Giuseppe Paternò
OpenStack Explained
Learn OpenStack
architecture and the secret
of a successful cloud project
An initiative to bring water
to African children.
- 2 -
Table of Contents
About Giuseppe Paternò............................................................ 3
Acknowledgments...................................................................... 3
Testimonials.................................................................................4
1.0 - Cloud: the undiscovered country....................................... 5
2.0 - Introduction to OpenStack................................................. 9
3.0 - OpenStack components................................................... 11
	 3.1 - OpenStack logical architecture................................ 13
	 3.2 - Horizon – Dashboard................................................ 14
	 3.3 - Keystone – Identity.................................................. 15
	 3.4 - Nova – Compute...................................................... 16
	 3.5 - Glance – Image Store............................................... 19
	 3.6 - Neutron – Network.................................................. 20
	 3.7 - Cinder – Block Storage............................................. 21
	 3.8 - Swift – Object Storage.............................................. 22
	 3.9 - Ceilometer - Telemetry........................................... 23
	 3.10 - Other projects........................................................ 24
4.0 - OpenStack Regions and Availability Zones....................... 25
5.0 - The choice in OpenStack.................................................. 28
	 5.1 - Nova......................................................................... 29
	 5.2 - Cinder....................................................................... 30
	 5.3 - Neutron................................................................... 30
	 5.4 - Swift........................................................................ 30
6.0 - Applications in the cloud................................................. 31
7.0 - DevOps: to the infinity and beyond................................. 34
8.0 - The “secret ingredient” of a successful project.............. 37
9.0 - Donation.......................................................................... 40
- 3 -
About Giuseppe Paternò
Giuseppe Paternò is an OpenStack
consultant. Through his extensive
20+ years experience in IT, he helps
customers to embrace cloud easily,
securely and risk-free.
Most European telecommunications,
government and finance organizations
are amongst his customers.
Giuseppe has a strong background
in the Open Source world, where he
played an important role for Canonical (the company behind
Ubuntu), RedHat, Sun Microsystems, and IBM.
He also has an extensive knowledge in information security: this
is reason behind his role as Visiting Professor and Researcher at
the University of Trinity College Dublin in 2009.
Web Site: http://www.gpaterno.com
Twitter: @gpaterno
Facebook Page: https://www.facebook.com/gpaterno.pro
E-mail: gpaterno@gpaterno.com
Acknowledgments
A big thank you goes to my wife Maria, without her support
I wouldn’t even being able to achieve what I did up to now.
A thank you also goes to Roberto Argentini from Telecom Italia,
without him this paper would not even exist.
Thanks to the reviewers Guido Bolognesi, Sab Knight, Francesco
Vollero, Nicolas Barcet and the designers Leonardo and Fausto
Nenci.
- 4 -

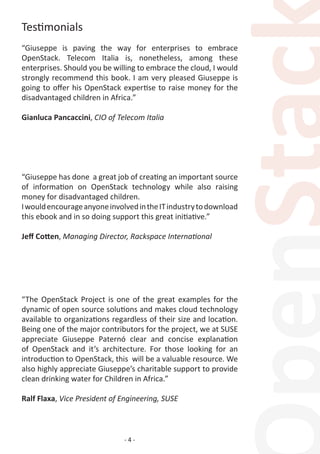

Testimonials
“Giuseppe is paving the way for enterprises to embrace
OpenStack. Telecom Italia is, nonetheless, among these
enterprises. Should you be willing to embrace the cloud, I would
strongly recommend this book. I am very pleased Giuseppe is
going to offer his OpenStack expertise to raise money for the
disadvantaged children in Africa.”
Gianluca Pancaccini, CIO of Telecom Italia
“Giuseppe has done a great job of creating an important source
of information on OpenStack technology while also raising
money for disadvantaged children.
IwouldencourageanyoneinvolvedintheITindustrytodownload
this ebook and in so doing support this great initiative.”
Jeff Cotten, Managing Director, Rackspace International


“The OpenStack Project is one of the great examples for the
dynamic of open source solutions and makes cloud technology
available to organizations regardless of their size and location.
Being one of the major contributors for the project, we at SUSE
appreciate Giuseppe Paternó clear and concise explanation
of OpenStack and it’s architecture. For those looking for an
introduction to OpenStack, this will be a valuable resource. We
also highly appreciate Giuseppe’s charitable support to provide
clean drinking water for Children in Africa.”
Ralf Flaxa, Vice President of Engineering, SUSE
Cloud: the undiscovered country
1
- 6 -
I’ve been sitting in front of many European IT Managers and
CTOs and when they want to hear from me about OpenStack
or Cloud, most of the times they mean something different:
customers want a VMware replacement for virtualization. The
most audacious ones are willing to have a nice web interface to
access their virtual machines and that’s it.
Cloud sounds like yet another marketing buzzword, it can mean
just about anything or nothing at all. We are not discussing here
what is the reason of walking away from VMWare, but the idea
of the equation “Cloud=Virtualization” is pretty spread across
all the customers. This is actually what some vendors tried to let
you think of cloud.
While Cloud implies a virtualized environment, virtualization
is not a cloud. Let me define Cloud using the NIST definition:
“Cloud computing is a model for enabling ubiquitous, convenient,
on-demand network access to a shared pool of configurable
computing resources (ex: networks, servers, storage, applications
and services) that can be rapidly provisioned and released with
minimal management effort”.
TheNISTdefinitiongoesontodefinetheessentialcharacteristics
of clouds (i.e., on-demand, network access, multitenancy,
elasticity, and metering). It continues by defining three service
models: software as a service (SaaS), platform as a service
(PaaS), and infrastructure as a service (IaaS). It also identifies
four main deployment models: private cloud, public cloud,
hybrid cloud, and community cloud.
- 7 -
IaaS is the infrastructure layer that
orchestrates the work typically done
by system administrators to host
the applications, including server
provisioning, network management,
and storage allocation.
PaaS represents what we used to
call middleware, and makes the link
between the end-user application and
the underlying infrastructure that it is
running on. A PaaS solution is aimed at
developers who do not want to worry
about the infrastructure. PaaS is still a
growing area and interesting players
such as Openshift, CloudFoundry (and
derivatives) and Cloudify.
SaaS refers to online application
hosting: users will access the
application interface over the Internet,
all the work that happens in the
background to make the application
available and scalable is hidden from
the end user. Gmail (and most Google
services, including Calendar and Docs),
SalesForce and SecurePass are typical
SaaS examples.
- 8 -
There are several open source solutions which can be used
to build our own IaaS Cloud. The three major projects in my
personal order of importance are: OpenStack, CloudStack and
OpenNebula. Successful private and public clouds are currently
operational all over the world using these solutions.
Cloud is a huge shift in your organization and will change
forever your way of working in the IT projects, improving
your IT dramatically and cutting down costs. If you follow me,
I will reveal to you the “secret ingredient” of a successful cloud
project and you will be able to achieve incredible results.
If you feel you’re not ready for it or if all you want is to find an
alternative virtualization solution, I can give you some names
such as RedHat oVirt, Citrix XenServer or Google’s Ganeti.
But if you are willing to embrace the change, understand what
actually are the impacts of OpenStack in your organization
or just curious about what OpenStack is, read on. We will go
into details of OpenStack, the most successful Open Source
project after Linux itself, we will understand the strength and
how it accomplished on-demand network access, multitenancy,
elasticity, and metering.
Introduction to OpenStack
2
- 10 -
The great advantage of OpenStack is that the end customer
can choose whether to use the reference implementations for
each project or a vendor-specific implementation for each one.
The promise of OpenStack is the interoperability amongst
different components from different vendors or open source
projects, giving the customer the choice to find out what is the
best solution for their own needs.
OpenStack could bring the following benefits to you:
●	 Self-service Instance life cycle management: run,
reboot, suspend, resize and terminate instances.
●	 Management of compute resources: CPU, memory,
disk, and network interfaces.
●	 Management of Local Area Networks (Flat, Flat DHCP,
VLAN DHCP and IPv6) through programmatically
allocated IPs and VLANs.
●	 API with rate limiting and authentication to manage
who has access to compute resources and prevent users
from impacting each other with excessive API utilization.
●	 Distributedandasynchronousarchitectureformassively
scalable and highly available system.
●	 Virtual Machine (VM) image management i.e. store,
import, share, and query images.
●	 Floating IP addresses i.e. Ability to assign (and re-assign)
IP addresses to VMs.
●	 Security Groups i.e. flexibility to assign and control
access to VM instances by creating separation between
resource pools.
●	 Role Based Access Control (RBAC) to ensure security by
user, role and project.
●	 Projects & Quotas i.e. ability to allocate, track and limit
resource utilization.
●	 REST-based API which is key to automation, a key
characteristic of clouds, and which is very simple to
implement using any computer language.
●	 Class of services: each type of resource can be available
with different features, eventually linked to pricing,
such as reliability, performance or resiliency
●	 Measurability of every action and consuption of
resource s to allow audability and usage reporting.
OpenStack components
3
- 12 -
OpenStack is a collection of open source technologies delivering
a massively scalable cloud operating system.
OpenStack cloud operating system controls large pools of
compute, storage and networking resources throughout
a datacenter, all managed through a dashboard that gives
administrators control while empowering their users to
provision resources through a web interface.
We can think of it as software to power our own Infrastructure
as a Service (IaaS) offering, like the one behind Amazon Web
Services.
OpenStack is an umbrella project that can be divided into many
sub-components:
Project Code Name
Dashboard Horizon
Compute Nova
Identity Keystone
Network Neutron
Image Service Glance
Block Storage Cinder
Object Storage Swift
Telemetry Ceilometer
Orchestration Heat
Database Trove
DNS service Designate
Bare Metal Ironic
Queue Service Zaqar
- 13 -
3.1 - OpenStack logical architecture
There are currently seven core components of OpenStack, how
they conceptually interact with each other is shown below:
All these components and how they relate each other are shown
in the simplest way in the below OpenStack logical architecture:
- 14 -
3.2 - Horizon – Dashboard
Horizon provides a modular web-based user interface for all the
OpenStack services. With this web GUI, you can perform most
operations on your cloud like launching an instance, assigning IP
addresses and setting access controls.
- 15 -
3.3 - Keystone – Identity
Keystone is a central component for authentication and
authorization for all the OpenStack services. Keystone handles
API requests and provides configurable catalog, policy, token
and identity services.
Keystone also implements the ability to add users to groups
(also known as tenants or projects) and to manage permissions
between users and groups. Permissions include the ability to
launch and terminate instances.
Keystone can be integrated with LDAP and other external
authentication providers as well as be part of an authentication
federation using SAML or OpenID with external identity
providers, ex: SecurePass (www.seure-pass.net).
- 16 -
3.4 - Nova – Compute
Probably the most known among the projects, it provides
virtual servers upon demand. Nova is the most complicated
and distributed component of OpenStack. A large number of
processes cooperate to turn end user API requests into running
virtual machines.
These are the Nova components and their functions:
●	 nova-api: a REST API web service which accepts
incoming commands to interact with the OpenStack
cloud
●	 nova-compute: a worker daemon which creates and
terminates virtual machine instances via specific
Hypervisor’s APIs. There are many different Hypervisors
implemented as plugins in OpenStack.
●	 nova-scheduler: takes a request from the queue and
determines which compute server host it should run on
●	 nova-conductor: provides services for nova-compute,
such as completing database updates and handling
long-running tasks
●	 nova database: stores most of the build-times and run-
time states for a cloud infrastructure
●	 The message queue provides a central hub for
passing messages between daemons. This is usually
implemented using a pluggable architecture based on
the Oslo project, but is most commonly with RabbitMQ
●	 Nova also provides console services to allow end users
to access their virtual instances console through a
proxy. This involves several daemons (nova-console,
nova-novncproxy and nova-consoleauth)
●	 nova-network: a worker daemon very similar to nova-
compute. It accepts networking tasks from the queue
and then performs tasks to manipulate the network
(such as setting up bridging interfaces or changing
iptables rules). This functionality is being migrated to
Neutron, a separate OpenStack service
●	 nova-volume: Manages creation, attaching and
detaching of persistent volumes to compute instances.
This functionality has been migrated to Cinder, a
separate OpenStack service.
- 17 -
Nova also interacts with many other OpenStack services:
Keystone for authentication, Glance for images and Horizon
for the web interface. The Glance interactions are central to
OpenStack. The API process can upload and query Glance while
nova-compute will download images for launching images.
Historically, most OpenStack development is done with the
most community supported hypervisor: KVM. This allows you
to refer to Internet forums to find help on your issues. All the
features that are currently supported in KVM are also supported
in QEMU.
- 18 -
Microsoft Hyper-V and VMware ESXi too are gaining much
support, with Hyper-V now being available with a free license.
ESXi can also be used with a free license however API support is
limited to READ ONLY without vCenter or an Enterprise license.
Nova has support for XenServer and XCP through the XenAPI
virt layer. Note that this does not imply support for other Xen-
based platforms such as those shipped with RHEL 6 or SUSE,
which is provided via the libvirt layer (i.e. Xen via libvirt).
Nova also supports bare metal provisioning through the Ironic
project, that means it is possible to deploy to hardware in the
same way the end user deploys virtual machines. By default, it
will use PXE and IPMI in concert to provision and turn on/off
machines, but Ironic also supports vendor-specific plugins which
may implement additional functionality. Some vendors, most
notably HP Helion, use Ironic to deploy OpenStack itself.
- 19 -
3.5 - Glance – Image Store
It provides discovery, registration and delivery services for disk
and server images.
List of components and their functions:
●	 glance-api: accepts Image API calls for image discovery,
image retrieval and image storage
●	 glance-registry: stores, processes and retrieves
metadata about images (size, type, etc.)
●	 glance database: a database to store the image
metadata
●	 A storage repository for the actual image files. Glance
supports normal filesystems, Ceph block devices,
Amazon S3, HTTP and Swift.
Glance accepts API requests for images (or image metadata)
from end users or Nova components and can store its disk files
in the object storage service, Swift or other storage repository.
- 20 -
3.6 - Neutron – Network
Neutron provides “network connectivity as a service” between
network interface devices, routers and more (e.g., vNICs)
managed by other OpenStack services (e.g., Nova). The service
works by allowing users to create their own networks and then
attach interfaces to them. Neutron has a pluggable architecture
to support many popular software defined networking (SDN)
vendors and other central network control plane technologies.
●	 neutron-server accept API requests and routes them to
the correct neutron plugin
●	 plugins and agents perform actual actions, like plug/
unplug ports, creating networks, subnets and IP
addressing
●	 it also uses the same Oslo messaging as Nova and other
OpenStack projects to route info between neutron-
server and various agents
●	 it has a neutron database to store networking state for
particular plugins
Neutron will interact mainly with Nova, where it will provide
networks and connectivity for its instances.
- 21 -
3.7 - Cinder – Block Storage
Cinder allows block devices to be exposed and connected to
compute instances for expanded storage & better performance.
●	 cinder-api accepts requests and routes them to cinder-
volumes for action
●	 cinder-volume reports reading or writing to the cinder
database to maintain state, interacts with other
processes (like cinder-scheduler, see below) through a
message queue and directly on block storage providing
hardware or software
●	 cinder-scheduler picks the optimal block storage node
to create the volume on
●	 the messages queue routes information between
Cinder processes
●	 a cinder database stores volumes state
Like Neutron, Cinder will mainly interact with Nova, providing
volumes for its instances.
- 22 -
3.8 - Swift – Object Storage
Object store allows you to store or retrieve files as individual
unitx. It provides a fully distributed, API-accessible storage
platform that can be directly integrated into applications or
used for backup, archiving and data retention.
Object Storage is not a traditional file system, but rather
a distributed storage system for static data such as virtual
machine images, or photos, e-mails, backups and archives.
Unlike filesystems, there is no hierarchy of files nor is it possible
to “open” a file and modify it online. If you want to modify a
file, you have to pull it, modify and push it back. This may seem
a huge restriction but it allows for much improved scalability
(by multiple orders of magnitudes) than traditional shared file
systems, ex: in multi-datacenter deployments.
●	 Proxy server (swift-proxy-server) accepts incoming
requests, like files to upload, modifications to metadata
or container creation; it also serves files and provides
container listing
●	 Accounts server manage accounts defined within the
object storage service.
●	 Container servers manage mapping of containers,
folders, within the object store service.
●	 Object servers manage actual objects, files, on the
storage nodes.
Also replication
services run
to provide
consistency and
availability across
the cluster, audit
and update.
- 23 -
3.9 - Ceilometer - Telemetry
The required steps to bill for usage in a cloud environment
are metering, rating and billing. Because the provider’s
requirements may be far too specific for a shared solution,
rating and billing solutions cannot be designed as a common
module that satisfies all possible scenarios. Providing users
with measurements on cloud services is required to meet the
“measured service” definition of cloud computing.
The Telemetry module was originally designed to support billing
systems for OpenStack cloud resources. This project only covers
the metering portion of the required processing for billing. The
module collects information about the system usage and stores
it in the form of samples in order to provide data about anything
that can be billed. It does so by both listening to event on the
message queue and by polling information out of the various
components.
The list of metrics is continuously growing, which makes it
possible to use the data collected by Telemetry for many more
purposes other than billing. For example Heat can autoscale
resources when Ceilometers triggers an alarm, for example
adding more front-end web servers when CPU utilization is
more than 70% for 5 minutes.
- 24 -
3.10 - Other projects
Although the former ones are the most relevant, there are three
other projects worth mentioning:
●	 Trove is a database-as-a-service provisioning relational
and non-relational database engines. It allows an
agnostic access to databases, currently supports MySQL
and PostgreSQL, but vendors like Oracle and Microsoft
might provide a Trove plugin for their databases in
future.
●	 Ironic (Bare Metal Provisioning), is an incubated
OpenStack project that aims to provision bare metal
machines instead of virtual machines. Ironic is currently
in use by HP Helion.
●	 Zaqar (Multiple Tenant Cloud Messaging), is a multi-
tenant cloud messaging service for Web developers.
Zaqar was formerly known as Marconi.
●	 Designate provides a DNS as a Service for OpenStack.
OpenStack Regions and Availability Zones
4
- 26 -
OpenStack was made from the ground up to scale to thousands
of nodes and span different datacenters and geographical
regions. For this reason, Openstack clouds can be divided in
three main hierarchical zones:
Regions, Availability Zones and Host Aggregates.
Region
Each Region has its own full Openstack deployment, including its
own API endpoints, networks and compute resources. Different
Regions share one set of Keystone and Horizon services, to
provide access control and a Web interface.
Availability Zone
Inside a Region, compute nodes can be logically grouped into
Availability Zones (AZ): when launching a new VM instance we
can specify the AZ we want it instantiated in, or even a specific
node inside an AZ to run the VM instance.
Host Aggregates
Besides AZs, compute nodes can also be logically grouped into
Host Aggregates.
Host Aggregates have meta-data to tag groups of compute
nodes, e.g. all nodes with an SSD disk can belong to one Host
Aggregate, while another Host Aggregate may contain all nodes
with 10 GB NICs.
- 27 -
One compute node can be put into both an Host Aggregate and
an Availability Zone at the same time, as they do not conflict.
Moreover, one compute node can belong to more than one Host
Aggregate. Host Aggregates are visible only to the admin and
can also be used to mix hypervisors in the same AZ, for example
to save license costs: some vendors provide free guests for their
hypervisors.
Cells
OpenStack Compute cells allow you to run the cloud in a
distributed fashion. Hosts in a cloud are partitioned into groups
called cells. Cells are configured in a tree. The top-level cell (“API
cell”) has a host that runs the nova-api service, but no nova-
compute services.
This allows for a single API server being used to control access
to multiple cloud installations. Introducing a second level of
scheduling (the cell selection), in addition to the regular nova-
scheduler selection of hosts, provides greater flexibility to
control where virtual machines are run.
Unlike having a single API endpoint, regions have a separate
API endpoint per installation, allowing for a more discrete
separation. Users wanting to run instances across sites have to
explicitly select a region. However, the additional complexity of
running a new service is not required.
The choice in OpenStack
5
- 29 -
Earlier in this publication I mentioned that the promise of
OpenStack is the interoperability among different components
from different vendors or open source projects. As a matter of
fact, each of the components described in the previous page
can be easily replaced with projects or products from each
vendor.
At the time of writing, the only project that has no valuable
alternativeamongvendorsisKeystone.Keystoneactsasaservice
registry and user repository, therefore plays an important role
in OpenStack. While it was conceived to have internal users like
Amazon does, the development is shifting towards an HTTP
interface to existing identity systems, such as LDAP or SAML.
AlsoHorizon,thewebdashboard,hasfewchancestobereplaced,
as its colors and logos can easily be customized to be adapted
for everyone. Some other dashboards exist for OpenStack, but
usually the company who needs a different web interface goes
for a customized development on top of the OpenStack APIs.
Projects in which it makes sense to adopt a plugin approach are
Nova, Neutron, Swift and Cinder. Let us review in a table what
are the most relevant open source and proprietary technology
for each component (please keep in mind that this list can vary).
5.1 - Nova
Open Source Proprietary
KVM VMWare ESX/ESXi
XenServer Microsoft Hyper-V
LXC
Docker
- 30 -
5.2 - Cinder
Open Source Proprietary
LVM NetApp
Ceph IBM (Storwize family/SVC, XIV)
Gluster Nexenta
NFS (any compatible) SolidFire
HP LeftHand/3PAR/MSA
Dell EqualLogic/Storage Center
EMC VNX/XtremIO
5.3 - Neutron
Open Source Proprietary
Linux Bridge VMWare NSX
Open vSwitch Brocade
Midonet Big Switch
OpenContrail (Juniper OpenSource) Alcatel Nuage
Cisco Nexus
5.4 - Swift
Open Source Proprietary
Swift project EMC Isilon OneFS
Ceph NetApp E-Series
Gluster Nexenta
Hadoop with SwiftFS/Sahara
Applications in the cloud
6
- 32 -
So you have read about OpenStack and you are really eager to
implement it. But let us step back and understand why you are
willing to embrace the cloud. You might think of several reasons,
but -- judging by my experience -- everything comes down to
two root causes:
●	 Youarelookingtotakeadvantageofthefastprovisioning
of the infrastructure, either for savings, speed, or both
●	 Your applications may have varying demand patterns,
resulting in the need of increased computing power
during some periods. You may want to take advantage
of the scaling capabilities of Cloud to fire up new
instances of key modules at peak periods, shutting
them down when not needed, freeing up infrastructure
resources for other tasks and reducing the TCO
Most of the customers just want a fast provisioning mechanism
of the infrastructure. Do not get me wrong, this is perfectly fine
and OpenStack gets the job done.
But you will get the full benefit of the cloud when you’ll have
an application that might be in need of resources on-demand.
Think about a sports news portal when the World Cup is on, the
invoicing and billing at the end of the month or a surge in the
need to process a data from devices.
- 33 -
Wouldn’t it not be nice, given the detected increasing loads,
to have the application scale automatically to cope with the
requests? Believe it or not, it is not magic and it is totally
feasible. Netflix did it and I can name a lot of other SaaS systems
that are doing it. There is only one constraint: you have to be in
control of the source code of your applications. If you bought
your application “as is”, contact your vendor, but there are yet
few chances that you can follow this pattern.
Being cloud aware for an application also means that it need to
be implemented with self resiliency in mind.
In case you have the source code, you can adapt your application
to take full advantage of your new environment. In this scenario,
you will have to intervene more into your code as you will
need to ensure that the application can take full advantage
of the environment, reconfiguring load balancers, dynamically
allocating resources and etc. There are some “tricks” that an
application has to adopt to be “cloudish”, but is outside of the
scope of this publication.
It’s quite common that a customer might decide to have a
phased approach to the cloud, starting to take advantage of
the fast provisioning and then transforming the application to
adapt it to the cloud. The cloud is a long journey and it can be
successful, are you ready for it?
7DevOps: to the infinity and beyond
- 35 -
So you understood OpenStack, its components and how
applications play an important role in the cloud. Before revealing
to you how to be successful with OpenStack, there is another
important piece I want you to understand.
The next marketing buzzword that everybody mentions
nowadays is DevOps. As you might understand, DevOps is an
acronym that stands for “Development” and “Operations”.
The goal of DevOps is to improve service delivery agility,
promoting communication, collaboration and integration
between software developers and IT operations. Rather than
seeing these two groups as silos who pass things along but do not
really work together, DevOps recognizes the interdependence
of software development and IT operations.
- 36 -
In an ideal world, through the use of continuous integration tools
and automated tests, a group of developers could bring a new
application on-line without any operations team. For example,
Flickr developed a DevOps approach to support a business
requirement of ten deployments per day. Just for your own
information, this kind of approach is also referred as continuous
deployment or continuous delivery.
Discussing development and agile methodologies is not within
the scope of this publication, but this is one thing you have to
understand and keep in mind, no matter if you are an IT manager,
developer or system administrator.
If you decided to embrace the cloud in full and you are thinking
of adapting your application to take advantage of it, then every
single aspect of IT have to be carefully analyzed. Development,
whether you do it internally or outsourced, must be taken into
consideration. Also the way your company has been organized
has to change: did I mention before Cloud is a huge shift?
The “secret ingredient” of a successful project
8
- 38 -
I promised you at the beginning that I would have revealed the
“secret ingredient” to deploy a successful OpenStack project.
Let me begin with two examples.
The first one belongs to a well-known European telecommu-
nication provider. Like every other telco, they have a complex
internal structure and when someone from the internal team
proposed OpenStack as a possible solution, the upper manage-
ment decided that it was not “enterprise enough” and that they
had to stick to a certified stack that included, amongst others,
VMware and Oracle. The time needed to deploy a single virtual
machine was around 40 days, because of all the process it had
go through.
A system engineer was receiving daily complaints from
the developers, who in turn were under pressure from the
marketing team to deploy new campaigns faster to the market.
This person decided to form an “unofficial team” of very
skilled people, stole some decommissioned old machines and
created an OpenStack cluster in two regions. He made some
internal meetups to educate the developers and the internal
people on how to embrace the OpenStack philosophy and how
an application can leverage the underlying platform to take
advantage of elasticity and scalability.
The unofficial experiment had an unexpected success and
most of the new applications were deployed on this platform.
Although this bypassed all the internal rules and processes, the
upper management could only take note of the status-quo and
approve it officially. The system administrator is now the leader
of this “SWAT group”, that is composed of only 11 people and
runs now 50% of the company internal applications.
The second story I want to share with you is about an American
financial institution. Following a conversation with the CEO of
a premier vendor, the CTO of this bank decided to embrace
OpenStack and switch over from VMWare. He asked his
management to go and execute the change. The office in charge
of the IT architectures had to review all the processes in place
and start talking with the departments of the company.
- 39 -
Like many big companies, this enterprise is divided in several
departments (network, security, system administrators,
middleware, …) and in the following months a large number of
meetings went through all the departments. OpenStack was
deployed in 8 months using the existing corporate policies
and following the standards and best practices that were in
place. Despite all the efforts, the processes of delivering a
new application to internal customer went from 90 days to
75 days. As OpenStack itself was perfectly working, the upper
management did not understand what went wrong and could
not justify the investment to the CTO.
What is the moral of the story then? The reality is that OpenStack
is just a technology and it enables you to do more if you embrace
its philosophy. This requires a company to change deeply in the
way IT is conceived, and to become even more productive and
agile. If you are not willing to change your internal processes
and department divisions, you will not enjoy the full benefits
of OpenStack. Meanwhile, if you look at the other example, the
telco was so successful because nobody believed on the project
at the beginning, therefore the system administrators were free
to bypass all the internal schemas. This approach, with a proper
internal awareness program, made the project a great success.
Of course it is not all black and white, there are several shades
of gray in between and not each company was created equal.
I hope I gave you the tools to have a clean and vendor-neutral
idea of what cloud is and what benefits it can bring you, but you
will have to find your own recipe to be successful in deploying
OpenStack.
9Donation
- 41 -
Giuseppe Paternò will donate all the revenues of this publication
to bring drinking water for school children in Benin: many
children in Benin have no choice but to drink contaminated
water and illness is just around the corner.
The donation will help the charity HELVETAS Swiss
Intercooperation to build drinking water wells in schoolyards,
and educating children about hygiene. With such project, the
children stay healthy and are able to attend school. For more
information visit Helvetas website www.helvetas.org

More Related Content

What's hot

[OpenInfra Days Korea 2018] (Track 4) - Grafana를 이용한 OpenStack 클라우드 성능 모니터링
[OpenInfra Days Korea 2018] (Track 4) - Grafana를 이용한 OpenStack 클라우드 성능 모니터링[OpenInfra Days Korea 2018] (Track 4) - Grafana를 이용한 OpenStack 클라우드 성능 모니터링
[OpenInfra Days Korea 2018] (Track 4) - Grafana를 이용한 OpenStack 클라우드 성능 모니터링
OpenStack Korea Community

Openstack 101
Openstack 101Openstack 101
Openstack 101
Kamesh Pemmaraju

Kubernetes - A Comprehensive Overview
Kubernetes - A Comprehensive OverviewKubernetes - A Comprehensive Overview
Kubernetes - A Comprehensive Overview
Bob Killen

Understand your system like never before with OpenTelemetry, Grafana, and Pro...
Understand your system like never before with OpenTelemetry, Grafana, and Pro...Understand your system like never before with OpenTelemetry, Grafana, and Pro...
Understand your system like never before with OpenTelemetry, Grafana, and Pro...
LibbySchulze

Seamless scaling of Kubernetes nodes
Seamless scaling of Kubernetes nodesSeamless scaling of Kubernetes nodes
Seamless scaling of Kubernetes nodes
Marko Bevc

Canonical Ubuntu OpenStack Overview Presentation
Canonical Ubuntu OpenStack Overview PresentationCanonical Ubuntu OpenStack Overview Presentation
Canonical Ubuntu OpenStack Overview Presentation
The World Bank

Canonical ubuntu introduction_20170330
Canonical ubuntu introduction_20170330Canonical ubuntu introduction_20170330
Canonical ubuntu introduction_20170330
Takaaki Suzuki

Amazon EKS - security best practices - 2022
Amazon EKS - security best practices - 2022 Amazon EKS - security best practices - 2022
Amazon EKS - security best practices - 2022
Jean-François LOMBARDO

Introduction to OpenStack Cinder
Introduction to OpenStack CinderIntroduction to OpenStack Cinder
Introduction to OpenStack Cinder
Sean McGinnis

Openstack nova
Openstack novaOpenstack nova
Openstack nova
Murali Boyapati

OpenStack and MySQL
OpenStack and MySQLOpenStack and MySQL
OpenStack and MySQL
Matt Lord

Trend Micro Big Data Platform and Apache Bigtop
Trend Micro Big Data Platform and Apache BigtopTrend Micro Big Data Platform and Apache Bigtop
Trend Micro Big Data Platform and Apache Bigtop
Evans Ye

Monitoring Kubernetes with Prometheus
Monitoring Kubernetes with PrometheusMonitoring Kubernetes with Prometheus
Monitoring Kubernetes with Prometheus
Grafana Labs

Let's build Developer Portal with Backstage
Let's build Developer Portal with BackstageLet's build Developer Portal with Backstage
Let's build Developer Portal with Backstage
Opsta

OpenStack vs VMware vCloud
OpenStack vs VMware vCloudOpenStack vs VMware vCloud
OpenStack vs VMware vCloud
Roozbeh Shafiee

Ceph Block Devices: A Deep Dive
Ceph Block Devices:  A Deep DiveCeph Block Devices:  A Deep Dive
Ceph Block Devices: A Deep Dive
Red_Hat_Storage

Prometheus 101
Prometheus 101Prometheus 101
Prometheus 101
Paul Podolny

Aws interview questions
Aws interview questionsAws interview questions
Introduction to Apache Kafka
Introduction to Apache KafkaIntroduction to Apache Kafka
Introduction to Apache Kafka
AIMDek Technologies

Kafka 101
Kafka 101Kafka 101
Kafka 101
Aparna Pillai


What's hot (20)

[OpenInfra Days Korea 2018] (Track 4) - Grafana를 이용한 OpenStack 클라우드 성능 모니터링
[OpenInfra Days Korea 2018] (Track 4) - Grafana를 이용한 OpenStack 클라우드 성능 모니터링[OpenInfra Days Korea 2018] (Track 4) - Grafana를 이용한 OpenStack 클라우드 성능 모니터링
[OpenInfra Days Korea 2018] (Track 4) - Grafana를 이용한 OpenStack 클라우드 성능 모니터링

Openstack 101
Openstack 101Openstack 101
Openstack 101

Kubernetes - A Comprehensive Overview
Kubernetes - A Comprehensive OverviewKubernetes - A Comprehensive Overview
Kubernetes - A Comprehensive Overview

Understand your system like never before with OpenTelemetry, Grafana, and Pro...
Understand your system like never before with OpenTelemetry, Grafana, and Pro...Understand your system like never before with OpenTelemetry, Grafana, and Pro...
Understand your system like never before with OpenTelemetry, Grafana, and Pro...

Seamless scaling of Kubernetes nodes
Seamless scaling of Kubernetes nodesSeamless scaling of Kubernetes nodes
Seamless scaling of Kubernetes nodes

Canonical Ubuntu OpenStack Overview Presentation
Canonical Ubuntu OpenStack Overview PresentationCanonical Ubuntu OpenStack Overview Presentation
Canonical Ubuntu OpenStack Overview Presentation

Canonical ubuntu introduction_20170330
Canonical ubuntu introduction_20170330Canonical ubuntu introduction_20170330
Canonical ubuntu introduction_20170330

Amazon EKS - security best practices - 2022
Amazon EKS - security best practices - 2022 Amazon EKS - security best practices - 2022
Amazon EKS - security best practices - 2022

Introduction to OpenStack Cinder
Introduction to OpenStack CinderIntroduction to OpenStack Cinder
Introduction to OpenStack Cinder

Openstack nova
Openstack novaOpenstack nova
Openstack nova

OpenStack and MySQL
OpenStack and MySQLOpenStack and MySQL
OpenStack and MySQL

Trend Micro Big Data Platform and Apache Bigtop
Trend Micro Big Data Platform and Apache BigtopTrend Micro Big Data Platform and Apache Bigtop
Trend Micro Big Data Platform and Apache Bigtop

Monitoring Kubernetes with Prometheus
Monitoring Kubernetes with PrometheusMonitoring Kubernetes with Prometheus
Monitoring Kubernetes with Prometheus

Let's build Developer Portal with Backstage
Let's build Developer Portal with BackstageLet's build Developer Portal with Backstage
Let's build Developer Portal with Backstage

OpenStack vs VMware vCloud
OpenStack vs VMware vCloudOpenStack vs VMware vCloud
OpenStack vs VMware vCloud

Ceph Block Devices: A Deep Dive
Ceph Block Devices:  A Deep DiveCeph Block Devices:  A Deep Dive
Ceph Block Devices: A Deep Dive

Prometheus 101
Prometheus 101Prometheus 101
Prometheus 101

Aws interview questions
Aws interview questionsAws interview questions
Aws interview questions

Introduction to Apache Kafka
Introduction to Apache KafkaIntroduction to Apache Kafka
Introduction to Apache Kafka

Kafka 101
Kafka 101Kafka 101
Kafka 101


Viewers also liked

Mastering OpenStack - Episode 01 - Simple Architectures
Mastering OpenStack - Episode 01 - Simple ArchitecturesMastering OpenStack - Episode 01 - Simple Architectures
Mastering OpenStack - Episode 01 - Simple Architectures
Roozbeh Shafiee

Fits Like Lego - 5 Ways to Deploy Guest Networking over OpenStack Neutron
Fits Like Lego - 5 Ways to Deploy Guest Networking over OpenStack NeutronFits Like Lego - 5 Ways to Deploy Guest Networking over OpenStack Neutron
Fits Like Lego - 5 Ways to Deploy Guest Networking over OpenStack Neutron
Stratoscale

OpenStack Introduction
OpenStack IntroductionOpenStack Introduction
OpenStack Introduction
openstackindia

OpenStack Tutorial
OpenStack TutorialOpenStack Tutorial
OpenStack Tutorial
Bret Piatt

2 Day Bootcamp for OpenStack--Cloud Training by Mirantis (Preview)
2 Day Bootcamp for OpenStack--Cloud Training by Mirantis (Preview)2 Day Bootcamp for OpenStack--Cloud Training by Mirantis (Preview)
2 Day Bootcamp for OpenStack--Cloud Training by Mirantis (Preview)
Mirantis

OpenStack Framework Introduction
OpenStack Framework IntroductionOpenStack Framework Introduction
OpenStack Framework Introduction
Jason TC HOU (侯宗成)


Viewers also liked (6)

Mastering OpenStack - Episode 01 - Simple Architectures
Mastering OpenStack - Episode 01 - Simple ArchitecturesMastering OpenStack - Episode 01 - Simple Architectures
Mastering OpenStack - Episode 01 - Simple Architectures

Fits Like Lego - 5 Ways to Deploy Guest Networking over OpenStack Neutron
Fits Like Lego - 5 Ways to Deploy Guest Networking over OpenStack NeutronFits Like Lego - 5 Ways to Deploy Guest Networking over OpenStack Neutron
Fits Like Lego - 5 Ways to Deploy Guest Networking over OpenStack Neutron

OpenStack Introduction
OpenStack IntroductionOpenStack Introduction
OpenStack Introduction

OpenStack Tutorial
OpenStack TutorialOpenStack Tutorial
OpenStack Tutorial

2 Day Bootcamp for OpenStack--Cloud Training by Mirantis (Preview)
2 Day Bootcamp for OpenStack--Cloud Training by Mirantis (Preview)2 Day Bootcamp for OpenStack--Cloud Training by Mirantis (Preview)
2 Day Bootcamp for OpenStack--Cloud Training by Mirantis (Preview)

OpenStack Framework Introduction
OpenStack Framework IntroductionOpenStack Framework Introduction
OpenStack Framework Introduction


Similar to OpenStack Explained: Learn OpenStack architecture and the secret of a successful cloud project

Cloud Ubuntu Open Stack Primer
Cloud  Ubuntu Open Stack PrimerCloud  Ubuntu Open Stack Primer
Cloud Ubuntu Open Stack Primer
The World Bank

Creating Your Own Cloud Using OpenStack by Raghvendra V Prabhu
Creating Your Own Cloud Using OpenStack by Raghvendra V PrabhuCreating Your Own Cloud Using OpenStack by Raghvendra V Prabhu
Creating Your Own Cloud Using OpenStack by Raghvendra V Prabhu
Raghavendra Prabhu

OpenStack-101-Modular-Deck-1.pptx
OpenStack-101-Modular-Deck-1.pptxOpenStack-101-Modular-Deck-1.pptx
OpenStack-101-Modular-Deck-1.pptx
LarrySevilla3

[OpenStack Day in Korea 2015] Keynote 1 - OpenStack Mission Update
[OpenStack Day in Korea 2015] Keynote 1 - OpenStack Mission Update[OpenStack Day in Korea 2015] Keynote 1 - OpenStack Mission Update
[OpenStack Day in Korea 2015] Keynote 1 - OpenStack Mission Update
OpenStack Korea Community

OpenStack - What is it and why you should know about it!
OpenStack - What is it and why you should know about it!OpenStack - What is it and why you should know about it!
OpenStack - What is it and why you should know about it!
OpenStack

Cloud Ubuntu Open Stack Private Cloud
Cloud  Ubuntu Open Stack Private CloudCloud  Ubuntu Open Stack Private Cloud
Cloud Ubuntu Open Stack Private Cloud
The World Bank

Add an OpenStack private cloud!
Add an OpenStack private cloud!Add an OpenStack private cloud!
Add an OpenStack private cloud!
Ben Fallah

Openstack
OpenstackOpenstack
Openstack
Samip Shah

OpenStack Book V2
OpenStack Book V2OpenStack Book V2
OpenStack Book V2
Lisa-Marie Namphy

The Environment for Innovation: Tristan Goode, Aptira
The Environment for Innovation: Tristan Goode, AptiraThe Environment for Innovation: Tristan Goode, Aptira
The Environment for Innovation: Tristan Goode, Aptira
OpenStack

Cloud Deploying a Public Cloud on Ubuntu Open Stack
Cloud Deploying a Public Cloud on Ubuntu Open StackCloud Deploying a Public Cloud on Ubuntu Open Stack
Cloud Deploying a Public Cloud on Ubuntu Open Stack
The World Bank

Nimbus Concept
Nimbus ConceptNimbus Concept
Nimbus Concept
Nimbus Concept

Grace Hopper Conference Opensource Day - OpenStack workshop
Grace Hopper Conference Opensource Day - OpenStack workshopGrace Hopper Conference Opensource Day - OpenStack workshop
Grace Hopper Conference Opensource Day - OpenStack workshop
Iccha Sethi

Telecom Clouds crossing borders, Chet Golding, Zefflin Systems
Telecom Clouds crossing borders, Chet Golding, Zefflin SystemsTelecom Clouds crossing borders, Chet Golding, Zefflin Systems
Telecom Clouds crossing borders, Chet Golding, Zefflin Systems
Sriram Subramanian

O'Reilly ebook: Operationalizing the Data Lake
O'Reilly ebook: Operationalizing the Data LakeO'Reilly ebook: Operationalizing the Data Lake
O'Reilly ebook: Operationalizing the Data Lake
Vasu S

OpenStack 7th Birthday Deck
OpenStack 7th Birthday DeckOpenStack 7th Birthday Deck
OpenStack 7th Birthday Deck
Stacy Véronneau

Ammeon See OpenStack in Action
Ammeon  See OpenStack in ActionAmmeon  See OpenStack in Action
Ammeon See OpenStack in Action
Ammeon HR

War of Openstack Private Cloud Distribution
War of Openstack Private Cloud DistributionWar of Openstack Private Cloud Distribution
War of Openstack Private Cloud Distribution
Yusuf Hadiwinata Sutandar

OpenStack: A Business Perspectives
OpenStack: A Business PerspectivesOpenStack: A Business Perspectives
OpenStack: A Business Perspectives
Susan Wu

OpenStack + VMware: Everything You Need to Know (Kilo-edition)
OpenStack + VMware: Everything You Need to Know (Kilo-edition)OpenStack + VMware: Everything You Need to Know (Kilo-edition)
OpenStack + VMware: Everything You Need to Know (Kilo-edition)
Dan Wendlandt


Similar to OpenStack Explained: Learn OpenStack architecture and the secret of a successful cloud project (20)

Cloud Ubuntu Open Stack Primer
Cloud  Ubuntu Open Stack PrimerCloud  Ubuntu Open Stack Primer
Cloud Ubuntu Open Stack Primer

Creating Your Own Cloud Using OpenStack by Raghvendra V Prabhu
Creating Your Own Cloud Using OpenStack by Raghvendra V PrabhuCreating Your Own Cloud Using OpenStack by Raghvendra V Prabhu
Creating Your Own Cloud Using OpenStack by Raghvendra V Prabhu

OpenStack-101-Modular-Deck-1.pptx
OpenStack-101-Modular-Deck-1.pptxOpenStack-101-Modular-Deck-1.pptx
OpenStack-101-Modular-Deck-1.pptx

[OpenStack Day in Korea 2015] Keynote 1 - OpenStack Mission Update
[OpenStack Day in Korea 2015] Keynote 1 - OpenStack Mission Update[OpenStack Day in Korea 2015] Keynote 1 - OpenStack Mission Update
[OpenStack Day in Korea 2015] Keynote 1 - OpenStack Mission Update

OpenStack - What is it and why you should know about it!
OpenStack - What is it and why you should know about it!OpenStack - What is it and why you should know about it!
OpenStack - What is it and why you should know about it!

Cloud Ubuntu Open Stack Private Cloud
Cloud  Ubuntu Open Stack Private CloudCloud  Ubuntu Open Stack Private Cloud
Cloud Ubuntu Open Stack Private Cloud

Add an OpenStack private cloud!
Add an OpenStack private cloud!Add an OpenStack private cloud!
Add an OpenStack private cloud!

Openstack
OpenstackOpenstack
Openstack

OpenStack Book V2
OpenStack Book V2OpenStack Book V2
OpenStack Book V2

The Environment for Innovation: Tristan Goode, Aptira
The Environment for Innovation: Tristan Goode, AptiraThe Environment for Innovation: Tristan Goode, Aptira
The Environment for Innovation: Tristan Goode, Aptira

Cloud Deploying a Public Cloud on Ubuntu Open Stack
Cloud Deploying a Public Cloud on Ubuntu Open StackCloud Deploying a Public Cloud on Ubuntu Open Stack
Cloud Deploying a Public Cloud on Ubuntu Open Stack

Nimbus Concept
Nimbus ConceptNimbus Concept
Nimbus Concept

Grace Hopper Conference Opensource Day - OpenStack workshop
Grace Hopper Conference Opensource Day - OpenStack workshopGrace Hopper Conference Opensource Day - OpenStack workshop
Grace Hopper Conference Opensource Day - OpenStack workshop

Telecom Clouds crossing borders, Chet Golding, Zefflin Systems
Telecom Clouds crossing borders, Chet Golding, Zefflin SystemsTelecom Clouds crossing borders, Chet Golding, Zefflin Systems
Telecom Clouds crossing borders, Chet Golding, Zefflin Systems

O'Reilly ebook: Operationalizing the Data Lake
O'Reilly ebook: Operationalizing the Data LakeO'Reilly ebook: Operationalizing the Data Lake
O'Reilly ebook: Operationalizing the Data Lake

OpenStack 7th Birthday Deck
OpenStack 7th Birthday DeckOpenStack 7th Birthday Deck
OpenStack 7th Birthday Deck

Ammeon See OpenStack in Action
Ammeon  See OpenStack in ActionAmmeon  See OpenStack in Action
Ammeon See OpenStack in Action

War of Openstack Private Cloud Distribution
War of Openstack Private Cloud DistributionWar of Openstack Private Cloud Distribution
War of Openstack Private Cloud Distribution

OpenStack: A Business Perspectives
OpenStack: A Business PerspectivesOpenStack: A Business Perspectives
OpenStack: A Business Perspectives

OpenStack + VMware: Everything You Need to Know (Kilo-edition)
OpenStack + VMware: Everything You Need to Know (Kilo-edition)OpenStack + VMware: Everything You Need to Know (Kilo-edition)
OpenStack + VMware: Everything You Need to Know (Kilo-edition)


More from Giuseppe Paterno'

OpenStack e le nuove Infrastrutture IT
OpenStack e le nuove Infrastrutture ITOpenStack e le nuove Infrastrutture IT
OpenStack e le nuove Infrastrutture IT
Giuseppe Paterno'

Let's sleep better: programming techniques to face new security attacks in cloud
Let's sleep better: programming techniques to face new security attacks in cloudLet's sleep better: programming techniques to face new security attacks in cloud
Let's sleep better: programming techniques to face new security attacks in cloud
Giuseppe Paterno'

SecurePass at OpenBrighton
SecurePass at OpenBrightonSecurePass at OpenBrighton
SecurePass at OpenBrighton
Giuseppe Paterno'

OpenStack: Security Beyond Firewalls
OpenStack: Security Beyond FirewallsOpenStack: Security Beyond Firewalls
OpenStack: Security Beyond Firewalls
Giuseppe Paterno'

Remote security with Red Hat Enterprise Linux
Remote security with Red Hat Enterprise LinuxRemote security with Red Hat Enterprise Linux
Remote security with Red Hat Enterprise Linux
Giuseppe Paterno'

Il problema dei furti di identità nelle infrastrutture Cloud e possibili rimedi
Il problema dei furti di identità nelle infrastrutture Cloud e possibili rimediIl problema dei furti di identità nelle infrastrutture Cloud e possibili rimedi
Il problema dei furti di identità nelle infrastrutture Cloud e possibili rimediGiuseppe Paterno'

How the Post-PC era changed IT Ubuntu for next gen datacenters
How the Post-PC era changed IT Ubuntu for next gen datacentersHow the Post-PC era changed IT Ubuntu for next gen datacenters
How the Post-PC era changed IT Ubuntu for next gen datacenters
Giuseppe Paterno'

Filesystem Comparison: NFS vs GFS2 vs OCFS2
Filesystem Comparison: NFS vs GFS2 vs OCFS2Filesystem Comparison: NFS vs GFS2 vs OCFS2
Filesystem Comparison: NFS vs GFS2 vs OCFS2
Giuseppe Paterno'

Creating OTP with free software
Creating OTP with free softwareCreating OTP with free software
Creating OTP with free software
Giuseppe Paterno'

Protecting confidential files using SE-Linux
Protecting confidential files using SE-LinuxProtecting confidential files using SE-Linux
Protecting confidential files using SE-Linux
Giuseppe Paterno'

Comparing IaaS: VMware vs OpenStack vs Google’s Ganeti
Comparing IaaS: VMware vs OpenStack vs Google’s GanetiComparing IaaS: VMware vs OpenStack vs Google’s Ganeti
Comparing IaaS: VMware vs OpenStack vs Google’s Ganeti
Giuseppe Paterno'

La gestione delle identità per il controllo delle frodi bancarie
La gestione delle identità per il controllo delle frodi bancarieLa gestione delle identità per il controllo delle frodi bancarie
La gestione delle identità per il controllo delle frodi bancarie
Giuseppe Paterno'

Secure real-time collaboration with SecurePass and Etherpad
Secure real-time collaboration with SecurePass and EtherpadSecure real-time collaboration with SecurePass and Etherpad
Secure real-time collaboration with SecurePass and Etherpad
Giuseppe Paterno'

Identity theft in the Cloud and remedies
Identity theft in the Cloud and remediesIdentity theft in the Cloud and remedies
Identity theft in the Cloud and remedies
Giuseppe Paterno'

Il problema dei furti di identita' nelle infrastrutture Cloud e possibili rimedi
Il problema dei furti di identita' nelle infrastrutture Cloud e possibili rimediIl problema dei furti di identita' nelle infrastrutture Cloud e possibili rimedi
Il problema dei furti di identita' nelle infrastrutture Cloud e possibili rimedi
Giuseppe Paterno'


More from Giuseppe Paterno' (15)

OpenStack e le nuove Infrastrutture IT
OpenStack e le nuove Infrastrutture ITOpenStack e le nuove Infrastrutture IT
OpenStack e le nuove Infrastrutture IT

Let's sleep better: programming techniques to face new security attacks in cloud
Let's sleep better: programming techniques to face new security attacks in cloudLet's sleep better: programming techniques to face new security attacks in cloud
Let's sleep better: programming techniques to face new security attacks in cloud

SecurePass at OpenBrighton
SecurePass at OpenBrightonSecurePass at OpenBrighton
SecurePass at OpenBrighton

OpenStack: Security Beyond Firewalls
OpenStack: Security Beyond FirewallsOpenStack: Security Beyond Firewalls
OpenStack: Security Beyond Firewalls

Remote security with Red Hat Enterprise Linux
Remote security with Red Hat Enterprise LinuxRemote security with Red Hat Enterprise Linux
Remote security with Red Hat Enterprise Linux

Il problema dei furti di identità nelle infrastrutture Cloud e possibili rimedi
Il problema dei furti di identità nelle infrastrutture Cloud e possibili rimediIl problema dei furti di identità nelle infrastrutture Cloud e possibili rimedi
Il problema dei furti di identità nelle infrastrutture Cloud e possibili rimedi

How the Post-PC era changed IT Ubuntu for next gen datacenters
How the Post-PC era changed IT Ubuntu for next gen datacentersHow the Post-PC era changed IT Ubuntu for next gen datacenters
How the Post-PC era changed IT Ubuntu for next gen datacenters

Filesystem Comparison: NFS vs GFS2 vs OCFS2
Filesystem Comparison: NFS vs GFS2 vs OCFS2Filesystem Comparison: NFS vs GFS2 vs OCFS2
Filesystem Comparison: NFS vs GFS2 vs OCFS2

Creating OTP with free software
Creating OTP with free softwareCreating OTP with free software
Creating OTP with free software

Protecting confidential files using SE-Linux
Protecting confidential files using SE-LinuxProtecting confidential files using SE-Linux
Protecting confidential files using SE-Linux

Comparing IaaS: VMware vs OpenStack vs Google’s Ganeti
Comparing IaaS: VMware vs OpenStack vs Google’s GanetiComparing IaaS: VMware vs OpenStack vs Google’s Ganeti
Comparing IaaS: VMware vs OpenStack vs Google’s Ganeti

La gestione delle identità per il controllo delle frodi bancarie
La gestione delle identità per il controllo delle frodi bancarieLa gestione delle identità per il controllo delle frodi bancarie
La gestione delle identità per il controllo delle frodi bancarie

Secure real-time collaboration with SecurePass and Etherpad
Secure real-time collaboration with SecurePass and EtherpadSecure real-time collaboration with SecurePass and Etherpad
Secure real-time collaboration with SecurePass and Etherpad

Identity theft in the Cloud and remedies
Identity theft in the Cloud and remediesIdentity theft in the Cloud and remedies
Identity theft in the Cloud and remedies

Il problema dei furti di identita' nelle infrastrutture Cloud e possibili rimedi
Il problema dei furti di identita' nelle infrastrutture Cloud e possibili rimediIl problema dei furti di identita' nelle infrastrutture Cloud e possibili rimedi
Il problema dei furti di identita' nelle infrastrutture Cloud e possibili rimedi


Recently uploaded

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students
KAMESHS29

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
Edge AI and Vision Alliance

Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Speck&Tech

20 Comprehensive Checklist of Designing and Developing a Website
20 Comprehensive Checklist of Designing and Developing a Website20 Comprehensive Checklist of Designing and Developing a Website
20 Comprehensive Checklist of Designing and Developing a Website
Pixlogix Infotech

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization
Zilliz

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany
innovationoecd

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
SOFTTECHHUB

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

Data structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdfData structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdf
TIPNGVN2

Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !
KatiaHIMEUR1

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI
Kumud Singh

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
SOFTTECHHUB

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems S.M.S.A.


Recently uploaded (20)

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

RESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for studentsRESUME BUILDER APPLICATION Project for students
RESUME BUILDER APPLICATION Project for students

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...
“Building and Scaling AI Applications with the Nx AI Manager,” a Presentation...

Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?

20 Comprehensive Checklist of Designing and Developing a Website
20 Comprehensive Checklist of Designing and Developing a Website20 Comprehensive Checklist of Designing and Developing a Website
20 Comprehensive Checklist of Designing and Developing a Website

Full-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalizationFull-RAG: A modern architecture for hyper-personalization
Full-RAG: A modern architecture for hyper-personalization

Presentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of GermanyPresentation of the OECD Artificial Intelligence Review of Germany
Presentation of the OECD Artificial Intelligence Review of Germany

Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

Data structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdfData structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdf

Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !Securing your Kubernetes cluster_ a step-by-step guide to success !
Securing your Kubernetes cluster_ a step-by-step guide to success !

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

Mind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AIMind map of terminologies used in context of Generative AI
Mind map of terminologies used in context of Generative AI

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf


OpenStack Explained: Learn OpenStack architecture and the secret of a successful cloud project

  • 1. Giuseppe Paternò OpenStack Explained Learn OpenStack architecture and the secret of a successful cloud project An initiative to bring water to African children.
  • 2. - 2 - Table of Contents About Giuseppe Paternò............................................................ 3 Acknowledgments...................................................................... 3 Testimonials.................................................................................4 1.0 - Cloud: the undiscovered country....................................... 5 2.0 - Introduction to OpenStack................................................. 9 3.0 - OpenStack components................................................... 11 3.1 - OpenStack logical architecture................................ 13 3.2 - Horizon – Dashboard................................................ 14 3.3 - Keystone – Identity.................................................. 15 3.4 - Nova – Compute...................................................... 16 3.5 - Glance – Image Store............................................... 19 3.6 - Neutron – Network.................................................. 20 3.7 - Cinder – Block Storage............................................. 21 3.8 - Swift – Object Storage.............................................. 22 3.9 - Ceilometer - Telemetry........................................... 23 3.10 - Other projects........................................................ 24 4.0 - OpenStack Regions and Availability Zones....................... 25 5.0 - The choice in OpenStack.................................................. 28 5.1 - Nova......................................................................... 29 5.2 - Cinder....................................................................... 30 5.3 - Neutron................................................................... 30 5.4 - Swift........................................................................ 30 6.0 - Applications in the cloud................................................. 31 7.0 - DevOps: to the infinity and beyond................................. 34 8.0 - The “secret ingredient” of a successful project.............. 37 9.0 - Donation.......................................................................... 40
  • 3. - 3 - About Giuseppe Paternò Giuseppe Paternò is an OpenStack consultant. Through his extensive 20+ years experience in IT, he helps customers to embrace cloud easily, securely and risk-free. Most European telecommunications, government and finance organizations are amongst his customers. Giuseppe has a strong background in the Open Source world, where he played an important role for Canonical (the company behind Ubuntu), RedHat, Sun Microsystems, and IBM. He also has an extensive knowledge in information security: this is reason behind his role as Visiting Professor and Researcher at the University of Trinity College Dublin in 2009. Web Site: http://www.gpaterno.com Twitter: @gpaterno Facebook Page: https://www.facebook.com/gpaterno.pro E-mail: gpaterno@gpaterno.com Acknowledgments A big thank you goes to my wife Maria, without her support I wouldn’t even being able to achieve what I did up to now. A thank you also goes to Roberto Argentini from Telecom Italia, without him this paper would not even exist. Thanks to the reviewers Guido Bolognesi, Sab Knight, Francesco Vollero, Nicolas Barcet and the designers Leonardo and Fausto Nenci.
  • 4. - 4 - Testimonials “Giuseppe is paving the way for enterprises to embrace OpenStack. Telecom Italia is, nonetheless, among these enterprises. Should you be willing to embrace the cloud, I would strongly recommend this book. I am very pleased Giuseppe is going to offer his OpenStack expertise to raise money for the disadvantaged children in Africa.” Gianluca Pancaccini, CIO of Telecom Italia “Giuseppe has done a great job of creating an important source of information on OpenStack technology while also raising money for disadvantaged children. IwouldencourageanyoneinvolvedintheITindustrytodownload this ebook and in so doing support this great initiative.” Jeff Cotten, Managing Director, Rackspace International
 “The OpenStack Project is one of the great examples for the dynamic of open source solutions and makes cloud technology available to organizations regardless of their size and location. Being one of the major contributors for the project, we at SUSE appreciate Giuseppe Paternó clear and concise explanation of OpenStack and it’s architecture. For those looking for an introduction to OpenStack, this will be a valuable resource. We also highly appreciate Giuseppe’s charitable support to provide clean drinking water for Children in Africa.” Ralf Flaxa, Vice President of Engineering, SUSE
  • 6. - 6 - I’ve been sitting in front of many European IT Managers and CTOs and when they want to hear from me about OpenStack or Cloud, most of the times they mean something different: customers want a VMware replacement for virtualization. The most audacious ones are willing to have a nice web interface to access their virtual machines and that’s it. Cloud sounds like yet another marketing buzzword, it can mean just about anything or nothing at all. We are not discussing here what is the reason of walking away from VMWare, but the idea of the equation “Cloud=Virtualization” is pretty spread across all the customers. This is actually what some vendors tried to let you think of cloud. While Cloud implies a virtualized environment, virtualization is not a cloud. Let me define Cloud using the NIST definition: “Cloud computing is a model for enabling ubiquitous, convenient, on-demand network access to a shared pool of configurable computing resources (ex: networks, servers, storage, applications and services) that can be rapidly provisioned and released with minimal management effort”. TheNISTdefinitiongoesontodefinetheessentialcharacteristics of clouds (i.e., on-demand, network access, multitenancy, elasticity, and metering). It continues by defining three service models: software as a service (SaaS), platform as a service (PaaS), and infrastructure as a service (IaaS). It also identifies four main deployment models: private cloud, public cloud, hybrid cloud, and community cloud.
  • 7. - 7 - IaaS is the infrastructure layer that orchestrates the work typically done by system administrators to host the applications, including server provisioning, network management, and storage allocation. PaaS represents what we used to call middleware, and makes the link between the end-user application and the underlying infrastructure that it is running on. A PaaS solution is aimed at developers who do not want to worry about the infrastructure. PaaS is still a growing area and interesting players such as Openshift, CloudFoundry (and derivatives) and Cloudify. SaaS refers to online application hosting: users will access the application interface over the Internet, all the work that happens in the background to make the application available and scalable is hidden from the end user. Gmail (and most Google services, including Calendar and Docs), SalesForce and SecurePass are typical SaaS examples.
  • 8. - 8 - There are several open source solutions which can be used to build our own IaaS Cloud. The three major projects in my personal order of importance are: OpenStack, CloudStack and OpenNebula. Successful private and public clouds are currently operational all over the world using these solutions. Cloud is a huge shift in your organization and will change forever your way of working in the IT projects, improving your IT dramatically and cutting down costs. If you follow me, I will reveal to you the “secret ingredient” of a successful cloud project and you will be able to achieve incredible results. If you feel you’re not ready for it or if all you want is to find an alternative virtualization solution, I can give you some names such as RedHat oVirt, Citrix XenServer or Google’s Ganeti. But if you are willing to embrace the change, understand what actually are the impacts of OpenStack in your organization or just curious about what OpenStack is, read on. We will go into details of OpenStack, the most successful Open Source project after Linux itself, we will understand the strength and how it accomplished on-demand network access, multitenancy, elasticity, and metering.
  • 10. - 10 - The great advantage of OpenStack is that the end customer can choose whether to use the reference implementations for each project or a vendor-specific implementation for each one. The promise of OpenStack is the interoperability amongst different components from different vendors or open source projects, giving the customer the choice to find out what is the best solution for their own needs. OpenStack could bring the following benefits to you: ● Self-service Instance life cycle management: run, reboot, suspend, resize and terminate instances. ● Management of compute resources: CPU, memory, disk, and network interfaces. ● Management of Local Area Networks (Flat, Flat DHCP, VLAN DHCP and IPv6) through programmatically allocated IPs and VLANs. ● API with rate limiting and authentication to manage who has access to compute resources and prevent users from impacting each other with excessive API utilization. ● Distributedandasynchronousarchitectureformassively scalable and highly available system. ● Virtual Machine (VM) image management i.e. store, import, share, and query images. ● Floating IP addresses i.e. Ability to assign (and re-assign) IP addresses to VMs. ● Security Groups i.e. flexibility to assign and control access to VM instances by creating separation between resource pools. ● Role Based Access Control (RBAC) to ensure security by user, role and project. ● Projects & Quotas i.e. ability to allocate, track and limit resource utilization. ● REST-based API which is key to automation, a key characteristic of clouds, and which is very simple to implement using any computer language. ● Class of services: each type of resource can be available with different features, eventually linked to pricing, such as reliability, performance or resiliency ● Measurability of every action and consuption of resource s to allow audability and usage reporting.
  • 12. - 12 - OpenStack is a collection of open source technologies delivering a massively scalable cloud operating system. OpenStack cloud operating system controls large pools of compute, storage and networking resources throughout a datacenter, all managed through a dashboard that gives administrators control while empowering their users to provision resources through a web interface. We can think of it as software to power our own Infrastructure as a Service (IaaS) offering, like the one behind Amazon Web Services. OpenStack is an umbrella project that can be divided into many sub-components: Project Code Name Dashboard Horizon Compute Nova Identity Keystone Network Neutron Image Service Glance Block Storage Cinder Object Storage Swift Telemetry Ceilometer Orchestration Heat Database Trove DNS service Designate Bare Metal Ironic Queue Service Zaqar
  • 13. - 13 - 3.1 - OpenStack logical architecture There are currently seven core components of OpenStack, how they conceptually interact with each other is shown below: All these components and how they relate each other are shown in the simplest way in the below OpenStack logical architecture:
  • 14. - 14 - 3.2 - Horizon – Dashboard Horizon provides a modular web-based user interface for all the OpenStack services. With this web GUI, you can perform most operations on your cloud like launching an instance, assigning IP addresses and setting access controls.
  • 15. - 15 - 3.3 - Keystone – Identity Keystone is a central component for authentication and authorization for all the OpenStack services. Keystone handles API requests and provides configurable catalog, policy, token and identity services. Keystone also implements the ability to add users to groups (also known as tenants or projects) and to manage permissions between users and groups. Permissions include the ability to launch and terminate instances. Keystone can be integrated with LDAP and other external authentication providers as well as be part of an authentication federation using SAML or OpenID with external identity providers, ex: SecurePass (www.seure-pass.net).
  • 16. - 16 - 3.4 - Nova – Compute Probably the most known among the projects, it provides virtual servers upon demand. Nova is the most complicated and distributed component of OpenStack. A large number of processes cooperate to turn end user API requests into running virtual machines. These are the Nova components and their functions: ● nova-api: a REST API web service which accepts incoming commands to interact with the OpenStack cloud ● nova-compute: a worker daemon which creates and terminates virtual machine instances via specific Hypervisor’s APIs. There are many different Hypervisors implemented as plugins in OpenStack. ● nova-scheduler: takes a request from the queue and determines which compute server host it should run on ● nova-conductor: provides services for nova-compute, such as completing database updates and handling long-running tasks ● nova database: stores most of the build-times and run- time states for a cloud infrastructure ● The message queue provides a central hub for passing messages between daemons. This is usually implemented using a pluggable architecture based on the Oslo project, but is most commonly with RabbitMQ ● Nova also provides console services to allow end users to access their virtual instances console through a proxy. This involves several daemons (nova-console, nova-novncproxy and nova-consoleauth) ● nova-network: a worker daemon very similar to nova- compute. It accepts networking tasks from the queue and then performs tasks to manipulate the network (such as setting up bridging interfaces or changing iptables rules). This functionality is being migrated to Neutron, a separate OpenStack service ● nova-volume: Manages creation, attaching and detaching of persistent volumes to compute instances. This functionality has been migrated to Cinder, a separate OpenStack service.
  • 17. - 17 - Nova also interacts with many other OpenStack services: Keystone for authentication, Glance for images and Horizon for the web interface. The Glance interactions are central to OpenStack. The API process can upload and query Glance while nova-compute will download images for launching images. Historically, most OpenStack development is done with the most community supported hypervisor: KVM. This allows you to refer to Internet forums to find help on your issues. All the features that are currently supported in KVM are also supported in QEMU.
  • 18. - 18 - Microsoft Hyper-V and VMware ESXi too are gaining much support, with Hyper-V now being available with a free license. ESXi can also be used with a free license however API support is limited to READ ONLY without vCenter or an Enterprise license. Nova has support for XenServer and XCP through the XenAPI virt layer. Note that this does not imply support for other Xen- based platforms such as those shipped with RHEL 6 or SUSE, which is provided via the libvirt layer (i.e. Xen via libvirt). Nova also supports bare metal provisioning through the Ironic project, that means it is possible to deploy to hardware in the same way the end user deploys virtual machines. By default, it will use PXE and IPMI in concert to provision and turn on/off machines, but Ironic also supports vendor-specific plugins which may implement additional functionality. Some vendors, most notably HP Helion, use Ironic to deploy OpenStack itself.
  • 19. - 19 - 3.5 - Glance – Image Store It provides discovery, registration and delivery services for disk and server images. List of components and their functions: ● glance-api: accepts Image API calls for image discovery, image retrieval and image storage ● glance-registry: stores, processes and retrieves metadata about images (size, type, etc.) ● glance database: a database to store the image metadata ● A storage repository for the actual image files. Glance supports normal filesystems, Ceph block devices, Amazon S3, HTTP and Swift. Glance accepts API requests for images (or image metadata) from end users or Nova components and can store its disk files in the object storage service, Swift or other storage repository.
  • 20. - 20 - 3.6 - Neutron – Network Neutron provides “network connectivity as a service” between network interface devices, routers and more (e.g., vNICs) managed by other OpenStack services (e.g., Nova). The service works by allowing users to create their own networks and then attach interfaces to them. Neutron has a pluggable architecture to support many popular software defined networking (SDN) vendors and other central network control plane technologies. ● neutron-server accept API requests and routes them to the correct neutron plugin ● plugins and agents perform actual actions, like plug/ unplug ports, creating networks, subnets and IP addressing ● it also uses the same Oslo messaging as Nova and other OpenStack projects to route info between neutron- server and various agents ● it has a neutron database to store networking state for particular plugins Neutron will interact mainly with Nova, where it will provide networks and connectivity for its instances.
  • 21. - 21 - 3.7 - Cinder – Block Storage Cinder allows block devices to be exposed and connected to compute instances for expanded storage & better performance. ● cinder-api accepts requests and routes them to cinder- volumes for action ● cinder-volume reports reading or writing to the cinder database to maintain state, interacts with other processes (like cinder-scheduler, see below) through a message queue and directly on block storage providing hardware or software ● cinder-scheduler picks the optimal block storage node to create the volume on ● the messages queue routes information between Cinder processes ● a cinder database stores volumes state Like Neutron, Cinder will mainly interact with Nova, providing volumes for its instances.
  • 22. - 22 - 3.8 - Swift – Object Storage Object store allows you to store or retrieve files as individual unitx. It provides a fully distributed, API-accessible storage platform that can be directly integrated into applications or used for backup, archiving and data retention. Object Storage is not a traditional file system, but rather a distributed storage system for static data such as virtual machine images, or photos, e-mails, backups and archives. Unlike filesystems, there is no hierarchy of files nor is it possible to “open” a file and modify it online. If you want to modify a file, you have to pull it, modify and push it back. This may seem a huge restriction but it allows for much improved scalability (by multiple orders of magnitudes) than traditional shared file systems, ex: in multi-datacenter deployments. ● Proxy server (swift-proxy-server) accepts incoming requests, like files to upload, modifications to metadata or container creation; it also serves files and provides container listing ● Accounts server manage accounts defined within the object storage service. ● Container servers manage mapping of containers, folders, within the object store service. ● Object servers manage actual objects, files, on the storage nodes. Also replication services run to provide consistency and availability across the cluster, audit and update.
  • 23. - 23 - 3.9 - Ceilometer - Telemetry The required steps to bill for usage in a cloud environment are metering, rating and billing. Because the provider’s requirements may be far too specific for a shared solution, rating and billing solutions cannot be designed as a common module that satisfies all possible scenarios. Providing users with measurements on cloud services is required to meet the “measured service” definition of cloud computing. The Telemetry module was originally designed to support billing systems for OpenStack cloud resources. This project only covers the metering portion of the required processing for billing. The module collects information about the system usage and stores it in the form of samples in order to provide data about anything that can be billed. It does so by both listening to event on the message queue and by polling information out of the various components. The list of metrics is continuously growing, which makes it possible to use the data collected by Telemetry for many more purposes other than billing. For example Heat can autoscale resources when Ceilometers triggers an alarm, for example adding more front-end web servers when CPU utilization is more than 70% for 5 minutes.
  • 24. - 24 - 3.10 - Other projects Although the former ones are the most relevant, there are three other projects worth mentioning: ● Trove is a database-as-a-service provisioning relational and non-relational database engines. It allows an agnostic access to databases, currently supports MySQL and PostgreSQL, but vendors like Oracle and Microsoft might provide a Trove plugin for their databases in future. ● Ironic (Bare Metal Provisioning), is an incubated OpenStack project that aims to provision bare metal machines instead of virtual machines. Ironic is currently in use by HP Helion. ● Zaqar (Multiple Tenant Cloud Messaging), is a multi- tenant cloud messaging service for Web developers. Zaqar was formerly known as Marconi. ● Designate provides a DNS as a Service for OpenStack.
  • 25. OpenStack Regions and Availability Zones 4
  • 26. - 26 - OpenStack was made from the ground up to scale to thousands of nodes and span different datacenters and geographical regions. For this reason, Openstack clouds can be divided in three main hierarchical zones: Regions, Availability Zones and Host Aggregates. Region Each Region has its own full Openstack deployment, including its own API endpoints, networks and compute resources. Different Regions share one set of Keystone and Horizon services, to provide access control and a Web interface. Availability Zone Inside a Region, compute nodes can be logically grouped into Availability Zones (AZ): when launching a new VM instance we can specify the AZ we want it instantiated in, or even a specific node inside an AZ to run the VM instance. Host Aggregates Besides AZs, compute nodes can also be logically grouped into Host Aggregates. Host Aggregates have meta-data to tag groups of compute nodes, e.g. all nodes with an SSD disk can belong to one Host Aggregate, while another Host Aggregate may contain all nodes with 10 GB NICs.
  • 27. - 27 - One compute node can be put into both an Host Aggregate and an Availability Zone at the same time, as they do not conflict. Moreover, one compute node can belong to more than one Host Aggregate. Host Aggregates are visible only to the admin and can also be used to mix hypervisors in the same AZ, for example to save license costs: some vendors provide free guests for their hypervisors. Cells OpenStack Compute cells allow you to run the cloud in a distributed fashion. Hosts in a cloud are partitioned into groups called cells. Cells are configured in a tree. The top-level cell (“API cell”) has a host that runs the nova-api service, but no nova- compute services. This allows for a single API server being used to control access to multiple cloud installations. Introducing a second level of scheduling (the cell selection), in addition to the regular nova- scheduler selection of hosts, provides greater flexibility to control where virtual machines are run. Unlike having a single API endpoint, regions have a separate API endpoint per installation, allowing for a more discrete separation. Users wanting to run instances across sites have to explicitly select a region. However, the additional complexity of running a new service is not required.
  • 28. The choice in OpenStack 5
  • 29. - 29 - Earlier in this publication I mentioned that the promise of OpenStack is the interoperability among different components from different vendors or open source projects. As a matter of fact, each of the components described in the previous page can be easily replaced with projects or products from each vendor. At the time of writing, the only project that has no valuable alternativeamongvendorsisKeystone.Keystoneactsasaservice registry and user repository, therefore plays an important role in OpenStack. While it was conceived to have internal users like Amazon does, the development is shifting towards an HTTP interface to existing identity systems, such as LDAP or SAML. AlsoHorizon,thewebdashboard,hasfewchancestobereplaced, as its colors and logos can easily be customized to be adapted for everyone. Some other dashboards exist for OpenStack, but usually the company who needs a different web interface goes for a customized development on top of the OpenStack APIs. Projects in which it makes sense to adopt a plugin approach are Nova, Neutron, Swift and Cinder. Let us review in a table what are the most relevant open source and proprietary technology for each component (please keep in mind that this list can vary). 5.1 - Nova Open Source Proprietary KVM VMWare ESX/ESXi XenServer Microsoft Hyper-V LXC Docker
  • 30. - 30 - 5.2 - Cinder Open Source Proprietary LVM NetApp Ceph IBM (Storwize family/SVC, XIV) Gluster Nexenta NFS (any compatible) SolidFire HP LeftHand/3PAR/MSA Dell EqualLogic/Storage Center EMC VNX/XtremIO 5.3 - Neutron Open Source Proprietary Linux Bridge VMWare NSX Open vSwitch Brocade Midonet Big Switch OpenContrail (Juniper OpenSource) Alcatel Nuage Cisco Nexus 5.4 - Swift Open Source Proprietary Swift project EMC Isilon OneFS Ceph NetApp E-Series Gluster Nexenta Hadoop with SwiftFS/Sahara
  • 32. - 32 - So you have read about OpenStack and you are really eager to implement it. But let us step back and understand why you are willing to embrace the cloud. You might think of several reasons, but -- judging by my experience -- everything comes down to two root causes: ● Youarelookingtotakeadvantageofthefastprovisioning of the infrastructure, either for savings, speed, or both ● Your applications may have varying demand patterns, resulting in the need of increased computing power during some periods. You may want to take advantage of the scaling capabilities of Cloud to fire up new instances of key modules at peak periods, shutting them down when not needed, freeing up infrastructure resources for other tasks and reducing the TCO Most of the customers just want a fast provisioning mechanism of the infrastructure. Do not get me wrong, this is perfectly fine and OpenStack gets the job done. But you will get the full benefit of the cloud when you’ll have an application that might be in need of resources on-demand. Think about a sports news portal when the World Cup is on, the invoicing and billing at the end of the month or a surge in the need to process a data from devices.
  • 33. - 33 - Wouldn’t it not be nice, given the detected increasing loads, to have the application scale automatically to cope with the requests? Believe it or not, it is not magic and it is totally feasible. Netflix did it and I can name a lot of other SaaS systems that are doing it. There is only one constraint: you have to be in control of the source code of your applications. If you bought your application “as is”, contact your vendor, but there are yet few chances that you can follow this pattern. Being cloud aware for an application also means that it need to be implemented with self resiliency in mind. In case you have the source code, you can adapt your application to take full advantage of your new environment. In this scenario, you will have to intervene more into your code as you will need to ensure that the application can take full advantage of the environment, reconfiguring load balancers, dynamically allocating resources and etc. There are some “tricks” that an application has to adopt to be “cloudish”, but is outside of the scope of this publication. It’s quite common that a customer might decide to have a phased approach to the cloud, starting to take advantage of the fast provisioning and then transforming the application to adapt it to the cloud. The cloud is a long journey and it can be successful, are you ready for it?
  • 34. 7DevOps: to the infinity and beyond
  • 35. - 35 - So you understood OpenStack, its components and how applications play an important role in the cloud. Before revealing to you how to be successful with OpenStack, there is another important piece I want you to understand. The next marketing buzzword that everybody mentions nowadays is DevOps. As you might understand, DevOps is an acronym that stands for “Development” and “Operations”. The goal of DevOps is to improve service delivery agility, promoting communication, collaboration and integration between software developers and IT operations. Rather than seeing these two groups as silos who pass things along but do not really work together, DevOps recognizes the interdependence of software development and IT operations.
  • 36. - 36 - In an ideal world, through the use of continuous integration tools and automated tests, a group of developers could bring a new application on-line without any operations team. For example, Flickr developed a DevOps approach to support a business requirement of ten deployments per day. Just for your own information, this kind of approach is also referred as continuous deployment or continuous delivery. Discussing development and agile methodologies is not within the scope of this publication, but this is one thing you have to understand and keep in mind, no matter if you are an IT manager, developer or system administrator. If you decided to embrace the cloud in full and you are thinking of adapting your application to take advantage of it, then every single aspect of IT have to be carefully analyzed. Development, whether you do it internally or outsourced, must be taken into consideration. Also the way your company has been organized has to change: did I mention before Cloud is a huge shift?
  • 37. The “secret ingredient” of a successful project 8
  • 38. - 38 - I promised you at the beginning that I would have revealed the “secret ingredient” to deploy a successful OpenStack project. Let me begin with two examples. The first one belongs to a well-known European telecommu- nication provider. Like every other telco, they have a complex internal structure and when someone from the internal team proposed OpenStack as a possible solution, the upper manage- ment decided that it was not “enterprise enough” and that they had to stick to a certified stack that included, amongst others, VMware and Oracle. The time needed to deploy a single virtual machine was around 40 days, because of all the process it had go through. A system engineer was receiving daily complaints from the developers, who in turn were under pressure from the marketing team to deploy new campaigns faster to the market. This person decided to form an “unofficial team” of very skilled people, stole some decommissioned old machines and created an OpenStack cluster in two regions. He made some internal meetups to educate the developers and the internal people on how to embrace the OpenStack philosophy and how an application can leverage the underlying platform to take advantage of elasticity and scalability. The unofficial experiment had an unexpected success and most of the new applications were deployed on this platform. Although this bypassed all the internal rules and processes, the upper management could only take note of the status-quo and approve it officially. The system administrator is now the leader of this “SWAT group”, that is composed of only 11 people and runs now 50% of the company internal applications. The second story I want to share with you is about an American financial institution. Following a conversation with the CEO of a premier vendor, the CTO of this bank decided to embrace OpenStack and switch over from VMWare. He asked his management to go and execute the change. The office in charge of the IT architectures had to review all the processes in place and start talking with the departments of the company.
  • 39. - 39 - Like many big companies, this enterprise is divided in several departments (network, security, system administrators, middleware, …) and in the following months a large number of meetings went through all the departments. OpenStack was deployed in 8 months using the existing corporate policies and following the standards and best practices that were in place. Despite all the efforts, the processes of delivering a new application to internal customer went from 90 days to 75 days. As OpenStack itself was perfectly working, the upper management did not understand what went wrong and could not justify the investment to the CTO. What is the moral of the story then? The reality is that OpenStack is just a technology and it enables you to do more if you embrace its philosophy. This requires a company to change deeply in the way IT is conceived, and to become even more productive and agile. If you are not willing to change your internal processes and department divisions, you will not enjoy the full benefits of OpenStack. Meanwhile, if you look at the other example, the telco was so successful because nobody believed on the project at the beginning, therefore the system administrators were free to bypass all the internal schemas. This approach, with a proper internal awareness program, made the project a great success. Of course it is not all black and white, there are several shades of gray in between and not each company was created equal. I hope I gave you the tools to have a clean and vendor-neutral idea of what cloud is and what benefits it can bring you, but you will have to find your own recipe to be successful in deploying OpenStack.
  • 41. - 41 - Giuseppe Paternò will donate all the revenues of this publication to bring drinking water for school children in Benin: many children in Benin have no choice but to drink contaminated water and illness is just around the corner. The donation will help the charity HELVETAS Swiss Intercooperation to build drinking water wells in schoolyards, and educating children about hygiene. With such project, the children stay healthy and are able to attend school. For more information visit Helvetas website www.helvetas.org
