Neutron Networking / OpenStack Kilo
Lukáš Korous
Lukáš Korous
Neutron Networking / OpenStack Kilo
Outline
0. OpenStack review, training environment setup
a. User & Administrator dashboard use
b. Training environment setup & walkthrough
1. Related networking technologies
a. Linux bridges and namespaces(,kernel settings – sysctl)
b. Network segmentation, encapsulation
i. vLAN

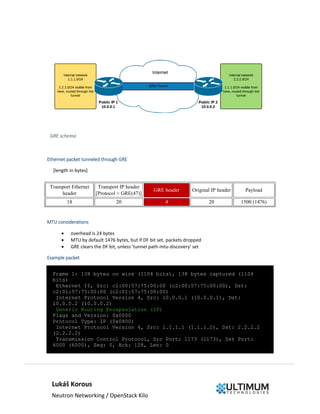

ii. GRE
iii. VXLAN

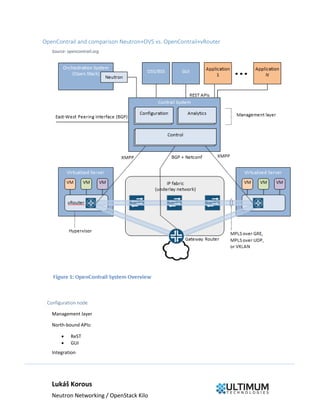

c. SDN Overview
2. Open vSwitch
a. Description, comparison with Linux bridge
b. Configuration
3. Neutron concept and relationship to other OpenStack components
a. Overview
b. Relationship to other components & projects

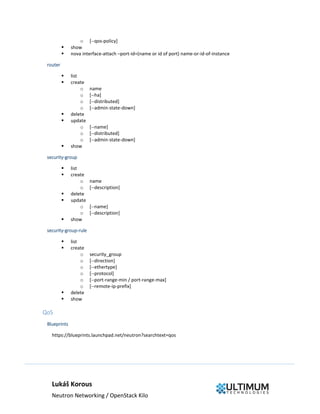

4. OpenStack commands for Neutron checking

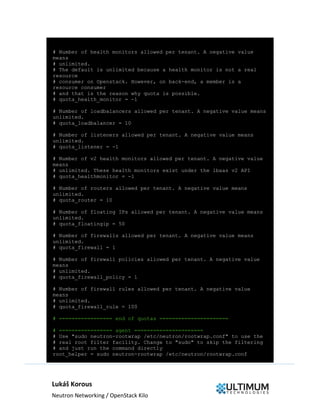

5. Neutron configuration files
a. Controller
i. neutron.conf
ii. nova.conf
iii. plugins/*/*.ini
iv. dnsmasq-neutron.conf
b. Nodes
i. l3_agent.ini
ii. dhcp_agent.ini
iii. metadata_agent.ini
iv. plugins/*/*.ini

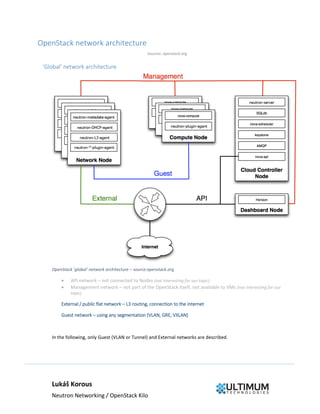

6. OpenStack network architecture
a. Public network
b. External (flat) network
c. Management network(, SSH network)
d. Tunnel (internal) network
7. Network traffic schemes
a. VM <-> VM

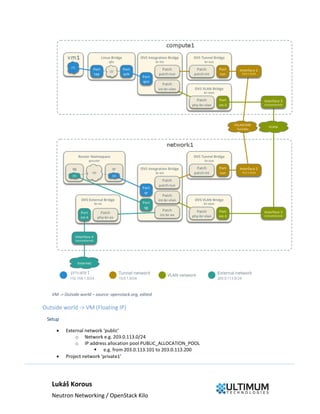

b. VM -> Outside world
c. Outside world -> VM (Floating IP)
d. Outside world -> VM (directly on Public network)

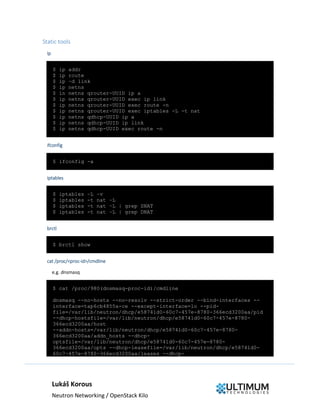

8. Network traffic inspection
a. Host level, guest level
Lukáš Korous
Neutron Networking / OpenStack Kilo
OpenStack review, training environment setup
OpenStack user dashboard
Testing dashboard address
http://test.ultimum-cloud.com/
Login
Please contact Ultimum Technologies at info@ultimum.io for access to the testing environment.
Keypairs for SSH
In the left menu, select "Access & Security", and after opening in the right panel, select the tab "Keypairs".
Now there are two ways how to add an SSH key - either create a new one, or import an existing one.
Create a key for SSH
In the top buttons row (see screenshot) select "Create Keypair". In the dialog, insert a name, e.g.
"myFirstKeypair".
Lukáš Korous
Neutron Networking / OpenStack Kilo
Confirm by selecting "Create Keypair". Keypair is created and you can see it on the list.
Import a key for SSH
In the top buttons row (see screenshot) select "Import Keypair".
Lukáš Korous
Neutron Networking / OpenStack Kilo
In the dialog, fill in a name, e.g. "myImportedKeypair", and copy your public key to the "Public Key" field. If
you do not know where to look for a public key, it is usually in your home folder (typically "/home/'user'" on
Linux, "C:Users'user'" on Windows), in subdirectory (caution, may be hidden) ".ssh", in a file id_rsa.pub
(id_dsa.pub).
The whole key, e.g. the entire content of the file id_rsa.pub, should then be copied into this field.
Confirm by selecting "Import Keypair". Keypair is created and you can see it on the list.
Security Groups
In the left menu, select "Access & Security", which opens in the right panel. Select the "Security Groups" tab.
In the default settings, there is one security group created - with the name "default":
Lukáš Korous
Neutron Networking / OpenStack Kilo
If you want to check the default security group rules, click on it and the detail will open:
Lukáš Korous
Neutron Networking / OpenStack Kilo
For the purpose of this tutorial though, we will create a new security group that will later allow us to
connect to our instances using SSH. On the list of security groups, press the button "Create Security Group"
and create a group for SSH connections by filling the information in the creation dialog:
The security group appears in the list:
Lukáš Korous
Neutron Networking / OpenStack Kilo
Adjustment of the security group rules
For adjustments of the SSH security group rules, select "Edit Rules":
Lukáš Korous
Neutron Networking / OpenStack Kilo
Then select "Add Rule" and add the SSH pre-defined rule (or you may fill the custom rule dialog and add it
manually). Note that the default CIDR is 0.0.0.0/0 which stands for any (=all) IP address.
The rule is created:
Lukáš Korous
Neutron Networking / OpenStack Kilo
Set up networking
Now we have to set up networking in order to plug the instance we are about to create into a proper
network.
Navigate to "Network Topology" in the left menu. The basic setup looks like in the following figure.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Creating a private network for your servers
Select "Create Network" and network creation dialog appears.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Creating a subnet
Now we have to create a subnet in the network being created. Navigate to the second tab of the dialog -
Subnet.
Subnet represents a logical set of connected devices, addressed in a common address space.
After you confirm, the network is created and it appears in the topology diagram.
Lukáš Korous
Neutron Networking / OpenStack Kilo
.
Creating a router
Now we have to create a router in order to be able to connect the new network to the outside world.
Select "Create Router" and name your new router. Router is created and we can see it in the router list:
Lukáš Korous
Neutron Networking / OpenStack Kilo
Also the router appears in the Network Topology schema:
Lukáš Korous
Neutron Networking / OpenStack Kilo
If you navigate to the router's detail, it opens and looks similarly to the following figure.
Now we need to create an interface, select "Add Interface" and add an interface to the private network.
When you confirm, the interface is created and we can see it on the router's detail:
Lukáš Korous
Neutron Networking / OpenStack Kilo
Adding a gateway to a router
Now we have to connect to the outside world using a gateway. For this, open the router list from the left
menu ("Routers") and select "Set Gateway" next to the appropriate router. The following dialog appears:
Lukáš Korous
Neutron Networking / OpenStack Kilo
Select the public network there and confirm.
Now the network topology reflects that the router is connected to the outside world:
First run of a cloud server
Let us now go through running a cloud server from a collection of public images (according to the operating
systems) and connect to it via the remote desktop. In the left menu, choose "Images & Snapshots". In the
right panel, a list of all available public images appears.
List of available ready-to-use images
Select "Images & Snapshots" in the left menu. In the right panel, the list of publicly available images will
appear.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Instantiation of a public server image
Next to the selected image (for the purpose of this manual we will select "Ubuntu 13.04 cloudimg x86_64"),
select "Launch".
A dialog window appears, where on the "Details" tab we fill in the instance name, e.g. "myFirstInstance" and
we select the type of the virtual hardware (flavor).
Lukáš Korous
Neutron Networking / OpenStack Kilo
Before we confirm by pressing "Launch", we need to check the security settings on the "Access & Security"
tab:
Lukáš Korous
Neutron Networking / OpenStack Kilo

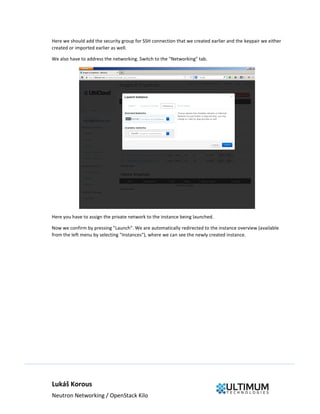

Here we should add the security group for SSH connection that we created earlier and the keypair we either
created or imported earlier as well.
We also have to address the networking. Switch to the "Networking" tab.
Here you have to assign the private network to the instance being launched.
Now we confirm by pressing "Launch". We are automatically redirected to the instance overview (available
from the left menu by selecting "Instances"), where we can see the newly created instance.
Lukáš Korous
Neutron Networking / OpenStack Kilo
We can also see the newly launched instance in the "Network Topology" schema:
Lukáš Korous
Neutron Networking / OpenStack Kilo
Public IP address assignment
For a successful connection to the newly created instance, it is important to add a public IP address. On the
instance overview we select "More" by the appropriate instance and in the context menu we select
"Associate Public IP":
A dialog appears:
Lukáš Korous
Neutron Networking / OpenStack Kilo
We need to select the "+" button next to the IP addresses drop-down list to add allocate a new IP address.
The allocation dialog appears.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Select the public pool and confirm. The address is allocated and we can select it now in the previous
assignment dialog.
After confirmation, we can select "Access & Security" in the left menu and then "Public IPs" in the right
window to see the list of allocated or assigned IP addresses:
Lukáš Korous
Neutron Networking / OpenStack Kilo
SSH connection to your newly created instance
Now we are able to connect to this new instance.
Username: debian
Password: debian / SSH key
Here is what a terminal looks like after a successful login.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Training environment setup & walkthrough
Networks
(details of OpenStack networks will follow in one of subsequent sections)
 Public (not part of the training environment)
o physical network in the datacenter
 Openstack-external-flat
o external (public) network from the testing environment viewpoint
 Openstack-ssh
o network dedicated for SSH, might be merged with management network, except for
deployment
 Openstack-management
o management network, access to controllers, and nodes
 Openstack-tunnel
o tunneled communication between nodes (VXLAN tunneling is used in the training
environment)
Machines
Name Public IP address Purpose OS
Controller1 XXX.YYY.ZZZ.239 Controller debian
Compute1 XXX.YYY.ZZZ.236 Compute & Network Node debian
Compute2 XXX.YYY.ZZZ.237 Compute & Network Node debian
Client1 XXX.YYY.ZZZ.238 Client machine debian
Services
List all installed OpenStack services on the controller
debian@controller1:~ $ source admin-openrc.sh
debian@controller1:~ $ openstack service list
+----------------------------------+----------+----------------+
| ID | Name | Type |
+----------------------------------+----------+----------------+
| 01dd76e265c34c98b30a80a95f4f744a | heat | orchestration |
| 0e313bbb8cc44d66b4691a65152450d3 | neutron | network |
| 41ed6e5e1ad84b5783ed52840b11bf2b | keystone | identity |
| a8761537893e490799af9cccd114df27 | cinderv2 | volumev2 |
| aa5dc322091549028b7c1b755a061dd1 | glance | image |
| c31f2edc4f14411d9efc7f3b6f9db5a6 | nova | compute |
| d5c2a54ee66648849607a8feea028662 | heat-cfn | cloudformation |
| f4cb7d150eb04920a9cfab8f24e29062 | cinder | volume |
+----------------------------------+----------+----------------+
debian@controller1:~ $
Lukáš Korous
Neutron Networking / OpenStack Kilo
View all services in the dashboard
Admin -> System -> System Information
-> Services
-> Compute Services
-> Network Agents
Lukáš Korous
Neutron Networking / OpenStack Kilo
Related networking technologies
Linux bridges
A piece of software used to unite two or more network segments. A bridge behaves like a virtual network
switch, working transparently (the other machines do not need to know or care about its existence). Any
real devices (e.g. eth0) and virtual devices (e.g. tap0) can be connected to it.
Layer 2 device.
Part of Linux kernel since 2.2 (stable as of 2.6).
$ brctl addbr mybridge
$ brctl addif mybridge eth0
$ brctl addif mybridge eth1
$ ifconfig mybridge up
$ brctl show
$ brctl showmacs mybridge
$ brctl delbr mybridge
Network namespaces
Isolated containers which can hold a network configuration and are not seen from outside of the
namespace.
Used to encapsulate specific network functionality or provide a network service in isolation as well as simply
help to organize a complicated network setup.
Used for many purposes and heavily used in OpenStack networking.
$ ip netns add ns1
$ ip netns add ns2
$ ip netns list
BUT: Cannot contain physical interfaces. Only virtual Ethernet (veth) interfaces.
Virtual Ethernet (veth) interfaces
Always come in pairs.
Connected like a tube—whatever comes in one veth interface will come out the other peer veth interface.
Used to connect a network namespace to the outside world via the “default” or “global” namespace
where physical interfaces exist.
Simple connection is achieved by the following:
Lukáš Korous
Neutron Networking / OpenStack Kilo
# create the veth pair
$ ip link add tap1 type veth peer name tap2
$ ip link list
# move the interfaces to the namespaces
$ ip link set tap1 netns ns1
$ ip link set tap2 netns ns2
$ ip link list # no veth here
$ ip netns exec ns1 ip link list
$ ip netns exec ns2 ip link list
# bring up the links
$ ip netns exec ns1 ifconfig tap1 10.0.0.0/24 up
$ ip netns exec ns2 ifconfig tap2 20.0.0.0/24 up

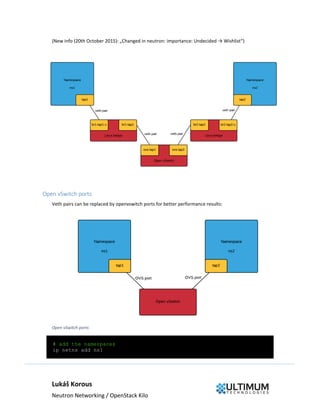

Connecting namespaces by a Linux bridge
$ ip netns exec ns1 ip link delete tap1
$ ip netns exec ns2 ip link delete tap2
$ brctl addbr mybridge
$ ip link set dev mybridge up
#### PORT 1
# create a port pair
$ ip link add tap1 type veth peer name br-tap1
# attach one side to linuxbridge
$ brctl addif mybridge br-tap1
# attach the other side to namespace
$ ip link set tap1 netns ns1
# set the ports to up
$ ip netns exec ns1 ifconfig tap1 10.0.0.0/24 up
$ ip link set dev br-tap1 up
#
#### PORT 2
A veth pair connecting namespaces
Lukáš Korous
Neutron Networking / OpenStack Kilo
# create a port pair
$ ip link add tap2 type veth peer name br-tap2
# attach one side to linuxbridge
$ brctl addif mybridge br-tap2
# attach the other side to namespace
$ ip link set tap2 netns ns2
# set the ports to up
$ ip netns exec ns2 ifconfig tap2 20.0.0.0/24 up
$ ip link set dev br-tap2 up
Linux bridge between two tap devices
Relevant kernel settings
/etc/sysctl.conf
$ vim /etc/sysctl.conf
net.ipv4.ip_forward=1
net.ipv4.conf.all.rp_filter=0
net.ipv4.conf.default.rp_filter=0
net.bridge.bridge-nf-call-arptables=1
net.bridge.bridge-nf-call-iptables=1
net.bridge.bridge-nf-call-ip6tables=1
Lukáš Korous
Neutron Networking / OpenStack Kilo
$ sysctl –p # save changes without reboot
Lukáš Korous
Neutron Networking / OpenStack Kilo
Network segmentation, encapsulation
vLAN tagging
 Layer 2
 One vLAN (One vLAN ID) = One broadcast domain
 No impact on MTU (MTU does not include ethernet header size)
Ethernet packet with VLAN Tag
[length in bytes]
Destination MAC
address
Source MAC
address
Type (VLAN: 0x8100) VLAN Tag Payload
6 6 2 4 1500
VLAN Tag
[length in bits]
Priority CFI ID Ethernet Type/Length
3 1 12 16
Example packet
Frame 53 (70 bytes on wire, 70 bytes captured)
Ethernet II, Src: 00:40:05:40:ef:24, Dst: 00:60:08:9f:b1:f3
802.1q Virtual LAN
000. .... .... .... = Priority: 0
...0 .... .... .... = CFI: 0
.... 0000 0010 0000 = ID: 32
Type: IP (0x0800)
Internet Protocol, Src Addr: 131.151.32.129 (131.151.32.129), Dst
Addr: 131.151.32.21 (131.151.32.21)
Transmission Control Protocol, Src Port: 1173 (1173), Dst Port:
6000 (6000), Seq: 0, Ack: 128, Len: 0
Disadvantages
 Only 12bits for VLAN ID => 4094 Available Ids
 STP imposes existence of a single active path => resiliency issues
GRE tunneling
 Layer 3
 Overlay network / Tunneling – IP packet is wrapped in another IP packet
Lukáš Korous
Neutron Networking / OpenStack Kilo
Ethernet packet tunneled through GRE
[length in bytes]
MTU considerations
 overhead is 24 bytes
 MTU by default 1476 bytes, but if DF bit set, packets dropped
 GRE clears the DF bit, unless 'tunnel path-mtu-discovery' set
Example packet
Frame 1: 138 bytes on wire (1104 bits), 138 bytes captured (1104
bits)
Ethernet II, Src: c2:00:57:75:00:00 (c2:00:57:75:00:00), Dst:
c2:01:57:75:00:00 (c2:01:57:75:00:00)
Internet Protocol Version 4, Src: 10.0.0.1 (10.0.0.1), Dst:
10.0.0.2 (10.0.0.2)
Generic Routing Encapsulation (IP)
Flags and Version: 0x0000
Protocol Type: IP (0x0800)
Internet Protocol Version 4, Src: 1.1.1.1 (1.1.1.1), Dst: 2.2.2.2
(2.2.2.2)
Transmission Control Protocol, Src Port: 1173 (1173), Dst Port:
6000 (6000), Seq: 0, Ack: 128, Len: 0
Transport Ethernet
header
Transport IP header
[Protocol = GRE(47)]
GRE header Original IP header Payload
18 20 4 20 1500 (1476)
GRE schema
Lukáš Korous
Neutron Networking / OpenStack Kilo
VXLAN Tagging
 Layer 4, default port: 4789
 Overlay network / Tunneling – Ethernet packet is wrapped in a UDP packet
VTEP - VXLAN Tunnel End Point
 VTEP is located within the hypervisor
 VTEP is assigned an IP address and acts as an IP host to the IP network
Ethernet packet tunneled through VXLAN
[length in bytes]
Recommended to increase the MTU to 1550:
VxLAN schema
Lukáš Korous
Neutron Networking / OpenStack Kilo

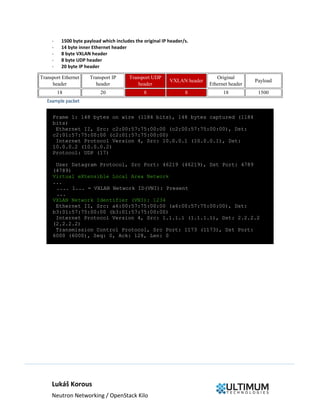

- 1500 byte payload which includes the original IP header/s.
- 14 byte inner Ethernet header
- 8 byte VXLAN header
- 8 byte UDP header
- 20 byte IP header
Transport Ethernet
header
Transport IP
header
Transport UDP
header
VXLAN header
Original
Ethernet header
Payload
18 20 8 8 18 1500
Example packet
Frame 1: 148 bytes on wire (1184 bits), 148 bytes captured (1184
bits)
Ethernet II, Src: c2:00:57:75:00:00 (c2:00:57:75:00:00), Dst:
c2:01:57:75:00:00 (c2:01:57:75:00:00)
Internet Protocol Version 4, Src: 10.0.0.1 (10.0.0.1), Dst:
10.0.0.2 (10.0.0.2)
Protocol: UDP (17)
User Datagram Protocol, Src Port: 46219 (46219), Dst Port: 4789
(4789)
Virtual eXtensible Local Area Network
...
.... 1... = VXLAN Network ID(VNI): Present
...
VXLAN Network Identifier (VNI): 1234
Ethernet II, Src: a6:00:57:75:00:00 (a6:00:57:75:00:00), Dst:
b3:01:57:75:00:00 (b3:01:57:75:00:00)
Internet Protocol Version 4, Src: 1.1.1.1 (1.1.1.1), Dst: 2.2.2.2
(2.2.2.2)
Transmission Control Protocol, Src Port: 1173 (1173), Dst Port:
6000 (6000), Seq: 0, Ack: 128, Len: 0
Lukáš Korous
Neutron Networking / OpenStack Kilo
SDN Overview
SDN – source: opennetworking.org
Control Plane
Planning, setup, internal traffic, configuration, management, routers ‘talking’.
Routers exchange topology information and construct routing tables based on a routing protocol, for
example Routing Information Protocol (RIP) or Open Shortest Path First (OSPF).
Control plane packets are processed by the router to update the routing table information.
Analogy with telephony – network signaling.
Data Plane
Also known as Forwarding Plane.
Analogy with telephony – network media.
Handles ‘user’ or ‘data’ traffic according to the setup from the Control Plane.
Lukáš Korous
Neutron Networking / OpenStack Kilo
SDN with OpenStack
Source: docs.openstack.org:
If an SDN implementation requires layer-2 access because it directly manipulates switches, we do not
recommend running an overlay network or a layer-3 agent. If the controller resides within an OpenStack
installation, it may be necessary to build an ML2 plug-in and schedule the controller instances to connect to
tenant VLANs that then talk directly to the switch hardware. Alternatively, depending on the external device
support, use a tunnel that terminates at the switch hardware itself.
OpenStack hosted SDN controller
OpenStack participating in an SDN controller network
Lukáš Korous
Neutron Networking / OpenStack Kilo
Open vSwitch (OVS)
Description, setup
Not a full-stack SDN / SDDC platform: focused on providing L2/L3 virtual networking.
Advantage of using (OVS) over Linux bridge as a L2 switching backend for Neutron is mainly performance.
Replacing Linux bridge
In the section about Linux bridges we used Linux bridges to connect virtual Ethernet interfaces tap1, tap2
(These will serve as vNICs for OpenStack VMs).
Commands
Here is how we can achieve the same with OVS:
# clean the namespaces if they exist
root@server:~ $ ip netns delete ns1
root@server:~ $ ip netns delete ns2
# add the namespaces
root@server:~ $ ip netns add ns1
root@server:~ $ ip netns add ns2
# create the switch
root@server:~ $ ovs-vsctl add-br myovs
#### PORT 1
# create a port pair
root@server:~ $ ip link add tap1 type veth peer name ovs-tap1
# attach one side to ovs
root@server:~ $ ovs-vsctl add-port myovs ovs-tap1
# attach the other side to namespace
root@server:~ $ ip link set tap1 netns ns1
# set the ports to up
root@server:~ $ ip netns exec ns1 ip link set dev tap1 up
root@server:~ $ ip link set dev ovs-tap1 up
#### PORT 2
# create a port pair
root@server:~ $ ip link add tap2 type veth peer name ovs-tap2
# attach one side to ovs
root@server:~ $ ovs-vsctl add-port myovs ovs-tap2
# attach the other side to namespace
root@server:~ $ ip link set tap2 netns ns2
# set the ports to up
Lukáš Korous
Neutron Networking / OpenStack Kilo
root@server:~ $ ip netns exec ns2 ip link set dev tap2 up
root@server:~ $ ip link set dev ovs-tap2 up
Schema
This is what we will end up with:
Problem (OpenStack - related) – We cannot (so far) impose firewall (security group) rules on OVS
Currently the implementation employs a standard Linux Bridge „in the middle“ that does no bridging,
merely filtering using iptables.
Replacing Linux bridge with Open vSwitch for namespaces connection
Lukáš Korous
Neutron Networking / OpenStack Kilo
(New info (20th October 2015): „Changed in neutron: importance: Undecided → Wishlist“)
Open vSwitch ports
Veth pairs can be replaced by openvswitch ports for better performance results:
Open vSwitch ports
# add the namespaces
ip netns add ns1
Lukáš Korous
Neutron Networking / OpenStack Kilo
ip netns add ns2
# create the switch
ovs-vsctl add-br ovstest
# PORT 1
# create an internal ovs port
ovs-vsctl add-port ovstest tap1 -- set Interface tap1 type=internal
# attach it to namespace
ip link set tap1 netns ns1
# set the ports to up
ip netns exec ns1 ip link set dev tap1 up
# PORT 2
# create an internal ovs port
ovs-vsctl add-port ovstest tap2 -- set Interface tap2 type=internal
# attach it to namespace
ip link set tap2 netns ns2
# set the ports to up
ip netns exec ns2 ip link set dev tap2 up
Performance comparison
Switch and Connection type
# of iperf threads
1 2 4 8 16
linuxbridge with two veth pairs 3.9 8.5 8.8 9.5 9.1
openvswitch with two veth pairs 4.5 9.7 11 11 11
openvswitch with two internal ovs ports 42 69 76 67 74
Performance comparison Linux Bridge vs. OVS [GBit/s] on a single machine between two
namespaces – source: opencloudblog.com
Lukáš Korous
Neutron Networking / OpenStack Kilo
Full picture
OVS Overview
Lukáš Korous
Neutron Networking / OpenStack Kilo
Management
Sources: openvswitch.org, yet.org
Two kinds of flow
 OpenFlows - User Space based
 Datapath - kernel based, a kind of cached version of the OpenFlow ones.
CLI parts
 ovs-vsctl - high level interface for Open vSwitch Database
 ovs-ofctl - speak to OpenFlow module
 ovs-dpctl - speak to Kernel module
ovs-vsctl
 ovs-vsctl - V version of openvswitch
 ovs-vsctl show - print a brief overview of database configuration
 ovs-vsctl list-br - list of configured bridges
 ovs-vsctl list-ports <bridge> - list of ports on a specific bridge
 ovs-vsctl list interface - list of interfaces
ovs-ofctl
 ovs-ofctl dump-flows <br> - examine OpenFlow tables
 ovs-ofctl show <br> - port number to port name mapping
 ovs-ofctl dump-ports <br> - port statistics by port number
ovs-dpctl
low level datapath manipulation
 ovs-dpctl show - basic info
 ovs-dpctl dump-flows - dump datapath (kernel cached) flows
Data Plane Development Kit (DPDK) with OVS
Development state analysis
Component Development Documentation Testing
Production
readiness
DPDK library
OK (http://dpdk.org/dev)
Last commit: today
OK OK
Intel - OK
Other –
Scarse use
(80%)
OVS 2.4
(needed for
DPDK 2.0)
OK
Last commit: today
OK OK 100%
OVS
compiled
with DPDK
Poor (github.com/01org/dpdk-ovs)
Last commit: 8 months ago
Very poor (e.g.
makefiles
wrong)
DPDK Version 1.7
– Poor
10% – 50%
Lukáš Korous
Neutron Networking / OpenStack Kilo
DPDK Version 2.0
– Non-existent
OVS + DPDK
in Neutron
In development
(https://github.com/openstack/netw
orking-ovs-dpdk)
Last commit: a week ago
Non-existent Non-existent (?) 0% - 20%
Mechanism needed for passing (very) custom parameters to qemu when running instances
(to use DPDK features). Such mechanism is a part of nova, although this is not its intended
use and such use may not be stable.
Lukáš Korous
Neutron Networking / OpenStack Kilo
OpenContrail and comparison Neutron+OVS vs. OpenContrail+vRouter
Source: opencontrail.org
Configuration node
Management layer
North-bound APIs:
 ReST
 GUI
Integration
Lukáš Korous
Neutron Networking / OpenStack Kilo
Transformation
Horizontally scalable
Failover-safe (including active-active HA setup)
Control node
Control layer
South-bound APIs
 vRouters
 physical routers
Horizontally scalable
Failover-safe (including active-active HA setup)
Analytics node
North-bound analytics APIs
Triggers, monitoring
Horizontally scalable
Failover-safe (including active-active HA setup)
vRouter on an OpenStack network/compute node
vRouter agent
The vRouter agent is a user space process running inside Linux. It acts as the local, light-weight control plane
and is responsible for the following functions:
Lukáš Korous
Neutron Networking / OpenStack Kilo

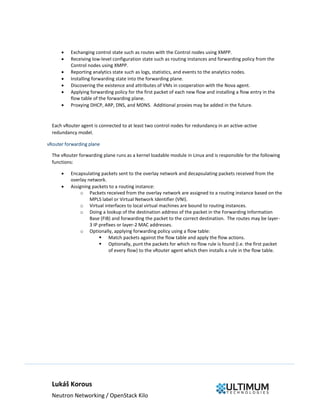

 Exchanging control state such as routes with the Control nodes using XMPP.
 Receiving low-level configuration state such as routing instances and forwarding policy from the
Control nodes using XMPP.
 Reporting analytics state such as logs, statistics, and events to the analytics nodes.
 Installing forwarding state into the forwarding plane.
 Discovering the existence and attributes of VMs in cooperation with the Nova agent.
 Applying forwarding policy for the first packet of each new flow and installing a flow entry in the
flow table of the forwarding plane.
 Proxying DHCP, ARP, DNS, and MDNS. Additional proxies may be added in the future.
Each vRouter agent is connected to at least two control nodes for redundancy in an active-active
redundancy model.
vRouter forwarding plane
The vRouter forwarding plane runs as a kernel loadable module in Linux and is responsible for the following
functions:
 Encapsulating packets sent to the overlay network and decapsulating packets received from the
overlay network.
 Assigning packets to a routing instance:
o Packets received from the overlay network are assigned to a routing instance based on the
MPLS label or Virtual Network Identifier (VNI).
o Virtual interfaces to local virtual machines are bound to routing instances.
o Doing a lookup of the destination address of the packet in the Forwarding Information
Base (FIB) and forwarding the packet to the correct destination. The routes may be layer-
3 IP prefixes or layer-2 MAC addresses.
o Optionally, applying forwarding policy using a flow table:
 Match packets against the flow table and apply the flow actions.
 Optionally, punt the packets for which no flow rule is found (i.e. the first packet
of every flow) to the vRouter agent which then installs a rule in the flow table.
Lukáš Korous
Neutron Networking / OpenStack Kilo
 Punting certain packets such as DHCP, ARP, MDNS to the vRouter agent for
proxying.
Comparision Neutron+OVS vs. OpenContrail+vRouter
Production readiness
OVS
 Initial commit: before 8.7.2009
 https://bugs.launchpad.net/neutron/+bugs?field.tag=ovs
vRouter
 Initial commit: 24.8.2013
 https://bugs.launchpad.net/juniperopenstack/+bugs?field.tag=vrouter
Management + functional level (SDN)
Neutron + OVS
 OpenFlow
 API – native
o Sec. groups, FwaaS, LbaaS, Vpnaas
o Will support QoS in Liberty
 GUI – e.g. Floodlight
 DPDK
 Neutron initial commit: 11.5.2011
OpenContrail + vRouter
 Complete platform, GUI & API included
Lukáš Korous
Neutron Networking / OpenStack Kilo
 Dynamic routing
 Service chaining
- Initial commit: 24.8.2013
Performance comparison - vRouter vs. Linux Bridge
Source: opencontrail.org
Description
On this setup, the unidirectional throughput measured with vRouter using MPLS over GRE as the
encapsulation is 9.18Gbps. The CPU consumption on the sender is 128% (1.28 CPU cores) and it is 166% on
the receiver. The CPU consumption includes the processing to push packets to and from the guest and does
not include the CPU consumed by the guest itself. With bidirectional traffic (one TCP stream in each
direction), the aggregate throughput is 13.1 Gbps and the CPU consumption is 188% on both ends.
Results
The table below compares the throughput and CPU consumption of vRouter with the Linux bridge numbers
for a unidirectional TCP streaming test.
Throughput Sender CPU Receiver CPU
Linux bridge 9.41 Gbps 85% 125%
vRouter 9.18 Gbps 128% 166%
Table 1: TCP unidirectional streaming test
The table below compares the numbers for a bidirectional TCP streaming test. The throughput below is the
aggregate of the measured throughput at each end. The CPU consumption is the same on both servers as
the traffic is bidirectional
Throughput CPU consumption
Linux bridge 13.9 Gbps 128%
vRouter 13.1 Gbps 188%
Table 2: TCP bidirectional streaming test
In order to measure the latency of communication, a TCP request-response test was run between the 2
servers. The table below compares the number of request-response transactions seen with Linux bridge and
vRouter.
Request-response transactions
Linux bridge 11050
VRouter 10800
Table 3: TCP request-response test
Data center networks often enable jumbo frames for better performance. The following table compares the
performance of vRouter with Linux bridge with a jumbo MTU on the 10G interface. The guest application
was modified to use sendfile() instead of send() in order to avoid a copy from user space to kernel.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Otherwise, the single-threaded guest application couldn’t achieve a bidirectional throughput higher than 14
Gbps.
Throughput CPU consumption
Linux bridge 18 Gbps 125%
vRouter 17.4 Gbps 120%
Table 4: TCP bidirectional streaming test (jumbo MTU)
SR-IOV (Single-root I/O Virtualization)
Alternative to virtual switches (OVS, Linux bridge).
Has to be supported by the physical NICs: https://access.redhat.com/articles/1390483
Protocol specification in 2007.
In OpenStack from 2014 (Juno).
Virtual Switch without (left) and with (right) SR-IOV enabled NIC – source: Glenn K. Lockwood, edited
Comparison to virtual switches:
 performance (still a large gap between native – non-virtualized)
Lukáš Korous
Neutron Networking / OpenStack Kilo
Comparison of virtualized w/o SR-IOV, w/ SR-IOV and native 10G switches using Amazon EC2 – source: Glenn K. Lockwood
Comparison of virtualized w/o SR-IOV, w/ SR-IOV and native 10G switches using Amazon EC2 – source: Glenn K. Lockwood
- features (iptables, migration, HA)
- limited number of Virtual Functions per NIC
Lukáš Korous
Neutron Networking / OpenStack Kilo
Neutron concept and relationship to other OpenStack components
Basic OpenStack services interaction scheme
(source: openstack.org)
Lukáš Korous
Neutron Networking / OpenStack Kilo
Objective - To provide Network-as-a-Service (NaaS)
Sources: openstack.org, Hewlett-Packard Development Company, L.P.
 To allow tenants to control their own private networks
o Ability to create “multi-tier” networks
o Control IP addressing (IP address overlapping)
 Neutron API for operating logical networks
o Separate logical operations and backend provisioning
o Backend technologies are provisioned/configured by Neutron plugins/drivers.
 Neutron provides common abstract network API independent from specific technologies/vendors.
 Abstractions - what abstractions do we need to provide?
o L2 (Switches)
o L3 (Routers)
o L4-7 (Firewalls, Load Balancers)
Basic network model
 Tenant can create multiple (L2) networks
o Subnet defines L3 subnet information (CIDR, gateway etc)
 Multiple subnets can be associated to a network
o E.g., IPv4 subnet + IPv6 subnet. Multiple IPv4 address pools
 Support IP address overlapping among tenants
o Network have multiple ports (similar to physical L2SW ports)
 Virtual NICs of VMs or router interfaces are associated with neutron ports.
Basic Neutron network model
Lukáš Korous
Neutron Networking / OpenStack Kilo
Components
API server - controller
Handles incoming API requests (including dashboard).
Handles DB connections & requests from agents.
Manages the agents.
OpenStack Networking plug-in and agents - nodes
Plugs and unplugs ports, creates networks or subnets, and provides IP addressing. The chosen plug-in and
agents differ depending on the vendor and technologies used in the particular cloud. It is important to
mention that only one plug-in can be used at a time.
Messaging queue – AMQP server & agents
Accepts and routes RPC requests between agents to complete API operations. Message queue is used in the
ML2 plug-in for RPC between the neutron server and neutron agents that run on each hypervisor, in the
ML2 mechanism drivers for Open vSwitch and Linux bridge.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Neutron networks
Tenant networks
Users create tenant networks for connectivity within projects. By default, they are fully isolated and are not
shared with other projects. OpenStack Networking supports the following types of network isolation and
overlay technologies.
Flat
(useless for multi-tenant environments)
All instances reside on the same network, which can also be shared with the hosts. No VLAN tagging or
other network segregation takes place.
VLAN
Described in the section “Network segmentation, encapsulation”. Networking allows users to create
multiple provider or tenant networks using VLAN IDs (802.1Q tagged) that correspond to VLANs present in
the physical network. This allows instances to communicate with each other across the environment. They
can also communicate with dedicated servers, firewalls, load balancers, and other networking infrastructure
on the same layer 2 VLAN (including hosts).
GRE and VXLAN
Described in the section “Network segmentation, encapsulation”. A Networking router is required to allow
traffic to flow outside of the GRE or VXLAN tenant network. A router is also required to connect directly-
connected tenant networks with external networks, including the Internet. The router provides the ability to
connect to instances directly from an external network using floating IP addresses.
Provider networks
Networks that map to existing (physical) provider’s networks. Can be created only by the administrator. Can
be:
 External
 Shared
Subnets
A block of IP addresses and associated configuration state. This is also known as the native IPAM (IP Address
Management) provided by the networking service for both tenant and provider networks. Subnets are used
to allocate IP addresses when new ports are created on a network.
Ports
A port is a connection point for attaching a single device, such as the NIC of a virtual server, to a virtual
network. Also describes the associated network configuration, such as the MAC and IP addresses to be used
on that port.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Routers
This is a logical component that forwards data packets between networks. It also provides L3 and NAT
(SNAT for connections from VMs to outside world, DNAT for floating IP addresses connections to VMs)
forwarding to provide external network access for VMs on tenant networks. Required by certain plug-ins
only.
Security groups
A security group acts as a virtual firewall for your compute instances to control inbound and outbound
traffic. Security groups act at the port level, not the subnet level. Therefore, each port (and therefore each
VM) in a subnet could be assigned to a different set of security groups.
Security groups and security group rules give administrators and tenants the ability to specify the type of
traffic and direction (ingress/egress) that is allowed to pass through a port. A security group is a container
for security group rules. When a port is created, it is associated with a security group.
Extensions
Applications can programmatically list available extensions by performing a GET on the /extensions URI.
Lukáš Korous
Neutron Networking / OpenStack Kilo
Relationship to other components & projects
Projects – Nova
Nova metadata being accessed from neutron and vice-versa.
Nova passing bootfile DHCP parameter to Neutron for PXE boot.
Nova asks neutron for default networks when launching an instance.
# launching an instance
$ nova boot [--flavor <flavor>] [--image <image>]
[--image-with <key=value>]
[--boot-volume <volume_id>]
[--snapshot <snapshot_id>] [--min-count <number>]
[--max-count <number>] [--meta <key=value>]
[--file <dst-path=src-path>]
[--key-name <key-name>]
[--user-data <user-data>]
[--availability-zone <availability-zone>]
[--security-groups <security-groups>]
[--block-device-mapping <dev-name=mapping>]
[--block-device key1=value1[,key2=value2...]]
[--swap <swap_size>]
[--ephemeral size=<size>[,format=<format>]]
[--hint <key=value>]
[--nic <net-id=net-uuid,v4-fixed-ip=ip-addr,v6-
fixed-ip=ip-addr,port-id=port-uuid>]
[--config-drive <value>] [--poll]
[--admin-pass <value>]
<name>
# DHCP
root@compute1: $ ps –A | grep dnsmasq # just to get process id
980 ? 00:00:00 dnsmasq
root@compute1: $ cat /proc/980(dnsmasq-proc-id)/cmdline
dnsmasq --no-hosts --no-resolv --strict-order --bind-interfaces --
interface=tap6cb4855a-ce --except-interface=lo --pid-
file=/var/lib/neutron/dhcp/e58741d0-60c7-457e-8780-366ecd3200aa/pid
--dhcp-hostsfile=/var/lib/neutron/dhcp/e58741d0-60c7-457e-8780-
366ecd3200aa/host
--addn-hosts=/var/lib/neutron/dhcp/e58741d0-60c7-457e-8780-
366ecd3200aa/addn_hosts --dhcp-
optsfile=/var/lib/neutron/dhcp/e58741d0-60c7-457e-8780-
366ecd3200aa/opts --dhcp-leasefile=/var/lib/neutron/dhcp/e58741d0-
60c7-457e-8780-366ecd3200aa/leases --dhcp-
range=set:tag0,192.168.150.0,static,86400s --dhcp-lease-max=256 --
conf-file=/etc/neutron/dnsmasq-neutron.conf --server=8.8.8.8 --
server=8.8.4.4 --domain=openstacklocal
root@compute1: $ cat /var/lib/neutron/dhcp/e58741d0-60c7-457e-8780-
366ecd3200aa/host
Lukáš Korous
Neutron Networking / OpenStack Kilo
fa:16:3e:03:4e:65,host-192-168-150-
233.openstacklocal,192.168.150.233
fa:16:3e:9f:ee:3d,host-192-168-150-
239.openstacklocal,192.168.150.239
fa:16:3e:01:53:94,host-192-168-150-
238.openstacklocal,192.168.150.238
fa:16:3e:b1:d1:e4,host-192-168-150-
235.openstacklocal,192.168.150.235
DHCP traffic follows the same principles discussed in section Network traffic schemes / VM <-> VM.
Projects – Keystone
Standard authentication mechanisms when using Neutron API.
Components – AMQP (RabbitMQ)
Internal communication among Neutron services performed via RPC.
tcpdump -f "port 5672" -i eth1 # management network
Components – Database
Neutron has its dedicated database (on the controller / dedicated db server).
Neutron architecture

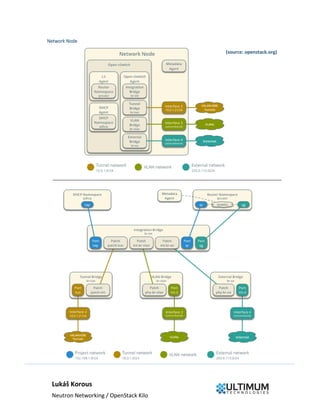

Lukáš Korous
Neutron Networking / OpenStack Kilo
Lukáš Korous
Neutron Networking / OpenStack Kilo
OpenStack commands for Neutron checking
Sources: openstack.org, http://docs.openstack.org/cli-reference/content/neutronclient_commands.html
Common parameters
*-list
 [-c, -F] specify columns to be listed
 [-f] format output (html, json, ...)
 [-D] details
 [--sort-key] sort according to
 [--sort-dir] sort direction
*-create
 [-c] specify columns to be listed
 [-f] format output (html, json, ...)
 [--tenant-id]
*-show
 name or ID
*-update
 name or ID
*-delete
 name or ID
Basic commands
openstack network
(NOT external network)
 list
 create
o name
o [--shared]
o [--provider:network_type]
o [--provider:physical_network]
o [--provider:segmentation_id]
o [--vlan-transparent]
o [--qos-policy]
 delete
 update
 show
external network has to be created using the ‘old way’:
Lukáš Korous
Neutron Networking / OpenStack Kilo
$ neutron net-create ext-net --router:external True
--provider:physical_network external --provider:network_type flat
Created a new network:
+---------------------------+--------------------------------------|
Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | True |
| id | 893aebb9-1c1e-48be-8908-6b947f3237b3 |
name | ext-net |
provider:network_type | flat |
provider:physical_network | external |
provider:segmentation_id | |
router:external | True |
shared | False |
status | ACTIVE |
subnets | |
tenant_id | 54cd044c64d5408b83f843d63624e0d8 +--
-------------------------+--------------------------------------
$ neutron net-external-list
+--------------------------------------+--------+--------------------------
-----------------------------+
| id | name | subnets
|
+--------------------------------------+--------+--------------------------
-----------------------------+
| e58741d0-60c7-457e-8780-366ecd3200aa | public | 31a30f35-54c9-4767-83bc-
8df76b909cdc 192.168.150.0/24 |
+--------------------------------------+--------+--------------------------
-----------------------------+
subnet
(NOT external network)
 list
 create
o network
o cidr
o [--allocation-pool]
o [--host-route]
o [--gateway / --no-gateway]
o [--dns-nameserver]
o [--enable-dhcp/--disable-dhcp]
o [--subnetpol]
o [--prefixlen]
 delete
 update
o [--allocation-pool]
o [--host-route]
o [--gateway / --no-gateway]
o [--dns-nameserver]
o [--enable-dhcp/--disable-dhcp]
Lukáš Korous
Neutron Networking / OpenStack Kilo
 show
external subnet:
$ neutron subnet-create ext-net --name ext-subnet
--allocation-pool start=FLOATING_IP_START,end=FLOATING_IP_END
--disable-dhcp --gateway EXTERNAL_NETWORK_GATEWAY
EXTERNAL_NETWORK_CIDR
Notes from docs.openstack.org:
Replace FLOATING_IP_START and FLOATING_IP_END with the first and last IP addresses of the
range that you want to allocate for floating IP addresses. Replace EXTERNAL_NETWORK_CIDR with the
subnet associated with the physical network. Replace EXTERNAL_NETWORK_GATEWAY with the
gateway associated with the physical network, typically the ".1" IP address.
 OK
You should disable DHCP on this subnet because instances do not connect directly to the external
network and floating IP addresses require manual assignment.
 This is for consideration.
floatingip
 list
 create
o public network (from which the floating ip is allocated)
o [--port-id]
o [--fixed-ip-address]
o [--floating-ip-address]
o
 delete
 show
port
 list
 create
o network
o [--fixed-ip]
o [--device-id]
o [--device-owner]
o [--mac-address]
o [--security-group/--no-security-groups]
o [--qos-policy]
 delete (!!! does not delete the vm’s interface, or its ip address)
 update
o [--fixed-ip]
o [--device-id]
o [--device-owner]
o [--security-group/--no-security-groups]
Lukáš Korous
Neutron Networking / OpenStack Kilo
o [--qos-policy]
 show
 nova interface-attach –port-id=(name or id of port) name-or-id-of-instance
router
 list
 create
o name
o [--ha]
o [--distributed]
o [--admin-state-down]
 delete
 update
o [--name]
o [--distributed]
o [--admin-state-down]
 show
security-group
 list
 create
o name
o [--description]
 delete
 update
o [--name]
o [--description]
 show
security-group-rule
 list
 create
o security_group
o [--direction]
o [--ethertype]
o [--protocol]
o [--port-range-min / port-range-max]
o [--remote-ip-prefix]
 delete
 show
QoS
Blueprints
https://blueprints.launchpad.net/neutron?searchtext=qos
Lukáš Korous
Neutron Networking / OpenStack Kilo
Kilo
no support
Liberty
first official support (=> (prediction) not practically usable)
neutron qos-policy
policy that is later possible to assign to a vm, or a router
 list
 create
o name
o [--shared]
 delete
 update
o [--name]
o [--shared]
 show
neutron qos-available-rule-types
list available rule types (in Liberty – 7.0.0 – only bandwidth limit rules are available)
neutron qos-bandwith-limit-rule
 create
o [--max-kbps]
o [--max-burst-kbps]
o qos_policy
 show
 update
o [--max-kbps]
o [--max-burst-kbps]
o qos_policy
 delete
 list
neutron queue
QoS queues
 create
o [--min]
o [--max]
o [--qos-marking]
o [--default]
o [--dscp]
o name
 show
 delete
 list
Lukáš Korous
Neutron Networking / OpenStack Kilo
Lukáš Korous
Neutron Networking / OpenStack Kilo
Neutron configuration files
Controller
Log file
/var/log/neutron-server.log
Main configuration file
/etc/neutron/neutron.conf
[DEFAULT]
# Print more verbose output (set logging level to INFO instead of
default WARNING level).
# Handles logging to /var/log/neutron-server.log on the controller
verbose = True
# ===Start Global Config Option for Distributed L3 Router=======
# Setting the "router_distributed" flag to "True" will default to
the creation
# of distributed tenant routers. The admin can override this flag by
specifying
# the type of the router on the create request (admin-only
attribute). Default
# value is "False" to support legacy mode (centralized) routers.
#
# Legacy mode (no DVR)
router_distributed = False
#
# ==End Global Config Option for Distributed L3 Router==========
# Print debugging output (set logging level to DEBUG instead of
default WARNING level).
# Handles logging to /var/log/neutron-server.log on the controller
# debug = False
# Where to store Neutron state files.
# This directory must be writable by the user executing the agent.
# Temporary files
# state_path = /var/lib/neutron
# log_format = %(asctime)s %(levelname)8s [%(name)s] %(message)s
# log_date_format = %Y-%m-%d %H:%M:%S
# Start - logging to syslog, stderr
# use_syslog -> syslog
# ... (logging to syslog, stderr)
# publish_errors = False
# End - logging to syslog, stderr
Lukáš Korous
Neutron Networking / OpenStack Kilo
# API endpoint specification
# Address to bind the API server to
bind_host = controller1
# Port the bind the API server to
bind_port = 9696
# Path to the API extensions
# ...
# api_extensions_path =
# (StrOpt) Neutron core plugin entrypoint to be loaded from the
# neutron.core_plugins namespace. See setup.cfg for the entrypoint
names of the
# plugins included in the neutron source distribution. For
compatibility with
# previous versions, the class name of a plugin can be specified
instead of its
# entrypoint name.
#
# Example: core_plugin = ml2
# https://github.com/openstack/neutron/blob/master/setup.cfg#L103
core_plugin = neutron.plugins.ml2.plugin.Ml2Plugin
# (ListOpt) List of service plugin entrypoints to be loaded from the
# neutron.service_plugins namespace. See setup.cfg for the
entrypoint names of
# the plugins included in the neutron source distribution. For
compatibility
# with previous versions, the class name of a plugin can be
specified instead
# of its entrypoint name.
#
# Example: service_plugins = router,firewall,lbaas,vpnaas,metering
# https://github.com/openstack/neutron/blob/master/setup.cfg#L108
service_plugins = router,lbaas,vpnaas
# api-paste.ini – API & authentication settings
# Paste configuration file
# api_paste_config = api-paste.ini
# default = hostname
# (StrOpt) Hostname to be used by the neutron server, agents and
services
# running on this machine. All the agents and services running on
this machine
# must use the same host value.
# The default value is hostname of the machine.
#
# host =
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Neutron authentication
# The strategy to be used for auth.
# Supported values are 'keystone'(default), 'noauth'.
auth_strategy = keystone
# Random MAC generation (defaults apply)
# Base MAC address. The first 3 octets will remain unchanged. If the
# 4h octet is not 00, it will also be used. The others will be
# randomly generated.
# 3 octet
# base_mac = fa:16:3e:00:00:00
# 4 octet
# base_mac = fa:16:3e:4f:00:00
# DVR Base MAC address. The first 3 octets will remain unchanged. If
the
# 4th octet is not 00, it will also be used. The others will be
randomly
# generated. The 'dvr_base_mac' *must* be different from 'base_mac'
to
# avoid mixing them up with MAC's allocated for tenant ports.
# A 4 octet example would be dvr_base_mac = fa:16:3f:4f:00:00
# The default is 3 octet
# dvr_base_mac = fa:16:3f:00:00:00
# Maximum amount of retries to generate a unique MAC address
# mac_generation_retries = 16
# DNSMASQ settings
# DHCP Lease duration (in seconds). Use -1 to
# tell dnsmasq to use infinite lease times.
# dhcp_lease_duration = 86400
# Allow sending resource operation notification to DHCP agent
# dhcp_agent_notification = True
# Enable or disable bulk create/update/delete operations
# allow_bulk = True
# Enable or disable pagination
# allow_pagination = False
# Enable or disable sorting
# allow_sorting = False
# Enable or disable overlapping IPs for subnets
# Attention: the following parameter MUST be set to False if Neutron
is
# being used in conjunction with nova security groups
allow_overlapping_ips = True
# Ensure that configured gateway is on subnet. For IPv6, validate
only if
# gateway is not a link local address. Deprecated, to be removed
during the
Lukáš Korous
Neutron Networking / OpenStack Kilo
# K release, at which point the check will be mandatory.
# force_gateway_on_subnet = True
# Default maximum number of items returned in a single response,
# value == infinite and value < 0 means no max limit, and value must
# be greater than 0. If the number of items requested is greater
than
# pagination_max_limit, server will just return pagination_max_limit
# of number of items.
# pagination_max_limit = -1
# Maximum number of DNS nameservers per subnet
# max_dns_nameservers = 5
# Maximum number of host routes per subnet
# max_subnet_host_routes = 20
# Maximum number of fixed ips per port
# max_fixed_ips_per_port = 5
# Maximum number of routes per router
# max_routes = 30
# Default Subnet Pool to be used for IPv4 subnet-allocation.
# Specifies by UUID the pool to be used in case of subnet-create
# being called without a subnet-pool ID. The default of None means
# that no pool will be used unless passed explicitly to subnet
# If no pool is used, then a CIDR must be passed to create a subnet
# and that subnet will not be allocated from any pool; it will be
# considered part of the tenant's private address space.
# default_ipv4_subnet_pool =
# Default Subnet Pool to be used for IPv6 subnet-allocation.
# Specifies by UUID the pool to be used in case of subnet-create
# being called without a subnet-pool ID.
# default_ipv6_subnet_pool =
# New in Kilo, MTU for instances done in a different config file.
# ==== items for MTU selection and advertisement =============
# Advertise MTU. If True, effort is made to advertise MTU
# settings to VMs via network methods (ie. DHCP and RA MTU options)
# when the network's preferred MTU is known.
# advertise_mtu = False
# ==== end of items for MTU selection and advertisement =========
# =========== items for agent management extension =============
# Seconds to regard the agent as down; should be at least twice
# report_interval, to be sure the agent is down for good
# agent_down_time = 75
# =========== end of items for agent management extension =====
# =========== items for agent scheduler extension =============
# Driver to use for scheduling network to DHCP agent
Lukáš Korous
Neutron Networking / OpenStack Kilo
#
https://github.com/openstack/neutron/blob/master/neutron/scheduler/d
hcp_agent_scheduler.py
# network_scheduler_driver =
# neutron.scheduler.dhcp_agent_scheduler.ChanceScheduler
# Driver to use for scheduling router to a default L3 agent
#
https://github.com/openstack/neutron/blob/master/neutron/scheduler/l
3_agent_scheduler.py
# router_scheduler_driver =
neutron.scheduler.l3_agent_scheduler.ChanceScheduler
# Driver to use for scheduling a loadbalancer pool to an lbaas agent
# loadbalancer_pool_scheduler_driver =
neutron.services.loadbalancer.agent_scheduler.ChanceScheduler
# (StrOpt) Representing the resource type whose load is being
# reported by the agent.
# This can be 'networks','subnets' or 'ports'. When specified
# (Default is networks), the server will extract particular load
# sent as part of its agent configuration object from the agent
# report state, which is the number of resources being consumed, at
# every report_interval.
# dhcp_load_type can be used in combination with
# network_scheduler_driver =
# neutron.scheduler.dhcp_agent_scheduler.WeightScheduler
# When the network_scheduler_driver is WeightScheduler,
# dhcp_load_type can be configured to represent the choice for the
# resource being balanced.
# Example: dhcp_load_type = networks
# Values:
# networks - number of networks hosted on the agent
# subnets - number of subnets associated with the networks
# hosted on the agent
# ports - number of ports associated with the networks hosted
# on the agent
# dhcp_load_type = networks
# Allow auto scheduling networks to DHCP agent. It will schedule
# non-hosted networks to first DHCP agent which sends
# get_active_networks message to neutron server
# network_auto_schedule = True
# Allow auto scheduling routers to L3 agent. It will schedule non-
# hosted routers to first L3 agent which sends sync_routers message
# to neutron server
# router_auto_schedule = True
# Allow automatic rescheduling of routers from dead L3 agents with
# admin_state_up set to True to alive agents.
# allow_automatic_l3agent_failover = False
# Allow automatic removal of networks from dead DHCP agents with
# admin_state_up set to True.
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Networks could then be rescheduled if network_auto_schedule is
# True
# allow_automatic_dhcp_failover = True
# Number of DHCP agents scheduled to host a network. This enables
# redundant DHCP agents for configured networks.
# dhcp_agents_per_network = 1
# Enable services on agents with admin_state_up False.
# If this option is False, when admin_state_up of an agent is
# turned to False, services on it will be disabled. If this option
# is True, services on agents with admin_state_up False keep
# available and manual scheduling to such agents is available.
# Agents with admin_state_up False are not selected for automatic
# scheduling regardless of this option.
# enable_services_on_agents_with_admin_state_down = False
# =========== end of items for agent scheduler extension =====
# =========== items for l3 extension ==============
# Enable high availability for virtual routers.
# l3_ha = False
#
# Maximum number of l3 agents which a HA router will be scheduled
# on.If it is set to 0 the router will be scheduled on every agent.
# max_l3_agents_per_router = 3
#
# Minimum number of l3 agents which a HA router will be scheduled
# on. The default value is 2.
# min_l3_agents_per_router = 2
#
# CIDR of the administrative network if HA mode is enabled
# l3_ha_net_cidr = 169.254.192.0/18
# =========== end of items for l3 extension =======
# =========== items for metadata proxy configuration ==============
# User (uid or name) running metadata proxy after its
# initialization (if empty: agent effective user)
# metadata_proxy_user =
# Group (gid or name) running metadata proxy after its
# initialization (if empty: agent effective group)
# metadata_proxy_group =
# Enable/Disable log watch by metadata proxy, it should be disabled
# when metadata_proxy_user/group is not allowed to read/write its
# log file and
# 'copytruncate' logrotate option must be used if logrotate is
# enabled on metadata proxy log files. Option default value is
# deduced from metadata_proxy_user: watch log is enabled if
# metadata_proxy_user is agent effective user id/name.
# metadata_proxy_watch_log =
Lukáš Korous
Neutron Networking / OpenStack Kilo

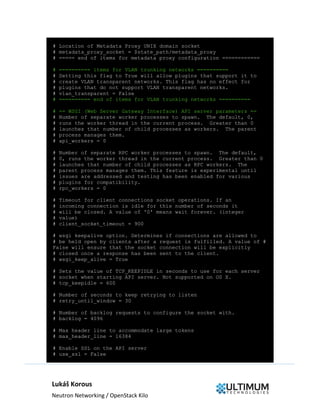

# Location of Metadata Proxy UNIX domain socket
# metadata_proxy_socket = $state_path/metadata_proxy
# ===== end of items for metadata proxy configuration ============
# ========== items for VLAN trunking networks ==========
# Setting this flag to True will allow plugins that support it to
# create VLAN transparent networks. This flag has no effect for
# plugins that do not support VLAN transparent networks.
# vlan_transparent = False
# ========== end of items for VLAN trunking networks ==========
# == WSGI (Web Server Gateway Interface) API server parameters ==
# Number of separate worker processes to spawn. The default, 0,
# runs the worker thread in the current process. Greater than 0
# launches that number of child processes as workers. The parent
# process manages them.
# api_workers = 0
# Number of separate RPC worker processes to spawn. The default,
# 0, runs the worker thread in the current process. Greater than 0
# launches that number of child processes as RPC workers. The
# parent process manages them. This feature is experimental until
# issues are addressed and testing has been enabled for various
# plugins for compatibility.
# rpc_workers = 0
# Timeout for client connections socket operations. If an
# incoming connection is idle for this number of seconds it
# will be closed. A value of '0' means wait forever. (integer
# value)
# client_socket_timeout = 900
# wsgi keepalive option. Determines if connections are allowed to
# be held open by clients after a request is fulfilled. A value of #
False will ensure that the socket connection will be explicitly
# closed once a response has been sent to the client.
# wsgi_keep_alive = True
# Sets the value of TCP_KEEPIDLE in seconds to use for each server
# socket when starting API server. Not supported on OS X.
# tcp_keepidle = 600
# Number of seconds to keep retrying to listen
# retry_until_window = 30
# Number of backlog requests to configure the socket with.
# backlog = 4096
# Max header line to accommodate large tokens
# max_header_line = 16384
# Enable SSL on the API server
# use_ssl = False
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Certificate file to use when starting API server securely
# ssl_cert_file = /path/to/certfile
# Private key file to use when starting API server securely
# ssl_key_file = /path/to/keyfile
# CA certificate file to use when starting API server securely to
# verify connecting clients. This is an optional parameter only
required if
# API clients need to authenticate to the API server using SSL
# certificates signed by a trusted CA
# ssl_ca_file = /path/to/cafile
# ===== end of WSGI parameters related to the API server =========
# ======== neutron nova interactions ==========
# Send notification to nova when port status is active.
notify_nova_on_port_status_changes = True
# Send notifications to nova when port data (fixed_ips/floatingips)
# change so nova can update it's cache.
notify_nova_on_port_data_changes = True
# URL for connection to nova (Only supports one nova region
currently).
nova_url = http://controller1:8774/v2
# Name of nova region to use. Useful if keystone manages more than
one region
# nova_region_name =
# Username for connection to nova in admin context
# nova_admin_username =
# The uuid of the admin nova tenant
# nova_admin_tenant_id =
# The name of the admin nova tenant. If the uuid of the admin nova
# tenant is set, this is optional. Useful for cases where the uuid
# of the admin nova tenant is not available when configuration is
# being done.
# nova_admin_tenant_name =
# Password for connection to nova in admin context.
# nova_admin_password =
# Authorization URL for connection to nova in admin context.
# nova_admin_auth_url =
# CA file for novaclient to verify server certificates
# nova_ca_certificates_file =
# Boolean to control ignoring SSL errors on the nova url
Lukáš Korous
Neutron Networking / OpenStack Kilo
# nova_api_insecure = False
# Number of seconds between sending events to nova if there are any
events to send
# send_events_interval = 2
# ======== end of neutron nova interactions ==========
# ================= AMQP ======================
# Use durable queues in amqp. (boolean value)
# Deprecated group/name - [DEFAULT]/rabbit_durable_queues
# amqp_durable_queues=false
# Auto-delete queues in amqp. (boolean value)
# amqp_auto_delete=false
# Size of RPC connection pool. (integer value)
# rpc_conn_pool_size=30
# The messaging driver to use, defaults to rabbit. Other
# drivers include qpid and zmq. (string value)
rpc_backend = rabbit
# The default exchange under which topics are scoped. May be
# overridden by an exchange name specified in the
# transport_url option. (string value)
# control_exchange=openstack
[matchmaker_redis]
#
# Options defined in oslo.messaging
#
# Host to locate redis. (string value)
# host=127.0.0.1
# Use this port to connect to redis host. (integer value)
# port=6379
# Password for Redis server (optional). (string value)
# password=
[matchmaker_ring]
#
# Options defined in oslo.messaging
#
# Matchmaker ring file (JSON). (string value)
# Deprecated group/name - [DEFAULT]/matchmaker_ringfile
# ringfile=/etc/oslo/matchmaker_ring.json
Lukáš Korous
Neutron Networking / OpenStack Kilo
# ================= end of AMQP ======================
# ================= quotas ======================
# Default driver to use for quota checks
# quota_driver = neutron.db.quota_db.DbQuotaDriver
# Resource name(s) that are supported in quota features
# quota_items = network,subnet,port
# Default number of resource allowed per tenant. A negative value
means
# unlimited.
# default_quota = -1
# Number of networks allowed per tenant. A negative value means
unlimited.
# quota_network = 10
# Number of subnets allowed per tenant. A negative value means
unlimited.
# quota_subnet = 10
# Number of ports allowed per tenant. A negative value means
unlimited.
# quota_port = 50
# Number of security groups allowed per tenant. A negative value
means
# unlimited.
# quota_security_group = 10
# Number of security group rules allowed per tenant. A negative
value means
# unlimited.
# quota_security_group_rule = 100
# Number of vips allowed per tenant. A negative value means
unlimited.
# quota_vip = 10
# Number of pools allowed per tenant. A negative value means
unlimited.
# quota_pool = 10
# Number of pool members allowed per tenant. A negative value means
unlimited.
# The default is unlimited because a member is not a real resource
consumer
# on Openstack. However, on back-end, a member is a resource
consumer
# and that is the reason why quota is possible.
# quota_member = -1
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Number of health monitors allowed per tenant. A negative value
means
# unlimited.
# The default is unlimited because a health monitor is not a real
resource
# consumer on Openstack. However, on back-end, a member is a
resource consumer
# and that is the reason why quota is possible.
# quota_health_monitor = -1
# Number of loadbalancers allowed per tenant. A negative value means
unlimited.
# quota_loadbalancer = 10
# Number of listeners allowed per tenant. A negative value means
unlimited.
# quota_listener = -1
# Number of v2 health monitors allowed per tenant. A negative value
means
# unlimited. These health monitors exist under the lbaas v2 API
# quota_healthmonitor = -1
# Number of routers allowed per tenant. A negative value means
unlimited.
# quota_router = 10
# Number of floating IPs allowed per tenant. A negative value means
unlimited.
# quota_floatingip = 50
# Number of firewalls allowed per tenant. A negative value means
unlimited.
# quota_firewall = 1
# Number of firewall policies allowed per tenant. A negative value
means
# unlimited.
# quota_firewall_policy = 1
# Number of firewall rules allowed per tenant. A negative value
means
# unlimited.
# quota_firewall_rule = 100
# ================= end of quotas ======================
# ================= agent ======================
# Use "sudo neutron-rootwrap /etc/neutron/rootwrap.conf" to use the
# real root filter facility. Change to "sudo" to skip the filtering
# and just run the command directly
root_helper = sudo neutron-rootwrap /etc/neutron/rootwrap.conf
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Set to true to add comments to generated iptables rules that
# describe each rule's purpose. (System must support the iptables
# comments module.)
# comment_iptables_rules = True
# Root helper daemon application to use when possible.
# root_helper_daemon =
# Use the root helper when listing the namespaces on a system. This
# may not be required depending on the security configuration. If
# the root helper is not required, set this to False for a
# performance improvement.
# use_helper_for_ns_read = True
# The interval to check external processes for failure in seconds
(0=disabled)
# check_child_processes_interval = 60
# Action to take when an external process spawned by an agent dies
# Values:
# respawn - Respawns the external process
# exit - Exits the agent
# check_child_processes_action = respawn
# ================= end of agent ======================
# =========== items for agent management extension =============
# seconds between nodes reporting state to server; should be less
# than agent_down_time, best if it is half or less than
# agent_down_time
# report_interval = 30
# =========== end of items for agent management extension =====
# ============== keystone_authtoken ==========================
auth_uri = http://controller1:5000
auth_url = http://controller1:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = neutron
password = asd08f756ae0ftya
# ============== end of keystone_authtoken ========================
# ====================== database ==========================
# This line MUST be changed to actually run the plugin.
# Example: connection = mysql://root:pass@127.0.0.1:3306/neutron
# Replace 127.0.0.1 above with the IP address of the database used
# by the main neutron server. (Leave it as is if the database runs
# on this host.)
# NOTE: In deployment the [database] section and its connection
Lukáš Korous
Neutron Networking / OpenStack Kilo

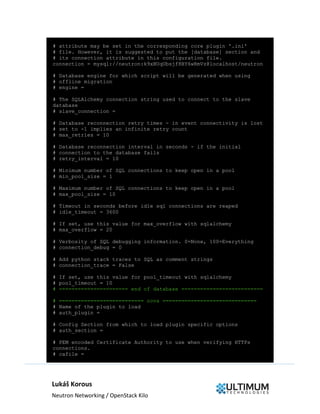

# attribute may be set in the corresponding core plugin '.ini'
# file. However, it is suggested to put the [database] section and
# its connection attribute in this configuration file.
connection = mysql://neutron:k9xBUqUbsjf8BY6wRmVz@localhost/neutron
# Database engine for which script will be generated when using
# offline migration
# engine =
# The SQLAlchemy connection string used to connect to the slave
database
# slave_connection =
# Database reconnection retry times - in event connectivity is lost
# set to -1 implies an infinite retry count
# max_retries = 10
# Database reconnection interval in seconds - if the initial
# connection to the database fails
# retry_interval = 10
# Minimum number of SQL connections to keep open in a pool
# min_pool_size = 1
# Maximum number of SQL connections to keep open in a pool
# max_pool_size = 10
# Timeout in seconds before idle sql connections are reaped
# idle_timeout = 3600
# If set, use this value for max_overflow with sqlalchemy
# max_overflow = 20
# Verbosity of SQL debugging information. 0=None, 100=Everything
# connection_debug = 0
# Add python stack traces to SQL as comment strings
# connection_trace = False
# If set, use this value for pool_timeout with sqlalchemy
# pool_timeout = 10
# ====================== end of database ==========================
# =========================== nova ==============================
# Name of the plugin to load
# auth_plugin =
# Config Section from which to load plugin specific options
# auth_section =
# PEM encoded Certificate Authority to use when verifying HTTPs
connections.
# cafile =
Lukáš Korous
Neutron Networking / OpenStack Kilo
# PEM encoded client certificate cert file
# certfile =
# Verify HTTPS connections.
# insecure = False
# PEM encoded client certificate key file
# keyfile =
# Timeout value for http requests
# timeout =
auth_url = http://controller1:35357
auth_plugin = password
project_domain_id = default
user_domain_id = default
region_name = regionOne
project_name = service
username = nova
password = asd08f756ae0ftya
# ========================= end of nova ===========================
# ====================== oslo_concurrency =========================
# Directory to use for lock files. For security, the specified
# directory should only be writable by the user running the
# processes that need locking. Defaults to environment variable
# OSLO_LOCK_PATH. If external locks are used, a lock path must be
# set.
lock_path = $state_path/lock
# Enables or disables inter-process locks.
# disable_process_locking = False
# ========================= oslo_policy ==========================
# The JSON file that defines policies.
# policy_file = policy.json
# Default rule. Enforced when a requested rule is not found.
# policy_default_rule = default
# Directories where policy configuration files are stored.
# They can be relative to any directory in the search path defined
# by the config_dir option, or absolute paths. The file defined by
# policy_file must exist for these directories to be searched.
# Missing or empty directories are ignored.
# policy_dirs = policy.d
# ===================== oslo_messaging_amqp =======================
# Address prefix used when sending to a specific server (string
value)
# Deprecated group/name - [amqp1]/server_request_prefix
Lukáš Korous
Neutron Networking / OpenStack Kilo
# server_request_prefix = exclusive
# Address prefix used when broadcasting to all servers (string
value)
# Deprecated group/name - [amqp1]/broadcast_prefix
# broadcast_prefix = broadcast
# Address prefix when sending to any server in group (string value)
# Deprecated group/name - [amqp1]/group_request_prefix
# group_request_prefix = unicast
# Name for the AMQP container (string value)
# Deprecated group/name - [amqp1]/container_name
# container_name =
# Timeout for inactive connections (in seconds) (integer value)
# Deprecated group/name - [amqp1]/idle_timeout
# idle_timeout = 0
# Debug: dump AMQP frames to stdout (boolean value)
# Deprecated group/name - [amqp1]/trace
# trace = false
# CA certificate PEM file for verifing server certificate (string
value)
# Deprecated group/name - [amqp1]/ssl_ca_file
# ssl_ca_file =
# Identifying certificate PEM file to present to clients (string
value)
# Deprecated group/name - [amqp1]/ssl_cert_file
# ssl_cert_file =
# Private key PEM file used to sign cert_file certificate (string
value)
# Deprecated group/name - [amqp1]/ssl_key_file
# ssl_key_file =
# Password for decrypting ssl_key_file (if encrypted) (string value)
# Deprecated group/name - [amqp1]/ssl_key_password
# ssl_key_password =
# Accept clients using either SSL or plain TCP (boolean value)
# Deprecated group/name - [amqp1]/allow_insecure_clients
# allow_insecure_clients = false
# ==================== oslo_messaging_rabbit ======================
# Use durable queues in AMQP. (boolean value)
# Deprecated group/name - [DEFAULT]/rabbit_durable_queues
# amqp_durable_queues=False
# Auto-delete queues in AMQP. (boolean value)
# Deprecated group/name - [DEFAULT]/amqp_auto_delete
# amqp_auto_delete = false
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Size of RPC connection pool. (integer value)
# Deprecated group/name - [DEFAULT]/rpc_conn_pool_size
# rpc_conn_pool_size = 30
# SSL version to use (valid only if SSL enabled). Valid values are
TLSv1 and
# SSLv23. SSLv2, SSLv3, TLSv1_1, and TLSv1_2 may be available on
some
# distributions. (string value)
# Deprecated group/name - [DEFAULT]/kombu_ssl_version
# kombu_ssl_version =
# SSL key file (valid only if SSL enabled). (string value)
# Deprecated group/name - [DEFAULT]/kombu_ssl_keyfile
# kombu_ssl_keyfile =
# SSL cert file (valid only if SSL enabled). (string value)
# Deprecated group/name - [DEFAULT]/kombu_ssl_certfile
# kombu_ssl_certfile =
# SSL certification authority file (valid only if SSL enabled).
(string value)
# Deprecated group/name - [DEFAULT]/kombu_ssl_ca_certs
# kombu_ssl_ca_certs =
# How long to wait before reconnecting in response to an AMQP
consumer cancel
# notification. (floating point value)
# Deprecated group/name - [DEFAULT]/kombu_reconnect_delay
# kombu_reconnect_delay = 1.0
# The RabbitMQ broker address where a single node is used. (string
value)
# Deprecated group/name - [DEFAULT]/rabbit_host
rabbit_host = rabbitmq1
# The RabbitMQ broker port where a single node is used. (integer
value)
# Deprecated group/name - [DEFAULT]/rabbit_port
rabbit_port = 5672
# RabbitMQ HA cluster host:port pairs. (list value)
# Deprecated group/name - [DEFAULT]/rabbit_hosts
# rabbit_hosts = $rabbit_host:$rabbit_port
# Connect over SSL for RabbitMQ. (boolean value)
# Deprecated group/name - [DEFAULT]/rabbit_use_ssl
rabbit_use_ssl = False
# The RabbitMQ userid. (string value)
# Deprecated group/name - [DEFAULT]/rabbit_userid
rabbit_userid = guest
Lukáš Korous
Neutron Networking / OpenStack Kilo
# The RabbitMQ password. (string value)
# Deprecated group/name - [DEFAULT]/rabbit_password
rabbit_password = ousthf67thb9R8876RBASD
# The RabbitMQ login method. (string value)
# Deprecated group/name - [DEFAULT]/rabbit_login_method
# rabbit_login_method = AMQPLAIN
# The RabbitMQ virtual host. (string value)
# Deprecated group/name - [DEFAULT]/rabbit_virtual_host
rabbit_virtual_host = /
# How frequently to retry connecting with RabbitMQ. (integer value)
# rabbit_retry_interval=1
# How long to backoff for between retries when connecting to
RabbitMQ. (integer
# value)
# Deprecated group/name - [DEFAULT]/rabbit_retry_backoff
# rabbit_retry_backoff=2
# Maximum number of RabbitMQ connection retries. Default is 0
(infinite retry
# count). (integer value)
# Deprecated group/name - [DEFAULT]/rabbit_max_retries
# rabbit_max_retries=0
# Use HA queues in RabbitMQ (x-ha-policy: all). If you change this
# option, you must wipe the RabbitMQ database. (boolean value)
# Deprecated group/name - [DEFAULT]/rabbit_ha_queues
# rabbit_ha_queues=False
# Deprecated, use rpc_backend=kombu+memory or rpc_backend=fake
(boolean value)
# Deprecated group/name - [DEFAULT]/fake_rabbit
fake_rabbit = False
# ===================== service providers ====================
# Specify service providers (drivers) for advanced services like
# loadbalancer, VPN, Firewall. Must be in form:
# service_provider=<service_type>:<name>:<driver>[:default]
# List of allowed service types includes LOADBALANCER, FIREWALL, VPN
# Combination of <service type> and <name> must be unique; <driver>
must also be unique
# This is multiline option, example for default provider:
#
service_provider=LOADBALANCER:name:lbaas_plugin_driver_path:default
# example of non-default provider:
# service_provider=FIREWALL:name2:firewall_driver_path
service_provider =
LOADBALANCER:Haproxy:neutron_lbaas.services.loadbalancer.drivers.hap
roxy.plugin_driver.HaproxyOnHostPluginDriver:default
Lukáš Korous
Neutron Networking / OpenStack Kilo
service_provider =
VPN:openswan:neutron_vpnaas.services.vpn.service_drivers.ipsec.IPsec
VPNDriver:default
Lukáš Korous
Neutron Networking / OpenStack Kilo
Nova configuration file
/etc/nova/nova.conf
# Control for checking for default networks (string value)
#use_neutron_default_nets=False
# Default tenant id when creating neutron networks (string
# value)
#neutron_default_tenant_id=default
# Number of private networks allowed per project (integer
# value)
#quota_networks=3
# The full class name of the network API class to use (string
# value)
network_api_class = nova.network.neutronv2.api.API
# === Options defined in nova.network.driver ===
# Driver to use for network creation (string value)
#network_driver=nova.network.linux_net
# === Options defined in nova.network.floating_ips ===
# Default pool for floating IPs (string value)
default_floating_pool = public
# Autoassigning floating IP to VM (boolean value)
#auto_assign_floating_ip=false
====== Options defined in nova.network.neutronv2.api ======
# URL for connecting to neutron (string value)
url = http://controller1:9696
# User id for connecting to neutron in admin context.
# DEPRECATED: specify an auth_plugin and appropriate
# credentials instead. (string value)
#admin_user_id=<None>
# Username for connecting to neutron in admin context
# DEPRECATED: specify an auth_plugin and appropriate
# credentials instead. (string value)
admin_username = neutron
# Password for connecting to neutron in admin context
# DEPRECATED: specify an auth_plugin and appropriate
# credentials instead. (string value)
admin_password = asd08f756ae0ftya
# Tenant id for connecting to neutron in admin context
# DEPRECATED: specify an auth_plugin and appropriate
# credentials instead. (string value)
#admin_tenant_id=<None>
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Tenant name for connecting to neutron in admin context. This
# option will be ignored if neutron_admin_tenant_id is set.
# Note that with Keystone V3 tenant names are only unique
# within a domain. DEPRECATED: specify an auth_plugin and
# appropriate credentials instead. (string value)
admin_tenant_name = service
# Region name for connecting to neutron in admin context
# (string value)
#region_name=<None>
# Authorization URL for connecting to neutron in admin
# context. DEPRECATED: specify an auth_plugin and appropriate
# credentials instead. (string value)
admin_auth_url = http://controller1:35357/v2.0
# Authorization strategy for connecting to neutron in admin
# context. DEPRECATED: specify an auth_plugin and appropriate
# credentials instead. If an auth_plugin is specified strategy
# will be ignored. (string value)
auth_strategy = keystone
# Name of Integration Bridge used by Open vSwitch (string
# value)
#ovs_bridge=br-int
# Number of seconds before querying neutron for extensions
# (integer value)
#extension_sync_interval=600
Lukáš Korous
Neutron Networking / OpenStack Kilo
ML2 plugin configuration file
/etc/neutron/plugins/ml2_conf.ini
# Drivers to be subsequently used in tenant_network_types
# (ListOpt) List of network type driver entrypoints to be loaded
# from the neutron.ml2.type_drivers namespace.
# Example: type_drivers = local,flat,vlan,gre,vxlan
type_drivers = flat,vxlan
# (ListOpt) Ordered list of network_types to allocate as tenant
# networks. The default value 'local' is useful for single-box
# testing but provides no connectivity between hosts.
#
# Example: tenant_network_types = vlan,gre,vxlan
tenant_network_types = vxlan
# (ListOpt) Ordered list of networking mechanism driver entrypoints
# to be loaded from the neutron.ml2.mechanism_drivers namespace.
# Example: mechanism_drivers = openvswitch,mlnx
# Example: mechanism_drivers = arista
# Example: mechanism_drivers = cisco,logger
# Example: mechanism_drivers = openvswitch,brocade
# Example: mechanism_drivers = linuxbridge,brocade
mechanism_drivers = openvswitch,l2population
# (ListOpt) Ordered list of extension driver entrypoints
# to be loaded from the neutron.ml2.extension_drivers namespace.
# extension_drivers =
# Example: extension_drivers = anewextensiondriver
# =========== items for MTU selection and advertisement =========
# MTU is possible to be set in different places, here is one
# option, in DHCP response is another
# (IntOpt) Path MTU. The maximum permissible size of an
# unfragmented packet travelling from and to addresses where
# encapsulated Neutron traffic is sent. Drivers calculate
# maximum viable MTU for validating tenant requests based on this
# value (typically, path_mtu - max encap header size). If <=0,
# the path MTU is indeterminate and no calculation takes place.
# path_mtu = 0
# (IntOpt) Segment MTU. The maximum permissible size of an
# unfragmented packet travelling a L2 network segment. If <=0,
# the segment MTU is indeterminate and no calculation takes place.
# segment_mtu = 0
# (ListOpt) Physical network MTUs. List of mappings of physical
# network to MTU value. The format of the mapping is
# <physnet>:<mtu val>. This mapping allows specifying a
# physical network MTU value that differs from the default
# segment_mtu value.
# physical_network_mtus =
# Example: physical_network_mtus = physnet1:1550, physnet2:1500
Lukáš Korous
Neutron Networking / OpenStack Kilo
# ====================== flat networks ======================
# (ListOpt) List of physical_network names with which flat
# networks
# can be created. Use * to allow flat networks with arbitrary
# physical_network names.
#
# Example:flat_networks = physnet1,physnet2
# Example:flat_networks = *
flat_networks = external
# ====================== vlan networks ======================
# (ListOpt) List of <physical_network>[:<vlan_min>:<vlan_max>]
tuples
# specifying physical_network names usable for VLAN provider and
# tenant networks, as well as ranges of VLAN tags on each
# physical_network available for allocation as tenant networks.
#
# network_vlan_ranges =
# Example: network_vlan_ranges = physnet1:1000:2999,physnet2
# ====================== gre networks ======================
# (ListOpt) Comma-separated list of <tun_min>:<tun_max> tuples
enumerating ranges of GRE tunnel IDs that are available for tenant
network allocation
# tunnel_id_ranges =
# ====================== vxlan networks ======================
# (ListOpt) Comma-separated list of <vni_min>:<vni_max> tuples
enumerating
# ranges of VXLAN VNI IDs that are available for tenant network
allocation.
#
vni_ranges = 65537:69999
# (StrOpt) Multicast group for the VXLAN interface. When configured,
will
# enable sending all broadcast traffic to this multicast group. When
left
# unconfigured, will disable multicast VXLAN mode.
#
# vxlan_group =
# Example: vxlan_group = 239.1.1.1
# ====================== security groups ======================
# Controls if neutron security group is enabled or not.
# It should be false when you use nova security group.
enable_security_group = True
# Use ipset to speed-up the iptables security groups. Enabling ipset
support
# requires that ipset is installed on L2 agent node.
Lukáš Korous
Neutron Networking / OpenStack Kilo
enable_ipset = True
Lukáš Korous
Neutron Networking / OpenStack Kilo

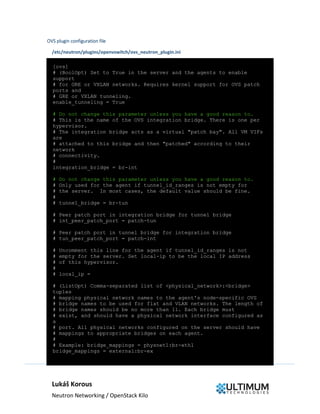

OVS plugin configuration file
/etc/neutron/plugins/openvswitch/ovs_neutron_plugin.ini
[ovs]
# (BoolOpt) Set to True in the server and the agents to enable
support
# for GRE or VXLAN networks. Requires kernel support for OVS patch
ports and
# GRE or VXLAN tunneling.
enable_tunneling = True
# Do not change this parameter unless you have a good reason to.
# This is the name of the OVS integration bridge. There is one per
hypervisor.
# The integration bridge acts as a virtual "patch bay". All VM VIFs
are
# attached to this bridge and then "patched" according to their
network
# connectivity.
#
integration_bridge = br-int
# Do not change this parameter unless you have a good reason to.
# Only used for the agent if tunnel_id_ranges is not empty for
# the server. In most cases, the default value should be fine.
#
# tunnel_bridge = br-tun
# Peer patch port in integration bridge for tunnel bridge
# int_peer_patch_port = patch-tun
# Peer patch port in tunnel bridge for integration bridge
# tun_peer_patch_port = patch-int
# Uncomment this line for the agent if tunnel_id_ranges is not
# empty for the server. Set local-ip to be the local IP address
# of this hypervisor.
#
# local_ip =
# (ListOpt) Comma-separated list of <physical_network>:<bridge>
tuples
# mapping physical network names to the agent's node-specific OVS
# bridge names to be used for flat and VLAN networks. The length of
# bridge names should be no more than 11. Each bridge must
# exist, and should have a physical network interface configured as
a
# port. All physical networks configured on the server should have
# mappings to appropriate bridges on each agent.
#
# Example: bridge_mappings = physnet1:br-eth1
bridge_mappings = external:br-ex
Lukáš Korous
Neutron Networking / OpenStack Kilo
# (BoolOpt) Use veths instead of patch ports to interconnect the
integration
# bridge to physical networks. Support kernel without ovs patch port
support
# so long as it is set to True.
# use_veth_interconnection = False
# (StrOpt) Which OVSDB backend to use, defaults to 'vsctl'
# vsctl - The backend based on executing ovs-vsctl
# native - The backend based on using native OVSDB
# ovsdb_interface = vsctl
# (StrOpt) The connection string for the native OVSDB backend
# To enable ovsdb-server to listen on port 6640:
# ovs-vsctl set-manager ptcp:6640:127.0.0.1
# ovsdb_connection = tcp:127.0.0.1:6640
[agent]
# Agent's polling interval in seconds
polling_interval = 15
# Minimize polling by monitoring ovsdb for interface changes
# minimize_polling = True
# When minimize_polling = True, the number of seconds to wait before
# respawning the ovsdb monitor after losing communication with it
# ovsdb_monitor_respawn_interval = 30
# (ListOpt) The types of tenant network tunnels supported by the
agent.
# Setting this will enable tunneling support in the agent. This can
be set to
# either 'gre' or 'vxlan'. If this is unset, it will default to []
and
# disable tunneling support in the agent.
# You can specify as many values here as your compute hosts
supports.
#
# Example: tunnel_types = gre
# Example: tunnel_types = vxlan
# Example: tunnel_types = vxlan, gre
tunnel_types = vxlan
# (IntOpt) The port number to utilize if tunnel_types includes
'vxlan'. By
# default, this will make use of the Open vSwitch default value of
'4789' if
# not specified.
#
# vxlan_udp_port =
# Example: vxlan_udp_port = 8472
# (IntOpt) This is the MTU size of veth interfaces.
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Do not change unless you have a good reason to.
# The default MTU size of veth interfaces is 1500.
# This option has no effect if use_veth_interconnection is False
# veth_mtu =
# Example: veth_mtu = 1504
# L2 population – speed up of the ARP requests
# (BoolOpt) Flag to enable l2-population extension. This option
# should only be used in conjunction with ml2 plugin and
# l2population mechanism driver. It'll enable plugin to populate
# remote ports macs and IPs (using fdb_add/remove RPC calbbacks
# instead of tunnel_sync/update) on OVS agents in order to
# optimize tunnel management.
#
l2_population = True
# Enable local ARP responder. Requires OVS 2.1. This is only used
# by the l2 population ML2 MechanismDriver.
#
arp_responder = False
# Enable suppression of ARP responses that don't match an IP address
that
# belongs to the port from which they originate.
# Note: This prevents the VMs attached to this agent from spoofing,
# it doesn't protect them from other devices which have the
capability to spoof
# (e.g. bare metal or VMs attached to agents without this flag set
to True).
# Requires a version of OVS that can match ARP headers.
#
# prevent_arp_spoofing = False
# (BoolOpt) Set or un-set the don't fragment (DF) bit on outgoing IP
packet
# carrying GRE/VXLAN tunnel. The default value is True.
#
# dont_fragment = True
# (BoolOpt) Set to True on L2 agents to enable support
# for distributed virtual routing.
#
enable_distributed_routing = False
# (IntOpt) Set new timeout in seconds for new rpc calls after agent
receives
# SIGTERM. If value is set to 0, rpc timeout won't be changed"
#
# quitting_rpc_timeout = 10
[securitygroup]
# Firewall driver for realizing neutron security group function.
Lukáš Korous
Neutron Networking / OpenStack Kilo
# Example: firewall_driver =
neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDrive
r
firewall_driver =
neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDrive
r
# Controls if neutron security group is enabled or not.
# It should be false when you use nova security group.
# enable_security_group = True
dnsmasq config file – MTU settings
dhcp-option-force=26,1380
Lukáš Korous
Neutron Networking / OpenStack Kilo
Nodes
L3 agent configuration file
/etc/neutron/l3_agent.ini
[DEFAULT]
# Print more verbose output (set logging level to INFO instead of
default WARNING level).
verbose = True
# Show debugging output in log (sets DEBUG log level output)
# debug = False
# L3 requires that an interface driver be set. Choose the one that
best
# matches your plugin.
# Example of interface_driver option for OVS based plugins (OVS,
# Ryu, NEC) that supports L3 agent
interface_driver = neutron.agent.linux.interface.OVSInterfaceDriver
# Use veth for an OVS interface or not.
# Support kernels with limited namespace support
# (e.g. RHEL 6.5) so long as ovs_use_veth is set to True.
# ovs_use_veth = False
# Example of interface_driver option for LinuxBridge
# interface_driver =
neutron.agent.linux.interface.BridgeInterfaceDriver
# Allow overlapping IP (Must have kernel build with
# CONFIG_NET_NS=y and iproute2 package that supports namespaces).
# This option is deprecated and will be removed in a future
# release, at which point the old behavior
# of use_namespaces = True will be enforced.
use_namespaces = True
# If use_namespaces is set as False then the agent can only
configure one router.
# This is done by setting the specific router_id.
# router_id =
# When external_network_bridge is set, each L3 agent can be
# associated with no more than one external network. This value
# should be set to the UUID of that external network. To allow L3
# agent support multiple external networks, both the
# external_network_bridge and gateway_external_network_id must be
# left empty.
# gateway_external_network_id =
# With IPv6, the network used for the external gateway does not
# need to have an associated subnet, since the automatically
Lukáš Korous
Neutron Networking / OpenStack Kilo
# assigned link-local address (LLA) can be used. However, an IPv6
# gateway address is needed for use as the next-hop for the
# default route. If no IPv6 gateway address is configured here,
# (and only then) the neutron router will be configured to get
# its default route from router advertisements (RAs) from the
# upstream router; in which case the upstream router must also be
# configured to send these RAs.
# The ipv6_gateway, when configured, should be the LLA of the
# interface on the upstream router. If a next-hop using a global
# unique address (GUA) is desired, it needs to be done via a
# subnet allocated to the network and not through this parameter.
# ipv6_gateway =
# Indicates that this L3 agent should also handle routers that do
# not have an external network gateway configured. This option
# should be True only for a single agent in a Neutron deployment,
# and may be False for all agents if all routers must have an
#external network gateway
handle_internal_only_routers = True
# Name of bridge used for external network traffic. This should
# be set to empty value for the linux bridge. when this parameter
# is set, each L3 agent can be associated with no more than one
# external network.
external_network_bridge = br-ex
# TCP Port used by Neutron metadata server
# metadata_port = 9697
# Send this many gratuitous ARPs for HA setup. Set it below or equal
to 0
# to disable this feature.
# send_arp_for_ha = 3
# seconds between re-sync routers' data if needed
# periodic_interval = 40
# seconds to start to sync routers' data after
# starting agent
# periodic_fuzzy_delay = 5
# enable_metadata_proxy, which is true by default, can be set to
False
# if the Nova metadata server is not available
enable_metadata_proxy = True
# Iptables mangle mark used to mark metadata valid requests
# metadata_access_mark = 0x1
# Iptables mangle mark used to mark ingress from external network
# external_ingress_mark = 0x2
Lukáš Korous
Neutron Networking / OpenStack Kilo
# router_delete_namespaces, which is false by default, can be set to
True if
# namespaces can be deleted cleanly on the host running the L3
agent.
# Do not enable this until you understand the problem with the Linux
iproute
# utility mentioned in
https://bugs.launchpad.net/neutron/+bug/1052535 and
# you are sure that your version of iproute does not suffer from the
problem.
# If True, namespaces will be deleted when a router is destroyed.
router_delete_namespaces = False
# Timeout for ovs-vsctl commands.
# If the timeout expires, ovs commands will fail with ALARMCLOCK
error.
# ovs_vsctl_timeout = 10
# The working mode for the agent. Allowed values are:
# - legacy: this preserves the existing behavior where the L3 agent
is
# deployed on a centralized networking node to provide L3 services
# like DNAT, and SNAT. Use this mode if you do not want to adopt
DVR.
# - dvr: this mode enables DVR functionality, and must be used for
an L3
# agent that runs on a compute host.
# - dvr_snat: this enables centralized SNAT support in conjunction
with
# DVR. This mode must be used for an L3 agent running on a
centralized
# node (or in single-host deployments, e.g. devstack).
agent_mode = legacy
# Location to store keepalived and all HA configurations
# ha_confs_path = $state_path/ha_confs
# VRRP authentication type AH/PASS
# ha_vrrp_auth_type = PASS
# VRRP authentication password
# ha_vrrp_auth_password =
# The advertisement interval in seconds
# ha_vrrp_advert_int = 2
allow_automatic_l3agent_failover = False
Lukáš Korous
Neutron Networking / OpenStack Kilo
DHCP agent configuration file
/etc/neutron/dhcp_agent.ini
[DEFAULT]
# Print more verbose output (set logging level to INFO instead of
default WARNING level).
verbose = True
# Show debugging output in log (sets DEBUG log level output)
# debug = False
# The DHCP agent will resync its state with Neutron to recover from
any
# transient notification or rpc errors. The interval is number of
# seconds between attempts.
# resync_interval = 5
# The DHCP agent requires an interface driver be set. Choose the one
that best
# matches your plugin.
# Example of interface_driver option for OVS based plugins(OVS, Ryu,
NEC, NVP,
# BigSwitch/Floodlight)
interface_driver = neutron.agent.linux.interface.OVSInterfaceDriver
# Name of Open vSwitch bridge to use
ovs_integration_bridge = br-int
# Use veth for an OVS interface or not.
# Support kernels with limited namespace support
# (e.g. RHEL 6.5) so long as ovs_use_veth is set to True.
# ovs_use_veth = False
# Example of interface_driver option for LinuxBridge
# interface_driver =
neutron.agent.linux.interface.BridgeInterfaceDriver
# The agent can use other DHCP drivers. Dnsmasq is the simplest and
requires
# no additional setup of the DHCP server.
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
# Allow overlapping IP (Must have kernel build with CONFIG_NET_NS=y
and
# iproute2 package that supports namespaces). This option is
# deprecated and will be removed in a future release, at which
# point the old behavior of use_namespaces = True will be
# enforced.
use_namespaces = True
# The DHCP server can assist with providing metadata support on
# isolated networks. Setting this value to True will cause the
# DHCP server to append specific host routes to the DHCP request.
Lukáš Korous
Neutron Networking / OpenStack Kilo
# The metadata service will only be activated when the subnet
# does not contain any router port. The guest instance must be
# configured to request host routes via DHCP (Option 121).
enable_isolated_metadata = True
# Allows for serving metadata requests coming from a dedicated
# metadata access network whose cidr is 169.254.169.254/16 (or
# larger prefix), and is connected to a Neutron router from which
# the VMs send metadata request. In this case DHCP Option 121
# will not be injected in VMs, as they will be able to reach
# 169.254.169.254 through a router.
# This option requires enable_isolated_metadata = True
enable_metadata_network = False
# Number of threads to use during sync process. Should not exceed
# connection pool size configured on server.
# num_sync_threads = 4
# Location to store DHCP server config files
# dhcp_confs = $state_path/dhcp
# Domain to use for building the hostnames
# dhcp_domain = openstacklocal
# Override the default dnsmasq settings with this file
dnsmasq_config_file = /etc/neutron/dnsmasq-neutron.conf
# Comma-separated list of DNS servers which will be used by
# dnsmasq as forwarders.
dnsmasq_dns_servers = 8.8.8.8,8.8.4.4
# Limit number of leases to prevent a denial-of-service.
# dnsmasq_lease_max = 16777216
# Location to DHCP lease relay UNIX domain socket
# dhcp_lease_relay_socket = $state_path/dhcp/lease_relay
# Use broadcast in DHCP replies
# dhcp_broadcast_reply = False
# dhcp_delete_namespaces, which is false by default, can be set
# to True if namespaces can be deleted cleanly on the host
# running the dhcp agent.
# Do not enable this until you understand the problem with the
# Linux iproute utility mentioned in
# https://bugs.launchpad.net/neutron/+bug/1052535 and
# you are sure that your version of iproute does not suffer from
# the problem.
# If True, namespaces will be deleted when a dhcp server is
disabled.
dhcp_delete_namespaces = False
# Timeout for ovs-vsctl commands.
Lukáš Korous
Neutron Networking / OpenStack Kilo

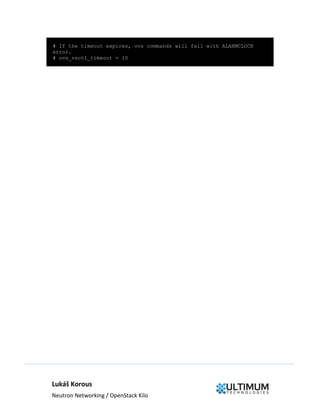

# If the timeout expires, ovs commands will fail with ALARMCLOCK
error.
# ovs_vsctl_timeout = 10
Lukáš Korous
Neutron Networking / OpenStack Kilo
Metadata agent configuration file
/etc/neutron/metadata_agent.ini
[DEFAULT]
# Print more verbose output (set logging level to INFO instead of
default WARNING level).
verbose = True
# Show debugging output in log (sets DEBUG log level output)
# debug = True
# The Neutron user information for accessing the Neutron API.
auth_uri = http://controller1:5000
auth_url = http://controller1:35357
auth_region = regionOne
auth_plugin = password
project_domain_id = default
user_domain_id = default
project_name = service
username = neutron
password = asd08f756ae0ftya
# Turn off verification of the certificate for ssl
# auth_insecure = False
# Certificate Authority public key (CA cert) file for ssl
# auth_ca_cert =
# Network service endpoint type to pull from the keystone catalog
# endpoint_type = adminURL
# IP address used by Nova metadata server
nova_metadata_ip = controller1
# TCP Port used by Nova metadata server
nova_metadata_port = 8775
# Which protocol to use for requests to Nova metadata server, http
or https
nova_metadata_protocol = http
# Whether insecure SSL connection should be accepted for Nova
metadata server
# requests
# nova_metadata_insecure = False
# Client certificate for nova api, needed when nova api requires
client
# certificates
# nova_client_cert =
# Private key for nova client certificate
# nova_client_priv_key =
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo
Neutron   kilo

More Related Content

Viewers also liked

Microservices Architectures with Docker Swarm, etcd, Kuryr and Neutron
Microservices Architectures with Docker Swarm, etcd, Kuryr and NeutronMicroservices Architectures with Docker Swarm, etcd, Kuryr and Neutron
Microservices Architectures with Docker Swarm, etcd, Kuryr and Neutron
Fawad Khaliq

Hands-on Lab: Test Drive Your OpenStack Network
Hands-on Lab: Test Drive Your OpenStack NetworkHands-on Lab: Test Drive Your OpenStack Network
Hands-on Lab: Test Drive Your OpenStack Network
PLUMgrid

021
021021
Mendix world 2014
Mendix world 2014Mendix world 2014
Mendix world 2014
Jochem Davids

Esenciales otoño invierno 2015
Esenciales otoño invierno 2015Esenciales otoño invierno 2015
Esenciales otoño invierno 2015
TECNYLAB

Letrasdeelcalordelplenoinvierno 140104225249-phpapp01
Letrasdeelcalordelplenoinvierno 140104225249-phpapp01Letrasdeelcalordelplenoinvierno 140104225249-phpapp01
Letrasdeelcalordelplenoinvierno 140104225249-phpapp01
Floor Fernández

Programa de Aspectos Legales, Contables y Tributarios de la Fusión y Adquisic...
Programa de Aspectos Legales, Contables y Tributarios de la Fusión y Adquisic...Programa de Aspectos Legales, Contables y Tributarios de la Fusión y Adquisic...
Programa de Aspectos Legales, Contables y Tributarios de la Fusión y Adquisic...
Dr. Santiago Marqués

Los unicos diego y maria
Los unicos diego y mariaLos unicos diego y maria
Los unicos diego y maria
nilda cristina

Interdisciplinar leyenda del lagarto de jaén
Interdisciplinar leyenda del lagarto de jaénInterdisciplinar leyenda del lagarto de jaén
Interdisciplinar leyenda del lagarto de jaén
pcromero

Media Kit Vivanuncios Desarrollos
Media Kit Vivanuncios DesarrollosMedia Kit Vivanuncios Desarrollos
Media Kit Vivanuncios Desarrollos
marianagr4

Ch 7 Privacy
Ch 7 PrivacyCh 7 Privacy
Ch 7 Privacy
ProEthics

Deportes Peculiares
Deportes PeculiaresDeportes Peculiares
Deportes Peculiares
Salvy Clariana Solá

Manual notebook
Manual notebookManual notebook
Manual notebook
María Gambetta

Take a walk on the wild side
Take a walk on the wild sideTake a walk on the wild side
Take a walk on the wild side
navajanegra

Modernizing SCA through new Object Management Group (OMG) standards
Modernizing SCA through new Object Management Group (OMG) standardsModernizing SCA through new Object Management Group (OMG) standards
Modernizing SCA through new Object Management Group (OMG) standards
Remedy IT

Programación lineal
Programación linealProgramación lineal
Programación lineal
Cris Panchi

Las huellas de jesús bueno
Las huellas de jesús buenoLas huellas de jesús bueno
Las huellas de jesús bueno
Pastoral Salud

Trabajo final diseño de proyectos
Trabajo final diseño de proyectosTrabajo final diseño de proyectos
Trabajo final diseño de proyectos
Libia Dominguez

AMT 03 Terminología Quechua
AMT 03 Terminología QuechuaAMT 03 Terminología Quechua
AMT 03 Terminología Quechua
hugodelgadosumar

Dissertation : personal writing style
Dissertation : personal writing styleDissertation : personal writing style
Dissertation : personal writing style
The Free School


Viewers also liked (20)

Microservices Architectures with Docker Swarm, etcd, Kuryr and Neutron
Microservices Architectures with Docker Swarm, etcd, Kuryr and NeutronMicroservices Architectures with Docker Swarm, etcd, Kuryr and Neutron
Microservices Architectures with Docker Swarm, etcd, Kuryr and Neutron

Hands-on Lab: Test Drive Your OpenStack Network
Hands-on Lab: Test Drive Your OpenStack NetworkHands-on Lab: Test Drive Your OpenStack Network
Hands-on Lab: Test Drive Your OpenStack Network

021
021021
021

Mendix world 2014
Mendix world 2014Mendix world 2014
Mendix world 2014

Esenciales otoño invierno 2015
Esenciales otoño invierno 2015Esenciales otoño invierno 2015
Esenciales otoño invierno 2015

Letrasdeelcalordelplenoinvierno 140104225249-phpapp01
Letrasdeelcalordelplenoinvierno 140104225249-phpapp01Letrasdeelcalordelplenoinvierno 140104225249-phpapp01
Letrasdeelcalordelplenoinvierno 140104225249-phpapp01

Programa de Aspectos Legales, Contables y Tributarios de la Fusión y Adquisic...
Programa de Aspectos Legales, Contables y Tributarios de la Fusión y Adquisic...Programa de Aspectos Legales, Contables y Tributarios de la Fusión y Adquisic...
Programa de Aspectos Legales, Contables y Tributarios de la Fusión y Adquisic...

Los unicos diego y maria
Los unicos diego y mariaLos unicos diego y maria
Los unicos diego y maria

Interdisciplinar leyenda del lagarto de jaén
Interdisciplinar leyenda del lagarto de jaénInterdisciplinar leyenda del lagarto de jaén
Interdisciplinar leyenda del lagarto de jaén

Media Kit Vivanuncios Desarrollos
Media Kit Vivanuncios DesarrollosMedia Kit Vivanuncios Desarrollos
Media Kit Vivanuncios Desarrollos

Ch 7 Privacy
Ch 7 PrivacyCh 7 Privacy
Ch 7 Privacy

Deportes Peculiares
Deportes PeculiaresDeportes Peculiares
Deportes Peculiares

Manual notebook
Manual notebookManual notebook
Manual notebook

Take a walk on the wild side
Take a walk on the wild sideTake a walk on the wild side
Take a walk on the wild side

Modernizing SCA through new Object Management Group (OMG) standards
Modernizing SCA through new Object Management Group (OMG) standardsModernizing SCA through new Object Management Group (OMG) standards
Modernizing SCA through new Object Management Group (OMG) standards

Programación lineal
Programación linealProgramación lineal
Programación lineal

Las huellas de jesús bueno
Las huellas de jesús buenoLas huellas de jesús bueno
Las huellas de jesús bueno

Trabajo final diseño de proyectos
Trabajo final diseño de proyectosTrabajo final diseño de proyectos
Trabajo final diseño de proyectos

AMT 03 Terminología Quechua
AMT 03 Terminología QuechuaAMT 03 Terminología Quechua
AMT 03 Terminología Quechua

Dissertation : personal writing style
Dissertation : personal writing styleDissertation : personal writing style
Dissertation : personal writing style


Similar to Neutron kilo

Deploying an open source private cloud on a shoe string budget presentation
Deploying an open source private cloud on a shoe string budget presentationDeploying an open source private cloud on a shoe string budget presentation
Deploying an open source private cloud on a shoe string budget presentation
Vijayabalan Open to Explore

Devnet 1005 Getting Started with OpenStack
Devnet 1005 Getting Started with OpenStackDevnet 1005 Getting Started with OpenStack
Devnet 1005 Getting Started with OpenStack
Cisco DevNet

Setting up your virtual infrastructure using FIWARE Lab Cloud
Setting up your virtual infrastructure using FIWARE Lab CloudSetting up your virtual infrastructure using FIWARE Lab Cloud
Setting up your virtual infrastructure using FIWARE Lab Cloud
Fernando Lopez Aguilar

Introduction to NS2 - Cont..
Introduction to NS2 - Cont..Introduction to NS2 - Cont..
Introduction to NS2 - Cont..
cscarcas

Intro to the FIWARE Lab
Intro to the FIWARE LabIntro to the FIWARE Lab
Intro to the FIWARE Lab
FIWARE

OpenStack hands-on (All-in-One)
OpenStack hands-on (All-in-One)OpenStack hands-on (All-in-One)
OpenStack hands-on (All-in-One)
JeSam Kim

Creating a cisco asa or pix firewall
Creating a cisco asa or pix firewallCreating a cisco asa or pix firewall
Creating a cisco asa or pix firewall
IT Tech

openstack-session.ppt
openstack-session.pptopenstack-session.ppt
openstack-session.ppt
kaushal76thakur

Calico and ubuntu
Calico and ubuntuCalico and ubuntu
Calico and ubuntu
Anirban Sen Chowdhary

Lab1
Lab1Lab1
sfdx continuous Integration with Jenkins on aws (Part I)
sfdx continuous Integration with Jenkins on aws (Part I)sfdx continuous Integration with Jenkins on aws (Part I)
sfdx continuous Integration with Jenkins on aws (Part I)
Jérémy Vial

Fire & Ice: Making and Breaking macOS Firewalls
Fire & Ice: Making and Breaking macOS FirewallsFire & Ice: Making and Breaking macOS Firewalls
Fire & Ice: Making and Breaking macOS Firewalls
Priyanka Aash

Configuring cisco asa and pix firewalls part4
Configuring cisco asa and pix firewalls part4Configuring cisco asa and pix firewalls part4
Configuring cisco asa and pix firewalls part4
IT Tech

OpenStack: Security Beyond Firewalls
OpenStack: Security Beyond FirewallsOpenStack: Security Beyond Firewalls
OpenStack: Security Beyond Firewalls
Giuseppe Paterno'

Openstack: security beyond firewalls
Openstack: security beyond firewallsOpenstack: security beyond firewalls
Openstack: security beyond firewalls
GARL

An overview of unix rootkits
An overview of unix rootkitsAn overview of unix rootkits
An overview of unix rootkits
UltraUploader

Openstack starter-guide-diablo
Openstack starter-guide-diabloOpenstack starter-guide-diablo
Openstack starter-guide-diablo
锐 张

Openstack starter-guide-diablo
Openstack starter-guide-diabloOpenstack starter-guide-diablo
Openstack starter-guide-diablo
babycat_feifei

Setting up your virtual infrastructure using FIWARE Lab Cloud
Setting up your virtual infrastructure using FIWARE Lab CloudSetting up your virtual infrastructure using FIWARE Lab Cloud
Setting up your virtual infrastructure using FIWARE Lab Cloud
Fernando Lopez Aguilar

Freeradius edir
Freeradius edirFreeradius edir
Freeradius edir
Jonas Segovia Velazquez


Similar to Neutron kilo (20)

Deploying an open source private cloud on a shoe string budget presentation
Deploying an open source private cloud on a shoe string budget presentationDeploying an open source private cloud on a shoe string budget presentation
Deploying an open source private cloud on a shoe string budget presentation

Devnet 1005 Getting Started with OpenStack
Devnet 1005 Getting Started with OpenStackDevnet 1005 Getting Started with OpenStack
Devnet 1005 Getting Started with OpenStack

Setting up your virtual infrastructure using FIWARE Lab Cloud
Setting up your virtual infrastructure using FIWARE Lab CloudSetting up your virtual infrastructure using FIWARE Lab Cloud
Setting up your virtual infrastructure using FIWARE Lab Cloud

Introduction to NS2 - Cont..
Introduction to NS2 - Cont..Introduction to NS2 - Cont..
Introduction to NS2 - Cont..

Intro to the FIWARE Lab
Intro to the FIWARE LabIntro to the FIWARE Lab
Intro to the FIWARE Lab

OpenStack hands-on (All-in-One)
OpenStack hands-on (All-in-One)OpenStack hands-on (All-in-One)
OpenStack hands-on (All-in-One)

Creating a cisco asa or pix firewall
Creating a cisco asa or pix firewallCreating a cisco asa or pix firewall
Creating a cisco asa or pix firewall

openstack-session.ppt
openstack-session.pptopenstack-session.ppt
openstack-session.ppt

Calico and ubuntu
Calico and ubuntuCalico and ubuntu
Calico and ubuntu

Lab1
Lab1Lab1
Lab1

sfdx continuous Integration with Jenkins on aws (Part I)
sfdx continuous Integration with Jenkins on aws (Part I)sfdx continuous Integration with Jenkins on aws (Part I)
sfdx continuous Integration with Jenkins on aws (Part I)

Fire & Ice: Making and Breaking macOS Firewalls
Fire & Ice: Making and Breaking macOS FirewallsFire & Ice: Making and Breaking macOS Firewalls
Fire & Ice: Making and Breaking macOS Firewalls

Configuring cisco asa and pix firewalls part4
Configuring cisco asa and pix firewalls part4Configuring cisco asa and pix firewalls part4
Configuring cisco asa and pix firewalls part4

OpenStack: Security Beyond Firewalls
OpenStack: Security Beyond FirewallsOpenStack: Security Beyond Firewalls
OpenStack: Security Beyond Firewalls

Openstack: security beyond firewalls
Openstack: security beyond firewallsOpenstack: security beyond firewalls
Openstack: security beyond firewalls

An overview of unix rootkits
An overview of unix rootkitsAn overview of unix rootkits
An overview of unix rootkits

Openstack starter-guide-diablo
Openstack starter-guide-diabloOpenstack starter-guide-diablo
Openstack starter-guide-diablo

Openstack starter-guide-diablo
Openstack starter-guide-diabloOpenstack starter-guide-diablo
Openstack starter-guide-diablo

Setting up your virtual infrastructure using FIWARE Lab Cloud
Setting up your virtual infrastructure using FIWARE Lab CloudSetting up your virtual infrastructure using FIWARE Lab Cloud
Setting up your virtual infrastructure using FIWARE Lab Cloud

Freeradius edir
Freeradius edirFreeradius edir
Freeradius edir


Recently uploaded

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
DanBrown980551

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...
GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...
GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...
James Anderson

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
SOFTTECHHUB

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems S.M.S.A.

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
Neo4j

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
Neo4j

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...
ThomasParaiso2

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Albert Hoitingh

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

Data structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdfData structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdf
TIPNGVN2

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair

A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...
sonjaschweigert1


Recently uploaded (20)

LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...
LF Energy Webinar: Electrical Grid Modelling and Simulation Through PowSyBl -...

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...
GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...
GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using Deplo...

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...

Uni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdfUni Systems Copilot event_05062024_C.Vlachos.pdf
Uni Systems Copilot event_05062024_C.Vlachos.pdf

GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...
GraphSummit Singapore | Enhancing Changi Airport Group's Passenger Experience...

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...
GraphSummit Singapore | The Future of Agility: Supercharging Digital Transfor...

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...GridMate - End to end testing is a critical piece to ensure quality and avoid...
GridMate - End to end testing is a critical piece to ensure quality and avoid...

Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024Encryption in Microsoft 365 - ExpertsLive Netherlands 2024
Encryption in Microsoft 365 - ExpertsLive Netherlands 2024

FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdfFIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf
FIDO Alliance Osaka Seminar: The WebAuthn API and Discoverable Credentials.pdf

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

Data structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdfData structures and Algorithms in Python.pdf
Data structures and Algorithms in Python.pdf

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024

A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...


Neutron kilo

  • 1. Neutron Networking / OpenStack Kilo Lukáš Korous
  • 2. Lukáš Korous Neutron Networking / OpenStack Kilo Outline 0. OpenStack review, training environment setup a. User & Administrator dashboard use b. Training environment setup & walkthrough 1. Related networking technologies a. Linux bridges and namespaces(,kernel settings – sysctl) b. Network segmentation, encapsulation i. vLAN ii. GRE iii. VXLAN c. SDN Overview 2. Open vSwitch a. Description, comparison with Linux bridge b. Configuration 3. Neutron concept and relationship to other OpenStack components a. Overview b. Relationship to other components & projects 4. OpenStack commands for Neutron checking 5. Neutron configuration files a. Controller i. neutron.conf ii. nova.conf iii. plugins/*/*.ini iv. dnsmasq-neutron.conf b. Nodes i. l3_agent.ini ii. dhcp_agent.ini iii. metadata_agent.ini iv. plugins/*/*.ini 6. OpenStack network architecture a. Public network b. External (flat) network c. Management network(, SSH network) d. Tunnel (internal) network 7. Network traffic schemes a. VM <-> VM b. VM -> Outside world c. Outside world -> VM (Floating IP) d. Outside world -> VM (directly on Public network) 8. Network traffic inspection a. Host level, guest level
  • 3. Lukáš Korous Neutron Networking / OpenStack Kilo OpenStack review, training environment setup OpenStack user dashboard Testing dashboard address http://test.ultimum-cloud.com/ Login Please contact Ultimum Technologies at info@ultimum.io for access to the testing environment. Keypairs for SSH In the left menu, select "Access & Security", and after opening in the right panel, select the tab "Keypairs". Now there are two ways how to add an SSH key - either create a new one, or import an existing one. Create a key for SSH In the top buttons row (see screenshot) select "Create Keypair". In the dialog, insert a name, e.g. "myFirstKeypair".
  • 4. Lukáš Korous Neutron Networking / OpenStack Kilo Confirm by selecting "Create Keypair". Keypair is created and you can see it on the list. Import a key for SSH In the top buttons row (see screenshot) select "Import Keypair".
  • 5. Lukáš Korous Neutron Networking / OpenStack Kilo In the dialog, fill in a name, e.g. "myImportedKeypair", and copy your public key to the "Public Key" field. If you do not know where to look for a public key, it is usually in your home folder (typically "/home/'user'" on Linux, "C:Users'user'" on Windows), in subdirectory (caution, may be hidden) ".ssh", in a file id_rsa.pub (id_dsa.pub). The whole key, e.g. the entire content of the file id_rsa.pub, should then be copied into this field. Confirm by selecting "Import Keypair". Keypair is created and you can see it on the list. Security Groups In the left menu, select "Access & Security", which opens in the right panel. Select the "Security Groups" tab. In the default settings, there is one security group created - with the name "default":
  • 6. Lukáš Korous Neutron Networking / OpenStack Kilo If you want to check the default security group rules, click on it and the detail will open:
  • 7. Lukáš Korous Neutron Networking / OpenStack Kilo For the purpose of this tutorial though, we will create a new security group that will later allow us to connect to our instances using SSH. On the list of security groups, press the button "Create Security Group" and create a group for SSH connections by filling the information in the creation dialog: The security group appears in the list:
  • 8. Lukáš Korous Neutron Networking / OpenStack Kilo Adjustment of the security group rules For adjustments of the SSH security group rules, select "Edit Rules":
  • 9. Lukáš Korous Neutron Networking / OpenStack Kilo Then select "Add Rule" and add the SSH pre-defined rule (or you may fill the custom rule dialog and add it manually). Note that the default CIDR is 0.0.0.0/0 which stands for any (=all) IP address. The rule is created:
  • 10. Lukáš Korous Neutron Networking / OpenStack Kilo Set up networking Now we have to set up networking in order to plug the instance we are about to create into a proper network. Navigate to "Network Topology" in the left menu. The basic setup looks like in the following figure.
  • 11. Lukáš Korous Neutron Networking / OpenStack Kilo Creating a private network for your servers Select "Create Network" and network creation dialog appears.
  • 12. Lukáš Korous Neutron Networking / OpenStack Kilo Creating a subnet Now we have to create a subnet in the network being created. Navigate to the second tab of the dialog - Subnet. Subnet represents a logical set of connected devices, addressed in a common address space. After you confirm, the network is created and it appears in the topology diagram.
  • 13. Lukáš Korous Neutron Networking / OpenStack Kilo . Creating a router Now we have to create a router in order to be able to connect the new network to the outside world. Select "Create Router" and name your new router. Router is created and we can see it in the router list:
  • 14. Lukáš Korous Neutron Networking / OpenStack Kilo Also the router appears in the Network Topology schema:
  • 15. Lukáš Korous Neutron Networking / OpenStack Kilo If you navigate to the router's detail, it opens and looks similarly to the following figure. Now we need to create an interface, select "Add Interface" and add an interface to the private network. When you confirm, the interface is created and we can see it on the router's detail:
  • 16. Lukáš Korous Neutron Networking / OpenStack Kilo Adding a gateway to a router Now we have to connect to the outside world using a gateway. For this, open the router list from the left menu ("Routers") and select "Set Gateway" next to the appropriate router. The following dialog appears:
  • 17. Lukáš Korous Neutron Networking / OpenStack Kilo Select the public network there and confirm. Now the network topology reflects that the router is connected to the outside world: First run of a cloud server Let us now go through running a cloud server from a collection of public images (according to the operating systems) and connect to it via the remote desktop. In the left menu, choose "Images & Snapshots". In the right panel, a list of all available public images appears. List of available ready-to-use images Select "Images & Snapshots" in the left menu. In the right panel, the list of publicly available images will appear.
  • 18. Lukáš Korous Neutron Networking / OpenStack Kilo Instantiation of a public server image Next to the selected image (for the purpose of this manual we will select "Ubuntu 13.04 cloudimg x86_64"), select "Launch". A dialog window appears, where on the "Details" tab we fill in the instance name, e.g. "myFirstInstance" and we select the type of the virtual hardware (flavor).
  • 19. Lukáš Korous Neutron Networking / OpenStack Kilo Before we confirm by pressing "Launch", we need to check the security settings on the "Access & Security" tab:
  • 20. Lukáš Korous Neutron Networking / OpenStack Kilo Here we should add the security group for SSH connection that we created earlier and the keypair we either created or imported earlier as well. We also have to address the networking. Switch to the "Networking" tab. Here you have to assign the private network to the instance being launched. Now we confirm by pressing "Launch". We are automatically redirected to the instance overview (available from the left menu by selecting "Instances"), where we can see the newly created instance.
  • 21. Lukáš Korous Neutron Networking / OpenStack Kilo We can also see the newly launched instance in the "Network Topology" schema:
  • 22. Lukáš Korous Neutron Networking / OpenStack Kilo Public IP address assignment For a successful connection to the newly created instance, it is important to add a public IP address. On the instance overview we select "More" by the appropriate instance and in the context menu we select "Associate Public IP": A dialog appears:
  • 23. Lukáš Korous Neutron Networking / OpenStack Kilo We need to select the "+" button next to the IP addresses drop-down list to add allocate a new IP address. The allocation dialog appears.
  • 24. Lukáš Korous Neutron Networking / OpenStack Kilo Select the public pool and confirm. The address is allocated and we can select it now in the previous assignment dialog. After confirmation, we can select "Access & Security" in the left menu and then "Public IPs" in the right window to see the list of allocated or assigned IP addresses:
  • 25. Lukáš Korous Neutron Networking / OpenStack Kilo SSH connection to your newly created instance Now we are able to connect to this new instance. Username: debian Password: debian / SSH key Here is what a terminal looks like after a successful login.
  • 26. Lukáš Korous Neutron Networking / OpenStack Kilo Training environment setup & walkthrough Networks (details of OpenStack networks will follow in one of subsequent sections)  Public (not part of the training environment) o physical network in the datacenter  Openstack-external-flat o external (public) network from the testing environment viewpoint  Openstack-ssh o network dedicated for SSH, might be merged with management network, except for deployment  Openstack-management o management network, access to controllers, and nodes  Openstack-tunnel o tunneled communication between nodes (VXLAN tunneling is used in the training environment) Machines Name Public IP address Purpose OS Controller1 XXX.YYY.ZZZ.239 Controller debian Compute1 XXX.YYY.ZZZ.236 Compute & Network Node debian Compute2 XXX.YYY.ZZZ.237 Compute & Network Node debian Client1 XXX.YYY.ZZZ.238 Client machine debian Services List all installed OpenStack services on the controller debian@controller1:~ $ source admin-openrc.sh debian@controller1:~ $ openstack service list +----------------------------------+----------+----------------+ | ID | Name | Type | +----------------------------------+----------+----------------+ | 01dd76e265c34c98b30a80a95f4f744a | heat | orchestration | | 0e313bbb8cc44d66b4691a65152450d3 | neutron | network | | 41ed6e5e1ad84b5783ed52840b11bf2b | keystone | identity | | a8761537893e490799af9cccd114df27 | cinderv2 | volumev2 | | aa5dc322091549028b7c1b755a061dd1 | glance | image | | c31f2edc4f14411d9efc7f3b6f9db5a6 | nova | compute | | d5c2a54ee66648849607a8feea028662 | heat-cfn | cloudformation | | f4cb7d150eb04920a9cfab8f24e29062 | cinder | volume | +----------------------------------+----------+----------------+ debian@controller1:~ $
  • 27. Lukáš Korous Neutron Networking / OpenStack Kilo View all services in the dashboard Admin -> System -> System Information -> Services -> Compute Services -> Network Agents
  • 28. Lukáš Korous Neutron Networking / OpenStack Kilo Related networking technologies Linux bridges A piece of software used to unite two or more network segments. A bridge behaves like a virtual network switch, working transparently (the other machines do not need to know or care about its existence). Any real devices (e.g. eth0) and virtual devices (e.g. tap0) can be connected to it. Layer 2 device. Part of Linux kernel since 2.2 (stable as of 2.6). $ brctl addbr mybridge $ brctl addif mybridge eth0 $ brctl addif mybridge eth1 $ ifconfig mybridge up $ brctl show $ brctl showmacs mybridge $ brctl delbr mybridge Network namespaces Isolated containers which can hold a network configuration and are not seen from outside of the namespace. Used to encapsulate specific network functionality or provide a network service in isolation as well as simply help to organize a complicated network setup. Used for many purposes and heavily used in OpenStack networking. $ ip netns add ns1 $ ip netns add ns2 $ ip netns list BUT: Cannot contain physical interfaces. Only virtual Ethernet (veth) interfaces. Virtual Ethernet (veth) interfaces Always come in pairs. Connected like a tube—whatever comes in one veth interface will come out the other peer veth interface. Used to connect a network namespace to the outside world via the “default” or “global” namespace where physical interfaces exist. Simple connection is achieved by the following:
  • 29. Lukáš Korous Neutron Networking / OpenStack Kilo # create the veth pair $ ip link add tap1 type veth peer name tap2 $ ip link list # move the interfaces to the namespaces $ ip link set tap1 netns ns1 $ ip link set tap2 netns ns2 $ ip link list # no veth here $ ip netns exec ns1 ip link list $ ip netns exec ns2 ip link list # bring up the links $ ip netns exec ns1 ifconfig tap1 10.0.0.0/24 up $ ip netns exec ns2 ifconfig tap2 20.0.0.0/24 up Connecting namespaces by a Linux bridge $ ip netns exec ns1 ip link delete tap1 $ ip netns exec ns2 ip link delete tap2 $ brctl addbr mybridge $ ip link set dev mybridge up #### PORT 1 # create a port pair $ ip link add tap1 type veth peer name br-tap1 # attach one side to linuxbridge $ brctl addif mybridge br-tap1 # attach the other side to namespace $ ip link set tap1 netns ns1 # set the ports to up $ ip netns exec ns1 ifconfig tap1 10.0.0.0/24 up $ ip link set dev br-tap1 up # #### PORT 2 A veth pair connecting namespaces
  • 30. Lukáš Korous Neutron Networking / OpenStack Kilo # create a port pair $ ip link add tap2 type veth peer name br-tap2 # attach one side to linuxbridge $ brctl addif mybridge br-tap2 # attach the other side to namespace $ ip link set tap2 netns ns2 # set the ports to up $ ip netns exec ns2 ifconfig tap2 20.0.0.0/24 up $ ip link set dev br-tap2 up Linux bridge between two tap devices Relevant kernel settings /etc/sysctl.conf $ vim /etc/sysctl.conf net.ipv4.ip_forward=1 net.ipv4.conf.all.rp_filter=0 net.ipv4.conf.default.rp_filter=0 net.bridge.bridge-nf-call-arptables=1 net.bridge.bridge-nf-call-iptables=1 net.bridge.bridge-nf-call-ip6tables=1
  • 31. Lukáš Korous Neutron Networking / OpenStack Kilo $ sysctl –p # save changes without reboot
  • 32. Lukáš Korous Neutron Networking / OpenStack Kilo Network segmentation, encapsulation vLAN tagging  Layer 2  One vLAN (One vLAN ID) = One broadcast domain  No impact on MTU (MTU does not include ethernet header size) Ethernet packet with VLAN Tag [length in bytes] Destination MAC address Source MAC address Type (VLAN: 0x8100) VLAN Tag Payload 6 6 2 4 1500 VLAN Tag [length in bits] Priority CFI ID Ethernet Type/Length 3 1 12 16 Example packet Frame 53 (70 bytes on wire, 70 bytes captured) Ethernet II, Src: 00:40:05:40:ef:24, Dst: 00:60:08:9f:b1:f3 802.1q Virtual LAN 000. .... .... .... = Priority: 0 ...0 .... .... .... = CFI: 0 .... 0000 0010 0000 = ID: 32 Type: IP (0x0800) Internet Protocol, Src Addr: 131.151.32.129 (131.151.32.129), Dst Addr: 131.151.32.21 (131.151.32.21) Transmission Control Protocol, Src Port: 1173 (1173), Dst Port: 6000 (6000), Seq: 0, Ack: 128, Len: 0 Disadvantages  Only 12bits for VLAN ID => 4094 Available Ids  STP imposes existence of a single active path => resiliency issues GRE tunneling  Layer 3  Overlay network / Tunneling – IP packet is wrapped in another IP packet
  • 33. Lukáš Korous Neutron Networking / OpenStack Kilo Ethernet packet tunneled through GRE [length in bytes] MTU considerations  overhead is 24 bytes  MTU by default 1476 bytes, but if DF bit set, packets dropped  GRE clears the DF bit, unless 'tunnel path-mtu-discovery' set Example packet Frame 1: 138 bytes on wire (1104 bits), 138 bytes captured (1104 bits) Ethernet II, Src: c2:00:57:75:00:00 (c2:00:57:75:00:00), Dst: c2:01:57:75:00:00 (c2:01:57:75:00:00) Internet Protocol Version 4, Src: 10.0.0.1 (10.0.0.1), Dst: 10.0.0.2 (10.0.0.2) Generic Routing Encapsulation (IP) Flags and Version: 0x0000 Protocol Type: IP (0x0800) Internet Protocol Version 4, Src: 1.1.1.1 (1.1.1.1), Dst: 2.2.2.2 (2.2.2.2) Transmission Control Protocol, Src Port: 1173 (1173), Dst Port: 6000 (6000), Seq: 0, Ack: 128, Len: 0 Transport Ethernet header Transport IP header [Protocol = GRE(47)] GRE header Original IP header Payload 18 20 4 20 1500 (1476) GRE schema
  • 34. Lukáš Korous Neutron Networking / OpenStack Kilo VXLAN Tagging  Layer 4, default port: 4789  Overlay network / Tunneling – Ethernet packet is wrapped in a UDP packet VTEP - VXLAN Tunnel End Point  VTEP is located within the hypervisor  VTEP is assigned an IP address and acts as an IP host to the IP network Ethernet packet tunneled through VXLAN [length in bytes] Recommended to increase the MTU to 1550: VxLAN schema
  • 35. Lukáš Korous Neutron Networking / OpenStack Kilo - 1500 byte payload which includes the original IP header/s. - 14 byte inner Ethernet header - 8 byte VXLAN header - 8 byte UDP header - 20 byte IP header Transport Ethernet header Transport IP header Transport UDP header VXLAN header Original Ethernet header Payload 18 20 8 8 18 1500 Example packet Frame 1: 148 bytes on wire (1184 bits), 148 bytes captured (1184 bits) Ethernet II, Src: c2:00:57:75:00:00 (c2:00:57:75:00:00), Dst: c2:01:57:75:00:00 (c2:01:57:75:00:00) Internet Protocol Version 4, Src: 10.0.0.1 (10.0.0.1), Dst: 10.0.0.2 (10.0.0.2) Protocol: UDP (17) User Datagram Protocol, Src Port: 46219 (46219), Dst Port: 4789 (4789) Virtual eXtensible Local Area Network ... .... 1... = VXLAN Network ID(VNI): Present ... VXLAN Network Identifier (VNI): 1234 Ethernet II, Src: a6:00:57:75:00:00 (a6:00:57:75:00:00), Dst: b3:01:57:75:00:00 (b3:01:57:75:00:00) Internet Protocol Version 4, Src: 1.1.1.1 (1.1.1.1), Dst: 2.2.2.2 (2.2.2.2) Transmission Control Protocol, Src Port: 1173 (1173), Dst Port: 6000 (6000), Seq: 0, Ack: 128, Len: 0
  • 36. Lukáš Korous Neutron Networking / OpenStack Kilo SDN Overview SDN – source: opennetworking.org Control Plane Planning, setup, internal traffic, configuration, management, routers ‘talking’. Routers exchange topology information and construct routing tables based on a routing protocol, for example Routing Information Protocol (RIP) or Open Shortest Path First (OSPF). Control plane packets are processed by the router to update the routing table information. Analogy with telephony – network signaling. Data Plane Also known as Forwarding Plane. Analogy with telephony – network media. Handles ‘user’ or ‘data’ traffic according to the setup from the Control Plane.
  • 37. Lukáš Korous Neutron Networking / OpenStack Kilo SDN with OpenStack Source: docs.openstack.org: If an SDN implementation requires layer-2 access because it directly manipulates switches, we do not recommend running an overlay network or a layer-3 agent. If the controller resides within an OpenStack installation, it may be necessary to build an ML2 plug-in and schedule the controller instances to connect to tenant VLANs that then talk directly to the switch hardware. Alternatively, depending on the external device support, use a tunnel that terminates at the switch hardware itself. OpenStack hosted SDN controller OpenStack participating in an SDN controller network
  • 38. Lukáš Korous Neutron Networking / OpenStack Kilo Open vSwitch (OVS) Description, setup Not a full-stack SDN / SDDC platform: focused on providing L2/L3 virtual networking. Advantage of using (OVS) over Linux bridge as a L2 switching backend for Neutron is mainly performance. Replacing Linux bridge In the section about Linux bridges we used Linux bridges to connect virtual Ethernet interfaces tap1, tap2 (These will serve as vNICs for OpenStack VMs). Commands Here is how we can achieve the same with OVS: # clean the namespaces if they exist root@server:~ $ ip netns delete ns1 root@server:~ $ ip netns delete ns2 # add the namespaces root@server:~ $ ip netns add ns1 root@server:~ $ ip netns add ns2 # create the switch root@server:~ $ ovs-vsctl add-br myovs #### PORT 1 # create a port pair root@server:~ $ ip link add tap1 type veth peer name ovs-tap1 # attach one side to ovs root@server:~ $ ovs-vsctl add-port myovs ovs-tap1 # attach the other side to namespace root@server:~ $ ip link set tap1 netns ns1 # set the ports to up root@server:~ $ ip netns exec ns1 ip link set dev tap1 up root@server:~ $ ip link set dev ovs-tap1 up #### PORT 2 # create a port pair root@server:~ $ ip link add tap2 type veth peer name ovs-tap2 # attach one side to ovs root@server:~ $ ovs-vsctl add-port myovs ovs-tap2 # attach the other side to namespace root@server:~ $ ip link set tap2 netns ns2 # set the ports to up
  • 39. Lukáš Korous Neutron Networking / OpenStack Kilo root@server:~ $ ip netns exec ns2 ip link set dev tap2 up root@server:~ $ ip link set dev ovs-tap2 up Schema This is what we will end up with: Problem (OpenStack - related) – We cannot (so far) impose firewall (security group) rules on OVS Currently the implementation employs a standard Linux Bridge „in the middle“ that does no bridging, merely filtering using iptables. Replacing Linux bridge with Open vSwitch for namespaces connection
  • 40. Lukáš Korous Neutron Networking / OpenStack Kilo (New info (20th October 2015): „Changed in neutron: importance: Undecided → Wishlist“) Open vSwitch ports Veth pairs can be replaced by openvswitch ports for better performance results: Open vSwitch ports # add the namespaces ip netns add ns1
  • 41. Lukáš Korous Neutron Networking / OpenStack Kilo ip netns add ns2 # create the switch ovs-vsctl add-br ovstest # PORT 1 # create an internal ovs port ovs-vsctl add-port ovstest tap1 -- set Interface tap1 type=internal # attach it to namespace ip link set tap1 netns ns1 # set the ports to up ip netns exec ns1 ip link set dev tap1 up # PORT 2 # create an internal ovs port ovs-vsctl add-port ovstest tap2 -- set Interface tap2 type=internal # attach it to namespace ip link set tap2 netns ns2 # set the ports to up ip netns exec ns2 ip link set dev tap2 up Performance comparison Switch and Connection type # of iperf threads 1 2 4 8 16 linuxbridge with two veth pairs 3.9 8.5 8.8 9.5 9.1 openvswitch with two veth pairs 4.5 9.7 11 11 11 openvswitch with two internal ovs ports 42 69 76 67 74 Performance comparison Linux Bridge vs. OVS [GBit/s] on a single machine between two namespaces – source: opencloudblog.com
  • 42. Lukáš Korous Neutron Networking / OpenStack Kilo Full picture OVS Overview
  • 43. Lukáš Korous Neutron Networking / OpenStack Kilo Management Sources: openvswitch.org, yet.org Two kinds of flow  OpenFlows - User Space based  Datapath - kernel based, a kind of cached version of the OpenFlow ones. CLI parts  ovs-vsctl - high level interface for Open vSwitch Database  ovs-ofctl - speak to OpenFlow module  ovs-dpctl - speak to Kernel module ovs-vsctl  ovs-vsctl - V version of openvswitch  ovs-vsctl show - print a brief overview of database configuration  ovs-vsctl list-br - list of configured bridges  ovs-vsctl list-ports <bridge> - list of ports on a specific bridge  ovs-vsctl list interface - list of interfaces ovs-ofctl  ovs-ofctl dump-flows <br> - examine OpenFlow tables  ovs-ofctl show <br> - port number to port name mapping  ovs-ofctl dump-ports <br> - port statistics by port number ovs-dpctl low level datapath manipulation  ovs-dpctl show - basic info  ovs-dpctl dump-flows - dump datapath (kernel cached) flows Data Plane Development Kit (DPDK) with OVS Development state analysis Component Development Documentation Testing Production readiness DPDK library OK (http://dpdk.org/dev) Last commit: today OK OK Intel - OK Other – Scarse use (80%) OVS 2.4 (needed for DPDK 2.0) OK Last commit: today OK OK 100% OVS compiled with DPDK Poor (github.com/01org/dpdk-ovs) Last commit: 8 months ago Very poor (e.g. makefiles wrong) DPDK Version 1.7 – Poor 10% – 50%
  • 44. Lukáš Korous Neutron Networking / OpenStack Kilo DPDK Version 2.0 – Non-existent OVS + DPDK in Neutron In development (https://github.com/openstack/netw orking-ovs-dpdk) Last commit: a week ago Non-existent Non-existent (?) 0% - 20% Mechanism needed for passing (very) custom parameters to qemu when running instances (to use DPDK features). Such mechanism is a part of nova, although this is not its intended use and such use may not be stable.
  • 45. Lukáš Korous Neutron Networking / OpenStack Kilo OpenContrail and comparison Neutron+OVS vs. OpenContrail+vRouter Source: opencontrail.org Configuration node Management layer North-bound APIs:  ReST  GUI Integration
  • 46. Lukáš Korous Neutron Networking / OpenStack Kilo Transformation Horizontally scalable Failover-safe (including active-active HA setup) Control node Control layer South-bound APIs  vRouters  physical routers Horizontally scalable Failover-safe (including active-active HA setup) Analytics node North-bound analytics APIs Triggers, monitoring Horizontally scalable Failover-safe (including active-active HA setup) vRouter on an OpenStack network/compute node vRouter agent The vRouter agent is a user space process running inside Linux. It acts as the local, light-weight control plane and is responsible for the following functions:
  • 47. Lukáš Korous Neutron Networking / OpenStack Kilo  Exchanging control state such as routes with the Control nodes using XMPP.  Receiving low-level configuration state such as routing instances and forwarding policy from the Control nodes using XMPP.  Reporting analytics state such as logs, statistics, and events to the analytics nodes.  Installing forwarding state into the forwarding plane.  Discovering the existence and attributes of VMs in cooperation with the Nova agent.  Applying forwarding policy for the first packet of each new flow and installing a flow entry in the flow table of the forwarding plane.  Proxying DHCP, ARP, DNS, and MDNS. Additional proxies may be added in the future. Each vRouter agent is connected to at least two control nodes for redundancy in an active-active redundancy model. vRouter forwarding plane The vRouter forwarding plane runs as a kernel loadable module in Linux and is responsible for the following functions:  Encapsulating packets sent to the overlay network and decapsulating packets received from the overlay network.  Assigning packets to a routing instance: o Packets received from the overlay network are assigned to a routing instance based on the MPLS label or Virtual Network Identifier (VNI). o Virtual interfaces to local virtual machines are bound to routing instances. o Doing a lookup of the destination address of the packet in the Forwarding Information Base (FIB) and forwarding the packet to the correct destination. The routes may be layer- 3 IP prefixes or layer-2 MAC addresses. o Optionally, applying forwarding policy using a flow table:  Match packets against the flow table and apply the flow actions.  Optionally, punt the packets for which no flow rule is found (i.e. the first packet of every flow) to the vRouter agent which then installs a rule in the flow table.
  • 48. Lukáš Korous Neutron Networking / OpenStack Kilo  Punting certain packets such as DHCP, ARP, MDNS to the vRouter agent for proxying. Comparision Neutron+OVS vs. OpenContrail+vRouter Production readiness OVS  Initial commit: before 8.7.2009  https://bugs.launchpad.net/neutron/+bugs?field.tag=ovs vRouter  Initial commit: 24.8.2013  https://bugs.launchpad.net/juniperopenstack/+bugs?field.tag=vrouter Management + functional level (SDN) Neutron + OVS  OpenFlow  API – native o Sec. groups, FwaaS, LbaaS, Vpnaas o Will support QoS in Liberty  GUI – e.g. Floodlight  DPDK  Neutron initial commit: 11.5.2011 OpenContrail + vRouter  Complete platform, GUI & API included
  • 49. Lukáš Korous Neutron Networking / OpenStack Kilo  Dynamic routing  Service chaining - Initial commit: 24.8.2013 Performance comparison - vRouter vs. Linux Bridge Source: opencontrail.org Description On this setup, the unidirectional throughput measured with vRouter using MPLS over GRE as the encapsulation is 9.18Gbps. The CPU consumption on the sender is 128% (1.28 CPU cores) and it is 166% on the receiver. The CPU consumption includes the processing to push packets to and from the guest and does not include the CPU consumed by the guest itself. With bidirectional traffic (one TCP stream in each direction), the aggregate throughput is 13.1 Gbps and the CPU consumption is 188% on both ends. Results The table below compares the throughput and CPU consumption of vRouter with the Linux bridge numbers for a unidirectional TCP streaming test. Throughput Sender CPU Receiver CPU Linux bridge 9.41 Gbps 85% 125% vRouter 9.18 Gbps 128% 166% Table 1: TCP unidirectional streaming test The table below compares the numbers for a bidirectional TCP streaming test. The throughput below is the aggregate of the measured throughput at each end. The CPU consumption is the same on both servers as the traffic is bidirectional Throughput CPU consumption Linux bridge 13.9 Gbps 128% vRouter 13.1 Gbps 188% Table 2: TCP bidirectional streaming test In order to measure the latency of communication, a TCP request-response test was run between the 2 servers. The table below compares the number of request-response transactions seen with Linux bridge and vRouter. Request-response transactions Linux bridge 11050 VRouter 10800 Table 3: TCP request-response test Data center networks often enable jumbo frames for better performance. The following table compares the performance of vRouter with Linux bridge with a jumbo MTU on the 10G interface. The guest application was modified to use sendfile() instead of send() in order to avoid a copy from user space to kernel.
  • 50. Lukáš Korous Neutron Networking / OpenStack Kilo Otherwise, the single-threaded guest application couldn’t achieve a bidirectional throughput higher than 14 Gbps. Throughput CPU consumption Linux bridge 18 Gbps 125% vRouter 17.4 Gbps 120% Table 4: TCP bidirectional streaming test (jumbo MTU) SR-IOV (Single-root I/O Virtualization) Alternative to virtual switches (OVS, Linux bridge). Has to be supported by the physical NICs: https://access.redhat.com/articles/1390483 Protocol specification in 2007. In OpenStack from 2014 (Juno). Virtual Switch without (left) and with (right) SR-IOV enabled NIC – source: Glenn K. Lockwood, edited Comparison to virtual switches:  performance (still a large gap between native – non-virtualized)
  • 51. Lukáš Korous Neutron Networking / OpenStack Kilo Comparison of virtualized w/o SR-IOV, w/ SR-IOV and native 10G switches using Amazon EC2 – source: Glenn K. Lockwood Comparison of virtualized w/o SR-IOV, w/ SR-IOV and native 10G switches using Amazon EC2 – source: Glenn K. Lockwood - features (iptables, migration, HA) - limited number of Virtual Functions per NIC
  • 52. Lukáš Korous Neutron Networking / OpenStack Kilo Neutron concept and relationship to other OpenStack components Basic OpenStack services interaction scheme (source: openstack.org)
  • 53. Lukáš Korous Neutron Networking / OpenStack Kilo Objective - To provide Network-as-a-Service (NaaS) Sources: openstack.org, Hewlett-Packard Development Company, L.P.  To allow tenants to control their own private networks o Ability to create “multi-tier” networks o Control IP addressing (IP address overlapping)  Neutron API for operating logical networks o Separate logical operations and backend provisioning o Backend technologies are provisioned/configured by Neutron plugins/drivers.  Neutron provides common abstract network API independent from specific technologies/vendors.  Abstractions - what abstractions do we need to provide? o L2 (Switches) o L3 (Routers) o L4-7 (Firewalls, Load Balancers) Basic network model  Tenant can create multiple (L2) networks o Subnet defines L3 subnet information (CIDR, gateway etc)  Multiple subnets can be associated to a network o E.g., IPv4 subnet + IPv6 subnet. Multiple IPv4 address pools  Support IP address overlapping among tenants o Network have multiple ports (similar to physical L2SW ports)  Virtual NICs of VMs or router interfaces are associated with neutron ports. Basic Neutron network model
  • 54. Lukáš Korous Neutron Networking / OpenStack Kilo Components API server - controller Handles incoming API requests (including dashboard). Handles DB connections & requests from agents. Manages the agents. OpenStack Networking plug-in and agents - nodes Plugs and unplugs ports, creates networks or subnets, and provides IP addressing. The chosen plug-in and agents differ depending on the vendor and technologies used in the particular cloud. It is important to mention that only one plug-in can be used at a time. Messaging queue – AMQP server & agents Accepts and routes RPC requests between agents to complete API operations. Message queue is used in the ML2 plug-in for RPC between the neutron server and neutron agents that run on each hypervisor, in the ML2 mechanism drivers for Open vSwitch and Linux bridge.
  • 55. Lukáš Korous Neutron Networking / OpenStack Kilo Neutron networks Tenant networks Users create tenant networks for connectivity within projects. By default, they are fully isolated and are not shared with other projects. OpenStack Networking supports the following types of network isolation and overlay technologies. Flat (useless for multi-tenant environments) All instances reside on the same network, which can also be shared with the hosts. No VLAN tagging or other network segregation takes place. VLAN Described in the section “Network segmentation, encapsulation”. Networking allows users to create multiple provider or tenant networks using VLAN IDs (802.1Q tagged) that correspond to VLANs present in the physical network. This allows instances to communicate with each other across the environment. They can also communicate with dedicated servers, firewalls, load balancers, and other networking infrastructure on the same layer 2 VLAN (including hosts). GRE and VXLAN Described in the section “Network segmentation, encapsulation”. A Networking router is required to allow traffic to flow outside of the GRE or VXLAN tenant network. A router is also required to connect directly- connected tenant networks with external networks, including the Internet. The router provides the ability to connect to instances directly from an external network using floating IP addresses. Provider networks Networks that map to existing (physical) provider’s networks. Can be created only by the administrator. Can be:  External  Shared Subnets A block of IP addresses and associated configuration state. This is also known as the native IPAM (IP Address Management) provided by the networking service for both tenant and provider networks. Subnets are used to allocate IP addresses when new ports are created on a network. Ports A port is a connection point for attaching a single device, such as the NIC of a virtual server, to a virtual network. Also describes the associated network configuration, such as the MAC and IP addresses to be used on that port.
  • 56. Lukáš Korous Neutron Networking / OpenStack Kilo Routers This is a logical component that forwards data packets between networks. It also provides L3 and NAT (SNAT for connections from VMs to outside world, DNAT for floating IP addresses connections to VMs) forwarding to provide external network access for VMs on tenant networks. Required by certain plug-ins only. Security groups A security group acts as a virtual firewall for your compute instances to control inbound and outbound traffic. Security groups act at the port level, not the subnet level. Therefore, each port (and therefore each VM) in a subnet could be assigned to a different set of security groups. Security groups and security group rules give administrators and tenants the ability to specify the type of traffic and direction (ingress/egress) that is allowed to pass through a port. A security group is a container for security group rules. When a port is created, it is associated with a security group. Extensions Applications can programmatically list available extensions by performing a GET on the /extensions URI.
  • 57. Lukáš Korous Neutron Networking / OpenStack Kilo Relationship to other components & projects Projects – Nova Nova metadata being accessed from neutron and vice-versa. Nova passing bootfile DHCP parameter to Neutron for PXE boot. Nova asks neutron for default networks when launching an instance. # launching an instance $ nova boot [--flavor <flavor>] [--image <image>] [--image-with <key=value>] [--boot-volume <volume_id>] [--snapshot <snapshot_id>] [--min-count <number>] [--max-count <number>] [--meta <key=value>] [--file <dst-path=src-path>] [--key-name <key-name>] [--user-data <user-data>] [--availability-zone <availability-zone>] [--security-groups <security-groups>] [--block-device-mapping <dev-name=mapping>] [--block-device key1=value1[,key2=value2...]] [--swap <swap_size>] [--ephemeral size=<size>[,format=<format>]] [--hint <key=value>] [--nic <net-id=net-uuid,v4-fixed-ip=ip-addr,v6- fixed-ip=ip-addr,port-id=port-uuid>] [--config-drive <value>] [--poll] [--admin-pass <value>] <name> # DHCP root@compute1: $ ps –A | grep dnsmasq # just to get process id 980 ? 00:00:00 dnsmasq root@compute1: $ cat /proc/980(dnsmasq-proc-id)/cmdline dnsmasq --no-hosts --no-resolv --strict-order --bind-interfaces -- interface=tap6cb4855a-ce --except-interface=lo --pid- file=/var/lib/neutron/dhcp/e58741d0-60c7-457e-8780-366ecd3200aa/pid --dhcp-hostsfile=/var/lib/neutron/dhcp/e58741d0-60c7-457e-8780- 366ecd3200aa/host --addn-hosts=/var/lib/neutron/dhcp/e58741d0-60c7-457e-8780- 366ecd3200aa/addn_hosts --dhcp- optsfile=/var/lib/neutron/dhcp/e58741d0-60c7-457e-8780- 366ecd3200aa/opts --dhcp-leasefile=/var/lib/neutron/dhcp/e58741d0- 60c7-457e-8780-366ecd3200aa/leases --dhcp- range=set:tag0,192.168.150.0,static,86400s --dhcp-lease-max=256 -- conf-file=/etc/neutron/dnsmasq-neutron.conf --server=8.8.8.8 -- server=8.8.4.4 --domain=openstacklocal root@compute1: $ cat /var/lib/neutron/dhcp/e58741d0-60c7-457e-8780- 366ecd3200aa/host
  • 58. Lukáš Korous Neutron Networking / OpenStack Kilo fa:16:3e:03:4e:65,host-192-168-150- 233.openstacklocal,192.168.150.233 fa:16:3e:9f:ee:3d,host-192-168-150- 239.openstacklocal,192.168.150.239 fa:16:3e:01:53:94,host-192-168-150- 238.openstacklocal,192.168.150.238 fa:16:3e:b1:d1:e4,host-192-168-150- 235.openstacklocal,192.168.150.235 DHCP traffic follows the same principles discussed in section Network traffic schemes / VM <-> VM. Projects – Keystone Standard authentication mechanisms when using Neutron API. Components – AMQP (RabbitMQ) Internal communication among Neutron services performed via RPC. tcpdump -f "port 5672" -i eth1 # management network Components – Database Neutron has its dedicated database (on the controller / dedicated db server). Neutron architecture
  • 60. Lukáš Korous Neutron Networking / OpenStack Kilo OpenStack commands for Neutron checking Sources: openstack.org, http://docs.openstack.org/cli-reference/content/neutronclient_commands.html Common parameters *-list  [-c, -F] specify columns to be listed  [-f] format output (html, json, ...)  [-D] details  [--sort-key] sort according to  [--sort-dir] sort direction *-create  [-c] specify columns to be listed  [-f] format output (html, json, ...)  [--tenant-id] *-show  name or ID *-update  name or ID *-delete  name or ID Basic commands openstack network (NOT external network)  list  create o name o [--shared] o [--provider:network_type] o [--provider:physical_network] o [--provider:segmentation_id] o [--vlan-transparent] o [--qos-policy]  delete  update  show external network has to be created using the ‘old way’:
  • 61. Lukáš Korous Neutron Networking / OpenStack Kilo $ neutron net-create ext-net --router:external True --provider:physical_network external --provider:network_type flat Created a new network: +---------------------------+--------------------------------------| Field | Value | +---------------------------+--------------------------------------+ | admin_state_up | True | | id | 893aebb9-1c1e-48be-8908-6b947f3237b3 | name | ext-net | provider:network_type | flat | provider:physical_network | external | provider:segmentation_id | | router:external | True | shared | False | status | ACTIVE | subnets | | tenant_id | 54cd044c64d5408b83f843d63624e0d8 +-- -------------------------+-------------------------------------- $ neutron net-external-list +--------------------------------------+--------+-------------------------- -----------------------------+ | id | name | subnets | +--------------------------------------+--------+-------------------------- -----------------------------+ | e58741d0-60c7-457e-8780-366ecd3200aa | public | 31a30f35-54c9-4767-83bc- 8df76b909cdc 192.168.150.0/24 | +--------------------------------------+--------+-------------------------- -----------------------------+ subnet (NOT external network)  list  create o network o cidr o [--allocation-pool] o [--host-route] o [--gateway / --no-gateway] o [--dns-nameserver] o [--enable-dhcp/--disable-dhcp] o [--subnetpol] o [--prefixlen]  delete  update o [--allocation-pool] o [--host-route] o [--gateway / --no-gateway] o [--dns-nameserver] o [--enable-dhcp/--disable-dhcp]
  • 62. Lukáš Korous Neutron Networking / OpenStack Kilo  show external subnet: $ neutron subnet-create ext-net --name ext-subnet --allocation-pool start=FLOATING_IP_START,end=FLOATING_IP_END --disable-dhcp --gateway EXTERNAL_NETWORK_GATEWAY EXTERNAL_NETWORK_CIDR Notes from docs.openstack.org: Replace FLOATING_IP_START and FLOATING_IP_END with the first and last IP addresses of the range that you want to allocate for floating IP addresses. Replace EXTERNAL_NETWORK_CIDR with the subnet associated with the physical network. Replace EXTERNAL_NETWORK_GATEWAY with the gateway associated with the physical network, typically the ".1" IP address.  OK You should disable DHCP on this subnet because instances do not connect directly to the external network and floating IP addresses require manual assignment.  This is for consideration. floatingip  list  create o public network (from which the floating ip is allocated) o [--port-id] o [--fixed-ip-address] o [--floating-ip-address] o  delete  show port  list  create o network o [--fixed-ip] o [--device-id] o [--device-owner] o [--mac-address] o [--security-group/--no-security-groups] o [--qos-policy]  delete (!!! does not delete the vm’s interface, or its ip address)  update o [--fixed-ip] o [--device-id] o [--device-owner] o [--security-group/--no-security-groups]
  • 63. Lukáš Korous Neutron Networking / OpenStack Kilo o [--qos-policy]  show  nova interface-attach –port-id=(name or id of port) name-or-id-of-instance router  list  create o name o [--ha] o [--distributed] o [--admin-state-down]  delete  update o [--name] o [--distributed] o [--admin-state-down]  show security-group  list  create o name o [--description]  delete  update o [--name] o [--description]  show security-group-rule  list  create o security_group o [--direction] o [--ethertype] o [--protocol] o [--port-range-min / port-range-max] o [--remote-ip-prefix]  delete  show QoS Blueprints https://blueprints.launchpad.net/neutron?searchtext=qos
  • 64. Lukáš Korous Neutron Networking / OpenStack Kilo Kilo no support Liberty first official support (=> (prediction) not practically usable) neutron qos-policy policy that is later possible to assign to a vm, or a router  list  create o name o [--shared]  delete  update o [--name] o [--shared]  show neutron qos-available-rule-types list available rule types (in Liberty – 7.0.0 – only bandwidth limit rules are available) neutron qos-bandwith-limit-rule  create o [--max-kbps] o [--max-burst-kbps] o qos_policy  show  update o [--max-kbps] o [--max-burst-kbps] o qos_policy  delete  list neutron queue QoS queues  create o [--min] o [--max] o [--qos-marking] o [--default] o [--dscp] o name  show  delete  list
  • 66. Lukáš Korous Neutron Networking / OpenStack Kilo Neutron configuration files Controller Log file /var/log/neutron-server.log Main configuration file /etc/neutron/neutron.conf [DEFAULT] # Print more verbose output (set logging level to INFO instead of default WARNING level). # Handles logging to /var/log/neutron-server.log on the controller verbose = True # ===Start Global Config Option for Distributed L3 Router======= # Setting the "router_distributed" flag to "True" will default to the creation # of distributed tenant routers. The admin can override this flag by specifying # the type of the router on the create request (admin-only attribute). Default # value is "False" to support legacy mode (centralized) routers. # # Legacy mode (no DVR) router_distributed = False # # ==End Global Config Option for Distributed L3 Router========== # Print debugging output (set logging level to DEBUG instead of default WARNING level). # Handles logging to /var/log/neutron-server.log on the controller # debug = False # Where to store Neutron state files. # This directory must be writable by the user executing the agent. # Temporary files # state_path = /var/lib/neutron # log_format = %(asctime)s %(levelname)8s [%(name)s] %(message)s # log_date_format = %Y-%m-%d %H:%M:%S # Start - logging to syslog, stderr # use_syslog -> syslog # ... (logging to syslog, stderr) # publish_errors = False # End - logging to syslog, stderr
  • 67. Lukáš Korous Neutron Networking / OpenStack Kilo # API endpoint specification # Address to bind the API server to bind_host = controller1 # Port the bind the API server to bind_port = 9696 # Path to the API extensions # ... # api_extensions_path = # (StrOpt) Neutron core plugin entrypoint to be loaded from the # neutron.core_plugins namespace. See setup.cfg for the entrypoint names of the # plugins included in the neutron source distribution. For compatibility with # previous versions, the class name of a plugin can be specified instead of its # entrypoint name. # # Example: core_plugin = ml2 # https://github.com/openstack/neutron/blob/master/setup.cfg#L103 core_plugin = neutron.plugins.ml2.plugin.Ml2Plugin # (ListOpt) List of service plugin entrypoints to be loaded from the # neutron.service_plugins namespace. See setup.cfg for the entrypoint names of # the plugins included in the neutron source distribution. For compatibility # with previous versions, the class name of a plugin can be specified instead # of its entrypoint name. # # Example: service_plugins = router,firewall,lbaas,vpnaas,metering # https://github.com/openstack/neutron/blob/master/setup.cfg#L108 service_plugins = router,lbaas,vpnaas # api-paste.ini – API & authentication settings # Paste configuration file # api_paste_config = api-paste.ini # default = hostname # (StrOpt) Hostname to be used by the neutron server, agents and services # running on this machine. All the agents and services running on this machine # must use the same host value. # The default value is hostname of the machine. # # host =
  • 68. Lukáš Korous Neutron Networking / OpenStack Kilo # Neutron authentication # The strategy to be used for auth. # Supported values are 'keystone'(default), 'noauth'. auth_strategy = keystone # Random MAC generation (defaults apply) # Base MAC address. The first 3 octets will remain unchanged. If the # 4h octet is not 00, it will also be used. The others will be # randomly generated. # 3 octet # base_mac = fa:16:3e:00:00:00 # 4 octet # base_mac = fa:16:3e:4f:00:00 # DVR Base MAC address. The first 3 octets will remain unchanged. If the # 4th octet is not 00, it will also be used. The others will be randomly # generated. The 'dvr_base_mac' *must* be different from 'base_mac' to # avoid mixing them up with MAC's allocated for tenant ports. # A 4 octet example would be dvr_base_mac = fa:16:3f:4f:00:00 # The default is 3 octet # dvr_base_mac = fa:16:3f:00:00:00 # Maximum amount of retries to generate a unique MAC address # mac_generation_retries = 16 # DNSMASQ settings # DHCP Lease duration (in seconds). Use -1 to # tell dnsmasq to use infinite lease times. # dhcp_lease_duration = 86400 # Allow sending resource operation notification to DHCP agent # dhcp_agent_notification = True # Enable or disable bulk create/update/delete operations # allow_bulk = True # Enable or disable pagination # allow_pagination = False # Enable or disable sorting # allow_sorting = False # Enable or disable overlapping IPs for subnets # Attention: the following parameter MUST be set to False if Neutron is # being used in conjunction with nova security groups allow_overlapping_ips = True # Ensure that configured gateway is on subnet. For IPv6, validate only if # gateway is not a link local address. Deprecated, to be removed during the
  • 69. Lukáš Korous Neutron Networking / OpenStack Kilo # K release, at which point the check will be mandatory. # force_gateway_on_subnet = True # Default maximum number of items returned in a single response, # value == infinite and value < 0 means no max limit, and value must # be greater than 0. If the number of items requested is greater than # pagination_max_limit, server will just return pagination_max_limit # of number of items. # pagination_max_limit = -1 # Maximum number of DNS nameservers per subnet # max_dns_nameservers = 5 # Maximum number of host routes per subnet # max_subnet_host_routes = 20 # Maximum number of fixed ips per port # max_fixed_ips_per_port = 5 # Maximum number of routes per router # max_routes = 30 # Default Subnet Pool to be used for IPv4 subnet-allocation. # Specifies by UUID the pool to be used in case of subnet-create # being called without a subnet-pool ID. The default of None means # that no pool will be used unless passed explicitly to subnet # If no pool is used, then a CIDR must be passed to create a subnet # and that subnet will not be allocated from any pool; it will be # considered part of the tenant's private address space. # default_ipv4_subnet_pool = # Default Subnet Pool to be used for IPv6 subnet-allocation. # Specifies by UUID the pool to be used in case of subnet-create # being called without a subnet-pool ID. # default_ipv6_subnet_pool = # New in Kilo, MTU for instances done in a different config file. # ==== items for MTU selection and advertisement ============= # Advertise MTU. If True, effort is made to advertise MTU # settings to VMs via network methods (ie. DHCP and RA MTU options) # when the network's preferred MTU is known. # advertise_mtu = False # ==== end of items for MTU selection and advertisement ========= # =========== items for agent management extension ============= # Seconds to regard the agent as down; should be at least twice # report_interval, to be sure the agent is down for good # agent_down_time = 75 # =========== end of items for agent management extension ===== # =========== items for agent scheduler extension ============= # Driver to use for scheduling network to DHCP agent
  • 70. Lukáš Korous Neutron Networking / OpenStack Kilo # https://github.com/openstack/neutron/blob/master/neutron/scheduler/d hcp_agent_scheduler.py # network_scheduler_driver = # neutron.scheduler.dhcp_agent_scheduler.ChanceScheduler # Driver to use for scheduling router to a default L3 agent # https://github.com/openstack/neutron/blob/master/neutron/scheduler/l 3_agent_scheduler.py # router_scheduler_driver = neutron.scheduler.l3_agent_scheduler.ChanceScheduler # Driver to use for scheduling a loadbalancer pool to an lbaas agent # loadbalancer_pool_scheduler_driver = neutron.services.loadbalancer.agent_scheduler.ChanceScheduler # (StrOpt) Representing the resource type whose load is being # reported by the agent. # This can be 'networks','subnets' or 'ports'. When specified # (Default is networks), the server will extract particular load # sent as part of its agent configuration object from the agent # report state, which is the number of resources being consumed, at # every report_interval. # dhcp_load_type can be used in combination with # network_scheduler_driver = # neutron.scheduler.dhcp_agent_scheduler.WeightScheduler # When the network_scheduler_driver is WeightScheduler, # dhcp_load_type can be configured to represent the choice for the # resource being balanced. # Example: dhcp_load_type = networks # Values: # networks - number of networks hosted on the agent # subnets - number of subnets associated with the networks # hosted on the agent # ports - number of ports associated with the networks hosted # on the agent # dhcp_load_type = networks # Allow auto scheduling networks to DHCP agent. It will schedule # non-hosted networks to first DHCP agent which sends # get_active_networks message to neutron server # network_auto_schedule = True # Allow auto scheduling routers to L3 agent. It will schedule non- # hosted routers to first L3 agent which sends sync_routers message # to neutron server # router_auto_schedule = True # Allow automatic rescheduling of routers from dead L3 agents with # admin_state_up set to True to alive agents. # allow_automatic_l3agent_failover = False # Allow automatic removal of networks from dead DHCP agents with # admin_state_up set to True.
  • 71. Lukáš Korous Neutron Networking / OpenStack Kilo # Networks could then be rescheduled if network_auto_schedule is # True # allow_automatic_dhcp_failover = True # Number of DHCP agents scheduled to host a network. This enables # redundant DHCP agents for configured networks. # dhcp_agents_per_network = 1 # Enable services on agents with admin_state_up False. # If this option is False, when admin_state_up of an agent is # turned to False, services on it will be disabled. If this option # is True, services on agents with admin_state_up False keep # available and manual scheduling to such agents is available. # Agents with admin_state_up False are not selected for automatic # scheduling regardless of this option. # enable_services_on_agents_with_admin_state_down = False # =========== end of items for agent scheduler extension ===== # =========== items for l3 extension ============== # Enable high availability for virtual routers. # l3_ha = False # # Maximum number of l3 agents which a HA router will be scheduled # on.If it is set to 0 the router will be scheduled on every agent. # max_l3_agents_per_router = 3 # # Minimum number of l3 agents which a HA router will be scheduled # on. The default value is 2. # min_l3_agents_per_router = 2 # # CIDR of the administrative network if HA mode is enabled # l3_ha_net_cidr = 169.254.192.0/18 # =========== end of items for l3 extension ======= # =========== items for metadata proxy configuration ============== # User (uid or name) running metadata proxy after its # initialization (if empty: agent effective user) # metadata_proxy_user = # Group (gid or name) running metadata proxy after its # initialization (if empty: agent effective group) # metadata_proxy_group = # Enable/Disable log watch by metadata proxy, it should be disabled # when metadata_proxy_user/group is not allowed to read/write its # log file and # 'copytruncate' logrotate option must be used if logrotate is # enabled on metadata proxy log files. Option default value is # deduced from metadata_proxy_user: watch log is enabled if # metadata_proxy_user is agent effective user id/name. # metadata_proxy_watch_log =
  • 72. Lukáš Korous Neutron Networking / OpenStack Kilo # Location of Metadata Proxy UNIX domain socket # metadata_proxy_socket = $state_path/metadata_proxy # ===== end of items for metadata proxy configuration ============ # ========== items for VLAN trunking networks ========== # Setting this flag to True will allow plugins that support it to # create VLAN transparent networks. This flag has no effect for # plugins that do not support VLAN transparent networks. # vlan_transparent = False # ========== end of items for VLAN trunking networks ========== # == WSGI (Web Server Gateway Interface) API server parameters == # Number of separate worker processes to spawn. The default, 0, # runs the worker thread in the current process. Greater than 0 # launches that number of child processes as workers. The parent # process manages them. # api_workers = 0 # Number of separate RPC worker processes to spawn. The default, # 0, runs the worker thread in the current process. Greater than 0 # launches that number of child processes as RPC workers. The # parent process manages them. This feature is experimental until # issues are addressed and testing has been enabled for various # plugins for compatibility. # rpc_workers = 0 # Timeout for client connections socket operations. If an # incoming connection is idle for this number of seconds it # will be closed. A value of '0' means wait forever. (integer # value) # client_socket_timeout = 900 # wsgi keepalive option. Determines if connections are allowed to # be held open by clients after a request is fulfilled. A value of # False will ensure that the socket connection will be explicitly # closed once a response has been sent to the client. # wsgi_keep_alive = True # Sets the value of TCP_KEEPIDLE in seconds to use for each server # socket when starting API server. Not supported on OS X. # tcp_keepidle = 600 # Number of seconds to keep retrying to listen # retry_until_window = 30 # Number of backlog requests to configure the socket with. # backlog = 4096 # Max header line to accommodate large tokens # max_header_line = 16384 # Enable SSL on the API server # use_ssl = False
  • 73. Lukáš Korous Neutron Networking / OpenStack Kilo # Certificate file to use when starting API server securely # ssl_cert_file = /path/to/certfile # Private key file to use when starting API server securely # ssl_key_file = /path/to/keyfile # CA certificate file to use when starting API server securely to # verify connecting clients. This is an optional parameter only required if # API clients need to authenticate to the API server using SSL # certificates signed by a trusted CA # ssl_ca_file = /path/to/cafile # ===== end of WSGI parameters related to the API server ========= # ======== neutron nova interactions ========== # Send notification to nova when port status is active. notify_nova_on_port_status_changes = True # Send notifications to nova when port data (fixed_ips/floatingips) # change so nova can update it's cache. notify_nova_on_port_data_changes = True # URL for connection to nova (Only supports one nova region currently). nova_url = http://controller1:8774/v2 # Name of nova region to use. Useful if keystone manages more than one region # nova_region_name = # Username for connection to nova in admin context # nova_admin_username = # The uuid of the admin nova tenant # nova_admin_tenant_id = # The name of the admin nova tenant. If the uuid of the admin nova # tenant is set, this is optional. Useful for cases where the uuid # of the admin nova tenant is not available when configuration is # being done. # nova_admin_tenant_name = # Password for connection to nova in admin context. # nova_admin_password = # Authorization URL for connection to nova in admin context. # nova_admin_auth_url = # CA file for novaclient to verify server certificates # nova_ca_certificates_file = # Boolean to control ignoring SSL errors on the nova url
  • 74. Lukáš Korous Neutron Networking / OpenStack Kilo # nova_api_insecure = False # Number of seconds between sending events to nova if there are any events to send # send_events_interval = 2 # ======== end of neutron nova interactions ========== # ================= AMQP ====================== # Use durable queues in amqp. (boolean value) # Deprecated group/name - [DEFAULT]/rabbit_durable_queues # amqp_durable_queues=false # Auto-delete queues in amqp. (boolean value) # amqp_auto_delete=false # Size of RPC connection pool. (integer value) # rpc_conn_pool_size=30 # The messaging driver to use, defaults to rabbit. Other # drivers include qpid and zmq. (string value) rpc_backend = rabbit # The default exchange under which topics are scoped. May be # overridden by an exchange name specified in the # transport_url option. (string value) # control_exchange=openstack [matchmaker_redis] # # Options defined in oslo.messaging # # Host to locate redis. (string value) # host=127.0.0.1 # Use this port to connect to redis host. (integer value) # port=6379 # Password for Redis server (optional). (string value) # password= [matchmaker_ring] # # Options defined in oslo.messaging # # Matchmaker ring file (JSON). (string value) # Deprecated group/name - [DEFAULT]/matchmaker_ringfile # ringfile=/etc/oslo/matchmaker_ring.json
  • 75. Lukáš Korous Neutron Networking / OpenStack Kilo # ================= end of AMQP ====================== # ================= quotas ====================== # Default driver to use for quota checks # quota_driver = neutron.db.quota_db.DbQuotaDriver # Resource name(s) that are supported in quota features # quota_items = network,subnet,port # Default number of resource allowed per tenant. A negative value means # unlimited. # default_quota = -1 # Number of networks allowed per tenant. A negative value means unlimited. # quota_network = 10 # Number of subnets allowed per tenant. A negative value means unlimited. # quota_subnet = 10 # Number of ports allowed per tenant. A negative value means unlimited. # quota_port = 50 # Number of security groups allowed per tenant. A negative value means # unlimited. # quota_security_group = 10 # Number of security group rules allowed per tenant. A negative value means # unlimited. # quota_security_group_rule = 100 # Number of vips allowed per tenant. A negative value means unlimited. # quota_vip = 10 # Number of pools allowed per tenant. A negative value means unlimited. # quota_pool = 10 # Number of pool members allowed per tenant. A negative value means unlimited. # The default is unlimited because a member is not a real resource consumer # on Openstack. However, on back-end, a member is a resource consumer # and that is the reason why quota is possible. # quota_member = -1
  • 76. Lukáš Korous Neutron Networking / OpenStack Kilo # Number of health monitors allowed per tenant. A negative value means # unlimited. # The default is unlimited because a health monitor is not a real resource # consumer on Openstack. However, on back-end, a member is a resource consumer # and that is the reason why quota is possible. # quota_health_monitor = -1 # Number of loadbalancers allowed per tenant. A negative value means unlimited. # quota_loadbalancer = 10 # Number of listeners allowed per tenant. A negative value means unlimited. # quota_listener = -1 # Number of v2 health monitors allowed per tenant. A negative value means # unlimited. These health monitors exist under the lbaas v2 API # quota_healthmonitor = -1 # Number of routers allowed per tenant. A negative value means unlimited. # quota_router = 10 # Number of floating IPs allowed per tenant. A negative value means unlimited. # quota_floatingip = 50 # Number of firewalls allowed per tenant. A negative value means unlimited. # quota_firewall = 1 # Number of firewall policies allowed per tenant. A negative value means # unlimited. # quota_firewall_policy = 1 # Number of firewall rules allowed per tenant. A negative value means # unlimited. # quota_firewall_rule = 100 # ================= end of quotas ====================== # ================= agent ====================== # Use "sudo neutron-rootwrap /etc/neutron/rootwrap.conf" to use the # real root filter facility. Change to "sudo" to skip the filtering # and just run the command directly root_helper = sudo neutron-rootwrap /etc/neutron/rootwrap.conf
  • 77. Lukáš Korous Neutron Networking / OpenStack Kilo # Set to true to add comments to generated iptables rules that # describe each rule's purpose. (System must support the iptables # comments module.) # comment_iptables_rules = True # Root helper daemon application to use when possible. # root_helper_daemon = # Use the root helper when listing the namespaces on a system. This # may not be required depending on the security configuration. If # the root helper is not required, set this to False for a # performance improvement. # use_helper_for_ns_read = True # The interval to check external processes for failure in seconds (0=disabled) # check_child_processes_interval = 60 # Action to take when an external process spawned by an agent dies # Values: # respawn - Respawns the external process # exit - Exits the agent # check_child_processes_action = respawn # ================= end of agent ====================== # =========== items for agent management extension ============= # seconds between nodes reporting state to server; should be less # than agent_down_time, best if it is half or less than # agent_down_time # report_interval = 30 # =========== end of items for agent management extension ===== # ============== keystone_authtoken ========================== auth_uri = http://controller1:5000 auth_url = http://controller1:35357 auth_plugin = password project_domain_id = default user_domain_id = default project_name = service username = neutron password = asd08f756ae0ftya # ============== end of keystone_authtoken ======================== # ====================== database ========================== # This line MUST be changed to actually run the plugin. # Example: connection = mysql://root:pass@127.0.0.1:3306/neutron # Replace 127.0.0.1 above with the IP address of the database used # by the main neutron server. (Leave it as is if the database runs # on this host.) # NOTE: In deployment the [database] section and its connection
  • 78. Lukáš Korous Neutron Networking / OpenStack Kilo # attribute may be set in the corresponding core plugin '.ini' # file. However, it is suggested to put the [database] section and # its connection attribute in this configuration file. connection = mysql://neutron:k9xBUqUbsjf8BY6wRmVz@localhost/neutron # Database engine for which script will be generated when using # offline migration # engine = # The SQLAlchemy connection string used to connect to the slave database # slave_connection = # Database reconnection retry times - in event connectivity is lost # set to -1 implies an infinite retry count # max_retries = 10 # Database reconnection interval in seconds - if the initial # connection to the database fails # retry_interval = 10 # Minimum number of SQL connections to keep open in a pool # min_pool_size = 1 # Maximum number of SQL connections to keep open in a pool # max_pool_size = 10 # Timeout in seconds before idle sql connections are reaped # idle_timeout = 3600 # If set, use this value for max_overflow with sqlalchemy # max_overflow = 20 # Verbosity of SQL debugging information. 0=None, 100=Everything # connection_debug = 0 # Add python stack traces to SQL as comment strings # connection_trace = False # If set, use this value for pool_timeout with sqlalchemy # pool_timeout = 10 # ====================== end of database ========================== # =========================== nova ============================== # Name of the plugin to load # auth_plugin = # Config Section from which to load plugin specific options # auth_section = # PEM encoded Certificate Authority to use when verifying HTTPs connections. # cafile =
  • 79. Lukáš Korous Neutron Networking / OpenStack Kilo # PEM encoded client certificate cert file # certfile = # Verify HTTPS connections. # insecure = False # PEM encoded client certificate key file # keyfile = # Timeout value for http requests # timeout = auth_url = http://controller1:35357 auth_plugin = password project_domain_id = default user_domain_id = default region_name = regionOne project_name = service username = nova password = asd08f756ae0ftya # ========================= end of nova =========================== # ====================== oslo_concurrency ========================= # Directory to use for lock files. For security, the specified # directory should only be writable by the user running the # processes that need locking. Defaults to environment variable # OSLO_LOCK_PATH. If external locks are used, a lock path must be # set. lock_path = $state_path/lock # Enables or disables inter-process locks. # disable_process_locking = False # ========================= oslo_policy ========================== # The JSON file that defines policies. # policy_file = policy.json # Default rule. Enforced when a requested rule is not found. # policy_default_rule = default # Directories where policy configuration files are stored. # They can be relative to any directory in the search path defined # by the config_dir option, or absolute paths. The file defined by # policy_file must exist for these directories to be searched. # Missing or empty directories are ignored. # policy_dirs = policy.d # ===================== oslo_messaging_amqp ======================= # Address prefix used when sending to a specific server (string value) # Deprecated group/name - [amqp1]/server_request_prefix
  • 80. Lukáš Korous Neutron Networking / OpenStack Kilo # server_request_prefix = exclusive # Address prefix used when broadcasting to all servers (string value) # Deprecated group/name - [amqp1]/broadcast_prefix # broadcast_prefix = broadcast # Address prefix when sending to any server in group (string value) # Deprecated group/name - [amqp1]/group_request_prefix # group_request_prefix = unicast # Name for the AMQP container (string value) # Deprecated group/name - [amqp1]/container_name # container_name = # Timeout for inactive connections (in seconds) (integer value) # Deprecated group/name - [amqp1]/idle_timeout # idle_timeout = 0 # Debug: dump AMQP frames to stdout (boolean value) # Deprecated group/name - [amqp1]/trace # trace = false # CA certificate PEM file for verifing server certificate (string value) # Deprecated group/name - [amqp1]/ssl_ca_file # ssl_ca_file = # Identifying certificate PEM file to present to clients (string value) # Deprecated group/name - [amqp1]/ssl_cert_file # ssl_cert_file = # Private key PEM file used to sign cert_file certificate (string value) # Deprecated group/name - [amqp1]/ssl_key_file # ssl_key_file = # Password for decrypting ssl_key_file (if encrypted) (string value) # Deprecated group/name - [amqp1]/ssl_key_password # ssl_key_password = # Accept clients using either SSL or plain TCP (boolean value) # Deprecated group/name - [amqp1]/allow_insecure_clients # allow_insecure_clients = false # ==================== oslo_messaging_rabbit ====================== # Use durable queues in AMQP. (boolean value) # Deprecated group/name - [DEFAULT]/rabbit_durable_queues # amqp_durable_queues=False # Auto-delete queues in AMQP. (boolean value) # Deprecated group/name - [DEFAULT]/amqp_auto_delete # amqp_auto_delete = false
  • 81. Lukáš Korous Neutron Networking / OpenStack Kilo # Size of RPC connection pool. (integer value) # Deprecated group/name - [DEFAULT]/rpc_conn_pool_size # rpc_conn_pool_size = 30 # SSL version to use (valid only if SSL enabled). Valid values are TLSv1 and # SSLv23. SSLv2, SSLv3, TLSv1_1, and TLSv1_2 may be available on some # distributions. (string value) # Deprecated group/name - [DEFAULT]/kombu_ssl_version # kombu_ssl_version = # SSL key file (valid only if SSL enabled). (string value) # Deprecated group/name - [DEFAULT]/kombu_ssl_keyfile # kombu_ssl_keyfile = # SSL cert file (valid only if SSL enabled). (string value) # Deprecated group/name - [DEFAULT]/kombu_ssl_certfile # kombu_ssl_certfile = # SSL certification authority file (valid only if SSL enabled). (string value) # Deprecated group/name - [DEFAULT]/kombu_ssl_ca_certs # kombu_ssl_ca_certs = # How long to wait before reconnecting in response to an AMQP consumer cancel # notification. (floating point value) # Deprecated group/name - [DEFAULT]/kombu_reconnect_delay # kombu_reconnect_delay = 1.0 # The RabbitMQ broker address where a single node is used. (string value) # Deprecated group/name - [DEFAULT]/rabbit_host rabbit_host = rabbitmq1 # The RabbitMQ broker port where a single node is used. (integer value) # Deprecated group/name - [DEFAULT]/rabbit_port rabbit_port = 5672 # RabbitMQ HA cluster host:port pairs. (list value) # Deprecated group/name - [DEFAULT]/rabbit_hosts # rabbit_hosts = $rabbit_host:$rabbit_port # Connect over SSL for RabbitMQ. (boolean value) # Deprecated group/name - [DEFAULT]/rabbit_use_ssl rabbit_use_ssl = False # The RabbitMQ userid. (string value) # Deprecated group/name - [DEFAULT]/rabbit_userid rabbit_userid = guest
  • 82. Lukáš Korous Neutron Networking / OpenStack Kilo # The RabbitMQ password. (string value) # Deprecated group/name - [DEFAULT]/rabbit_password rabbit_password = ousthf67thb9R8876RBASD # The RabbitMQ login method. (string value) # Deprecated group/name - [DEFAULT]/rabbit_login_method # rabbit_login_method = AMQPLAIN # The RabbitMQ virtual host. (string value) # Deprecated group/name - [DEFAULT]/rabbit_virtual_host rabbit_virtual_host = / # How frequently to retry connecting with RabbitMQ. (integer value) # rabbit_retry_interval=1 # How long to backoff for between retries when connecting to RabbitMQ. (integer # value) # Deprecated group/name - [DEFAULT]/rabbit_retry_backoff # rabbit_retry_backoff=2 # Maximum number of RabbitMQ connection retries. Default is 0 (infinite retry # count). (integer value) # Deprecated group/name - [DEFAULT]/rabbit_max_retries # rabbit_max_retries=0 # Use HA queues in RabbitMQ (x-ha-policy: all). If you change this # option, you must wipe the RabbitMQ database. (boolean value) # Deprecated group/name - [DEFAULT]/rabbit_ha_queues # rabbit_ha_queues=False # Deprecated, use rpc_backend=kombu+memory or rpc_backend=fake (boolean value) # Deprecated group/name - [DEFAULT]/fake_rabbit fake_rabbit = False # ===================== service providers ==================== # Specify service providers (drivers) for advanced services like # loadbalancer, VPN, Firewall. Must be in form: # service_provider=<service_type>:<name>:<driver>[:default] # List of allowed service types includes LOADBALANCER, FIREWALL, VPN # Combination of <service type> and <name> must be unique; <driver> must also be unique # This is multiline option, example for default provider: # service_provider=LOADBALANCER:name:lbaas_plugin_driver_path:default # example of non-default provider: # service_provider=FIREWALL:name2:firewall_driver_path service_provider = LOADBALANCER:Haproxy:neutron_lbaas.services.loadbalancer.drivers.hap roxy.plugin_driver.HaproxyOnHostPluginDriver:default
  • 83. Lukáš Korous Neutron Networking / OpenStack Kilo service_provider = VPN:openswan:neutron_vpnaas.services.vpn.service_drivers.ipsec.IPsec VPNDriver:default
  • 84. Lukáš Korous Neutron Networking / OpenStack Kilo Nova configuration file /etc/nova/nova.conf # Control for checking for default networks (string value) #use_neutron_default_nets=False # Default tenant id when creating neutron networks (string # value) #neutron_default_tenant_id=default # Number of private networks allowed per project (integer # value) #quota_networks=3 # The full class name of the network API class to use (string # value) network_api_class = nova.network.neutronv2.api.API # === Options defined in nova.network.driver === # Driver to use for network creation (string value) #network_driver=nova.network.linux_net # === Options defined in nova.network.floating_ips === # Default pool for floating IPs (string value) default_floating_pool = public # Autoassigning floating IP to VM (boolean value) #auto_assign_floating_ip=false ====== Options defined in nova.network.neutronv2.api ====== # URL for connecting to neutron (string value) url = http://controller1:9696 # User id for connecting to neutron in admin context. # DEPRECATED: specify an auth_plugin and appropriate # credentials instead. (string value) #admin_user_id=<None> # Username for connecting to neutron in admin context # DEPRECATED: specify an auth_plugin and appropriate # credentials instead. (string value) admin_username = neutron # Password for connecting to neutron in admin context # DEPRECATED: specify an auth_plugin and appropriate # credentials instead. (string value) admin_password = asd08f756ae0ftya # Tenant id for connecting to neutron in admin context # DEPRECATED: specify an auth_plugin and appropriate # credentials instead. (string value) #admin_tenant_id=<None>
  • 85. Lukáš Korous Neutron Networking / OpenStack Kilo # Tenant name for connecting to neutron in admin context. This # option will be ignored if neutron_admin_tenant_id is set. # Note that with Keystone V3 tenant names are only unique # within a domain. DEPRECATED: specify an auth_plugin and # appropriate credentials instead. (string value) admin_tenant_name = service # Region name for connecting to neutron in admin context # (string value) #region_name=<None> # Authorization URL for connecting to neutron in admin # context. DEPRECATED: specify an auth_plugin and appropriate # credentials instead. (string value) admin_auth_url = http://controller1:35357/v2.0 # Authorization strategy for connecting to neutron in admin # context. DEPRECATED: specify an auth_plugin and appropriate # credentials instead. If an auth_plugin is specified strategy # will be ignored. (string value) auth_strategy = keystone # Name of Integration Bridge used by Open vSwitch (string # value) #ovs_bridge=br-int # Number of seconds before querying neutron for extensions # (integer value) #extension_sync_interval=600
  • 86. Lukáš Korous Neutron Networking / OpenStack Kilo ML2 plugin configuration file /etc/neutron/plugins/ml2_conf.ini # Drivers to be subsequently used in tenant_network_types # (ListOpt) List of network type driver entrypoints to be loaded # from the neutron.ml2.type_drivers namespace. # Example: type_drivers = local,flat,vlan,gre,vxlan type_drivers = flat,vxlan # (ListOpt) Ordered list of network_types to allocate as tenant # networks. The default value 'local' is useful for single-box # testing but provides no connectivity between hosts. # # Example: tenant_network_types = vlan,gre,vxlan tenant_network_types = vxlan # (ListOpt) Ordered list of networking mechanism driver entrypoints # to be loaded from the neutron.ml2.mechanism_drivers namespace. # Example: mechanism_drivers = openvswitch,mlnx # Example: mechanism_drivers = arista # Example: mechanism_drivers = cisco,logger # Example: mechanism_drivers = openvswitch,brocade # Example: mechanism_drivers = linuxbridge,brocade mechanism_drivers = openvswitch,l2population # (ListOpt) Ordered list of extension driver entrypoints # to be loaded from the neutron.ml2.extension_drivers namespace. # extension_drivers = # Example: extension_drivers = anewextensiondriver # =========== items for MTU selection and advertisement ========= # MTU is possible to be set in different places, here is one # option, in DHCP response is another # (IntOpt) Path MTU. The maximum permissible size of an # unfragmented packet travelling from and to addresses where # encapsulated Neutron traffic is sent. Drivers calculate # maximum viable MTU for validating tenant requests based on this # value (typically, path_mtu - max encap header size). If <=0, # the path MTU is indeterminate and no calculation takes place. # path_mtu = 0 # (IntOpt) Segment MTU. The maximum permissible size of an # unfragmented packet travelling a L2 network segment. If <=0, # the segment MTU is indeterminate and no calculation takes place. # segment_mtu = 0 # (ListOpt) Physical network MTUs. List of mappings of physical # network to MTU value. The format of the mapping is # <physnet>:<mtu val>. This mapping allows specifying a # physical network MTU value that differs from the default # segment_mtu value. # physical_network_mtus = # Example: physical_network_mtus = physnet1:1550, physnet2:1500
  • 87. Lukáš Korous Neutron Networking / OpenStack Kilo # ====================== flat networks ====================== # (ListOpt) List of physical_network names with which flat # networks # can be created. Use * to allow flat networks with arbitrary # physical_network names. # # Example:flat_networks = physnet1,physnet2 # Example:flat_networks = * flat_networks = external # ====================== vlan networks ====================== # (ListOpt) List of <physical_network>[:<vlan_min>:<vlan_max>] tuples # specifying physical_network names usable for VLAN provider and # tenant networks, as well as ranges of VLAN tags on each # physical_network available for allocation as tenant networks. # # network_vlan_ranges = # Example: network_vlan_ranges = physnet1:1000:2999,physnet2 # ====================== gre networks ====================== # (ListOpt) Comma-separated list of <tun_min>:<tun_max> tuples enumerating ranges of GRE tunnel IDs that are available for tenant network allocation # tunnel_id_ranges = # ====================== vxlan networks ====================== # (ListOpt) Comma-separated list of <vni_min>:<vni_max> tuples enumerating # ranges of VXLAN VNI IDs that are available for tenant network allocation. # vni_ranges = 65537:69999 # (StrOpt) Multicast group for the VXLAN interface. When configured, will # enable sending all broadcast traffic to this multicast group. When left # unconfigured, will disable multicast VXLAN mode. # # vxlan_group = # Example: vxlan_group = 239.1.1.1 # ====================== security groups ====================== # Controls if neutron security group is enabled or not. # It should be false when you use nova security group. enable_security_group = True # Use ipset to speed-up the iptables security groups. Enabling ipset support # requires that ipset is installed on L2 agent node.
  • 88. Lukáš Korous Neutron Networking / OpenStack Kilo enable_ipset = True
  • 89. Lukáš Korous Neutron Networking / OpenStack Kilo OVS plugin configuration file /etc/neutron/plugins/openvswitch/ovs_neutron_plugin.ini [ovs] # (BoolOpt) Set to True in the server and the agents to enable support # for GRE or VXLAN networks. Requires kernel support for OVS patch ports and # GRE or VXLAN tunneling. enable_tunneling = True # Do not change this parameter unless you have a good reason to. # This is the name of the OVS integration bridge. There is one per hypervisor. # The integration bridge acts as a virtual "patch bay". All VM VIFs are # attached to this bridge and then "patched" according to their network # connectivity. # integration_bridge = br-int # Do not change this parameter unless you have a good reason to. # Only used for the agent if tunnel_id_ranges is not empty for # the server. In most cases, the default value should be fine. # # tunnel_bridge = br-tun # Peer patch port in integration bridge for tunnel bridge # int_peer_patch_port = patch-tun # Peer patch port in tunnel bridge for integration bridge # tun_peer_patch_port = patch-int # Uncomment this line for the agent if tunnel_id_ranges is not # empty for the server. Set local-ip to be the local IP address # of this hypervisor. # # local_ip = # (ListOpt) Comma-separated list of <physical_network>:<bridge> tuples # mapping physical network names to the agent's node-specific OVS # bridge names to be used for flat and VLAN networks. The length of # bridge names should be no more than 11. Each bridge must # exist, and should have a physical network interface configured as a # port. All physical networks configured on the server should have # mappings to appropriate bridges on each agent. # # Example: bridge_mappings = physnet1:br-eth1 bridge_mappings = external:br-ex
  • 90. Lukáš Korous Neutron Networking / OpenStack Kilo # (BoolOpt) Use veths instead of patch ports to interconnect the integration # bridge to physical networks. Support kernel without ovs patch port support # so long as it is set to True. # use_veth_interconnection = False # (StrOpt) Which OVSDB backend to use, defaults to 'vsctl' # vsctl - The backend based on executing ovs-vsctl # native - The backend based on using native OVSDB # ovsdb_interface = vsctl # (StrOpt) The connection string for the native OVSDB backend # To enable ovsdb-server to listen on port 6640: # ovs-vsctl set-manager ptcp:6640:127.0.0.1 # ovsdb_connection = tcp:127.0.0.1:6640 [agent] # Agent's polling interval in seconds polling_interval = 15 # Minimize polling by monitoring ovsdb for interface changes # minimize_polling = True # When minimize_polling = True, the number of seconds to wait before # respawning the ovsdb monitor after losing communication with it # ovsdb_monitor_respawn_interval = 30 # (ListOpt) The types of tenant network tunnels supported by the agent. # Setting this will enable tunneling support in the agent. This can be set to # either 'gre' or 'vxlan'. If this is unset, it will default to [] and # disable tunneling support in the agent. # You can specify as many values here as your compute hosts supports. # # Example: tunnel_types = gre # Example: tunnel_types = vxlan # Example: tunnel_types = vxlan, gre tunnel_types = vxlan # (IntOpt) The port number to utilize if tunnel_types includes 'vxlan'. By # default, this will make use of the Open vSwitch default value of '4789' if # not specified. # # vxlan_udp_port = # Example: vxlan_udp_port = 8472 # (IntOpt) This is the MTU size of veth interfaces.
  • 91. Lukáš Korous Neutron Networking / OpenStack Kilo # Do not change unless you have a good reason to. # The default MTU size of veth interfaces is 1500. # This option has no effect if use_veth_interconnection is False # veth_mtu = # Example: veth_mtu = 1504 # L2 population – speed up of the ARP requests # (BoolOpt) Flag to enable l2-population extension. This option # should only be used in conjunction with ml2 plugin and # l2population mechanism driver. It'll enable plugin to populate # remote ports macs and IPs (using fdb_add/remove RPC calbbacks # instead of tunnel_sync/update) on OVS agents in order to # optimize tunnel management. # l2_population = True # Enable local ARP responder. Requires OVS 2.1. This is only used # by the l2 population ML2 MechanismDriver. # arp_responder = False # Enable suppression of ARP responses that don't match an IP address that # belongs to the port from which they originate. # Note: This prevents the VMs attached to this agent from spoofing, # it doesn't protect them from other devices which have the capability to spoof # (e.g. bare metal or VMs attached to agents without this flag set to True). # Requires a version of OVS that can match ARP headers. # # prevent_arp_spoofing = False # (BoolOpt) Set or un-set the don't fragment (DF) bit on outgoing IP packet # carrying GRE/VXLAN tunnel. The default value is True. # # dont_fragment = True # (BoolOpt) Set to True on L2 agents to enable support # for distributed virtual routing. # enable_distributed_routing = False # (IntOpt) Set new timeout in seconds for new rpc calls after agent receives # SIGTERM. If value is set to 0, rpc timeout won't be changed" # # quitting_rpc_timeout = 10 [securitygroup] # Firewall driver for realizing neutron security group function.
  • 92. Lukáš Korous Neutron Networking / OpenStack Kilo # Example: firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDrive r firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDrive r # Controls if neutron security group is enabled or not. # It should be false when you use nova security group. # enable_security_group = True dnsmasq config file – MTU settings dhcp-option-force=26,1380
  • 93. Lukáš Korous Neutron Networking / OpenStack Kilo Nodes L3 agent configuration file /etc/neutron/l3_agent.ini [DEFAULT] # Print more verbose output (set logging level to INFO instead of default WARNING level). verbose = True # Show debugging output in log (sets DEBUG log level output) # debug = False # L3 requires that an interface driver be set. Choose the one that best # matches your plugin. # Example of interface_driver option for OVS based plugins (OVS, # Ryu, NEC) that supports L3 agent interface_driver = neutron.agent.linux.interface.OVSInterfaceDriver # Use veth for an OVS interface or not. # Support kernels with limited namespace support # (e.g. RHEL 6.5) so long as ovs_use_veth is set to True. # ovs_use_veth = False # Example of interface_driver option for LinuxBridge # interface_driver = neutron.agent.linux.interface.BridgeInterfaceDriver # Allow overlapping IP (Must have kernel build with # CONFIG_NET_NS=y and iproute2 package that supports namespaces). # This option is deprecated and will be removed in a future # release, at which point the old behavior # of use_namespaces = True will be enforced. use_namespaces = True # If use_namespaces is set as False then the agent can only configure one router. # This is done by setting the specific router_id. # router_id = # When external_network_bridge is set, each L3 agent can be # associated with no more than one external network. This value # should be set to the UUID of that external network. To allow L3 # agent support multiple external networks, both the # external_network_bridge and gateway_external_network_id must be # left empty. # gateway_external_network_id = # With IPv6, the network used for the external gateway does not # need to have an associated subnet, since the automatically
  • 94. Lukáš Korous Neutron Networking / OpenStack Kilo # assigned link-local address (LLA) can be used. However, an IPv6 # gateway address is needed for use as the next-hop for the # default route. If no IPv6 gateway address is configured here, # (and only then) the neutron router will be configured to get # its default route from router advertisements (RAs) from the # upstream router; in which case the upstream router must also be # configured to send these RAs. # The ipv6_gateway, when configured, should be the LLA of the # interface on the upstream router. If a next-hop using a global # unique address (GUA) is desired, it needs to be done via a # subnet allocated to the network and not through this parameter. # ipv6_gateway = # Indicates that this L3 agent should also handle routers that do # not have an external network gateway configured. This option # should be True only for a single agent in a Neutron deployment, # and may be False for all agents if all routers must have an #external network gateway handle_internal_only_routers = True # Name of bridge used for external network traffic. This should # be set to empty value for the linux bridge. when this parameter # is set, each L3 agent can be associated with no more than one # external network. external_network_bridge = br-ex # TCP Port used by Neutron metadata server # metadata_port = 9697 # Send this many gratuitous ARPs for HA setup. Set it below or equal to 0 # to disable this feature. # send_arp_for_ha = 3 # seconds between re-sync routers' data if needed # periodic_interval = 40 # seconds to start to sync routers' data after # starting agent # periodic_fuzzy_delay = 5 # enable_metadata_proxy, which is true by default, can be set to False # if the Nova metadata server is not available enable_metadata_proxy = True # Iptables mangle mark used to mark metadata valid requests # metadata_access_mark = 0x1 # Iptables mangle mark used to mark ingress from external network # external_ingress_mark = 0x2
  • 95. Lukáš Korous Neutron Networking / OpenStack Kilo # router_delete_namespaces, which is false by default, can be set to True if # namespaces can be deleted cleanly on the host running the L3 agent. # Do not enable this until you understand the problem with the Linux iproute # utility mentioned in https://bugs.launchpad.net/neutron/+bug/1052535 and # you are sure that your version of iproute does not suffer from the problem. # If True, namespaces will be deleted when a router is destroyed. router_delete_namespaces = False # Timeout for ovs-vsctl commands. # If the timeout expires, ovs commands will fail with ALARMCLOCK error. # ovs_vsctl_timeout = 10 # The working mode for the agent. Allowed values are: # - legacy: this preserves the existing behavior where the L3 agent is # deployed on a centralized networking node to provide L3 services # like DNAT, and SNAT. Use this mode if you do not want to adopt DVR. # - dvr: this mode enables DVR functionality, and must be used for an L3 # agent that runs on a compute host. # - dvr_snat: this enables centralized SNAT support in conjunction with # DVR. This mode must be used for an L3 agent running on a centralized # node (or in single-host deployments, e.g. devstack). agent_mode = legacy # Location to store keepalived and all HA configurations # ha_confs_path = $state_path/ha_confs # VRRP authentication type AH/PASS # ha_vrrp_auth_type = PASS # VRRP authentication password # ha_vrrp_auth_password = # The advertisement interval in seconds # ha_vrrp_advert_int = 2 allow_automatic_l3agent_failover = False
  • 96. Lukáš Korous Neutron Networking / OpenStack Kilo DHCP agent configuration file /etc/neutron/dhcp_agent.ini [DEFAULT] # Print more verbose output (set logging level to INFO instead of default WARNING level). verbose = True # Show debugging output in log (sets DEBUG log level output) # debug = False # The DHCP agent will resync its state with Neutron to recover from any # transient notification or rpc errors. The interval is number of # seconds between attempts. # resync_interval = 5 # The DHCP agent requires an interface driver be set. Choose the one that best # matches your plugin. # Example of interface_driver option for OVS based plugins(OVS, Ryu, NEC, NVP, # BigSwitch/Floodlight) interface_driver = neutron.agent.linux.interface.OVSInterfaceDriver # Name of Open vSwitch bridge to use ovs_integration_bridge = br-int # Use veth for an OVS interface or not. # Support kernels with limited namespace support # (e.g. RHEL 6.5) so long as ovs_use_veth is set to True. # ovs_use_veth = False # Example of interface_driver option for LinuxBridge # interface_driver = neutron.agent.linux.interface.BridgeInterfaceDriver # The agent can use other DHCP drivers. Dnsmasq is the simplest and requires # no additional setup of the DHCP server. dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq # Allow overlapping IP (Must have kernel build with CONFIG_NET_NS=y and # iproute2 package that supports namespaces). This option is # deprecated and will be removed in a future release, at which # point the old behavior of use_namespaces = True will be # enforced. use_namespaces = True # The DHCP server can assist with providing metadata support on # isolated networks. Setting this value to True will cause the # DHCP server to append specific host routes to the DHCP request.
  • 97. Lukáš Korous Neutron Networking / OpenStack Kilo # The metadata service will only be activated when the subnet # does not contain any router port. The guest instance must be # configured to request host routes via DHCP (Option 121). enable_isolated_metadata = True # Allows for serving metadata requests coming from a dedicated # metadata access network whose cidr is 169.254.169.254/16 (or # larger prefix), and is connected to a Neutron router from which # the VMs send metadata request. In this case DHCP Option 121 # will not be injected in VMs, as they will be able to reach # 169.254.169.254 through a router. # This option requires enable_isolated_metadata = True enable_metadata_network = False # Number of threads to use during sync process. Should not exceed # connection pool size configured on server. # num_sync_threads = 4 # Location to store DHCP server config files # dhcp_confs = $state_path/dhcp # Domain to use for building the hostnames # dhcp_domain = openstacklocal # Override the default dnsmasq settings with this file dnsmasq_config_file = /etc/neutron/dnsmasq-neutron.conf # Comma-separated list of DNS servers which will be used by # dnsmasq as forwarders. dnsmasq_dns_servers = 8.8.8.8,8.8.4.4 # Limit number of leases to prevent a denial-of-service. # dnsmasq_lease_max = 16777216 # Location to DHCP lease relay UNIX domain socket # dhcp_lease_relay_socket = $state_path/dhcp/lease_relay # Use broadcast in DHCP replies # dhcp_broadcast_reply = False # dhcp_delete_namespaces, which is false by default, can be set # to True if namespaces can be deleted cleanly on the host # running the dhcp agent. # Do not enable this until you understand the problem with the # Linux iproute utility mentioned in # https://bugs.launchpad.net/neutron/+bug/1052535 and # you are sure that your version of iproute does not suffer from # the problem. # If True, namespaces will be deleted when a dhcp server is disabled. dhcp_delete_namespaces = False # Timeout for ovs-vsctl commands.
  • 98. Lukáš Korous Neutron Networking / OpenStack Kilo # If the timeout expires, ovs commands will fail with ALARMCLOCK error. # ovs_vsctl_timeout = 10

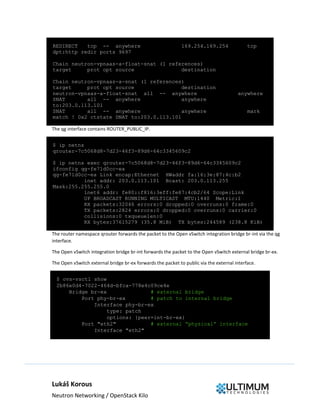

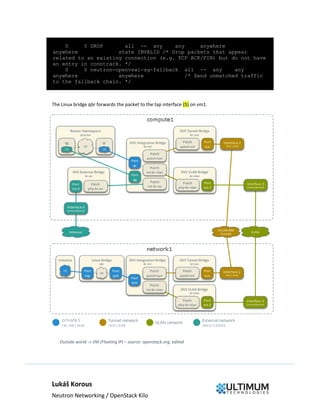

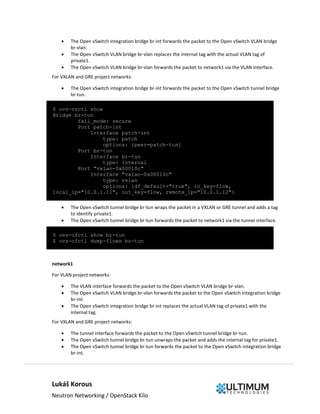

  • 99. Lukáš Korous Neutron Networking / OpenStack Kilo Metadata agent configuration file /etc/neutron/metadata_agent.ini [DEFAULT] # Print more verbose output (set logging level to INFO instead of default WARNING level). verbose = True # Show debugging output in log (sets DEBUG log level output) # debug = True # The Neutron user information for accessing the Neutron API. auth_uri = http://controller1:5000 auth_url = http://controller1:35357 auth_region = regionOne auth_plugin = password project_domain_id = default user_domain_id = default project_name = service username = neutron password = asd08f756ae0ftya # Turn off verification of the certificate for ssl # auth_insecure = False # Certificate Authority public key (CA cert) file for ssl # auth_ca_cert = # Network service endpoint type to pull from the keystone catalog # endpoint_type = adminURL # IP address used by Nova metadata server nova_metadata_ip = controller1 # TCP Port used by Nova metadata server nova_metadata_port = 8775 # Which protocol to use for requests to Nova metadata server, http or https nova_metadata_protocol = http # Whether insecure SSL connection should be accepted for Nova metadata server # requests # nova_metadata_insecure = False # Client certificate for nova api, needed when nova api requires client # certificates # nova_client_cert = # Private key for nova client certificate # nova_client_priv_key =
