1. fundamentals

2. Agenda
 What is OpenStack?
 Components overview
 Different flavors of OpenStack
 Deploying methods
 Architecture

3. About me
 Private Cloud
 DevOps
 Automation Developer
 A Basketball Guy

4. What is OpenStack?

5. Background
 OpenStack began in 2010 as a joint project NASA of and
Rackspace Hosting
 It is managed by the OpenStack Foundation
 More than 500 companies have joined the project

6. What is OpenStack?
OpenStack is a cloud operating system that controls large
pools of compute, storage, and networking resources
throughout a datacenter, all managed through a dashboard
that gives administrators control while empowering their users
to provision resources through a web interface.

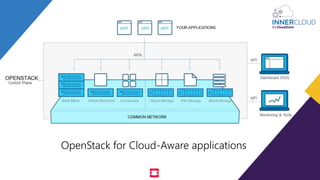

7. OpenStack for Cloud-Aware applications

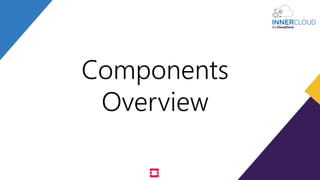

8. Components
Overview

9. OpenStack as a modular cloud
OpenStack is a modular collection of cloud components.
Each of these components, which are also known as projects, is
a collection of services that handles an IAAS resource such as
compute, networking and authentication.
There is a vast variety of projects out there,
You just need to choose.

10. Core Projects:
NOVA NEUTRON SWIFT KEYSTONECINDERGLANCE

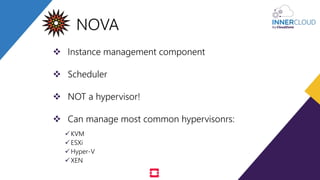

11.  Instance management component
 Scheduler
 NOT a hypervisor!
 Can manage most common hypervisonrs:
KVM
ESXi
Hyper-V
XEN
NOVA

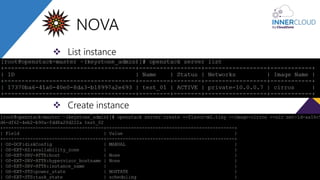

12.  List instance
 Create instance
NOVA

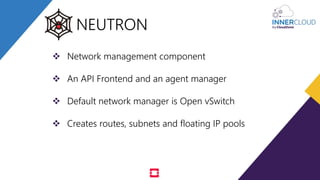

13.  Network management component
 An API Frontend and an agent manager
 Default network manager is Open vSwitch
 Creates routes, subnets and floating IP pools
NEUTRON

14.  Create a network
 Assign subnet to a network
NEUTRON

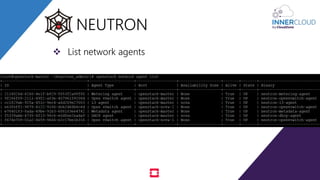

15.  List network agents
NEUTRON

16.  Image management component
 Commonly, store images inside swift
 Acts as an image repository
Glance

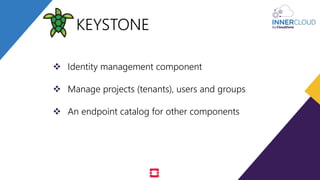

17.  Identity management component
 Manage projects (tenants), users and groups
 An endpoint catalog for other components
KEYSTONE

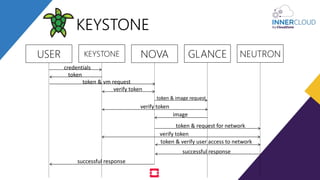

18. KEYSTONE
USER KEYSTONE NOVA GLANCE NEUTRON
credentials
token
token & vm request
verify token
verify token
verify token
token & image request
token & request for network
token & verify user access to network
successful response
successful response

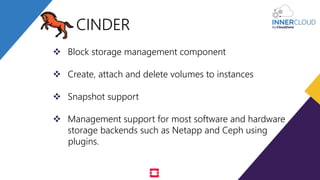

19.  Block storage management component
 Create, attach and delete volumes to instances
 Snapshot support
 Management support for most software and hardware
storage backends such as Netapp and Ceph using
plugins.
CINDER

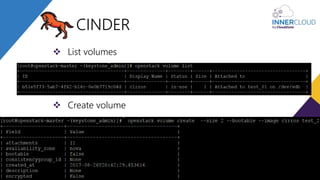

20.  List volumes
 Create volume
CINDER

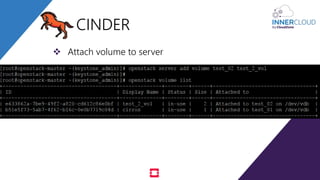

21.  Attach volume to server
CINDER

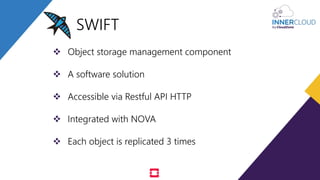

22.  Object storage management component
 A software solution
 Accessible via Restful API HTTP
 Integrated with NOVA
 Each object is replicated 3 times
SWIFT

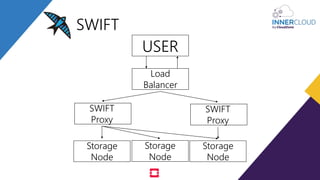

23. SWIFT
USER
Load
Balancer
SWIFT
Proxy
Storage
Node
Storage
Node
Storage
Node
SWIFT
Proxy

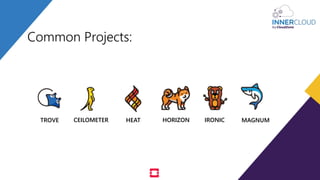

24. Common Projects:
HEAT HORIZON IRONIC MAGNUMCEILOMETERTROVE

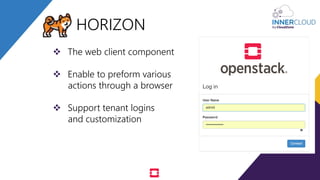

25.  The web client component
 Enable to preform various
actions through a browser
 Support tenant logins
and customization
HORIZON

26.  OpenStack orchestration engine component
 Provision OpenStack resources
 Heat Orchestration Templates (known as HOT)
 HOT are similar to CloudFromation and written in YAML
 HOT resources are referred as a stack
HEAT

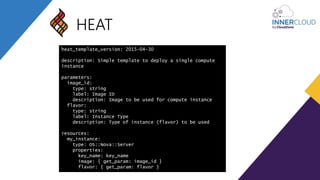

27. HEAT
heat_template_version: 2015-04-30
description: Simple template to deploy a single compute
instance
parameters:
image_id:
type: string
label: Image ID
description: Image to be used for compute instance
flavor:
type: string
label: Instance Type
description: Type of instance (flavor) to be used
resources:
my_instance:
type: OS::Nova::Server
properties:
key_name: key_name
image: { get_param: image_id }
flavor: { get_param: flavor }

28.  Create a stack
HEAT

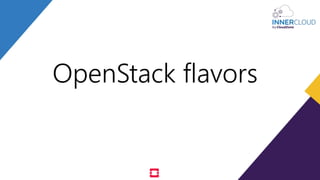

29. OpenStack flavors

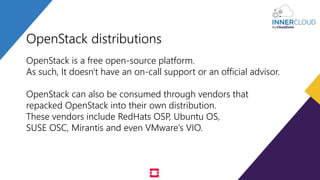

30. OpenStack distributions
OpenStack is a free open-source platform.
As such, It doesn't have an on-call support or an official advisor.
OpenStack can also be consumed through vendors that
repacked OpenStack into their own distribution.
These vendors include RedHats OSP, Ubuntu OS,
SUSE OSC, Mirantis and even VMware’s VIO.

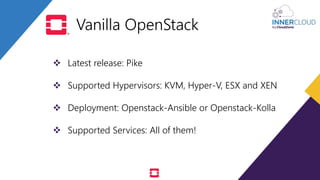

31.  Latest release: Pike
 Supported Hypervisors: KVM, Hyper-V, ESX and XEN
 Deployment: Openstack-Ansible or Openstack-Kolla
 Supported Services: All of them!
Vanilla OpenStack

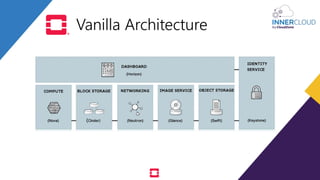

32. Vanilla Architecture

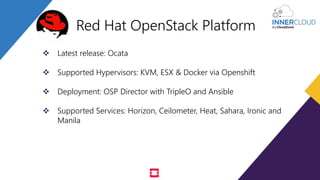

33.  Latest release: Ocata
 Supported Hypervisors: KVM, ESX & Docker via Openshift
 Deployment: OSP Director with TripleO and Ansible
 Supported Services: Horizon, Ceilometer, Heat, Sahara, Ironic and
Manila
Red Hat OpenStack Platform

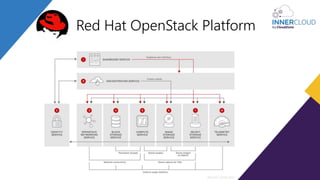

34. Red Hat OpenStack Platform

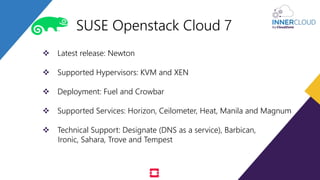

35.  Latest release: Newton
 Supported Hypervisors: KVM and XEN
 Deployment: Fuel and Crowbar
 Supported Services: Horizon, Ceilometer, Heat, Manila and Magnum
 Technical Support: Designate (DNS as a service), Barbican,
Ironic, Sahara, Trove and Tempest
SUSE Openstack Cloud 7

36. SUSE Openstack Cloud 7

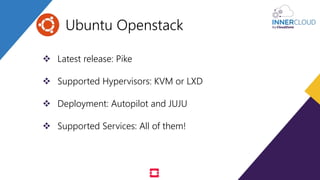

37.  Latest release: Pike
 Supported Hypervisors: KVM or LXD
 Deployment: Autopilot and JUJU
 Supported Services: All of them!
Ubuntu Openstack

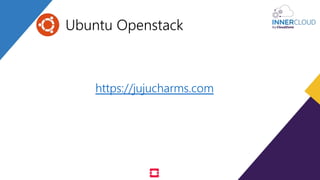

38. https://jujucharms.com
Ubuntu Openstack

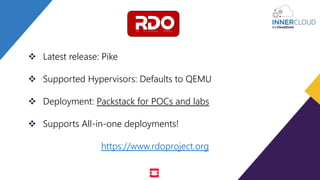

39.  Latest release: Pike
 Supported Hypervisors: Defaults to QEMU
 Deployment: Packstack for POCs and labs
 Supports All-in-one deployments!
https://www.rdoproject.org

40. Thank You!
