Cloud Orchestration Tools
by
Ravikiran

Email: kiran79@techgeek.co.in

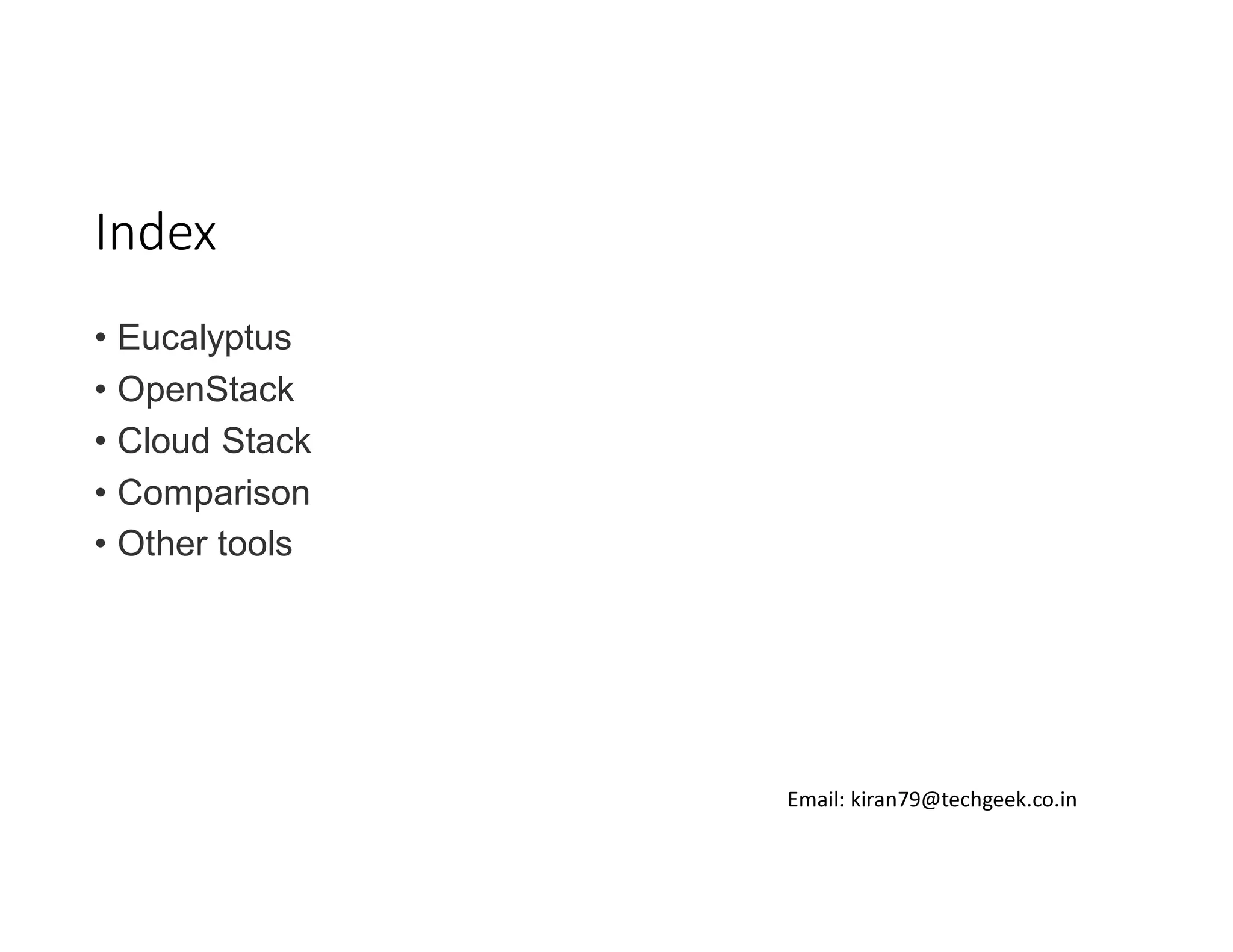

Index
• Eucalyptus
• OpenStack
• Cloud Stack

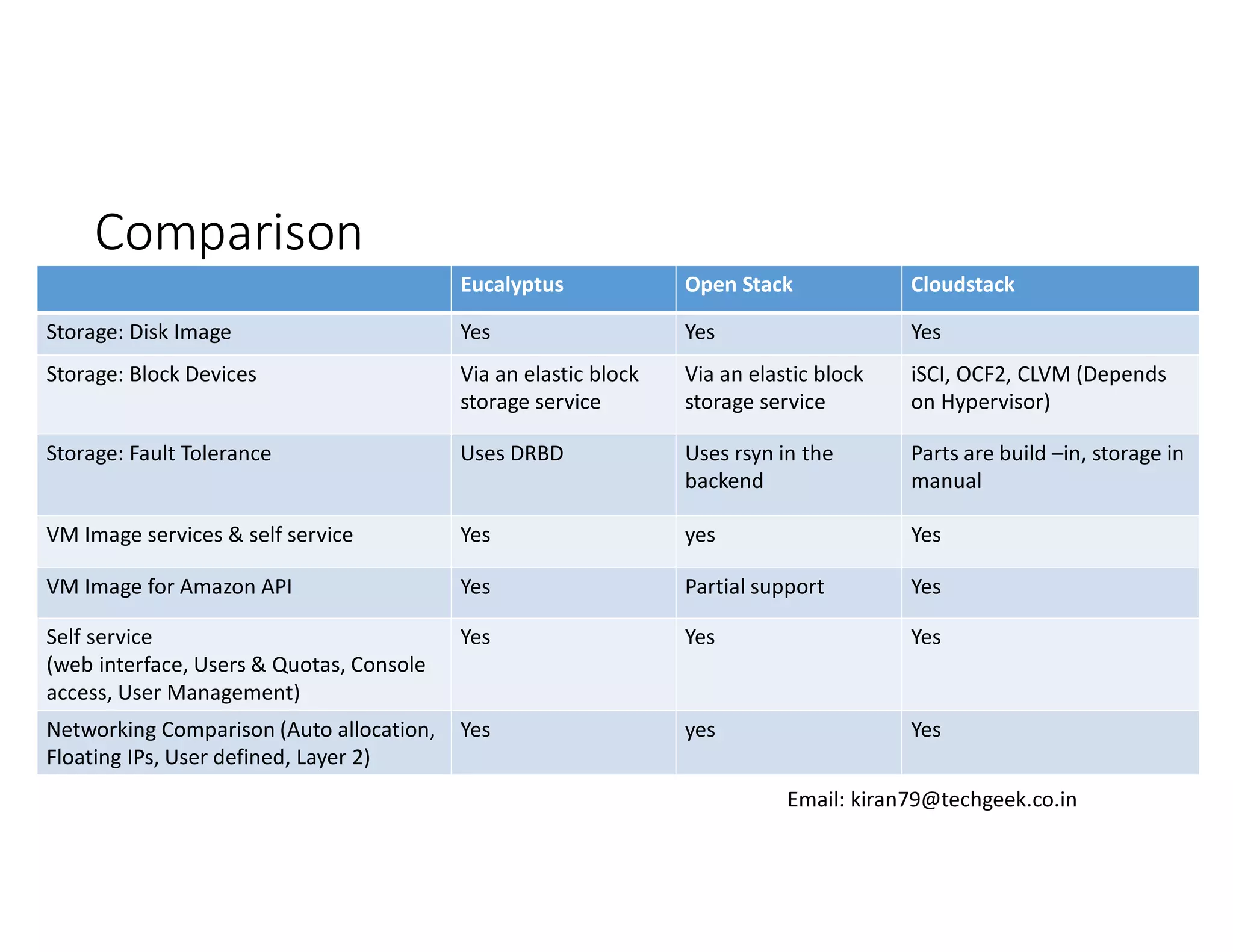

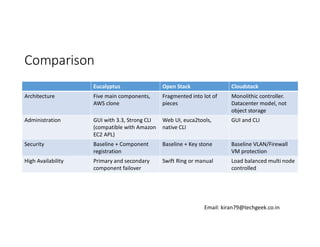

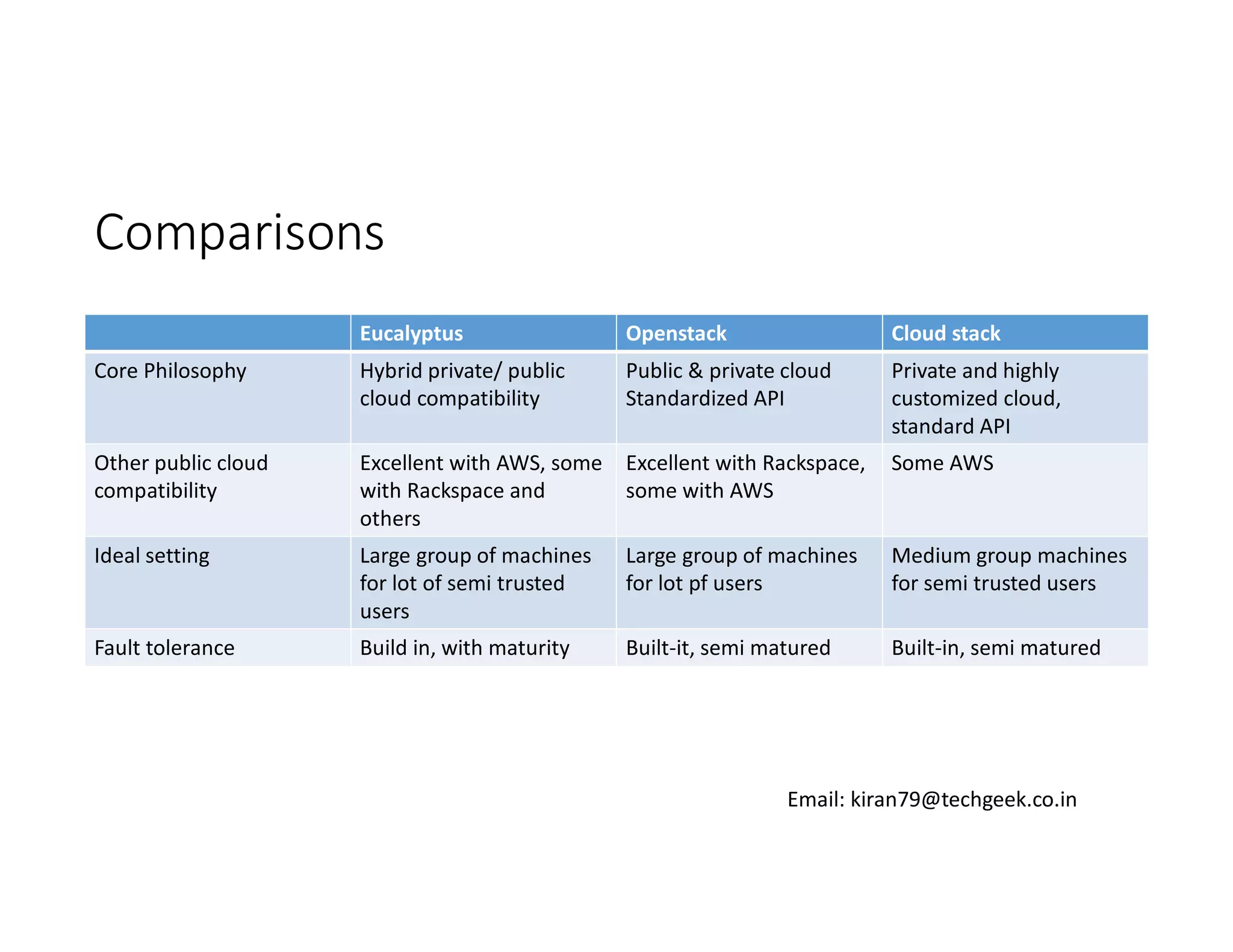

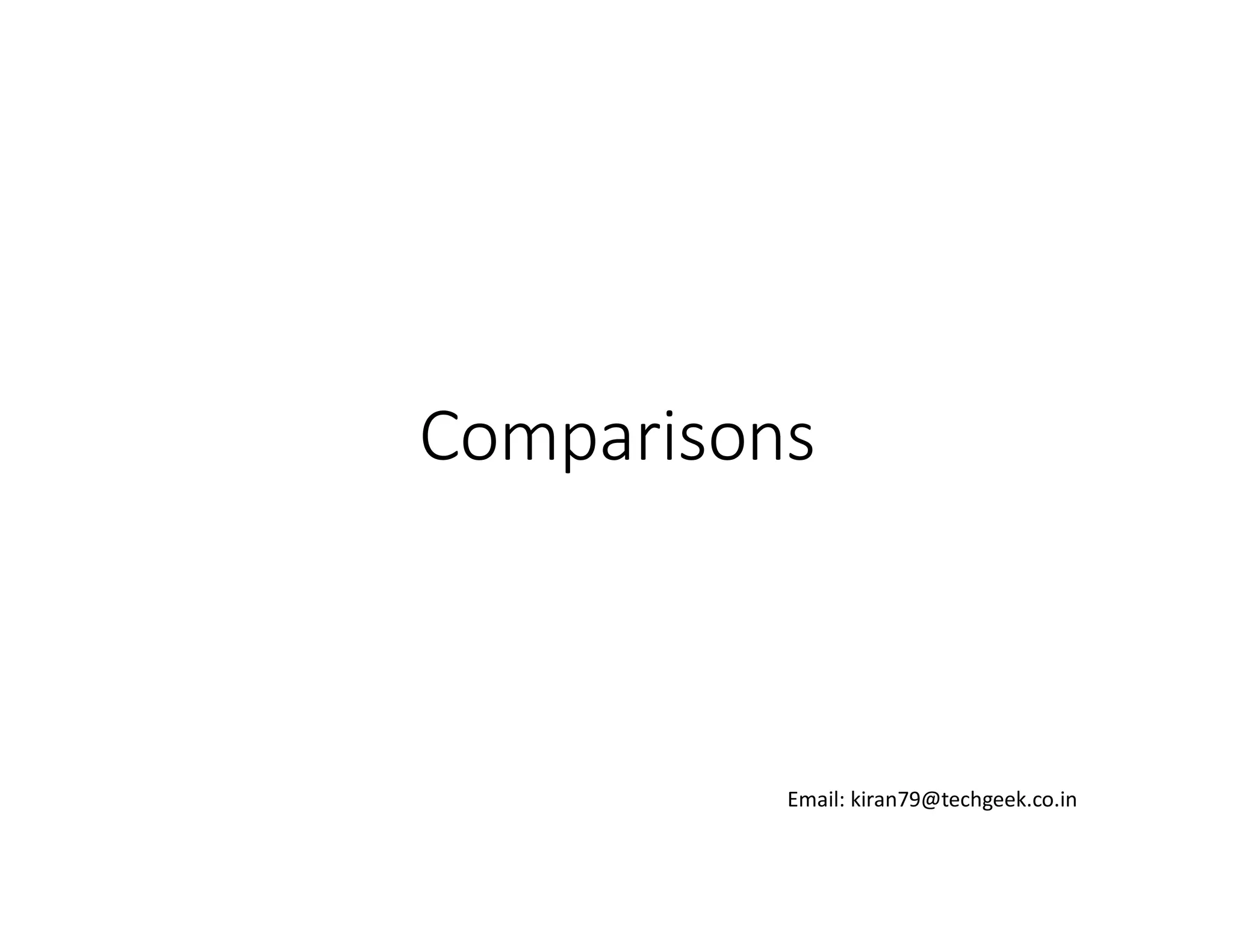

• Comparison

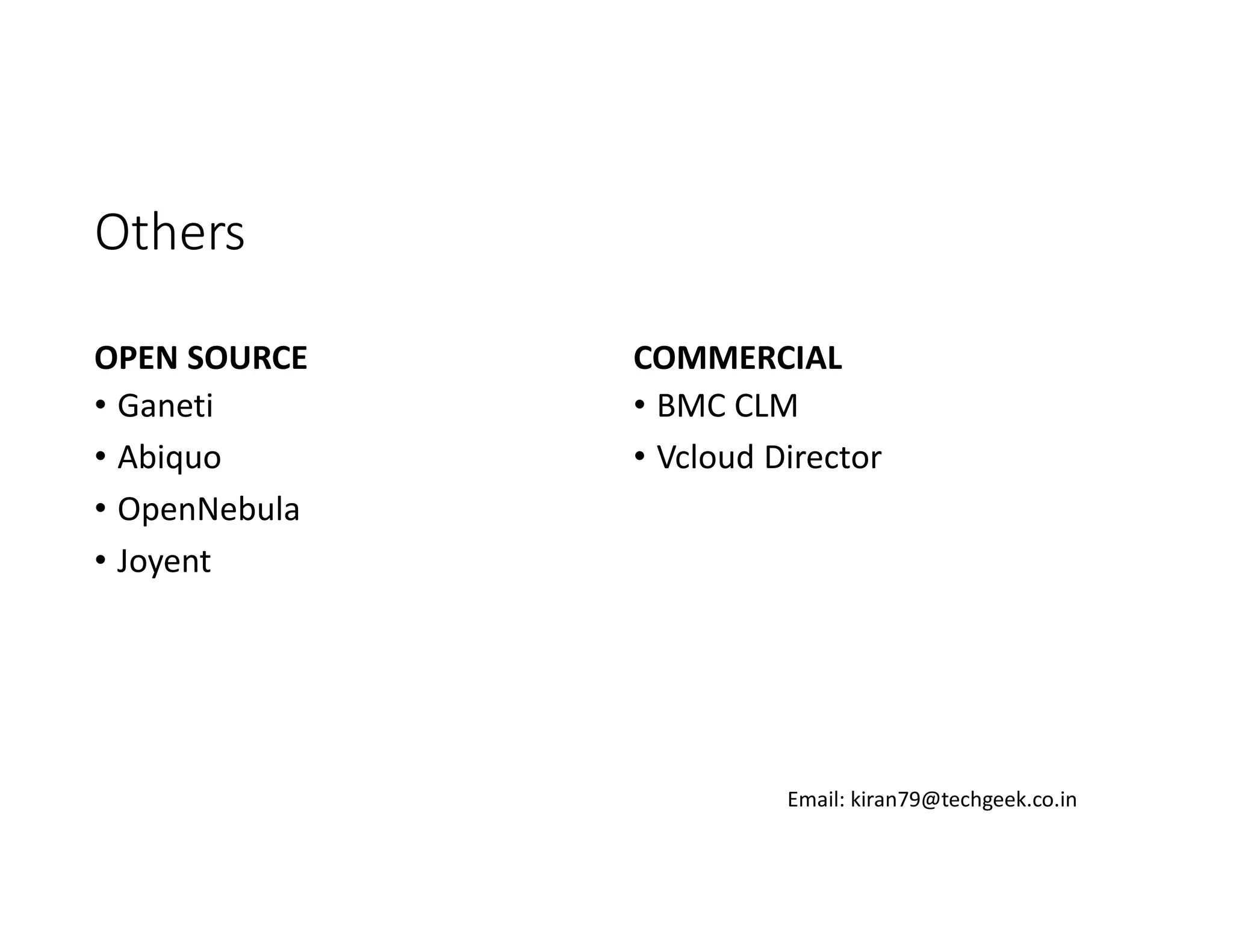

• Other tools

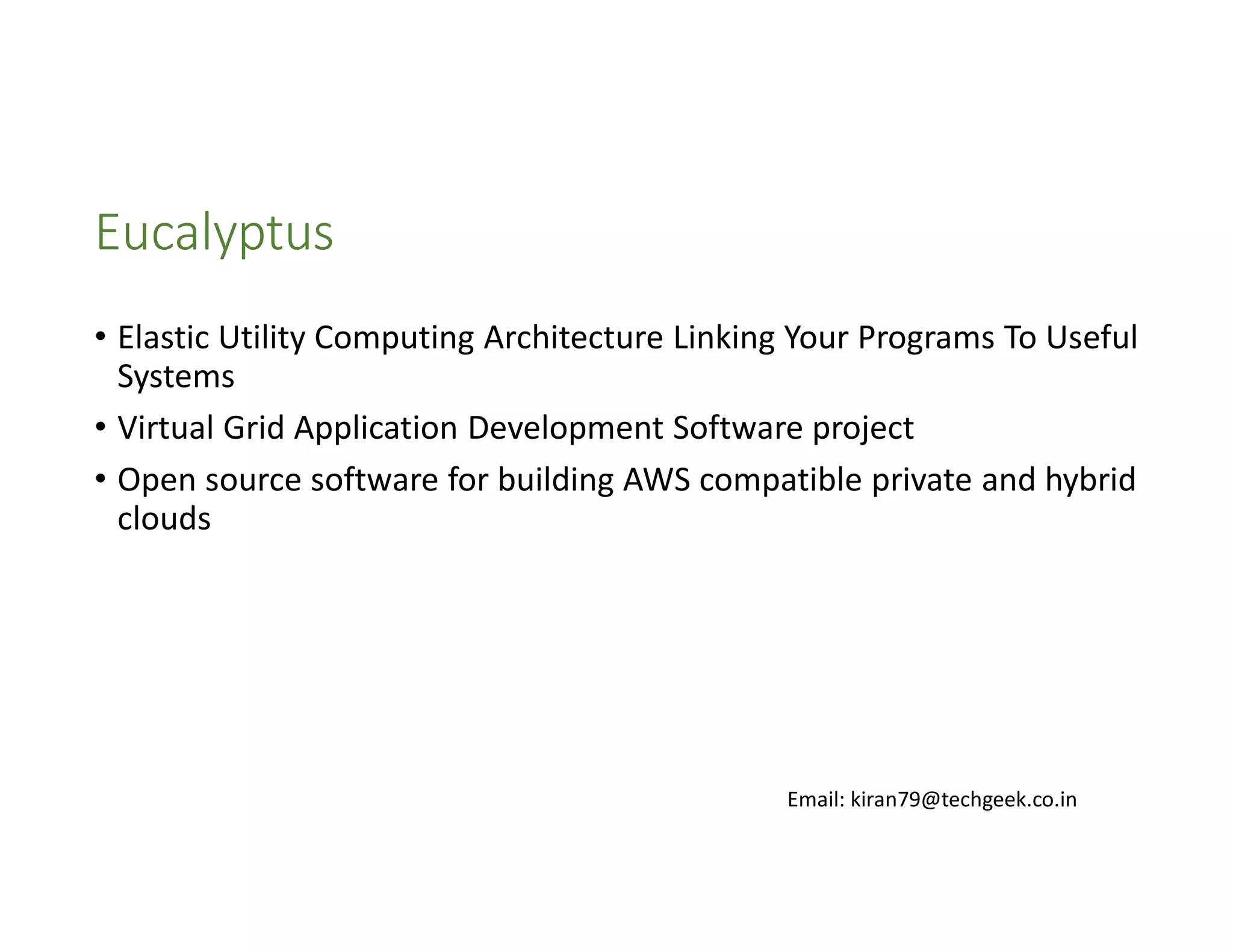

Eucalyptus
• Elastic Utility Computing Architecture Linking Your Programs To Useful
Systems
• Virtual Grid Application Development Software project
• Open source software for building AWS compatible private and hybrid
clouds

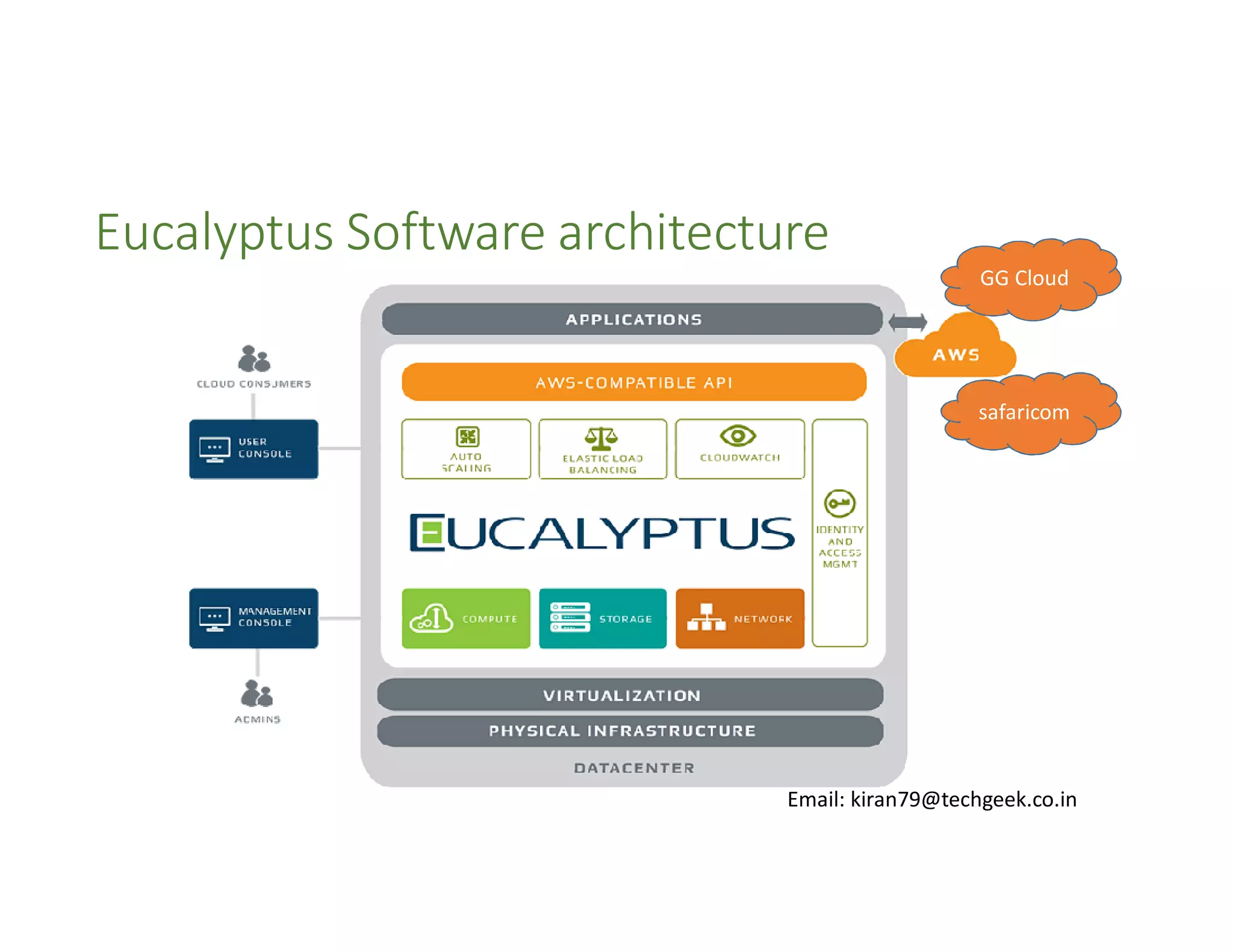

Eucalyptus Software architecture
GG Cloud

safaricom

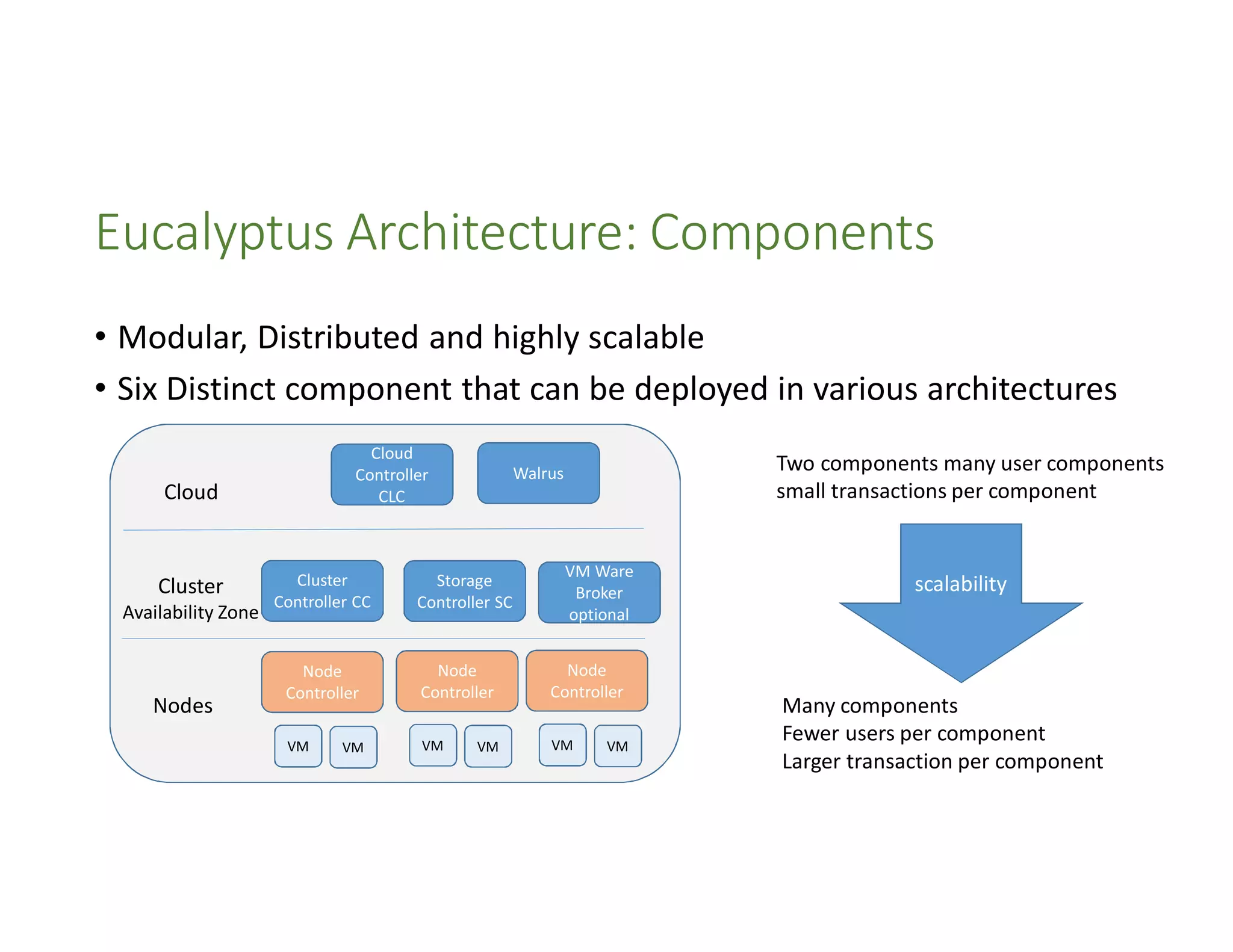

Eucalyptus Architecture: Components
• Modular, Distributed and highly scalable
• Six Distinct component that can be deployed in various architectures
Cloud
Controller
CLC

Cloud

Cluster
Availability Zone

Nodes

Cluster
Controller CC

Two components many user components
small transactions per component

Walrus

Storage
Controller SC

VM Ware
Broker
optional

Node
Controller

Node
Controller

Node
Controller

VM

VM

VM

VM

VM

VM

scalability

Many components
Fewer users per component
Larger transaction per component

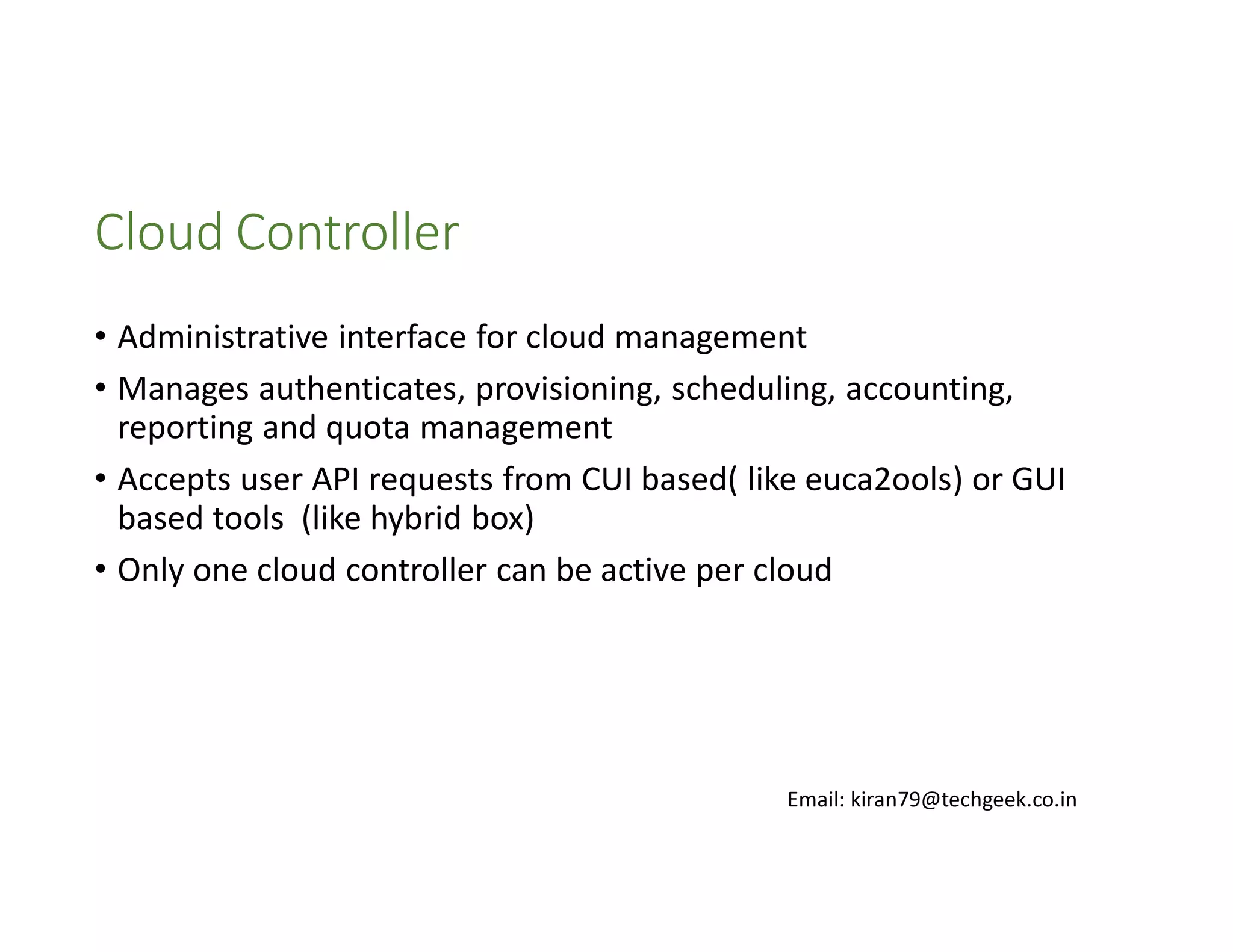

Cloud Controller
• Administrative interface for cloud management
• Manages authenticates, provisioning, scheduling, accounting,
reporting and quota management
• Accepts user API requests from CUI based( like euca2ools) or GUI
based tools (like hybrid box)
• Only one cloud controller can be active per cloud

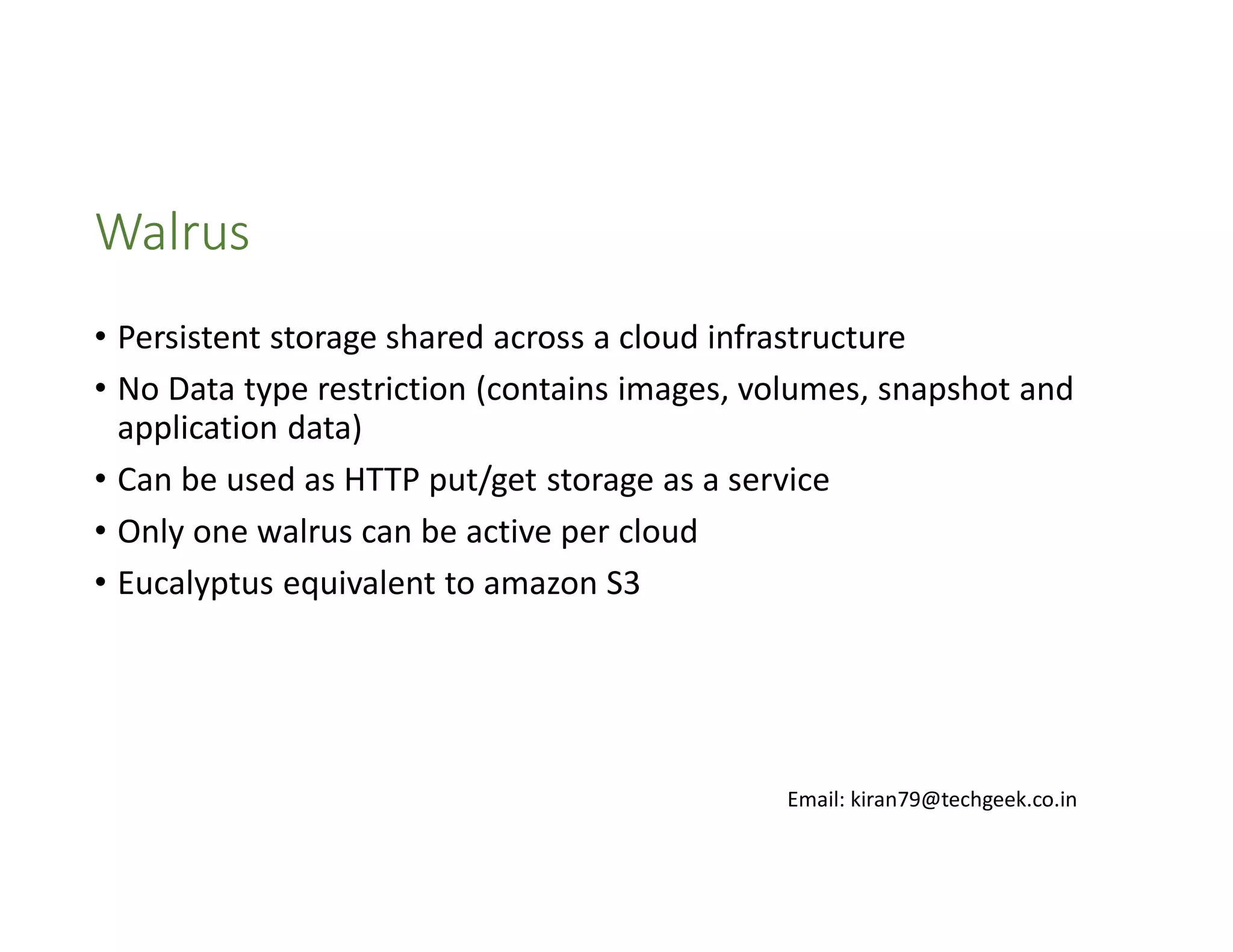

Walrus
• Persistent storage shared across a cloud infrastructure
• No Data type restriction (contains images, volumes, snapshot and
application data)
• Can be used as HTTP put/get storage as a service
• Only one walrus can be active per cloud
• Eucalyptus equivalent to amazon S3

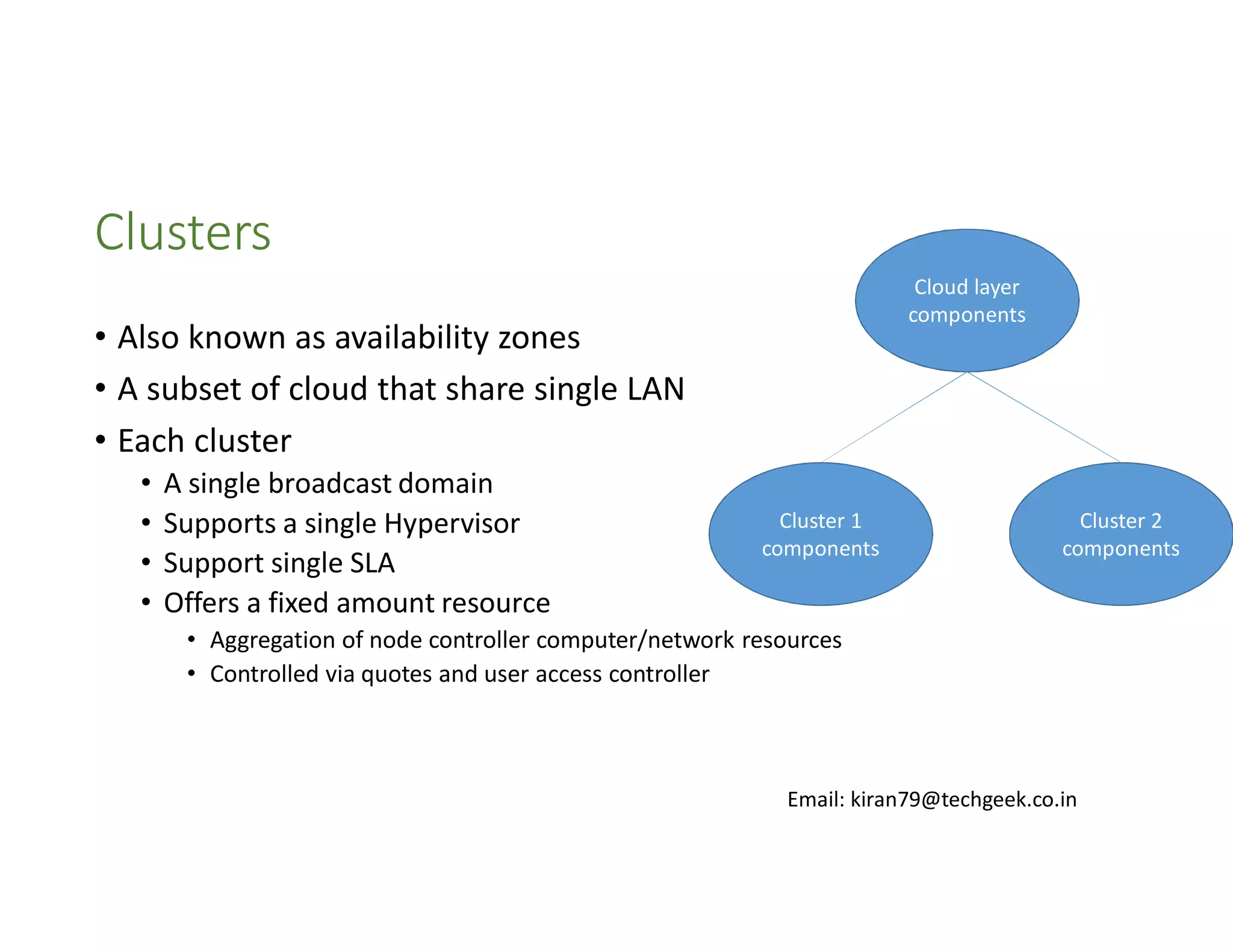

Clusters
Cloud layer
components

• Also known as availability zones
• A subset of cloud that share single LAN
• Each cluster
•
•
•
•

A single broadcast domain
Supports a single Hypervisor
Support single SLA
Offers a fixed amount resource

Cluster 1
components

Cluster 2
components

• Aggregation of node controller computer/network resources
• Controlled via quotes and user access controller

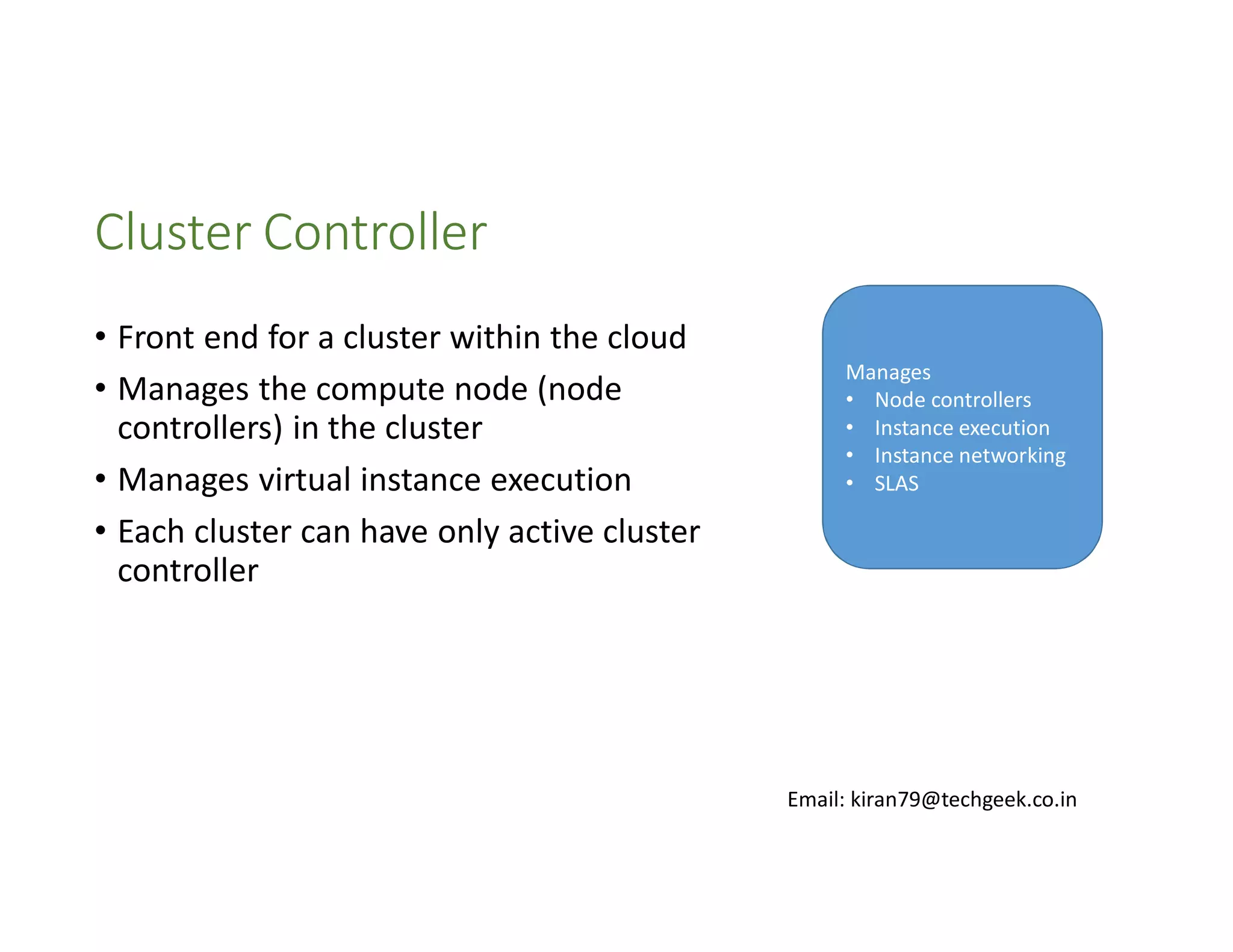

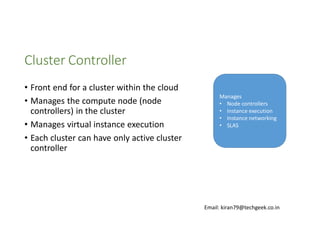

Cluster Controller
• Front end for a cluster within the cloud
• Manages the compute node (node
controllers) in the cluster
• Manages virtual instance execution
• Each cluster can have only active cluster
controller

Manages
• Node controllers
• Instance execution
• Instance networking
• SLAS

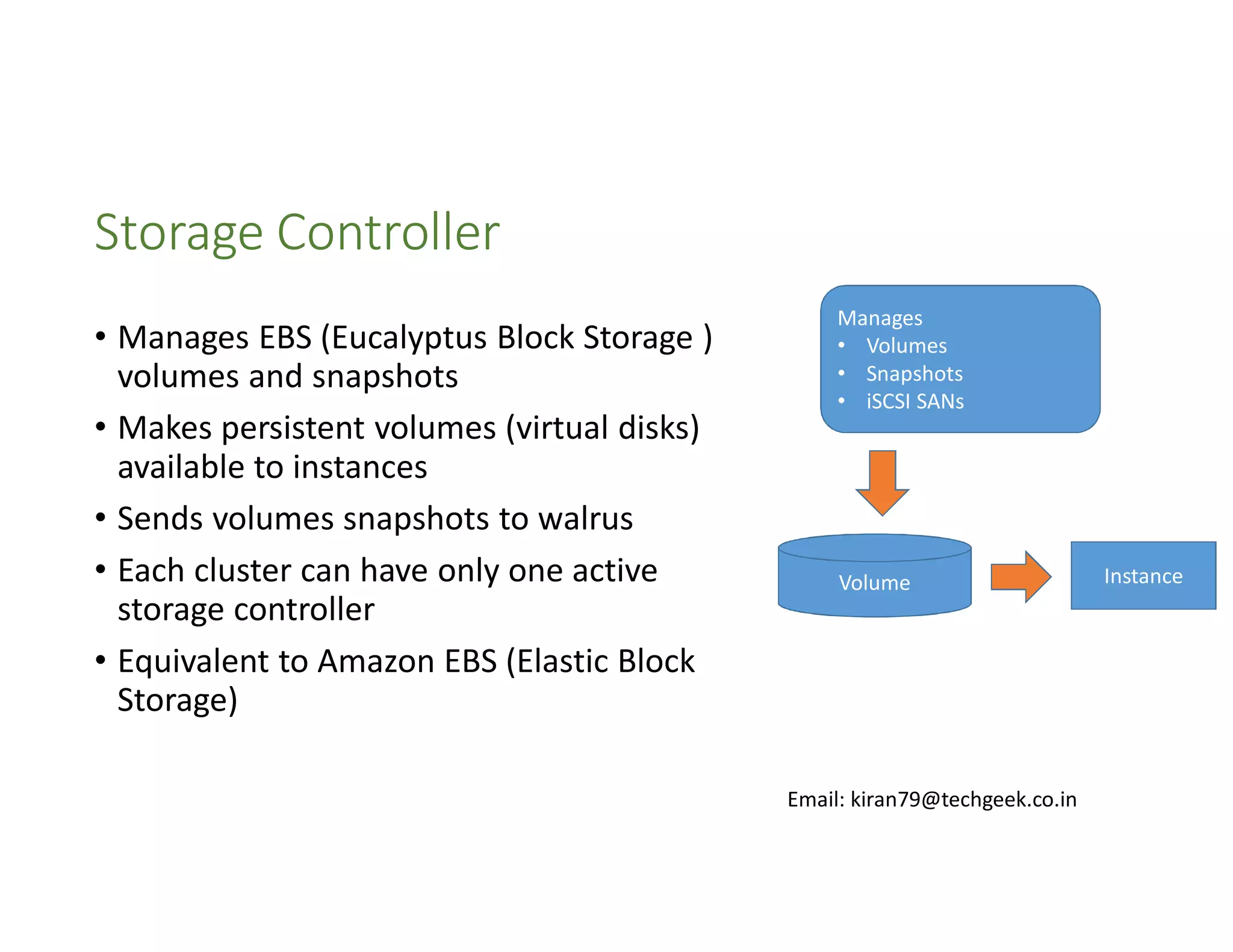

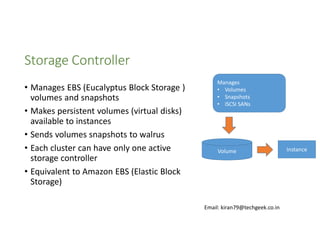

Storage Controller
• Manages EBS (Eucalyptus Block Storage )
volumes and snapshots
• Makes persistent volumes (virtual disks)
available to instances
• Sends volumes snapshots to walrus
• Each cluster can have only one active
storage controller
• Equivalent to Amazon EBS (Elastic Block
Storage)

Manages
• Volumes
• Snapshots
• iSCSI SANs

Volume


Instance

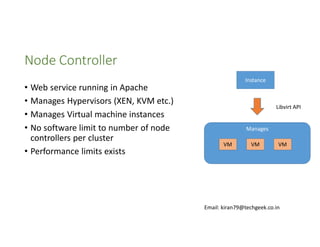

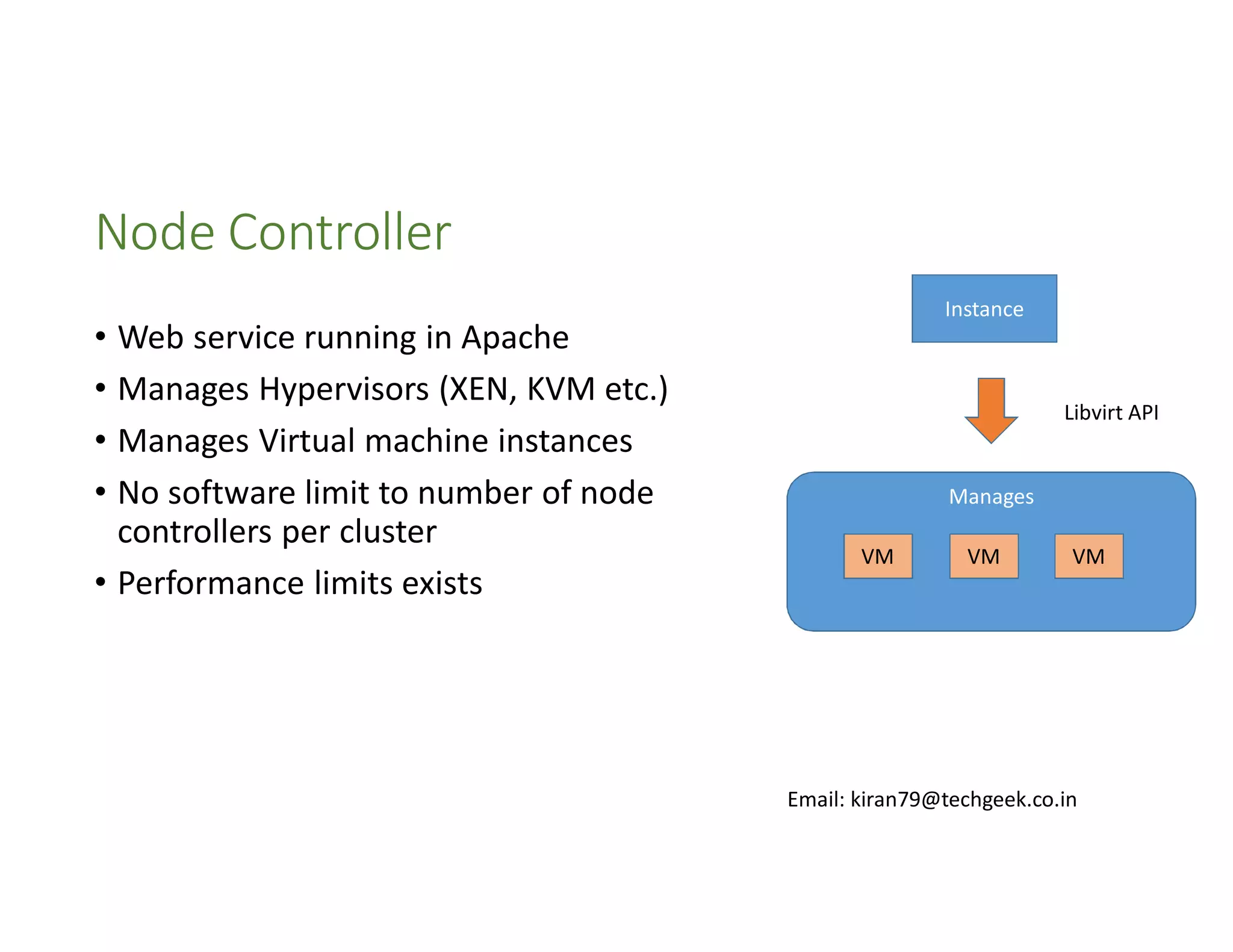

Node Controller
• Web service running in Apache
• Manages Hypervisors (XEN, KVM etc.)
• Manages Virtual machine instances
• No software limit to number of node
controllers per cluster
• Performance limits exists

Instance

Libvirt API

Manages
VM

VM

VM

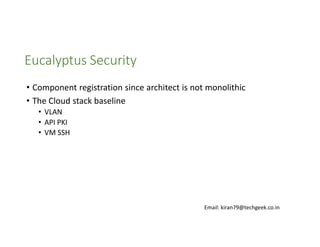

Eucalyptus Security
• Component registration since architect is not monolithic
• The Cloud stack baseline
• VLAN
• API PKI
• VM SSH

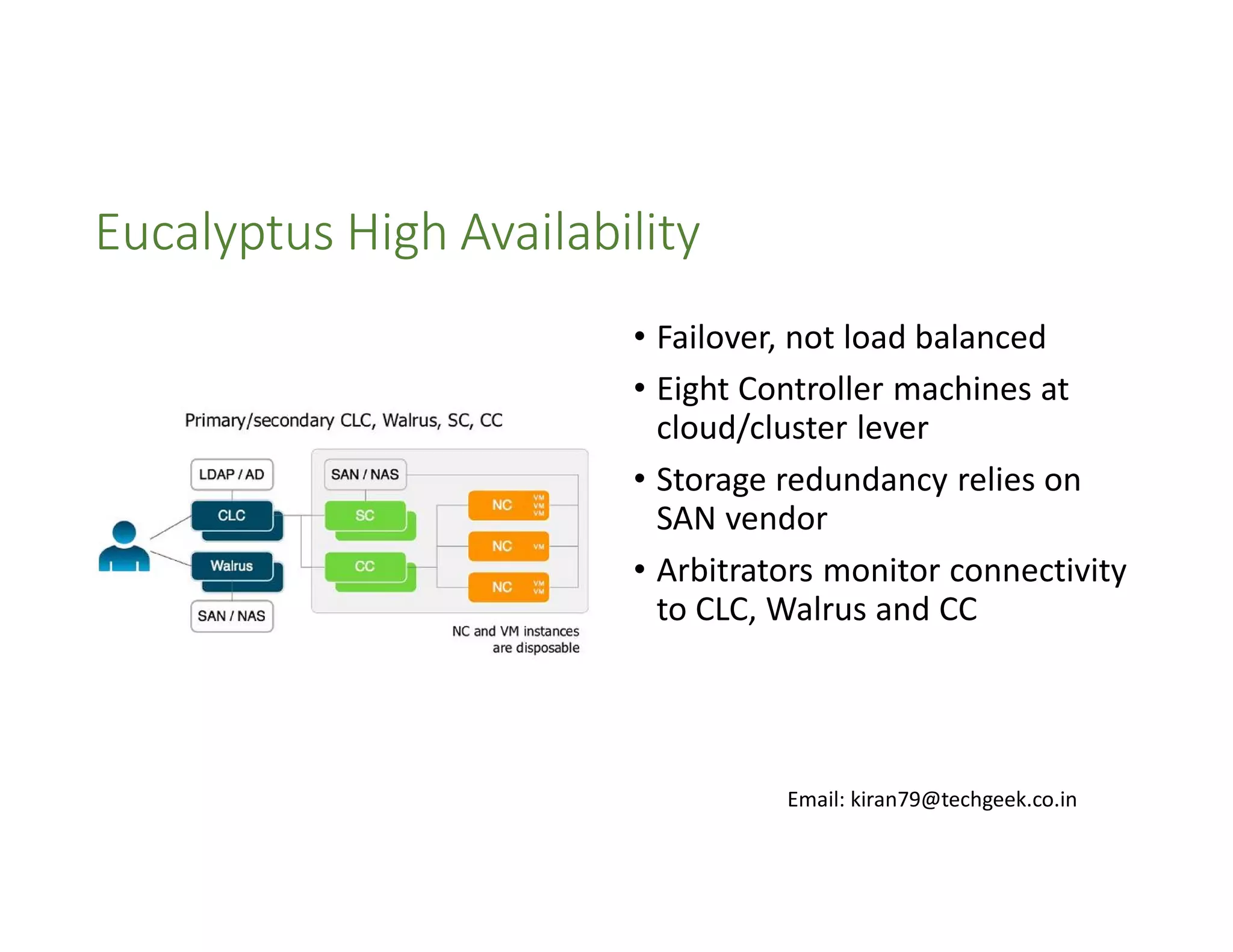

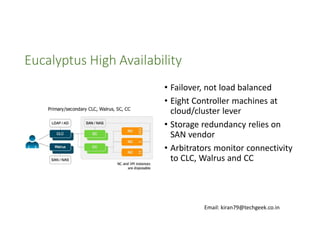

Eucalyptus High Availability
• Failover, not load balanced
• Eight Controller machines at
cloud/cluster lever
• Storage redundancy relies on
SAN vendor
• Arbitrators monitor connectivity
to CLC, Walrus and CC

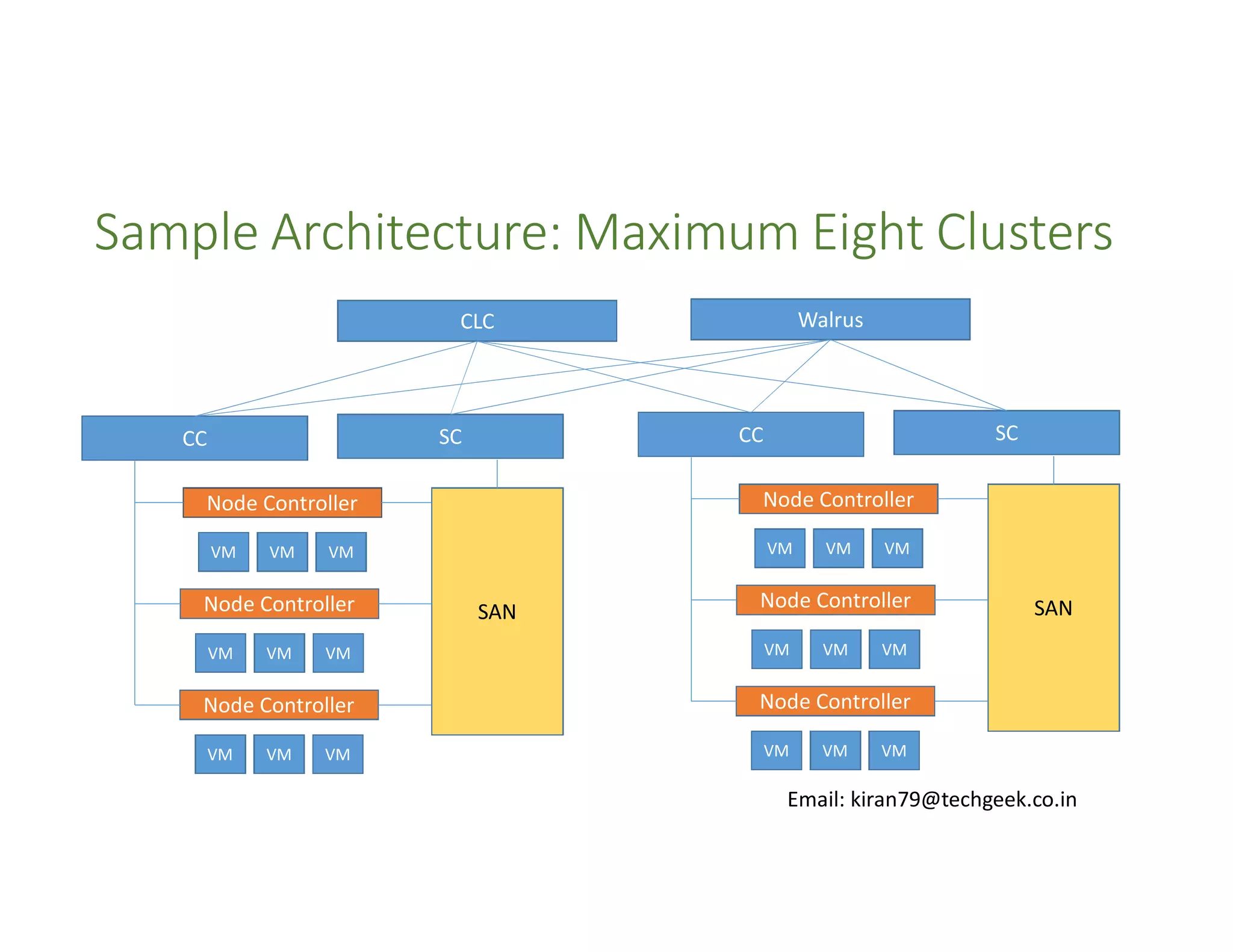

Sample Architecture: Maximum Eight Clusters
Walrus

CLC

SC

CC

SC

CC
Node Controller

Node Controller

VM

VM

VM

VM

Node Controller
VM

VM

VM

SAN

VM

VM

Node Controller
VM

VM

SAN

VM

Node Controller

Node Controller

VM

VM

VM

VM

VM

VM

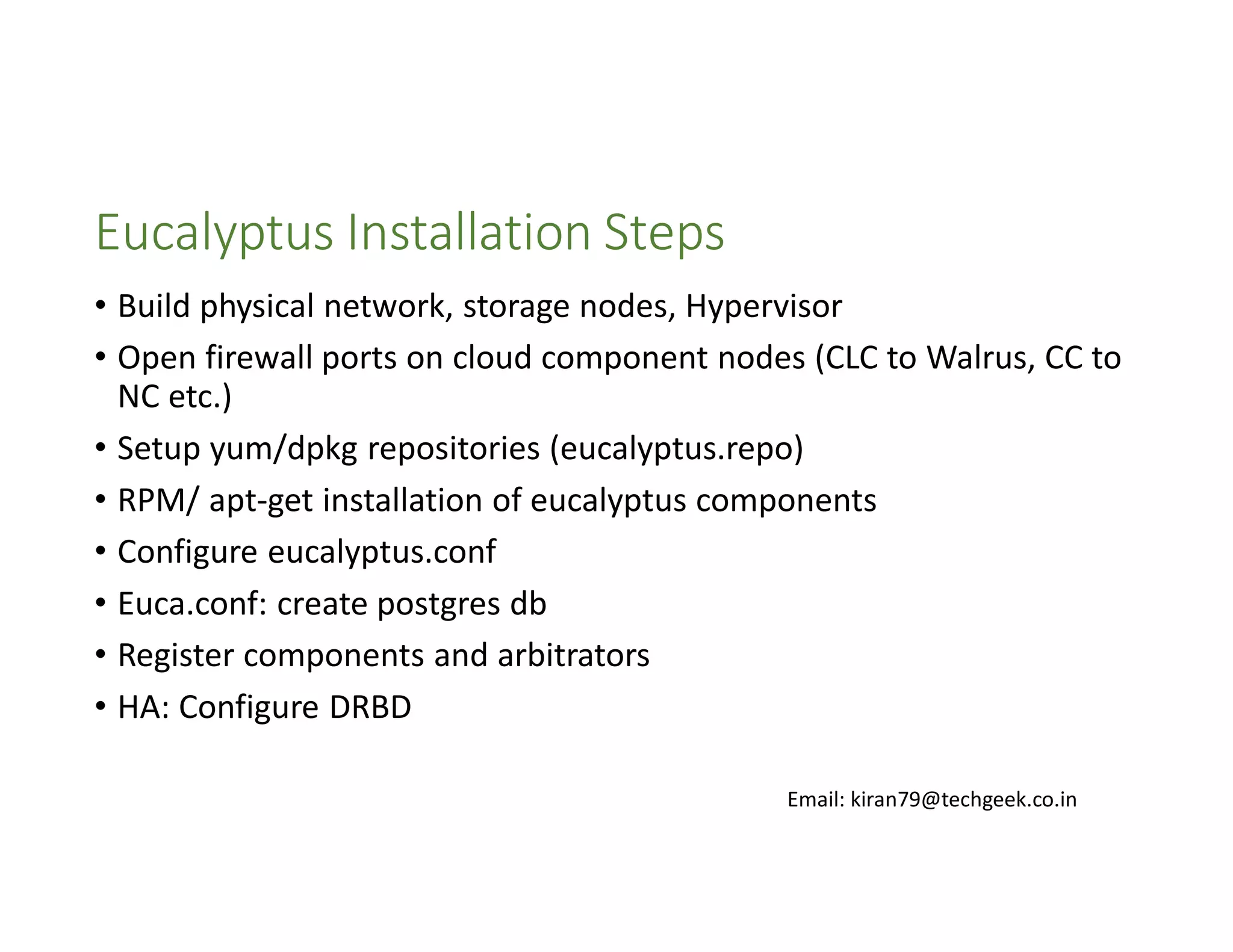

Eucalyptus Installation Steps
• Build physical network, storage nodes, Hypervisor
• Open firewall ports on cloud component nodes (CLC to Walrus, CC to
NC etc.)
• Setup yum/dpkg repositories (eucalyptus.repo)
• RPM/ apt-get installation of eucalyptus components
• Configure eucalyptus.conf
• Euca.conf: create postgres db
• Register components and arbitrators
• HA: Configure DRBD

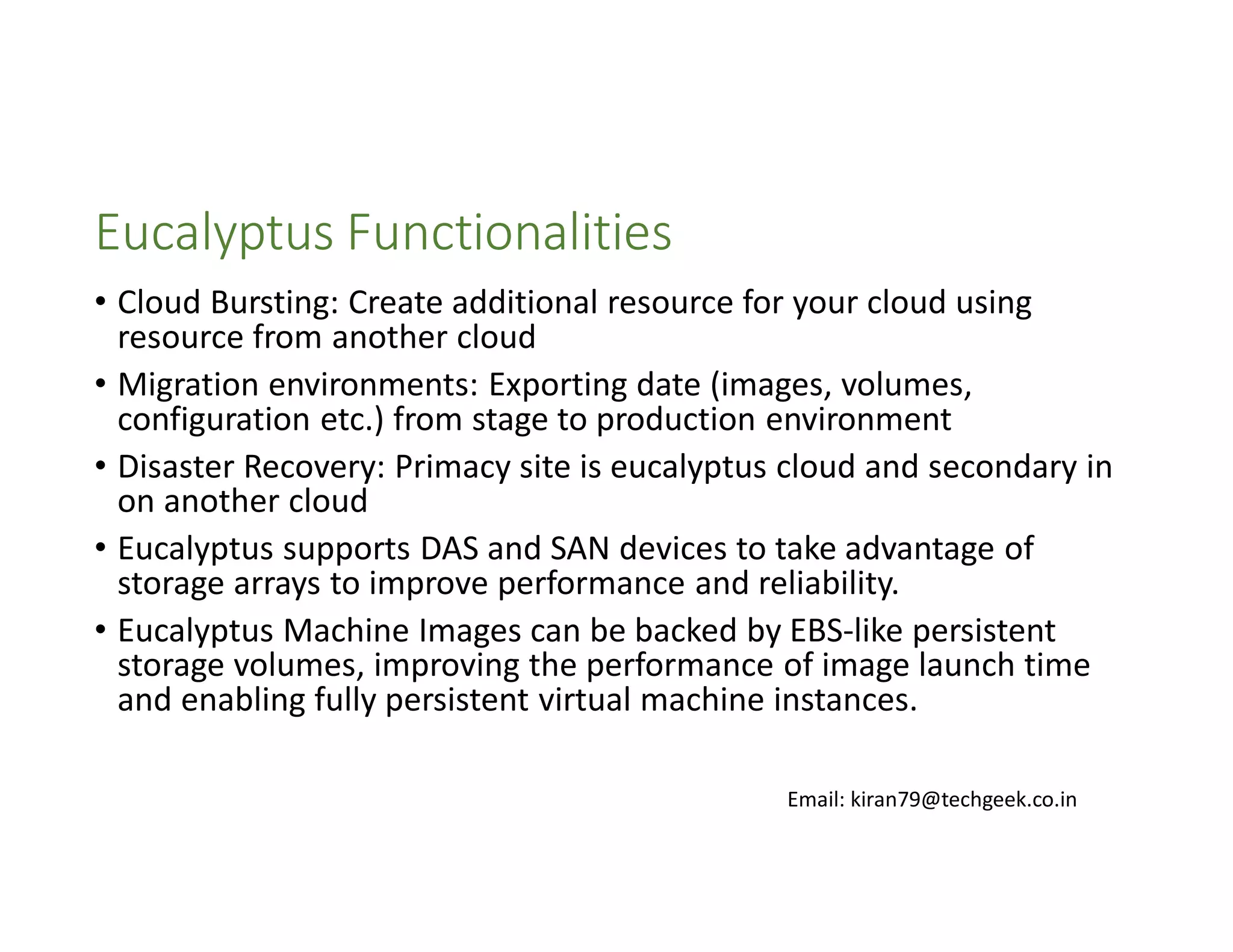

Eucalyptus Functionalities
• Cloud Bursting: Create additional resource for your cloud using
resource from another cloud
• Migration environments: Exporting date (images, volumes,
configuration etc.) from stage to production environment
• Disaster Recovery: Primacy site is eucalyptus cloud and secondary in
on another cloud
• Eucalyptus supports DAS and SAN devices to take advantage of
storage arrays to improve performance and reliability.
• Eucalyptus Machine Images can be backed by EBS-like persistent
storage volumes, improving the performance of image launch time
and enabling fully persistent virtual machine instances.

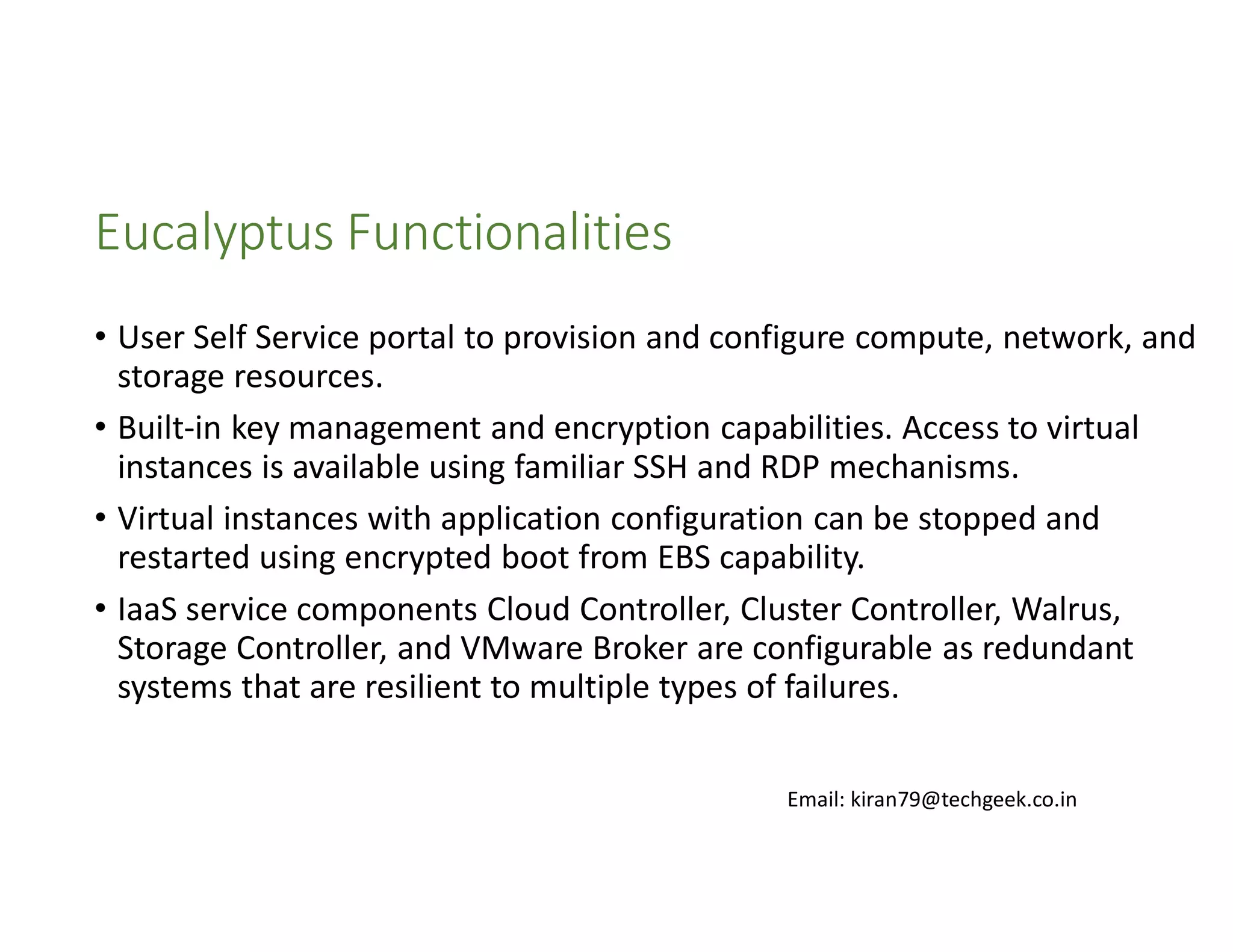

• User Self Service portal to provision and configure compute, network, and
storage resources.
• Built-in key management and encryption capabilities. Access to virtual
instances is available using familiar SSH and RDP mechanisms.
• Virtual instances with application configuration can be stopped and
restarted using encrypted boot from EBS capability.
• IaaS service components Cloud Controller, Cluster Controller, Walrus,
Storage Controller, and VMware Broker are configurable as redundant
systems that are resilient to multiple types of failures.

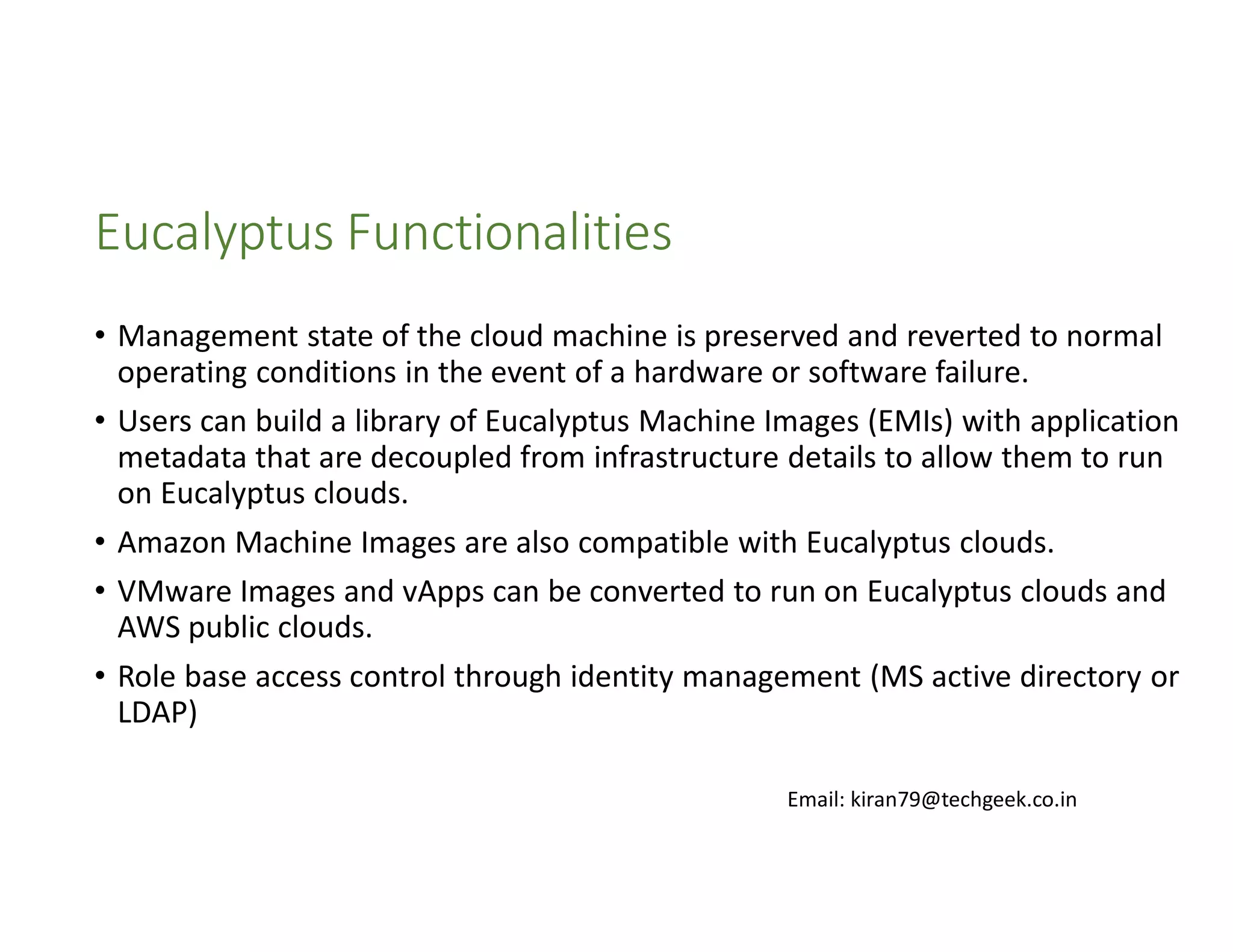

• Management state of the cloud machine is preserved and reverted to normal
operating conditions in the event of a hardware or software failure.
• Users can build a library of Eucalyptus Machine Images (EMIs) with application
metadata that are decoupled from infrastructure details to allow them to run
on Eucalyptus clouds.
• Amazon Machine Images are also compatible with Eucalyptus clouds.
• VMware Images and vApps can be converted to run on Eucalyptus clouds and
AWS public clouds.
• Role base access control through identity management (MS active directory or
LDAP)

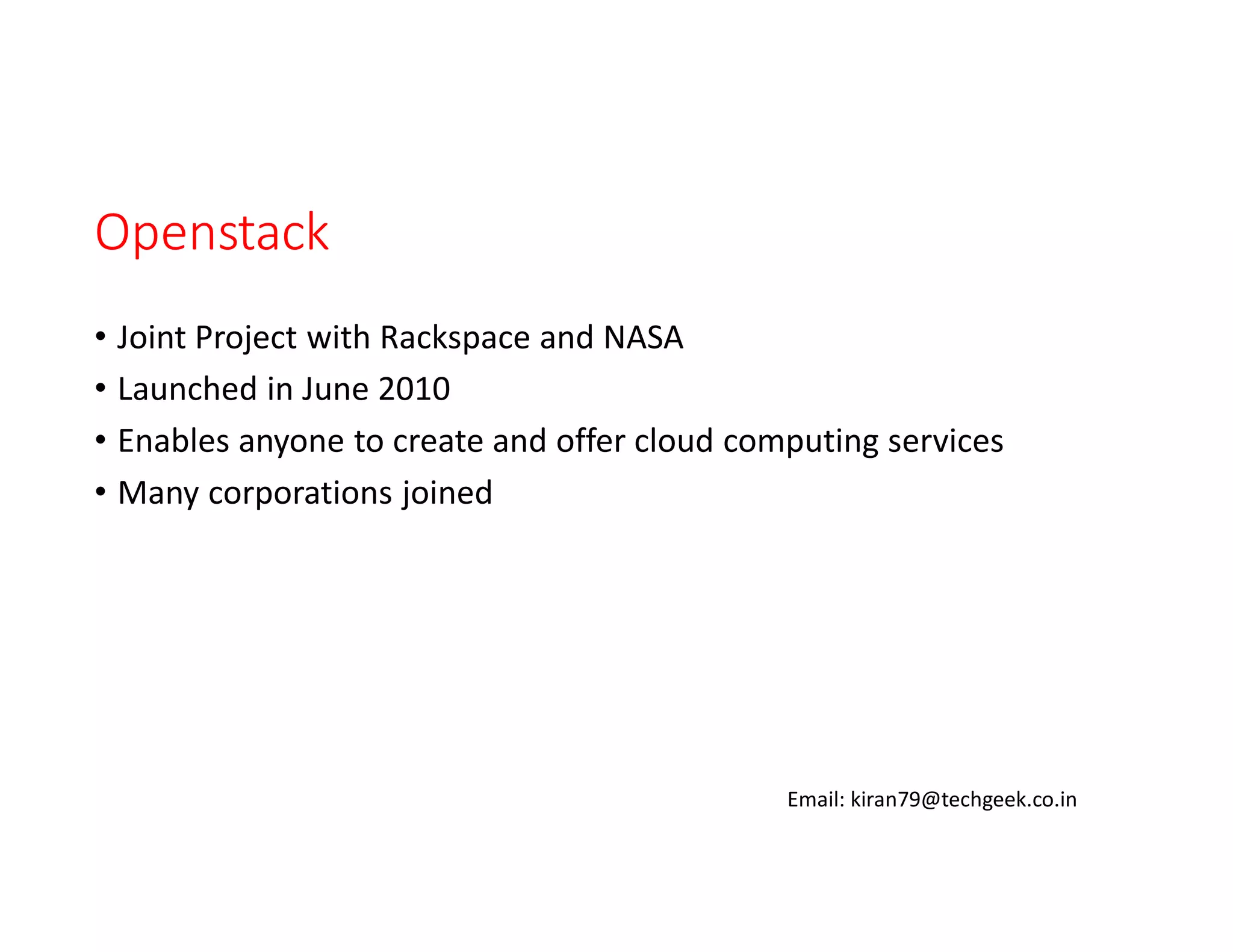

Openstack
• Joint Project with Rackspace and NASA
• Launched in June 2010
• Enables anyone to create and offer cloud computing services
• Many corporations joined

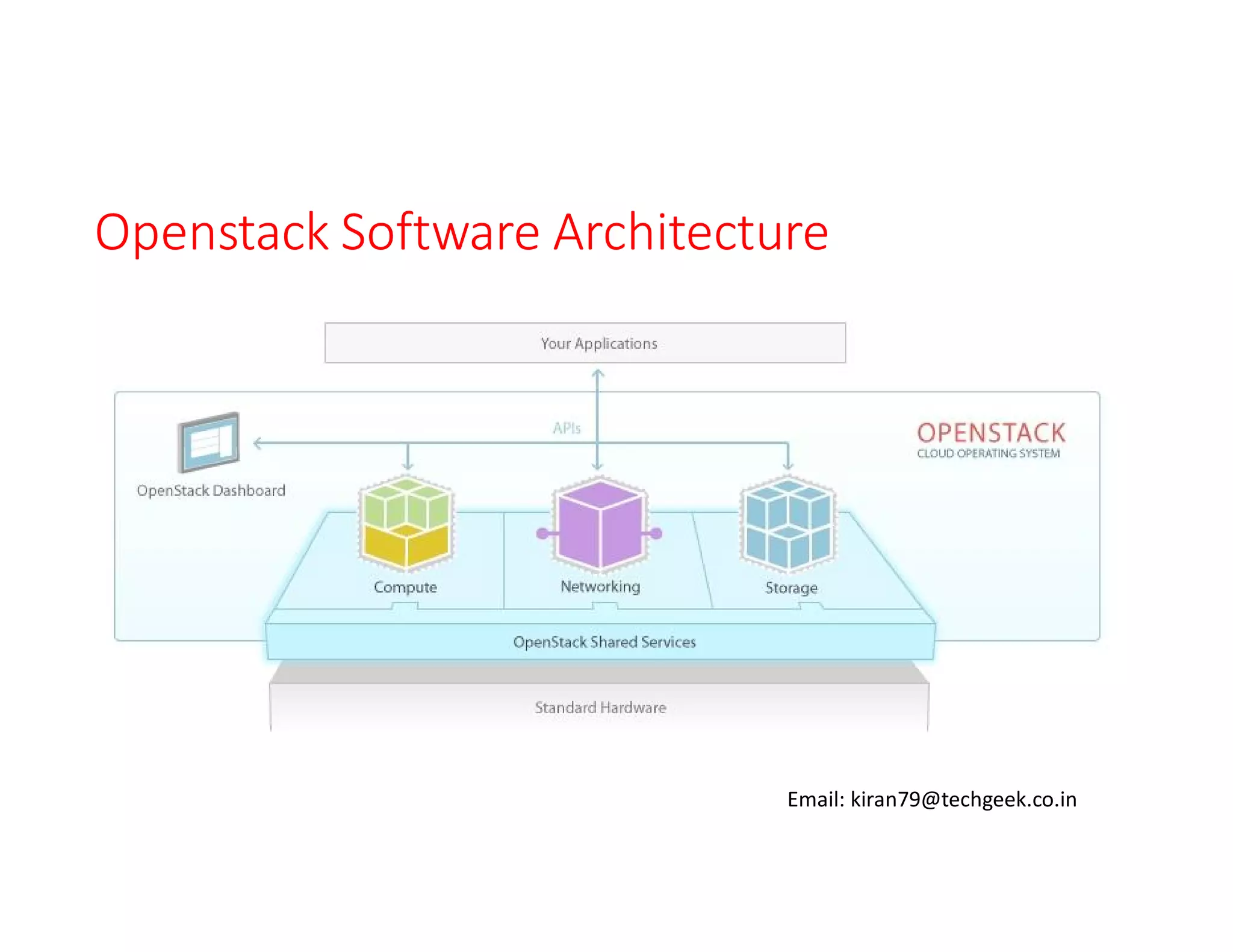

Openstack Software Architecture

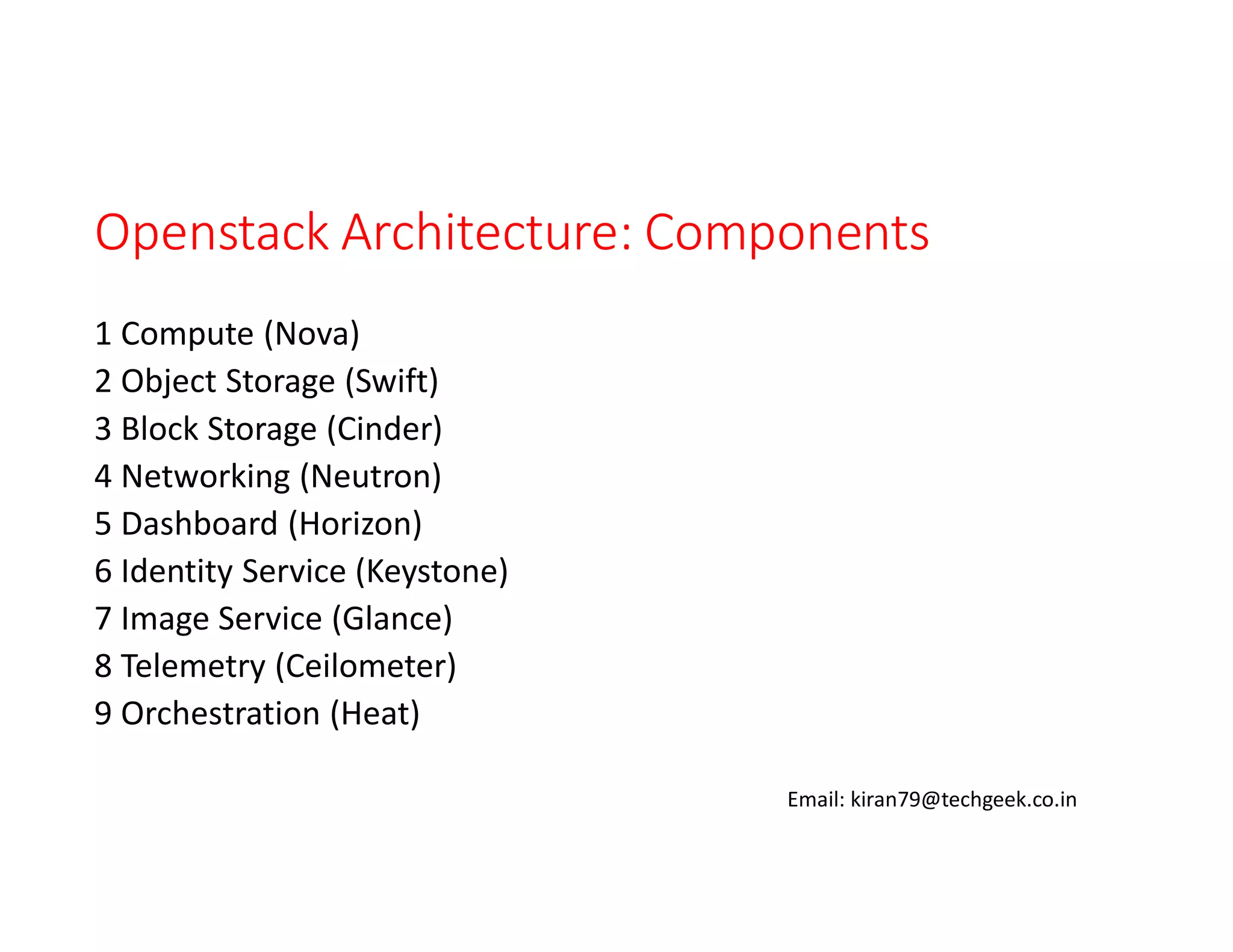

Openstack Architecture: Components
1 Compute (Nova)
2 Object Storage (Swift)
3 Block Storage (Cinder)
4 Networking (Neutron)
5 Dashboard (Horizon)
6 Identity Service (Keystone)
7 Image Service (Glance)
8 Telemetry (Ceilometer)
9 Orchestration (Heat)

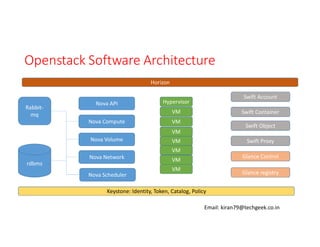

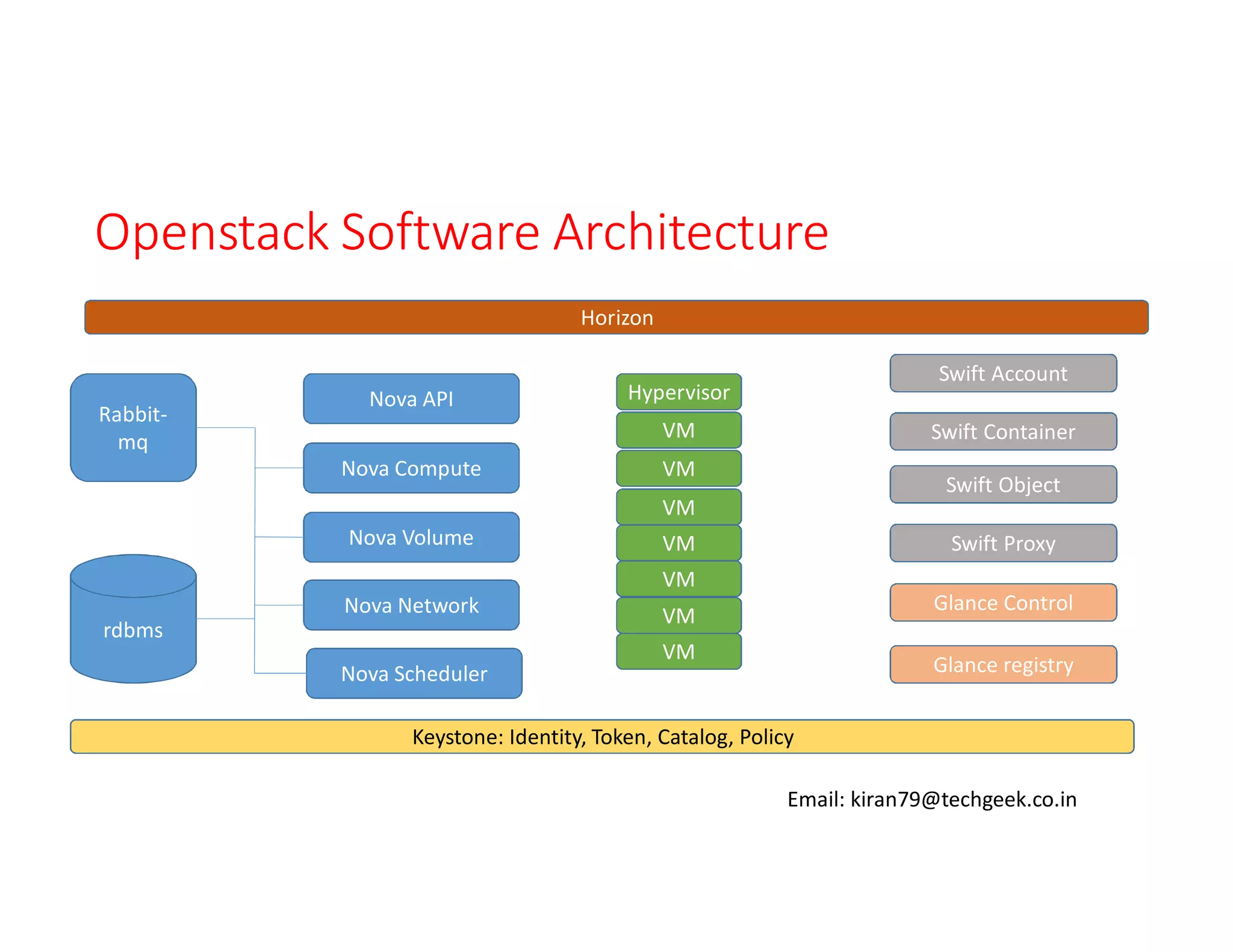

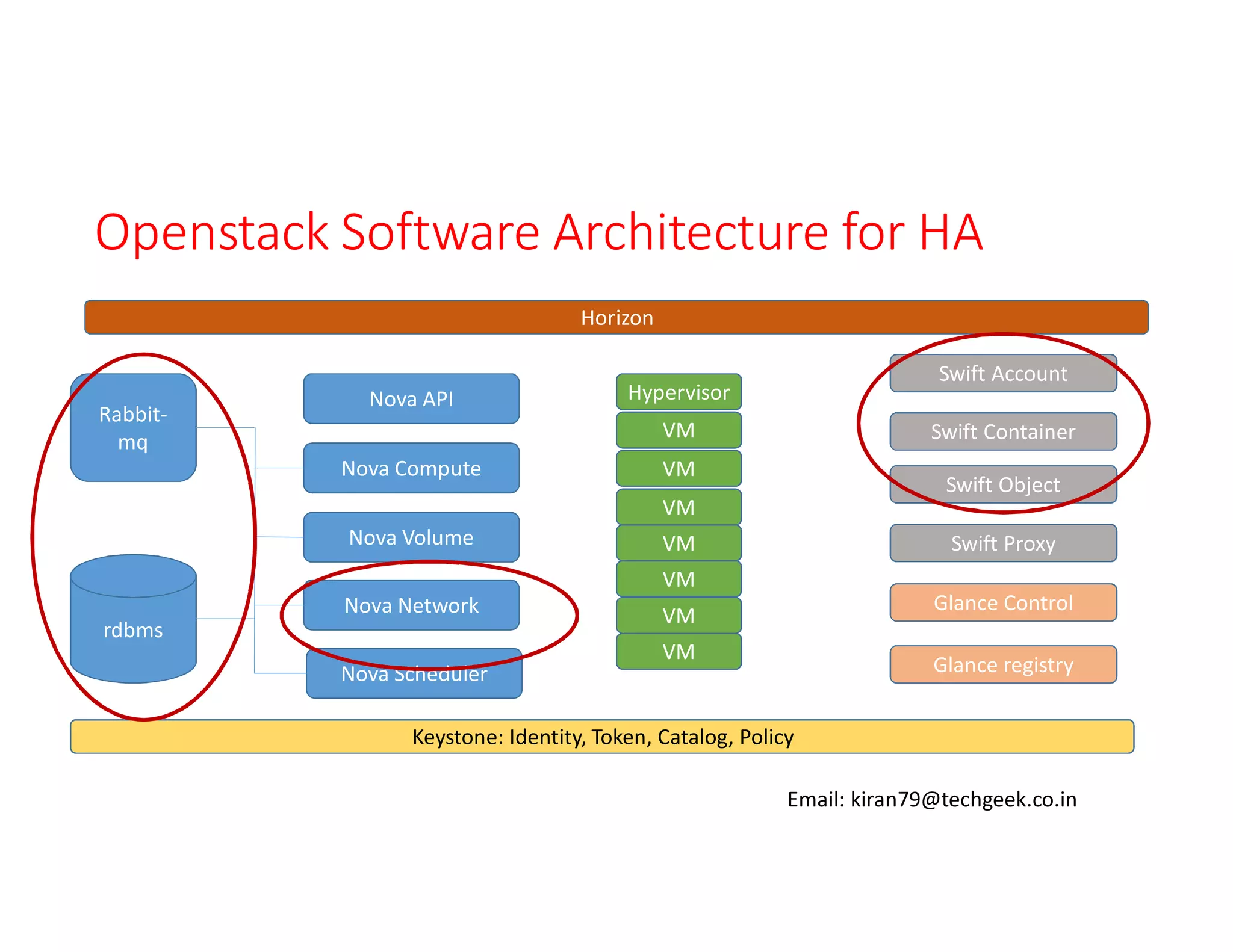

Openstack Software Architecture
Horizon

Rabbitmq

Nova API

Swift Account

Hypervisor
VM

Nova Compute

Swift Container

VM

Swift Object

VM
Nova Volume

VM

Swift Proxy

VM
Nova Network
rdbms
Nova Scheduler

Glance Control

VM
VM

Glance registry

Keystone: Identity, Token, Catalog, Policy

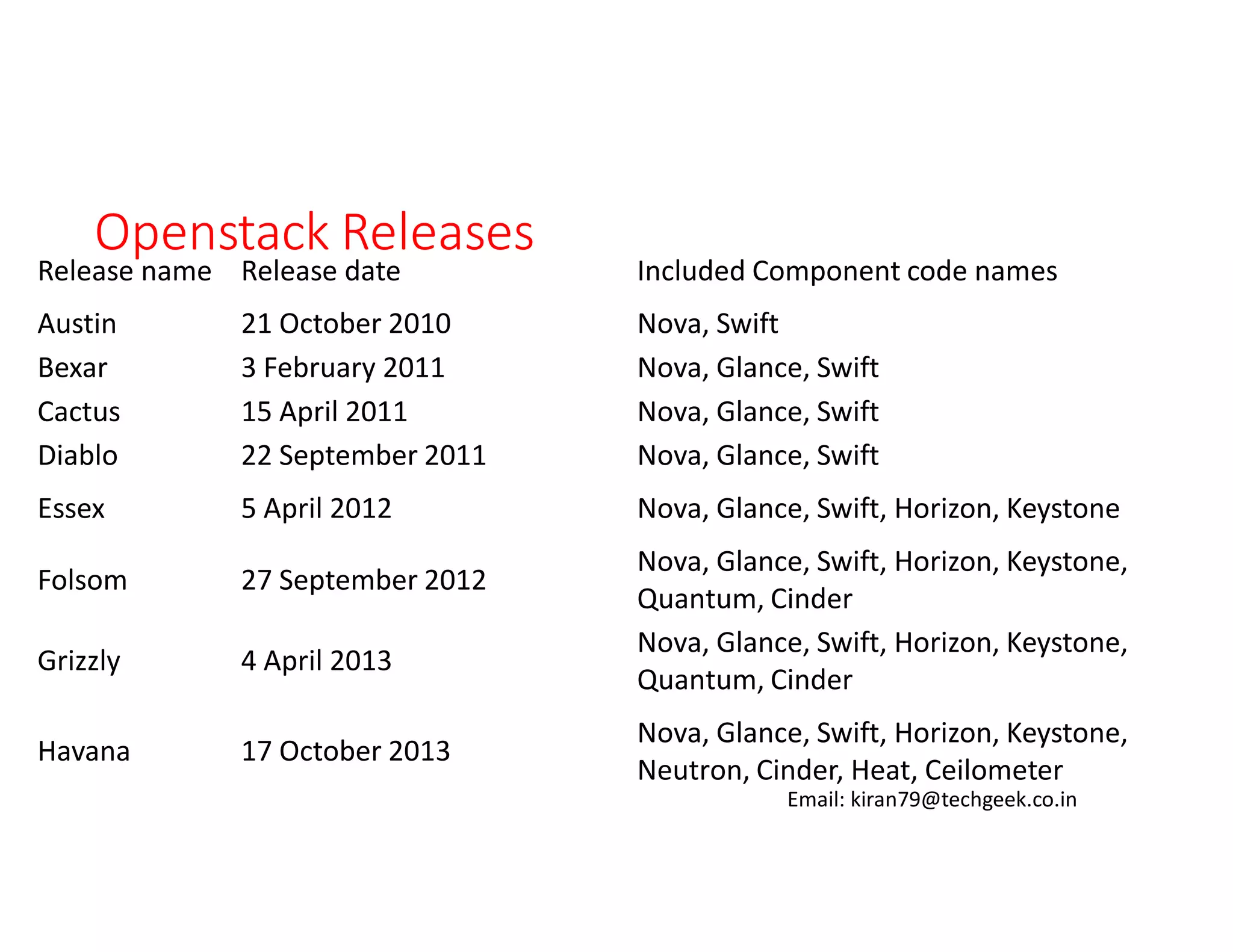

Openstack Releases

Release name Release date

Included Component code names

Austin
Bexar
Cactus
Diablo

21 October 2010
3 February 2011
15 April 2011
22 September 2011

Nova, Swift
Nova, Glance, Swift
Nova, Glance, Swift
Nova, Glance, Swift

Essex

5 April 2012

Nova, Glance, Swift, Horizon, Keystone

Folsom

27 September 2012

Grizzly

4 April 2013

Havana

17 October 2013

Nova, Glance, Swift, Horizon, Keystone,
Quantum, Cinder
Quantum, Cinder
Neutron, Cinder, Heat, Ceilometer

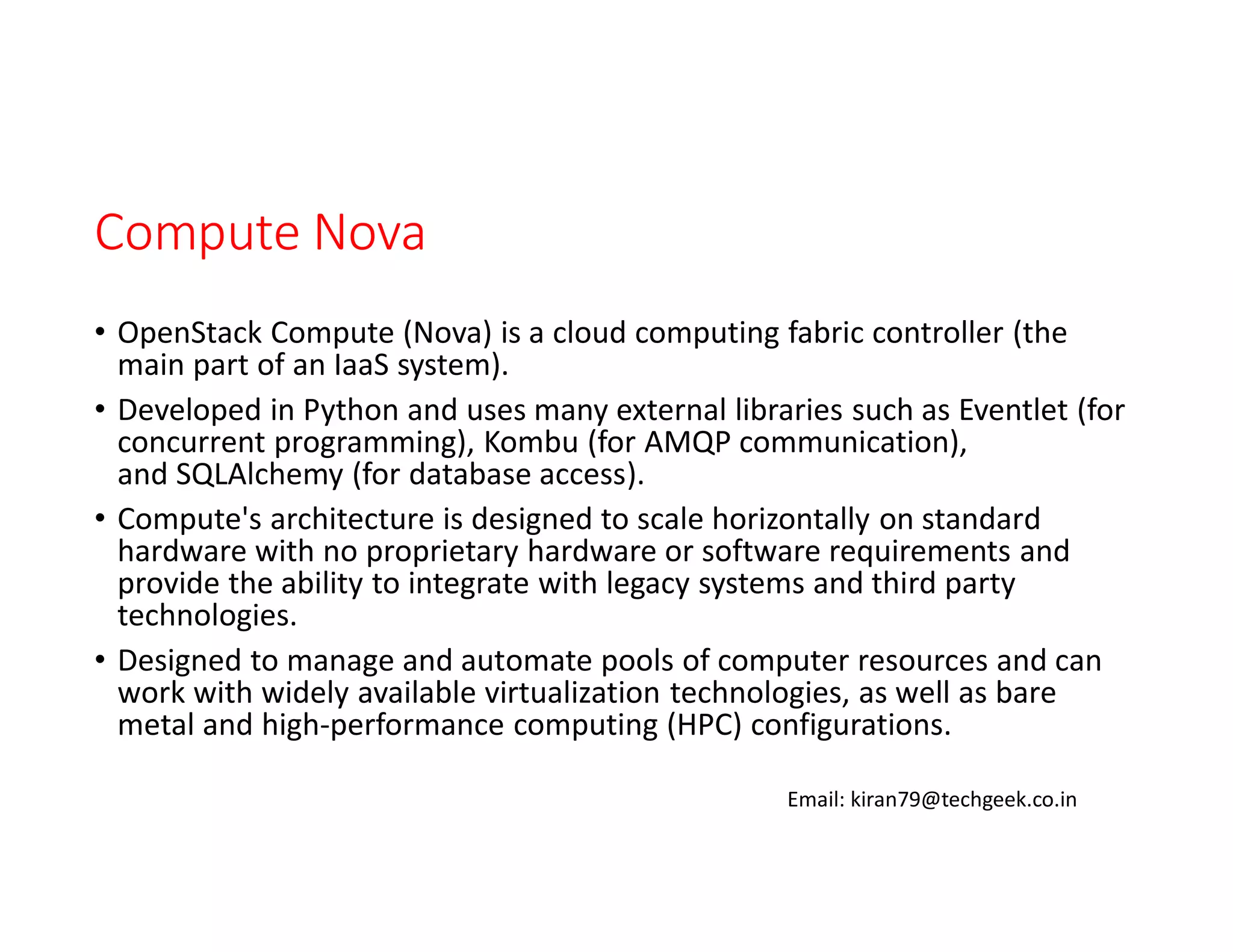

Compute Nova
• OpenStack Compute (Nova) is a cloud computing fabric controller (the
main part of an IaaS system).
• Developed in Python and uses many external libraries such as Eventlet (for
concurrent programming), Kombu (for AMQP communication),
and SQLAlchemy (for database access).
• Compute's architecture is designed to scale horizontally on standard
hardware with no proprietary hardware or software requirements and
provide the ability to integrate with legacy systems and third party
technologies.
• Designed to manage and automate pools of computer resources and can
work with widely available virtualization technologies, as well as bare
metal and high-performance computing (HPC) configurations.

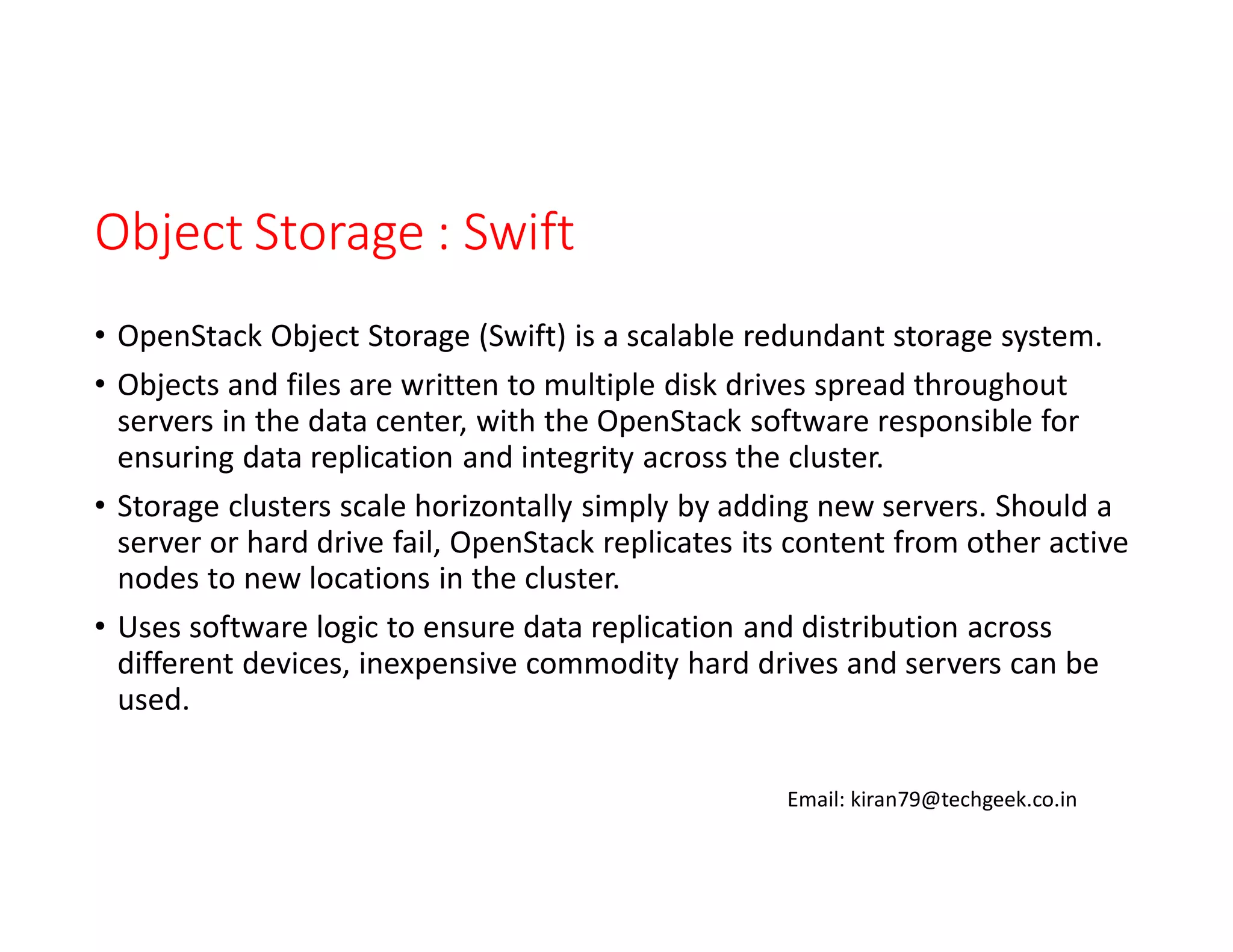

Object Storage : Swift
• OpenStack Object Storage (Swift) is a scalable redundant storage system.
• Objects and files are written to multiple disk drives spread throughout
servers in the data center, with the OpenStack software responsible for
ensuring data replication and integrity across the cluster.
• Storage clusters scale horizontally simply by adding new servers. Should a
server or hard drive fail, OpenStack replicates its content from other active
nodes to new locations in the cluster.
• Uses software logic to ensure data replication and distribution across
different devices, inexpensive commodity hard drives and servers can be
used.

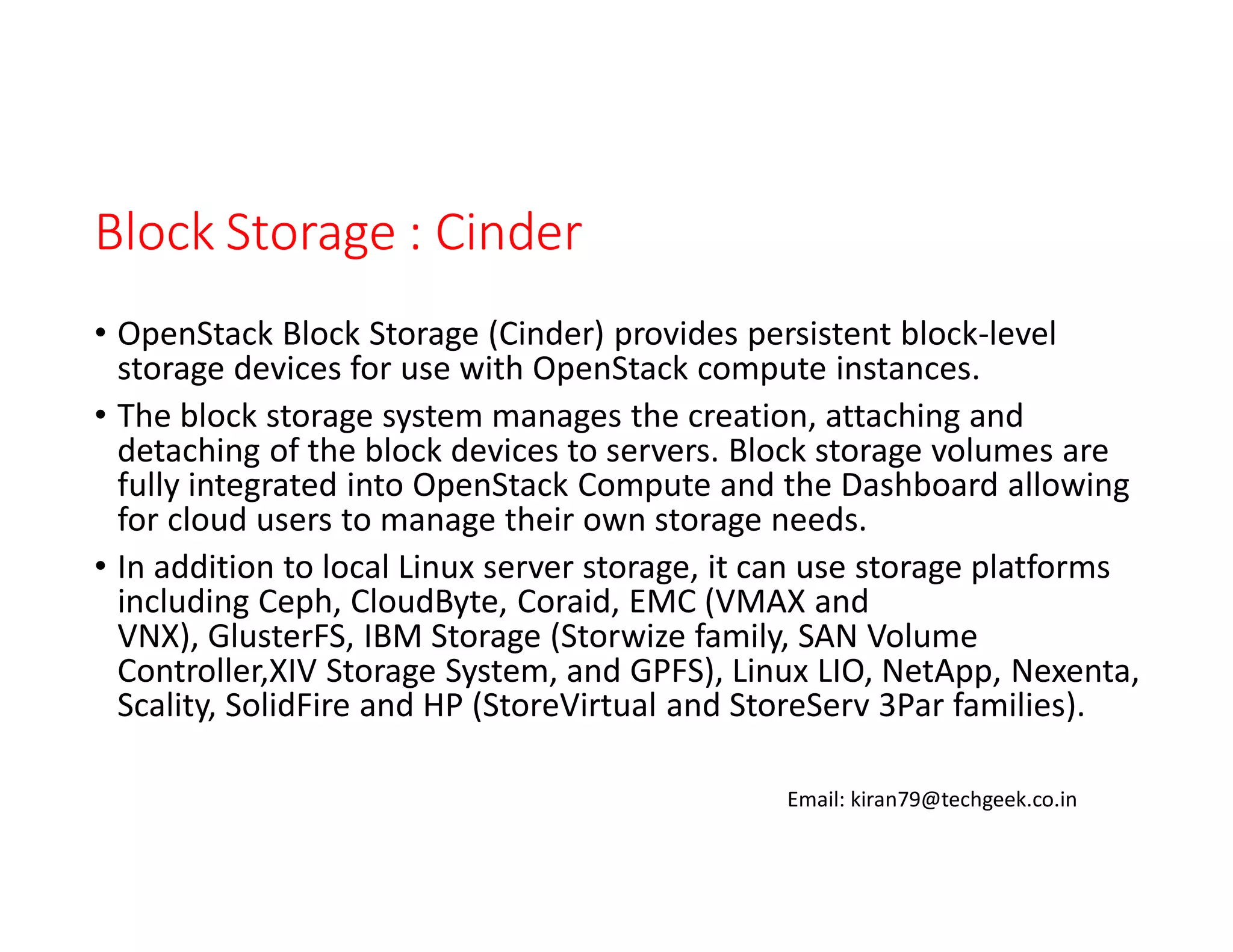

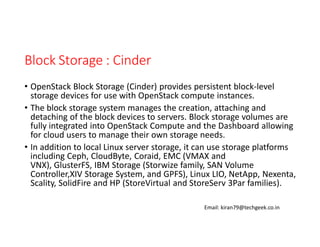

Block Storage : Cinder
• OpenStack Block Storage (Cinder) provides persistent block-level
storage devices for use with OpenStack compute instances.
• The block storage system manages the creation, attaching and
detaching of the block devices to servers. Block storage volumes are
fully integrated into OpenStack Compute and the Dashboard allowing
for cloud users to manage their own storage needs.
• In addition to local Linux server storage, it can use storage platforms
including Ceph, CloudByte, Coraid, EMC (VMAX and
VNX), GlusterFS, IBM Storage (Storwize family, SAN Volume
Controller,XIV Storage System, and GPFS), Linux LIO, NetApp, Nexenta,
Scality, SolidFire and HP (StoreVirtual and StoreServ 3Par families).

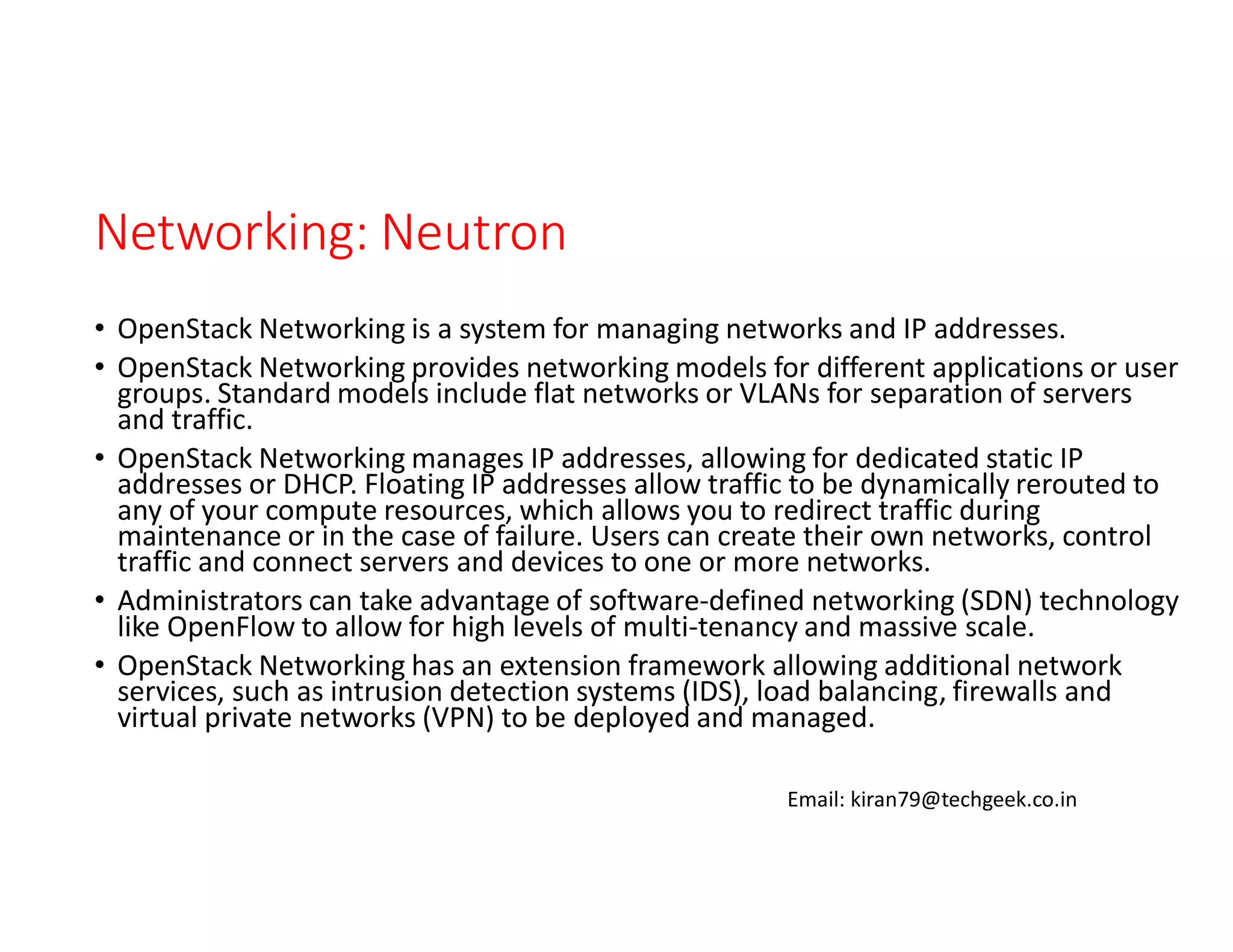

Networking: Neutron
• OpenStack Networking is a system for managing networks and IP addresses.
• OpenStack Networking provides networking models for different applications or user
groups. Standard models include flat networks or VLANs for separation of servers
and traffic.
• OpenStack Networking manages IP addresses, allowing for dedicated static IP
addresses or DHCP. Floating IP addresses allow traffic to be dynamically rerouted to
any of your compute resources, which allows you to redirect traffic during
maintenance or in the case of failure. Users can create their own networks, control
traffic and connect servers and devices to one or more networks.
• Administrators can take advantage of software-defined networking (SDN) technology
like OpenFlow to allow for high levels of multi-tenancy and massive scale.
• OpenStack Networking has an extension framework allowing additional network
services, such as intrusion detection systems (IDS), load balancing, firewalls and
virtual private networks (VPN) to be deployed and managed.

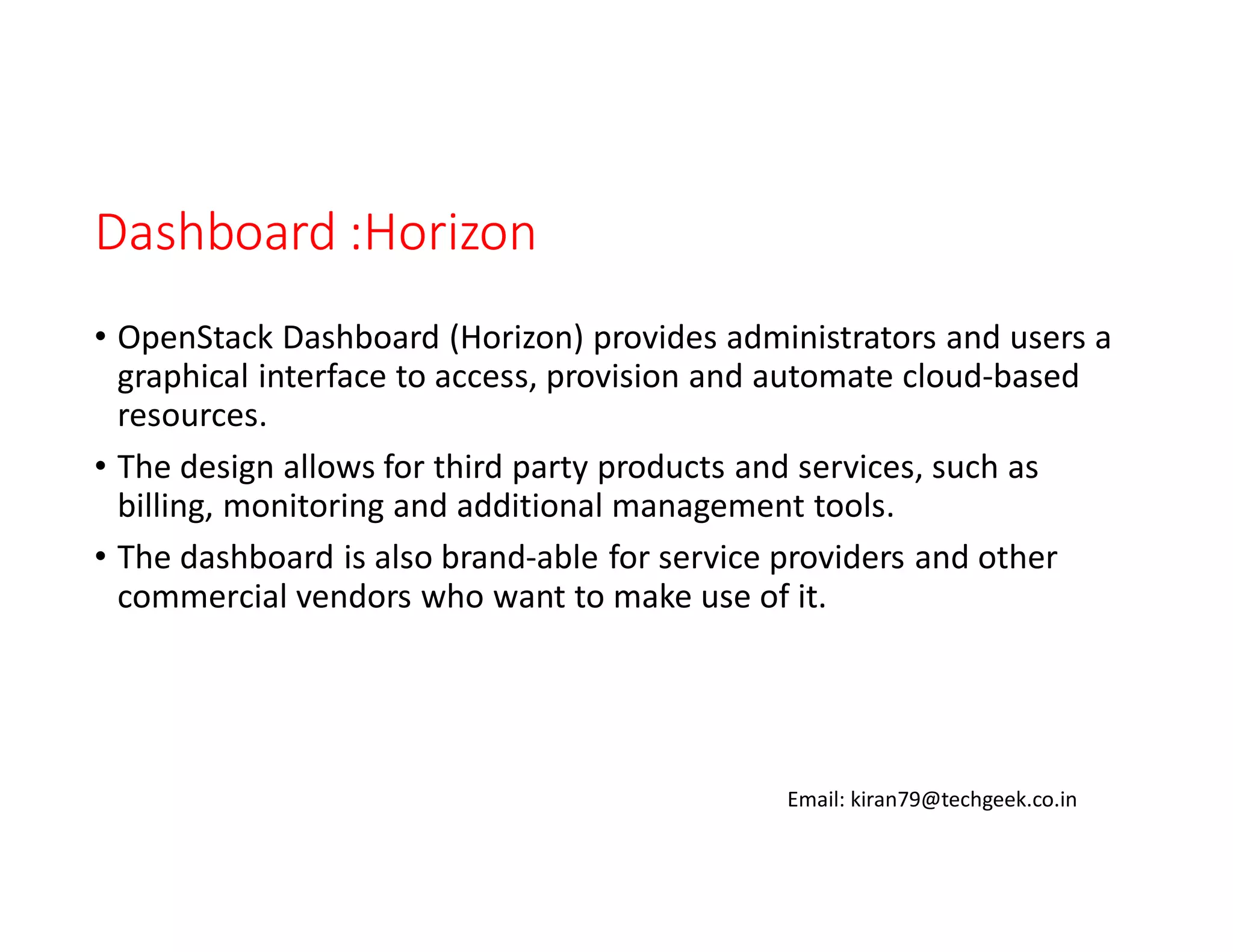

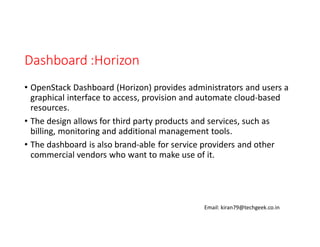

Dashboard :Horizon
• OpenStack Dashboard (Horizon) provides administrators and users a
graphical interface to access, provision and automate cloud-based
resources.
• The design allows for third party products and services, such as
billing, monitoring and additional management tools.
• The dashboard is also brand-able for service providers and other
commercial vendors who want to make use of it.

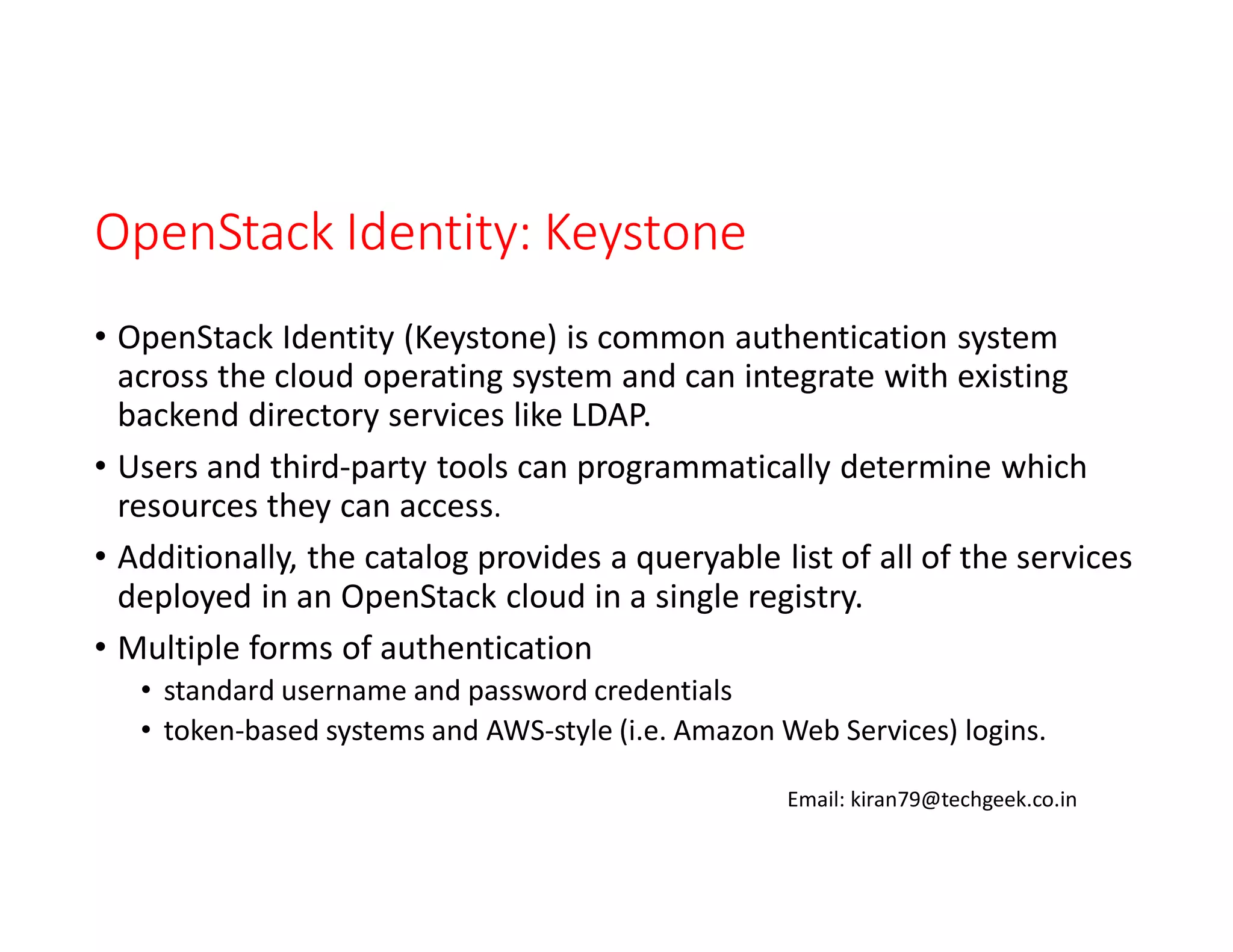

OpenStack Identity: Keystone
• OpenStack Identity (Keystone) is common authentication system
across the cloud operating system and can integrate with existing
backend directory services like LDAP.
• Users and third-party tools can programmatically determine which
resources they can access.
• Additionally, the catalog provides a queryable list of all of the services
deployed in an OpenStack cloud in a single registry.
• Multiple forms of authentication
• standard username and password credentials
• token-based systems and AWS-style (i.e. Amazon Web Services) logins.

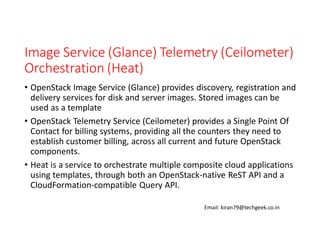

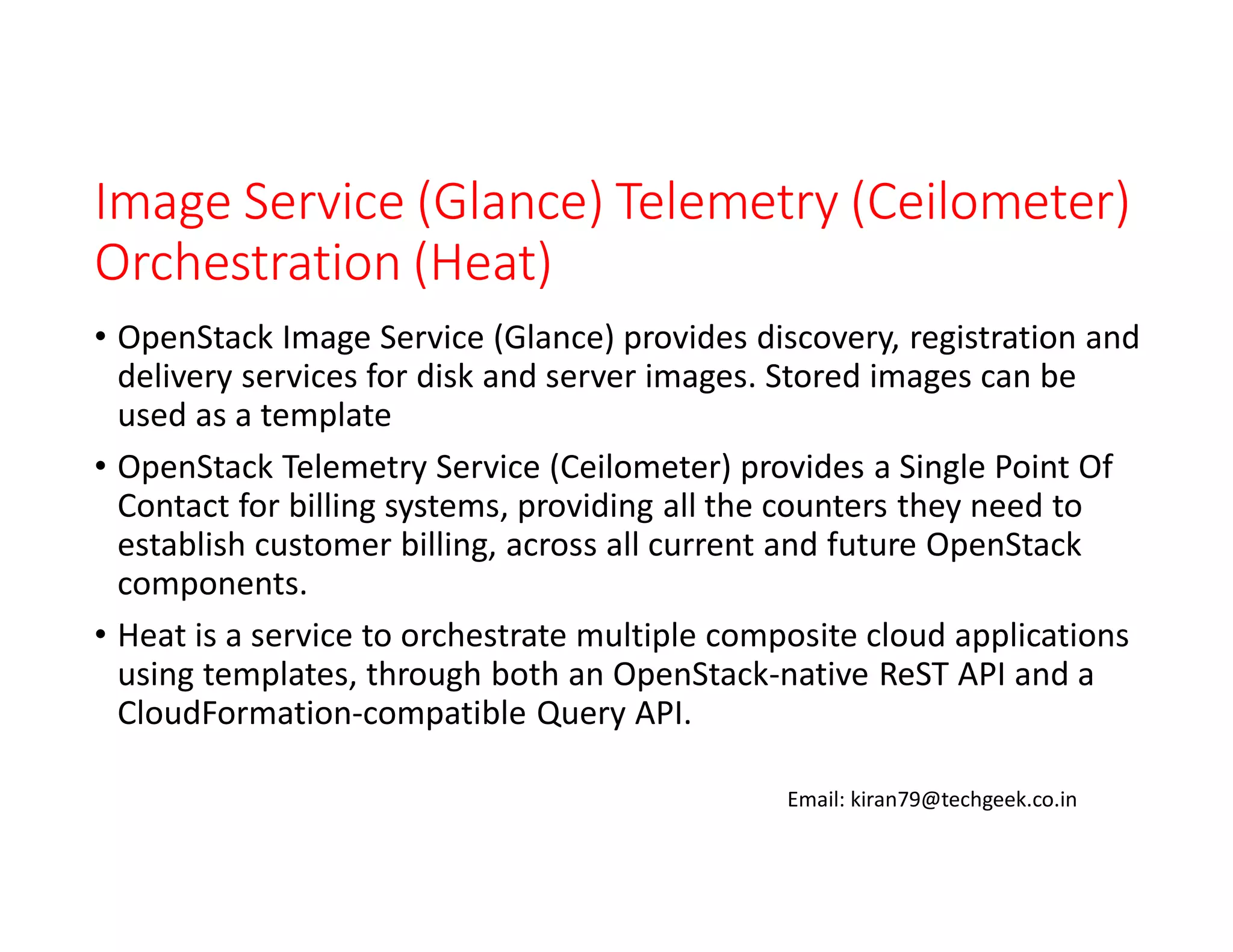

Image Service (Glance) Telemetry (Ceilometer)
Orchestration (Heat)
• OpenStack Image Service (Glance) provides discovery, registration and
delivery services for disk and server images. Stored images can be
used as a template
• OpenStack Telemetry Service (Ceilometer) provides a Single Point Of
Contact for billing systems, providing all the counters they need to
establish customer billing, across all current and future OpenStack
components.
• Heat is a service to orchestrate multiple composite cloud applications
using templates, through both an OpenStack-native ReST API and a
CloudFormation-compatible Query API.

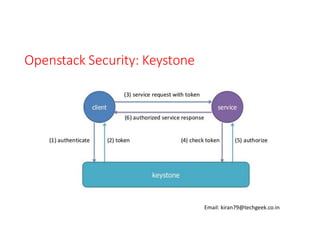

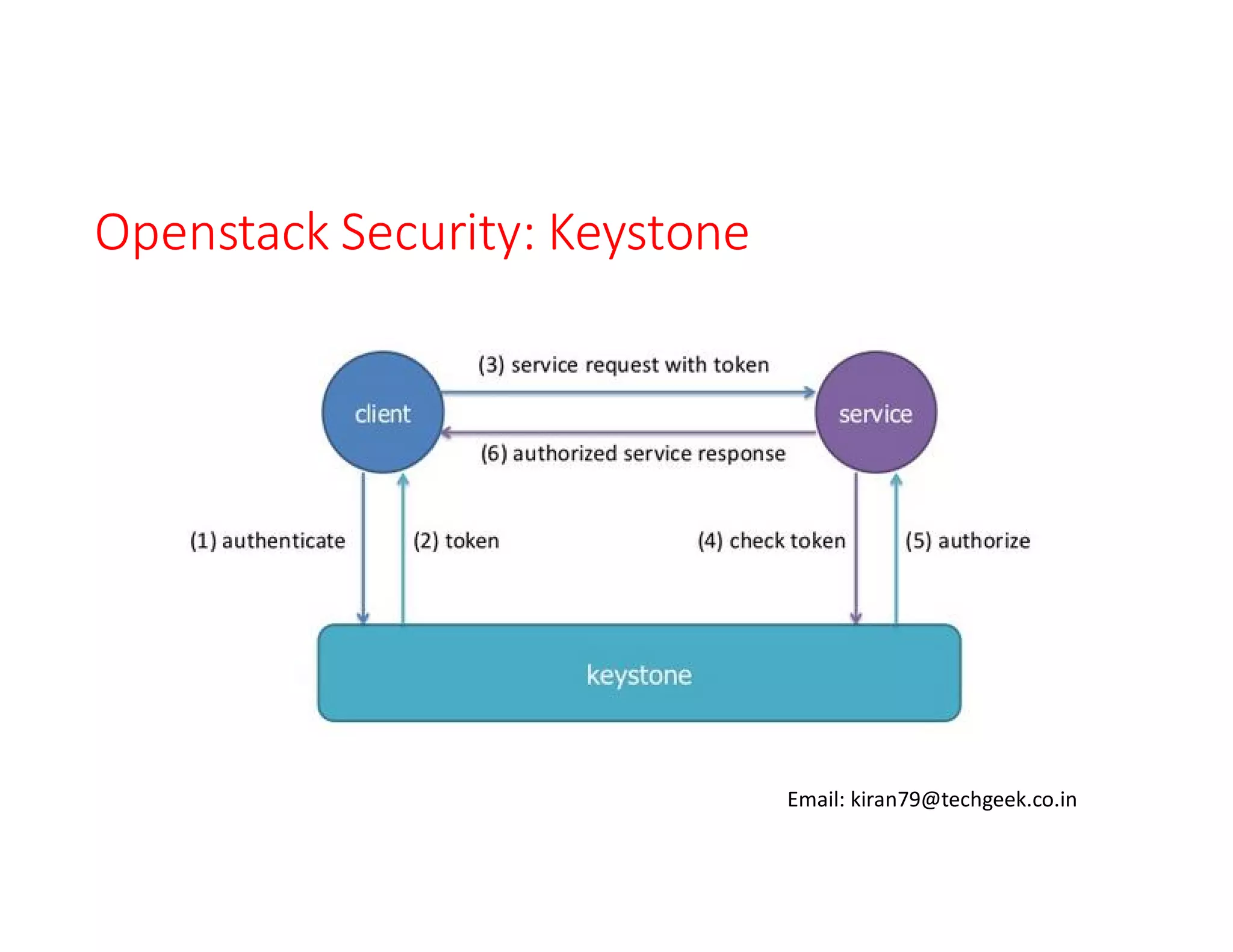

Openstack Security: Keystone

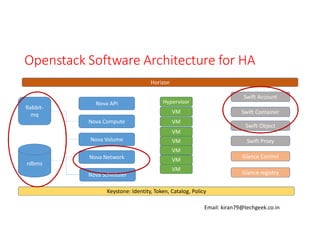

Openstack Software Architecture for HA
Horizon

Rabbitmq

Nova API

Swift Account

Hypervisor
VM

Nova Compute

Swift Container

VM

Swift Object

VM
Nova Volume

VM

Swift Proxy

VM
Nova Network
rdbms
Nova Scheduler

Glance Control

VM
VM

Glance registry

Keystone: Identity, Token, Catalog, Policy

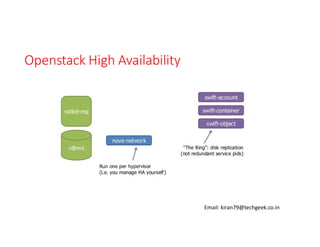

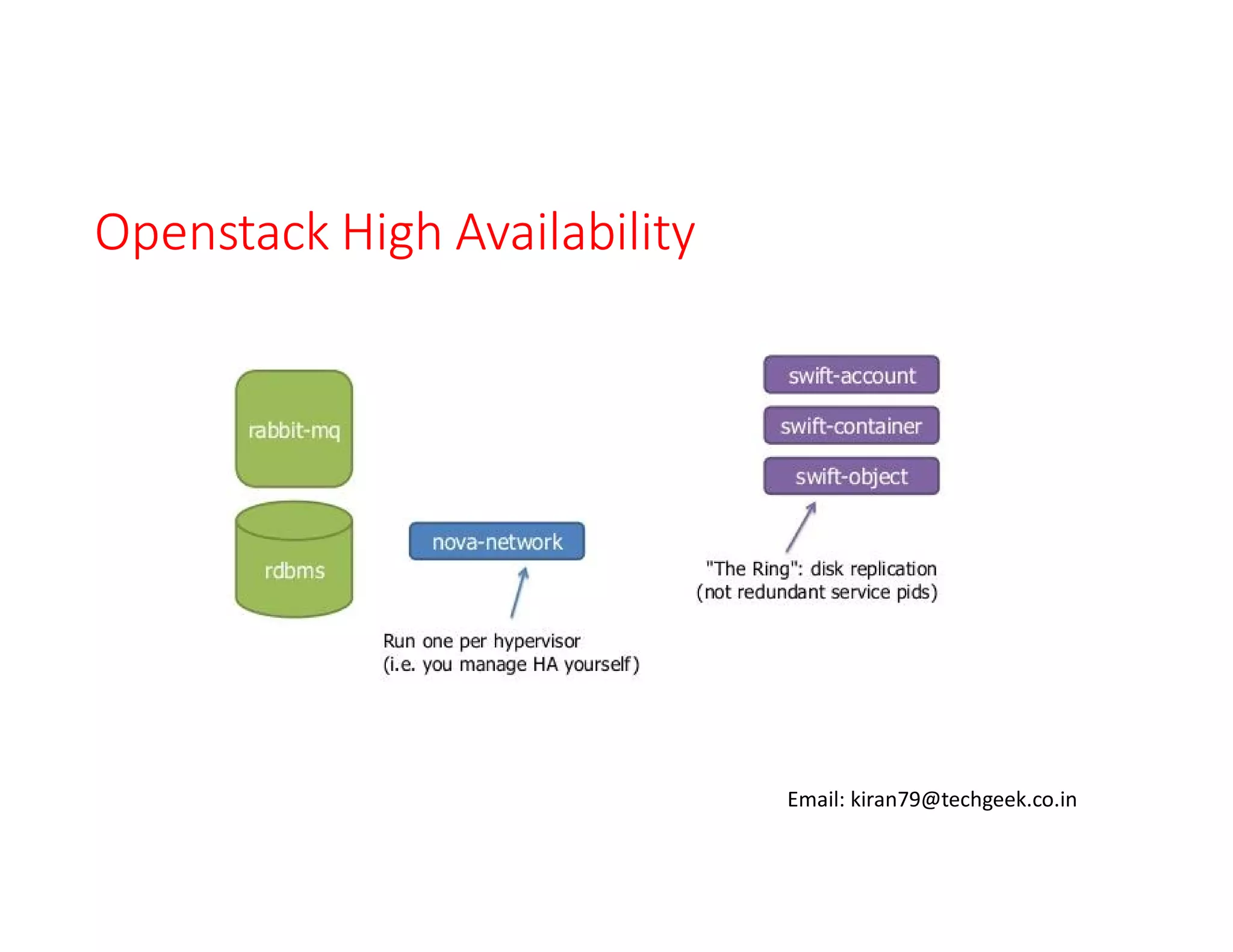

Openstack High Availability

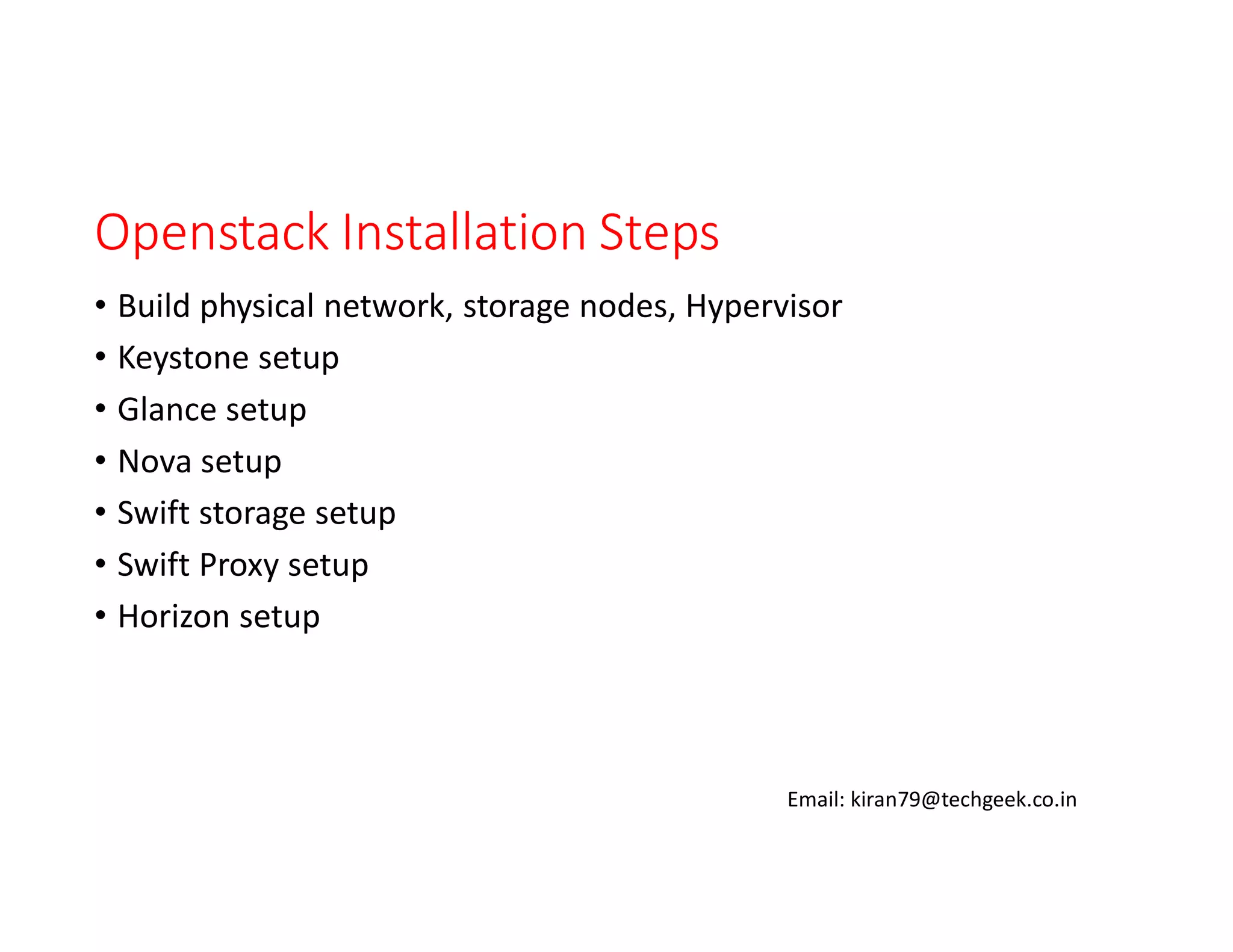

Openstack Installation Steps
• Keystone setup
• Glance setup
• Nova setup
• Swift storage setup
• Swift Proxy setup
• Horizon setup

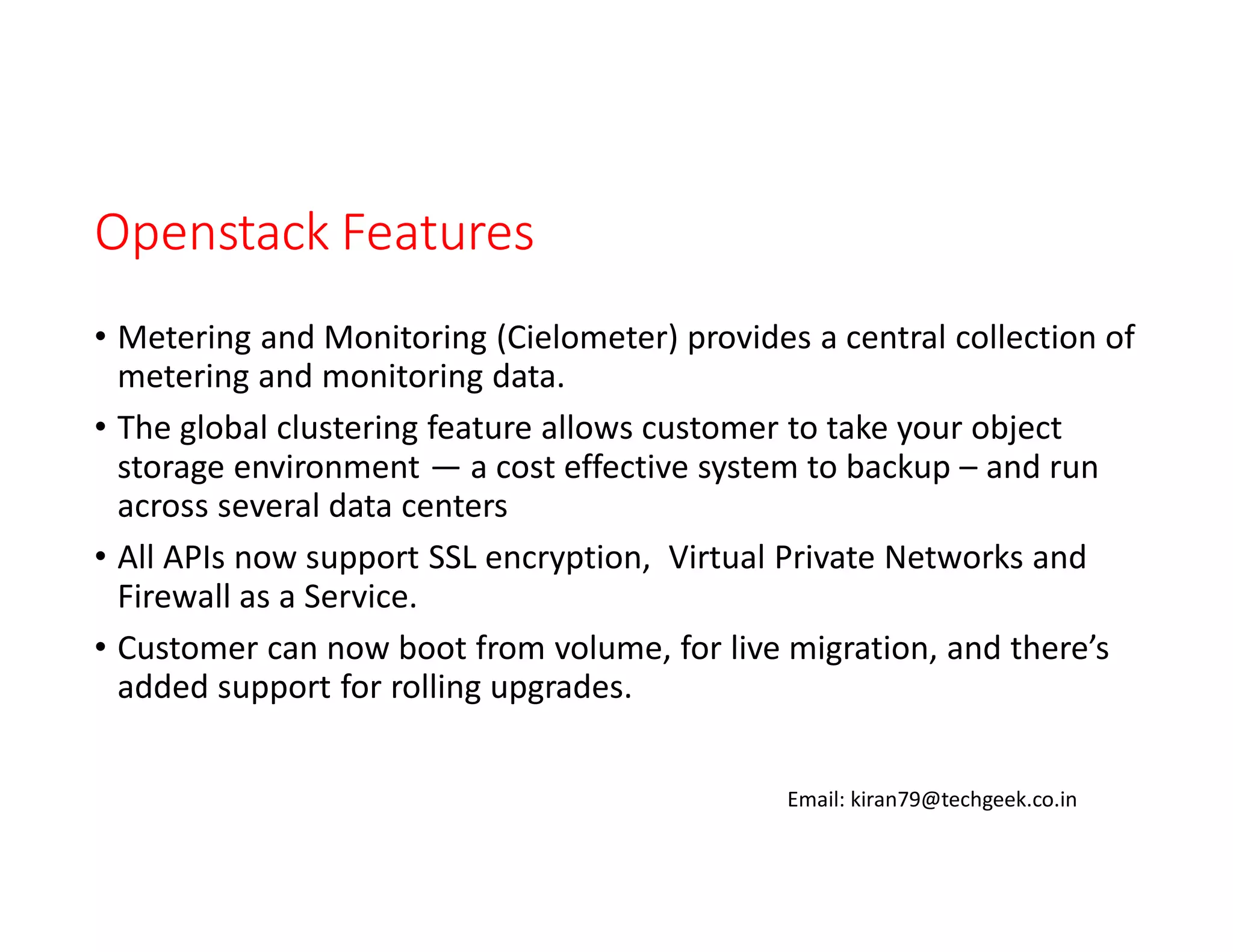

Openstack Features
• Metering and Monitoring (Cielometer) provides a central collection of
metering and monitoring data.
• The global clustering feature allows customer to take your object
storage environment — a cost effective system to backup – and run
across several data centers
• All APIs now support SSL encryption, Virtual Private Networks and
Firewall as a Service.
• Customer can now boot from volume, for live migration, and there’s
added support for rolling upgrades.

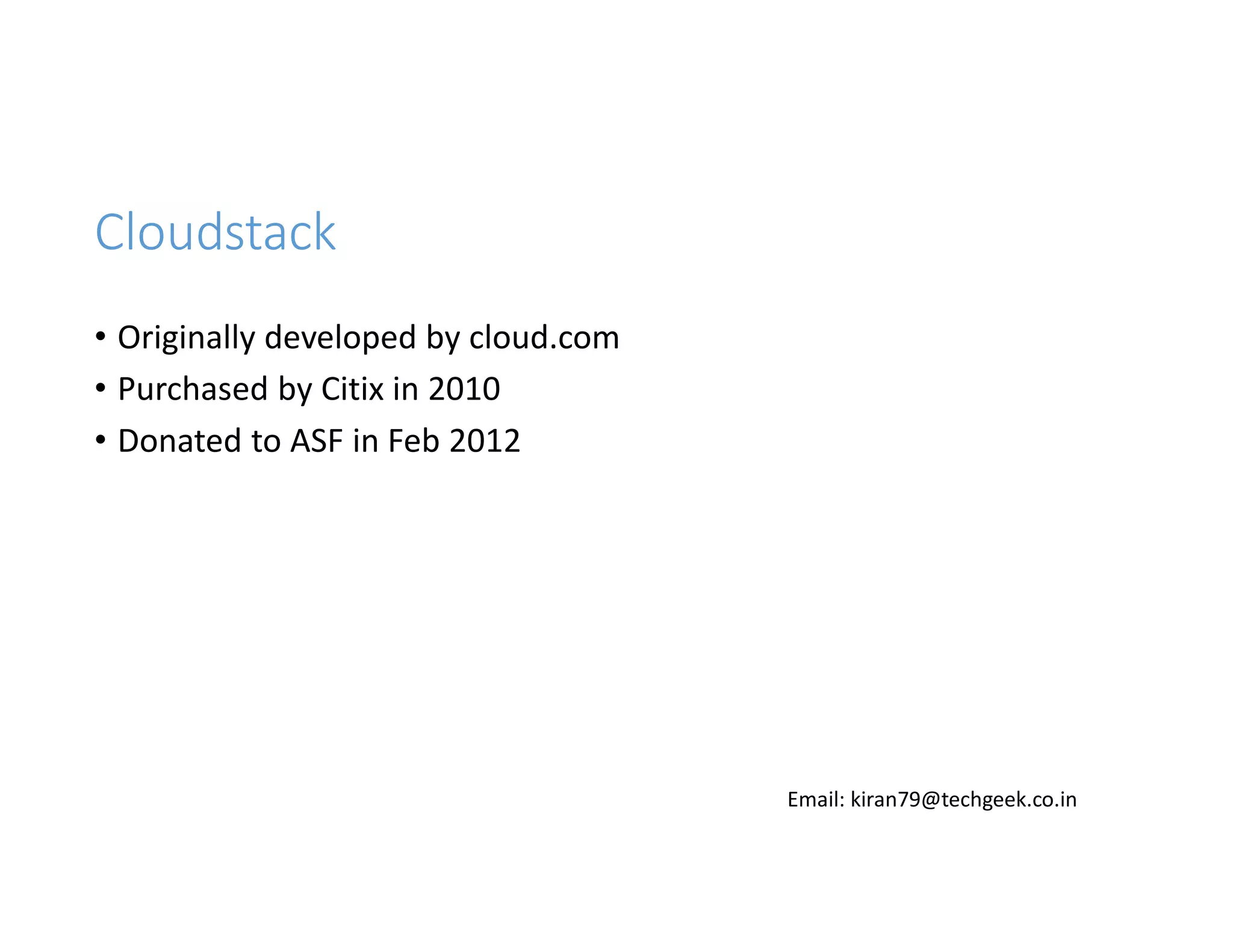

Cloudstack
• Originally developed by cloud.com
• Purchased by Citix in 2010
• Donated to ASF in Feb 2012

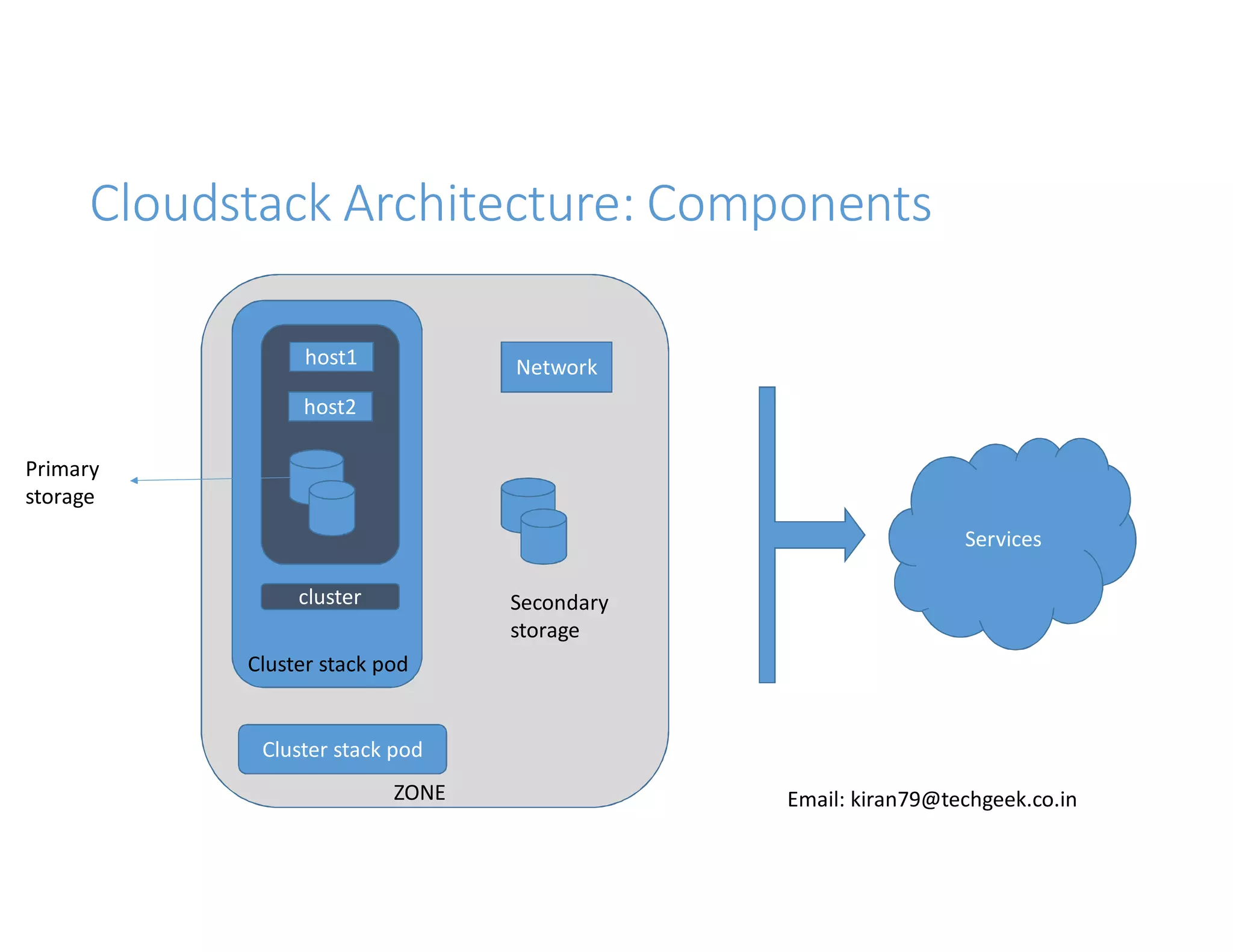

Cloudstack Architecture: Components
host1

Network

host2
Primary
storage
Services
cluster

Secondary
storage

Cluster stack pod

Cluster stack pod
ZONE

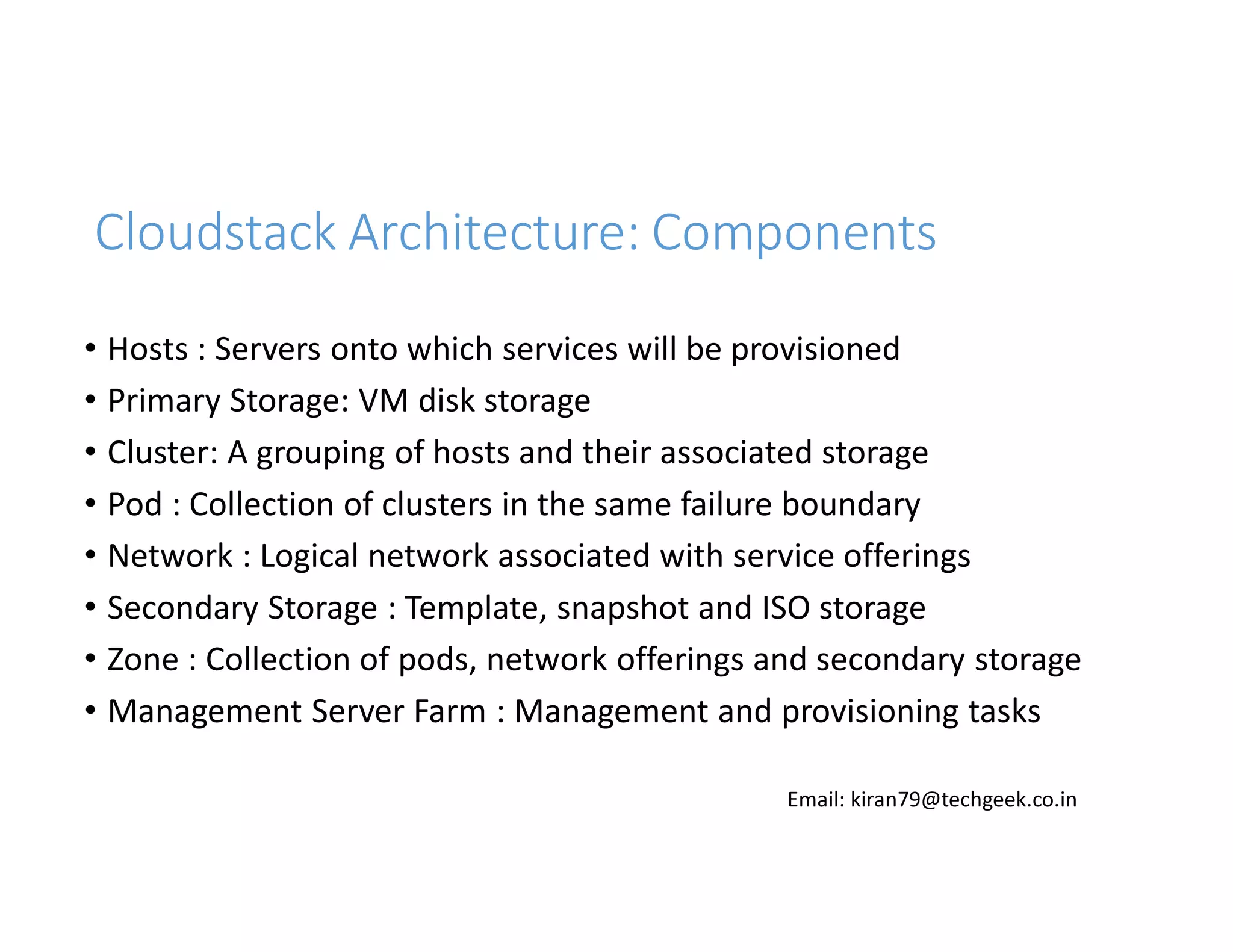

Cloudstack Architecture: Components
• Hosts : Servers onto which services will be provisioned
• Primary Storage: VM disk storage
• Cluster: A grouping of hosts and their associated storage
• Pod : Collection of clusters in the same failure boundary
• Network : Logical network associated with service offerings
• Secondary Storage : Template, snapshot and ISO storage
• Zone : Collection of pods, network offerings and secondary storage
• Management Server Farm : Management and provisioning tasks

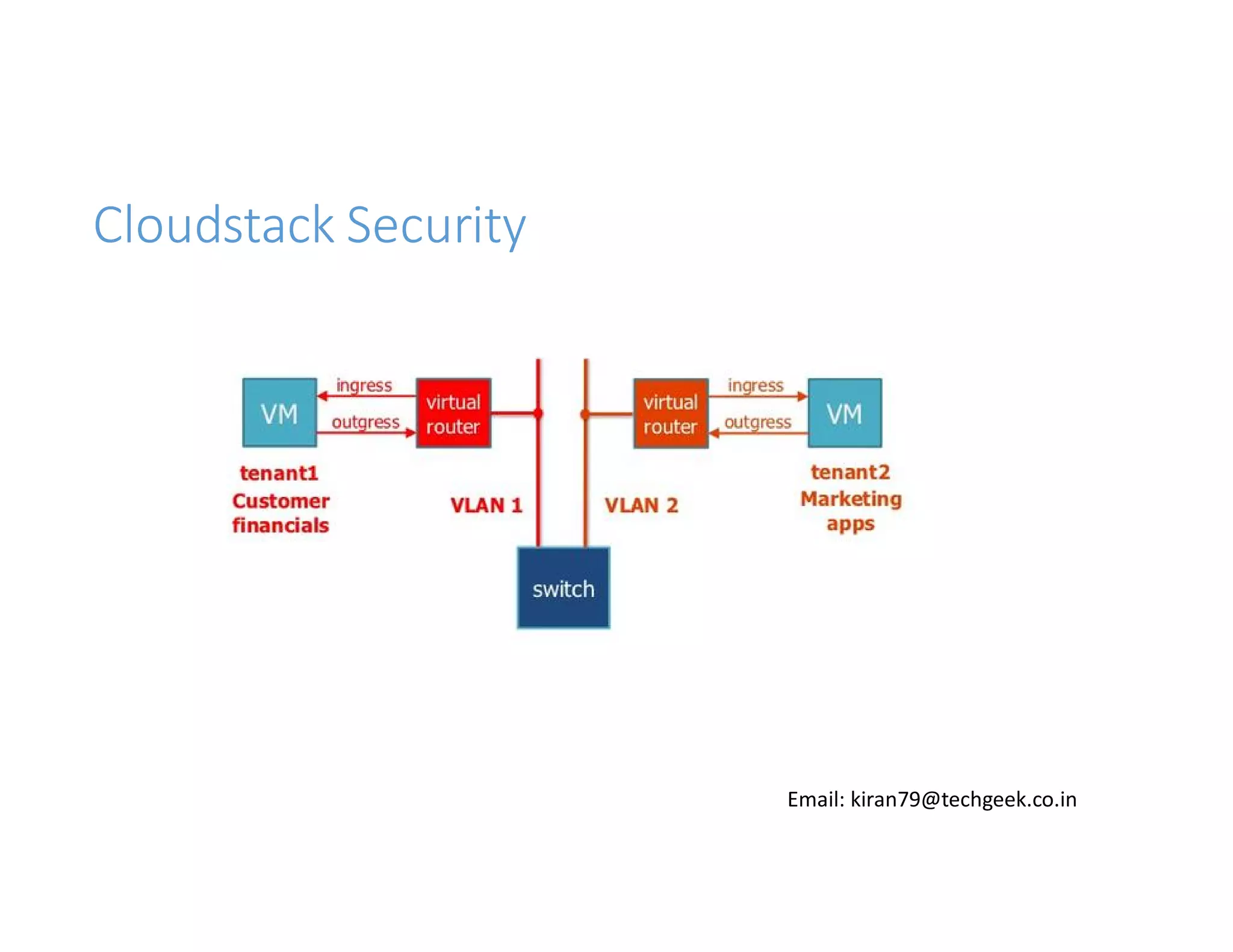

Cloudstack Security

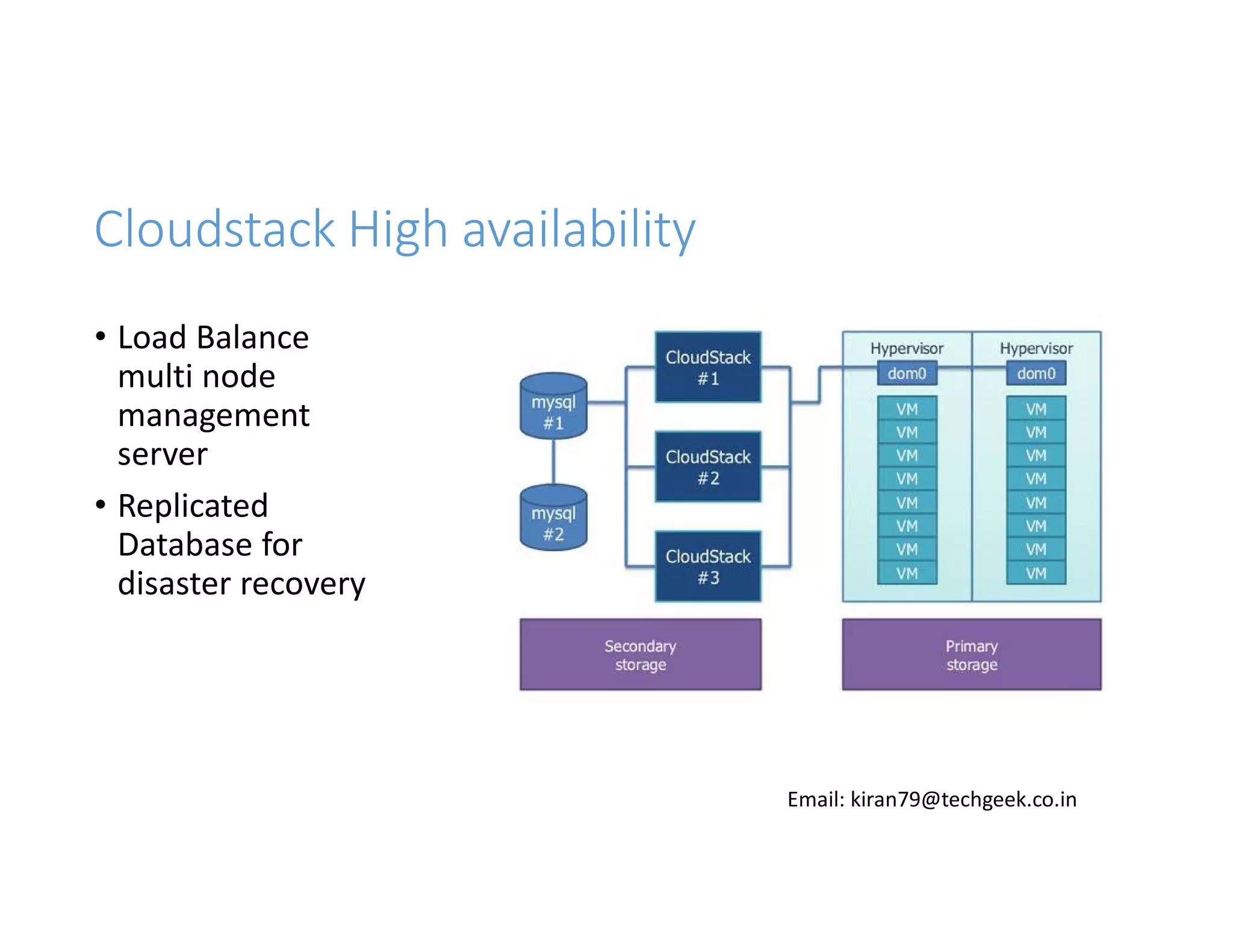

Cloudstack High availability
• Load Balance
multi node
management
server
• Replicated
Database for
disaster recovery

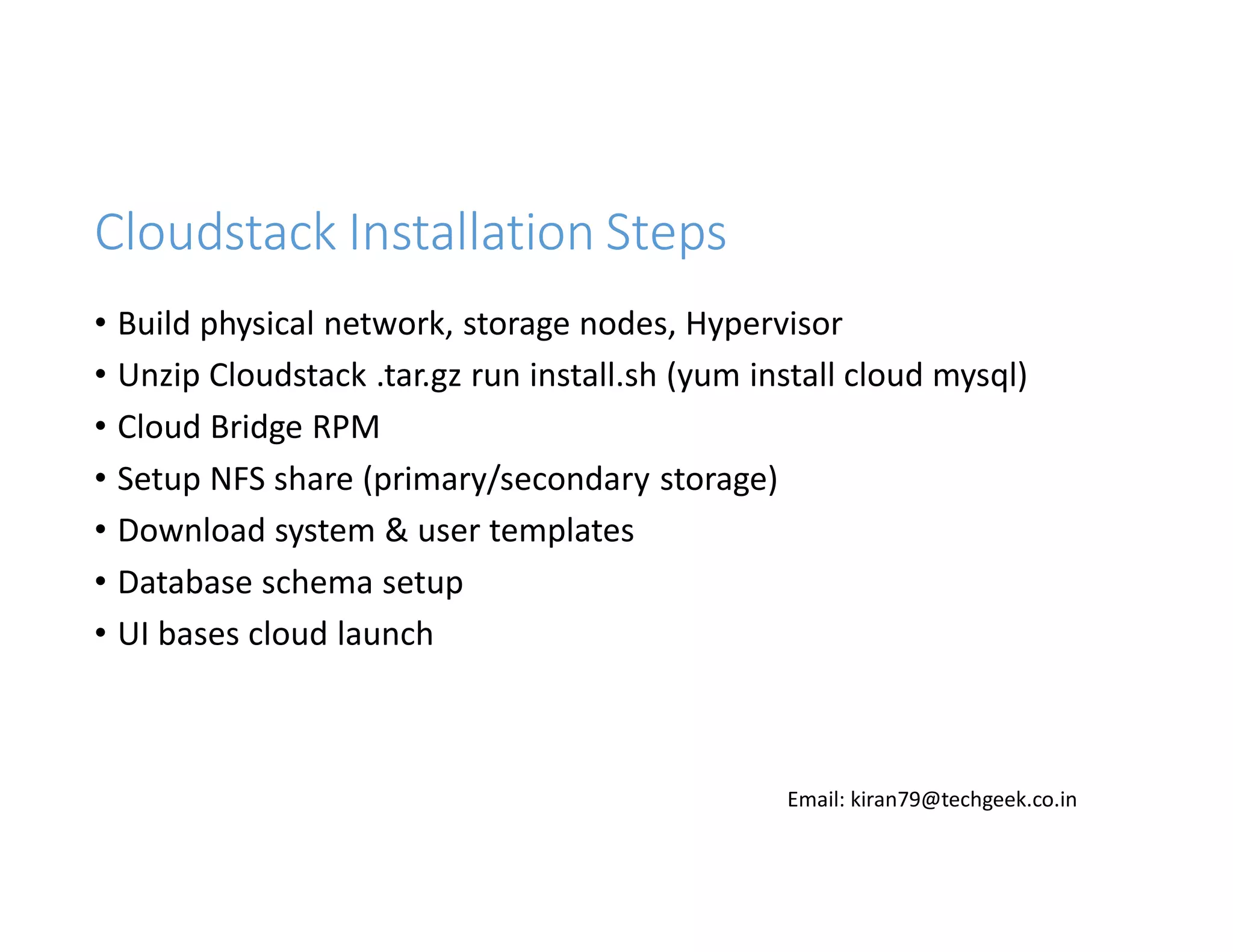

Cloudstack Installation Steps
• Unzip Cloudstack .tar.gz run install.sh (yum install cloud mysql)
• Cloud Bridge RPM
• Setup NFS share (primary/secondary storage)
• Download system & user templates
• Database schema setup
• UI bases cloud launch


Comparisons


Comparison
Eucalyptus

Open Stack

Cloudstack

Storage: Disk Image

Yes

Yes

Yes

Storage: Block Devices

Via an elastic block
storage service

Via an elastic block
storage service

iSCI, OCF2, CLVM (Depends
on Hypervisor)

Storage: Fault Tolerance

Uses DRBD

Uses rsyn in the
backend

Parts are build –in, storage in
manual

VM Image services & self service

Yes

yes

Yes

VM Image for Amazon API

Yes

Partial support

Yes

Self service
(web interface, Users & Quotas, Console
access, User Management)

Yes

Yes

Yes

Networking Comparison (Auto allocation,
Floating IPs, User defined, Layer 2)

Yes

yes

Yes

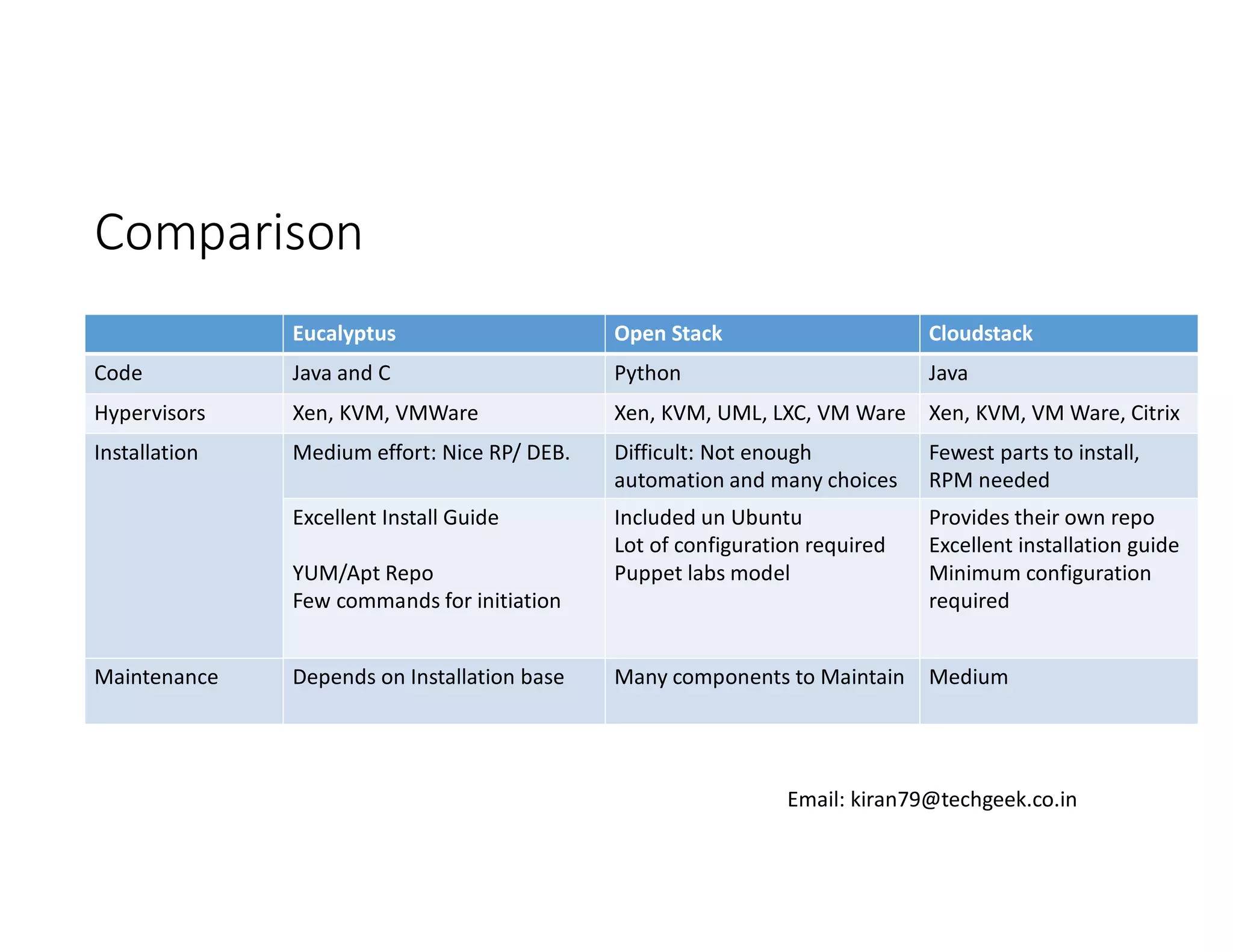

Comparison
Eucalyptus

Open Stack

Cloudstack

Code

Java and C

Python

Java

Hypervisors

Xen, KVM, VMWare

Xen, KVM, UML, LXC, VM Ware Xen, KVM, VM Ware, Citrix

Installation

Medium effort: Nice RP/ DEB.

Difficult: Not enough
automation and many choices

Fewest parts to install,
RPM needed

Excellent Install Guide

Included un Ubuntu
Lot of configuration required
Puppet labs model

Provides their own repo
Excellent installation guide
Minimum configuration
required

Many components to Maintain

Medium

YUM/Apt Repo
Few commands for initiation
Maintenance

Depends on Installation base

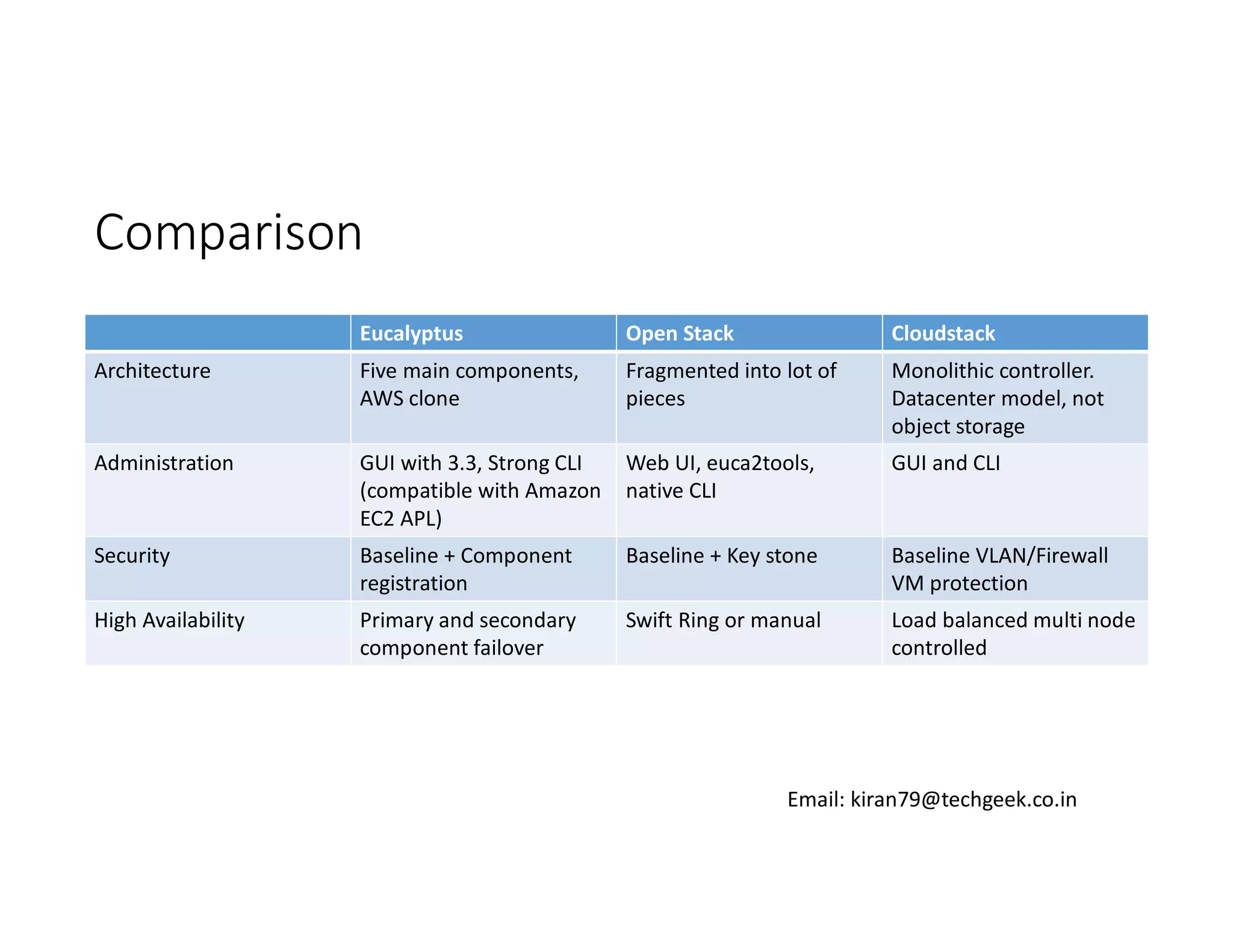

Comparison
Eucalyptus

Open Stack

Cloudstack

Architecture

Five main components,
AWS clone

Fragmented into lot of
pieces

Monolithic controller.
Datacenter model, not
object storage

Administration

GUI with 3.3, Strong CLI
(compatible with Amazon
EC2 APL)

Web UI, euca2tools,
native CLI

GUI and CLI

Security

Baseline + Component
registration

Baseline + Key stone

Baseline VLAN/Firewall
VM protection

High Availability

Primary and secondary
component failover

Swift Ring or manual

Load balanced multi node
controlled

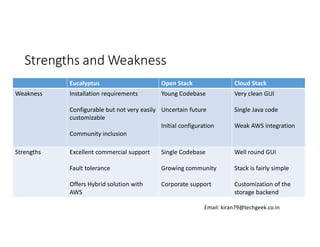

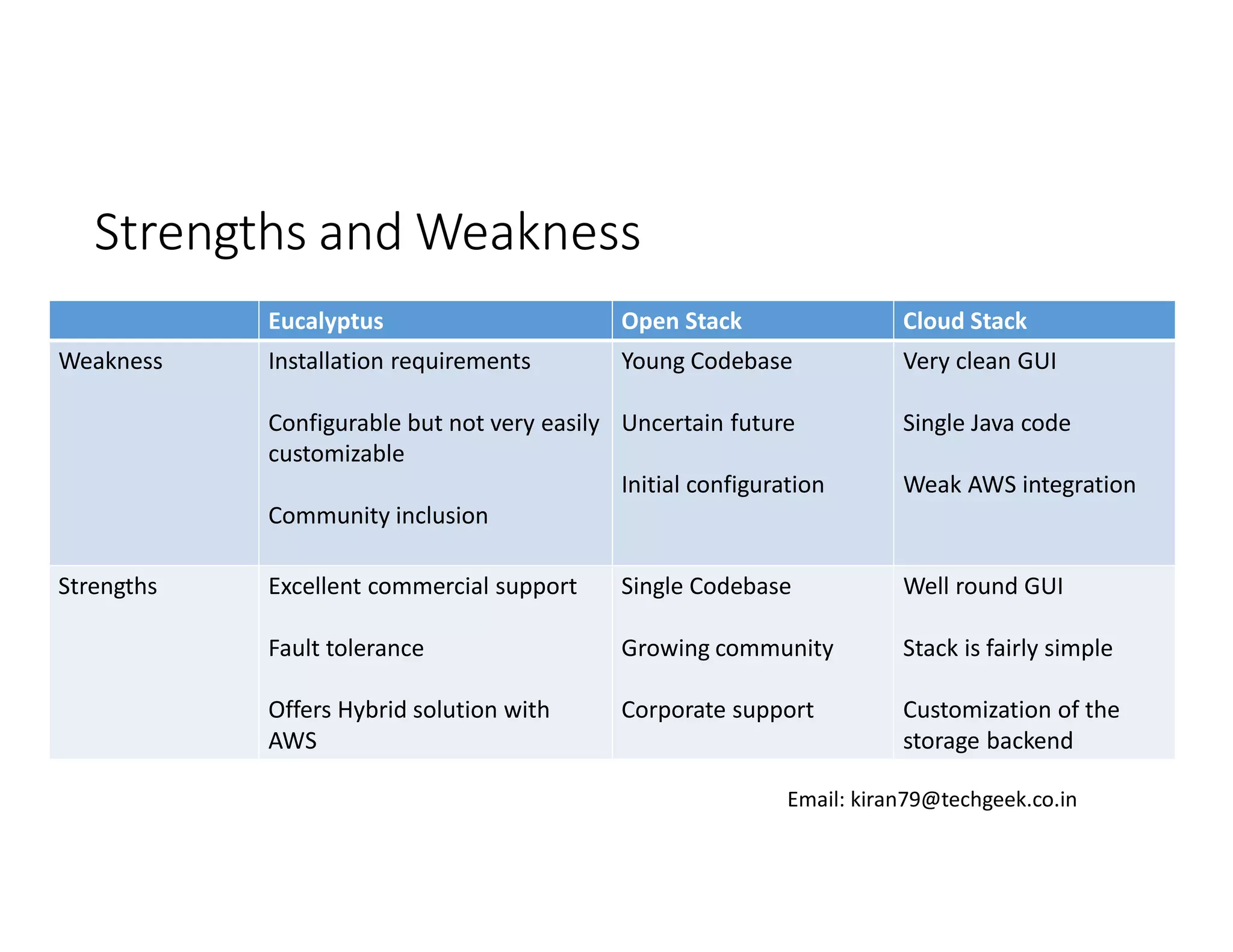

Strengths and Weakness
Eucalyptus
Weakness

Open Stack

Cloud Stack

Installation requirements

Young Codebase

Very clean GUI

Configurable but not very easily Uncertain future
customizable
Initial configuration
Community inclusion
Strengths

Single Java code

Excellent commercial support

Single Codebase

Well round GUI

Fault tolerance

Growing community

Stack is fairly simple

Offers Hybrid solution with
AWS

Corporate support

Customization of the
storage backend

Weak AWS integration

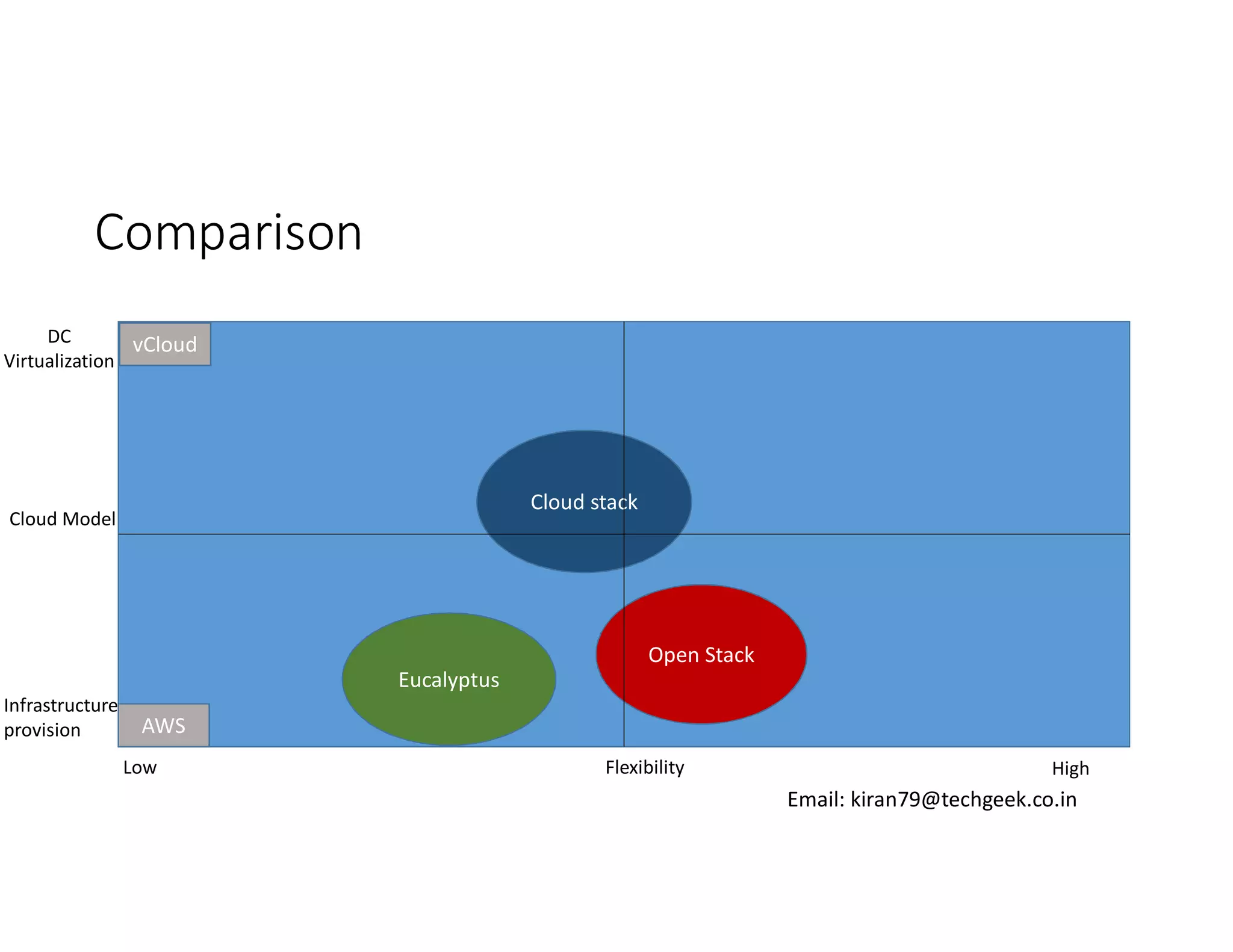

Comparison
DC
vCloud
Virtualization

Cloud stack

Cloud Model

Open Stack
Eucalyptus
Infrastructure
provision

AWS
Low

Flexibility

High


Comparisons
Eucalyptus

Openstack

Cloud stack

Core Philosophy

Hybrid private/ public
cloud compatibility

Public & private cloud
Standardized API

Private and highly
customized cloud,
standard API

Other public cloud
compatibility

Excellent with AWS, some
with Rackspace and
others

Excellent with Rackspace,
some with AWS

Some AWS

Ideal setting

Large group of machines
for lot of semi trusted
users

Large group of machines
for lot pf users

Medium group machines
for semi trusted users

Fault tolerance

Build in, with maturity

Built-it, semi matured

Built-in, semi matured

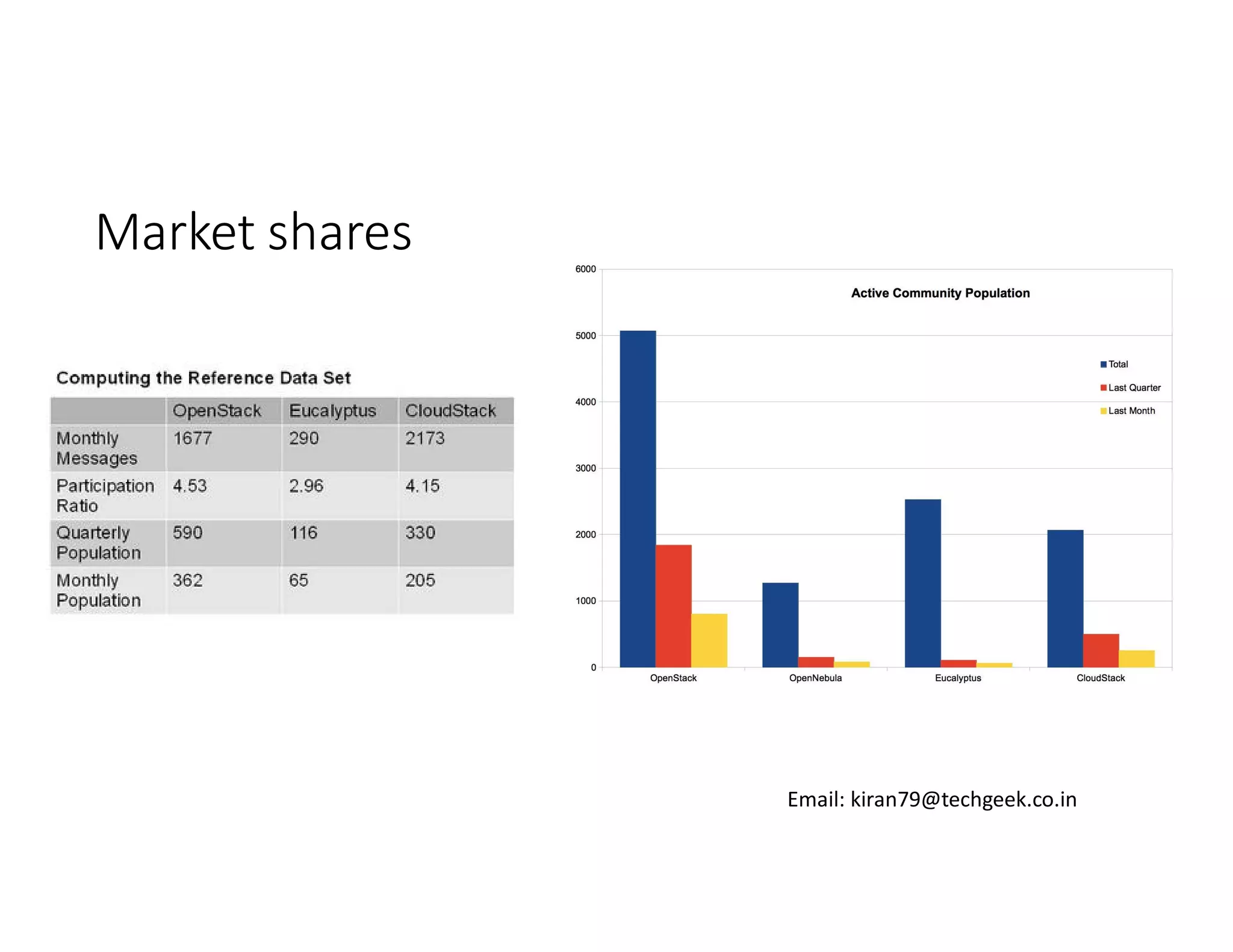

Market shares


Others
OPEN SOURCE
• Ganeti
• Abiquo
• OpenNebula
• Joyent

COMMERCIAL
• BMC CLM
• Vcloud Director


Q&A


Thank you


Cloud orchestration major tools comparision

More Related Content

What's hot

Viewers also liked

Similar to Cloud orchestration major tools comparision

Recently uploaded

Cloud orchestration major tools comparision
