Docker 101: An Introduction
This document provides an introduction to Docker presented by Tibor Vass, a core maintainer on Docker Engine. It outlines challenges with traditional application deployment and argues that Docker addresses these by providing lightweight containers that package code and dependencies. The key Docker concepts of images, containers, builds and Compose are introduced. Images are read-only templates for containers which sandbox applications. Builds describe how to assemble images with Dockerfiles. Compose allows defining multi-container applications. The document concludes by describing how Docker improves the deployment workflow by allowing testing and deployment of the same images across environments.
More Related Content
Similar to Docker 101: An Introduction
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Docker 101: An Introduction
- 1. Another introduction toDocker Tibor Vass
- 2. Who Am I? •Core maintainer on Docker Engine • Previously Ops @ StumbleUpon • I ♡ Go 2 Tibor Vass, Chapel Hill, NC IRC #docker: tibor Twitter: @tiborvass

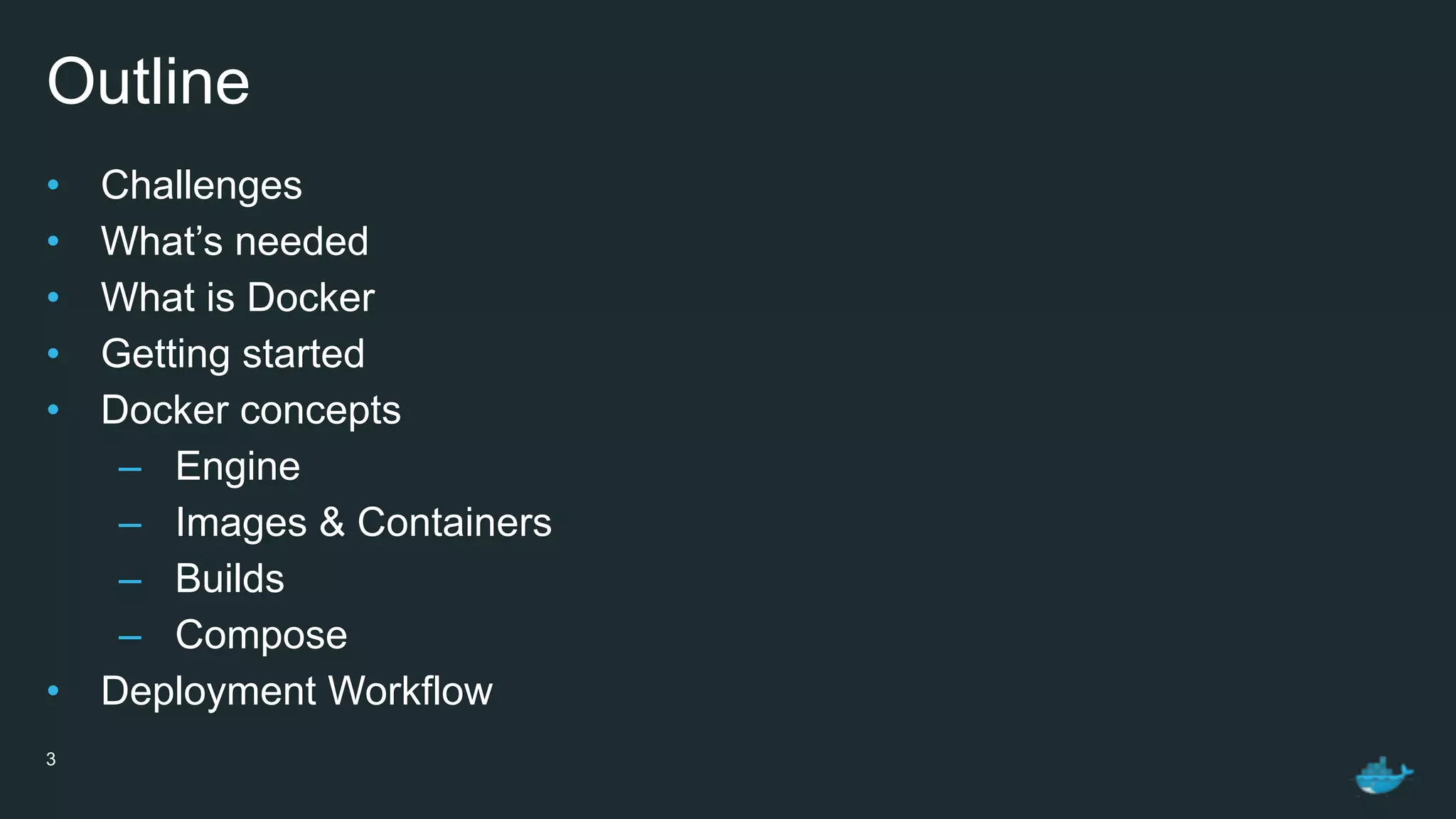

- 3. Outline • Challenges • What’sneeded • What is Docker • Getting started • Docker concepts – Engine – Images & Containers – Builds – Compose • Deployment Workflow 3
- 4.
- 5. 1. Deployment &Guarantees
- 6. 1. Separation ofconcerns (Dev vs Ops)

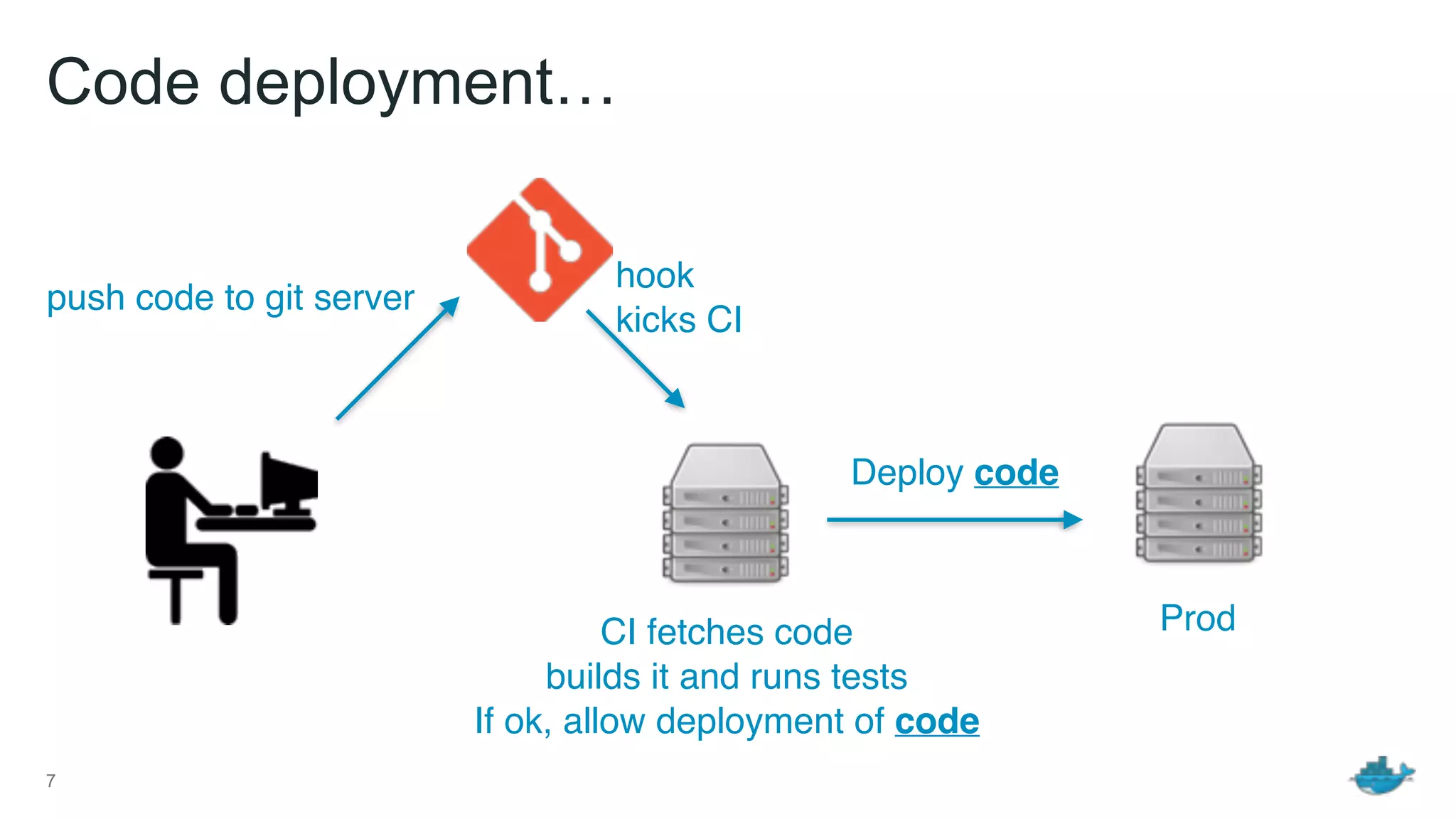

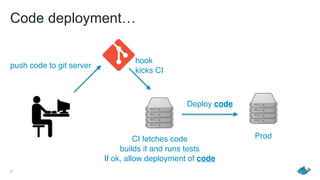

- 7. Code deployment… 7 CI fetchescode builds it and runs tests If ok, allow deployment of code push code to git server Prod Deploy code hook kicks CI

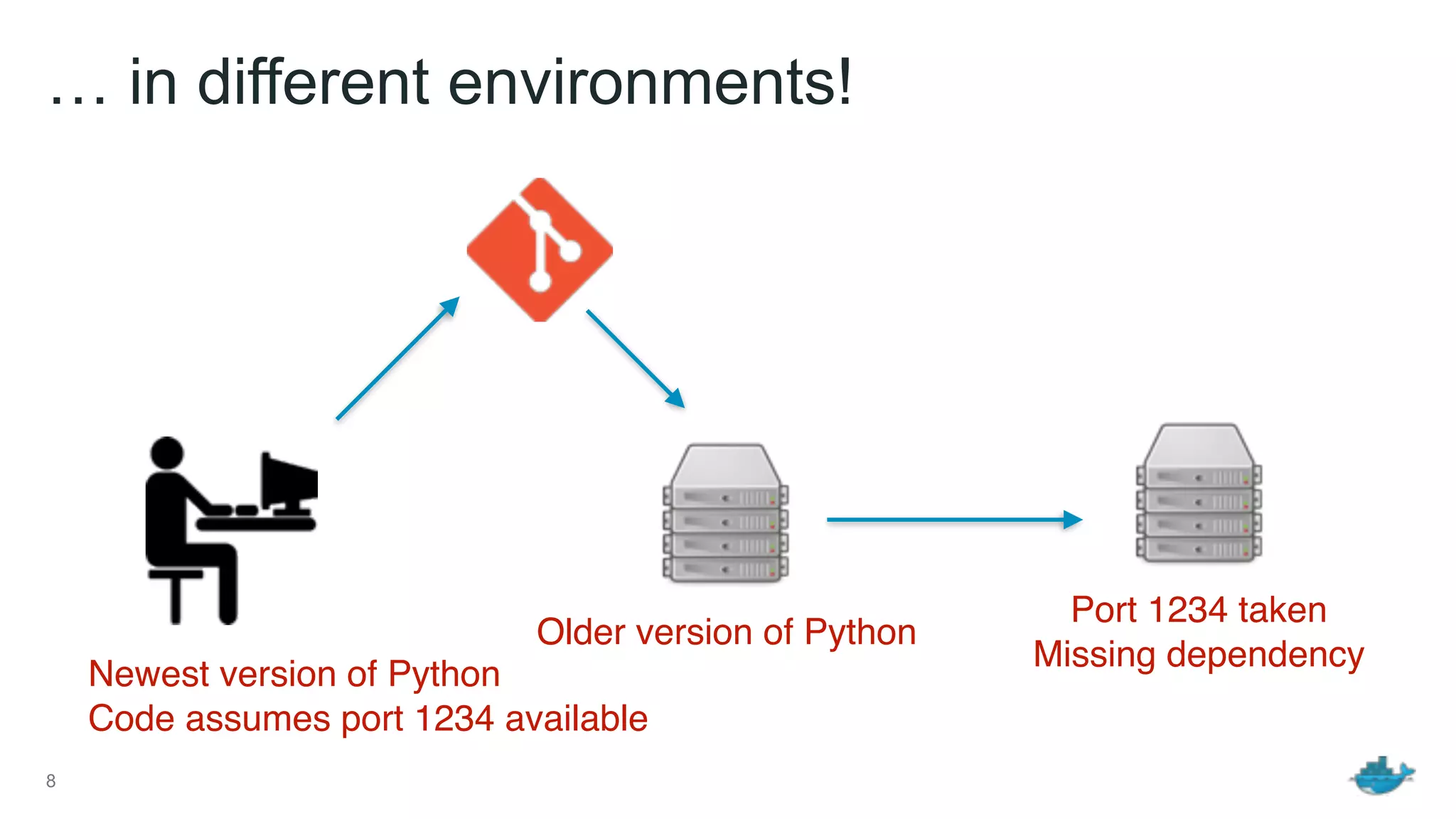

- 8. … in differentenvironments! 8 Newest version of Python Code assumes port 1234 available Older version of Python Port 1234 taken Missing dependency

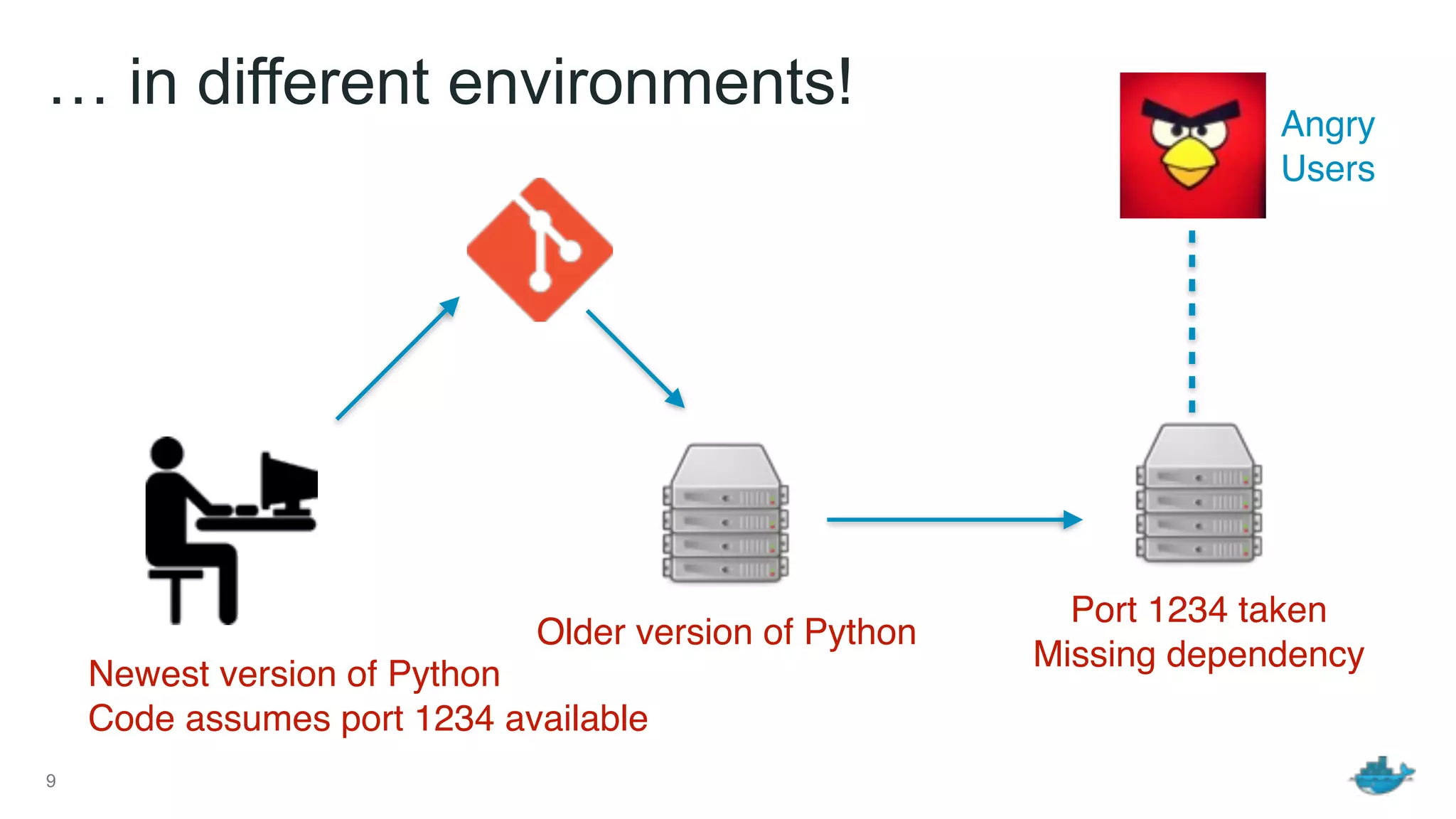

- 9. … in differentenvironments! 9 Newest version of Python Code assumes port 1234 available Older version of Python Port 1234 taken Missing dependency Angry Users

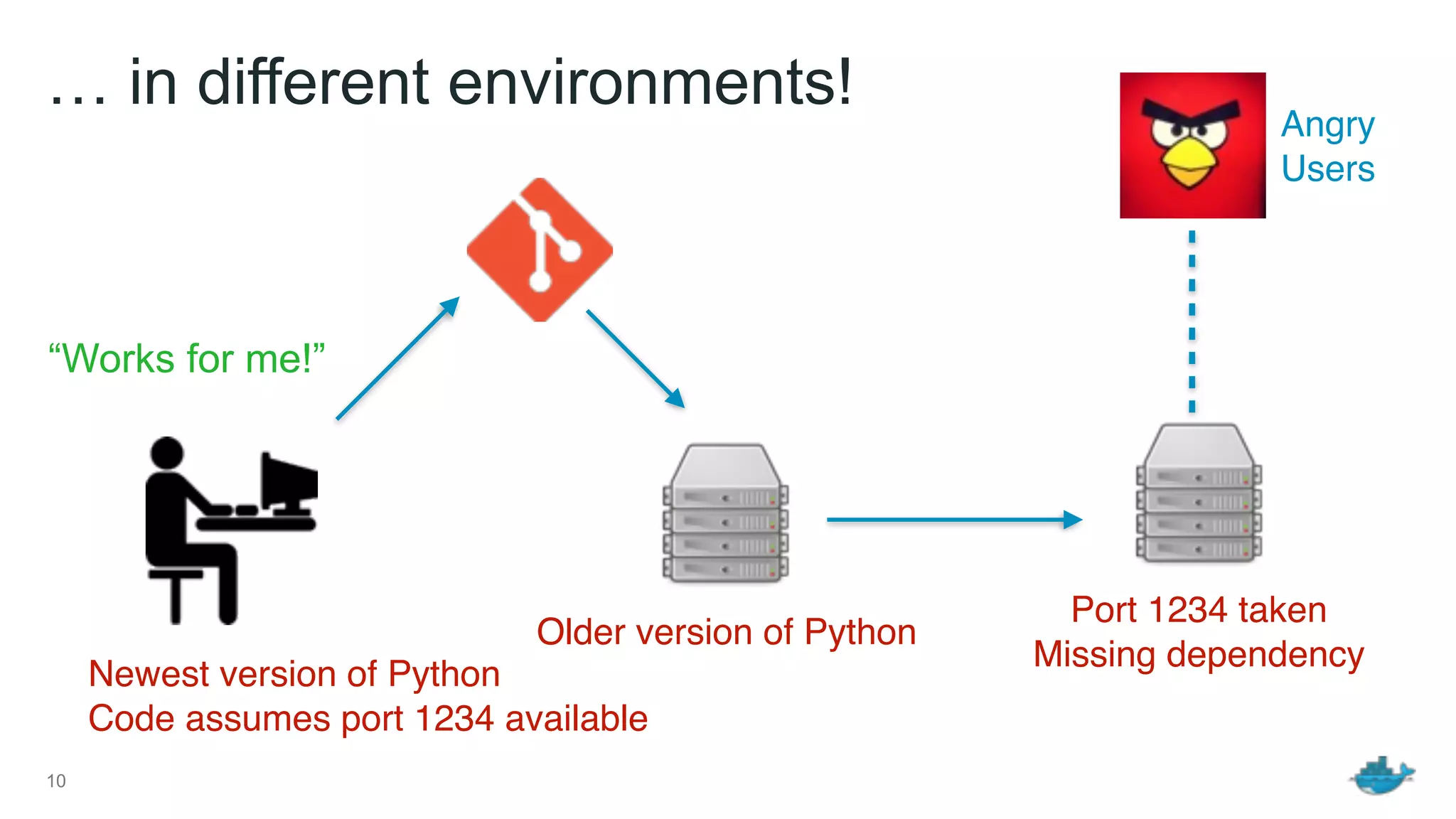

- 10. … in differentenvironments! 10 Newest version of Python Code assumes port 1234 available Older version of Python Port 1234 taken Missing dependency Angry Users “Works for me!”
- 11.
- 12.
- 13. 13 Code deployment Need “Code+ environment” deployment

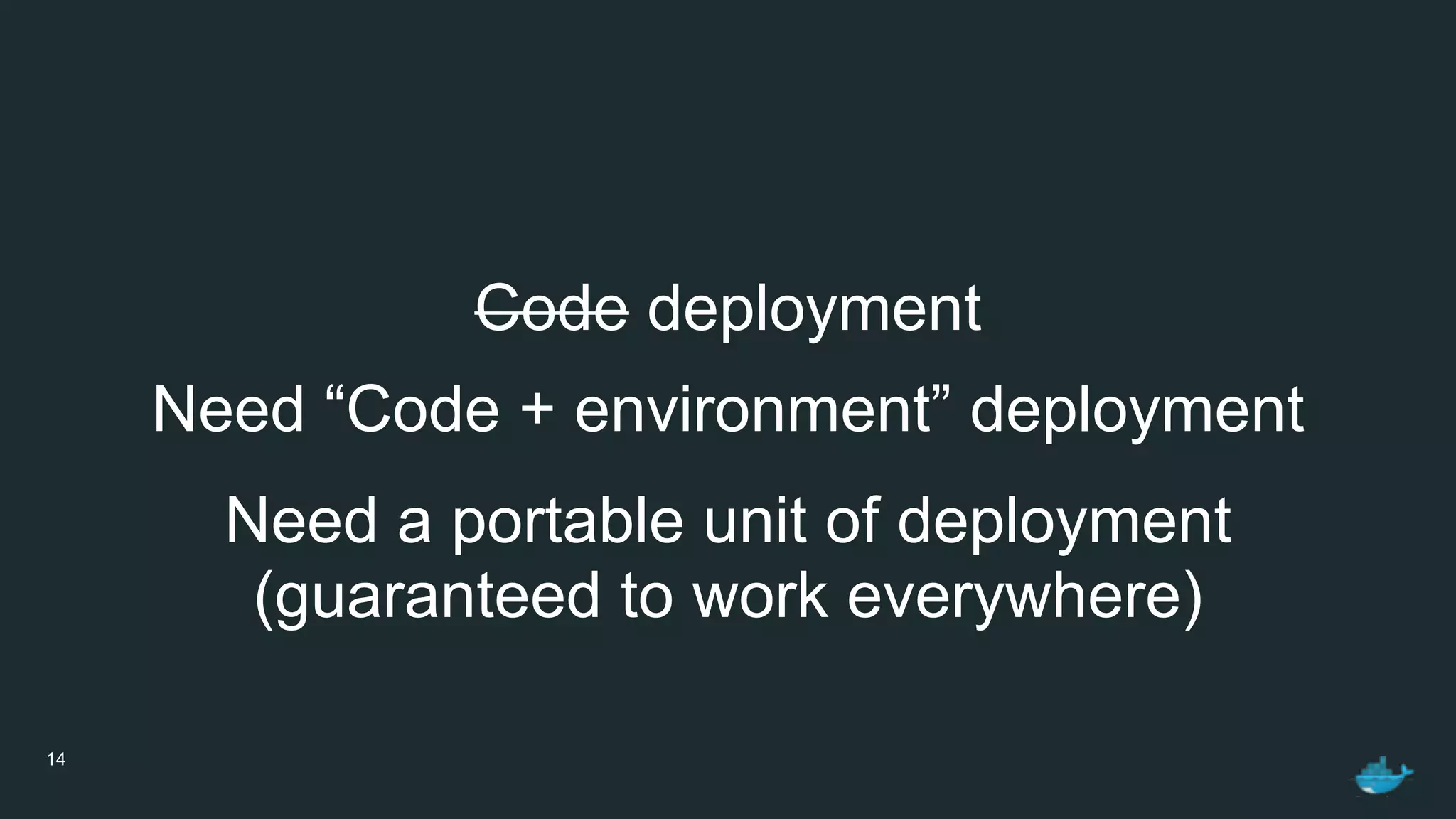

- 14. 14 Code deployment Need “Code+ environment” deployment Need a portable unit of deployment (guaranteed to work everywhere)
- 15.
- 16. 2. Density &Resource usage

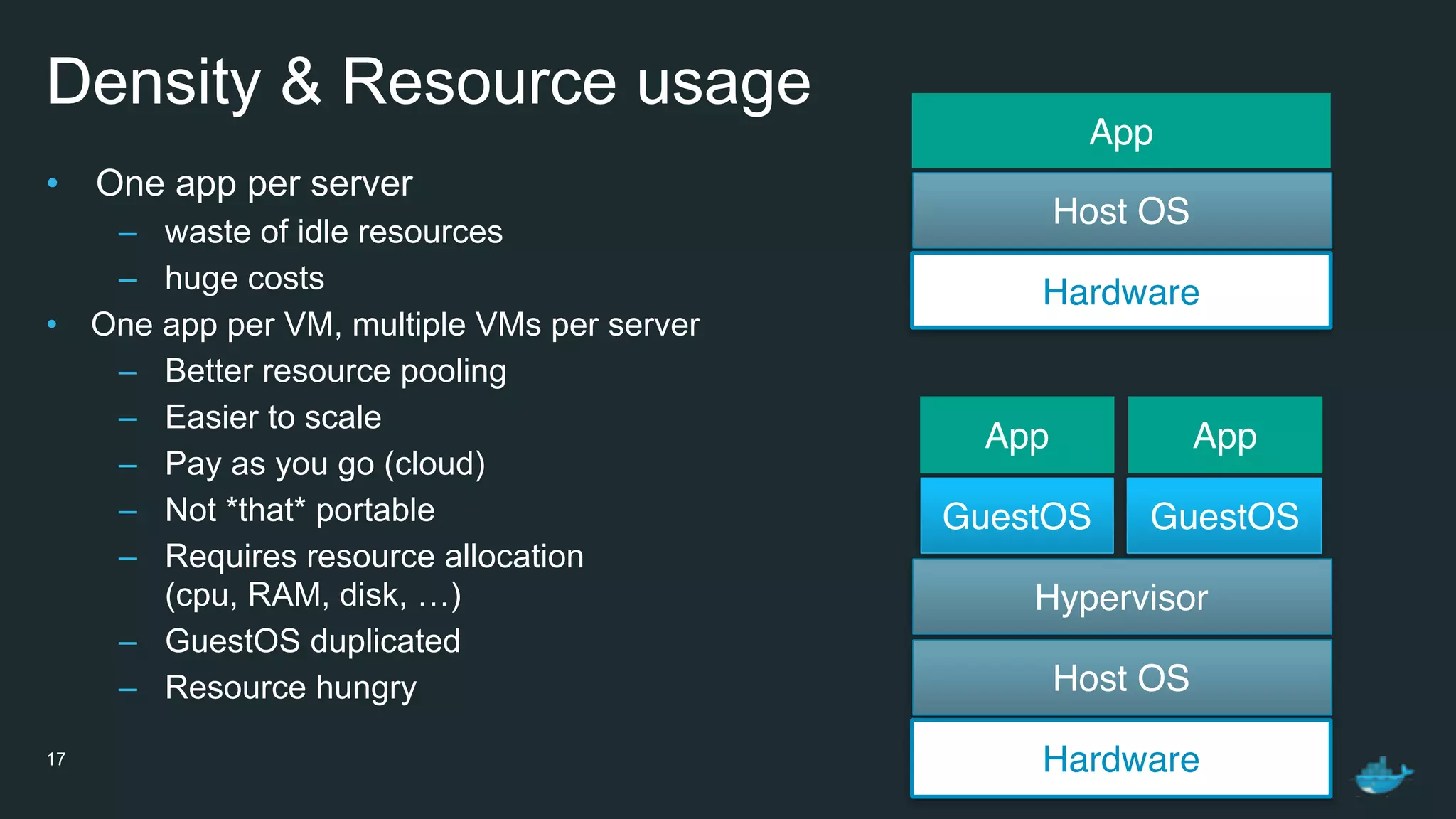

- 17. Density & Resourceusage • One app per server – waste of idle resources – huge costs • One app per VM, multiple VMs per server – Better resource pooling – Easier to scale – Pay as you go (cloud) – Not *that* portable – Requires resource allocation (cpu, RAM, disk, …) – GuestOS duplicated – Resource hungry 17 Hardware Host OS Hypervisor GuestOS GuestOS AppApp Hardware Host OS App
- 18. 3. Move fast,and don’t break things
- 19. 19 Make your productbetter faster (stronger♫) to gain competitive advantage
- 20.

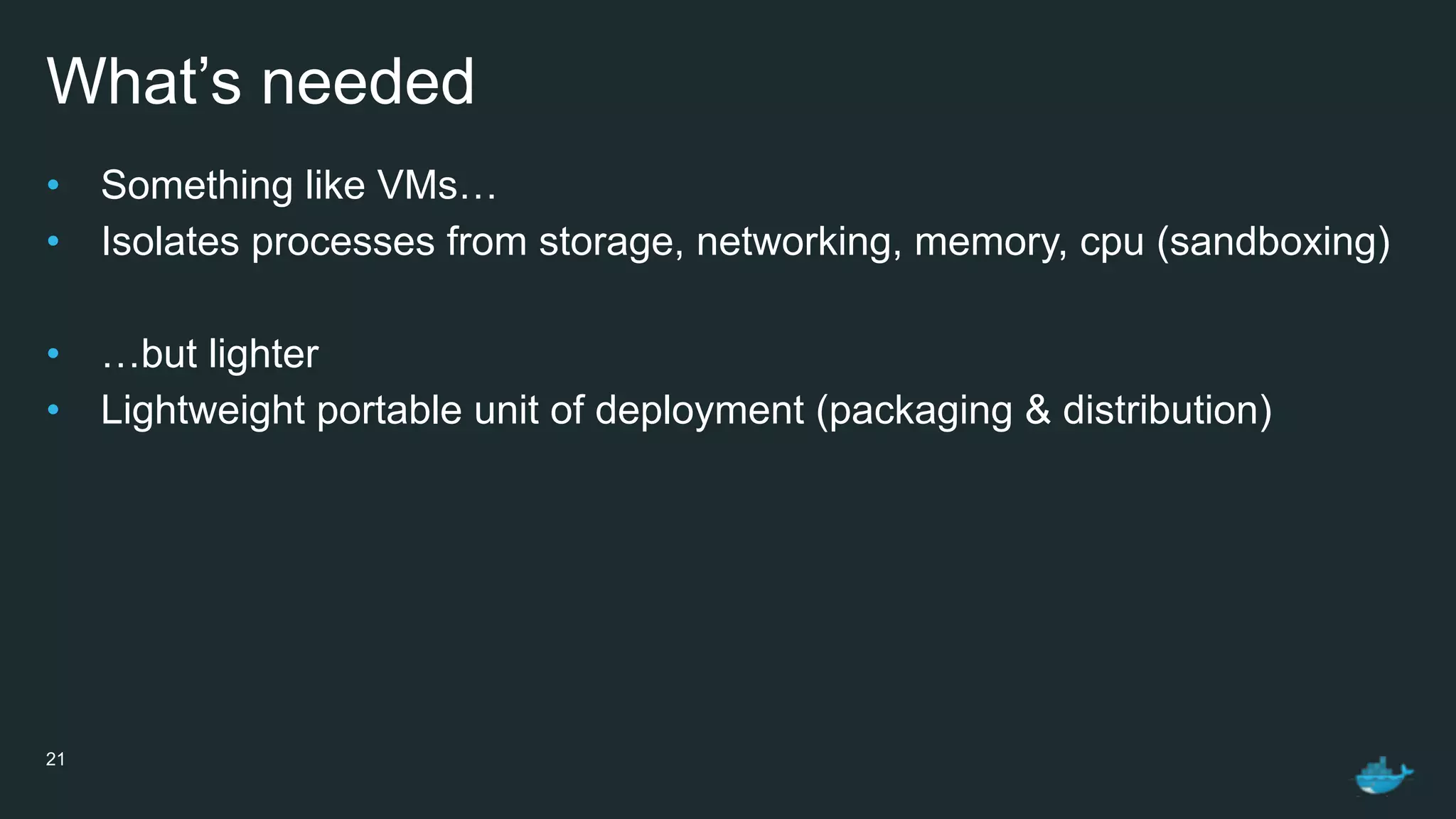

- 21. What’s needed • Somethinglike VMs… • Isolates processes from storage, networking, memory, cpu (sandboxing) • …but lighter • Lightweight portable unit of deployment (packaging & distribution) 21
- 22.
- 23.

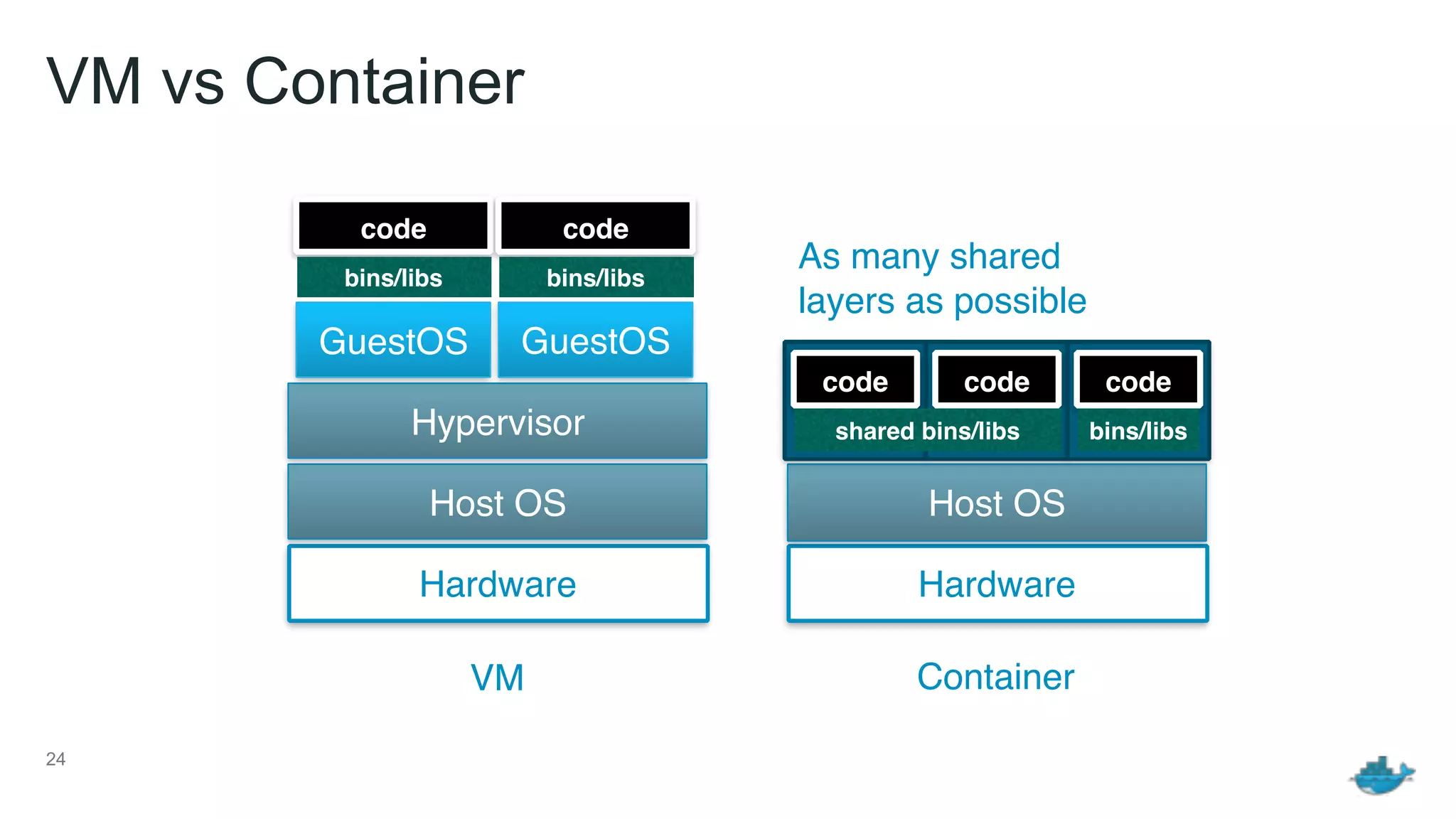

- 24. 24 Hardware Host OS Hardware Host OS Hypervisor GuestOSGuestOS code bins/libs code bins/libs code code code bins/libsshared bins/libs As many shared layers as possible VM Container VM vs Container
- 25.
- 26. Challenge #0: SatisfyingUsers’ expectation of reliability and availability
- 27. 27 Dream: what if,you could build distributed apps easily, and focus on your product?

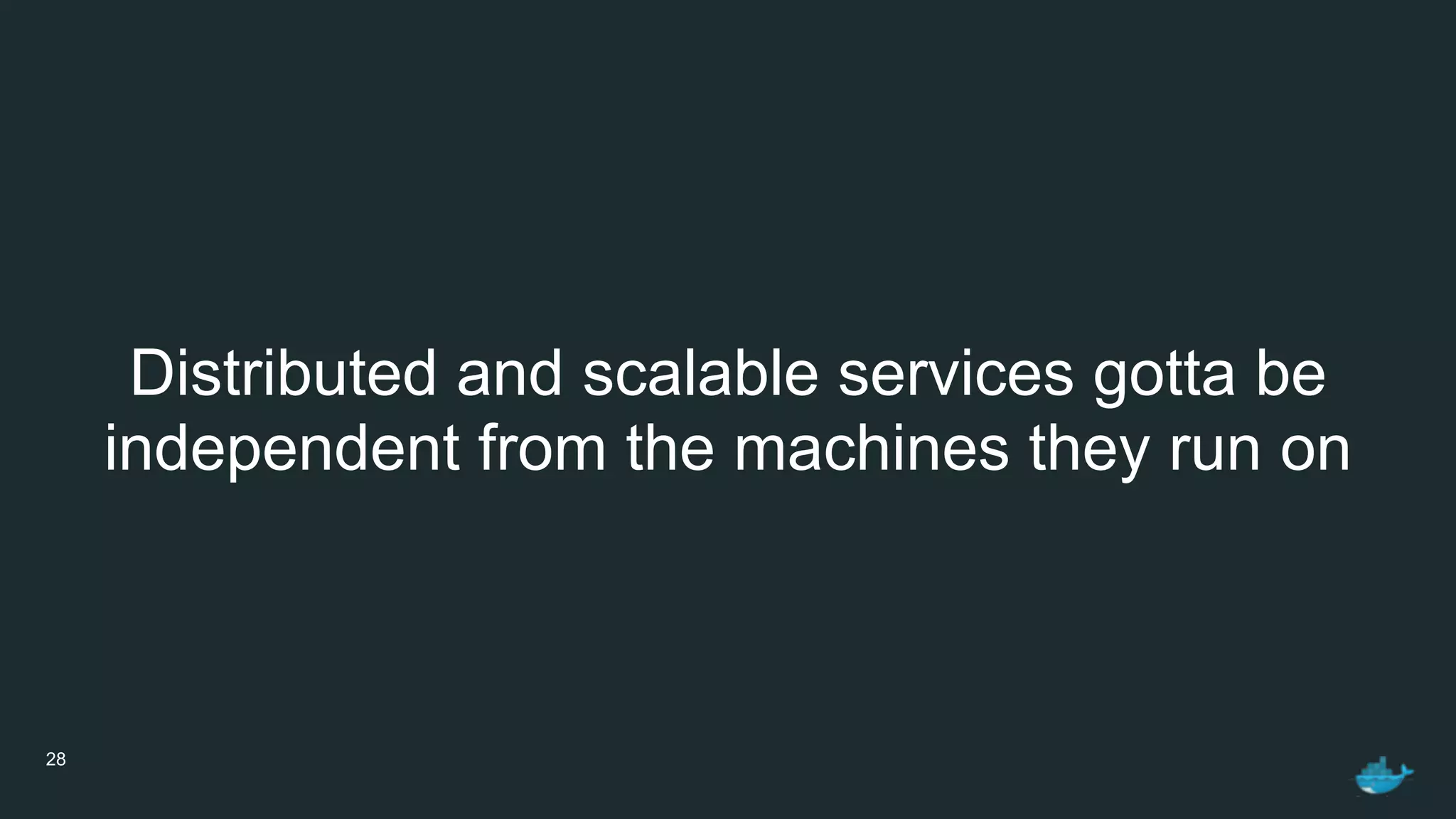

- 28. 28 Distributed and scalableservices gotta be independent from the machines they run on
- 29. 29 Containers are partof the answer

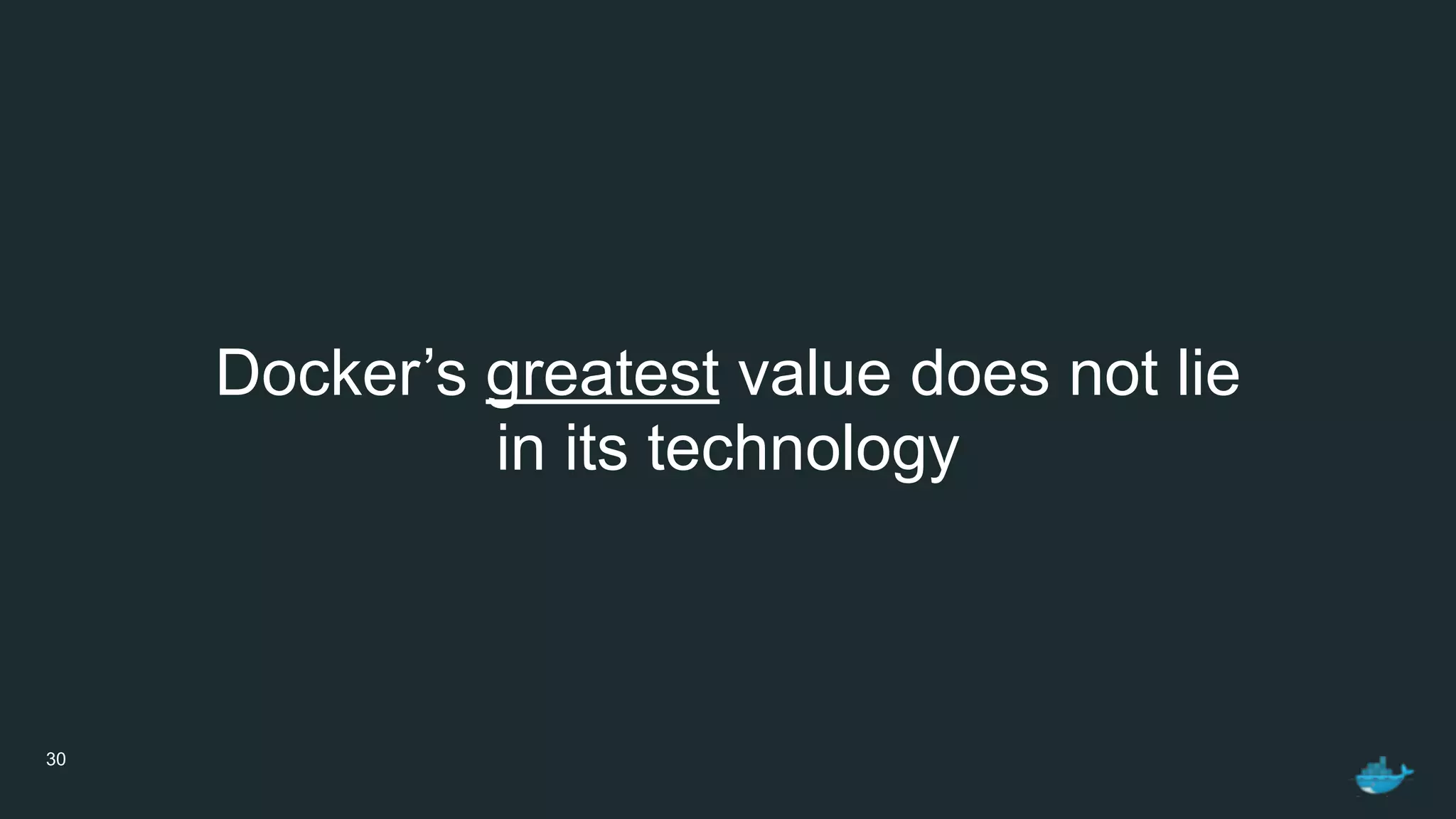

- 30. 30 Docker’s greatest valuedoes not lie in its technology
- 31. 31 It lies inits ability to get people agree on something
- 32. 32 Open platform invitingyou to help make the dream happen
- 33. 33 Or simply enjoyand contribute to each independent piece along the way

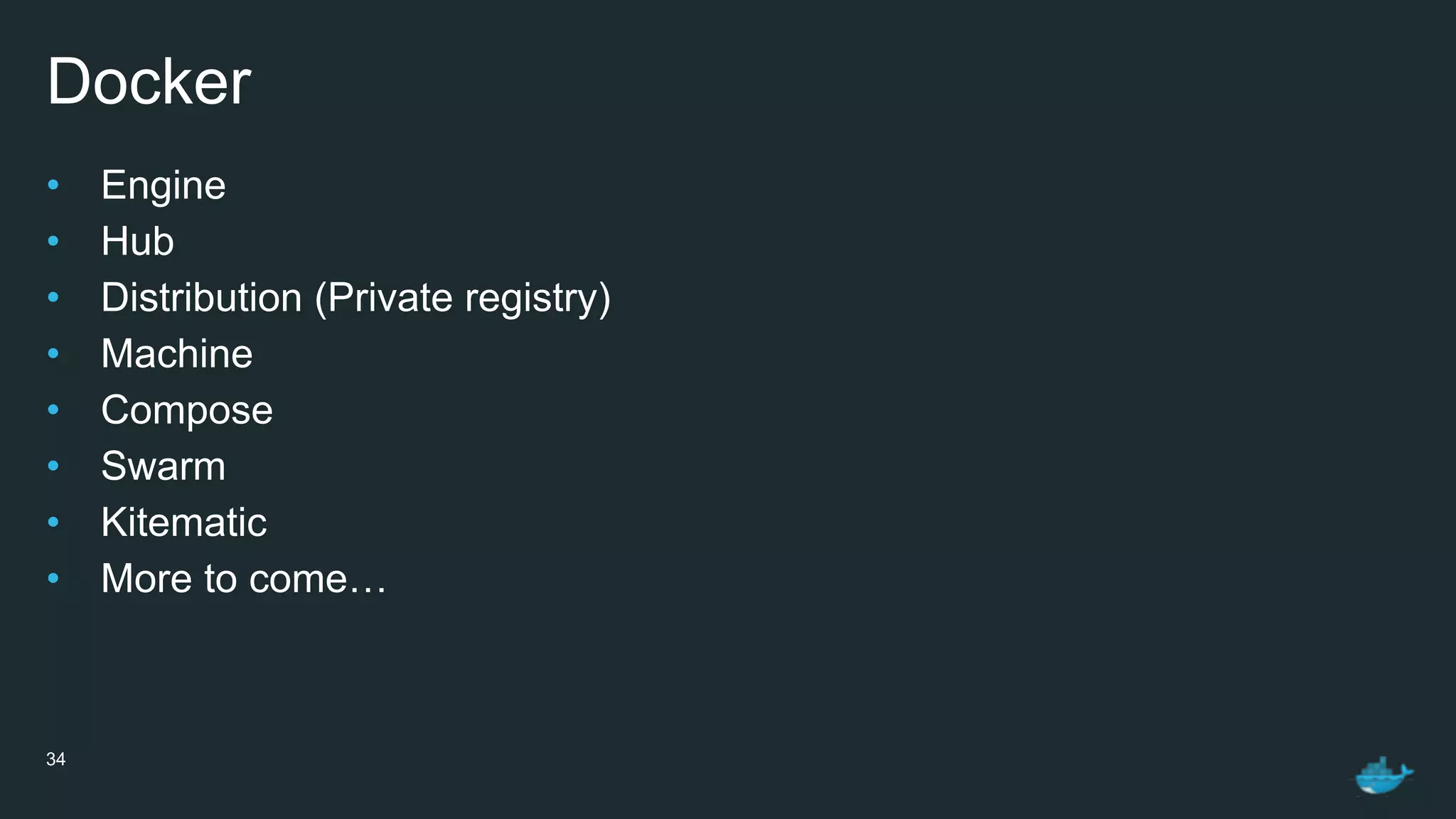

- 34. Docker • Engine • Hub •Distribution (Private registry) • Machine • Compose • Swarm • Kitematic • More to come… 34
- 35.
- 36.
- 37. 37 (install Machine andCompose as well)
- 38.
- 39.

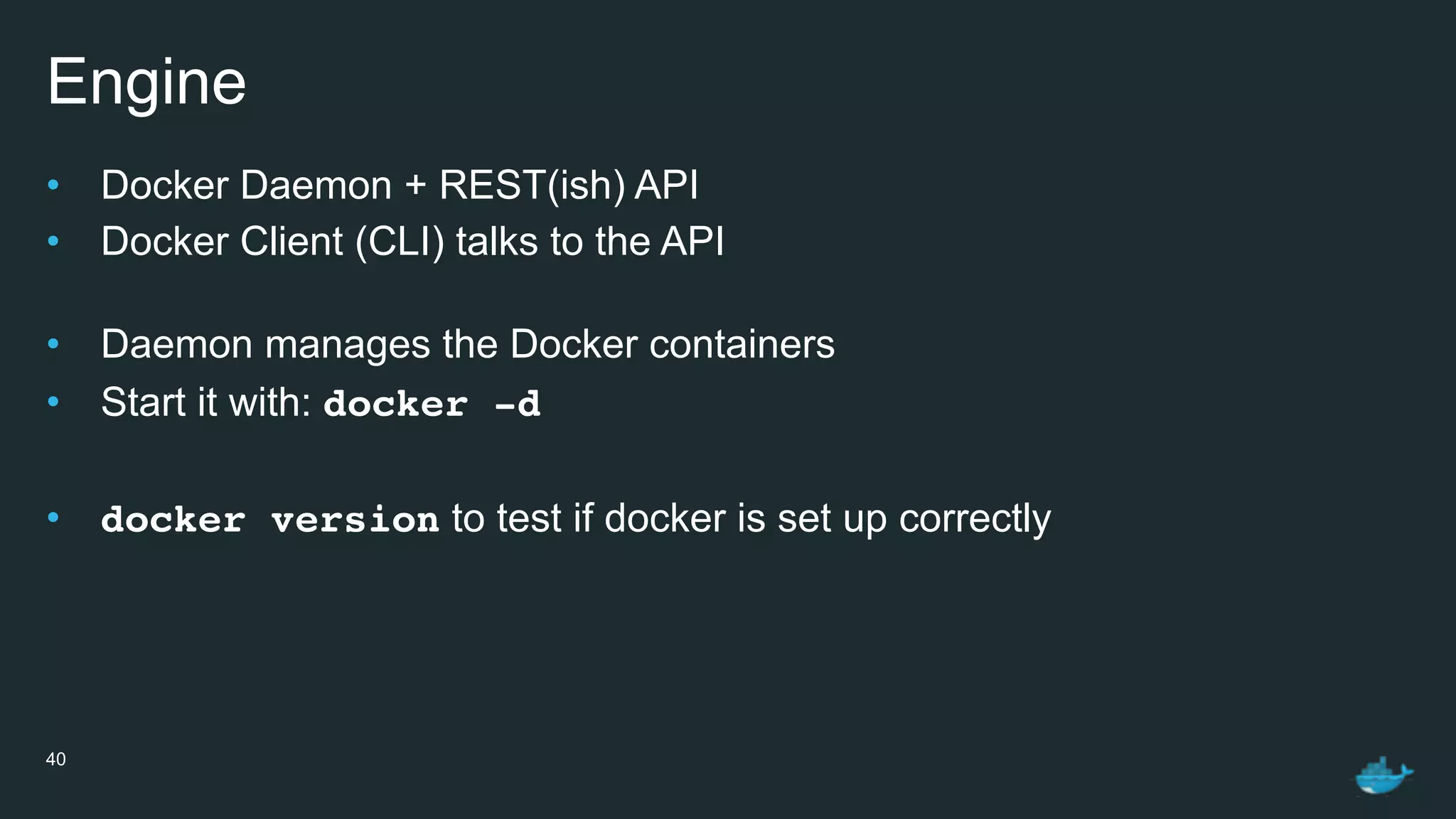

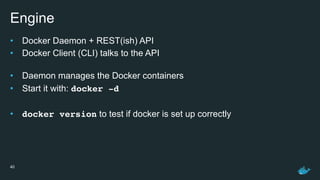

- 40. Engine • Docker Daemon+ REST(ish) API • Docker Client (CLI) talks to the API • Daemon manages the Docker containers • Start it with: docker -d • docker version to test if docker is set up correctly 40
- 41. 2. Images &Containers

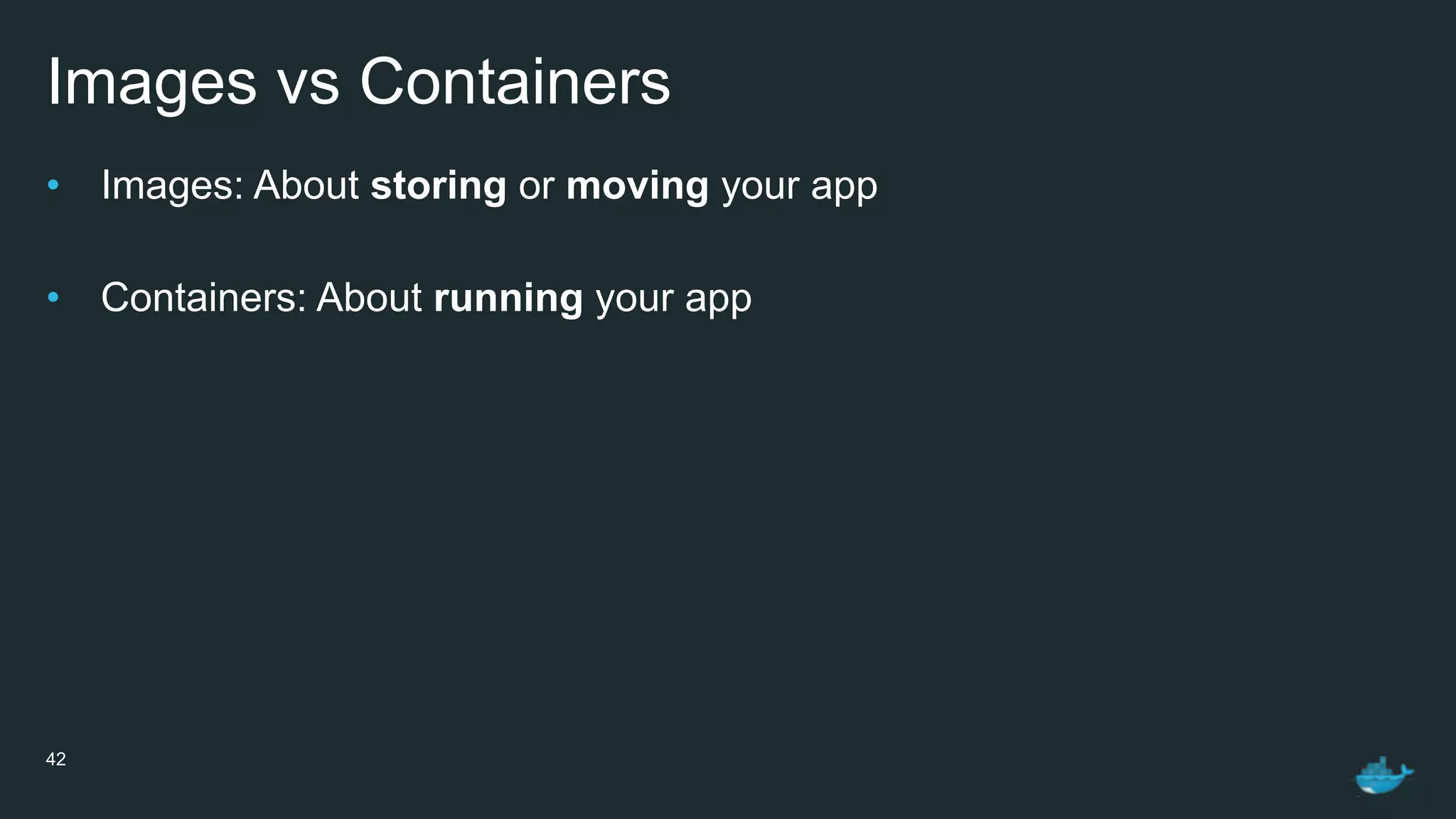

- 42. Images vs Containers •Images: About storing or moving your app • Containers: About running your app 42

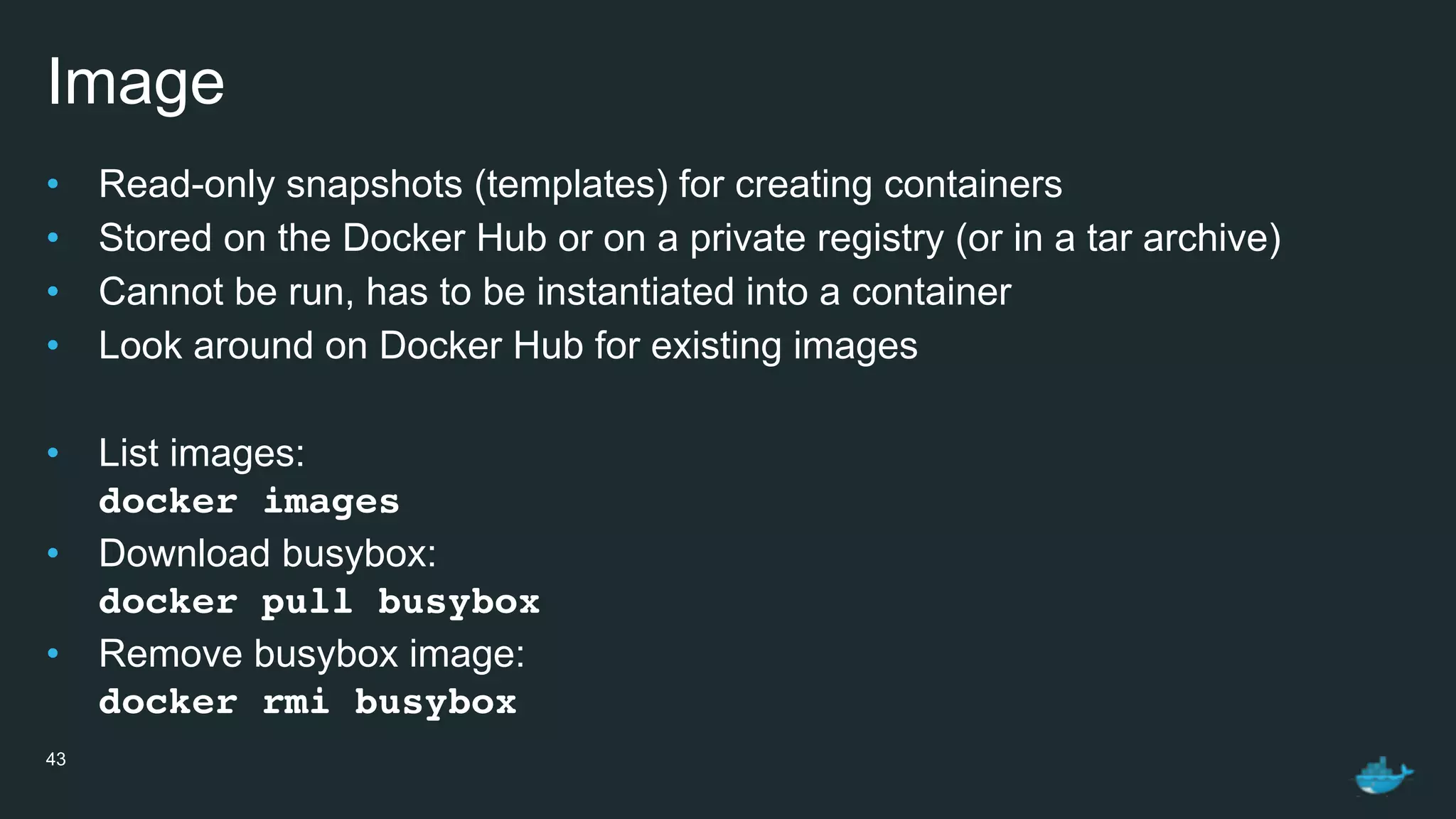

- 43. Image • Read-only snapshots(templates) for creating containers • Stored on the Docker Hub or on a private registry (or in a tar archive) • Cannot be run, has to be instantiated into a container • Look around on Docker Hub for existing images • List images: docker images • Download busybox: docker pull busybox • Remove busybox image: docker rmi busybox 43

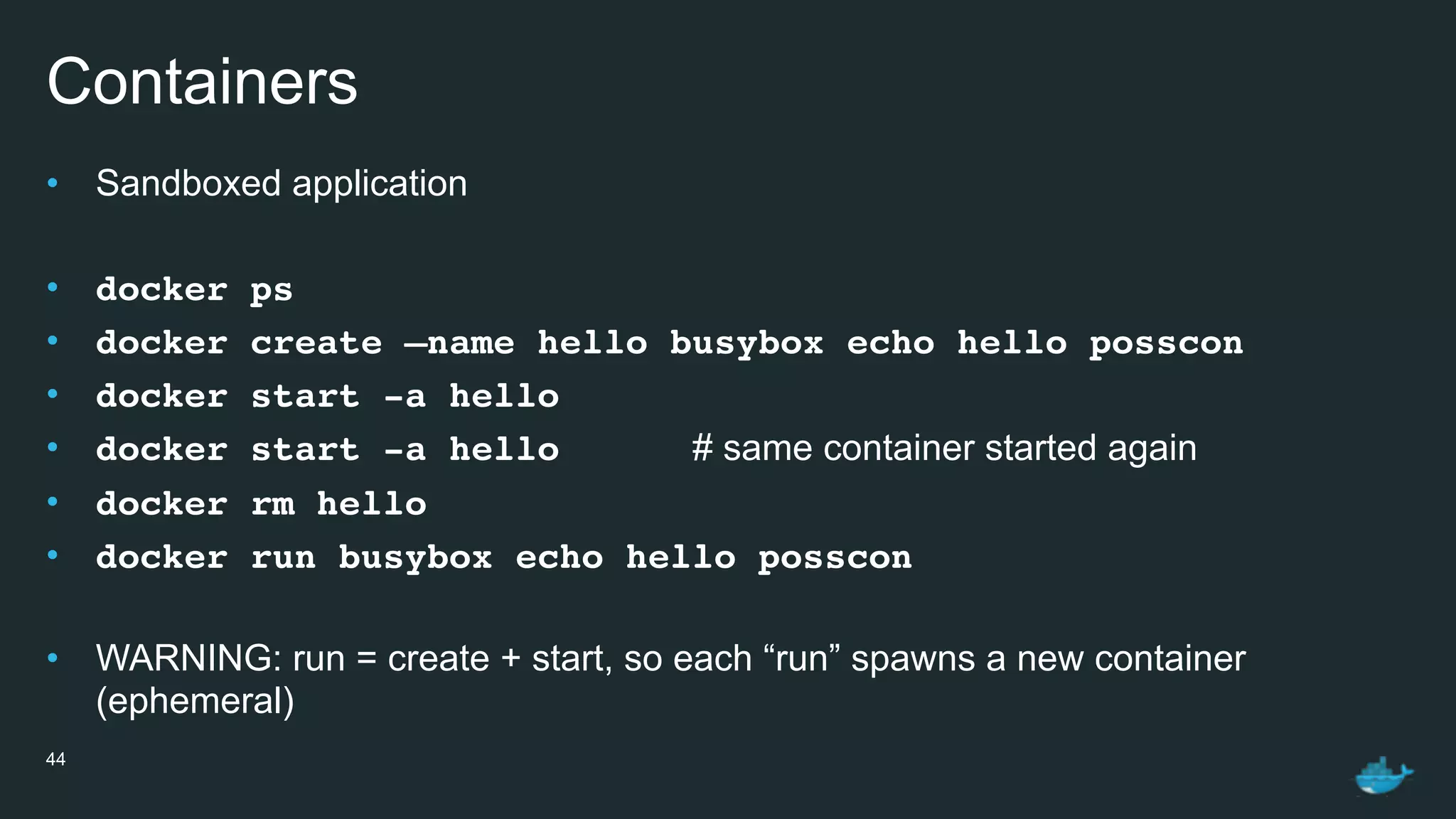

- 44. Containers • Sandboxed application •docker ps • docker create —name hello busybox echo hello posscon • docker start -a hello • docker start -a hello # same container started again • docker rm hello • docker run busybox echo hello posscon • WARNING: run = create + start, so each “run” spawns a new container (ephemeral) 44

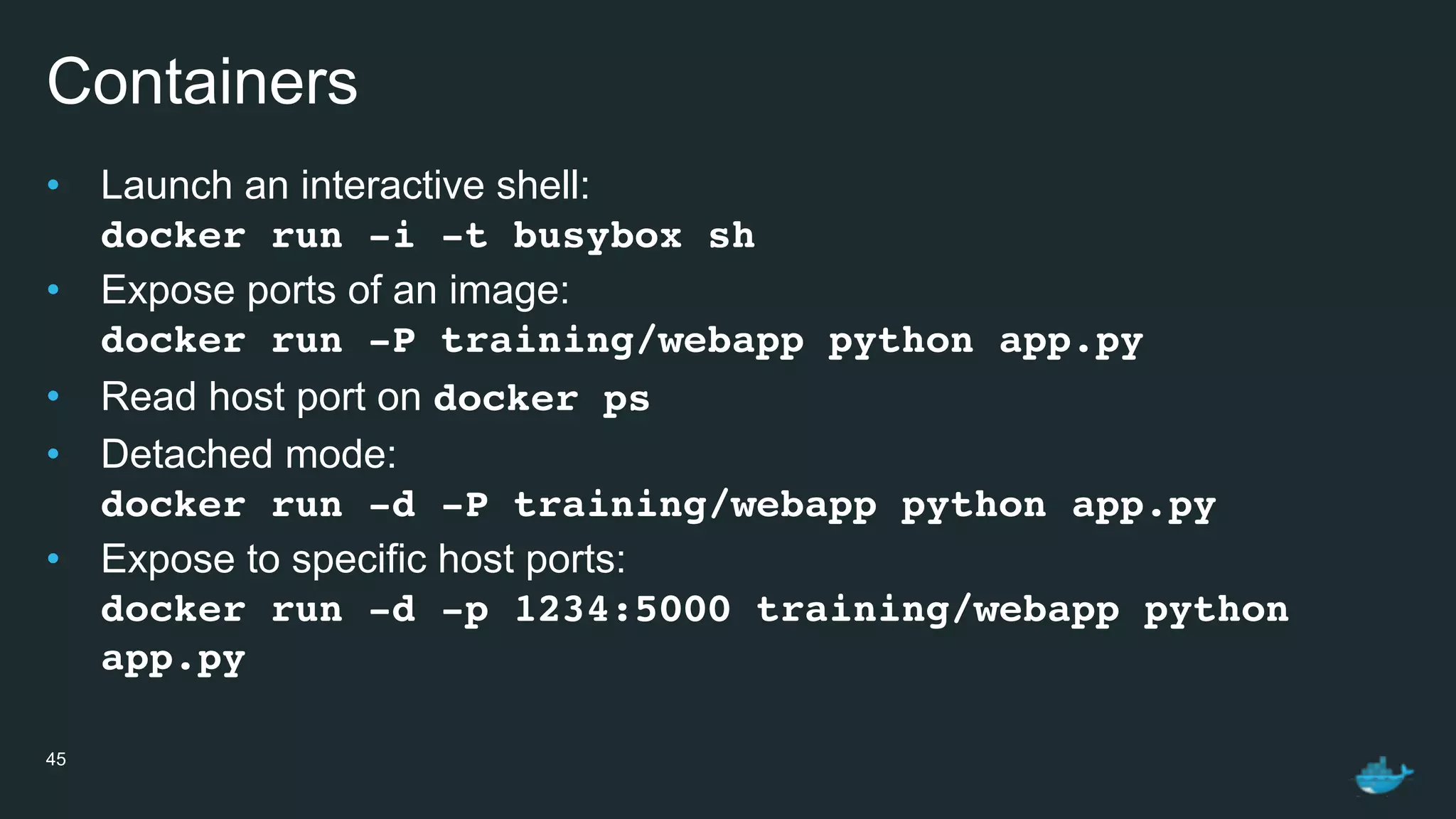

- 45. Containers • Launch aninteractive shell: docker run -i -t busybox sh • Expose ports of an image: docker run -P training/webapp python app.py • Read host port on docker ps • Detached mode: docker run -d -P training/webapp python app.py • Expose to specific host ports: docker run -d -p 1234:5000 training/webapp python app.py 45
- 46. 3. Builds akaDockerizing

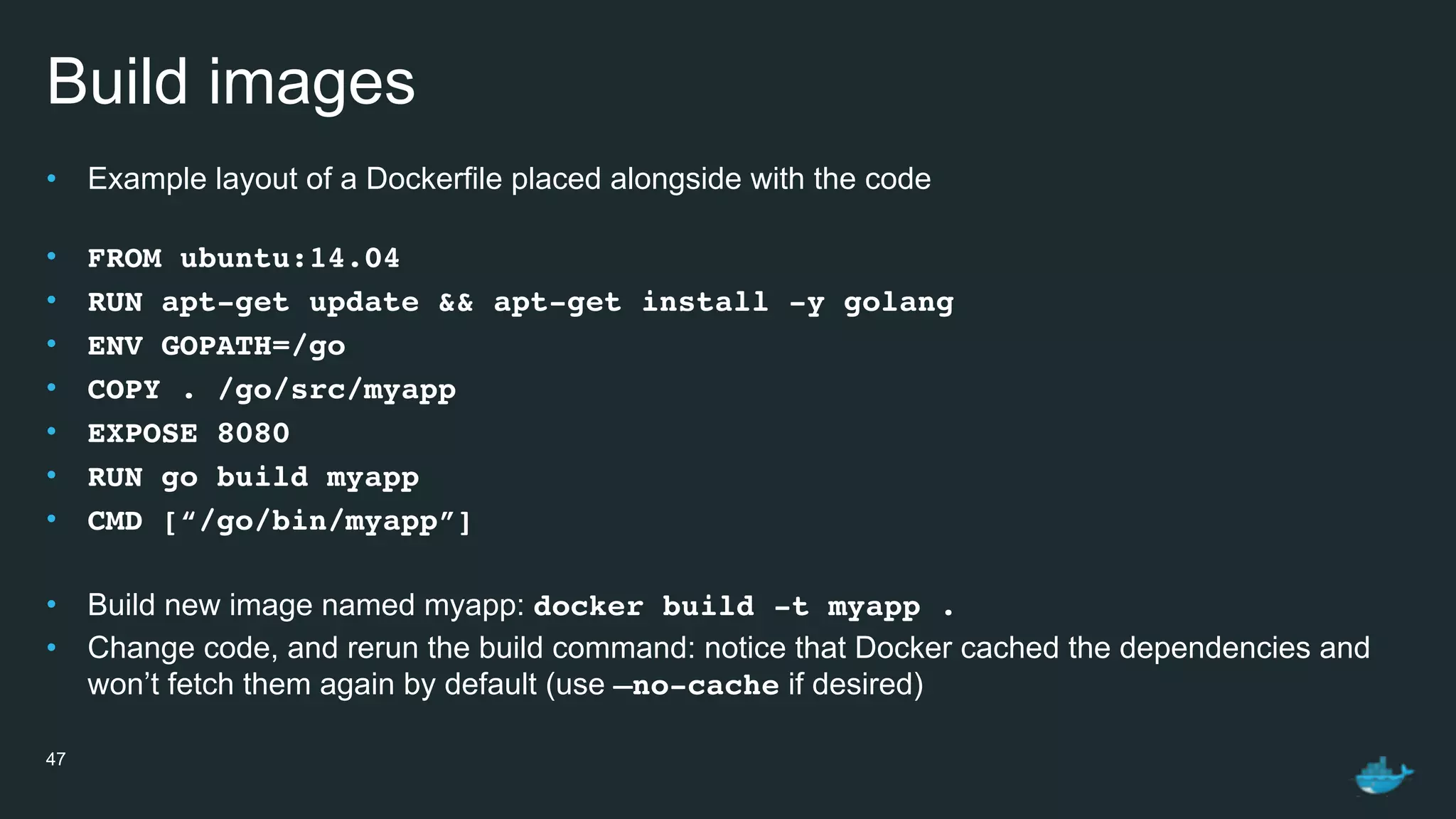

- 47. Build images • Examplelayout of a Dockerfile placed alongside with the code • FROM ubuntu:14.04 • RUN apt-get update && apt-get install -y golang • ENV GOPATH=/go • COPY . /go/src/myapp • EXPOSE 8080 • RUN go build myapp • CMD [“/go/bin/myapp”] • Build new image named myapp: docker build -t myapp . • Change code, and rerun the build command: notice that Docker cached the dependencies and won’t fetch them again by default (use —no-cache if desired) 47

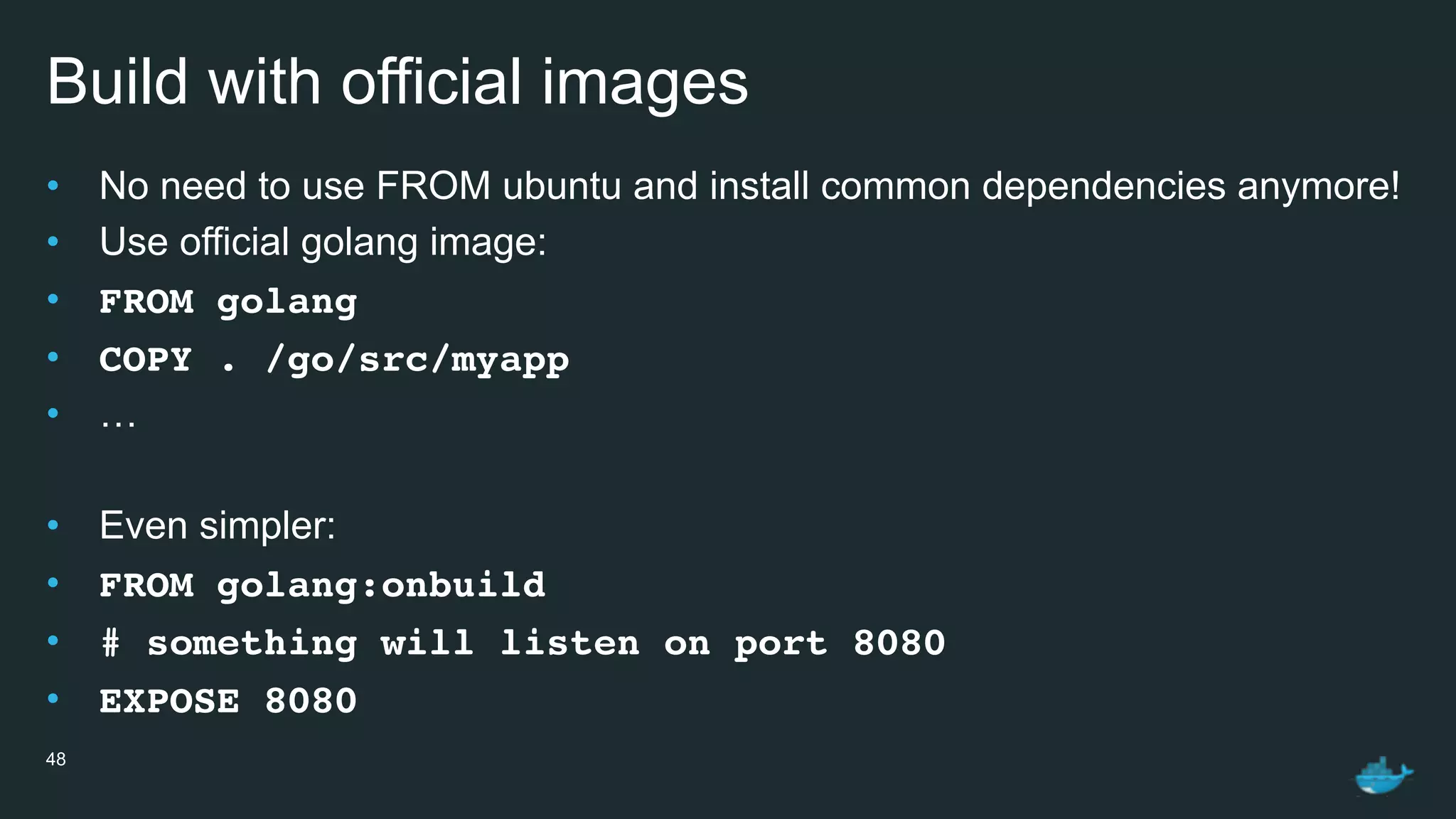

- 48. Build with officialimages • No need to use FROM ubuntu and install common dependencies anymore! • Use official golang image: • FROM golang • COPY . /go/src/myapp • … • Even simpler: • FROM golang:onbuild • # something will listen on port 8080 • EXPOSE 8080 48
- 49.

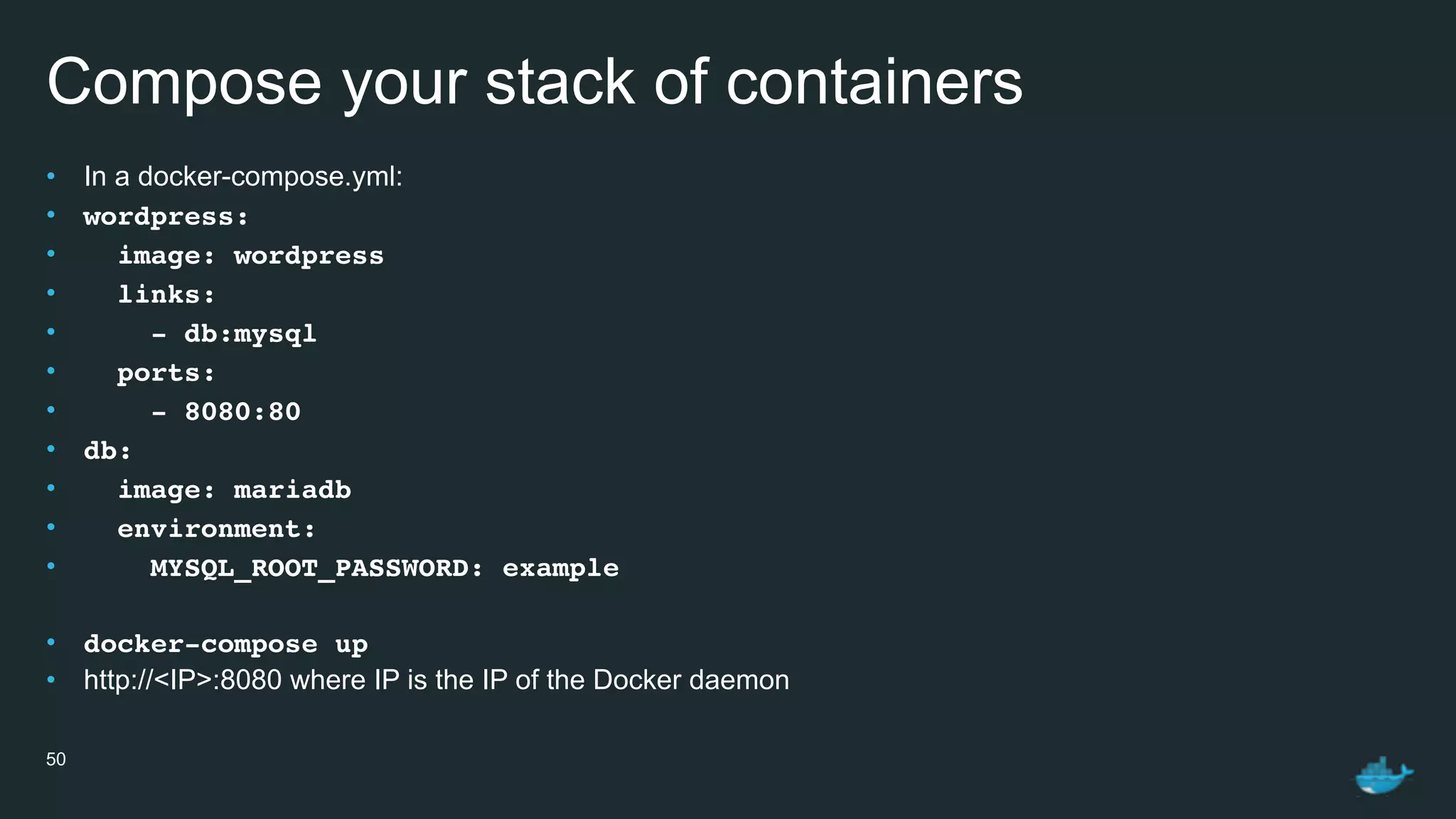

- 50. Compose your stackof containers • In a docker-compose.yml: • wordpress: • image: wordpress • links: • - db:mysql • ports: • - 8080:80 • db: • image: mariadb • environment: • MYSQL_ROOT_PASSWORD: example • docker-compose up • http://<IP>:8080 where IP is the IP of the Docker daemon 50
- 51.

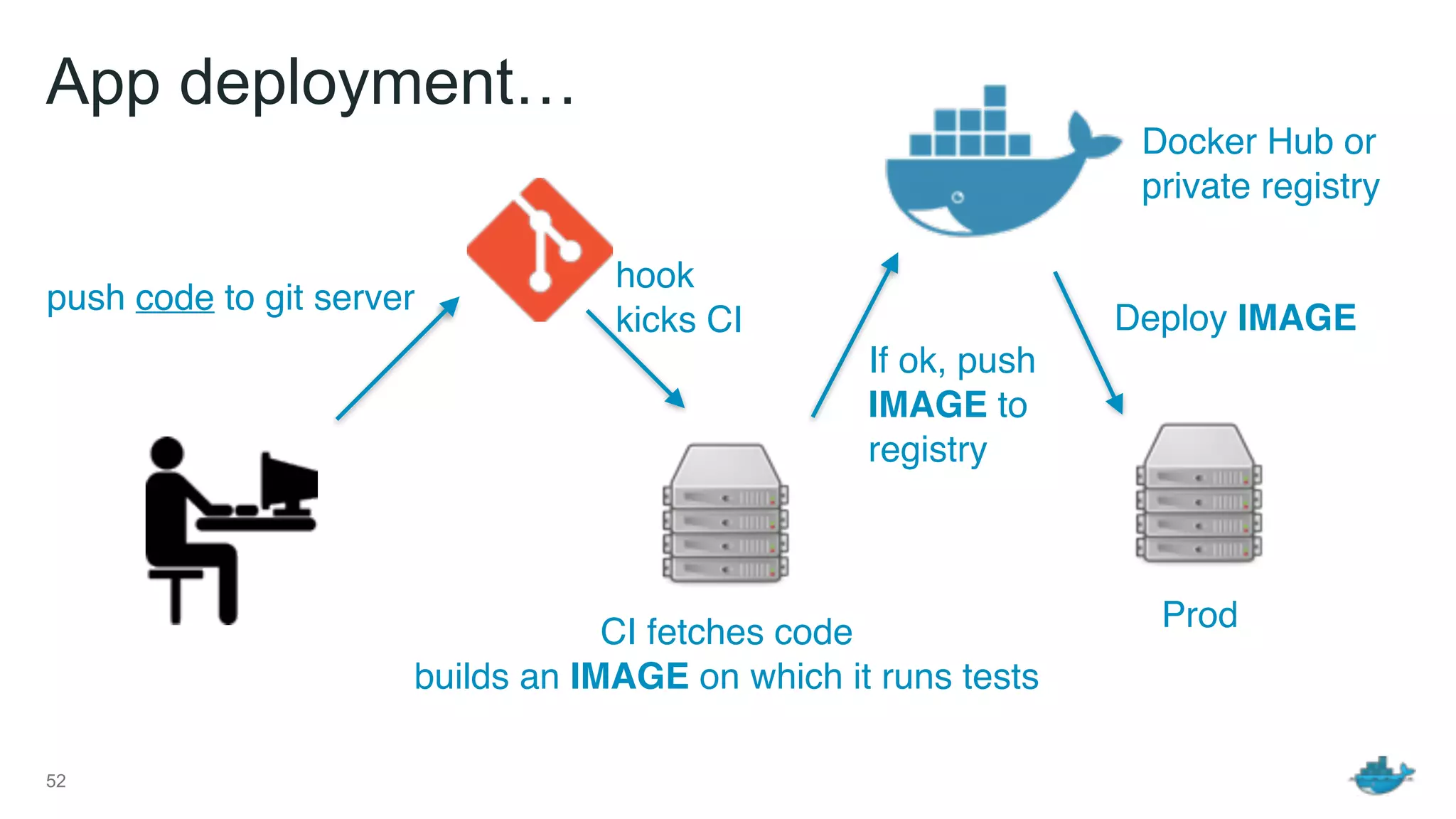

- 52. App deployment… 52 CI fetchescode builds an IMAGE on which it runs tests push code to git server hook kicks CI Prod Docker Hub or private registry If ok, push IMAGE to registry Deploy IMAGE

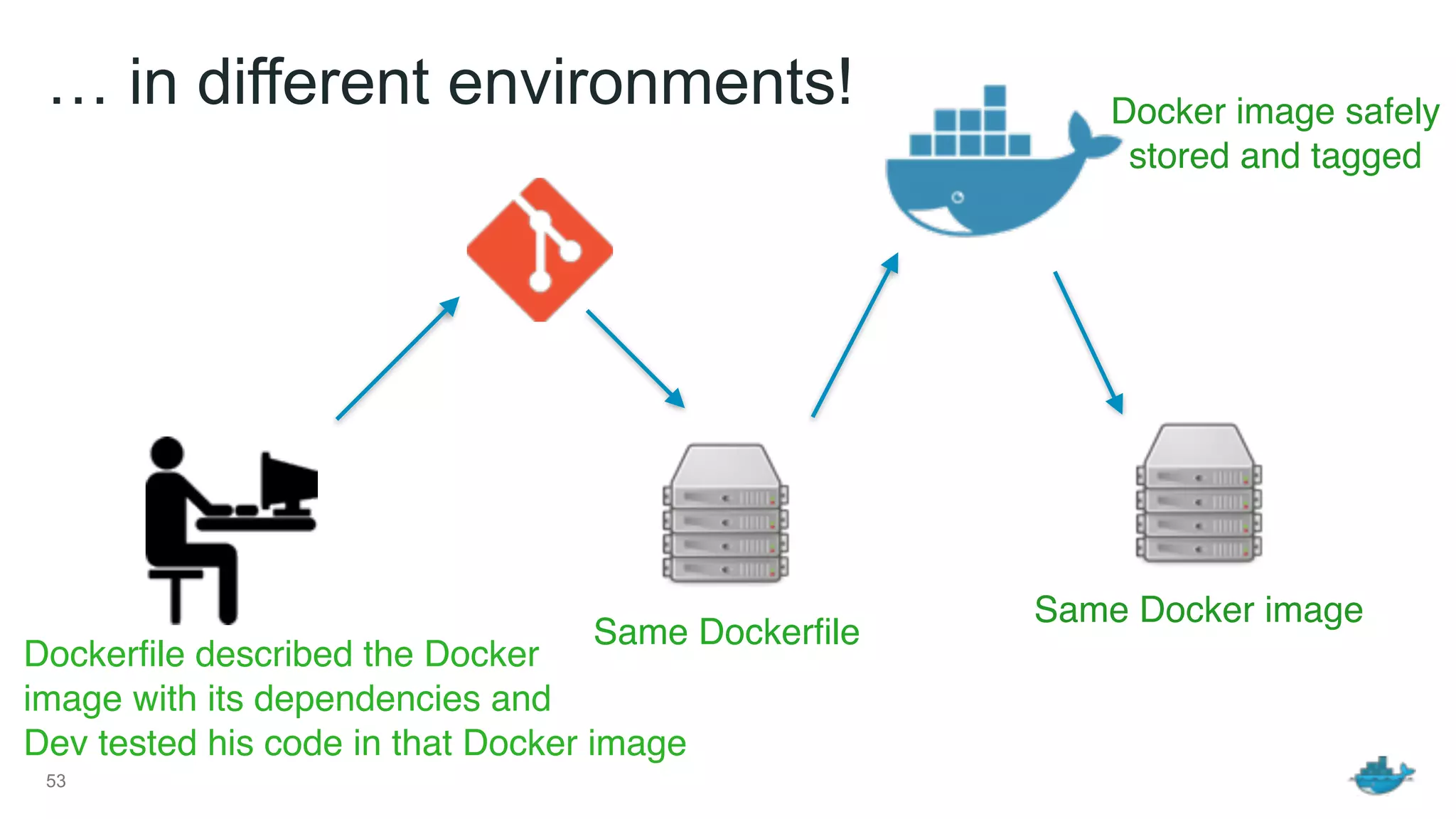

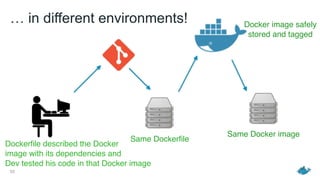

- 53. … in differentenvironments! 53 Dockerfile described the Docker image with its dependencies and Dev tested his code in that Docker image Same Dockerfile Same Docker image Docker image safely stored and tagged
- 54.

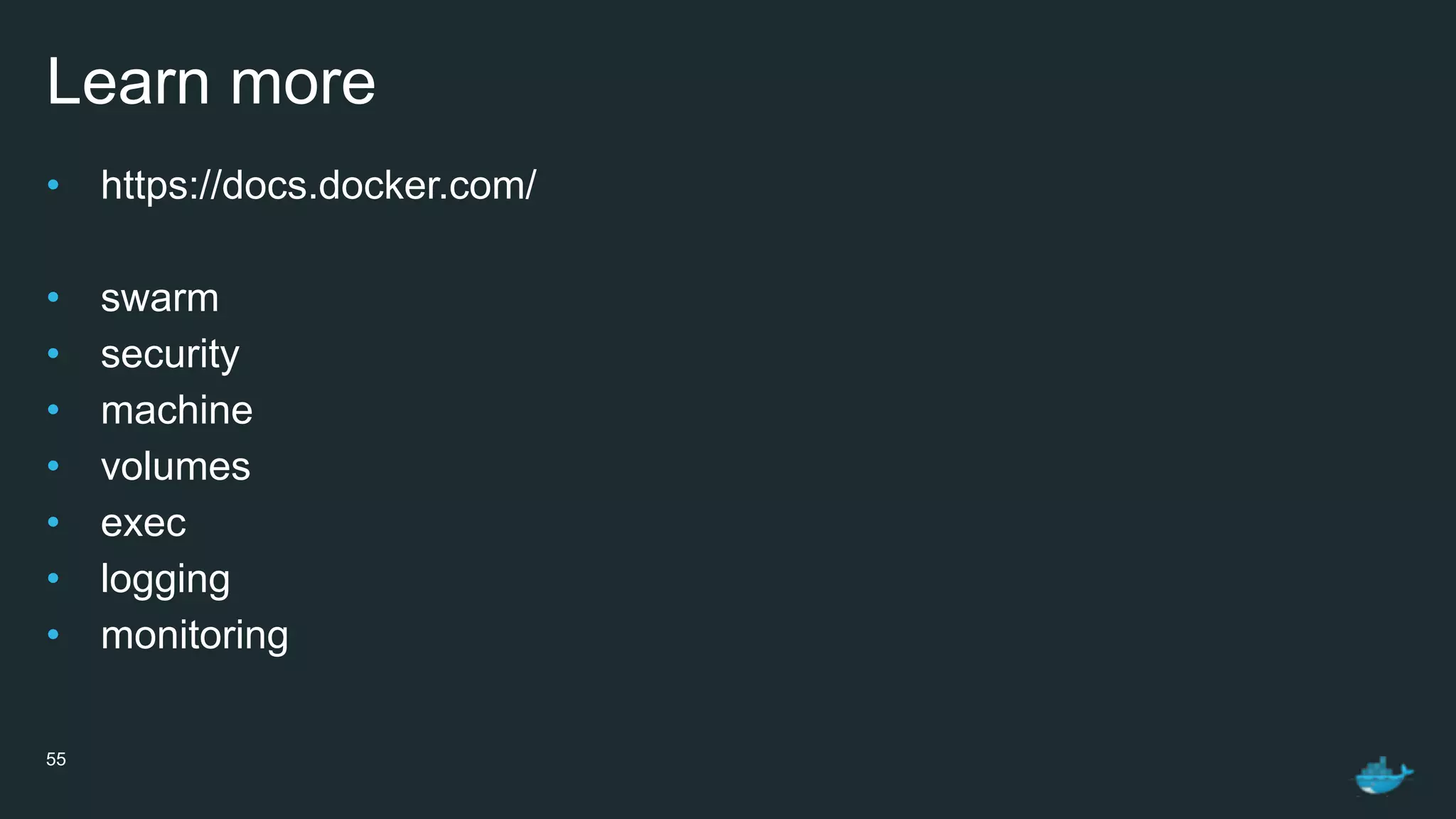

- 55. Learn more • https://docs.docker.com/ •swarm • security • machine • volumes • exec • logging • monitoring 55
