CH5:
Project
Scope Management
ABDULLAH ALKHADRAWY, PMP
Course Instructor:
 Abdullah Ahmed Al-Khadrawy.
 BSc. Civil Engineering 2006 (V.Good HD).
 Graduation Project (Project Management)
2006.(Excellent graded)
 Certified from Primavera Inc. ® : Advanced user for
Primavera P6 (2008).
 Certified from Primavera Inc. ® : Advanced user for
primavera Contract Manager 12 (2009).
 Attended courses (PMP, CCE, FIDIC, Project
Management, Arbitration for Engineering Contracts)
[2007-2013]
 Certified from PMI ® as PMP ® April2011

mahmed210@gmail.com
5
5

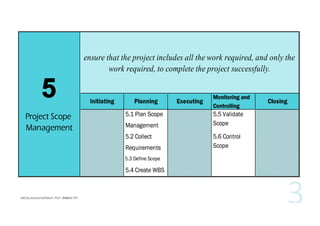

Project Scope
Management

ensure that the project includes all the work required, and only the
work required, to complete the project successfully.

Initiating

Planning
5.1 Plan Scope
Management
5.2 Collect
Requirements
5.3 Define Scope

5.4 Create WBS

Executing

Monitoring and
Controlling

5.5 Validate
Scope
5.6 Control
Scope

Closing

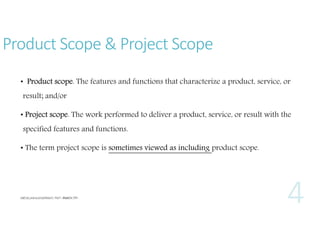

Product Scope & Project Scope
• Product scope. The features and functions that characterize a product, service, or
result; and/or
• Project scope. The work performed to deliver a product, service, or result with the
specified features and functions.
• The term project scope is sometimes viewed as including product scope.
5.1 Plan Scope Management

Planning

creating a scope management plan that documents how the project scope will
be defined, validated, and controlled.
.1 Project management plan

.1 Expert judgment

.2 Project charter
.3 Enterprise environmental
factors

.2 Meetings

.4 Organizational process assets

.1 Scope management plan
.2 Requirements management plan

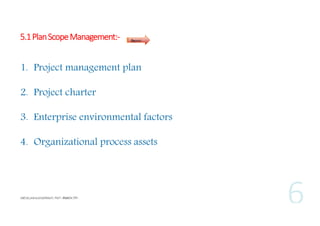

5.1 Plan Scope Management:-

Inputs

1. Project management plan
2. Project charter
3. Enterprise environmental factors
4. Organizational process assets

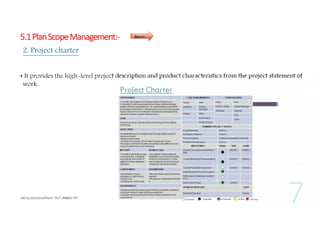

5.1 Plan Scope Management:-

Inputs

2. Project charter
• It provides the high-level project description and product characteristics from the project statement of
work.

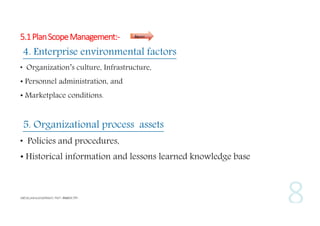

5.1 Plan Scope Management:-

Inputs

4. Enterprise environmental factors
• Organization’s culture, Infrastructure,
• Personnel administration, and
• Marketplace conditions.

5. Organizational process assets
• Policies and procedures,
• Historical information and lessons learned knowledge base

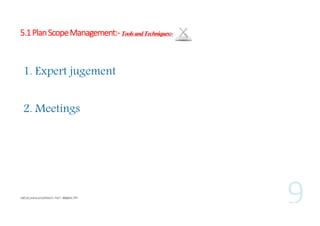

5.1 Plan Scope Management:- Tools and Techniques:-

1. Expert jugement
2. Meetings

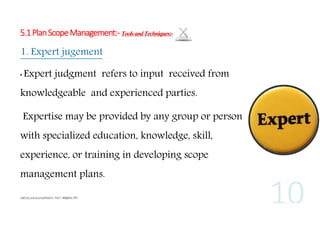

5.1 Plan Scope Management:- Tools and Techniques:-

1. Expert jugement
•

Expert judgment refers to input received from

knowledgeable and experienced parties.
Expertise may be provided by any group or person
with specialized education, knowledge, skill,
experience, or training in developing scope
management plans.

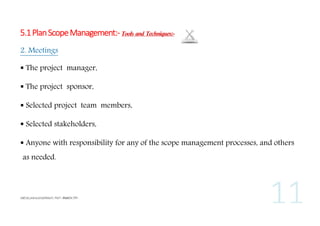

5.1 Plan Scope Management:- Tools and Techniques:2. Meetings
 The project manager,
 The project sponsor,
 Selected project team members,
 Selected stakeholders,
 Anyone with responsibility for any of the scope management processes, and others
as needed.

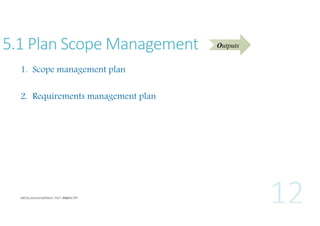

5.1 Plan Scope Management
1. Scope management plan
2. Requirements management plan

Outputs
5.1 Plan Scope Management

Outputs

1. Scope management plan

 The scope management plan is a component of the project or program management plan that
describes how the scope will be defined, developed, monitored, controlled, and verified.,
 The components of a scope management plan include:
• Process for preparing a detailed project scope statement;
• Process that enables the creation of the WBS from the detailed project scope statement;
• Process that establishes how the WBS will be maintained and approved;
• Process that specifies how formal acceptance of the completed project deliverables will be obtained;
• Process to control how requests for changes to the detailed project scope statement will be processed.
This process is directly linked to the Perform Integrated Change Control process (Section 4.5).
 The scope management plan can be formal or informal, broadly framed or highly detailed, based on
the needs of the project

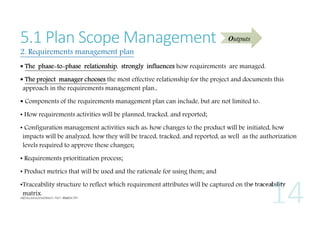

5.1 Plan Scope Management

Outputs

2. Requirements management plan

 The phase-to-phase relationship, strongly influences how requirements are managed.
 The project manager chooses the most effective relationship for the project and documents this
approach in the requirements management plan.,
 Components of the requirements management plan can include, but are not limited to:
• How requirements activities will be planned, tracked, and reported;
• Configuration management activities such as: how changes to the product will be initiated, how
impacts will be analyzed, how they will be traced, tracked, and reported, as well as the authorization
levels required to approve these changes;
• Requirements prioritization process;
• Product metrics that will be used and the rationale for using them; and
•Traceability structure to reflect which requirement attributes will be captured on the traceability
matrix.
5.2 Collect Requirements

Planning

determining, documenting, and managing stakeholder needs and
requirements to meet project objectives.
.1 Scope management plan
.2 Requirements management plan
.3 Stakeholder management plan
.4 Project charter
.5 Stakeholder register

.1 Interviews
.2 Focus groups
.3 Facilitated workshops
.4 Group creativity techniques
.5 Group decision-making
techniques
.6 Questionnaires and surveys
.7 Observations

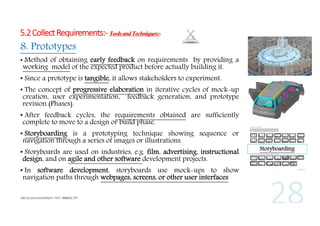

.8 Prototypes

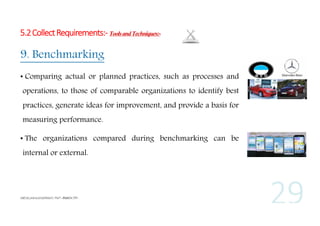

.9 Benchmarking
.10 Context diagrams

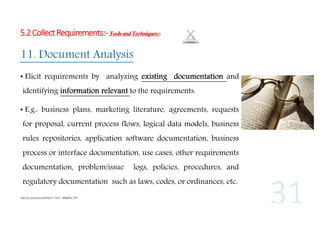

.11 Document analysis

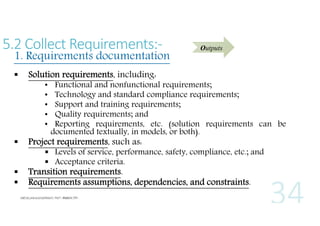

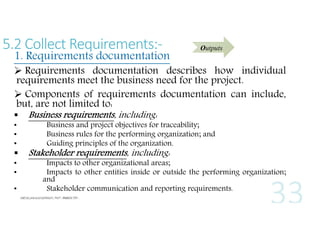

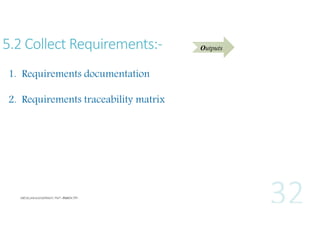

.1 Requirements documentation

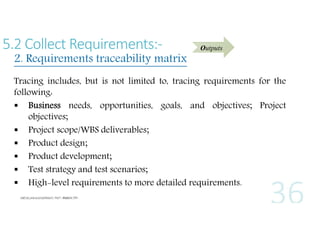

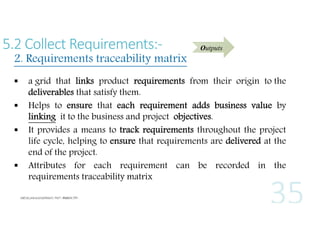

.2 Requirements traceability matrix

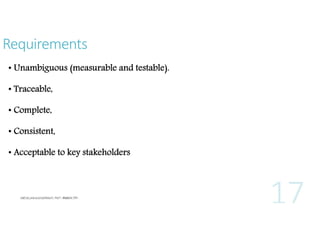

Requirements
• Unambiguous (measurable and testable).
• Traceable,
• Complete,
• Consistent,
• Acceptable to key stakeholders

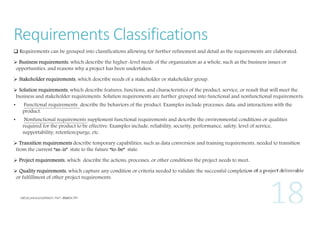

Requirements Classifications
 Requirements can be grouped into classifications allowing for further refinement and detail as the requirements are elaborated:
 Business requirements, which describe the higher-level needs of the organization as a whole, such as the business issues or
opportunities, and reasons why a project has been undertaken.
 Stakeholder requirements, which describe needs of a stakeholder or stakeholder group.
 Solution requirements, which describe features, functions, and characteristics of the product, service, or result that will meet the
business and stakeholder requirements. Solution requirements are further grouped into functional and nonfunctional requirements:
•

Functional requirements describe the behaviors of the product. Examples include processes, data, and interactions with the
product.

•

Nonfunctional requirements supplement functional requirements and describe the environmental conditions or qualities
required for the product to be effective. Examples include: reliability, security, performance, safety, level of service,
supportability, retention/purge, etc.

 Transition requirements describe temporary capabilities, such as data conversion and training requirements, needed to transition
from the current “as-is” state to the future “to-be” state.
 Project requirements, which describe the actions, processes, or other conditions the project needs to meet.
 Quality requirements, which capture any condition or criteria needed to validate the successful completion of a project deliverable
or fulfillment of other project requirements.

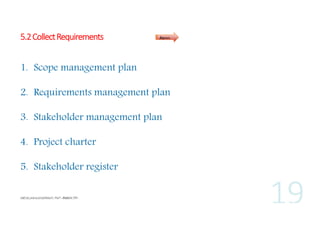

5.2 Collect Requirements

Inputs

1. Scope management plan
2. Requirements management plan
3. Stakeholder management plan
4. Project charter
5. Stakeholder register

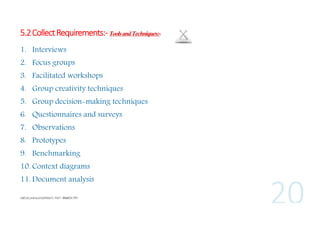

5.2 Collect Requirements:- Tools and Techniques:1. Interviews
2. Focus groups
3. Facilitated workshops
4. Group creativity techniques
5. Group decision-making techniques
6. Questionnaires and surveys
7. Observations
8. Prototypes
9. Benchmarking
10. Context diagrams
11. Document analysis

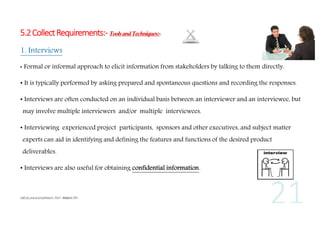

5.2 Collect Requirements:- Tools and Techniques:1. Interviews
•

Formal or informal approach to elicit information from stakeholders by talking to them directly.

• It is typically performed by asking prepared and spontaneous questions and recording the responses.
• Interviews are often conducted on an individual basis between an interviewer and an interviewee, but
may involve multiple interviewers and/or multiple interviewees.
• Interviewing experienced project participants, sponsors and other executives, and subject matter
experts can aid in identifying and defining the features and functions of the desired product
deliverables.
• Interviews are also useful for obtaining confidential information.
5.2 Collect Requirements:- Tools and Techniques:-

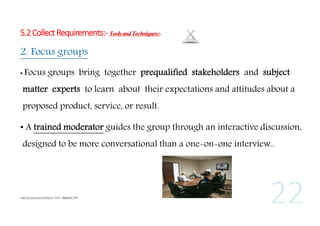

2. Focus groups
• Focus

groups bring together prequalified stakeholders and subject

matter experts to learn about their expectations and attitudes about a
proposed product, service, or result.
• A trained moderator guides the group through an interactive discussion,
designed to be more conversational than a one-on-one interview..

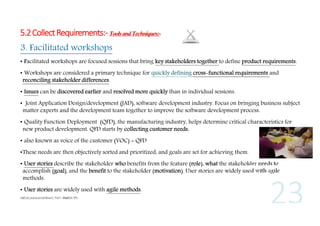

5.2 Collect Requirements:- Tools and Techniques:3. Facilitated workshops
• Facilitated workshops are focused sessions that bring key stakeholders together to define product requirements.
• Workshops are considered a primary technique for quickly defining cross-functional requirements and
reconciling stakeholder differences.
• Issues can be discovered earlier and resolved more quickly than in individual sessions.
• Joint Application Design/development (JAD), software development industry. Focus on bringing business subject
matter experts and the development team together to improve the software development process.
• Quality Function Deployment (QFD), the manufacturing industry, helps determine critical characteristics for
new product development. QFD starts by collecting customer needs,
• also known as voice of the customer (VOC) = QFD
•These needs are then objectively sorted and prioritized, and goals are set for achieving them.
• User stories describe the stakeholder who benefits from the feature (role), what the stakeholder needs to
accomplish (goal), and the benefit to the stakeholder (motivation). User stories are widely used with agile
methods.
• User stories are widely used with agile methods.

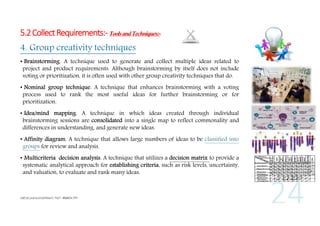

5.2 Collect Requirements:- Tools and Techniques:4. Group creativity techniques
• Brainstorming. A technique used to generate and collect multiple ideas related to
project and product requirements. Although brainstorming by itself does not include
voting or prioritization, it is often used with other group creativity techniques that do.
• Nominal group technique. A technique that enhances brainstorming with a voting
process used to rank the most useful ideas for further brainstorming or for
prioritization.
• Idea/mind mapping. A technique in which ideas created through individual
brainstorming sessions are consolidated into a single map to reflect commonality and
differences in understanding, and generate new ideas.
• Affinity diagram. A technique that allows large numbers of ideas to be classified into
groups for review and analysis.
• Multicriteria decision analysis. A technique that utilizes a decision matrix to provide a
systematic analytical approach for establishing criteria, such as risk levels, uncertainty,
and valuation, to evaluate and rank many ideas.
5.2 Collect Requirements:- Tools and Techniques:5. Group Decision-Making Techniques
• Unanimity. A decision that is reached whereby everyone agrees on a single course of
action. One way to reach unanimity is the Delphi technique, in which a selected group
of experts answers questionnaires and provides feedback regarding the responses from
each round of requirements gathering. The responses are only available to the
facilitator to maintain anonymity.
• Majority. A decision that is reached with support obtained from more than 50 % of the
members of the group. Having a group size with an uneven number of participants can
ensure that a decision will be reached, rather than resulting in a tie.
• Plurality. A decision that is reached whereby the largest block in a group decides, even
if a majority is not achieved. This method is generally used when the number of options
nominated is more than two.
• Dictatorship. In this method, one individual makes the decision for the group.
5.2 Collect Requirements:- Tools and Techniques:-

6. Questionnaires and surveys
•written sets of questions designed to quickly accumulate
information from a large number of respondents; e.g. football

fans, hotel end users,…,… etc.

• Questionnaires and/or surveys are most appropriate with varied
audiences, when a quick turnaround is needed, when respondents
are geographically dispersed, and where statistical analysis is
appropriate.
5.2 Collect Requirements:- Tools and Techniques:-

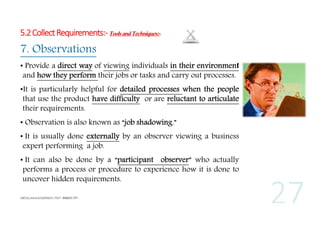

7. Observations
• Provide a direct way of viewing individuals in their environment
and how they perform their jobs or tasks and carry out processes.
•It is particularly helpful for detailed processes when the people
that use the product have difficulty or are reluctant to articulate
their requirements.
• Observation is also known as “job shadowing.”
• It is usually done externally by an observer viewing a business
expert performing a job.
• It can also be done by a “participant observer” who actually
performs a process or procedure to experience how it is done to
uncover hidden requirements.
5.2 Collect Requirements:- Tools and Techniques:-

8. Prototypes

• Method of obtaining early feedback on requirements by providing a

working model of the expected product before actually building it.

• Since a prototype is tangible, it allows stakeholders to experiment.
• The concept of progressive elaboration in iterative cycles of mock-up
creation, user experimentation, feedback generation, and prototype
revision (Phases).
• After feedback cycles, the requirements obtained are sufficiently
complete to move to a design or build phase.
• Storyboarding is a prototyping technique showing sequence or
navigation through a series of images or illustrations.
• Storyboards are used on industries, e.g. film, advertising, instructional
design, and on agile and other software development projects.
• In software development, storyboards use mock-ups to show
navigation paths through webpages, screens, or other user interfaces

Storyboarding
5.2 Collect Requirements:- Tools and Techniques:-

9. Benchmarking
• Comparing actual or planned practices, such as processes and
operations, to those of comparable organizations to identify best
practices, generate ideas for improvement, and provide a basis for
measuring performance.
• The organizations compared during benchmarking can be
internal or external.
5.2 Collect Requirements:- Tools and Techniques:-

10. Context Diagrams
• Visually depict the product scope by showing a business system
(process, equipment, computer system, etc.), and how people and
other systems (actors) interact with it.
• Show inputs to the business system, the actor(s) providing the
input, the outputs from the business system, and the actor(s)
receiving the output.
5.2 Collect Requirements:- Tools and Techniques:-

11. Document Analysis
• Elicit requirements by analyzing existing documentation and
identifying information relevant to the requirements.
• E.g.: business plans, marketing literature, agreements, requests
for proposal, current process flows, logical data models, business
rules repositories, application software documentation, business
process or interface documentation, use cases, other requirements
documentation, problem/issue

logs, policies, procedures, and

regulatory documentation such as laws, codes, or ordinances, etc.
5.2 Collect Requirements:1. Requirements documentation
2. Requirements traceability matrix

Outputs
5.2 Collect Requirements:-

1. Requirements documentation

Outputs

 Requirements documentation describes how individual
requirements meet the business need for the project.
 Components of requirements documentation can include,
but, are not limited to:

•
•
•


•
•
•

Business requirements, including:

Business and project objectives for traceability;
Business rules for the performing organization; and
Guiding principles of the organization.

Stakeholder requirements, including:

Impacts to other organizational areas;
Impacts to other entities inside or outside the performing organization;
and
Stakeholder communication and reporting requirements.
5.2 Collect Requirements:-

1. Requirements documentation


Outputs

Solution requirements, including:
•
•
•
•
•

Functional and nonfunctional requirements;
Technology and standard compliance requirements;
Support and training requirements;
Quality requirements; and
Reporting requirements, etc. (solution requirements can be
documented textually, in models, or both).



Project requirements, such as:




Transition requirements.
Requirements assumptions, dependencies, and constraints.

 Levels of service, performance, safety, compliance, etc.; and
 Acceptance criteria.
5.2 Collect Requirements:-

2. Requirements traceability matrix






Outputs

a grid that links product requirements from their origin to the
deliverables that satisfy them.
Helps to ensure that each requirement adds business value by
linking it to the business and project objectives.
It provides a means to track requirements throughout the project
life cycle, helping to ensure that requirements are delivered at the
end of the project.
Attributes for each requirement can be recorded in the
requirements traceability matrix
5.2 Collect Requirements:-

2. Requirements traceability matrix

Outputs

Tracing includes, but is not limited to, tracing requirements for the
following:
 Business needs, opportunities, goals, and objectives; Project
objectives;
 Project scope/WBS deliverables;
 Product design;
 Product development;
 Test strategy and test scenarios;
 High-level requirements to more detailed requirements.
5.2 Collect Requirements:-

2. Requirements traceability matrix

Outputs

Requirements Traceability Matrix
Programs

Project Name:

Portfolios

Cost Center:
Project Description:
ID

Associate
ID
1.0

001

1.1
1.2
1.2.1
2.0

002

2.1
2.1.1
3.0

003

3.1
3.2

004

4.0

005

5.0

Requirements Description

Business Needs,
Opportunities,
Goals, Objectives

Project
Objectives

WBS
Deliverables

Product
Design

Product
Development

Test
Cases

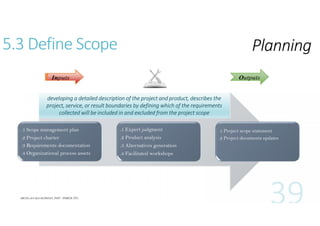

5.3 Define Scope

Planning

developing a detailed description of the project and product, describes the
project, service, or result boundaries by defining which of the requirements
collected will be included in and excluded from the project scope
.1 Scope management plan
.2 Project charter
.3 Requirements documentation
.4 Organizational process assets

.1 Expert judgment
.2 Product analysis
.3 Alternatives generation
.4 Facilitated workshops

.1 Project scope statement
.2 Project documents updates

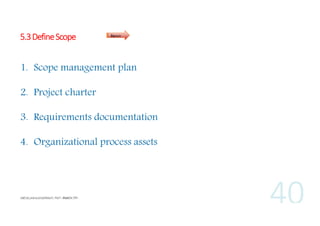

5.3 Define Scope

Inputs

1. Scope management plan
2. Project charter
3. Requirements documentation
4. Organizational process assets

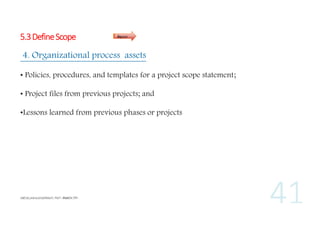

5.3 Define Scope

Inputs

4. Organizational process assets
• Policies, procedures, and templates for a project scope statement;
• Project files from previous projects; and
•Lessons learned from previous phases or projects

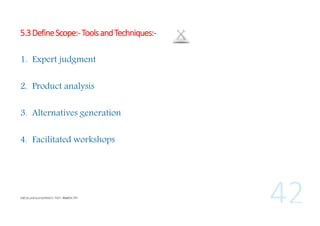

5.3 Define Scope:- Tools and Techniques:1. Expert judgment
2. Product analysis
3. Alternatives generation
4. Facilitated workshops

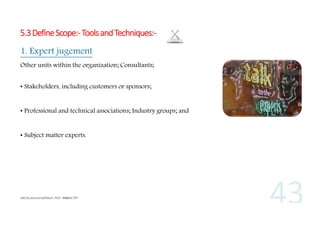

5.3 Define Scope:- Tools and Techniques:1. Expert jugement
Other units within the organization; Consultants;
• Stakeholders, including customers or sponsors;
• Professional and technical associations; Industry groups; and
• Subject matter experts.

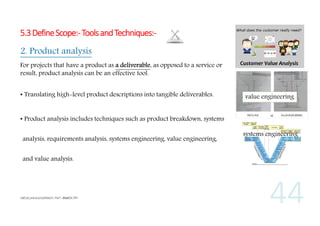

5.3 Define Scope:- Tools and Techniques:2. Product analysis
For projects that have a product as a deliverable, as opposed to a service or
result, product analysis can be an effective tool.
• Translating high-level product descriptions into tangible deliverables.

value engineering

• Product analysis includes techniques such as product breakdown, systems
analysis, requirements analysis, systems engineering, value engineering,
and value analysis.

systems engineering
5.3 Define Scope:- Tools and Techniques:4. Facilitated workshops
• Facilitated workshops are focused sessions that bring key stakeholders together to define product requirements.
• Workshops are considered a primary technique for quickly defining cross-functional requirements and
reconciling stakeholder differences.
• Issues can be discovered earlier and resolved more quickly than in individual sessions.
• Joint Application Design/development (JAD), software development industry. Focus on bringing business subject
matter experts and the development team together to improve the software development process.
• Quality Function Deployment (QFD), the manufacturing industry, helps determine critical characteristics for
new product development. QFD starts by collecting customer needs,
• also known as voice of the customer (VOC) = QFD
•These needs are then objectively sorted and prioritized, and goals are set for achieving them.
• User stories describe the stakeholder who benefits from the feature (role), what the stakeholder needs to
accomplish (goal), and the benefit to the stakeholder (motivation). User stories are widely used with agile
methods.
• User stories are widely used with agile methods.

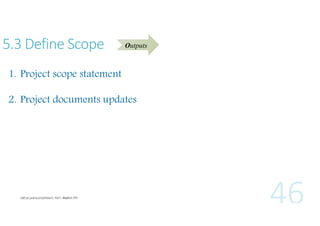

5.3 Define Scope

Outputs

1. Project scope statement
2. Project documents updates

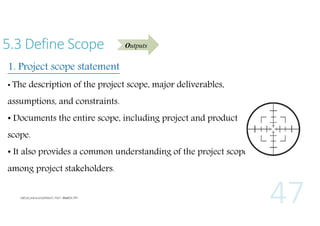

5.3 Define Scope

Outputs

1. Project scope statement
• The description of the project scope, major deliverables,

assumptions, and constraints.
• Documents the entire scope, including project and product
scope.
• It also provides a common understanding of the project scope
among project stakeholders.

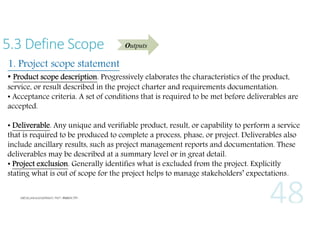

5.3 Define Scope

Outputs

1. Project scope statement

• Product scope description. Progressively elaborates the characteristics of the product,

service, or result described in the project charter and requirements documentation.
• Acceptance criteria. A set of conditions that is required to be met before deliverables are
accepted.
• Deliverable. Any unique and verifiable product, result, or capability to perform a service
that is required to be produced to complete a process, phase, or project. Deliverables also
include ancillary results, such as project management reports and documentation. These
deliverables may be described at a summary level or in great detail.
• Project exclusion. Generally identifies what is excluded from the project. Explicitly
stating what is out of scope for the project helps to manage stakeholders’ expectations.

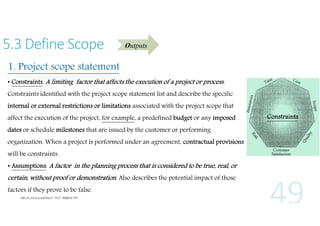

5.3 Define Scope

Outputs

1. Project scope statement
• Constraints. A limiting factor that affects the execution of a project or process .
Constraints identified with the project scope statement list and describe the specific
internal or external restrictions or limitations associated with the project scope that
affect the execution of the project, for example, a predefined budget or any imposed
dates or schedule milestones that are issued by the customer or performing
organization. When a project is performed under an agreement, contractual provisions
will be constraints.
• Assumptions. A factor in the planning process that is considered to be true, real, or

certain, without proof or demonstration. Also describes the potential impact of those
factors if they prove to be false.

Constraints

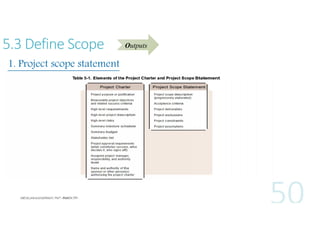

5.3 Define Scope
1. Project scope statement

Outputs
5.3 Define Scope

Outputs

2. Project documents updates
• Stakeholder register,
• Requirements documentation, and
• Requirements traceability matrix.

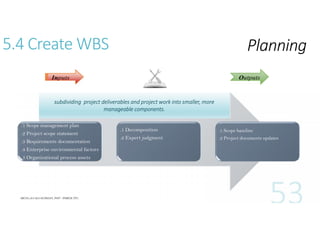

5.4 Create WBS

Planning

subdividing project deliverables and project work into smaller, more
manageable components.
.1 Scope management plan
.2 Project scope statement
.3 Requirements documentation
.4 Enterprise environmental factors
.5 Organizational process assets

.1 Decomposition
.2 Expert judgment

.1 Scope baseline
.2 Project documents updates

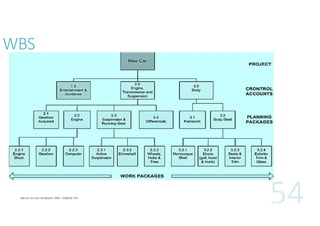

WBS

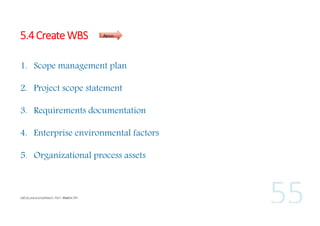

5.4 Create WBS

Inputs

1. Scope management plan
2. Project scope statement
3. Requirements documentation
4. Enterprise environmental factors
5. Organizational process assets

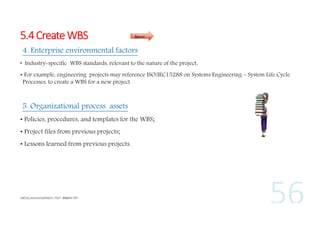

5.4 Create WBS

Inputs

4. Enterprise environmental factors
• Industry-specific WBS standards, relevant to the nature of the project,
• For example, engineering projects may reference ISO/IEC15288 on Systems Engineering – System Life Cycle
Processes, to create a WBS for a new project.

5. Organizational process assets
• Policies, procedures, and templates for the WBS;
• Project files from previous projects;
• Lessons learned from previous projects.

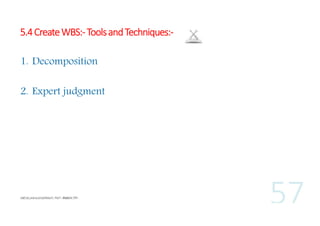

5.4 Create WBS:- Tools and Techniques:1. Decomposition
2. Expert judgment

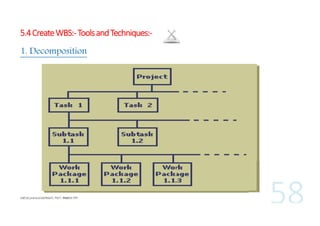

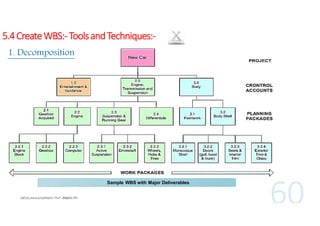

5.4 Create WBS:- Tools and Techniques:1. Decomposition
5.4 Create WBS:- Tools and Techniques:1. Decomposition

Sample WBS Organized by Phase
5.4 Create WBS:- Tools and Techniques:1. Decomposition

Sample WBS with Major Deliverables
5.4 Create WBS:- Tools and Techniques:1. Decomposition
• Identifying and analyzing the deliverables and related work;
• Structuring and organizing the WBS;
• Decomposing the upper WBS levels into lower-level detailed components;
•Developing and assigning identification codes to the WBS components; and
•Verifying that the degree of decomposition of the deliverables is appropriate.

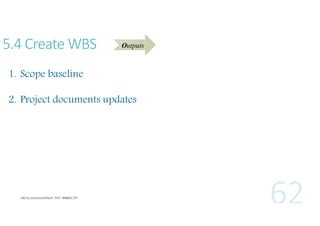

5.4 Create WBS

Outputs

1. Scope baseline
2. Project documents updates

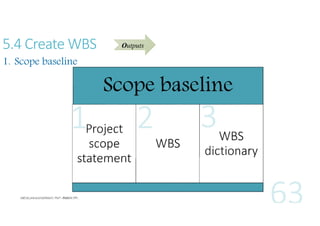

5.4 Create WBS
1. Scope baseline

Outputs

Scope baseline

Project
scope
statement

WBS

WBS
dictionary

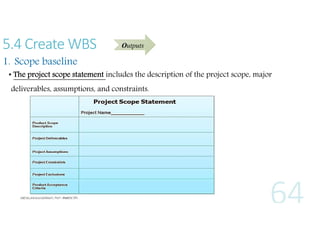

5.4 Create WBS

Outputs

1. Scope baseline

• The project scope statement includes the description of the project scope, major
deliverables, assumptions, and constraints.

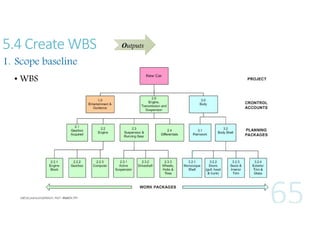

5.4 Create WBS
1. Scope baseline
• WBS

Outputs

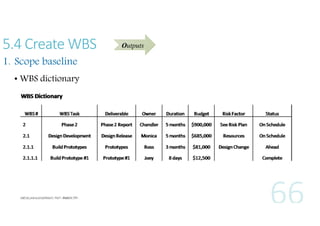

5.4 Create WBS
1. Scope baseline
• WBS dictionary

Outputs

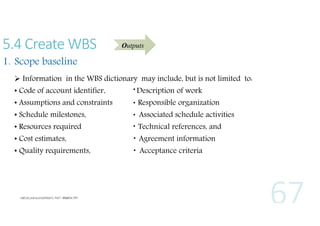

5.4 Create WBS

Outputs

1. Scope baseline
 Information in the WBS dictionary may include, but is not limited to:
• Code of account identifier,

Description of work

• Schedule milestones,

Associated schedule activities

• Assumptions and constraints

Responsible organization

• Resources required

Technical references, and

• Quality requirements,

Acceptance criteria

• Cost estimates,

Agreement information
5.5 Validate Scope

Monitoring&Controlling

formalizing acceptance of the completed project deliverables
.1 Project management plan
.2 Requirements documentation
.3 Requirements traceability
matrix
.4 Verified deliverables
.5 Work performance data

.1 Inspection
.2 Group decision-making
techniques

.1 Accepted deliverables
.2 Change requests
.3 Work performance
information
.4 Project documents updates

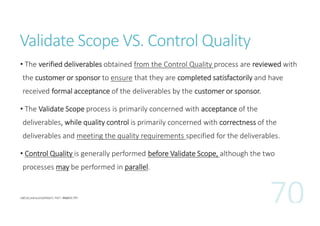

Validate Scope VS. Control Quality
• The verified deliverables obtained from the Control Quality process are reviewed with
the customer or sponsor to ensure that they are completed satisfactorily and have
received formal acceptance of the deliverables by the customer or sponsor.
• The Validate Scope process is primarily concerned with acceptance of the
deliverables, while quality control is primarily concerned with correctness of the
deliverables and meeting the quality requirements specified for the deliverables.
• Control Quality is generally performed before Validate Scope, although the two
processes may be performed in parallel.

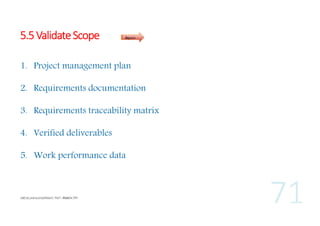

5.5 Validate Scope

Inputs

1. Project management plan
2. Requirements documentation
3. Requirements traceability matrix
4. Verified deliverables
5. Work performance data

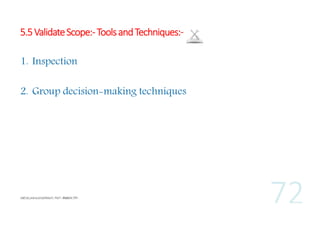

5.5 Validate Scope:- Tools and Techniques:1. Inspection
2. Group decision-making techniques

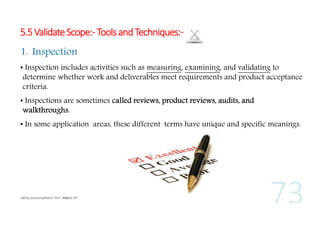

5.5 Validate Scope:- Tools and Techniques:1. Inspection
• Inspection includes activities such as measuring, examining, and validating to
determine whether work and deliverables meet requirements and product acceptance
criteria.
• Inspections are sometimes called reviews, product reviews, audits, and
walkthroughs.
• In some application areas, these different terms have unique and specific meanings.

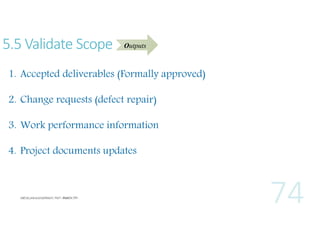

5.5 Validate Scope

Outputs

1. Accepted deliverables (Formally approved)
2. Change requests (defect repair)
3. Work performance information
4. Project documents updates
5.6 Control Scope

Monitoring&Controlling

monitoring the status of the project and product scope and managing changes
to the scope baseline
.
.1 Project management plan

.1 Variance analysis

.1 Work performance information

.2 Requirements documentation

.2 Change requests

.3 Requirements traceability
matrix

.3 Project management plan updates

.4 Work performance data
.5 Organizational process assets

.4 Project documents updates
.5 Organizational process assets
update

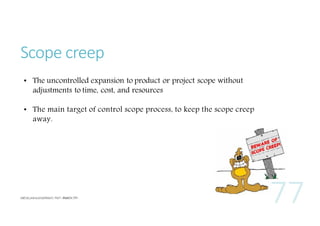

Scope creep
• The uncontrolled expansion to product or project scope without
adjustments to time, cost, and resources
• The main target of control scope process, to keep the scope creep
away.

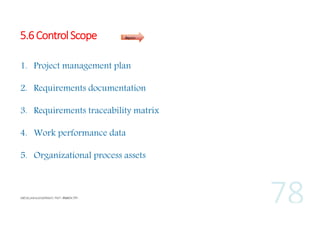

5.6 Control Scope

Inputs

1. Project management plan
2. Requirements documentation
3. Requirements traceability matrix
4. Work performance data
5. Organizational process assets
5.6 Control Scope:- Tools and Techniques:1. Variance analysis
• Technique for determining the cause and degree of difference between the baseline
and actual performance.
• Then deciding whether corrective or preventive action is required.

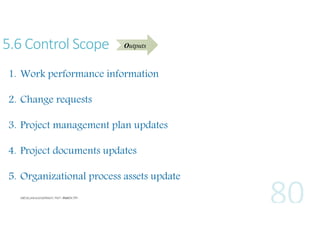

5.6 Control Scope

Outputs

1. Work performance information
2. Change requests
3. Project management plan updates
4. Project documents updates
5. Organizational process assets update
5.6 Control Scope

Outputs

3. Project management plan updates
• Scope Baseline Updates. If the approved change requests have an effect on the project
scope.
• Other Baseline Updates. If the approved change requests have an effect on the project
besides the project scope, then the corresponding cost baseline and schedule baselines are
revised and reissued to reflect the approved changes.

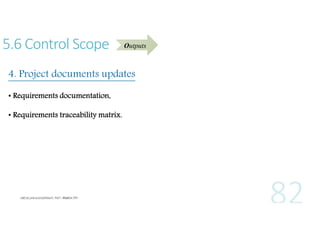

5.6 Control Scope

Outputs

4. Project documents updates
• Requirements documentation,
• Requirements traceability matrix.

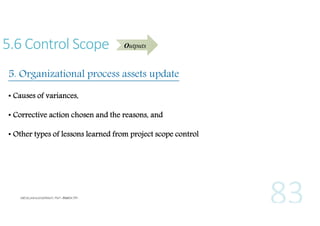

5.6 Control Scope

Outputs

5. Organizational process assets update
• Causes of variances,
• Corrective action chosen and the reasons, and
• Other types of lessons learned from project scope control
PMP PMBok 5th ch 5 scope management

More Related Content

What's hot

Pmp chap13 - project stakeholder management details
Pmp chap13 - project stakeholder management detailsPmp chap13 - project stakeholder management details
Pmp chap13 - project stakeholder management details
Anand Bobade

Project scope management
Project scope managementProject scope management
Project scope management
Jody R Flower

PMBOK(R) sixth edition data flow diagrams r2
PMBOK(R)  sixth edition data flow diagrams r2PMBOK(R)  sixth edition data flow diagrams r2
PMBOK(R) sixth edition data flow diagrams r2
Kose Jumnichi

2_Project Scope Management
2_Project Scope Management2_Project Scope Management
2_Project Scope Management
Hisham Haridy MBA, PMP®, RMP®, SP®

Program governance Structure
Program governance StructureProgram governance Structure
Program governance Structure
Saurabh Sardesai

Project Quality Management | Project Quality Control | Edureka
Project Quality Management | Project Quality Control | EdurekaProject Quality Management | Project Quality Control | Edureka
Project Quality Management | Project Quality Control | Edureka
Edureka!

Project Management: Integration Management Knowledge Area
Project Management: Integration Management Knowledge AreaProject Management: Integration Management Knowledge Area
Project Management: Integration Management Knowledge Area
Joshua Render

Introduce Project Management
Introduce Project ManagementIntroduce Project Management
Introduce Project Management
guest90bddb

Project scope and requirements management
Project scope and requirements managementProject scope and requirements management
Project scope and requirements management
tictactoe123

Introduction to Project Management (workshop) - v.2
Introduction to Project Management (workshop) - v.2Introduction to Project Management (workshop) - v.2
Introduction to Project Management (workshop) - v.2
Mena M. Eissa

project management
project managementproject management
project management
Sanchita Siromoni

Introduction to Project Management
Introduction to Project ManagementIntroduction to Project Management
Introduction to Project Management
Waleed Elnaggar

Pmbok 4th edition chapter 1 - Introduction to Project Management
Pmbok 4th edition   chapter 1 - Introduction to Project ManagementPmbok 4th edition   chapter 1 - Introduction to Project Management
Pmbok 4th edition chapter 1 - Introduction to Project Management
Ahmad Maharma, PMP,RMP

Project integration management
Project  integration managementProject  integration management
Project integration management
deep sharma

9.0 Project Resource Management Overview
9.0 Project Resource Management Overview9.0 Project Resource Management Overview
9.0 Project Resource Management Overview
DavidMcLachlan1

Project Scope Management
Project Scope ManagementProject Scope Management
Project Scope Management
Andersson Lujan Ojeda

Develop Project Management Plan Data Flow Diagram
Develop Project Management Plan Data Flow DiagramDevelop Project Management Plan Data Flow Diagram
Develop Project Management Plan Data Flow Diagram
riosabel

PMP Chapter 2 of 6 Initiating Process Group (2- Processes) (Based on PMBOK 6...
PMP Chapter 2 of 6  Initiating Process Group (2- Processes) (Based on PMBOK 6...PMP Chapter 2 of 6  Initiating Process Group (2- Processes) (Based on PMBOK 6...
PMP Chapter 2 of 6 Initiating Process Group (2- Processes) (Based on PMBOK 6...
Shamil Habet

Project Management Professional PMI-PMP Based on PMBOK 6th Edition
Project Management Professional PMI-PMP Based on PMBOK 6th EditionProject Management Professional PMI-PMP Based on PMBOK 6th Edition
Project Management Professional PMI-PMP Based on PMBOK 6th Edition
John Khateeb

Project charter sample
Project charter sampleProject charter sample
Project charter sample
Gregory Weiss


What's hot (20)

Pmp chap13 - project stakeholder management details
Pmp chap13 - project stakeholder management detailsPmp chap13 - project stakeholder management details
Pmp chap13 - project stakeholder management details

Project scope management
Project scope managementProject scope management
Project scope management

PMBOK(R) sixth edition data flow diagrams r2
PMBOK(R)  sixth edition data flow diagrams r2PMBOK(R)  sixth edition data flow diagrams r2
PMBOK(R) sixth edition data flow diagrams r2

2_Project Scope Management
2_Project Scope Management2_Project Scope Management
2_Project Scope Management

Program governance Structure
Program governance StructureProgram governance Structure
Program governance Structure

Project Quality Management | Project Quality Control | Edureka
Project Quality Management | Project Quality Control | EdurekaProject Quality Management | Project Quality Control | Edureka
Project Quality Management | Project Quality Control | Edureka

Project Management: Integration Management Knowledge Area
Project Management: Integration Management Knowledge AreaProject Management: Integration Management Knowledge Area
Project Management: Integration Management Knowledge Area

Introduce Project Management
Introduce Project ManagementIntroduce Project Management
Introduce Project Management

Project scope and requirements management
Project scope and requirements managementProject scope and requirements management
Project scope and requirements management

Introduction to Project Management (workshop) - v.2
Introduction to Project Management (workshop) - v.2Introduction to Project Management (workshop) - v.2
Introduction to Project Management (workshop) - v.2

project management
project managementproject management
project management

Introduction to Project Management
Introduction to Project ManagementIntroduction to Project Management
Introduction to Project Management

Pmbok 4th edition chapter 1 - Introduction to Project Management
Pmbok 4th edition   chapter 1 - Introduction to Project ManagementPmbok 4th edition   chapter 1 - Introduction to Project Management
Pmbok 4th edition chapter 1 - Introduction to Project Management

Project integration management
Project  integration managementProject  integration management
Project integration management

9.0 Project Resource Management Overview
9.0 Project Resource Management Overview9.0 Project Resource Management Overview
9.0 Project Resource Management Overview

Project Scope Management
Project Scope ManagementProject Scope Management
Project Scope Management

Develop Project Management Plan Data Flow Diagram
Develop Project Management Plan Data Flow DiagramDevelop Project Management Plan Data Flow Diagram
Develop Project Management Plan Data Flow Diagram

PMP Chapter 2 of 6 Initiating Process Group (2- Processes) (Based on PMBOK 6...
PMP Chapter 2 of 6  Initiating Process Group (2- Processes) (Based on PMBOK 6...PMP Chapter 2 of 6  Initiating Process Group (2- Processes) (Based on PMBOK 6...
PMP Chapter 2 of 6 Initiating Process Group (2- Processes) (Based on PMBOK 6...

Project Management Professional PMI-PMP Based on PMBOK 6th Edition
Project Management Professional PMI-PMP Based on PMBOK 6th EditionProject Management Professional PMI-PMP Based on PMBOK 6th Edition
Project Management Professional PMI-PMP Based on PMBOK 6th Edition

Project charter sample
Project charter sampleProject charter sample
Project charter sample


Viewers also liked

PMP Chap 5 - Project Scope Management - Part1
PMP Chap 5 - Project Scope Management - Part1PMP Chap 5 - Project Scope Management - Part1
PMP Chap 5 - Project Scope Management - Part1
Anand Bobade

Project Scope Management - PMBOK 5th Edition
Project Scope Management - PMBOK 5th EditionProject Scope Management - PMBOK 5th Edition
Project Scope Management - PMBOK 5th Edition
pankajsh10

Project Scope Management,PMP Chapter 5,PMBOK,PMP Exam Preparation training
Project Scope Management,PMP Chapter 5,PMBOK,PMP Exam Preparation trainingProject Scope Management,PMP Chapter 5,PMBOK,PMP Exam Preparation training
Project Scope Management,PMP Chapter 5,PMBOK,PMP Exam Preparation training
JustAcademy

Pmbok 4th edition chapter 5 - Project Scope Management
Pmbok 4th edition   chapter 5 - Project Scope Management Pmbok 4th edition   chapter 5 - Project Scope Management
Pmbok 4th edition chapter 5 - Project Scope Management
Ahmad Maharma, PMP,RMP

PMP Training - 05 project scope management
PMP Training - 05 project scope managementPMP Training - 05 project scope management
PMP Training - 05 project scope managementejlp12

Pmp – pmbok 5th edition chapter4 project integration management final
Pmp – pmbok 5th edition chapter4 project integration management finalPmp – pmbok 5th edition chapter4 project integration management final
Pmp – pmbok 5th edition chapter4 project integration management final
Yudha Pratama, PMP

project Scope management
project Scope management project Scope management
project Scope management
Mohamed , PMP

Project Scope Management -
Project Scope Management - Project Scope Management -
Project Scope Management -
dyaksa hanindito

Episode 21 : Project Scope Management
Episode 21 :  Project Scope ManagementEpisode 21 :  Project Scope Management
Episode 21 : Project Scope Management
SAJJAD KHUDHUR ABBAS

Scope Management
Scope ManagementScope Management
Scope Management
Dr. Hosam AbouElDahab

PMBOK 5th Edition - Chapter 6 PROJECT TIME MANAGEMENT Summary
PMBOK 5th Edition - Chapter 6 PROJECT TIME MANAGEMENT SummaryPMBOK 5th Edition - Chapter 6 PROJECT TIME MANAGEMENT Summary
PMBOK 5th Edition - Chapter 6 PROJECT TIME MANAGEMENT SummaryYudha Pratama, PMP

Project Quality Management - PMBOK 5th Edition
Project Quality Management - PMBOK 5th EditionProject Quality Management - PMBOK 5th Edition
Project Quality Management - PMBOK 5th Edition
pankajsh10

Project communications management (PMBOK 5th Edition)
Project communications management (PMBOK 5th Edition)Project communications management (PMBOK 5th Edition)
Project communications management (PMBOK 5th Edition)
pankajsh10

Project Time Management - PMBOK 5th Edition
Project  Time Management - PMBOK 5th EditionProject  Time Management - PMBOK 5th Edition
Project Time Management - PMBOK 5th Edition
pankajsh10

Pmp – pmbok 5th edition chapter7 project cost management
Pmp – pmbok 5th edition chapter7 project cost managementPmp – pmbok 5th edition chapter7 project cost management
Pmp – pmbok 5th edition chapter7 project cost management
Yudha Pratama, PMP

People CMM
People CMMPeople CMM
People CMM
QAI

A Knowledge Based Approach to Learning
A Knowledge Based Approach to LearningA Knowledge Based Approach to Learning
A Knowledge Based Approach to Learning
Cory Banks

Part1: Introduction to Project Management
Part1: Introduction to Project ManagementPart1: Introduction to Project Management
Part1: Introduction to Project Management
Arry Arman

Agile implementation at make mytrip
Agile implementation at make mytripAgile implementation at make mytrip
Agile implementation at make mytrip
India Scrum Enthusiasts Community


Viewers also liked (20)

PMP Chap 5 - Project Scope Management - Part1
PMP Chap 5 - Project Scope Management - Part1PMP Chap 5 - Project Scope Management - Part1
PMP Chap 5 - Project Scope Management - Part1

Project Scope Management - PMBOK 5th Edition
Project Scope Management - PMBOK 5th EditionProject Scope Management - PMBOK 5th Edition
Project Scope Management - PMBOK 5th Edition

Project Scope Management,PMP Chapter 5,PMBOK,PMP Exam Preparation training
Project Scope Management,PMP Chapter 5,PMBOK,PMP Exam Preparation trainingProject Scope Management,PMP Chapter 5,PMBOK,PMP Exam Preparation training
Project Scope Management,PMP Chapter 5,PMBOK,PMP Exam Preparation training

Pmbok 4th edition chapter 5 - Project Scope Management
Pmbok 4th edition   chapter 5 - Project Scope Management Pmbok 4th edition   chapter 5 - Project Scope Management
Pmbok 4th edition chapter 5 - Project Scope Management

PMP Training - 05 project scope management
PMP Training - 05 project scope managementPMP Training - 05 project scope management
PMP Training - 05 project scope management

Pmp – pmbok 5th edition chapter4 project integration management final
Pmp – pmbok 5th edition chapter4 project integration management finalPmp – pmbok 5th edition chapter4 project integration management final
Pmp – pmbok 5th edition chapter4 project integration management final

project Scope management
project Scope management project Scope management
project Scope management

Project Scope Management -
Project Scope Management - Project Scope Management -
Project Scope Management -

Episode 21 : Project Scope Management
Episode 21 :  Project Scope ManagementEpisode 21 :  Project Scope Management
Episode 21 : Project Scope Management

Scope Management
Scope ManagementScope Management
Scope Management

PMBOK 5th Edition - Chapter 6 PROJECT TIME MANAGEMENT Summary
PMBOK 5th Edition - Chapter 6 PROJECT TIME MANAGEMENT SummaryPMBOK 5th Edition - Chapter 6 PROJECT TIME MANAGEMENT Summary
PMBOK 5th Edition - Chapter 6 PROJECT TIME MANAGEMENT Summary

Project Quality Management - PMBOK 5th Edition
Project Quality Management - PMBOK 5th EditionProject Quality Management - PMBOK 5th Edition
Project Quality Management - PMBOK 5th Edition

Project communications management (PMBOK 5th Edition)
Project communications management (PMBOK 5th Edition)Project communications management (PMBOK 5th Edition)
Project communications management (PMBOK 5th Edition)

Project Time Management - PMBOK 5th Edition
Project  Time Management - PMBOK 5th EditionProject  Time Management - PMBOK 5th Edition
Project Time Management - PMBOK 5th Edition

Pmp – pmbok 5th edition chapter7 project cost management
Pmp – pmbok 5th edition chapter7 project cost managementPmp – pmbok 5th edition chapter7 project cost management
Pmp – pmbok 5th edition chapter7 project cost management

People CMM
People CMMPeople CMM
People CMM

Project Time management
Project Time managementProject Time management
Project Time management

A Knowledge Based Approach to Learning
A Knowledge Based Approach to LearningA Knowledge Based Approach to Learning
A Knowledge Based Approach to Learning

Part1: Introduction to Project Management
Part1: Introduction to Project ManagementPart1: Introduction to Project Management
Part1: Introduction to Project Management

Agile implementation at make mytrip
Agile implementation at make mytripAgile implementation at make mytrip
Agile implementation at make mytrip


Similar to PMP PMBok 5th ch 5 scope management

projectscopemanagement1-140220062122-phpapp01 (1).pdf
projectscopemanagement1-140220062122-phpapp01 (1).pdfprojectscopemanagement1-140220062122-phpapp01 (1).pdf
projectscopemanagement1-140220062122-phpapp01 (1).pdf
AbdiqadirOsman

2. Project Scope Management.ppt
2. Project Scope Management.ppt2. Project Scope Management.ppt
2. Project Scope Management.ppt
MohamadAGhareb

PMP-Scope Management area
PMP-Scope Management areaPMP-Scope Management area
PMP-Scope Management area
Zaur Ahmadov, PMP

Project Formulation and Management - Project Scope Management
Project Formulation and Management - Project Scope ManagementProject Formulation and Management - Project Scope Management
Project Formulation and Management - Project Scope Management
Hrishikesh Satpute

2013 Project Management Institute. A Guide To The Project Management Body Of ...
2013 Project Management Institute. A Guide To The Project Management Body Of ...2013 Project Management Institute. A Guide To The Project Management Body Of ...
2013 Project Management Institute. A Guide To The Project Management Body Of ...
Arlene Smith

3&4. project scope management at project.ppt
3&4. project scope management at project.ppt3&4. project scope management at project.ppt
3&4. project scope management at project.ppt
GoharSaeed6

04 projectintegrationmanagement
04 projectintegrationmanagement04 projectintegrationmanagement
04 projectintegrationmanagement
Dhamo daran

PMBOK 5th Planning Process Group Part One
PMBOK 5th Planning Process Group Part OnePMBOK 5th Planning Process Group Part One
PMBOK 5th Planning Process Group Part One
Hossam Maghrabi

Project scope management and planning
Project scope management and planningProject scope management and planning
Project scope management and planning
Abubeker mukemil

1. project integration management
1. project integration management1. project integration management
1. project integration management
Mohamed Salah Eldien Mohamed Ali

PMP Prep Handout_Integration
PMP Prep Handout_IntegrationPMP Prep Handout_Integration
PMP Prep Handout_Integration
Ali Forouzesh PMP,PfMP,OPM3cc

Online PMP Training Material for PMP Exam - Scope Management Knowledge Area
Online PMP Training Material for PMP Exam - Scope Management Knowledge AreaOnline PMP Training Material for PMP Exam - Scope Management Knowledge Area
Online PMP Training Material for PMP Exam - Scope Management Knowledge Area
GlobalSkillup

2. project scope management
2. project scope management2. project scope management
2. project scope management
Mohamed Salah Eldien Mohamed Ali

Enfoucs Requirement Suite™
Enfoucs Requirement Suite™Enfoucs Requirement Suite™
Enfoucs Requirement Suite™
Enfocus Solutions Inc.

04 projectintegrationmanagement
04 projectintegrationmanagement04 projectintegrationmanagement
04 projectintegrationmanagement
Dhamo daran

Requirementsdevelopment 120207165817-phpapp02
Requirementsdevelopment 120207165817-phpapp02Requirementsdevelopment 120207165817-phpapp02
Requirementsdevelopment 120207165817-phpapp02Oginni Olumide

CAPM Exam preparation - series 1
CAPM Exam preparation - series 1CAPM Exam preparation - series 1
CAPM Exam preparation - series 1
Toe Myint Naing


Similar to PMP PMBok 5th ch 5 scope management (20)

Project scope management 1
Project scope management 1Project scope management 1
Project scope management 1

projectscopemanagement1-140220062122-phpapp01 (1).pdf
projectscopemanagement1-140220062122-phpapp01 (1).pdfprojectscopemanagement1-140220062122-phpapp01 (1).pdf
projectscopemanagement1-140220062122-phpapp01 (1).pdf

2. Project Scope Management.ppt
2. Project Scope Management.ppt2. Project Scope Management.ppt
2. Project Scope Management.ppt

PMP-Scope Management area
PMP-Scope Management areaPMP-Scope Management area
PMP-Scope Management area

Project Formulation and Management - Project Scope Management
Project Formulation and Management - Project Scope ManagementProject Formulation and Management - Project Scope Management
Project Formulation and Management - Project Scope Management

05 project scope management
05 project scope management05 project scope management
05 project scope management

2013 Project Management Institute. A Guide To The Project Management Body Of ...
2013 Project Management Institute. A Guide To The Project Management Body Of ...2013 Project Management Institute. A Guide To The Project Management Body Of ...
2013 Project Management Institute. A Guide To The Project Management Body Of ...

3&4. project scope management at project.ppt
3&4. project scope management at project.ppt3&4. project scope management at project.ppt
3&4. project scope management at project.ppt

04 projectintegrationmanagement
04 projectintegrationmanagement04 projectintegrationmanagement
04 projectintegrationmanagement

PMBOK 5th Planning Process Group Part One
PMBOK 5th Planning Process Group Part OnePMBOK 5th Planning Process Group Part One
PMBOK 5th Planning Process Group Part One

Project scope management and planning
Project scope management and planningProject scope management and planning
Project scope management and planning

1. project integration management
1. project integration management1. project integration management
1. project integration management

PMP Prep Handout_Integration
PMP Prep Handout_IntegrationPMP Prep Handout_Integration
PMP Prep Handout_Integration

Online PMP Training Material for PMP Exam - Scope Management Knowledge Area
Online PMP Training Material for PMP Exam - Scope Management Knowledge AreaOnline PMP Training Material for PMP Exam - Scope Management Knowledge Area
Online PMP Training Material for PMP Exam - Scope Management Knowledge Area

2. project scope management
2. project scope management2. project scope management
2. project scope management

Enfoucs Requirement Suite™
Enfoucs Requirement Suite™Enfoucs Requirement Suite™
Enfoucs Requirement Suite™

04 projectintegrationmanagement
04 projectintegrationmanagement04 projectintegrationmanagement
04 projectintegrationmanagement

Requirementsdevelopment 120207165817-phpapp02
Requirementsdevelopment 120207165817-phpapp02Requirementsdevelopment 120207165817-phpapp02
Requirementsdevelopment 120207165817-phpapp02

PMP PMBOK5 Ch4 integration management
PMP PMBOK5 Ch4 integration managementPMP PMBOK5 Ch4 integration management
PMP PMBOK5 Ch4 integration management

CAPM Exam preparation - series 1
CAPM Exam preparation - series 1CAPM Exam preparation - series 1
CAPM Exam preparation - series 1


More from Abdullah Ahmed, PMP, RMP

Sr. Planning Engineer/ Lead Planner resume
Sr. Planning Engineer/ Lead Planner resume Sr. Planning Engineer/ Lead Planner resume
Sr. Planning Engineer/ Lead Planner resume
Abdullah Ahmed, PMP, RMP

Float paths
Float pathsFloat paths
EDIT-ADD WBS FOR ORACLE PRIMAVERA P6® USING NOTEPAD`& MS EXCEL
EDIT-ADD WBS FOR ORACLE PRIMAVERA P6® USING NOTEPAD`& MS EXCELEDIT-ADD WBS FOR ORACLE PRIMAVERA P6® USING NOTEPAD`& MS EXCEL
EDIT-ADD WBS FOR ORACLE PRIMAVERA P6® USING NOTEPAD`& MS EXCEL
Abdullah Ahmed, PMP, RMP

Strategic Planning first entry - that everybody should know
Strategic Planning first entry - that everybody should knowStrategic Planning first entry - that everybody should know
Strategic Planning first entry - that everybody should know
Abdullah Ahmed, PMP, RMP

Organizational Risk Management
Organizational Risk Management Organizational Risk Management
Organizational Risk Management
Abdullah Ahmed, PMP, RMP

Pm study project risk management test
Pm study project  risk management testPm study project  risk management test
Pm study project risk management test
Abdullah Ahmed, PMP, RMP

Q+&+as+
Q+&+as+Q+&+as+
RMP risk management-final exam
RMP risk management-final examRMP risk management-final exam
RMP risk management-final exam
Abdullah Ahmed, PMP, RMP

Self test engine PSP-PMI-SP
Self test engine PSP-PMI-SPSelf test engine PSP-PMI-SP
Self test engine PSP-PMI-SP
Abdullah Ahmed, PMP, RMP

PMP PMBOK 5th Ch 11 Project Risk Management
PMP PMBOK 5th Ch 11 Project Risk ManagementPMP PMBOK 5th Ch 11 Project Risk Management
PMP PMBOK 5th Ch 11 Project Risk Management
Abdullah Ahmed, PMP, RMP

Pmi rmp
Pmi rmpPmi rmp
PMI-RMP a test mod 00
PMI-RMP a test  mod 00PMI-RMP a test  mod 00
PMI-RMP a test mod 00
Abdullah Ahmed, PMP, RMP

PMP PMBOK 5TH Ch 6 time management
PMP PMBOK 5TH Ch 6 time managementPMP PMBOK 5TH Ch 6 time management
PMP PMBOK 5TH Ch 6 time management
Abdullah Ahmed, PMP, RMP

ENGINEERING CONTRACTS العقود الهندسية
  ENGINEERING CONTRACTS العقود الهندسية  ENGINEERING CONTRACTS العقود الهندسية
ENGINEERING CONTRACTS العقود الهندسيةAbdullah Ahmed, PMP, RMP

PMP PMbok 5th CH1 - CH2
PMP PMbok 5th CH1 - CH2PMP PMbok 5th CH1 - CH2
PMP PMbok 5th CH1 - CH2
Abdullah Ahmed, PMP, RMP

PMP PMBok 5th Project management processes
PMP PMBok 5th Project management processesPMP PMBok 5th Project management processes
PMP PMBok 5th Project management processesAbdullah Ahmed, PMP, RMP


More from Abdullah Ahmed, PMP, RMP (18)

Sr. Planning Engineer/ Lead Planner resume
Sr. Planning Engineer/ Lead Planner resume Sr. Planning Engineer/ Lead Planner resume
Sr. Planning Engineer/ Lead Planner resume

Float paths
Float pathsFloat paths
Float paths

EDIT-ADD WBS FOR ORACLE PRIMAVERA P6® USING NOTEPAD`& MS EXCEL
EDIT-ADD WBS FOR ORACLE PRIMAVERA P6® USING NOTEPAD`& MS EXCELEDIT-ADD WBS FOR ORACLE PRIMAVERA P6® USING NOTEPAD`& MS EXCEL
EDIT-ADD WBS FOR ORACLE PRIMAVERA P6® USING NOTEPAD`& MS EXCEL

Strategic Planning first entry - that everybody should know
Strategic Planning first entry - that everybody should knowStrategic Planning first entry - that everybody should know
Strategic Planning first entry - that everybody should know

Organizational Risk Management
Organizational Risk Management Organizational Risk Management
Organizational Risk Management

Pm study project risk management test
Pm study project  risk management testPm study project  risk management test
Pm study project risk management test

Q+&+as+
Q+&+as+Q+&+as+
Q+&+as+

RMP risk management-final exam
RMP risk management-final examRMP risk management-final exam
RMP risk management-final exam

Self test engine PSP-PMI-SP
Self test engine PSP-PMI-SPSelf test engine PSP-PMI-SP
Self test engine PSP-PMI-SP

PMP PMBOK 5th Ch 11 Project Risk Management
PMP PMBOK 5th Ch 11 Project Risk ManagementPMP PMBOK 5th Ch 11 Project Risk Management
PMP PMBOK 5th Ch 11 Project Risk Management

Pmi rmp
Pmi rmpPmi rmp
Pmi rmp

PMI-RMP a test mod 00
PMI-RMP a test  mod 00PMI-RMP a test  mod 00
PMI-RMP a test mod 00

PMP PMBOK 5TH Ch 6 time management
PMP PMBOK 5TH Ch 6 time managementPMP PMBOK 5TH Ch 6 time management
PMP PMBOK 5TH Ch 6 time management

ENGINEERING CONTRACTS العقود الهندسية
  ENGINEERING CONTRACTS العقود الهندسية  ENGINEERING CONTRACTS العقود الهندسية
ENGINEERING CONTRACTS العقود الهندسية

PMP PMBOK5 project management processes
PMP PMBOK5 project management processesPMP PMBOK5 project management processes
PMP PMBOK5 project management processes

PMP PMbok 5th CH1 - CH2
PMP PMbok 5th CH1 - CH2PMP PMbok 5th CH1 - CH2
PMP PMbok 5th CH1 - CH2

PMP PMBok 5th Project management processes
PMP PMBok 5th Project management processesPMP PMBok 5th Project management processes
PMP PMBok 5th Project management processes

Ch1 ch2
Ch1 ch2Ch1 ch2
Ch1 ch2


Recently uploaded

Cracking the Workplace Discipline Code Main.pptx
Cracking the Workplace Discipline Code Main.pptxCracking the Workplace Discipline Code Main.pptx
Cracking the Workplace Discipline Code Main.pptx
Workforce Group

The-McKinsey-7S-Framework. strategic management
The-McKinsey-7S-Framework. strategic managementThe-McKinsey-7S-Framework. strategic management
The-McKinsey-7S-Framework. strategic management
Bojamma2

Improving profitability for small business
Improving profitability for small businessImproving profitability for small business
Improving profitability for small business
Ben Wann

3.0 Project 2_ Developing My Brand Identity Kit.pptx
3.0 Project 2_ Developing My Brand Identity Kit.pptx3.0 Project 2_ Developing My Brand Identity Kit.pptx
3.0 Project 2_ Developing My Brand Identity Kit.pptx
tanyjahb

Project File Report BBA 6th semester.pdf
Project File Report BBA 6th semester.pdfProject File Report BBA 6th semester.pdf
Project File Report BBA 6th semester.pdf
RajPriye

Business Valuation Principles for Entrepreneurs
Business Valuation Principles for EntrepreneursBusiness Valuation Principles for Entrepreneurs
Business Valuation Principles for Entrepreneurs
Ben Wann

amptalk_RecruitingDeck_english_2024.06.05
amptalk_RecruitingDeck_english_2024.06.05amptalk_RecruitingDeck_english_2024.06.05
amptalk_RecruitingDeck_english_2024.06.05
marketing317746

falcon-invoice-discounting-a-premier-platform-for-investors-in-india
falcon-invoice-discounting-a-premier-platform-for-investors-in-indiafalcon-invoice-discounting-a-premier-platform-for-investors-in-india
falcon-invoice-discounting-a-premier-platform-for-investors-in-india
Falcon Invoice Discounting

Affordable Stationery Printing Services in Jaipur | Navpack n Print
Affordable Stationery Printing Services in Jaipur | Navpack n PrintAffordable Stationery Printing Services in Jaipur | Navpack n Print
Affordable Stationery Printing Services in Jaipur | Navpack n Print
Navpack & Print

Unveiling the Secrets How Does Generative AI Work.pdf
Unveiling the Secrets How Does Generative AI Work.pdfUnveiling the Secrets How Does Generative AI Work.pdf
Unveiling the Secrets How Does Generative AI Work.pdf
Sam H

5 Things You Need To Know Before Hiring a Videographer
5 Things You Need To Know Before Hiring a Videographer5 Things You Need To Know Before Hiring a Videographer
5 Things You Need To Know Before Hiring a Videographer
ofm712785

Attending a job Interview for B1 and B2 Englsih learners
Attending a job Interview for B1 and B2 Englsih learnersAttending a job Interview for B1 and B2 Englsih learners
Attending a job Interview for B1 and B2 Englsih learners
Erika906060

The Influence of Marketing Strategy and Market Competition on Business Perfor...
The Influence of Marketing Strategy and Market Competition on Business Perfor...The Influence of Marketing Strategy and Market Competition on Business Perfor...
The Influence of Marketing Strategy and Market Competition on Business Perfor...
Adam Smith

April 2024 Nostalgia Products Newsletter
April 2024 Nostalgia Products NewsletterApril 2024 Nostalgia Products Newsletter
April 2024 Nostalgia Products Newsletter
NathanBaughman3

20240425_ TJ Communications Credentials_compressed.pdf
20240425_ TJ Communications Credentials_compressed.pdf20240425_ TJ Communications Credentials_compressed.pdf
20240425_ TJ Communications Credentials_compressed.pdf
tjcomstrang

Exploring Patterns of Connection with Social Dreaming
Exploring Patterns of Connection with Social DreamingExploring Patterns of Connection with Social Dreaming
Exploring Patterns of Connection with Social Dreaming
Nicola Wreford-Howard

Putting the SPARK into Virtual Training.pptx
Putting the SPARK into Virtual Training.pptxPutting the SPARK into Virtual Training.pptx
Putting the SPARK into Virtual Training.pptx
Cynthia Clay

Enterprise Excellence is Inclusive Excellence.pdf
Enterprise Excellence is Inclusive Excellence.pdfEnterprise Excellence is Inclusive Excellence.pdf
Enterprise Excellence is Inclusive Excellence.pdf
KaiNexus

Memorandum Of Association Constitution of Company.ppt
Memorandum Of Association Constitution of Company.pptMemorandum Of Association Constitution of Company.ppt
Memorandum Of Association Constitution of Company.ppt
seri bangash

Tata Group Dials Taiwan for Its Chipmaking Ambition in Gujarat’s Dholera
Tata Group Dials Taiwan for Its Chipmaking Ambition in Gujarat’s DholeraTata Group Dials Taiwan for Its Chipmaking Ambition in Gujarat’s Dholera
Tata Group Dials Taiwan for Its Chipmaking Ambition in Gujarat’s Dholera
Avirahi City Dholera


Recently uploaded (20)

Cracking the Workplace Discipline Code Main.pptx
Cracking the Workplace Discipline Code Main.pptxCracking the Workplace Discipline Code Main.pptx
Cracking the Workplace Discipline Code Main.pptx

The-McKinsey-7S-Framework. strategic management
The-McKinsey-7S-Framework. strategic managementThe-McKinsey-7S-Framework. strategic management
The-McKinsey-7S-Framework. strategic management

Improving profitability for small business
Improving profitability for small businessImproving profitability for small business
Improving profitability for small business

3.0 Project 2_ Developing My Brand Identity Kit.pptx
3.0 Project 2_ Developing My Brand Identity Kit.pptx3.0 Project 2_ Developing My Brand Identity Kit.pptx
3.0 Project 2_ Developing My Brand Identity Kit.pptx

Project File Report BBA 6th semester.pdf
Project File Report BBA 6th semester.pdfProject File Report BBA 6th semester.pdf
Project File Report BBA 6th semester.pdf

Business Valuation Principles for Entrepreneurs
Business Valuation Principles for EntrepreneursBusiness Valuation Principles for Entrepreneurs
Business Valuation Principles for Entrepreneurs

amptalk_RecruitingDeck_english_2024.06.05
amptalk_RecruitingDeck_english_2024.06.05amptalk_RecruitingDeck_english_2024.06.05
amptalk_RecruitingDeck_english_2024.06.05

falcon-invoice-discounting-a-premier-platform-for-investors-in-india
falcon-invoice-discounting-a-premier-platform-for-investors-in-indiafalcon-invoice-discounting-a-premier-platform-for-investors-in-india
falcon-invoice-discounting-a-premier-platform-for-investors-in-india

Affordable Stationery Printing Services in Jaipur | Navpack n Print
Affordable Stationery Printing Services in Jaipur | Navpack n PrintAffordable Stationery Printing Services in Jaipur | Navpack n Print
Affordable Stationery Printing Services in Jaipur | Navpack n Print

Unveiling the Secrets How Does Generative AI Work.pdf
Unveiling the Secrets How Does Generative AI Work.pdfUnveiling the Secrets How Does Generative AI Work.pdf
Unveiling the Secrets How Does Generative AI Work.pdf

5 Things You Need To Know Before Hiring a Videographer
5 Things You Need To Know Before Hiring a Videographer5 Things You Need To Know Before Hiring a Videographer
5 Things You Need To Know Before Hiring a Videographer

Attending a job Interview for B1 and B2 Englsih learners
Attending a job Interview for B1 and B2 Englsih learnersAttending a job Interview for B1 and B2 Englsih learners
Attending a job Interview for B1 and B2 Englsih learners

The Influence of Marketing Strategy and Market Competition on Business Perfor...
The Influence of Marketing Strategy and Market Competition on Business Perfor...The Influence of Marketing Strategy and Market Competition on Business Perfor...
The Influence of Marketing Strategy and Market Competition on Business Perfor...

April 2024 Nostalgia Products Newsletter
April 2024 Nostalgia Products NewsletterApril 2024 Nostalgia Products Newsletter
April 2024 Nostalgia Products Newsletter

20240425_ TJ Communications Credentials_compressed.pdf
20240425_ TJ Communications Credentials_compressed.pdf20240425_ TJ Communications Credentials_compressed.pdf
20240425_ TJ Communications Credentials_compressed.pdf

Exploring Patterns of Connection with Social Dreaming
Exploring Patterns of Connection with Social DreamingExploring Patterns of Connection with Social Dreaming
Exploring Patterns of Connection with Social Dreaming

Putting the SPARK into Virtual Training.pptx
Putting the SPARK into Virtual Training.pptxPutting the SPARK into Virtual Training.pptx
Putting the SPARK into Virtual Training.pptx

Enterprise Excellence is Inclusive Excellence.pdf
Enterprise Excellence is Inclusive Excellence.pdfEnterprise Excellence is Inclusive Excellence.pdf
Enterprise Excellence is Inclusive Excellence.pdf

Memorandum Of Association Constitution of Company.ppt
Memorandum Of Association Constitution of Company.pptMemorandum Of Association Constitution of Company.ppt
Memorandum Of Association Constitution of Company.ppt

Tata Group Dials Taiwan for Its Chipmaking Ambition in Gujarat’s Dholera
Tata Group Dials Taiwan for Its Chipmaking Ambition in Gujarat’s DholeraTata Group Dials Taiwan for Its Chipmaking Ambition in Gujarat’s Dholera
Tata Group Dials Taiwan for Its Chipmaking Ambition in Gujarat’s Dholera


PMP PMBok 5th ch 5 scope management

  • 2. Course Instructor:  Abdullah Ahmed Al-Khadrawy.  BSc. Civil Engineering 2006 (V.Good HD).  Graduation Project (Project Management) 2006.(Excellent graded)  Certified from Primavera Inc. ® : Advanced user for Primavera P6 (2008).  Certified from Primavera Inc. ® : Advanced user for primavera Contract Manager 12 (2009).  Attended courses (PMP, CCE, FIDIC, Project Management, Arbitration for Engineering Contracts) [2007-2013]  Certified from PMI ® as PMP ® April2011 mahmed210@gmail.com
  • 3. 5 5 Project Scope Management ensure that the project includes all the work required, and only the work required, to complete the project successfully. Initiating Planning 5.1 Plan Scope Management 5.2 Collect Requirements 5.3 Define Scope 5.4 Create WBS Executing Monitoring and Controlling 5.5 Validate Scope 5.6 Control Scope Closing
  • 4. Product Scope & Project Scope • Product scope. The features and functions that characterize a product, service, or result; and/or • Project scope. The work performed to deliver a product, service, or result with the specified features and functions. • The term project scope is sometimes viewed as including product scope.
  • 5. 5.1 Plan Scope Management Planning creating a scope management plan that documents how the project scope will be defined, validated, and controlled. .1 Project management plan .1 Expert judgment .2 Project charter .3 Enterprise environmental factors .2 Meetings .4 Organizational process assets .1 Scope management plan .2 Requirements management plan
  • 6. 5.1 Plan Scope Management:- Inputs 1. Project management plan 2. Project charter 3. Enterprise environmental factors 4. Organizational process assets
  • 7. 5.1 Plan Scope Management:- Inputs 2. Project charter • It provides the high-level project description and product characteristics from the project statement of work.
  • 8. 5.1 Plan Scope Management:- Inputs 4. Enterprise environmental factors • Organization’s culture, Infrastructure, • Personnel administration, and • Marketplace conditions. 5. Organizational process assets • Policies and procedures, • Historical information and lessons learned knowledge base
  • 9. 5.1 Plan Scope Management:- Tools and Techniques:- 1. Expert jugement 2. Meetings
  • 10. 5.1 Plan Scope Management:- Tools and Techniques:- 1. Expert jugement • Expert judgment refers to input received from knowledgeable and experienced parties. Expertise may be provided by any group or person with specialized education, knowledge, skill, experience, or training in developing scope management plans.
  • 11. 5.1 Plan Scope Management:- Tools and Techniques:2. Meetings  The project manager,  The project sponsor,  Selected project team members,  Selected stakeholders,  Anyone with responsibility for any of the scope management processes, and others as needed.
  • 12. 5.1 Plan Scope Management 1. Scope management plan 2. Requirements management plan Outputs
  • 13. 5.1 Plan Scope Management Outputs 1. Scope management plan  The scope management plan is a component of the project or program management plan that describes how the scope will be defined, developed, monitored, controlled, and verified.,  The components of a scope management plan include: • Process for preparing a detailed project scope statement; • Process that enables the creation of the WBS from the detailed project scope statement; • Process that establishes how the WBS will be maintained and approved; • Process that specifies how formal acceptance of the completed project deliverables will be obtained; • Process to control how requests for changes to the detailed project scope statement will be processed. This process is directly linked to the Perform Integrated Change Control process (Section 4.5).  The scope management plan can be formal or informal, broadly framed or highly detailed, based on the needs of the project
  • 14. 5.1 Plan Scope Management Outputs 2. Requirements management plan  The phase-to-phase relationship, strongly influences how requirements are managed.  The project manager chooses the most effective relationship for the project and documents this approach in the requirements management plan.,  Components of the requirements management plan can include, but are not limited to: • How requirements activities will be planned, tracked, and reported; • Configuration management activities such as: how changes to the product will be initiated, how impacts will be analyzed, how they will be traced, tracked, and reported, as well as the authorization levels required to approve these changes; • Requirements prioritization process; • Product metrics that will be used and the rationale for using them; and •Traceability structure to reflect which requirement attributes will be captured on the traceability matrix.
  • 15. 5.2 Collect Requirements Planning determining, documenting, and managing stakeholder needs and requirements to meet project objectives. .1 Scope management plan .2 Requirements management plan .3 Stakeholder management plan .4 Project charter .5 Stakeholder register .1 Interviews .2 Focus groups .3 Facilitated workshops .4 Group creativity techniques .5 Group decision-making techniques .6 Questionnaires and surveys .7 Observations .8 Prototypes .9 Benchmarking .10 Context diagrams .11 Document analysis .1 Requirements documentation .2 Requirements traceability matrix
  • 16. Requirements • Unambiguous (measurable and testable). • Traceable, • Complete, • Consistent, • Acceptable to key stakeholders
  • 17. Requirements Classifications  Requirements can be grouped into classifications allowing for further refinement and detail as the requirements are elaborated:  Business requirements, which describe the higher-level needs of the organization as a whole, such as the business issues or opportunities, and reasons why a project has been undertaken.  Stakeholder requirements, which describe needs of a stakeholder or stakeholder group.  Solution requirements, which describe features, functions, and characteristics of the product, service, or result that will meet the business and stakeholder requirements. Solution requirements are further grouped into functional and nonfunctional requirements: • Functional requirements describe the behaviors of the product. Examples include processes, data, and interactions with the product. • Nonfunctional requirements supplement functional requirements and describe the environmental conditions or qualities required for the product to be effective. Examples include: reliability, security, performance, safety, level of service, supportability, retention/purge, etc.  Transition requirements describe temporary capabilities, such as data conversion and training requirements, needed to transition from the current “as-is” state to the future “to-be” state.  Project requirements, which describe the actions, processes, or other conditions the project needs to meet.  Quality requirements, which capture any condition or criteria needed to validate the successful completion of a project deliverable or fulfillment of other project requirements.
  • 18. 5.2 Collect Requirements Inputs 1. Scope management plan 2. Requirements management plan 3. Stakeholder management plan 4. Project charter 5. Stakeholder register
  • 19. 5.2 Collect Requirements:- Tools and Techniques:1. Interviews 2. Focus groups 3. Facilitated workshops 4. Group creativity techniques 5. Group decision-making techniques 6. Questionnaires and surveys 7. Observations 8. Prototypes 9. Benchmarking 10. Context diagrams 11. Document analysis
  • 20. 5.2 Collect Requirements:- Tools and Techniques:1. Interviews • Formal or informal approach to elicit information from stakeholders by talking to them directly. • It is typically performed by asking prepared and spontaneous questions and recording the responses. • Interviews are often conducted on an individual basis between an interviewer and an interviewee, but may involve multiple interviewers and/or multiple interviewees. • Interviewing experienced project participants, sponsors and other executives, and subject matter experts can aid in identifying and defining the features and functions of the desired product deliverables. • Interviews are also useful for obtaining confidential information.
  • 21. 5.2 Collect Requirements:- Tools and Techniques:- 2. Focus groups • Focus groups bring together prequalified stakeholders and subject matter experts to learn about their expectations and attitudes about a proposed product, service, or result. • A trained moderator guides the group through an interactive discussion, designed to be more conversational than a one-on-one interview..
  • 22. 5.2 Collect Requirements:- Tools and Techniques:3. Facilitated workshops • Facilitated workshops are focused sessions that bring key stakeholders together to define product requirements. • Workshops are considered a primary technique for quickly defining cross-functional requirements and reconciling stakeholder differences. • Issues can be discovered earlier and resolved more quickly than in individual sessions. • Joint Application Design/development (JAD), software development industry. Focus on bringing business subject matter experts and the development team together to improve the software development process. • Quality Function Deployment (QFD), the manufacturing industry, helps determine critical characteristics for new product development. QFD starts by collecting customer needs, • also known as voice of the customer (VOC) = QFD •These needs are then objectively sorted and prioritized, and goals are set for achieving them. • User stories describe the stakeholder who benefits from the feature (role), what the stakeholder needs to accomplish (goal), and the benefit to the stakeholder (motivation). User stories are widely used with agile methods. • User stories are widely used with agile methods.
  • 23. 5.2 Collect Requirements:- Tools and Techniques:4. Group creativity techniques • Brainstorming. A technique used to generate and collect multiple ideas related to project and product requirements. Although brainstorming by itself does not include voting or prioritization, it is often used with other group creativity techniques that do. • Nominal group technique. A technique that enhances brainstorming with a voting process used to rank the most useful ideas for further brainstorming or for prioritization. • Idea/mind mapping. A technique in which ideas created through individual brainstorming sessions are consolidated into a single map to reflect commonality and differences in understanding, and generate new ideas. • Affinity diagram. A technique that allows large numbers of ideas to be classified into groups for review and analysis. • Multicriteria decision analysis. A technique that utilizes a decision matrix to provide a systematic analytical approach for establishing criteria, such as risk levels, uncertainty, and valuation, to evaluate and rank many ideas.
  • 24. 5.2 Collect Requirements:- Tools and Techniques:5. Group Decision-Making Techniques • Unanimity. A decision that is reached whereby everyone agrees on a single course of action. One way to reach unanimity is the Delphi technique, in which a selected group of experts answers questionnaires and provides feedback regarding the responses from each round of requirements gathering. The responses are only available to the facilitator to maintain anonymity. • Majority. A decision that is reached with support obtained from more than 50 % of the members of the group. Having a group size with an uneven number of participants can ensure that a decision will be reached, rather than resulting in a tie. • Plurality. A decision that is reached whereby the largest block in a group decides, even if a majority is not achieved. This method is generally used when the number of options nominated is more than two. • Dictatorship. In this method, one individual makes the decision for the group.
  • 25. 5.2 Collect Requirements:- Tools and Techniques:- 6. Questionnaires and surveys •written sets of questions designed to quickly accumulate information from a large number of respondents; e.g. football fans, hotel end users,…,… etc. • Questionnaires and/or surveys are most appropriate with varied audiences, when a quick turnaround is needed, when respondents are geographically dispersed, and where statistical analysis is appropriate.
  • 26. 5.2 Collect Requirements:- Tools and Techniques:- 7. Observations • Provide a direct way of viewing individuals in their environment and how they perform their jobs or tasks and carry out processes. •It is particularly helpful for detailed processes when the people that use the product have difficulty or are reluctant to articulate their requirements. • Observation is also known as “job shadowing.” • It is usually done externally by an observer viewing a business expert performing a job. • It can also be done by a “participant observer” who actually performs a process or procedure to experience how it is done to uncover hidden requirements.
  • 27. 5.2 Collect Requirements:- Tools and Techniques:- 8. Prototypes • Method of obtaining early feedback on requirements by providing a working model of the expected product before actually building it. • Since a prototype is tangible, it allows stakeholders to experiment. • The concept of progressive elaboration in iterative cycles of mock-up creation, user experimentation, feedback generation, and prototype revision (Phases). • After feedback cycles, the requirements obtained are sufficiently complete to move to a design or build phase. • Storyboarding is a prototyping technique showing sequence or navigation through a series of images or illustrations. • Storyboards are used on industries, e.g. film, advertising, instructional design, and on agile and other software development projects. • In software development, storyboards use mock-ups to show navigation paths through webpages, screens, or other user interfaces Storyboarding
  • 28. 5.2 Collect Requirements:- Tools and Techniques:- 9. Benchmarking • Comparing actual or planned practices, such as processes and operations, to those of comparable organizations to identify best practices, generate ideas for improvement, and provide a basis for measuring performance. • The organizations compared during benchmarking can be internal or external.
  • 29. 5.2 Collect Requirements:- Tools and Techniques:- 10. Context Diagrams • Visually depict the product scope by showing a business system (process, equipment, computer system, etc.), and how people and other systems (actors) interact with it. • Show inputs to the business system, the actor(s) providing the input, the outputs from the business system, and the actor(s) receiving the output.
  • 30. 5.2 Collect Requirements:- Tools and Techniques:- 11. Document Analysis • Elicit requirements by analyzing existing documentation and identifying information relevant to the requirements. • E.g.: business plans, marketing literature, agreements, requests for proposal, current process flows, logical data models, business rules repositories, application software documentation, business process or interface documentation, use cases, other requirements documentation, problem/issue logs, policies, procedures, and regulatory documentation such as laws, codes, or ordinances, etc.
  • 31. 5.2 Collect Requirements:1. Requirements documentation 2. Requirements traceability matrix Outputs
  • 32. 5.2 Collect Requirements:- 1. Requirements documentation Outputs  Requirements documentation describes how individual requirements meet the business need for the project.  Components of requirements documentation can include, but, are not limited to:  • • •  • • • Business requirements, including: Business and project objectives for traceability; Business rules for the performing organization; and Guiding principles of the organization. Stakeholder requirements, including: Impacts to other organizational areas; Impacts to other entities inside or outside the performing organization; and Stakeholder communication and reporting requirements.
  • 33. 5.2 Collect Requirements:- 1. Requirements documentation  Outputs Solution requirements, including: • • • • • Functional and nonfunctional requirements; Technology and standard compliance requirements; Support and training requirements; Quality requirements; and Reporting requirements, etc. (solution requirements can be documented textually, in models, or both).  Project requirements, such as:   Transition requirements. Requirements assumptions, dependencies, and constraints.  Levels of service, performance, safety, compliance, etc.; and  Acceptance criteria.
  • 34. 5.2 Collect Requirements:- 2. Requirements traceability matrix     Outputs a grid that links product requirements from their origin to the deliverables that satisfy them. Helps to ensure that each requirement adds business value by linking it to the business and project objectives. It provides a means to track requirements throughout the project life cycle, helping to ensure that requirements are delivered at the end of the project. Attributes for each requirement can be recorded in the requirements traceability matrix
  • 35. 5.2 Collect Requirements:- 2. Requirements traceability matrix Outputs Tracing includes, but is not limited to, tracing requirements for the following:  Business needs, opportunities, goals, and objectives; Project objectives;  Project scope/WBS deliverables;  Product design;  Product development;  Test strategy and test scenarios;  High-level requirements to more detailed requirements.
  • 36. 5.2 Collect Requirements:- 2. Requirements traceability matrix Outputs Requirements Traceability Matrix Programs Project Name: Portfolios Cost Center: Project Description: ID Associate ID 1.0 001 1.1 1.2 1.2.1 2.0 002 2.1 2.1.1 3.0 003 3.1 3.2 004 4.0 005 5.0 Requirements Description Business Needs, Opportunities, Goals, Objectives Project Objectives WBS Deliverables Product Design Product Development Test Cases
  • 37. 5.3 Define Scope Planning developing a detailed description of the project and product, describes the project, service, or result boundaries by defining which of the requirements collected will be included in and excluded from the project scope .1 Scope management plan .2 Project charter .3 Requirements documentation .4 Organizational process assets .1 Expert judgment .2 Product analysis .3 Alternatives generation .4 Facilitated workshops .1 Project scope statement .2 Project documents updates
  • 38. 5.3 Define Scope Inputs 1. Scope management plan 2. Project charter 3. Requirements documentation 4. Organizational process assets
  • 39. 5.3 Define Scope Inputs 4. Organizational process assets • Policies, procedures, and templates for a project scope statement; • Project files from previous projects; and •Lessons learned from previous phases or projects
  • 40. 5.3 Define Scope:- Tools and Techniques:1. Expert judgment 2. Product analysis 3. Alternatives generation 4. Facilitated workshops
  • 41. 5.3 Define Scope:- Tools and Techniques:1. Expert jugement Other units within the organization; Consultants; • Stakeholders, including customers or sponsors; • Professional and technical associations; Industry groups; and • Subject matter experts.
  • 42. 5.3 Define Scope:- Tools and Techniques:2. Product analysis For projects that have a product as a deliverable, as opposed to a service or result, product analysis can be an effective tool. • Translating high-level product descriptions into tangible deliverables. value engineering • Product analysis includes techniques such as product breakdown, systems analysis, requirements analysis, systems engineering, value engineering, and value analysis. systems engineering
  • 43. 5.3 Define Scope:- Tools and Techniques:4. Facilitated workshops • Facilitated workshops are focused sessions that bring key stakeholders together to define product requirements. • Workshops are considered a primary technique for quickly defining cross-functional requirements and reconciling stakeholder differences. • Issues can be discovered earlier and resolved more quickly than in individual sessions. • Joint Application Design/development (JAD), software development industry. Focus on bringing business subject matter experts and the development team together to improve the software development process. • Quality Function Deployment (QFD), the manufacturing industry, helps determine critical characteristics for new product development. QFD starts by collecting customer needs, • also known as voice of the customer (VOC) = QFD •These needs are then objectively sorted and prioritized, and goals are set for achieving them. • User stories describe the stakeholder who benefits from the feature (role), what the stakeholder needs to accomplish (goal), and the benefit to the stakeholder (motivation). User stories are widely used with agile methods. • User stories are widely used with agile methods.
  • 44. 5.3 Define Scope Outputs 1. Project scope statement 2. Project documents updates
  • 45. 5.3 Define Scope Outputs 1. Project scope statement • The description of the project scope, major deliverables, assumptions, and constraints. • Documents the entire scope, including project and product scope. • It also provides a common understanding of the project scope among project stakeholders.
  • 46. 5.3 Define Scope Outputs 1. Project scope statement • Product scope description. Progressively elaborates the characteristics of the product, service, or result described in the project charter and requirements documentation. • Acceptance criteria. A set of conditions that is required to be met before deliverables are accepted. • Deliverable. Any unique and verifiable product, result, or capability to perform a service that is required to be produced to complete a process, phase, or project. Deliverables also include ancillary results, such as project management reports and documentation. These deliverables may be described at a summary level or in great detail. • Project exclusion. Generally identifies what is excluded from the project. Explicitly stating what is out of scope for the project helps to manage stakeholders’ expectations.
  • 47. 5.3 Define Scope Outputs 1. Project scope statement • Constraints. A limiting factor that affects the execution of a project or process . Constraints identified with the project scope statement list and describe the specific internal or external restrictions or limitations associated with the project scope that affect the execution of the project, for example, a predefined budget or any imposed dates or schedule milestones that are issued by the customer or performing organization. When a project is performed under an agreement, contractual provisions will be constraints. • Assumptions. A factor in the planning process that is considered to be true, real, or certain, without proof or demonstration. Also describes the potential impact of those factors if they prove to be false. Constraints
  • 48. 5.3 Define Scope 1. Project scope statement Outputs
  • 49. 5.3 Define Scope Outputs 2. Project documents updates • Stakeholder register, • Requirements documentation, and • Requirements traceability matrix.
  • 50. 5.4 Create WBS Planning subdividing project deliverables and project work into smaller, more manageable components. .1 Scope management plan .2 Project scope statement .3 Requirements documentation .4 Enterprise environmental factors .5 Organizational process assets .1 Decomposition .2 Expert judgment .1 Scope baseline .2 Project documents updates
  • 51. WBS
  • 52. 5.4 Create WBS Inputs 1. Scope management plan 2. Project scope statement 3. Requirements documentation 4. Enterprise environmental factors 5. Organizational process assets
  • 53. 5.4 Create WBS Inputs 4. Enterprise environmental factors • Industry-specific WBS standards, relevant to the nature of the project, • For example, engineering projects may reference ISO/IEC15288 on Systems Engineering – System Life Cycle Processes, to create a WBS for a new project. 5. Organizational process assets • Policies, procedures, and templates for the WBS; • Project files from previous projects; • Lessons learned from previous projects.
  • 54. 5.4 Create WBS:- Tools and Techniques:1. Decomposition 2. Expert judgment
  • 55. 5.4 Create WBS:- Tools and Techniques:1. Decomposition
  • 56. 5.4 Create WBS:- Tools and Techniques:1. Decomposition Sample WBS Organized by Phase
  • 57. 5.4 Create WBS:- Tools and Techniques:1. Decomposition Sample WBS with Major Deliverables
  • 58. 5.4 Create WBS:- Tools and Techniques:1. Decomposition • Identifying and analyzing the deliverables and related work; • Structuring and organizing the WBS; • Decomposing the upper WBS levels into lower-level detailed components; •Developing and assigning identification codes to the WBS components; and •Verifying that the degree of decomposition of the deliverables is appropriate.
  • 59. 5.4 Create WBS Outputs 1. Scope baseline 2. Project documents updates
  • 60. 5.4 Create WBS 1. Scope baseline Outputs Scope baseline Project scope statement WBS WBS dictionary
  • 61. 5.4 Create WBS Outputs 1. Scope baseline • The project scope statement includes the description of the project scope, major deliverables, assumptions, and constraints.
  • 62. 5.4 Create WBS 1. Scope baseline • WBS Outputs
  • 63. 5.4 Create WBS 1. Scope baseline • WBS dictionary Outputs
  • 64. 5.4 Create WBS Outputs 1. Scope baseline  Information in the WBS dictionary may include, but is not limited to: • Code of account identifier, Description of work • Schedule milestones, Associated schedule activities • Assumptions and constraints Responsible organization • Resources required Technical references, and • Quality requirements, Acceptance criteria • Cost estimates, Agreement information
  • 65. 5.5 Validate Scope Monitoring&Controlling formalizing acceptance of the completed project deliverables .1 Project management plan .2 Requirements documentation .3 Requirements traceability matrix .4 Verified deliverables .5 Work performance data .1 Inspection .2 Group decision-making techniques .1 Accepted deliverables .2 Change requests .3 Work performance information .4 Project documents updates
  • 66. Validate Scope VS. Control Quality • The verified deliverables obtained from the Control Quality process are reviewed with the customer or sponsor to ensure that they are completed satisfactorily and have received formal acceptance of the deliverables by the customer or sponsor. • The Validate Scope process is primarily concerned with acceptance of the deliverables, while quality control is primarily concerned with correctness of the deliverables and meeting the quality requirements specified for the deliverables. • Control Quality is generally performed before Validate Scope, although the two processes may be performed in parallel.
  • 67. 5.5 Validate Scope Inputs 1. Project management plan 2. Requirements documentation 3. Requirements traceability matrix 4. Verified deliverables 5. Work performance data
  • 68. 5.5 Validate Scope:- Tools and Techniques:1. Inspection 2. Group decision-making techniques
  • 69. 5.5 Validate Scope:- Tools and Techniques:1. Inspection • Inspection includes activities such as measuring, examining, and validating to determine whether work and deliverables meet requirements and product acceptance criteria. • Inspections are sometimes called reviews, product reviews, audits, and walkthroughs. • In some application areas, these different terms have unique and specific meanings.
  • 70. 5.5 Validate Scope Outputs 1. Accepted deliverables (Formally approved) 2. Change requests (defect repair) 3. Work performance information 4. Project documents updates
  • 71. 5.6 Control Scope Monitoring&Controlling monitoring the status of the project and product scope and managing changes to the scope baseline . .1 Project management plan .1 Variance analysis .1 Work performance information .2 Requirements documentation .2 Change requests .3 Requirements traceability matrix .3 Project management plan updates .4 Work performance data .5 Organizational process assets .4 Project documents updates .5 Organizational process assets update
  • 72. Scope creep • The uncontrolled expansion to product or project scope without adjustments to time, cost, and resources • The main target of control scope process, to keep the scope creep away.
  • 73. 5.6 Control Scope Inputs 1. Project management plan 2. Requirements documentation 3. Requirements traceability matrix 4. Work performance data 5. Organizational process assets
  • 74. 5.6 Control Scope:- Tools and Techniques:1. Variance analysis • Technique for determining the cause and degree of difference between the baseline and actual performance. • Then deciding whether corrective or preventive action is required.
  • 75. 5.6 Control Scope Outputs 1. Work performance information 2. Change requests 3. Project management plan updates 4. Project documents updates 5. Organizational process assets update
  • 76. 5.6 Control Scope Outputs 3. Project management plan updates • Scope Baseline Updates. If the approved change requests have an effect on the project scope. • Other Baseline Updates. If the approved change requests have an effect on the project besides the project scope, then the corresponding cost baseline and schedule baselines are revised and reissued to reflect the approved changes.
  • 77. 5.6 Control Scope Outputs 4. Project documents updates • Requirements documentation, • Requirements traceability matrix.
  • 78. 5.6 Control Scope Outputs 5. Organizational process assets update • Causes of variances, • Corrective action chosen and the reasons, and • Other types of lessons learned from project scope control
