05 project scope management

The document provides guidance on collecting requirements for a project. It describes collecting stakeholder needs through various techniques like interviews, focus groups, and workshops. Requirements are categorized as business, stakeholder, solution, transition, project, and quality requirements. Solution requirements include functional and non-functional requirements. Inputs to collecting requirements include the scope management plan, stakeholder register, and project charter to identify stakeholders and understand their needs. Techniques like brainstorming, nominal group, and user stories are used to generate and document requirements.

Embed presentation

Download as PDF, PPTX
By: Omer Alsayed Omer abbas MBA, PMP, B.Sc.(Civil Eng.) : PMO manager EWU-DIU
“ Don’t do anything you don’t have TO DO -– Louis Fried

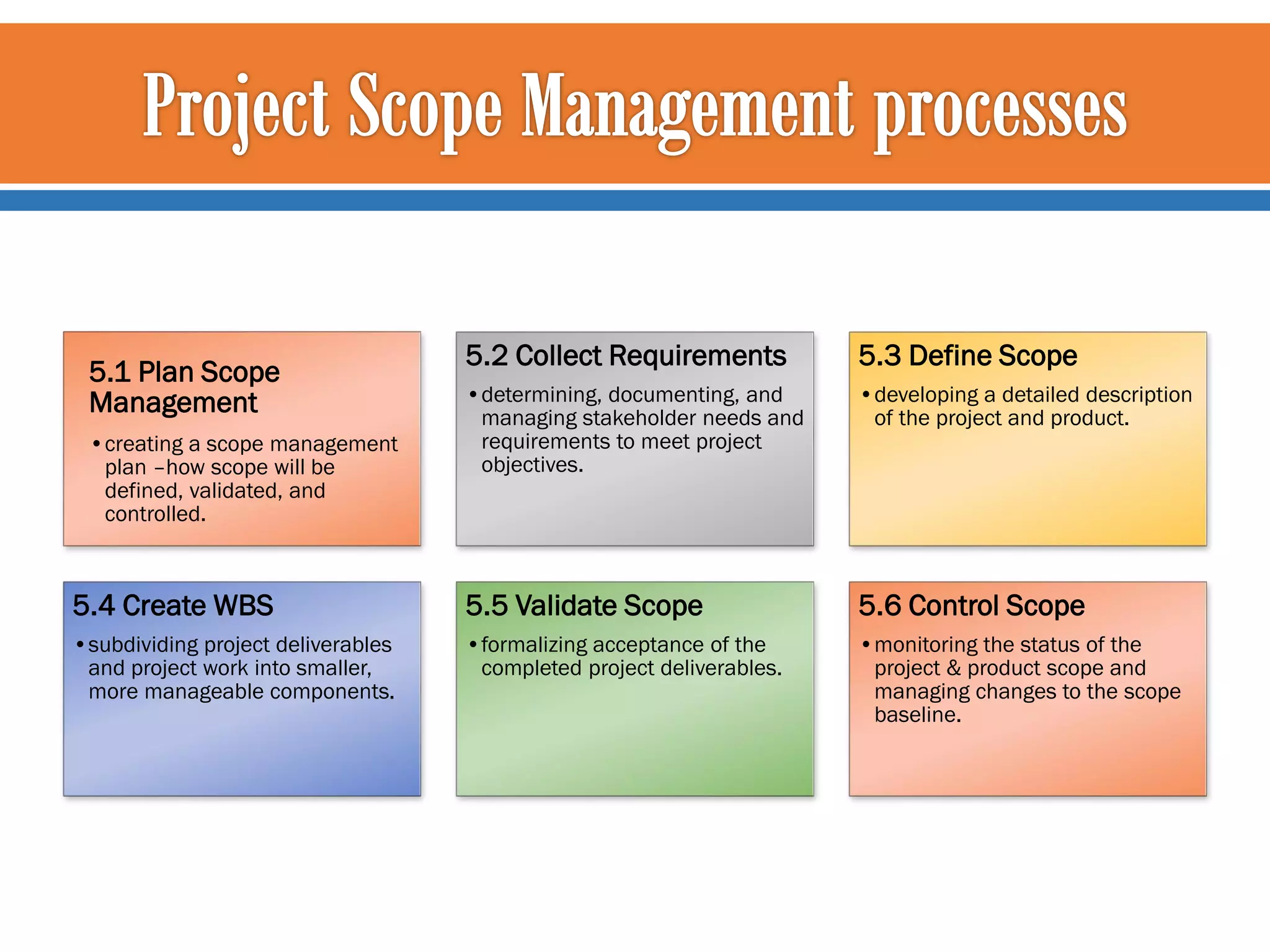

5.2 Collect Requirements 5.3 Define Scope •determining, documenting, and managing stakeholder needs and requirements to meet project objectives. •developing a detailed description of the project and product. 5.4 Create WBS 5.5 Validate Scope 5.6 Control Scope •subdividing project deliverables and project work into smaller, more manageable components. •formalizing acceptance of the completed project deliverables. •monitoring the status of the project & product scope and managing changes to the scope baseline. 5.1 Plan Scope Management •creating a scope management plan –how scope will be defined, validated, and controlled.

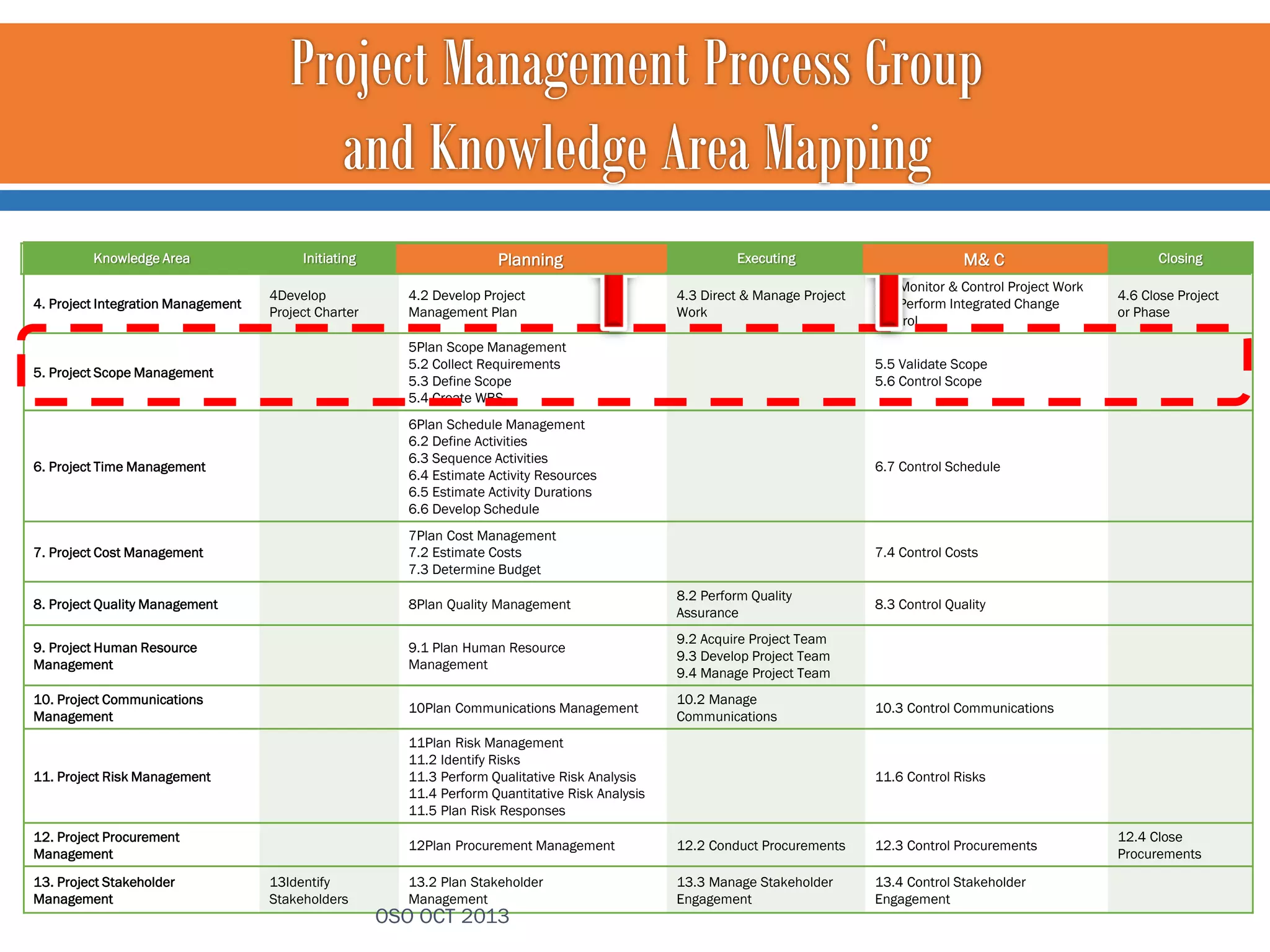

Project Management Process Group and Knowledge Area Mapping Knowledge Area 4. Project Integration Management Initiating 4Develop Project Charter Planning Planning 4.2 Develop Project Management Plan Executing 4.3 Direct & Manage Project Work M& C M& C 4.4 Monitor & Control Project Work 4.5 Perform Integrated Change Control 5. Project Scope Management 5Plan Scope Management 5.2 Collect Requirements 5.3 Define Scope 5.4 Create WBS 6. Project Time Management 6.7 Control Schedule 7. Project Cost Management 7Plan Cost Management 7.2 Estimate Costs 7.3 Determine Budget 7.4 Control Costs 8. Project Quality Management 8Plan Quality Management 8.2 Perform Quality Assurance 9. Project Human Resource Management 9.1 Plan Human Resource Management 9.2 Acquire Project Team 9.3 Develop Project Team 9.4 Manage Project Team 10. Project Communications Management 10Plan Communications Management 10.2 Manage Communications 11. Project Risk Management 11Plan Risk Management 11.2 Identify Risks 11.3 Perform Qualitative Risk Analysis 11.4 Perform Quantitative Risk Analysis 11.5 Plan Risk Responses 12. Project Procurement Management 12Plan Procurement Management 12.2 Conduct Procurements 12.3 Control Procurements 13.2 Plan Stakeholder Management 13.3 Manage Stakeholder Engagement 13.4 Control Stakeholder Engagement 4.6 Close Project or Phase 5.5 Validate Scope 5.6 Control Scope 6Plan Schedule Management 6.2 Define Activities 6.3 Sequence Activities 6.4 Estimate Activity Resources 6.5 Estimate Activity Durations 6.6 Develop Schedule Closing 13. Project Stakeholder Management 13Identify Stakeholders OSO OCT 2013 8.3 Control Quality 10.3 Control Communications 11.6 Control Risks 12.4 Close Procurements

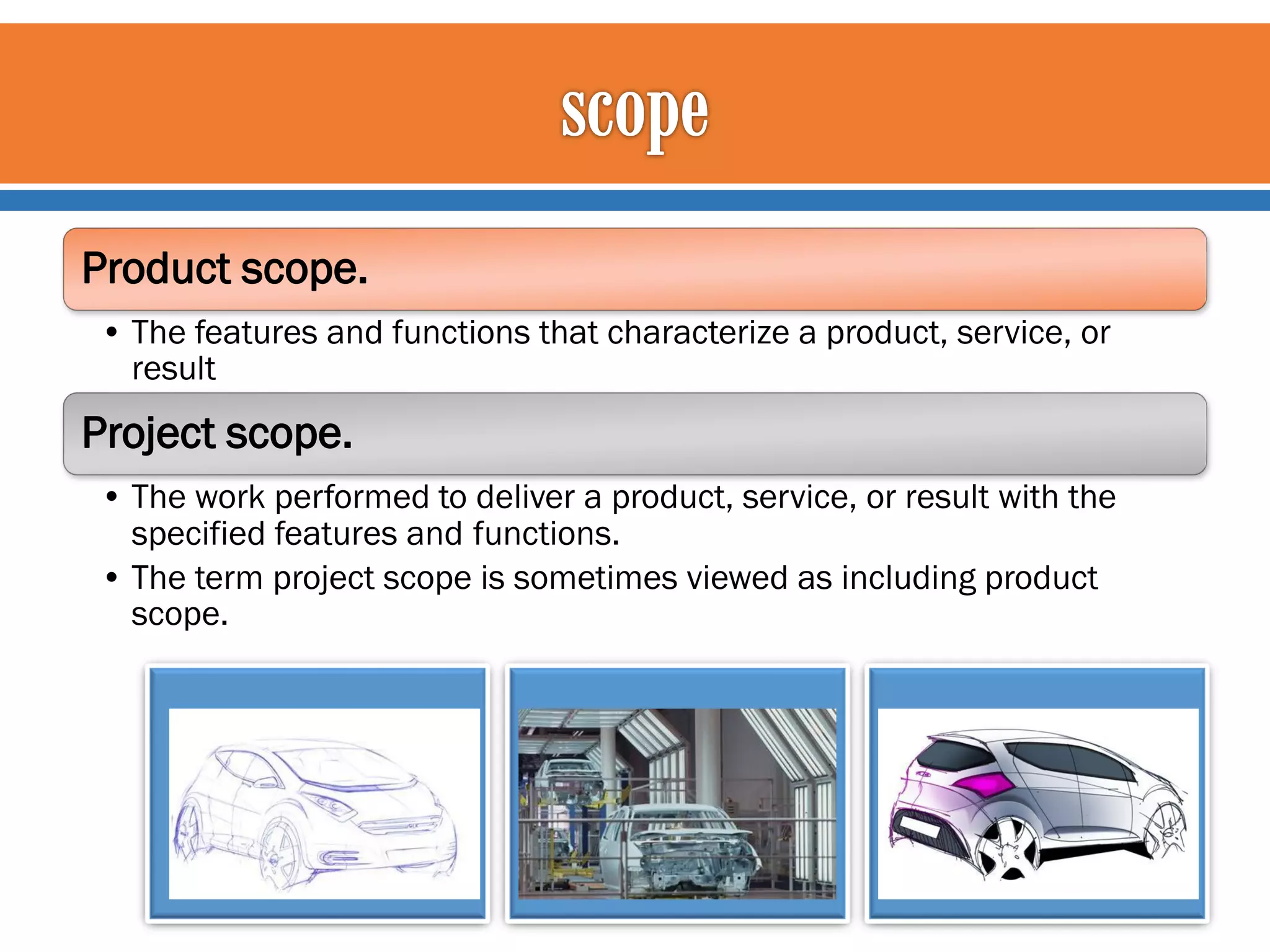

Product scope. • The features and functions that characterize a product, service, or result Project scope. • The work performed to deliver a product, service, or result with the specified features and functions. • The term project scope is sometimes viewed as including product scope.

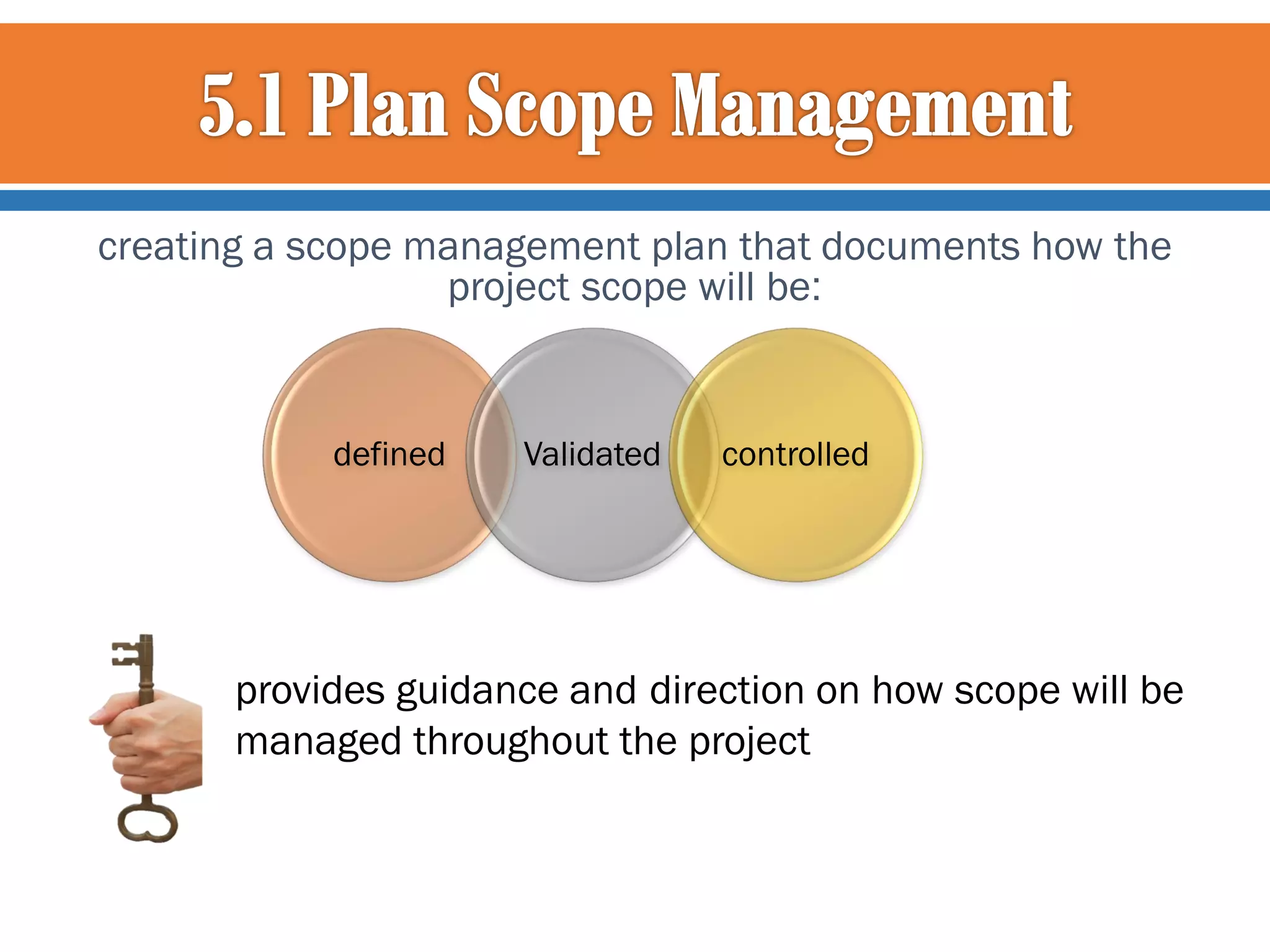

creating a scope management plan that documents how the project scope will be: defined Validated controlled provides guidance and direction on how scope will be managed throughout the project

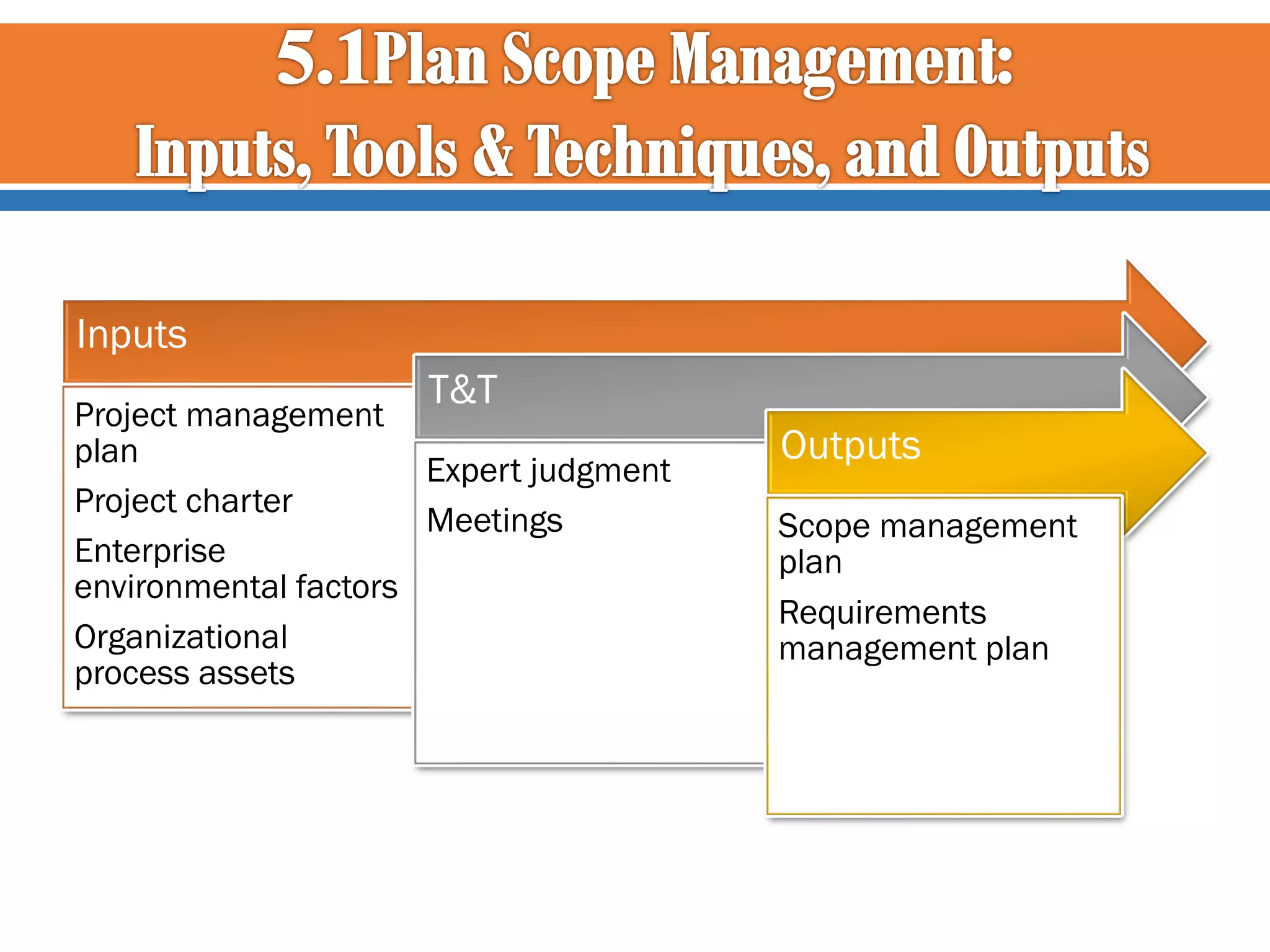

Inputs T&T Project management plan Expert judgment Project charter Meetings Enterprise environmental factors Organizational process assets Outputs Scope management plan Requirements management plan

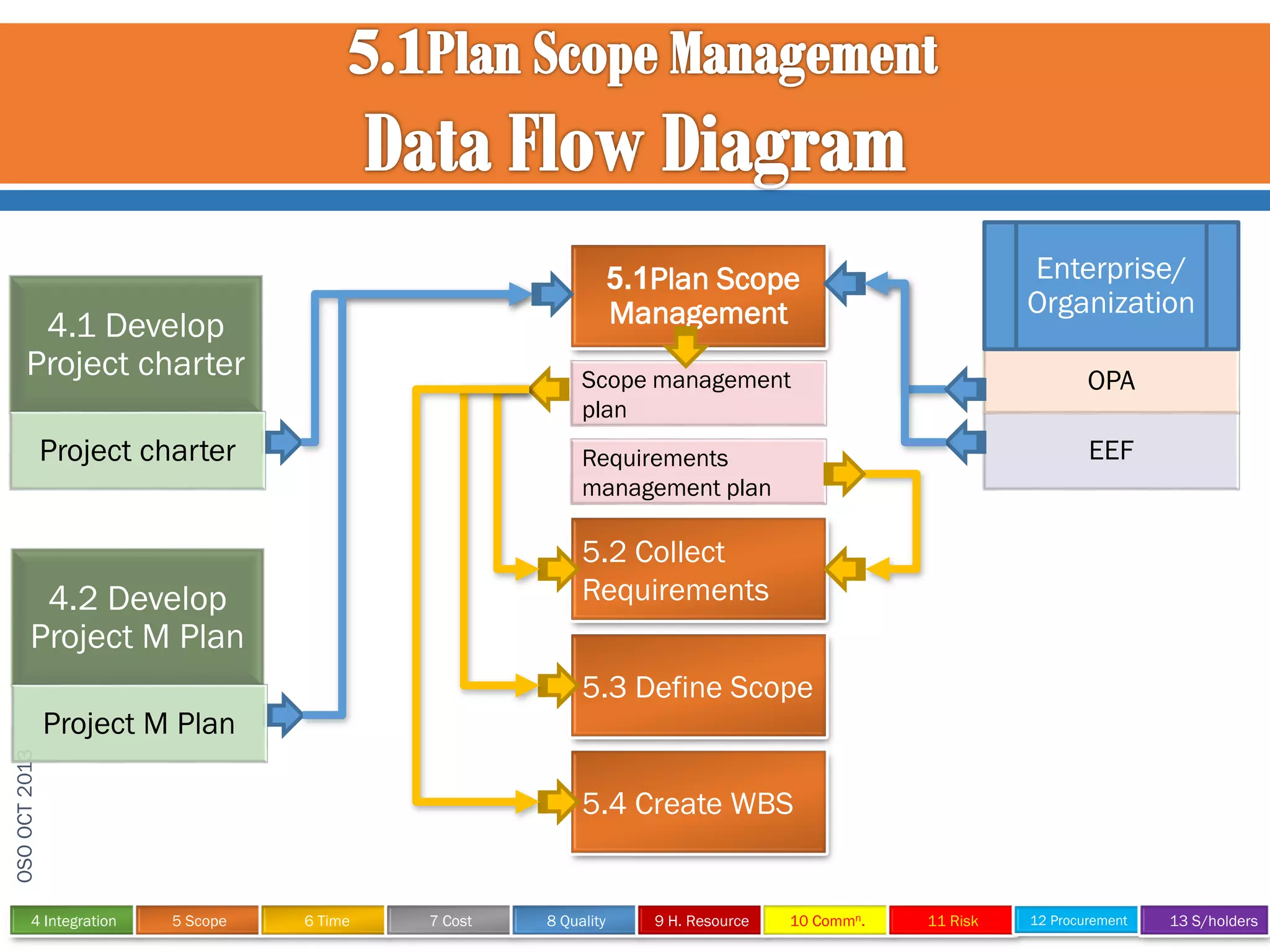

Enterprise/ Organization 5.1Plan Scope Management 4.1 Develop Project charter Scope management plan Requirements management plan Project charter OPA EEF 5.2 Collect Requirements 4.2 Develop Project M Plan 5.3 Define Scope OSO OCT 2013 Project M Plan 4 Integration 5.4 Create WBS 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource 10 Commn. 11 Risk 12 Procurement 13 S/holders

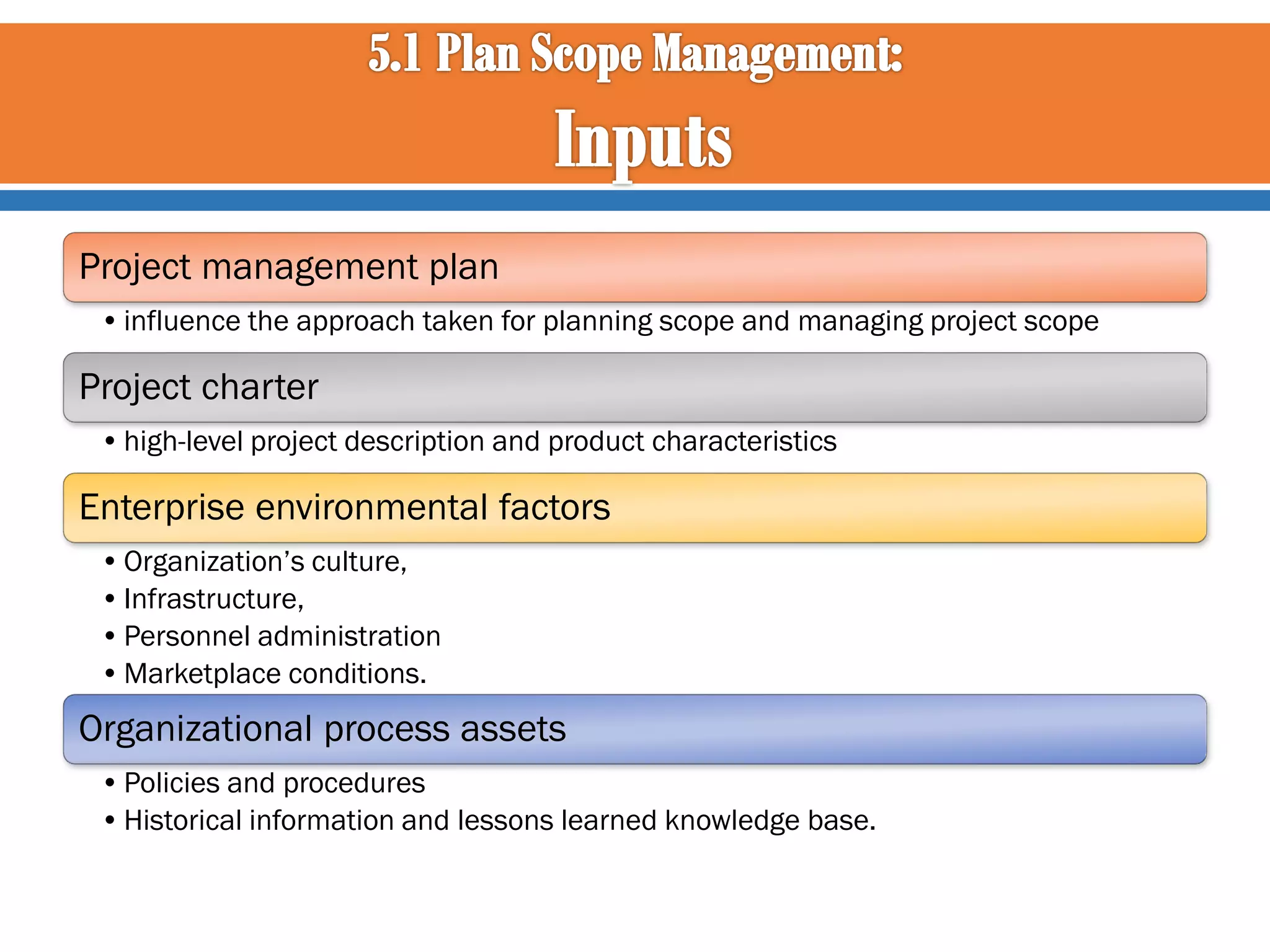

Project management plan • influence the approach taken for planning scope and managing project scope Project charter • high-level project description and product characteristics Enterprise environmental factors • Organization’s culture, • Infrastructure, • Personnel administration • Marketplace conditions. Organizational process assets • Policies and procedures • Historical information and lessons learned knowledge base.

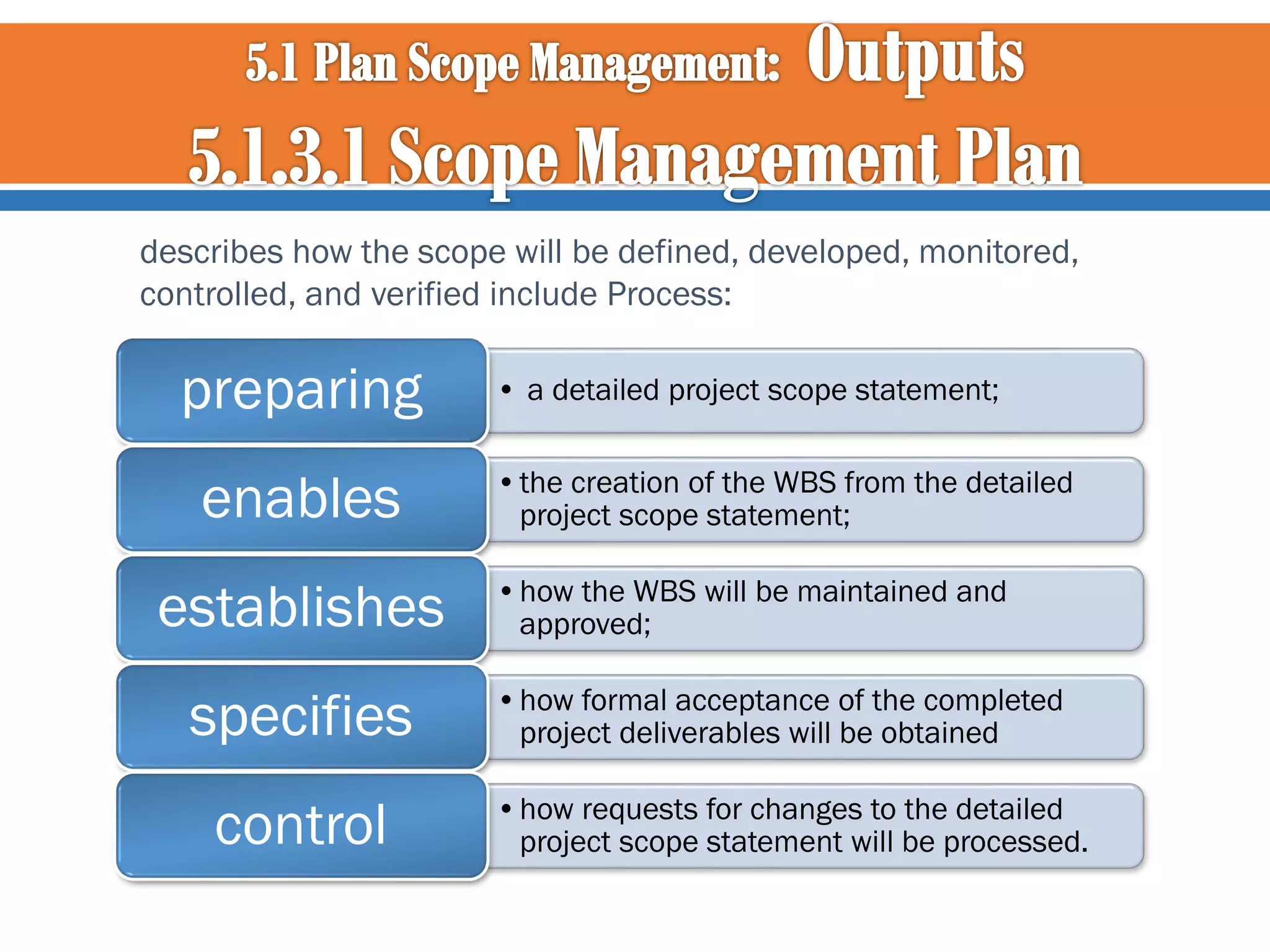

describes how the scope will be defined, developed, monitored, controlled, and verified include Process: preparing enables establishes specifies control • a detailed project scope statement; •the creation of the WBS from the detailed project scope statement; •how the WBS will be maintained and approved; •how formal acceptance of the completed project deliverables will be obtained •how requests for changes to the detailed project scope statement will be processed.

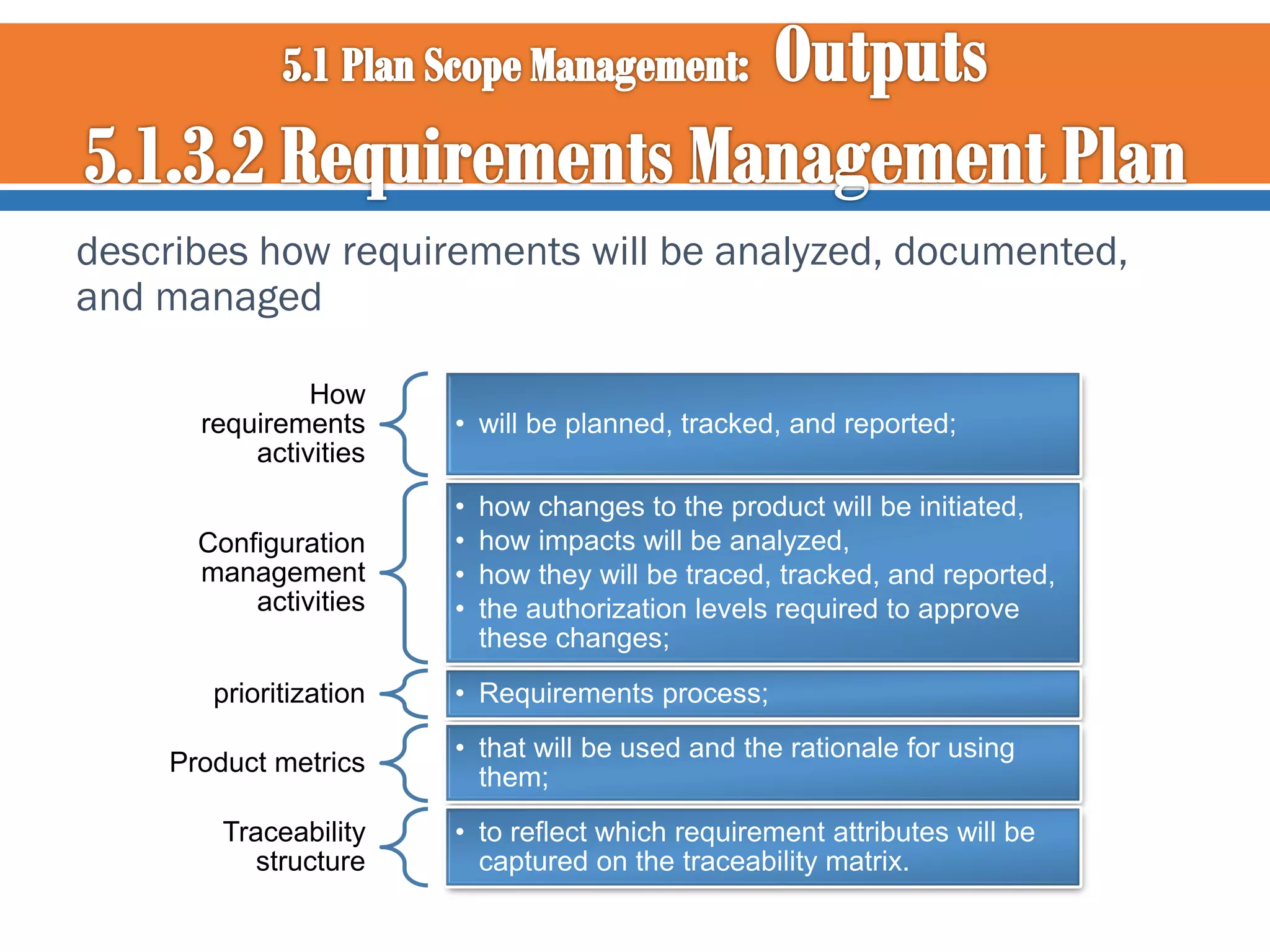

describes how requirements will be analyzed, documented, and managed How requirements activities Configuration management activities prioritization Product metrics Traceability structure • will be planned, tracked, and reported; • • • • how changes to the product will be initiated, how impacts will be analyzed, how they will be traced, tracked, and reported, the authorization levels required to approve these changes; • Requirements process; • that will be used and the rationale for using them; • to reflect which requirement attributes will be captured on the traceability matrix.

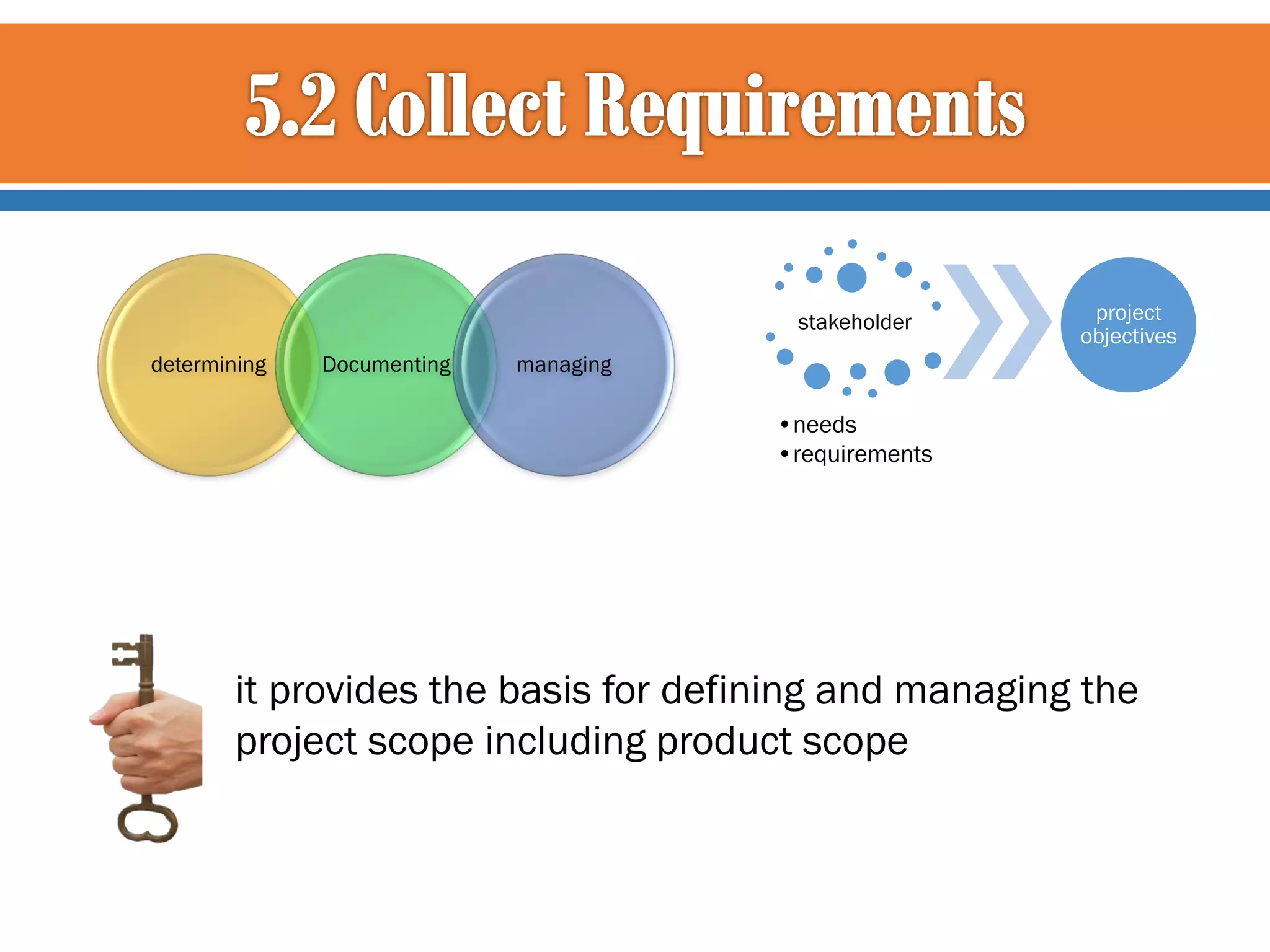

stakeholder determining Documenting project objectives managing •needs •requirements it provides the basis for defining and managing the project scope including product scope

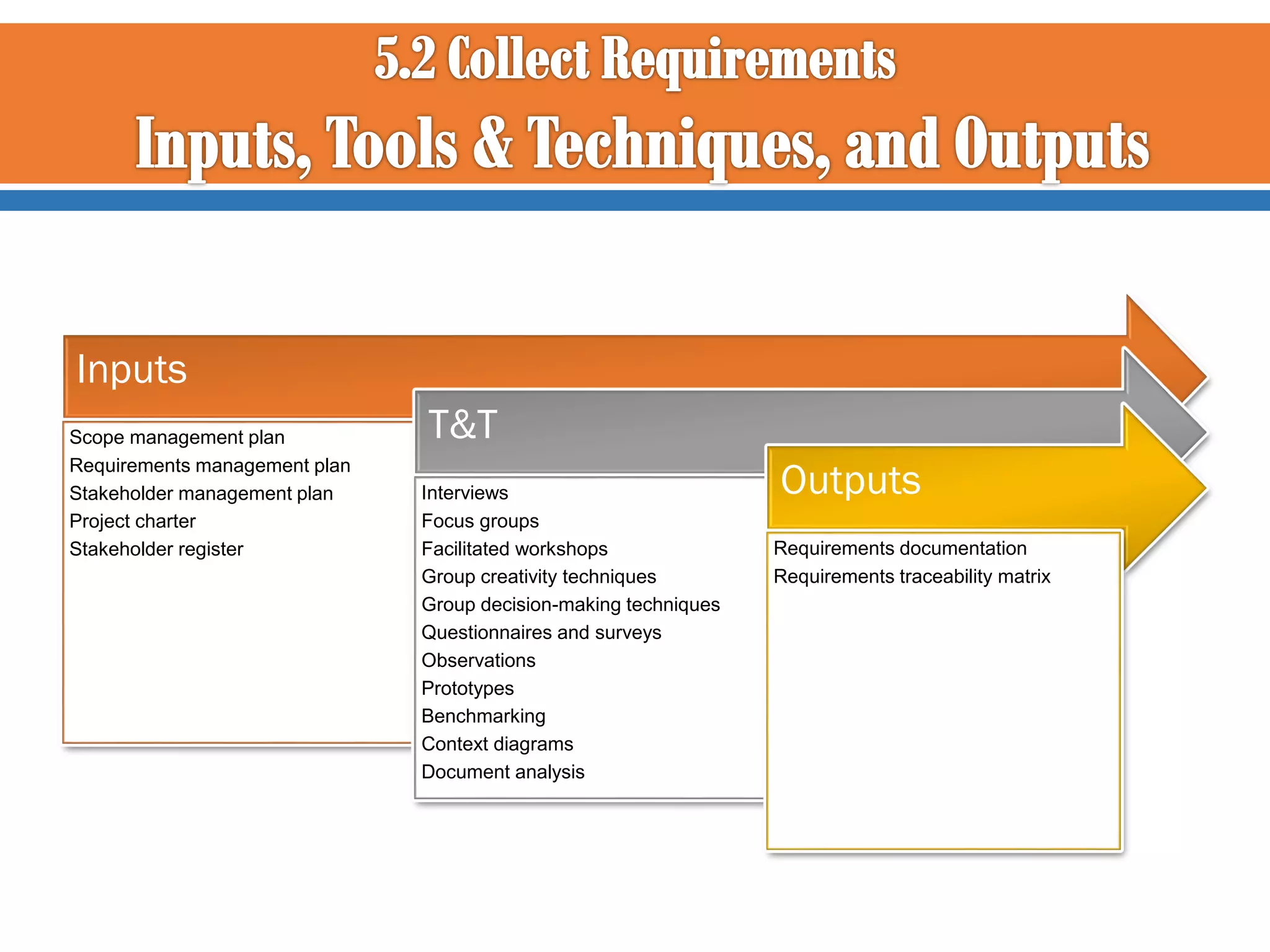

Inputs Scope management plan Requirements management plan Stakeholder management plan Project charter Stakeholder register T&T Interviews Focus groups Facilitated workshops Group creativity techniques Group decision-making techniques Questionnaires and surveys Observations Prototypes Benchmarking Context diagrams Document analysis Outputs Requirements documentation Requirements traceability matrix

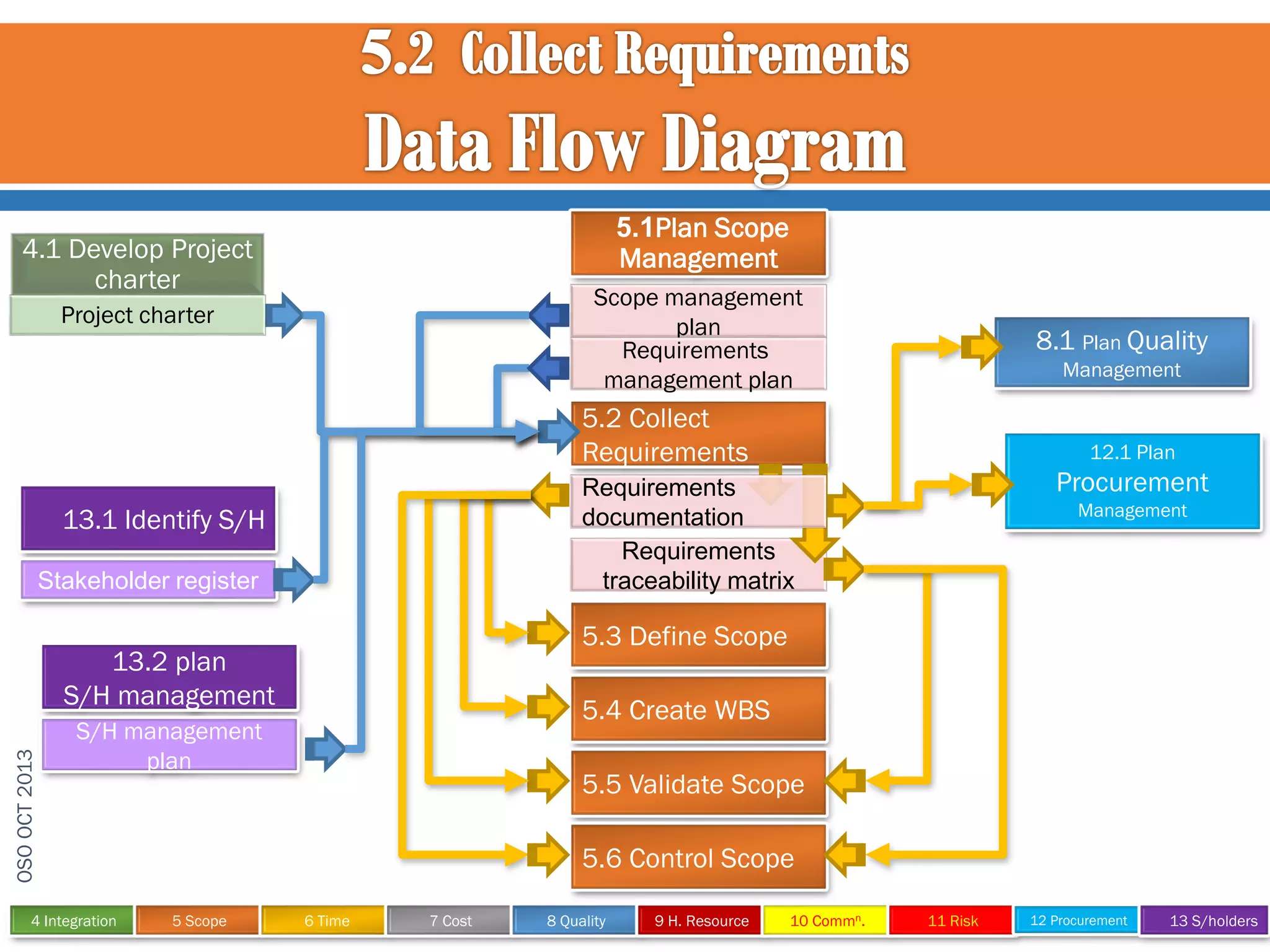

5.1Plan Scope Management 4.1 Develop Project charter Scope management plan Requirements management plan Project charter 8.1 Plan Quality Management 5.2 Collect Requirements Stakeholder register Management 5.3 Define Scope 13.2 plan S/H management OSO OCT 2013 Procurement Requirements documentation Requirements traceability matrix 13.1 Identify S/H 5.4 Create WBS S/H management plan 4 Integration 12.1 Plan 5.5 Validate Scope 5.6 Control Scope 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource 10 Commn. 11 Risk 12 Procurement 13 S/holders

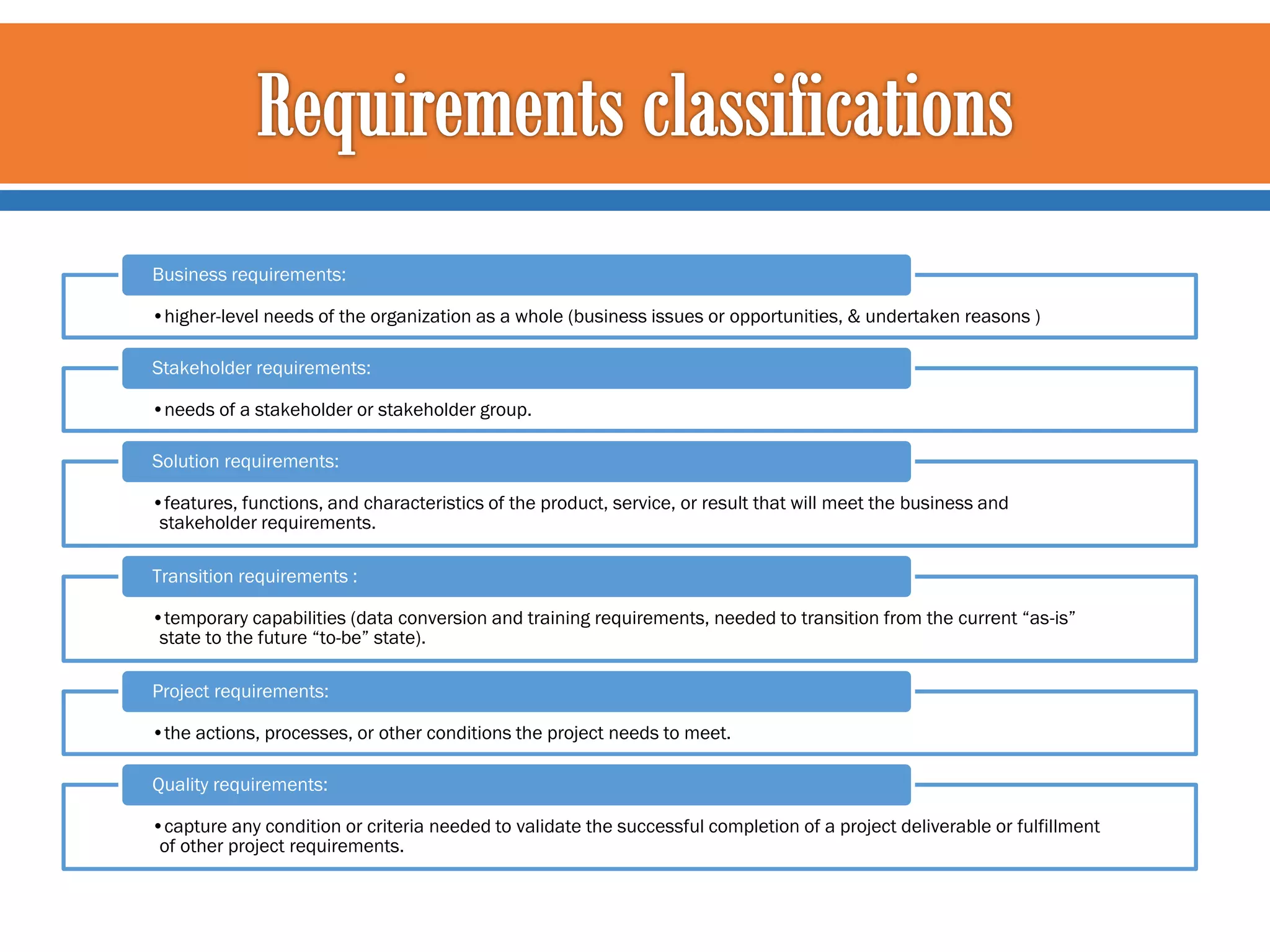

Business requirements: •higher-level needs of the organization as a whole (business issues or opportunities, & undertaken reasons ) Stakeholder requirements: •needs of a stakeholder or stakeholder group. Solution requirements: •features, functions, and characteristics of the product, service, or result that will meet the business and stakeholder requirements. Transition requirements : •temporary capabilities (data conversion and training requirements, needed to transition from the current “as-is” state to the future “to-be” state). Project requirements: •the actions, processes, or other conditions the project needs to meet. Quality requirements: •capture any condition or criteria needed to validate the successful completion of a project deliverable or fulfillment of other project requirements.

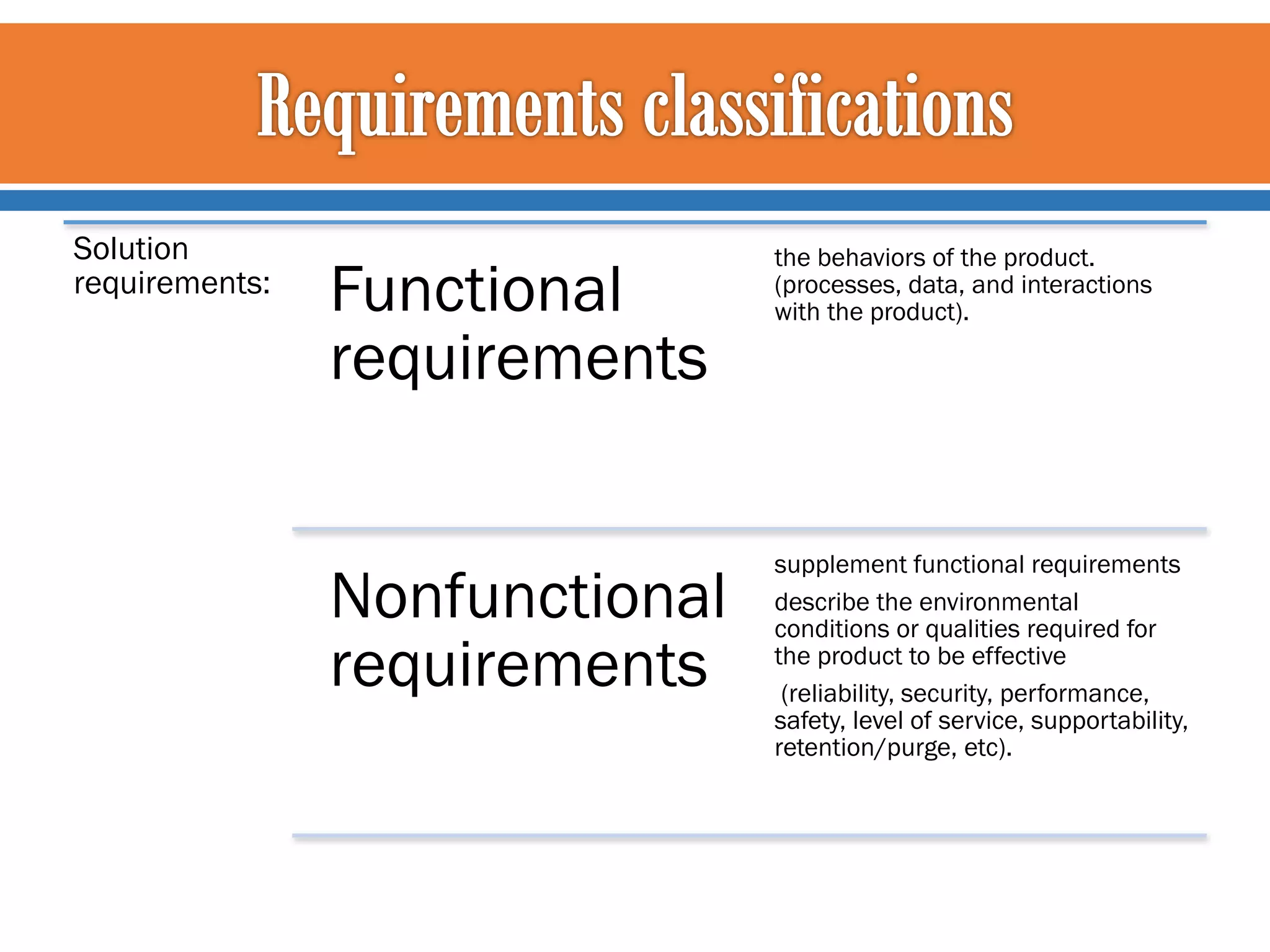

Solution requirements: Functional requirements the behaviors of the product. (processes, data, and interactions with the product). Nonfunctional requirements supplement functional requirements describe the environmental conditions or qualities required for the product to be effective (reliability, security, performance, safety, level of service, supportability, retention/purge, etc).

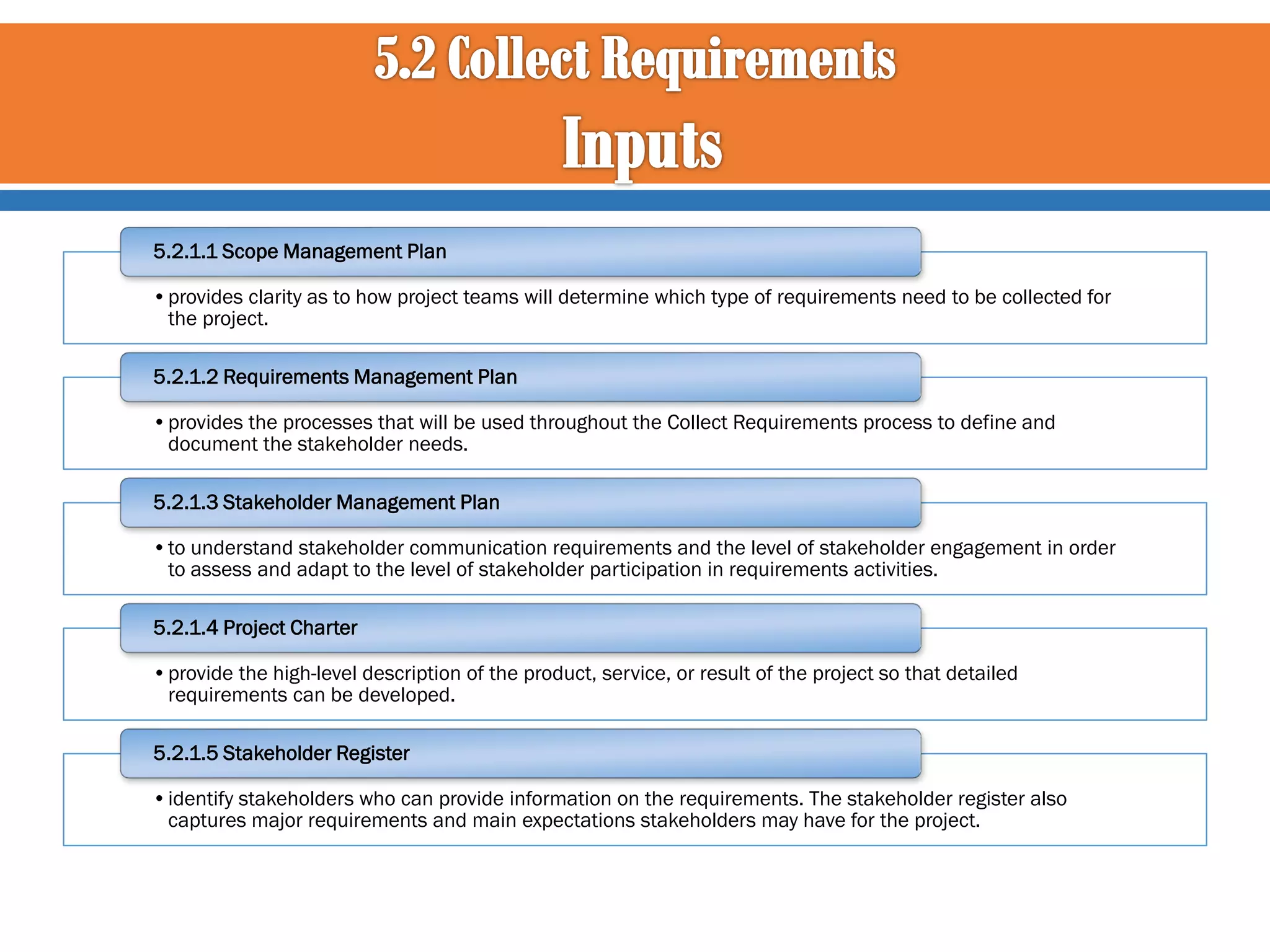

5.2.1.1 Scope Management Plan •provides clarity as to how project teams will determine which type of requirements need to be collected for the project. 5.2.1.2 Requirements Management Plan •provides the processes that will be used throughout the Collect Requirements process to define and document the stakeholder needs. 5.2.1.3 Stakeholder Management Plan •to understand stakeholder communication requirements and the level of stakeholder engagement in order to assess and adapt to the level of stakeholder participation in requirements activities. 5.2.1.4 Project Charter •provide the high-level description of the product, service, or result of the project so that detailed requirements can be developed. 5.2.1.5 Stakeholder Register •identify stakeholders who can provide information on the requirements. The stakeholder register also captures major requirements and main expectations stakeholders may have for the project.

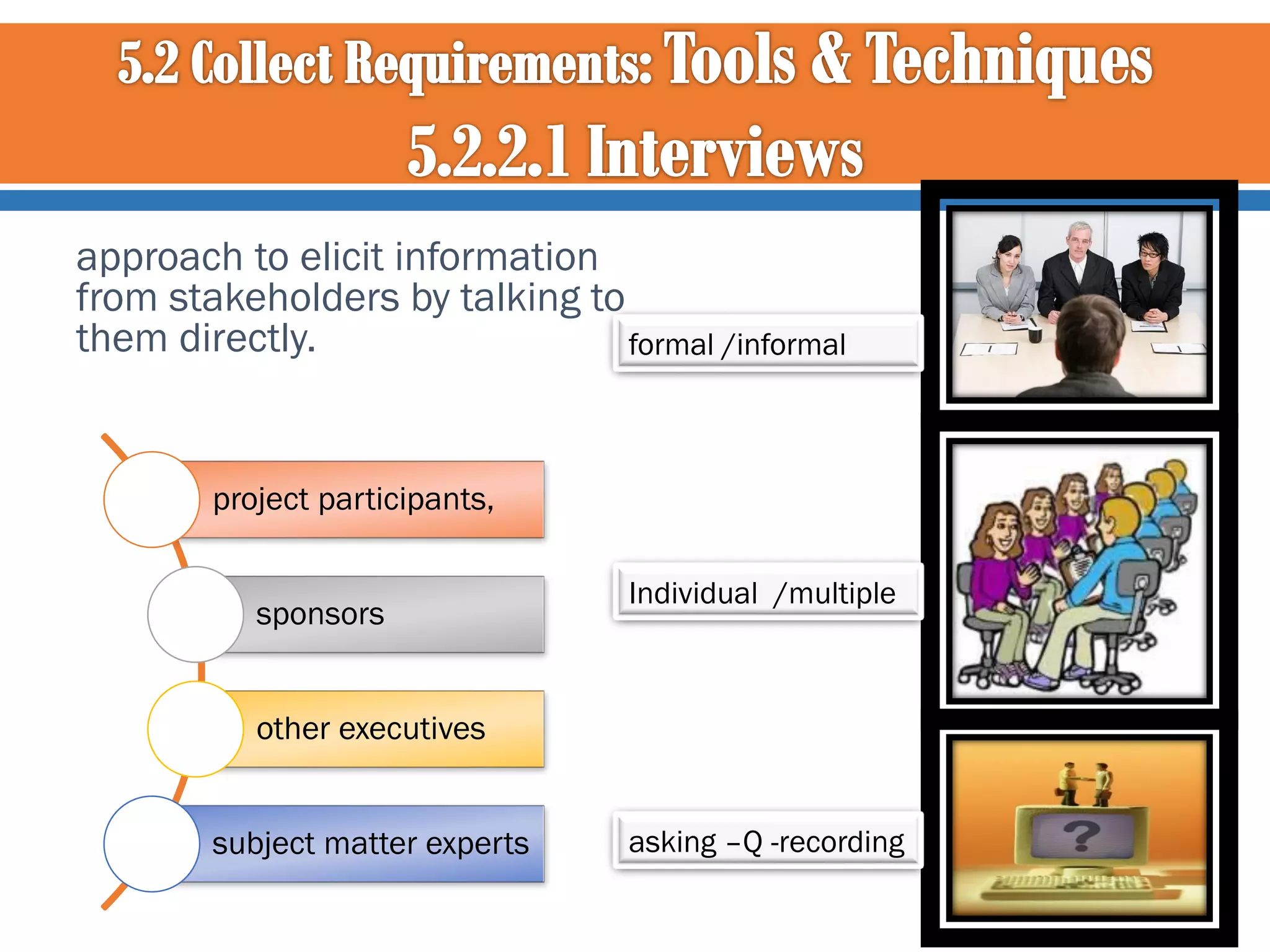

approach to elicit information from stakeholders by talking to them directly. formal /informal project participants, sponsors Individual /multiple other executives subject matter experts asking –Q -recording

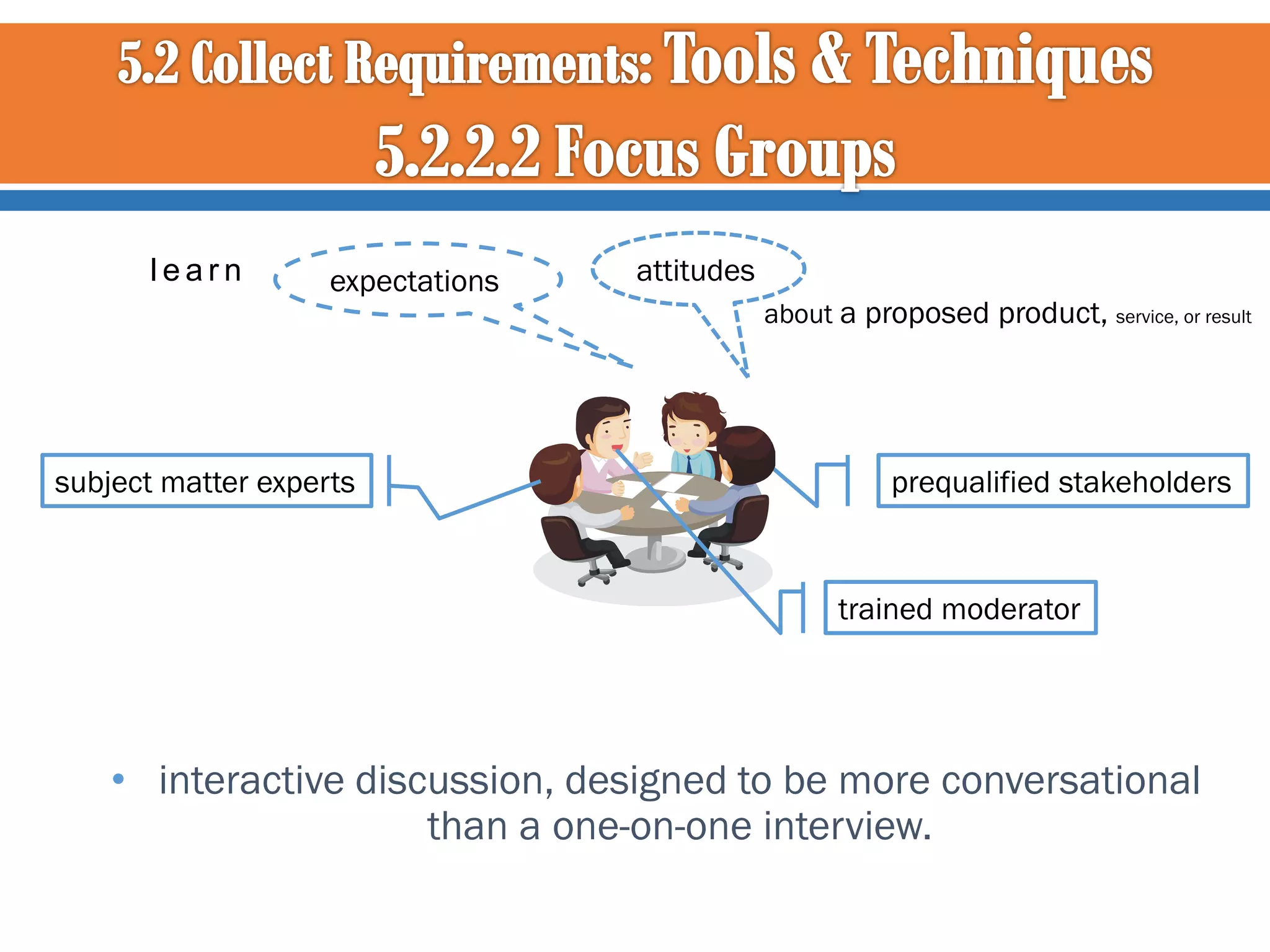

learn expectations subject matter experts attitudes about a proposed product, service, or result prequalified stakeholders trained moderator • interactive discussion, designed to be more conversational than a one-on-one interview.

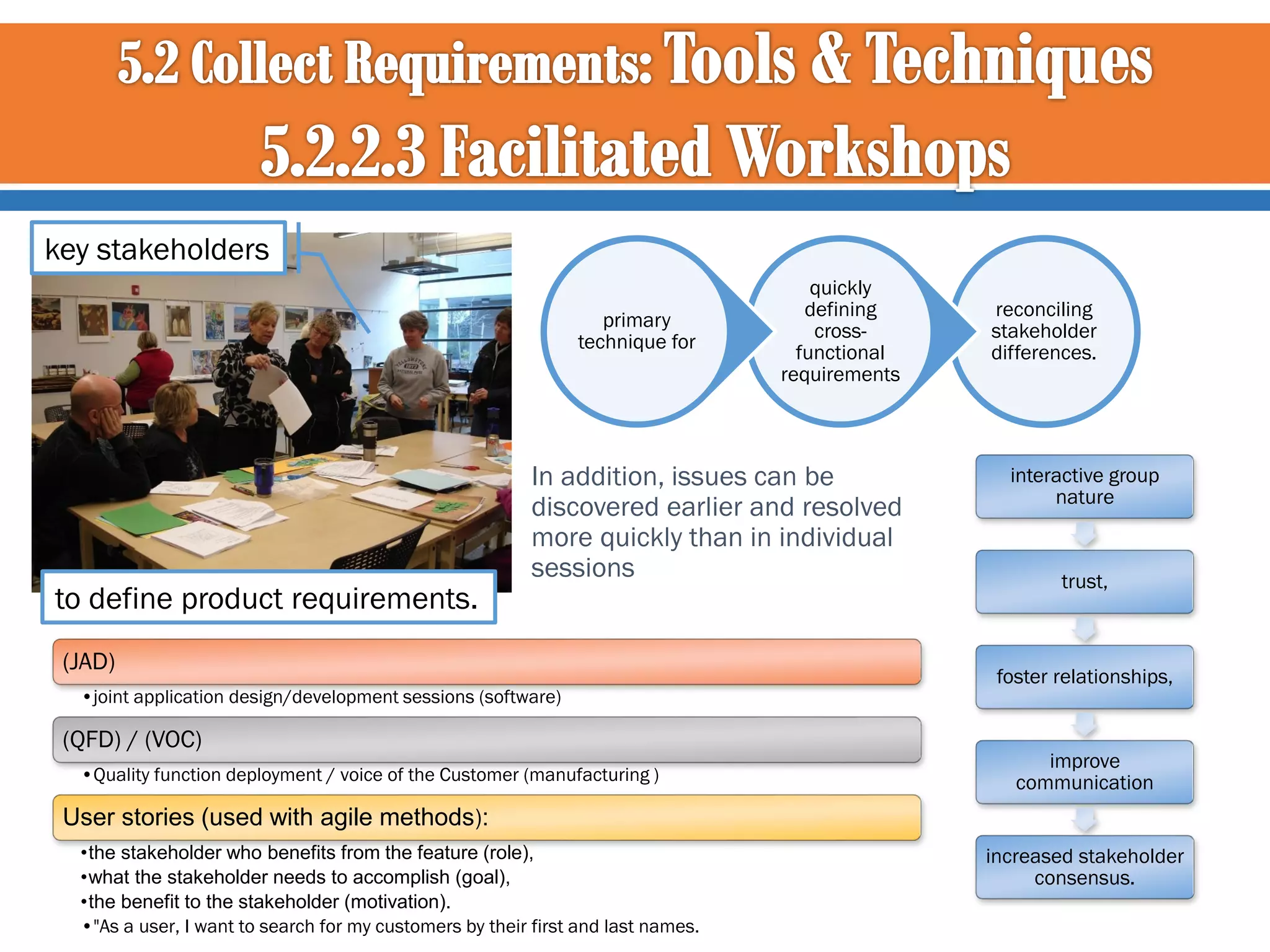

key stakeholders primary technique for to define product requirements. quickly defining crossfunctional requirements In addition, issues can be discovered earlier and resolved more quickly than in individual sessions (JAD) •joint application design/development sessions (software) (QFD) / (VOC) •Quality function deployment / voice of the Customer (manufacturing ) reconciling stakeholder differences. interactive group nature trust, foster relationships, improve communication User stories (used with agile methods): •the stakeholder who benefits from the feature (role), •what the stakeholder needs to accomplish (goal), •the benefit to the stakeholder (motivation). •"As a user, I want to search for my customers by their first and last names. increased stakeholder consensus.

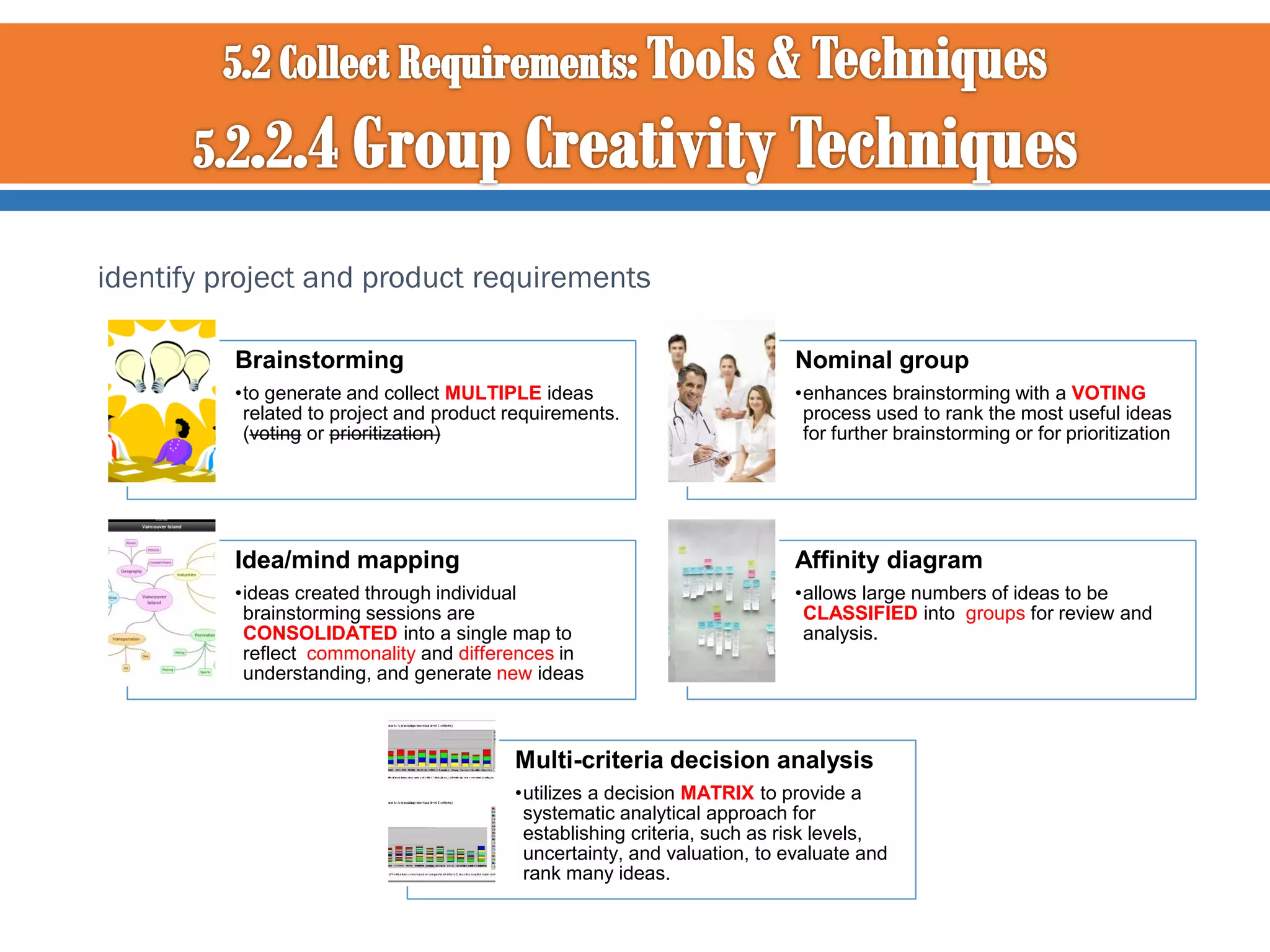

identify project and product requirements Brainstorming Nominal group •to generate and collect MULTIPLE ideas related to project and product requirements. (voting or prioritization) •enhances brainstorming with a VOTING process used to rank the most useful ideas for further brainstorming or for prioritization Idea/mind mapping Affinity diagram •ideas created through individual brainstorming sessions are CONSOLIDATED into a single map to reflect commonality and differences in understanding, and generate new ideas •allows large numbers of ideas to be CLASSIFIED into groups for review and analysis. Multi-criteria decision analysis •utilizes a decision MATRIX to provide a systematic analytical approach for establishing criteria, such as risk levels, uncertainty, and valuation, to evaluate and rank many ideas.
BRAINSTORMING AFFINITY DIAGRAM

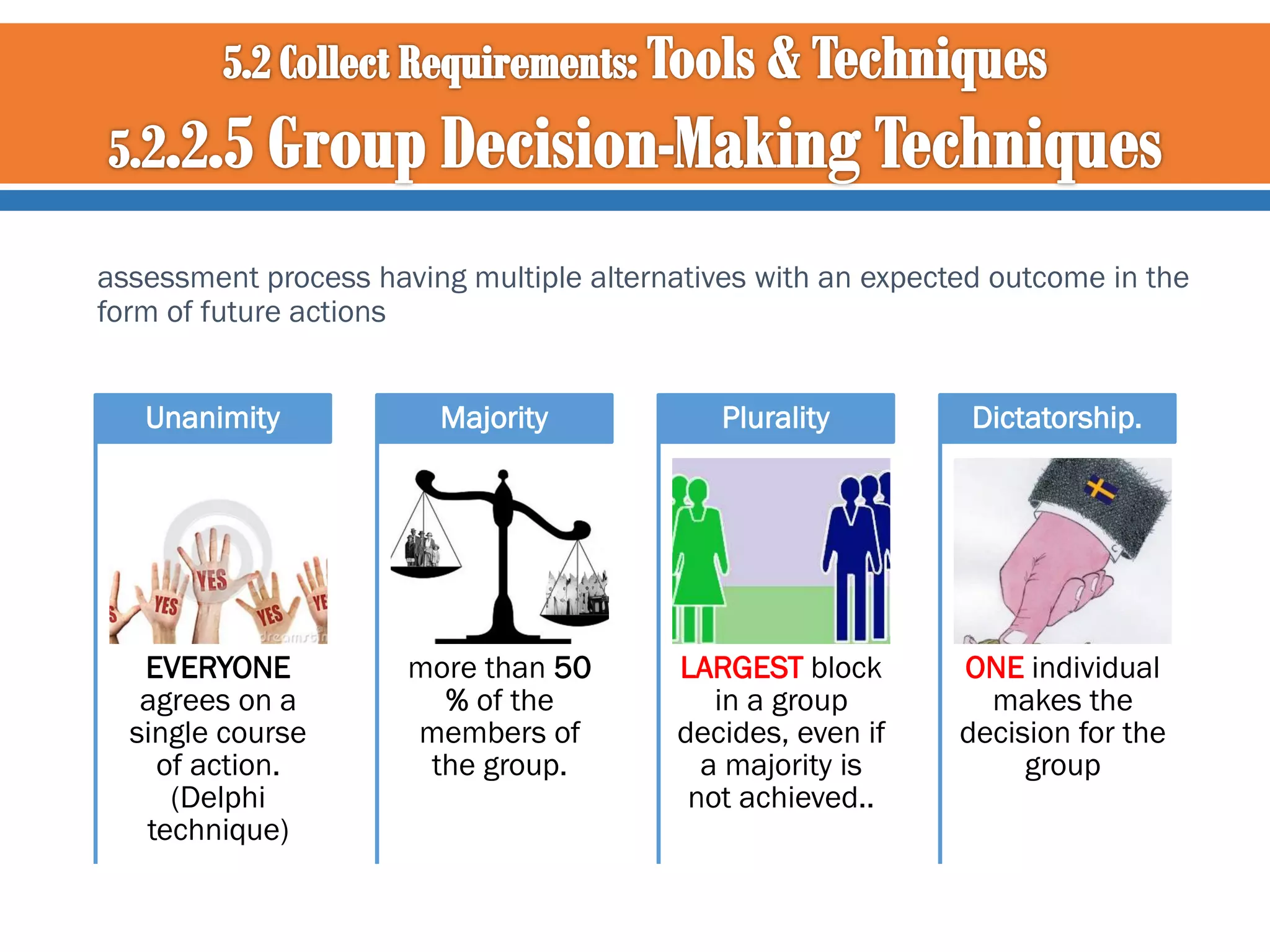

assessment process having multiple alternatives with an expected outcome in the form of future actions Unanimity Majority Plurality Dictatorship. EVERYONE agrees on a single course of action. (Delphi technique) more than 50 % of the members of the group. LARGEST block in a group decides, even if a majority is not achieved.. ONE individual makes the decision for the group

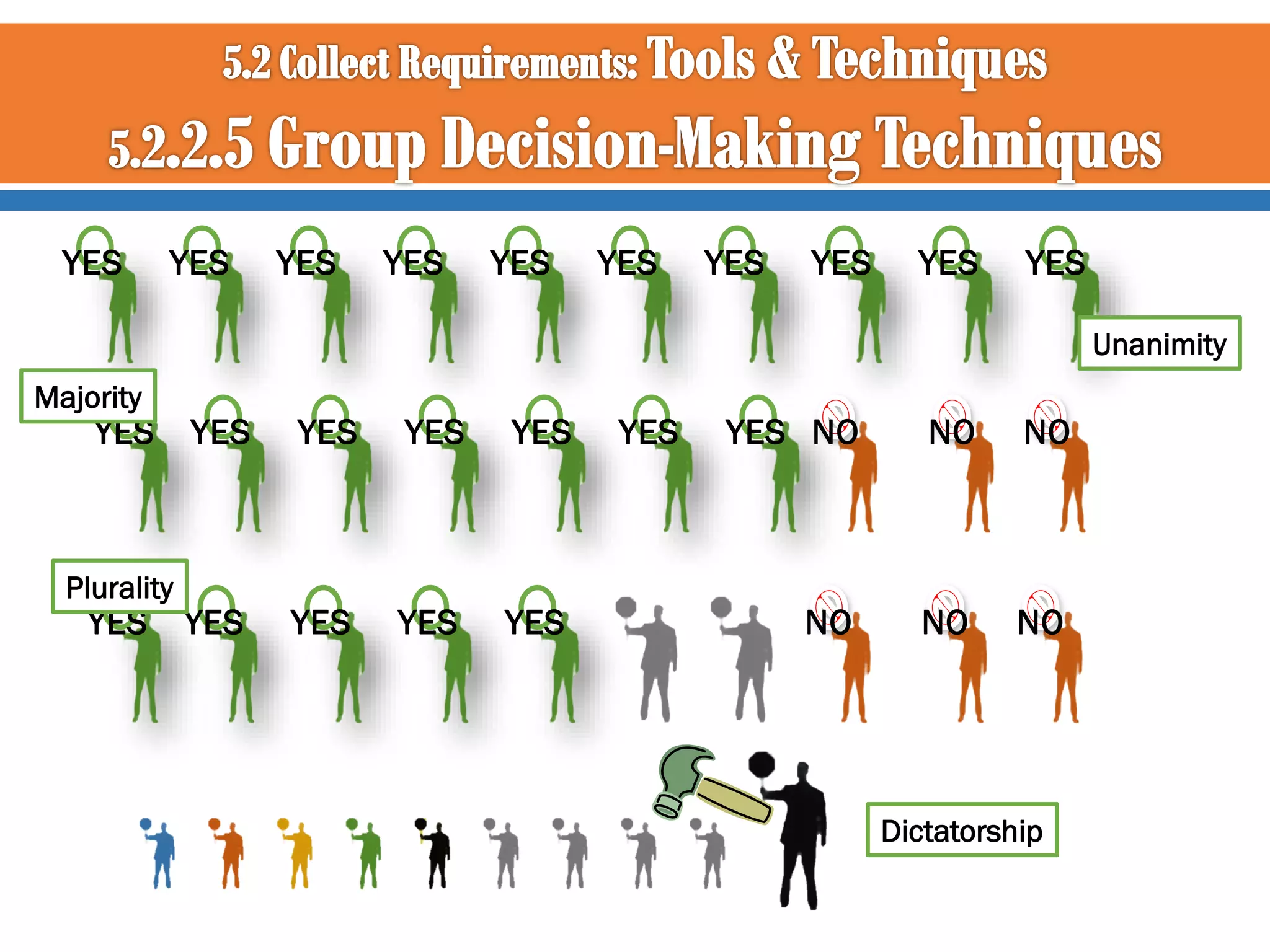

YES YES YES YES YES YES YES YES YES YES Unanimity Majority YES Plurality YES YES YES YES YES YES YES YES YES YES YES NO NO NO NO NO NO Dictatorship

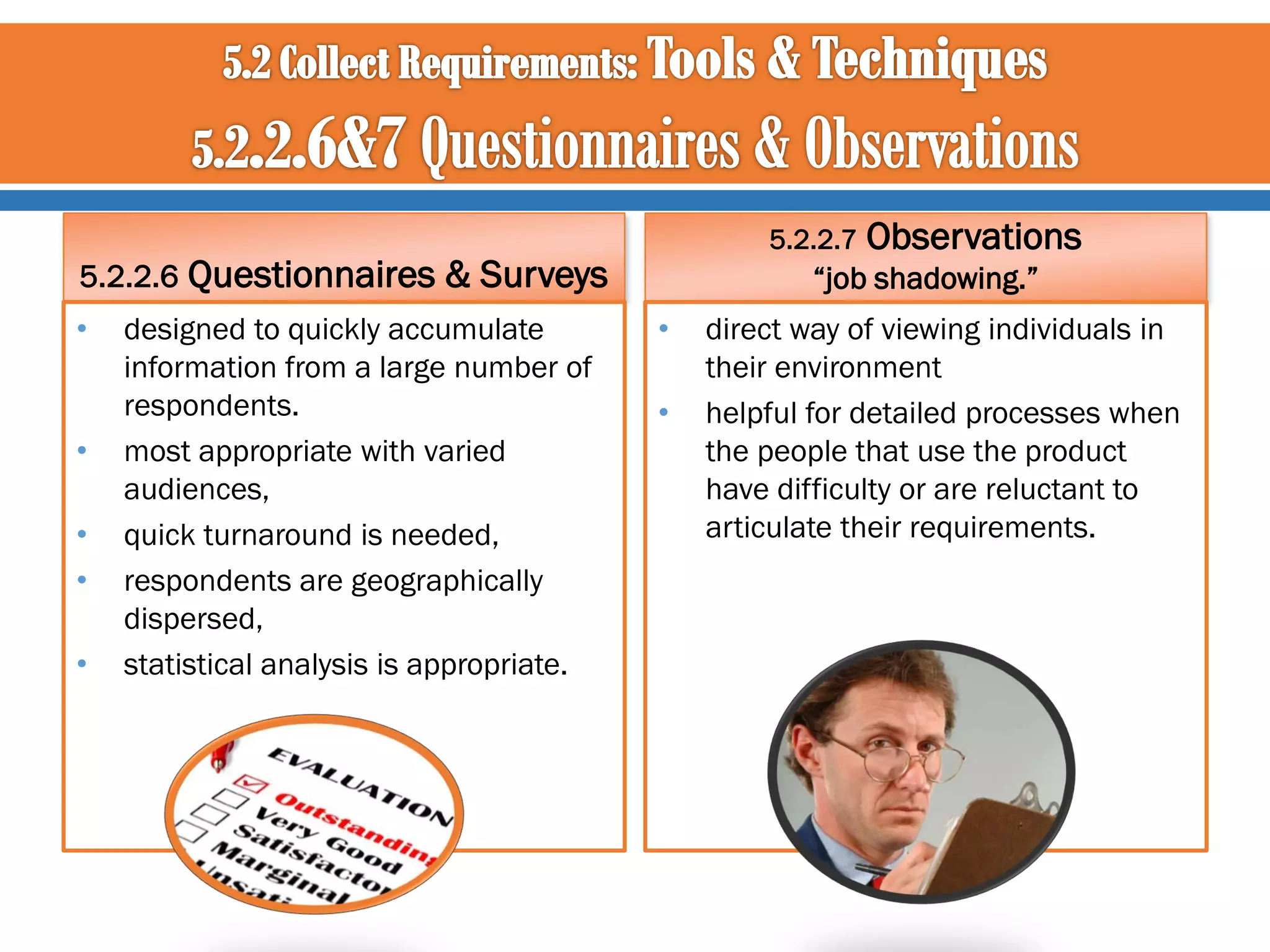

5.2.2.6 Questionnaires & • • • • • 5.2.2.7 Surveys designed to quickly accumulate information from a large number of respondents. most appropriate with varied audiences, quick turnaround is needed, respondents are geographically dispersed, statistical analysis is appropriate. Observations “job shadowing.” • • direct way of viewing individuals in their environment helpful for detailed processes when the people that use the product have difficulty or are reluctant to articulate their requirements.

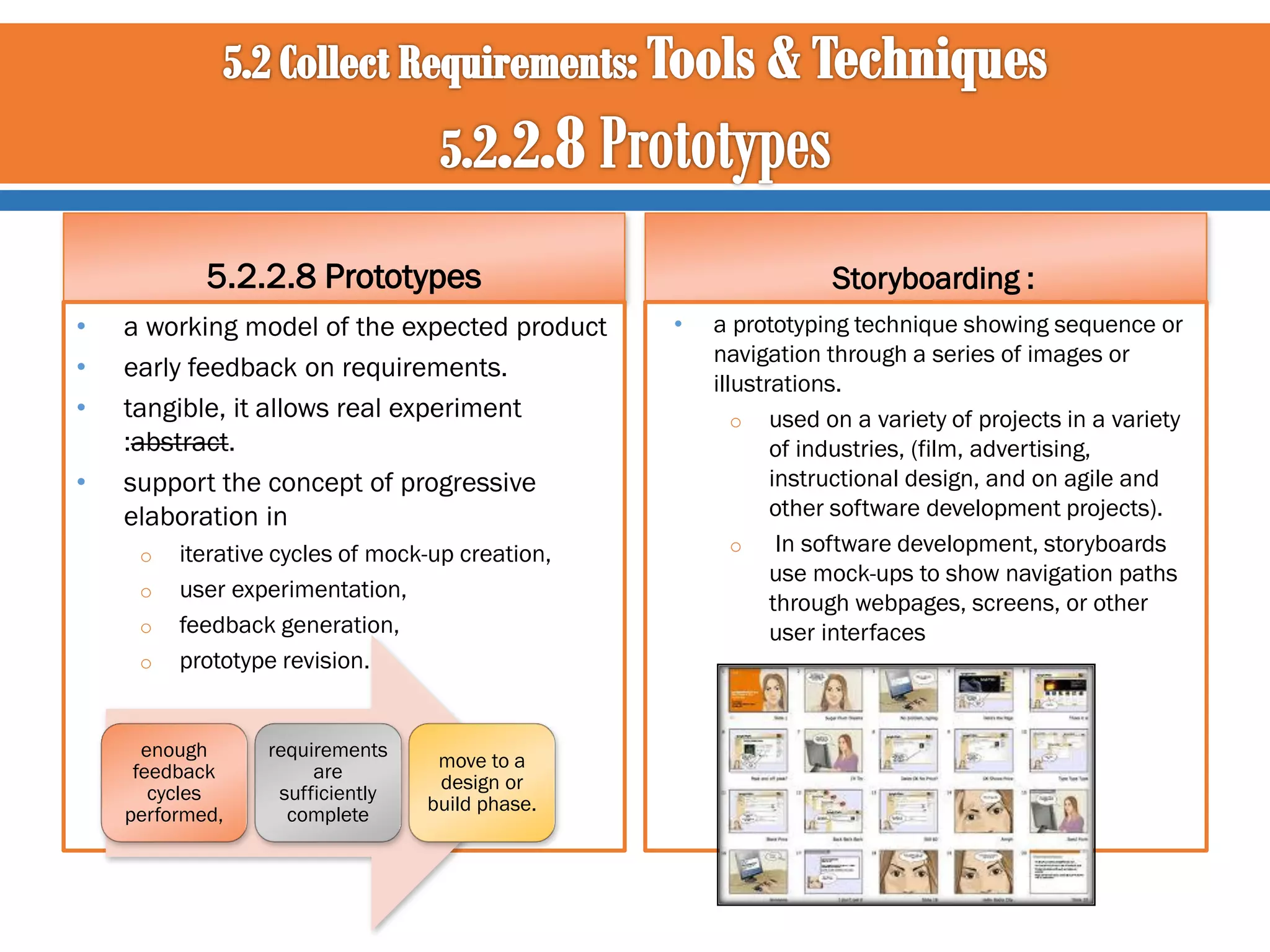

5.2.2.8 Prototypes • • • • a working model of the expected product early feedback on requirements. tangible, it allows real experiment :abstract. support the concept of progressive elaboration in o o o o iterative cycles of mock-up creation, user experimentation, feedback generation, prototype revision. enough feedback cycles performed, requirements are sufficiently complete move to a design or build phase. Storyboarding : • a prototyping technique showing sequence or navigation through a series of images or illustrations. o used on a variety of projects in a variety of industries, (film, advertising, instructional design, and on agile and other software development projects). o In software development, storyboards use mock-ups to show navigation paths through webpages, screens, or other user interfaces

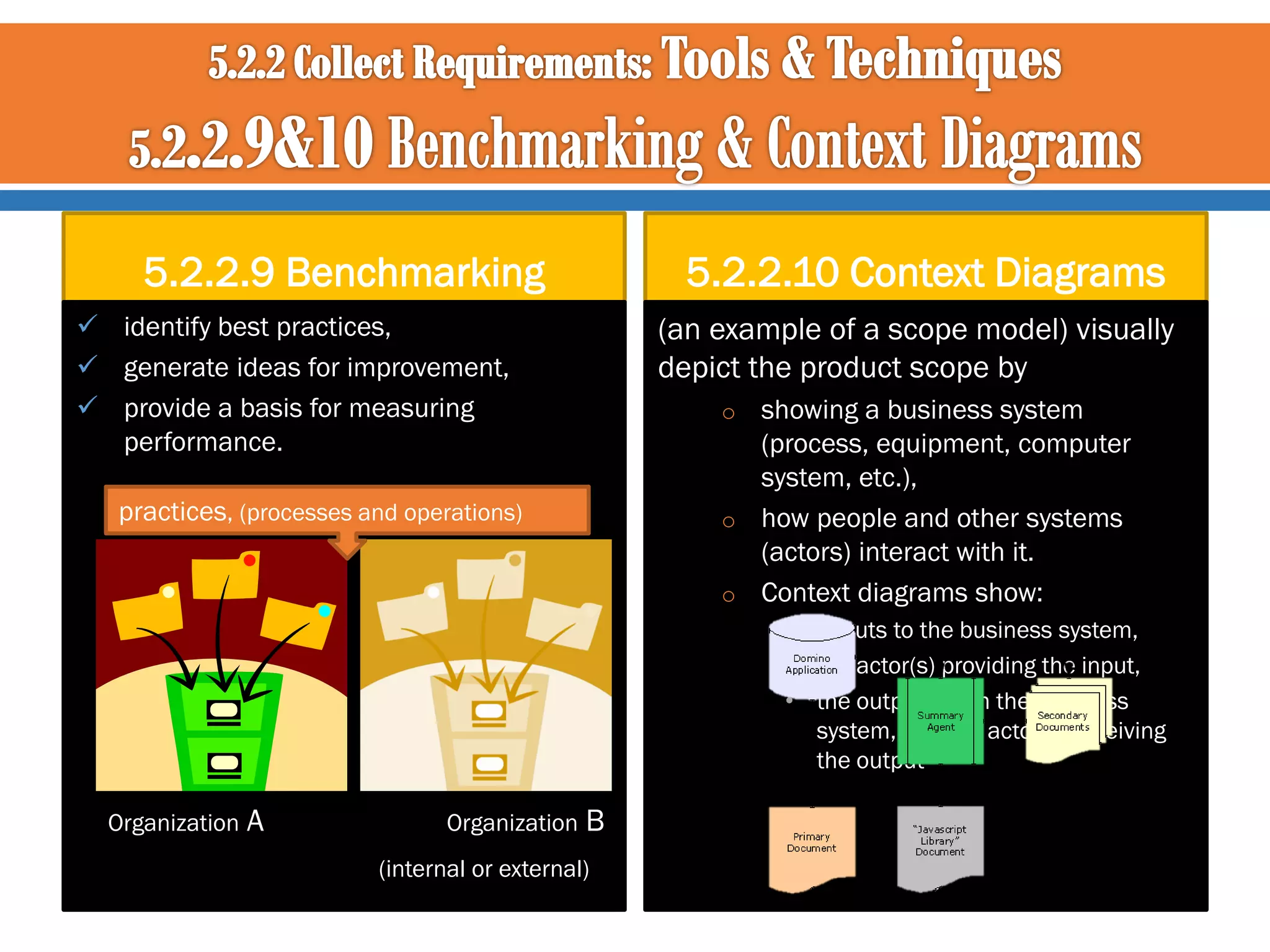

5.2.2.9 Benchmarking  identify best practices,  generate ideas for improvement,  provide a basis for measuring performance. practices, (processes and operations) 5.2.2.10 Context Diagrams (an example of a scope model) visually depict the product scope by showing a business system (process, equipment, computer system, etc.), o how people and other systems (actors) interact with it. o Context diagrams show: o • inputs to the business system, • the actor(s) providing the input, • the outputs from the business system, and the actor(s) receiving the output Organization A Organization B (internal or external)

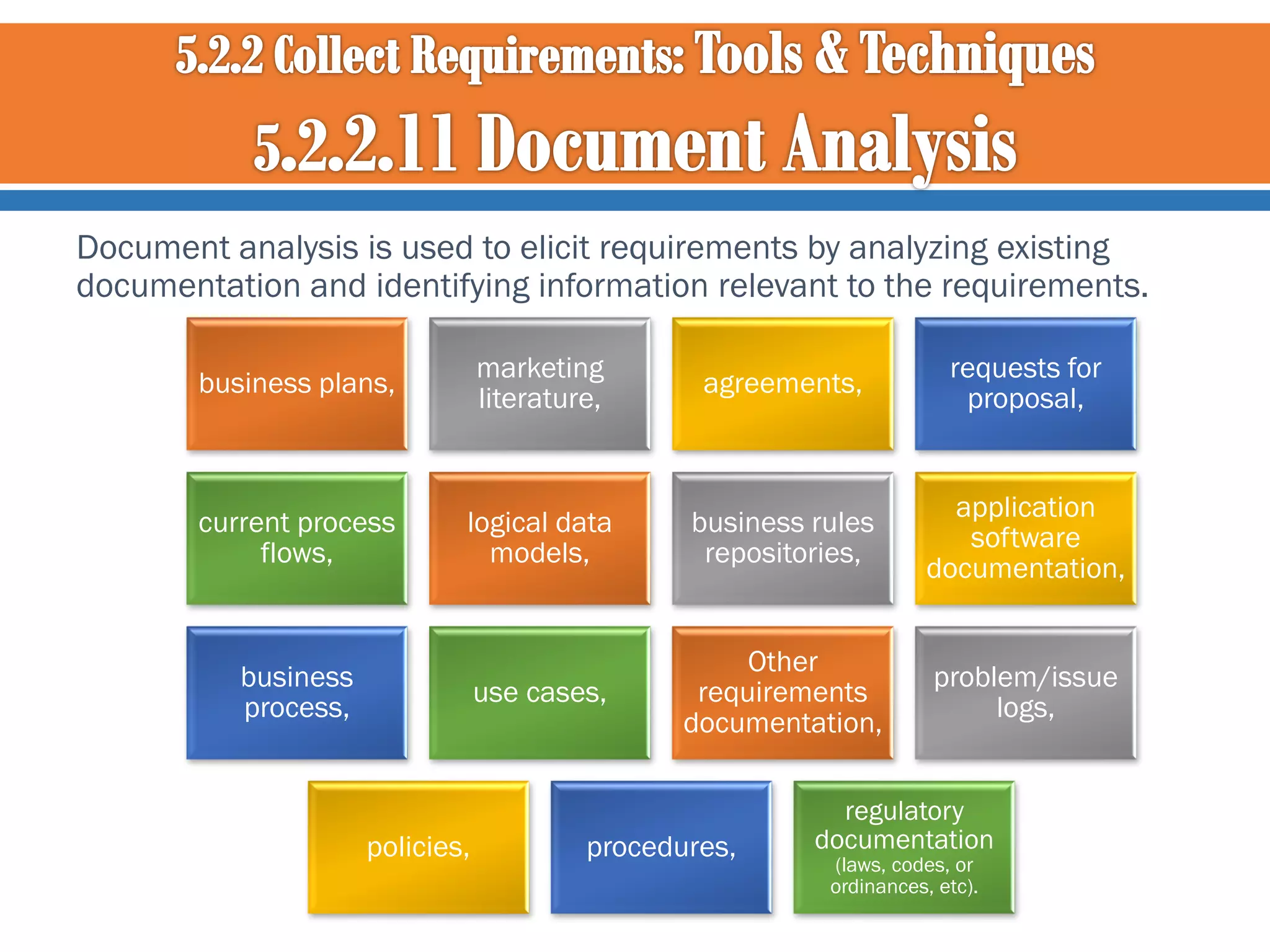

Document analysis is used to elicit requirements by analyzing existing documentation and identifying information relevant to the requirements. business plans, marketing literature, agreements, requests for proposal, current process flows, logical data models, business rules repositories, application software documentation, use cases, Other requirements documentation, problem/issue logs, business process, policies, procedures, regulatory documentation (laws, codes, or ordinances, etc).

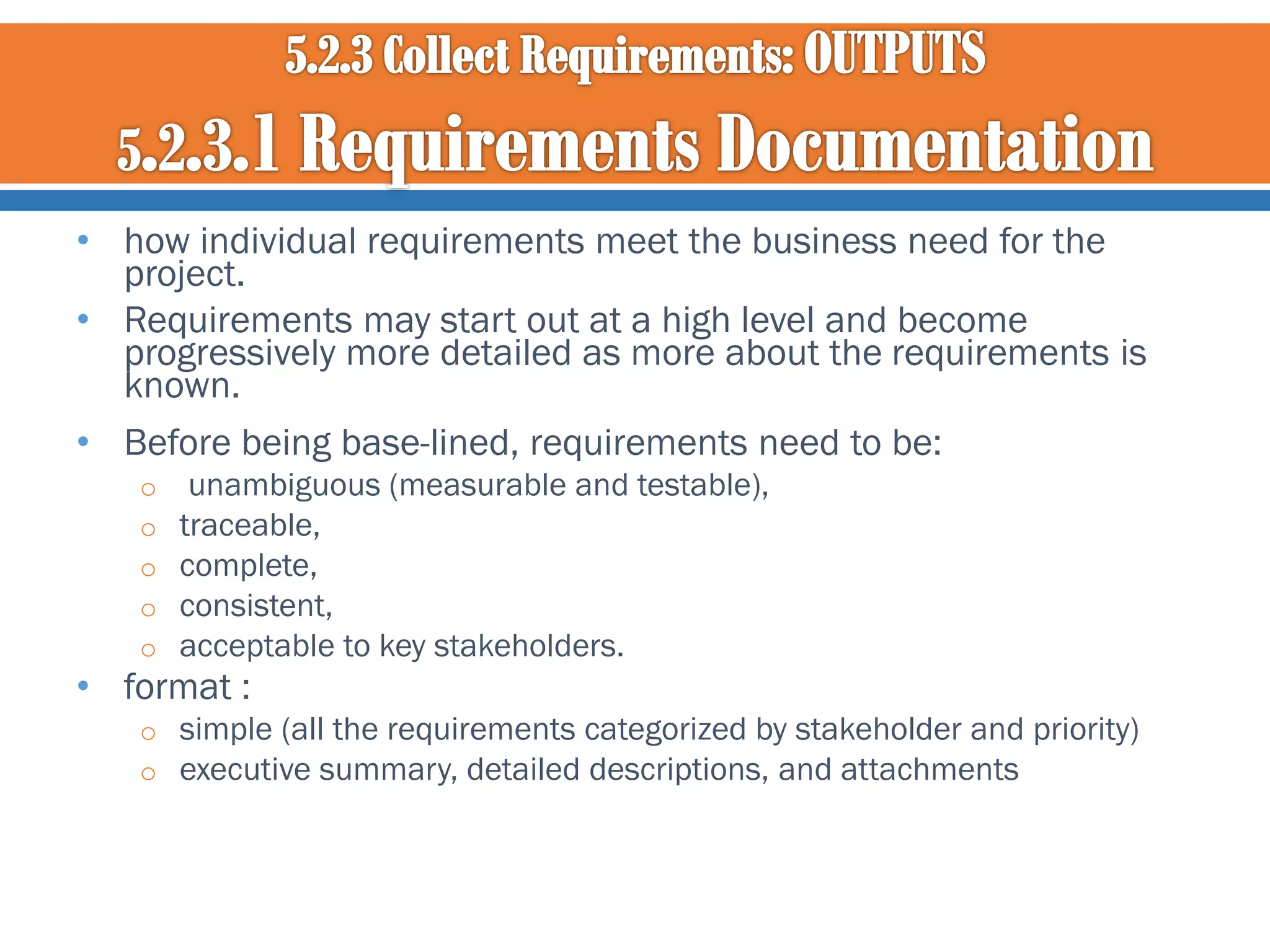

• how individual requirements meet the business need for the project. • Requirements may start out at a high level and become progressively more detailed as more about the requirements is known. • Before being base-lined, requirements need to be: o o o o o unambiguous (measurable and testable), traceable, complete, consistent, acceptable to key stakeholders. • format : o simple (all the requirements categorized by stakeholder and priority) o executive summary, detailed descriptions, and attachments

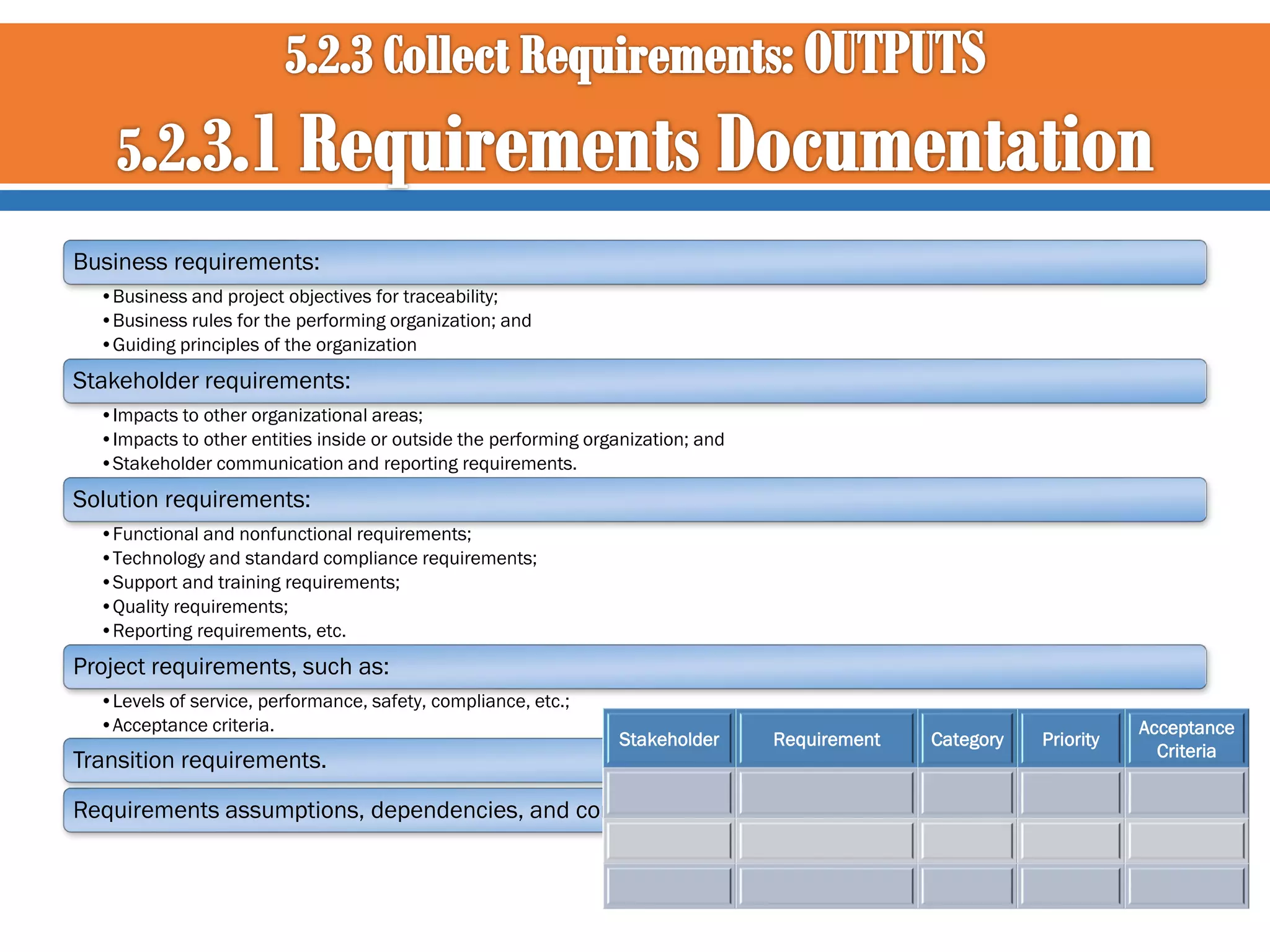

Business requirements: •Business and project objectives for traceability; •Business rules for the performing organization; and •Guiding principles of the organization Stakeholder requirements: •Impacts to other organizational areas; •Impacts to other entities inside or outside the performing organization; and •Stakeholder communication and reporting requirements. Solution requirements: •Functional and nonfunctional requirements; •Technology and standard compliance requirements; •Support and training requirements; •Quality requirements; •Reporting requirements, etc. Project requirements, such as: •Levels of service, performance, safety, compliance, etc.; •Acceptance criteria. Transition requirements. Stakeholder Requirements assumptions, dependencies, and constraints. Requirement Category Priority Acceptance Criteria

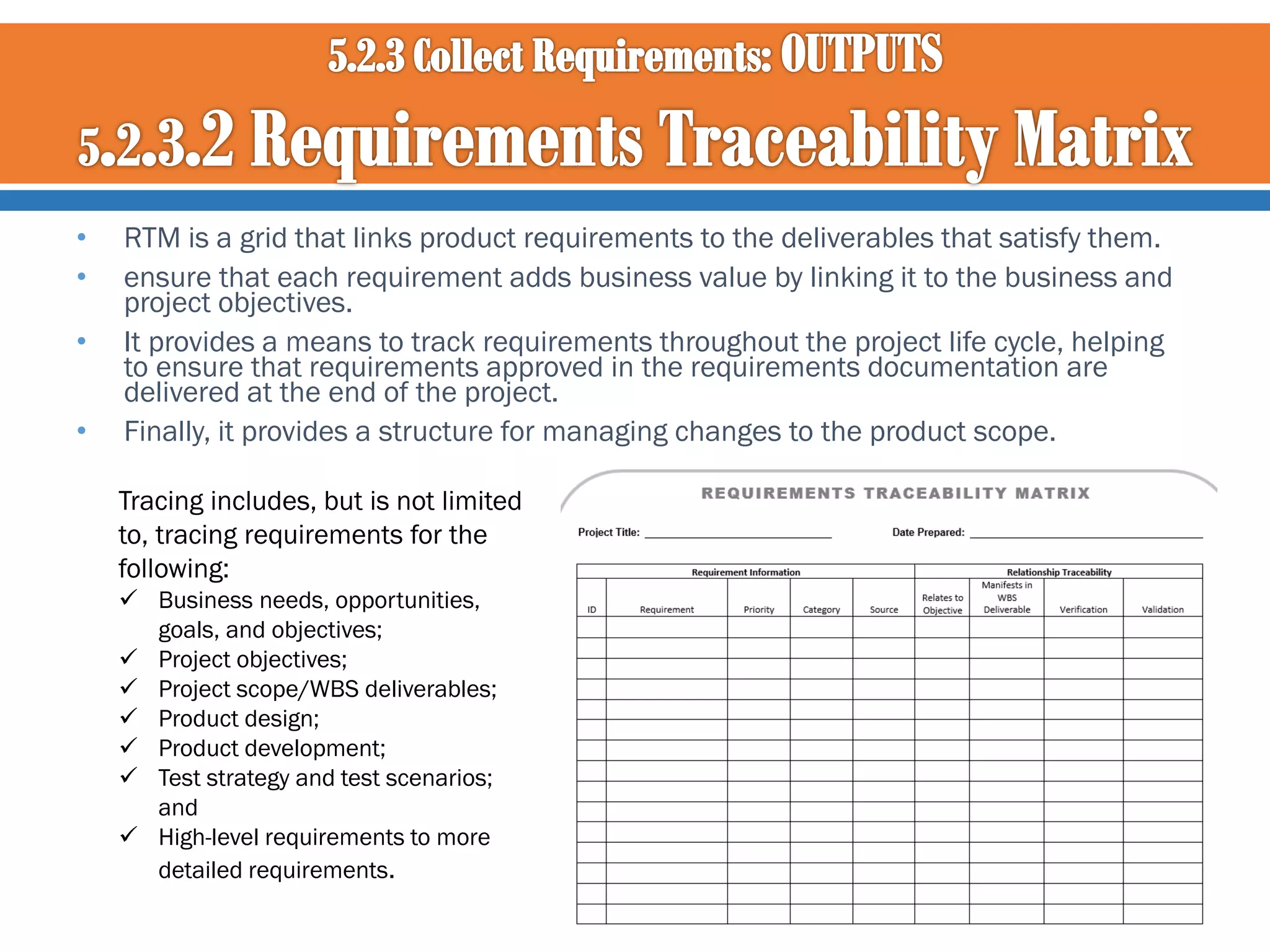

• • • • RTM is a grid that links product requirements to the deliverables that satisfy them. ensure that each requirement adds business value by linking it to the business and project objectives. It provides a means to track requirements throughout the project life cycle, helping to ensure that requirements approved in the requirements documentation are delivered at the end of the project. Finally, it provides a structure for managing changes to the product scope. Tracing includes, but is not limited to, tracing requirements for the following:  Business needs, opportunities, goals, and objectives;  Project objectives;  Project scope/WBS deliverables;  Product design;  Product development;  Test strategy and test scenarios; and  High-level requirements to more detailed requirements.

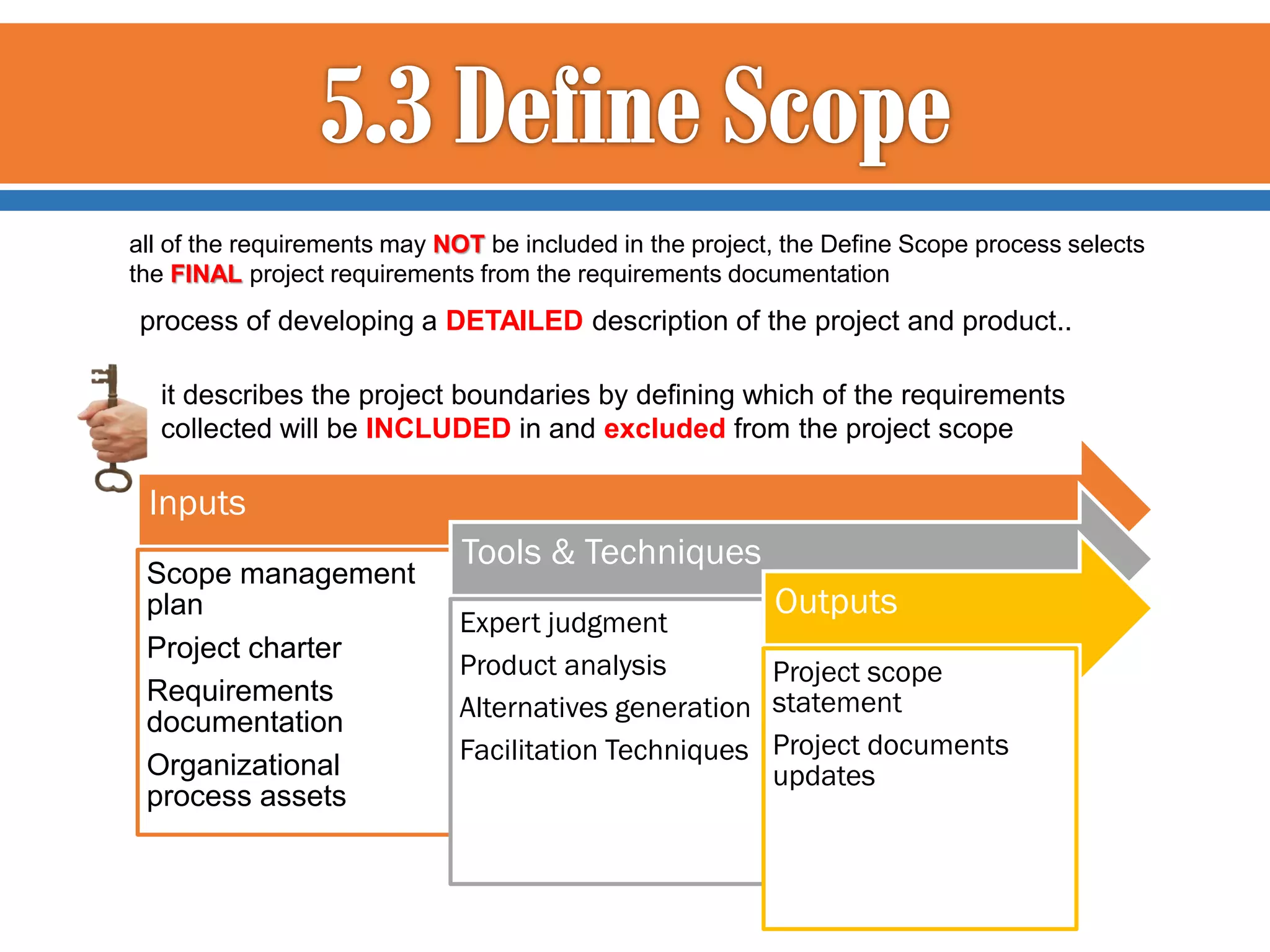

all of the requirements may NOT be included in the project, the Define Scope process selects the FINAL project requirements from the requirements documentation process of developing a DETAILED description of the project and product.. it describes the project boundaries by defining which of the requirements collected will be INCLUDED in and excluded from the project scope Inputs Scope management plan Project charter Requirements documentation Organizational process assets Tools & Techniques Outputs Expert judgment Product analysis Project scope Alternatives generation statement Facilitation Techniques Project documents updates

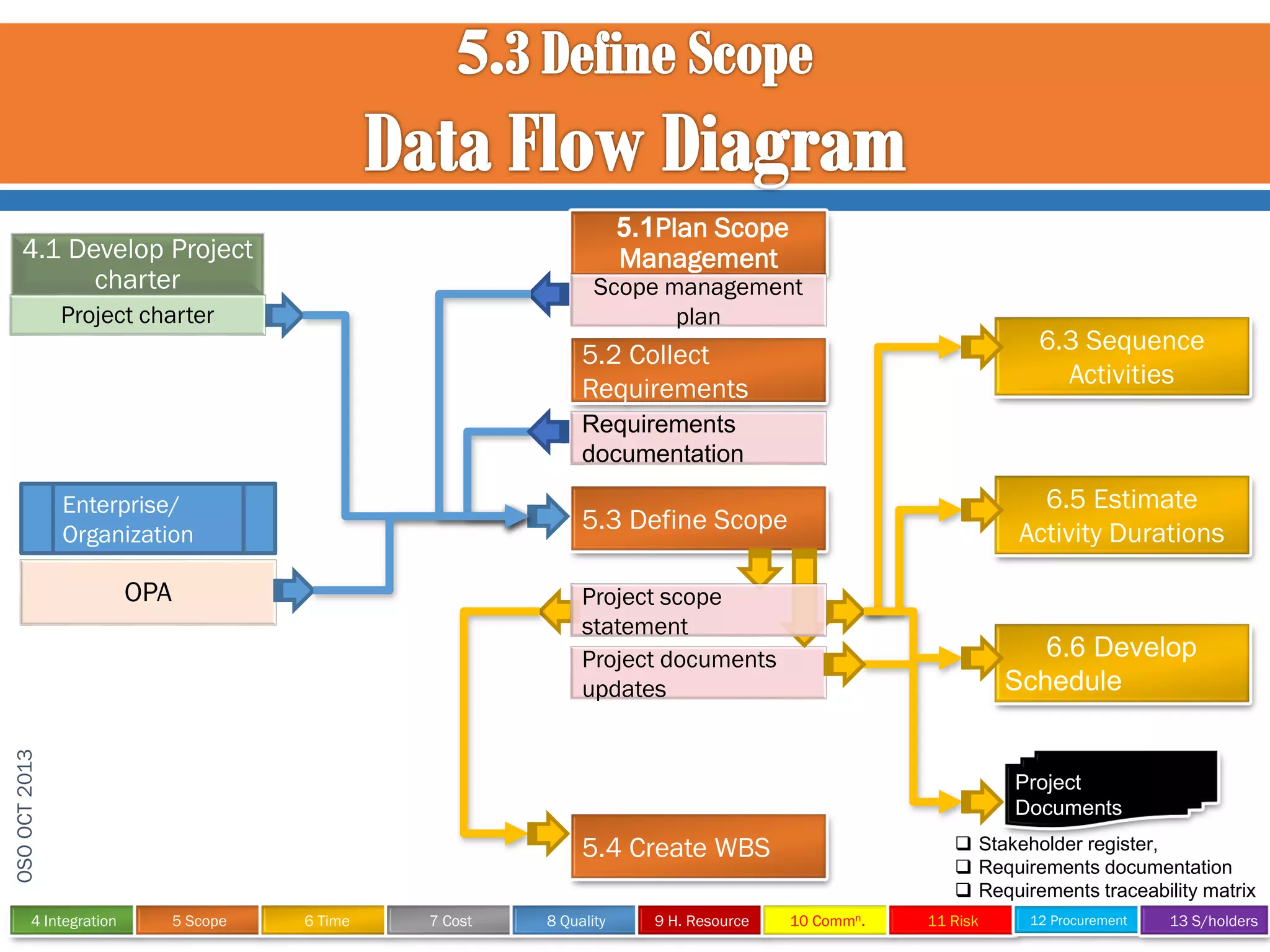

5.1Plan Scope Management 4.1 Develop Project charter Scope management plan Project charter 6.3 Sequence Activities 5.2 Collect Requirements Requirements documentation Enterprise/ Organization OPA Project scope statement Project documents updates OSO OCT 2013 4 Integration 6.5 Estimate Activity Durations 5.3 Define Scope 6.6 Develop Schedule Project Documents 5.4 Create WBS 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource  Stakeholder register,  Requirements documentation  Requirements traceability matrix 10 Commn. 11 Risk 12 Procurement 13 S/holders

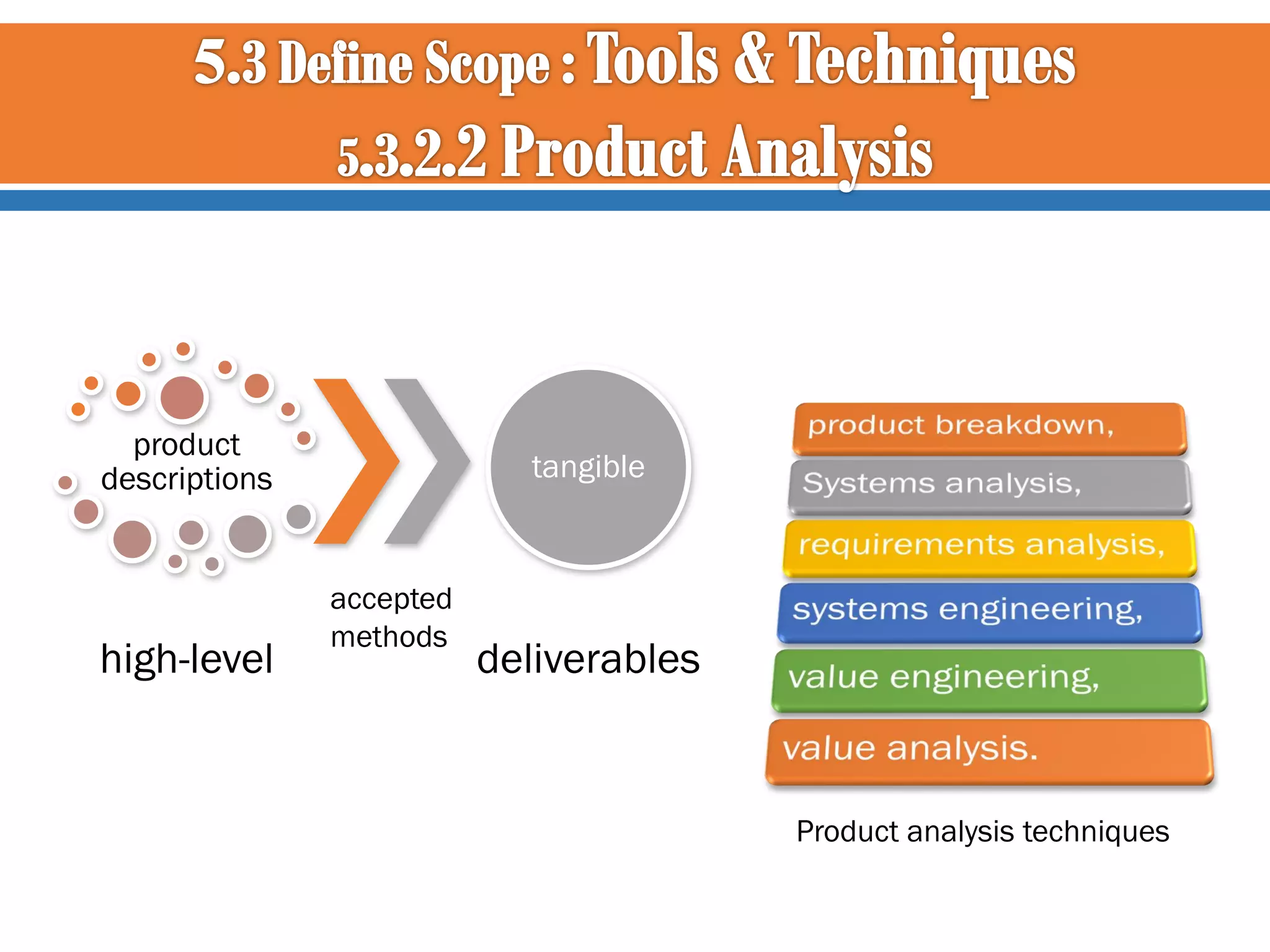

product descriptions high-level tangible accepted methods deliverables Product analysis techniques
develop as many potential OPTIONS as possible in order to identify different approaches to execute and perform the work of the project

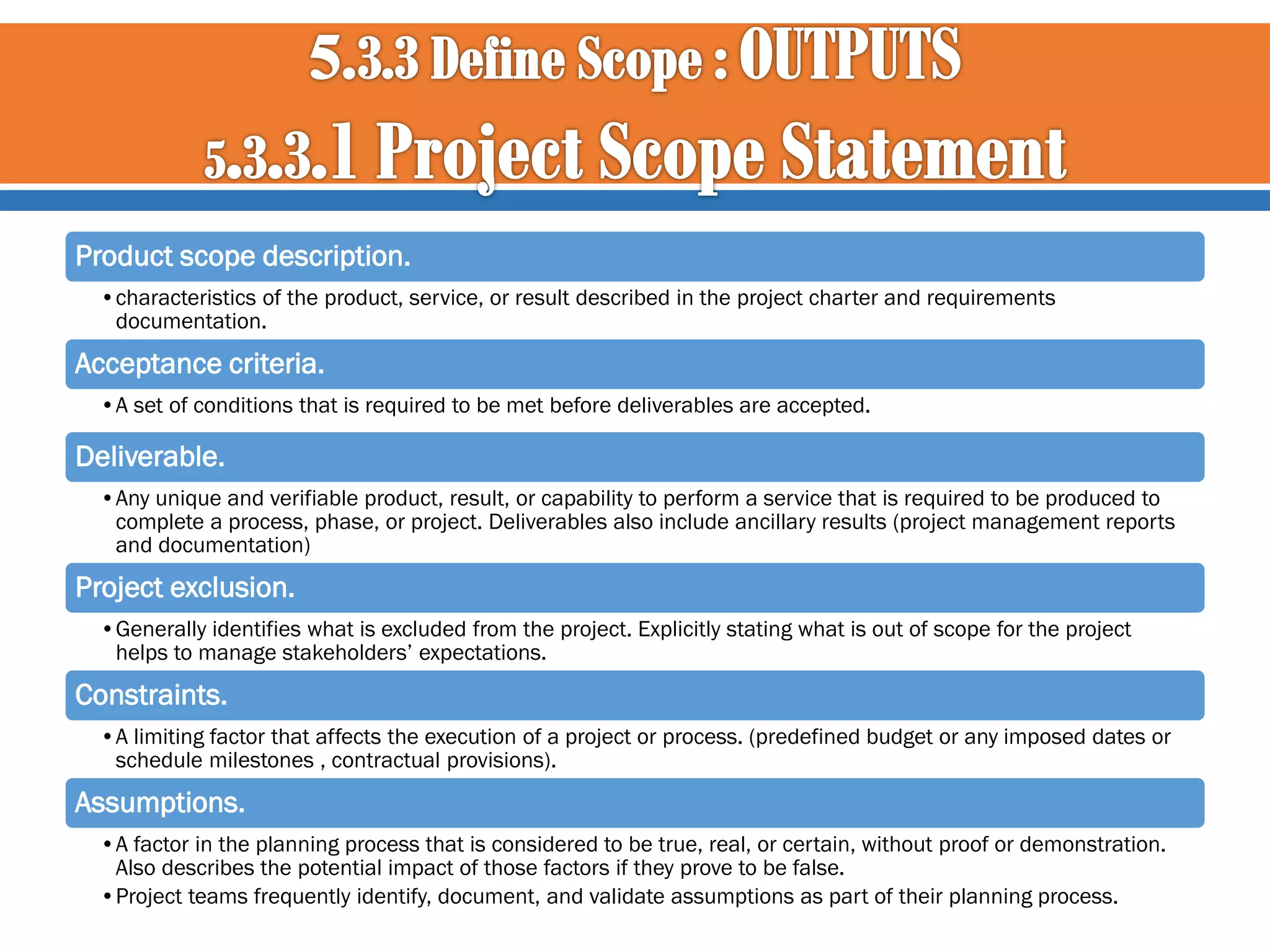

Product scope description. •characteristics of the product, service, or result described in the project charter and requirements documentation. Acceptance criteria. •A set of conditions that is required to be met before deliverables are accepted. Deliverable. •Any unique and verifiable product, result, or capability to perform a service that is required to be produced to complete a process, phase, or project. Deliverables also include ancillary results (project management reports and documentation) Project exclusion. •Generally identifies what is excluded from the project. Explicitly stating what is out of scope for the project helps to manage stakeholders’ expectations. Constraints. •A limiting factor that affects the execution of a project or process. (predefined budget or any imposed dates or schedule milestones , contractual provisions). Assumptions. •A factor in the planning process that is considered to be true, real, or certain, without proof or demonstration. Also describes the potential impact of those factors if they prove to be false. •Project teams frequently identify, document, and validate assumptions as part of their planning process.

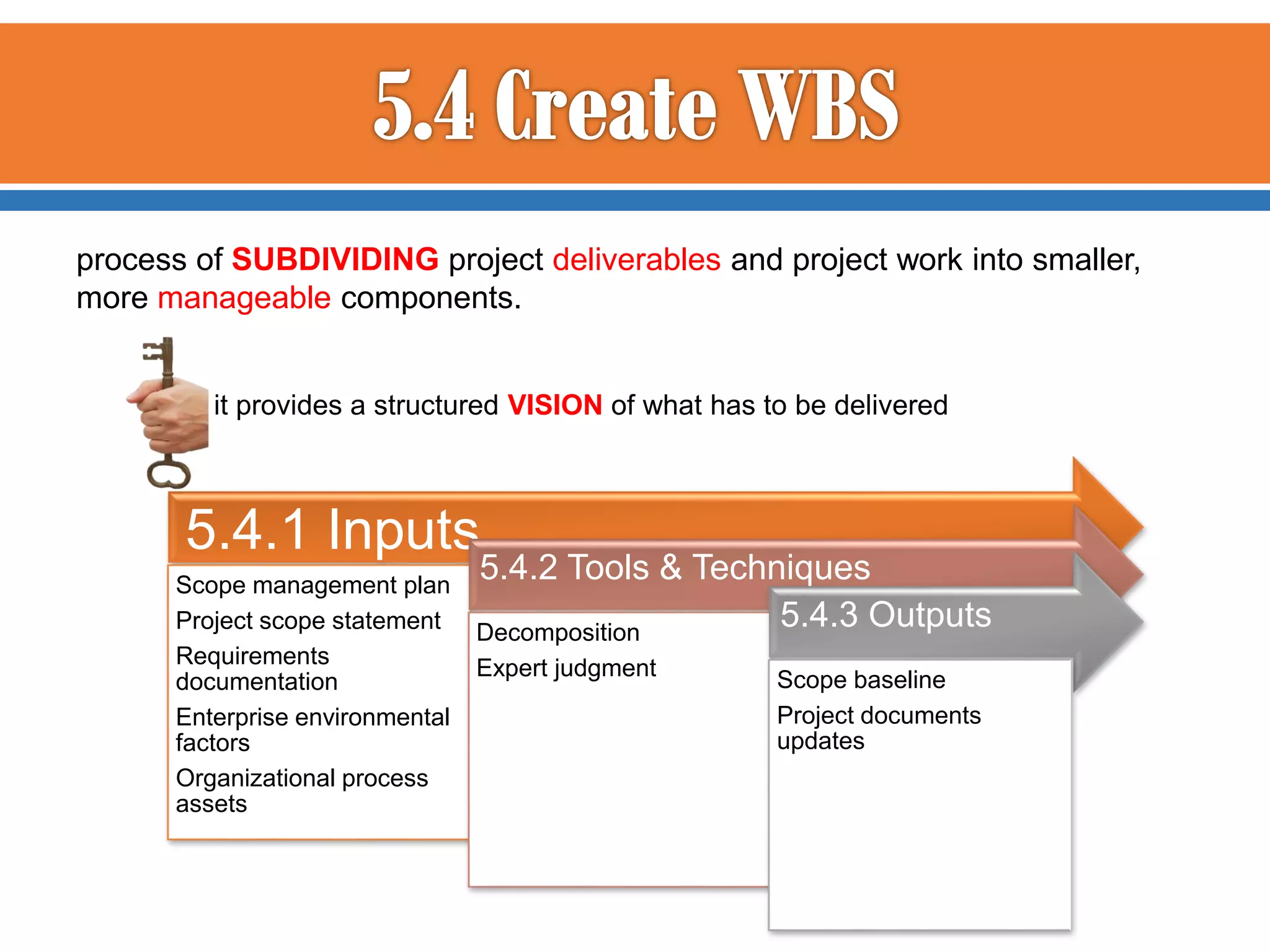

process of SUBDIVIDING project deliverables and project work into smaller, more manageable components. it provides a structured VISION of what has to be delivered 5.4.1 Inputs Scope management plan Project scope statement Requirements documentation Enterprise environmental factors Organizational process assets 5.4.2 Tools & Techniques 5.4.3 Outputs Decomposition Expert judgment Scope baseline Project documents updates

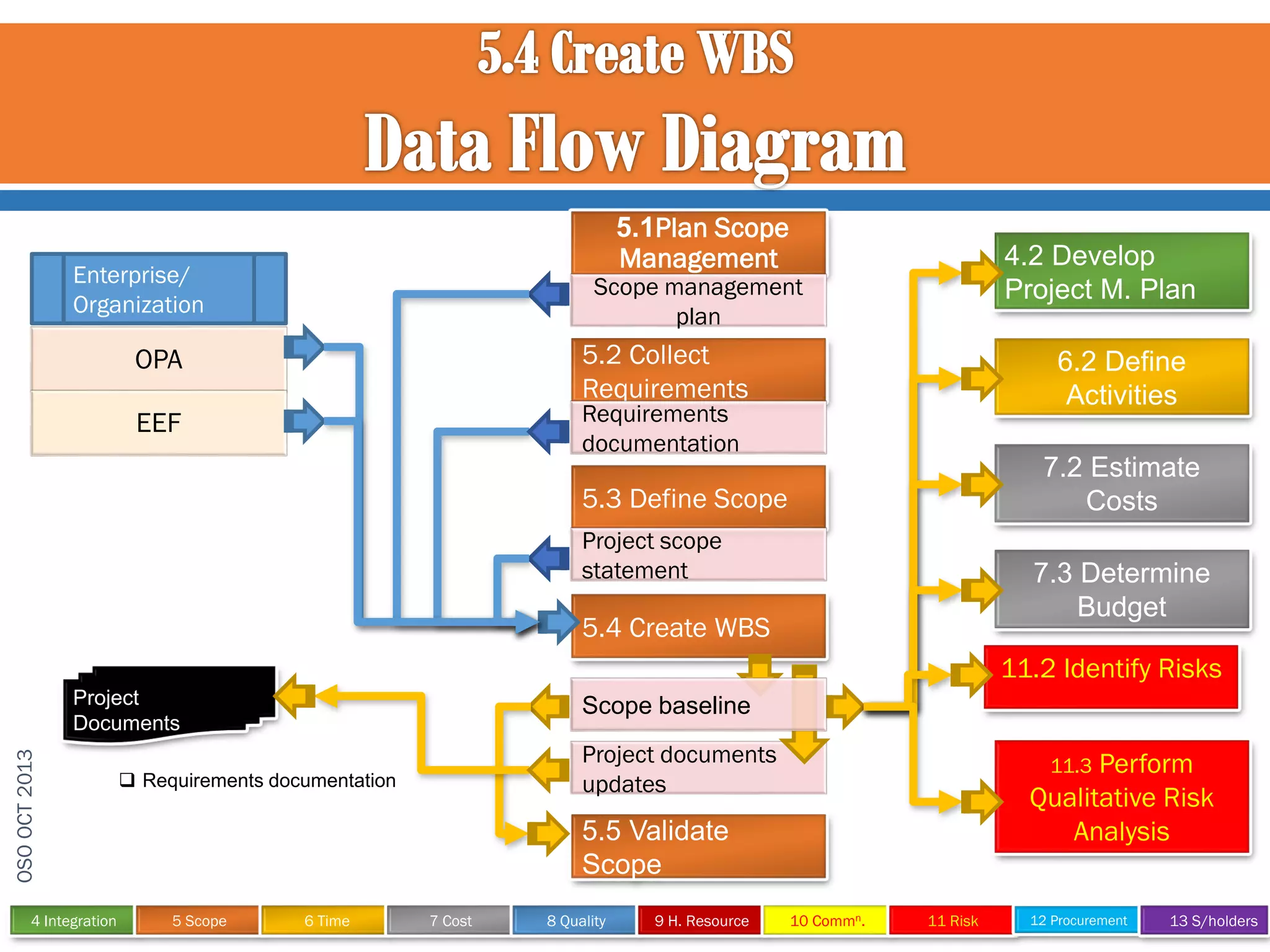

5.1Plan Scope Management Enterprise/ Organization 4.2 Develop Project M. Plan Scope management plan 5.2 Collect Requirements OPA 6.2 Define Activities Requirements documentation EEF 7.2 Estimate Costs 5.3 Define Scope Project scope statement 7.3 Determine Budget 5.4 Create WBS 11.2 Identify Risks OSO OCT 2013 Project Documents 4 Integration Scope baseline Project documents updates  Requirements documentation Perform Qualitative Risk Analysis 11.3 5.5 Validate Scope 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource 10 Commn. 11 Risk 12 Procurement 13 S/holders

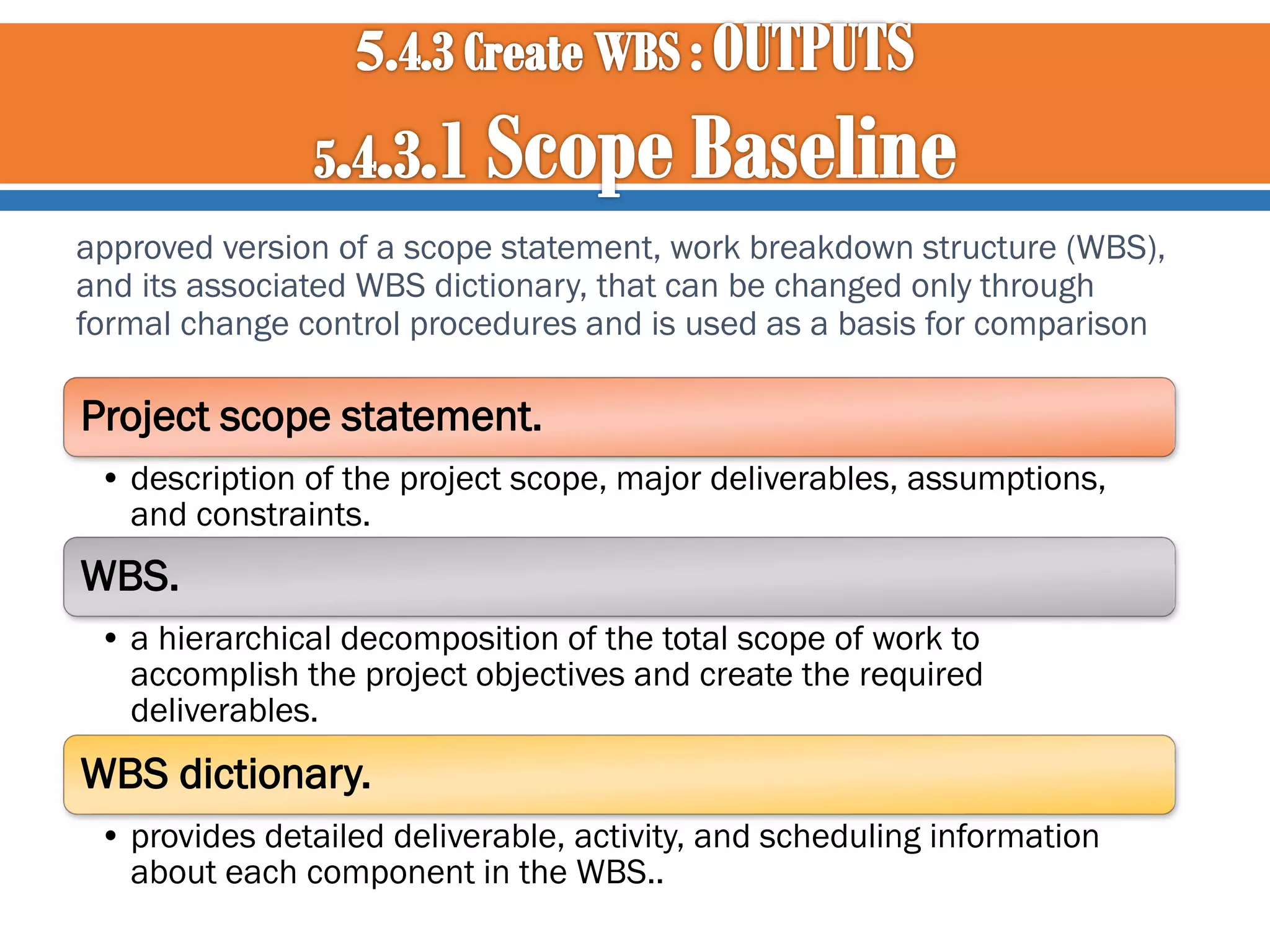

approved version of a scope statement, work breakdown structure (WBS), and its associated WBS dictionary, that can be changed only through formal change control procedures and is used as a basis for comparison Project scope statement. • description of the project scope, major deliverables, assumptions, and constraints. WBS. • a hierarchical decomposition of the total scope of work to accomplish the project objectives and create the required deliverables. WBS dictionary. • provides detailed deliverable, activity, and scheduling information about each component in the WBS..

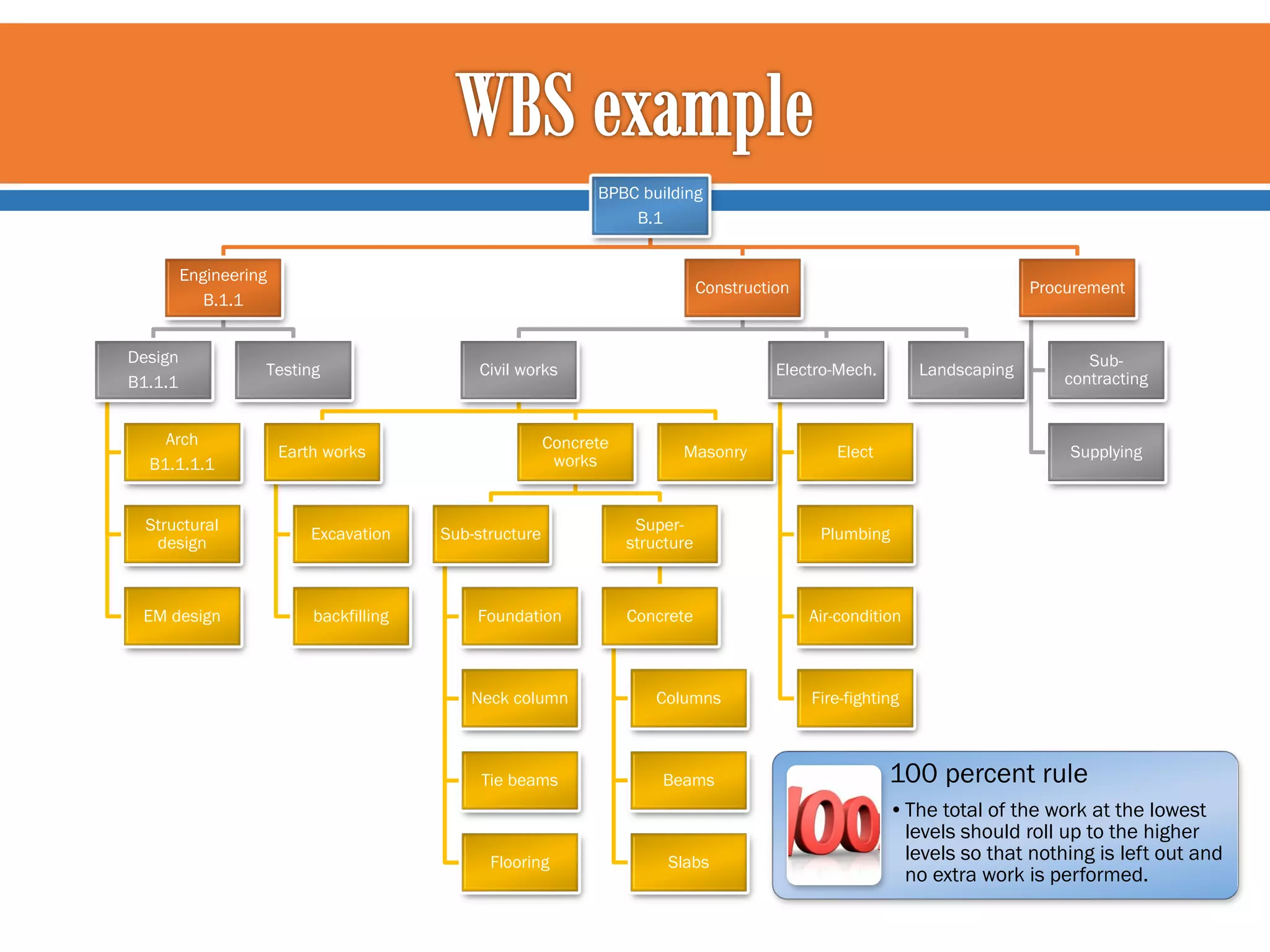

BPBC building B.1 Engineering B.1.1 Design B1.1.1 Arch B1.1.1.1 Construction Testing Civil works Concrete works Earth works Structural design Excavation EM design backfilling Sub-structure Foundation Electro-Mech. Masonry Landscaping Elect Subcontracting Supplying Superstructure Plumbing Concrete Air-condition Neck column Columns Tie beams Beams Flooring Procurement Slabs Fire-fighting 100 percent rule •The total of the work at the lowest levels should roll up to the higher levels so that nothing is left out and no extra work is performed.

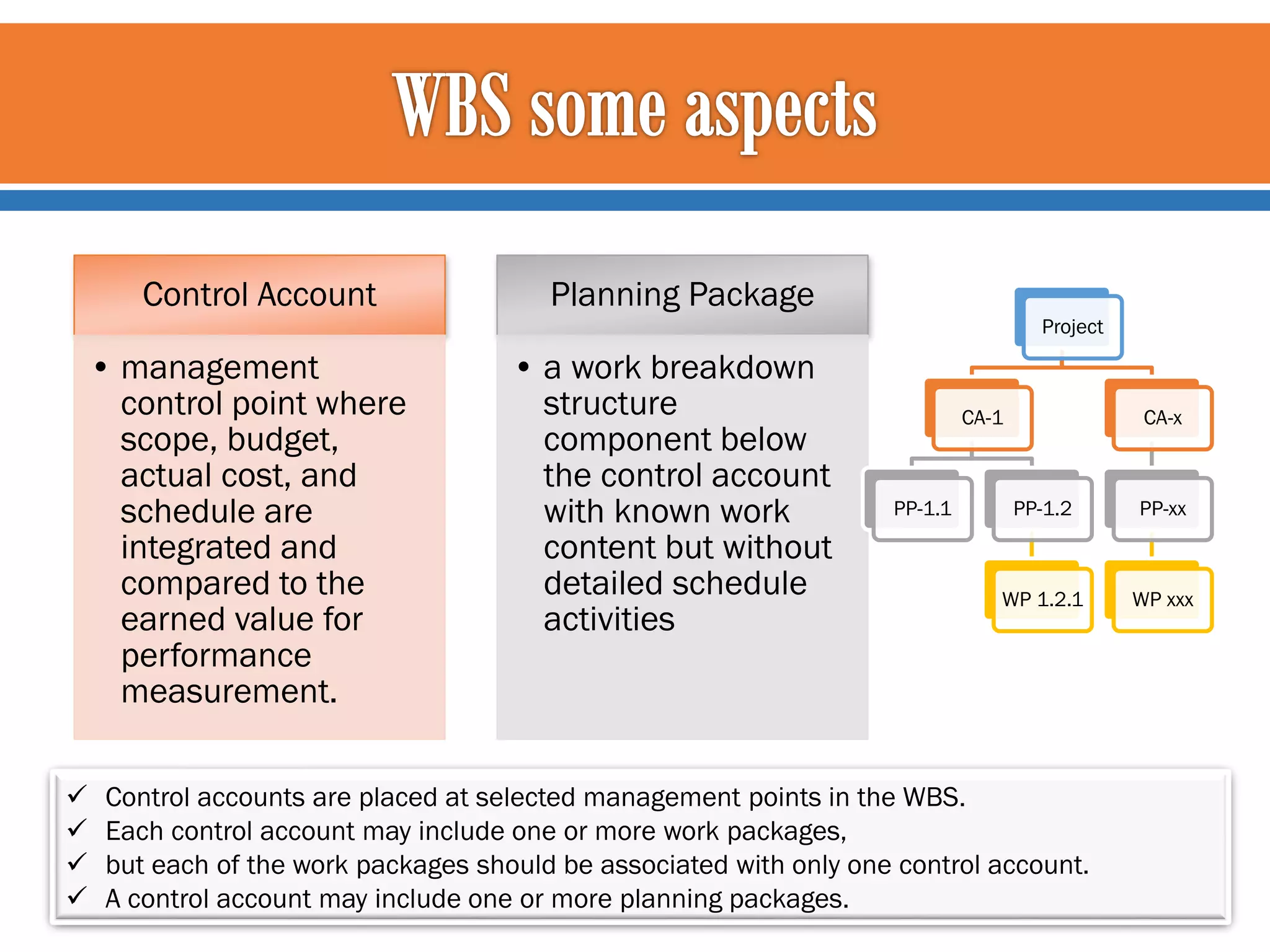

Control Account Planning Package Project • management control point where scope, budget, actual cost, and schedule are integrated and compared to the earned value for performance measurement.     • a work breakdown structure component below the control account with known work content but without detailed schedule activities CA-1 PP-1.1 CA-x PP-1.2 PP-xx WP 1.2.1 WP xxx Control accounts are placed at selected management points in the WBS. Each control account may include one or more work packages, but each of the work packages should be associated with only one control account. A control account may include one or more planning packages.

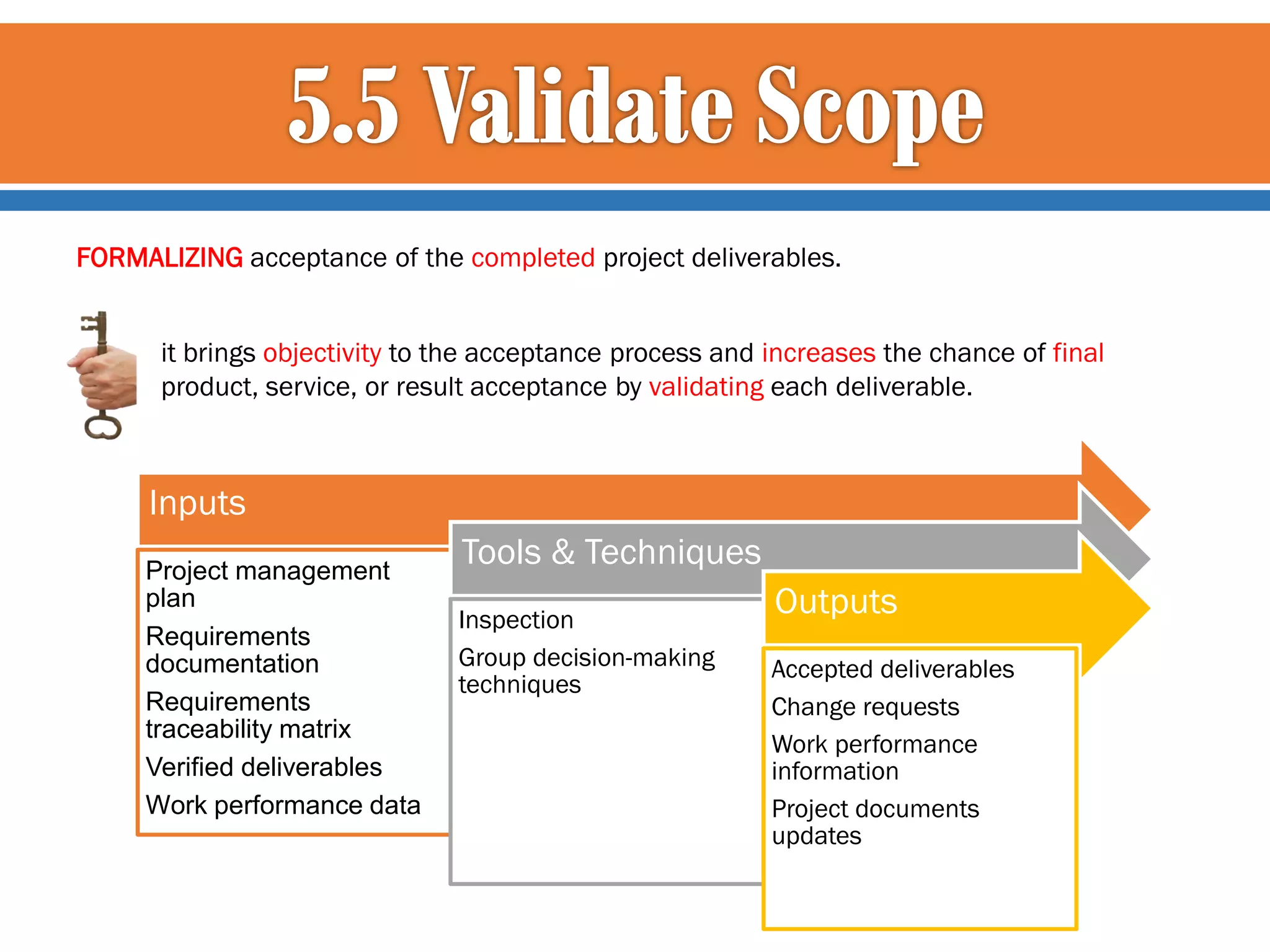

FORMALIZING acceptance of the completed project deliverables. it brings objectivity to the acceptance process and increases the chance of final product, service, or result acceptance by validating each deliverable. Inputs Project management plan Requirements documentation Requirements traceability matrix Verified deliverables Work performance data Tools & Techniques Inspection Group decision-making techniques Outputs Accepted deliverables Change requests Work performance information Project documents updates

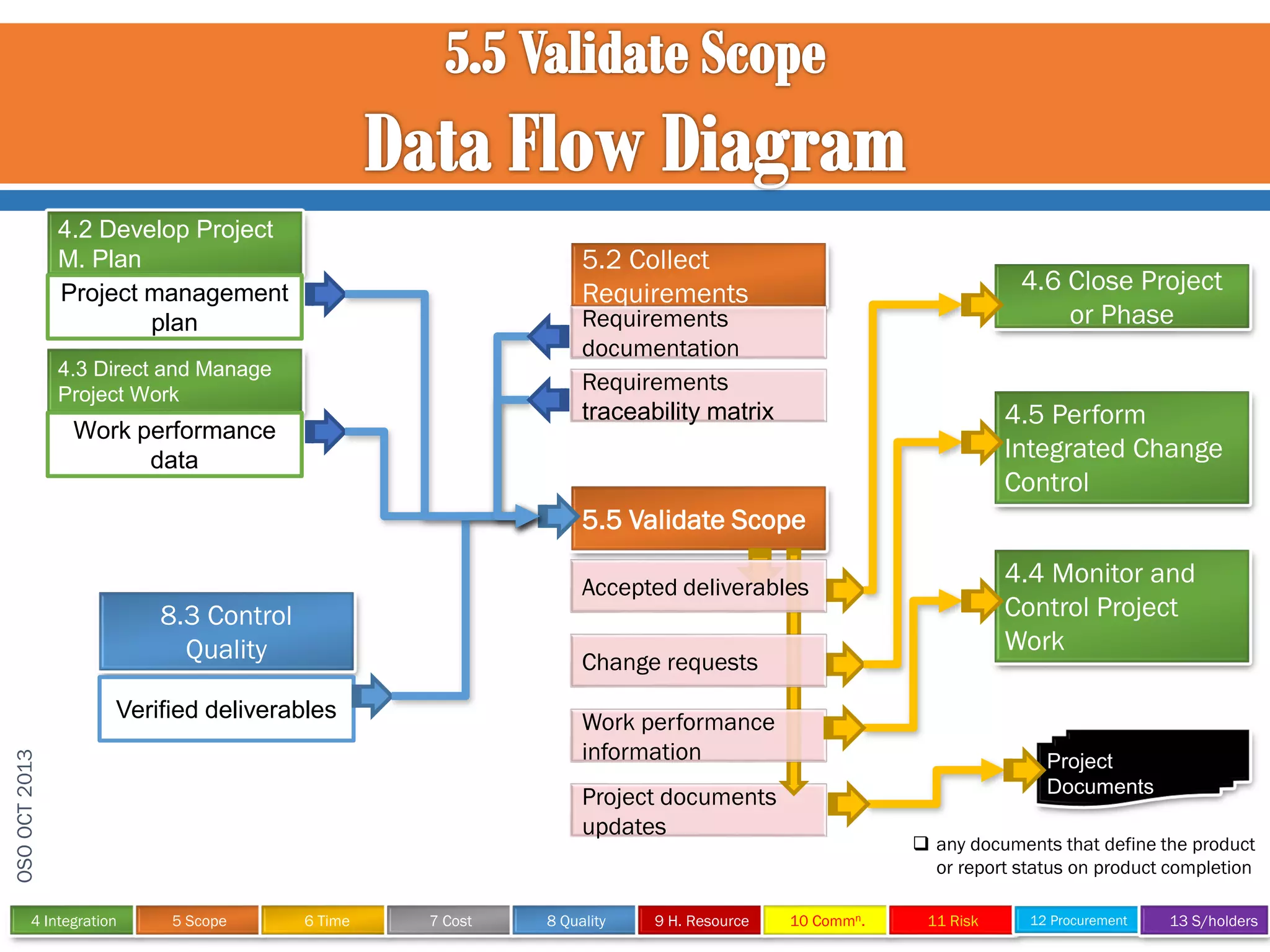

4.2 Develop Project M. Plan Project management plan 5.2 Collect Requirements 4.6 Close Project or Phase Requirements documentation Requirements traceability matrix 4.3 Direct and Manage Project Work Work performance data 4.5 Perform Integrated Change Control 5.5 Validate Scope 8.3 Control Quality Change requests Verified deliverables Work performance information OSO OCT 2013 4 Integration Project Documents Project documents updates 5 Scope 4.4 Monitor and Control Project Work Accepted deliverables 6 Time 7 Cost 8 Quality 9 H. Resource  any documents that define the product or report status on product completion 10 Commn. 11 Risk 12 Procurement 13 S/holders

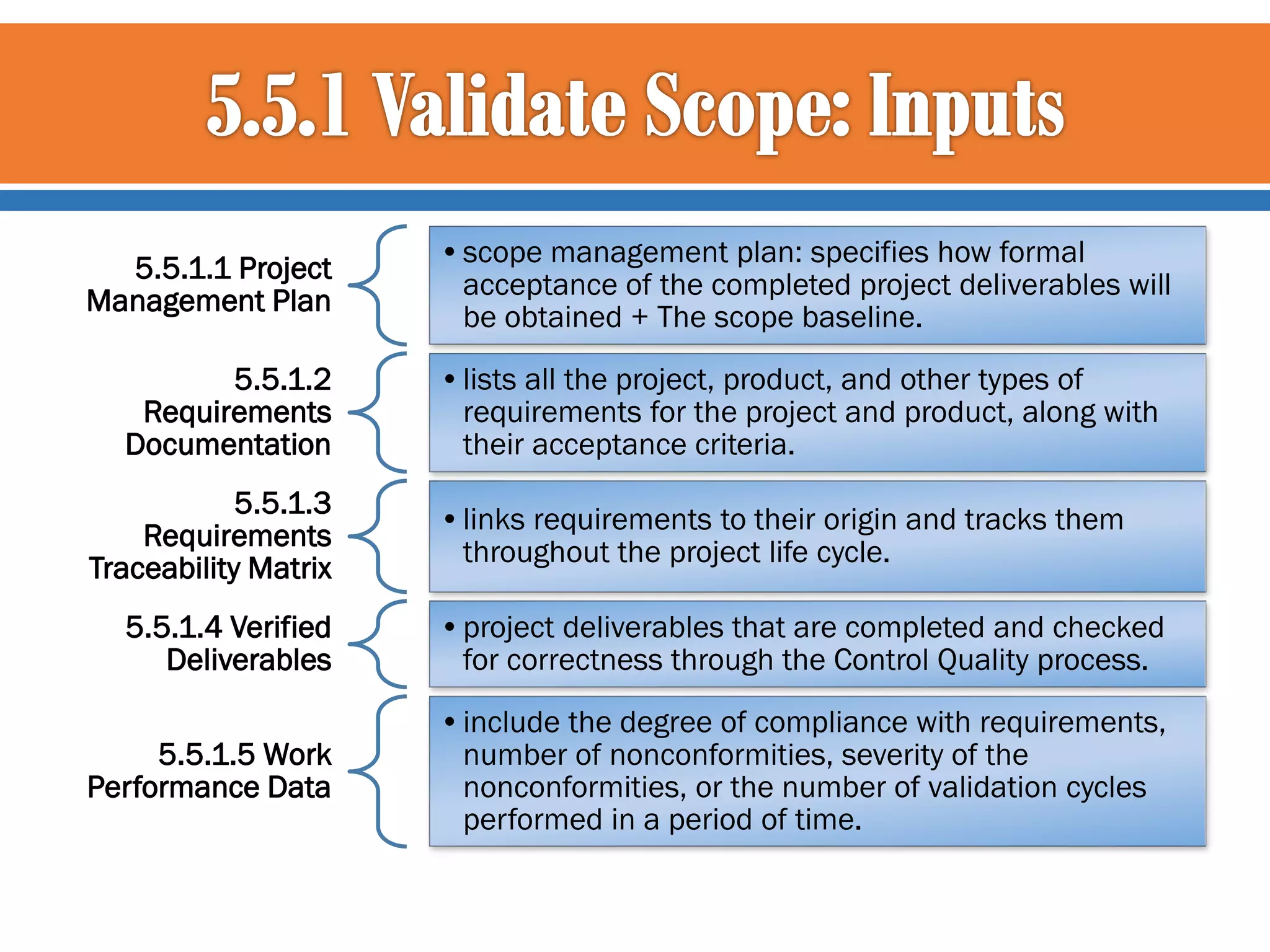

5.5.1.1 Project Management Plan 5.5.1.2 Requirements Documentation 5.5.1.3 Requirements Traceability Matrix •scope management plan: specifies how formal acceptance of the completed project deliverables will be obtained + The scope baseline. •lists all the project, product, and other types of requirements for the project and product, along with their acceptance criteria. •links requirements to their origin and tracks them throughout the project life cycle. 5.5.1.4 Verified Deliverables •project deliverables that are completed and checked for correctness through the Control Quality process. 5.5.1.5 Work Performance Data •include the degree of compliance with requirements, number of nonconformities, severity of the nonconformities, or the number of validation cycles performed in a period of time.

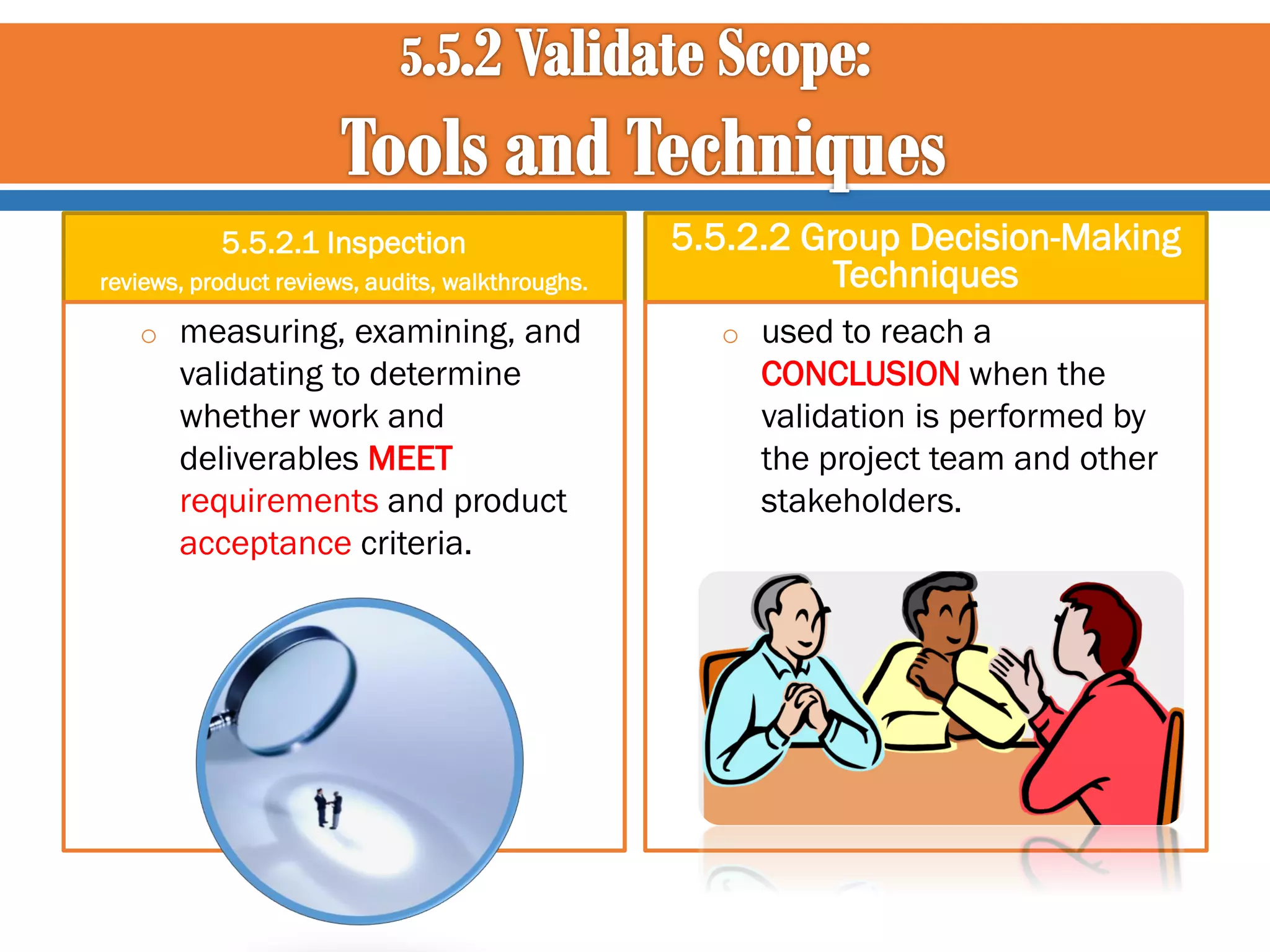

5.5.2.1 Inspection reviews, product reviews, audits, walkthroughs. o measuring, examining, and validating to determine whether work and deliverables MEET requirements and product acceptance criteria. 5.5.2.2 Group Decision-Making Techniques o used to reach a CONCLUSION when the validation is performed by the project team and other stakeholders.

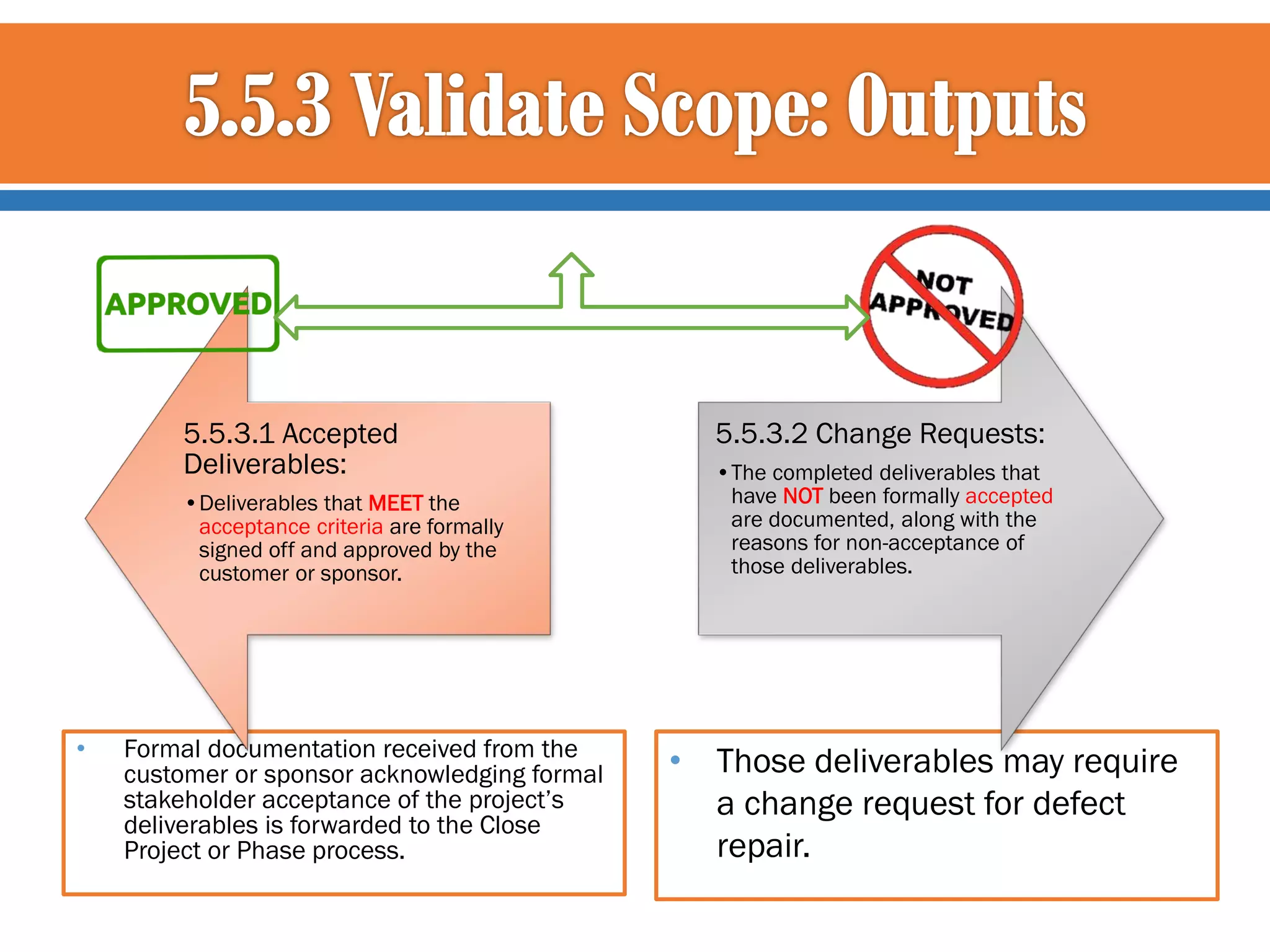

5.5.3.1 Accepted Deliverables: •Deliverables that MEET the acceptance criteria are formally signed off and approved by the customer or sponsor. • Formal documentation received from the customer or sponsor acknowledging formal stakeholder acceptance of the project’s deliverables is forwarded to the Close Project or Phase process. 5.5.3.2 Change Requests: •The completed deliverables that have NOT been formally accepted are documented, along with the reasons for non-acceptance of those deliverables. • Those deliverables may require a change request for defect repair.

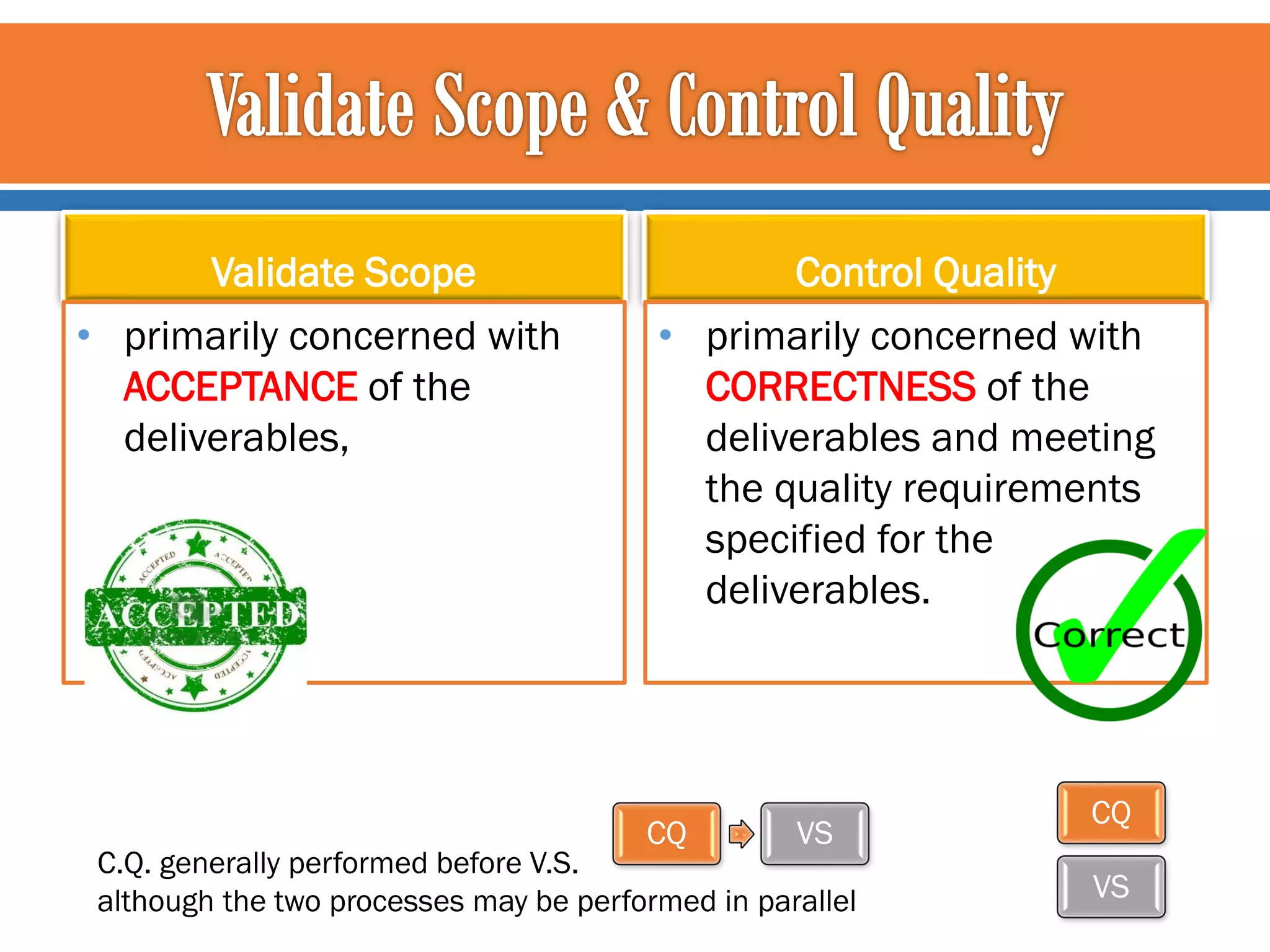

Validate Scope • primarily concerned with ACCEPTANCE of the deliverables, Control Quality • primarily concerned with CORRECTNESS of the deliverables and meeting the quality requirements specified for the deliverables. CQ VS C.Q. generally performed before V.S. although the two processes may be performed in parallel CQ VS

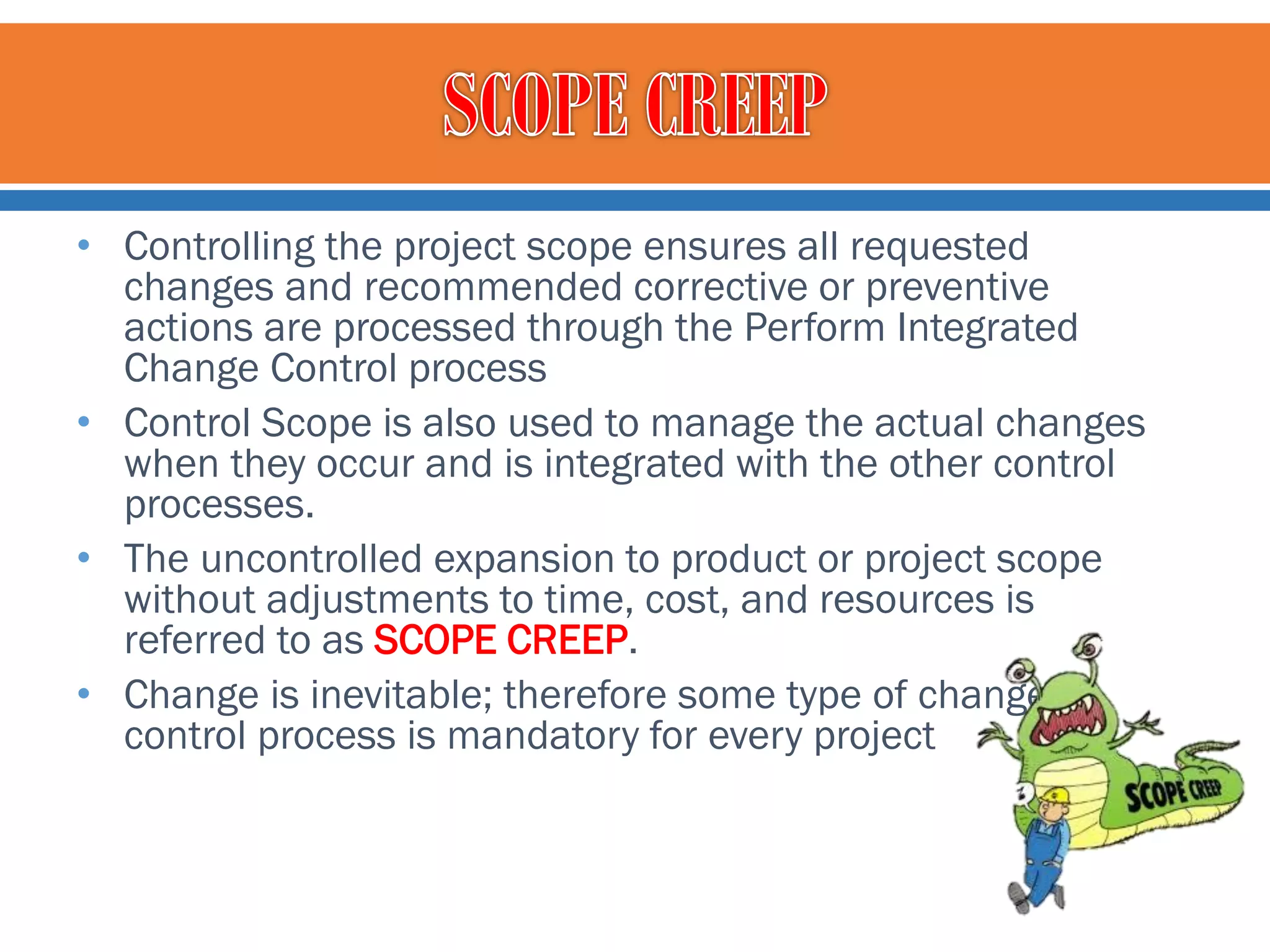

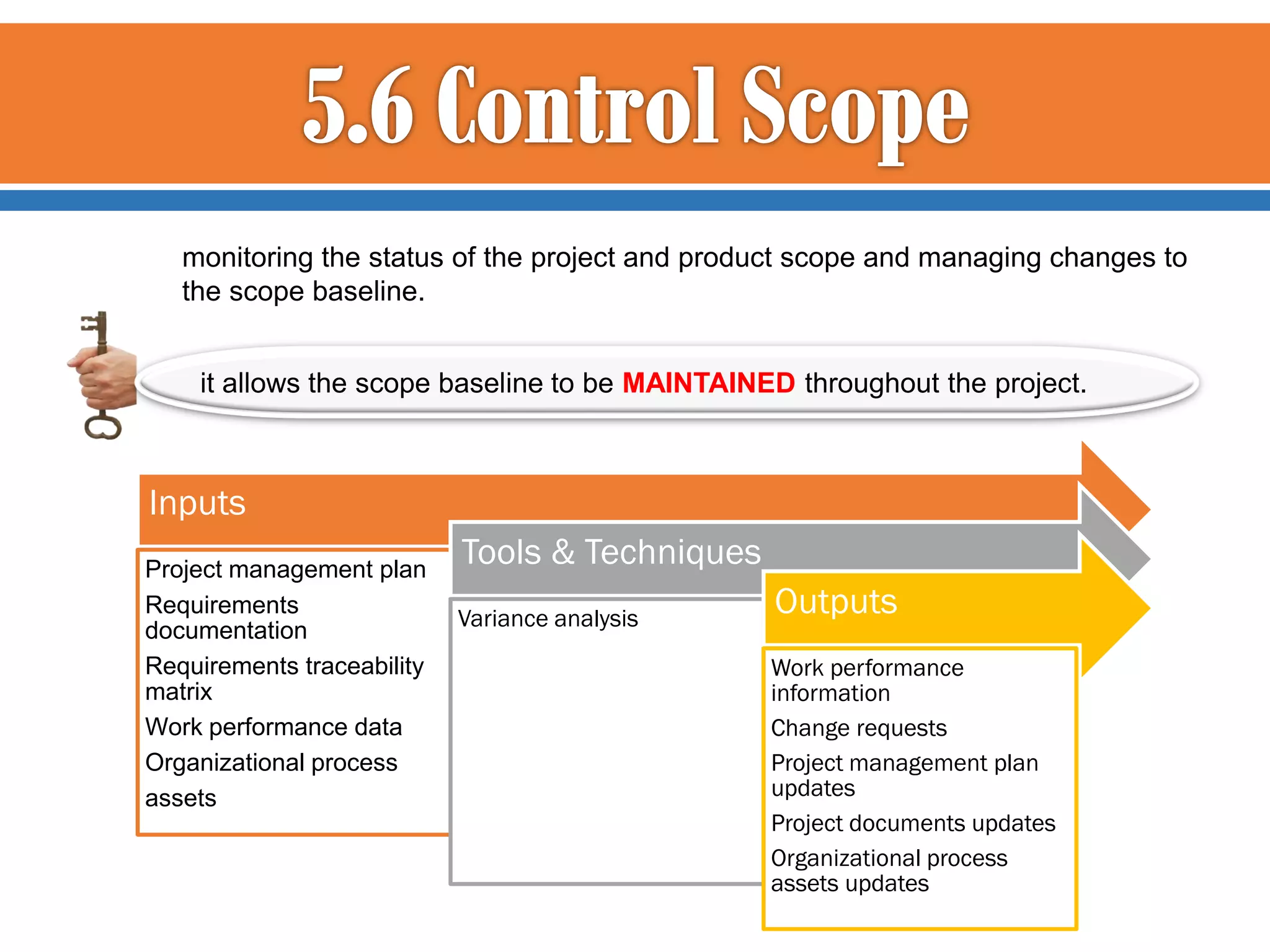

monitoring the status of the project and product scope and managing changes to the scope baseline. it allows the scope baseline to be MAINTAINED throughout the project. Inputs Project management plan Requirements documentation Requirements traceability matrix Work performance data Organizational process assets Tools & Techniques Variance analysis Outputs Work performance information Change requests Project management plan updates Project documents updates Organizational process assets updates
• Controlling the project scope ensures all requested changes and recommended corrective or preventive actions are processed through the Perform Integrated Change Control process • Control Scope is also used to manage the actual changes when they occur and is integrated with the other control processes. • The uncontrolled expansion to product or project scope without adjustments to time, cost, and resources is referred to as SCOPE CREEP. • Change is inevitable; therefore some type of change control process is mandatory for every project

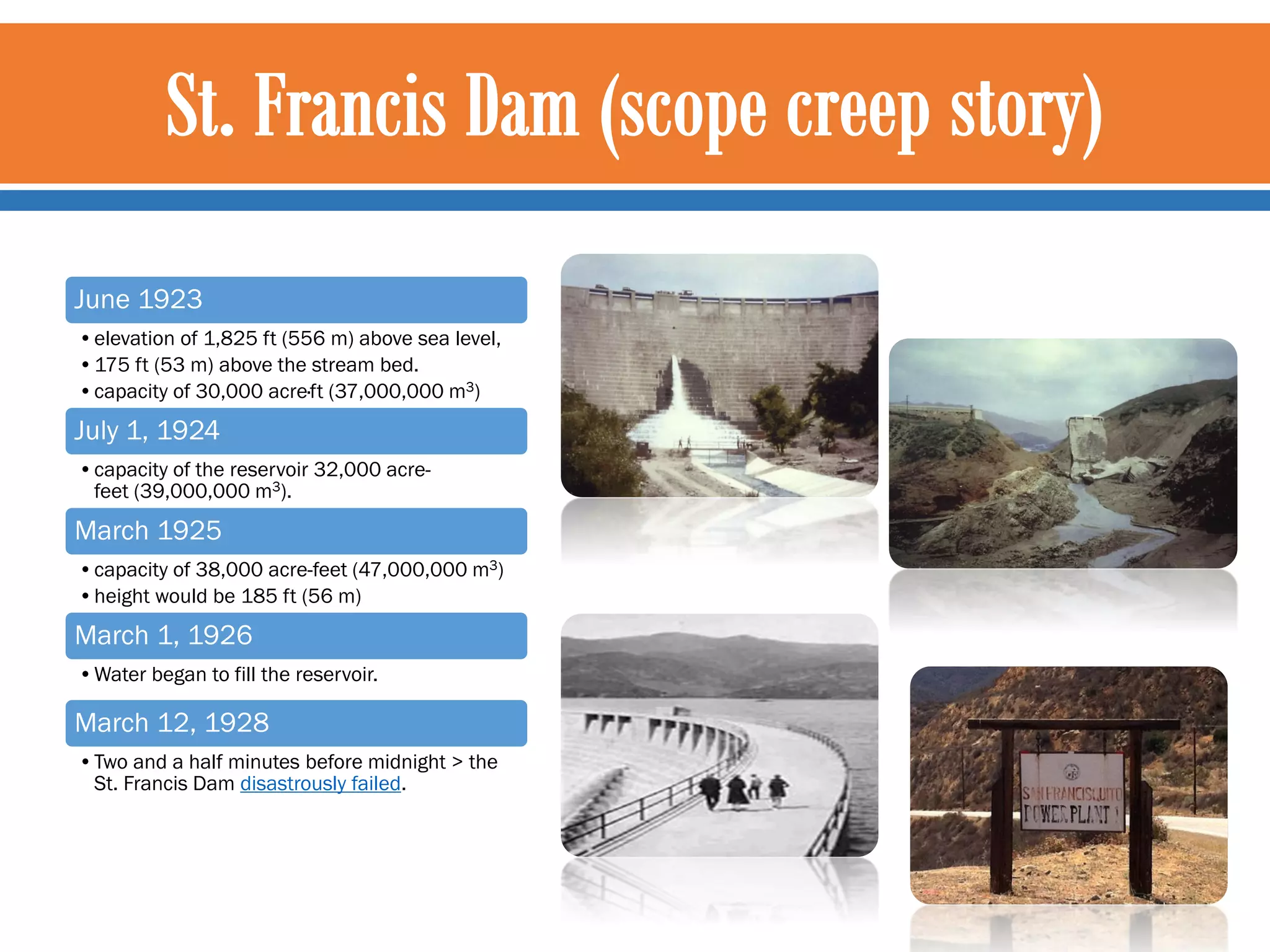

June 1923 •elevation of 1,825 ft (556 m) above sea level, •175 ft (53 m) above the stream bed. •capacity of 30,000 acre·ft (37,000,000 m3) July 1, 1924 •capacity of the reservoir 32,000 acrefeet (39,000,000 m3). March 1925 •capacity of 38,000 acre-feet (47,000,000 m3) •height would be 185 ft (56 m) March 1, 1926 •Water began to fill the reservoir. March 12, 1928 •Two and a half minutes before midnight > the St. Francis Dam disastrously failed.

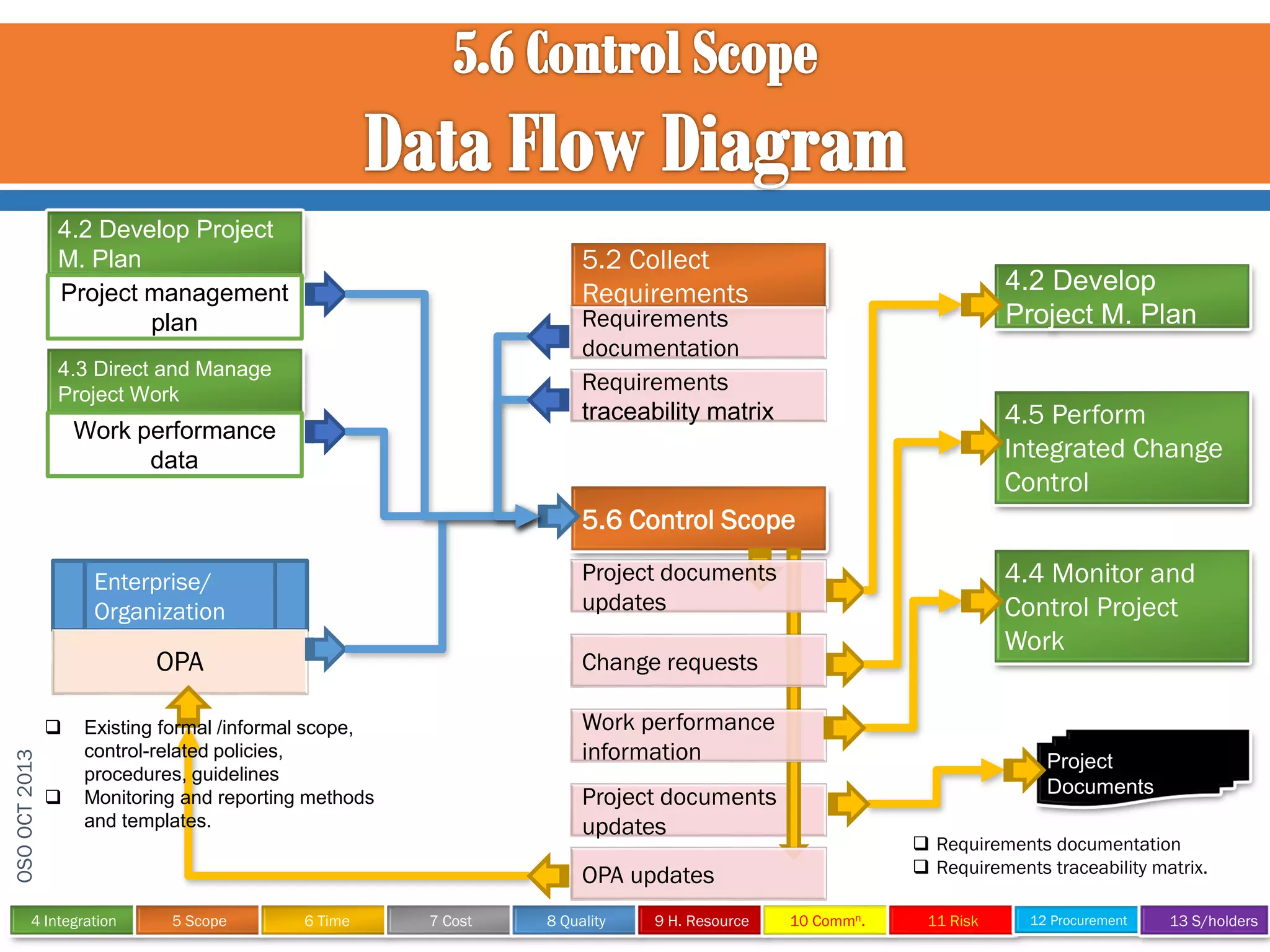

4.2 Develop Project M. Plan Project management plan 5.2 Collect Requirements 4.2 Develop Project M. Plan Requirements documentation Requirements traceability matrix 4.3 Direct and Manage Project Work Work performance data 4.5 Perform Integrated Change Control 5.6 Control Scope OPA OSO OCT 2013   Change requests Work performance information Existing formal /informal scope, control-related policies, procedures, guidelines Monitoring and reporting methods and templates. 4 Integration 4.4 Monitor and Control Project Work Project documents updates Enterprise/ Organization Project Documents Project documents updates  Requirements documentation  Requirements traceability matrix. OPA updates 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource 10 Commn. 11 Risk 12 Procurement 13 S/holders

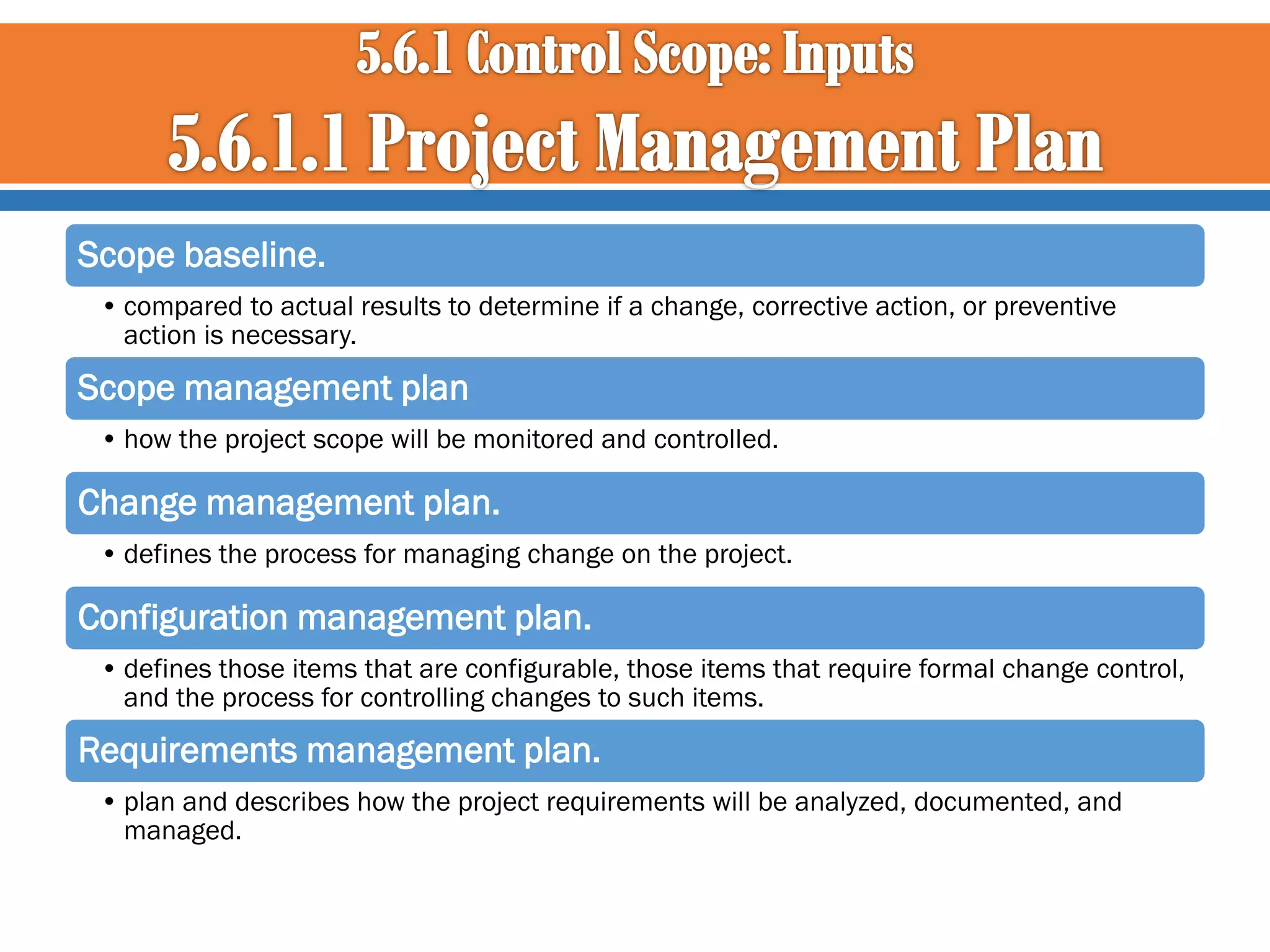

Scope baseline. • compared to actual results to determine if a change, corrective action, or preventive action is necessary. Scope management plan • how the project scope will be monitored and controlled. Change management plan. • defines the process for managing change on the project. Configuration management plan. • defines those items that are configurable, those items that require formal change control, and the process for controlling changes to such items. Requirements management plan. • plan and describes how the project requirements will be analyzed, documented, and managed.

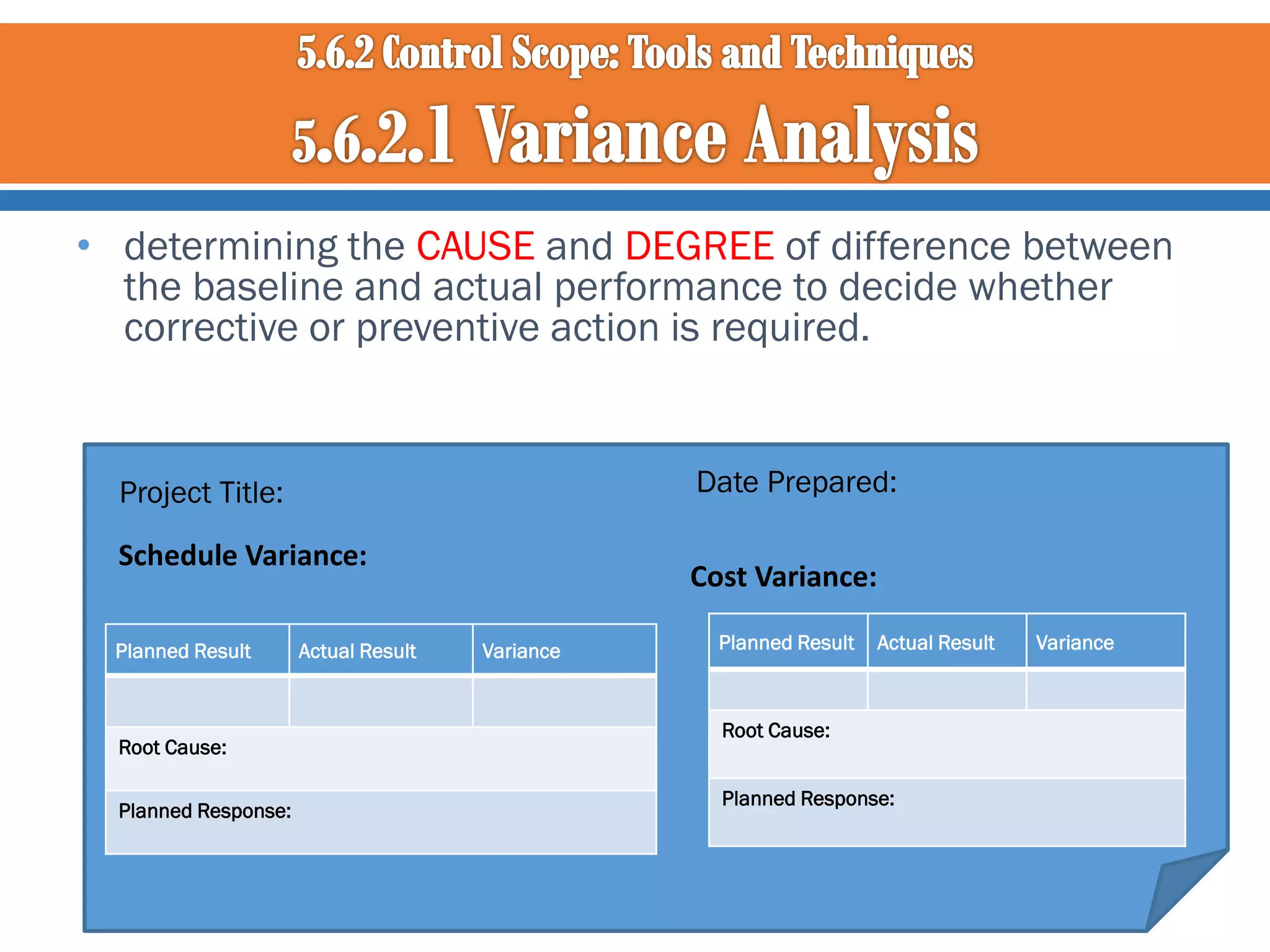

• determining the CAUSE and DEGREE of difference between the baseline and actual performance to decide whether corrective or preventive action is required. Date Prepared: Project Title: Schedule Variance: Planned Result Root Cause: Planned Response: Actual Result Cost Variance: Variance Planned Result Actual Result Root Cause: Planned Response: Variance

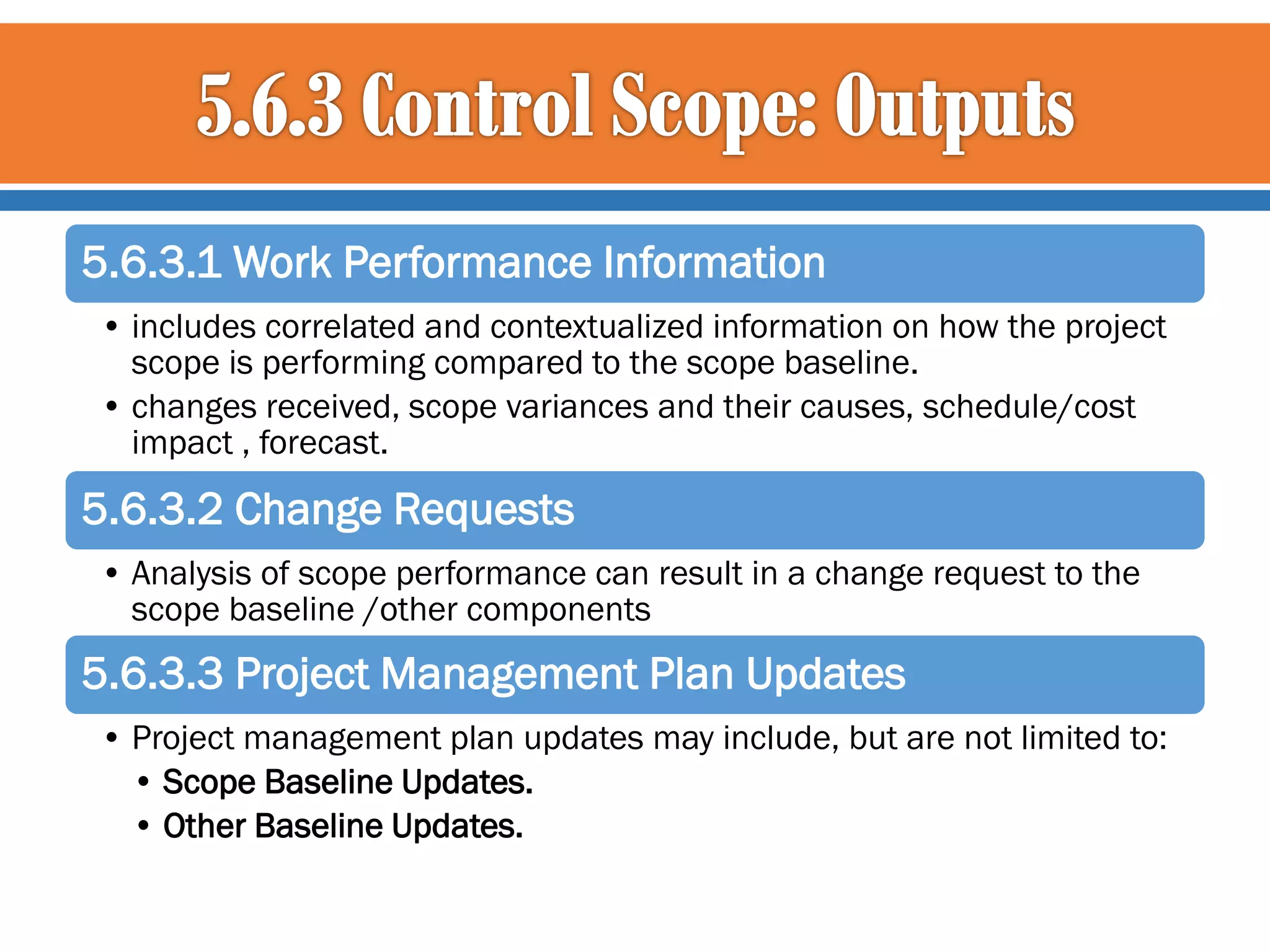

5.6.3.1 Work Performance Information • includes correlated and contextualized information on how the project scope is performing compared to the scope baseline. • changes received, scope variances and their causes, schedule/cost impact , forecast. 5.6.3.2 Change Requests • Analysis of scope performance can result in a change request to the scope baseline /other components 5.6.3.3 Project Management Plan Updates • Project management plan updates may include, but are not limited to: • Scope Baseline Updates. • Other Baseline Updates.
‫ان للــه عبادا اختصهم بقضاء حوائــج الناس . حببهم اىل اخلري وحبب اخلري اليهـم اولئــك‬ )‫اآلمنون من عذاب اللـه يــوم القيامة. (اللهم اجعلنا منهم‬ omer2t www.linkedin.com/pub/omeralsayed-mba-pmp®/40/609/610/ omer2t https://www.facebook.com/pages/2tPMP/1429460070603068 http://www.slideshare.net/omeralsayed “if you ever need my help, just let me know?”

More Related Content

PPTX
Pmp chapter(5) Scope Management
byHisham Ali,PMP

PDF
Project Scope Management
byAndersson Lujan Ojeda

PDF
project Scope management
byMohamed , PMP

PPT
05 project scope management
byAla Ibrahim

PDF
Project Scope Management - PMBOK 5th Edition
bypankajsh10

PDF
Project scope and requirements management
bytictactoe123

PPTX
Project scope management
bySidraSaleem17

PDF
Project Integration Management
bypankajsh10

Pmp chapter(5) Scope Management
byHisham Ali,PMP

Project Scope Management
byAndersson Lujan Ojeda

project Scope management
byMohamed , PMP

05 project scope management
byAla Ibrahim

Project Scope Management - PMBOK 5th Edition
bypankajsh10

Project scope and requirements management
bytictactoe123

Project scope management
bySidraSaleem17

Project Integration Management
bypankajsh10


What's hot

PPTX
Project scope management 1
byMohammad Ashraf Khan, PMP

PPTX
Project Scope Management - PMBOK6
byAgus Suhanto

PPTX
10.1 Plan Communication Management
byDavidMcLachlan1

PDF
PMP PMBOK 6th
byAshraf Osman, MBA, PMP

PDF
PMP Chap 5 - Project Scope Management - Part1
byAnand Bobade

PDF
PMP Lecture 4: Project Integration Management
byMohamed Loey

PDF
Project scope management
byAnit Roy

PPTX
Project Management: Integration Management Knowledge Area
byJoshua Render

PDF
Fundamentals of project management
byMohamed Amin

PPTX
Project Management Foundations Course 101 - Project Management Concepts
byThink For A Change

PPTX
Smart project management - Best Practices to Manage Project effectively
byChetan Khanzode

PPTX
PMP Training - 05 project scope management
byejlp12

PDF
PMP Chap 4 - Project Integration Management - Part1
byAnand Bobade

PDF
Introduction to Project Management by Javid Hamdard
byJavid Hamdard

PPTX
Project Quality Management - PMBOK6
byAgus Suhanto

PDF
PMP Chap 10 - Project Communication Management Details
byAnand Bobade

PPT
2.project lifecycle
byrlabsza

PPT
Presentation project management
byFlobz Caloy

PPTX
PMP Training - 08 project quality management
byejlp12

PPTX
Project management methodologies and planning
byDebashis Paul

Project scope management 1
byMohammad Ashraf Khan, PMP

Project Scope Management - PMBOK6
byAgus Suhanto

10.1 Plan Communication Management
byDavidMcLachlan1

PMP PMBOK 6th
byAshraf Osman, MBA, PMP

PMP Chap 5 - Project Scope Management - Part1
byAnand Bobade

PMP Lecture 4: Project Integration Management
byMohamed Loey

Project scope management
byAnit Roy

Project Management: Integration Management Knowledge Area
byJoshua Render

Fundamentals of project management
byMohamed Amin

Project Management Foundations Course 101 - Project Management Concepts
byThink For A Change

Smart project management - Best Practices to Manage Project effectively
byChetan Khanzode

PMP Training - 05 project scope management
byejlp12

PMP Chap 4 - Project Integration Management - Part1
byAnand Bobade

Introduction to Project Management by Javid Hamdard
byJavid Hamdard

Project Quality Management - PMBOK6
byAgus Suhanto

PMP Chap 10 - Project Communication Management Details
byAnand Bobade

2.project lifecycle
byrlabsza

Presentation project management
byFlobz Caloy

PMP Training - 08 project quality management
byejlp12

Project management methodologies and planning
byDebashis Paul


Viewers also liked

PDF
PMP PMBok 5th ch 5 scope management
byAbdullah Ahmed, PMP, RMP

PPT
Episode 21 : Project Scope Management
bySAJJAD KHUDHUR ABBAS

PDF
Project Time Management - PMBOK 5th Edition
bypankajsh10

PPT
Project Scope Management -
bydyaksa hanindito

PPTX
Project scope management
byANOOP S NAIR

PDF
Pmbok 4th edition chapter 5 - Project Scope Management
byAhmad Maharma, PMP,RMP

PPTX
PMP Training - 04 project integration management
byejlp12

PPTX
2.05 scope management 1
byreddvise

PPTX
Project Charter and Scope Statement: Content and Differences
byRicardo Viana Vargas

PDF
Project management frame work part 1
byMohamed , PMP

DOC
Project scope statement template v2.3
byAditya Pandey

PDF
Project management frame work part 2
byMohamed , PMP

PPTX
PMP Training - 06 project time management2
byejlp12

DOCX
Project Scope Statement
bybrittanyjespersen

PDF
2. scope of project
byNoor Farahin

PDF
Project management frame work part 3
byMohamed , PMP

PPTX
Project scope preparation
byDimitar Bakardzhiev

PPTX
Presentation4
byHanaa

PMP PMBok 5th ch 5 scope management
byAbdullah Ahmed, PMP, RMP

Episode 21 : Project Scope Management
bySAJJAD KHUDHUR ABBAS

Project Time Management - PMBOK 5th Edition
bypankajsh10

Project Scope Management -
bydyaksa hanindito

Project scope management
byANOOP S NAIR

Pmbok 4th edition chapter 5 - Project Scope Management
byAhmad Maharma, PMP,RMP

PMP Training - 04 project integration management
byejlp12

2.05 scope management 1
byreddvise

Project Charter and Scope Statement: Content and Differences
byRicardo Viana Vargas

Project management frame work part 1
byMohamed , PMP

Project scope statement template v2.3
byAditya Pandey

Project management frame work part 2
byMohamed , PMP

PMP Training - 06 project time management2
byejlp12

Project Scope Statement
bybrittanyjespersen

2. scope of project
byNoor Farahin

Project management frame work part 3
byMohamed , PMP

Project scope preparation
byDimitar Bakardzhiev

Presentation4
byHanaa


Similar to 05 project scope management

PDF
05 project scope management
byOmer Alsayed PhD,MBA, PMP®

PPTX
PMP-Scope Management area
byZaur Ahmadov, PMP

PDF
Topic 7 - Project Scope Management.pdf
byHuyNguyen657394

PDF
Pmp scope chapter 5
byAhmed Elshaboury,PMP,LEED GA

PPT
3&4. project scope management at project.ppt
byGoharSaeed6

PPTX
Project Scope Management Knowledge Area
byJoshua Render

PDF
projectscopemanagement1-140220062122-phpapp01 (1).pdf
byAbdiqadirOsman

PPT
2. Project Scope Management.ppt
byMohamadAGhareb

PPTX
Online PMP Training Material for PMP Exam - Scope Management Knowledge Area
byGlobalSkillup

PPTX
Project Formulation and Management - Project Scope Management
byHrishikesh Satpute

PDF
PMBOK 5th Planning Process Group Part One
byHossam Maghrabi

PPTX
Project Software Scope Management for PMP
byPhuocNT (Fresher.VN)

PPTX
4. PMP Training - Scope management
byQais Ur Rehman Rasooli, PMP

PDF
2. project scope management
byMohamed Salah Eldien Mohamed Ali

PDF
Project scope selection and management file.
bySohamMukhopadhyay14

PPTX
Scope management
byMostafa Elgamala

PDF
05.scope management updated
byShraddha PMP

PPT
802003 634318955109991250
byrajat898

PPTX
Session 3 4th edition
byمحمد عصمت عبد الرازق

PPTX
3) PSTM & PSCM.pptx
byMuhammadAmanAzam

05 project scope management
byOmer Alsayed PhD,MBA, PMP®

PMP-Scope Management area
byZaur Ahmadov, PMP

Topic 7 - Project Scope Management.pdf
byHuyNguyen657394

Pmp scope chapter 5
byAhmed Elshaboury,PMP,LEED GA

3&4. project scope management at project.ppt
byGoharSaeed6

Project Scope Management Knowledge Area
byJoshua Render

projectscopemanagement1-140220062122-phpapp01 (1).pdf
byAbdiqadirOsman

2. Project Scope Management.ppt
byMohamadAGhareb

Online PMP Training Material for PMP Exam - Scope Management Knowledge Area
byGlobalSkillup

Project Formulation and Management - Project Scope Management
byHrishikesh Satpute

PMBOK 5th Planning Process Group Part One
byHossam Maghrabi

Project Software Scope Management for PMP
byPhuocNT (Fresher.VN)

4. PMP Training - Scope management
byQais Ur Rehman Rasooli, PMP

2. project scope management
byMohamed Salah Eldien Mohamed Ali

Project scope selection and management file.
bySohamMukhopadhyay14

Scope management
byMostafa Elgamala

05.scope management updated
byShraddha PMP

802003 634318955109991250
byrajat898

Session 3 4th edition
byمحمد عصمت عبد الرازق

3) PSTM & PSCM.pptx
byMuhammadAmanAzam


More from Omer Alsayed PhD,MBA, PMP®

PDF
07 project cost management
byOmer Alsayed PhD,MBA, PMP®

PDF
09 project human resources management pmbok 5th
byOmer Alsayed PhD,MBA, PMP®

PDF
06 project time management m
byOmer Alsayed PhD,MBA, PMP®

PDF
11 project risk management
byOmer Alsayed PhD,MBA, PMP®

PDF
Project stakeholders management arabic ادارة المعنيين في المشروع
byOmer Alsayed PhD,MBA, PMP®

PDF
برنامج حصاد المياه خطوة نحو تنمية الموارد الطبيعية
byOmer Alsayed PhD,MBA, PMP®

PDF
04 project integration management
byOmer Alsayed PhD,MBA, PMP®

PDF
08 project quality management
byOmer Alsayed PhD,MBA, PMP®

PDF
Practical project management based on PMBOK5
byOmer Alsayed PhD,MBA, PMP®

PDF
09 Project Human Resources management based on PMBOK5
byOmer Alsayed PhD,MBA, PMP®

PDF
10 project communications
byOmer Alsayed PhD,MBA, PMP®

PDF
09 project human res 2014
byOmer Alsayed PhD,MBA, PMP®

PDF
Practical project management 12 feb 2014
byOmer Alsayed PhD,MBA, PMP®

PDF
04 project integration management
byOmer Alsayed PhD,MBA, PMP®

PDF
13 project stakeholders management
byOmer Alsayed PhD,MBA, PMP®

PDF
12 project procurement management
byOmer Alsayed PhD,MBA, PMP®

PDF
09 project human res 2014
byOmer Alsayed PhD,MBA, PMP®

PDF
Project risk management for water harvesting in Darfur إدارة مخاطر المشروعات ...
byOmer Alsayed PhD,MBA, PMP®

PPTX
09 PMP Project Human Resources Management PMBOK 5th edittion
byOmer Alsayed PhD,MBA, PMP®

PPTX
وأحسن الناس من بين الورى رجل
byOmer Alsayed PhD,MBA, PMP®

07 project cost management
byOmer Alsayed PhD,MBA, PMP®

09 project human resources management pmbok 5th
byOmer Alsayed PhD,MBA, PMP®

06 project time management m
byOmer Alsayed PhD,MBA, PMP®

11 project risk management
byOmer Alsayed PhD,MBA, PMP®

Project stakeholders management arabic ادارة المعنيين في المشروع
byOmer Alsayed PhD,MBA, PMP®

برنامج حصاد المياه خطوة نحو تنمية الموارد الطبيعية
byOmer Alsayed PhD,MBA, PMP®

04 project integration management
byOmer Alsayed PhD,MBA, PMP®

08 project quality management
byOmer Alsayed PhD,MBA, PMP®

Practical project management based on PMBOK5
byOmer Alsayed PhD,MBA, PMP®

09 Project Human Resources management based on PMBOK5
byOmer Alsayed PhD,MBA, PMP®

10 project communications
byOmer Alsayed PhD,MBA, PMP®

09 project human res 2014
byOmer Alsayed PhD,MBA, PMP®

Practical project management 12 feb 2014
byOmer Alsayed PhD,MBA, PMP®

04 project integration management
byOmer Alsayed PhD,MBA, PMP®

13 project stakeholders management
byOmer Alsayed PhD,MBA, PMP®

12 project procurement management
byOmer Alsayed PhD,MBA, PMP®

09 project human res 2014
byOmer Alsayed PhD,MBA, PMP®

Project risk management for water harvesting in Darfur إدارة مخاطر المشروعات ...
byOmer Alsayed PhD,MBA, PMP®

09 PMP Project Human Resources Management PMBOK 5th edittion
byOmer Alsayed PhD,MBA, PMP®

وأحسن الناس من بين الورى رجل
byOmer Alsayed PhD,MBA, PMP®


Recently uploaded

PDF
Unlock the Power of Leadership: The Electrolux Manufacturing System (EMS) Way
byKaiNexus

PPTX
Smart Solutions for Work with Flexible iPad Rental
byVRS Technologies

PDF
Buy Verified PayPal Accounts Search Intent Analysis for 2025–26.pdf
byUsaservicepoint

PDF
Step-by-Step Guide to Buying LinkedIn Accounts in 2026.pdf
byasikurrhmanxyzit

PDF
Where to Buy Verified Cash App Accounts for Long-term ... (1).pdf
byh55oga0kd25m12iaza2

PDF
how to Buy linkedin Accounts in 2026 .pdf
bywc0fr9qf43i5qo5kn3

PDF
Mobile and Online Banking_ Open an Account Today.pdf
bykmn4gloa39pwajpujj

PDF
Top 10 Websites to Buy Facebook Accounts Tone.pdf
byidc1w3adizw383go

PDF
How to Buy Twitter Accounts in 2026 .pdf
bywc0fr9qf43i5qo5kn3

PDF
growth-approach-pm-letter-december-2025 (1).pdf
byHenry Tapper

PDF
Deckers stock picking idea from October 2025
byMathias Lascar

PDF
Dubai Multi Commodities Centre (DMCC) – Supplier Code of Conduct Policy
byDubai Multi Commodity Centre

PDF
How to Safely Buy Twitter Accounts A Complete Guide in ....pdf
byidc1w3adizw383go

PDF
What You in 2026 Buy Twitter Accounts_.pdf
byh3lfp4332e3gctbnm22w

PDF
How to Buy USA Facebook Accounts in 2026 (1).pdf
bywc0fr9qf43i5qo5kn3

PDF
How to Buy Instagram Accounts in 2026.pdf
byh55oga0kd25m12iaza2

PPTX
DeFi Passive Income: From definitions to practical examples
byAli Mohammad Saghiri

PDF
Safe & Secure Ways to Buy Verified Paypal Accounts in 2025.pdf
byhi1885171

DOCX
Safe & Secure Ways to Buy Verified Paypal Accounts in 2025.docx
byhi1885171

PDF
Myocardial Infarction- MI for Nursing Students.pdf
byhttps://www.facebook.com/profile.php?id=61578457231735

Unlock the Power of Leadership: The Electrolux Manufacturing System (EMS) Way
byKaiNexus

Smart Solutions for Work with Flexible iPad Rental
byVRS Technologies

Buy Verified PayPal Accounts Search Intent Analysis for 2025–26.pdf
byUsaservicepoint

Step-by-Step Guide to Buying LinkedIn Accounts in 2026.pdf
byasikurrhmanxyzit

Where to Buy Verified Cash App Accounts for Long-term ... (1).pdf
byh55oga0kd25m12iaza2

how to Buy linkedin Accounts in 2026 .pdf
bywc0fr9qf43i5qo5kn3

Mobile and Online Banking_ Open an Account Today.pdf
bykmn4gloa39pwajpujj

Top 10 Websites to Buy Facebook Accounts Tone.pdf
byidc1w3adizw383go

How to Buy Twitter Accounts in 2026 .pdf
bywc0fr9qf43i5qo5kn3

growth-approach-pm-letter-december-2025 (1).pdf
byHenry Tapper

Deckers stock picking idea from October 2025
byMathias Lascar

Dubai Multi Commodities Centre (DMCC) – Supplier Code of Conduct Policy
byDubai Multi Commodity Centre

How to Safely Buy Twitter Accounts A Complete Guide in ....pdf
byidc1w3adizw383go

What You in 2026 Buy Twitter Accounts_.pdf
byh3lfp4332e3gctbnm22w

How to Buy USA Facebook Accounts in 2026 (1).pdf
bywc0fr9qf43i5qo5kn3

How to Buy Instagram Accounts in 2026.pdf
byh55oga0kd25m12iaza2

DeFi Passive Income: From definitions to practical examples
byAli Mohammad Saghiri

Safe & Secure Ways to Buy Verified Paypal Accounts in 2025.pdf
byhi1885171

Safe & Secure Ways to Buy Verified Paypal Accounts in 2025.docx
byhi1885171

Myocardial Infarction- MI for Nursing Students.pdf
byhttps://www.facebook.com/profile.php?id=61578457231735


05 project scope management

  • 1.
    By: Omer AlsayedOmer abbas MBA, PMP, B.Sc.(Civil Eng.) : PMO manager EWU-DIU
  • 2.
    “ Don’t do anything you don’thave TO DO -– Louis Fried
  • 3.
    5.2 Collect Requirements 5.3Define Scope •determining, documenting, and managing stakeholder needs and requirements to meet project objectives. •developing a detailed description of the project and product. 5.4 Create WBS 5.5 Validate Scope 5.6 Control Scope •subdividing project deliverables and project work into smaller, more manageable components. •formalizing acceptance of the completed project deliverables. •monitoring the status of the project & product scope and managing changes to the scope baseline. 5.1 Plan Scope Management •creating a scope management plan –how scope will be defined, validated, and controlled.
  • 4.
    Project Management ProcessGroup and Knowledge Area Mapping Knowledge Area 4. Project Integration Management Initiating 4Develop Project Charter Planning Planning 4.2 Develop Project Management Plan Executing 4.3 Direct & Manage Project Work M& C M& C 4.4 Monitor & Control Project Work 4.5 Perform Integrated Change Control 5. Project Scope Management 5Plan Scope Management 5.2 Collect Requirements 5.3 Define Scope 5.4 Create WBS 6. Project Time Management 6.7 Control Schedule 7. Project Cost Management 7Plan Cost Management 7.2 Estimate Costs 7.3 Determine Budget 7.4 Control Costs 8. Project Quality Management 8Plan Quality Management 8.2 Perform Quality Assurance 9. Project Human Resource Management 9.1 Plan Human Resource Management 9.2 Acquire Project Team 9.3 Develop Project Team 9.4 Manage Project Team 10. Project Communications Management 10Plan Communications Management 10.2 Manage Communications 11. Project Risk Management 11Plan Risk Management 11.2 Identify Risks 11.3 Perform Qualitative Risk Analysis 11.4 Perform Quantitative Risk Analysis 11.5 Plan Risk Responses 12. Project Procurement Management 12Plan Procurement Management 12.2 Conduct Procurements 12.3 Control Procurements 13.2 Plan Stakeholder Management 13.3 Manage Stakeholder Engagement 13.4 Control Stakeholder Engagement 4.6 Close Project or Phase 5.5 Validate Scope 5.6 Control Scope 6Plan Schedule Management 6.2 Define Activities 6.3 Sequence Activities 6.4 Estimate Activity Resources 6.5 Estimate Activity Durations 6.6 Develop Schedule Closing 13. Project Stakeholder Management 13Identify Stakeholders OSO OCT 2013 8.3 Control Quality 10.3 Control Communications 11.6 Control Risks 12.4 Close Procurements
  • 5.
    Product scope. • Thefeatures and functions that characterize a product, service, or result Project scope. • The work performed to deliver a product, service, or result with the specified features and functions. • The term project scope is sometimes viewed as including product scope.
  • 6.
    creating a scopemanagement plan that documents how the project scope will be: defined Validated controlled provides guidance and direction on how scope will be managed throughout the project
  • 7.
    Inputs T&T Project management plan Expert judgment Projectcharter Meetings Enterprise environmental factors Organizational process assets Outputs Scope management plan Requirements management plan
  • 8.
    Enterprise/ Organization 5.1Plan Scope Management 4.1 Develop Projectcharter Scope management plan Requirements management plan Project charter OPA EEF 5.2 Collect Requirements 4.2 Develop Project M Plan 5.3 Define Scope OSO OCT 2013 Project M Plan 4 Integration 5.4 Create WBS 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource 10 Commn. 11 Risk 12 Procurement 13 S/holders
  • 9.
    Project management plan •influence the approach taken for planning scope and managing project scope Project charter • high-level project description and product characteristics Enterprise environmental factors • Organization’s culture, • Infrastructure, • Personnel administration • Marketplace conditions. Organizational process assets • Policies and procedures • Historical information and lessons learned knowledge base.
  • 10.
    describes how thescope will be defined, developed, monitored, controlled, and verified include Process: preparing enables establishes specifies control • a detailed project scope statement; •the creation of the WBS from the detailed project scope statement; •how the WBS will be maintained and approved; •how formal acceptance of the completed project deliverables will be obtained •how requests for changes to the detailed project scope statement will be processed.
  • 11.
    describes how requirementswill be analyzed, documented, and managed How requirements activities Configuration management activities prioritization Product metrics Traceability structure • will be planned, tracked, and reported; • • • • how changes to the product will be initiated, how impacts will be analyzed, how they will be traced, tracked, and reported, the authorization levels required to approve these changes; • Requirements process; • that will be used and the rationale for using them; • to reflect which requirement attributes will be captured on the traceability matrix.
  • 12.
    stakeholder determining Documenting project objectives managing •needs •requirements it provides thebasis for defining and managing the project scope including product scope
  • 13.
    Inputs Scope management plan Requirementsmanagement plan Stakeholder management plan Project charter Stakeholder register T&T Interviews Focus groups Facilitated workshops Group creativity techniques Group decision-making techniques Questionnaires and surveys Observations Prototypes Benchmarking Context diagrams Document analysis Outputs Requirements documentation Requirements traceability matrix
  • 14.
    5.1Plan Scope Management 4.1 DevelopProject charter Scope management plan Requirements management plan Project charter 8.1 Plan Quality Management 5.2 Collect Requirements Stakeholder register Management 5.3 Define Scope 13.2 plan S/H management OSO OCT 2013 Procurement Requirements documentation Requirements traceability matrix 13.1 Identify S/H 5.4 Create WBS S/H management plan 4 Integration 12.1 Plan 5.5 Validate Scope 5.6 Control Scope 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource 10 Commn. 11 Risk 12 Procurement 13 S/holders
  • 15.
    Business requirements: •higher-level needsof the organization as a whole (business issues or opportunities, & undertaken reasons ) Stakeholder requirements: •needs of a stakeholder or stakeholder group. Solution requirements: •features, functions, and characteristics of the product, service, or result that will meet the business and stakeholder requirements. Transition requirements : •temporary capabilities (data conversion and training requirements, needed to transition from the current “as-is” state to the future “to-be” state). Project requirements: •the actions, processes, or other conditions the project needs to meet. Quality requirements: •capture any condition or criteria needed to validate the successful completion of a project deliverable or fulfillment of other project requirements.
  • 16.
    Solution requirements: Functional requirements the behaviors ofthe product. (processes, data, and interactions with the product). Nonfunctional requirements supplement functional requirements describe the environmental conditions or qualities required for the product to be effective (reliability, security, performance, safety, level of service, supportability, retention/purge, etc).
  • 17.
    5.2.1.1 Scope ManagementPlan •provides clarity as to how project teams will determine which type of requirements need to be collected for the project. 5.2.1.2 Requirements Management Plan •provides the processes that will be used throughout the Collect Requirements process to define and document the stakeholder needs. 5.2.1.3 Stakeholder Management Plan •to understand stakeholder communication requirements and the level of stakeholder engagement in order to assess and adapt to the level of stakeholder participation in requirements activities. 5.2.1.4 Project Charter •provide the high-level description of the product, service, or result of the project so that detailed requirements can be developed. 5.2.1.5 Stakeholder Register •identify stakeholders who can provide information on the requirements. The stakeholder register also captures major requirements and main expectations stakeholders may have for the project.
  • 18.
    approach to elicitinformation from stakeholders by talking to them directly. formal /informal project participants, sponsors Individual /multiple other executives subject matter experts asking –Q -recording
  • 19.
    learn expectations subject matter experts attitudes abouta proposed product, service, or result prequalified stakeholders trained moderator • interactive discussion, designed to be more conversational than a one-on-one interview.
  • 20.
    key stakeholders primary technique for todefine product requirements. quickly defining crossfunctional requirements In addition, issues can be discovered earlier and resolved more quickly than in individual sessions (JAD) •joint application design/development sessions (software) (QFD) / (VOC) •Quality function deployment / voice of the Customer (manufacturing ) reconciling stakeholder differences. interactive group nature trust, foster relationships, improve communication User stories (used with agile methods): •the stakeholder who benefits from the feature (role), •what the stakeholder needs to accomplish (goal), •the benefit to the stakeholder (motivation). •"As a user, I want to search for my customers by their first and last names. increased stakeholder consensus.
  • 21.
    identify project andproduct requirements Brainstorming Nominal group •to generate and collect MULTIPLE ideas related to project and product requirements. (voting or prioritization) •enhances brainstorming with a VOTING process used to rank the most useful ideas for further brainstorming or for prioritization Idea/mind mapping Affinity diagram •ideas created through individual brainstorming sessions are CONSOLIDATED into a single map to reflect commonality and differences in understanding, and generate new ideas •allows large numbers of ideas to be CLASSIFIED into groups for review and analysis. Multi-criteria decision analysis •utilizes a decision MATRIX to provide a systematic analytical approach for establishing criteria, such as risk levels, uncertainty, and valuation, to evaluate and rank many ideas.
  • 23.
  • 24.
    assessment process havingmultiple alternatives with an expected outcome in the form of future actions Unanimity Majority Plurality Dictatorship. EVERYONE agrees on a single course of action. (Delphi technique) more than 50 % of the members of the group. LARGEST block in a group decides, even if a majority is not achieved.. ONE individual makes the decision for the group
  • 25.
  • 26.
    5.2.2.6 Questionnaires & • • • • • 5.2.2.7 Surveys designedto quickly accumulate information from a large number of respondents. most appropriate with varied audiences, quick turnaround is needed, respondents are geographically dispersed, statistical analysis is appropriate. Observations “job shadowing.” • • direct way of viewing individuals in their environment helpful for detailed processes when the people that use the product have difficulty or are reluctant to articulate their requirements.
  • 27.
    5.2.2.8 Prototypes • • • • a workingmodel of the expected product early feedback on requirements. tangible, it allows real experiment :abstract. support the concept of progressive elaboration in o o o o iterative cycles of mock-up creation, user experimentation, feedback generation, prototype revision. enough feedback cycles performed, requirements are sufficiently complete move to a design or build phase. Storyboarding : • a prototyping technique showing sequence or navigation through a series of images or illustrations. o used on a variety of projects in a variety of industries, (film, advertising, instructional design, and on agile and other software development projects). o In software development, storyboards use mock-ups to show navigation paths through webpages, screens, or other user interfaces
  • 28.
    5.2.2.9 Benchmarking  identifybest practices,  generate ideas for improvement,  provide a basis for measuring performance. practices, (processes and operations) 5.2.2.10 Context Diagrams (an example of a scope model) visually depict the product scope by showing a business system (process, equipment, computer system, etc.), o how people and other systems (actors) interact with it. o Context diagrams show: o • inputs to the business system, • the actor(s) providing the input, • the outputs from the business system, and the actor(s) receiving the output Organization A Organization B (internal or external)
  • 29.
    Document analysis isused to elicit requirements by analyzing existing documentation and identifying information relevant to the requirements. business plans, marketing literature, agreements, requests for proposal, current process flows, logical data models, business rules repositories, application software documentation, use cases, Other requirements documentation, problem/issue logs, business process, policies, procedures, regulatory documentation (laws, codes, or ordinances, etc).
  • 30.
    • how individualrequirements meet the business need for the project. • Requirements may start out at a high level and become progressively more detailed as more about the requirements is known. • Before being base-lined, requirements need to be: o o o o o unambiguous (measurable and testable), traceable, complete, consistent, acceptable to key stakeholders. • format : o simple (all the requirements categorized by stakeholder and priority) o executive summary, detailed descriptions, and attachments
  • 31.
    Business requirements: •Business andproject objectives for traceability; •Business rules for the performing organization; and •Guiding principles of the organization Stakeholder requirements: •Impacts to other organizational areas; •Impacts to other entities inside or outside the performing organization; and •Stakeholder communication and reporting requirements. Solution requirements: •Functional and nonfunctional requirements; •Technology and standard compliance requirements; •Support and training requirements; •Quality requirements; •Reporting requirements, etc. Project requirements, such as: •Levels of service, performance, safety, compliance, etc.; •Acceptance criteria. Transition requirements. Stakeholder Requirements assumptions, dependencies, and constraints. Requirement Category Priority Acceptance Criteria
  • 32.
    • • • • RTM is agrid that links product requirements to the deliverables that satisfy them. ensure that each requirement adds business value by linking it to the business and project objectives. It provides a means to track requirements throughout the project life cycle, helping to ensure that requirements approved in the requirements documentation are delivered at the end of the project. Finally, it provides a structure for managing changes to the product scope. Tracing includes, but is not limited to, tracing requirements for the following:  Business needs, opportunities, goals, and objectives;  Project objectives;  Project scope/WBS deliverables;  Product design;  Product development;  Test strategy and test scenarios; and  High-level requirements to more detailed requirements.
  • 33.
    all of therequirements may NOT be included in the project, the Define Scope process selects the FINAL project requirements from the requirements documentation process of developing a DETAILED description of the project and product.. it describes the project boundaries by defining which of the requirements collected will be INCLUDED in and excluded from the project scope Inputs Scope management plan Project charter Requirements documentation Organizational process assets Tools & Techniques Outputs Expert judgment Product analysis Project scope Alternatives generation statement Facilitation Techniques Project documents updates
  • 34.
    5.1Plan Scope Management 4.1 DevelopProject charter Scope management plan Project charter 6.3 Sequence Activities 5.2 Collect Requirements Requirements documentation Enterprise/ Organization OPA Project scope statement Project documents updates OSO OCT 2013 4 Integration 6.5 Estimate Activity Durations 5.3 Define Scope 6.6 Develop Schedule Project Documents 5.4 Create WBS 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource  Stakeholder register,  Requirements documentation  Requirements traceability matrix 10 Commn. 11 Risk 12 Procurement 13 S/holders
  • 35.
  • 36.
    develop as manypotential OPTIONS as possible in order to identify different approaches to execute and perform the work of the project

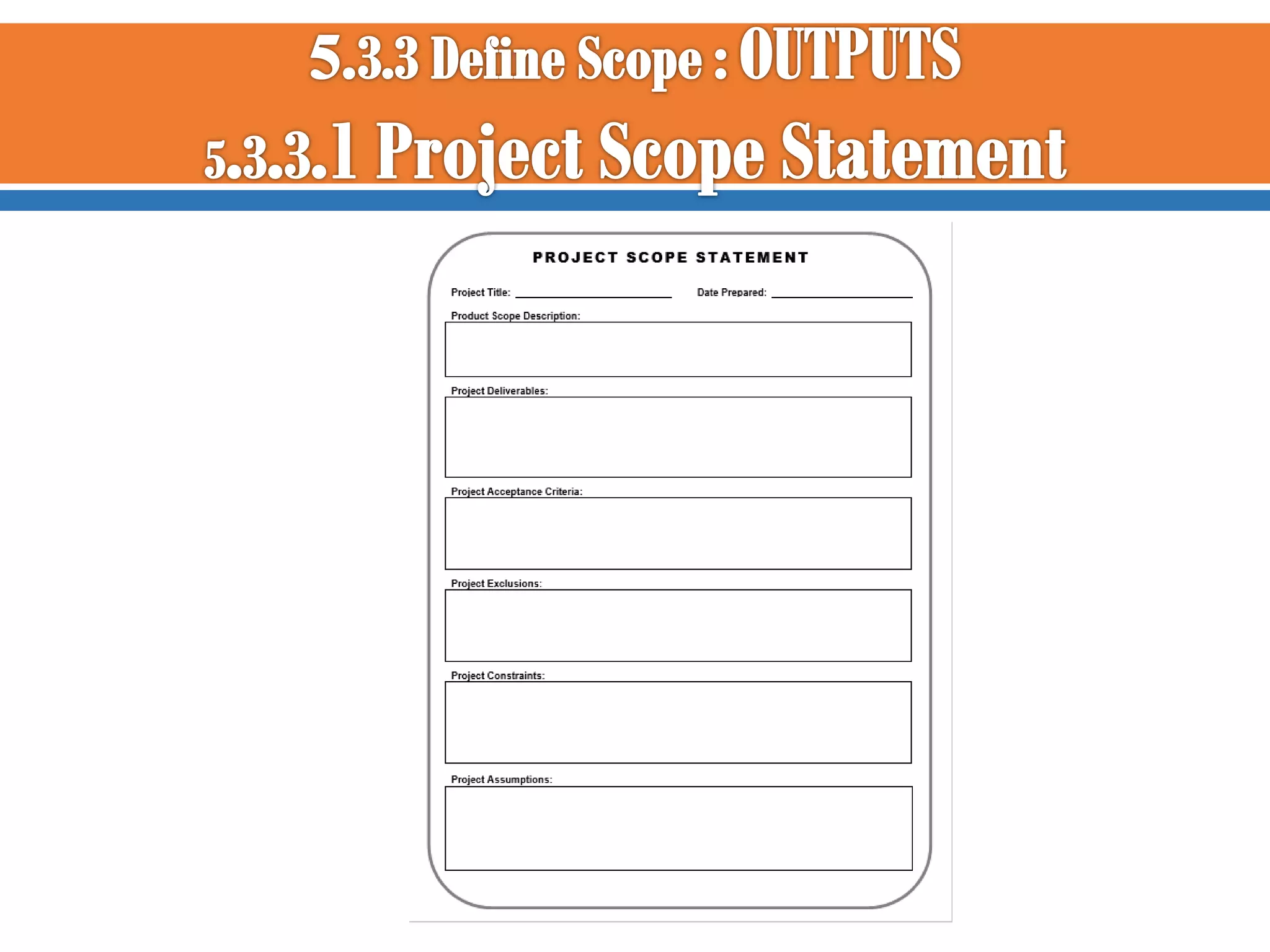

  • 37.
    Product scope description. •characteristicsof the product, service, or result described in the project charter and requirements documentation. Acceptance criteria. •A set of conditions that is required to be met before deliverables are accepted. Deliverable. •Any unique and verifiable product, result, or capability to perform a service that is required to be produced to complete a process, phase, or project. Deliverables also include ancillary results (project management reports and documentation) Project exclusion. •Generally identifies what is excluded from the project. Explicitly stating what is out of scope for the project helps to manage stakeholders’ expectations. Constraints. •A limiting factor that affects the execution of a project or process. (predefined budget or any imposed dates or schedule milestones , contractual provisions). Assumptions. •A factor in the planning process that is considered to be true, real, or certain, without proof or demonstration. Also describes the potential impact of those factors if they prove to be false. •Project teams frequently identify, document, and validate assumptions as part of their planning process.
  • 39.
    process of SUBDIVIDINGproject deliverables and project work into smaller, more manageable components. it provides a structured VISION of what has to be delivered 5.4.1 Inputs Scope management plan Project scope statement Requirements documentation Enterprise environmental factors Organizational process assets 5.4.2 Tools & Techniques 5.4.3 Outputs Decomposition Expert judgment Scope baseline Project documents updates
  • 40.
    5.1Plan Scope Management Enterprise/ Organization 4.2 Develop ProjectM. Plan Scope management plan 5.2 Collect Requirements OPA 6.2 Define Activities Requirements documentation EEF 7.2 Estimate Costs 5.3 Define Scope Project scope statement 7.3 Determine Budget 5.4 Create WBS 11.2 Identify Risks OSO OCT 2013 Project Documents 4 Integration Scope baseline Project documents updates  Requirements documentation Perform Qualitative Risk Analysis 11.3 5.5 Validate Scope 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource 10 Commn. 11 Risk 12 Procurement 13 S/holders
  • 41.
    approved version ofa scope statement, work breakdown structure (WBS), and its associated WBS dictionary, that can be changed only through formal change control procedures and is used as a basis for comparison Project scope statement. • description of the project scope, major deliverables, assumptions, and constraints. WBS. • a hierarchical decomposition of the total scope of work to accomplish the project objectives and create the required deliverables. WBS dictionary. • provides detailed deliverable, activity, and scheduling information about each component in the WBS..
  • 42.
    BPBC building B.1 Engineering B.1.1 Design B1.1.1 Arch B1.1.1.1 Construction Testing Civil works Concrete works Earthworks Structural design Excavation EM design backfilling Sub-structure Foundation Electro-Mech. Masonry Landscaping Elect Subcontracting Supplying Superstructure Plumbing Concrete Air-condition Neck column Columns Tie beams Beams Flooring Procurement Slabs Fire-fighting 100 percent rule •The total of the work at the lowest levels should roll up to the higher levels so that nothing is left out and no extra work is performed.
  • 43.
    Control Account Planning Package Project •management control point where scope, budget, actual cost, and schedule are integrated and compared to the earned value for performance measurement.     • a work breakdown structure component below the control account with known work content but without detailed schedule activities CA-1 PP-1.1 CA-x PP-1.2 PP-xx WP 1.2.1 WP xxx Control accounts are placed at selected management points in the WBS. Each control account may include one or more work packages, but each of the work packages should be associated with only one control account. A control account may include one or more planning packages.
  • 45.
    FORMALIZING acceptance ofthe completed project deliverables. it brings objectivity to the acceptance process and increases the chance of final product, service, or result acceptance by validating each deliverable. Inputs Project management plan Requirements documentation Requirements traceability matrix Verified deliverables Work performance data Tools & Techniques Inspection Group decision-making techniques Outputs Accepted deliverables Change requests Work performance information Project documents updates
  • 46.
    4.2 Develop Project M.Plan Project management plan 5.2 Collect Requirements 4.6 Close Project or Phase Requirements documentation Requirements traceability matrix 4.3 Direct and Manage Project Work Work performance data 4.5 Perform Integrated Change Control 5.5 Validate Scope 8.3 Control Quality Change requests Verified deliverables Work performance information OSO OCT 2013 4 Integration Project Documents Project documents updates 5 Scope 4.4 Monitor and Control Project Work Accepted deliverables 6 Time 7 Cost 8 Quality 9 H. Resource  any documents that define the product or report status on product completion 10 Commn. 11 Risk 12 Procurement 13 S/holders
  • 47.
    5.5.1.1 Project Management Plan 5.5.1.2 Requirements Documentation 5.5.1.3 Requirements TraceabilityMatrix •scope management plan: specifies how formal acceptance of the completed project deliverables will be obtained + The scope baseline. •lists all the project, product, and other types of requirements for the project and product, along with their acceptance criteria. •links requirements to their origin and tracks them throughout the project life cycle. 5.5.1.4 Verified Deliverables •project deliverables that are completed and checked for correctness through the Control Quality process. 5.5.1.5 Work Performance Data •include the degree of compliance with requirements, number of nonconformities, severity of the nonconformities, or the number of validation cycles performed in a period of time.
  • 48.
    5.5.2.1 Inspection reviews, productreviews, audits, walkthroughs. o measuring, examining, and validating to determine whether work and deliverables MEET requirements and product acceptance criteria. 5.5.2.2 Group Decision-Making Techniques o used to reach a CONCLUSION when the validation is performed by the project team and other stakeholders.
  • 49.
    5.5.3.1 Accepted Deliverables: •Deliverables thatMEET the acceptance criteria are formally signed off and approved by the customer or sponsor. • Formal documentation received from the customer or sponsor acknowledging formal stakeholder acceptance of the project’s deliverables is forwarded to the Close Project or Phase process. 5.5.3.2 Change Requests: •The completed deliverables that have NOT been formally accepted are documented, along with the reasons for non-acceptance of those deliverables. • Those deliverables may require a change request for defect repair.
  • 50.
    Validate Scope • primarilyconcerned with ACCEPTANCE of the deliverables, Control Quality • primarily concerned with CORRECTNESS of the deliverables and meeting the quality requirements specified for the deliverables. CQ VS C.Q. generally performed before V.S. although the two processes may be performed in parallel CQ VS
  • 51.
    monitoring the statusof the project and product scope and managing changes to the scope baseline. it allows the scope baseline to be MAINTAINED throughout the project. Inputs Project management plan Requirements documentation Requirements traceability matrix Work performance data Organizational process assets Tools & Techniques Variance analysis Outputs Work performance information Change requests Project management plan updates Project documents updates Organizational process assets updates
  • 52.
    • Controlling theproject scope ensures all requested changes and recommended corrective or preventive actions are processed through the Perform Integrated Change Control process • Control Scope is also used to manage the actual changes when they occur and is integrated with the other control processes. • The uncontrolled expansion to product or project scope without adjustments to time, cost, and resources is referred to as SCOPE CREEP. • Change is inevitable; therefore some type of change control process is mandatory for every project
  • 53.
    June 1923 •elevation of1,825 ft (556 m) above sea level, •175 ft (53 m) above the stream bed. •capacity of 30,000 acre·ft (37,000,000 m3) July 1, 1924 •capacity of the reservoir 32,000 acrefeet (39,000,000 m3). March 1925 •capacity of 38,000 acre-feet (47,000,000 m3) •height would be 185 ft (56 m) March 1, 1926 •Water began to fill the reservoir. March 12, 1928 •Two and a half minutes before midnight > the St. Francis Dam disastrously failed.
  • 54.
    4.2 Develop Project M.Plan Project management plan 5.2 Collect Requirements 4.2 Develop Project M. Plan Requirements documentation Requirements traceability matrix 4.3 Direct and Manage Project Work Work performance data 4.5 Perform Integrated Change Control 5.6 Control Scope OPA OSO OCT 2013   Change requests Work performance information Existing formal /informal scope, control-related policies, procedures, guidelines Monitoring and reporting methods and templates. 4 Integration 4.4 Monitor and Control Project Work Project documents updates Enterprise/ Organization Project Documents Project documents updates  Requirements documentation  Requirements traceability matrix. OPA updates 5 Scope 6 Time 7 Cost 8 Quality 9 H. Resource 10 Commn. 11 Risk 12 Procurement 13 S/holders
  • 55.
    Scope baseline. • comparedto actual results to determine if a change, corrective action, or preventive action is necessary. Scope management plan • how the project scope will be monitored and controlled. Change management plan. • defines the process for managing change on the project. Configuration management plan. • defines those items that are configurable, those items that require formal change control, and the process for controlling changes to such items. Requirements management plan. • plan and describes how the project requirements will be analyzed, documented, and managed.
  • 56.
    • determining theCAUSE and DEGREE of difference between the baseline and actual performance to decide whether corrective or preventive action is required. Date Prepared: Project Title: Schedule Variance: Planned Result Root Cause: Planned Response: Actual Result Cost Variance: Variance Planned Result Actual Result Root Cause: Planned Response: Variance
  • 57.
    5.6.3.1 Work PerformanceInformation • includes correlated and contextualized information on how the project scope is performing compared to the scope baseline. • changes received, scope variances and their causes, schedule/cost impact , forecast. 5.6.3.2 Change Requests • Analysis of scope performance can result in a change request to the scope baseline /other components 5.6.3.3 Project Management Plan Updates • Project management plan updates may include, but are not limited to: • Scope Baseline Updates. • Other Baseline Updates.
  • 58.
    ‫ان للــه عبادااختصهم بقضاء حوائــج الناس . حببهم اىل اخلري وحبب اخلري اليهـم اولئــك‬ )‫اآلمنون من عذاب اللـه يــوم القيامة. (اللهم اجعلنا منهم‬ omer2t www.linkedin.com/pub/omeralsayed-mba-pmp®/40/609/610/ omer2t https://www.facebook.com/pages/2tPMP/1429460070603068 http://www.slideshare.net/omeralsayed “if you ever need my help, just let me know?”
