This document discusses physical and virtual server management. It summarizes that nearly 50% of servers will be virtualized by 2011, and that virtualization without management is dangerous. It then outlines managing servers through centralized platforms to enable dynamic provisioning based on real-time needs, and monitoring physical and virtual servers from various vendors to ensure performance and uptime. Disaster recovery and data protection methods are also discussed to maintain high availability through technologies like replication and continuous data protection.

1. Physical and Virtual Server Management Amit Gatenyo Infrastructure & Security Manager Dario IT Solutions ltd [email_address] 054-2492499

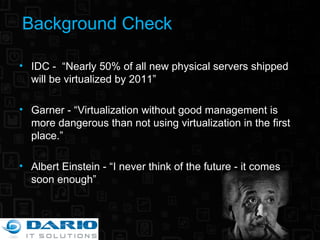

2. Background Check IDC - “Nearly 50% of all new physical servers shipped will be virtualized by 2011” Garner - “Virtualization without good management is more dangerous than not using virtualization in the first place.” Albert Einstein - “I never think of the future - it comes soon enough”

3. Agenda Turning IT into a service Data Center Management Virtual Management Operations Management Configuration Management Data Protection Summary

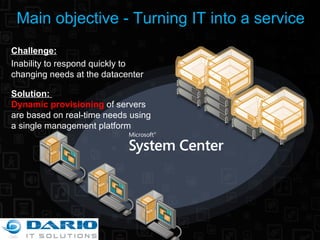

4. Main objective - Turning IT into a service Solution: Dynamic provisioning of servers are based on real-time needs using a single management platform Challenge: Inability to respond quickly to changing needs at the datacenter

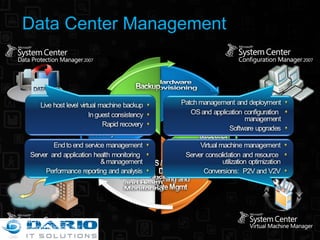

5. Data Center Management

6. A Centralized, Heterogeneous Management Solution For The Virtual Datacenter

7. VMM 2008 Architecture VMware VI3 Windows ® PowerShell VM VMM Library Server VM VM VM VM VM VM VM

8. Managing Virtual Machines

9. " באמצעות Operation Manager 2007 אנחנו מסוגלים לנטר מקצה לקצה את מערכות הזמנת הרכב של אלדן , לדמות את חווית המשתמש ולקבל התרעה במידה ויש תקלה או בעיית ביצועים " כוכב ששון , מנהל אבטחת מידע וטכנולוגיות , אלדן IT services, applications and servers must run smoothly Increasing pressure for service levels that ensure optimal uptime and responsiveness Proactively monitor availability, performance and configuration across heterogeneous platforms Perform deep application and service-level monitoring ERP Application Databases Order Tracker DB Servers Web Servers DN-App1 OTW-IIS-01 OTW-IIS-02

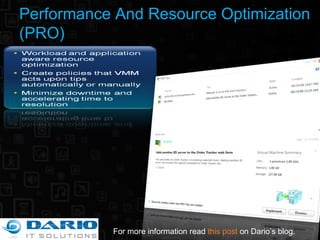

10. Performance And Resource Optimization (PRO) For more information read this post on Dario’s blog.

11. Performance And Resource Optimization (PRO)

12. Monitoring Physical & Virtual Servers

13. Non-Microsoft Monitoring Citrix Network: Cisco, Juniper, Nortel Apache SAP WebSphere Siebel Databases: Oracle, MySQL, DB2 Linux – RH, Suse, Debian Unix – Solaris, AIX And a lot more…

14. " הבנו שהטמעת Configuration Manager תאפשר לנו לנהל את תחנות העבודה והשרתים באופן פשוט ולהבין בקלות איזה תוכנות מותקנות ועם איזה חומרה עובד כל אחד " גיל קרפט , מנהל סיסטם , סימטרון Power, space and maintenance costs forcing more efficient use of resources Dispersed servers and applications difficult to manage and update Manage virtual machines to consolidate physical servers Provision operating systems, applications, and patches in the data center

15. Offline VM Patching

16. Managing Physical & Virtual Servers

17. High availability and business continuity needed to meet service levels and optimal uptime Simple disaster recovery and backup & restoration of data and information Dynamically replicate and move virtual machines and applications to distribute workloads in the event of an outage Recover and restore the physical and virtual environments in the data center through continuous data protection

18. Windows Server 2003 Windows Server 2008 file shares and directories

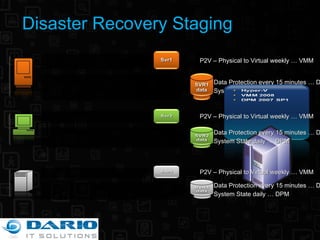

19. Disaster Recovery Staging Data Protection every 15 minutes … DPM System State daily … DPM P2V – Physical to Virtual weekly … VMM Data Protection every 15 minutes … DPM System State daily … DPM P2V – Physical to Virtual weekly … VMM Data Protection every 15 minutes … DPM System State daily … DPM P2V – Physical to Virtual weekly … VMM

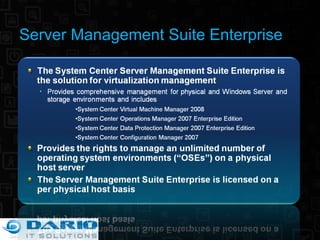

20. Server Management Suite Enterprise

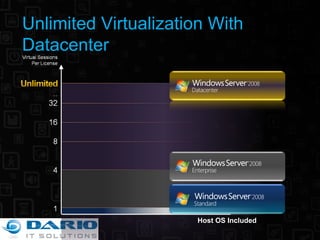

21. Unlimited Virtualization With Datacenter Host OS Included

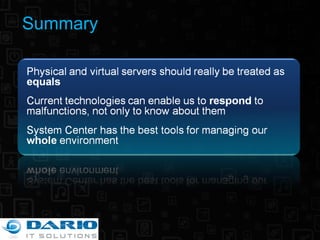

22. Summary

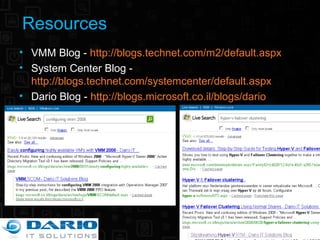

23. Resources VMM Blog - http://blogs.technet.com/m2/default.aspx System Center Blog - http://blogs.technet.com/systemcenter/default.aspx Dario Blog - http://blogs.microsoft.co.il/blogs/dario

25. Amit Gatenyo Infrastructure & Security Manager Dario IT Solutions ltd [email_address] 054-2492499 המון תודה על ההקשבה !
