Phenylpropanoids ( Flavonoids, coumarin, lignan )

rohanjagdale235@gmail.com
Flavonoids , coumarins , Lignans

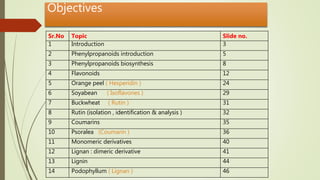

Objectives
Sr.No. Topic Slide no.
1 Introduction 3
2 Phenylpropanoids introduction 5
3 Phenylpropanoids biosynthesis 8
4 Flavonoids 12

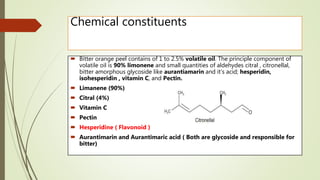

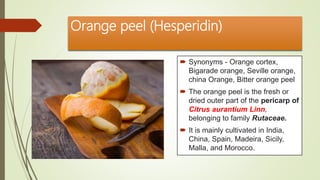

5 Orange peel ( Hesperidin ) 24

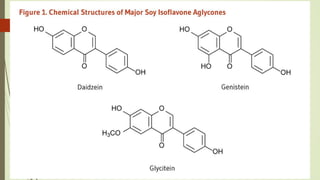

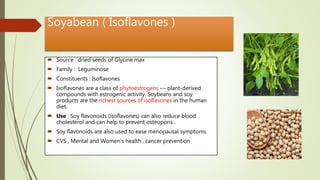

6 Soyabean ( Isoflavones ) 29

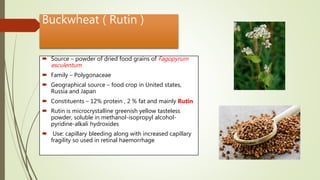

7 Buckwheat ( Rutin ) 31

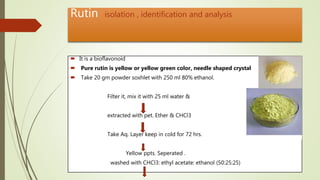

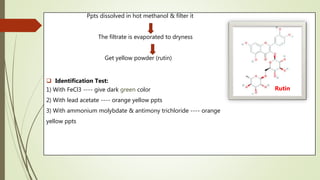

8 Rutin (isolation , identification & analysis ) 32
9 Coumarins 35

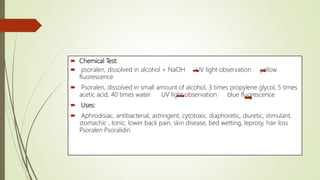

10 Psoralea (Coumarin ) 36
11 Monomeric derivatives 40

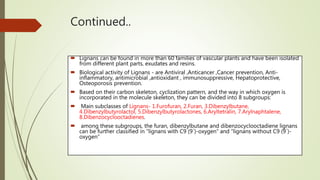

12 Lignan : dimeric derivative 41
13 Lignin 44

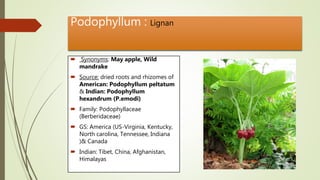

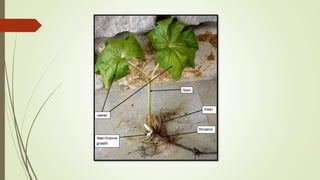

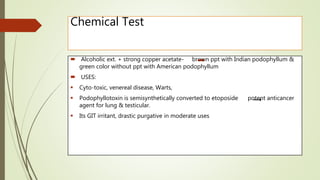

14 Podophyllum ( Lignan ) 46

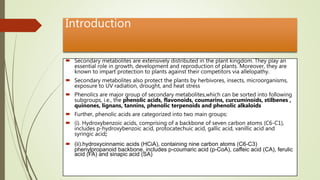

Introduction
 Secondary metabolites are extensively distributed in the plant kingdom. They play an
essential role in growth, development and reproduction of plants. Moreover, they are
known to impart protection to plants against their competitors via allelopathy.
 Secondary metabolites also protect the plants by herbivores, insects, microorganisms,
exposure to UV radiation, drought, and heat stress
 Phenolics are major group of secondary metabolites,which can be sorted into following
subgroups, i.e., the phenolic acids, flavonoids, coumarins, curcuminoids, stilbenes ,
quinones, lignans, tannins, phenolic terpenoids and phenolic alkaloids
 Further, phenolic acids are categorized into two main groups:
 (i). Hydroxybenzoic acids, comprising of a backbone of seven carbon atoms (C6-C1),
includes p-hydroxybenzoic acid, protocatechuic acid, gallic acid, vanillic acid and
syringic acid;
 (ii).hydroxycinnamic acids (HCiA), containing nine carbon atoms (C6-C3)
phenylpropanoid backbone, includes p-coumaric acid (p-CoA), caffeic acid (CA), ferulic
acid (FA) and sinapic acid (SA)

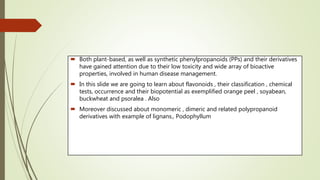

 Both plant-based, as well as synthetic phenylpropanoids (PPs) and their derivatives
have gained attention due to their low toxicity and wide array of bioactive
properties, involved in human disease management.
 In this slide we are going to learn about flavonoids , their classification , chemical
tests, occurrence and their biopotential as exemplified orange peel , soyabean,
buckwheat and psoralea . Also

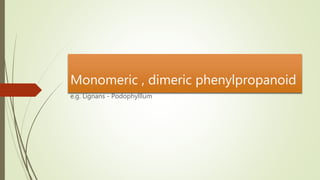

 Moreover discussed about monomeric , dimeric and related polypropanoid
derivatives with example of lignans., Podophyllum

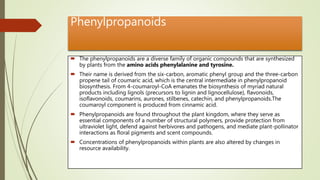

Phenylpropanoids
 The phenylpropanoids are a diverse family of organic compounds that are synthesized
by plants from the amino acids phenylalanine and tyrosine.
 Their name is derived from the six-carbon, aromatic phenyl group and the three-carbon
propene tail of coumaric acid, which is the central intermediate in phenylpropanoid
biosynthesis. From 4-coumaroyl-CoA emanates the biosynthesis of myriad natural
products including lignols (precursors to lignin and lignocellulose), flavonoids,
isoflavonoids, coumarins, aurones, stilbenes, catechin, and phenylpropanoids.The
coumaroyl component is produced from cinnamic acid.
 Phenylpropanoids are found throughout the plant kingdom, where they serve as
essential components of a number of structural polymers, provide protection from
ultraviolet light, defend against herbivores and pathogens, and mediate plant-pollinator
interactions as floral pigments and scent compounds.
 Concentrations of phenylpropanoids within plants are also altered by changes in
resource availability.

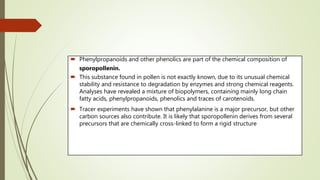

 Phenylpropanoids and other phenolics are part of the chemical composition of
sporopollenin.
 This substance found in pollen is not exactly known, due to its unusual chemical
stability and resistance to degradation by enzymes and strong chemical reagents.
Analyses have revealed a mixture of biopolymers, containing mainly long chain
fatty acids, phenylpropanoids, phenolics and traces of carotenoids.
 Tracer experiments have shown that phenylalanine is a major precursor, but other
carbon sources also contribute. It is likely that sporopollenin derives from several
precursors that are chemically cross-linked to form a rigid structure

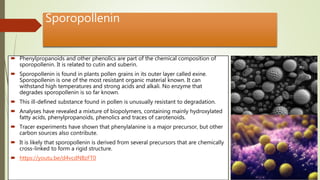

Sporopollenin
 Phenylpropanoids and other phenolics are part of the chemical composition of
sporopollenin. It is related to cutin and suberin.
 Sporopollenin is found in plants pollen grains in its outer layer called exine.
Sporopollenin is one of the most resistant organic material known. It can
withstand high temperatures and strong acids and alkali. No enzyme that
degrades sporopollenin is so far known.
 This ill-defined substance found in pollen is unusually resistant to degradation.
 Analyses have revealed a mixture of biopolymers, containing mainly hydroxylated
fatty acids, phenylpropanoids, phenolics and traces of carotenoids.
 Tracer experiments have shown that phenylalanine is a major precursor, but other
carbon sources also contribute.
 It is likely that sporopollenin is derived from several precursors that are chemically
cross-linked to form a rigid structure.
 https://youtu.be/d4vcdNBzFT0

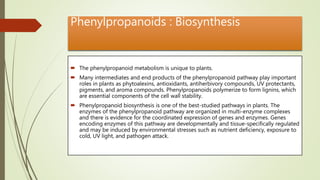

Phenylpropanoids : Biosynthesis
 The phenylpropanoid metabolism is unique to plants.
 Many intermediates and end products of the phenylpropanoid pathway play important
roles in plants as phytoalexins, antioxidants, antiherbivory compounds, UV protectants,
pigments, and aroma compounds. Phenylpropanoids polymerize to form lignins, which
are essential components of the cell wall stability.
 Phenylpropanoid biosynthesis is one of the best-studied pathways in plants. The
enzymes of the phenylpropanoid pathway are organized in multi-enzyme complexes
and there is evidence for the coordinated expression of genes and enzymes. Genes
encoding enzymes of this pathway are developmentally and tissue-specifically regulated
and may be induced by environmental stresses such as nutrient deficiency, exposure to
cold, UV light, and pathogen attack.

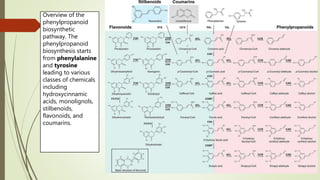

Overview of the
phenylpropanoid
biosynthetic
pathway. The
phenylpropanoid
biosynthesis starts
from phenylalanine
and tyrosine
leading to various
classes of chemicals
including
hydroxycinnamic
acids, monolignols,
stilbenoids,
flavonoids, and
coumarins.

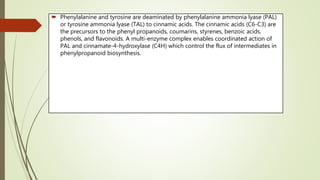

 Phenylalanine and tyrosine are deaminated by phenylalanine ammonia lyase (PAL)
or tyrosine ammonia lyase (TAL) to cinnamic acids. The cinnamic acids (C6-C3) are
the precursors to the phenyl propanoids, coumarins, styrenes, benzoic acids,
phenols, and flavonoids. A multi-enzyme complex enables coordinated action of
PAL and cinnamate-4-hydroxylase (C4H) which control the flux of intermediates in
phenylpropanoid biosynthesis.

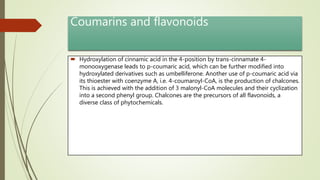

Coumarins and flavonoids
 Hydroxylation of cinnamic acid in the 4-position by trans-cinnamate 4-
monooxygenase leads to p-coumaric acid, which can be further modified into
hydroxylated derivatives such as umbelliferone. Another use of p-coumaric acid via
its thioester with coenzyme A, i.e. 4-coumaroyl-CoA, is the production of chalcones.
This is achieved with the addition of 3 malonyl-CoA molecules and their cyclization
into a second phenyl group. Chalcones are the precursors of all flavonoids, a
diverse class of phytochemicals.

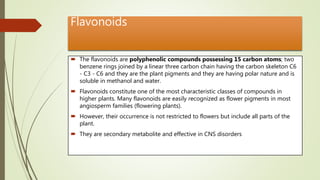

Flavonoids
 The flavonoids are polyphenolic compounds possessing 15 carbon atoms; two
benzene rings joined by a linear three carbon chain having the carbon skeleton C6
- C3 - C6 and they are the plant pigments and they are having polar nature and is
soluble in methanol and water.
 Flavonoids constitute one of the most characteristic classes of compounds in
higher plants. Many flavonoids are easily recognized as flower pigments in most
angiosperm families (flowering plants).
 However, their occurrence is not restricted to flowers but include all parts of the
plant.
 They are secondary metabolite and effective in CNS disorders

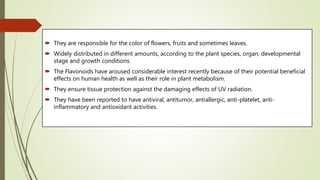

 They are responsible for the color of flowers, fruits and sometimes leaves.
 Widely distributed in different amounts, according to the plant species, organ, developmental
stage and growth conditions.
 The Flavonoids have aroused considerable interest recently because of their potential beneficial
effects on human health as well as their role in plant metabolism.
 They ensure tissue protection against the damaging effects of UV radiation.
 They have been reported to have antiviral, antitumor, antiallergic, anti-platelet, anti-
inflammatory and antioxidant activities.

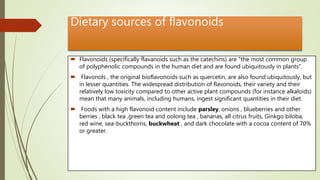

Dietary sources of flavonoids
 Flavonoids (specifically flavanoids such as the catechins) are "the most common group
of polyphenolic compounds in the human diet and are found ubiquitously in plants".
 Flavonols , the original bioflavonoids such as quercetin, are also found ubiquitously, but
in lesser quantities. The widespread distribution of flavonoids, their variety and their
relatively low toxicity compared to other active plant compounds (for instance alkaloids)
mean that many animals, including humans, ingest significant quantities in their diet.
 Foods with a high flavonoid content include parsley, onions , blueberries and other
berries , black tea ,green tea and oolong tea , bananas, all citrus fruits, Ginkgo biloba,
red wine, sea-buckthorns, buckwheat , and dark chocolate with a cocoa content of 70%
or greater.

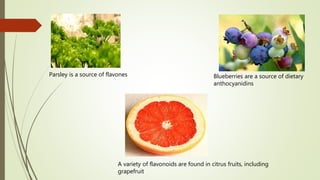

Parsley is a source of flavones Blueberries are a source of dietary
anthocyanidins
A variety of flavonoids are found in citrus fruits, including
grapefruit

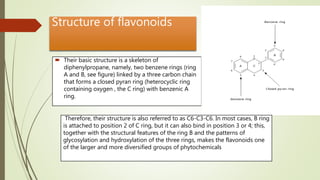

Structure of flavonoids
 Their basic structure is a skeleton of
diphenylpropane, namely, two benzene rings (ring
A and B, see figure) linked by a three carbon chain
that forms a closed pyran ring (heterocyclic ring
containing oxygen , the C ring) with benzenic A
ring.
Therefore, their structure is also referred to as C6-C3-C6. In most cases, B ring
is attached to position 2 of C ring, but it can also bind in position 3 or 4; this,
together with the structural features of the ring B and the patterns of
glycosylation and hydroxylation of the three rings, makes the flavonoids one
of the larger and more diversified groups of phytochemicals

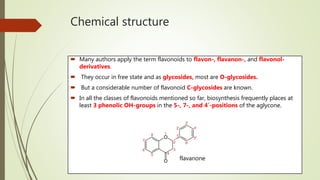

Chemical structure
 Many authors apply the term flavonoids to flavon-, flavanon-, and flavonol-
derivatives.
 They occur in free state and as glycosides, most are O-glycosides.
 But a considerable number of flavonoid C-glycosides are known.
 In all the classes of flavonoids mentioned so far, biosynthesis frequently places at
least 3 phenolic OH-groups in the 5-, 7-, and 4´-positions of the aglycone.
flavanone

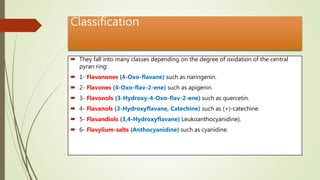

Classification
 They fall into many classes depending on the degree of oxidation of the central
pyran ring:
 1- Flavanones (4-Oxo-flavane) such as naringenin.
 2- Flavones (4-Oxo-flav-2-ene) such as apigenin.
 3- Flavonols (3-Hydroxy-4-Oxo-flav-2-ene) such as quercetin.
 4- Flavanols (3-Hydroxyflavane, Catechine) such as (+)-catechine.
 5- Flavandiols (3,4-Hydroxyflavane) Leukoanthocyanidine).
 6- Flavylium-salts (Anthocyanidine) such as cyanidine.

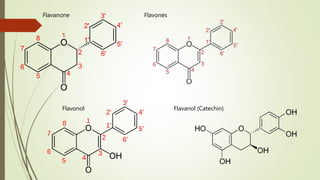

Flavanone Flavones
Flavonol Flavanol (Catechin)

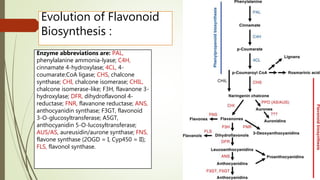

Evolution of Flavonoid
Biosynthesis :
Enzyme abbreviations are: PAL,
phenylalanine ammonia-lyase; C4H,
cinnamate 4-hydroxylase; 4CL, 4-
coumarate:CoA ligase; CHS, chalcone
synthase; CHI, chalcone isomerase; CHIL,
chalcone isomerase-like; F3H, flavanone 3-
hydroxylase; DFR, dihydroflavonol 4-
reductase; FNR, flavanone reductase; ANS,
anthocyanidin synthase; F3GT, flavonoid
3-O-glucosyltransferase; A5GT,
anthocyanidin 5-O-lucosyltransferase;
AUS/AS, aureusidin/aurone synthase; FNS,
flavone synthase (2OGD = I, Cyp450 = II);
FLS, flavonol synthase.

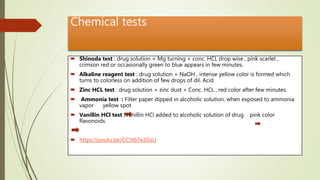

Chemical tests

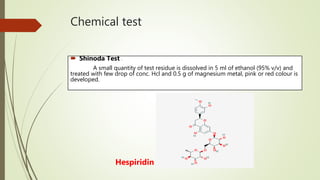

 Shinoda test : drug solution + Mg turning + conc. HCL drop wise , pink scarlet ,
crimson red or occasionally green to blue appears in few minutes.
 Alkaline reagent test : drug solution + NaOH , intense yellow color is formed which
turns to colorless on addition of few drops of dil. Acid
 Zinc HCL test : drug solution + zinc dust + Conc. HCL , red color after few minutes.
 Ammonia test : Filter paper dipped in alcoholic solution, when exposed to ammonia
vapor yellow spot
 Vanillin HCl test :Vanillin HCl added to alcoholic solution of drug pink color
flavonoids
 https://youtu.be/CC3t67e2GsU

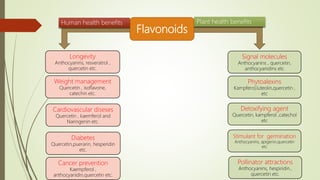

Flavonoids
Longevity
Anthocyanins, resveratrol ,
quercetin etc.
Weight management
Quercetin , isoflavone,
catechin etc.
Cardiovascular diseses
Quercetin , kaemferol and
Naringenin etc.
Diabetes
Quercetin,puerarin, hesperidin
etc.
Cancer prevention
Kaempferol ,
anthocyanidin,quercetin etc.
Signal molecules
Anthocyanins , quercetin,
anthocyanidins etc
Phytoalexins
Kampferol,luteolin,quercetin ,
etc
Detoxifying agent
Quercetin, kampferol ,catechol
etc
Stimulant for germination
Anthocyanins, apigenin,quercetin
etc
Pollinator attractions
Anthocyanins, hespiridin.,
quercetin etc.
Plant health benefits
Human health benefits

Orange peel (Hesperidin)
 Synonyms - Orange cortex,
Bigarade orange, Seville orange,
china Orange, Bitter orange peel
 The orange peel is the fresh or
dried outer part of the pericarp of
Citrus aurantium Linn,
belonging to family Rutaceae.
 It is mainly cultivated in India,
China, Spain, Madeira, Sicily,
Malla, and Morocco.

Collection & Preparation
 Orange Peel is cultivated in Mediterranean countries and England.
 The peel should be removed with as little of white ‘ zest’ as possible.
 Hand cut English dried peel is most esteemed.
 The peel may be removed in four quarters or in spiral band.
 It is also found in thin strips similar to those found in marmalade cut by machines.
They so called maltese is of this type which is known as ‘gelatin cut’.

Chemical constituents
 Bitter orange peel contains of 1 to 2.5% volatile oil. The principle component of
volatile oil is 90% limonene and small quantities of aldehydes citral , citronellal,
bitter amorphous glycoside like aurantiamarin and it’s acid; hesperidin,
isohesperidin , vitamin C, and Pectin.
 Limanene (90%)
 Citral (4%)
 Vitamin C
 Pectin
 Hesperidine ( Flavonoid )
 Aurantimarin and Aurantimaric acid ( Both are glycoside and responsible for
bitter)

Chemical test
 Shinoda Test :-
A small quantity of test residue is dissolved in 5 ml of ethanol (95% v/v) and
treated with few drop of conc. Hcl and 0.5 g of magnesium metal, pink or red colour is
developed.
Hespiridin

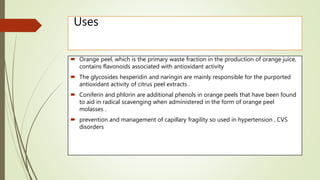

Uses
 Orange peel, which is the primary waste fraction in the production of orange juice,
contains flavonoids associated with antioxidant activity
 The glycosides hesperidin and naringin are mainly responsible for the purported
antioxidant activity of citrus peel extracts .
 Coniferin and phlorin are additional phenols in orange peels that have been found
to aid in radical scavenging when administered in the form of orange peel
molasses .
 prevention and management of capillary fragility so used in hypertension , CVS
disorders

Soyabean ( Isoflavones )
 Source : dried seeds of Glycine max
 Family : Leguminose
 Constituents : Isoflavones
 Isoflavones are a class of phytoestrogens — plant-derived
compounds with estrogenic activity. Soybeans and soy
products are the richest sources of isoflavones in the human
diet.
 Use : Soy flavonoids (isoflavones) can also reduce blood
cholesterol and can help to prevent osteoporis .
 Soy flavonoids are also used to ease menopausal symptoms.
 CVS , Mental and Women’s health , cancer prevention

Buckwheat ( Rutin )
 Source – powder of dried food grains of Fagopyrum
esculentum
 Family – Polygonaceae
 Geographical source – food crop in United states,
Russia and Japan
 Constituents – 12% protein , 2 % fat and mainly Rutin
 Rutin is microcrystalline greenish yellow tasteless
powder, soluble in methanol-isopropyl alcohol-
pyridine-alkali hydroxides
 Use: capillary bleeding along with increased capillary
fragility so used in retinal haemorrhage

Rutin isolation , identification and analysis
 It is a bioflavonoid
 Pure rutin is yellow or yellow green color, needle shaped crystal
 Take 20 gm powder soxhlet with 250 ml 80% ethanol.
Filter it, mix it with 25 ml water &
extracted with pet. Ether & CHCl3
Take Aq. Layer keep in cold for 72 hrs.
Yellow ppts. Seperated .
washed with CHCl3: ethyl acetate: ethanol (50:25:25)

Ppts dissolved in hot methanol & filter it
The filtrate is evaporated to dryness
Get yellow powder (rutin)
 Identification Test:
1) With FeCl3 ---- give dark green color
2) With lead acetate ---- orange yellow ppts
3) With ammonium molybdate & antimony trichloride ---- orange
yellow ppts
Rutin

Analysis
1) TLC & Paper Chromatography:
 Precoated aluminium sheet with silica gel G
 Mobile Phase: Ethyl acetate: butanone: formic Acid:water(50:30:10:10)
 Ethyl acetate: formic Acid: Acetic Acid :water(100:10:11:27)
 In Paper C.: Stationary phase: filter paper (W.-1)
 Mobile Phase: acetic acid: water (15:85)
 isopropyl alcohol: water (60:40)
2) Spectrophotometric:
 Dissolved in methanol & detect in UV.

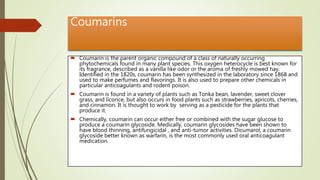

Coumarins
 Coumarin is the parent organic compound of a class of naturally occurring
phytochemicals found in many plant species. This oxygen heterocycle is best known for
its fragrance, described as a vanilla like odor or the aroma of freshly mowed hay.
Identified in the 1820s, coumarin has been synthesized in the laboratory since 1868 and
used to make perfumes and flavorings. It is also used to prepare other chemicals in
particular anticoagulants and rodent poison.
 Coumarin is found in a variety of plants such as Tonka bean, lavender, sweet clover
grass, and licorice, but also occurs in food plants such as strawberries, apricots, cherries,
and cinnamon. It is thought to work by serving as a pesticide for the plants that
produce it.
 Chemically, coumarin can occur either free or combined with the sugar glucose to
produce a coumarin glycoside. Medically, coumarin glycosides have been shown to
have blood thinning, antifungicidal , and anti-tumor activities. Dicumarol, a coumarin
glycoside better known as warfarin, is the most commonly used oral anticoagulant
medication.

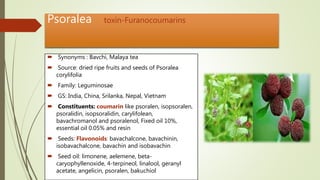

Psoralea toxin-Furanocoumarins
 Synonyms : Bavchi, Malaya tea
 Source: dried ripe fruits and seeds of Psoralea
corylifolia
 Family: Leguminosae
 GS: India, China, Srilanka, Nepal, Vietnam
 Constituents: coumarin like psoralen, isopsoralen,
psoralidin, isopsoralidin, carylifolean,
bavachromanol and psoralenol, Fixed oil 10%,
essential oil 0.05% and resin
 Seeds: Flavonoids: bavachalcone, bavachinin,
isobavachalcone, bavachin and isobavachin
 Seed oil: limonene, aelemene, beta-
caryophyllenoxide, 4-terpineol, linalool, geranyl
acetate, angelicin, psoralen, bakuchiol

 Chemical Test:
 psoralen, dissolved in alcohol + NaOH UV light observation yellow
fluorescence
 Psoralen, dissolved in small amount of alcohol, 3 times propylene glycol, 5 times
acetic acid, 40 times water UV light observation blue fluorescence
 Uses:
 Aphrodisiac, antibacterial, astringent, cytotoxic, diaphoretic, diuretic, stimulant,
stomachic , tonic, lower back pain, skin disease, bed wetting, leprosy, hair loss

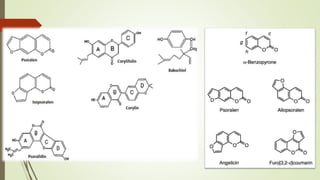

Psoralen Psoralidin

e.g. Lignans - Podophylllum
Monomeric , dimeric phenylpropanoid

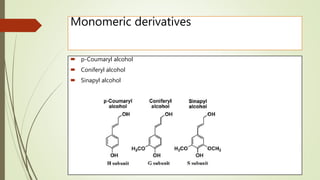

Monomeric derivatives
 p-Coumaryl alcohol
 Coniferyl alcohol
 Sinapyl alcohol

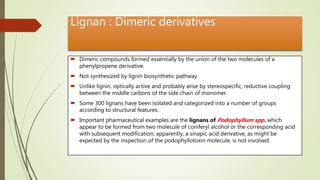

Lignan : Dimeric derivatives
 Dimeric compounds formed essentially by the union of the two molecules of a
phenylpropene derivative.
 Not synthesized by lignin biosynthetic pathway.
 Unlike lignin, optically active and probably arise by stereospecific, reductive coupling
between the middle carbons of the side chain of monomer.
 Some 300 lignans have been isolated and categorized into a number of groups
according to structural features.
 Important pharmaceutical examples are the lignans of Podophyllum spp. which
appear to be formed from two molecule of coniferyl alcohol or the corresponding acid
with subsequent modification; apparently, a sinapic acid derivative, as might be
expected by the inspection of the podophyllotoxin molecule, is not involved.

Continued..
 Lignans can be found in more than 60 families of vascular plants and have been isolated
from different plant parts, exudates and resins.
 Biological activity of Lignans - are Antiviral ,Anticancer ,Cancer prevention, Anti-
inflammatory, antimicrobial ,antioxidant , immunosuppressive, Hepatoprotective,
Osteoporosis prevention.
 Based on their carbon skeleton, cyclization pattern, and the way in which oxygen is
incorporated in the molecule skeleton, they can be divided into 8 subgroups:
 Main subclasses of Lignans- 1.Furofuran, 2.Furan, 3.Dibenzylbutane,
4.Dibenzylbutyrolactol, 5.Dibenzylbutyrolactones, 6.Aryltetralin, 7.Arylnaphtalene,
8.Dibenzocyclooctadienes.
 among these subgroups, the furan, dibenzylbutane and dibenzocyclooctadiene lignans
can be further classified in “lignans with C9 (9´)-oxygen” and “lignans without C9 (9´)-
oxygen”

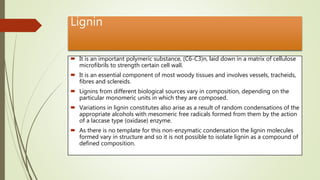

Lignin
 It is an important polymeric substance, (C6-C3)n, laid down in a matrix of cellulose
microfibrils to strength certain cell wall.
 It is an essential component of most woody tissues and involves vessels, tracheids,
fibres and sclereids.
 Lignins from different biological sources vary in composition, depending on the
particular monomeric units in which they are composed.
 Variations in lignin constitutes also arise as a result of random condensations of the
appropriate alcohols with mesomeric free radicals formed from them by the action
of a laccase type (oxidase) enzyme.
 As there is no template for this non-enzymatic condensation the lignin molecules
formed vary in structure and so it is not possible to isolate lignin as a compound of
defined composition.

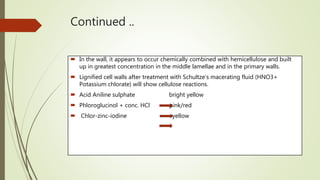

Continued ..
 In the wall, it appears to occur chemically combined with hemicellulose and built
up in greatest concentration in the middle lamellae and in the primary walls.
 Lignified cell walls after treatment with Schultze’s macerating fluid (HNO3+
Potassium chlorate) will show cellulose reactions.
 Acid Aniline sulphate bright yellow
 Phloroglucinol + conc. HCl pink/red
 Chlor-zinc-iodine yellow

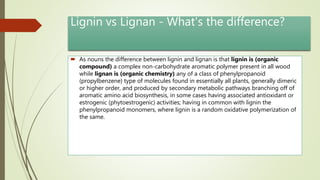

Lignin vs Lignan - What's the difference?
 As nouns the difference between lignin and lignan is that lignin is (organic
compound) a complex non-carbohydrate aromatic polymer present in all wood
while lignan is (organic chemistry) any of a class of phenylpropanoid
(propylbenzene) type of molecules found in essentially all plants, generally dimeric
or higher order, and produced by secondary metabolic pathways branching off of
aromatic amino acid biosynthesis, in some cases having associated antioxidant or
estrogenic (phytoestrogenic) activities; having in common with lignin the
phenylpropanoid monomers, where lignin is a random oxidative polymerization of
the same.

Podophyllum : Lignan
 Synonyms: May apple, Wild
mandrake
 Source: dried roots and rhizomes of
American: Podophyllum peltatum
& Indian: Podophyllum
hexandrum (P.emodi)
 Family: Podophyllaceae
(Berberidaceae)
 GS: America (US-Virginia, Kentucky,
North carolina, Tennessee, Indiana
)& Canada
 Indian: Tibet, China, Afghanistan,
Himalayas

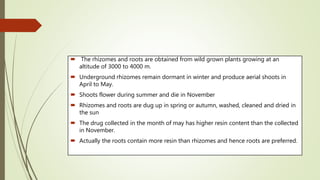

 The rhizomes and roots are obtained from wild grown plants growing at an
altitude of 3000 to 4000 m.
 Underground rhizomes remain dormant in winter and produce aerial shoots in
April to May.
 Shoots flower during summer and die in November
 Rhizomes and roots are dug up in spring or autumn, washed, cleaned and dried in
the sun
 The drug collected in the month of may has higher resin content than the collected
in November.
 Actually the roots contain more resin than rhizomes and hence roots are preferred.

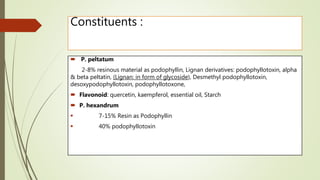

Constituents :
 P. peltatum

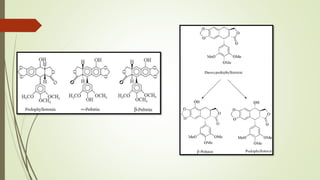

2-8% resinous material as podophyllin, Lignan derivatives: podophyllotoxin, alpha
& beta peltatin, (Lignan: in form of glycoside), Desmethyl podophyllotoxin,
desoxypodophyllotoxin, podophyllotoxone,
 Flavonoid: quercetin, kaempferol, essential oil, Starch
 P. hexandrum
 7-15% Resin as Podophyllin
 40% podophyllotoxin

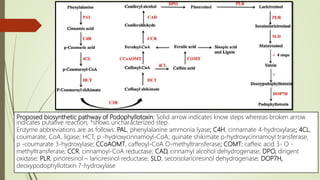

Proposed biosynthetic pathway of Podophyllotoxin: Solid arrow indicates know steps whereas broken arrow
indicates putative reaction; *shows uncharacterized step.
Enzyme abbreviations are as follows: PAL, phenylalanine ammonia lyase; C4H, cinnamate 4-hydroxylase; 4CL,
coumarate; CoA, ligase; HCT, p -hydroxycinnamoyl-CoA; quinate shikimate p-hydroxycinnamoyl transferase;
p -coumarate 3-hydroxylase; CCoAOMT, caffeoyl-CoA O-methyltransferase; COMT: caffeic acid 3- O -
methyltransferase; CCR, cinnamoyl-CoA reductase; CAD, cinnamyl alcohol dehydrogenase; DPO, dirigent
oxidase; PLR, pinoresinol – lariciresinol reductase; SLD, secoisolariciresinol dehydrogenase; DOP7H,
deoxypodophyllotoxin 7-hydroxylase

Chemical Test
 Alcoholic ext. + strong copper acetate- brown ppt with Indian podophyllum &
green color without ppt with American podophyllum
 USES:
 Cyto-toxic, venereal disease, Warts,
 Podophyllotoxin is semisynthetically converted to etoposide potent anticancer
agent for lung & testicular.
 Its GIT irritant, drastic purgative in moderate uses

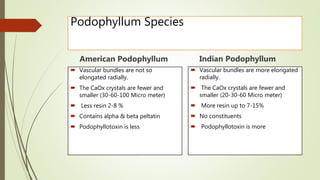

Podophyllum Species
American Podophyllum
 Vascular bundles are not so
elongated radially.
 The CaOx crystals are fewer and
smaller (30-60-100 Micro meter)
 Less resin 2-8 %
 Contains alpha & beta peltatin
 Podophyllotoxin is less
Indian Podophyllum
 Vascular bundles are more elongated
radially.
 The CaOx crystals are fewer and
smaller (20-30-60 Micro meter)
 More resin up to 7-15%
 No constituents
 Podophyllotoxin is more

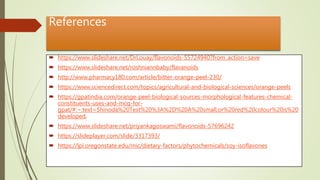

References
 https://www.slideshare.net/DrLouay/flavonoids-55724940?from_action=save
 https://www.slideshare.net/roshniannbaby/flavanoids
 http://www.pharmacy180.com/article/bitter-orange-peel-230/
 https://www.sciencedirect.com/topics/agricultural-and-biological-sciences/orange-peels
 https://gpatindia.com/orange-peel-biological-sources-morphological-features-chemical-
constituents-uses-and-mcq-for-
gpat/#:~:text=Shinoda%20Test%20%3A%2D%20A%20small,or%20red%20colour%20is%20
developed.
 https://www.slideshare.net/priyankagoswami/flavonoids-57696242
 https://slideplayer.com/slide/3317393/
 https://lpi.oregonstate.edu/mic/dietary-factors/phytochemicals/soy-isoflavones

 https://www.slideshare.net/priyankagoswami/polyketide-lignanphenylpropanoids
 https://www.slideshare.net/aksharpreetpharmacy/isolation-by-pooja
 https://link.springer.com/chapter/10.1007%2F978-1-4615-4913-0_8
 https://www.researchgate.net/figure/Overview-of-the-phenylpropanoid-biosynthetic-
pathway-The-phenylpropanoid-biosynthesis_fig1_321804537
 https://wikidiff.com/lignin/lignan
 https://www.researchgate.net/figure/Chemical-structures-of-the-three-phenylpropanoid-
monomeric-lignin-precursors_fig4_271891304
 https://www.researchgate.net/publication/335454580_Phenylpropanoids_and_its_derivatives
_biological_activities_and_its_role_in_food_pharmaceutical_and_cosmetic_industries
 https://studylib.net/doc/9099671/phenylpropanoids
 https://en.wikipedia.org/wiki/Phenylpropanoid
 https://en.wikipedia.org/wiki/Flavonoid
 https://www.frontiersin.org/articles/10.3389/fpls.2020.00007/full

Phenylpropanoids ( Flavonoids, coumarin, lignan )

Phenylpropanoids ( Flavonoids, coumarin, lignan )

More Related Content

What's hot

Similar to Phenylpropanoids ( Flavonoids, coumarin, lignan )

More from Rohan Jagdale

Recently uploaded

Phenylpropanoids ( Flavonoids, coumarin, lignan )
