This tutorial teaches how to use Microsoft Access 2007 to create and manage databases. It covers creating blank databases and databases from templates, as well as working with tables, queries, forms and reports. The tutorial is divided into 7 lessons that cover getting familiar with the Access interface, creating tables and relationships between tables, sorting and filtering data, building queries to extract and analyze data, making forms to enter and view records, generating reports, and more.

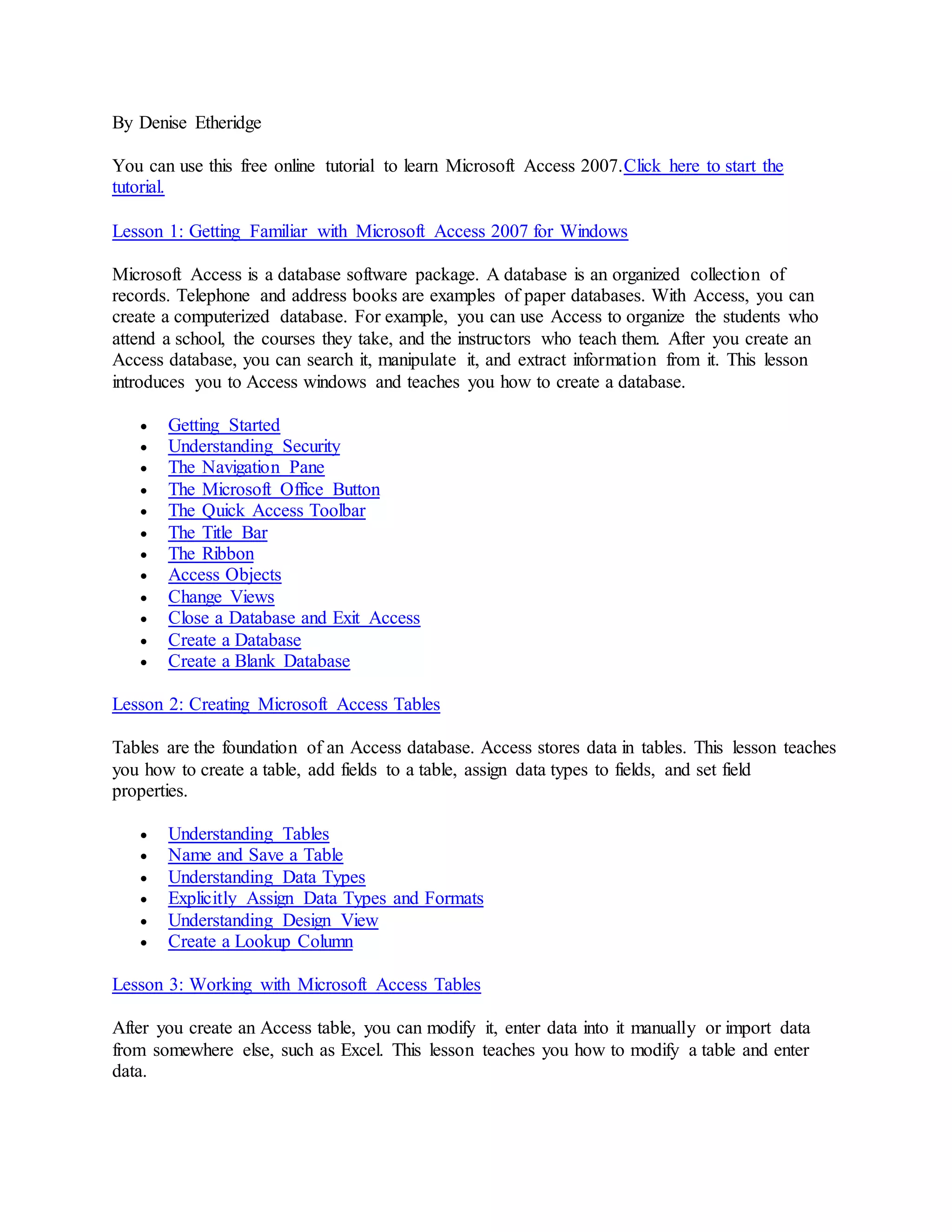

1. By Denise Etheridge
You can use this free online tutorial to learn Microsoft Access 2007.Click here to start the
tutorial.
Lesson 1: Getting Familiar with Microsoft Access 2007 for Windows
Microsoft Access is a database software package. A database is an organized collection of
records. Telephone and address books are examples of paper databases. With Access, you can
create a computerized database. For example, you can use Access to organize the students who
attend a school, the courses they take, and the instructors who teach them. After you create an
Access database, you can search it, manipulate it, and extract information from it. This lesson
introduces you to Access windows and teaches you how to create a database.
 Getting Started
 Understanding Security
 The Navigation Pane
 The Microsoft Office Button
 The Quick Access Toolbar
 The Title Bar
 The Ribbon
 Access Objects
 Change Views

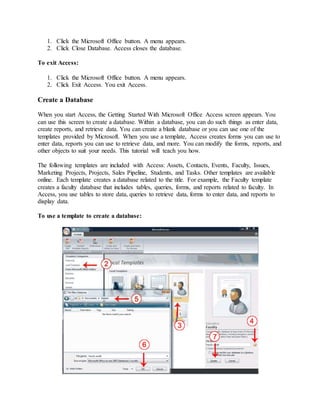

 Close a Database and Exit Access

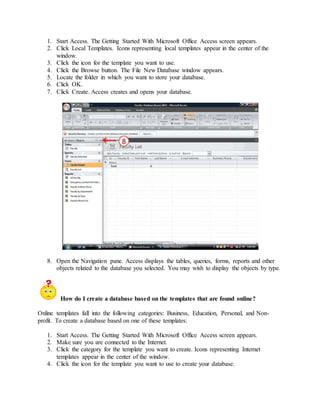

 Create a Database

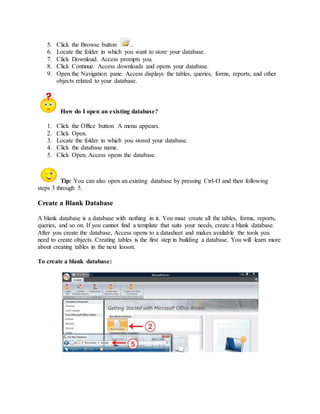

 Create a Blank Database
Lesson 2: Creating Microsoft Access Tables
Tables are the foundation of an Access database. Access stores data in tables. This lesson teaches
you how to create a table, add fields to a table, assign data types to fields, and set field
properties.
 Understanding Tables
 Name and Save a Table

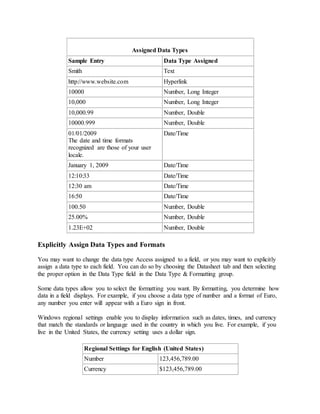

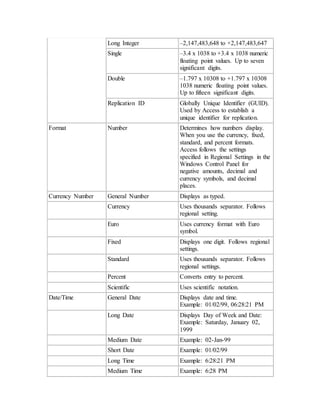

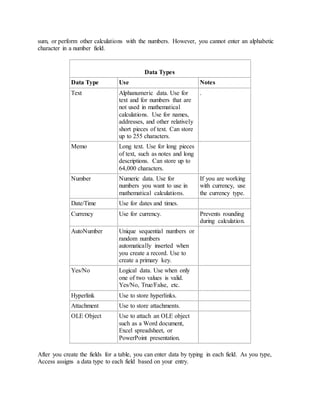

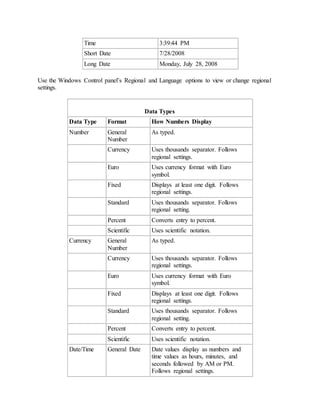

 Understanding Data Types

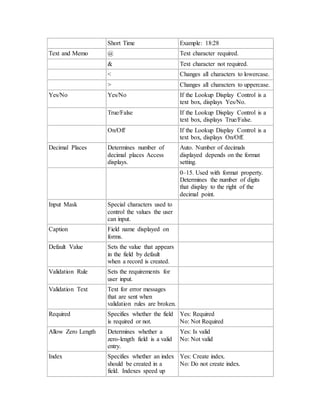

 Explicitly Assign Data Types and Formats

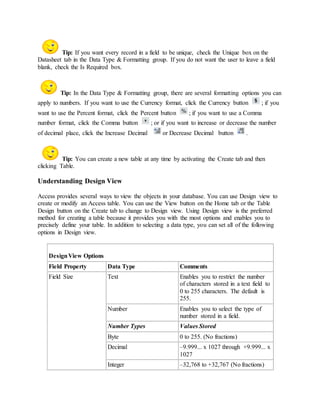

 Understanding Design View

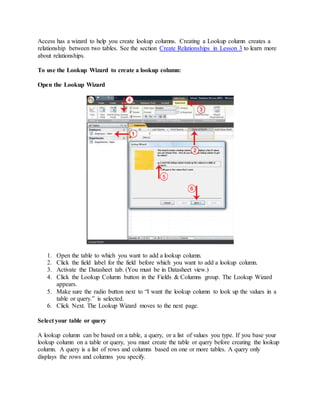

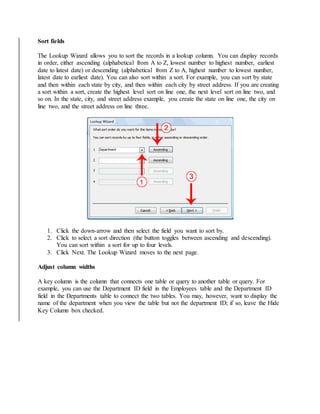

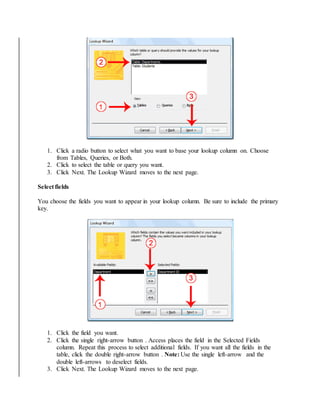

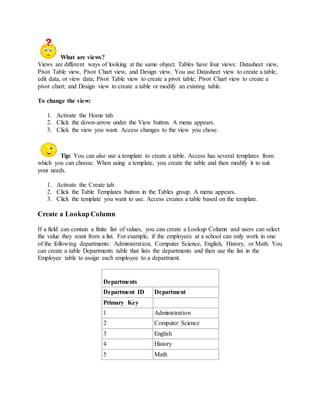

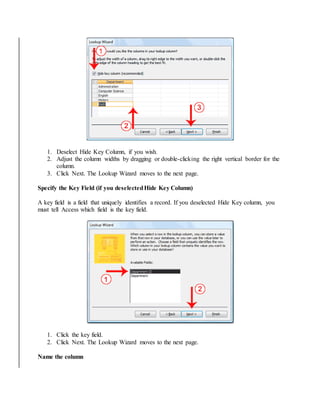

 Create a Lookup Column
Lesson 3: Working with Microsoft Access Tables
After you create an Access table, you can modify it, enter data into it manually or import data
from somewhere else, such as Excel. This lesson teaches you how to modify a table and enter
data.

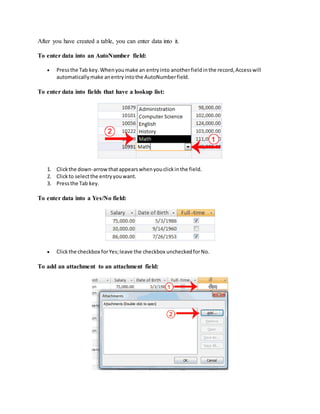

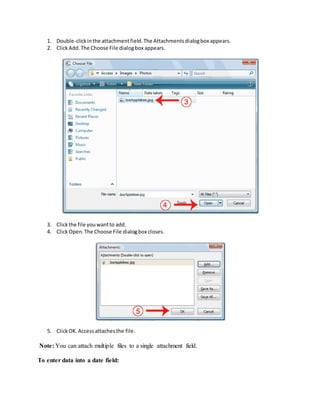

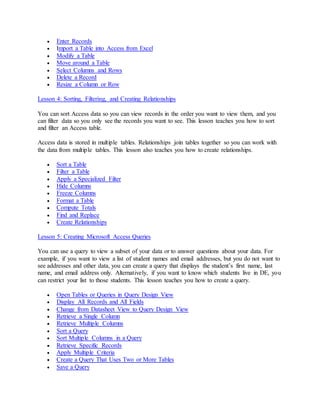

2.  Enter Records

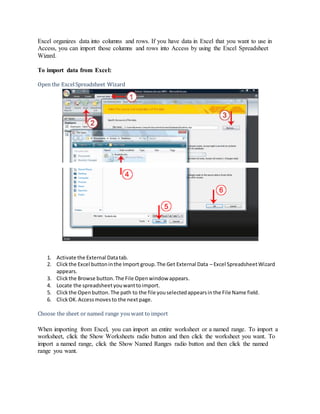

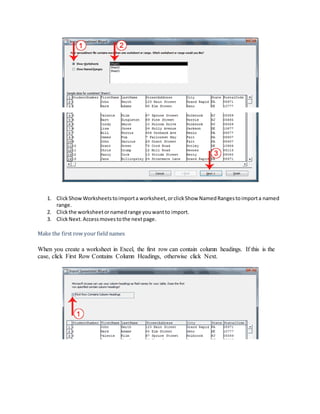

 Import a Table into Access from Excel

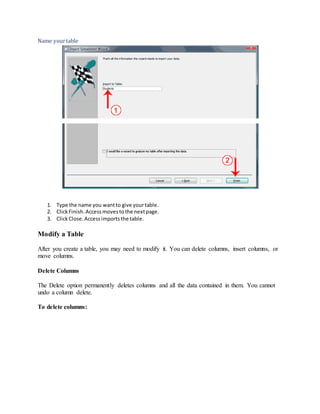

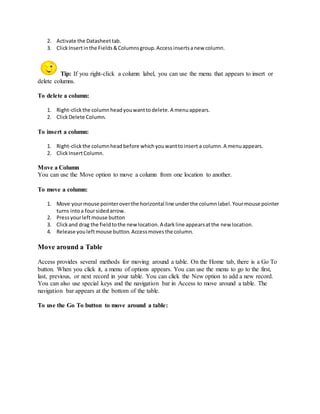

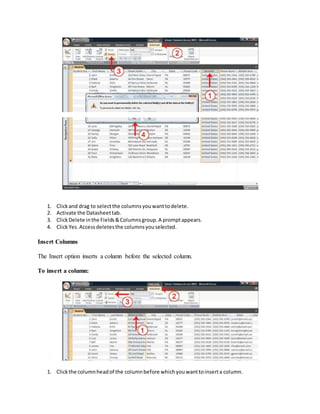

 Modify a Table

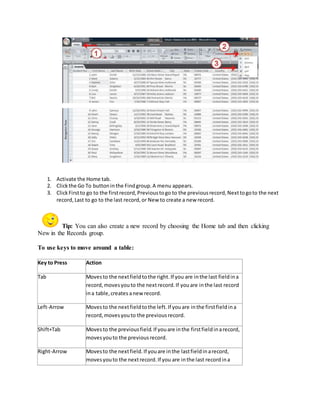

 Move around a Table
 Select Columns and Rows

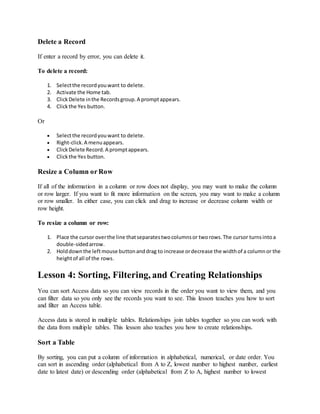

 Delete a Record
 Resize a Column or Row
Lesson 4: Sorting, Filtering, and Creating Relationships
You can sort Access data so you can view records in the order you want to view them, and you
can filter data so you only see the records you want to see. This lesson teaches you how to sort
and filter an Access table.
Access data is stored in multiple tables. Relationships join tables together so you can work with
the data from multiple tables. This lesson also teaches you how to create relationships.

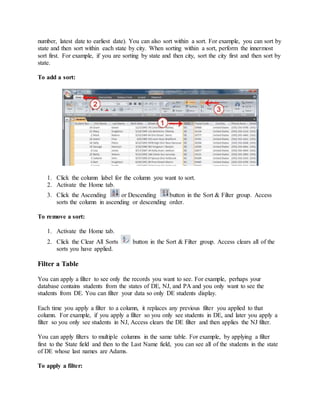

 Sort a Table

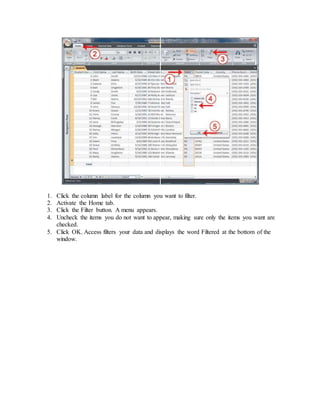

 Filter a Table

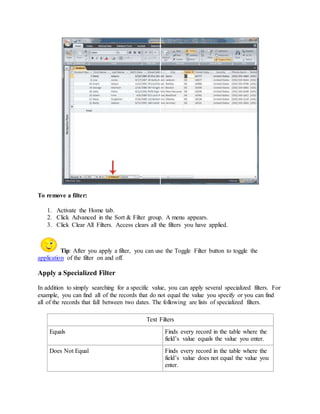

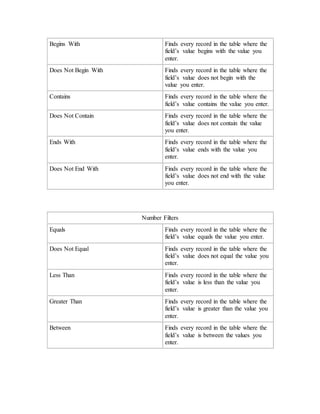

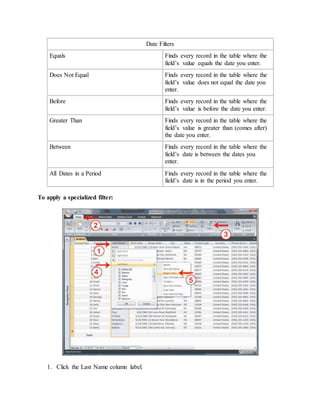

 Apply a Specialized Filter

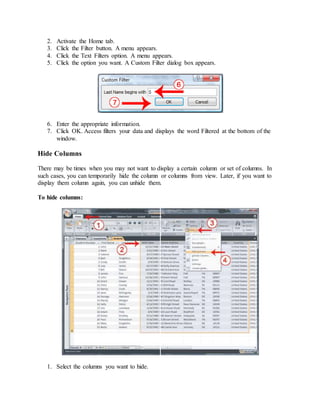

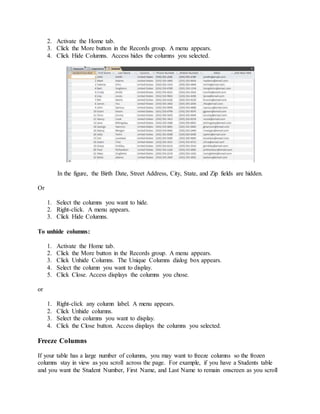

 Hide Columns

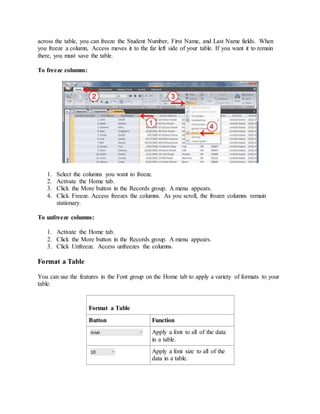

 Freeze Columns

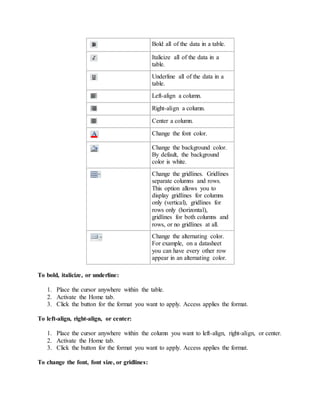

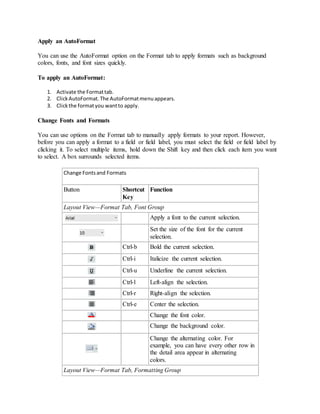

 Format a Table

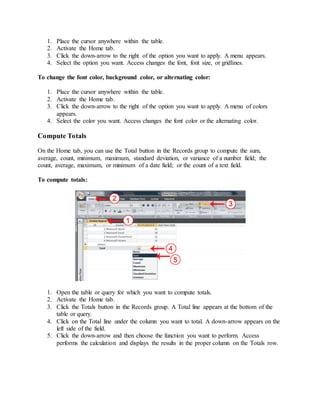

 Compute Totals
 Find and Replace

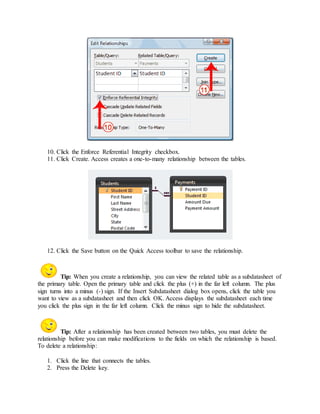

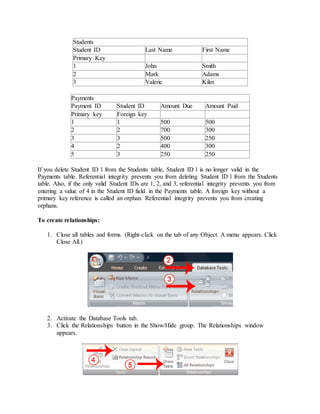

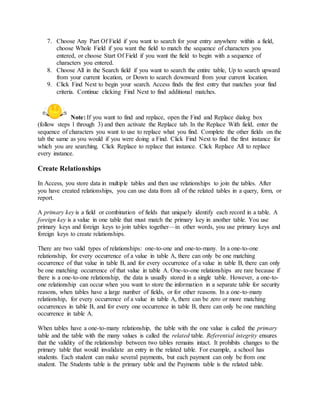

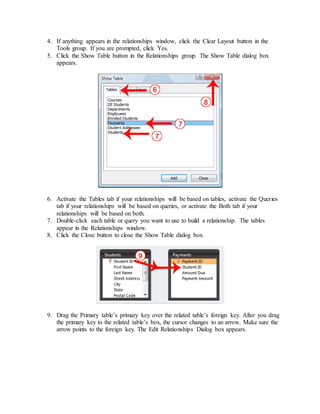

 Create Relationships

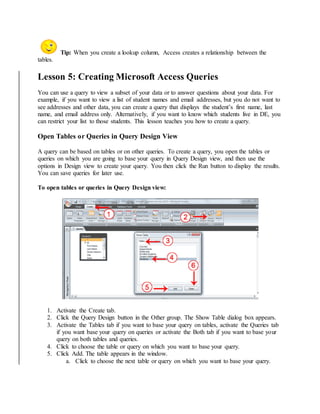

Lesson 5: Creating Microsoft Access Queries
You can use a query to view a subset of your data or to answer questions about your data. For
example, if you want to view a list of student names and email addresses, but you do not want to
see addresses and other data, you can create a query that displays the student’s first name, last
name, and email address only. Alternatively, if you want to know which students live in DE, you
can restrict your list to those students. This lesson teaches you how to create a query.
 Open Tables or Queries in Query Design View

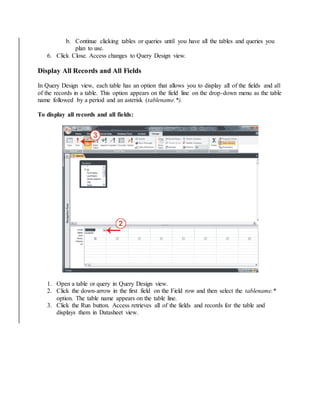

 Display All Records and All Fields

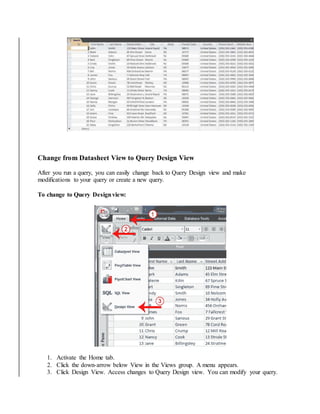

 Change from Datasheet View to Query Design View

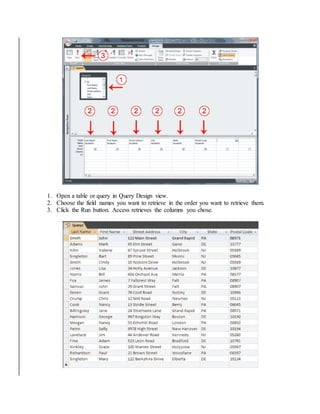

 Retrieve a Single Column

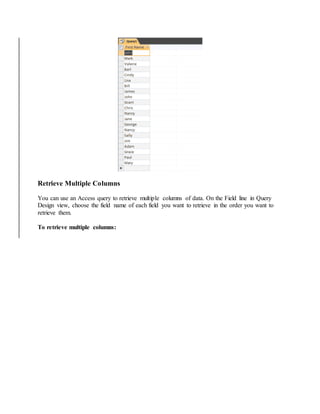

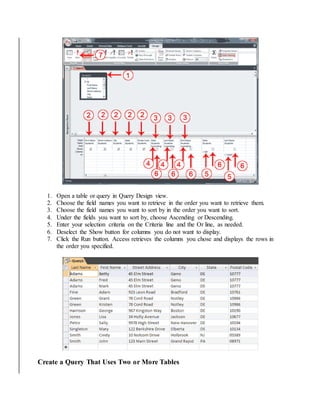

 Retrieve Multiple Columns

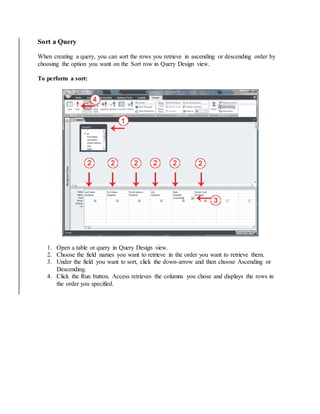

 Sort a Query

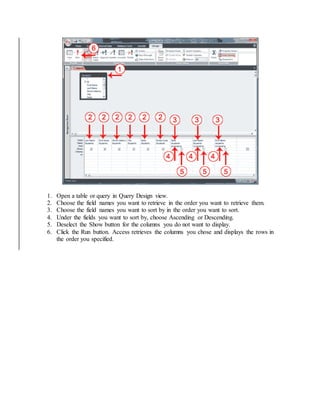

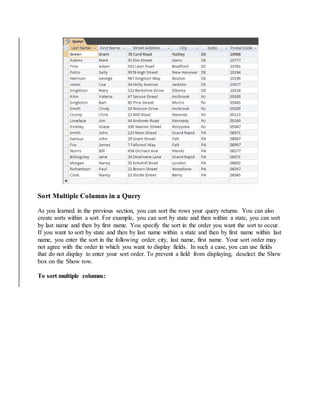

 Sort Multiple Columns in a Query

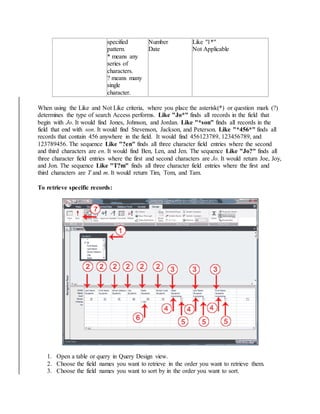

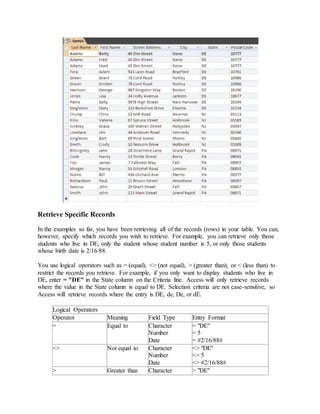

 Retrieve Specific Records

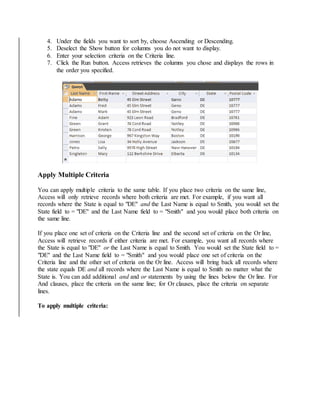

 Apply Multiple Criteria

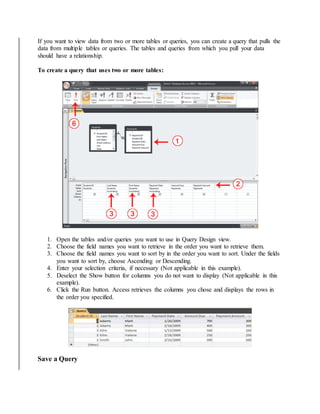

 Create a Query That Uses Two or More Tables
 Save a Query

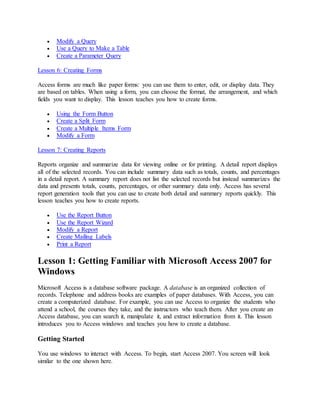

3.  Modify a Query

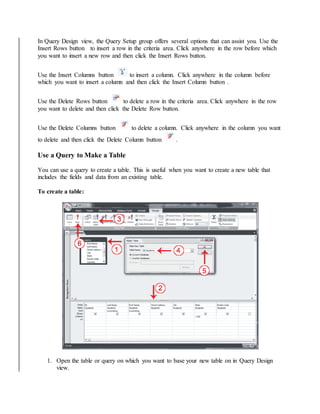

 Use a Query to Make a Table

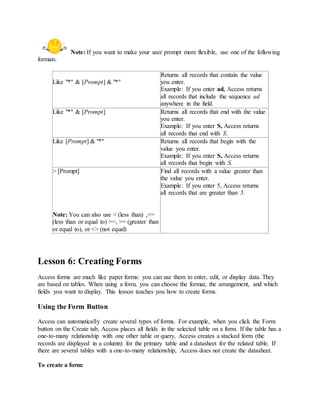

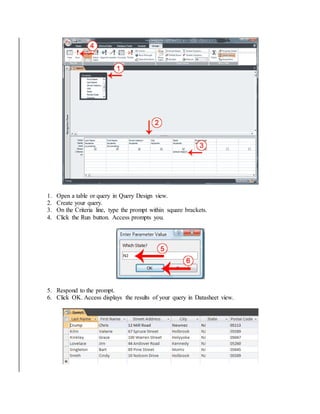

 Create a Parameter Query
Lesson 6: Creating Forms
Access forms are much like paper forms: you can use them to enter, edit, or display data. They
are based on tables. When using a form, you can choose the format, the arrangement, and which
fields you want to display. This lesson teaches you how to create forms.

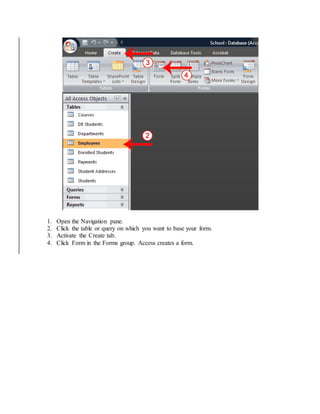

 Using the Form Button

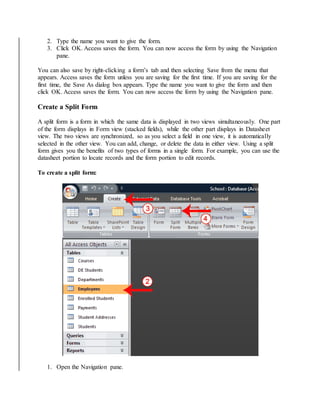

 Create a Split Form

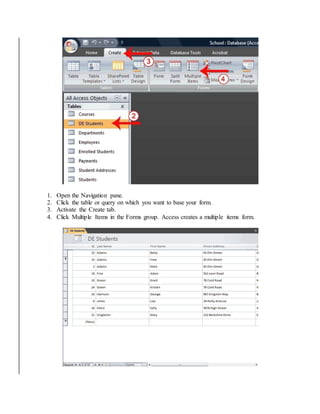

 Create a Multiple Items Form

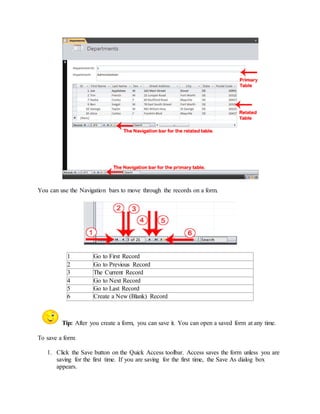

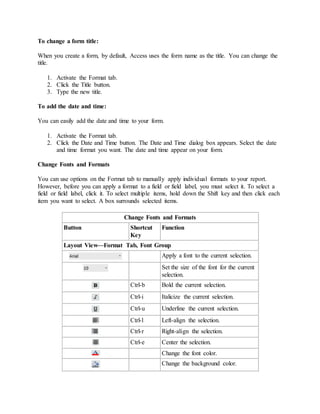

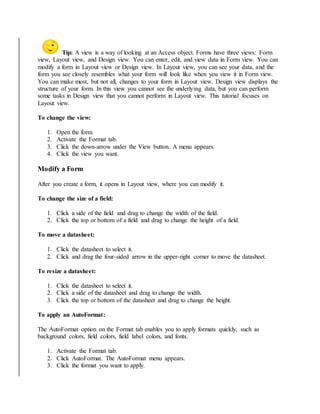

 Modify a Form
Lesson 7: Creating Reports
Reports organize and summarize data for viewing online or for printing. A detail report displays
all of the selected records. You can include summary data such as totals, counts, and percentages
in a detail report. A summary report does not list the selected records but instead summarizes the
data and presents totals, counts, percentages, or other summary data only. Access has several
report generation tools that you can use to create both detail and summary reports quickly. This
lesson teaches you how to create reports.
 Use the Report Button

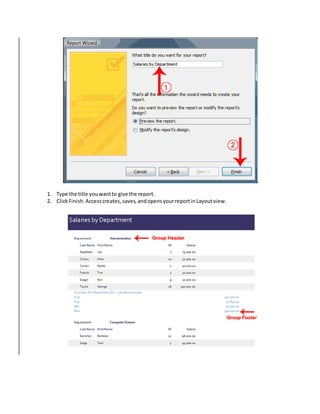

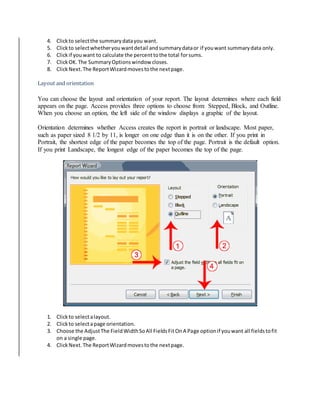

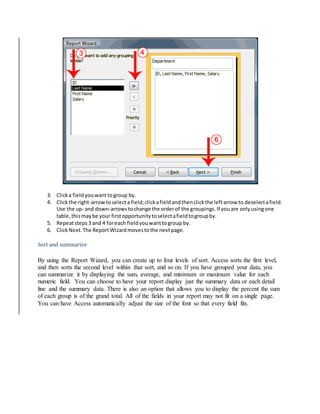

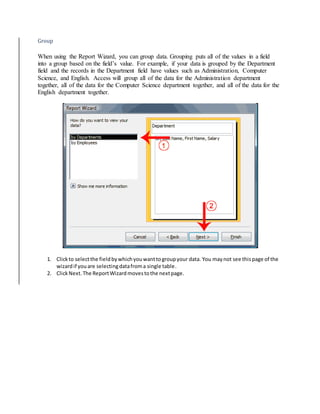

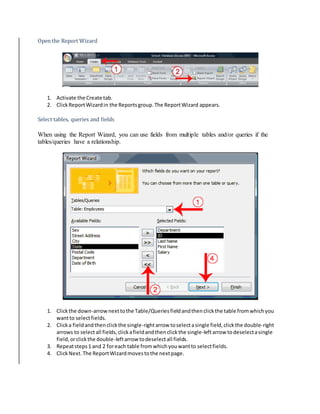

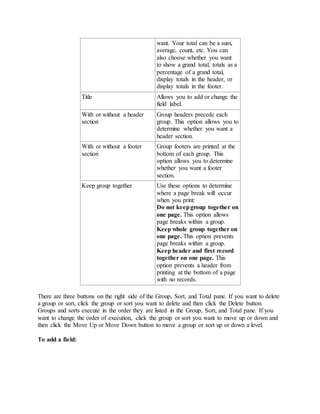

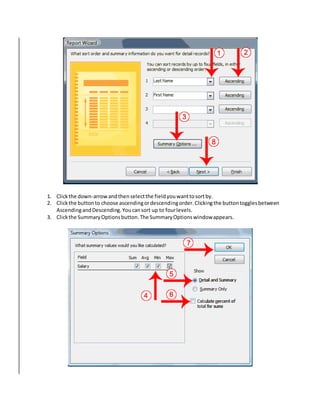

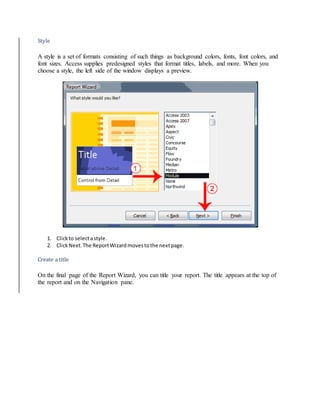

 Use the Report Wizard

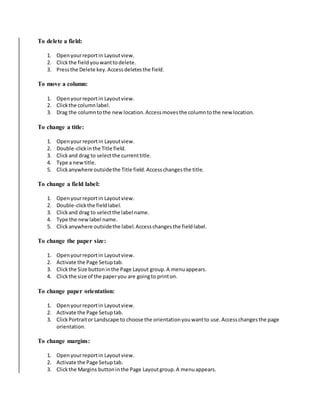

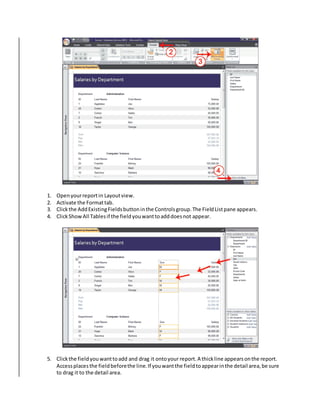

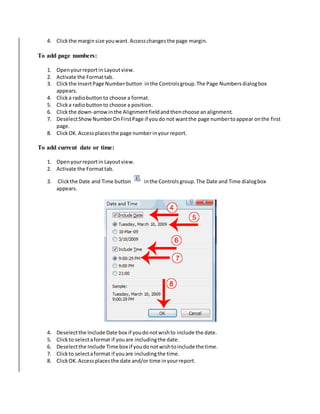

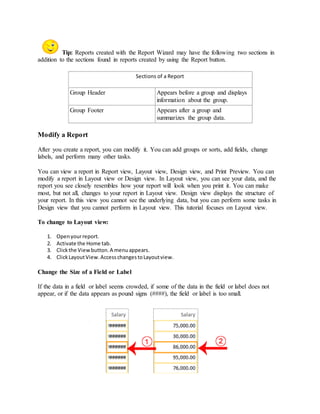

 Modify a Report

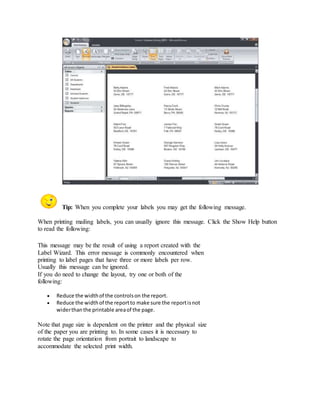

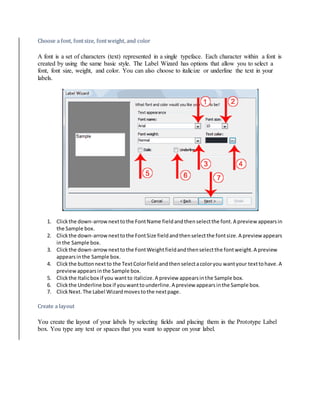

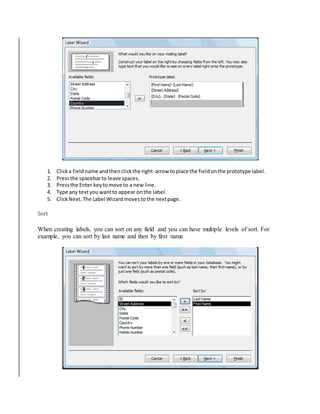

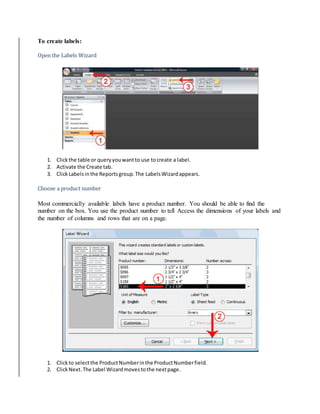

 Create Mailing Labels

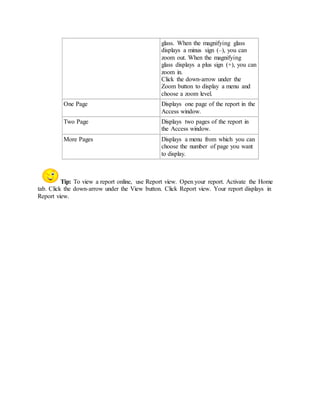

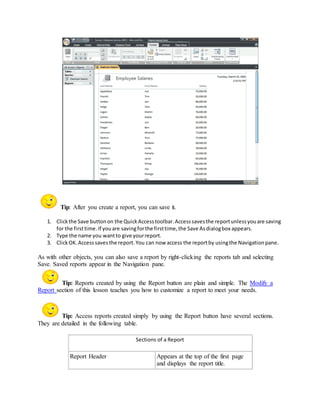

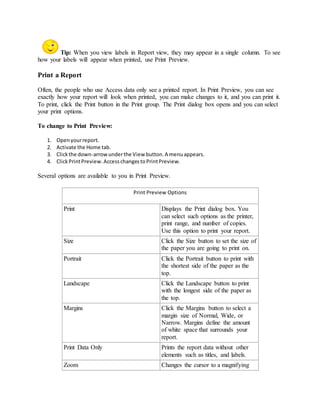

 Print a Report
Lesson 1: Getting Familiar with Microsoft Access 2007 for
Windows
Microsoft Access is a database software package. A database is an organized collection of
records. Telephone and address books are examples of paper databases. With Access, you can
create a computerized database. For example, you can use Access to organize the students who
attend a school, the courses they take, and the instructors who teach them. After you create an
Access database, you can search it, manipulate it, and extract information from it. This lesson
introduces you to Access windows and teaches you how to create a database.
Getting Started
You use windows to interact with Access. To begin, start Access 2007. You screen will look
similar to the one shown here.

4. Northwind is a sample database you can download from the Microsoft website. I will use the
Northwind database to introduce you to Access windows. If the Northwind database is already
on your system, open it, otherwise download it and then open it.
To open Northwind:
1. Click the Microsoft Office button. A menu appears.
2. Click Open. The Open dialog box appears.
3. Locate the Northwind database.
4. Click the Open button. Access opens the Northwind database.
To download Northwind, connect to the Internet and then follow these steps:

5. 1. Click Sample. The Northwind 2007 icon appears in the center of the window.
2. Click the Northwind icon.
3. Click the Browse button. The File New Database window appears.
4. Locate the folder in which you want to save the Northwind database.
5. Click OK. The File New Database window closes.
6. Click Create. Access creates the Northwind database and opens it.
Understanding Security
It is possible for an Access database to contain malicious code, such as a computer virus. Access
has security settings that disable code and display a security warning when you open a database.
If you know a database is trustworthy, you can perform the following steps to enable it. You may
need to enable the Northwind database.
To enable a database:

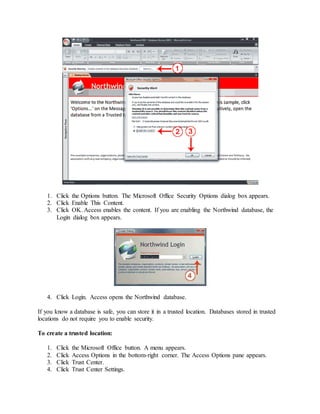

6. 1. Click the Options button. The Microsoft Office Security Options dialog box appears.
2. Click Enable This Content.
3. Click OK. Access enables the content. If you are enabling the Northwind database, the
Login dialog box appears.
4. Click Login. Access opens the Northwind database.
If you know a database is safe, you can store it in a trusted location. Databases stored in trusted
locations do not require you to enable security.
To create a trusted location:
1. Click the Microsoft Office button. A menu appears.
2. Click Access Options in the bottom-right corner. The Access Options pane appears.
3. Click Trust Center.
4. Click Trust Center Settings.

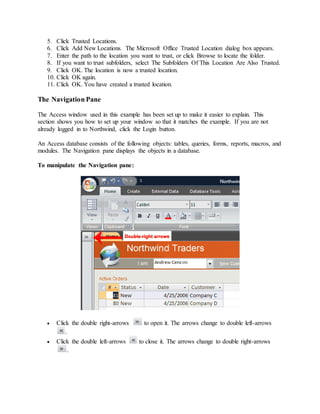

7. 5. Click Trusted Locations.
6. Click Add New Locations. The Microsoft Office Trusted Location dialog box appears.
7. Enter the path to the location you want to trust, or click Browse to locate the folder.
8. If you want to trust subfolders, select The Subfolders Of This Location Are Also Trusted.
9. Click OK. The location is now a trusted location.
10. Click OK again.
11. Click OK. You have created a trusted location.
The Navigation Pane
The Access window used in this example has been set up to make it easier to explain. This
section shows you how to set up your window so that it matches the example. If you are not
already logged in to Northwind, click the Login button.
An Access database consists of the following objects: tables, queries, forms, reports, macros, and
modules. The Navigation pane displays the objects in a database.
To manipulate the Navigation pane:
 Click the double right-arrows to open it. The arrows change to double left-arrows
.
 Click the double left-arrows to close it. The arrows change to double right-arrows
.

8. In this example, the objects are organized by type, which is not the default setting. You may
want to organize the objects in your database by type also. You can use the down-arrow on the
top of the Navigation pane to change the manner in which objects are organized.
To organize objects by type:
1. Click the All Access Objects button on the Navigation pane. A menu appears.
2. Click Object Type. Access displays the objects in the database by type.
The Access window with the Northwind database open is shown here.
Note: Your window probably does not look exactly like the one shown. In Access
2007, the window display depends on the size of the window, the size of your monitor, and the
resolution to which your monitor is set. Resolution determines how much information your
computer monitor can display. If you use a low resolution, you can fit less information on your
screen, but the size of your text and images are larger. If you use a high resolution, you can fit
more information on your screen, but the size of the text and images are smaller. Also, you can
use settings in Access 2007, Windows Vista, and Windows XP to change the color and style of
your windows.
The Microsoft Office Button

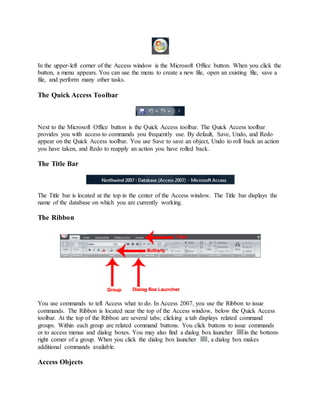

9. In the upper-left corner of the Access window is the Microsoft Office button. When you click the
button, a menu appears. You can use the menu to create a new file, open an existing file, save a
file, and perform many other tasks.
The Quick Access Toolbar
Next to the Microsoft Office button is the Quick Access toolbar. The Quick Access toolbar
provides you with access to commands you frequently use. By default, Save, Undo, and Redo
appear on the Quick Access toolbar. You use Save to save an object, Undo to roll back an action
you have taken, and Redo to reapply an action you have rolled back.
The Title Bar
The Title bar is located at the top in the center of the Access window. The Title bar displays the
name of the database on which you are currently working.
The Ribbon
You use commands to tell Access what to do. In Access 2007, you use the Ribbon to issue
commands. The Ribbon is located near the top of the Access window, below the Quick Access
toolbar. At the top of the Ribbon are several tabs; clicking a tab displays related command
groups. Within each group are related command buttons. You click buttons to issue commands
or to access menus and dialog boxes. You may also find a dialog box launcher in the bottom-right
corner of a group. When you click the dialog box launcher , a dialog box makes
additional commands available.
Access Objects

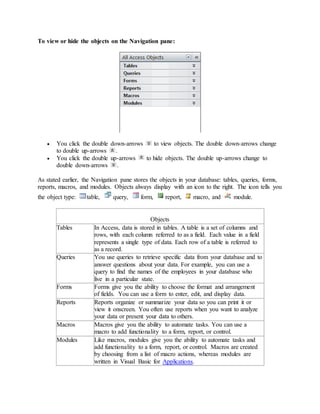

10. To view or hide the objects on the Navigation pane:
 You click the double down-arrows to view objects. The double down-arrows change
to double up-arrows .
 You click the double up-arrows to hide objects. The double up-arrows change to
double down-arrows .
As stated earlier, the Navigation pane stores the objects in your database: tables, queries, forms,
reports, macros, and modules. Objects always display with an icon to the right. The icon tells you
the object type: table, query, form, report, macro, and module.
Objects
Tables In Access, data is stored in tables. A table is a set of columns and
rows, with each column referred to as a field. Each value in a field
represents a single type of data. Each row of a table is referred to
as a record.
Queries You use queries to retrieve specific data from your database and to
answer questions about your data. For example, you can use a
query to find the names of the employees in your database who
live in a particular state.
Forms Forms give you the ability to choose the format and arrangement
of fields. You can use a form to enter, edit, and display data.
Reports Reports organize or summarize your data so you can print it or
view it onscreen. You often use reports when you want to analyze
your data or present your data to others.
Macros Macros give you the ability to automate tasks. You can use a
macro to add functionality to a form, report, or control.
Modules Like macros, modules give you the ability to automate tasks and
add functionality to a form, report, or control. Macros are created
by choosing from a list of macro actions, whereas modules are
written in Visual Basic for Applications.

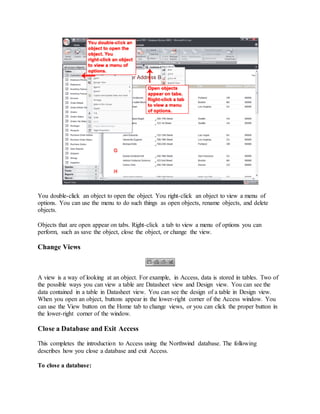

11. You double-click an object to open the object. You right-click an object to view a menu of
options. You can use the menu to do such things as open objects, rename objects, and delete
objects.
Objects that are open appear on tabs. Right-click a tab to view a menu of options you can
perform, such as save the object, close the object, or change the view.
Change Views
A view is a way of looking at an object. For example, in Access, data is stored in tables. Two of
the possible ways you can view a table are Datasheet view and Design view. You can see the
data contained in a table in Datasheet view. You can see the design of a table in Design view.
When you open an object, buttons appear in the lower-right corner of the Access window. You
can use the View button on the Home tab to change views, or you can click the proper button in
the lower-right corner of the window.
Close a Database and Exit Access
This completes the introduction to Access using the Northwind database. The following
describes how you close a database and exit Access.
To close a database:

12. 1. Click the Microsoft Office button. A menu appears.
2. Click Close Database. Access closes the database.
To exit Access:
1. Click the Microsoft Office button. A menu appears.
2. Click Exit Access. You exit Access.
Create a Database
When you start Access, the Getting Started With Microsoft Office Access screen appears. You
can use this screen to create a database. Within a database, you can do such things as enter data,
create reports, and retrieve data. You can create a blank database or you can use one of the
templates provided by Microsoft. When you use a template, Access creates forms you can use to
enter data, reports you can use to retrieve data, and more. You can modify the forms, reports, and
other objects to suit your needs. This tutorial will teach you how.
The following templates are included with Access: Assets, Contacts, Events, Faculty, Issues,
Marketing Projects, Projects, Sales Pipeline, Students, and Tasks. Other templates are available
online. Each template creates a database related to the title. For example, the Faculty template
creates a faculty database that includes tables, queries, forms, and reports related to faculty. In
Access, you use tables to store data, queries to retrieve data, forms to enter data, and reports to
display data.
To use a template to create a database:

13. 1. Start Access. The Getting Started With Microsoft Office Access screen appears.
2. Click Local Templates. Icons representing local templates appear in the center of the
window.
3. Click the icon for the template you want to use.
4. Click the Browse button. The File New Database window appears.
5. Locate the folder in which you want to store your database.
6. Click OK.
7. Click Create. Access creates and opens your database.
8. Open the Navigation pane. Access displays the tables, queries, forms, reports and other
objects related to the database you selected. You may wish to display the objects by type.
How do I create a database based on the templates that are found online?
Online templates fall into the following categories: Business, Education, Personal, and Non-profit.
To create a database based on one of these templates:
1. Start Access. The Getting Started With Microsoft Office Access screen appears.
2. Make sure you are connected to the Internet.
3. Click the category for the template you want to create. Icons representing Internet
templates appear in the center of the window.
4. Click the icon for the template you want to use to create your database.

14. 5. Click the Browse button .
6. Locate the folder in which you want to store your database.
7. Click Download. Access prompts you.
8. Click Continue. Access downloads and opens your database.
9. Open the Navigation pane. Access displays the tables, queries, forms, reports, and other
objects related to your database.
How do I open an existing database?
1. Click the Office button. A menu appears.
2. Click Open.
3. Locate the folder in which you stored your database.
4. Click the database name.
5. Click Open. Access opens the database.
Tip: You can also open an existing database by pressing Ctrl-O and then following
steps 3 through 5.
Create a Blank Database
A blank database is a database with nothing in it. You must create all the tables, forms, reports,
queries, and so on. If you cannot find a template that suits your needs, create a blank database.
After you create the database, Access opens to a datasheet and makes available the tools you
need to create objects. Creating tables is the first step in building a database. You will learn more
about creating tables in the next lesson.
To create a blank database:

15. 1. Start Access.
2. Click Blank Database.
3. Type the name you want to give your database in the File Name field. Access will
automatically append .accdb to the name.
4. Click the Browse button. The File New Database window appears.
5. Locate the folder in which you want to store your database. Note that the name of the file
appears in the File Name field.
6. Click OK.
7. Click the Create button. Access creates the database and opens a datasheet with the Table
Tools available to you.
Note the Table Tools in the upper-right portion of the Ribbon.
What is a Datasheet?
In Access, data is stored in tables. A datasheet displays the information stored in a table in
columns and rows. The columns are called fields and the rows are called records. You can use a
datasheet to create a table, enter data, retrieve data, and perform other tasks.
Lesson 2: Creating Microsoft Access Tables
Tables are the foundation of an Access database. Access stores data in tables. This lesson teaches
you how to create a table, add fields to a table, assign data types to fields, and set field
properties.

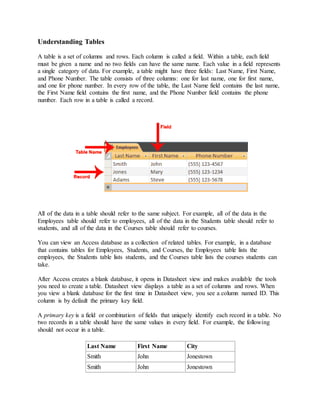

16. Understanding Tables
A table is a set of columns and rows. Each column is called a field. Within a table, each field
must be given a name and no two fields can have the same name. Each value in a field represents
a single category of data. For example, a table might have three fields: Last Name, First Name,
and Phone Number. The table consists of three columns: one for last name, one for first name,
and one for phone number. In every row of the table, the Last Name field contains the last name,
the First Name field contains the first name, and the Phone Number field contains the phone
number. Each row in a table is called a record.
All of the data in a table should refer to the same subject. For example, all of the data in the
Employees table should refer to employees, all of the data in the Students table should refer to
students, and all of the data in the Courses table should refer to courses.
You can view an Access database as a collection of related tables. For example, in a database
that contains tables for Employees, Students, and Courses, the Employees table lists the
employees, the Students table lists students, and the Courses table lists the courses students can
take.
After Access creates a blank database, it opens in Datasheet view and makes available the tools
you need to create a table. Datasheet view displays a table as a set of columns and rows. When
you view a blank database for the first time in Datasheet view, you see a column named ID. This
column is by default the primary key field.
A primary key is a field or combination of fields that uniquely identify each record in a table. No
two records in a table should have the same values in every field. For example, the following
should not occur in a table.
Last Name First Name City
Smith John Jonestown
Smith John Jonestown

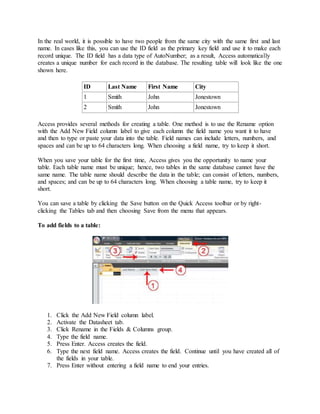

17. In the real world, it is possible to have two people from the same city with the same first and last
name. In cases like this, you can use the ID field as the primary key field and use it to make each
record unique. The ID field has a data type of AutoNumber; as a result, Access automatically
creates a unique number for each record in the database. The resulting table will look like the one
shown here.
ID Last Name First Name City
1 Smith John Jonestown
2 Smith John Jonestown
Access provides several methods for creating a table. One method is to use the Rename option
with the Add New Field column label to give each column the field name you want it to have
and then to type or paste your data into the table. Field names can include letters, numbers, and
spaces and can be up to 64 characters long. When choosing a field name, try to keep it short.
When you save your table for the first time, Access gives you the opportunity to name your
table. Each table name must be unique; hence, two tables in the same database cannot have the
same name. The table name should describe the data in the table; can consist of letters, numbers,
and spaces; and can be up to 64 characters long. When choosing a table name, try to keep it
short.
You can save a table by clicking the Save button on the Quick Access toolbar or by right-clicking
the Tables tab and then choosing Save from the menu that appears.
To add fields to a table:
1. Click the Add New Field column label.
2. Activate the Datasheet tab.
3. Click Rename in the Fields & Columns group.
4. Type the field name.
5. Press Enter. Access creates the field.
6. Type the next field name. Access creates the field. Continue until you have created all of
the fields in your table.
7. Press Enter without entering a field name to end your entries.

18. Or
1. Right-click the Add New Field column label. A menu appears.
2. Click Rename Column.
3. Type the field name.
4. Press Enter. Access creates the field.
5. Type the next field name. Access creates the field. Continue until you have created all of
the fields in your table.
Name and Save a Table
After you create a table, you must name and save it.
To name and save a table:
1. Click the Save button on the Quick Access toolbar. The Save As dialog box appears.
2. Type the name you want to give your table.
3. Click OK. Access names your table.
Tip: You can use the Rename option at any time to rename any column. For example,
you can rename the ID column Employee ID.
Understanding Data Types
In Access, you use data types to specify the type of data each field can capture. A field with a
data type of text can store alphabetic characters and numbers. Generally speaking, you cannot
perform mathematical calculations by using a text field. For example, you can use a text field to
store a street address. Unless you do some manipulation, you cannot use the numbers in the street
address in mathematical calculations. You will not be able to sum or average the numbers in an
address field, which is fine, because you probably do not want to. Alternatively, you can assign a
Test Score field a data type of Number. You can enter numbers into the field and then average,

19. sum, or perform other calculations with the numbers. However, you cannot enter an alphabetic
character in a number field.
Data Types
Data Type Use Notes
Text Alphanumeric data. Use for
text and for numbers that are
not used in mathematical
calculations. Use for names,
addresses, and other relatively
short pieces of text. Can store
up to 255 characters.
.
Memo Long text. Use for long pieces
of text, such as notes and long
descriptions. Can store up to
64,000 characters.
Number Numeric data. Use for
numbers you want to use in
mathematical calculations.
If you are working
with currency, use
the currency type.
Date/Time Use for dates and times.
Currency Use for currency. Prevents rounding
during calculation.
AutoNumber Unique sequential numbers or
random numbers
automatically inserted when
you create a record. Use to
create a primary key.
Yes/No Logical data. Use when only
one of two values is valid.
Yes/No, True/False, etc.
Hyperlink Use to store hyperlinks.
Attachment Use to store attachments.
OLE Object Use to attach an OLE object
such as a Word document,
Excel spreadsheet, or
PowerPoint presentation.
After you create the fields for a table, you can enter data by typing in each field. As you type,
Access assigns a data type to each field based on your entry.

20. Assigned Data Types
Sample Entry Data Type Assigned
Smith Text
http://www.website.com Hyperlink
10000 Number, Long Integer
10,000 Number, Long Integer
10,000.99 Number, Double
10000.999 Number, Double
01/01/2009
Date/Time
The date and time formats
recognized are those of your user
locale.
January 1, 2009 Date/Time
12:10:33 Date/Time
12:30 am Date/Time
16:50 Date/Time
100.50 Number, Double
25.00% Number, Double
1.23E+02 Number, Double

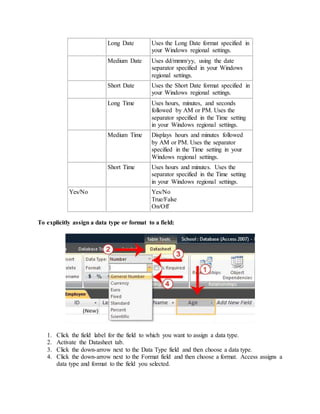

Explicitly Assign Data Types and Formats
You may want to change the data type Access assigned to a field, or you may want to explicitly
assign a data type to each field. You can do so by choosing the Datasheet tab and then selecting
the proper option in the Data Type field in the Data Type & Formatting group.
Some data types allow you to select the formatting you want. By formatting, you determine how
data in a field displays. For example, if you choose a data type of number and a format of Euro,
any number you enter will appear with a Euro sign in front.
Windows regional settings enable you to display information such as dates, times, and currency
that match the standards or language used in the country in which you live. For example, if you
live in the United States, the currency setting uses a dollar sign.
Regional Settings for English (United States)
Number 123,456,789.00
Currency $123,456,789.00

21. Time 3:39:44 PM
Short Date 7/28/2008
Long Date Monday, July 28, 2008
Use the Windows Control panel’s Regional and Language options to view or change regional
settings.
Data Types
Data Type Format How Numbers Display
Number General
Number
As typed.
Currency Uses thousands separator. Follows
regional settings.
Euro Uses currency format with Euro
symbol.
Fixed Displays at least one digit. Follows
regional settings.
Standard Uses thousands separator. Follows
regional setting.
Percent Converts entry to percent.
Scientific Uses scientific notation.
Currency General
Number
As typed.
Currency Uses thousands separator. Follows
regional settings.
Euro Uses currency format with Euro
symbol.
Fixed Displays at least one digit. Follows
regional settings.
Standard Uses thousands separator. Follows
regional setting.
Percent Converts entry to percent.
Scientific Uses scientific notation.
Date/Time General Date Date values display as numbers and
time values as hours, minutes, and
seconds followed by AM or PM.
Follows regional settings.

22. Long Date Uses the Long Date format specified in
your Windows regional settings.
Medium Date Uses dd/mmm/yy, using the date
separator specified in your Windows
regional settings.
Short Date Uses the Short Date format specified in
your Windows regional settings.
Long Time Uses hours, minutes, and seconds
followed by AM or PM. Uses the
separator specified in the Time setting
in your Windows regional settings.
Medium Time Displays hours and minutes followed
by AM or PM. Uses the separator
specified in the Time setting in your
Windows regional settings.
Short Time Uses hours and minutes. Uses the
separator specified in the Time setting
in your Windows regional settings.
Yes/No Yes/No
True/False
On/Off
To explicitly assign a data type or format to a field:
1. Click the field label for the field to which you want to assign a data type.
2. Activate the Datasheet tab.
3. Click the down-arrow next to the Data Type field and then choose a data type.
4. Click the down-arrow next to the Format field and then choose a format. Access assigns a
data type and format to the field you selected.

23. Tip: If you want every record in a field to be unique, check the Unique box on the
Datasheet tab in the Data Type & Formatting group. If you do not want the user to leave a field
blank, check the Is Required box.
Tip: In the Data Type & Formatting group, there are several formatting options you can
apply to numbers. If you want to use the Currency format, click the Currency button ; if you
want to use the Percent format, click the Percent button ; if you want to use a Comma
number format, click the Comma button ; or if you want to increase or decrease the number
of decimal place, click the Increase Decimal or Decrease Decimal button .
Tip: You can create a new table at any time by activating the Create tab and then
clicking Table.
Understanding Design View
Access provides several ways to view the objects in your database. You can use Design view to
create or modify an Access table. You can use the View button on the Home tab or the Table
Design button on the Create tab to change to Design view. Using Design view is the preferred
method for creating a table because it provides you with the most options and enables you to
precisely define your table. In addition to selecting a data type, you can set all of the following
options in Design view.
Design View Options
Field Property Data Type Comments
Field Size Text Enables you to restrict the number
of characters stored in a text field to
0 to 255 characters. The default is
255.
Number Enables you to select the type of
number stored in a field.
Number Types Values Stored
Byte 0 to 255. (No fractions)
Decimal –9.999... x 1027 through +9.999... x
1027
Integer –32,768 to +32,767 (No fractions)

24. Long Integer –2,147,483,648 to +2,147,483,647
Single –3.4 x 1038 to +3.4 x 1038 numeric
floating point values. Up to seven
significant digits.
Double –1.797 x 10308 to +1.797 x 10308
1038 numeric floating point values.
Up to fifteen significant digits.
Replication ID Globally Unique Identifier (GUID).
Used by Access to establish a
unique identifier for replication.
Format Number Determines how numbers display.
When you use the currency, fixed,
standard, and percent formats.
Access follows the settings
specified in Regional Settings in the
Windows Control Panel for
negative amounts, decimal and
currency symbols, and decimal
places.
Currency Number General Number Displays as typed.
Currency Uses thousands separator. Follows
regional setting.
Euro Uses currency format with Euro
symbol.
Fixed Displays one digit. Follows regional
settings.
Standard Uses thousands separator. Follows
regional settings.
Percent Converts entry to percent.
Scientific Uses scientific notation.
Date/Time General Date Displays date and time.
Example: 01/02/99, 06:28:21 PM
Long Date Displays Day of Week and Date:
Example: Saturday, January 02,
1999
Medium Date Example: 02-Jan-99
Short Date Example: 01/02/99
Long Time Example: 6:28:21 PM
Medium Time Example: 6:28 PM

25. Short Time Example: 18:28
Text and Memo @ Text character required.
& Text character not required.
< Changes all characters to lowercase.
> Changes all characters to uppercase.
Yes/No Yes/No If the Lookup Display Control is a
text box, displays Yes/No.
True/False If the Lookup Display Control is a
text box, displays True/False.
On/Off If the Lookup Display Control is a
text box, displays On/Off.
Decimal Places Determines number of
decimal places Access
displays.
Auto. Number of decimals
displayed depends on the format
setting.
0–15. Used with format property.
Determines the number of digits
that display to the right of the
decimal point.
Input Mask Special characters used to
control the values the user
can input.
Caption Field name displayed on
forms.
Default Value Sets the value that appears
in the field by default
when a record is created.
Validation Rule Sets the requirements for
user input.
Validation Text Text for error messages
that are sent when
validation rules are broken.
Required Specifies whether the field
is required or not.
Yes: Required
No: Not Required
Allow Zero Length Determines whether a
zero-length field is a valid
entry.
Yes: Is valid
No: Not valid
Index Specifies whether an index
should be created in a
field. Indexes speed up
Yes: Create index.
No: Do not create index.

26. queries.
To use Design view to create a new table:
1. Activate the Create tab.
2. Click Table Design in the Tables group. Access changes to Design view and the Table
Tools become available.
3. Type the first field name in the Field Name field.
4. Press the Tab key.
5. Click the down-arrow that appears when you click in the Data Type field and then select
a data type.
6. Click Primary Key if the column you created is a primary key. A small key appears next
to the field name.
7. Press the Tab key.
8. Type a description. The description is optional.
9. Press the Tab key. Access moves to the Field Name field.
10. Repeat steps 3 through 10 until you have created all of your fields.
To set field properties:

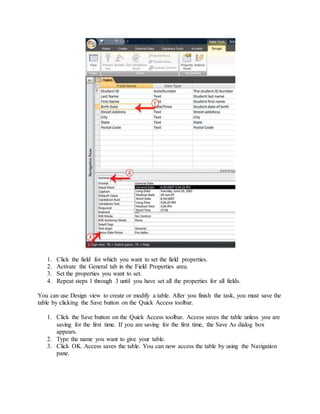

27. 1. Click the field for which you want to set the field properties.
2. Activate the General tab in the Field Properties area.
3. Set the properties you want to set.
4. Repeat steps 1 through 3 until you have set all the properties for all fields.
You can use Design view to create or modify a table. After you finish the task, you must save the
table by clicking the Save button on the Quick Access toolbar.
1. Click the Save button on the Quick Access toolbar. Access saves the table unless you are
saving for the first time. If you are saving for the first time, the Save As dialog box
appears.
2. Type the name you want to give your table.
3. Click OK. Access saves the table. You can now access the table by using the Navigation
pane.

28. What are views?
Views are different ways of looking at the same object. Tables have four views: Datasheet view,
Pivot Table view, Pivot Chart view, and Design view. You use Datasheet view to create a table,
edit data, or view data; Pivot Table view to create a pivot table; Pivot Chart view to create a
pivot chart; and Design view to create a table or modify an existing table.
To change the view:
1. Activate the Home tab.
2. Click the down-arrow under the View button. A menu appears.
3. Click the view you want. Access changes to the view you chose.
Tip: You can also use a template to create a table. Access has several templates from
which you can choose. When using a template, you create the table and then modify it to suit
your needs.
1. Activate the Create tab.
2. Click the Table Templates button in the Tables group. A menu appears.
3. Click the template you want to use. Access creates a table based on the template.
Create a Lookup Column
If a field can contain a finite list of values, you can create a Lookup Column and users can select
the value they want from a list. For example, if the employees at a school can only work in one
of the following departments: Administration, Computer Science, English, History, or Math. You
can create a table Departments table that lists the departments and then use the list in the
Employee table to assign each employee to a department.
Departments
Department ID Department
Primary Key
1 Administration
2 Computer Science
3 English
4 History
5 Math

29. Access has a wizard to help you create lookup columns. Creating a Lookup column creates a
relationship between two tables. See the section Create Relationships in Lesson 3 to learn more
about relationships.
To use the Lookup Wizard to create a lookup column:
Open the Lookup Wizard
1. Open the table to which you want to add a lookup column.
2. Click the field label for the field before which you want to add a lookup column.
3. Activate the Datasheet tab. (You must be in Datasheet view.)
4. Click the Lookup Column button in the Fields & Columns group. The Lookup Wizard
appears.
5. Make sure the radio button next to “I want the lookup column to look up the values in a
table or query.” is selected.
6. Click Next. The Lookup Wizard moves to the next page.
Select your table or query
A lookup column can be based on a table, a query, or a list of values you type. If you base your
lookup column on a table or query, you must create the table or query before creating the lookup
column. A query is a list of rows and columns based on one or more tables. A query only
displays the rows and columns you specify.

30. 1. Click a radio button to select what you want to base your lookup column on. Choose
from Tables, Queries, or Both.
2. Click to select the table or query you want.
3. Click Next. The Lookup Wizard moves to the next page.
Select fields
You choose the fields you want to appear in your lookup column. Be sure to include the primary
key.
1. Click the field you want.
2. Click the single right-arrow button . Access places the field in the Selected Fields
column. Repeat this process to select additional fields. If you want all the fields in the
table, click the double right-arrow button . Note: Use the single left-arrow and the
double left-arrows to deselect fields.
3. Click Next. The Lookup Wizard moves to the next page.

31. Sort fields
The Lookup Wizard allows you to sort the records in a lookup column. You can display records
in order, either ascending (alphabetical from A to Z, lowest number to highest number, earliest
date to latest date) or descending (alphabetical from Z to A, highest number to lowest number,
latest date to earliest date). You can also sort within a sort. For example, you can sort by state
and then within each state by city, and then within each city by street address. If you are creating
a sort within a sort, create the highest level sort on line one, the next level sort on line two, and
so on. In the state, city, and street address example, you create the state on line one, the city on
line two, and the street address on line three.
1. Click the down-arrow and then select the field you want to sort by.
2. Click to select a sort direction (the button toggles between ascending and descending).
You can sort within a sort for up to four levels.
3. Click Next. The Lookup Wizard moves to the next page.
Adjust column widths
A key column is the column that connects one table or query to another table or query. For
example, you can use the Department ID field in the Employees table and the Department ID
field in the Departments table to connect the two tables. You may, however, want to display the
name of the department when you view the table but not the department ID; if so, leave the Hide
Key Column box checked.

32. 1. Deselect Hide Key Column, if you wish.
2. Adjust the column widths by dragging or double-clicking the right vertical border for the
column.
3. Click Next. The Lookup Wizard moves to the next page.
Specify the Key Field (if you deselected Hide Key Column)
A key field is a field that uniquely identifies a record. If you deselected Hide Key column, you
must tell Access which field is the key field.
1. Click the key field.
2. Click Next. The Lookup Wizard moves to the next page.
Name the column

33. Field names appear at the top of each column. On this page of the Wizard you tell Access what
you want to name your lookup column. In Access 2007, multiple values can appear in a field;
click the Allow Multiple Values checkbox if you want to allow multiple values.
1. Type the name you want to give the column.
2. Click if you want to allow multiple values in the field.
3. Click Finish. Access creates the lookup column.
How do I create a lookup column by typing a list?
1. Activate the Datasheet tab. (These instructions assume you are in the Datasheet view.)
2. Click the Lookup Column button in the Fields & Columns group. The Lookup Wizard
appears.
3. Click the radio button next to “I will type the values I want.”
4. Click Next. The Lookup Wizard moves to the next page.
5. Type the number of Columns you want in the Number Of Columns field.
6. Type the values you want under the column heading.
7. Click Next. The Lookup Wizard moves to the next page.
8. Type the column label you want.
9. Click Finish. Access creates a lookup column based on your list.
Lesson 3: Working with Microsoft Access Tables
After you create an Access table, you can modify it, enter data into it manually or import data
from somewhere else, such as Excel. This lesson teaches you how to modify a table and enter
data.
Enter Records

34. After you have created a table, you can enter data into it.
To enter data into an AutoNumber field:
 Press the Tab key. When you make an entry into another field in the record, Access will
automatically make an entry into the AutoNumber field.
To enter data into fields that have a lookup list:
1. Click the down-arrow that appears when you click in the field.
2. Click to select the entry you want.
3. Press the Tab key.
To enter data into a Yes/No field:
 Click the checkbox for Yes; leave the checkbox unchecked for No.
To add an attachment to an attachment field:

35. 1. Double-click in the attachment field. The Attachments dialog box appears.
2. Click Add. The Choose File dialog box appears.
3. Click the file you want to add.
4. Click Open. The Choose File dialog box closes.
5. Click OK. Access attaches the file.
Note: You can attach multiple files to a single attachment field.
To enter data into a date field:

36.  Type the date.
Or
 Select the date from the calendar that appears to the left of the field when you click in the field.
You click the calendar to open it. Use the left-arrow at the top of the calendar to move to the
previous month; use the right-arrow at the top of the calendar to move to the next month.
When you reach the proper month, click the proper date.
To add data to an OLE Object field:
An OLE object is an object such as a Word document or an Excel Spreadsheet.
1. Right-click in the field. A menu appears.
2. Click Insert Object. The Microsoft Office Access dialog box appears.
Create New:

37. 3. Click the Create New radio button if you want to create a new object.
a. Click the object type you want to create.
b. Click OK. Access opens the program for the object type you selected. You can create the
object.
c. Create the object and then close the program for the object type you selected. Access
links to the object.
Create From File:
3. Click the Create From File radio button if you want to use an existing file.
a. Type the path to the file or click the Browse button and locate the file.
b. Click OK. Access links to the object.
To add data to other field types:
For all other fields, type your entry and then press the Tab key.
Import a Table into Access from Excel

38. Excel organizes data into columns and rows. If you have data in Excel that you want to use in
Access, you can import those columns and rows into Access by using the Excel Spreadsheet
Wizard.
To import data from Excel:
Open the Excel Spreadsheet Wizard
1. Activate the External Data tab.
2. Click the Excel button in the Import group. The Get External Data – Excel Spreadsheet Wizard
appears.
3. Click the Browse button. The File Open window appears.
4. Locate the spreadsheet you want to import.
5. Click the Open button. The path to the file you selected appears in the File Name field.
6. Click OK. Access moves to the next page.
Choose the sheet or named range you want to import
When importing from Excel, you can import an entire worksheet or a named range. To import a
worksheet, click the Show Worksheets radio button and then click the worksheet you want. To
import a named range, click the Show Named Ranges radio button and then click the named
range you want.

39. 1. Click Show Worksheets to import a worksheet, or click Show Named Ranges to import a named
range.
2. Click the worksheet or named range you want to import.
3. Click Next. Access moves to the next page.
Make the first row your field names
When you create a worksheet in Excel, the first row can contain column headings. If this is the
case, click First Row Contains Column Headings, otherwise click Next.

40. 1. Click First Row Contains Column Headings if the first row of your Excel spreadsheet contains
column headings.
2. Click Next. Access moves to the next page.
Set data types
Access attempts to assign the correct data type to each column. You can view the assignment
made by Access and then make changes. An Index speeds up Access’s ability to search a
column. You can use the Indexed field to assign an index. The Yes (Duplicates OK) option
creates an index in which duplicate values in the field are allowed; the Yes (No Duplicates)
option creates an index in which duplicate values in the field are not allowed. The primary key
should be indexed and you should use the Yes (No Duplicates) option. You can also skip fields
you do not want to import.
1. Click a column heading to select a column.

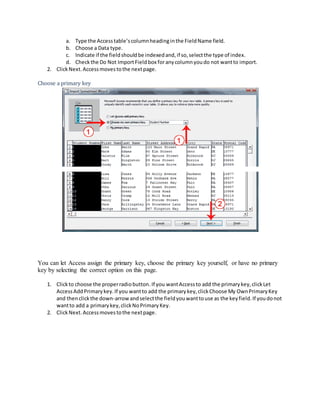

41. a. Type the Access table’s column heading in the Field Name field.
b. Choose a Data type.
c. Indicate if the field should be indexed and, if so, select the type of index.
d. Check the Do Not Import Field box for any column you do not want to import.
2. Click Next. Access moves to the next page.
Choose a primary key
You can let Access assign the primary key, choose the primary key yourself, or have no primary
key by selecting the correct option on this page.
1. Click to choose the proper radio button. If you want Access to add the primary key, click Let
Access Add Primary key. If you want to add the primary key, click Choose My Own Primary Key
and then click the down-arrow and select the field you want to use as the key field. If you do not
want to add a primary key, click No Primary Key.
2. Click Next. Access moves to the next page.

42. Name your table
1. Type the name you want to give your table.
2. Click Finish. Access moves to the next page.
3. Click Close. Access imports the table.
Modify a Table
After you create a table, you may need to modify it. You can delete columns, insert columns, or
move columns.
Delete Columns
The Delete option permanently deletes columns and all the data contained in them. You cannot
undo a column delete.
To delete columns:

43. 1. Click and drag to select the columns you want to delete.
2. Activate the Datasheet tab.
3. Click Delete in the Fields & Columns group. A prompt appears.
4. Click Yes. Access deletes the columns you selected.
Insert Columns
The Insert option inserts a column before the selected column.
To insert a column:
1. Click the column head of the column before which you want to insert a column.

44. 2. Activate the Datasheet tab.
3. Click Insert in the Fields & Columns group. Access inserts a new column.
Tip: If you right-click a column label, you can use the menu that appears to insert or
delete columns.
To delete a column:
1. Right-click the column head you want to delete. A menu appears.
2. Click Delete Column.
To insert a column:
1. Right-click the column head before which you want to insert a column. A menu appears.
2. Click Insert Column.
Move a Column
You can use the Move option to move a column from one location to another.
To move a column:
1. Move your mouse pointer over the horizontal line under the column label. Your mouse pointer
turns into a four sided arrow.
2. Press your left mouse button
3. Click and drag the field to the new location. A dark line appears at the new location.
4. Release you left mouse button. Access moves the column.
Move around a Table
Access provides several methods for moving around a table. On the Home tab, there is a Go To
button. When you click it, a menu of options appears. You can use the menu to go to the first,
last, previous, or next record in your table. You can click the New option to add a new record.
You can also use special keys and the navigation bar in Access to move around a table. The
navigation bar appears at the bottom of the table.
To use the Go To button to move around a table:

45. 1. Activate the Home tab.
2. Click the Go To button in the Find group. A menu appears.
3. Click First to go to the first record, Previous to go to the previous record, Next to go to the next
record, Last to go to the last record, or New to create a new record.
Tip: You can also create a new record by choosing the Home tab and then clicking
New in the Records group.
To use keys to move around a table:
Key to Press Action
Tab Moves to the next field to the right. If you are in the last field in a
record, moves you to the next record. If you are in the last record
in a table, creates a new record.
Left-Arrow Moves to the next field to the left. If you are in the first field in a
record, moves you to the previous record.
Shift+Tab Moves to the previous field. If you are in the first field in a record,
moves you to the previous record.
Right-Arrow Moves to the next field. If you are in the last field in a record,
moves you to the next record. If you are in the last record in a

46. table, creates a new record.
Up-Arrow Moves you up one record.
Down-Arrow Moves you down one record.
Ctrl++ Creates a new record.
To use the Navigation bar to move around a table:
1 Go to First Record
2 Go to Previous Record
3 The Current Record
4 Go to Next Record
5 Go to Last Record
6 Create a New (Blank) Record
Select Columns and Rows
Before you can perform an operation on a column or row, you must select it. To select a column,
click the column head. To select several columns, click a column head and then drag. To select a
row, click the blank area to the left of the row. To select several rows, click the blank area to the
left of a row and then drag. To select the entire table, click the Select All button in the upper-left
corner of the table.

48. Delete a Record
If enter a record by error, you can delete it.
To delete a record:
1. Select the record you want to delete.
2. Activate the Home tab.
3. Click Delete in the Records group. A prompt appears.
4. Click the Yes button.
Or
 Select the record you want to delete.
 Right-click. A menu appears.
 Click Delete Record. A prompt appears.
 Click the Yes button.
Resize a Column or Row
If all of the information in a column or row does not display, you may want to make the column
or row larger. If you want to fit more information on the screen, you may want to make a column
or row smaller. In either case, you can click and drag to increase or decrease column width or
row height.
To resize a column or row:
1. Place the cursor over the line that separates two columns or two rows. The cursor turns into a
double-sided arrow.
2. Hold down the left mouse button and drag to increase or decrease the width of a column or the
height of all of the rows.
Lesson 4: Sorting, Filtering, and Creating Relationships
You can sort Access data so you can view records in the order you want to view them, and you
can filter data so you only see the records you want to see. This lesson teaches you how to sort
and filter an Access table.
Access data is stored in multiple tables. Relationships join tables together so you can work with
the data from multiple tables. This lesson also teaches you how to create relationships.
Sort a Table
By sorting, you can put a column of information in alphabetical, numerical, or date order. You
can sort in ascending order (alphabetical from A to Z, lowest number to highest number, earliest
date to latest date) or descending order (alphabetical from Z to A, highest number to lowest

49. number, latest date to earliest date). You can also sort within a sort. For example, you can sort by
state and then sort within each state by city. When sorting within a sort, perform the innermost
sort first. For example, if you are sorting by state and then city, sort the city first and then sort by
state.
To add a sort:
1. Click the column label for the column you want to sort.
2. Activate the Home tab.
3. Click the Ascending or Descending button in the Sort & Filter group. Access
sorts the column in ascending or descending order.
To remove a sort:
1. Activate the Home tab.
2. Click the Clear All Sorts button in the Sort & Filter group. Access clears all of the
sorts you have applied.
Filter a Table
You can apply a filter to see only the records you want to see. For example, perhaps your
database contains students from the states of DE, NJ, and PA and you only want to see the
students from DE. You can filter your data so only DE students display.
Each time you apply a filter to a column, it replaces any previous filter you applied to that
column. For example, if you apply a filter so you only see students in DE, and later you apply a
filter so you only see students in NJ, Access clears the DE filter and then applies the NJ filter.
You can apply filters to multiple columns in the same table. For example, by applying a filter
first to the State field and then to the Last Name field, you can see all of the students in the state
of DE whose last names are Adams.
To apply a filter:

50. 1. Click the column label for the column you want to filter.
2. Activate the Home tab.
3. Click the Filter button. A menu appears.
4. Uncheck the items you do not want to appear, making sure only the items you want are
checked.
5. Click OK. Access filters your data and displays the word Filtered at the bottom of the
window.

51. To remove a filter:
1. Activate the Home tab.
2. Click Advanced in the Sort & Filter group. A menu appears.
3. Click Clear All Filters. Access clears all the filters you have applied.
Tip: After you apply a filter, you can use the Toggle Filter button to toggle the
application of the filter on and off.
Apply a Specialized Filter
In addition to simply searching for a specific value, you can apply several specialized filters. For
example, you can find all of the records that do not equal the value you specify or you can find
all of the records that fall between two dates. The following are lists of specialized filters.
Text Filters
Equals Finds every record in the table where the
field’s value equals the value you enter.
Does Not Equal Finds every record in the table where the
field’s value does not equal the value you
enter.

52. Begins With Finds every record in the table where the
field’s value begins with the value you
enter.
Does Not Begin With Finds every record in the table where the
field’s value does not begin with the
value you enter.
Contains Finds every record in the table where the
field’s value contains the value you enter.
Does Not Contain Finds every record in the table where the
field’s value does not contain the value
you enter.
Ends With Finds every record in the table where the
field’s value ends with the value you
enter.
Does Not End With Finds every record in the table where the
field’s value does not end with the value
you enter.
Number Filters
Equals Finds every record in the table where the
field’s value equals the value you enter.
Does Not Equal Finds every record in the table where the
field’s value does not equal the value you
enter.
Less Than Finds every record in the table where the
field’s value is less than the value you
enter.
Greater Than Finds every record in the table where the
field’s value is greater than the value you
enter.
Between Finds every record in the table where the
field’s value is between the values you
enter.

53. Date Filters
Equals Finds every record in the table where the
field’s value equals the date you enter.
Does Not Equal Finds every record in the table where the
field’s value does not equal the date you
enter.
Before Finds every record in the table where the
field’s value is before the date you enter.
Greater Than Finds every record in the table where the
field’s value is greater than (comes after)
the date you enter.
Between Finds every record in the table where the
field’s date is between the dates you
enter.
All Dates in a Period Finds every record in the table where the
field’s date is in the period you enter.
To apply a specialized filter:
1. Click the Last Name column label.

54. 2. Activate the Home tab.
3. Click the Filter button. A menu appears.
4. Click the Text Filters option. A menu appears.
5. Click the option you want. A Custom Filter dialog box appears.
6. Enter the appropriate information.
7. Click OK. Access filters your data and displays the word Filtered at the bottom of the
window.
Hide Columns
There may be times when you may not want to display a certain column or set of columns. In
such cases, you can temporarily hide the column or columns from view. Later, if you want to
display them column again, you can unhide them.
To hide columns:
1. Select the columns you want to hide.

55. 2. Activate the Home tab.
3. Click the More button in the Records group. A menu appears.
4. Click Hide Columns. Access hides the columns you selected.
In the figure, the Birth Date, Street Address, City, State, and Zip fields are hidden.
Or
1. Select the columns you want to hide.
2. Right-click. A menu appears.
3. Click Hide Columns.
To unhide columns:
1. Activate the Home tab.
2. Click the More button in the Records group. A menu appears.
3. Click Unhide Columns. The Unique Columns dialog box appears.
4. Select the column you want to display.
5. Click Close. Access displays the columns you chose.
or
1. Right-click any column label. A menu appears.
2. Click Unhide columns.
3. Select the columns you want to display.
4. Click the Close button. Access displays the columns you selected.
Freeze Columns
If your table has a large number of columns, you may want to freeze columns so the frozen
columns stay in view as you scroll across the page. For example, if you have a Students table
and you want the Student Number, First Name, and Last Name to remain onscreen as you scroll

56. across the table, you can freeze the Student Number, First Name, and Last Name fields. When
you freeze a column, Access moves it to the far left side of your table. If you want it to remain
there, you must save the table.
To freeze columns:
1. Select the columns you want to freeze.
2. Activate the Home tab.
3. Click the More button in the Records group. A menu appears.
4. Click Freeze. Access freezes the columns. As you scroll, the frozen columns remain
stationary.
To unfreeze columns:
1. Activate the Home tab.
2. Click the More button in the Records group. A menu appears.
3. Click Unfreeze. Access unfreezes the columns.
Format a Table
You can use the features in the Font group on the Home tab to apply a variety of formats to your
table.
Format a Table
Button Function
Apply a font to all of the data
in a table.
Apply a font size to all of the
data in a table.

57. Bold all of the data in a table.
Italicize all of the data in a
table.
Underline all of the data in a
table.
Left-align a column.
Right-align a column.
Center a column.
Change the font color.
Change the background color.
By default, the background
color is white.
Change the gridlines. Gridlines
separate columns and rows.
This option allows you to
display gridlines for columns
only (vertical), gridlines for
rows only (horizontal),
gridlines for both columns and
rows, or no gridlines at all.
Change the alternating color.
For example, on a datasheet
you can have every other row
appear in an alternating color.
To bold, italicize, or underline:
1. Place the cursor anywhere within the table.
2. Activate the Home tab.
3. Click the button for the format you want to apply. Access applies the format.
To left-align, right-align, or center:
1. Place the cursor anywhere within the column you want to left-align, right-align, or center.
2. Activate the Home tab.
3. Click the button for the format you want to apply. Access applies the format.
To change the font, font size, or gridlines:

58. 1. Place the cursor anywhere within the table.
2. Activate the Home tab.
3. Click the down-arrow to the right of the option you want to apply. A menu appears.
4. Select the option you want. Access changes the font, font size, or gridlines.
To change the font color, background color, or alternating color:
1. Place the cursor anywhere within the table.
2. Activate the Home tab.
3. Click the down-arrow to the right of the option you want to apply. A menu of colors
appears.
4. Select the color you want. Access changes the font color or the alternating color.
Compute Totals
On the Home tab, you can use the Total button in the Records group to compute the sum,
average, count, minimum, maximum, standard deviation, or variance of a number field; the
count, average, maximum, or minimum of a date field; or the count of a text field.
To compute totals:
1. Open the table or query for which you want to compute totals.
2. Activate the Home tab.
3. Click the Totals button in the Records group. A Total line appears at the bottom of the
table or query.
4. Click on the Total line under the column you want to total. A down-arrow appears on the
left side of the field.
5. Click the down-arrow and then choose the function you want to perform. Access
performs the calculation and displays the results in the proper column on the Totals row.

59. Find and Replace
If you need to find a sequence of characters, a word, or a phrase in a table or field, you can use
the Find command. In Access, the Find command has three options: You can find all instances in
a table or field that match a sequence of characters, all instances that begin with a sequence of
characters, or all instances that contain a sequence of characters. For example, you can find all
students with the last name Smith, all students whose last name begins with S, or all instances of
08 anywhere in the field.
After you find the word, phrase, or sequence of characters you are searching for, you can replace
it with a new sequence of characters by executing the Replace command.
To do a Find:
1. Place your cursor in the column you want to search.
2. Activate the Home tab.
3. Click the Find button in the Find group. The Find and Replace dialog box appears.
4. Activate the Find tab.
5. Type what you want to find in the Find What field.
6. Choose the name of the table you want to search in the Look In field if you want to
search the entire table or select the field you selected in step 1 if you want to search that
field. If you want to search another field, click in that field and then select it in the Look
In field.

60. 7. Choose Any Part Of Field if you want to search for your entry anywhere within a field,
choose Whole Field if you want the field to match the sequence of characters you
entered, or choose Start Of Field if you want the field to begin with a sequence of
characters you entered.
8. Choose All in the Search field if you want to search the entire table, Up to search upward
from your current location, or Down to search downward from your current location.
9. Click Find Next to begin your search. Access finds the first entry that matches your find
criteria. Continue clicking Find Next to find additional matches.
Note: If you want to find and replace, open the Find and Replace dialog box
(follow steps 1 through 3) and then activate the Replace tab. In the Replace With field, enter the
sequence of characters you want to use to replace what you find. Complete the other fields on the
tab the same as you would if you were doing a Find. Click Find Next to find the first instance for
which you are searching. Click Replace to replace that instance. Click Replace All to replace
every instance.
Create Relationships
In Access, you store data in multiple tables and then use relationships to join the tables. After
you have created relationships, you can use data from all of the related tables in a query, form, or
report.
A primary key is a field or combination of fields that uniquely identify each record in a table. A
foreign key is a value in one table that must match the primary key in another table. You use
primary keys and foreign keys to join tables together—in other words, you use primary keys and
foreign keys to create relationships.
There are two valid types of relationships: one-to-one and one-to-many. In a one-to-one
relationship, for every occurrence of a value in table A, there can only be one matching
occurrence of that value in table B, and for every occurrence of a value in table B, there can only
be one matching occurrence of that value in table A. One-to-one relationships are rare because if
there is a one-to-one relationship, the data is usually stored in a single table. However, a one-to-one
relationship can occur when you want to store the information in a separate table for security
reasons, when tables have a large number of fields, or for other reasons. In a one-to-many
relationship, for every occurrence of a value in table A, there can be zero or more matching
occurrences in table B, and for every one occurrence in table B, there can only be one matching
occurrence in table A.
When tables have a one-to-many relationship, the table with the one value is called the primary
table and the table with the many values is called the related table. Referential integrity ensures
that the validity of the relationship between two tables remains intact. It prohibits changes to the
primary table that would invalidate an entry in the related table. For example, a school has
students. Each student can make several payments, but each payment can only be from one
student. The Students table is the primary table and the Payments table is the related table.

61. Students
Student ID Last Name First Name
Primary Key
1 John Smith
2 Mark Adams
3 Valerie Kilm
Payments
Payment ID Student ID Amount Due Amount Paid
Primary key Foreign key
1 1 500 500
2 2 700 300
3 3 500 250
4 2 400 300
5 3 250 250
If you delete Student ID 1 from the Students table, Student ID 1 is no longer valid in the
Payments table. Referential integrity prevents you from deleting Student ID 1 from the Students
table. Also, if the only valid Student IDs are 1, 2, and 3, referential integrity prevents you from
entering a value of 4 in the Student ID field in the Payments table. A foreign key without a
primary key reference is called an orphan. Referential integrity prevents you from creating
orphans.
To create relationships:
1. Close all tables and forms. (Right-click on the tab of any Object. A menu appears. Click
Close All.)
2. Activate the Database Tools tab.
3. Click the Relationships button in the Show/Hide group. The Relationships window
appears.

62. 4. If anything appears in the relationships window, click the Clear Layout button in the
Tools group. If you are prompted, click Yes.
5. Click the Show Table button in the Relationships group. The Show Table dialog box
appears.
6. Activate the Tables tab if your relationships will be based on tables, activate the Queries
tab if your relationships will be based on queries, or activate the Both tab if your
relationships will be based on both.
7. Double-click each table or query you want to use to build a relationship. The tables
appear in the Relationships window.
8. Click the Close button to close the Show Table dialog box.
9. Drag the Primary table’s primary key over the related table’s foreign key. After you drag
the primary key to the related table’s box, the cursor changes to an arrow. Make sure the
arrow points to the foreign key. The Edit Relationships Dialog box appears.

63. 10. Click the Enforce Referential Integrity checkbox.
11. Click Create. Access creates a one-to-many relationship between the tables.
12. Click the Save button on the Quick Access toolbar to save the relationship.
Tip: When you create a relationship, you can view the related table as a subdatasheet of
the primary table. Open the primary table and click the plus (+) in the far left column. The plus
sign turns into a minus (-) sign. If the Insert Subdatasheet dialog box opens, click the table you
want to view as a subdatasheet and then click OK. Access displays the subdatasheet each time
you click the plus sign in the far left column. Click the minus sign to hide the subdatasheet.
Tip: After a relationship has been created between two tables, you must delete the
relationship before you can make modifications to the fields on which the relationship is based.
To delete a relationship:
1. Click the line that connects the tables.
2. Press the Delete key.

64. Tip: When you create a lookup column, Access creates a relationship between the
tables.
Lesson 5: Creating Microsoft Access Queries
You can use a query to view a subset of your data or to answer questions about your data. For
example, if you want to view a list of student names and email addresses, but you do not want to
see addresses and other data, you can create a query that displays the student’s first name, last
name, and email address only. Alternatively, if you want to know which students live in DE, you
can restrict your list to those students. This lesson teaches you how to create a query.
Open Tables or Queries in Query Design View
A query can be based on tables or on other queries. To create a query, you open the tables or
queries on which you are going to base your query in Query Design view, and then use the
options in Design view to create your query. You then click the Run button to display the results.
You can save queries for later use.
To open tables or queries in Query Design view:
1. Activate the Create tab.
2. Click the Query Design button in the Other group. The Show Table dialog box appears.
3. Activate the Tables tab if you want to base your query on tables, activate the Queries tab
if you want base your query on queries or activate the Both tab if you want to base your
query on both tables and queries.
4. Click to choose the table or query on which you want to base your query.
5. Click Add. The table appears in the window.
a. Click to choose the next table or query on which you want to base your query.

65. b. Continue clicking tables or queries until you have all the tables and queries you
plan to use.
6. Click Close. Access changes to Query Design view.
Display All Records and All Fields
In Query Design view, each table has an option that allows you to display all of the fields and all
of the records in a table. This option appears on the field line on the drop-down menu as the table
name followed by a period and an asterisk (tablename.*).
To display all records and all fields:
1. Open a table or query in Query Design view.
2. Click the down-arrow in the first field on the Field row and then select the tablename.*
option. The table name appears on the table line.
3. Click the Run button. Access retrieves all of the fields and records for the table and
displays them in Datasheet view.

66. Change from Datasheet View to Query Design View
After you run a query, you can easily change back to Query Design view and make
modifications to your query or create a new query.
To change to Query Design view:
1. Activate the Home tab.
2. Click the down-arrow below View in the Views group. A menu appears.
3. Click Design View. Access changes to Query Design view. You can modify your query.

67. Tip: You can also click the Design button in the lower-right corner of the Access
window to change to Design view.
Retrieve a Single Column
You can use an Access query to retrieve a single column of data. Instead of choosing the
tablename.* option on the Field line in Query Design view, choose the name of the field you
want to retrieve.
To retrieve a single column:
1. Open a table or query in Query Design view.
2. Choose the field name you want to display in the field line.
3. Click the Run button. Access retrieves the column you chose.

68. Retrieve Multiple Columns
You can use an Access query to retrieve multiple columns of data. On the Field line in Query
Design view, choose the field name of each field you want to retrieve in the order you want to
retrieve them.
To retrieve multiple columns:

69. 1. Open a table or query in Query Design view.
2. Choose the field names you want to retrieve in the order you want to retrieve them.
3. Click the Run button. Access retrieves the columns you chose.

70. Sort a Query
When creating a query, you can sort the rows you retrieve in ascending or descending order by
choosing the option you want on the Sort row in Query Design view.
To perform a sort:
1. Open a table or query in Query Design view.
2. Choose the field names you want to retrieve in the order you want to retrieve them.
3. Under the field you want to sort, click the down-arrow and then choose Ascending or
Descending.
4. Click the Run button. Access retrieves the columns you chose and displays the rows in
the order you specified.

71. Sort Multiple Columns in a Query
As you learned in the previous section, you can sort the rows your query returns. You can also
create sorts within a sort. For example, you can sort by state and then within a state, you can sort
by last name and then by first name. You specify the sort in the order you want the sort to occur.
If you want to sort by state and then by last name within a state and then by first name within last
name, you enter the sort in the following order: city, last name, first name. Your sort order may
not agree with the order in which you want to display fields. In such a case, you can use fields
that do not display to enter your sort order. To prevent a field from displaying, deselect the Show
box on the Show row.
To sort multiple columns:

72. 1. Open a table or query in Query Design view.
2. Choose the field names you want to retrieve in the order you want to retrieve them.
3. Choose the field names you want to sort by in the order you want to sort.
4. Under the fields you want to sort by, choose Ascending or Descending.
5. Deselect the Show button for the columns you do not want to display.
6. Click the Run button. Access retrieves the columns you chose and displays the rows in
the order you specified.

73. Retrieve Specific Records
In the examples so far, you have been retrieving all of the records (rows) in your table. You can,
however, specify which records you wish to retrieve. For example, you can retrieve only those
students who live in DE, only the student whose student number is 5, or only those students
whose birth date is 2/16/88.
You use logical operators such as = (equal), <> (not equal), > (greater than), or < (less than) to
restrict the records you retrieve. For example, if you only want to display students who live in
DE, enter = "DE" in the State column on the Criteria line. Access will only retrieve records
where the value in the State column is equal to DE. Selection criteria are not case-sensitive, so
Access will retrieve records where the entry is DE, de, De, or dE.
Logical Operators
Operator Meaning Field Type Entry Format
= Equal to Character
Number
Date
= "DE"
= 5
= #2/16/88#
<> Not equal to Character
Number
Date
<> "DE"
<> 5
<> #2/16/88#
> Greater than Character > "DE"

74. Number
Date
> 5
> #2/16/88#
>= Greater than or
equal to
Character
Number
Date
> = "DE"
> = 5
> = #2/16/88#
< Less than Character
Number
Date
< "DE"
< 5
< #2/16/88#
<= Less than or
equal to
Character
Number
Date
<= "DE"
<= 5
<= #2/16/88#
In Equal to any
item in a list
Character
Number
Date
In ("DE", "NJ")
In (5, 9, 17)
In (#2/16/88#, #2/3/90#,
#12/15/88#)
Not In Not equal to
any item in a
list
Character
Number
Date
Not In ("DE", "NJ")
Not In (5, 9, 17)
Not In (#2/16/88#, #2/3/90#,
#12/15/88#)
Between Between two
values,
greater than or
equal to one
and less than or
equal to the
other
Character
Number
Date
Between "C" And "F"
Between 5 And 10
Between #1/1/88# And
#12/31/88#
Not Between Not between
two values
Character
Number
Date
Not Between "C" And "F"
Not Between 5 And 10
Not Between #1/1/88# And
#12/31/88#
Is Null The value is
missing from
the field
Character
Number
Date
Is Null
Is Null
Is Null
Is Not Null The value is not
missing from
the field
Character
Number
Date
Is Not Null
Is Not Null
Is Not Null
Like Like a specified
pattern.
* means any
series of
characters.
? means any
single
character.
Character
Number
Date
Like "S*"
Like "1*"
Not Applicable
Not Like Not like a Character Like "S*"

75. specified
pattern.
* means any
series of
characters.
? means many
single
character.
Number
Date
Like "1*"
Not Applicable
When using the Like and Not Like criteria, where you place the asterisk(*) or question mark (?)
determines the type of search Access performs. Like "Jo*" finds all records in the field that
begin with Jo. It would find Jones, Johnson, and Jordan. Like "*son" finds all records in the
field that end with son. It would find Stevenson, Jackson, and Peterson. Like "*456*" finds all
records that contain 456 anywhere in the field. It would find 456123789, 123456789, and
123789456. The sequence Like "?en" finds all three character field entries where the second
and third characters are en. It would find Ben, Len, and Jen. The sequence Like "Jo?" finds all
three character field entries where the first and second characters are Jo. It would return Joe, Joy,
and Jon. The sequence Like "T?m" finds all three character field entries where the first and
third characters are T and m. It would return Tim, Tom, and Tam.
To retrieve specific records:
1. Open a table or query in Query Design view.
2. Choose the field names you want to retrieve in the order you want to retrieve them.
3. Choose the field names you want to sort by in the order you want to sort.

76. 4. Under the fields you want to sort by, choose Ascending or Descending.
5. Deselect the Show button for columns you do not want to display.
6. Enter your selection criteria on the Criteria line.
7. Click the Run button. Access retrieves the columns you chose and displays the rows in
the order you specified.
Apply Multiple Criteria
You can apply multiple criteria to the same table. If you place two criteria on the same line,
Access will only retrieve records where both criteria are met. For example, if you want all
records where the State is equal to "DE" and the Last Name is equal to Smith, you would set the
State field to = "DE" and the Last Name field to = "Smith" and you would place both criteria on
the same line.
If you place one set of criteria on the Criteria line and the second set of criteria on the Or line,
Access will retrieve records if either criteria are met. For example, you want all records where
the State is equal to "DE" or the Last Name is equal to Smith. You would set the State field to =
"DE" and the Last Name field to = "Smith" and you would place one set of criteria on the
Criteria line and the other set of criteria on the Or line. Access will bring back all records where
the state equals DE and all records where the Last Name is equal to Smith no matter what the
State is. You can add additional and and or statements by using the lines below the Or line. For
And clauses, place the criteria on the same line; for Or clauses, place the criteria on separate
lines.
To apply multiple criteria:

77. 1. Open a table or query in Query Design view.
2. Choose the field names you want to retrieve in the order you want to retrieve them.
3. Choose the field names you want to sort by in the order you want to sort.
4. Under the fields you want to sort by, choose Ascending or Descending.
5. Enter your selection criteria on the Criteria line and the Or line, as needed.
6. Deselect the Show button for columns you do not want to display.
7. Click the Run button. Access retrieves the columns you chose and displays the rows in
the order you specified.
Create a Query That Uses Two or More Tables

78. If you want to view data from two or more tables or queries, you can create a query that pulls the
data from multiple tables or queries. The tables and queries from which you pull your data
should have a relationship.
To create a query that uses two or more tables:
1. Open the tables and/or queries you want to use in Query Design view.
2. Choose the field names you want to retrieve in the order you want to retrieve them.
3. Choose the field names you want to sort by in the order you want to sort. Under the fields
you want to sort by, choose Ascending or Descending.
4. Enter your selection criteria, if necessary (Not applicable in this example).
5. Deselect the Show button for columns you do not want to display (Not applicable in this
example).
6. Click the Run button. Access retrieves the columns you chose and displays the rows in
the order you specified.
Save a Query

79. After you create a query, you can save it. You can rerun a saved query at any time. If you change
the data on which the saved query is based, you will see the changes when you rerun the query.
To save a query:
1. Click the Save button on the Quick Access toolbar. Access saves the query unless you are
saving for the first time. If you are saving for the first time, the Save As dialog box
appears.
2. Type the name you want to give your query.
3. Click OK. Access saves the query. You can now access the query by using the
Navigation pane.
Tip: You can also save by right-clicking a query’s tab and then selecting Save from the
menu that appears. Access saves the query unless you are saving for the first time. If you are
saving for the first time, the Save As dialog box appears. Type the name you want to give the
query and then click OK. Access saves the query. You can now access the query by using the
Navigation pane.
Tip: After you have saved a query, you can run it by opening the Navigation pane and
then clicking the name of the query.
Modify a Query
Once created, a query can be modified. Simply open the query in Query Design view and make
the changes. You can add columns, change the sort order, change the criteria, and make other
changes.

80. In Query Design view, the Query Setup group offers several options that can assist you. Use the
Insert Rows button to insert a row in the criteria area. Click anywhere in the row before which
you want to insert a new row and then click the Insert Rows button.
Use the Insert Columns button to insert a column. Click anywhere in the column before
which you want to insert a column and then click the Insert Column button .
Use the Delete Rows button to delete a row in the criteria area. Click anywhere in the row
you want to delete and then click the Delete Row button.
Use the Delete Columns button to delete a column. Click anywhere in the column you want
to delete and then click the Delete Column button .
Use a Query to Make a Table
You can use a query to create a table. This is useful when you want to create a new table that
includes the fields and data from an existing table.
To create a table:
1. Open the table or query on which you want to base your new table on in Query Design
view.

81. 2. Enter the criteria on which you want to base your new table.
3. Click the Make Table button. The Make Table dialog box appears.
4. Type the name you want to give your new table.
5. Click OK.
6. Click Run. You see the following prompt.
7. Click Yes.
8. Close the query. (Right-click the query’s tab and then click Close.)
9. Double-click the new table’s name in the Navigation pane to view the new table.
Create a Parameter Query
If instead of entering predetermined criteria, you want to prompt users when a query runs, you
can create a parameter query. You create a parameter query by enclosing a question in square
brackets ([]). For example, if you want to create a parameter query that asks users which State
they want to use from the Student’s table, you would type [Which State?] on the Criteria line
under the State column. When the query runs, Access will prompt the user for the answer to your
question.
To create a parameter query:

82. 1. Open a table or query in Query Design view.
2. Create your query.
3. On the Criteria line, type the prompt within square brackets.
4. Click the Run button. Access prompts you.
5. Respond to the prompt.
6. Click OK. Access displays the results of your query in Datasheet view.

83. Note: If you want to make your user prompt more flexible, use one of the following
formats.
Like "*" & [Prompt] & "*"
Returns all records that contain the value
you enter.
Example: If you enter ad, Access returns
all records that include the sequence ad
anywhere in the field.
Like "*" & [Prompt] Returns all records that end with the value
you enter.
Example: If you enter S, Access returns
all records that end with S.
Like [Prompt] & "*" Returns all records that begin with the
value you enter.
Example: If you enter S, Access returns
all records that begin with S.
> [Prompt]
Note: You can also use < (less than) ,<=
(less than or equal to) >=, >= (greater than
or equal to), or <> (not equal)
Find all records with a value greater than
the value you enter.
Example: If you enter 5, Access returns
all records that are greater than 5.
Lesson 6: Creating Forms
Access forms are much like paper forms: you can use them to enter, edit, or display data. They
are based on tables. When using a form, you can choose the format, the arrangement, and which
fields you want to display. This lesson teaches you how to create forms.
Using the Form Button
Access can automatically create several types of forms. For example, when you click the Form
button on the Create tab, Access places all fields in the selected table on a form. If the table has a
one-to-many relationship with one other table or query, Access creates a stacked form (the
records are displayed in a column) for the primary table and a datasheet for the related table. If
there are several tables with a one-to-many relationship, Access does not create the datasheet.
To create a form:

84. 1. Open the Navigation pane.
2. Click the table or query on which you want to base your form.
3. Activate the Create tab.
4. Click Form in the Forms group. Access creates a form.

85. You can use the Navigation bars to move through the records on a form.
1 Go to First Record
2 Go to Previous Record
3 The Current Record
4 Go to Next Record
5 Go to Last Record
6 Create a New (Blank) Record
Tip: After you create a form, you can save it. You can open a saved form at any time.
To save a form:
1. Click the Save button on the Quick Access toolbar. Access saves the form unless you are
saving for the first time. If you are saving for the first time, the Save As dialog box
appears.

86. 2. Type the name you want to give the form.
3. Click OK. Access saves the form. You can now access the form by using the Navigation
pane.
You can also save by right-clicking a form’s tab and then selecting Save from the menu that
appears. Access saves the form unless you are saving for the first time. If you are saving for the
first time, the Save As dialog box appears. Type the name you want to give the form and then
click OK. Access saves the form. You can now access the form by using the Navigation pane.
Create a Split Form
A split form is a form in which the same data is displayed in two views simultaneously. One part
of the form displays in Form view (stacked fields), while the other part displays in Datasheet
view. The two views are synchronized, so as you select a field in one view, it is automatically
selected in the other view. You can add, change, or delete the data in either view. Using a split
form gives you the benefits of two types of forms in a single form. For example, you can use the
datasheet portion to locate records and the form portion to edit records.
To create a split form:
1. Open the Navigation pane.

87. 2. Click the table or query on which you want to base your form.
3. Activate the Create tab.
4. Click Split Form in the Forms group. Access creates a split form.
Create a Multiple Items Form
You can use the Multiple Items button on the Forms tab to create a form that displays multiple
records, one record per row.
To create a multiple items form:

88. 1. Open the Navigation pane.
2. Click the table or query on which you want to base your form.
3. Activate the Create tab.
4. Click Multiple Items in the Forms group. Access creates a multiple items form.

89. Tip: A view is a way of looking at an Access object. Forms have three views: Form
view, Layout view, and Design view. You can enter, edit, and view data in Form view. You can
modify a form in Layout view or Design view. In Layout view, you can see your data, and the
form you see closely resembles what your form will look like when you view it in Form view.
You can make most, but not all, changes to your form in Layout view. Design view displays the
structure of your form. In this view you cannot see the underlying data, but you can perform
some tasks in Design view that you cannot perform in Layout view. This tutorial focuses on
Layout view.
To change the view:
1. Open the form.
2. Activate the Format tab.
3. Click the down-arrow under the View button. A menu appears.
4. Click the view you want.
Modify a Form
After you create a form, it opens in Layout view, where you can modify it.
To change the size of a field:
1. Click a side of the field and drag to change the width of the field.
2. Click the top or bottom of a field and drag to change the height of a field.
To move a datasheet:
1. Click the datasheet to select it.
2. Click and drag the four-sided arrow in the upper-right corner to move the datasheet.
To resize a datasheet:
1. Click the datasheet to select it.
2. Click a side of the datasheet and drag to change the width.
3. Click the top or bottom of the datasheet and drag to change the height.
To apply an AutoFormat:
The AutoFormat option on the Format tab enables you to apply formats quickly, such as
background colors, field colors, field label colors, and fonts.
1. Activate the Format tab.
2. Click AutoFormat. The AutoFormat menu appears.
3. Click the format you want to apply.

90. To change a form title:
When you create a form, by default, Access uses the form name as the title. You can change the
title.
1. Activate the Format tab.
2. Click the Title button.
3. Type the new title.
To add the date and time:
You can easily add the date and time to your form.
1. Activate the Format tab.
2. Click the Date and Time button. The Date and Time dialog box appears. Select the date
and time format you want. The date and time appear on your form.
Change Fonts and Formats
You can use options on the Format tab to manually apply individual formats to your report.
However, before you can apply a format to a field or field label, you must select it. To select a
field or field label, click it. To select multiple items, hold down the Shift key and then click each
item you want to select. A box surrounds selected items.
Change Fonts and Formats
Button Shortcut
Key
Function
Layout View—Format Tab, Font Group
Apply a font to the current selection.
Set the size of the font for the current
selection.
Ctrl-b Bold the current selection.
Ctrl-i Italicize the current selection.
Ctrl-u Underline the current selection.
Ctrl-l Left-align the selection.
Ctrl-r Right-align the selection.
Ctrl-e Center the selection.
Change the font color.
Change the background color.

91. Change the alternating color. For
example, you can have every other
row on a datasheet appear in an
alternating color.
Layout View—Format Tab, Formatting Group
Apply a Number format.
Use a currency symbol.
Change to percent.
Use thousand separators.
Increase decimal places.
Decrease decimal places.
Layout View—Format Tab, Gridlines Group
Add gridlines.
Change the weight of gridlines.
Change the style of gridlines.
Change the color of gridlines.
Layout View—Format Tab, Controls Group
Add a logo.
Add or change a title.
Add a date and time.
Set line thickness.
Set line style.
Set line color.
Lesson 7: Creating Reports
Reports organize and summarize data for viewing online or for printing. A detail report displays
all of the selected records. You can include summary data such as totals, counts, and percentages

92. in a detail report. A summary report does not list the selected records but instead summarizes the
data and presents totals, counts, percentages, or other summary data only. Access has several
report generation tools that you can use to create both detail and summary reports quickly. This
lesson teaches you how to create reports.
Use the Report Button
The Report button creates a simple report that lists the records in the selected table or query in a
columnar format.
To use the Report button:
1. Open the Navigation pane.
2. Click the table or query on which you want to base your report.
3. Activate the Create tab.
4. Click the Report button in the Reports group. Access creates your report and displays your
report in Layout view. You can modify the report.

93. Tip: After you create a report, you can save it.
1. Click the Save button on the Quick Access toolbar. Access saves the report unless you are saving
for the first time. If you are saving for the first time, the Save As dialog box appears.
2. Type the name you want to give your report.
3. Click OK. Access saves the report. You can now access the report by using the Navigation pane.
As with other objects, you can also save a report by right-clicking the reports tab and selecting
Save. Saved reports appear in the Navigation pane.
Tip: Reports created by using the Report button are plain and simple. The Modify a
Report section of this lesson teaches you how to customize a report to meet your needs.
Tip: Access reports created simply by using the Report button have several sections.
They are detailed in the following table.
Sections of a Report
Report Header Appears at the top of the first page
and displays the report title.

94. Page Header Appears at the top of every page and
displays the headings (field labels)
for each column.
Page Footer Appears at the bottom of every page
and displays the page number and
total number of pages.
Detail Section Appears between the page header
and page footer and displays the
records from the table or query.
Report Footer This section is optional. Appears on
the last page of the report and
displays summary information such
as grand totals.
Use the Report Wizard
You can also use the Report Wizard to create a report. The Report Wizard provides you with
more flexibility than you get by using the Report button. You can choose the tables and fields,
group the data, sort the data, summarize the data, choose a layout and orientation, apply a style,
and title your report. Follow the steps shown here to create a report by using the Report Wizard:
To create a report by using the Report Wizard:

95. Open the Report Wizard
1. Activate the Create tab.
2. Click Report Wizard in the Reports group. The Report Wizard appears.
Select tables, queries and fields
When using the Report Wizard, you can use fields from multiple tables and/or queries if the
tables/queries have a relationship.
1. Click the down-arrow next to the Table/Queries field and then click the table from which you
want to select fields.
2. Click a field and then click the single-right arrow to select a single field, click the double-right
arrows to select all fields, click a field and then click the single-left arrow to deselect a single
field, or click the double-left arrow to deselect all fields.
3. Repeat steps 1 and 2 for each table from which you want to select fields.
4. Click Next. The Report Wizard moves to the next page.

96. Group
When using the Report Wizard, you can group data. Grouping puts all of the values in a field
into a group based on the field’s value. For example, if your data is grouped by the Department
field and the records in the Department field have values such as Administration, Computer
Science, and English. Access will group all of the data for the Administration department
together, all of the data for the Computer Science department together, and all of the data for the
English department together.
1. Click to select the field by which you want to group your data. You may not see this page of the
wizard if you are selecting data from a single table.
2. Click Next. The Report Wizard moves to the next page.

97. 3. Click a field you want to group by.
4. Click the right-arrow to select a field; click a field and then click the left arrow to deselect a field.
Use the up- and down-arrows to change the order of the groupings. If you are only using one
table, this may be your first opportunity to select a field to group by.
5. Repeat steps 3 and 4 for each field you want to group by.
6. Click Next. The Report Wizard moves to the next page.
Sort and summarize
By using the Report Wizard, you can create up to four levels of sort. Access sorts the first level,
and then sorts the second level within that sort, and so on. If you have grouped your data, you
can summarize it by displaying the sum, average, and minimum or maximum value for each
numeric field. You can choose to have your report display just the summary data or each detail
line and the summary data. There is also an option that allows you to display the percent the sum
of each group is of the grand total. All of the fields in your report may not fit on a single page.
You can have Access automatically adjust the size of the font so that every field fits.

98. 1. Click the down-arrow and then select the field you want to sort by.
2. Click the button to choose ascending or descending order. Clicking the button toggles between
Ascending and Descending. You can sort up to four levels.
3. Click the Summary Options button. The Summary Options window appears.

99. 4. Click to select the summary data you want.
5. Click to select whether you want detail and summary data or if you want summary data only.
6. Click if you want to calculate the percent to the total for sums.
7. Click OK. The Summary Options window closes.
8. Click Next. The Report Wizard moves to the next page.
Layout and orientation
You can choose the layout and orientation of your report. The layout determines where each field
appears on the page. Access provides three options to choose from: Stepped, Block, and Outline.
When you choose an option, the left side of the window displays a graphic of the layout.
Orientation determines whether Access creates the report in portrait or landscape. Most paper,
such as paper sized 8 1/2 by 11, is longer on one edge than it is on the other. If you print in
Portrait, the shortest edge of the paper becomes the top of the page. Portrait is the default option.
If you print Landscape, the longest edge of the paper becomes the top of the page.
1. Click to select a layout.
2. Click to select a page orientation.
3. Choose the Adjust The Field Width So All Fields Fit On A Page option if you want all fields to fit
on a single page.
4. Click Next. The Report Wizard moves to the next page.

100. Style
A style is a set of formats consisting of such things as background colors, fonts, font colors, and
font sizes. Access supplies predesigned styles that format titles, labels, and more. When you
choose a style, the left side of the window displays a preview.
1. Click to select a style.
2. Click Next. The Report Wizard moves to the next page.
Create a title
On the final page of the Report Wizard, you can title your report. The title appears at the top of
the report and on the Navigation pane.

101. 1. Type the title you want to give the report.
2. Click Finish. Access creates, saves, and opens your report in Layout view.

102. Tip: Reports created with the Report Wizard may have the following two sections in
addition to the sections found in reports created by using the Report button.
Sections of a Report
Group Header Appears before a group and displays
information about the group.
Group Footer Appears after a group and
summarizes the group data.
Modify a Report
After you create a report, you can modify it. You can add groups or sorts, add fields, change
labels, and perform many other tasks.
You can view a report in Report view, Layout view, Design view, and Print Preview. You can
modify a report in Layout view or Design view. In Layout view, you can see your data, and the
report you see closely resembles how your report will look when you print it. You can make
most, but not all, changes to your report in Layout view. Design view displays the structure of
your report. In this view you cannot see the underlying data, but you can perform some tasks in
Design view that you cannot perform in Layout view. This tutorial focuses on Layout view.
To change to Layout view:
1. Open your report.
2. Activate the Home tab.
3. Click the View button. A menu appears.
4. Click Layout View. Access changes to Layout view.
Change the Size of a Field or Label
If the data in a field or label seems crowded, if some of the data in the field or label does not
appear, or if the data appears as pound signs (####), the field or label is too small.

103. To change the size of a field or label:
1. Click the field or label. A border appears around it.
2. Click a side of the border and drag outward to increase the width. Click a side of the border and
drag inward to decrease the width.
Tip: Incidentally, if you want to change the height of records, click the top or bottom
of a field border and drag upward or downward.
Add a Group or Sort
When you create a report by clicking the Report button, you are not given options that enable
you to group or sort. You can use the Group & Sort button on the Format tab to create a group or
sort. When you create a report by using the Report Wizard, you can use the Group & Sort button
to add or modify a group or sort.
To Group or Sort:
Open the Group, Sort, and Total pane
1. Open your report in Layout view.
2. Activate the Format tab.
3. Click Group & Sort in the Grouping and Totals group. The Group, Sort, and Total pane appears.

104. Add a group
4. Click Add A Group and then select the field by which you want to group. Access groups and sorts
the field.
Add a sort
5. Click Add A Sort and then select the field on which you want to sort. Access sorts the field.
Groups and sorts display in the Group, Sort, and Total pane in levels. Access performs the
highest- level group or sort first, the second level next, and so on.

105. After you have added a group or sort, you can set several options by clicking the More button
and then clicking the down-arrow next to each option and making your choices.
Group, Sort, and Total Pane Options
Option Description
Sort order
With A on top
From smallest to largest
From oldest to newest
Use these options to choose
from ascending or descending
order.
Group interval Set how you want to group. For
example, if you want to group
by the first letter of the last
name so that all As are together,
all Bs are together. etc., you can
select By First Character.
Totals Select the field you want to total
on and the type of total you

106. want. Your total can be a sum,
average, count, etc. You can
also choose whether you want
to show a grand total, totals as a
percentage of a grand total,
display totals in the header, or
display totals in the footer.
Title Allows you to add or change the
field label.
With or without a header
section
Group headers precede each
group. This option allows you to
determine whether you want a
header section.
With or without a footer
section
Group footers are printed at the
bottom of each group. This
option allows you to determine
whether you want a footer
section.
Keep group together Use these options to determine
where a page break will occur
when you print:
Do not keep group together on
one page. This option allows
page breaks within a group.
Keep whole group together on
one page. This option prevents
page breaks within a group.
Keep header and first record
together on one page. This
option prevents a header from
printing at the bottom of a page
with no records.
There are three buttons on the right side of the Group, Sort, and Total pane. If you want to delete
a group or sort, click the group or sort you want to delete and then click the Delete button.
Groups and sorts execute in the order they are listed in the Group, Sort, and Total pane. If you
want to change the order of execution, click the group or sort you want to move up or down and
then click the Move Up or Move Down button to move a group or sort up or down a level.
To add a field:

107. 1. Open your report in Layout view.
2. Activate the Format tab.
3. Click the Add Existing Fields button in the Controls group. The Field List pane appears.
4. Click Show All Tables if the field you want to add does not appear.
5. Click the field you want to add and drag it onto your report. A thick line appears on the report.
Access places the field before the line. If you want the field to appear in the detail area, be sure
to drag it to the detail area.

108. To delete a field:
1. Open your report in Layout view.
2. Click the field you want to delete.
3. Press the Delete key. Access deletes the field.
To move a column:
1. Open your report in Layout view.
2. Click the column label.
3. Drag the column to the new location. Access moves the column to the new location.
To change a title:
1. Open your report in Layout view.
2. Double-click in the Title field.
3. Click and drag to select the current title.
4. Type a new title.
5. Click anywhere outside the Title field. Access changes the title.
To change a field label:
1. Open your report in Layout view.
2. Double-click the field label.
3. Click and drag to select the label name.
4. Type the new label name.
5. Click anywhere outside the label. Access changes the field label.
To change the paper size:
1. Open your report in Layout view.
2. Activate the Page Setup tab.
3. Click the Size button in the Page Layout group. A menu appears.
4. Click the size of the paper you are going to print on.
To change paper orientation:
1. Open your report in Layout view.
2. Activate the Page Setup tab.
3. Click Portrait or Landscape to choose the orientation you want to use. Access changes the page
orientation.
To change margins:
1. Open your report in Layout view.
2. Activate the Page Setup tab.
3. Click the Margins button in the Page Layout group. A menu appears.

109. 4. Click the margin size you want. Access changes the page margin.
To add page numbers:
1. Open your report in Layout view.
2. Activate the Format tab.
3. Click the Insert Page Number button in the Controls group. The Page Numbers dialog box
appears.
4. Click a radio button to choose a format.
5. Click a radio button to choose a position.
6. Click the down-arrow in the Alignment field and then choose an alignment.
7. Deselect Show Number On First Page if you do not want the page number to appear on the first
page.
8. Click OK. Access places the page number in your report.
To add current date or time:
1. Open your report in Layout view.
2. Activate the Format tab.
3. Click the Date and Time button in the Controls group. The Date and Time dialog box
appears.
4. Deselect the Include Date box if you do not wish to include the date.
5. Click to select a format if you are including the date.
6. Deselect the Include Time box if you do not wish to include the time.
7. Click to select a format if you are including the time.
8. Click OK. Access places the date and/or time in your report.

110. Apply an AutoFormat
You can use the AutoFormat option on the Format tab to apply formats such as background
colors, fonts, and font sizes quickly.
To apply an AutoFormat:
1. Activate the Format tab.
2. Click AutoFormat. The AutoFormat menu appears.
3. Click the format you want to apply.
Change Fonts and Formats
You can use options on the Format tab to manually apply formats to your report. However,
before you can apply a format to a field or field label, you must select the field or field label by
clicking it. To select multiple items, hold down the Shift key and then click each item you want
to select. A box surrounds selected items.
Change Fonts and Formats
Button Shortcut
Key
Function
Layout View—Format Tab, Font Group
Apply a font to the current selection.
Set the size of the font for the current
selection.
Ctrl-b Bold the current selection.
Ctrl-i Italicize the current selection.
Ctrl-u Underline the current selection.
Ctrl-l Left-align the selection.
Ctrl-r Right-align the selection.
Ctrl-e Center the selection.
Change the font color.
Change the background color.
Change the alternating color. For
example, you can have every other row in
the detail area appear in alternating
colors.
Layout View—Format Tab, Formatting Group

111. Apply a Number format.
Use a currency symbol.
Change to percent.
Use thousand separators.
Increase decimal places.
Decrease decimal places.
Layout View—Format Tab, Gridlines Group
Add gridlines.
Change the weight of gridlines.
Change the style of gridlines.
Change the color of gridlines.
Layout View—Format Tab, Controls Group
Add a logo.
Add a title.
Set line thickness.
Set line style.
Set line color.
Tip: After you modify your report, you must save it if you want to keep the changes.
To save, click the Save button on the Quick Access toolbar or right-click the report’s tab and
then click Save.
Create Mailing Labels
In Access, the easiest way to create a mailing label is to use the Label Wizard. The Label Wizard
extracts name and address data from your database and formats it so you can print it on
commercially available labels.
Each time you view or print labels, the data are extracted from the database, so as you update
your database, Access updates your labels.

112. To create labels:
Open the Labels Wizard
1. Click the table or query you want to use to create a label.
2. Activate the Create tab.
3. Click Labels in the Reports group. The Labels Wizard appears.
Choose a product number
Most commercially available labels have a product number. You should be able to find the
number on the box. You use the product number to tell Access the dimensions of your labels and
the number of columns and rows that are on a page.
1. Click to select the Product Number in the Product Number field.
2. Click Next. The Label Wizard moves to the next page.

113. Choose a font, font size, font weight, and color
A font is a set of characters (text) represented in a single typeface. Each character within a font is
created by using the same basic style. The Label Wizard has options that allow you to select a
font, font size, weight, and color. You can also choose to italicize or underline the text in your
labels.
1. Click the down-arrow next to the Font Name field and then select the font. A preview appears in
the Sample box.
2. Click the down-arrow next to the Font Size field and then select the font size. A preview appears
in the Sample box.
3. Click the down-arrow next to the Font Weight field and then select the font weight. A preview
appears in the Sample box.
4. Click the button next to the Text Color field and then select a color you want your text to have. A
preview appears in the Sample box.
5. Click the Italic box if you want to italicize. A preview appears in the Sample box.
6. Click the Underline box if you want to underline. A preview appears in the Sample box.
7. Click Next. The Label Wizard moves to the next page.
Create a layout
You create the layout of your labels by selecting fields and placing them in the Prototype Label
box. You type any text or spaces that you want to appear on your label.

114. 1. Click a field name and then click the right-arrow to place the field on the prototype label.
2. Press the spacebar to leave spaces.
3. Press the Enter key to move to a new line.
4. Type any text you want to appear on the label.
5. Click Next. The Label Wizard moves to the next page.
Sort
When creating labels, you can sort on any field and you can have multiple levels of sort. For
example, you can sort by last name and then by first name.

115. 1. Click to choose the fields you want to sort by. Click the single right-arrow to select a single field,
click the double right-arrow to select all fields, click the single left-arrow to deselect a single
field, click the double left-arrow to deselect all fields.
2. Click Next. The Label Wizard moves to the next page.
Title the report
1. Type a title for your report. The title will appear in the Navigation pane.
2. Click Finish. Access displays the labels in Print Preview.

116. Tip: When you complete your labels you may get the following message.
When printing mailing labels, you can usually ignore this message. Click the Show Help button
to read the following:
This message may be the result of using a report created with the
Label Wizard. This error message is commonly encountered when
printing to label pages that have three or more labels per row.
Usually this message can be ignored.
If you do need to change the layout, try one or both of the
following:
 Reduce the width of the controls on the report.
 Reduce the width of the report to make sure the report is not
wider than the printable area of the page.
Note that page size is dependent on the printer and the physical size
of the paper you are printing to. In some cases it is necessary to
rotate the page orientation from portrait to landscape to
accommodate the selected print width.

117. Tip: When you view labels in Report view, they may appear in a single column. To see
how your labels will appear when printed, use Print Preview.
Print a Report
Often, the people who use Access data only see a printed report. In Print Preview, you can see
exactly how your report will look when printed, you can make changes to it, and you can print it.
To print, click the Print button in the Print group. The Print dialog box opens and you can select
your print options.
To change to Print Preview:
1. Open your report.
2. Activate the Home tab.
3. Click the down-arrow under the View button. A menu appears.
4. Click Print Preview. Access changes to Print Preview.
Several options are available to you in Print Preview.
Print Preview Options
Print Displays the Print dialog box. You
can select such options as the printer,
print range, and number of copies.
Use this option to print your report.
Size Click the Size button to set the size of
the paper you are going to print on.
Portrait Click the Portrait button to print with
the shortest side of the paper as the
top.
Landscape Click the Landscape button to print
with the longest side of the paper as
the top.
Margins Click the Margins button to select a
margin size of Normal, Wide, or
Narrow. Margins define the amount
of white space that surrounds your
report.
Print Data Only Prints the report data without other
elements such as titles, and labels.
Zoom Changes the cursor to a magnifying

118. glass. When the magnifying glass
displays a minus sign (–), you can
zoom out. When the magnifying
glass displays a plus sign (+), you can
zoom in.
Click the down-arrow under the
Zoom button to display a menu and
choose a zoom level.
One Page Displays one page of the report in the
Access window.
Two Page Displays two pages of the report in
the Access window.
More Pages Displays a menu from which you can
choose the number of page you want
to display.
Tip: To view a report online, use Report view. Open your report. Activate the Home
tab. Click the down-arrow under the View button. Click Report view. Your report displays in
Report view.
