Microsoft Access is a powerful database program that allows users to create and manage databases. It has built-in features to help construct and view information through tables, queries, forms, and reports. Access breaks down databases into a hierarchy including the database file, tables, records, fields, and data types. Users can create databases from scratch or with a wizard, then enter and manipulate data by adding, updating, and deleting records in tables or forms. Relationships between tables can also be created by matching primary and foreign keys to bring information together across multiple tables.

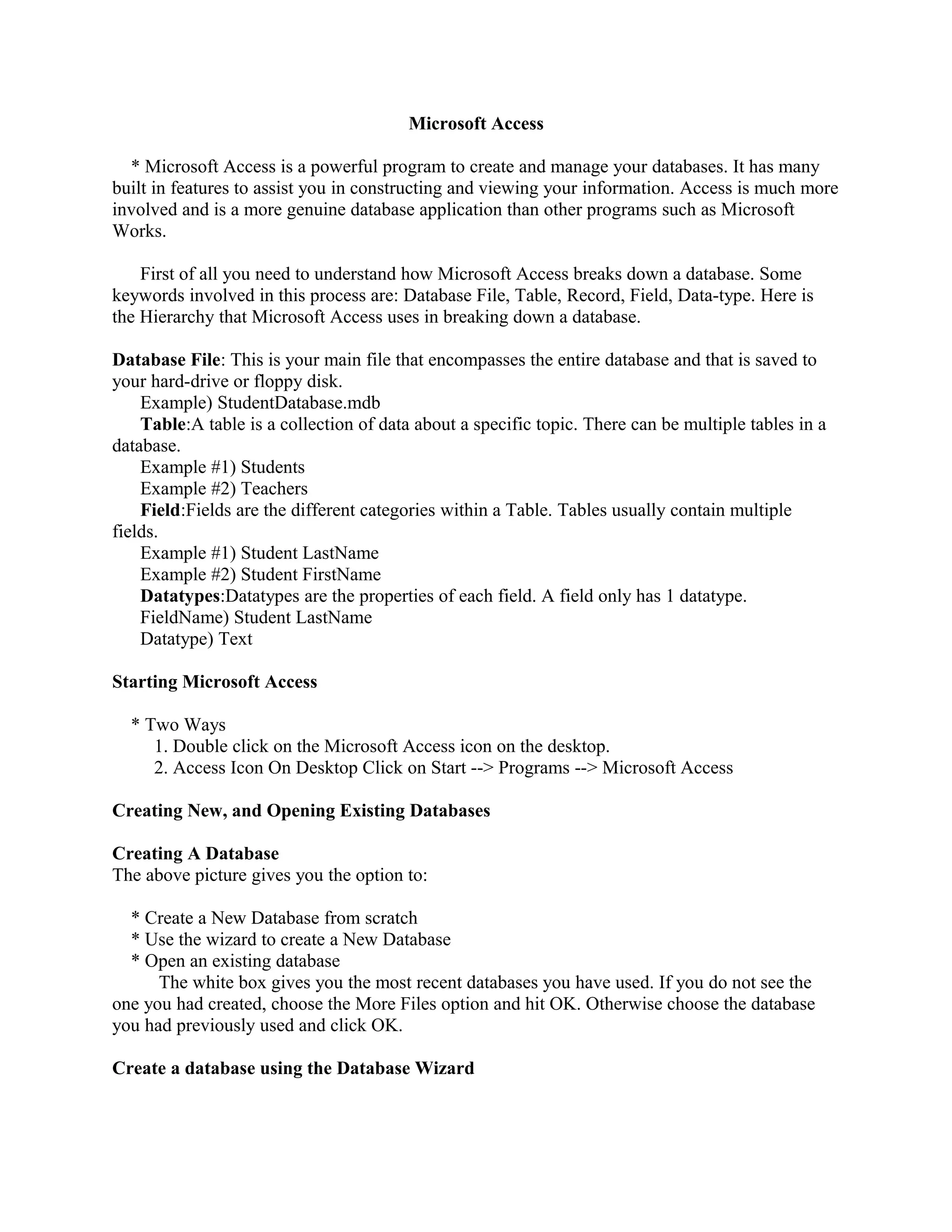

1. Microsoft Access
* Microsoft Access is a powerful program to create and manage your databases. It has many
built in features to assist you in constructing and viewing your information. Access is much more
involved and is a more genuine database application than other programs such as Microsoft
Works.
First of all you need to understand how Microsoft Access breaks down a database. Some
keywords involved in this process are: Database File, Table, Record, Field, Data-type. Here is
the Hierarchy that Microsoft Access uses in breaking down a database.
Database File: This is your main file that encompasses the entire database and that is saved to
your hard-drive or floppy disk.
Example) StudentDatabase.mdb
Table:A table is a collection of data about a specific topic. There can be multiple tables in a
database.
Example #1) Students
Example #2) Teachers
Field:Fields are the different categories within a Table. Tables usually contain multiple
fields.
Example #1) Student LastName
Example #2) Student FirstName
Datatypes:Datatypes are the properties of each field. A field only has 1 datatype.
FieldName) Student LastName
Datatype) Text
Starting Microsoft Access
* Two Ways
1. Double click on the Microsoft Access icon on the desktop.
2. Access Icon On Desktop Click on Start --> Programs --> Microsoft Access
Creating New, and Opening Existing Databases
Creating A Database
The above picture gives you the option to:
* Create a New Database from scratch
* Use the wizard to create a New Database
* Open an existing database
The white box gives you the most recent databases you have used. If you do not see the
one you had created, choose the More Files option and hit OK. Otherwise choose the database
you had previously used and click OK.
Create a database using the Database Wizard

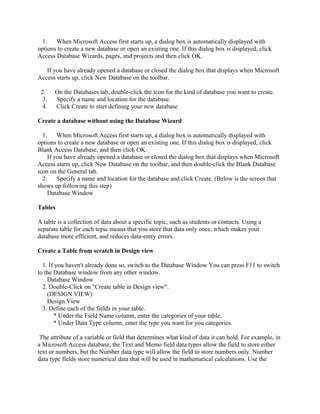

2. 1. When Microsoft Access first starts up, a dialog box is automatically displayed with
options to create a new database or open an existing one. If this dialog box is displayed, click
Access Database Wizards, pages, and projects and then click OK.
If you have already opened a database or closed the dialog box that displays when Microsoft
Access starts up, click New Database on the toolbar.
2. On the Databases tab, double-click the icon for the kind of database you want to create.
3. Specify a name and location for the database.
4. Click Create to start defining your new database
Create a database without using the Database Wizard
1. When Microsoft Access first starts up, a dialog box is automatically displayed with
options to create a new database or open an existing one. If this dialog box is displayed, click
Blank Access Database, and then click OK.
If you have already opened a database or closed the dialog box that displays when Microsoft
Access starts up, click New Database on the toolbar, and then double-click the Blank Database
icon on the General tab.
2. Specify a name and location for the database and click Create. (Below is the screen that
shows up following this step)
Database Window
Tables
A table is a collection of data about a specific topic, such as students or contacts. Using a
separate table for each topic means that you store that data only once, which makes your
database more efficient, and reduces data-entry errors.
Create a Table from scratch in Design view
1. If you haven't already done so, switch to the Database Window You can press F11 to switch
to the Database window from any other window.
Database Window
2. Double-Click on "Create table in Design view".
(DESIGN VIEW)
Design View
3. Define each of the fields in your table.
* Under the Field Name column, enter the categories of your table.
* Under Data Type column, enter the type you want for you categories.
The attribute of a variable or field that determines what kind of data it can hold. For example, in
a Microsoft Access database, the Text and Memo field data types allow the field to store either
text or numbers, but the Number data type will allow the field to store numbers only. Number
data type fields store numerical data that will be used in mathematical calculations. Use the

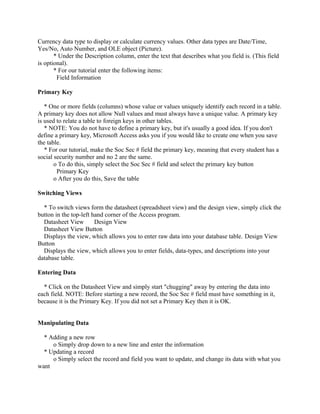

3. Currency data type to display or calculate currency values. Other data types are Date/Time,
Yes/No, Auto Number, and OLE object (Picture).
* Under the Description column, enter the text that describes what you field is. (This field
is optional).
* For our tutorial enter the following items:
Field Information
Primary Key
* One or more fields (columns) whose value or values uniquely identify each record in a table.
A primary key does not allow Null values and must always have a unique value. A primary key
is used to relate a table to foreign keys in other tables.
* NOTE: You do not have to define a primary key, but it's usually a good idea. If you don't
define a primary key, Microsoft Access asks you if you would like to create one when you save
the table.
* For our tutorial, make the Soc Sec # field the primary key, meaning that every student has a
social security number and no 2 are the same.
o To do this, simply select the Soc Sec # field and select the primary key button
Primary Key
o After you do this, Save the table
Switching Views
* To switch views form the datasheet (spreadsheet view) and the design view, simply click the
button in the top-left hand corner of the Access program.
Datasheet View Design View
Datasheet View Button
Displays the view, which allows you to enter raw data into your database table. Design View
Button
Displays the view, which allows you to enter fields, data-types, and descriptions into your
database table.
Entering Data
* Click on the Datasheet View and simply start "chugging" away by entering the data into
each field. NOTE: Before starting a new record, the Soc Sec # field must have something in it,
because it is the Primary Key. If you did not set a Primary Key then it is OK.
Manipulating Data
* Adding a new row
o Simply drop down to a new line and enter the information
* Updating a record
o Simply select the record and field you want to update, and change its data with what you
want

4. * Deleting a record
o Simply select the entire row and hit the Delete Key on the keyboard
Advanced Table Features w/Microsoft Access
* Assigning a field a specific set of characters
o Example) Making a Social Security Number only allows 9 characters.
1. Switch to Design View
2. Select the field you want to alter
3. At the bottom select the General Tab
Field Properties
4. Select Field Size
5. Enter the number of characters you want this field to have
* Formatting a field to look a specific way (HINT: You do not need to assign a field a specific
set of characters if you do this)
o Example) Formatting Phone Number w/ Area Code (xxx) xxx-xxxx
1. Switch to Design View
2. Select the field you want to format
3. At the bottom select the General Tab
4. Select Input Mask Box and click on the ... button at the right.
5. Select Phone Number option
Input Mask
6. Click on Next
7. Leave !(999) 000-0000 the way it is. This is a default.
8. Click Next
9. Select which option you want it to look like
10. Click Next
11. Click Finish
* Selecting a value from a dropdown box with a set of values that you assign to it. This saves
you from typing it in each time
o Example)Choosing a city that is either Auburn, Bay City, Flint, Midland, or Saginaw
1. Switch to Design View
2. Select the field you want to alter (City)
3. At the bottom select the Lookup Tab
4. In the Display Control box, select Combo Box
5. Under Row Source Type, select Value List
6. Under Row Source, enter the values how you want them displayed, separated by a
comma. (Auburn, Bay City, Flint, Midland, Saginaw)
+ NOTE:This will not alphabetize them for you, so you will have to do that
yourself. It should look something like this:
Value List
7. Select in the datasheet view and you should see the change when you go to the city
field.
Output

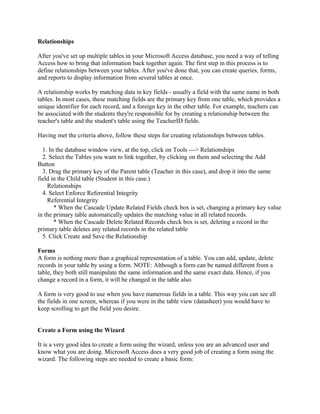

5. Relationships
After you've set up multiple tables in your Microsoft Access database, you need a way of telling
Access how to bring that information back together again. The first step in this process is to
define relationships between your tables. After you've done that, you can create queries, forms,
and reports to display information from several tables at once.
A relationship works by matching data in key fields - usually a field with the same name in both
tables. In most cases, these matching fields are the primary key from one table, which provides a
unique identifier for each record, and a foreign key in the other table. For example, teachers can
be associated with the students they're responsible for by creating a relationship between the
teacher's table and the student's table using the TeacherID fields.
Having met the criteria above, follow these steps for creating relationships between tables.
1. In the database window view, at the top, click on Tools ---> Relationships
2. Select the Tables you want to link together, by clicking on them and selecting the Add
Button
3. Drag the primary key of the Parent table (Teacher in this case), and drop it into the same
field in the Child table (Student in this case.)
Relationships
4. Select Enforce Referential Integrity
Referential Integrity
* When the Cascade Update Related Fields check box is set, changing a primary key value
in the primary table automatically updates the matching value in all related records.
* When the Cascade Delete Related Records check box is set, deleting a record in the
primary table deletes any related records in the related table
5. Click Create and Save the Relationship
Forms
A form is nothing more than a graphical representation of a table. You can add, update, delete
records in your table by using a form. NOTE: Although a form can be named different from a
table, they both still manipulate the same information and the same exact data. Hence, if you
change a record in a form, it will be changed in the table also.
A form is very good to use when you have numerous fields in a table. This way you can see all
the fields in one screen, whereas if you were in the table view (datasheet) you would have to
keep scrolling to get the field you desire.
Create a Form using the Wizard
It is a very good idea to create a form using the wizard, unless you are an advanced user and
know what you are doing. Microsoft Access does a very good job of creating a form using the
wizard. The following steps are needed to create a basic form:

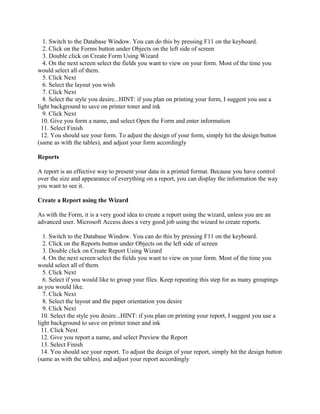

6. 1. Switch to the Database Window. You can do this by pressing F11 on the keyboard.
2. Click on the Forms button under Objects on the left side of screen
3. Double click on Create Form Using Wizard
4. On the next screen select the fields you want to view on your form. Most of the time you
would select all of them.
5. Click Next
6. Select the layout you wish
7. Click Next
8. Select the style you desire...HINT: if you plan on printing your form, I suggest you use a
light background to save on printer toner and ink
9. Click Next
10. Give you form a name, and select Open the Form and enter information
11. Select Finish
12. You should see your form. To adjust the design of your form, simply hit the design button
(same as with the tables), and adjust your form accordingly
Reports
A report is an effective way to present your data in a printed format. Because you have control
over the size and appearance of everything on a report, you can display the information the way
you want to see it.
Create a Report using the Wizard
As with the Form, it is a very good idea to create a report using the wizard, unless you are an
advanced user. Microsoft Access does a very good job using the wizard to create reports.
1. Switch to the Database Window. You can do this by pressing F11 on the keyboard.
2. Click on the Reports button under Objects on the left side of screen
3. Double click on Create Report Using Wizard
4. On the next screen select the fields you want to view on your form. Most of the time you
would select all of them.
5. Click Next
6. Select if you would like to group your files. Keep repeating this step for as many groupings
as you would like.
7. Click Next
8. Select the layout and the paper orientation you desire
9. Click Next
10. Select the style you desire...HINT: if you plan on printing your report, I suggest you use a
light background to save on printer toner and ink
11. Click Next
12. Give you report a name, and select Preview the Report
13. Select Finish
14. You should see your report. To adjust the design of your report, simply hit the design button
(same as with the tables), and adjust your report accordingly

7. 1. Switch to the Database Window. You can do this by pressing F11 on the keyboard.
2. Click on the Forms button under Objects on the left side of screen
3. Double click on Create Form Using Wizard
4. On the next screen select the fields you want to view on your form. Most of the time you
would select all of them.
5. Click Next
6. Select the layout you wish
7. Click Next
8. Select the style you desire...HINT: if you plan on printing your form, I suggest you use a
light background to save on printer toner and ink
9. Click Next
10. Give you form a name, and select Open the Form and enter information
11. Select Finish
12. You should see your form. To adjust the design of your form, simply hit the design button
(same as with the tables), and adjust your form accordingly
Reports
A report is an effective way to present your data in a printed format. Because you have control
over the size and appearance of everything on a report, you can display the information the way
you want to see it.
Create a Report using the Wizard
As with the Form, it is a very good idea to create a report using the wizard, unless you are an
advanced user. Microsoft Access does a very good job using the wizard to create reports.
1. Switch to the Database Window. You can do this by pressing F11 on the keyboard.
2. Click on the Reports button under Objects on the left side of screen
3. Double click on Create Report Using Wizard
4. On the next screen select the fields you want to view on your form. Most of the time you
would select all of them.
5. Click Next
6. Select if you would like to group your files. Keep repeating this step for as many groupings
as you would like.
7. Click Next
8. Select the layout and the paper orientation you desire
9. Click Next
10. Select the style you desire...HINT: if you plan on printing your report, I suggest you use a
light background to save on printer toner and ink
11. Click Next
12. Give you report a name, and select Preview the Report
13. Select Finish
14. You should see your report. To adjust the design of your report, simply hit the design button
(same as with the tables), and adjust your report accordingly
