These Slides Is For Computer Sciences Students For Presentation On The Subject Of Computer Networks Hope You Enjoy To Read It & Happily Present This Presentation To Your Class.
Topology refers to the layout of connected devices on a network.
It also refers to how various nodes, devices, and connections on your network are physically or logically arranged in relation to each other.
Logical Layouts of Topology
Logical Layouts of Topology :
MESH TOPOLOGY
STAR TOPOLOGY
BUS TOPOLOGY
RING TOPOLOGY
TREE AND HYBRID

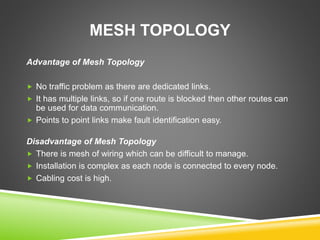

1. Mesh Topology
Here every device has a point to point link to every other device.
Node 1 node must be connected with n-1 nodes.
A fully connected mesh can have n(n-1)/2 physical channels to link n devices.
It must have n-1 I/O ports.

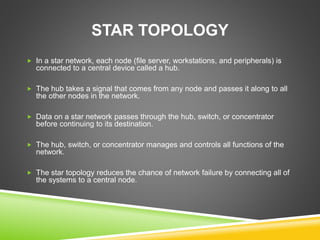

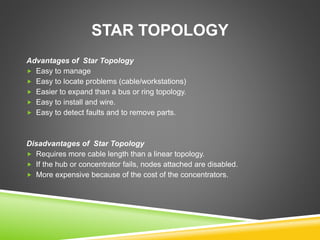

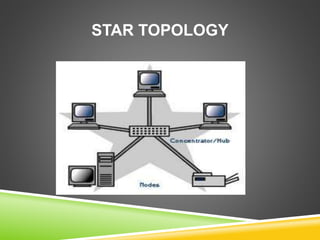

2.STAR TOPOLOGY
Less expensive than mesh since each device is connected only to the hub.
Installation and configuration are easy.
Less cabling needs than mesh.
Easy to identification & remove parts.
3.BUS TOPOLOGY
A bus topology is multipoint.
Here one long cable act as a backbone to link all the devices are connected to the backbone by drop lines and taps.
Drop line- is the connection b/w the devices and the cable.
Tap:- is the splitter that cut the main link.
This allows only one device to transmit at a time.
4.RING TOPOLOGY
Here each device has a dedicated connection with two devices on either side.
The signal is passed in one direction from device to device until it reaches the destination and each device have repeater
When one device received signal instead of intended another devices, its repeater then regenerates the data and passes them along.
To add or delete a device requires changing only two connections.

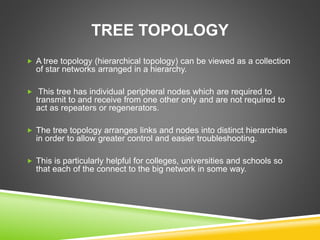

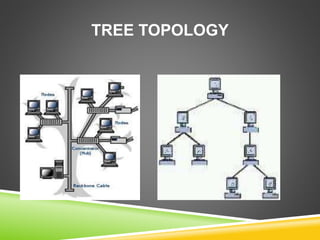

5.TREE TOPOLOGY
Alternative referred to as a star bus topology.
Tree topology is one of the most common network setups that is similar to a bus topology and a star topology.
A tree topology connects multiple star networks to other star networks. Below is a visual example of a simple computer setup on a network using the star topology.

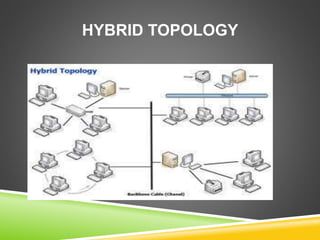

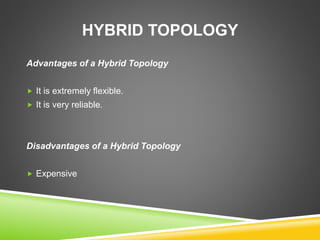

6.HYBRID TOPOLOGY
A network which contains all types of physical structure and connected under a single backbone channel.
In network topology, i am explaining about how to set a network, how many types of network topology, explanation of each type and its advantages and disadvantages.
Linkedin - https://in.linkedin.com/in/prakharmaurya
Network Topology and it's types Star topology, Ring topology, Bus topology an...Self-employed
this slides will help you in understanding what is network topology and its types Bus topology, Ring topology, Star topology and Mesh topology and also what is a Hub, Router and Switch.
Contents
What is Topology ?
Types of topology?
Advantages and disadvantage of topology
What is topology ?
In a single node topology only two system can communicate via single node .
Node :- Connected link between the devices create node.
Benefits and Drawbacks
Benefits
High speed
Easy to create
Security, no third party can access.
Easy to troubleshoot.
Drawbacks
Only to system can communicate .
Fixed network .
Benefits and drawbacks
Benefits
More than two system can communicate.
Drawbacks
Single point of failure.
If backbone fails entire network will fail
Low bandwidth because of broadcasting.
Benefits
Each Pcs are directly connected to each other .
Easy to create and troubleshoot .
Create a central point of management .
High bandwidth because individual transmission.
Tree topology
I t is a combination of bus and star topology.
Hybrid Topology
It is a combination of two or topologies .
1st combination – star + bus topology
2nd combination – ring +star topology
QUESTIONS
Network topology And Its Types in detail.
If you liked it don't forget to follow me-
SlideShare-www.slideshare.net/gauravyadav65
Instagram-yadavgaurav251
Facebook-www.facebook.com/yadavgaurav251
This really motivates me too help you guys more :D
These Slides Is For Computer Sciences Students For Presentation On The Subject Of Computer Networks Hope You Enjoy To Read It & Happily Present This Presentation To Your Class.
Topology refers to the layout of connected devices on a network.
It also refers to how various nodes, devices, and connections on your network are physically or logically arranged in relation to each other.
Logical Layouts of Topology
Logical Layouts of Topology :
MESH TOPOLOGY
STAR TOPOLOGY
BUS TOPOLOGY
RING TOPOLOGY
TREE AND HYBRID
1. Mesh Topology
Here every device has a point to point link to every other device.
Node 1 node must be connected with n-1 nodes.
A fully connected mesh can have n(n-1)/2 physical channels to link n devices.
It must have n-1 I/O ports.
2.STAR TOPOLOGY
Less expensive than mesh since each device is connected only to the hub.
Installation and configuration are easy.
Less cabling needs than mesh.
Easy to identification & remove parts.
3.BUS TOPOLOGY
A bus topology is multipoint.
Here one long cable act as a backbone to link all the devices are connected to the backbone by drop lines and taps.
Drop line- is the connection b/w the devices and the cable.
Tap:- is the splitter that cut the main link.
This allows only one device to transmit at a time.
4.RING TOPOLOGY
Here each device has a dedicated connection with two devices on either side.
The signal is passed in one direction from device to device until it reaches the destination and each device have repeater
When one device received signal instead of intended another devices, its repeater then regenerates the data and passes them along.
To add or delete a device requires changing only two connections.
5.TREE TOPOLOGY
Alternative referred to as a star bus topology.
Tree topology is one of the most common network setups that is similar to a bus topology and a star topology.
A tree topology connects multiple star networks to other star networks. Below is a visual example of a simple computer setup on a network using the star topology.
6.HYBRID TOPOLOGY
A network which contains all types of physical structure and connected under a single backbone channel.
In network topology, i am explaining about how to set a network, how many types of network topology, explanation of each type and its advantages and disadvantages.
Linkedin - https://in.linkedin.com/in/prakharmaurya
Network Topology and it's types Star topology, Ring topology, Bus topology an...Self-employed
this slides will help you in understanding what is network topology and its types Bus topology, Ring topology, Star topology and Mesh topology and also what is a Hub, Router and Switch.
Contents
What is Topology ?
Types of topology?
Advantages and disadvantage of topology
What is topology ?
In a single node topology only two system can communicate via single node .
Node :- Connected link between the devices create node.
Benefits and Drawbacks
Benefits
High speed
Easy to create
Security, no third party can access.
Easy to troubleshoot.
Drawbacks
Only to system can communicate .
Fixed network .
Benefits and drawbacks
Benefits
More than two system can communicate.
Drawbacks
Single point of failure.
If backbone fails entire network will fail
Low bandwidth because of broadcasting.
Benefits
Each Pcs are directly connected to each other .
Easy to create and troubleshoot .
Create a central point of management .
High bandwidth because individual transmission.
Tree topology
I t is a combination of bus and star topology.
Hybrid Topology
It is a combination of two or topologies .
1st combination – star + bus topology
2nd combination – ring +star topology
QUESTIONS
As humans, we never fail to think that we are highly intelligent beings, and that we are mentally superior than any other creatures found on Earth.
Well, that...... may be true.
However, we can be equally stupid and dumb too.
Worse still, we don't even realize it - in terms of how we can make erroneous judgments, decisions and choices, based on how our mind processes and filters information, as well as how our belief system works.
As intriguing and exciting this topic is to me, I find it difficult to illustrate the concepts involve, and that took me nearly 6 months to complete this work. (The Planning Fallacy in play?!) Throughout writing this deck, I've made a total of 8 major revisions before coming to this final piece.
I hope you'll find this deck both interesting and useful!
This topic is related to computer network in these topic How the computers are communicate each other through the different connections and the data transfer between them.The adavantages and disadvantages of these topologies..
This document consists of network topologies in computer networking. It entails star, ring, mesh, bus, tree, and hybrid topologies. Their advantages and disadvantages of each topology discussed in detail above.
The best PPT for knowing about the deeply information of topology networks..
That PPT was win the "BPS 2012" Award.
so,strong your exceptions and try it down...................
network topologies bus star hybrid mesh ring tree
detail of all topology
advantages of ring topology
advantages of bus topology
advantages of mesh topology
advantages of star topology
advantages of hybrid topology
advantages of tree topology
Unit 8 - Information and Communication Technology (Paper I).pdfThiyagu K
This slides describes the basic concepts of ICT, basics of Email, Emerging Technology and Digital Initiatives in Education. This presentations aligns with the UGC Paper I syllabus.
Introduction to AI for Nonprofits with Tapp NetworkTechSoup
Dive into the world of AI! Experts Jon Hill and Tareq Monaur will guide you through AI's role in enhancing nonprofit websites and basic marketing strategies, making it easy to understand and apply.
The Roman Empire A Historical Colossus.pdfkaushalkr1407
The Roman Empire, a vast and enduring power, stands as one of history's most remarkable civilizations, leaving an indelible imprint on the world. It emerged from the Roman Republic, transitioning into an imperial powerhouse under the leadership of Augustus Caesar in 27 BCE. This transformation marked the beginning of an era defined by unprecedented territorial expansion, architectural marvels, and profound cultural influence.
The empire's roots lie in the city of Rome, founded, according to legend, by Romulus in 753 BCE. Over centuries, Rome evolved from a small settlement to a formidable republic, characterized by a complex political system with elected officials and checks on power. However, internal strife, class conflicts, and military ambitions paved the way for the end of the Republic. Julius Caesar’s dictatorship and subsequent assassination in 44 BCE created a power vacuum, leading to a civil war. Octavian, later Augustus, emerged victorious, heralding the Roman Empire’s birth.
Under Augustus, the empire experienced the Pax Romana, a 200-year period of relative peace and stability. Augustus reformed the military, established efficient administrative systems, and initiated grand construction projects. The empire's borders expanded, encompassing territories from Britain to Egypt and from Spain to the Euphrates. Roman legions, renowned for their discipline and engineering prowess, secured and maintained these vast territories, building roads, fortifications, and cities that facilitated control and integration.
The Roman Empire’s society was hierarchical, with a rigid class system. At the top were the patricians, wealthy elites who held significant political power. Below them were the plebeians, free citizens with limited political influence, and the vast numbers of slaves who formed the backbone of the economy. The family unit was central, governed by the paterfamilias, the male head who held absolute authority.
Culturally, the Romans were eclectic, absorbing and adapting elements from the civilizations they encountered, particularly the Greeks. Roman art, literature, and philosophy reflected this synthesis, creating a rich cultural tapestry. Latin, the Roman language, became the lingua franca of the Western world, influencing numerous modern languages.
Roman architecture and engineering achievements were monumental. They perfected the arch, vault, and dome, constructing enduring structures like the Colosseum, Pantheon, and aqueducts. These engineering marvels not only showcased Roman ingenuity but also served practical purposes, from public entertainment to water supply.
Biological screening of herbal drugs: Introduction and Need for
Phyto-Pharmacological Screening, New Strategies for evaluating
Natural Products, In vitro evaluation techniques for Antioxidants, Antimicrobial and Anticancer drugs. In vivo evaluation techniques
for Anti-inflammatory, Antiulcer, Anticancer, Wound healing, Antidiabetic, Hepatoprotective, Cardio protective, Diuretics and
Antifertility, Toxicity studies as per OECD guidelines
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.

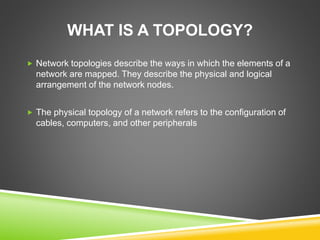

2. WHAT IS A TOPOLOGY?
Network topologies describe the ways in which the elements of a
network are mapped. They describe the physical and logical
arrangement of the network nodes.
The physical topology of a network refers to the configuration of
cables, computers, and other peripherals

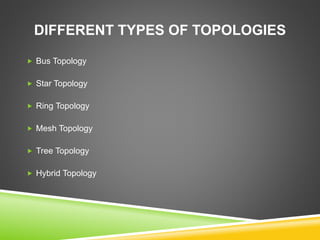

3. DIFFERENT TYPES OF TOPOLOGIES
Bus Topology
Star Topology
Ring Topology
Mesh Topology
Tree Topology
Hybrid Topology

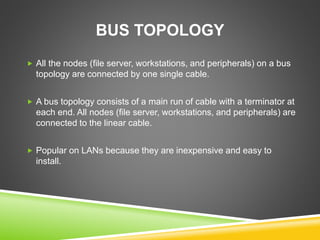

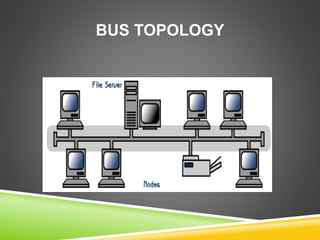

4. BUS TOPOLOGY
All the nodes (file server, workstations, and peripherals) on a bus
topology are connected by one single cable.
A bus topology consists of a main run of cable with a terminator at
each end. All nodes (file server, workstations, and peripherals) are
connected to the linear cable.
Popular on LANs because they are inexpensive and easy to
install.

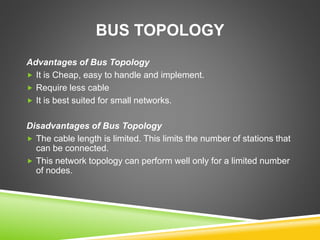

6. BUS TOPOLOGY
Advantages of Bus Topology
It is Cheap, easy to handle and implement.
Require less cable
It is best suited for small networks.
Disadvantages of Bus Topology
The cable length is limited. This limits the number of stations that
can be connected.
This network topology can perform well only for a limited number
of nodes.

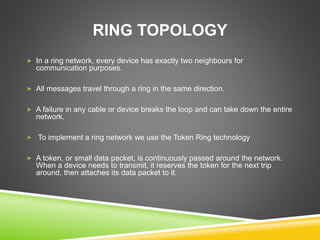

7. RING TOPOLOGY
In a ring network, every device has exactly two neighbours for
communication purposes.
All messages travel through a ring in the same direction.
A failure in any cable or device breaks the loop and can take down the entire
network.
To implement a ring network we use the Token Ring technology
A token, or small data packet, is continuously passed around the network.
When a device needs to transmit, it reserves the token for the next trip
around, then attaches its data packet to it.
9. RING TOPOLOGY

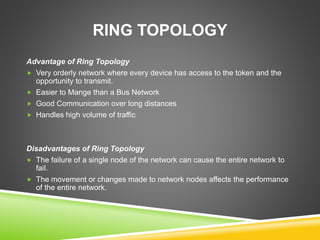

Advantage of Ring Topology
Very orderly network where every device has access to the token and the
opportunity to transmit.
Easier to Mange than a Bus Network
Good Communication over long distances
Handles high volume of traffic
Disadvantages of Ring Topology
The failure of a single node of the network can cause the entire network to
fail.
The movement or changes made to network nodes affects the performance
of the entire network.
10. STAR TOPOLOGY
In a star network, each node (file server, workstations, and peripherals) is
connected to a central device called a hub.
The hub takes a signal that comes from any node and passes it along to all
the other nodes in the network.
Data on a star network passes through the hub, switch, or concentrator
before continuing to its destination.
The hub, switch, or concentrator manages and controls all functions of the
network.
The star topology reduces the chance of network failure by connecting all of
the systems to a central node.
12. STAR TOPOLOGY
Advantages of Star Topology
Easy to manage
Easy to locate problems (cable/workstations)
Easier to expand than a bus or ring topology.
Easy to install and wire.
Easy to detect faults and to remove parts.
Disadvantages of Star Topology
Requires more cable length than a linear topology.
If the hub or concentrator fails, nodes attached are disabled.
More expensive because of the cost of the concentrators.
13. TREE TOPOLOGY
A tree topology (hierarchical topology) can be viewed as a collection
of star networks arranged in a hierarchy.
This tree has individual peripheral nodes which are required to
transmit to and receive from one other only and are not required to
act as repeaters or regenerators.
The tree topology arranges links and nodes into distinct hierarchies
in order to allow greater control and easier troubleshooting.
This is particularly helpful for colleges, universities and schools so
that each of the connect to the big network in some way.
15. TREE TOPOLOGY
Advantages of a Tree Topology
Point-to-point wiring for individual segments.
Supported by several hardware and software vendors.
All the computers have access to the larger and their immediate
networks.
Disadvantages of a Tree Topology
Overall length of each segment is limited by the type of cabling
used.
If the backbone line breaks, the entire segment goes down.
More difficult to configure and wire than other topologies.
16. MESH TOPOLOGY
In this topology, each node is connected to every other node in
the network.
Implementing the mesh topology is expensive and difficult.
In this type of network, each node may send message to
destination through multiple paths.
While the data is travelling on the Mesh Network it is
automatically configured to reach the destination by taking the
shortest route which means the least number of hops.
18. MESH TOPOLOGY
Advantage of Mesh Topology
No traffic problem as there are dedicated links.
It has multiple links, so if one route is blocked then other routes can
be used for data communication.
Points to point links make fault identification easy.
Disadvantage of Mesh Topology
There is mesh of wiring which can be difficult to manage.
Installation is complex as each node is connected to every node.
Cabling cost is high.
19. HYBRID TOPOLOGY
A combination of any two or more network topologies.
A hybrid topology always accrues when two different basic
network topologies are connected.
It is a mixture of above mentioned topologies. Usually, a central
computer is attached with sub-controllers which in turn participate
in a variety of topologies
