- 1. Wong Hin KaiA0098451X Susanne Pihl A0098559E Ushashree Divakar A0098574L Shahnawaz P. Shamsuddin A0098486H Mahnaz D. Damavandi A0066523H Heng Chew Chwee A0098597B Xiao Lizhi Bill A0098493L For information on other new technologies that are becoming economically feasible, see http://www.slideshare.net/Funk98/presentations

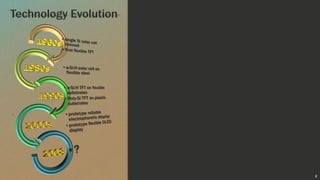

- 2.
- 3.

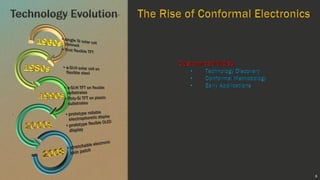

- 4.

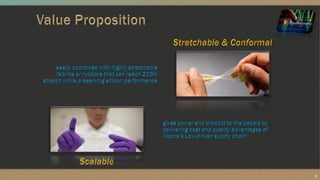

- 5.

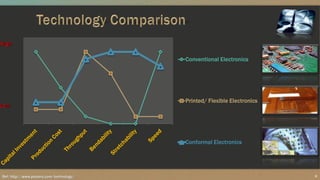

- 6. Conventional Electronics Printed/ FlexibleElectronics Conformal Electronics 6Ref: http://www.polyera.com/technology/

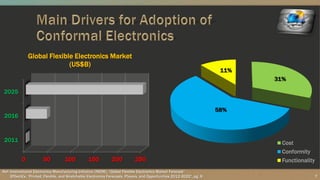

- 7. Cost Conformity Functionality Ref: International ElectronicsManufacturing Initiative (iNEMI), “Global Flexible Electronics Market Forecast” IDTechEx, “Printed, Flexible, and Stretchable Electronics Forecasts, Players, and Opportunities 2012-2022”, pg. 9 0 50 100 150 200 250 2011 2016 2025 Global Flexible Electronics Market (US$B) 7

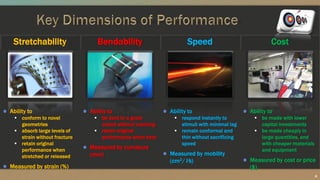

- 8. Stretchability Bendability SpeedCost Ability to conform to novel geometries absorb large levels of strain without fracture retain original performance when stretched or released Measured by strain (%) Ability to be bent to a great extent without cracking retain original performance when bent Measured by curvature (mm) Ability to respond instantly to stimuli with minimal lag remain conformal and thin without sacrificing speed Measured by mobility (cm2/Ѵs) Ability to be made with lower capital investments be made cheaply in large quantities, and with cheaper materials and equipment Measured by cost or price ($) 8
- 9.
- 10. build a stretchymesh with electronics on thin islands connected by springy bridges print mesh onto thin plastic which holds the entire mesh together

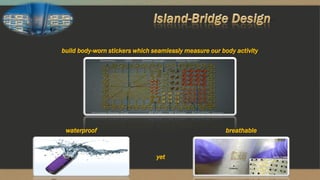

- 11. build body-worn stickerswhich seamlessly measure our body activity breathablewaterproof yet

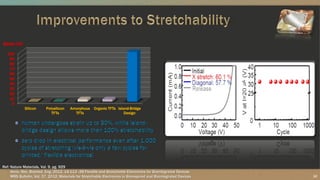

- 12. 0 10 20 30 40 50 60 70 80 90 100 Silicon Polysilicon TFTs Amorphous TFTs Organic TFTsIsland-Bridge Design Strain (%) 12 Ref: Nature Materials, Vol. 9, pg. 929 Annu. Rev. Biomed. Eng. 2012. 14:113–28 Flexible and Stretchable Electronics for Biointegrated Devices MRS Bulletin, Vol. 37, 2012, Materials for Stretchable Electronics in Bioinspired and Biointegrated Devices

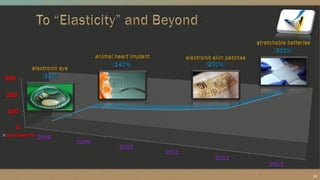

- 13.

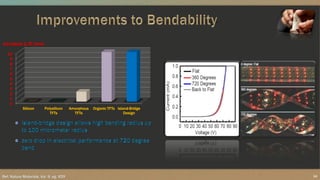

- 14. 0 1 2 3 4 5 6 7 8 9 10 Silicon Polysilicon TFTs Amorphous TFTs Organic TFTsIsland-Bridge Design Curvature 1/R (mm) 14Ref: Nature Materials, Vol. 9, pg. 929

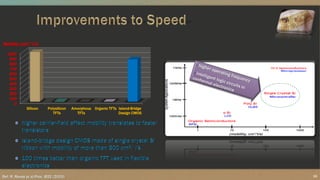

- 15. 0 100 200 300 400 500 600 700 800 900 1000 Silicon Polysilicon TFTs Amorphous TFTs Organic TFTsIsland-Bridge Design CMOS Mobility (cm2/Ѵs) 15Ref: R. Reuss et al.Proc. IEEE (2005)

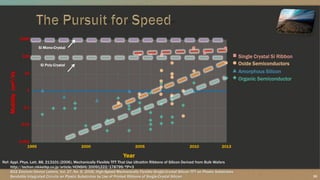

- 16. Mobilitycm2/Vs Single Crystal SiRibbon Oxide Semiconductors Amorphous Silicon Organic Semiconductor 1995 2000 2005 2010 0.001 0.01 0.1 1 100 10 1000 Si Mono-Crystal Si Poly-Crystal 2013 Year 16 Ref: Appl. Phys. Lett. 88, 213101 (2006), Mechanically Flexible TFT That Use Ultrathin Ribbons of Silicon Derived from Bulk Wafers http://techon.nikkeibp.co.jp/article/HONSHI/20091222/178799/?P=3 IEEE Electron Device Letters, Vol. 27, No. 6, 2006, High-Speed Mechanically Flexible Single-Crystal Silicon TFT on Plastic Substrates Bendable Integrated Circuits on Plastic Substrates by Use of Printed Ribbons of Single-Crystal Silicon

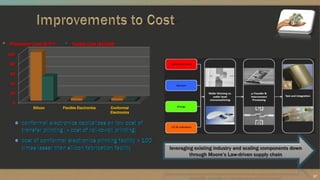

- 17. 0 20 40 60 80 100 Silicon Flexible ElectronicsConformal Electronics Production Cost ($/ft2) Facility Cost ($100M) leveraging existing industry and scaling components down through Moore’s Law-driven supply chain 17

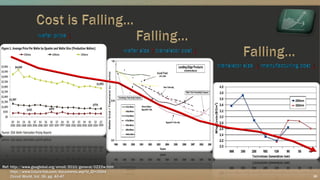

- 18.

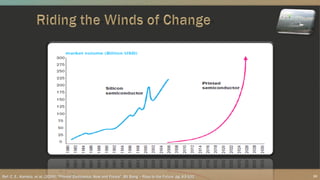

- 19. Ref: C. E.,Kantola, et al. (2009), “Printed Electronics, Now and Future”, Bit Bang – Rays to the Future, pg. 63-102 19

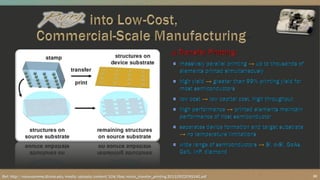

- 20.

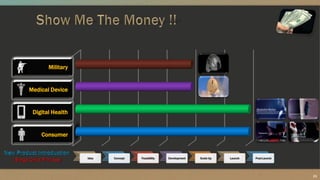

- 21. Consumer Digital Health Medical Device Military IdeaConcept Feasibility Development Scale Up Launch Post-Launch 21

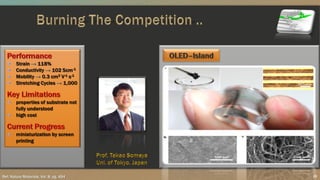

- 22. 22Ref: Nature Materials,Vol. 8, pg. 494
- 23. 23Ref: Advanced Materials,Vol. 23, pg. 3989

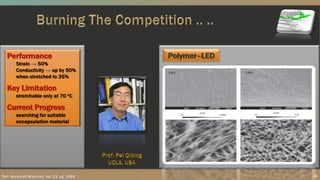

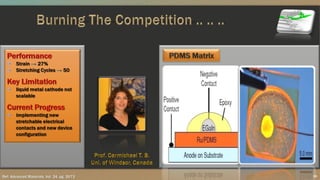

- 24. 24Ref: Advanced Materials,Vol. 24, pg. 2673

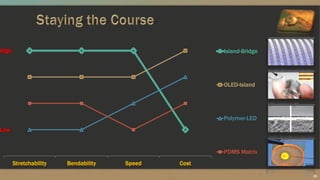

- 25. Stretchability Bendability SpeedCost Island-Bridge OLED-Island Polymer-LED PDMS Matrix High Low 25

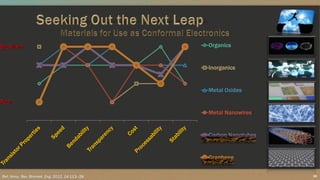

- 26. Ref: Annu. Rev.Biomed. Eng. 2012. 14:113–28 Organics Inorganics Metal Oxides Metal Nanowires Carbon Nanotubes Graphene 26

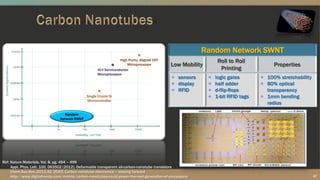

- 27. 27 Random Network SWNT High Purity,Aligned CNT Microprocessor III-V Semiconductor Microprocessor Single Crystal Si Microcontroller Random Network SWNT Low Mobility Roll to Roll Printing Properties sensors display RFID logic gates half adder d-flip-flops 1-bit RFID tags 100% stretchability 80% optical transparency 1mm bending radius Ref: Nature Materials, Vol. 8, pg. 494 – 499 Appl. Phys. Lett. 100, 063502 (2012); Deformable transparent all-carbon-nanotube transistors Chem.Soc.Rev.,2013,42, 2592; Carbon nanotube electronics – moving forward http://www.digitaltrends.com/mobile/carbon-nanotubes-could-power-the-next-generation-of-processors/

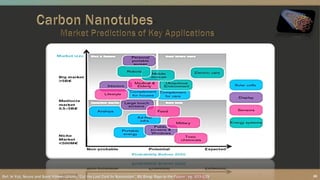

- 28. Ref: In Yrjö,Neuvo and Sami Ylönen (2009), “Cut the Last Cord by Nanolution”, Bit Bang: Rays to the Future , pg. 103-139 28

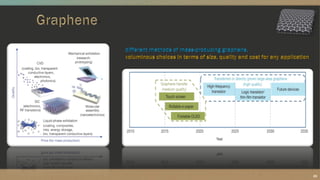

- 29.

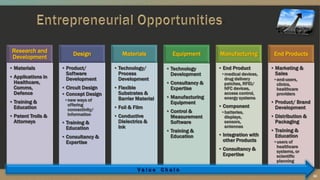

- 30. Research and Development • Materials •Applications in Healthcare, Comms, Defence • Training & Education • Patent Trolls & Attorneys Design • Product/ Software Development • Circuit Design • Concept Design •new ways of offering connectivity/ information • Training & Education • Consultancy & Expertise Materials • Technology/ Process Development • Flexible Substrates & Barrier Material • Foil & Film • Conductive Dielectrics & Ink Equipment • Technology Development • Consultancy & Expertise • Manufacturing Equipment • Control & Measurement Software • Training & Education Manufacturing • End Product •medical devices, drug delivery patches, RFID/ NFC devices, access control, energy systems • Component •batteries, displays, sensors, antennas • Integration with other Products • Consultancy & Expertise End Products • Marketing & Sales •end-users, clinics, healthcare providers • Product/ Brand Development • Distribution & Packaging • Training & Education •users of healthcare systems, or scientific planning 30
