- 1. Truly Flexible Electronicsfor Wearables and Everywhere-ables Indro Mukerjee Chairman , FlexEnable Ltd. Printed Electronics Europe, 2015
- 2. Truly Flexible Electronicsfor Wearables and Everywhere-ables Technology embedding further into our lives………. 28 April 2015 | 2 Everywhere-ables = wearable technology for our environment - furthering the reach of electronics into our lives Technology must be Flexible, Bendable, Formable, Robust https://devcentral.f5.com/articles/oh-is-that-the-internet-youre-wearing http://www.computerworld.com/article/2496611/personal-technology/why-your-clothes-need-a-mobile-upgrade.htm Wearables • On body • In clothes Everywhere-ables • On surfaces and everyday objects
- 3. Truly Flexible Electronicsfor Wearables and Everywhere-ables Wearable Technology is the obvious next step………. In our rooms In our bags / carried In our pockets On our bodies In our clothes 28 April 2015 | 3
- 4. Truly Flexible Electronicsfor Wearables and Everywhere-ables Wearable technology is not new… • Wearable technology has been around for many years… • …and function ultimately adapts to fashion / social norms http://www.tie-a-tie.net/blog/the-evolution-of-the-necktie/ Functional Tie (Croatian, 17th Century) Fashion Tie (21st Century) Example: The Neck Tie 28 April 2015 | 4

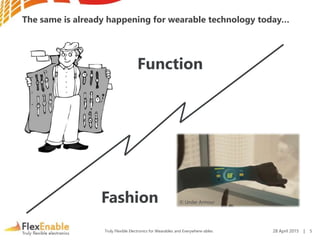

- 5. Truly Flexible Electronicsfor Wearables and Everywhere-ables The same is already happening for wearable technology today… Function Fashion © Under Armour 28 April 2015 | 5

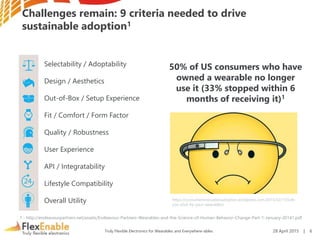

- 6. Truly Flexible Electronicsfor Wearables and Everywhere-ables Challenges remain: 9 criteria needed to drive sustainable adoption1 1 - http://endeavourpartners.net/assets/Endeavour-Partners-Wearables-and-the-Science-of-Human-Behavior-Change-Part-1-January-20141.pdf Selectability / Adoptability Design / Aesthetics Out-of-Box / Setup Experience Fit / Comfort / Form Factor Quality / Robustness User Experience API / Integratability Lifestyle Compatibility Overall Utility 50% of US consumers who have owned a wearable no longer use it (33% stopped within 6 months of receiving it)1 https://consumerinnovationadoption.wordpress.com/2015/02/13/will- you-stick-by-your-wearables/ 28 April 2015 | 6

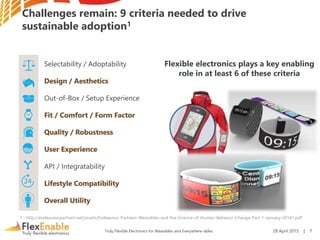

- 7. Truly Flexible Electronicsfor Wearables and Everywhere-ables Challenges remain: 9 criteria needed to drive sustainable adoption1 1 - http://endeavourpartners.net/assets/Endeavour-Partners-Wearables-and-the-Science-of-Human-Behavior-Change-Part-1-January-20141.pdf Selectability / Adoptability Out-of-Box / Setup Experience API / Integratability Flexible electronics plays a key enabling role in at least 6 of these criteria 28 April 2015 | 7

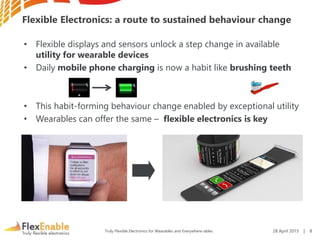

- 8. Truly Flexible Electronicsfor Wearables and Everywhere-ables Flexible Electronics: a route to sustained behaviour change • Flexible displays and sensors unlock a step change in available utility for wearable devices • Daily mobile phone charging is now a habit like brushing teeth • This habit-forming behaviour change enabled by exceptional utility • Wearables can offer the same – flexible electronics is key 28 April 2015 | 8
- 9. Truly Flexible Electronicsfor Wearables and Everywhere-ables Introducing FlexEnable 28 April 2015 | 9
- 10. Truly Flexible Electronicsfor Wearables and Everywhere-ables A uniquely enabling technology… • The most significant new transistor and flexible electronics platform in decades- based on high performance Organic Thin Film Transistor (OTFT) • Enables true flexibility, bendability and unbreakability, for displays, sensors & entire electronics systems on plastic • Fully industrialised and suitable for all high volume display (LCD,OLED,EPD) & sensor technologies ……launching a spectacular future for flexible electronics 28 April 2015 | 10

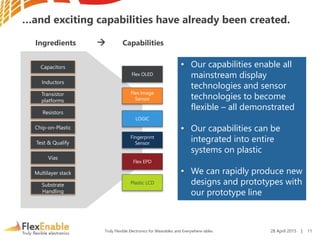

- 11. Truly Flexible Electronicsfor Wearables and Everywhere-ables …and exciting capabilities have already been created. Capacitors Inductors Resistors Chip-on-Plastic Test & Qualify Transistor platforms Flex OLED Flex Image Sensor LOGIC Fingerprint Sensor Flex EPD Plastic LCD Vias Multilayer stack Substrate Handling • Our capabilities enable all mainstream display technologies and sensor technologies to become flexible – all demonstrated • Our capabilities can be integrated into entire systems on plastic • We can rapidly produce new designs and prototypes with our prototype line Ingredients Capabilities 28 April 2015 | 11

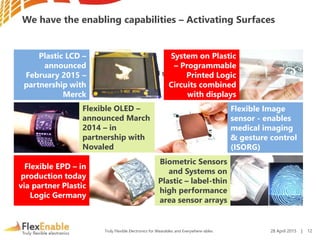

- 12. Truly Flexible Electronicsfor Wearables and Everywhere-ables We have the enabling capabilities – Activating Surfaces Plastic LCD – announced February 2015 – partnership with Merck Flexible EPD – in production today via partner Plastic Logic Germany Flexible OLED – announced March 2014 – in partnership with Novaled System on Plastic – Programmable Printed Logic Circuits combined with displays Flexible Image sensor - enables medical imaging & gesture control (ISORG) Biometric Sensors and Systems on Plastic – label-thin high performance area sensor arrays 28 April 2015 | 12

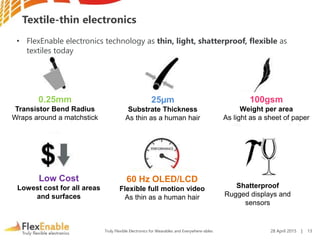

- 13. Truly Flexible Electronicsfor Wearables and Everywhere-ables Textile-thin electronics 0.25mm Transistor Bend Radius Wraps around a matchstick 25µm Substrate Thickness As thin as a human hair 100gsm Weight per area As light as a sheet of paper 60 Hz OLED/LCD Flexible full motion video As thin as a human hair Low Cost Lowest cost for all areas and surfaces Shatterproof Rugged displays and sensors • FlexEnable electronics technology as thin, light, shatterproof, flexible as textiles today 28 April 2015 | 13

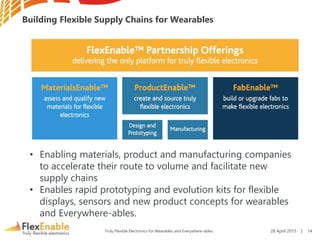

- 14. Truly Flexible Electronicsfor Wearables and Everywhere-ables Building Flexible Supply Chains for Wearables • Enabling materials, product and manufacturing companies to accelerate their route to volume and facilitate new supply chains • Enables rapid prototyping and evolution kits for flexible displays, sensors and new product concepts for wearables and Everywhere-ables. 28 April 2015 | 14
- 15. Truly Flexible Electronicsfor Wearables and Everywhere-ables A tale of two industries – with no previous overlap • We are partnering with materials, product, manufacturing companies Flexible Electronics Textiles & Clothing Designers & Manufacturers 28 April 2015 | 15

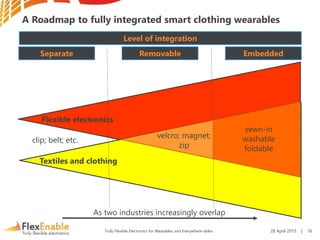

- 16. Truly Flexible Electronicsfor Wearables and Everywhere-ables A Roadmap to fully integrated smart clothing wearables Removable EmbeddedSeparate Flexible electronics Textiles and clothing Level of integration clip; belt; etc. As two industries increasingly overlap velcro; magnet; zip sewn-in washable foldable 28 April 2015 | 16

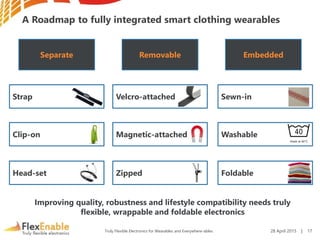

- 17. Truly Flexible Electronicsfor Wearables and Everywhere-ables A Roadmap to fully integrated smart clothing wearables Removable Washable Embedded Zipped Velcro-attached Magnetic-attached Sewn-in Foldable Separate Head-set Strap Clip-on Improving quality, robustness and lifestyle compatibility needs truly flexible, wrappable and foldable electronics 28 April 2015 | 17
- 18. Truly Flexible Electronicsfor Wearables and Everywhere-ables Example: Gesture-controlled Smart Sleeve – System on Plastic Sports jacket flexible display Flexible light sensors Flexible curved display • Light, thin, curved display, gesture- controllable in all conditions • Lightweight, glass-free makes magnetic attachment effective and reliable • Can be easily removed for washing the garment, or transferring to another • Option to add wireless charging within the fabric of the jacket itself 28 April 2015 | 18
- 19. Truly Flexible Electronicsfor Wearables and Everywhere-ables Everywhere-ables • Embedding technology into the world around us • Conforming technology to our world, not the other way round. • Activating surfaces – for sensing and displaying data 28 April 2015 | 19

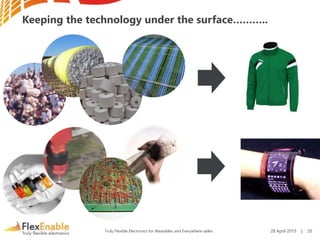

- 20. Truly Flexible Electronicsfor Wearables and Everywhere-ables Keeping the technology under the surface……….. 28 April 2015 | 20

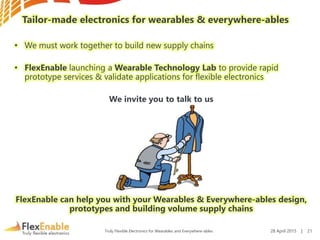

- 21. Truly Flexible Electronicsfor Wearables and Everywhere-ables Tailor-made electronics for wearables & everywhere-ables • We must work together to build new supply chains • FlexEnable launching a Wearable Technology Lab to provide rapid prototype services & validate applications for flexible electronics We invite you to talk to us FlexEnable can help you with your Wearables & Everywhere-ables design, prototypes and building volume supply chains 28 April 2015 | 21
