The document outlines a webinar lab practice on MPLS using RouterOS v7, led by M. Taufik Nurhuda, a certified Mikrotik trainer. It discusses the differences between MPLS on RouterOS v6 and v7, including configuration aspects such as LDP and VPLS. Additional resources and configurations are provided through linked documentation.

1. MPLS
On RouterOS v7
GLC Networks
Colaboration
Webinar
Lab Practice

2. Profile
Name : M. Taufik Nurhuda
Work : Guru TKJ, IT Support, Mikrotik Academy Trainer
SMK Pelita Pesawaran
Mikrotik Certified :
MTCNA/RE/ACTR/INE/IPv6/WE/SE/UME/TCE
Facebook : https://www.facebook.com/taufik.nurhuda.5/
LinkedIn :
https://www.linkedin.com/in/taufik-nurhuda-5224b1180/
Website : www.taufiknurhuda.web.id

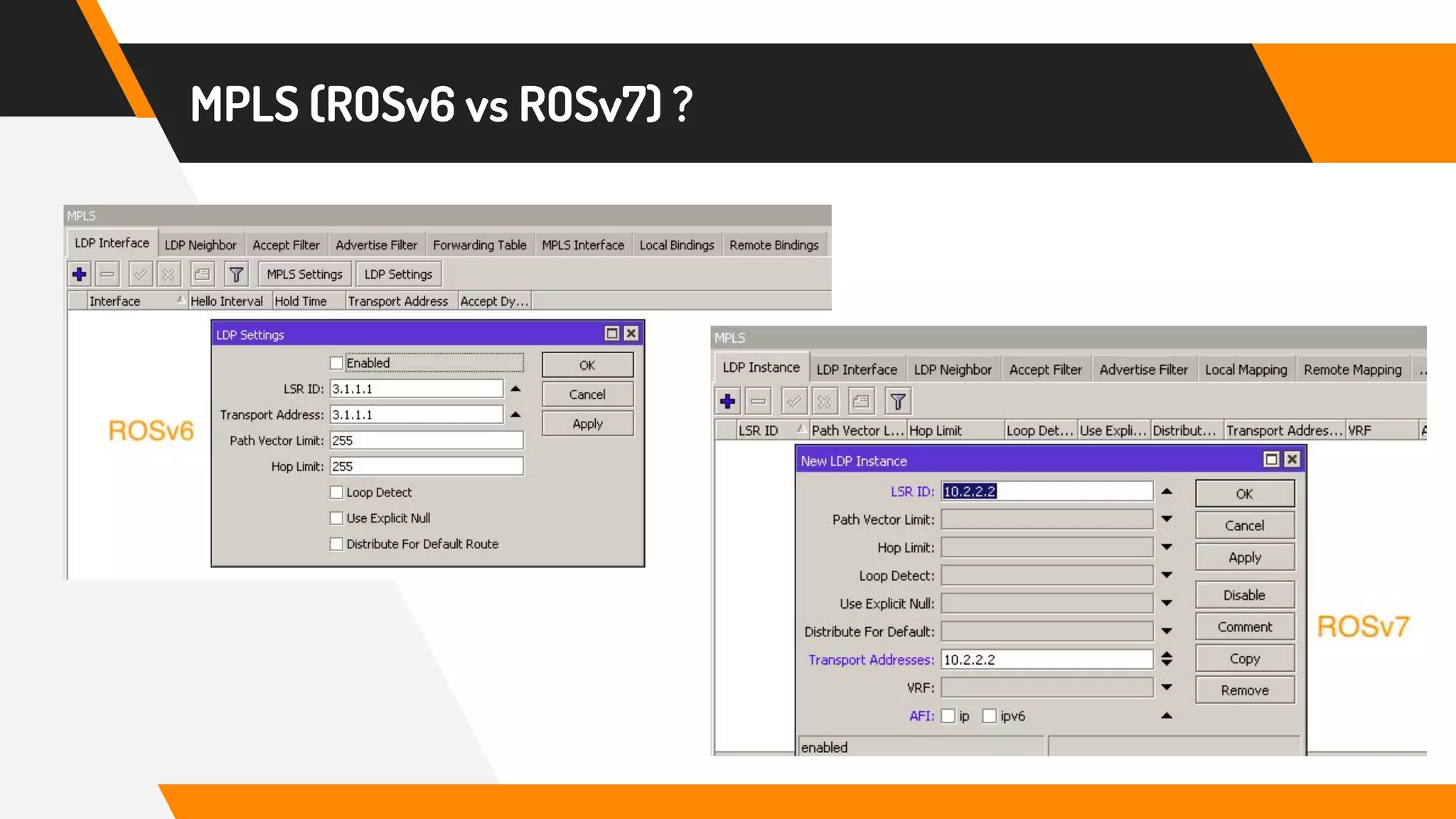

3. MPLS (ROSv6 vs ROSv7) ?

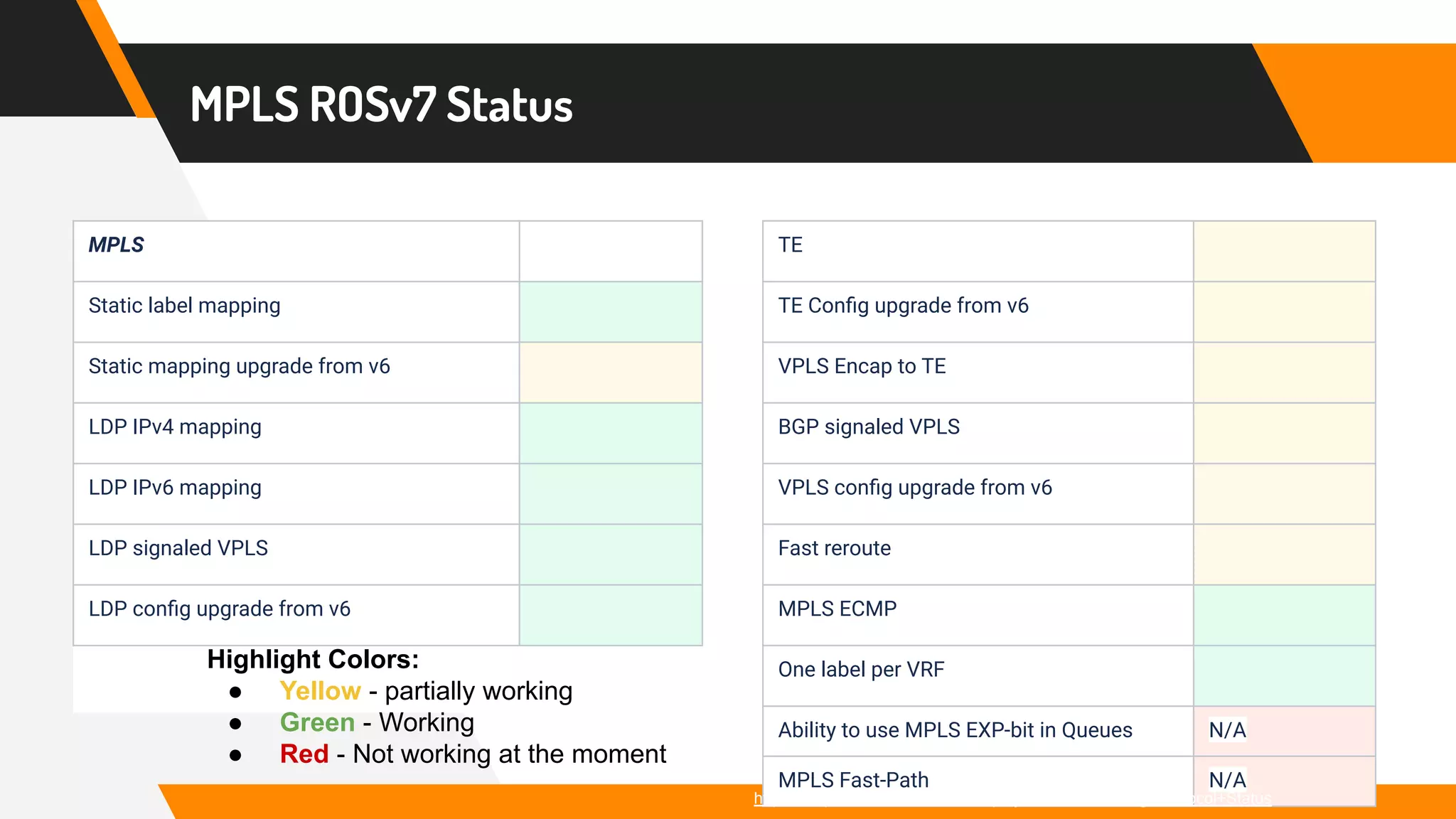

4. MPLS ROSv7 Status
MPLS
Static label mapping
Static mapping upgrade from v6
LDP IPv4 mapping
LDP IPv6 mapping
LDP signaled VPLS
LDP config upgrade from v6
TE
TE Config upgrade from v6
VPLS Encap to TE
BGP signaled VPLS
VPLS config upgrade from v6
Fast reroute
MPLS ECMP
One label per VRF
Ability to use MPLS EXP-bit in Queues N/A
MPLS Fast-Path N/A
Highlight Colors:
● Yellow - partially working
● Green - Working
● Red - Not working at the moment
https://help.mikrotik.com/docs/display/ROS/v7+Routing+Protocol+Status

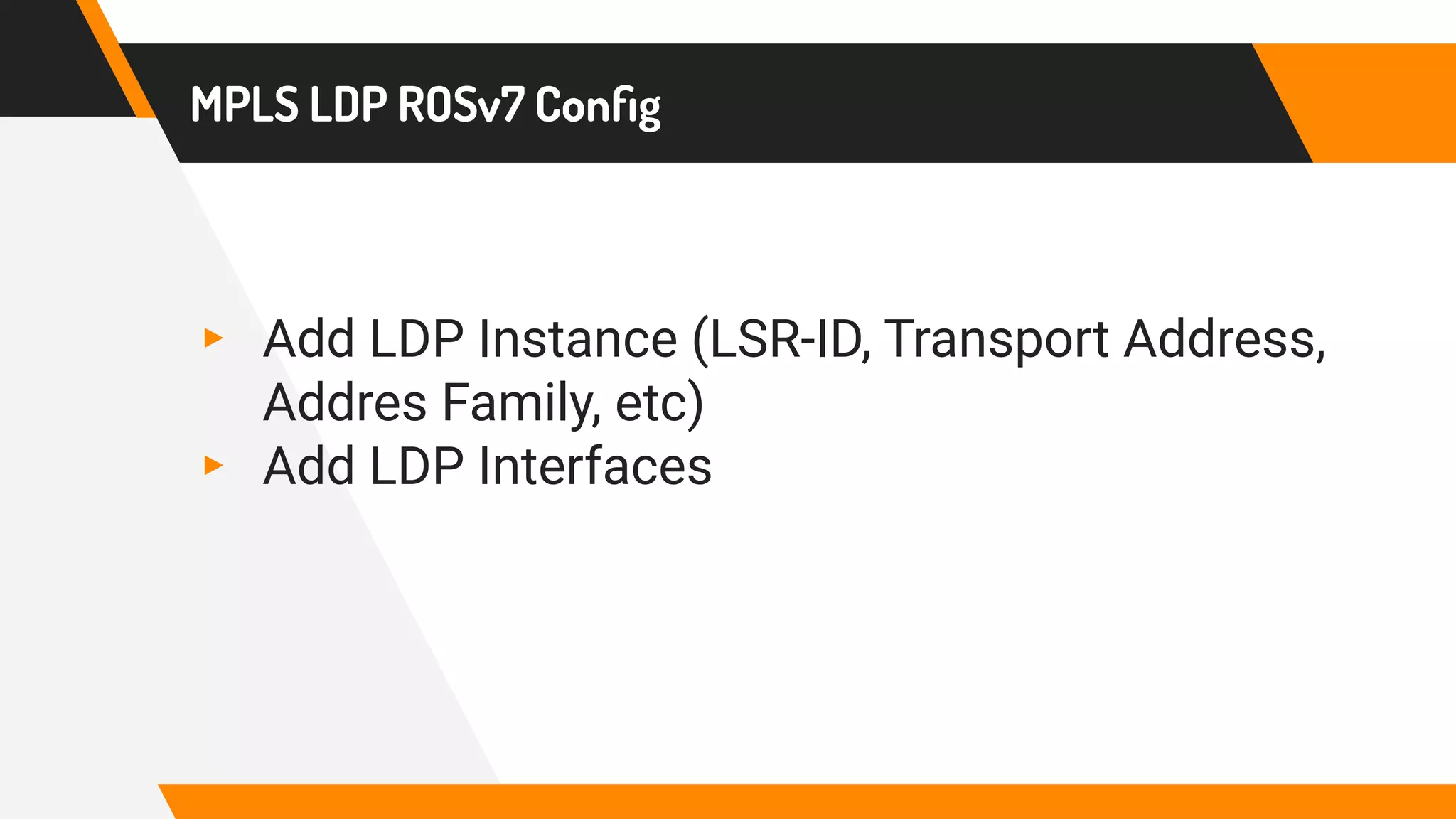

5. MPLS LDP ROSv7 Config
▸ Add LDP Instance (LSR-ID, Transport Address,
Addres Family, etc)
▸ Add LDP Interfaces

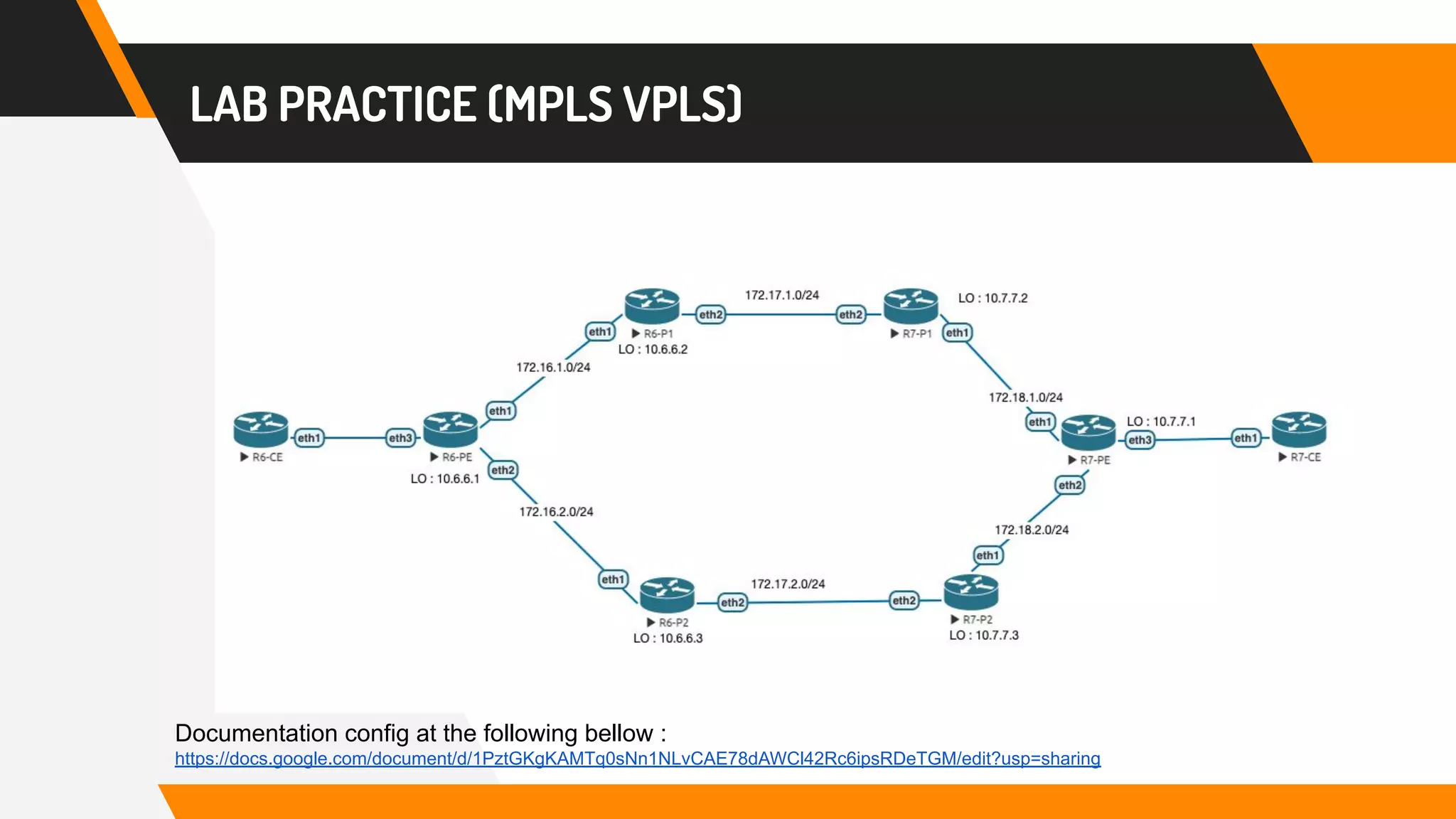

6. LAB PRACTICE (MPLS VPLS)
Documentation config at the following bellow :
https://docs.google.com/document/d/1PztGKgKAMTq0sNn1NLvCAE78dAWCl42Rc6ipsRDeTGM/edit?usp=sharing

7. THANKS
