This document discusses hard and soft gelatin capsules. Gelatin capsules enclose drug substances within soluble shells, usually made from gelatin derived from animal bones and hides. Hard gelatin capsules are prepared through dipping, spinning, drying, stripping and trimming processes. Soft gelatin capsules are manufactured using one of four methods: plate, rotary die, reciprocating die or Accogel machine. The document describes the soft gelatin capsule production process and lists common evaluation tests for capsules including weight variation, content uniformity, dissolution and disintegration.

1. NASRIN AKTER MUKTA
Faculty of Veterinary Science
Bangladesh Agricultural University

2.  Introduction
 Hard gelatin capsule
 Soft gelatin capsule
 Evaluation of capsule

3. Capsules are solid dosage forms in which drug
substance is enclosed within hard or soft
soluble shell . The shells are generally formed
from gelatin.
Capsules are of two types
1.Hard gelatin capsules
2.Soft gelatin capsules

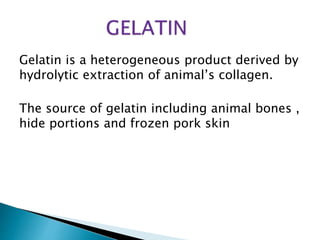

4. Gelatin is a heterogeneous product derived by
hydrolytic extraction of animal’s collagen.
The source of gelatin including animal bones ,
hide portions and frozen pork skin

5. Methods of preparation of hard gelatin
capsule shells
 Dipping
 Spinning
 Drying
 Stripping
 Trimming
 Joining

6. Methods of preparation of capsule shell
.

7. Developing and
preparing formulation
Filling the capsule
shell
Capsule sealing
Cleaning and polishing
the filled capsules

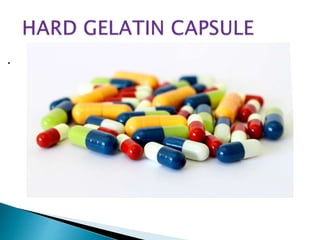

9. .

10. Is manufactured by four methods
1.Plate process
2.Rotary die process
3.Reciprocating die
4.Accogel machine

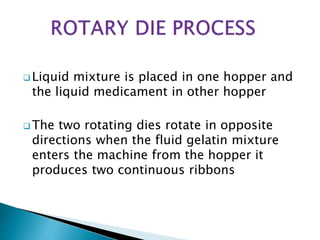

11.  Liquid mixture is placed in one hopper and
the liquid medicament in other hopper
 The two rotating dies rotate in opposite
directions when the fluid gelatin mixture
enters the machine from the hopper it
produces two continuous ribbons

12.  These half shell of the capsule is formed
 At this stage medicament is filled into it
with the stroke of a pump with subsequent
movement of the dies the other half capsule
is formed
 The two halves of the capsules are sealed
together by the heat and pressure of the
rotating dies
 As the die rolls rotate , the matching die
pocket seals and cuts out the filled
capsules.

13. .

15.  Weight variation test
 Content uniformity test
 Dissolution test
 Disintegration test
