GBH Enterprises, Ltd.

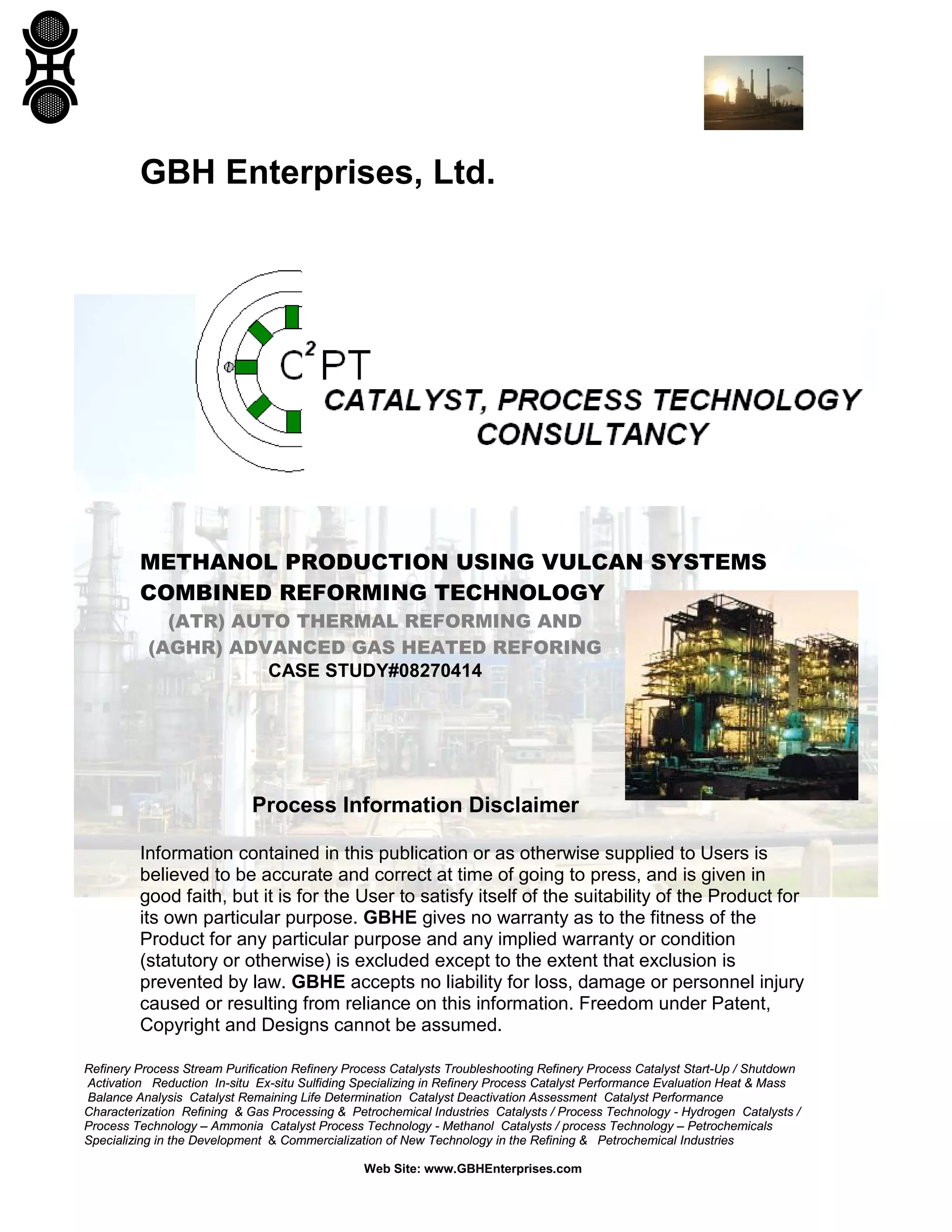

METHANOL PRODUCTION USING VULCAN SYSTEMS
COMBINED REFORMING TECHNOLOGY
(ATR) AUTO THERMAL REFORMING AND
(AGHR) ADVANCED GAS HEATED REFORING
CASE STUDY#08270414
Process Information Disclaimer
Information contained in this publication or as otherwise supplied to Users is
believed to be accurate and correct at time of going to press, and is given in
good faith, but it is for the User to satisfy itself of the suitability of the Product for
its own particular purpose. GBHE gives no warranty as to the fitness of the
Product for any particular purpose and any implied warranty or condition
(statutory or otherwise) is excluded except to the extent that exclusion is
prevented by law. GBHE accepts no liability for loss, damage or personnel injury
caused or resulting from reliance on this information. Freedom under Patent,
Copyright and Designs cannot be assumed.

2. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

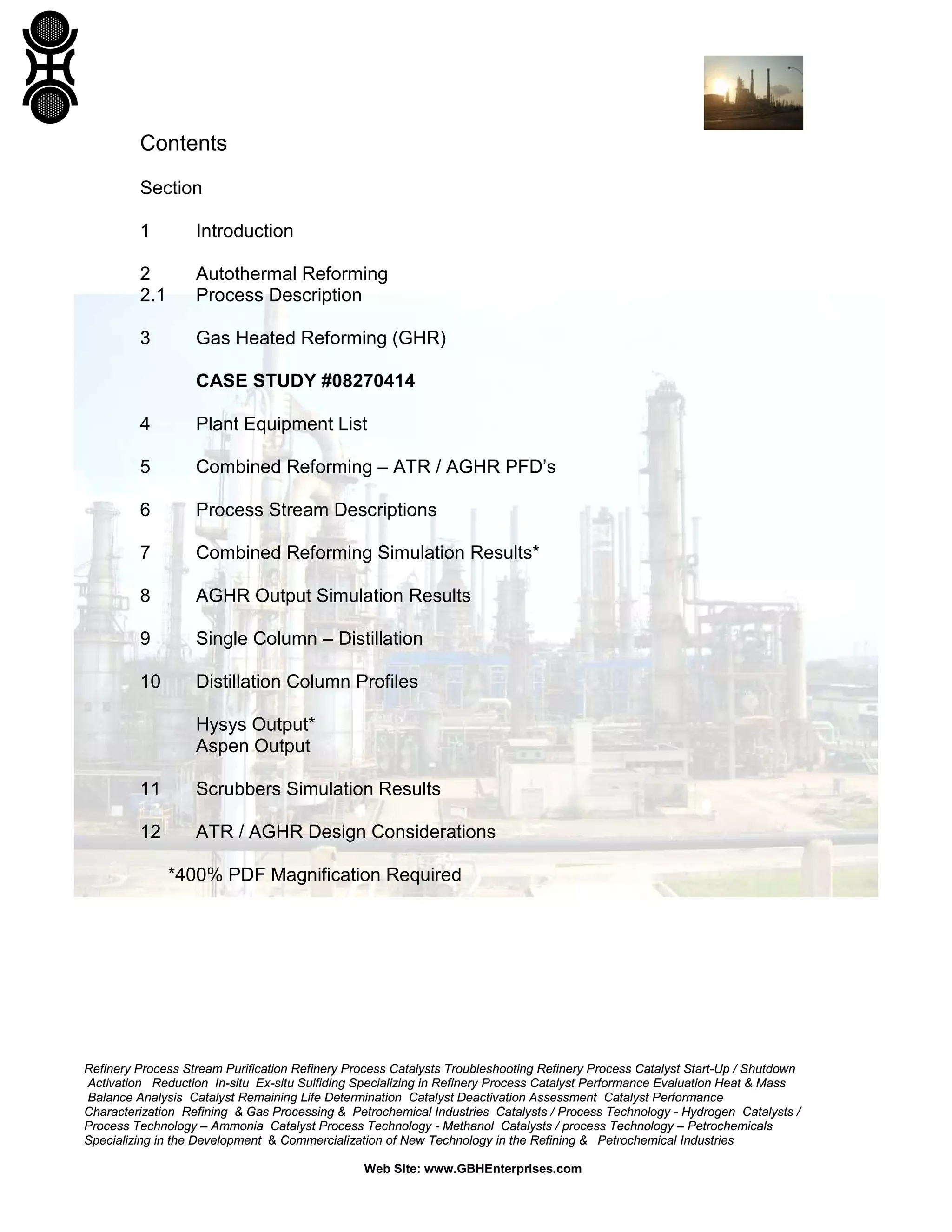

Contents
Section
1 Introduction
2 Autothermal Reforming
2.1 Process Description

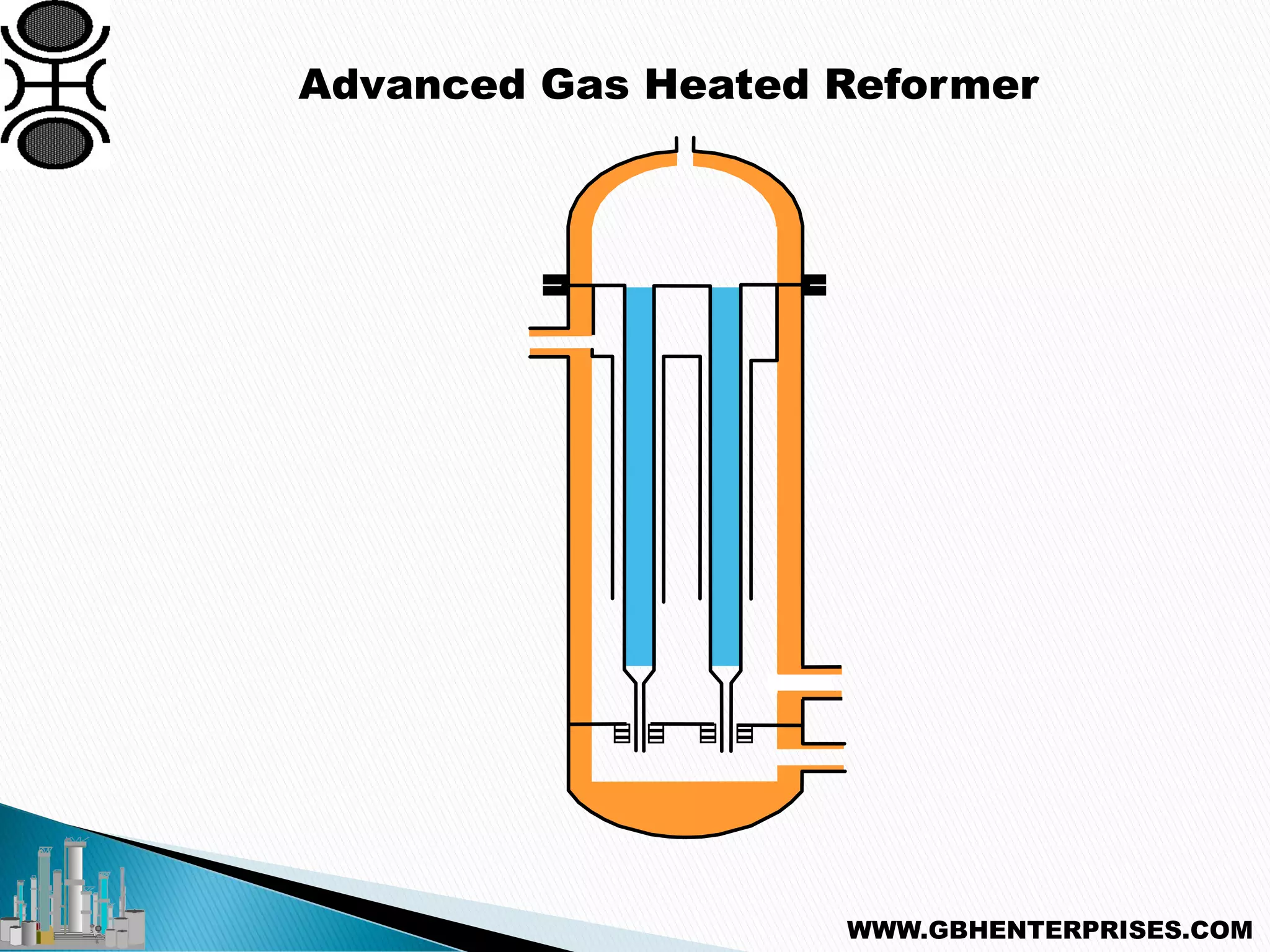

3 Gas Heated Reforming (GHR)
CASE STUDY #08270414

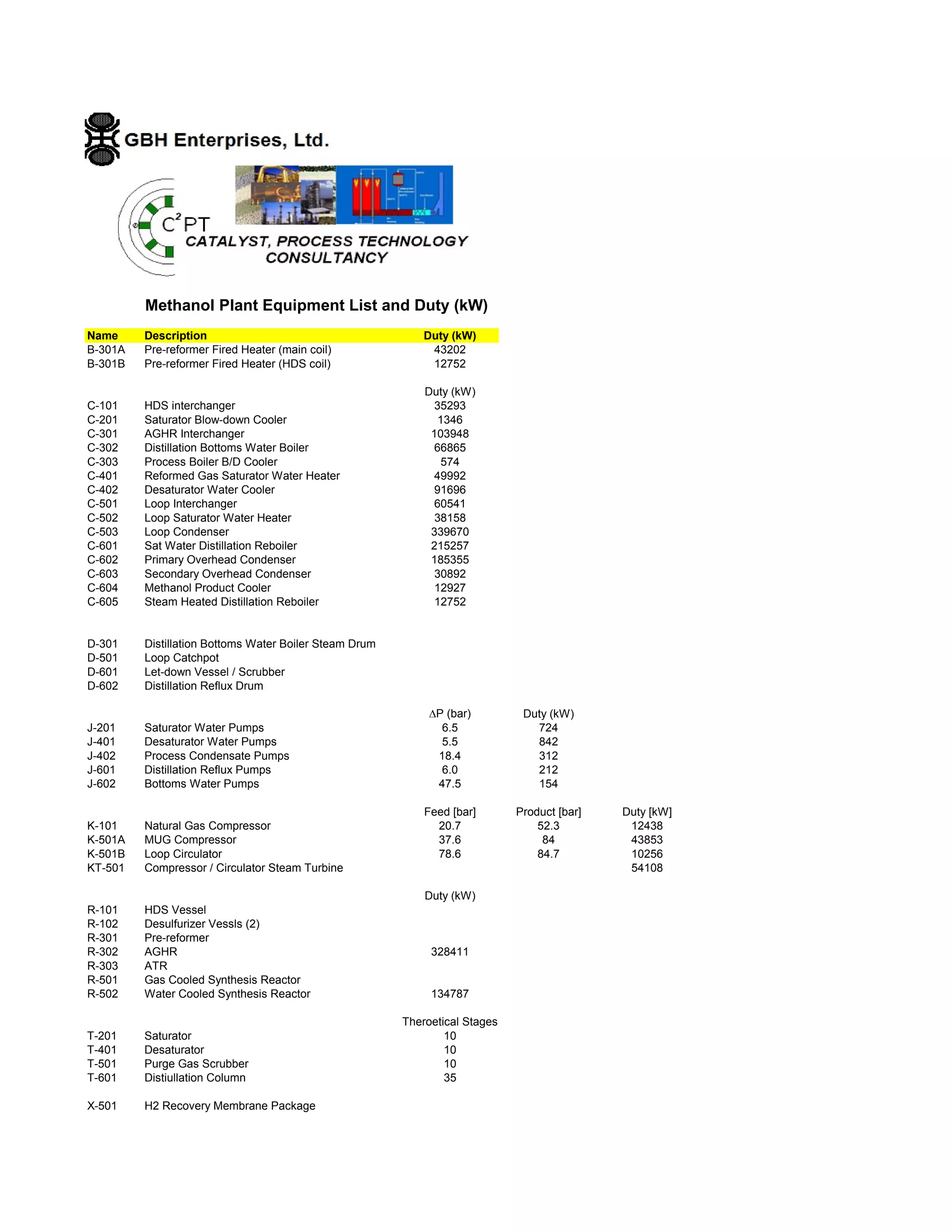

4 Plant Equipment List

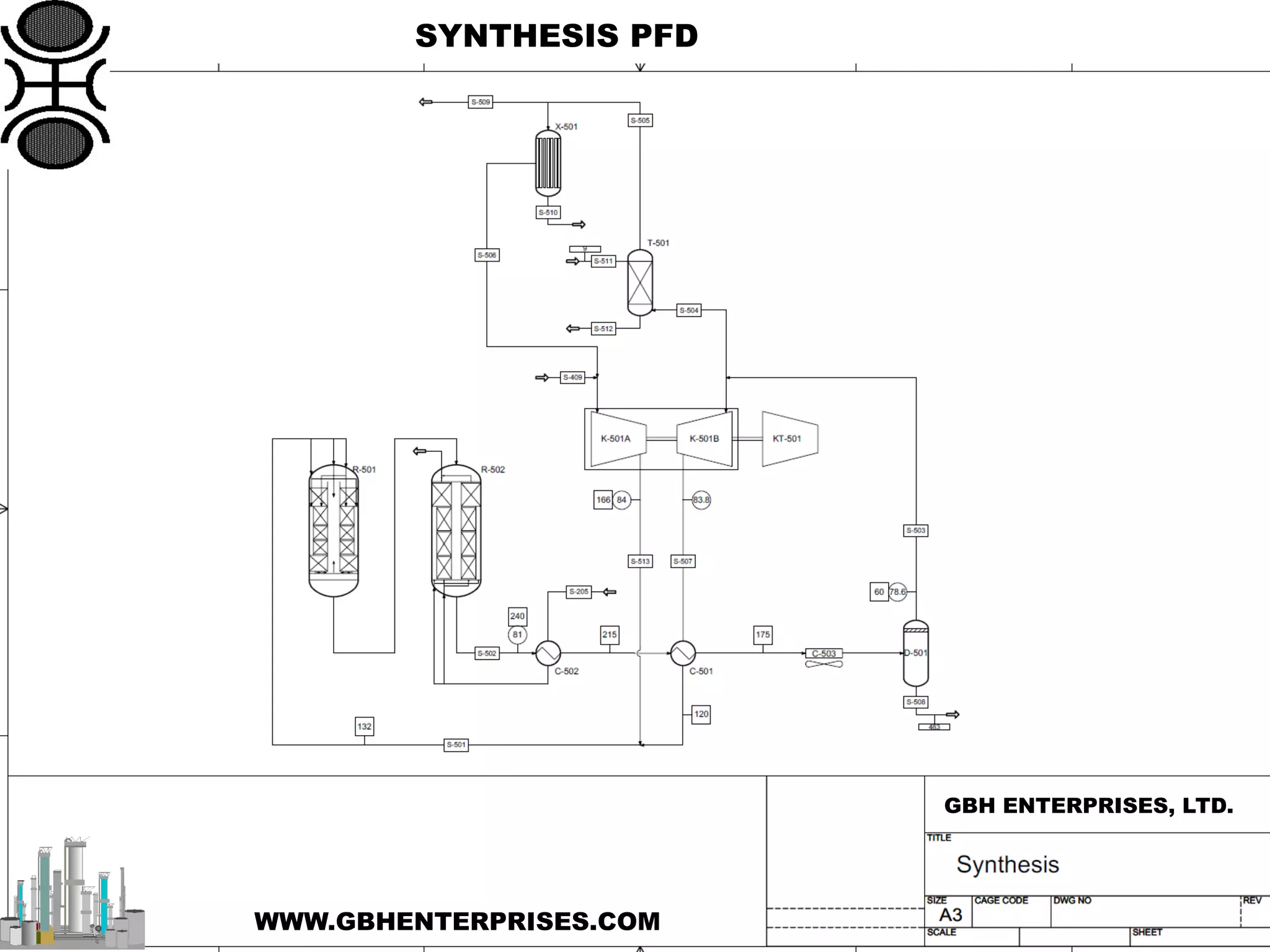

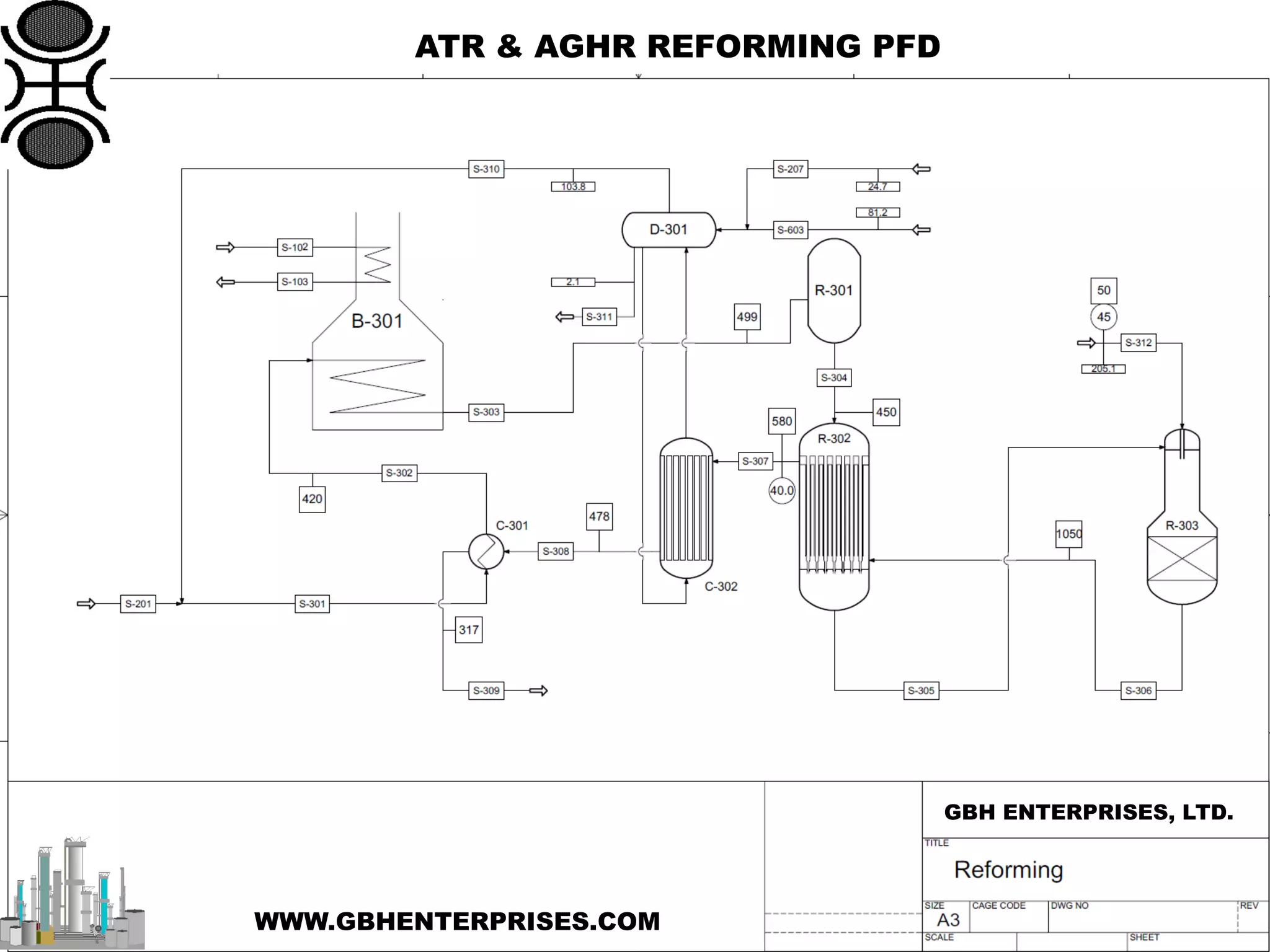

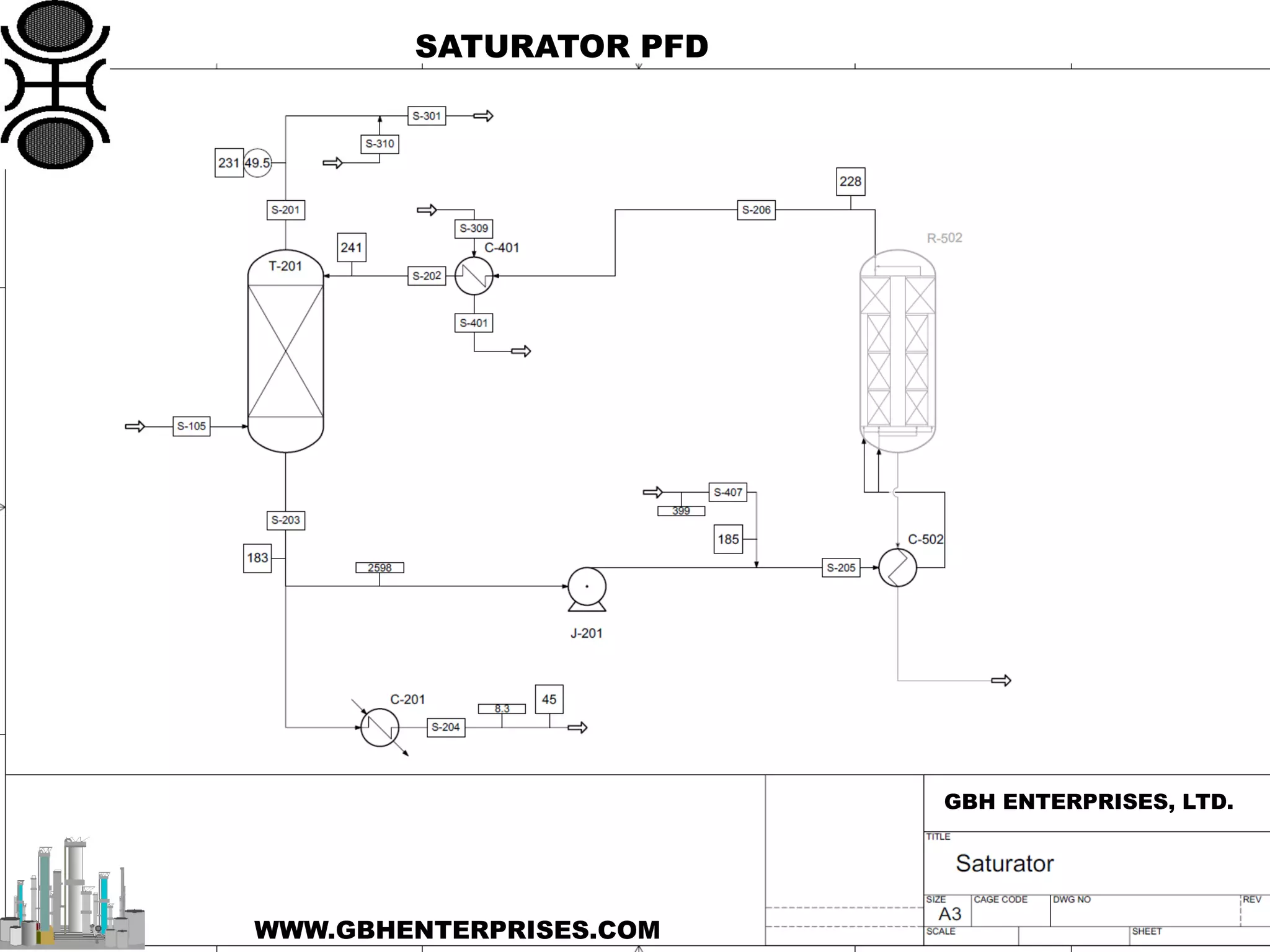

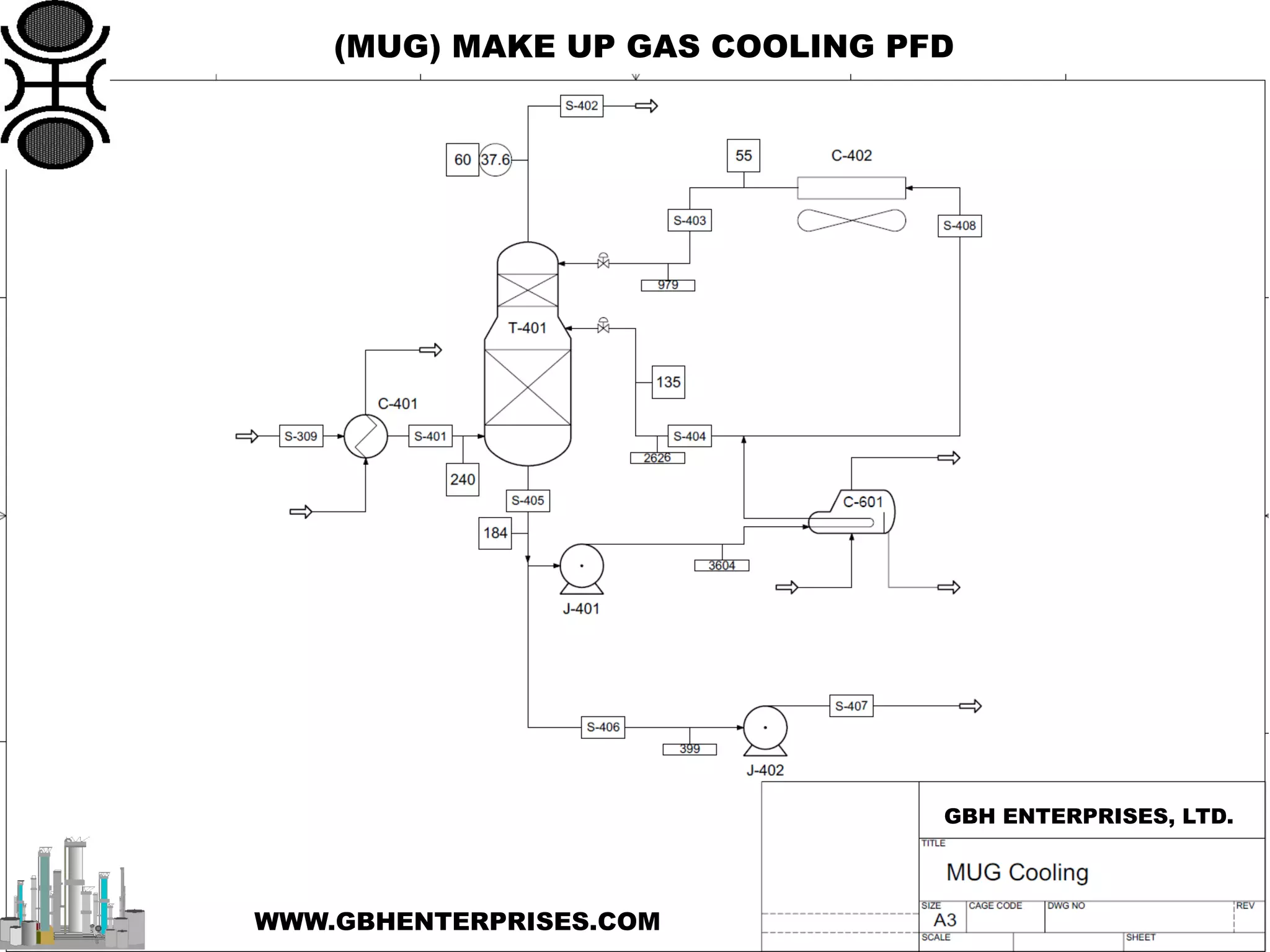

5 Combined Reforming – ATR / AGHR PFD’s

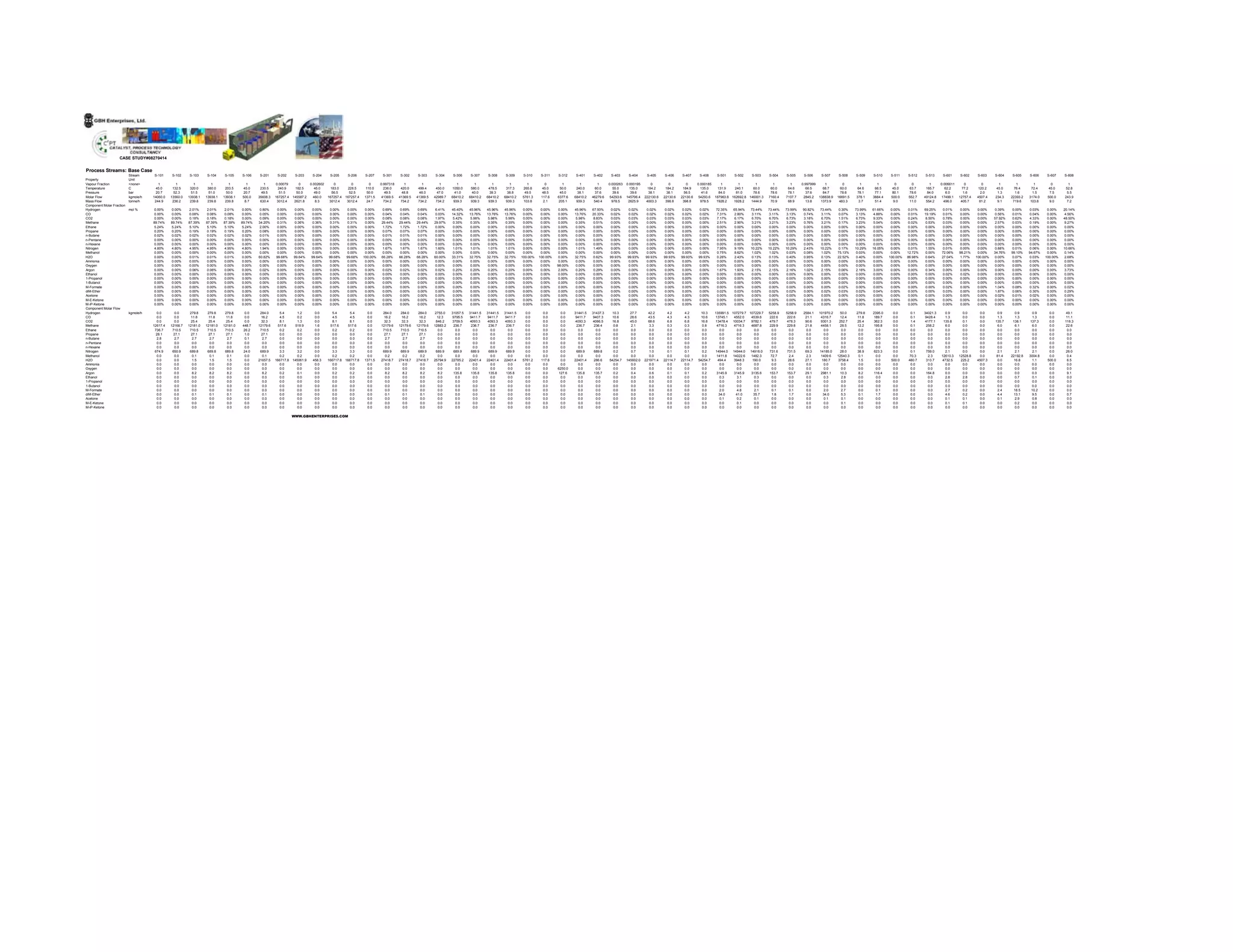

6 Process Stream Descriptions

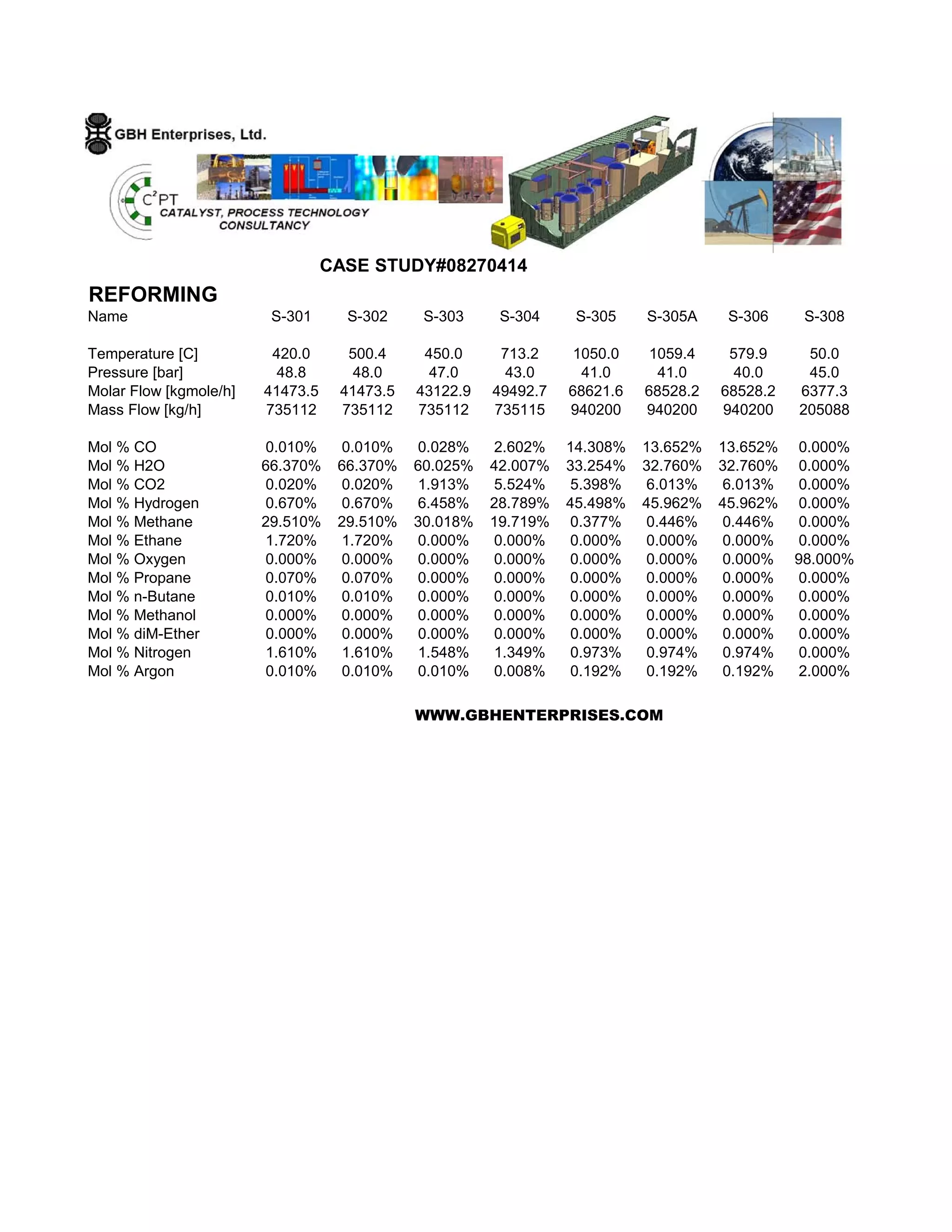

7 Combined Reforming Simulation Results*

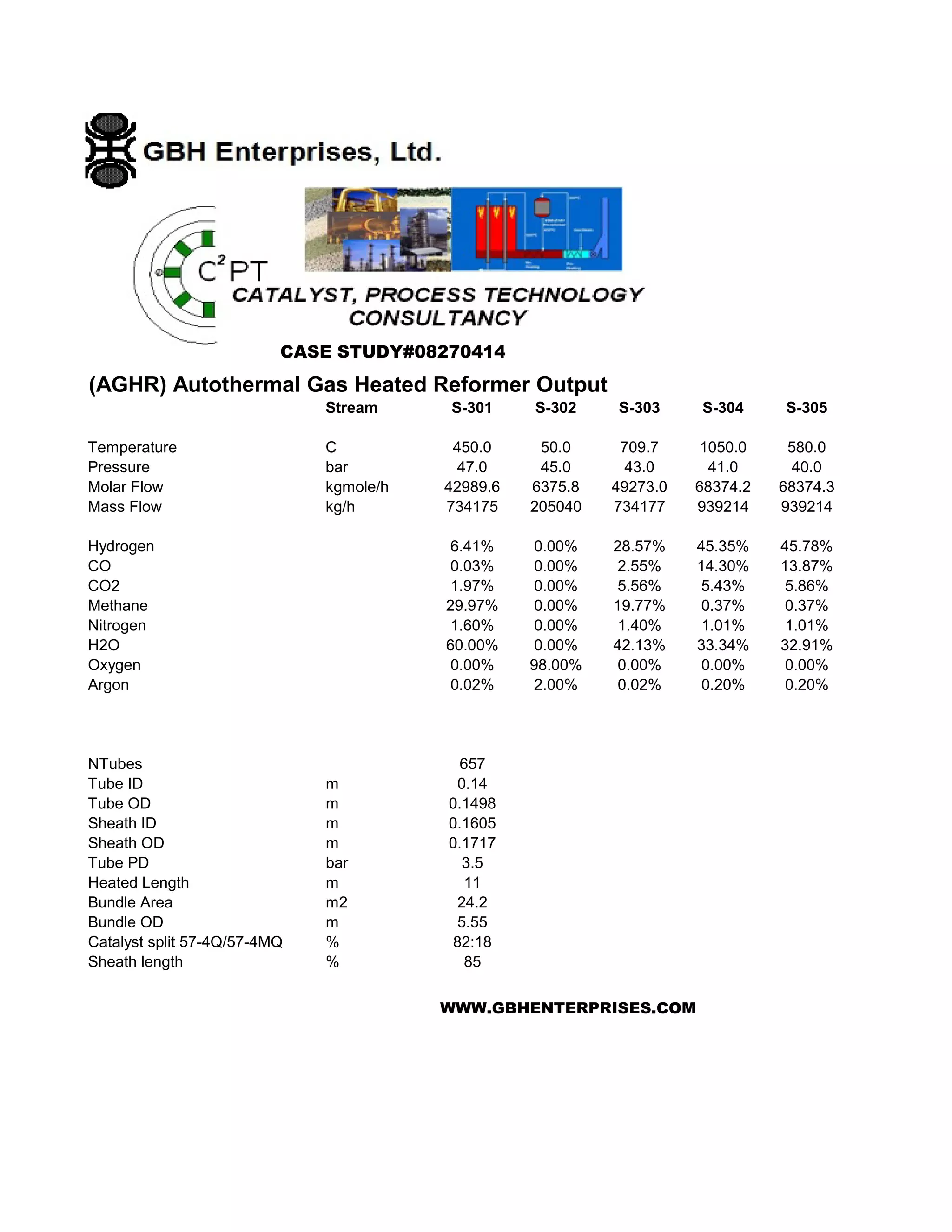

8 AGHR Output Simulation Results

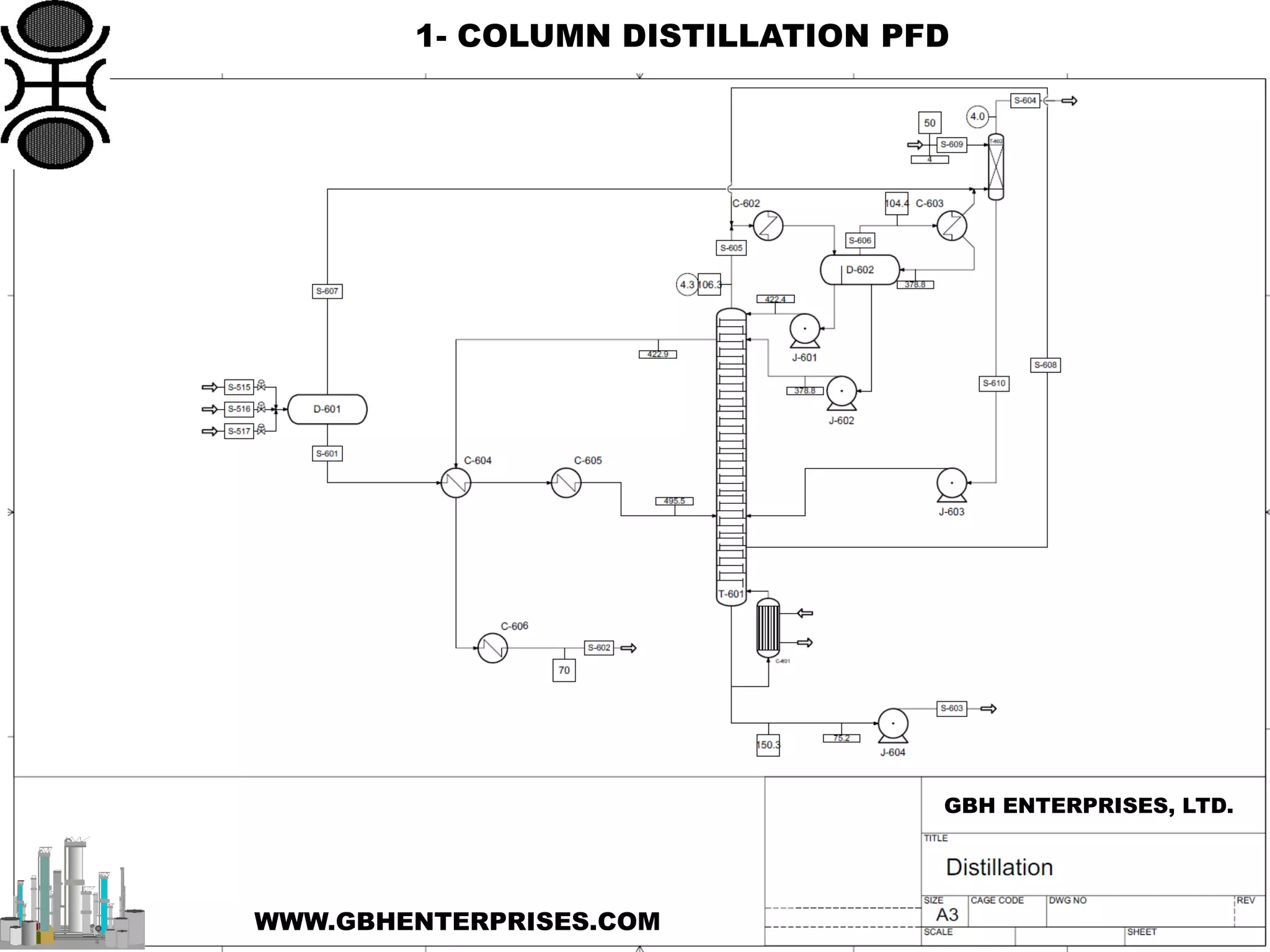

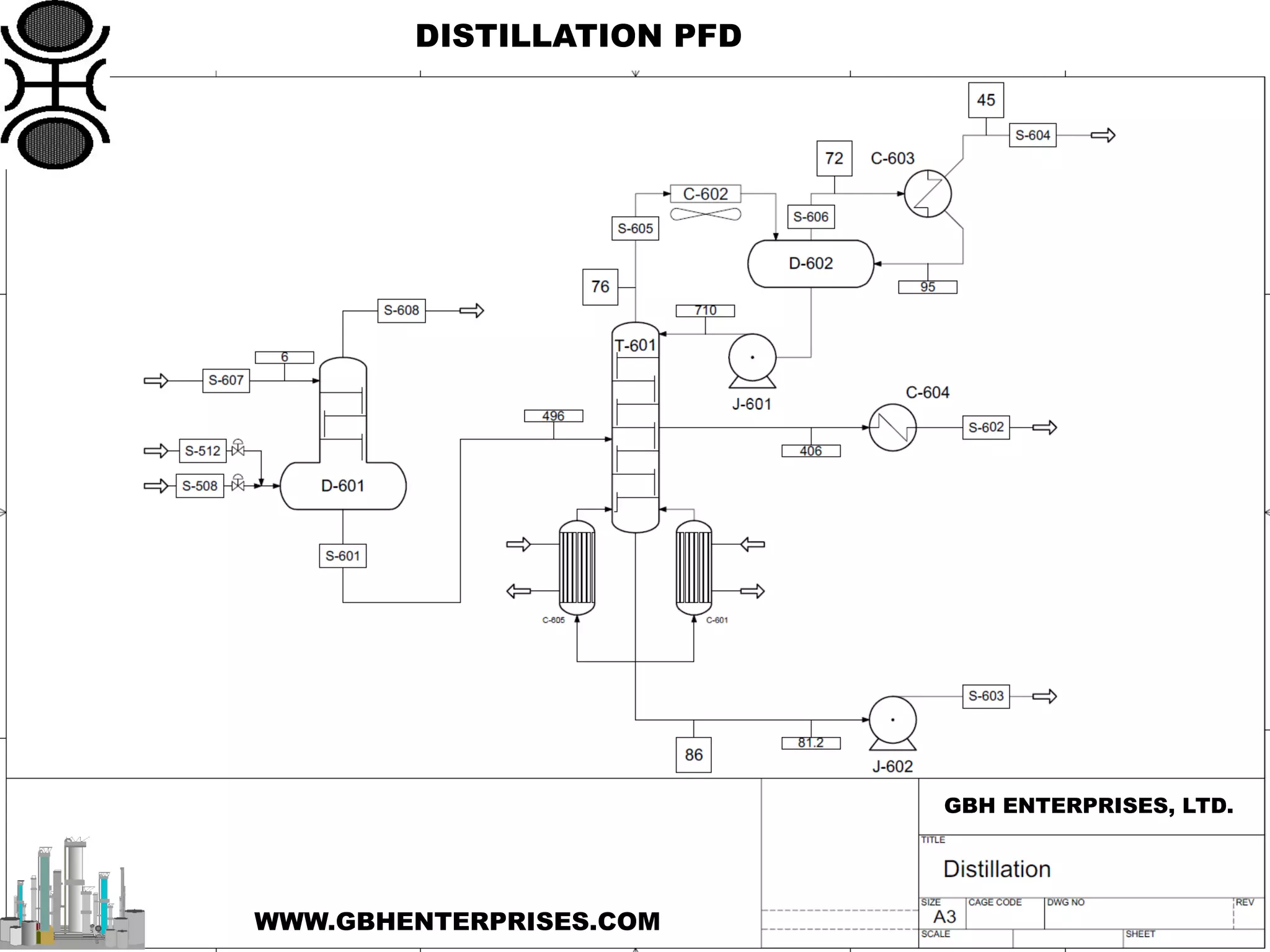

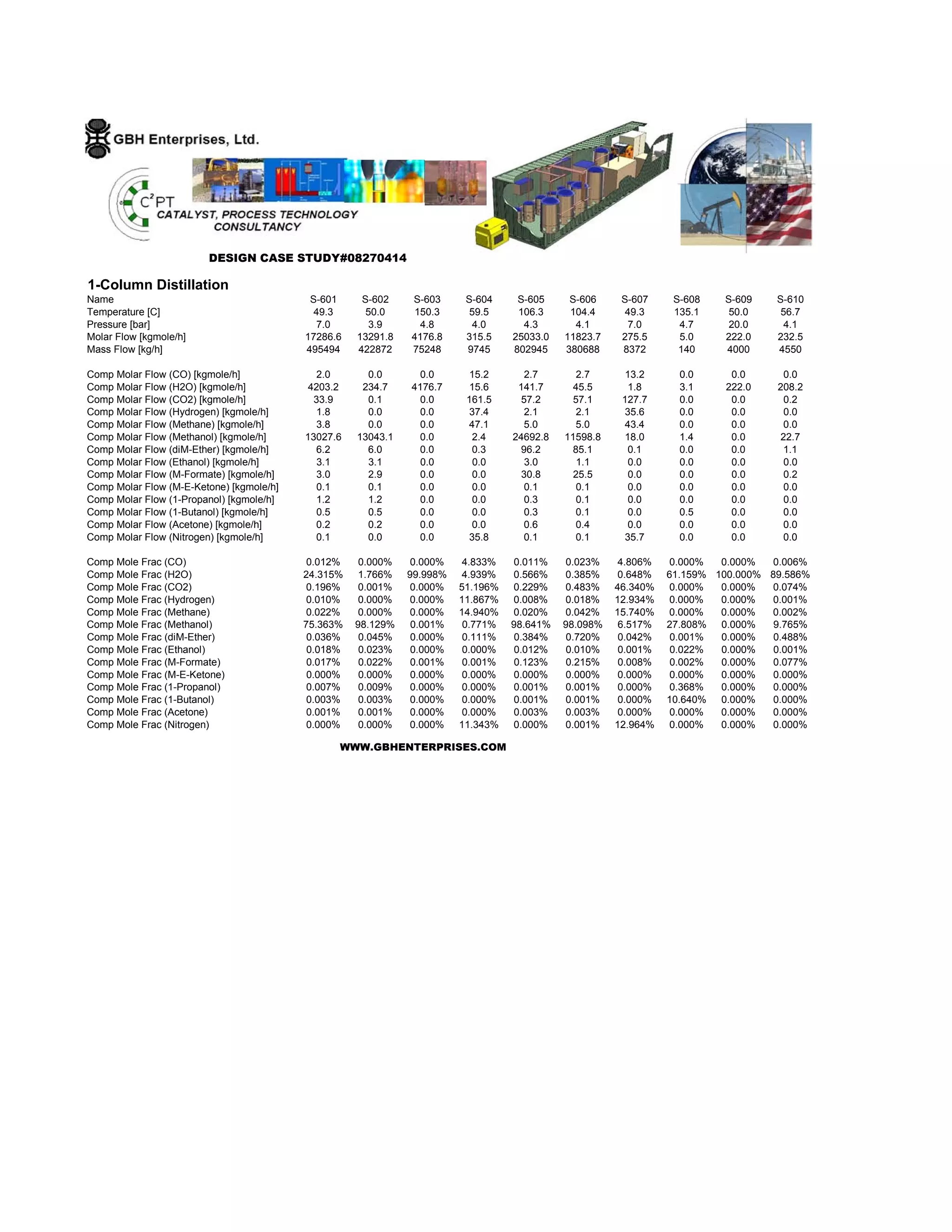

9 Single Column – Distillation

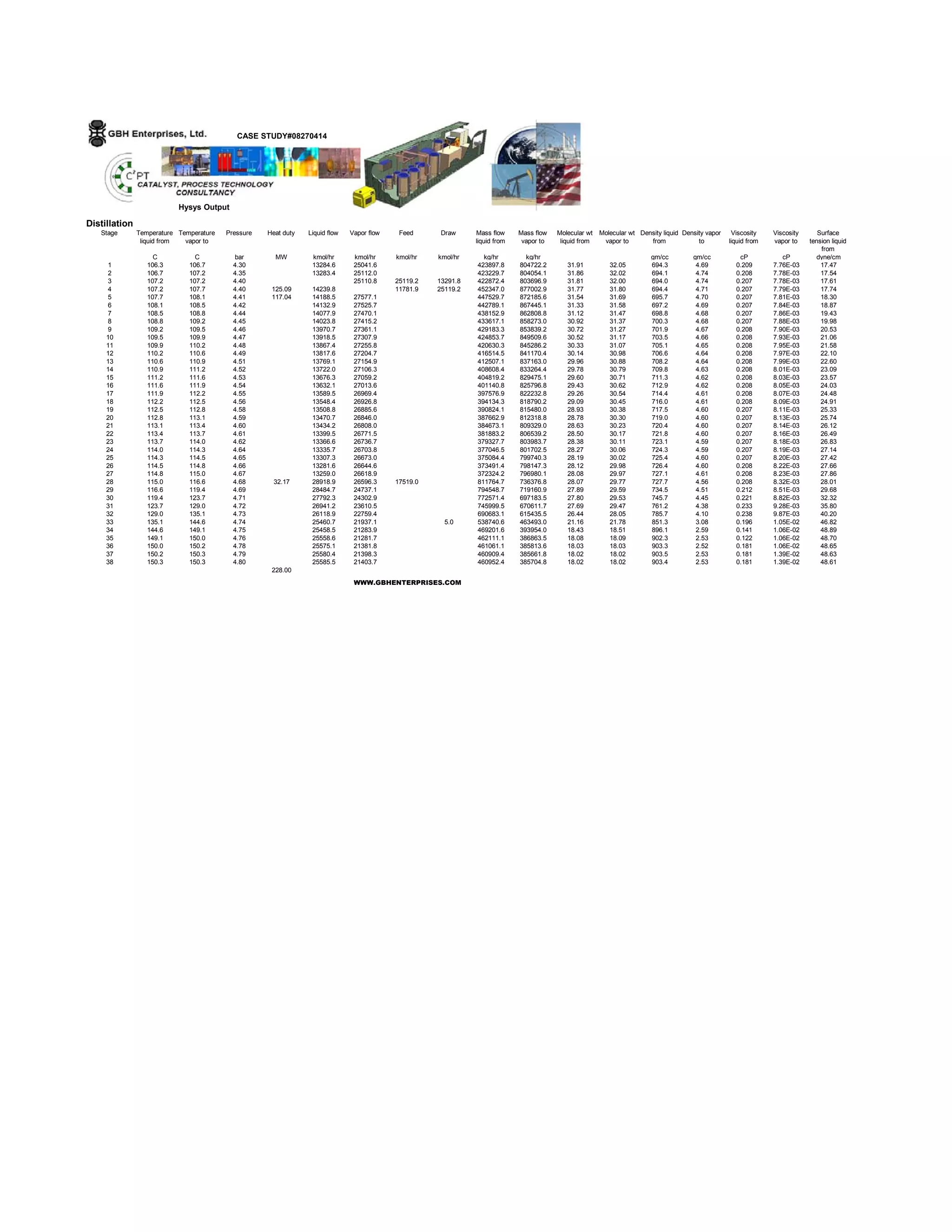

10 Distillation Column Profiles
Hysys Output*

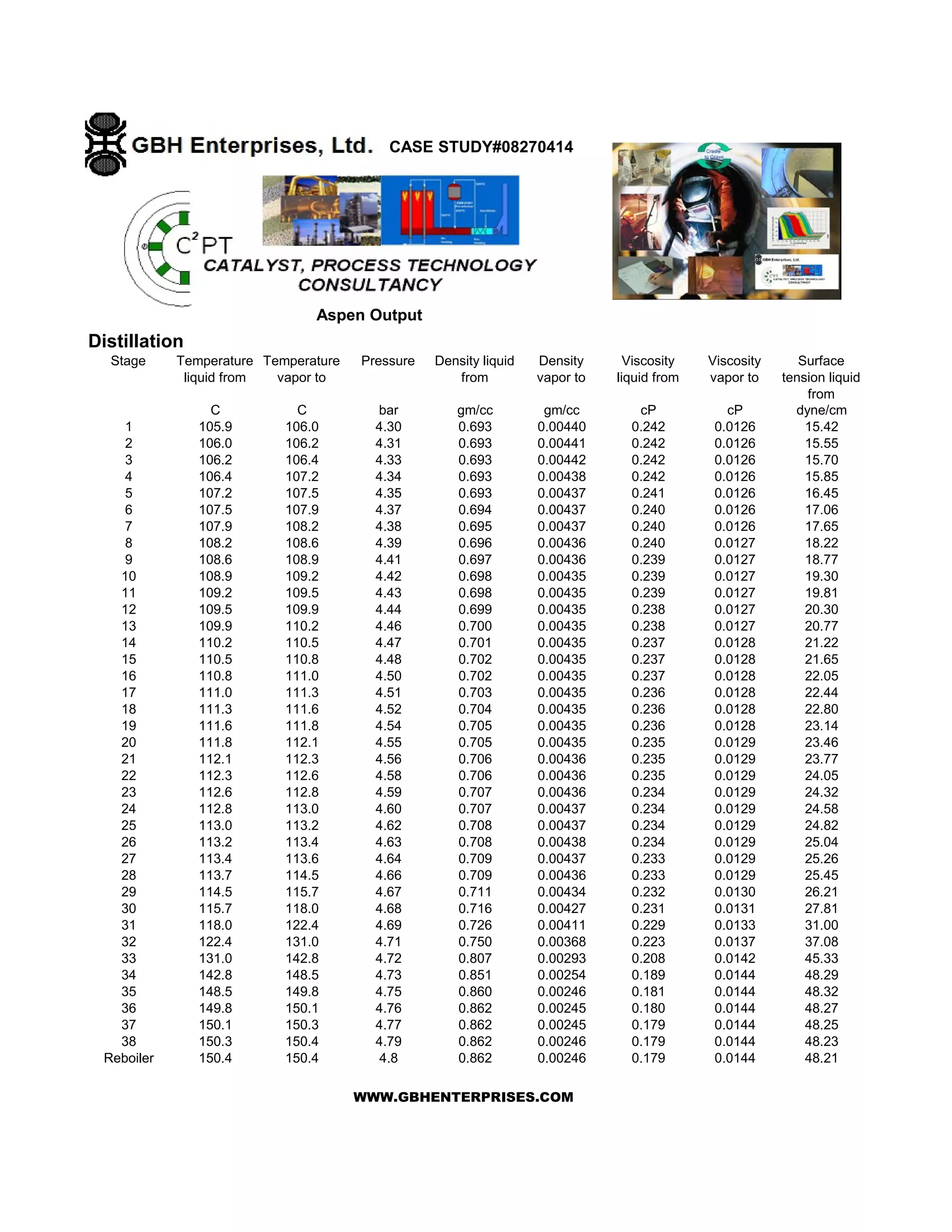

Aspen Output

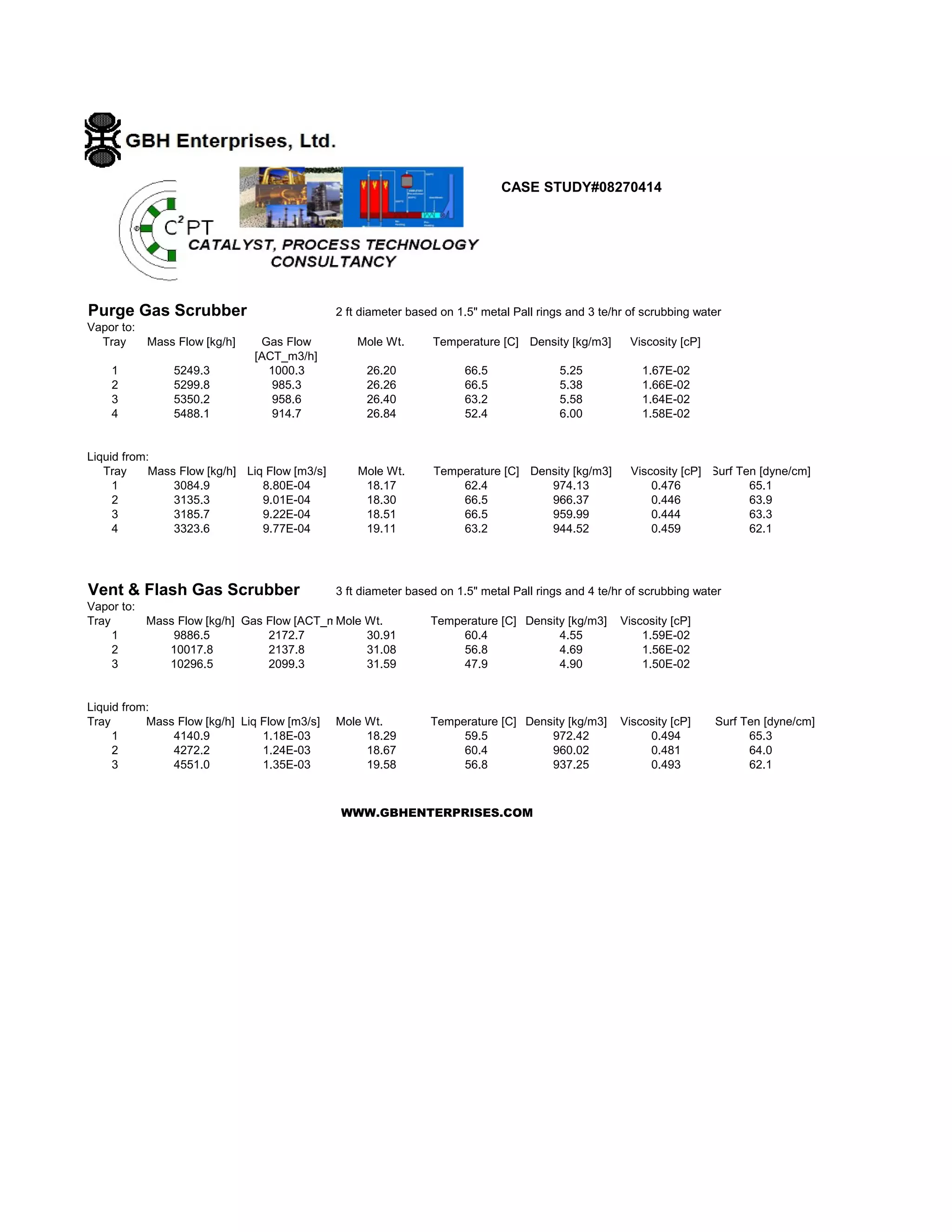

11 Scrubbers Simulation Results
12 ATR / AGHR Design Considerations
*400% PDF Magnification Required

3. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

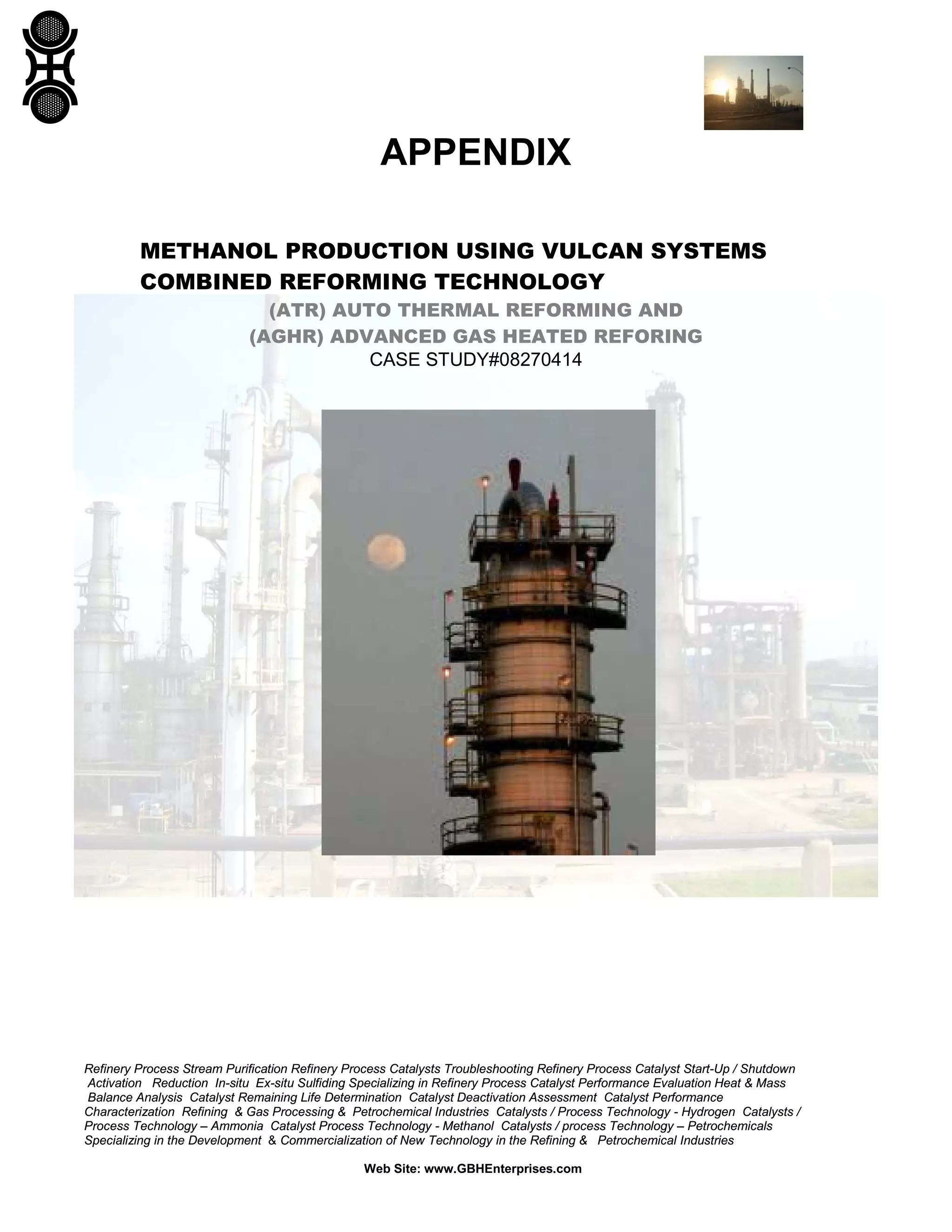

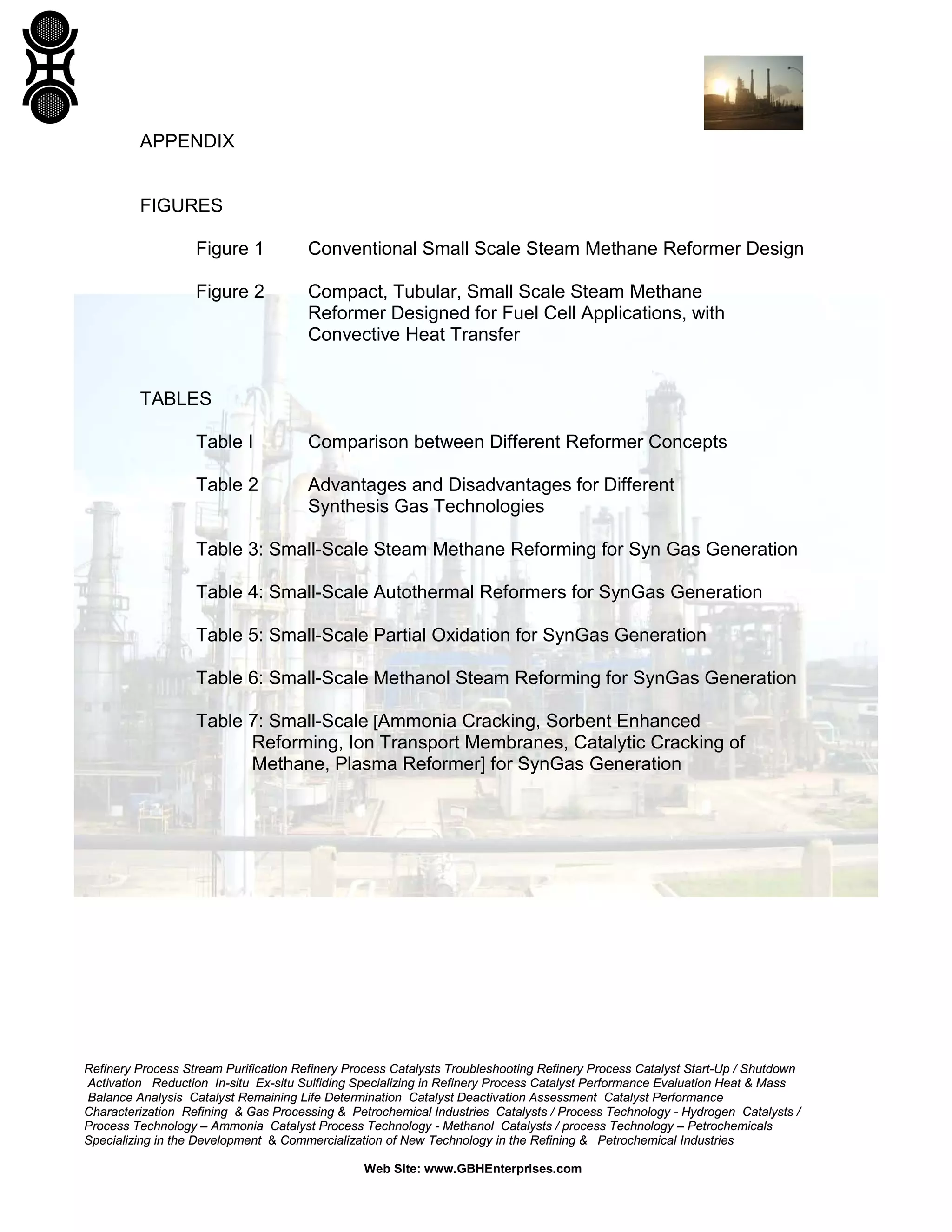

APPENDIX
FIGURES

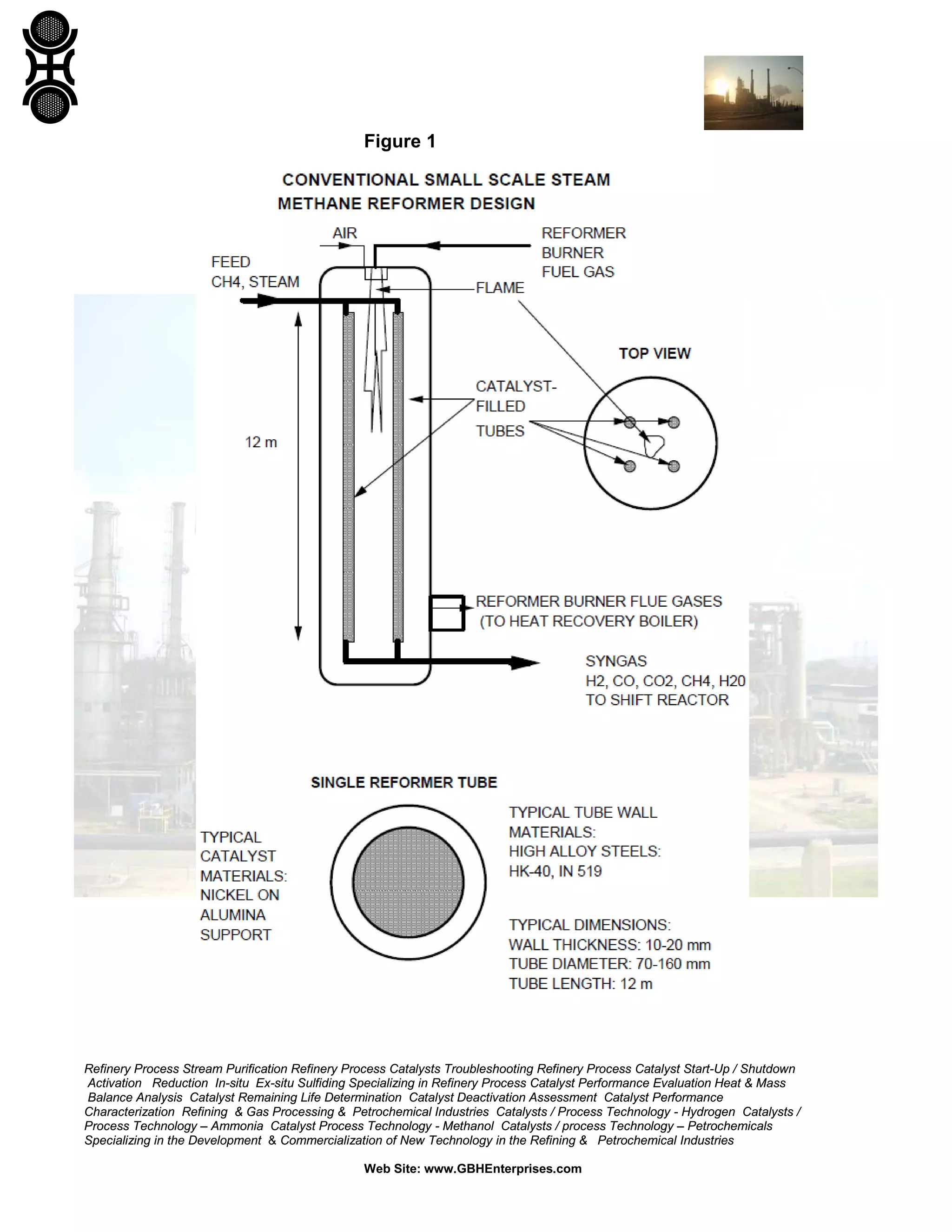

Figure 1 Conventional Small Scale Steam Methane Reformer Design

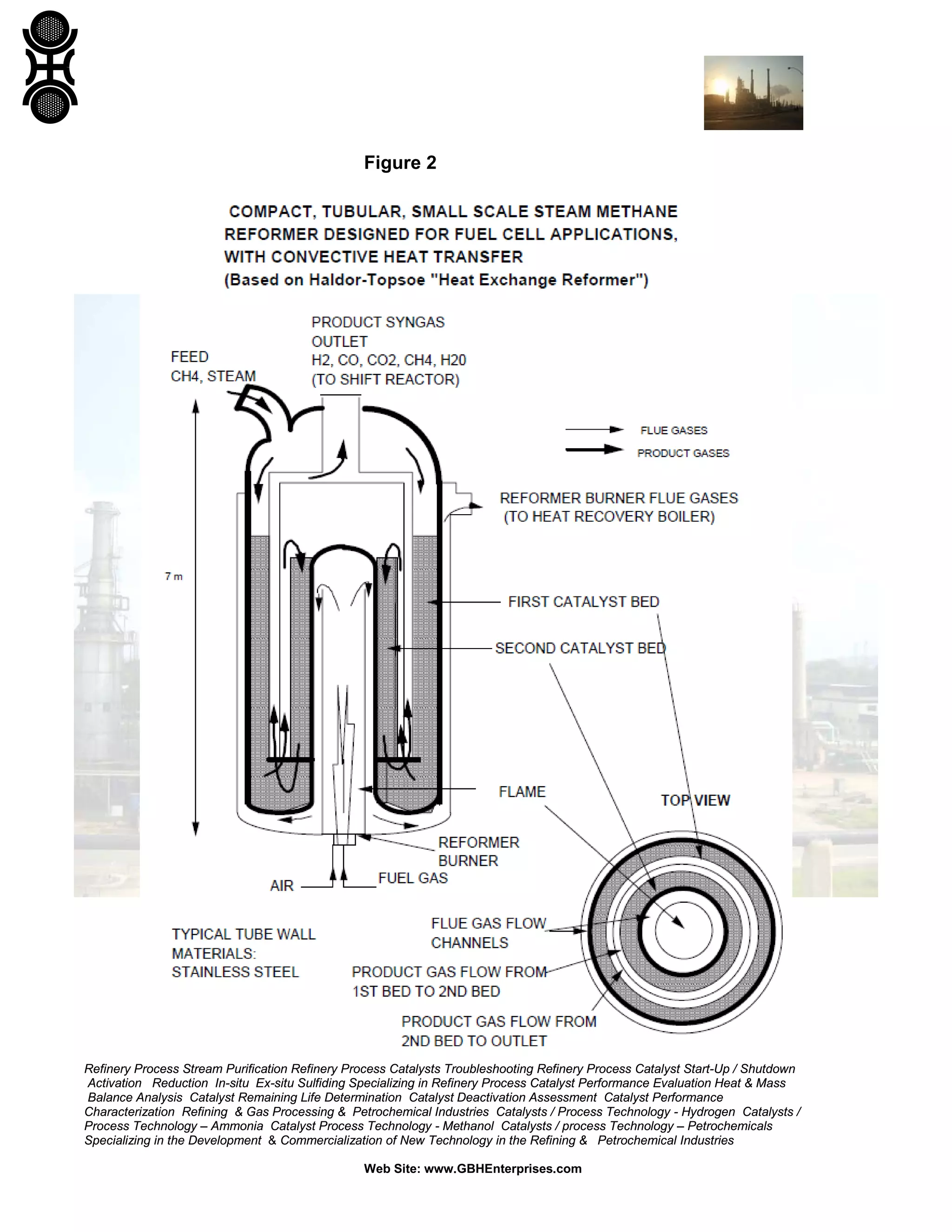

Figure 2 Compact, Tubular, Small Scale Steam Methane
Reformer Designed for Fuel Cell Applications, with
Convective Heat Transfer
TABLES

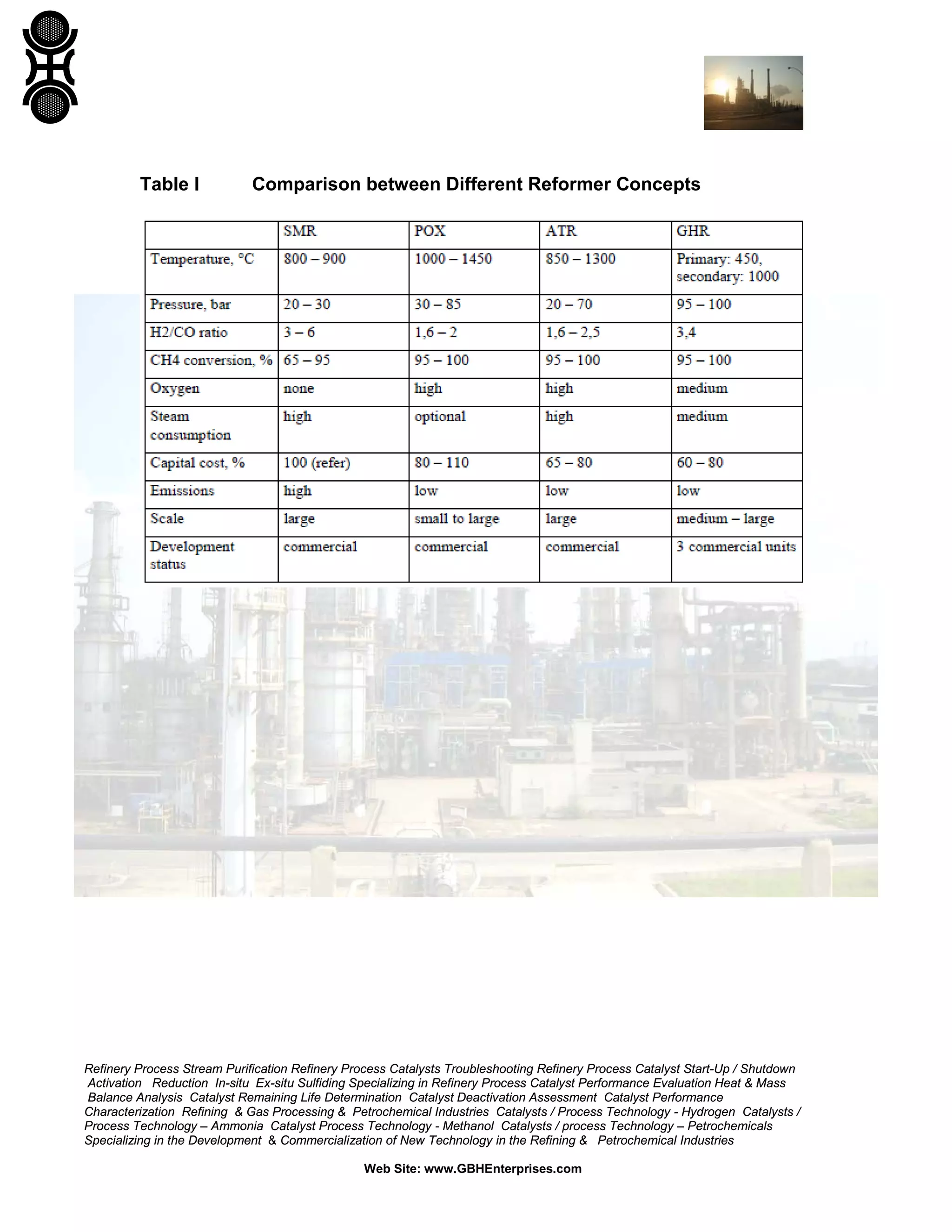

Table I Comparison between Different Reformer Concepts

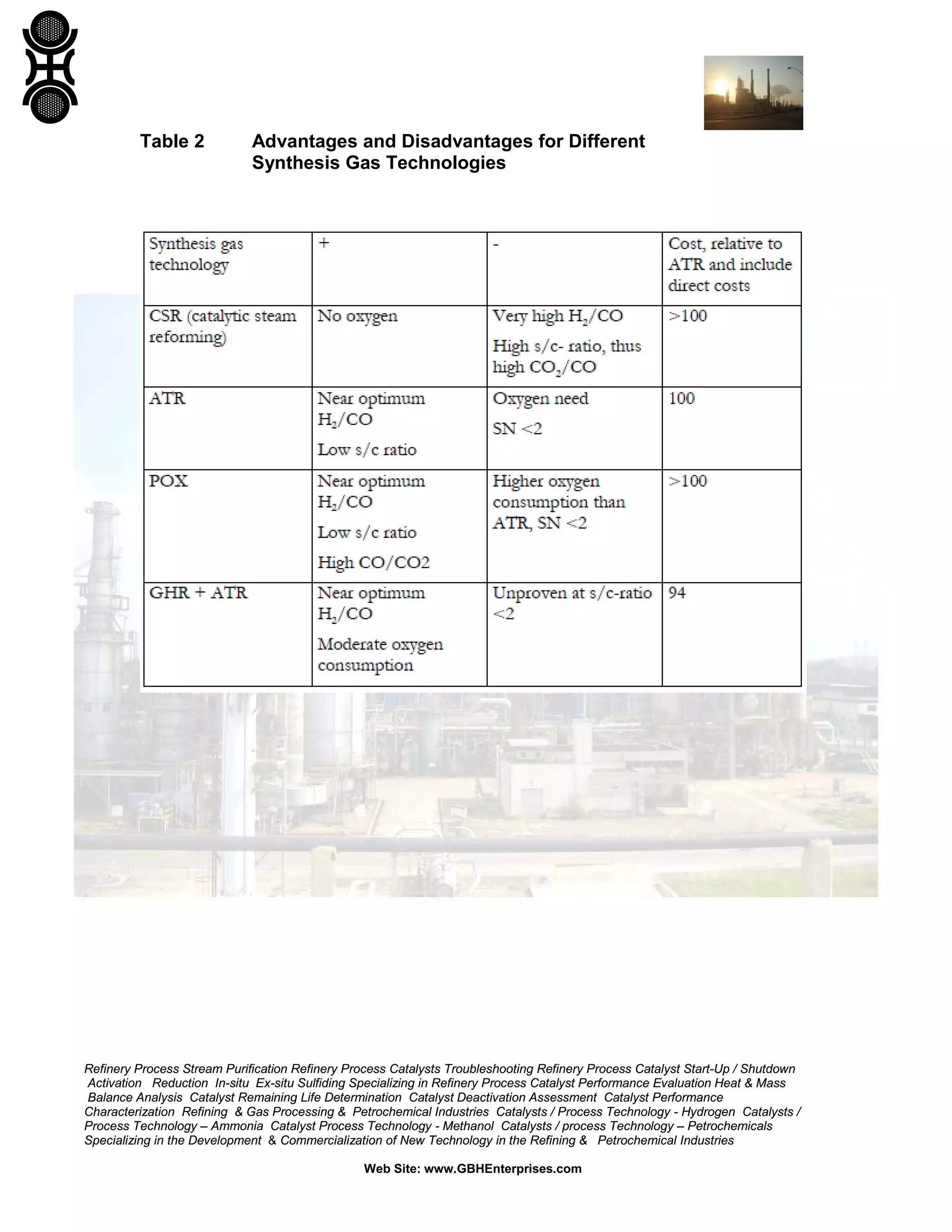

Table 2 Advantages and Disadvantages for Different
Synthesis Gas Technologies

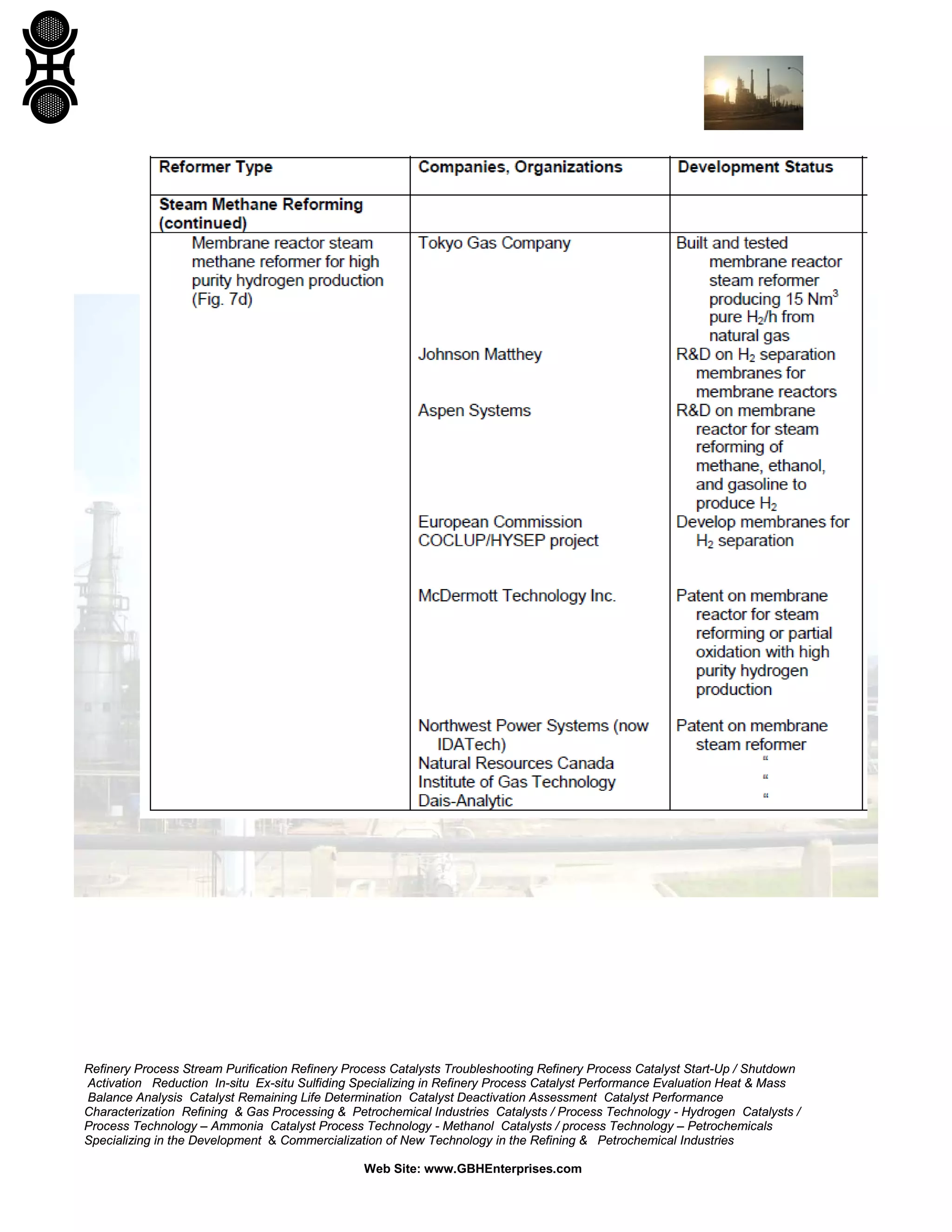

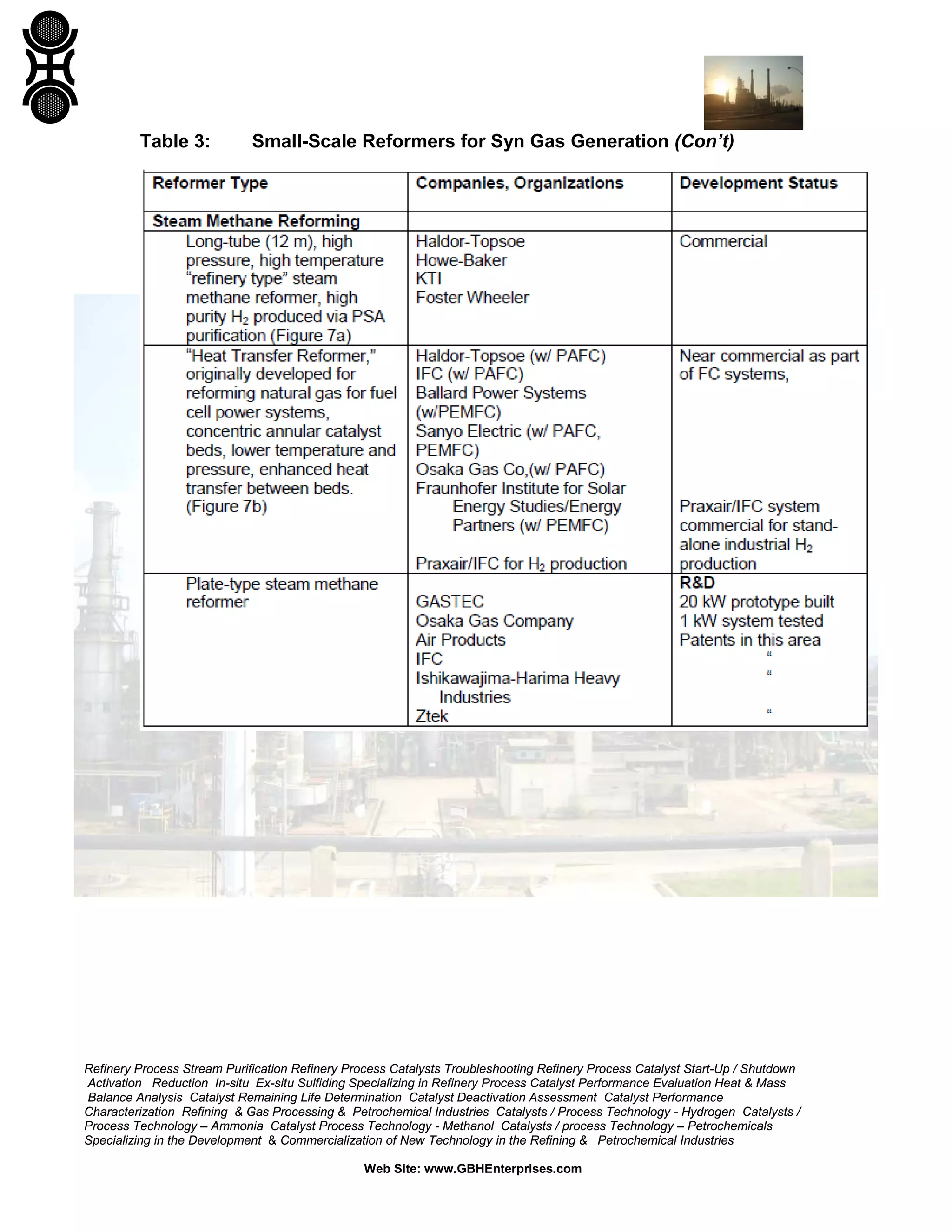

Table 3: Small-Scale Steam Methane Reforming for Syn Gas Generation

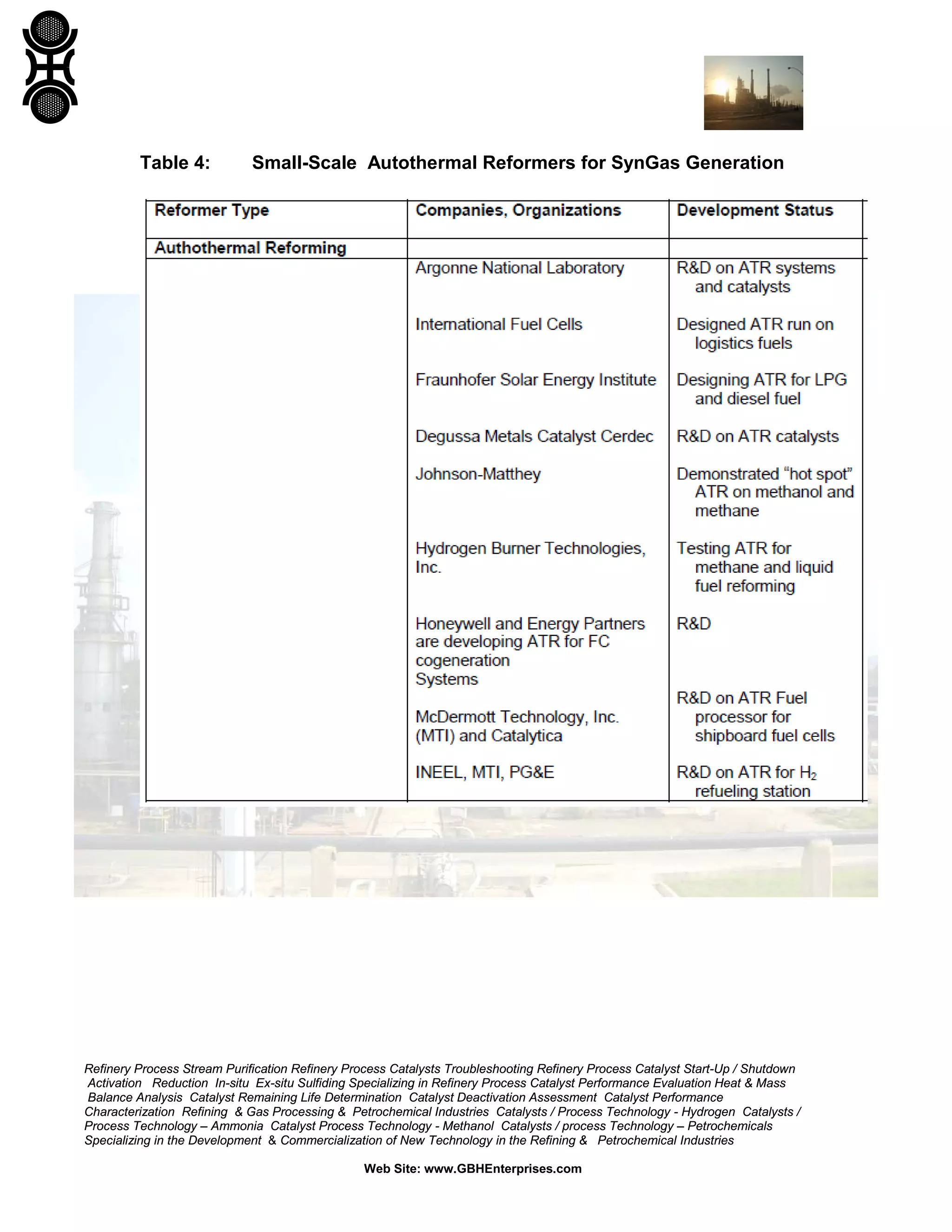

Table 4: Small-Scale Autothermal Reformers for SynGas Generation

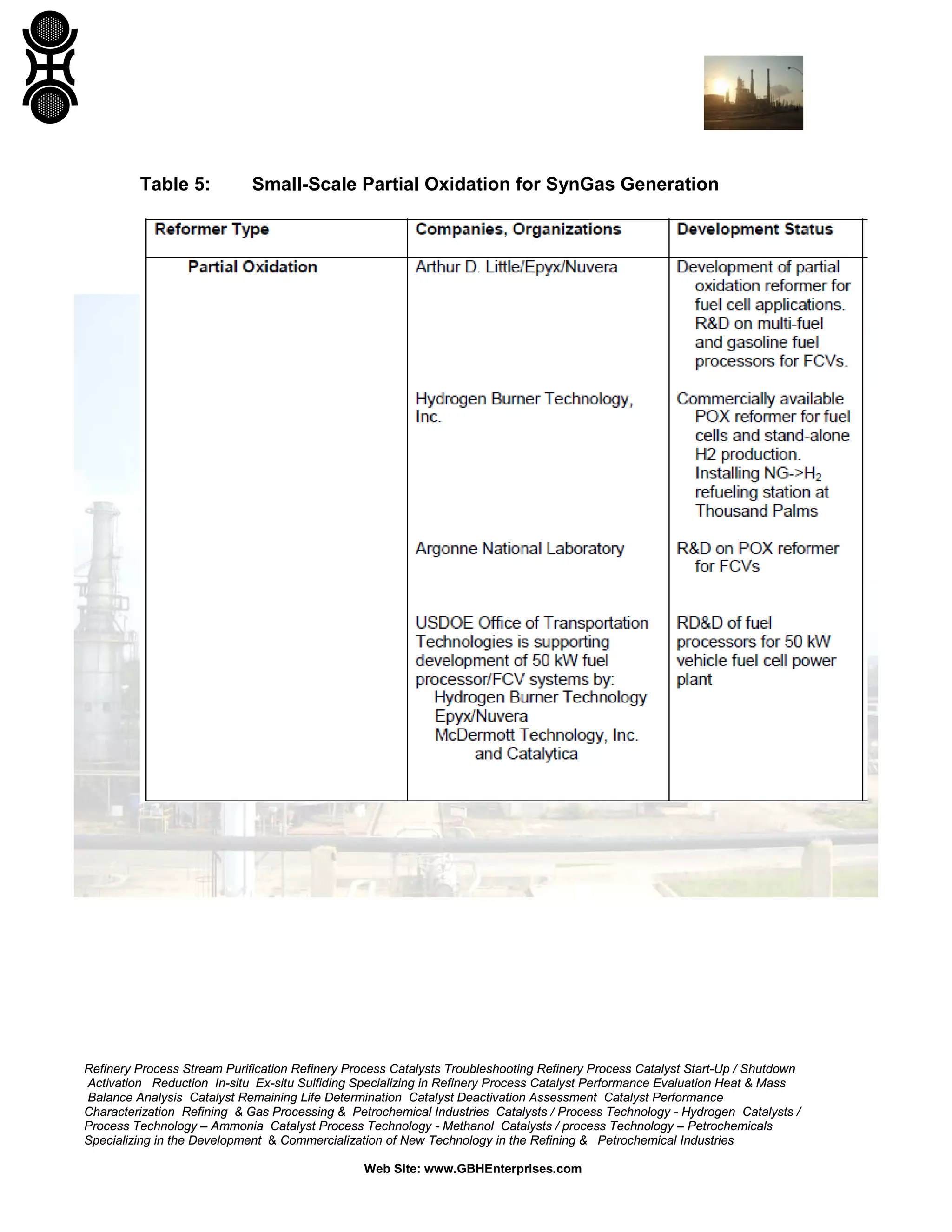

Table 5: Small-Scale Partial Oxidation for SynGas Generation

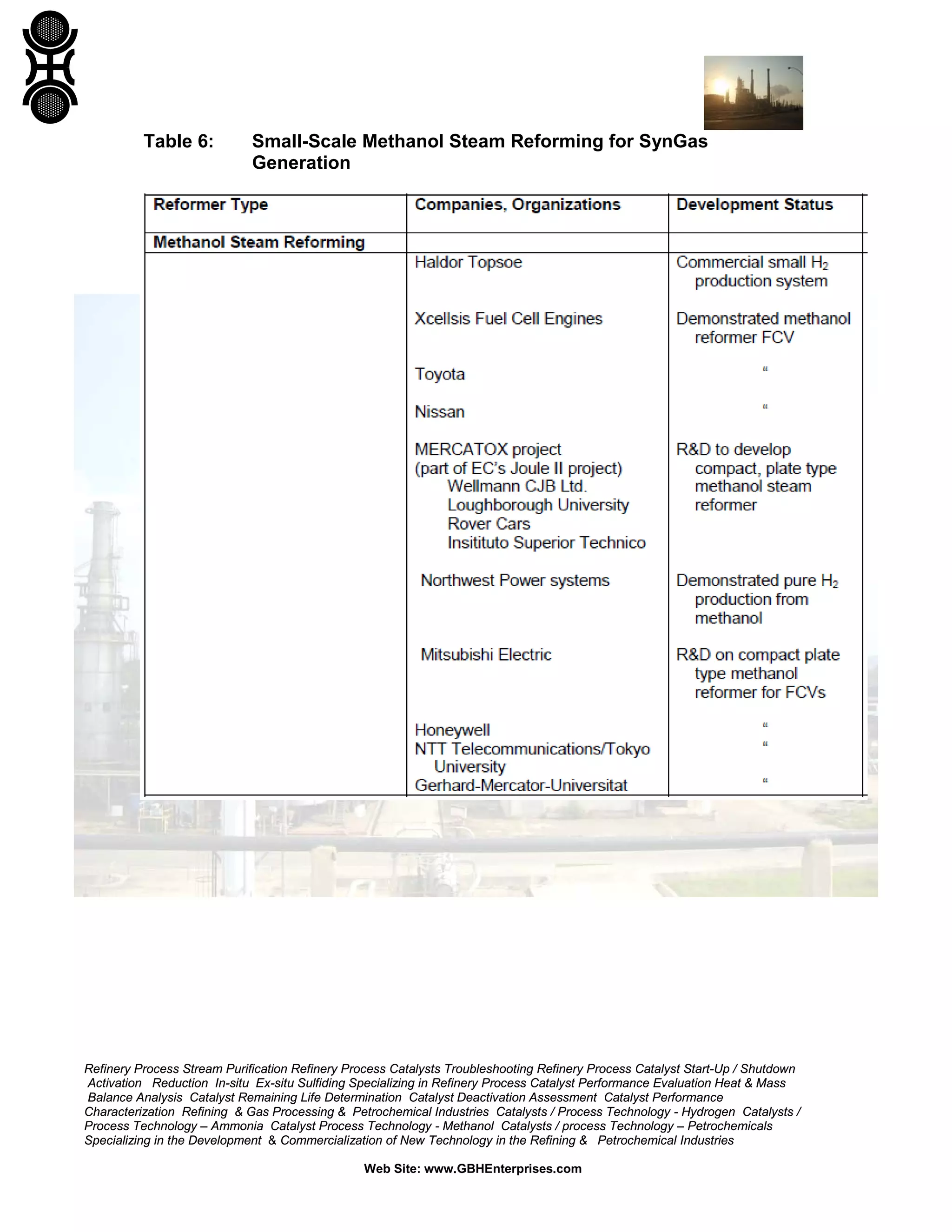

Table 6: Small-Scale Methanol Steam Reforming for SynGas Generation

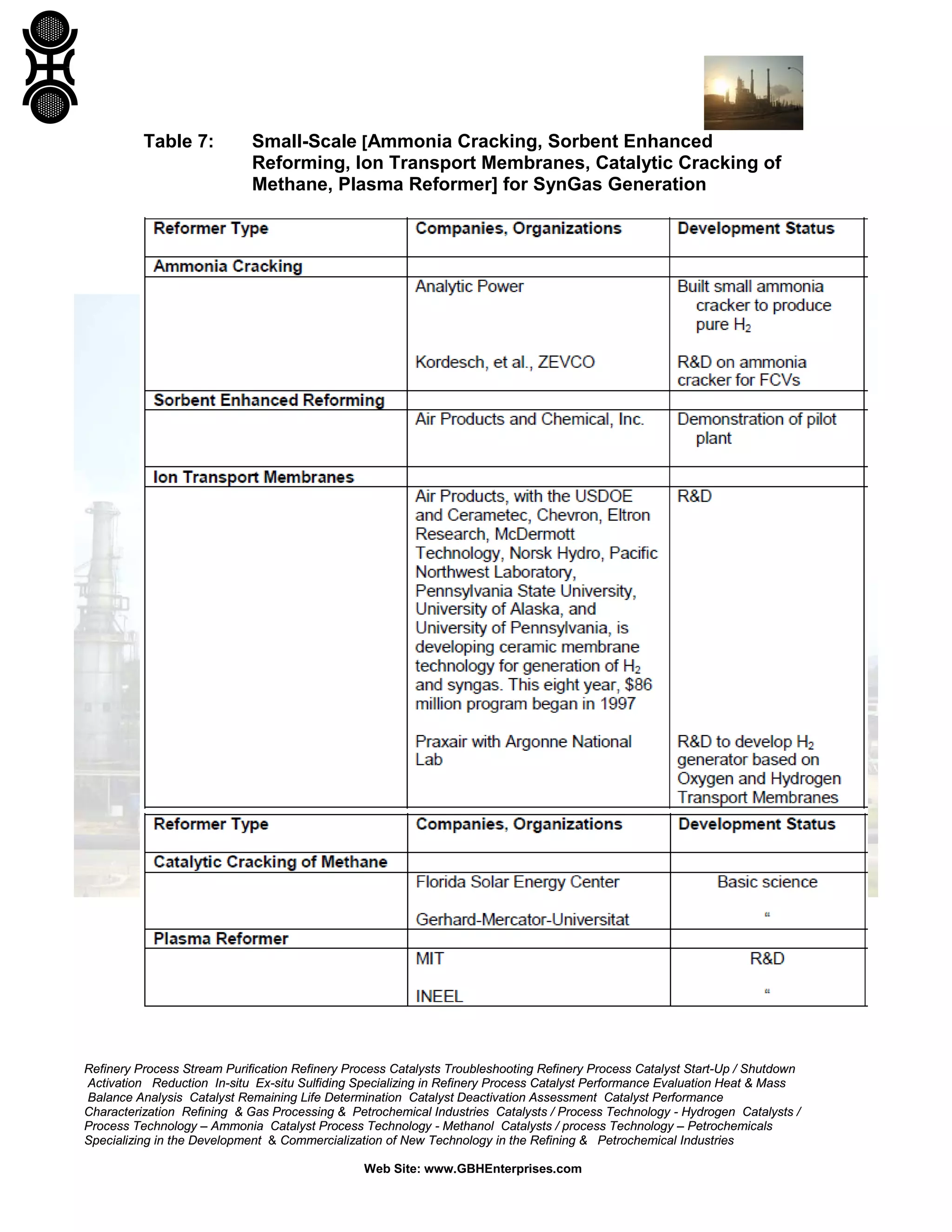

Table 7: Small-Scale [Ammonia Cracking, Sorbent Enhanced
Reforming, Ion Transport Membranes, Catalytic Cracking of
Methane, Plasma Reformer] for SynGas Generation

4. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

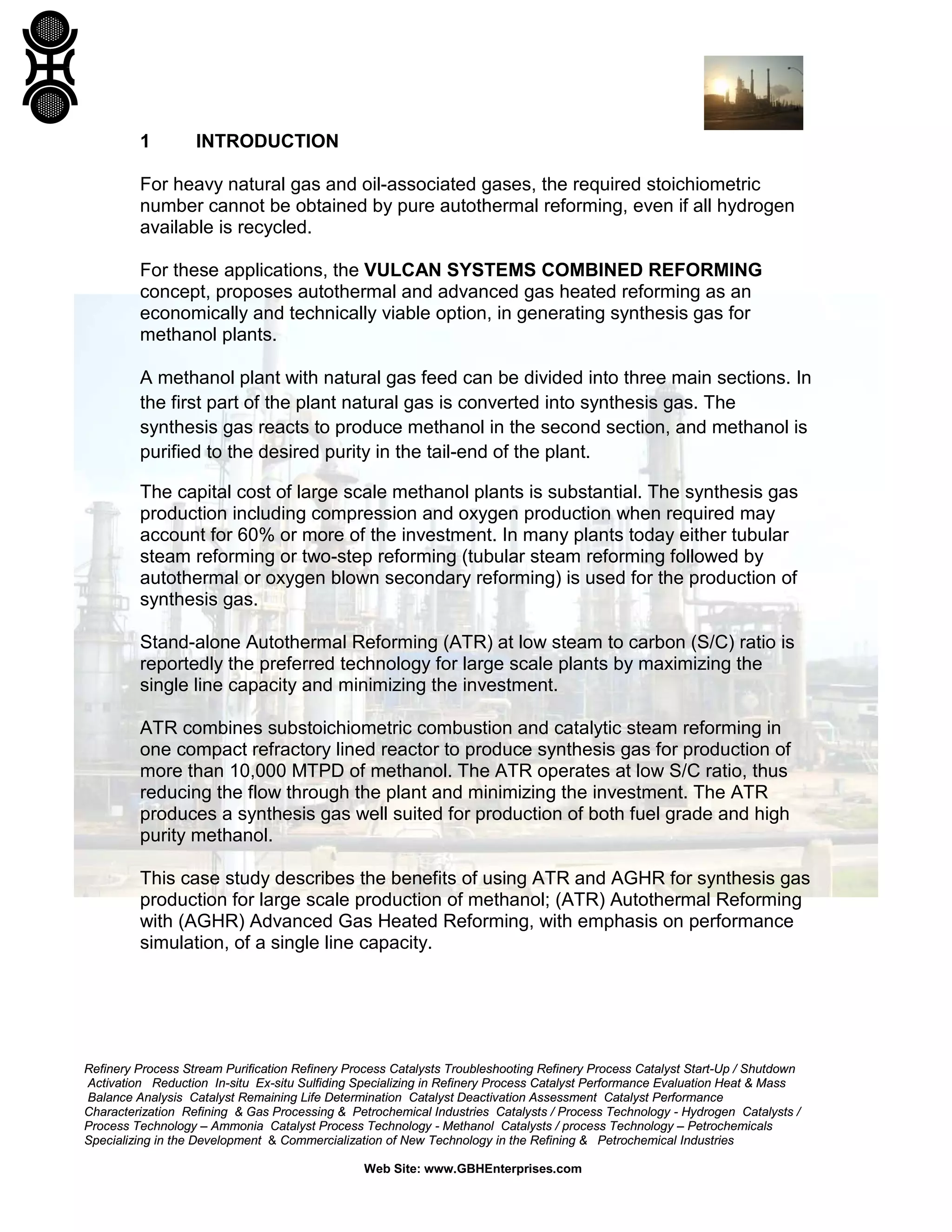

1 INTRODUCTION
For heavy natural gas and oil-associated gases, the required stoichiometric
number cannot be obtained by pure autothermal reforming, even if all hydrogen
available is recycled.
For these applications, the VULCAN SYSTEMS COMBINED REFORMING
concept, proposes autothermal and advanced gas heated reforming as an
economically and technically viable option, in generating synthesis gas for
methanol plants.
A methanol plant with natural gas feed can be divided into three main sections. In
the first part of the plant natural gas is converted into synthesis gas. The
synthesis gas reacts to produce methanol in the second section, and methanol is
purified to the desired purity in the tail-end of the plant.
The capital cost of large scale methanol plants is substantial. The synthesis gas
production including compression and oxygen production when required may
account for 60% or more of the investment. In many plants today either tubular
steam reforming or two-step reforming (tubular steam reforming followed by
autothermal or oxygen blown secondary reforming) is used for the production of
synthesis gas.
Stand-alone Autothermal Reforming (ATR) at low steam to carbon (S/C) ratio is
reportedly the preferred technology for large scale plants by maximizing the
single line capacity and minimizing the investment.
ATR combines substoichiometric combustion and catalytic steam reforming in
one compact refractory lined reactor to produce synthesis gas for production of
more than 10,000 MTPD of methanol. The ATR operates at low S/C ratio, thus
reducing the flow through the plant and minimizing the investment. The ATR
produces a synthesis gas well suited for production of both fuel grade and high
purity methanol.
This case study describes the benefits of using ATR and AGHR for synthesis gas
production for large scale production of methanol; (ATR) Autothermal Reforming
with (AGHR) Advanced Gas Heated Reforming, with emphasis on performance
simulation, of a single line capacity.

5. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

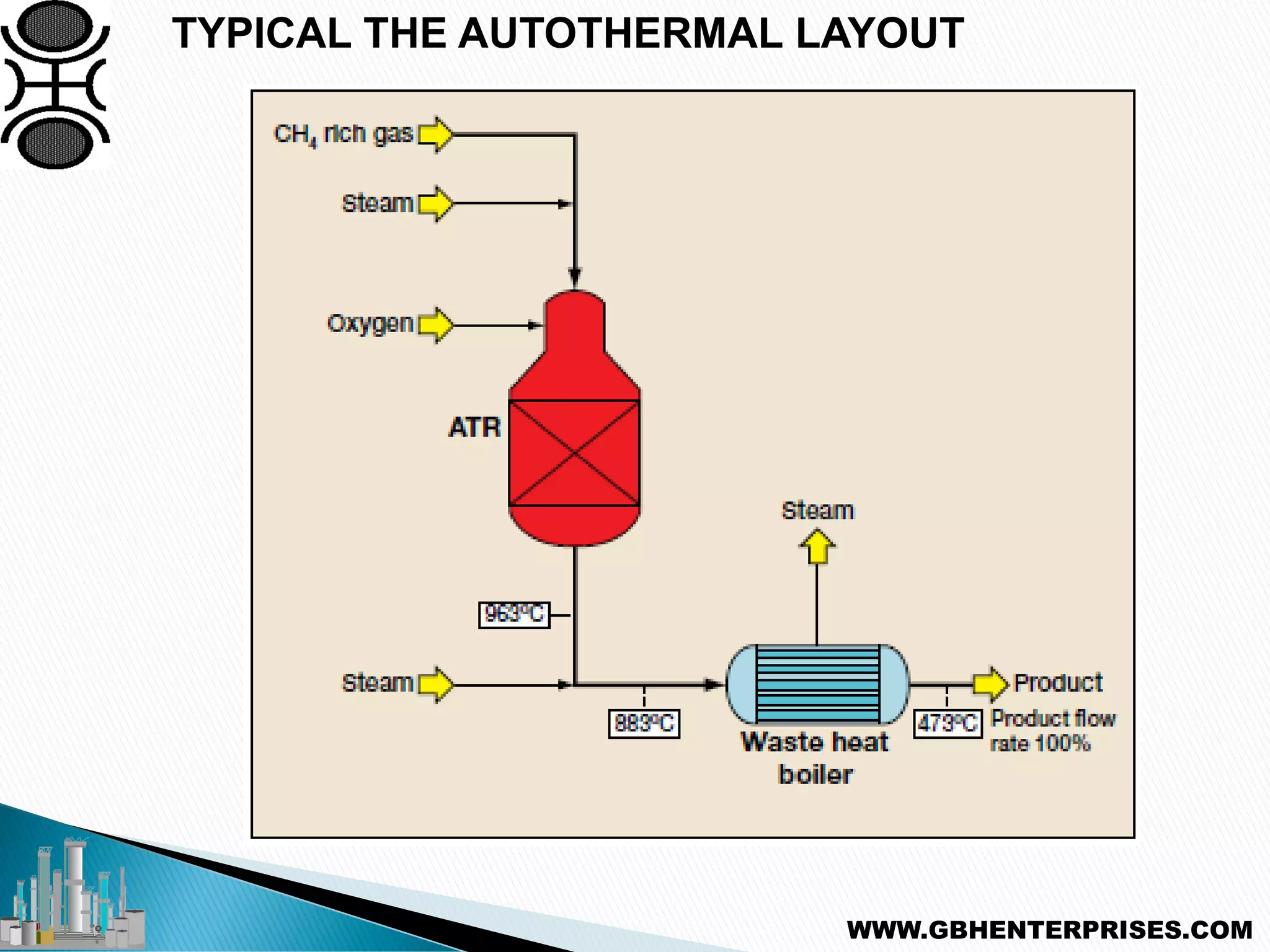

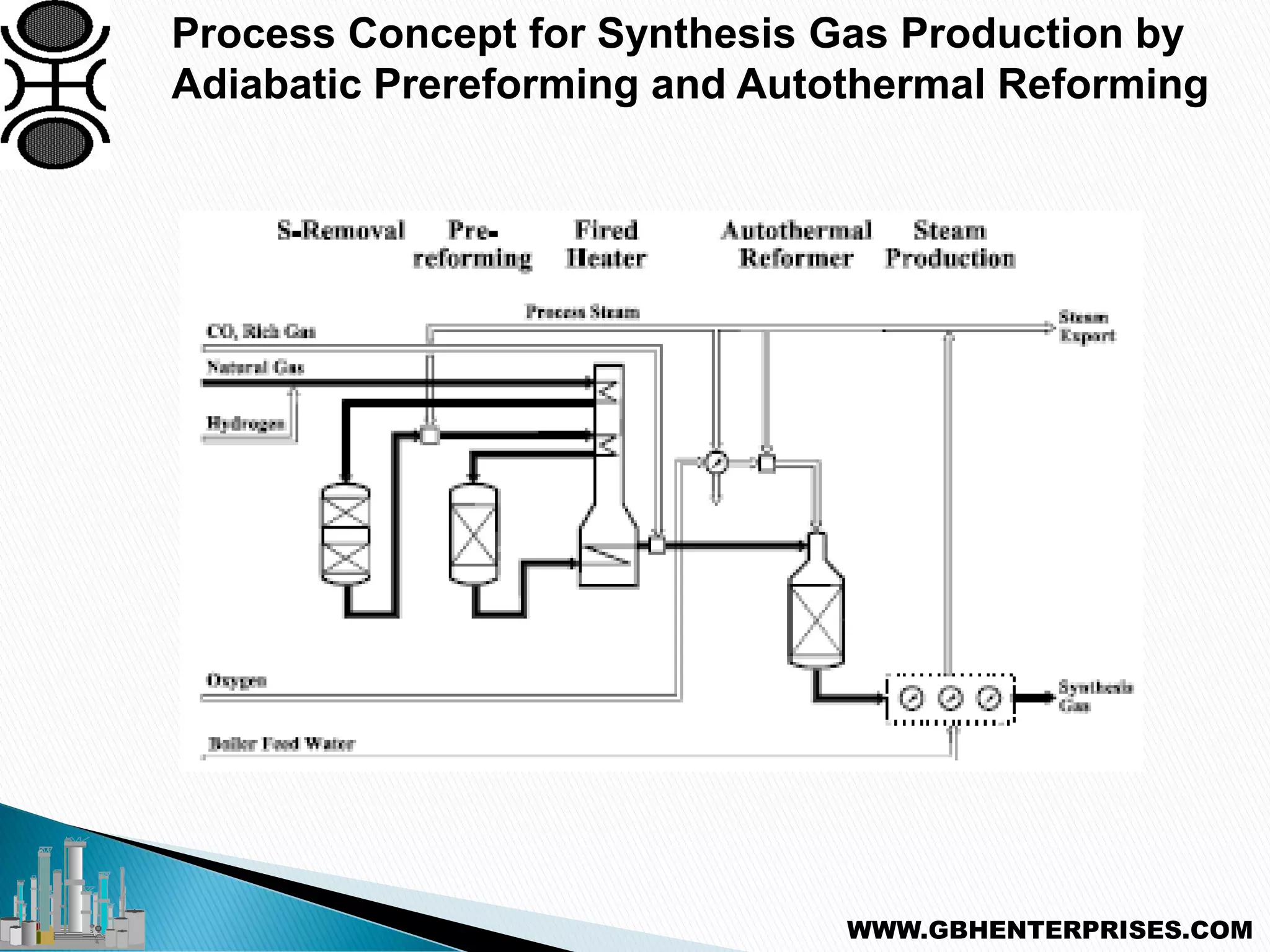

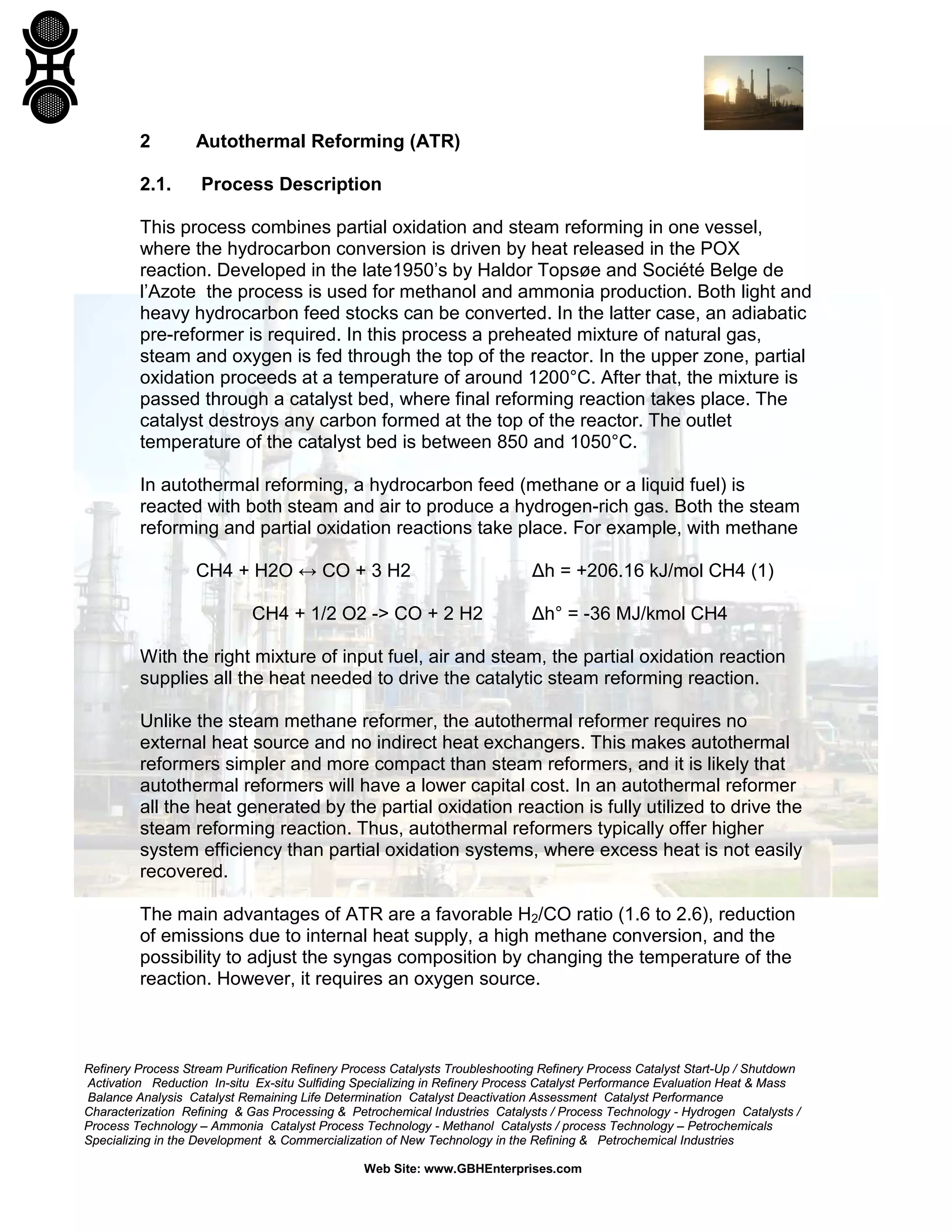

2 Autothermal Reforming (ATR)
2.1. Process Description
This process combines partial oxidation and steam reforming in one vessel,
where the hydrocarbon conversion is driven by heat released in the POX
reaction. Developed in the late1950’s by Haldor Topsøe and Société Belge de
l’Azote the process is used for methanol and ammonia production. Both light and
heavy hydrocarbon feed stocks can be converted. In the latter case, an adiabatic

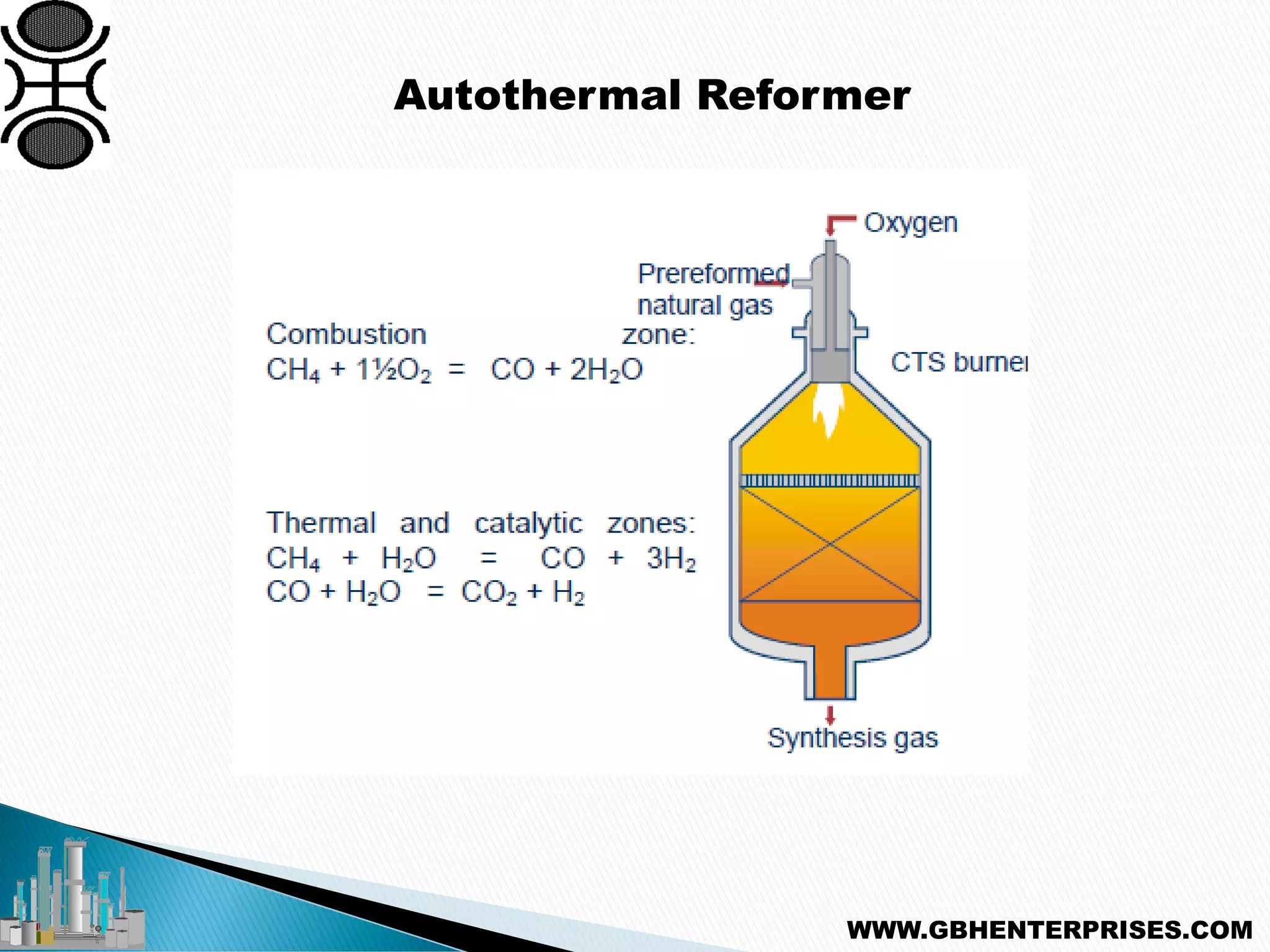

pre-reformer is required. In this process a preheated mixture of natural gas,
steam and oxygen is fed through the top of the reactor. In the upper zone, partial
oxidation proceeds at a temperature of around 1200°C. After that, the mixture is
passed through a catalyst bed, where final reforming reaction takes place. The
catalyst destroys any carbon formed at the top of the reactor. The outlet
temperature of the catalyst bed is between 850 and 1050°C.
In autothermal reforming, a hydrocarbon feed (methane or a liquid fuel) is
reacted with both steam and air to produce a hydrogen-rich gas. Both the steam
reforming and partial oxidation reactions take place. For example, with methane
CH4 + H2O ↔ CO + 3 H2 Δh = +206.16 kJ/mol CH4 (1)
CH4 + 1/2 O2 -> CO + 2 H2 Δh° = -36 MJ/kmol CH4
With the right mixture of input fuel, air and steam, the partial oxidation reaction
supplies all the heat needed to drive the catalytic steam reforming reaction.
Unlike the steam methane reformer, the autothermal reformer requires no
external heat source and no indirect heat exchangers. This makes autothermal
reformers simpler and more compact than steam reformers, and it is likely that
autothermal reformers will have a lower capital cost. In an autothermal reformer
all the heat generated by the partial oxidation reaction is fully utilized to drive the
steam reforming reaction. Thus, autothermal reformers typically offer higher
system efficiency than partial oxidation systems, where excess heat is not easily
recovered.

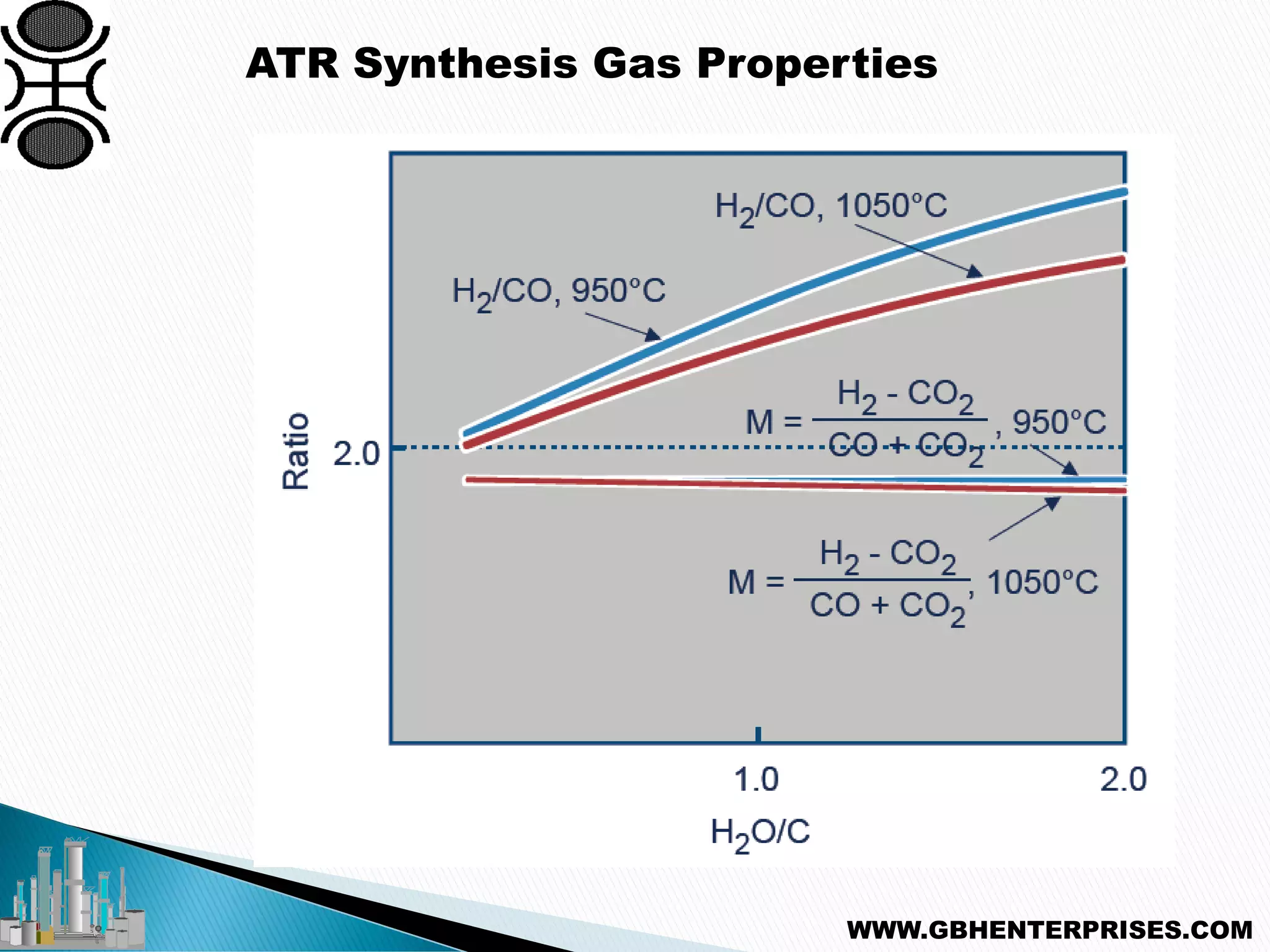

The main advantages of ATR are a favorable H2/CO ratio (1.6 to 2.6), reduction
of emissions due to internal heat supply, a high methane conversion, and the
possibility to adjust the syngas composition by changing the temperature of the
reaction. However, it requires an oxygen source.

6. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

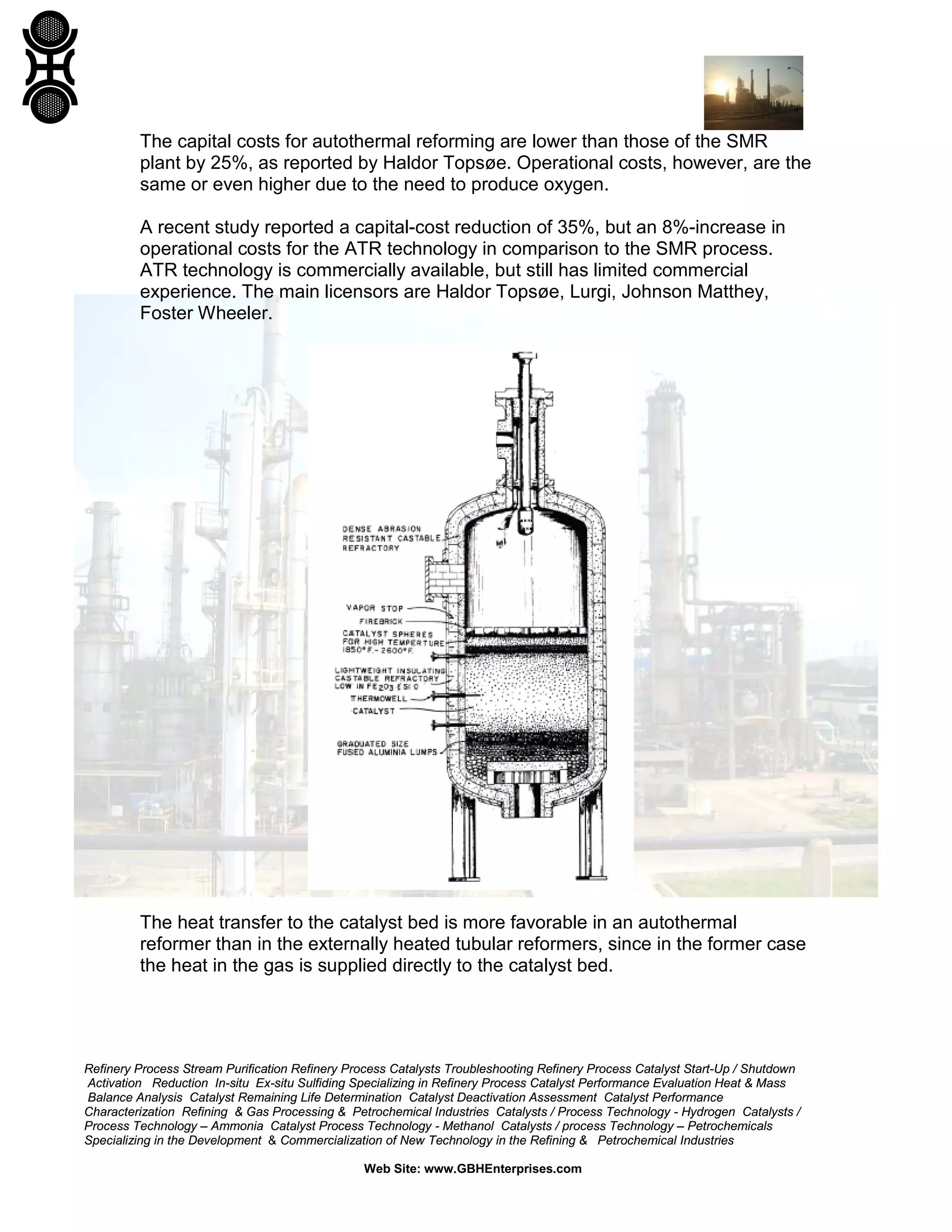

The capital costs for autothermal reforming are lower than those of the SMR
plant by 25%, as reported by Haldor Topsøe. Operational costs, however, are the
same or even higher due to the need to produce oxygen.
A recent study reported a capital-cost reduction of 35%, but an 8%-increase in
operational costs for the ATR technology in comparison to the SMR process.
ATR technology is commercially available, but still has limited commercial
experience. The main licensors are Haldor Topsøe, Lurgi, Johnson Matthey,
Foster Wheeler.
The heat transfer to the catalyst bed is more favorable in an autothermal
reformer than in the externally heated tubular reformers, since in the former case
the heat in the gas is supplied directly to the catalyst bed.

7. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

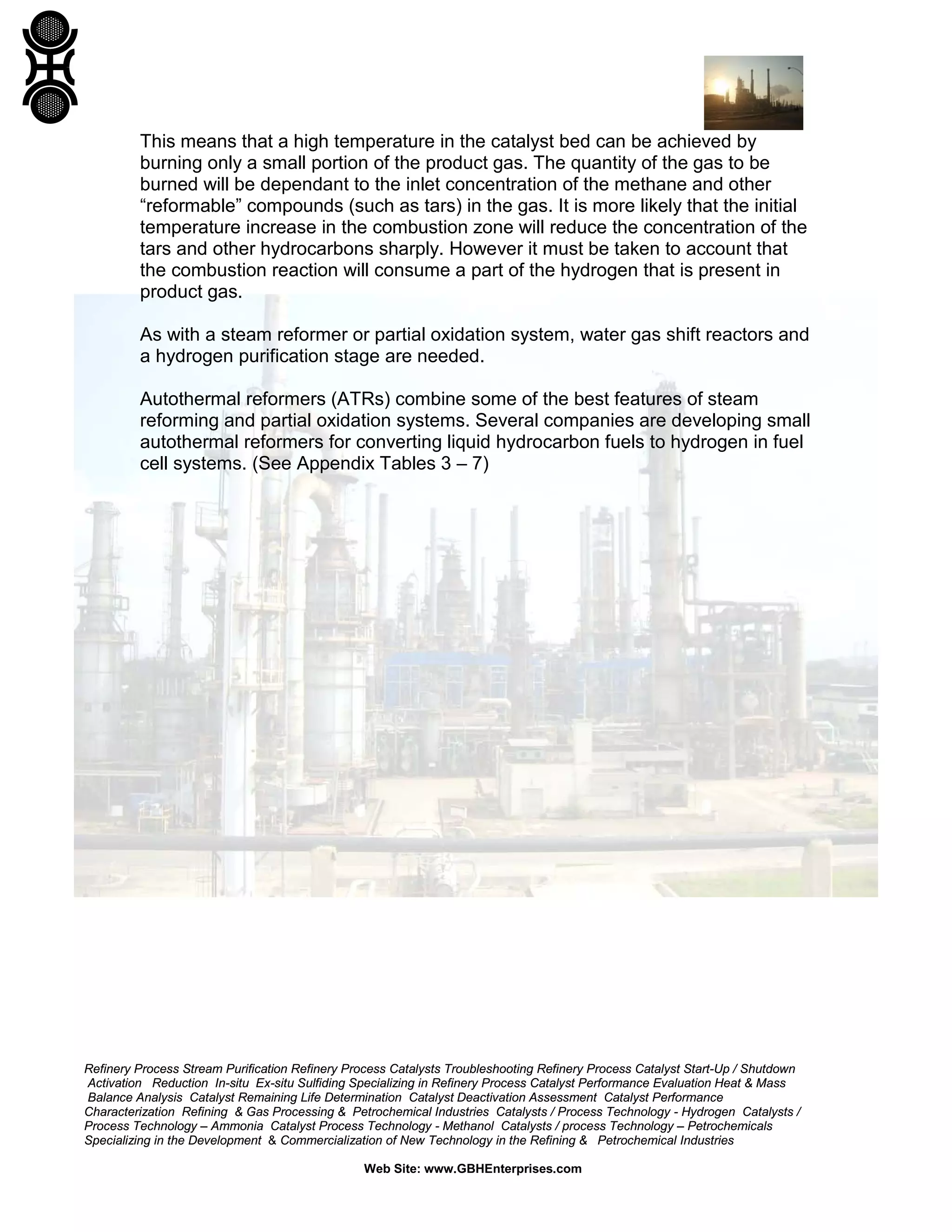

This means that a high temperature in the catalyst bed can be achieved by
burning only a small portion of the product gas. The quantity of the gas to be
burned will be dependant to the inlet concentration of the methane and other
“reformable” compounds (such as tars) in the gas. It is more likely that the initial
temperature increase in the combustion zone will reduce the concentration of the
tars and other hydrocarbons sharply. However it must be taken to account that
the combustion reaction will consume a part of the hydrogen that is present in
product gas.
As with a steam reformer or partial oxidation system, water gas shift reactors and
a hydrogen purification stage are needed.
Autothermal reformers (ATRs) combine some of the best features of steam
reforming and partial oxidation systems. Several companies are developing small
autothermal reformers for converting liquid hydrocarbon fuels to hydrogen in fuel
cell systems. (See Appendix Tables 3 – 7)

8. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

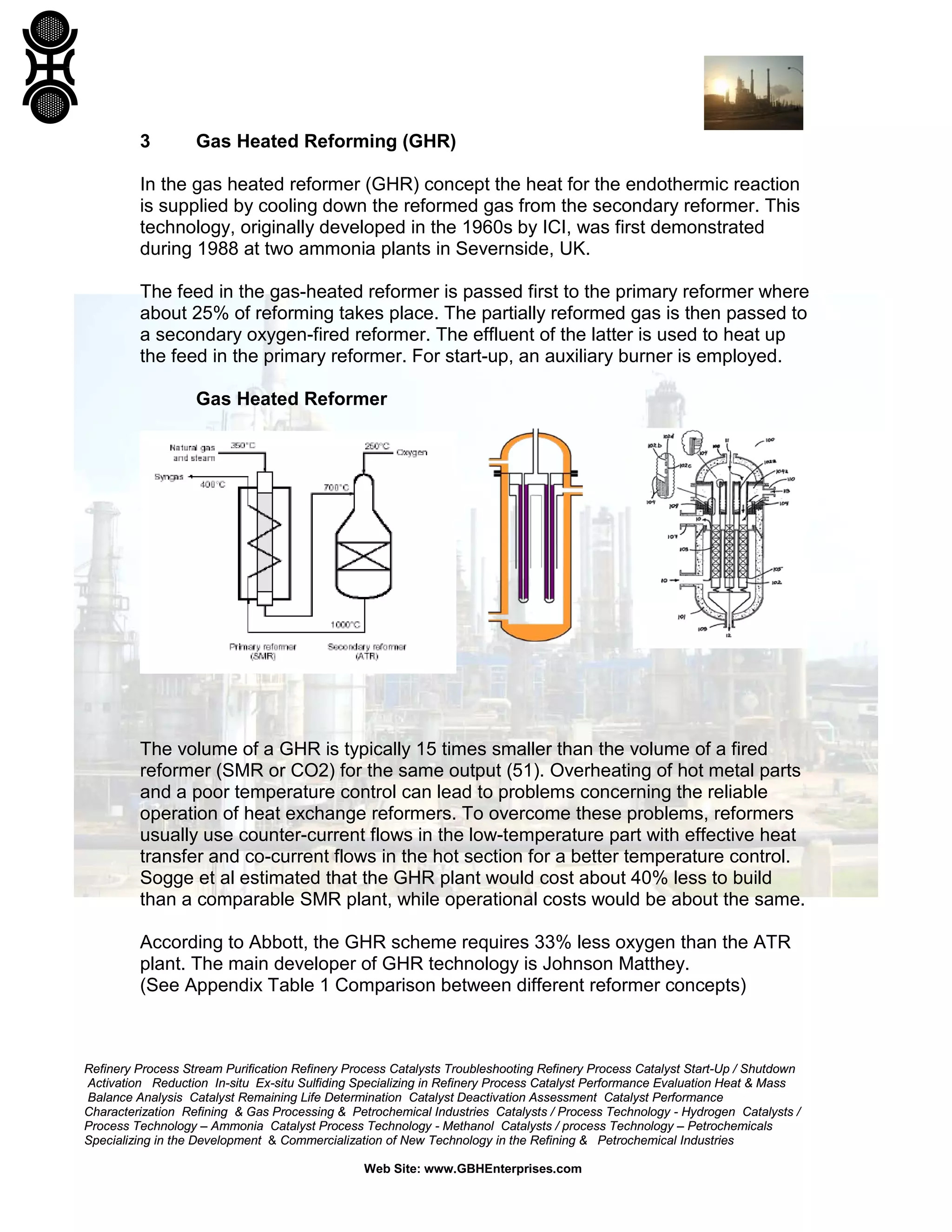

3 Gas Heated Reforming (GHR)
In the gas heated reformer (GHR) concept the heat for the endothermic reaction
is supplied by cooling down the reformed gas from the secondary reformer. This
technology, originally developed in the 1960s by ICI, was first demonstrated
during 1988 at two ammonia plants in Severnside, UK.
The feed in the gas-heated reformer is passed first to the primary reformer where
about 25% of reforming takes place. The partially reformed gas is then passed to
a secondary oxygen-fired reformer. The effluent of the latter is used to heat up
the feed in the primary reformer. For start-up, an auxiliary burner is employed.
Gas Heated Reformer
The volume of a GHR is typically 15 times smaller than the volume of a fired
reformer (SMR or CO2) for the same output (51). Overheating of hot metal parts
and a poor temperature control can lead to problems concerning the reliable
operation of heat exchange reformers. To overcome these problems, reformers
usually use counter-current flows in the low-temperature part with effective heat
transfer and co-current flows in the hot section for a better temperature control.
Sogge et al estimated that the GHR plant would cost about 40% less to build
than a comparable SMR plant, while operational costs would be about the same.
According to Abbott, the GHR scheme requires 33% less oxygen than the ATR
plant. The main developer of GHR technology is Johnson Matthey.
(See Appendix Table 1 Comparison between different reformer concepts)

9. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

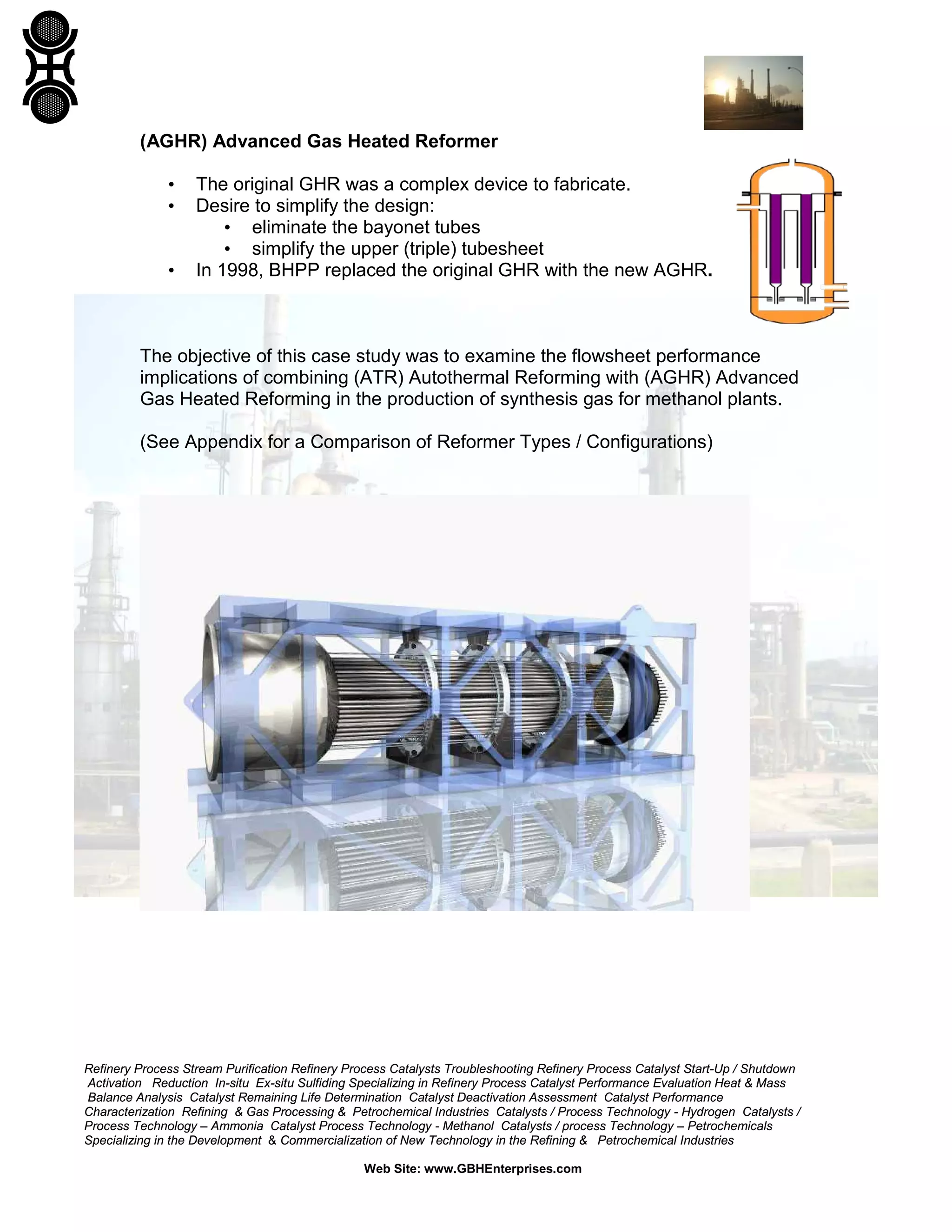

(AGHR) Advanced Gas Heated Reformer
• The original GHR was a complex device to fabricate.
• Desire to simplify the design:
• eliminate the bayonet tubes
• simplify the upper (triple) tubesheet
• In 1998, BHPP replaced the original GHR with the new AGHR.
The objective of this case study was to examine the flowsheet performance
implications of combining (ATR) Autothermal Reforming with (AGHR) Advanced
Gas Heated Reforming in the production of synthesis gas for methanol plants.
(See Appendix for a Comparison of Reformer Types / Configurations)

10. Methanol Plant Equipment List and Duty (kW)
Name Description Duty (kW)
B-301A Pre-reformer Fired Heater (main coil) 43202
B-301B Pre-reformer Fired Heater (HDS coil) 12752
Duty (kW)
C-101 HDS interchanger 35293
C-201 Saturator Blow-down Cooler 1346
C-301 AGHR Interchanger 103948
C-302 Distillation Bottoms Water Boiler 66865
C-303 Process Boiler B/D Cooler 574
C-401 Reformed Gas Saturator Water Heater 49992
C-402 Desaturator Water Cooler 91696
C-501 Loop Interchanger 60541
C-502 Loop Saturator Water Heater 38158
C-503 Loop Condenser 339670
C-601 Sat Water Distillation Reboiler 215257
C-602 Primary Overhead Condenser 185355
C-603 Secondary Overhead Condenser 30892
C-604 Methanol Product Cooler 12927
C-605 Steam Heated Distillation Reboiler 12752
D-301 Distillation Bottoms Water Boiler Steam Drum
D-501 Loop Catchpot
D-601 Let-down Vessel / Scrubber
D-602 Distillation Reflux Drum
∆P (bar) Duty (kW)
J-201 Saturator Water Pumps 6.5 724
J-401 Desaturator Water Pumps 5.5 842
J-402 Process Condensate Pumps 18.4 312
J-601 Distillation Reflux Pumps 6.0 212
J-602 Bottoms Water Pumps 47.5 154
Feed [bar] Product [bar] Duty [kW]
K-101 Natural Gas Compressor 20.7 52.3 12438
K-501A MUG Compressor 37.6 84 43853
K-501B Loop Circulator 78.6 84.7 10256
KT-501 Compressor / Circulator Steam Turbine 54108
Duty (kW)
R-101 HDS Vessel
R-102 Desulfurizer Vessls (2)
R-301 Pre-reformer
R-302 AGHR 328411
R-303 ATR
R-501 Gas Cooled Synthesis Reactor
R-502 Water Cooled Synthesis Reactor 134787
Theroetical Stages
T-201 Saturator 10
T-401 Desaturator 10
T-501 Purge Gas Scrubber 10
T-601 Distiullation Column 35
X-501 H2 Recovery Membrane Package

11. VULCAN SYSTEMS METHANOL PLANT
PFD’s
CASE STUDY#08270414
GBH ENTERPRISES, LTD.
WWW.GBHENTERPRISES.COM

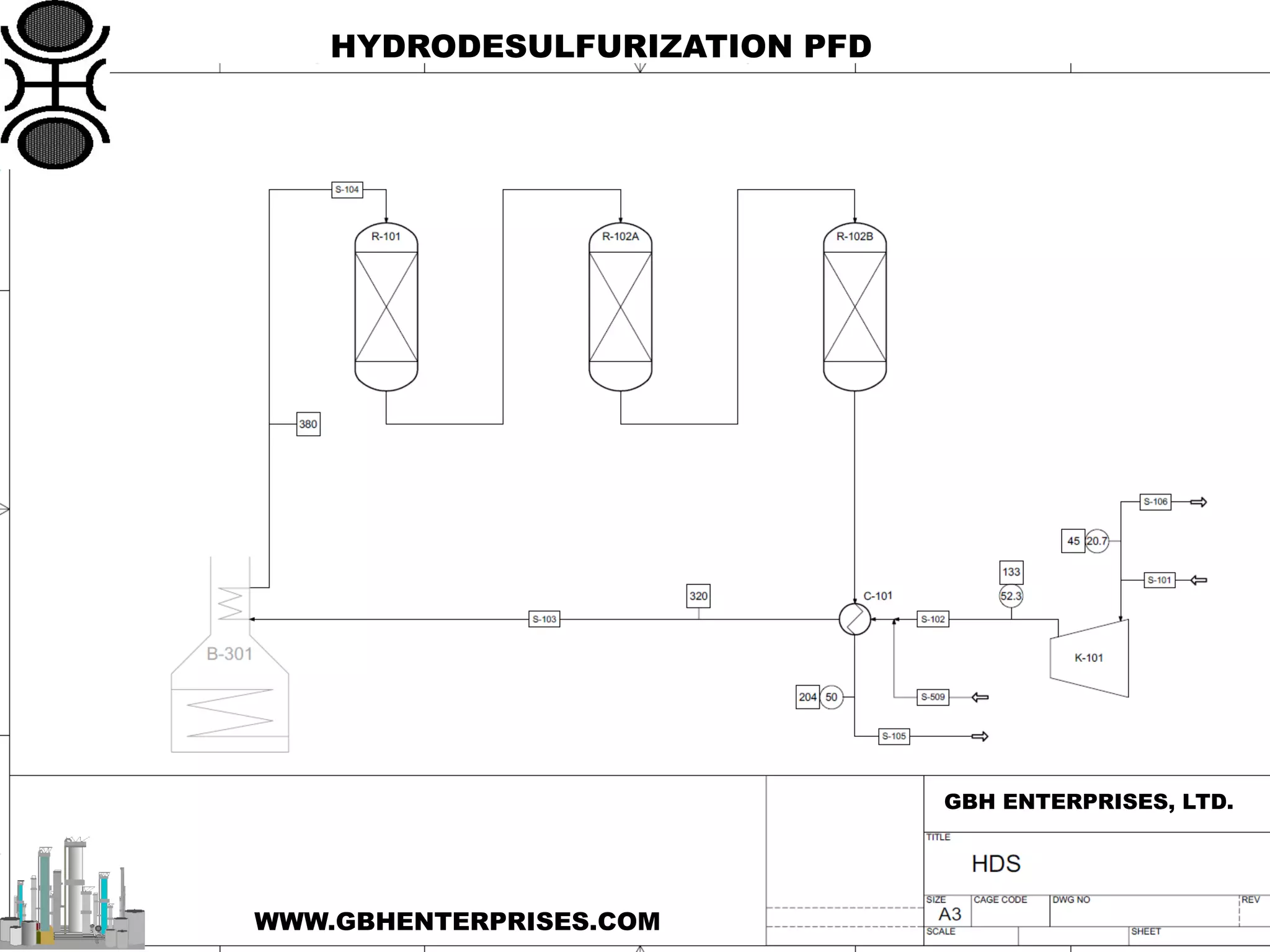

12. HYDRODESULFURIZATION PFD
GBH ENTERPRISES, LTD.
WWW.GBHENTERPRISES.COM

13. SATURATOR PFD
GBH ENTERPRISES, LTD.
WWW.GBHENTERPRISES.COM

14. ATR & AGHR REFORMING PFD
GBH ENTERPRISES, LTD.
WWW.GBHENTERPRISES.COM

15. (MUG) MAKE UP GAS COOLING PFD
GBH ENTERPRISES, LTD.
WWW.GBHENTERPRISES.COM

16. SYNTHESIS PFD
GBH ENTERPRISES, LTD.
WWW.GBHENTERPRISES.COM

17. DISTILLATION PFD
GBH ENTERPRISES, LTD.
WWW.GBHENTERPRISES.COM

18. 1- COLUMN DISTILLATION PFD
GBH ENTERPRISES, LTD.
WWW.GBHENTERPRISES.COM

19. Process Streams: Base Case
Stream S-101 S-102 S-103 S-104 S-105 S-106 S-201 S-202 S-203 S-204 S-205 S-206 S-207 S-301 S-302 S-303 S-304 S-306 S-307 S-308 S-309 S-310 S-311 S-312 S-401 S-402 S-403 S-404 S-405 S-406 S-407 S-408 S-501 S-502 S-503 S-504 S-505 S-506 S-507 S-508 S-509 S-510 S-511 S-512 S-513 S-601 S-602 S-603 S-604 S-605 S-606 S-607 S-608
Property Unit
Vapour Fraction <none> 1 1 1 1 1 1 1 0.00079 0 0.002602 0 0 0 0.997318 1 1 1 1 1 1 1 1 0 1 1 1 0.000263 0.000195 0 0 0 0.000185 1 1 1 1 1 0.997999 1 0 1 1 0 0 1 0.006611 0 0 1 1 1 0 1
Temperature C 45.0 132.5 320.0 380.0 203.5 45.0 230.5 240.9 182.5 45.0 183.0 228.5 110.0 236.0 420.0 499.4 450.0 1050.0 580.0 478.5 317.3 265.8 45.0 50.0 240.0 60.0 55.0 135.0 184.2 184.2 184.9 135.0 131.9 240.1 60.0 60.0 64.6 66.5 68.7 60.0 64.6 66.5 45.0 63.7 165.7 62.2 77.2 120.2 45.0 76.4 72.4 45.0 52.8
Pressure bar 20.7 52.3 51.5 51.0 50.0 20.7 49.5 51.5 50.0 49.0 56.5 52.5 50.0 49.5 48.8 48.0 47.0 41.0 40.0 39.3 38.8 49.5 48.5 45.0 38.1 37.6 39.6 39.6 38.1 38.1 56.5 41.6 84.0 81.0 78.6 78.6 78.1 37.6 84.7 78.6 78.1 77.1 80.1 78.6 84.0 6.0 1.6 2.0 1.3 1.6 1.5 7.5 5.5
Molar Flow kgmole/h 14060.0 13560.0 13938.1 13938.1 13938.1 500.0 35608.3 167257.4 145587.2 460.0 167257.4 167257.4 1371.5 41369.5 41369.5 41369.5 42989.7 68410.2 68410.2 68410.2 68410.2 5761.3 117.6 6377.6 68410.2 46279.6 54293.6 145706.4 222130.6 22130.6 22130.6 54293.6 187963.8 162692.8 146001.3 7160.4 7107.7 2845.2 138838.9 16691.5 378.1 3884.4 500.0 552.7 49124.8 17499.1 12757.4 4507.4 234.3 22393.2 3174.0 500.0 243.9
Mass Flow tonne/h 244.9 236.2 239.8 239.8 239.8 8.7 630.4 3012.4 2621.8 8.3 3012.4 3012.4 24.7 734.2 734.2 734.2 734.2 939.3 939.3 939.3 939.3 103.8 2.1 205.1 939.3 540.4 978.5 2625.9 4003.3 398.8 398.8 978.5 1928.2 1928.2 1444.9 70.9 68.9 13.8 1373.9 483.3 3.7 51.4 9.0 11.0 554.2 496.0 405.7 81.2 9.1 719.6 103.6 9.0 7.2
Component Molar Fraction
Hydrogen mol % 0.00% 0.00% 2.01% 2.01% 2.01% 0.00% 0.80% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.69% 0.69% 0.69% 6.41% 45.40% 45.96% 45.96% 45.96% 0.00% 0.00% 0.00% 45.96% 67.93% 0.02% 0.02% 0.02% 0.02% 0.02% 0.02% 72.35% 65.94% 73.44% 73.44% 73.99% 90.82% 73.44% 0.30% 73.99% 61.66% 0.00% 0.01% 69.25% 0.01% 0.00% 0.00% 0.39% 0.00% 0.03% 0.00% 20.14%
CO 0.00% 0.00% 0.08% 0.08% 0.08% 0.00% 0.05% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.04% 0.04% 0.04% 0.03% 14.32% 13.76% 13.76% 13.76% 0.00% 0.00% 0.00% 13.76% 20.33% 0.02% 0.02% 0.02% 0.02% 0.02% 0.02% 7.31% 2.80% 3.11% 3.11% 3.13% 0.74% 3.11% 0.07% 3.13% 4.88% 0.00% 0.01% 19.19% 0.01% 0.00% 0.00% 0.56% 0.01% 0.04% 0.00% 4.56%
CO2 0.00% 0.00% 0.18% 0.18% 0.18% 0.00% 0.09% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.08% 0.08% 0.08% 1.97% 5.42% 5.98% 5.98% 5.98% 0.00% 0.00% 0.00% 5.98% 8.83% 0.03% 0.03% 0.03% 0.03% 0.03% 0.03% 7.17% 6.17% 6.70% 6.70% 6.73% 3.18% 6.70% 1.51% 6.73% 9.33% 0.00% 0.24% 8.50% 0.78% 0.00% 0.00% 57.92% 0.62% 4.33% 0.00% 48.50%
Methane 89.74% 89.74% 87.39% 87.39% 87.39% 89.74% 34.20% 0.31% 0.36% 0.36% 0.31% 0.31% 0.00% 29.44% 29.44% 29.44% 29.97% 0.35% 0.35% 0.35% 0.35% 0.00% 0.00% 0.00% 0.35% 0.51% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 2.51% 2.90% 3.21% 3.21% 3.23% 0.76% 3.21% 0.17% 3.23% 5.04% 0.00% 0.02% 0.53% 0.03% 0.00% 0.00% 2.57% 0.03% 0.19% 0.00% 9.27%
Ethane 5.24% 5.24% 5.10% 5.10% 5.10% 5.24% 2.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 1.72% 1.72% 1.72% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
Propane 0.20% 0.20% 0.19% 0.19% 0.19% 0.20% 0.08% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.07% 0.07% 0.07% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
n-Butane 0.02% 0.02% 0.02% 0.02% 0.02% 0.02% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.01% 0.01% 0.01% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
n-Pentane 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
n-Hexane 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
Nitrogen 4.80% 4.80% 4.95% 4.95% 4.95% 4.80% 1.94% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 1.67% 1.67% 1.67% 1.60% 1.01% 1.01% 1.01% 1.01% 0.00% 0.00% 0.00% 1.01% 1.49% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 7.95% 9.19% 10.22% 10.22% 10.29% 2.43% 10.22% 0.17% 10.29% 16.05% 0.00% 0.01% 1.55% 0.01% 0.00% 0.00% 0.88% 0.01% 0.06% 0.00% 10.66%
Methanol 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.75% 8.62% 1.02% 1.02% 0.03% 0.08% 1.02% 75.13% 0.03% 0.00% 0.00% 12.72% 0.00% 72.06% 98.21% 0.00% 34.76% 99.10% 94.67% 0.00% 0.14%
H2O 0.00% 0.00% 0.01% 0.01% 0.01% 0.00% 60.82% 99.68% 99.64% 99.64% 99.68% 99.68% 100.00% 66.28% 66.28% 66.28% 60.00% 33.31% 32.75% 32.75% 32.75% 100.00% 100.00% 0.00% 32.75% 0.62% 99.93% 99.93% 99.93% 99.93% 99.93% 99.93% 0.26% 2.43% 0.13% 0.13% 0.40% 0.95% 0.13% 22.52% 0.40% 0.00% 100.00% 86.98% 0.64% 27.04% 1.77% 100.00% 0.00% 0.07% 0.03% 100.00% 2.68%
Ammonia 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
Oxygen 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 98.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
Argon 0.00% 0.00% 0.06% 0.06% 0.06% 0.00% 0.02% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.02% 0.02% 0.02% 0.20% 0.20% 0.20% 0.20% 0.00% 0.00% 2.00% 0.20% 0.29% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 1.67% 1.93% 2.15% 2.15% 2.16% 1.02% 2.15% 0.06% 2.16% 3.00% 0.00% 0.00% 0.34% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 3.73%
Ethanol 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.02% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
1-Propanol 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
1-Butanol 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
M-Formate 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.00% 0.00% 1.04% 0.08% 0.32% 0.00% 0.02%
diM-Ether 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.03% 0.02% 0.02% 0.02% 0.00% 0.02% 0.03% 0.02% 0.04% 0.00% 0.00% 0.00% 0.03% 0.00% 0.00% 1.87% 0.06% 0.30% 0.00% 0.29%
Acetone 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.02% 0.01% 0.02% 0.00% 0.00%
M-E-Ketone 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
M-iP-Ketone 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 0.00%
Component Molar Flow
Hydrogen kgmole/h 0.0 0.0 279.8 279.8 279.8 0.0 284.0 5.4 1.2 0.0 5.4 5.4 0.0 284.0 284.0 284.0 2755.0 31057.5 31441.5 31441.5 31441.5 0.0 0.0 0.0 31441.5 31437.3 10.3 27.7 42.2 4.2 4.2 10.3 135991.5 107279.7 107229.7 5258.9 5258.9 2584.1 101970.2 50.0 279.8 2395.0 0.0 0.1 34021.3 0.9 0.0 0.0 0.9 0.9 0.9 0.0 49.1
CO 0.0 0.0 11.8 11.8 11.8 0.0 16.2 4.5 0.2 0.0 4.5 4.5 0.0 16.2 16.2 16.2 12.3 9795.5 9411.7 9411.7 9411.7 0.0 0.0 0.0 9411.7 9407.3 10.6 28.6 43.5 4.3 4.3 10.6 13745.1 4552.0 4539.6 222.6 222.6 21.1 4316.7 12.4 11.8 189.7 0.0 0.1 9428.4 1.3 0.0 0.0 1.3 1.3 1.3 0.0 11.1
CO2 0.0 0.0 25.4 25.4 25.4 0.0 32.3 8.1 1.3 0.0 8.1 8.1 0.0 32.3 32.3 32.3 846.2 3709.5 4093.3 4093.3 4093.3 0.0 0.0 0.0 4093.3 4086.5 16.8 45.0 68.6 6.8 6.8 16.8 13478.4 10034.7 9782.1 479.7 478.3 90.6 9301.3 252.7 25.4 362.3 0.0 1.4 4177.1 135.8 0.1 0.0 135.7 138.1 137.3 0.0 118.3
Methane 12617.4 12168.7 12181.0 12181.0 12181.0 448.7 12179.6 517.6 518.9 1.6 517.6 517.6 0.0 12179.6 12179.6 12179.6 12883.2 236.7 236.7 236.7 236.7 0.0 0.0 0.0 236.7 236.4 0.8 2.1 3.3 0.3 0.3 0.8 4716.3 4716.3 4687.8 229.9 229.8 21.8 4458.1 28.5 12.2 195.8 0.0 0.1 258.2 6.0 0.0 0.0 6.0 6.1 6.0 0.0 22.6
Ethane 736.7 710.5 710.5 710.5 710.5 26.2 710.5 0.2 0.2 0.0 0.2 0.2 0.0 710.5 710.5 710.5 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Propane 28.1 27.1 27.1 27.1 27.1 1.0 27.1 0.0 0.0 0.0 0.0 0.0 0.0 27.1 27.1 27.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
n-Butane 2.8 2.7 2.7 2.7 2.7 0.1 2.7 0.0 0.0 0.0 0.0 0.0 0.0 2.7 2.7 2.7 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
n-Pentane 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
n-Hexane 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Nitrogen 674.9 650.9 689.8 689.8 689.8 24.0 689.9 3.3 3.2 0.0 3.3 3.3 0.0 689.9 689.9 689.9 689.9 689.9 689.9 689.9 689.9 0.0 0.0 0.0 689.9 689.8 0.2 0.7 1.0 0.1 0.1 0.2 14944.0 14944.0 14916.0 731.6 731.5 69.3 14185.0 28.0 38.9 623.3 0.0 0.1 759.0 2.1 0.0 0.0 2.1 2.1 2.1 0.0 26.0
Methanol 0.0 0.0 0.1 0.1 0.1 0.0 0.1 0.2 0.2 0.0 0.2 0.2 0.0 0.2 0.2 0.2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 1411.8 14022.6 1482.3 72.7 2.4 2.3 1409.6 12540.3 0.1 0.0 0.0 70.3 2.3 12610.3 12528.8 0.0 81.4 22192.8 3004.8 0.0 0.4
H2O 0.0 0.0 1.5 1.5 1.5 0.0 21657.5 166717.8 145061.9 458.3 166717.8 166717.8 1371.5 27418.7 27418.7 27418.7 25794.9 22785.2 22401.4 22401.4 22401.4 5761.2 117.6 0.0 22401.4 286.6 54254.7 145602.0 221971.4 22114.7 22114.7 54254.7 494.4 3948.3 190.0 9.3 28.6 27.1 180.7 3758.4 1.5 0.0 500.0 480.7 313.7 4732.5 225.2 4507.3 0.0 16.8 1.1 500.0 6.5
Ammonia 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Oxygen 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 6250.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Argon 0.0 0.0 8.2 8.2 8.2 0.0 8.2 0.2 0.1 0.0 0.2 0.2 0.0 8.2 8.2 8.2 8.2 135.8 135.8 135.8 135.8 0.0 0.0 127.6 135.8 135.7 0.2 0.4 0.6 0.1 0.1 0.2 3145.9 3145.9 3135.6 153.7 153.7 29.1 2981.1 10.3 8.2 116.4 0.0 0.0 164.8 0.0 0.0 0.0 0.0 0.0 0.0 0.0 9.1
Ethanol 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.3 3.1 0.3 0.0 0.0 0.0 0.3 2.8 0.0 0.0 0.0 0.0 0.0 2.8 2.8 0.0 0.0 0.7 0.1 0.0 0.0
1-Propanol 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
1-Butanol 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
M-Formate 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 2.0 4.8 2.1 0.1 0.1 0.0 2.0 2.7 0.0 0.1 0.0 0.0 0.0 2.7 0.2 0.0 2.4 18.5 10.2 0.0 0.0
diM-Ether 0.0 0.0 0.1 0.1 0.1 0.0 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 34.0 41.0 35.7 1.8 1.7 0.0 34.0 5.3 0.1 1.7 0.0 0.0 0.0 4.6 0.2 0.0 4.4 13.1 9.5 0.0 0.7
Acetone 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.2 0.1 0.0 0.0 0.0 0.1 0.1 0.0 0.0 0.0 0.0 0.0 0.1 0.1 0.0 0.1 2.9 0.8 0.0 0.0
M-E-Ketone 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.1 0.0 0.0 0.0 0.0 0.0 0.1 0.0 0.0 0.0 0.0 0.0 0.1 0.1 0.0 0.0 0.2 0.0 0.0 0.0
M-iP-Ketone 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
WWW.GBHENTERPRISES.COM
CASE STUDY#08270414

20. REFORMING
Name S-301 S-302 S-303 S-304 S-305 S-305A S-306 S-308
Temperature [C] 420.0 500.4 450.0 713.2 1050.0 1059.4 579.9 50.0
Pressure [bar] 48.8 48.0 47.0 43.0 41.0 41.0 40.0 45.0
Molar Flow [kgmole/h] 41473.5 41473.5 43122.9 49492.7 68621.6 68528.2 68528.2 6377.3
Mass Flow [kg/h] 735112 735112 735112 735115 940200 940200 940200 205088
Mol % CO 0.010% 0.010% 0.028% 2.602% 14.308% 13.652% 13.652% 0.000%
Mol % H2O 66.370% 66.370% 60.025% 42.007% 33.254% 32.760% 32.760% 0.000%
Mol % CO2 0.020% 0.020% 1.913% 5.524% 5.398% 6.013% 6.013% 0.000%
Mol % Hydrogen 0.670% 0.670% 6.458% 28.789% 45.498% 45.962% 45.962% 0.000%
Mol % Methane 29.510% 29.510% 30.018% 19.719% 0.377% 0.446% 0.446% 0.000%
Mol % Ethane 1.720% 1.720% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000%
Mol % Oxygen 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 98.000%
Mol % Propane 0.070% 0.070% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000%
Mol % n-Butane 0.010% 0.010% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000%
Mol % Methanol 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000%
Mol % diM-Ether 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000%
Mol % Nitrogen 1.610% 1.610% 1.548% 1.349% 0.973% 0.974% 0.974% 0.000%
Mol % Argon 0.010% 0.010% 0.010% 0.008% 0.192% 0.192% 0.192% 2.000%
WWW.GBHENTERPRISES.COM
CASE STUDY#08270414

21. (AGHR) Autothermal Gas Heated Reformer Output
Stream S-301 S-302 S-303 S-304 S-305
Temperature C 450.0 50.0 709.7 1050.0 580.0
Pressure bar 47.0 45.0 43.0 41.0 40.0
Molar Flow kgmole/h 42989.6 6375.8 49273.0 68374.2 68374.3
Mass Flow kg/h 734175 205040 734177 939214 939214
Hydrogen 6.41% 0.00% 28.57% 45.35% 45.78%
CO 0.03% 0.00% 2.55% 14.30% 13.87%
CO2 1.97% 0.00% 5.56% 5.43% 5.86%
Methane 29.97% 0.00% 19.77% 0.37% 0.37%
Nitrogen 1.60% 0.00% 1.40% 1.01% 1.01%
H2O 60.00% 0.00% 42.13% 33.34% 32.91%
Oxygen 0.00% 98.00% 0.00% 0.00% 0.00%
Argon 0.02% 2.00% 0.02% 0.20% 0.20%
NTubes 657
Tube ID m 0.14
Tube OD m 0.1498
Sheath ID m 0.1605
Sheath OD m 0.1717
Tube PD bar 3.5
Heated Length m 11
Bundle Area m2 24.2
Bundle OD m 5.55
Catalyst split 57-4Q/57-4MQ % 82:18
Sheath length % 85
WWW.GBHENTERPRISES.COM
CASE STUDY#08270414

22. 1-Column Distillation
Name S-601 S-602 S-603 S-604 S-605 S-606 S-607 S-608 S-609 S-610
Temperature [C] 49.3 50.0 150.3 59.5 106.3 104.4 49.3 135.1 50.0 56.7
Pressure [bar] 7.0 3.9 4.8 4.0 4.3 4.1 7.0 4.7 20.0 4.1
Molar Flow [kgmole/h] 17286.6 13291.8 4176.8 315.5 25033.0 11823.7 275.5 5.0 222.0 232.5
Mass Flow [kg/h] 495494 422872 75248 9745 802945 380688 8372 140 4000 4550
Comp Molar Flow (CO) [kgmole/h] 2.0 0.0 0.0 15.2 2.7 2.7 13.2 0.0 0.0 0.0
Comp Molar Flow (H2O) [kgmole/h] 4203.2 234.7 4176.7 15.6 141.7 45.5 1.8 3.1 222.0 208.2
Comp Molar Flow (CO2) [kgmole/h] 33.9 0.1 0.0 161.5 57.2 57.1 127.7 0.0 0.0 0.2
Comp Molar Flow (Hydrogen) [kgmole/h] 1.8 0.0 0.0 37.4 2.1 2.1 35.6 0.0 0.0 0.0
Comp Molar Flow (Methane) [kgmole/h] 3.8 0.0 0.0 47.1 5.0 5.0 43.4 0.0 0.0 0.0
Comp Molar Flow (Methanol) [kgmole/h] 13027.6 13043.1 0.0 2.4 24692.8 11598.8 18.0 1.4 0.0 22.7
Comp Molar Flow (diM-Ether) [kgmole/h] 6.2 6.0 0.0 0.3 96.2 85.1 0.1 0.0 0.0 1.1
Comp Molar Flow (Ethanol) [kgmole/h] 3.1 3.1 0.0 0.0 3.0 1.1 0.0 0.0 0.0 0.0
Comp Molar Flow (M-Formate) [kgmole/h] 3.0 2.9 0.0 0.0 30.8 25.5 0.0 0.0 0.0 0.2
Comp Molar Flow (M-E-Ketone) [kgmole/h] 0.1 0.1 0.0 0.0 0.1 0.1 0.0 0.0 0.0 0.0
Comp Molar Flow (1-Propanol) [kgmole/h] 1.2 1.2 0.0 0.0 0.3 0.1 0.0 0.0 0.0 0.0
Comp Molar Flow (1-Butanol) [kgmole/h] 0.5 0.5 0.0 0.0 0.3 0.1 0.0 0.5 0.0 0.0
Comp Molar Flow (Acetone) [kgmole/h] 0.2 0.2 0.0 0.0 0.6 0.4 0.0 0.0 0.0 0.0
Comp Molar Flow (Nitrogen) [kgmole/h] 0.1 0.0 0.0 35.8 0.1 0.1 35.7 0.0 0.0 0.0
Comp Mole Frac (CO) 0.012% 0.000% 0.000% 4.833% 0.011% 0.023% 4.806% 0.000% 0.000% 0.006%
Comp Mole Frac (H2O) 24.315% 1.766% 99.998% 4.939% 0.566% 0.385% 0.648% 61.159% 100.000% 89.586%
Comp Mole Frac (CO2) 0.196% 0.001% 0.000% 51.196% 0.229% 0.483% 46.340% 0.000% 0.000% 0.074%
Comp Mole Frac (Hydrogen) 0.010% 0.000% 0.000% 11.867% 0.008% 0.018% 12.934% 0.000% 0.000% 0.001%
Comp Mole Frac (Methane) 0.022% 0.000% 0.000% 14.940% 0.020% 0.042% 15.740% 0.000% 0.000% 0.002%
Comp Mole Frac (Methanol) 75.363% 98.129% 0.001% 0.771% 98.641% 98.098% 6.517% 27.808% 0.000% 9.765%
Comp Mole Frac (diM-Ether) 0.036% 0.045% 0.000% 0.111% 0.384% 0.720% 0.042% 0.001% 0.000% 0.488%
Comp Mole Frac (Ethanol) 0.018% 0.023% 0.000% 0.000% 0.012% 0.010% 0.001% 0.022% 0.000% 0.001%
Comp Mole Frac (M-Formate) 0.017% 0.022% 0.001% 0.001% 0.123% 0.215% 0.008% 0.002% 0.000% 0.077%
Comp Mole Frac (M-E-Ketone) 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000% 0.000%
Comp Mole Frac (1-Propanol) 0.007% 0.009% 0.000% 0.000% 0.001% 0.001% 0.000% 0.368% 0.000% 0.000%
Comp Mole Frac (1-Butanol) 0.003% 0.003% 0.000% 0.000% 0.001% 0.001% 0.000% 10.640% 0.000% 0.000%
Comp Mole Frac (Acetone) 0.001% 0.001% 0.000% 0.000% 0.003% 0.003% 0.000% 0.000% 0.000% 0.000%
Comp Mole Frac (Nitrogen) 0.000% 0.000% 0.000% 11.343% 0.000% 0.001% 12.964% 0.000% 0.000% 0.000%
WWW.GBHENTERPRISES.COM
DESIGN CASE STUDY#08270414

23. Distillation
Stage Temperature
liquid from
Temperature
vapor to
Pressure Heat duty Liquid flow Vapor flow Feed Draw Mass flow
liquid from
Mass flow
vapor to
Molecular wt
liquid from
Molecular wt
vapor to
Density liquid
from
Density vapor
to
Viscosity
liquid from
Viscosity
vapor to
Surface
tension liquid
from
C C bar MW kmol/hr kmol/hr kmol/hr kmol/hr kg/hr kg/hr gm/cc gm/cc cP cP dyne/cm
1 106.3 106.7 4.30 13284.6 25041.6 423897.8 804722.2 31.91 32.05 694.3 4.69 0.209 7.76E-03 17.47
2 106.7 107.2 4.35 13283.4 25112.0 423229.7 804054.1 31.86 32.02 694.1 4.74 0.208 7.78E-03 17.54
3 107.2 107.2 4.40 25110.8 25119.2 13291.8 422872.4 803696.9 31.81 32.00 694.0 4.74 0.207 7.78E-03 17.61
4 107.2 107.7 4.40 125.09 14239.8 11781.9 25119.2 452347.0 877002.9 31.77 31.80 694.4 4.71 0.207 7.79E-03 17.74
5 107.7 108.1 4.41 117.04 14188.5 27577.1 447529.7 872185.6 31.54 31.69 695.7 4.70 0.207 7.81E-03 18.30
6 108.1 108.5 4.42 14132.9 27525.7 442789.1 867445.1 31.33 31.58 697.2 4.69 0.207 7.84E-03 18.87
7 108.5 108.8 4.44 14077.9 27470.1 438152.9 862808.8 31.12 31.47 698.8 4.68 0.207 7.86E-03 19.43
8 108.8 109.2 4.45 14023.8 27415.2 433617.1 858273.0 30.92 31.37 700.3 4.68 0.207 7.88E-03 19.98
9 109.2 109.5 4.46 13970.7 27361.1 429183.3 853839.2 30.72 31.27 701.9 4.67 0.208 7.90E-03 20.53
10 109.5 109.9 4.47 13918.5 27307.9 424853.7 849509.6 30.52 31.17 703.5 4.66 0.208 7.93E-03 21.06
11 109.9 110.2 4.48 13867.4 27255.8 420630.3 845286.2 30.33 31.07 705.1 4.65 0.208 7.95E-03 21.58
12 110.2 110.6 4.49 13817.6 27204.7 416514.5 841170.4 30.14 30.98 706.6 4.64 0.208 7.97E-03 22.10
13 110.6 110.9 4.51 13769.1 27154.9 412507.1 837163.0 29.96 30.88 708.2 4.64 0.208 7.99E-03 22.60
14 110.9 111.2 4.52 13722.0 27106.3 408608.4 833264.4 29.78 30.79 709.8 4.63 0.208 8.01E-03 23.09
15 111.2 111.6 4.53 13676.3 27059.2 404819.2 829475.1 29.60 30.71 711.3 4.62 0.208 8.03E-03 23.57
16 111.6 111.9 4.54 13632.1 27013.6 401140.8 825796.8 29.43 30.62 712.9 4.62 0.208 8.05E-03 24.03
17 111.9 112.2 4.55 13589.5 26969.4 397576.9 822232.8 29.26 30.54 714.4 4.61 0.208 8.07E-03 24.48
18 112.2 112.5 4.56 13548.4 26926.8 394134.3 818790.2 29.09 30.45 716.0 4.61 0.208 8.09E-03 24.91
19 112.5 112.8 4.58 13508.8 26885.6 390824.1 815480.0 28.93 30.38 717.5 4.60 0.207 8.11E-03 25.33
20 112.8 113.1 4.59 13470.7 26846.0 387662.9 812318.8 28.78 30.30 719.0 4.60 0.207 8.13E-03 25.74
21 113.1 113.4 4.60 13434.2 26808.0 384673.1 809329.0 28.63 30.23 720.4 4.60 0.207 8.14E-03 26.12
22 113.4 113.7 4.61 13399.5 26771.5 381883.2 806539.2 28.50 30.17 721.8 4.60 0.207 8.16E-03 26.49
23 113.7 114.0 4.62 13366.6 26736.7 379327.7 803983.7 28.38 30.11 723.1 4.59 0.207 8.18E-03 26.83
24 114.0 114.3 4.64 13335.7 26703.8 377046.5 801702.5 28.27 30.06 724.3 4.59 0.207 8.19E-03 27.14
25 114.3 114.5 4.65 13307.3 26673.0 375084.4 799740.3 28.19 30.02 725.4 4.60 0.207 8.20E-03 27.42
26 114.5 114.8 4.66 13281.6 26644.6 373491.4 798147.3 28.12 29.98 726.4 4.60 0.208 8.22E-03 27.66
27 114.8 115.0 4.67 13259.0 26618.9 372324.2 796980.1 28.08 29.97 727.1 4.61 0.208 8.23E-03 27.86
28 115.0 116.6 4.68 32.17 28918.9 26596.3 17519.0 811764.7 736376.8 28.07 29.77 727.7 4.56 0.208 8.32E-03 28.01
29 116.6 119.4 4.69 28484.7 24737.1 794548.7 719160.9 27.89 29.59 734.5 4.51 0.212 8.51E-03 29.68
30 119.4 123.7 4.71 27792.3 24302.9 772571.4 697183.5 27.80 29.53 745.7 4.45 0.221 8.82E-03 32.32
31 123.7 129.0 4.72 26941.2 23610.5 745999.5 670611.7 27.69 29.47 761.2 4.38 0.233 9.28E-03 35.80
32 129.0 135.1 4.73 26118.9 22759.4 690683.1 615435.5 26.44 28.05 785.7 4.10 0.238 9.87E-03 40.20
33 135.1 144.6 4.74 25460.7 21937.1 5.0 538740.6 463493.0 21.16 21.78 851.3 3.08 0.196 1.05E-02 46.82
34 144.6 149.1 4.75 25458.5 21283.9 469201.6 393954.0 18.43 18.51 896.1 2.59 0.141 1.06E-02 48.89
35 149.1 150.0 4.76 25558.6 21281.7 462111.1 386863.5 18.08 18.09 902.3 2.53 0.122 1.06E-02 48.70
36 150.0 150.2 4.78 25575.1 21381.8 461061.1 385813.6 18.03 18.03 903.3 2.52 0.181 1.06E-02 48.65
37 150.2 150.3 4.79 25580.4 21398.3 460909.4 385661.8 18.02 18.02 903.5 2.53 0.181 1.39E-02 48.63
38 150.3 150.3 4.80 25585.5 21403.7 460952.4 385704.8 18.02 18.02 903.4 2.53 0.181 1.39E-02 48.61
228.00
WWW.GBHENTERPRISES.COM
Hysys Output
CASE STUDY#08270414

24. Distillation
Stage Temperature
liquid from
Temperature
vapor to
Pressure Density liquid
from
Density
vapor to
Viscosity
liquid from
Viscosity
vapor to
Surface
tension liquid
from
C C bar gm/cc gm/cc cP cP dyne/cm
1 105.9 106.0 4.30 0.693 0.00440 0.242 0.0126 15.42
2 106.0 106.2 4.31 0.693 0.00441 0.242 0.0126 15.55
3 106.2 106.4 4.33 0.693 0.00442 0.242 0.0126 15.70
4 106.4 107.2 4.34 0.693 0.00438 0.242 0.0126 15.85
5 107.2 107.5 4.35 0.693 0.00437 0.241 0.0126 16.45
6 107.5 107.9 4.37 0.694 0.00437 0.240 0.0126 17.06
7 107.9 108.2 4.38 0.695 0.00437 0.240 0.0126 17.65
8 108.2 108.6 4.39 0.696 0.00436 0.240 0.0127 18.22
9 108.6 108.9 4.41 0.697 0.00436 0.239 0.0127 18.77
10 108.9 109.2 4.42 0.698 0.00435 0.239 0.0127 19.30
11 109.2 109.5 4.43 0.698 0.00435 0.239 0.0127 19.81
12 109.5 109.9 4.44 0.699 0.00435 0.238 0.0127 20.30
13 109.9 110.2 4.46 0.700 0.00435 0.238 0.0127 20.77
14 110.2 110.5 4.47 0.701 0.00435 0.237 0.0128 21.22
15 110.5 110.8 4.48 0.702 0.00435 0.237 0.0128 21.65
16 110.8 111.0 4.50 0.702 0.00435 0.237 0.0128 22.05
17 111.0 111.3 4.51 0.703 0.00435 0.236 0.0128 22.44
18 111.3 111.6 4.52 0.704 0.00435 0.236 0.0128 22.80
19 111.6 111.8 4.54 0.705 0.00435 0.236 0.0128 23.14
20 111.8 112.1 4.55 0.705 0.00435 0.235 0.0129 23.46
21 112.1 112.3 4.56 0.706 0.00436 0.235 0.0129 23.77
22 112.3 112.6 4.58 0.706 0.00436 0.235 0.0129 24.05
23 112.6 112.8 4.59 0.707 0.00436 0.234 0.0129 24.32
24 112.8 113.0 4.60 0.707 0.00437 0.234 0.0129 24.58
25 113.0 113.2 4.62 0.708 0.00437 0.234 0.0129 24.82
26 113.2 113.4 4.63 0.708 0.00438 0.234 0.0129 25.04
27 113.4 113.6 4.64 0.709 0.00437 0.233 0.0129 25.26
28 113.7 114.5 4.66 0.709 0.00436 0.233 0.0129 25.45
29 114.5 115.7 4.67 0.711 0.00434 0.232 0.0130 26.21
30 115.7 118.0 4.68 0.716 0.00427 0.231 0.0131 27.81
31 118.0 122.4 4.69 0.726 0.00411 0.229 0.0133 31.00
32 122.4 131.0 4.71 0.750 0.00368 0.223 0.0137 37.08
33 131.0 142.8 4.72 0.807 0.00293 0.208 0.0142 45.33
34 142.8 148.5 4.73 0.851 0.00254 0.189 0.0144 48.29
35 148.5 149.8 4.75 0.860 0.00246 0.181 0.0144 48.32
36 149.8 150.1 4.76 0.862 0.00245 0.180 0.0144 48.27
37 150.1 150.3 4.77 0.862 0.00245 0.179 0.0144 48.25
38 150.3 150.4 4.79 0.862 0.00246 0.179 0.0144 48.23
Reboiler 150.4 150.4 4.8 0.862 0.00246 0.179 0.0144 48.21
Aspen Output
WWW.GBHENTERPRISES.COM
CASE STUDY#08270414

25. Purge Gas Scrubber 2 ft diameter based on 1.5" metal Pall rings and 3 te/hr of scrubbing water
Vapor to:
Tray Mass Flow [kg/h] Gas Flow
[ACT_m3/h]
Mole Wt. Temperature [C] Density [kg/m3] Viscosity [cP]
1 5249.3 1000.3 26.20 66.5 5.25 1.67E-02
2 5299.8 985.3 26.26 66.5 5.38 1.66E-02
3 5350.2 958.6 26.40 63.2 5.58 1.64E-02
4 5488.1 914.7 26.84 52.4 6.00 1.58E-02
Liquid from:
Tray Mass Flow [kg/h] Liq Flow [m3/s] Mole Wt. Temperature [C] Density [kg/m3] Viscosity [cP] Surf Ten [dyne/cm]
1 3084.9 8.80E-04 18.17 62.4 974.13 0.476 65.1
2 3135.3 9.01E-04 18.30 66.5 966.37 0.446 63.9
3 3185.7 9.22E-04 18.51 66.5 959.99 0.444 63.3
4 3323.6 9.77E-04 19.11 63.2 944.52 0.459 62.1
Vent & Flash Gas Scrubber 3 ft diameter based on 1.5" metal Pall rings and 4 te/hr of scrubbing water
Vapor to:
Tray Mass Flow [kg/h] Gas Flow [ACT_mMole Wt. Temperature [C] Density [kg/m3] Viscosity [cP]
1 9886.5 2172.7 30.91 60.4 4.55 1.59E-02
2 10017.8 2137.8 31.08 56.8 4.69 1.56E-02
3 10296.5 2099.3 31.59 47.9 4.90 1.50E-02
Liquid from:
Tray Mass Flow [kg/h] Liq Flow [m3/s] Mole Wt. Temperature [C] Density [kg/m3] Viscosity [cP] Surf Ten [dyne/cm]
1 4140.9 1.18E-03 18.29 59.5 972.42 0.494 65.3
2 4272.2 1.24E-03 18.67 60.4 960.02 0.481 64.0
3 4551.0 1.35E-03 19.58 56.8 937.25 0.493 62.1
WWW.GBHENTERPRISES.COM
CASE STUDY#08270414

26. VULCAN SYSTEMS METHANOL PLANT
TECHNOLOGY
(ATR) AUTO THERMAL REFORMING AND
(AGHR) ADVANCED GAS HEATED REFORING
CASE STUDY#08270414
WWW.GBHENTERPRISES.COM

27. Process Concept for Synthesis Gas Production by
Adiabatic Prereforming and Autothermal Reforming
WWW.GBHENTERPRISES.COM

28. TYPICAL THE AUTOTHERMAL LAYOUT
WWW.GBHENTERPRISES.COM

29. WWW.GBHENTERPRISES.COM
Autothermal Reformer

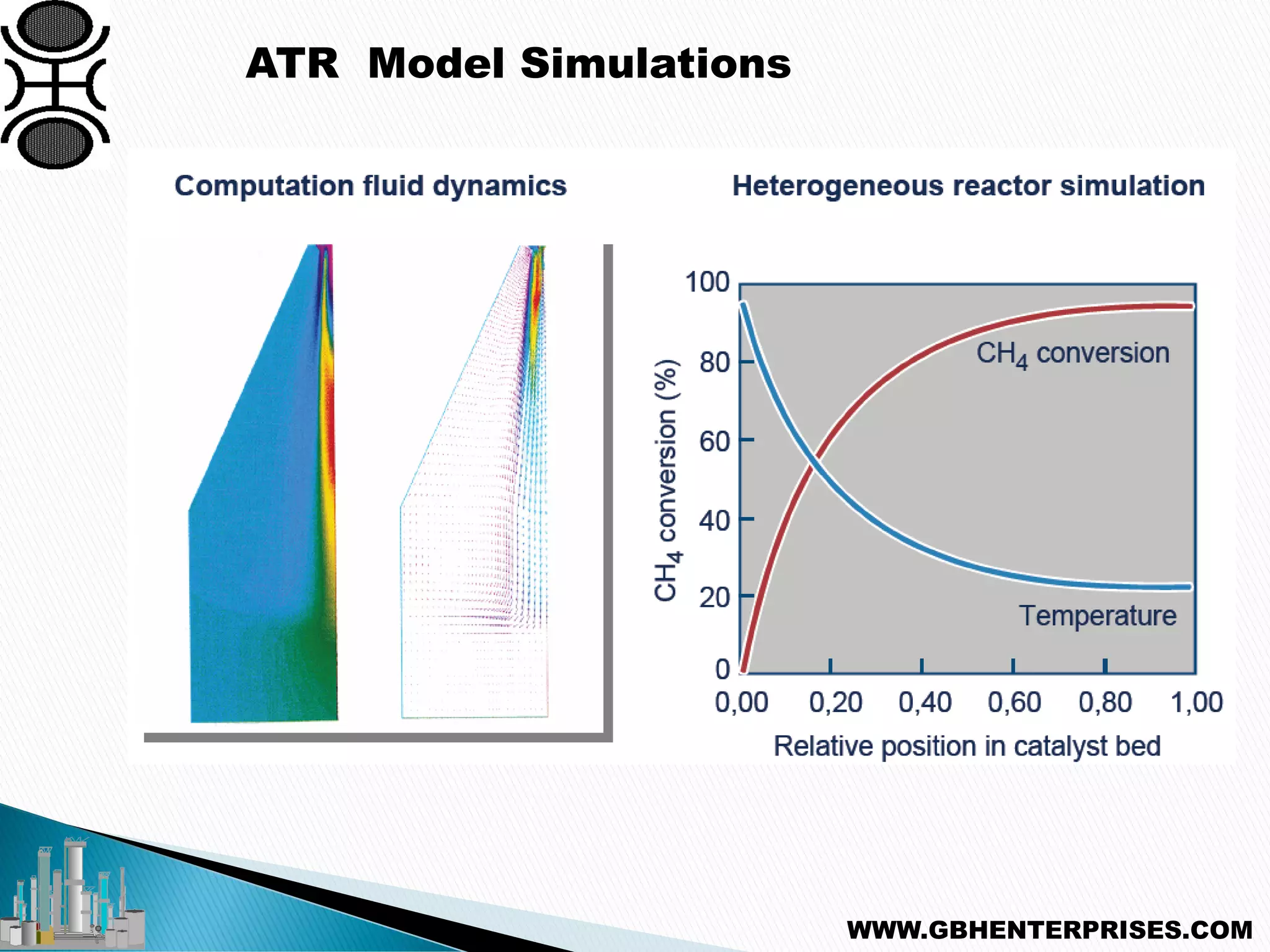

30. WWW.GBHENTERPRISES.COM
ATR Model Simulations

31. WWW.GBHENTERPRISES.COM
ATR Synthesis Gas Properties

32. WWW.GBHENTERPRISES.COM
Advanced Gas Heated Reformer

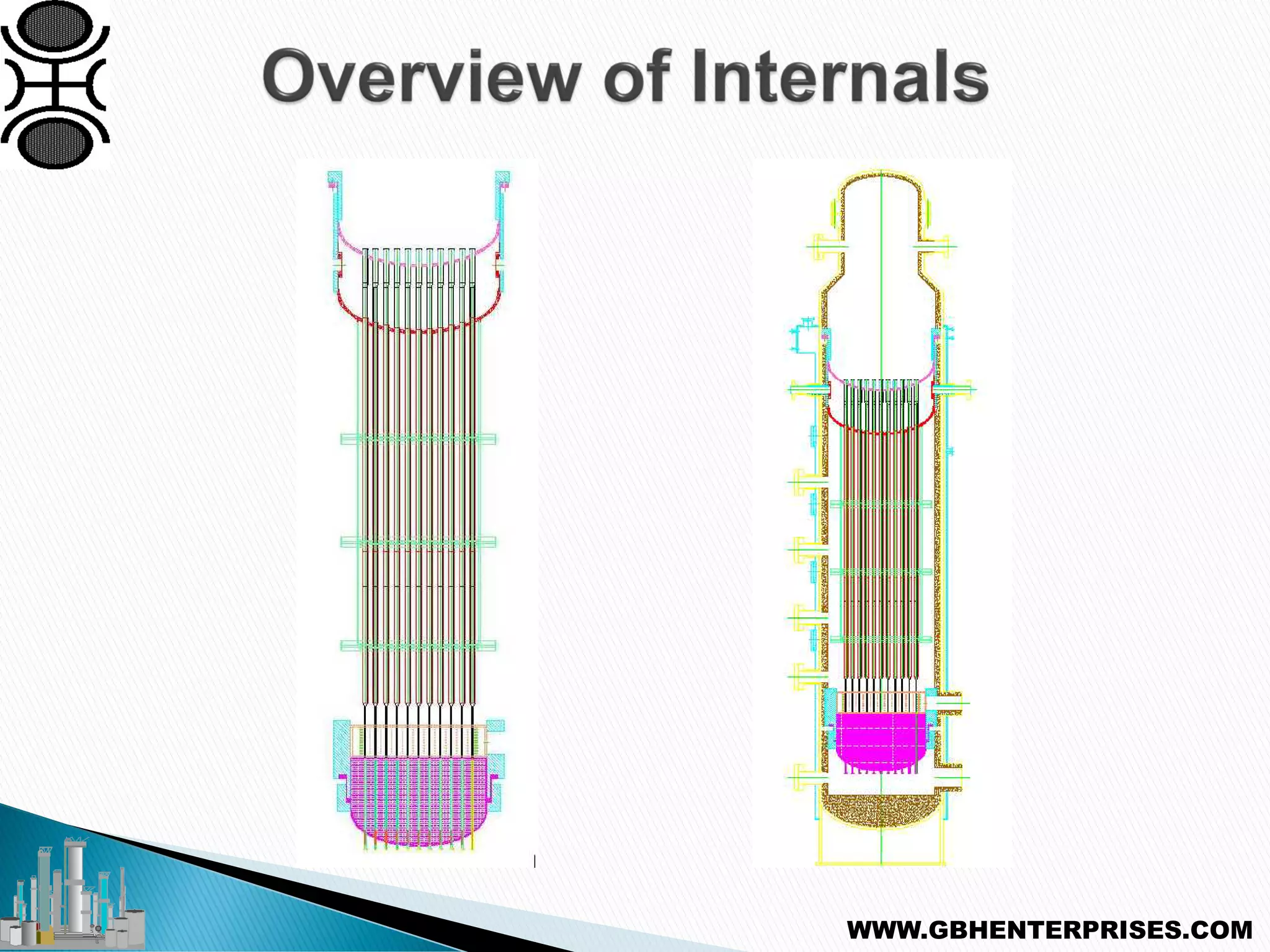

33. WWW.GBHENTERPRISES.COM

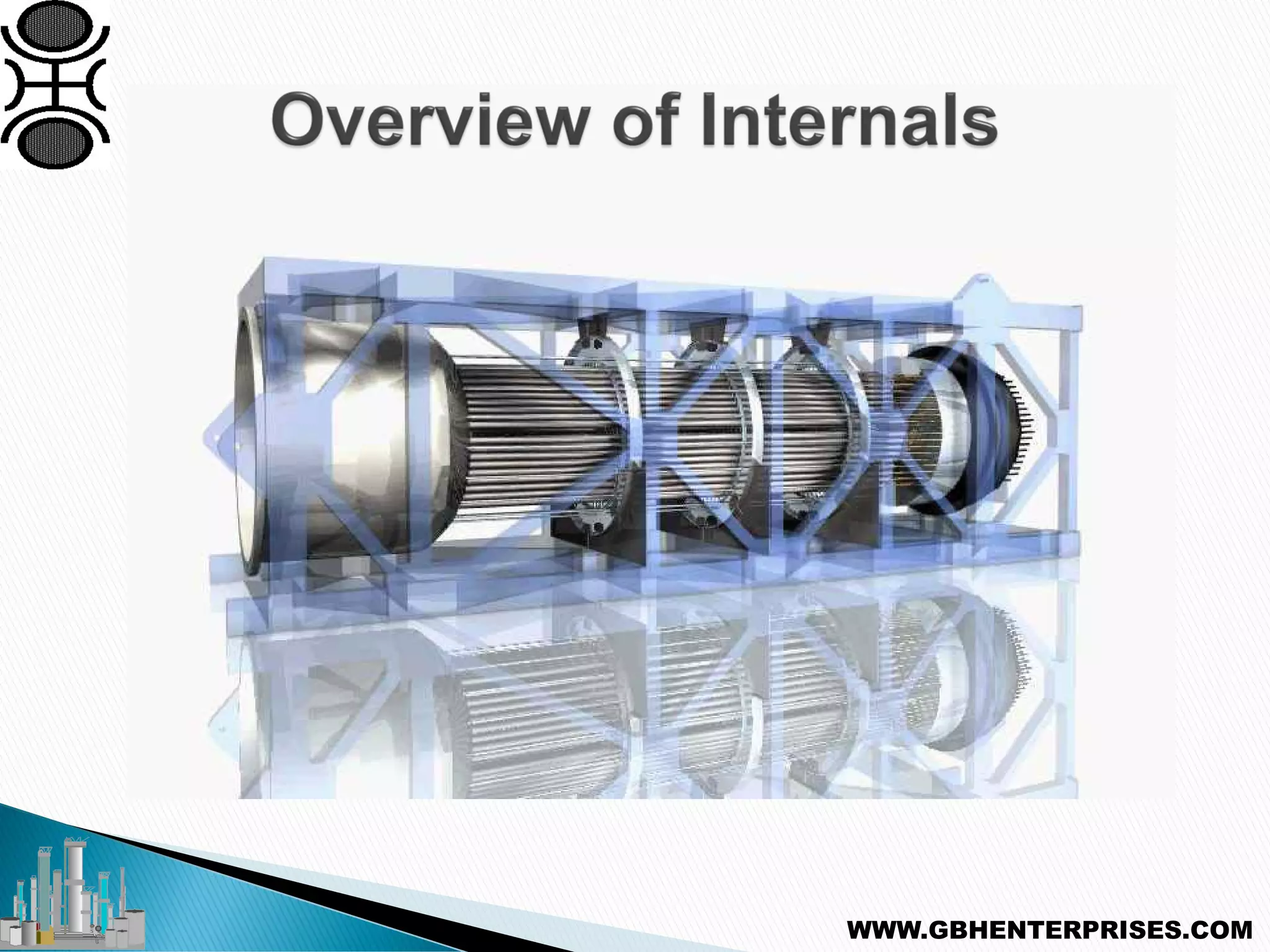

34. WWW.GBHENTERPRISES.COM

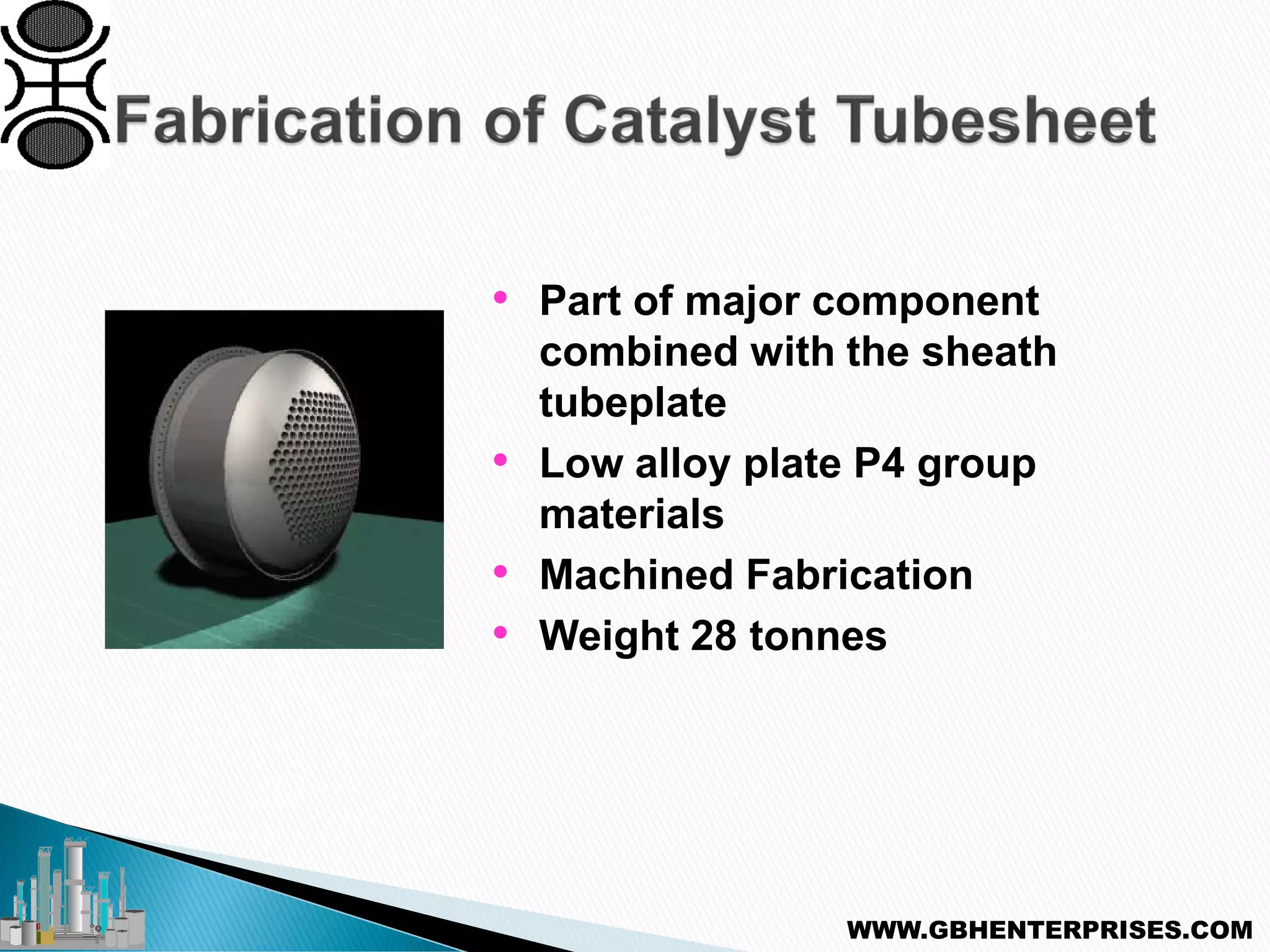

35. • Part of major component
combined with the sheath
tubeplate
• Low alloy plate P4 group
materials
• Machined Fabrication
• Weight 28 tonnes
WWW.GBHENTERPRISES.COM

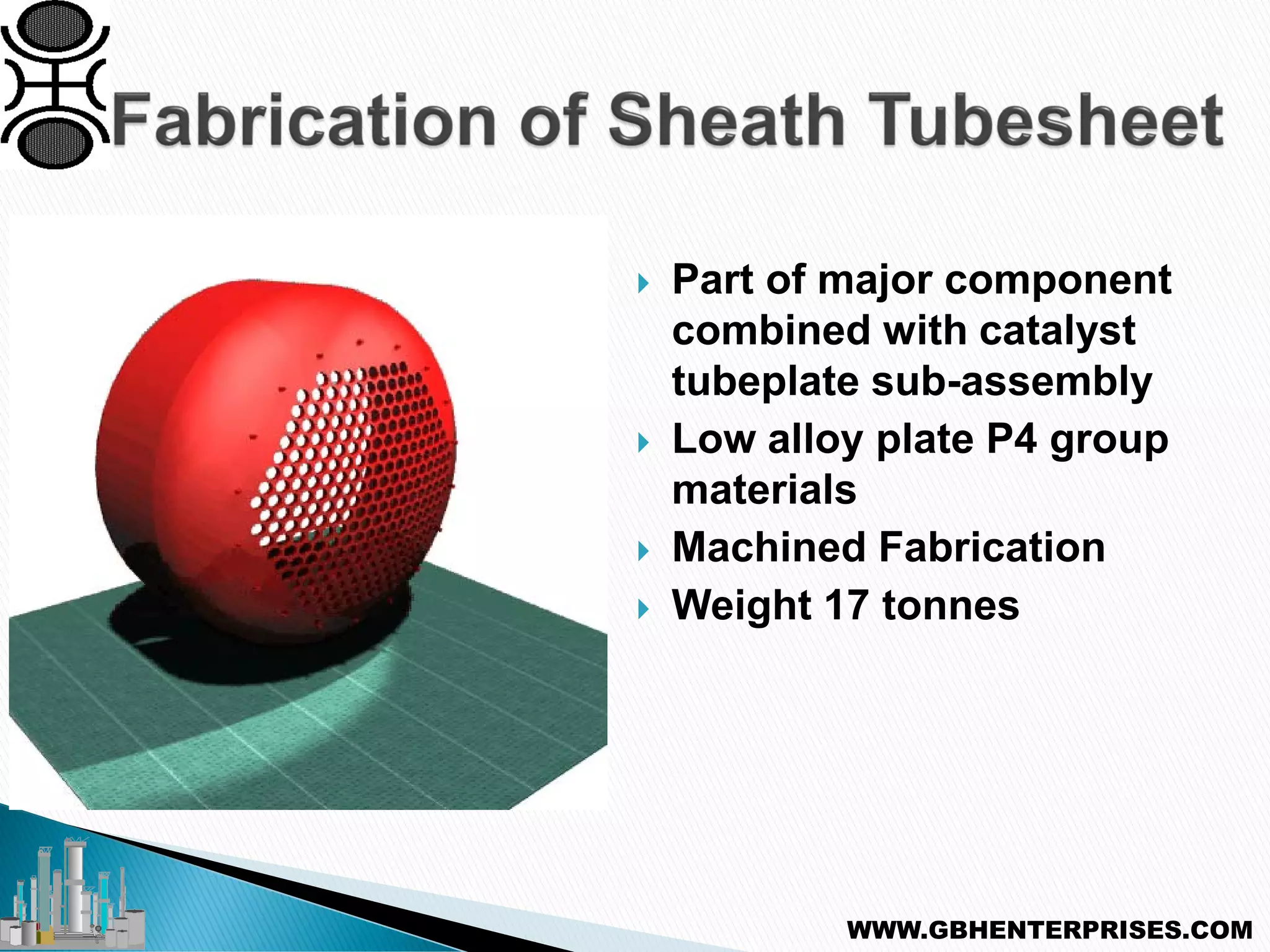

36.  Part of major component
combined with catalyst
tubeplate sub-assembly
 Low alloy plate P4 group
materials
 Machined Fabrication
 Weight 17 tonnes
WWW.GBHENTERPRISES.COM

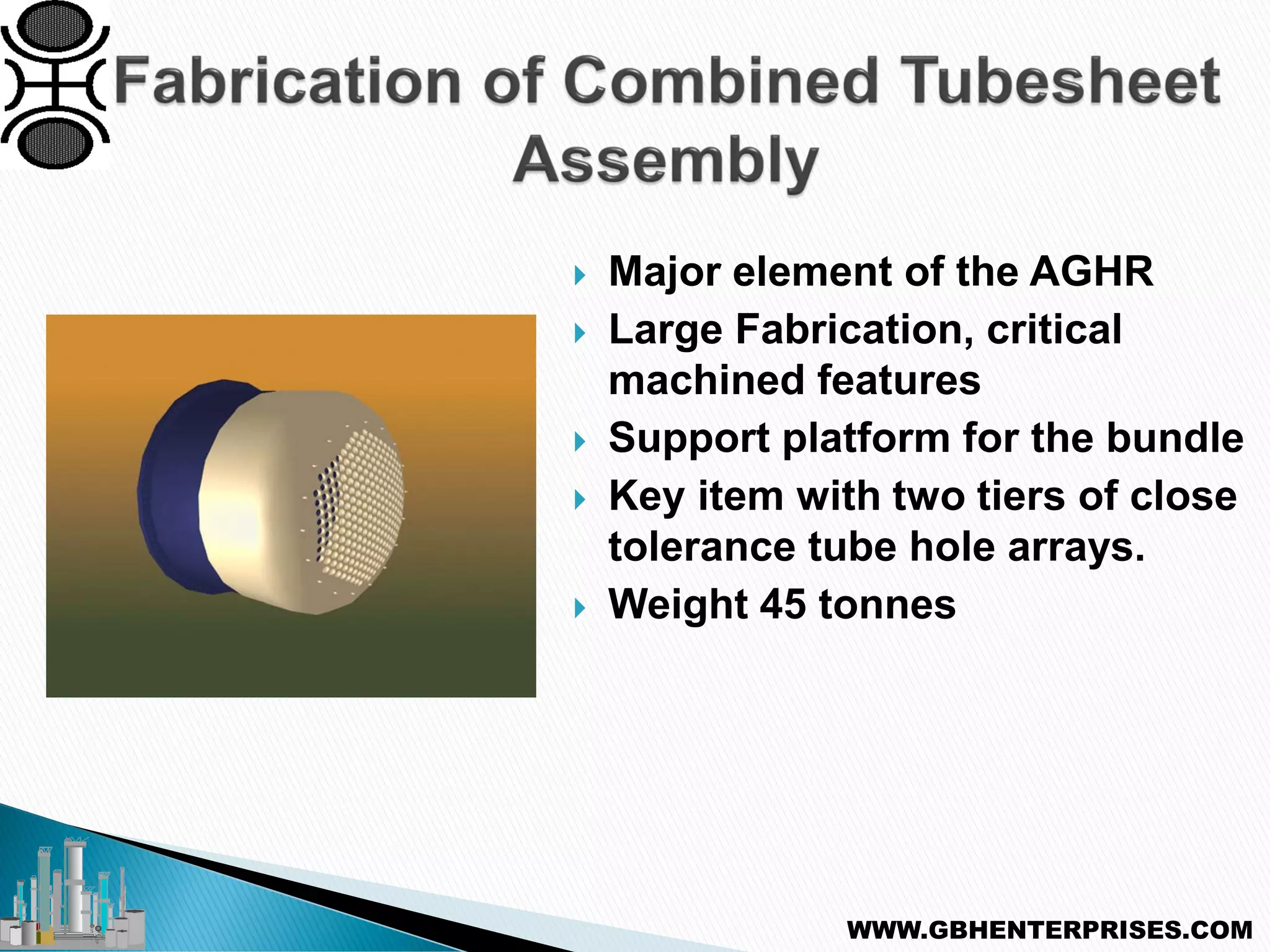

37.  Major element of the AGHR
 Large Fabrication, critical
machined features
 Support platform for the bundle
 Key item with two tiers of close
tolerance tube hole arrays.
 Weight 45 tonnes
WWW.GBHENTERPRISES.COM

38.  Fabricated tube component
with laser welded fins.
 High tolerance required, needs
to fit precisely with
corresponding components
 Relatively flimsy assembly
careful handling required
WWW.GBHENTERPRISES.COM

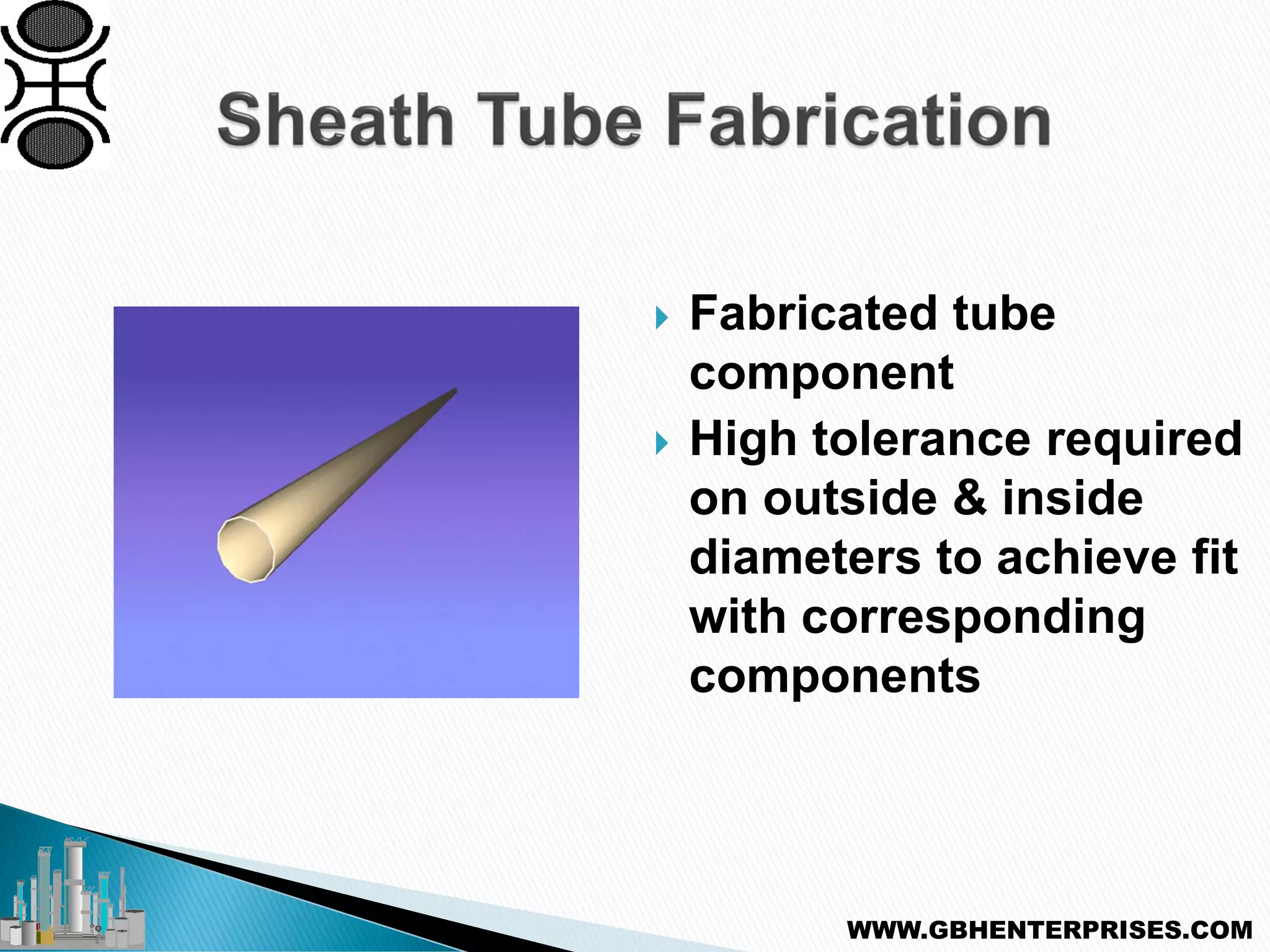

39.  Fabricated tube
component
 High tolerance required
on outside & inside
diameters to achieve fit
with corresponding
components
WWW.GBHENTERPRISES.COM

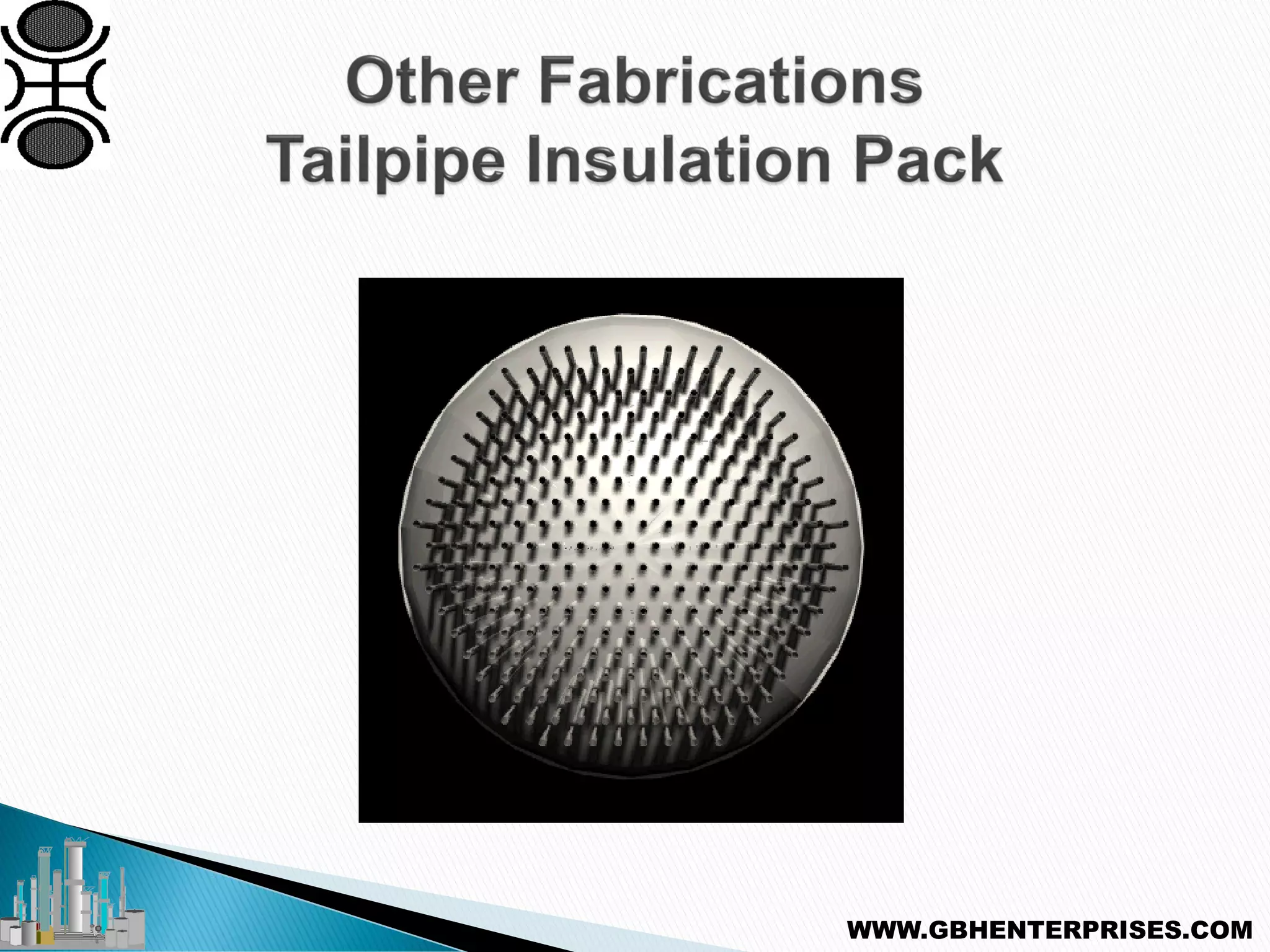

40. WWW.GBHENTERPRISES.COM

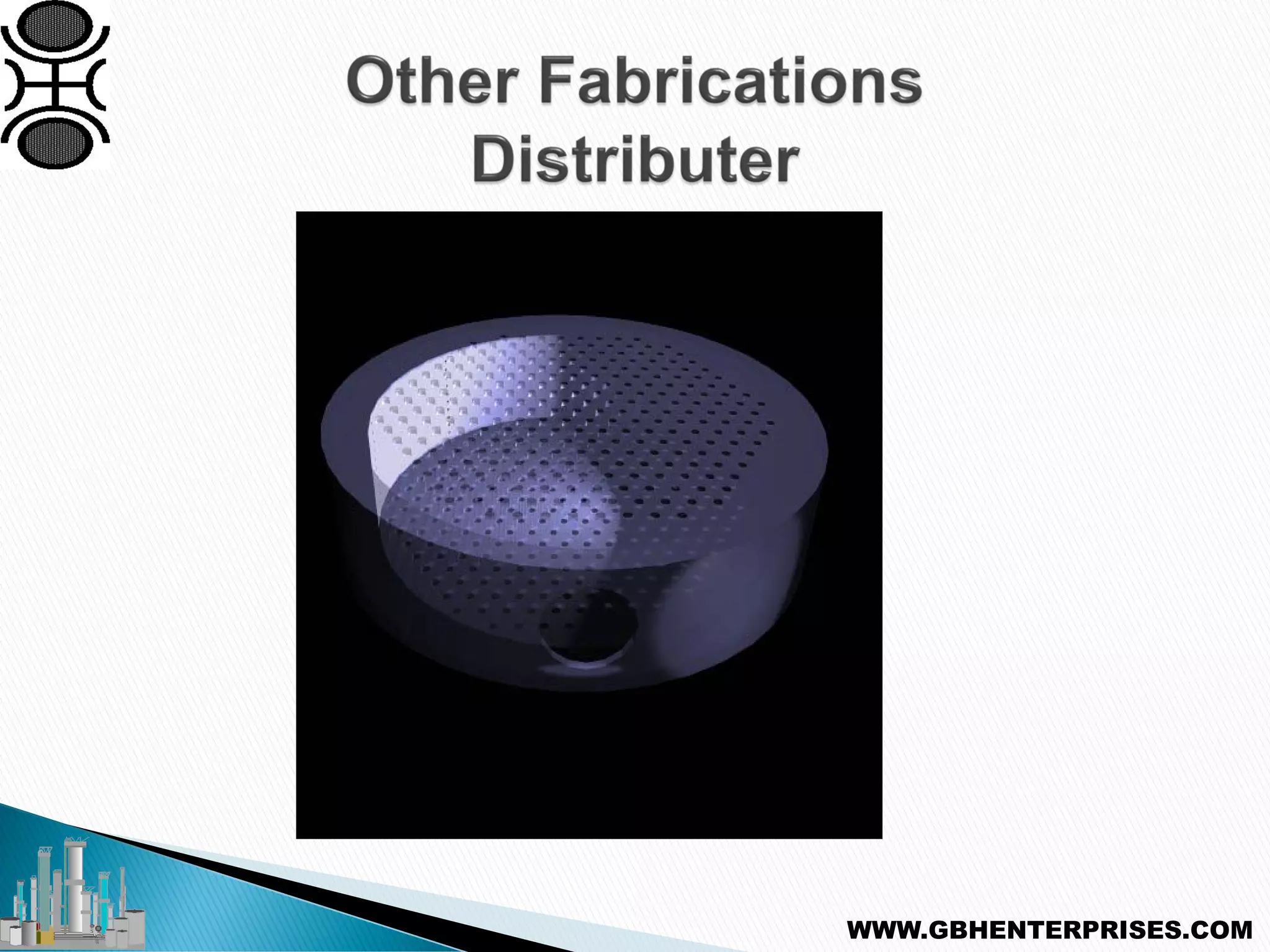

41. WWW.GBHENTERPRISES.COM

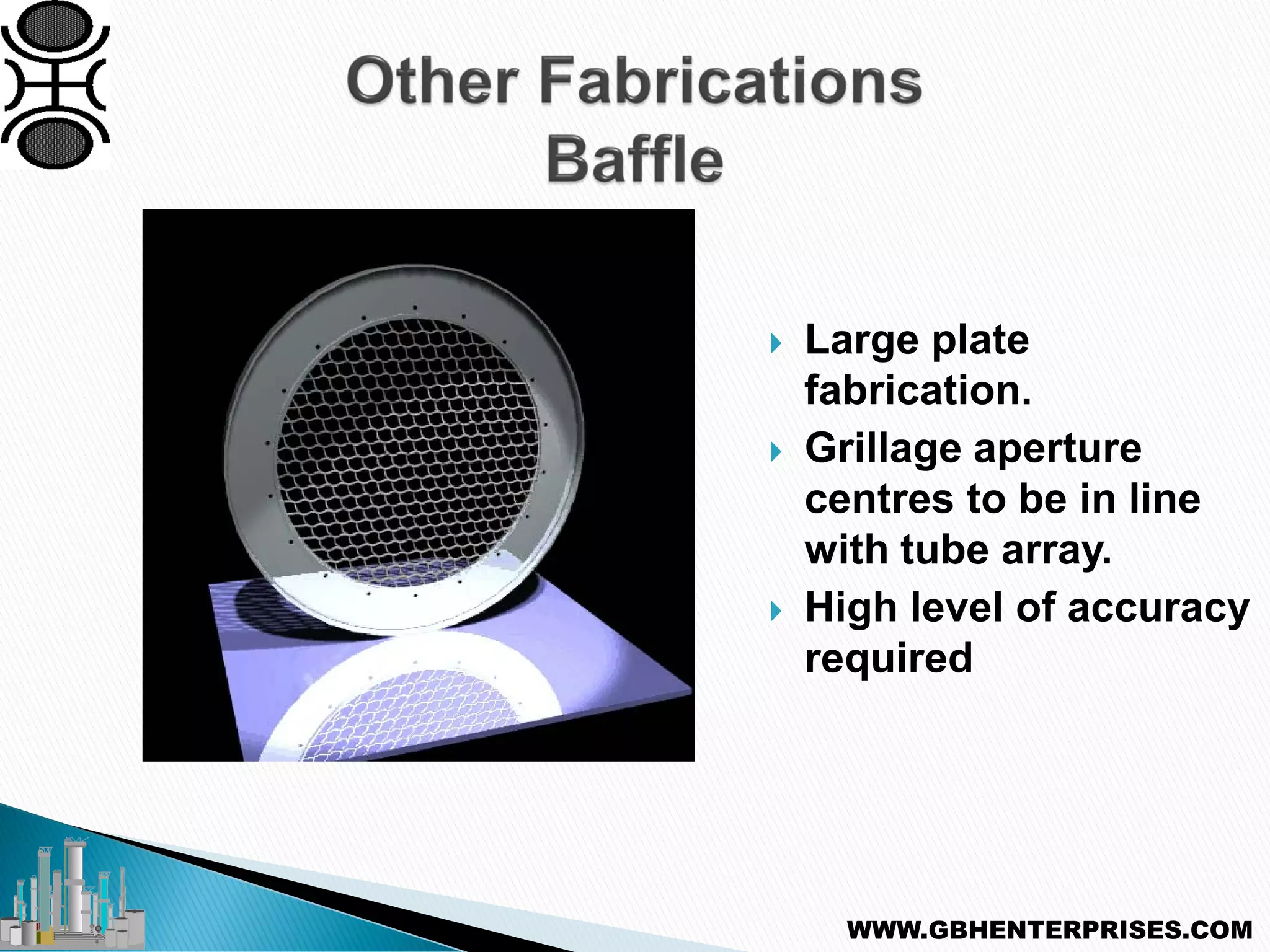

42.  Large plate
fabrication.
 Grillage aperture
centres to be in line
with tube array.
 High level of accuracy
required
WWW.GBHENTERPRISES.COM

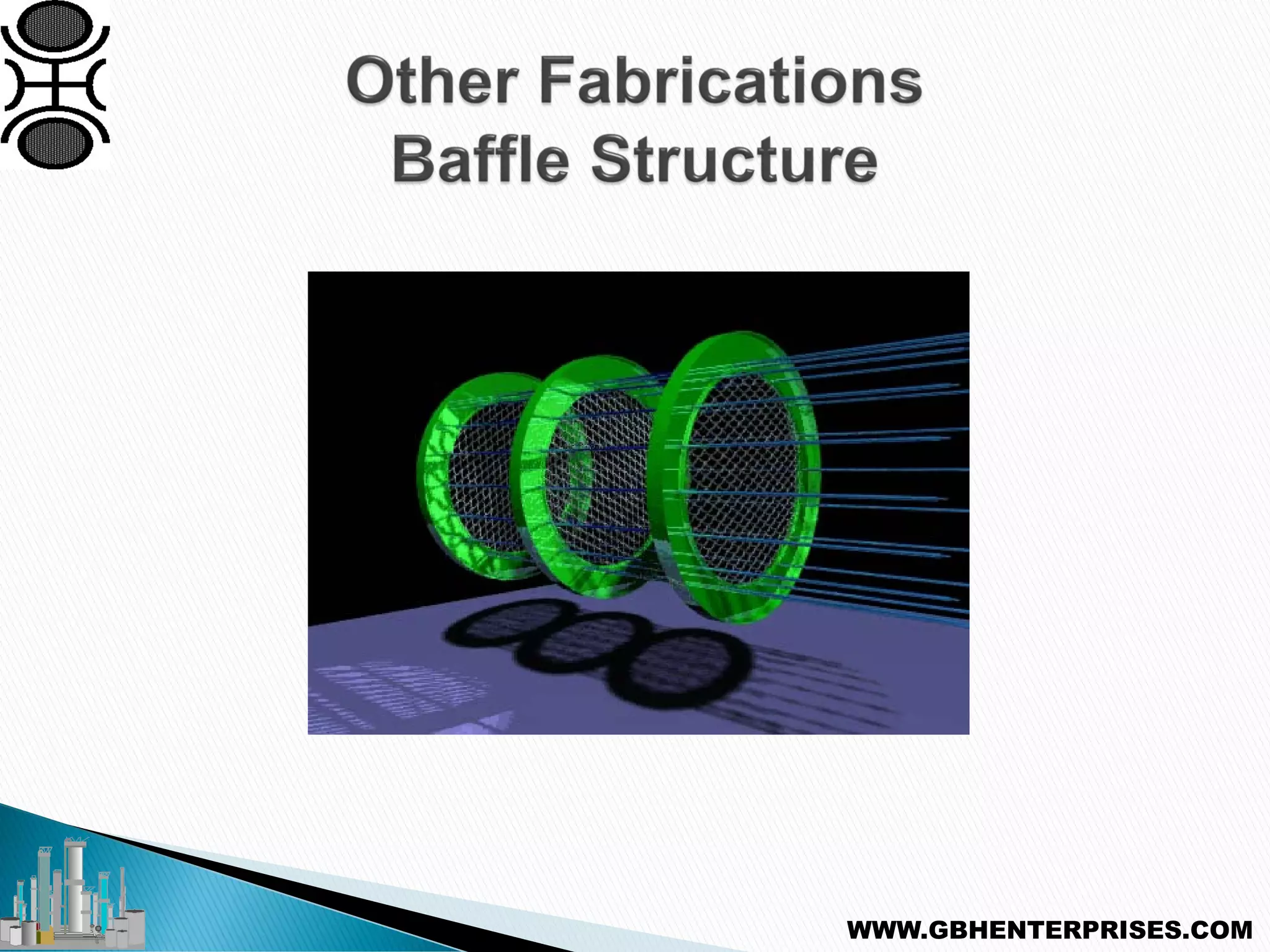

43. WWW.GBHENTERPRISES.COM

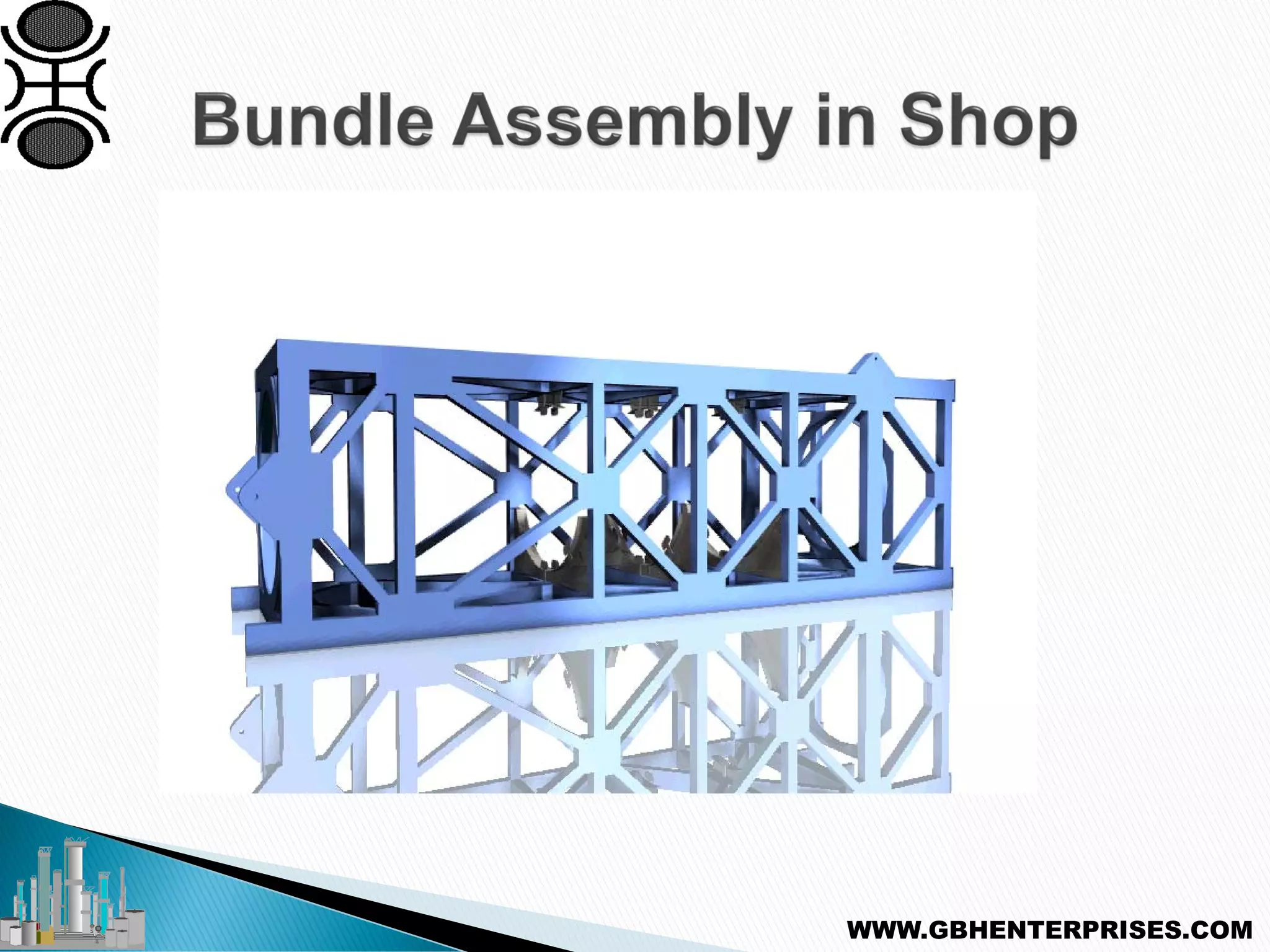

44. WWW.GBHENTERPRISES.COM

45. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
APPENDIX
METHANOL PRODUCTION USING VULCAN SYSTEMS
COMBINED REFORMING TECHNOLOGY
(ATR) AUTO THERMAL REFORMING AND
(AGHR) ADVANCED GAS HEATED REFORING
CASE STUDY#08270414

46. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Figure 1

47. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Figure 2

48. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Table I Comparison between Different Reformer Concepts

49. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Table 2 Advantages and Disadvantages for Different
Synthesis Gas Technologies

50. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Table 3: Small-Scale Reformers for Syn Gas Generation (Con’t)

51. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

52. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Table 4: Small-Scale Autothermal Reformers for SynGas Generation

53. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Table 5: Small-Scale Partial Oxidation for SynGas Generation

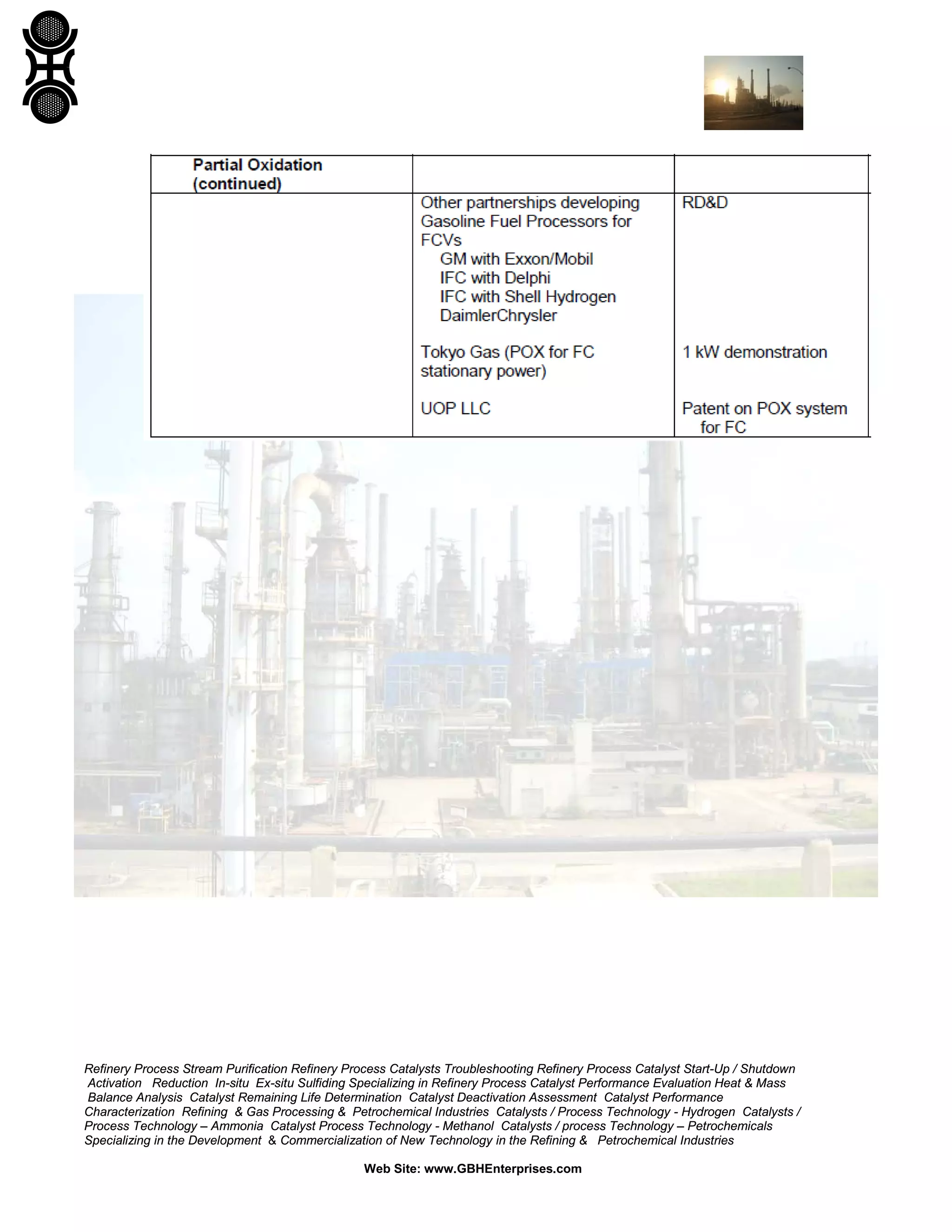

54. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com

55. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Table 6: Small-Scale Methanol Steam Reforming for SynGas
Generation

56. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
Table 7: Small-Scale [Ammonia Cracking, Sorbent Enhanced
Reforming, Ion Transport Membranes, Catalytic Cracking of
Methane, Plasma Reformer] for SynGas Generation

57. Refinery Process Stream Purification Refinery Process Catalysts Troubleshooting Refinery Process Catalyst Start-Up / Shutdown
Activation Reduction In-situ Ex-situ Sulfiding Specializing in Refinery Process Catalyst Performance Evaluation Heat & Mass
Balance Analysis Catalyst Remaining Life Determination Catalyst Deactivation Assessment Catalyst Performance
Characterization Refining & Gas Processing & Petrochemical Industries Catalysts / Process Technology - Hydrogen Catalysts /
Process Technology – Ammonia Catalyst Process Technology - Methanol Catalysts / process Technology – Petrochemicals
Specializing in the Development & Commercialization of New Technology in the Refining & Petrochemical Industries
Web Site: www.GBHEnterprises.com
