1. 6G TECHNOLOGY
Akhil John
S7 CSE
Roll No: 02
Computer Science Department
College Of Engineering Munnar

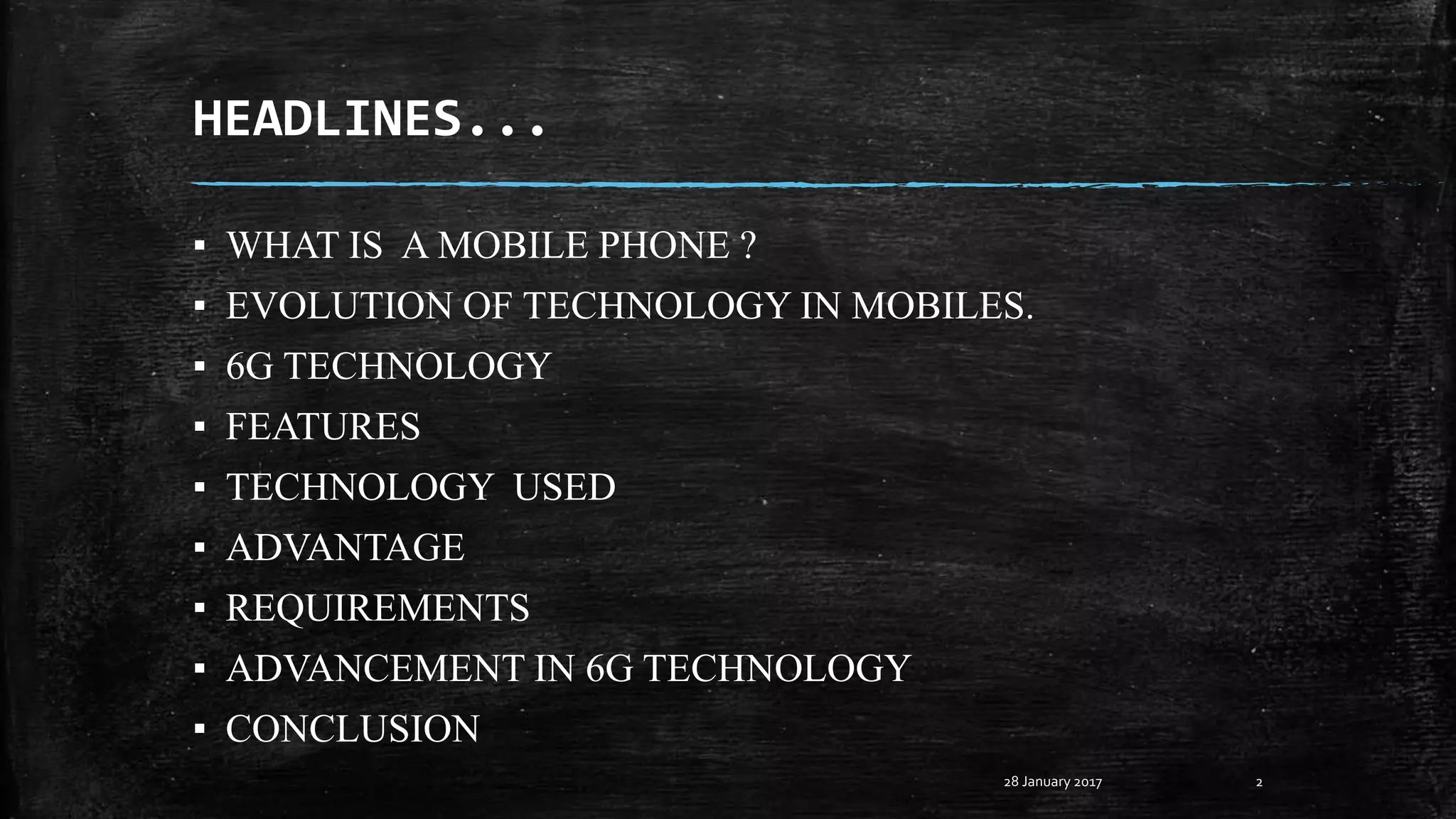

2. HEADLINES...
▪ WHAT IS A MOBILE PHONE ?
▪ EVOLUTION OF TECHNOLOGY IN MOBILES.
▪ 6G TECHNOLOGY
▪ FEATURES
▪ TECHNOLOGY USED
▪ ADVANTAGE
▪ REQUIREMENTS
▪ ADVANCEMENT IN 6G TECHNOLOGY
▪ CONCLUSION
228 January 2017

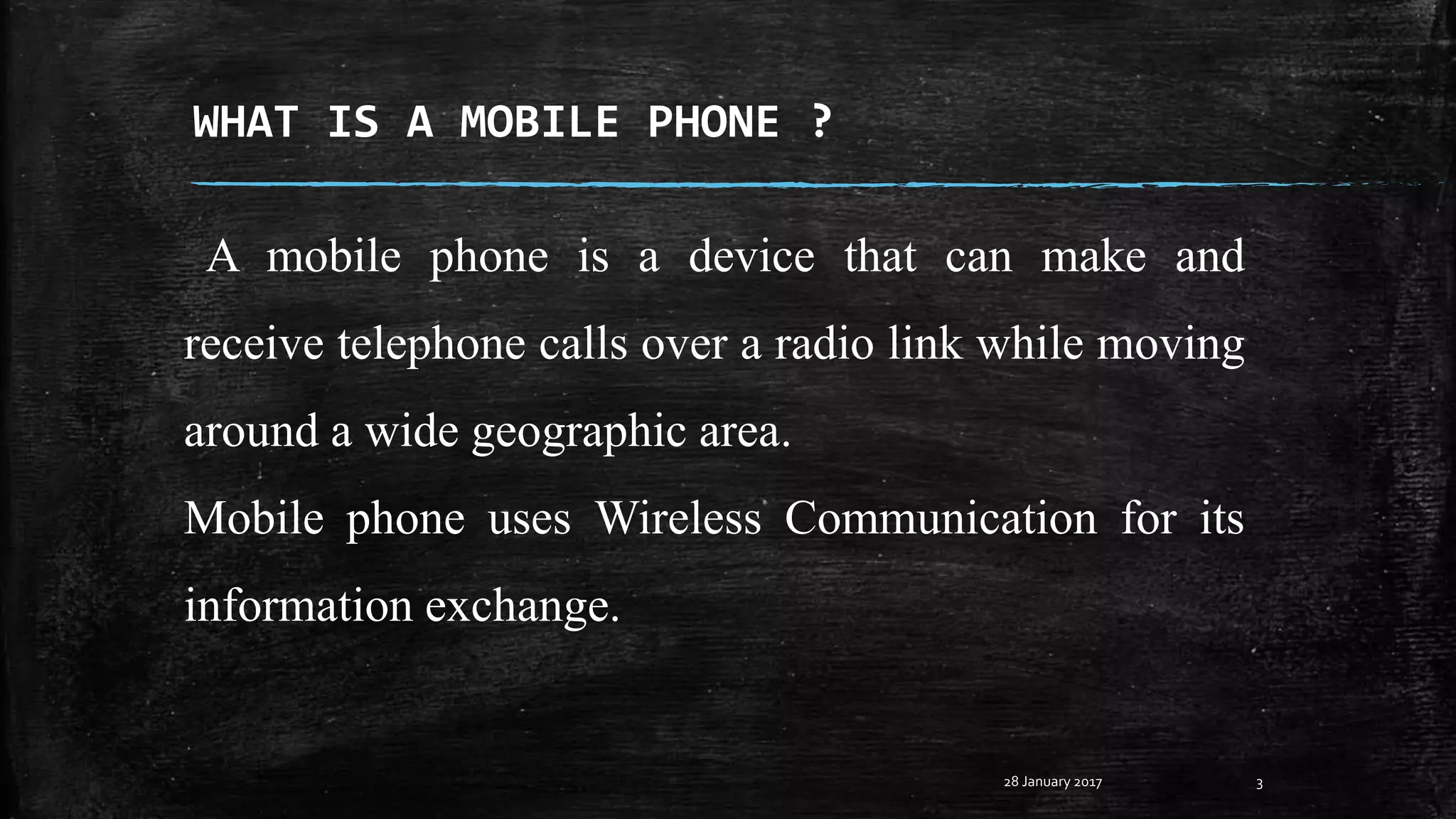

3. WHAT IS A MOBILE PHONE ?
A mobile phone is a device that can make and
receive telephone calls over a radio link while moving
around a wide geographic area.
Mobile phone uses Wireless Communication for its
information exchange.
328 January 2017

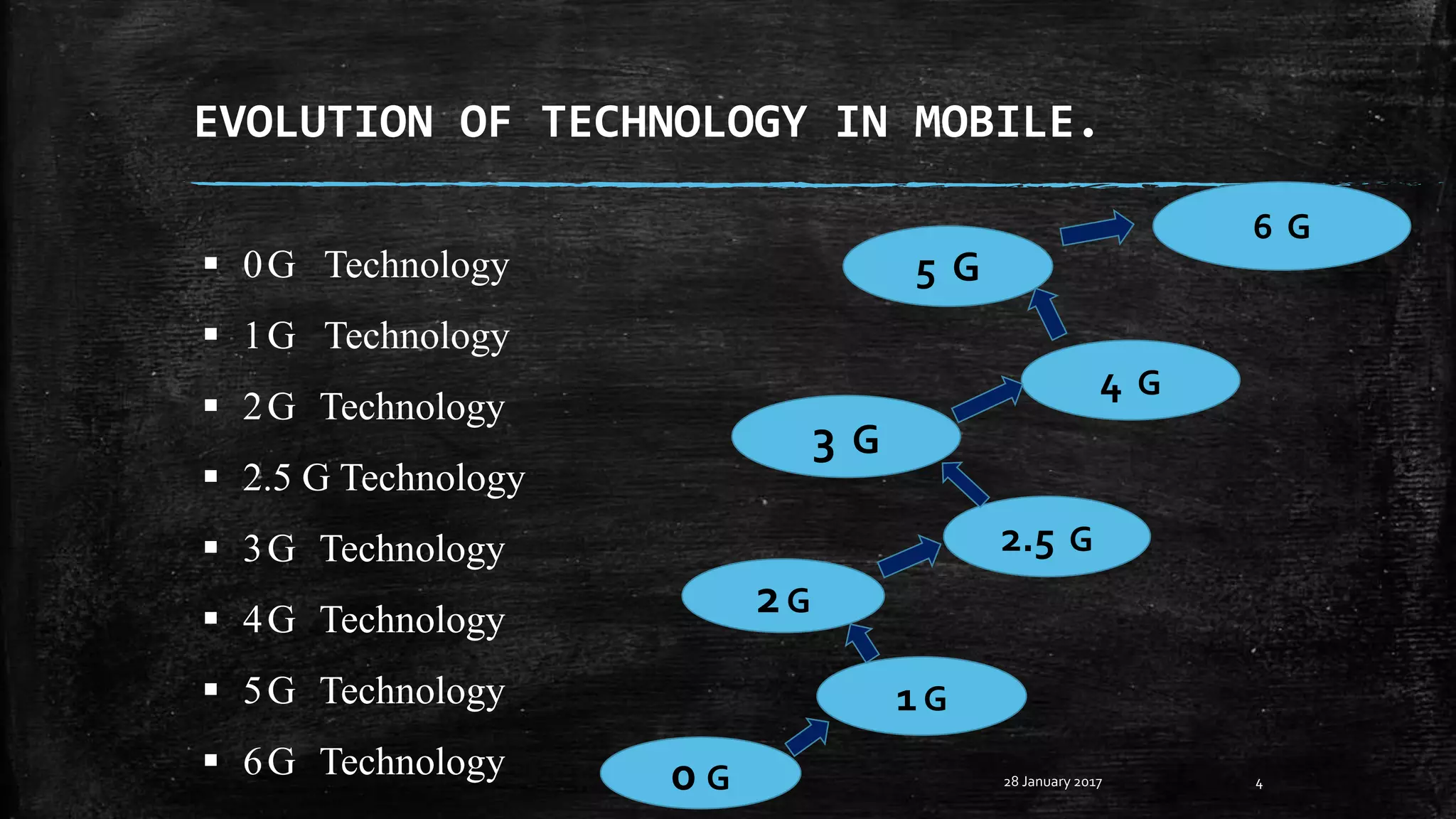

4. EVOLUTION OF TECHNOLOGY IN MOBILE.
 0G Technology
 1G Technology
 2G Technology
 2.5 G Technology
 3G Technology
 4G Technology
 5G Technology
 6G Technology 0 G
1G
2G
2.5 G
3 G
4 G
5 G
6 G
428 January 2017

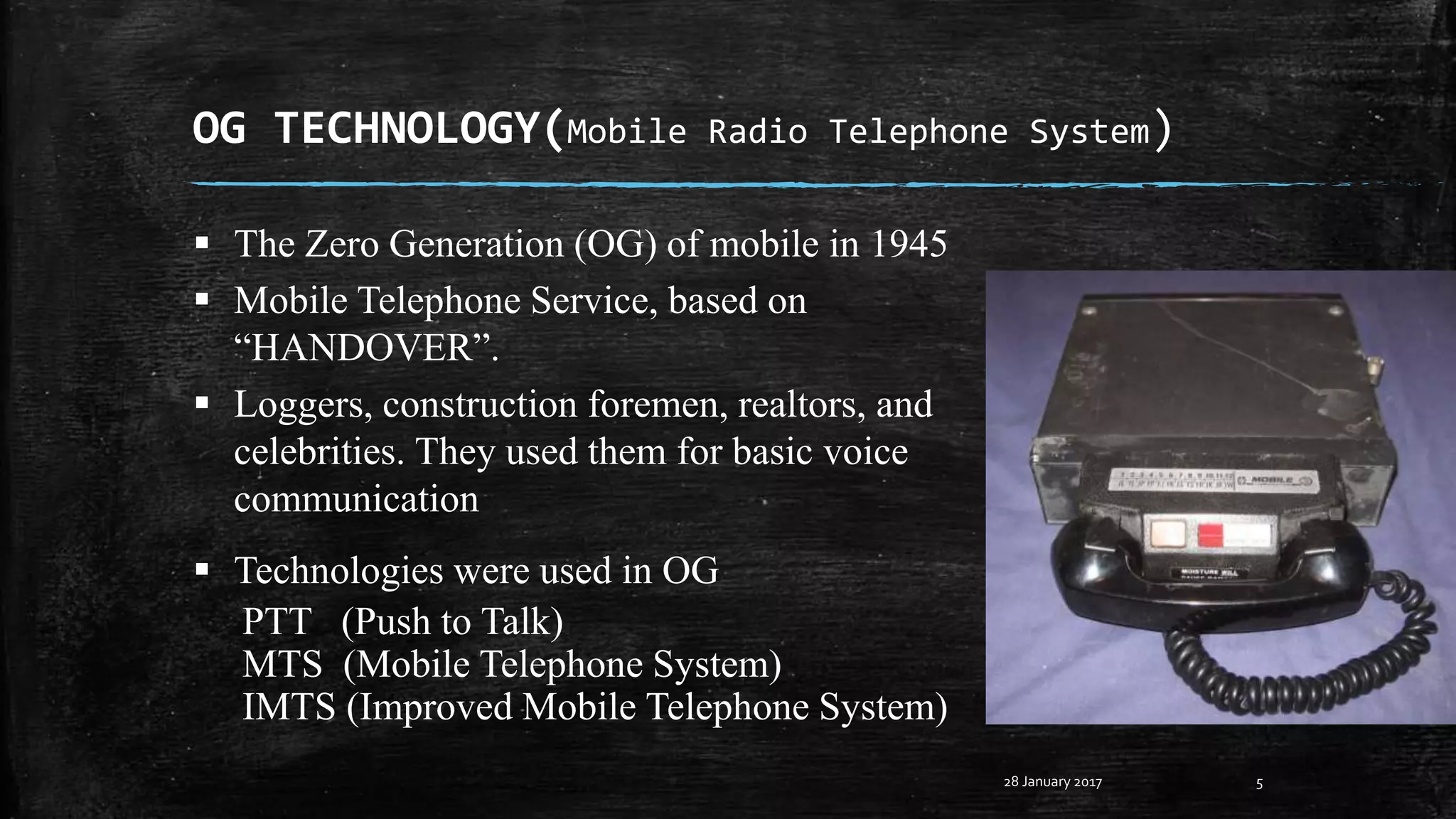

5. OG TECHNOLOGY(Mobile Radio Telephone System)
5
 The Zero Generation (OG) of mobile in 1945
 Mobile Telephone Service, based on
“HANDOVER”.
 Loggers, construction foremen, realtors, and
celebrities. They used them for basic voice
communication
 Technologies were used in OG
PTT (Push to Talk)
MTS (Mobile Telephone System)
IMTS (Improved Mobile Telephone System)
28 January 2017

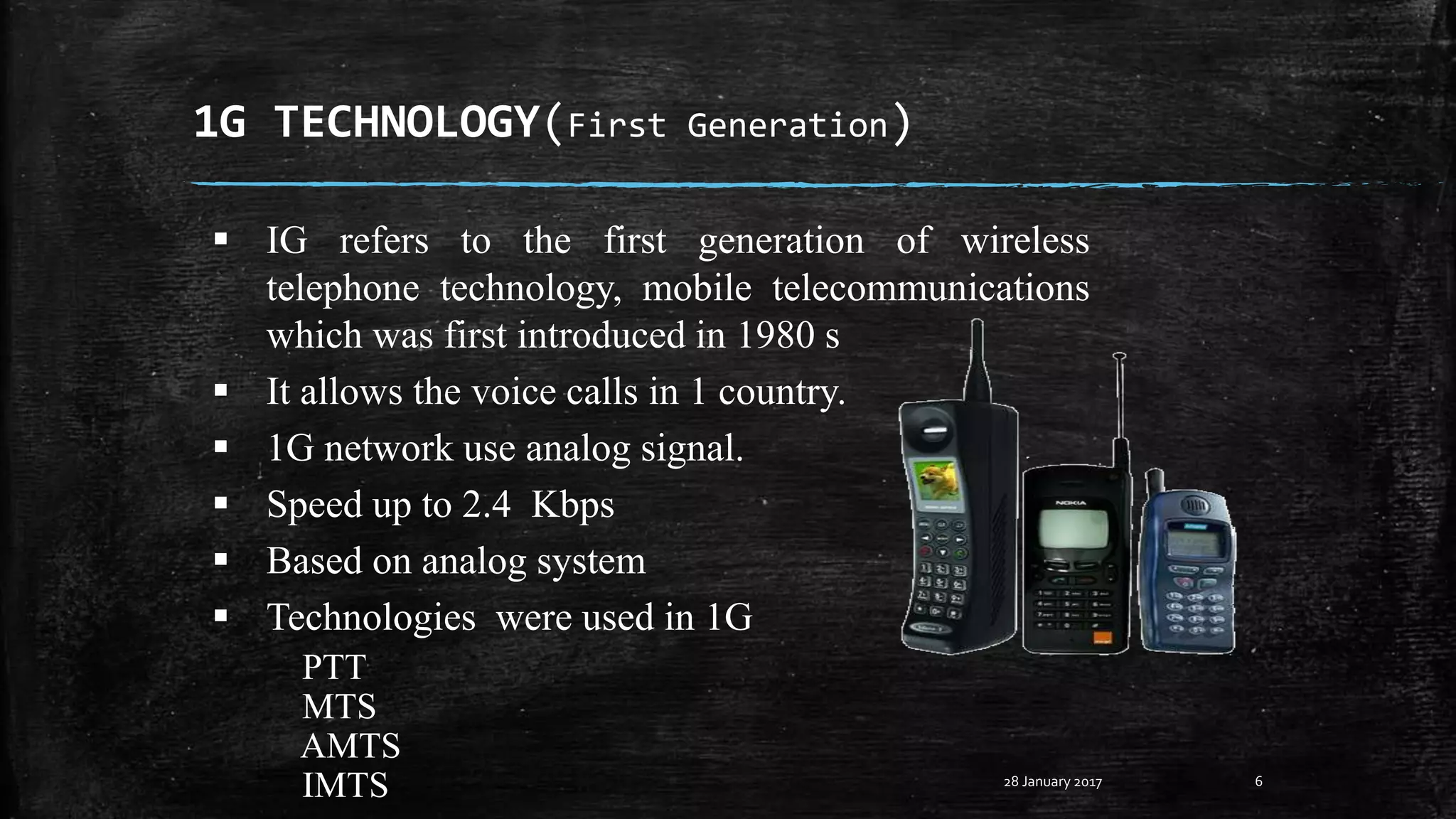

6. 1G TECHNOLOGY(First Generation)
6
 IG refers to the first generation of wireless
telephone technology, mobile telecommunications
which was first introduced in 1980 s
 It allows the voice calls in 1 country.
 1G network use analog signal.
 Speed up to 2.4 Kbps
 Based on analog system
 Technologies were used in 1G
PTT
MTS
AMTS
IMTS 28 January 2017

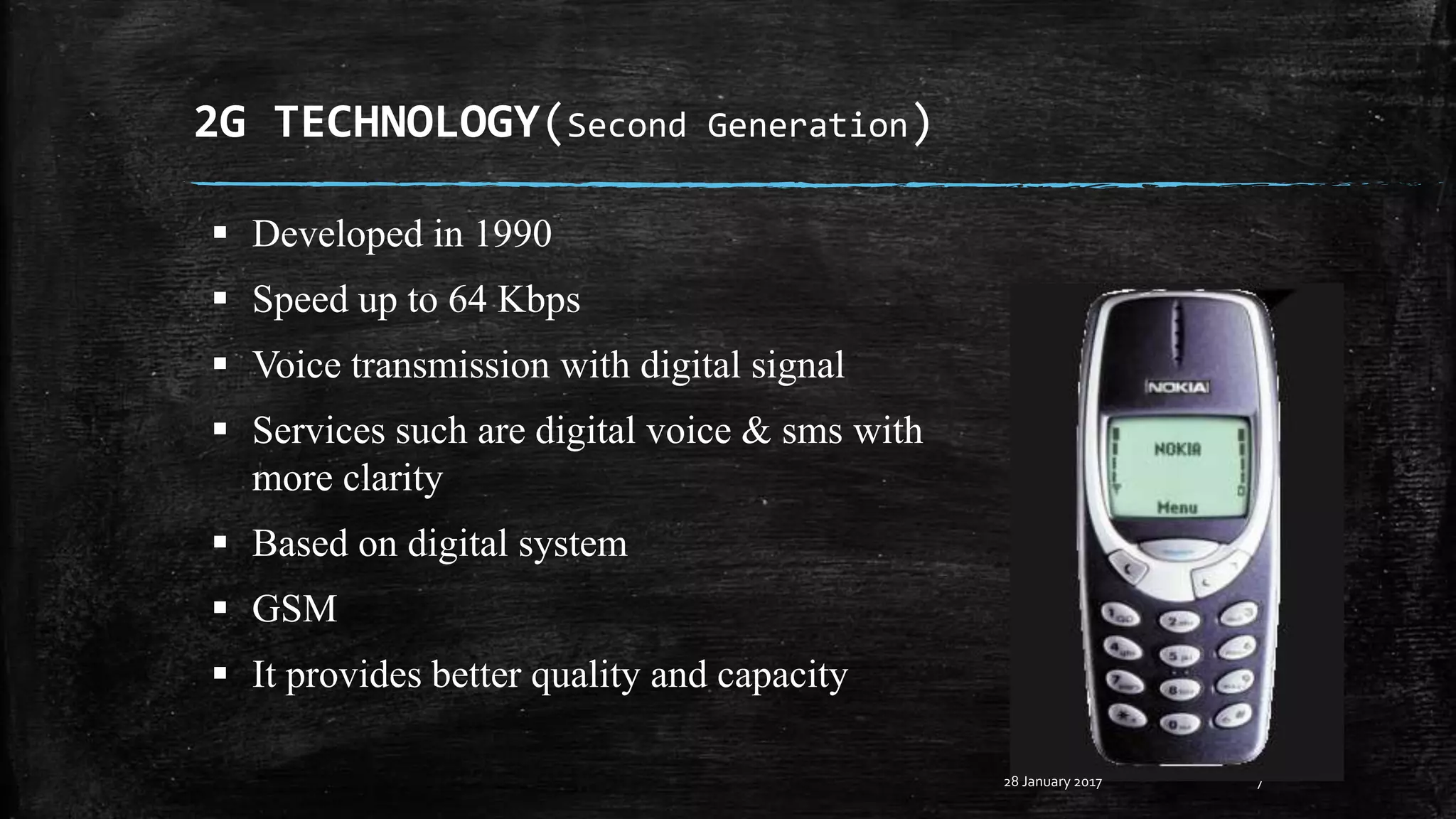

7. 2G TECHNOLOGY(Second Generation)
7
 Developed in 1990
 Speed up to 64 Kbps
 Voice transmission with digital signal
 Services such are digital voice & sms with
more clarity
 Based on digital system
 GSM
 It provides better quality and capacity
28 January 2017

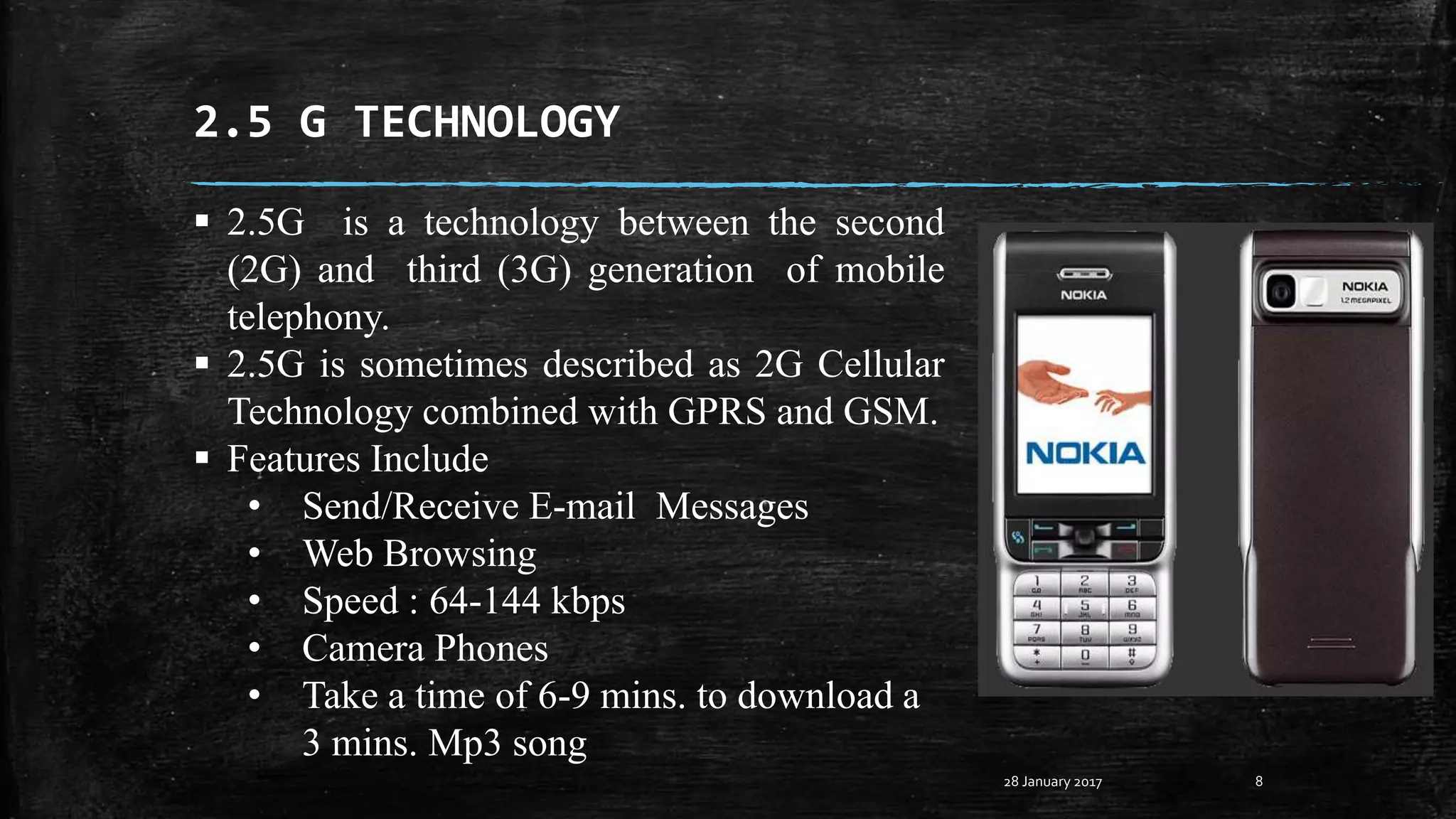

8. 2.5 G TECHNOLOGY
8
 2.5G is a technology between the second
(2G) and third (3G) generation of mobile
telephony.
 2.5G is sometimes described as 2G Cellular
Technology combined with GPRS and GSM.
 Features Include
• Send/Receive E-mail Messages
• Web Browsing
• Speed : 64-144 kbps
• Camera Phones
• Take a time of 6-9 mins. to download a
3 mins. Mp3 song
28 January 2017

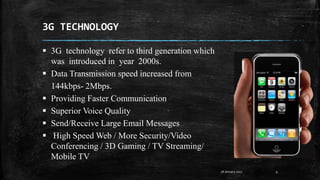

9. 3G TECHNOLOGY
9
 3G technology refer to third generation which
was introduced in year 2000s.
 Data Transmission speed increased from
144kbps- 2Mbps.
 Providing Faster Communication
 Superior Voice Quality
 Send/Receive Large Email Messages
 High Speed Web / More Security/Video
Conferencing / 3D Gaming / TV Streaming/
Mobile TV
28 January 2017

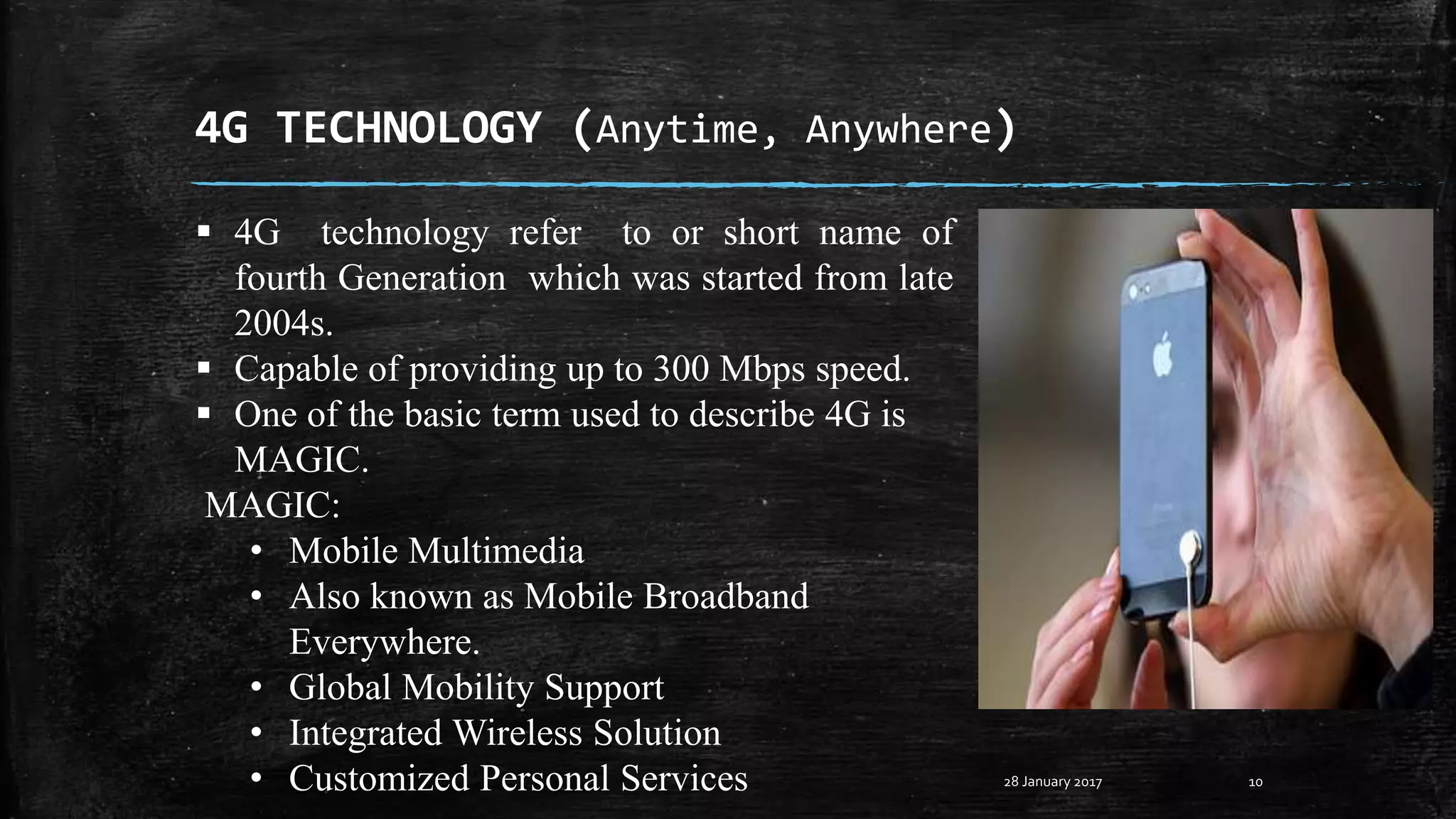

10. 4G TECHNOLOGY (Anytime, Anywhere)
1028 January 2017
 4G technology refer to or short name of
fourth Generation which was started from late
2004s.
 Capable of providing up to 300 Mbps speed.
 One of the basic term used to describe 4G is
MAGIC.
MAGIC:
• Mobile Multimedia
• Also known as Mobile Broadband
Everywhere.
• Global Mobility Support
• Integrated Wireless Solution
• Customized Personal Services

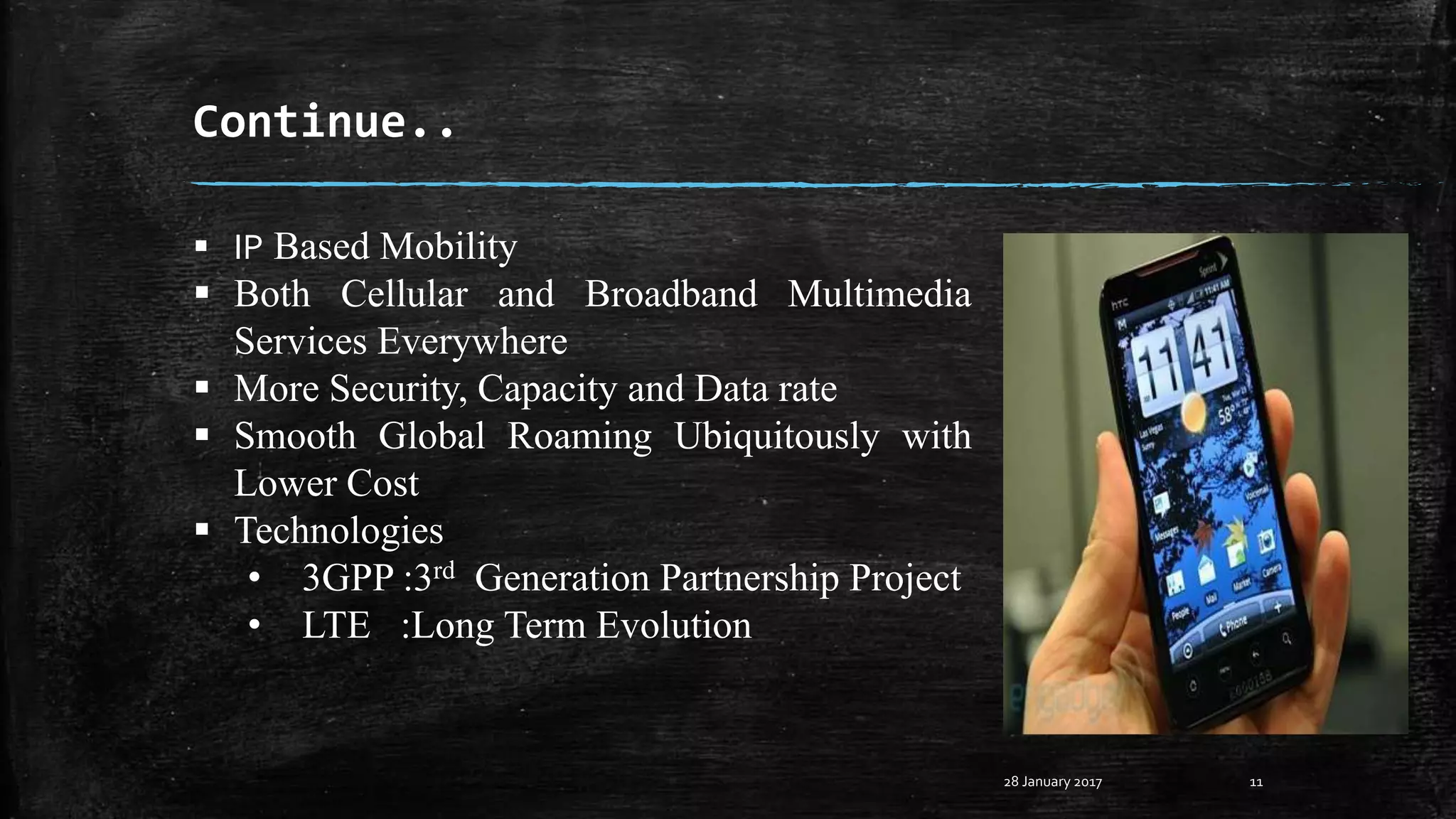

11. Continue..
28 January 2017 11
 IP Based Mobility
 Both Cellular and Broadband Multimedia
Services Everywhere
 More Security, Capacity and Data rate
 Smooth Global Roaming Ubiquitously with
Lower Cost
 Technologies
• 3GPP :3rd Generation Partnership Project
• LTE :Long Term Evolution

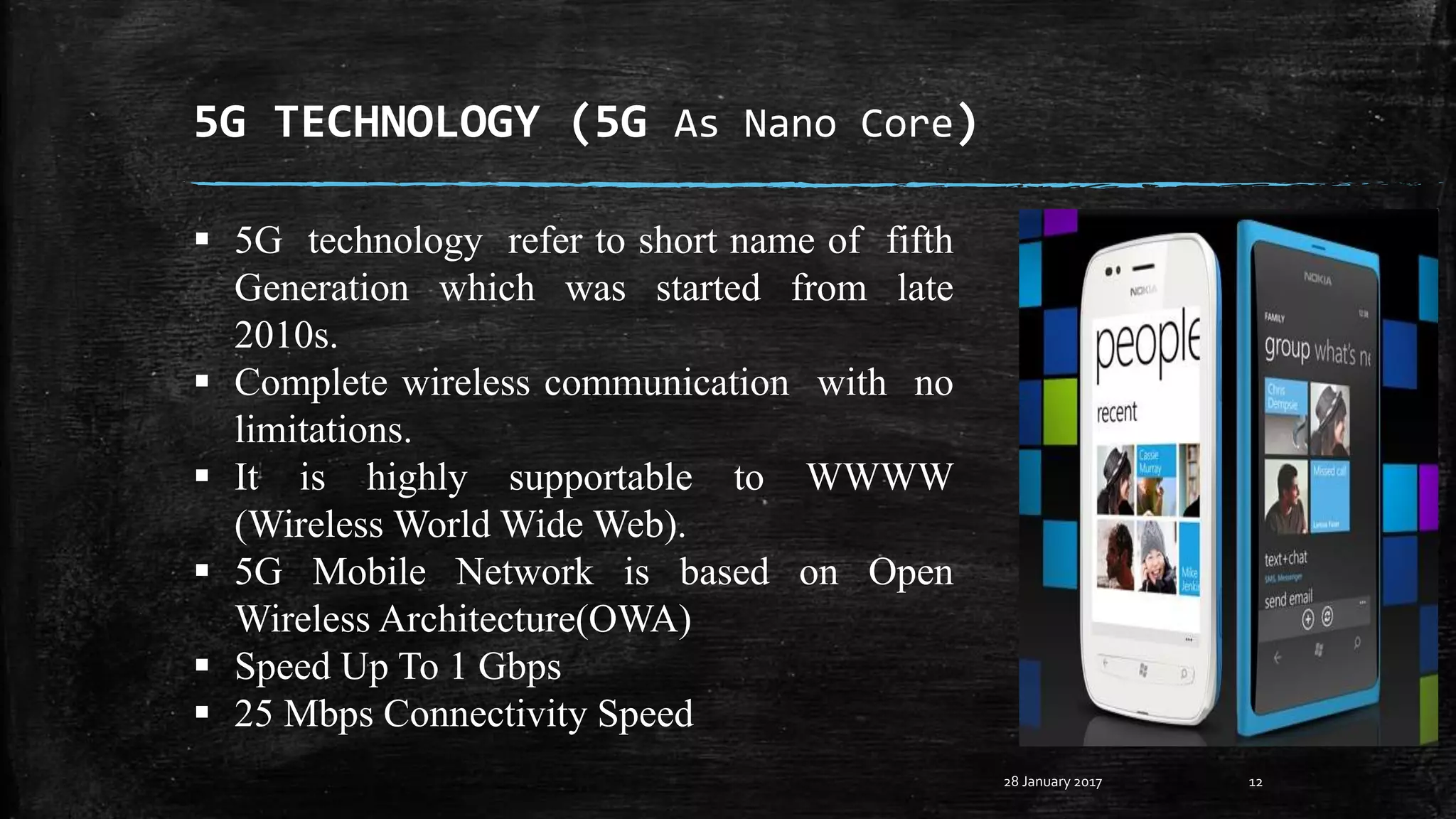

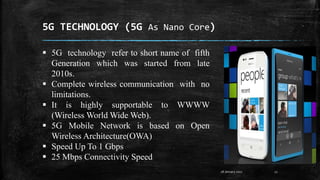

12. 5G TECHNOLOGY (5G As Nano Core)
28 January 2017 12
 5G technology refer to short name of fifth
Generation which was started from late
2010s.
 Complete wireless communication with no
limitations.
 It is highly supportable to WWWW
(Wireless World Wide Web).
 5G Mobile Network is based on Open
Wireless Architecture(OWA)
 Speed Up To 1 Gbps
 25 Mbps Connectivity Speed

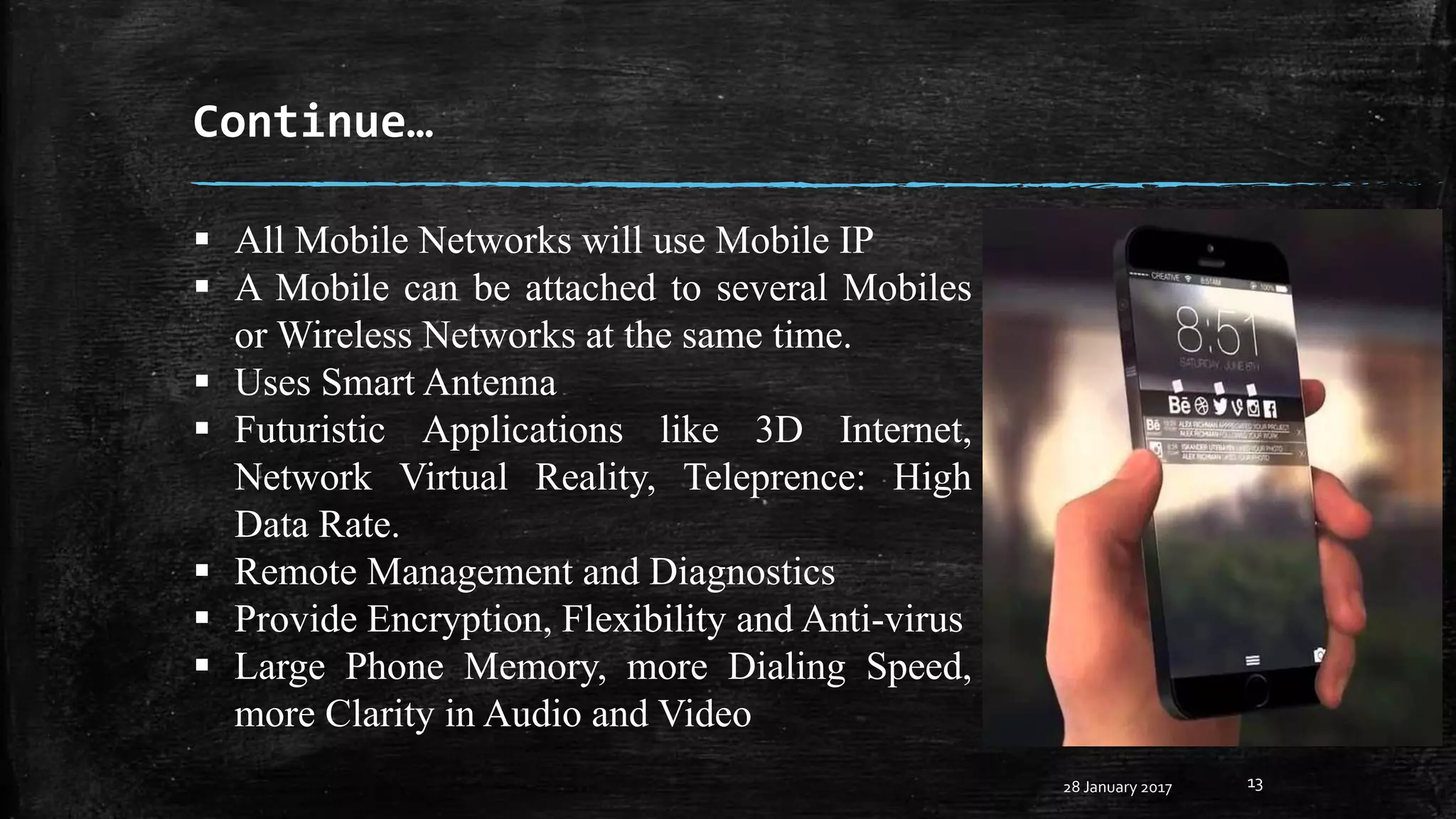

13. Continue…
28 January 2017 13
 All Mobile Networks will use Mobile IP
 A Mobile can be attached to several Mobiles
or Wireless Networks at the same time.
 Uses Smart Antenna
 Futuristic Applications like 3D Internet,
Network Virtual Reality, Teleprence: High
Data Rate.
 Remote Management and Diagnostics
 Provide Encryption, Flexibility and Anti-virus
 Large Phone Memory, more Dialing Speed,
more Clarity in Audio and Video

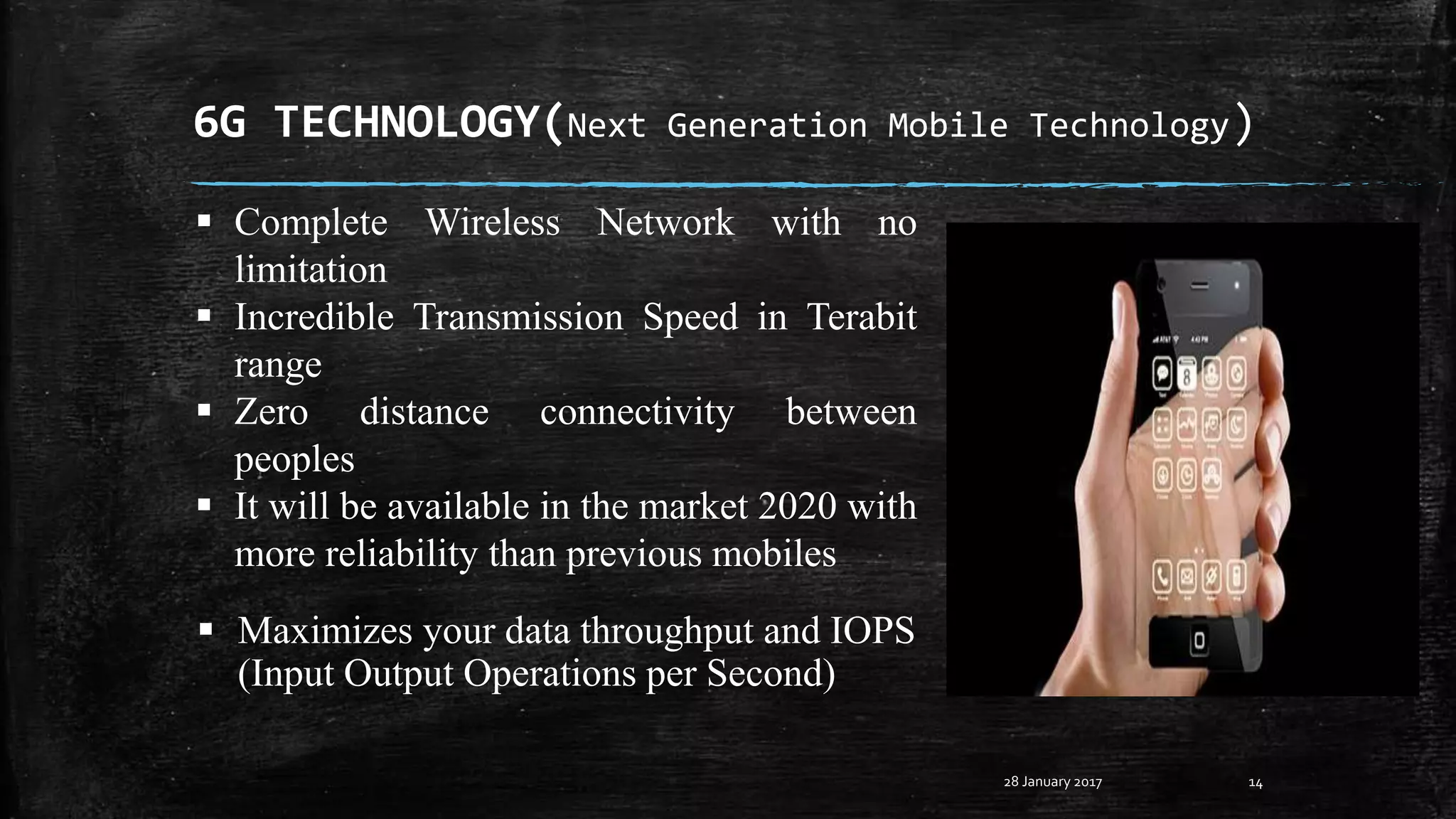

14. 6G TECHNOLOGY(Next Generation Mobile Technology)
28 January 2017 14
 Complete Wireless Network with no
limitation
 Incredible Transmission Speed in Terabit
range
 Zero distance connectivity between
peoples
 It will be available in the market 2020 with
more reliability than previous mobiles
 Maximizes your data throughput and IOPS
(Input Output Operations per Second)

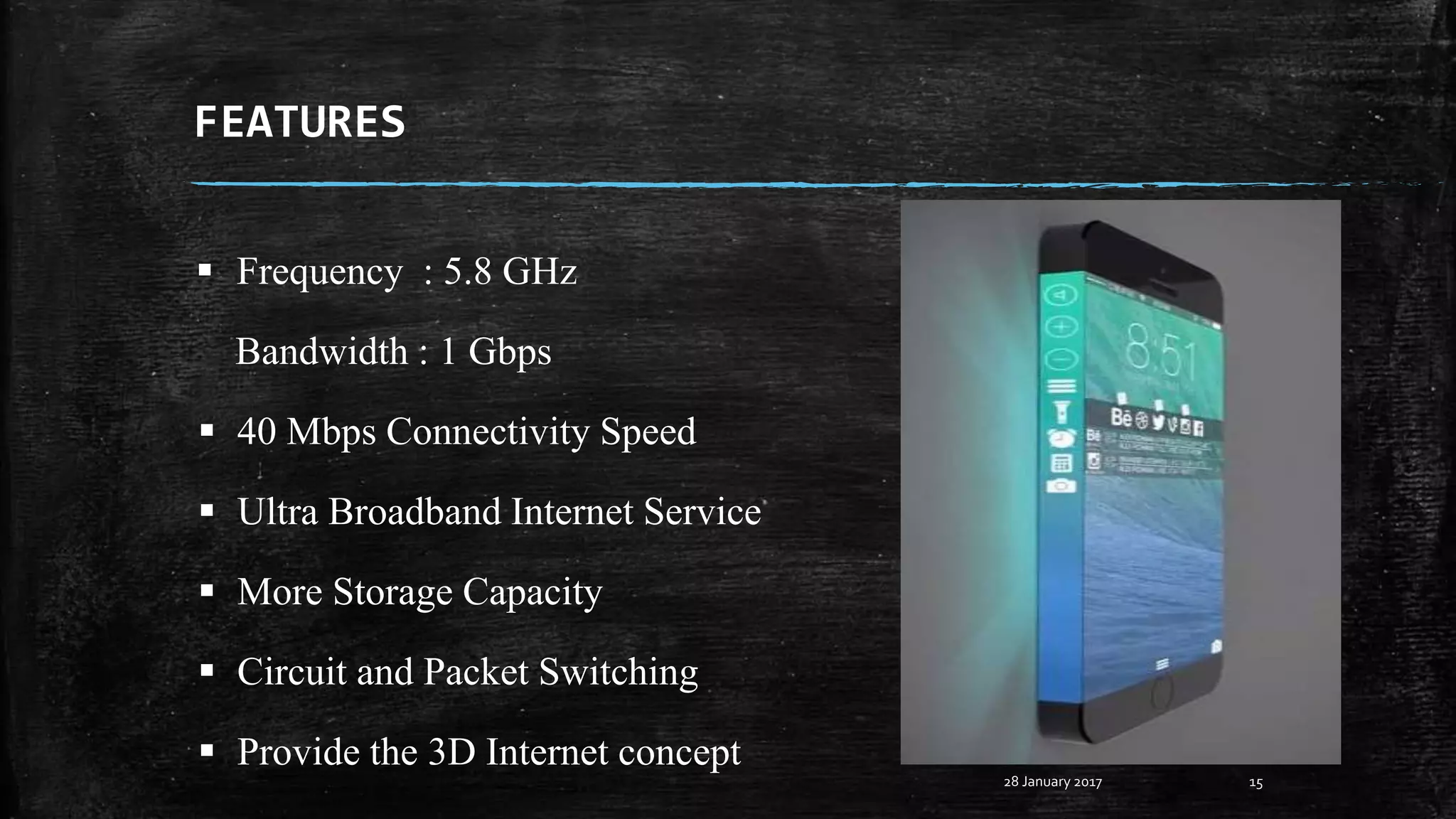

15. FEATURES
28 January 2017 15
 Frequency : 5.8 GHz
Bandwidth : 1 Gbps
 40 Mbps Connectivity Speed
 Ultra Broadband Internet Service
 More Storage Capacity
 Circuit and Packet Switching
 Provide the 3D Internet concept

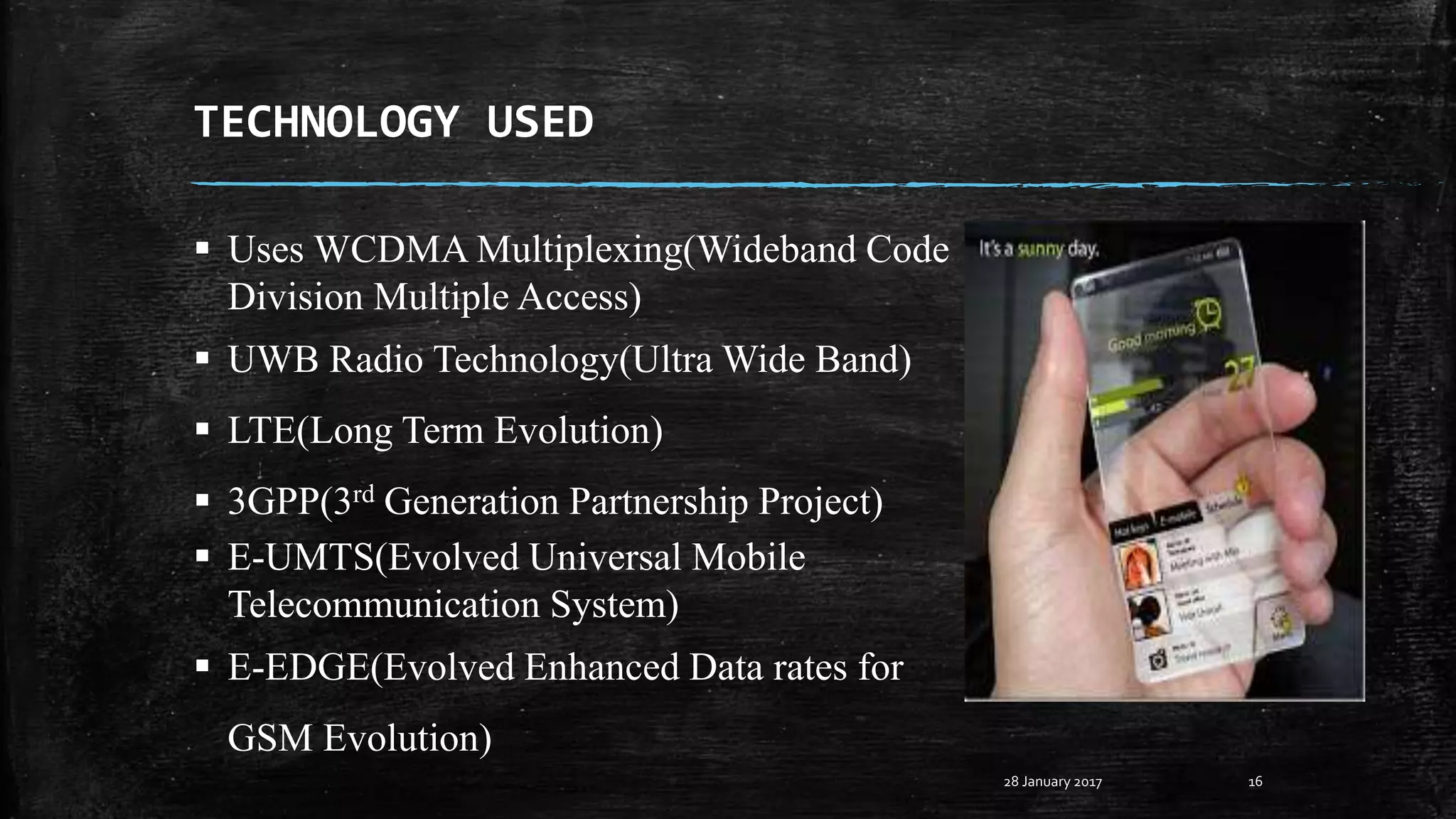

16. TECHNOLOGY USED
28 January 2017 16
 Uses WCDMA Multiplexing(Wideband Code
Division Multiple Access)
 UWB Radio Technology(Ultra Wide Band)
 LTE(Long Term Evolution)
 3GPP(3rd Generation Partnership Project)
 E-UMTS(Evolved Universal Mobile
Telecommunication System)
 E-EDGE(Evolved Enhanced Data rates for
GSM Evolution)

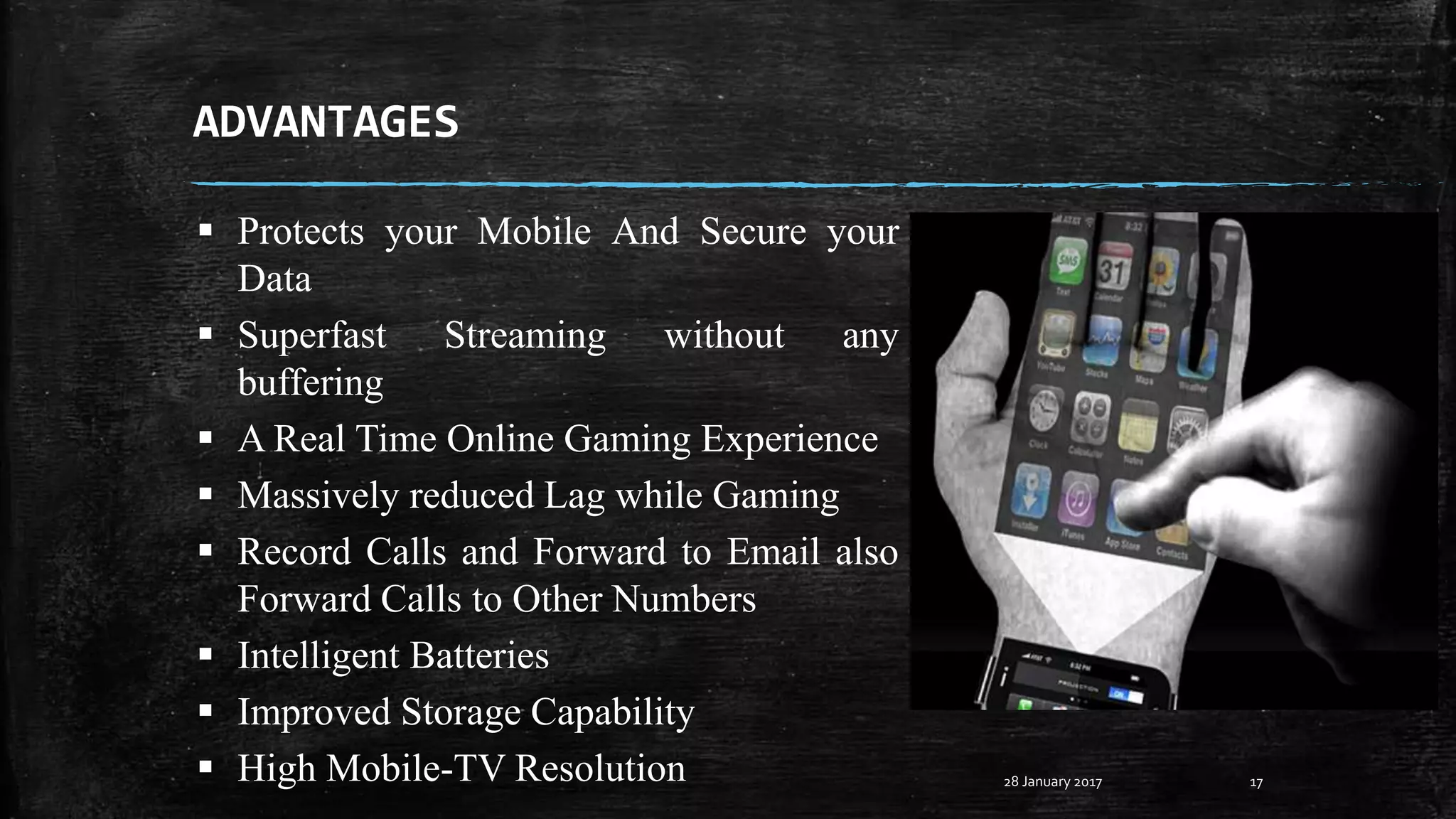

17. ADVANTAGES
28 January 2017 17
 Protects your Mobile And Secure your
Data
 Superfast Streaming without any
buffering
 A Real Time Online Gaming Experience
 Massively reduced Lag while Gaming
 Record Calls and Forward to Email also
Forward Calls to Other Numbers
 Intelligent Batteries
 Improved Storage Capability
 High Mobile-TV Resolution

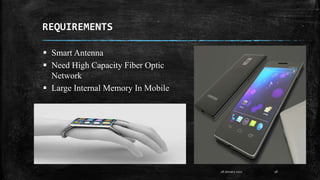

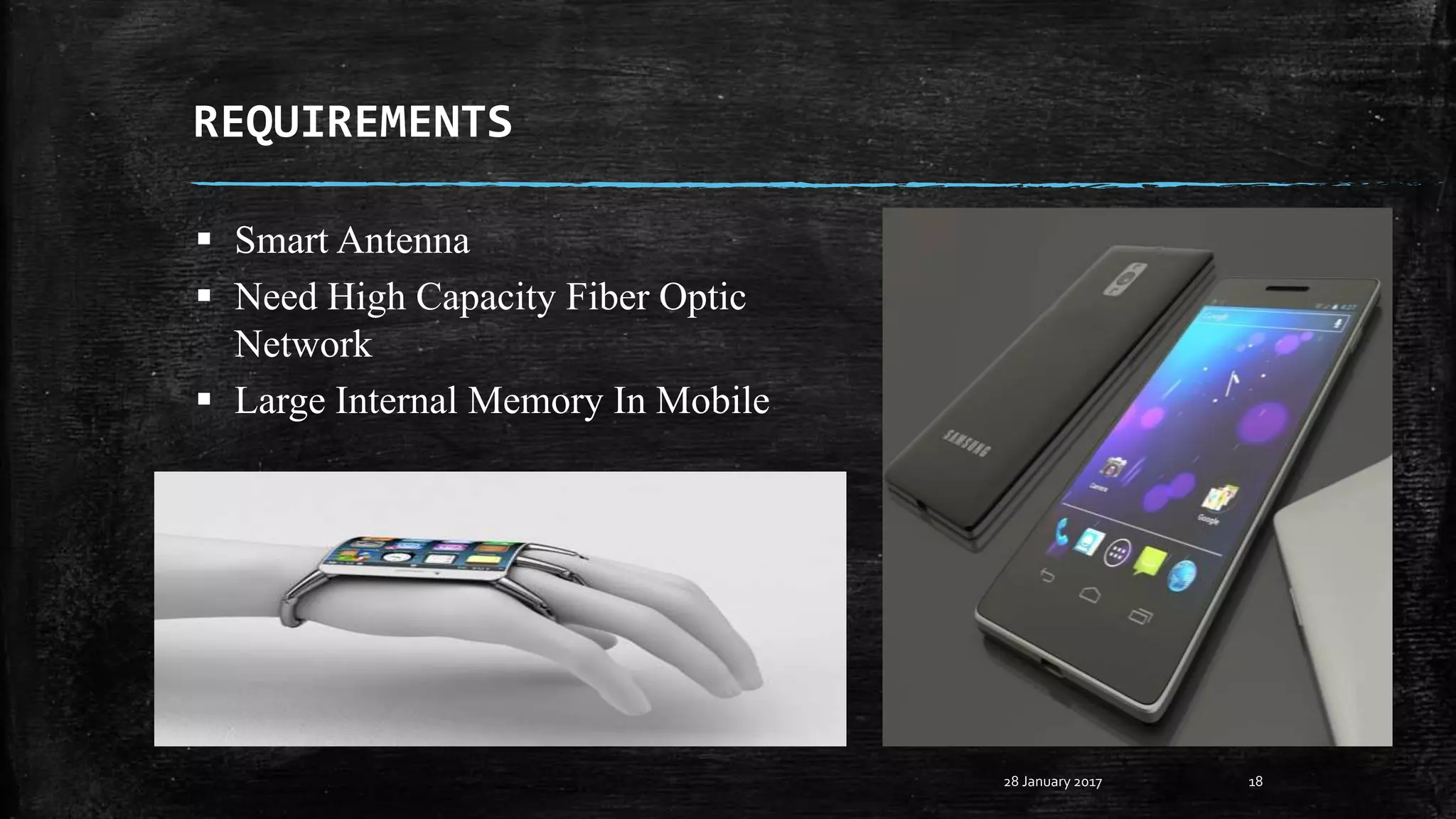

18. REQUIREMENTS
28 January 2017 18
 Smart Antenna
 Need High Capacity Fiber Optic
Network
 Large Internal Memory In Mobile

19. ADVANCEMENT IN 6G
19
Today’s Telecom Network
PSTN DPCN ATM IP ….
PDH SDH ATM IP ….
Wireless BB PSTN X DSL Cable Leased Line Mobile
c
o
p
p
e
r
H
F
C
F
I
B
R
E
A
C
C
E
S
S
M
E
T
R
O
C
O
R
E

20. CONTINUE..
20
AGGREGATION
Wireless BB PSTN X DSL Cable Leased Line Mobile
c
o
p
p
e
r
H
F
C
F
I
B
R
E
A
C
C
E
S
S
C
O
R
E
&
M
E
T
R
O
IP
Next Generation network

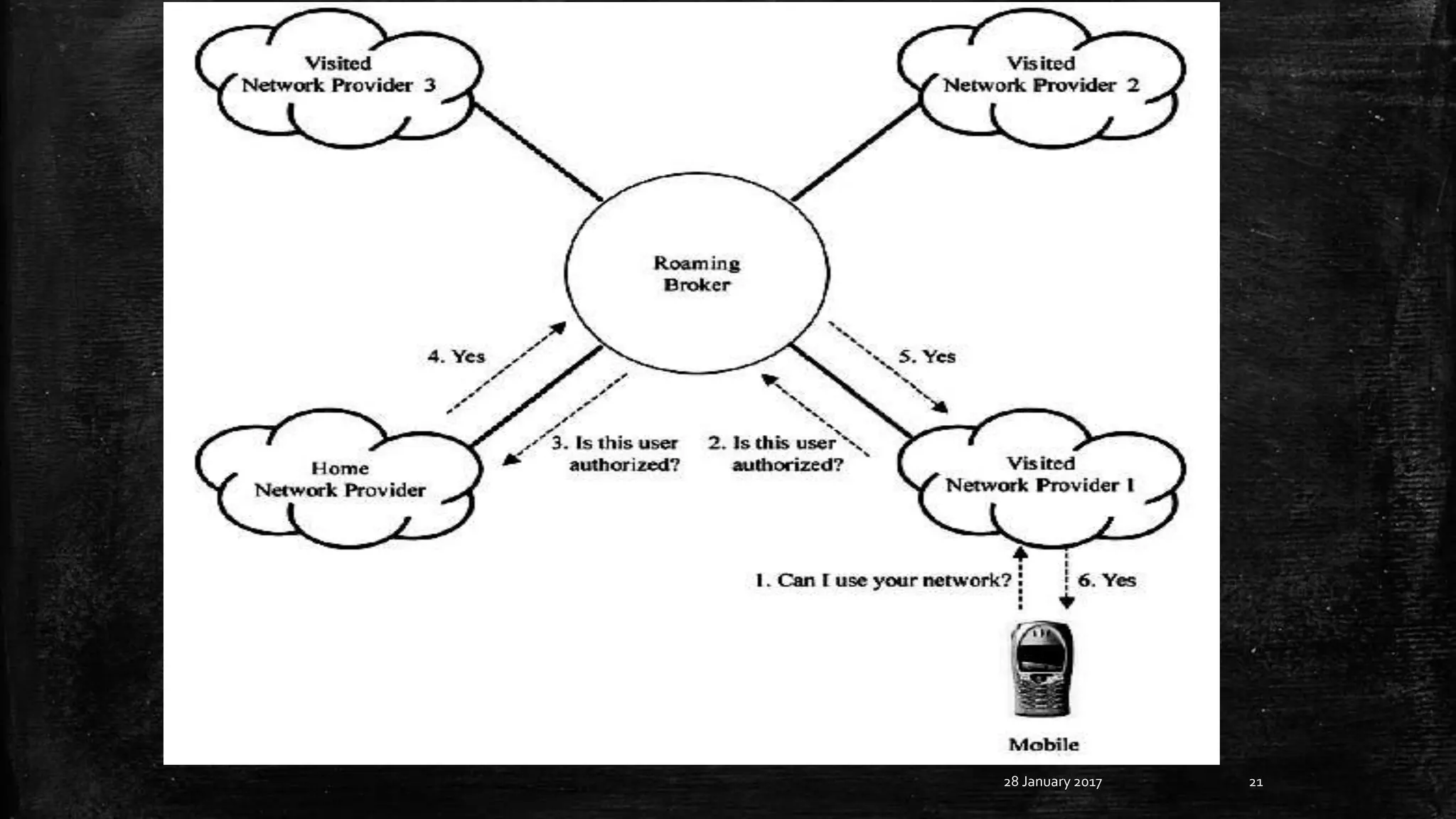

21. 28 January 2017 21

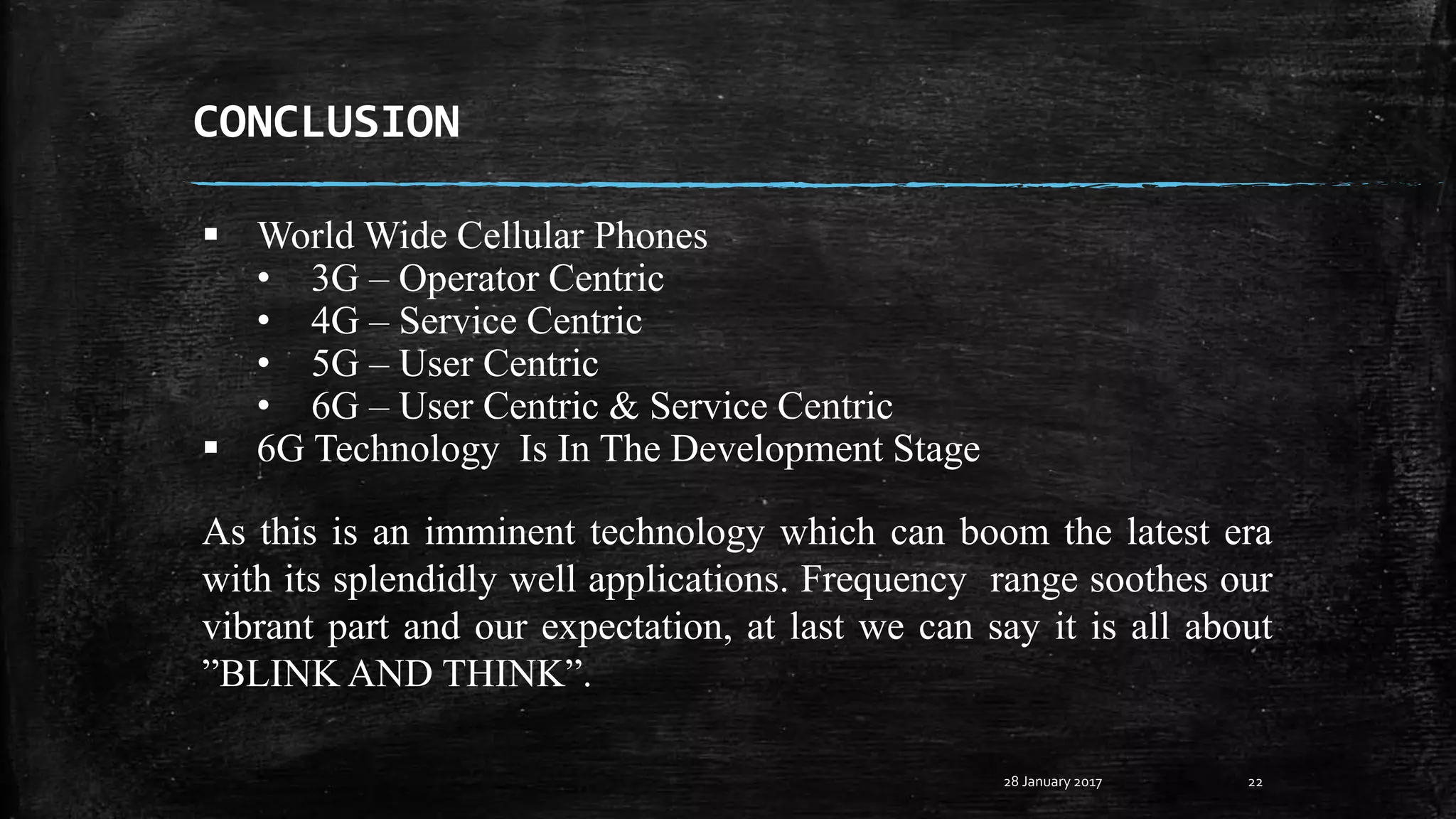

22. CONCLUSION
28 January 2017 22
As this is an imminent technology which can boom the latest era
with its splendidly well applications. Frequency range soothes our
vibrant part and our expectation, at last we can say it is all about
”BLINK AND THINK”.
 World Wide Cellular Phones
• 3G – Operator Centric
• 4G – Service Centric
• 5G – User Centric
• 6G – User Centric & Service Centric
 6G Technology Is In The Development Stage

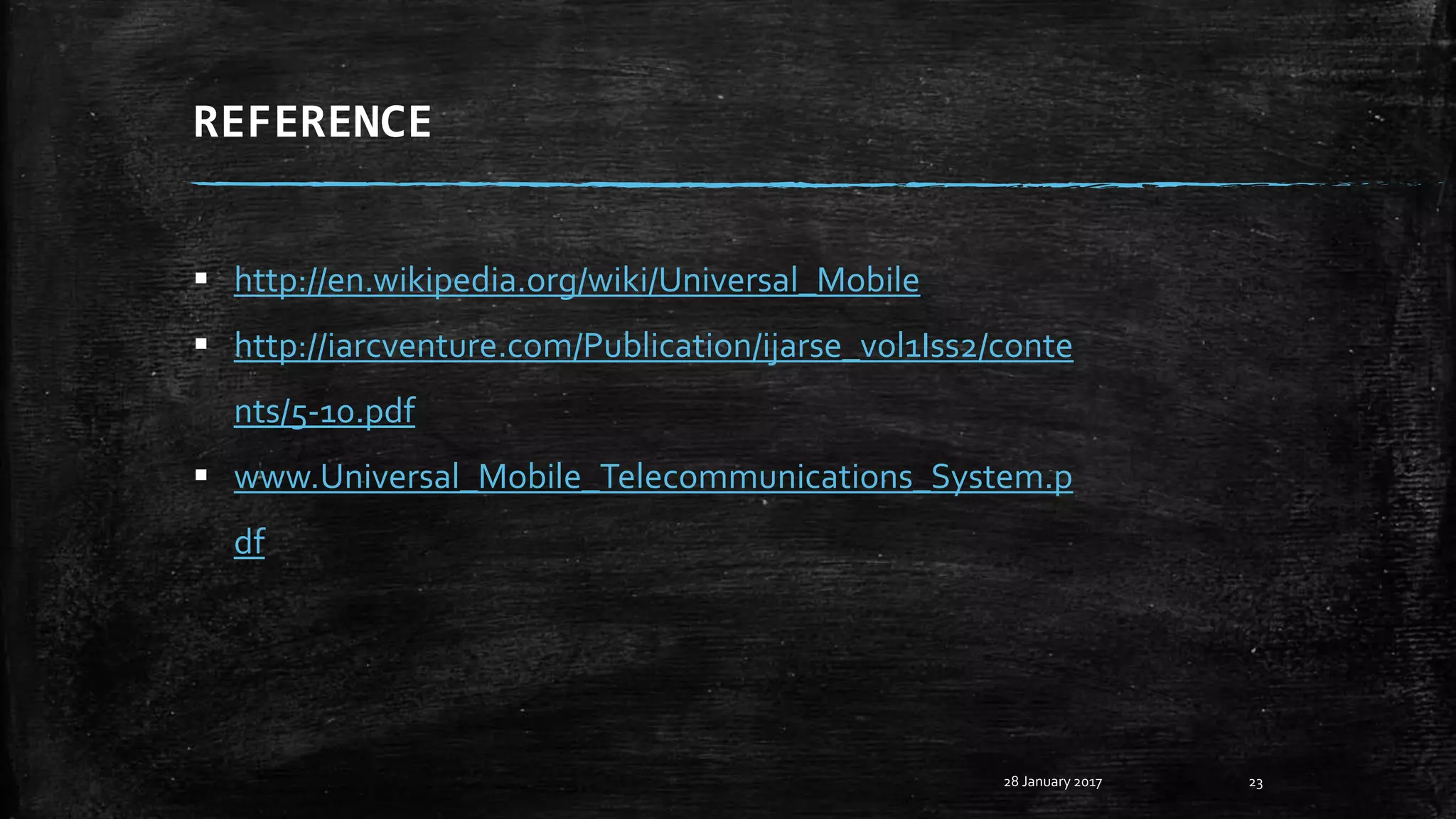

23. REFERENCE
28 January 2017 23
 http://en.wikipedia.org/wiki/Universal_Mobile
 http://iarcventure.com/Publication/ijarse_vol1Iss2/conte
nts/5-10.pdf
 www.Universal_Mobile_Telecommunications_System.p
df

24. 28 January 2017 24
THANK YOU FOR YOUR TIME
