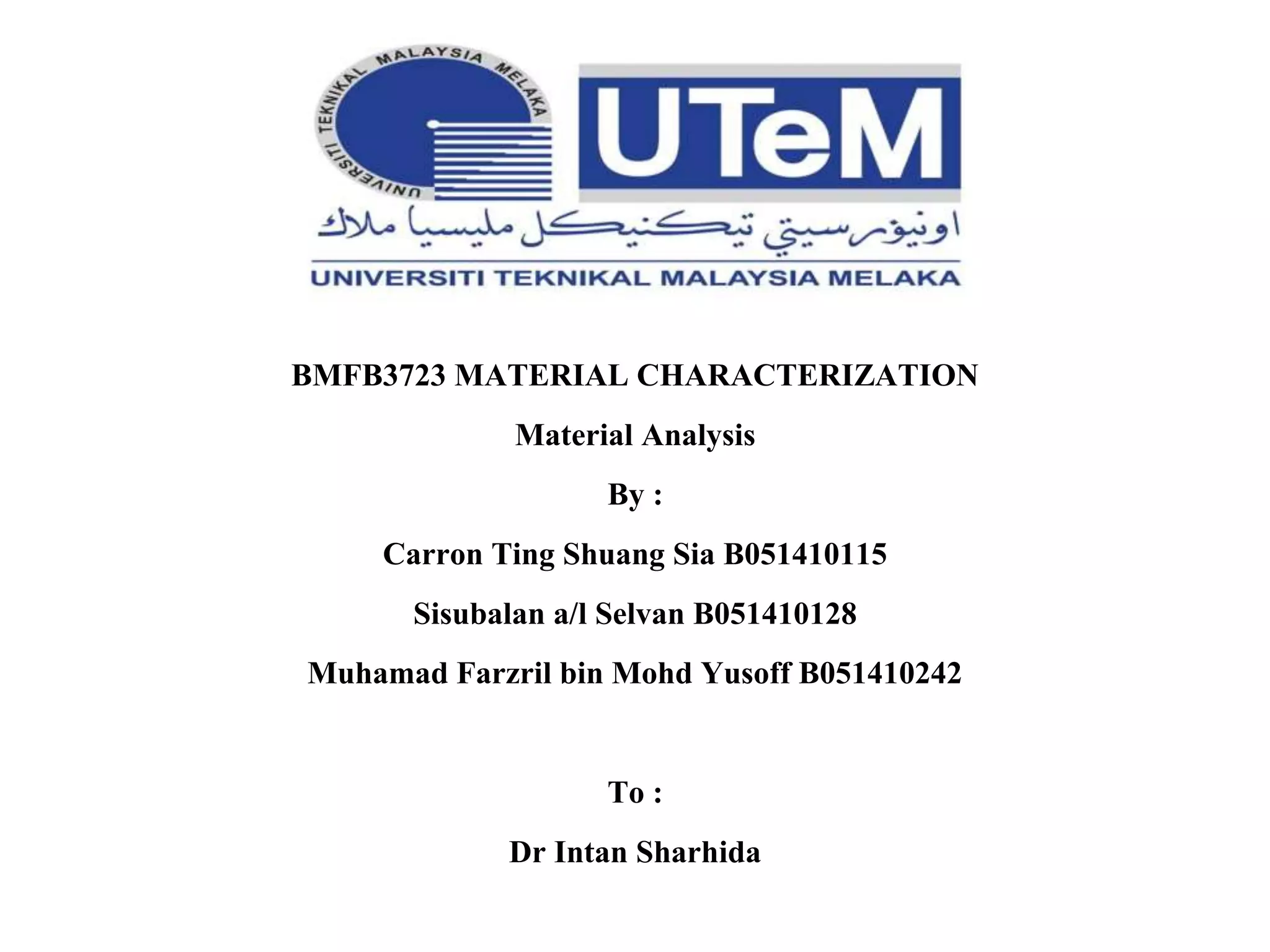

1. BMFB3723 MATERIAL CHARACTERIZATION
Material Analysis
By :
Carron Ting Shuang Sia B051410115
Sisubalan a/l Selvan B051410128
Muhamad Farzril bin Mohd Yusoff B051410242
To :
Dr Intan Sharhida

2. Material
• Threaded tensile bar
• Standard Test Methods for Tension
Testing of Metallic Materials.
ASTM E8/E8M
threaded tensile

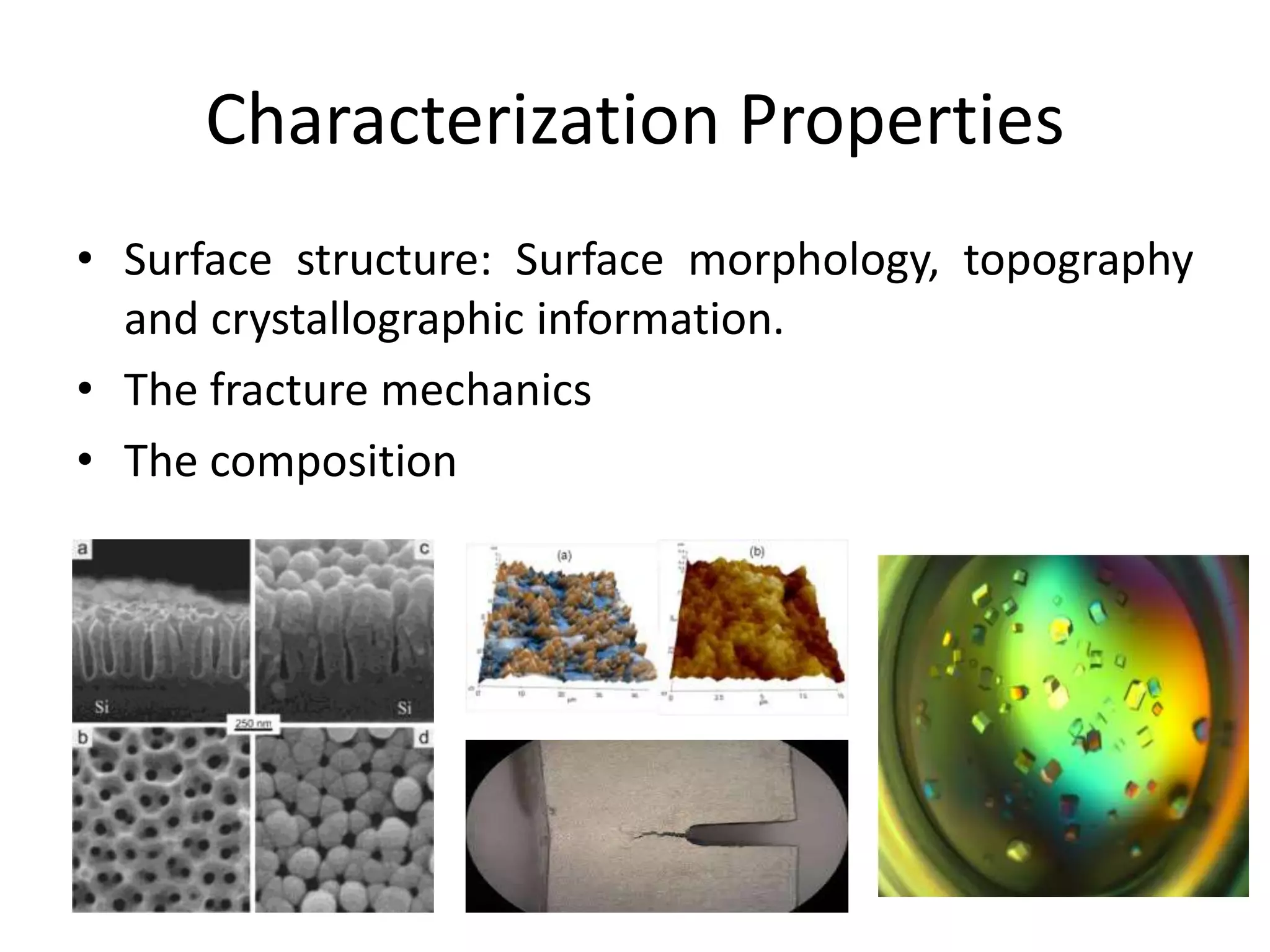

3. Characterization Properties
• Surface structure: Surface morphology, topography
and crystallographic information.
• The fracture mechanics
• The composition

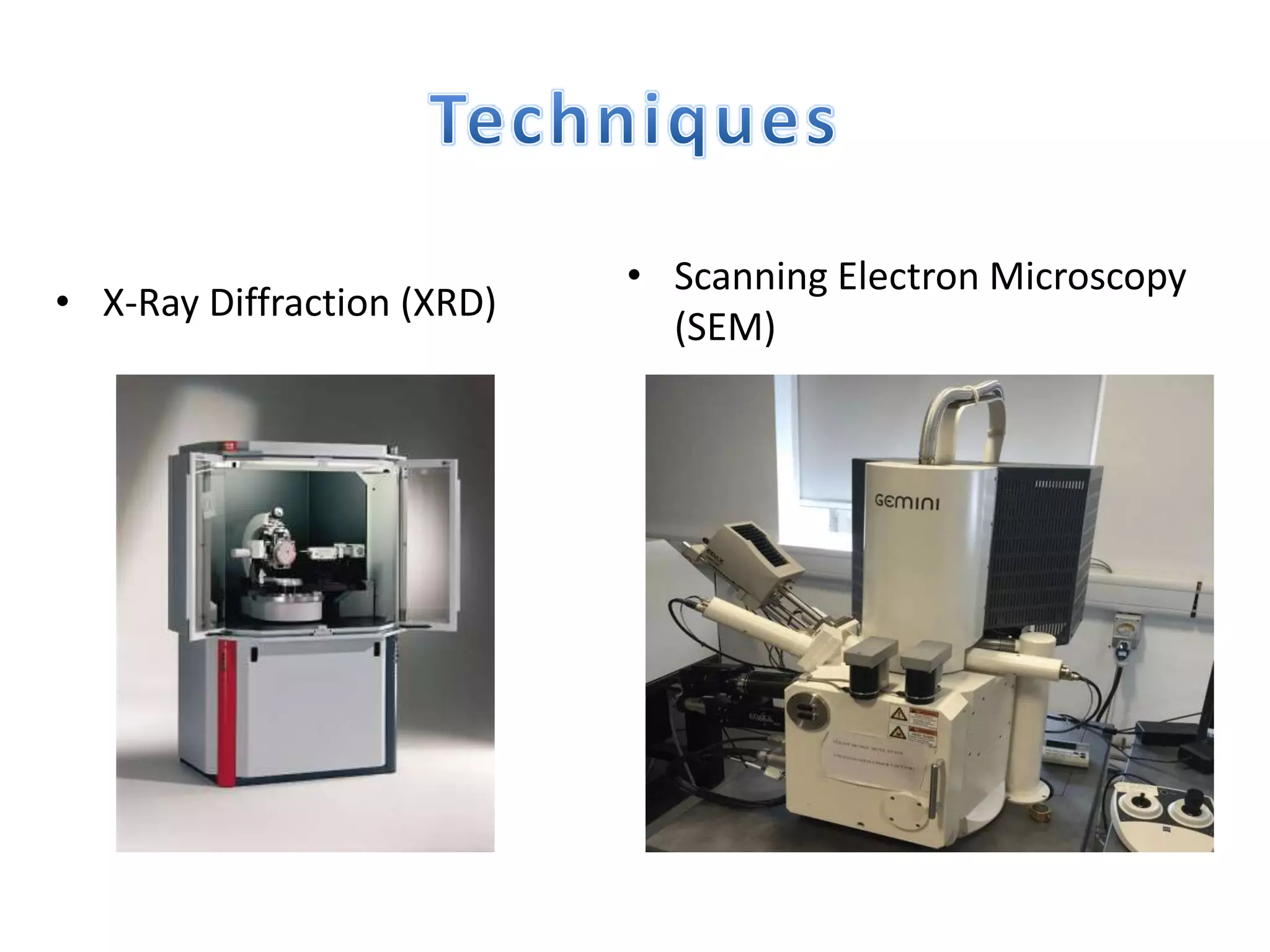

4. • X-Ray Diffraction (XRD)
• Scanning Electron Microscopy
(SEM)

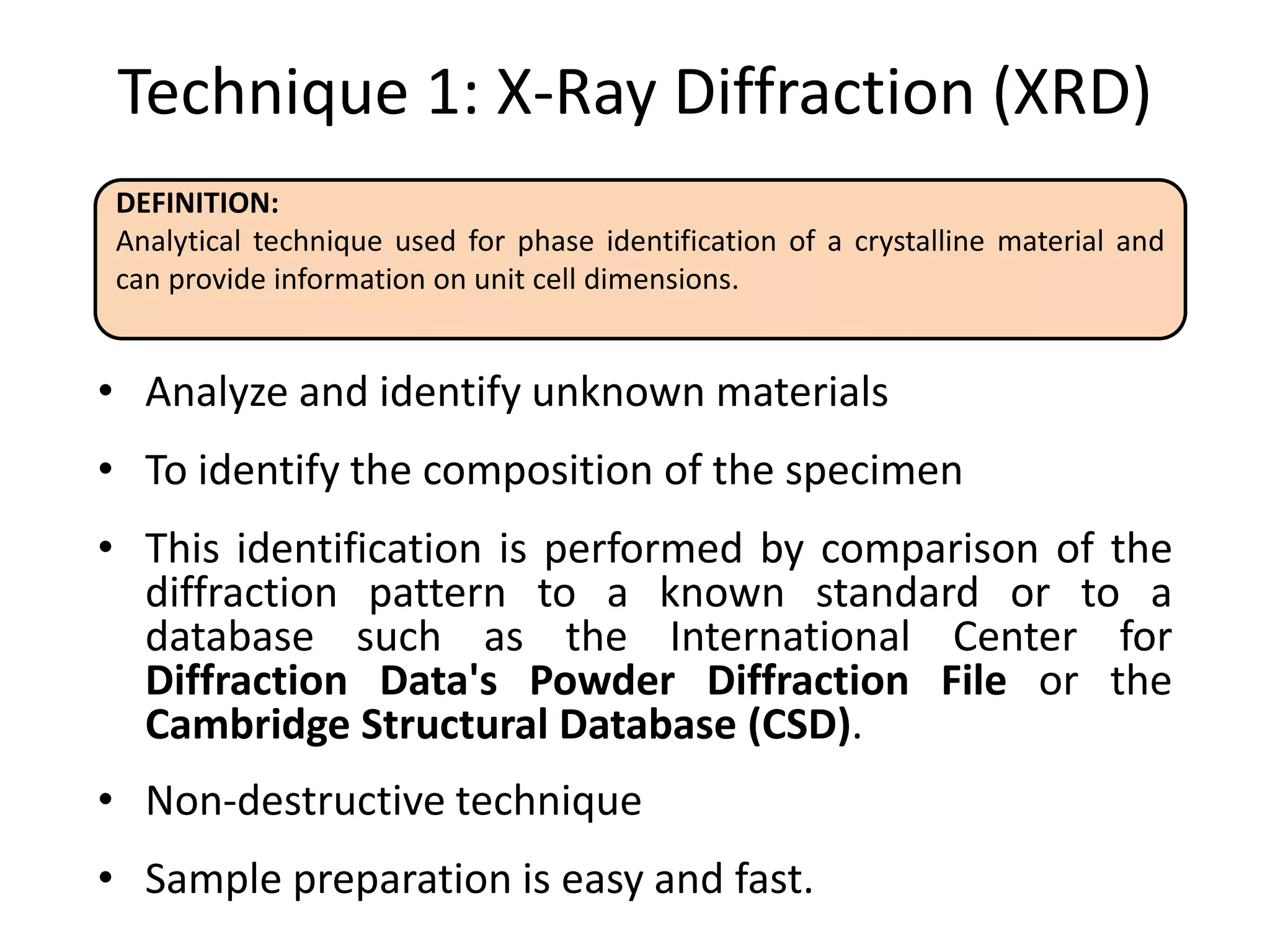

5. Technique 1: X-Ray Diffraction (XRD)
• Analyze and identify unknown materials
• To identify the composition of the specimen
• This identification is performed by comparison of the
diffraction pattern to a known standard or to a
database such as the International Center for
Diffraction Data's Powder Diffraction File or the
Cambridge Structural Database (CSD).
• Non-destructive technique
• Sample preparation is easy and fast.
DEFINITION:
Analytical technique used for phase identification of a crystalline material and
can provide information on unit cell dimensions.

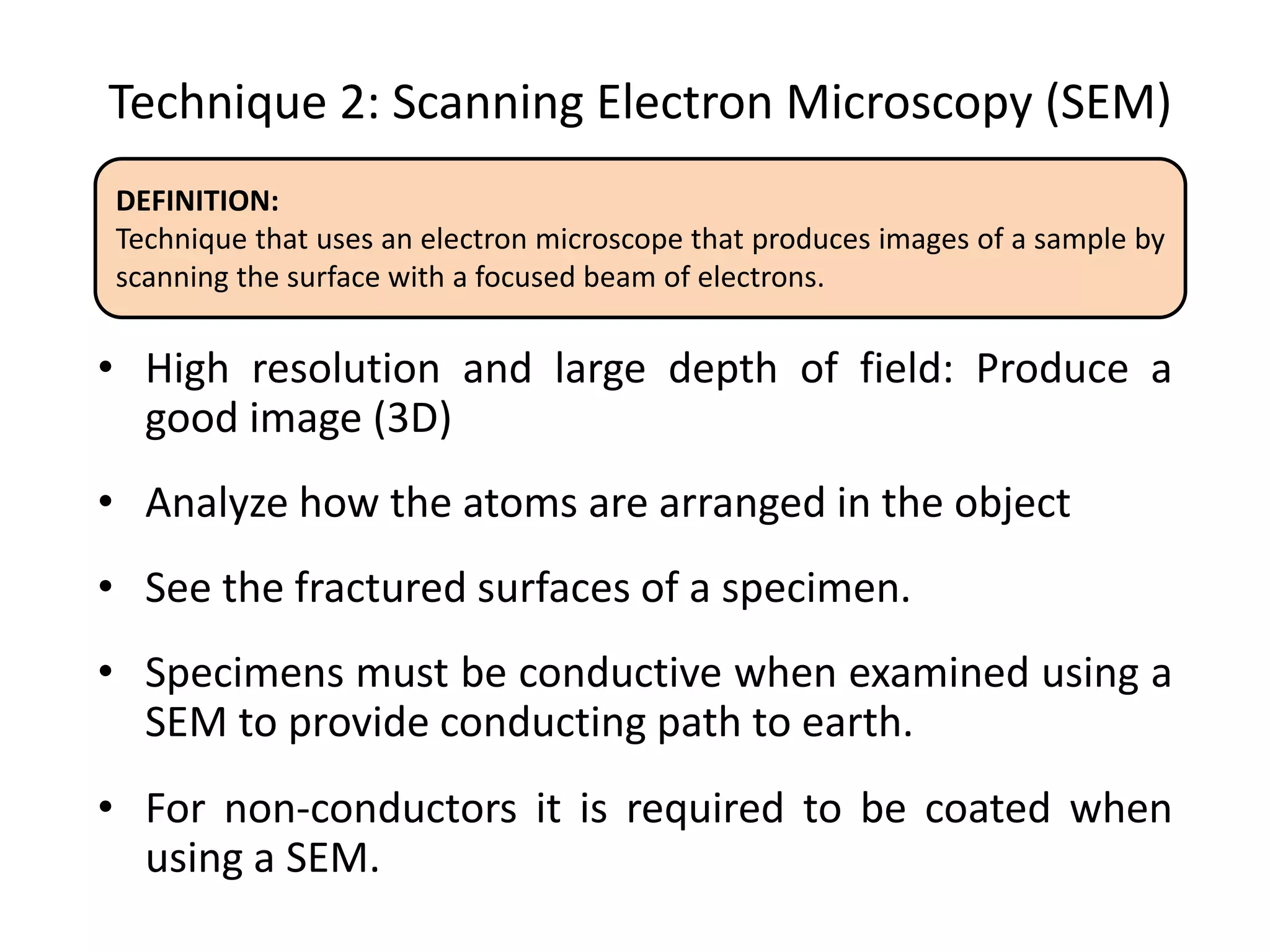

6. Technique 2: Scanning Electron Microscopy (SEM)
• High resolution and large depth of field: Produce a
good image (3D)
• Analyze how the atoms are arranged in the object
• See the fractured surfaces of a specimen.
• Specimens must be conductive when examined using a
SEM to provide conducting path to earth.
• For non-conductors it is required to be coated when
using a SEM.
DEFINITION:
Technique that uses an electron microscope that produces images of a sample by
scanning the surface with a focused beam of electrons.

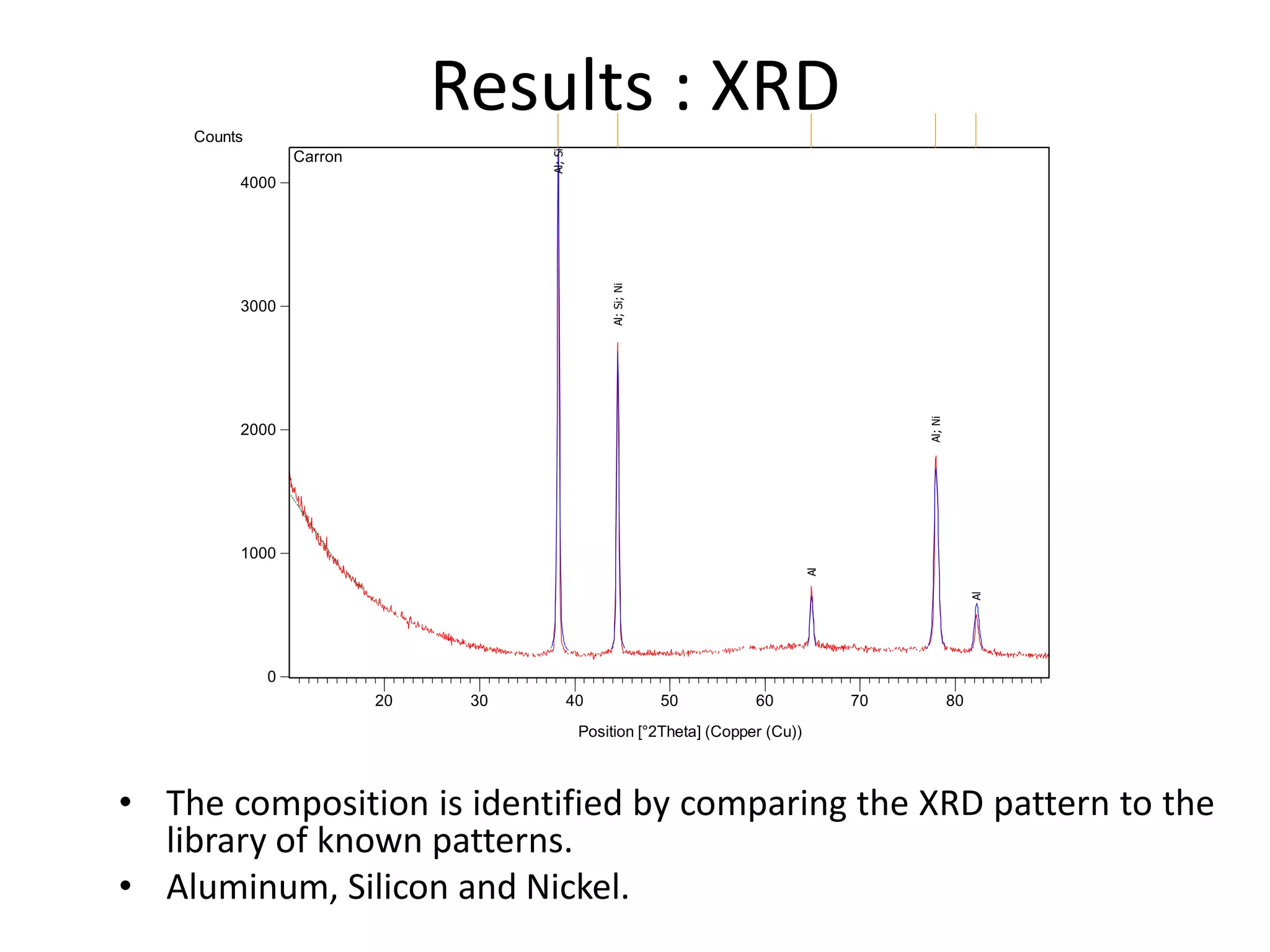

7. Results : XRD
• The composition is identified by comparing the XRD pattern to the
library of known patterns.
• Aluminum, Silicon and Nickel.
Position [°2Theta] (Copper (Cu))
20 30 40 50 60 70 80
Counts
0
1000
2000
3000
4000
Al;Si
Al;Si;Ni
Al
Al;Ni
Al
Carron

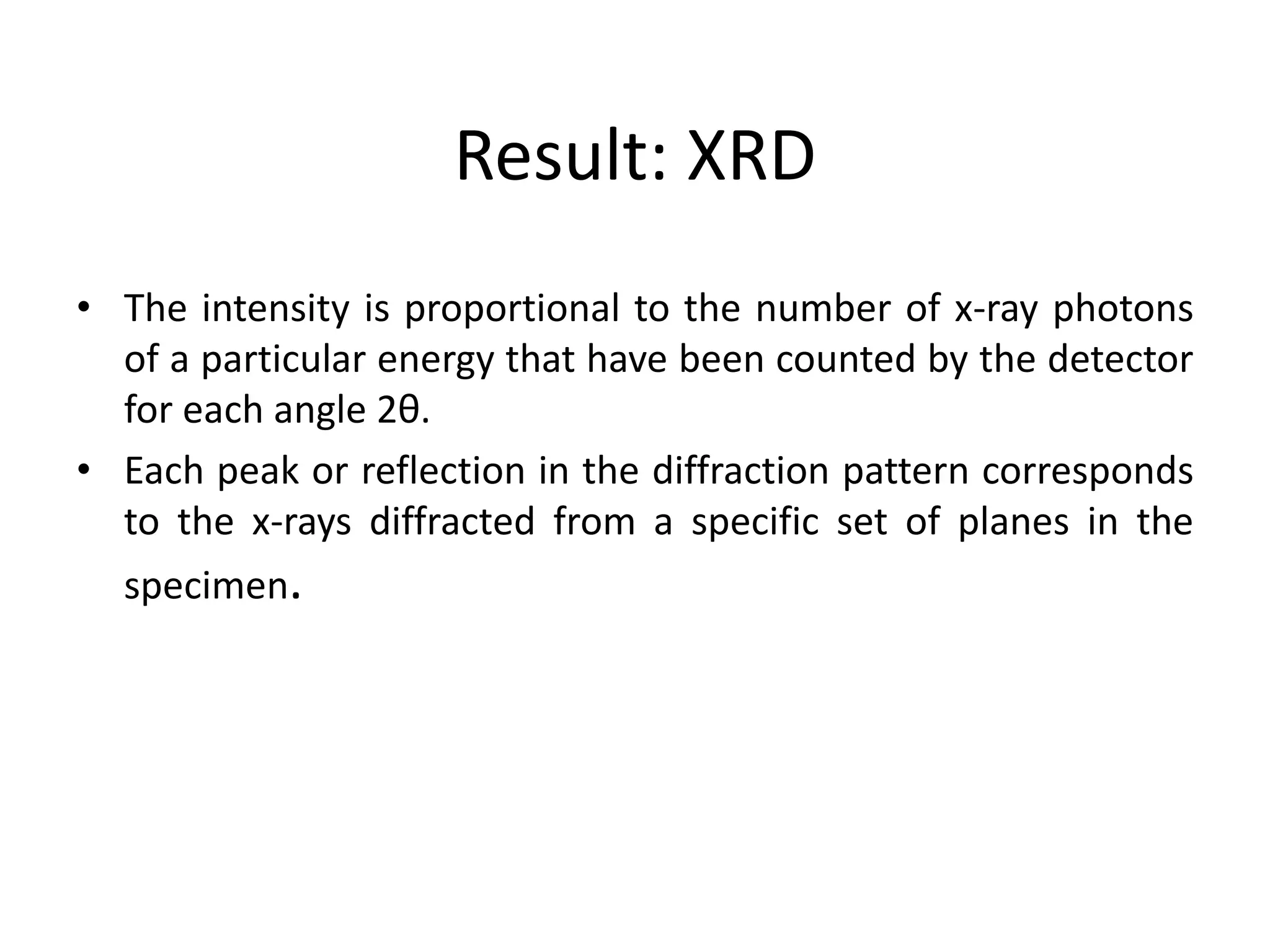

8. Result: XRD
• The intensity is proportional to the number of x-ray photons
of a particular energy that have been counted by the detector
for each angle 2θ.
• Each peak or reflection in the diffraction pattern corresponds
to the x-rays diffracted from a specific set of planes in the
specimen.

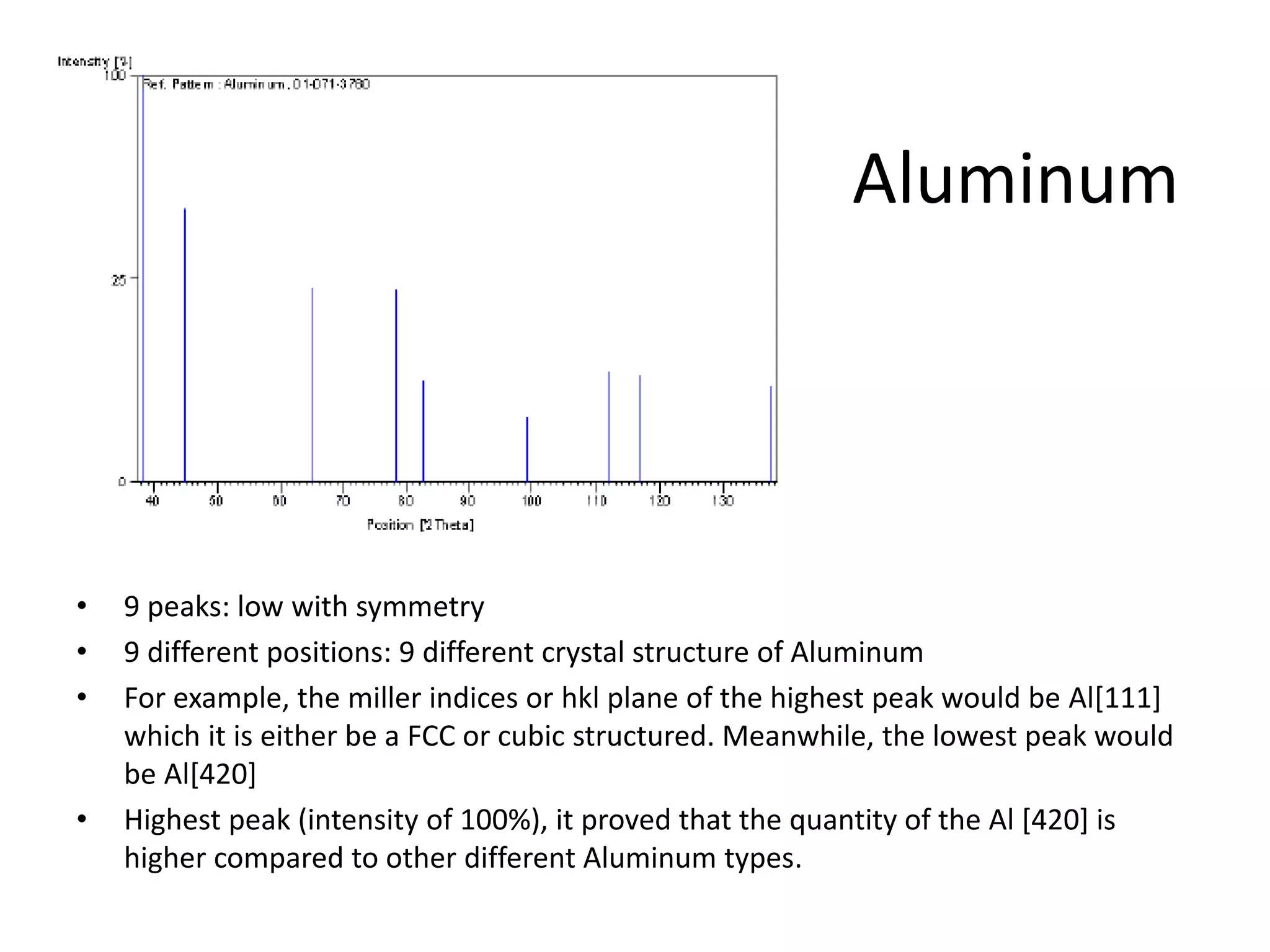

9. Aluminum
• 9 peaks: low with symmetry
• 9 different positions: 9 different crystal structure of Aluminum
• For example, the miller indices or hkl plane of the highest peak would be Al[111]
which it is either be a FCC or cubic structured. Meanwhile, the lowest peak would
be Al[420]
• Highest peak (intensity of 100%), it proved that the quantity of the Al [420] is
higher compared to other different Aluminum types.

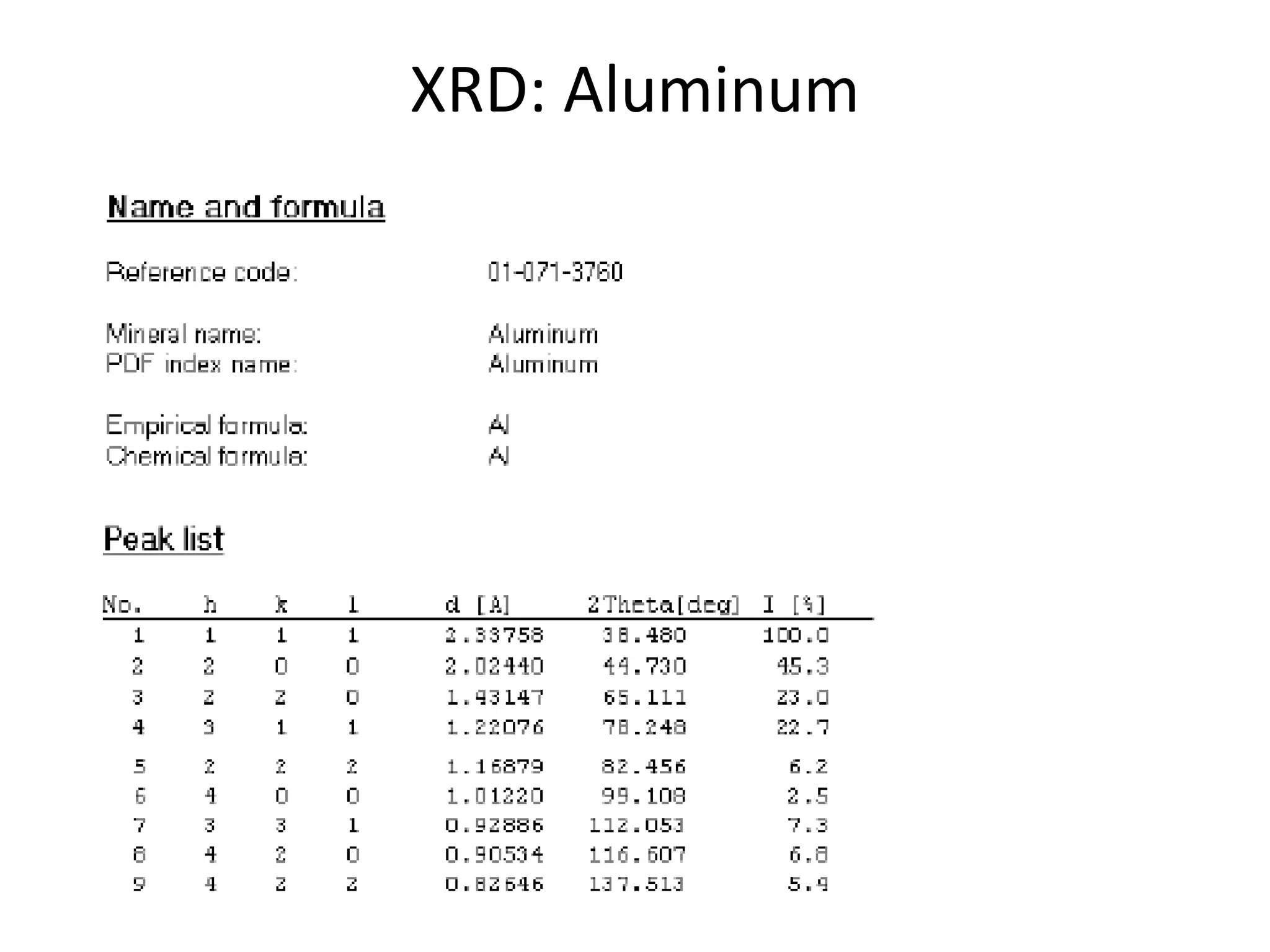

10. XRD: Aluminum

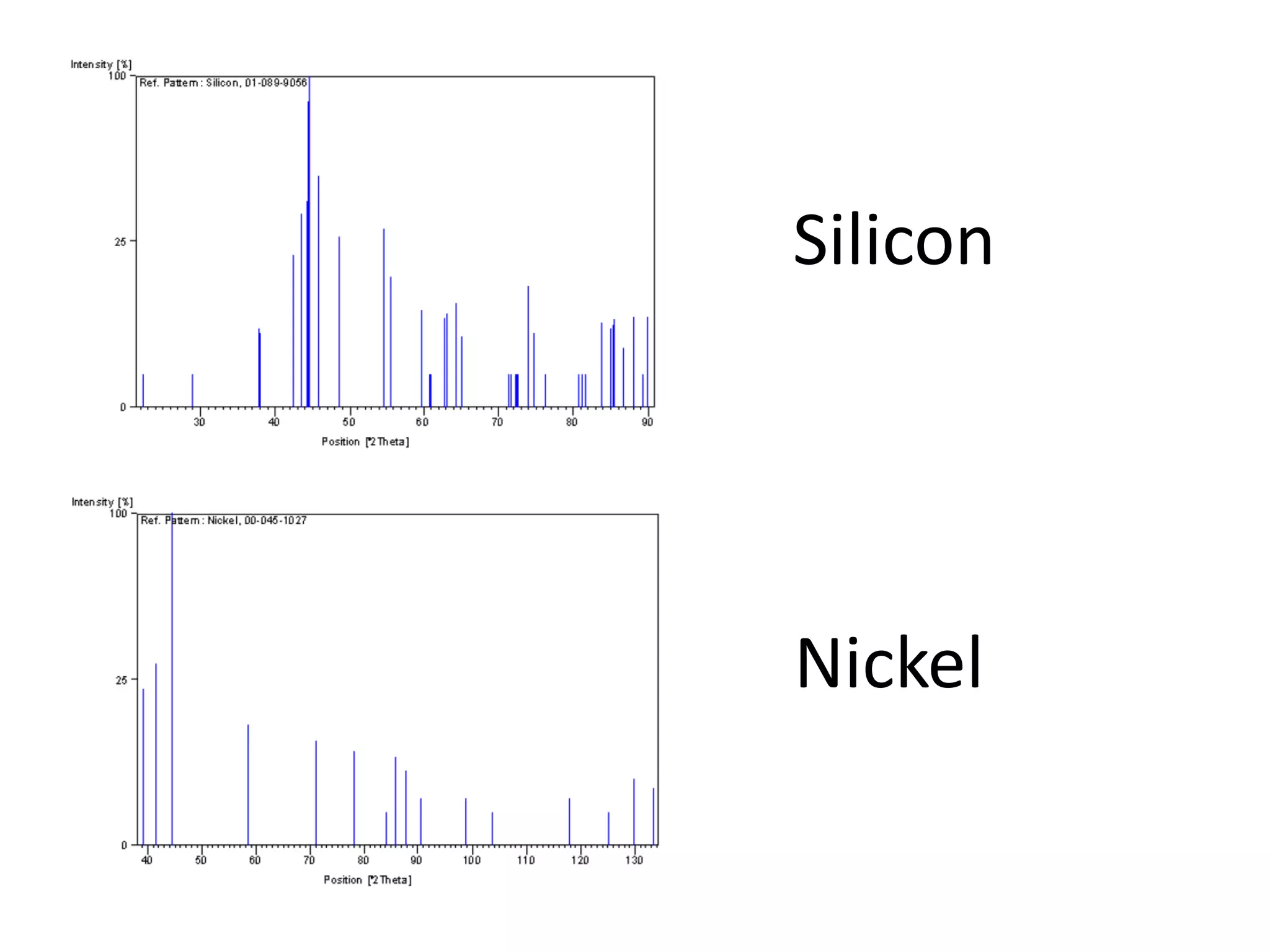

11. Silicon
Nickel

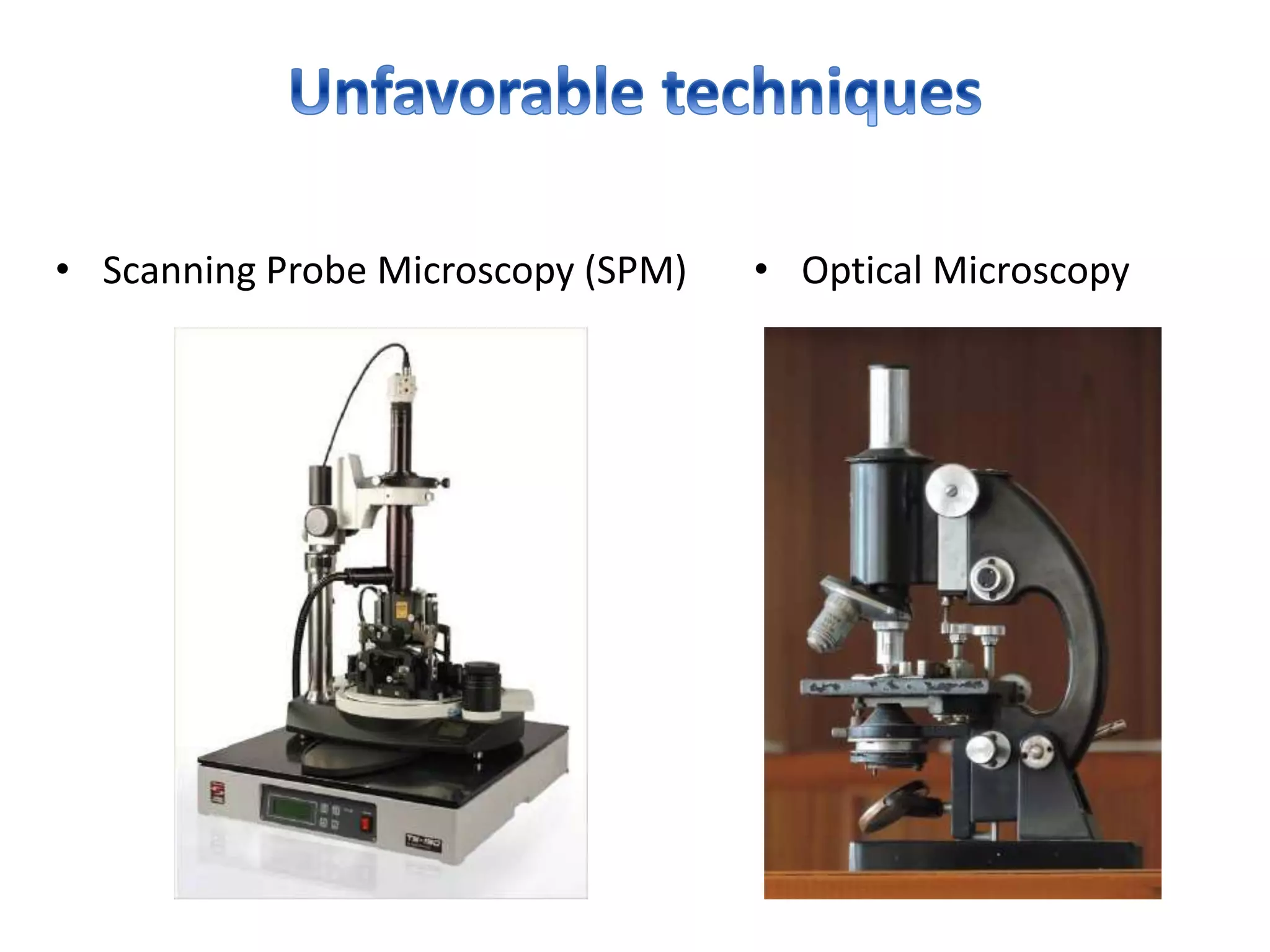

12. • Scanning Probe Microscopy (SPM) • Optical Microscopy

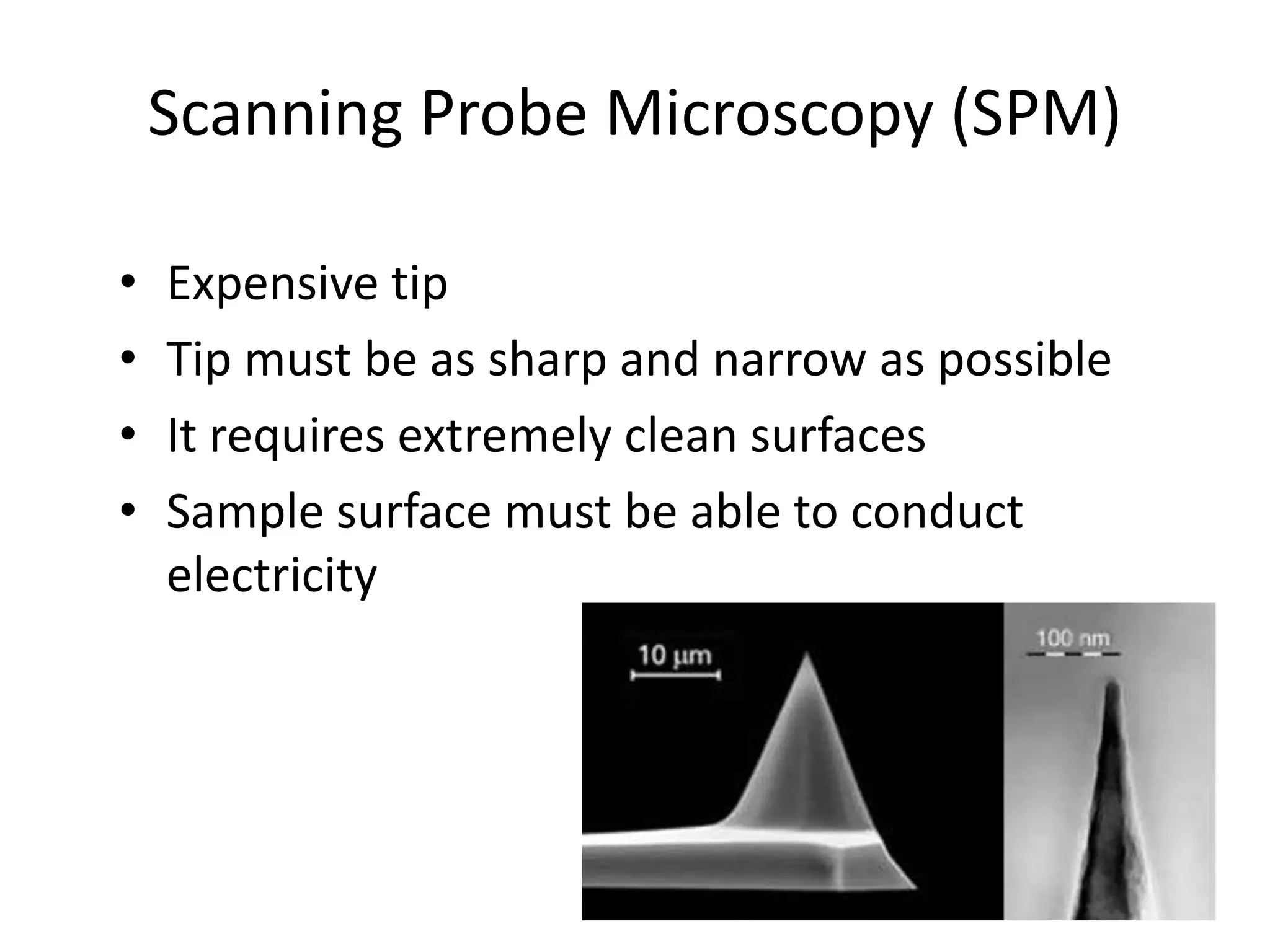

13. Scanning Probe Microscopy (SPM)
• Expensive tip
• Tip must be as sharp and narrow as possible
• It requires extremely clean surfaces
• Sample surface must be able to conduct
electricity

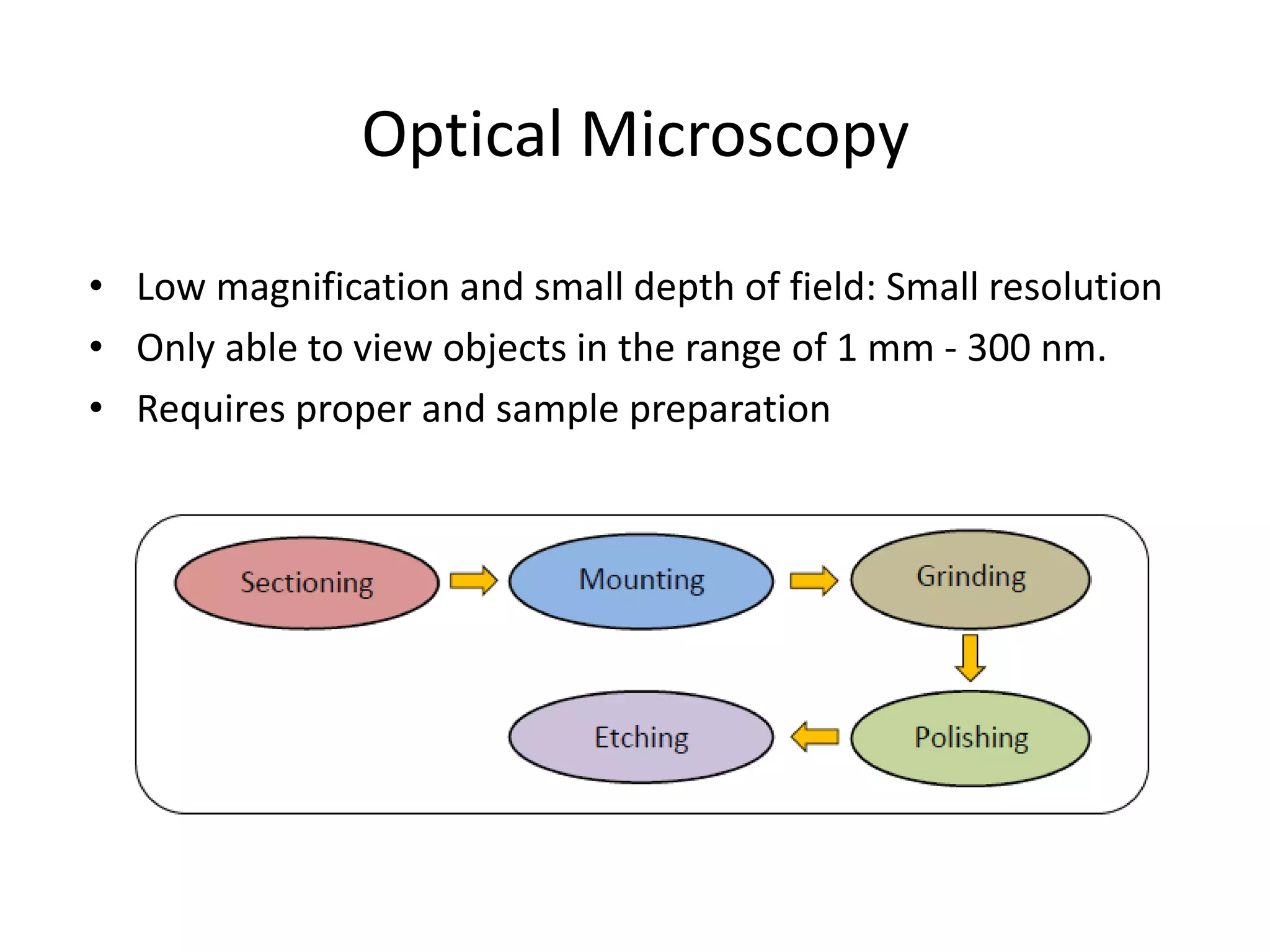

14. Optical Microscopy
• Low magnification and small depth of field: Small resolution
• Only able to view objects in the range of 1 mm - 300 nm.
• Requires proper and sample preparation

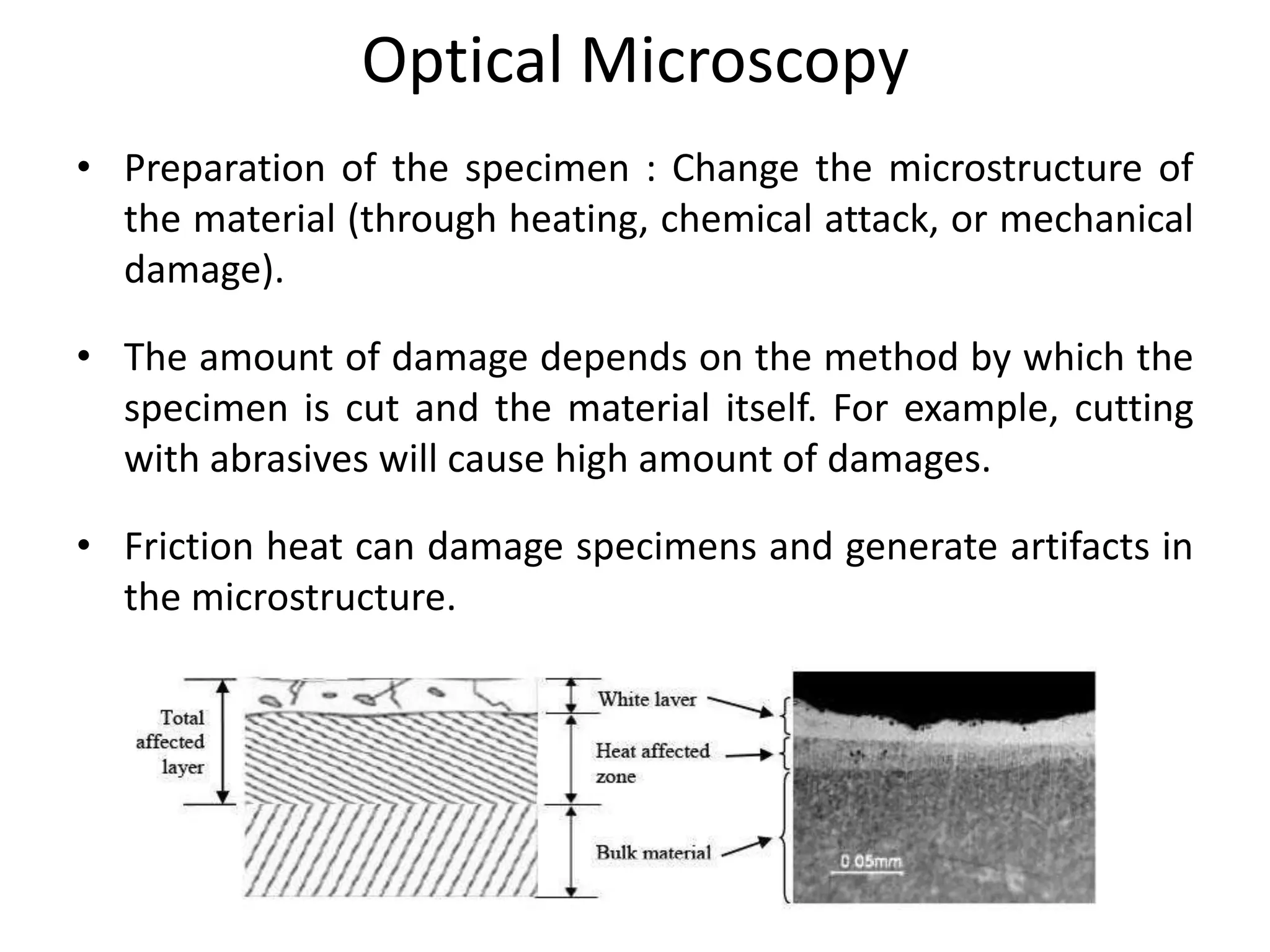

15. Optical Microscopy
• Preparation of the specimen : Change the microstructure of
the material (through heating, chemical attack, or mechanical
damage).
• The amount of damage depends on the method by which the
specimen is cut and the material itself. For example, cutting
with abrasives will cause high amount of damages.
• Friction heat can damage specimens and generate artifacts in
the microstructure.

16. Optical Microscopy
• Over-etching cause the small pits to grow and
obscure the main features to be observed.

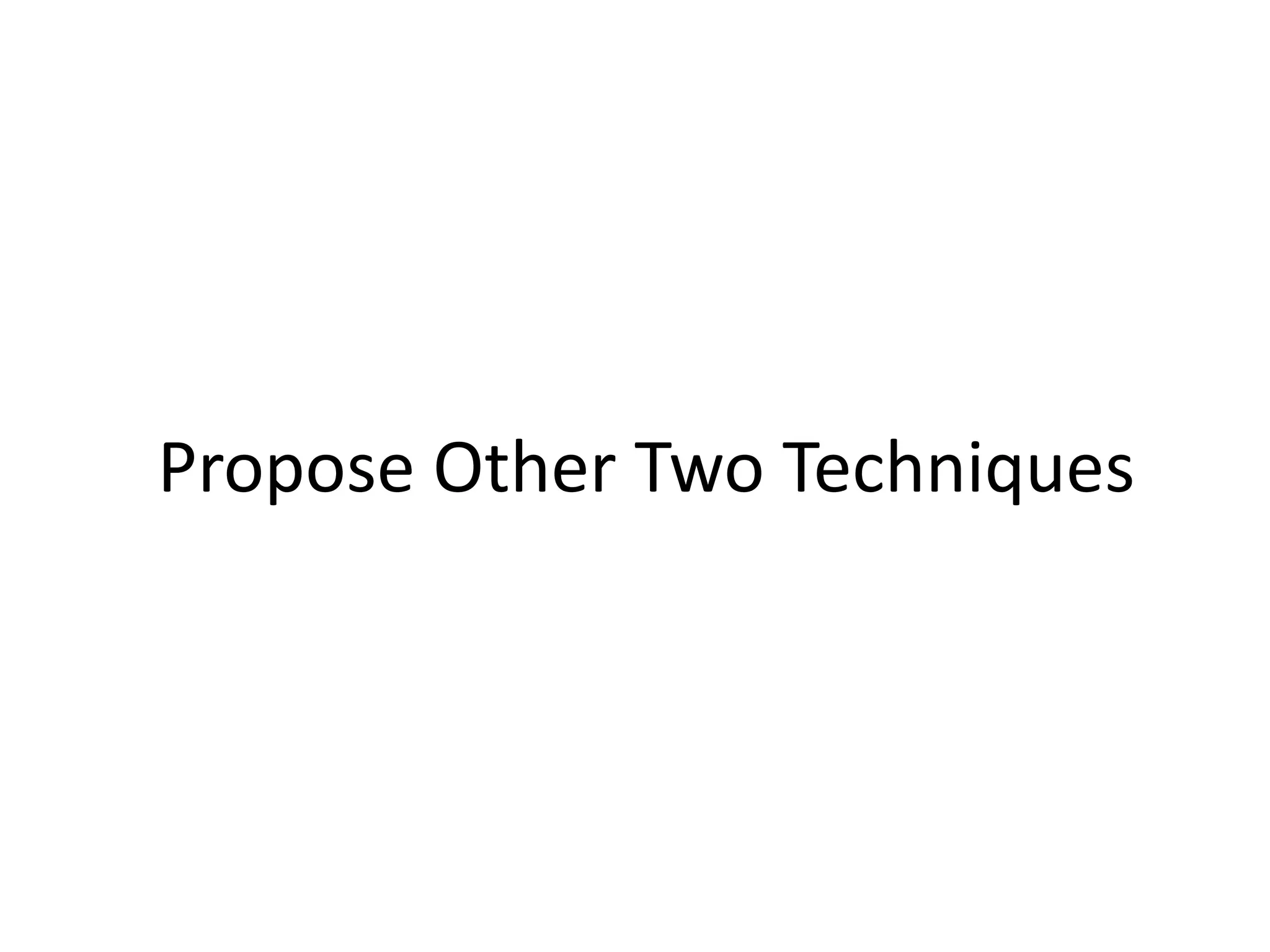

17. Propose Other Two Techniques

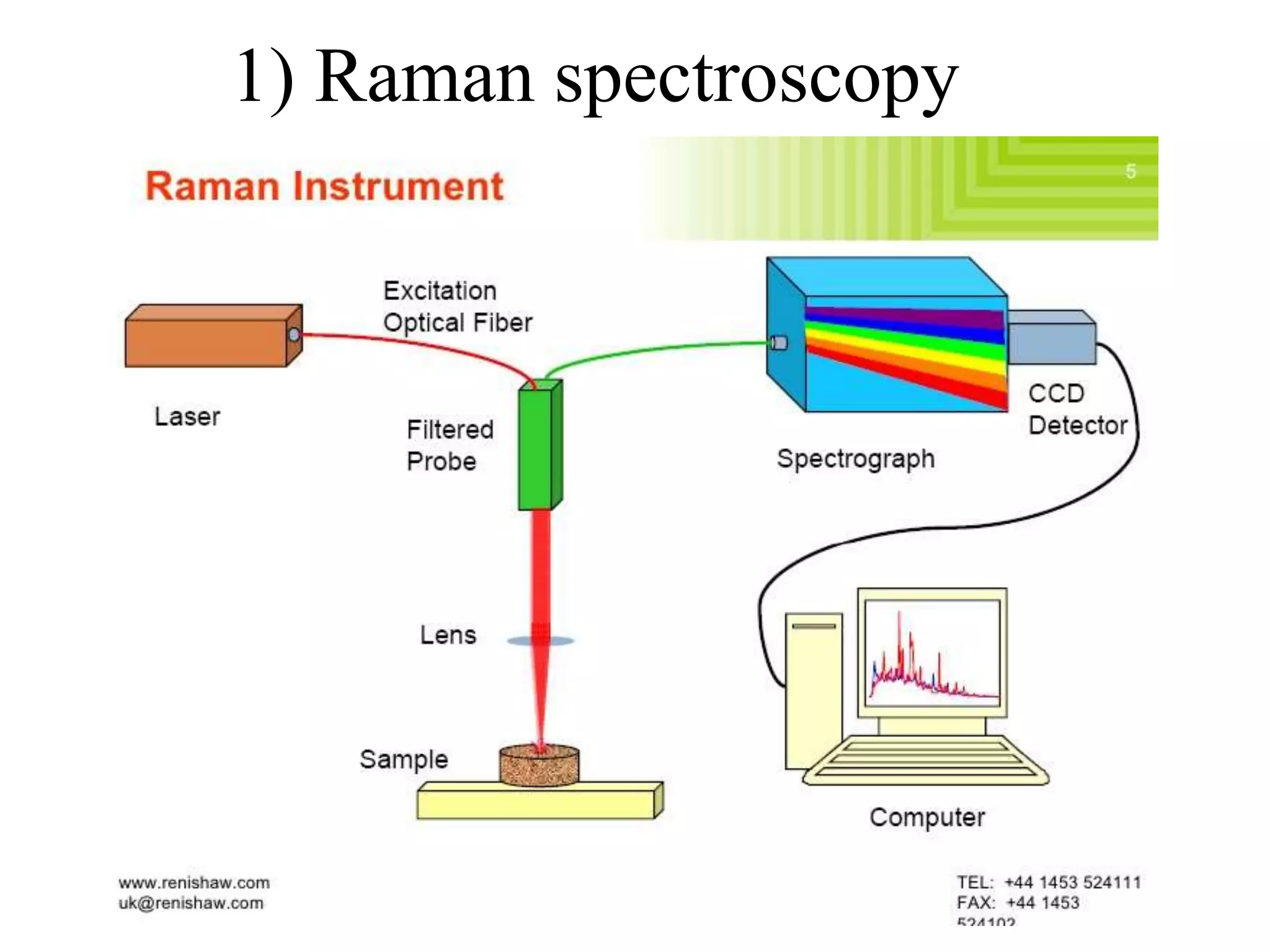

18. 1) Raman spectroscopy

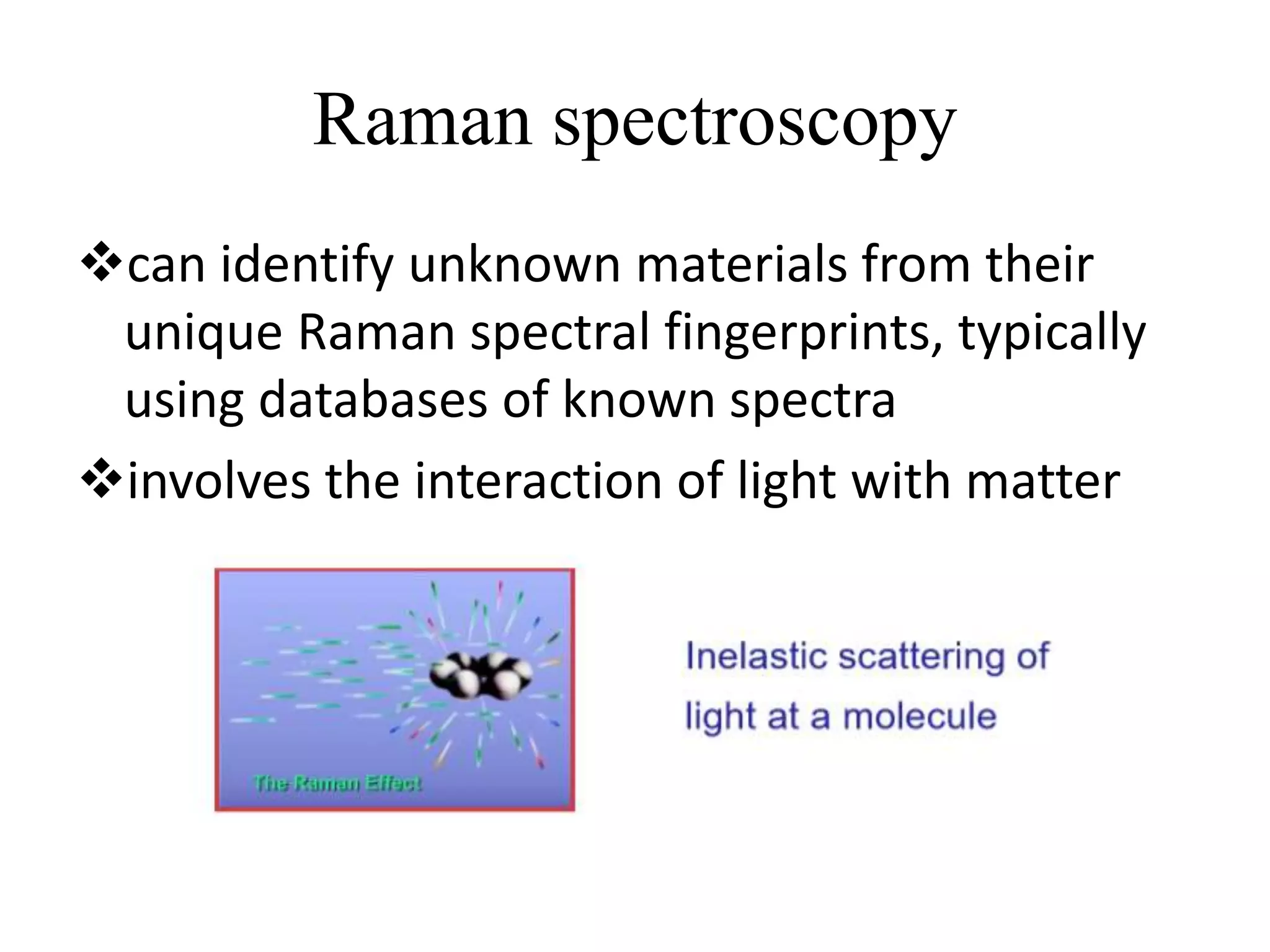

19. Raman spectroscopy
can identify unknown materials from their
unique Raman spectral fingerprints, typically
using databases of known spectra
involves the interaction of light with matter

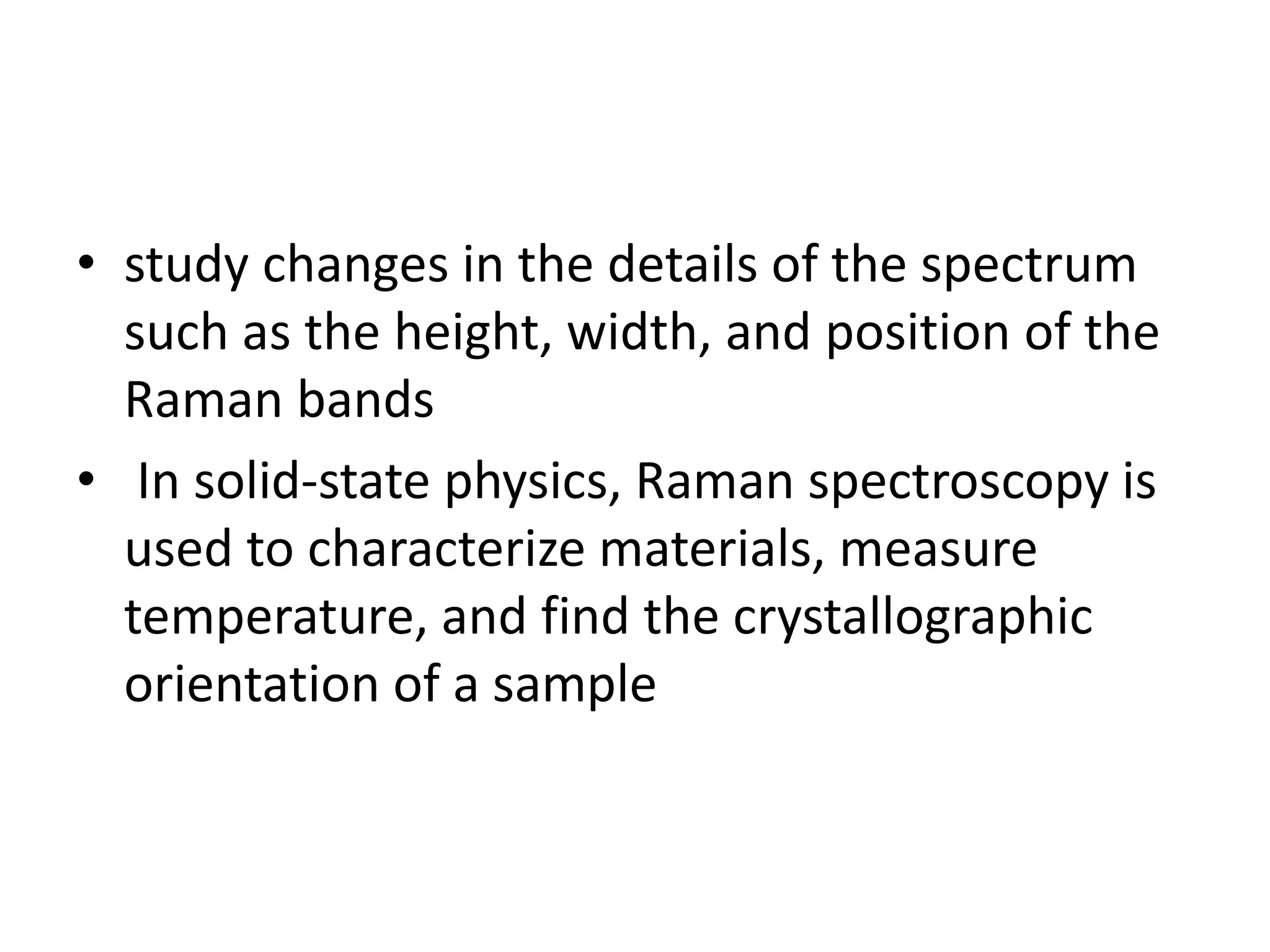

20. • study changes in the details of the spectrum
such as the height, width, and position of the
Raman bands
• In solid-state physics, Raman spectroscopy is
used to characterize materials, measure
temperature, and find the crystallographic
orientation of a sample

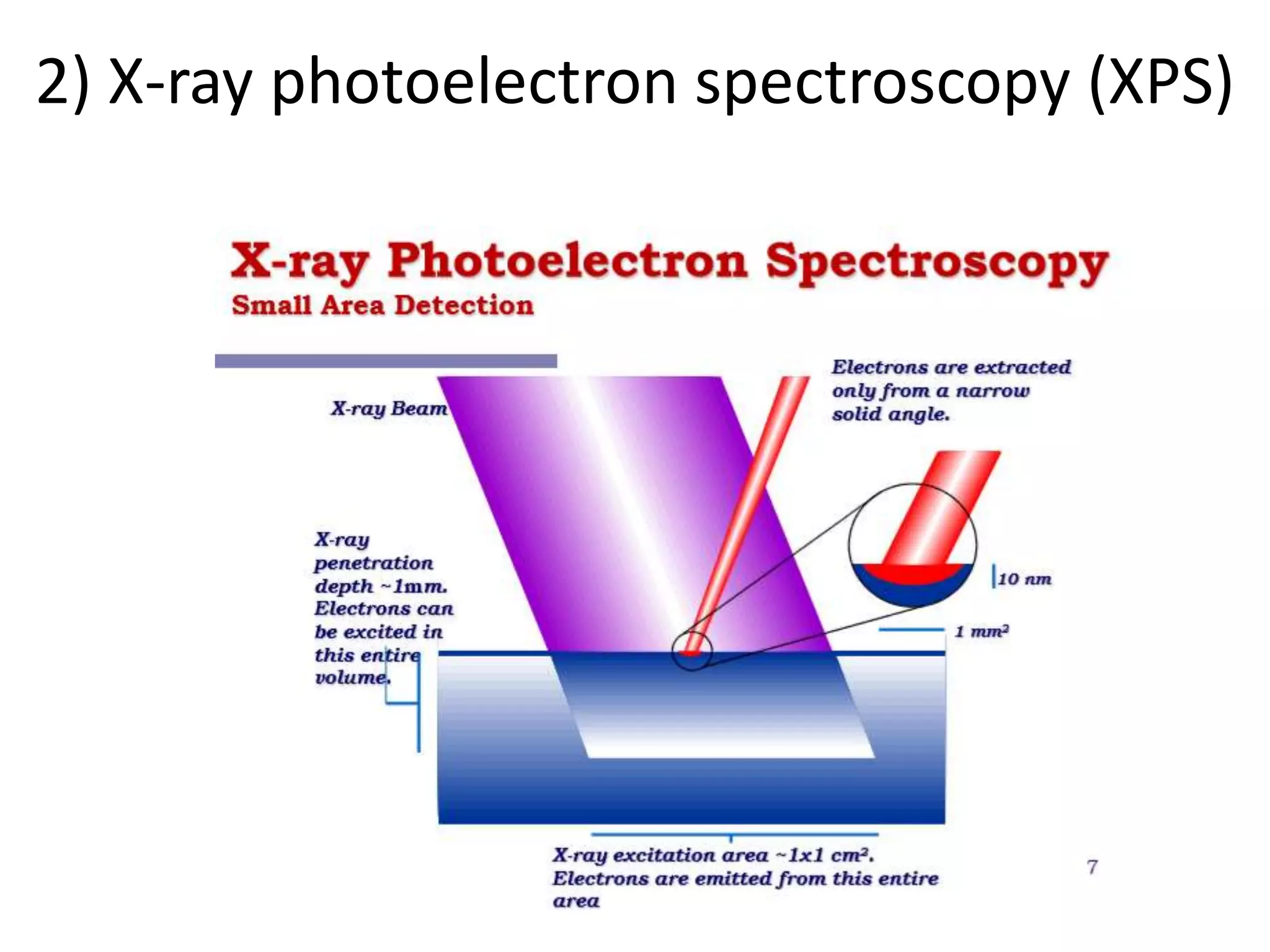

21. 2) X-ray photoelectron spectroscopy (XPS)

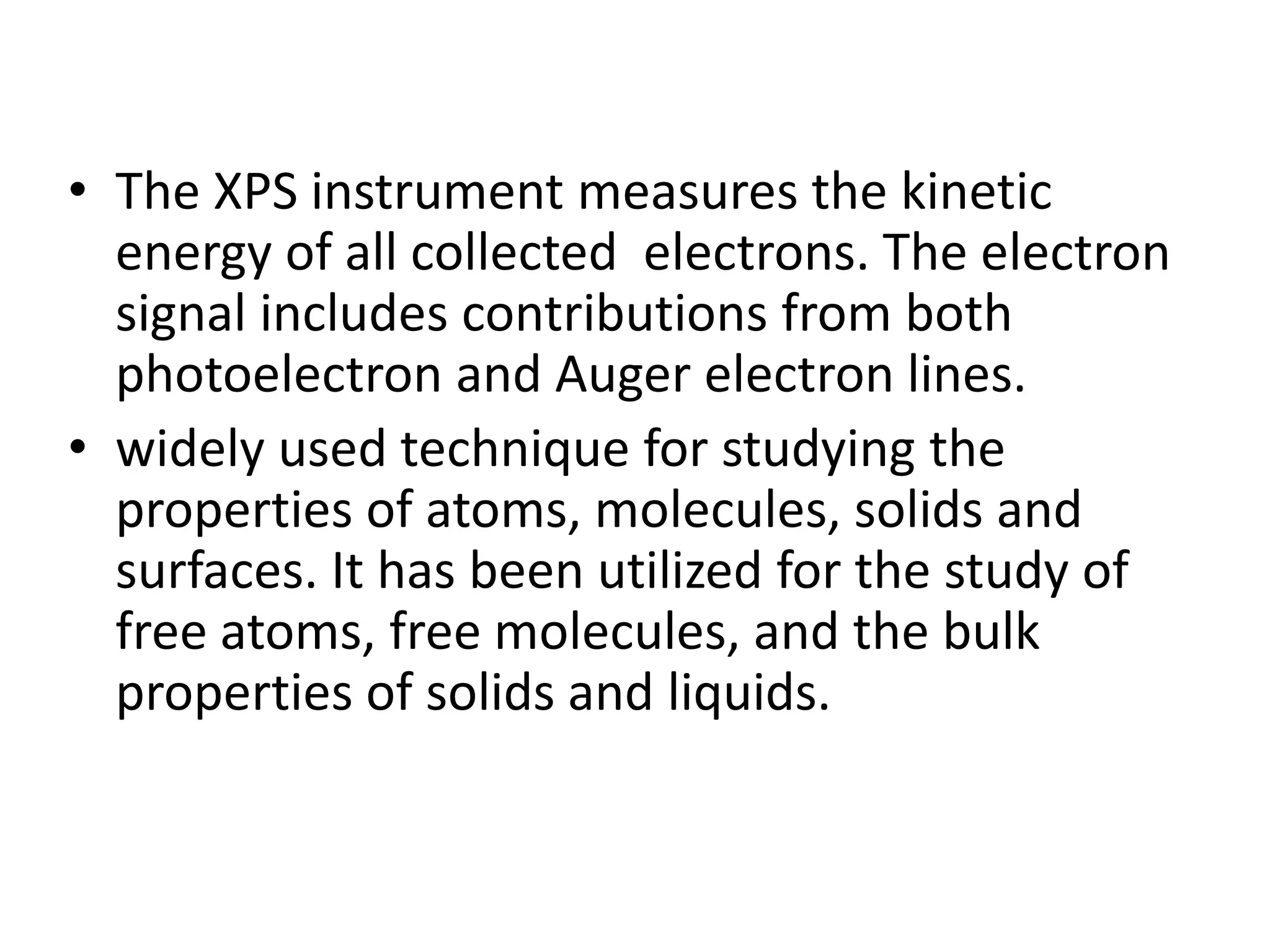

22. • The XPS instrument measures the kinetic
energy of all collected electrons. The electron
signal includes contributions from both
photoelectron and Auger electron lines.
• widely used technique for studying the
properties of atoms, molecules, solids and
surfaces. It has been utilized for the study of
free atoms, free molecules, and the bulk
properties of solids and liquids.
