Applied Nanochemistry
/Lecture No. 1,2,3,4/Lecture No. 1,2,3,4
Dr. Prakash JhaDr. Prakash Jha
School of Chemical Sciences,School of Chemical Sciences,
CUG,GujaratCUG,Gujarat
14-02-201314-02-2013
Prakash_cjha@yahoo.comPrakash_cjha@yahoo.com
1
2

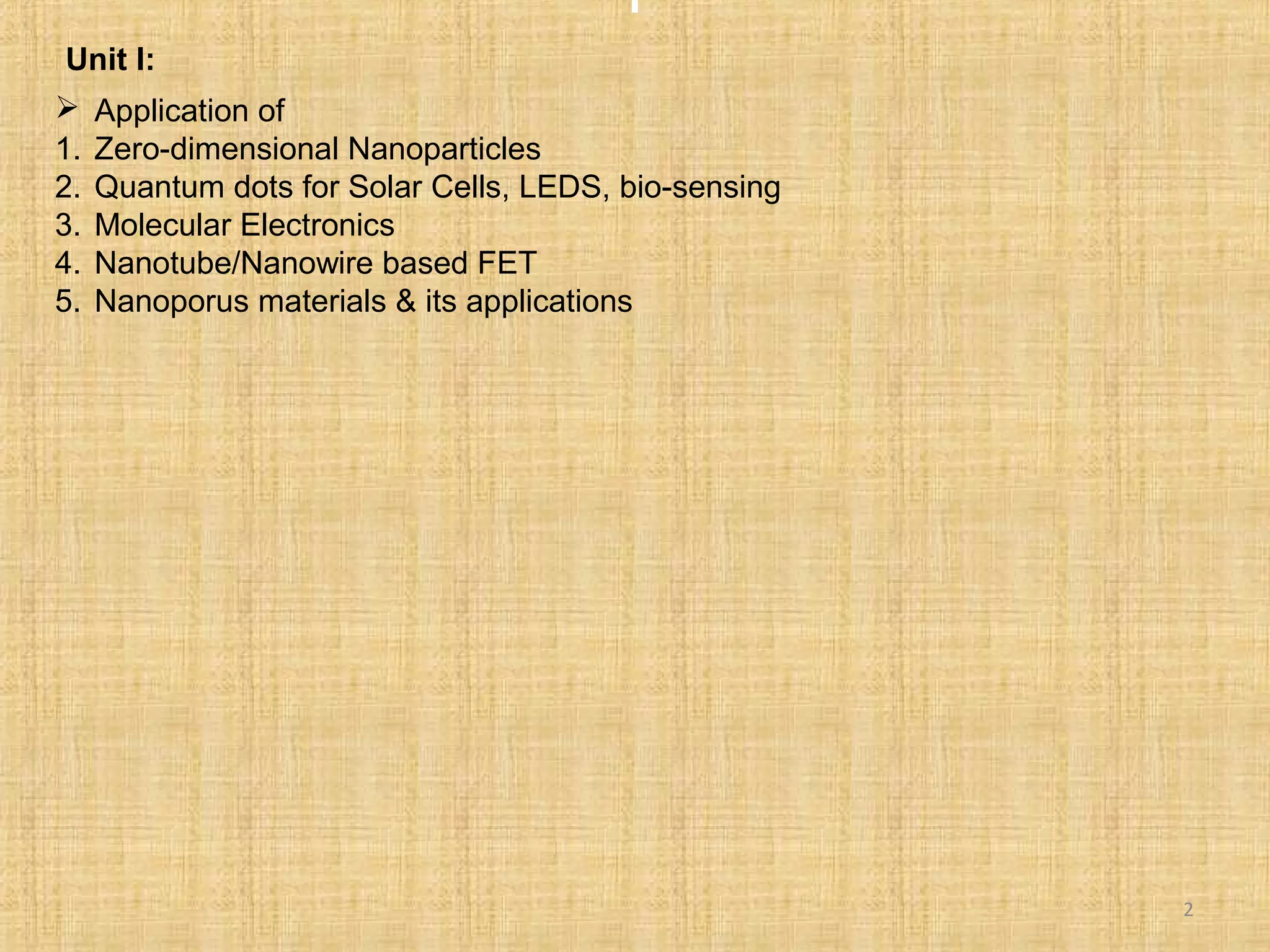

Unit I:
 Application of
1. Zero-dimensional Nanoparticles
2. Quantum dots for Solar Cells, LEDS, bio-sensing
3. Molecular Electronics
4. Nanotube/Nanowire based FET
5. Nanoporus materials & its applications
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Material Classes, Structure, and Properties
 Classes of Materials
 If you stop for a moment and look around you, you will notice a wide variety of materials, either
artificially produced by humans or naturally existing in nature.
 Both types can be categorized in particular classes to provide a better understanding of their similarities
and differences.
 we distinguish seven classes: metallic, ceramic, polymeric, composite, electronic, biomaterials, and
nanomaterials.
 However, as you will note, some materials have characteristics across various classes .
Metallic Materials
 Metallic materials consist principally of one or more metallic elements, although in some cases small
additions of nonmetallic elements are present.
 Examples of metallic elements are copper, nickel, and aluminum, whereas examples of nonmetallic
elements are carbon, silicon, and nitrogen.
 When a particular metallic element dissolves well in one or more additional elements, the mixture is
called a metallic alloy.
 The best example of a metallic alloy is steel, which is composed of iron and carbon.
 Metallic materials exhibit metallic-type bonds and thus are good thermal and electrical conductors and
are ductile, particularly at room temperature
31
Ceramic Materials:
Ceramic materials are composed of at least two different elements.
Among the ceramic materials, we can distinguish those that are predominantly ionic in nature (these consist
of a mixture of metallic elements and nonmetallic elements) and those that are covalent in nature (which
consist mainly of a mixture of nonmetallic elements).
Examples of ceramic materials are glasses, bricks, stones, and porcelain.
Because of their ionic and covalent types of bonds, ceramic materials are hard, brittle, and good insulators.
In addition, they have very good corrosion resistance properties.
Polymeric Materials:
Polymeric materials consist of long molecules composed of manyorganic molecule units, called mer
(therefore the term polymer).
Polymers are typically divided into natural polymers such as wood, rubber, and wool; biopolymers such as
proteins, enzymes, and cellulose; and synthetic polymers such as Teflon and Kevlar.
Among the synthetic polymers there are elastomers, which exhibit large elongations and low strength, and
plastics, which exhibit large variations in properties. Polymeric materials are in general good insulators
and have good corrosion resistance
Composite Materials
Composite materials are formed of two or more materials with verydistinctive properties, which act
synergistically to create properties that cannot be achieved by each single material alone.
Typically, one of the materials of the composite acts as a matrix, whereas the other materials act as
reinforcing phases. Composite materials can be classified as metal-matrix, ceramic-matrix, or polymer-matrix.
For each of these composite materials, the reinforcing phases can be a metal, a ceramic, or a polymer,
depending on the targeted applications.
32
Electronic Materials
The electronic class of materials is a bit broader than the previous classes because electronic materials can
encompass metals, ceramics, and polymers, such as
the metal copper that is used as interconnects in most electronic chips,
the ceramic silica that is used as optical fibers, and
the polymer polyamides, which are used as a dielectric.
However, the term electronic material is used to describe materials that exhibit semiconductor properties.
 The most important of these materials is silicon, which is used in practically all electronic components.
Other materials such as germanium and gallium arsenide are also part of this class.
Biomaterials
The biomaterials class is related to any material, natural or synthetic, that is designed to mimic, augment, or
replace a biological function. Biomaterials should be compatible with the human body and not induce rejection.
This class of materials is rather broad and can comprise metals, ceramics, polymers, and composites.
Typically these materials are used in prostheses, implants, and surgical instruments.
Biomaterials should not be confused with bio-based materials, which are the material parts of our body, such
as bone.
Nanomaterials
The nanomaterial class of materials is extremely broad because it can include all the previous classes of
materials, provided they are composed of a structural component at the nanoscale or they exhibit one of the
dimensions at the nanoscale.
33
Nanomaterials
 Nanomaterials are typically categorized as 0-D (nanoparticles), 1-D (nanowires, nanotubes,and nanorods),
2-D (nanofilms and nanocoatings), or 3-D (bulk), which represent the number of dimensions that are not at
the nanoscale.
Everything is made of atoms. How do we know? It is a hypothesis that has been confirmed in several ways.
To illustrate the idea of how small an atom is, observe Figure . If a strawberry is magnified to the size of
the Earth, the atoms in the strawberry are approximately the size of the original strawberry.
34
Q. Let’s now ask another question, which is: What are the properties of these entities called atoms?
We shall divide the properties of atoms into two main categories, namely inertia and forces.
1. The property of inertia: If a particle is moving, it keeps going in the same direction unless forces act on it.
2.The existence of short-range forces: They hold the atoms together in various combinations in a complicated way.
3.What are these short-range forces? These are, of course, the electrical forces.
4.What is it in the atom that can produce such an effect?
5.To answer this question, consider the Bohr atomic model, depicted in Figure.
35
Let’s now think about another aspect: What is particular about particles such as electrons, protons, neutrons,
and photons?
Newton thought that light was made up of particles and therefore should behave the way particles do.
 And in fact light does behave like particles.
However, this is not the whole story. Light also behaves like a wave.
Q. How can particles such as electrons and light exhibit this dual behavior? We don’t know.
For the time being we need to accept this, keeping in mind that on a small scale the world behaves in a
very different way. It is hard for us to imagine this because we have evolved in a different kind of world.
However, we can still use our imagination. This is the field of quantum mechanics.
This idea claims that we are not allowed to know simultaneously the definite location and the definite speed
of a particle. This is called the Heinserberg Uncertainty Principle.
In other words, we can only say that there is a probability that a particle will have a position near some
coordinate x. This is akin to watching Shaquille O’Neal throw a basketball to the basket. You can’t say that he
is going to hit the basket for sure! There is also a certain probability
Q.This explains a very mysterious paradox, which is this: If the atoms are made of plus and minus charges,
why don’t the electrons get closer? Why are atoms so big? Why is the nucleus at the center with electrons
around it? What keeps the electrons from simply falling in?
Ans: The answer is that if the electrons were in the nucleus, we would know their position and then they
would have to have a very high speed, which would lead to them breaking away from the nucleus.
36
 So far, when we have been talking about atoms, we have considered their lowest possible energy
configuration. But it turns out that electrons can exist in higher-energy configurations. Are those energies
arbitrary????
Ans: The answer is no. In fact, atoms interchange energy in a very particular away. An
analogous idea is to have people exchange paper currency. Imagine that I want to buy
a CD that costs Rs17 and that I only have Rs5 bills. Further imagine that the
CD store only has Rs5 bills in the cash register. In this case, the CD I want to
buy will cost either Rs15 or Rs20, depending on which party wants to assume the loss.
Atoms are very similar. They can only exchange certain “Rs bills.” For simplicity, let’s
look at the hydrogen atom. As shown in this figure, the ground energy for the hydrogen
atom is −13.6 eV (electron volts). Why is it negative?
The reason is because electrons have less energy when located in the atom than when outside the atom.
Therefore, −13.6 eV is the energy required to remove the electron from the ground energy level. If an atom is
in one of the excited states E1, E2, and so on, it does not remain in that state forever. Sooner or later it drops
to a lower state and radiates energy in the form of light???
if we have equipment of very high resolution, we will see that what we thought was a single shell actually
consists of several subshells close together in energy.
We are still left with one thing to worry about, and that is: How many electrons can we have in each
state? To understand this problem, we should consider that electrons not only move around the nucleus but
also spin while moving. In addition, we should consider a fundamental principle of atomic science, which is
the exclusion principle.
In other words, it is not possible for two electrons to have the same momentum, be at the same location,
and spin in the same direction. What is the consequence of this?
37
General characteristics of nanomaterial classes and their dimensionality
38
 This procedure of classification by dimensions allows nanomaterials to be identified and classified in a 3-D
space. The distances x, y, and z represent dimensions below 100 nm.
 As we look in more detail at the aforementioned categories, the straightforward nature of 0-D and 1-D
nanomaterials speak for themselves, and we will look at their synthesis, characterization, properties, and
applications in further detail in next few classes.
 For us to begin thinking in more detail about 2-D and 3-D nanomaterials, we need a stronger
understanding of their classification.
• With that in mind, we start by discussing 2-D nanomaterials
 2-D nanomaterial is a single-layer material, with a
thickness below 100 nm and length and width that
exceed nanometer dimensions.
 However, as discussed, a material may be
categorized as a nanomaterial simply on the basis of
its internal structural dimensions, regardless of its
exterior material dimensions.
 The inclusion of these internal structural qualifications is part of what makes the classification of 2-D
nanomaterials more complex.
 A 2-D nanomaterial is shown with a particular internal structure,
composed of crystals (or grains) with nanoscale dimension.
 This 2-D nanomaterial may be called a nanocrystalline film
because of two features: (1) the material exhibits an overall exterior
thickness with nanoscale dimensions, and (2) its internal structure is
also at the nanoscale
Two-dimensional nanomaterial with
thickness and internal structure at the
nanoscale
 The above example helps illustrate two possible ways of categorizing of 2-D nanomaterials, both these
restrictions do not need to be in place for the material to be considered a nanomaterial.
Two-dimensional nanomaterial with
thickness at the nanoscale and internal
structure at the microscale
 if the exterior thickness remains at the nanoscale, it is possible for
the same to have a larger (above 100 nm) internal grain structure and
still qualify the entire material as a nanoscale material.
 These examples help point out how the internal structural
dimensions and external surface dimensions are independent
variables for the categorization of 2-D nanomaterials.
 The way 2-D nanomaterials are produced adds to the complexity
of their categorization. Generally, 2-D nanomaterials, are deposited
on a substrate or support with typical dimensions above the nanoscale.
 In these cases, the overall sample thickness dimensions become
a summation of the film’s and substrate’s thickness.
 When this occurs, the 2-D nanomaterial can be considered a
nanocoating .
 Yet at times when the substrate thickness does have
nanoscale dimensions or when multiple layers with thicknesses
at the nanoscale are deposited sequentially, the 2-D nanomaterial
can be classified as a multilayer 2-D nanomaterial.
 Within each layer, the internal structure can be at the nanoscale or
above it
Two-dimensional nanomaterials with
thickness at the nanoscale, internal structure
at the nanoscale/ microscale, and deposited
as a nanocoating on a substrate of any
dimension
40
Two-dimensional nanocrystalline
and microcrystalline multilayered
nanomaterials.
 Since we now have several working models for the categorization of
2-D nanomaterials, let’s move on to 3-D nanomaterials.
 bulk nanomaterials are materials that do not have any dimension at the
nanoscale.
 However, bulk nanomaterials still exhibit features at the nanoscale.
 bulk nanomaterials with dimensions larger than the nanoscale
can be composed of crystallites or grains at the nanoscale,
as shown in Figure below:
Three-dimensional nanocrystalline
nanomaterial in bulk form
 Another group of 3-D nanomaterials are the so-called
nanocomposites.
 These materials are formed of two or more materials with very
distinctive properties that act synergistically to create properties
that cannot be achieved by each single material alone.
 The matrix of the nanocomposite, which can be polymeric, metallic,
or ceramic, has dimensions larger than the nanoscale, whereas the
reinforcing phase is commonly at the nanoscale
 Distinctions are based on the types of reinforcing nanomaterials
added, such as nanoparticles, nanowires, nanotubes, or nanolayers.
 Within the nanocomposite classification, we should also consider
materials with multinanolayers composed of various materials or
sandwiches of nanolayers bonded to a matrix core.
41
Summary of 2-D and 3-D crystalline structures.
Matrix-reinforced and layered nanocomposites
42
Basic types of large-scale nanomaterials bulk forms. The filler materials, whether 0-D, 1-D, or
2-D nanomaterials are used to make film and bulk nanocomposites.
43
44
 Many applications, especially in nanoelectronics, require the use of various kinds of physical features, such
as channels, grooves, and raised lines, that are at the nanoscale (see Figure 1)
Two-dimensional nanomaterials containing patterns of
features (e.g., channels, holes).
Nanocopper interconnects used in electronic devices. The
copper lines were produced by electrodeposition of copper
on previously patterned channels existent in the dielectric
material.
(Courtesy of Jin An and P. J. Ferreira, University of
Texas at Austin.
45
• Nanofilms, nanocoatings, and multilayer 2-D nanomaterials can be patterned with various features at
various scales.
• In the case of multilayered nanomaterials, the patterns can be made on any layer. These patterns can
have different geometries and dimensions at the nanoscale or at larger scales.
 Most electronic materials fall into the category of patterned 2-D nanomaterials.
 Figure below broadly summarizes types of nanomaterials in relation to their dimensionalities:
46
Size Effects:Surface-to-Volume Ratio Versus Shape
One of the most fundamental differences between nanomaterials and larger-scale materials is that
nanoscale materials have an extraordinary ratio of surface area to volume.
Though the properties of traditional large-scale materials are often determined entirely by the properties of
their bulk, due to the relatively small contribution of a small surface area, for nanomaterials this surface-to-
volume ratio is inverted, as we will see shortly.
As a result, the larger surface area of nanomaterials (compared to their volume) plays a larger role in
dictating these materials’ important properties.
This inverted ratio and its effects on nanomaterials properties is a key feature of nanoscience and
nanotechnology.
For these reasons, a nanomaterial’s shape is of great interest because various shapes will produce distinct
surface-to-volume ratios and therefore different properties.
How to calculate the surface-to-volume ratios in nanomaterials with different shapes and to illustrate the
effects of their diversity?
Thank you for your kindThank you for your kind
attention!!!!!!!attention!!!!!!!
47

More Related Content

What's hot

Classification of Nanostructures by Peeyush Mishra
Classification of Nanostructures by Peeyush MishraClassification of Nanostructures by Peeyush Mishra
Classification of Nanostructures by Peeyush Mishra
Peeyush Mishra

Quantum dots 1
Quantum dots 1Quantum dots 1
Quantum dots 1
Ashraf Ali

Nanomaterial and their application
Nanomaterial and their applicationNanomaterial and their application
Nanomaterial and their application
Preeti Choudhary

sol gel method
sol gel methodsol gel method
sol gel method
sukesh hegde

Quantum dots ppt
Quantum dots pptQuantum dots ppt
Quantum dots ppt
Meenu Chaudhary

Synthesis of Nanomaterials: Chemical Methods
Synthesis of Nanomaterials: Chemical MethodsSynthesis of Nanomaterials: Chemical Methods
Synthesis of Nanomaterials: Chemical Methods
Mayur D. Chauhan

Quantum Dots and its applications
Quantum Dots and its applicationsQuantum Dots and its applications
Quantum Dots and its applications
Arun Kumar

Solvothermal method mithibai college msc part 1 pradeep jaiswal
Solvothermal method mithibai college msc part 1 pradeep jaiswalSolvothermal method mithibai college msc part 1 pradeep jaiswal
Solvothermal method mithibai college msc part 1 pradeep jaiswal
Pradeep Jaiswal

Quantum Dots And Their Properties
Quantum Dots And Their PropertiesQuantum Dots And Their Properties
Quantum Dots And Their Properties
Tanvi Kaple

Nanowires presentation
Nanowires presentationNanowires presentation
Nanowires presentation
Tam Van Tran

Nanomaterials
NanomaterialsNanomaterials
Nanomaterials
Arvind Singh Heer

Applications of carbon nanotubes
Applications of carbon nanotubesApplications of carbon nanotubes
Applications of carbon nanotubes
Nitin Patel

Nanochemistry
NanochemistryNanochemistry
Nanochemistry
Thakur Sandilya

Nanomaterials
NanomaterialsNanomaterials
Nanomaterials
Farhan ullah baig

Nanomaterials dr.surendran prambadath
Nanomaterials dr.surendran prambadathNanomaterials dr.surendran prambadath
Nanomaterials dr.surendran prambadath
Surendran Parambadath

Carbon containing Nanomaterials: Fullerenes & Carbon nanotubes
Carbon containing Nanomaterials: Fullerenes & Carbon nanotubesCarbon containing Nanomaterials: Fullerenes & Carbon nanotubes
Carbon containing Nanomaterials: Fullerenes & Carbon nanotubes
Mayur D. Chauhan

Chemical vapour deposition
Chemical vapour depositionChemical vapour deposition
Chemical vapour deposition
Sethu Ram

Optical properties of nanomaterials
Optical properties of nanomaterialsOptical properties of nanomaterials
Optical properties of nanomaterials
udhay roopavath

Fullerenes
FullerenesFullerenes
Fullerenes
SANEESH KUMAR N

Carbon Nanotubes and Their Methods of Synthesis
Carbon Nanotubes and Their Methods of Synthesis Carbon Nanotubes and Their Methods of Synthesis
Carbon Nanotubes and Their Methods of Synthesis
tabirsir


What's hot (20)

Classification of Nanostructures by Peeyush Mishra
Classification of Nanostructures by Peeyush MishraClassification of Nanostructures by Peeyush Mishra
Classification of Nanostructures by Peeyush Mishra

Quantum dots 1
Quantum dots 1Quantum dots 1
Quantum dots 1

Nanomaterial and their application
Nanomaterial and their applicationNanomaterial and their application
Nanomaterial and their application

sol gel method
sol gel methodsol gel method
sol gel method

Quantum dots ppt
Quantum dots pptQuantum dots ppt
Quantum dots ppt

Synthesis of Nanomaterials: Chemical Methods
Synthesis of Nanomaterials: Chemical MethodsSynthesis of Nanomaterials: Chemical Methods
Synthesis of Nanomaterials: Chemical Methods

Quantum Dots and its applications
Quantum Dots and its applicationsQuantum Dots and its applications
Quantum Dots and its applications

Solvothermal method mithibai college msc part 1 pradeep jaiswal
Solvothermal method mithibai college msc part 1 pradeep jaiswalSolvothermal method mithibai college msc part 1 pradeep jaiswal
Solvothermal method mithibai college msc part 1 pradeep jaiswal

Quantum Dots And Their Properties
Quantum Dots And Their PropertiesQuantum Dots And Their Properties
Quantum Dots And Their Properties

Nanowires presentation
Nanowires presentationNanowires presentation
Nanowires presentation

Nanomaterials
NanomaterialsNanomaterials
Nanomaterials

Applications of carbon nanotubes
Applications of carbon nanotubesApplications of carbon nanotubes
Applications of carbon nanotubes

Nanochemistry
NanochemistryNanochemistry
Nanochemistry

Nanomaterials
NanomaterialsNanomaterials
Nanomaterials

Nanomaterials dr.surendran prambadath
Nanomaterials dr.surendran prambadathNanomaterials dr.surendran prambadath
Nanomaterials dr.surendran prambadath

Carbon containing Nanomaterials: Fullerenes & Carbon nanotubes
Carbon containing Nanomaterials: Fullerenes & Carbon nanotubesCarbon containing Nanomaterials: Fullerenes & Carbon nanotubes
Carbon containing Nanomaterials: Fullerenes & Carbon nanotubes

Chemical vapour deposition
Chemical vapour depositionChemical vapour deposition
Chemical vapour deposition

Optical properties of nanomaterials
Optical properties of nanomaterialsOptical properties of nanomaterials
Optical properties of nanomaterials

Fullerenes
FullerenesFullerenes
Fullerenes

Carbon Nanotubes and Their Methods of Synthesis
Carbon Nanotubes and Their Methods of Synthesis Carbon Nanotubes and Their Methods of Synthesis
Carbon Nanotubes and Their Methods of Synthesis


Viewers also liked

Manufacturing technique of Nanomaterial's
Manufacturing technique of Nanomaterial'sManufacturing technique of Nanomaterial's
Manufacturing technique of Nanomaterial's
Sheama Farheen Savanur

Nanomaterials
NanomaterialsNanomaterials
Nanomaterials
Swaraj Wase

Nanoparticle
NanoparticleNanoparticle
Nanoparticle
Sonam Gandhi

Intro to nanomaterial
Intro to nanomaterialIntro to nanomaterial
Intro to nanomaterial
ziad zohdy

Fundamental "Nano-effects" - Nanoscience and nanotechnologies
Fundamental "Nano-effects" - Nanoscience and nanotechnologiesFundamental "Nano-effects" - Nanoscience and nanotechnologies
Fundamental "Nano-effects" - Nanoscience and nanotechnologies
NANOYOU

Preparation of nanomaterials :Molecular sieves,Nanosponges
Preparation of nanomaterials :Molecular sieves,NanospongesPreparation of nanomaterials :Molecular sieves,Nanosponges
Preparation of nanomaterials :Molecular sieves,Nanosponges
RIJU CHANDRAN.R

Effect Size
Effect SizeEffect Size
Effect Size
Gaetan Lion

Macular hole
Macular holeMacular hole
Macular hole
Dr Samarth Mishra

Nanoparticle Synthesis
Nanoparticle SynthesisNanoparticle Synthesis
Nanoparticle Synthesis
TARIQ ISLAM

Techniques for synthesis of nanomaterials (II)
Techniques for synthesis of nanomaterials (II) Techniques for synthesis of nanomaterials (II)
Techniques for synthesis of nanomaterials (II)
shubham211

Nanochemistry
NanochemistryNanochemistry
Nanochemistry
tabirsir

1 d structure materials
1 d structure materials1 d structure materials
1 d structure materials
Hoang Tien

1 nanomaterial-synthesis-methods (1)
1 nanomaterial-synthesis-methods (1)1 nanomaterial-synthesis-methods (1)
1 nanomaterial-synthesis-methods (1)
Popy Merliana

Report
ReportReport
Report
anuragbora

Nanomaterials
Nanomaterials Nanomaterials
Nanomaterials
G V S R PAVAN KUMAR

Micro electromechanical system
Micro electromechanical systemMicro electromechanical system
Micro electromechanical system
Bharath Kanna

Wafer processing
Wafer processingWafer processing
Wafer processing
Swaraj Raghavan

Nano kolkata
Nano kolkataNano kolkata
Nano kolkata
Rakesh Khandal

growth of carbon nanotubes
growth of carbon nanotubesgrowth of carbon nanotubes
growth of carbon nanotubes
sumit__kumar

Optical properties of nanoparticles
Optical properties of nanoparticlesOptical properties of nanoparticles
Optical properties of nanoparticles
Achal Bhardwaj


Viewers also liked (20)

Manufacturing technique of Nanomaterial's
Manufacturing technique of Nanomaterial'sManufacturing technique of Nanomaterial's
Manufacturing technique of Nanomaterial's

Nanomaterials
NanomaterialsNanomaterials
Nanomaterials

Nanoparticle
NanoparticleNanoparticle
Nanoparticle

Intro to nanomaterial
Intro to nanomaterialIntro to nanomaterial
Intro to nanomaterial

Fundamental "Nano-effects" - Nanoscience and nanotechnologies
Fundamental "Nano-effects" - Nanoscience and nanotechnologiesFundamental "Nano-effects" - Nanoscience and nanotechnologies
Fundamental "Nano-effects" - Nanoscience and nanotechnologies

Preparation of nanomaterials :Molecular sieves,Nanosponges
Preparation of nanomaterials :Molecular sieves,NanospongesPreparation of nanomaterials :Molecular sieves,Nanosponges
Preparation of nanomaterials :Molecular sieves,Nanosponges

Effect Size
Effect SizeEffect Size
Effect Size

Macular hole
Macular holeMacular hole
Macular hole

Nanoparticle Synthesis
Nanoparticle SynthesisNanoparticle Synthesis
Nanoparticle Synthesis

Techniques for synthesis of nanomaterials (II)
Techniques for synthesis of nanomaterials (II) Techniques for synthesis of nanomaterials (II)
Techniques for synthesis of nanomaterials (II)

Nanochemistry
NanochemistryNanochemistry
Nanochemistry

1 d structure materials
1 d structure materials1 d structure materials
1 d structure materials

1 nanomaterial-synthesis-methods (1)
1 nanomaterial-synthesis-methods (1)1 nanomaterial-synthesis-methods (1)
1 nanomaterial-synthesis-methods (1)

Report
ReportReport
Report

Nanomaterials
Nanomaterials Nanomaterials
Nanomaterials

Micro electromechanical system
Micro electromechanical systemMicro electromechanical system
Micro electromechanical system

Wafer processing
Wafer processingWafer processing
Wafer processing

Nano kolkata
Nano kolkataNano kolkata
Nano kolkata

growth of carbon nanotubes
growth of carbon nanotubesgrowth of carbon nanotubes
growth of carbon nanotubes

Optical properties of nanoparticles
Optical properties of nanoparticlesOptical properties of nanoparticles
Optical properties of nanoparticles


Similar to nanomaterial and dimensional effect

lecture5nano13-130508011104-phpapp01 (1).pptx
lecture5nano13-130508011104-phpapp01 (1).pptxlecture5nano13-130508011104-phpapp01 (1).pptx
lecture5nano13-130508011104-phpapp01 (1).pptx
ZAHEERAHMAD273520

Quantam Free Electron.pdf
Quantam Free Electron.pdfQuantam Free Electron.pdf
Quantam Free Electron.pdf
VALAGURUNATHANR22ECR

Structure of matter /certified fixed orthodontic courses by Indian dental aca...
Structure of matter /certified fixed orthodontic courses by Indian dental aca...Structure of matter /certified fixed orthodontic courses by Indian dental aca...
Structure of matter /certified fixed orthodontic courses by Indian dental aca...
Indian dental academy

Topic 7.3 - The structure of matter.pptx
Topic 7.3 - The structure of matter.pptxTopic 7.3 - The structure of matter.pptx
Topic 7.3 - The structure of matter.pptx
HashemYamani

The chemical components of a
The chemical components of aThe chemical components of a
The chemical components of a
FabiolaSpiaggia1

Structure of matter /cosmetic dentistry course by Indian dental academy
Structure of matter /cosmetic dentistry course by Indian dental academyStructure of matter /cosmetic dentistry course by Indian dental academy
Structure of matter /cosmetic dentistry course by Indian dental academy
Indian dental academy

-Nature-of-Material-Engineering-ppt.ppt
-Nature-of-Material-Engineering-ppt.ppt-Nature-of-Material-Engineering-ppt.ppt
-Nature-of-Material-Engineering-ppt.ppt
PauloValerio6

John mark sebolino breaking through
John mark sebolino breaking throughJohn mark sebolino breaking through
John mark sebolino breaking through
john mark

Chemistry finisher
Chemistry finisherChemistry finisher
Chemistry finisher
mehhhh

Chemistry finisher
Chemistry finisherChemistry finisher
Chemistry finisher
mehhhh

Chem m10 what's inside the atom
Chem m10 what's inside the atomChem m10 what's inside the atom
Chem m10 what's inside the atom
dionesioable

Nanochemistry lectures-part 1
Nanochemistry lectures-part 1Nanochemistry lectures-part 1
Nanochemistry lectures-part 1
Abdulkareem Al-sammarraei

Engineering Chemistry - Bonding 20.pptx
Engineering Chemistry -  Bonding 20.pptxEngineering Chemistry -  Bonding 20.pptx
Engineering Chemistry - Bonding 20.pptx
happycocoman

Advchemchapt10 101015122937-phpapp01
Advchemchapt10 101015122937-phpapp01Advchemchapt10 101015122937-phpapp01
Advchemchapt10 101015122937-phpapp01
Cleophas Rwemera

Grade 10 matter and materials
Grade 10 matter and materials Grade 10 matter and materials
Grade 10 matter and materials
GLADWELL PRINCE

Apchemunit10 111116094703-phpapp01
Apchemunit10 111116094703-phpapp01Apchemunit10 111116094703-phpapp01
Apchemunit10 111116094703-phpapp01
Cleophas Rwemera

PROPERTIES OF MATERIALS FOR ENGINEERING APPLICATION 22.pdf
PROPERTIES OF MATERIALS FOR ENGINEERING APPLICATION 22.pdfPROPERTIES OF MATERIALS FOR ENGINEERING APPLICATION 22.pdf
PROPERTIES OF MATERIALS FOR ENGINEERING APPLICATION 22.pdf
EmmanuelIsiayinekife

Basics of electricity,AC,DC .
Basics of electricity,AC,DC .Basics of electricity,AC,DC .
Basics of electricity,AC,DC .
Dheenathayalan Ramasamy

Fun and East Physics for the non-physics trained
Fun and East Physics for the non-physics trainedFun and East Physics for the non-physics trained
Fun and East Physics for the non-physics trained
coyley

Fundamentals of Light and Matter
Fundamentals of Light and MatterFundamentals of Light and Matter
Fundamentals of Light and Matter
John D. Johnson


Similar to nanomaterial and dimensional effect (20)

lecture5nano13-130508011104-phpapp01 (1).pptx
lecture5nano13-130508011104-phpapp01 (1).pptxlecture5nano13-130508011104-phpapp01 (1).pptx
lecture5nano13-130508011104-phpapp01 (1).pptx

Quantam Free Electron.pdf
Quantam Free Electron.pdfQuantam Free Electron.pdf
Quantam Free Electron.pdf

Structure of matter /certified fixed orthodontic courses by Indian dental aca...
Structure of matter /certified fixed orthodontic courses by Indian dental aca...Structure of matter /certified fixed orthodontic courses by Indian dental aca...
Structure of matter /certified fixed orthodontic courses by Indian dental aca...

Topic 7.3 - The structure of matter.pptx
Topic 7.3 - The structure of matter.pptxTopic 7.3 - The structure of matter.pptx
Topic 7.3 - The structure of matter.pptx

The chemical components of a
The chemical components of aThe chemical components of a
The chemical components of a

Structure of matter /cosmetic dentistry course by Indian dental academy
Structure of matter /cosmetic dentistry course by Indian dental academyStructure of matter /cosmetic dentistry course by Indian dental academy
Structure of matter /cosmetic dentistry course by Indian dental academy

-Nature-of-Material-Engineering-ppt.ppt
-Nature-of-Material-Engineering-ppt.ppt-Nature-of-Material-Engineering-ppt.ppt
-Nature-of-Material-Engineering-ppt.ppt

John mark sebolino breaking through
John mark sebolino breaking throughJohn mark sebolino breaking through
John mark sebolino breaking through

Chemistry finisher
Chemistry finisherChemistry finisher
Chemistry finisher

Chemistry finisher
Chemistry finisherChemistry finisher
Chemistry finisher

Chem m10 what's inside the atom
Chem m10 what's inside the atomChem m10 what's inside the atom
Chem m10 what's inside the atom

Nanochemistry lectures-part 1
Nanochemistry lectures-part 1Nanochemistry lectures-part 1
Nanochemistry lectures-part 1

Engineering Chemistry - Bonding 20.pptx
Engineering Chemistry -  Bonding 20.pptxEngineering Chemistry -  Bonding 20.pptx
Engineering Chemistry - Bonding 20.pptx

Advchemchapt10 101015122937-phpapp01
Advchemchapt10 101015122937-phpapp01Advchemchapt10 101015122937-phpapp01
Advchemchapt10 101015122937-phpapp01

Grade 10 matter and materials
Grade 10 matter and materials Grade 10 matter and materials
Grade 10 matter and materials

Apchemunit10 111116094703-phpapp01
Apchemunit10 111116094703-phpapp01Apchemunit10 111116094703-phpapp01
Apchemunit10 111116094703-phpapp01

PROPERTIES OF MATERIALS FOR ENGINEERING APPLICATION 22.pdf
PROPERTIES OF MATERIALS FOR ENGINEERING APPLICATION 22.pdfPROPERTIES OF MATERIALS FOR ENGINEERING APPLICATION 22.pdf
PROPERTIES OF MATERIALS FOR ENGINEERING APPLICATION 22.pdf

Basics of electricity,AC,DC .
Basics of electricity,AC,DC .Basics of electricity,AC,DC .
Basics of electricity,AC,DC .

Fun and East Physics for the non-physics trained
Fun and East Physics for the non-physics trainedFun and East Physics for the non-physics trained
Fun and East Physics for the non-physics trained

Fundamentals of Light and Matter
Fundamentals of Light and MatterFundamentals of Light and Matter
Fundamentals of Light and Matter


Recently uploaded

220711130088 Sumi Basak Virtual University EPC 3.pptx
220711130088 Sumi Basak Virtual University EPC 3.pptx220711130088 Sumi Basak Virtual University EPC 3.pptx
220711130088 Sumi Basak Virtual University EPC 3.pptx
Kalna College

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad

Electric Fetus - Record Store Scavenger Hunt
Electric Fetus - Record Store Scavenger HuntElectric Fetus - Record Store Scavenger Hunt
Electric Fetus - Record Store Scavenger Hunt
RamseyBerglund

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.
deepaannamalai16

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
MJDuyan

Juneteenth Freedom Day 2024 David Douglas School District
Juneteenth Freedom Day 2024 David Douglas School DistrictJuneteenth Freedom Day 2024 David Douglas School District
Juneteenth Freedom Day 2024 David Douglas School District
David Douglas School District

Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
EduSkills OECD

Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10
nitinpv4ai

Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
TechSoup

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx
zuzanka

NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
Payaamvohra1

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
سمير بسيوني

Oliver Asks for More by Charles Dickens (9)
Oliver Asks for More by Charles Dickens (9)Oliver Asks for More by Charles Dickens (9)
Oliver Asks for More by Charles Dickens (9)
nitinpv4ai

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 8 - CẢ NĂM - FRIENDS PLUS - NĂM HỌC 2023-2024 (B...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 8 - CẢ NĂM - FRIENDS PLUS - NĂM HỌC 2023-2024 (B...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 8 - CẢ NĂM - FRIENDS PLUS - NĂM HỌC 2023-2024 (B...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 8 - CẢ NĂM - FRIENDS PLUS - NĂM HỌC 2023-2024 (B...
Nguyen Thanh Tu Collection

Skimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S EliotSkimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S Eliot
nitinpv4ai

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts
Steve Thomason

How to Download & Install Module From the Odoo App Store in Odoo 17
How to Download & Install Module From the Odoo App Store in Odoo 17How to Download & Install Module From the Odoo App Store in Odoo 17
How to Download & Install Module From the Odoo App Store in Odoo 17
Celine George

skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)
Mohammad Al-Dhahabi

MDP on air pollution of class 8 year 2024-2025
MDP on air pollution of class 8 year 2024-2025MDP on air pollution of class 8 year 2024-2025
MDP on air pollution of class 8 year 2024-2025
khuleseema60


Recently uploaded (20)

220711130088 Sumi Basak Virtual University EPC 3.pptx
220711130088 Sumi Basak Virtual University EPC 3.pptx220711130088 Sumi Basak Virtual University EPC 3.pptx
220711130088 Sumi Basak Virtual University EPC 3.pptx

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills

Electric Fetus - Record Store Scavenger Hunt
Electric Fetus - Record Store Scavenger HuntElectric Fetus - Record Store Scavenger Hunt
Electric Fetus - Record Store Scavenger Hunt

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum

Juneteenth Freedom Day 2024 David Douglas School District
Juneteenth Freedom Day 2024 David Douglas School DistrictJuneteenth Freedom Day 2024 David Douglas School District
Juneteenth Freedom Day 2024 David Douglas School District

Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...
Andreas Schleicher presents PISA 2022 Volume III - Creative Thinking - 18 Jun...

Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10Haunted Houses by H W Longfellow for class 10
Haunted Houses by H W Longfellow for class 10

Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...
Elevate Your Nonprofit's Online Presence_ A Guide to Effective SEO Strategies...

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx

NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf

Oliver Asks for More by Charles Dickens (9)
Oliver Asks for More by Charles Dickens (9)Oliver Asks for More by Charles Dickens (9)
Oliver Asks for More by Charles Dickens (9)

BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 8 - CẢ NĂM - FRIENDS PLUS - NĂM HỌC 2023-2024 (B...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 8 - CẢ NĂM - FRIENDS PLUS - NĂM HỌC 2023-2024 (B...BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 8 - CẢ NĂM - FRIENDS PLUS - NĂM HỌC 2023-2024 (B...
BÀI TẬP BỔ TRỢ TIẾNG ANH LỚP 8 - CẢ NĂM - FRIENDS PLUS - NĂM HỌC 2023-2024 (B...

Skimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S EliotSkimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S Eliot

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts

How to Download & Install Module From the Odoo App Store in Odoo 17
How to Download & Install Module From the Odoo App Store in Odoo 17How to Download & Install Module From the Odoo App Store in Odoo 17
How to Download & Install Module From the Odoo App Store in Odoo 17

skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)skeleton System.pdf (skeleton system wow)
skeleton System.pdf (skeleton system wow)

MDP on air pollution of class 8 year 2024-2025
MDP on air pollution of class 8 year 2024-2025MDP on air pollution of class 8 year 2024-2025
MDP on air pollution of class 8 year 2024-2025


nanomaterial and dimensional effect

  • 1. Applied Nanochemistry /Lecture No. 1,2,3,4/Lecture No. 1,2,3,4 Dr. Prakash JhaDr. Prakash Jha School of Chemical Sciences,School of Chemical Sciences, CUG,GujaratCUG,Gujarat 14-02-201314-02-2013 Prakash_cjha@yahoo.comPrakash_cjha@yahoo.com 1
  • 2. 2 Unit I:  Application of 1. Zero-dimensional Nanoparticles 2. Quantum dots for Solar Cells, LEDS, bio-sensing 3. Molecular Electronics 4. Nanotube/Nanowire based FET 5. Nanoporus materials & its applications
  • 3. 3
  • 4. 4
  • 5. 5
  • 6. 6
  • 7. 7
  • 8. 8
  • 9. 9
  • 10. 10
  • 11. 11
  • 12. 12
  • 13. 13
  • 14. 14
  • 15. 15
  • 16. 16
  • 17. 17
  • 18. 18
  • 19. 19
  • 20. 20
  • 21. 21
  • 22. 22
  • 23. 23
  • 24. 24
  • 25. 25
  • 26. 26
  • 27. 27
  • 28. 28
  • 29. 29
  • 30. 30 Material Classes, Structure, and Properties  Classes of Materials  If you stop for a moment and look around you, you will notice a wide variety of materials, either artificially produced by humans or naturally existing in nature.  Both types can be categorized in particular classes to provide a better understanding of their similarities and differences.  we distinguish seven classes: metallic, ceramic, polymeric, composite, electronic, biomaterials, and nanomaterials.  However, as you will note, some materials have characteristics across various classes . Metallic Materials  Metallic materials consist principally of one or more metallic elements, although in some cases small additions of nonmetallic elements are present.  Examples of metallic elements are copper, nickel, and aluminum, whereas examples of nonmetallic elements are carbon, silicon, and nitrogen.  When a particular metallic element dissolves well in one or more additional elements, the mixture is called a metallic alloy.  The best example of a metallic alloy is steel, which is composed of iron and carbon.  Metallic materials exhibit metallic-type bonds and thus are good thermal and electrical conductors and are ductile, particularly at room temperature
  • 31. 31 Ceramic Materials: Ceramic materials are composed of at least two different elements. Among the ceramic materials, we can distinguish those that are predominantly ionic in nature (these consist of a mixture of metallic elements and nonmetallic elements) and those that are covalent in nature (which consist mainly of a mixture of nonmetallic elements). Examples of ceramic materials are glasses, bricks, stones, and porcelain. Because of their ionic and covalent types of bonds, ceramic materials are hard, brittle, and good insulators. In addition, they have very good corrosion resistance properties. Polymeric Materials: Polymeric materials consist of long molecules composed of manyorganic molecule units, called mer (therefore the term polymer). Polymers are typically divided into natural polymers such as wood, rubber, and wool; biopolymers such as proteins, enzymes, and cellulose; and synthetic polymers such as Teflon and Kevlar. Among the synthetic polymers there are elastomers, which exhibit large elongations and low strength, and plastics, which exhibit large variations in properties. Polymeric materials are in general good insulators and have good corrosion resistance Composite Materials Composite materials are formed of two or more materials with verydistinctive properties, which act synergistically to create properties that cannot be achieved by each single material alone. Typically, one of the materials of the composite acts as a matrix, whereas the other materials act as reinforcing phases. Composite materials can be classified as metal-matrix, ceramic-matrix, or polymer-matrix. For each of these composite materials, the reinforcing phases can be a metal, a ceramic, or a polymer, depending on the targeted applications.
  • 32. 32 Electronic Materials The electronic class of materials is a bit broader than the previous classes because electronic materials can encompass metals, ceramics, and polymers, such as the metal copper that is used as interconnects in most electronic chips, the ceramic silica that is used as optical fibers, and the polymer polyamides, which are used as a dielectric. However, the term electronic material is used to describe materials that exhibit semiconductor properties.  The most important of these materials is silicon, which is used in practically all electronic components. Other materials such as germanium and gallium arsenide are also part of this class. Biomaterials The biomaterials class is related to any material, natural or synthetic, that is designed to mimic, augment, or replace a biological function. Biomaterials should be compatible with the human body and not induce rejection. This class of materials is rather broad and can comprise metals, ceramics, polymers, and composites. Typically these materials are used in prostheses, implants, and surgical instruments. Biomaterials should not be confused with bio-based materials, which are the material parts of our body, such as bone. Nanomaterials The nanomaterial class of materials is extremely broad because it can include all the previous classes of materials, provided they are composed of a structural component at the nanoscale or they exhibit one of the dimensions at the nanoscale.
  • 33. 33 Nanomaterials  Nanomaterials are typically categorized as 0-D (nanoparticles), 1-D (nanowires, nanotubes,and nanorods), 2-D (nanofilms and nanocoatings), or 3-D (bulk), which represent the number of dimensions that are not at the nanoscale. Everything is made of atoms. How do we know? It is a hypothesis that has been confirmed in several ways. To illustrate the idea of how small an atom is, observe Figure . If a strawberry is magnified to the size of the Earth, the atoms in the strawberry are approximately the size of the original strawberry.
  • 34. 34 Q. Let’s now ask another question, which is: What are the properties of these entities called atoms? We shall divide the properties of atoms into two main categories, namely inertia and forces. 1. The property of inertia: If a particle is moving, it keeps going in the same direction unless forces act on it. 2.The existence of short-range forces: They hold the atoms together in various combinations in a complicated way. 3.What are these short-range forces? These are, of course, the electrical forces. 4.What is it in the atom that can produce such an effect? 5.To answer this question, consider the Bohr atomic model, depicted in Figure.
  • 35. 35 Let’s now think about another aspect: What is particular about particles such as electrons, protons, neutrons, and photons? Newton thought that light was made up of particles and therefore should behave the way particles do.  And in fact light does behave like particles. However, this is not the whole story. Light also behaves like a wave. Q. How can particles such as electrons and light exhibit this dual behavior? We don’t know. For the time being we need to accept this, keeping in mind that on a small scale the world behaves in a very different way. It is hard for us to imagine this because we have evolved in a different kind of world. However, we can still use our imagination. This is the field of quantum mechanics. This idea claims that we are not allowed to know simultaneously the definite location and the definite speed of a particle. This is called the Heinserberg Uncertainty Principle. In other words, we can only say that there is a probability that a particle will have a position near some coordinate x. This is akin to watching Shaquille O’Neal throw a basketball to the basket. You can’t say that he is going to hit the basket for sure! There is also a certain probability Q.This explains a very mysterious paradox, which is this: If the atoms are made of plus and minus charges, why don’t the electrons get closer? Why are atoms so big? Why is the nucleus at the center with electrons around it? What keeps the electrons from simply falling in? Ans: The answer is that if the electrons were in the nucleus, we would know their position and then they would have to have a very high speed, which would lead to them breaking away from the nucleus.
  • 36. 36  So far, when we have been talking about atoms, we have considered their lowest possible energy configuration. But it turns out that electrons can exist in higher-energy configurations. Are those energies arbitrary???? Ans: The answer is no. In fact, atoms interchange energy in a very particular away. An analogous idea is to have people exchange paper currency. Imagine that I want to buy a CD that costs Rs17 and that I only have Rs5 bills. Further imagine that the CD store only has Rs5 bills in the cash register. In this case, the CD I want to buy will cost either Rs15 or Rs20, depending on which party wants to assume the loss. Atoms are very similar. They can only exchange certain “Rs bills.” For simplicity, let’s look at the hydrogen atom. As shown in this figure, the ground energy for the hydrogen atom is −13.6 eV (electron volts). Why is it negative? The reason is because electrons have less energy when located in the atom than when outside the atom. Therefore, −13.6 eV is the energy required to remove the electron from the ground energy level. If an atom is in one of the excited states E1, E2, and so on, it does not remain in that state forever. Sooner or later it drops to a lower state and radiates energy in the form of light??? if we have equipment of very high resolution, we will see that what we thought was a single shell actually consists of several subshells close together in energy. We are still left with one thing to worry about, and that is: How many electrons can we have in each state? To understand this problem, we should consider that electrons not only move around the nucleus but also spin while moving. In addition, we should consider a fundamental principle of atomic science, which is the exclusion principle. In other words, it is not possible for two electrons to have the same momentum, be at the same location, and spin in the same direction. What is the consequence of this?
  • 37. 37 General characteristics of nanomaterial classes and their dimensionality
  • 38. 38  This procedure of classification by dimensions allows nanomaterials to be identified and classified in a 3-D space. The distances x, y, and z represent dimensions below 100 nm.  As we look in more detail at the aforementioned categories, the straightforward nature of 0-D and 1-D nanomaterials speak for themselves, and we will look at their synthesis, characterization, properties, and applications in further detail in next few classes.  For us to begin thinking in more detail about 2-D and 3-D nanomaterials, we need a stronger understanding of their classification. • With that in mind, we start by discussing 2-D nanomaterials  2-D nanomaterial is a single-layer material, with a thickness below 100 nm and length and width that exceed nanometer dimensions.  However, as discussed, a material may be categorized as a nanomaterial simply on the basis of its internal structural dimensions, regardless of its exterior material dimensions.  The inclusion of these internal structural qualifications is part of what makes the classification of 2-D nanomaterials more complex.  A 2-D nanomaterial is shown with a particular internal structure, composed of crystals (or grains) with nanoscale dimension.  This 2-D nanomaterial may be called a nanocrystalline film because of two features: (1) the material exhibits an overall exterior thickness with nanoscale dimensions, and (2) its internal structure is also at the nanoscale Two-dimensional nanomaterial with thickness and internal structure at the nanoscale
  • 39.  The above example helps illustrate two possible ways of categorizing of 2-D nanomaterials, both these restrictions do not need to be in place for the material to be considered a nanomaterial. Two-dimensional nanomaterial with thickness at the nanoscale and internal structure at the microscale  if the exterior thickness remains at the nanoscale, it is possible for the same to have a larger (above 100 nm) internal grain structure and still qualify the entire material as a nanoscale material.  These examples help point out how the internal structural dimensions and external surface dimensions are independent variables for the categorization of 2-D nanomaterials.  The way 2-D nanomaterials are produced adds to the complexity of their categorization. Generally, 2-D nanomaterials, are deposited on a substrate or support with typical dimensions above the nanoscale.  In these cases, the overall sample thickness dimensions become a summation of the film’s and substrate’s thickness.  When this occurs, the 2-D nanomaterial can be considered a nanocoating .  Yet at times when the substrate thickness does have nanoscale dimensions or when multiple layers with thicknesses at the nanoscale are deposited sequentially, the 2-D nanomaterial can be classified as a multilayer 2-D nanomaterial.  Within each layer, the internal structure can be at the nanoscale or above it Two-dimensional nanomaterials with thickness at the nanoscale, internal structure at the nanoscale/ microscale, and deposited as a nanocoating on a substrate of any dimension
  • 40. 40 Two-dimensional nanocrystalline and microcrystalline multilayered nanomaterials.  Since we now have several working models for the categorization of 2-D nanomaterials, let’s move on to 3-D nanomaterials.  bulk nanomaterials are materials that do not have any dimension at the nanoscale.  However, bulk nanomaterials still exhibit features at the nanoscale.  bulk nanomaterials with dimensions larger than the nanoscale can be composed of crystallites or grains at the nanoscale, as shown in Figure below: Three-dimensional nanocrystalline nanomaterial in bulk form  Another group of 3-D nanomaterials are the so-called nanocomposites.  These materials are formed of two or more materials with very distinctive properties that act synergistically to create properties that cannot be achieved by each single material alone.  The matrix of the nanocomposite, which can be polymeric, metallic, or ceramic, has dimensions larger than the nanoscale, whereas the reinforcing phase is commonly at the nanoscale  Distinctions are based on the types of reinforcing nanomaterials added, such as nanoparticles, nanowires, nanotubes, or nanolayers.  Within the nanocomposite classification, we should also consider materials with multinanolayers composed of various materials or sandwiches of nanolayers bonded to a matrix core.
  • 41. 41 Summary of 2-D and 3-D crystalline structures. Matrix-reinforced and layered nanocomposites
  • 42. 42 Basic types of large-scale nanomaterials bulk forms. The filler materials, whether 0-D, 1-D, or 2-D nanomaterials are used to make film and bulk nanocomposites.
  • 43. 43
  • 44. 44  Many applications, especially in nanoelectronics, require the use of various kinds of physical features, such as channels, grooves, and raised lines, that are at the nanoscale (see Figure 1) Two-dimensional nanomaterials containing patterns of features (e.g., channels, holes). Nanocopper interconnects used in electronic devices. The copper lines were produced by electrodeposition of copper on previously patterned channels existent in the dielectric material. (Courtesy of Jin An and P. J. Ferreira, University of Texas at Austin.
  • 45. 45 • Nanofilms, nanocoatings, and multilayer 2-D nanomaterials can be patterned with various features at various scales. • In the case of multilayered nanomaterials, the patterns can be made on any layer. These patterns can have different geometries and dimensions at the nanoscale or at larger scales.  Most electronic materials fall into the category of patterned 2-D nanomaterials.  Figure below broadly summarizes types of nanomaterials in relation to their dimensionalities:
  • 46. 46 Size Effects:Surface-to-Volume Ratio Versus Shape One of the most fundamental differences between nanomaterials and larger-scale materials is that nanoscale materials have an extraordinary ratio of surface area to volume. Though the properties of traditional large-scale materials are often determined entirely by the properties of their bulk, due to the relatively small contribution of a small surface area, for nanomaterials this surface-to- volume ratio is inverted, as we will see shortly. As a result, the larger surface area of nanomaterials (compared to their volume) plays a larger role in dictating these materials’ important properties. This inverted ratio and its effects on nanomaterials properties is a key feature of nanoscience and nanotechnology. For these reasons, a nanomaterial’s shape is of great interest because various shapes will produce distinct surface-to-volume ratios and therefore different properties. How to calculate the surface-to-volume ratios in nanomaterials with different shapes and to illustrate the effects of their diversity?
  • 47. Thank you for your kindThank you for your kind attention!!!!!!!attention!!!!!!! 47
