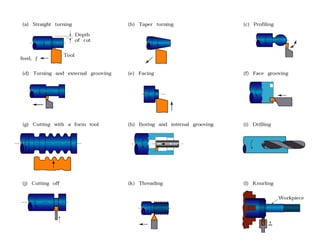

3. Lathe Operations

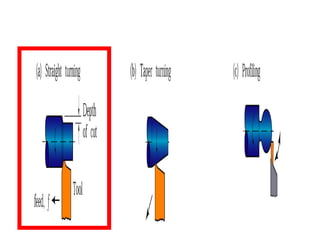

a) Straight Turning

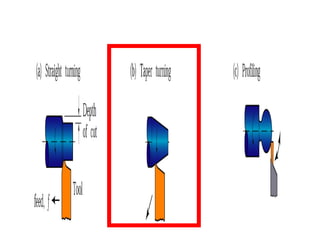

b) Taper Turning

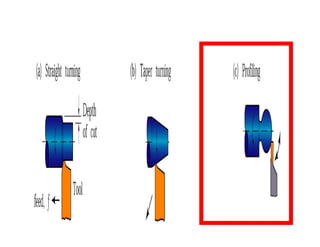

c) Profiling

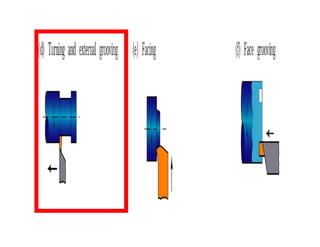

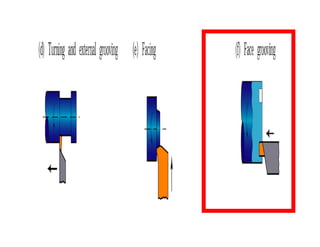

d) Turning & External grooving

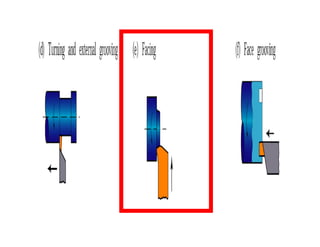

e) Facing
f) Face Grooving

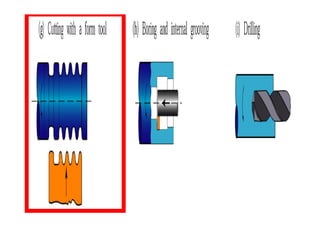

g) Cutting with form tool

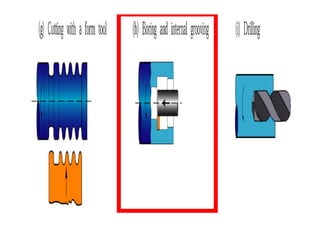

h) Boring & Internal grooving

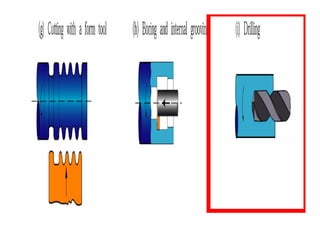

i) Drilling

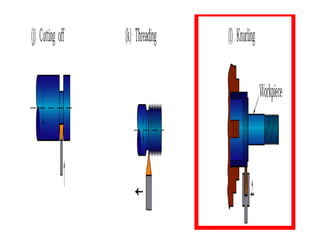

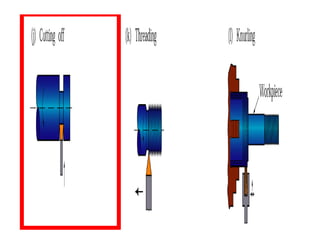

j) Cutting off or Parting off
k) Threading
l) Knurling
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17. Different Methods of Taper Turning

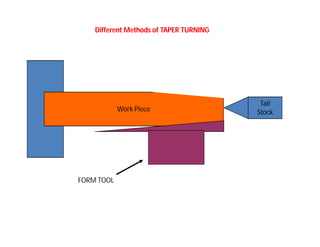

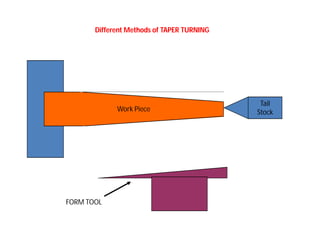

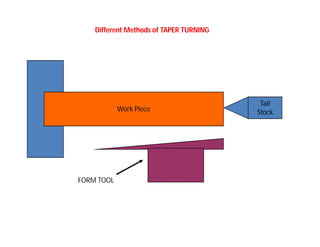

1. By using a form tool
2. By setting over the tail stock
3. By swiveling the compound rest
4. By using a taper turning attachment
21. Different Methods of Taper Turning
1. By using a form tool
2. By setting over the tail stock
3. By swiveling the compound rest
4. By using a taper turning attachment

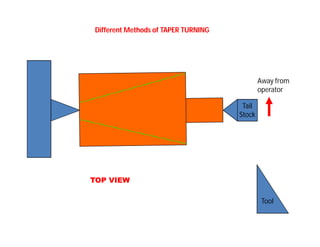

23. Different Methods of TAPER TURNING
Tail
Stock
Tool
Set over Distance

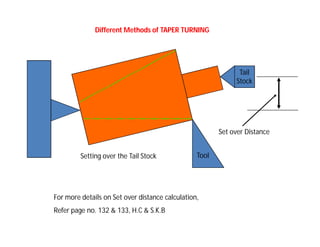

Setting over the Tail Stock
For more details on Set over distance calculation,
Refer page no. 132 & 133, H.C & S.K.B
24. Different Methods of Taper Turning
1. By using a form tool
2. By setting over the tail stock
3. By swiveling the compound rest
4. By using a taper turning attachment
25. Different Methods of Taper Turning
1. By using a form tool
2. By setting over the tail stock
3. By swiveling the compound rest
4. By using a taper turning attachment
26. Different Methods of TAPER TURNING
TOP VIEW
Angle
By swiveling the compound rest
