- 1. HÖNNUN OG SMÍÐIHUGBÚNAÐAR 2015 L10 ARCHITECTURE CONSIDERATIONS

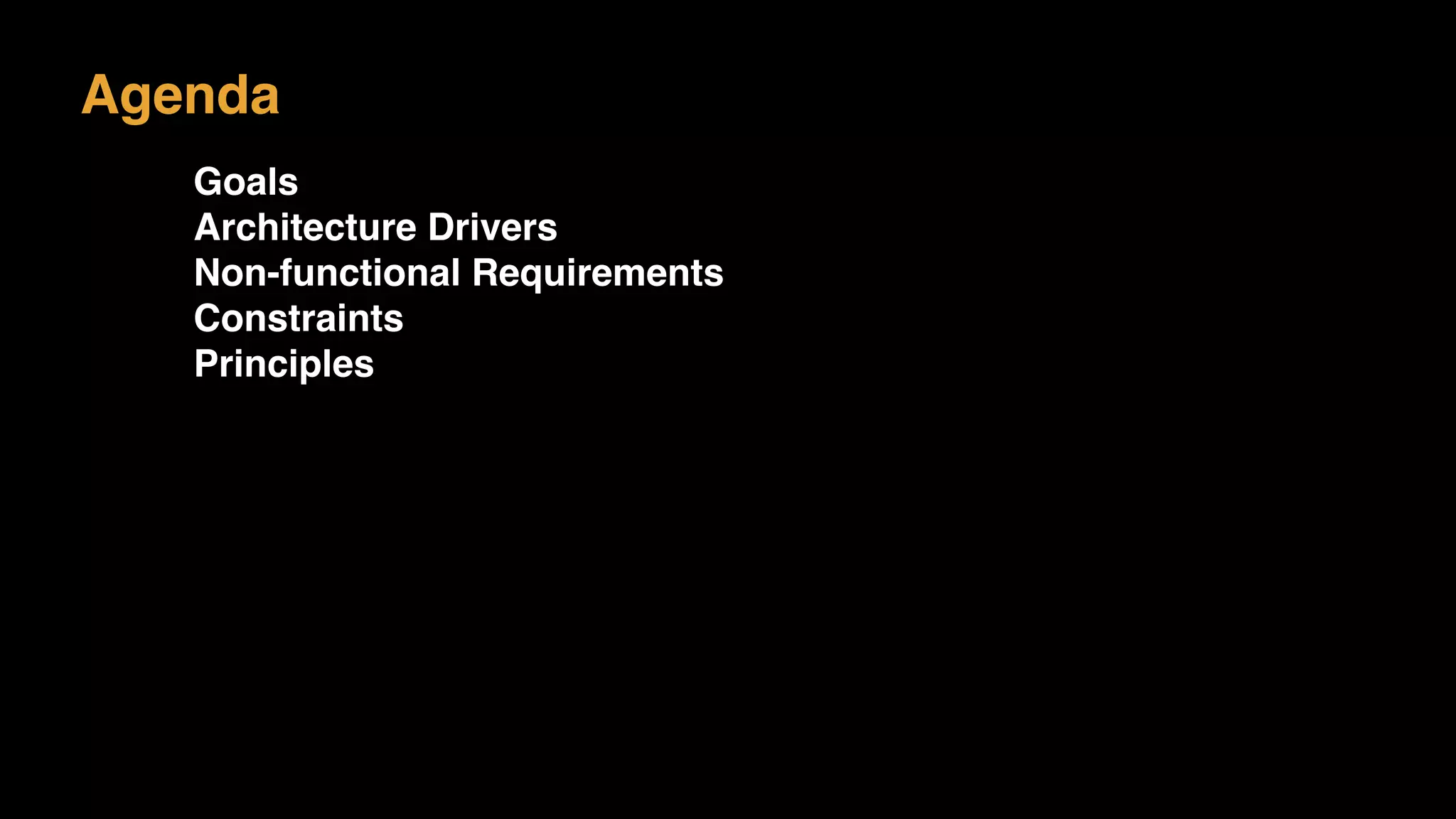

- 2.

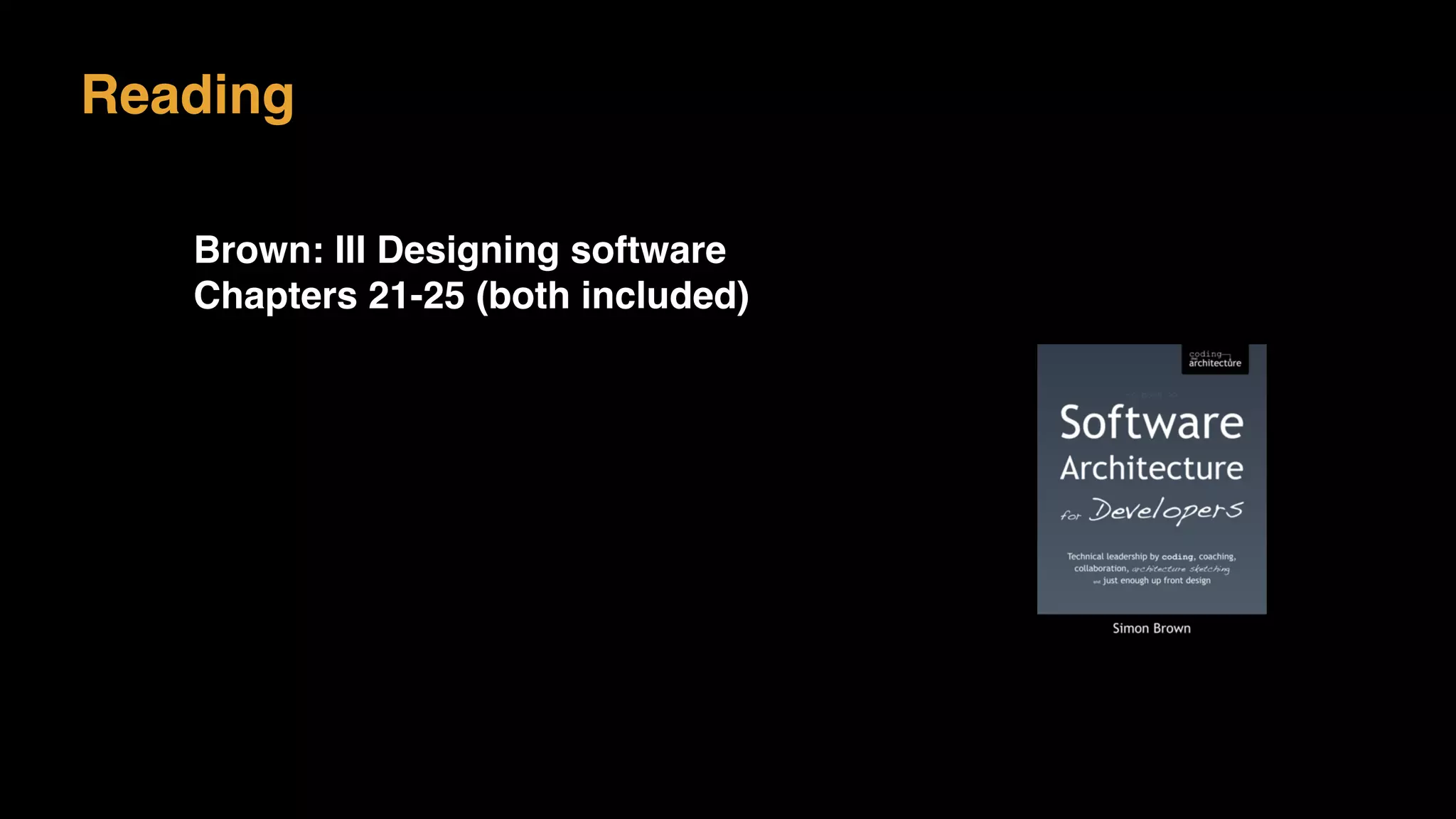

- 3. Reading Brown: III Designingsoftware Chapters 21-25 (both included)

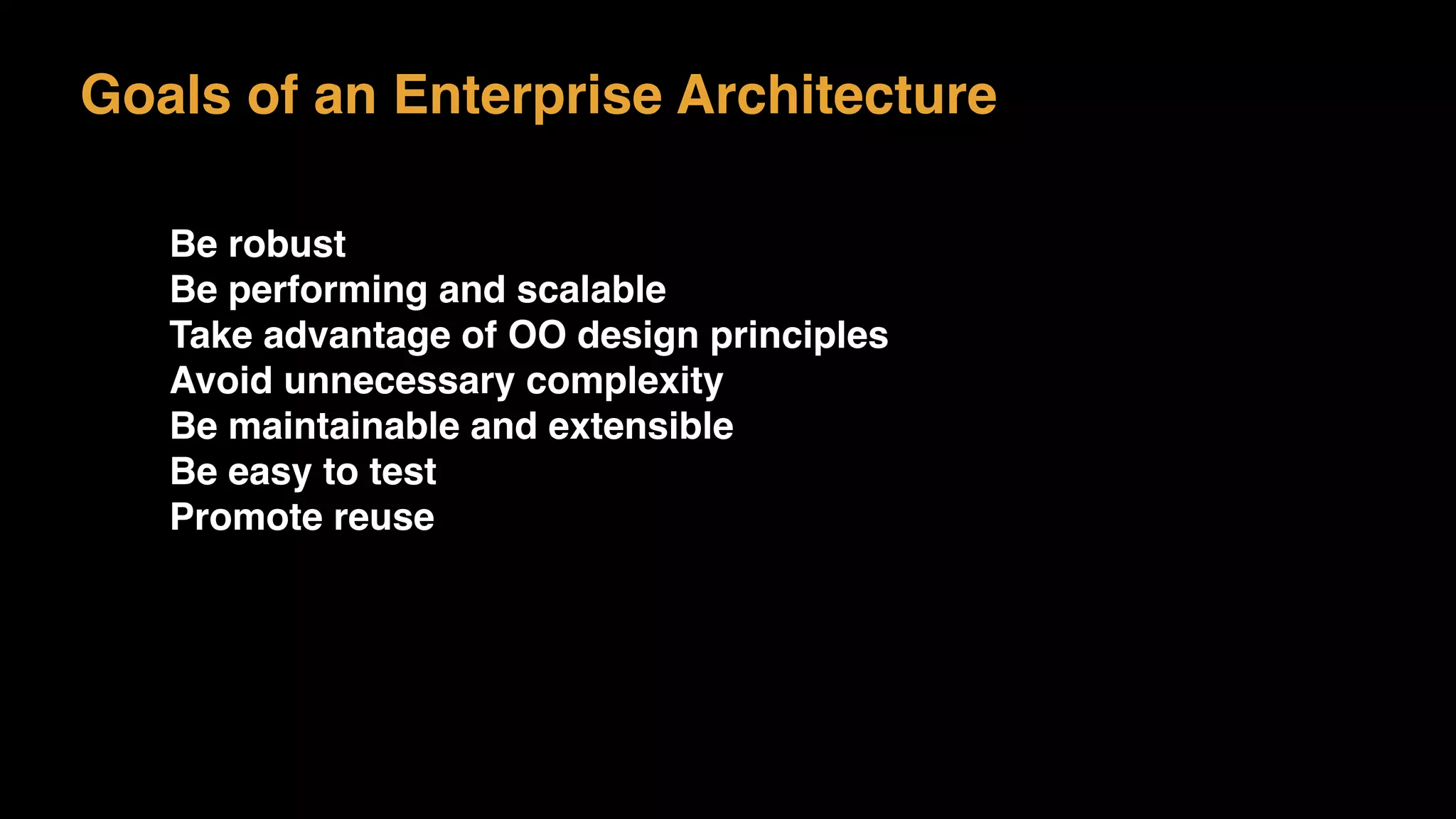

- 4. Goals of anEnterprise Architecture Be robust Be performing and scalable Take advantage of OO design principles Avoid unnecessary complexity Be maintainable and extensible Be easy to test Promote reuse

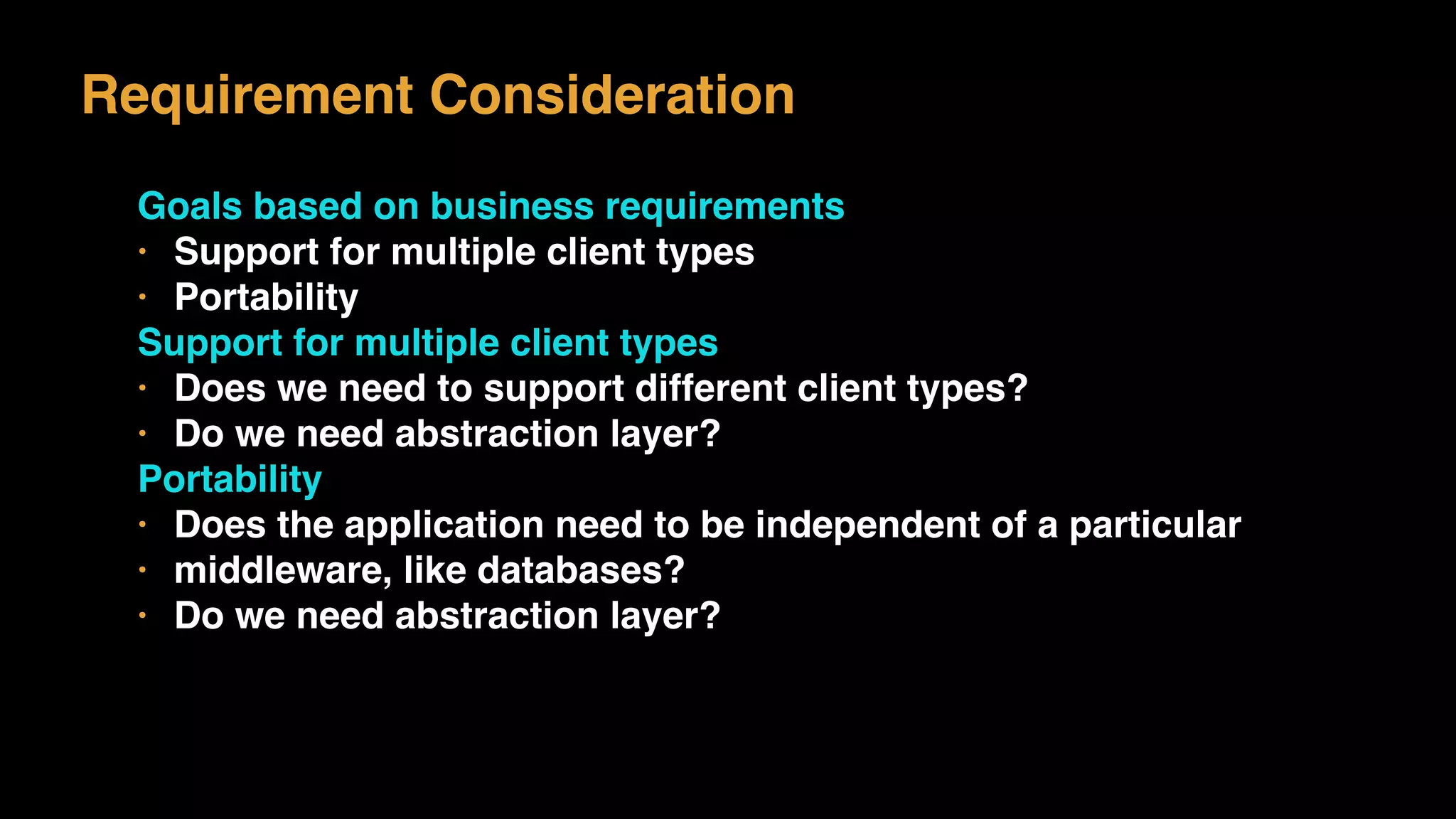

- 5. Requirement Consideration Goals basedon business requirements • Support for multiple client types • Portability Support for multiple client types • Does we need to support different client types? • Do we need abstraction layer? Portability • Does the application need to be independent of a particular • middleware, like databases? • Do we need abstraction layer?
- 6.

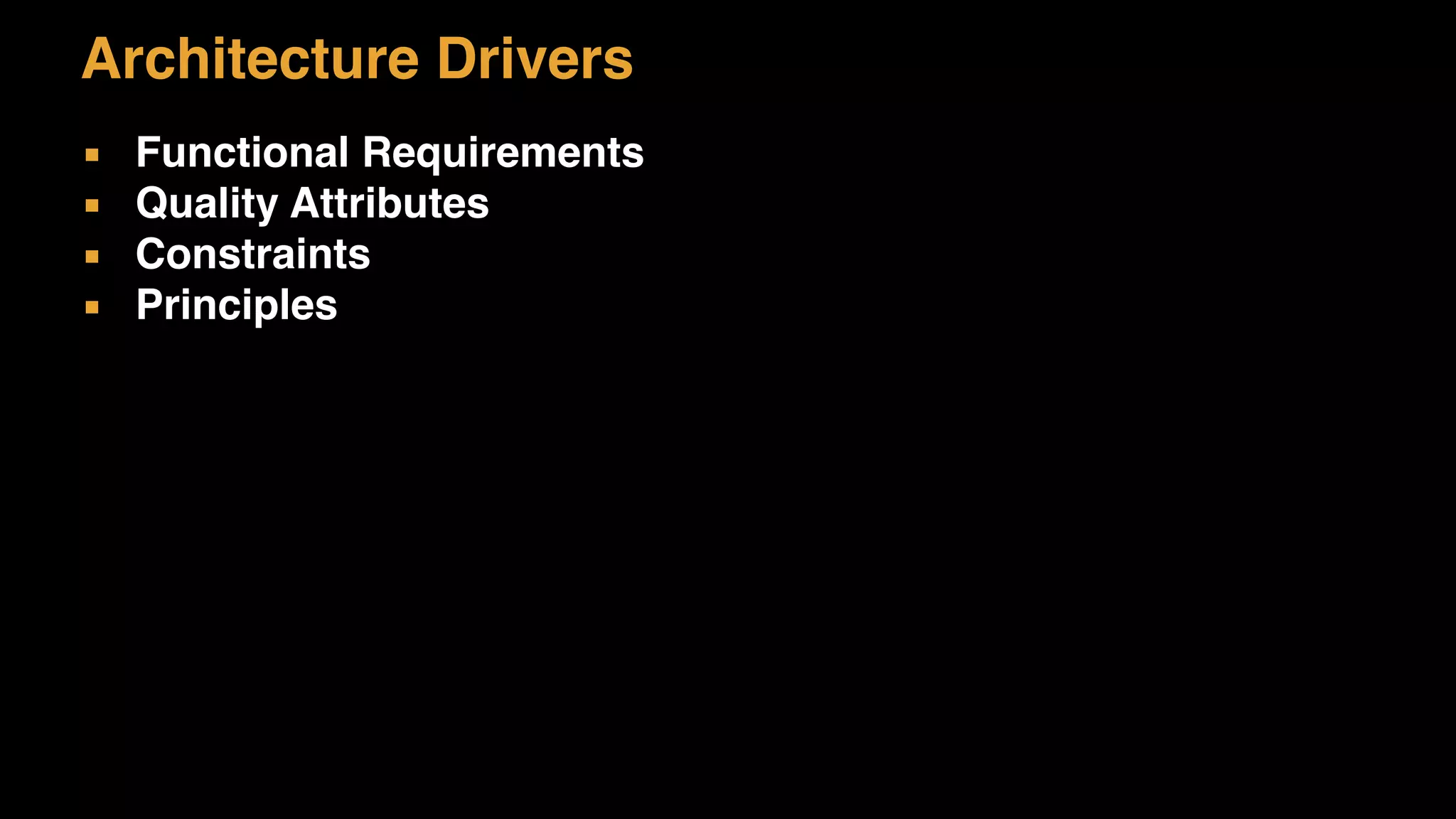

- 7. Architecture Drivers ▪ FunctionalRequirements ▪ Quality Attributes ▪ Constraints ▪ Principles

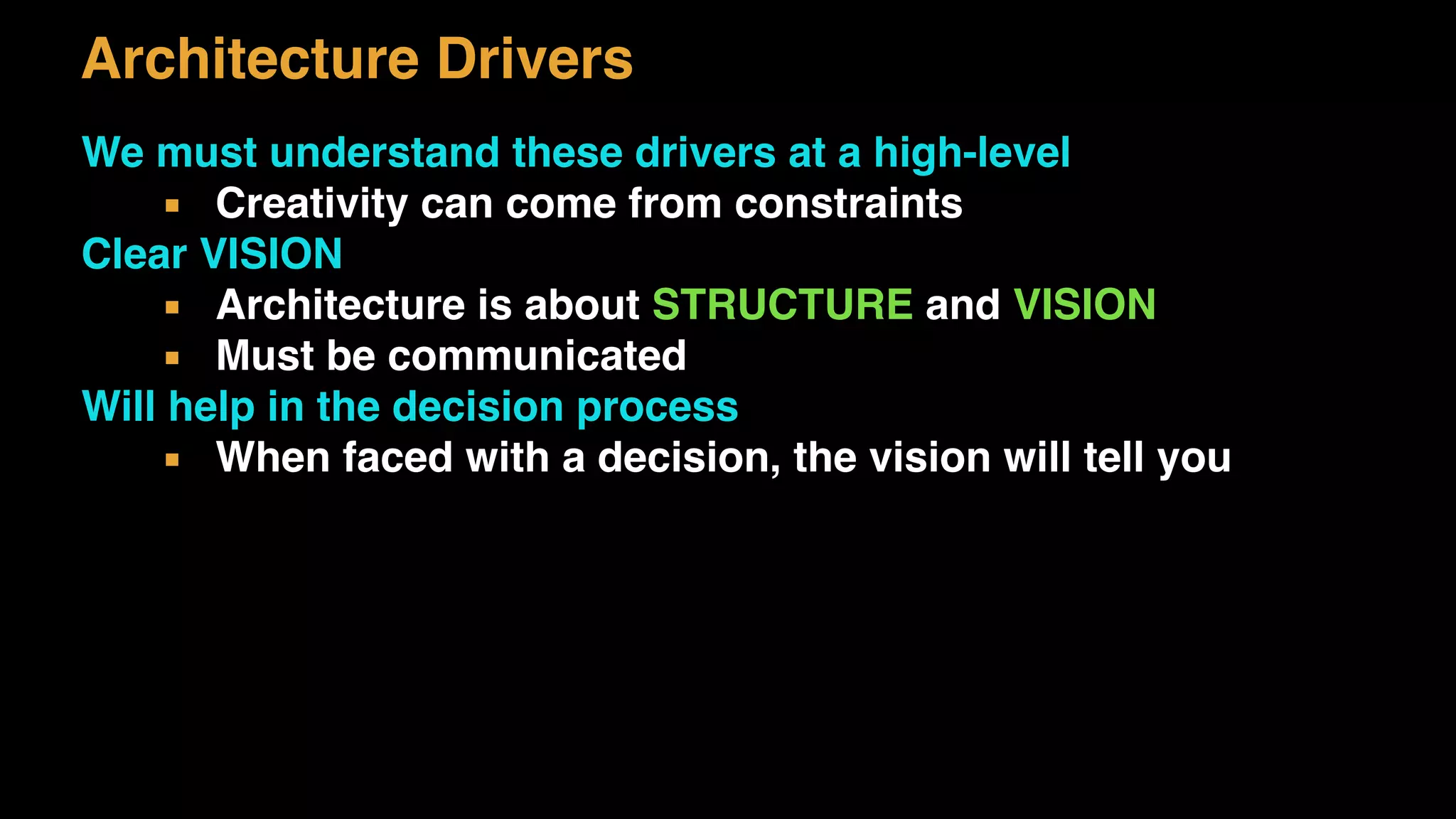

- 8. Architecture Drivers We mustunderstand these drivers at a high-level ▪ Creativity can come from constraints Clear VISION ▪ Architecture is about STRUCTURE and VISION ▪ Must be communicated Will help in the decision process ▪ When faced with a decision, the vision will tell you
- 9.

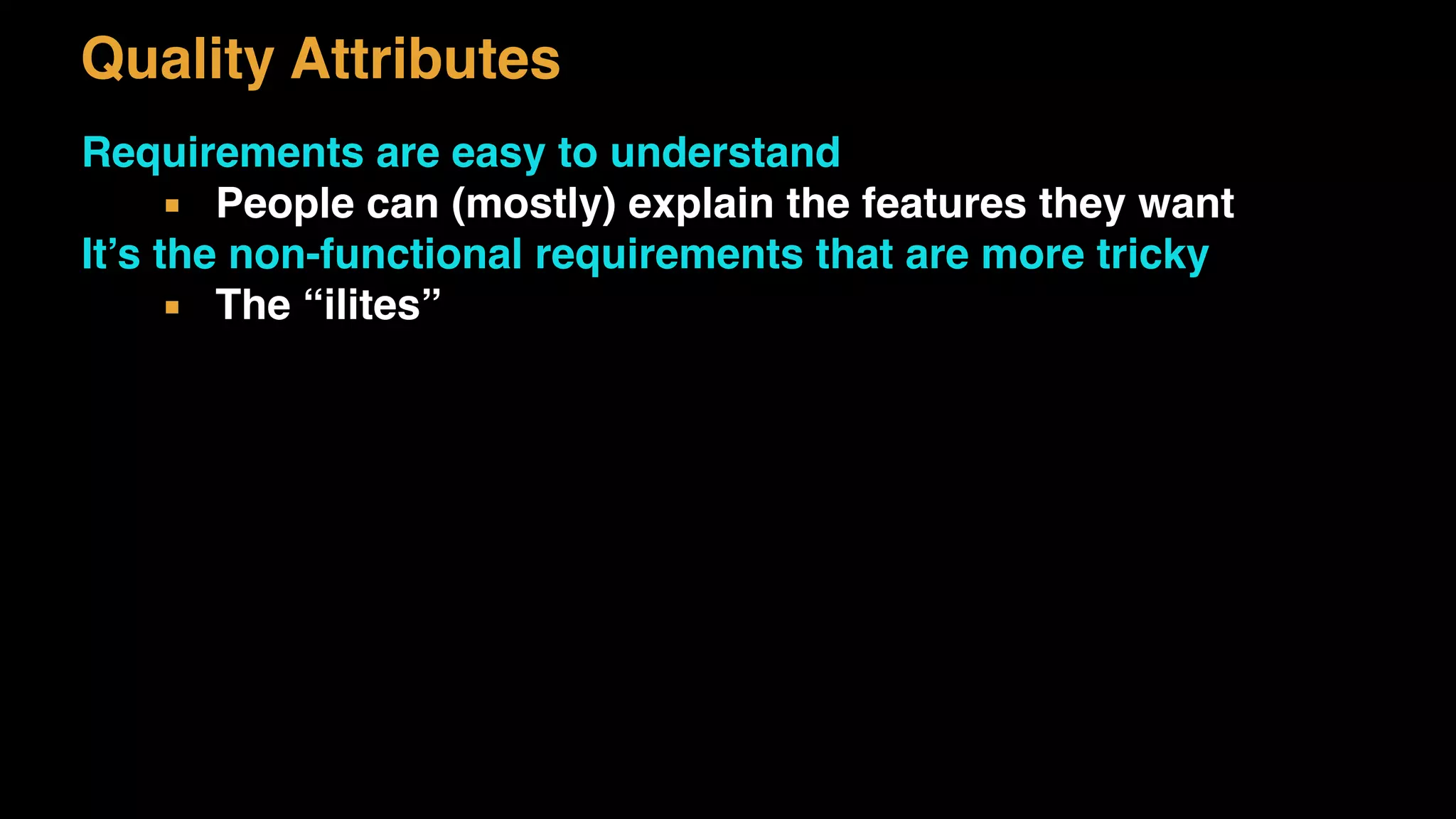

- 10. Quality Attributes Requirements areeasy to understand ▪ People can (mostly) explain the features they want It’s the non-functional requirements that are more tricky ▪ The “ilites”

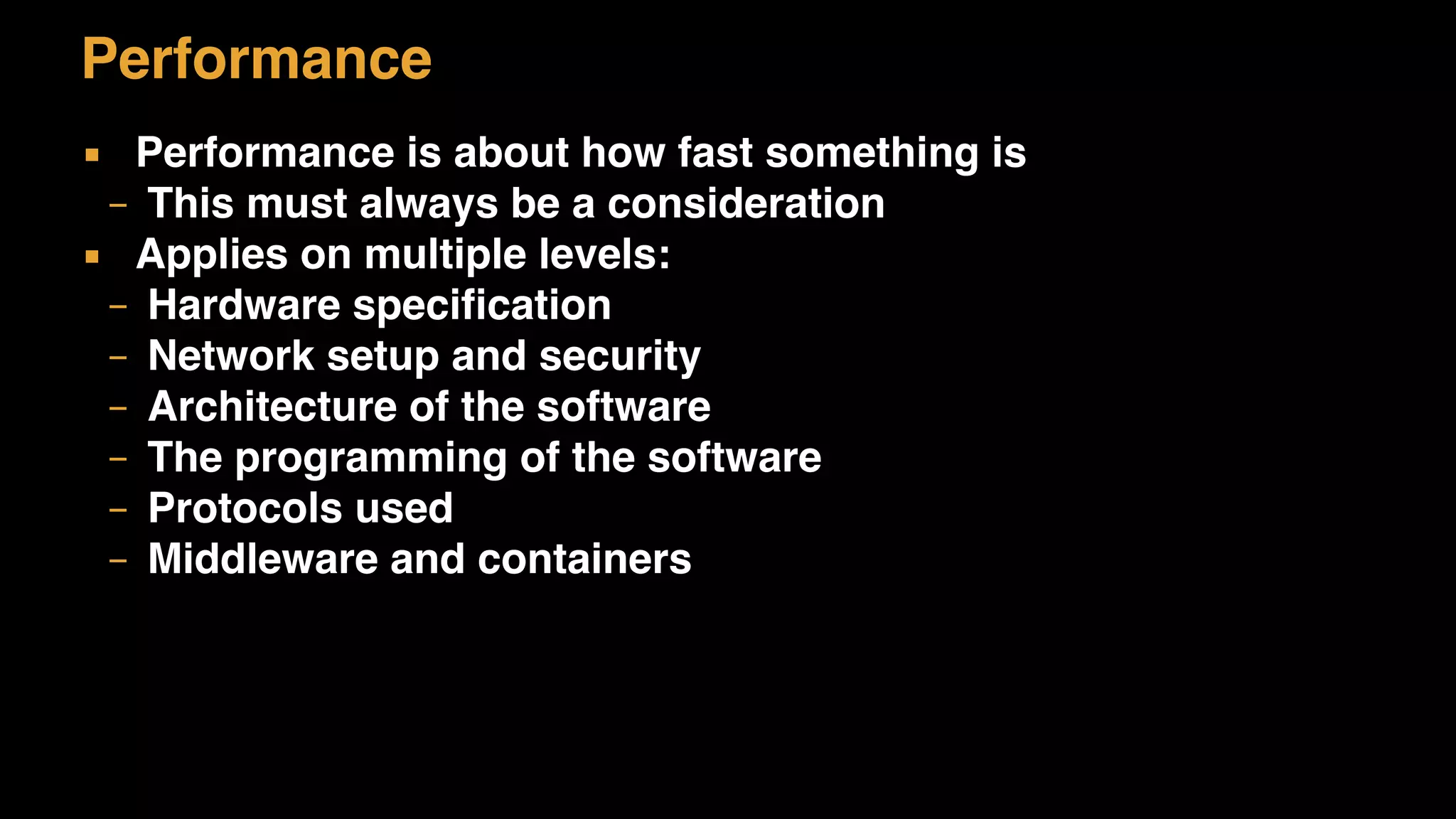

- 11. Performance ▪ Performance isabout how fast something is – This must always be a consideration ▪ Applies on multiple levels: – Hardware specification – Network setup and security – Architecture of the software – The programming of the software – Protocols used – Middleware and containers

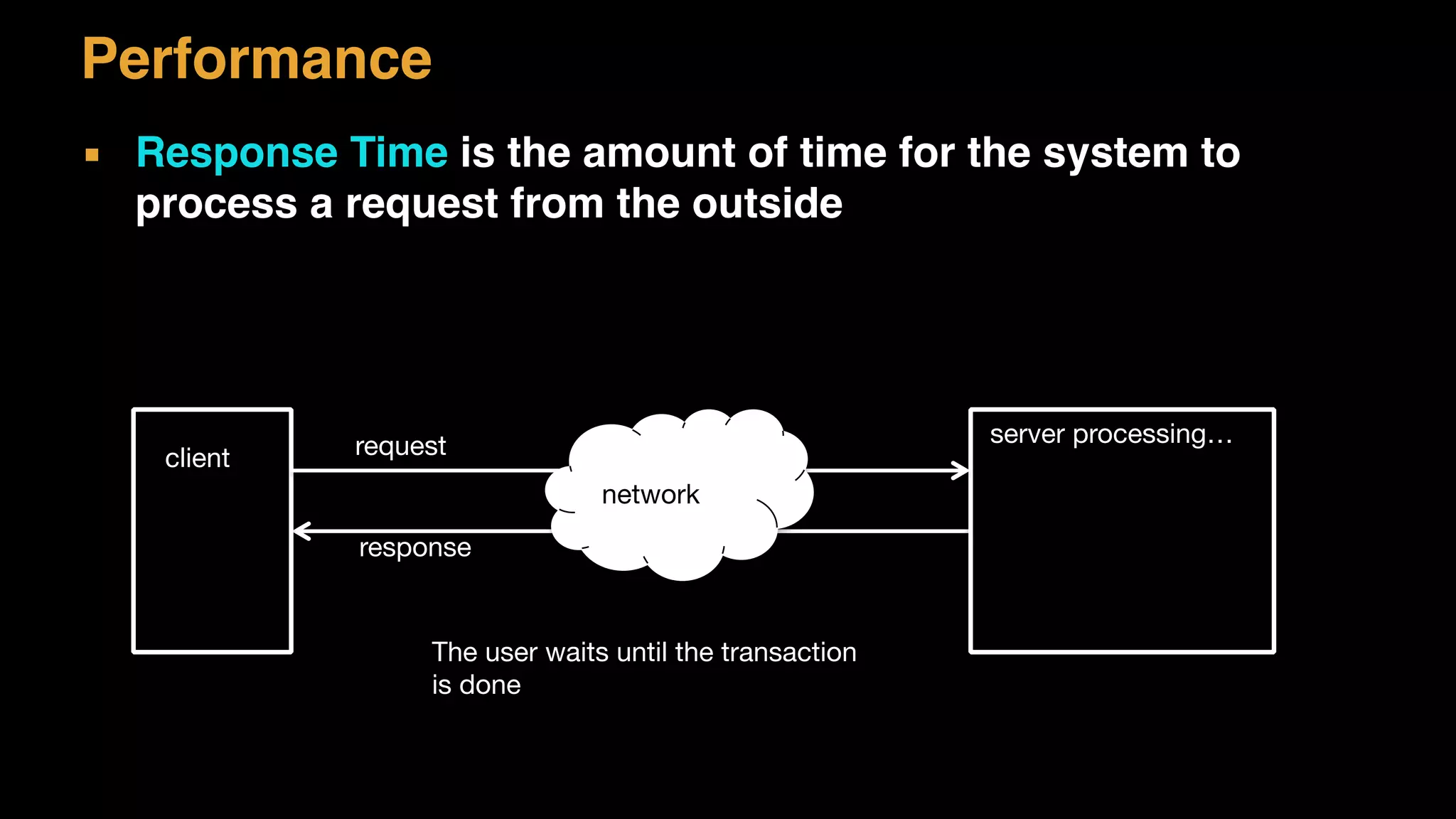

- 12. Performance ▪ Response Timeis the amount of time for the system to process a request from the outside server processing… client request network response The user waits until the transaction is done

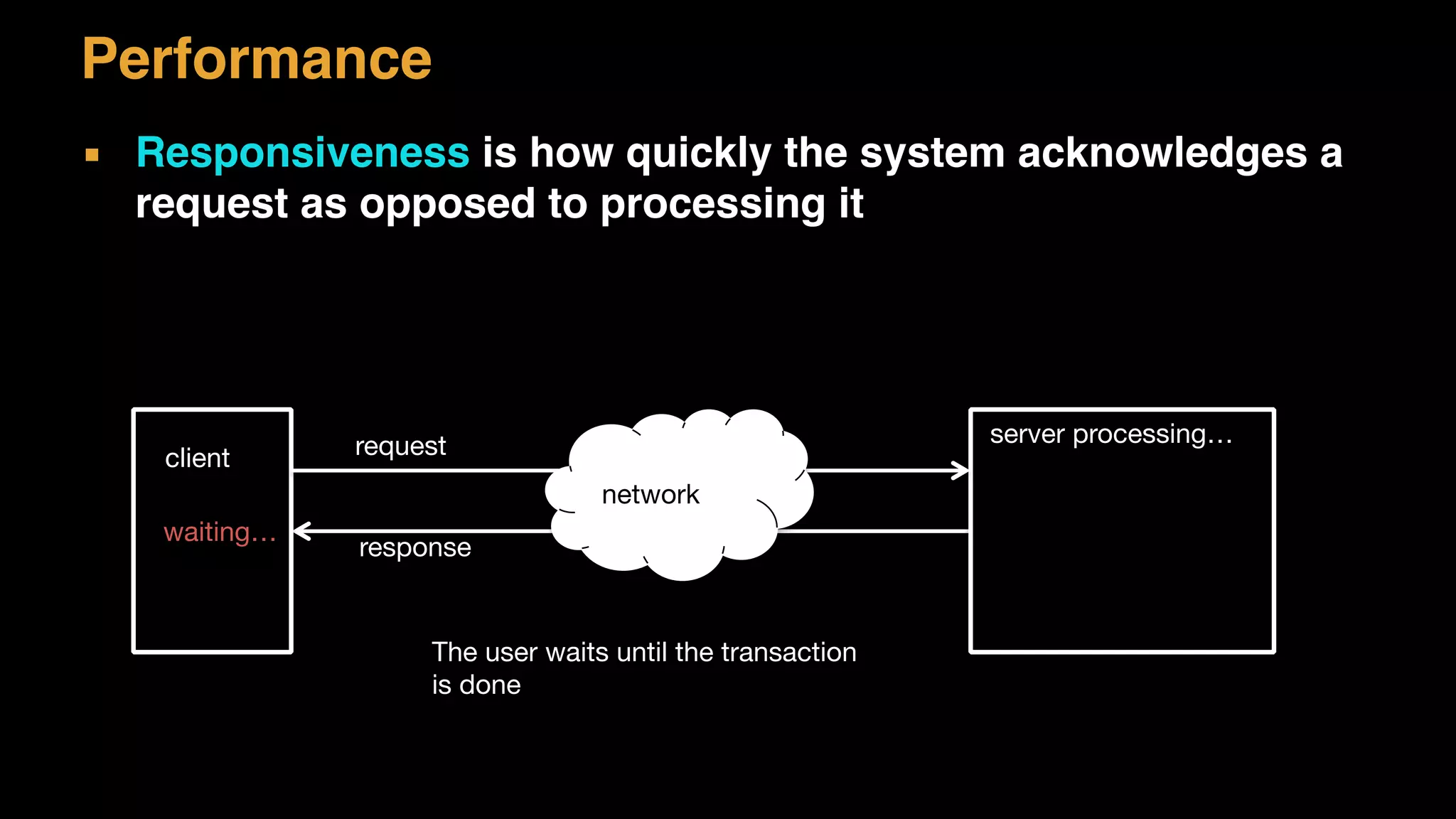

- 13. Performance ▪ Responsiveness ishow quickly the system acknowledges a request as opposed to processing it server processing… client request network response The user waits until the transaction is done waiting…

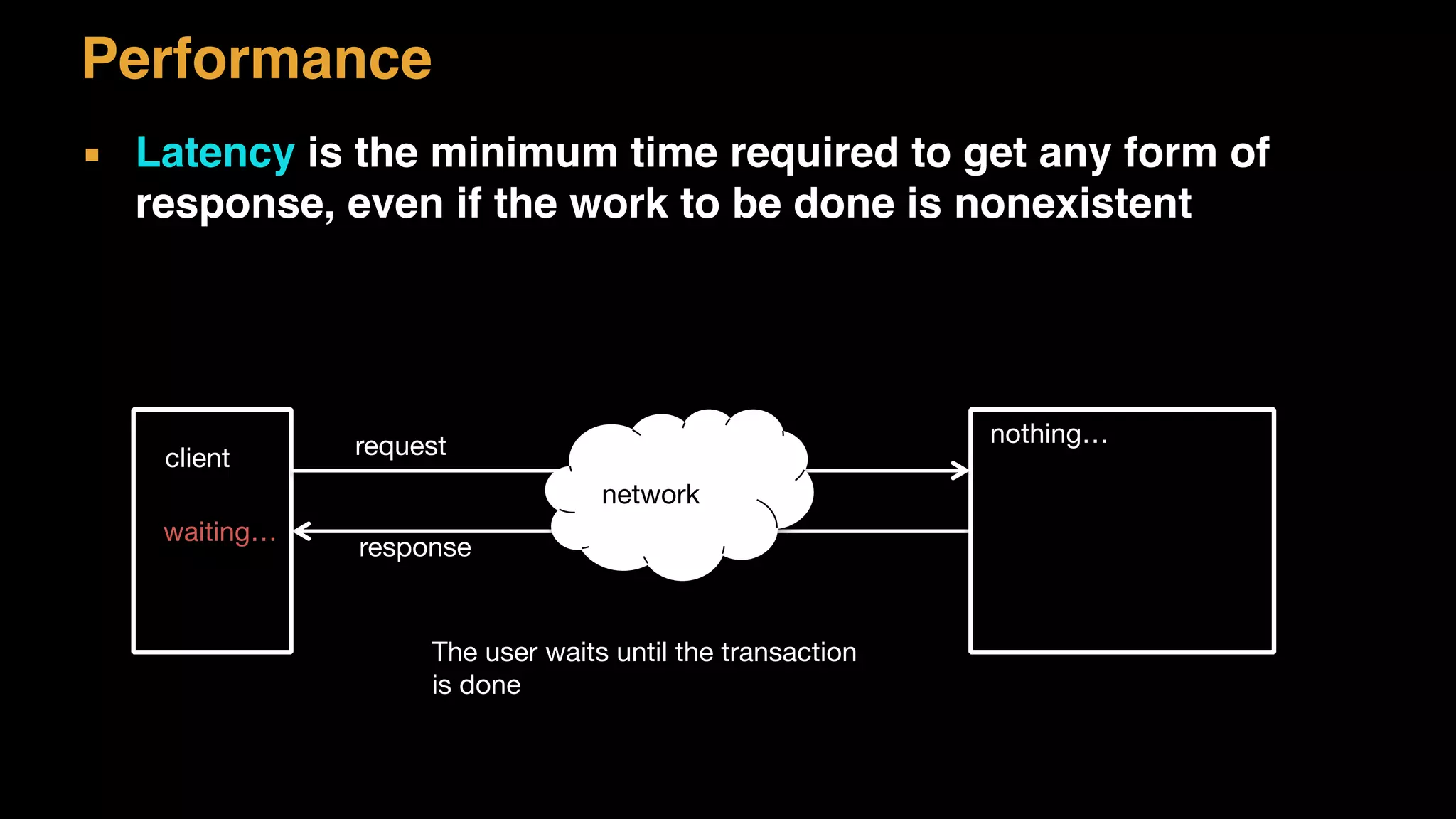

- 14. Performance ▪ Latency isthe minimum time required to get any form of response, even if the work to be done is nonexistent nothing… client request network response The user waits until the transaction is done waiting…

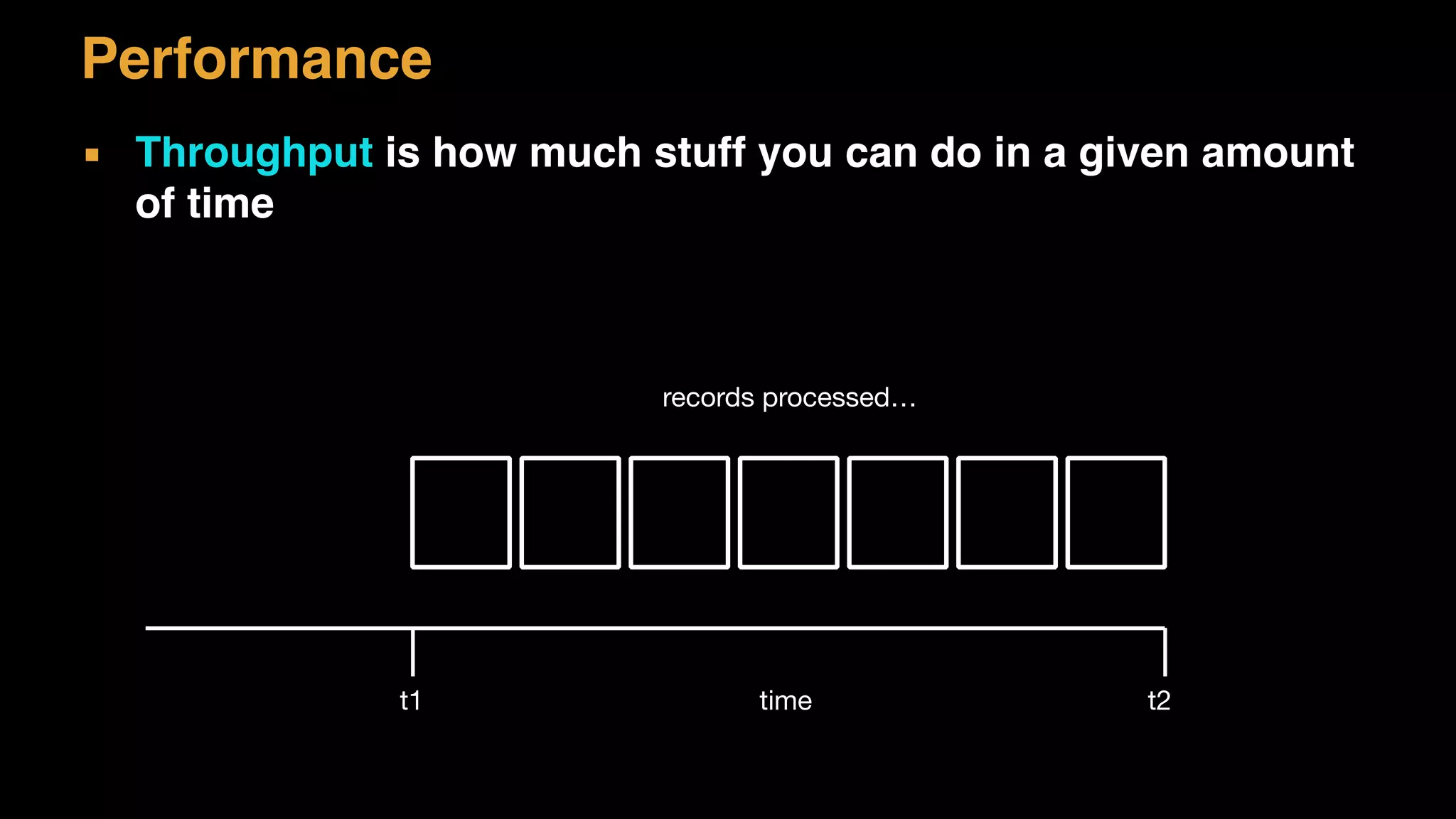

- 15. ▪ Throughput ishow much stuff you can do in a given amount of time t1 t2time records processed… Performance
- 16. ▪ Load isa statement of how much stress a system is under Performance

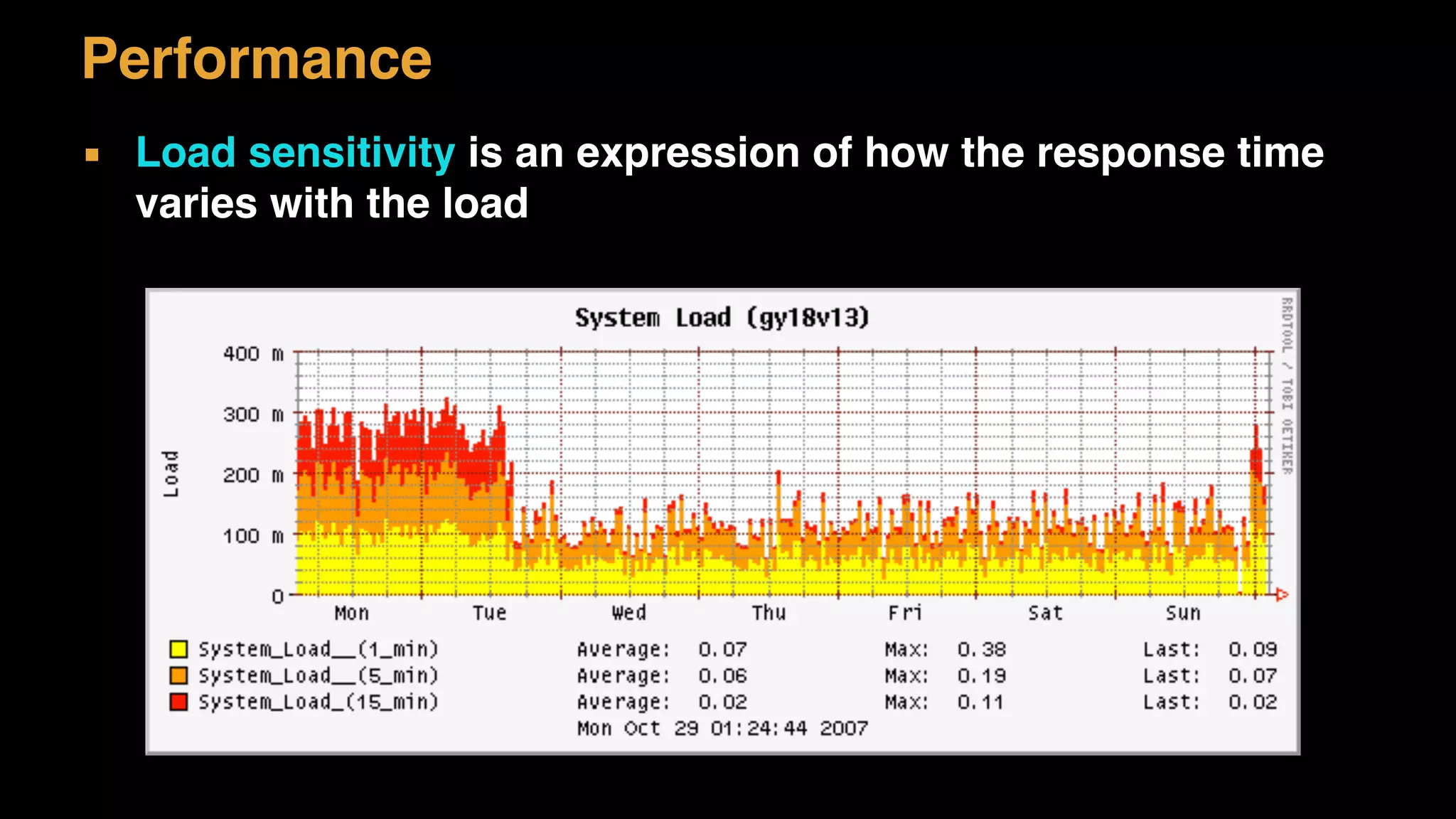

- 17. ▪ Load sensitivityis an expression of how the response time varies with the load Performance

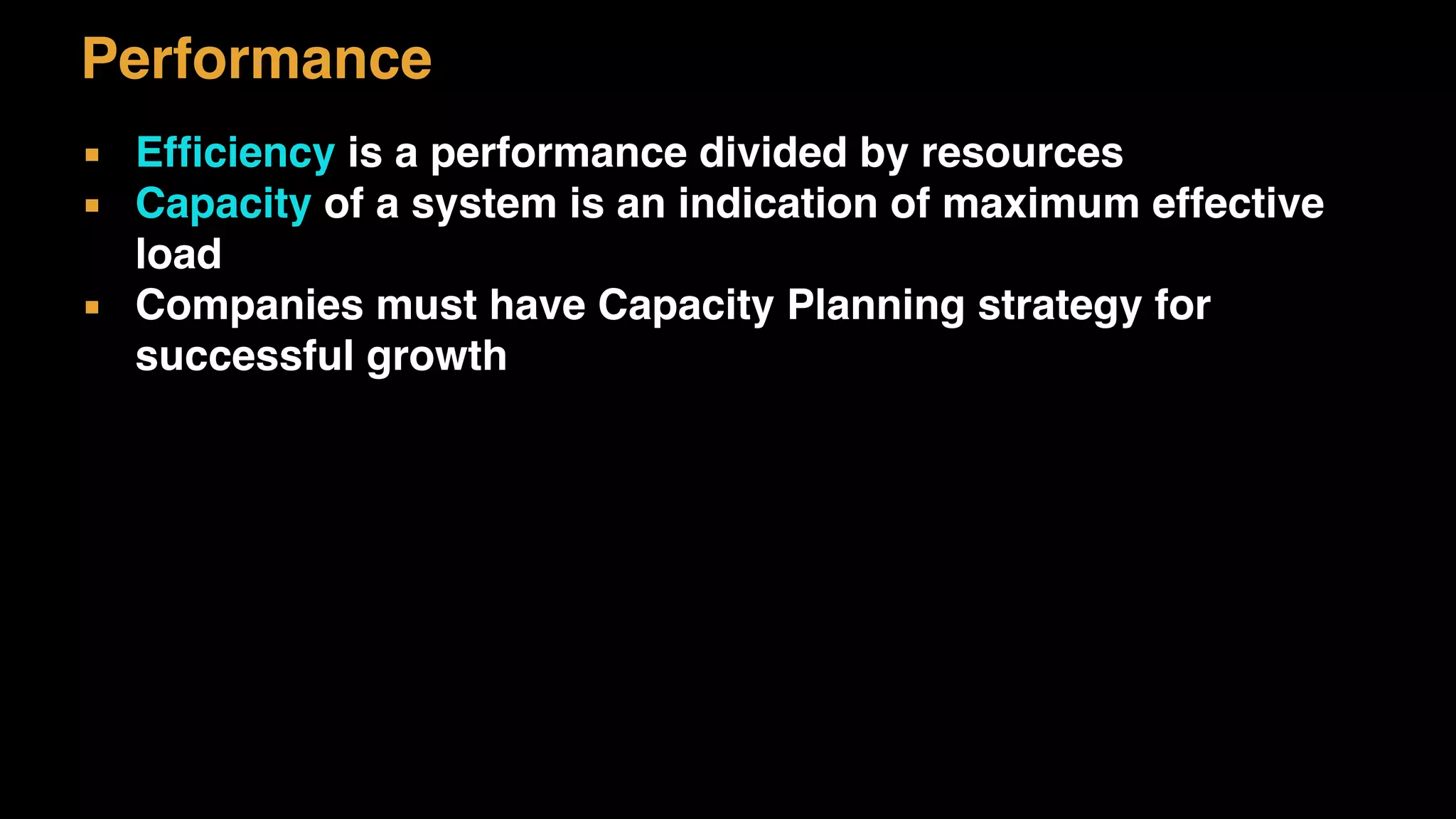

- 18. ▪ Efficiency isa performance divided by resources ▪ Capacity of a system is an indication of maximum effective load ▪ Companies must have Capacity Planning strategy for successful growth Performance

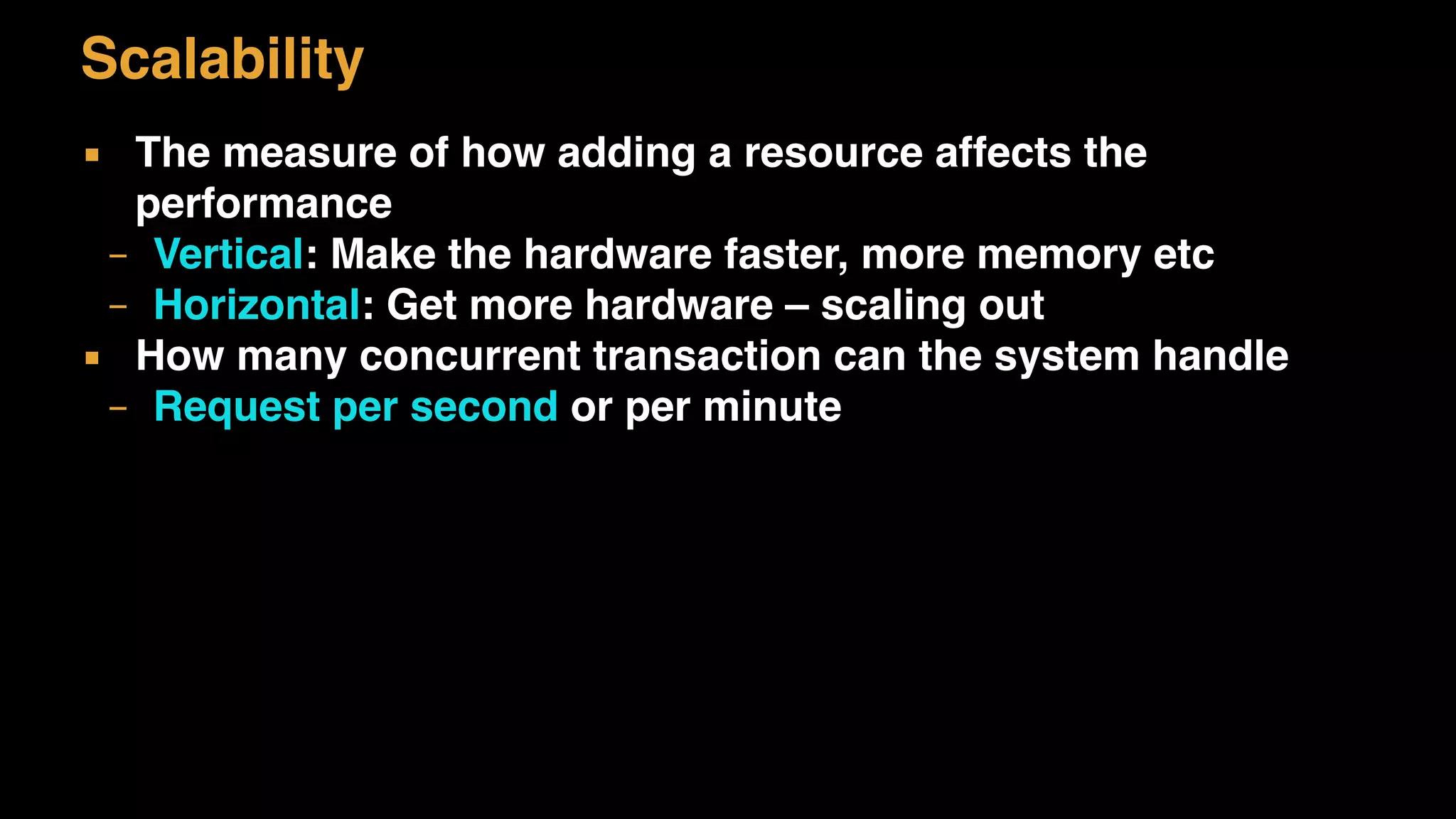

- 19. Scalability ▪ The measureof how adding a resource affects the performance – Vertical: Make the hardware faster, more memory etc – Horizontal: Get more hardware – scaling out ▪ How many concurrent transaction can the system handle – Request per second or per minute

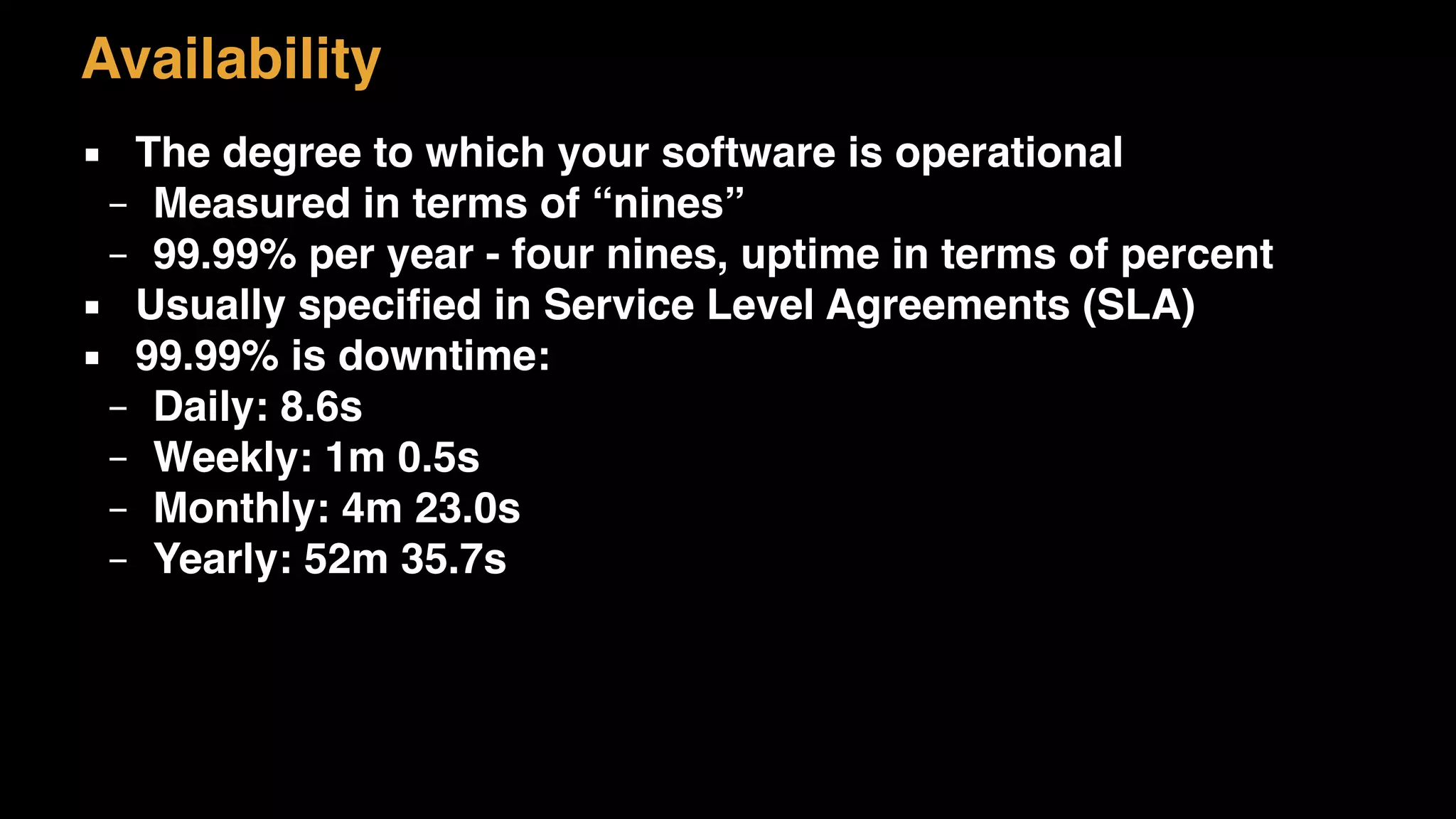

- 20. Availability ▪ The degreeto which your software is operational – Measured in terms of “nines” – 99.99% per year - four nines, uptime in terms of percent ▪ Usually specified in Service Level Agreements (SLA) ▪ 99.99% is downtime: – Daily: 8.6s – Weekly: 1m 0.5s – Monthly: 4m 23.0s – Yearly: 52m 35.7s

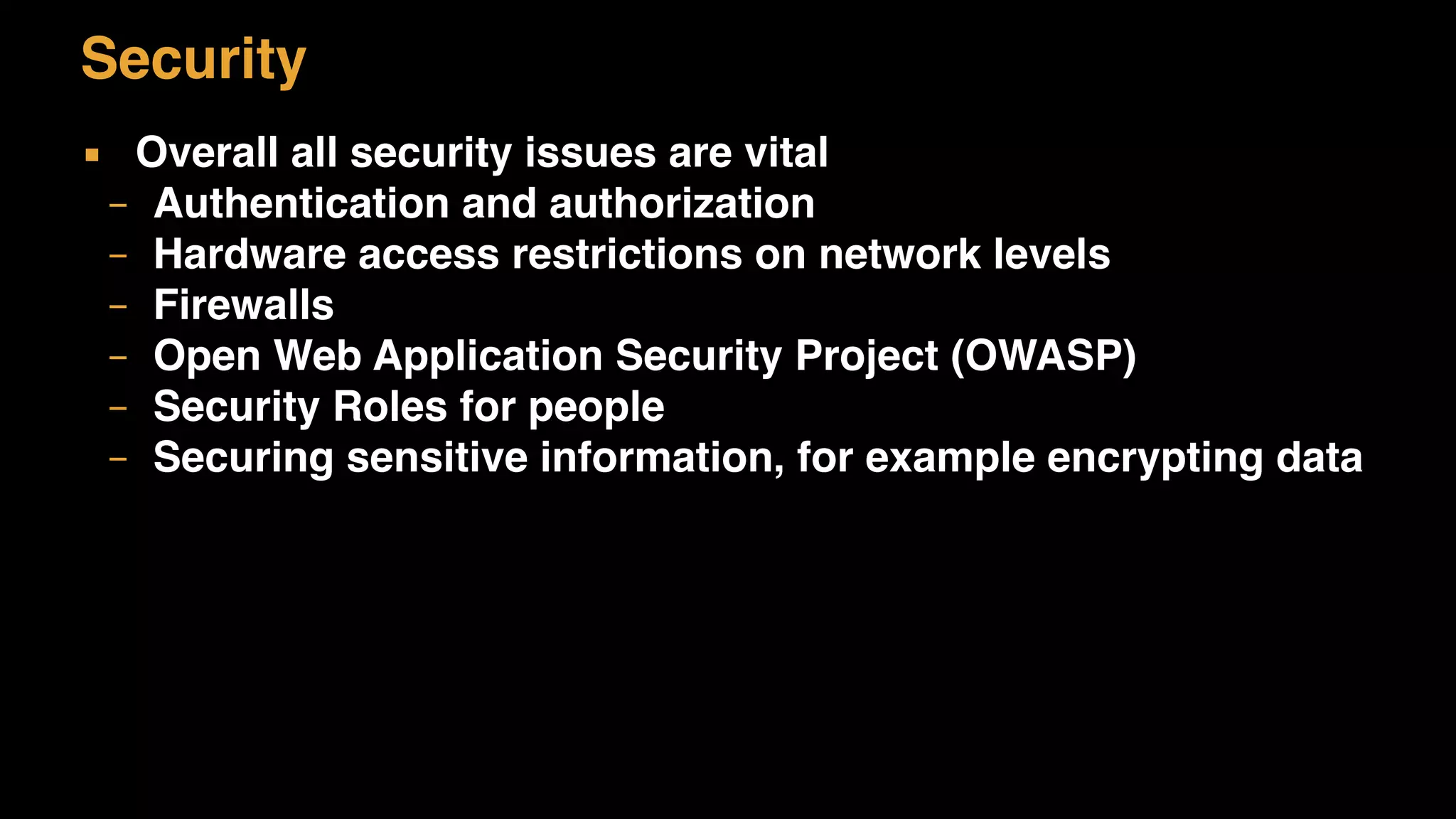

- 21. Security ▪ Overall allsecurity issues are vital – Authentication and authorization – Hardware access restrictions on network levels – Firewalls – Open Web Application Security Project (OWASP) – Security Roles for people – Securing sensitive information, for example encrypting data

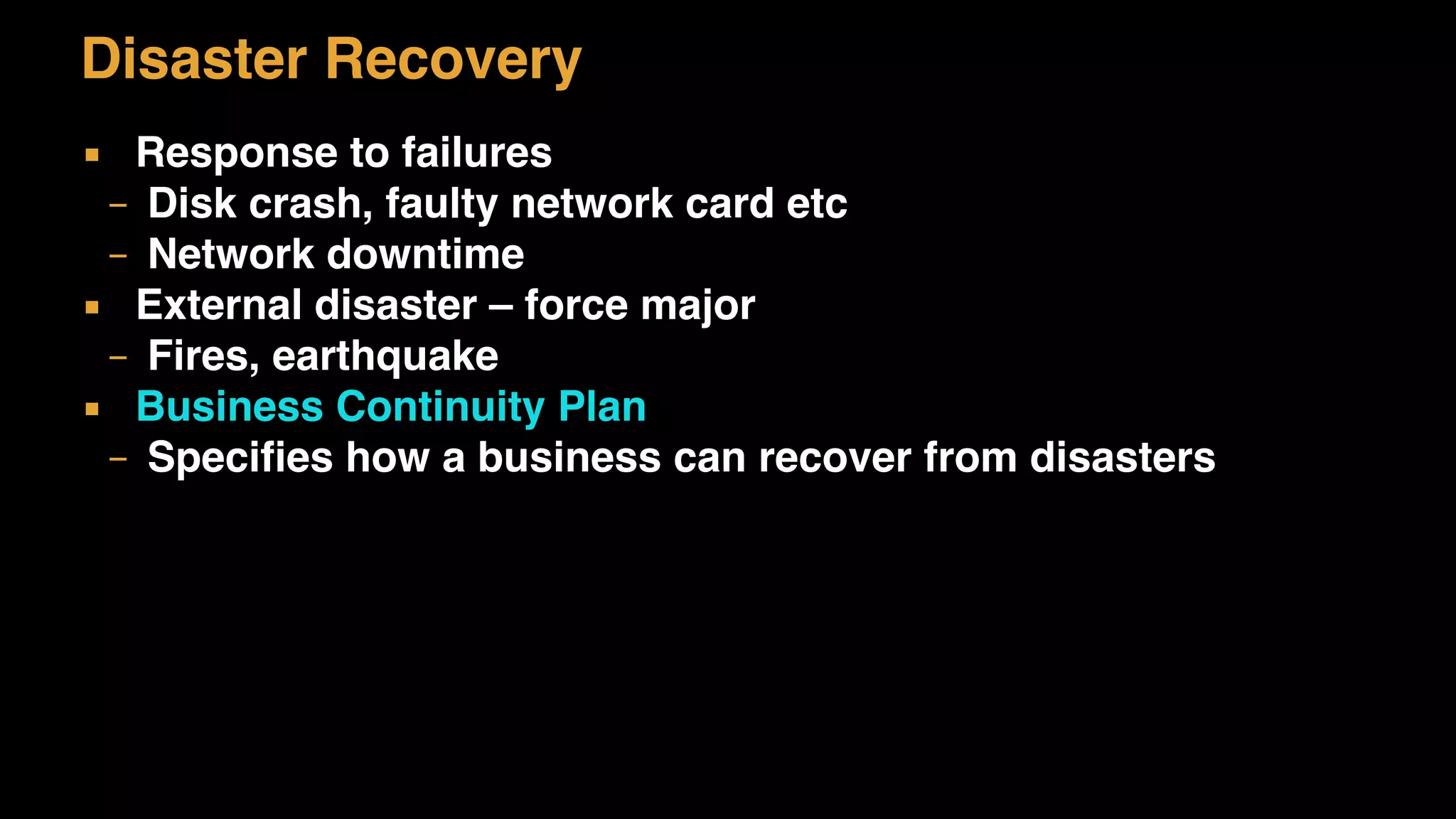

- 22. Disaster Recovery ▪ Responseto failures – Disk crash, faulty network card etc – Network downtime ▪ External disaster – force major – Fires, earthquake ▪ Business Continuity Plan – Specifies how a business can recover from disasters

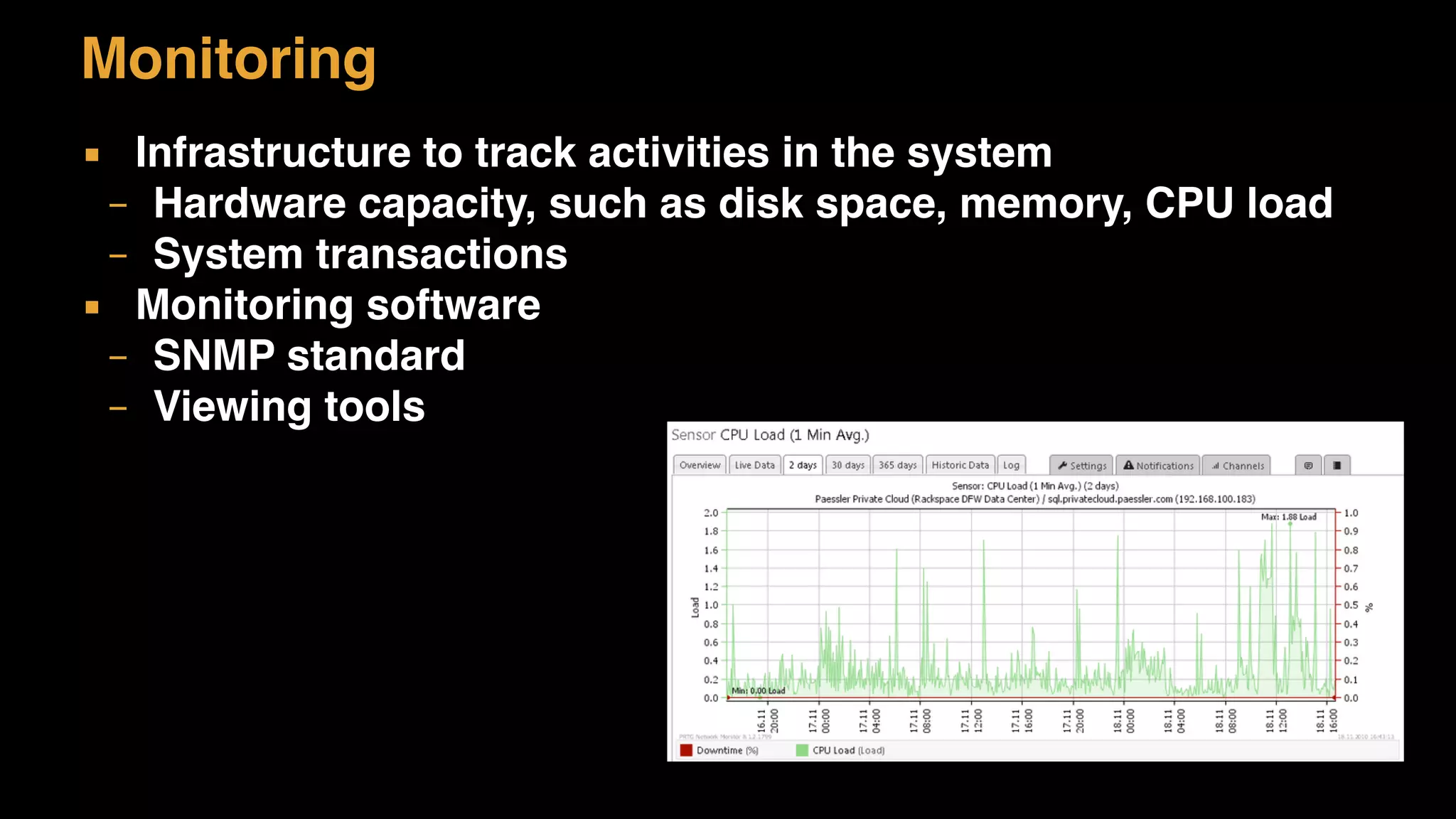

- 23. Monitoring ▪ Infrastructure totrack activities in the system – Hardware capacity, such as disk space, memory, CPU load – System transactions ▪ Monitoring software – SNMP standard – Viewing tools

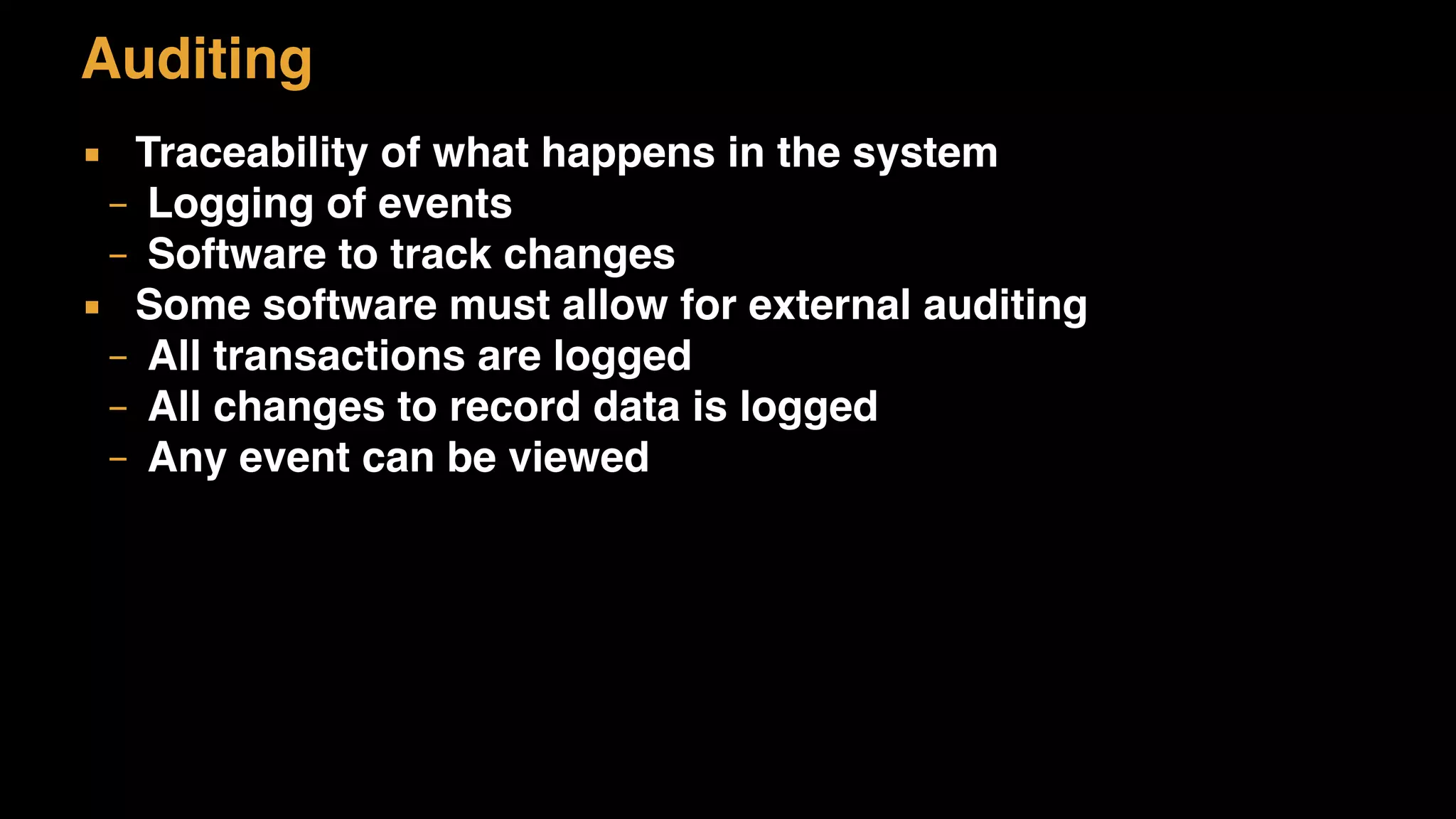

- 24. Auditing ▪ Traceability ofwhat happens in the system – Logging of events – Software to track changes ▪ Some software must allow for external auditing – All transactions are logged – All changes to record data is logged – Any event can be viewed

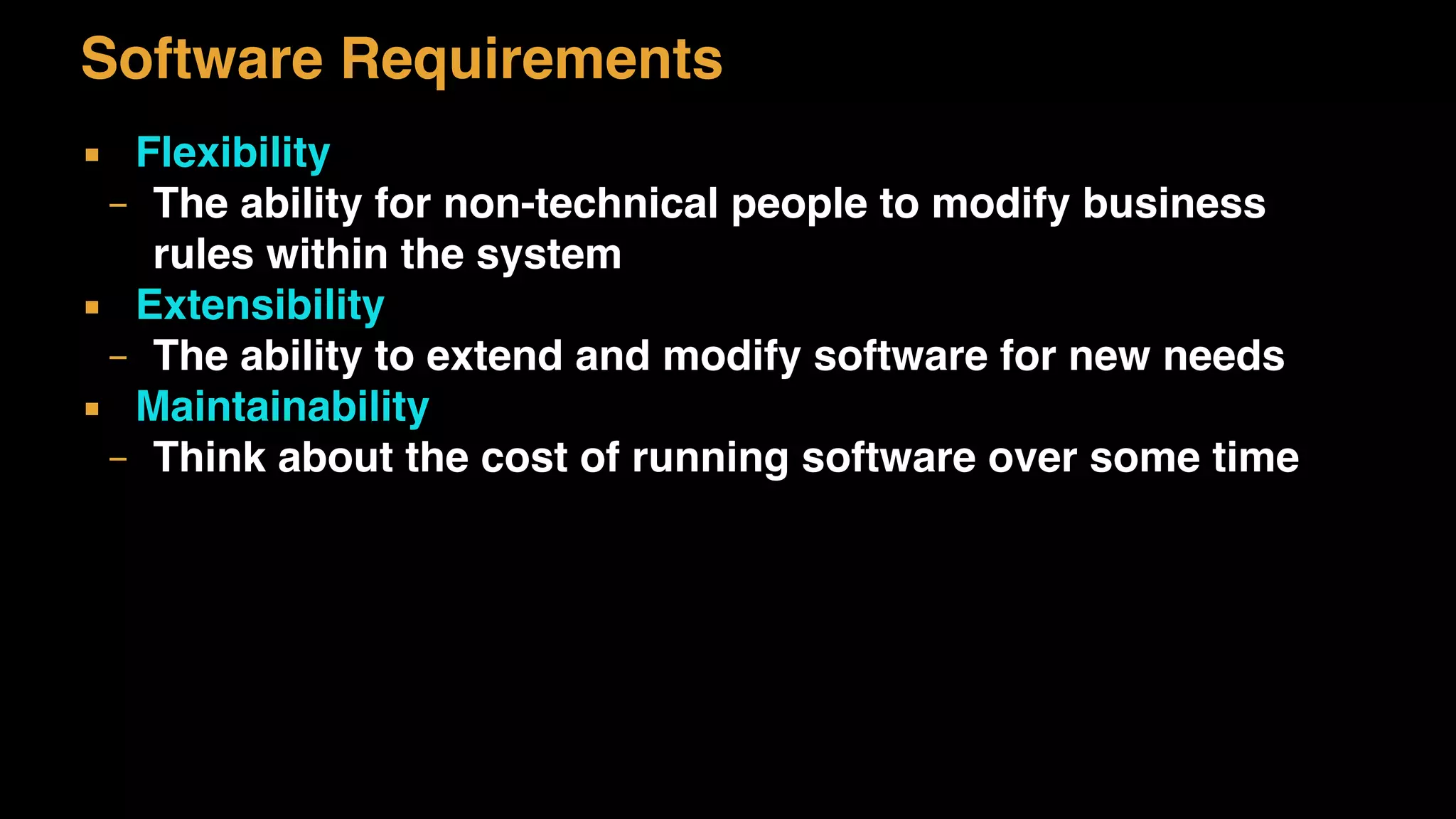

- 25. Software Requirements ▪ Flexibility –The ability for non-technical people to modify business rules within the system ▪ Extensibility – The ability to extend and modify software for new needs ▪ Maintainability – Think about the cost of running software over some time

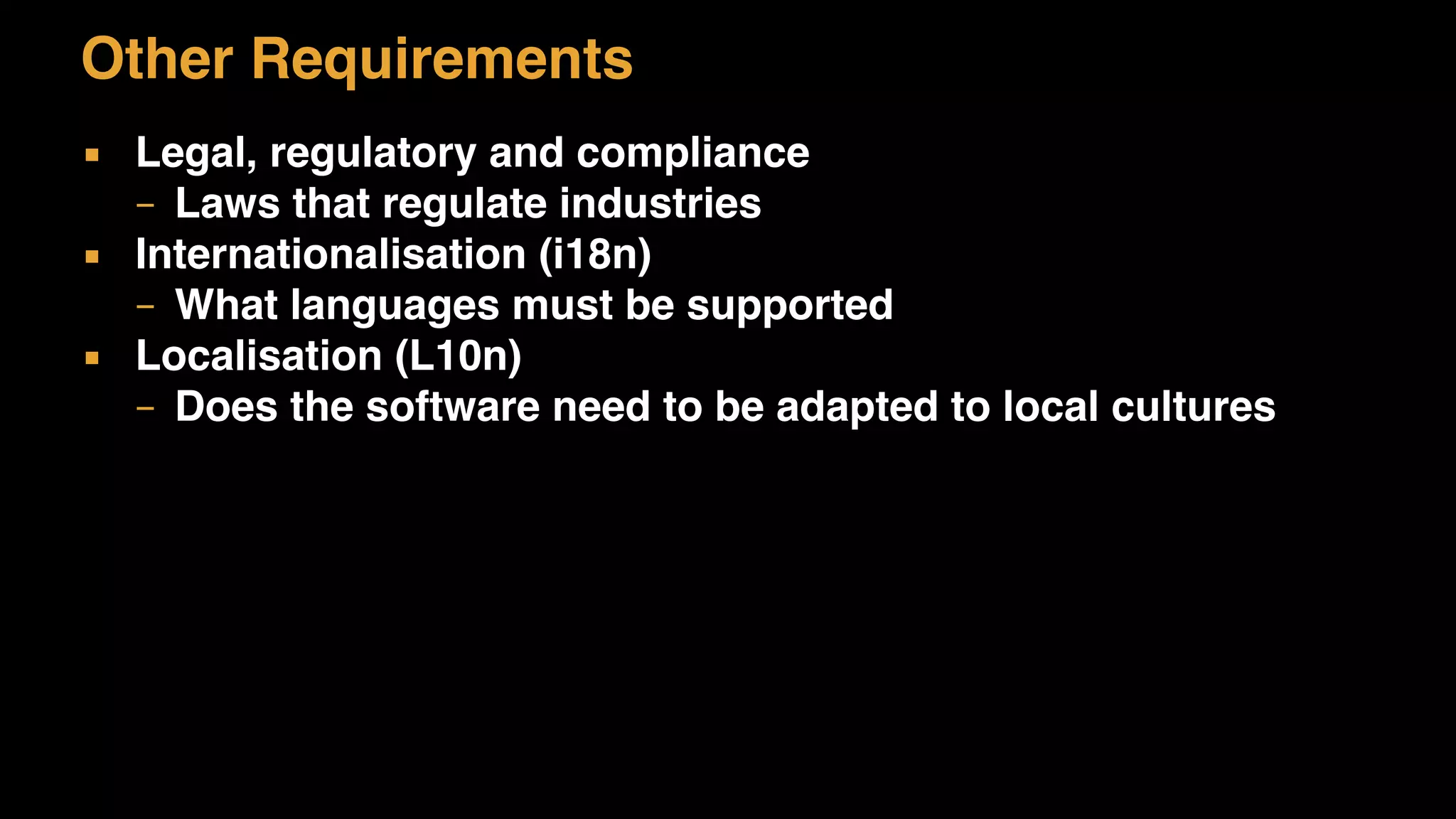

- 26. Other Requirements ▪ Legal,regulatory and compliance – Laws that regulate industries ▪ Internationalisation (i18n) – What languages must be supported ▪ Localisation (L10n) – Does the software need to be adapted to local cultures
- 27.

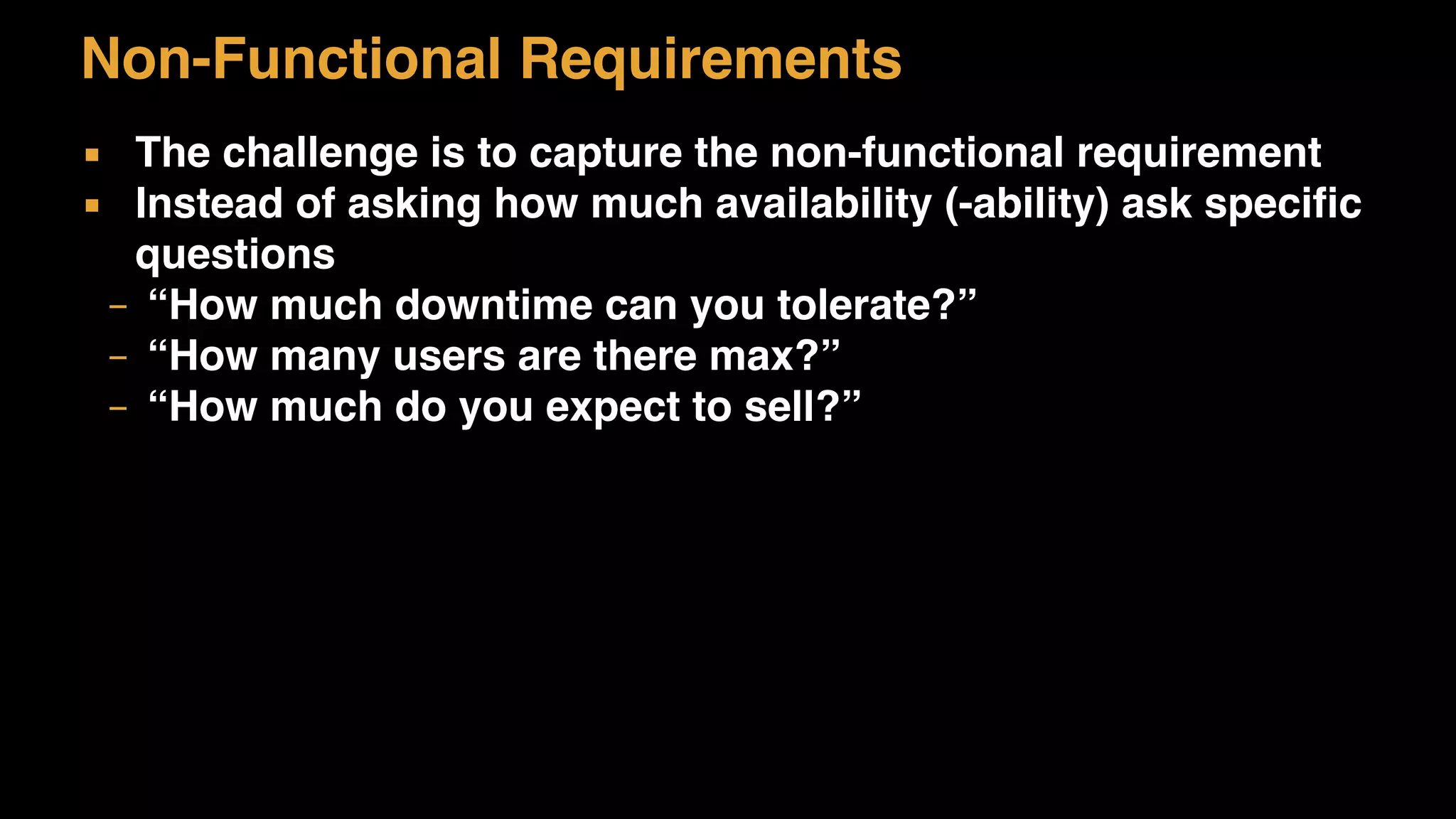

- 28. Non-Functional Requirements ▪ Thechallenge is to capture the non-functional requirement ▪ Instead of asking how much availability (-ability) ask specific questions – “How much downtime can you tolerate?” – “How many users are there max?” – “How much do you expect to sell?”

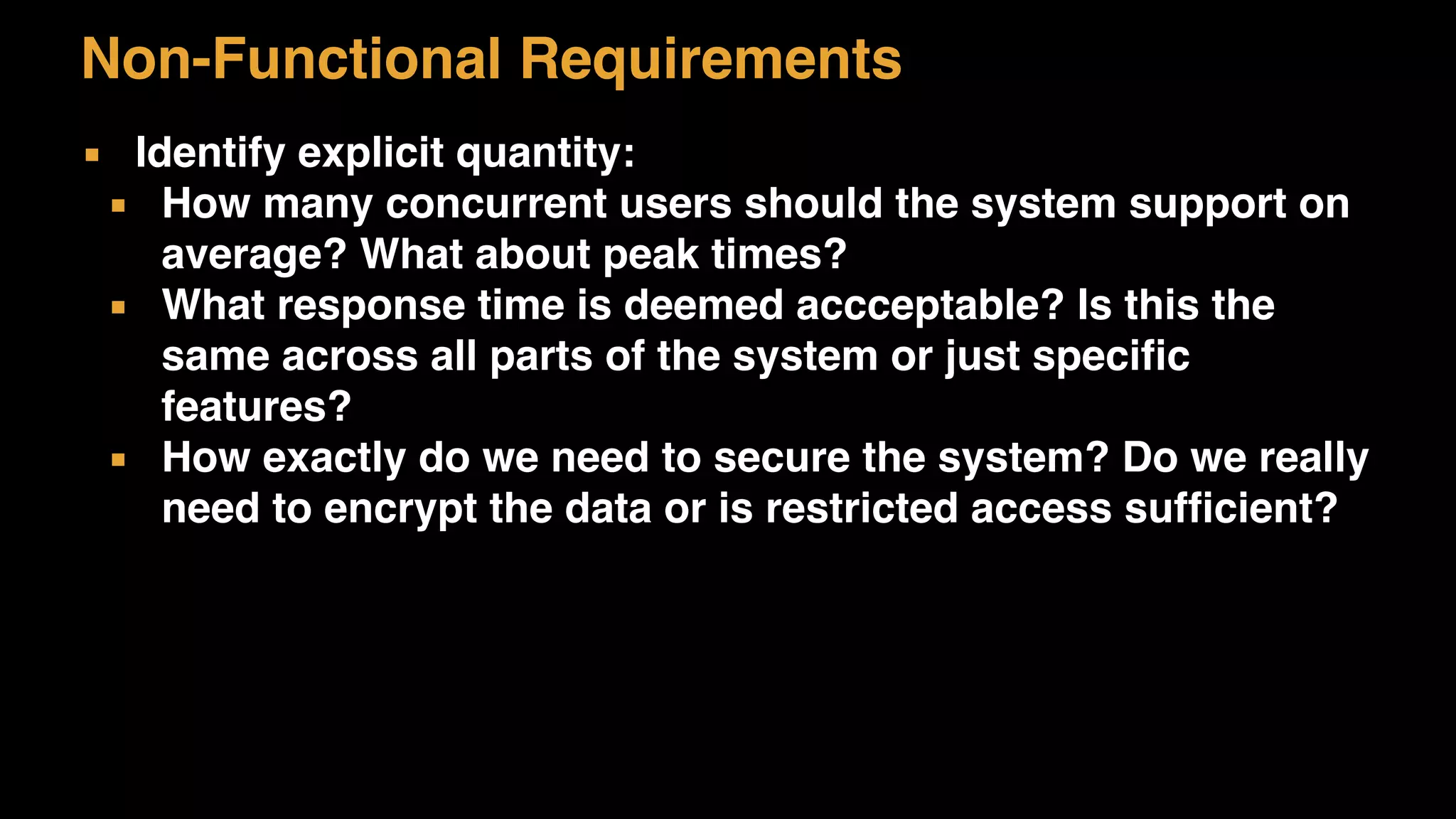

- 29. Non-Functional Requirements ▪ Identifyexplicit quantity: ▪ How many concurrent users should the system support on average? What about peak times? ▪ What response time is deemed accceptable? Is this the same across all parts of the system or just specific features? ▪ How exactly do we need to secure the system? Do we really need to encrypt the data or is restricted access sufficient?

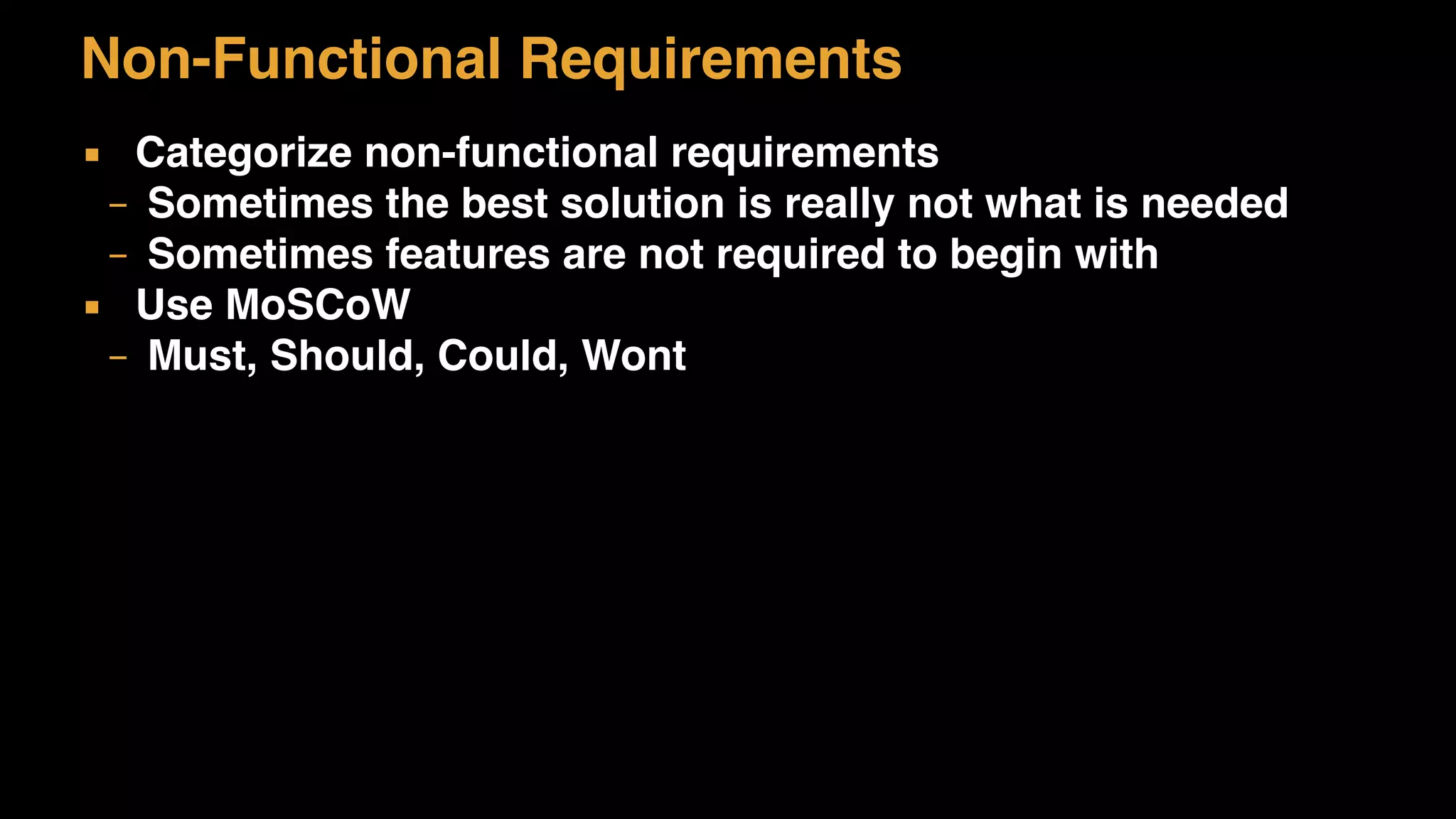

- 30. ▪ Categorize non-functionalrequirements – Sometimes the best solution is really not what is needed – Sometimes features are not required to begin with ▪ Use MoSCoW – Must, Should, Could, Wont Non-Functional Requirements

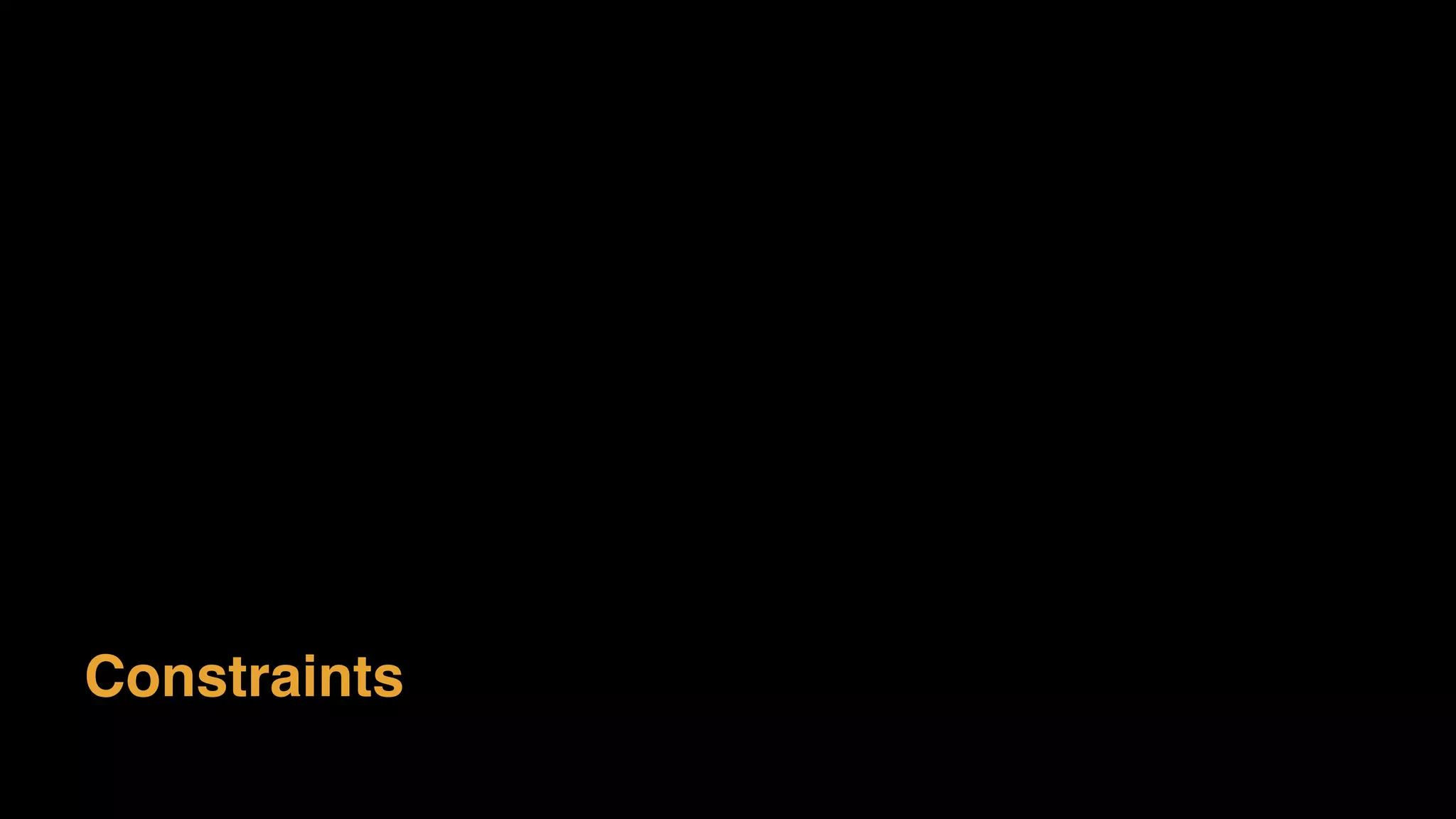

- 31.

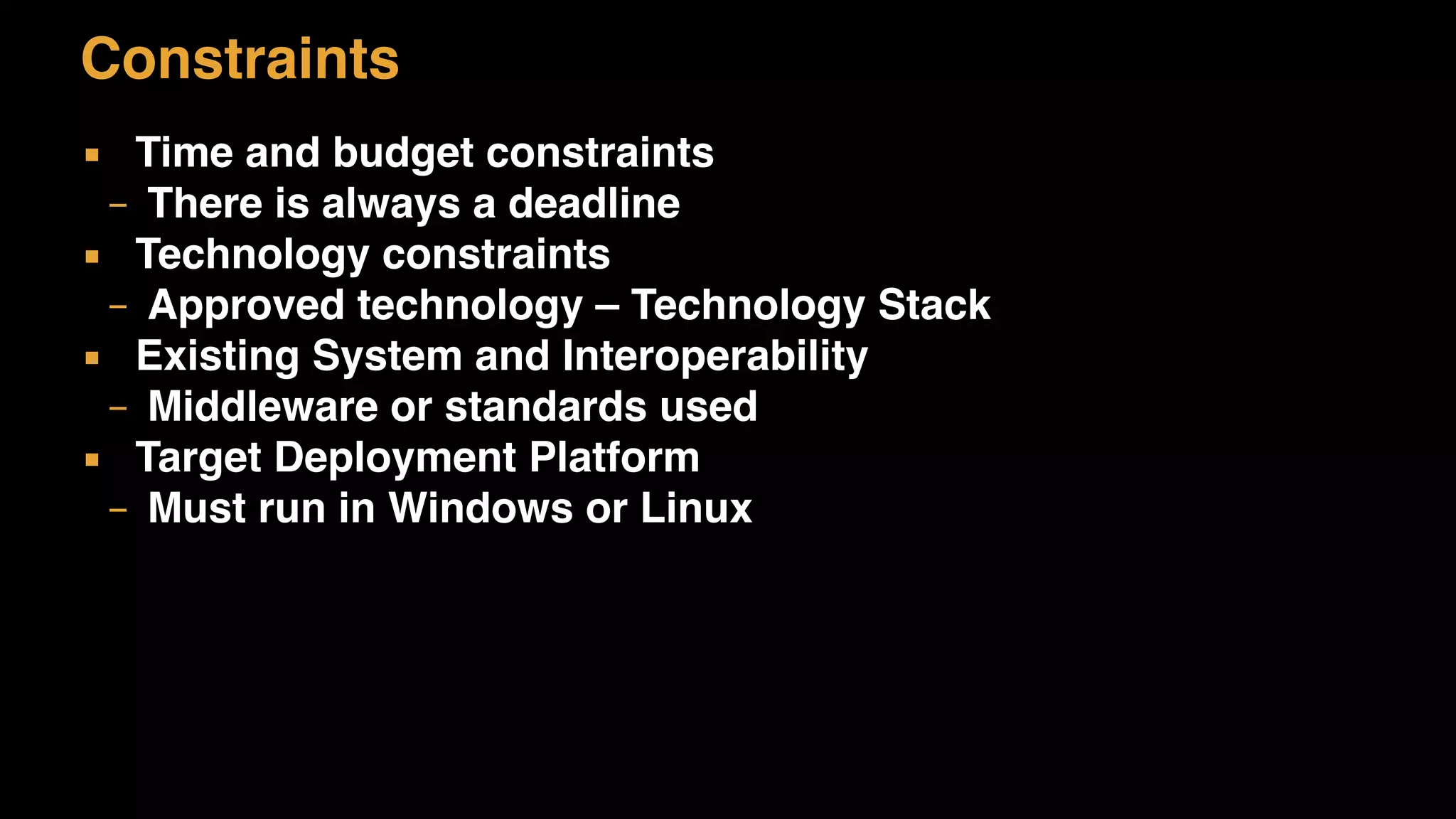

- 32. Constraints ▪ Time andbudget constraints – There is always a deadline ▪ Technology constraints – Approved technology – Technology Stack ▪ Existing System and Interoperability – Middleware or standards used ▪ Target Deployment Platform – Must run in Windows or Linux

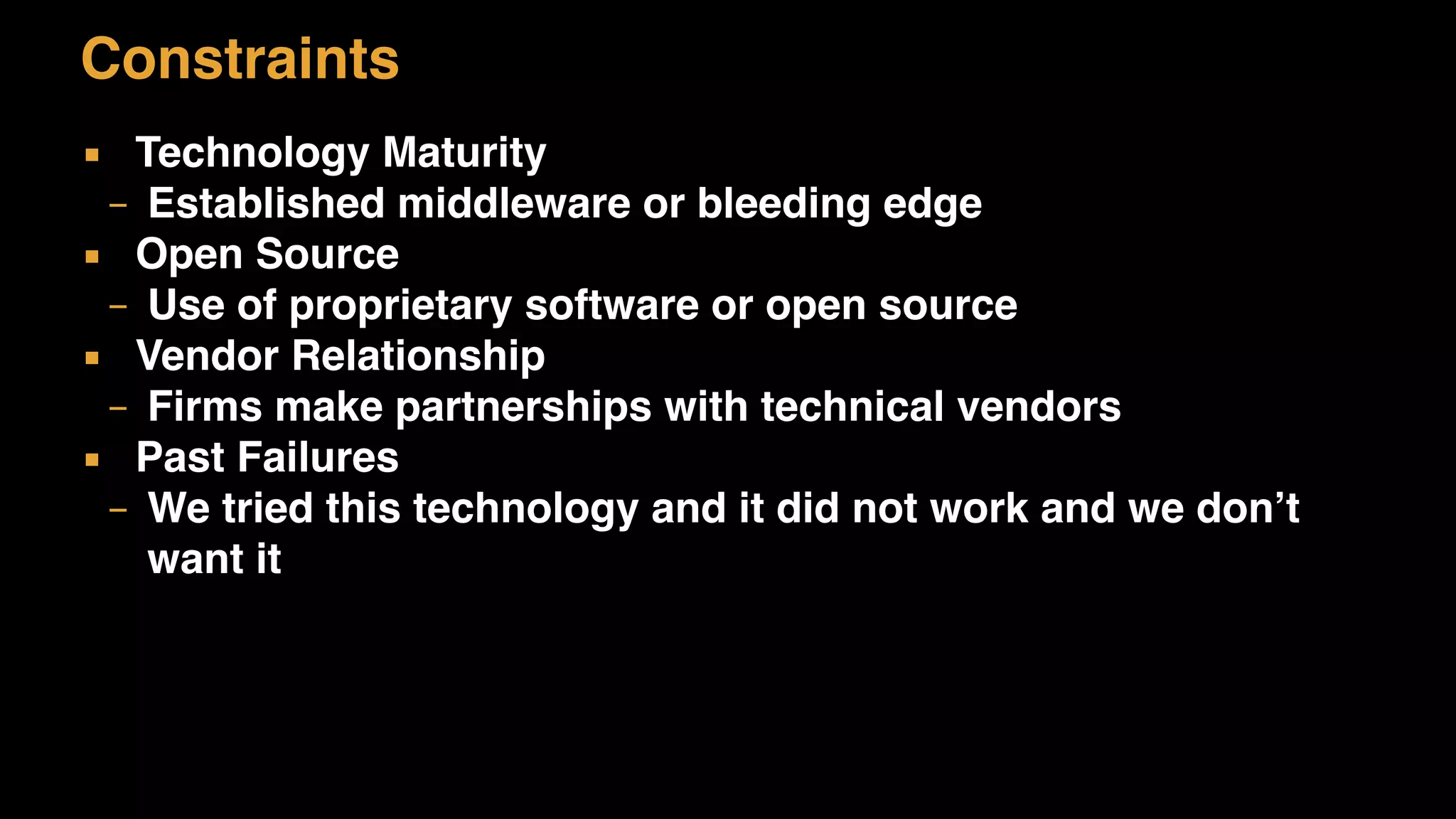

- 33. Constraints ▪ Technology Maturity –Established middleware or bleeding edge ▪ Open Source – Use of proprietary software or open source ▪ Vendor Relationship – Firms make partnerships with technical vendors ▪ Past Failures – We tried this technology and it did not work and we don’t want it

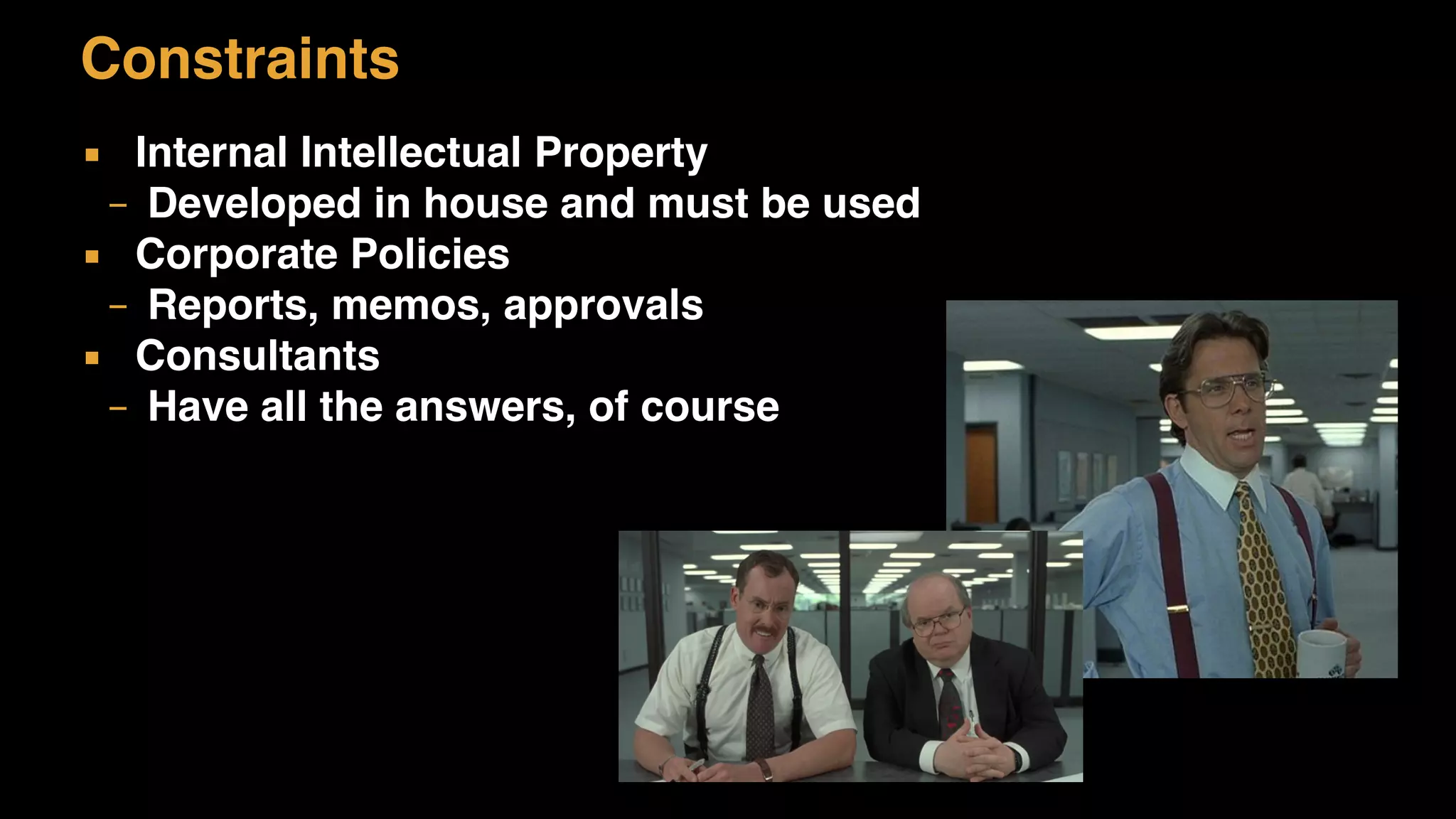

- 34. Constraints ▪ Internal IntellectualProperty – Developed in house and must be used ▪ Corporate Policies – Reports, memos, approvals ▪ Consultants – Have all the answers, of course

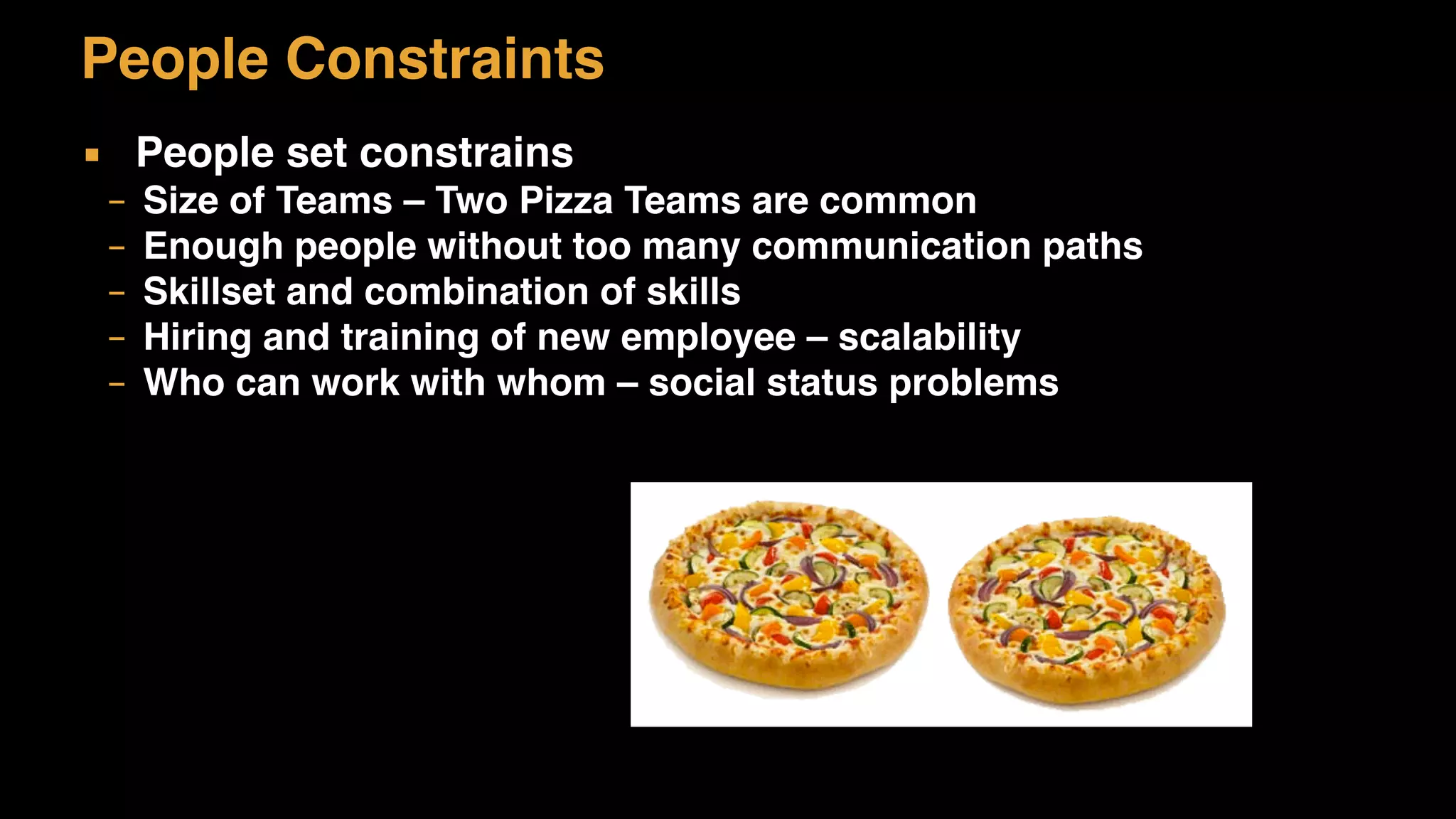

- 35. People Constraints ▪ Peopleset constrains – Size of Teams – Two Pizza Teams are common – Enough people without too many communication paths – Skillset and combination of skills – Hiring and training of new employee – scalability – Who can work with whom – social status problems

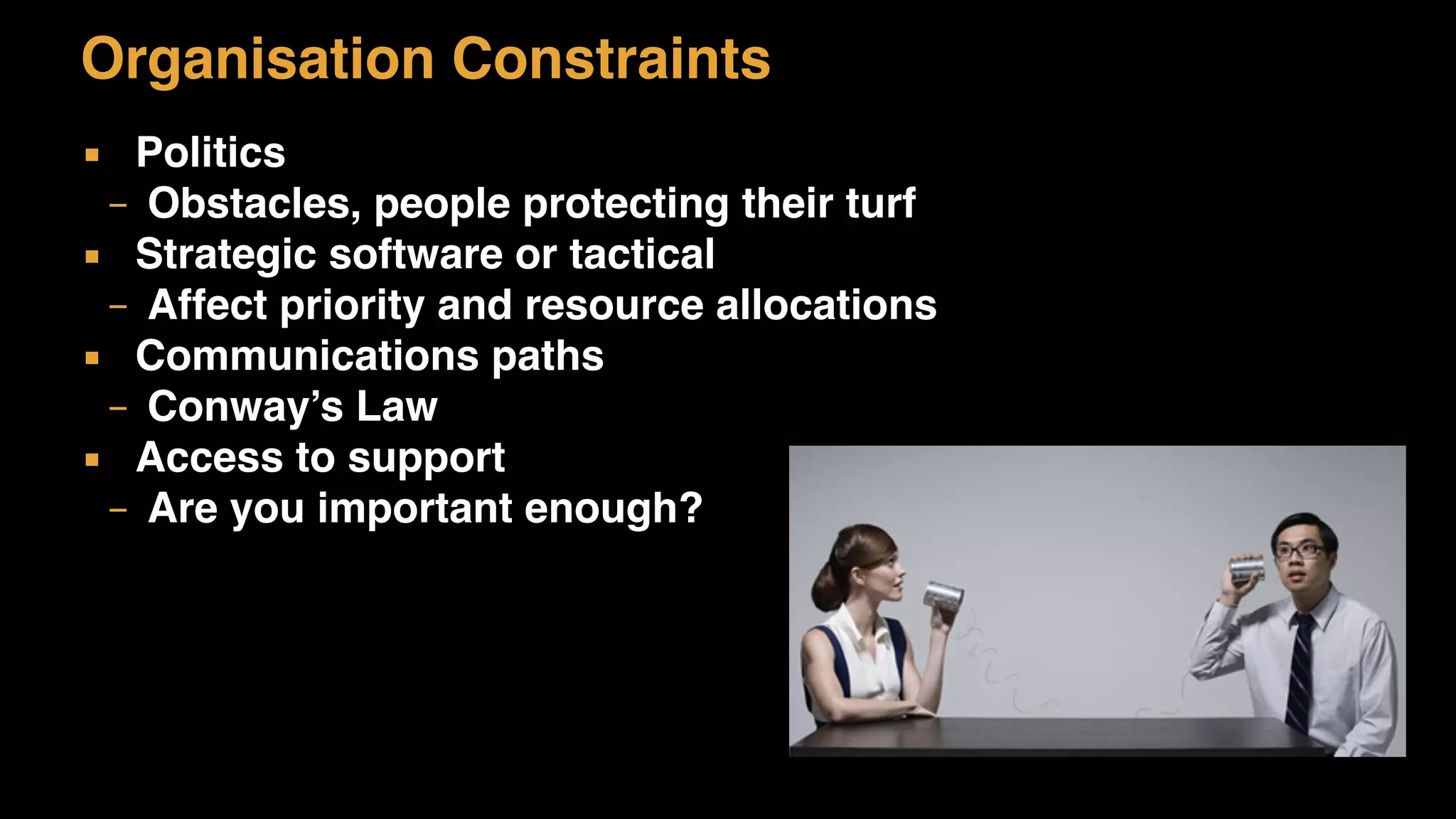

- 36. Organisation Constraints ▪ Politics –Obstacles, people protecting their turf ▪ Strategic software or tactical – Affect priority and resource allocations ▪ Communications paths – Conway’s Law ▪ Access to support – Are you important enough?

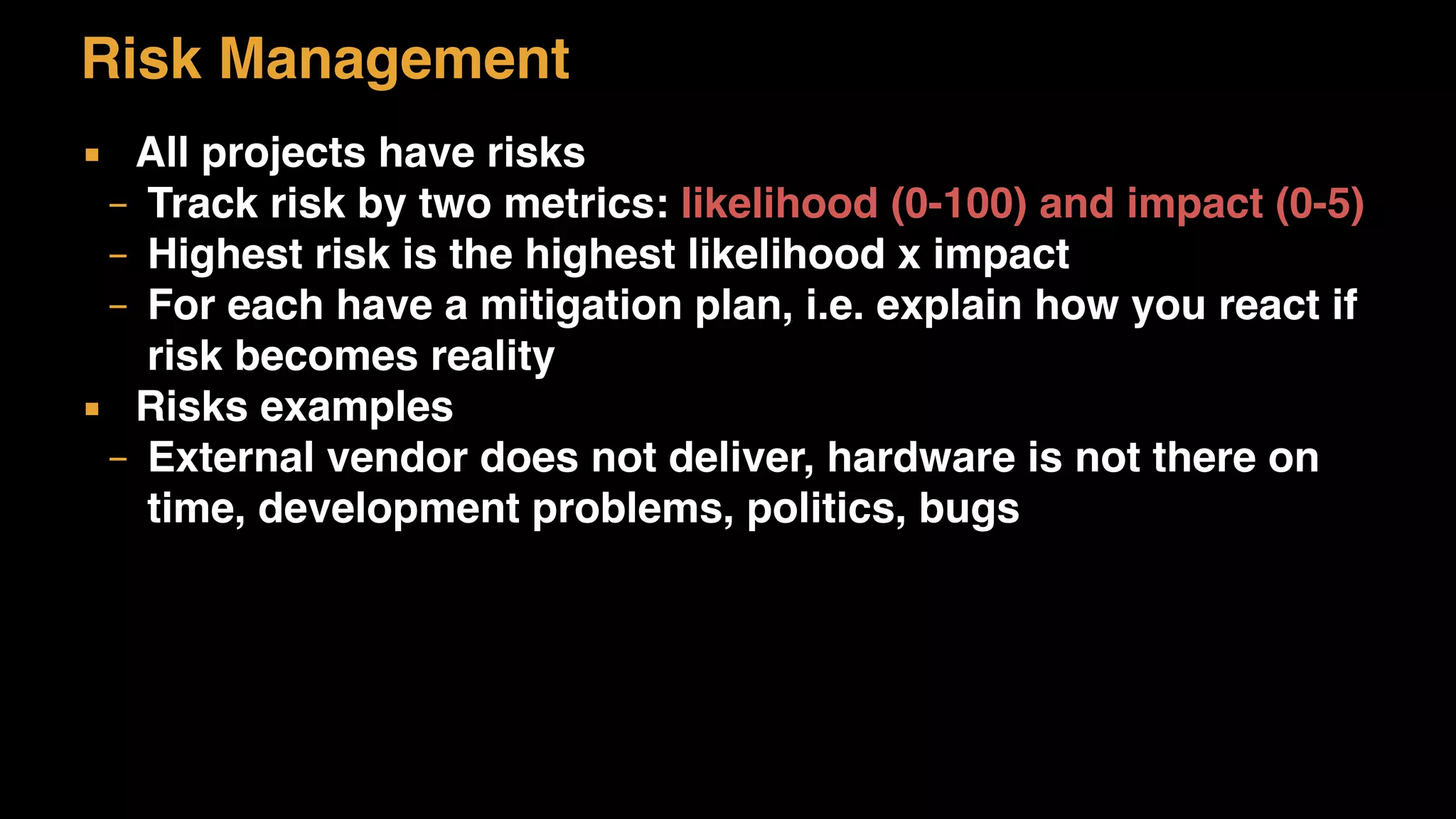

- 37. Risk Management ▪ Allprojects have risks – Track risk by two metrics: likelihood (0-100) and impact (0-5) – Highest risk is the highest likelihood x impact – For each have a mitigation plan, i.e. explain how you react if risk becomes reality ▪ Risks examples – External vendor does not deliver, hardware is not there on time, development problems, politics, bugs

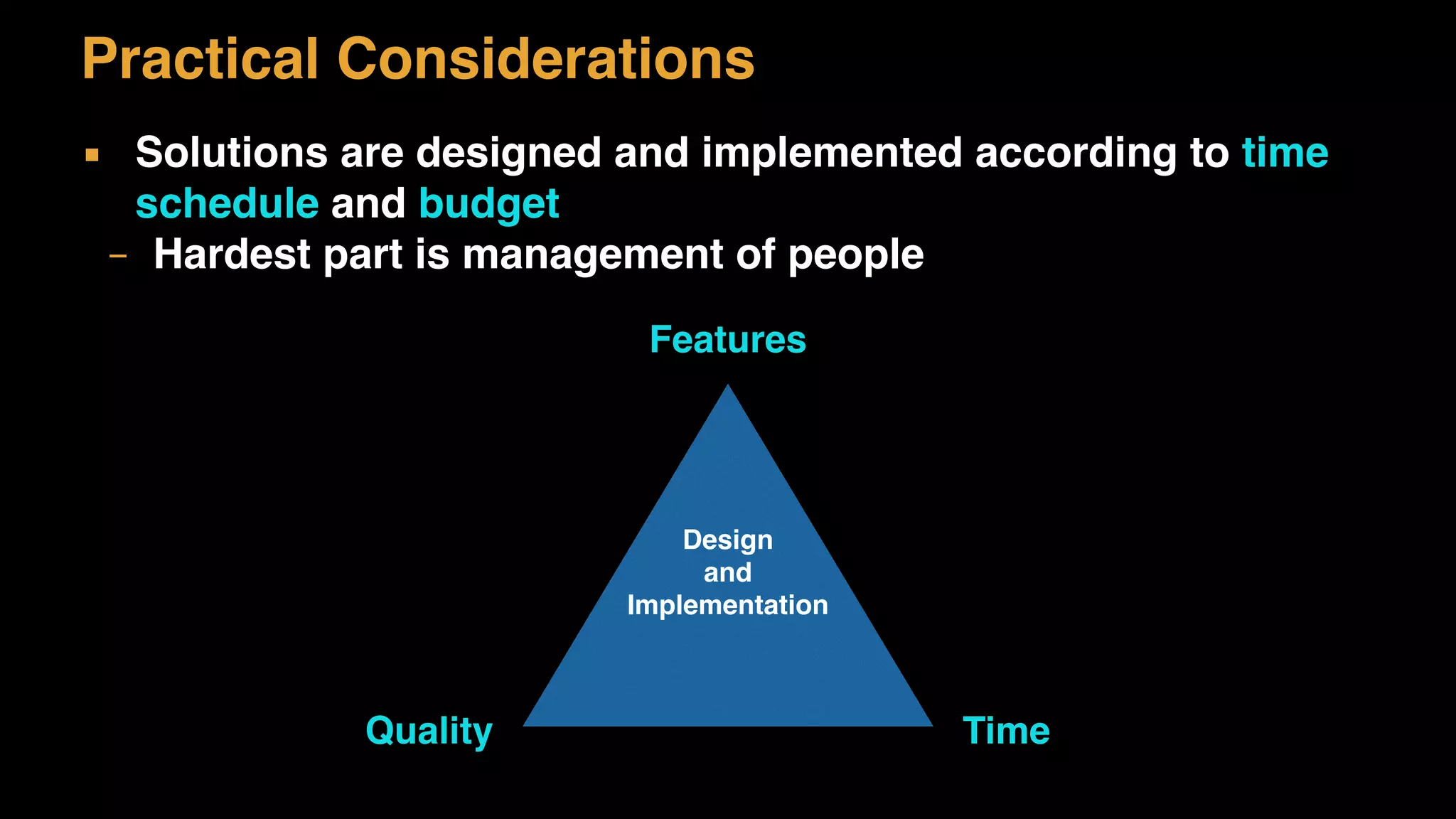

- 38. Practical Considerations ▪ Solutionsare designed and implemented according to time schedule and budget – Hardest part is management of people Design and Implementation Features TimeQuality

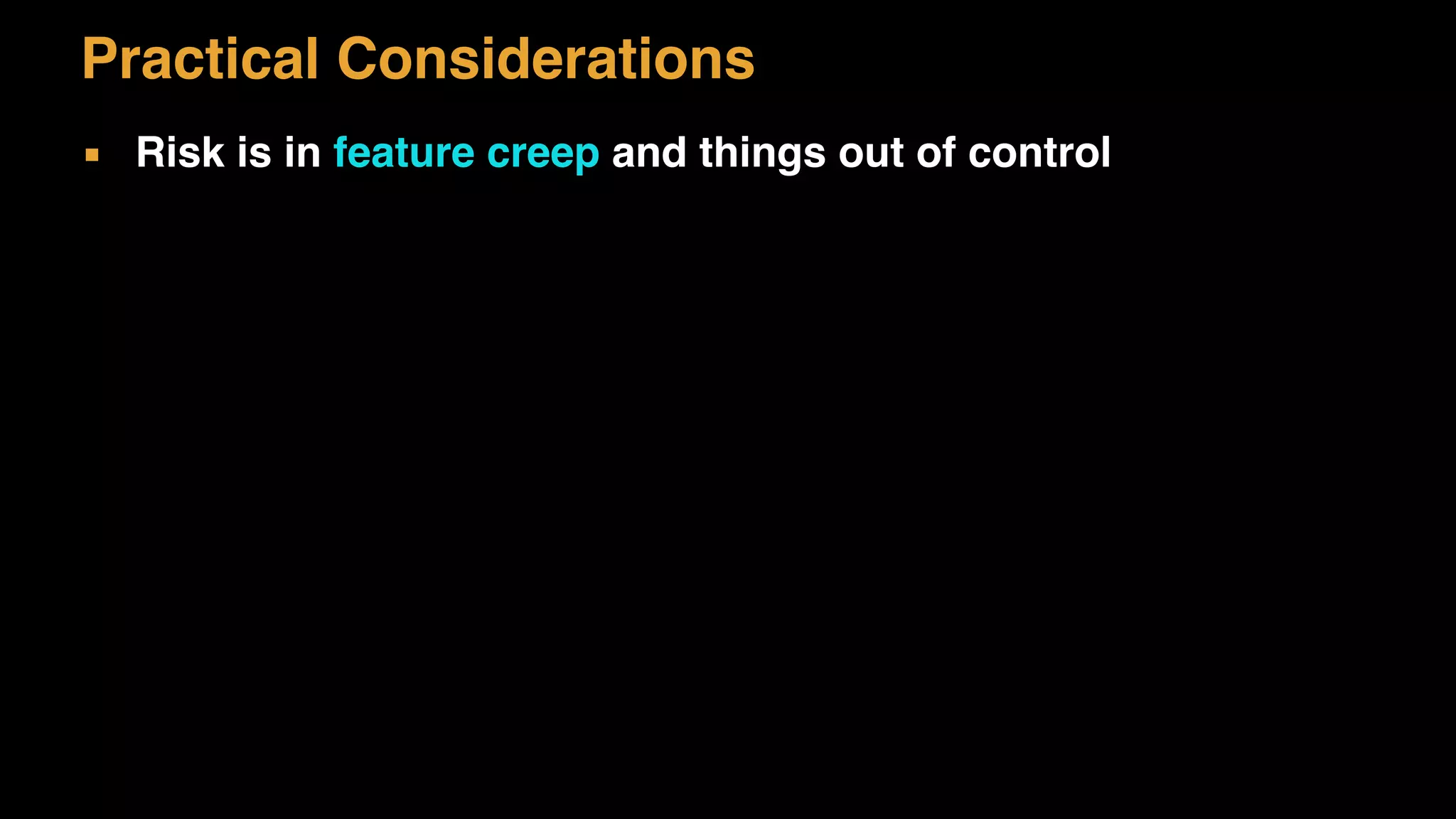

- 39. Practical Considerations ▪ Riskis in feature creep and things out of control
- 40.

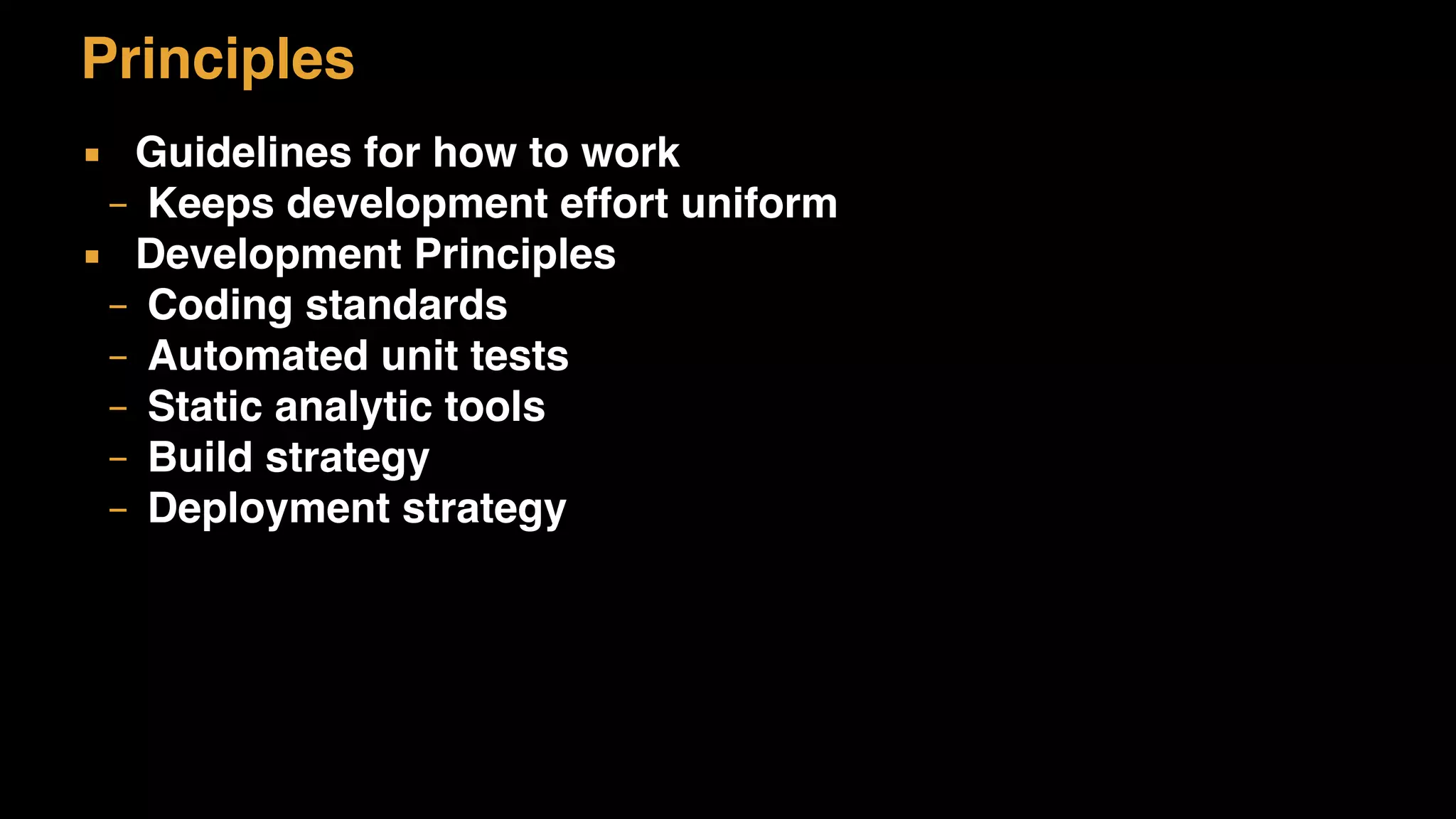

- 41. Principles ▪ Guidelines forhow to work – Keeps development effort uniform ▪ Development Principles – Coding standards – Automated unit tests – Static analytic tools – Build strategy – Deployment strategy

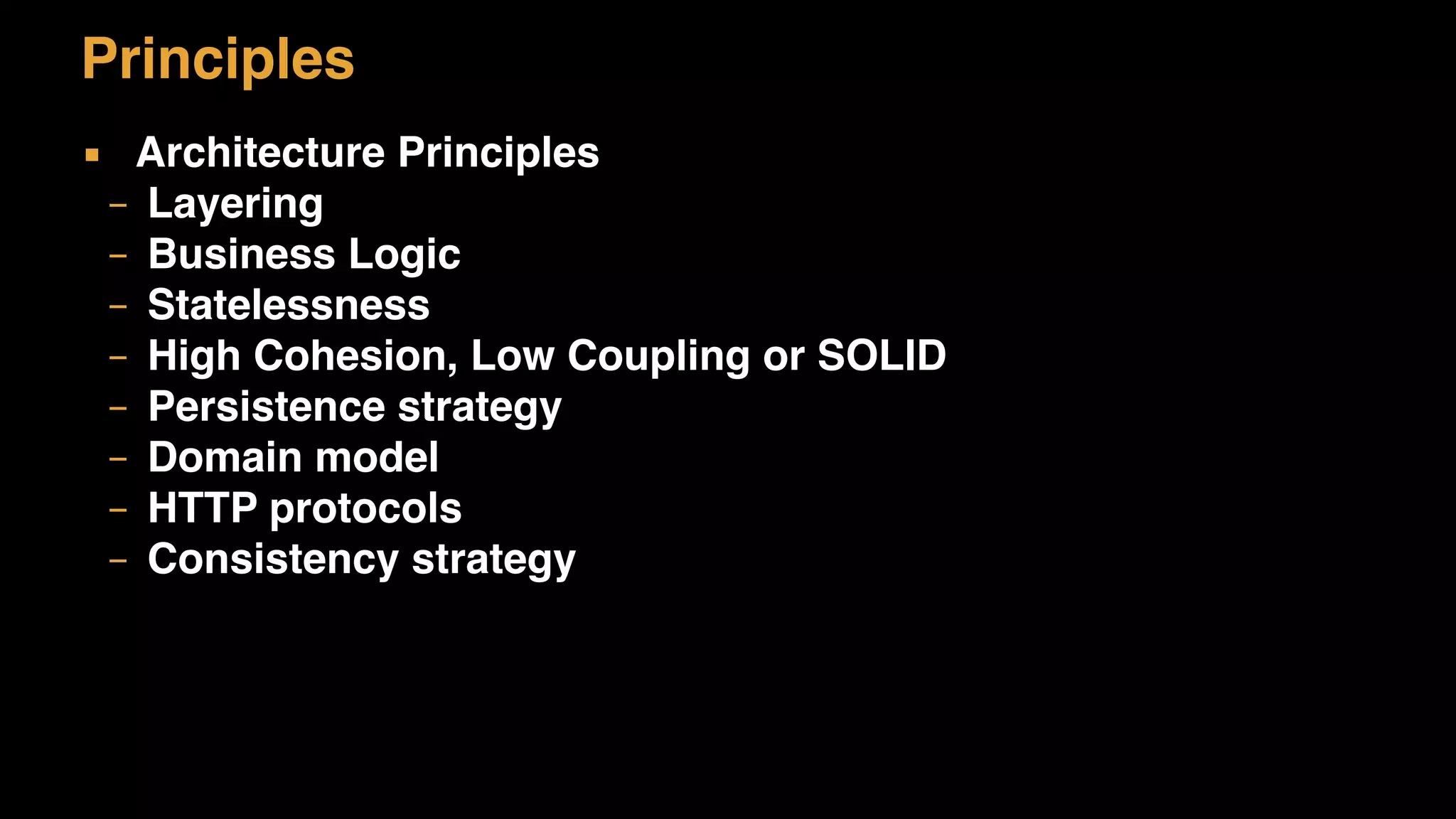

- 42. Principles ▪ Architecture Principles –Layering – Business Logic – Statelessness – High Cohesion, Low Coupling or SOLID – Persistence strategy – Domain model – HTTP protocols – Consistency strategy

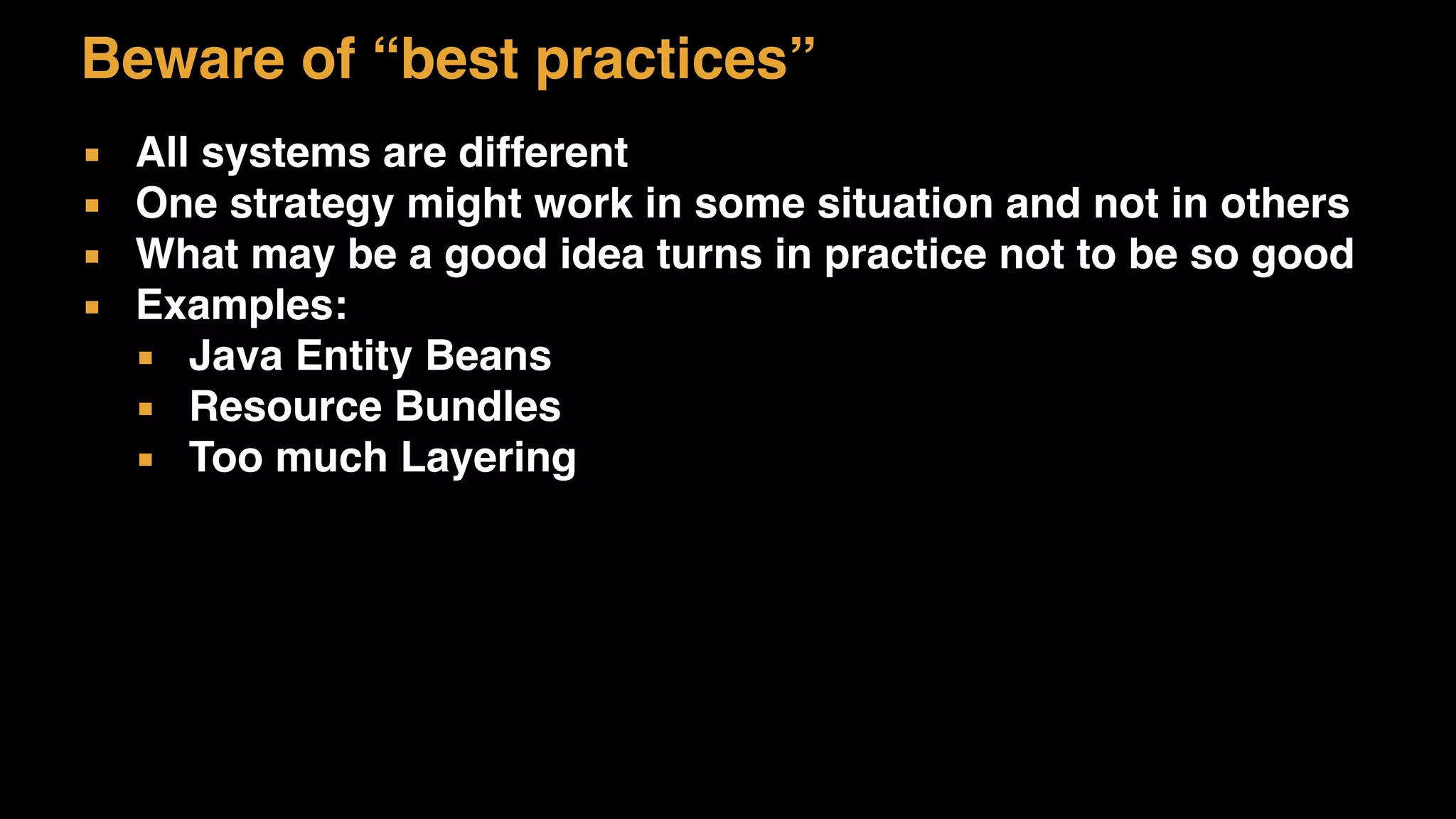

- 43. Beware of “bestpractices” ▪ All systems are different ▪ One strategy might work in some situation and not in others ▪ What may be a good idea turns in practice not to be so good ▪ Examples: ▪ Java Entity Beans ▪ Resource Bundles ▪ Too much Layering
