1. Requirements Are Optional,
Right?
A DISCUSSION ON THE
SCIENTIFIC ART OF
REQUIREMENTS ANALYSIS
THOM STRATTON
SR. BUSINESS SYSTEMS ANALYST
SUPERVALU, INC.

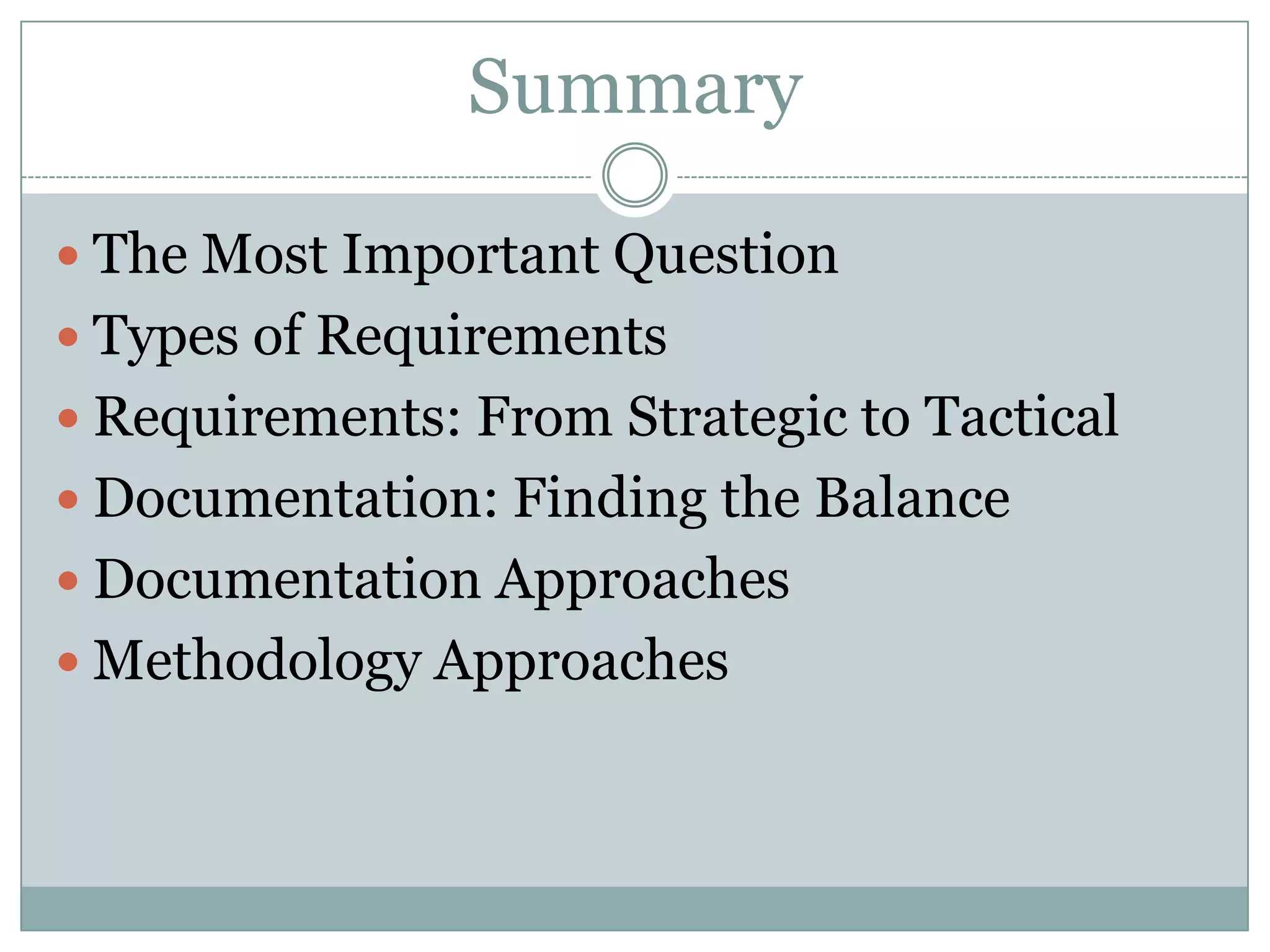

2. Summary
 The Most Important Question
 Types of Requirements
 Requirements: From Strategic to Tactical
 Documentation: Finding the Balance
 Documentation Approaches
 Methodology Approaches

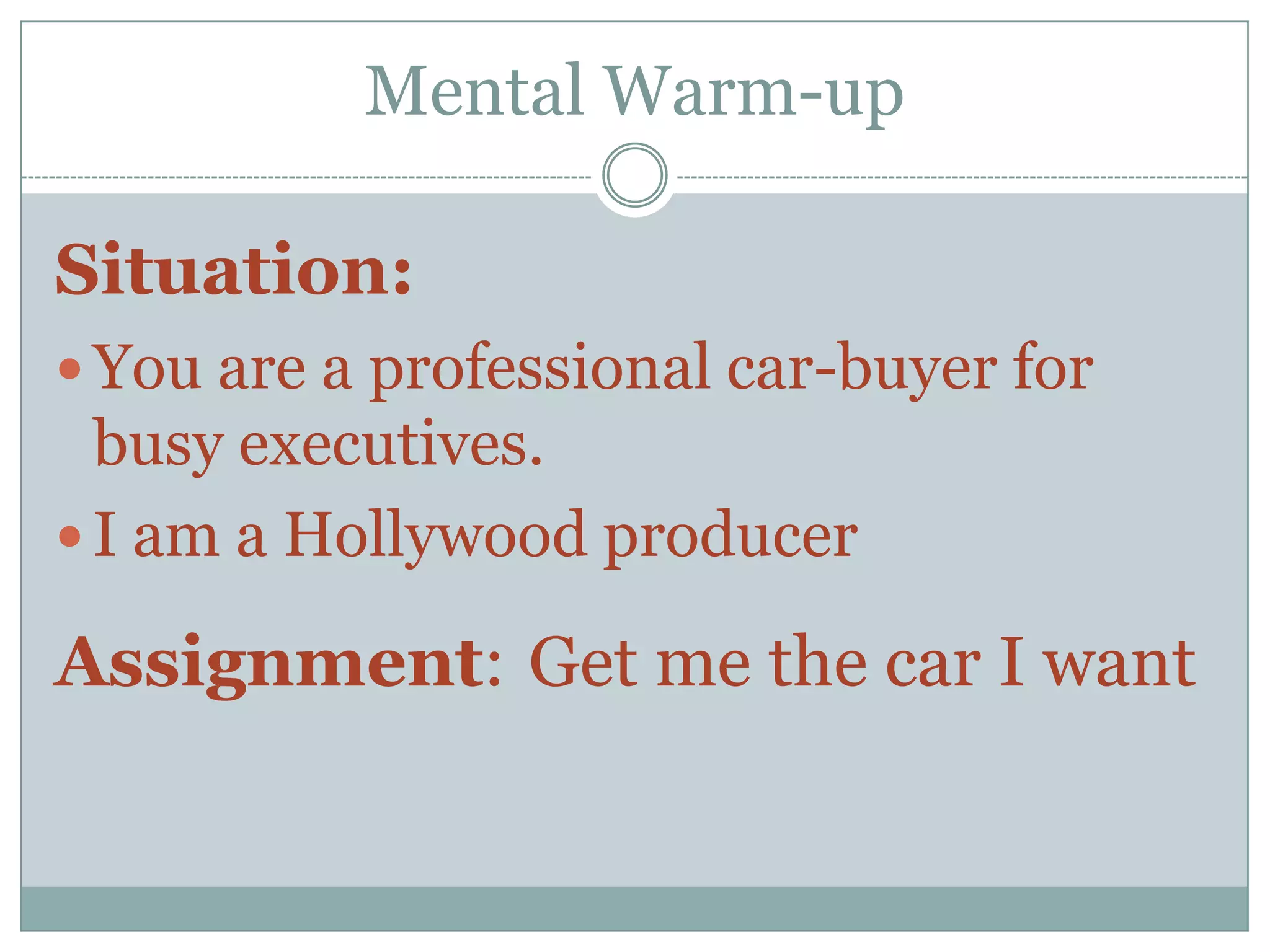

3. Mental Warm-up
Situation:
 You are a professional car-buyer for
busy executives.
 I am a Hollywood producer
Assignment: Get me the car I want

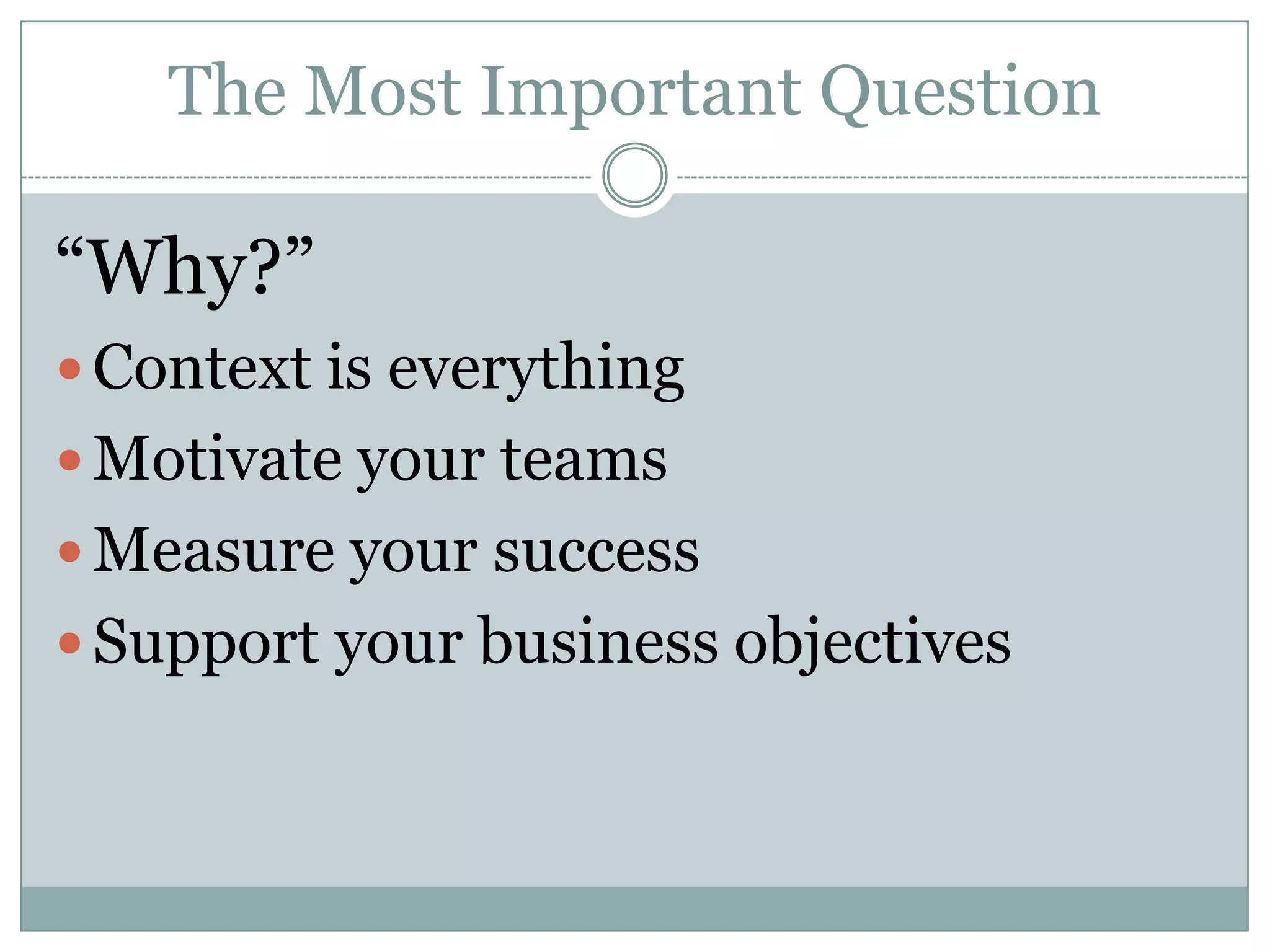

4. The Most Important Question
“Why?”
 Context is everything
 Motivate your teams
 Measure your success
 Support your business objectives

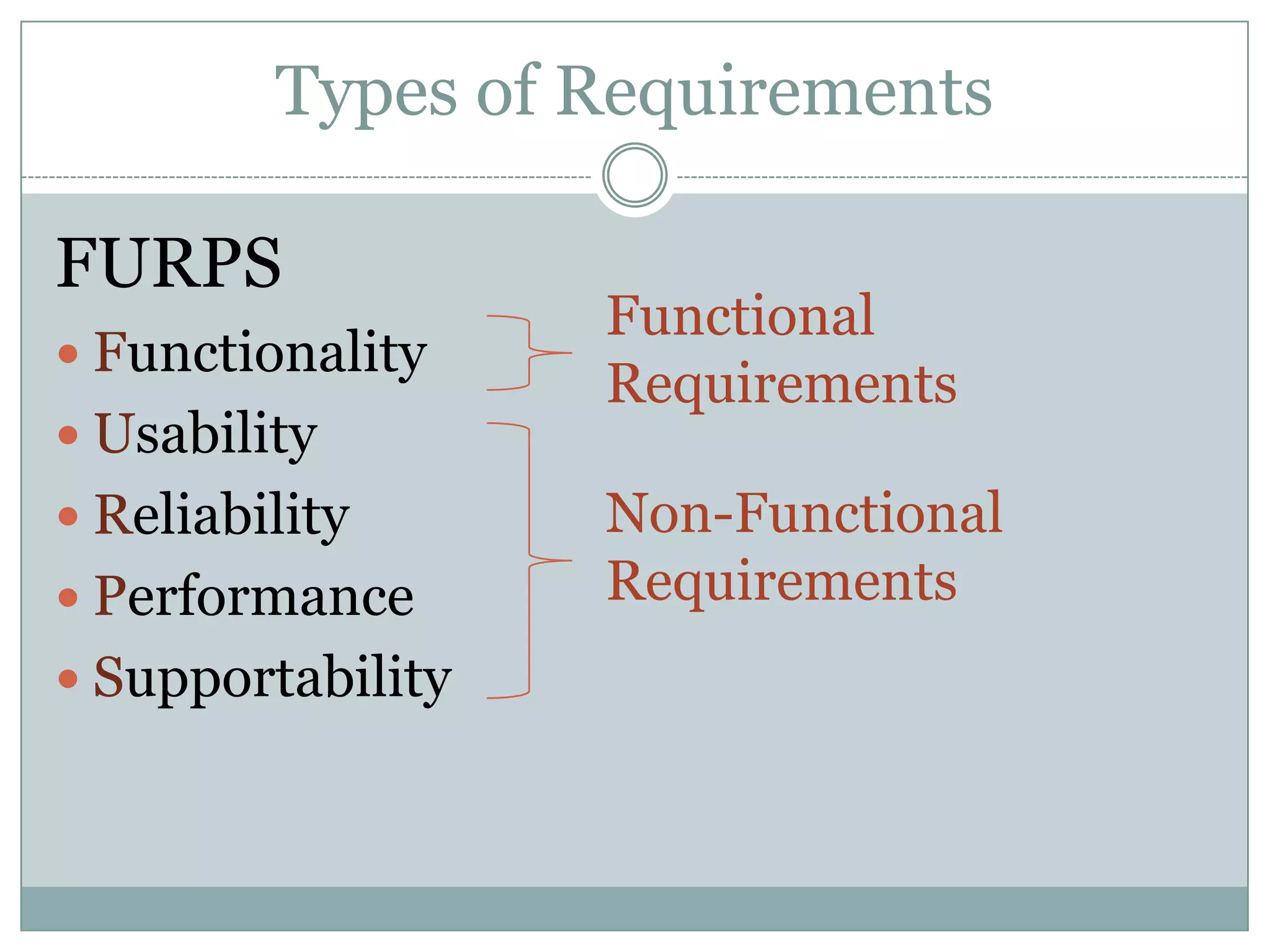

5. Types of Requirements
FURPS
Functional
 Functionality
Requirements
 Usability
 Reliability Non-Functional
 Performance Requirements
 Supportability

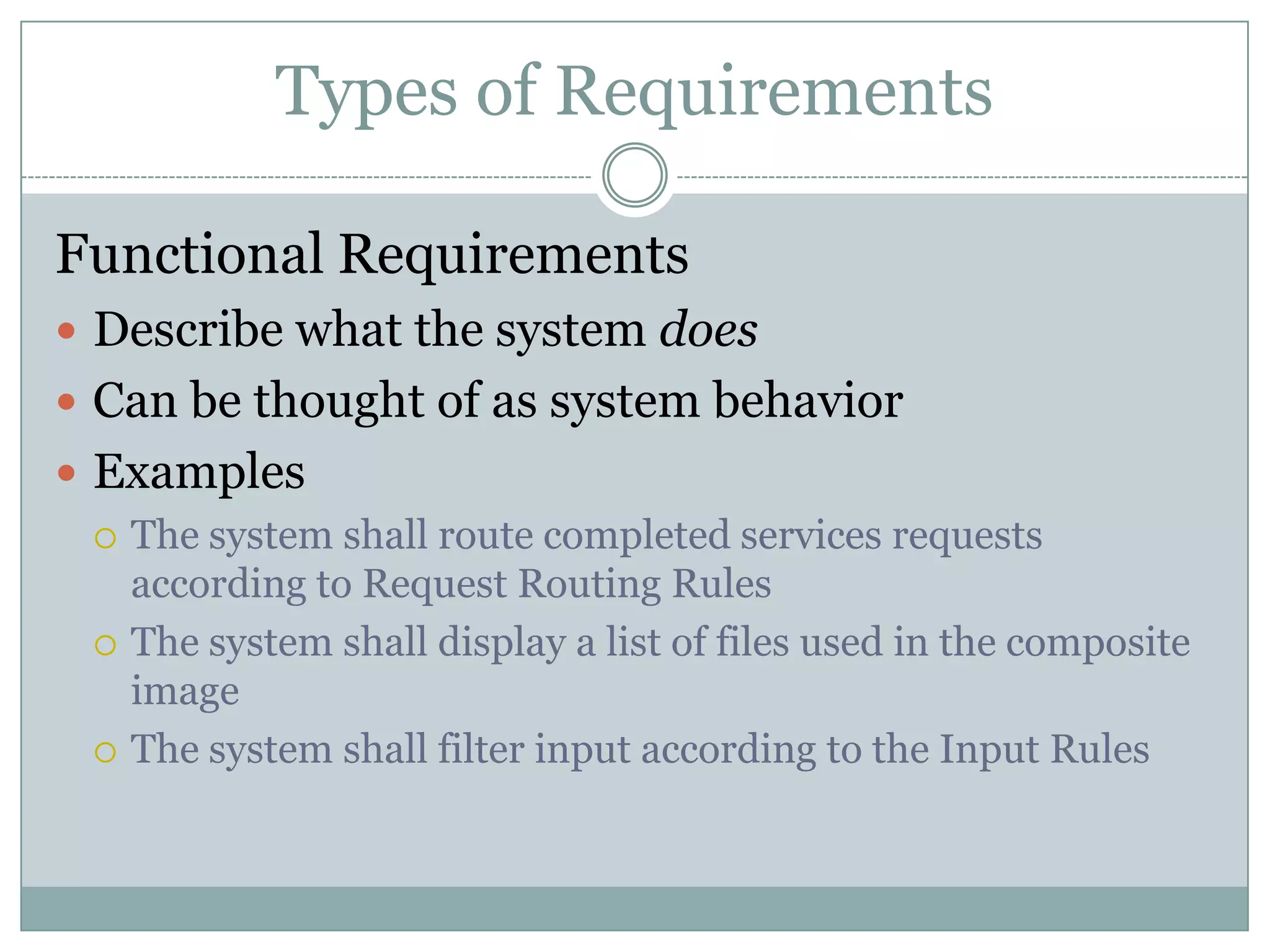

6. Types of Requirements
Functional Requirements
 Describe what the system does
 Can be thought of as system behavior
 Examples
 The system shall route completed services requests
according to Request Routing Rules
 The system shall display a list of files used in the composite
 The system shall filter input according to the Input Rules

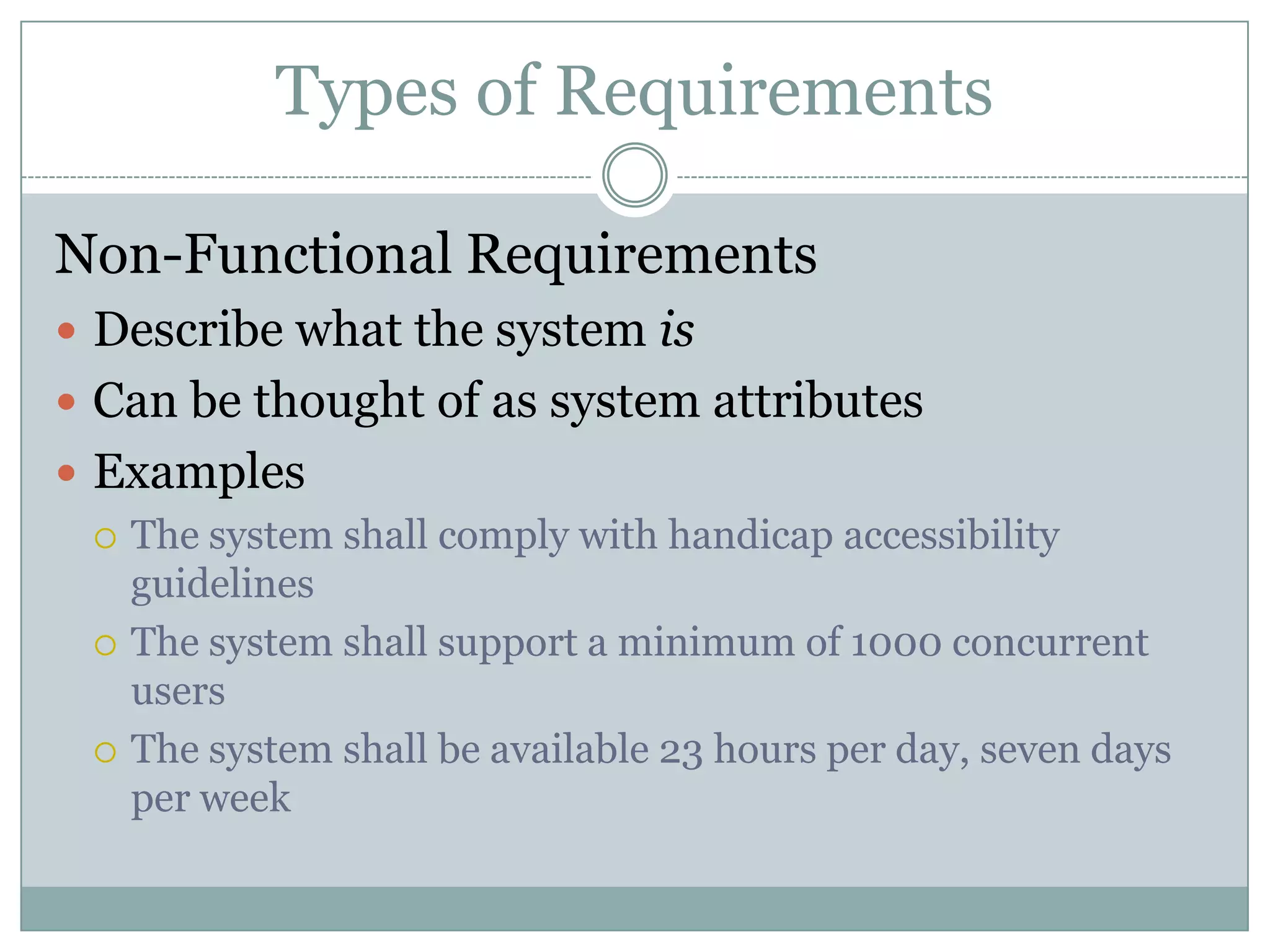

7. Types of Requirements
Non-Functional Requirements
 Describe what the system is
 Can be thought of as system attributes
 Examples
 The system shall comply with handicap accessibility
guidelines
 The system shall support a minimum of 1000 concurrent
users
 The system shall be available 23 hours per day, seven days
per week

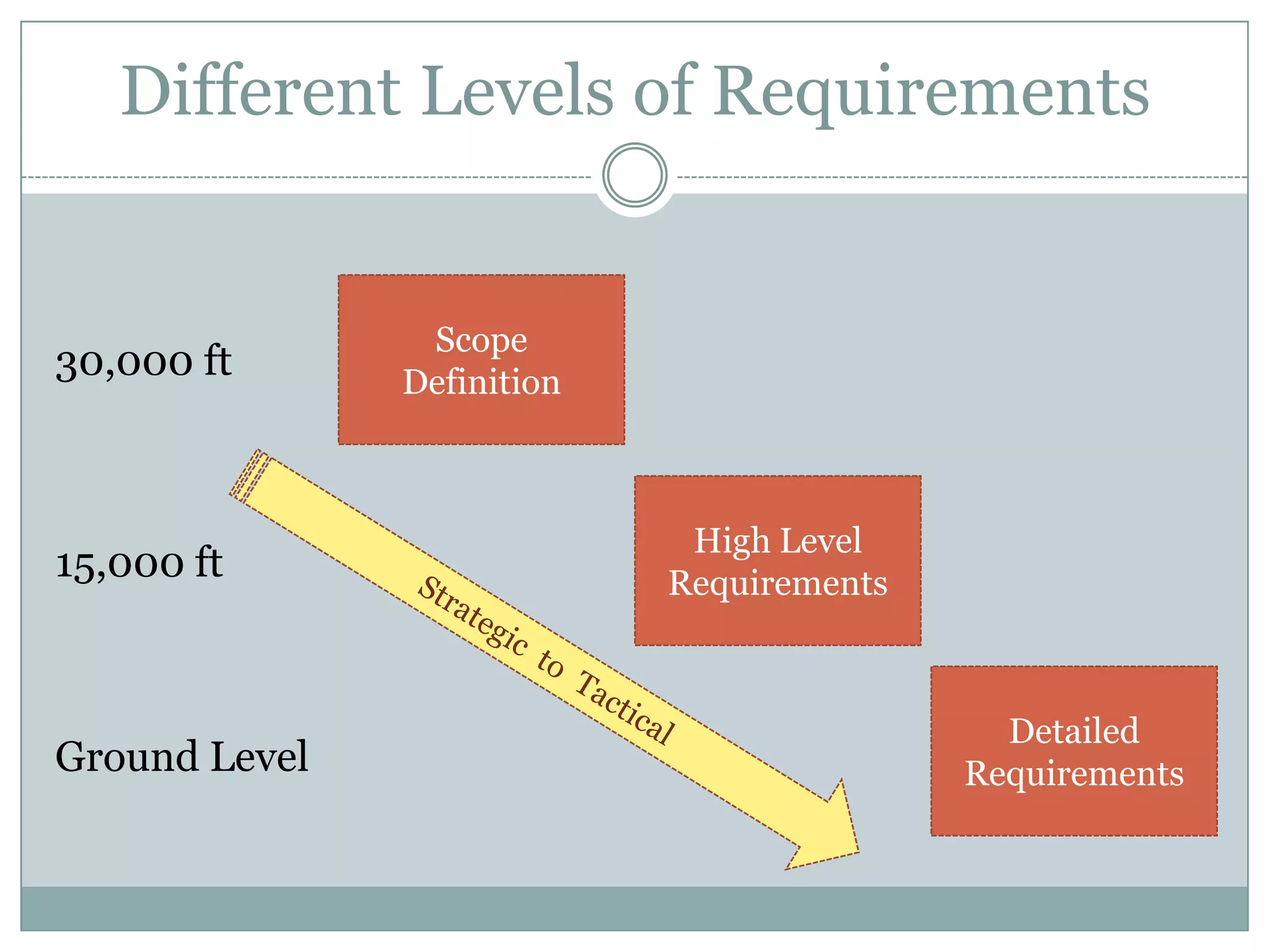

8. Different Levels of Requirements
Scope
30,000 ft Definition
High Level
15,000 ft Requirements
Detailed
Ground Level Requirements

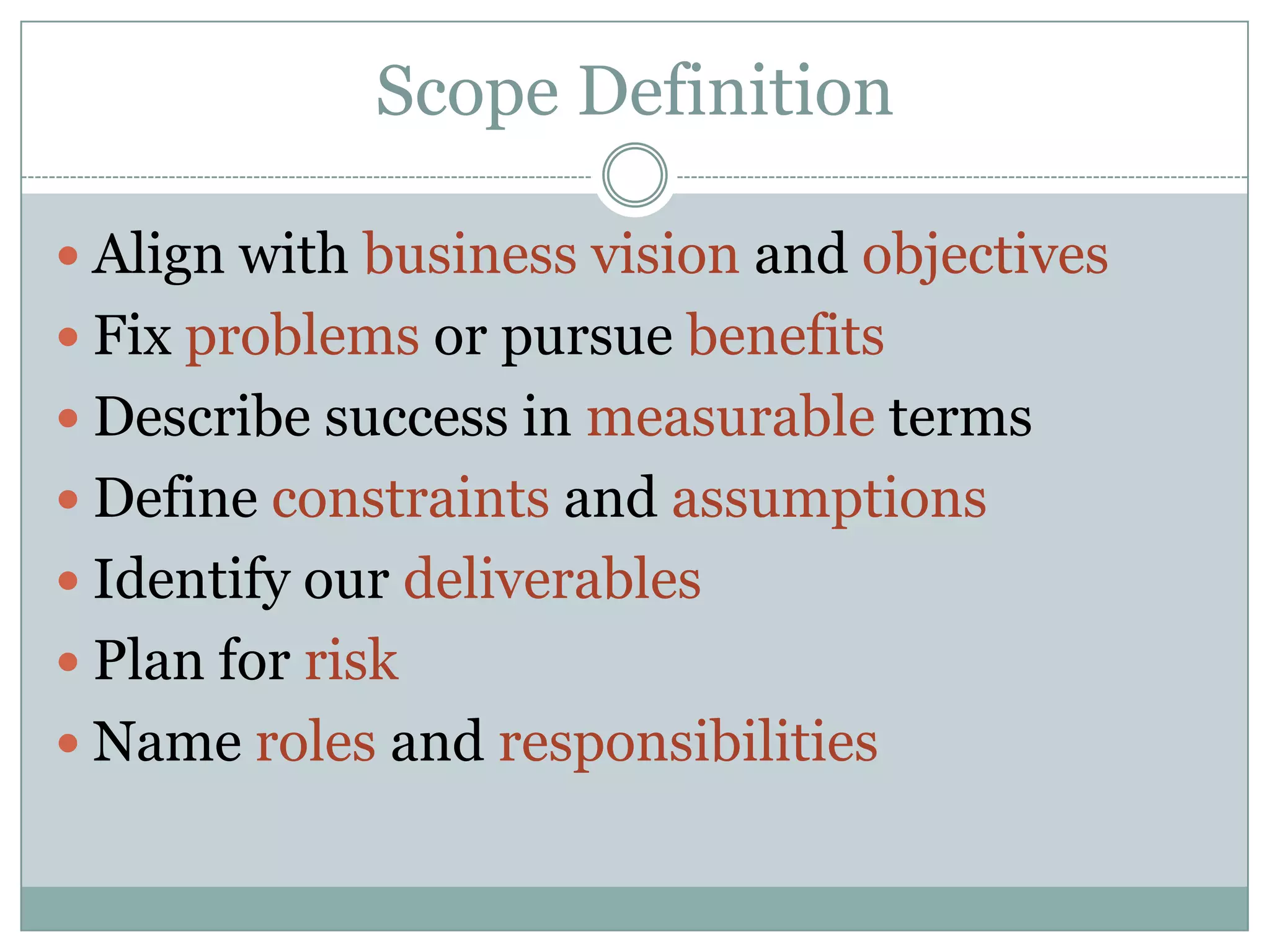

9. Scope Definition
 Align with business vision and objectives
 Fix problems or pursue benefits
 Describe success in measurable terms
 Define constraints and assumptions
 Identify our deliverables
 Plan for risk
 Name roles and responsibilities

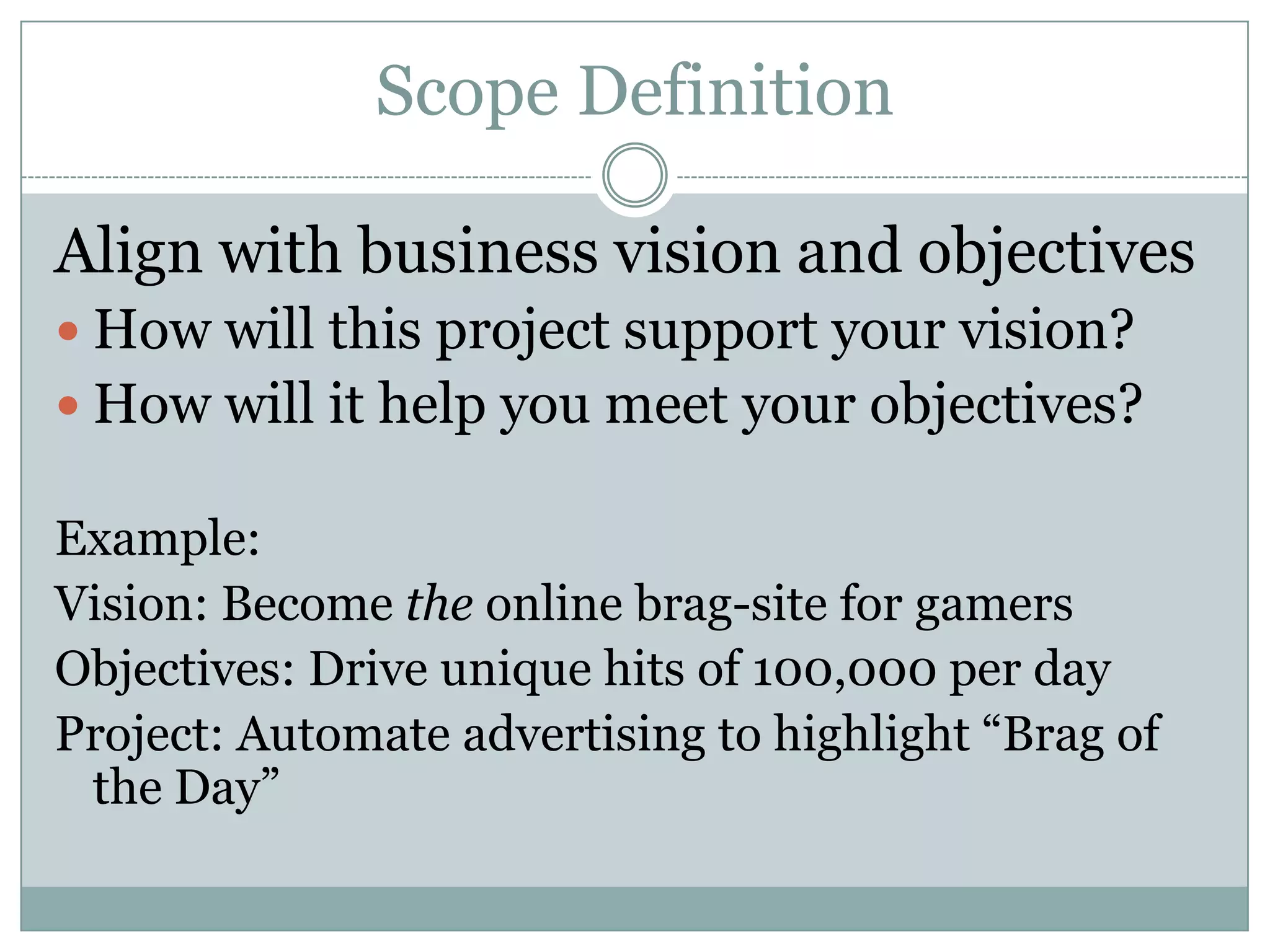

10. Scope Definition
Align with business vision and objectives
 How will this project support your vision?
 How will it help you meet your objectives?
Example:
Vision: Become the online brag-site for gamers
Objectives: Drive unique hits of 100,000 per day
Project: Automate advertising to highlight “Brag of
the Day”

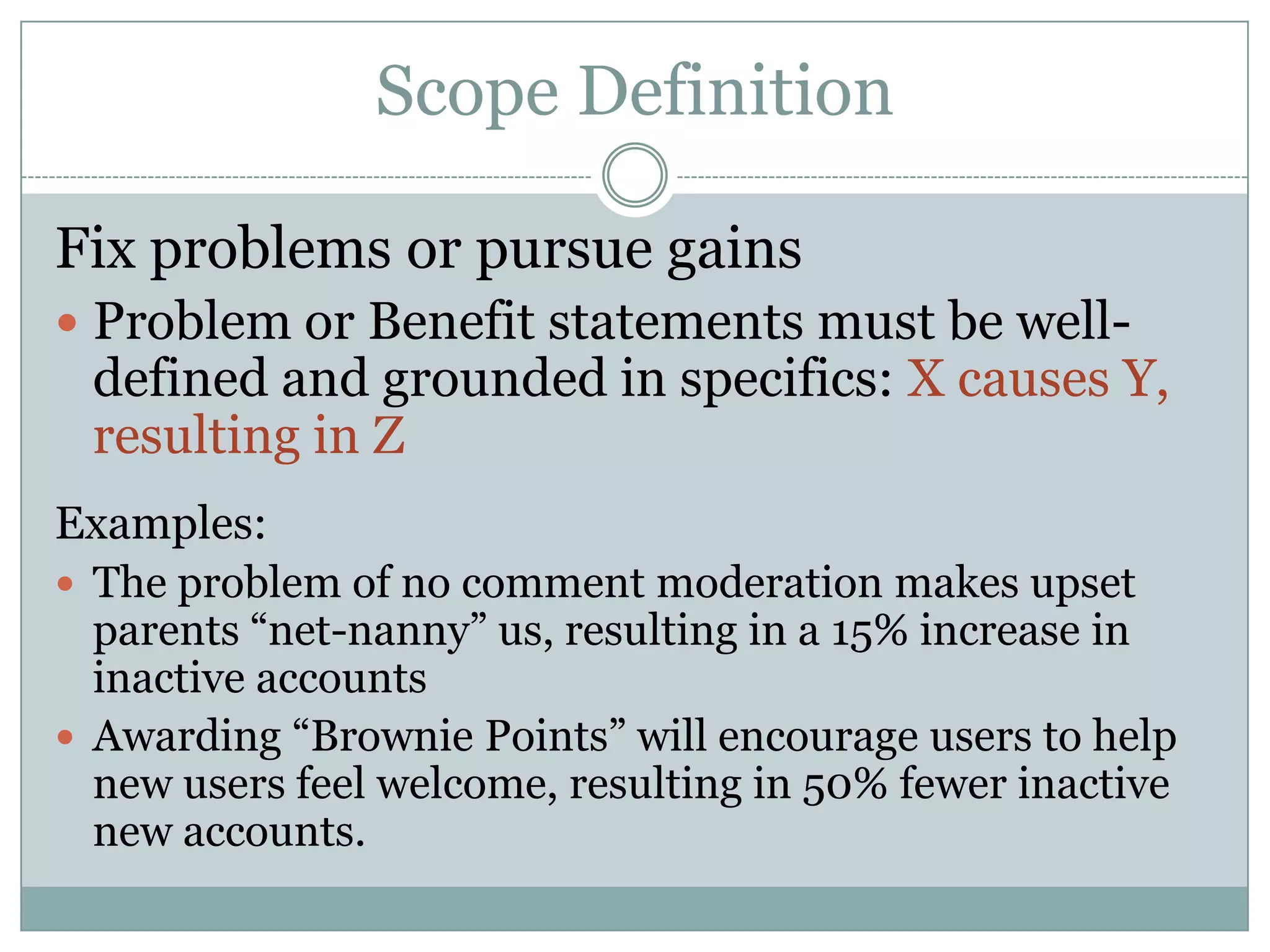

11. Scope Definition
Fix problems or pursue gains
 Problem or Benefit statements must be well-
defined and grounded in specifics: X causes Y,
resulting in Z
Examples:
 The problem of no comment moderation makes upset
parents “net-nanny” us, resulting in a 15% increase in
inactive accounts
 Awarding “Brownie Points” will encourage users to help
new users feel welcome, resulting in 50% fewer inactive
new accounts.

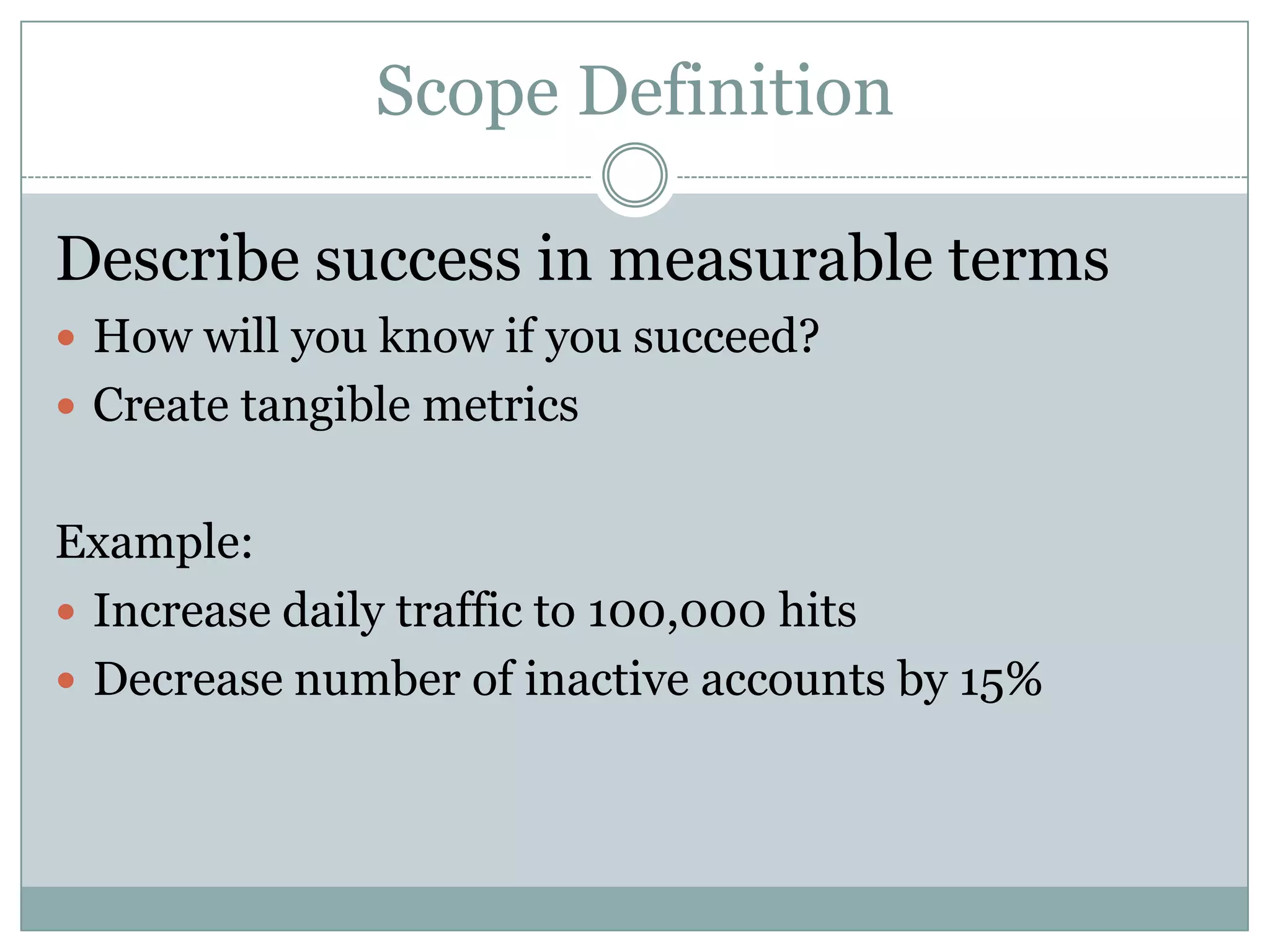

12. Scope Definition
Describe success in measurable terms
 How will you know if you succeed?
 Create tangible metrics
Example:
 Increase daily traffic to 100,000 hits
 Decrease number of inactive accounts by 15%

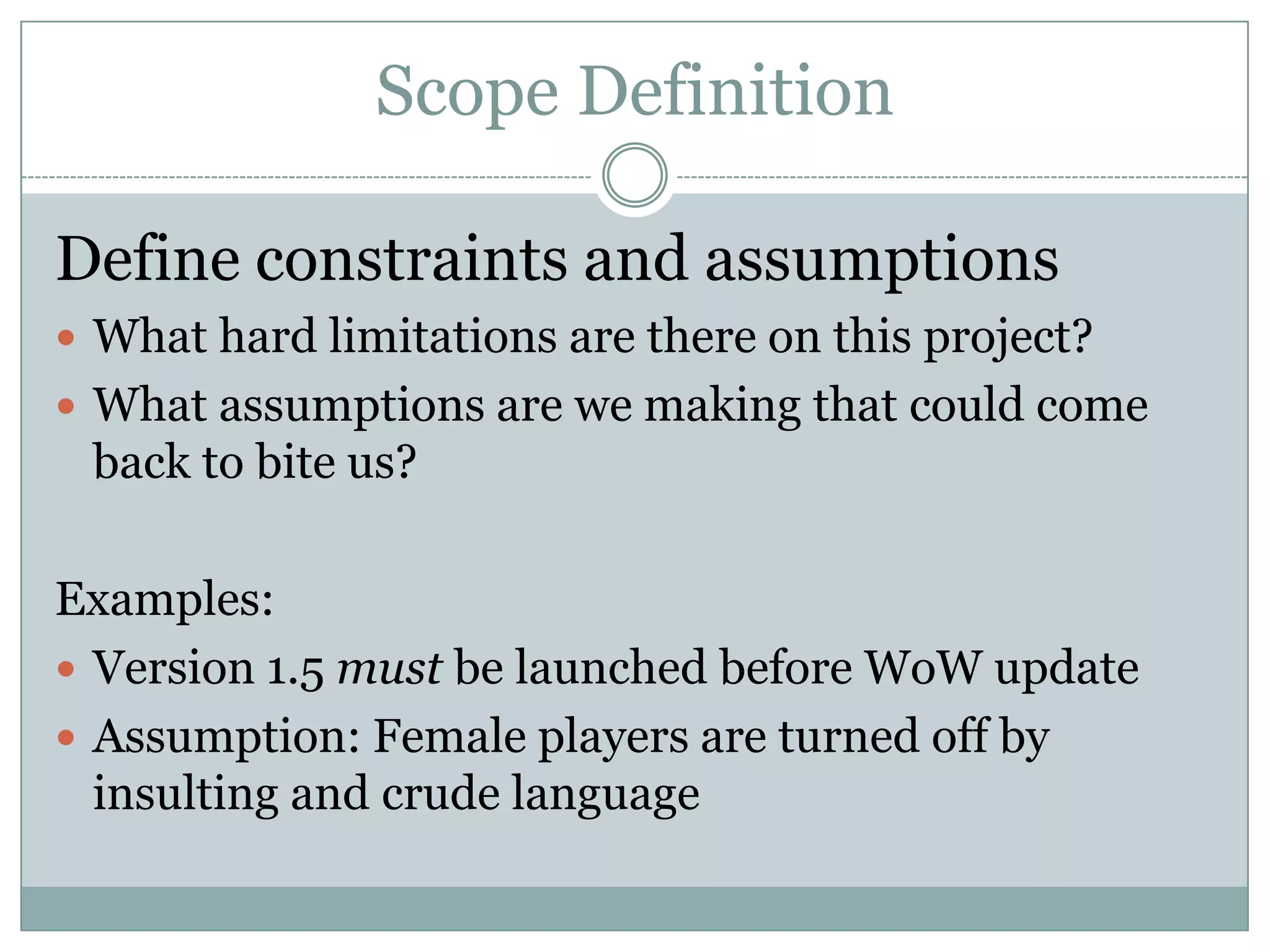

13. Scope Definition
Define constraints and assumptions
 What hard limitations are there on this project?
 What assumptions are we making that could come
back to bite us?
Examples:
 Version 1.5 must be launched before WoW update
 Assumption: Female players are turned off by
insulting and crude language

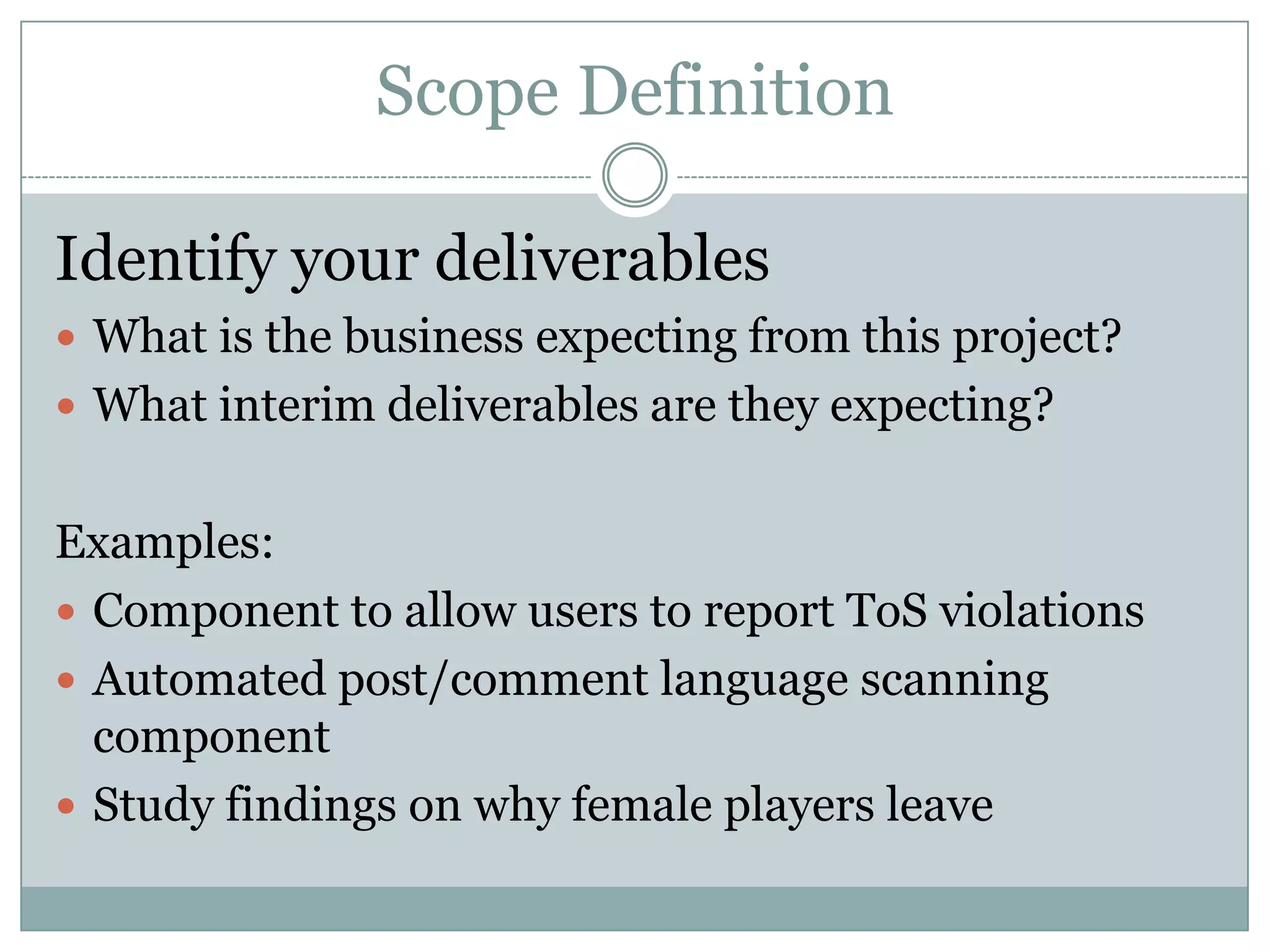

14. Scope Definition
Identify your deliverables
 What is the business expecting from this project?
 What interim deliverables are they expecting?
Examples:
 Component to allow users to report ToS violations
 Automated post/comment language scanning
component
 Study findings on why female players leave

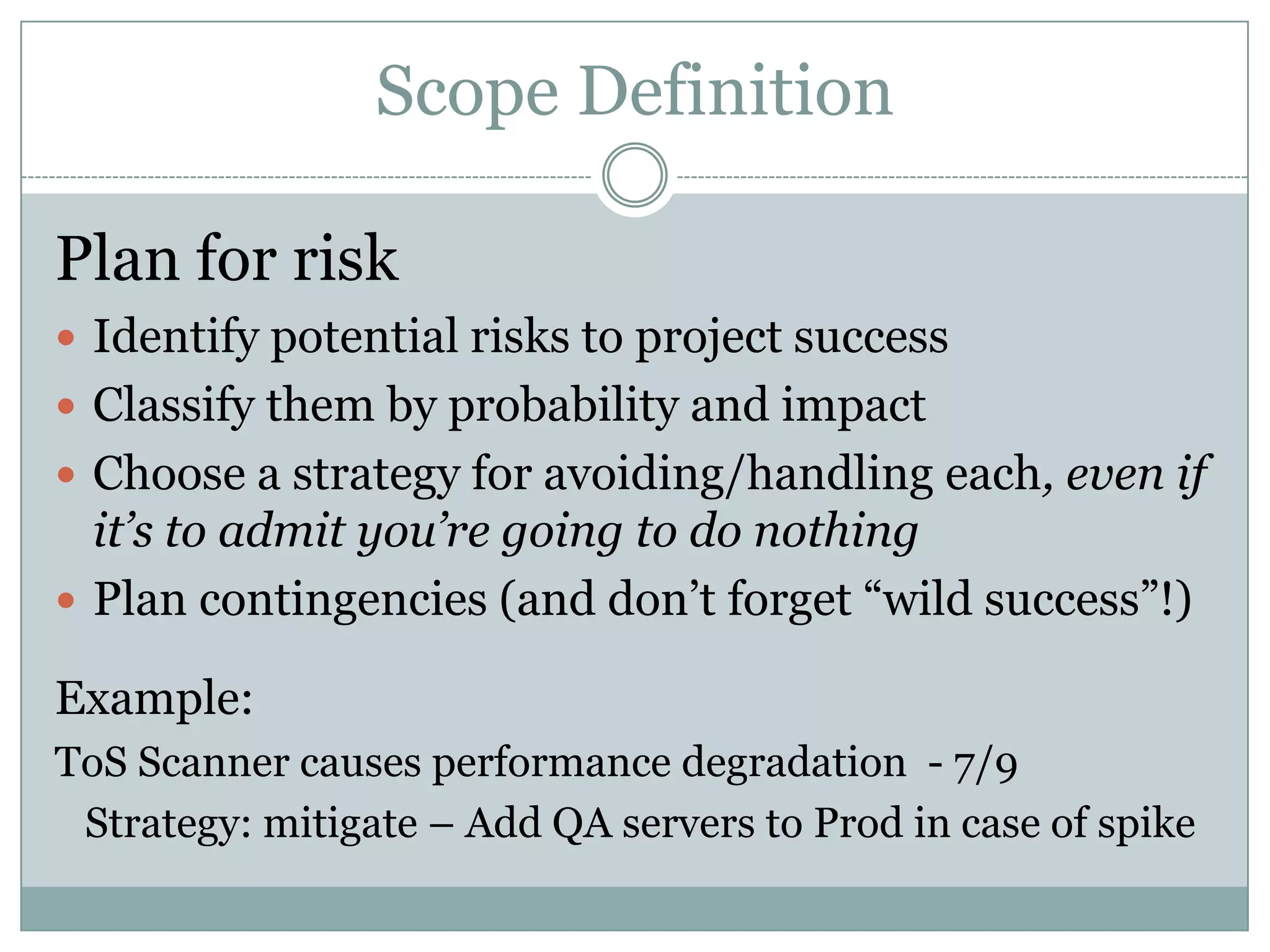

15. Scope Definition
Plan for risk
 Identify potential risks to project success
 Classify them by probability and impact
 Choose a strategy for avoiding/handling each, even if
it’s to admit you’re going to do nothing
 Plan contingencies (and don’t forget “wild success”!)
Example:
ToS Scanner causes performance degradation - 7/9
Strategy: mitigate – Add QA servers to Prod in case of spike

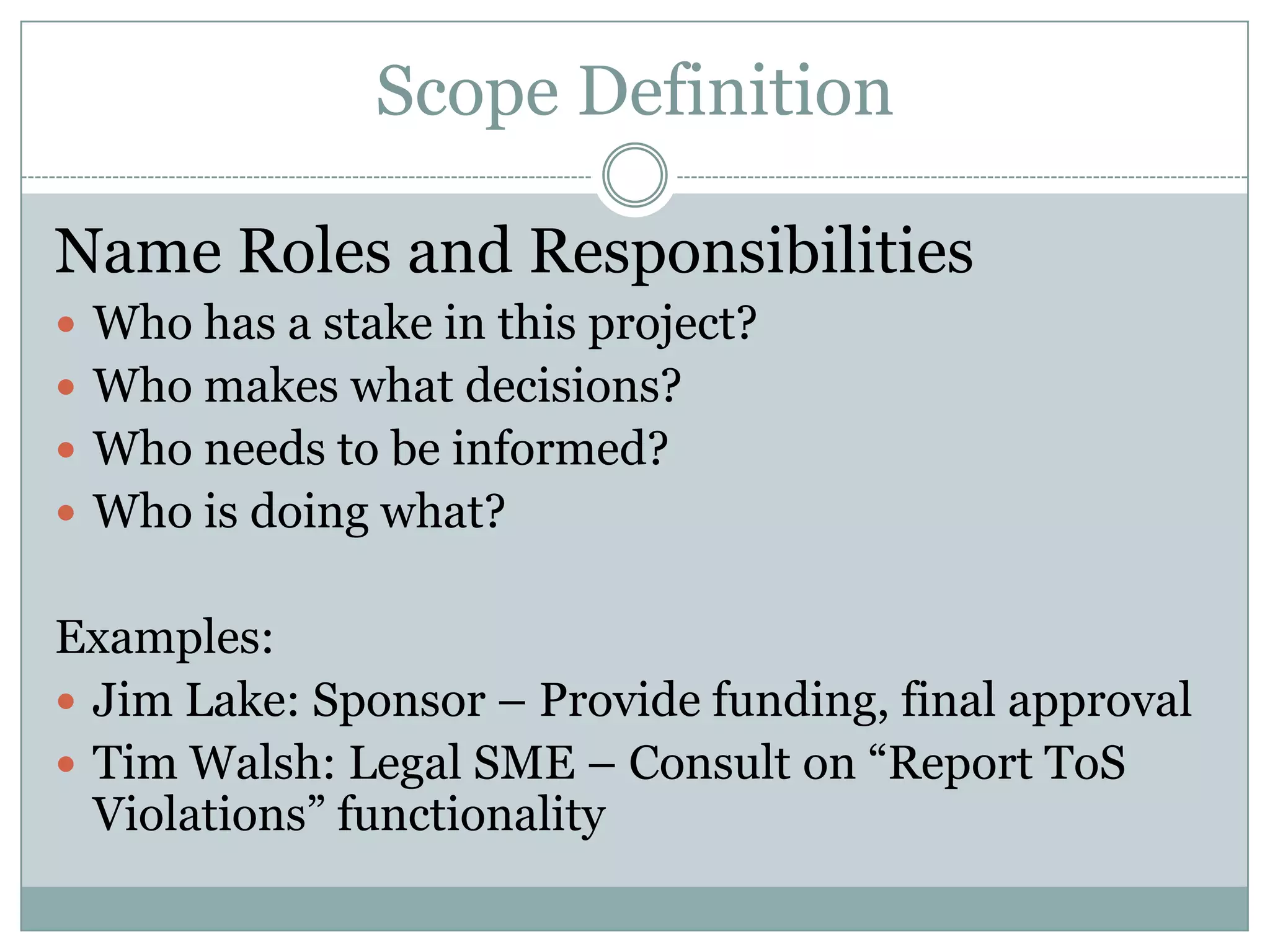

16. Scope Definition
Name Roles and Responsibilities
 Who has a stake in this project?
 Who makes what decisions?
 Who needs to be informed?
 Who is doing what?
Examples:
 Jim Lake: Sponsor – Provide funding, final approval
 Tim Walsh: Legal SME – Consult on “Report ToS
Violations” functionality

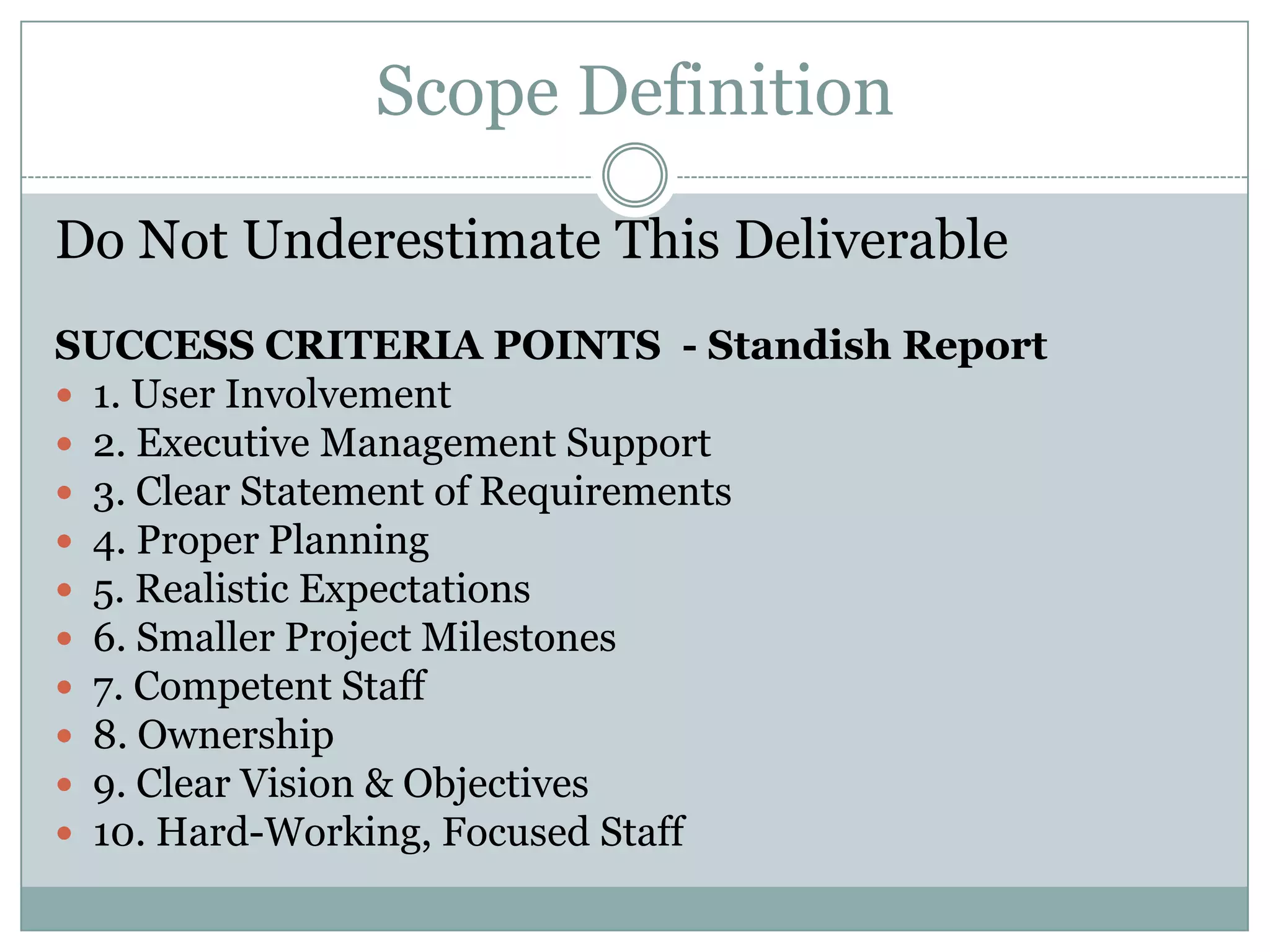

17. Scope Definition
Do Not Underestimate This Deliverable
SUCCESS CRITERIA POINTS - Standish Report
 1. User Involvement
 2. Executive Management Support
 3. Clear Statement of Requirements
 4. Proper Planning
 5. Realistic Expectations
 6. Smaller Project Milestones
 7. Competent Staff
 8. Ownership
 9. Clear Vision & Objectives
 10. Hard-Working, Focused Staff

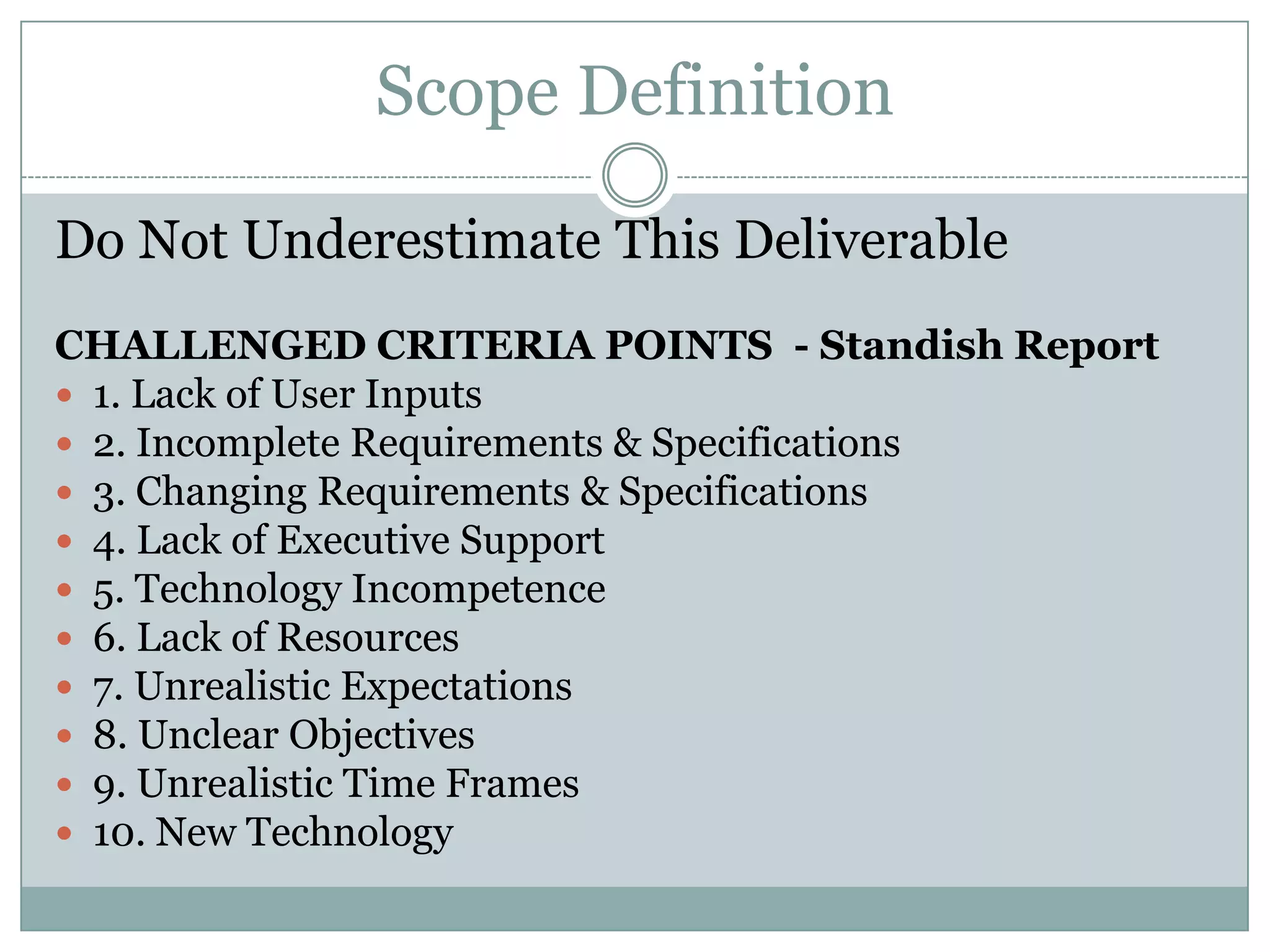

18. Scope Definition
Do Not Underestimate This Deliverable
CHALLENGED CRITERIA POINTS - Standish Report
 1. Lack of User Inputs
 2. Incomplete Requirements & Specifications
 3. Changing Requirements & Specifications
 4. Lack of Executive Support
 5. Technology Incompetence
 6. Lack of Resources
 7. Unrealistic Expectations
 8. Unclear Objectives
 9. Unrealistic Time Frames
 10. New Technology

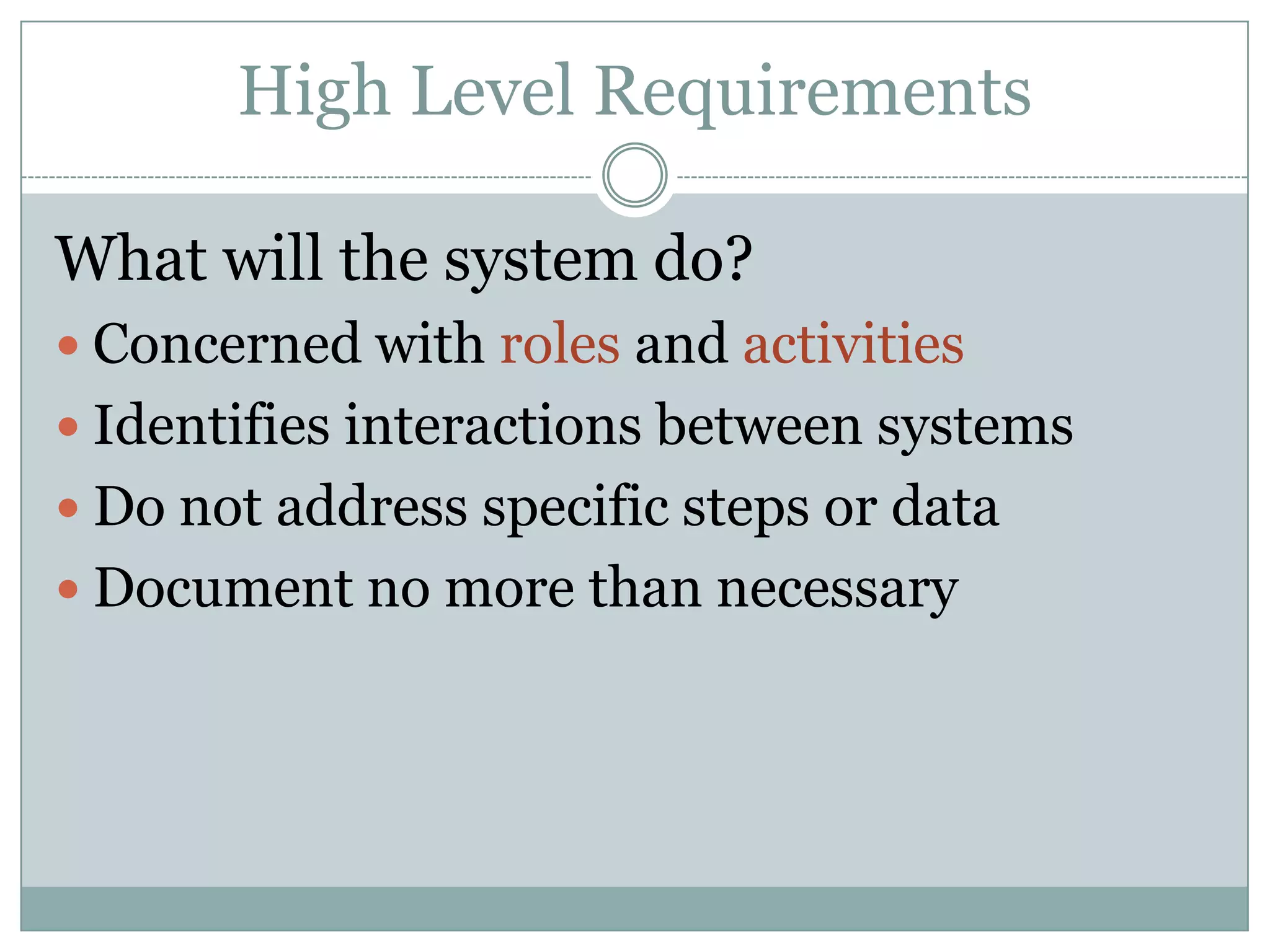

19. High Level Requirements
What will the system do?
 Concerned with roles and activities
 Identifies interactions between systems
 Do not address specific steps or data
 Document no more than necessary

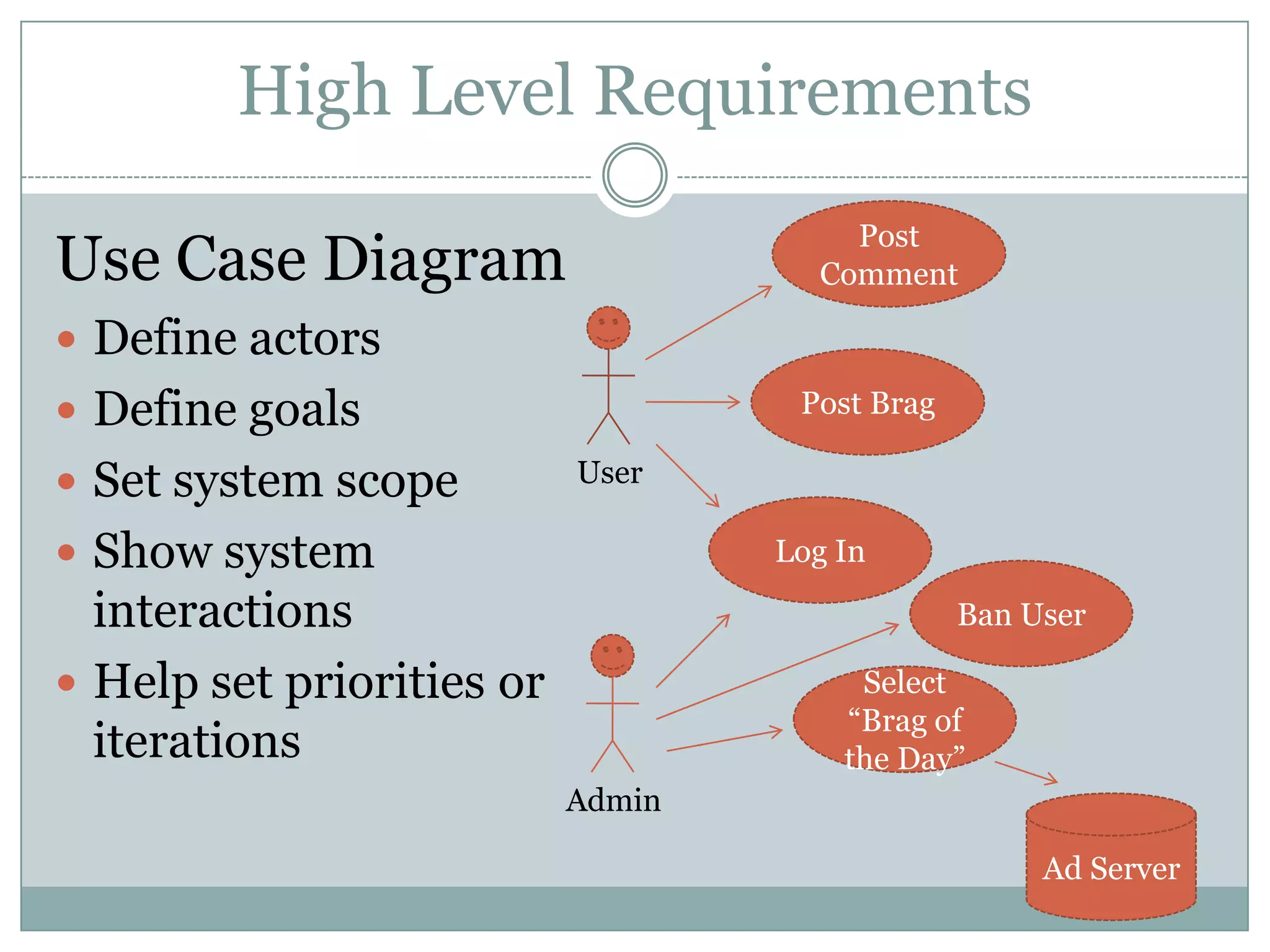

20. High Level Requirements
Post
Use Case Diagram Comment
 Define actors
 Define goals Post Brag
 Set system scope User
 Show system Log In
interactions Ban User
 Help set priorities or Select
“Brag of
iterations the Day”
Admin
Ad Server

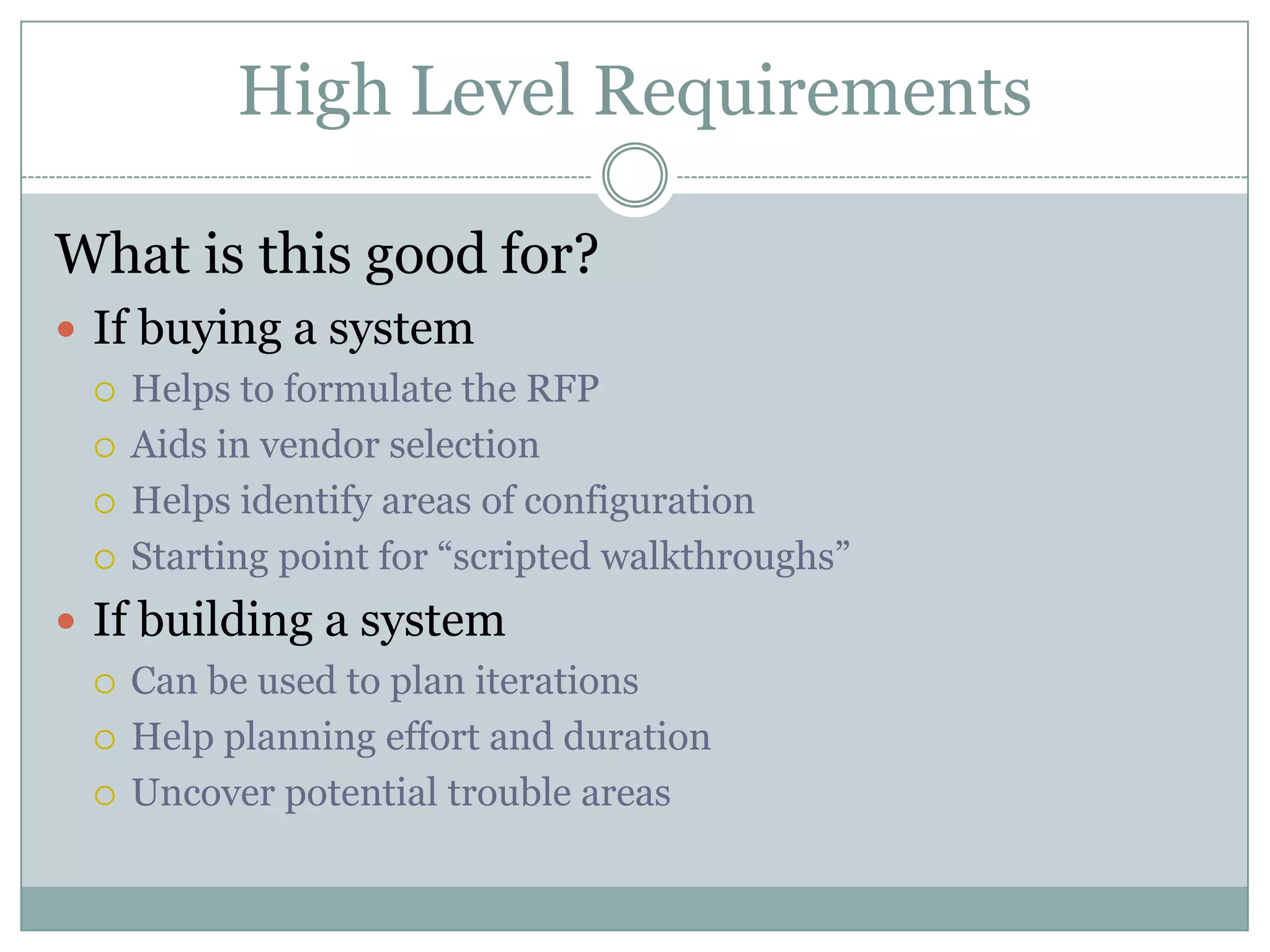

21. High Level Requirements
What is this good for?
 If buying a system
 Helps to formulate the RFP
 Aids in vendor selection
 Helps identify areas of configuration
 Starting point for “scripted walkthroughs”
 If building a system
 Can be used to plan iterations
 Help planning effort and duration
 Uncover potential trouble areas

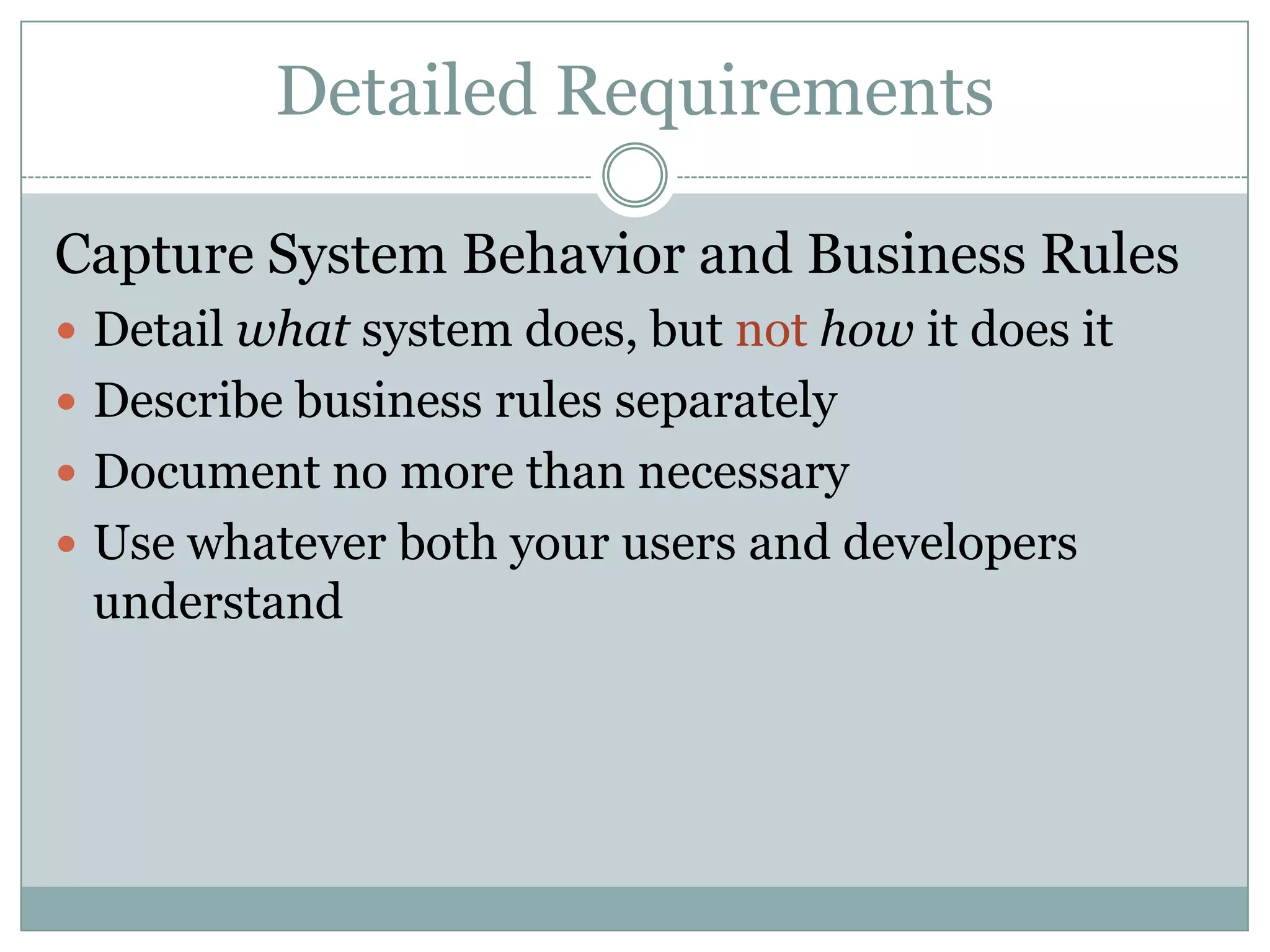

22. Detailed Requirements
Capture System Behavior and Business Rules
 Detail what system does, but not how it does it
 Describe business rules separately
 Document no more than necessary
 Use whatever both your users and developers
understand

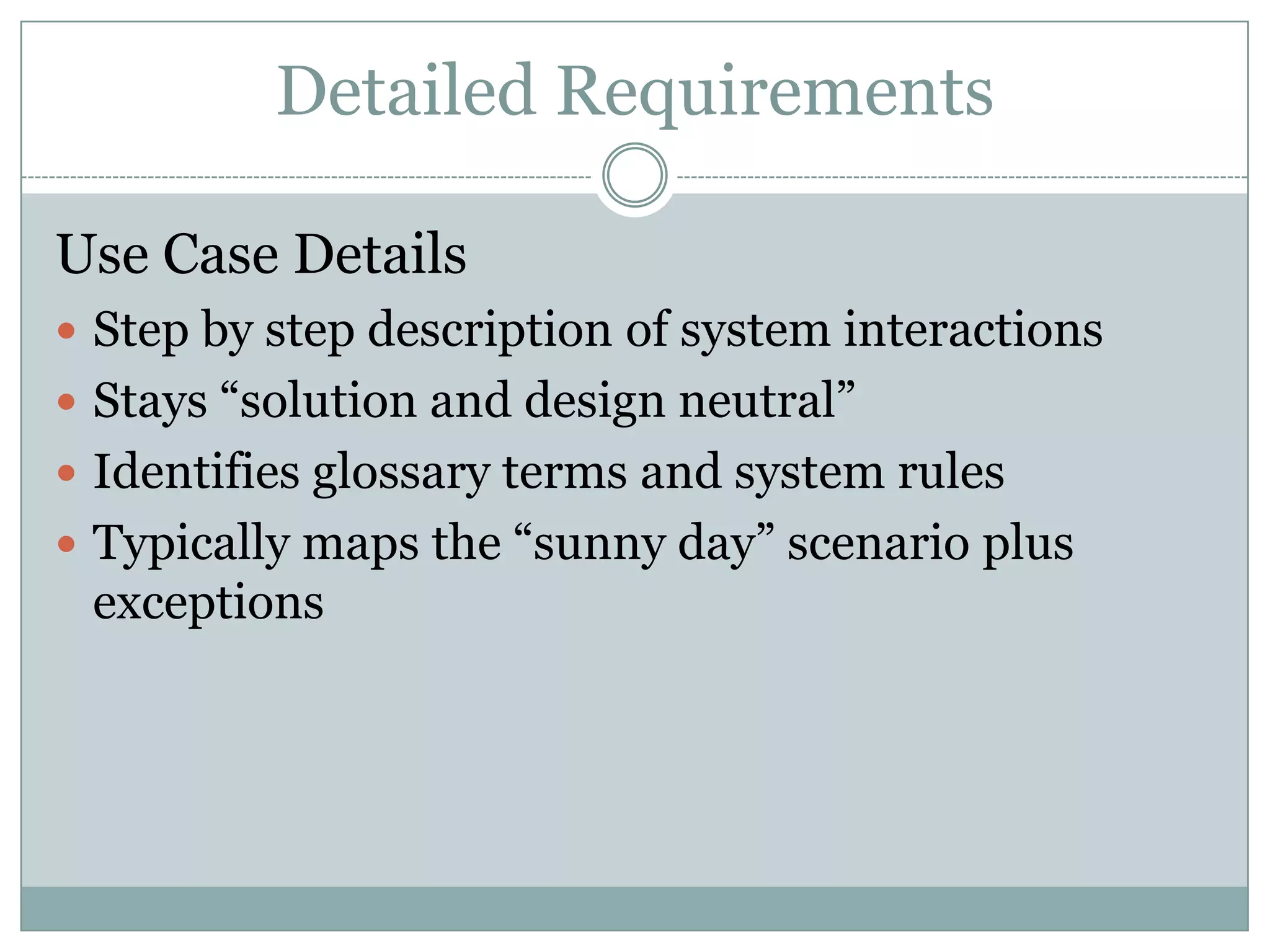

23. Detailed Requirements
Use Case Details
 Step by step description of system interactions
 Stays “solution and design neutral”
 Identifies glossary terms and system rules
 Typically maps the “sunny day” scenario plus
exceptions

24. Detailed Requirements
Example Use Case: Post Brag
1. User selects option to post a brag
2. System prompts the user to select a forum
3. User selects a forum
4. System displays brag entry form
5. User enters Brag Text according to Text Entry Rules and
selects option to submit
6. System checks text according to ToS Filter Rules and
posts brag to selected forum, then prompts user to post
another or exit
7. User selects option to exit
8. System returns user to main page

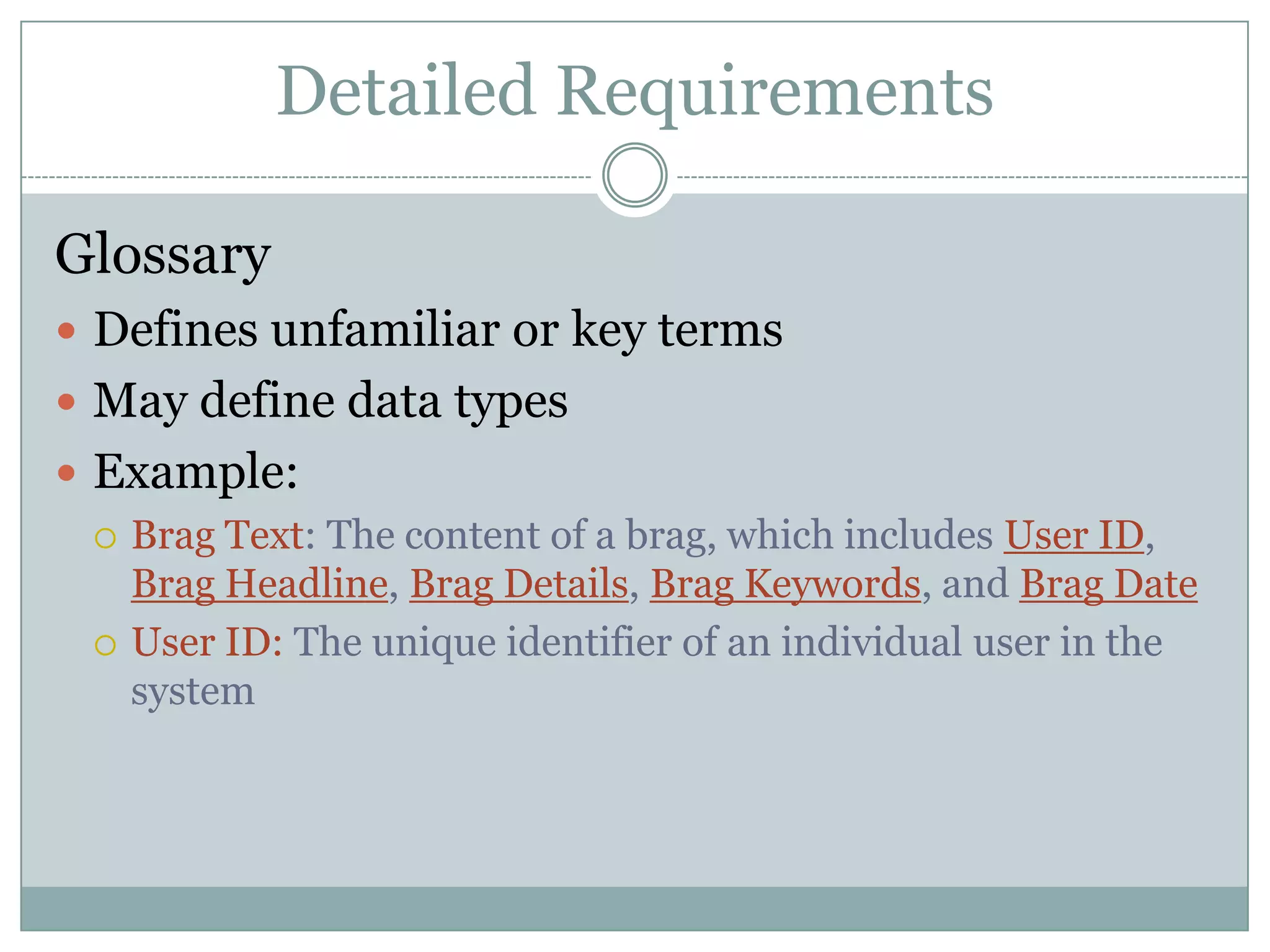

25. Detailed Requirements
Glossary
 Defines unfamiliar or key terms
 May define data types
 Example:
 Brag Text: The content of a brag, which includes User ID,
Brag Headline, Brag Details, Brag Keywords, and Brag Date
 User ID: The unique identifier of an individual user in the
system

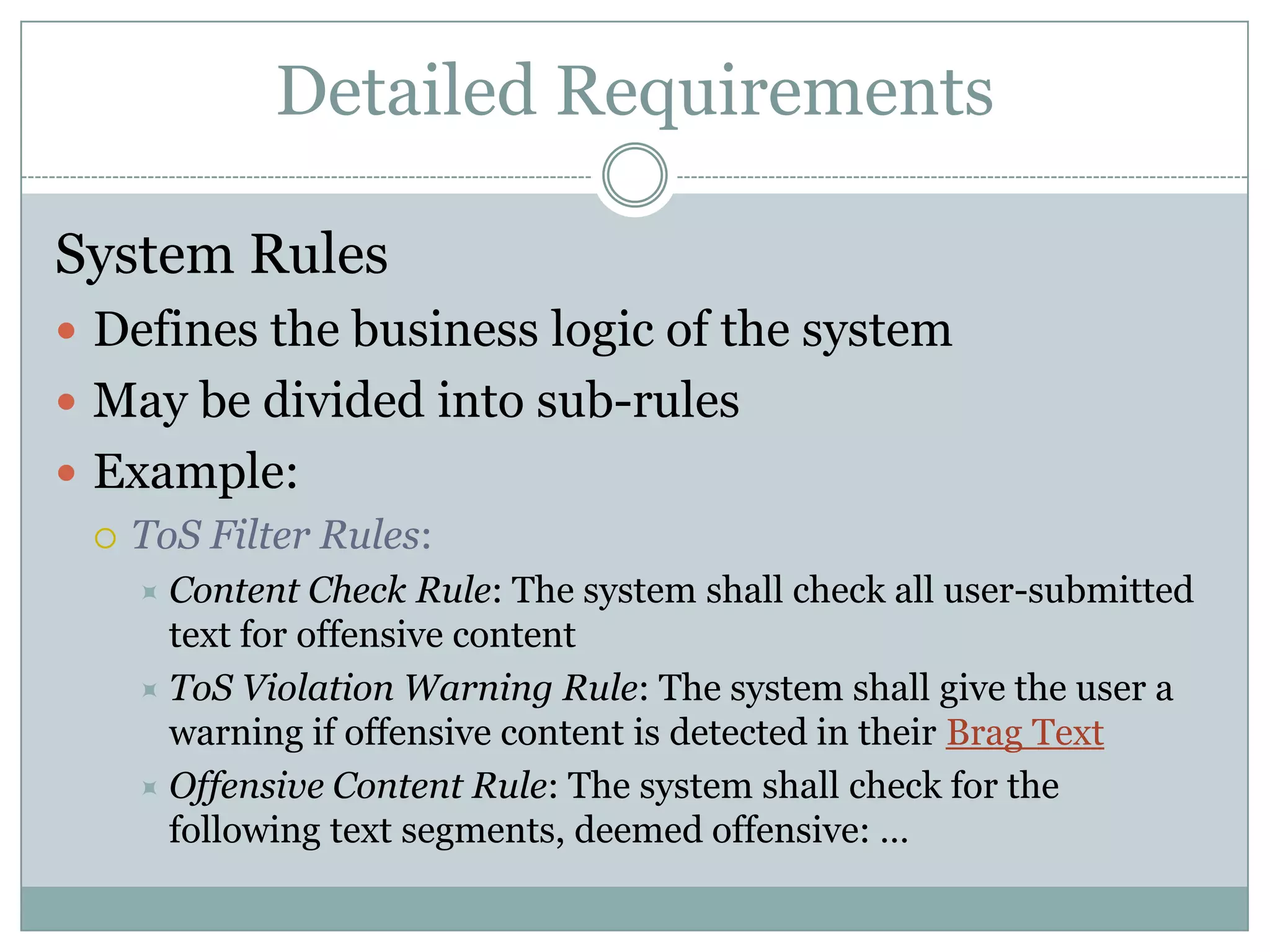

26. Detailed Requirements
System Rules
 Defines the business logic of the system
 May be divided into sub-rules
 Example:
 ToS Filter Rules:
 Content Check Rule: The system shall check all user-submitted
text for offensive content
 ToS Violation Warning Rule: The system shall give the user a
warning if offensive content is detected in their Brag Text
 Offensive Content Rule: The system shall check for the
following text segments, deemed offensive: …

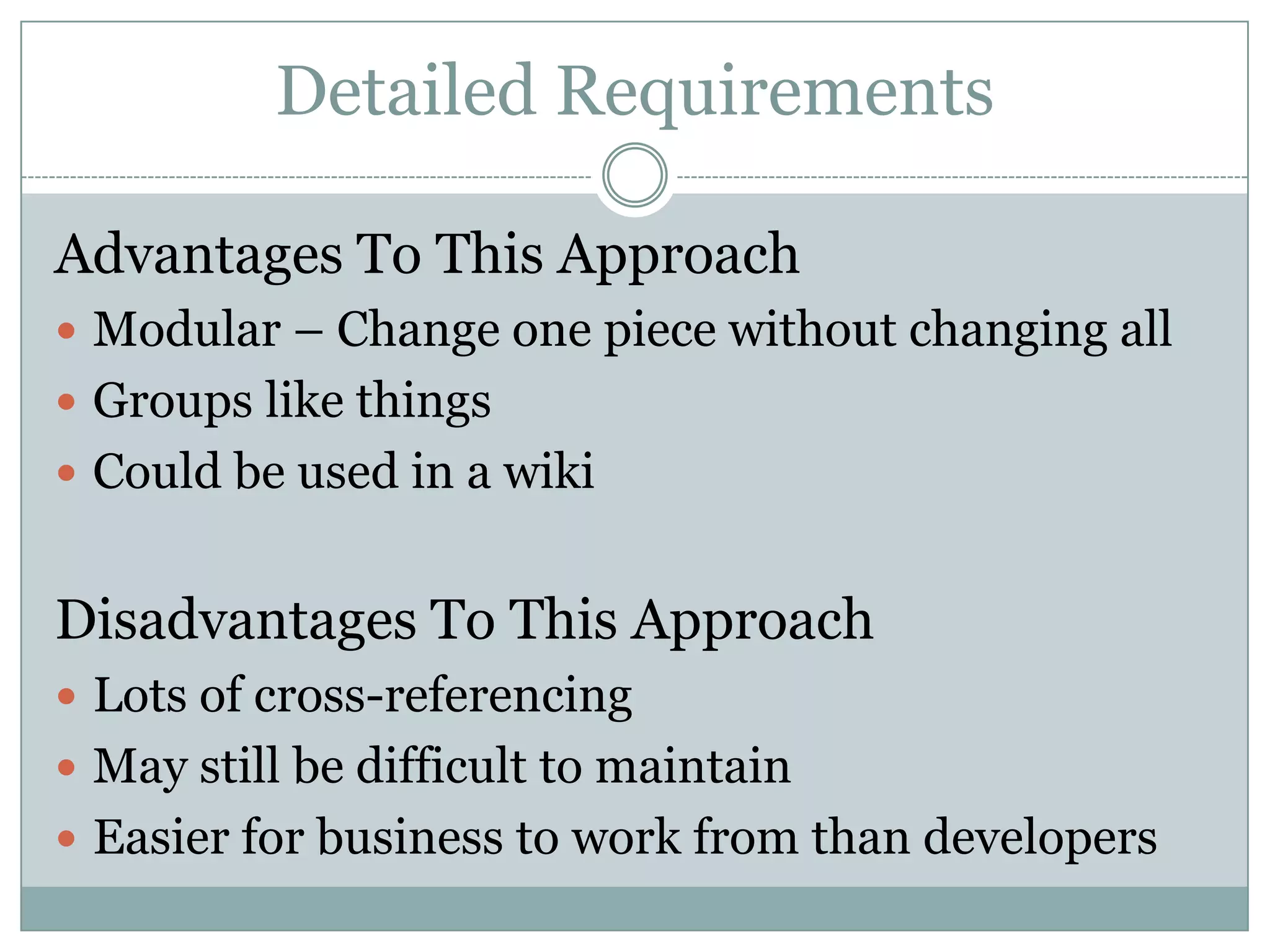

27. Detailed Requirements
Advantages To This Approach
 Modular – Change one piece without changing all
 Groups like things
 Could be used in a wiki
Disadvantages To This Approach
 Lots of cross-referencing
 May still be difficult to maintain
 Easier for business to work from than developers

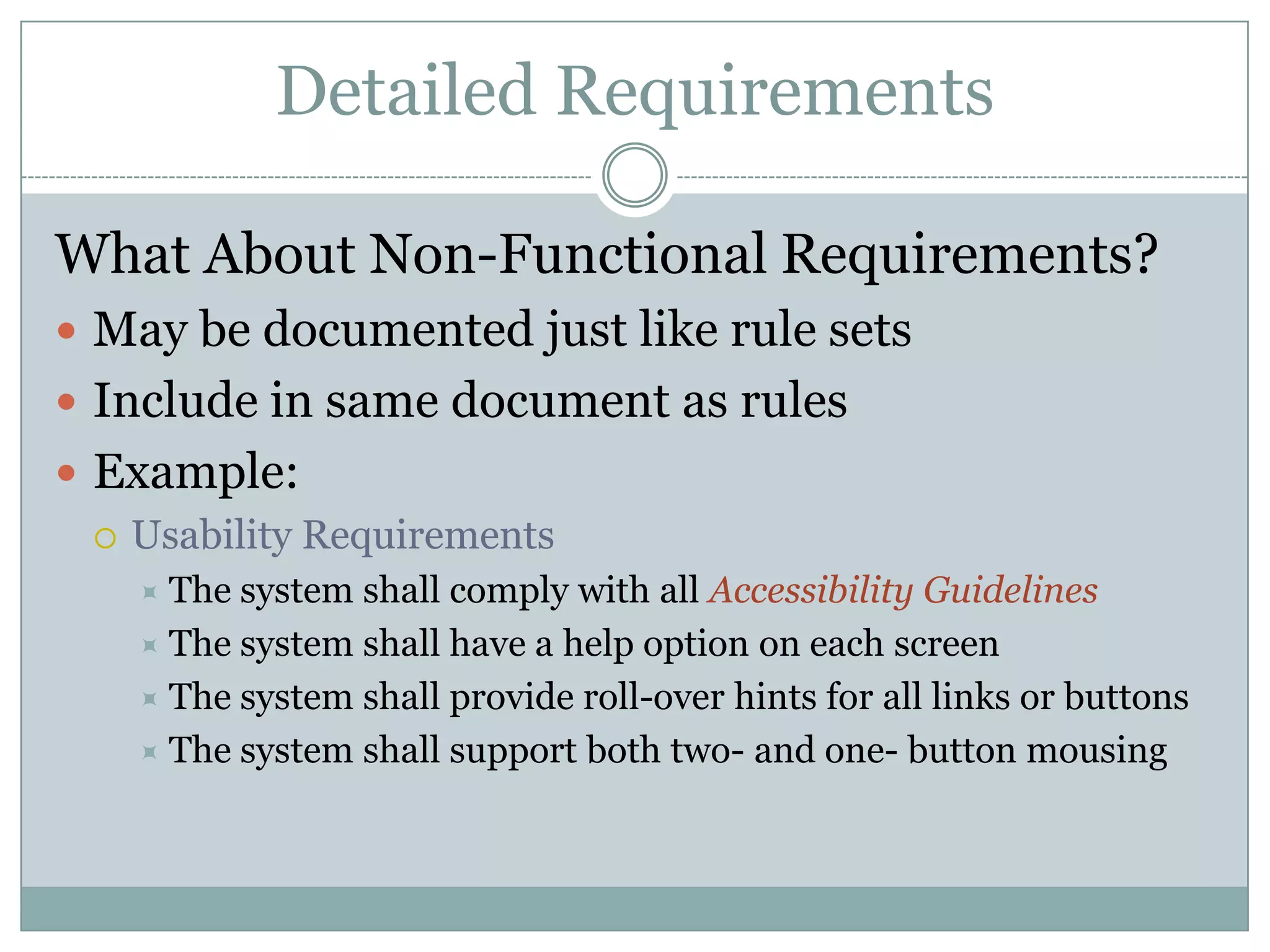

28. Detailed Requirements
What About Non-Functional Requirements?
 May be documented just like rule sets
 Include in same document as rules
 Example:
 Usability Requirements
 The system shall comply with all Accessibility Guidelines
 The system shall have a help option on each screen
 The system shall provide roll-over hints for all links or buttons
 The system shall support both two- and one- button mousing

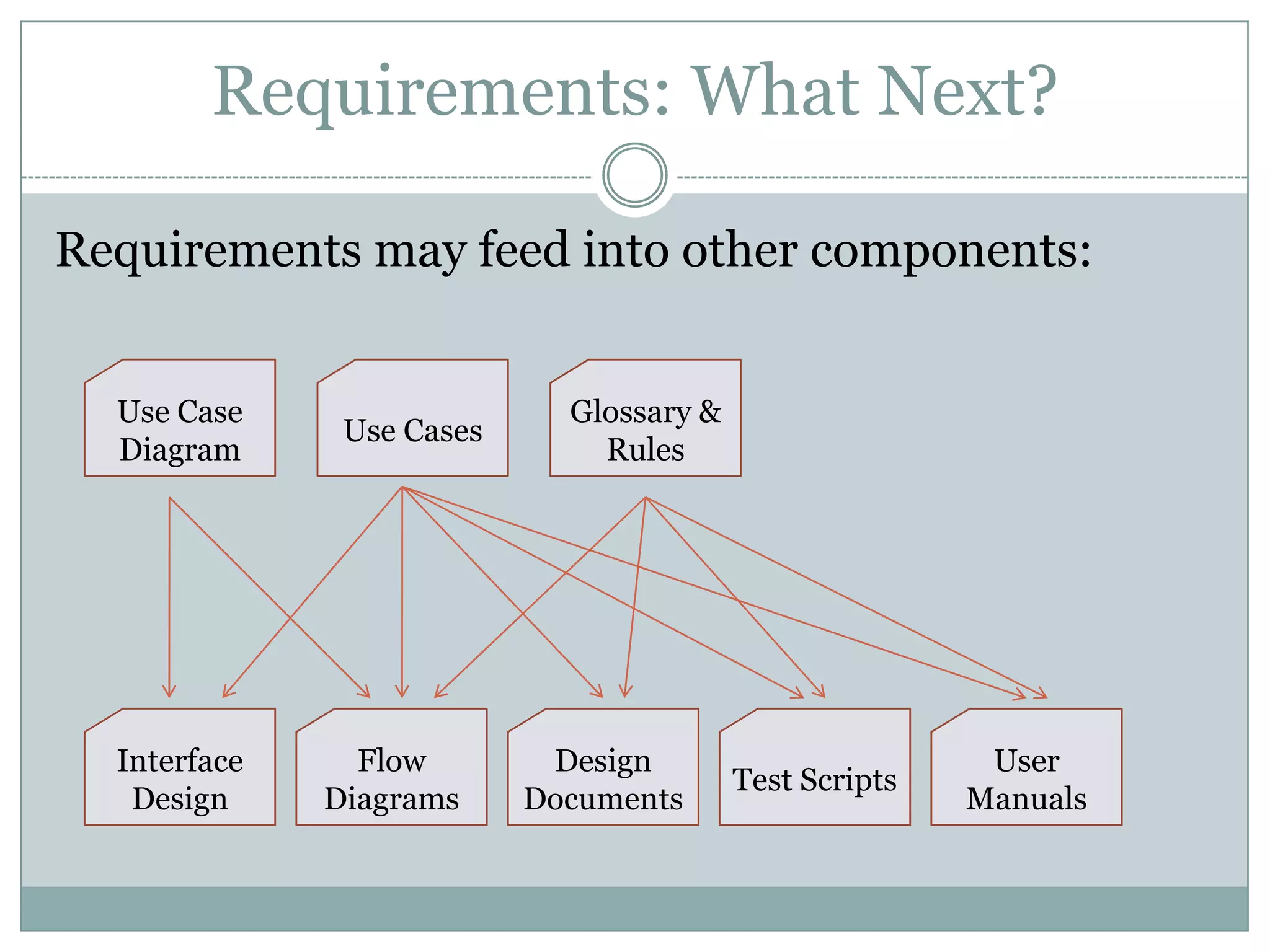

29. Requirements: What Next?
Requirements may feed into other components:
Use Case Glossary &
Use Cases
Diagram Rules
Interface Flow Design User
Test Scripts
Design Diagrams Documents Manuals

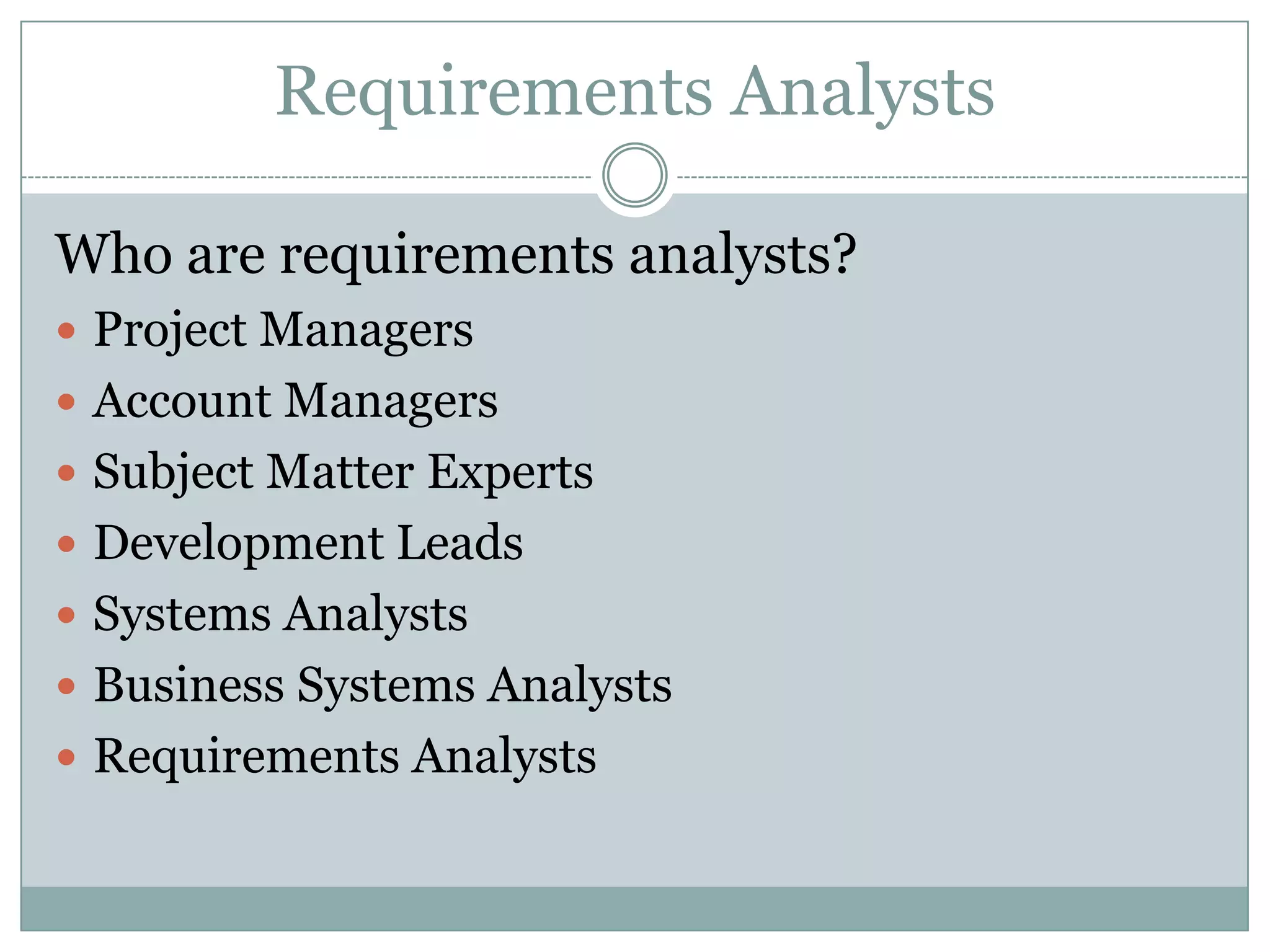

30. Requirements Analysts
Who are requirements analysts?
 Project Managers
 Account Managers
 Subject Matter Experts
 Development Leads
 Systems Analysts
 Business Systems Analysts
 Requirements Analysts

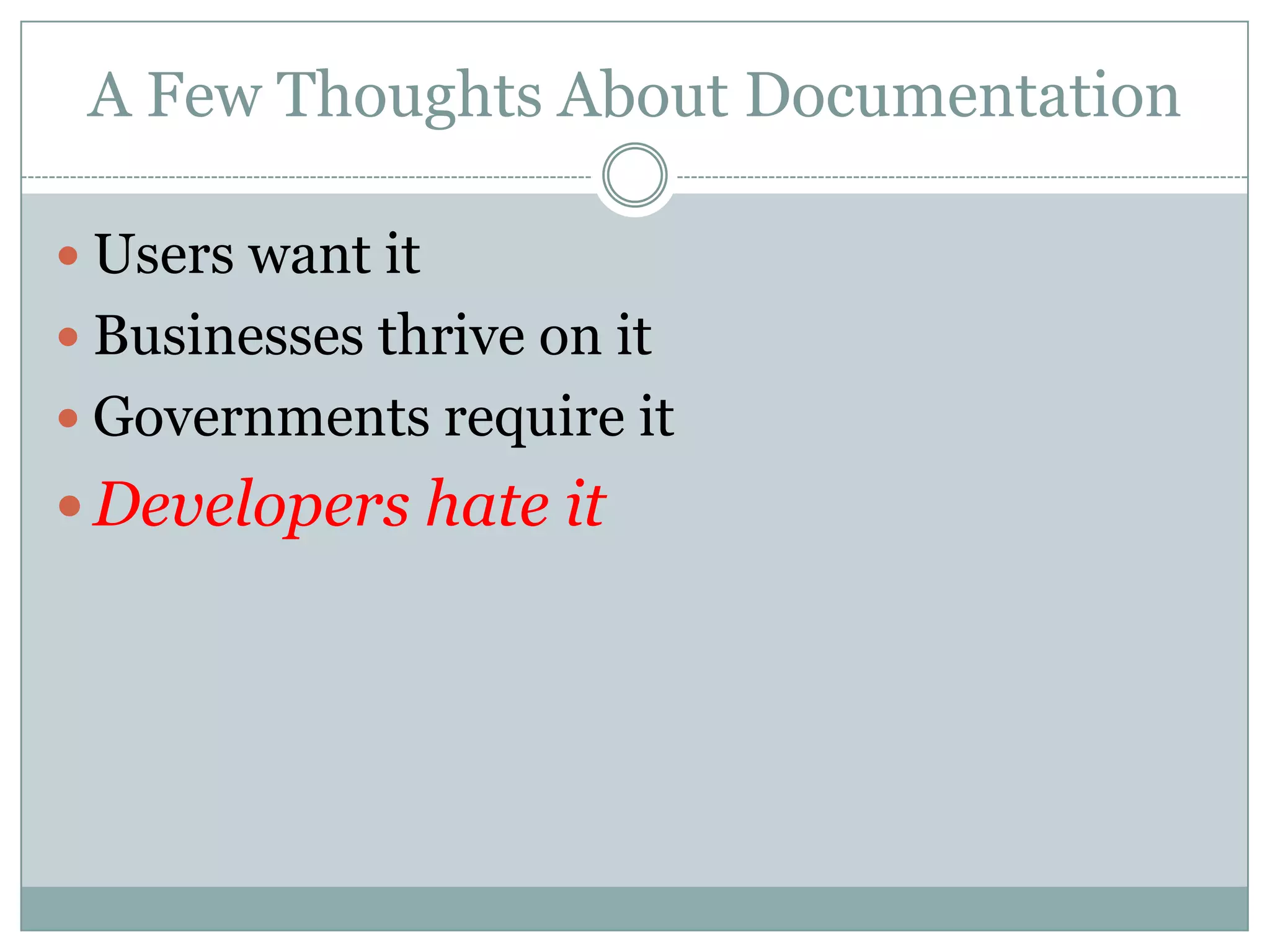

31. A Few Thoughts About Documentation
 Users want it
 Businesses thrive on it
 Governments require it
 Developers hate it

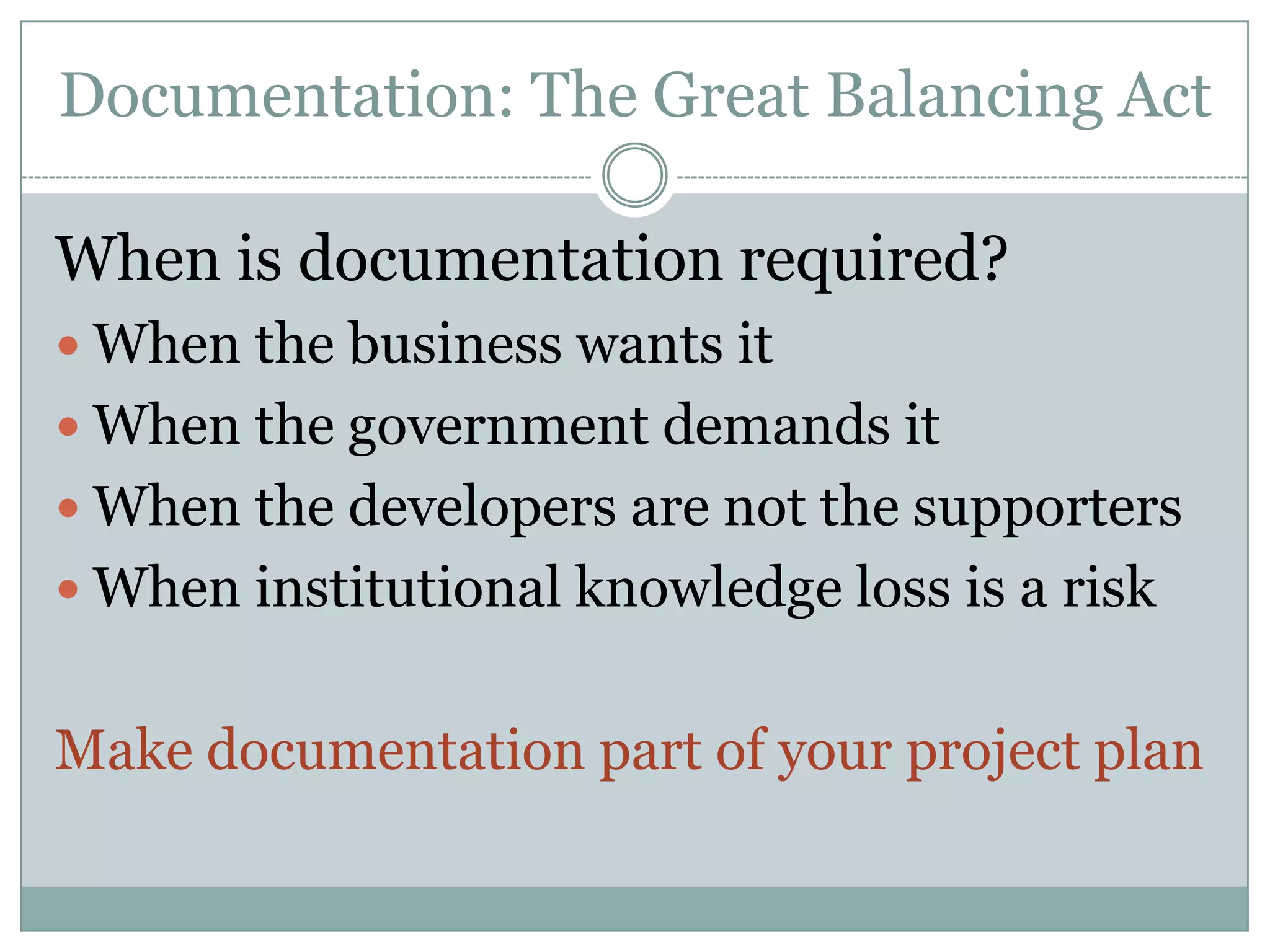

32. Documentation: The Great Balancing Act
When is documentation required?
 When the business wants it
 When the government demands it
 When the developers are not the supporters
 When institutional knowledge loss is a risk
Make documentation part of your project plan

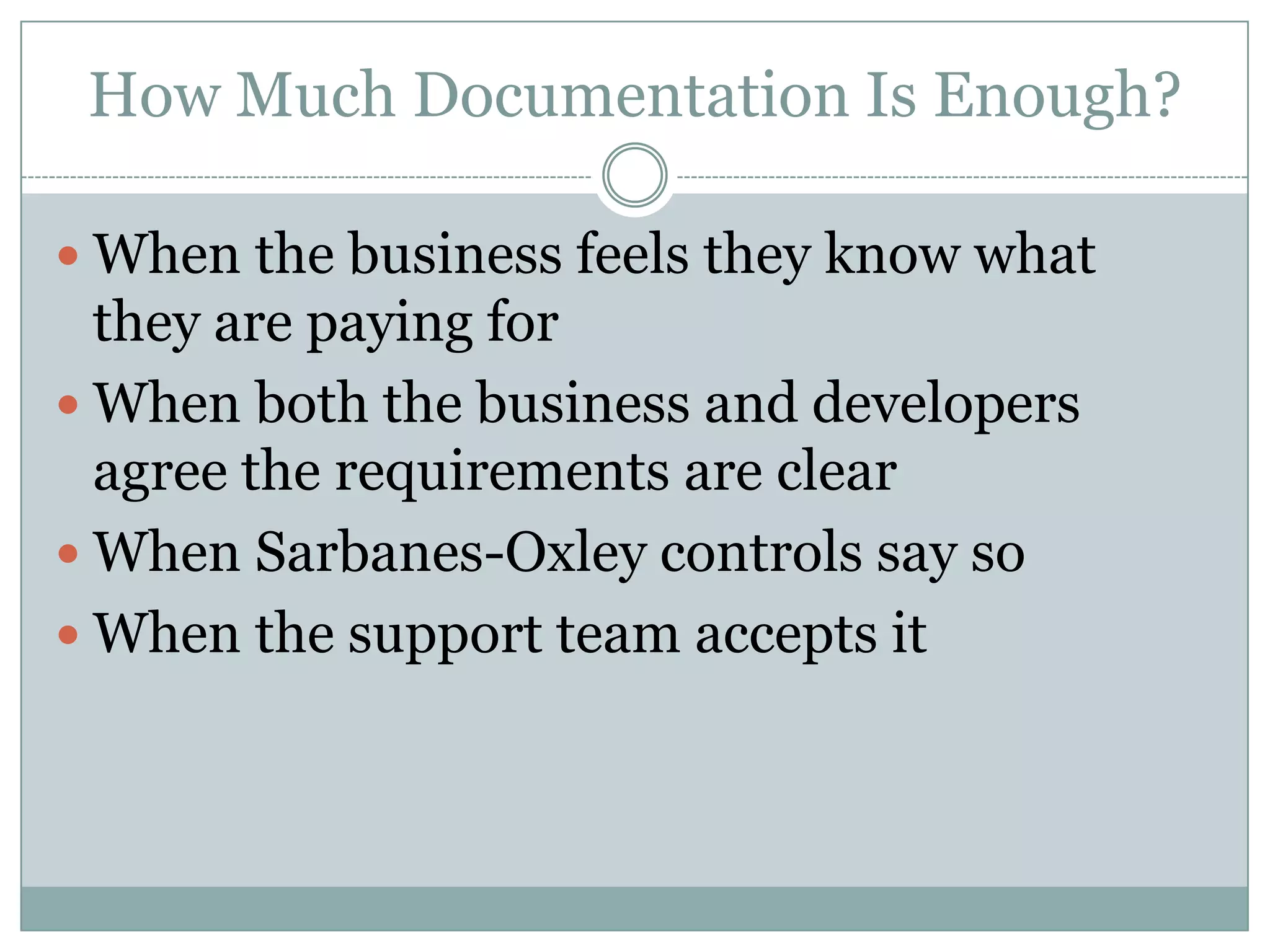

33. How Much Documentation Is Enough?
 When the business feels they know what
they are paying for
 When both the business and developers
agree the requirements are clear
 When Sarbanes-Oxley controls say so
 When the support team accepts it

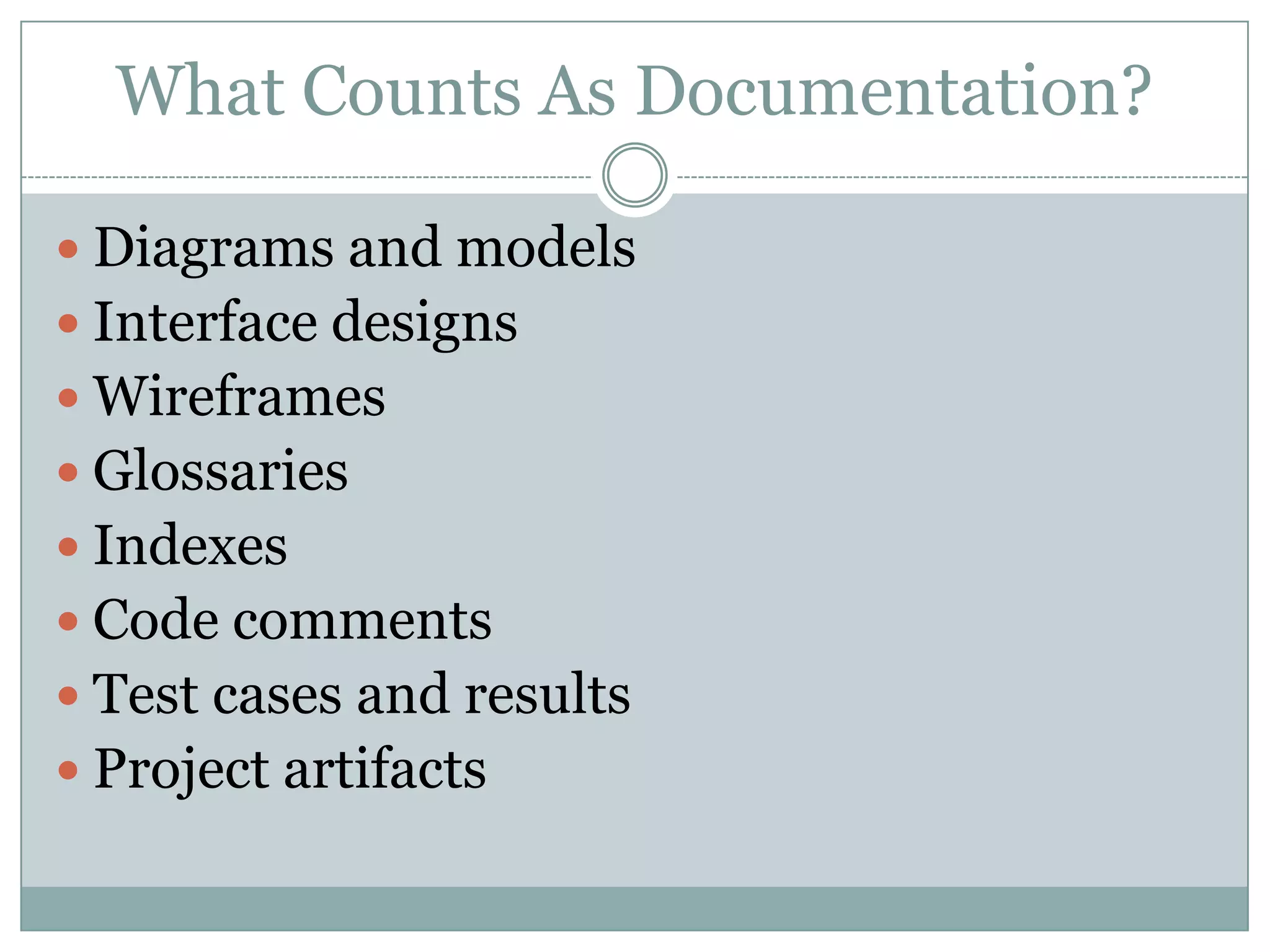

34. What Counts As Documentation?
 Diagrams and models
 Interface designs
 Wireframes
 Glossaries
 Indexes
 Code comments
 Test cases and results
 Project artifacts

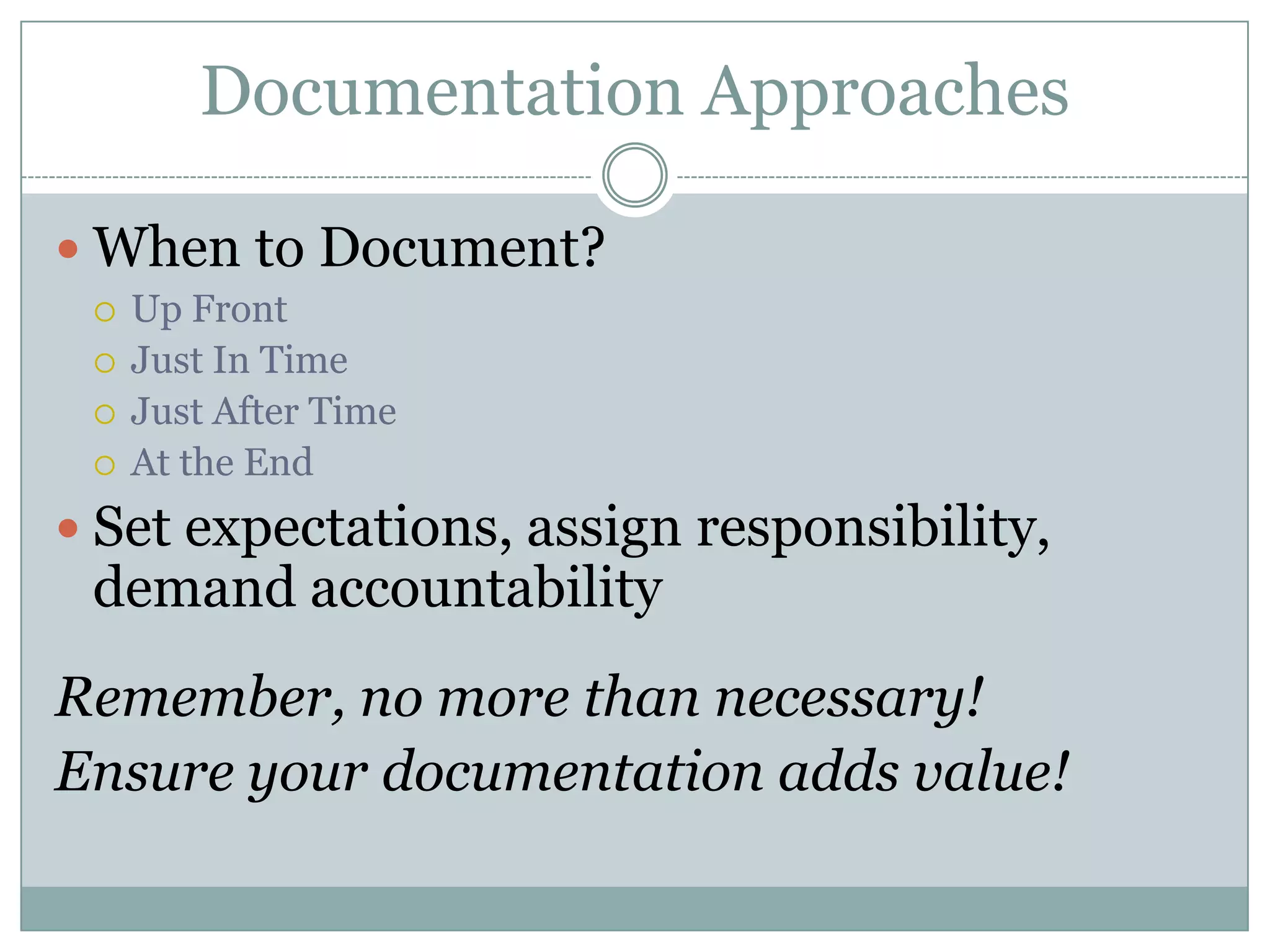

35. Documentation Approaches
 When to Document?
 Up Front
 Just In Time
 Just After Time
 At the End
 Set expectations, assign responsibility,
demand accountability
Remember, no more than necessary!
Ensure your documentation adds value!

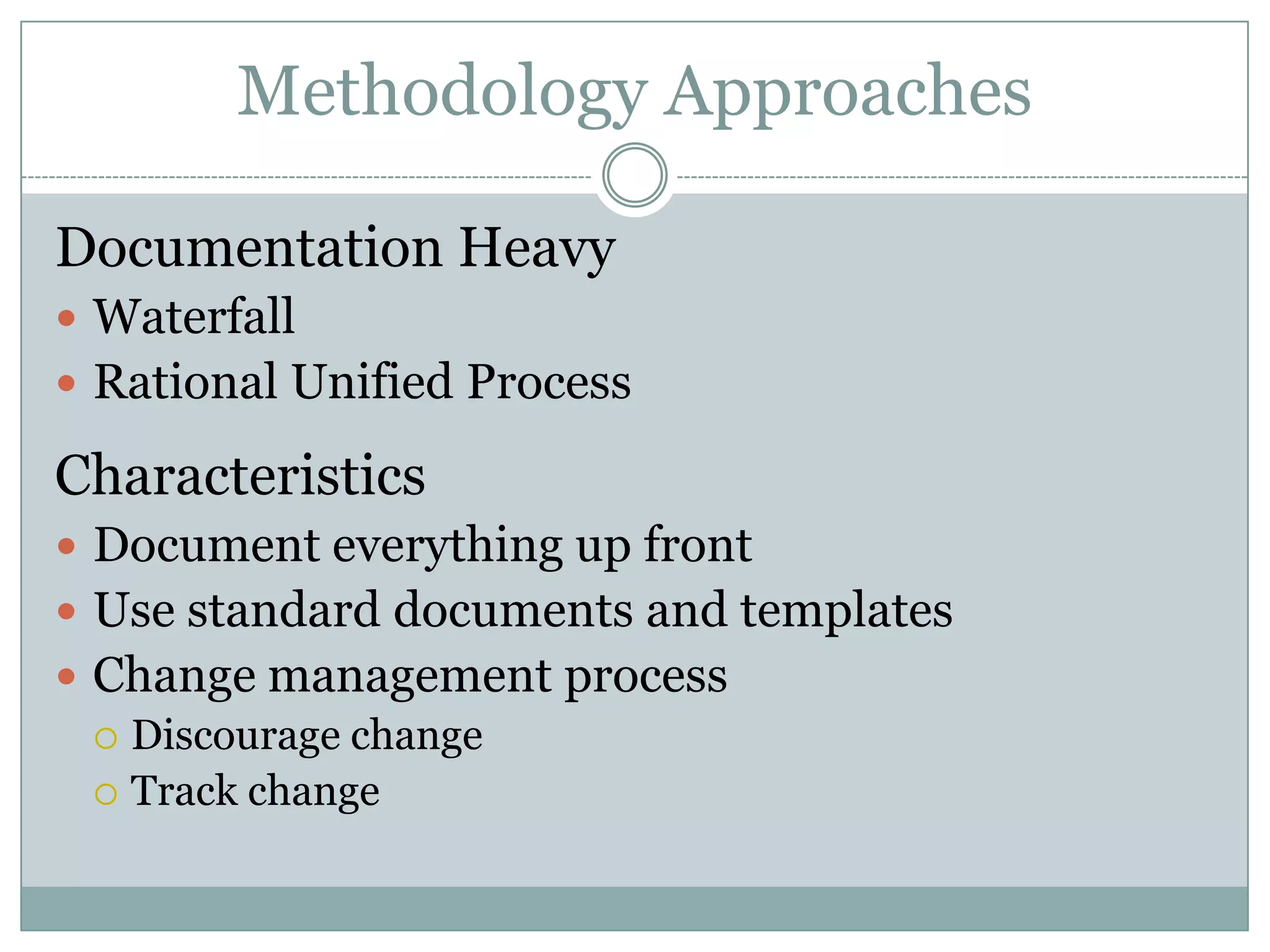

36. Methodology Approaches
Documentation Heavy
 Waterfall
 Rational Unified Process
Characteristics
 Document everything up front
 Use standard documents and templates
 Change management process
 Discourage change
 Track change

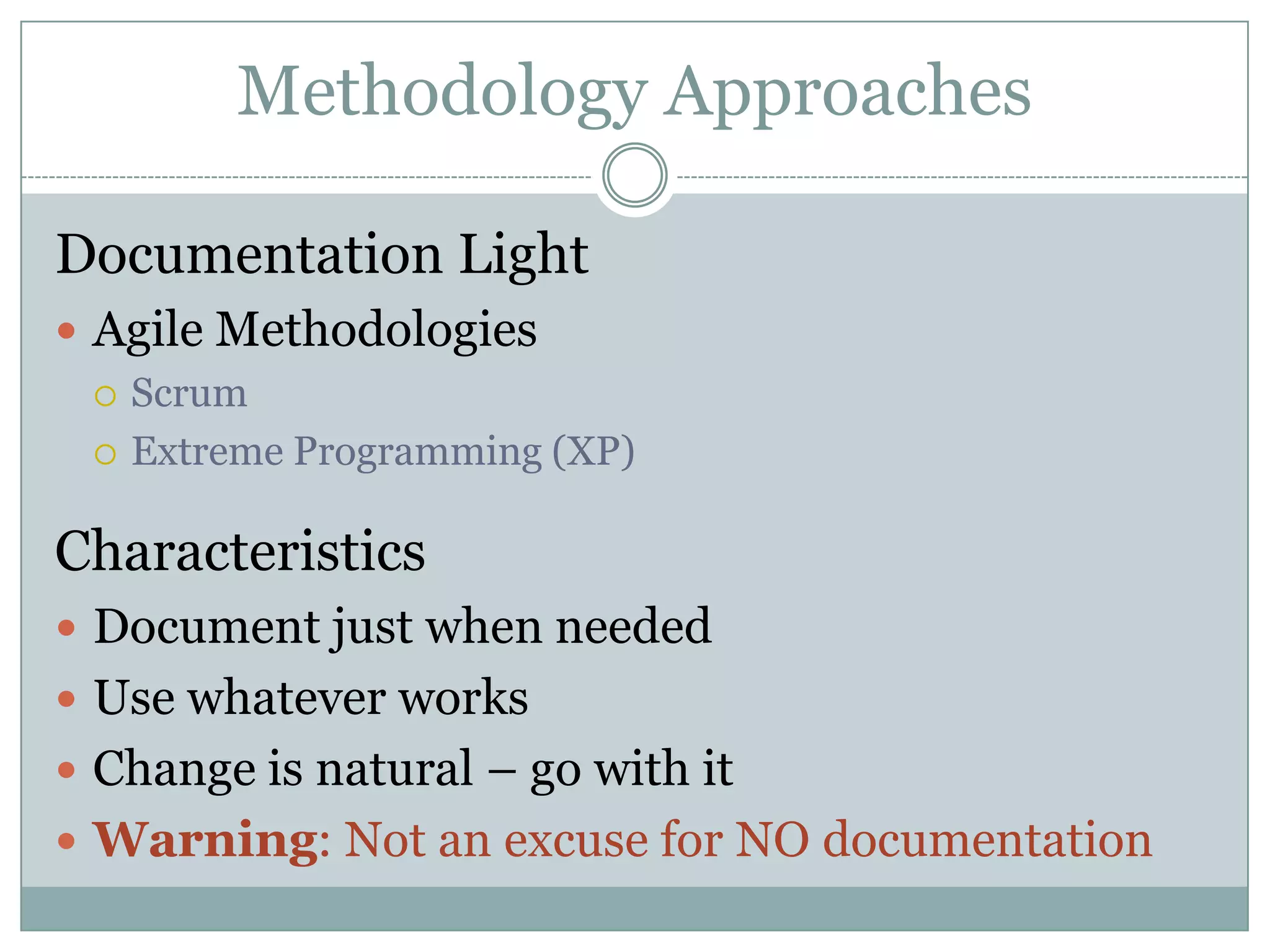

37. Methodology Approaches
Documentation Light
 Agile Methodologies
 Scrum
 Extreme Programming (XP)
Characteristics
 Document just when needed
 Use whatever works
 Change is natural – go with it
 Warning: Not an excuse for NO documentation

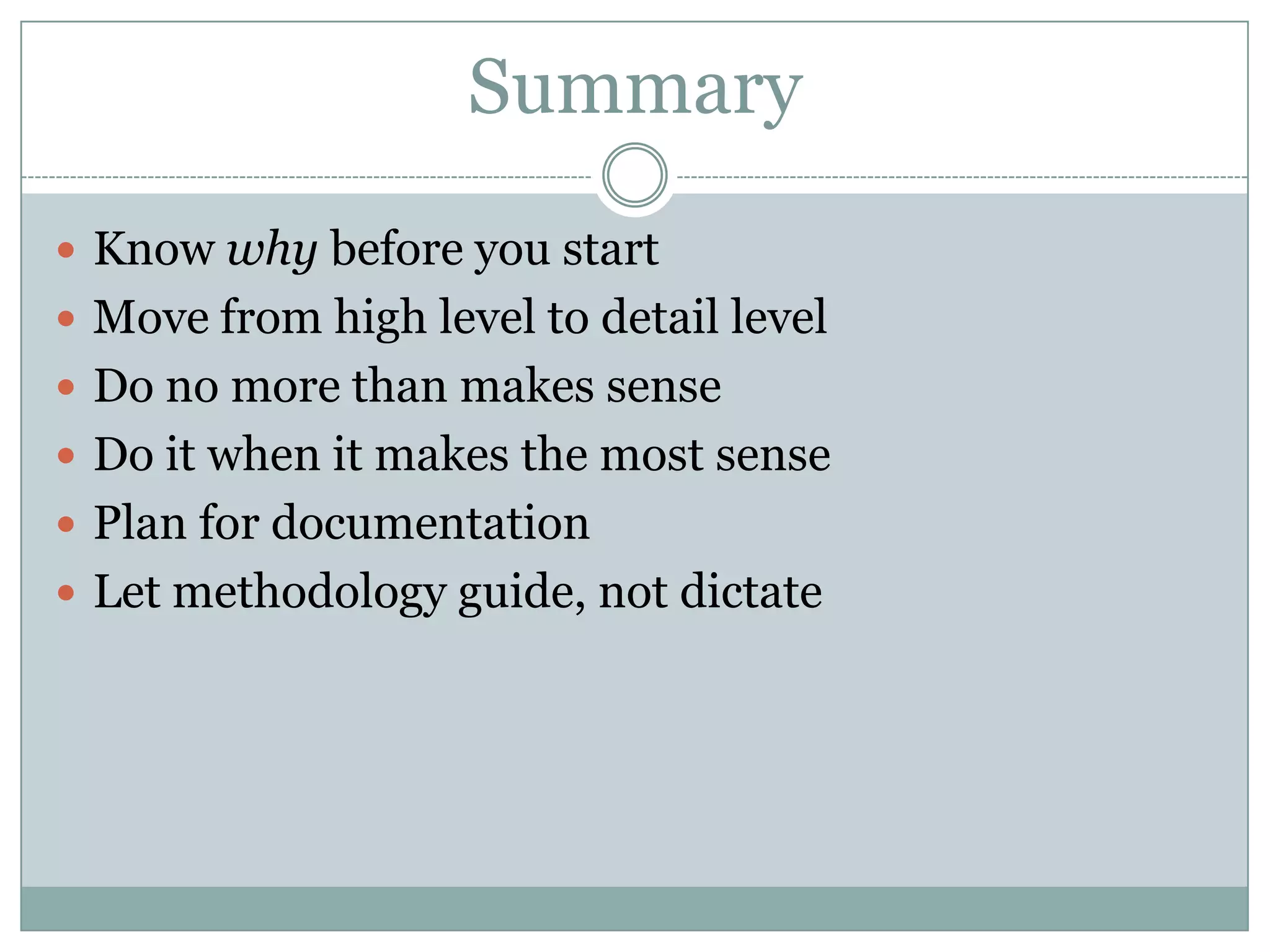

38. Summary
 Know why before you start
 Move from high level to detail level
 Do no more than makes sense
 Do it when it makes the most sense
 Plan for documentation
 Let methodology guide, not dictate

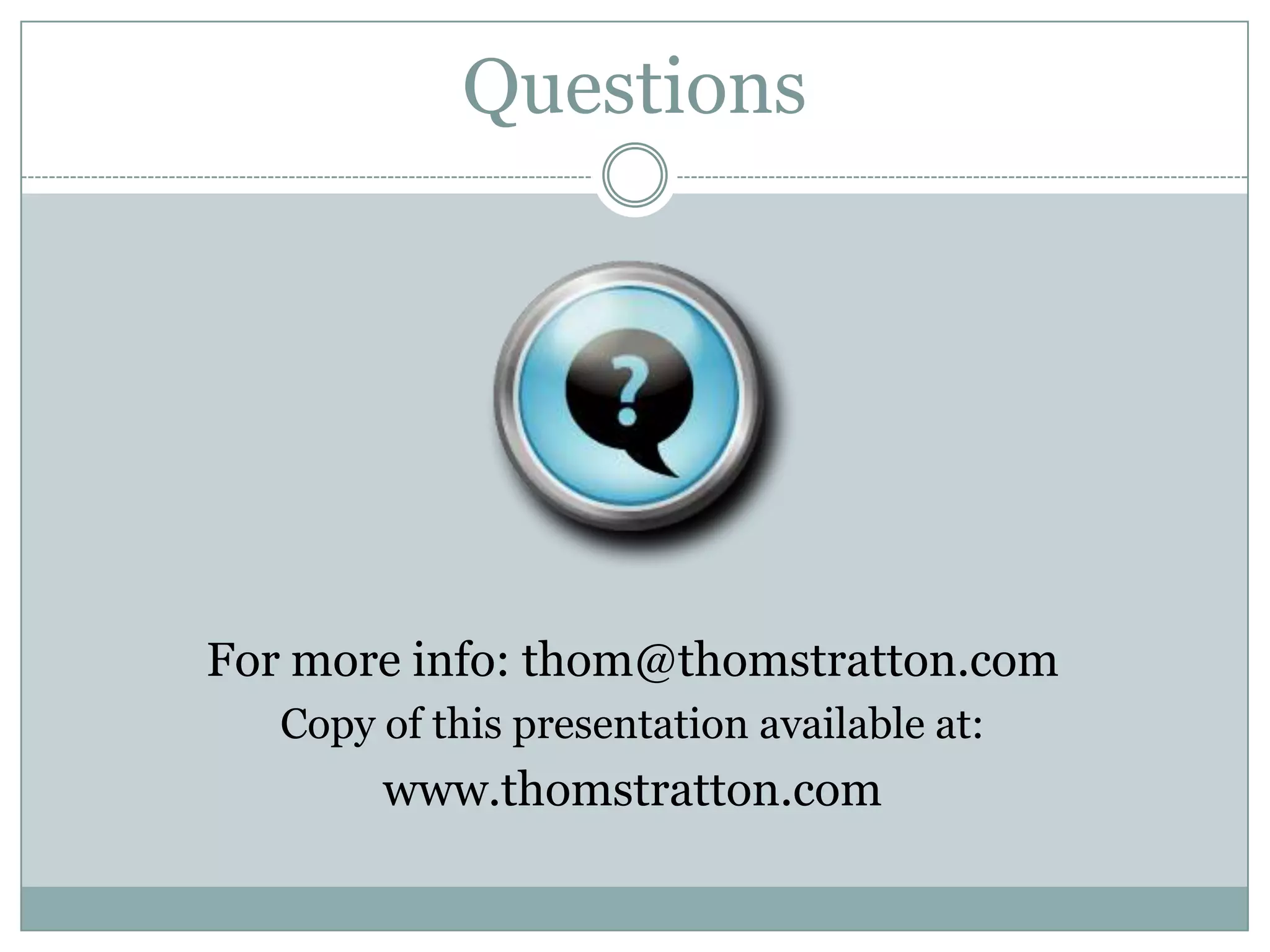

39. Questions
For more info: thom@thomstratton.com
Copy of this presentation available at:
www.thomstratton.com
