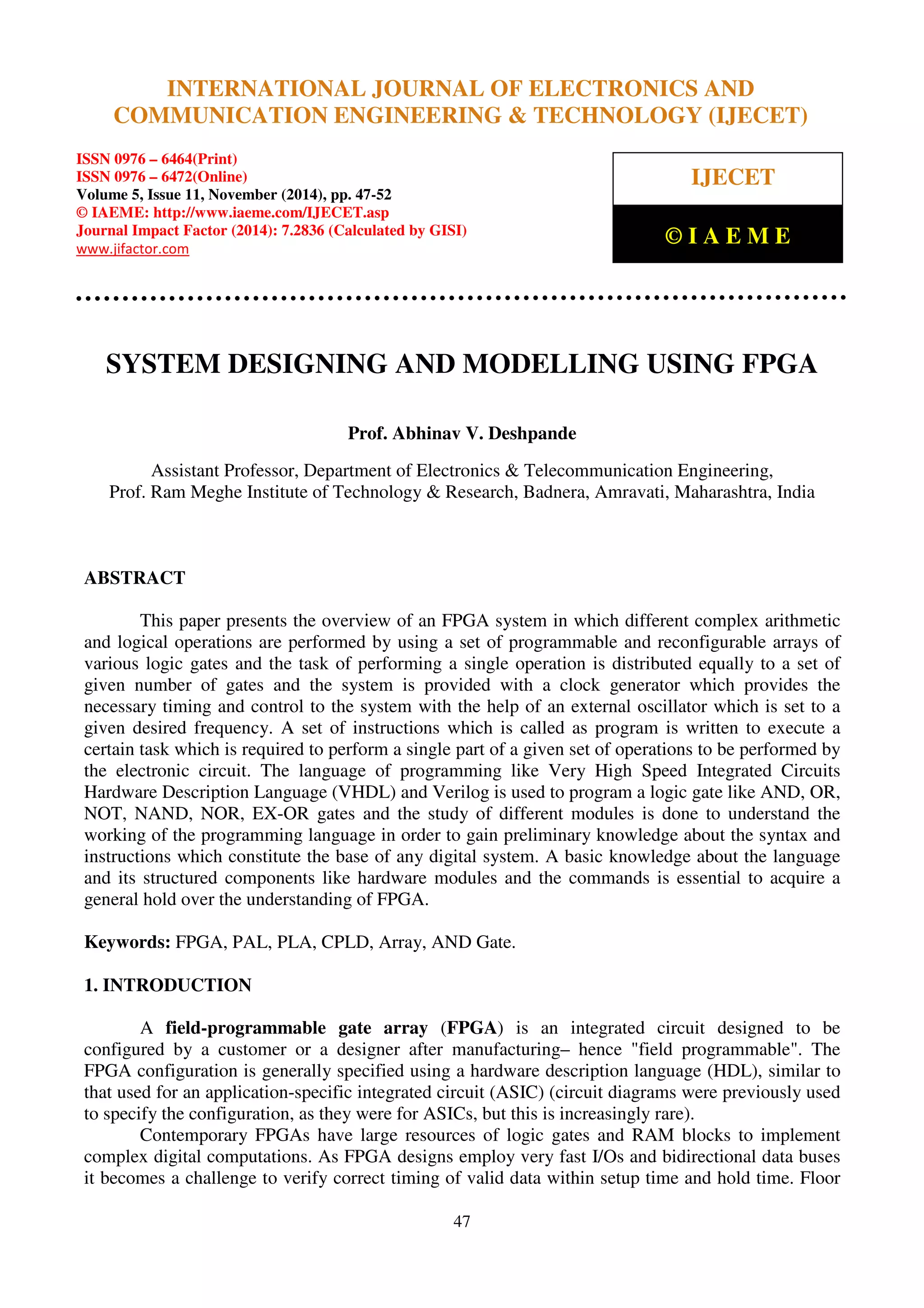

SYSTEM DESIGNING AND MODELLING USING FPGA
Prof. Abhinav V. Deshpande
Assistant Professor, Department of Electronics Telecommunication Engineering,
Prof. Ram Meghe Institute of Technology Research, Badnera, Amravati, Maharashtra, India
ABSTRACT
This paper presents the overview of an FPGA system in which different complex arithmetic
and logical operations are performed by using a set of programmable and reconfigurable arrays of
various logic gates and the task of performing a single operation is distributed equally to a set of
given number of gates and the system is provided with a clock generator which provides the
necessary timing and control to the system with the help of an external oscillator which is set to a
given desired frequency. A set of instructions which is called as program is written to execute a
certain task which is required to perform a single part of a given set of operations to be performed by
the electronic circuit. The language of programming like Very High Speed Integrated Circuits
Hardware Description Language (VHDL) and Verilog is used to program a logic gate like AND, OR,
NOT, NAND, NOR, EX-OR gates and the study of different modules is done to understand the
working of the programming language in order to gain preliminary knowledge about the syntax and
instructions which constitute the base of any digital system. A basic knowledge about the language
and its structured components like hardware modules and the commands is essential to acquire a
general hold over the understanding of FPGA.
Keywords: FPGA, PAL, PLA, CPLD, Array, AND Gate.
1. INTRODUCTION
A field-programmable gate array (FPGA) is an integrated circuit designed to be
configured by a customer or a designer after manufacturing– hence field programmable. The
FPGA configuration is generally specified using a hardware description language (HDL), similar to
that used for an application-specific integrated circuit (ASIC) (circuit diagrams were previously used
to specify the configuration, as they were for ASICs, but this is increasingly rare).
Contemporary FPGAs have large resources of logic gates and RAM blocks to implement
complex digital computations. As FPGA designs employ very fast I/Os and bidirectional data buses
it becomes a challenge to verify correct timing of valid data within setup time and hold time. Floor

3. International Journal of Electronics and Communication Engineering Technology (IJECET), ISSN 0976 –
6464(Print), ISSN 0976 – 6472(Online), Volume 5, Issue 11, November (2014), pp. 47-52 © IAEME

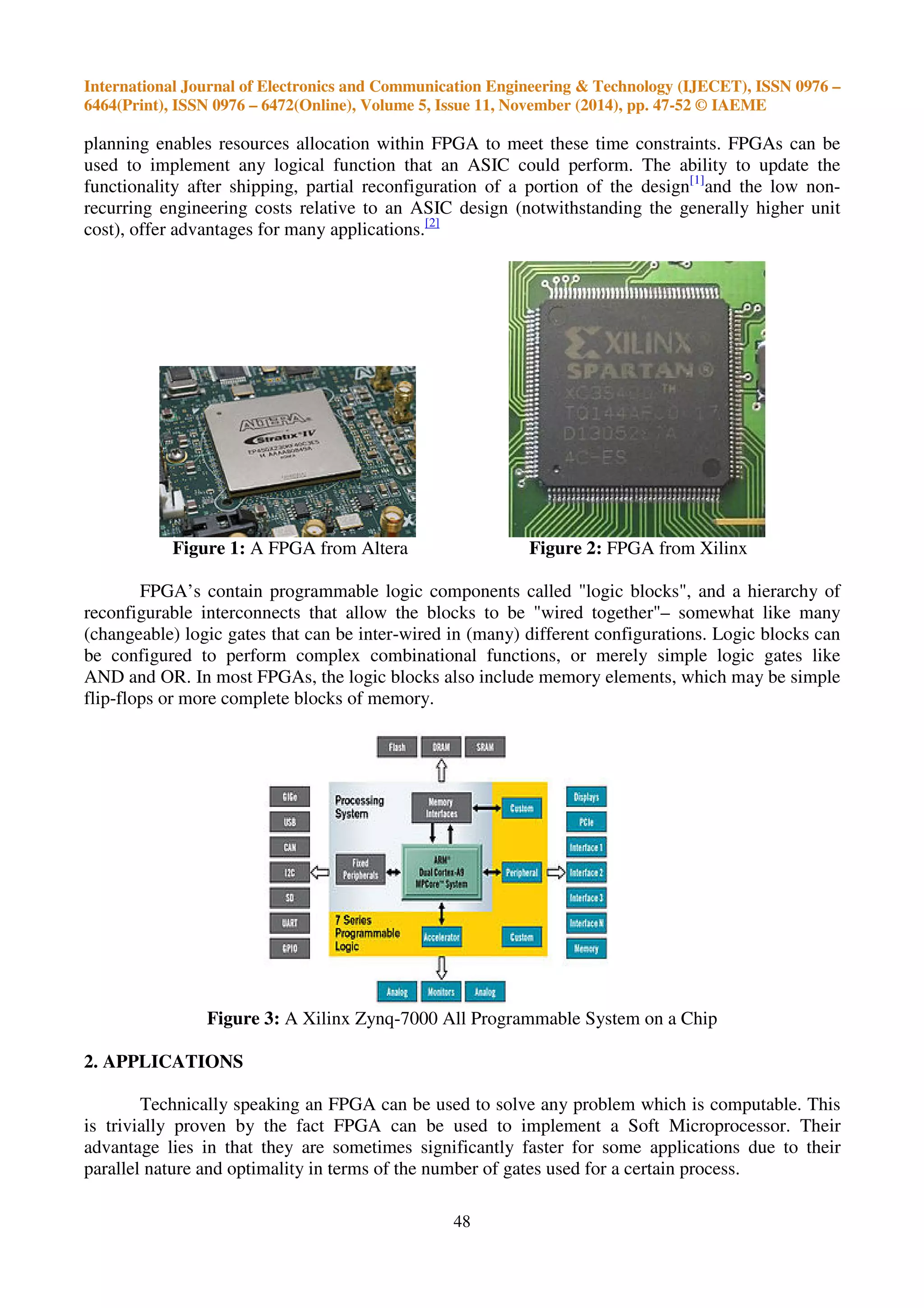

planning enables resources allocation within FPGA to meet these time constraints. FPGAs can be
used to implement any logical function that an ASIC could perform. The ability to update the
functionality after shipping, partial reconfiguration of a portion of the design[1]and the low non-recurring
48
engineering costs relative to an ASIC design (notwithstanding the generally higher unit
cost), offer advantages for many applications.[2]
Figure 1: A FPGA from Altera Figure 2: FPGA from Xilinx
FPGA’s contain programmable logic components called logic blocks, and a hierarchy of
reconfigurable interconnects that allow the blocks to be wired together– somewhat like many
(changeable) logic gates that can be inter-wired in (many) different configurations. Logic blocks can
be configured to perform complex combinational functions, or merely simple logic gates like
AND and OR. In most FPGAs, the logic blocks also include memory elements, which may be simple
flip-flops or more complete blocks of memory.
Figure 3: A Xilinx Zynq-7000 All Programmable System on a Chip
2. APPLICATIONS
Technically speaking an FPGA can be used to solve any problem which is computable. This
is trivially proven by the fact FPGA can be used to implement a Soft Microprocessor. Their
advantage lies in that they are sometimes significantly faster for some applications due to their
parallel nature and optimality in terms of the number of gates used for a certain process.

4. International Journal of Electronics and Communication Engineering Technology (IJECET), ISSN 0976 –
6464(Print), ISSN 0976 – 6472(Online), Volume 5, Issue 11, November (2014), pp. 47-52 © IAEME
49

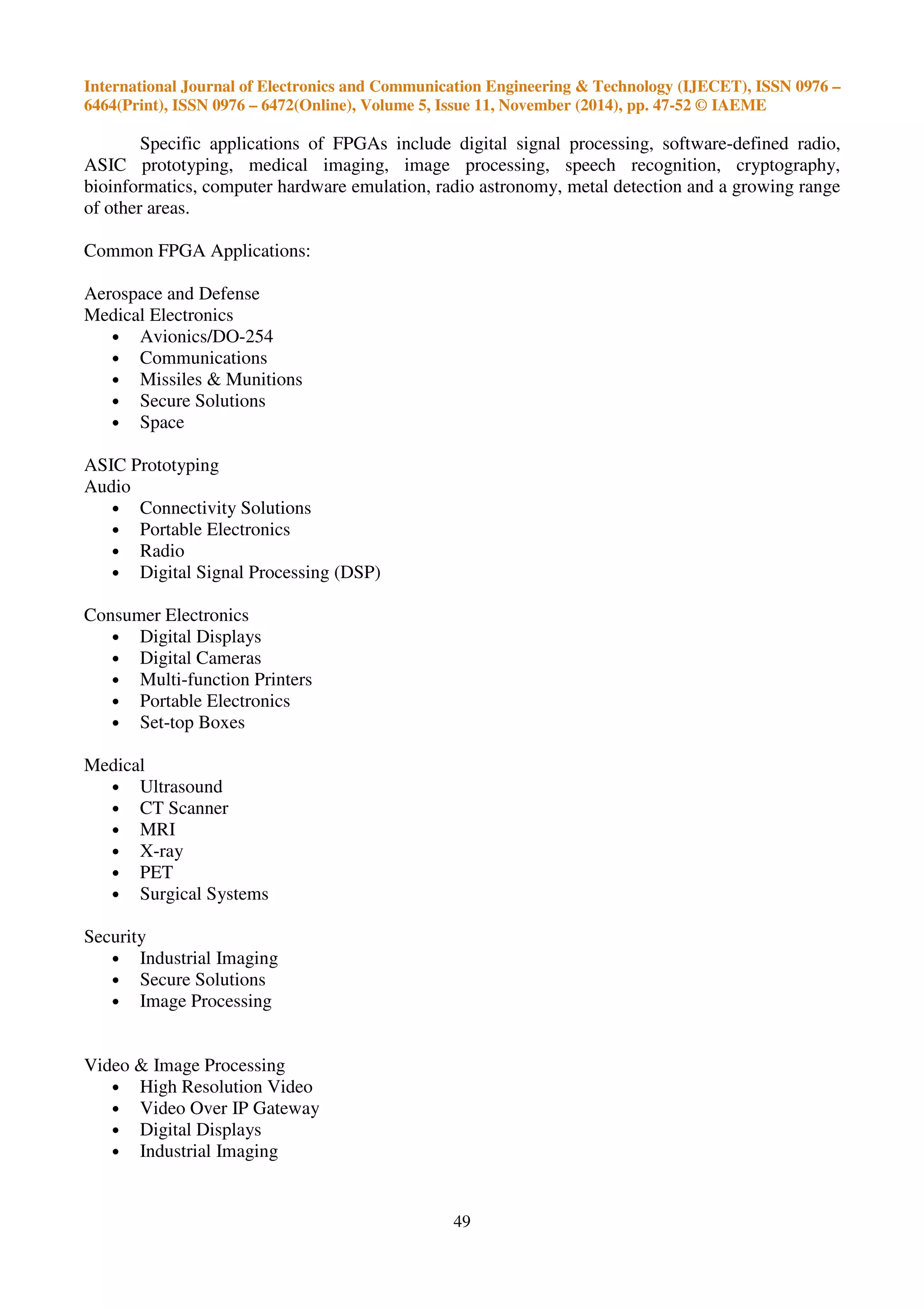

Specific applications of FPGAs include digital signal processing, software-defined radio,
ASIC prototyping, medical imaging, image processing, speech recognition, cryptography,
bioinformatics, computer hardware emulation, radio astronomy, metal detection and a growing range
of other areas.
Common FPGA Applications:
Aerospace and Defense
Medical Electronics
• Avionics/DO-254
• Communications
• Missiles Munitions
• Secure Solutions
• Space
ASIC Prototyping
Audio
• Connectivity Solutions
• Portable Electronics
• Radio
• Digital Signal Processing (DSP)
Consumer Electronics
• Digital Displays
• Digital Cameras
• Multi-function Printers
• Portable Electronics
• Set-top Boxes
Medical
• Ultrasound
• CT Scanner
• MRI
• X-ray
• PET
• Surgical Systems
Security
• Industrial Imaging
• Secure Solutions
• Image Processing
Video Image Processing
• High Resolution Video
• Video Over IP Gateway
• Digital Displays
• Industrial Imaging

5. International Journal of Electronics and Communication Engineering Technology (IJECET), ISSN 0976
6464(Print), ISSN 0976 – 6472(Online), Volume 5, Issue 11, November (2014),

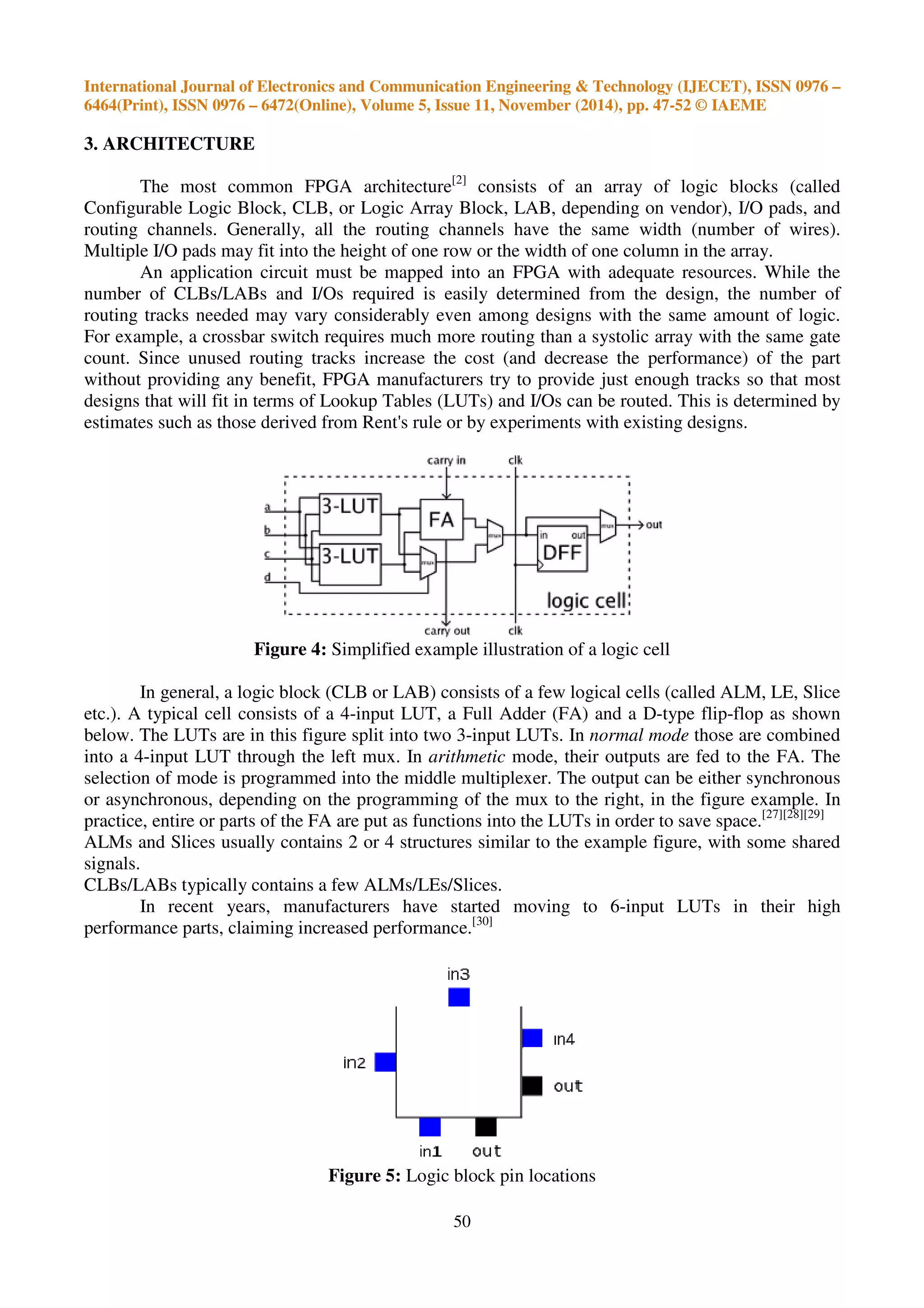

3. ARCHITECTURE
[2] consists of an array of logic blocks (called
The most common FPGA architecture
Configurable Logic Block, CLB, or Logic Array Block, LAB, depending on vendor), I/O pads, and
routing channels. Generally, all the routing channels have the s
Multiple I/O pads may fit into the height of one row or the width of one column in the array.
An application circuit must be mapped into an FPGA with adequate resources. While the
number of CLBs/LABs and I/Os required is easily
routing tracks needed may vary considerably even among designs with the same amount of logic.
For example, a crossbar switch requires much more routing than a systolic array with the same gate
count. Since unused routing tracks increase the cost (and decrease the performance) of the part
without providing any benefit, FPGA manufacturers try to provide just enough tracks so that most
designs that will fit in terms of Lookup Tables (LUTs) and I/Os can be routed. This
estimates such as those derived from Rent's rule or by experiments with existing designs.
Figure 4: Simplified example illustration of a logic cell
In general, a logic block (CLB or LAB) consists of a few logical cells (called ALM, LE, Slice
etc.). A typical cell consists of a 4
below. The LUTs are in this figure split into two 3
into a 4-input LUT through the left mux. In
selection of mode is programmed into the middle multiplexer. The output can be either synchronous
or asynchronous, depending on the programming of the mux to the right, in the figure example. In
practice, entire or parts of the FA are put as functions into the LUTs in order to save space.
ALMs and Slices usually contains 2 or 4 structures similar to the example fig
signals.
CLBs/LABs typically contains a few ALMs/LEs/Slices.
In recent years, manufacturers have started moving to 6
performance parts, claiming increased performance.
Figure 5
pp. 47
50
same width (number of wires).
determined from the design, the number of
4-input LUT, a Full Adder (FA) and a D-type flip
3-input LUTs. In normal mode
arithmetic mode, their outputs are fed to the FA. The
g 6-input LUTs in their high
performance.[30]
5: Logic block pin locations
–
7-52 © IAEME
ame is determined by
flip-flop as shown
those are combined
space.[27][28][29]
figure, with some shared

6. International Journal of Electronics and Communication Engineering Technology (IJECET), ISSN 0976 –
6464(Print), ISSN 0976 – 6472(Online), Volume 5, Issue 11, November (2014), pp. 47-52 © IAEME
51

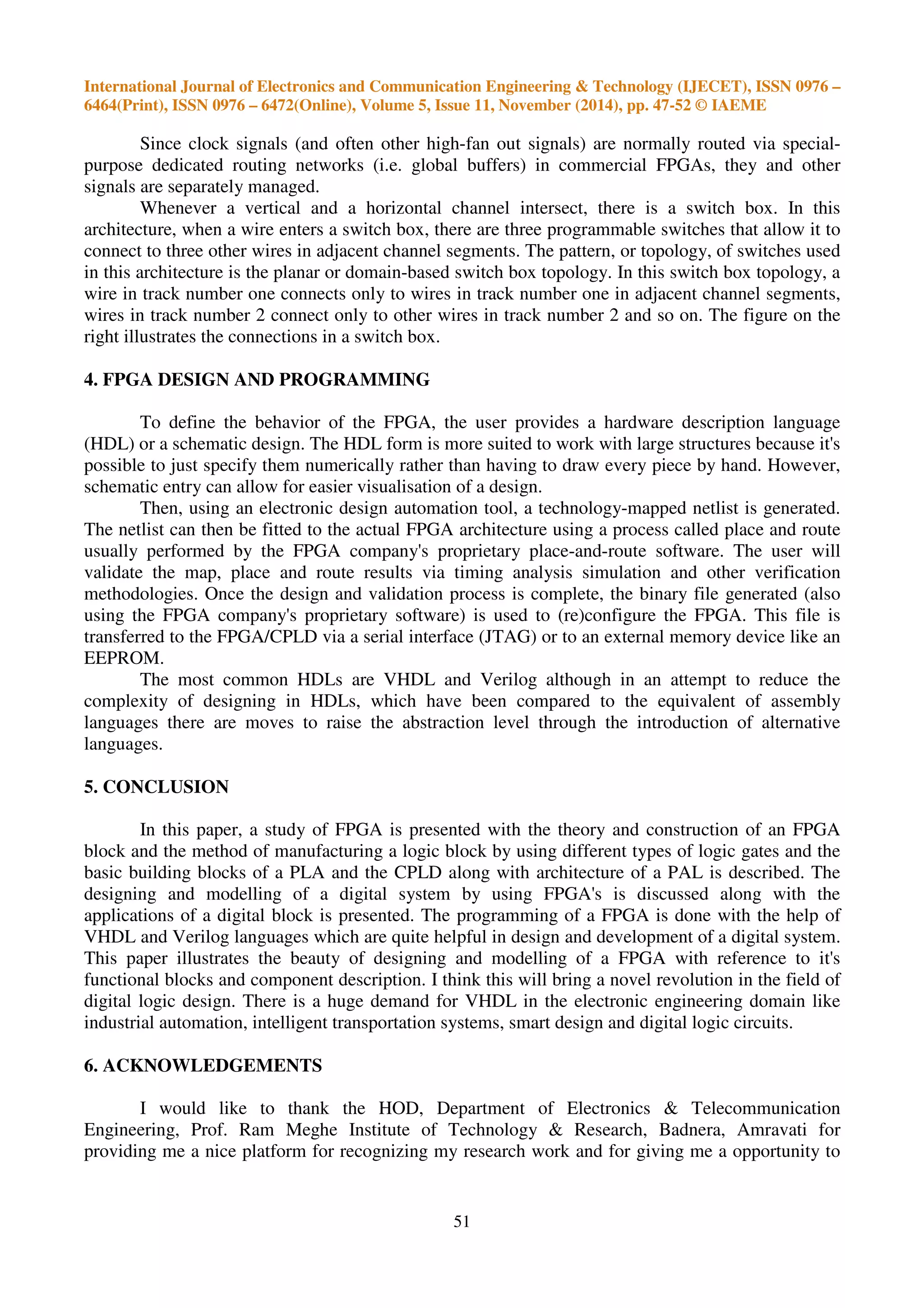

Since clock signals (and often other high-fan out signals) are normally routed via special-purpose
dedicated routing networks (i.e. global buffers) in commercial FPGAs, they and other
signals are separately managed.
Whenever a vertical and a horizontal channel intersect, there is a switch box. In this
architecture, when a wire enters a switch box, there are three programmable switches that allow it to
connect to three other wires in adjacent channel segments. The pattern, or topology, of switches used
in this architecture is the planar or domain-based switch box topology. In this switch box topology, a
wire in track number one connects only to wires in track number one in adjacent channel segments,
wires in track number 2 connect only to other wires in track number 2 and so on. The figure on the
right illustrates the connections in a switch box.
4. FPGA DESIGN AND PROGRAMMING
To define the behavior of the FPGA, the user provides a hardware description language
(HDL) or a schematic design. The HDL form is more suited to work with large structures because it's
possible to just specify them numerically rather than having to draw every piece by hand. However,
schematic entry can allow for easier visualisation of a design.
Then, using an electronic design automation tool, a technology-mapped netlist is generated.
The netlist can then be fitted to the actual FPGA architecture using a process called place and route
usually performed by the FPGA company's proprietary place-and-route software. The user will
validate the map, place and route results via timing analysis simulation and other verification
methodologies. Once the design and validation process is complete, the binary file generated (also
using the FPGA company's proprietary software) is used to (re)configure the FPGA. This file is
transferred to the FPGA/CPLD via a serial interface (JTAG) or to an external memory device like an
EEPROM.
The most common HDLs are VHDL and Verilog although in an attempt to reduce the
complexity of designing in HDLs, which have been compared to the equivalent of assembly
languages there are moves to raise the abstraction level through the introduction of alternative
languages.
5. CONCLUSION
In this paper, a study of FPGA is presented with the theory and construction of an FPGA
block and the method of manufacturing a logic block by using different types of logic gates and the
basic building blocks of a PLA and the CPLD along with architecture of a PAL is described. The
designing and modelling of a digital system by using FPGA's is discussed along with the
applications of a digital block is presented. The programming of a FPGA is done with the help of
VHDL and Verilog languages which are quite helpful in design and development of a digital system.
This paper illustrates the beauty of designing and modelling of a FPGA with reference to it's
functional blocks and component description. I think this will bring a novel revolution in the field of
digital logic design. There is a huge demand for VHDL in the electronic engineering domain like
industrial automation, intelligent transportation systems, smart design and digital logic circuits.
6. ACKNOWLEDGEMENTS
I would like to thank the HOD, Department of Electronics Telecommunication
Engineering, Prof. Ram Meghe Institute of Technology Research, Badnera, Amravati for
providing me a nice platform for recognizing my research work and for giving me a opportunity to

7. International Journal of Electronics and Communication Engineering Technology (IJECET), ISSN 0976 –
6464(Print), ISSN 0976 – 6472(Online), Volume 5, Issue 11, November (2014), pp. 47-52 © IAEME
publish a research paper on the topic of FPGA design and development by using VHDL and Verilog
as a part of Technical Education Quality improvement under the programme of TEQIP-2.
52
7. REFERENCES
[1] Wisniewski, Remigiusz (2009). Synthesis of compositional microprogram control units for
programmable devices. Zielona Góra: University of Zielona Góra. p. 153. ISBN 978-83-
7481-293-1.
[2] FPGA Architecture for the Challenge
[3] FPGA Signal Integrity tutorial
[4] NASA: FPGA drive strength
[5] Mike Thompson. Mixed-signal FPGAs provide GREEN POWER. EE Times, 2007-07-02.
[6] History of FPGAs at the Wayback Machine (archived April 12, 2007)
[7] Google Patent Search, Re-programmable PLA. Retrieved February 5, 2009.
[8] Google Patent Search, Dynamic data re-programmable PLA. Retrieved February 5, 2009.
[9] Peter Clarke, EE Times, Xilinx, ASIC Vendors Talk Licensing. June 22, 2001. Retrieved
February 10, 2009.
[10] Funding Universe. “Xilinx, Inc.” Retrieved January 15, 2009.
[11] Clive Maxfield, Programmable Logic DesignLine, Xilinx unveil revolutionary 65nm
FPGA architecture: the Virtex-5 family. May 15, 2006. Retrieved February 5, 2009.
[12] Press Release, Xilinx Co-Founder Ross Freeman Honored as 2009 National Inventors Hall
of Fame Inductee for Invention of FPGA
[13] Maxfield, Clive (2004). The Design Warrior's Guide to FPGAs: Devices, Tools and Flows.
Elsevier. p. 4. ISBN 978-0-7506-7604-5.
[14] McConnel, Toni. EETimes. ESC - Xilinx All Programmable System on a Chip combines
best of serial and parallel processing. April 28, 2010. Retrieved February 14, 2011.
[15] Cheung, Ken, FPGA Blog. Xilinx Extensible Processing Platform for Embedded Systems.
April 27, 2010. Retrieved February 14, 2011.
[16] Nass, Rich, EETimes. Xilinx puts ARM core into its FPGAs. April 27, 2010. Retrieved
February 14, 2011.
[17] Leibson, Steve, Design-Reuse. Xilinx redefines the high-end microcontroller with its
ARM-based Extensible Processing Platform - Part 1. May. 03, 2010. Retrieved February
15, 2011.
[18] Wilson, Richard, Electronics Weekly. Xilinx acquires ESL firm to make FPGAs easier to
use. January 31, 2011. Retrieved February 15, 2011.
[19] Dylan McGrath, EE Times, FPGA Market to Pass $2.7 Billion by '10, In-Stat Says. May
24, 2006. Retrieved February 5, 2009.
[20] Dylan McGrath, EE Times, Gartner Dataquest Analyst Gives ASIC, FPGA Markets Clean
Bill of Health. June 13, 2005. Retrieved February 5, 2009.
[21] Naga Raju Boya, Sreelekha Kande, Vijay Kumar Jinde, Swapna Chintakunta, Mahesh
Ungarala and Ramanjappa Thogata, “Design and Development of FPGA Based
Temperature Measurement and Control System”, International Journal of Electronics
and Communication Engineering Technology (IJECET), Volume 4, Issue 4, 2013,
pp. 86 - 95, ISSN Print: 0976- 6464, ISSN Online: 0976 –6472.
[22] G.Prasad and N.Vasantha, “Design and Implementation of Multi Channel Frame
Synchronization in FPGA”, International Journal of Electronics and Communication
Engineering Technology (IJECET), Volume 4, Issue 1, 2013, pp. 189 - 199, ISSN Print:
0976- 6464, ISSN Online: 0976 –6472.
