1. Tapeshwar
Yadav
(Senior
Lecturer)
BMLT, DNHE,
M.Sc. Medical Biochemistry
Ion specific electrodes

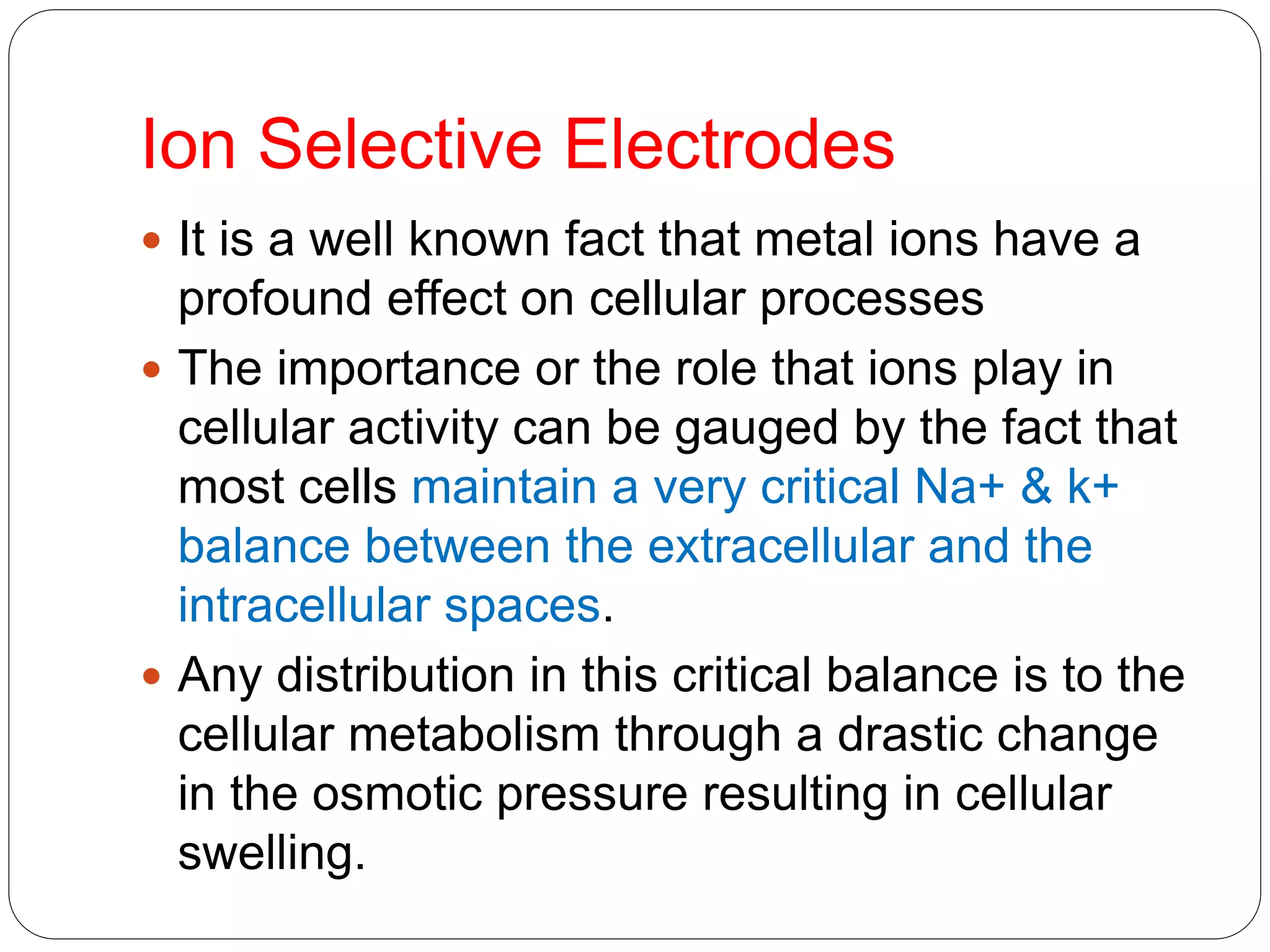

2. Ion Selective Electrodes
 It is a well known fact that metal ions have a
profound effect on cellular processes
 The importance or the role that ions play in
cellular activity can be gauged by the fact that
most cells maintain a very critical Na+ & k+
balance between the extracellular and the
intracellular spaces.
 Any distribution in this critical balance is to the
cellular metabolism through a drastic change
in the osmotic pressure resulting in cellular
swelling.

3. ISE
 Another metal ions, Ca2+ is known to act as a
minatory intracellular message stimulating such
diverse process as
 Insulin secretion
 Chemotaxis
 Endocytosis
 Cellular proliferation

4. Basic principles
 An ISE operates an exactly the same principles
as a PH electrode
In fact, a PH electrode is a type of ion selective
electrode sensitive to hydrogen ion.
Just like a PH electrode, the electrode body
contains a reference solution and an metal
reference electrode

5. Contd…

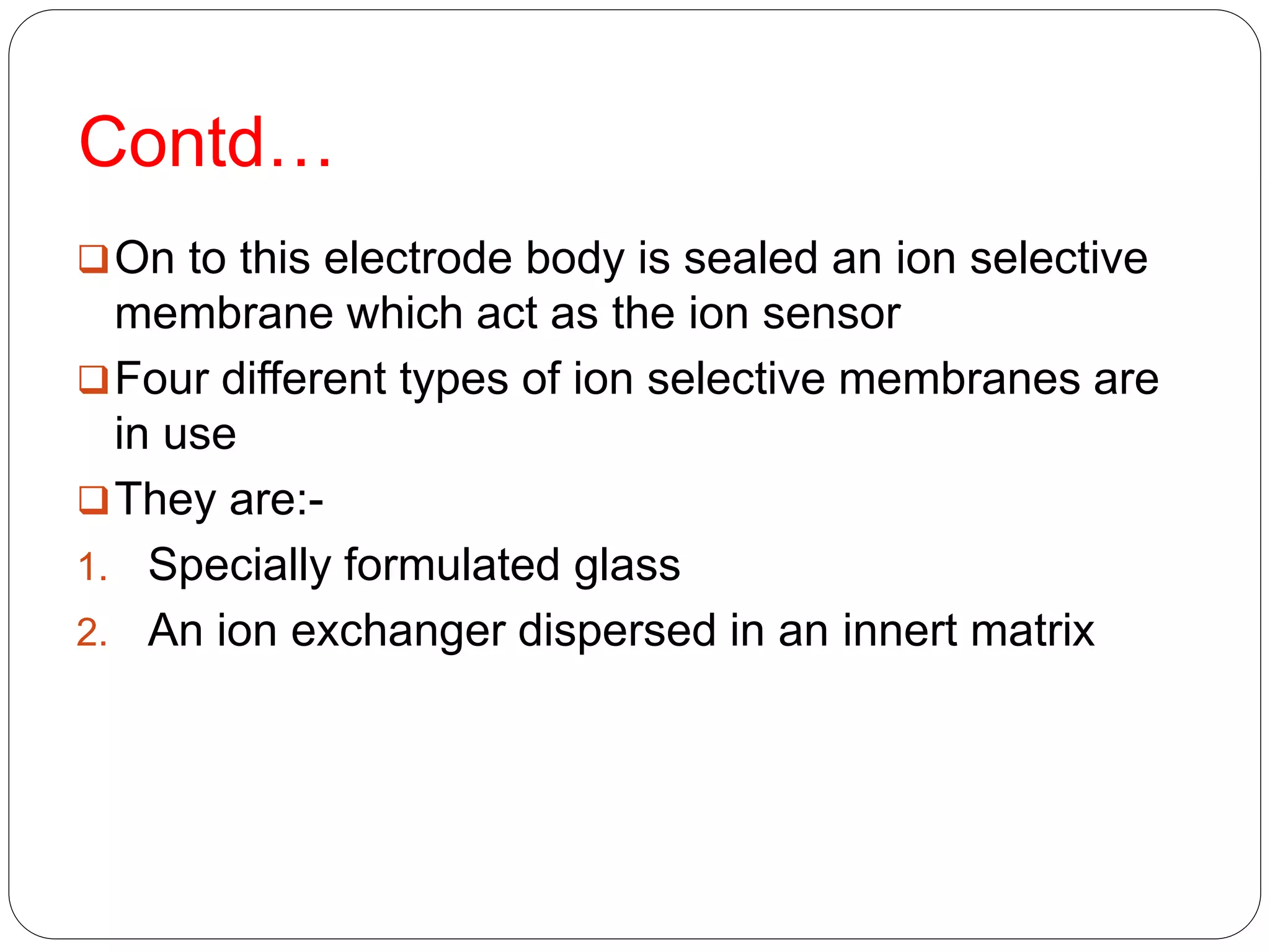

On to this electrode body is sealed an ion selective
membrane which act as the ion sensor
Four different types of ion selective membranes are
in use
They are:-
1. Specially formulated glass
2. An ion exchanger dispersed in an innert matrix

6. Contd…
3. A crystal
4. A liquid ion exchanger
The external reference electrode is either a
calomel or a Ag/Agcl electrode
The potential developed a cross the ion selective
electrode can be measured on a milli volt scale
available in a PH meter.

7. Contd…

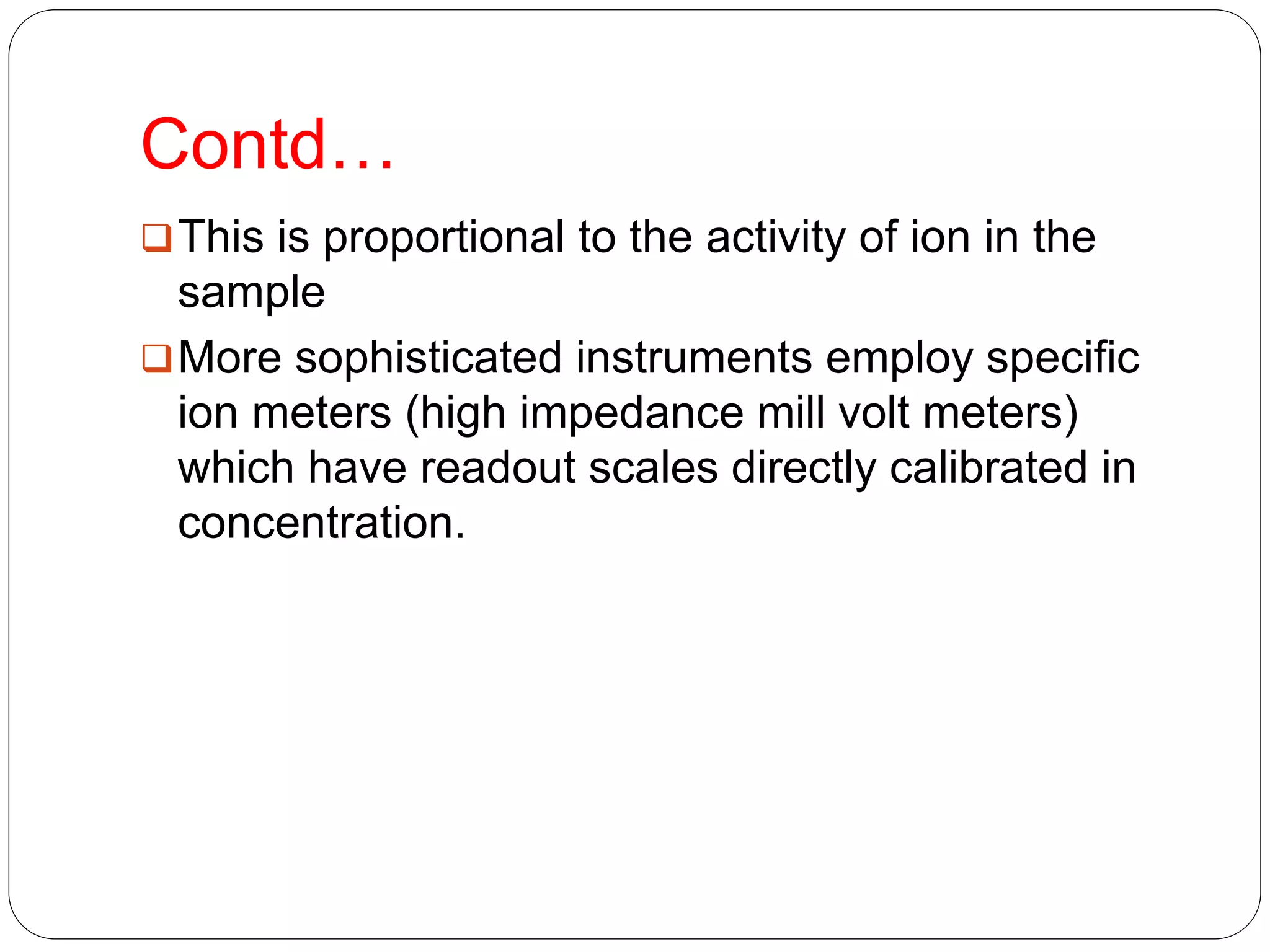

This is proportional to the activity of ion in the
sample
More sophisticated instruments employ specific
ion meters (high impedance mill volt meters)
which have readout scales directly calibrated in
concentration.

8. Types of ISE
1. Glass membrane electrodes
2. Solid-state ion exchanger electrodes
3. Solid-state crystal electrodes
4. Liquid-membrane electrodes

9. 1. Glass membrane electrodes
 Glass electrode consists of a stem of non-cation
responsive, high resistance glass on which is fused a thin
walled bulb of cation responsive glass.
 Selectivity of a glass electrode is a function of the comp.
of the glass.
 3 subtypes:
i. Type : pH
ii. Type : Cation sensitive
iii. Type : Sodium sensitive
Note: 2nd two subtypes are in general responsive to monovalent
cations and are more or less unresponsive to anions.

10. Contd…
 Appropriate adjustments of glass composition
change the degree of electrode selectivity.
 Thus, glass can be made more responsive to
cations by adding to it elements which have co-
ordination numbers greater than oxidation
numbers to alkali metal-silicate glasses (20%
Na2O – 10% CaO – 70% SiO2).
 It usually imparts an excessive negative change to
the glass making it suitable to attract cations
having a proper charge-size ratio.

11. Contd…

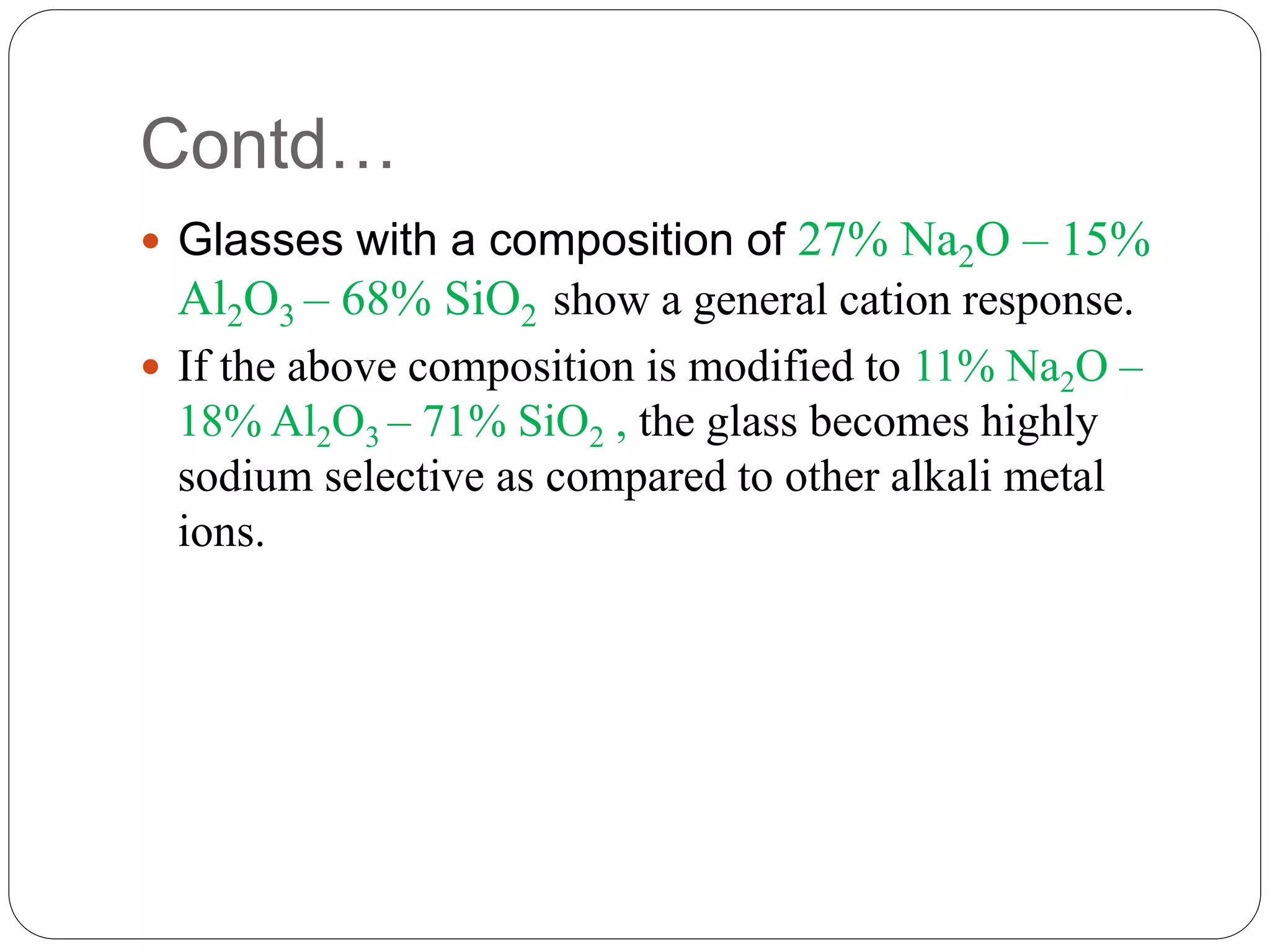

 Glasses with a composition of 27% Na2O – 15%
Al2O3 – 68% SiO2 show a general cation response.
 If the above composition is modified to 11% Na2O –
18% Al2O3 – 71% SiO2 , the glass becomes highly
sodium selective as compared to other alkali metal
ions.

13. Applications of Glass electrodes:
Measurement of sodium, lithium, or silver ions
because of their high specificity for these ions.
Due to its relative inertness it can be used in non-
aqueous media, organic solvents & also in the
presence of lipid soluble or surface active
molecules.

14. 2. Solid-State Ion Exchange
Electrodes
 In these electrodes, the glass membrane is
replaced with a solid-state ionically conducting
membrane.
 Ion responsive material is an insoluble or
sparingly soluble salt dispersed in an inert matrix.
 Often used inert matrices include silicon rubber,
polyvinyl chloride & other polymeric materials.

15. Contd…
 Membrane have good mechanical properties and
give reproducible potentials.
 The membrane so prepared is then cemented to a
glass or epoxy resin electrode body.
 The body holds an internal-reference solution and
a reference electrode .
 Sometimes, the back of an ion responsive
membrane is coated with mercury and platinum
wire is connected to it which works as the
reference electrode.

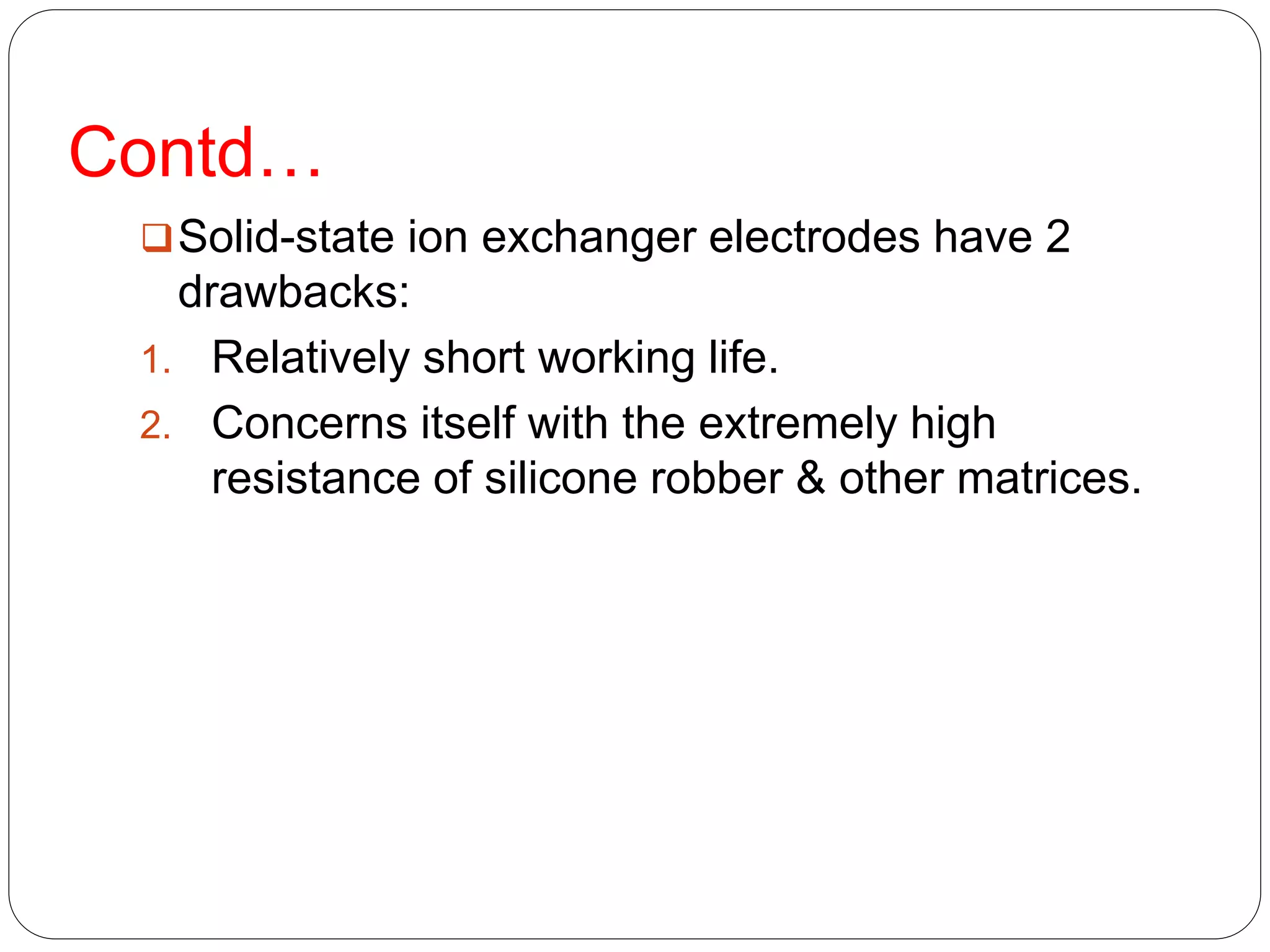

16. Contd…
Solid-state ion exchanger electrodes have 2
drawbacks:
1. Relatively short working life.
2. Concerns itself with the extremely high
resistance of silicone robber & other matrices.

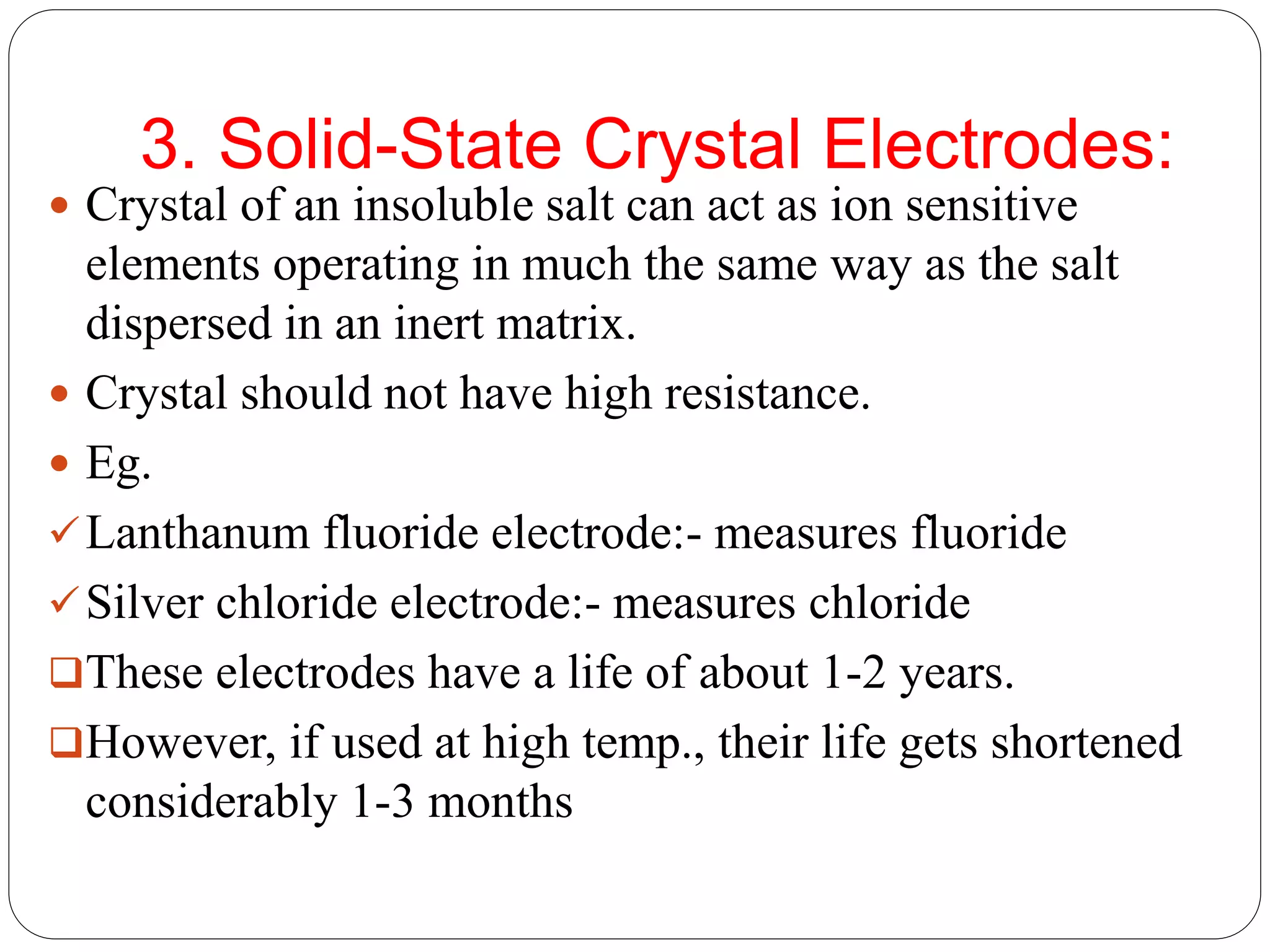

18. 3. Solid-State Crystal Electrodes:
 Crystal of an insoluble salt can act as ion sensitive
elements operating in much the same way as the salt
dispersed in an inert matrix.
 Crystal should not have high resistance.
 Eg.
Lanthanum fluoride electrode:- measures fluoride
Silver chloride electrode:- measures chloride
These electrodes have a life of about 1-2 years.
However, if used at high temp., their life gets shortened
considerably 1-3 months

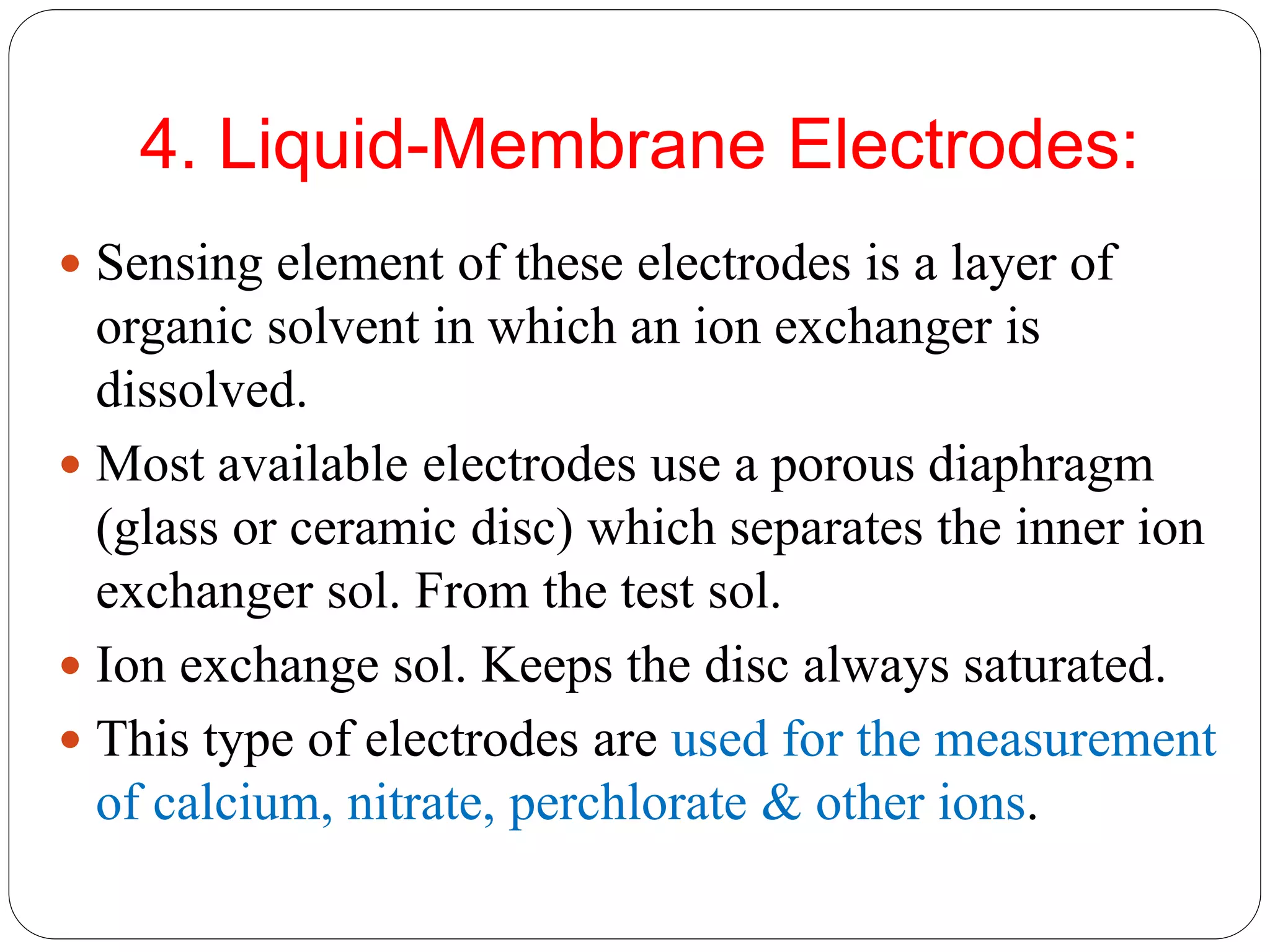

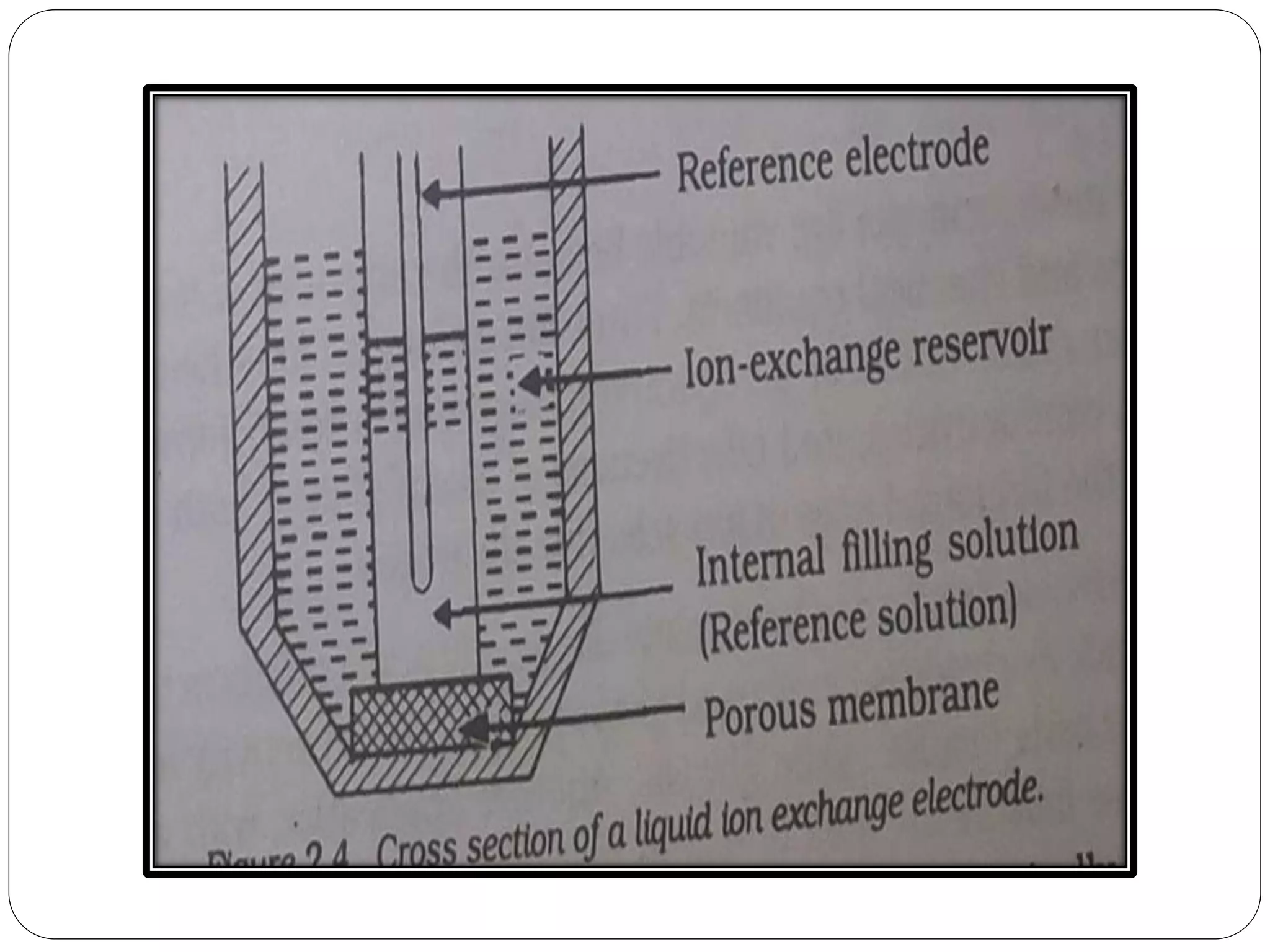

20. 4. Liquid-Membrane Electrodes:
 Sensing element of these electrodes is a layer of
organic solvent in which an ion exchanger is
dissolved.
 Most available electrodes use a porous diaphragm
(glass or ceramic disc) which separates the inner ion
exchanger sol. From the test sol.
 Ion exchange sol. Keeps the disc always saturated.
 This type of electrodes are used for the measurement
of calcium, nitrate, perchlorate & other ions.

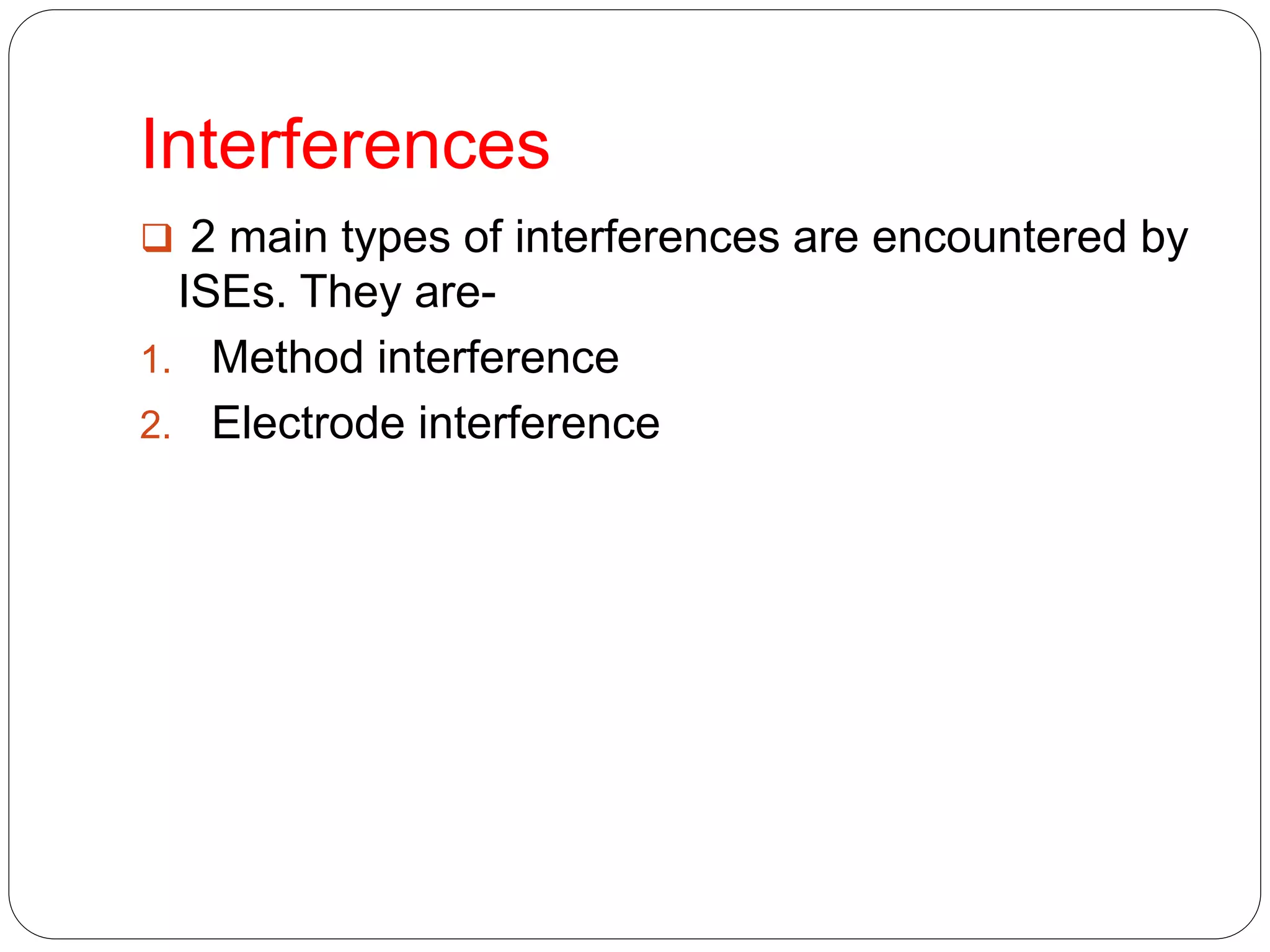

23. Interferences
 2 main types of interferences are encountered by
ISEs. They are-
1. Method interference
2. Electrode interference

24. 1. Method interference:
It can occur when either or all of such factors at the pH,
ionic strength or temp. of the sample being tested are not
properly mixed.
Thus, while measuring fluoride ions, a low pH might
give very low values for the activity of this ion.
This is so since fluoride ions form complexes with the
hydrogen ions and consequently lose their measurable
activity.
The method interference can therefore be done away
with by fixing the measurement conditions diligently.

25. 2. Electrode interference:
These are mostly due to the passage of an interfering
ion into the membrane, being measured.
Thus, high barium ion conc. In a sample being
measured for calcium can be detrimental to the
experiment as barium ions can compete with calcium
ions for passage into the membrane.
Another type of electrode interference occurs chiefly
with crystal electrodes.
Crystal electrodes consequently loses its sensitivity to
the desired ion.

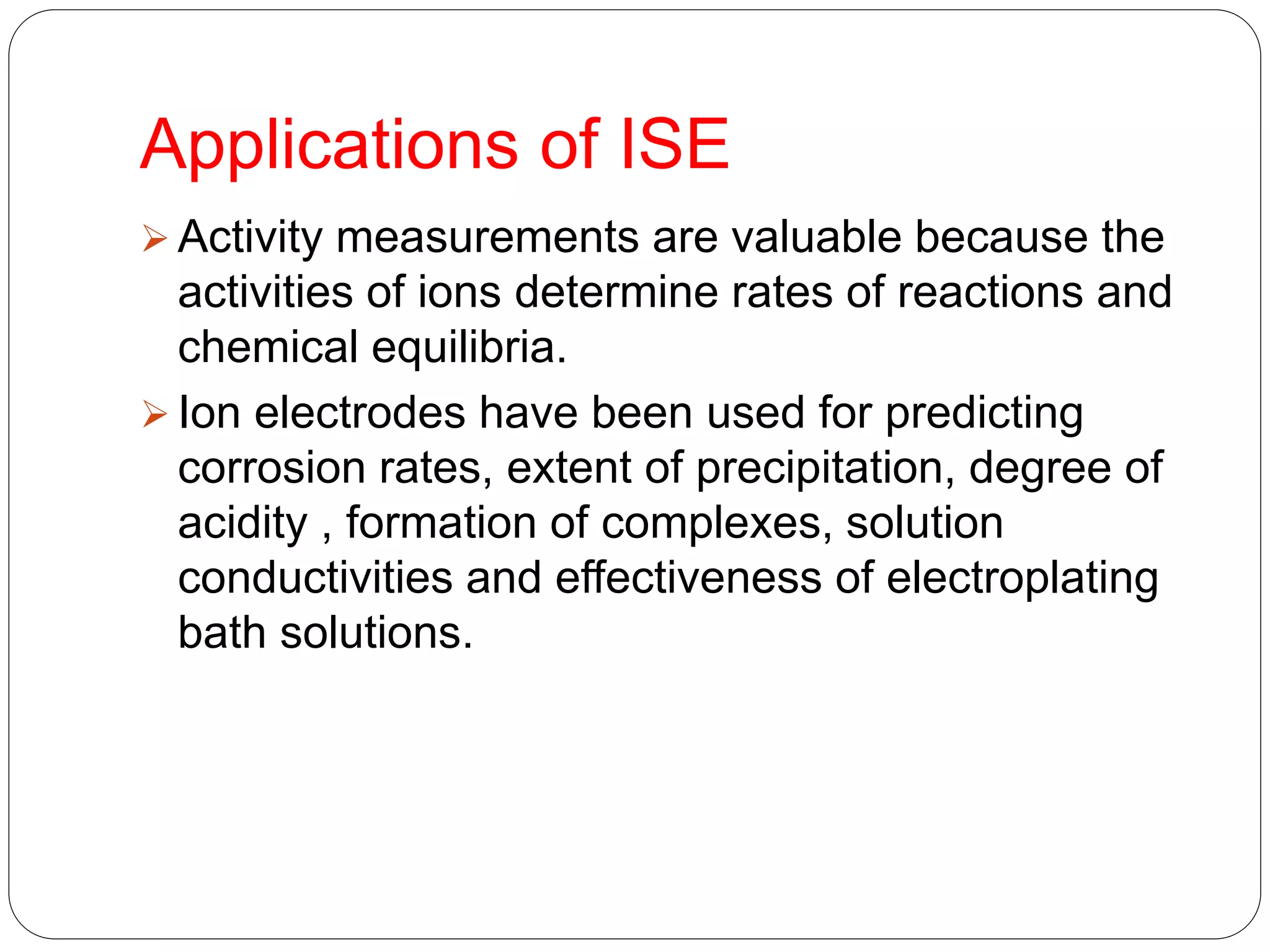

26. Applications of ISE
 Activity measurements are valuable because the
activities of ions determine rates of reactions and
chemical equilibria.
 Ion electrodes have been used for predicting
corrosion rates, extent of precipitation, degree of
acidity , formation of complexes, solution
conductivities and effectiveness of electroplating
bath solutions.

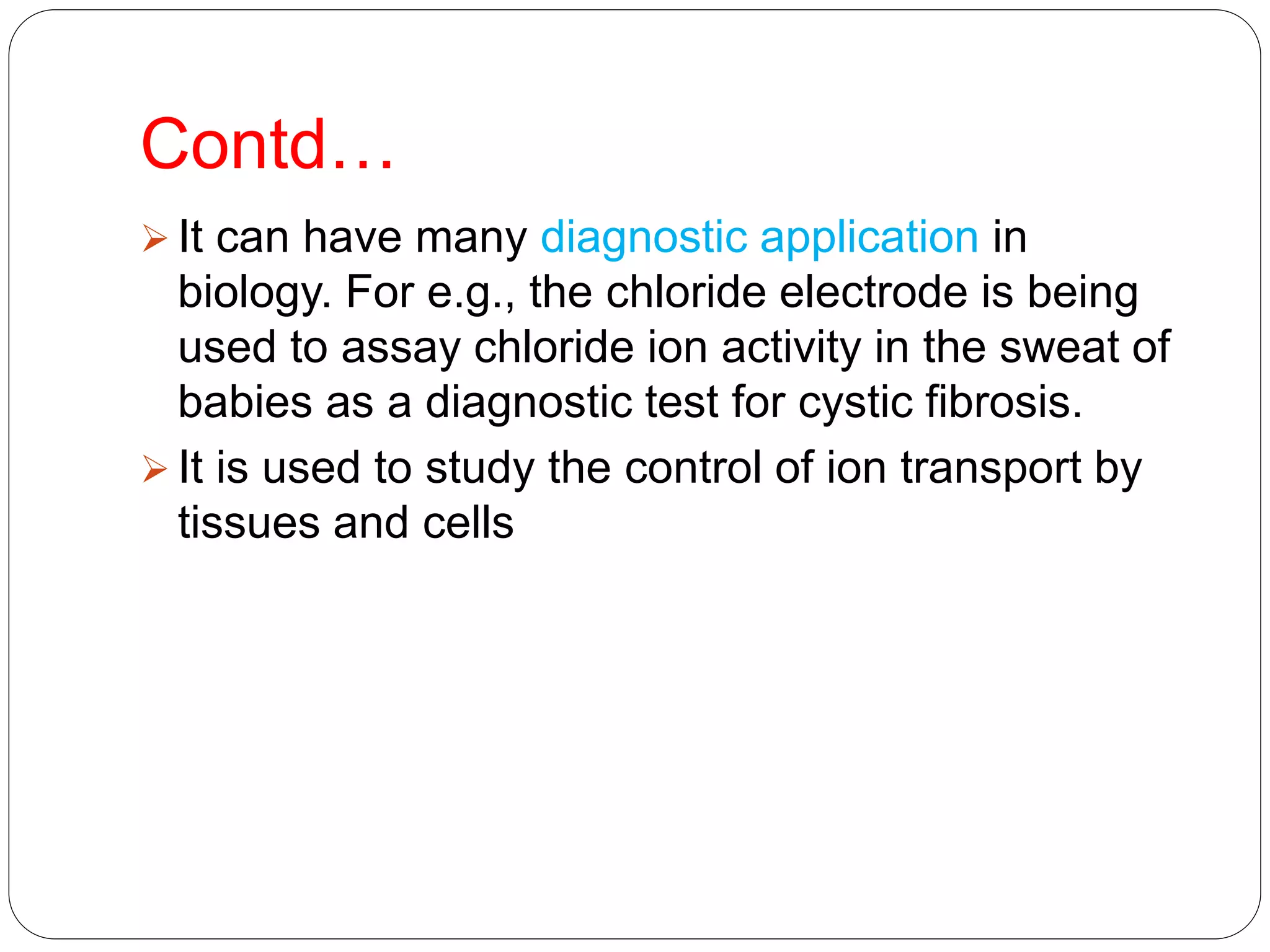

27. Contd…
 It can have many diagnostic application in
biology. For e.g., the chloride electrode is being
used to assay chloride ion activity in the sweat of
babies as a diagnostic test for cystic fibrosis.
 It is used to study the control of ion transport by
tissues and cells

28. Contd…
 Stimulating biological application of ion selective
electrodes is that they can be converted into
enzyme electrodes.
 These electrodes can be measure the activity of
an enzyme in a given sample
 For e.g., the ammonium ion electrode can be
converted into an enzyme electrode measuring
the activity of ureas.

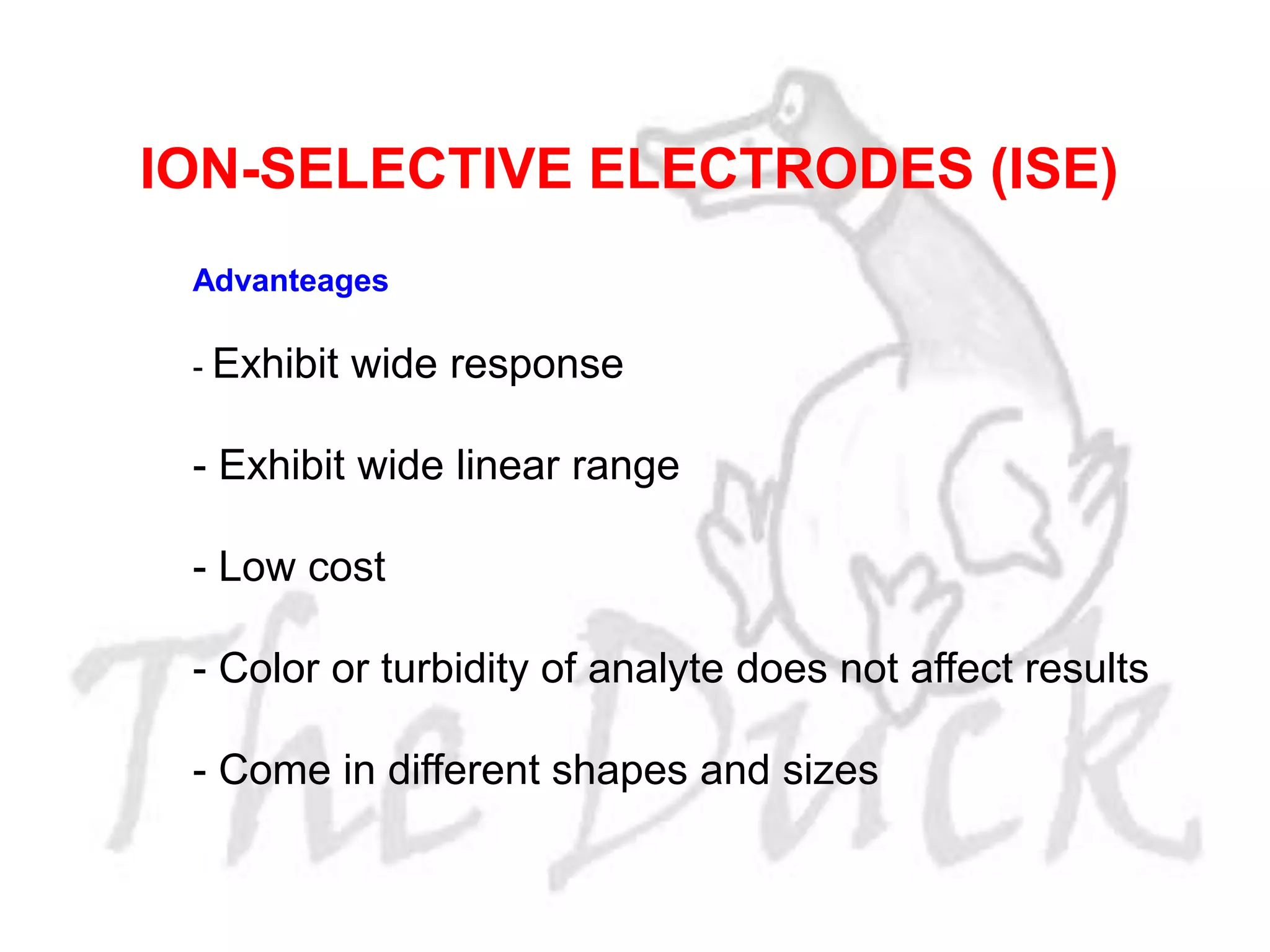

29. Advanteages
- Exhibit wide response
- Exhibit wide linear range
- Low cost
- Color or turbidity of analyte does not affect results
- Come in different shapes and sizes
ION-SELECTIVE ELECTRODES (ISE)

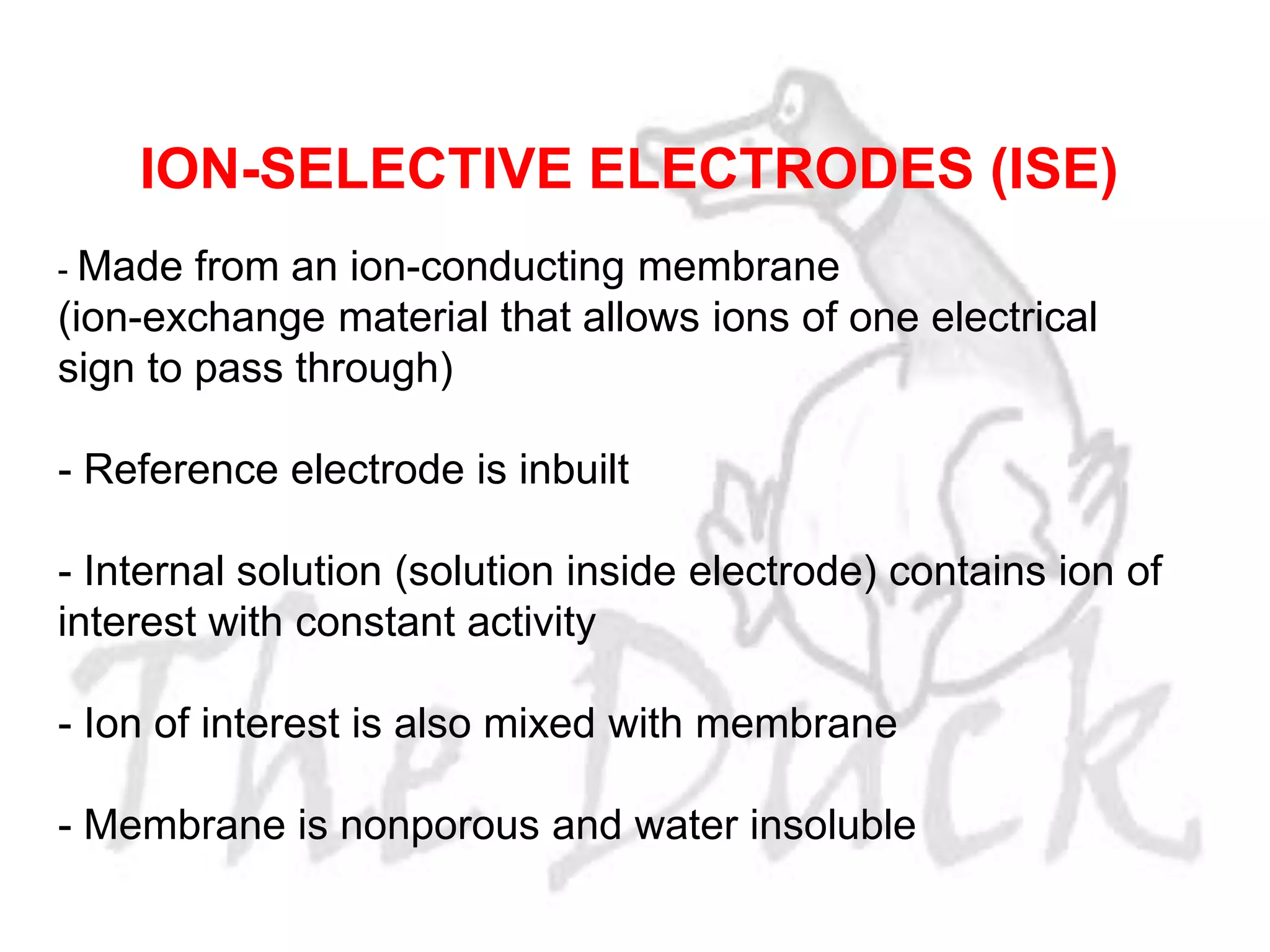

30. - Made from an ion-conducting membrane
(ion-exchange material that allows ions of one electrical
sign to pass through)
- Reference electrode is inbuilt
- Internal solution (solution inside electrode) contains ion of
interest with constant activity
- Ion of interest is also mixed with membrane
- Membrane is nonporous and water insoluble
ION-SELECTIVE ELECTRODES (ISE)

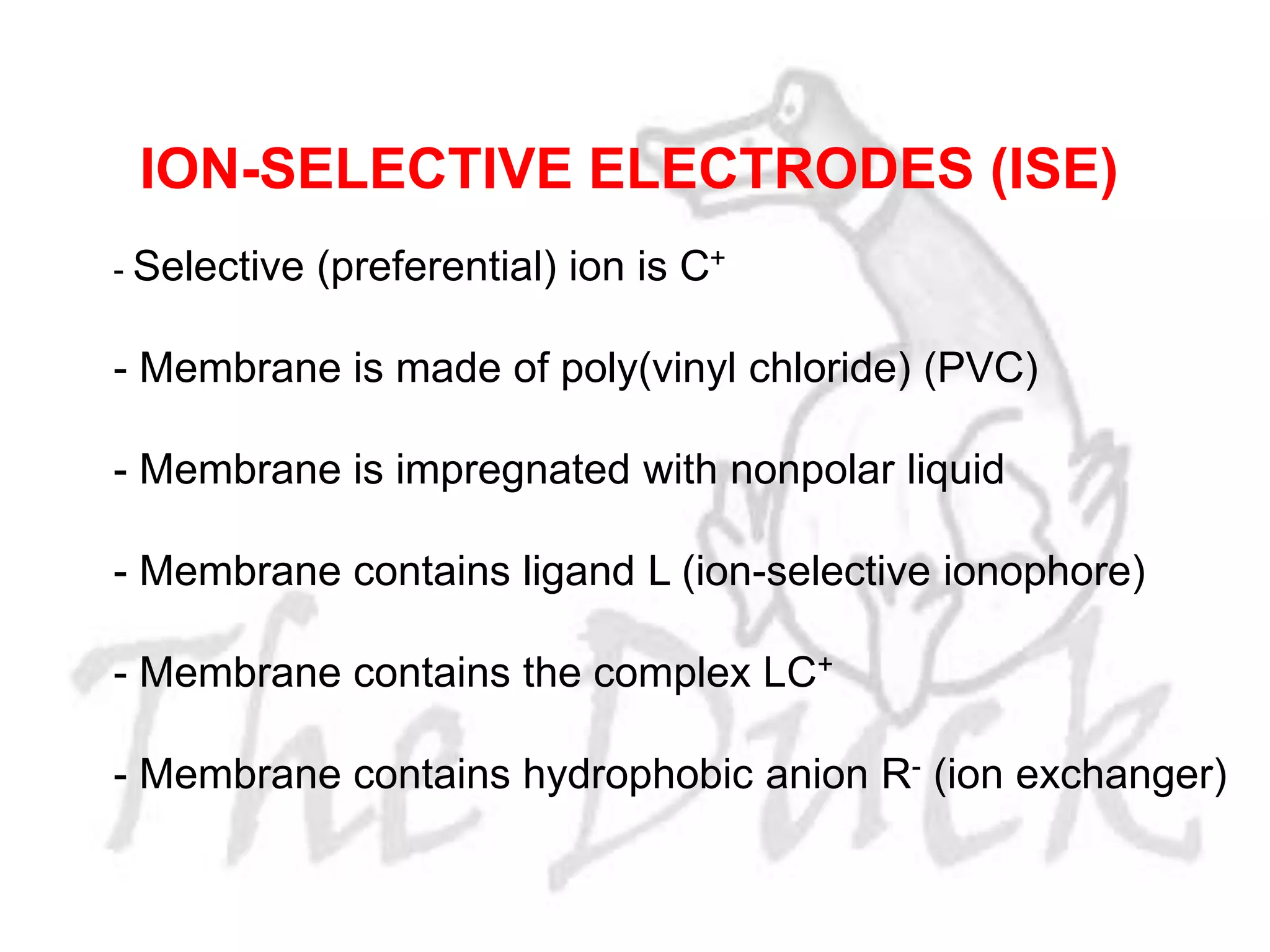

31. - Selective (preferential) ion is C+
- Membrane is made of poly(vinyl chloride) (PVC)
- Membrane is impregnated with nonpolar liquid
- Membrane contains ligand L (ion-selective ionophore)
- Membrane contains the complex LC+
- Membrane contains hydrophobic anion R- (ion exchanger)
ION-SELECTIVE ELECTRODES (ISE)

32. - Responds preferentially to one species in solution
Internal reference
electrode
Ion-selective membrane
Internal (filling)
solution
ION-SELECTIVE ELECTRODES (ISE)
