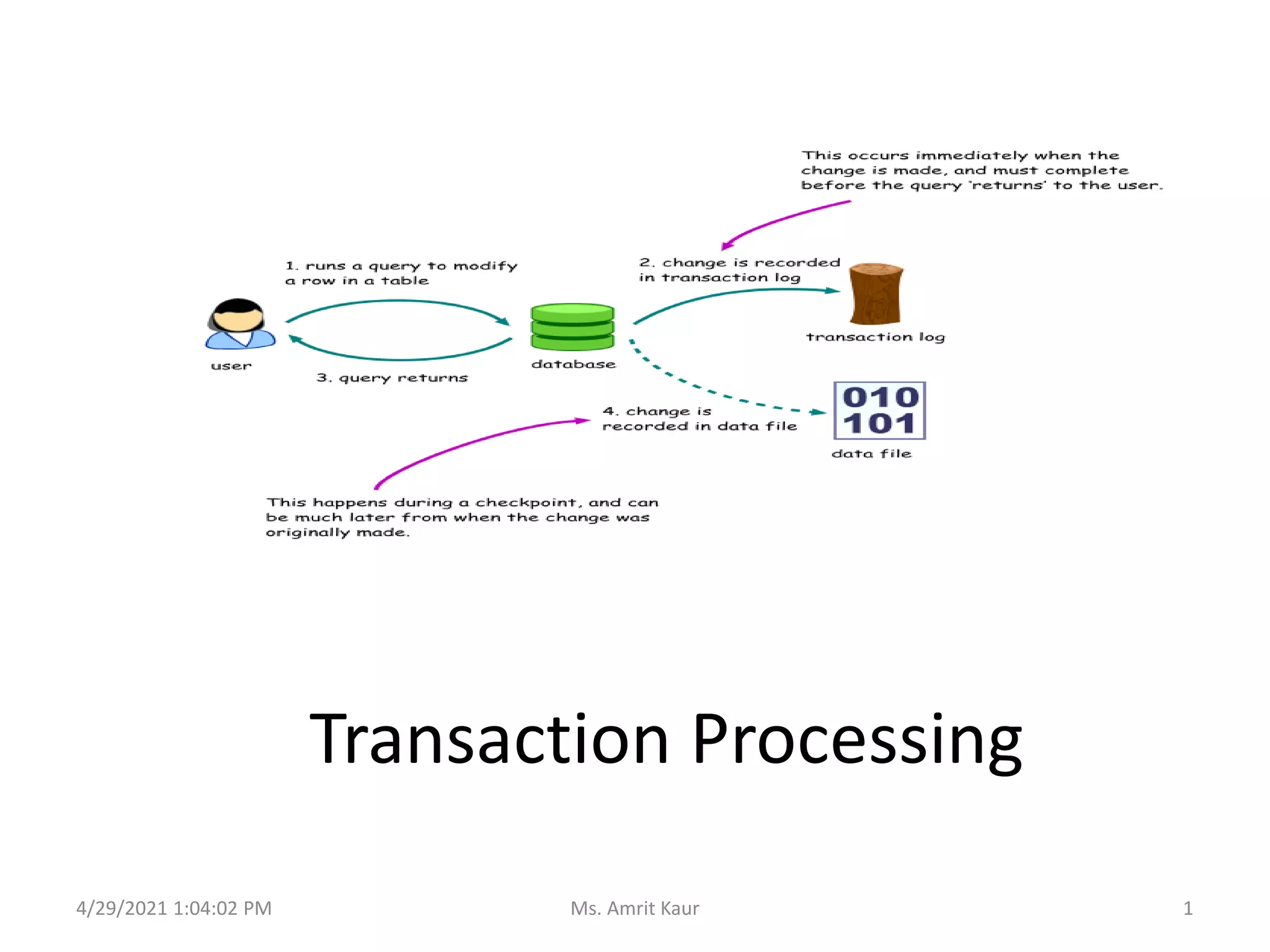

1. Transaction Processing
4/29/2021 1:04:02 PM 1
Ms. Amrit Kaur

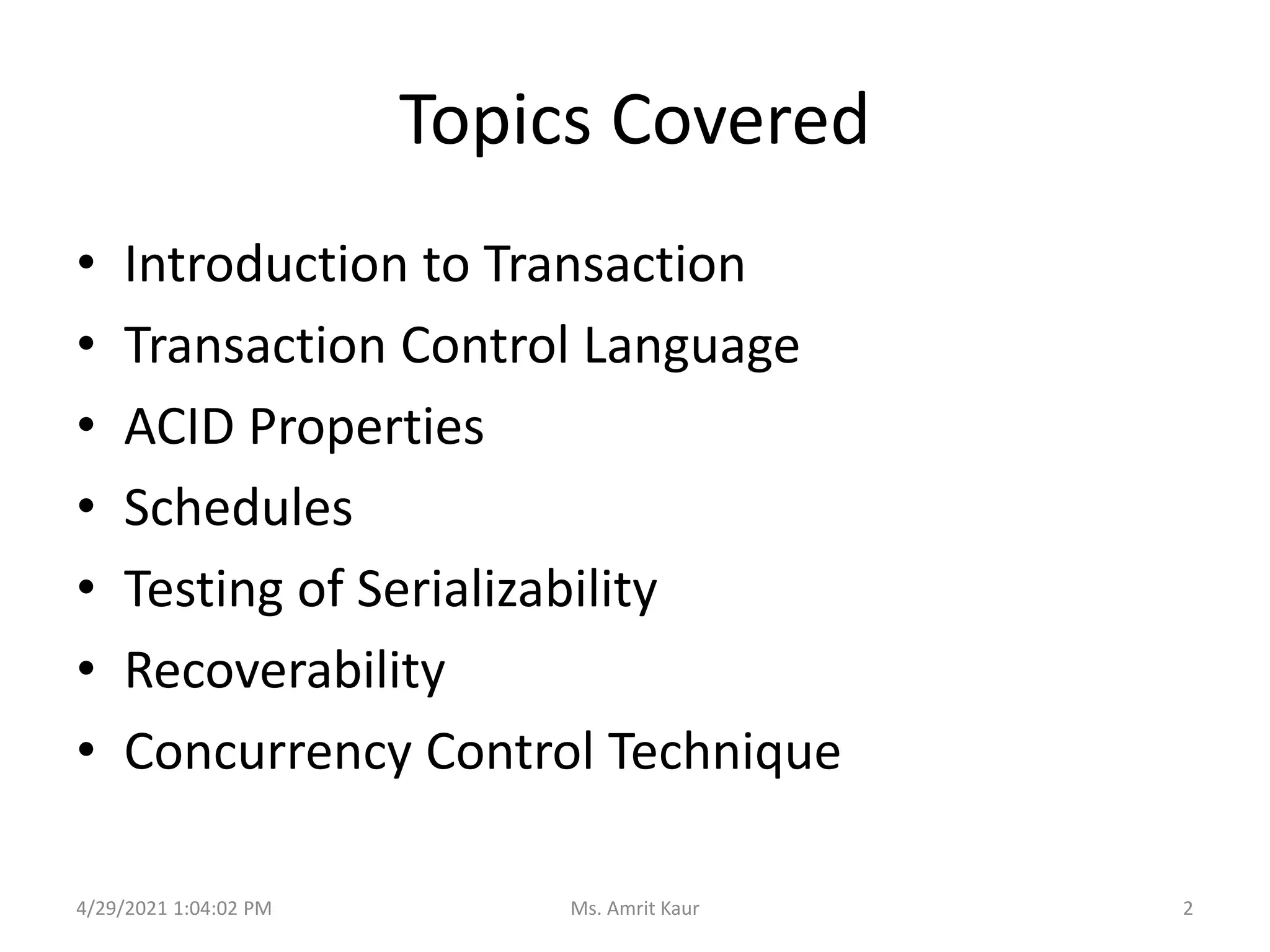

2. Topics Covered
• Introduction to Transaction
• Transaction Control Language
• ACID Properties
• Schedules
• Testing of Serializability
• Recoverability
• Concurrency Control Technique
4/29/2021 1:04:02 PM 2
Ms. Amrit Kaur

3. INTRODUCTION TO
TRANSACTION PROCESSING
1
4/29/2021 1:04:02 PM 3
Ms. Amrit Kaur

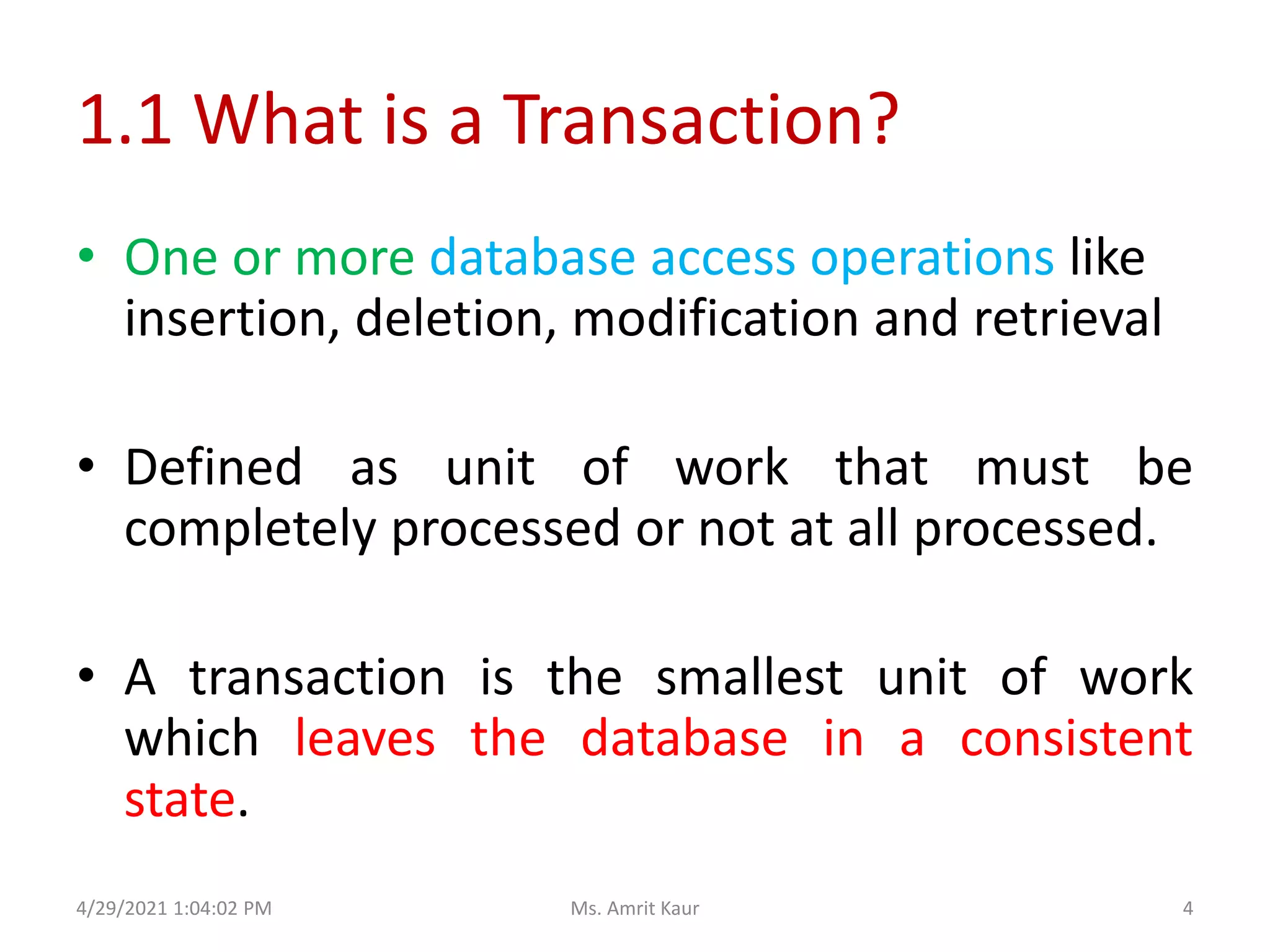

4. 1.1 What is a Transaction?
• One or more database access operations like
insertion, deletion, modification and retrieval
• Defined as unit of work that must be
completely processed or not at all processed.
• A transaction is the smallest unit of work
which leaves the database in a consistent
state.
4/29/2021 1:04:02 PM 4
Ms. Amrit Kaur

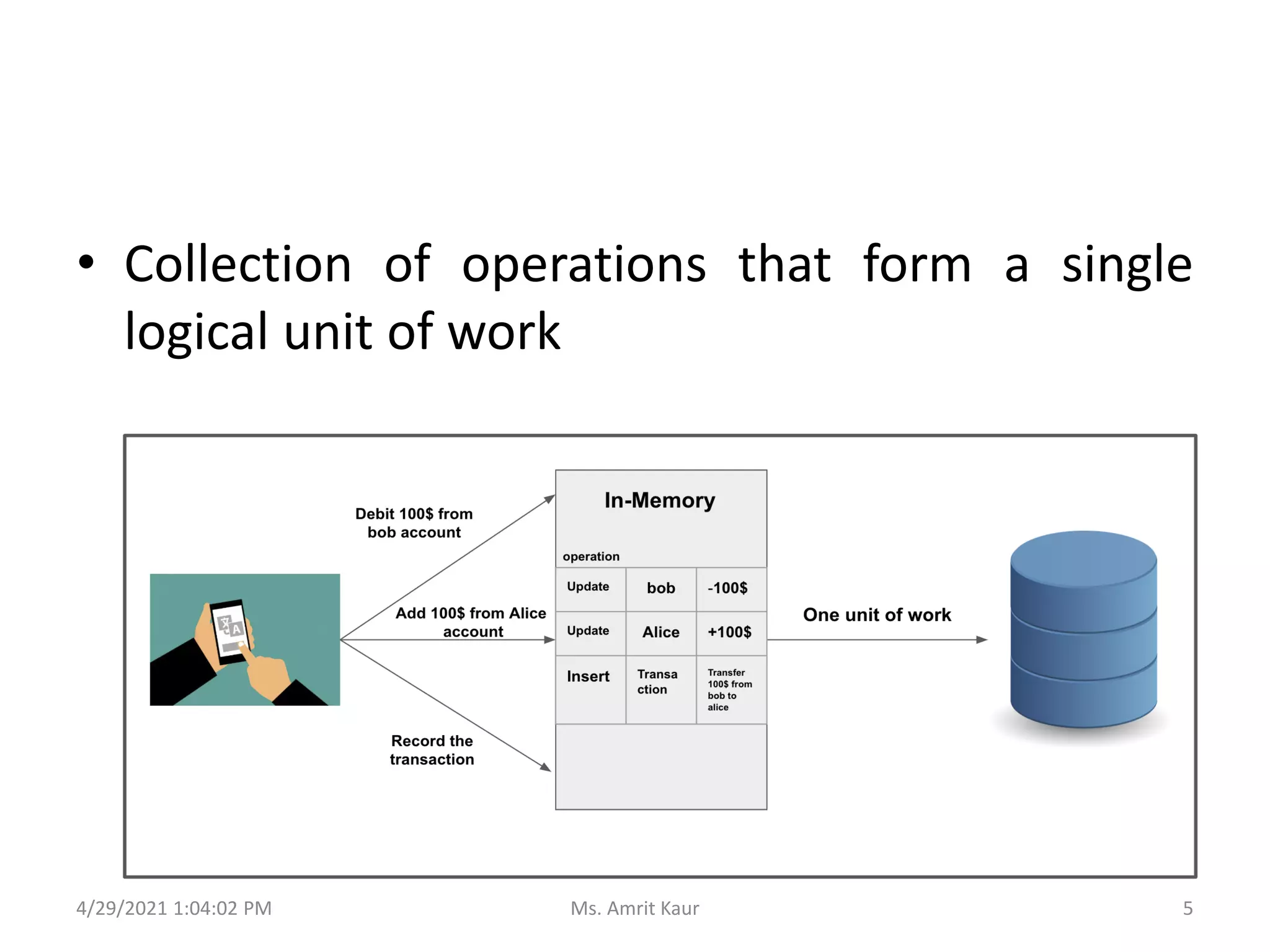

5. • Collection of operations that form a single
logical unit of work
4/29/2021 1:04:02 PM 5
Ms. Amrit Kaur

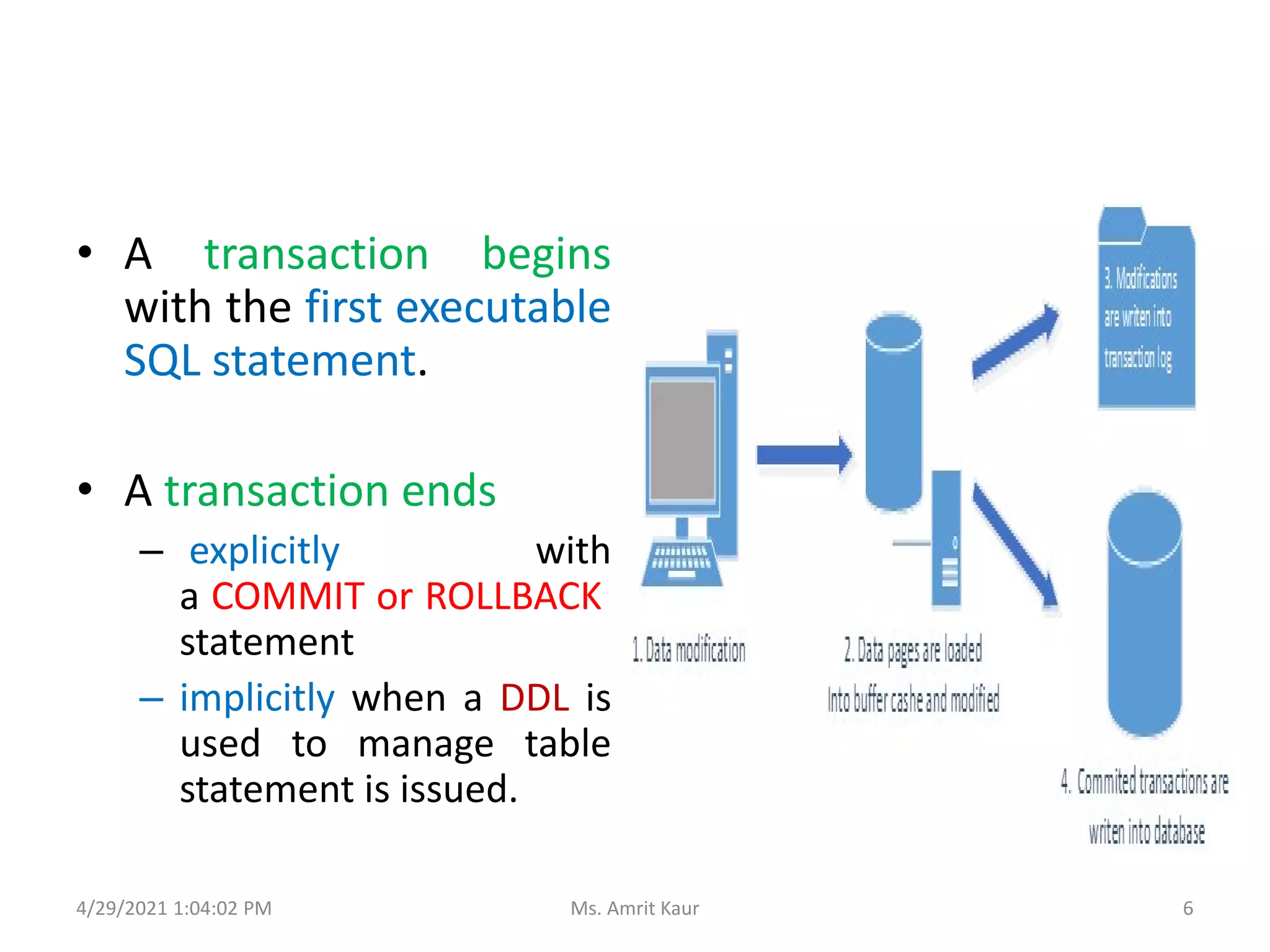

6. • A transaction begins
with the first executable
SQL statement.
• A transaction ends
– explicitly with
a COMMIT or ROLLBACK
statement
– implicitly when a DDL is
used to manage table
statement is issued.
4/29/2021 1:04:02 PM 6
Ms. Amrit Kaur

7. TRANSACTION CONTROL
LANGUAGE
2
4/29/2021 1:04:02 PM 7
Ms. Amrit Kaur

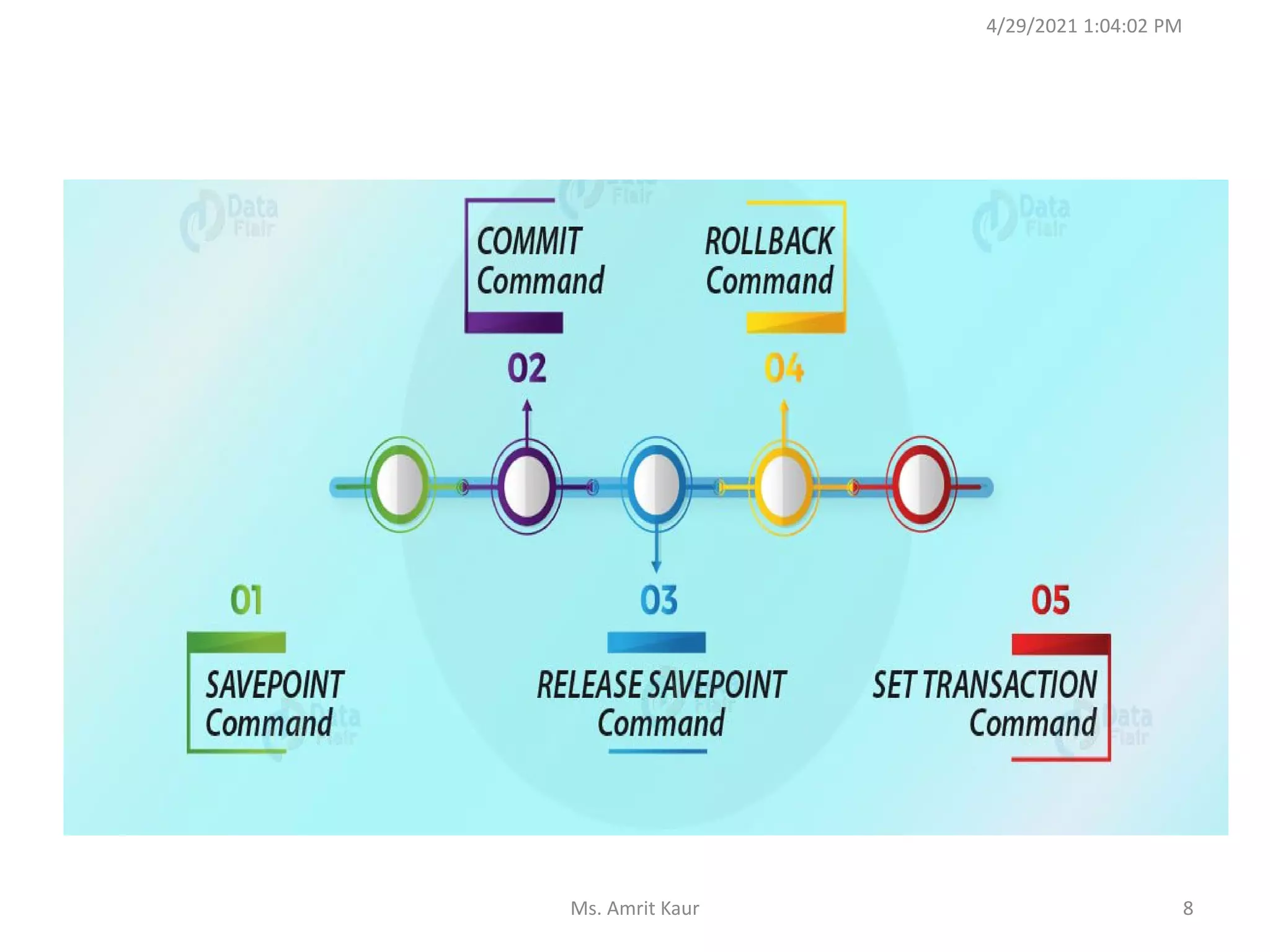

8. 4/29/2021 1:04:02 PM
8
Ms. Amrit Kaur

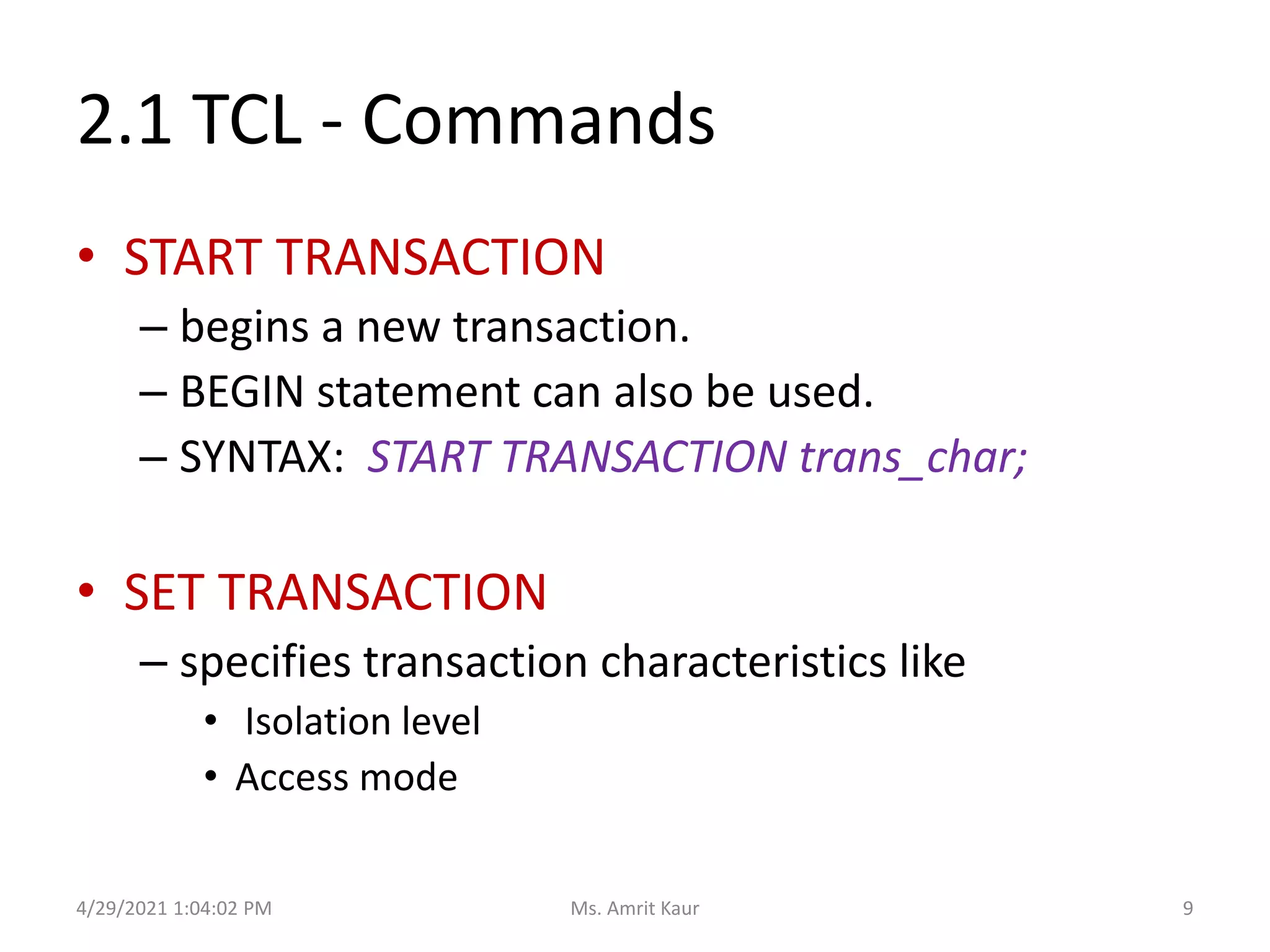

9. 2.1 TCL - Commands
• START TRANSACTION
– begins a new transaction.
– BEGIN statement can also be used.
– SYNTAX: START TRANSACTION trans_char;
• SET TRANSACTION
– specifies transaction characteristics like
• Isolation level
• Access mode
4/29/2021 1:04:02 PM 9
Ms. Amrit Kaur

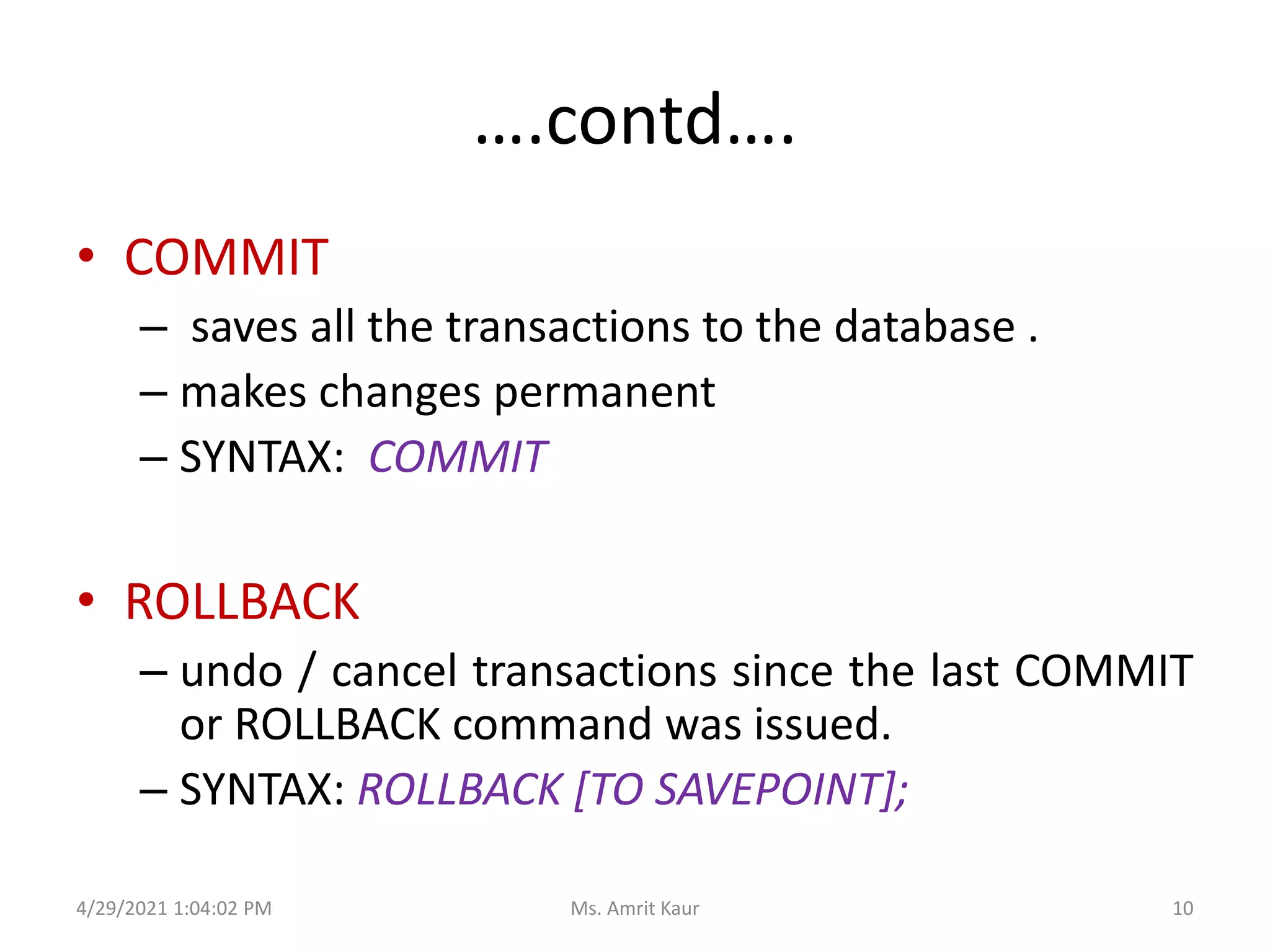

10. ….contd….
• COMMIT
– saves all the transactions to the database .
– makes changes permanent
– SYNTAX: COMMIT
• ROLLBACK
– undo / cancel transactions since the last COMMIT
or ROLLBACK command was issued.
– SYNTAX: ROLLBACK [TO SAVEPOINT];
4/29/2021 1:04:02 PM 10
Ms. Amrit Kaur

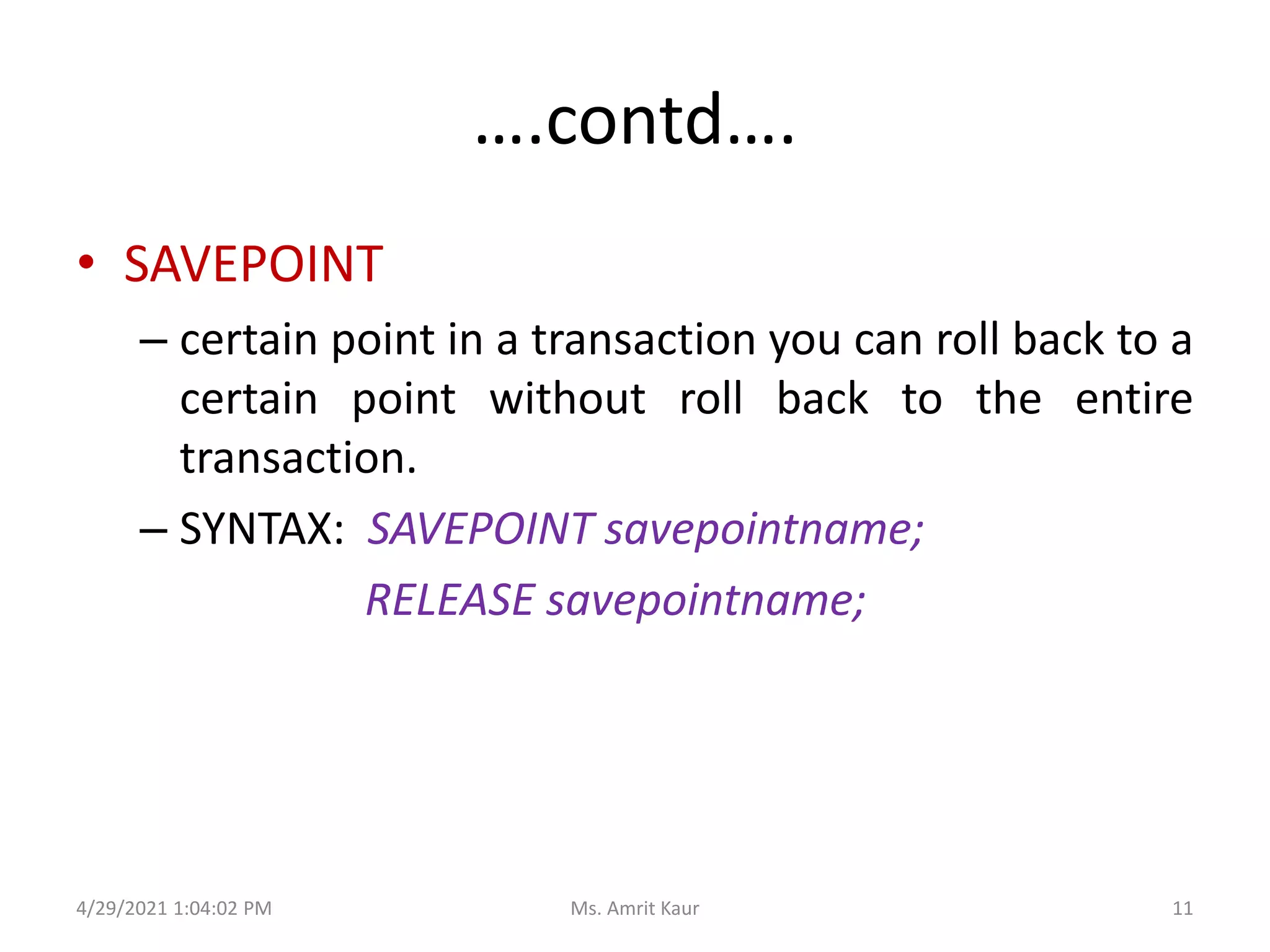

11. ….contd….
• SAVEPOINT
– certain point in a transaction you can roll back to a
certain point without roll back to the entire
transaction.
– SYNTAX: SAVEPOINT savepointname;
RELEASE savepointname;
4/29/2021 1:04:02 PM 11
Ms. Amrit Kaur

12. ACID PROPERTIES
3
4/29/2021 1:04:02 PM 12
Ms. Amrit Kaur

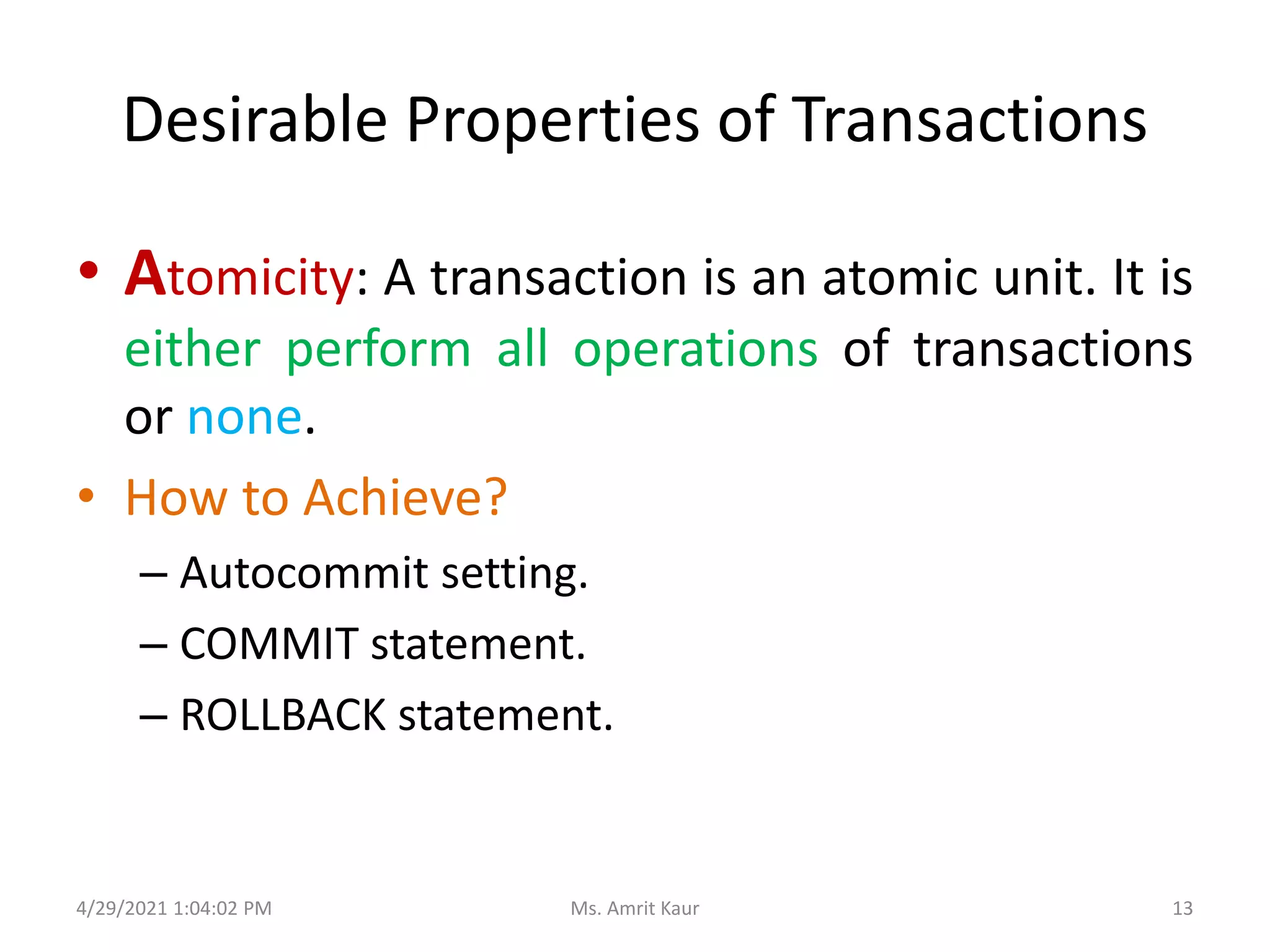

13. Desirable Properties of Transactions
• Atomicity: A transaction is an atomic unit. It is
either perform all operations of transactions
or none.
• How to Achieve?
– Autocommit setting.
– COMMIT statement.
– ROLLBACK statement.
4/29/2021 1:04:02 PM 13
Ms. Amrit Kaur

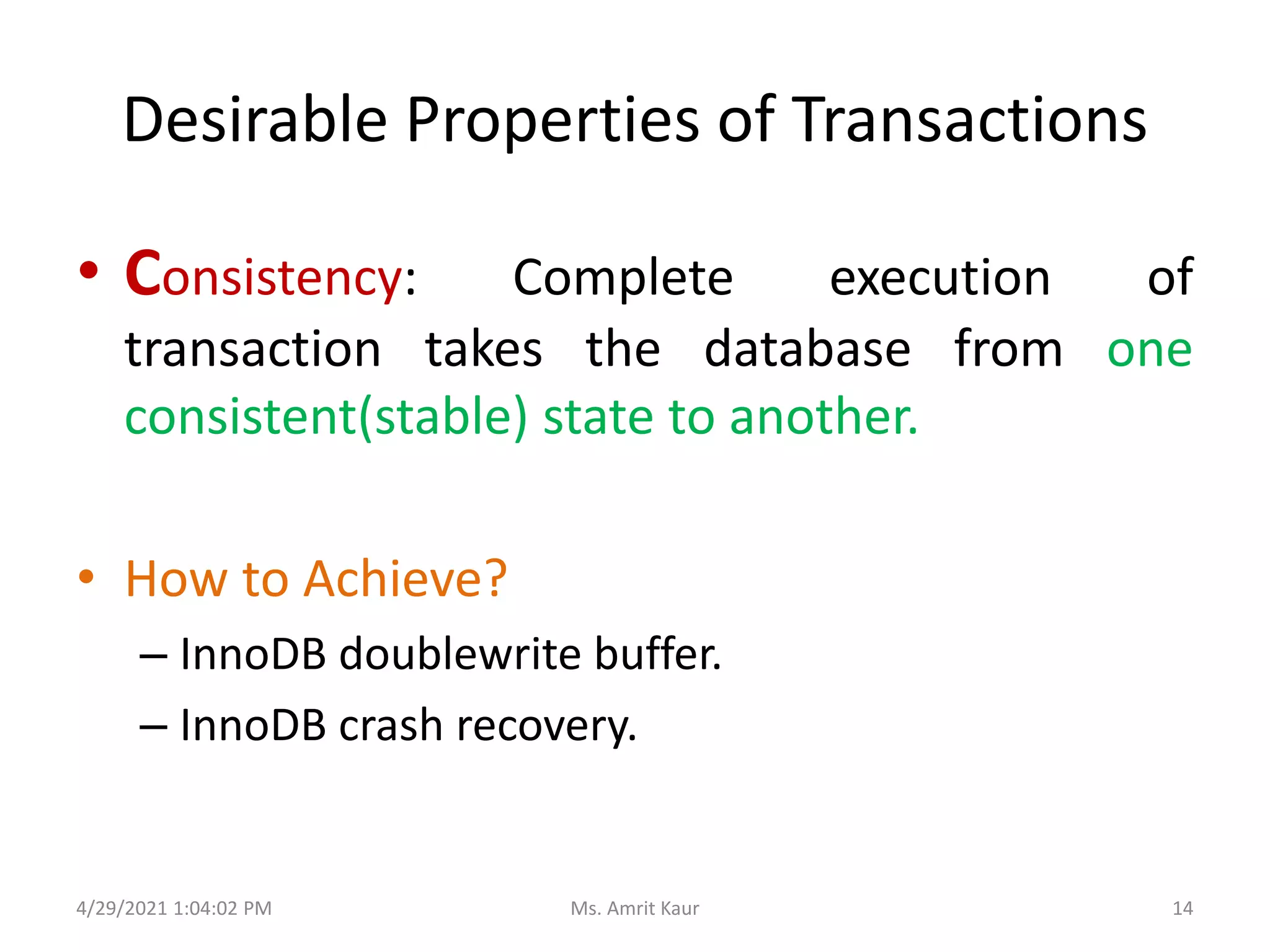

14. Desirable Properties of Transactions
• Consistency: Complete execution of
transaction takes the database from one
consistent(stable) state to another.
• How to Achieve?
– InnoDB doublewrite buffer.
– InnoDB crash recovery.
4/29/2021 1:04:02 PM 14
Ms. Amrit Kaur

15. Desirable Properties of Transactions
• Isolation: Execution of transaction should not
be interfered with any other transactions
executing concurrently.
• How to Achieve?
– Autocommit setting.
– SET ISOLATION LEVEL statement.
4/29/2021 1:04:02 PM 15
Ms. Amrit Kaur

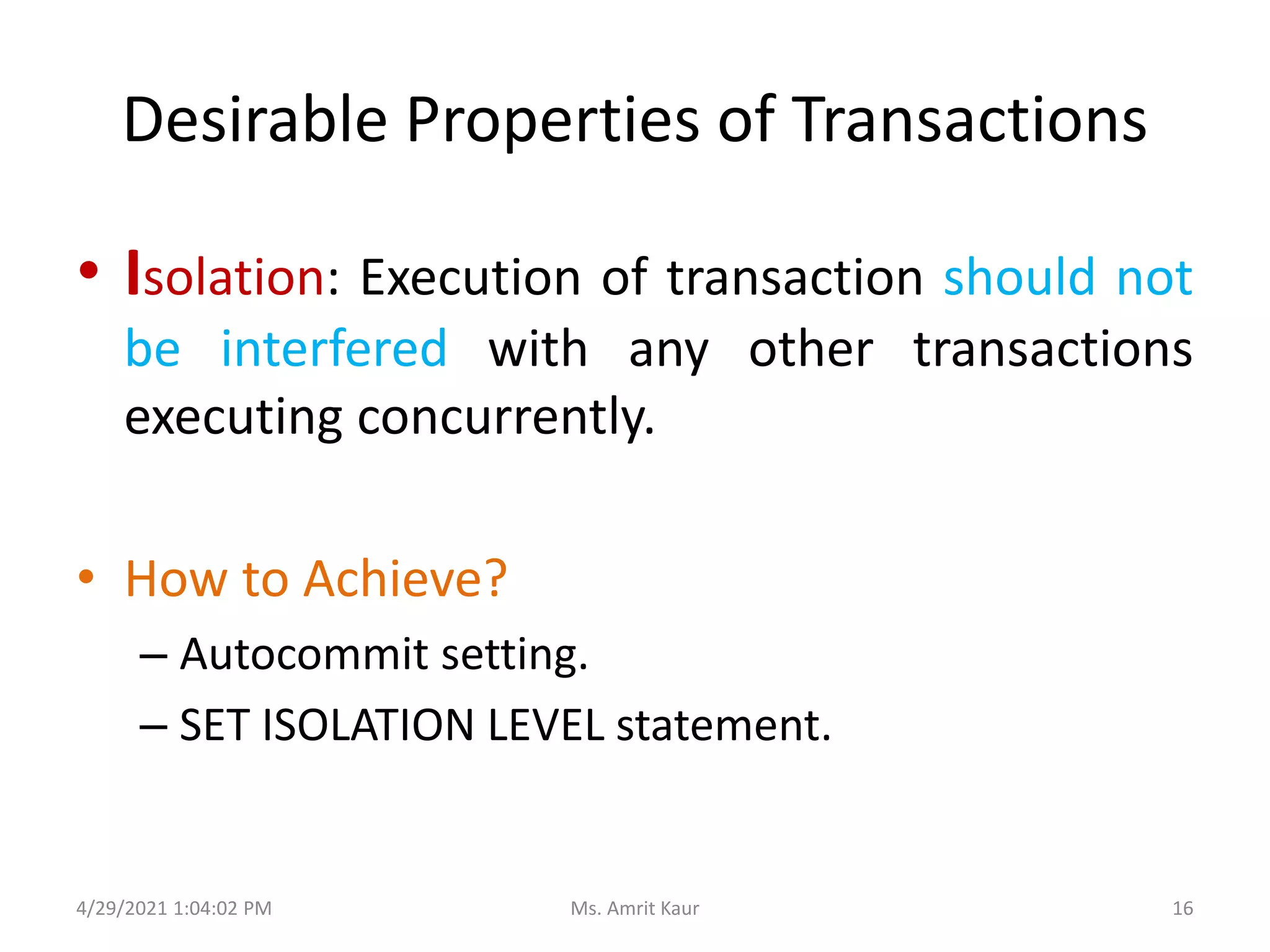

16. Desirable Properties of Transactions
• Isolation: Execution of transaction should not
be interfered with any other transactions
executing concurrently.
• How to Achieve?
– Autocommit setting.
– SET ISOLATION LEVEL statement.
4/29/2021 1:04:02 PM 16
Ms. Amrit Kaur

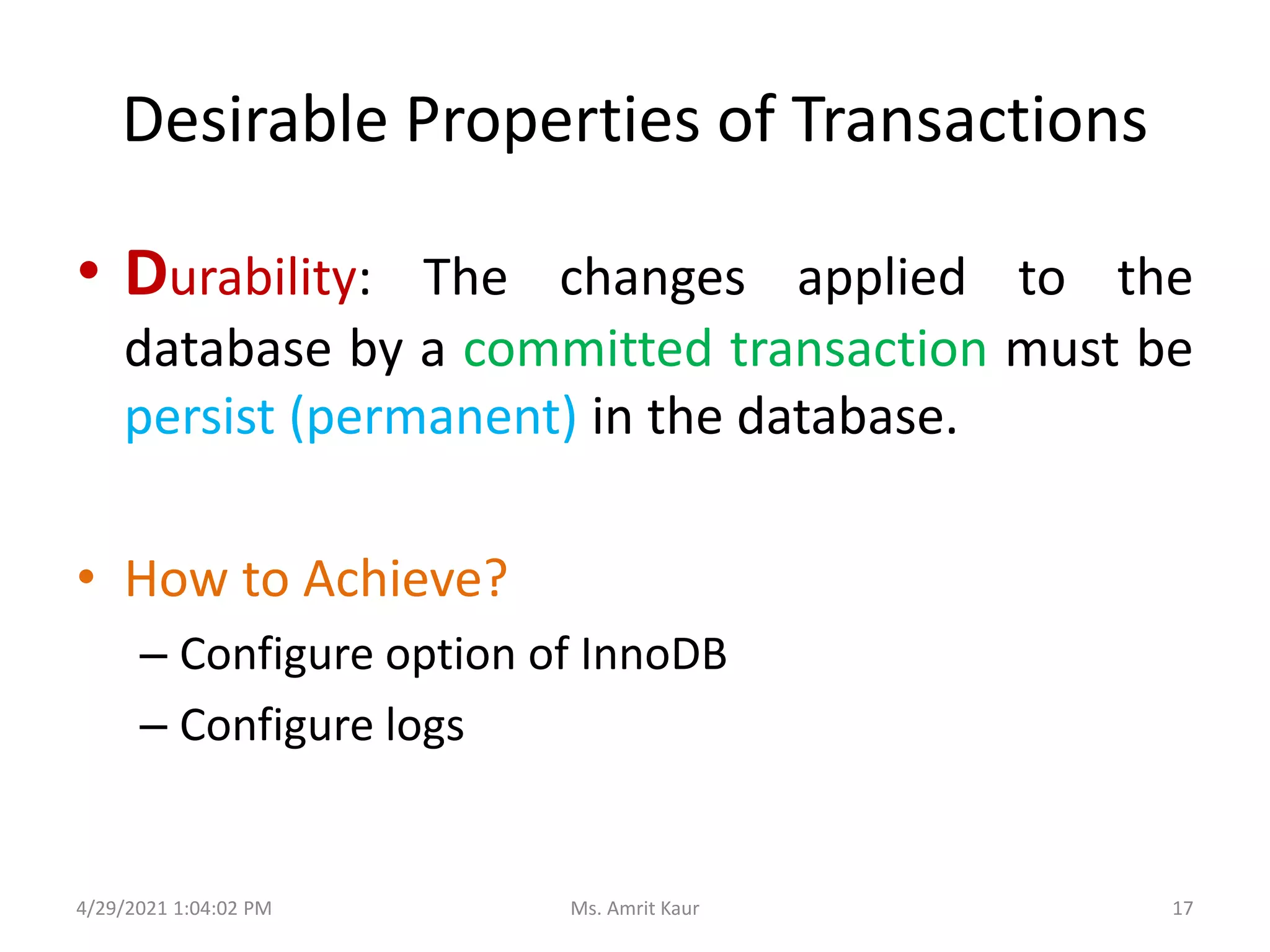

17. Desirable Properties of Transactions
• Durability: The changes applied to the
database by a committed transaction must be
persist (permanent) in the database.
• How to Achieve?
– Configure option of InnoDB
– Configure logs
4/29/2021 1:04:02 PM 17
Ms. Amrit Kaur

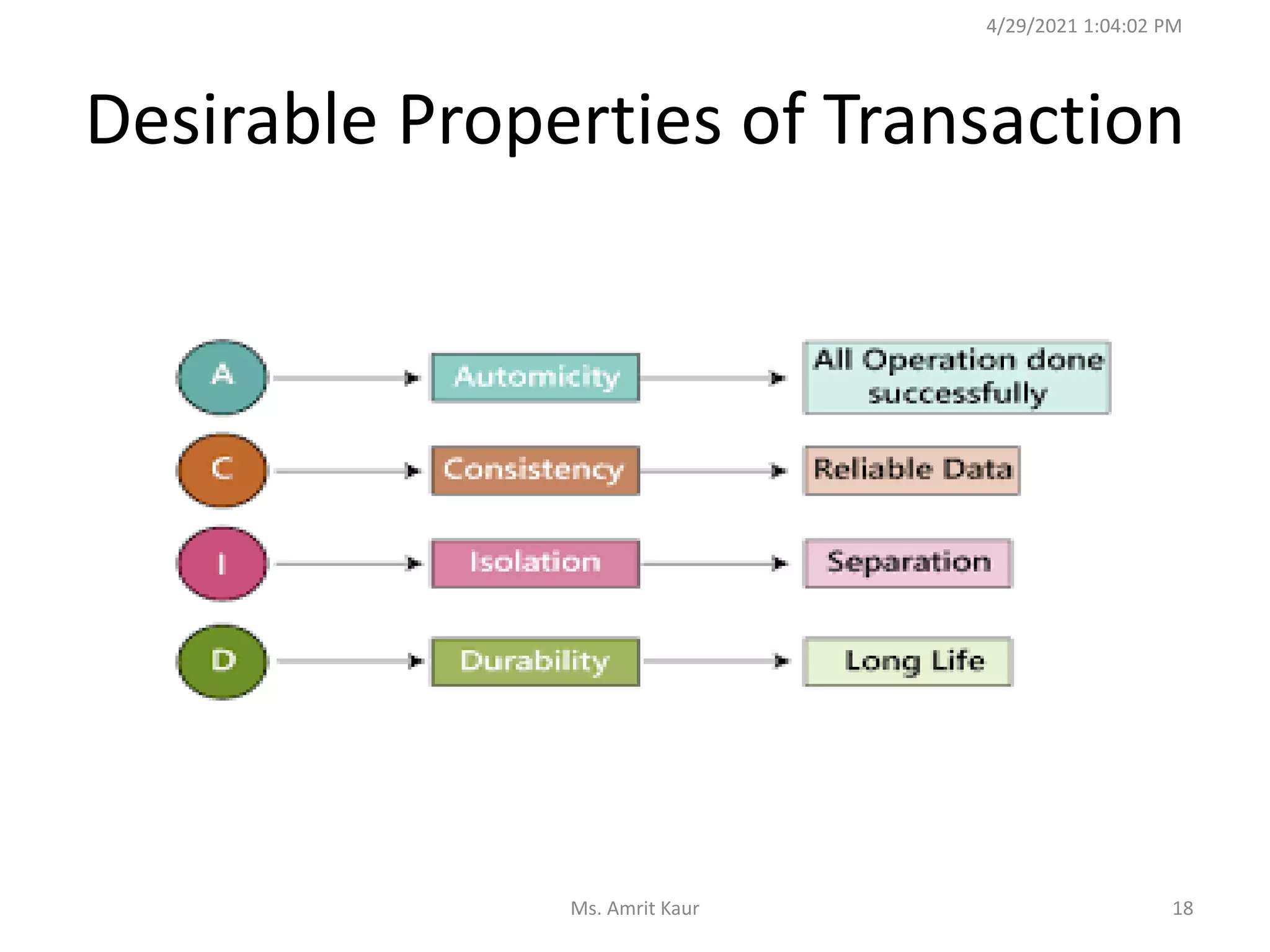

18. Desirable Properties of Transaction
4/29/2021 1:04:02 PM
18
Ms. Amrit Kaur

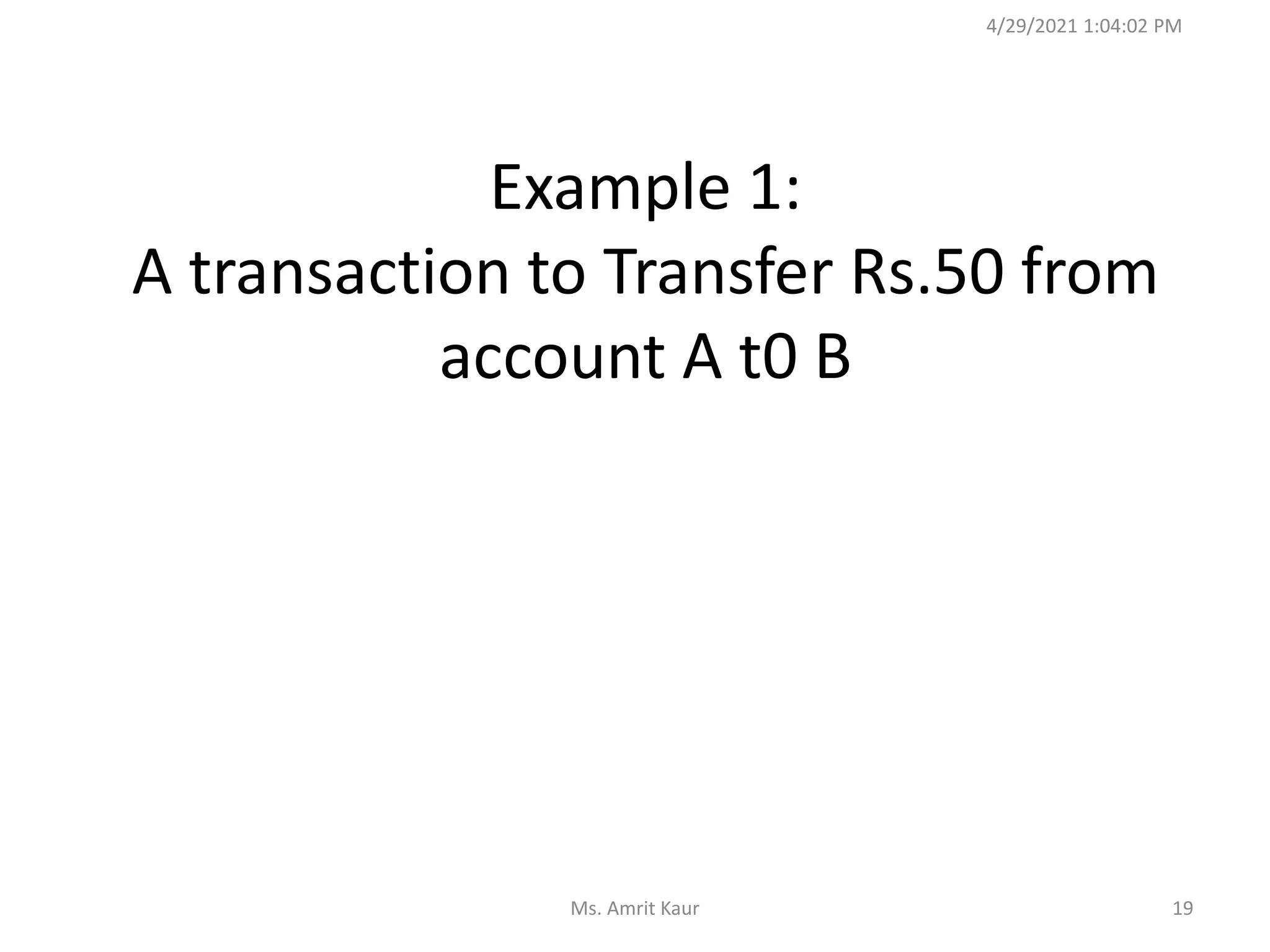

19. Example 1:
A transaction to Transfer Rs.50 from
account A t0 B
4/29/2021 1:04:02 PM
19
Ms. Amrit Kaur

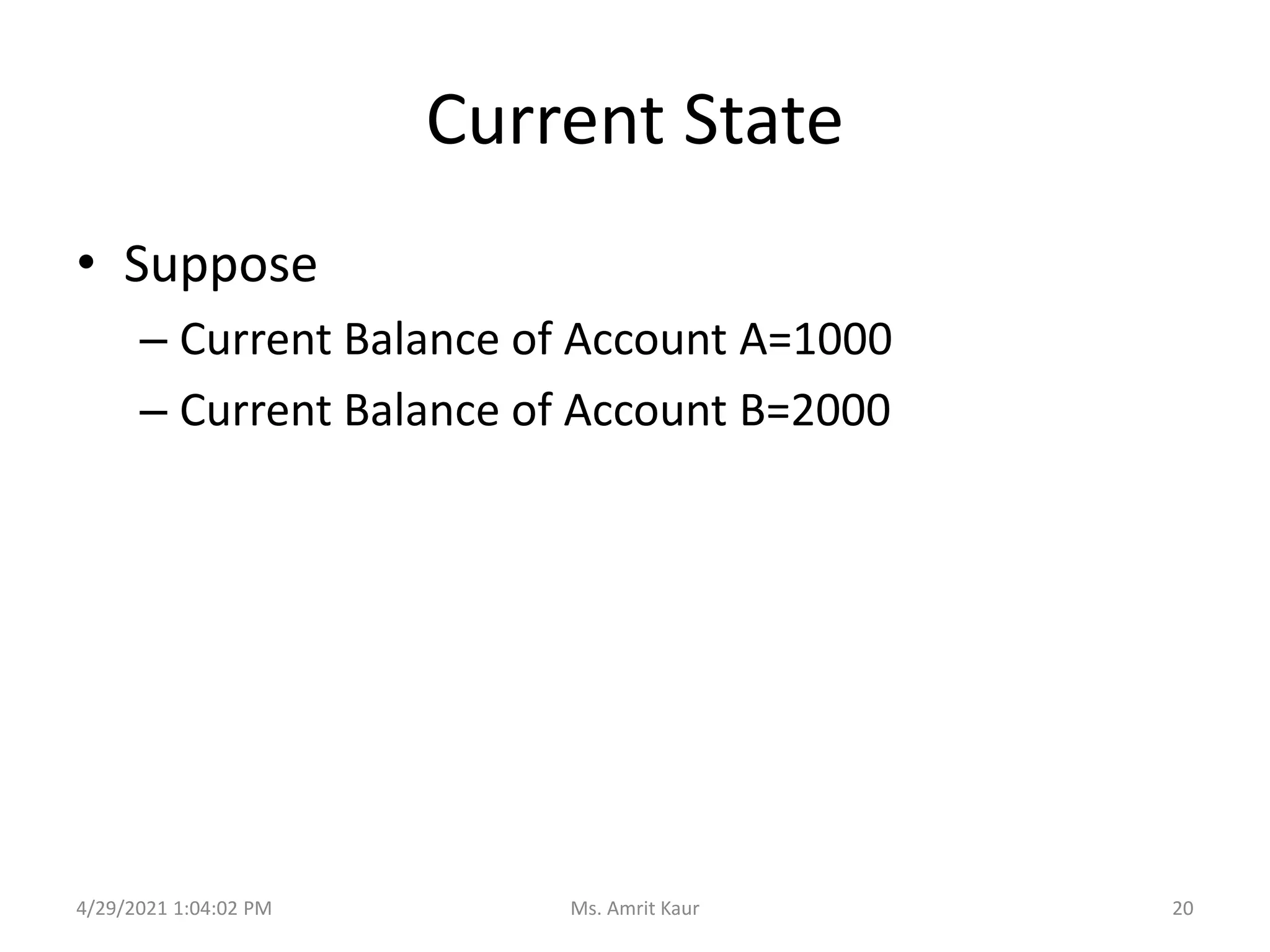

20. Current State
• Suppose
– Current Balance of Account A=1000
– Current Balance of Account B=2000
4/29/2021 1:04:02 PM 20
Ms. Amrit Kaur

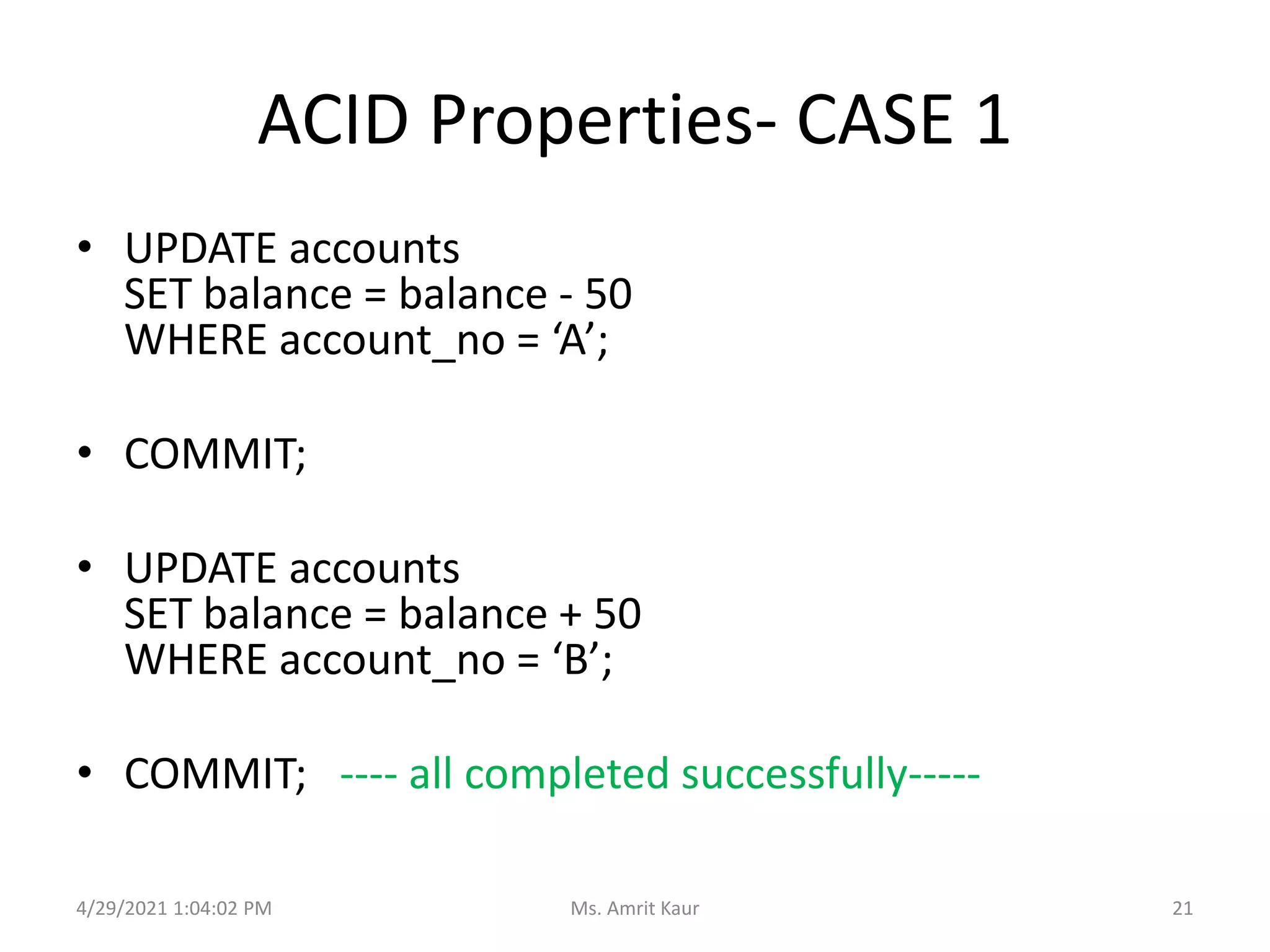

21. ACID Properties- CASE 1
• UPDATE accounts
SET balance = balance - 50
WHERE account_no = ‘A’;
• COMMIT;
• UPDATE accounts
SET balance = balance + 50
WHERE account_no = ‘B’;
• COMMIT; ---- all completed successfully-----
4/29/2021 1:04:02 PM 21
Ms. Amrit Kaur

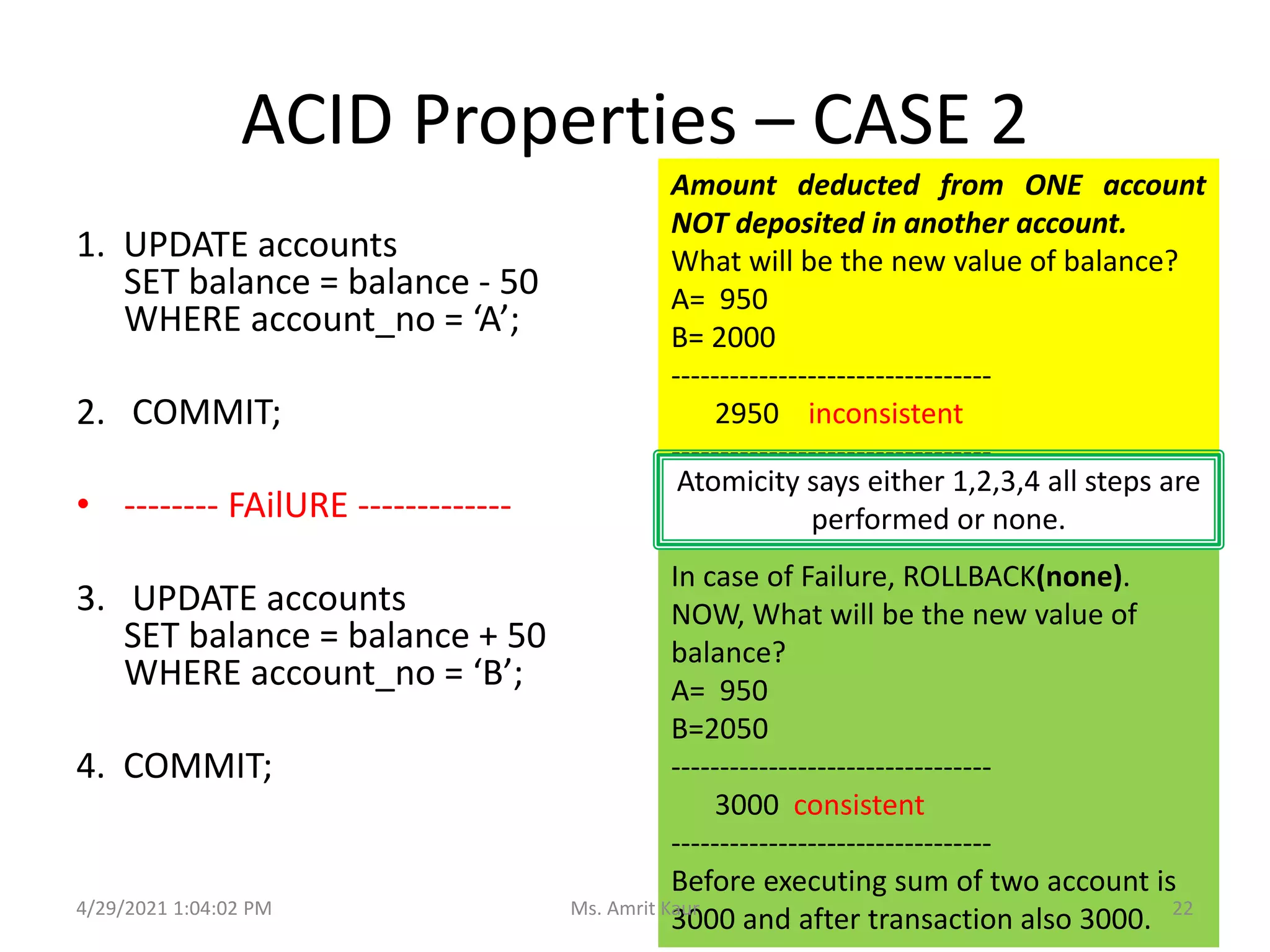

22. ACID Properties – CASE 2
1. UPDATE accounts
SET balance = balance - 50
WHERE account_no = ‘A’;
2. COMMIT;
• -------- FAilURE -------------
3. UPDATE accounts
SET balance = balance + 50
WHERE account_no = ‘B’;
4. COMMIT;
Amount deducted from ONE account
NOT deposited in another account.
What will be the new value of balance?
A= 950
B= 2000
---------------------------------
2950 inconsistent
---------------------------------
Atomicity says either 1,2,3,4 all steps are
performed or none.
In case of Failure, ROLLBACK(none).
NOW, What will be the new value of
balance?
A= 950
B=2050
---------------------------------
3000 consistent
---------------------------------
Before executing sum of two account is
3000 and after transaction also 3000.
4/29/2021 1:04:02 PM 22
Ms. Amrit Kaur

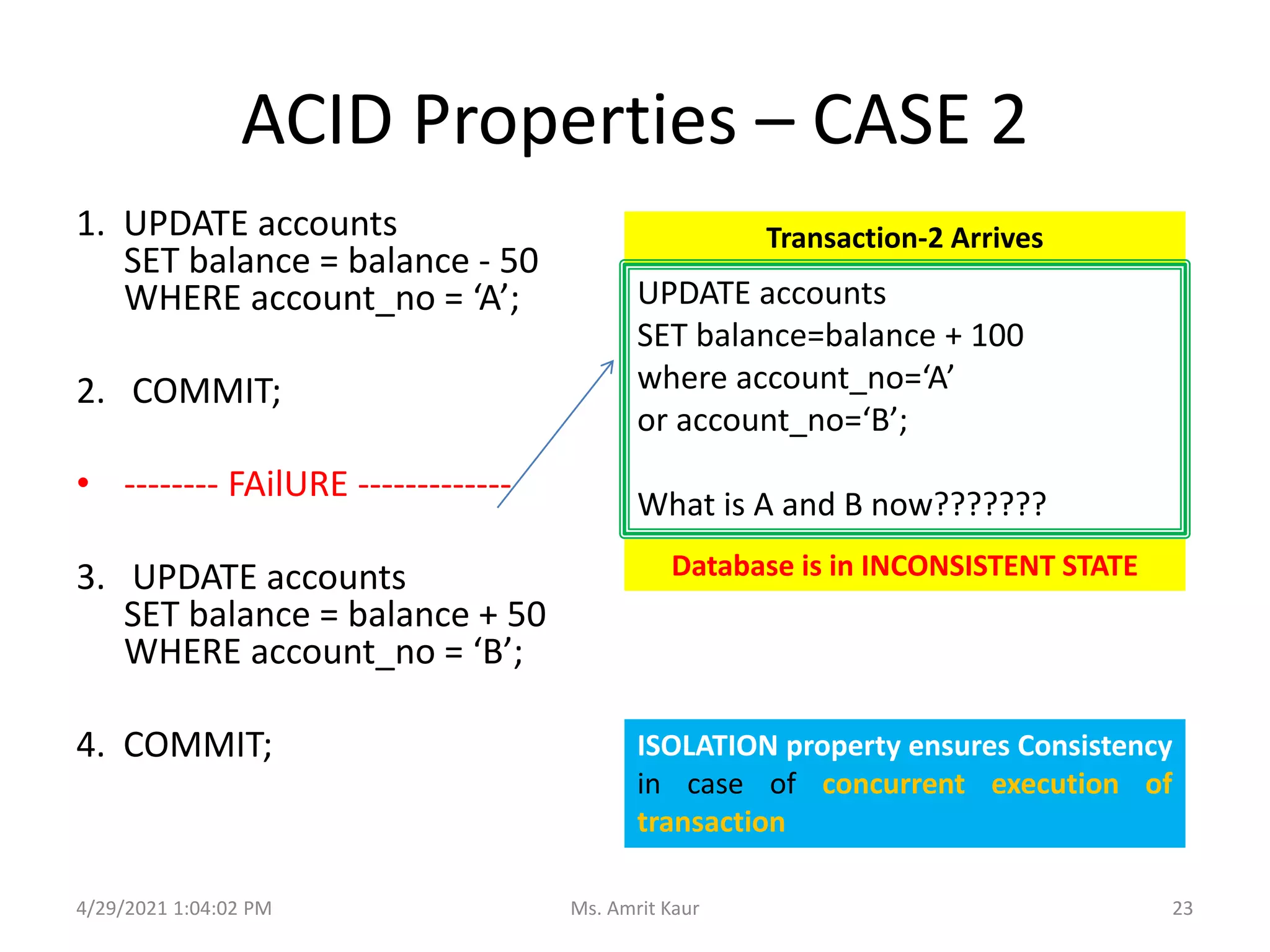

23. ACID Properties – CASE 2
1. UPDATE accounts
SET balance = balance - 50
WHERE account_no = ‘A’;
2. COMMIT;
• -------- FAilURE -------------
3. UPDATE accounts
SET balance = balance + 50
WHERE account_no = ‘B’;
4. COMMIT;
Transaction-2 Arrives
ISOLATION property ensures Consistency
in case of concurrent execution of
transaction
UPDATE accounts
SET balance=balance + 100
where account_no=‘A’
or account_no=‘B’;
What is A and B now???????
Database is in INCONSISTENT STATE
4/29/2021 1:04:02 PM 23
Ms. Amrit Kaur

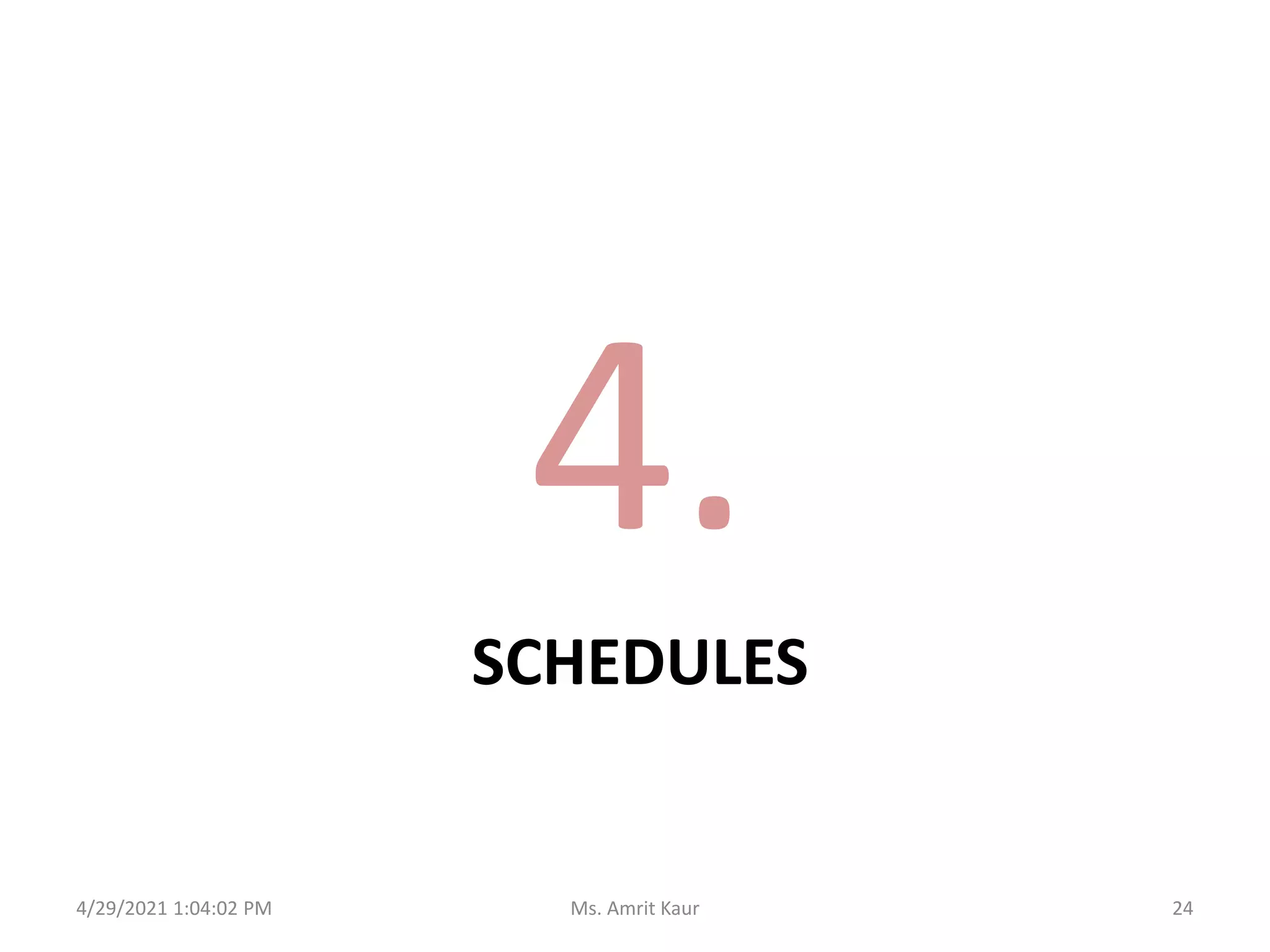

24. SCHEDULES
4.
4/29/2021 1:04:02 PM 24
Ms. Amrit Kaur

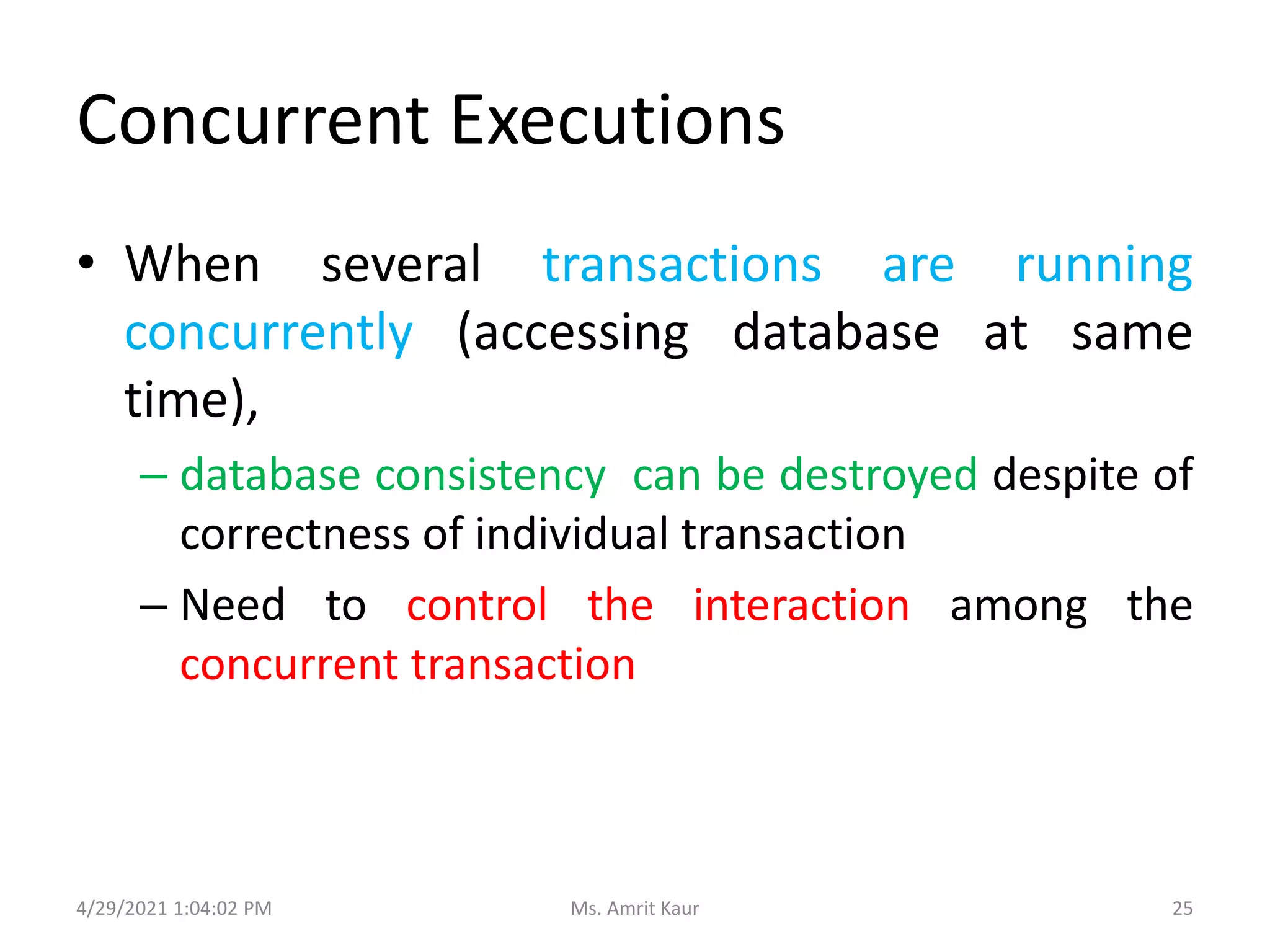

25. Concurrent Executions
• When several transactions are running
concurrently (accessing database at same
time),
– database consistency can be destroyed despite of
correctness of individual transaction
– Need to control the interaction among the
concurrent transaction
4/29/2021 1:04:02 PM 25
Ms. Amrit Kaur

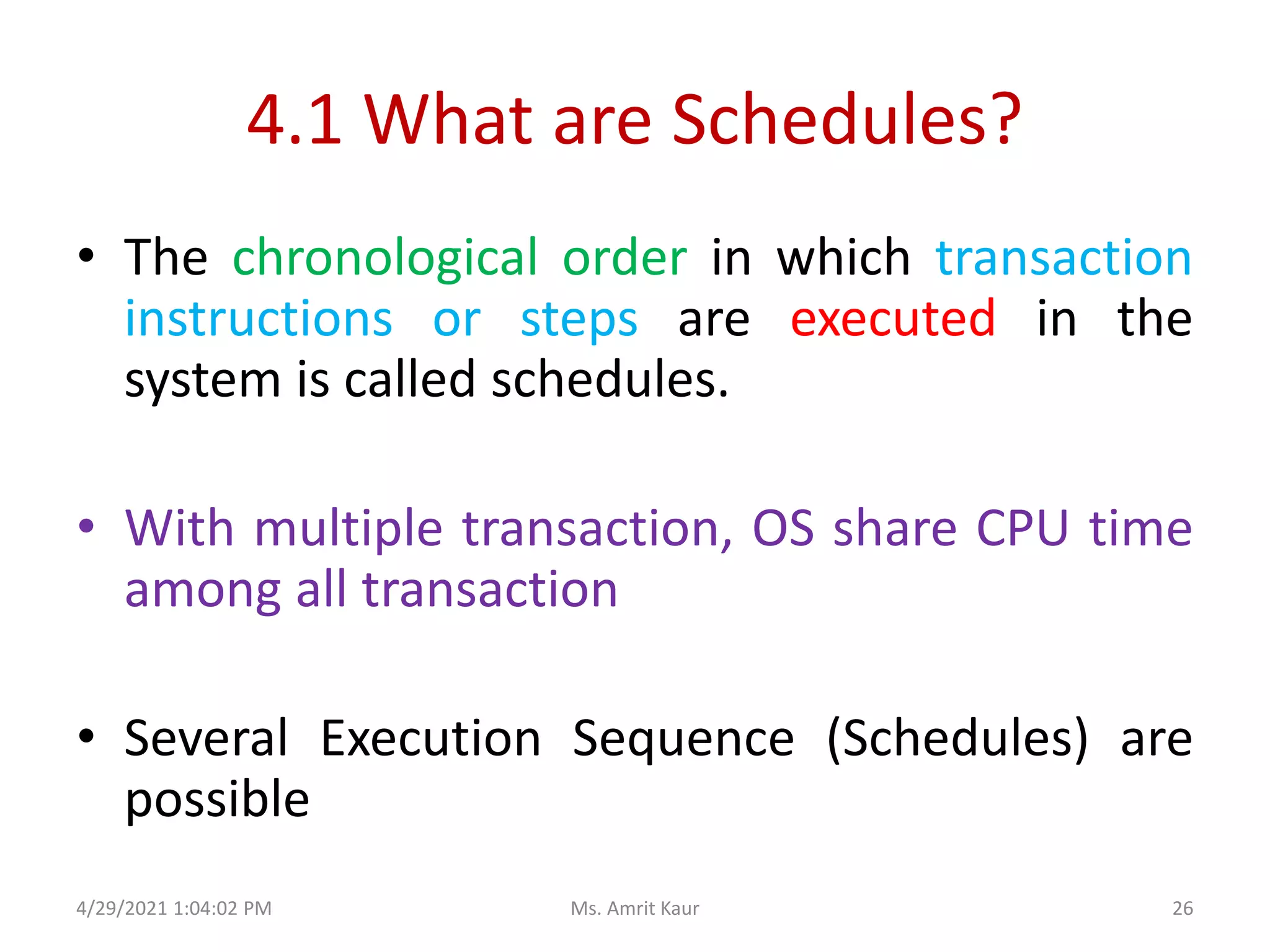

26. 4.1 What are Schedules?
• The chronological order in which transaction
instructions or steps are executed in the
system is called schedules.
• With multiple transaction, OS share CPU time
among all transaction
• Several Execution Sequence (Schedules) are
possible
4/29/2021 1:04:02 PM 26
Ms. Amrit Kaur

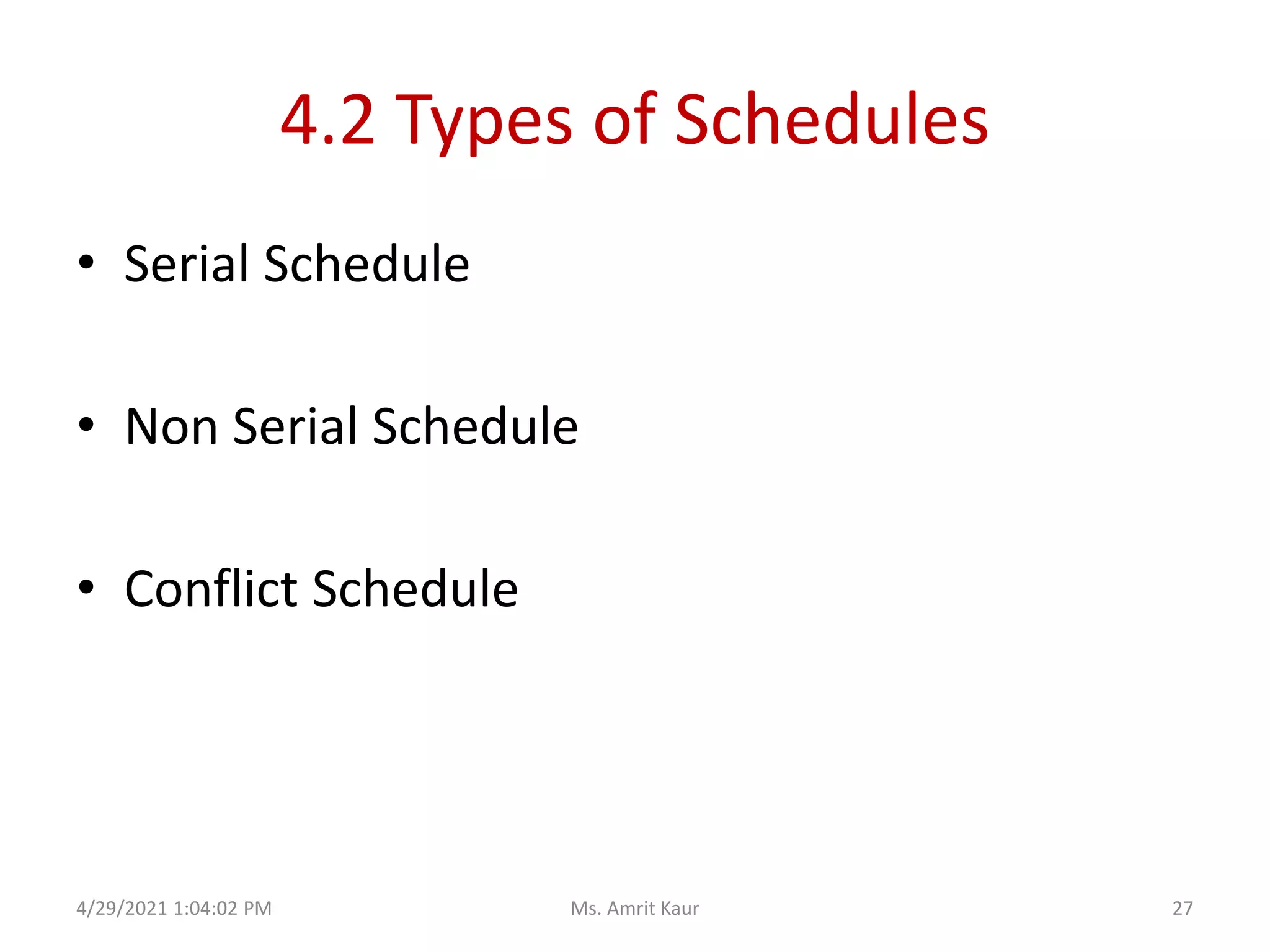

27. 4.2 Types of Schedules
• Serial Schedule
• Non Serial Schedule
• Conflict Schedule
4/29/2021 1:04:02 PM 27
Ms. Amrit Kaur

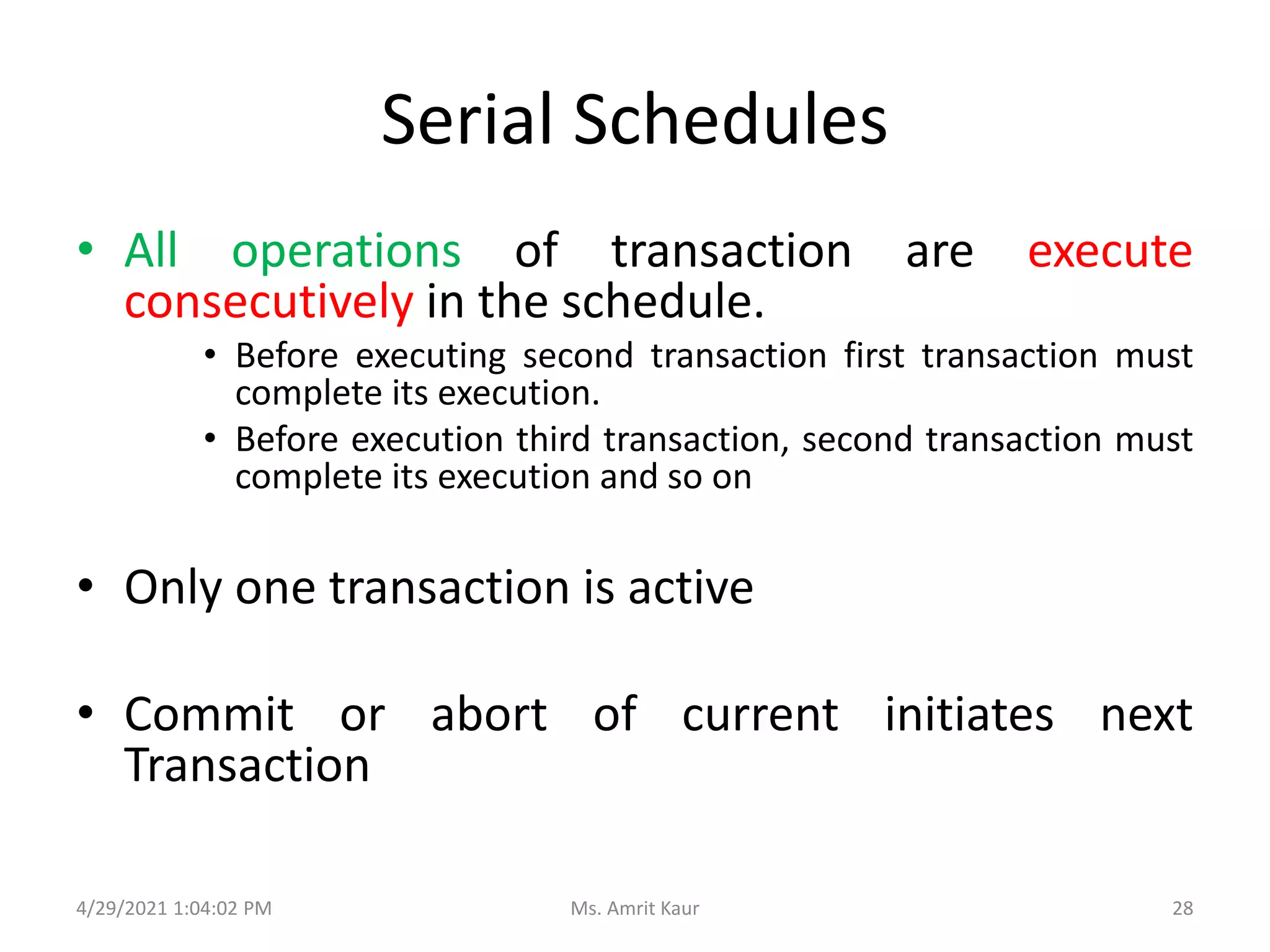

28. Serial Schedules
• All operations of transaction are execute
consecutively in the schedule.
• Before executing second transaction first transaction must
complete its execution.
• Before execution third transaction, second transaction must
complete its execution and so on
• Only one transaction is active
• Commit or abort of current initiates next
Transaction
4/29/2021 1:04:02 PM 28
Ms. Amrit Kaur

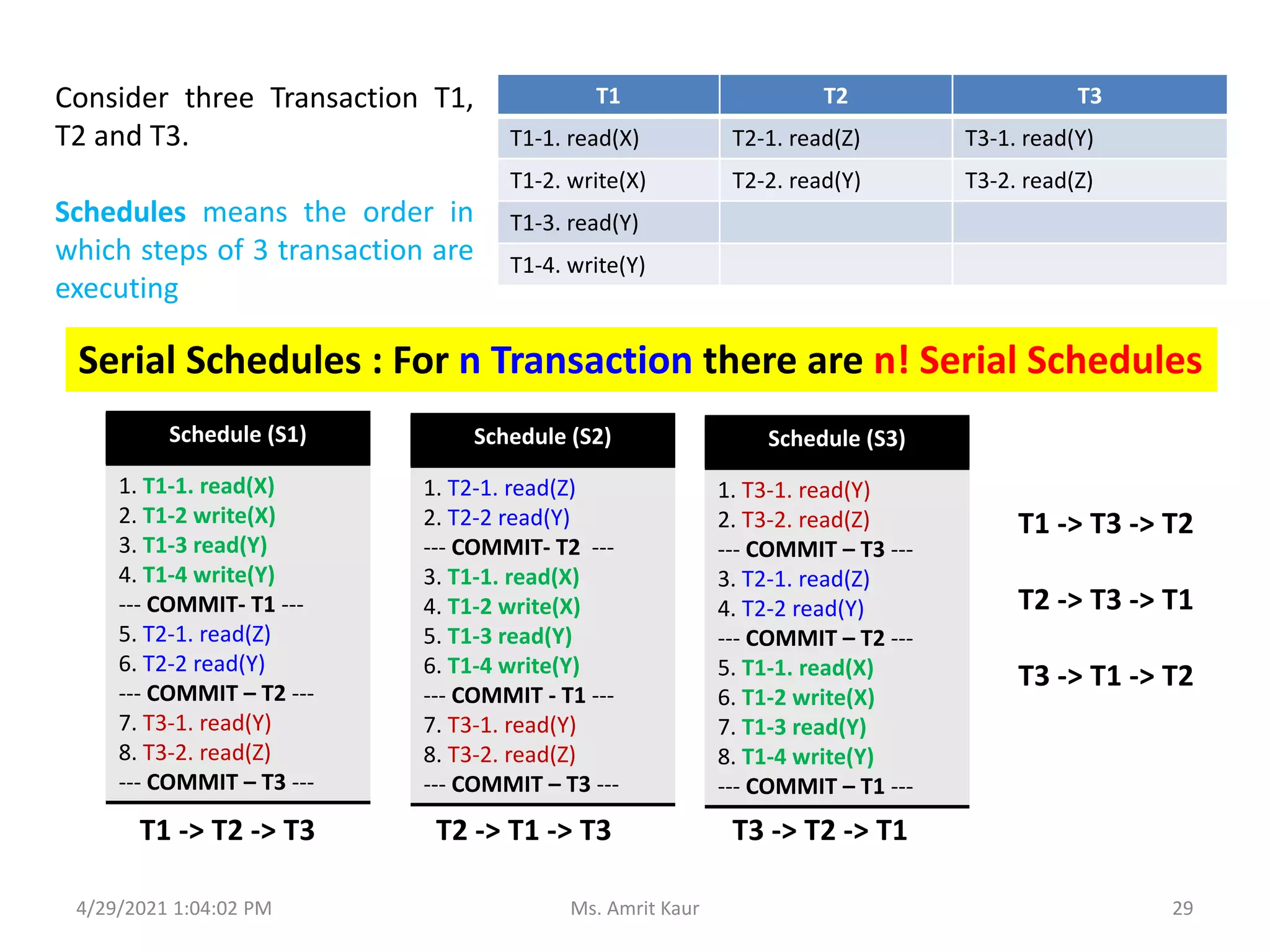

29. 4/29/2021 1:04:02 PM
T1 T2 T3
T1-1. read(X) T2-1. read(Z) T3-1. read(Y)
T1-2. write(X) T2-2. read(Y) T3-2. read(Z)
T1-3. read(Y)
T1-4. write(Y)
Schedule (S1)
1. T1-1. read(X)
2. T1-2 write(X)
3. T1-3 read(Y)
4. T1-4 write(Y)
--- COMMIT- T1 ---
5. T2-1. read(Z)
6. T2-2 read(Y)
--- COMMIT – T2 ---
7. T3-1. read(Y)
8. T3-2. read(Z)
--- COMMIT – T3 ---
Schedule (S2)
1. T2-1. read(Z)
2. T2-2 read(Y)
--- COMMIT- T2 ---
3. T1-1. read(X)
4. T1-2 write(X)
5. T1-3 read(Y)
6. T1-4 write(Y)
--- COMMIT - T1 ---
7. T3-1. read(Y)
8. T3-2. read(Z)
--- COMMIT – T3 ---
Schedule (S3)
1. T3-1. read(Y)
2. T3-2. read(Z)
--- COMMIT – T3 ---
3. T2-1. read(Z)
4. T2-2 read(Y)
--- COMMIT – T2 ---
5. T1-1. read(X)
6. T1-2 write(X)
7. T1-3 read(Y)
8. T1-4 write(Y)
--- COMMIT – T1 ---
Consider three Transaction T1,
T2 and T3.
Schedules means the order in
which steps of 3 transaction are
executing
Serial Schedules : For n Transaction there are n! Serial Schedules
T1 -> T2 -> T3 T2 -> T1 -> T3 T3 -> T2 -> T1
T1 -> T3 -> T2
T2 -> T3 -> T1
T3 -> T1 -> T2
29
Ms. Amrit Kaur

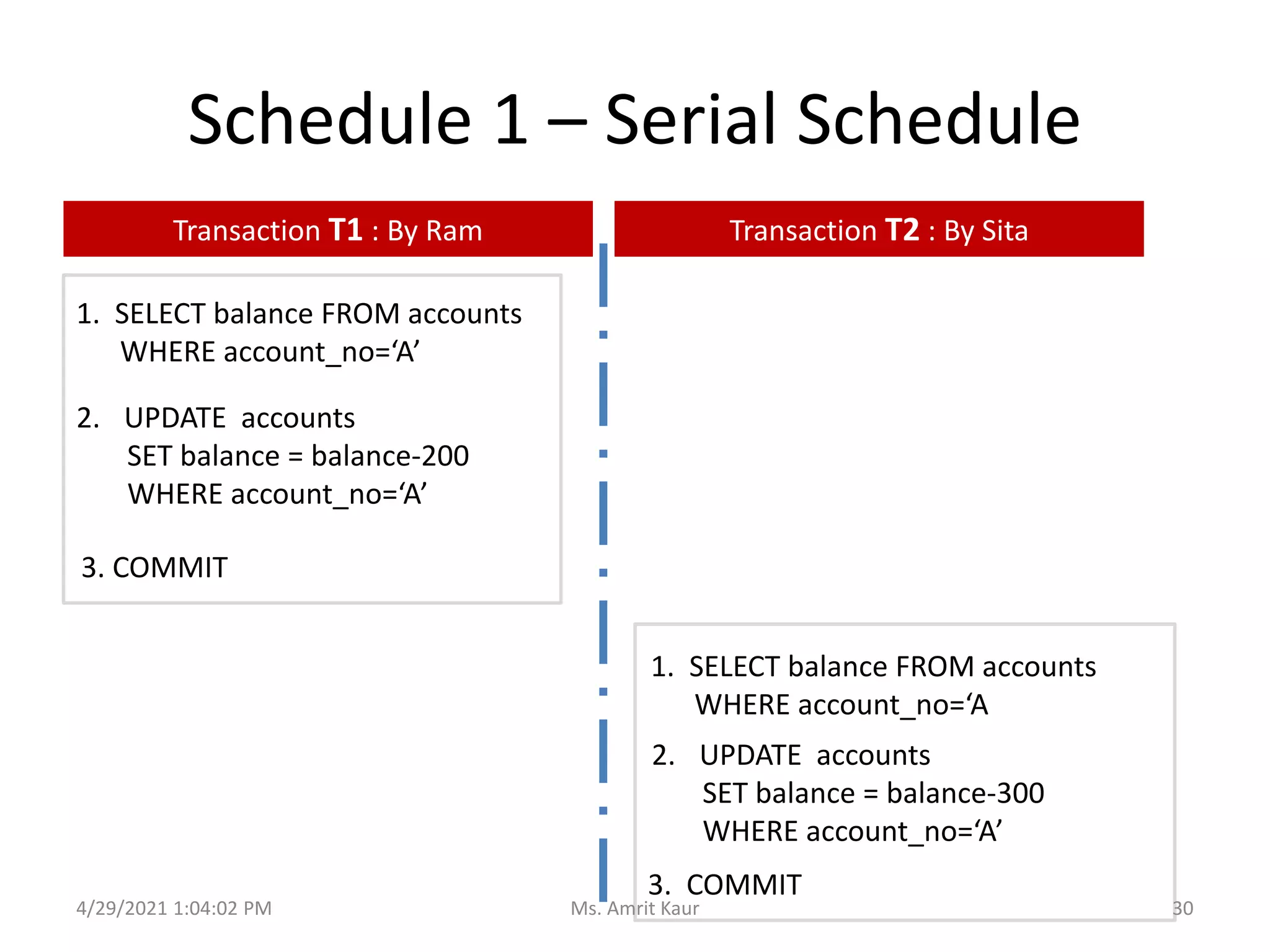

30. Schedule 1 – Serial Schedule
1. SELECT balance FROM accounts
WHERE account_no=‘A’
1. SELECT balance FROM accounts
WHERE account_no=‘A
2. UPDATE accounts
SET balance = balance-200
WHERE account_no=‘A’
2. UPDATE accounts
SET balance = balance-300
WHERE account_no=‘A’
3. COMMIT
3. COMMIT
Transaction T1 : By Ram Transaction T2 : By Sita
4/29/2021 1:04:02 PM 30
Ms. Amrit Kaur

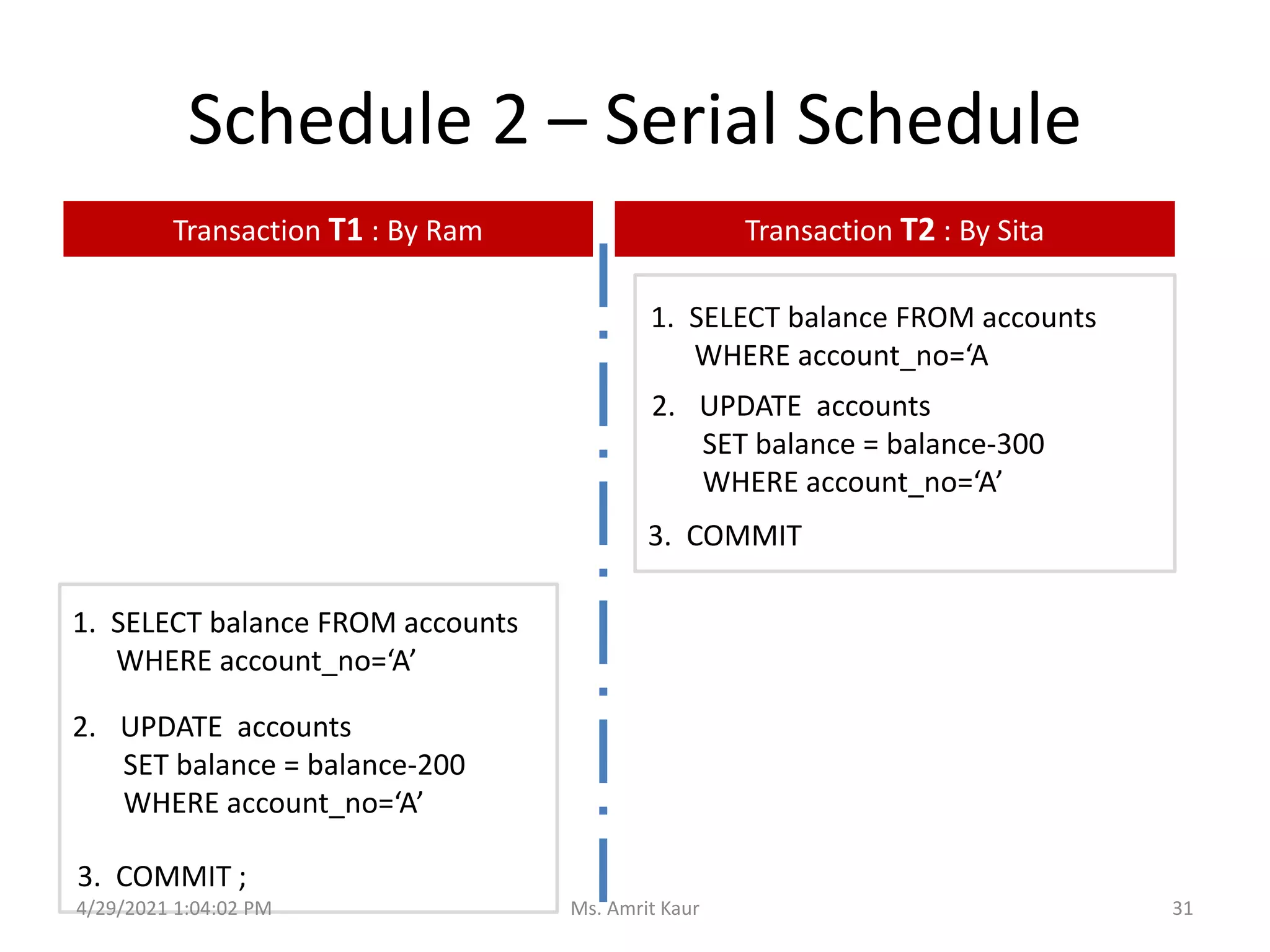

31. Schedule 2 – Serial Schedule
Transaction T1 : By Ram Transaction T2 : By Sita
1. SELECT balance FROM accounts
WHERE account_no=‘A’
2. UPDATE accounts
SET balance = balance-200
WHERE account_no=‘A’
3. COMMIT ;
1. SELECT balance FROM accounts
WHERE account_no=‘A
2. UPDATE accounts
SET balance = balance-300
WHERE account_no=‘A’
3. COMMIT
4/29/2021 1:04:02 PM 31
Ms. Amrit Kaur

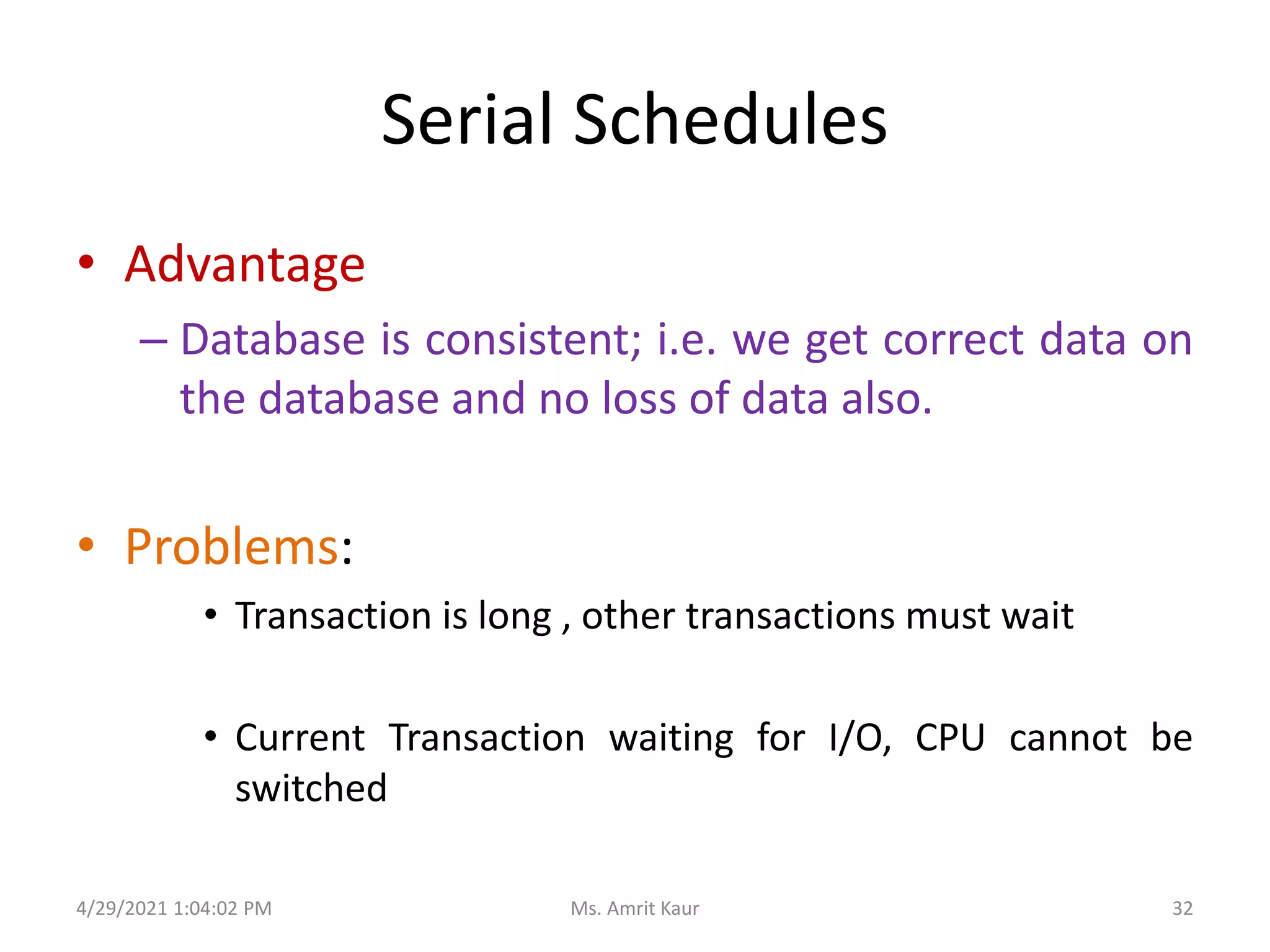

32. Serial Schedules
• Advantage
– Database is consistent; i.e. we get correct data on
the database and no loss of data also.
• Problems:
• Transaction is long , other transactions must wait
• Current Transaction waiting for I/O, CPU cannot be
switched
4/29/2021 1:04:02 PM 32
Ms. Amrit Kaur

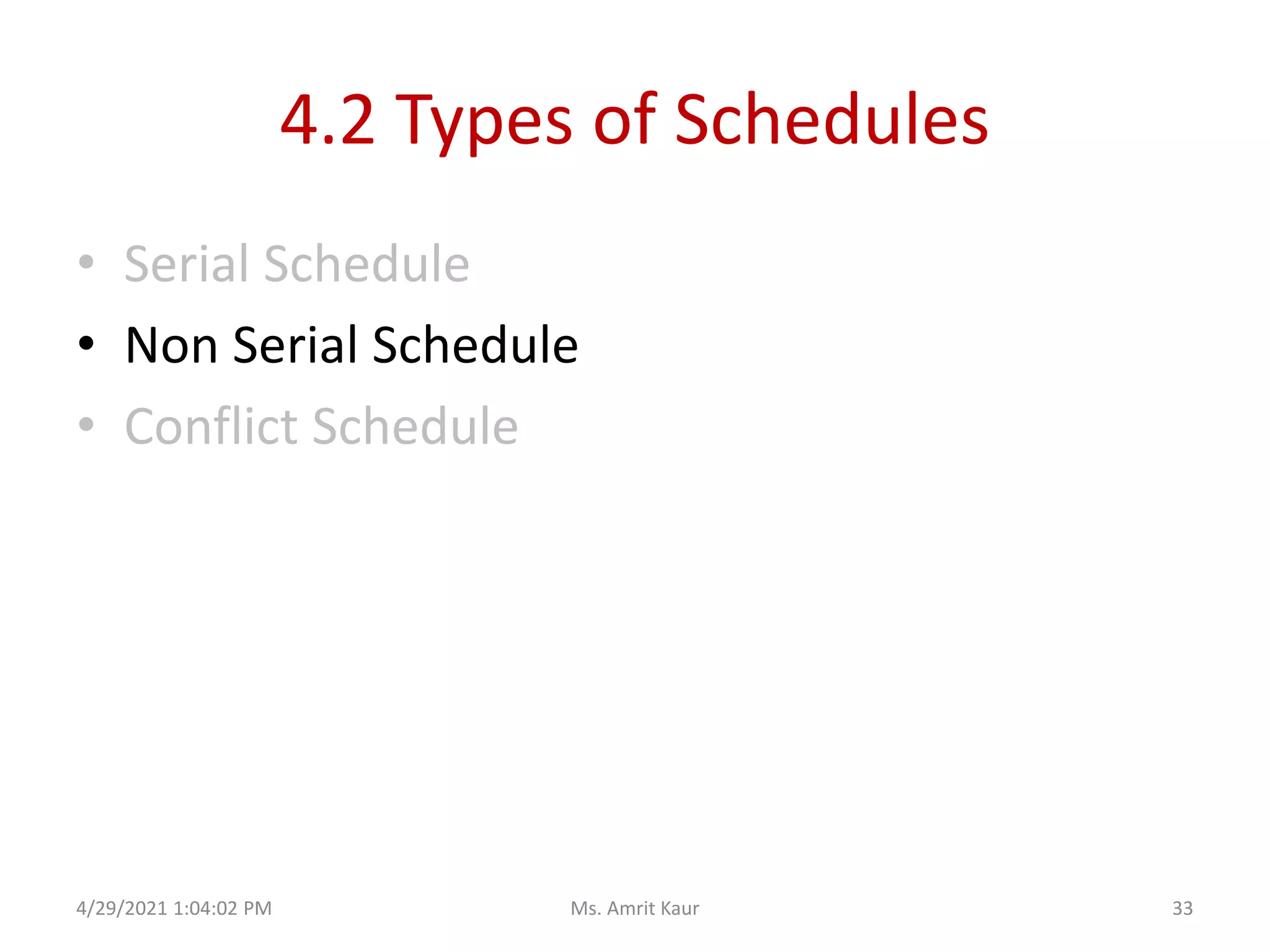

33. 4.2 Types of Schedules
• Serial Schedule
• Non Serial Schedule
• Conflict Schedule
4/29/2021 1:04:02 PM 33
Ms. Amrit Kaur

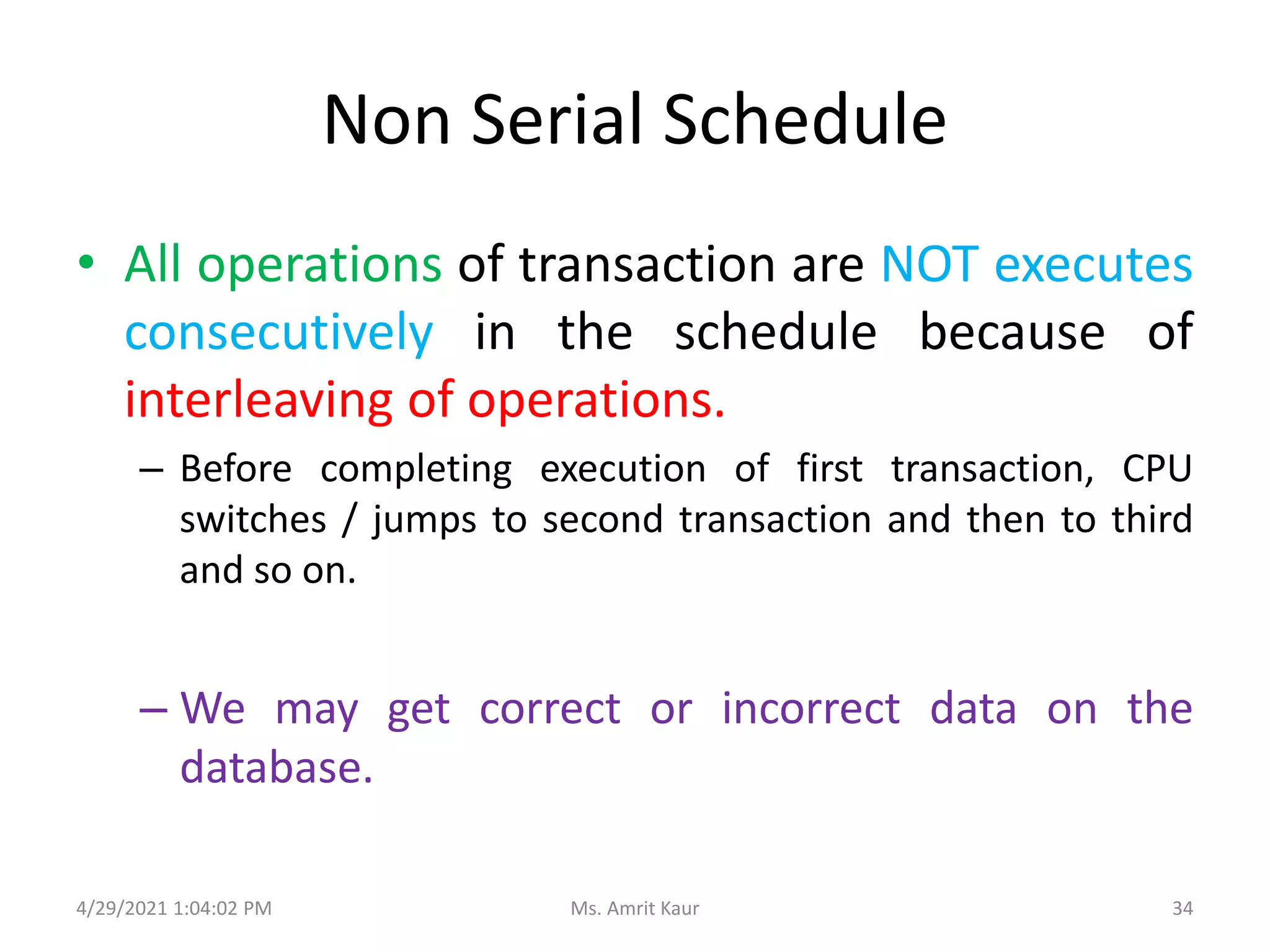

34. Non Serial Schedule
• All operations of transaction are NOT executes
consecutively in the schedule because of
interleaving of operations.
– Before completing execution of first transaction, CPU
switches / jumps to second transaction and then to third
and so on.
– We may get correct or incorrect data on the
database.
4/29/2021 1:04:02 PM 34
Ms. Amrit Kaur

35. 4/29/2021 1:04:02 PM
T1 T2 T3
T1-1. read(X) T2-1. read(Z) T3-1. read(Y)
T1-2. write(X) T2-2. read(Y) T3-2. read(Z)
T1-3. read(Y)
T1-4. write(Y)
Schedule (S1)
1. T1-1. read(X)
2. T2-1. read(Z)
3. T3-1. read(Y)
4. T1-2 write(X)
5. T2-2 read(Y)
6. T2-2. read(Z)
7. T1-3 read(Y)
8. T1-4 write(Y)
Schedule (S2)
1. T2-1. read(Z)
2. T1-1. read(X)
3. T1-2 write(X)
4. T3-1. read(Y)
5. T1-3 read(Y)
6. T2-2 read(Y)
7. T1-4 write(Y)
8. T2-2. read(Z)
Schedule (S3)
1. T3-1. read(Y)
2. T2-1. read(Z)
3. T1-1. read(X)
4. T1-2 write(X)
5. T2-2 read(Y)
6. T2-2. read(Z)
7. T1-3 read(Y)
8. T1-4 write(Y)
Consider three Transaction T1,
T2 and T3.
Schedules means the order in
which steps of 3 transaction are
executing
For n Transaction there are MANY Non Serial Schedules
and many more
combination
Which schedule will leave database in consistent state?
In which schedule, recovery from failure is safe and proper?
35
Ms. Amrit Kaur

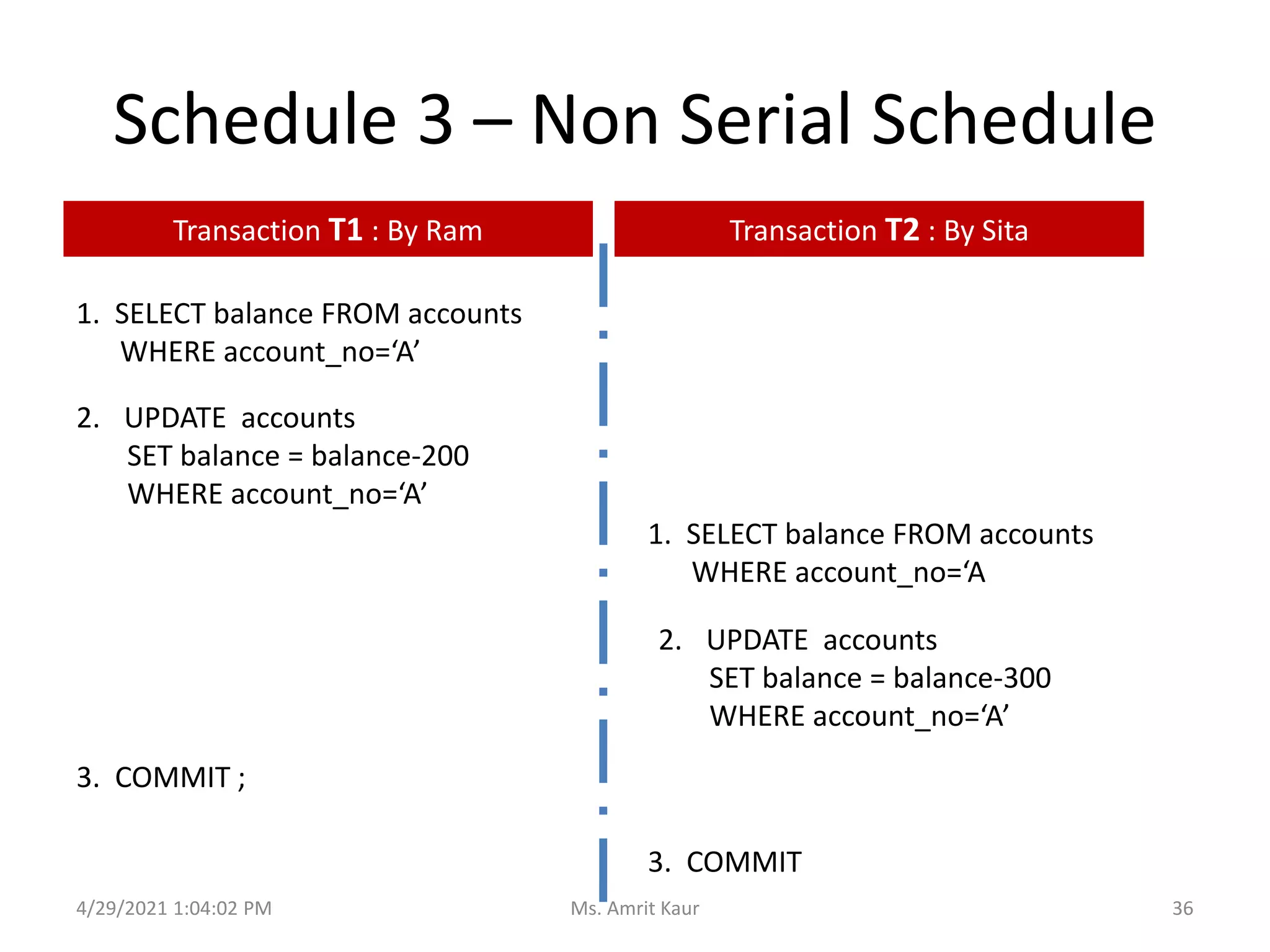

36. Schedule 3 – Non Serial Schedule
1. SELECT balance FROM accounts
WHERE account_no=‘A’
1. SELECT balance FROM accounts
WHERE account_no=‘A
2. UPDATE accounts
SET balance = balance-200
WHERE account_no=‘A’
2. UPDATE accounts
SET balance = balance-300
WHERE account_no=‘A’
3. COMMIT ;
3. COMMIT
Transaction T1 : By Ram Transaction T2 : By Sita
4/29/2021 1:04:02 PM 36
Ms. Amrit Kaur

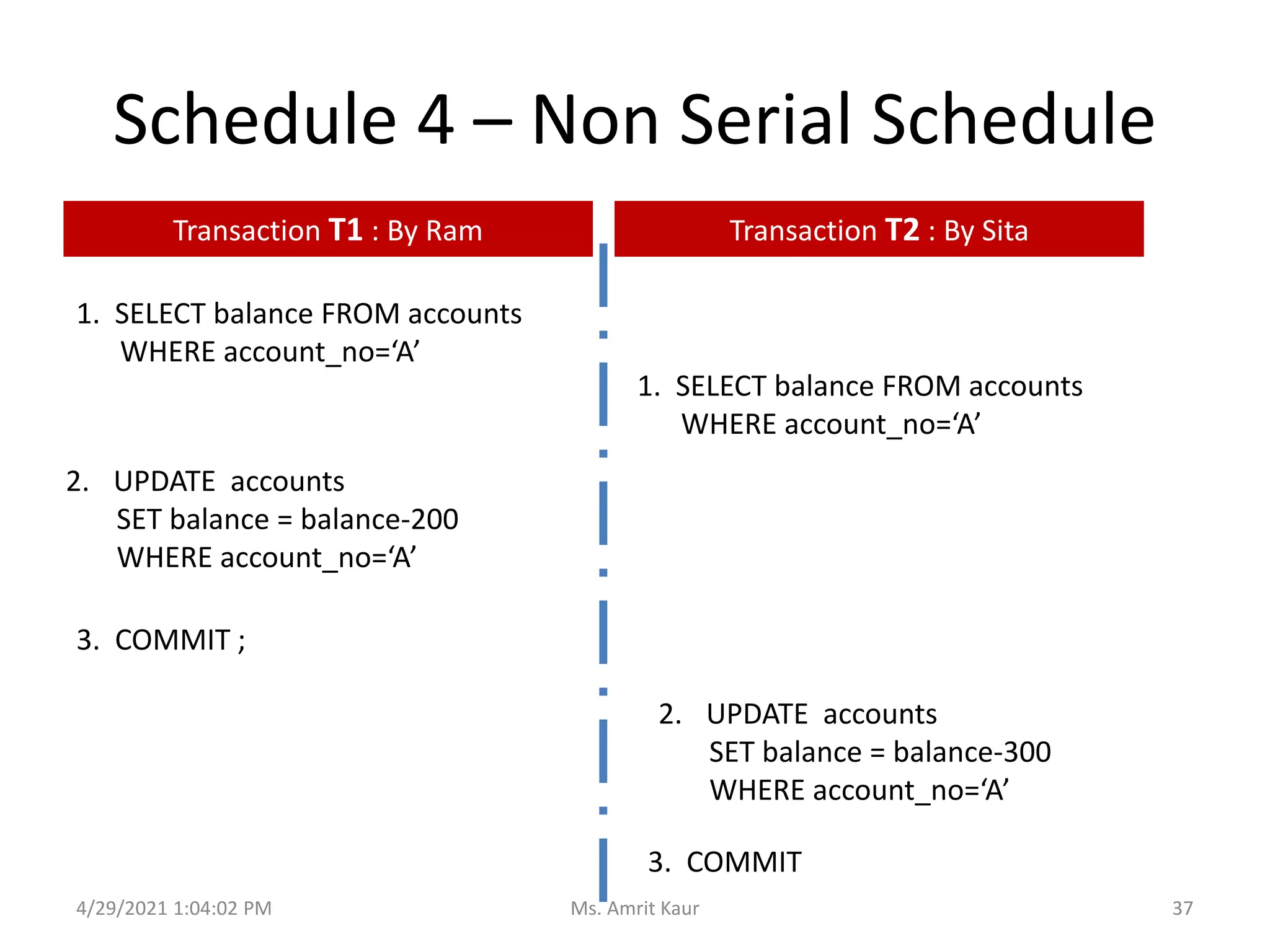

37. Schedule 4 – Non Serial Schedule
1. SELECT balance FROM accounts
WHERE account_no=‘A’
1. SELECT balance FROM accounts
WHERE account_no=‘A’
2. UPDATE accounts
SET balance = balance-200
WHERE account_no=‘A’
2. UPDATE accounts
SET balance = balance-300
WHERE account_no=‘A’
3. COMMIT ;
3. COMMIT
Transaction T1 : By Ram Transaction T2 : By Sita
4/29/2021 1:04:02 PM 37
Ms. Amrit Kaur

38. 4.2 Types of Schedules
• Serial Schedule
• Non Serial Schedule
• Conflict Schedule
4/29/2021 1:04:02 PM 38
Ms. Amrit Kaur

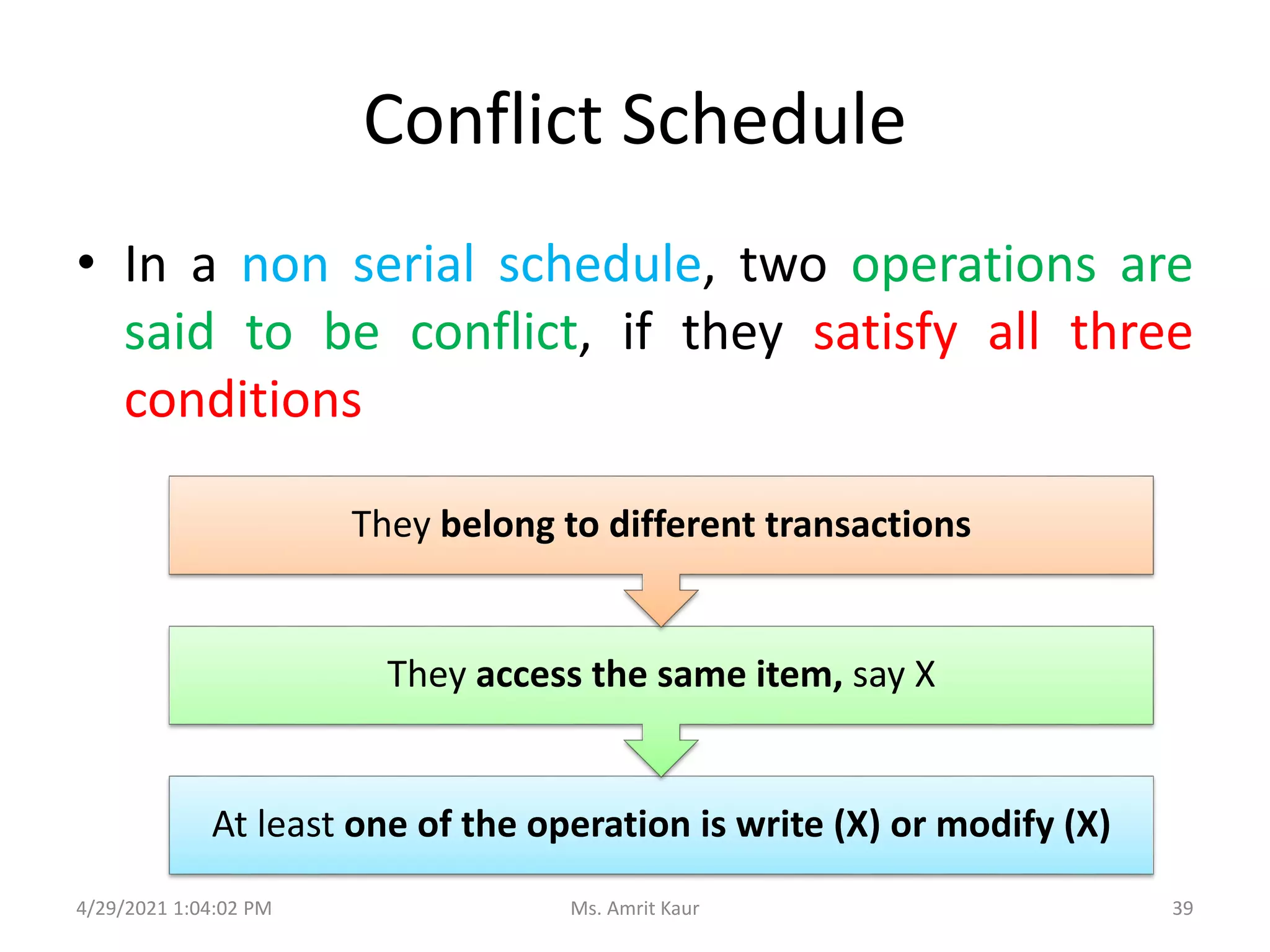

39. Conflict Schedule
• In a non serial schedule, two operations are
said to be conflict, if they satisfy all three
conditions
4/29/2021 1:04:02 PM
At least one of the operation is write (X) or modify (X)
They access the same item, say X
They belong to different transactions
39
Ms. Amrit Kaur

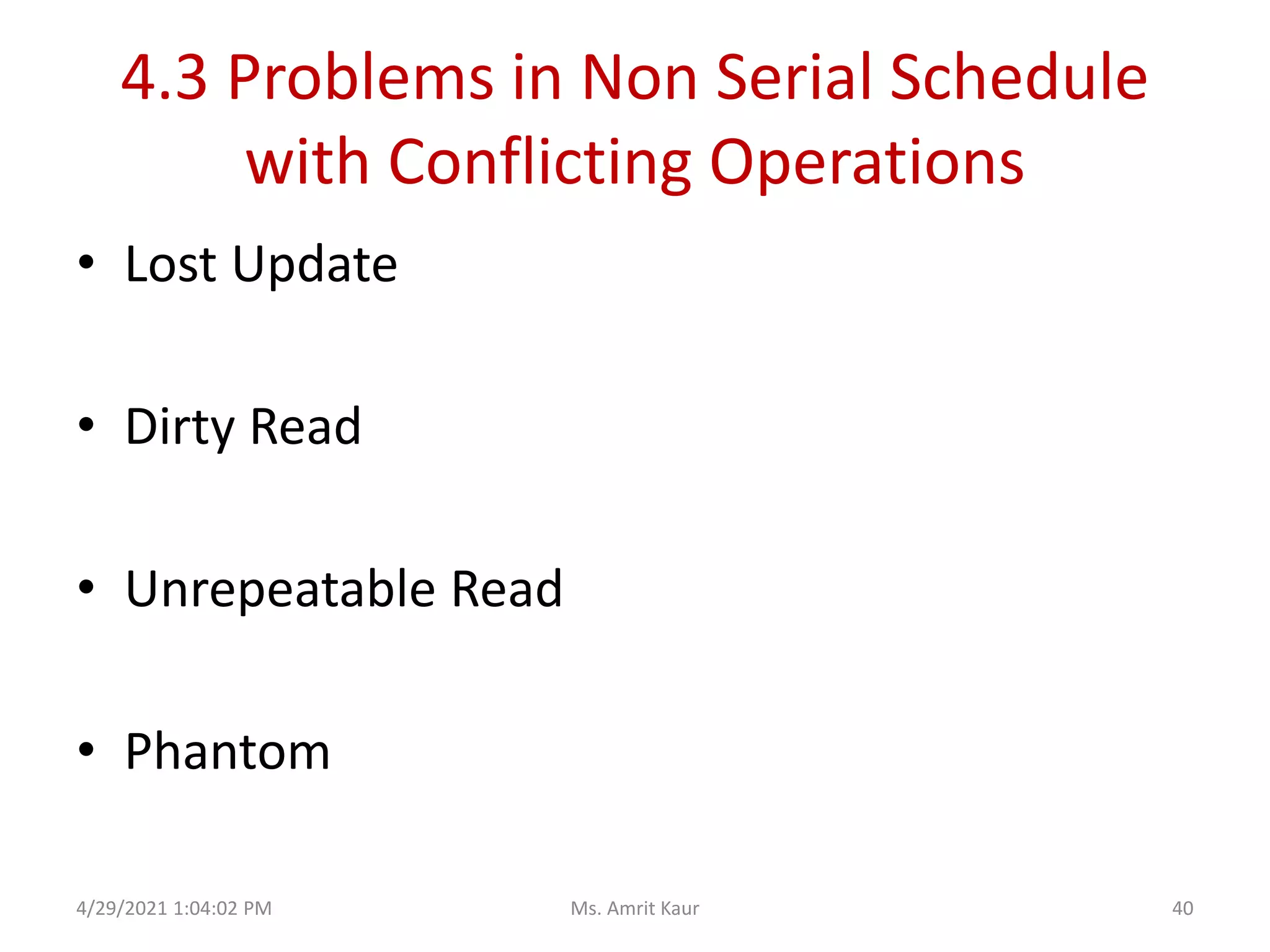

40. 4.3 Problems in Non Serial Schedule
with Conflicting Operations
• Lost Update
• Dirty Read
• Unrepeatable Read
• Phantom
4/29/2021 1:04:02 PM 40
Ms. Amrit Kaur

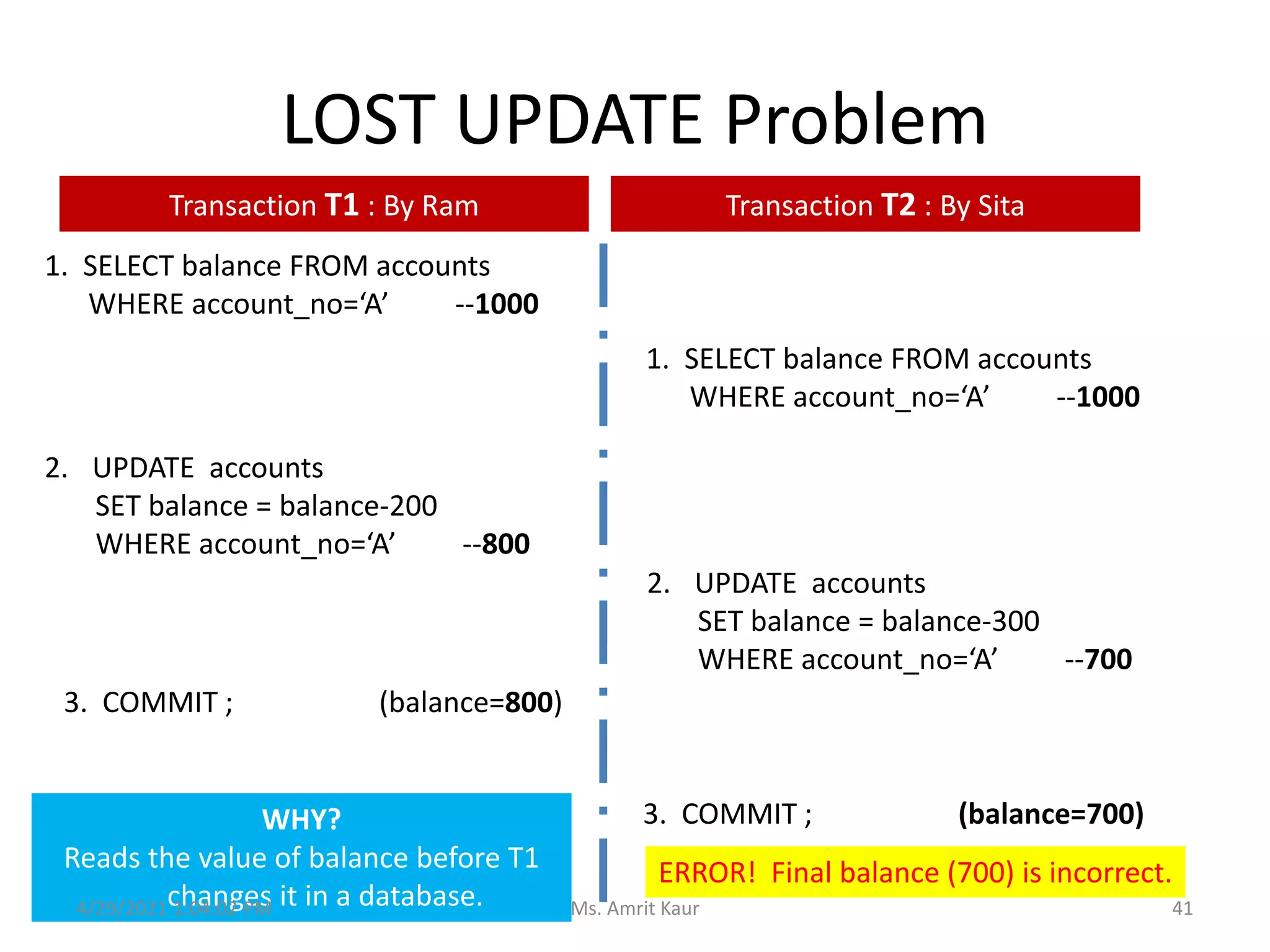

41. LOST UPDATE Problem
1. SELECT balance FROM accounts
WHERE account_no=‘A’ --1000
1. SELECT balance FROM accounts
WHERE account_no=‘A’ --1000
2. UPDATE accounts
SET balance = balance-200
WHERE account_no=‘A’ --800
2. UPDATE accounts
SET balance = balance-300
WHERE account_no=‘A’ --700
3. COMMIT ; (balance=800)
3. COMMIT ; (balance=700)
ERROR! Final balance (700) is incorrect.
WHY?
Reads the value of balance before T1
changes it in a database.
Transaction T1 : By Ram Transaction T2 : By Sita
4/29/2021 1:04:02 PM 41
Ms. Amrit Kaur

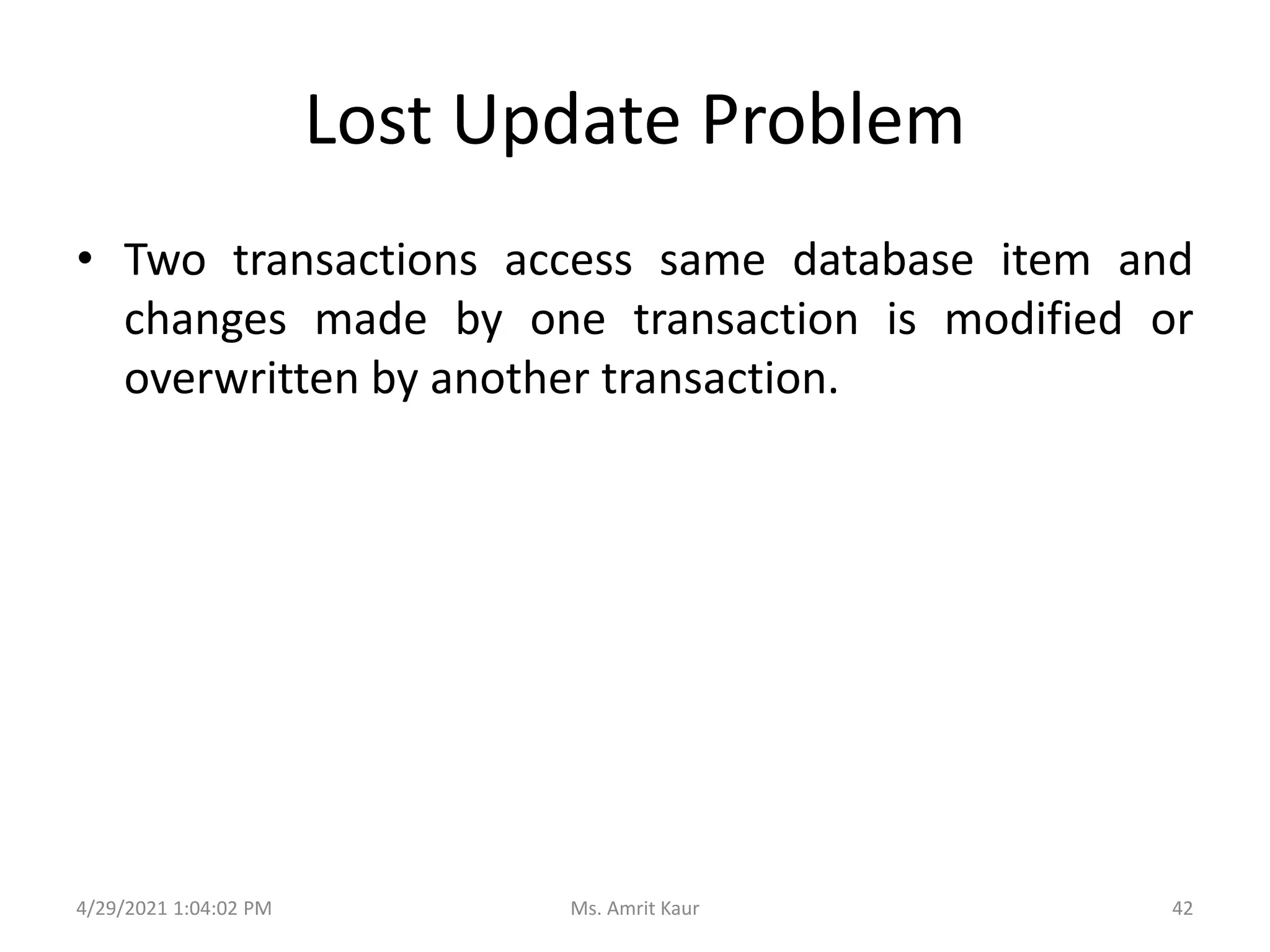

42. Lost Update Problem
• Two transactions access same database item and
changes made by one transaction is modified or
overwritten by another transaction.
4/29/2021 1:04:02 PM 42
Ms. Amrit Kaur

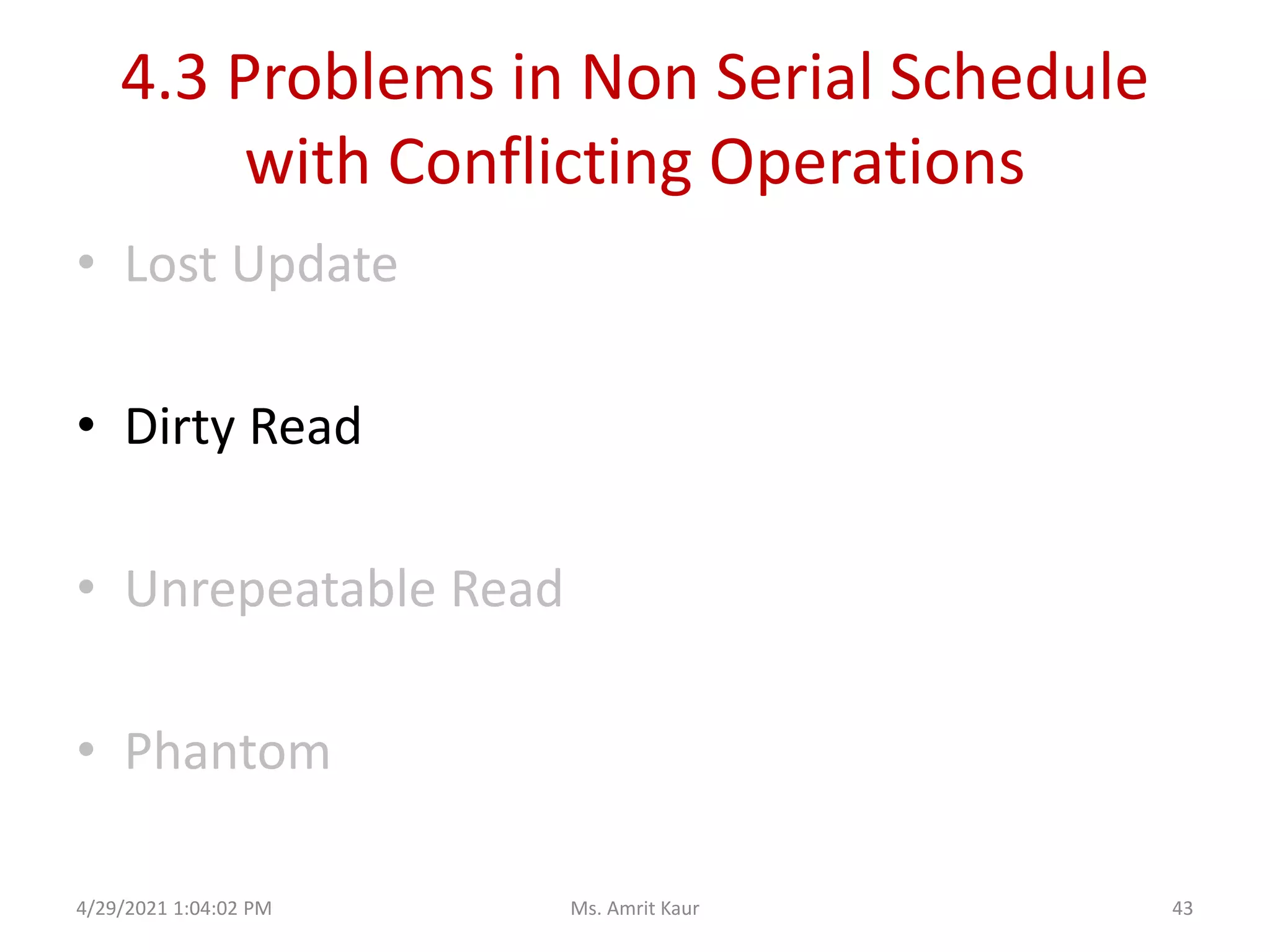

43. 4.3 Problems in Non Serial Schedule
with Conflicting Operations
• Lost Update
• Dirty Read
• Unrepeatable Read
• Phantom
4/29/2021 1:04:02 PM 43
Ms. Amrit Kaur

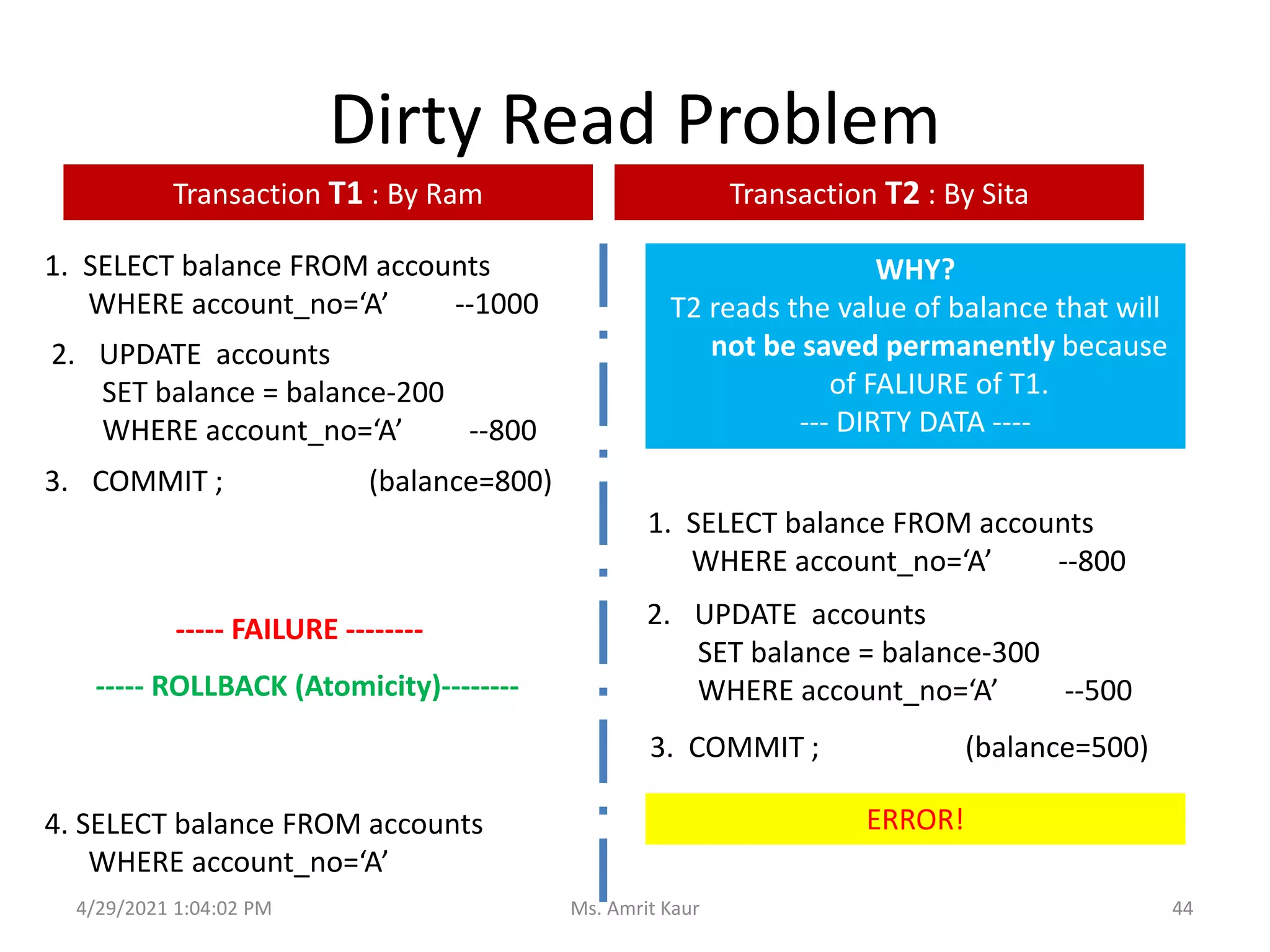

44. Dirty Read Problem
1. SELECT balance FROM accounts
WHERE account_no=‘A’ --1000
1. SELECT balance FROM accounts
WHERE account_no=‘A’ --800
2. UPDATE accounts
SET balance = balance-200
WHERE account_no=‘A’ --800
2. UPDATE accounts
SET balance = balance-300
WHERE account_no=‘A’ --500
3. COMMIT ; (balance=800)
4. SELECT balance FROM accounts
WHERE account_no=‘A’
3. COMMIT ; (balance=500)
ERROR!
WHY?
T2 reads the value of balance that will
not be saved permanently because
of FALIURE of T1.
--- DIRTY DATA ----
----- FAILURE --------
----- ROLLBACK (Atomicity)--------
Transaction T1 : By Ram Transaction T2 : By Sita
4/29/2021 1:04:02 PM 44
Ms. Amrit Kaur

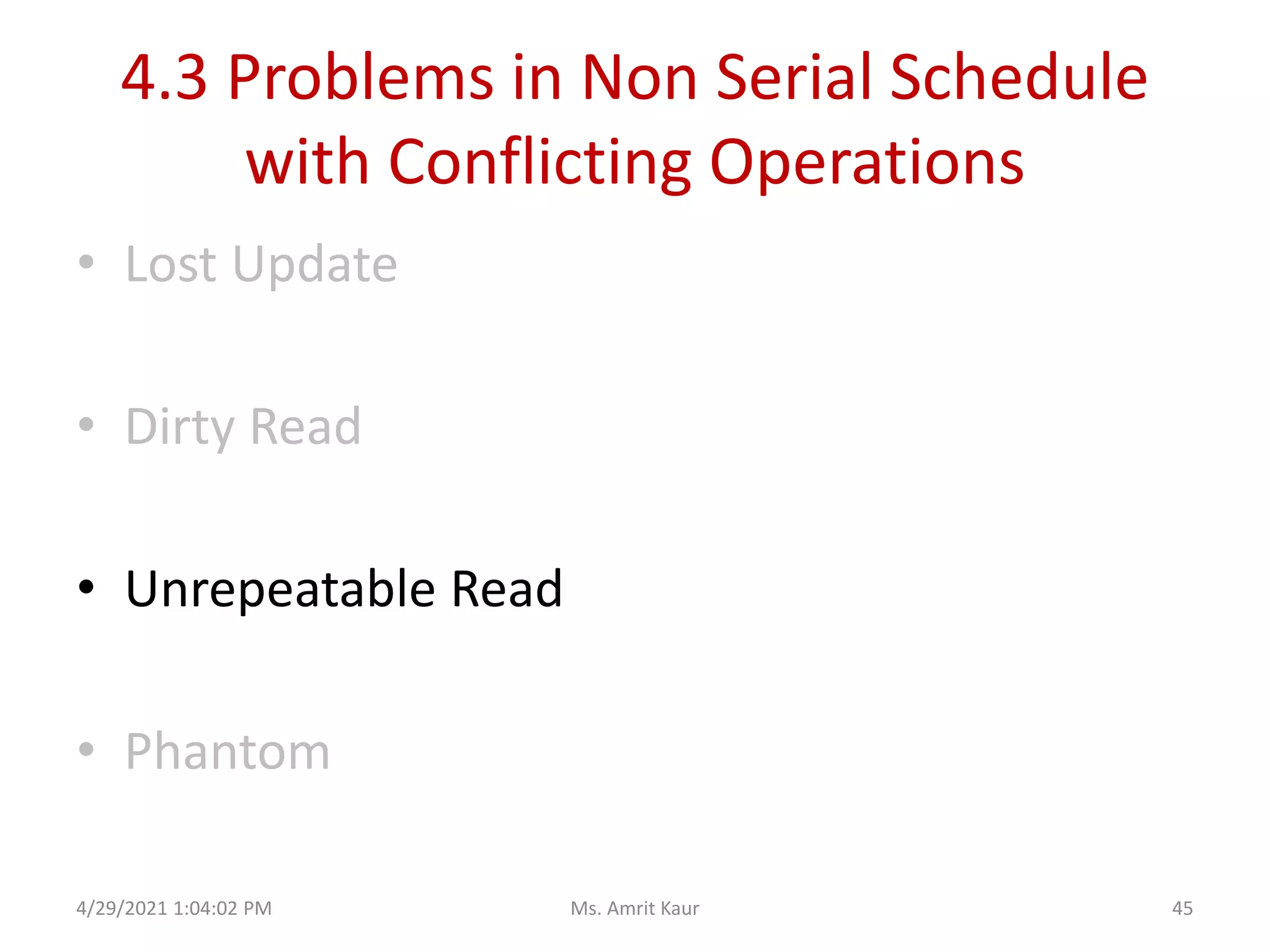

45. 4.3 Problems in Non Serial Schedule
with Conflicting Operations
• Lost Update
• Dirty Read
• Unrepeatable Read
• Phantom
4/29/2021 1:04:02 PM 45
Ms. Amrit Kaur

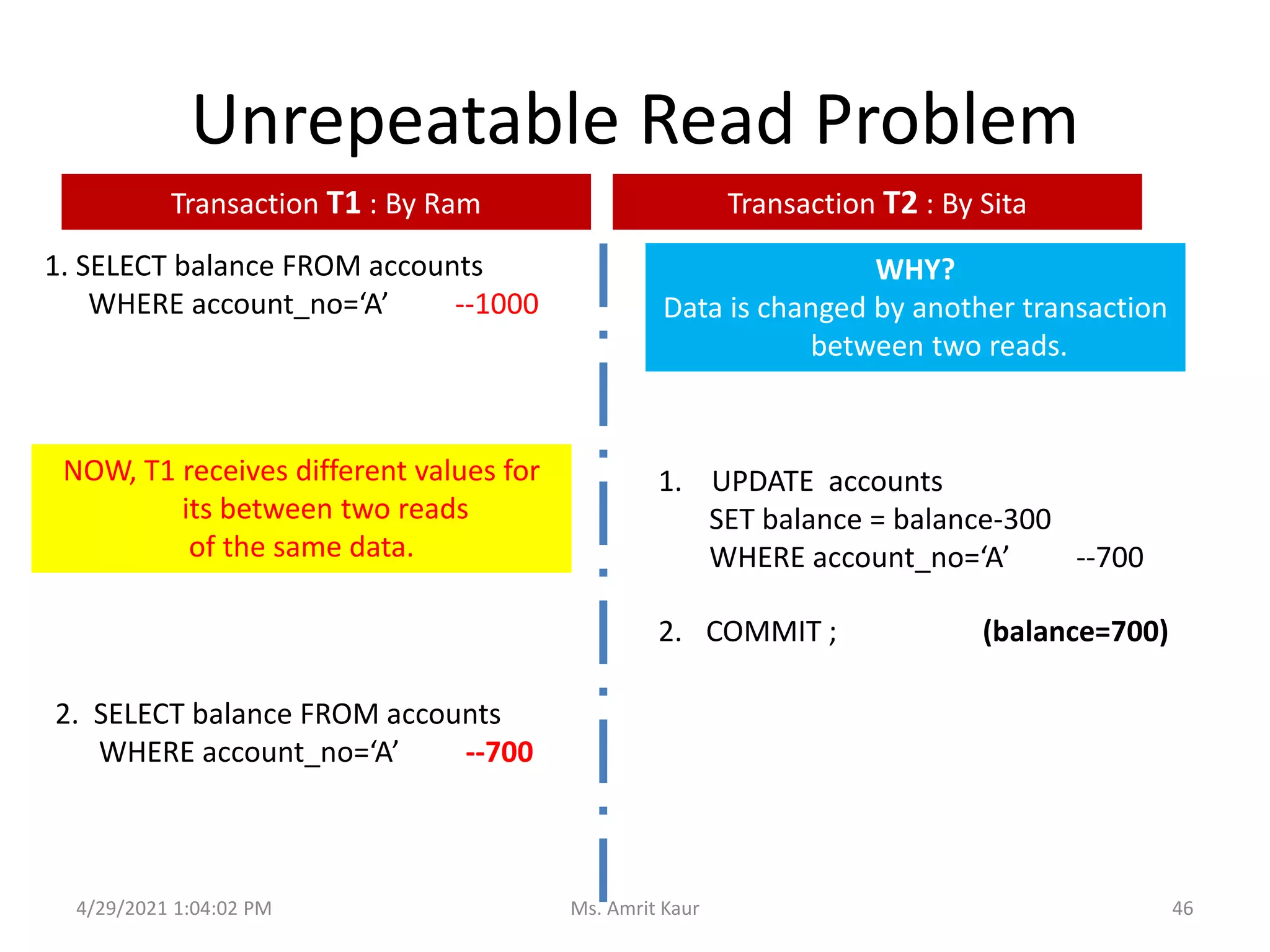

46. Unrepeatable Read Problem
1. SELECT balance FROM accounts
WHERE account_no=‘A’ --1000
1. UPDATE accounts
SET balance = balance-300
WHERE account_no=‘A’ --700
2. COMMIT ; (balance=700)
NOW, T1 receives different values for
its between two reads
of the same data.
WHY?
Data is changed by another transaction
between two reads.
2. SELECT balance FROM accounts
WHERE account_no=‘A’ --700
Transaction T1 : By Ram Transaction T2 : By Sita
4/29/2021 1:04:02 PM 46
Ms. Amrit Kaur

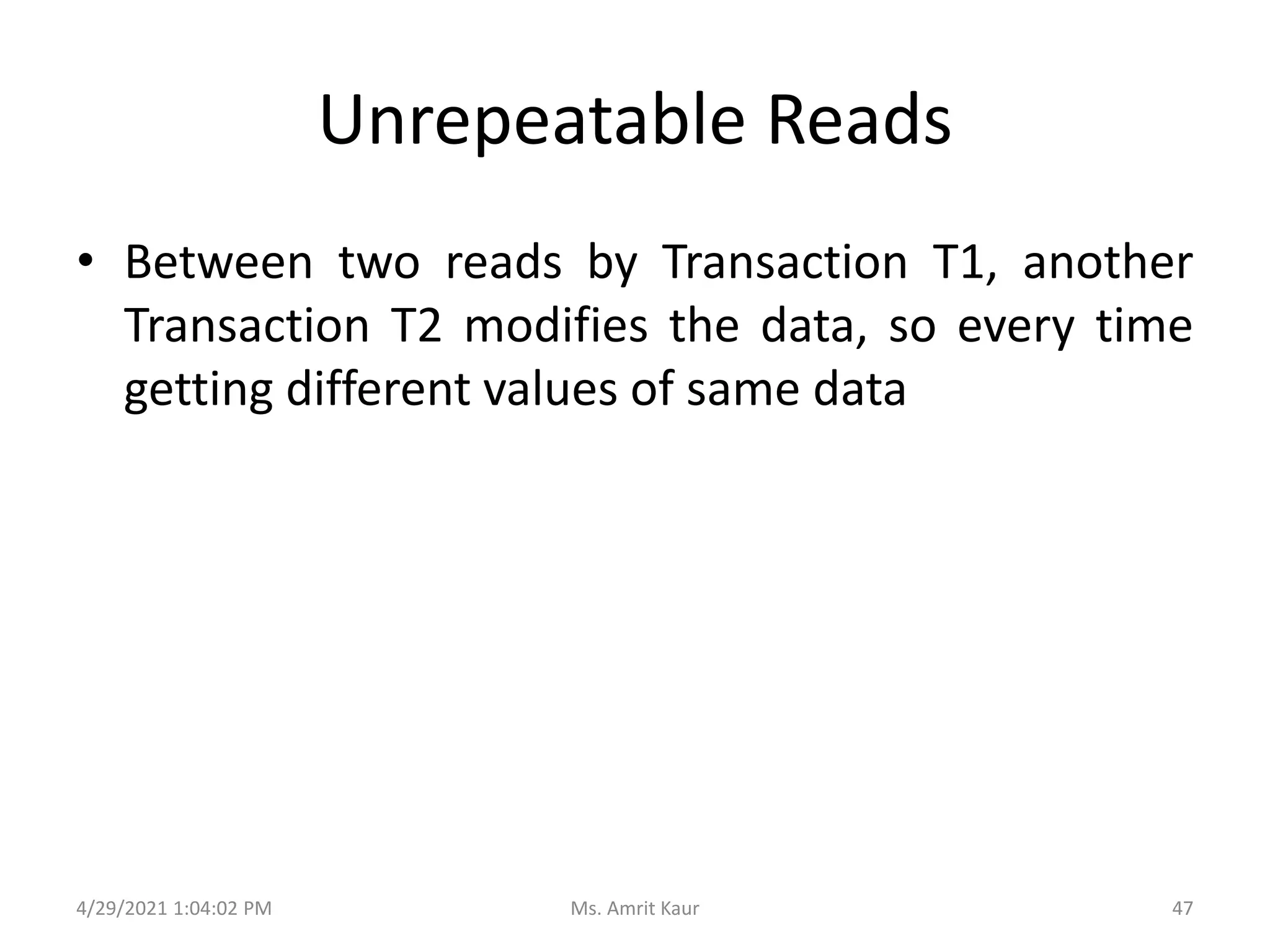

47. Unrepeatable Reads
• Between two reads by Transaction T1, another
Transaction T2 modifies the data, so every time
getting different values of same data
4/29/2021 1:04:02 PM 47
Ms. Amrit Kaur

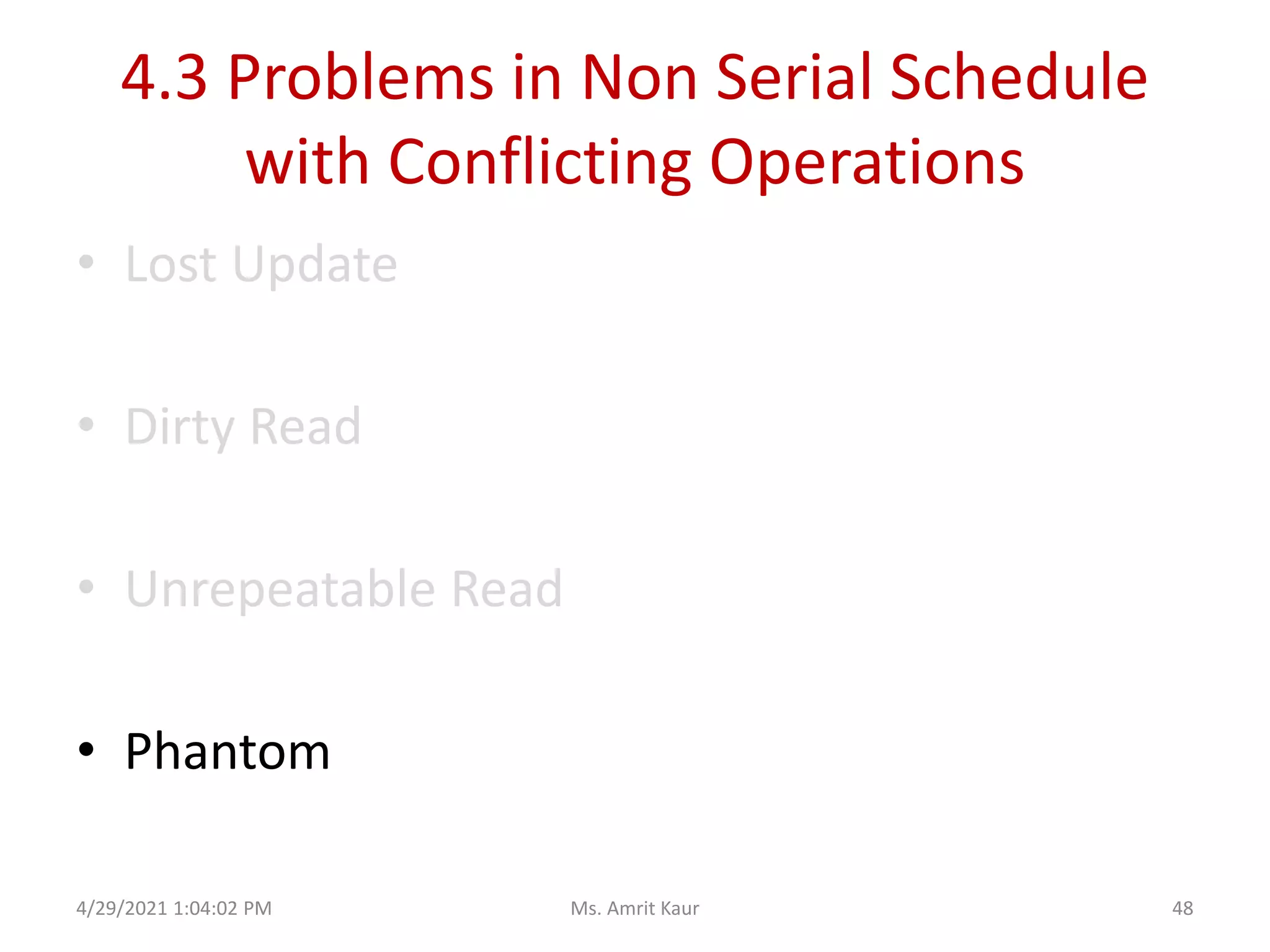

48. 4.3 Problems in Non Serial Schedule
with Conflicting Operations
• Lost Update
• Dirty Read
• Unrepeatable Read
• Phantom
4/29/2021 1:04:02 PM 48
Ms. Amrit Kaur

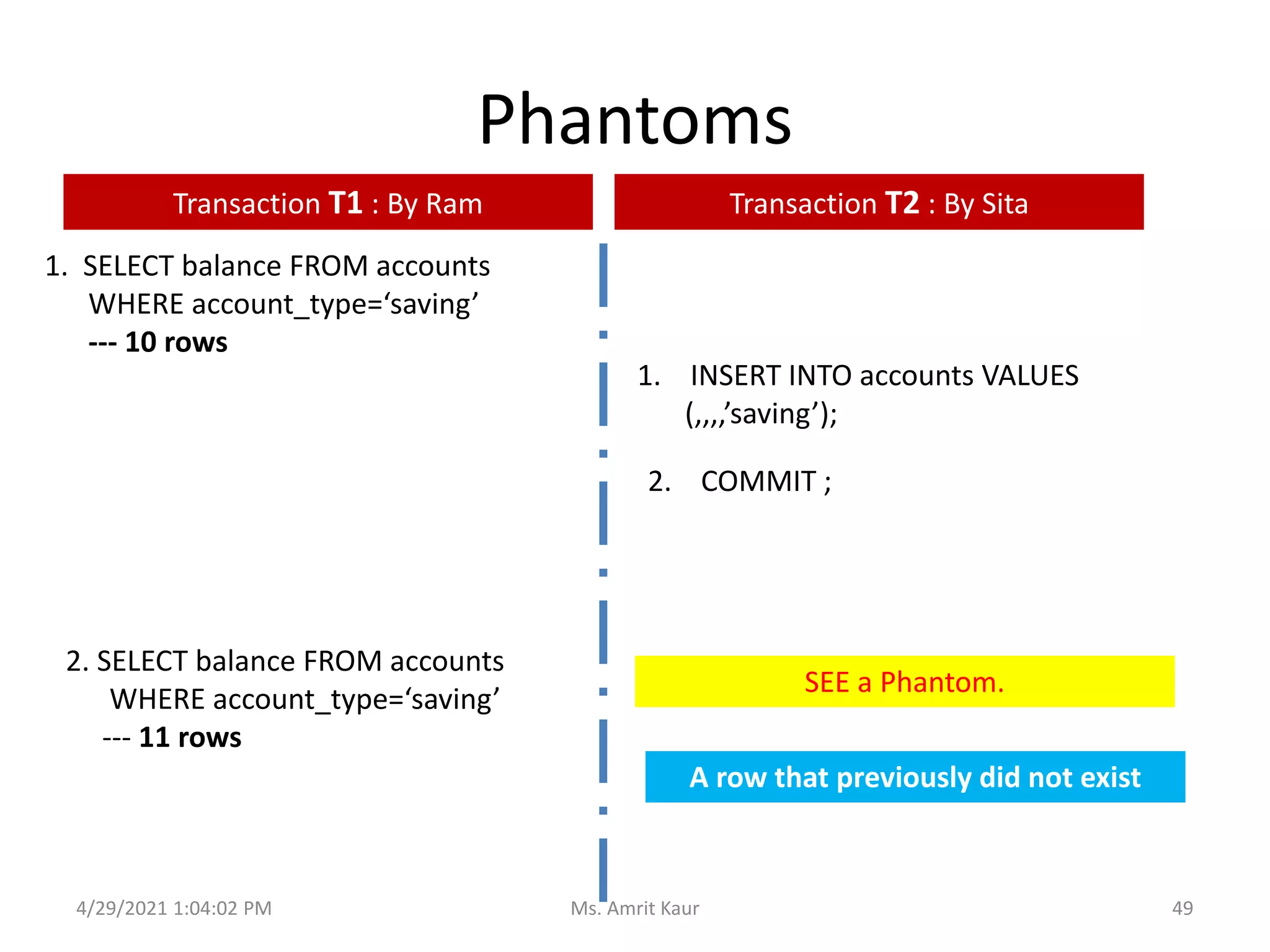

49. Phantoms
1. SELECT balance FROM accounts
WHERE account_type=‘saving’
--- 10 rows
1. INSERT INTO accounts VALUES
(,,,,’saving’);
2. COMMIT ;
SEE a Phantom.
2. SELECT balance FROM accounts
WHERE account_type=‘saving’
--- 11 rows
Transaction T1 : By Ram Transaction T2 : By Sita
A row that previously did not exist
4/29/2021 1:04:02 PM 49
Ms. Amrit Kaur

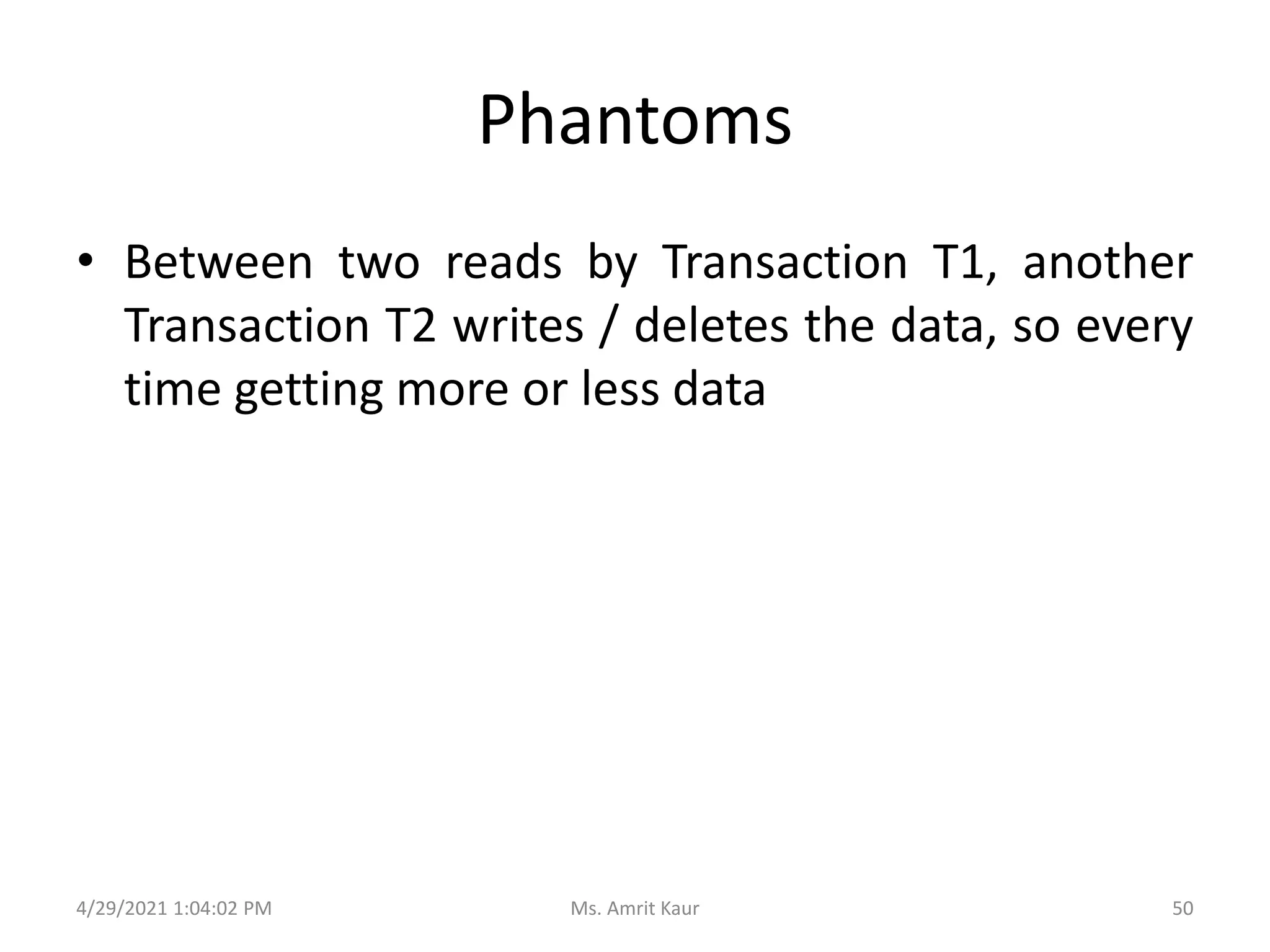

50. Phantoms
• Between two reads by Transaction T1, another
Transaction T2 writes / deletes the data, so every
time getting more or less data
4/29/2021 1:04:02 PM 50
Ms. Amrit Kaur

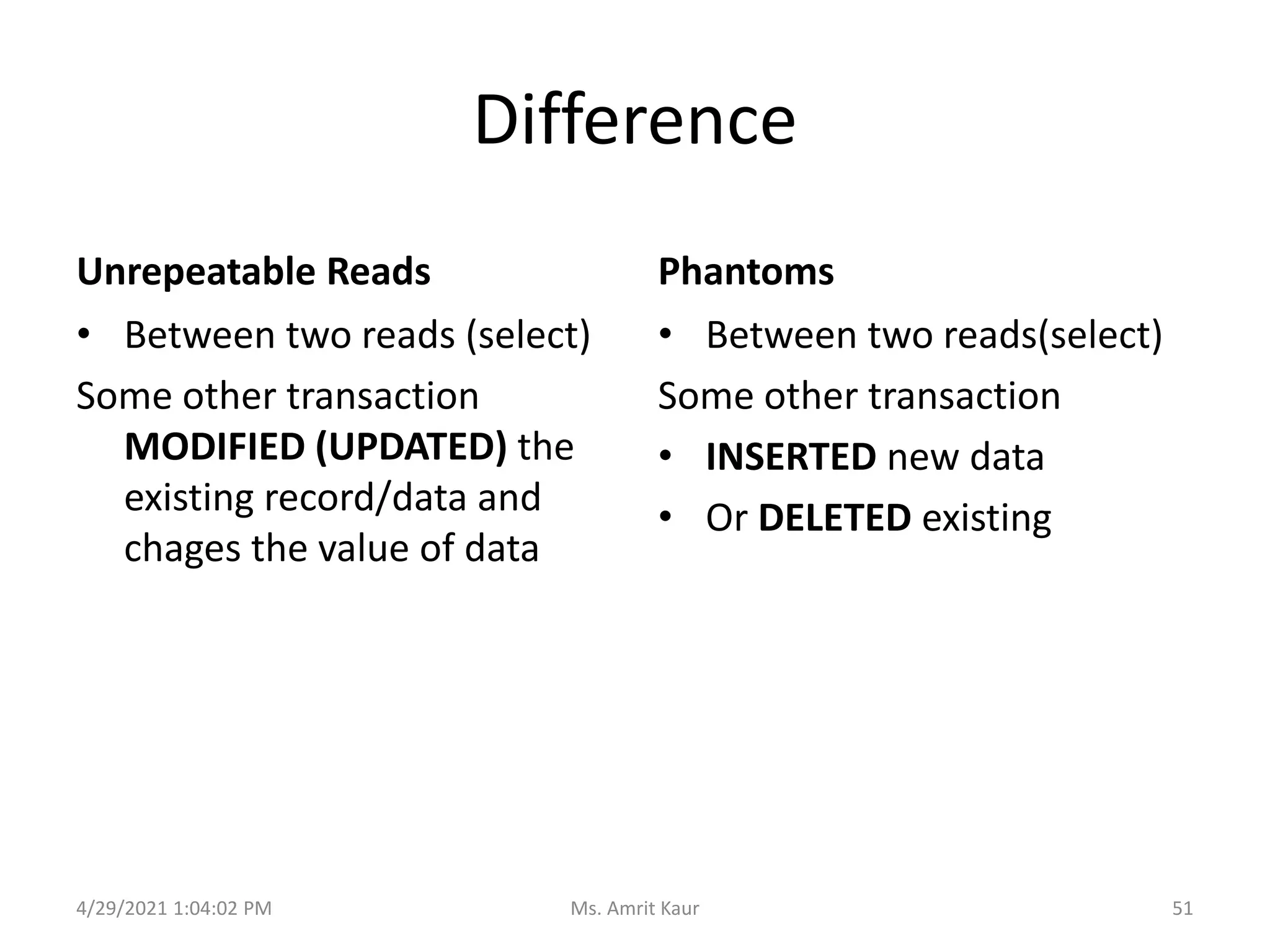

51. Difference
Unrepeatable Reads
• Between two reads (select)
Some other transaction
MODIFIED (UPDATED) the
existing record/data and
chages the value of data
Phantoms
• Between two reads(select)
Some other transaction
• INSERTED new data
• Or DELETED existing
4/29/2021 1:04:02 PM 51
Ms. Amrit Kaur

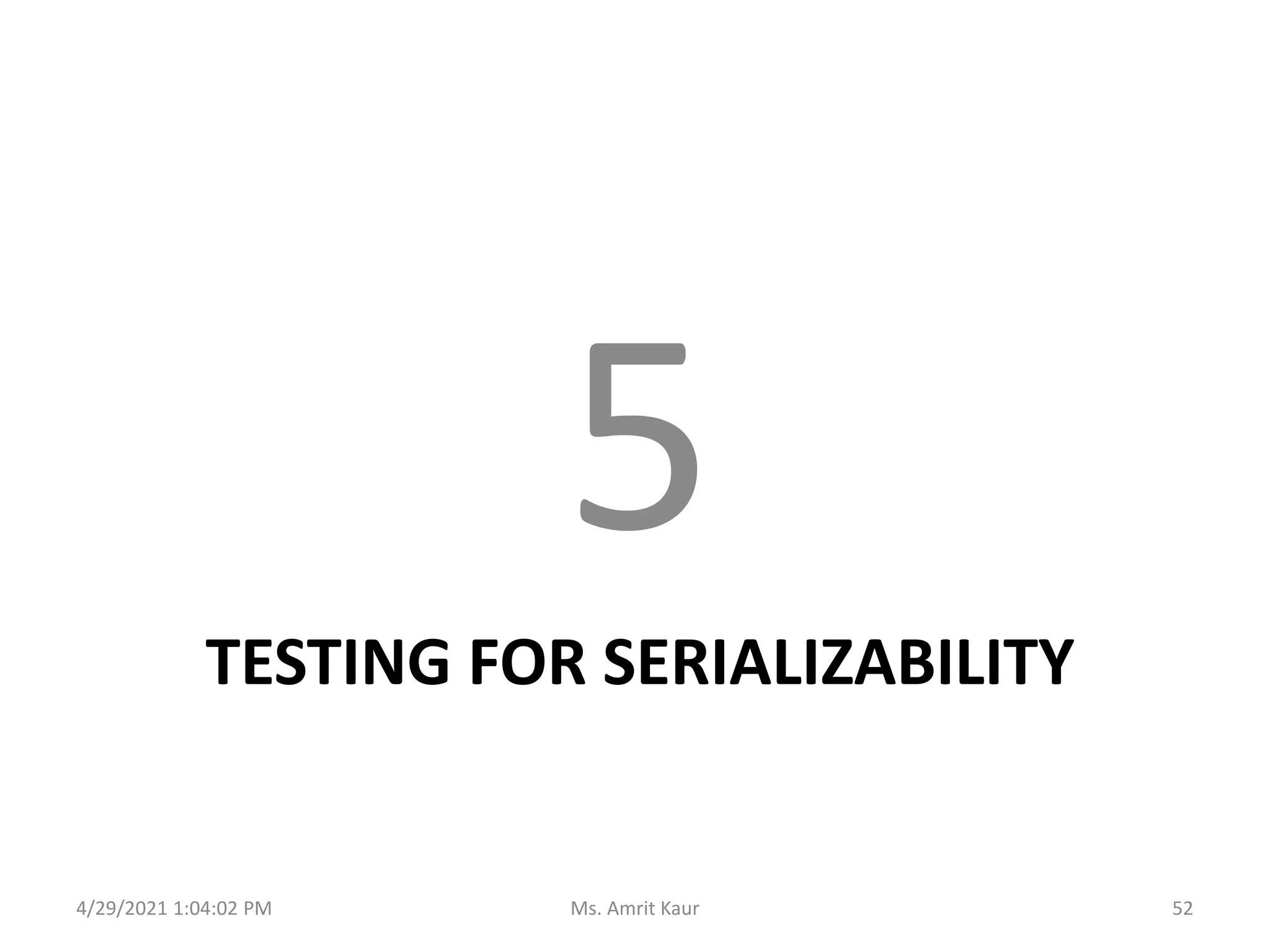

52. TESTING FOR SERIALIZABILITY
5
4/29/2021 1:04:02 PM 52
Ms. Amrit Kaur

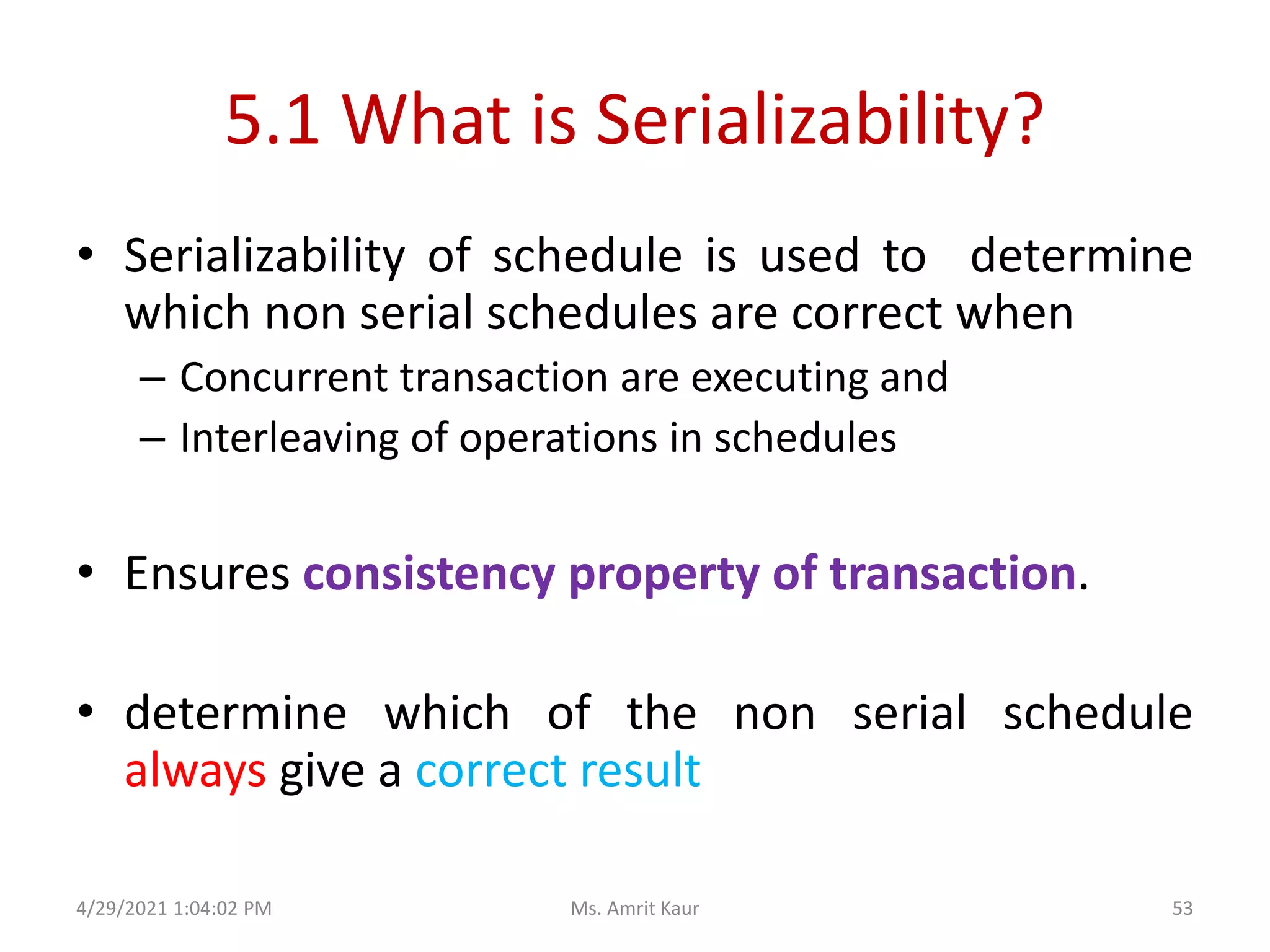

53. 5.1 What is Serializability?
• Serializability of schedule is used to determine
which non serial schedules are correct when
– Concurrent transaction are executing and
– Interleaving of operations in schedules
• Ensures consistency property of transaction.
• determine which of the non serial schedule
always give a correct result
4/29/2021 1:04:02 PM 53
Ms. Amrit Kaur

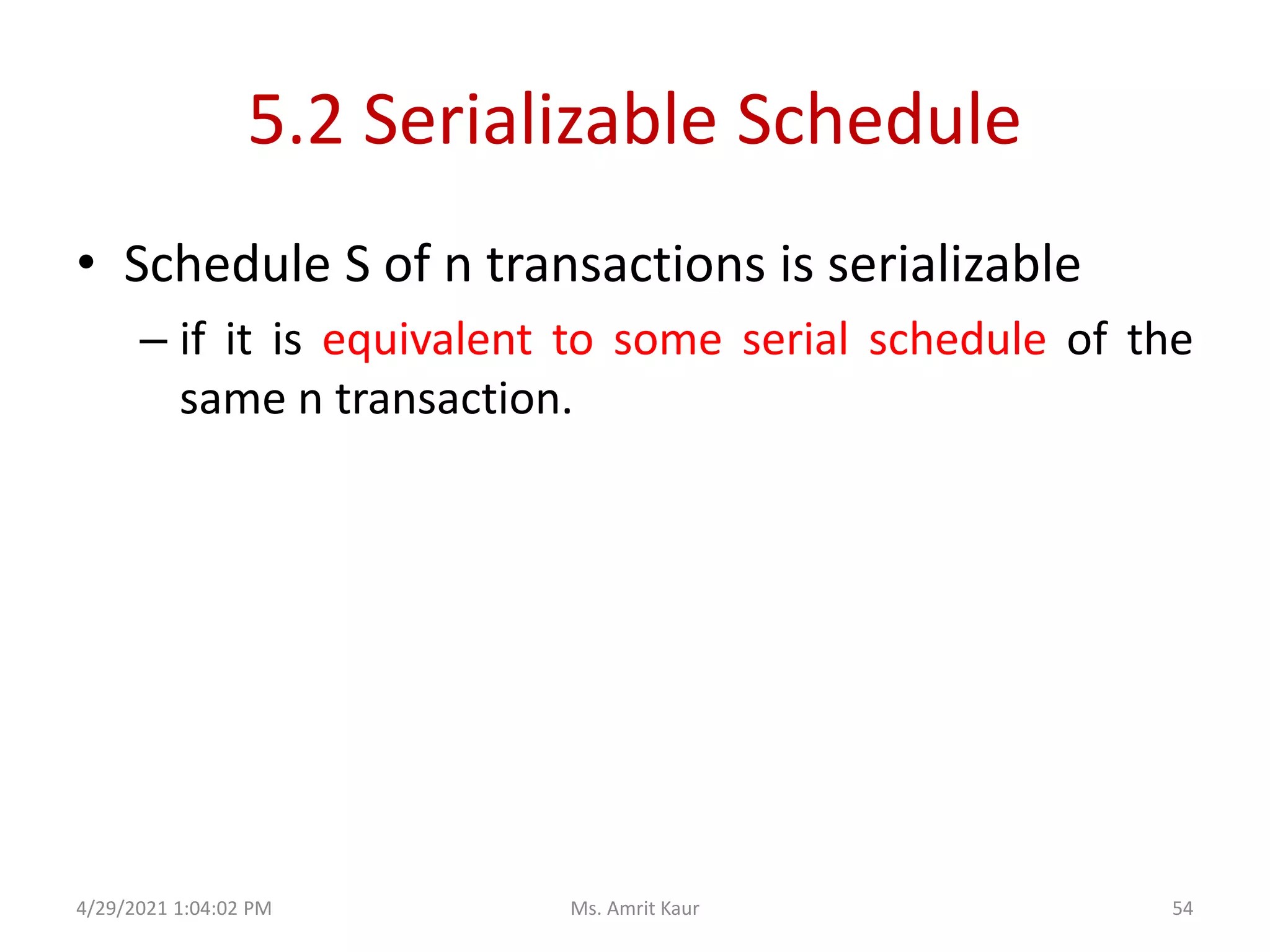

54. 5.2 Serializable Schedule
• Schedule S of n transactions is serializable
– if it is equivalent to some serial schedule of the
same n transaction.
4/29/2021 1:04:02 PM 54
Ms. Amrit Kaur

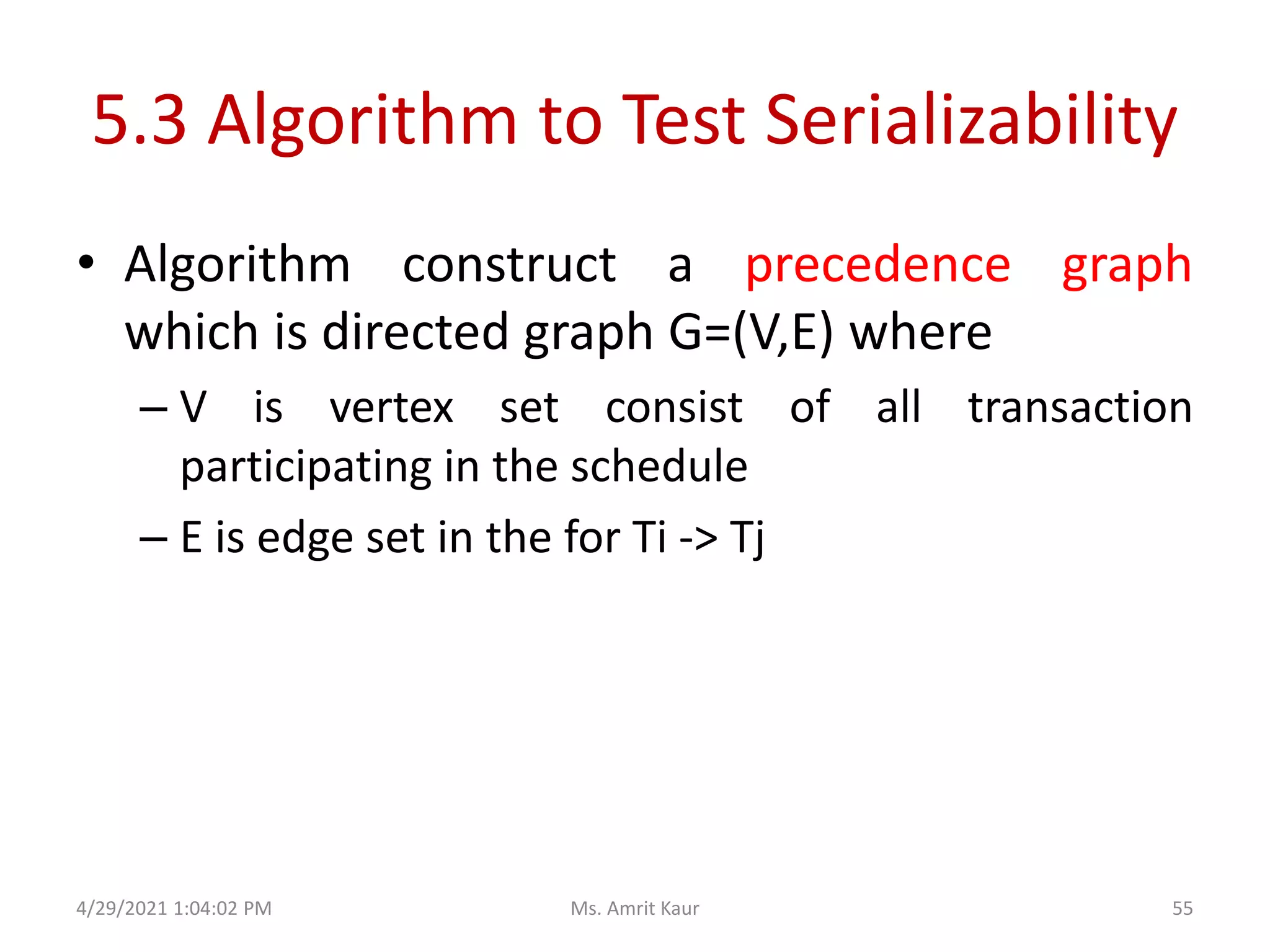

55. 5.3 Algorithm to Test Serializability
• Algorithm construct a precedence graph
which is directed graph G=(V,E) where
– V is vertex set consist of all transaction
participating in the schedule
– E is edge set in the for Ti -> Tj
4/29/2021 1:04:02 PM 55
Ms. Amrit Kaur

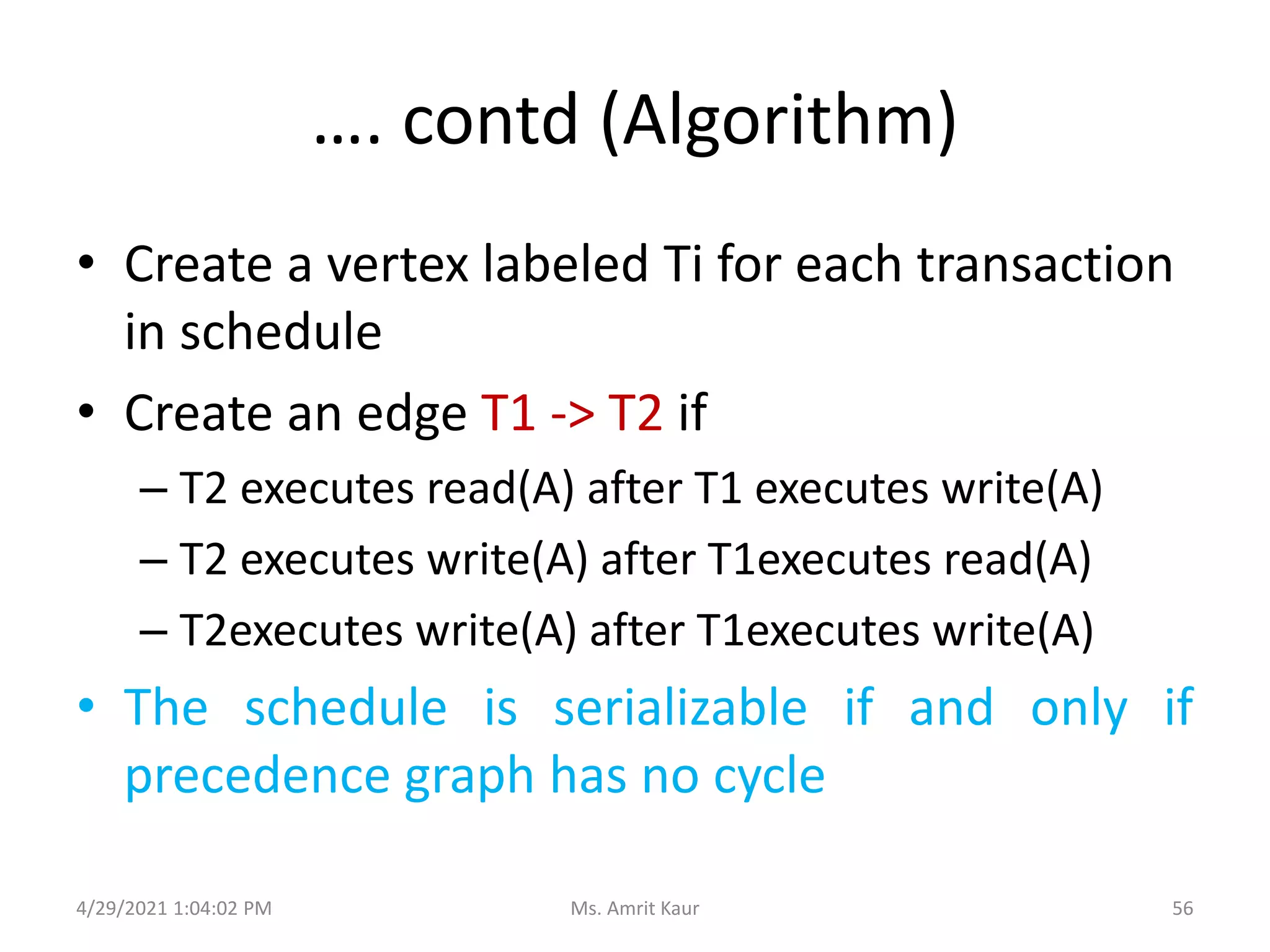

56. …. contd (Algorithm)
• Create a vertex labeled Ti for each transaction
in schedule
• Create an edge T1 -> T2 if
– T2 executes read(A) after T1 executes write(A)
– T2 executes write(A) after T1executes read(A)
– T2executes write(A) after T1executes write(A)
• The schedule is serializable if and only if
precedence graph has no cycle
4/29/2021 1:04:02 PM 56
Ms. Amrit Kaur

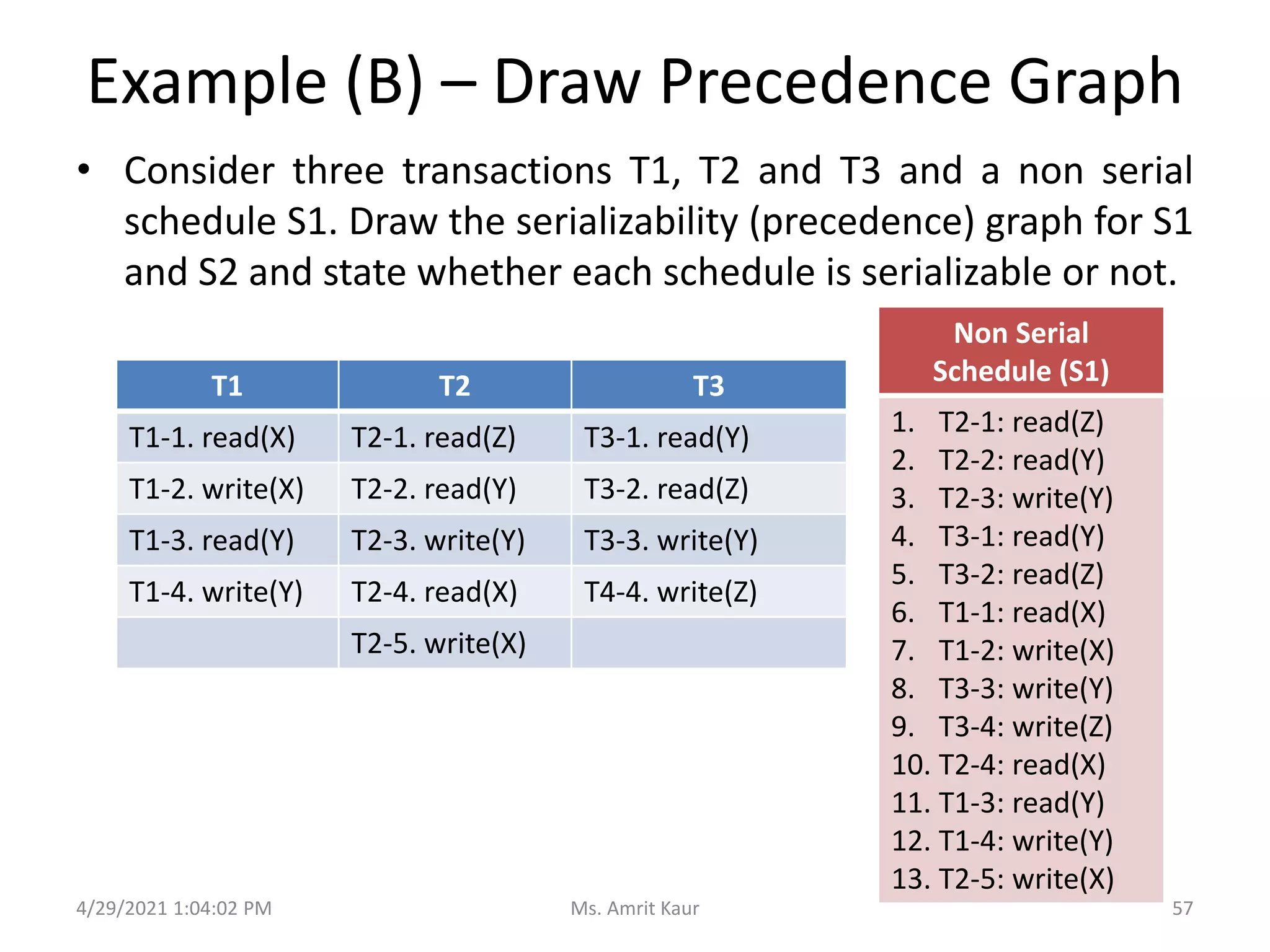

57. Example (B) – Draw Precedence Graph
• Consider three transactions T1, T2 and T3 and a non serial
schedule S1. Draw the serializability (precedence) graph for S1
and S2 and state whether each schedule is serializable or not.
4/29/2021 1:04:02 PM
T1 T2 T3
T1-1. read(X) T2-1. read(Z) T3-1. read(Y)
T1-2. write(X) T2-2. read(Y) T3-2. read(Z)
T1-3. read(Y) T2-3. write(Y) T3-3. write(Y)
T1-4. write(Y) T2-4. read(X) T4-4. write(Z)
T2-5. write(X)
Non Serial
Schedule (S1)
1. T2-1: read(Z)
2. T2-2: read(Y)
3. T2-3: write(Y)
4. T3-1: read(Y)
5. T3-2: read(Z)
6. T1-1: read(X)
7. T1-2: write(X)
8. T3-3: write(Y)
9. T3-4: write(Z)
10. T2-4: read(X)
11. T1-3: read(Y)
12. T1-4: write(Y)
13. T2-5: write(X)
57
Ms. Amrit Kaur

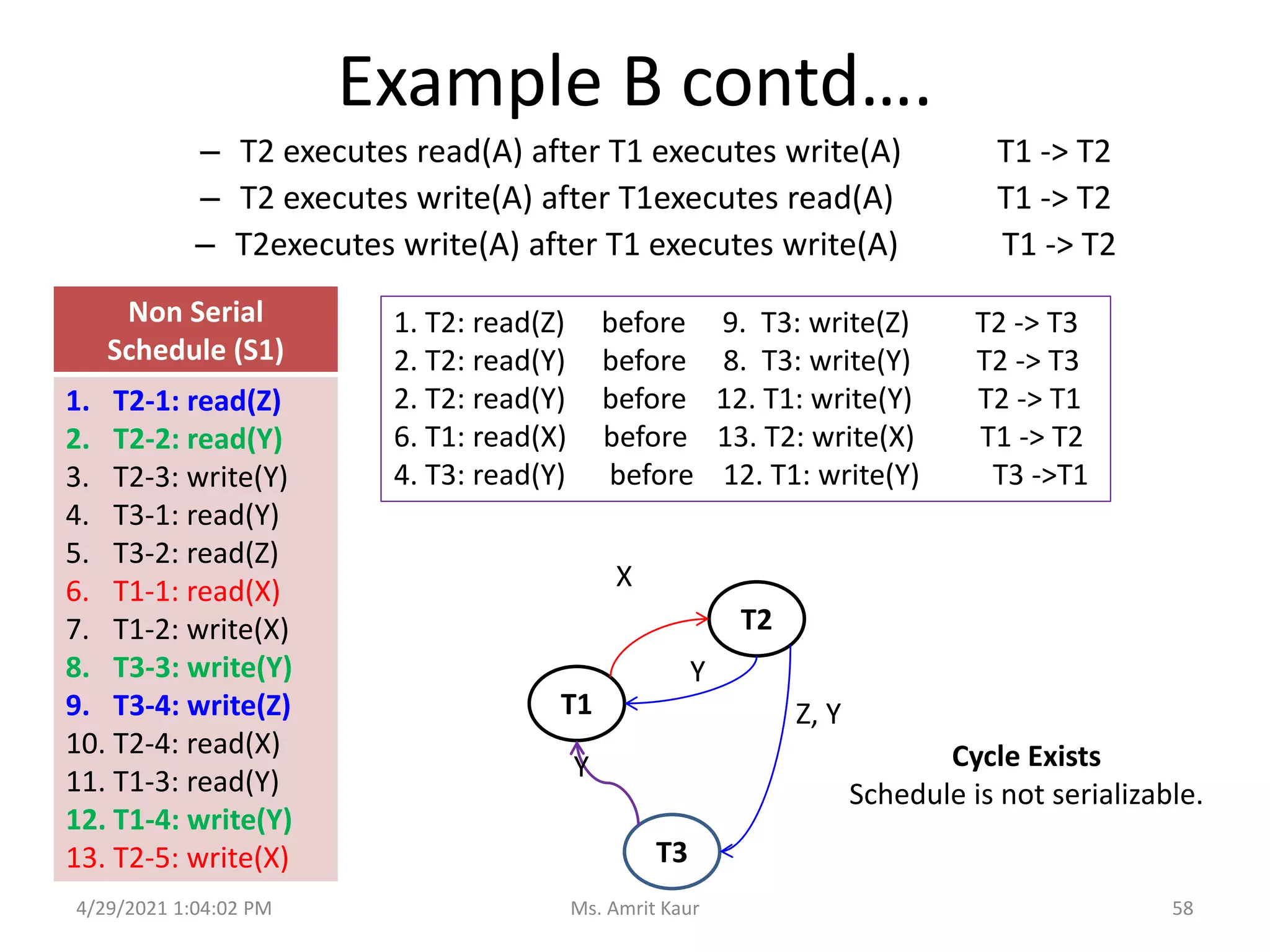

58. Example B contd….
– T2 executes read(A) after T1 executes write(A) T1 -> T2
– T2 executes write(A) after T1executes read(A) T1 -> T2
– T2executes write(A) after T1 executes write(A) T1 -> T2
4/29/2021 1:04:02 PM
Non Serial
Schedule (S1)
1. T2-1: read(Z)
2. T2-2: read(Y)
3. T2-3: write(Y)
4. T3-1: read(Y)
5. T3-2: read(Z)
6. T1-1: read(X)
7. T1-2: write(X)
8. T3-3: write(Y)
9. T3-4: write(Z)
10. T2-4: read(X)
11. T1-3: read(Y)
12. T1-4: write(Y)
13. T2-5: write(X)
T1
T2
T3
1. T2: read(Z) before 9. T3: write(Z) T2 -> T3
2. T2: read(Y) before 8. T3: write(Y) T2 -> T3
2. T2: read(Y) before 12. T1: write(Y) T2 -> T1
6. T1: read(X) before 13. T2: write(X) T1 -> T2
4. T3: read(Y) before 12. T1: write(Y) T3 ->T1
X
Y
Z, Y
Y Cycle Exists
Schedule is not serializable.
58
Ms. Amrit Kaur

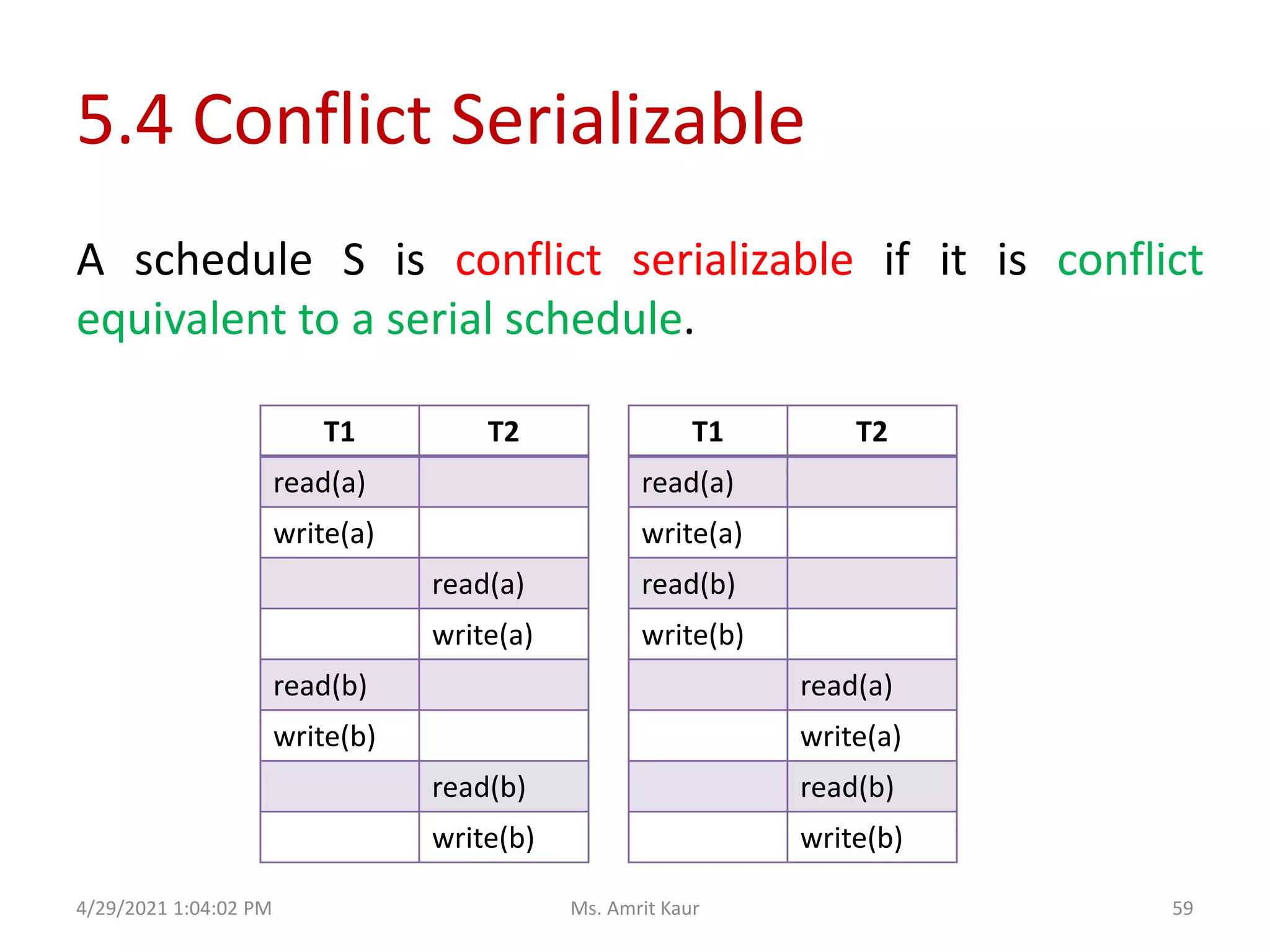

59. 5.4 Conflict Serializable
T1 T2
read(a)
write(a)
read(b)
write(b)
read(a)
write(a)
read(b)
write(b)
A schedule S is conflict serializable if it is conflict
equivalent to a serial schedule.
T1 T2
read(a)
write(a)
read(a)
write(a)
read(b)
write(b)
read(b)
write(b)
4/29/2021 1:04:02 PM 59
Ms. Amrit Kaur

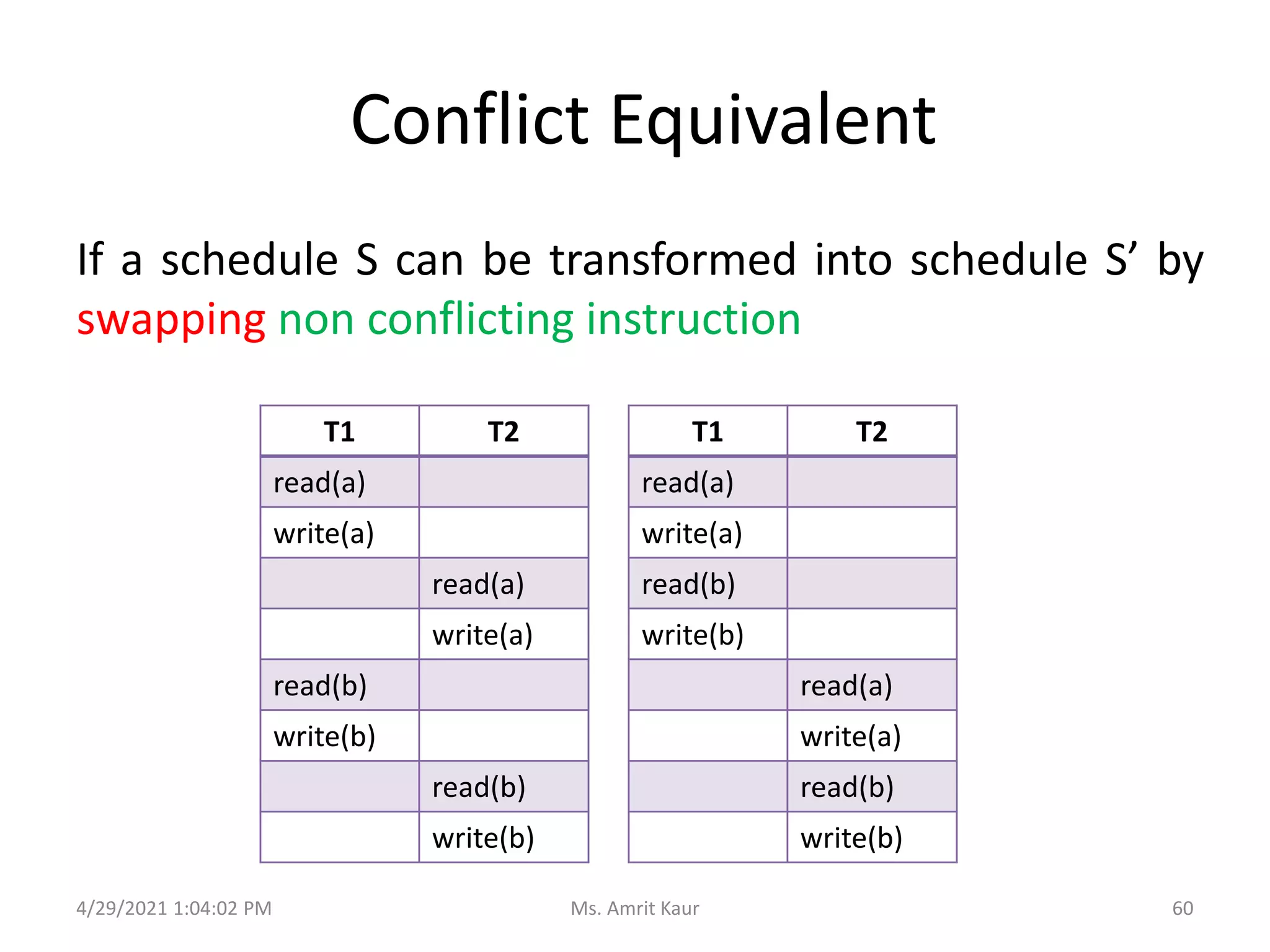

60. Conflict Equivalent
T1 T2
read(a)
write(a)
read(b)
write(b)
read(a)
write(a)
read(b)
write(b)
If a schedule S can be transformed into schedule S’ by
swapping non conflicting instruction
T1 T2
read(a)
write(a)
read(a)
write(a)
read(b)
write(b)
read(b)
write(b)
4/29/2021 1:04:02 PM 60
Ms. Amrit Kaur

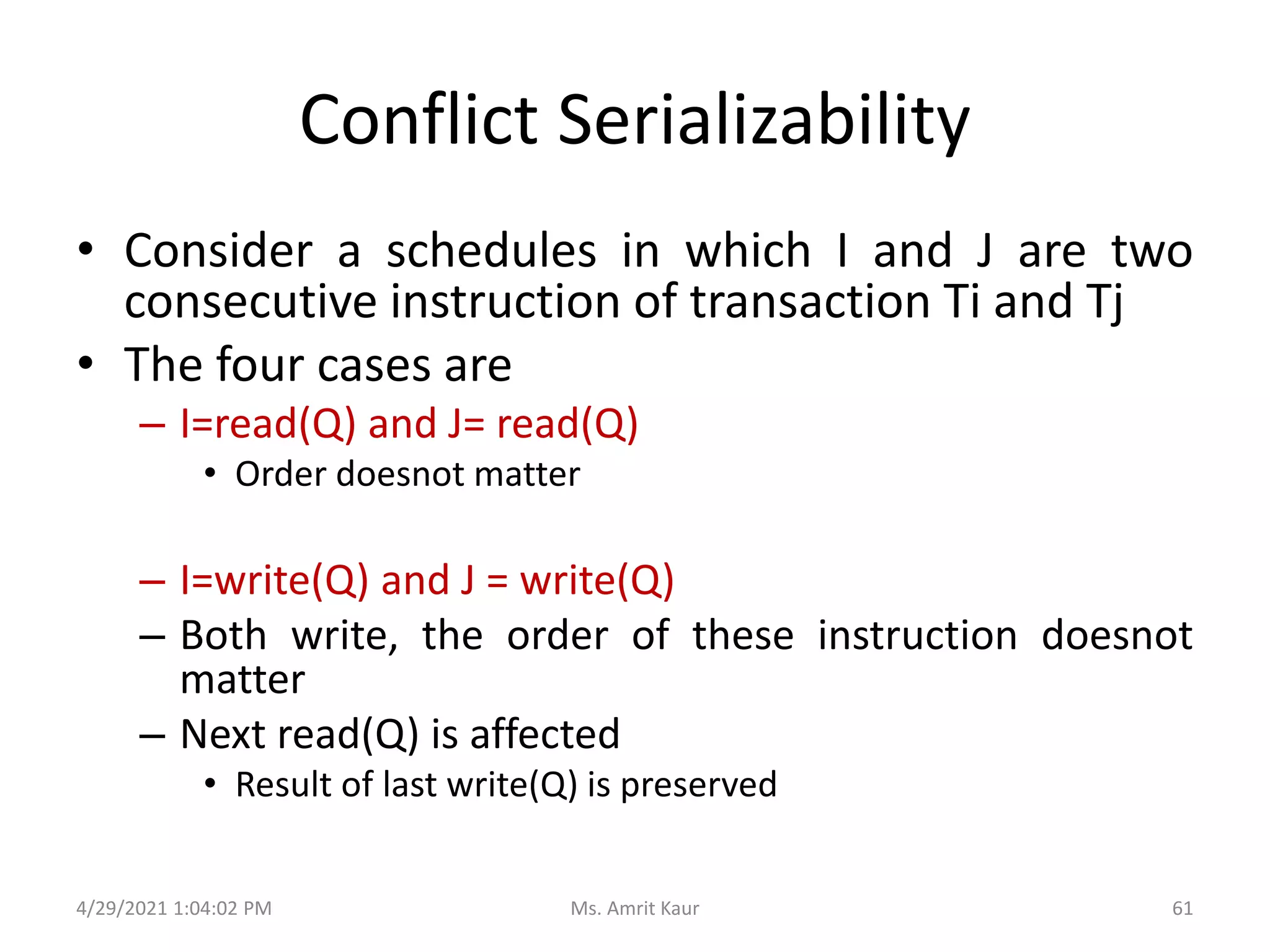

61. Conflict Serializability
• Consider a schedules in which I and J are two
consecutive instruction of transaction Ti and Tj
• The four cases are
– I=read(Q) and J= read(Q)
• Order doesnot matter
– I=write(Q) and J = write(Q)
– Both write, the order of these instruction doesnot
matter
– Next read(Q) is affected
• Result of last write(Q) is preserved
4/29/2021 1:04:02 PM 61
Ms. Amrit Kaur

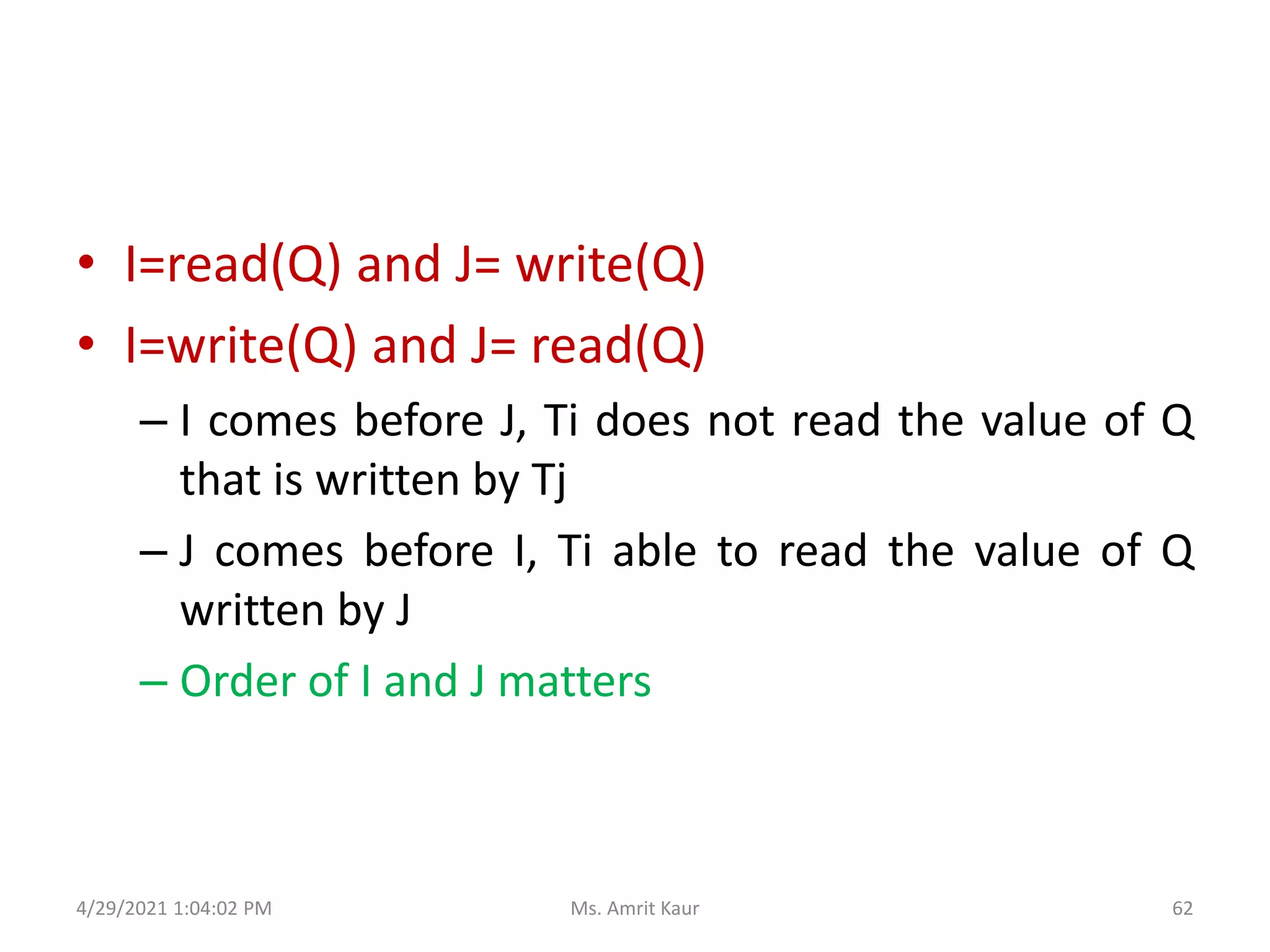

62. • I=read(Q) and J= write(Q)
• I=write(Q) and J= read(Q)
– I comes before J, Ti does not read the value of Q
that is written by Tj
– J comes before I, Ti able to read the value of Q
written by J
– Order of I and J matters
4/29/2021 1:04:02 PM 62
Ms. Amrit Kaur

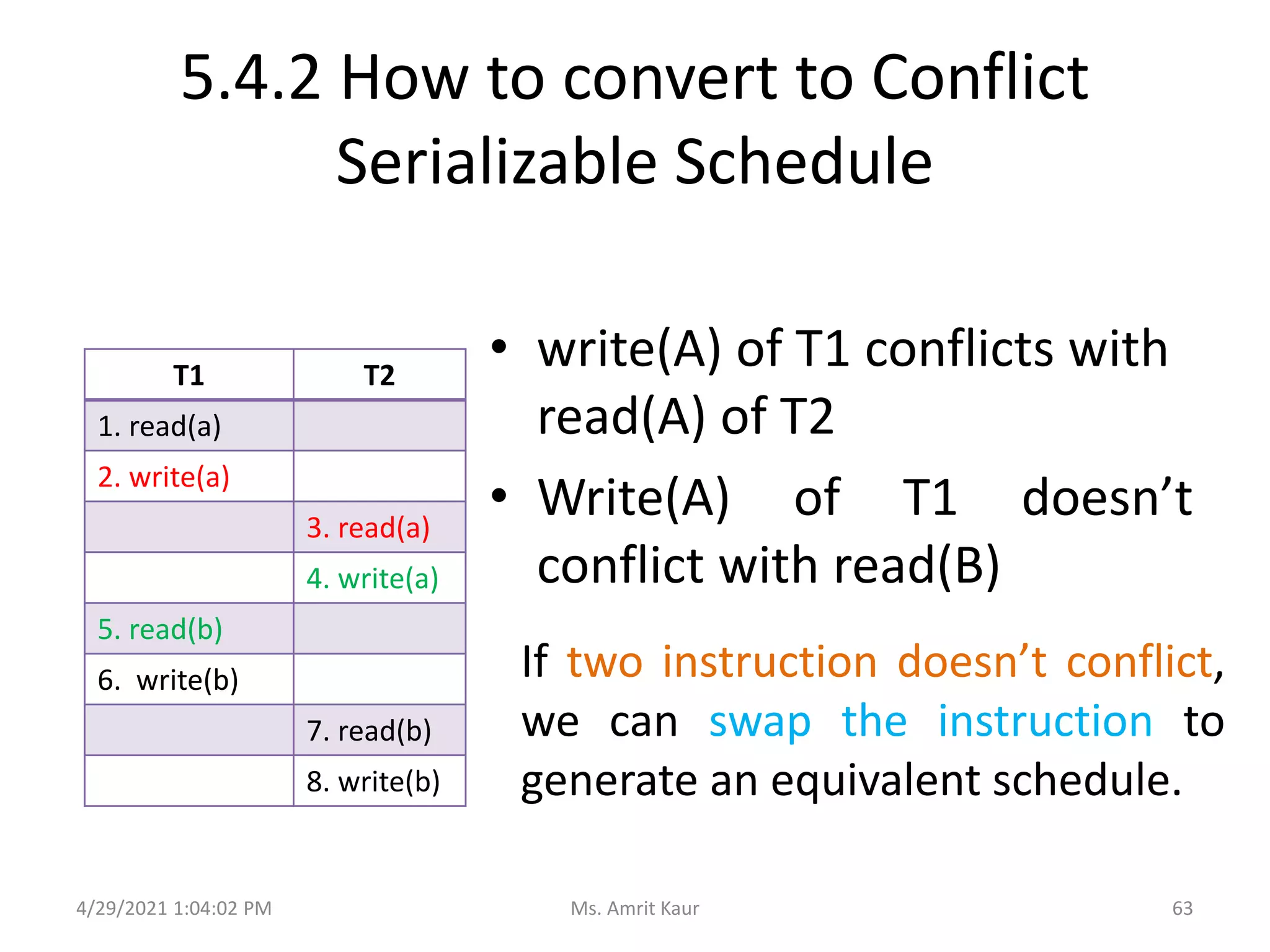

63. 5.4.2 How to convert to Conflict
Serializable Schedule
• write(A) of T1 conflicts with
read(A) of T2
• Write(A) of T1 doesn’t
conflict with read(B)
T1 T2
1. read(a)
2. write(a)
3. read(a)
4. write(a)
5. read(b)
6. write(b)
7. read(b)
8. write(b)
If two instruction doesn’t conflict,
we can swap the instruction to
generate an equivalent schedule.
4/29/2021 1:04:02 PM 63
Ms. Amrit Kaur

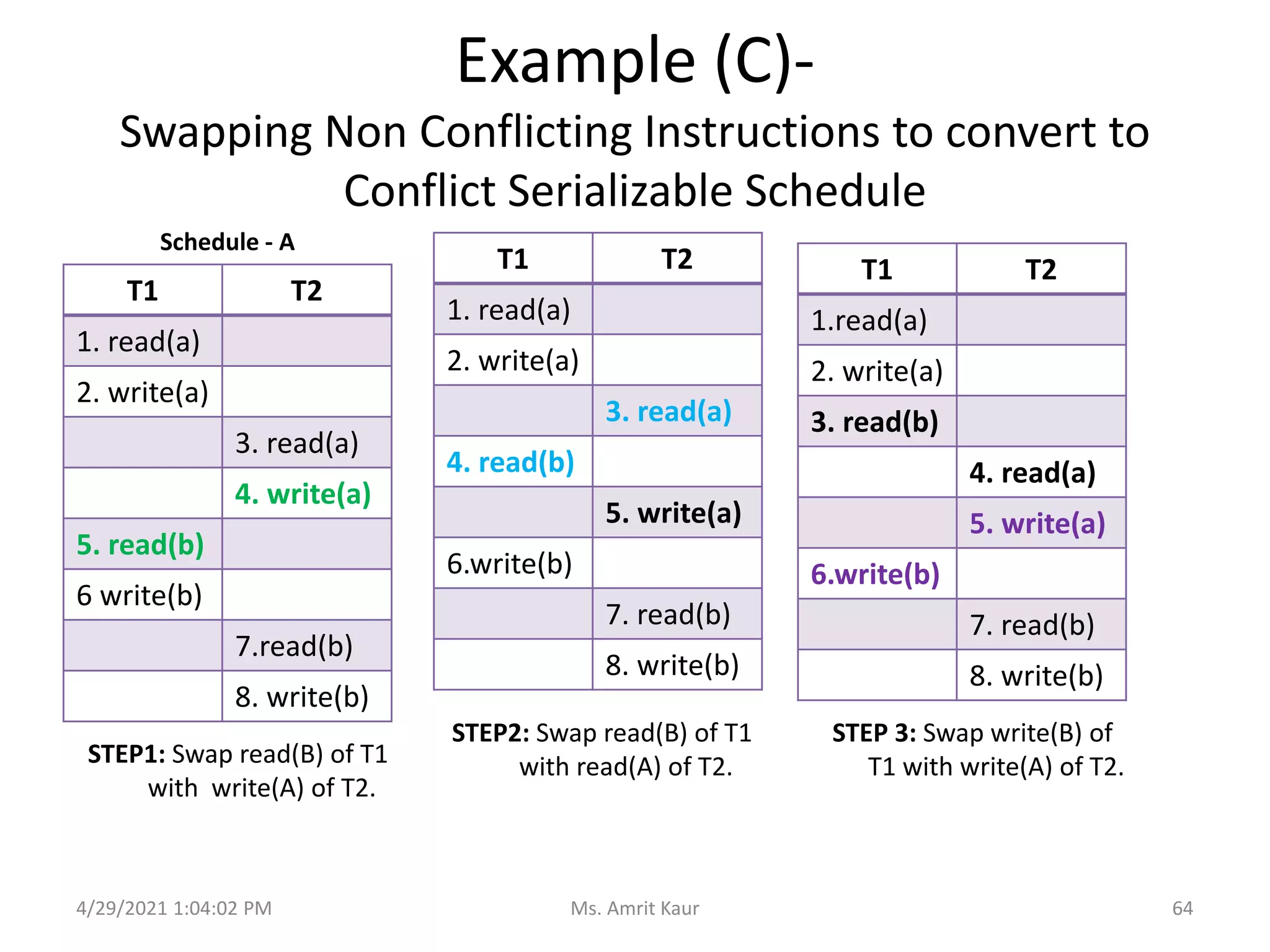

64. Example (C)-
Swapping Non Conflicting Instructions to convert to
Conflict Serializable Schedule
STEP1: Swap read(B) of T1
with write(A) of T2.
T1 T2
1. read(a)
2. write(a)
3. read(a)
4. write(a)
5. read(b)
6 write(b)
7.read(b)
8. write(b)
T1 T2
1. read(a)
2. write(a)
3. read(a)
4. read(b)
5. write(a)
6.write(b)
7. read(b)
8. write(b)
STEP2: Swap read(B) of T1
with read(A) of T2.
T1 T2
1.read(a)
2. write(a)
3. read(b)
4. read(a)
5. write(a)
6.write(b)
7. read(b)
8. write(b)
STEP 3: Swap write(B) of
T1 with write(A) of T2.
4/29/2021 1:04:02 PM 64
Ms. Amrit Kaur
Schedule - A

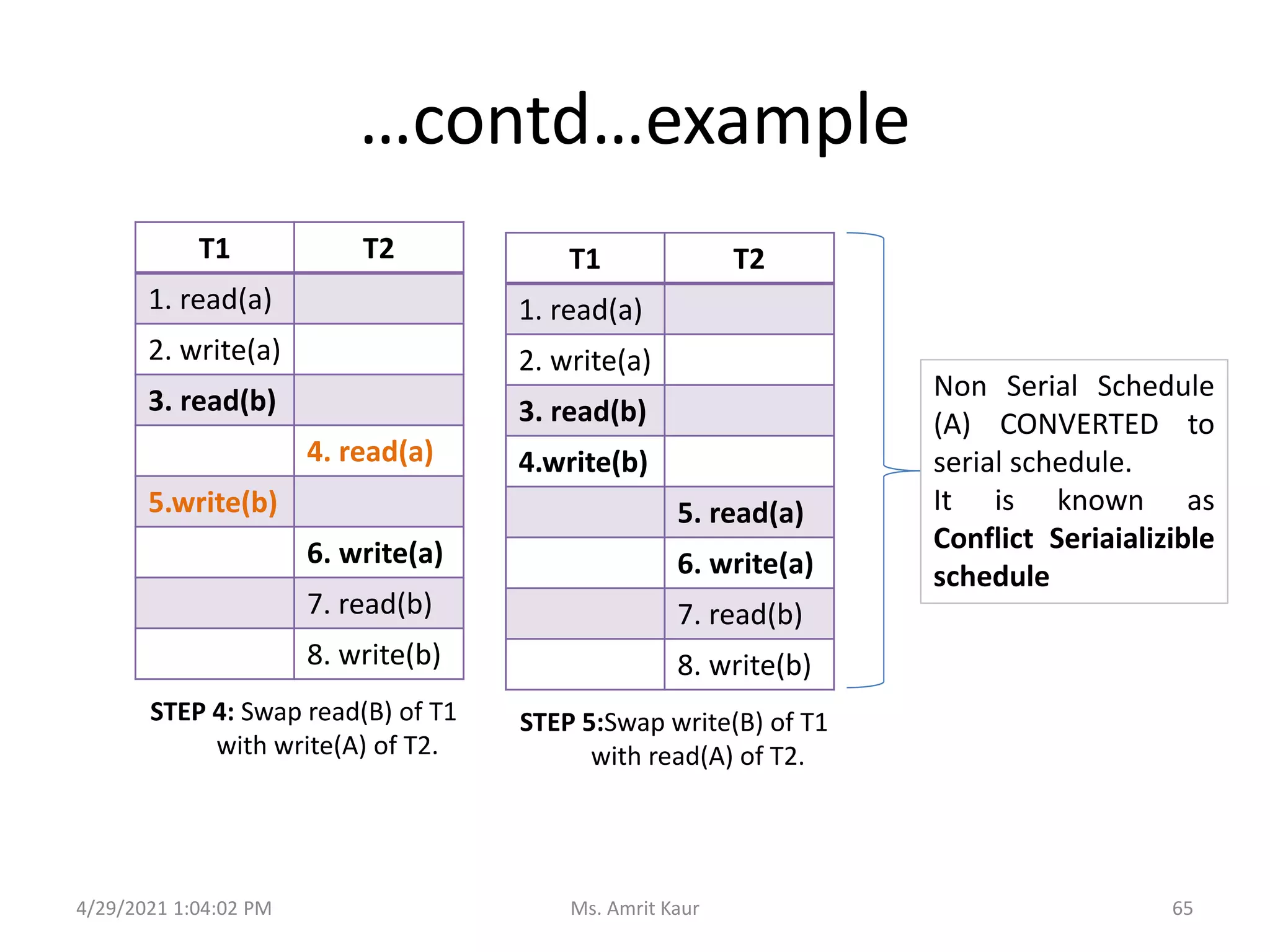

65. …contd…example
STEP 4: Swap read(B) of T1
with write(A) of T2.
T1 T2
1. read(a)
2. write(a)
3. read(b)
4. read(a)
5.write(b)
6. write(a)
7. read(b)
8. write(b)
STEP 5:Swap write(B) of T1
with read(A) of T2.
T1 T2
1. read(a)
2. write(a)
3. read(b)
4.write(b)
5. read(a)
6. write(a)
7. read(b)
8. write(b)
4/29/2021 1:04:02 PM 65
Ms. Amrit Kaur
Non Serial Schedule
(A) CONVERTED to
serial schedule.
It is known as
Conflict Seriaializible
schedule

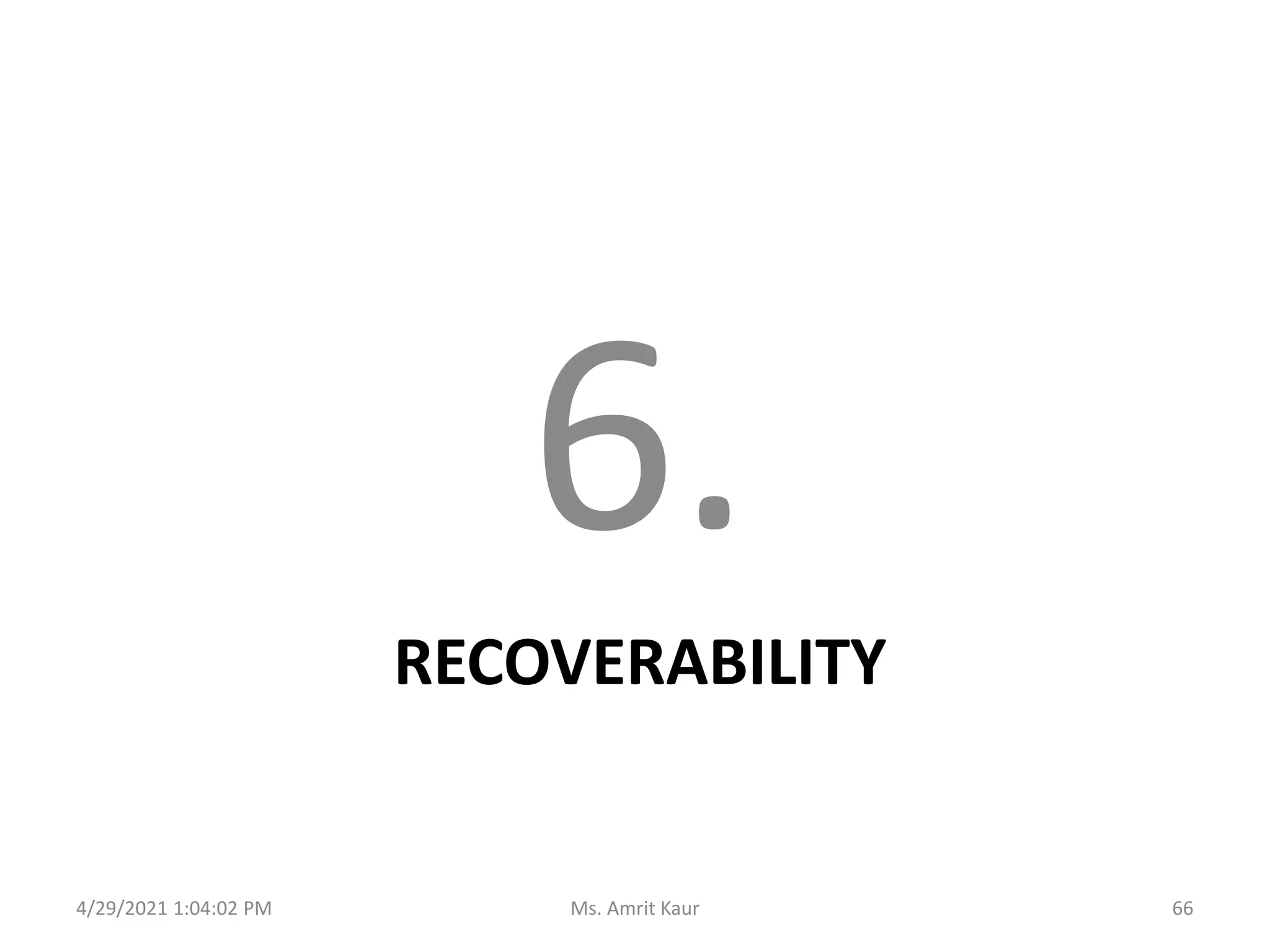

66. RECOVERABILITY
6.
4/29/2021 1:04:02 PM 66
Ms. Amrit Kaur

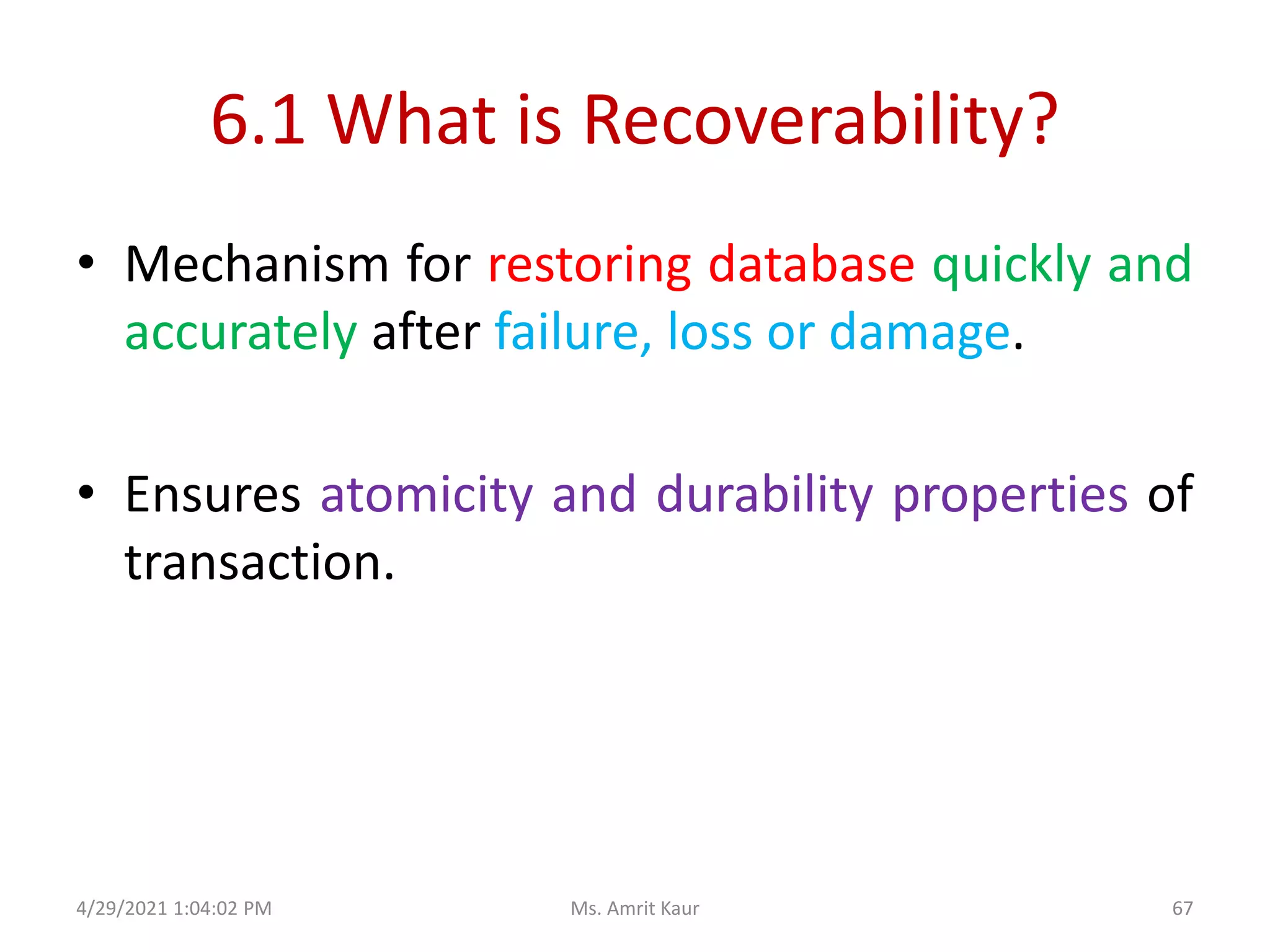

67. 6.1 What is Recoverability?
• Mechanism for restoring database quickly and
accurately after failure, loss or damage.
• Ensures atomicity and durability properties of
transaction.
4/29/2021 1:04:02 PM 67
Ms. Amrit Kaur

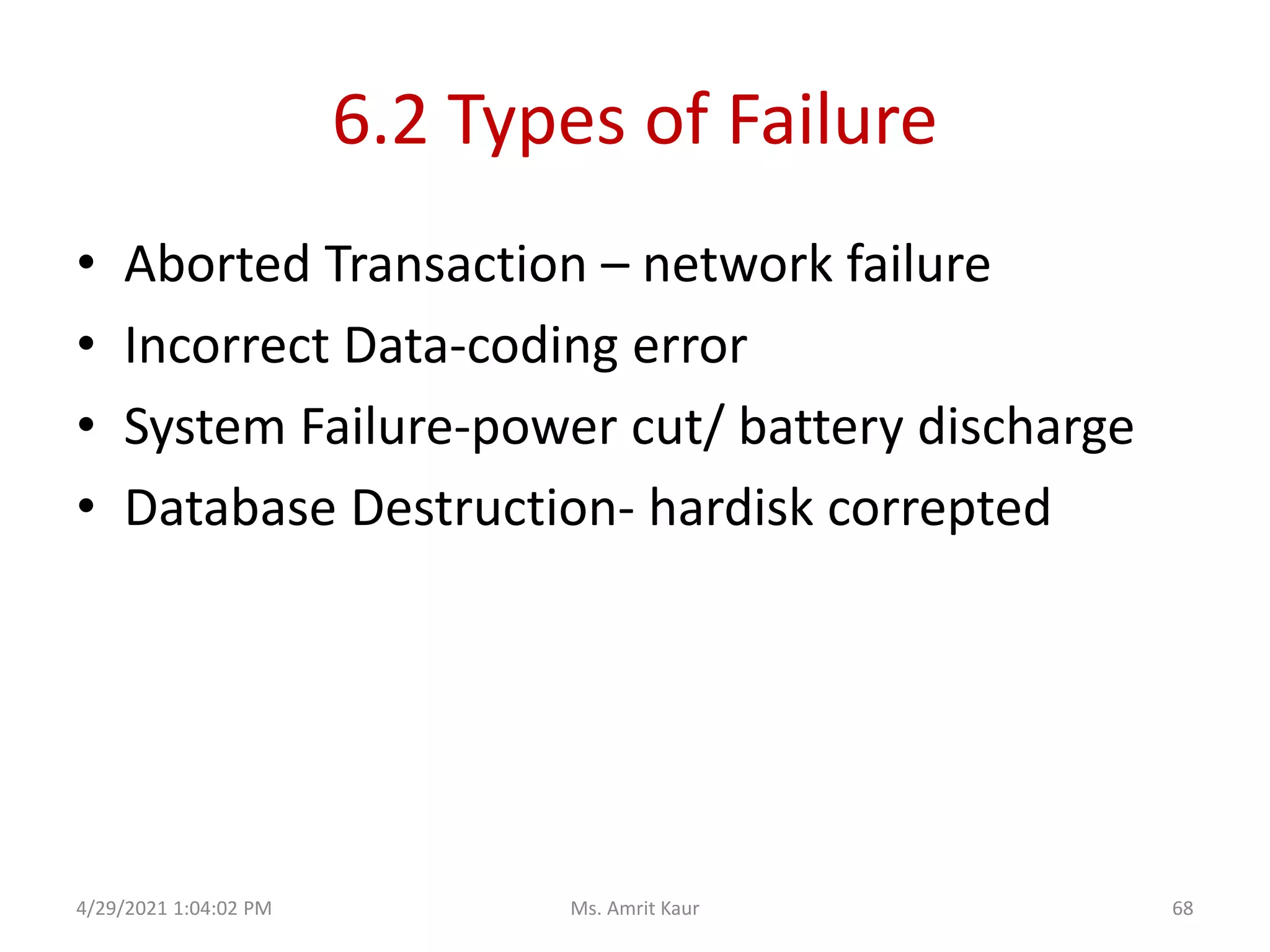

68. 6.2 Types of Failure
• Aborted Transaction – network failure
• Incorrect Data-coding error
• System Failure-power cut/ battery discharge
• Database Destruction- hardisk correpted
4/29/2021 1:04:02 PM 68
Ms. Amrit Kaur

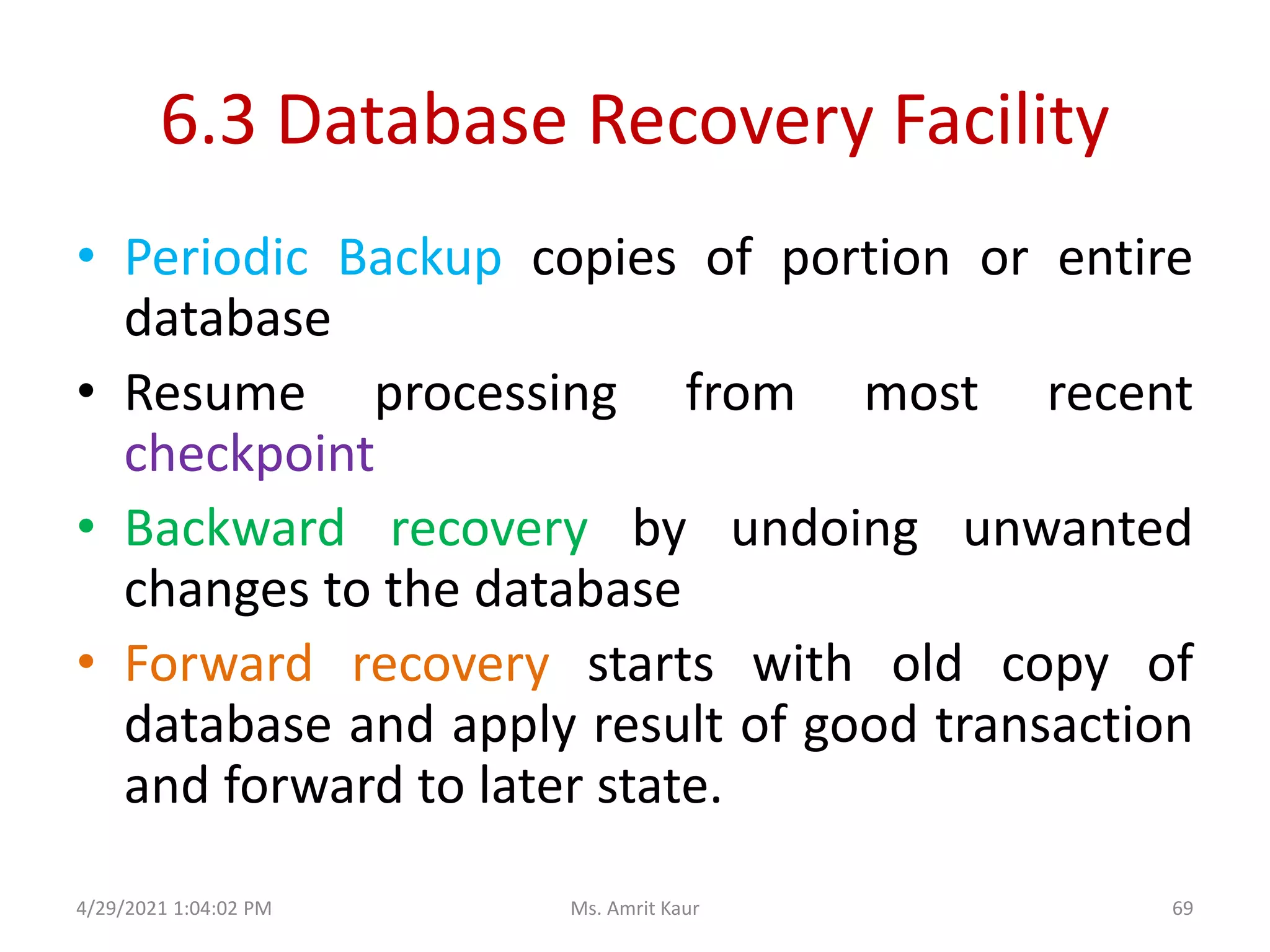

69. 6.3 Database Recovery Facility
• Periodic Backup copies of portion or entire
database
• Resume processing from most recent
checkpoint
• Backward recovery by undoing unwanted
changes to the database
• Forward recovery starts with old copy of
database and apply result of good transaction
and forward to later state.
4/29/2021 1:04:02 PM 69
Ms. Amrit Kaur

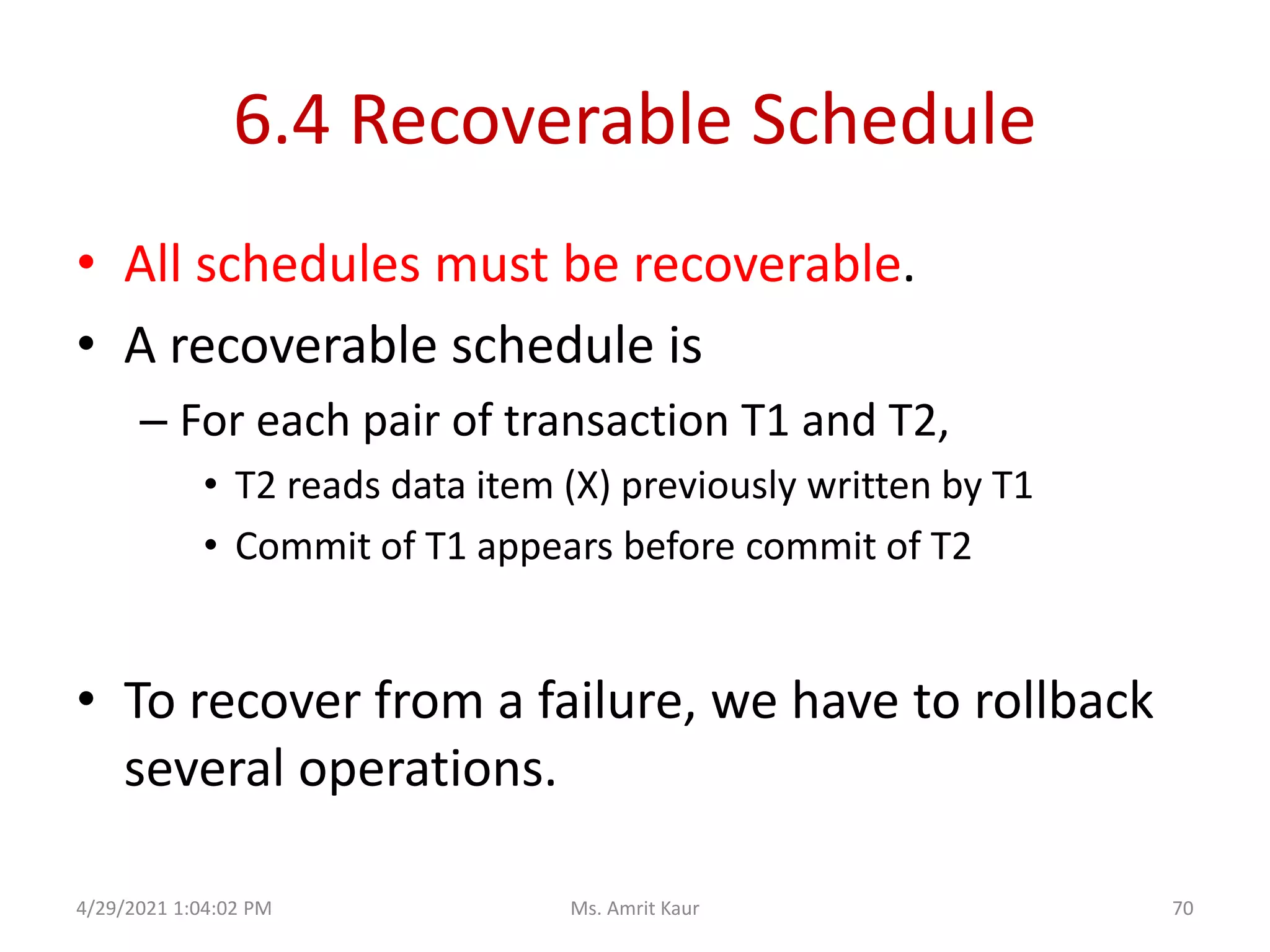

70. 6.4 Recoverable Schedule
• All schedules must be recoverable.
• A recoverable schedule is
– For each pair of transaction T1 and T2,
• T2 reads data item (X) previously written by T1
• Commit of T1 appears before commit of T2
• To recover from a failure, we have to rollback
several operations.
4/29/2021 1:04:02 PM 70
Ms. Amrit Kaur

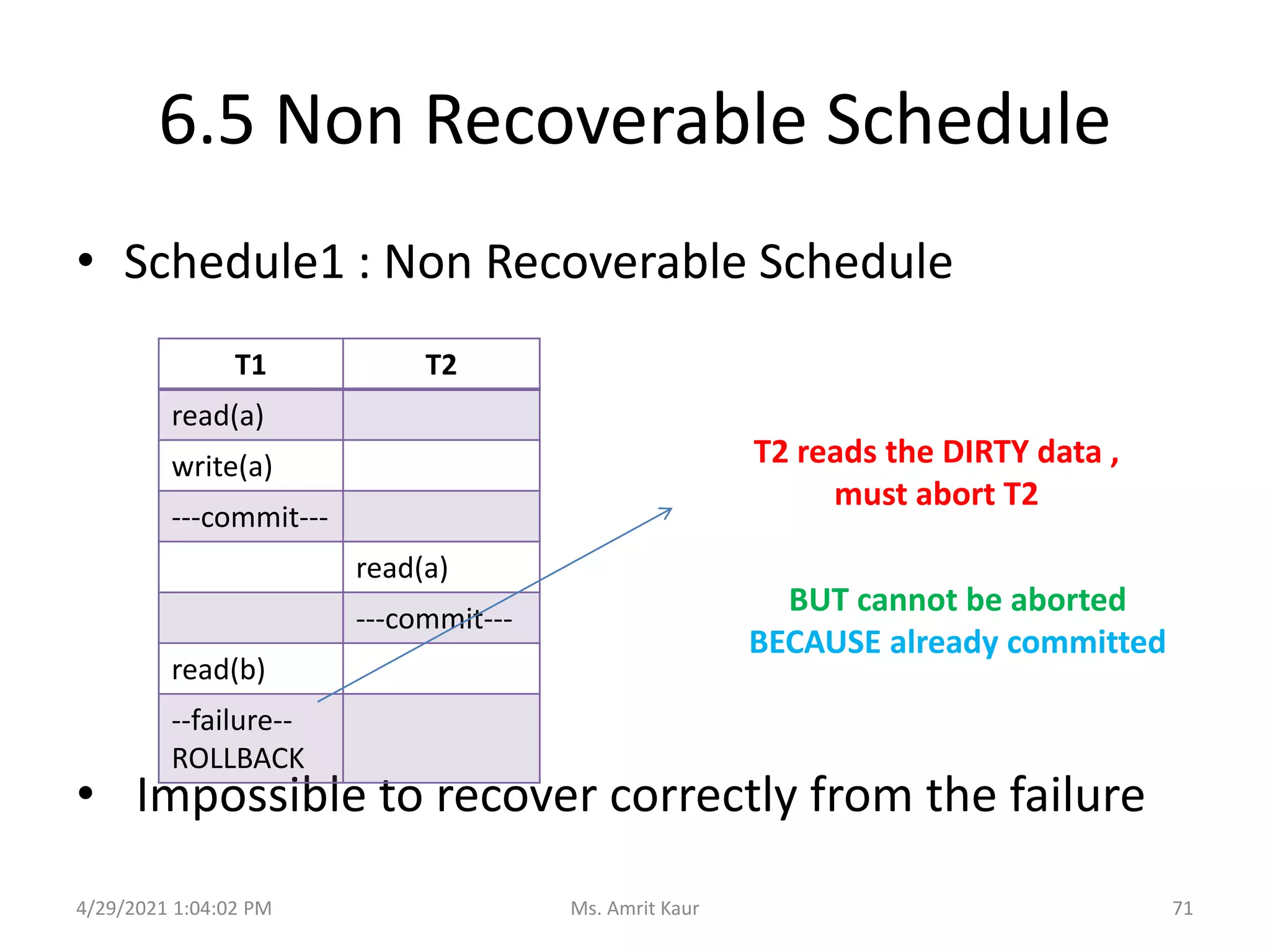

71. 6.5 Non Recoverable Schedule
• Schedule1 : Non Recoverable Schedule
• Impossible to recover correctly from the failure
T1 T2
read(a)
write(a)
---commit---
read(a)
---commit---
read(b)
--failure--
ROLLBACK
BUT cannot be aborted
BECAUSE already committed
T2 reads the DIRTY data ,
must abort T2
4/29/2021 1:04:02 PM 71
Ms. Amrit Kaur

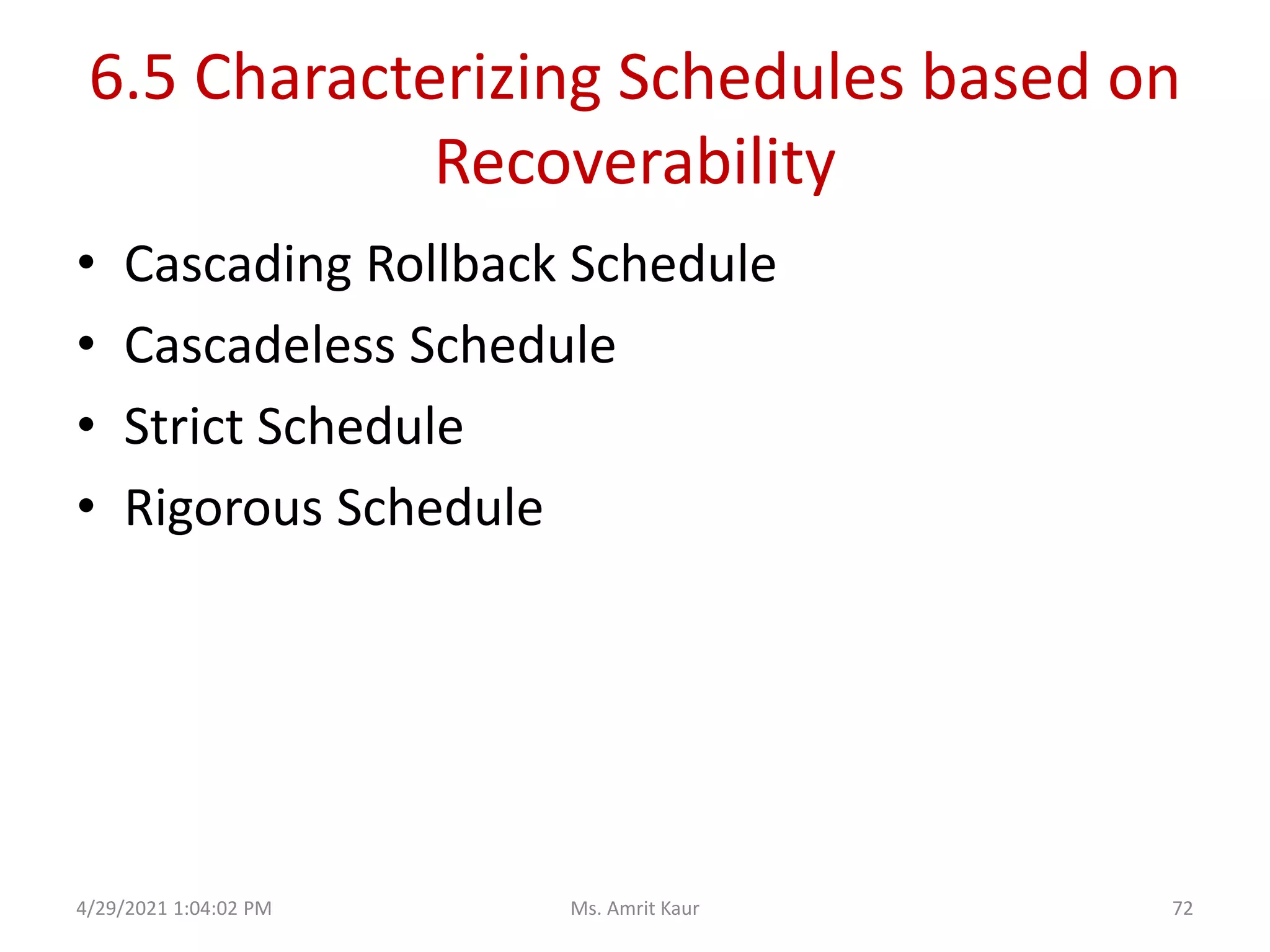

72. 6.5 Characterizing Schedules based on
Recoverability
• Cascading Rollback Schedule
• Cascadeless Schedule
• Strict Schedule
• Rigorous Schedule
4/29/2021 1:04:02 PM 72
Ms. Amrit Kaur

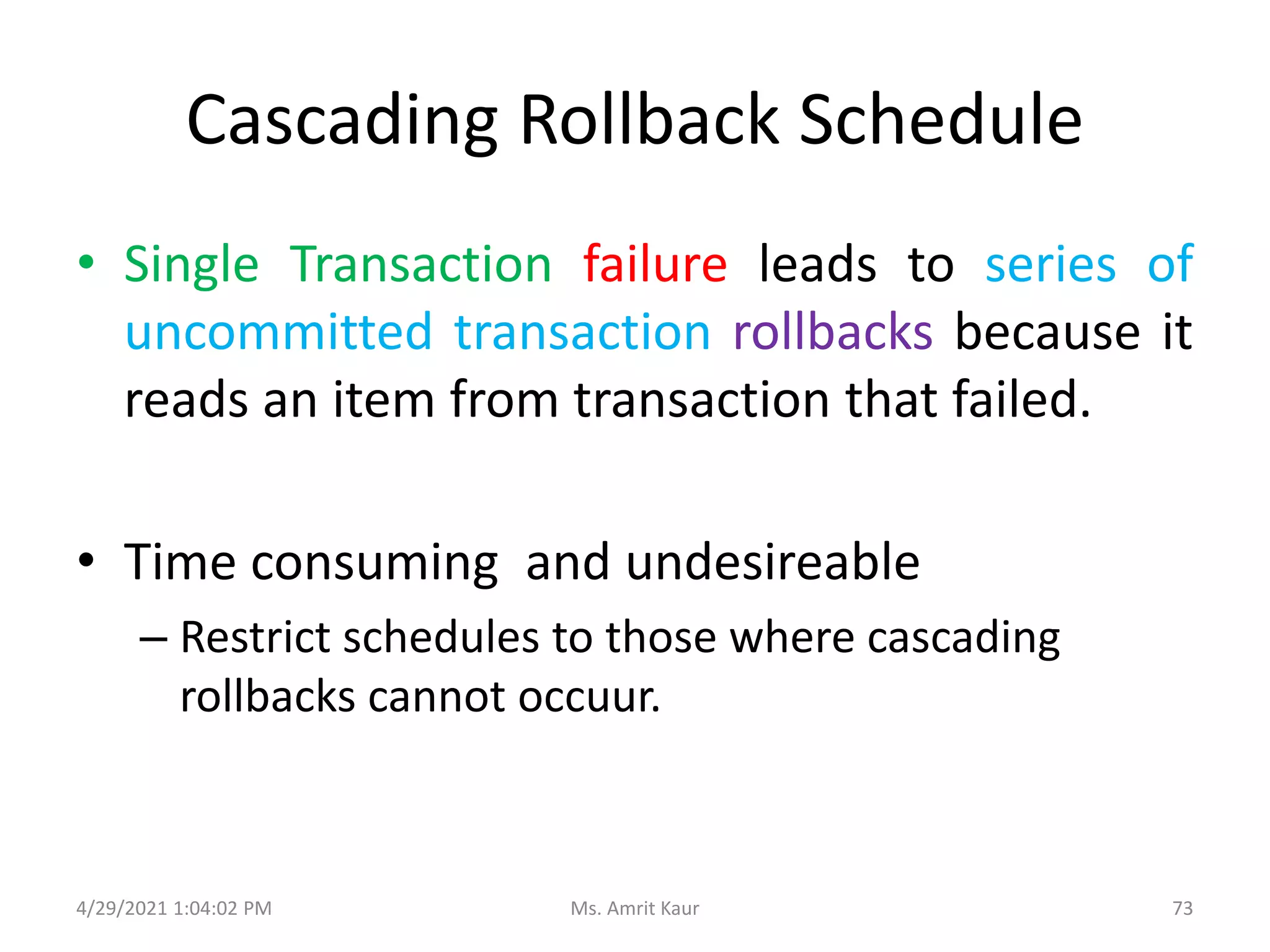

73. Cascading Rollback Schedule
• Single Transaction failure leads to series of
uncommitted transaction rollbacks because it
reads an item from transaction that failed.
• Time consuming and undesireable
– Restrict schedules to those where cascading
rollbacks cannot occuur.
4/29/2021 1:04:02 PM 73
Ms. Amrit Kaur

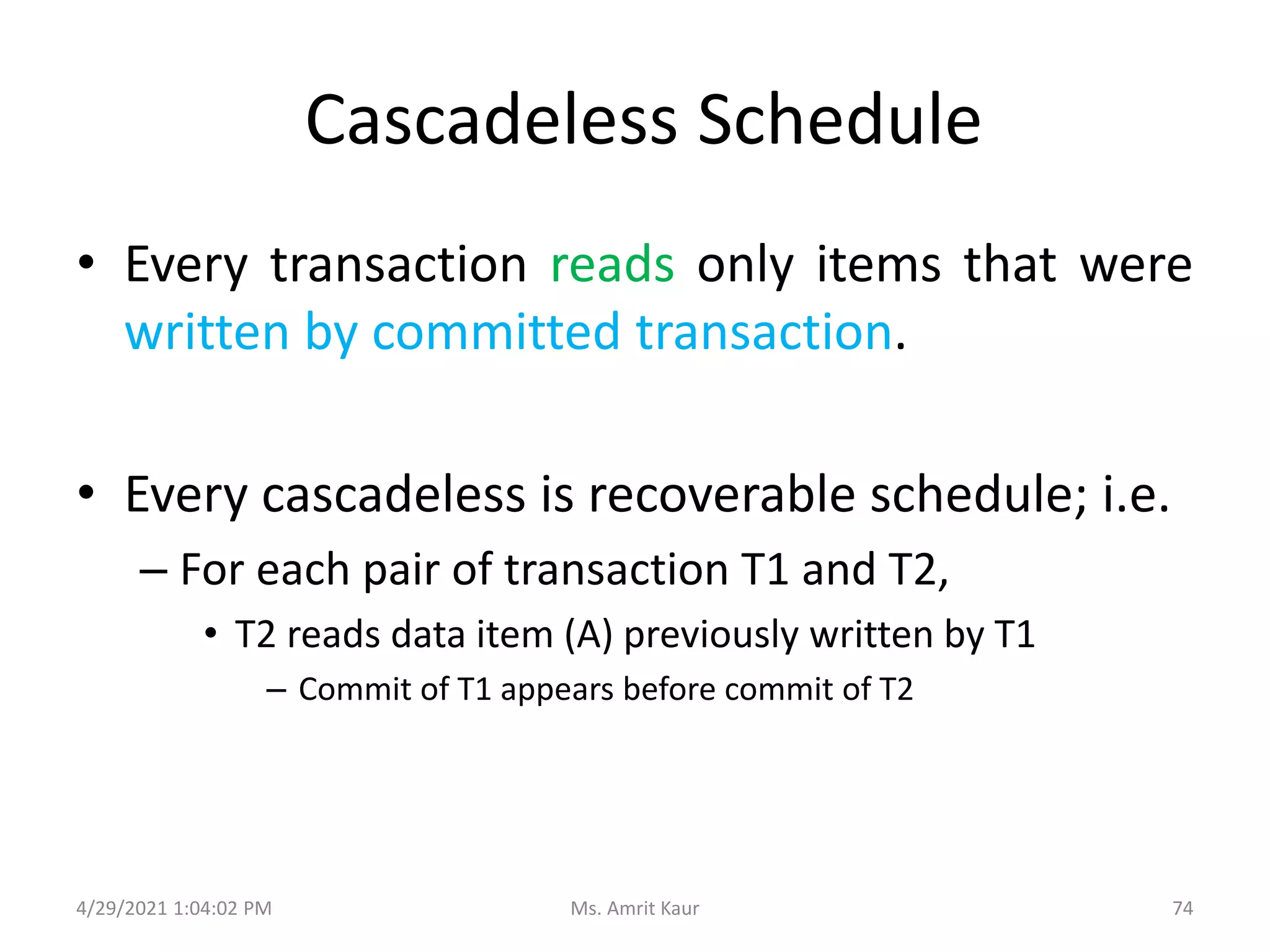

74. Cascadeless Schedule
• Every transaction reads only items that were
written by committed transaction.
• Every cascadeless is recoverable schedule; i.e.
– For each pair of transaction T1 and T2,
• T2 reads data item (A) previously written by T1
– Commit of T1 appears before commit of T2
4/29/2021 1:04:02 PM 74
Ms. Amrit Kaur

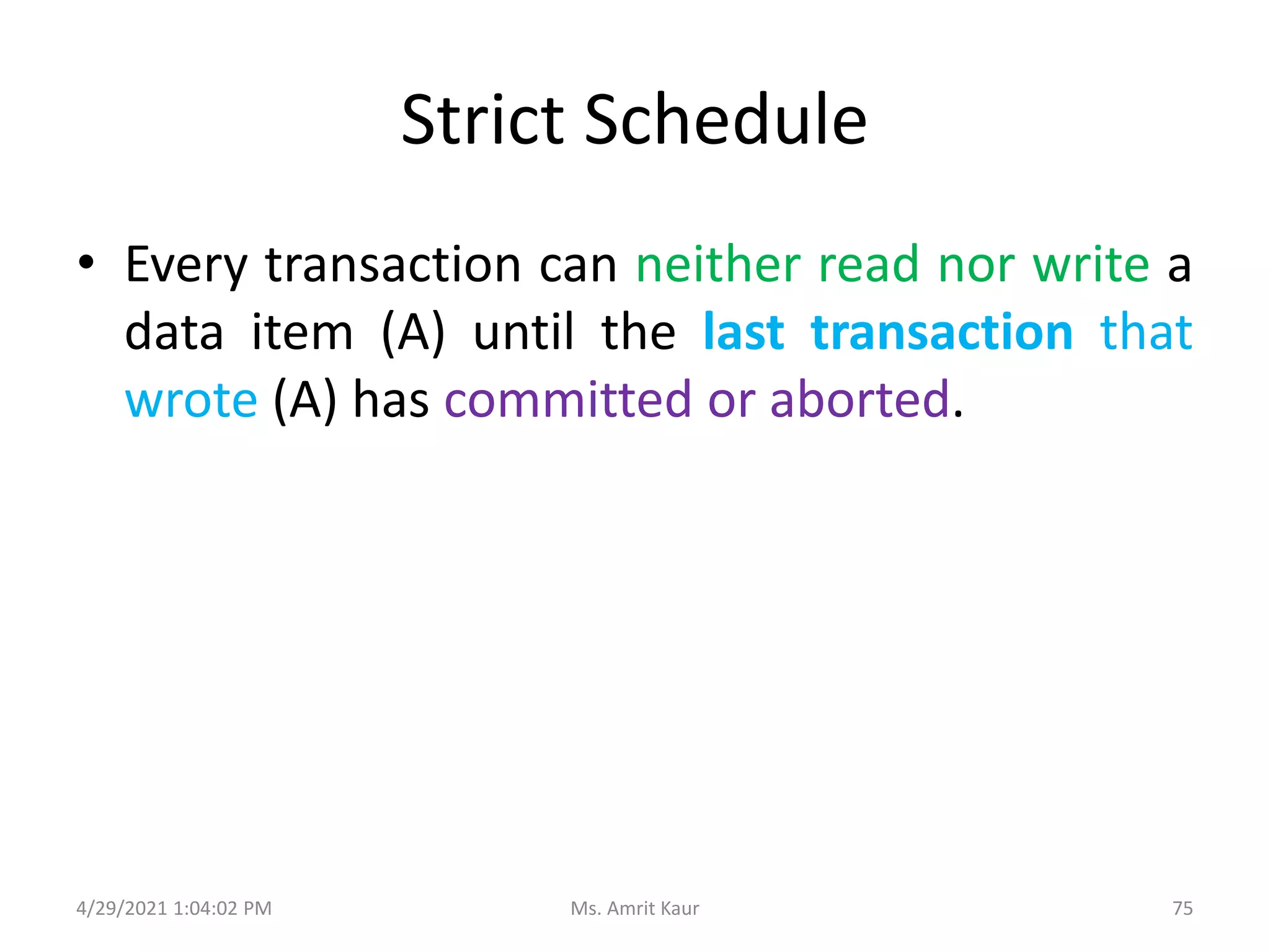

75. Strict Schedule
• Every transaction can neither read nor write a
data item (A) until the last transaction that
wrote (A) has committed or aborted.
4/29/2021 1:04:02 PM 75
Ms. Amrit Kaur

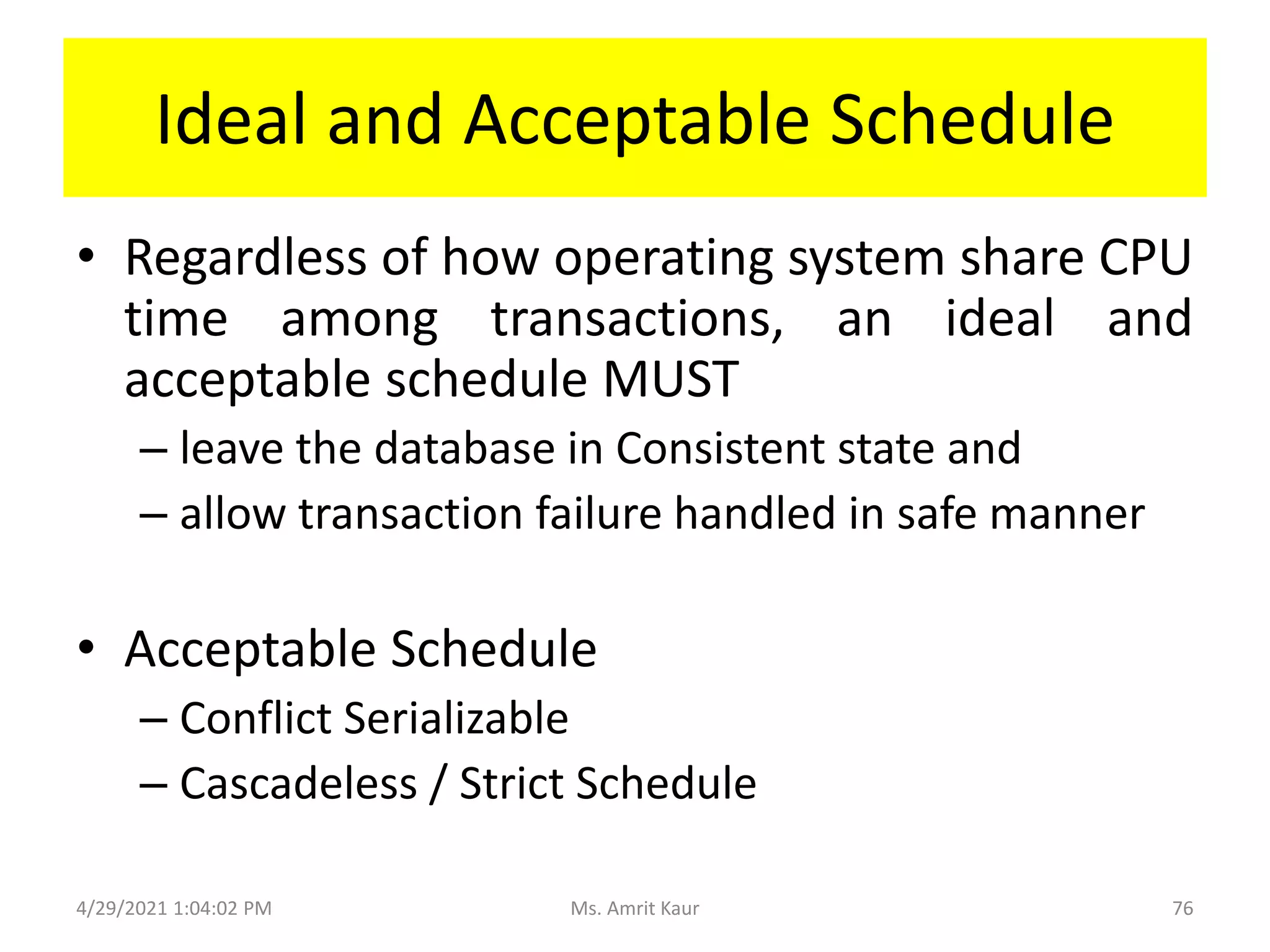

76. Ideal and Acceptable Schedule
• Regardless of how operating system share CPU
time among transactions, an ideal and
acceptable schedule MUST
– leave the database in Consistent state and
– allow transaction failure handled in safe manner
• Acceptable Schedule
– Conflict Serializable
– Cascadeless / Strict Schedule
4/29/2021 1:04:02 PM 76
Ms. Amrit Kaur

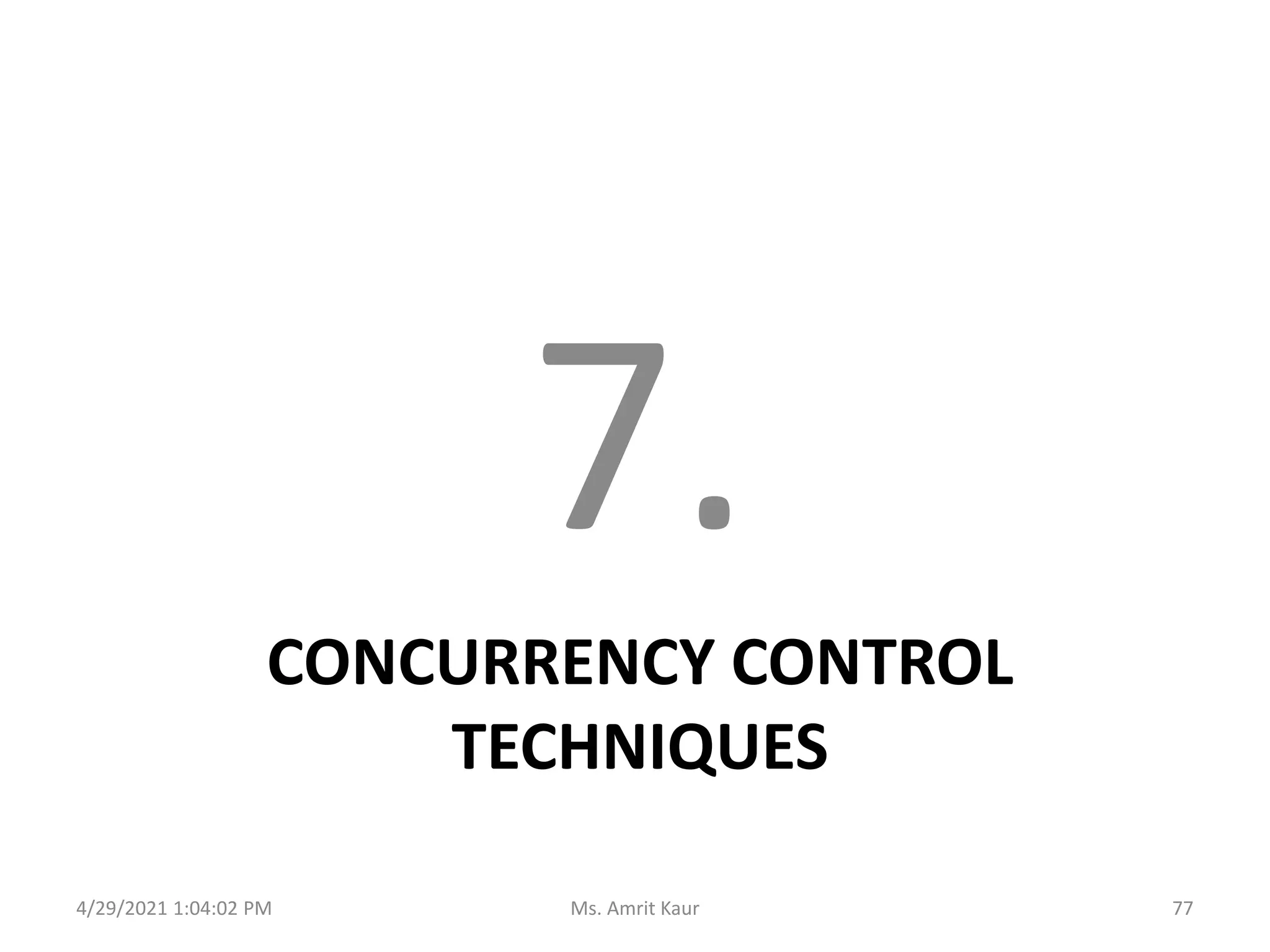

77. CONCURRENCY CONTROL
TECHNIQUES
7.
4/29/2021 1:04:02 PM 77
Ms. Amrit Kaur

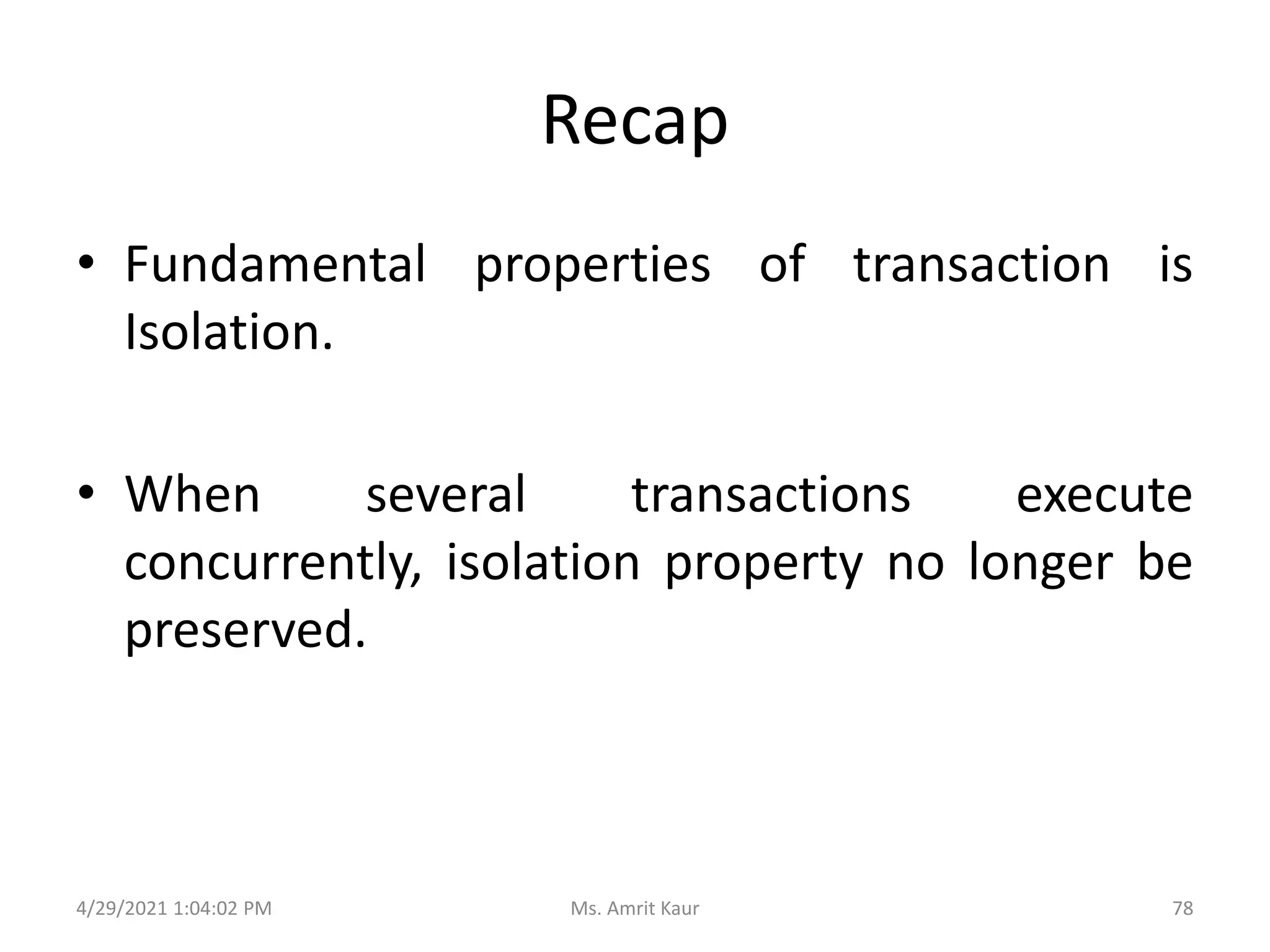

78. Recap
• Fundamental properties of transaction is
Isolation.
• When several transactions execute
concurrently, isolation property no longer be
preserved.
4/29/2021 1:04:02 PM 78
Ms. Amrit Kaur

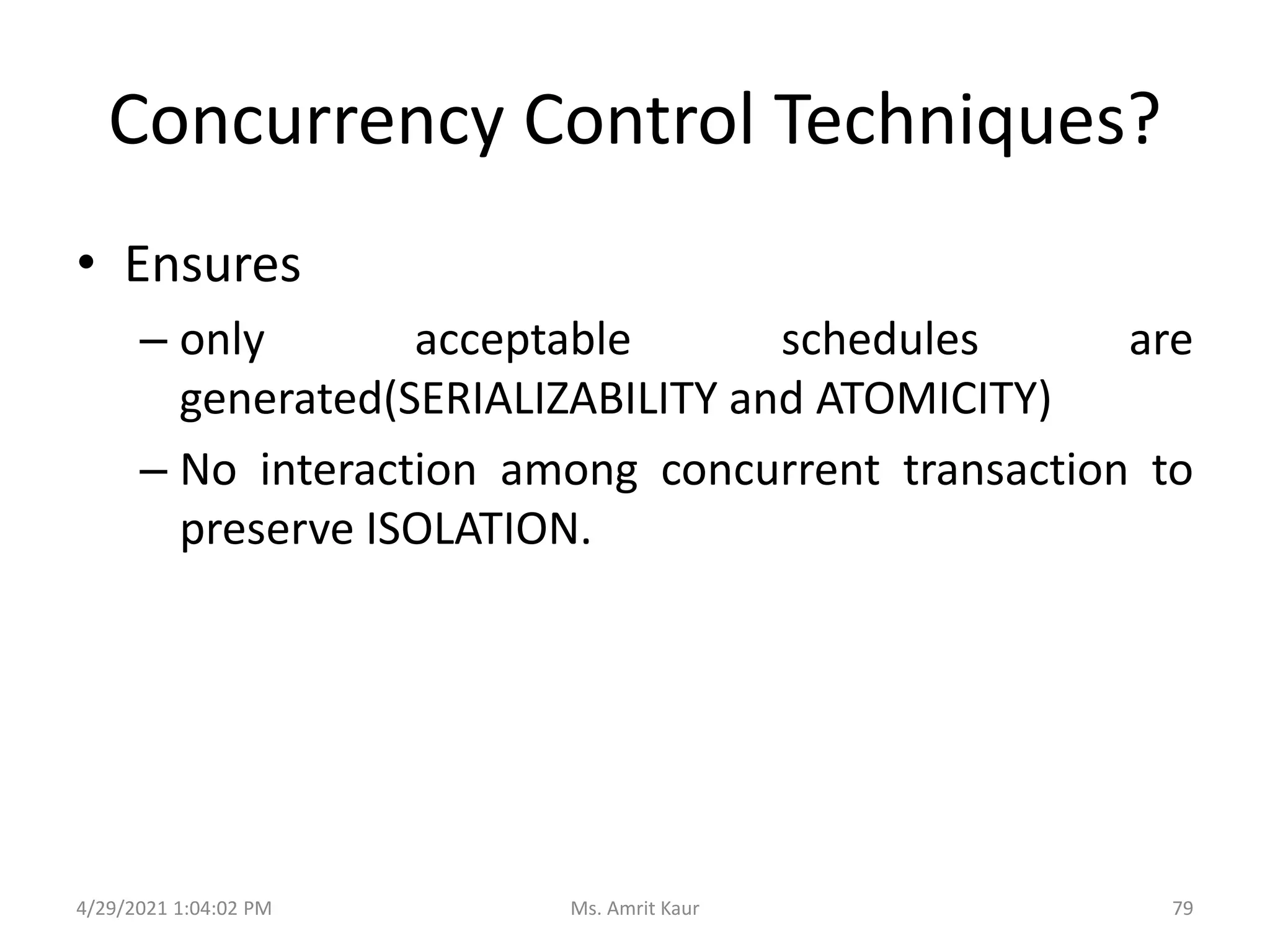

79. Concurrency Control Techniques?
• Ensures
– only acceptable schedules are
generated(SERIALIZABILITY and ATOMICITY)
– No interaction among concurrent transaction to
preserve ISOLATION.
4/29/2021 1:04:02 PM 79
Ms. Amrit Kaur

80. Concurrency Control Techniques
• basic-Lock Based Protocol
• Two Phase Locking Protocol (2PL)
• Multiple Granularity
• Timestamp Ordering
4/29/2021 1:04:02 PM 80
Ms. Amrit Kaur

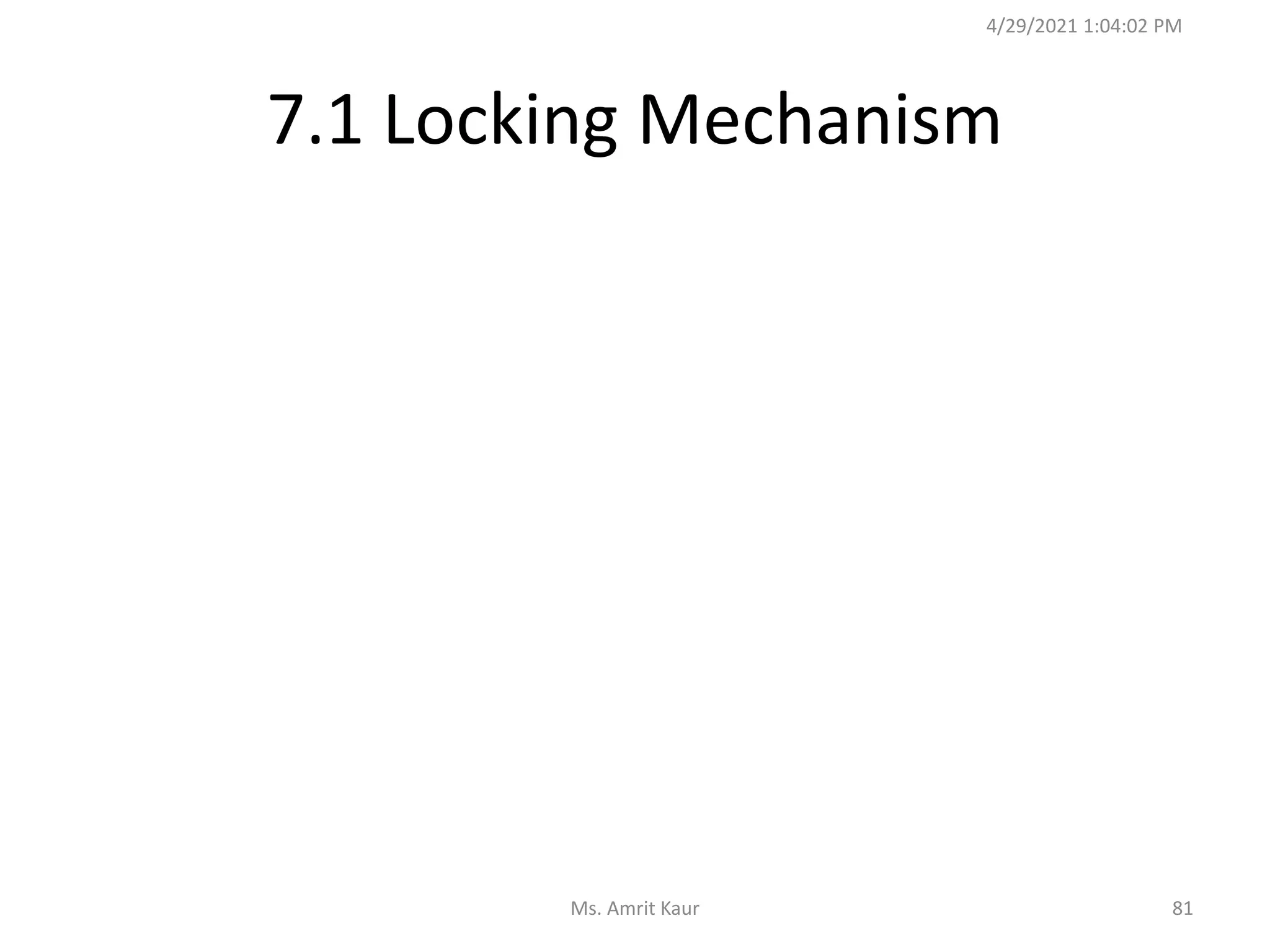

81. 7.1 Locking Mechanism
4/29/2021 1:04:02 PM
81
Ms. Amrit Kaur

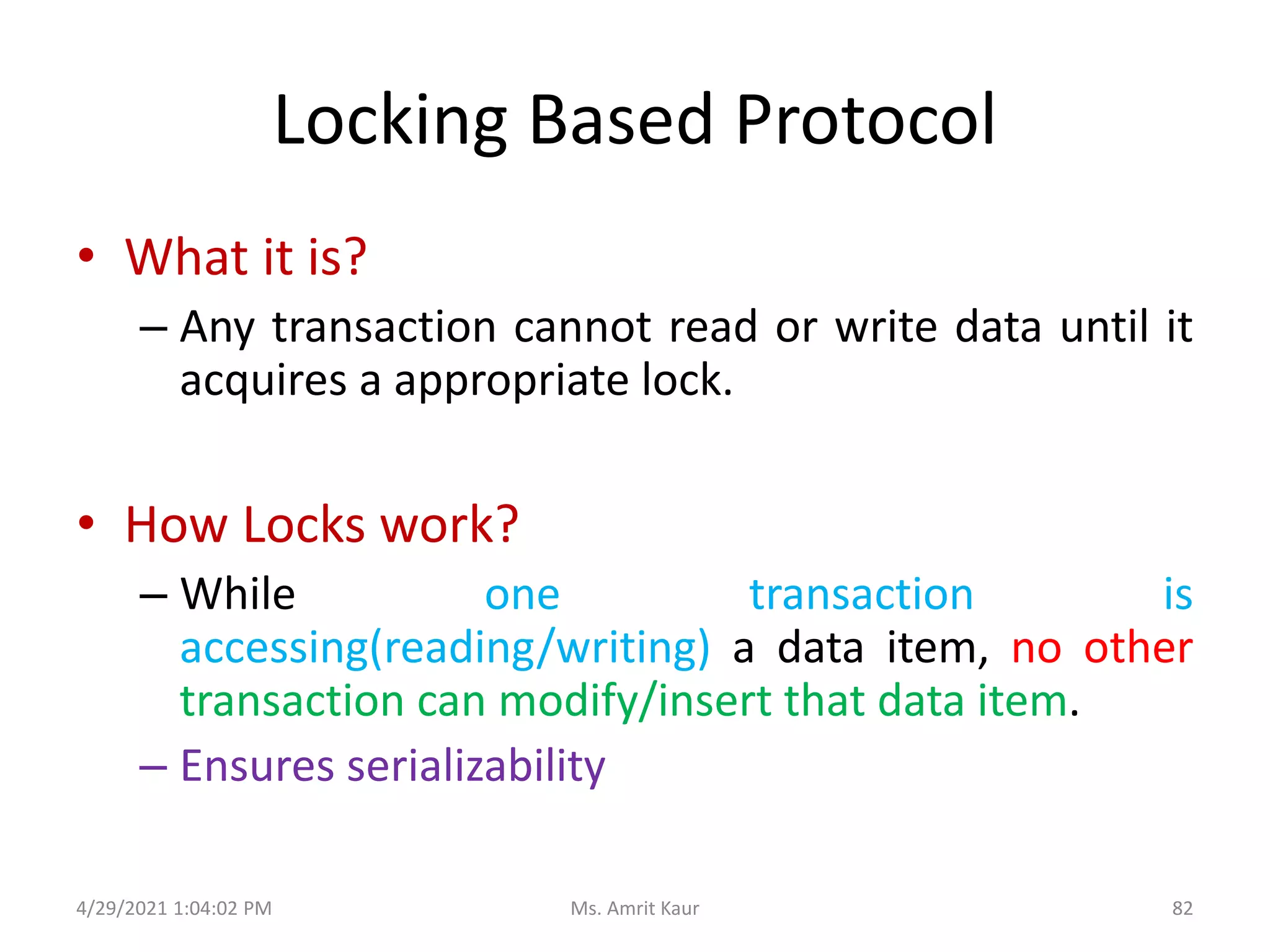

82. Locking Based Protocol
• What it is?
– Any transaction cannot read or write data until it
acquires a appropriate lock.
• How Locks work?
– While one transaction is
accessing(reading/writing) a data item, no other
transaction can modify/insert that data item.
– Ensures serializability
4/29/2021 1:04:02 PM 82
Ms. Amrit Kaur

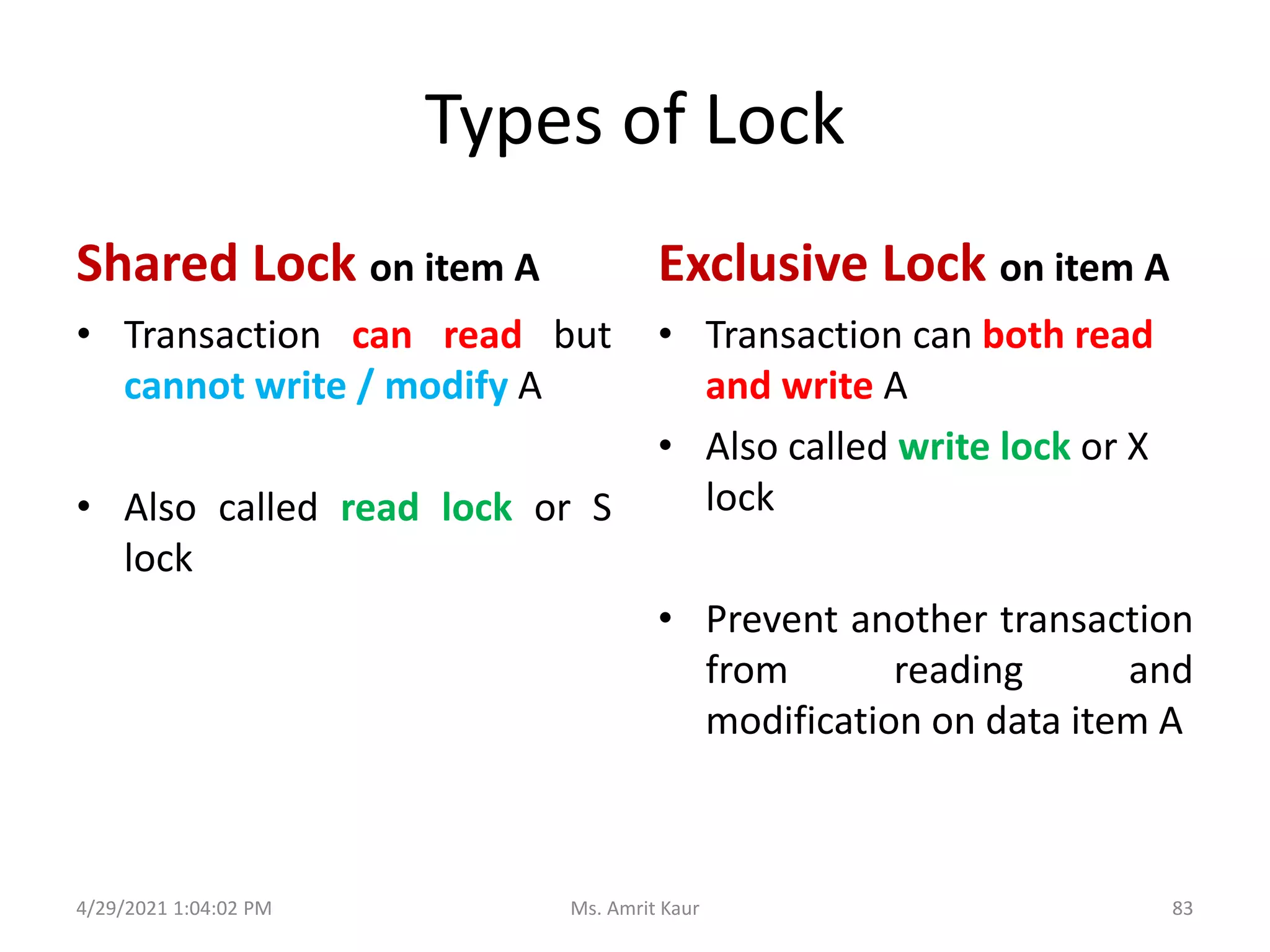

83. Types of Lock
Shared Lock on item A
• Transaction can read but
cannot write / modify A
• Also called read lock or S
lock
Exclusive Lock on item A
• Transaction can both read
and write A
• Also called write lock or X
lock
• Prevent another transaction
from reading and
modification on data item A
4/29/2021 1:04:02 PM 83
Ms. Amrit Kaur

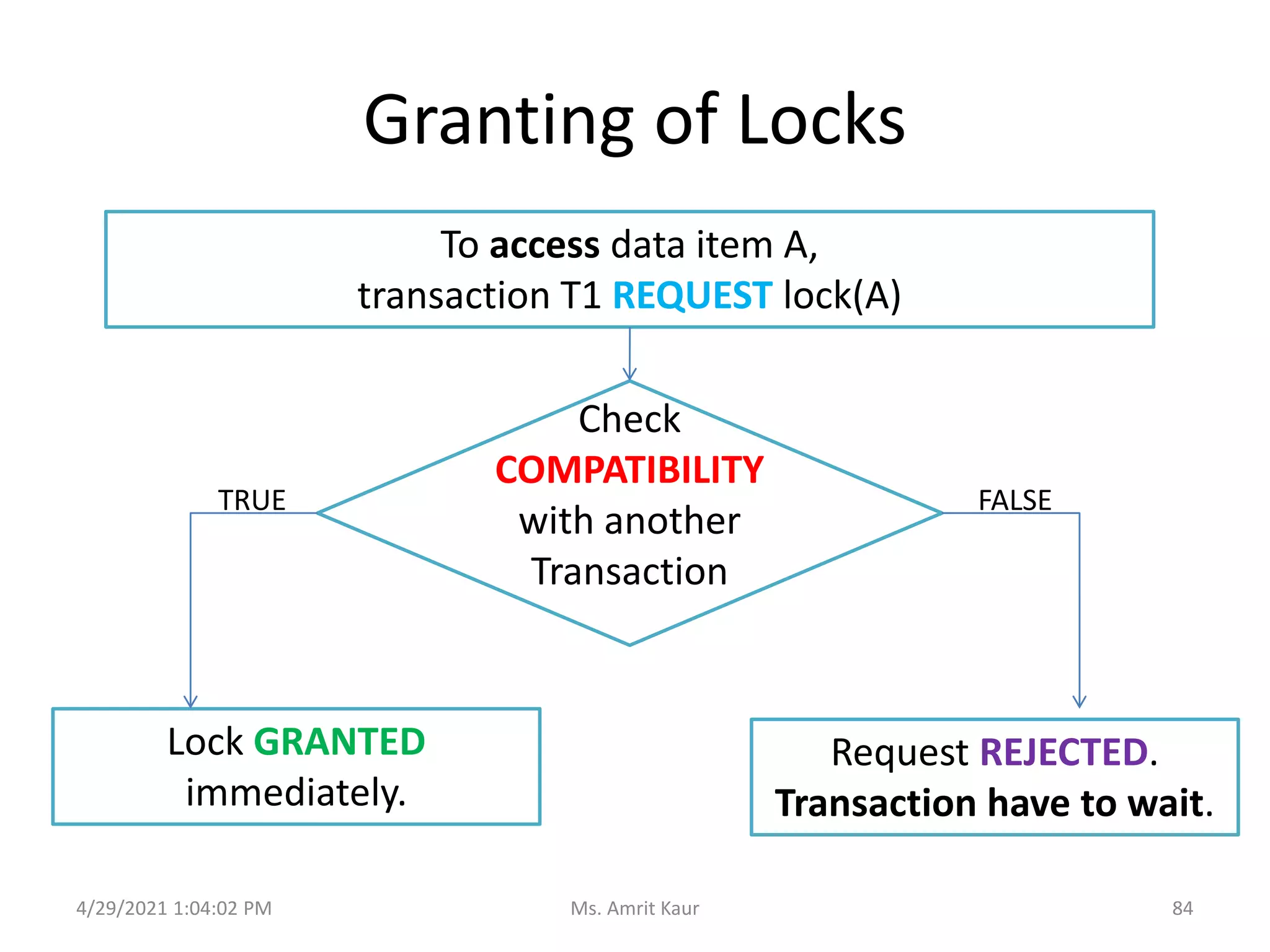

84. Granting of Locks
4/29/2021 1:04:02 PM
To access data item A,
transaction T1 REQUEST lock(A)
Check
COMPATIBILITY
with another
Transaction
Lock GRANTED
immediately.
Request REJECTED.
Transaction have to wait.
TRUE FALSE
84
Ms. Amrit Kaur

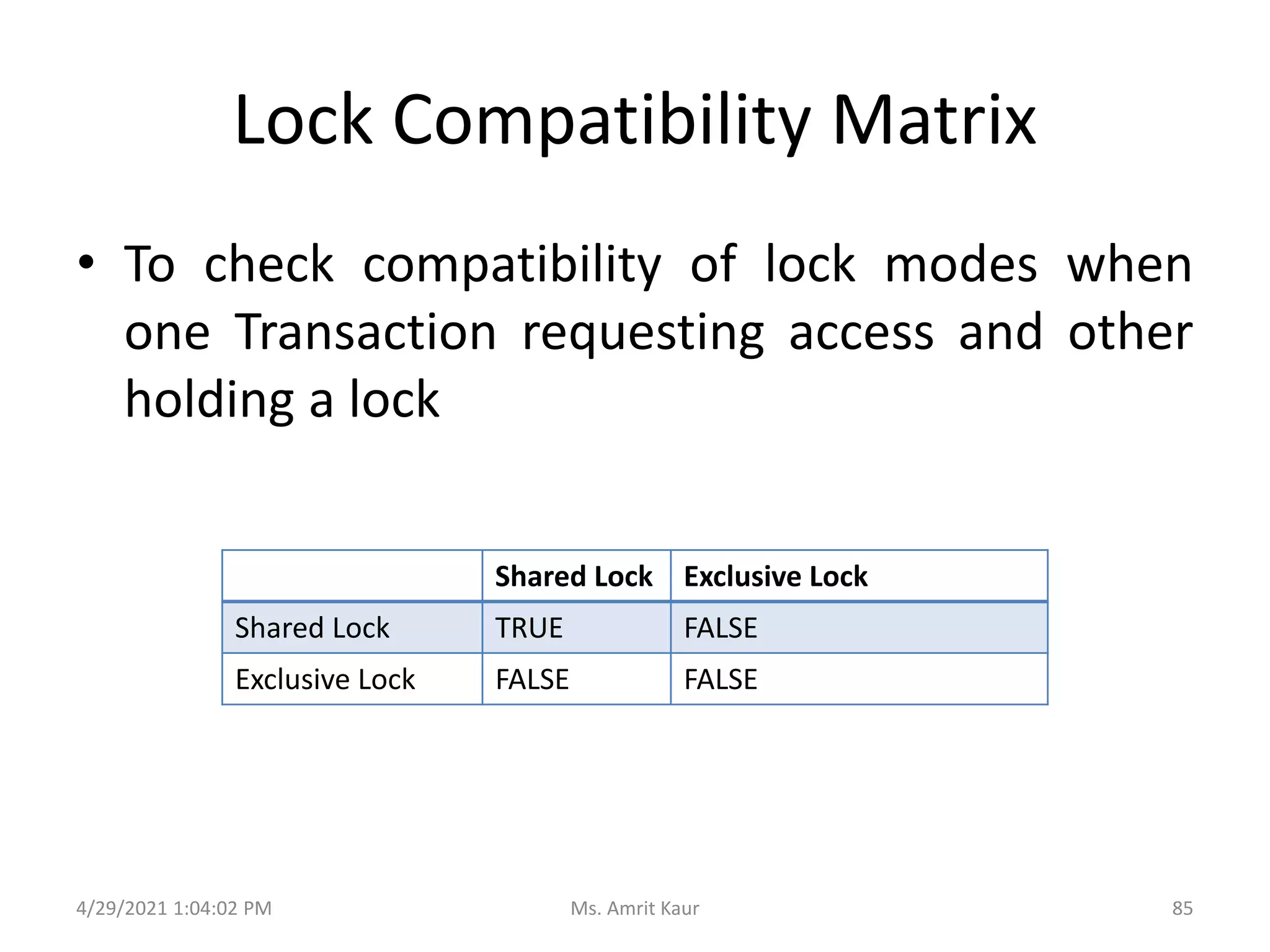

85. Lock Compatibility Matrix
• To check compatibility of lock modes when
one Transaction requesting access and other
holding a lock
Shared Lock Exclusive Lock
Shared Lock TRUE FALSE
Exclusive Lock FALSE FALSE
4/29/2021 1:04:02 PM 85
Ms. Amrit Kaur

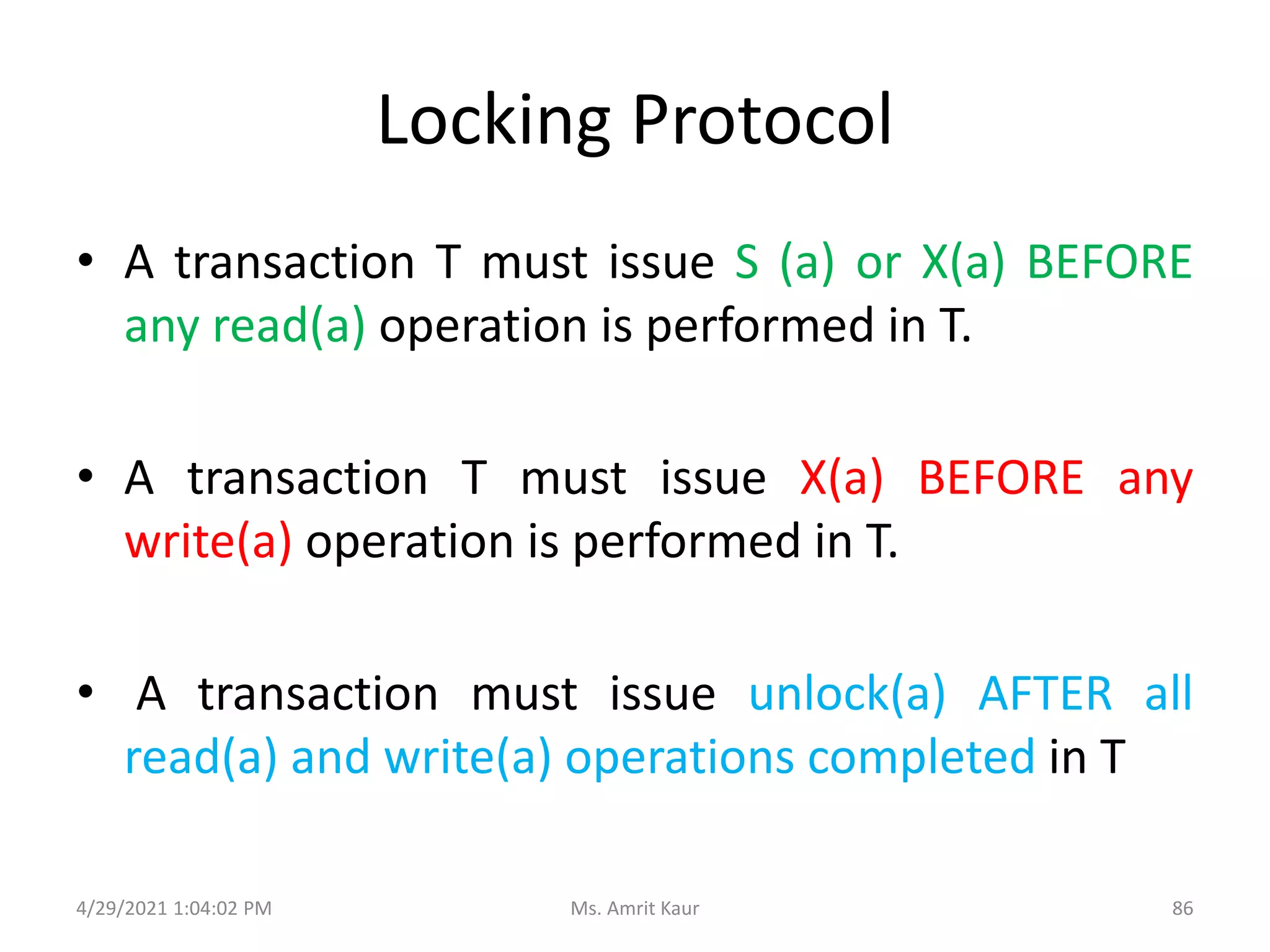

86. Locking Protocol
• A transaction T must issue S (a) or X(a) BEFORE
any read(a) operation is performed in T.
• A transaction T must issue X(a) BEFORE any
write(a) operation is performed in T.
• A transaction must issue unlock(a) AFTER all
read(a) and write(a) operations completed in T
4/29/2021 1:04:02 PM 86
Ms. Amrit Kaur

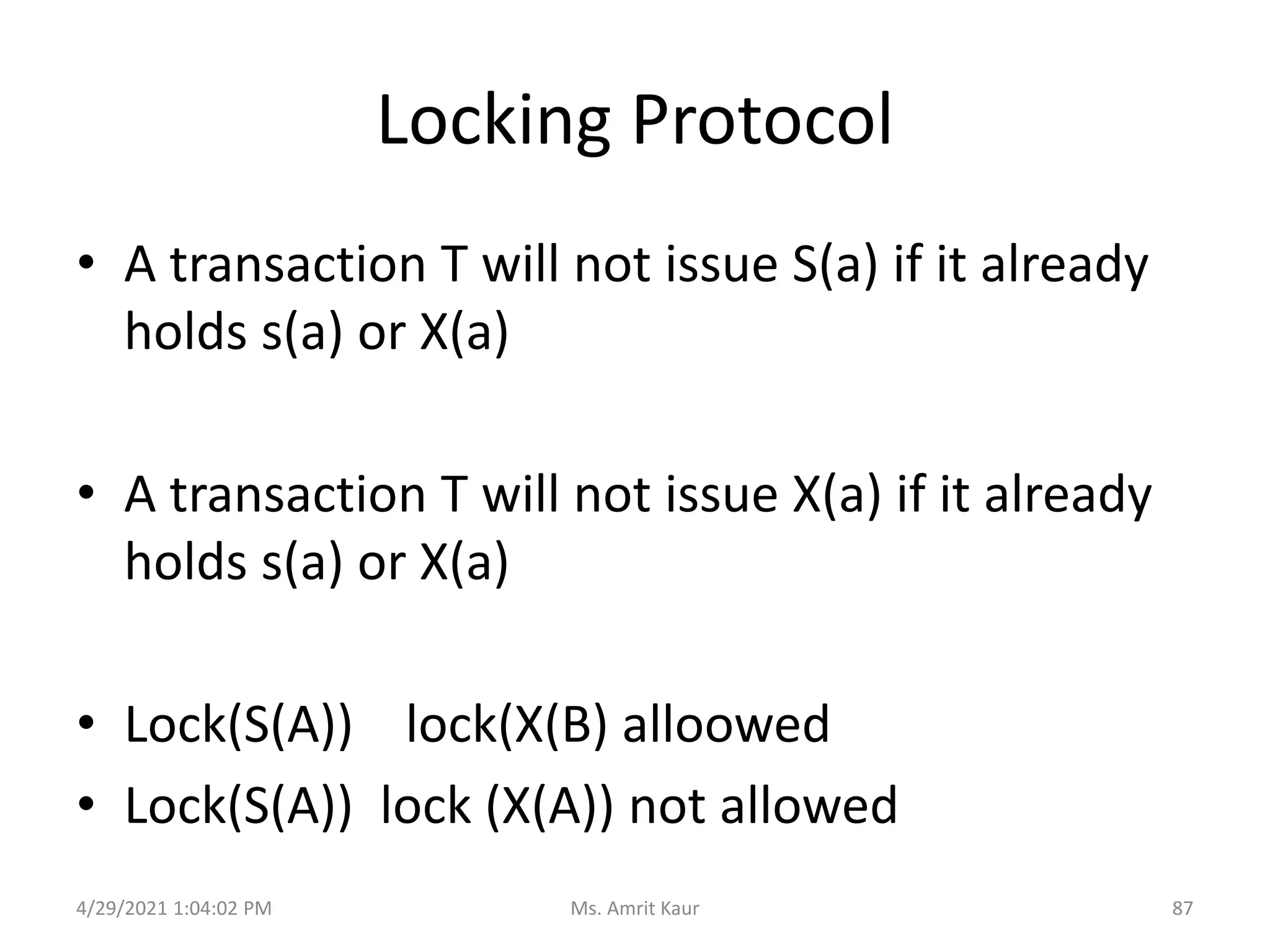

87. Locking Protocol
• A transaction T will not issue S(a) if it already
holds s(a) or X(a)
• A transaction T will not issue X(a) if it already
holds s(a) or X(a)
• Lock(S(A)) lock(X(B) alloowed
• Lock(S(A)) lock (X(A)) not allowed
4/29/2021 1:04:02 PM 87
Ms. Amrit Kaur

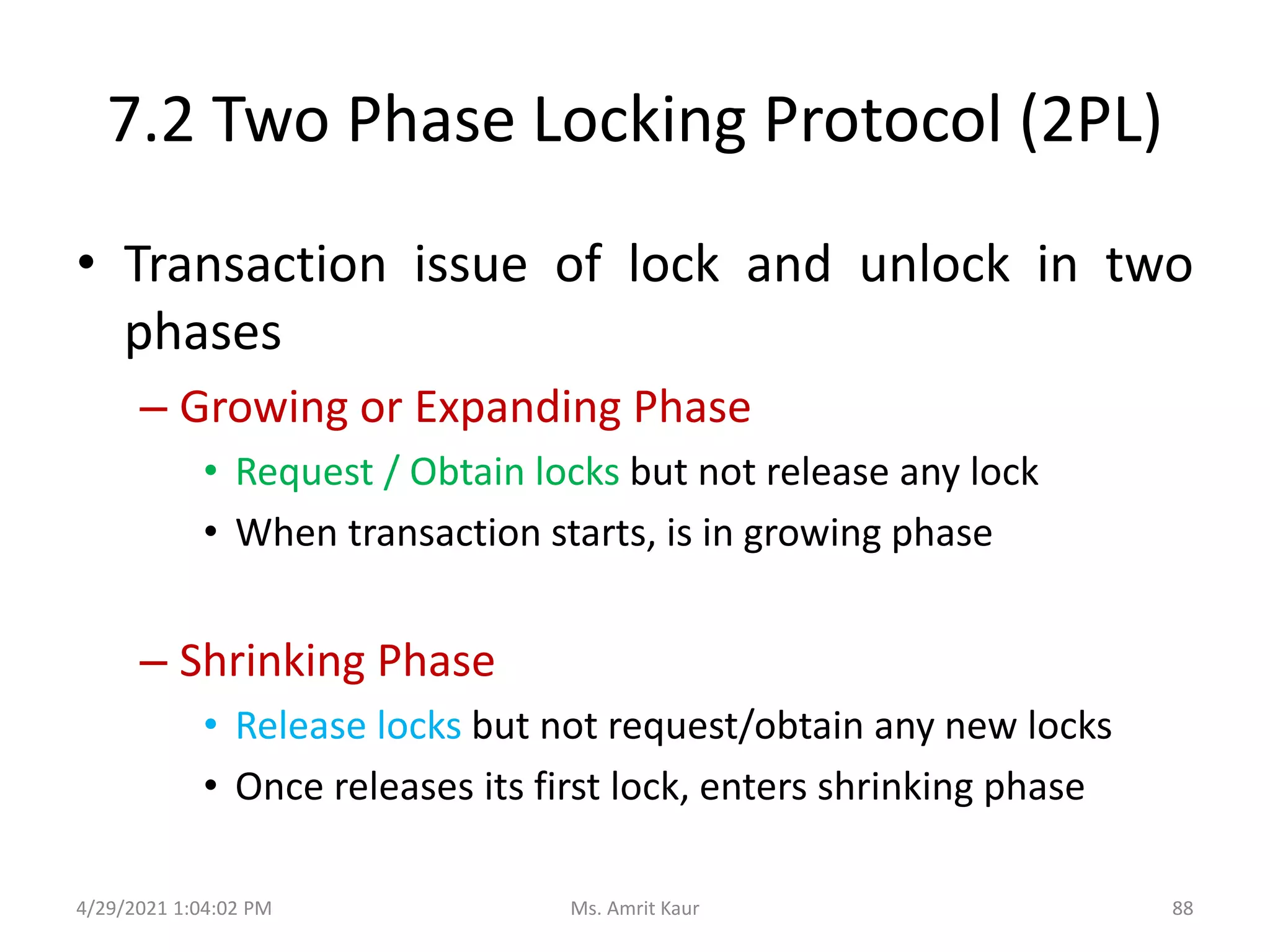

88. 7.2 Two Phase Locking Protocol (2PL)
• Transaction issue of lock and unlock in two
phases
– Growing or Expanding Phase
• Request / Obtain locks but not release any lock
• When transaction starts, is in growing phase
– Shrinking Phase
• Release locks but not request/obtain any new locks
• Once releases its first lock, enters shrinking phase
4/29/2021 1:04:02 PM 88
Ms. Amrit Kaur

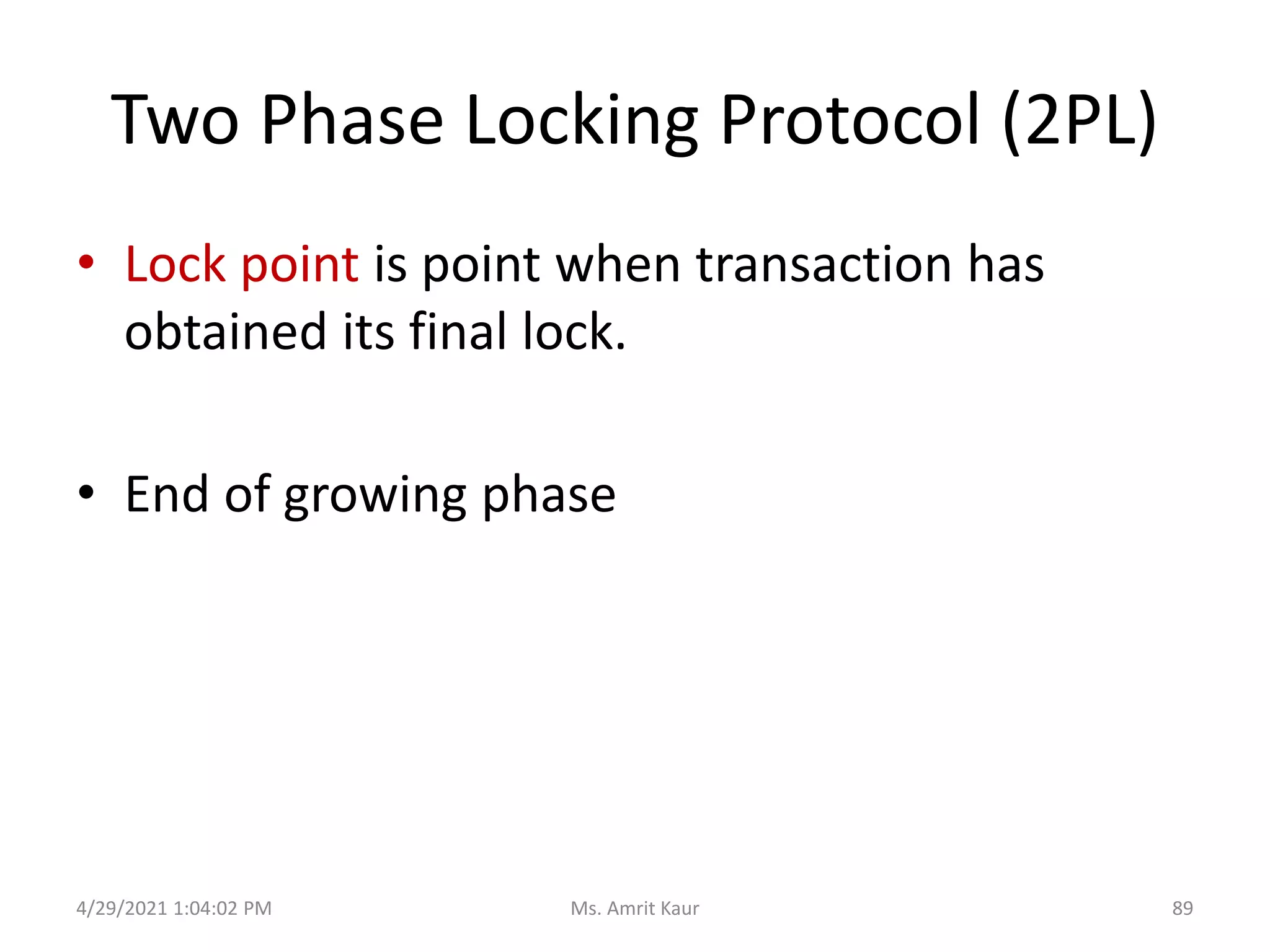

89. Two Phase Locking Protocol (2PL)
• Lock point is point when transaction has
obtained its final lock.
• End of growing phase
4/29/2021 1:04:02 PM 89
Ms. Amrit Kaur

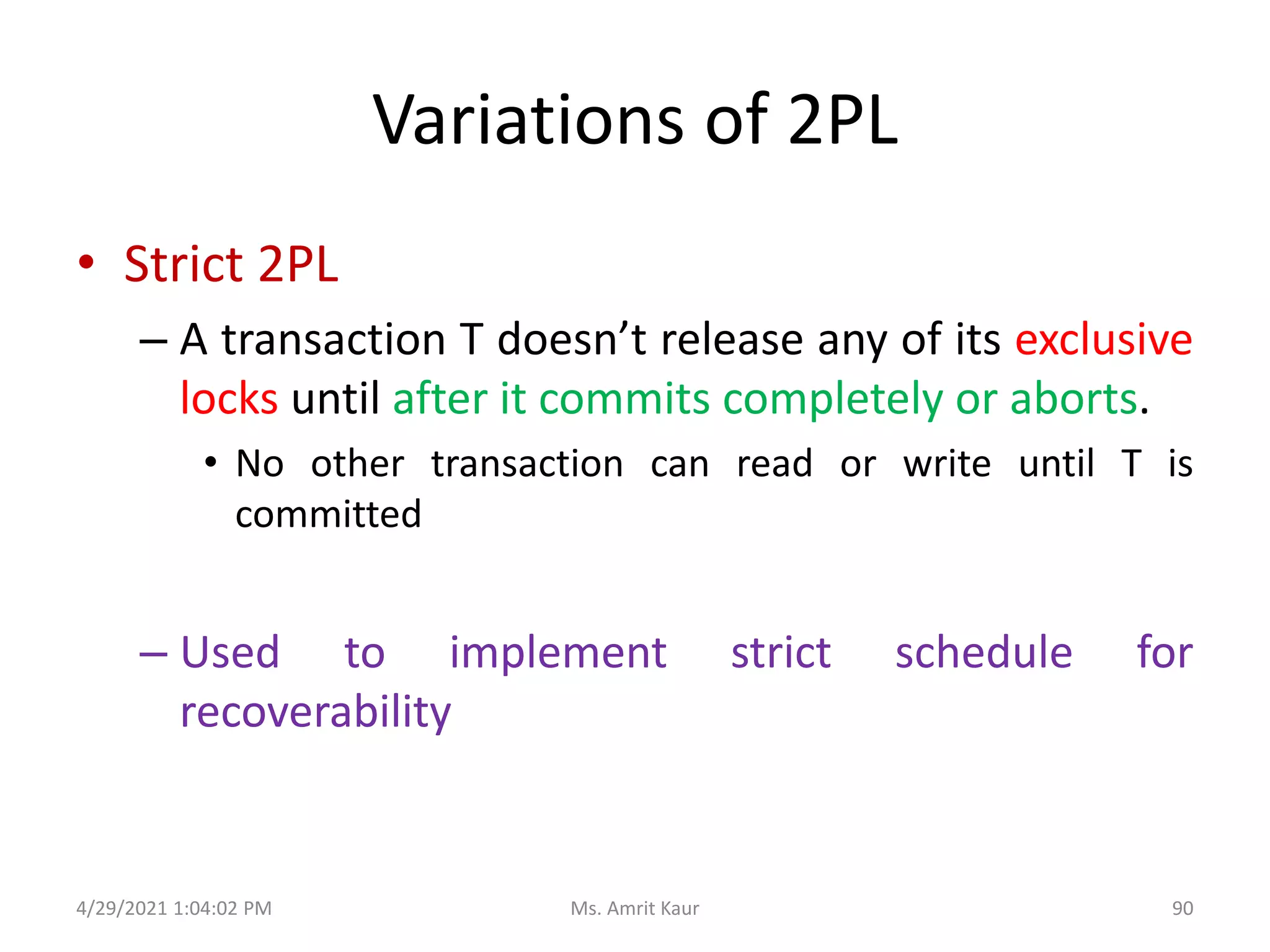

90. Variations of 2PL
• Strict 2PL
– A transaction T doesn’t release any of its exclusive
locks until after it commits completely or aborts.
• No other transaction can read or write until T is
committed
– Used to implement strict schedule for
recoverability
4/29/2021 1:04:02 PM 90
Ms. Amrit Kaur

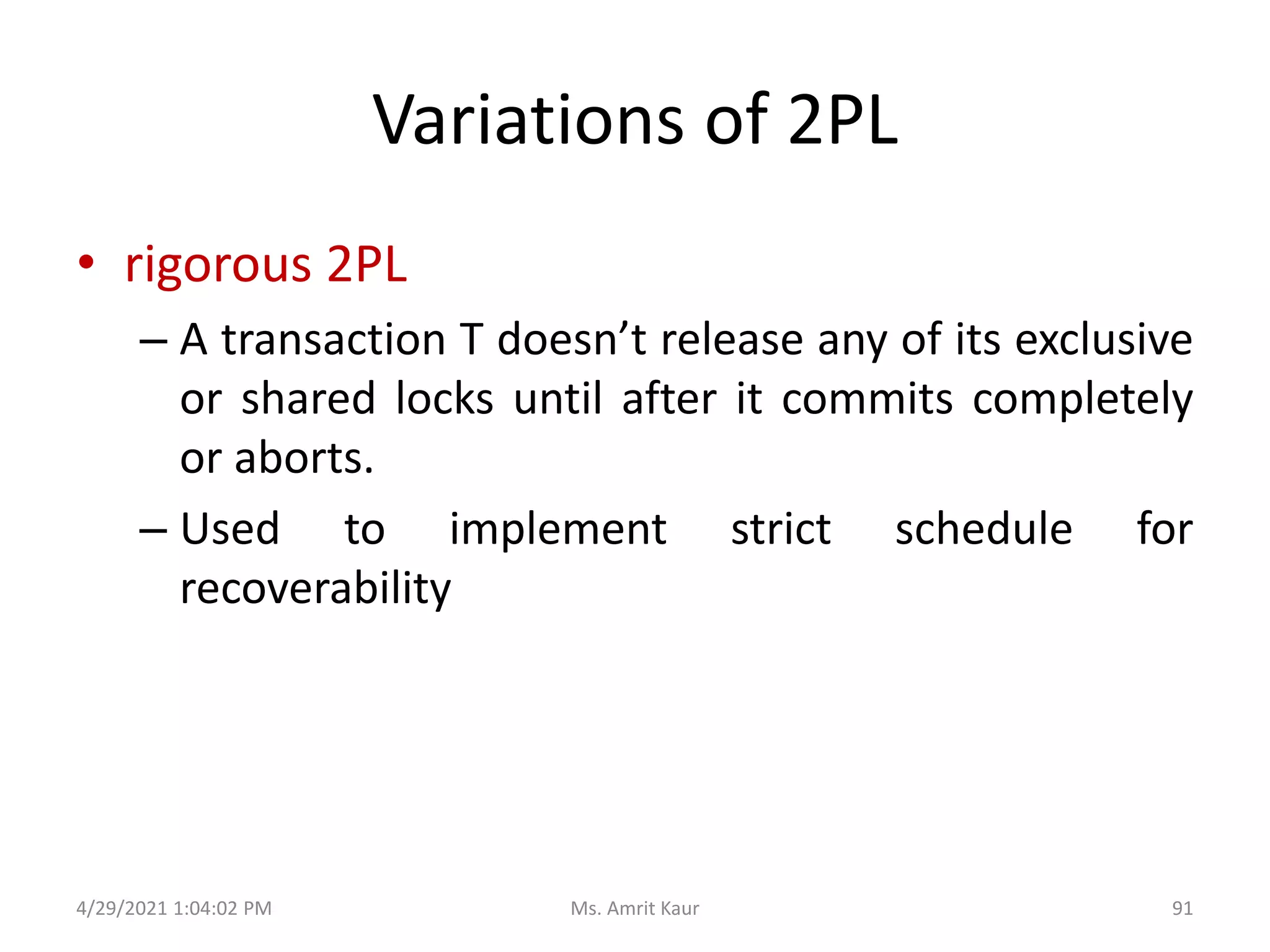

91. Variations of 2PL
• rigorous 2PL
– A transaction T doesn’t release any of its exclusive
or shared locks until after it commits completely
or aborts.
– Used to implement strict schedule for
recoverability
4/29/2021 1:04:02 PM 91
Ms. Amrit Kaur

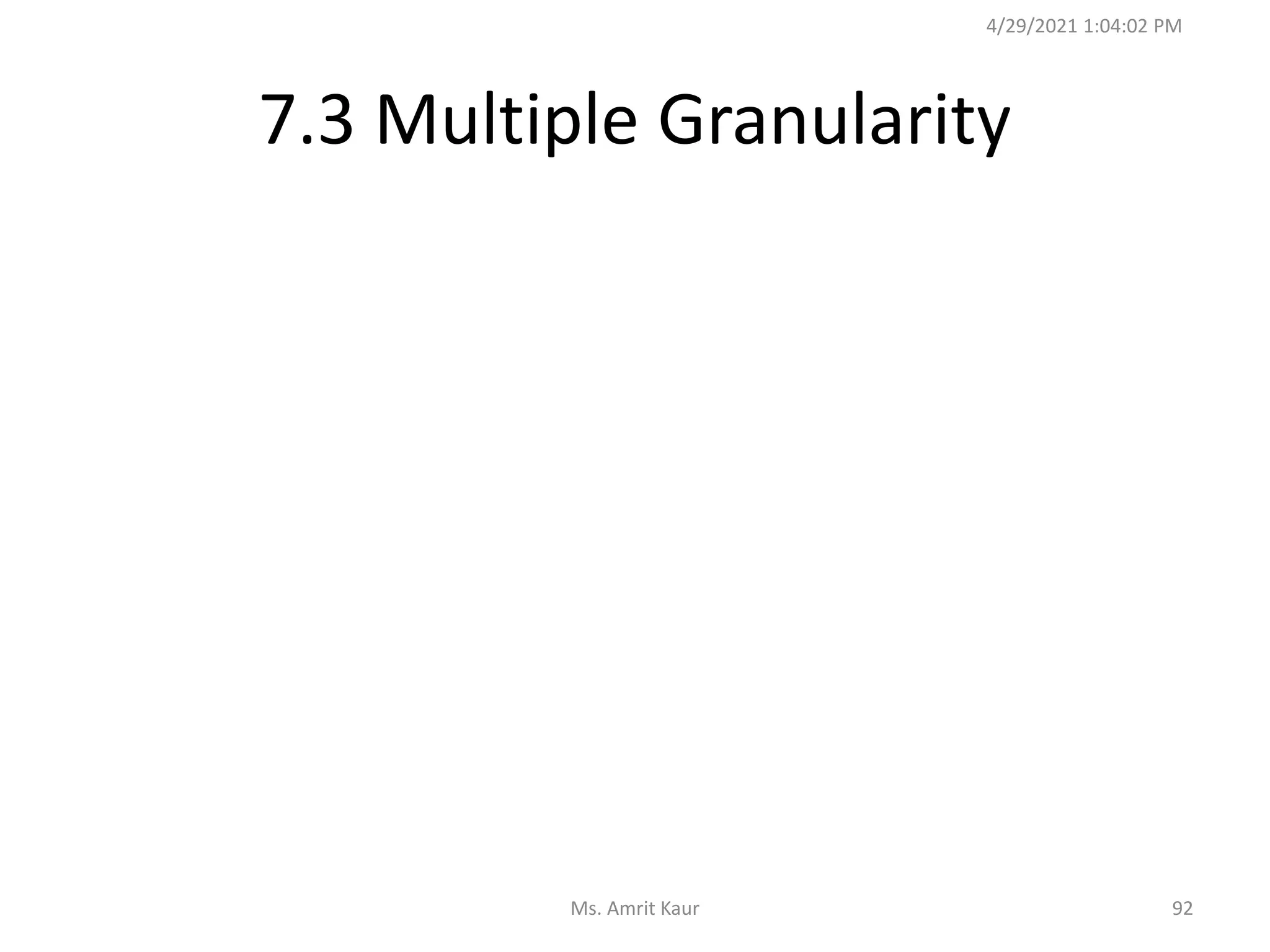

92. 7.3 Multiple Granularity
4/29/2021 1:04:02 PM
92
Ms. Amrit Kaur

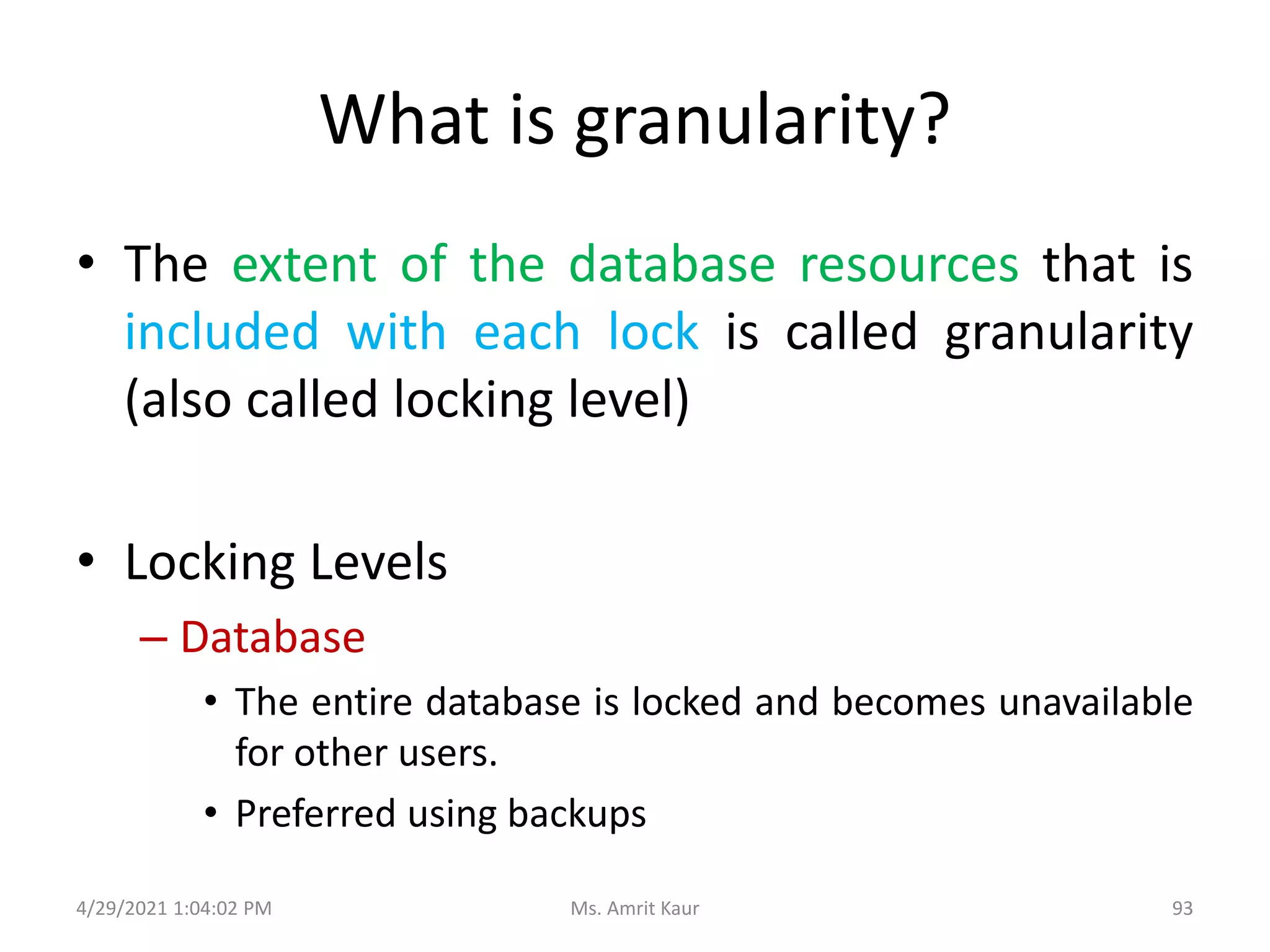

93. What is granularity?
• The extent of the database resources that is
included with each lock is called granularity
(also called locking level)
• Locking Levels
– Database
• The entire database is locked and becomes unavailable
for other users.
• Preferred using backups
4/29/2021 1:04:02 PM 93
Ms. Amrit Kaur

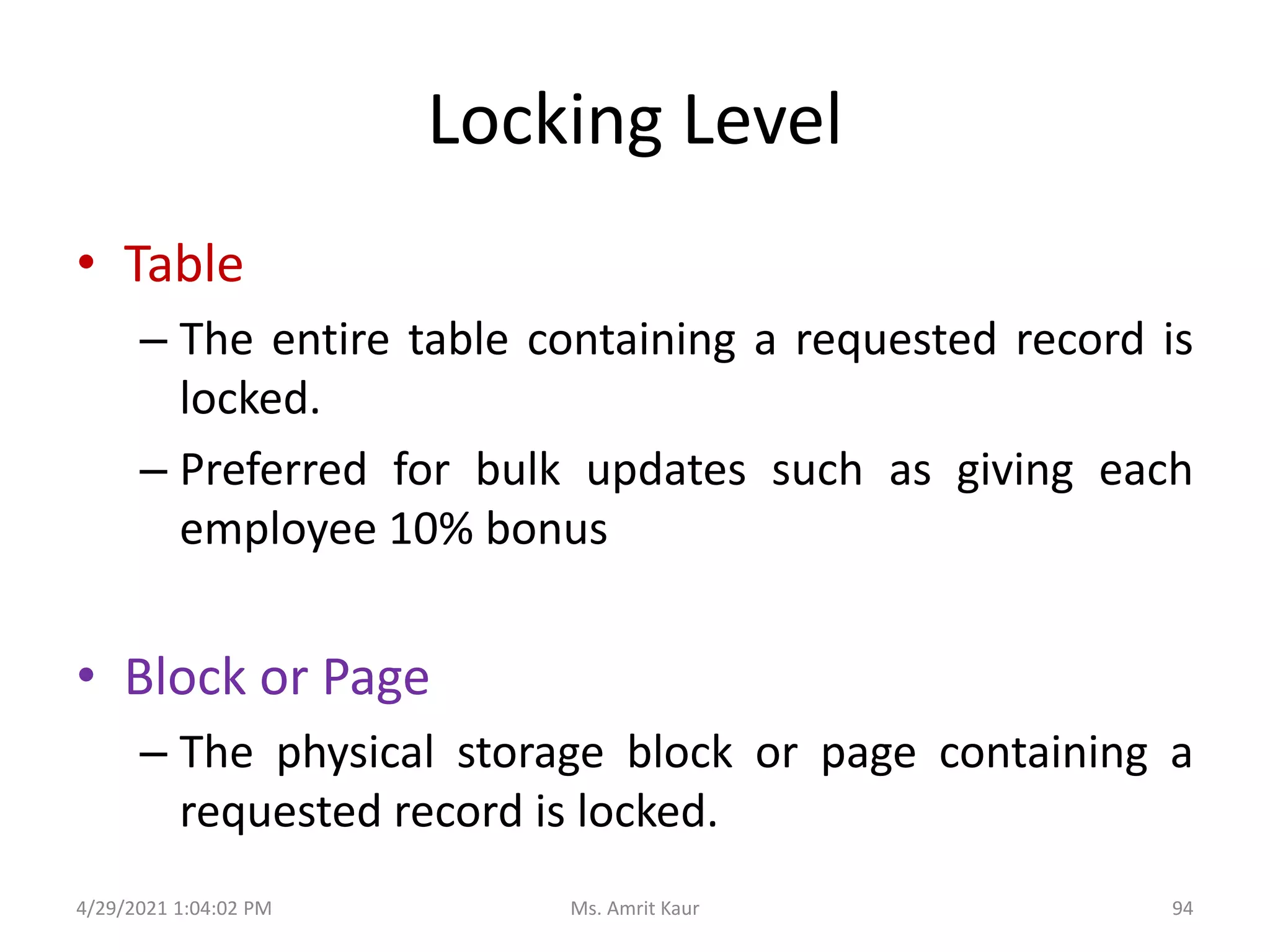

94. Locking Level
• Table
– The entire table containing a requested record is
locked.
– Preferred for bulk updates such as giving each
employee 10% bonus
• Block or Page
– The physical storage block or page containing a
requested record is locked.
4/29/2021 1:04:02 PM 94
Ms. Amrit Kaur

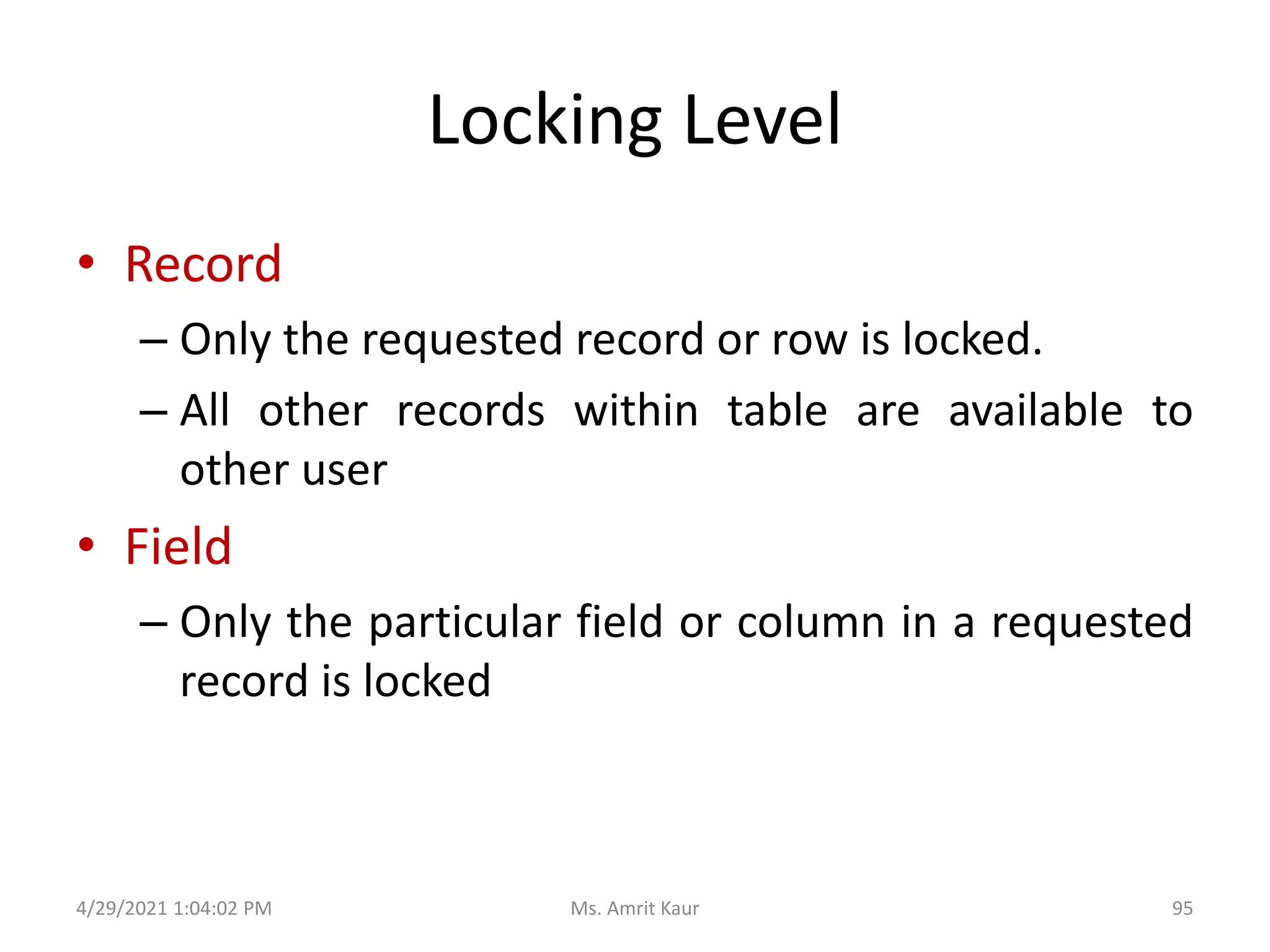

95. Locking Level
• Record
– Only the requested record or row is locked.
– All other records within table are available to
other user
• Field
– Only the particular field or column in a requested
record is locked
4/29/2021 1:04:02 PM 95
Ms. Amrit Kaur

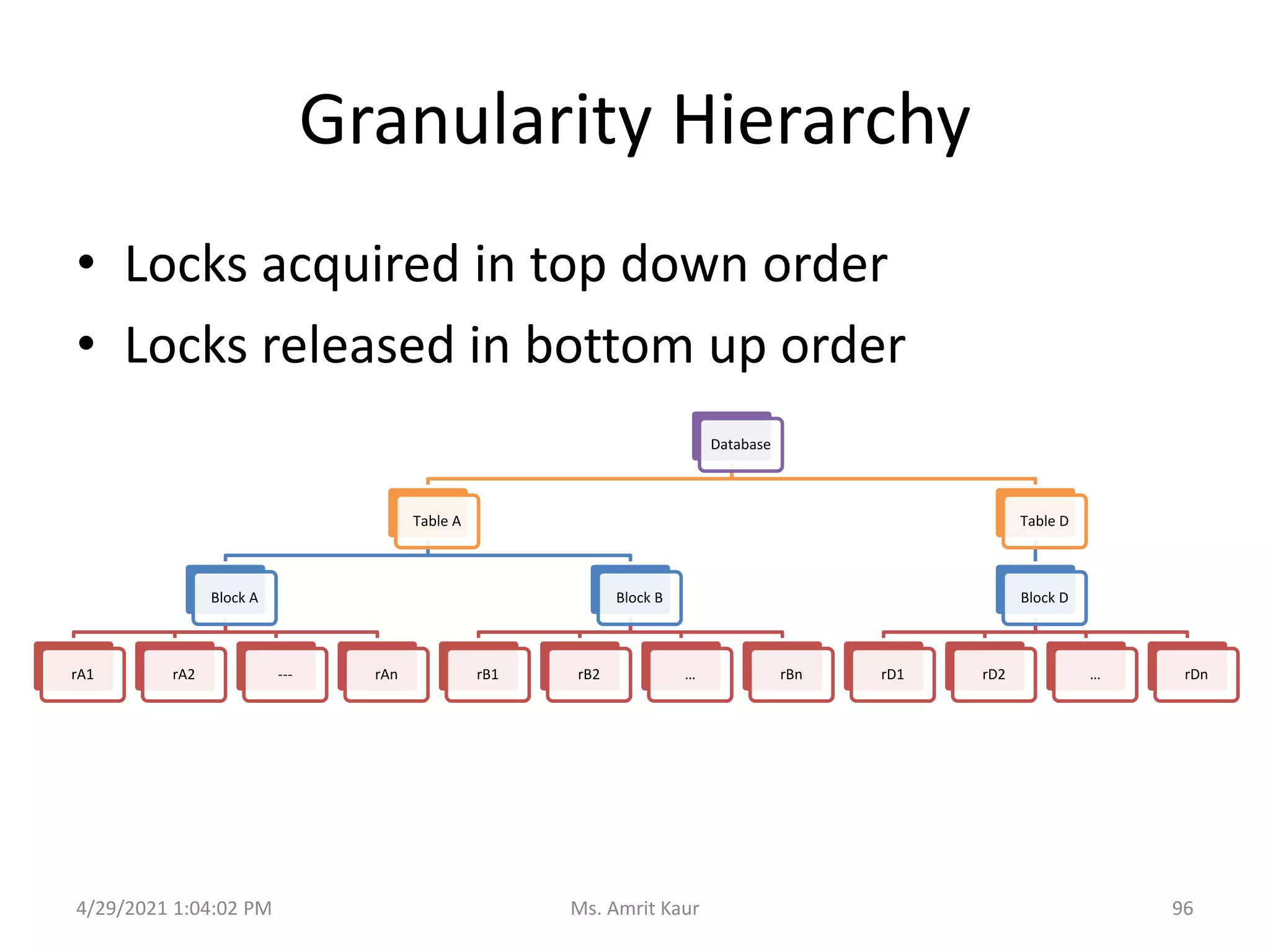

96. Granularity Hierarchy
4/29/2021 1:04:02 PM
• Locks acquired in top down order
• Locks released in bottom up order
Database
Table A
Block A
rA1 rA2 --- rAn
Block B
rB1 rB2 … rBn
Table D
Block D
rD1 rD2 … rDn
96
Ms. Amrit Kaur

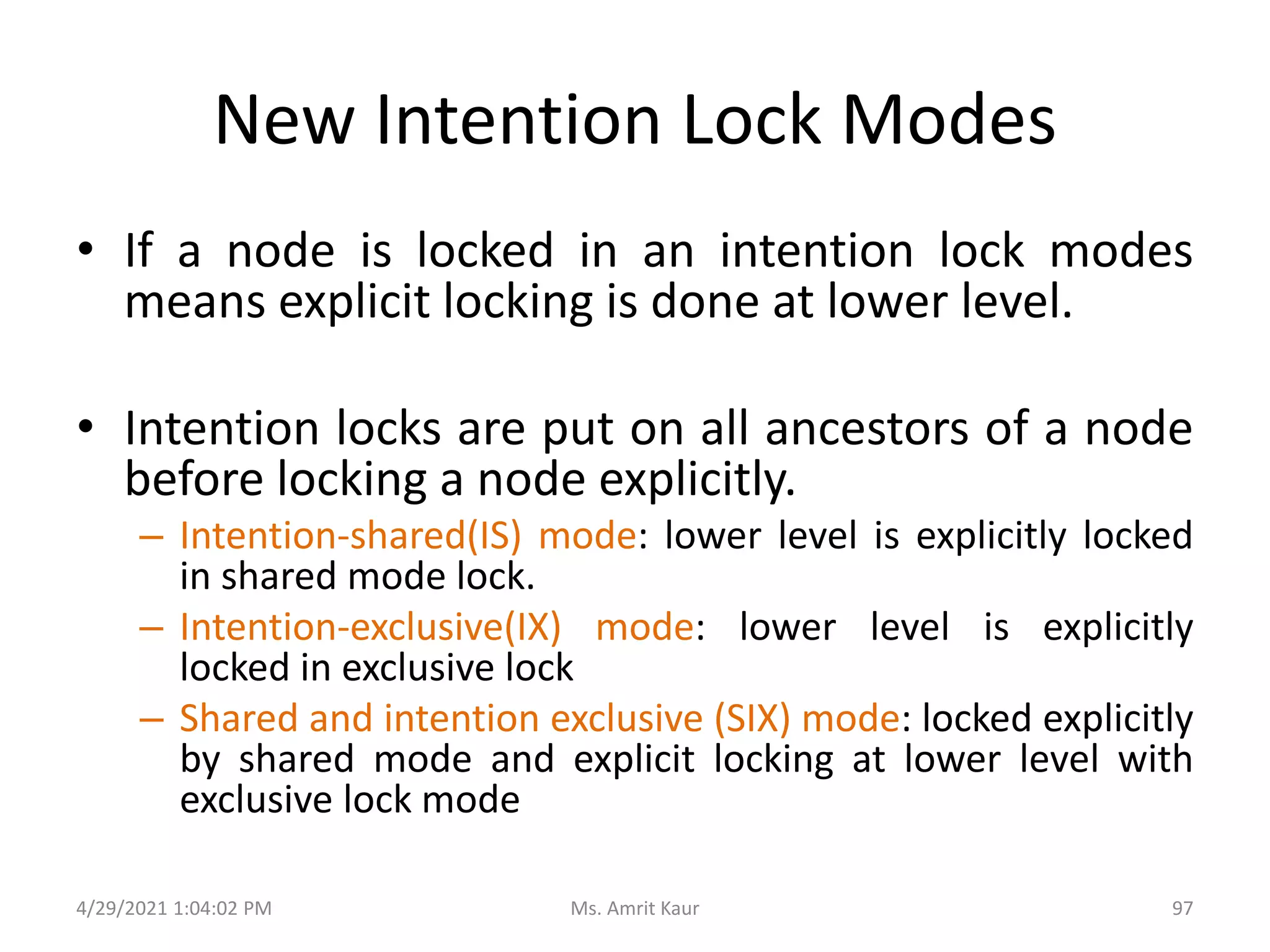

97. New Intention Lock Modes
• If a node is locked in an intention lock modes
means explicit locking is done at lower level.
• Intention locks are put on all ancestors of a node
before locking a node explicitly.
– Intention-shared(IS) mode: lower level is explicitly locked
in shared mode lock.
– Intention-exclusive(IX) mode: lower level is explicitly
locked in exclusive lock
– Shared and intention exclusive (SIX) mode: locked explicitly
by shared mode and explicit locking at lower level with
exclusive lock mode
4/29/2021 1:04:02 PM 97
Ms. Amrit Kaur

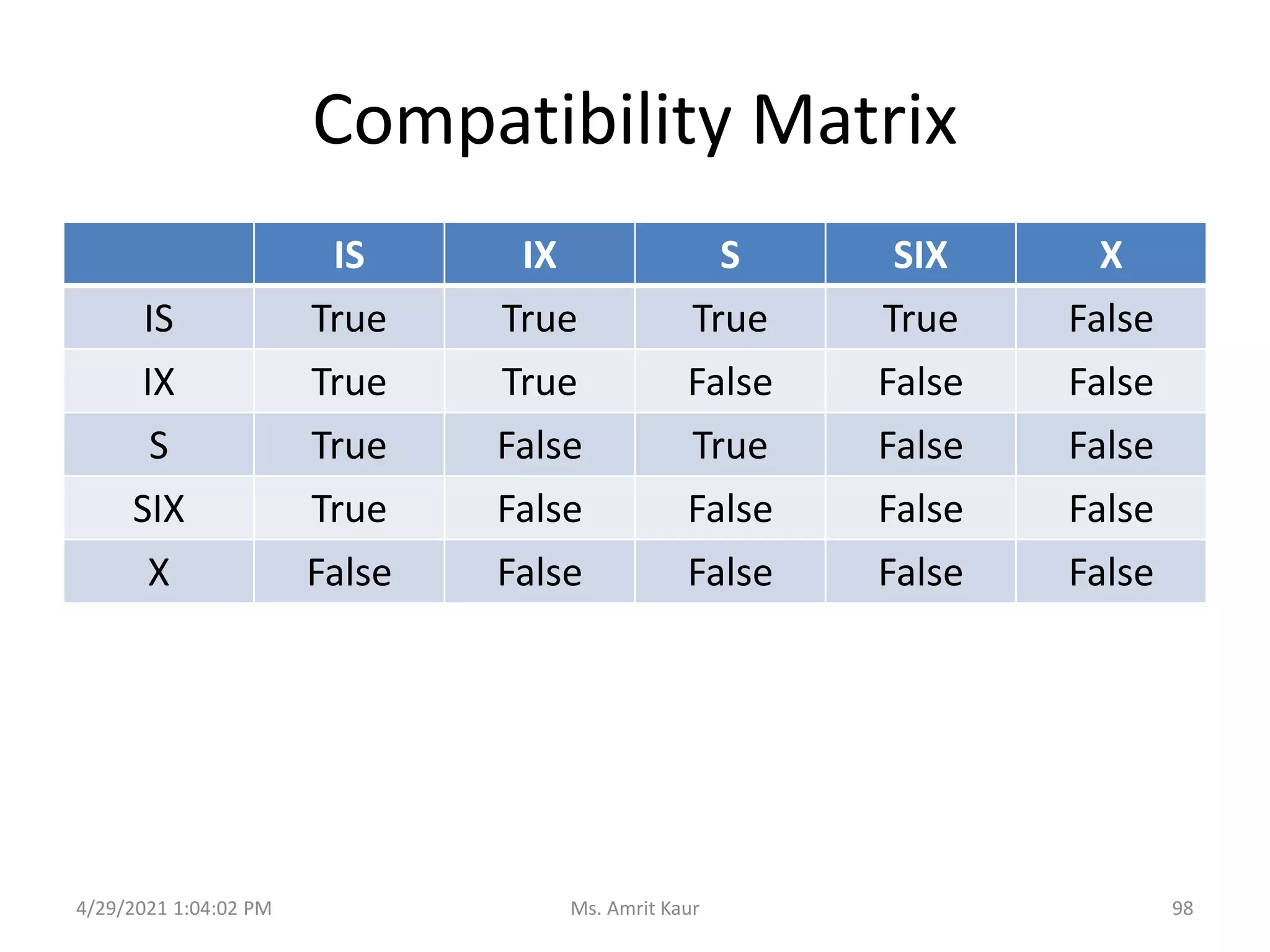

98. Compatibility Matrix
IS IX S SIX X
IS True True True True False
IX True True False False False
S True False True False False
SIX True False False False False
X False False False False False
4/29/2021 1:04:02 PM 98
Ms. Amrit Kaur

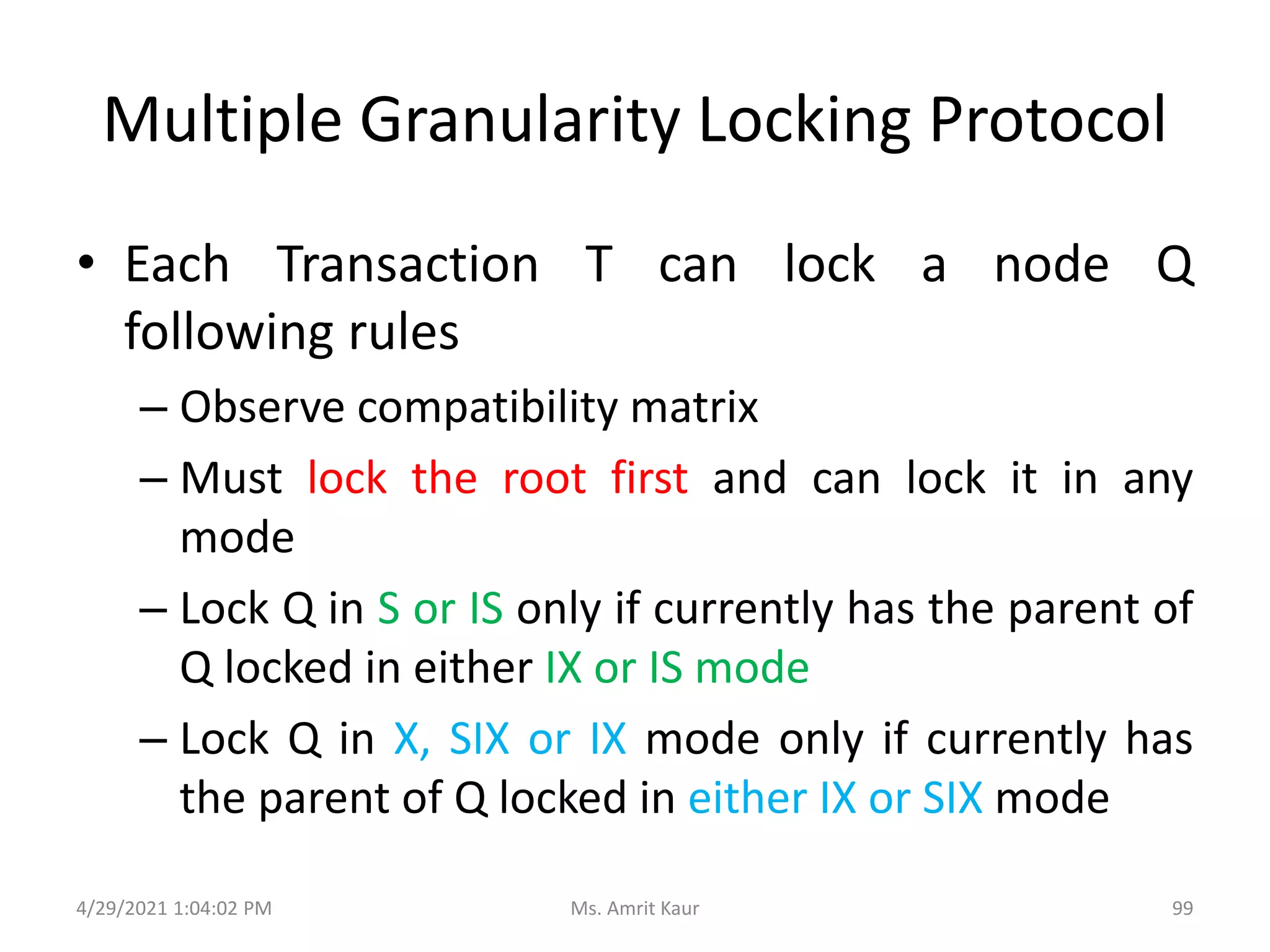

99. Multiple Granularity Locking Protocol
• Each Transaction T can lock a node Q
following rules
– Observe compatibility matrix
– Must lock the root first and can lock it in any
mode
– Lock Q in S or IS only if currently has the parent of
Q locked in either IX or IS mode
– Lock Q in X, SIX or IX mode only if currently has
the parent of Q locked in either IX or SIX mode
4/29/2021 1:04:02 PM 99
Ms. Amrit Kaur

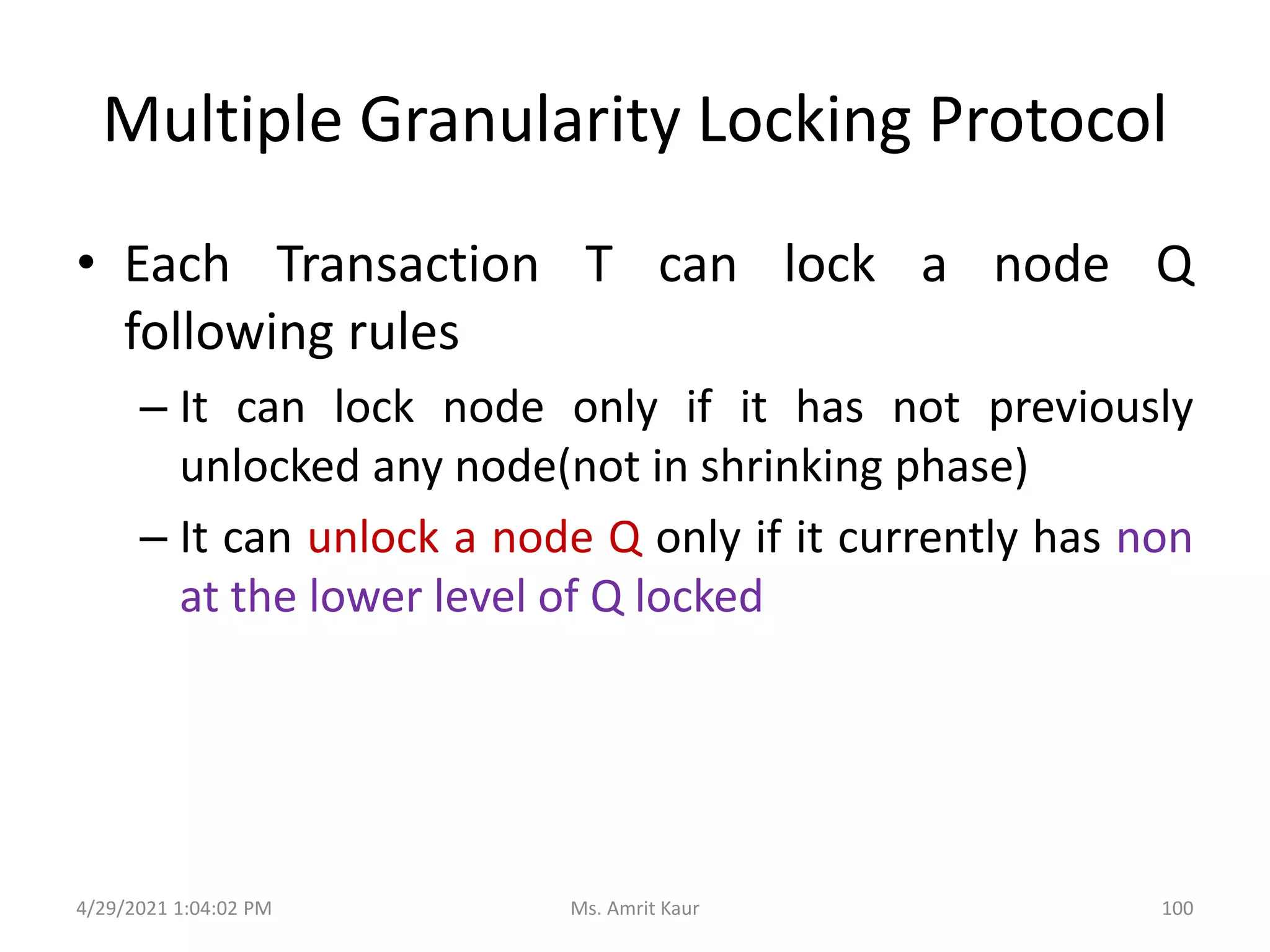

100. Multiple Granularity Locking Protocol
• Each Transaction T can lock a node Q
following rules
– It can lock node only if it has not previously
unlocked any node(not in shrinking phase)
– It can unlock a node Q only if it currently has non
at the lower level of Q locked
4/29/2021 1:04:02 PM 100
Ms. Amrit Kaur

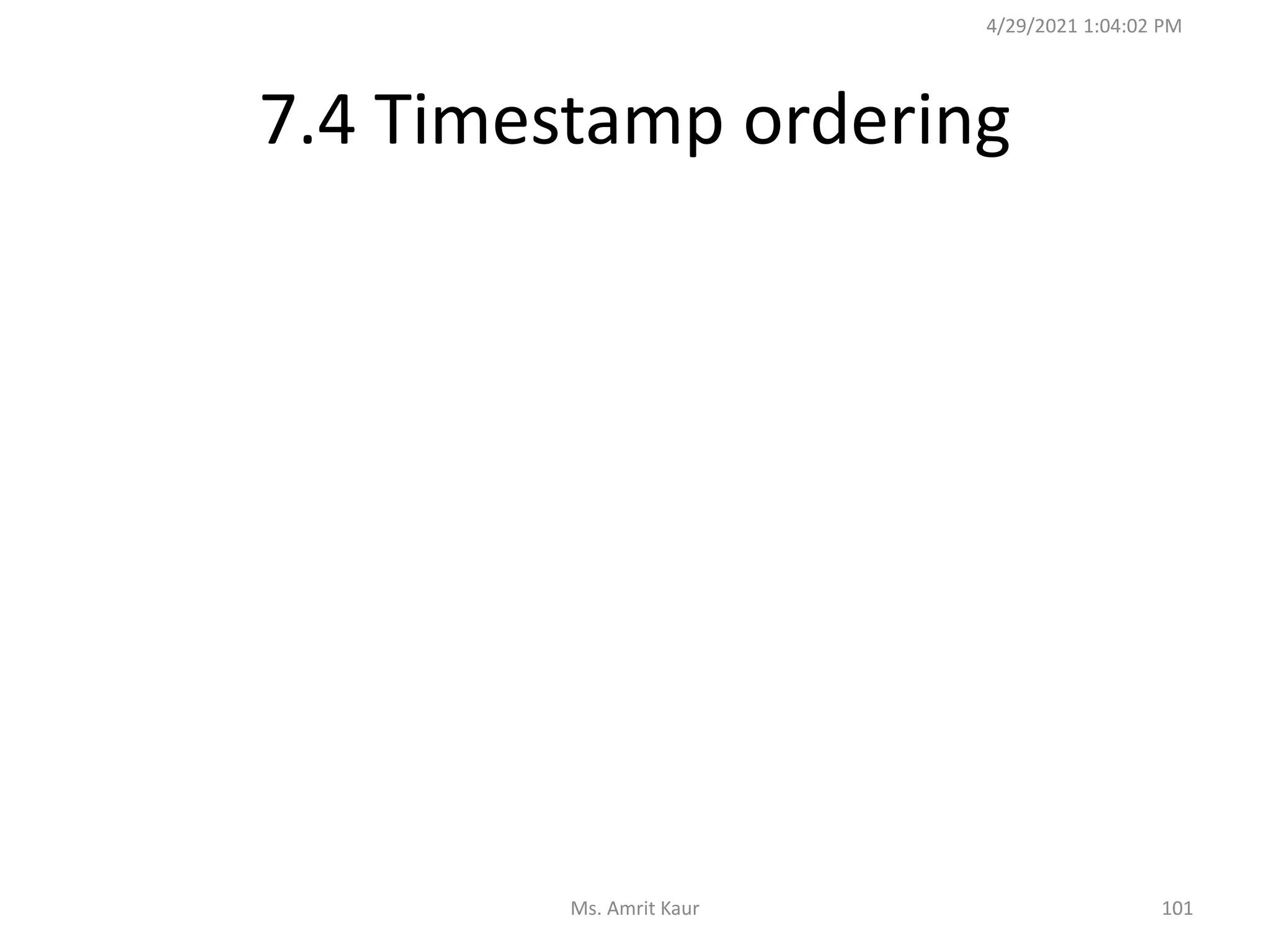

101. 7.4 Timestamp ordering
4/29/2021 1:04:02 PM
101
Ms. Amrit Kaur

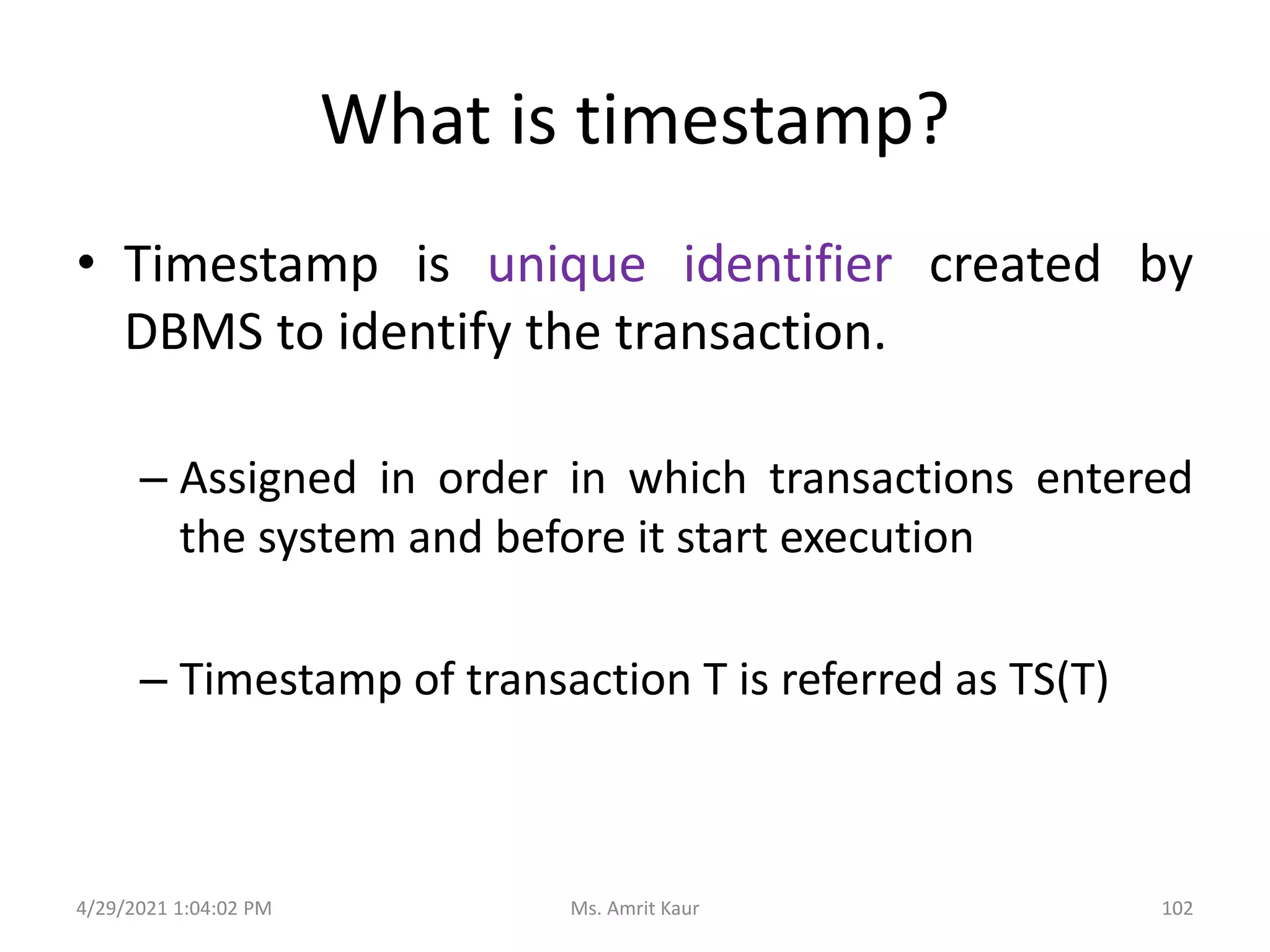

102. What is timestamp?
• Timestamp is unique identifier created by
DBMS to identify the transaction.
– Assigned in order in which transactions entered
the system and before it start execution
– Timestamp of transaction T is referred as TS(T)
4/29/2021 1:04:02 PM 102
Ms. Amrit Kaur

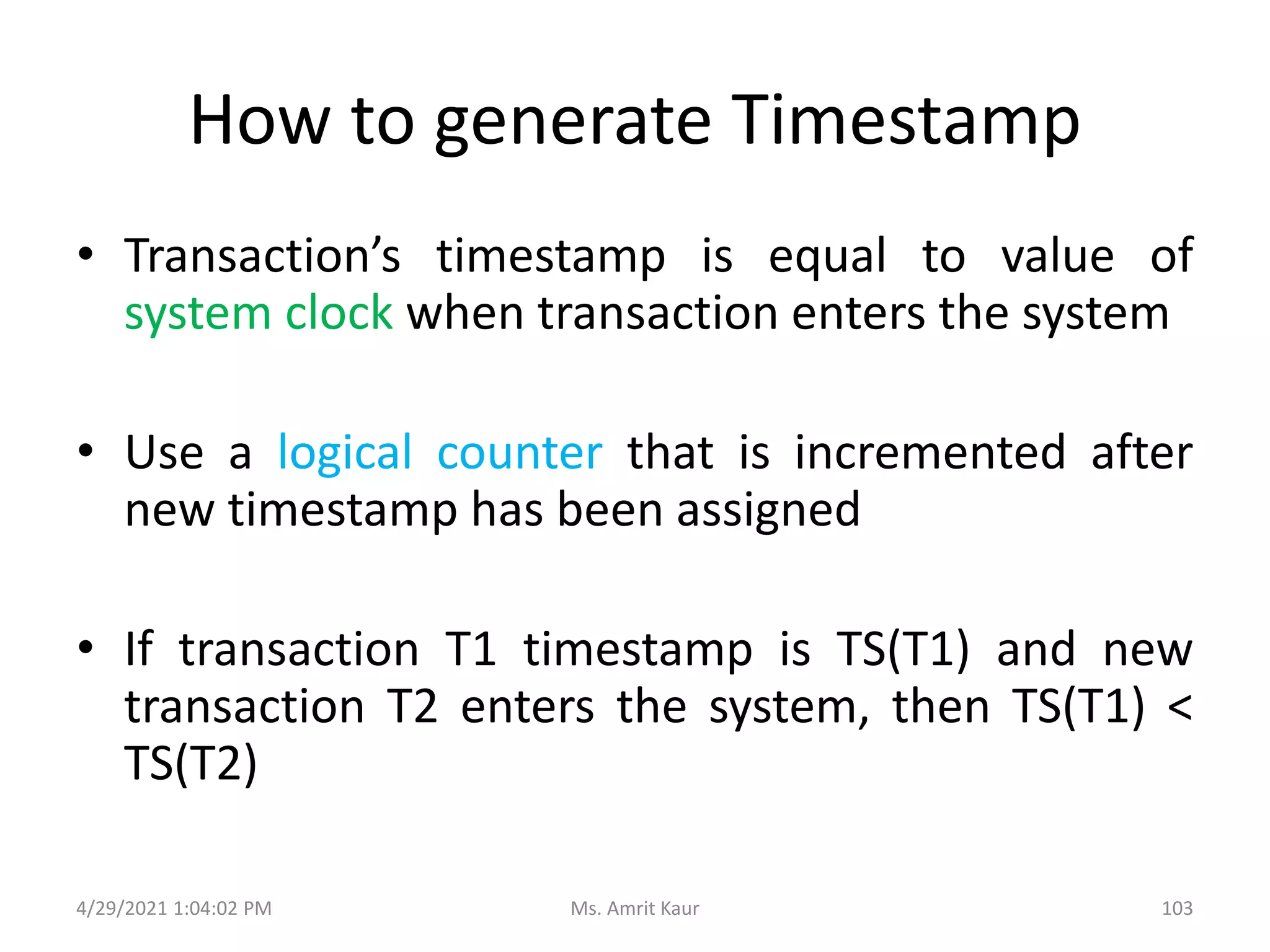

103. How to generate Timestamp
• Transaction’s timestamp is equal to value of
system clock when transaction enters the system
• Use a logical counter that is incremented after
new timestamp has been assigned
• If transaction T1 timestamp is TS(T1) and new
transaction T2 enters the system, then TS(T1) <
TS(T2)
4/29/2021 1:04:02 PM 103
Ms. Amrit Kaur

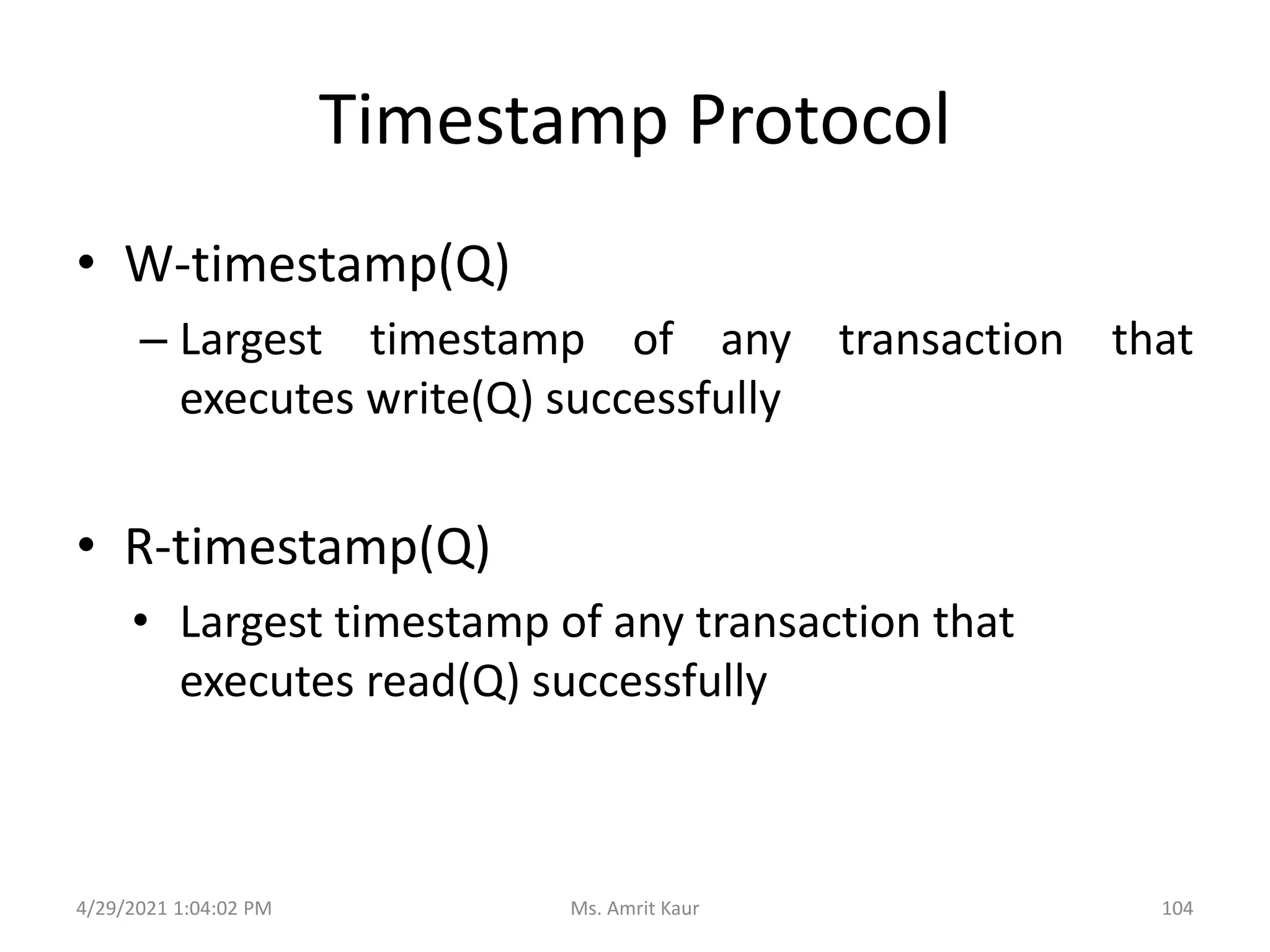

104. Timestamp Protocol
• W-timestamp(Q)
– Largest timestamp of any transaction that
executes write(Q) successfully
• R-timestamp(Q)
• Largest timestamp of any transaction that
executes read(Q) successfully
4/29/2021 1:04:02 PM 104
Ms. Amrit Kaur

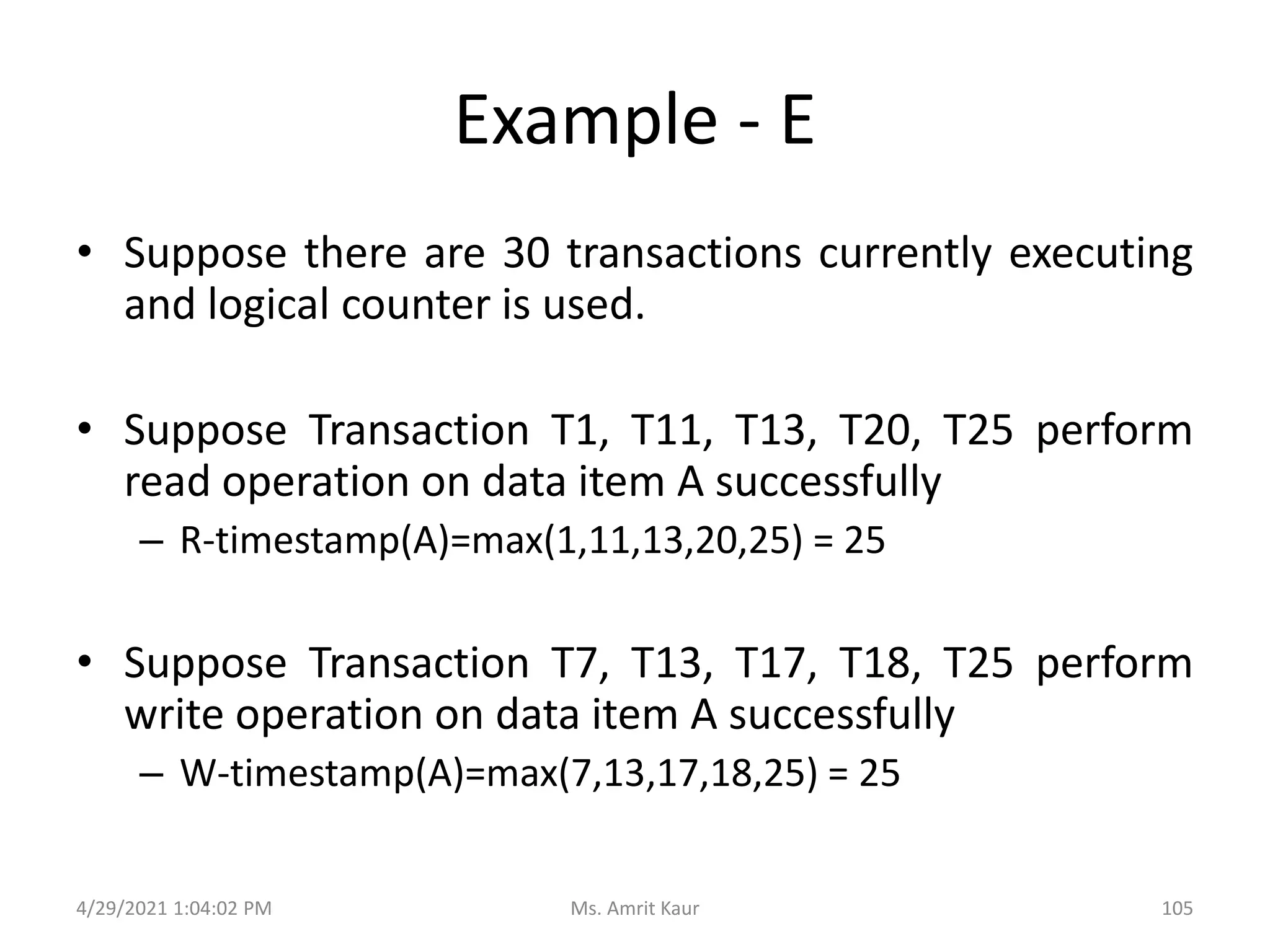

105. Example - E
• Suppose there are 30 transactions currently executing
and logical counter is used.
• Suppose Transaction T1, T11, T13, T20, T25 perform
read operation on data item A successfully
– R-timestamp(A)=max(1,11,13,20,25) = 25
• Suppose Transaction T7, T13, T17, T18, T25 perform
write operation on data item A successfully
– W-timestamp(A)=max(7,13,17,18,25) = 25
4/29/2021 1:04:02 PM 105
Ms. Amrit Kaur

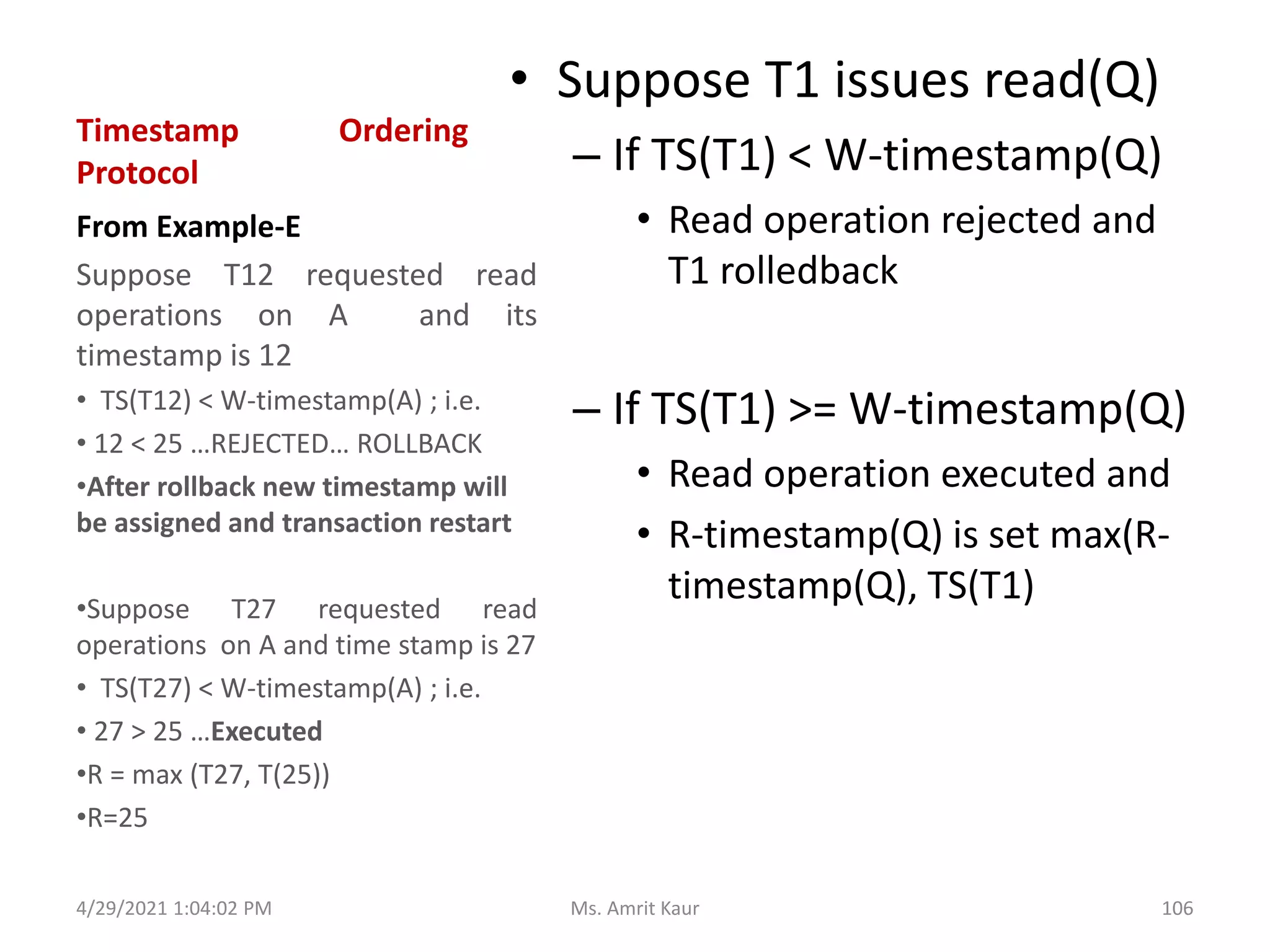

106. Timestamp Ordering
Protocol
• Suppose T1 issues read(Q)
– If TS(T1) < W-timestamp(Q)
• Read operation rejected and
T1 rolledback
– If TS(T1) >= W-timestamp(Q)
• Read operation executed and
• R-timestamp(Q) is set max(R-
timestamp(Q), TS(T1)
From Example-E
Suppose T12 requested read
operations on A and its
timestamp is 12
• TS(T12) < W-timestamp(A) ; i.e.
• 12 < 25 …REJECTED… ROLLBACK
•After rollback new timestamp will
be assigned and transaction restart
•Suppose T27 requested read
operations on A and time stamp is 27
• TS(T27) < W-timestamp(A) ; i.e.
• 27 > 25 …Executed
•R = max (T27, T(25))
•R=25
4/29/2021 1:04:02 PM 106
Ms. Amrit Kaur

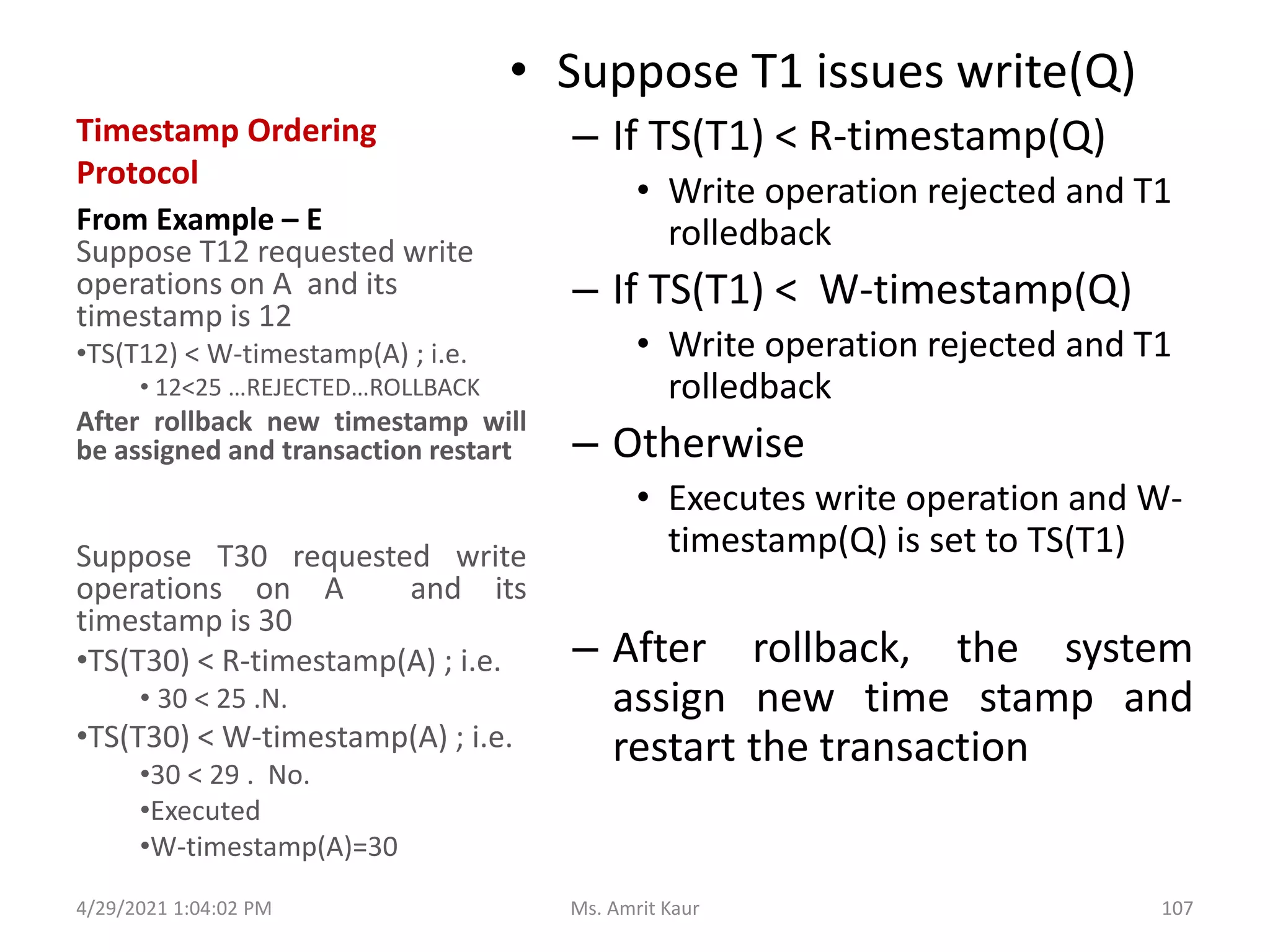

107. Timestamp Ordering
Protocol
• Suppose T1 issues write(Q)
– If TS(T1) < R-timestamp(Q)
• Write operation rejected and T1
rolledback
– If TS(T1) < W-timestamp(Q)
• Write operation rejected and T1
rolledback
– Otherwise
• Executes write operation and W-
timestamp(Q) is set to TS(T1)
– After rollback, the system
assign new time stamp and
restart the transaction
From Example – E
Suppose T12 requested write
operations on A and its
timestamp is 12
•TS(T12) < W-timestamp(A) ; i.e.
• 12<25 …REJECTED…ROLLBACK
After rollback new timestamp will
be assigned and transaction restart
Suppose T30 requested write
operations on A and its
timestamp is 30
•TS(T30) < R-timestamp(A) ; i.e.
• 30 < 25 .N.
•TS(T30) < W-timestamp(A) ; i.e.
•30 < 29 . No.
•Executed
•W-timestamp(A)=30
4/29/2021 1:04:02 PM 107
Ms. Amrit Kaur

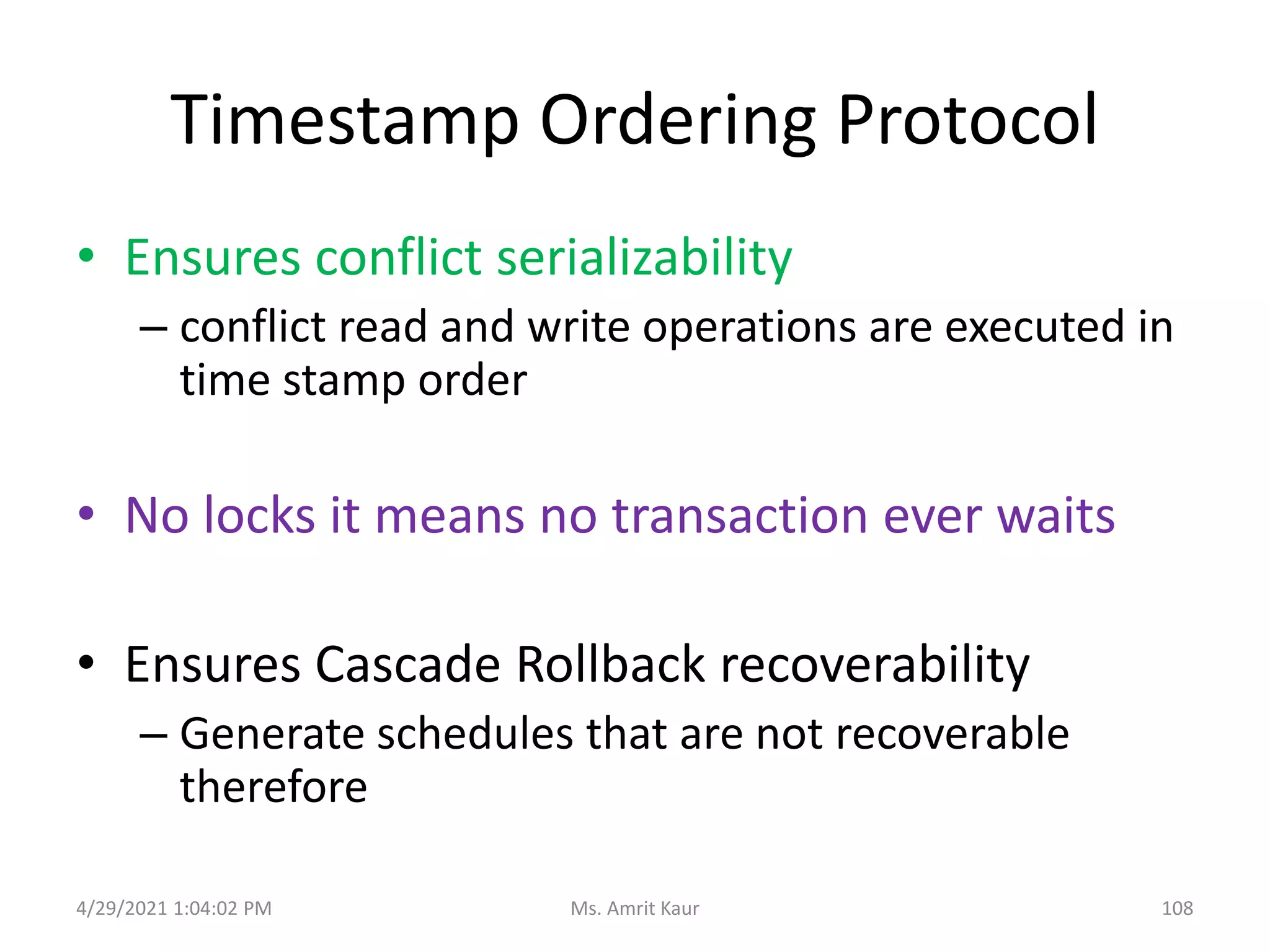

108. Timestamp Ordering Protocol
• Ensures conflict serializability
– conflict read and write operations are executed in
time stamp order
• No locks it means no transaction ever waits
• Ensures Cascade Rollback recoverability
– Generate schedules that are not recoverable
therefore
4/29/2021 1:04:02 PM 108
Ms. Amrit Kaur

109. Thank You
4/29/2021 1:04:02 PM 109
Ms. Amrit Kaur
