1. Oracle Database Architecture

2. Database and Instance
• Database
– A database is a set of physical files,
– located on disk, that store data and
– are created by the CREATE DATABASE statement.

3. Database and Instance
• Database instance
– An instance is a set of memory structures that
manage database files.
– The instance serves the users of the database.
– Because an instance exists in memory and a
database exists on disk, an instance can exist
without a database and a database can exist
without an instance.

4. Database and Instance
• Database instance
– When an instance is started, Oracle Database
allocates a memory area called the system global area
(SGA) and starts one or more background processes.
– An instance begins when it is created with
the STARTUP command and ends when it is
terminated.
– An instance can associate itself with one and only
one database.

5. Oracle System Identifier (SID)
• The system identifier (SID) is a unique name
for an Oracle database instance on a specific
host.
• Oracle Database uses the SID to create a key
to shared memory.

6. DATABASE STORAGE STRUCTURE

7. • Oracle Database used following storage
structure
– Physical Storage Structures
– Logical Storage Structures

8. PHYSICAL STORAGE STRUCTURE

9. Physical Storage Structure
• Physical structures are viewable at the
operating system level.
• Following database files generated on issue of
CREATE DATABASE statement:
– Data files and temp Files
– Control Files
– Online redo log files

10. Physical Storage Structure

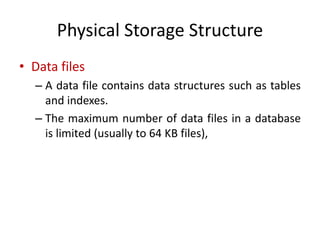

• Data files
– A data file contains data structures such as tables
and indexes.
– The maximum number of data files in a database
is limited (usually to 64 KB files),

11. Physical Storage Structure
• Temp files
– A temp file is a data file that belongs to a
temporary tablespace
– Cannot be read by other programs.

12. Physical Storage Structure

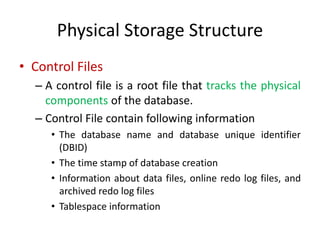

• Control Files
– A control file is a root file that tracks the physical
components of the database.
– Control File contain following information
• The database name and database unique identifier
(DBID)
• The time stamp of database creation
• Information about data files, online redo log files, and
archived redo log files
• Tablespace information

13. Physical Data Structure
• Control File
– Purpose
• The control file tracks structural changes to the
database.
• It contains metadata that must be accessible
when the database is not open.

14. Physical Storage Structure
• Online redo log files
– The online redo log is a set of files containing
records of changes made to data.
– The database maintains online redo log files to
protect against data loss.
• After an instance failure the online redo log files enable
Oracle Database to recover committed data not yet
written to the data files.

15. Archived Redo Log Files
• An archived redo log file is a copy of a an online redo
log group.
• This file is not considered part of the database, but is
an offline copy of an online redo log file created by the
database and written to a user-specified location.
• You can use archived redo log files to:
– Recover a database backup
– Update a standby database
– Obtain information about the history of a database

16. LOGICAL STORAGE SPACE

17. Logical Storage Space
• These structures are created and recognized by
Oracle Database and are not known to the
operating system.
• Oracle Database allocates logical space for all
data in the database.
• Logical storage structures enable Oracle Database
to have fine-grained control of disk space use.

18. Logical Storage Space
• Logical Storages Space Hierarchy
– Data blocks
– Extents
– Segments
– Tablespaces

19. Logical Storage Space
• Data blocks
– Oracle Database data is stored in data blocks.
– One data block corresponds to a specific number of
bytes on disk.
– Data blocks are the smallest units of storage that
Oracle Database can use or allocate.
– The standard data block size for a database is 4 KB or
8 KB.
– The DB_BLOCK_SIZE initialization parameter sets the
data block size for a database when it is created

20. Logical Storage Structure
• Extents
– An extent is a specific number of logically
contiguous data blocks, allocated for storing a
specific type of information

21. Logical Storage Structure

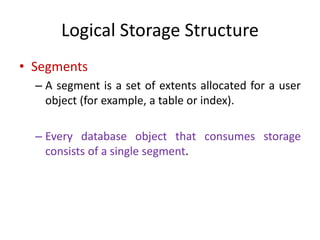

• Segments
– A segment is a set of extents allocated for a user
object (for example, a table or index).
– Every database object that consumes storage
consists of a single segment.

22. Logical Storage Structure
• Segments
– A single data segment in a database stores the
data for one user object.
– There are different types of segments.
• Table
• LOB
• Index

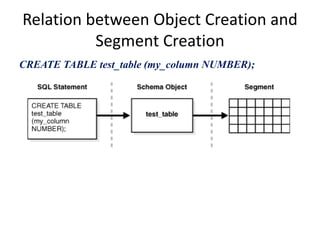

23. Relation between Object Creation and
Segment Creation
CREATE TABLE test_table (my_column NUMBER);

24. Relation between Object Creation and
Segment Creation
CREATE TABLE lob_table (my_column NUMBER PRIMARY
KEY, clob_column CLOB);

25. Logical Storage Structure
• Tablespaces
– Oracle Database physically stores tablespace data
in data files.
– A database is divided into logical storage units
called tablespaces.
– A tablespace is the logical container for a
segment.
– A database must have
the SYSTEM and SYSAUX tablespaces

26. Logical Storage Structure
• Tablespace
– Each tablespace consists of one or more data files.
• The data for a database is collectively stored in the data
files located in each tablespace of the database.
– A segment can span one or more data files, but it
cannot span multiple tablespaces.

27. Logical Storage Structue
• SYSTEM Tablespace
– The data dictionary
– Tables and views that contain administrative
information about the database
– Compiled stored objects such as triggers, procedures,
and packages
– All information is owned by the SYS user

28. Logical Storage Structure
• SYSAUX tablespace
– an auxiliary tablespace to the SYSTEM tablespace.
– provides a centralized location for database
metadata.
– created automatically during database creation or
upgrade.

29. Logical Storage Structure
• Undo Tablespaces
– reserved for system-managed undo data.
• Temporary Tablespaces
– contains transient data that persists only for the
duration of a session.
– No permanent schema objects can reside in a
temporary tablespace.
– The database stores temporary tablespace data in
temp files.

30. Logical Storage Structure
• Online and Offline Tablespace
– A tablespace is usually online so that its data is
available to users.
– The SYSTEM tablespace and temporary
tablespaces cannot be taken offline.
