The process of devising a System, Component or Process to meet desired needs.
It is a decision – making process (Often iterative), in which the basic sciences, mathematics and engineering sciences are applied to optimally convert resources to meet a stated objective.
Among the fundamental elements of the design process is the establishment of objectives and criteria, synthesis, analysis, construction, testing and evaluation.
Curriculum must include :
Development of student creativity
Use of open-ended problems
Development and use of modern design theory and methodology
Formulation of design problem statement and specification
Production process
Concurrent engineering design and
Detailed system description.
Essential to include :
Realistic constraints such as
Economic factors
Safety
Reliability
Ethics and
Social impact
The engineering design process is a methodical series of steps that engineers use in creating functional products and processes. The process is highly iterative - parts of the process often need to be repeated many times before another can be entered - though the part(s) that get iterated and the number of such cycles in any given project may vary.
It is a decision-making process (often iterative) in which the basic sciences, mathematics, and engineering sciences are applied to convert resources optimally to meet a stated objective.
10 Steps of Engineering Design Process are :
1) Identifying the problem.
2) Defining Working Criteria and Goals.
3) Researching and Gathering Data.
4) Brainstorming and Generating Creative Ideas.
5) Analyzing Potential Solutions.
6) Developing and Testing Models
7) Making the Decision.
8) Communicating and Specifying.
9) Implementing and Commercializing.
10) Post-Implementation Review and Assessment.
Note :
I have copied the written material (of the PPT) from http://www.asfa.k12.al.us/ourpages/auto/2014/8/25/41576897/Engineering%20Design%20Process%20-%2010%20stages%20-%20PRESENT%20THIS.pdf and then just made it looked more beautiful, for my presentation in college.
This slide was made for a first-semester course named Professional Development Seminar (IPE 152). This presentation shows various engineering disciplines and their significance.
Purpose Statement:
To provide an overview of Design for Manufacturing and Assembly (DFMA) techniques, which are used to minimize product cost through design and process improvements.
The attached narrated power point presentation attempts to explain the fundamentals and the different components of engineering design.The presentation also throws light into different levels of design and the importance of engineering design. The material will be useful for KTU final year B Tech students who prepare for the subject, EST 200, Design and Engineering.
The process of devising a System, Component or Process to meet desired needs.
It is a decision – making process (Often iterative), in which the basic sciences, mathematics and engineering sciences are applied to optimally convert resources to meet a stated objective.
Among the fundamental elements of the design process is the establishment of objectives and criteria, synthesis, analysis, construction, testing and evaluation.
Curriculum must include :
Development of student creativity
Use of open-ended problems
Development and use of modern design theory and methodology
Formulation of design problem statement and specification
Production process
Concurrent engineering design and
Detailed system description.
Essential to include :
Realistic constraints such as
Economic factors
Safety
Reliability
Ethics and
Social impact
The engineering design process is a methodical series of steps that engineers use in creating functional products and processes. The process is highly iterative - parts of the process often need to be repeated many times before another can be entered - though the part(s) that get iterated and the number of such cycles in any given project may vary.
It is a decision-making process (often iterative) in which the basic sciences, mathematics, and engineering sciences are applied to convert resources optimally to meet a stated objective.
10 Steps of Engineering Design Process are :
1) Identifying the problem.
2) Defining Working Criteria and Goals.
3) Researching and Gathering Data.
4) Brainstorming and Generating Creative Ideas.
5) Analyzing Potential Solutions.
6) Developing and Testing Models
7) Making the Decision.
8) Communicating and Specifying.
9) Implementing and Commercializing.
10) Post-Implementation Review and Assessment.
Note :
I have copied the written material (of the PPT) from http://www.asfa.k12.al.us/ourpages/auto/2014/8/25/41576897/Engineering%20Design%20Process%20-%2010%20stages%20-%20PRESENT%20THIS.pdf and then just made it looked more beautiful, for my presentation in college.
This slide was made for a first-semester course named Professional Development Seminar (IPE 152). This presentation shows various engineering disciplines and their significance.
Purpose Statement:
To provide an overview of Design for Manufacturing and Assembly (DFMA) techniques, which are used to minimize product cost through design and process improvements.
The attached narrated power point presentation attempts to explain the fundamentals and the different components of engineering design.The presentation also throws light into different levels of design and the importance of engineering design. The material will be useful for KTU final year B Tech students who prepare for the subject, EST 200, Design and Engineering.
2_Analogy btw science math and engineering and ED.pptxaabhishekkushwaha9
An analogy between SMEs (Small and Medium Enterprises) and design could be drawn in various ways, highlighting similarities in their characteristics, processes, or importance. Here's one analogy:
Foundation and Flexibility:
SMEs are often likened to the building blocks of an economy, providing the foundation for growth and innovation. Similarly, design serves as the foundation for products, services, and experiences, shaping their functionality, usability, and aesthetics.
Just as SMEs need to be flexible and adaptable to changing market conditions, design also requires flexibility to meet evolving user needs, technological advancements, and design trends.
Problem-Solving Approach:
SMEs typically thrive by addressing niche markets, solving specific problems, or fulfilling unmet needs. Similarly, design is fundamentally about problem-solving, whether it's improving user experiences, optimizing efficiency, or enhancing aesthetics.
Both SMEs and design involve identifying challenges, brainstorming solutions, and implementing strategies to achieve desired outcomes.
Biomedical engineers design electrical circuits, software to run medical equipment, or computer simulations to test new drug therapies. In addition, they design and build artificial body parts, such as hip and knee joints. In some cases, they develop the materials needed to make the replacement body parts among others. The engineering design process is a methodical series of steps that engineers use in creating functional products and processes. The process is highly iterative - parts of the process often need to be repeated many times before another can be entered though the part(s) that get iterated and the number of such cycles in any given project may vary.
Best
TECHNICAL TRAINING MANUAL GENERAL FAMILIARIZATION COURSEDuvanRamosGarzon1
AIRCRAFT GENERAL
The Single Aisle is the most advanced family aircraft in service today, with fly-by-wire flight controls.
The A318, A319, A320 and A321 are twin-engine subsonic medium range aircraft.
The family offers a choice of engines
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Event Management System Vb Net Project Report.pdfKamal Acharya
In present era, the scopes of information technology growing with a very fast .We do not see any are untouched from this industry. The scope of information technology has become wider includes: Business and industry. Household Business, Communication, Education, Entertainment, Science, Medicine, Engineering, Distance Learning, Weather Forecasting. Carrier Searching and so on.
My project named “Event Management System” is software that store and maintained all events coordinated in college. It also helpful to print related reports. My project will help to record the events coordinated by faculties with their Name, Event subject, date & details in an efficient & effective ways.
In my system we have to make a system by which a user can record all events coordinated by a particular faculty. In our proposed system some more featured are added which differs it from the existing system such as security.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Hybrid optimization of pumped hydro system and solar- Engr. Abdul-Azeez.pdffxintegritypublishin
Advancements in technology unveil a myriad of electrical and electronic breakthroughs geared towards efficiently harnessing limited resources to meet human energy demands. The optimization of hybrid solar PV panels and pumped hydro energy supply systems plays a pivotal role in utilizing natural resources effectively. This initiative not only benefits humanity but also fosters environmental sustainability. The study investigated the design optimization of these hybrid systems, focusing on understanding solar radiation patterns, identifying geographical influences on solar radiation, formulating a mathematical model for system optimization, and determining the optimal configuration of PV panels and pumped hydro storage. Through a comparative analysis approach and eight weeks of data collection, the study addressed key research questions related to solar radiation patterns and optimal system design. The findings highlighted regions with heightened solar radiation levels, showcasing substantial potential for power generation and emphasizing the system's efficiency. Optimizing system design significantly boosted power generation, promoted renewable energy utilization, and enhanced energy storage capacity. The study underscored the benefits of optimizing hybrid solar PV panels and pumped hydro energy supply systems for sustainable energy usage. Optimizing the design of solar PV panels and pumped hydro energy supply systems as examined across diverse climatic conditions in a developing country, not only enhances power generation but also improves the integration of renewable energy sources and boosts energy storage capacities, particularly beneficial for less economically prosperous regions. Additionally, the study provides valuable insights for advancing energy research in economically viable areas. Recommendations included conducting site-specific assessments, utilizing advanced modeling tools, implementing regular maintenance protocols, and enhancing communication among system components.
Democratizing Fuzzing at Scale by Abhishek Aryaabh.arya
Presented at NUS: Fuzzing and Software Security Summer School 2024
This keynote talks about the democratization of fuzzing at scale, highlighting the collaboration between open source communities, academia, and industry to advance the field of fuzzing. It delves into the history of fuzzing, the development of scalable fuzzing platforms, and the empowerment of community-driven research. The talk will further discuss recent advancements leveraging AI/ML and offer insights into the future evolution of the fuzzing landscape.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
2. Foundational Questions
What is engineering?
What is engineering design?
Difference between engineering analysis
and engineering design
What is the difference between product and
process design?
What is the context of the design process?
Engineering design vs. design in other
academic disciplines?
Why design?

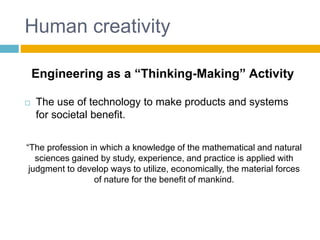

4. Human creativity
The use of technology to make products and systems
for societal benefit.
“The profession in which a knowledge of the mathematical and natural
sciences gained by study, experience, and practice is applied with
judgment to develop ways to utilize, economically, the material forces
of nature for the benefit of mankind.
Engineering as a “Thinking-Making” Activity

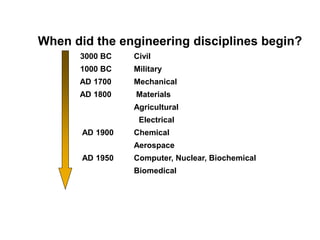

5. When did the engineering disciplines begin?
3000 BC Civil
1000 BC Military
AD 1700 Mechanical
AD 1800 Materials
Agricultural
Electrical
AD 1900 Chemical
Aerospace
AD 1950 Computer, Nuclear, Biochemical
Biomedical

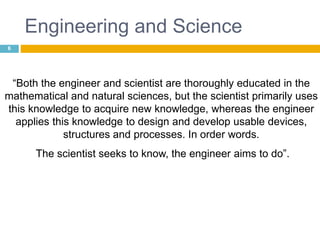

6. Engineering and Science
6
“Both the engineer and scientist are thoroughly educated in the
mathematical and natural sciences, but the scientist primarily uses
this knowledge to acquire new knowledge, whereas the engineer
applies this knowledge to design and develop usable devices,
structures and processes. In order words.
The scientist seeks to know, the engineer aims to do”.

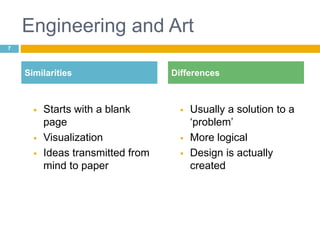

7. Engineering and Art
Starts with a blank
page
Visualization
Ideas transmitted from
mind to paper
Usually a solution to a
‘problem’
More logical
Design is actually
created
7
Similarities Differences
9. What is engineering design?
Engineering design is the set of decision-making processes
and activities used determine the form of an object given the
functions desired by the customer.
Engineering design is the process of devising a system,
component, or process to meet desired needs. It is a
decision-making process (often iterative), in which the basic
science and mathematics and engineering sciences are
applied to convert resources optimally to meet a stated
objective. Among the fundamental elements of the design
process are the establishment of objectives and criteria,
synthesis, analysis, construction, testing and evaluation.

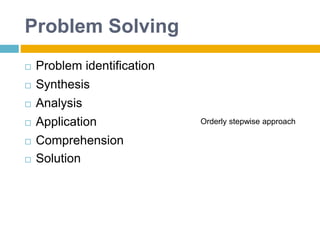

13. Brainstorming
Rule : There are
no stupid ideas
in a brainstorm

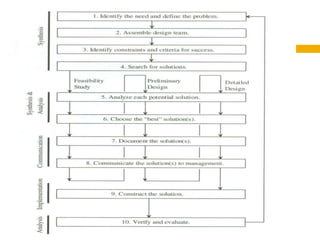

Process of Engineering Design
Need
Analysis of Problem
Statement of Problem
Conceptual Design
Selected Schemes
Embodiment of Schemes
Detailing
Working drawings, etc..
14. Define problem and goal
Consider:
What do you want to accomplish?
What are the requirements?
Are there any limitations?
Who is the customer?
• Identify and describe
the issue and the
ultimate objective

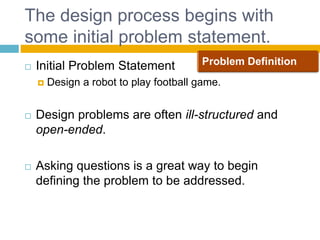

15. The design process begins with
some initial problem statement.
Initial Problem Statement
Design a robot to play football game.
Design problems are often ill-structured and
open-ended.
Asking questions is a great way to begin
defining the problem to be addressed.
Page 15

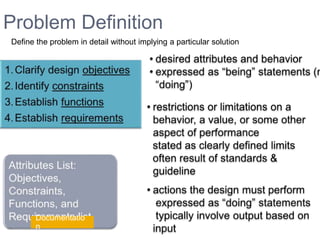

Problem Definition

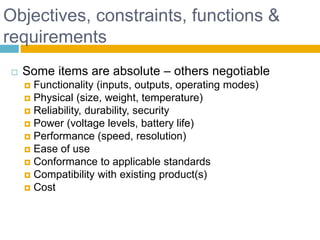

17. Objectives, constraints, functions &
requirements
Some items are absolute – others negotiable
Functionality (inputs, outputs, operating modes)
Physical (size, weight, temperature)
Reliability, durability, security
Power (voltage levels, battery life)
Performance (speed, resolution)
Ease of use
Conformance to applicable standards
Compatibility with existing product(s)
Cost
Page 17

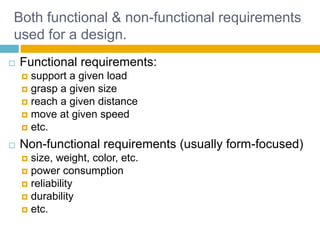

18. Both functional & non-functional requirements
used for a design.
Functional requirements:
support a given load
grasp a given size
reach a given distance
move at given speed
etc.
Non-functional requirements (usually form-focused)
size, weight, color, etc.
power consumption
reliability
durability
etc.
Page 18

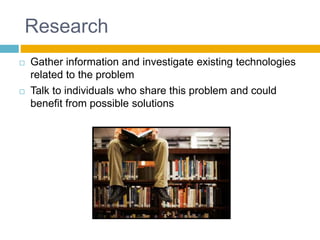

19. Research
Gather information and investigate existing technologies
related to the problem
Talk to individuals who share this problem and could
benefit from possible solutions

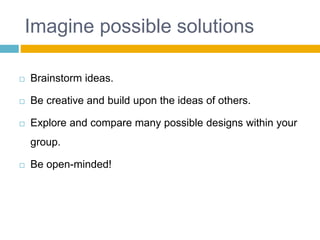

20. Imagine possible solutions
Brainstorm ideas.
Be creative and build upon the ideas of others.
Explore and compare many possible designs within your
group.
Be open-minded!

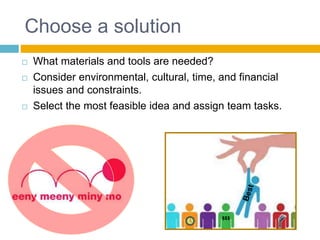

21. Choose a solution
What materials and tools are needed?
Consider environmental, cultural, time, and financial
issues and constraints.
Select the most feasible idea and assign team tasks.
$$$

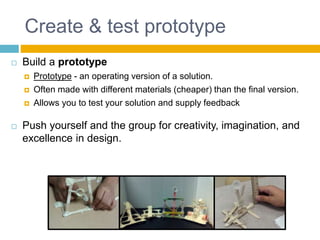

22. Create & test prototype
Build a prototype
Prototype - an operating version of a solution.
Often made with different materials (cheaper) than the final version.
Allows you to test your solution and supply feedback
Push yourself and the group for creativity, imagination, and
excellence in design.

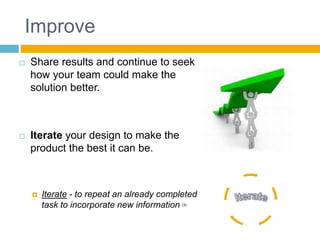

23. Improve
Share results and continue to seek
how your team could make the
solution better.
Iterate your design to make the
product the best it can be.
Iterate - to repeat an already completed
task to incorporate new information (3)
24. Environmental Design
Changing human needs mean the need for the
design of new infrastructures
Design with a focus on natural processes
Designs should mimic nature – i.e., self-
adaptive, self-sustaining, and resilient

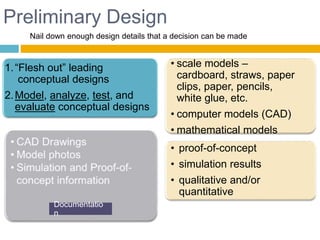

26. Preliminary Design
• proof-of-concept
• simulation results
• qualitative and/or
quantitative
• scale models –
cardboard, straws, paper
clips, paper, pencils,
white glue, etc.
• computer models (CAD)
• mathematical models
1.“Flesh out” leading
conceptual designs
2.Model, analyze, test, and
evaluate conceptual designs
Page 26
Documentatio
n
Nail down enough design details that a decision can be made

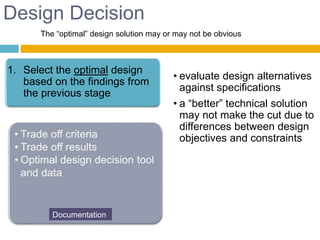

27. Design Decision
1. Select the optimal design
based on the findings from
the previous stage
• evaluate design alternatives
against specifications
• a “better” technical solution
may not make the cut due to
differences between design
objectives and constraints
Page 27
Documentation
The “optimal” design solution may or may not be obvious

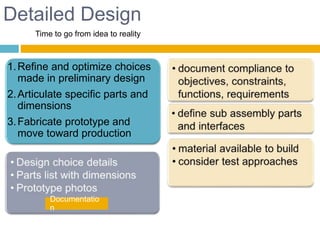

28. Detailed Design
1.Refine and optimize choices
made in preliminary design
2.Articulate specific parts and
dimensions
3.Fabricate prototype and
move toward production
Page 28
Documentatio
n
Time to go from idea to reality

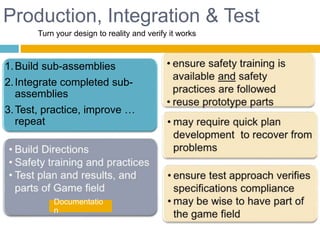

29. Production, Integration & Test
Production,
Integration & Test
1.Build sub-assemblies
2.Integrate completed sub-
assemblies
3.Test, practice, improve …
repeat
Page 29
Documentatio
n
Turn your design to reality and verify it works
31. Engineering Design vs Engineering Analysis
Engineering analysis: Predicted behavior is the solution
to an analysis problem
Formulating
Solving
Checking
Engineering design:
Formulating
Generating
Analyzing
Evaluating

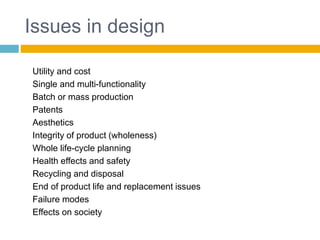

32. Issues in design
Utility and cost
Single and multi-functionality
Batch or mass production
Patents
Aesthetics
Integrity of product (wholeness)
Whole life-cycle planning
Health effects and safety
Recycling and disposal
End of product life and replacement issues
Failure modes
Effects on society

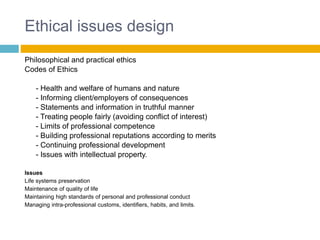

33. Ethical issues design
Philosophical and practical ethics
Codes of Ethics
- Health and welfare of humans and nature
- Informing client/employers of consequences
- Statements and information in truthful manner
- Treating people fairly (avoiding conflict of interest)
- Limits of professional competence
- Building professional reputations according to merits
- Continuing professional development
- Issues with intellectual property.
Issues
Life systems preservation
Maintenance of quality of life
Maintaining high standards of personal and professional conduct
Managing intra-professional customs, identifiers, habits, and limits.

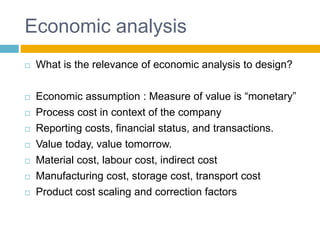

34. Economic analysis
What is the relevance of economic analysis to design?
Economic assumption : Measure of value is “monetary”
Process cost in context of the company
Reporting costs, financial status, and transactions.
Value today, value tomorrow.
Material cost, labour cost, indirect cost
Manufacturing cost, storage cost, transport cost
Product cost scaling and correction factors

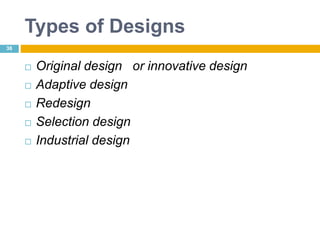

35. Types of Designs
Original design or innovative design
Adaptive design
Redesign
Selection design
Industrial design
36
36. Original design
This form is at the top of the hierarchy
Employs an original, innovative concept to achieve
a need
Sometimes, but rarely, the need itself be original
Original designs occur rarely, but when occurs they
usually disrupt existing markets
37

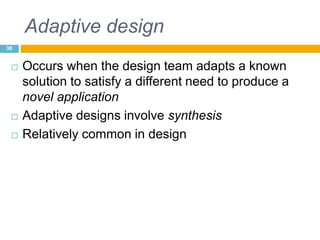

37. Adaptive design
Occurs when the design team adapts a known
solution to satisfy a different need to produce a
novel application
Adaptive designs involve synthesis
Relatively common in design
38

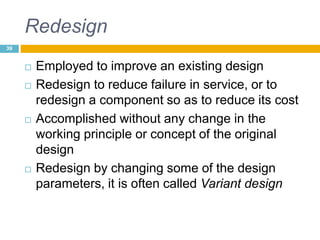

38. Redesign
Employed to improve an existing design
Redesign to reduce failure in service, or to
redesign a component so as to reduce its cost
Accomplished without any change in the
working principle or concept of the original
design
Redesign by changing some of the design
parameters, it is often called Variant design
39

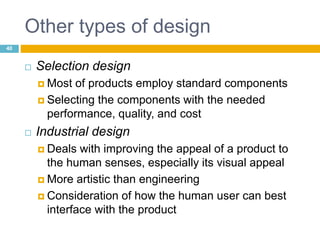

39. Other types of design
Selection design
Most of products employ standard components
Selecting the components with the needed
performance, quality, and cost
Industrial design
Deals with improving the appeal of a product to
the human senses, especially its visual appeal
More artistic than engineering
Consideration of how the human user can best
interface with the product
40
