Ziyad

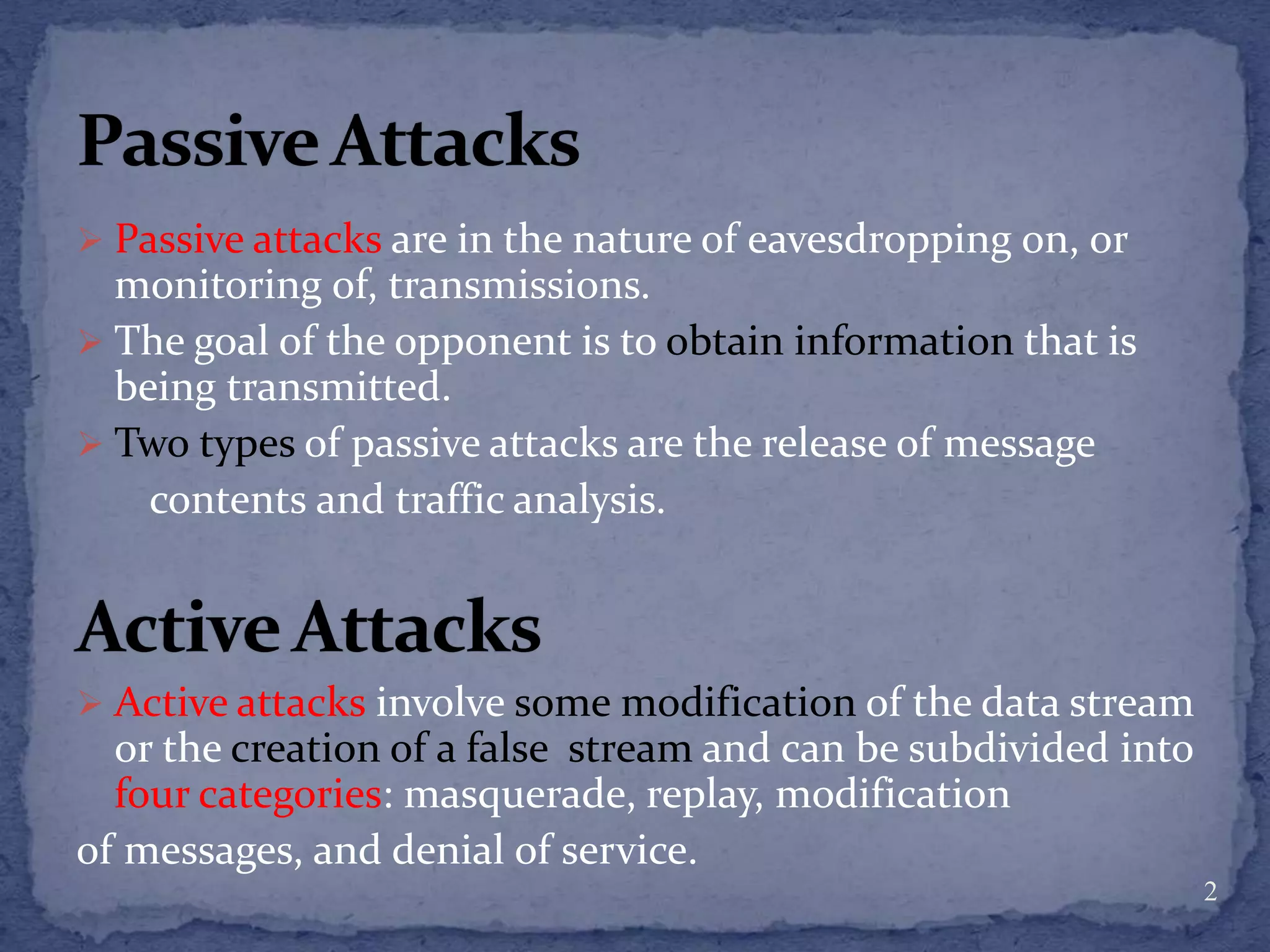

 Passive attacks are in the nature of eavesdropping on, or
monitoring of, transmissions.
 The goal of the opponent is to obtain information that is
being transmitted.
 Two types of passive attacks are the release of message
contents and traffic analysis.
 Active attacks involve some modification of the data stream
or the creation of a false stream and can be subdivided into
four categories: masquerade, replay, modification
of messages, and denial of service.
2
 Differential cryptanalysis is a general form of
cryptanalysis applicable primarily to block ciphers, but
also to stream ciphers and cryptographic hash functions.
 Differential attack is a chosen-plaintext attack .
 can successfully cryptanalyze DES with an effort on the
 order of
 The main difference from linear attack is that
differential attack involves comparing the XOR of two
inputs to the XOR of the corresponding outputs .
 This difference provide information that can be used to
determine the key .
4
 linear cryptanalysis is a general form of cryptanalysis
based on finding affine approximations to the action of
a cipher Attacks have been developed for block ciphers
and stream ciphers. Linear cryptanalysis is one of the
two most widely used attacks on block ciphers
 Linear Cryptanalysis is (known plaintext attack).
 This method can find a DES key given known
plaintexts .
 Although this is a minor improvement, because it
may be easier to acquire known plaintext rather than
chosen plaintext, it still leaves linear cryptanalysis
infeasible
 Meet-in-the-middle attack is performed on two blocks of
known ( plaintext–ciphertext ) , the probability that the correct
keys are determined .
The meet-in-the-middle attack targets block cipher cryptographic
functions ( double DES ) .
 The name for this exploit comes from the method. Because the
attacker tries to break the two-part encryption method from
both sides , a successful effort enables him to meet in the middle
of the block cipher.
 Meet-in-the-middle is a passive attack, which means that
although the intruder can access messages, in most situations he
can not alter them or send his own.
 is an attack where the attacker secretly relays and
possibly alters the communication between two parties
who believe they are directly communicating with each
other. A man-in-the-middle attack can be used against
many cryptographic protocols. One example of man-in-
the-middle attacks is active eavesdropping, in which the
attacker makes independent connections with the victims
and relays messages between them to make them believe
they are talking directly to each other over a private
connection, when in fact the entire conversation is
controlled by the attacker. The attacker must be able to
intercept all relevant messages passing between the two
victims and inject new ones. This is straightforward in
many circumstances;
6
7
Alice sends a message to Bob, which is intercepted by Mallory:
Alice "Hi Bob, it's Alice. Give me your key.“ → Mallory Bob
Mallory relays this message to Bob; Bob cannot tell it is not really from
Alice: Alice Mallory "Hi Bob, it's Alice. Give me your key." → Bob
Bob responds with his encryption key:
Alice Mallory ← [Bob's key] Bob
Mallory replaces Bob's key with her own, and relays this to Alice, claiming
that it is Bob's key: Alice ← [Mallory's key] Mallory Bob
Alice encrypts a message with what she believes to be Bob's key, thinking
that only Bob can read it:
Alice "Meet me at the bus stop!" [encrypted with Mallory's key]
→ Mallory Bob
However, because it was actually encrypted with Mallory's key, Mallory can
decrypt it, read it, modify it (if desired), re-encrypt with Bob's key, and
forward it to Bob :
Alice Mallory "Meet me at the van down by the river!" [encrypted with
Bob's key] → Bob
Bob thinks that this message is a secure communication from Alice.
Bob goes to the van down by the river and gets robbed by Mallory . 8
 Brute-Force attack
A brute-force attack does not depend on the specific algorithm
but depends only on bit length of the hash value .
A cryptanalysis, in contrast, is an attack based on weaknesses in a
particular cryptographic algorithm.
 PREIMAGE AND SECOND PREIMAGE ATTACKS
For a preimage or second preimage attack, an adversary wishes to
find a value such that H(y) is equal to a given hash value .The
brute-force method is to pick values of at random and try each
value until a collision occurs. For an -bit hash value, the level of
effort is proportional to Specifically, the adversary would have to
try, on average, values of y to find one that generates a given hash
value .
 COLLISION RESISTANT ATTACKS
For a collision resistant attack, an adversary wishes to find two
messages or data blocks , x and , y that yield the same hash
function: . This turns out to require considerably less effort than a
preimage or second preimage attack. if we pick data blocks at
random, we can expect to find two data blocks with the same hash
value within attempts.
 As with encryption algorithms, cryptanalytic attacks on hash
functions seek to exploit some property of the algorithm to perform
some attack other than an exhaustive search. The way to measure
the resistance of a hash algorithm to cryptanalysis is to compare its
strength to the effort required for a brute-force attack. That is, an
ideal hash algorithm will require a cryptanalytic effort greater than
or equal to the brute-force effort.
 Cryptanalysis of hash functions focuses on the internal structure
of f and is based on attempts to find efficient techniques for
producing collisions for a single execution of f.
 f consists of a series of rounds of processing, so that the attack
involves analysis of the pattern of bit changes from round to
round..
 a timing attack is one in which information about the key or the plaintext
is obtained by observing how long it takes a given implementation to
perform decryptions on various cipher texts . A timing attack exploits the
fact that an encryption or decryption algorithm often takes slightly different
amounts of time on different inputs.
 Timing attacks are applicable not just to RSA, but to other public-key
cryptography systems. This attack is alarming for two reasons: It comes from
a completely unexpected direction, and it is a ciphertext-only attack.
A timing attack guessing the combination of a safe by observing how long it
takes for someone to turn the dial from number to number.
 Although the timing atta`ck is a serious threat, there are simple
countermeasures that can be used, including the following : ( fix or resistant )
• Constant exponentiation time: Ensure that all exponentiations take the
same amount of time before returning a result .
• Random delay: Better performance could be achieved by adding a random
delay to the exponentiation algorithm to confuse the timing attack.
• Blinding: Multiply the ciphertext by a random number before performing
Exponentiation .This process prevents the attacker from knowing what
ciphertext bits are being processed inside the computer and therefore
prevents the bit-by-bit analysis essential to the timing attack.
 A brute-force attack on a MAC is a more difficult undertaking
than a brute-force attack on a hash function because it
requires known message-tag pairs.
 The attacker would like to come up with the valid MAC code
for a given message, There are two lines of attack possible:
attack the key space and attack the MAC value .
 If an attacker can determine the MAC key, then it is possible to
generate a valid MAC value for any input x .
 At least one key is guaranteed to produce the correct tag,
namely, the valid key that was initially used to produce the
known text–tag pair.
 the objective is to generate a valid tag for a given message or to
find a message that matches a given tag
As with encryption algorithms and hash functions,
cryptanalytic attacks on MAC algorithms seek to exploit
some property of the algorithm to perform some attack
other than an exhaustive search .
The way to measure the resistance of a MAC algorithm
to cryptanalysis is to compare its strength to the effort
required for a brute-force attack. That is, an ideal MAC
algorithm will require a cryptanalytic effort greater than
or equal to the brute-force effort , There is much more
variety in the structure of MACs than in hash functions,
 might think a 64-bit hash is secure
 birthday attack works thus:
 given user prepared to sign a valid message x
 opponent generates 2m/2 variations x’ of x,
all with essentially the same meaning, and
saves them
 opponent generates 2m/2 variations y’ of a
desired fraudulent message y
 two sets of messages are compared to find
pair with same hash (probability > 0.5 by
birthday paradox)
 have user sign the valid message, then
substitute the forgery which will have a valid
signature
 conclusion is that need to use larger MAC/hash
15
 Square Attack was first proposed by Daemenetal. in as a
dedicated attack on block cipher SQUARE, a forerunner
of AES. It was shown to be applicable to AES as well.
This attack consists of choosing a special set of plaintexts
and studying its propagation through the block cipher.
 The attack on AES is illustrated as follows:
 Consider a set of 28 plaintexts in which the first byte
takes all possible 256 values and the remaining bytes take
any constant value that remains same throughout the set.
 We call such a set of plaintexts as -set. The byte which
takes all possible 256 values is termed as the active byte.
Rest of the bytes are termed as passive bytes.
16
 Key-only attack: attacker only knows user’s public key.
 Known message attack: attacker is given access to a set of messages
and their signatures.
 Generic chosen message attack: attacker chooses a list of messages
before attempting to breaks user’s signature scheme, independent of user’s
public key. The attacker then obtains from a user valid signatures for the
chosen messages . The attack is generic, because it does not depend on
user’s public key; the same attack is used against everyone.
 Directed chosen message attack: Similar to the generic attack, except
that the list of messages to be signed is chosen after the attacker knows
user’s public key but before any signatures are seen.
 Adaptive chosen message attack: attacker is allowed to use user as an
“oracle.” This means the user may request signatures of messages that
depend on previously obtained message–signature pairs.
18
attackAlgorithm
Brute force , Mathematical attacks , Timing
attacks , Chosen ciphertext attacks
RSA
Differential and linear cryptanalysisDES
Meet-in-the -middle attackDouble DES
Man-in-the-Middle AttackDiffie-Hellman
Brute-Force attack , CryptanalysisHash function
Brute-Force attack , CryptanalysisMac
Key-only attack , Known message attack , Generic
chosen message attack , Directed chosen message
attack , Adaptive chosen message attack
Digital signature
Known-Plaintext AttackTriple DES
 Finding the relationship between two
quantitative variables without being able
to infer causal relationships
Correlation is a statistical technique used to
determine the degree to which two
variables are related
19
 Regression: technique concerned with
predicting some variables by knowing
others
 The process of predicting variable Y using
variable X
 Uses a variable (x) to predict some
outcome variable (y)
Tells you how values in y change as a
function of changes in values of x
20
21

More Related Content

What's hot

Public Key Encryption & Hash functions
Public Key Encryption & Hash functionsPublic Key Encryption & Hash functions
Public Key Encryption & Hash functions
Dr.Florence Dayana

Cryptography
CryptographyCryptography
Cryptography
Sidharth Mohapatra

Message Authentication
Message AuthenticationMessage Authentication
Message Authentication
chauhankapil

overview of cryptographic techniques
overview of cryptographic techniquesoverview of cryptographic techniques
overview of cryptographic techniques
Shubham Jain

Sankar jayam
Sankar jayamSankar jayam
Sankar jayam
tasankar14

Is unit 5_message authentication and hash functions
Is unit 5_message authentication and hash functionsIs unit 5_message authentication and hash functions
Is unit 5_message authentication and hash functionsSarthak Patel

MAC-Message Authentication Codes
MAC-Message Authentication CodesMAC-Message Authentication Codes
MAC-Message Authentication Codes
DarshanPatil82

Https bicycle-attack
Https bicycle-attackHttps bicycle-attack
Https bicycle-attack
Andrey Apuhtin

Cs8792 cns - unit iv
Cs8792   cns - unit ivCs8792   cns - unit iv
Cs8792 cns - unit iv
ArthyR3

Assignment 1 ns
Assignment 1 nsAssignment 1 ns
What is Cryptography?
What is Cryptography?What is Cryptography?
What is Cryptography?
Pratik Poddar

Information Security Cryptography ( L03- Old Cryptography Algorithms )
Information Security Cryptography ( L03- Old Cryptography Algorithms )Information Security Cryptography ( L03- Old Cryptography Algorithms )
Information Security Cryptography ( L03- Old Cryptography Algorithms )
Anas Rock

Cryptography Fundamentals
Cryptography FundamentalsCryptography Fundamentals
Cryptography FundamentalsDuy Do Phan

Encryption
EncryptionEncryption
Encryption
keith dias

Cryptography by Durlab Kumbhakar
Cryptography by Durlab KumbhakarCryptography by Durlab Kumbhakar
Cryptography by Durlab Kumbhakar
Durlove Kumbhakar

Hash crypto
Hash cryptoHash crypto
Hash crypto
Harry Potter


What's hot (19)

Ch11
Ch11Ch11
Ch11

Public Key Encryption & Hash functions
Public Key Encryption & Hash functionsPublic Key Encryption & Hash functions
Public Key Encryption & Hash functions

Cryptography
CryptographyCryptography
Cryptography

Message Authentication
Message AuthenticationMessage Authentication
Message Authentication

overview of cryptographic techniques
overview of cryptographic techniquesoverview of cryptographic techniques
overview of cryptographic techniques

Sankar jayam
Sankar jayamSankar jayam
Sankar jayam

Is unit 5_message authentication and hash functions
Is unit 5_message authentication and hash functionsIs unit 5_message authentication and hash functions
Is unit 5_message authentication and hash functions

Cns 1
Cns 1Cns 1
Cns 1

MAC-Message Authentication Codes
MAC-Message Authentication CodesMAC-Message Authentication Codes
MAC-Message Authentication Codes

Https bicycle-attack
Https bicycle-attackHttps bicycle-attack
Https bicycle-attack

Cs8792 cns - unit iv
Cs8792   cns - unit ivCs8792   cns - unit iv
Cs8792 cns - unit iv

Asif
AsifAsif
Asif

Assignment 1 ns
Assignment 1 nsAssignment 1 ns
Assignment 1 ns

What is Cryptography?
What is Cryptography?What is Cryptography?
What is Cryptography?

Information Security Cryptography ( L03- Old Cryptography Algorithms )
Information Security Cryptography ( L03- Old Cryptography Algorithms )Information Security Cryptography ( L03- Old Cryptography Algorithms )
Information Security Cryptography ( L03- Old Cryptography Algorithms )

Cryptography Fundamentals
Cryptography FundamentalsCryptography Fundamentals
Cryptography Fundamentals

Encryption
EncryptionEncryption
Encryption

Cryptography by Durlab Kumbhakar
Cryptography by Durlab KumbhakarCryptography by Durlab Kumbhakar
Cryptography by Durlab Kumbhakar

Hash crypto
Hash cryptoHash crypto
Hash crypto


Similar to Information and data security cryptanalysis method

Cryptanalysis and Attacks
Cryptanalysis and AttacksCryptanalysis and Attacks
Cryptanalysis and Attacks
Shahbaz Anjam

Unit-2-IS (1).pdf
Unit-2-IS (1).pdfUnit-2-IS (1).pdf
Unit-2-IS (1).pdf
ShaikSameena24

Efficient Coercion Resistant Public Key Encryption
Efficient Coercion Resistant Public Key EncryptionEfficient Coercion Resistant Public Key Encryption
Efficient Coercion Resistant Public Key Encryption
CSCJournals

Cryptography Unchained - BeeBryte (White Paper)
Cryptography Unchained - BeeBryte (White Paper) Cryptography Unchained - BeeBryte (White Paper)
Cryptography Unchained - BeeBryte (White Paper)
BeeBryte | Energy Intelligence & Automation

Network security & cryptography full notes
Network security & cryptography full notesNetwork security & cryptography full notes
Network security & cryptography full notes
gangadhar9989166446

Cryptography Unchained - BeeBryte (White Paper)
Cryptography Unchained - BeeBryte (White Paper) Cryptography Unchained - BeeBryte (White Paper)
Cryptography Unchained - BeeBryte (White Paper)
BeeBryte | Energy Intelligence & Automation

ch11.ppt
ch11.pptch11.ppt
ch11.ppt
SomuPatil8

Answer die following questions with short answers Explain the d.pdf
Answer die following questions with short answers  Explain the d.pdfAnswer die following questions with short answers  Explain the d.pdf
Answer die following questions with short answers Explain the d.pdf
calderoncasto9163

Surreptitiously weakening cryptographic systems
Surreptitiously weakening cryptographic systemsSurreptitiously weakening cryptographic systems
Surreptitiously weakening cryptographic systems
Yael Ziv

NSC_Unit-III_final.ppt
NSC_Unit-III_final.pptNSC_Unit-III_final.ppt
NSC_Unit-III_final.ppt
DrVASAVIBANDE

Crypto failures every developer should avoid
Crypto failures every developer should avoidCrypto failures every developer should avoid
Crypto failures every developer should avoid
OwaspCzech

Crypto failures every developer should avoid
Crypto failures every developer should avoidCrypto failures every developer should avoid
Crypto failures every developer should avoidFilip Šebesta

Cryptography and security
Cryptography and securityCryptography and security
Cryptography and security
research30

Unit 3
Unit 3Unit 3
Unit 3
tamil arasan

Cs8792 cns - unit iv
Cs8792   cns - unit ivCs8792   cns - unit iv
Cs8792 cns - unit iv
ArthyR3

unit 4.pptx of hash function in cryptography
unit 4.pptx of hash function in cryptographyunit 4.pptx of hash function in cryptography
unit 4.pptx of hash function in cryptography
NithyasriA2

A Robust Cryptographic System using Neighborhood-Generated Keys
A Robust Cryptographic System using Neighborhood-Generated KeysA Robust Cryptographic System using Neighborhood-Generated Keys
A Robust Cryptographic System using Neighborhood-Generated KeysIJORCS

A Robust Cryptographic System using Neighborhood-Generated Keys
A Robust Cryptographic System using Neighborhood-Generated KeysA Robust Cryptographic System using Neighborhood-Generated Keys
A Robust Cryptographic System using Neighborhood-Generated KeysIJORCS


Similar to Information and data security cryptanalysis method (20)

Cryptanalysis and Attacks
Cryptanalysis and AttacksCryptanalysis and Attacks
Cryptanalysis and Attacks

Unit-2-IS (1).pdf
Unit-2-IS (1).pdfUnit-2-IS (1).pdf
Unit-2-IS (1).pdf

Efficient Coercion Resistant Public Key Encryption
Efficient Coercion Resistant Public Key EncryptionEfficient Coercion Resistant Public Key Encryption
Efficient Coercion Resistant Public Key Encryption

Cryptography Unchained - BeeBryte (White Paper)
Cryptography Unchained - BeeBryte (White Paper) Cryptography Unchained - BeeBryte (White Paper)
Cryptography Unchained - BeeBryte (White Paper)

Network security & cryptography full notes
Network security & cryptography full notesNetwork security & cryptography full notes
Network security & cryptography full notes

Cryptography Unchained - BeeBryte (White Paper)
Cryptography Unchained - BeeBryte (White Paper) Cryptography Unchained - BeeBryte (White Paper)
Cryptography Unchained - BeeBryte (White Paper)

ch11.ppt
ch11.pptch11.ppt
ch11.ppt

Answer die following questions with short answers Explain the d.pdf
Answer die following questions with short answers  Explain the d.pdfAnswer die following questions with short answers  Explain the d.pdf
Answer die following questions with short answers Explain the d.pdf

Surreptitiously weakening cryptographic systems
Surreptitiously weakening cryptographic systemsSurreptitiously weakening cryptographic systems
Surreptitiously weakening cryptographic systems

NSC_Unit-III_final.ppt
NSC_Unit-III_final.pptNSC_Unit-III_final.ppt
NSC_Unit-III_final.ppt

1_Abstract
1_Abstract1_Abstract
1_Abstract

Crypto failures every developer should avoid
Crypto failures every developer should avoidCrypto failures every developer should avoid
Crypto failures every developer should avoid

Crypto failures every developer should avoid
Crypto failures every developer should avoidCrypto failures every developer should avoid
Crypto failures every developer should avoid

Cryptography in GSM
Cryptography in GSMCryptography in GSM
Cryptography in GSM

Cryptography and security
Cryptography and securityCryptography and security
Cryptography and security

Unit 3
Unit 3Unit 3
Unit 3

Cs8792 cns - unit iv
Cs8792   cns - unit ivCs8792   cns - unit iv
Cs8792 cns - unit iv

unit 4.pptx of hash function in cryptography
unit 4.pptx of hash function in cryptographyunit 4.pptx of hash function in cryptography
unit 4.pptx of hash function in cryptography

A Robust Cryptographic System using Neighborhood-Generated Keys
A Robust Cryptographic System using Neighborhood-Generated KeysA Robust Cryptographic System using Neighborhood-Generated Keys
A Robust Cryptographic System using Neighborhood-Generated Keys

A Robust Cryptographic System using Neighborhood-Generated Keys
A Robust Cryptographic System using Neighborhood-Generated KeysA Robust Cryptographic System using Neighborhood-Generated Keys
A Robust Cryptographic System using Neighborhood-Generated Keys


More from Mazin Alwaaly

Pattern recognition voice biometrics
Pattern recognition voice biometricsPattern recognition voice biometrics
Pattern recognition voice biometrics
Mazin Alwaaly

Pattern recognition palm print authentication system
Pattern recognition palm print authentication systemPattern recognition palm print authentication system
Pattern recognition palm print authentication system
Mazin Alwaaly

Pattern recognition on line signature
Pattern recognition on line signaturePattern recognition on line signature
Pattern recognition on line signature
Mazin Alwaaly

Pattern recognition multi biometrics using face and ear
Pattern recognition multi biometrics using face and earPattern recognition multi biometrics using face and ear
Pattern recognition multi biometrics using face and ear
Mazin Alwaaly

Pattern recognition IRIS recognition
Pattern recognition IRIS recognitionPattern recognition IRIS recognition
Pattern recognition IRIS recognition
Mazin Alwaaly

Pattern recognition hand vascular pattern recognition
Pattern recognition hand vascular pattern recognitionPattern recognition hand vascular pattern recognition
Pattern recognition hand vascular pattern recognition
Mazin Alwaaly

Pattern recognition Hand Geometry
Pattern recognition Hand GeometryPattern recognition Hand Geometry
Pattern recognition Hand Geometry
Mazin Alwaaly

Pattern recognition forensic dental identification
Pattern recognition forensic dental identificationPattern recognition forensic dental identification
Pattern recognition forensic dental identification
Mazin Alwaaly

Pattern recognition fingerprints
Pattern recognition fingerprintsPattern recognition fingerprints
Pattern recognition fingerprints
Mazin Alwaaly

Pattern recognition facial recognition
Pattern recognition facial recognitionPattern recognition facial recognition
Pattern recognition facial recognition
Mazin Alwaaly

Pattern recognition ear as a biometric
Pattern recognition ear as a biometricPattern recognition ear as a biometric
Pattern recognition ear as a biometric
Mazin Alwaaly

Pattern recognition 3d face recognition
Pattern recognition 3d face recognitionPattern recognition 3d face recognition
Pattern recognition 3d face recognition
Mazin Alwaaly

Multimedia multimedia over wireless and mobile networks
Multimedia multimedia over wireless and mobile networksMultimedia multimedia over wireless and mobile networks
Multimedia multimedia over wireless and mobile networks
Mazin Alwaaly

Multimedia network services and protocols for multimedia communications
Multimedia network services and protocols for multimedia communicationsMultimedia network services and protocols for multimedia communications
Multimedia network services and protocols for multimedia communications
Mazin Alwaaly

Multimedia content based retrieval in digital libraries
Multimedia content based retrieval in digital librariesMultimedia content based retrieval in digital libraries
Multimedia content based retrieval in digital libraries
Mazin Alwaaly

Multimedia lossy compression algorithms
Multimedia lossy compression algorithmsMultimedia lossy compression algorithms
Multimedia lossy compression algorithms
Mazin Alwaaly

Multimedia lossless compression algorithms
Multimedia lossless compression algorithmsMultimedia lossless compression algorithms
Multimedia lossless compression algorithms
Mazin Alwaaly

Multimedia basic video compression techniques
Multimedia basic video compression techniquesMultimedia basic video compression techniques
Multimedia basic video compression techniques
Mazin Alwaaly

Multimedia image compression standards
Multimedia image compression standardsMultimedia image compression standards
Multimedia image compression standards
Mazin Alwaaly

Multimedia fundamental concepts in video
Multimedia fundamental concepts in videoMultimedia fundamental concepts in video
Multimedia fundamental concepts in video
Mazin Alwaaly


More from Mazin Alwaaly (20)

Pattern recognition voice biometrics
Pattern recognition voice biometricsPattern recognition voice biometrics
Pattern recognition voice biometrics

Pattern recognition palm print authentication system
Pattern recognition palm print authentication systemPattern recognition palm print authentication system
Pattern recognition palm print authentication system

Pattern recognition on line signature
Pattern recognition on line signaturePattern recognition on line signature
Pattern recognition on line signature

Pattern recognition multi biometrics using face and ear
Pattern recognition multi biometrics using face and earPattern recognition multi biometrics using face and ear
Pattern recognition multi biometrics using face and ear

Pattern recognition IRIS recognition
Pattern recognition IRIS recognitionPattern recognition IRIS recognition
Pattern recognition IRIS recognition

Pattern recognition hand vascular pattern recognition
Pattern recognition hand vascular pattern recognitionPattern recognition hand vascular pattern recognition
Pattern recognition hand vascular pattern recognition

Pattern recognition Hand Geometry
Pattern recognition Hand GeometryPattern recognition Hand Geometry
Pattern recognition Hand Geometry

Pattern recognition forensic dental identification
Pattern recognition forensic dental identificationPattern recognition forensic dental identification
Pattern recognition forensic dental identification

Pattern recognition fingerprints
Pattern recognition fingerprintsPattern recognition fingerprints
Pattern recognition fingerprints

Pattern recognition facial recognition
Pattern recognition facial recognitionPattern recognition facial recognition
Pattern recognition facial recognition

Pattern recognition ear as a biometric
Pattern recognition ear as a biometricPattern recognition ear as a biometric
Pattern recognition ear as a biometric

Pattern recognition 3d face recognition
Pattern recognition 3d face recognitionPattern recognition 3d face recognition
Pattern recognition 3d face recognition

Multimedia multimedia over wireless and mobile networks
Multimedia multimedia over wireless and mobile networksMultimedia multimedia over wireless and mobile networks
Multimedia multimedia over wireless and mobile networks

Multimedia network services and protocols for multimedia communications
Multimedia network services and protocols for multimedia communicationsMultimedia network services and protocols for multimedia communications
Multimedia network services and protocols for multimedia communications

Multimedia content based retrieval in digital libraries
Multimedia content based retrieval in digital librariesMultimedia content based retrieval in digital libraries
Multimedia content based retrieval in digital libraries

Multimedia lossy compression algorithms
Multimedia lossy compression algorithmsMultimedia lossy compression algorithms
Multimedia lossy compression algorithms

Multimedia lossless compression algorithms
Multimedia lossless compression algorithmsMultimedia lossless compression algorithms
Multimedia lossless compression algorithms

Multimedia basic video compression techniques
Multimedia basic video compression techniquesMultimedia basic video compression techniques
Multimedia basic video compression techniques

Multimedia image compression standards
Multimedia image compression standardsMultimedia image compression standards
Multimedia image compression standards

Multimedia fundamental concepts in video
Multimedia fundamental concepts in videoMultimedia fundamental concepts in video
Multimedia fundamental concepts in video


Recently uploaded

GBSN - Microbiology (Lab 4) Culture Media
GBSN - Microbiology (Lab 4) Culture MediaGBSN - Microbiology (Lab 4) Culture Media
GBSN - Microbiology (Lab 4) Culture Media
Areesha Ahmad

Richard's aventures in two entangled wonderlands
Richard's aventures in two entangled wonderlandsRichard's aventures in two entangled wonderlands
Richard's aventures in two entangled wonderlands
Richard Gill

general properties of oerganologametal.ppt
general properties of oerganologametal.pptgeneral properties of oerganologametal.ppt
general properties of oerganologametal.ppt
IqrimaNabilatulhusni

Toxic effects of heavy metals : Lead and Arsenic
Toxic effects of heavy metals : Lead and ArsenicToxic effects of heavy metals : Lead and Arsenic
Toxic effects of heavy metals : Lead and Arsenic
sanjana502982

Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Sérgio Sacani

Deep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless ReproducibilityDeep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless Reproducibility
University of Rennes, INSA Rennes, Inria/IRISA, CNRS

Phenomics assisted breeding in crop improvement
Phenomics assisted breeding in crop improvementPhenomics assisted breeding in crop improvement
Phenomics assisted breeding in crop improvement
IshaGoswami9

platelets_clotting_biogenesis.clot retractionpptx
platelets_clotting_biogenesis.clot retractionpptxplatelets_clotting_biogenesis.clot retractionpptx
platelets_clotting_biogenesis.clot retractionpptx
muralinath2

GBSN- Microbiology (Lab 3) Gram Staining
GBSN- Microbiology (Lab 3) Gram StainingGBSN- Microbiology (Lab 3) Gram Staining
GBSN- Microbiology (Lab 3) Gram Staining
Areesha Ahmad

Lateral Ventricles.pdf very easy good diagrams comprehensive
Lateral Ventricles.pdf very easy good diagrams comprehensiveLateral Ventricles.pdf very easy good diagrams comprehensive
Lateral Ventricles.pdf very easy good diagrams comprehensive
silvermistyshot

Seminar of U.V. Spectroscopy by SAMIR PANDA
 Seminar of U.V. Spectroscopy by SAMIR PANDA Seminar of U.V. Spectroscopy by SAMIR PANDA
Seminar of U.V. Spectroscopy by SAMIR PANDA
SAMIR PANDA

DMARDs Pharmacolgy Pharm D 5th Semester.pdf
DMARDs Pharmacolgy Pharm D 5th Semester.pdfDMARDs Pharmacolgy Pharm D 5th Semester.pdf
DMARDs Pharmacolgy Pharm D 5th Semester.pdf
fafyfskhan251kmf

What is greenhouse gasses and how many gasses are there to affect the Earth.
What is greenhouse gasses and how many gasses are there to affect the Earth.What is greenhouse gasses and how many gasses are there to affect the Earth.
What is greenhouse gasses and how many gasses are there to affect the Earth.
moosaasad1975

Nucleic Acid-its structural and functional complexity.
Nucleic Acid-its structural and functional complexity.Nucleic Acid-its structural and functional complexity.
Nucleic Acid-its structural and functional complexity.
Nistarini College, Purulia (W.B) India

3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
3D Hybrid PIC simulation of the plasma expansion (ISSS-14)3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
David Osipyan

bordetella pertussis.................................ppt
bordetella pertussis.................................pptbordetella pertussis.................................ppt
bordetella pertussis.................................ppt
kejapriya1

Deep Behavioral Phenotyping in Systems Neuroscience for Functional Atlasing a...
Deep Behavioral Phenotyping in Systems Neuroscience for Functional Atlasing a...Deep Behavioral Phenotyping in Systems Neuroscience for Functional Atlasing a...
Deep Behavioral Phenotyping in Systems Neuroscience for Functional Atlasing a...
Ana Luísa Pinho

Introduction to Mean Field Theory(MFT).pptx
Introduction to Mean Field Theory(MFT).pptxIntroduction to Mean Field Theory(MFT).pptx
Introduction to Mean Field Theory(MFT).pptx
zeex60

nodule formation by alisha dewangan.pptx
nodule formation by alisha dewangan.pptxnodule formation by alisha dewangan.pptx
nodule formation by alisha dewangan.pptx
alishadewangan1

role of pramana in research.pptx in science
role of pramana in research.pptx in sciencerole of pramana in research.pptx in science
role of pramana in research.pptx in science
sonaliswain16


Recently uploaded (20)

GBSN - Microbiology (Lab 4) Culture Media
GBSN - Microbiology (Lab 4) Culture MediaGBSN - Microbiology (Lab 4) Culture Media
GBSN - Microbiology (Lab 4) Culture Media

Richard's aventures in two entangled wonderlands
Richard's aventures in two entangled wonderlandsRichard's aventures in two entangled wonderlands
Richard's aventures in two entangled wonderlands

general properties of oerganologametal.ppt
general properties of oerganologametal.pptgeneral properties of oerganologametal.ppt
general properties of oerganologametal.ppt

Toxic effects of heavy metals : Lead and Arsenic
Toxic effects of heavy metals : Lead and ArsenicToxic effects of heavy metals : Lead and Arsenic
Toxic effects of heavy metals : Lead and Arsenic

Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...
Observation of Io’s Resurfacing via Plume Deposition Using Ground-based Adapt...

Deep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless ReproducibilityDeep Software Variability and Frictionless Reproducibility
Deep Software Variability and Frictionless Reproducibility

Phenomics assisted breeding in crop improvement
Phenomics assisted breeding in crop improvementPhenomics assisted breeding in crop improvement
Phenomics assisted breeding in crop improvement

platelets_clotting_biogenesis.clot retractionpptx
platelets_clotting_biogenesis.clot retractionpptxplatelets_clotting_biogenesis.clot retractionpptx
platelets_clotting_biogenesis.clot retractionpptx

GBSN- Microbiology (Lab 3) Gram Staining
GBSN- Microbiology (Lab 3) Gram StainingGBSN- Microbiology (Lab 3) Gram Staining
GBSN- Microbiology (Lab 3) Gram Staining

Lateral Ventricles.pdf very easy good diagrams comprehensive
Lateral Ventricles.pdf very easy good diagrams comprehensiveLateral Ventricles.pdf very easy good diagrams comprehensive
Lateral Ventricles.pdf very easy good diagrams comprehensive

Seminar of U.V. Spectroscopy by SAMIR PANDA
 Seminar of U.V. Spectroscopy by SAMIR PANDA Seminar of U.V. Spectroscopy by SAMIR PANDA
Seminar of U.V. Spectroscopy by SAMIR PANDA

DMARDs Pharmacolgy Pharm D 5th Semester.pdf
DMARDs Pharmacolgy Pharm D 5th Semester.pdfDMARDs Pharmacolgy Pharm D 5th Semester.pdf
DMARDs Pharmacolgy Pharm D 5th Semester.pdf

What is greenhouse gasses and how many gasses are there to affect the Earth.
What is greenhouse gasses and how many gasses are there to affect the Earth.What is greenhouse gasses and how many gasses are there to affect the Earth.
What is greenhouse gasses and how many gasses are there to affect the Earth.

Nucleic Acid-its structural and functional complexity.
Nucleic Acid-its structural and functional complexity.Nucleic Acid-its structural and functional complexity.
Nucleic Acid-its structural and functional complexity.

3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
3D Hybrid PIC simulation of the plasma expansion (ISSS-14)3D Hybrid PIC simulation of the plasma expansion (ISSS-14)
3D Hybrid PIC simulation of the plasma expansion (ISSS-14)

bordetella pertussis.................................ppt
bordetella pertussis.................................pptbordetella pertussis.................................ppt
bordetella pertussis.................................ppt

Deep Behavioral Phenotyping in Systems Neuroscience for Functional Atlasing a...
Deep Behavioral Phenotyping in Systems Neuroscience for Functional Atlasing a...Deep Behavioral Phenotyping in Systems Neuroscience for Functional Atlasing a...
Deep Behavioral Phenotyping in Systems Neuroscience for Functional Atlasing a...

Introduction to Mean Field Theory(MFT).pptx
Introduction to Mean Field Theory(MFT).pptxIntroduction to Mean Field Theory(MFT).pptx
Introduction to Mean Field Theory(MFT).pptx

nodule formation by alisha dewangan.pptx
nodule formation by alisha dewangan.pptxnodule formation by alisha dewangan.pptx
nodule formation by alisha dewangan.pptx

role of pramana in research.pptx in science
role of pramana in research.pptx in sciencerole of pramana in research.pptx in science
role of pramana in research.pptx in science


Information and data security cryptanalysis method

  • 2.  Passive attacks are in the nature of eavesdropping on, or monitoring of, transmissions.  The goal of the opponent is to obtain information that is being transmitted.  Two types of passive attacks are the release of message contents and traffic analysis.  Active attacks involve some modification of the data stream or the creation of a false stream and can be subdivided into four categories: masquerade, replay, modification of messages, and denial of service. 2
  • 3.  Differential cryptanalysis is a general form of cryptanalysis applicable primarily to block ciphers, but also to stream ciphers and cryptographic hash functions.  Differential attack is a chosen-plaintext attack .  can successfully cryptanalyze DES with an effort on the  order of  The main difference from linear attack is that differential attack involves comparing the XOR of two inputs to the XOR of the corresponding outputs .  This difference provide information that can be used to determine the key .
  • 4. 4  linear cryptanalysis is a general form of cryptanalysis based on finding affine approximations to the action of a cipher Attacks have been developed for block ciphers and stream ciphers. Linear cryptanalysis is one of the two most widely used attacks on block ciphers  Linear Cryptanalysis is (known plaintext attack).  This method can find a DES key given known plaintexts .  Although this is a minor improvement, because it may be easier to acquire known plaintext rather than chosen plaintext, it still leaves linear cryptanalysis infeasible
  • 5.  Meet-in-the-middle attack is performed on two blocks of known ( plaintext–ciphertext ) , the probability that the correct keys are determined . The meet-in-the-middle attack targets block cipher cryptographic functions ( double DES ) .  The name for this exploit comes from the method. Because the attacker tries to break the two-part encryption method from both sides , a successful effort enables him to meet in the middle of the block cipher.  Meet-in-the-middle is a passive attack, which means that although the intruder can access messages, in most situations he can not alter them or send his own.
  • 6.  is an attack where the attacker secretly relays and possibly alters the communication between two parties who believe they are directly communicating with each other. A man-in-the-middle attack can be used against many cryptographic protocols. One example of man-in- the-middle attacks is active eavesdropping, in which the attacker makes independent connections with the victims and relays messages between them to make them believe they are talking directly to each other over a private connection, when in fact the entire conversation is controlled by the attacker. The attacker must be able to intercept all relevant messages passing between the two victims and inject new ones. This is straightforward in many circumstances; 6
  • 7. 7
  • 8. Alice sends a message to Bob, which is intercepted by Mallory: Alice "Hi Bob, it's Alice. Give me your key.“ → Mallory Bob Mallory relays this message to Bob; Bob cannot tell it is not really from Alice: Alice Mallory "Hi Bob, it's Alice. Give me your key." → Bob Bob responds with his encryption key: Alice Mallory ← [Bob's key] Bob Mallory replaces Bob's key with her own, and relays this to Alice, claiming that it is Bob's key: Alice ← [Mallory's key] Mallory Bob Alice encrypts a message with what she believes to be Bob's key, thinking that only Bob can read it: Alice "Meet me at the bus stop!" [encrypted with Mallory's key] → Mallory Bob However, because it was actually encrypted with Mallory's key, Mallory can decrypt it, read it, modify it (if desired), re-encrypt with Bob's key, and forward it to Bob : Alice Mallory "Meet me at the van down by the river!" [encrypted with Bob's key] → Bob Bob thinks that this message is a secure communication from Alice. Bob goes to the van down by the river and gets robbed by Mallory . 8
  • 9.  Brute-Force attack A brute-force attack does not depend on the specific algorithm but depends only on bit length of the hash value . A cryptanalysis, in contrast, is an attack based on weaknesses in a particular cryptographic algorithm.  PREIMAGE AND SECOND PREIMAGE ATTACKS For a preimage or second preimage attack, an adversary wishes to find a value such that H(y) is equal to a given hash value .The brute-force method is to pick values of at random and try each value until a collision occurs. For an -bit hash value, the level of effort is proportional to Specifically, the adversary would have to try, on average, values of y to find one that generates a given hash value .
  • 10.  COLLISION RESISTANT ATTACKS For a collision resistant attack, an adversary wishes to find two messages or data blocks , x and , y that yield the same hash function: . This turns out to require considerably less effort than a preimage or second preimage attack. if we pick data blocks at random, we can expect to find two data blocks with the same hash value within attempts.
  • 11.  As with encryption algorithms, cryptanalytic attacks on hash functions seek to exploit some property of the algorithm to perform some attack other than an exhaustive search. The way to measure the resistance of a hash algorithm to cryptanalysis is to compare its strength to the effort required for a brute-force attack. That is, an ideal hash algorithm will require a cryptanalytic effort greater than or equal to the brute-force effort.  Cryptanalysis of hash functions focuses on the internal structure of f and is based on attempts to find efficient techniques for producing collisions for a single execution of f.  f consists of a series of rounds of processing, so that the attack involves analysis of the pattern of bit changes from round to round..
  • 12.  a timing attack is one in which information about the key or the plaintext is obtained by observing how long it takes a given implementation to perform decryptions on various cipher texts . A timing attack exploits the fact that an encryption or decryption algorithm often takes slightly different amounts of time on different inputs.  Timing attacks are applicable not just to RSA, but to other public-key cryptography systems. This attack is alarming for two reasons: It comes from a completely unexpected direction, and it is a ciphertext-only attack. A timing attack guessing the combination of a safe by observing how long it takes for someone to turn the dial from number to number.  Although the timing atta`ck is a serious threat, there are simple countermeasures that can be used, including the following : ( fix or resistant ) • Constant exponentiation time: Ensure that all exponentiations take the same amount of time before returning a result . • Random delay: Better performance could be achieved by adding a random delay to the exponentiation algorithm to confuse the timing attack. • Blinding: Multiply the ciphertext by a random number before performing Exponentiation .This process prevents the attacker from knowing what ciphertext bits are being processed inside the computer and therefore prevents the bit-by-bit analysis essential to the timing attack.
  • 13.  A brute-force attack on a MAC is a more difficult undertaking than a brute-force attack on a hash function because it requires known message-tag pairs.  The attacker would like to come up with the valid MAC code for a given message, There are two lines of attack possible: attack the key space and attack the MAC value .  If an attacker can determine the MAC key, then it is possible to generate a valid MAC value for any input x .  At least one key is guaranteed to produce the correct tag, namely, the valid key that was initially used to produce the known text–tag pair.  the objective is to generate a valid tag for a given message or to find a message that matches a given tag
  • 14. As with encryption algorithms and hash functions, cryptanalytic attacks on MAC algorithms seek to exploit some property of the algorithm to perform some attack other than an exhaustive search . The way to measure the resistance of a MAC algorithm to cryptanalysis is to compare its strength to the effort required for a brute-force attack. That is, an ideal MAC algorithm will require a cryptanalytic effort greater than or equal to the brute-force effort , There is much more variety in the structure of MACs than in hash functions,
  • 15.  might think a 64-bit hash is secure  birthday attack works thus:  given user prepared to sign a valid message x  opponent generates 2m/2 variations x’ of x, all with essentially the same meaning, and saves them  opponent generates 2m/2 variations y’ of a desired fraudulent message y  two sets of messages are compared to find pair with same hash (probability > 0.5 by birthday paradox)  have user sign the valid message, then substitute the forgery which will have a valid signature  conclusion is that need to use larger MAC/hash 15
  • 16.  Square Attack was first proposed by Daemenetal. in as a dedicated attack on block cipher SQUARE, a forerunner of AES. It was shown to be applicable to AES as well. This attack consists of choosing a special set of plaintexts and studying its propagation through the block cipher.  The attack on AES is illustrated as follows:  Consider a set of 28 plaintexts in which the first byte takes all possible 256 values and the remaining bytes take any constant value that remains same throughout the set.  We call such a set of plaintexts as -set. The byte which takes all possible 256 values is termed as the active byte. Rest of the bytes are termed as passive bytes. 16
  • 17.  Key-only attack: attacker only knows user’s public key.  Known message attack: attacker is given access to a set of messages and their signatures.  Generic chosen message attack: attacker chooses a list of messages before attempting to breaks user’s signature scheme, independent of user’s public key. The attacker then obtains from a user valid signatures for the chosen messages . The attack is generic, because it does not depend on user’s public key; the same attack is used against everyone.  Directed chosen message attack: Similar to the generic attack, except that the list of messages to be signed is chosen after the attacker knows user’s public key but before any signatures are seen.  Adaptive chosen message attack: attacker is allowed to use user as an “oracle.” This means the user may request signatures of messages that depend on previously obtained message–signature pairs.
  • 18. 18 attackAlgorithm Brute force , Mathematical attacks , Timing attacks , Chosen ciphertext attacks RSA Differential and linear cryptanalysisDES Meet-in-the -middle attackDouble DES Man-in-the-Middle AttackDiffie-Hellman Brute-Force attack , CryptanalysisHash function Brute-Force attack , CryptanalysisMac Key-only attack , Known message attack , Generic chosen message attack , Directed chosen message attack , Adaptive chosen message attack Digital signature Known-Plaintext AttackTriple DES
  • 19.  Finding the relationship between two quantitative variables without being able to infer causal relationships Correlation is a statistical technique used to determine the degree to which two variables are related 19
  • 20.  Regression: technique concerned with predicting some variables by knowing others  The process of predicting variable Y using variable X  Uses a variable (x) to predict some outcome variable (y) Tells you how values in y change as a function of changes in values of x 20
  • 21. 21
