1. Crypto failures every
developer should avoid
FILIP ŠEBESTA - OWASP CZECH CHAPTER MEETING - PRAGUE
DECEMBER 7 2015

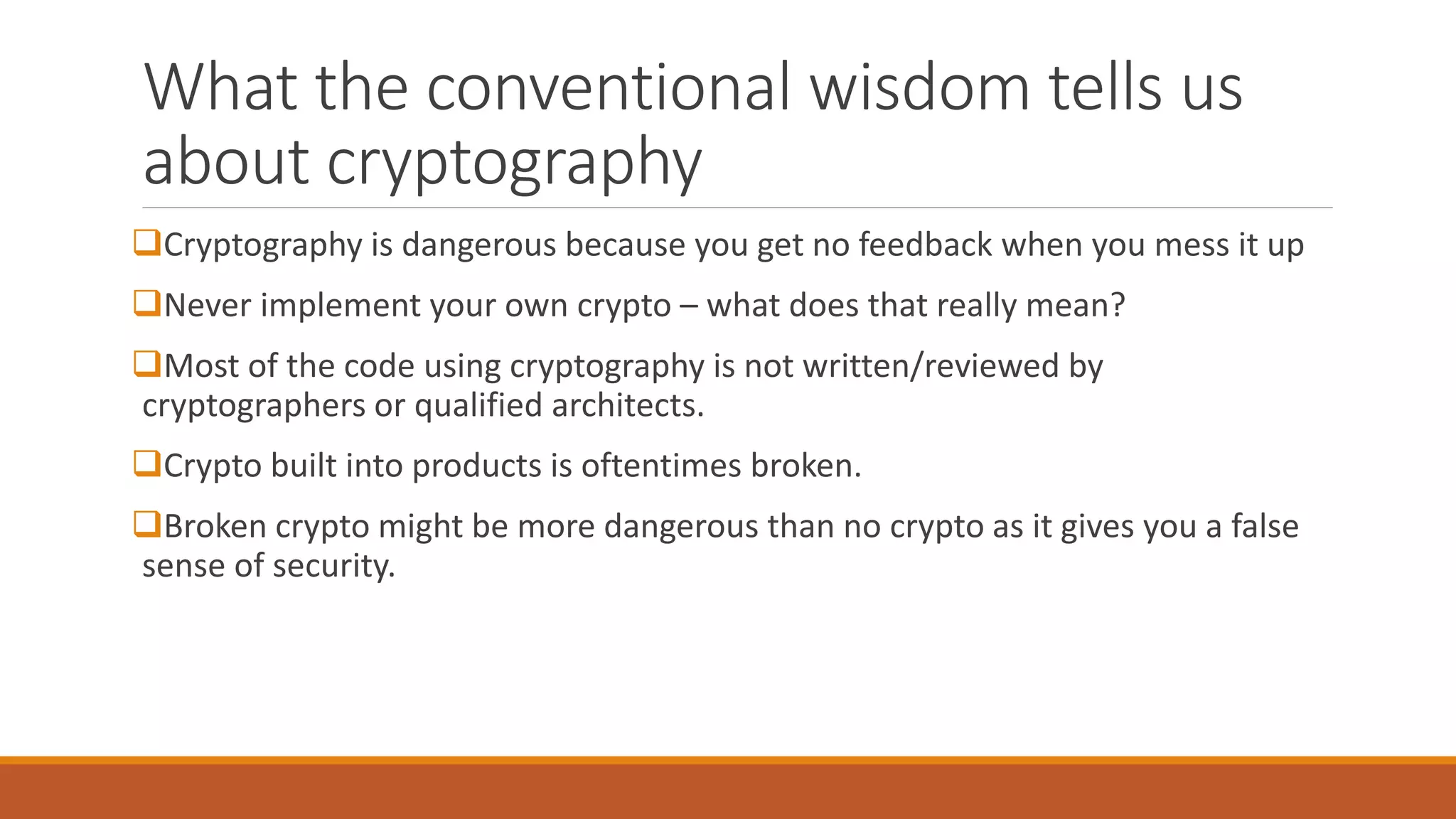

2. What the conventional wisdom tells us
about cryptography
Cryptography is dangerous because you get no feedback when you mess it up
Never implement your own crypto – what does that really mean?
Most of the code using cryptography is not written/reviewed by
cryptographers or qualified architects.
Crypto built into products is oftentimes broken.
Broken crypto might be more dangerous than no crypto as it gives you a false
sense of security.

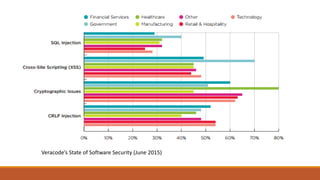

3. Veracode’s State of Software Security (June 2015)

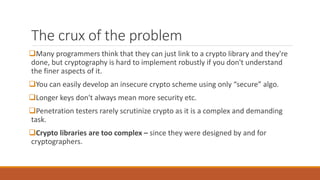

4. The crux of the problem
Many programmers think that they can just link to a crypto library and they're
done, but cryptography is hard to implement robustly if you don't understand
the finer aspects of it.
You can easily develop an insecure crypto scheme using only “secure” algo.
Longer keys don't always mean more security etc.
Penetration testers rarely scrutinize crypto as it is a complex and demanding
task.
Crypto libraries are too complex – since they were designed by and for
cryptographers.

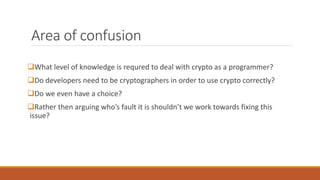

5. Area of confusion
What level of knowledge is requred to deal with crypto as a programmer?
Do developers need to be cryptographers in order to use crypto correctly?
Do we even have a choice?
Rather then arguing who’s fault it is shouldn’t we work towards fixing this
issue?

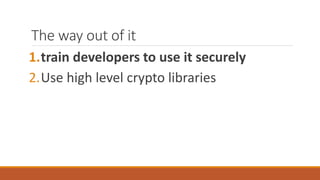

6. The way out of it
1.train developers to use it securely
2.Use high level crypto libraries

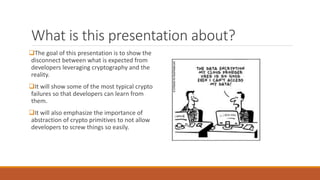

7. What is this presentation about?
The goal of this presentation is to show the
disconnect between what is expected from
developers leveraging cryptography and the
reality.
It will show some of the most typical crypto
failures so that developers can learn from
them.
It will also emphasize the importance of
abstraction of crypto primitives to not allow
developers to screw things so easily.

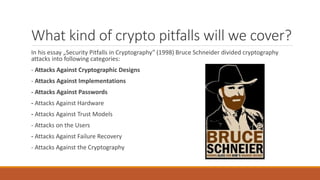

8. What kind of crypto pitfalls will we cover?
In his essay „Security Pitfalls in Cryptography” (1998) Bruce Schneider divided cryptography
attacks into following categories:
- Attacks Against Cryptographic Designs
- Attacks Against Implementations
- Attacks Against Passwords
- Attacks Against Hardware
- Attacks Against Trust Models
- Attacks on the Users
- Attacks Against Failure Recovery
- Attacks Against the Cryptography

9. Failure #1 – Improper password storage

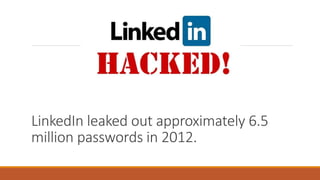

10. LinkedIn leaked out approximately 6.5
million passwords in 2012.

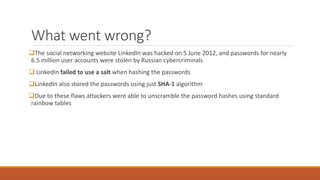

11. What went wrong?
The social networking website LinkedIn was hacked on 5 June 2012, and passwords for nearly
6.5 million user accounts were stolen by Russian cybercriminals
 LinkedIn failed to use a salt when hashing the passwords
LinkedIn also stored the passwords using just SHA-1 algorithm
Due to these flaws attackers were able to unscramble the password hashes using standard
rainbow tables

12. Ashley Madison Leak

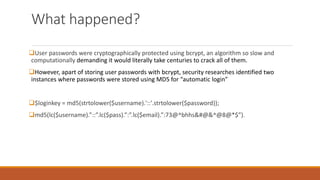

13. What happened?
User passwords were cryptographically protected using bcrypt, an algorithm so slow and
computationally demanding it would literally take centuries to crack all of them.
However, apart of storing user passwords with bcrypt, security researches identified two
instances where passwords were stored using MD5 for “automatic login”
$loginkey = md5(strtolower($username).'::'.strtolower($password));
md5(lc($username).”::”.lc($pass).”:”.lc($email).”:73@^bhhs&#@&^@8@*$”).

15. The right way to do it
Never store passwords in plaintext (obviously)
Never store hashed passwords without using a unique salt (ideally a random one sufficiently long)
Use a cryptographically secure & slow hash functions (PBKDF2, bcrypt, scrypt). Apply a sufficient number of iterations.
Slow hashing is desirable as it makes processing of a single password more expensive for the attacker
PBKDF2: good enough but can be optimized with GPU
bcrypt: less GPU friendly then PBKDF2 but vulnerable to brute-forcing using Field-Programmable Gate Arrays (FPGAs) with
relatively small SRAM
scrypt: requires not only exponential time but also exponential memory
however doesn’t have a cryptanalytic pedigree required to gain most cryptographers' trust
Do not allow users to use weak passwords. Even with the strongest crypto, weak passwords are easy to crack.
As soon as you receive a password, remove it from memory.

16. High level approach example
string password_hash ( string $password , integer $algo [, array $options ] )
password_hash() creates a new password hash using a strong one-way hashing algorithm.
Uses bcrypt or PASSWORD_DEFAULT (a constatnt which may change in time)
Options Cost and Salt are secure by default
http://php.net/manual/en/function.password-hash.php

17. Failure #2 Improper use of hash
functions
It’s 2015 and developers still use MD5
SHA- 1 has been considered insecure for long time, yet it still used widely.
Comparing hashes also causes problems – timing attacks
Using certain hash functions for what they are not might also cause issues e.g. length extension
attacks

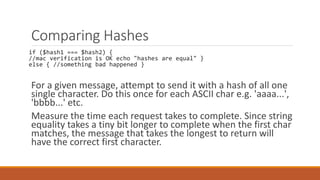

18. Comparing Hashes
if ($hash1 === $hash2) {
//mac verification is OK echo "hashes are equal" }
else { //something bad happened }
For a given message, attempt to send it with a hash of all one
single character. Do this once for each ASCII char e.g. 'aaaa...',
'bbbb...' etc.
Measure the time each request takes to complete. Since string
equality takes a tiny bit longer to complete when the first char
matches, the message that takes the longest to return will
have the correct first character.

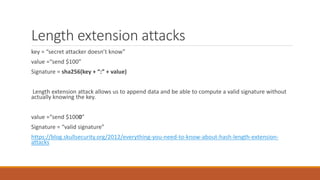

19. Length extension attacks
key = “secret attacker doesn’t know”
value =“send $100”
Signature = sha256(key + “:” + value)
Length extension attack allows us to append data and be able to compute a valid signature without
actually knowing the key.
value =“send $1000”
Signature = “valid signature”
https://blog.skullsecurity.org/2012/everything-you-need-to-know-about-hash-length-extension-
attacks

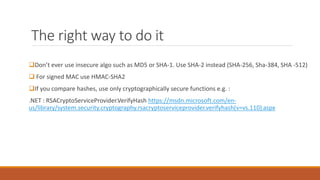

20. The right way to do it
Don’t ever use insecure algo such as MD5 or SHA-1. Use SHA-2 instead (SHA-256, Sha-384, SHA -512)
 For signed MAC use HMAC-SHA2
If you compare hashes, use only cryptographically secure functions e.g. :
.NET : RSACryptoServiceProvider.VerifyHash https://msdn.microsoft.com/en-
us/library/system.security.cryptography.rsacryptoserviceprovider.verifyhash(v=vs.110).aspx

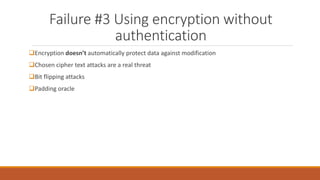

21. Failure #3 Using encryption without
authentication
Encryption doesn’t automatically protect data against modification
Chosen cipher text attacks are a real threat
Bit flipping attacks
Padding oracle

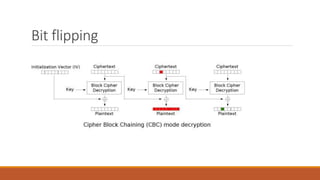

23. Bit flipping

24. Padding oracle
Frequently present in web applications
Occurs when a web service reveals whether there was a padding or integrity error when
decryption (can be also base on timing)
If you can feed in ciphertexts and somehow find out whether or not they decrypt to something
with valid padding or not, then you can decrypt ANY given ciphertext.
Typical scenario : Using AES in CBC mode where have a ciphertext encrypted by a web service.
POODLE

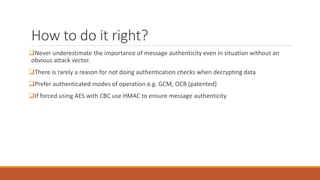

25. How to do it right?
Never underestimate the importance of message authenticity even in situation without an
obvious attack vector.
There is rarely a reason for not doing authentication checks when decrypting data
Prefer authenticated modes of operation e.g. GCM, OCB (patented)
If forced using AES with CBC use HMAC to ensure message authenticity

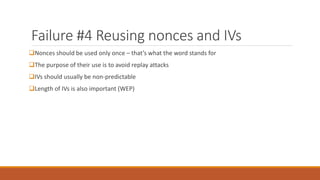

26. Failure #4 Reusing nonces and IVs
Nonces should be used only once – that’s what the word stands for
The purpose of their use is to avoid replay attacks
IVs should usually be non-predictable
Length of IVs is also important (WEP)

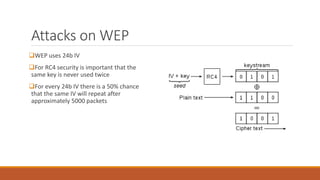

27. Attacks on WEP
WEP uses 24b IV
For RC4 security is important that the
same key is never used twice
For every 24b IV there is a 50% chance
that the same IV will repeat after
approximately 5000 packets

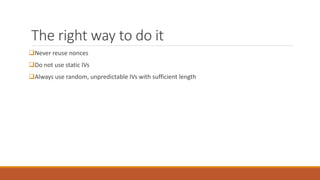

28. The right way to do it
Never reuse nonces
Do not use static IVs
Always use random, unpredictable IVs with sufficient length

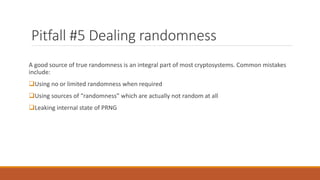

29. Pitfall #5 Dealing randomness
A good source of true randomness is an integral part of most cryptosystems. Common mistakes
include:
Using no or limited randomness when required
Using sources of “randomness” which are actually not random at all
Leaking internal state of PRNG

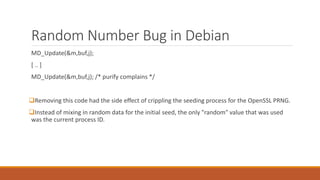

30. Random Number Bug in Debian
MD_Update(&m,buf,j);
[ .. ]
MD_Update(&m,buf,j); /* purify complains */
Removing this code had the side effect of crippling the seeding process for the OpenSSL PRNG.
Instead of mixing in random data for the initial seed, the only "random" value that was used
was the current process ID.

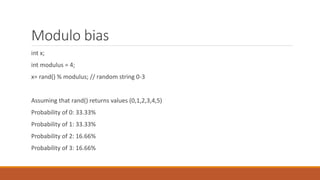

32. Modulo bias
int x;
int modulus = 4;
x= rand() % modulus; // random string 0-3
Assuming that rand() returns values (0,1,2,3,4,5)
Probability of 0: 33.33%
Probability of 1: 33.33%
Probability of 2: 16.66%
Probability of 3: 16.66%

33. Modulo bias #2
You will get modulo bias if max(rand()) + 1 is not evenly divisible by your modulus.
int excess = (RAND_MAX + 1) % modulus;
int limit = RAND_MAX - excess;
while (x = rand() > limit) {};
return x % modulus;

34. The right way to do it
.NET : https://msdn.microsoft.com/en-
us/library/system.security.cryptography.randomnumbergenerator
C++ (Windows): CryptGenRandom function in MS-CAPI https://msdn.microsoft.com/en-
us/library/windows/desktop/aa379942(v=vs.85).aspx
Linux: read from /dev/urandom
recommended reading: http://www.2uo.de/myths-about-urandom/

35. Failure #6 SSL/TLS Certificates
Using TLS in non-browser software is a challenging task
Using standard SSL/TLS libraries is not enough
Certificate validation is sometimes completely disabled
Certificate revocation check is oftentimes missing
Full chain check is sometimes not complete
Subject is sometimes not verified at all!

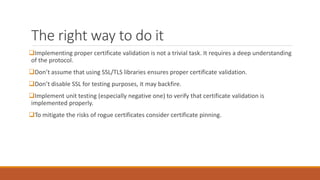

37. The right way to do it
Implementing proper certificate validation is not a trivial task. It requires a deep understanding
of the protocol.
Don’t assume that using SSL/TLS libraries ensures proper certificate validation.
Don’t disable SSL for testing purposes, it may backfire.
Implement unit testing (especially negative one) to verify that certificate validation is
implemented properly.
To mitigate the risks of rogue certificates consider certificate pinning.

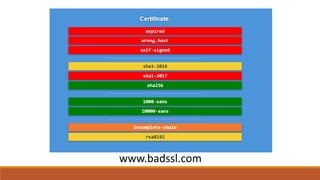

38. www.badssl.com

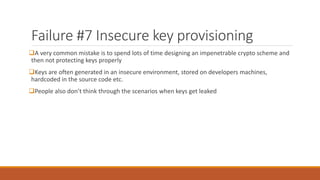

40. Failure #7 Insecure key provisioning
A very common mistake is to spend lots of time designing an impenetrable crypto scheme and
then not protecting keys properly
Keys are often generated in an insecure environment, stored on developers machines,
hardcoded in the source code etc.
People also don’t think through the scenarios when keys get leaked

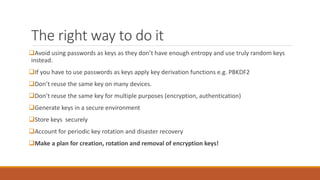

42. The right way to do it
Avoid using passwords as keys as they don’t have enough entropy and use truly random keys
instead.
If you have to use passwords as keys apply key derivation functions e.g. PBKDF2
Don’t reuse the same key on many devices.
Don’t reuse the same key for multiple purposes (encryption, authentication)
Generate keys in a secure environment
Store keys securely
Account for periodic key rotation and disaster recovery
Make a plan for creation, rotation and removal of encryption keys!

43. Takeaways
Never implement your own crypto primitives
Never leverage cryptography if you don’t understand it’s fundamentals
Learn the fundamentals!
Avoid using low level crypto libraries (OpenSSL, Bouncy Castle, Java JCE, PyCrypto) unless you
are a pro
 Beware of compositional weaknesses. Consult person with advanced knowledge of
cryptography.
Use high level crypto libraries (KeyCzar, NaCL, libsodium )

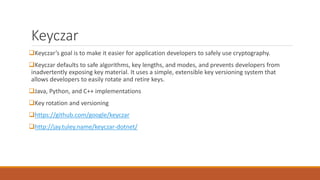

44. Keyczar
Keyczar’s goal is to make it easier for application developers to safely use cryptography.
Keyczar defaults to safe algorithms, key lengths, and modes, and prevents developers from
inadvertently exposing key material. It uses a simple, extensible key versioning system that
allows developers to easily rotate and retire keys.
Java, Python, and C++ implementations
Key rotation and versioning
https://github.com/google/keyczar
http://jay.tuley.name/keyczar-dotnet/

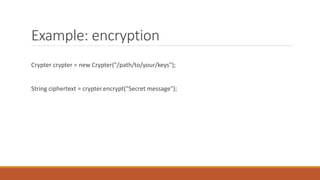

45. Example: encryption
Crypter crypter = new Crypter("/path/to/your/keys");
String ciphertext = crypter.encrypt("Secret message");

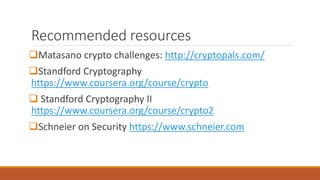

46. Recommended resources
Matasano crypto challenges: http://cryptopals.com/
Standford Cryptography
https://www.coursera.org/course/crypto
 Standford Cryptography II
https://www.coursera.org/course/crypto2
Schneier on Security https://www.schneier.com
