1. 如何用 SVM 做分類問題
Yiwei Chen
2016.10

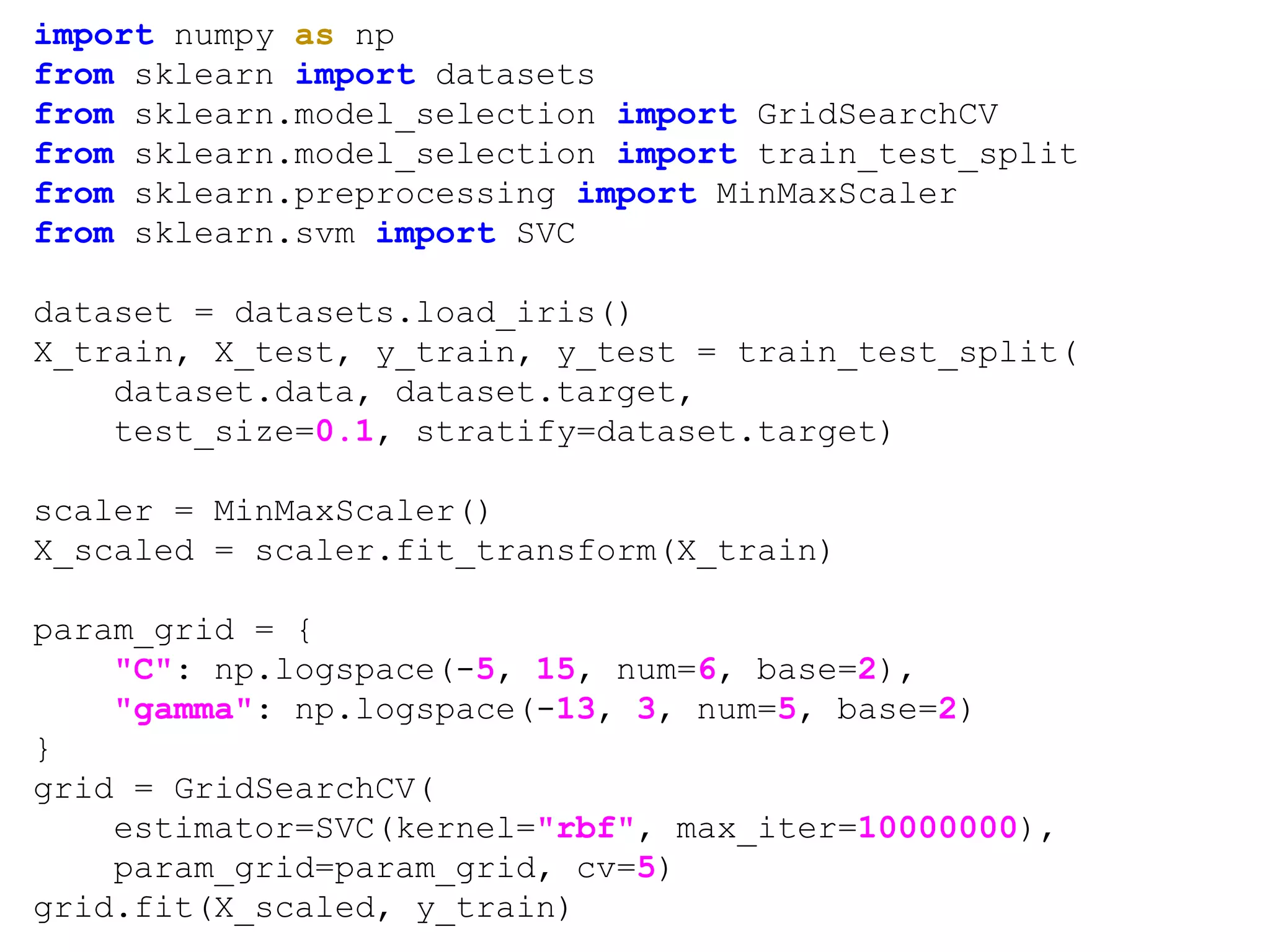

2. import numpy as np
from sklearn import datasets
from sklearn.model_selection import GridSearchCV
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import MinMaxScaler
from sklearn.svm import SVC
dataset = datasets.load_iris()
X_train, X_test, y_train, y_test = train_test_split(
dataset.data, dataset.target,
test_size=0.1, stratify=dataset.target)
scaler = MinMaxScaler()
X_scaled = scaler.fit_transform(X_train)
param_grid = {
"C": np.logspace(-5, 15, num=6, base=2),
"gamma": np.logspace(-13, 3, num=5, base=2)
}
grid = GridSearchCV(
estimator=SVC(kernel="rbf", max_iter=10000000),
param_grid=param_grid, cv=5)
grid.fit(X_scaled, y_train)

3. clf = SVC(kernel="rbf",
C=grid.best_params_["C"],
gamma=grid.best_params_["gamma"],
max_iter=10000000)
clf.fit(X_scaled, y_train)
novel_X = np.array([[5.9, 3.2, 3.9, 1.5]])
novel_X_scaled = scaler.transform(novel_X)
print(novel_X_scaled)
print(clf.predict(novel_X_scaled))
X_test_scaled = scaler.transform(X_test)
print(clf.predict(X_test_scaled))
print(clf.score(X_test_scaled, y_test))

4. 如果看得懂前兩頁，
就可以跳出這份投影片了

5. 學習的方式很多

6. 學習的目的也不同
not
sweet
sweet

7. 從經驗中學習冥冥之定數
Learn the Mother Nature
from experience

8. 這份投影片著重在
監督式分類(Supervised classification)

9. Mother Nature
甜 不甜 不甜 甜 ??

10. ??
甜 / 不甜 ?
train
甜/不甜?
model
甜 不甜 不甜 甜

11. ??
甜 / 不甜 ?
predict
model
甜甜/不甜?
甜 不甜 不甜 甜

12. Supervised Classification
● 有 training data: 一些物品/事情 + 其類別 (classes)
● 你要訓練出一個模型 (train a model)，之後
有新的物品進來，能預測 (predicts) 其類別
類別可以有兩個 (甜/不甜, binary classification)
或者更多個 (台/日/韓, multi-class classification)

13. Support Vector Machine (SVM)
● 有 training data: 向量 (vectors) + 其類別
● 你要訓練出一個模型 -- 為一個函數 (function),
之後有新的向量進來，能預測其類別
類別可以有兩個 (甜/不甜, binary classification)
或者更多個 (台/日/韓, multi-class classification)

14. (1.2, 0, 0, 1, …, 57)
train
ƒ: →
model
O
(8.7, 1, 0, 0, …, -3)X
(2.4, 1, 0, 0, …, 22)O
(0.3, 0, 1, 0, …, 33)X
⋮⋮

15. (1.2, 0, 0, 1, …, 57)
ƒ: →
model
O
(8.7, 1, 0, 0, …, -3)X
(2.4, 1, 0, 0, …, 22)O
(0.3, 0, 1, 0, …, 33)X (1.2, 0, 1, …, 8)
predict
X
O
⋮⋮

16. Feature engineering
● 用同樣方式，把物品轉成向量
● Size: 8cm or 80mm?
● red/yellow/green: (1,0,0)/(0,1,0)/(0,0,1)

17. 解決監督式分類問題有很多種方法
● SVM
● Decision trees
● Neural networks
● Deep learning
● …
他們可以解決監督式分類問題
不代表他們只能解決監督式分類問題

18. Agenda
● Supervised classification
● Support Vector Machine
● Software environment
● Use Support Vector Machines

19. (1.2, 0, 0, 1, …, 57)
train
ƒ: →
model
O
(8.7, 1, 0, 0, …, 22)X
(2.4, 1, 0, 0, …, -3)O
(0.3, 0, 1, 0, …, 33)X (1.2, 0, 1, …, 8)
predict
X
O
⋮⋮

20. Support Vector Machine ??
例子: 二維的向量，兩個分類
Feature 1
Feature 2
train
Model (function)

21. Support Vector Machine ??
例子: 二維的向量，兩個分類
predict
Model
?
? Model

22. Maximum Margin

23. SVM 的性質
● 和距離相關 (Distance related)
● 分越開越好 (Maximum margin)

24. Characteristics in SVM
● 和距離相關 (Distance related)
● 分越開越好 (Maximum margin)
● 參數化 (Parameterized)
○ 邊界有可能是彎的
○ 可以分錯，但要懲罰

25. 用不同參數訓練，有不同結果 ...

26. Agenda
● Supervised classification
● Support Vector Machine
● Software environment
● Use Support Vector Machines

27. 用 python 的話
scikit-learn
(sklearn)
numpy
SVM,
decision trees,
...
arrays, ... scipy
python
variance, ...

28. Anaconda: 願望一次滿足
● 跑在 python 上的開源科學平台
○ Linux / OSX / Windows
● 想得到的都幫你安裝
● 快。不花腦。
● https://www.continuum.io/anaconda-overview

29. Agenda
● Supervised classification
● Support Vector Machine
● Software environment
● Use Support Vector Machines

30. (1.2, 0, 0, 1, …, 57)
train
ƒ: →
model
O
(8.7, 1, 0, 0, …, 22)X
(2.4, 1, 0, 0, …, -3)O
(0.3, 0, 1, 0, …, 33)X (1.2, 0, 1, …, 8)
predict
X
O
⋮⋮

31. 一般流程
定好 評估公式+基礎預測
上線預測訓練

32. ● Accuracy
○ Training accuracy
○ Testing accuracy
● precision, recall, Type I / Type II error, AUC, …
進行任何訓練前，先決定好你要怎麼評估結果！
評估 (Evaluation)

33. ● Simple and easy, 閉著眼睛猜
● 拿來「比較」用（你知道你做的比Baseline還差嗎）
基礎的預測 (Baseline predictor)
train
ALL

34. 用 SVM 的流程
定好 評估公式+基礎預測
處理資料處理資料
縮放 features
尋找最好的參數
訓練模型
縮放 features
預測

35. dataset = datasets.load_iris()
X_train, X_test, y_train, y_test = train_test_split(
dataset.data, dataset.target,
test_size=0.1, stratify=dataset.target)
scaler = MinMaxScaler()
X_scaled = scaler.fit_transform(X_train)
param_grid = {
"C": np.logspace(-5, 15, num=6, base=2),
"gamma": np.logspace(-13, 3, num=5, base=2)
}
grid = GridSearchCV(
estimator=SVC(kernel="rbf", max_iter=10000000),
param_grid=param_grid, cv=5)
grid.fit(X_scaled, y_train)
clf = SVC(kernel="rbf",
C=grid.best_params_["C"],
gamma=grid.best_params_["gamma"],
max_iter=10000000)
clf.fit(X_scaled, y_train)

36. novel_X = np.array([[5.9, 3.2, 3.9, 1.5]])
novel_X_scaled = scaler.transform(novel_X)
print(novel_X_scaled)
print(clf.predict(novel_X_scaled))
X_test_scaled = scaler.transform(X_test)
print(clf.predict(X_test_scaled))
print(clf.score(X_test_scaled, y_test))

37. 1. Data preparation
● Transform object → vector
● Whole training data at once
○ X in numpy.array (2-D) or scipy.sparse.csr_matrix
○ y in numpy.array
(1.2, 0, 57)O
(8.7, 1, 22)X
(2.4, 1, -3)O X=np.array([[2.4, 1, -3],
[8.7, 1, 22],
[1.2, 0, 57]])
y=np.array([1,0,1])

38. 2. Feature Scaling
(1.2, 0, 0, …)O
(8.7, 1, 0, …)X
(2.4, 1, 0, …)O
(0.3, 0, 1, …)X
⋮⋮
0.3 ~ 10.3
(n−0.3)
×0.1
0 ~ 1
0 ~ 1
(n+0)
×1
0 ~ 1
(0.09, 0, 0, …)O
(0.84, 1, 0, …)X
O
(0 , 0, 1, …)X
⋮⋮
(0.21, 1, 0, …)
scale

39. 2. Feature Scaling
(1.2, 0, 0, …)O
(8.7, 1, 0, …)X
(2.4, 1, 0, …)O
(0.3, 0, 1, …)X
⋮⋮
(0.09, 0, 0, …)O
(0.84, 1, 0, …)X
O
(0 , 0, 1, …)X
⋮⋮
(0.21, 1, 0, …)
scale
scaler = MinMaxScaler()
X_scaled = scaler.fit_transform(X)

40. 3. Search for the best parameter
param_grid = {
"C": np.logspace(-5, 15, num=6, base=2),
"gamma": np.logspace(-13, 3, num=5, base=2)
}
grid = GridSearchCV(
estimator=SVC(kernel="rbf",
max_iter=10000000),
param_grid=param_grid, cv=5)
grid.fit(X_scaled, y_train)

41. 3. Search for best (??) C and

42. 3. what is “best”?
甜 不甜 不甜 甜 ??
train
model
你還不知道

43. 3. Search for the best - validation
train
model
當做新的，
沒看過
validate
甜 不甜 不甜 甜

44. 3. Search for the best - cross-validation
Cross-validation (CV): each fold validates in turn
train validate
train validate train
validate train
Given C=12, =34, the validation accuracy=0.56

45. 3. Search for the best parameter - Grid
C

46. 3. Search for the best parameter
param_grid = {
"C": np.logspace(-5, 15, num=6, base=2),
"gamma": np.logspace(-13, 3, num=5, base=2)
}
grid = GridSearchCV(
estimator=SVC(kernel="rbf",
max_iter=10000000),
param_grid=param_grid, cv=5)
grid.fit(X_scaled, y_train)

47. 4. Train Model
use the best parameter in CV to train
clf = SVC(kernel="rbf",
C=grid.best_params_["C"],
gamma=grid.best_params_["gamma"],
max_iter=10000000)
clf.fit(X_scaled, y_train)

48. Predict a novel data
● Scaling
● Predict
novel_X = np.array([[5.9, 3.2, 3.9, 1.5]])
novel_X_scaled = scaler.transform(novel_X)
print(clf.predict(novel_X_scaled))

49. Scale Training Data
(1.2, 0, 0, …)O
(8.7, 1, 0, …)X
(2.4, 1, 0, …)O
(0.3, 0, 1, …)X
⋮⋮
0.3 ~ 10.3
(n−0.3)
×0.1
0 ~ 1
0 ~ 1
(n+0)
×1
0 ~ 1
(0.09, 0, 0, …)O
(0.84, 1, 0, …)X
O
(0 , 0, 1, …)X
⋮⋮
(0.21, 1, 0, …)
scale

50. Scale Testing Data
(2.3, 0, 0, …)O
(-0.7, 1, 1, …)X
(1.3, 1, 1, …)O
(100, 0, 0, …)X
⋮⋮
(n−0.3)
×0.1
(n+0)
×1
(0.20, 0, 0, …)O
(-0.1, 1, 1, …)X
O
(9.97, 0, 0, …)X
⋮⋮
(0.10, 1, 1, …)
scale

51. dataset = datasets.load_iris()
X_train, X_test, y_train, y_test = train_test_split(
dataset.data, dataset.target,
test_size=0.1, stratify=dataset.target)
scaler = MinMaxScaler()
X_scaled = scaler.fit_transform(X_train)
param_grid = {
"C": np.logspace(-5, 15, num=6, base=2),
"gamma": np.logspace(-13, 3, num=5, base=2)
}
grid = GridSearchCV(
estimator=SVC(kernel="rbf", max_iter=10000000),
param_grid=param_grid, cv=5)
grid.fit(X_scaled, y_train)
clf = SVC(kernel="rbf",
C=grid.best_params_["C"],
gamma=grid.best_params_["gamma"],
max_iter=10000000)
clf.fit(X_scaled, y_train)

52. novel_X = np.array([[5.9, 3.2, 3.9, 1.5]])
novel_X_scaled = scaler.transform(novel_X)
print(novel_X_scaled)
print(clf.predict(novel_X_scaled))
X_test_scaled = scaler.transform(X_test)
print(clf.predict(X_test_scaled))
print(clf.score(X_test_scaled, y_test))

53. Agenda
● Supervised classification
● Support Vector Machine
● Software environment
● Use Support Vector Machines
Takeaway…

54. ??
甜 / 不甜 ?
train
甜/不甜?
model
甜 不甜 不甜 甜

55. ??
甜 / 不甜 ?
predict
model
甜甜/不甜?
甜 不甜 不甜 甜

56. 用 SVM 的流程
Evaluation criteria + Baseline predictor
prepare dataprepare data
scale features
search best param:
CV on grid
train model
scale features
predict

57. 知道怎麼正確使用微波爐之後...
● Data collection (準備食材)
● Model evaluation monitoring (客戶滿意?)
● Feature engineering (處理食材)
● Model update from novel data (與時俱進)
● Training / prediction in large scale (大量食材)
● A robust pipeline that integrates these altogether
(開餐廳)

58. Happy Training!

59. More materials

60. “Support” Vectors?

61. Maximum Margin

62. Why scaling?

63. Model Serialization
http://scikit-learn.org/stable/modules/model_persiste
nce.html
