The branch of Civil Engineering which deals with the design, construction and maintenance of the railway tracks for safe and efficient movements of trains is called Railway Engineering
BALLAST
RAILS
SLEEPERS
POINTS OF CROSSINGS
POINTS OF SWITCH
The rolled steel sections laid
end to end in two parallel lines
over sleepers to form a railway
track are known as RAILS The rails used in the construction of railway track can be divided into the following three types :
(1) Double Headed Rails (D.H. Rail)
(2) Flat Footed Rails (F.F. Rail)
(3) Bull Headed Rails (B.H. Rail)
Permanent Way of Railway & Components ?(part -1,2,3,4,5)RAMPRASAD KUMAWAT
Permanent Way Components: , Selection of Alignment, Ideal Permanent Ways and Cross-sections in different conditions, Salient Features and types of Components viz.
Rails, Sleepers, Ballast, Rail Fastenings.
Types and Selection of Gauges
Permanent Way of Railway & Components ?(part -1,2,3,4,5)RAMPRASAD KUMAWAT
Permanent Way Components: , Selection of Alignment, Ideal Permanent Ways and Cross-sections in different conditions, Salient Features and types of Components viz.
Rails, Sleepers, Ballast, Rail Fastenings.
Types and Selection of Gauges
Railway Track Components. A Railway Track has many Components in it. they are as follows, Rails; Sleepers; Ballast; Formations or subgrades; A good quality and strong aggregate materials, steel I section to use in the construction of railway tracks. 1. Rails. Rails are the first main element in the Railway Track Components. It is of an I section make with steel. Two rails fix opposite to each other.
components of a railroad track
rail track components
railroad components
parts of a railroad track
parts of a rail
parts of a railroad crossing
rail components
railroad switch part components
components of a railroad track
rail track components
railroad track switch components
railway track and structure
This Presentation Contains Railway engineering concepts. The contents covered are Permanent way: Requirement, its component. Feel free to write in Comment Section or drop a line in my Inbox amanbathla710@gmail.com.
this slides will contains some information about 'turnouts in railways', it's component parts and its classification. if any mistakes present, please tell me i will rectify them.
Railway secondary part of the transportation . Railway use of maximum materials transport of one place to other place. Particular time of number of trains are move of particular junction so these part are used of points and crossing.
Best helpful of these ppt of railway track and design purposes.
Objective and classification of highway maintenance works. Distresses and maintenance measures in flexible and rigid pavements. Concept of pavement evaluation: Functional and Structural
Inadequate Stability or Strength
Loss of binding action
Loss of base course materials
Inadequate wearing course
Use of inferior materials and crushing of base course materials
Lack of lateral confinement for the granular base course.
Railway Track Components. A Railway Track has many Components in it. they are as follows, Rails; Sleepers; Ballast; Formations or subgrades; A good quality and strong aggregate materials, steel I section to use in the construction of railway tracks. 1. Rails. Rails are the first main element in the Railway Track Components. It is of an I section make with steel. Two rails fix opposite to each other.
components of a railroad track
rail track components
railroad components
parts of a railroad track
parts of a rail
parts of a railroad crossing
rail components
railroad switch part components
components of a railroad track
rail track components
railroad track switch components
railway track and structure
This Presentation Contains Railway engineering concepts. The contents covered are Permanent way: Requirement, its component. Feel free to write in Comment Section or drop a line in my Inbox amanbathla710@gmail.com.
this slides will contains some information about 'turnouts in railways', it's component parts and its classification. if any mistakes present, please tell me i will rectify them.
Railway secondary part of the transportation . Railway use of maximum materials transport of one place to other place. Particular time of number of trains are move of particular junction so these part are used of points and crossing.
Best helpful of these ppt of railway track and design purposes.
Objective and classification of highway maintenance works. Distresses and maintenance measures in flexible and rigid pavements. Concept of pavement evaluation: Functional and Structural
Inadequate Stability or Strength
Loss of binding action
Loss of base course materials
Inadequate wearing course
Use of inferior materials and crushing of base course materials
Lack of lateral confinement for the granular base course.
Role of Indian Railways in National Development, Basic requirement of railway alignment and functions of Permanent Way, Types of components and functions: Gauge, Rail, Fittings, Ballast, Embankments, Subgrade. Purpose: Coning of wheel, Super-elevation, points and crossing, signalling and interlocking, yard, junction and terminal.
Railway engineering
The branch of civil engineering which deals with the design , construction and maintenance of the railway tracks for safe and efficient movements of train is called Railway engineering.
In this, some railway terminology and their types are discussed.
Railway terminology – (1)Ballast (2)Rails (3)Sleepers (4)Points of crossing
(1) Ballast - Ballast in railroad terminology is durable granular material placed between the crosstie and the sub ballast to hold the track in line and grade.
(2) Rails - The rolled steel sections laid end to end in two parallel lines over sleepers to form a railway track are known as rails.
(3) Sleepers - Sleepers are the transverse ties that are laid to support the rails. They transmit wheel load from the rails to ballast.
(4) Crossing – A crossing is a device which provides two flange ways through which the wheels of the flanges will move, when two rails intersect each other at right angle.
Railway engineering is a multi-faceted engineering discipline dealing with the design, construction and operation of all types of rail transport systems.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Final project report on grocery store management system..pdfKamal Acharya
In today’s fast-changing business environment, it’s extremely important to be able to respond to client needs in the most effective and timely manner. If your customers wish to see your business online and have instant access to your products or services.
Online Grocery Store is an e-commerce website, which retails various grocery products. This project allows viewing various products available enables registered users to purchase desired products instantly using Paytm, UPI payment processor (Instant Pay) and also can place order by using Cash on Delivery (Pay Later) option. This project provides an easy access to Administrators and Managers to view orders placed using Pay Later and Instant Pay options.
In order to develop an e-commerce website, a number of Technologies must be studied and understood. These include multi-tiered architecture, server and client-side scripting techniques, implementation technologies, programming language (such as PHP, HTML, CSS, JavaScript) and MySQL relational databases. This is a project with the objective to develop a basic website where a consumer is provided with a shopping cart website and also to know about the technologies used to develop such a website.
This document will discuss each of the underlying technologies to create and implement an e- commerce website.

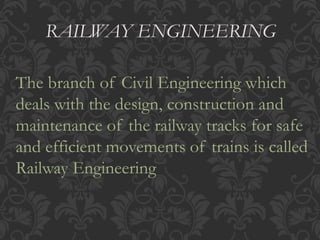

3. RAILWAY ENGINEERING
The branch of Civil Engineering which
deals with the design, construction and
maintenance of the railway tracks for safe
and efficient movements of trains is called
Railway Engineering

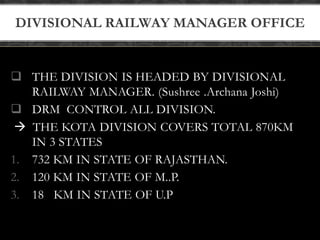

4. DIVISIONAL RAILWAY MANAGER OFFICE
THE DIVISION IS HEADED BY DIVISIONAL
RAILWAY MANAGER. (Sushree .Archana Joshi)
DRM CONTROL ALL DIVISION.
THE KOTA DIVISION COVERS TOTAL 870KM
IN 3 STATES
1. 732 KM IN STATE OF RAJASTHAN.
2. 120 KM IN STATE OF M..P.
3. 18 KM IN STATE OF U.P
5. CONTENTS
1. BALLAST
2. RAILS
3. SLEEPERS
4. POINTS OF CROSSINGS
5. POINTS OF SWITCH

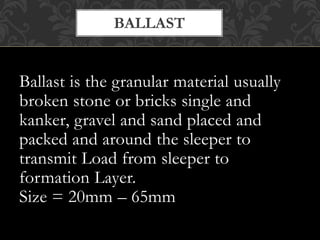

6. BALLAST
Ballast is the granular material usually
broken stone or bricks single and
kanker, gravel and sand placed and
packed and around the sleeper to
transmit Load from sleeper to
formation Layer.
Size = 20mm – 65mm
7.
8. RAILS
The rolled steel sections laid
end to end in two parallel lines
over sleepers to form a railway
track are known as RAILS.
9. TYPES OF RAILS :-
The rails used in the construction of railway track
can be divided into the following three types :
(1) Double Headed Rails (D.H. Rail)
(2) Flat Footed Rails (F.F. Rail)
(3) Bull Headed Rails (B.H. Rail)
10. 1. DOUBLE HEADED RAIL :-
The rails having their head and foot of
same dimensions are known as double
headed rail (D.H.).
11.

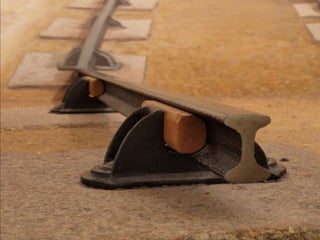

12. 2. FLAT FOOTED RAILS :-
The rail section having their foot
rolled to a flat are known as
flat footed rails.

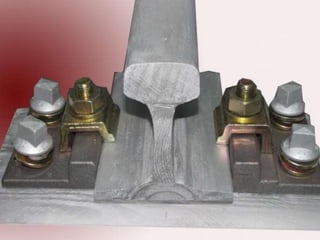

13.

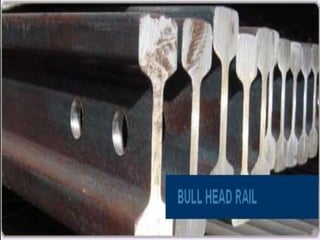

14. 3. BULL HEADED RAIL :
The rails sections having their head of
more dimension then that of their foot
are known as bull headed rails (B.H.).

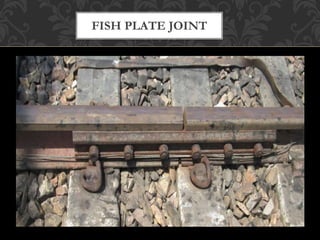

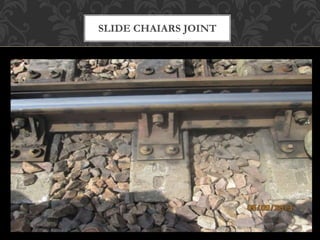

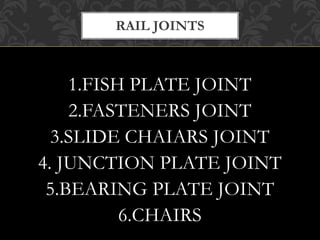

21. Sleepers
Sleepers are members generally laid transverse
to the rails, on which the rails are fixed to
transfer the loads from the rails to the ballast
and the subgrade.

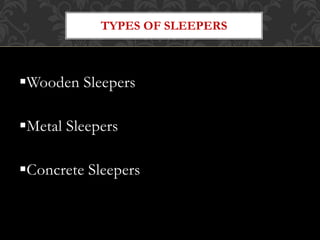

22. TYPES OF SLEEPERS

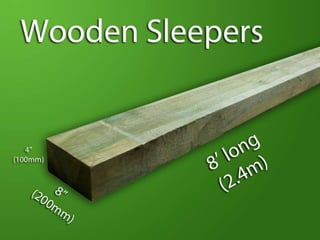

Wooden Sleepers

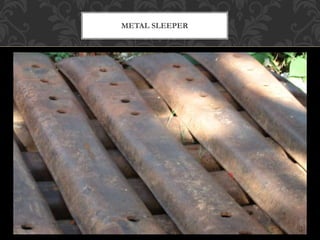

Metal Sleepers

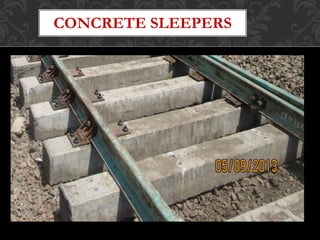

Concrete Sleepers
26. POINT OF CROSSING
Point , crossing , turnout , cross-overs and
such related terms are arrangement by
which different routes either parallel are
connected and offered the means for terms
to move from one route to another route is
called POINT OF CROSSING .

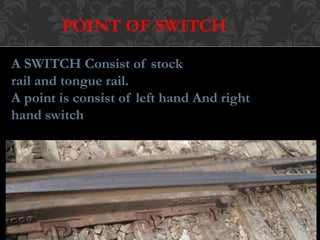

27. COMPONENTS OF SWITCH

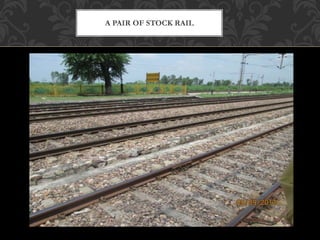

1. A pair of stock rail.

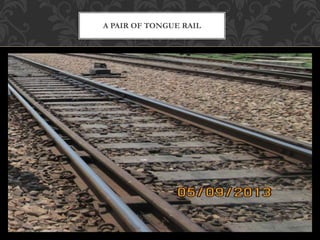

2. A Pair of tongue rail.

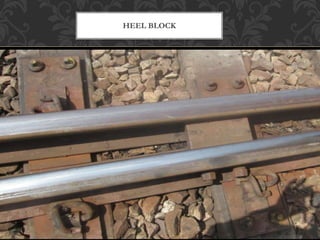

3. Heel Block.
4. Stretcher bar.

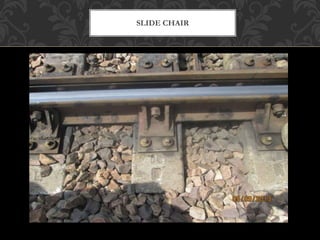

5. Slide Chair.
