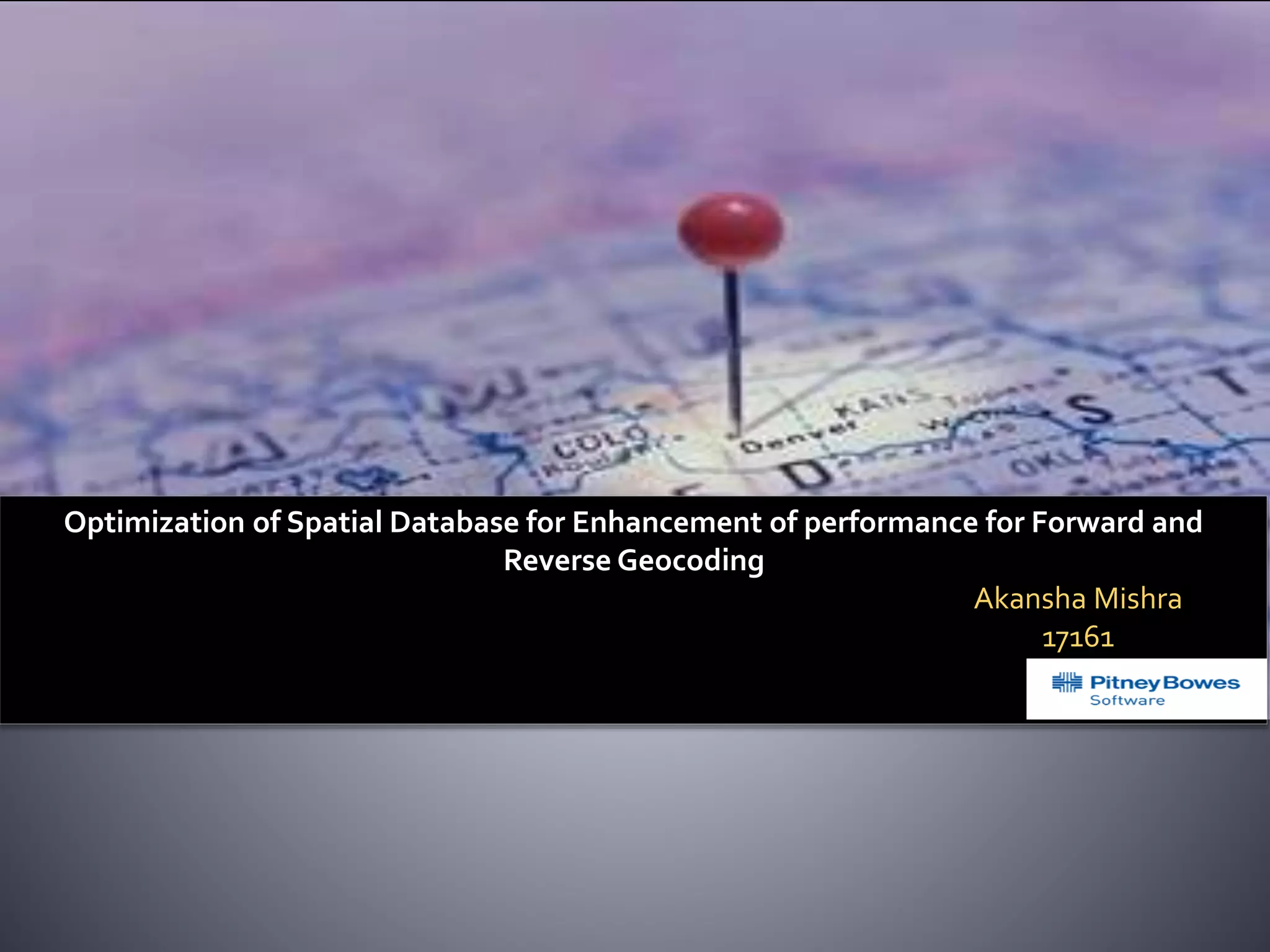

1. Optimization of Spatial Database for Enhancement of performance for Forward and
Reverse Geocoding
Akansha Mishra

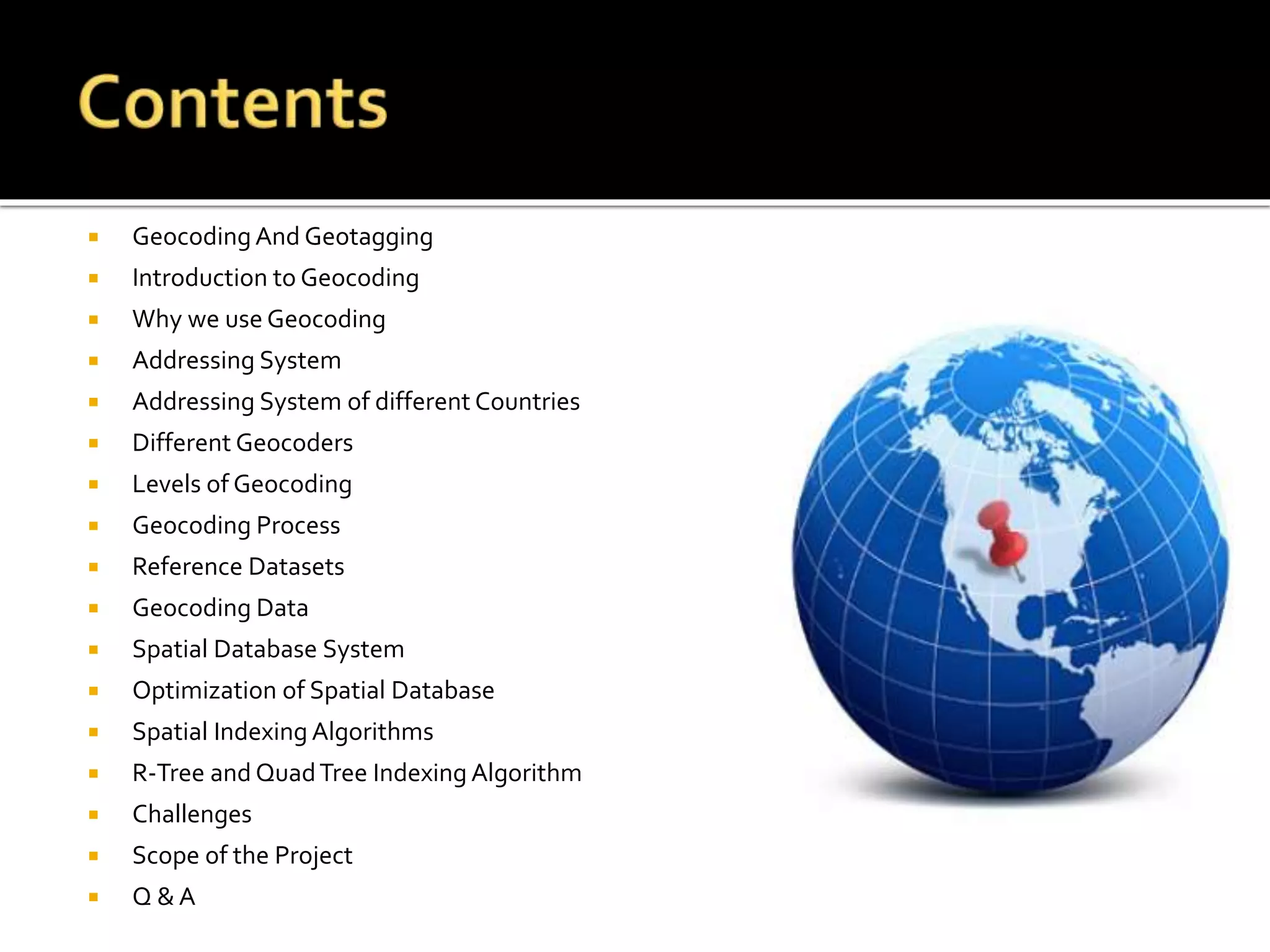

2.  GeocodingAnd Geotagging
 Introduction to Geocoding
 Why we use Geocoding
 Addressing System
 Addressing System of different Countries
 Different Geocoders
 Levels of Geocoding
 Geocoding Process
 Reference Datasets
 Geocoding Data
 Spatial Database System
 Optimization of Spatial Database
 Spatial Indexing Algorithms
 R-Tree and QuadTree Indexing Algorithm
 Challenges
 Q & A

3. GEOTAGGING
 Geocoding is the process of assigning
latitude and longitude values to address
information.
 The process of gettingAddress data from
Location data (lat/Long) is called Backward
Geocoding.
 Input Address: "642 Arbitrary Lane, Cityville,
MA" or "Miami" or "FIPS county #64623“.
Output Coordinates: "53.645 N, 73.6453 W"
GEOCODING
 Geotagging is the process of adding
geographical information to various media in
the form of metadata.
 Metadata consists of coordinates like latitude
and longitude, it may also include altitude,
distance and place names.
 Geotagging is most commonly used for
photographs. It contains the information about
where the photograph was taken.

4.  Geocoding is the conversion of a human-readable location name into a machine-
processable location such as latitude and longitude.
 Once a latitude and longitude coordinates is assigned the geocoded address can be
displayed on a map or used in geographic search.
 Reverse Geocoding is the ability to find an associated textual location , like a street
address or business name from latitude and longitude coordinates.
Output:
4383 Apple Ct Boulder CO
80301-1745
-105.248599, 40.054337
Input:
4383 Apple Boulder CO 80303
Geocoding
ReverseGeocoding

5.  Geocoding allow operational spatial decisions to be made:
 Where is the Customer? Nearest to which CellTower?
 What is this point inside/close to?
 What is the value/Risk/Danger?
 Delivers Answers to Critical Business needs.
 Facebook Check In:
 Facebook Can use reverse geocoding to auto populate place
address field during Check In.
 Pictures, Status updates and other timeline events have
location tags available.
Spatial ProcessingGeocoding
Business
Decision

6.  An address is a collection of information that describes the location of buildings, apartment,
plot or other structure.
 Address are two types:
 Relative Address: Such As Across the Street, behind the landmark etc.
 Absolute Address: Actual address that contain house no, street name, locality, town, state
and other address Components.
 Components of address are house number/ Apartment number, Apartment Name, Street
number, Street Name, Zip Code and political boundary.
 There is no globally applicable address format exist that works internationally.

7. Australia:
[FLOOR] [/] [APARTMENT]
HOUSE_NUMBER
STREET_NAME STREET_TYPE
LOCALITY
PROVINCE_ABBREVIATION
POSTAL_CODE
AUSTRALIA
Canada:
[UNIT_NUMBER]-
CIVIC_NUMBER
[STREET_NUMBER]
[STREET_TYPE] STREET_NAME
[STREET_DIRECTION]
LOCALITY
PROVINCE_ABBREVIATION
POSTAL_CODE
CANADA
Cameroon:
STREET_NAME
[HOUSE_NUMBER]
LOCALITY
CAMEROON
China:
[BUILDING] [APARTMENT]
[HOUSE_NUMBER STREET,]
[DOUBLE_DEPENDENT_LOCALI
TY,] [DEPENDENT_LOCALITY,]
[LOCALITY]
POSTAL_CODE PROVINCE
India:
[HOUSE_NUMBER]
[STREET_NAME]
[DEPENDENT_LOCALITY] [,
DOUBLE_DEPENDENT_LOCALIT
Y]
LOCALITY - POSTAL_CODE
INDIA
United States:
HOUSE_NUMBER STREET_NAME
[STREET_TYPE]
[STREET_DIRECTION]
[BUILDING] [FLOOR]
[APARTMENT]
LOCALITY
PROVINCE_ABBREVIATION
POSTAL_CODE
UNITED STATES
United Kingdom:
[FLOOR] [APARTMENT]
[BUILDING]
[HOUSE_NUMBER] STREET_NAME
[DEPENDENT_LOCALITY]
LOCALITY
POSTAL_CODE
UNITED KINGDOM
France:
[APARTMENT] [BUILDING]
HOUSE_NUMBER
[STREET_TYPE] STREET_NAME
[DEPENDENT_LOCALITY]
POSTAL_CODE LOCALITY
FRANCE
Turkey:
STREET_NAME STREET TYPE
[DEPENDENT_STREET
STREET_TYPE] [BUILDING]
[[No.] HOUSE_NUMBER
[/APARTMENT]
POSTAL_CODE
[ADMINISTRATIVE_DISTRICT /]
LOCALITY / PROVINCE
TURKEY

8.  Google Maps
 Yahoo Maps
 Bing Maps
 ArcGIS
 Geocoder.us
 MapMarker
 Global Locator
 Address Doctor
 LOQATE

9. Zip Code
Area
Street level Geocoding
----------------------------------------------------------------------
Point level
Geocoding Address Point Interpolation
Zip+4 level
Geocoding
(6+4 Digits)
Zip Level Geocoding
(6 Digits)Zip+4 Area

10.  Point level geocoding:
• Address is matched to the location of the
Building Rooftop
GPS front Door
Parcel Centroid
• Point level geocoding is more accurate than Street level Geocoding.
 Street Level Geocoding:
• Address is matched against a street segment address range.
 Zip Code Level Geocoding:
• Zip code level geocoding returns the centroid of the passed Zip code area.
 Zip+4 Code Level Geocoding:
• Zip+4 is the sub division of zip code.

12.  Reference dataset provides the base data from which the geocoder
calculates, derives or obtains geocodes.
 Linear Based Reference Datasets:
 Roads and Ferries.
 US Census BureauTIGER provide vector line file.
 Polygon Based Reference Datasets:
 Administrative Boundaries and postal Codes.
 Los angels Country Assessor Parcel Data isVector Polygon File.
 Point Based Reference Datasets:
 POIs.
 Australian Geocoded National Address File(GNAF) isVector
Point File.

13.  Most Geocoding Applications work withVector
based GIS Data.
 Vector Data represent features as:
 Discrete Point
 Line
 Polygon
 Vector Data is available in
 TAB Files
 Shape Files
 Cad( AutoCAD DXF & DWG).

14.  A database system that is used to store and query spatial objects:
 Point: a hotel, a car
 Line: a road segment
 Polygon: landmarks
 Spatial databases can perform a wide variety of spatial operations.

15.  Optimizing spatial databases means
optimizing the queries, which requires less
time spent by running the queries before
receiving an answer.
 Spatial Indexing is used to decrease the
number of searches.
 Appropriate Indexes can reduce the Response
time.
 Oracle Spatial uses two types of indexing: R-
Tree and QuadTree.

16.  R-Tree
 QuadTree
 K-DTrees
 K-D-BTrees
 Grid Index
 Z-order
 Octree
 UB-Tree
 M-Tree
 HTM
 Geohashes

17.  Objects(Point, Line and Polygon) are
grouped using the MBR(Minimum
Bounding Rectangle).
 Objects are added to an MBR with an
INDEX .It index geometries in two or
more dimensions.
 R-tree are more suitable for nearest
neighbor search.
 Basic Spatial Operations are performed
much faster using an R-Tree indexing
types.
R1 R2
R3 R4 R5 R6 R7
R8 R9 R10 R11 R12 R13 R14 R15 R16 R17
R7
R6
R2
R1
R17
R16
R14
R15
R
8 R1
0
R
3
R
9
R4
R5
R12
R13
R11
Desired Region

18. 0 1
2 3
10 11
12 13
132
Desired Region
133
130 131
 It divides rectangular 2D regions into
quadrants until we reach at a desired
granularity.
 QuadTree Indexes are preferable when there
is heavy updates activity to the Spatial
Column.
 It can easily integrate into traditional
database.
 QuadTree has its advantages in terms of
more complex type of Queries.

19. Spatial Data
Layer
Primary Filter:
Spatial Index
Data Selection
Secondary
Filter: Spatial
Functions
Result
Optional Filter

20.  Geocoding Accuracy:To correctly identify a
location.
 International Geocoding :
 Address formats vary
 order of the address is often different
 Use of Native languages.
 Use of Multiple Data Sets.
 Sequential Processing
 Inconsistent use of base maps and geocoding
services.
