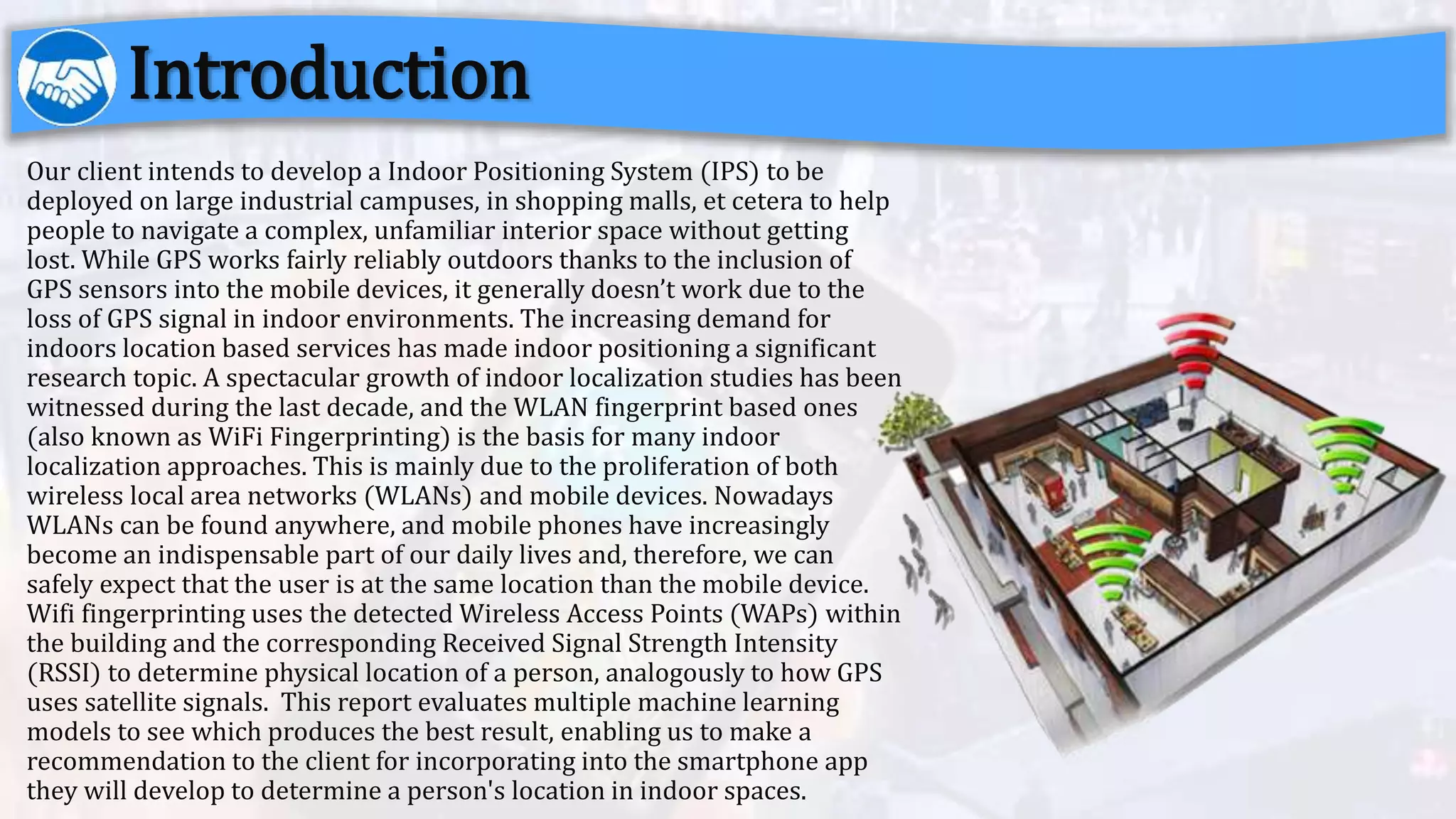

3. Our client intends to develop a Indoor Positioning System (IPS) to be
deployed on large industrial campuses, in shopping malls, et cetera to help
people to navigate a complex, unfamiliar interior space without getting
lost. While GPS works fairly reliably outdoors thanks to the inclusion of
GPS sensors into the mobile devices, it generally doesn’t work due to the
loss of GPS signal in indoor environments. The increasing demand for
indoors location based services has made indoor positioning a significant
research topic. A spectacular growth of indoor localization studies has been
witnessed during the last decade, and the WLAN fingerprint based ones
(also known as WiFi Fingerprinting) is the basis for many indoor
localization approaches. This is mainly due to the proliferation of both
wireless local area networks (WLANs) and mobile devices. Nowadays
WLANs can be found anywhere, and mobile phones have increasingly
become an indispensable part of our daily lives and, therefore, we can
safely expect that the user is at the same location than the mobile device.
Wifi fingerprinting uses the detected Wireless Access Points (WAPs) within
the building and the corresponding Received Signal Strength Intensity
(RSSI) to determine physical location of a person, analogously to how GPS
uses satellite signals. This report evaluates multiple machine learning
models to see which produces the best result, enabling us to make a
recommendation to the client for incorporating into the smartphone app
they will develop to determine a person's location in indoor spaces.
Introduction

4.  To identify a person’s physical position in a multi-building
indoor facility using Wi-Fi Fingerprinting.
 Evaluate a sufficiently accurate model for client
Analysis Goal

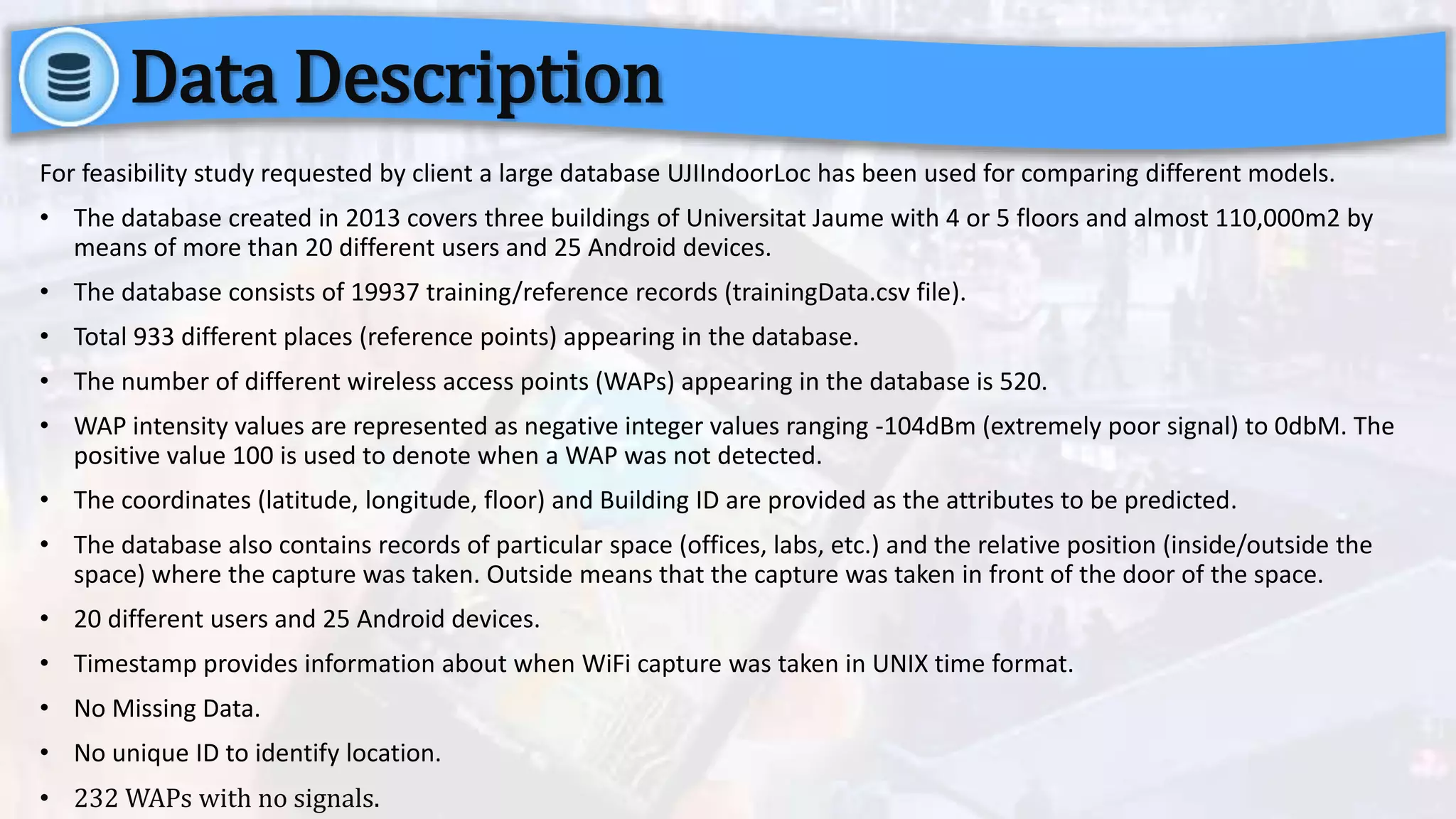

5. For feasibility study requested by client a large database UJIIndoorLoc has been used for comparing different models.
• The database created in 2013 covers three buildings of Universitat Jaume with 4 or 5 floors and almost 110,000m2 by
means of more than 20 different users and 25 Android devices.
• The database consists of 19937 training/reference records (trainingData.csv file).
• Total 933 different places (reference points) appearing in the database.
• The number of different wireless access points (WAPs) appearing in the database is 520.
• WAP intensity values are represented as negative integer values ranging -104dBm (extremely poor signal) to 0dbM. The
positive value 100 is used to denote when a WAP was not detected.
• The coordinates (latitude, longitude, floor) and Building ID are provided as the attributes to be predicted.
• The database also contains records of particular space (offices, labs, etc.) and the relative position (inside/outside the
space) where the capture was taken. Outside means that the capture was taken in front of the door of the space.
• 20 different users and 25 Android devices.
• Timestamp provides information about when WiFi capture was taken in UNIX time format.
• No Missing Data.
• No unique ID to identify location.
• 232 WAPs with no signals.
Data Description

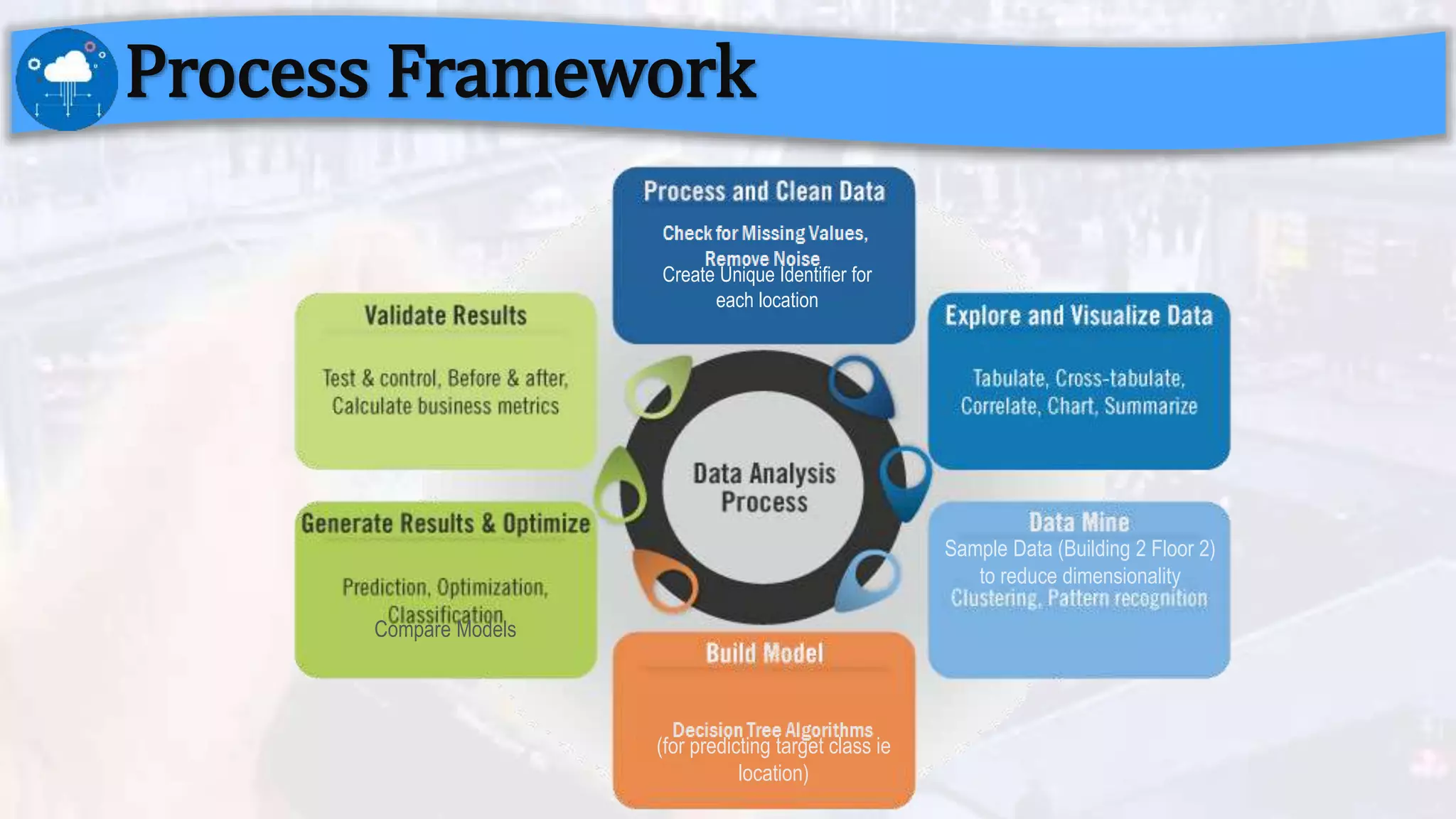

6. Process Framework
Create Unique Identifier for
each location
Sample Data (Building 2 Floor 2)
to reduce dimensionality
(for predicting target class ie
location)
Compare Models

7. Data Preparation
To evaluate machine learning techniques to locate a person indoors using fingerprinting, following measures were taken on
the database.
• Reduce database dimensionality because of processor speed and memory of available . In real life there will be better
computing facilities available.
• The database sample has been restricted to 2nd Floor of Building 2.
• Converted TimeStamp from Unix Time to calender dates and times using as.POSIXct function.
• Assigned an unique identifier MasterId by concatenating attributes Building Id, Floor, Space Id and Relative Position(Inside
or outside).
• Classified MasterId as factor to help with building models.
• Remove excessive attributes Longitude, Latitude, Building Id, Floor, Space Id and Relative Position to get rid of overfitting.
• The sample database of Building 2 Floor 2 consist of 1577 observations with 524 attributes.
• Sample database then partitioned, 80% Training & 20% Testing sets using createDataPartition Function of R. Our Training
set consist of 1277 observations while the Testing Set consists of 300 observations.
• Total 523 predictors and 73 classes appearing in the Training database of 2nd Floor of Building 2.
• No Missing Data.
• Create and evaluate models for determining location.

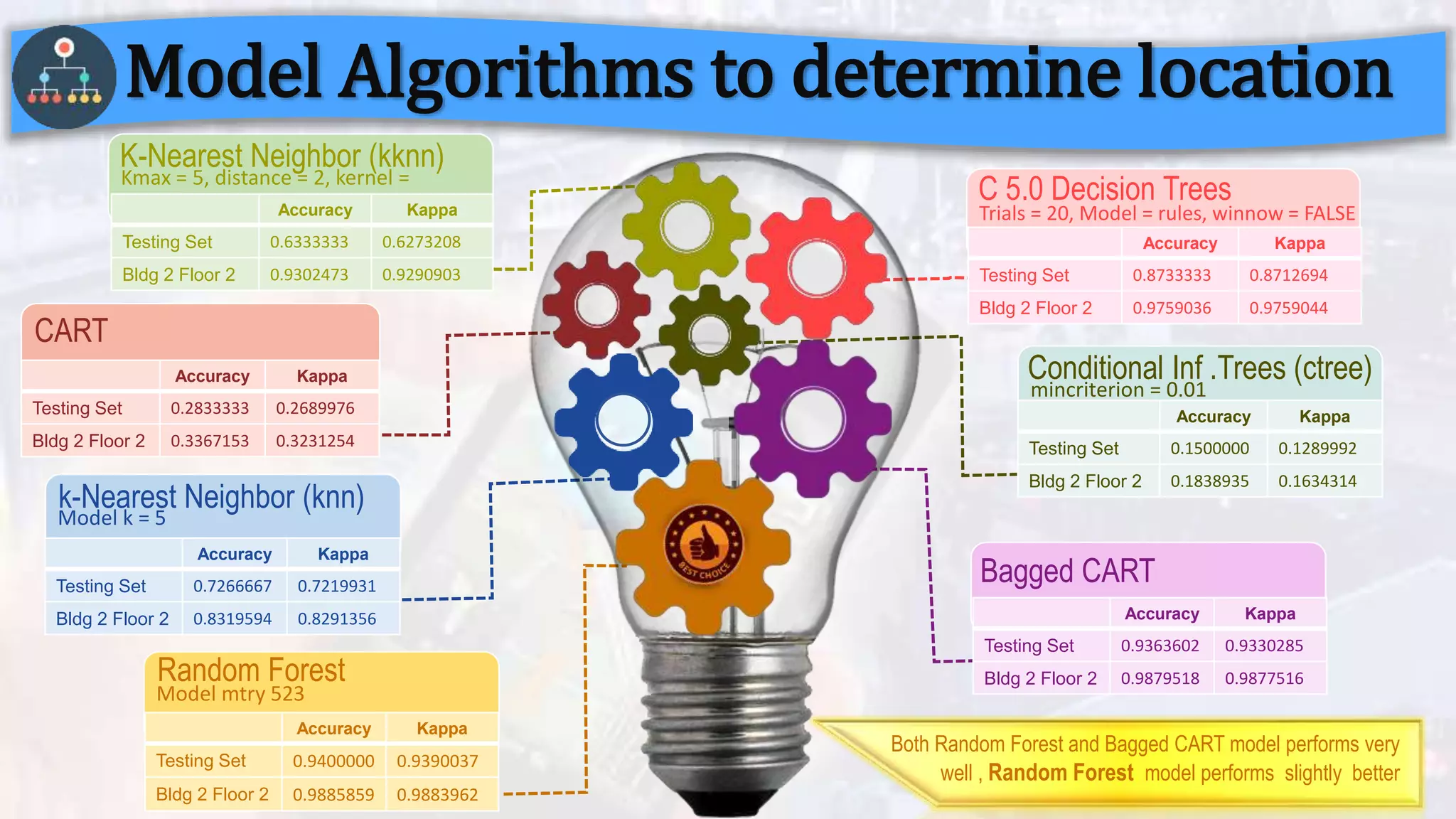

8. Model Algorithms to determine location
K-Nearest Neighbor (knn)
Random Forest
Model mtry 523
Model k = 5
CART
K-Nearest Neighbor (kknn)
Kmax = 5, distance = 2, kernel =
optimal
C 5.0 Decision Trees
Trials = 20, Model = rules, winnow = FALSE
Conditional Inf .Trees (ctree)
mincriterion = 0.01
Bagged CART
Accuracy Kappa
Testing Set 0.9400000 0.9390037
Bldg 2 Floor 2 0.9885859 0.9883962
Accuracy Kappa
Testing Set 0.7266667 0.7219931
Bldg 2 Floor 2 0.8319594 0.8291356
Accuracy Kappa
Testing Set 0.2833333 0.2689976
Bldg 2 Floor 2 0.3367153 0.3231254
Accuracy Kappa
Testing Set 0.6333333 0.6273208
Bldg 2 Floor 2 0.9302473 0.9290903
Accuracy Kappa
Testing Set 0.8733333 0.8712694
Bldg 2 Floor 2 0.9759036 0.9759044
Accuracy Kappa
Testing Set 0.1500000 0.1289992
Bldg 2 Floor 2 0.1838935 0.1634314
Accuracy Kappa
Testing Set 0.9363602 0.9330285
Bldg 2 Floor 2 0.9879518 0.9877516
k-Nearest Neighbor (knn)
Both Random Forest and Bagged CART model performs very
well , Random Forest model performs slightly better

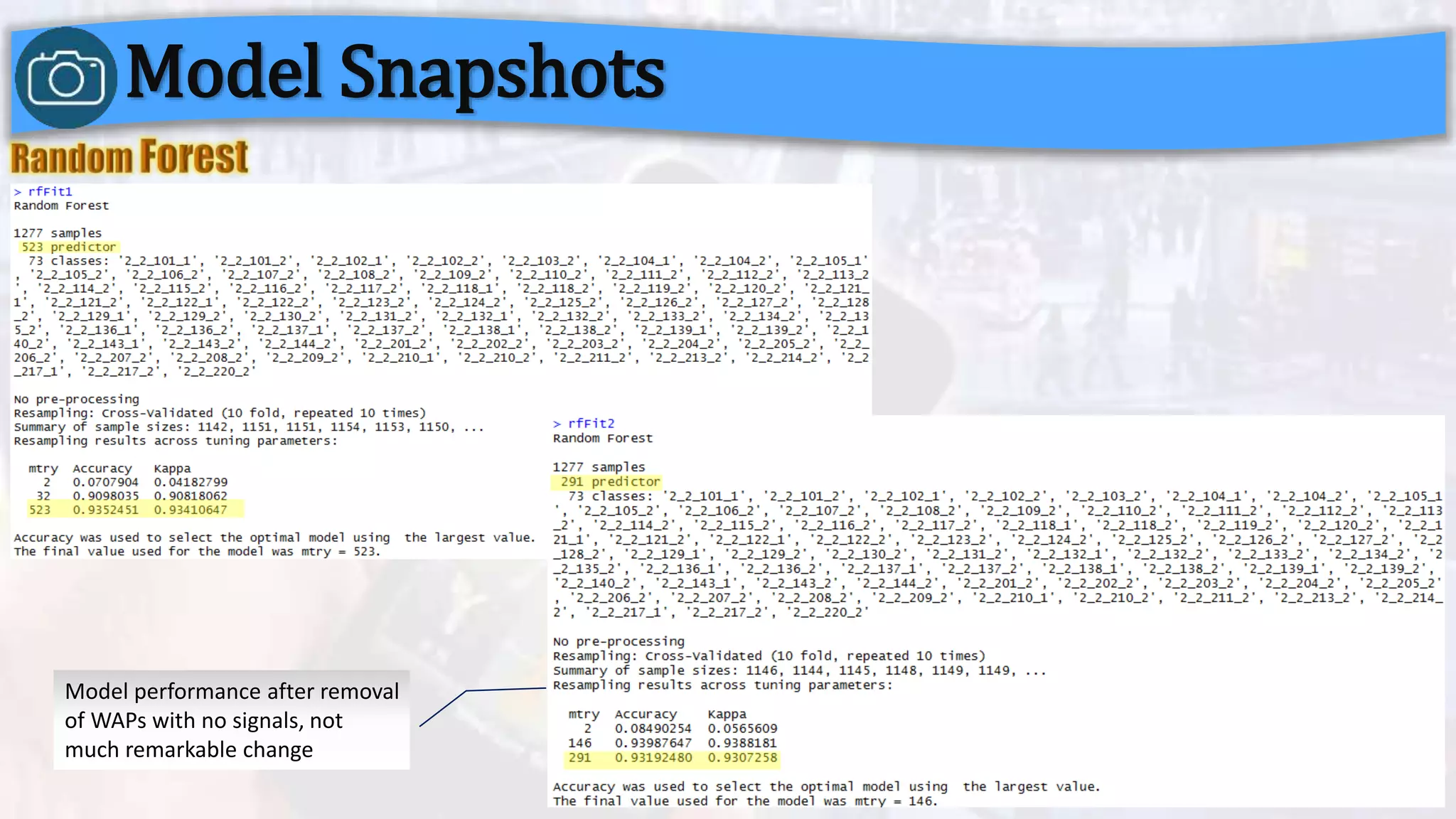

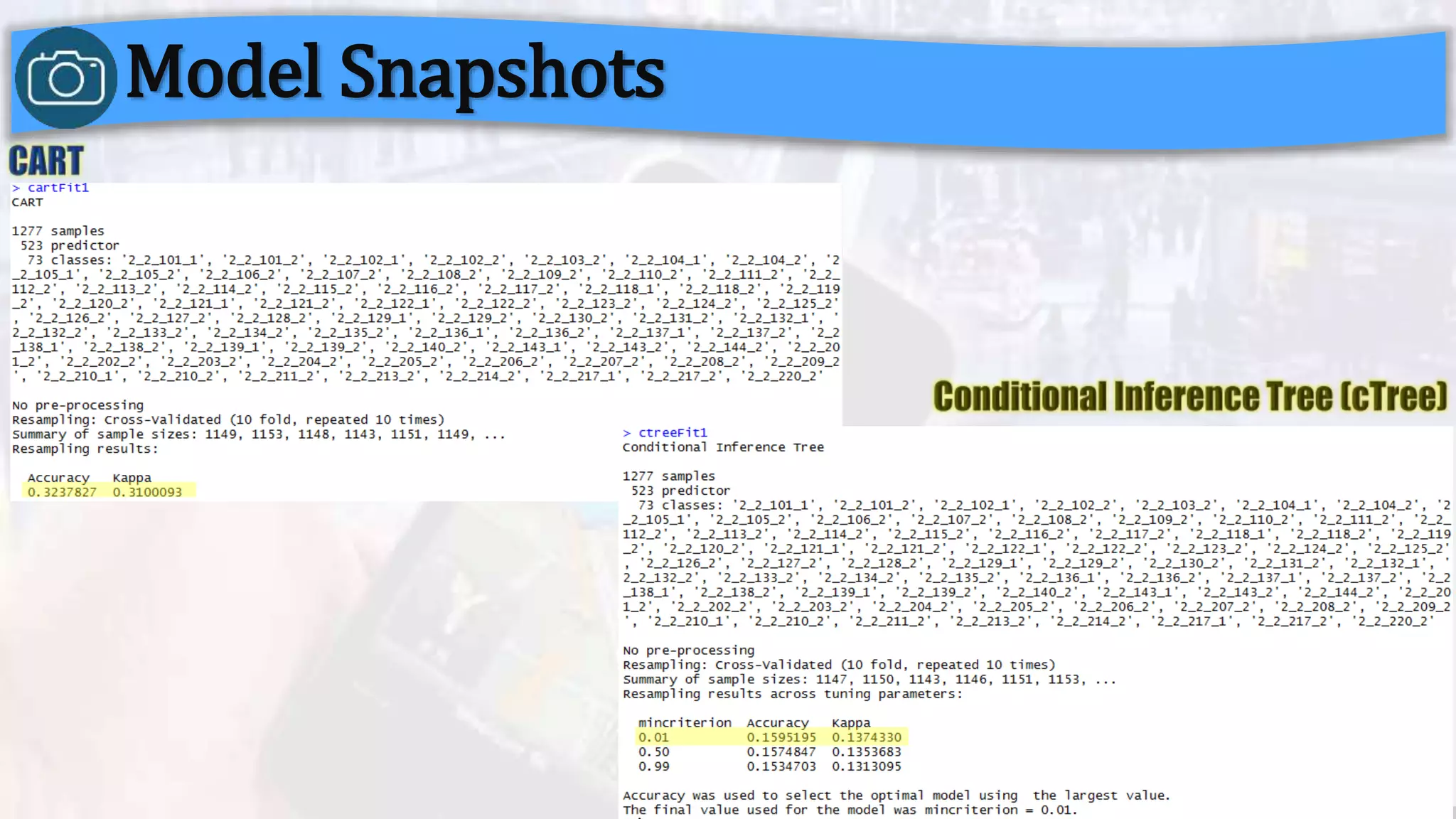

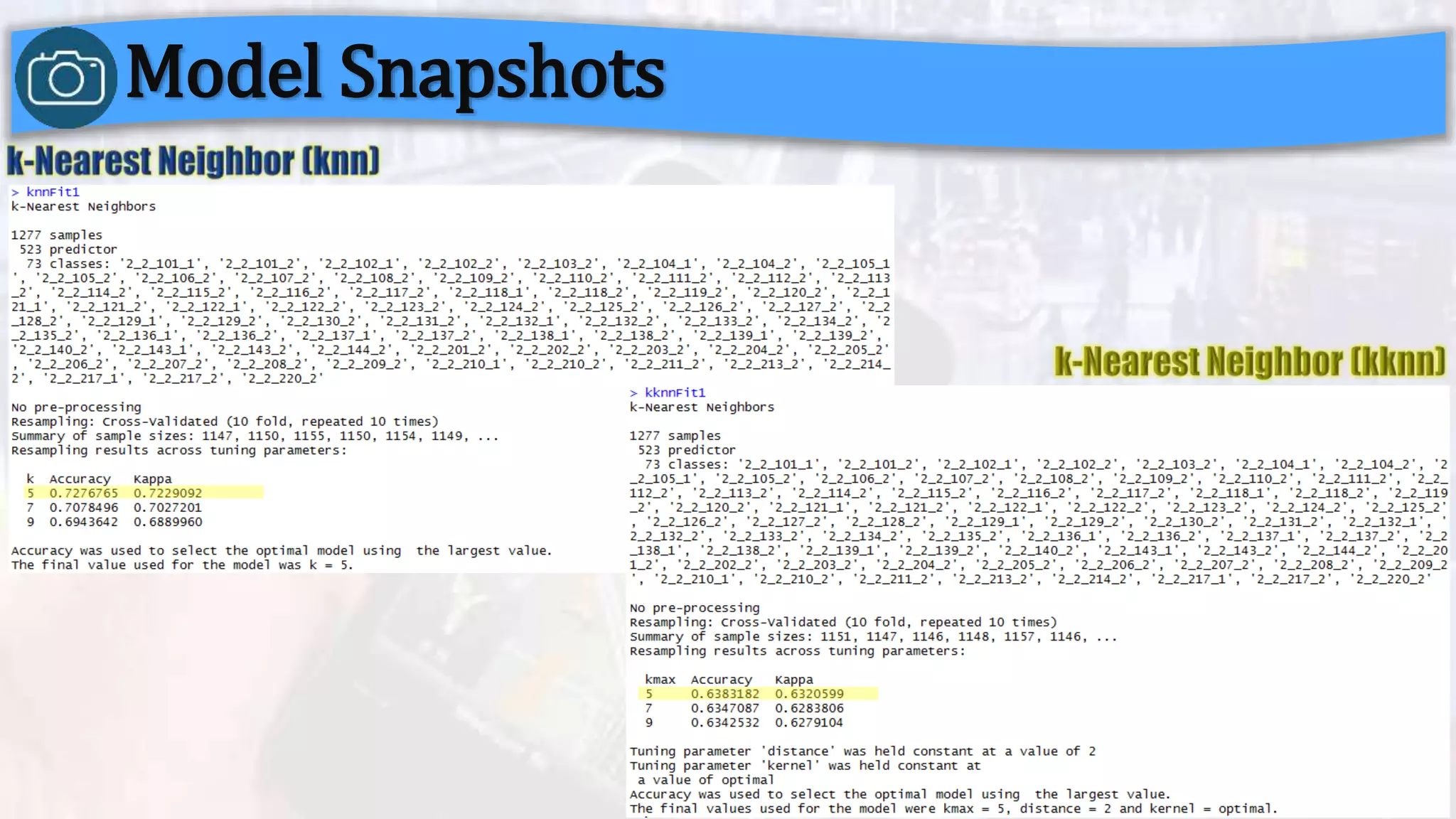

9. Model Snapshots
Model performance after removal
of WAPs with no signals, not
much remarkable change

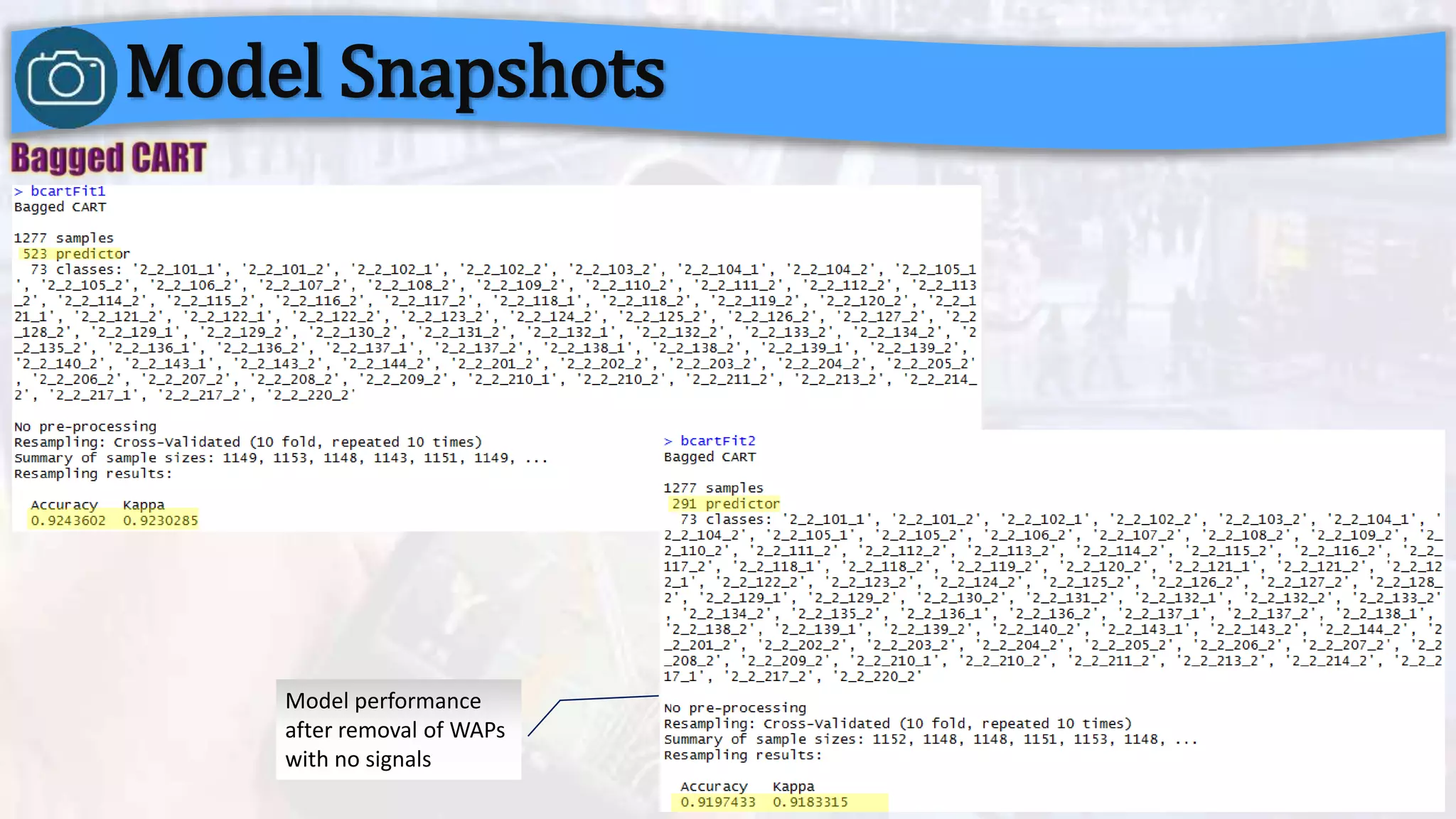

10. Model Snapshots
Model performance
after removal of WAPs
with no signals

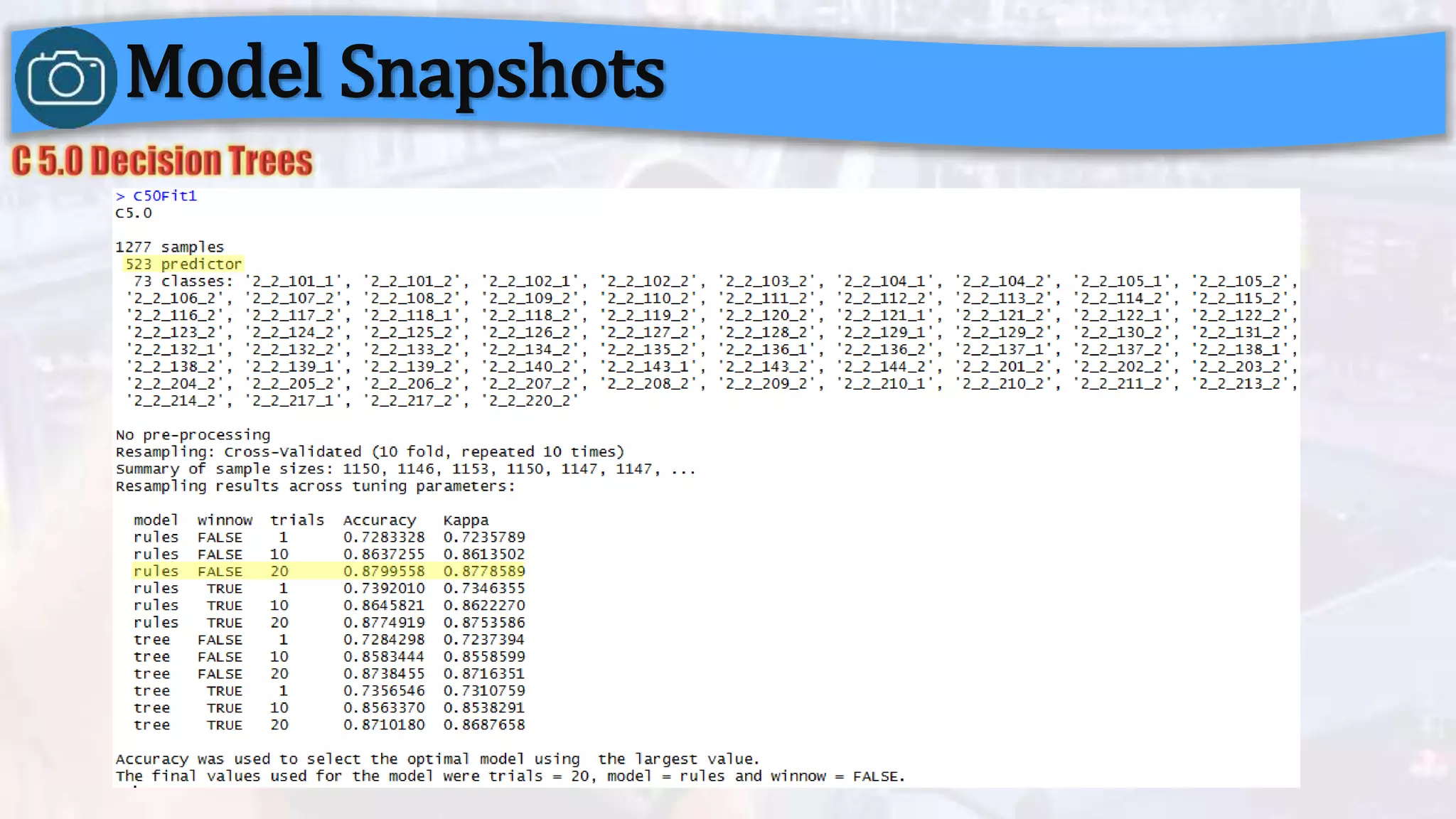

11. Model Snapshots

12. Model Snapshots

13. Model Snapshots

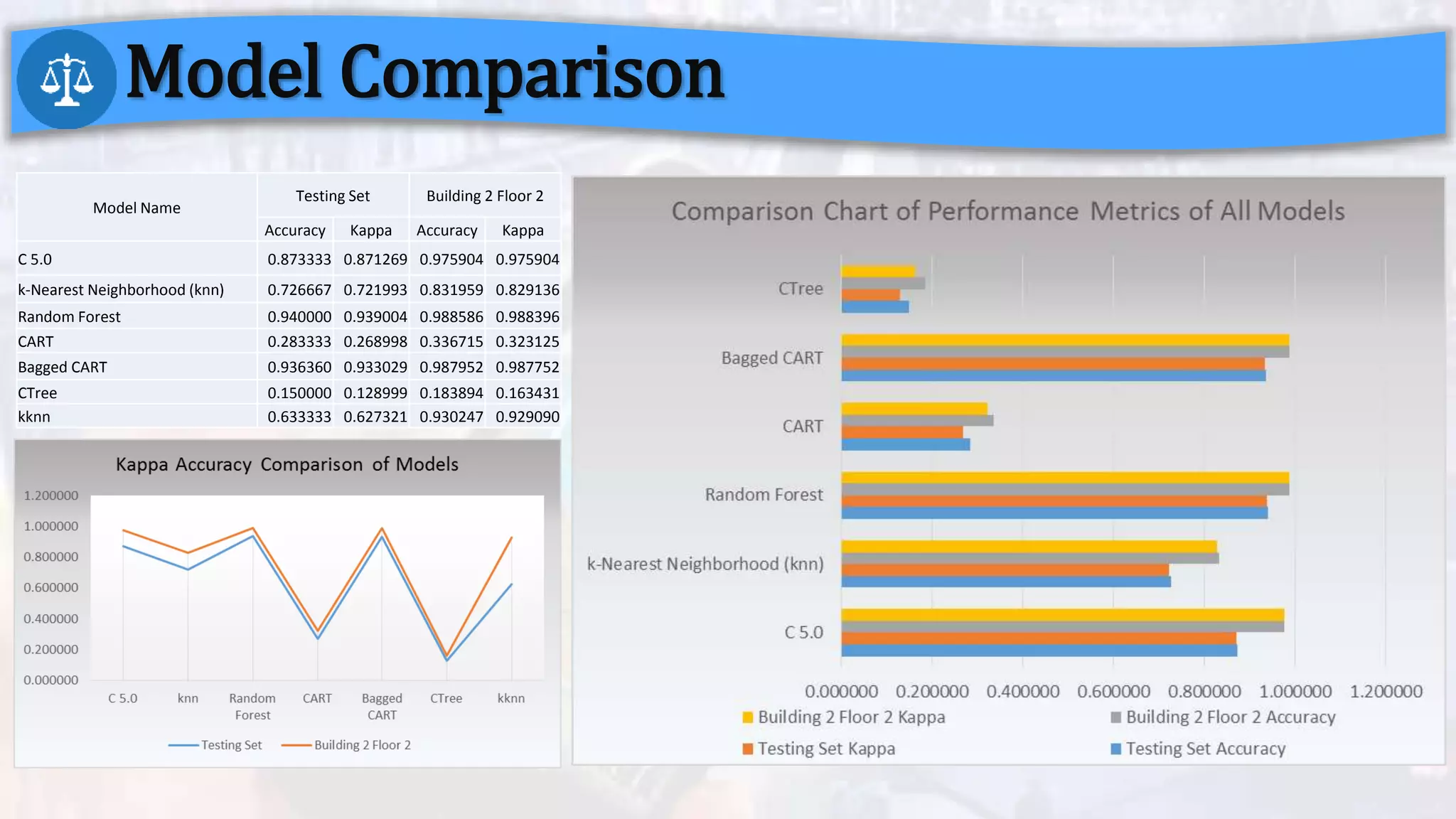

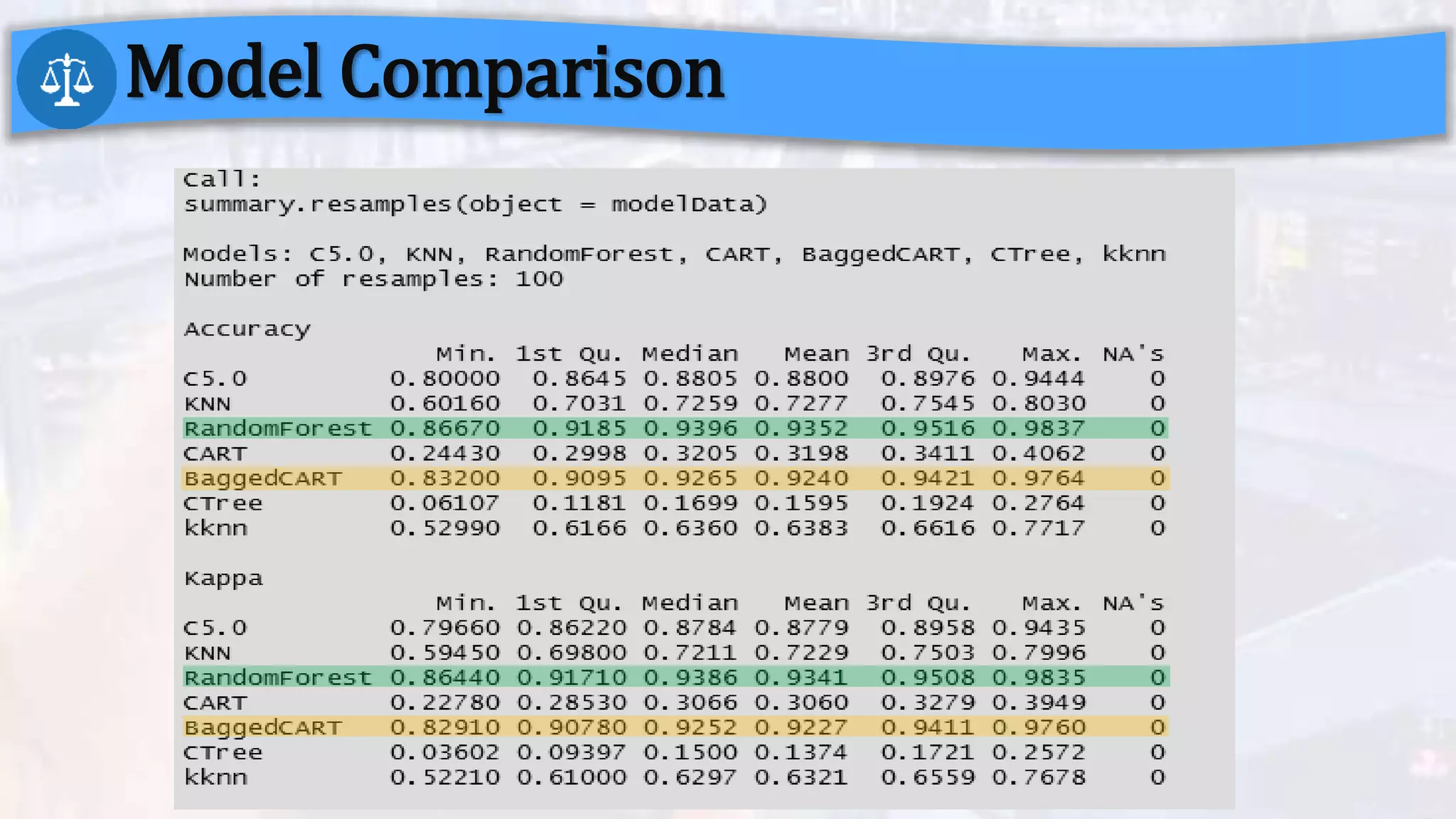

14. Model Comparison
Model Name
Testing Set Building 2 Floor 2
Accuracy Kappa Accuracy Kappa
C 5.0 0.873333 0.871269 0.975904 0.975904
k-Nearest Neighborhood (knn) 0.726667 0.721993 0.831959 0.829136
Random Forest 0.940000 0.939004 0.988586 0.988396
CART 0.283333 0.268998 0.336715 0.323125
Bagged CART 0.936360 0.933029 0.987952 0.987752
CTree 0.150000 0.128999 0.183894 0.163431
kknn 0.633333 0.627321 0.930247 0.929090

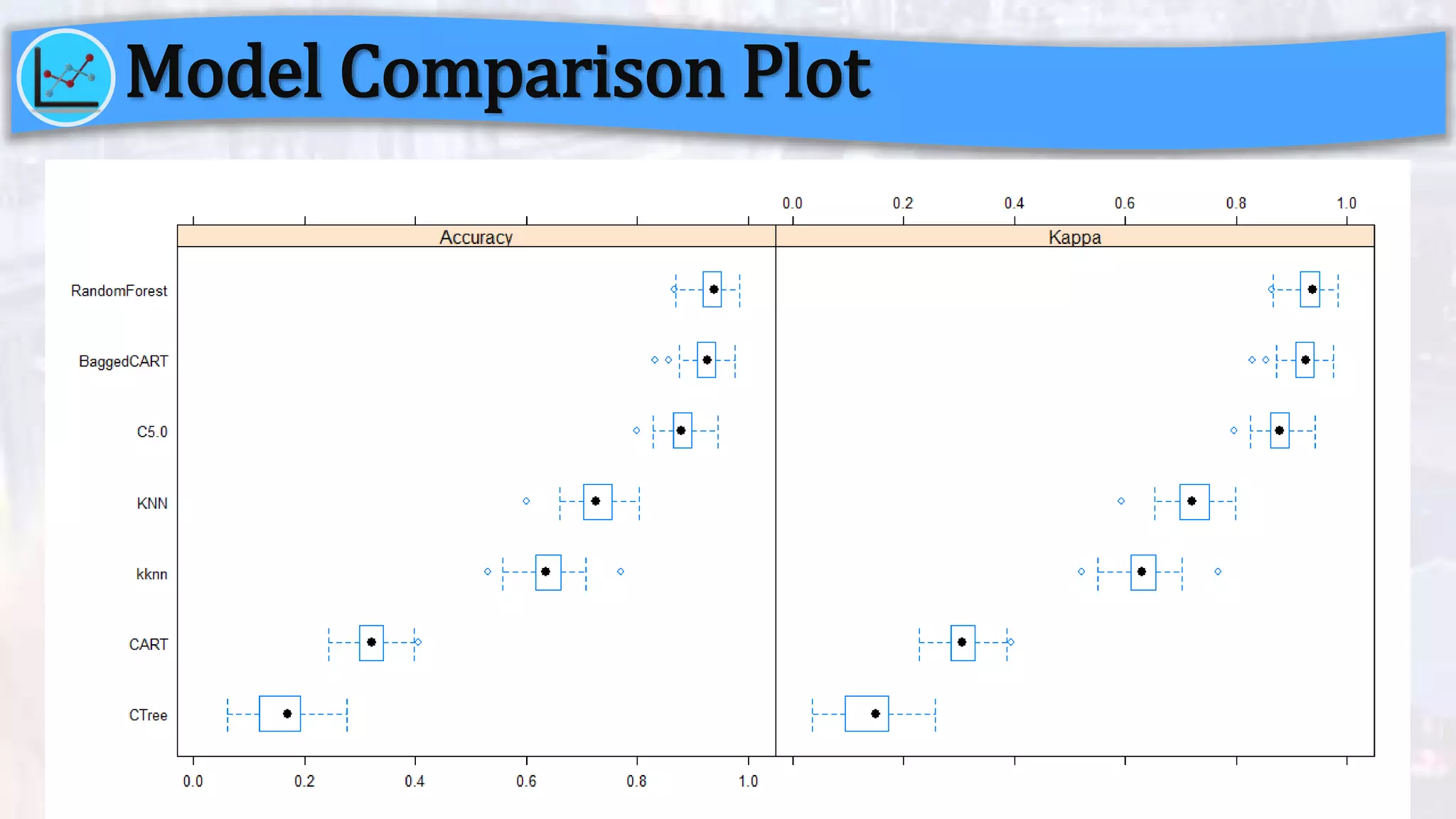

15. Model Comparison

16. Model Comparison Plot

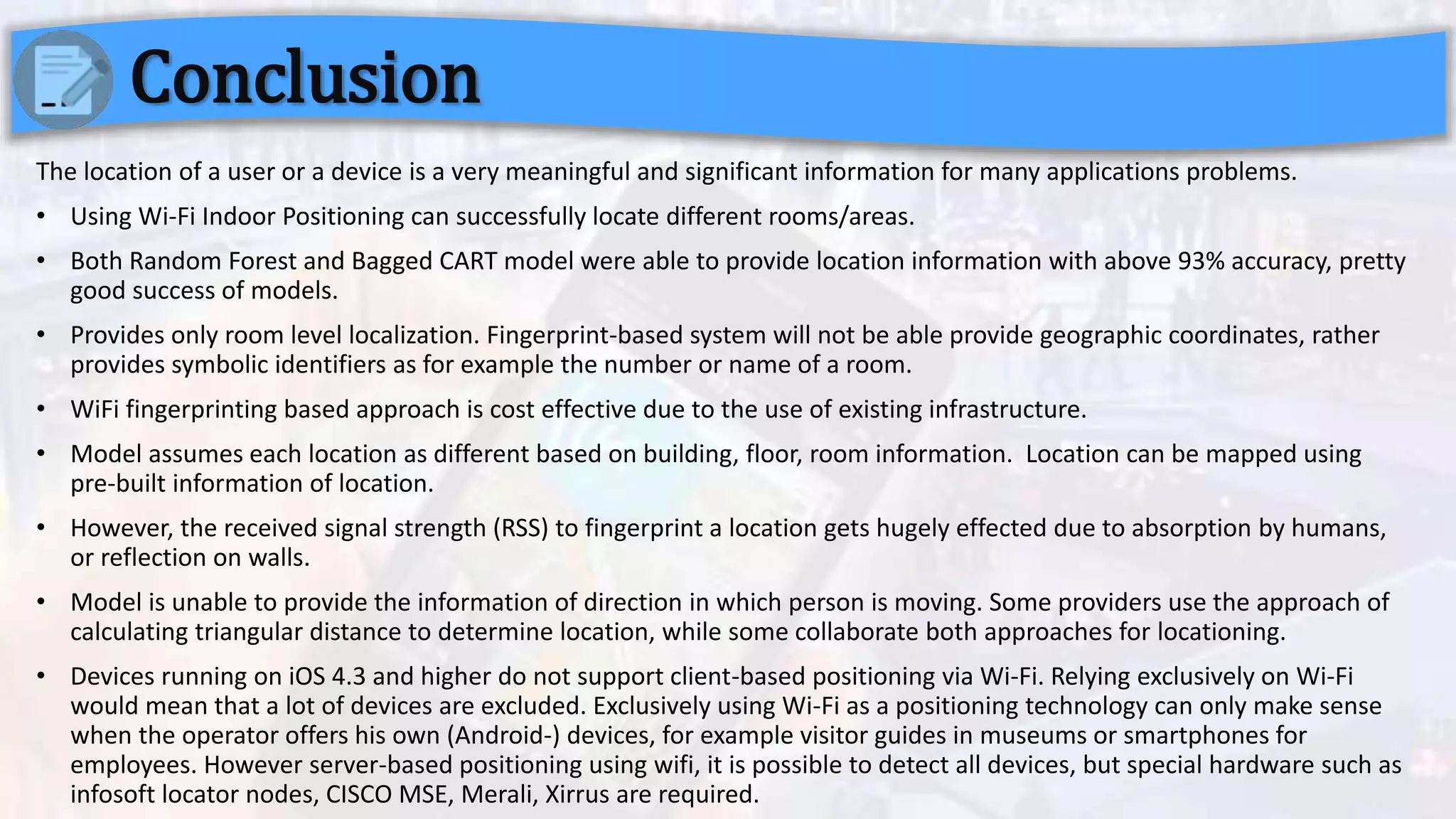

17. The location of a user or a device is a very meaningful and significant information for many applications problems.
• Using Wi-Fi Indoor Positioning can successfully locate different rooms/areas.
• Both Random Forest and Bagged CART model were able to provide location information with above 93% accuracy, pretty
good success of models.
• Provides only room level localization. Fingerprint-based system will not be able provide geographic coordinates, rather
provides symbolic identifiers as for example the number or name of a room.
• WiFi fingerprinting based approach is cost effective due to the use of existing infrastructure.
• Model assumes each location as different based on building, floor, room information. Location can be mapped using
pre-built information of location.
• However, the received signal strength (RSS) to fingerprint a location gets hugely effected due to absorption by humans,
or reflection on walls.
• Model is unable to provide the information of direction in which person is moving. Some providers use the approach of
calculating triangular distance to determine location, while some collaborate both approaches for locationing.
• Devices running on iOS 4.3 and higher do not support client-based positioning via Wi-Fi. Relying exclusively on Wi-Fi
would mean that a lot of devices are excluded. Exclusively using Wi-Fi as a positioning technology can only make sense
when the operator offers his own (Android-) devices, for example visitor guides in museums or smartphones for
employees. However server-based positioning using wifi, it is possible to detect all devices, but special hardware such as
infosoft locator nodes, CISCO MSE, Merali, Xirrus are required.
Conclusion
