Genomic library and shotgun sequencing. It includes the topics about genomic library,construction method, its uses and applications, shotgun sequencing, difference between random and whole genome sequencing, its advantages and disadvantages etc.

1. Welcome

2. GENOMIC
LIBRARY
Lulu S Kumar

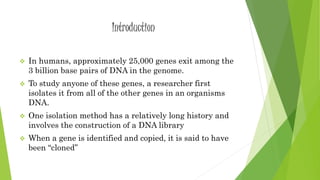

3. Introduction
 In humans, approximately 25,000 genes exit among the
3 billion base pairs of DNA in the genome.
 To study anyone of these genes, a researcher first
isolates it from all of the other genes in an organisms
DNA.
 One isolation method has a relatively long history and
involves the construction of a DNA library
 When a gene is identified and copied, it is said to have
been “cloned”

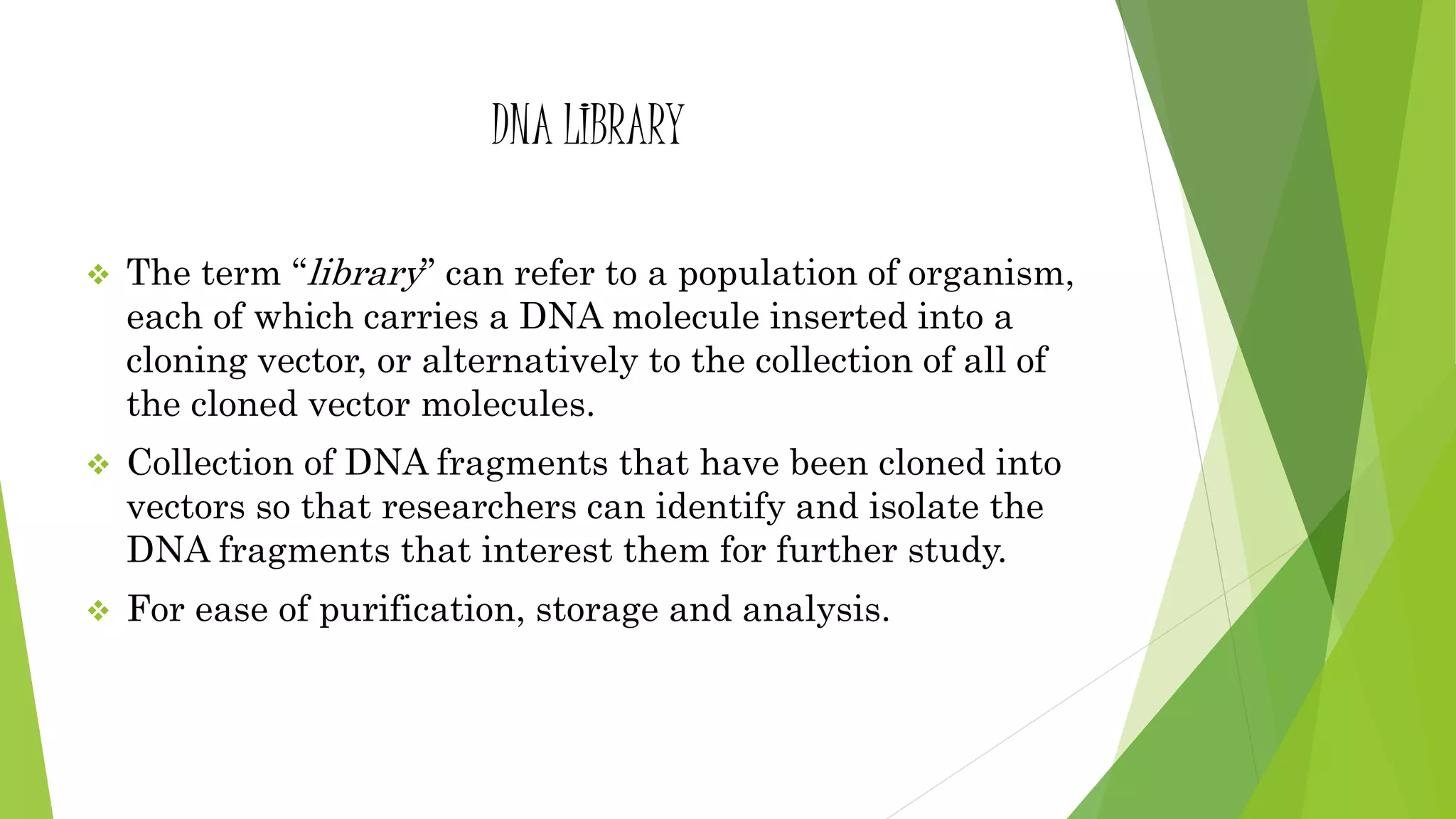

4. DNA LIBRARY
 The term “library” can refer to a population of organism,
each of which carries a DNA molecule inserted into a
cloning vector, or alternatively to the collection of all of
the cloned vector molecules.
 Collection of DNA fragments that have been cloned into
vectors so that researchers can identify and isolate the
DNA fragments that interest them for further study.
 For ease of purification, storage and analysis.

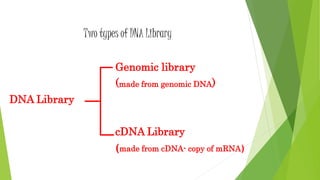

5. Two types of DNA Library
Genomic library
(made from genomic DNA)
DNA Library
cDNA Library
(made from cDNA- copy of mRNA)

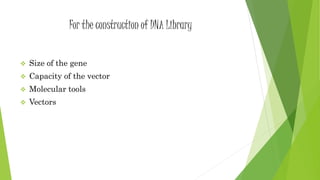

6. For the construction of DNA Library
 Size of the gene
 Capacity of the vector
 Molecular tools
 Vectors

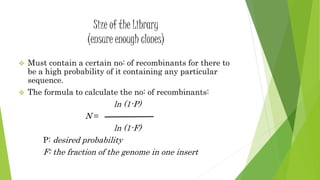

7. Size of the Library
(ensure enough clones)
 Must contain a certain no: of recombinants for there to
be a high probability of it containing any particular
sequence.
 The formula to calculate the no: of recombinants:
ln (1-P)
N =
ln (1-F)
P: desired probability
F: the fraction of the genome in one insert

8. Vectors for DNA Library

9. Genomic Library
A library for me???
Why not?...You are the
Backbone of Life……

10. What is Genomic Library?
 Contains DNA fragments representing entire genome of an
organism.
 Created using molecular cloning
 Genome size is expressed in terms of no: of base pairs.
 The sizes of genomes in different species are variable.
 There is a distinct difference in the genes of prokaryotes and
eukaryotes.
 In prokaryotes, the structural genes coding for proteins are
continuous while in eukaryotes, the coding regions ( exons )
are separated by non-coding regions ( introns ).
 Therefore, the construction of gene libraries for eukaryotes is
more complicated.

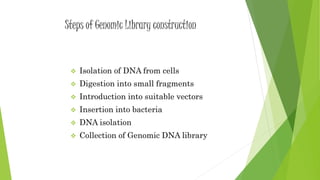

11. Steps of Genomic Library construction
 Isolation of DNA from cells
 Digestion into small fragments
 Introduction into suitable vectors
 Insertion into bacteria
 DNA isolation
 Collection of Genomic DNA library

12. 1. Isolation of DNA
(purification)
Eukaryotes : Prepare cell nuclei, remove
proteins, lipids and other unwanted
macromolecules by protease
digestion and phase extraction.
Prokaryotes : Extracted DNA directly from cells.

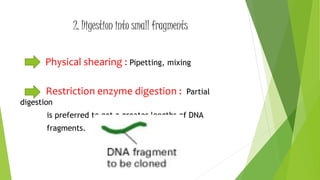

13. 2. Digestion into small fragments
Physical shearing : Pipetting, mixing
Restriction enzyme digestion : Partial
digestion
is preferred to get a greater lengths of DNA
fragments.

14. Selection of restriction enzymes
1. Ends produced (sticky or blunt) & the cleaved ends of the
vector to be vector
2. Whether the enzyme is inhibited by DNA modifications
3. Time of digestion and ratio of restriction enzyme to DNA
is dependent on the desired insert size range.

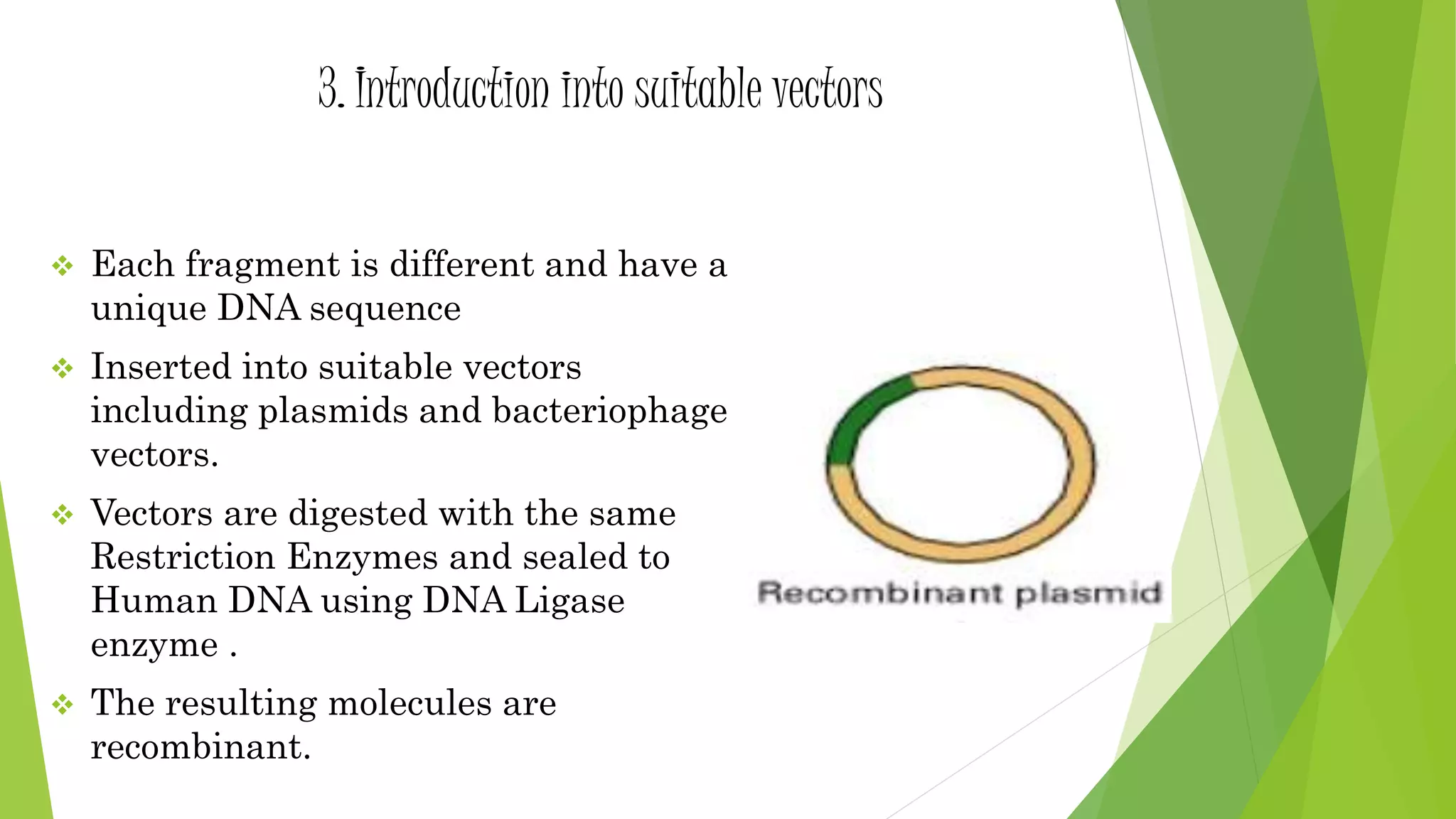

15. 3. Introduction into suitable vectors
 Each fragment is different and have a
unique DNA sequence
 Inserted into suitable vectors
including plasmids and bacteriophage
vectors.
 Vectors are digested with the same
Restriction Enzymes and sealed to
Human DNA using DNA Ligase
enzyme .
 The resulting molecules are
recombinant.

16. 4. Insertion into Bacteria
 Inserted into host bacteria ( E.coli )
 The microbes are grown in culture.
 They are made to take up the DNA.
 They replicate their genome along with
the vector genome contained with them.
 Produce clones of the original genome.
 This collection of clones which contains
all the sequences found in the original
source, including the sequence of
interest forms the genomic library.

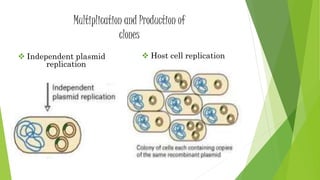

17. Multiplication and Production of
clones
 Independent plasmid
replication
 Host cell replication

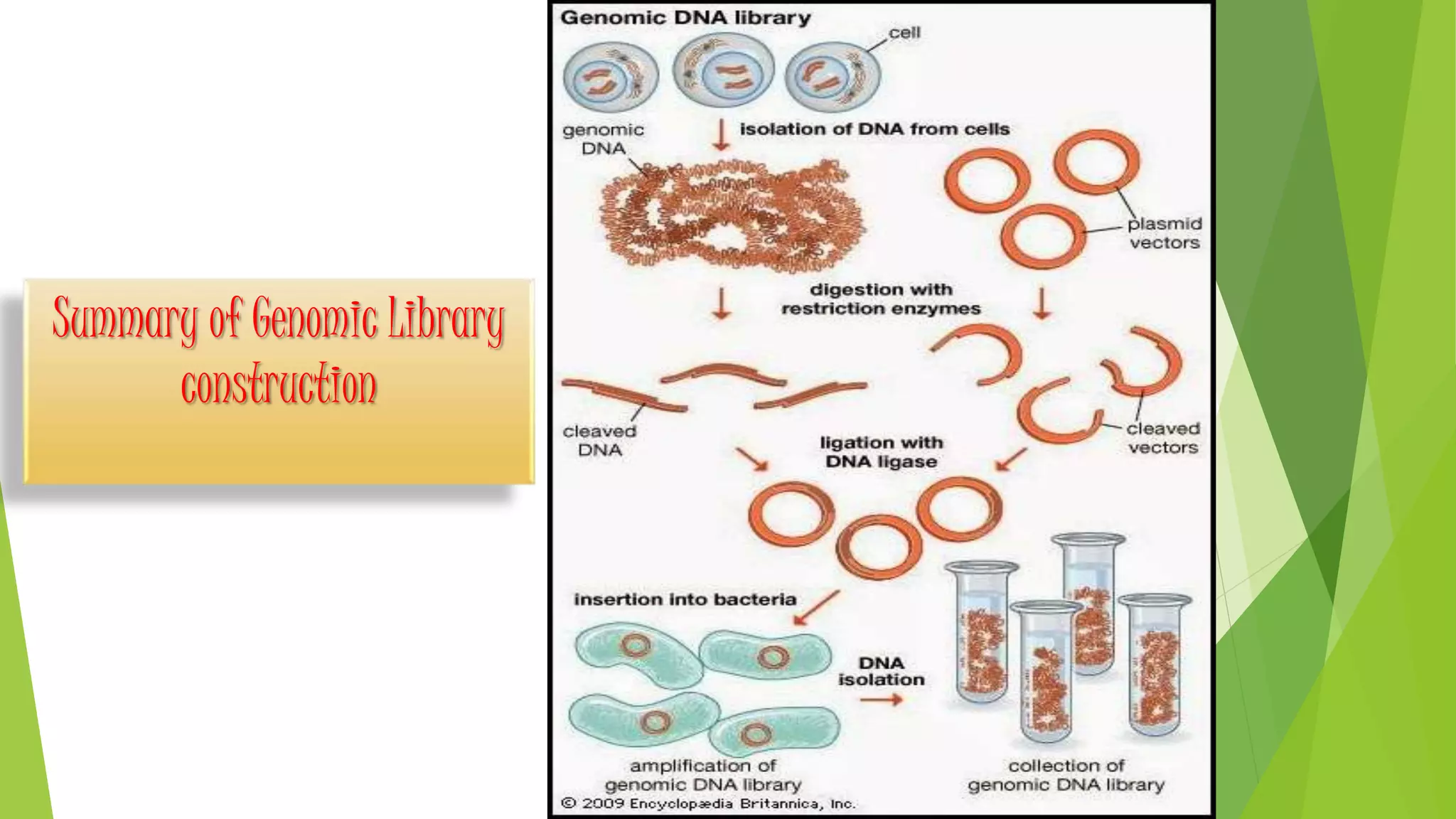

18. Summary of Genomic Library
construction

19. Screening of clones
The methods used for the selection of recombinants
include:
 Expression Screening or Direct Selection of
Recombinants
 Insertional Selection Inactivation Method
 Blue-White Selection Method
 Colony Hybridisation (Nucleic Acid Hybridisation)
Technique

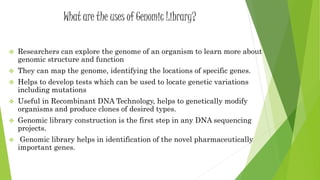

20. What are the uses of Genomic Library?
 Researchers can explore the genome of an organism to learn more about
genomic structure and function
 They can map the genome, identifying the locations of specific genes.
 Helps to develop tests which can be used to locate genetic variations
including mutations
 Useful in Recombinant DNA Technology, helps to genetically modify
organisms and produce clones of desired types.
 Genomic library construction is the first step in any DNA sequencing
projects.
 Genomic library helps in identification of the novel pharmaceutically
important genes.

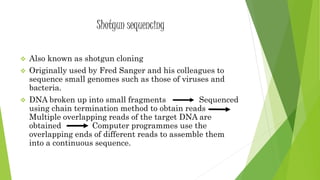

21. Shotgun sequencing
 Also known as shotgun cloning
 Originally used by Fred Sanger and his colleagues to
sequence small genomes such as those of viruses and
bacteria.
 DNA broken up into small fragments Sequenced
using chain termination method to obtain reads
Multiple overlapping reads of the target DNA are
obtained Computer programmes use the
overlapping ends of different reads to assemble them
into a continuous sequence.

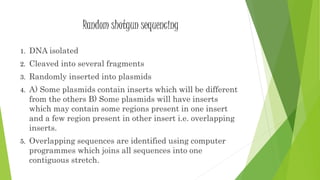

22. Random shotgun sequencing
1. DNA isolated
2. Cleaved into several fragments
3. Randomly inserted into plasmids
4. A) Some plasmids contain inserts which will be different
from the others B) Some plasmids will have inserts
which may contain some regions present in one insert
and a few region present in other insert i.e. overlapping
inserts.
5. Overlapping sequences are identified using computer
programmes which joins all sequences into one
contiguous stretch.

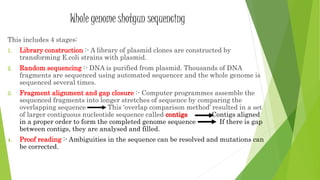

23. Whole genome shotgun sequencing
This includes 4 stages:
1. Library construction :- A library of plasmid clones are constructed by
transforming E.coli strains with plasmid.
2. Random sequencing :- DNA is purified from plasmid. Thousands of DNA
fragments are sequenced using automated sequencer and the whole genome is
sequenced several times.
3. Fragment alignment and gap closure :- Computer programmes assemble the
sequenced fragments into longer stretches of sequence by comparing the
overlapping sequence This ‘overlap comparison method’ resulted in a set
of larger contiguous nucleotide sequence called contigs Contigs aligned
in a proper order to form the completed genome sequence If there is gap
between contigs, they are analysed and filled.
4. Proof reading :- Ambiguities in the sequence can be resolved and mutations can
be corrected.

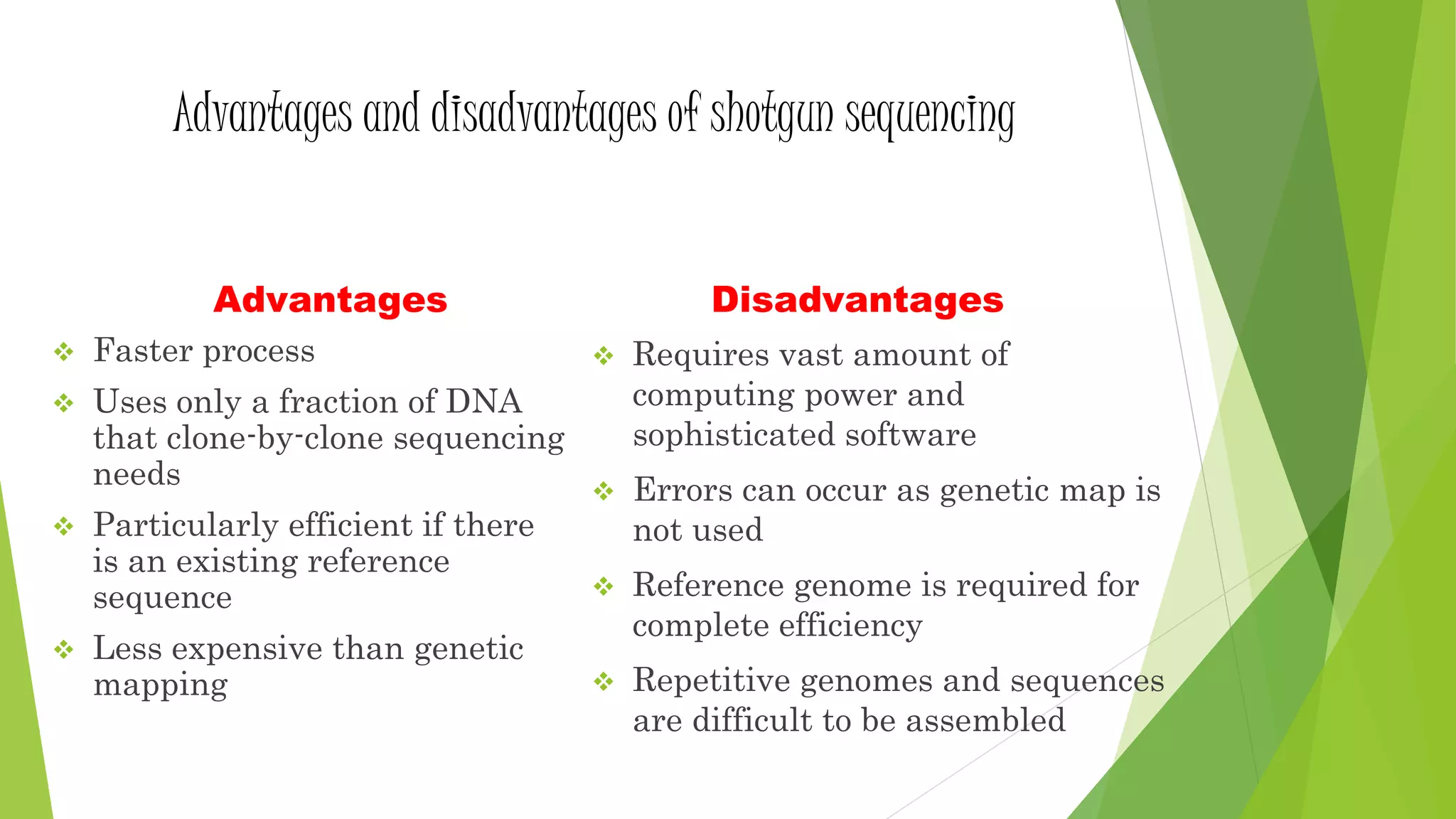

24. Advantages and disadvantages of shotgun sequencing
Advantages
 Faster process
 Uses only a fraction of DNA
that clone-by-clone sequencing
needs
 Particularly efficient if there
is an existing reference
sequence
 Less expensive than genetic
mapping
Disadvantages
 Requires vast amount of
computing power and
sophisticated software
 Errors can occur as genetic map is
not used
 Reference genome is required for
complete efficiency
 Repetitive genomes and sequences
are difficult to be assembled

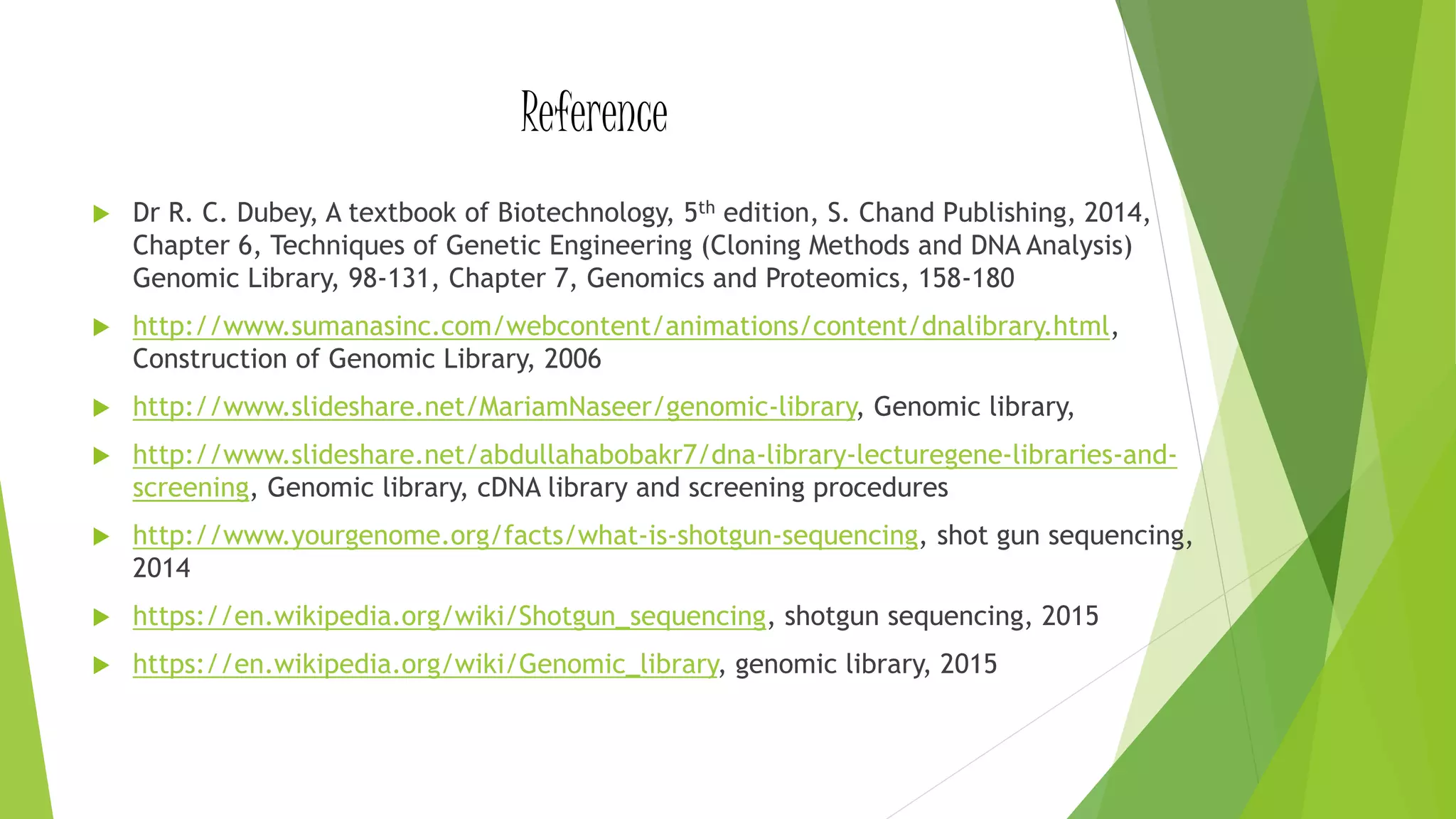

25. Reference
 Dr R. C. Dubey, A textbook of Biotechnology, 5th edition, S. Chand Publishing, 2014,
Chapter 6, Techniques of Genetic Engineering (Cloning Methods and DNA Analysis)
Genomic Library, 98-131, Chapter 7, Genomics and Proteomics, 158-180
 http://www.sumanasinc.com/webcontent/animations/content/dnalibrary.html,
Construction of Genomic Library, 2006
 http://www.slideshare.net/MariamNaseer/genomic-library, Genomic library,
 http://www.slideshare.net/abdullahabobakr7/dna-library-lecturegene-libraries-and-
screening, Genomic library, cDNA library and screening procedures
 http://www.yourgenome.org/facts/what-is-shotgun-sequencing, shot gun sequencing,
2014
 https://en.wikipedia.org/wiki/Shotgun_sequencing, shotgun sequencing, 2015
 https://en.wikipedia.org/wiki/Genomic_library, genomic library, 2015
