1. File Transfer and Access
Utilities

2. What You'll Learn in This Hour:
 FTP and TFTP
 RCP
 NFS
 SMB

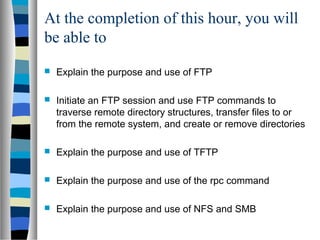

3. At the completion of this hour, you will
be able to
 Explain the purpose and use of FTP
 Initiate an FTP session and use FTP commands to
traverse remote directory structures, transfer files to or
from the remote system, and create or remove directories
 Explain the purpose and use of TFTP
 Explain the purpose and use of the rpc command
 Explain the purpose and use of NFS and SMB

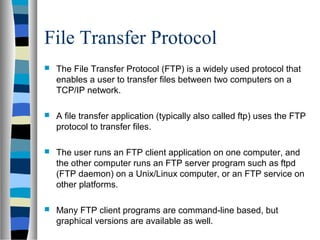

4. File Transfer Protocol
 The File Transfer Protocol (FTP) is a widely used protocol that
enables a user to transfer files between two computers on a
TCP/IP network.
 A file transfer application (typically also called ftp) uses the FTP
protocol to transfer files.
 The user runs an FTP client application on one computer, and
the other computer runs an FTP server program such as ftpd
(FTP daemon) on a Unix/Linux computer, or an FTP service on
other platforms.
 Many FTP client programs are command-line based, but
graphical versions are available as well.

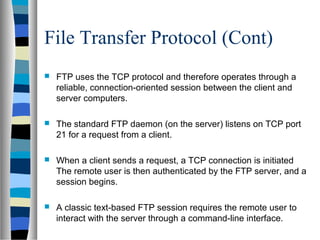

5. File Transfer Protocol (Cont)
 FTP uses the TCP protocol and therefore operates through a
reliable, connection-oriented session between the client and
server computers.
 The standard FTP daemon (on the server) listens on TCP port
21 for a request from a client.
 When a client sends a request, a TCP connection is initiated
The remote user is then authenticated by the FTP server, and a
session begins.
 A classic text-based FTP session requires the remote user to
interact with the server through a command-line interface.

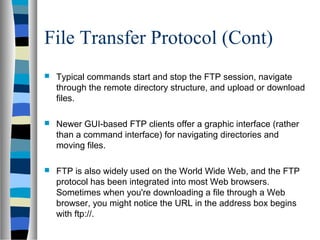

6. File Transfer Protocol (Cont)
 Typical commands start and stop the FTP session, navigate
through the remote directory structure, and upload or download
files.
 Newer GUI-based FTP clients offer a graphic interface (rather
than a command interface) for navigating directories and
moving files.
 FTP is also widely used on the World Wide Web, and the FTP
protocol has been integrated into most Web browsers.
Sometimes when you're downloading a file through a Web
browser, you might notice the URL in the address box begins
with ftp://.

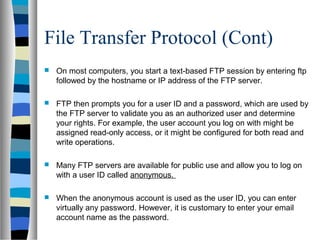

7. File Transfer Protocol (Cont)
 On most computers, you start a text-based FTP session by entering ftp
followed by the hostname or IP address of the FTP server.
 FTP then prompts you for a user ID and a password, which are used by
the FTP server to validate you as an authorized user and determine
your rights. For example, the user account you log on with might be
assigned read-only access, or it might be configured for both read and
write operations.
 Many FTP servers are available for public use and allow you to log on
with a user ID called anonymous.
 When the anonymous account is used as the user ID, you can enter
virtually any password. However, it is customary to enter your email
account name as the password.

8. File Transfer Protocol (Cont)
 Many FTP client implementations allow you to enter either Unix-based
commands or DOS-based commands.
 The actual commands available depend on the client software being
used.
 When you transfer files using FTP, you must specify to FTP the type of
file that you are about to transfer; the most common choices are binary
and ASCII.
 Choose ASCII when the type of file you want to transfer is a simple text
file.
 Choose binary when the type of file you want to transfer is either a
program file, a word processing document, or a graphics file. The
default file transfer mode is ASCII.

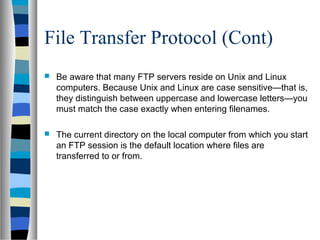

9. File Transfer Protocol (Cont)
 Be aware that many FTP servers reside on Unix and Linux
computers. Because Unix and Linux are case sensitive—that is,
they distinguish between uppercase and lowercase letters—you
must match the case exactly when entering filenames.
 The current directory on the local computer from which you start
an FTP session is the default location where files are
transferred to or from.

10. FTP Command
 ftp - The ftp command is used to start the FTP client program
 User - The user command is used to change the user ID and
password information of the current session
 ls or dir - The Unix/Linux ls or ls -l command or the Windows dir
command lists the contents of a directory
 pwd - The pwd command prints the name of the current working
directory
 cd - The cd command changes the current working directory on
the FTP server

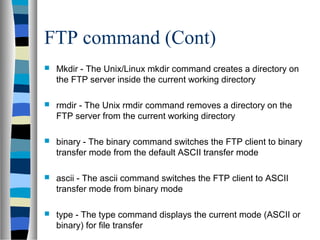

11. FTP command (Cont)
 Mkdir - The Unix/Linux mkdir command creates a directory on
the FTP server inside the current working directory
 rmdir - The Unix rmdir command removes a directory on the
FTP server from the current working directory
 binary - The binary command switches the FTP client to binary
transfer mode from the default ASCII transfer mode
 ascii - The ascii command switches the FTP client to ASCII
transfer mode from binary mode
 type - The type command displays the current mode (ASCII or
binary) for file transfer

12. FTP Command (Cont)
 Status - The status command displays information about the
various settings on the FTP client
 get - The get command retrieves a file from an FTP server to an
FTP client
 mget - The mget command is similar to the get command
except that it lets you retrieve multiple files
 put - The put command transfers a file from the FTP client to the
FTP server
 mput - The mput command is similar to the put command,
except that it enables you to transfer multiple files with one
command

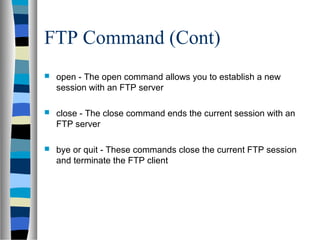

13. FTP Command (Cont)
 open - The open command allows you to establish a new
session with an FTP server
 close - The close command ends the current session with an
FTP server
 bye or quit - These commands close the current FTP session
and terminate the FTP client

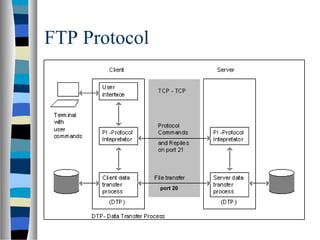

14. FTP Protocol
port 20

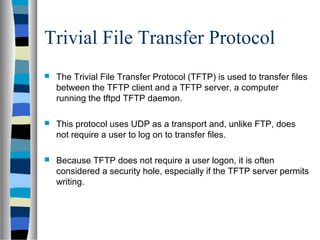

15. Trivial File Transfer Protocol
 The Trivial File Transfer Protocol (TFTP) is used to transfer files
between the TFTP client and a TFTP server, a computer
running the tftpd TFTP daemon.
 This protocol uses UDP as a transport and, unlike FTP, does
not require a user to log on to transfer files.
 Because TFTP does not require a user logon, it is often
considered a security hole, especially if the TFTP server permits
writing.

16. TFTP (Cont)
 The TFTP protocol was designed to be small so that both it and
the UDP protocol could be implemented on a PROM
(Programmable Read Only Memory) chip.
 The TFTP protocol is limited (hence the name trivial) when
compared to the FTP protocol. The TFTP protocol can only read
and write files; it cannot list the contents of directories, create or
remove directories, or allow a user to log on as the FTP protocol
allows.
 The TFTP protocol is primarily used in conjunction with the
RARP and BOOTP protocols to boot diskless workstations and,
in some cases, to upload new system code or patches to
routers or other network devices.

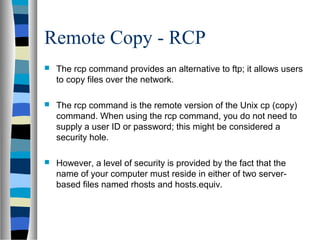

17. Remote Copy - RCP
 The rcp command provides an alternative to ftp; it allows users
to copy files over the network.
 The rcp command is the remote version of the Unix cp (copy)
command. When using the rcp command, you do not need to
supply a user ID or password; this might be considered a
security hole.
 However, a level of security is provided by the fact that the
name of your computer must reside in either of two server-
based files named rhosts and hosts.equiv.

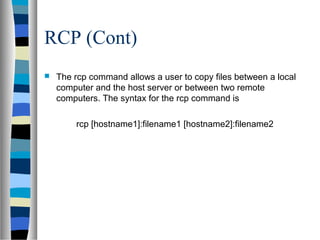

18. RCP (Cont)
 The rcp command allows a user to copy files between a local
computer and the host server or between two remote
computers. The syntax for the rcp command is
rcp [hostname1]:filename1 [hostname2]:filename2

19. Integrating Network File Access
 Network File System (NFS)— A protocol
used on Unix and Linux computers
 Server Message Block (SMB)— A protocol
used to provide remote file access for
Windows clients

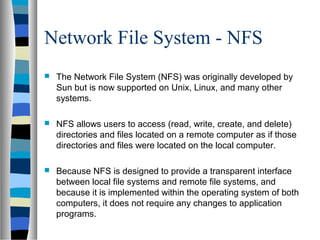

20. Network File System - NFS
 The Network File System (NFS) was originally developed by
Sun but is now supported on Unix, Linux, and many other
systems.
 NFS allows users to access (read, write, create, and delete)
directories and files located on a remote computer as if those
directories and files were located on the local computer.
 Because NFS is designed to provide a transparent interface
between local file systems and remote file systems, and
because it is implemented within the operating system of both
computers, it does not require any changes to application
programs.

21. NFS (Cont)
 Programs are capable of accessing both local files and remote
files and directories via NFS without any recompilation or other
changes.
 To the user, all files and directories appear and operate as if
they existed only on the local file system.
 The original implementation of NFS used the UDP protocol for
its transport and was intended for use on a LAN.
 However, later revisions allow use of the TCP protocol; the
additional reliability of TCP allows for expanded capabilities of
NFS, which can now operate in a WAN

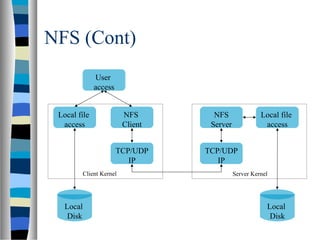

22. NFS (Cont)
Local file
access
TCP/UDP
IP
NFS
Client
Local file
access
TCP/UDP
IP
NFS
Server
User
access
Local
Disk
Local
Disk
Client Kernel Server Kernel

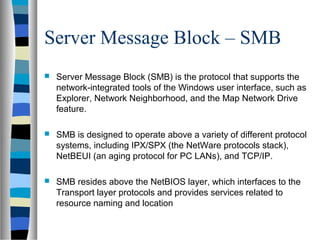

23. Server Message Block – SMB
 Server Message Block (SMB) is the protocol that supports the
network-integrated tools of the Windows user interface, such as
Explorer, Network Neighborhood, and the Map Network Drive
feature.
 SMB is designed to operate above a variety of different protocol
systems, including IPX/SPX (the NetWare protocols stack),
NetBEUI (an aging protocol for PC LANs), and TCP/IP.
 SMB resides above the NetBIOS layer, which interfaces to the
Transport layer protocols and provides services related to
resource naming and location

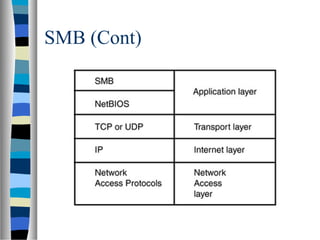

24. SMB (Cont)

25. SMB (Cont)
 If the logon is successful, the client sends an SMB specifying
the name of the network share it wishes to access. If the share
access is successful, the client may open, close, read from, or
write to the network resource, and the server sends the
necessary data to fulfill the request.
 SMB is generally considered a Windows protocol, and it is true
that the primary importance of SMB is its tight integration with
the Windows client user interface. But details of the SMB
protocol are well known to developers, and other operating
systems support servers that speak SMB to Windows clients.
 A popular open source server called Samba (which is, if you'll
notice, SMB with two vowels to make a dance) provides SMB
file services for Unix/Linux systems.

26. HTTP, HTML, and the
World Wide Web

27. What You'll Learn in This Hour:
 HTTP and HTML
 URLs (Uniform Resource Locator)
 Advanced Web techniques

28. At the completion of this hour, you will
be able to
 Describe URLs and formulate your own URLs
 Build a basic Web page using text and HTML tags
 Discuss the HTTP protocol and describe how it works
 List the benefits of server-end and client-end scripting

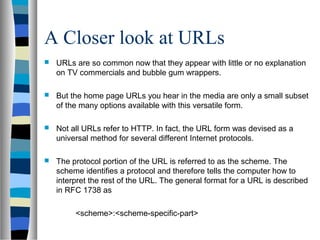

29. A Closer look at URLs
 URLs are so common now that they appear with little or no explanation
on TV commercials and bubble gum wrappers.
 But the home page URLs you hear in the media are only a small subset
of the many options available with this versatile form.
 Not all URLs refer to HTTP. In fact, the URL form was devised as a
universal method for several different Internet protocols.
 The protocol portion of the URL is referred to as the scheme. The
scheme identifies a protocol and therefore tells the computer how to
interpret the rest of the URL. The general format for a URL is described
in RFC 1738 as
<scheme>:<scheme-specific-part>

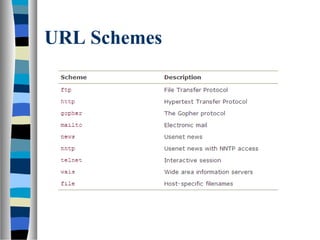

30. URL Schemes

31. General form of HTTP URL
 The general form for later an HTTP URL is
http://<host>[:<port>]/<path>[;<parameters>][?<search>]
 <host> is the DNS name of the server (for example, www.google.com)
 <path> is the path to the HTML document or other resource.
 <port>— The port number of the daemon or service to which the browser is
connecting. The port number reserved for HTTP servers is TCP port 80.
 <parameters>— Optional parameters supplied by the client. The user almost
never has to enter parameters in order to access a Web site
 <search>— Lets the client send a query string to the user. The user almost
never enters a query into a URL by hand.

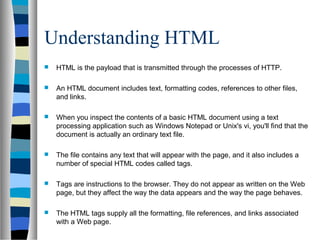

32. Understanding HTML
 HTML is the payload that is transmitted through the processes of HTTP.
 An HTML document includes text, formatting codes, references to other files,
and links.
 When you inspect the contents of a basic HTML document using a text
processing application such as Windows Notepad or Unix's vi, you'll find that the
document is actually an ordinary text file.
 The file contains any text that will appear with the page, and it also includes a
number of special HTML codes called tags.
 Tags are instructions to the browser. They do not appear as written on the Web
page, but they affect the way the data appears and the way the page behaves.
 The HTML tags supply all the formatting, file references, and links associated
with a Web page.

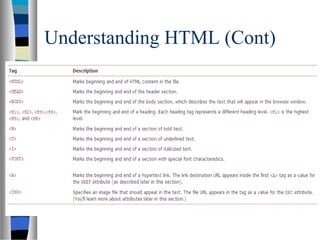

33. Understanding HTML (Cont)

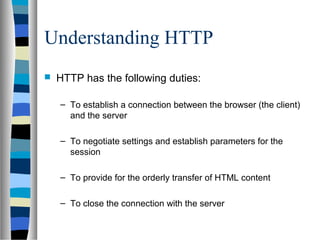

34. Understanding HTTP
 HTTP has the following duties:
– To establish a connection between the browser (the client)
and the server
– To negotiate settings and establish parameters for the
session
– To provide for the orderly transfer of HTML content
– To close the connection with the server

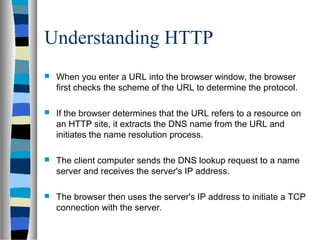

35. Understanding HTTP
 When you enter a URL into the browser window, the browser
first checks the scheme of the URL to determine the protocol.
 If the browser determines that the URL refers to a resource on
an HTTP site, it extracts the DNS name from the URL and
initiates the name resolution process.
 The client computer sends the DNS lookup request to a name
server and receives the server's IP address.
 The browser then uses the server's IP address to initiate a TCP
connection with the server.

36. Understanding HTTP
 After the TCP connection is established, the browser uses the HTTP GET
command to request the Web page from the server. The GET command
contains the URL of the resource the browser is requesting and the version of
HTTP the browser wants to use for the transaction. The browser can send the
relative URL with the GET request (rather than the full URL) because the
connection with the server has already been established:
GET /watergate/tapes/transcript HTTP/1.1
 The server receives the request and returns the requested document. Along with
the document is a header containing several settings. The parameters specified
in the header take the form
keyword:value

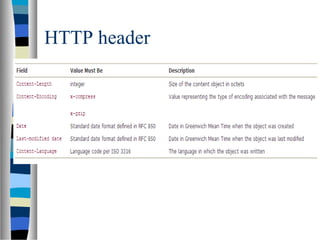

37. HTTP header

38. Advanced HTML Technique
 The Web grew up around the vision of the HTML file as a simple, static
text file served uniformly to all requests, but this vision has gotten
complicated in recent years by advances in Web technology.
 Web sites now commonly generate Web content at the time of the
client's request. These Dynamic HTML techniques allow the content to
adapt to the specific preferences and requests of the user.
 Dynamic HTML also simplifies the task of Web design because the
Web server can serve up unlimited combinations of output through a
single template.
 At the same time, another vision is now playing out in the Web world:
client-side programming. In this vision, programmatic instructions are
passed to the client along with the HTML data, and these instructions
execute on the client computer while the user views the Web page.

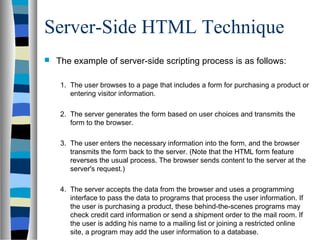

39. Server-Side HTML Technique
 The example of server-side scripting process is as follows:
1. The user browses to a page that includes a form for purchasing a product or
entering visitor information.
2. The server generates the form based on user choices and transmits the
form to the browser.
3. The user enters the necessary information into the form, and the browser
transmits the form back to the server. (Note that the HTML form feature
reverses the usual process. The browser sends content to the server at the
server's request.)
4. The server accepts the data from the browser and uses a programming
interface to pass the data to programs that process the user information. If
the user is purchasing a product, these behind-the-scenes programs may
check credit card information or send a shipment order to the mail room. If
the user is adding his name to a mailing list or joining a restricted online
site, a program may add the user information to a database.

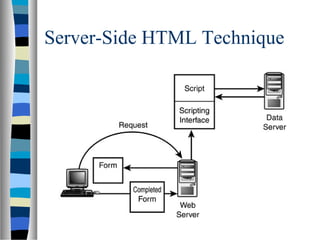

40. Server-Side HTML Technique

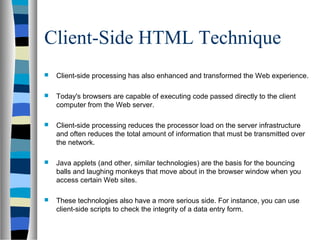

41. Client-Side HTML Technique
 Client-side processing has also enhanced and transformed the Web experience.
 Today's browsers are capable of executing code passed directly to the client
computer from the Web server.
 Client-side processing reduces the processor load on the server infrastructure
and often reduces the total amount of information that must be transmitted over
the network.
 Java applets (and other, similar technologies) are the basis for the bouncing
balls and laughing monkeys that move about in the browser window when you
access certain Web sites.
 These technologies also have a more serious side. For instance, you can use
client-side scripts to check the integrity of a data entry form.

42. XML
 As soon as users, vendors, and Web designers became accustomed to HTML,
they started to ask for more.
 The growth of server-side and client-side programming techniques, and the
evolution of the Web services architecture caused many experts to wonder if
there might be a way to extend the rigid tag system of HTML.
 Their goal was to get beyond the conception of a markup language as a means
for formatting text and graphics and to employ the language simply as a means
for transmitting data.
 The result of this discussion was a new markup language called Extensible
Markup Language, or XML.

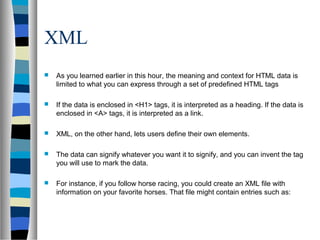

43. XML
 As you learned earlier in this hour, the meaning and context for HTML data is
limited to what you can express through a set of predefined HTML tags
 If the data is enclosed in <H1> tags, it is interpreted as a heading. If the data is
enclosed in <A> tags, it is interpreted as a link.
 XML, on the other hand, lets users define their own elements.
 The data can signify whatever you want it to signify, and you can invent the tag
you will use to mark the data.
 For instance, if you follow horse racing, you could create an XML file with
information on your favorite horses. That file might contain entries such as:

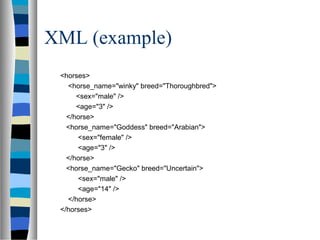

44. XML (example)
<horses>
<horse_name="winky" breed="Thoroughbred">
<sex="male" />
<age="3" />
</horse>
<horse_name="Goddess" breed="Arabian">
<sex="female" />
<age="3" />
</horse>
<horse_name="Gecko" breed="Uncertain">
<sex="male" />
<age="14" />
</horse>
</horses>

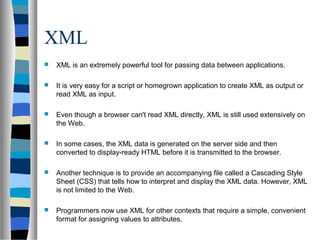

45. XML
 XML is an extremely powerful tool for passing data between applications.
 It is very easy for a script or homegrown application to create XML as output or
read XML as input.
 Even though a browser can't read XML directly, XML is still used extensively on
the Web.
 In some cases, the XML data is generated on the server side and then
converted to display-ready HTML before it is transmitted to the browser.
 Another technique is to provide an accompanying file called a Cascading Style
Sheet (CSS) that tells how to interpret and display the XML data. However, XML
is not limited to the Web.
 Programmers now use XML for other contexts that require a simple, convenient
format for assigning values to attributes.

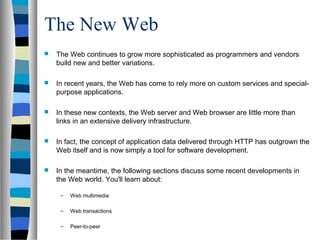

46. The New Web
 The Web continues to grow more sophisticated as programmers and vendors
build new and better variations.
 In recent years, the Web has come to rely more on custom services and special-
purpose applications.
 In these new contexts, the Web server and Web browser are little more than
links in an extensive delivery infrastructure.
 In fact, the concept of application data delivered through HTTP has outgrown the
Web itself and is now simply a tool for software development.
 In the meantime, the following sections discuss some recent developments in
the Web world. You'll learn about:
– Web multimedia
– Web transactions
– Peer-to-peer

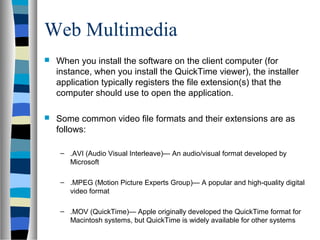

47. Web Multimedia
 When you install the software on the client computer (for
instance, when you install the QuickTime viewer), the installer
application typically registers the file extension(s) that the
computer should use to open the application.
 Some common video file formats and their extensions are as
follows:
– .AVI (Audio Visual Interleave)— An audio/visual format developed by
Microsoft
– .MPEG (Motion Picture Experts Group)— A popular and high-quality digital
video format
– .MOV (QuickTime)— Apple originally developed the QuickTime format for
Macintosh systems, but QuickTime is widely available for other systems

48. Web Transaction
 A typical Web transaction scenario is shown in next slide. The process is as
follows:
1. A Web server provides an online catalog accessible from the Web. A user browses through the
product offerings from a remote location across the Internet.
2. The user decides to buy a product and clicks a Buy This Product link on the Web page.
3. The server and browser establish a secure connection. At this point, the browser sometimes displays
a message that says something like "You are now entering a secure area…" Different browsers have
different methods for indicating a secure connection. Netscape Navigator, for instance, displays a
golden key.
4. After the connection is established, some form of authentication usually follows. On most transaction
sites, the buyer establishes some form of user account with the vendor. This is partly for security
reasons and partly for convenience (so the user can track the status of purchases). The user account
information also lets the vendor track the behavior of the user and correlate the user's demographic
information and purchase history. This logon step requires the Web server to contact some form of
back end database server—either to establish a new account or to check the credentials for logon to
an existing account.
5. After the user is logged in, the server (or some application working on the server back end) must
verify the credit card information and register the transaction with some credit card authority. Often
this credit card authority is a commercial service affiliated with the credit card company.
6. If the transaction is approved, notice of the purchase and mailing information is transmitted to the
vendor's fulfillment department, and the transaction application attends to the final details of
confirming the purchase with the user and updating the user's account profile.

49. Web Transaction

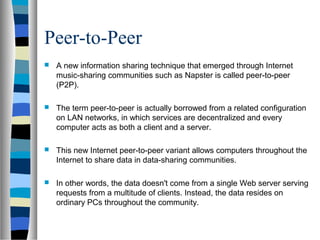

50. Peer-to-Peer
 A new information sharing technique that emerged through Internet
music-sharing communities such as Napster is called peer-to-peer
(P2P).
 The term peer-to-peer is actually borrowed from a related configuration
on LAN networks, in which services are decentralized and every
computer acts as both a client and a server.
 This new Internet peer-to-peer variant allows computers throughout the
Internet to share data in data-sharing communities.
 In other words, the data doesn't come from a single Web server serving
requests from a multitude of clients. Instead, the data resides on
ordinary PCs throughout the community.

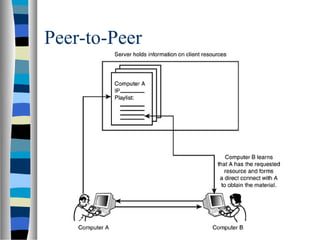

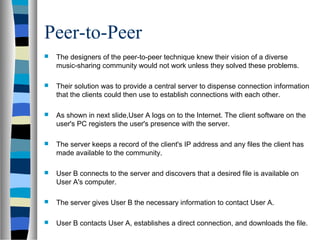

51. Peer-to-Peer
 The designers of the peer-to-peer technique knew their vision of a diverse
music-sharing community would not work unless they solved these problems.
 Their solution was to provide a central server to dispense connection information
that the clients could then use to establish connections with each other.
 As shown in next slide,User A logs on to the Internet. The client software on the
user's PC registers the user's presence with the server.
 The server keeps a record of the client's IP address and any files the client has
made available to the community.
 User B connects to the server and discovers that a desired file is available on
User A's computer.
 The server gives User B the necessary information to contact User A.
 User B contacts User A, establishes a direct connection, and downloads the file.

52. Peer-to-Peer
