1. FAULT EQUIVALENCE AND FAULT LOCATION
PRESENTED BY:
PRANOTI V BACHHAV
ME 2ND year.

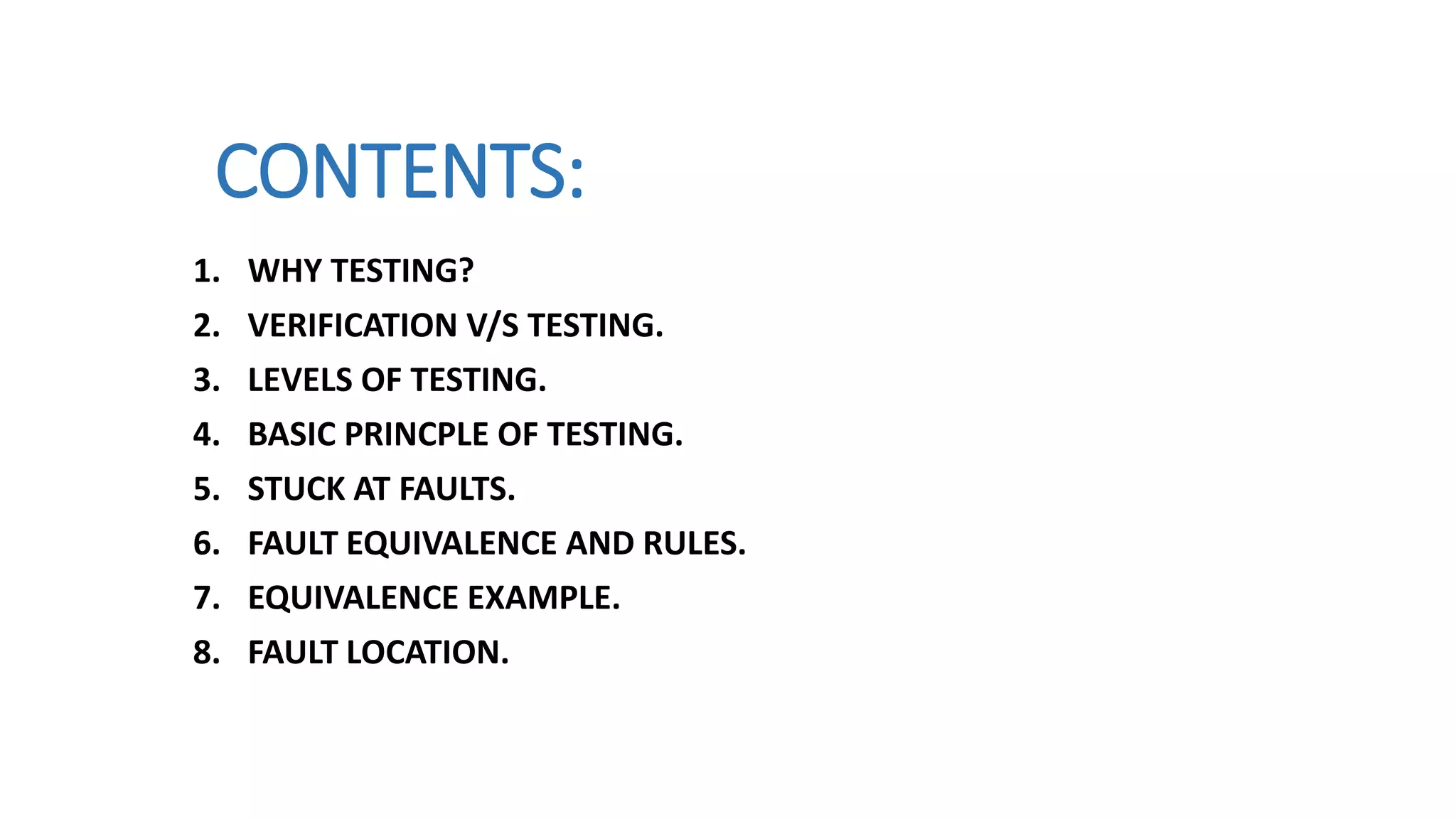

2. CONTENTS:
1. WHY TESTING?
2. VERIFICATION V/S TESTING.
3. LEVELS OF TESTING.
4. BASIC PRINCPLE OF TESTING.
5. STUCK AT FAULTS.
6. FAULT EQUIVALENCE AND RULES.
7. EQUIVALENCE EXAMPLE.
8. FAULT LOCATION.

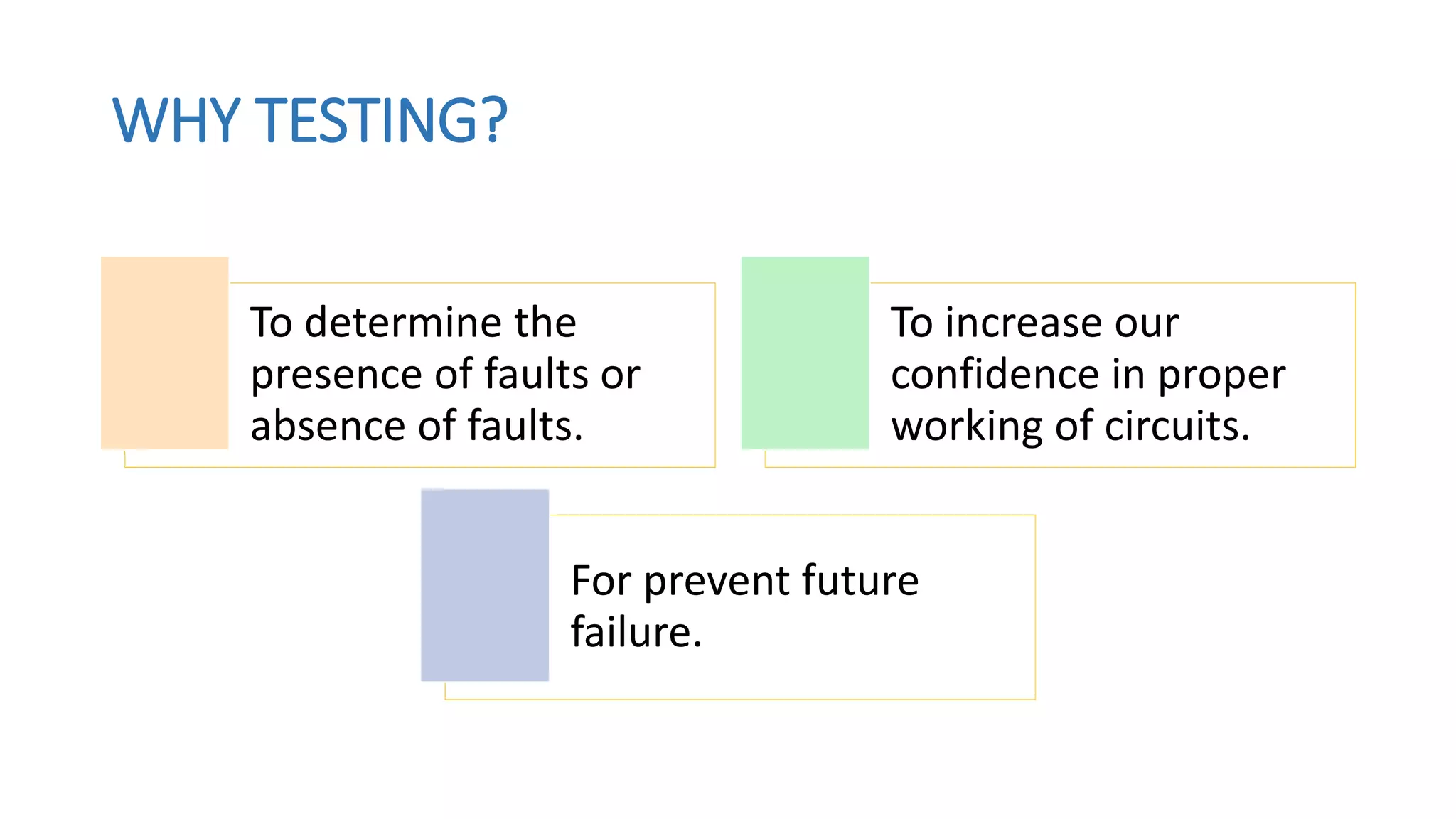

3. WHY TESTING?
To determine the
presence of faults or
absence of faults.
To increase our
confidence in proper
working of circuits.
For prevent future
failure.

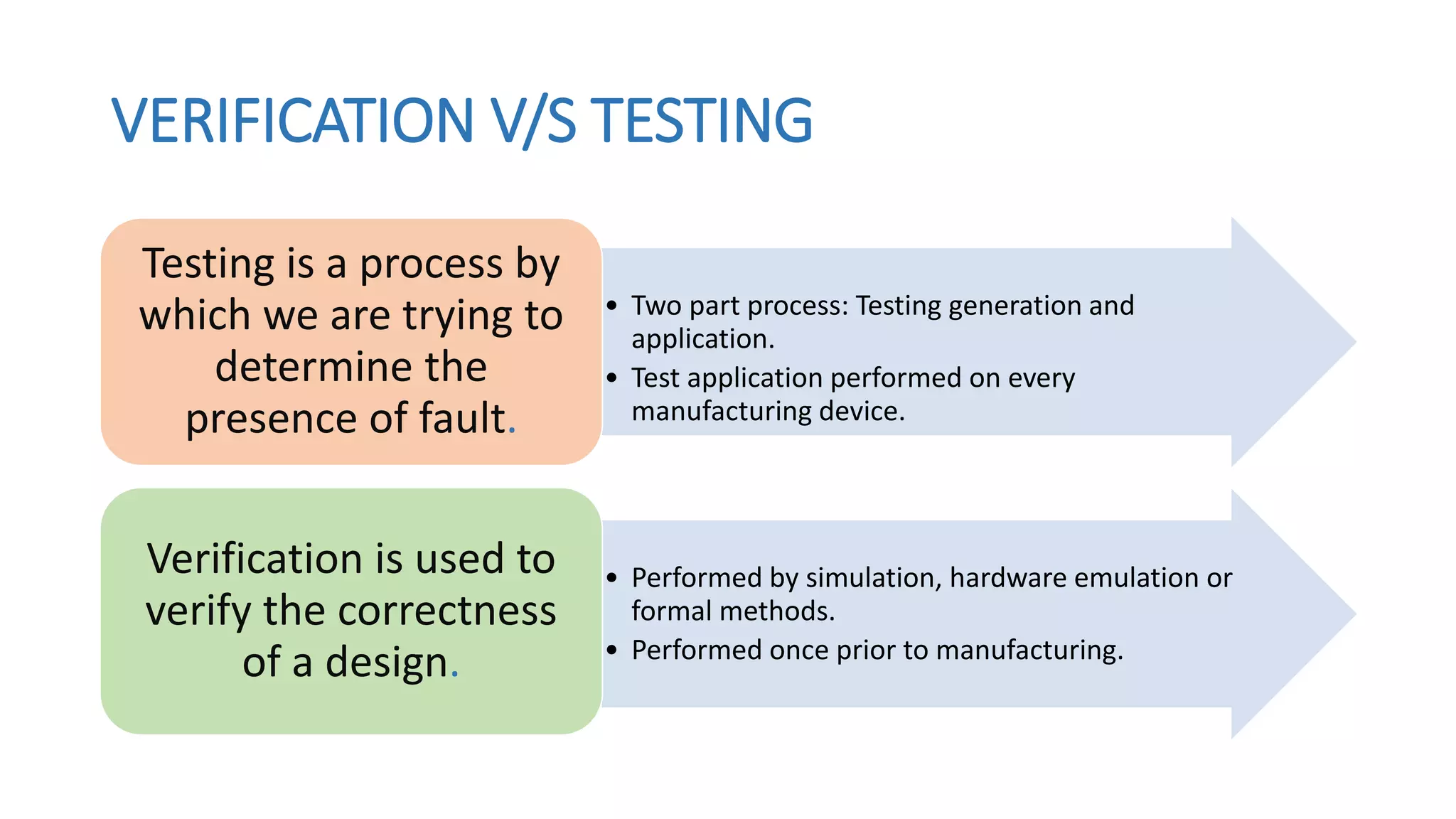

4. VERIFICATION V/S TESTING
• Two part process: Testing generation and
application.
• Test application performed on every
manufacturing device.
Testing is a process by
which we are trying to
determine the
presence of fault.
• Performed by simulation, hardware emulation or
formal methods.
• Performed once prior to manufacturing.
Verification is used to
verify the correctness
of a design.

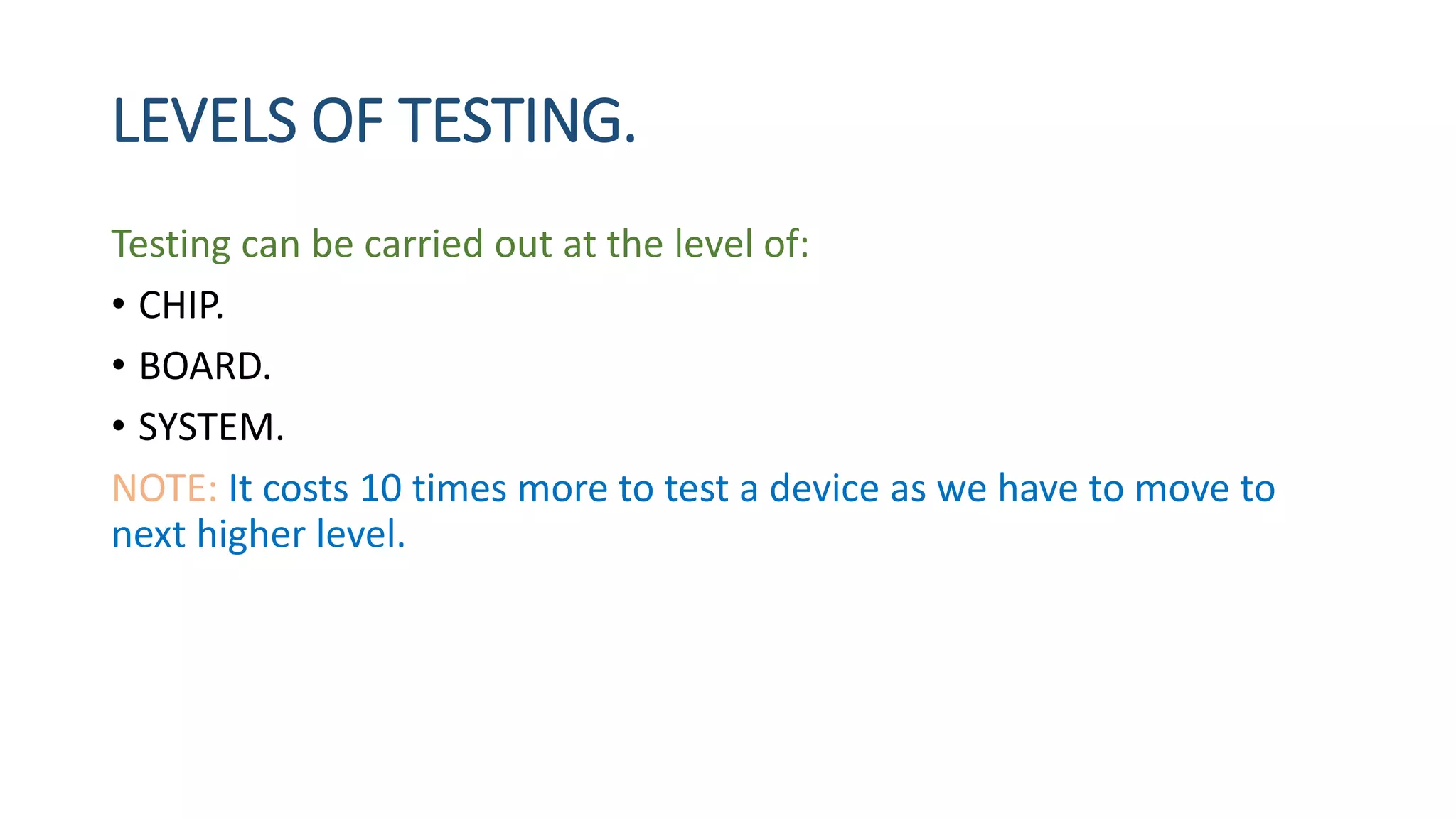

5. LEVELS OF TESTING.
Testing can be carried out at the level of:
• CHIP.
• BOARD.
• SYSTEM.
NOTE: It costs 10 times more to test a device as we have to move to
next higher level.

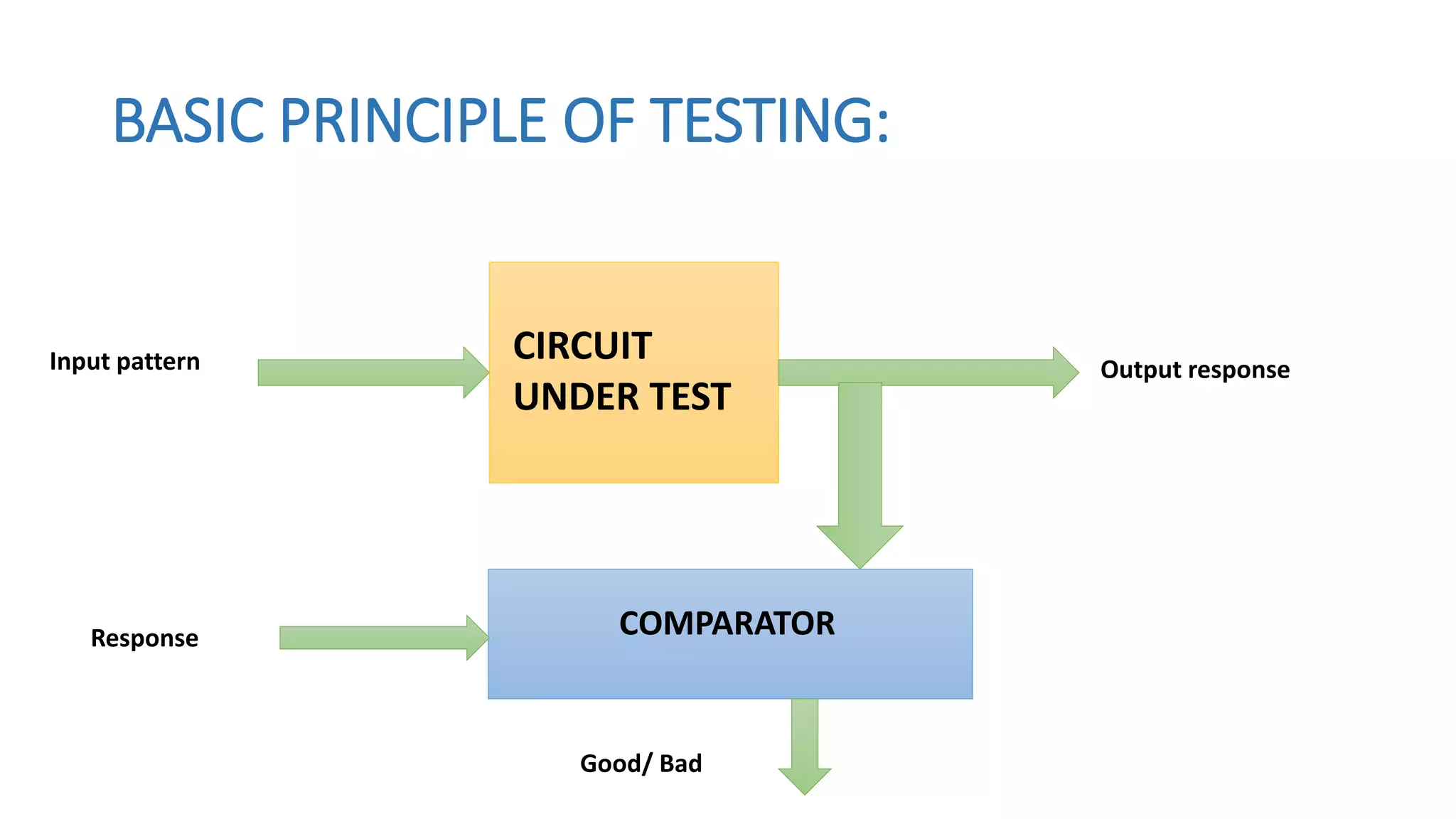

6. BASIC PRINCIPLE OF TESTING:
CIRCUIT
UNDER TEST
COMPARATOR
Input pattern
Response
Output response
Good/ Bad

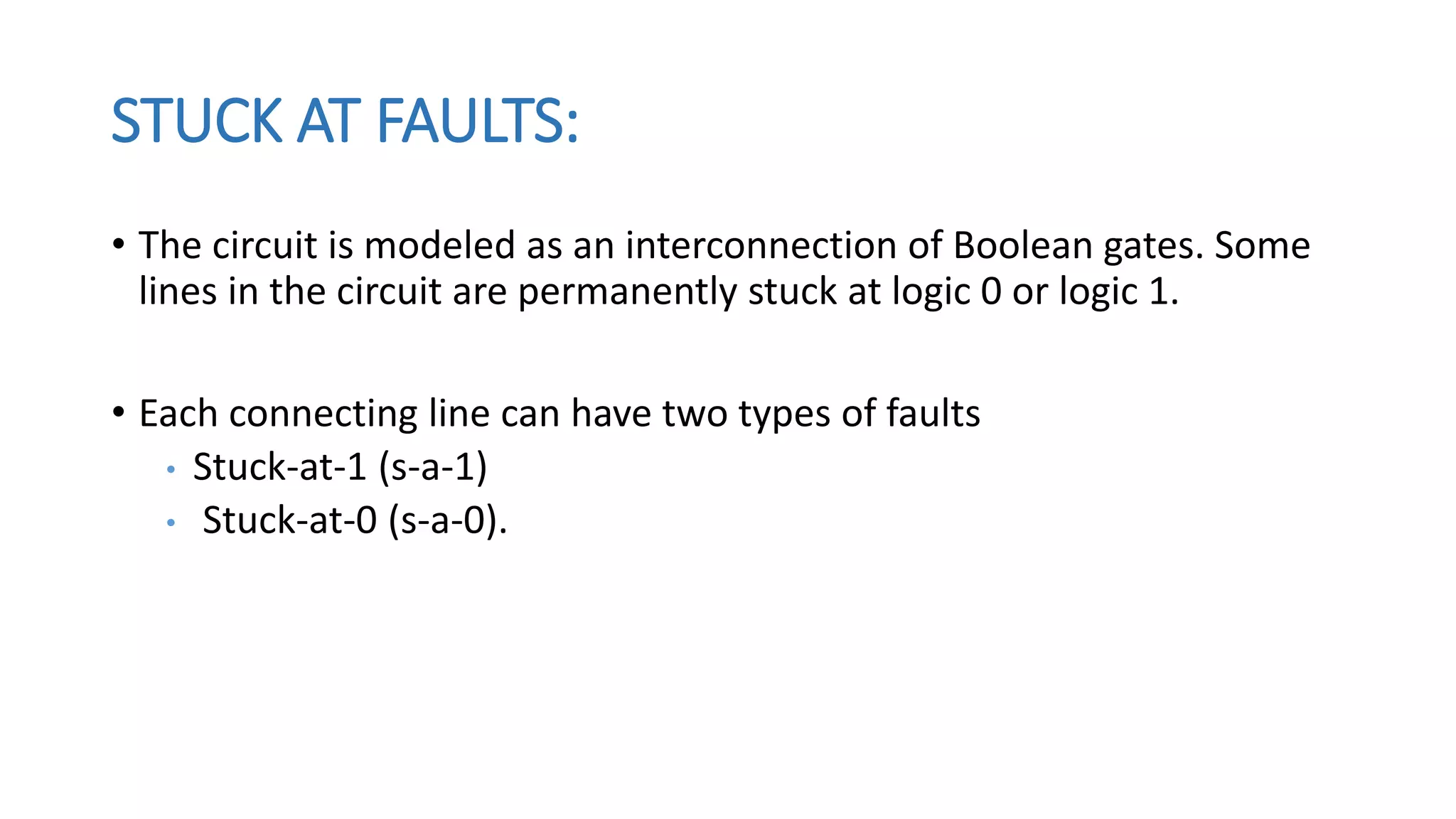

7. STUCK AT FAULTS:
• The circuit is modeled as an interconnection of Boolean gates. Some
lines in the circuit are permanently stuck at logic 0 or logic 1.
• Each connecting line can have two types of faults
• Stuck-at-1 (s-a-1)
• Stuck-at-0 (s-a-0).

8. FAULT EQUIVALENCE:
• Two faults f1 and f2 are equivalent if all tests that detect f1 also
detect f2.
• If faults f1 and f2 are equivalent then the corresponding faulty
functions are identical.
• Fault collapsing: All single faults of a logic circuit can be divided into
disjoint equivalence subsets, where all faults in a subset are mutually
equivalent. A collapsed fault set contains one fault from each
equivalence subset.

9. EQUIVALENCE RULE:

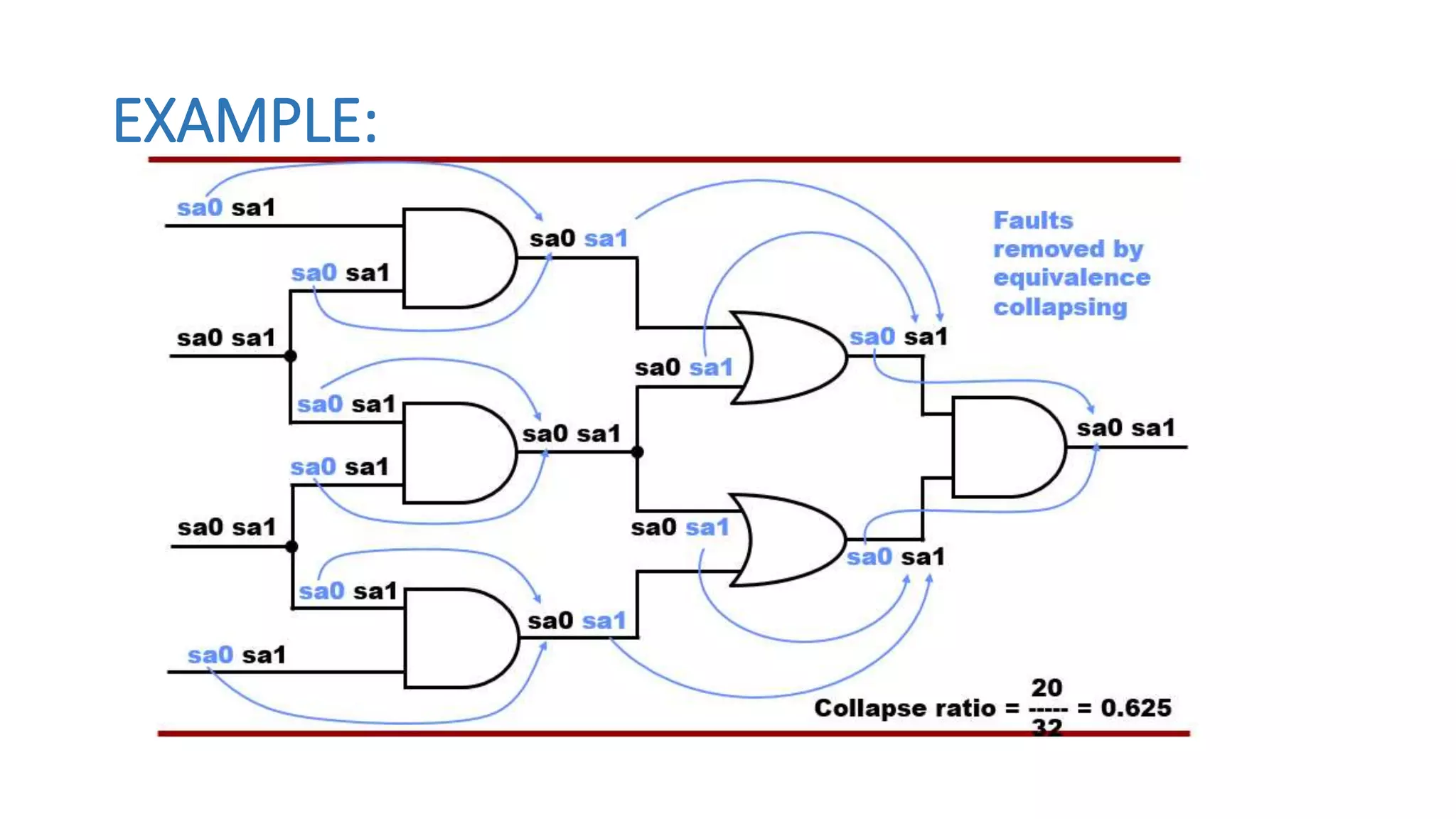

10. EXAMPLE:

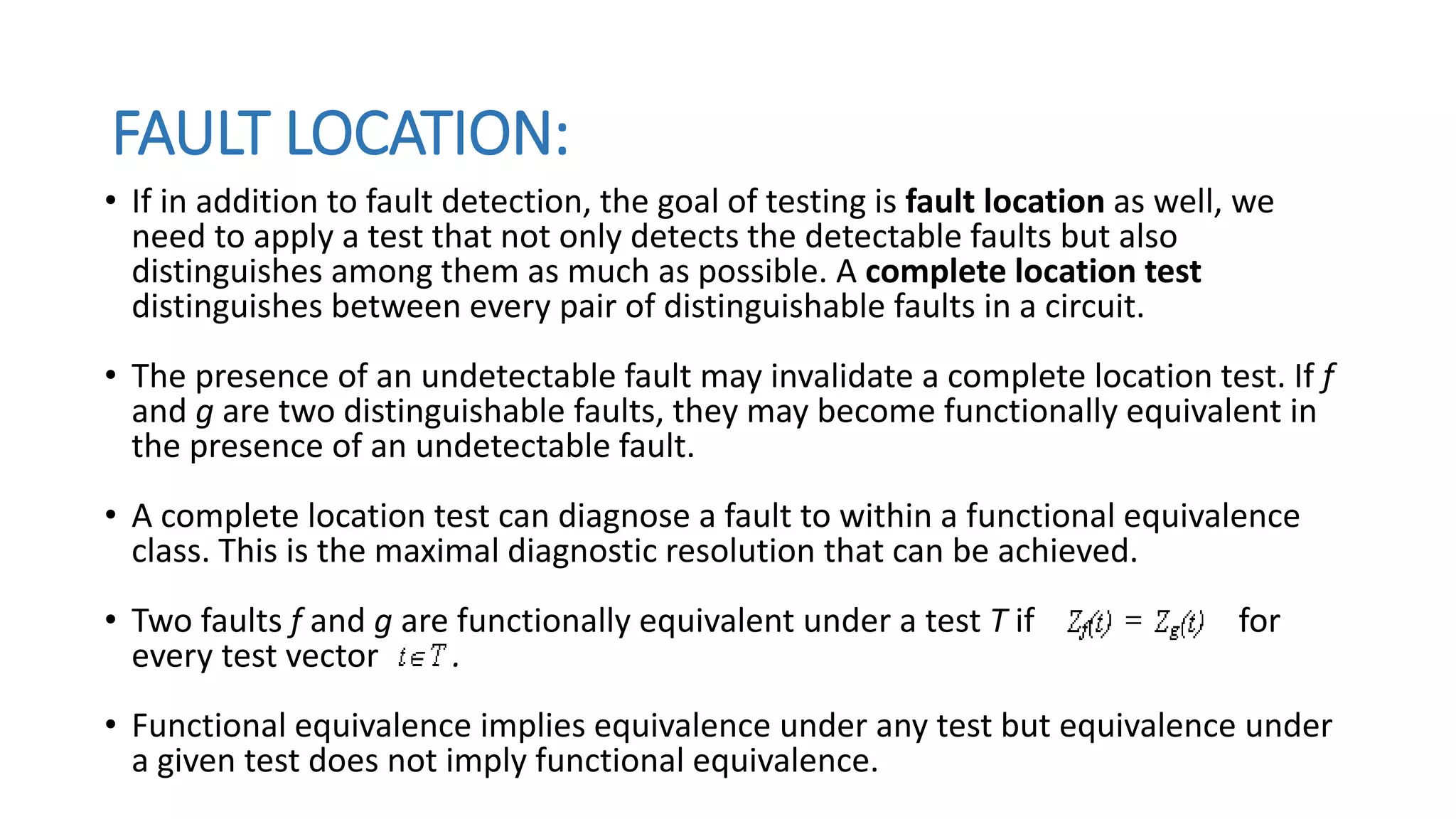

11. FAULT LOCATION:
• If in addition to fault detection, the goal of testing is fault location as well, we
need to apply a test that not only detects the detectable faults but also
distinguishes among them as much as possible. A complete location test
distinguishes between every pair of distinguishable faults in a circuit.
• The presence of an undetectable fault may invalidate a complete location test. If f
and g are two distinguishable faults, they may become functionally equivalent in
the presence of an undetectable fault.
• A complete location test can diagnose a fault to within a functional equivalence
class. This is the maximal diagnostic resolution that can be achieved.
• Two faults f and g are functionally equivalent under a test T if for
every test vector .
• Functional equivalence implies equivalence under any test but equivalence under
a given test does not imply functional equivalence.
