The document provides an overview of runtime symbol resolution and dynamic libraries in Linux x86-64, explaining how dynamic linking differs from static linking. It details the process of building and loading executable code, including the roles of the preprocessor, compiler, assembler, linker, and loader, while discussing the importance of relocation sections. Additionally, it covers how executable code utilizes the Global Offset Table (GOT) and Procedure Linkage Table (PLT) for lazy linking and symbol resolution during runtime using `gdb` for analysis.

1. Runtime Symbol Resolution

2. Outline Overview of Dynamic Library

3. Relocatable code / Relocation section

4. Executable code / PLT & GOT

5. Runtime process analysis with GDB

6. Summary

7. Overview This is about runtime symbol resolution on Linux x86-64 Windows/Mac have different mechanisms Assume source code is written in C

8. “Linker” means “static linker” (not dynamic) in this material

9. Build (& Load) Process Usually you just type “gcc foo.c” and it invokes the four sub-processes for you. (text) (text) (text) (ELF) (ELF) (ELF) C code Preprocessed C code Assembly code Executable code Relocatable code Preprocessor Compiler Process Image Assembler Linker Loader DL

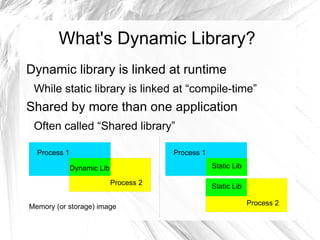

10. What's Dynamic Library? Dynamic library is linked at runtime While static library is linked at “compile-time” Shared by more than one application Often called “Shared library” Process 1 Process 2 Dynamic Lib Static Lib Static Lib Process 1 Process 2 Memory (or storage) image

11. How is DL different? Address of symbols (functions, variables) are only known at run-time Linker cannot tell where the DL will be loaded

12. Executables cannot contain exact addresses Loader must play a role so that the code can call functions (or refer to variables) defined in DLs

13. Sample Code: Hello, World! #include <stdio.h> int main() { puts(&quot;Hello, World!&quot;); return 0; } hello.c

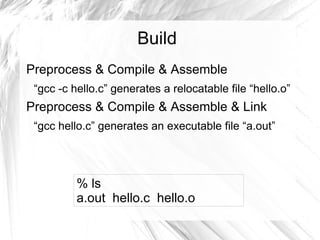

14. Build Preprocess & Compile & Assemble “gcc -c hello.c” generates a relocatable file “hello.o” Preprocess & Compile & Assemble & Link “gcc hello.c” generates an executable file “a.out” % ls a.out hello.c hello.o

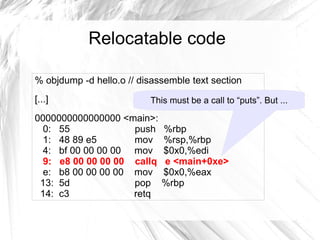

15. Relocatable code % objdump -d hello.o // disassemble text section [...] 0000000000000000 <main>: 0: 55 push %rbp 1: 48 89 e5 mov %rsp,%rbp 4: bf 00 00 00 00 mov $0x0,%edi 9: e8 00 00 00 00 callq e <main+0xe> e: b8 00 00 00 00 mov $0x0,%eax 13: 5d pop %rbp 14: c3 retq This must be a call to “puts”. But ...

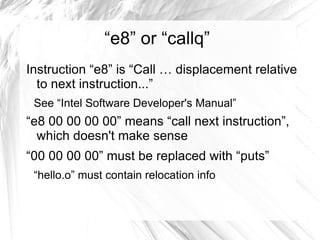

16. “e8” or “callq” Instruction “e8” is “Call … displacement relative to next instruction...” See “Intel Software Developer's Manual” “e8 00 00 00 00” means “call next instruction”, which doesn't make sense

17. “00 00 00 00” must be replaced with “puts” “hello.o” must contain relocation info

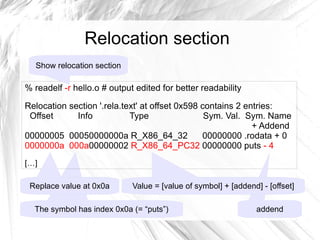

18. Relocation section % readelf -r hello.o # output edited for better readability Relocation section '.rela.text' at offset 0x598 contains 2 entries: Offset Info Type Sym. Val. Sym. Name + Addend 00000005 00050000000a R_X86_64_32 00000000 .rodata + 0 0000000a 000a 00000002 R_X86_64_PC32 00000000 puts - 4 […] The symbol has index 0x0a (= “puts”) Show relocation section Replace value at 0x0a addend Value = [value of symbol] + [addend] - [offset]

19. Summary: Relocatable code Code (or “.text” section) has zero as an address

20. Relocation table (or “.rela” section) tells what to replace the zero with

21. The later process must utilize the relocation info to actually link “puts” to the code

22. Executable code % objdump -d a.out // disassemble text section [...] 00000000004004c4 <main>: 4004c4: 55 push %rbp 4004c5: 48 89 e5 mov %rsp,%rbp 4004c8: bf e0 05 40 00 mov $0x4005e0,%edi 4004cd: e8 e6 fe ff ff callq 4003b8 <puts@plt> 4004d2: b8 00 00 00 00 mov $0x0,%eax 4004d7: 5d pop %rbp 4004d8: c3 retq Calling “puts@plt”, not “puts”

23. Executable code: PLT % objdump -d a.out [...] 00000000004003a8 <puts@plt-0x10>: 4003a8: pushq 0x2004b2(%rip) # 600860 4003ae: jmpq *0x2004b4(%rip) # 600868 4003b4: nopl 0x0(%rax) 00000000004003b8 < [email_address] >: 4003b8: jmpq *0x2004b2(%rip) # 600870 4003be: pushq $0x0 4003c3: jmpq 4003a8 <_init+0x18> _GLOBAL_OFFSET_TABLE_+0x8 _GLOBAL_OFFSET_TABLE_+0x10 _GLOBAL_OFFSET_TABLE_+0x18 Machine code is omitted as it's getting cryptic...

24. Executable code: GOT Symbol Address Value _GLOBAL_OFFSET_TABLE_ + 0x0 0x600858 0x006006c0 _GLOBAL_OFFSET_TABLE_ + 0x8 0x600860 0x00000000 _GLOBAL_OFFSET_TABLE_ + 0x10 0x600868 0x00000000 _GLOBAL_OFFSET_TABLE_ + 0x18 0x600870 0x004003be _GLOBAL_OFFSET_TABLE_ + 0x20 0x600878 0x004003ce GOT contents can be shown with objdump “objdump -s --start-address=0x600858 --stop-address=0x600880 a.out”

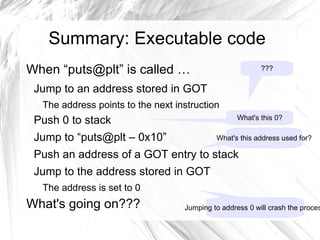

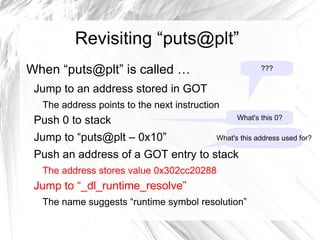

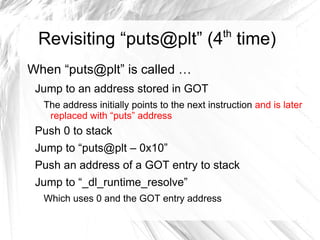

25. Summary: Executable code When “puts@plt” is called … Jump to an address stored in GOT The address points to the next instruction Push 0 to stack

26. Jump to “puts@plt – 0x10”

27. Push an address of a GOT entry to stack

28. Jump to the address stored in GOT The address is set to 0 What's going on??? ??? Jumping to address 0 will crash the process What's this 0? What's this address used for?
