Dynamic Resolution and Interlaced Rendering Claude Marais Software Engineer Xbox Advanced Technology Group (ATG)
This is a confidential event No photography No recording No posts to social media Thank You

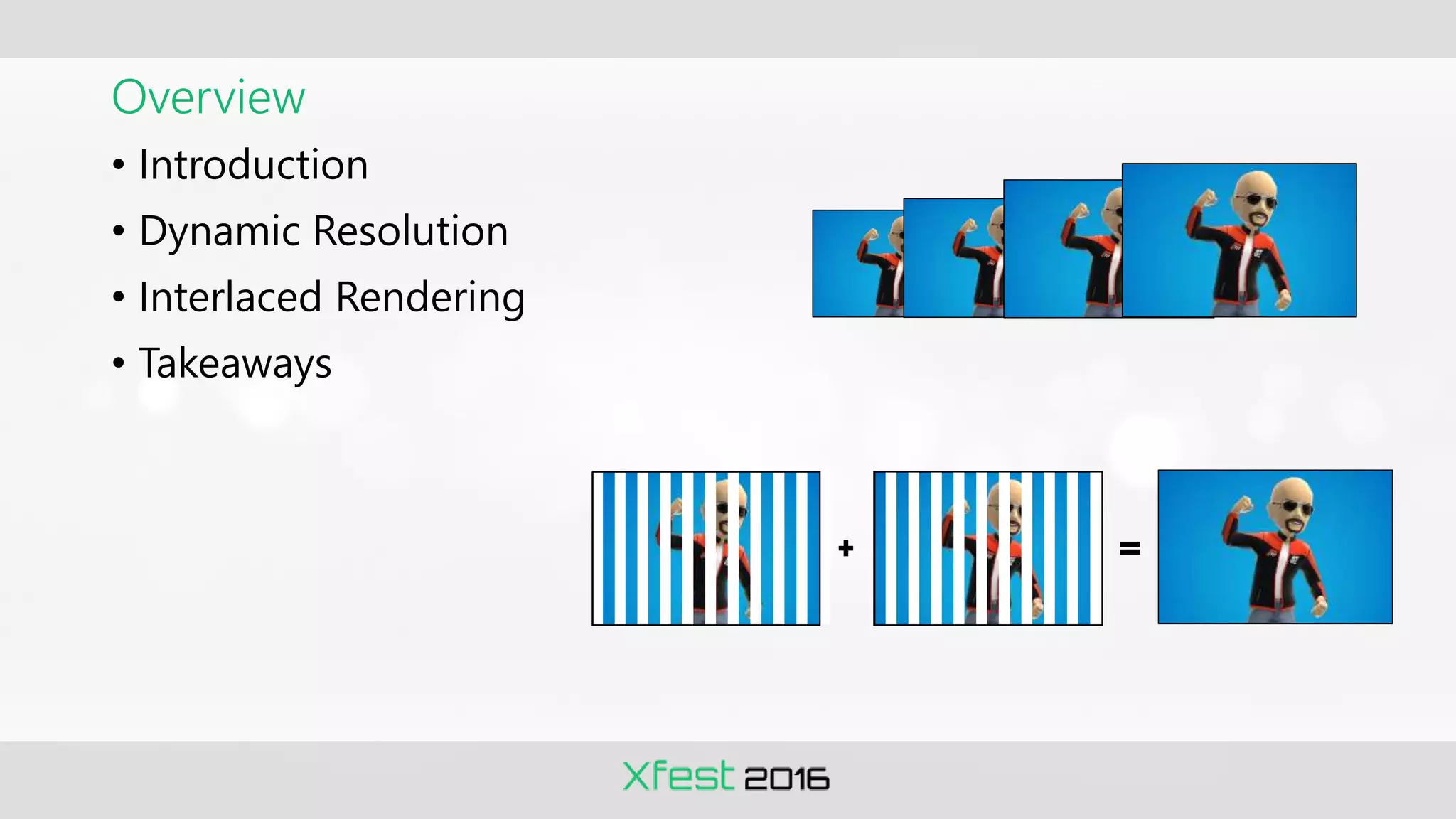

Overview • Introduction • Dynamic Resolution • Interlaced Rendering • Takeaways

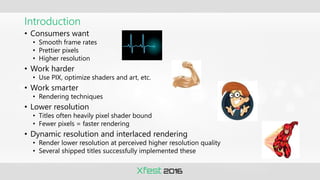

Introduction • Consumers want • Smooth frame rates • Prettier pixels • Higher resolution • Work harder • Use PIX, optimize shaders and art, etc. • Work smarter • Rendering techniques • Lower resolution • Titles often heavily pixel shader bound • Fewer pixels = faster rendering • Dynamic resolution and interlaced rendering • Render lower resolution at perceived higher resolution quality • Several shipped titles successfully implemented these
Dynamic Resolution
Dynamic Resolution • What is it • How does it work • Implementation details

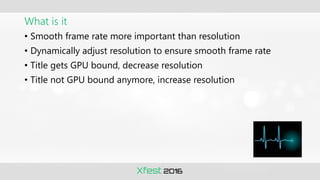

What is it • Smooth frame rate more important than resolution • Dynamically adjust resolution to ensure smooth frame rate • Title gets GPU bound, decrease resolution • Title not GPU bound anymore, increase resolution

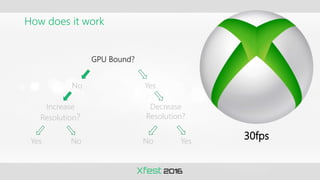

How does it work GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes 30fps

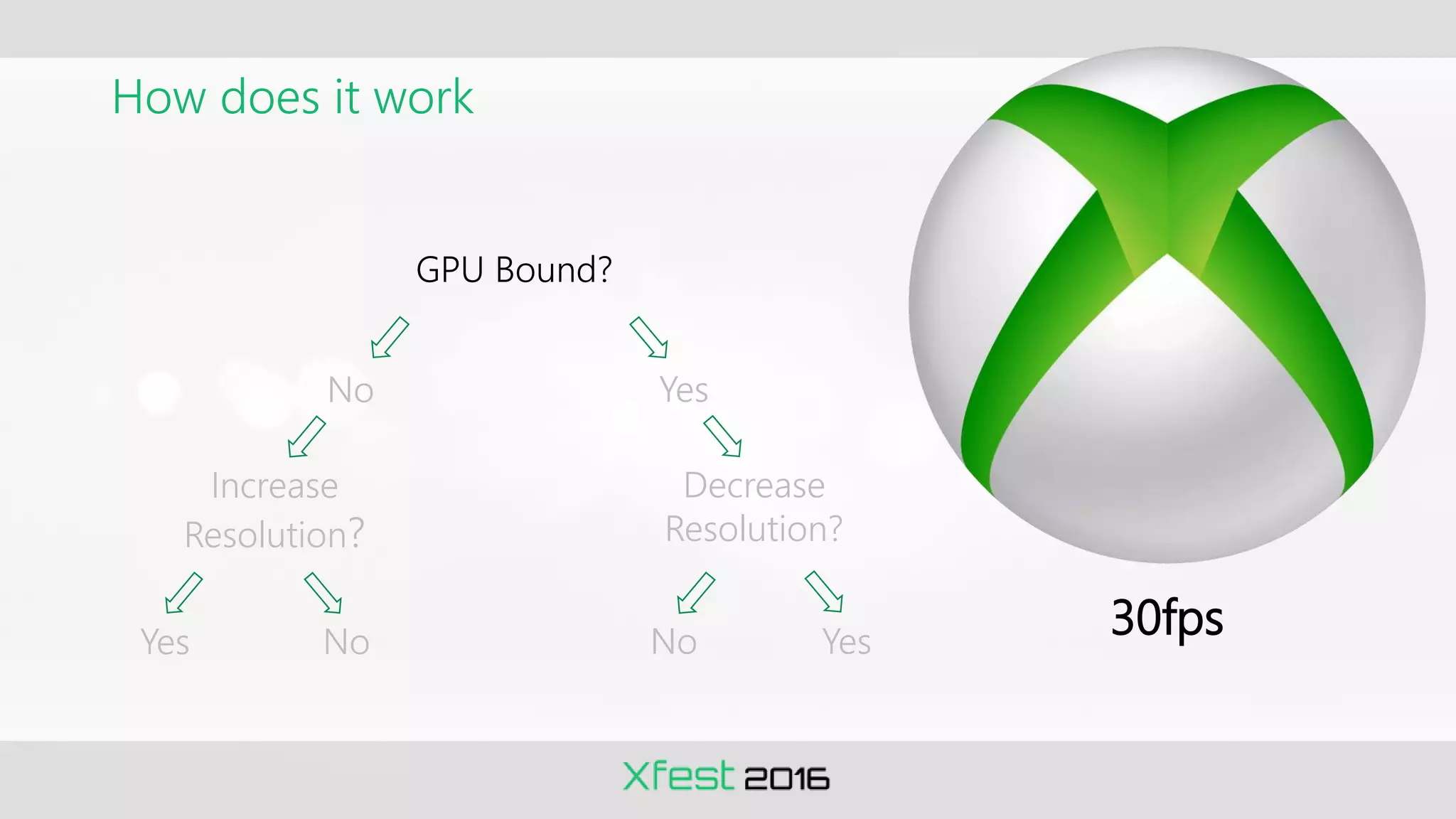

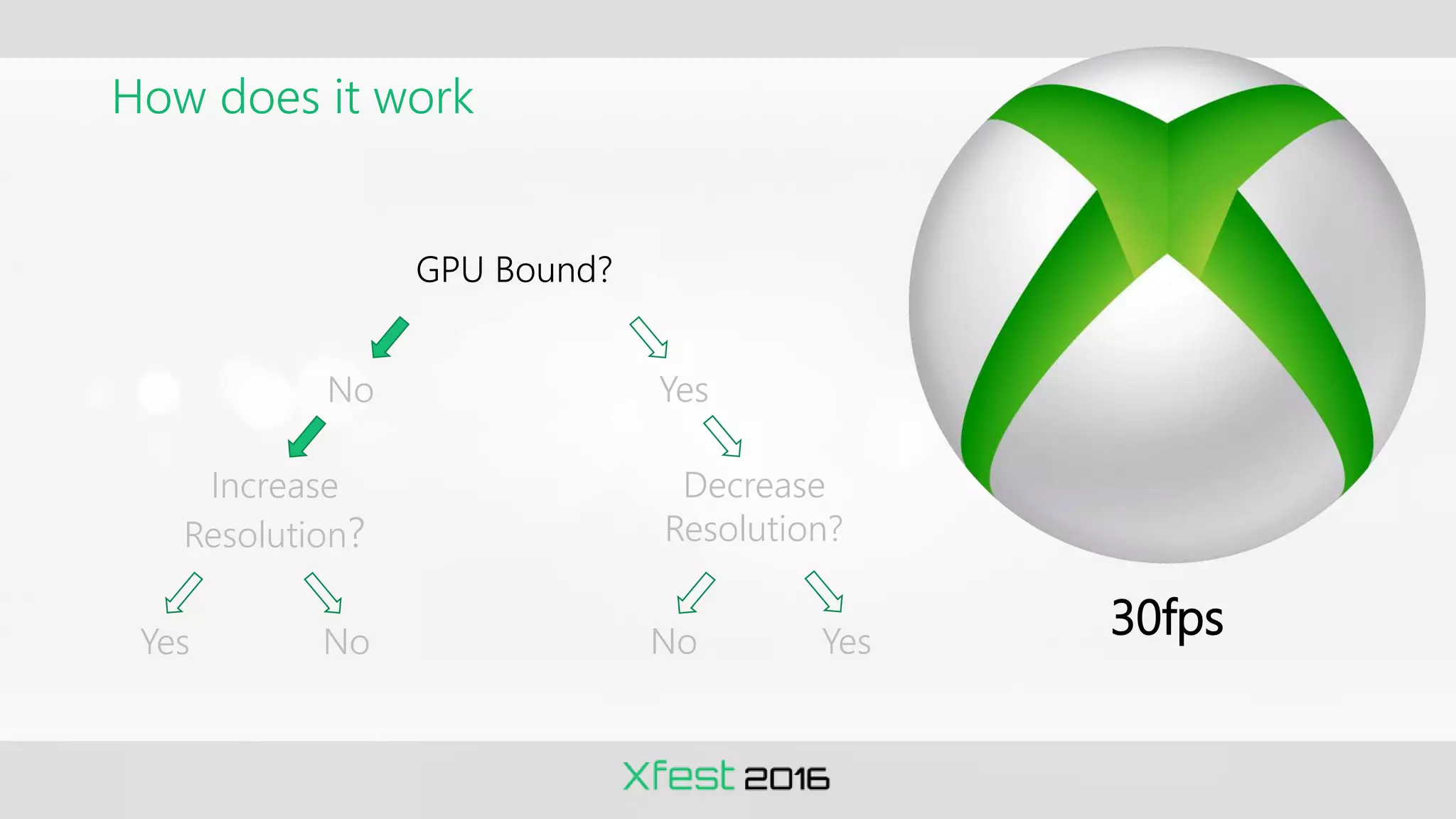

How does it work 30fps GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 30fps GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes

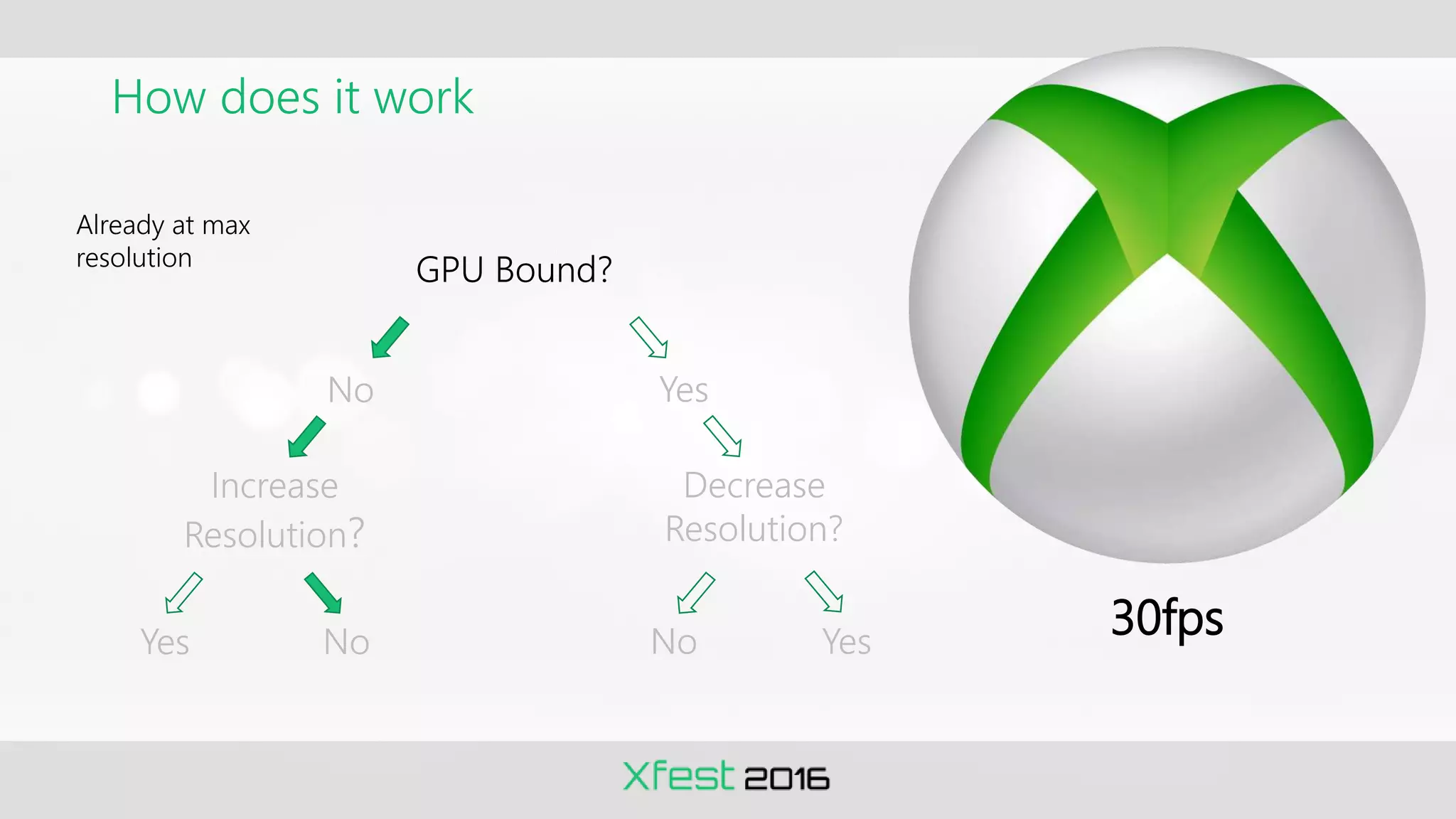

How does it work 30fps Already at max resolution GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 30fps GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes

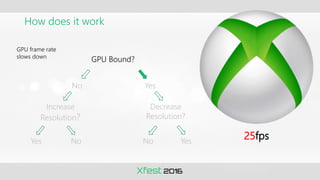

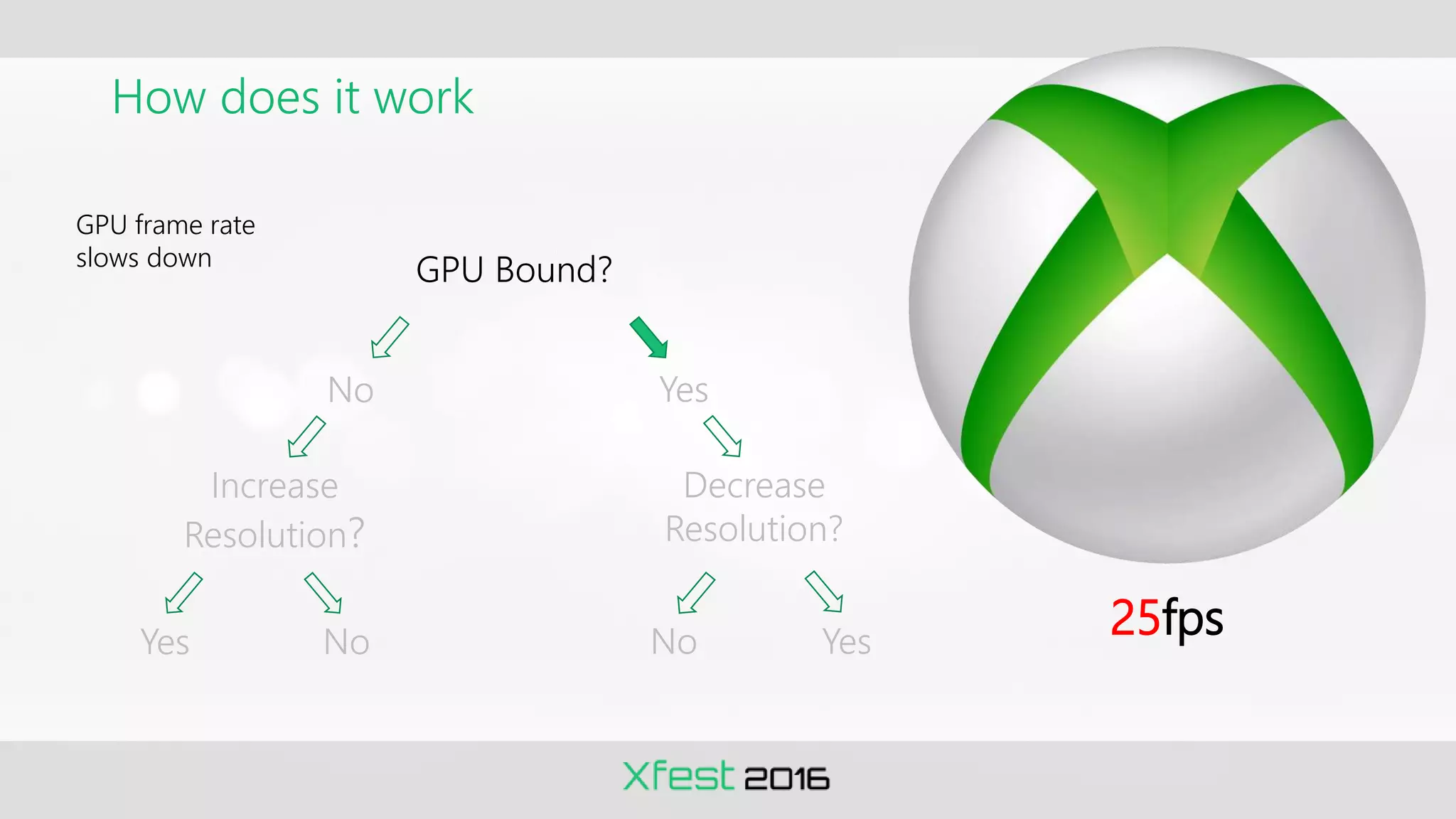

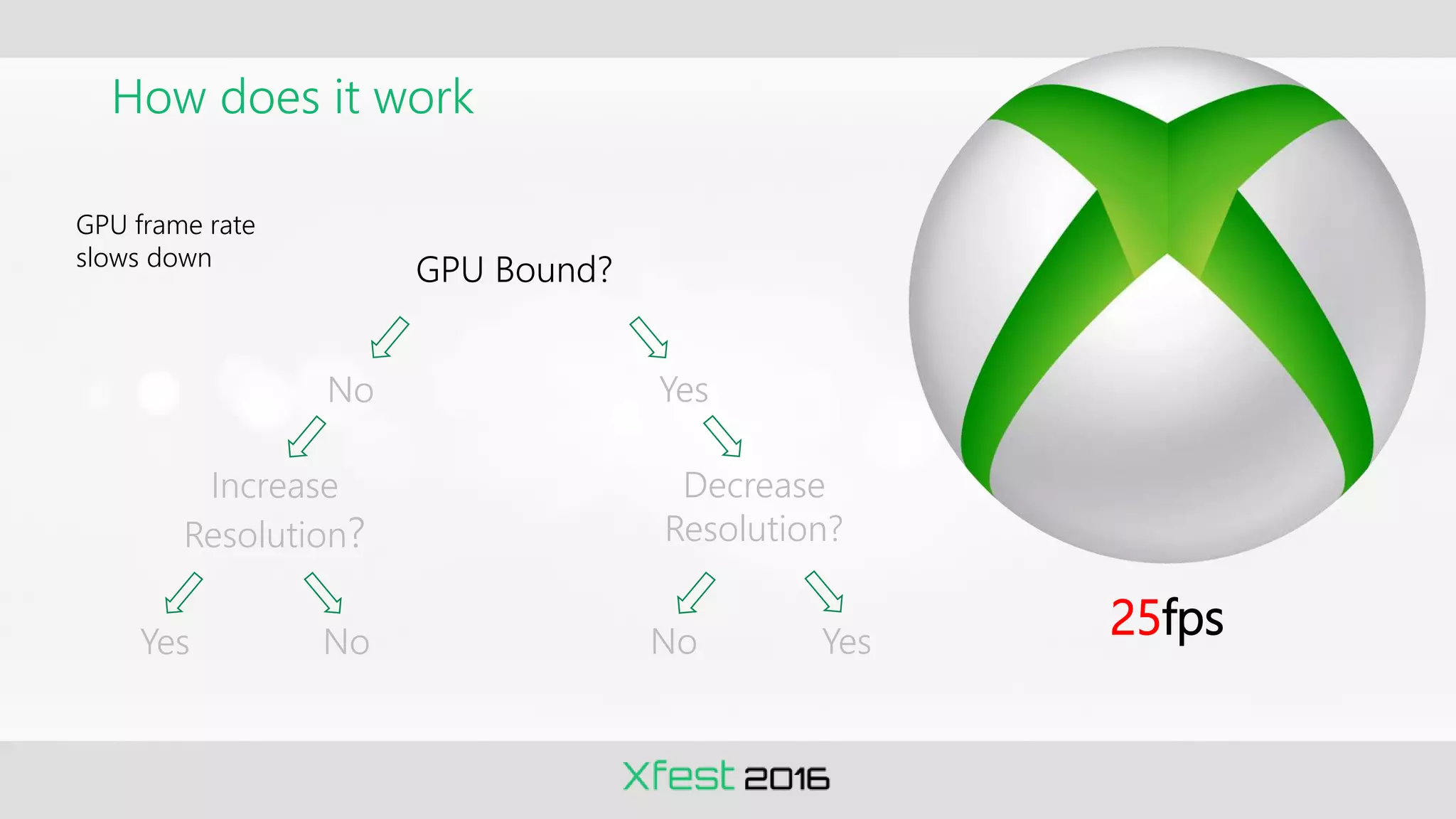

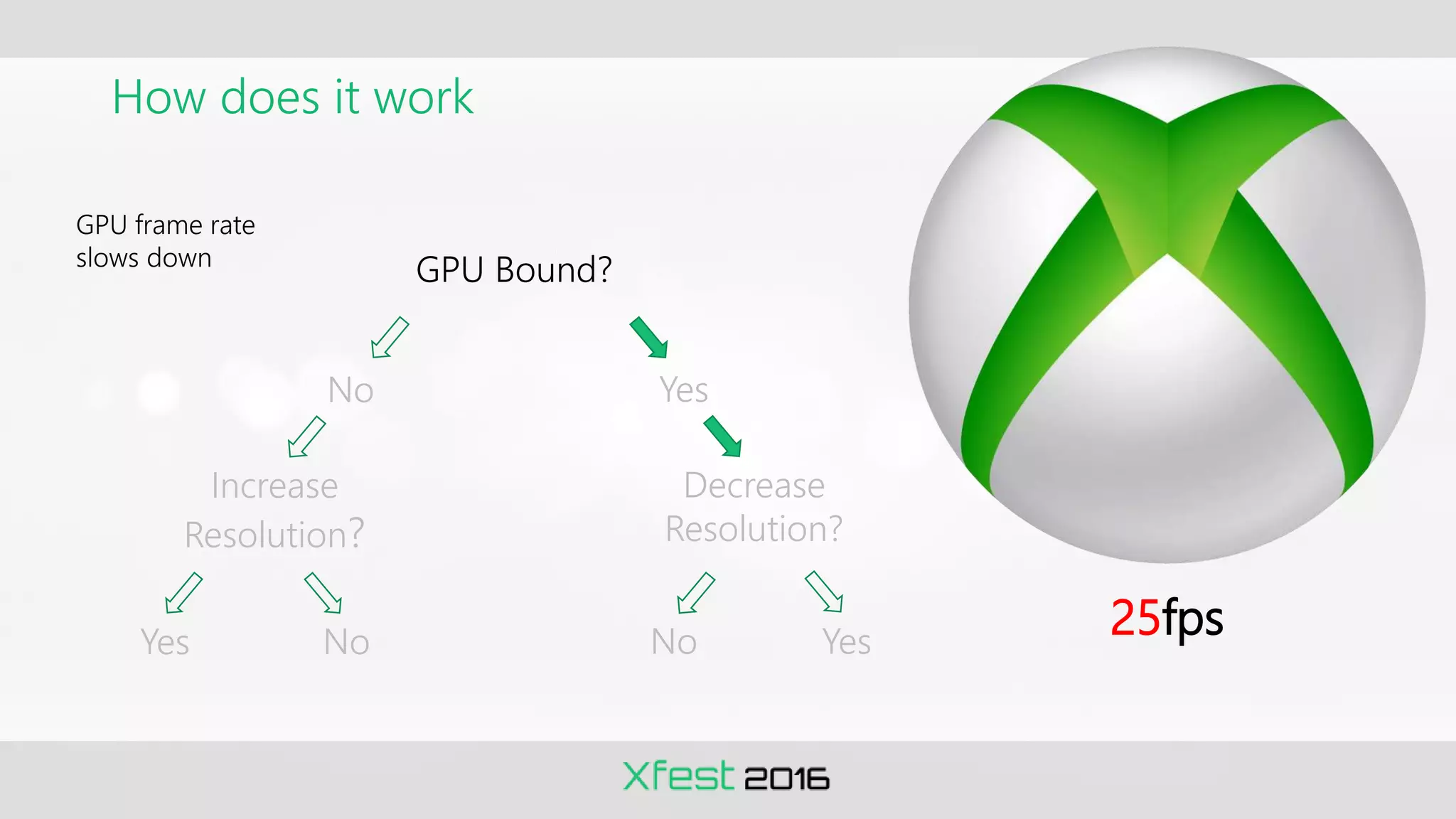

How does it work 25fps GPU frame rate slows down GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 25fps GPU frame rate slows down GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 25fps GPU frame rate slows down GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 30fps GPU frame rate at target FPS GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes

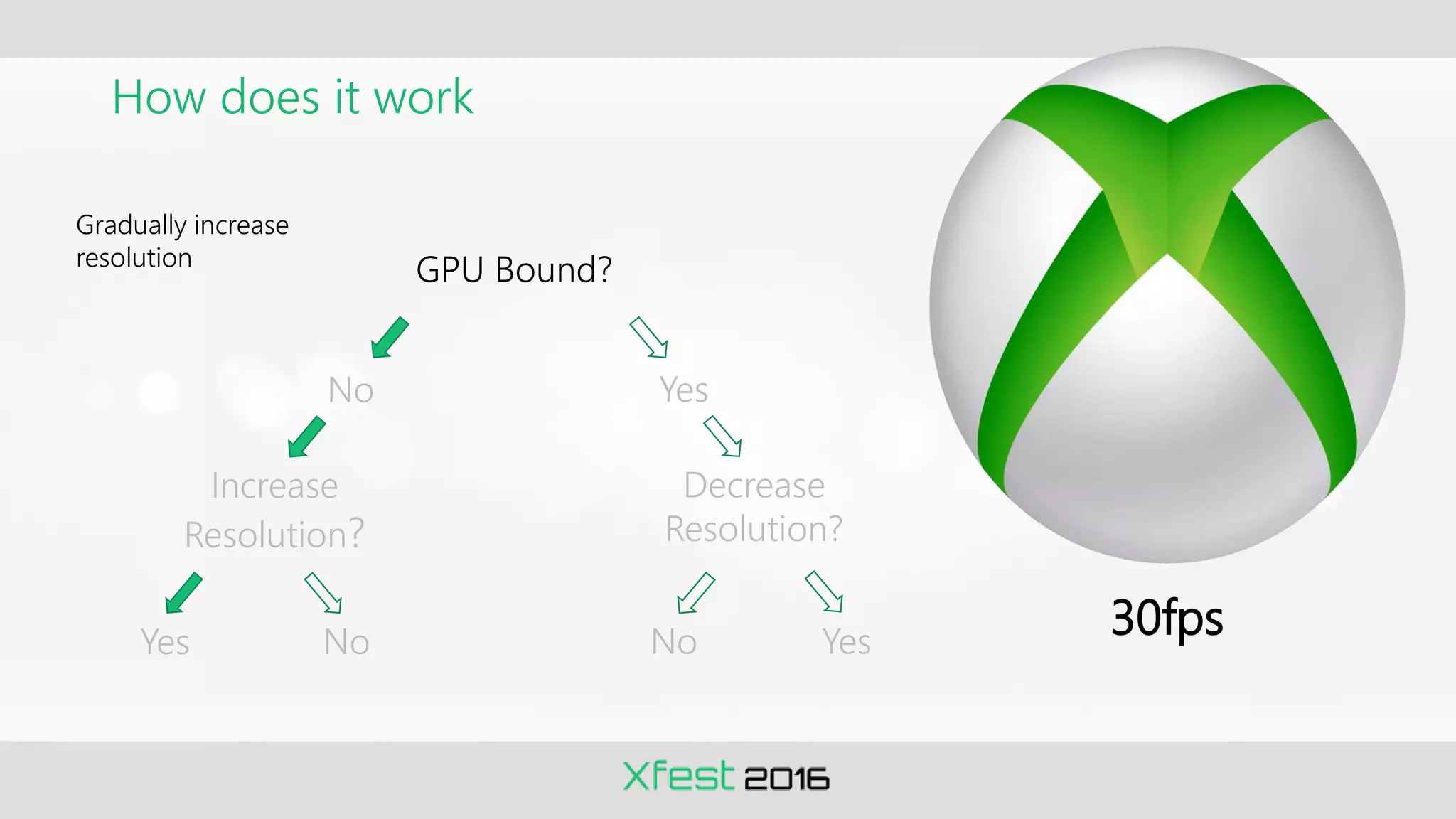

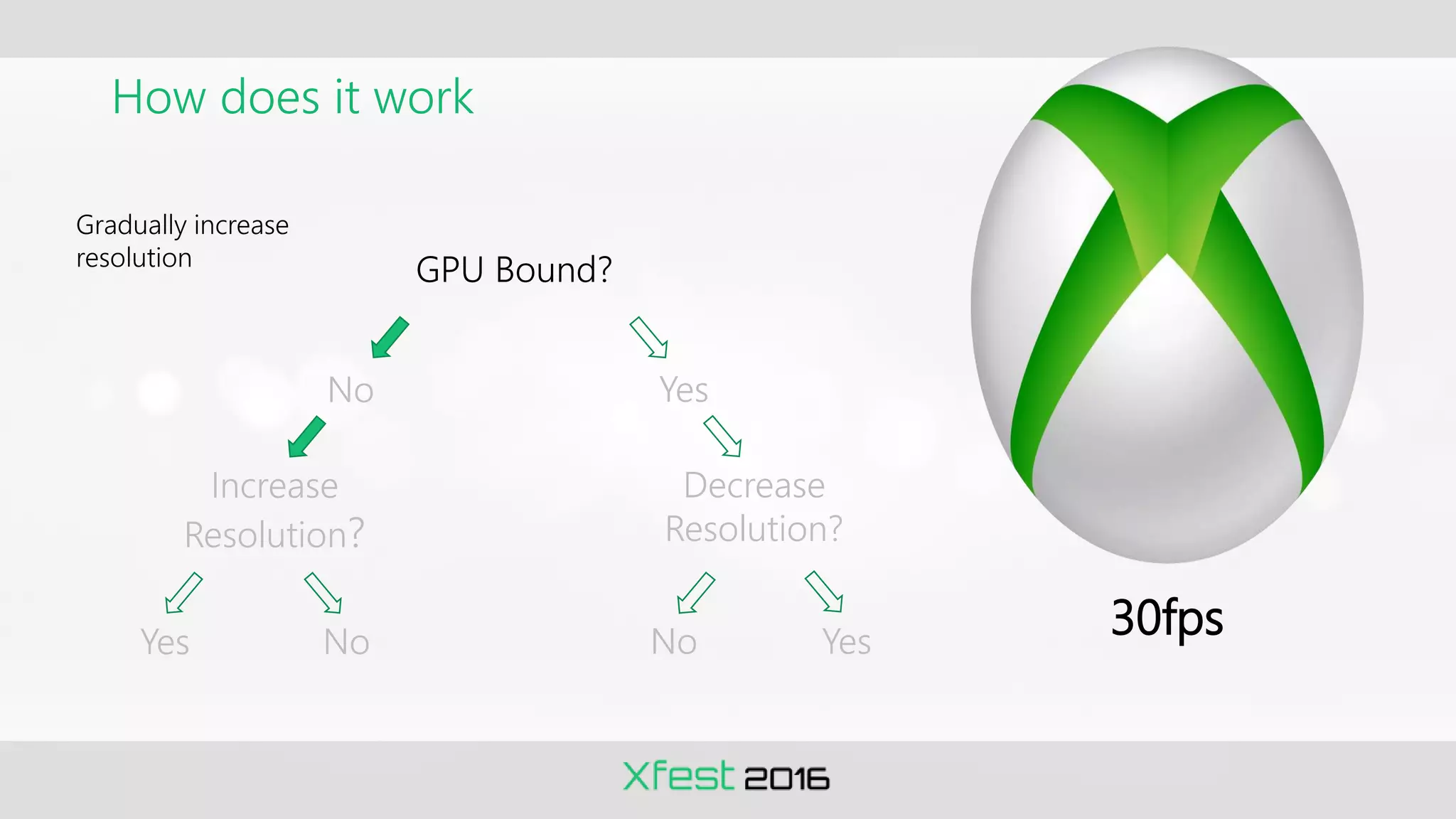

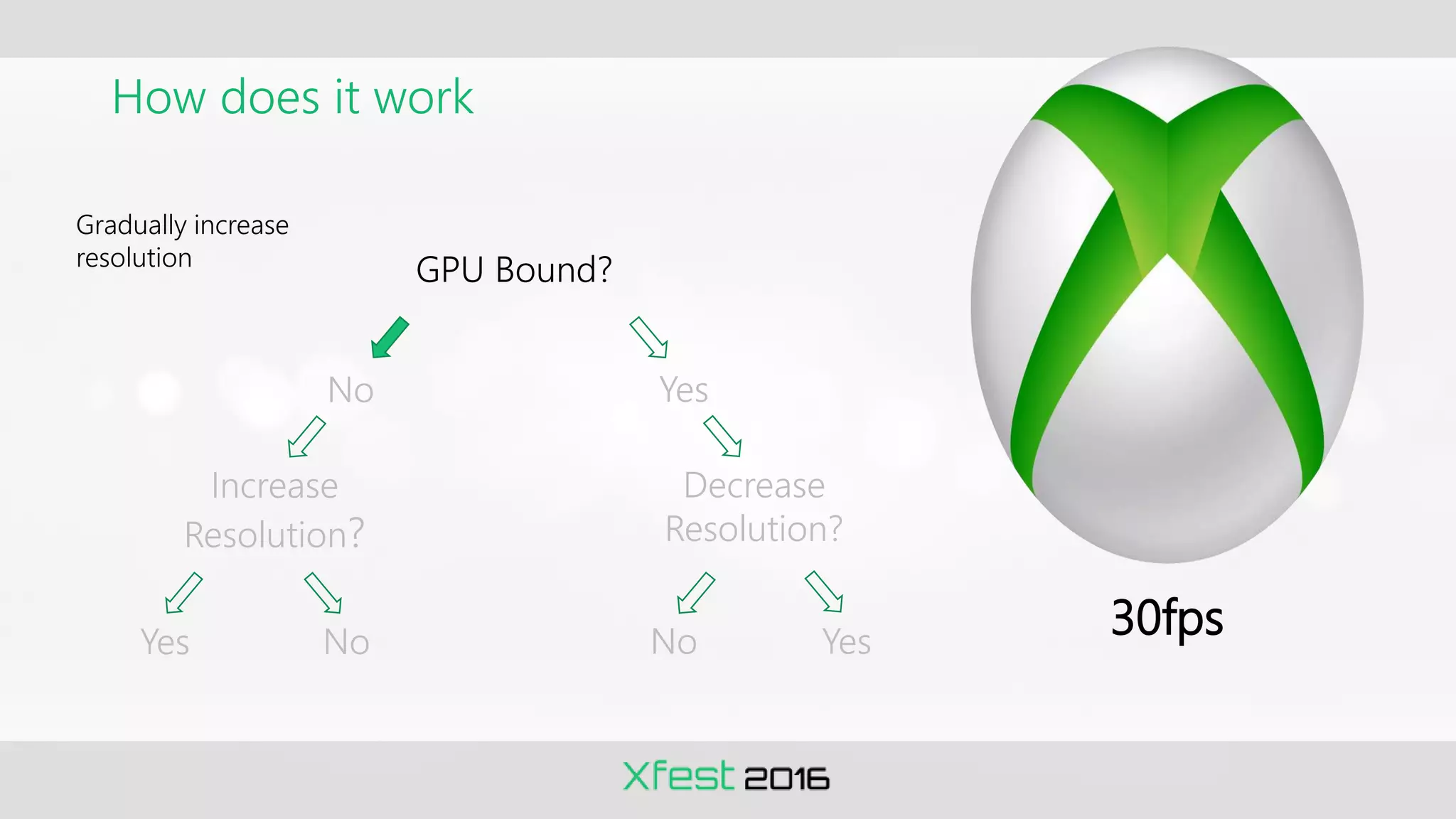

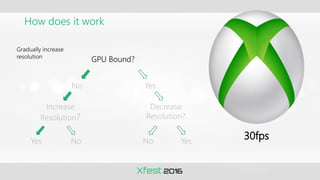

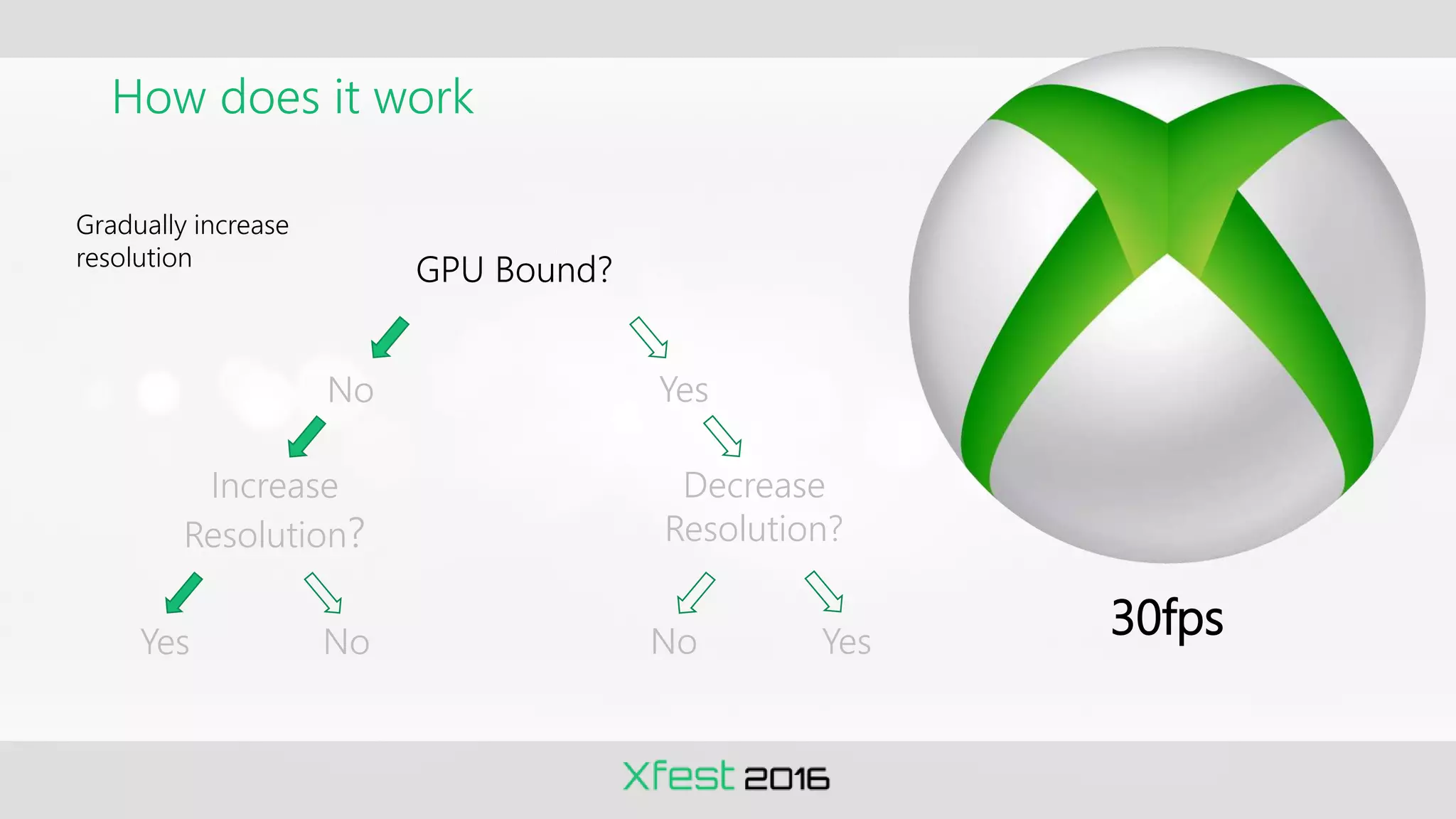

How does it work 30fps Gradually increase resolution GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 30fps Gradually increase resolution GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 30fps Gradually increase resolution GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 30fps Gradually increase resolution GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 30fps Gradually increase resolution GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes
How does it work 30fps Gradually increase resolution GPU Bound? No Yes Increase Resolution? Decrease Resolution? Yes No No Yes

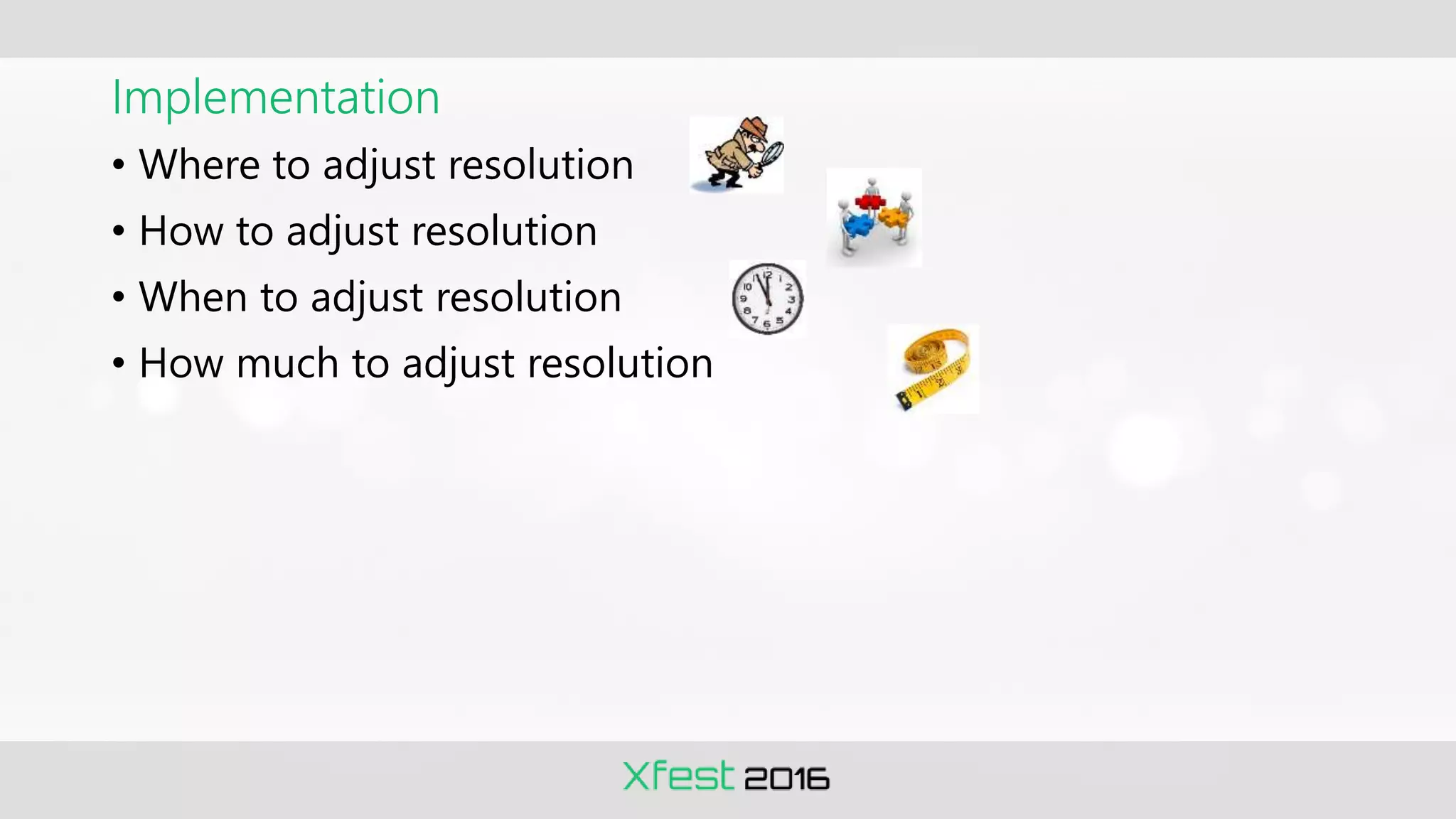

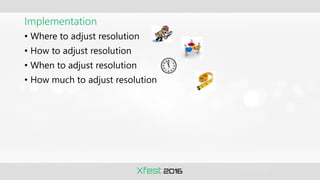

Implementation • Where to adjust resolution • How to adjust resolution • When to adjust resolution • How much to adjust resolution

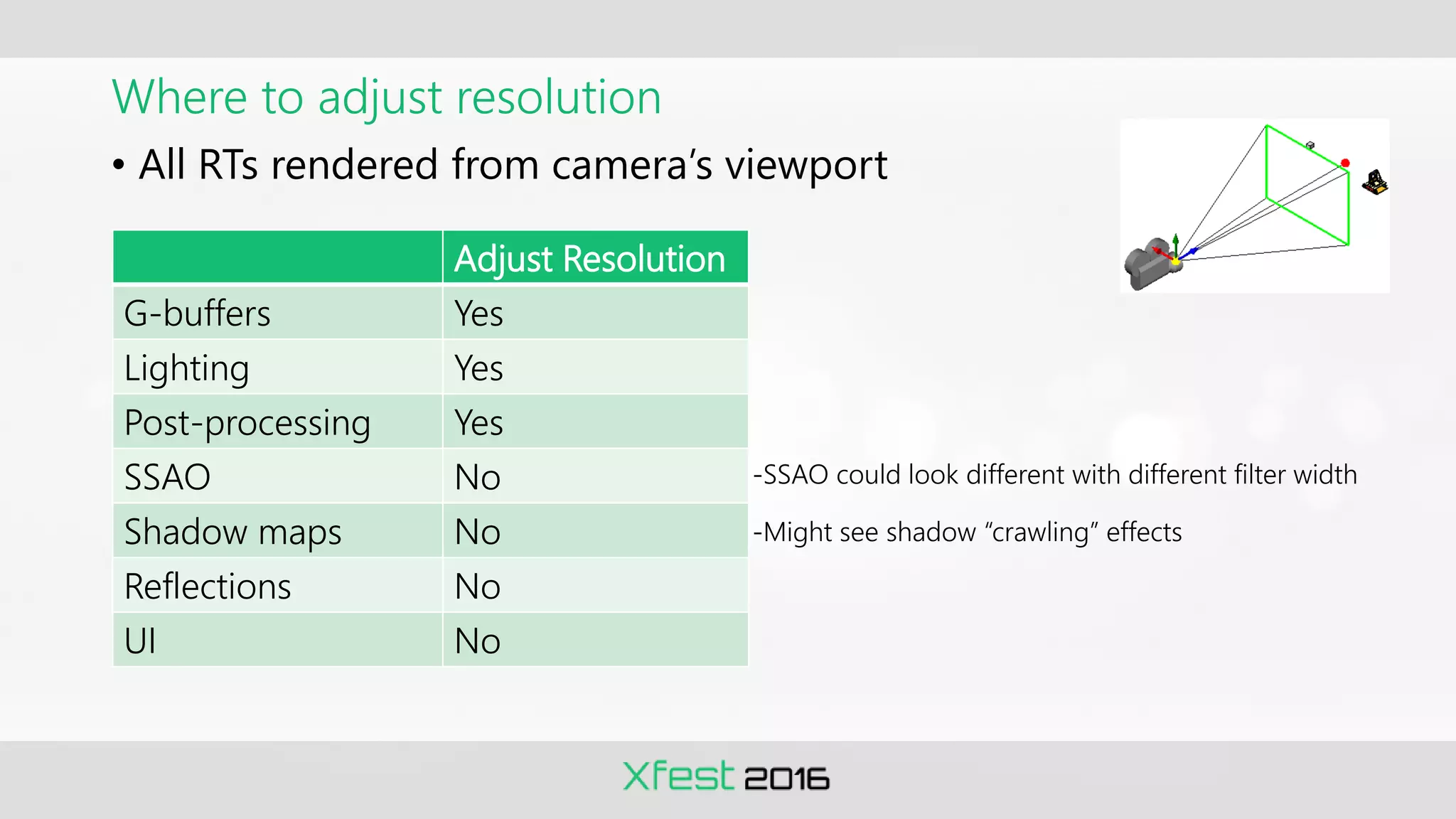

Where to adjust resolution • All RTs rendered from camera’s viewport Adjust Resolution G-buffers Yes Lighting Yes Post-processing Yes SSAO No Shadow maps No Reflections No UI No -SSAO could look different with different filter width -Might see shadow “crawling” effects

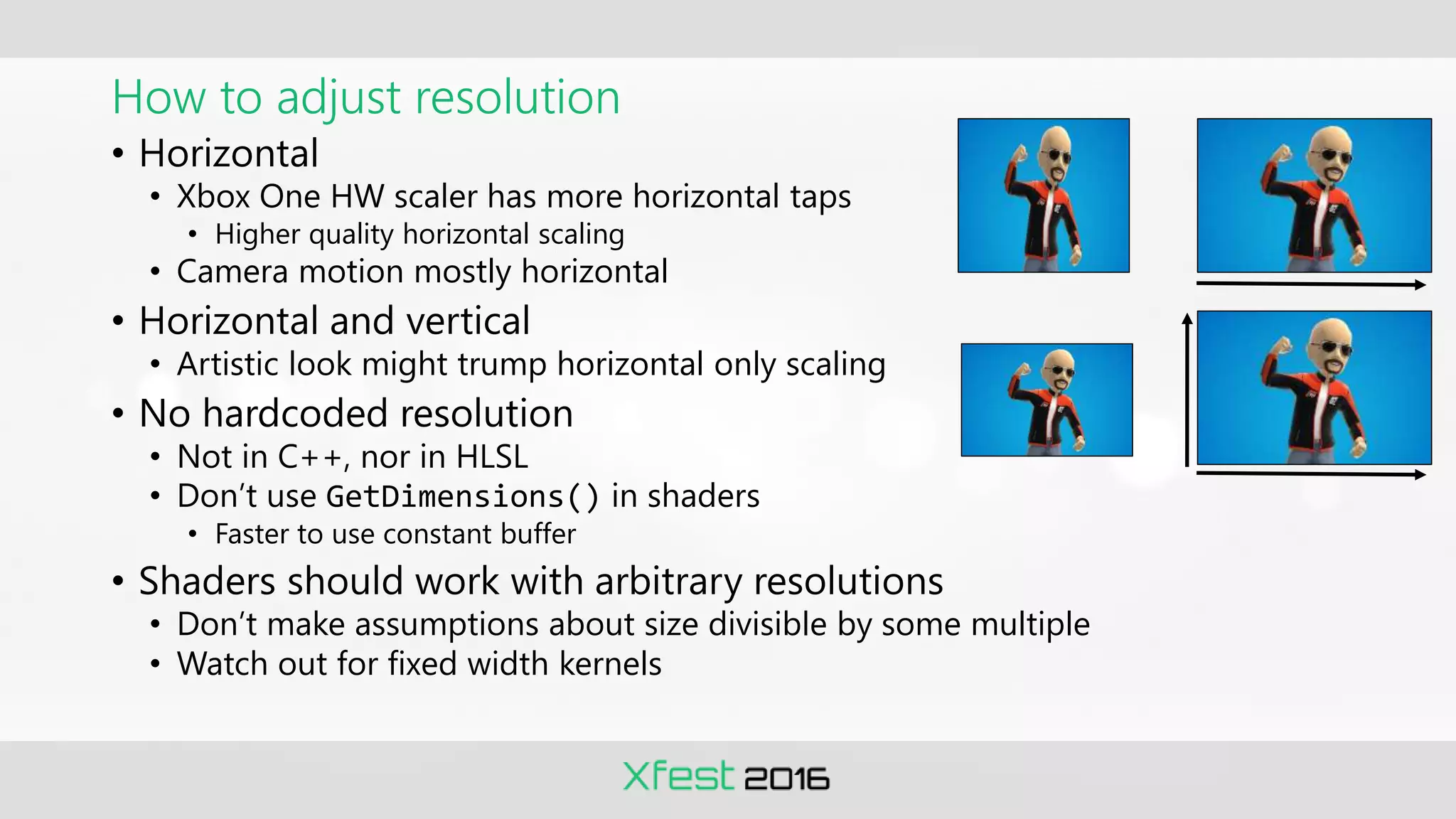

How to adjust resolution • Horizontal • Xbox One HW scaler has more horizontal taps • Higher quality horizontal scaling • Camera motion mostly horizontal • Horizontal and vertical • Artistic look might trump horizontal only scaling • No hardcoded resolution • Not in C++, nor in HLSL • Don’t use GetDimensions() in shaders • Faster to use constant buffer • Shaders should work with arbitrary resolutions • Don’t make assumptions about size divisible by some multiple • Watch out for fixed width kernels

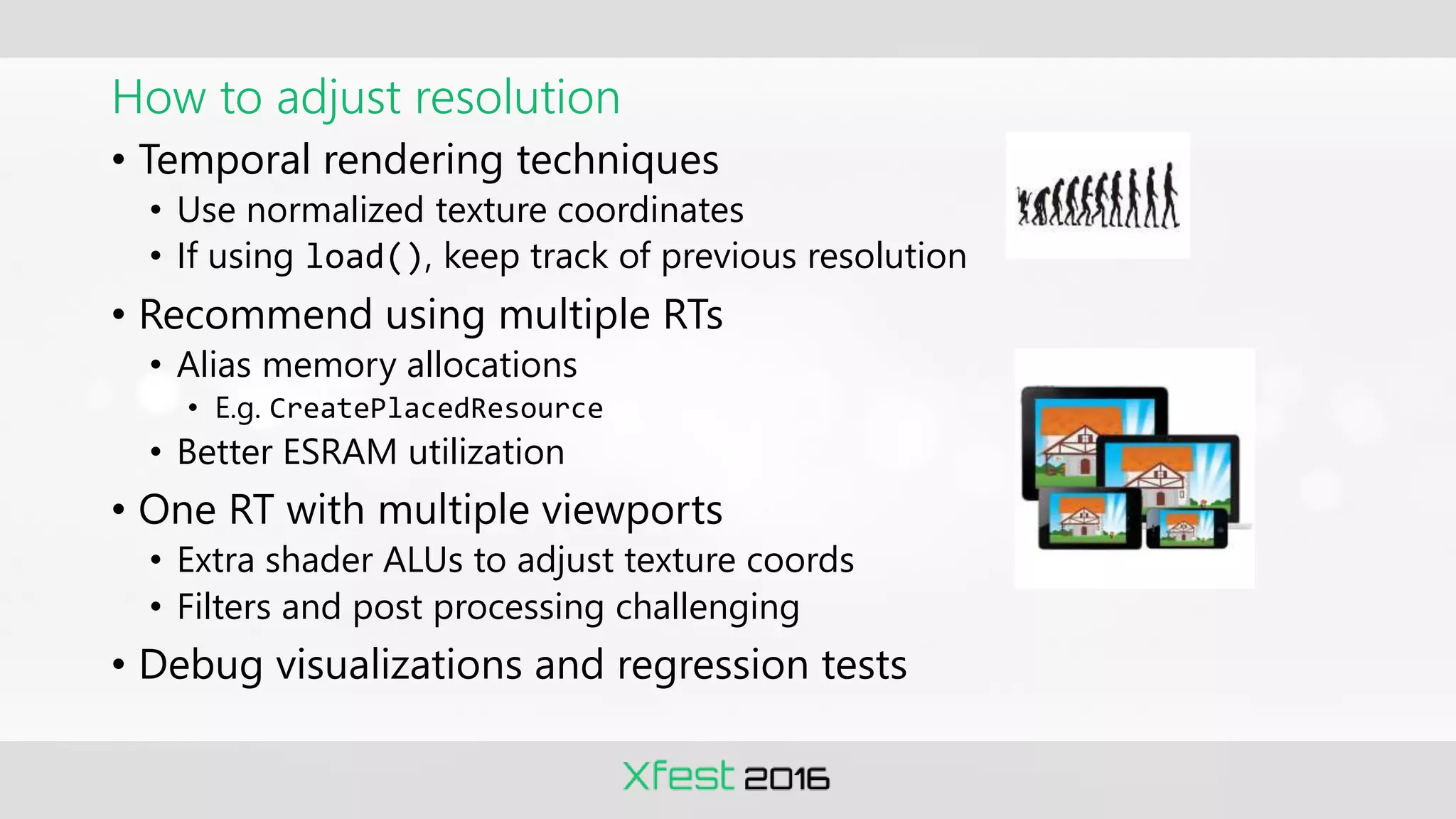

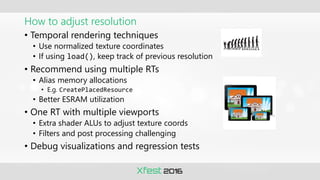

How to adjust resolution • Temporal rendering techniques • Use normalized texture coordinates • If using load(), keep track of previous resolution • Recommend using multiple RTs • Alias memory allocations • E.g. CreatePlacedResource • Better ESRAM utilization • One RT with multiple viewports • Extra shader ALUs to adjust texture coords • Filters and post processing challenging • Debug visualizations and regression tests

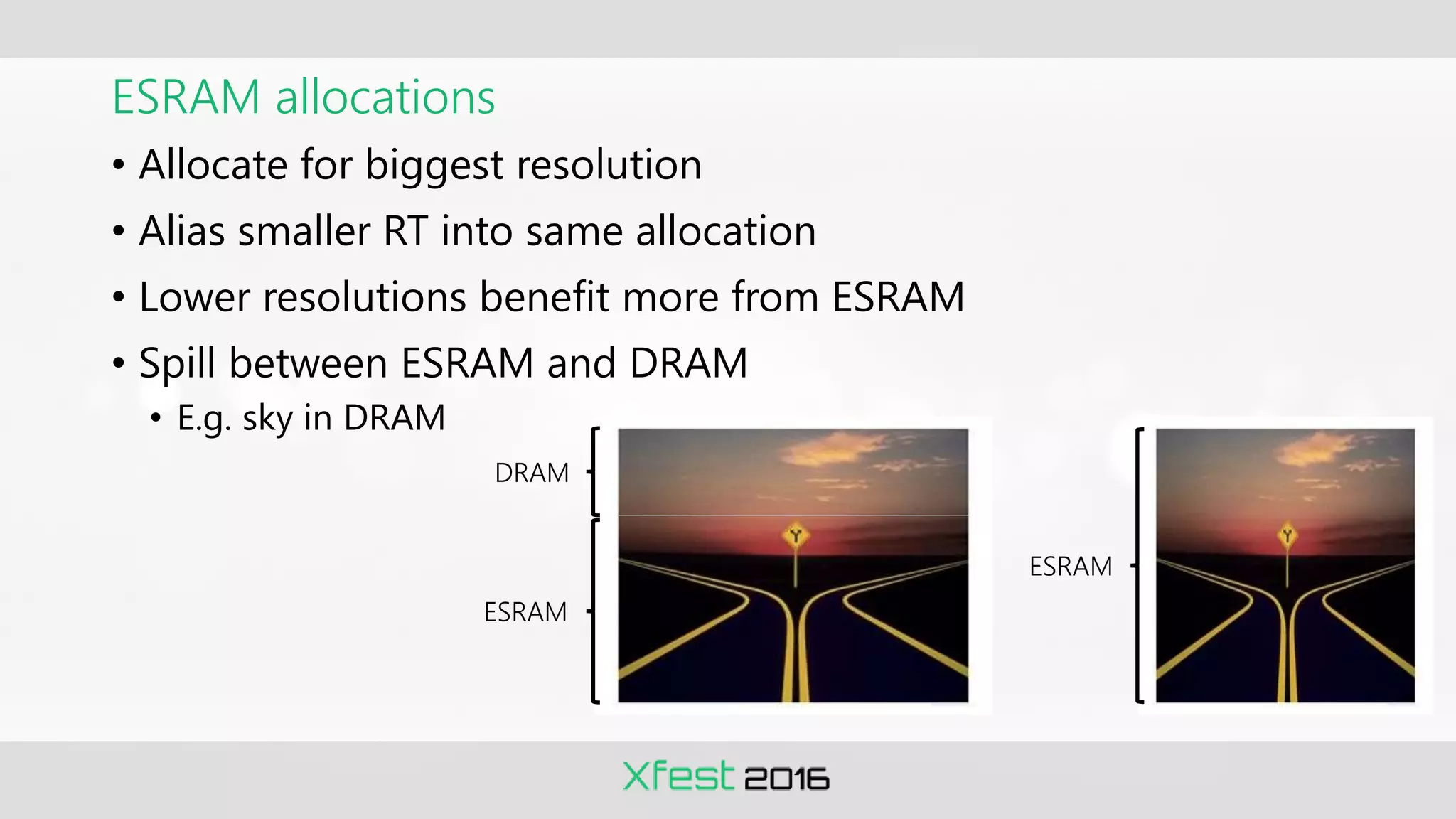

ESRAM allocations • Allocate for biggest resolution • Alias smaller RT into same allocation • Lower resolutions benefit more from ESRAM • Spill between ESRAM and DRAM • E.g. sky in DRAM DRAM ESRAM ESRAM

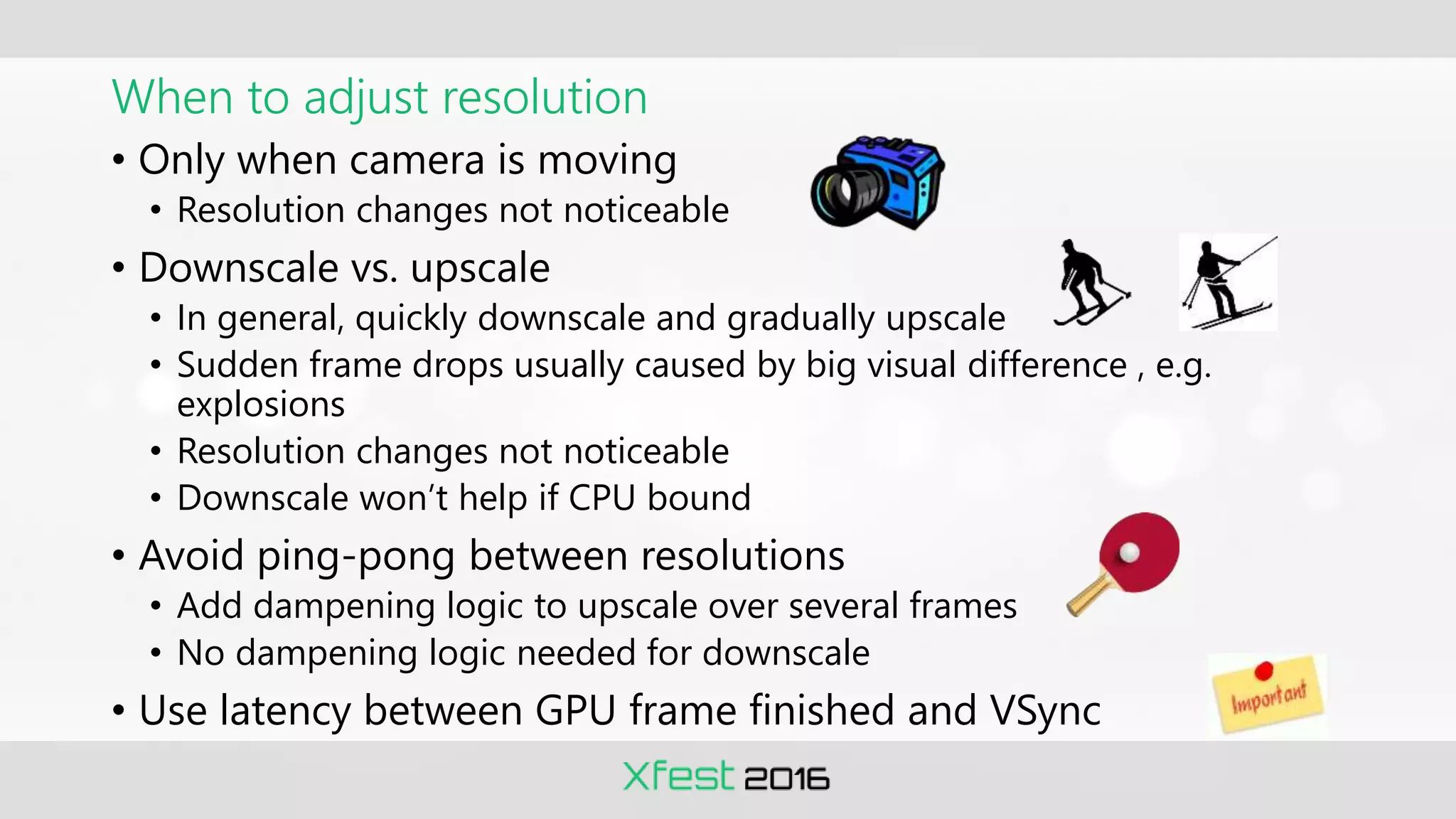

When to adjust resolution • Only when camera is moving • Resolution changes not noticeable • Downscale vs. upscale • In general, quickly downscale and gradually upscale • Sudden frame drops usually caused by big visual difference , e.g. explosions • Resolution changes not noticeable • Downscale won’t help if CPU bound • Avoid ping-pong between resolutions • Add dampening logic to upscale over several frames • No dampening logic needed for downscale • Use latency between GPU frame finished and VSync

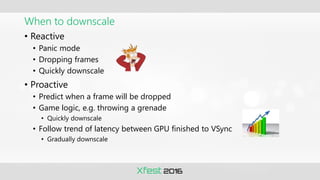

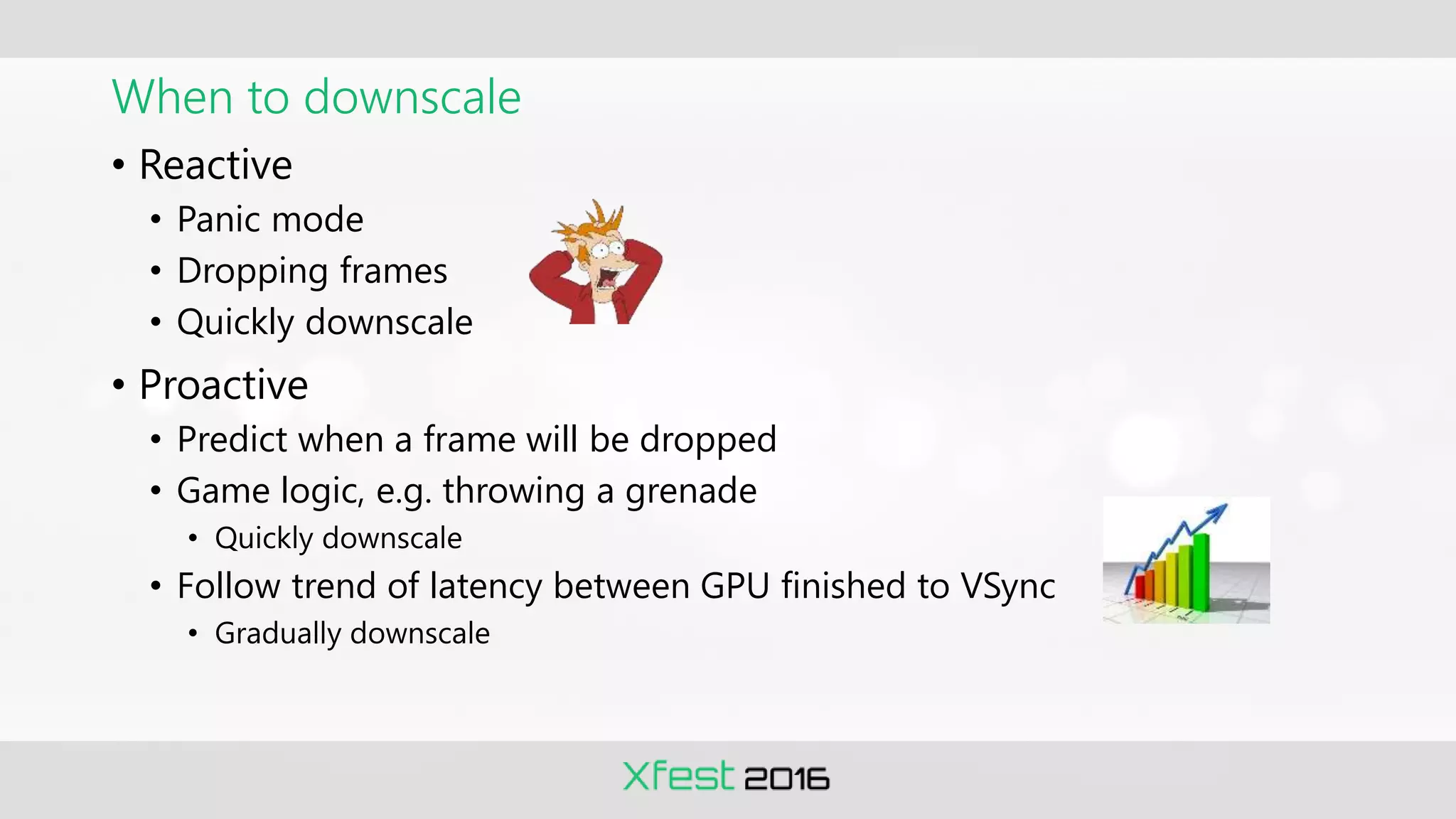

When to downscale • Reactive • Panic mode • Dropping frames • Quickly downscale • Proactive • Predict when a frame will be dropped • Game logic, e.g. throwing a grenade • Quickly downscale • Follow trend of latency between GPU finished to VSync • Gradually downscale

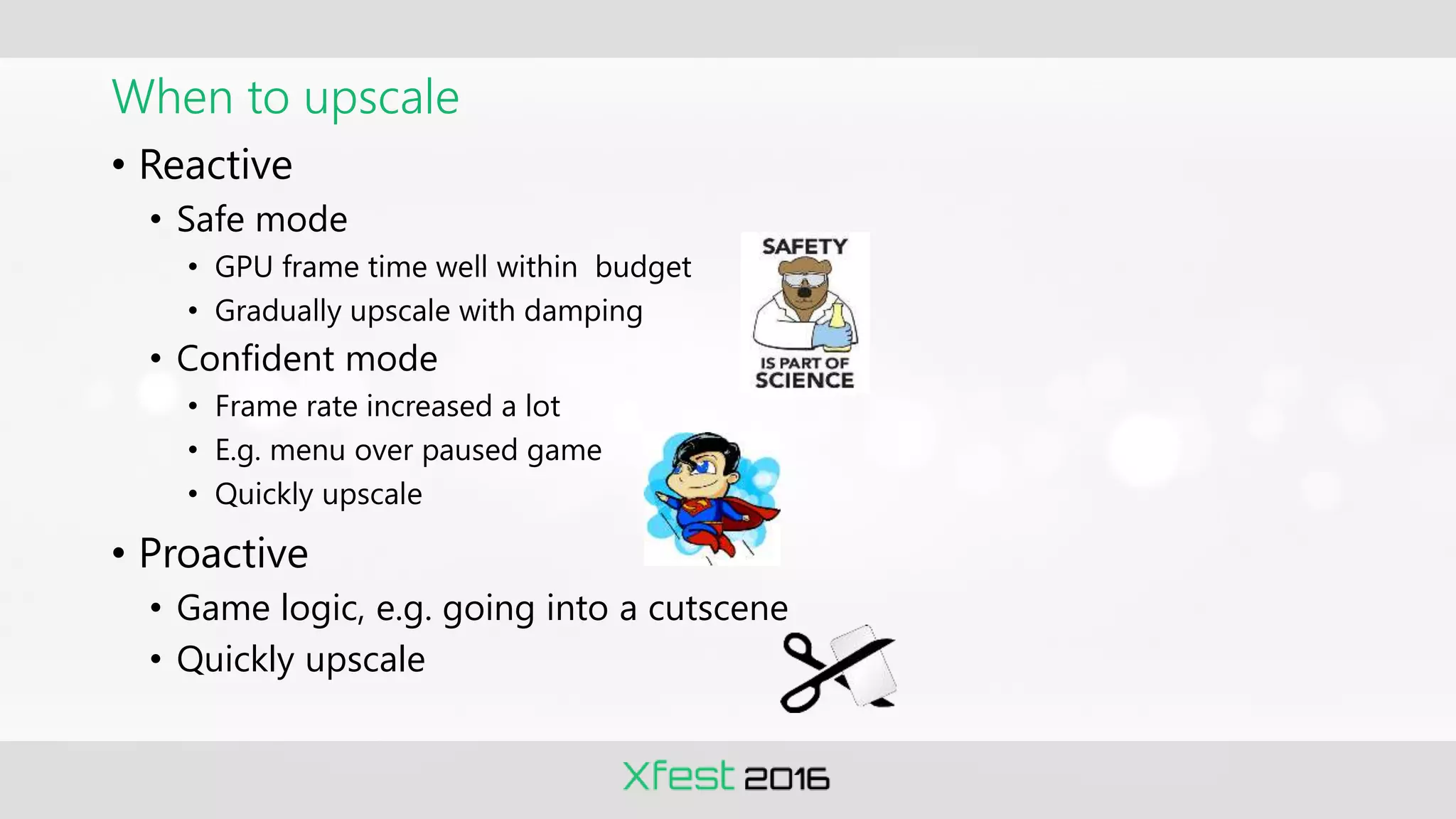

When to upscale • Reactive • Safe mode • GPU frame time well within budget • Gradually upscale with damping • Confident mode • Frame rate increased a lot • E.g. menu over paused game • Quickly upscale • Proactive • Game logic, e.g. going into a cutscene • Quickly upscale

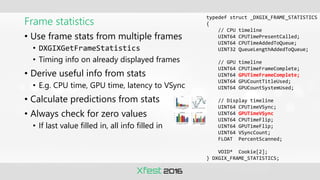

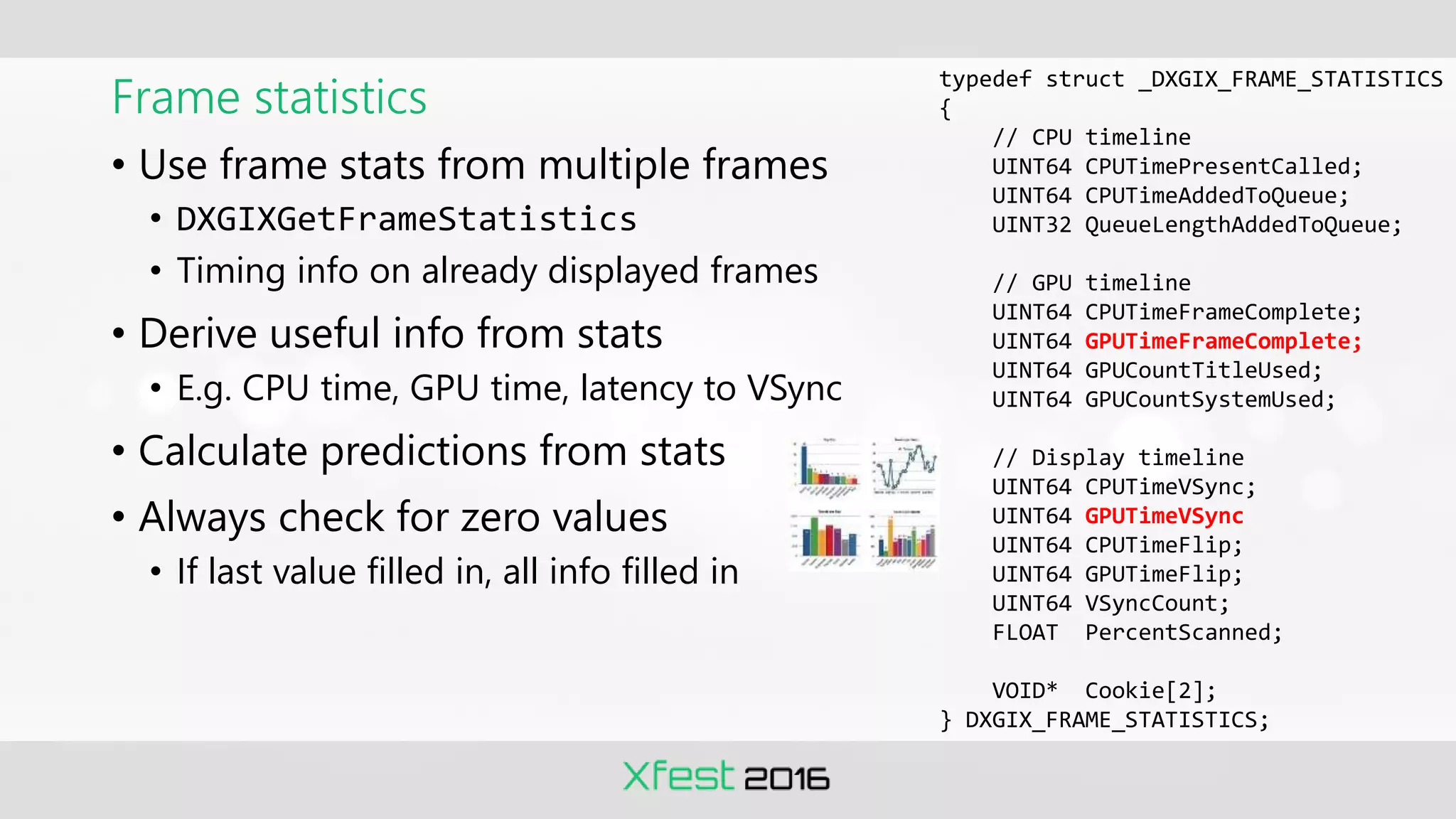

Frame statistics • Use frame stats from multiple frames • DXGIXGetFrameStatistics • Timing info on already displayed frames • Derive useful info from stats • E.g. CPU time, GPU time, latency to VSync • Calculate predictions from stats • Always check for zero values • If last value filled in, all info filled in typedef struct _DXGIX_FRAME_STATISTICS { // CPU timeline UINT64 CPUTimePresentCalled; UINT64 CPUTimeAddedToQueue; UINT32 QueueLengthAddedToQueue; // GPU timeline UINT64 CPUTimeFrameComplete; UINT64 GPUTimeFrameComplete; UINT64 GPUCountTitleUsed; UINT64 GPUCountSystemUsed; // Display timeline UINT64 CPUTimeVSync; UINT64 GPUTimeVSync UINT64 CPUTimeFlip; UINT64 GPUTimeFlip; UINT64 VSyncCount; FLOAT PercentScanned; VOID* Cookie[2]; } DXGIX_FRAME_STATISTICS;

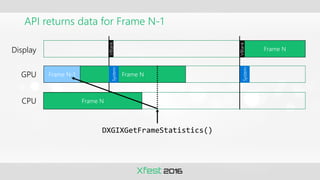

API returns data for Frame N-1 Display GPU CPU Frame N Frame N System VBlank Frame N-1 System VBlank Frame N DXGIXGetFrameStatistics()

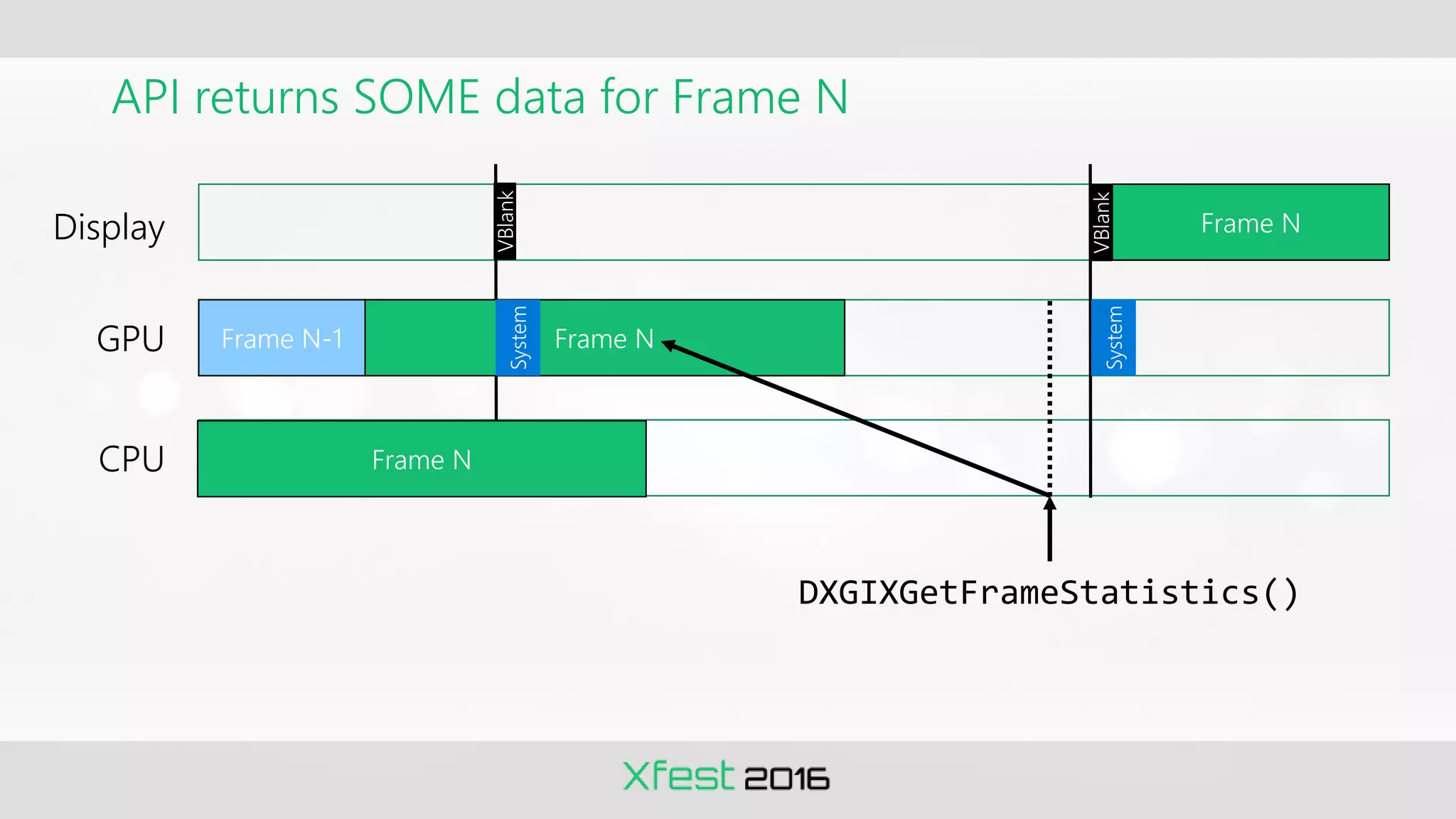

API returns SOME data for Frame N Display GPU CPU Frame N Frame N System VBlank Frame N-1 System VBlank Frame N DXGIXGetFrameStatistics()

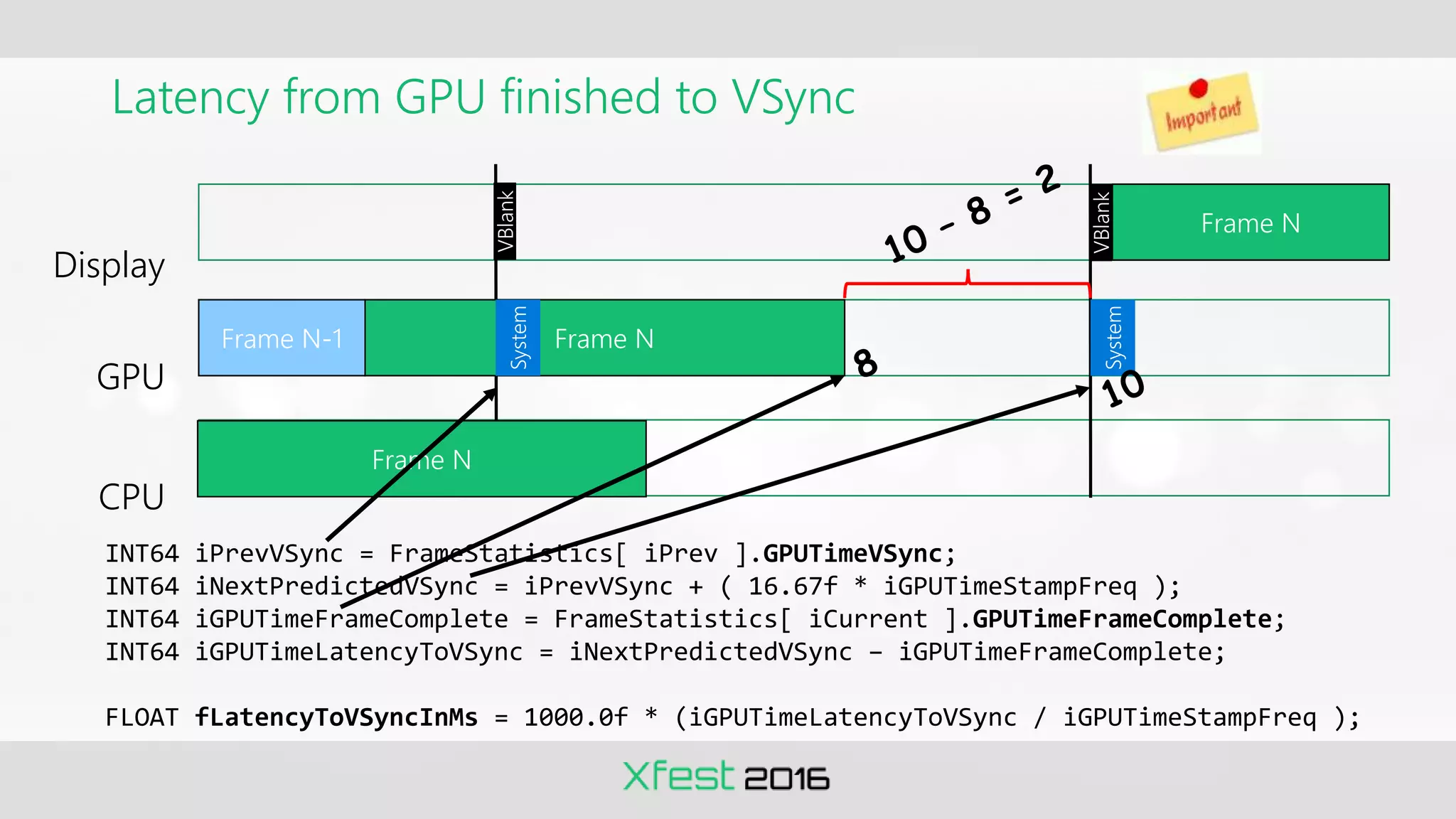

Latency from GPU finished to VSync Display GPU CPU Frame N Frame N System VBlank INT64 iPrevVSync = FrameStatistics[ iPrev ].GPUTimeVSync; INT64 iNextPredictedVSync = iPrevVSync + ( 16.67f * iGPUTimeStampFreq ); INT64 iGPUTimeFrameComplete = FrameStatistics[ iCurrent ].GPUTimeFrameComplete; INT64 iGPUTimeLatencyToVSync = iNextPredictedVSync – iGPUTimeFrameComplete; FLOAT fLatencyToVSyncInMs = 1000.0f * (iGPUTimeLatencyToVSync / iGPUTimeStampFreq ); Frame N-1 System VBlank Frame N

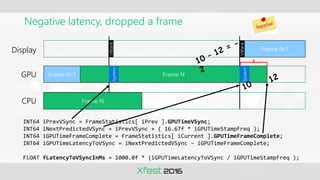

Negative latency, dropped a frame Display GPU CPU Frame N Frame N System VBlank INT64 iPrevVSync = FrameStatistics[ iPrev ].GPUTimeVSync; INT64 iNextPredictedVSync = iPrevVSync + ( 16.67f * iGPUTimeStampFreq ); INT64 iGPUTimeFrameComplete = FrameStatistics[ iCurrent ].GPUTimeFrameComplete; INT64 iGPUTimeLatencyToVSync = iNextPredictedVSync – iGPUTimeFrameComplete; FLOAT fLatencyToVSyncInMs = 1000.0f * (iGPUTimeLatencyToVSync / iGPUTimeStampFreq ); Frame N-1 System VBlank Frame N-1

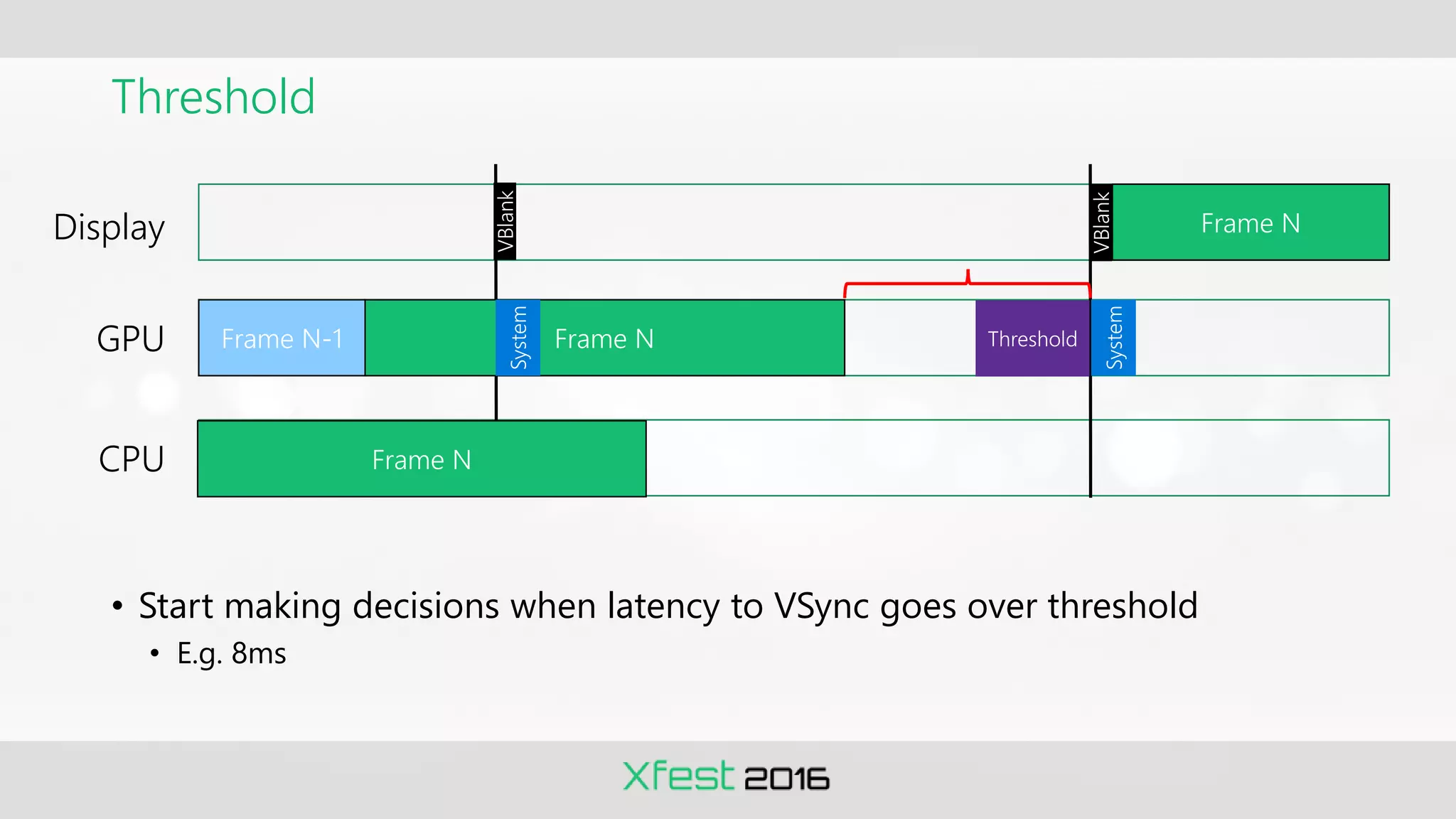

Threshold • Start making decisions when latency to VSync goes over threshold • E.g. 8ms Display GPU CPU Frame N Frame N System VBlank Frame N-1 System VBlank Threshold Frame N

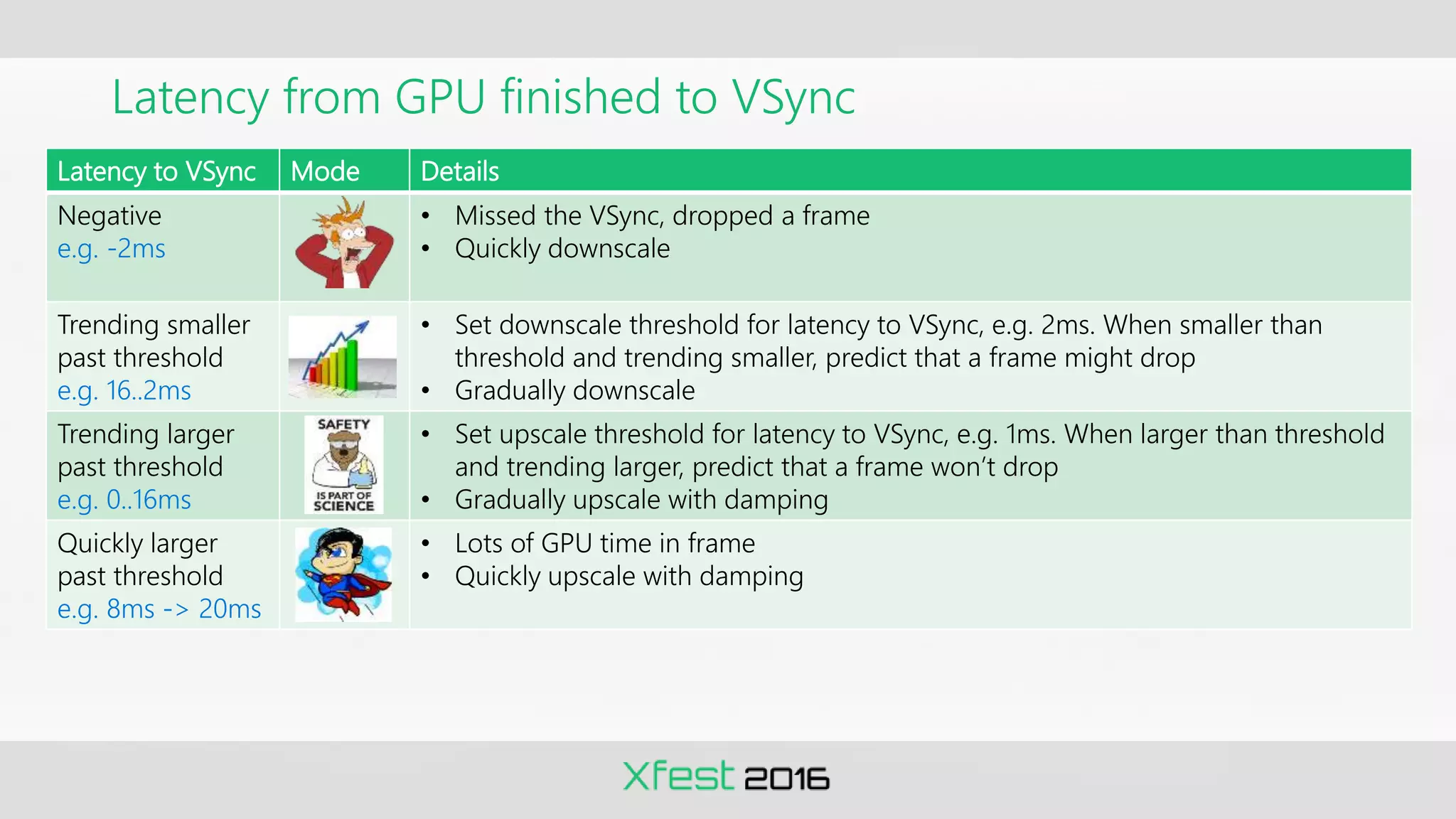

Latency from GPU finished to VSync Latency to VSync Mode Details Negative e.g. -2ms • Missed the VSync, dropped a frame • Quickly downscale Trending smaller past threshold e.g. 16..2ms • Set downscale threshold for latency to VSync, e.g. 2ms. When smaller than threshold and trending smaller, predict that a frame might drop • Gradually downscale Trending larger past threshold e.g. 0..16ms • Set upscale threshold for latency to VSync, e.g. 1ms. When larger than threshold and trending larger, predict that a frame won’t drop • Gradually upscale with damping Quickly larger past threshold e.g. 8ms -> 20ms • Lots of GPU time in frame • Quickly upscale with damping

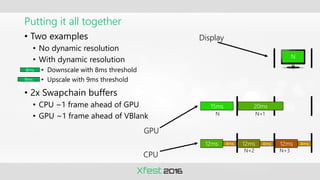

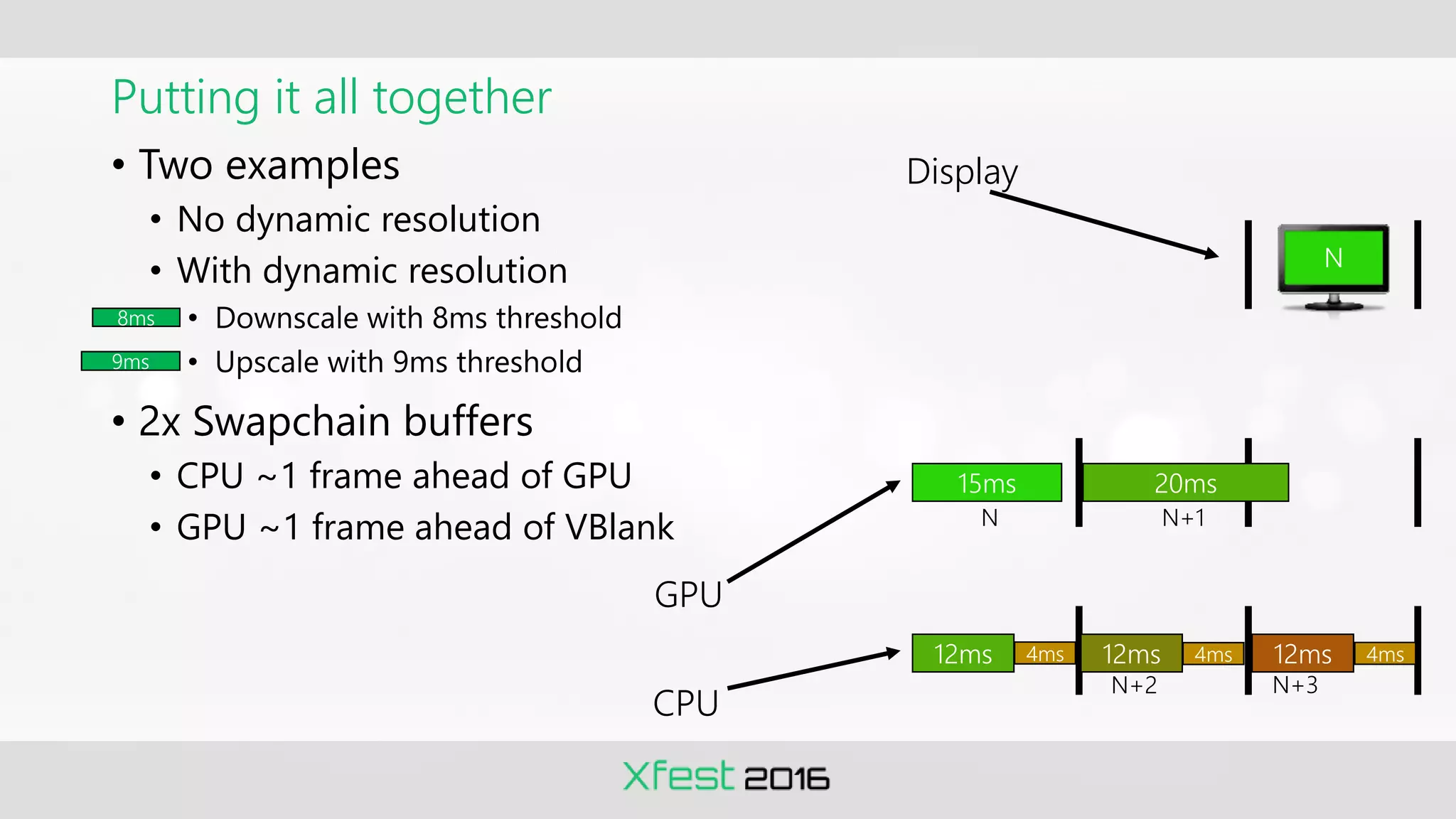

Putting it all together • Two examples • No dynamic resolution • With dynamic resolution • Downscale with 8ms threshold • Upscale with 9ms threshold • 2x Swapchain buffers • CPU ~1 frame ahead of GPU • GPU ~1 frame ahead of VBlank 15ms 20ms 12ms 12ms 12ms 4ms 4ms 4ms N N N+1 N+2 N+3 Display GPU CPU 8ms 9ms

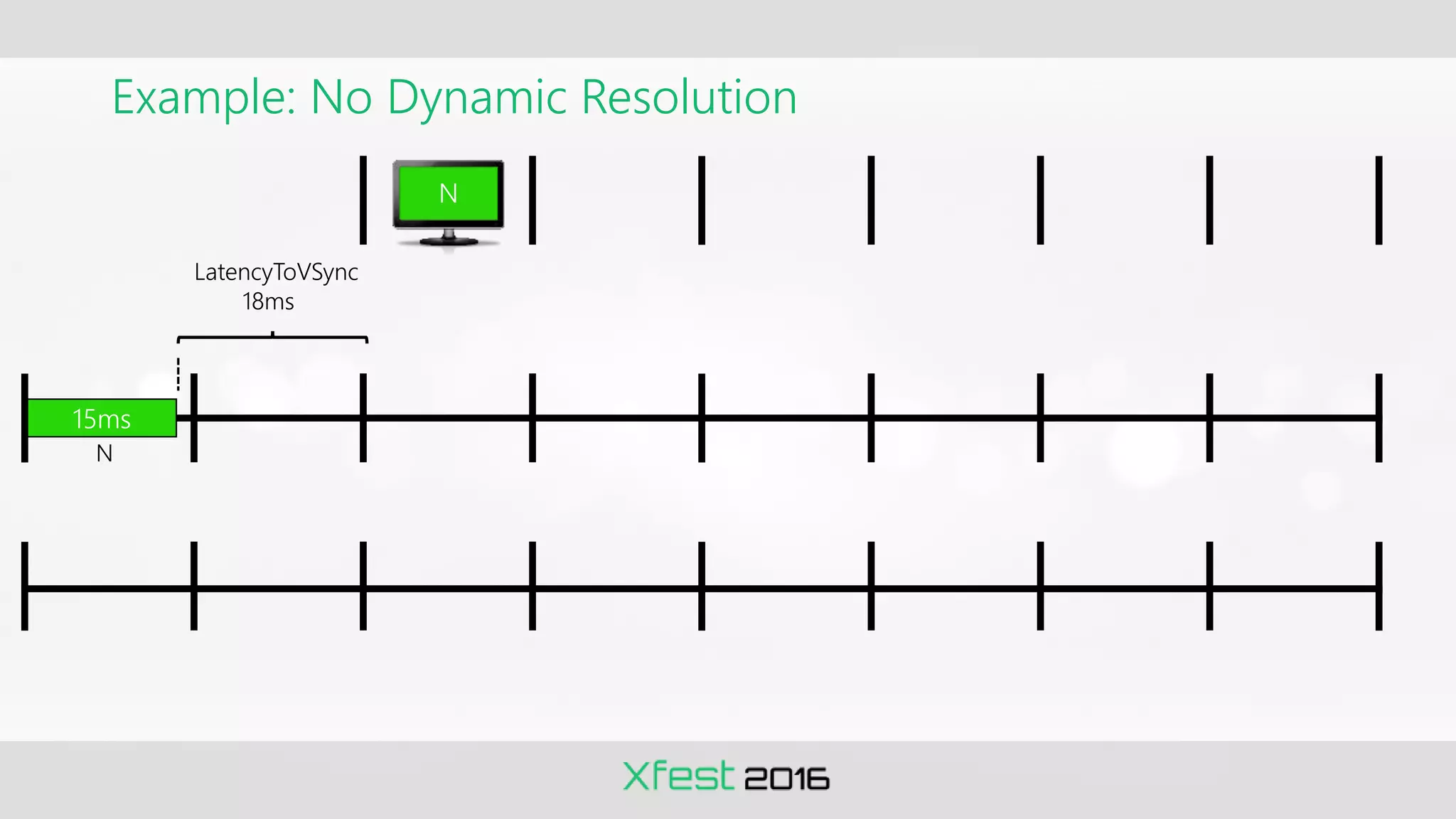

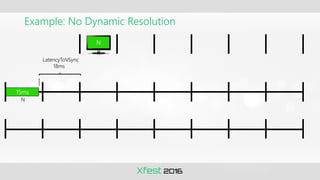

Example: No Dynamic Resolution 15ms 18ms LatencyToVSync N N

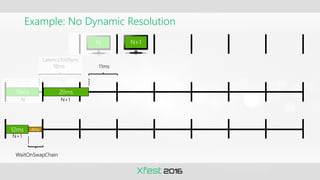

Example: No Dynamic Resolution 15ms 18ms 11ms 20ms 12ms 4ms LatencyToVSync WaitOnSwapChain N N+1 N N+1 N+1

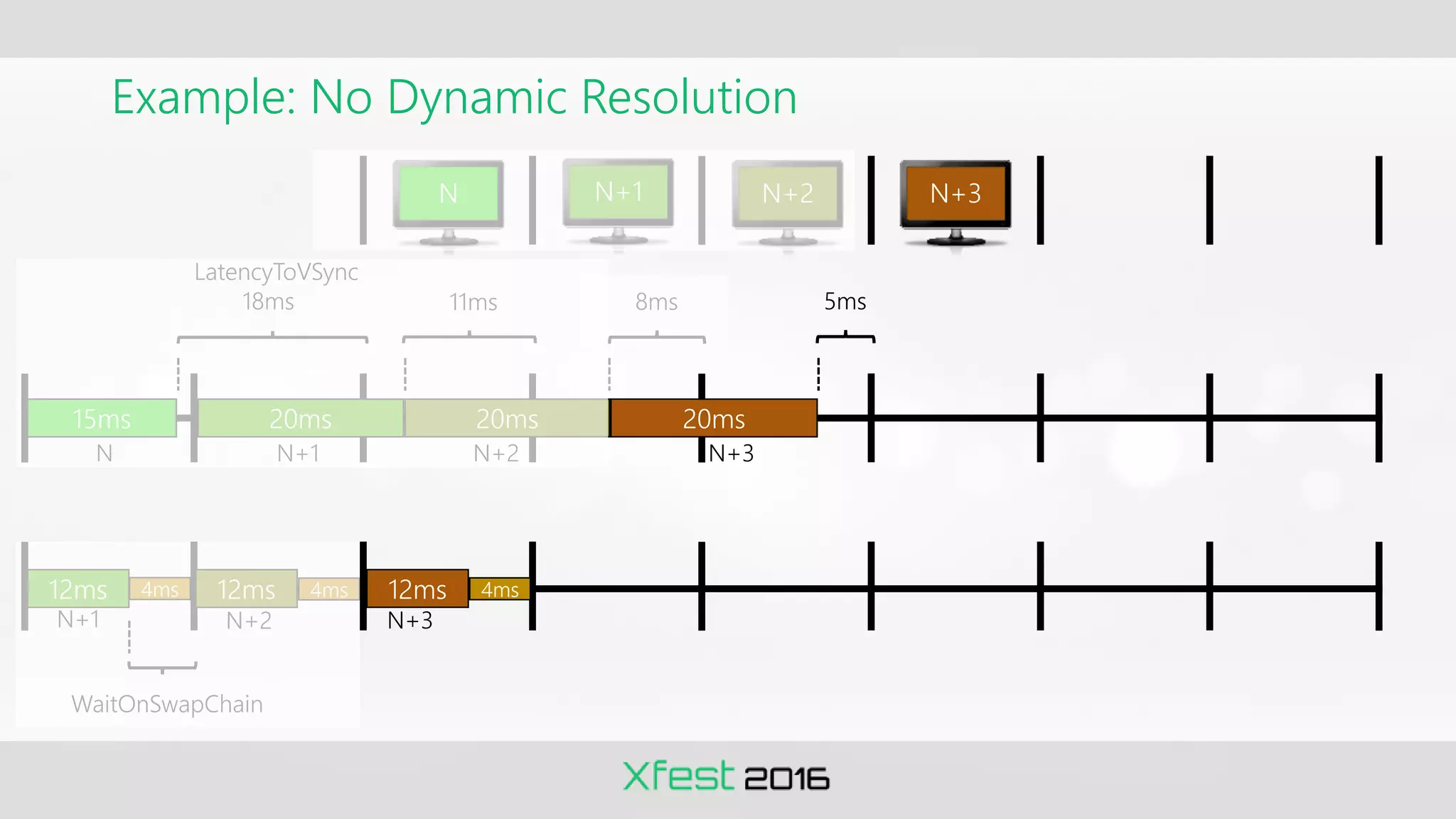

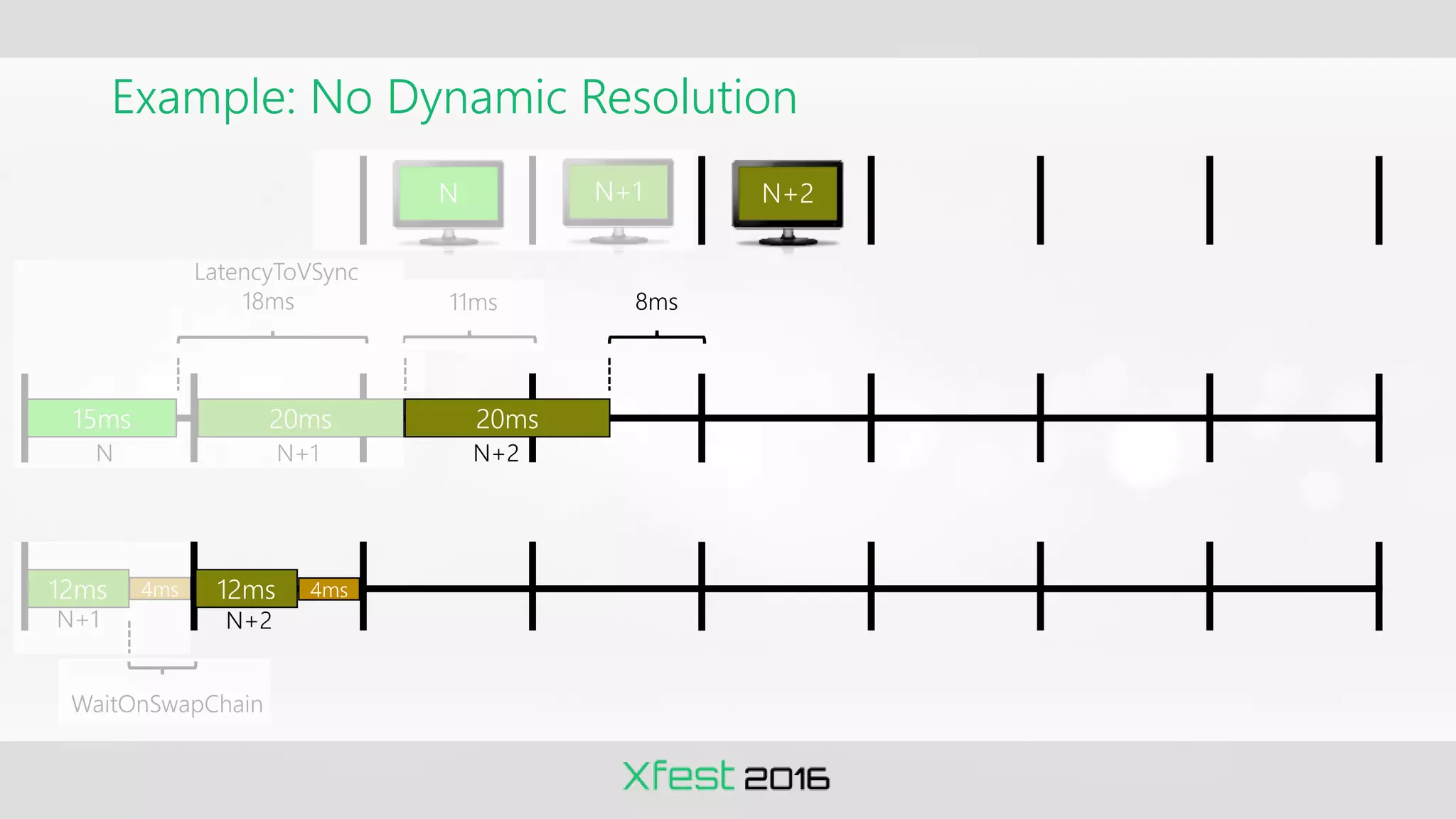

Example: No Dynamic Resolution 15ms 20ms 18ms 11ms 20ms 8ms 12ms 12ms 4ms 4ms LatencyToVSync N N+1 N+2 N N+1 N+2 N+1 N+2 WaitOnSwapChain

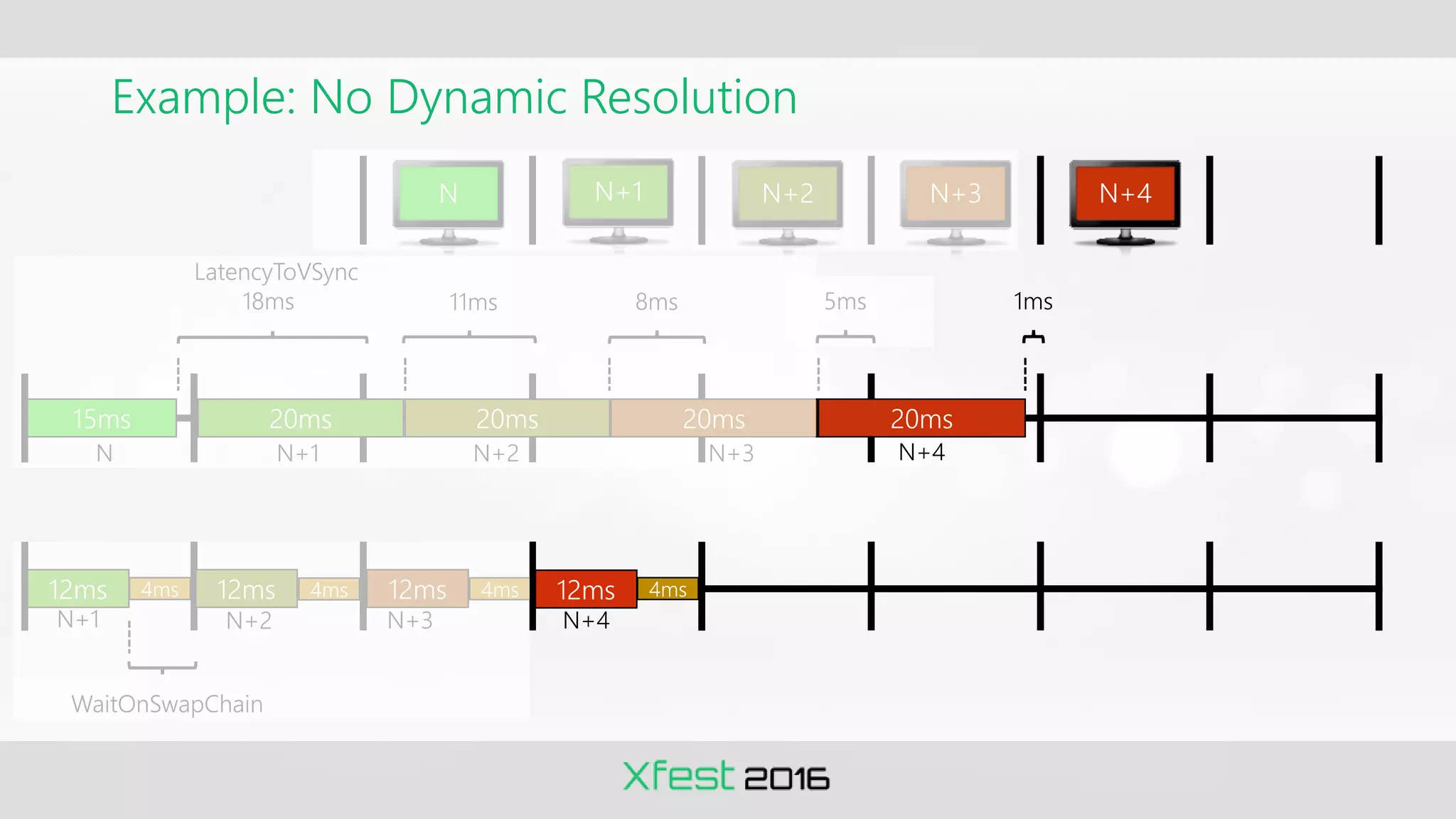

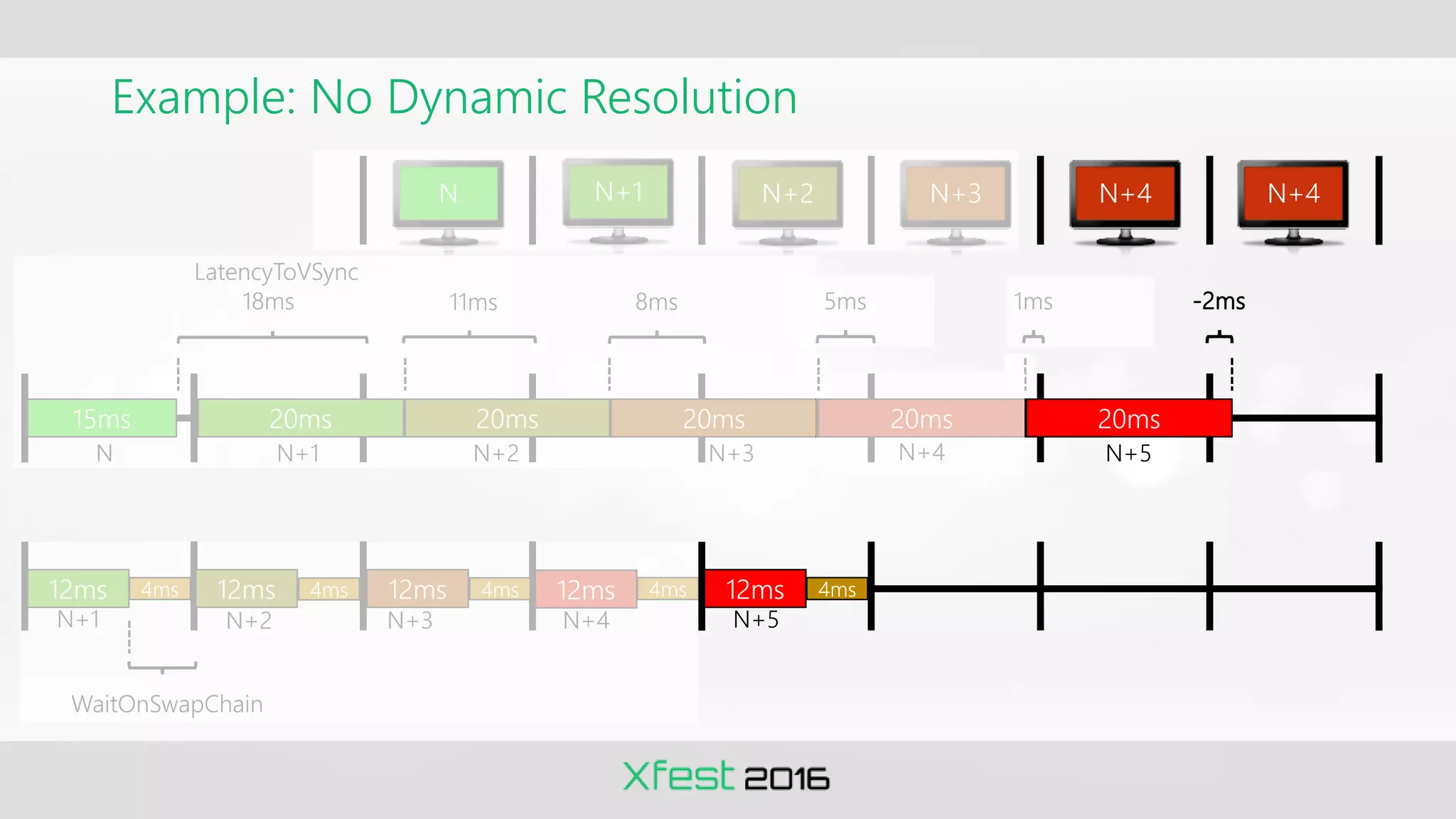

Example: No Dynamic Resolution 15ms 20ms 20ms 18ms 11ms 20ms 8ms 5ms 12ms 12ms 12ms 4ms 4ms 4ms LatencyToVSync N N+1 N+2 N+3 N N+1 N+2 N+3 N+1 N+2 N+3 WaitOnSwapChain

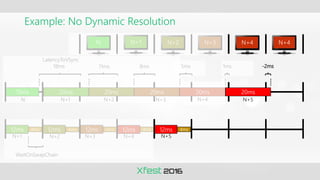

Example: No Dynamic Resolution 15ms 20ms 20ms 20ms 18ms 11ms 20ms 8ms 5ms 1ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms LatencyToVSync N N+1 N+2 N+3 N+4 N N+1 N+2 N+3 N+4 N+1 N+2 N+3 N+4 WaitOnSwapChain

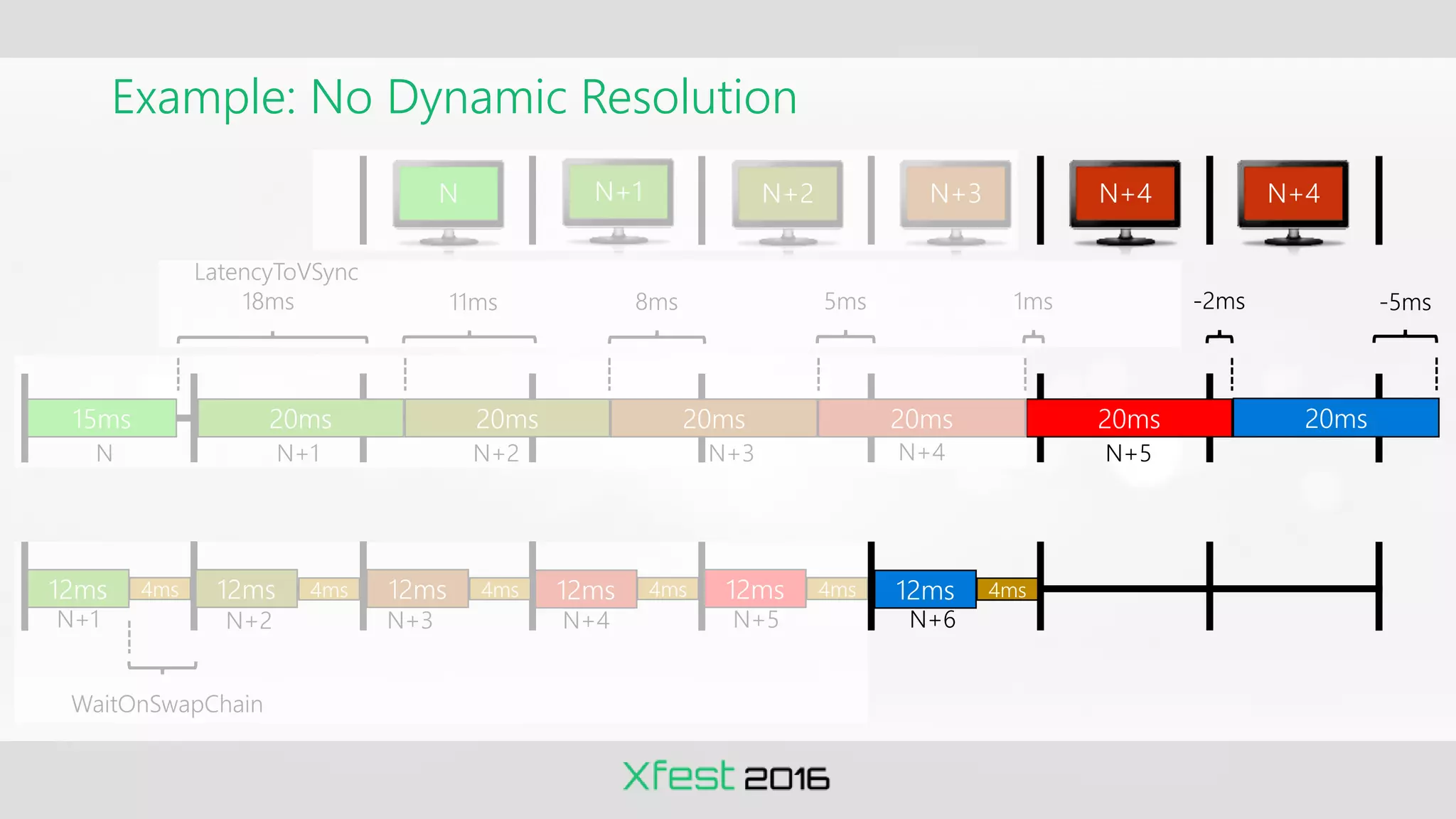

Example: No Dynamic Resolution 15ms 20ms 20ms 20ms 20ms 18ms 11ms 20ms 8ms 5ms 1ms -2ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms LatencyToVSync N N+1 N+2 N+3 N+4 N+4 N N+1 N+2 N+3 N+4 N+5 N+1 N+2 N+3 N+4 N+5 WaitOnSwapChain

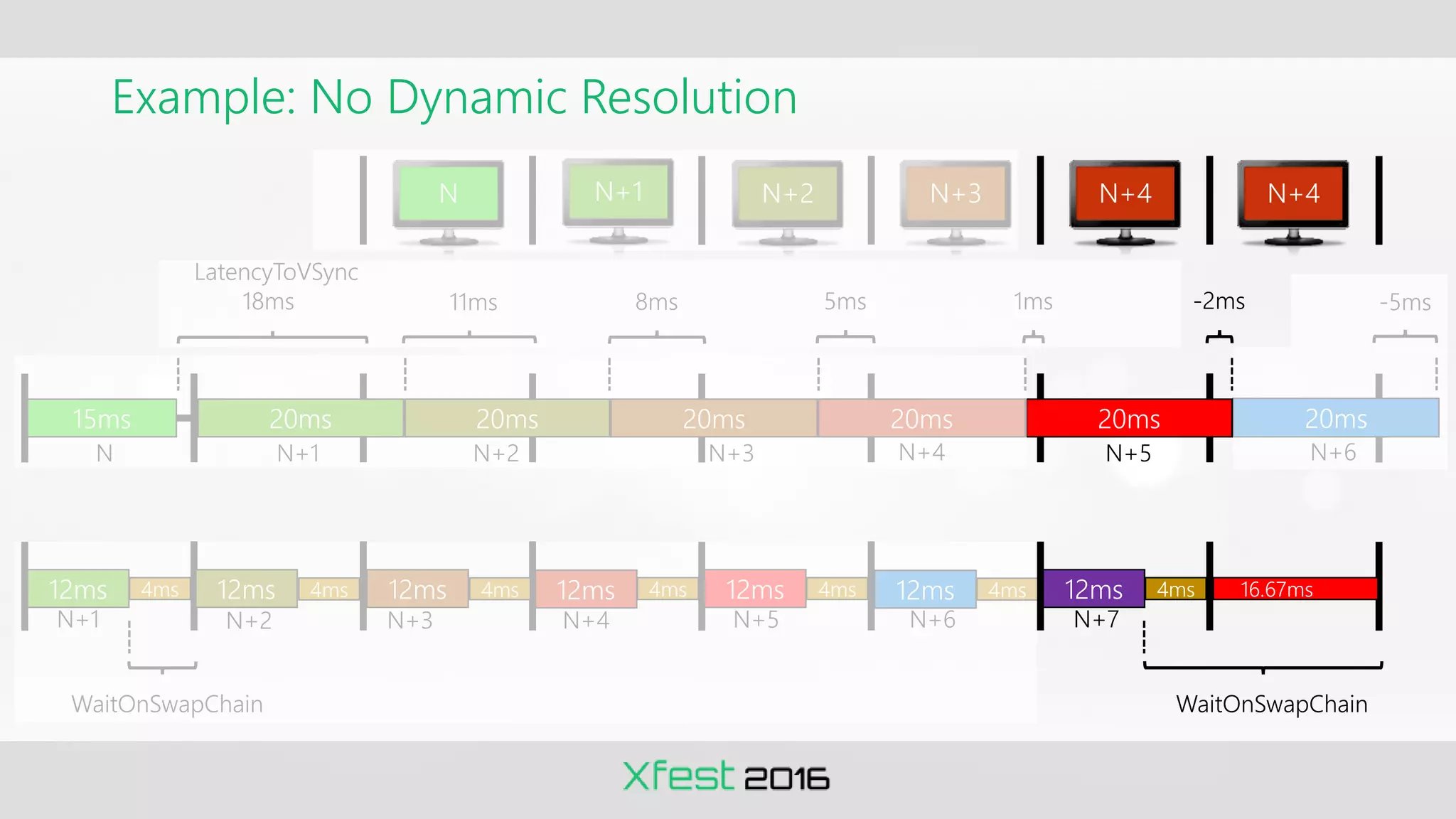

Example: No Dynamic Resolution 15ms 20ms 20ms 20ms 20ms 18ms 11ms 20ms 8ms 5ms 1ms -2ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms LatencyToVSync 20ms -5ms 12ms 4ms N N+1 N+2 N+3 N+4 N+4 N N+1 N+2 N+3 N+4 N+5 N+1 N+2 N+3 N+4 N+5 N+6 WaitOnSwapChain
Example: No Dynamic Resolution 15ms 20ms 20ms 20ms 20ms 18ms 11ms 20ms 8ms 5ms 1ms -2ms 12ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms 4ms 16.67ms7ms LatencyToVSync 20ms -5ms 12ms 4ms WaitOnSwapChain N N+1 N+2 N+3 N+4 N+4 N N+1 N+2 N+3 N+4 N+5 N+6 N+1 N+2 N+3 N+4 N+5 N+6 N+7 WaitOnSwapChain

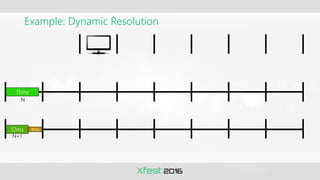

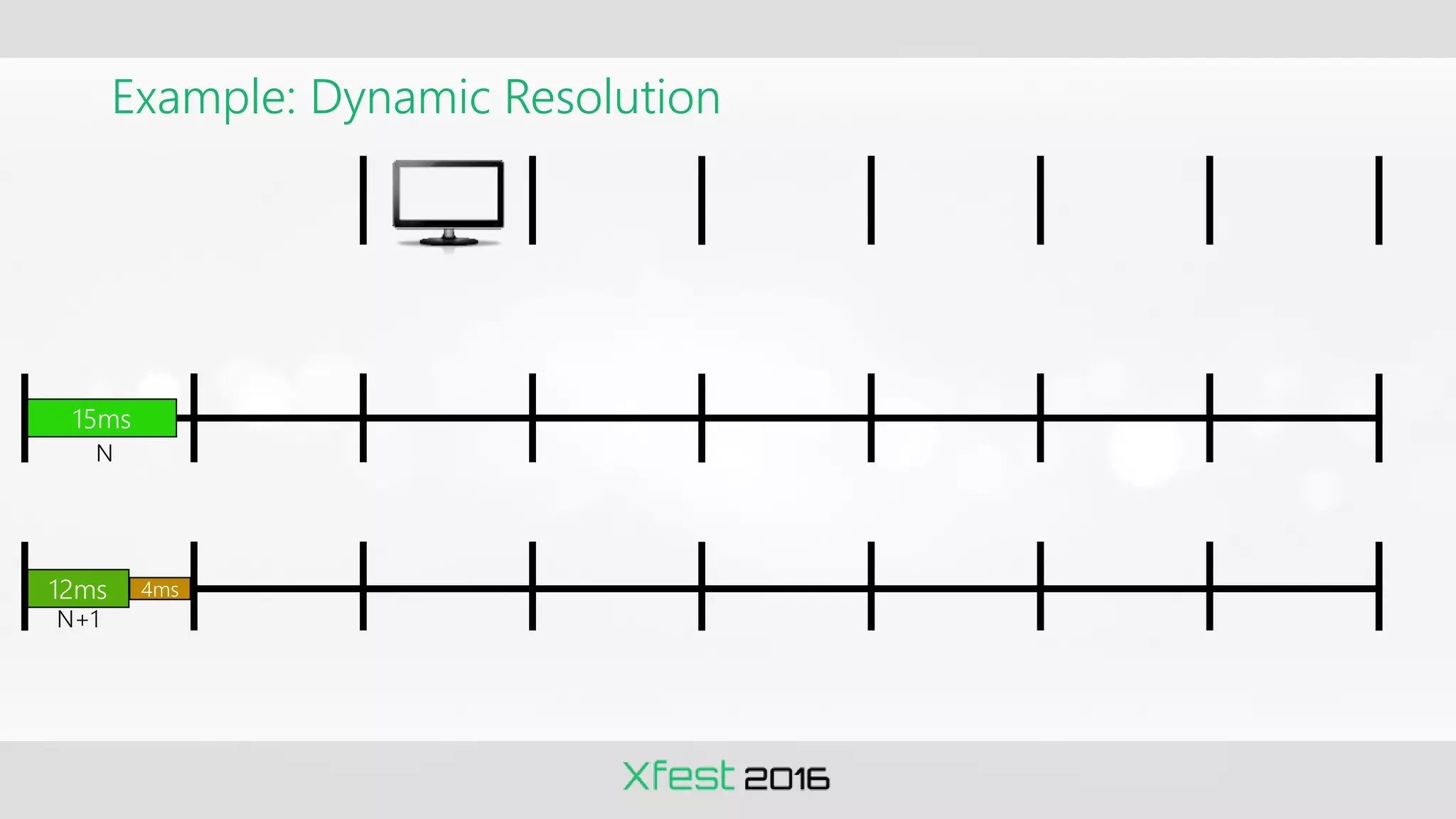

Example: Dynamic Resolution 15ms 12ms 4ms N N+1

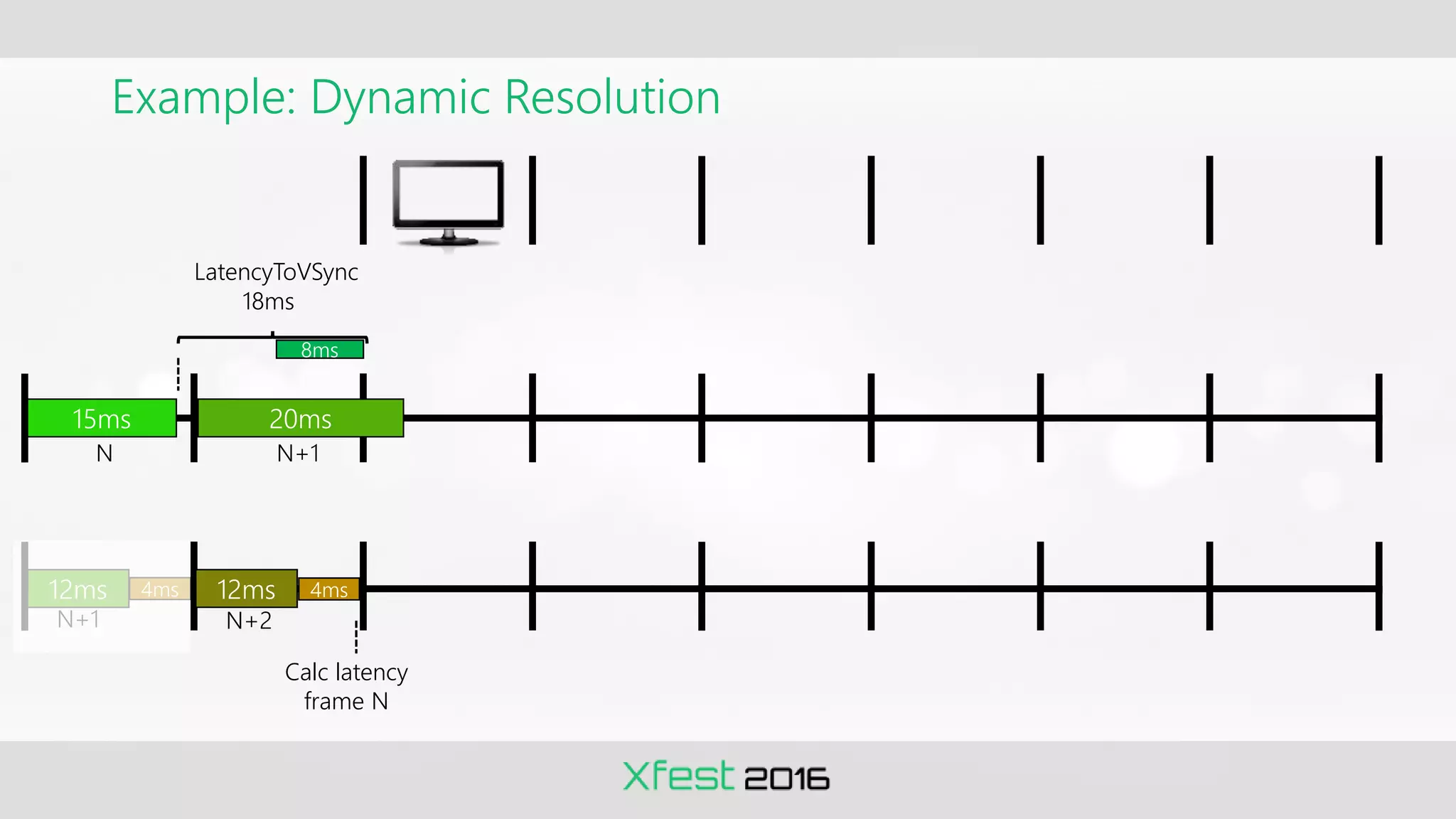

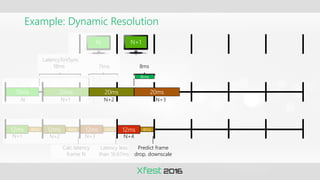

Example: Dynamic Resolution 15ms 20ms 12ms 12ms 4ms 4ms LatencyToVSync 18ms N N+1 N+1 N+2 Calc latency frame N 8ms

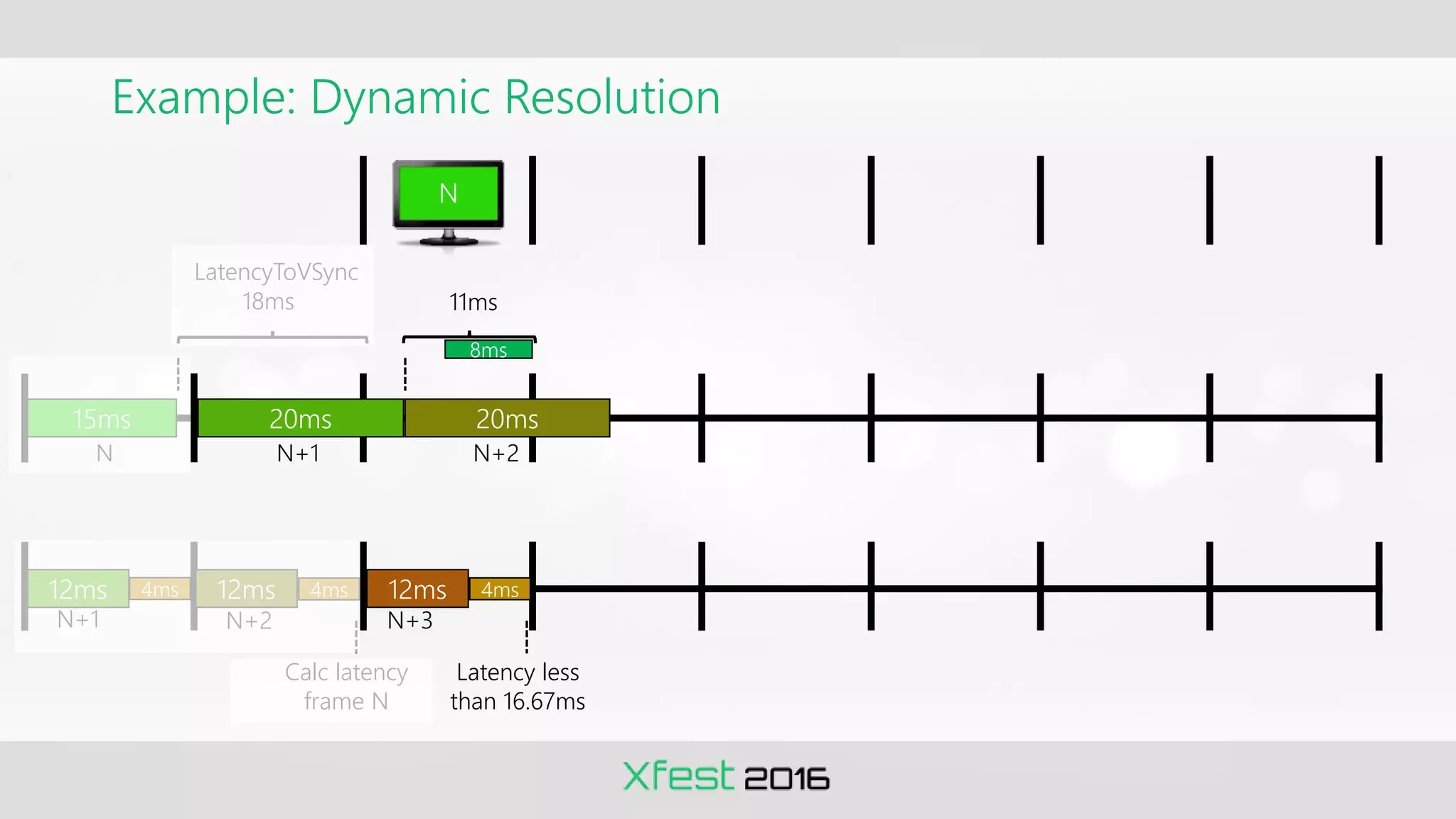

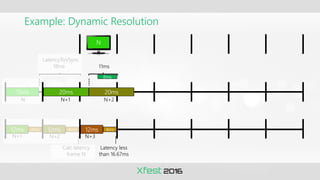

Example: Dynamic Resolution 15ms 20ms 20ms 12ms 12ms 12ms 4ms 4ms 4ms N LatencyToVSync 18ms 11ms N N+1 N+2 N+1 N+2 N+3 Latency less than 16.67ms Calc latency frame N 8ms

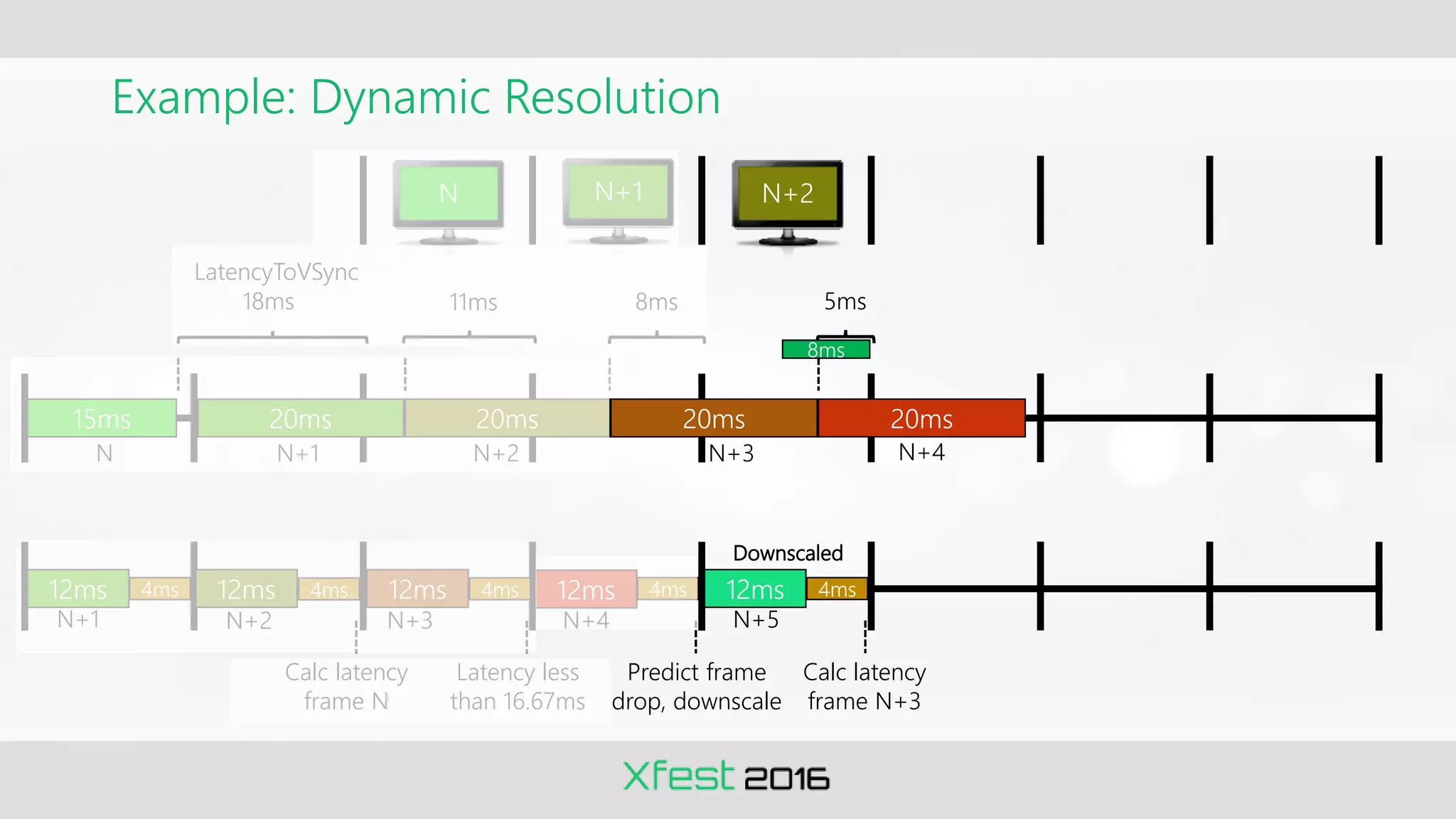

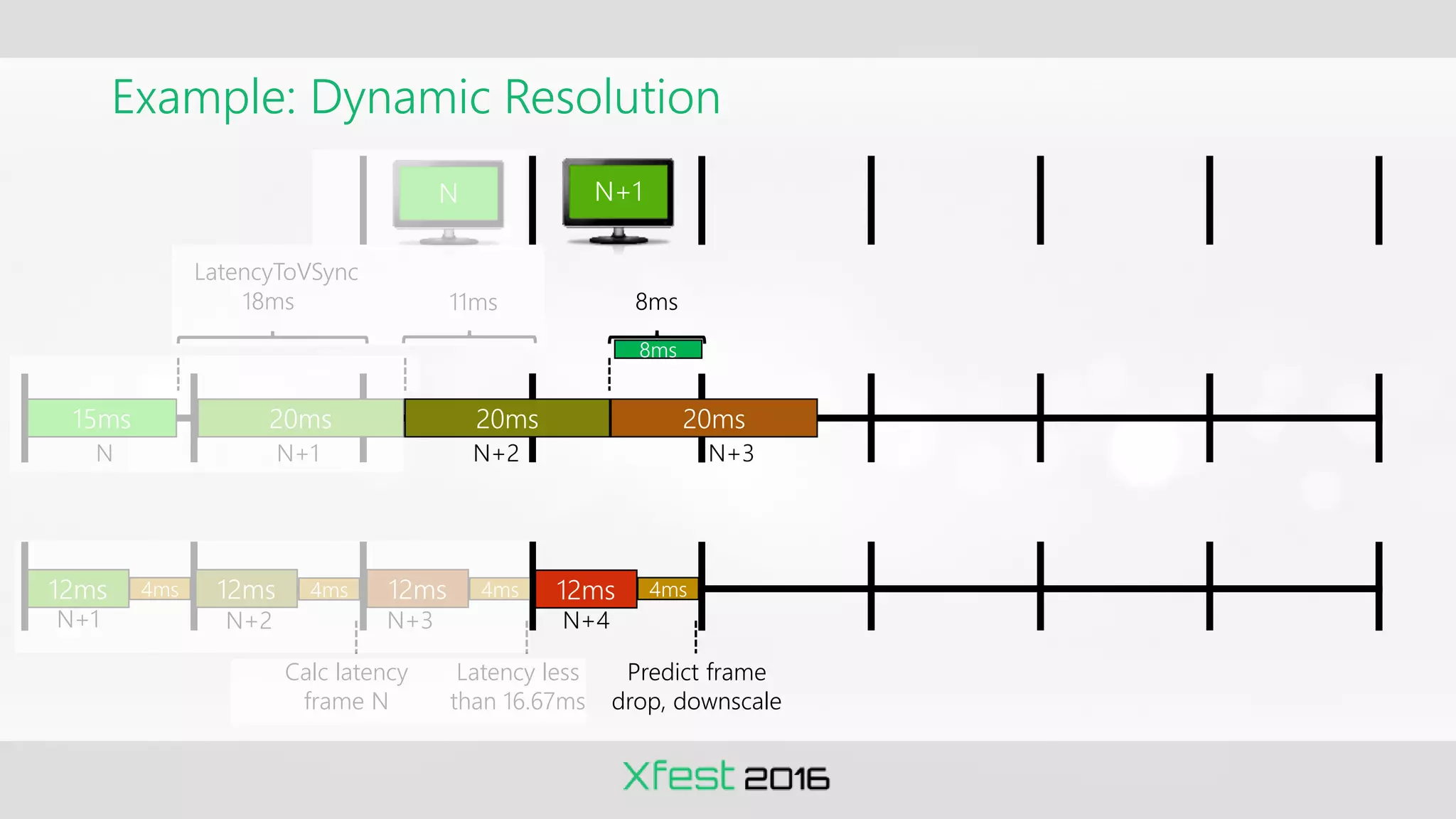

Example: Dynamic Resolution 15ms 20ms 20ms 20ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms N N+1 LatencyToVSync 18ms 11ms 8ms N N+1 N+2 N+3 N+1 N+2 N+3 N+4 Latency less than 16.67ms Calc latency frame N 8ms Predict frame drop, downscale

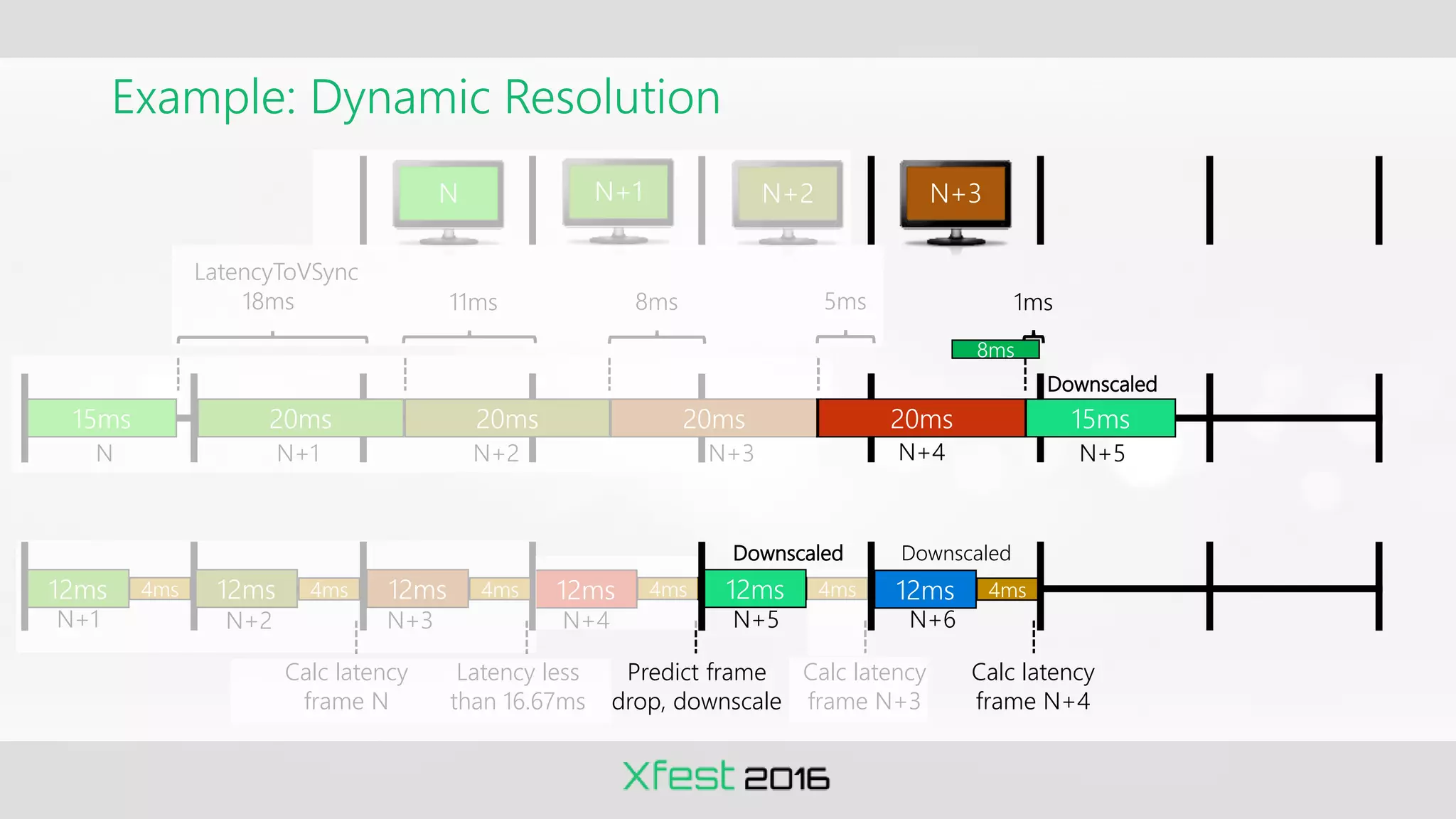

Example: Dynamic Resolution 15ms 20ms 20ms 20ms 20ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms N N+1 N+2 LatencyToVSync 18ms 11ms 8ms 5ms N N+1 N+2 N+3 N+4 N+1 N+2 N+3 N+4 N+5 Latency less than 16.67ms Predict frame drop, downscale Calc latency frame N Calc latency frame N+3 Downscaled 8ms

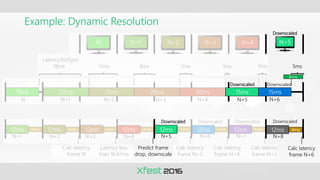

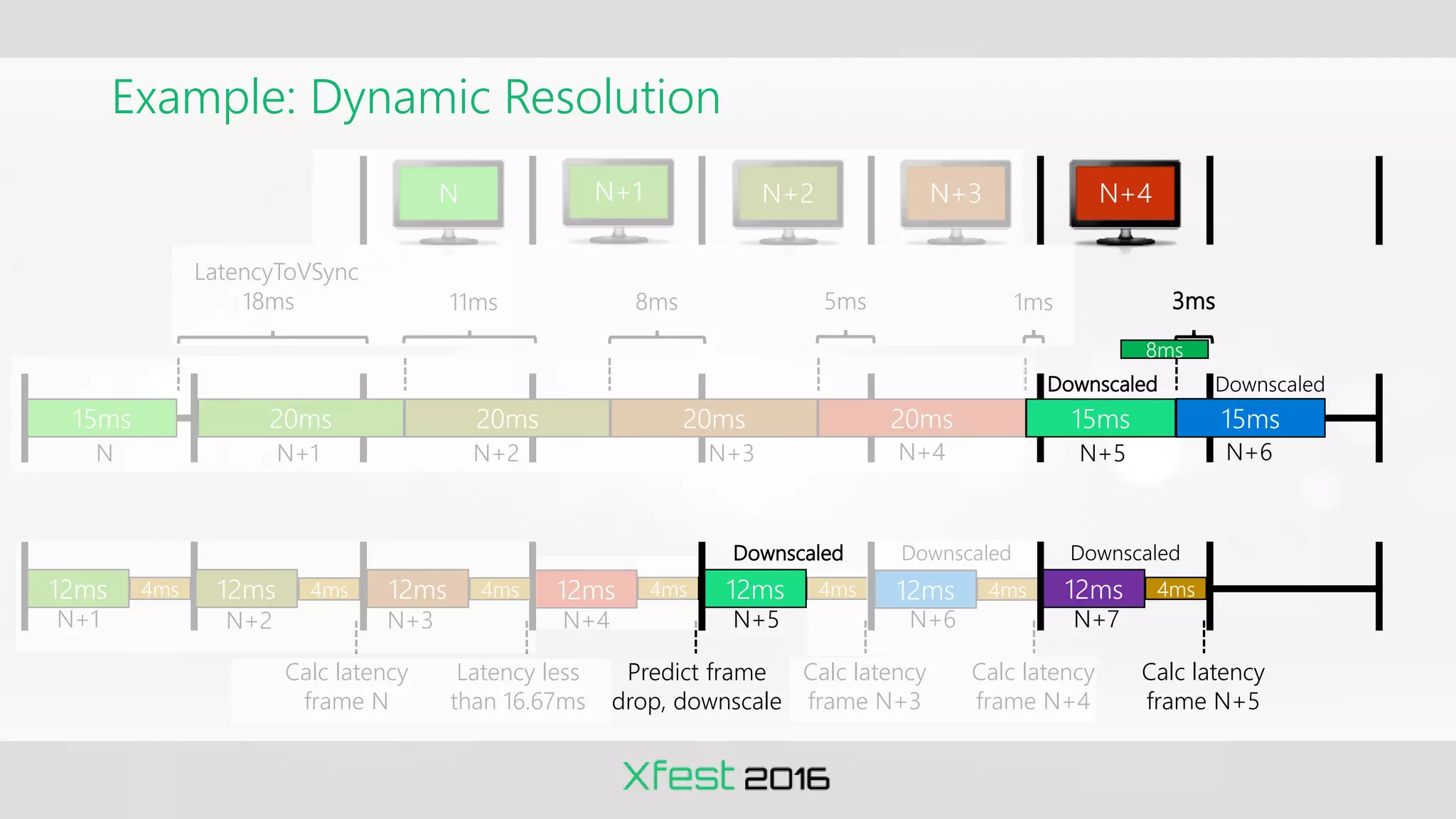

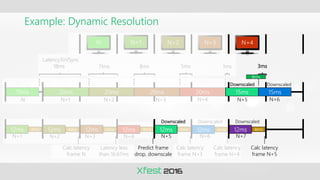

Example: Dynamic Resolution 15ms 20ms 20ms 20ms 15ms 20ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms 12ms 4ms N N+1 N+2 N+3 LatencyToVSync 18ms 11ms 8ms 5ms 1ms N N+1 N+2 N+3 N+4 N+5 N+1 N+2 N+3 N+4 N+5 N+6 Latency less than 16.67ms Calc latency frame N Calc latency frame N+3 Calc latency frame N+4 Downscaled Downscaled Downscaled 8ms Predict frame drop, downscale

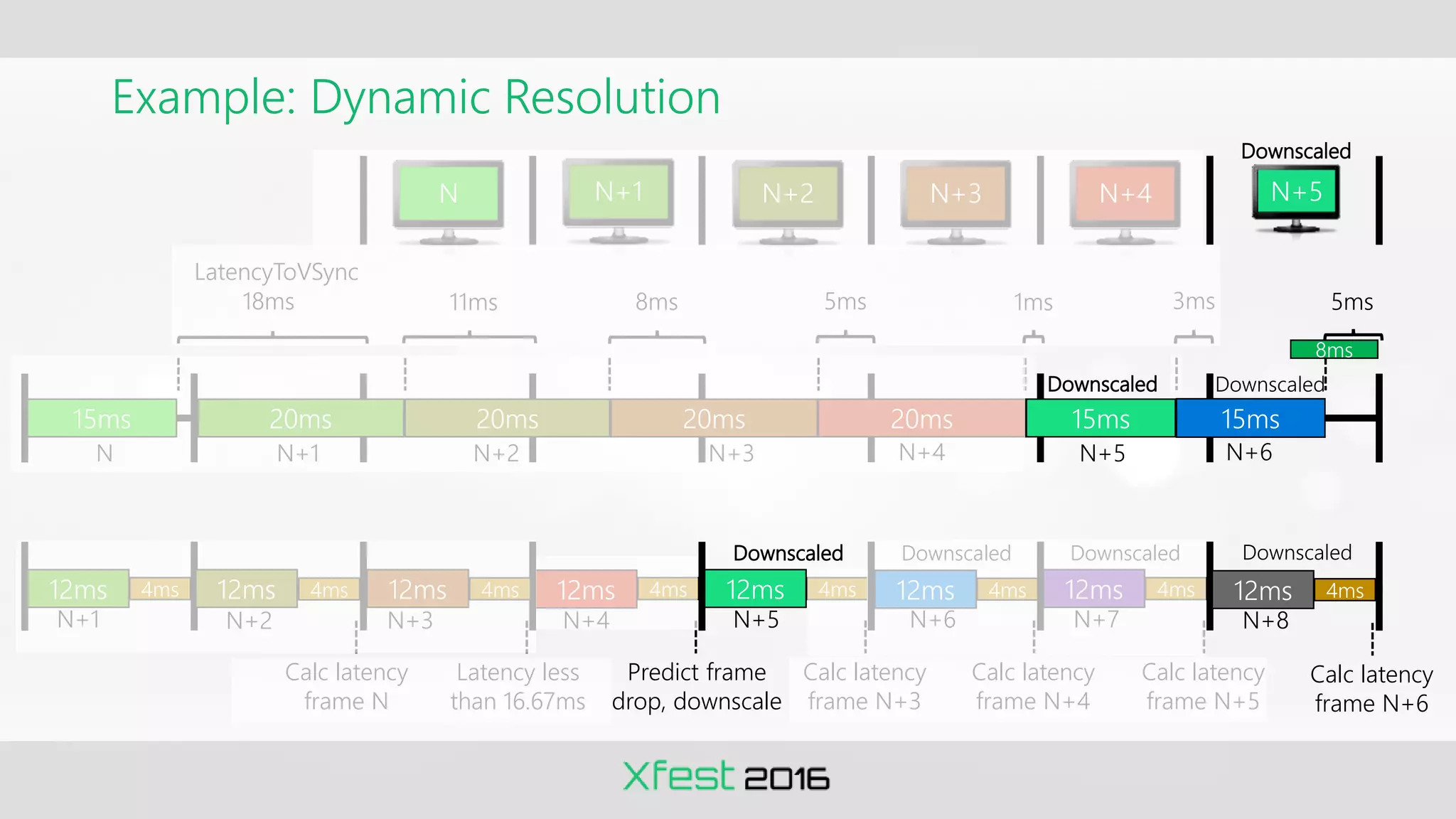

Example: Dynamic Resolution 15ms 20ms 20ms 20ms 15ms 20ms 12ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms 4ms 15ms 12ms 4ms N N+1 N+2 N+3 N+4 LatencyToVSync 18ms 11ms 8ms 5ms 1ms 3ms N N+1 N+2 N+3 N+4 N+5 N+6 N+1 N+2 N+3 N+4 N+5 N+6 N+7 Latency less than 16.67ms Calc latency frame N Calc latency frame N+3 Calc latency frame N+4 Calc latency frame N+5 Downscaled Downscaled Downscaled Downscaled Downscaled 8ms Predict frame drop, downscale
Example: Dynamic Resolution 15ms 20ms 20ms 20ms 15ms 20ms 12ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms 4ms 15ms 12ms 4ms N N+1 N+2 N+3 N+4 N+5 12ms 4ms Calc latency frame N+6 LatencyToVSync 18ms 11ms 8ms 5ms 1ms 3ms N 5ms N+1 N+2 N+3 N+4 N+5 N+6 N+1 N+2 N+3 N+4 N+5 N+6 N+7 Latency less than 16.67ms N+8 Calc latency frame N Calc latency frame N+3 Calc latency frame N+4 Calc latency frame N+5 Downscaled Downscaled Downscaled Downscaled Downscaled Downscaled Downscaled 8ms Predict frame drop, downscale

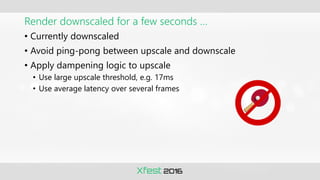

Render downscaled for a few seconds … • Currently downscaled • Avoid ping-pong between upscale and downscale • Apply dampening logic to upscale • Use large upscale threshold, e.g. 17ms • Use average latency over several frames

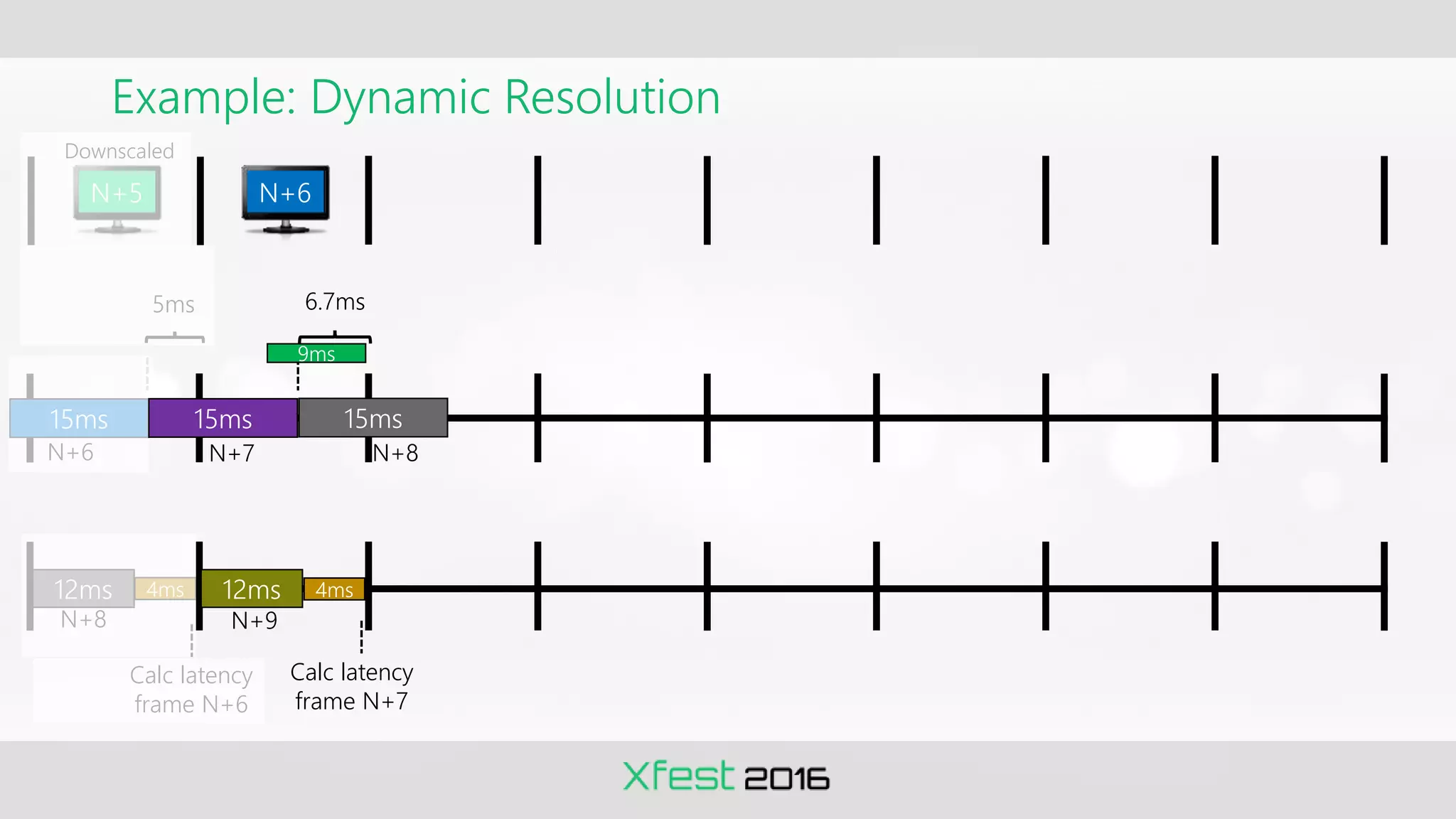

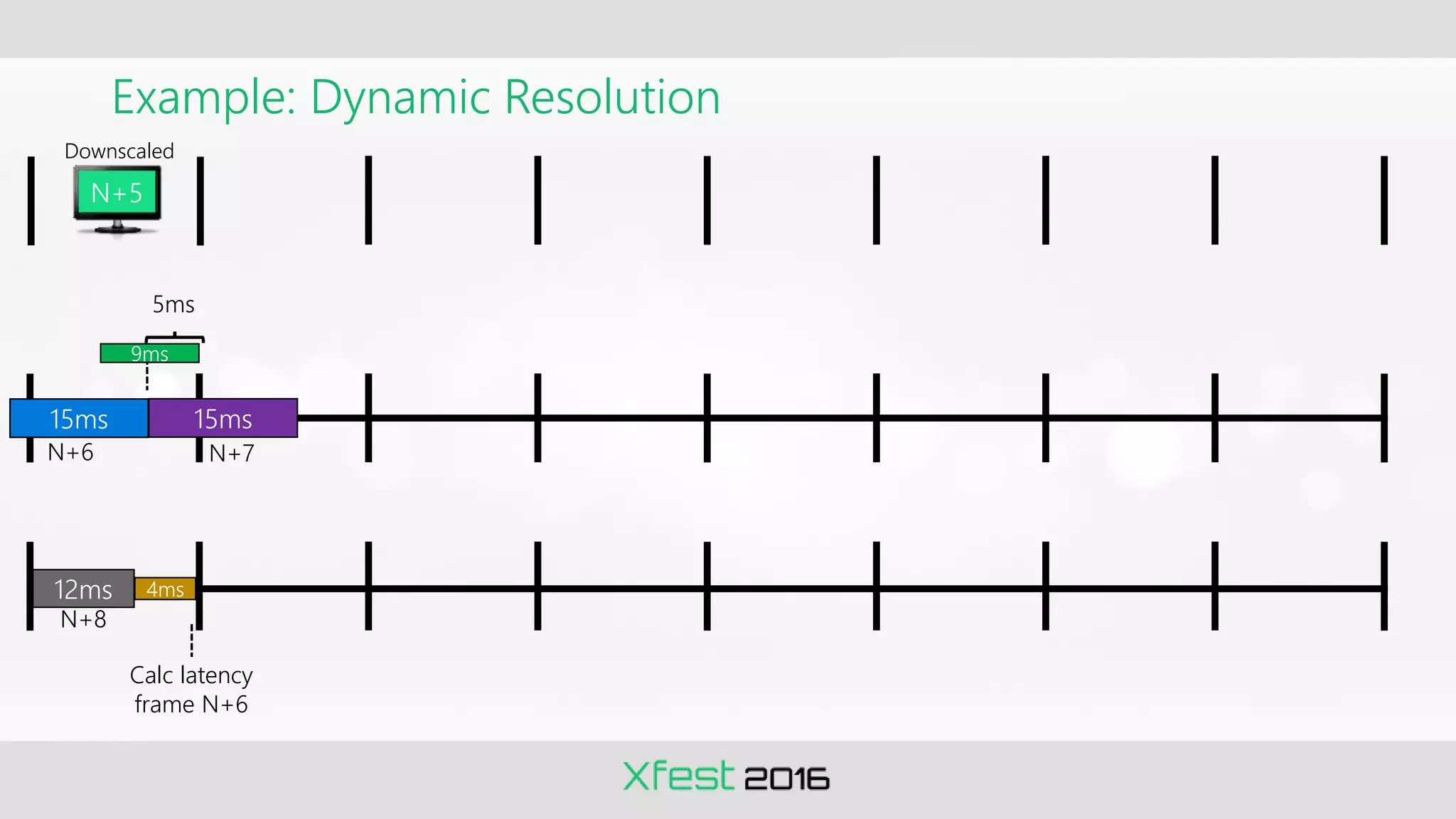

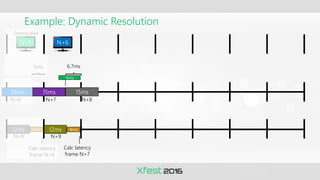

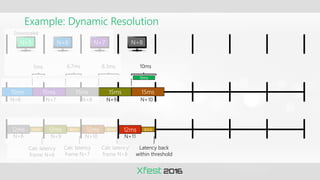

Example: Dynamic Resolution 12ms 4ms 15ms N+7 N+8 Calc latency frame N+6 5ms N+6 N+5 15ms Downscaled 9ms

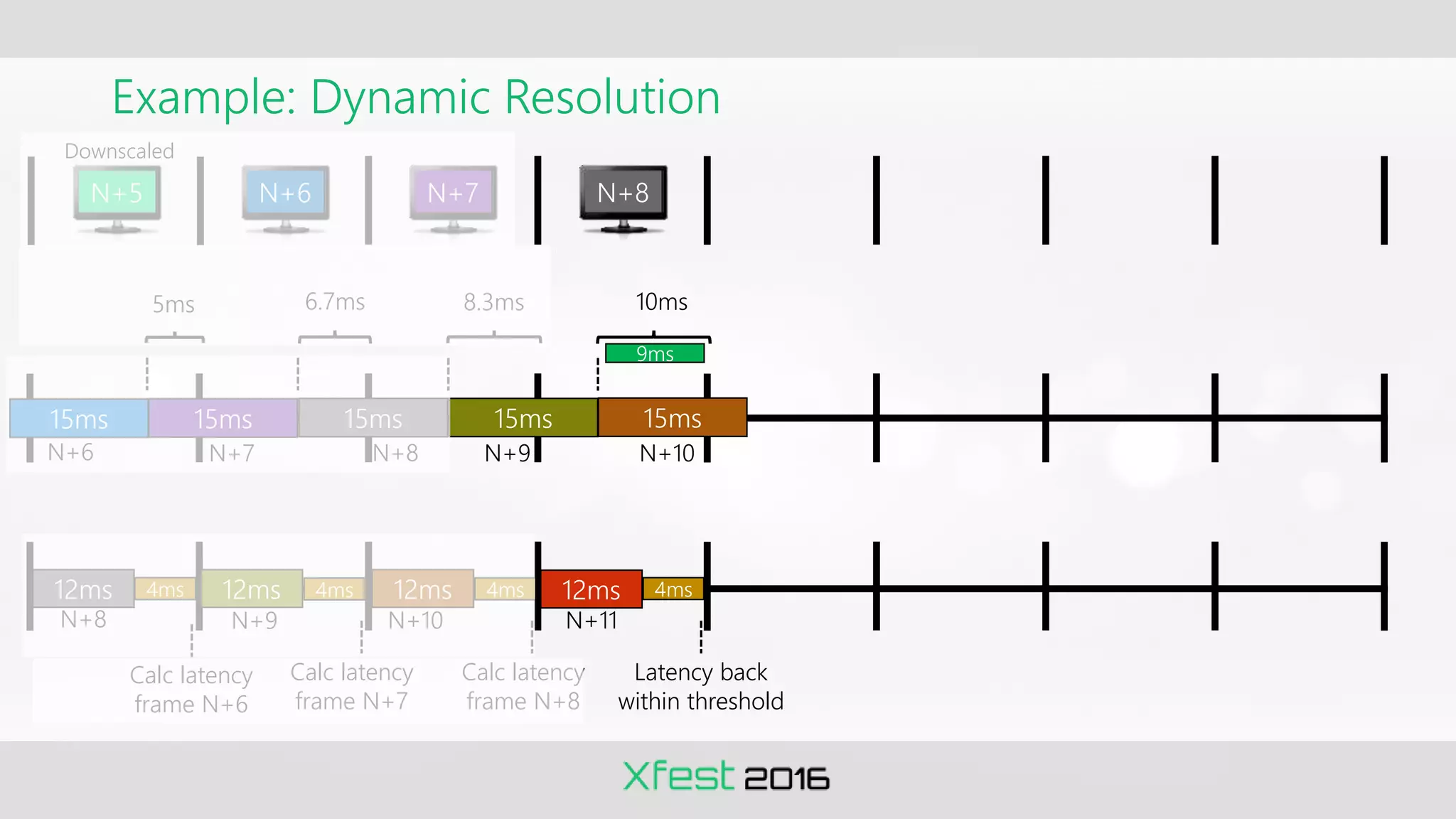

Example: Dynamic Resolution 12ms 12ms 4ms 4ms 15ms N+7 N+8 N+9 Calc latency frame N+7 Calc latency frame N+6 5ms N+6 N+5 15ms 6.7ms 15ms N+8 N+6 Downscaled 9ms

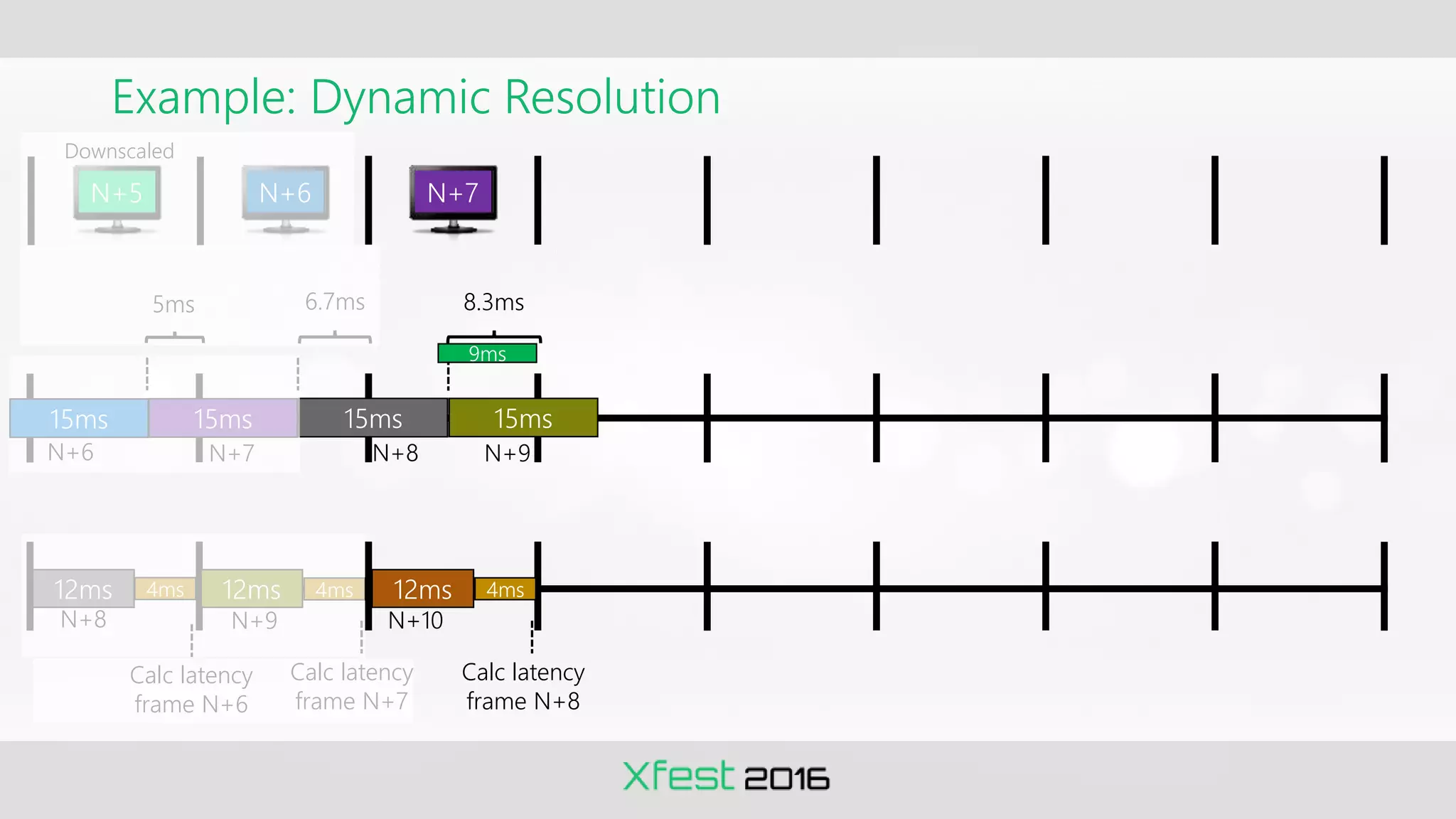

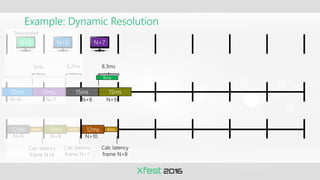

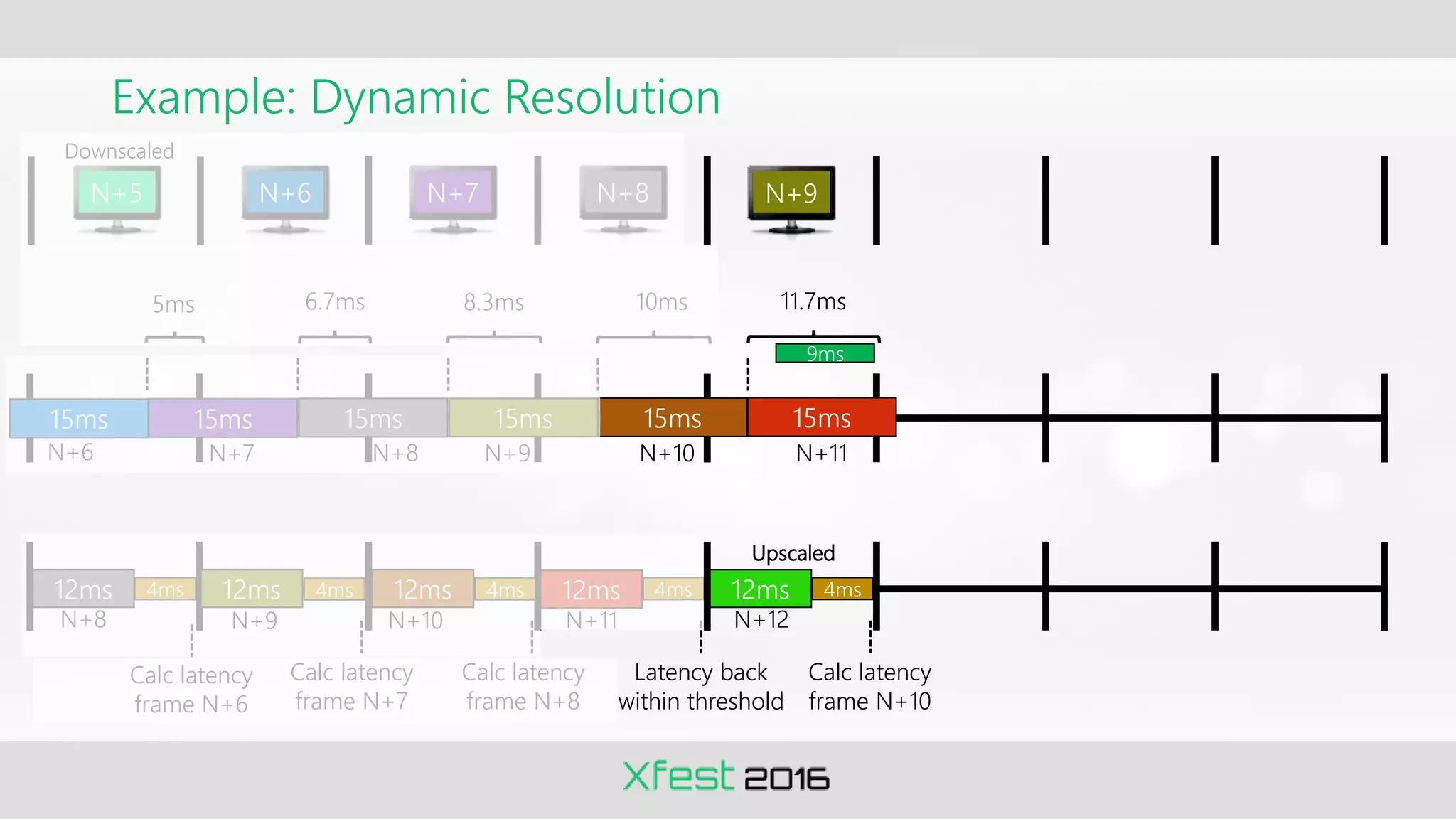

Example: Dynamic Resolution 12ms 12ms 12ms 4ms 4ms 4ms 15ms N+7 N+9 N+8 N+9 N+10 Calc latency frame N+8 Calc latency frame N+7 Calc latency frame N+6 5ms N+6 N+5 15ms 15ms 15ms N+8 N+6 N+7 Downscaled 6.7ms 8.3ms 9ms
Example: Dynamic Resolution 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 15ms 10ms N+7 N+9 N+8 N+9 N+10 N+11 Calc latency frame N+8 Latency back within threshold Calc latency frame N+7 Calc latency frame N+6 5ms N+6 N+5 15ms 15ms 15ms 15ms N+8 N+10 N+6 N+7 N+8 Downscaled 6.7ms 8.3ms 9ms

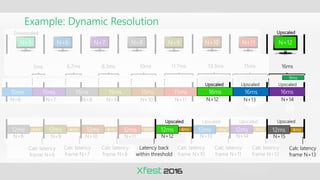

Example: Dynamic Resolution 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms 15ms 10ms 11.7ms N+7 N+9 N+11 N+8 N+9 N+10 N+11 N+12 Calc latency frame N+8 Latency back within threshold Calc latency frame N+7 Calc latency frame N+10 Upscaled Calc latency frame N+6 5ms N+6 N+5 15ms 15ms 15ms 15ms N+8 N+10 N+6 N+7 15ms N+8 N+9 Downscaled 6.7ms 8.3ms 9ms

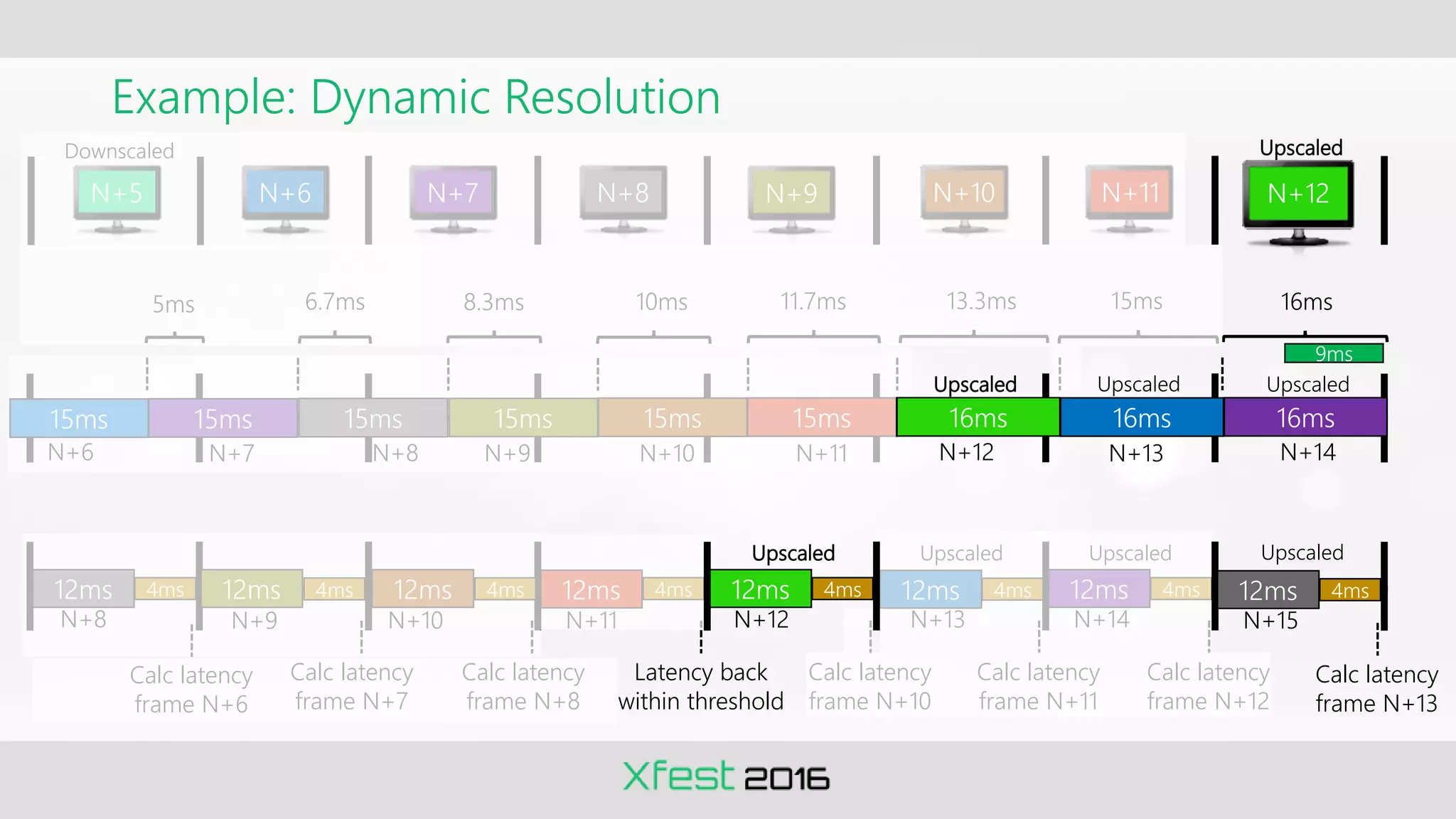

Example: Dynamic Resolution 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms 15ms 12ms 4ms 10ms 11.7ms N+7 N+9 N+11 N+12 N+8 N+9 N+10 N+11 N+12 N+13 Calc latency frame N+8 Latency back within threshold Calc latency frame N+7 Calc latency frame N+10 Calc latency frame N+11 Upscaled Upscaled Calc latency frame N+6 5ms N+6 N+5 15ms 15ms 15ms 15ms N+8 N+10 N+6 N+7 15ms 16ms 13.3ms N+8 N+9 N+10 Upscaled Downscaled 6.7ms 8.3ms 9ms

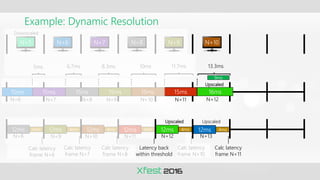

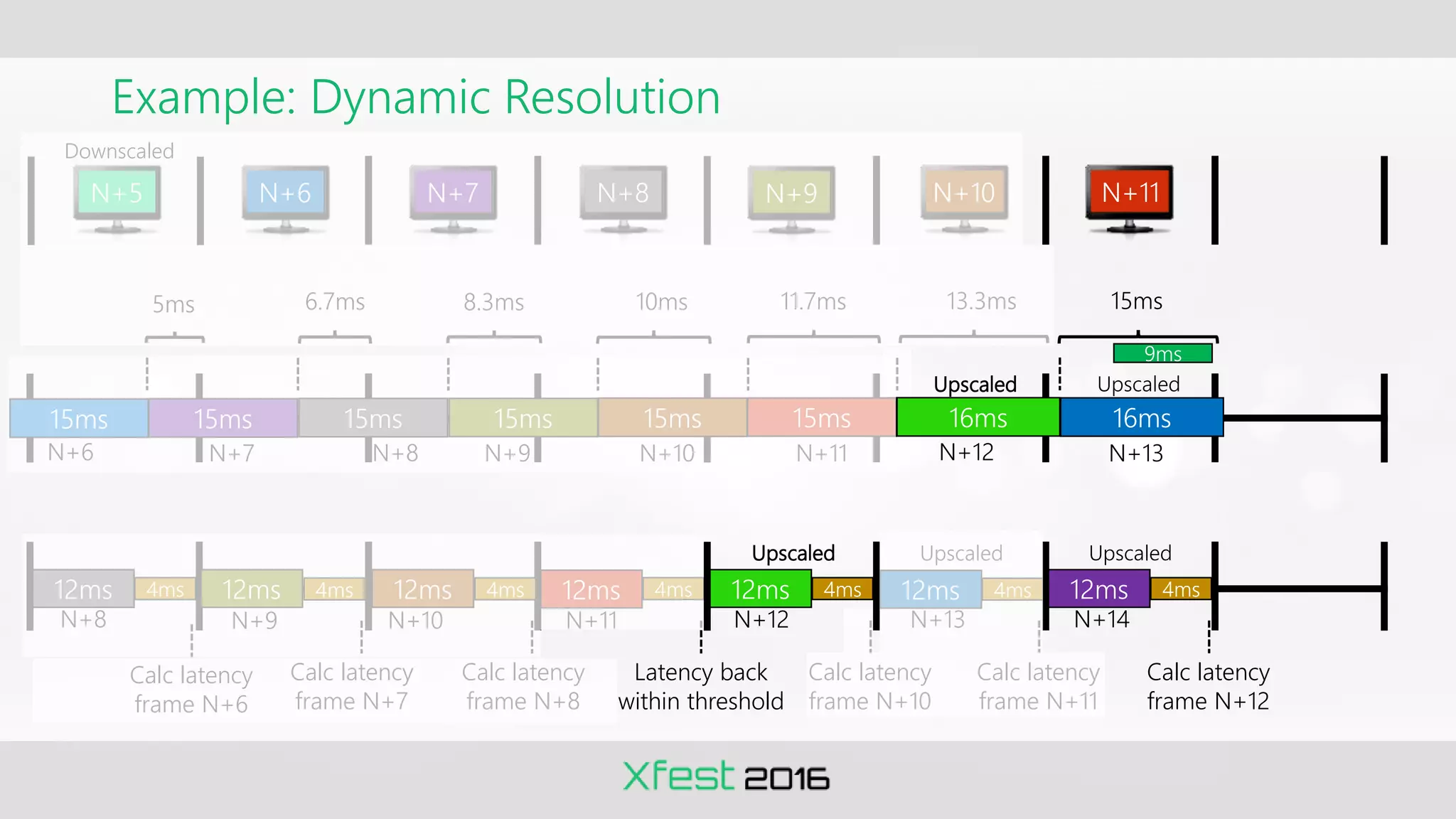

Example: Dynamic Resolution 12ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms 4ms 15ms 12ms 4ms 10ms 11.7ms 15ms N+7 N+9 N+11 N+12 N+13 N+8 N+9 N+10 N+11 N+12 N+13 N+14 Calc latency frame N+8 Latency back within threshold Calc latency frame N+7 Calc latency frame N+10 Calc latency frame N+11 Calc latency frame N+12 Upscaled Upscaled Upscaled Upscaled Calc latency frame N+6 5ms N+6 N+5 15ms 15ms 15ms 15ms N+8 N+10 N+6 N+7 15ms 16ms 13.3ms N+8 N+9 N+10 N+11 16ms Upscaled Downscaled 6.7ms 8.3ms 9ms
Example: Dynamic Resolution 12ms 12ms 12ms 12ms 12ms 12ms 4ms 4ms 4ms 4ms 4ms 4ms 15ms 12ms 4ms 12ms 4ms Calc latency frame N+13 10ms 11.7ms 15ms 16ms N+7 N+9 N+11 N+12 N+13 N+14 N+8 N+9 N+10 N+11 N+12 N+13 N+14 Calc latency frame N+8 Latency back within threshold N+15 Calc latency frame N+7 Calc latency frame N+10 Calc latency frame N+11 Calc latency frame N+12 Upscaled Upscaled Upscaled Upscaled Upscaled Calc latency frame N+6 5ms N+6 N+5 15ms 15ms 15ms 15ms N+8 N+10 N+6 N+7 15ms 16ms 13.3ms N+8 N+9 N+10 N+11 N+12 Upscaled 16ms 16ms Upscaled Upscaled Downscaled 6.7ms 8.3ms 9ms

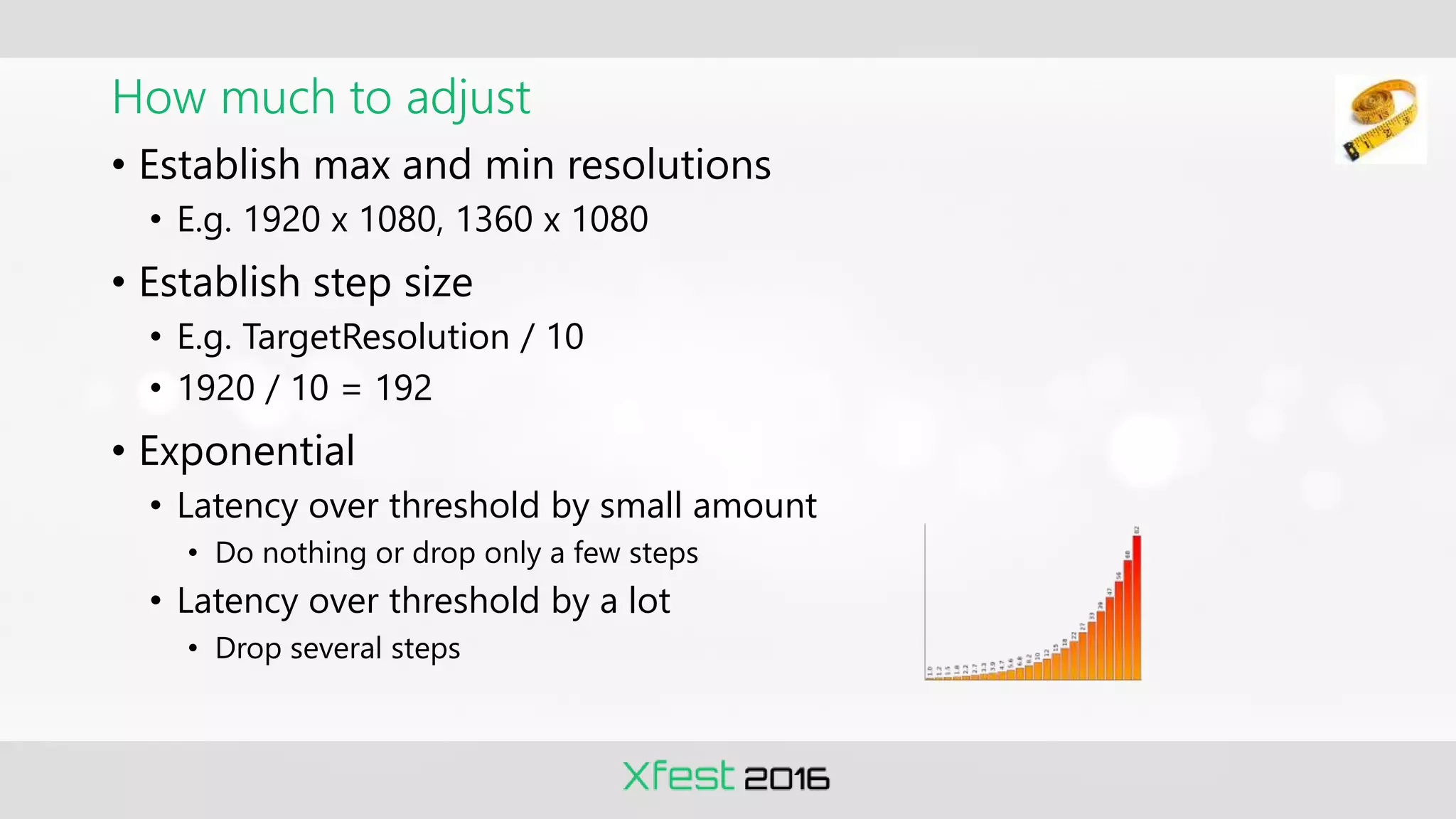

How much to adjust • Establish max and min resolutions • E.g. 1920 x 1080, 1360 x 1080 • Establish step size • E.g. TargetResolution / 10 • 1920 / 10 = 192 • Exponential • Latency over threshold by small amount • Do nothing or drop only a few steps • Latency over threshold by a lot • Drop several steps

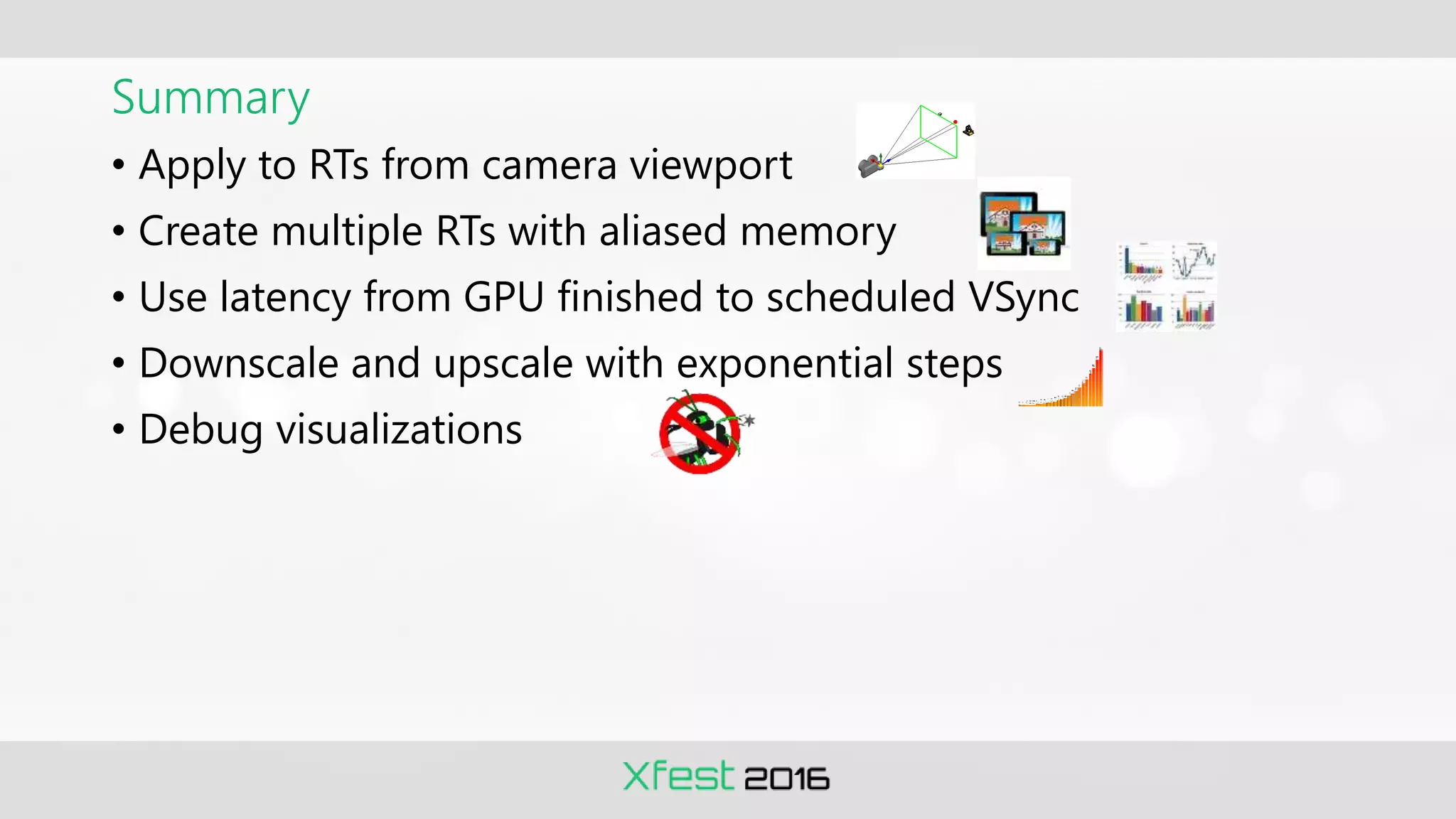

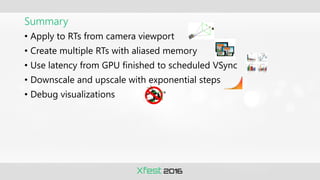

Summary • Apply to RTs from camera viewport • Create multiple RTs with aliased memory • Use latency from GPU finished to scheduled VSync • Downscale and upscale with exponential steps • Debug visualizations
Interlaced Rendering

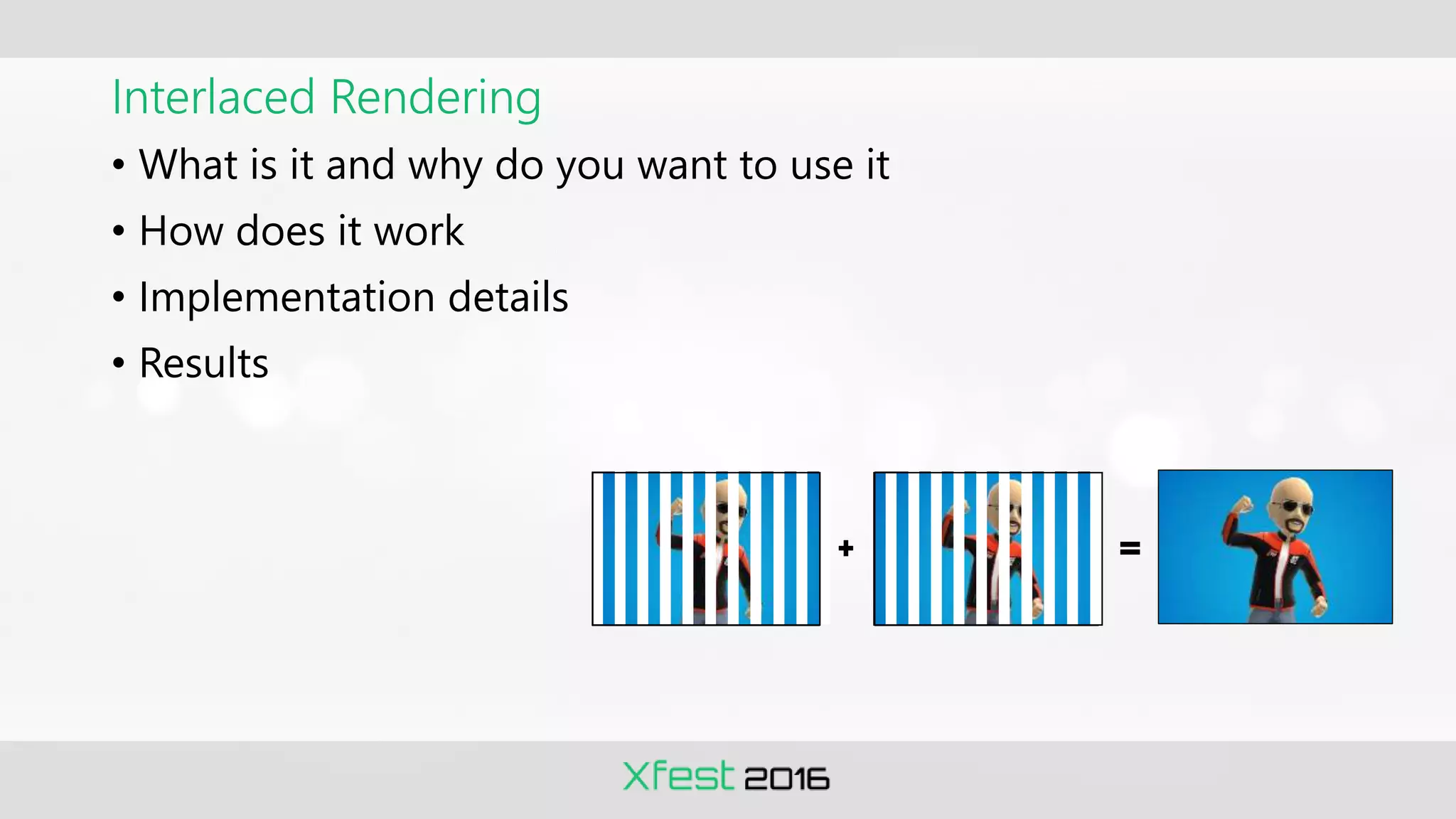

Interlaced Rendering • What is it and why do you want to use it • How does it work • Implementation details • Results

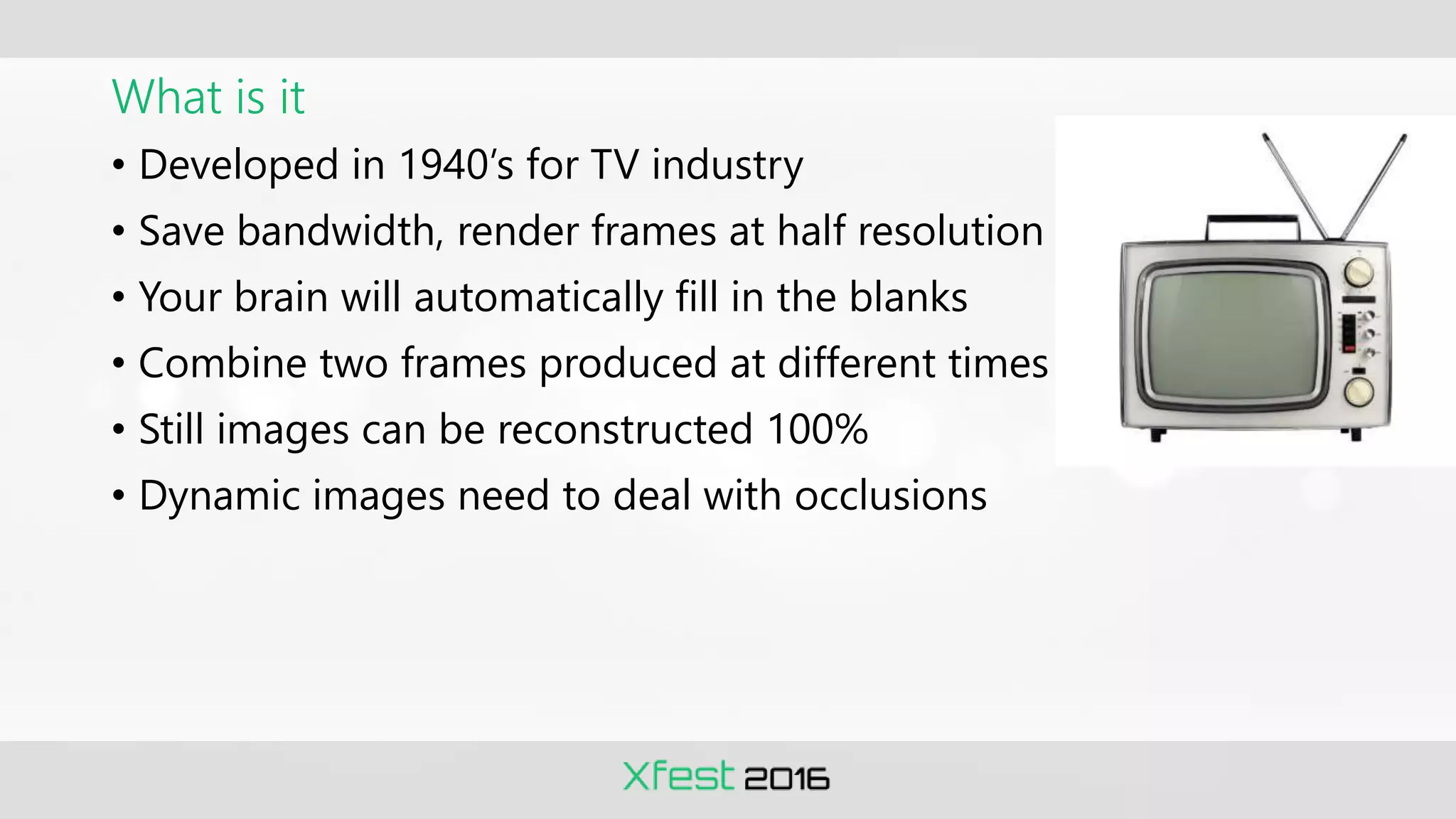

What is it • Developed in 1940’s for TV industry • Save bandwidth, render frames at half resolution • Your brain will automatically fill in the blanks • Combine two frames produced at different times • Still images can be reconstructed 100% • Dynamic images need to deal with occlusions

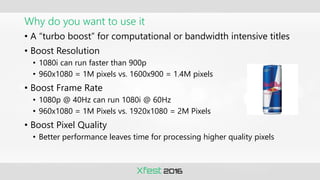

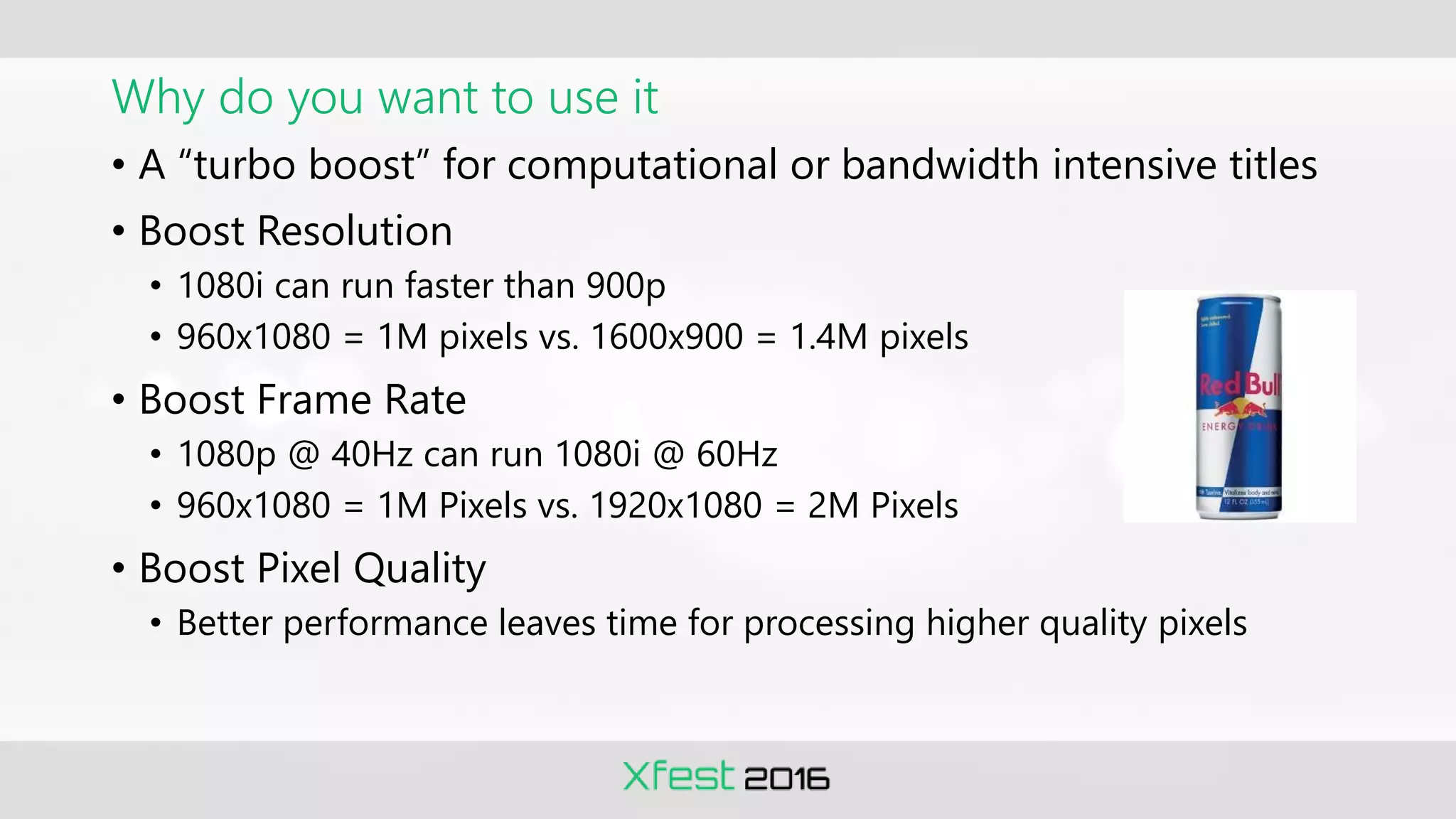

Why do you want to use it • A “turbo boost” for computational or bandwidth intensive titles • Boost Resolution • 1080i can run faster than 900p • 960x1080 = 1M pixels vs. 1600x900 = 1.4M pixels • Boost Frame Rate • 1080p @ 40Hz can run 1080i @ 60Hz • 960x1080 = 1M Pixels vs. 1920x1080 = 2M Pixels • Boost Pixel Quality • Better performance leaves time for processing higher quality pixels

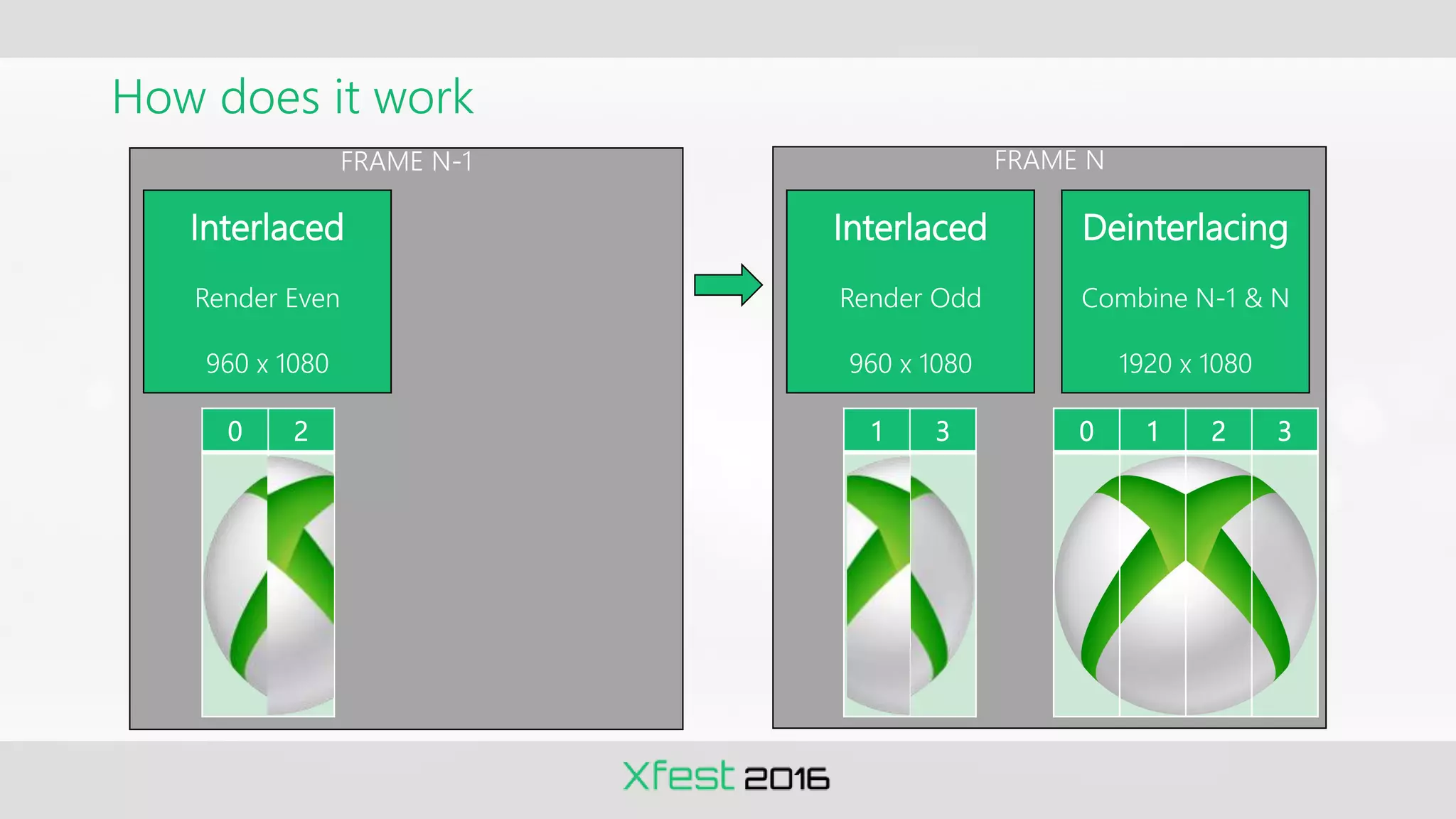

How does it work FRAME N-1 Interlaced Render Even 960 x 1080 FRAME N Interlaced Render Odd 960 x 1080 Deinterlacing Combine N-1 & N 1920 x 1080 0 1 2 3 0 2 1 3 0 1 2 3

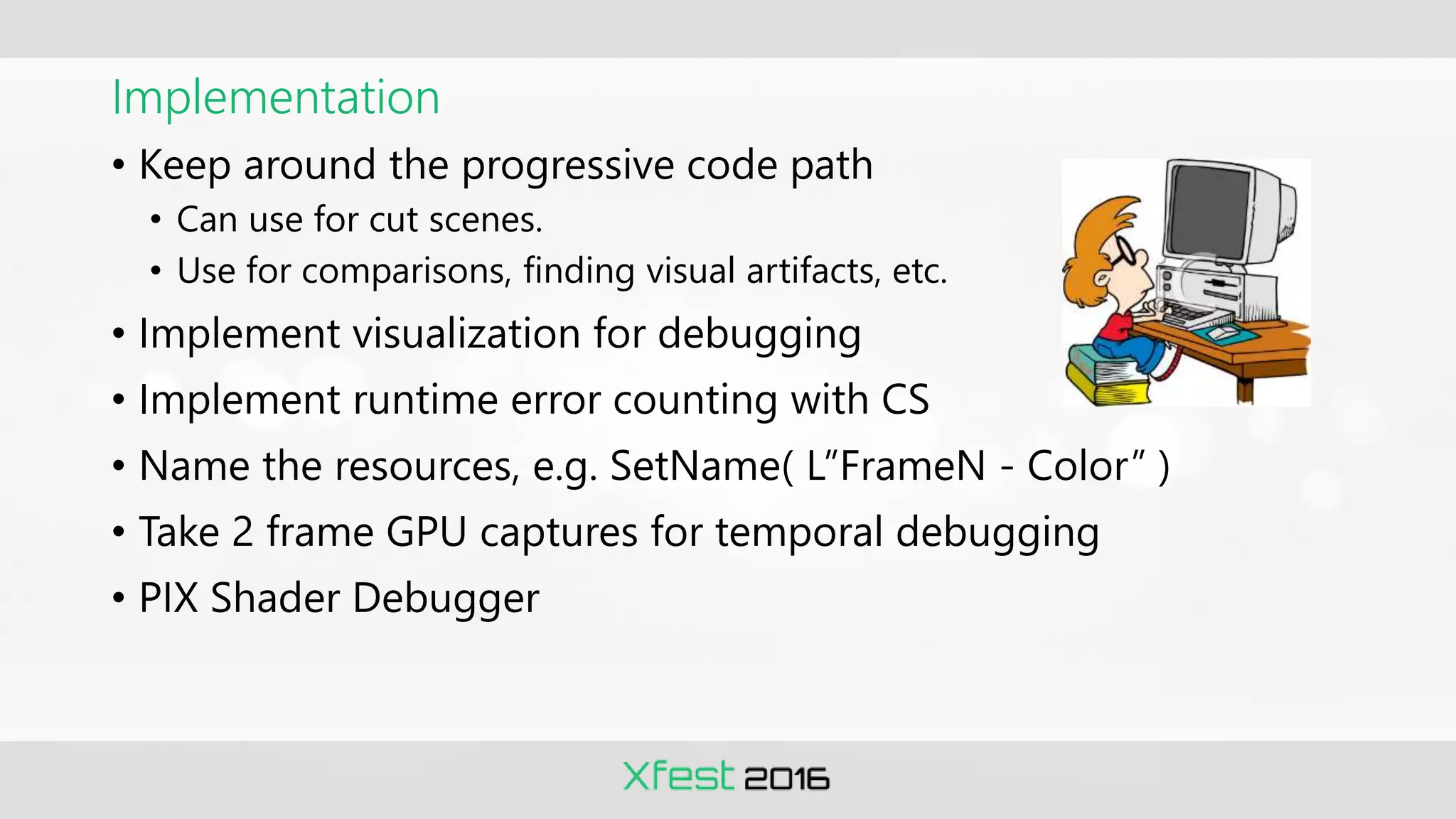

Implementation • Keep around the progressive code path • Can use for cut scenes. • Use for comparisons, finding visual artifacts, etc. • Implement visualization for debugging • Implement runtime error counting with CS • Name the resources, e.g. SetName( L”FrameN - Color” ) • Take 2 frame GPU captures for temporal debugging • PIX Shader Debugger

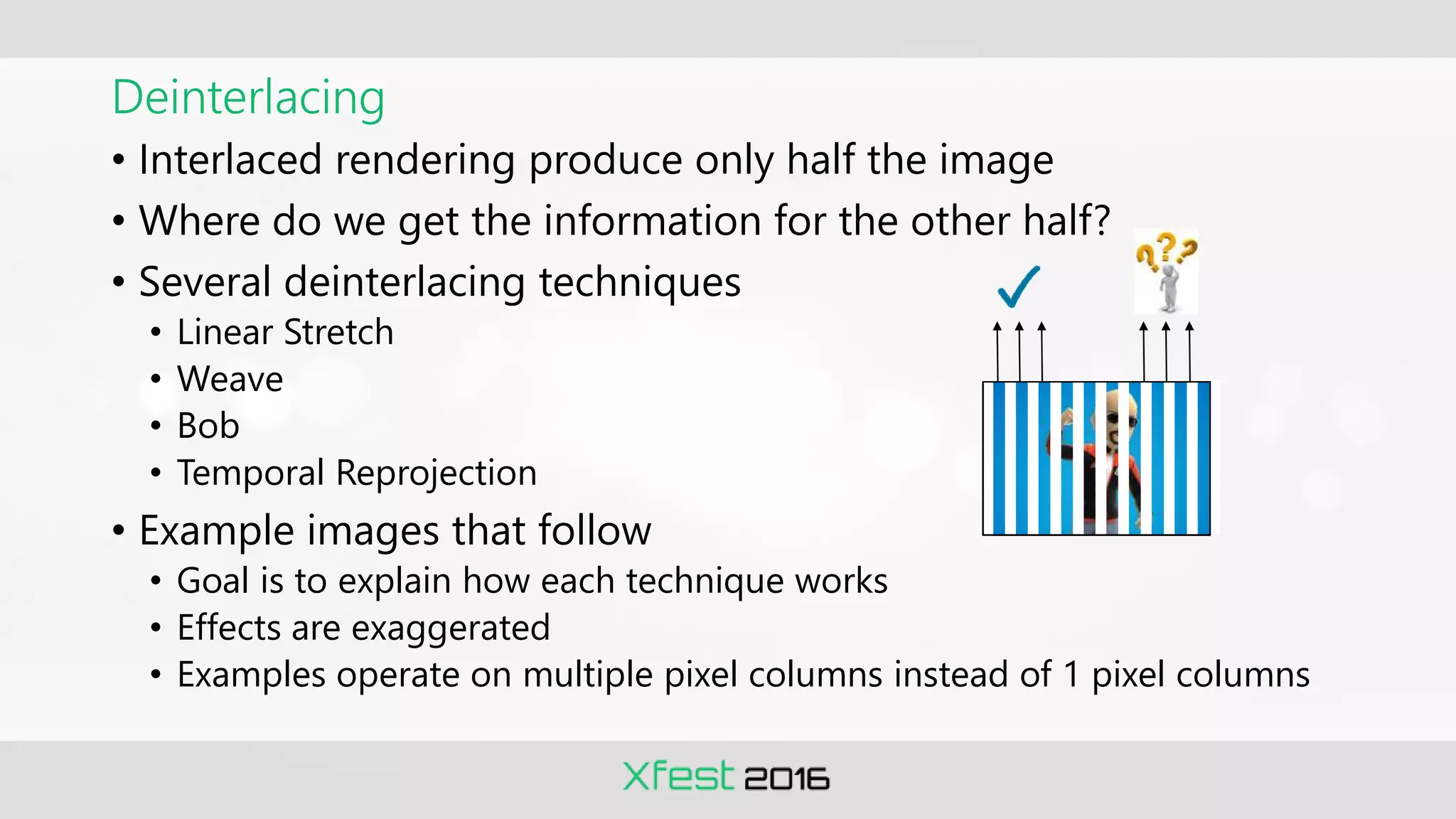

Deinterlacing • Interlaced rendering produce only half the image • Where do we get the information for the other half? • Several deinterlacing techniques • Linear Stretch • Weave • Bob • Temporal Reprojection • Example images that follow • Goal is to explain how each technique works • Effects are exaggerated • Examples operate on multiple pixel columns instead of 1 pixel columns

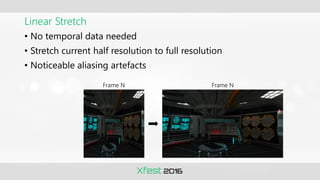

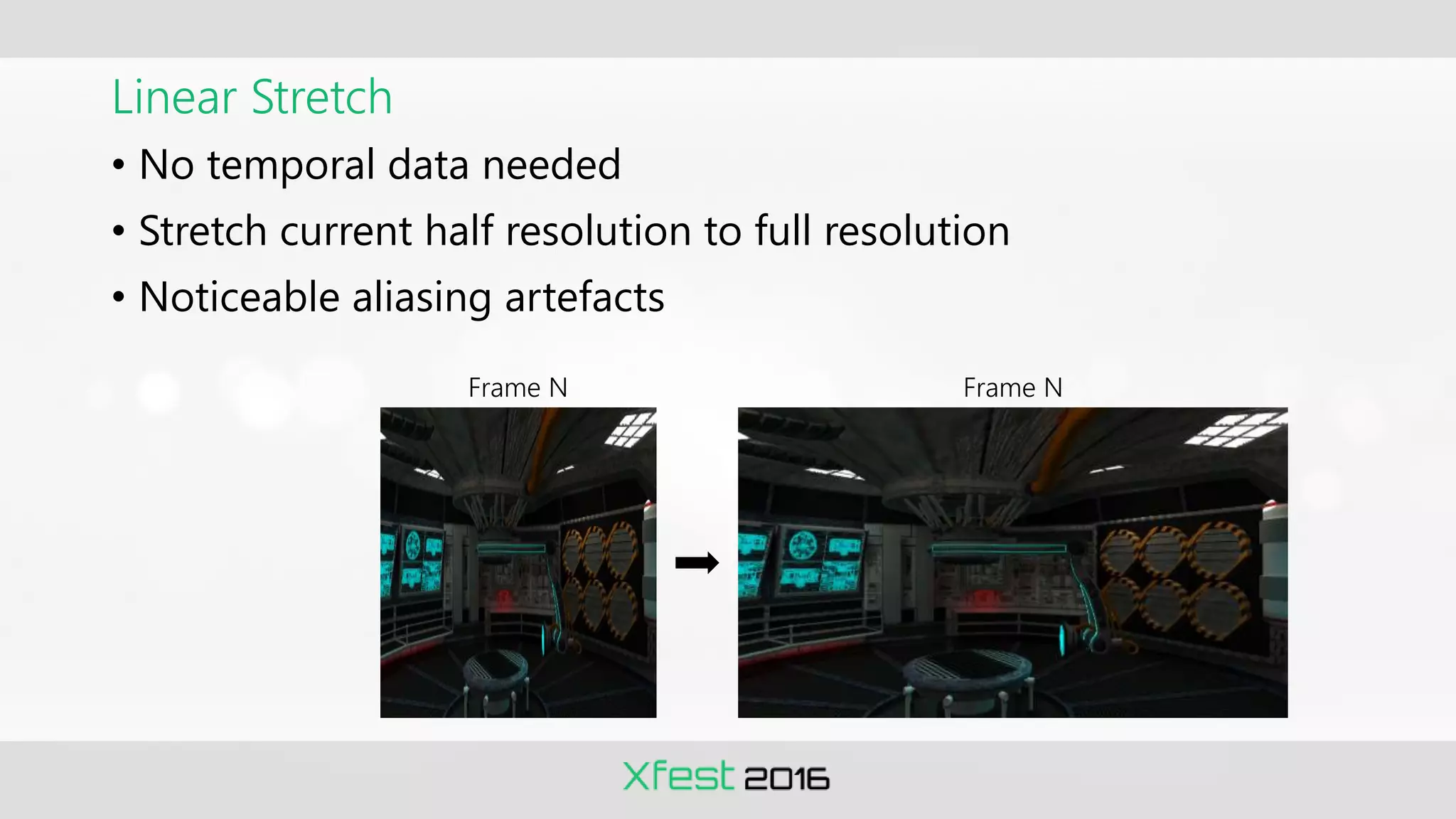

Linear Stretch • No temporal data needed • Stretch current half resolution to full resolution • Noticeable aliasing artefacts Frame N Frame N

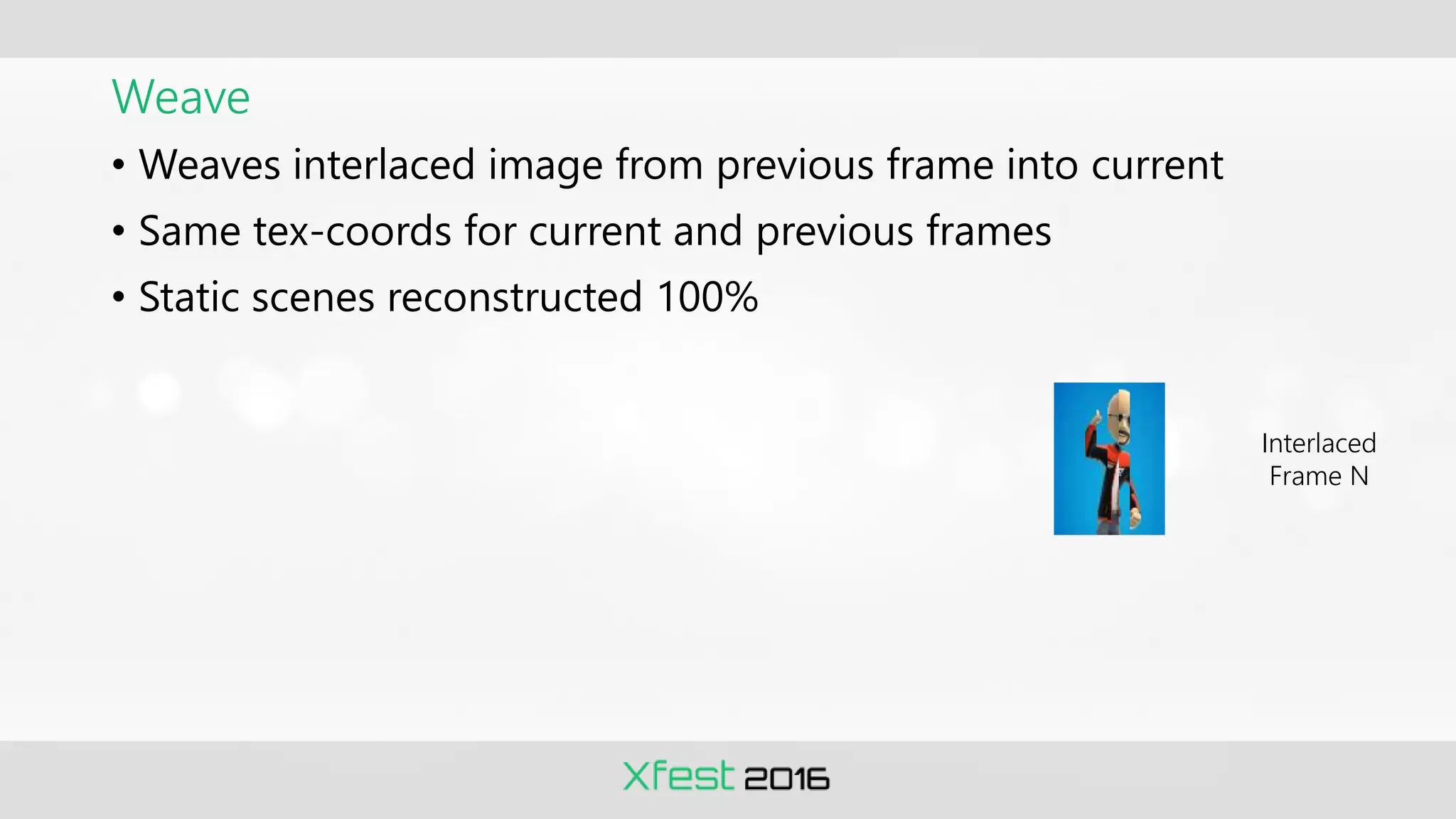

• Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% Weave Interlaced Frame N

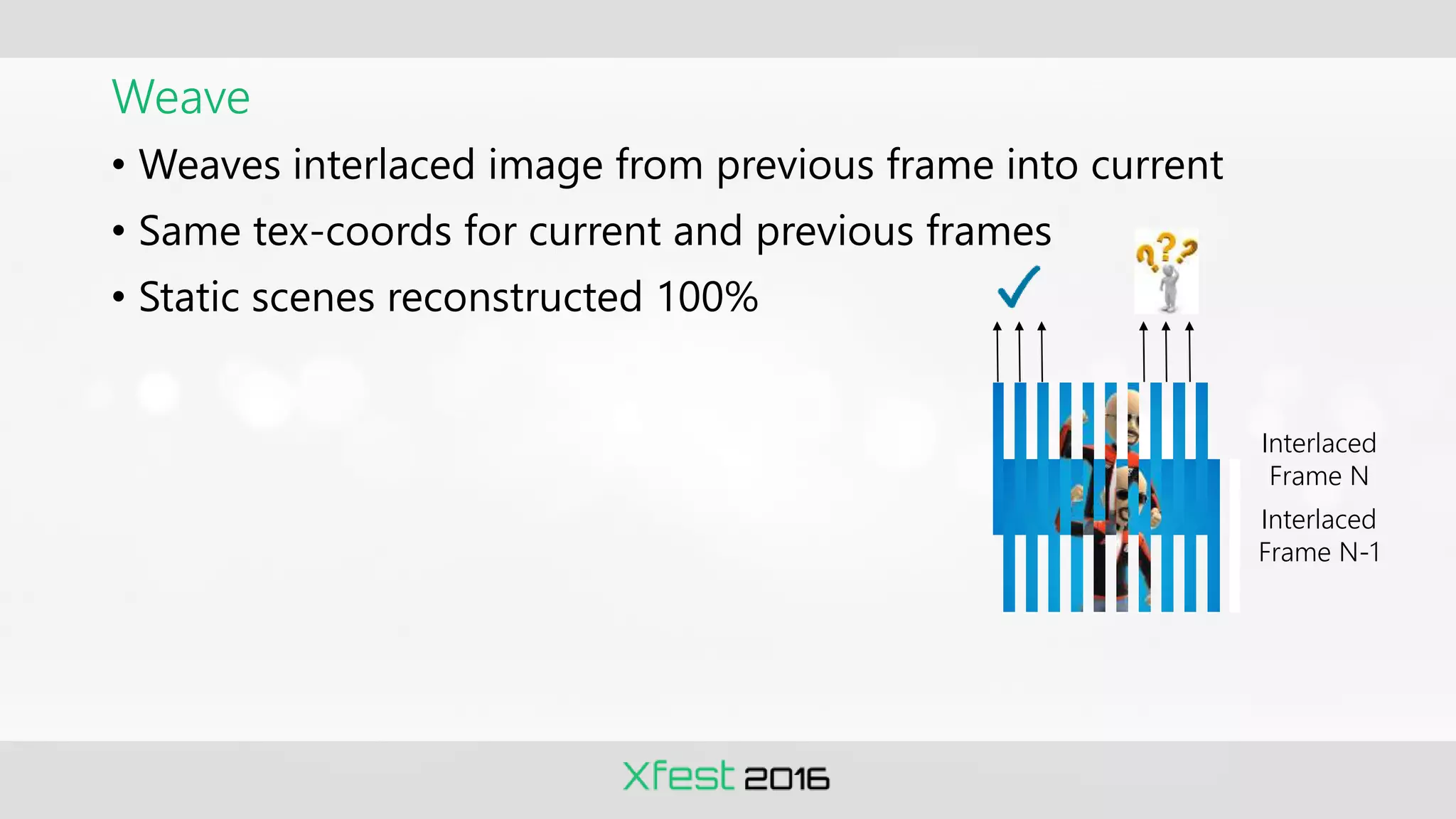

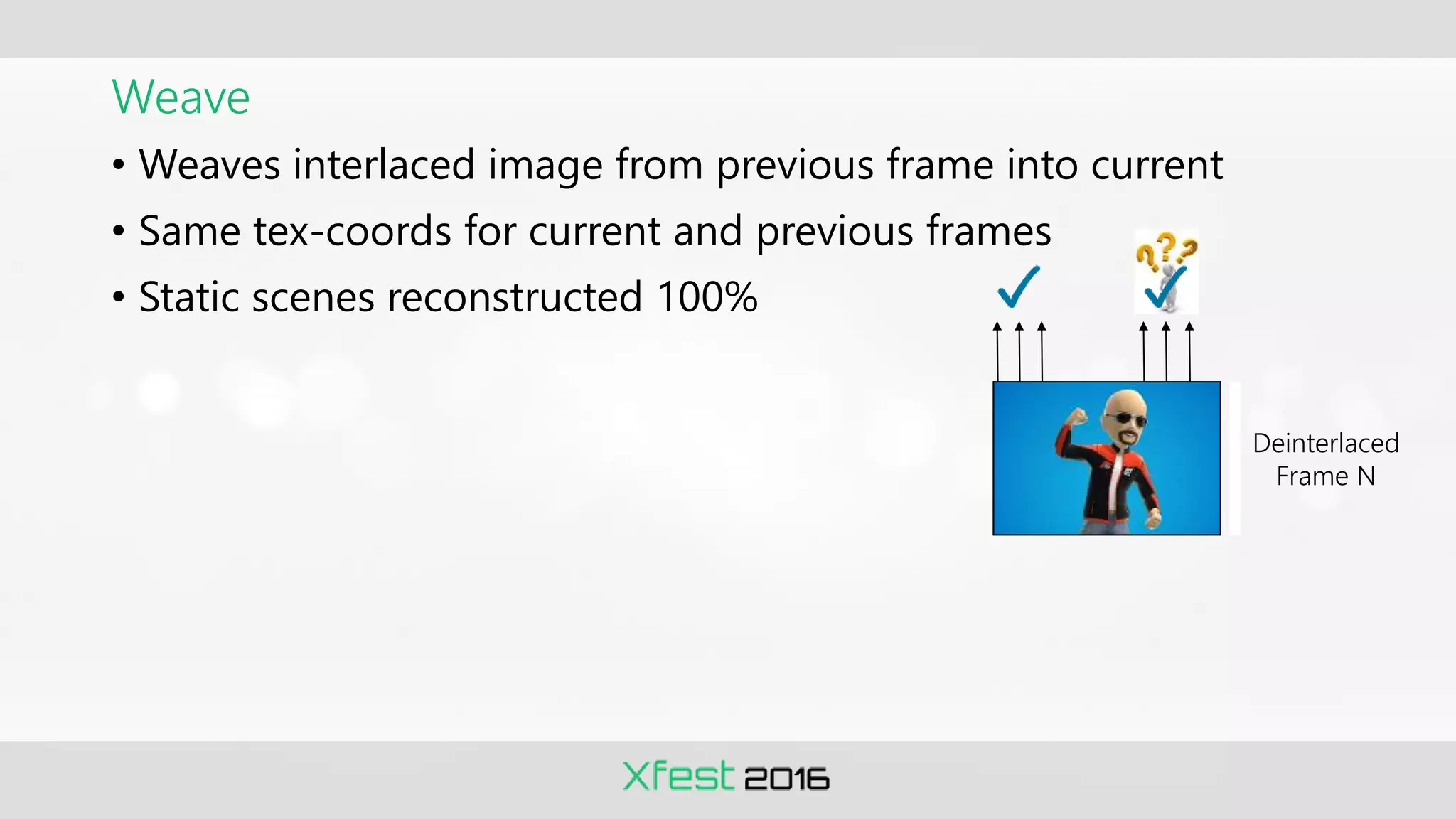

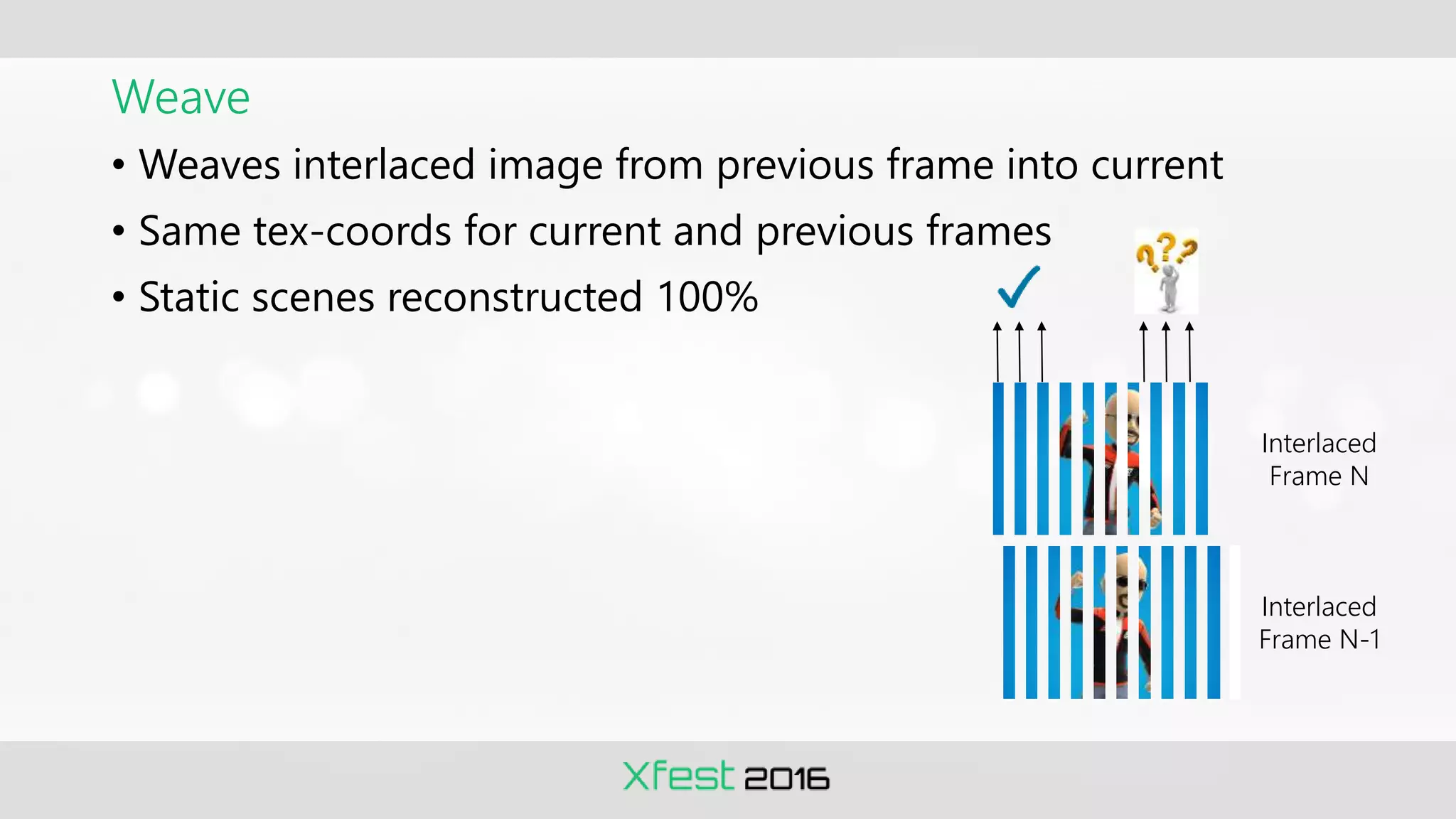

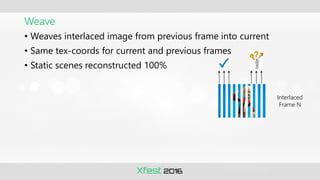

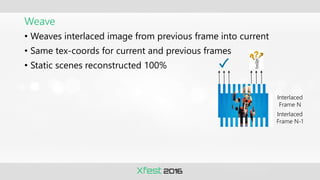

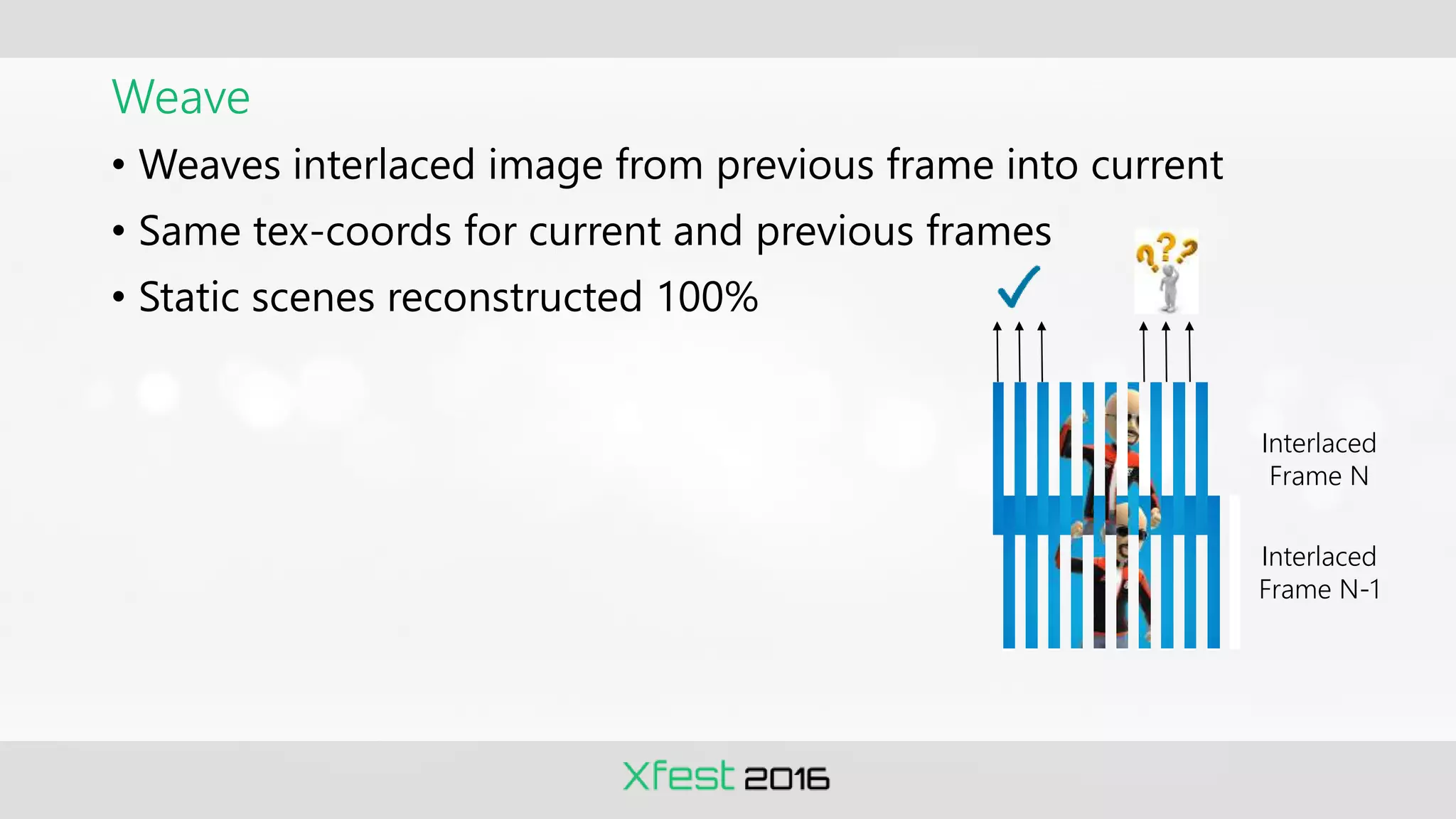

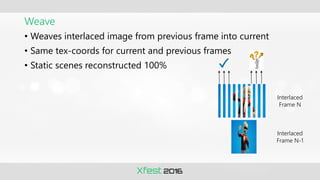

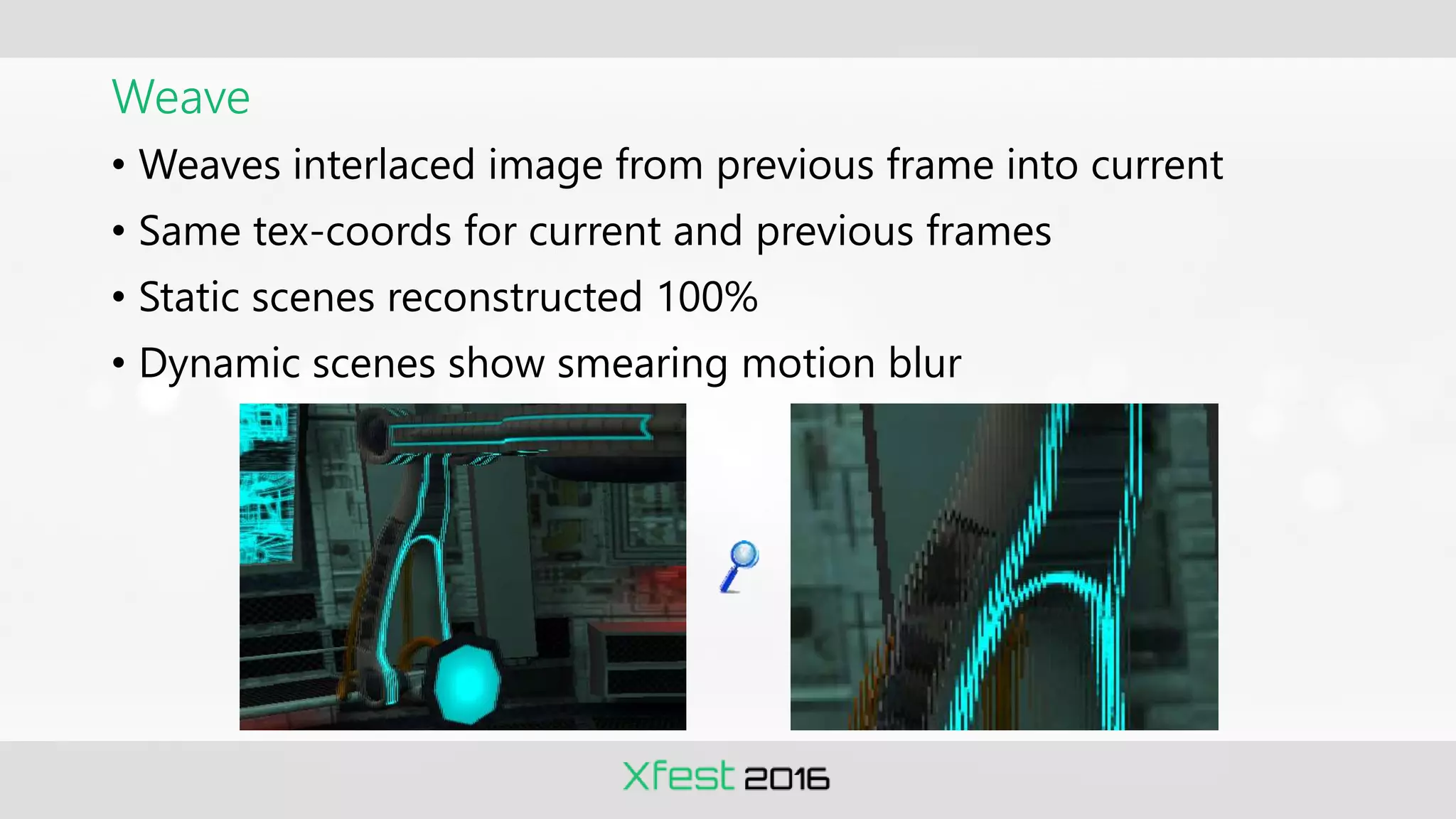

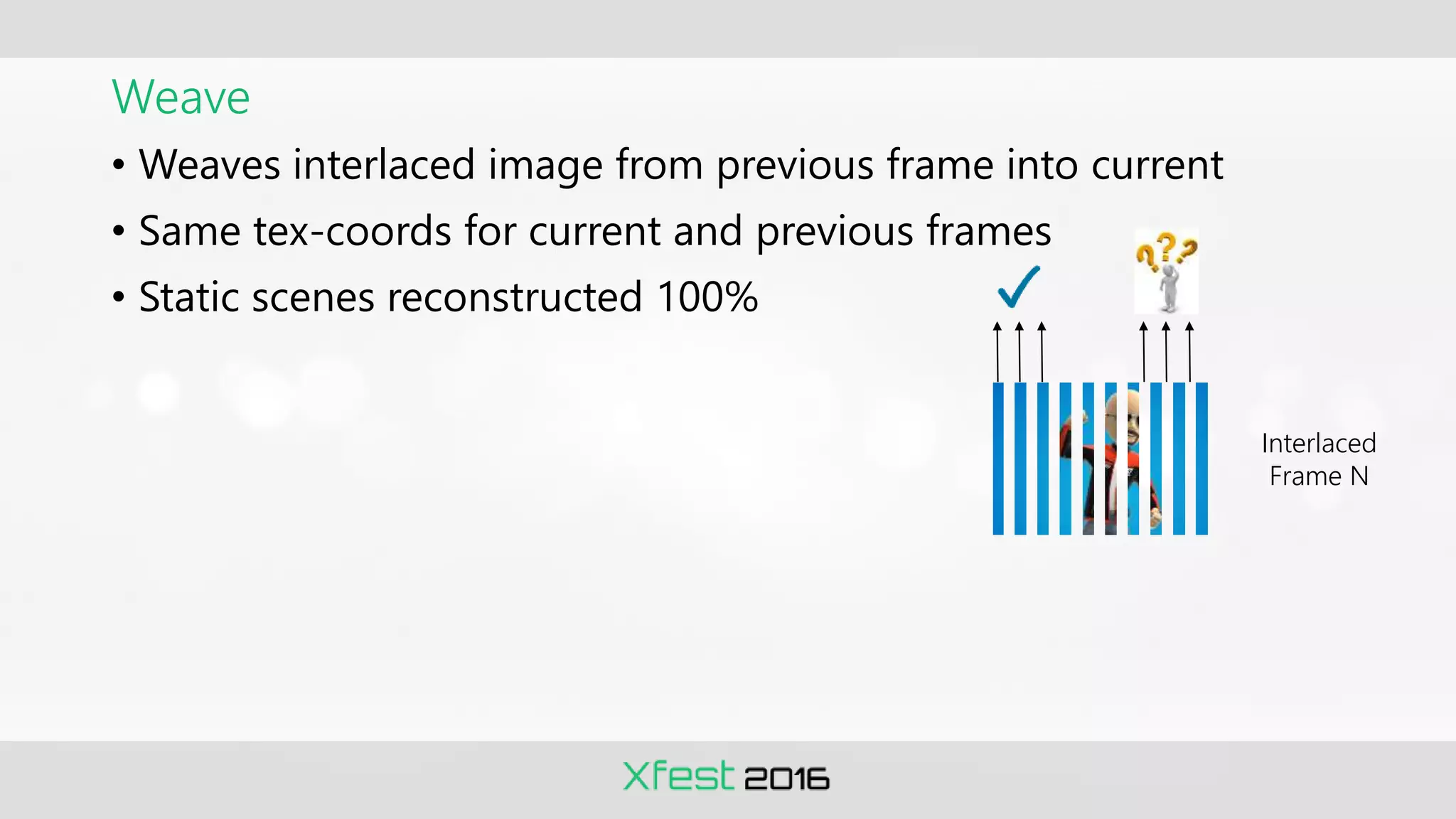

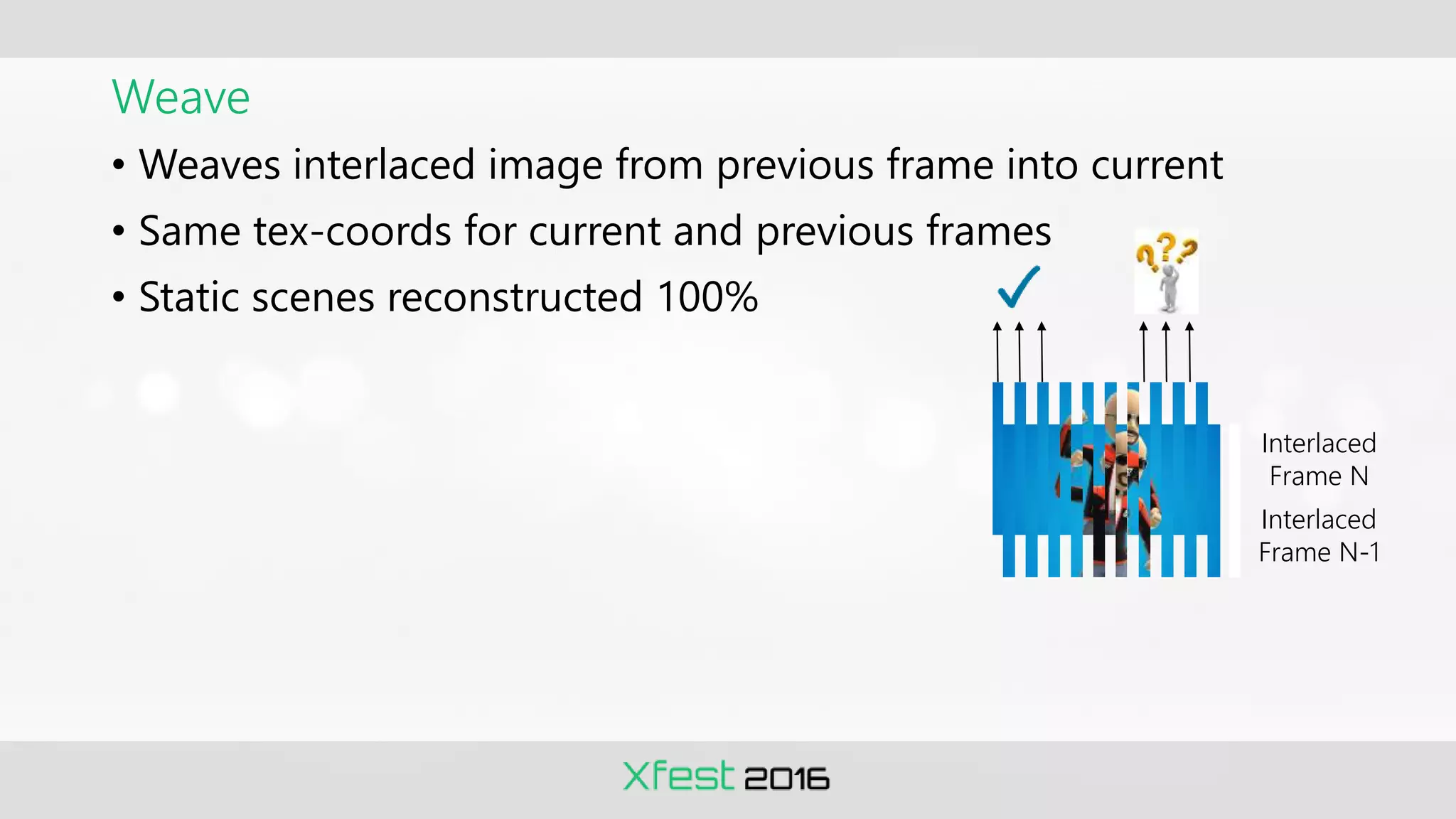

Weave • Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% Interlaced Frame N
Weave • Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% Interlaced Frame N Interlaced Frame N-1

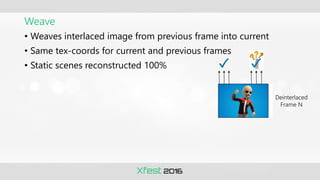

Weave • Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% Interlaced Frame N-1 Interlaced Frame N
Weave • Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% Interlaced Frame N-1 Interlaced Frame N
Weave • Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% Interlaced Frame N-1 Interlaced Frame N
Weave • Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% Interlaced Frame N Interlaced Frame N-1
Weave • Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% Deinterlaced Frame N
Weave • Weaves interlaced image from previous frame into current • Same tex-coords for current and previous frames • Static scenes reconstructed 100% • Dynamic scenes show smearing motion blur

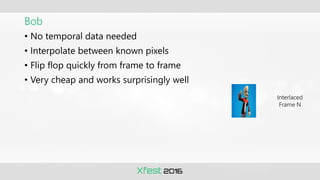

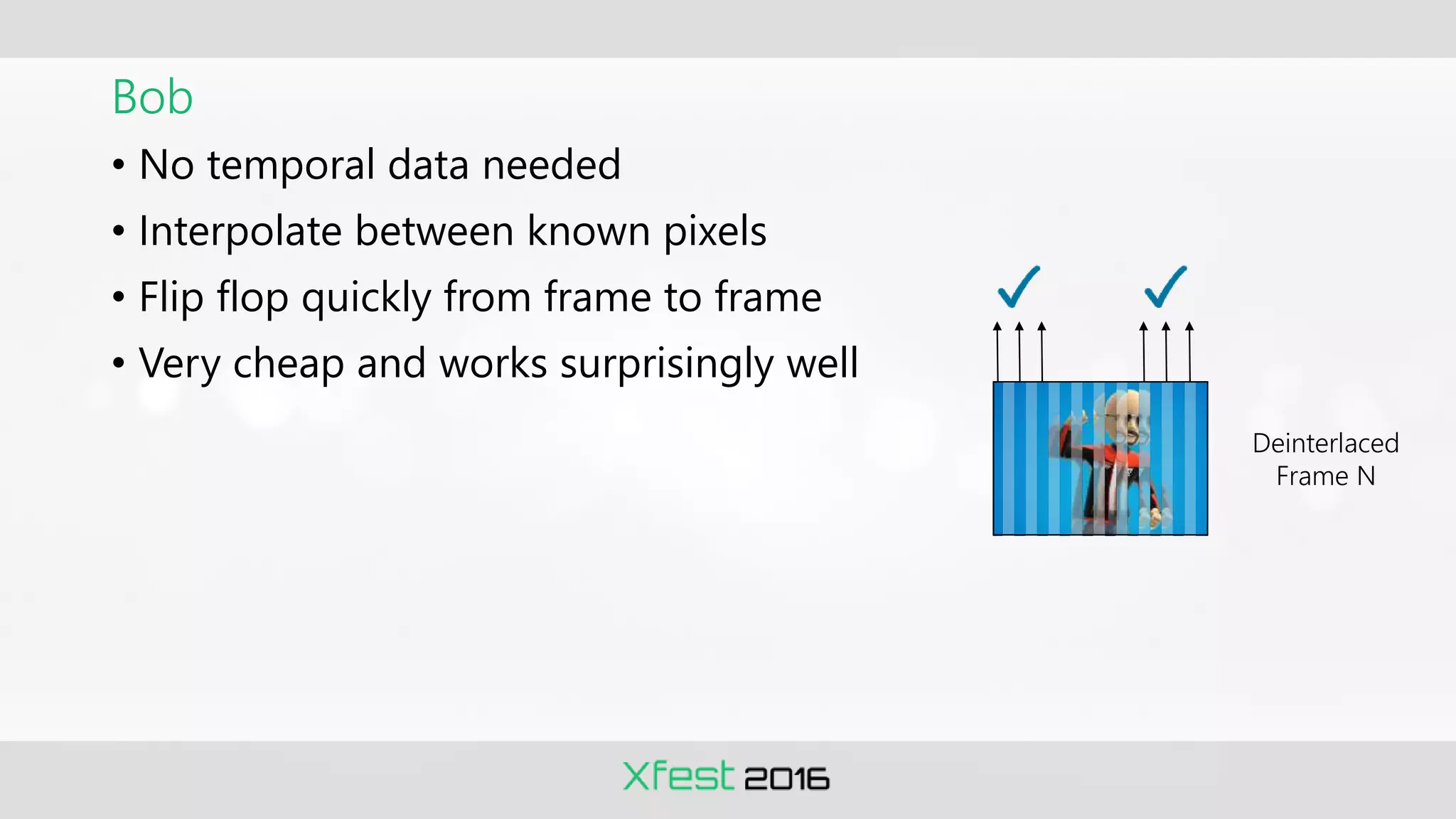

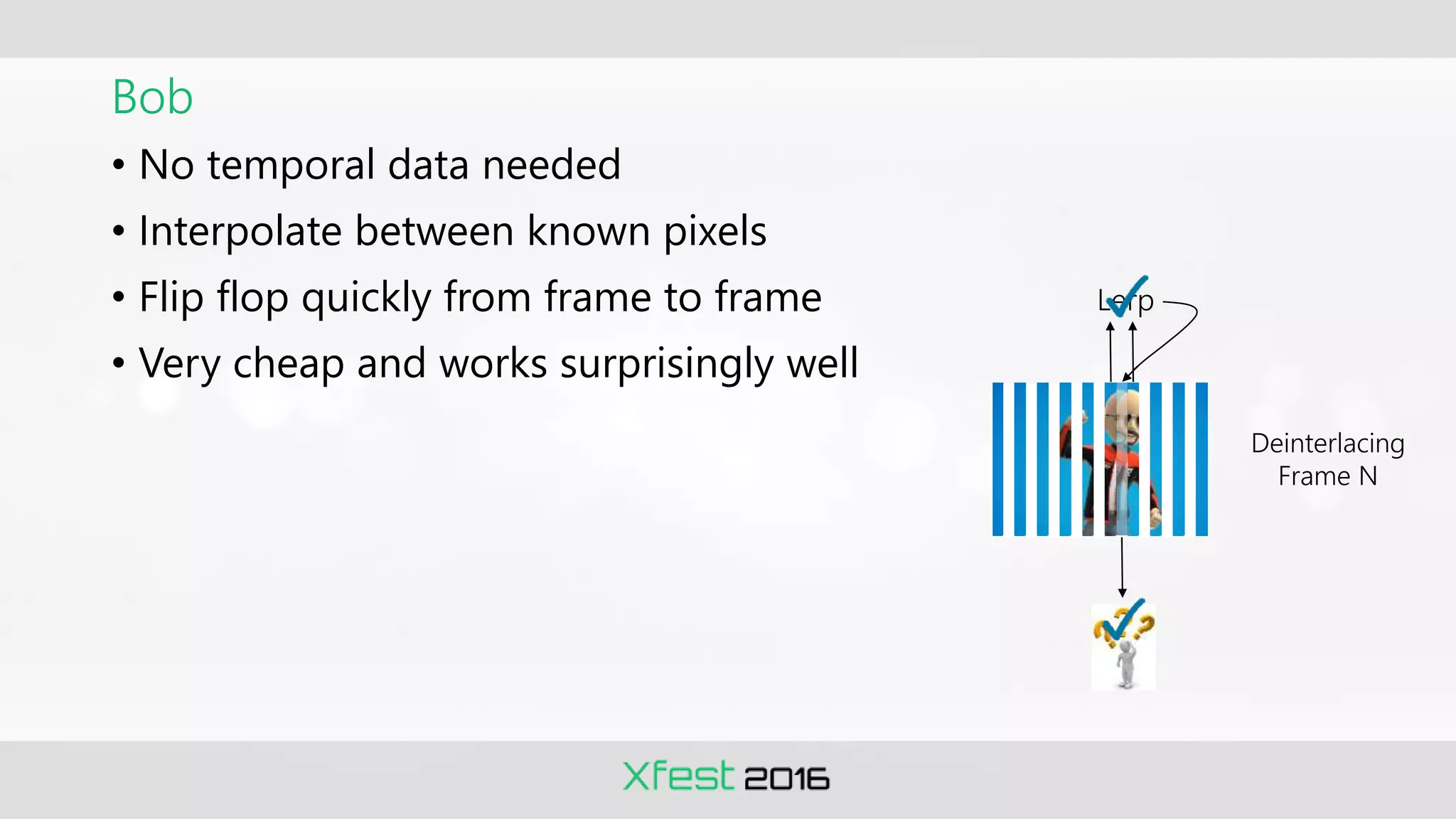

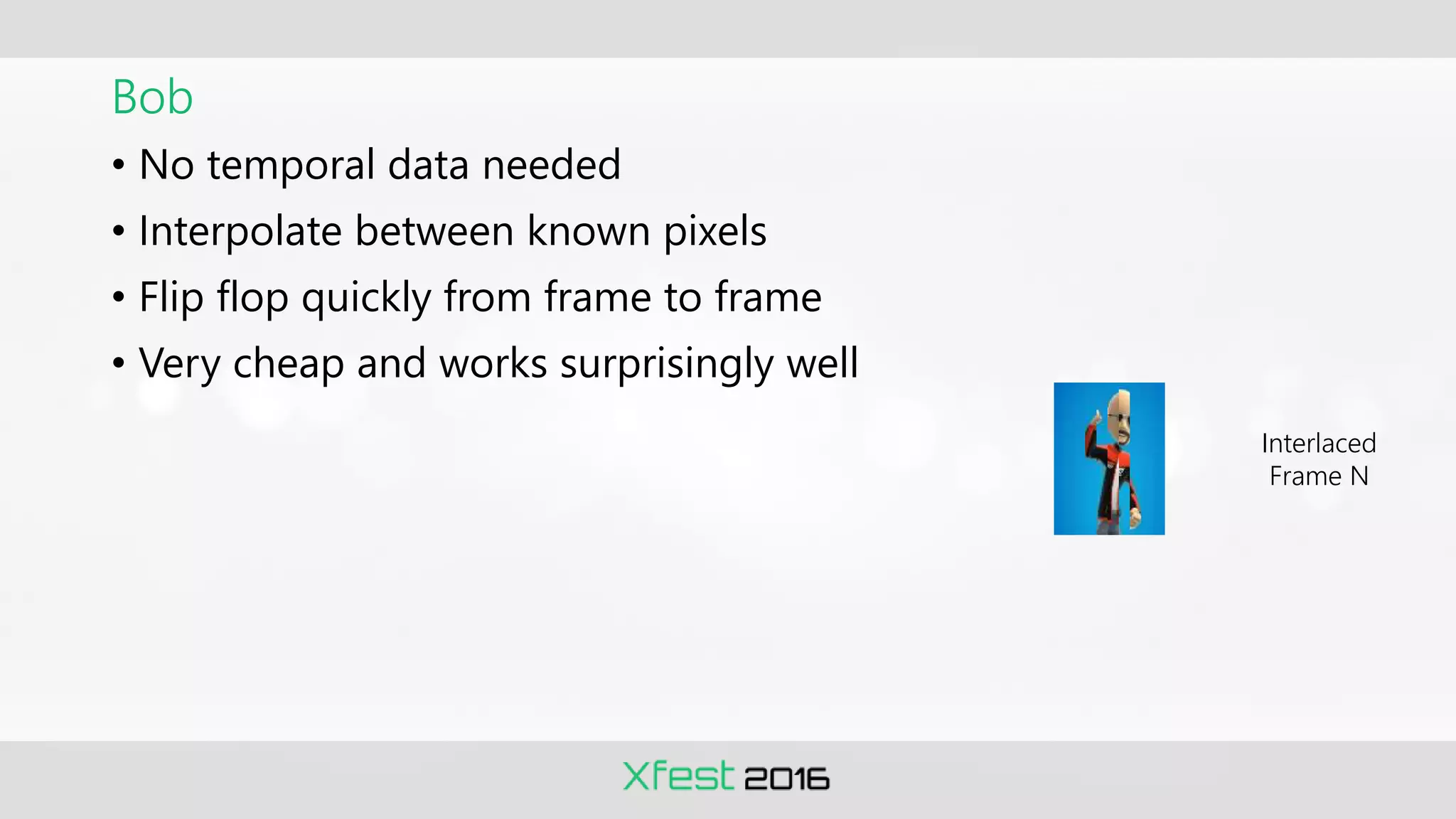

• No temporal data needed • Interpolate between known pixels • Flip flop quickly from frame to frame • Very cheap and works surprisingly well Bob Interlaced Frame N
• No temporal data needed • Interpolate between known pixels • Flip flop quickly from frame to frame • Very cheap and works surprisingly well Bob Deinterlacing Frame N Lerp
• No temporal data needed • Interpolate between known pixels • Flip flop quickly from frame to frame • Very cheap and works surprisingly well Bob Deinterlaced Frame N

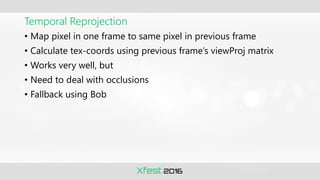

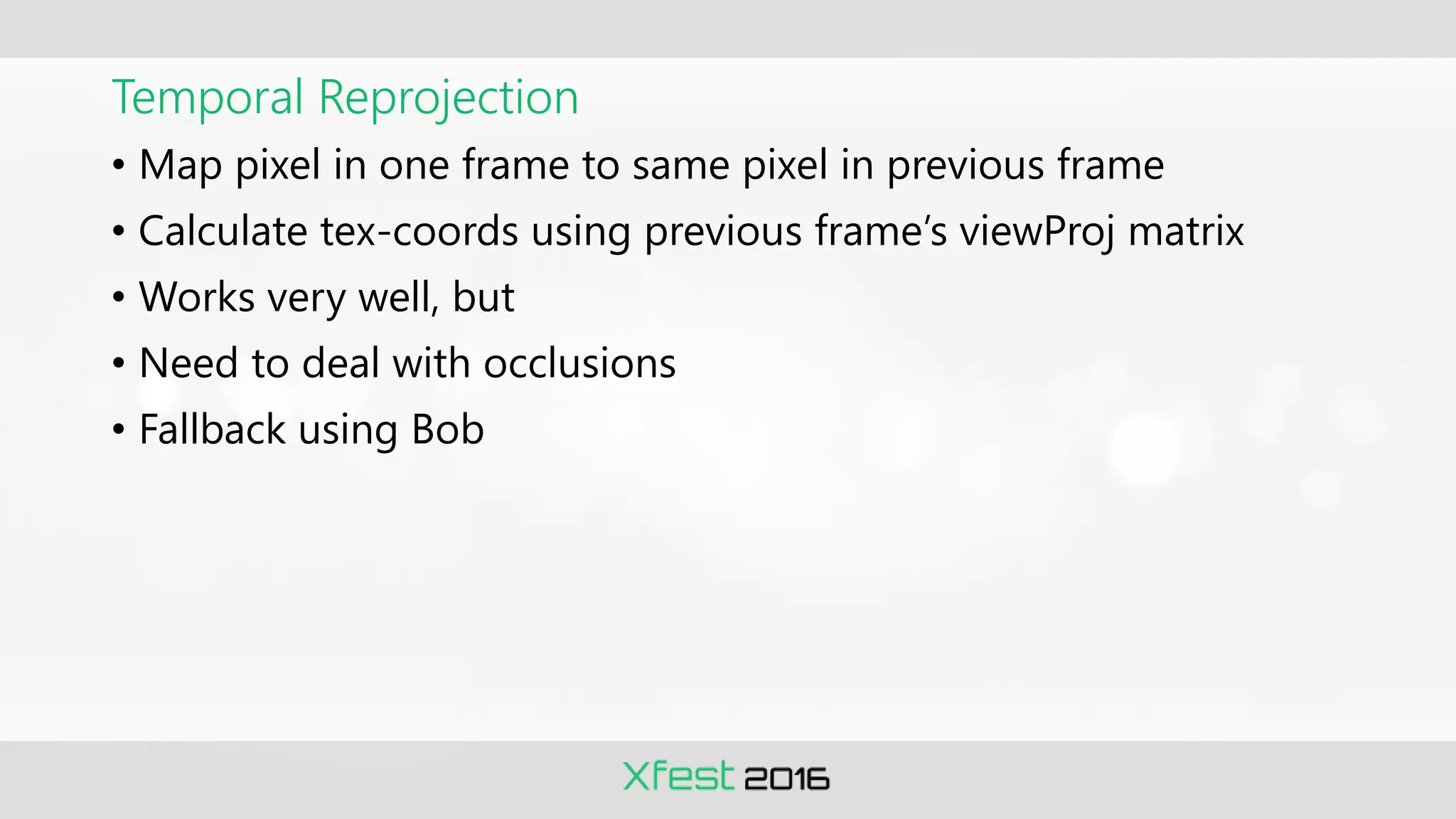

Temporal Reprojection • Map pixel in one frame to same pixel in previous frame • Calculate tex-coords using previous frame’s viewProj matrix • Works very well, but • Need to deal with occlusions • Fallback using Bob

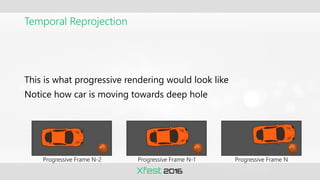

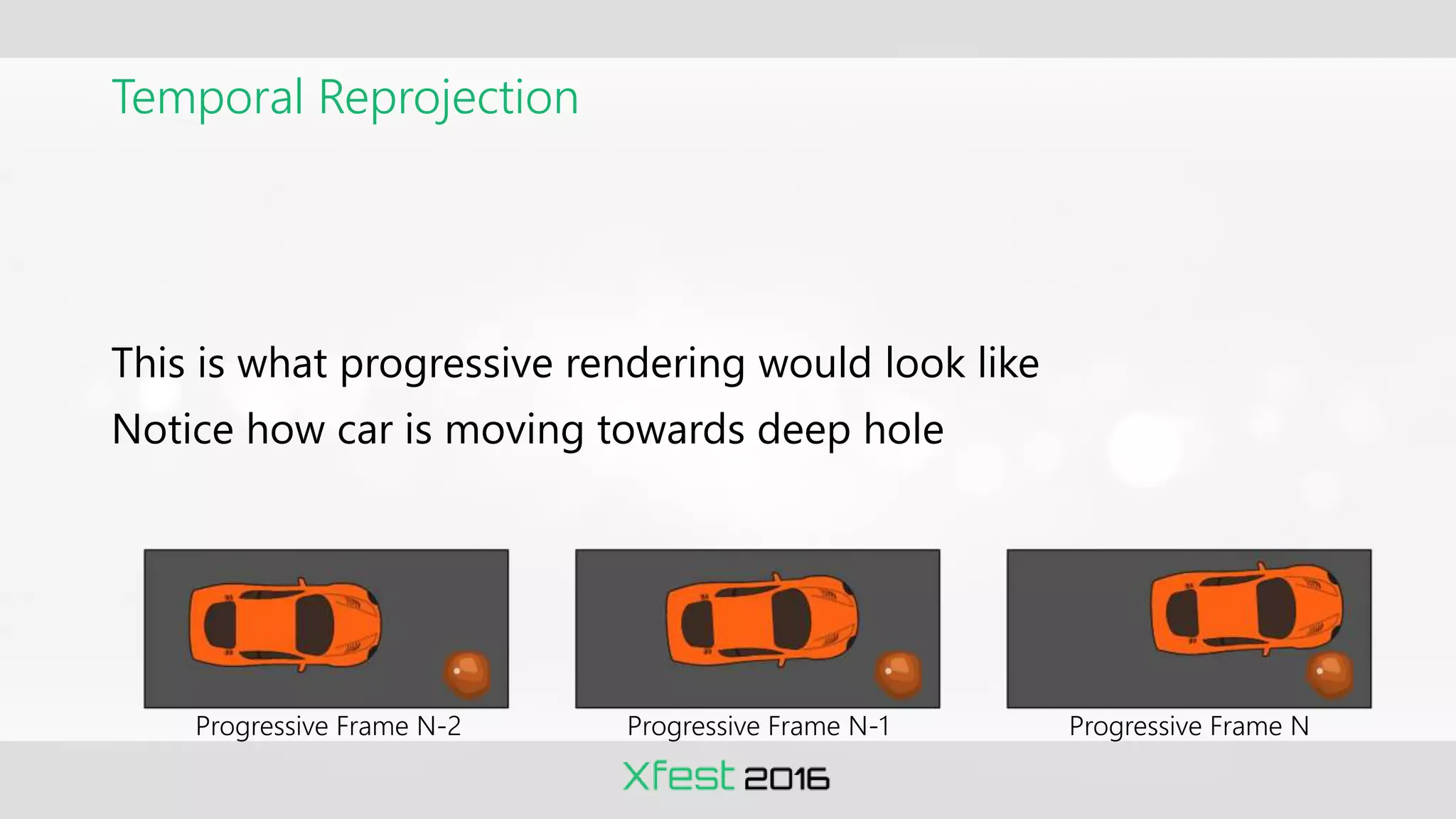

Temporal Reprojection This is what progressive rendering would look like Notice how car is moving towards deep hole Progressive Frame N-2 Progressive Frame N-1 Progressive Frame N

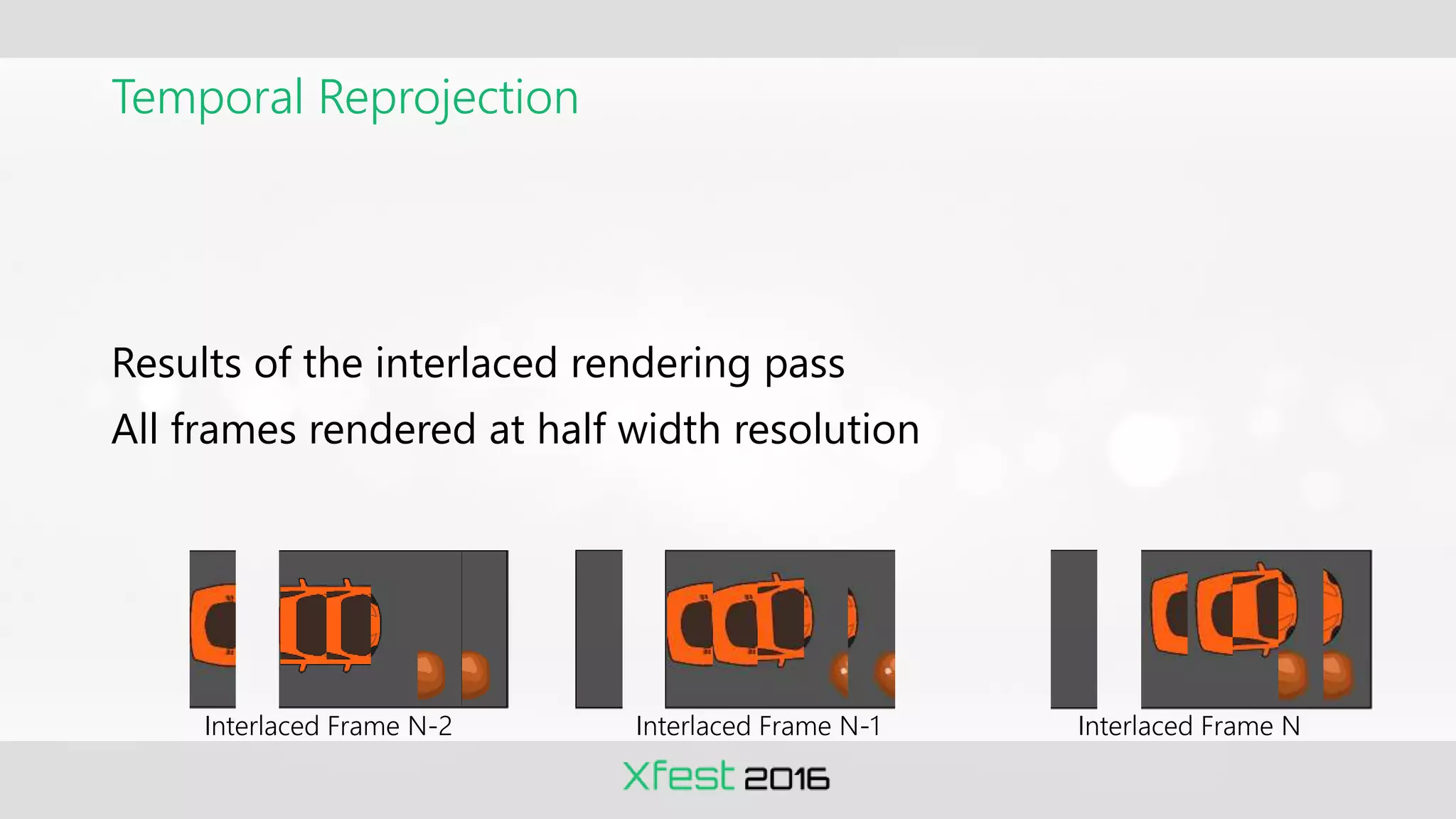

Temporal Reprojection Results of the interlaced rendering pass All frames rendered at half width resolution Interlaced Frame N-1 Interlaced Frame N Interlaced Frame N-2
Temporal Reprojection Deinterlacing, already have frame N’s data Interlaced Frame N-1 Interlaced Frame N Interlaced Frame N-2

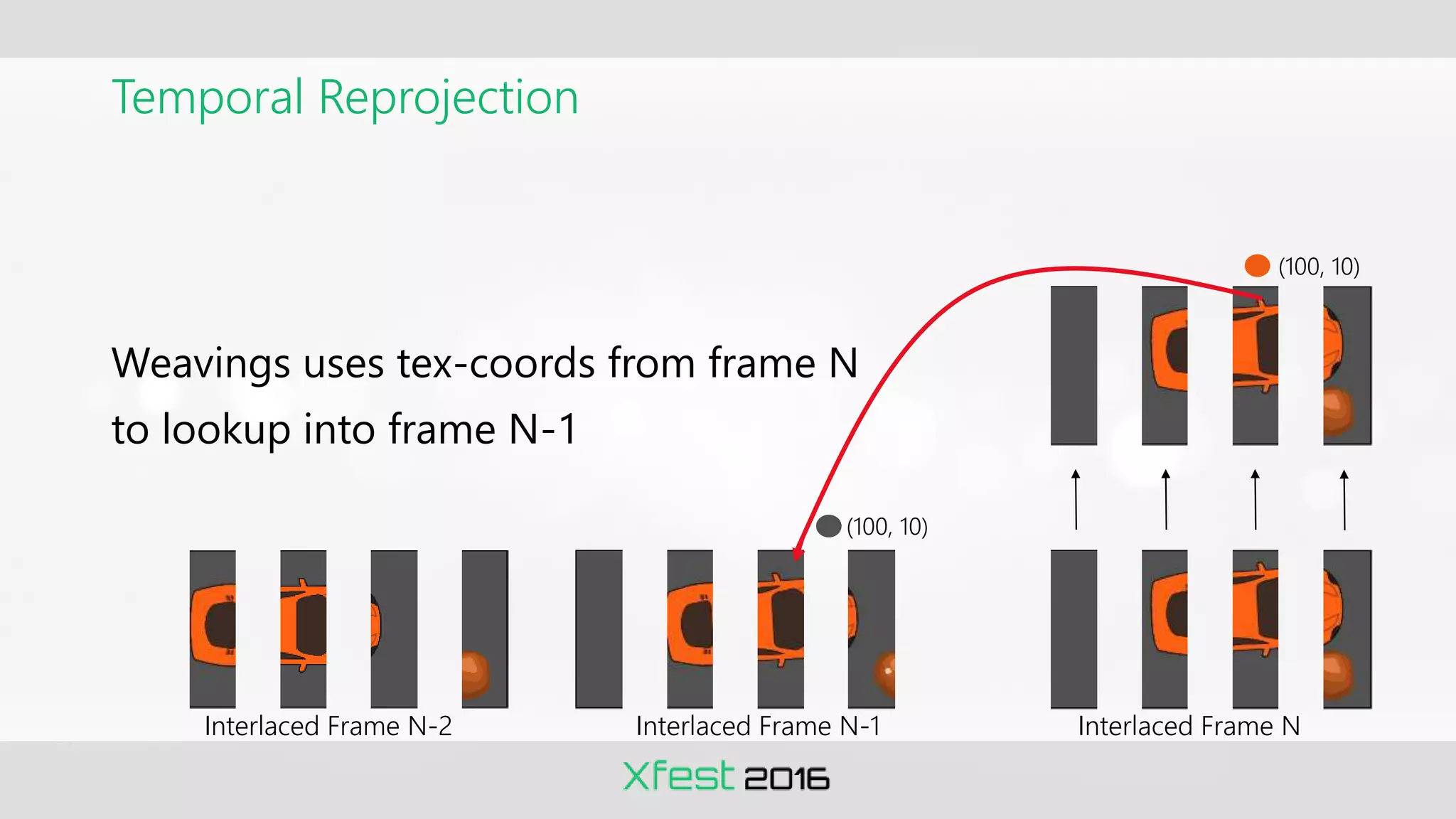

Temporal Reprojection Weavings uses tex-coords from frame N to lookup into frame N-1 Interlaced Frame N-1 Interlaced Frame N Interlaced Frame N-2 (100, 10) (100, 10)

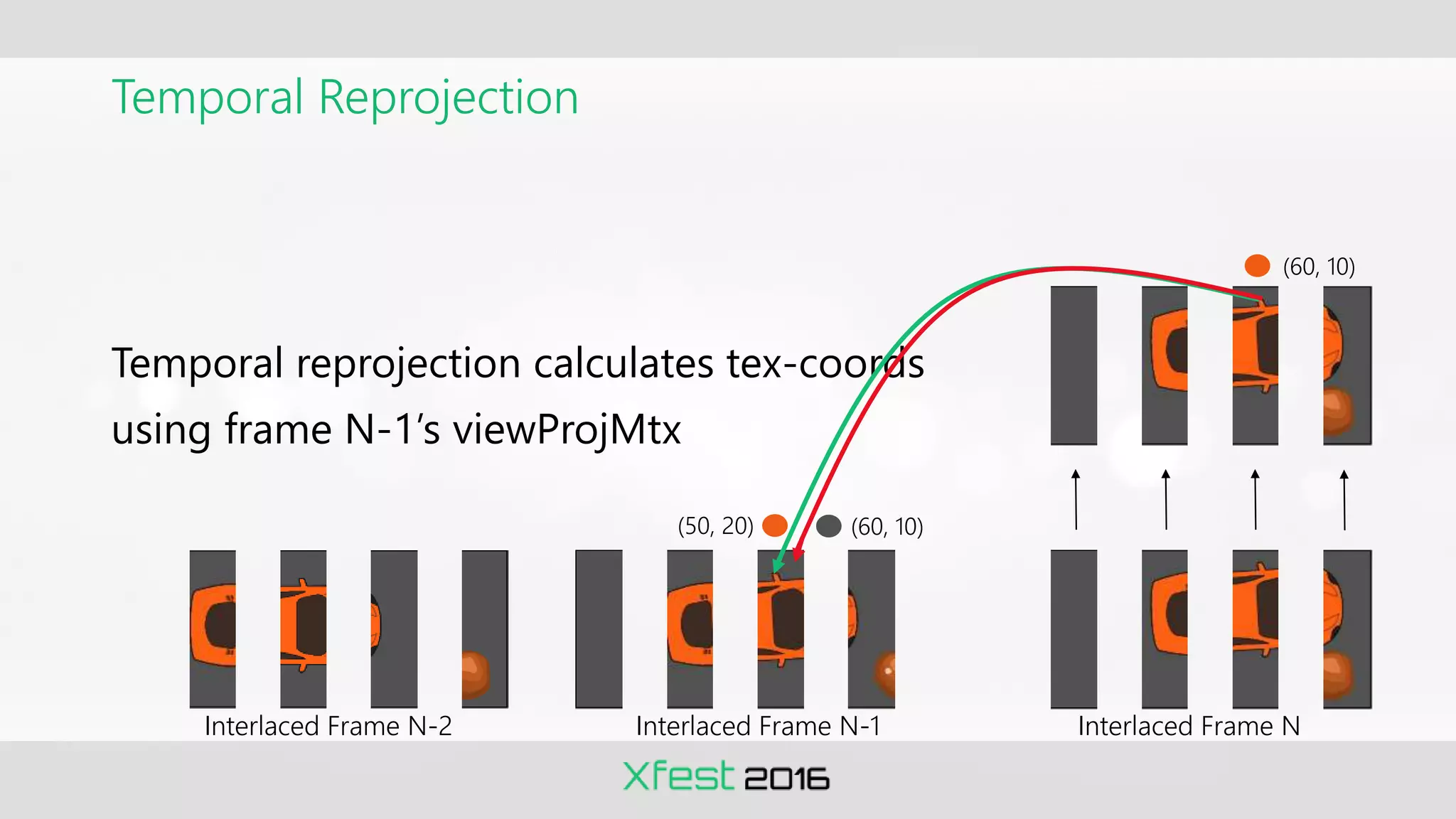

Temporal Reprojection Temporal reprojection calculates tex-coords using frame N-1’s viewProjMtx Interlaced Frame N-1 Interlaced Frame N Interlaced Frame N-2 (60, 10) (60, 10) (50, 20)

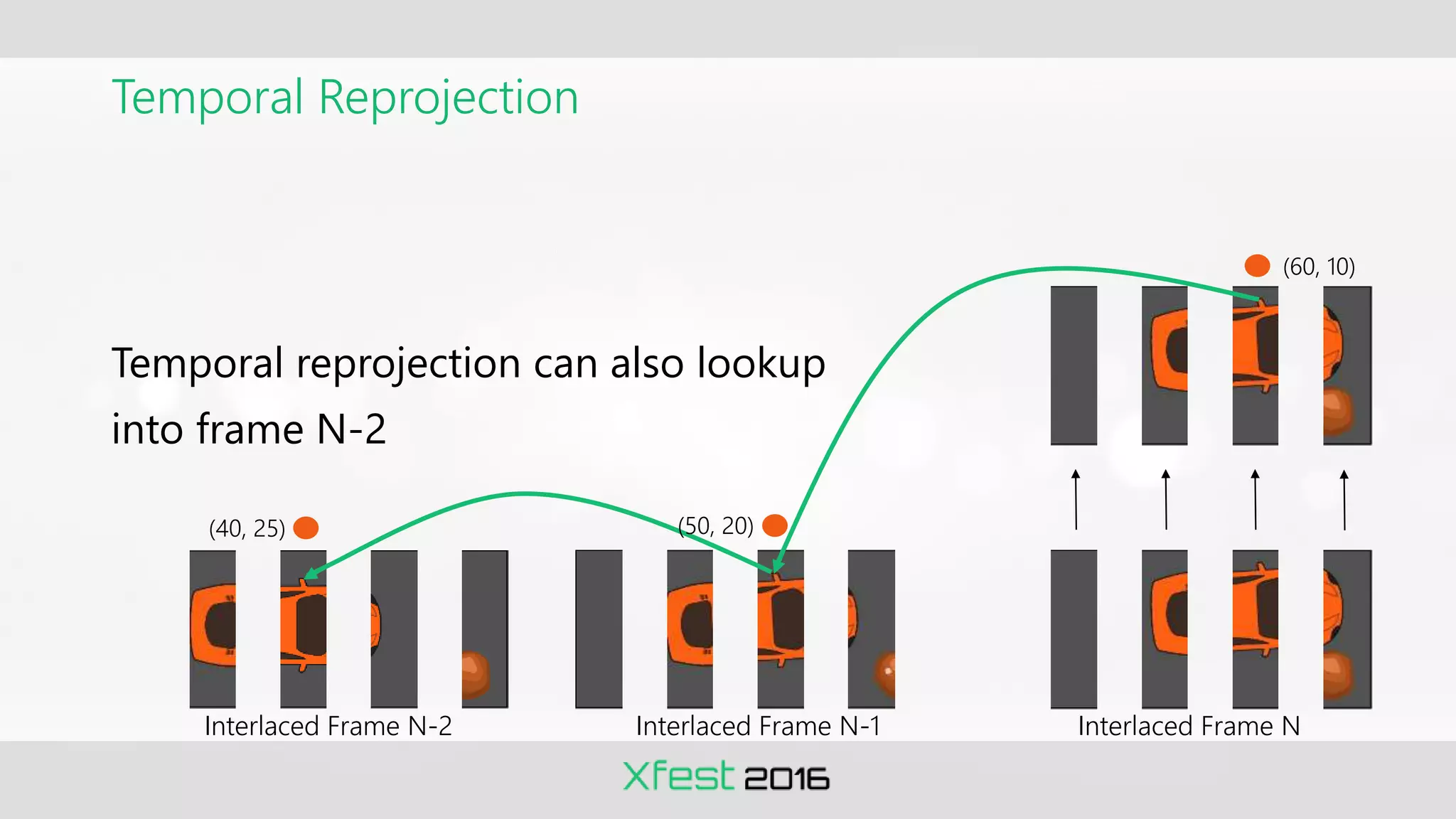

Temporal Reprojection Temporal reprojection can also lookup into frame N-2 Interlaced Frame N-1 Interlaced Frame N Interlaced Frame N-2 (60, 10) (50, 20) (40, 25)

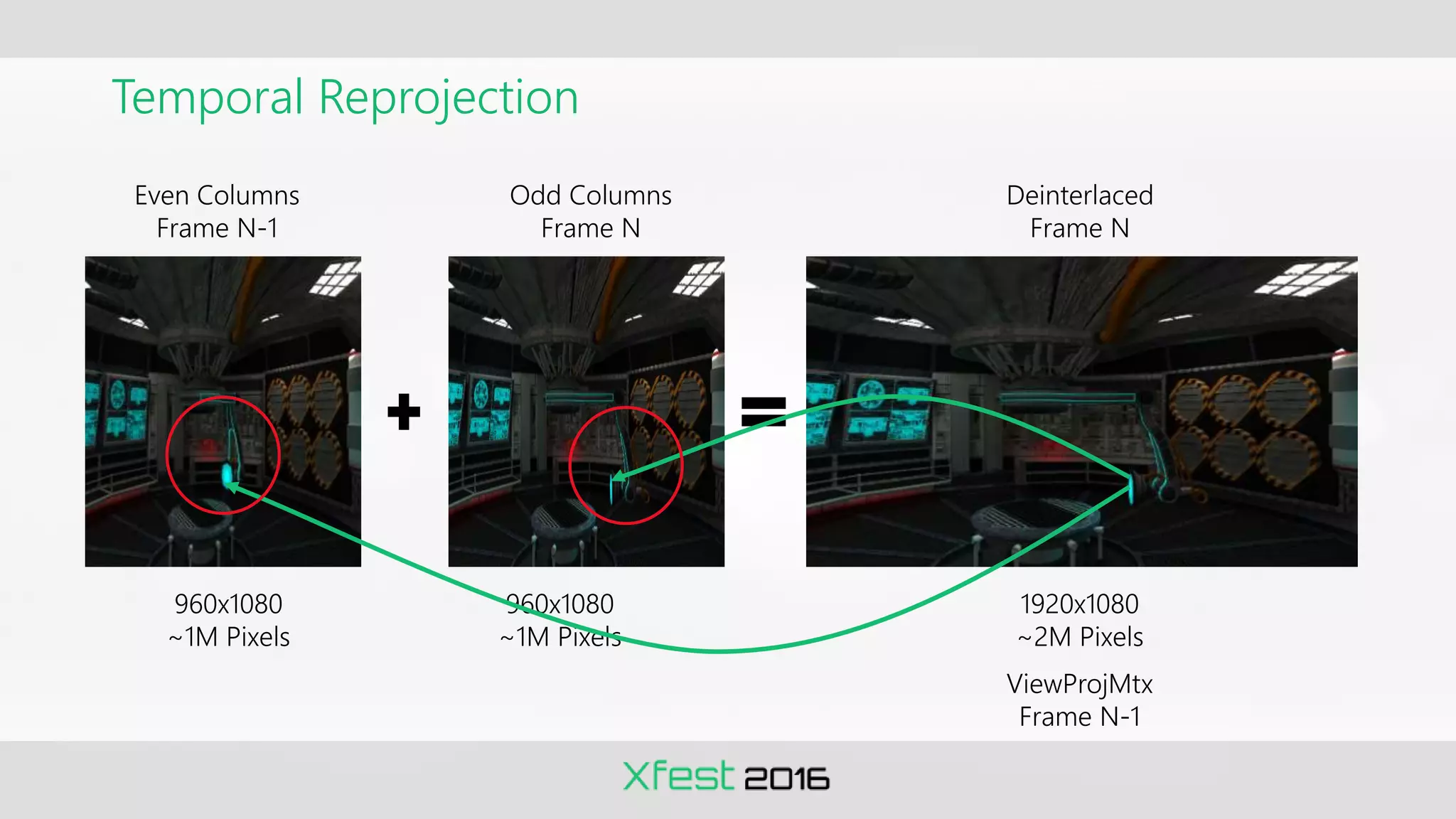

Temporal Reprojection Even Columns Frame N-1 Odd Columns Frame N Deinterlaced Frame N 960x1080 ~1M Pixels 960x1080 ~1M Pixels 1920x1080 ~2M Pixels ViewProjMtx Frame N-1

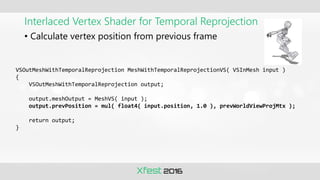

Interlaced Vertex Shader for Temporal Reprojection • Calculate vertex position from previous frame VSOutMeshWithTemporalReprojection MeshWithTemporalReprojectionVS( VSInMesh input ) { VSOutMeshWithTemporalReprojection output; output.meshOutput = MeshVS( input ); output.prevPosition = mul( float4( input.position, 1.0 ), prevWorldViewProjMtx ); return output; }

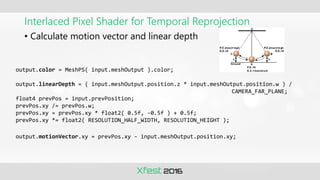

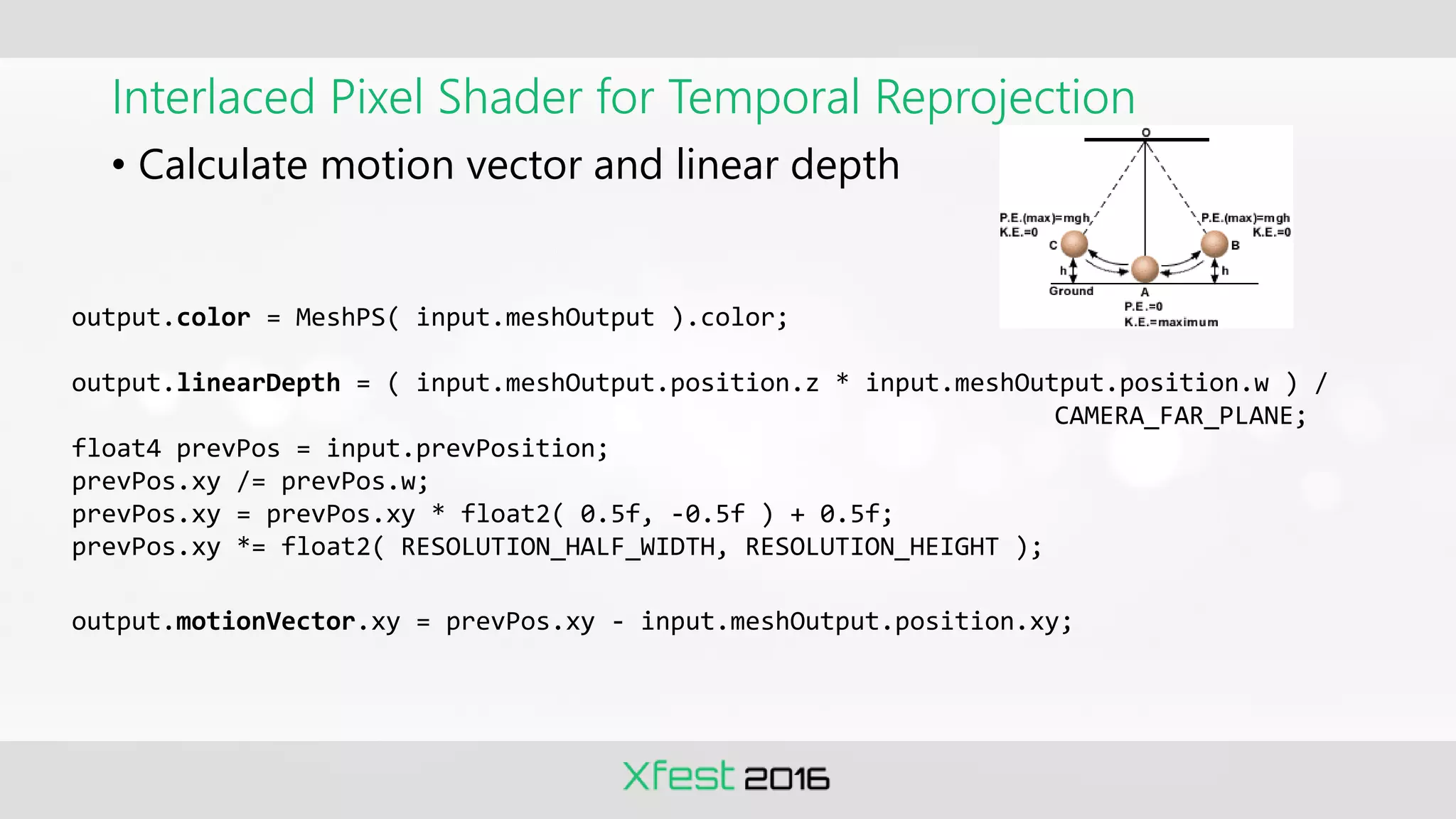

Interlaced Pixel Shader for Temporal Reprojection • Calculate motion vector and linear depth output.color = MeshPS( input.meshOutput ).color; output.linearDepth = ( input.meshOutput.position.z * input.meshOutput.position.w ) / CAMERA_FAR_PLANE; float4 prevPos = input.prevPosition; prevPos.xy /= prevPos.w; prevPos.xy = prevPos.xy * float2( 0.5f, -0.5f ) + 0.5f; prevPos.xy *= float2( RESOLUTION_HALF_WIDTH, RESOLUTION_HEIGHT ); output.motionVector.xy = prevPos.xy - input.meshOutput.position.xy;

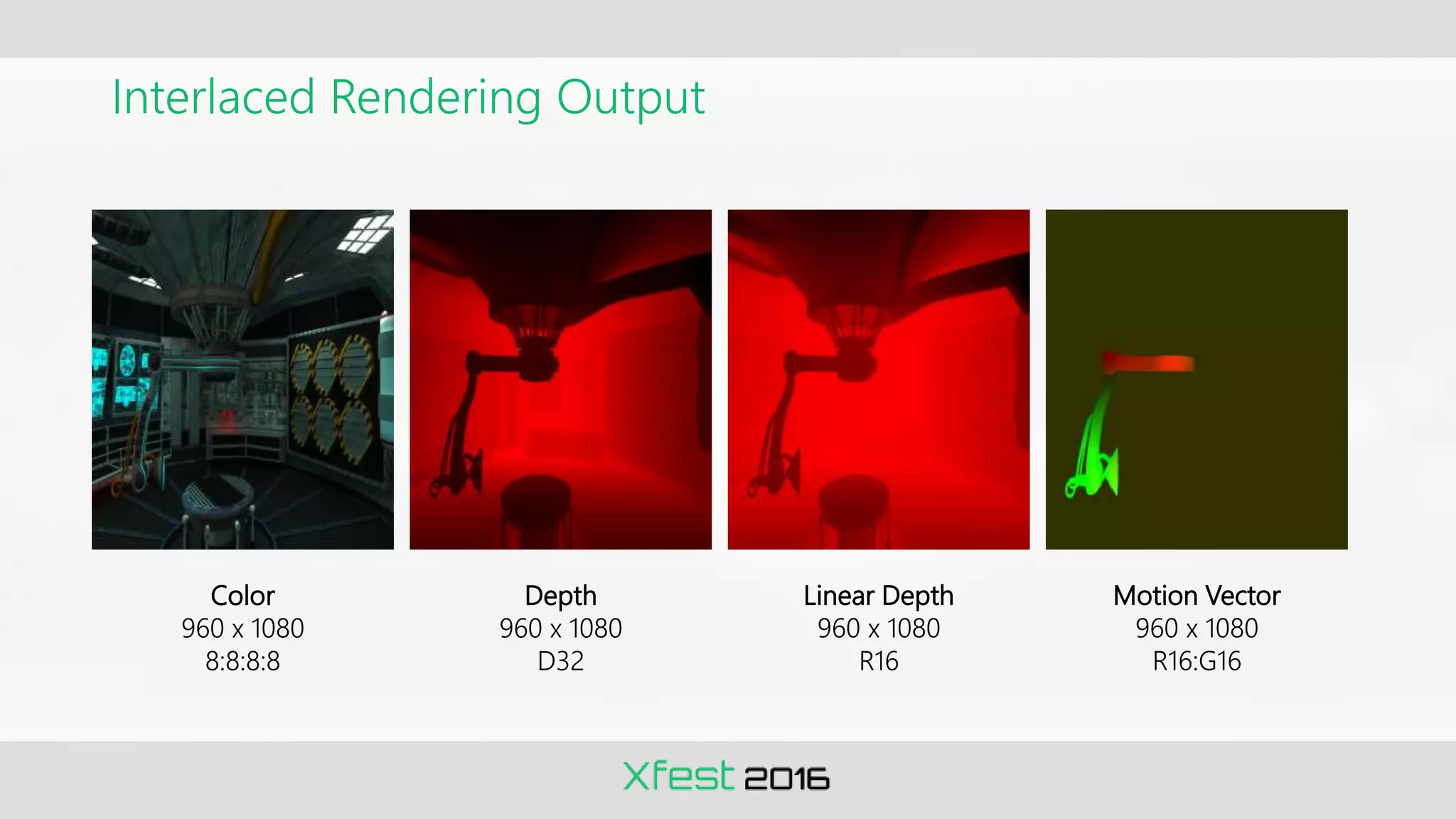

Interlaced Rendering Output Color 960 x 1080 8:8:8:8 Motion Vector 960 x 1080 R16:G16 Depth 960 x 1080 D32 Linear Depth 960 x 1080 R16

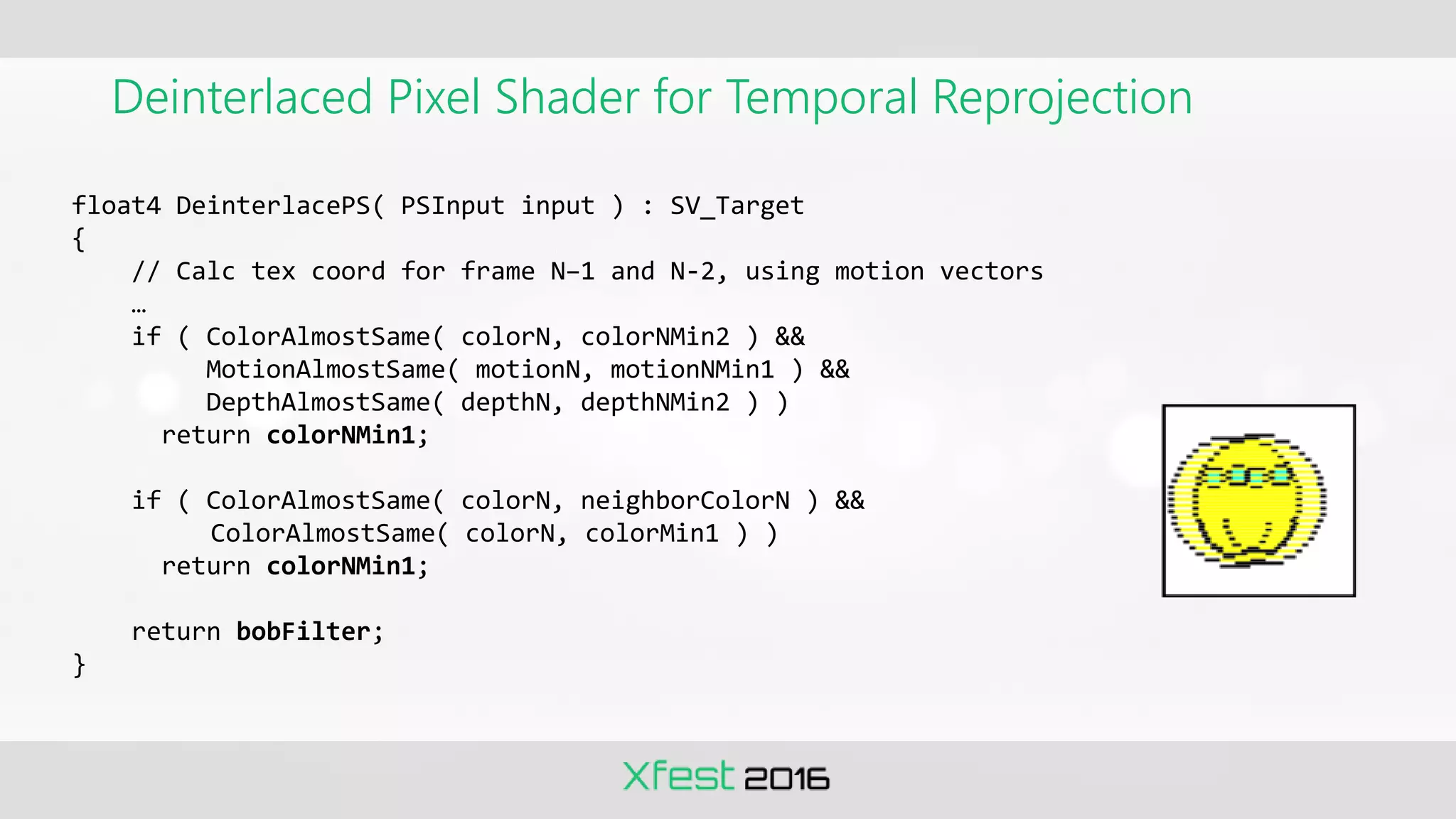

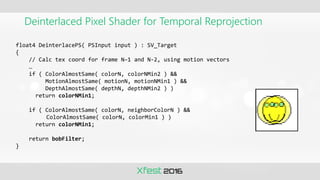

Deinterlaced Pixel Shader for Temporal Reprojection float4 DeinterlacePS( PSInput input ) : SV_Target { // Calc tex coord for frame N–1 and N-2, using motion vectors … if ( ColorAlmostSame( colorN, colorNMin2 ) && MotionAlmostSame( motionN, motionNMin1 ) && DepthAlmostSame( depthN, depthNMin2 ) ) return colorNMin1; if ( ColorAlmostSame( colorN, neighborColorN ) && ColorAlmostSame( colorN, colorMin1 ) ) return colorNMin1; return bobFilter; }

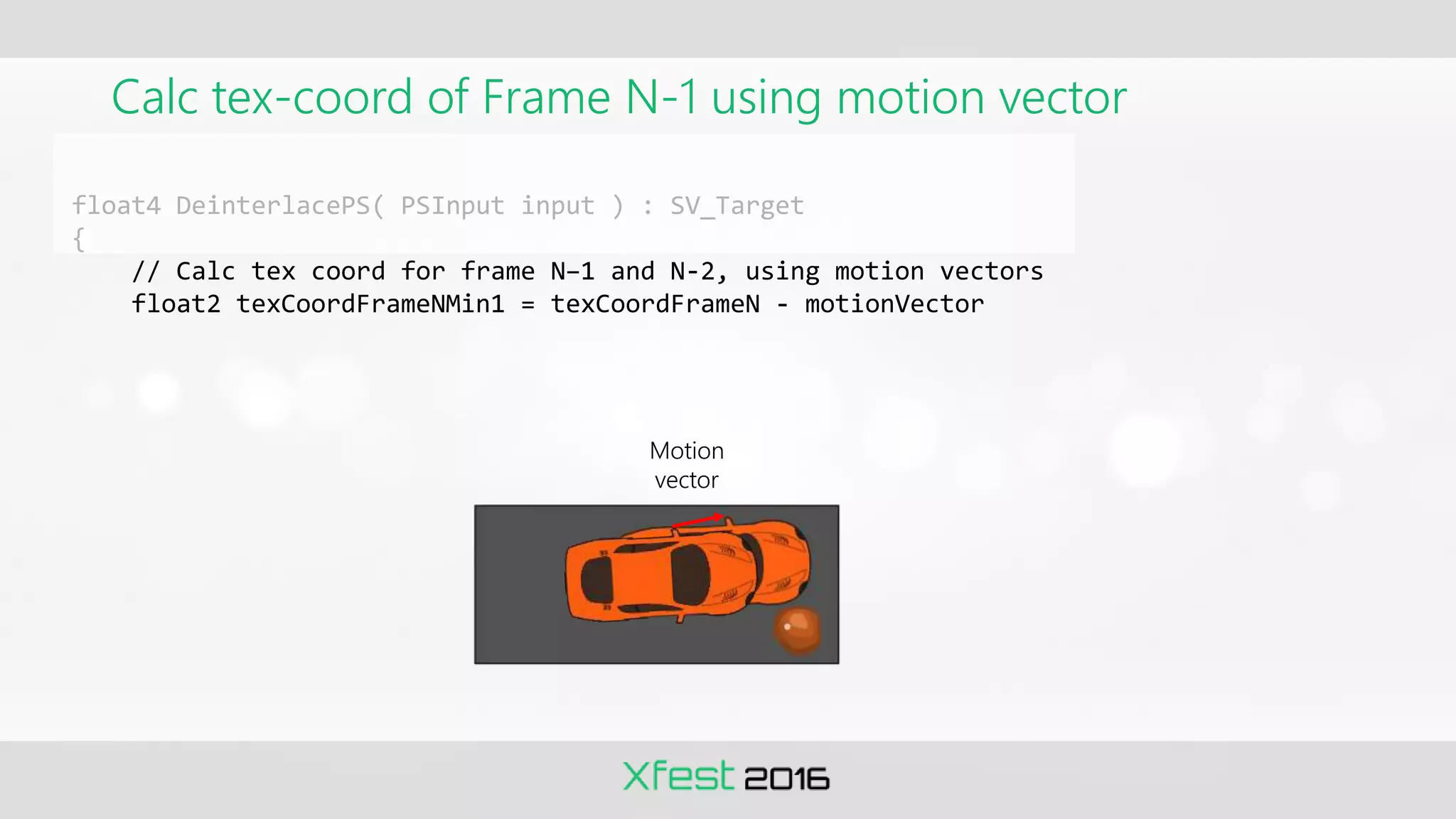

Calc tex-coord of Frame N-1 using motion vector float4 DeinterlacePS( PSInput input ) : SV_Target { // Calc tex coord for frame N–1 and N-2, using motion vectors float2 texCoordFrameNMin1 = texCoordFrameN - motionVector Motion vector

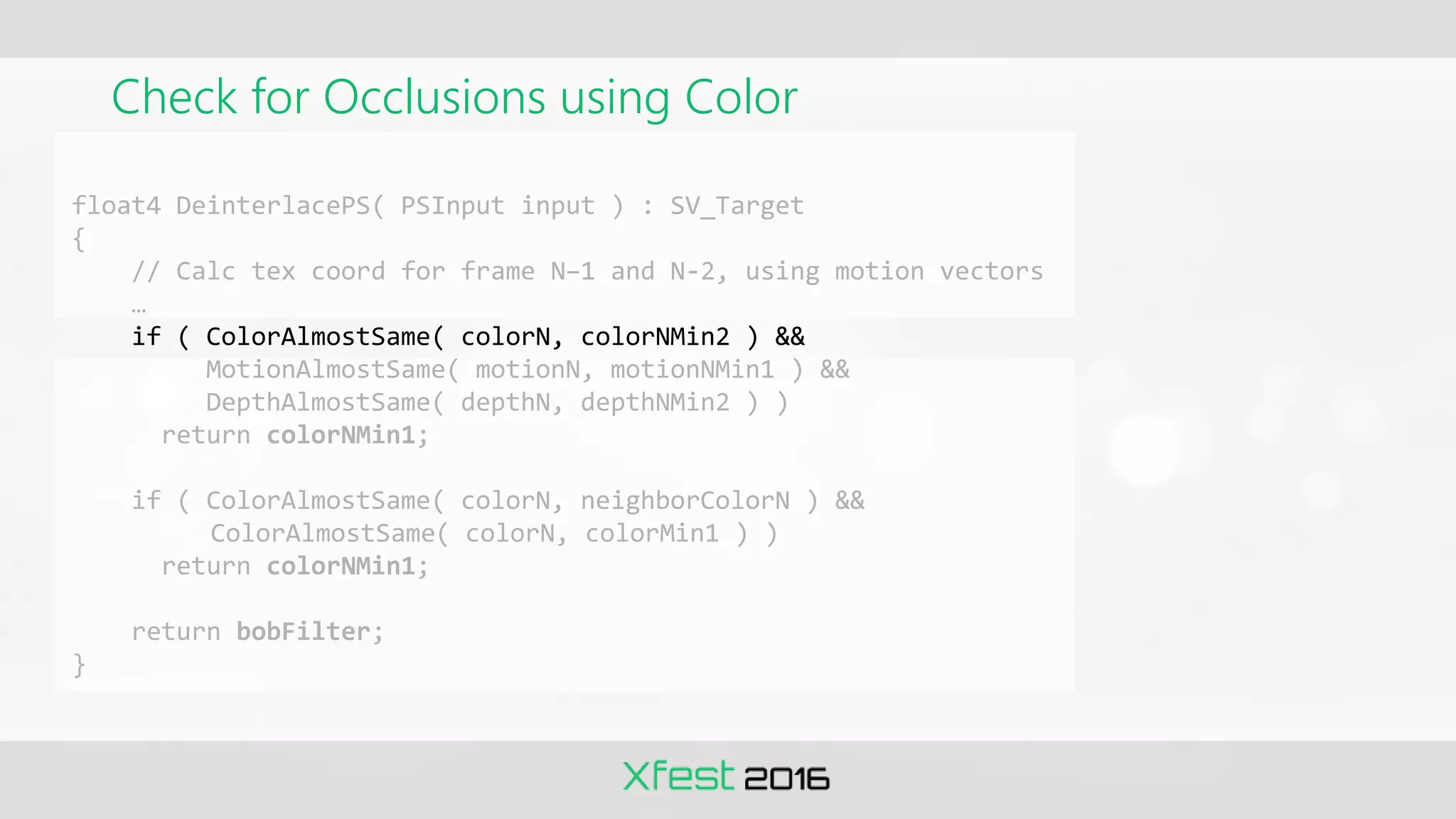

Check for Occlusions using Color float4 DeinterlacePS( PSInput input ) : SV_Target { // Calc tex coord for frame N–1 and N-2, using motion vectors … if ( ColorAlmostSame( colorN, colorNMin2 ) && MotionAlmostSame( motionN, motionNMin1 ) && DepthAlmostSame( depthN, depthNMin2 ) ) return colorNMin1; if ( ColorAlmostSame( colorN, neighborColorN ) && ColorAlmostSame( colorN, colorMin1 ) ) return colorNMin1; return bobFilter; }

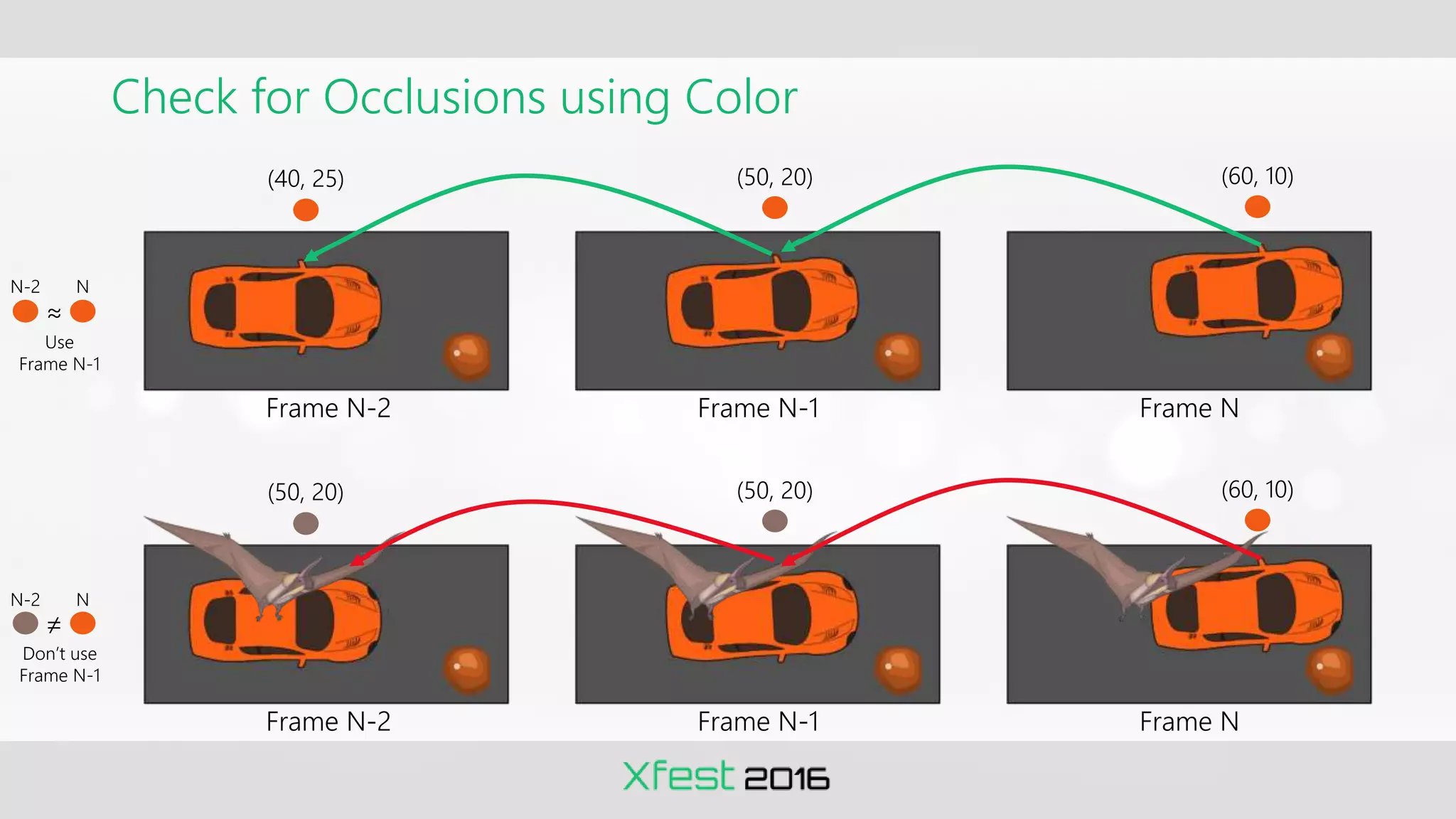

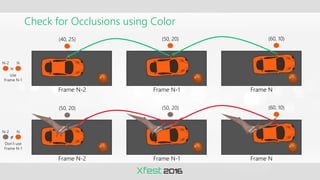

Check for Occlusions using Color Frame N-2 Frame N-1 Frame N (60, 10) (50, 20) (50, 20) Frame N-2 Frame N-1 Frame N (60, 10) (50, 20) (40, 25) ≠ ≈ Use Frame N-1 Don’t use Frame N-1 N-2 N N-2 N

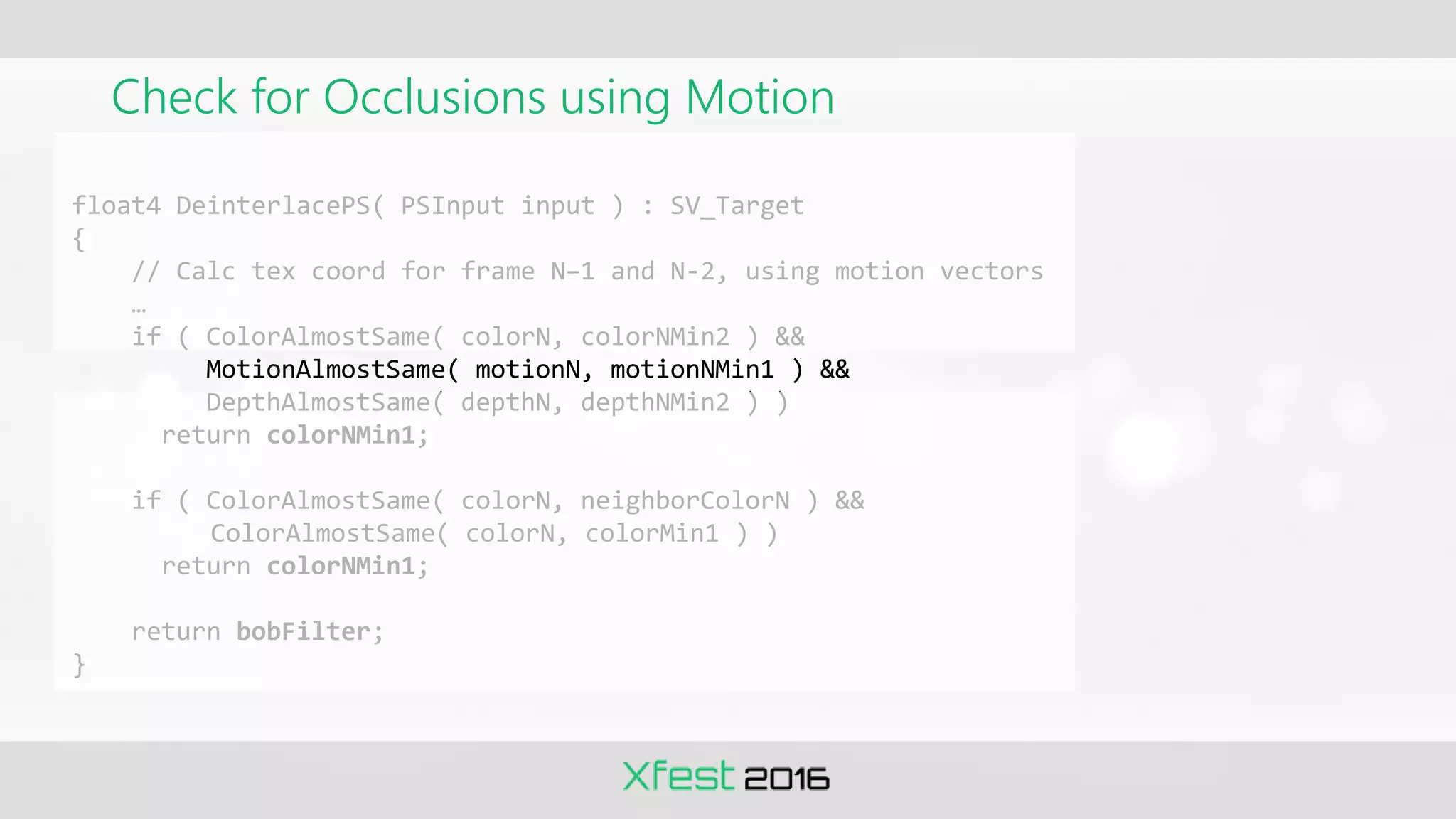

Check for Occlusions using Motion float4 DeinterlacePS( PSInput input ) : SV_Target { // Calc tex coord for frame N–1 and N-2, using motion vectors … if ( ColorAlmostSame( colorN, colorNMin2 ) && MotionAlmostSame( motionN, motionNMin1 ) && DepthAlmostSame( depthN, depthNMin2 ) ) return colorNMin1; if ( ColorAlmostSame( colorN, neighborColorN ) && ColorAlmostSame( colorN, colorMin1 ) ) return colorNMin1; return bobFilter; }

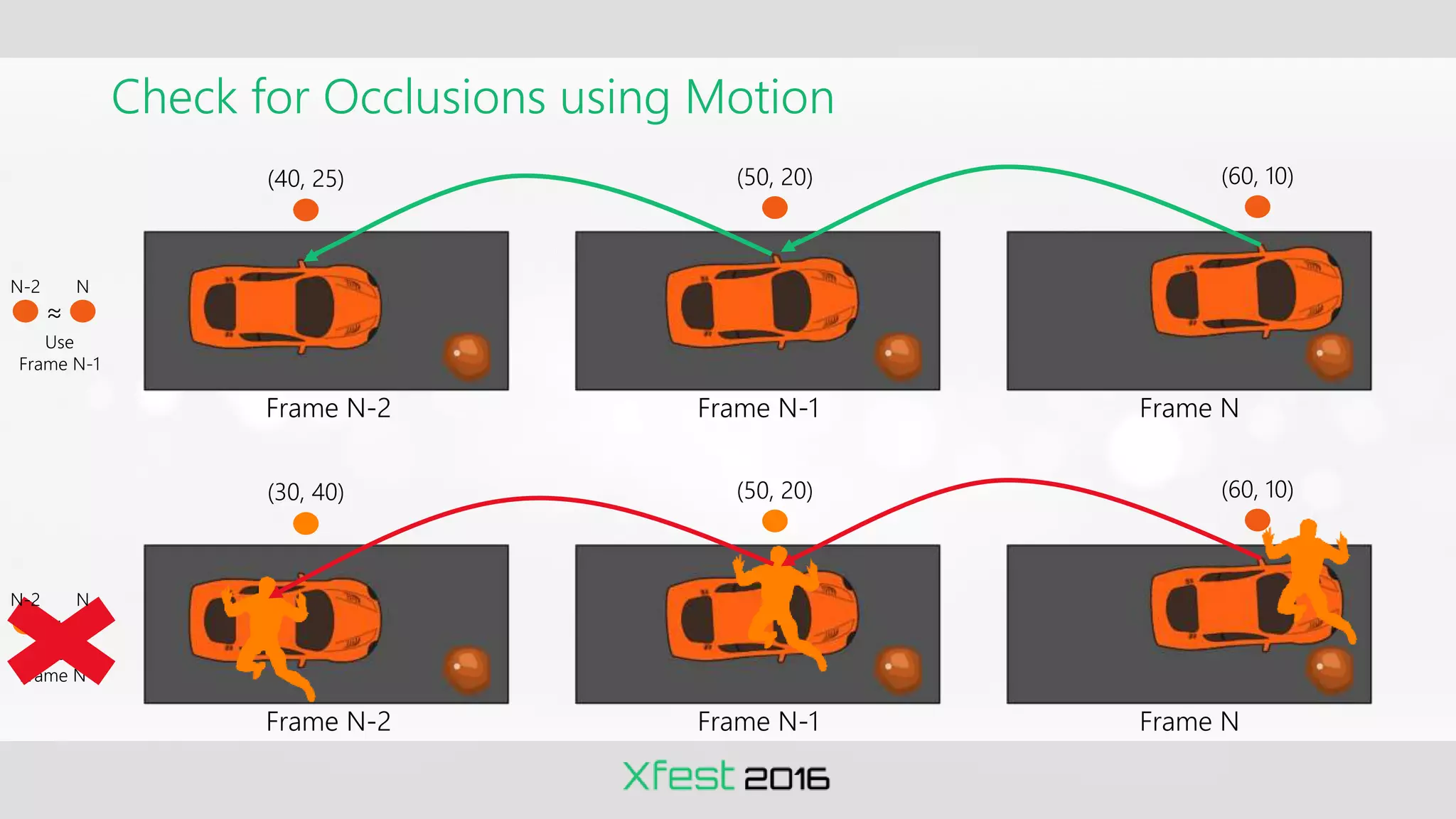

Check for Occlusions using Motion Frame N-2 Frame N-1 Frame N (60, 10) (50, 20) (30, 40) Frame N-2 Frame N-1 Frame N (60, 10) (50, 20) (40, 25) ≈ ≈ Use Frame N-1 Use Frame N-1 N-2 N N-2 N

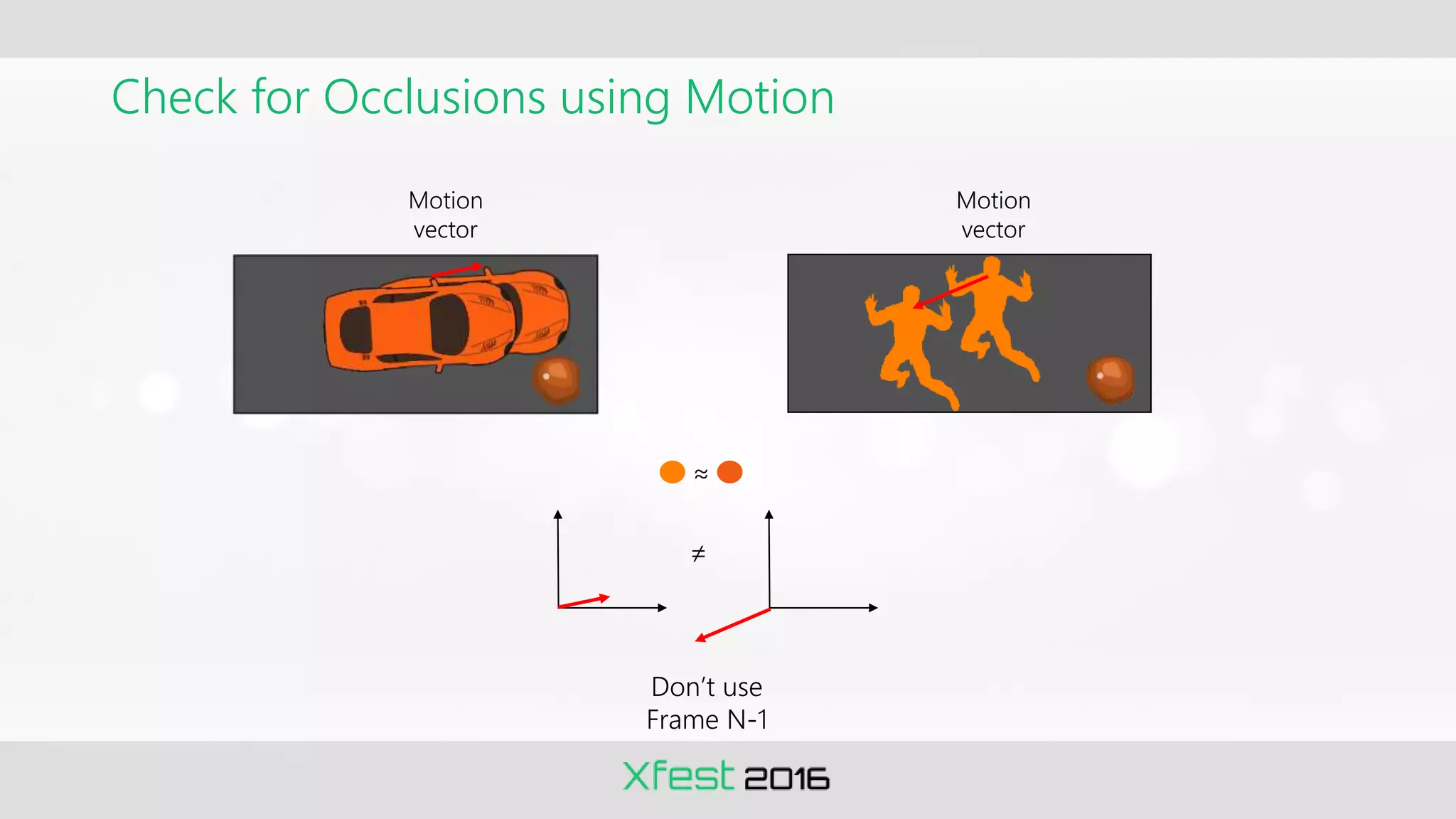

Check for Occlusions using Motion Motion vector Motion vector ≈ Don’t use Frame N-1 ≠

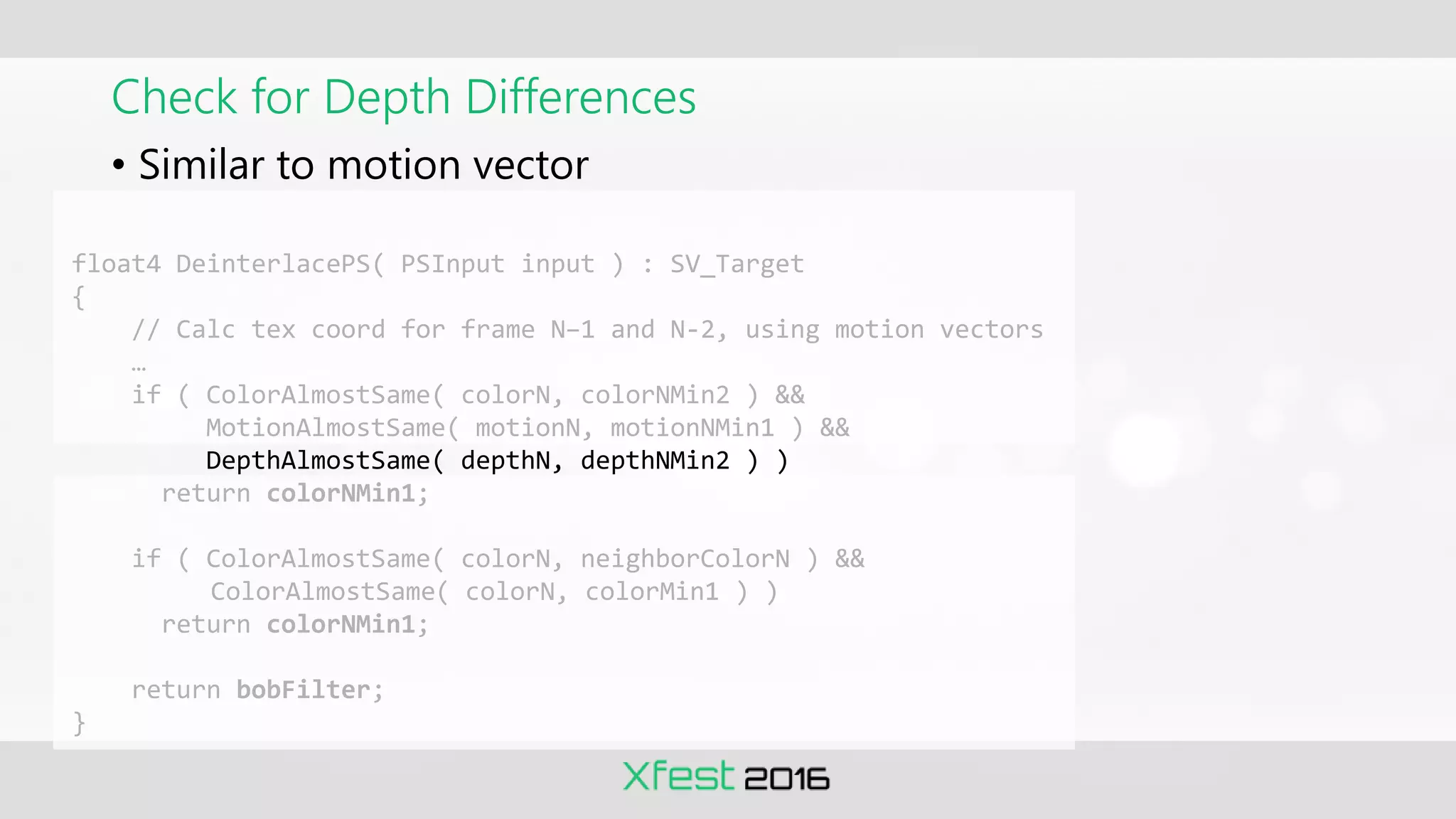

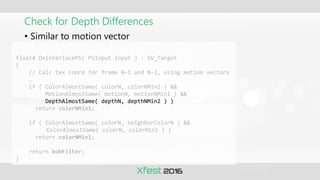

Check for Depth Differences float4 DeinterlacePS( PSInput input ) : SV_Target { // Calc tex coord for frame N–1 and N-2, using motion vectors … if ( ColorAlmostSame( colorN, colorNMin2 ) && MotionAlmostSame( motionN, motionNMin1 ) && DepthAlmostSame( depthN, depthNMin2 ) ) return colorNMin1; if ( ColorAlmostSame( colorN, neighborColorN ) && ColorAlmostSame( colorN, colorMin1 ) ) return colorNMin1; return bobFilter; } • Similar to motion vector

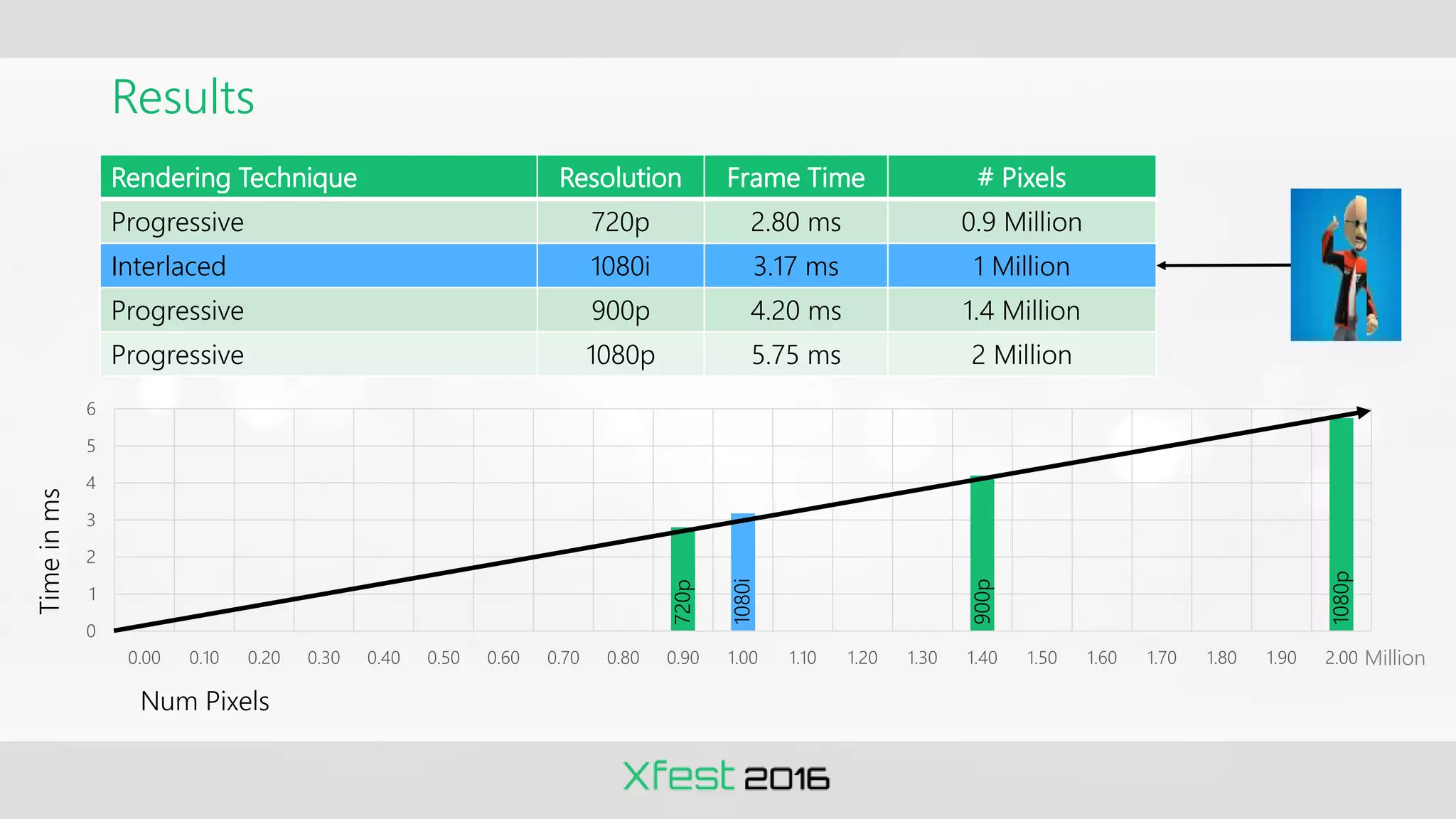

Results Rendering Technique Resolution Frame Time # Pixels Progressive 720p 2.80 ms 0.9 Million Interlaced 1080i 3.17 ms 1 Million Progressive 900p 4.20 ms 1.4 Million Progressive 1080p 5.75 ms 2 Million 0 1 2 3 4 5 6 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00 Time in ms Num Pixels 720p 1080i 900p 1080p Million

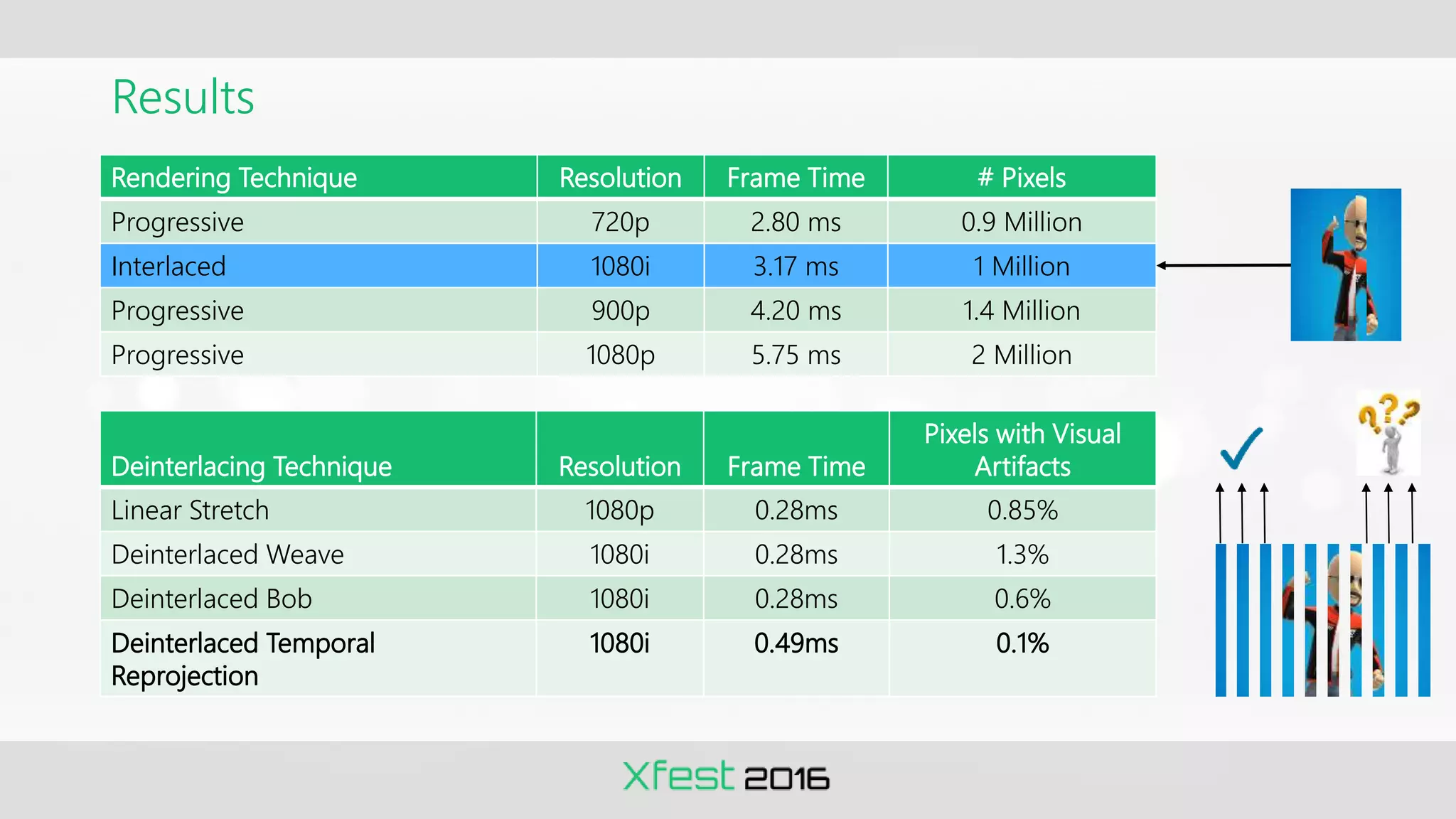

Results Deinterlacing Technique Resolution Frame Time Pixels with Visual Artifacts Linear Stretch 1080p 0.28ms 0.85% Deinterlaced Weave 1080i 0.28ms 1.3% Deinterlaced Bob 1080i 0.28ms 0.6% Deinterlaced Temporal Reprojection 1080i 0.49ms 0.1% Rendering Technique Resolution Frame Time # Pixels Progressive 720p 2.80 ms 0.9 Million Interlaced 1080i 3.17 ms 1 Million Progressive 900p 4.20 ms 1.4 Million Progressive 1080p 5.75 ms 2 Million

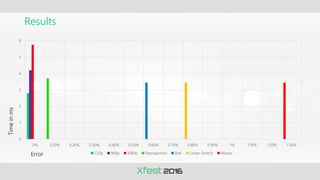

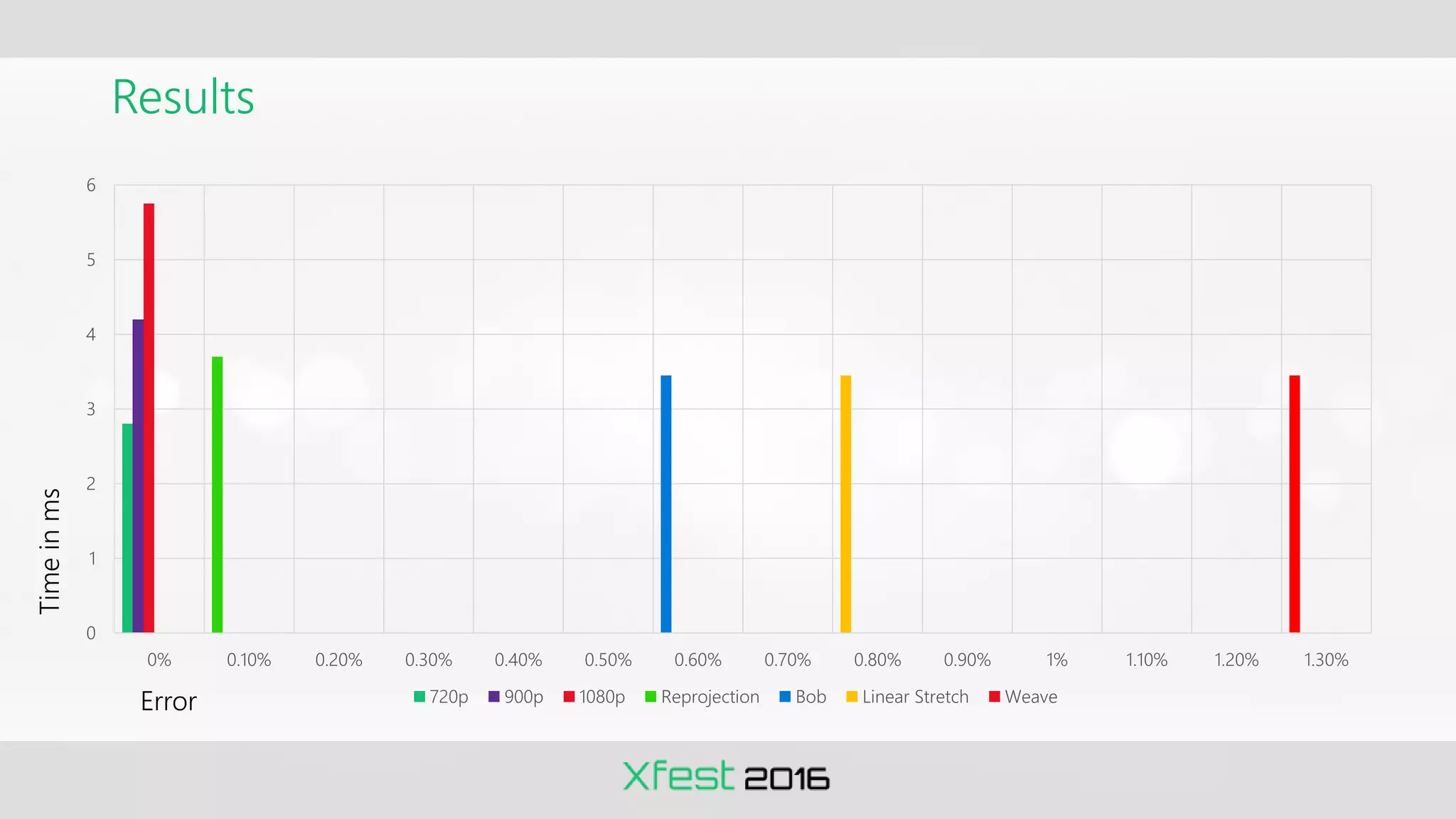

Results 0 1 2 3 4 5 6 0% 0.10% 0.20% 0.30% 0.40% 0.50% 0.60% 0.70% 0.80% 0.90% 1% 1.10% 1.20% 1.30% 720p 900p 1080p Reprojection Bob Linear Stretch Weave Time in ms Error

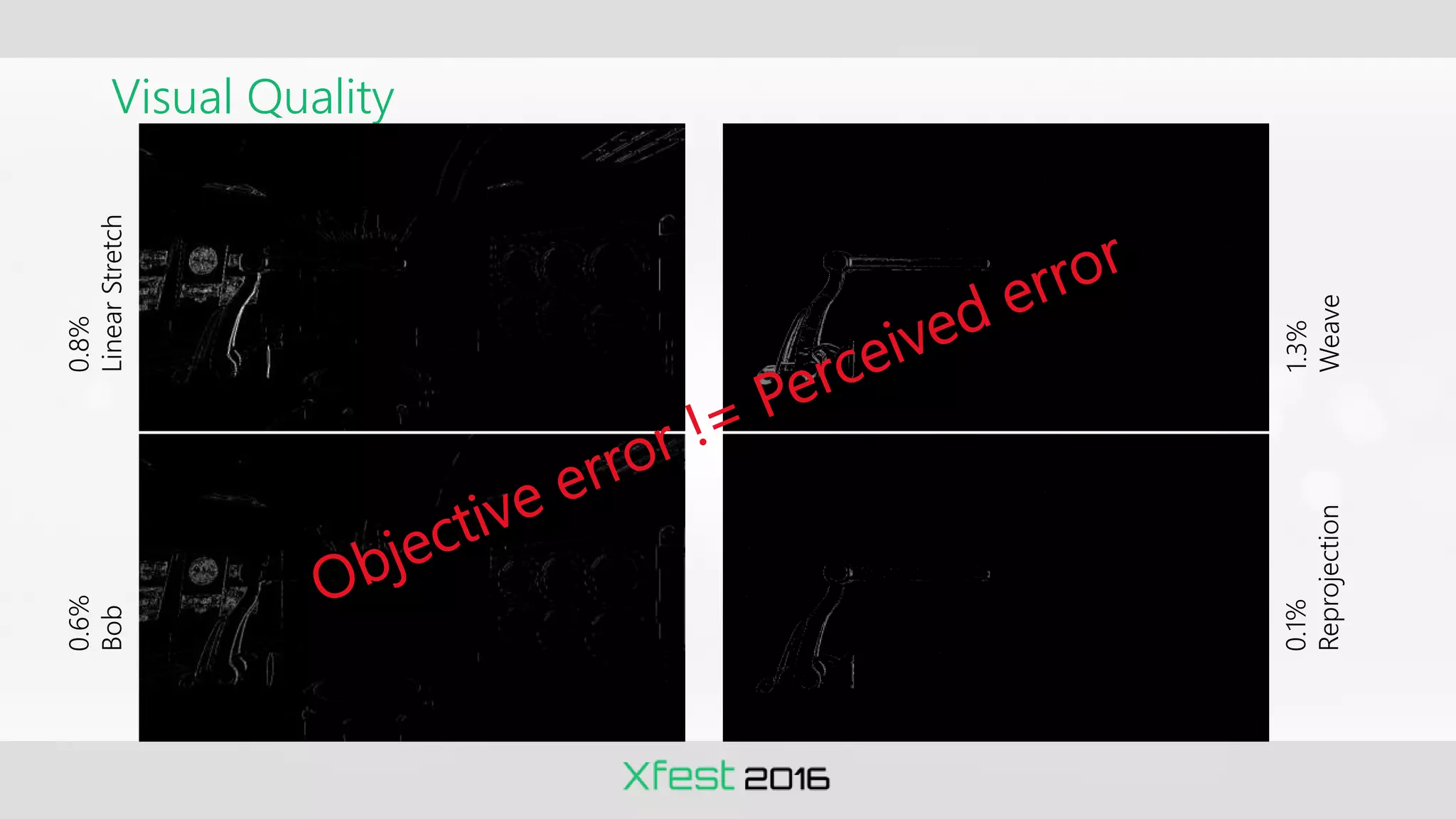

Visual Quality 0.8% Linear Stretch 0.6% Bob 1.3% Weave 0.1% Reprojection

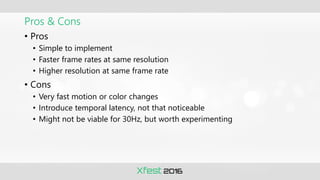

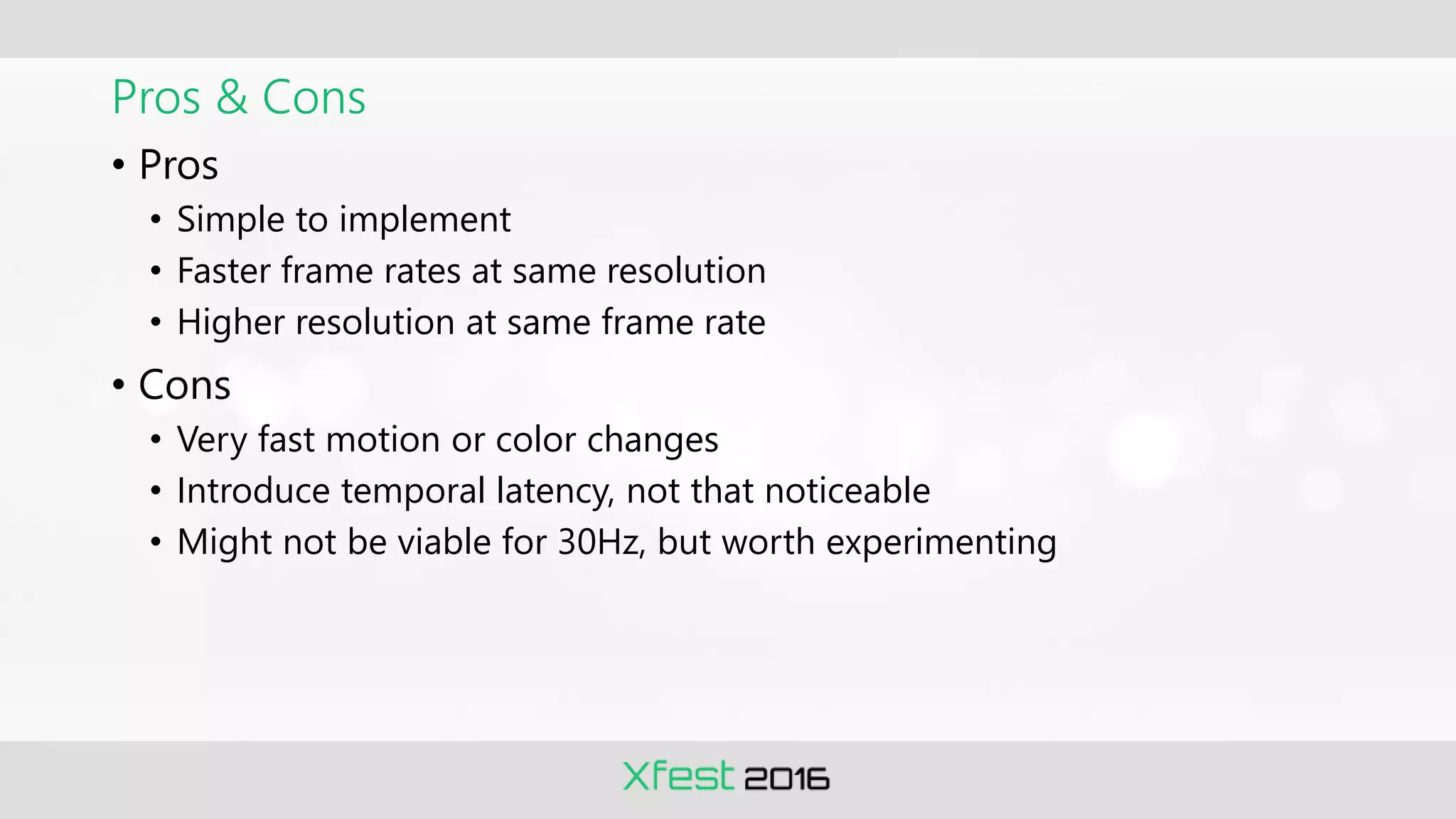

Pros & Cons • Pros • Simple to implement • Faster frame rates at same resolution • Higher resolution at same frame rate • Cons • Very fast motion or color changes • Introduce temporal latency, not that noticeable • Might not be viable for 30Hz, but worth experimenting
Interesting Thoughts • Combine interlaced rendering with dynamic resolution • Composite progressive over interlaced, e.g. main character as progressive • Horizontal vs. vertical interlacing result in different aliasing • Vertical – very little horizontal aliasing • Horizontal – very little vertical aliasing

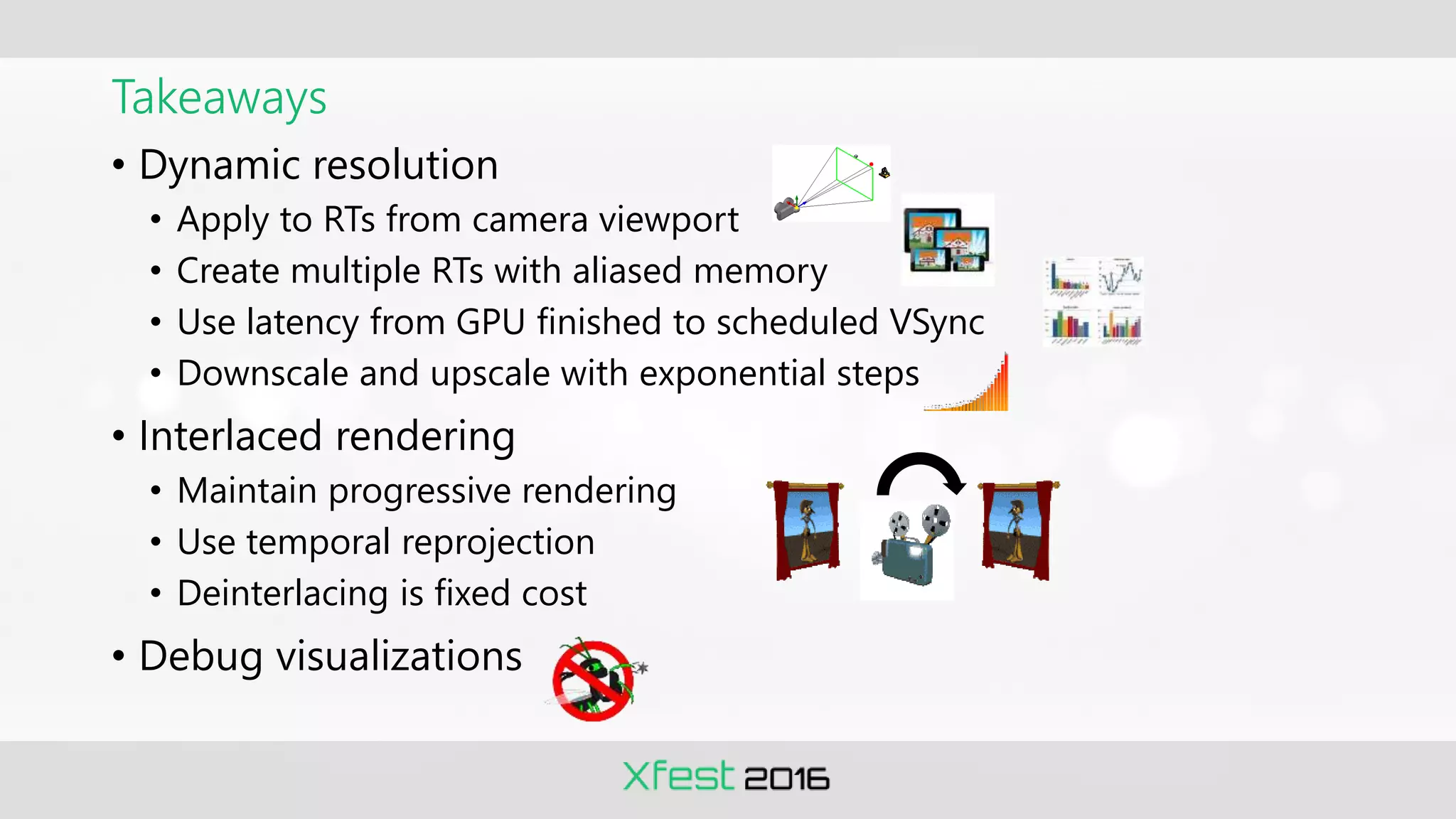

Takeaways • Dynamic resolution • Apply to RTs from camera viewport • Create multiple RTs with aliased memory • Use latency from GPU finished to scheduled VSync • Downscale and upscale with exponential steps • Interlaced rendering • Maintain progressive rendering • Use temporal reprojection • Deinterlacing is fixed cost • Debug visualizations

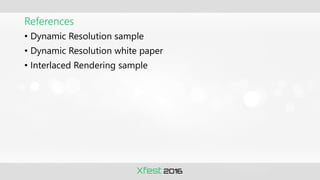

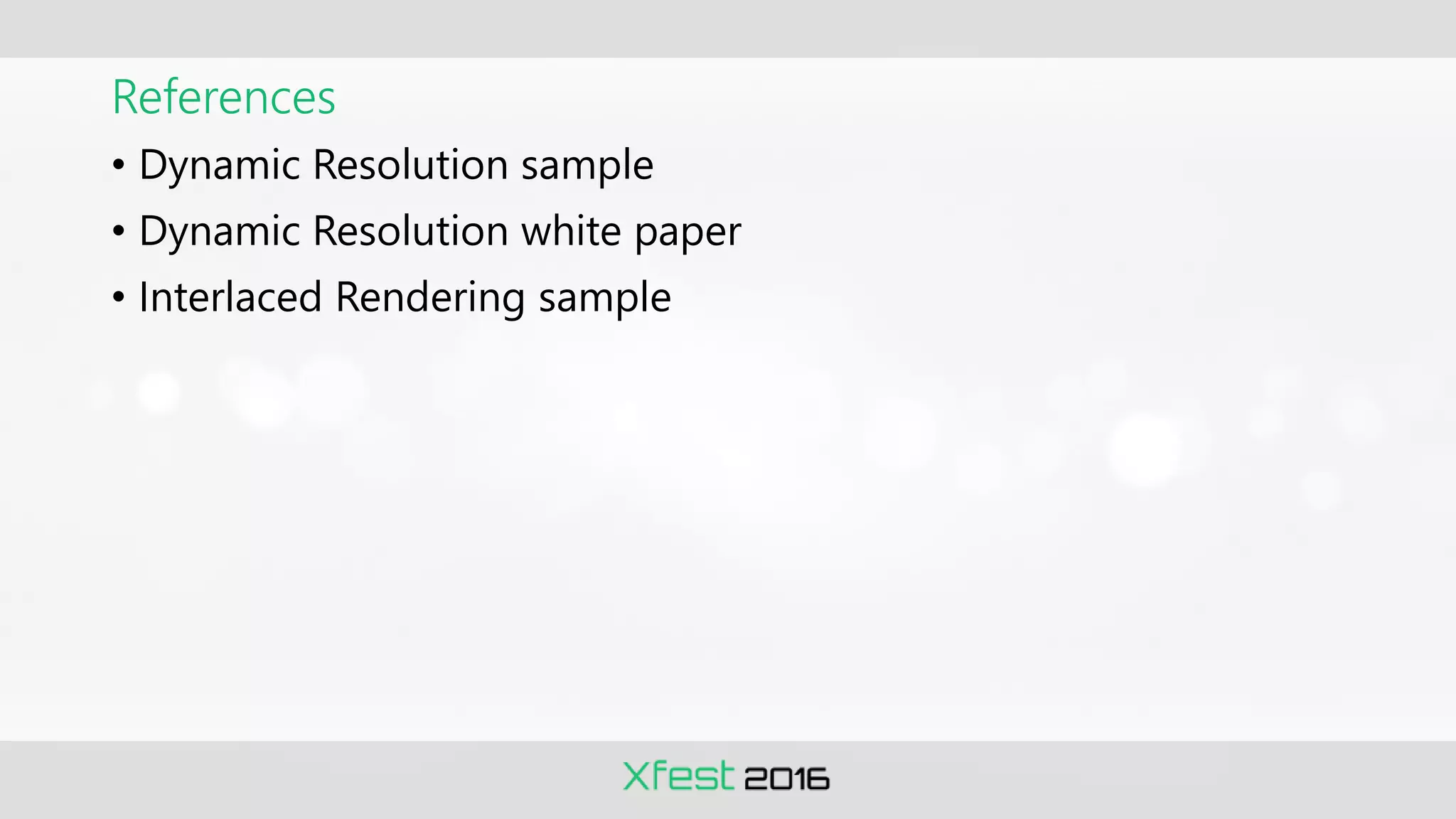

References • Dynamic Resolution sample • Dynamic Resolution white paper • Interlaced Rendering sample
Questions?
© 2016 Microsoft Corporation. All rights reserved. Microsoft, Xbox, Windows, and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries. The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
