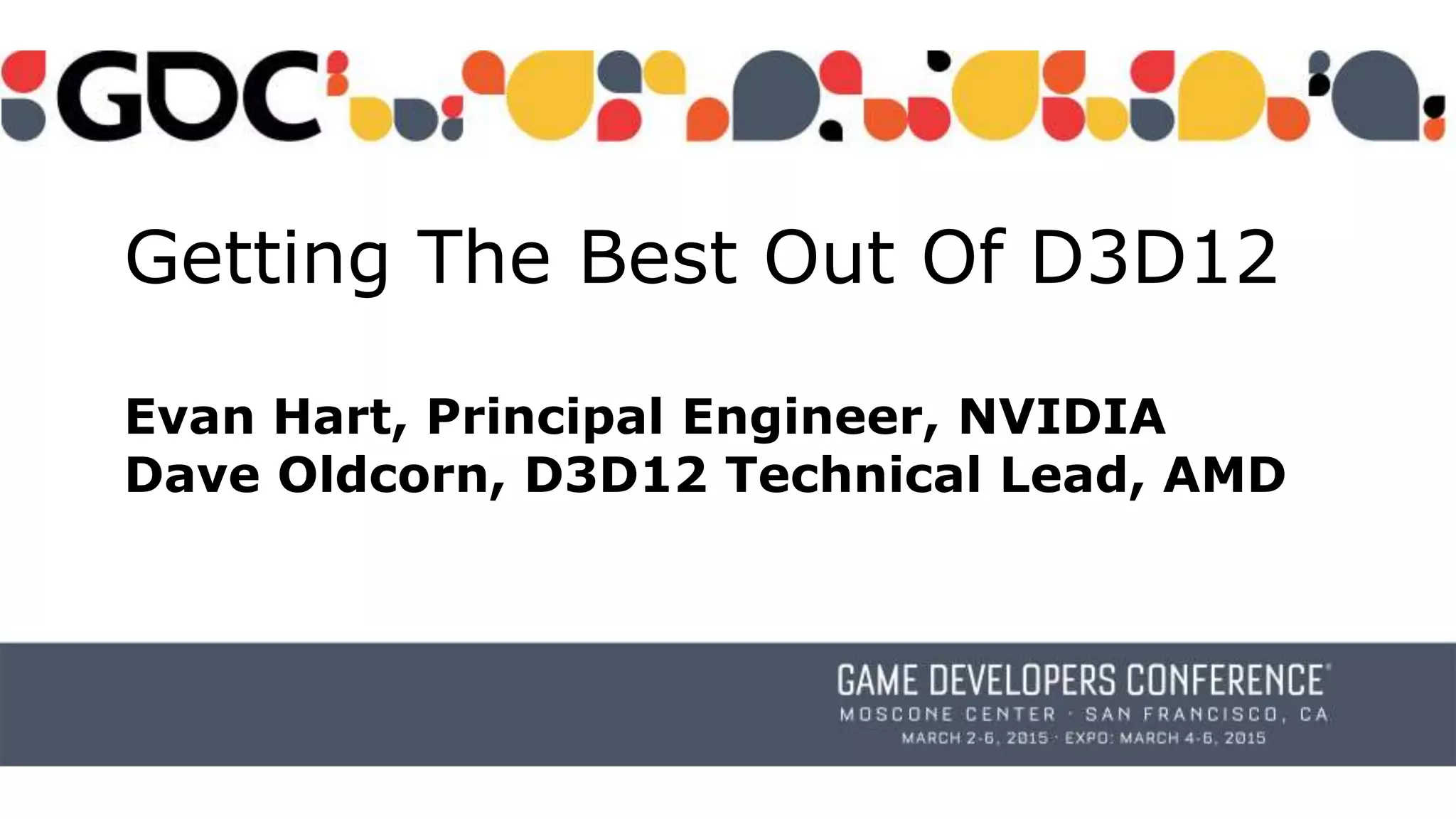

- 1. Getting The BestOut Of D3D12 Evan Hart, Principal Engineer, NVIDIA Dave Oldcorn, D3D12 Technical Lead, AMD

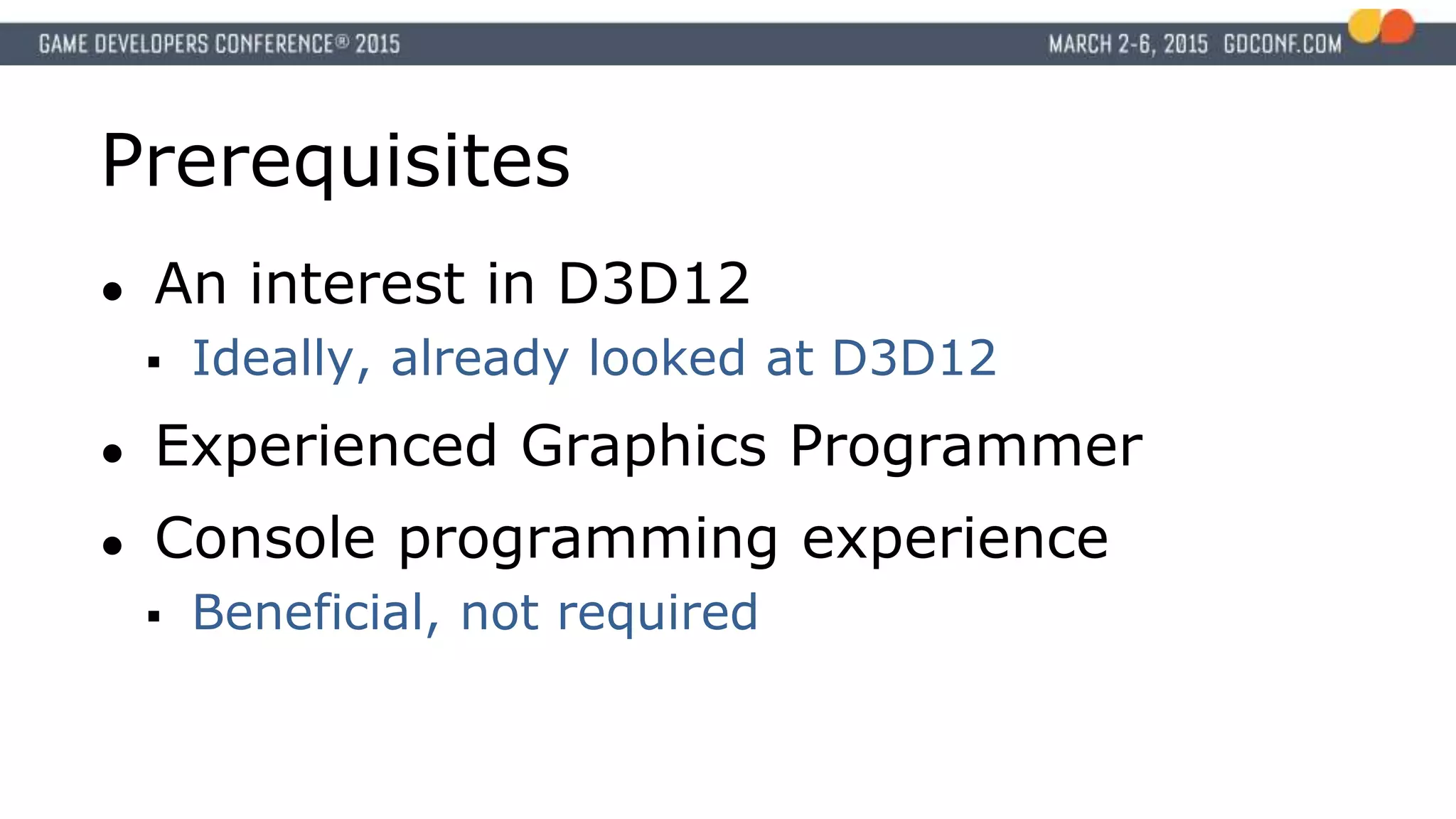

- 2. Prerequisites ● An interestin D3D12 Ideally, already looked at D3D12 ● Experienced Graphics Programmer ● Console programming experience Beneficial, not required
- 3.

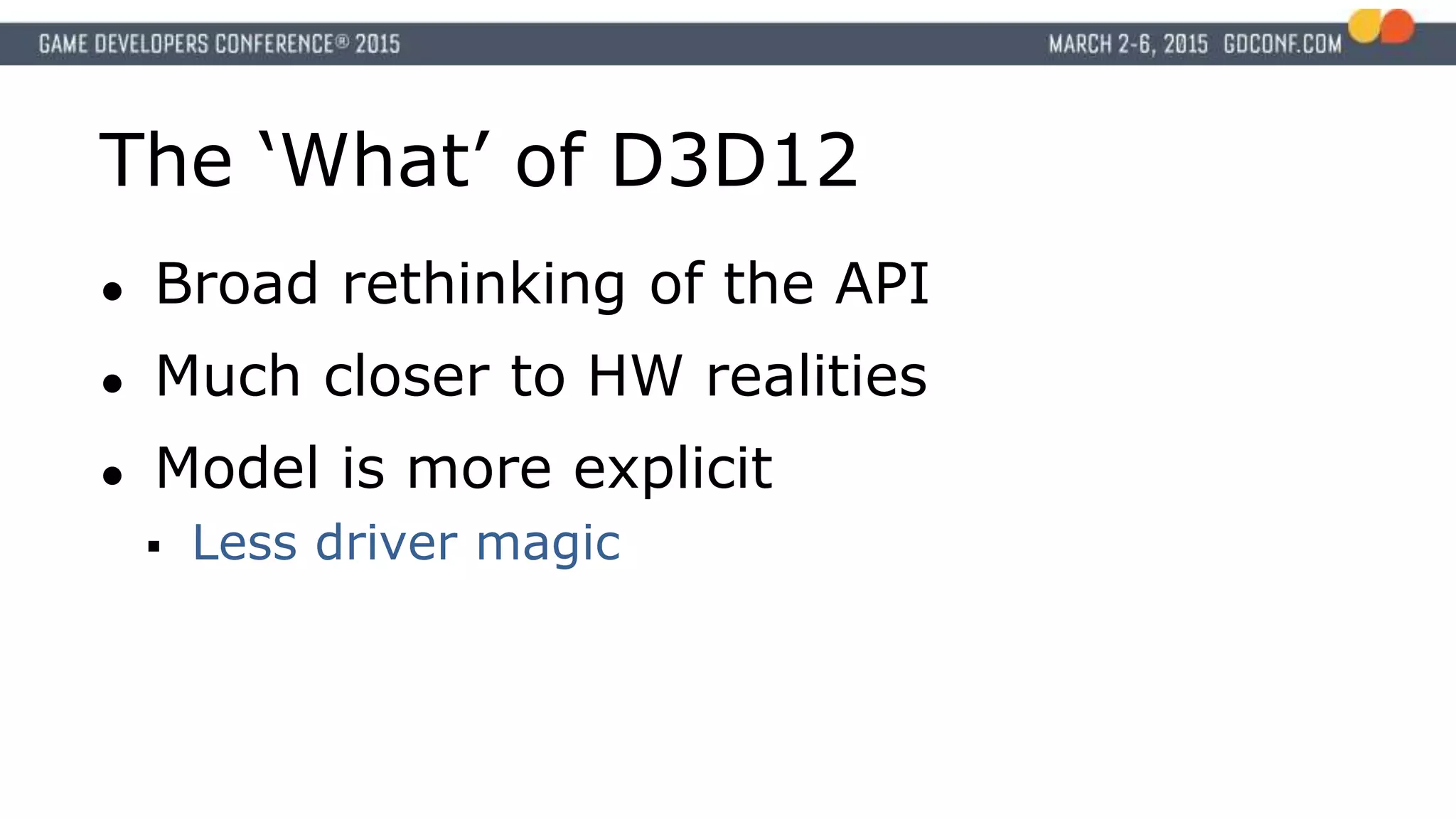

- 4. The ‘What’ ofD3D12 ● Broad rethinking of the API ● Much closer to HW realities ● Model is more explicit Less driver magic

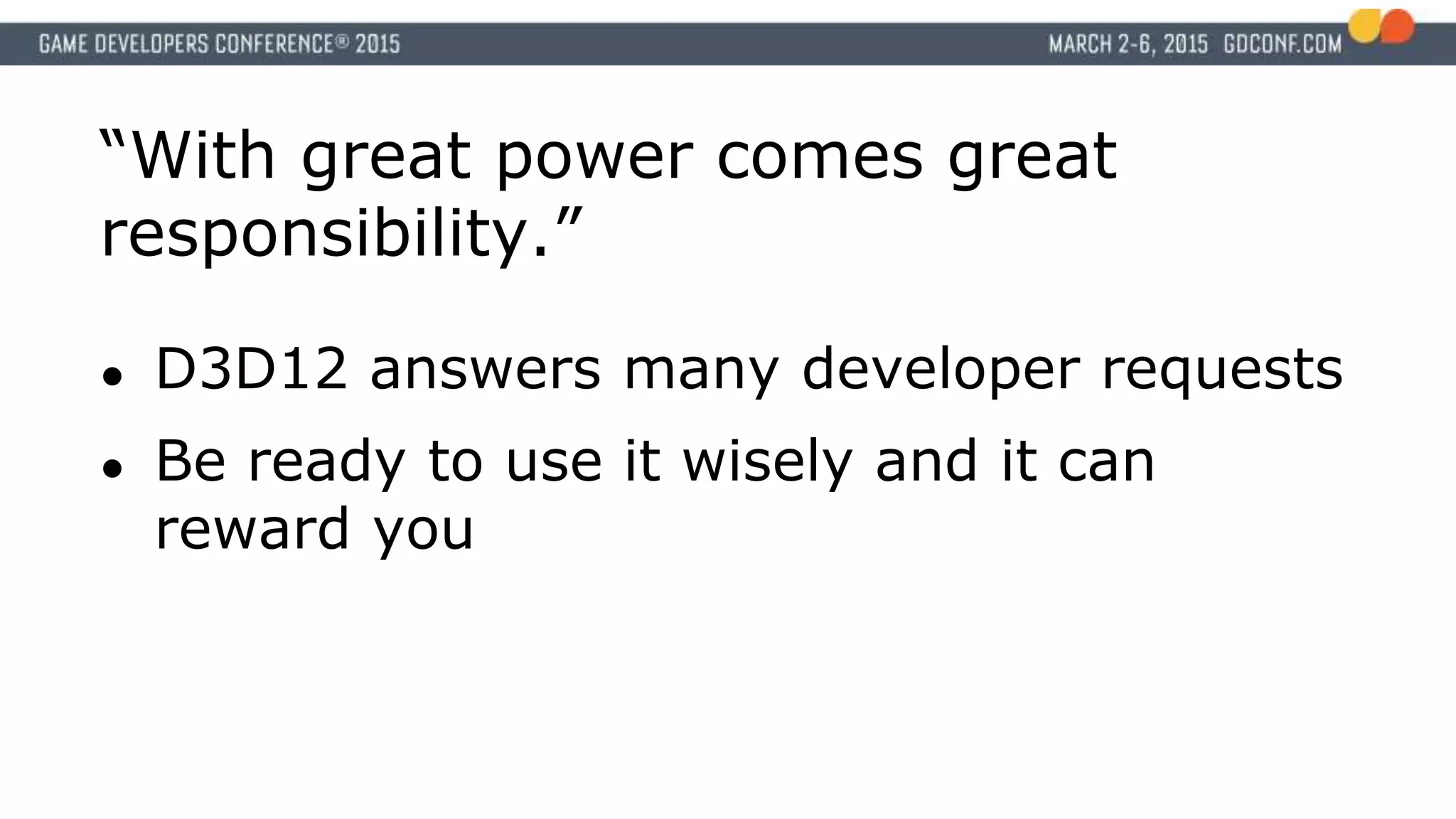

- 5. “With great powercomes great responsibility.” ● D3D12 answers many developer requests ● Be ready to use it wisely and it can reward you

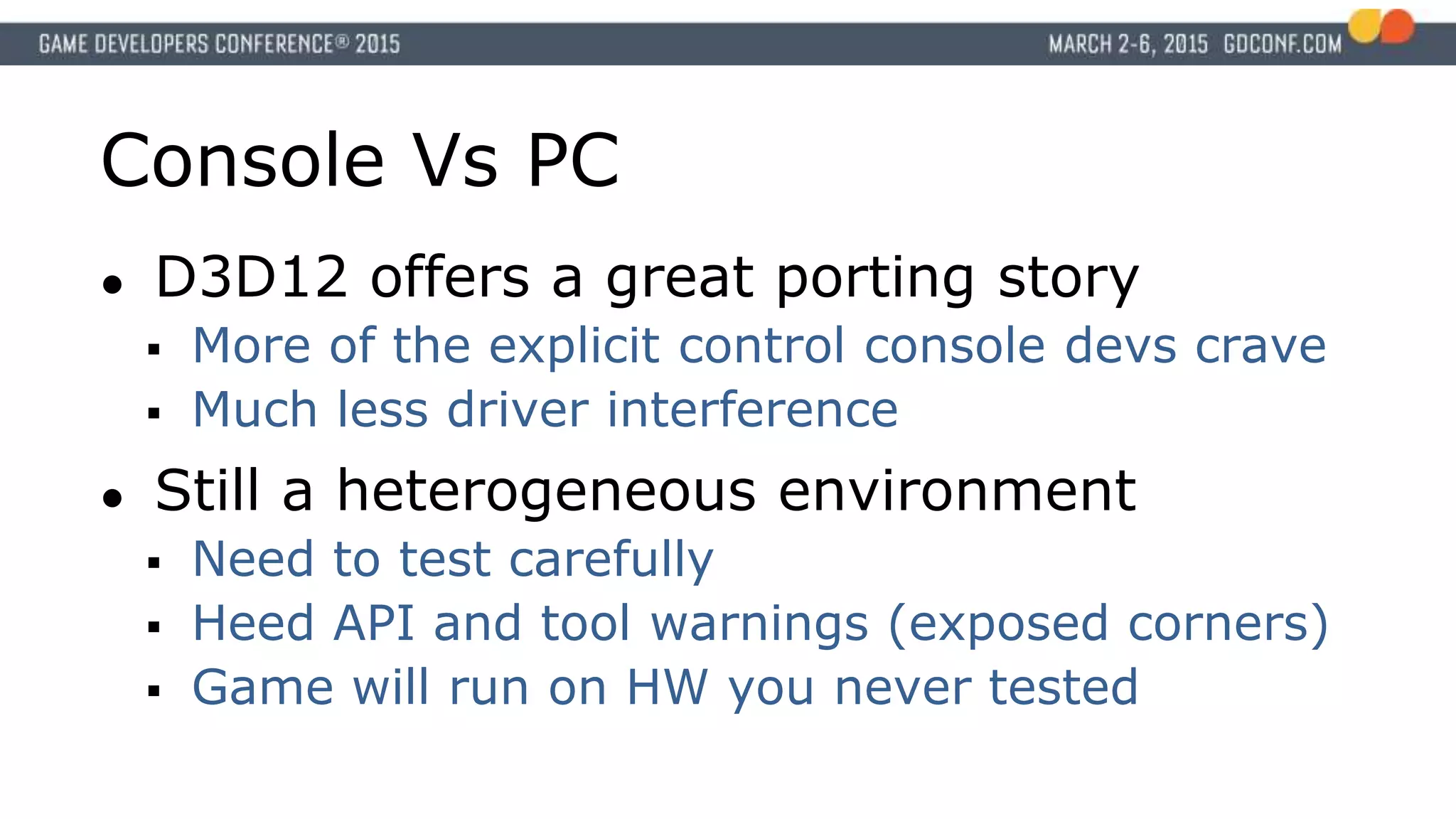

- 6. Console Vs PC ●D3D12 offers a great porting story More of the explicit control console devs crave Much less driver interference ● Still a heterogeneous environment Need to test carefully Heed API and tool warnings (exposed corners) Game will run on HW you never tested

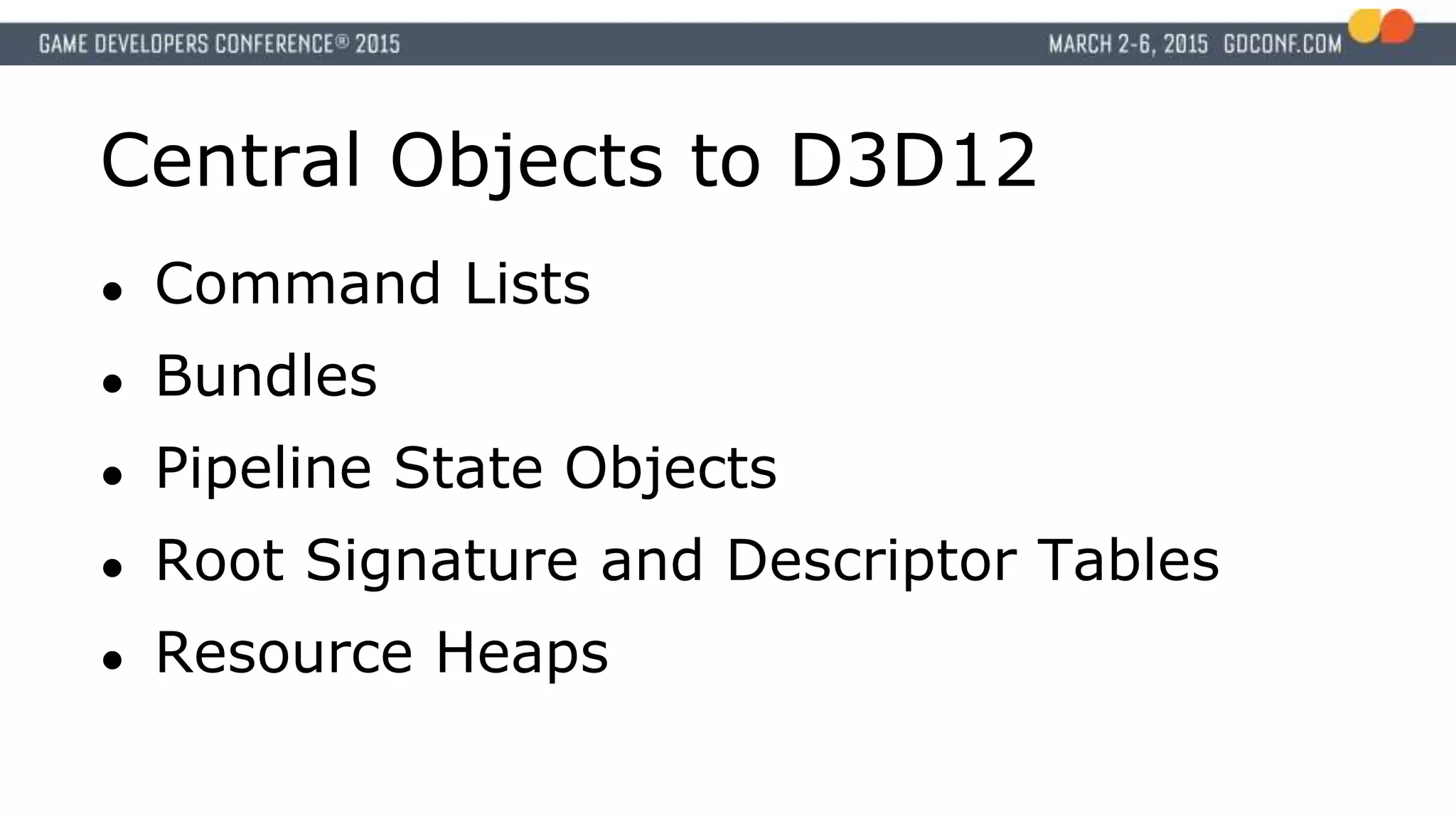

- 7. Central Objects toD3D12 ● Command Lists ● Bundles ● Pipeline State Objects ● Root Signature and Descriptor Tables ● Resource Heaps

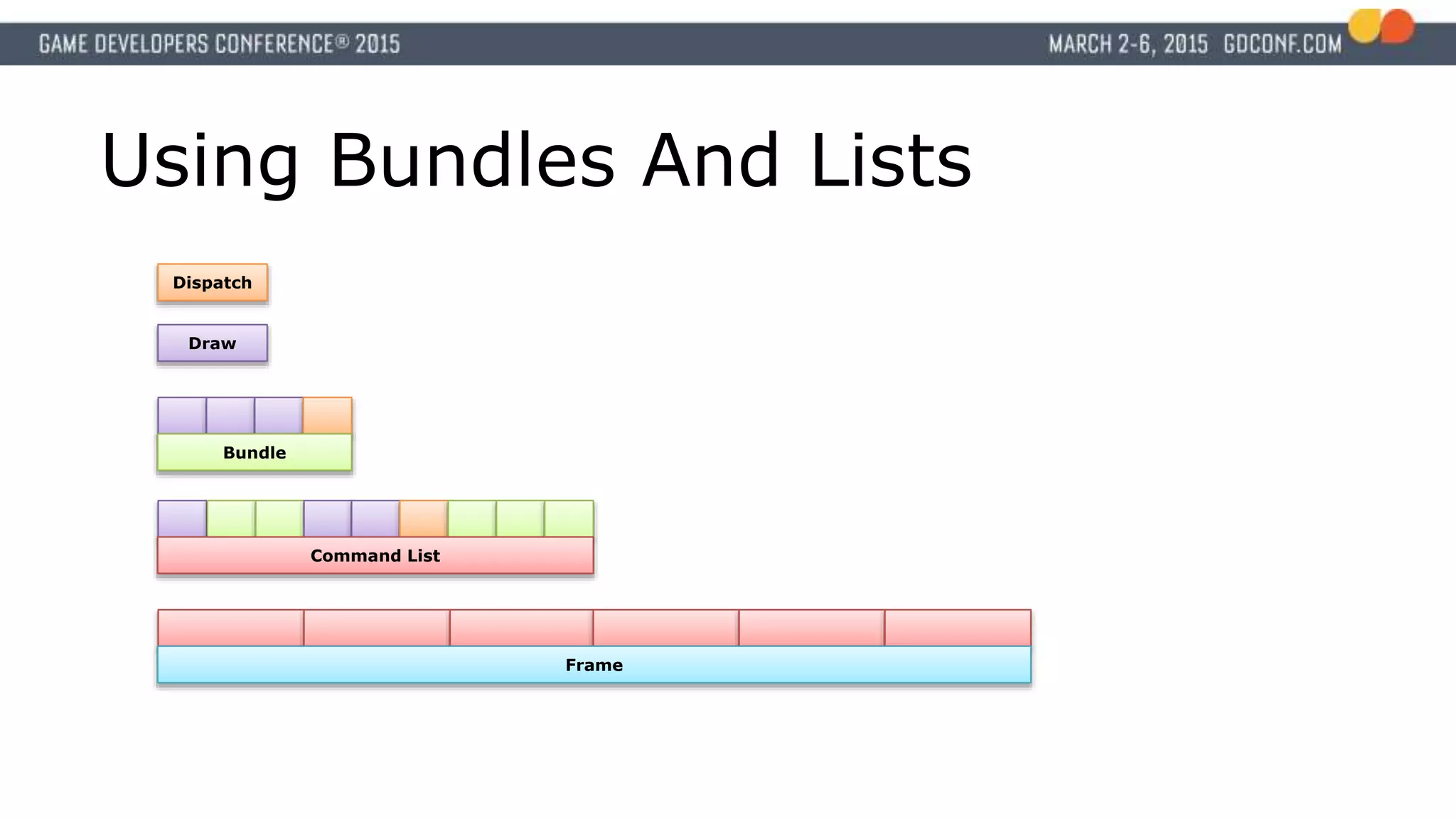

- 8. Using Bundles AndLists Draw Dispatch Bundle Command List Frame

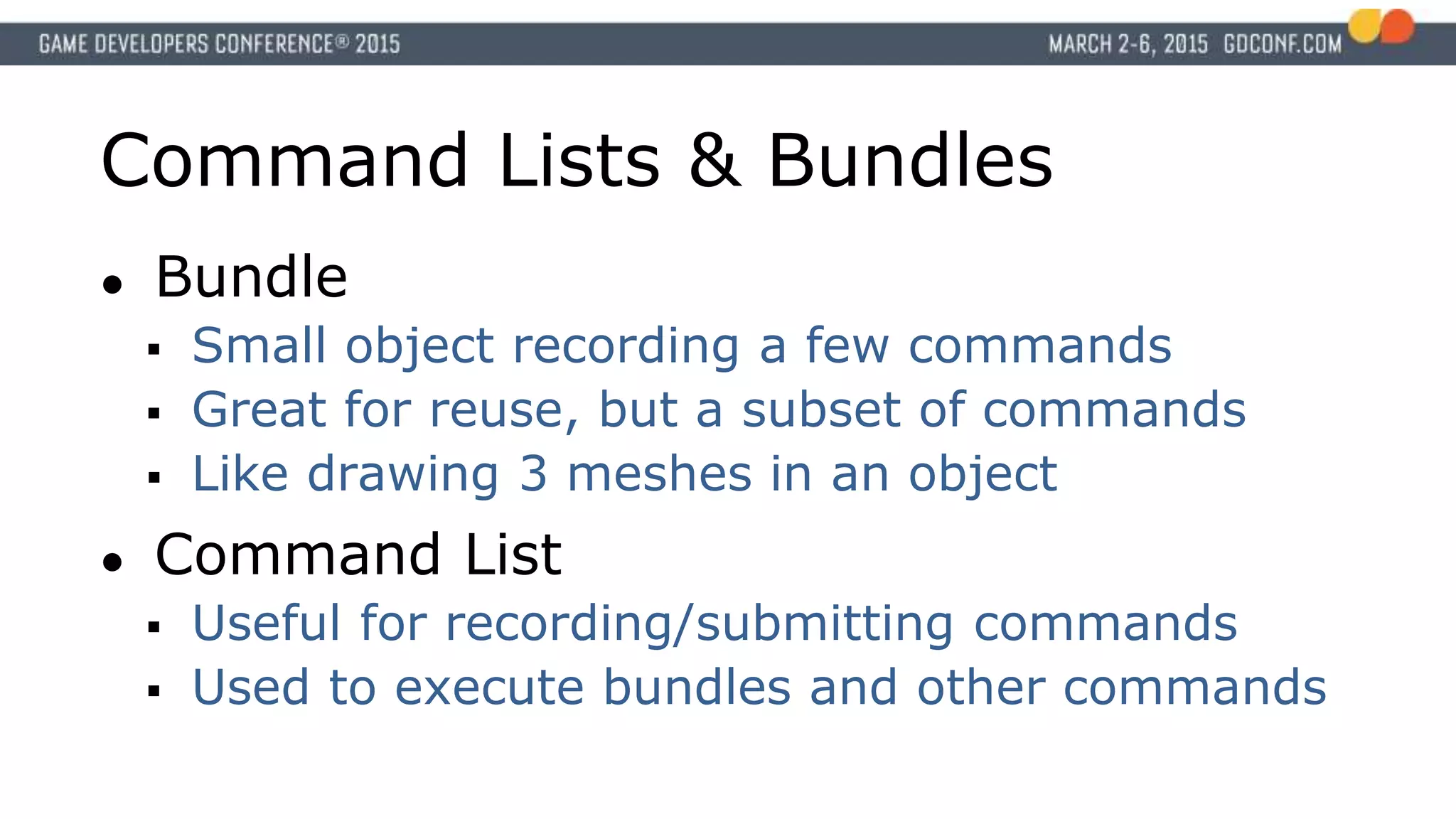

- 9. Command Lists &Bundles ● Bundle Small object recording a few commands Great for reuse, but a subset of commands Like drawing 3 meshes in an object ● Command List Useful for recording/submitting commands Used to execute bundles and other commands

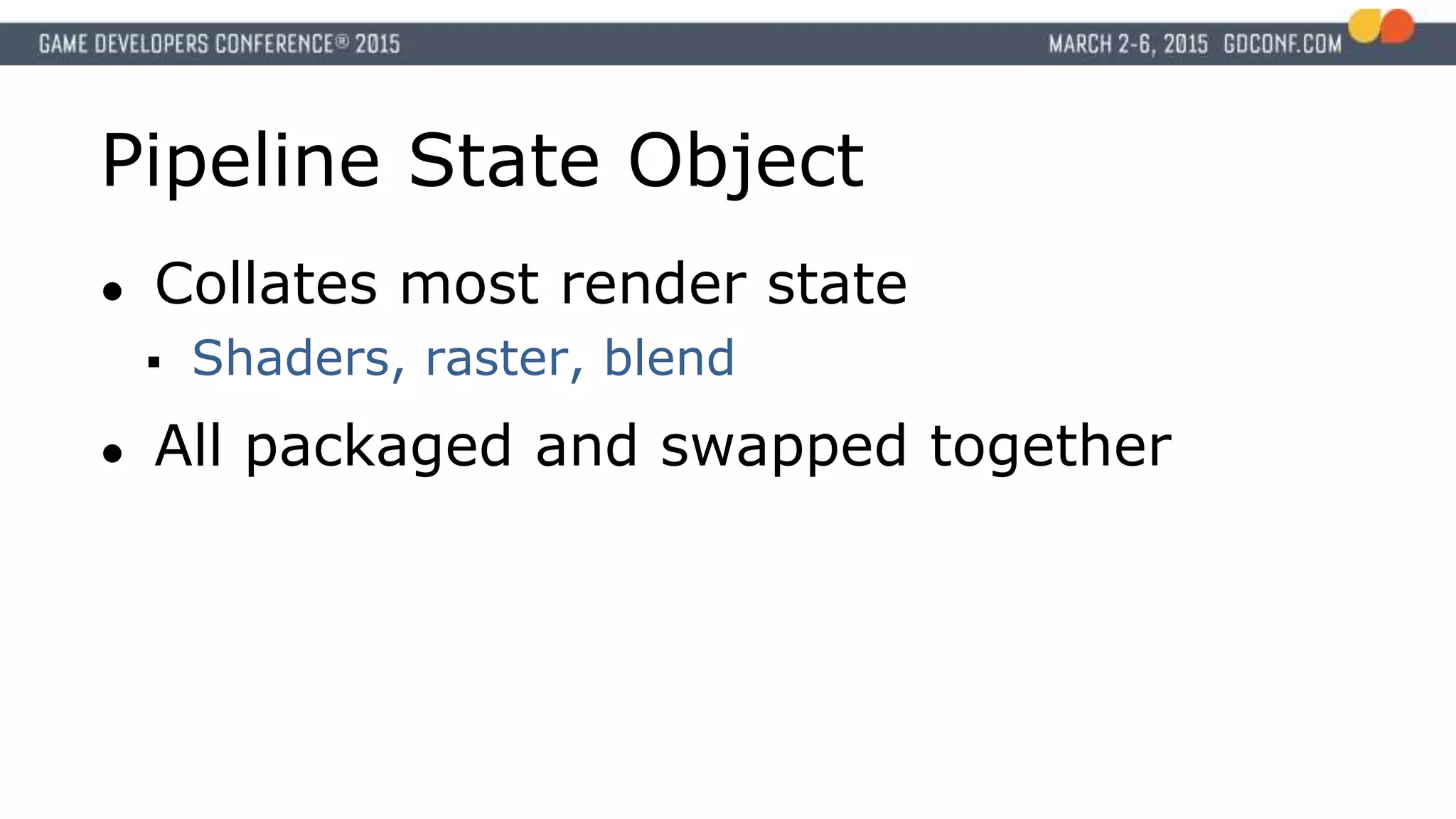

- 10. Pipeline State Object ●Collates most render state Shaders, raster, blend ● All packaged and swapped together

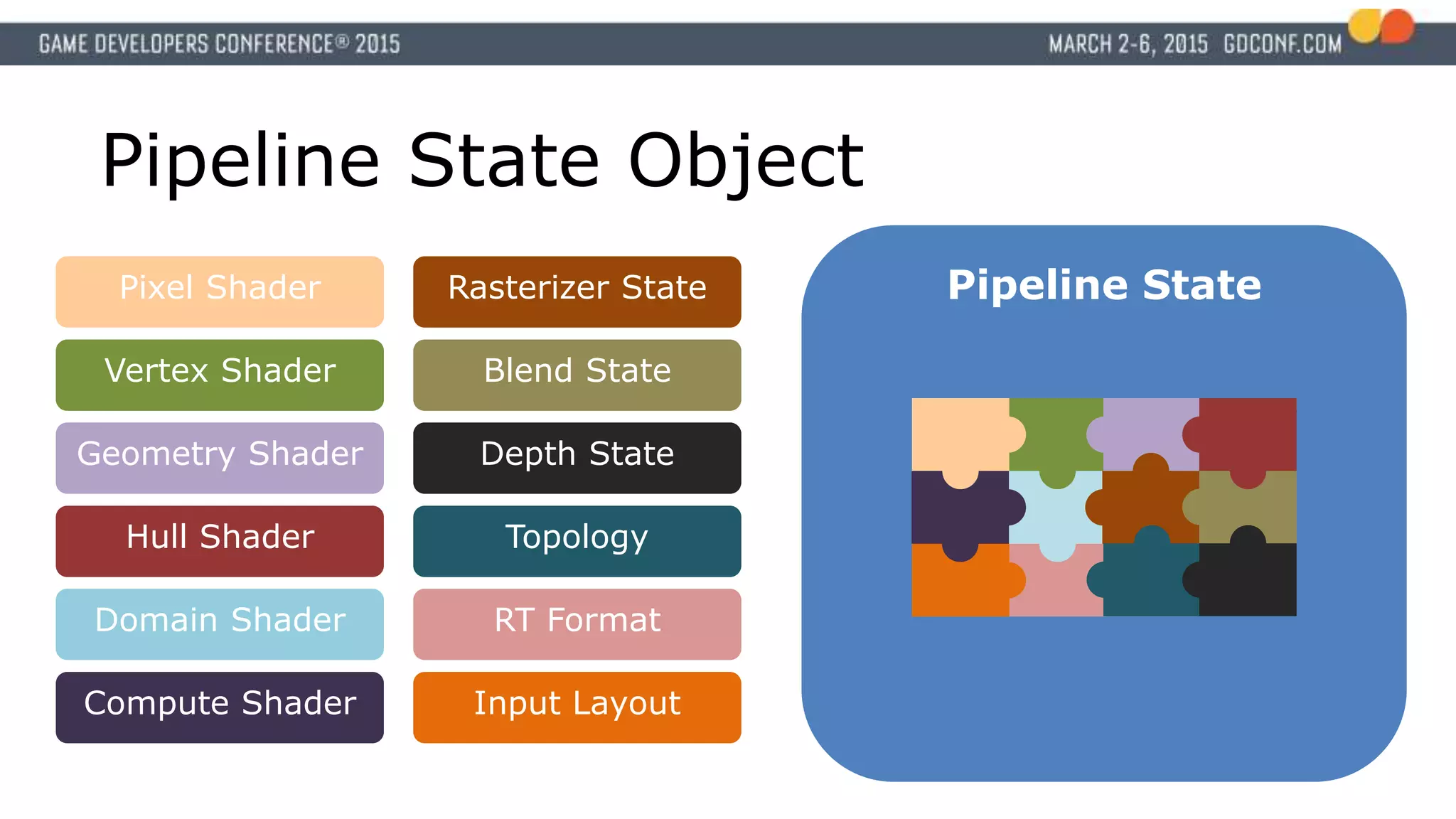

- 11. Pipeline State Object PipelineStatePixel Shader Vertex Shader Rasterizer State Depth State Blend State Input Layout Topology RT Format Geometry Shader Hull Shader Domain Shader Compute Shader

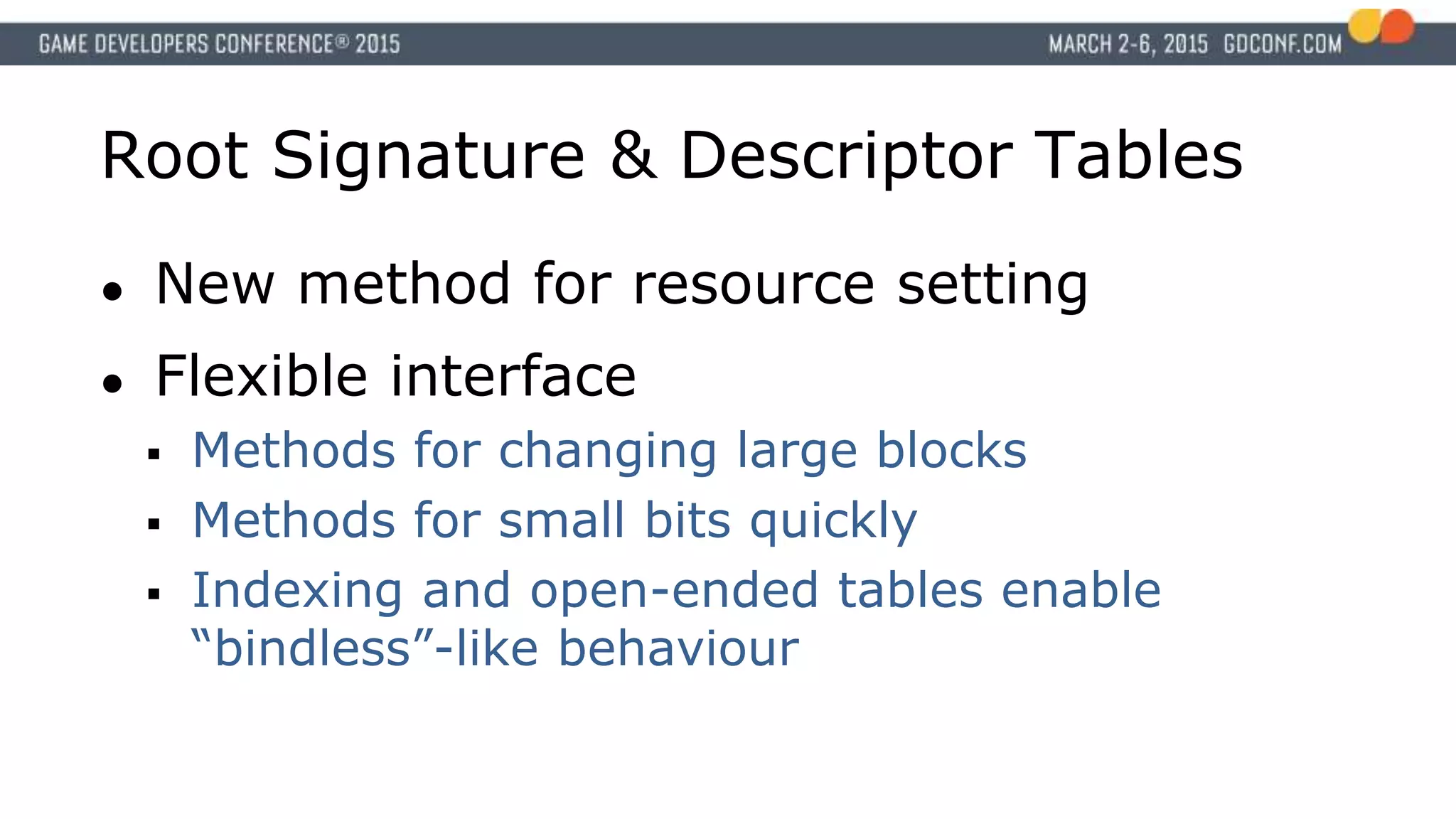

- 12. Root Signature &Descriptor Tables ● New method for resource setting ● Flexible interface Methods for changing large blocks Methods for small bits quickly Indexing and open-ended tables enable “bindless”-like behaviour

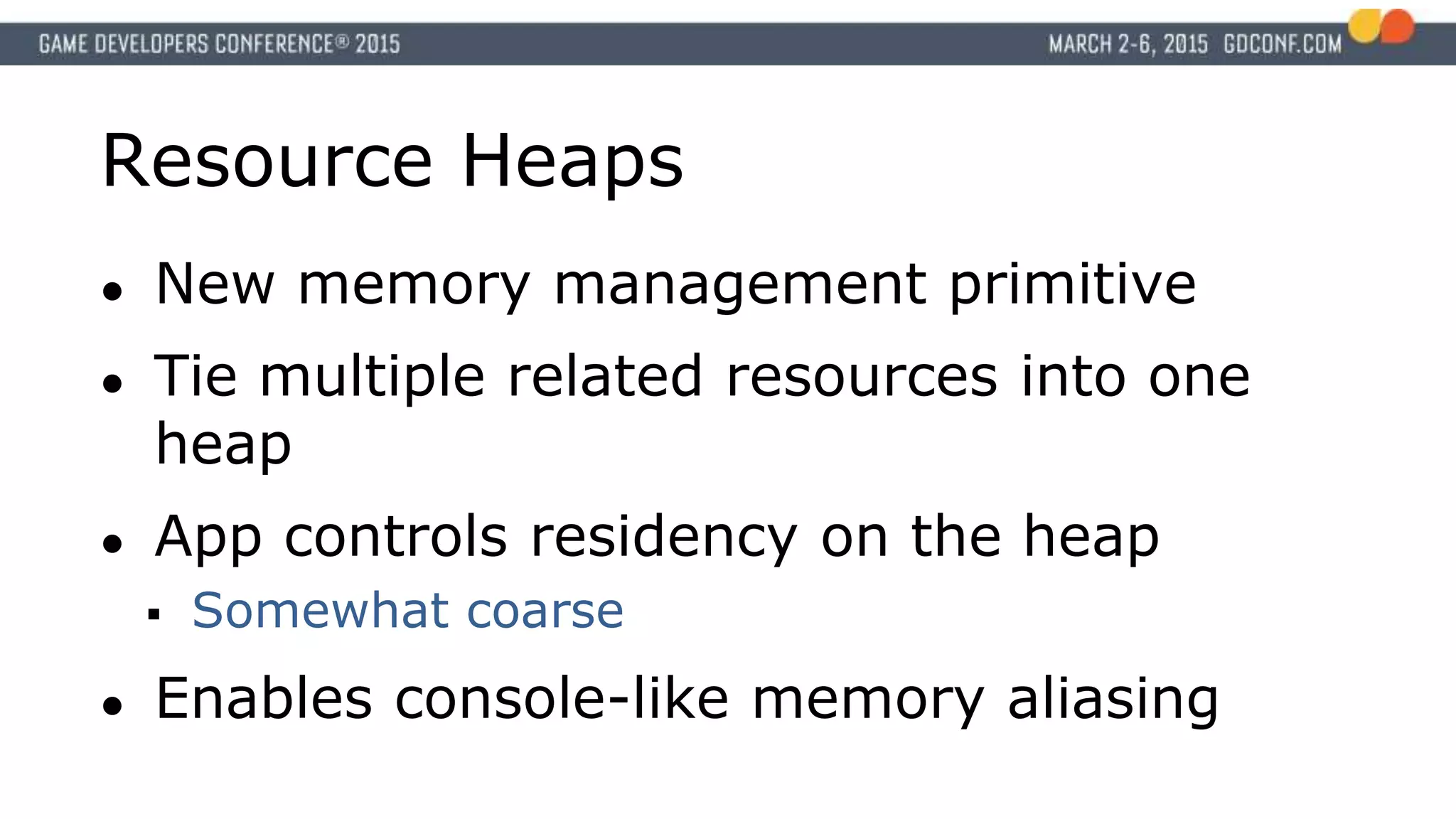

- 13. Resource Heaps ● Newmemory management primitive ● Tie multiple related resources into one heap ● App controls residency on the heap Somewhat coarse ● Enables console-like memory aliasing

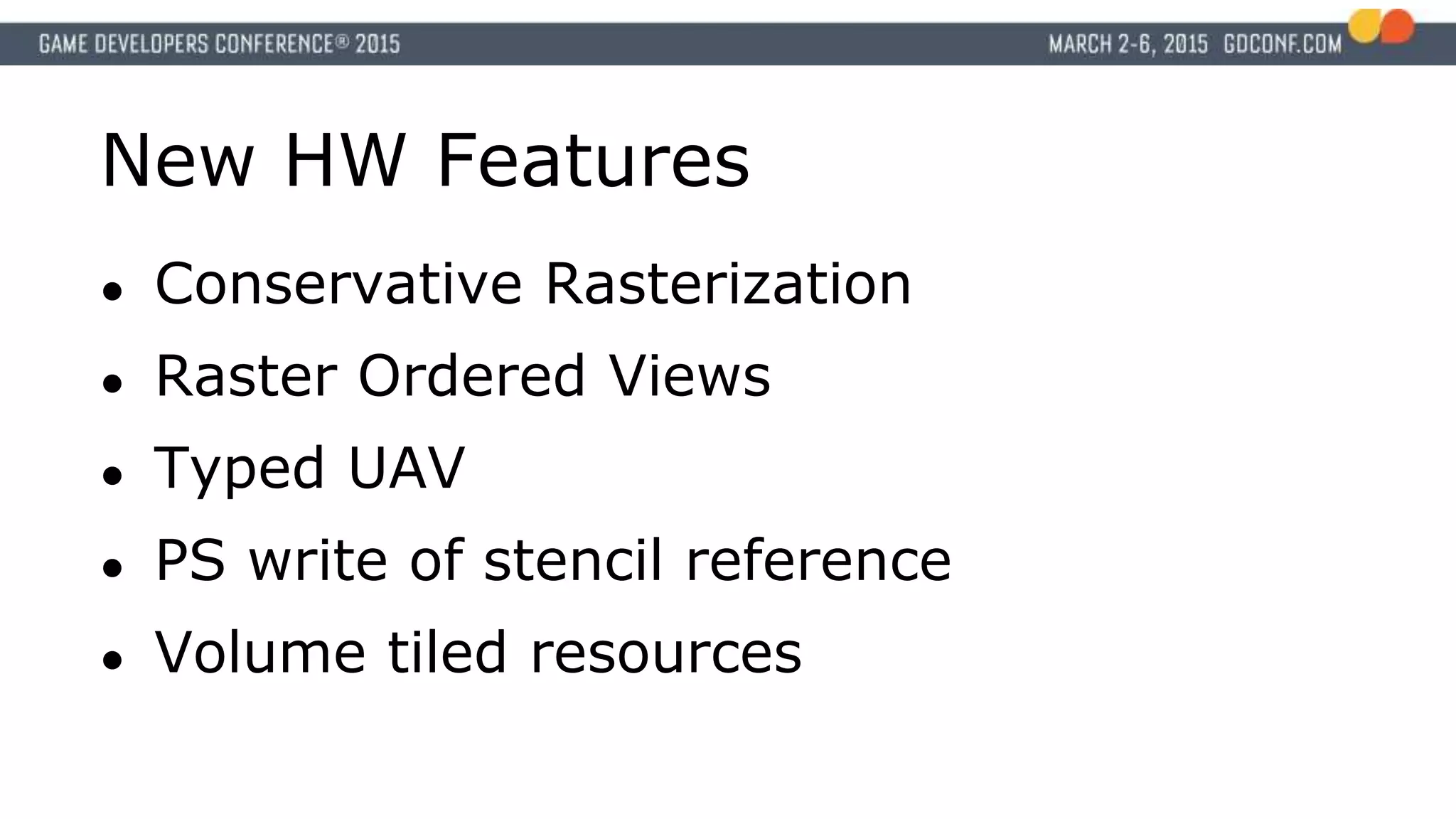

- 14. New HW Features ●Conservative Rasterization ● Raster Ordered Views ● Typed UAV ● PS write of stencil reference ● Volume tiled resources
- 15. Advice for theD3D12 Dev

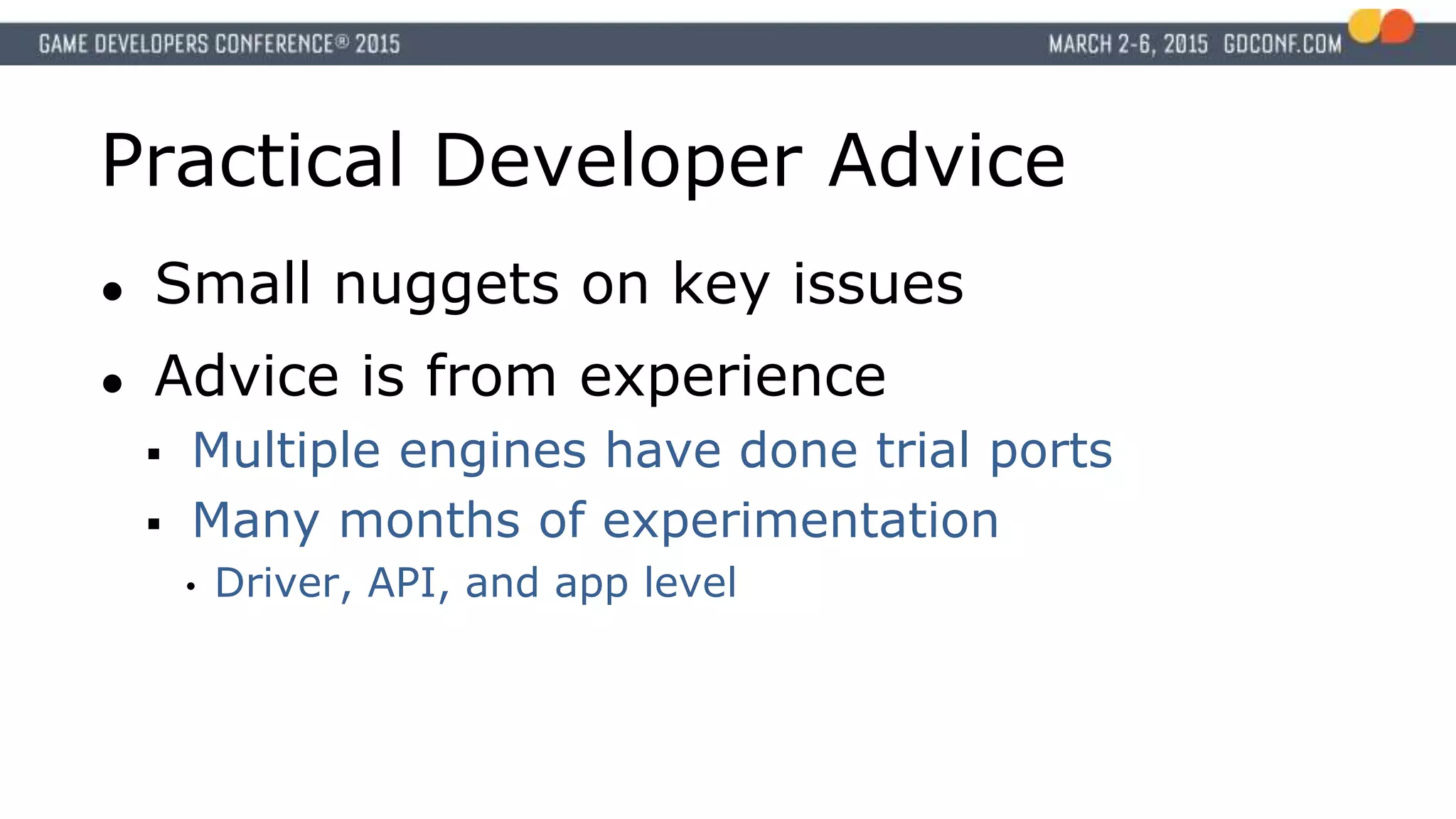

- 16. Practical Developer Advice ●Small nuggets on key issues ● Advice is from experience Multiple engines have done trial ports Many months of experimentation • Driver, API, and app level

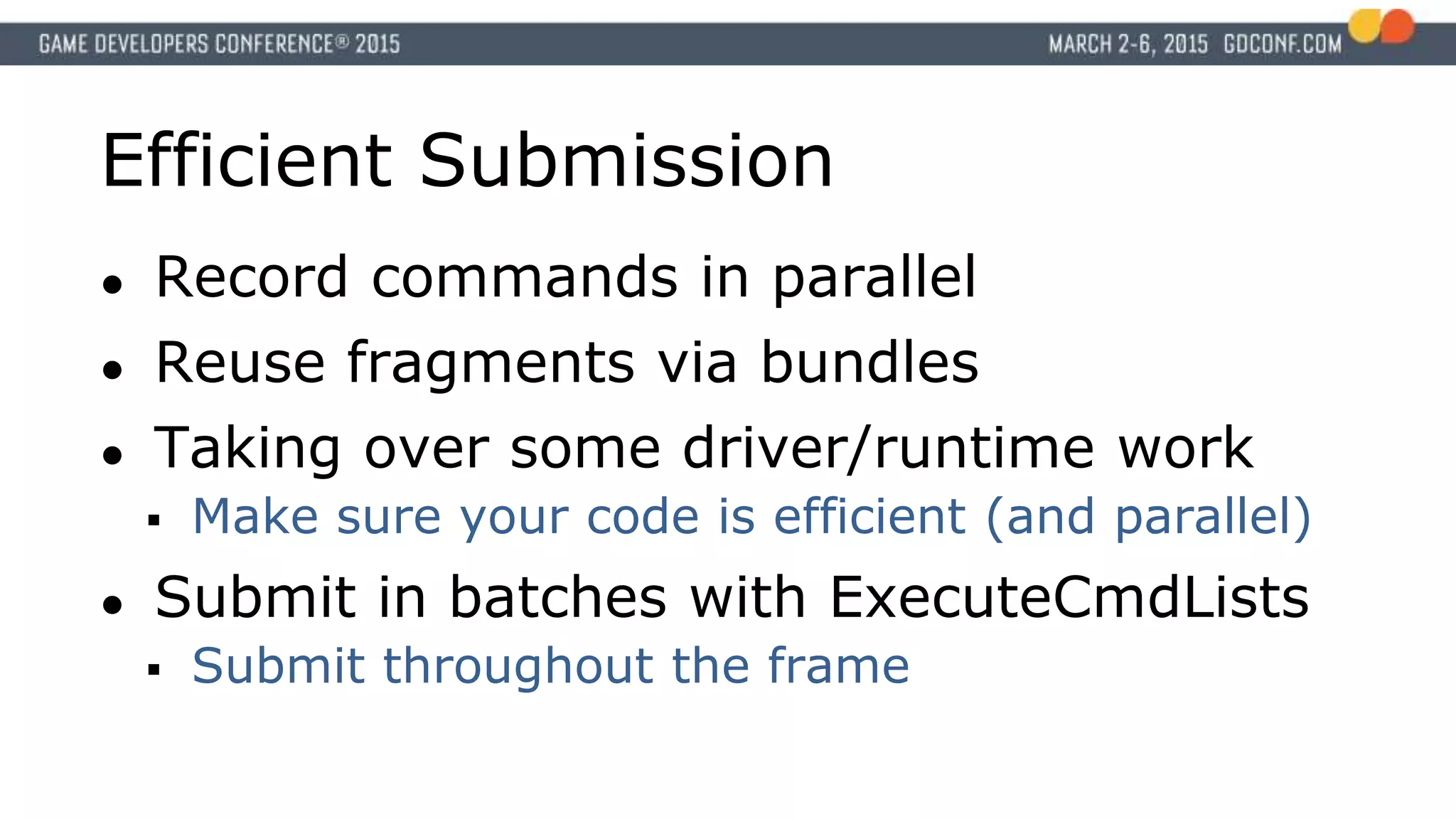

- 17. Efficient Submission ● Recordcommands in parallel ● Reuse fragments via bundles ● Taking over some driver/runtime work Make sure your code is efficient (and parallel) ● Submit in batches with ExecuteCmdLists Submit throughout the frame

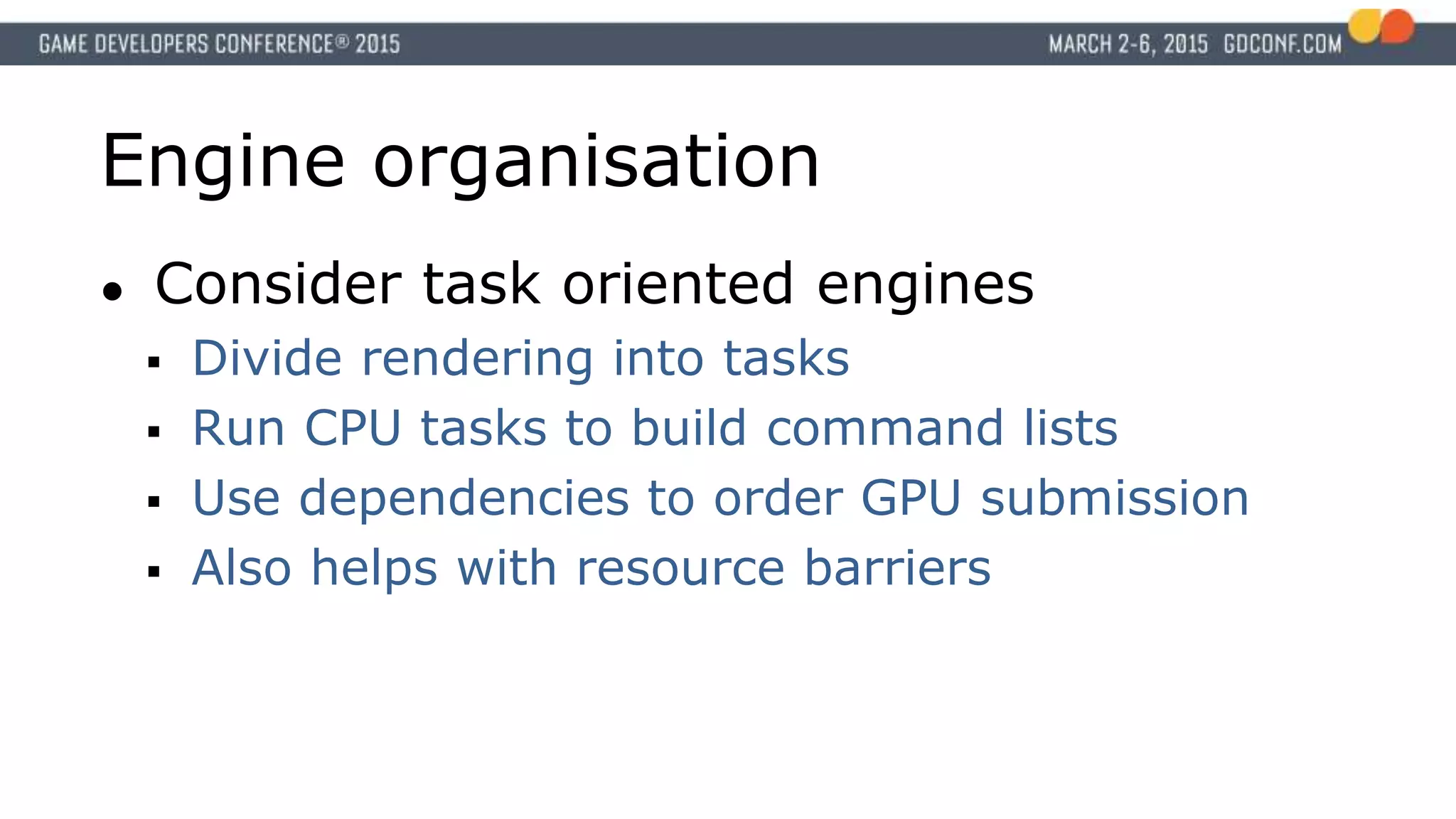

- 18. Engine organisation ● Considertask oriented engines Divide rendering into tasks Run CPU tasks to build command lists Use dependencies to order GPU submission Also helps with resource barriers

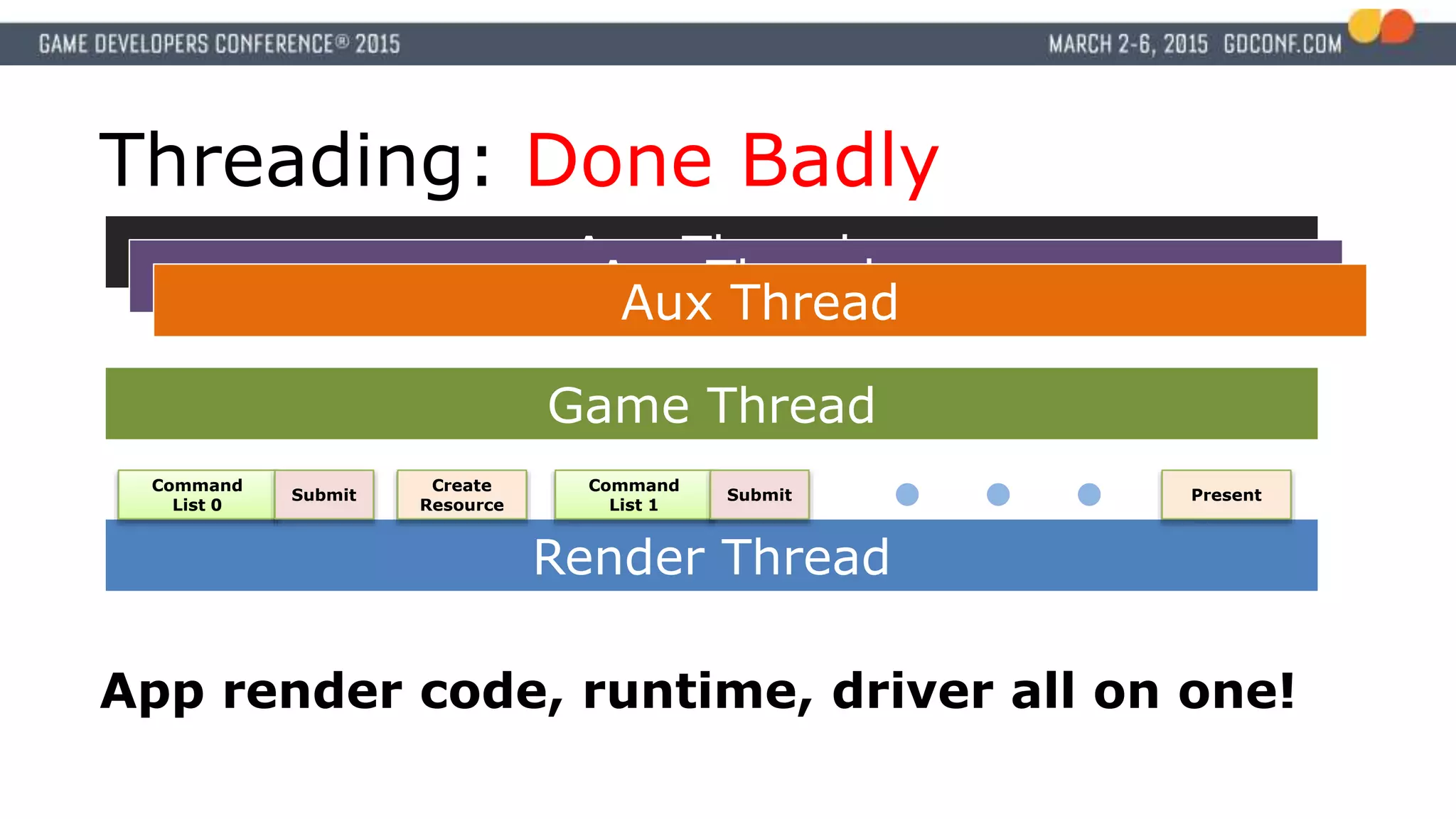

- 19. Threading: Done Badly RenderThread Command List 0 Command List 1 Submit Submit Create Resource Present Game Thread Aux Thread Aux ThreadAux Thread App render code, runtime, driver all on one!

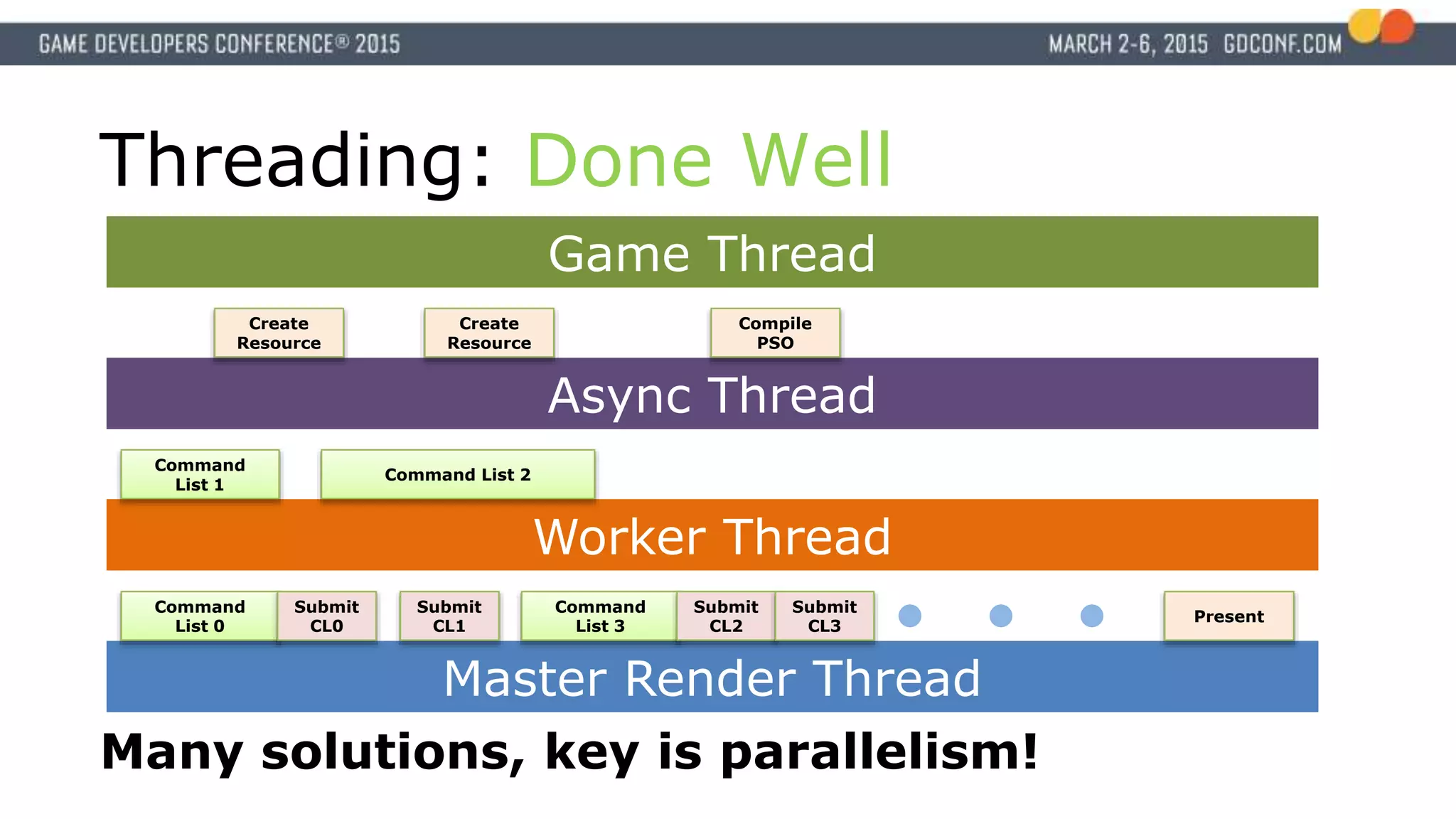

- 20. Async Thread Worker Thread Threading:Done Well Master Render Thread Command List 0 Command List 1 Submit CL0 Submit CL1 Create Resource Present Game Thread Many solutions, key is parallelism! Create Resource Compile PSO Command List 2 Command List 3 Submit CL2 Submit CL3

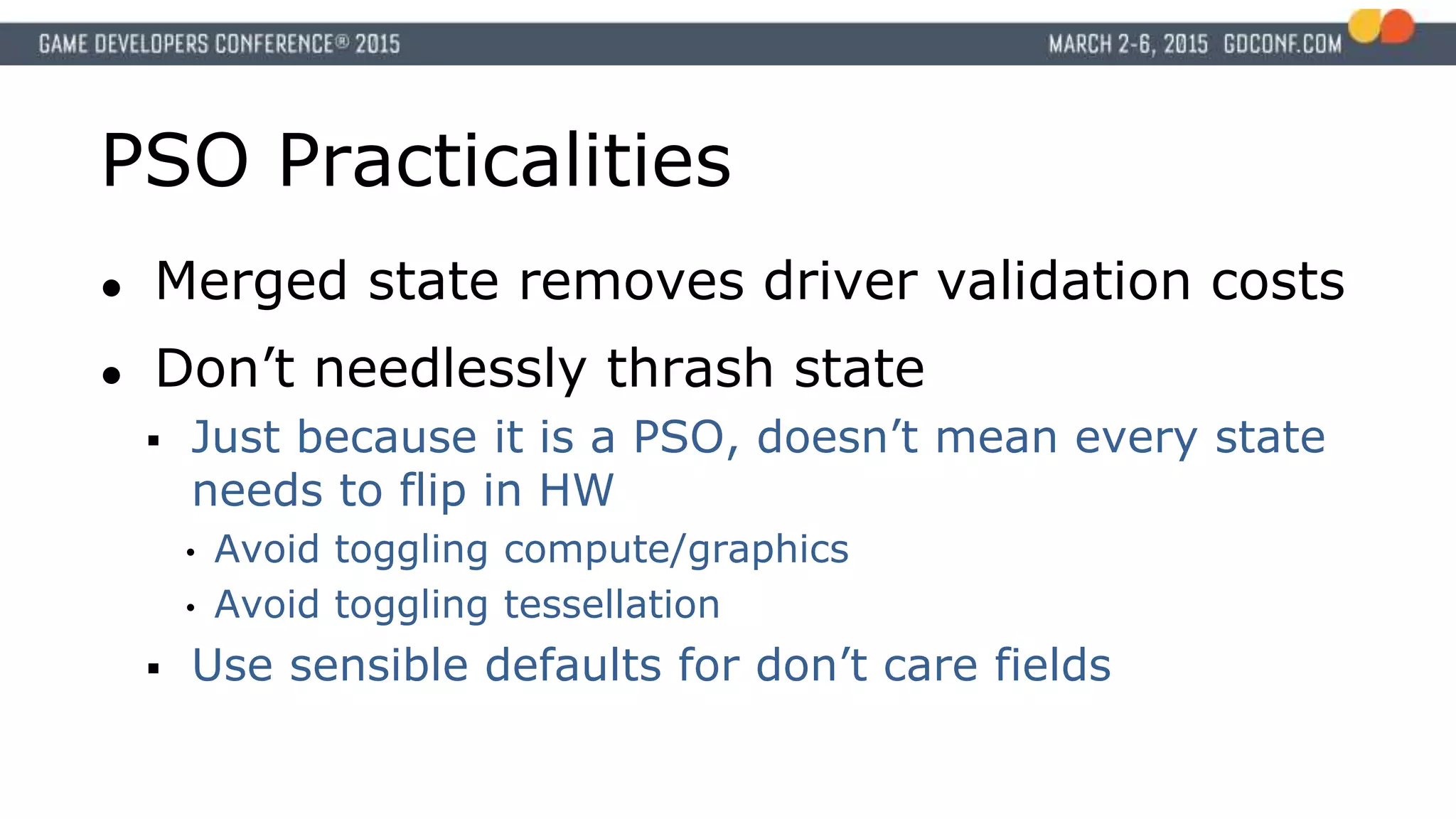

- 21. PSO Practicalities ● Mergedstate removes driver validation costs ● Don’t needlessly thrash state Just because it is a PSO, doesn’t mean every state needs to flip in HW • Avoid toggling compute/graphics • Avoid toggling tessellation Use sensible defaults for don’t care fields

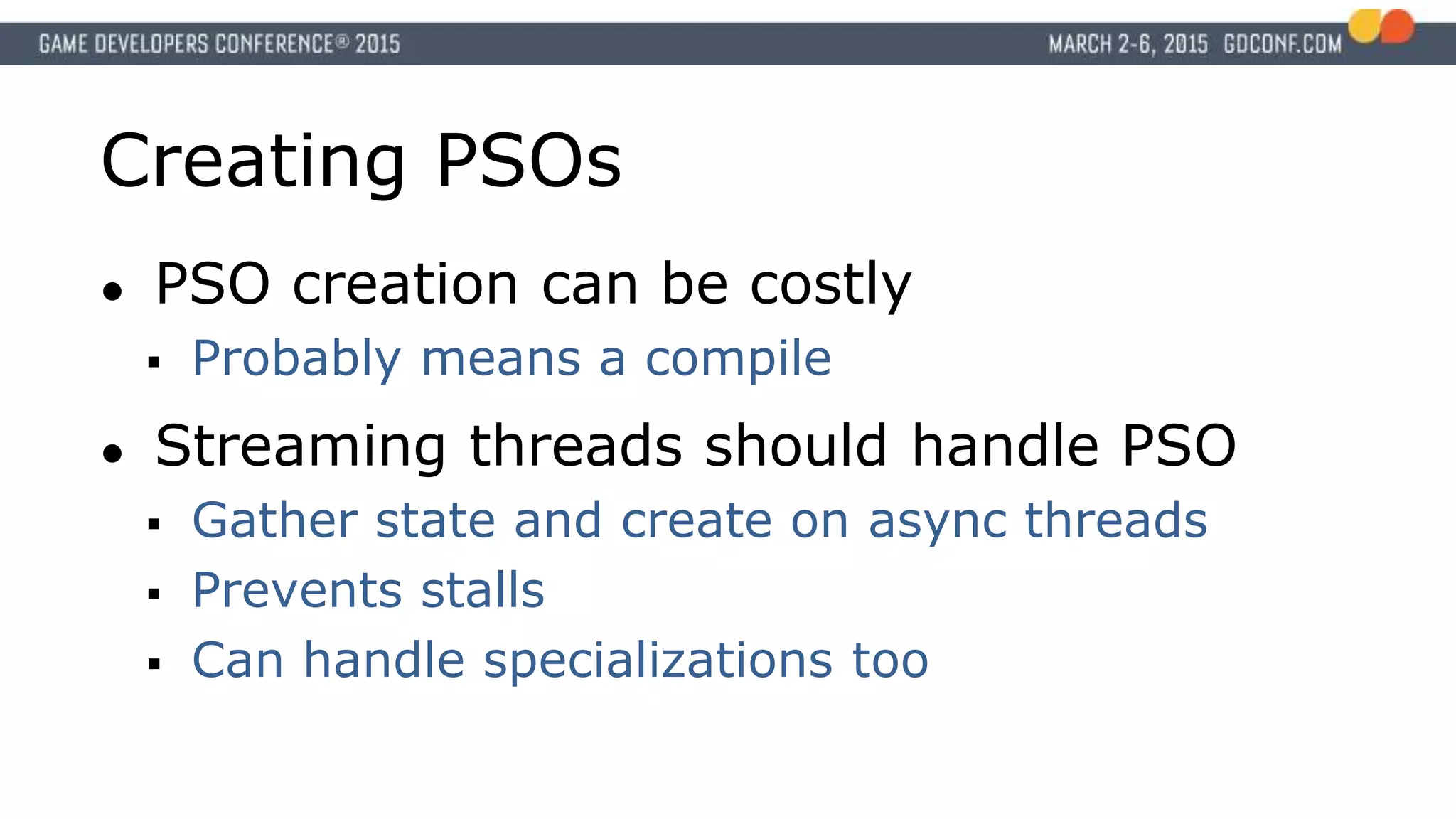

- 22. Creating PSOs ● PSOcreation can be costly Probably means a compile ● Streaming threads should handle PSO Gather state and create on async threads Prevents stalls Can handle specializations too
- 23. Deferred PSO Update ●“Quick first compile; better answer later” Simple / generic / free initial shader Start the compile of the better result Substitute PSO when it’s ready ● Generic / specialized especially useful Precompile the generic case More optimal path for special cases, compiled on low priority thread
- 24. Using Bundles AndLists Draw Dispatch Bundle Command List Frame

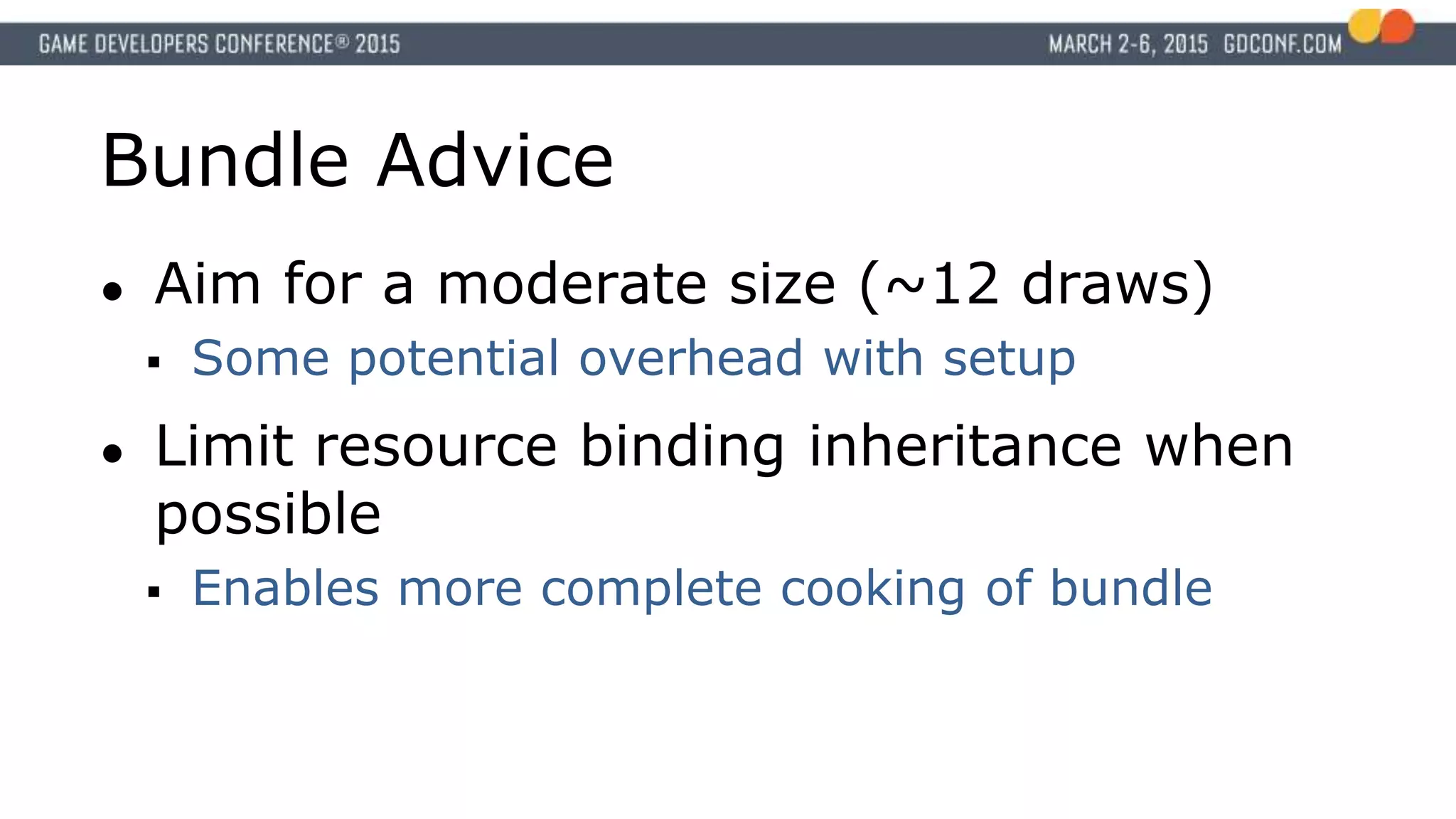

- 25. Bundle Advice ● Aimfor a moderate size (~12 draws) Some potential overhead with setup ● Limit resource binding inheritance when possible Enables more complete cooking of bundle

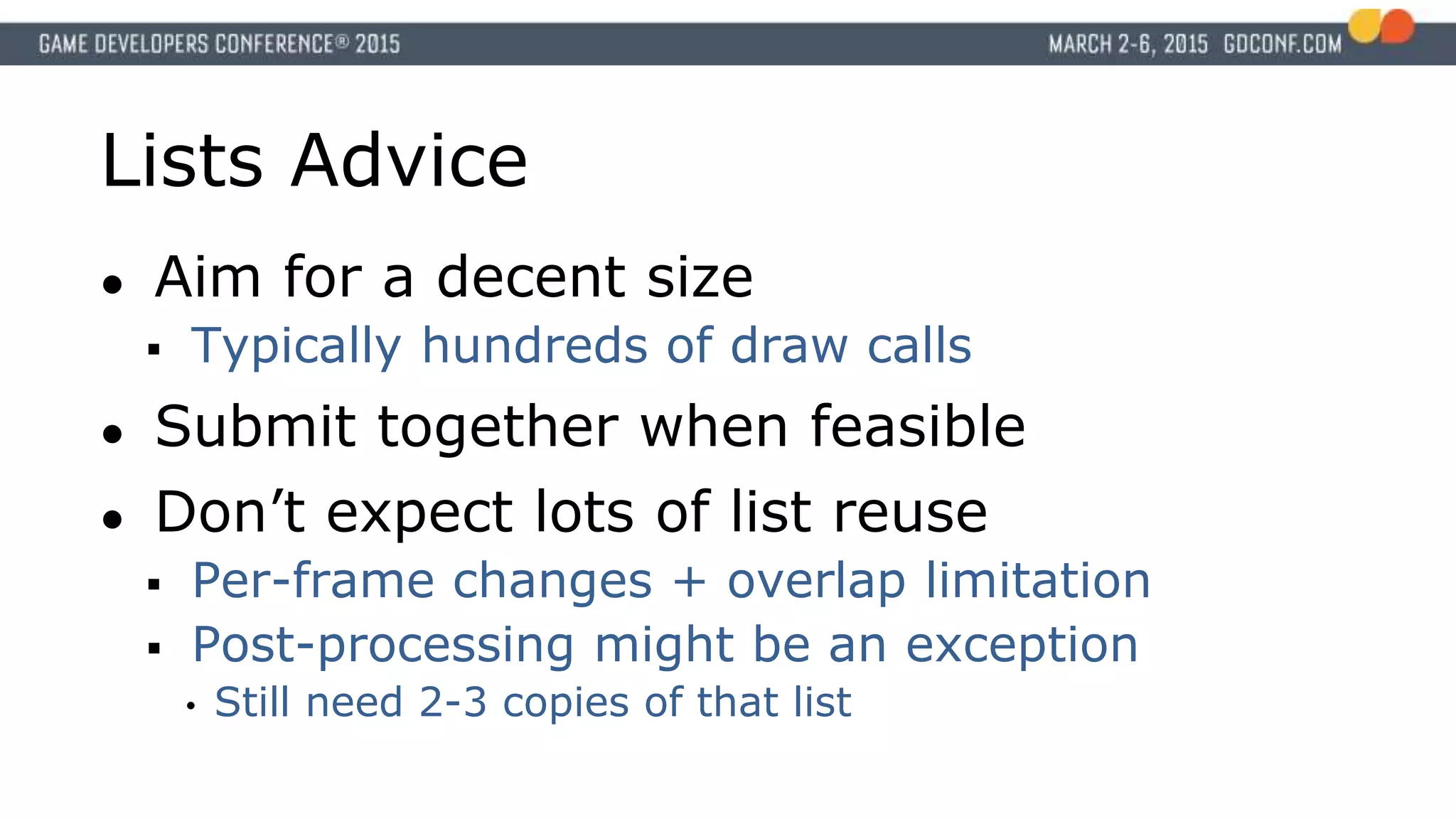

- 26. Lists Advice ● Aimfor a decent size Typically hundreds of draw calls ● Submit together when feasible ● Don’t expect lots of list reuse Per-frame changes + overlap limitation Post-processing might be an exception • Still need 2-3 copies of that list
- 27.

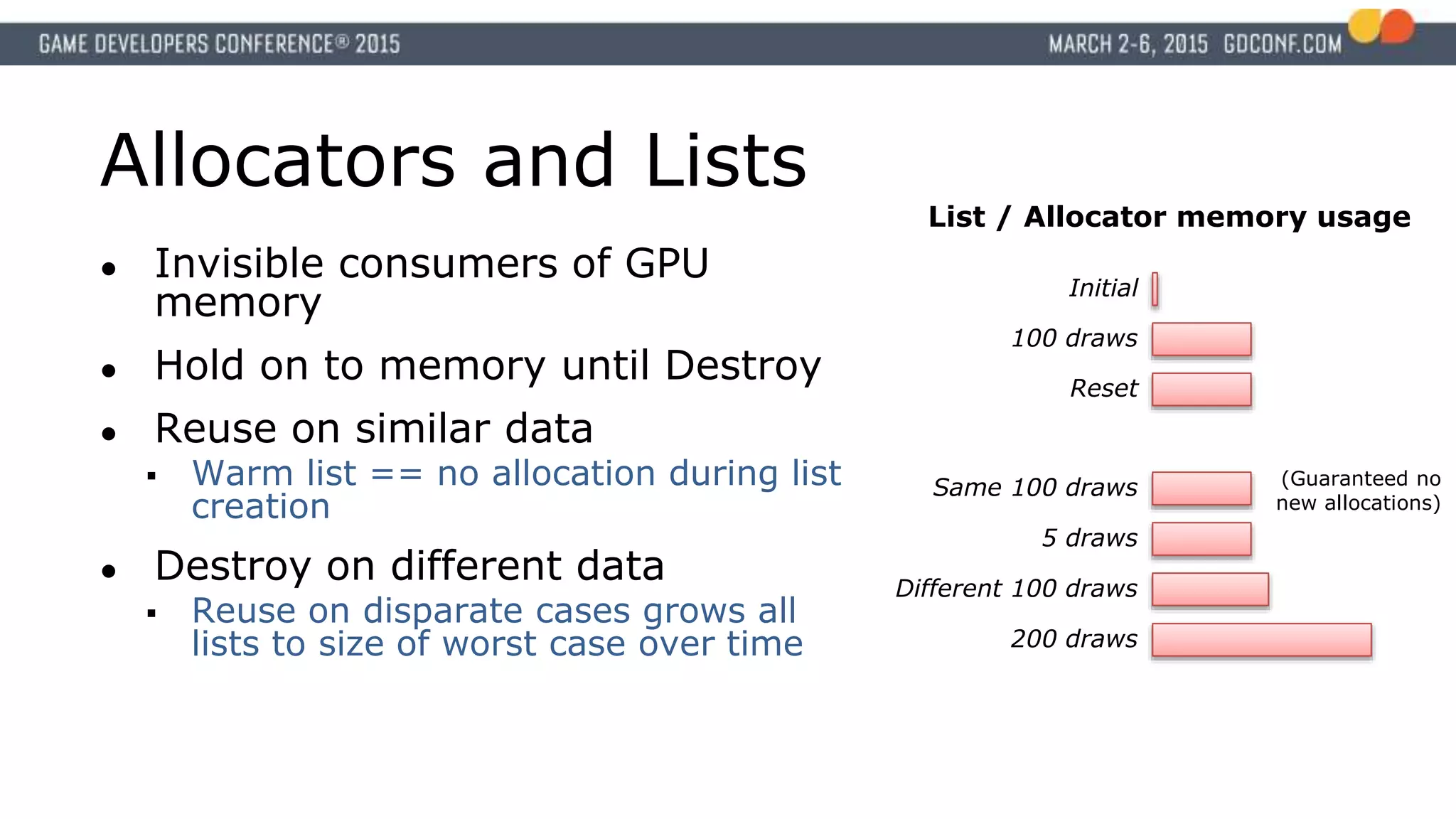

- 28. Allocators and Lists ●Invisible consumers of GPU memory ● Hold on to memory until Destroy ● Reuse on similar data Warm list == no allocation during list creation ● Destroy on different data Reuse on disparate cases grows all lists to size of worst case over time Initial 100 draws Reset Same 100 draws 200 draws List / Allocator memory usage (Guaranteed no new allocations) Different 100 draws 5 draws

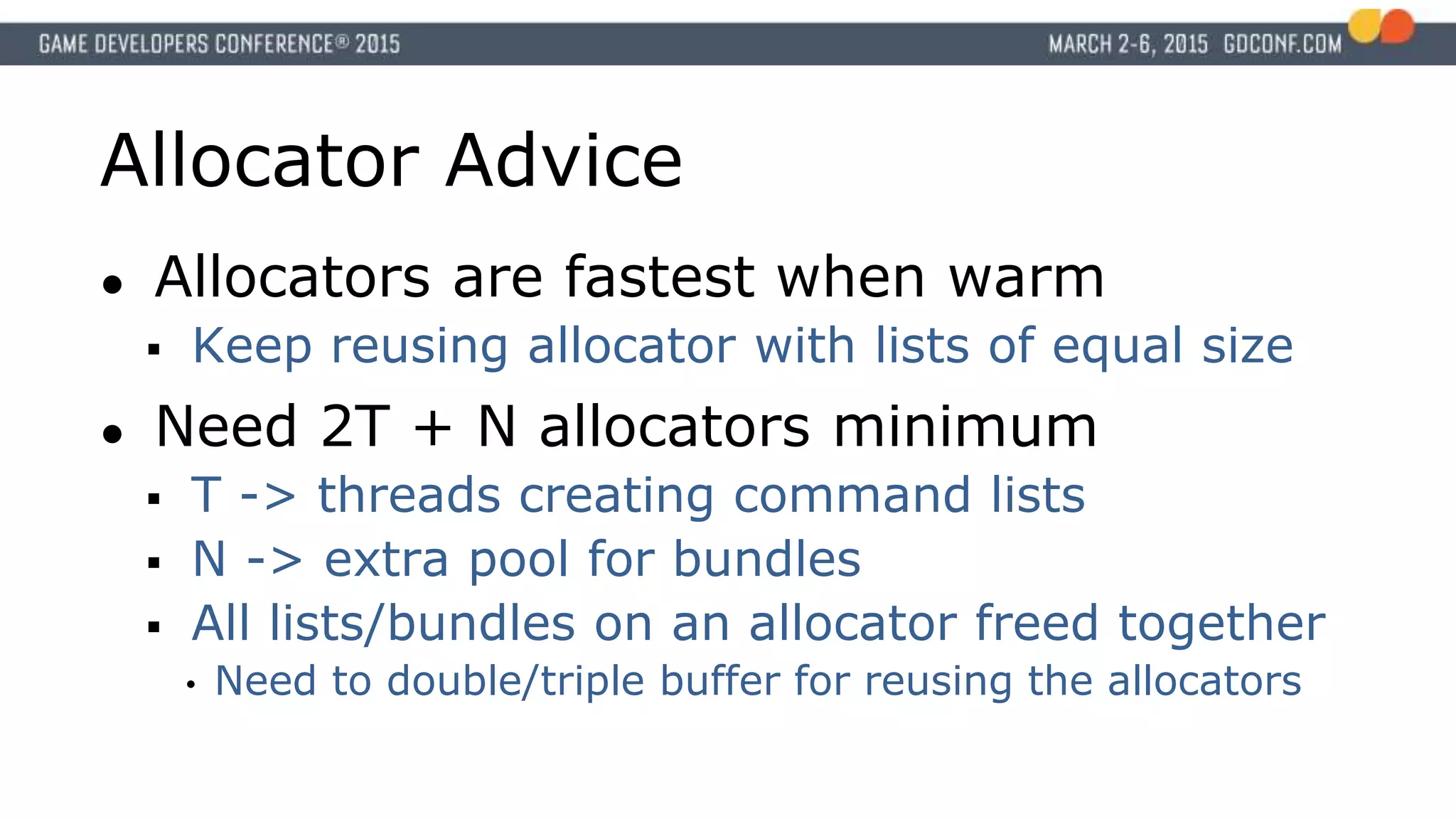

- 29. Allocator Advice ● Allocatorsare fastest when warm Keep reusing allocator with lists of equal size ● Need 2T + N allocators minimum T -> threads creating command lists N -> extra pool for bundles All lists/bundles on an allocator freed together • Need to double/triple buffer for reusing the allocators
- 30. Root Signature ● Carefullylayout root signature Group tables by frequency of change Most frequent changes early in signature ● Standardize slots Signature change costs Per-Draw Table Pointer Tex Tex Const Buf (shader params) Tex Const Buf (shader params) Tex Const Buf (camera , eye...) Constant Buffer pointer (Modelview matrix, skinning) Per-draw constants Per-Material Table Pointer Per-Frame Table Pointer Tex

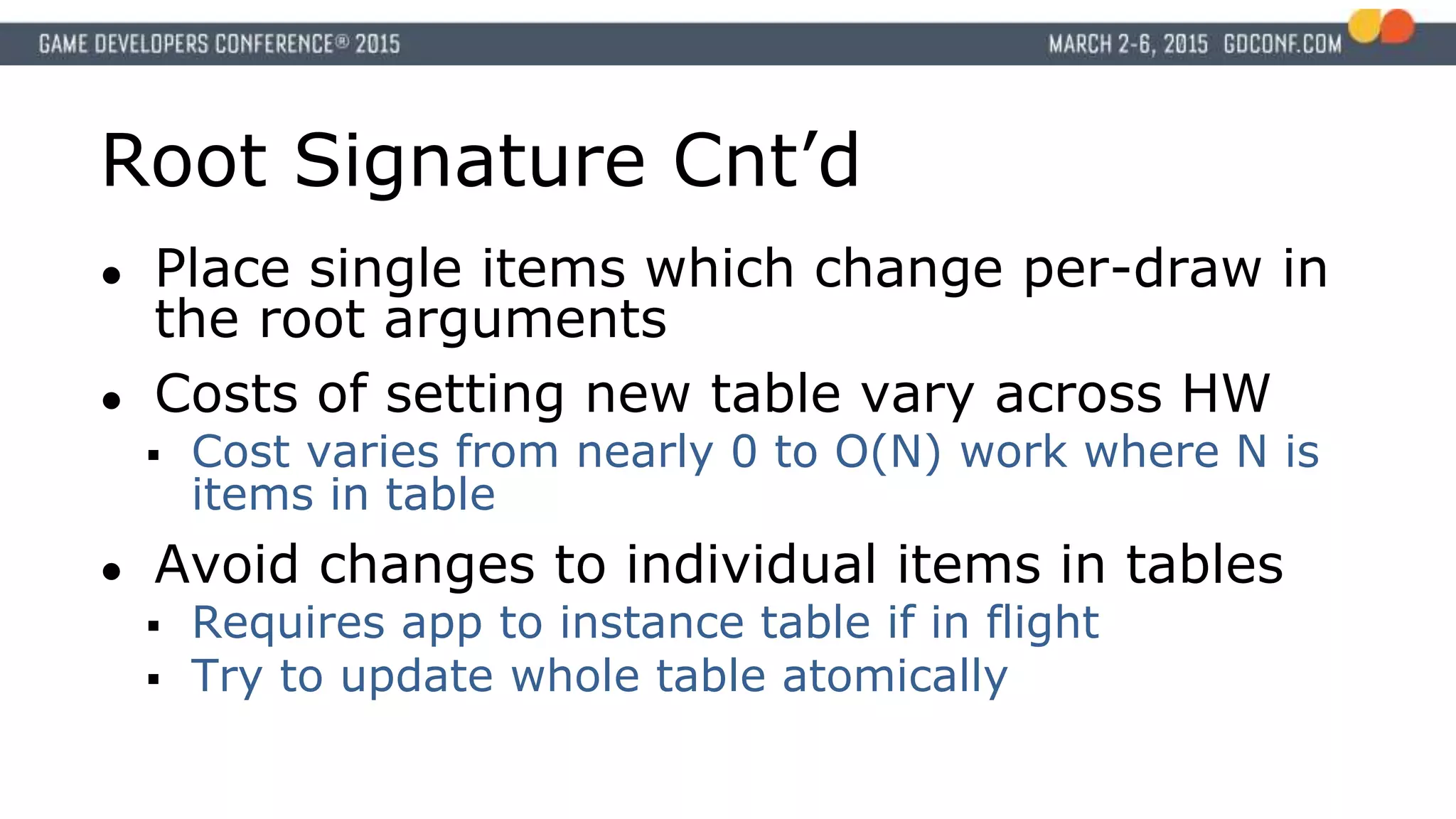

- 31. Root Signature Cnt’d ●Place single items which change per-draw in the root arguments ● Costs of setting new table vary across HW Cost varies from nearly 0 to O(N) work where N is items in table ● Avoid changes to individual items in tables Requires app to instance table if in flight Try to update whole table atomically

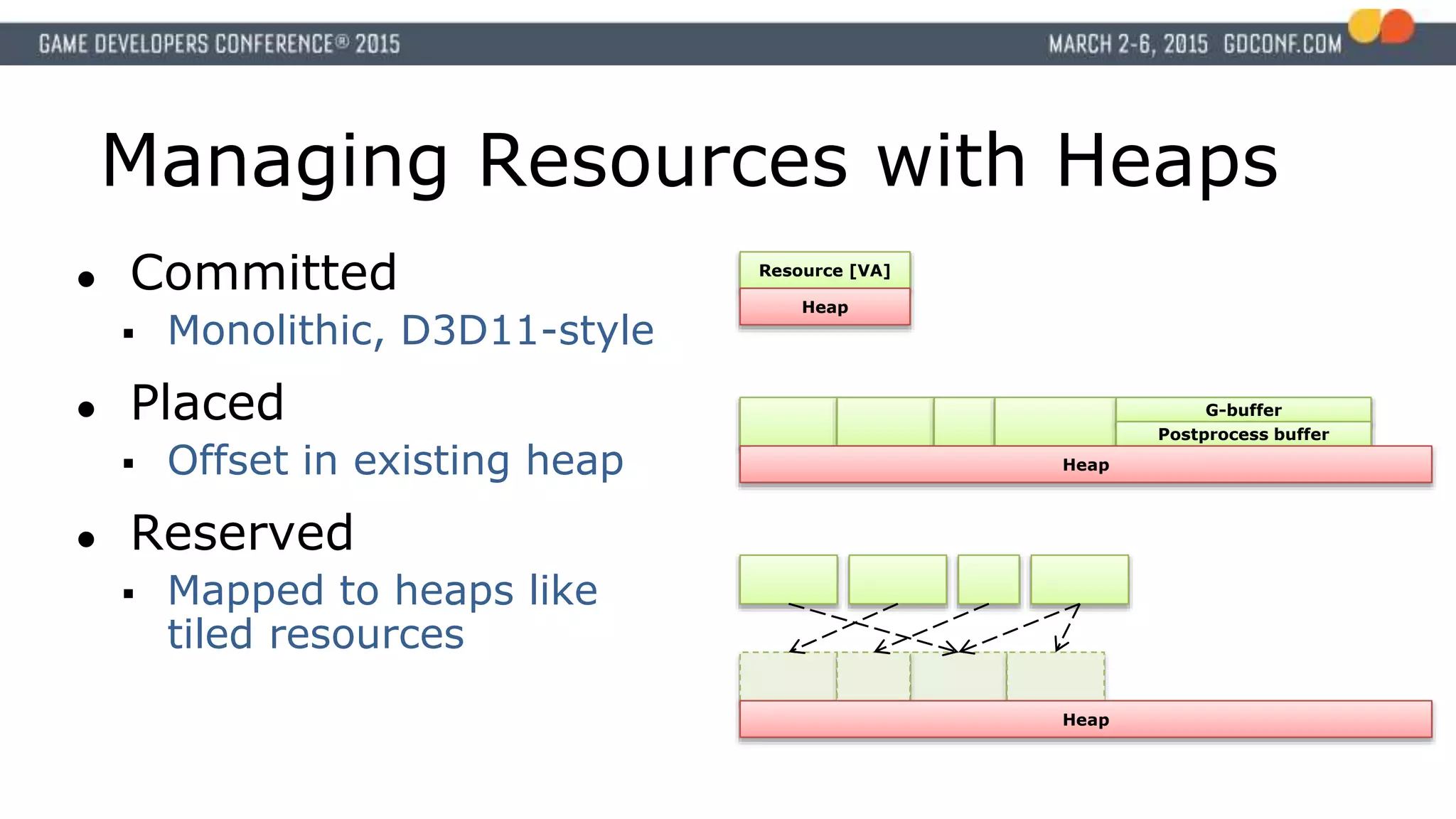

- 32. Managing Resources withHeaps ● Committed Monolithic, D3D11-style ● Placed Offset in existing heap ● Reserved Mapped to heaps like tiled resources Resource [VA] Heap G-buffer Postprocess buffer Heap Heap

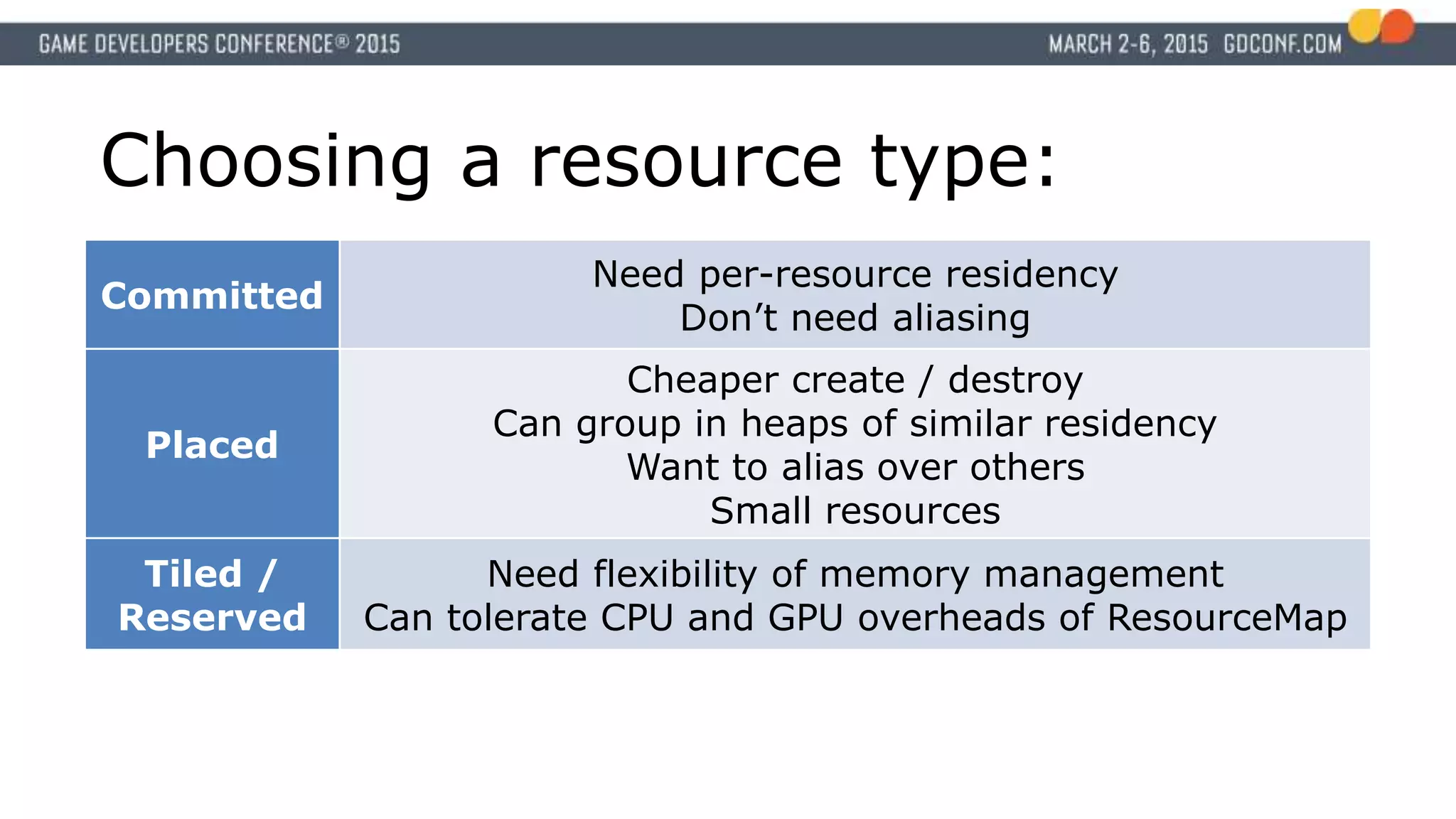

- 33. Choosing a resourcetype: Committed Need per-resource residency Don’t need aliasing Placed Cheaper create / destroy Can group in heaps of similar residency Want to alias over others Small resources Tiled / Reserved Need flexibility of memory management Can tolerate CPU and GPU overheads of ResourceMap

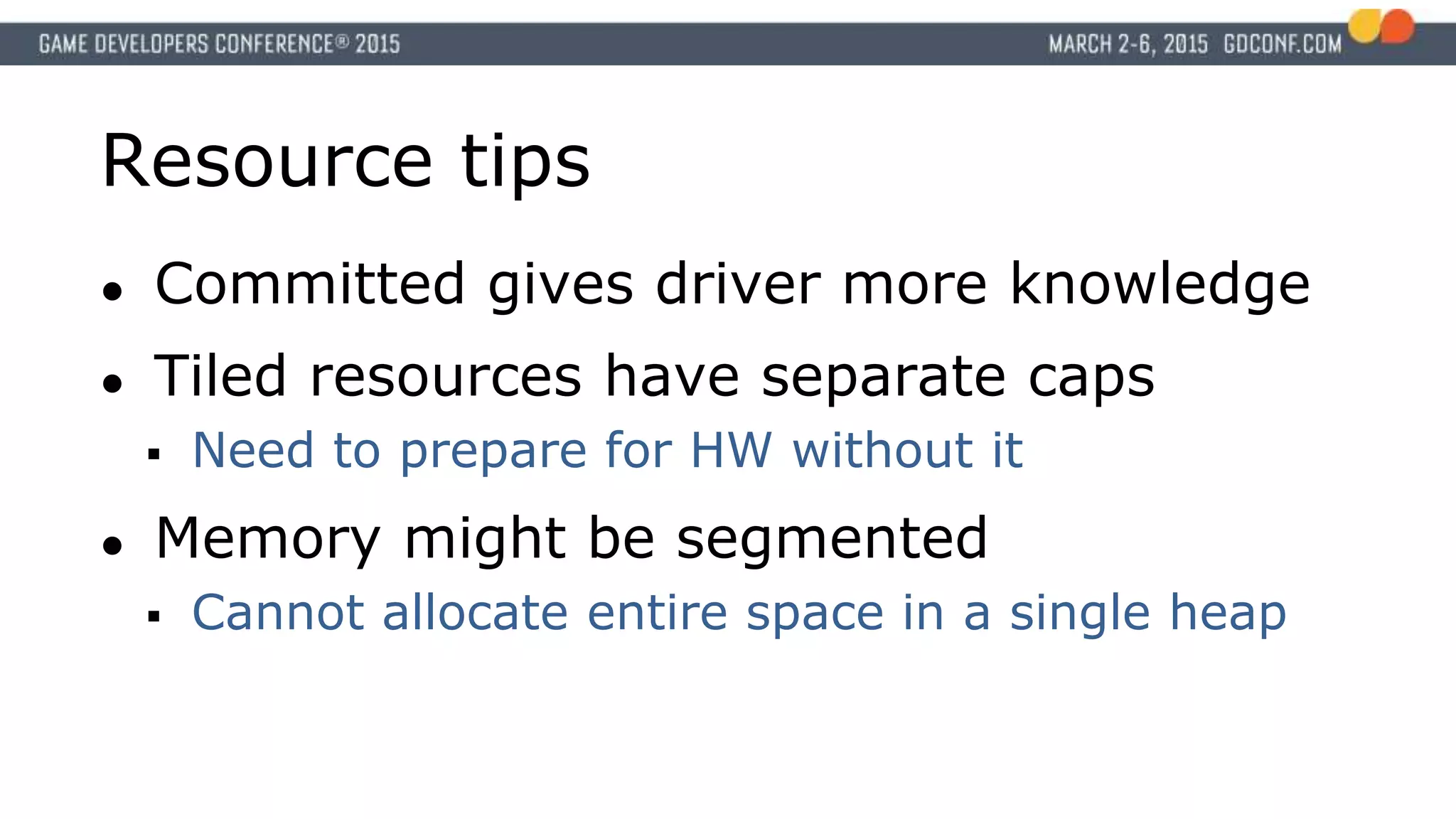

- 34. Resource tips ● Committedgives driver more knowledge ● Tiled resources have separate caps Need to prepare for HW without it ● Memory might be segmented Cannot allocate entire space in a single heap

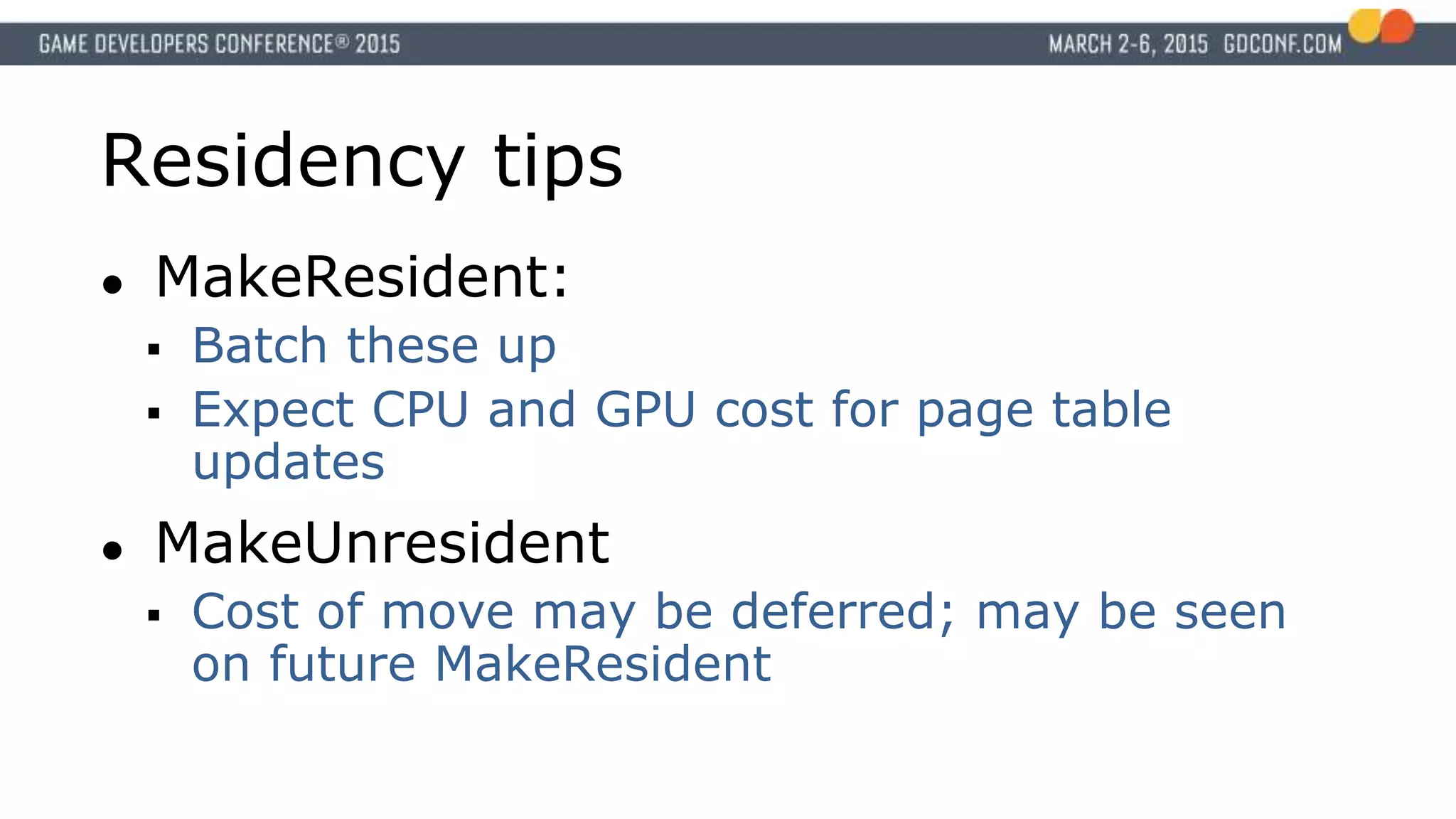

- 35. Residency tips ● MakeResident: Batch these up Expect CPU and GPU cost for page table updates ● MakeUnresident Cost of move may be deferred; may be seen on future MakeResident

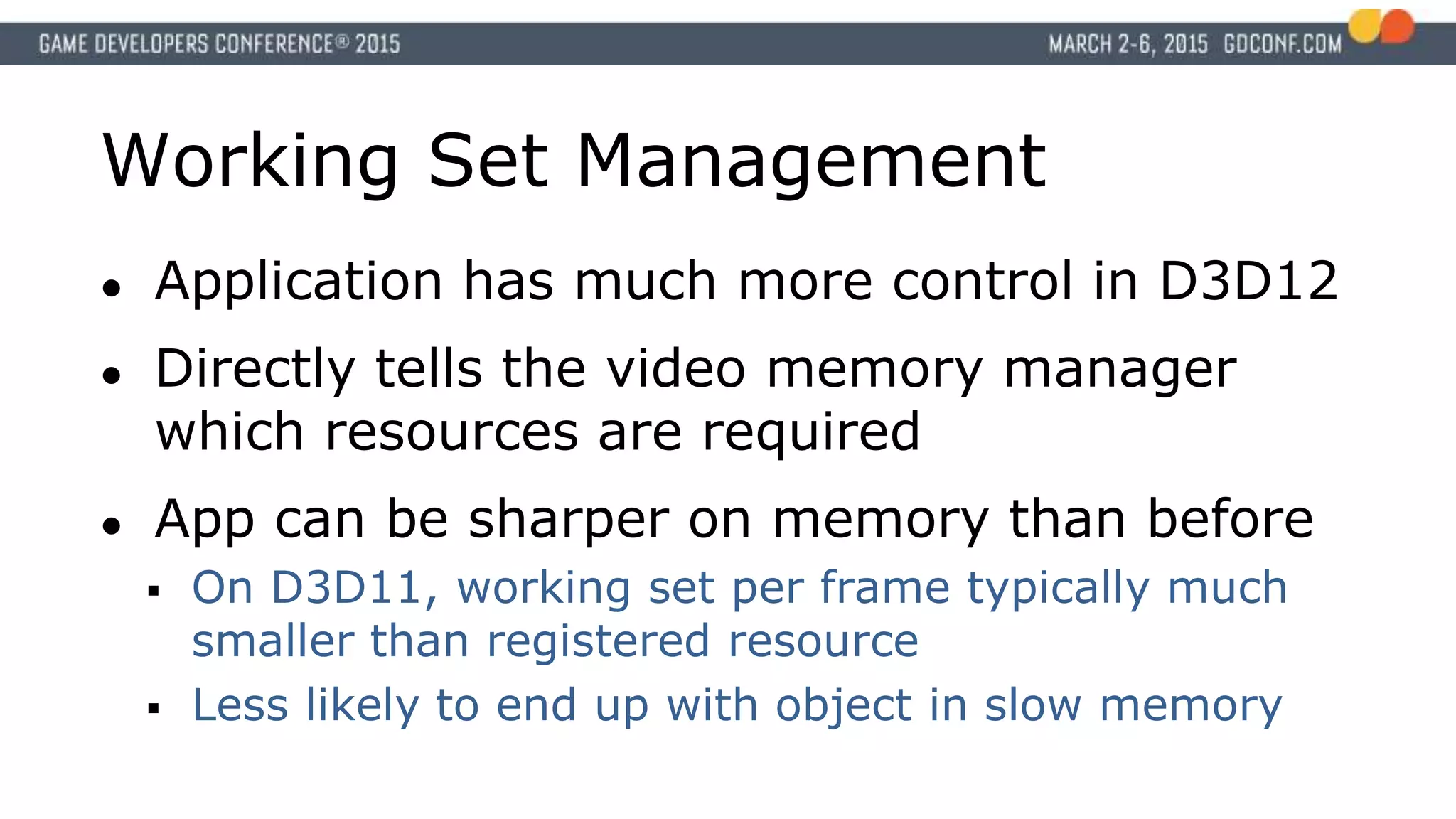

- 36. Working Set Management ●Application has much more control in D3D12 ● Directly tells the video memory manager which resources are required ● App can be sharper on memory than before On D3D11, working set per frame typically much smaller than registered resource Less likely to end up with object in slow memory

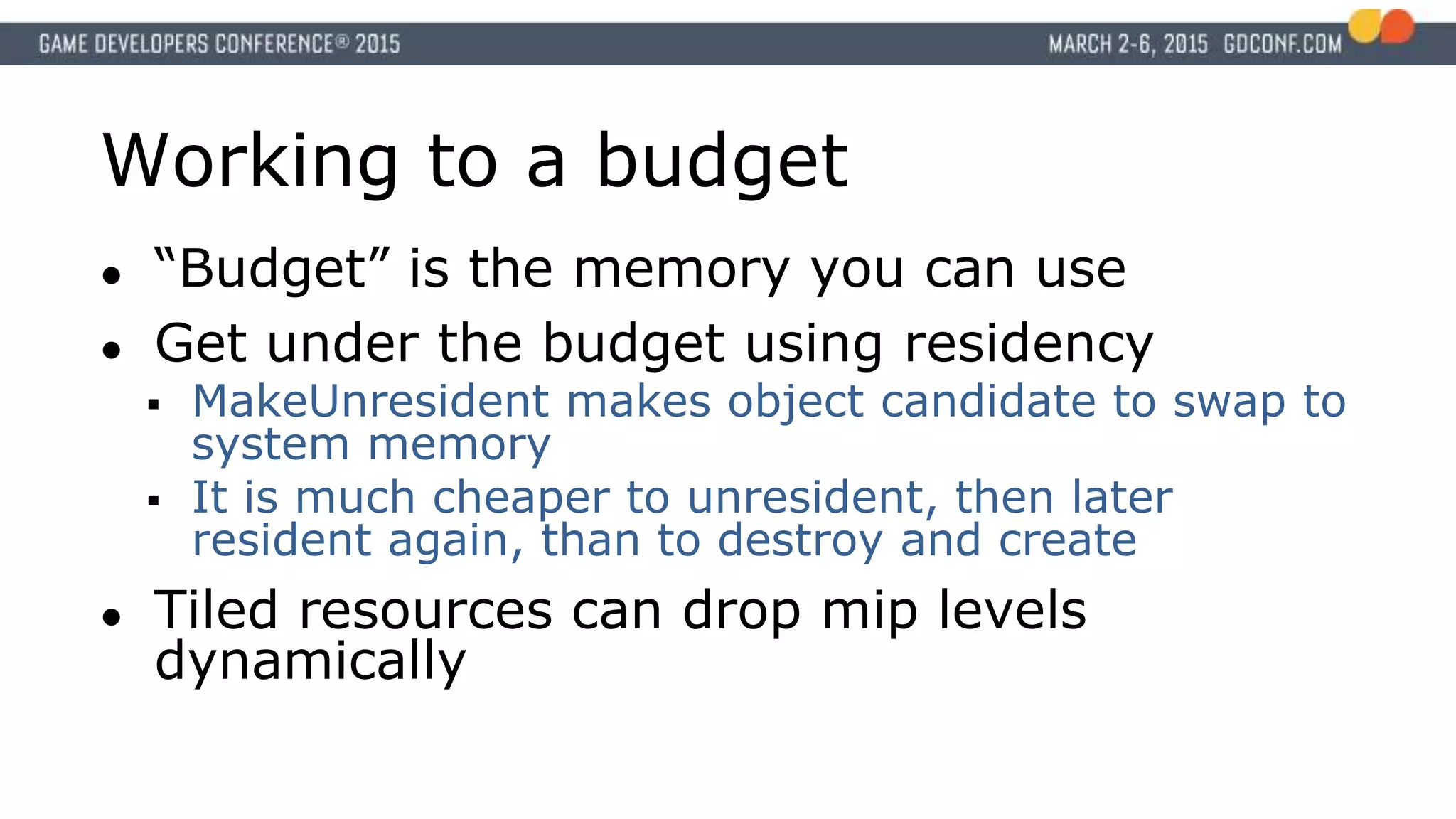

- 37. Working to abudget ● “Budget” is the memory you can use ● Get under the budget using residency MakeUnresident makes object candidate to swap to system memory It is much cheaper to unresident, then later resident again, than to destroy and create ● Tiled resources can drop mip levels dynamically

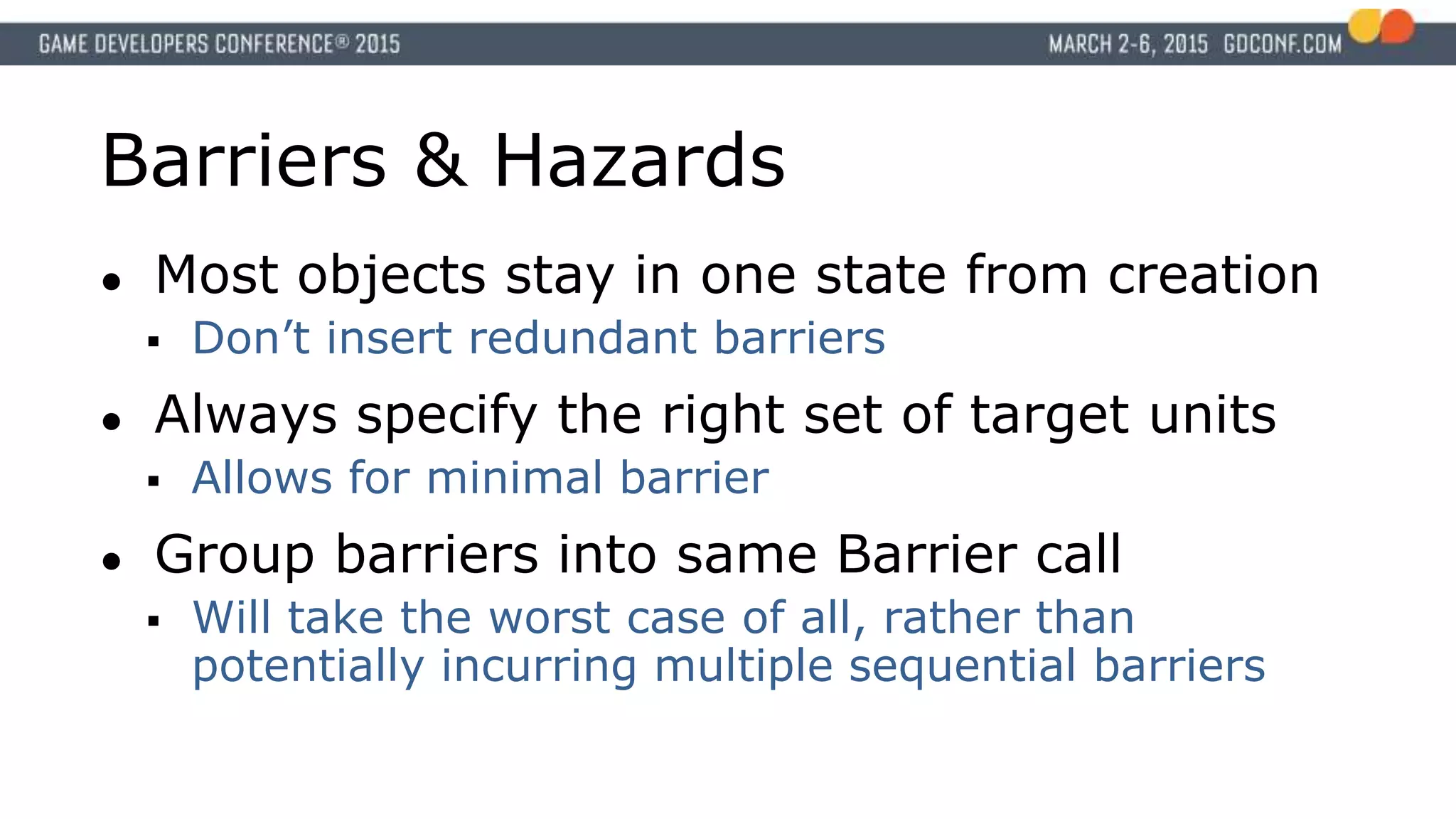

- 38. Barriers & Hazards ●Most objects stay in one state from creation Don’t insert redundant barriers ● Always specify the right set of target units Allows for minimal barrier ● Group barriers into same Barrier call Will take the worst case of all, rather than potentially incurring multiple sequential barriers

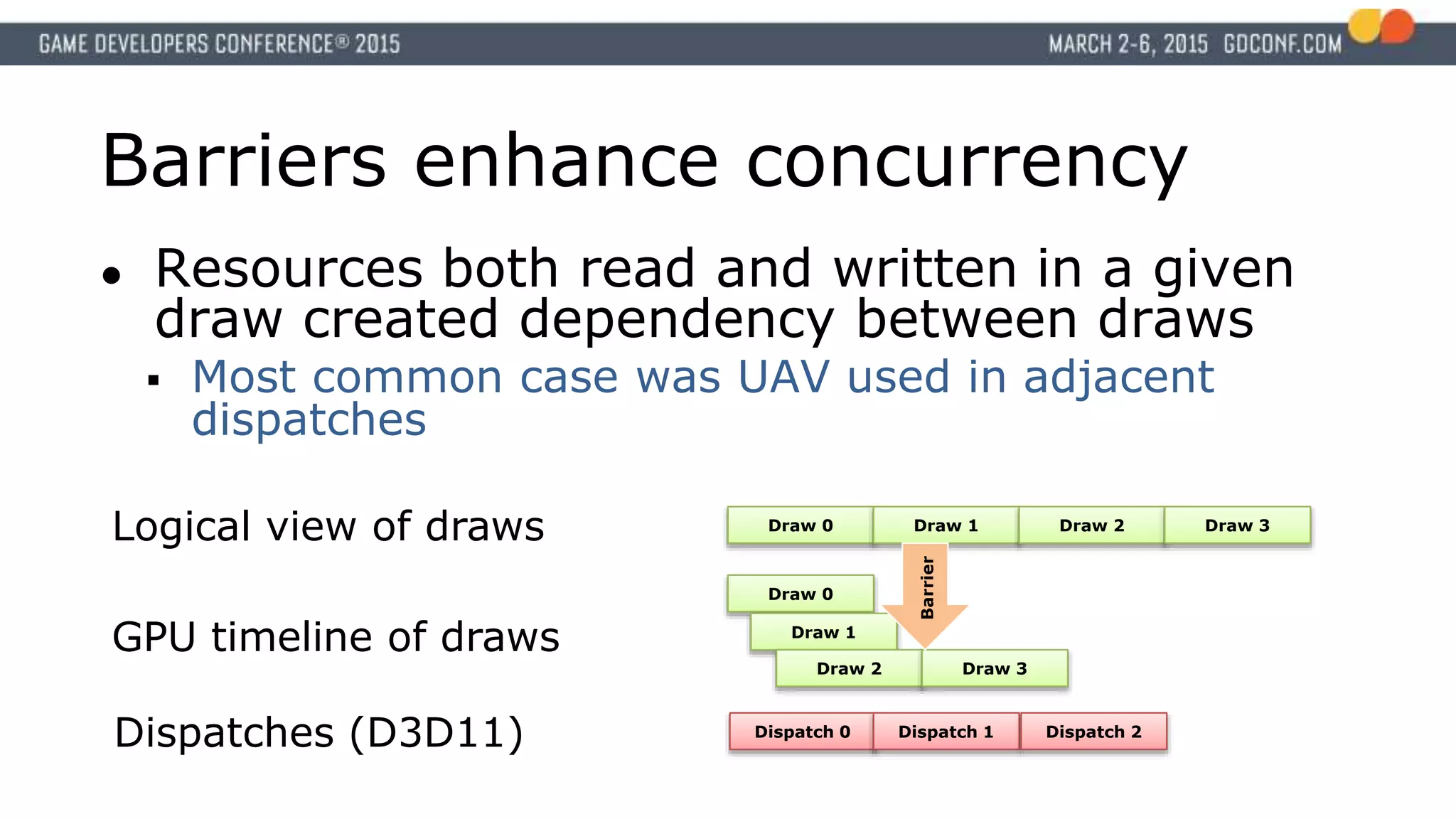

- 39. Barriers enhance concurrency ●Resources both read and written in a given draw created dependency between draws Most common case was UAV used in adjacent dispatches Dispatch 0 Dispatch 1 Dispatch 2 Dispatches (D3D11) Draw 0 Draw 1 Draw 2 Draw 3 Draw 0 Draw 1 Draw 2 Draw 3 Logical view of draws GPU timeline of draws Barrier

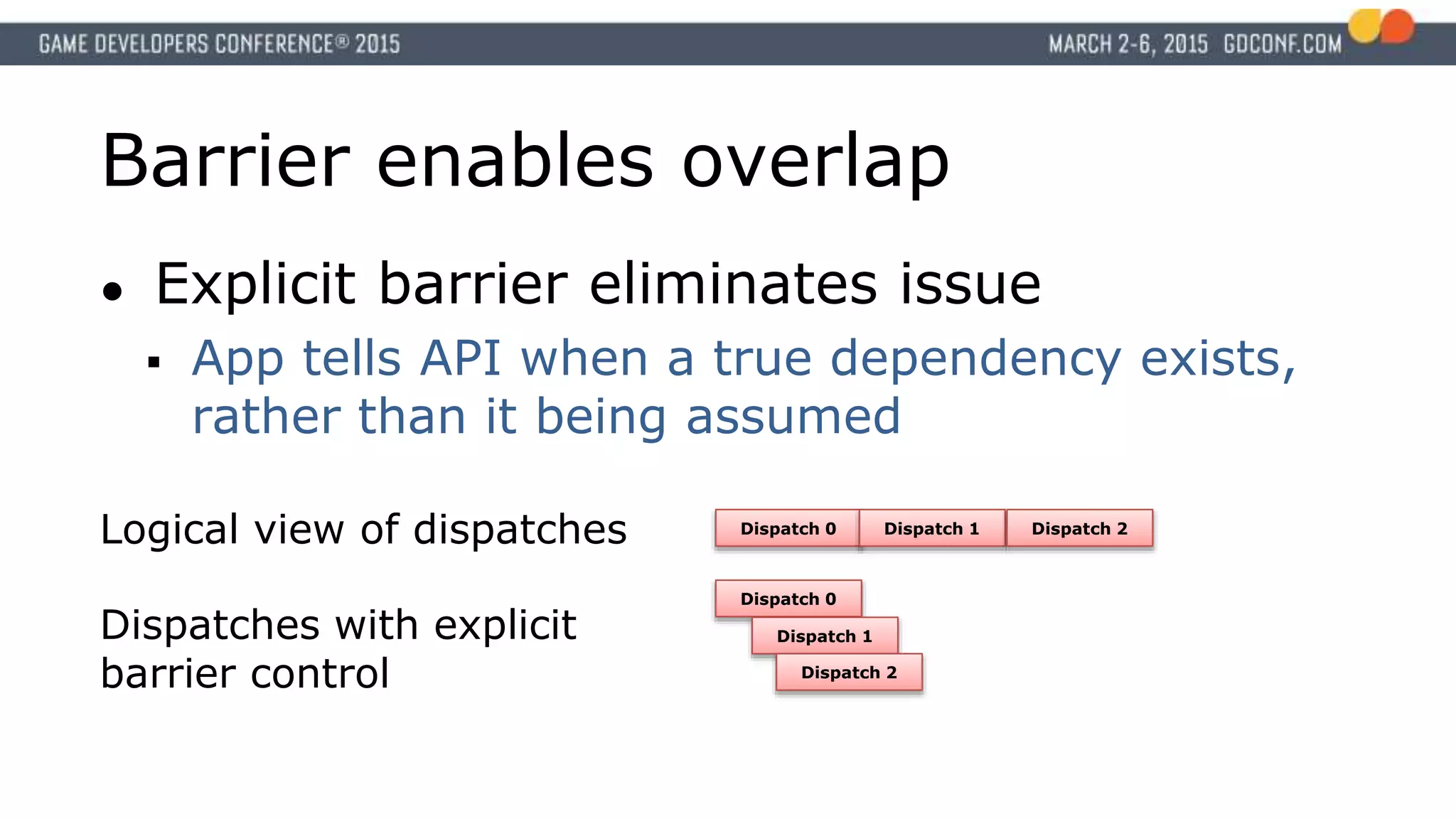

- 40. Barrier enables overlap ●Explicit barrier eliminates issue App tells API when a true dependency exists, rather than it being assumed Dispatch 0 Dispatch 1 Dispatch 2 Dispatch 0 Dispatch 1 Dispatch 2 Logical view of dispatches Dispatches with explicit barrier control

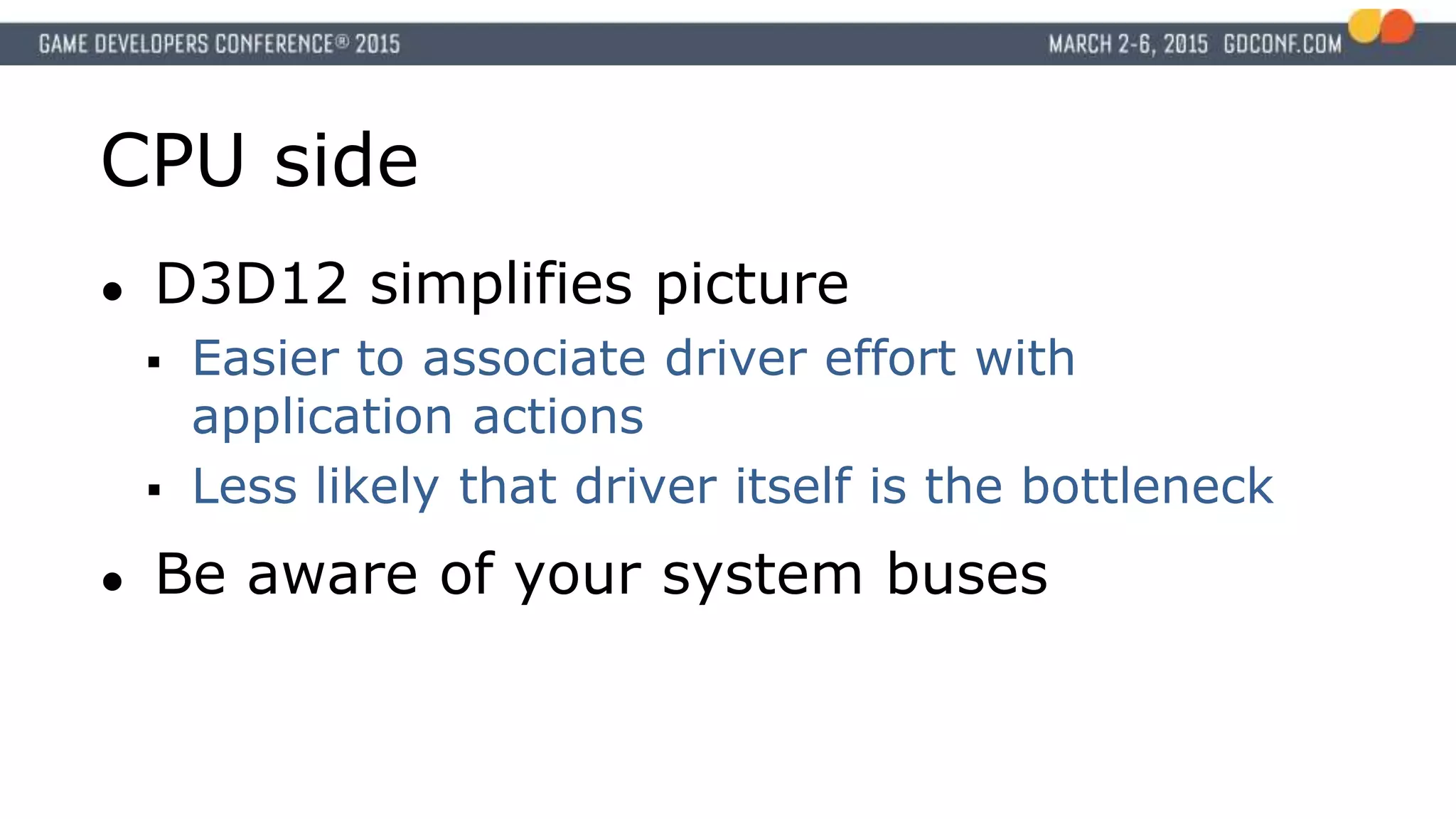

- 41. CPU side ● D3D12simplifies picture Easier to associate driver effort with application actions Less likely that driver itself is the bottleneck ● Be aware of your system buses

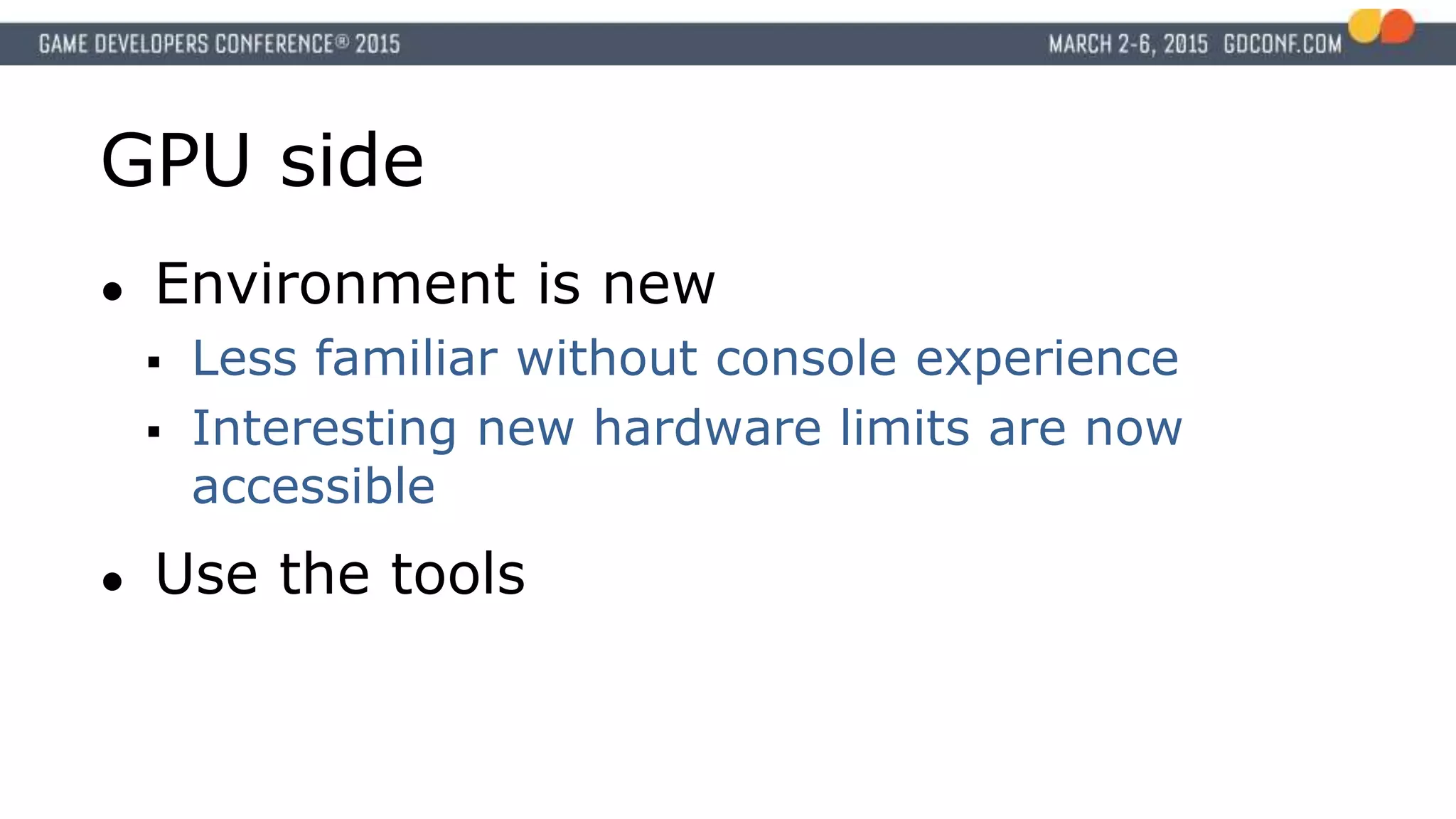

- 42. GPU side ● Environmentis new Less familiar without console experience Interesting new hardware limits are now accessible ● Use the tools
- 43.

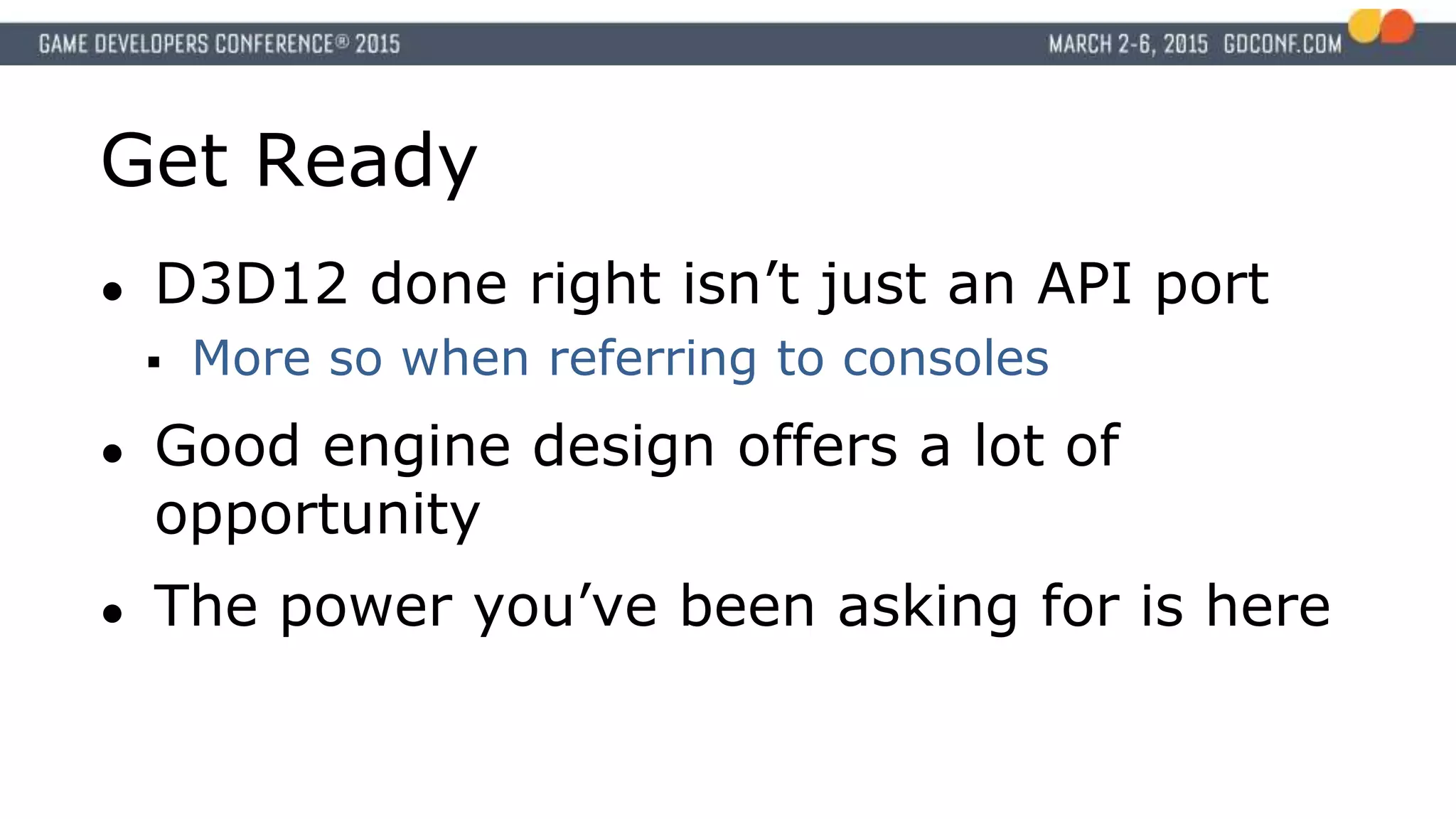

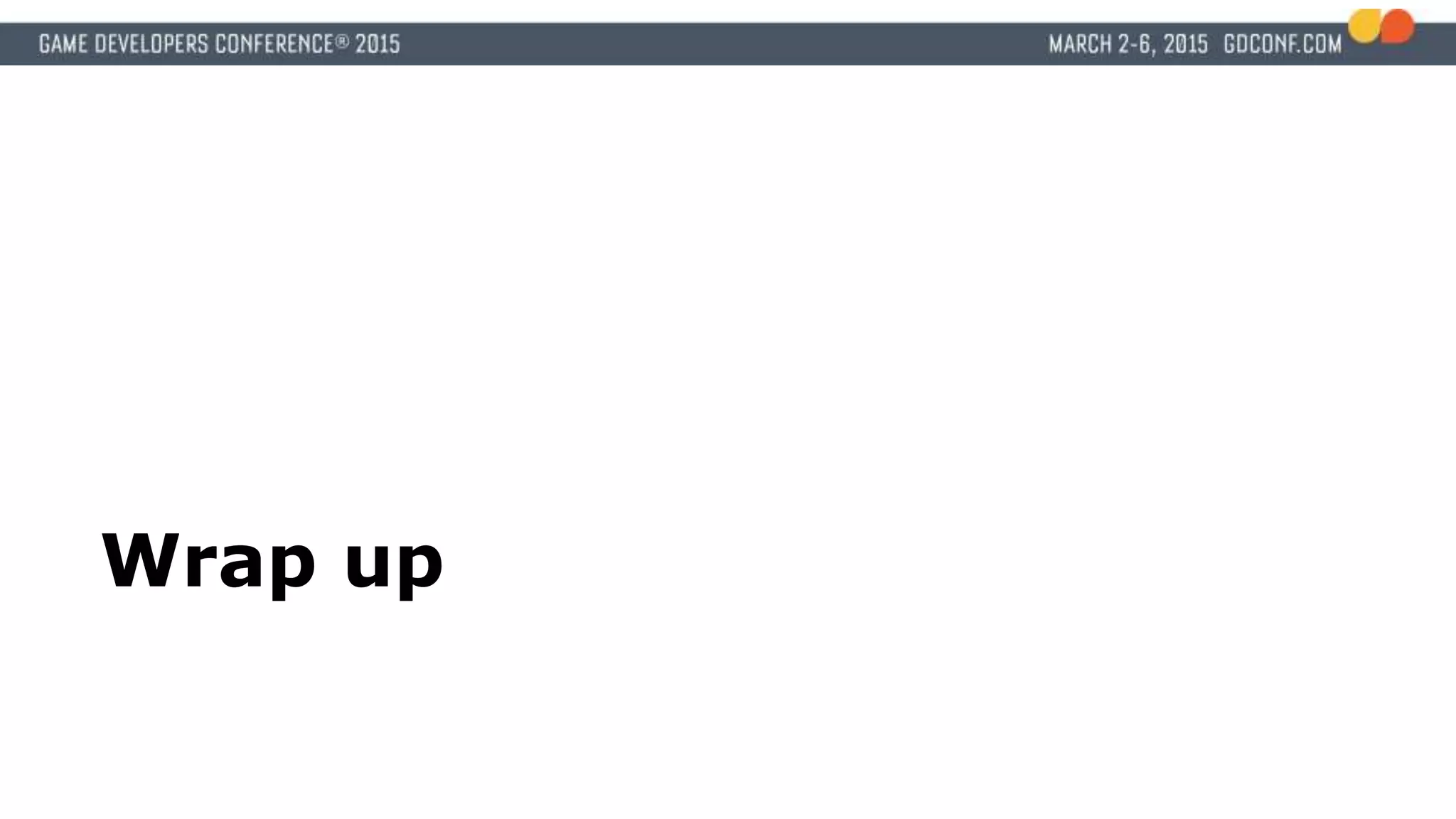

- 44. Get Ready ● D3D12done right isn’t just an API port More so when referring to consoles ● Good engine design offers a lot of opportunity ● The power you’ve been asking for is here
- 45.
Editor's Notes
- #6 [D3D11 is C#; D3D12 is C++]
- #7 [It works on card XXX does not mean you can expect it to work elsewhere, need to heed the spec to ensure compatibility in the heterogeneous environment]
- #9 Bundles and Lists provide the work submission and reuse capability to the API All work in a frame is provided via command lists Command lists consist of bundles, draws, and dispatches Bundles package draws and dispatches Grouping work together in reasonable chunks is key to efficiency Same general principal of triangles per draw call applies to bundles command lists and frames
- #15 Not a lot of these as primarily D3D12 is a software update
- #18 [Cost of N lists per submit ~= cost of 1] [Don’t build everything, then submit everything] [Submit is thread-safe]
- #20 Amdahl’s Law!
- #23 [No driver threads in D3D12!]
- #24 This is for when you’re about to display an object and don’t have the time to wait 100ms for a compile result.
- #25 Bundles and Lists provide the work submission and reuse capability to the API All work in a frame is provided via command lists Command lists consist of bundles, draws, and dispatches Bundles package draws and dispatches Grouping work together in reasonable chunks is key to efficiency Same general principal of triangles per draw call applies to bundles command lists and frames
- #40 UAVs are as stated unordered, but API enforced draw/dispatch ordering.
- #41 Now, explicit usage barriers allows overlap of calls referencing UAVs. If back to back dispatches don’t have a dependency, the kernels can run in parallel. This resolves some of the largest inefficiencies seen in compute work loads today.
- #43 API still has timestamps Fully featured tooling will come and soon
