Terrain in Battlefield 3:
A modern, complete and scalable system

Mattias Widmark
Software Engineer, EA Digital Illusions (DICE), Stockholm

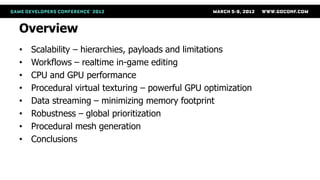

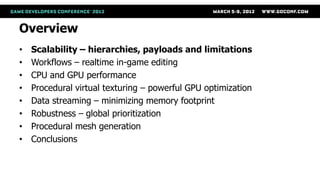

Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions

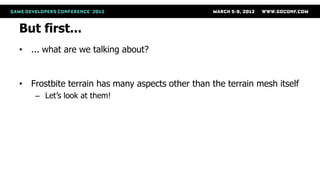

But first...
• ... what are we talking about?


• Frostbite terrain has many aspects other than the terrain mesh itself
    – Let’s look at them!

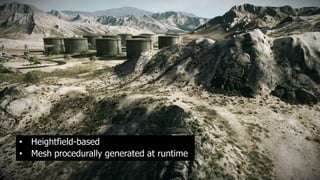

• Heightfield-based
• Mesh procedurally generated at runtime

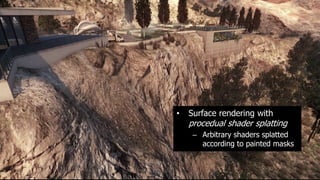

•   Surface rendering with
    procedual shader splatting
     – Arbitrary shaders splatted
       according to painted masks

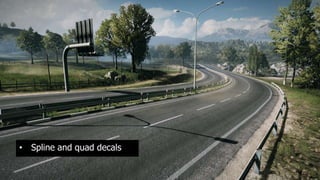

• Spline and quad decals
•   Terrain decoration

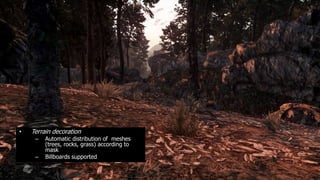

     –   Automatic distribution of meshes
         (trees, rocks, grass) according to
         mask
     –   Billboards supported
§

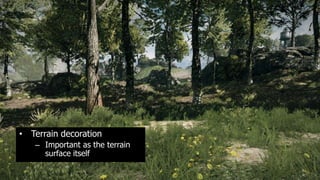

• Terrain decoration
    – Important as the terrain
      surface itself
•   Destruction/dynamic terrain
     –   Destruction depth map
           •   Controls crater depth around ie static models
     –   Physics material map
           •   Controls surface effects, audio, crater depth and width

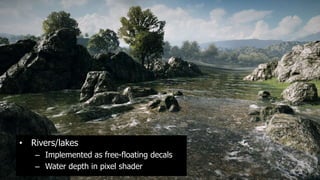

• Rivers/lakes
   – Implemented as free-floating decals
   – Water depth in pixel shader

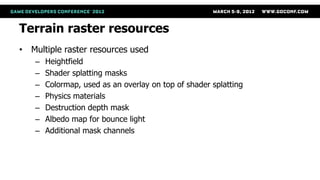

Terrain raster resources
• Multiple raster resources used
   –   Heightfield
   –   Shader splatting masks
   –   Colormap, used as an overlay on top of shader splatting
   –   Physics materials
   –   Destruction depth mask
   –   Albedo map for bounce light
   –   Additional mask channels
Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions

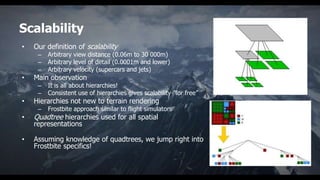

Scalability
•   Our definition of scalability
     –   Arbitrary view distance (0.06m to 30 000m)
     –   Arbitrary level of detail (0.0001m and lower)
     –   Arbitrary velocity (supercars and jets)
•   Main observation
     –   It is all about hierarchies!
     –   Consistent use of hierarchies gives scalability ”for free”
•   Hierarchies not new to terrain rendering
     –   Frostbite approach similar to flight simulators
•   Quadtree hierarchies used for all spatial
    representations

•   Assuming knowledge of quadtrees, we jump right into
    Frostbite specifics!
Quadtree node payload
• The node payload is a central concept
• A quadtree node can be attributed with a ”data blob”; the payload
• Payload is                             Nodes (white circle)
   – a tile of raster data                          Payload (red dot)
   – a cell of terrain decoration
       • A list of instances (rock, grass, trees)
   – a piece of decal mesh
• All nodes have payload...
   – ... but only a few have it loaded
Nodes with and without payload

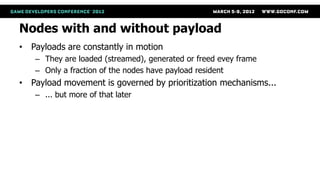

• Payloads are constantly in motion
   – They are loaded (streamed), generated or freed evey frame
   – Only a fraction of the nodes have payload resident
• Payload movement is governed by prioritization mechanisms...
   – ... but more of that later

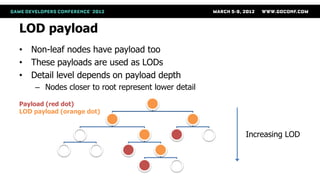

LOD payload
• Non-leaf nodes have payload too
• These payloads are used as LODs
• Detail level depends on payload depth
    – Nodes closer to root represent lower detail

Payload (red dot)
LOD payload (orange dot)


                                                    Increasing LOD

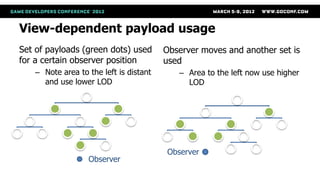

View-dependent payload usage
Set of payloads (green dots) used       Observer moves and another set is
for a certain observer position         used
   – Note area to the left is distant      – Area to the left now use higher
     and use lower LOD                       LOD




                                        Observer
                  Observer

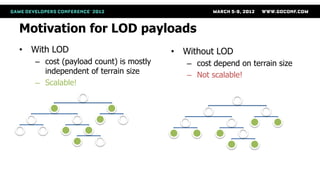

Motivation for LOD payloads
• With LOD                            • Without LOD
   – cost (payload count) is mostly      – cost depend on terrain size
     independent of terrain size         – Not scalable!
   – Scalable!

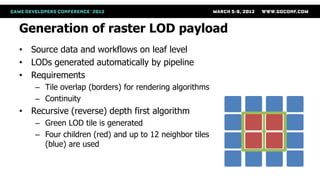

Generation of raster LOD payload
• Source data and workflows on leaf level
• LODs generated automatically by pipeline
• Requirements
    – Tile overlap (borders) for rendering algorithms
    – Continuity
• Recursive (reverse) depth first algorithm
    – Green LOD tile is generated
    – Four children (red) and up to 12 neighbor tiles
      (blue) are used
Terrain decoration payloads

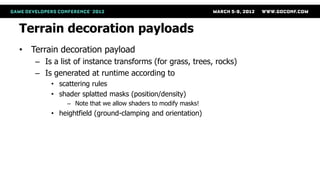

• Terrain decoration payload
   – Is a list of instance transforms (for grass, trees, rocks)
   – Is generated at runtime according to
       • scattering rules
       • shader splatted masks (position/density)
            – Note that we allow shaders to modify masks!
       • heightfield (ground-clamping and orientation)
Terrain decoration LOD payloads
• Quite unique (and slightly confusing) concept
• LOD payloads used for scalability
   – Near-root payloads provide high view distance
   – Near-leaf payloads provide high density
• Payloads can overlap
   – Providing high view distance and density

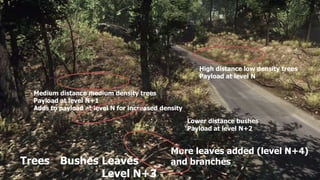

• <screenshot from Frosted w/ game view>

                                                        High distance low density trees
                                                        Payload at level N

  Medium distance medium density trees
  Payload at level N+1
  Adds to payload at level N for increased density

                                                     Lower distance bushes
                                                     Payload at level N+2


                                              More leaves added (level N+4)
Trees Bushes Leaves                           and branches
             Level N+3

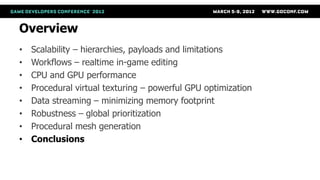

Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions
Real time editing in FrostEd
• FrostEd is Frostbite editor
• Game View is game rendering inside editor
• Terrain editing with realtime feedback in game view
   –   Heightfield sculpting
   –   Mask and color painting
   –   Decal editing
   –   Terrain decoration

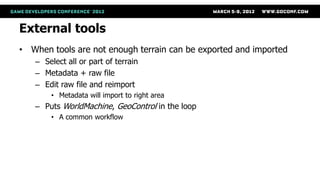

External tools
• When tools are not enough terrain can be exported and imported
   – Select all or part of terrain
   – Metadata + raw file
   – Edit raw file and reimport
       • Metadata will import to right area
   – Puts WorldMachine, GeoControl in the loop
       • A common workflow

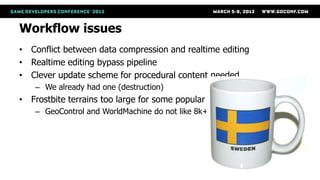

Workflow issues
• Conflict between data compression and realtime editing
• Realtime editing bypass pipeline
• Clever update scheme for procedural content needed
    – We already had one (destruction)
• Frostbite terrains too large for some popular tools
    – GeoControl and WorldMachine do not like 8k+ rasters
Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions

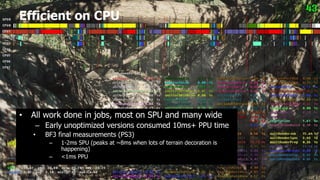

Efficient on CPU




•   All work done in jobs, most on SPU and many wide
     – Early unoptimized versions consumed 10ms+ PPU time
    •   BF3 final measurements (PS3)
         –   1-2ms SPU (peaks at ~8ms when lots of terrain decoration is
             happening)
         –   <1ms PPU
Efficient on GPU
• Pre-baked shader permutations to avoid multi-pass
• Procedual virtual texturing exploit frame-to-frame coherency
• Typical figures (PS3):
   – Full screen GBuffer laydown (w/o detail overlay and terrain decoration):
     2.5-3ms
   – Full screen GBuffer laydown (w/ detail overlay): 2.5-7ms
   – Terrain decoration: 1-4ms
   – Virtual texture tile compositing: 0.2-0.5ms

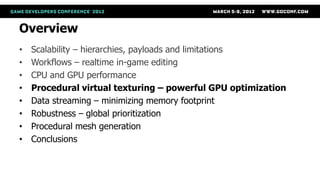

Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions

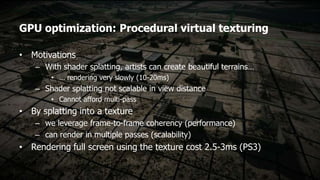

GPU optimization: Procedural virtual texturing

• Motivations
    – With shader splatting, artists can create beautiful terrains…
        • … rendering very slowly (10-20ms)
    – Shader splatting not scalable in view distance
        • Cannot afford multi-pass
• By splatting into a texture
    – we leverage frame-to-frame coherency (performance)
    – can render in multiple passes (scalability)
• Rendering full screen using the texture cost 2.5-3ms (PS3)

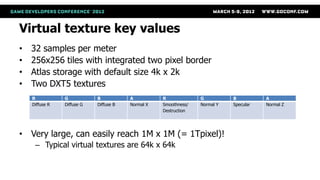

Virtual texture key values
•   32 samples per meter
•   256x256 tiles with integrated two pixel border
•   Atlas storage with default size 4k x 2k
•   Two DXT5 textures
    R           G           B           A          R             G          B          A
    Diffuse R   Diffuse G   Diffuse B   Normal X   Smoothness/   Normal Y   Specular   Normal Z
                                                   Destruction




• Very large, can easily reach 1M x 1M (= 1Tpixel)!
     – Typical virtual textures are 64k x 64k

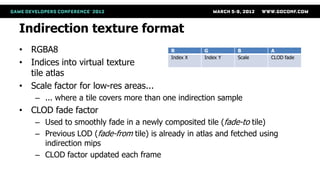

Indirection texture format
• RGBA8                                   R         G         B        A
                                          Index X   Index Y   Scale    CLOD fade
• Indices into virtual texture
  tile atlas
• Scale factor for low-res areas...
    – ... where a tile covers more than one indirection sample
• CLOD fade factor
    – Used to smoothly fade in a newly composited tile (fade-to tile)
    – Previous LOD (fade-from tile) is already in atlas and fetched using
      indirection mips
    – CLOD factor updated each frame

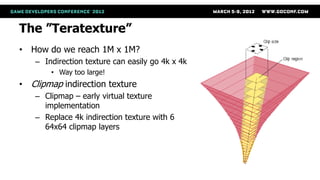

The ”Teratexture”
• How do we reach 1M x 1M?
   – Indirection texture can easily go 4k x 4k
       • Way too large!
• Clipmap indirection texture
   – Clipmap – early virtual texture
     implementation
   – Replace 4k indirection texture with 6
     64x64 clipmap layers

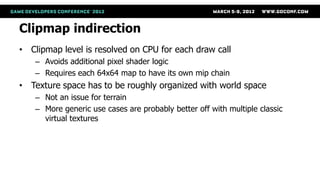

Clipmap indirection
• Clipmap level is resolved on CPU for each draw call
    – Avoids additional pixel shader logic
    – Requires each 64x64 map to have its own mip chain
• Texture space has to be roughly organized with world space
    – Not an issue for terrain
    – More generic use cases are probably better off with multiple classic
      virtual textures

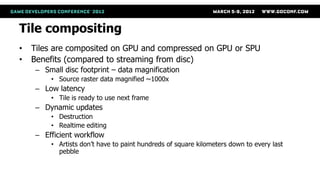

Tile compositing
•   Tiles are composited on GPU and compressed on GPU or SPU
•   Benefits (compared to streaming from disc)
    – Small disc footprint – data magnification
        • Source raster data magnified ~1000x
    – Low latency
        • Tile is ready to use next frame
    – Dynamic updates
        • Destruction
        • Realtime editing
    – Efficient workflow
        • Artists don’t have to paint hundreds of square kilometers down to every last
          pebble
Virtual texture issues
• Blurriness (consoles have too small tile pool)
• Runtime texture compression quality
• GPU tile compositing cost offset some of the gain
   – ~0.25ms/frame on Xenon
• Limited hardware filtering support
   – Expensive software and/or lower-quality filtering
• Compositing latency
• Tile compositing render target memory usage
Virtual texture issues
• Virtual texture has practical limit at around 32
  samples per meter
    – Detail shader splatting fills in to required
      sharpness (500-1000 samples per meter)
• We now have two shader splatting methods
    – Diffuse/Normal/Specular/Smoothness splats
      into virtual texture
    – Direct* splats details into Gbuffer
• Performance concerns
    – Have to limit detail view distance
    – Typically 50m-100m
Virtual texture issues

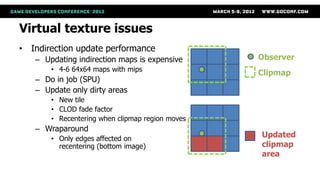

• Indirection update performance
   – Updating indirection maps is expensive      Observer
       • 4-6 64x64 maps with mips
                                                 Clipmap
   – Do in job (SPU)
   – Update only dirty areas
       • New tile
       • CLOD fade factor
       • Recentering when clipmap region moves
   – Wraparound
       • Only edges affected on
                                                 Updated
         recentering (bottom image)              clipmap
                                                 area
Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions

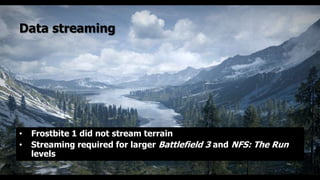

Data streaming




•   Frostbite 1 did not stream terrain
•   Streaming required for larger Battlefield 3 and NFS: The Run
    levels

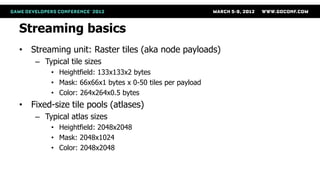

Streaming basics
• Streaming unit: Raster tiles (aka node payloads)
    – Typical tile sizes
        • Heightfield: 133x133x2 bytes
        • Mask: 66x66x1 bytes x 0-50 tiles per payload
        • Color: 264x264x0.5 bytes
• Fixed-size tile pools (atlases)
    – Typical atlas sizes
        • Heightfield: 2048x2048
        • Mask: 2048x1024
        • Color: 2048x2048

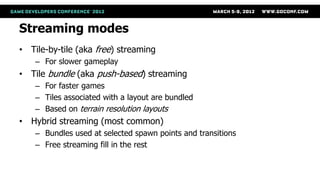

Streaming modes
• Tile-by-tile (aka free) streaming
    – For slower gameplay
• Tile bundle (aka push-based) streaming
    – For faster games
    – Tiles associated with a layout are bundled
    – Based on terrain resolution layouts
• Hybrid streaming (most common)
    – Bundles used at selected spawn points and transitions
    – Free streaming fill in the rest

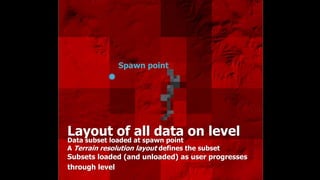

Spawn point




Layout of all data on level
Data subset loaded at spawn point
A Terrain resolution layout defines the subset
Subsets loaded (and unloaded) as user progresses
through level

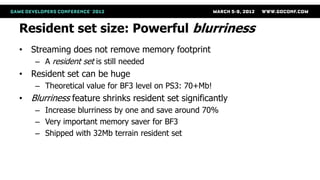

Resident set size: Powerful blurriness
• Streaming does not remove memory footprint
    – A resident set is still needed
• Resident set can be huge
    – Theoretical value for BF3 level on PS3: 70+Mb!
• Blurriness feature shrinks resident set significantly
    – Increase blurriness by one and save around 70%
    – Very important memory saver for BF3
    – Shipped with 32Mb terrain resident set

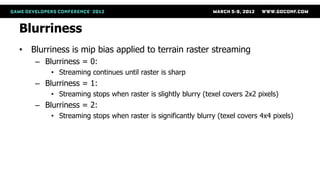

Blurriness
• Blurriness is mip bias applied to terrain raster streaming
    – Blurriness = 0:
        • Streaming continues until raster is sharp
    – Blurriness = 1:
        • Streaming stops when raster is slightly blurry (texel covers 2x2 pixels)
    – Blurriness = 2:
        • Streaming stops when raster is significantly blurry (texel covers 4x4 pixels)

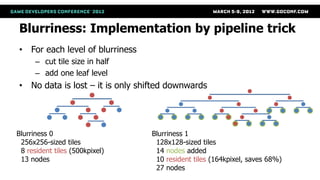

Blurriness: Implementation by pipeline trick
• For each level of blurriness
      – cut tile size in half
      – add one leaf level
• No data is lost – it is only shifted downwards




Blurriness 0                     Blurriness 1
 256x256-sized tiles              128x128-sized tiles
 8 resident tiles (500kpixel)     14 nodes added
 13 nodes                         10 resident tiles (164kpixel, saves 68%)
                                  27 nodes

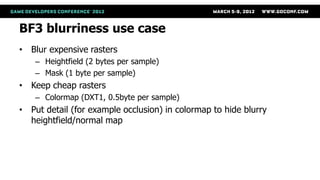

BF3 blurriness use case
• Blur expensive rasters
    – Heightfield (2 bytes per sample)
    – Mask (1 byte per sample)
• Keep cheap rasters
    – Colormap (DXT1, 0.5byte per sample)
• Put detail (for example occlusion) in colormap to hide blurry
  heightfield/normal map

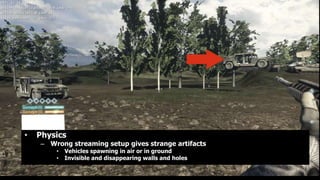

•   Physics
    – Wrong streaming setup gives strange artifacts
        •   Vehicles spawning in air or in ground
        •   Invisible and disappearing walls and holes

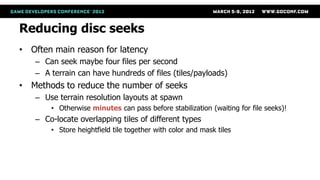

Reducing disc seeks
• Often main reason for latency
   – Can seek maybe four files per second
   – A terrain can have hundreds of files (tiles/payloads)
• Methods to reduce the number of seeks
   – Use terrain resolution layouts at spawn
       • Otherwise minutes can pass before stabilization (waiting for file seeks)!
   – Co-locate overlapping tiles of different types
       • Store heightfield tile together with color and mask tiles

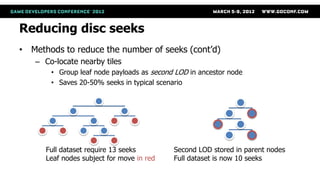

Reducing disc seeks
• Methods to reduce the number of seeks (cont’d)
   – Co-locate nearby tiles
       • Group leaf node payloads as second LOD in ancestor node
       • Saves 20-50% seeks in typical scenario




      Full dataset require 13 seeks        Second LOD stored in parent nodes
      Leaf nodes subject for move in red   Full dataset is now 10 seeks

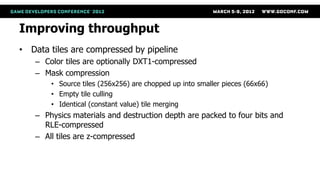

Improving throughput
• Data tiles are compressed by pipeline
   – Color tiles are optionally DXT1-compressed
   – Mask compression
       • Source tiles (256x256) are chopped up into smaller pieces (66x66)
       • Empty tile culling
       • Identical (constant value) tile merging
   – Physics materials and destruction depth are packed to four bits and
     RLE-compressed
   – All tiles are z-compressed
Improving throughput

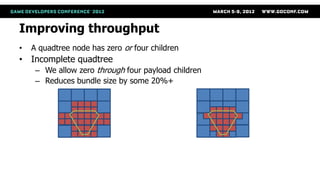

•     A quadtree node has zero or four children
• Incomplete quadtree
       – We allow zero through four payload children
       – Reduces bundle size by some 20%+




    Complete quadtree with 32            Incomplete quadtree with only
    tiles at red LOD                     20 tiles. Incompleteness saves
                                         12 tiles (37%)

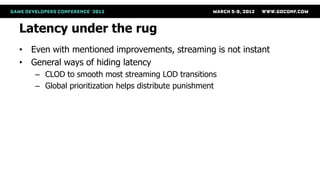

Latency under the rug
• Even with mentioned improvements, streaming is not instant
• General ways of hiding latency
   – CLOD to smooth most streaming LOD transitions
   – Global prioritization helps distribute punishment

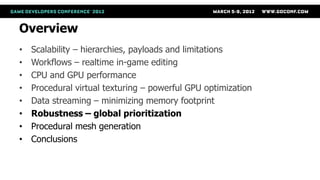

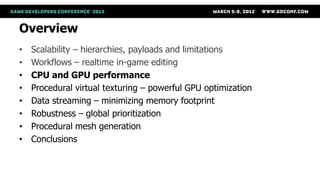

Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions

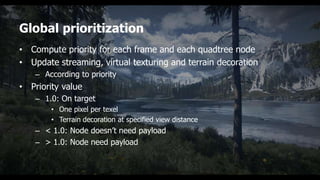

Global prioritization
• Compute priority for each frame and each quadtree node
• Update streaming, virtual texturing and terrain decoration
    – According to priority
• Priority value
    – 1.0: On target
        • One pixel per texel
        • Terrain decoration at specified view distance
    – < 1.0: Node doesn’t need payload
    – > 1.0: Node need payload

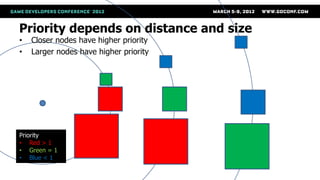

Priority depends on distance and size
•   Closer nodes have higher priority
•   Larger nodes have higher priority




    Observer

Priority
• Red > 1
• Green = 1
• Blue < 1
Priority modified by culling, updates and speed

                           Normal node

                           Node in motion

              Occluder      Node being updated (crater added)
Observer

                            Occluded node
Priority
• Red > 1
• Green = 1
• Blue < 1                  Node outside frustum

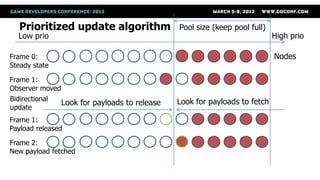

Prioritized update algorithm                Pool size (keep pool full)
  Low prio                                                                 High prio

Frame 0:                                                                   Nodes
Steady state

Frame 1:
Observer moved
Bidirectional                                 Look for payloads to fetch
               Look for payloads to release
update
Frame 1:
Payload released

Frame 2:
New payload fetched

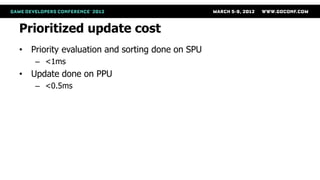

Prioritized update cost
• Priority evaluation and sorting done on SPU
   – <1ms
• Update done on PPU
   – <0.5ms
Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions

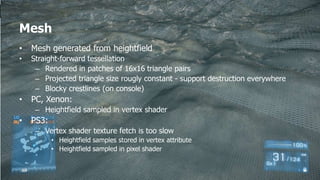

Mesh
•   Mesh generated from heightfield
•   Straight-forward tessellation
     – Rendered in patches of 16x16 triangle pairs
     – Projected triangle size rougly constant - support destruction everywhere
     – Blocky crestlines (on console)
•   PC, Xenon:
     – Heightfield sampled in vertex shader
•   PS3:
     – Vertex shader texture fetch is too slow
           • Heightfield samples stored in vertex attribute
           • Heightfield sampled in pixel shader

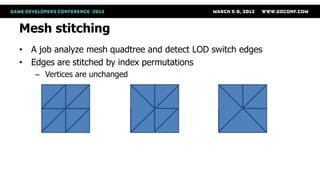

Mesh stitching
• A job analyze mesh quadtree and detect LOD switch edges
• Edges are stitched by index permutations
   – Vertices are unchanged




       No stitch              Stitch left   Stitch left and bottom

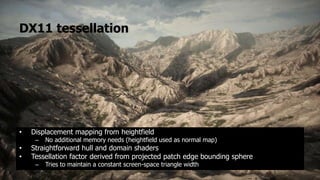

DX11 tessellation




•   Displacement mapping from heightfield
     –   No additional memory needs (heightfield used as normal map)
•   Straightforward hull and domain shaders
•   Tessellation factor derived from projected patch edge bounding sphere
     –   Tries to maintain a constant screen-space triangle width

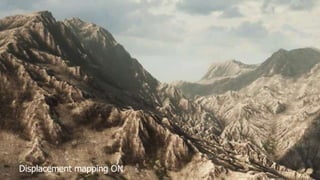

Displacement mapping ON
                     OFF
Overview
•   Scalability – hierarchies, payloads and limitations
•   Workflows – realtime in-game editing
•   CPU and GPU performance
•   Procedural virtual texturing – powerful GPU optimization
•   Data streaming – minimizing memory footprint
•   Robustness – global prioritization
•   Procedural mesh generation
•   Conclusions

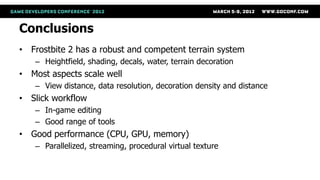

Conclusions
• Frostbite 2 has a robust and competent terrain system
   – Heightfield, shading, decals, water, terrain decoration
• Most aspects scale well
   – View distance, data resolution, decoration density and distance
• Slick workflow
   – In-game editing
   – Good range of tools
• Good performance (CPU, GPU, memory)
   – Parallelized, streaming, procedural virtual texture

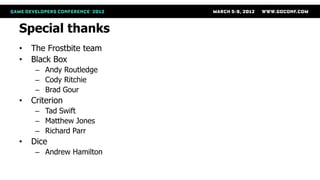

Special thanks
•   The Frostbite team
•   Black Box
     – Andy Routledge
     – Cody Ritchie
     – Brad Gour
•   Criterion
     – Tad Swift
     – Matthew Jones
     – Richard Parr
•   Dice
     – Andrew Hamilton
Questions?




             mattias.widmark@dice.se
             EA Digital Illusions (DICE)

More Related Content

What's hot

Star Ocean 4 - Flexible Shader Managment and Post-processing
Star Ocean 4 - Flexible Shader Managment and Post-processingStar Ocean 4 - Flexible Shader Managment and Post-processing
Star Ocean 4 - Flexible Shader Managment and Post-processingumsl snfrzb

Screen Space Reflections in The Surge
Screen Space Reflections in The SurgeScreen Space Reflections in The Surge
Screen Space Reflections in The SurgeMichele Giacalone

Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)
Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)
Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)Johan Andersson

Secrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics TechnologySecrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics TechnologyTiago Sousa

The Rendering Technology of 'Lords of the Fallen' (Game Connection Europe 2014)
The Rendering Technology of 'Lords of the Fallen' (Game Connection Europe 2014)The Rendering Technology of 'Lords of the Fallen' (Game Connection Europe 2014)
The Rendering Technology of 'Lords of the Fallen' (Game Connection Europe 2014)Philip Hammer

FrameGraph: Extensible Rendering Architecture in Frostbite
FrameGraph: Extensible Rendering Architecture in FrostbiteFrameGraph: Extensible Rendering Architecture in Frostbite
FrameGraph: Extensible Rendering Architecture in FrostbiteElectronic Arts / DICE

Crysis Next-Gen Effects (GDC 2008)
Crysis Next-Gen Effects (GDC 2008)Crysis Next-Gen Effects (GDC 2008)
Crysis Next-Gen Effects (GDC 2008)Tiago Sousa

Five Rendering Ideas from Battlefield 3 & Need For Speed: The Run
Five Rendering Ideas from Battlefield 3 & Need For Speed: The RunFive Rendering Ideas from Battlefield 3 & Need For Speed: The Run
Five Rendering Ideas from Battlefield 3 & Need For Speed: The RunElectronic Arts / DICE

Destruction Masking in Frostbite 2 using Volume Distance Fields
Destruction Masking in Frostbite 2 using Volume Distance FieldsDestruction Masking in Frostbite 2 using Volume Distance Fields
Destruction Masking in Frostbite 2 using Volume Distance FieldsElectronic Arts / DICE

Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...
Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...
Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...Colin Barré-Brisebois

Calibrating Lighting and Materials in Far Cry 3
Calibrating Lighting and Materials in Far Cry 3Calibrating Lighting and Materials in Far Cry 3
Calibrating Lighting and Materials in Far Cry 3stevemcauley

A Scalable Real-Time Many-Shadowed-Light Rendering System
A Scalable Real-Time Many-Shadowed-Light Rendering SystemA Scalable Real-Time Many-Shadowed-Light Rendering System
A Scalable Real-Time Many-Shadowed-Light Rendering SystemBo Li

Killzone Shadow Fall Demo Postmortem
Killzone Shadow Fall Demo PostmortemKillzone Shadow Fall Demo Postmortem
Killzone Shadow Fall Demo PostmortemGuerrilla

The Rendering Technology of Killzone 2
The Rendering Technology of Killzone 2The Rendering Technology of Killzone 2
The Rendering Technology of Killzone 2Guerrilla

Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)Takahiro Harada

Volumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the FallenVolumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the FallenBenjamin Glatzel

Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow FallLighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow FallGuerrilla

Bindless Deferred Decals in The Surge 2
Bindless Deferred Decals in The Surge 2Bindless Deferred Decals in The Surge 2
Bindless Deferred Decals in The Surge 2Philip Hammer


What's hot (20)

Star Ocean 4 - Flexible Shader Managment and Post-processing
Star Ocean 4 - Flexible Shader Managment and Post-processingStar Ocean 4 - Flexible Shader Managment and Post-processing
Star Ocean 4 - Flexible Shader Managment and Post-processing

Shiny PC Graphics in Battlefield 3
Shiny PC Graphics in Battlefield 3Shiny PC Graphics in Battlefield 3
Shiny PC Graphics in Battlefield 3

Screen Space Reflections in The Surge
Screen Space Reflections in The SurgeScreen Space Reflections in The Surge
Screen Space Reflections in The Surge

Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)
Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)
Terrain Rendering in Frostbite using Procedural Shader Splatting (Siggraph 2007)

Secrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics TechnologySecrets of CryENGINE 3 Graphics Technology
Secrets of CryENGINE 3 Graphics Technology

Lighting the City of Glass
Lighting the City of GlassLighting the City of Glass
Lighting the City of Glass

The Rendering Technology of 'Lords of the Fallen' (Game Connection Europe 2014)
The Rendering Technology of 'Lords of the Fallen' (Game Connection Europe 2014)The Rendering Technology of 'Lords of the Fallen' (Game Connection Europe 2014)
The Rendering Technology of 'Lords of the Fallen' (Game Connection Europe 2014)

FrameGraph: Extensible Rendering Architecture in Frostbite
FrameGraph: Extensible Rendering Architecture in FrostbiteFrameGraph: Extensible Rendering Architecture in Frostbite
FrameGraph: Extensible Rendering Architecture in Frostbite

Crysis Next-Gen Effects (GDC 2008)
Crysis Next-Gen Effects (GDC 2008)Crysis Next-Gen Effects (GDC 2008)
Crysis Next-Gen Effects (GDC 2008)

Five Rendering Ideas from Battlefield 3 & Need For Speed: The Run
Five Rendering Ideas from Battlefield 3 & Need For Speed: The RunFive Rendering Ideas from Battlefield 3 & Need For Speed: The Run
Five Rendering Ideas from Battlefield 3 & Need For Speed: The Run

Destruction Masking in Frostbite 2 using Volume Distance Fields
Destruction Masking in Frostbite 2 using Volume Distance FieldsDestruction Masking in Frostbite 2 using Volume Distance Fields
Destruction Masking in Frostbite 2 using Volume Distance Fields

Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...
Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...
Colin Barre-Brisebois - GDC 2011 - Approximating Translucency for a Fast, Che...

Calibrating Lighting and Materials in Far Cry 3
Calibrating Lighting and Materials in Far Cry 3Calibrating Lighting and Materials in Far Cry 3
Calibrating Lighting and Materials in Far Cry 3

A Scalable Real-Time Many-Shadowed-Light Rendering System
A Scalable Real-Time Many-Shadowed-Light Rendering SystemA Scalable Real-Time Many-Shadowed-Light Rendering System
A Scalable Real-Time Many-Shadowed-Light Rendering System

Killzone Shadow Fall Demo Postmortem
Killzone Shadow Fall Demo PostmortemKillzone Shadow Fall Demo Postmortem
Killzone Shadow Fall Demo Postmortem

The Rendering Technology of Killzone 2
The Rendering Technology of Killzone 2The Rendering Technology of Killzone 2
The Rendering Technology of Killzone 2

Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)Forward+ (EUROGRAPHICS 2012)
Forward+ (EUROGRAPHICS 2012)

Volumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the FallenVolumetric Lighting for Many Lights in Lords of the Fallen
Volumetric Lighting for Many Lights in Lords of the Fallen

Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow FallLighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall

Bindless Deferred Decals in The Surge 2
Bindless Deferred Decals in The Surge 2Bindless Deferred Decals in The Surge 2
Bindless Deferred Decals in The Surge 2


Similar to Terrain in Battlefield 3: A Modern, Complete and Scalable System

Using Imagery in ArcGIS
Using Imagery in ArcGISUsing Imagery in ArcGIS
Using Imagery in ArcGISEsri

Modern Graphics Pipeline Overview
Modern Graphics Pipeline OverviewModern Graphics Pipeline Overview
Modern Graphics Pipeline Overviewslantsixgames

Building Mosaics
Building MosaicsBuilding Mosaics
Building MosaicsEsri

Decima Engine: Visibility in Horizon Zero Dawn
Decima Engine: Visibility in Horizon Zero DawnDecima Engine: Visibility in Horizon Zero Dawn
Decima Engine: Visibility in Horizon Zero DawnGuerrilla

High Dimensional Indexing using MongoDB (MongoSV 2012)
High Dimensional Indexing using MongoDB (MongoSV 2012)High Dimensional Indexing using MongoDB (MongoSV 2012)
High Dimensional Indexing using MongoDB (MongoSV 2012)Nicholas Knize, Ph.D., GISP

Shadow Warrior 2 and the evolution of the Roadhog Engine, GIC15
Shadow Warrior 2 and the evolution of the Roadhog Engine, GIC15Shadow Warrior 2 and the evolution of the Roadhog Engine, GIC15
Shadow Warrior 2 and the evolution of the Roadhog Engine, GIC15Jarosław Pleskot

GIS and Remote sensing CIvil Engg by Mrunmayee
GIS and Remote sensing CIvil Engg by MrunmayeeGIS and Remote sensing CIvil Engg by Mrunmayee
GIS and Remote sensing CIvil Engg by MrunmayeeMrunmayee Manjari

DSD-INT 2018 Realtime classification of lidar pointclouds - Pronk
DSD-INT 2018 Realtime classification of lidar pointclouds - PronkDSD-INT 2018 Realtime classification of lidar pointclouds - Pronk
DSD-INT 2018 Realtime classification of lidar pointclouds - PronkDeltares

Hadoop performance optimization tips
Hadoop performance optimization tipsHadoop performance optimization tips
Hadoop performance optimization tipsSubhas Kumar Ghosh

Terrain Rendering using GPU-Based Geometry Clipmaps
Terrain Rendering usingGPU-Based Geometry ClipmapsTerrain Rendering usingGPU-Based Geometry Clipmaps
Terrain Rendering using GPU-Based Geometry Clipmapsnone299359

Building Worlds - Codebits
Building Worlds - CodebitsBuilding Worlds - Codebits
Building Worlds - CodebitsFilipe Varela

Le projet “Canadian Spatial Data Foundry”: Introduction à PostGIS WKT Raster
Le projet “Canadian Spatial Data Foundry”: Introduction à PostGIS WKT RasterLe projet “Canadian Spatial Data Foundry”: Introduction à PostGIS WKT Raster
Le projet “Canadian Spatial Data Foundry”: Introduction à PostGIS WKT RasterACSG Section Montréal

L19CloudMapReduce introduction for cloud computing .ppt
L19CloudMapReduce introduction for cloud computing .pptL19CloudMapReduce introduction for cloud computing .ppt
L19CloudMapReduce introduction for cloud computing .pptMaruthiPrasad96

Bigdata and Hadoop
 Bigdata and Hadoop Bigdata and Hadoop
Bigdata and HadoopGirish L

Cloud infrastructure. Google File System and MapReduce - Andrii Vozniuk
Cloud infrastructure. Google File System and MapReduce - Andrii VozniukCloud infrastructure. Google File System and MapReduce - Andrii Vozniuk
Cloud infrastructure. Google File System and MapReduce - Andrii VozniukAndrii Vozniuk

Distributed Data processing in a Cloud
Distributed Data processing in a CloudDistributed Data processing in a Cloud
Distributed Data processing in a Cloudelliando dias


Similar to Terrain in Battlefield 3: A Modern, Complete and Scalable System (20)

Felwyrld Tech
Felwyrld TechFelwyrld Tech
Felwyrld Tech

Using Imagery in ArcGIS
Using Imagery in ArcGISUsing Imagery in ArcGIS
Using Imagery in ArcGIS

Modern Graphics Pipeline Overview
Modern Graphics Pipeline OverviewModern Graphics Pipeline Overview
Modern Graphics Pipeline Overview

Building Mosaics
Building MosaicsBuilding Mosaics
Building Mosaics

Decima Engine: Visibility in Horizon Zero Dawn
Decima Engine: Visibility in Horizon Zero DawnDecima Engine: Visibility in Horizon Zero Dawn
Decima Engine: Visibility in Horizon Zero Dawn

High Dimensional Indexing using MongoDB (MongoSV 2012)
High Dimensional Indexing using MongoDB (MongoSV 2012)High Dimensional Indexing using MongoDB (MongoSV 2012)
High Dimensional Indexing using MongoDB (MongoSV 2012)

Shadow Warrior 2 and the evolution of the Roadhog Engine, GIC15
Shadow Warrior 2 and the evolution of the Roadhog Engine, GIC15Shadow Warrior 2 and the evolution of the Roadhog Engine, GIC15
Shadow Warrior 2 and the evolution of the Roadhog Engine, GIC15

GIS and Remote sensing CIvil Engg by Mrunmayee
GIS and Remote sensing CIvil Engg by MrunmayeeGIS and Remote sensing CIvil Engg by Mrunmayee
GIS and Remote sensing CIvil Engg by Mrunmayee

DSD-INT 2018 Realtime classification of lidar pointclouds - Pronk
DSD-INT 2018 Realtime classification of lidar pointclouds - PronkDSD-INT 2018 Realtime classification of lidar pointclouds - Pronk
DSD-INT 2018 Realtime classification of lidar pointclouds - Pronk

Hadoop performance optimization tips
Hadoop performance optimization tipsHadoop performance optimization tips
Hadoop performance optimization tips

Terrain Rendering using GPU-Based Geometry Clipmaps
Terrain Rendering usingGPU-Based Geometry ClipmapsTerrain Rendering usingGPU-Based Geometry Clipmaps
Terrain Rendering using GPU-Based Geometry Clipmaps

Hadoop
HadoopHadoop
Hadoop

Building Worlds - Codebits
Building Worlds - CodebitsBuilding Worlds - Codebits
Building Worlds - Codebits

Le projet “Canadian Spatial Data Foundry”: Introduction à PostGIS WKT Raster
Le projet “Canadian Spatial Data Foundry”: Introduction à PostGIS WKT RasterLe projet “Canadian Spatial Data Foundry”: Introduction à PostGIS WKT Raster
Le projet “Canadian Spatial Data Foundry”: Introduction à PostGIS WKT Raster

L19CloudMapReduce introduction for cloud computing .ppt
L19CloudMapReduce introduction for cloud computing .pptL19CloudMapReduce introduction for cloud computing .ppt
L19CloudMapReduce introduction for cloud computing .ppt

Bigdata and Hadoop
 Bigdata and Hadoop Bigdata and Hadoop
Bigdata and Hadoop

RTree Spatial Indexing with MongoDB - MongoDC
RTree Spatial Indexing with MongoDB - MongoDC RTree Spatial Indexing with MongoDB - MongoDC
RTree Spatial Indexing with MongoDB - MongoDC

Cloud infrastructure. Google File System and MapReduce - Andrii Vozniuk
Cloud infrastructure. Google File System and MapReduce - Andrii VozniukCloud infrastructure. Google File System and MapReduce - Andrii Vozniuk
Cloud infrastructure. Google File System and MapReduce - Andrii Vozniuk

External memory
External memoryExternal memory
External memory

Distributed Data processing in a Cloud
Distributed Data processing in a CloudDistributed Data processing in a Cloud
Distributed Data processing in a Cloud


More from Electronic Arts / DICE

GDC2019 - SEED - Towards Deep Generative Models in Game Development
GDC2019 - SEED - Towards Deep Generative Models in Game DevelopmentGDC2019 - SEED - Towards Deep Generative Models in Game Development
GDC2019 - SEED - Towards Deep Generative Models in Game DevelopmentElectronic Arts / DICE

SIGGRAPH 2010 - Style and Gameplay in the Mirror's Edge
SIGGRAPH 2010 - Style and Gameplay in the Mirror's EdgeSIGGRAPH 2010 - Style and Gameplay in the Mirror's Edge
SIGGRAPH 2010 - Style and Gameplay in the Mirror's EdgeElectronic Arts / DICE

Syysgraph 2018 - Modern Graphics Abstractions & Real-Time Ray Tracing
Syysgraph 2018 - Modern Graphics Abstractions & Real-Time Ray TracingSyysgraph 2018 - Modern Graphics Abstractions & Real-Time Ray Tracing
Syysgraph 2018 - Modern Graphics Abstractions & Real-Time Ray TracingElectronic Arts / DICE

Khronos Munich 2018 - Halcyon and Vulkan
Khronos Munich 2018 - Halcyon and VulkanKhronos Munich 2018 - Halcyon and Vulkan
Khronos Munich 2018 - Halcyon and VulkanElectronic Arts / DICE

CEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
CEDEC 2018 - Towards Effortless Photorealism Through Real-Time RaytracingCEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
CEDEC 2018 - Towards Effortless Photorealism Through Real-Time RaytracingElectronic Arts / DICE

CEDEC 2018 - Functional Symbiosis of Art Direction and Proceduralism
CEDEC 2018 - Functional Symbiosis of Art Direction and ProceduralismCEDEC 2018 - Functional Symbiosis of Art Direction and Proceduralism
CEDEC 2018 - Functional Symbiosis of Art Direction and ProceduralismElectronic Arts / DICE

SIGGRAPH 2018 - PICA PICA and NVIDIA Turing
SIGGRAPH 2018 - PICA PICA and NVIDIA TuringSIGGRAPH 2018 - PICA PICA and NVIDIA Turing
SIGGRAPH 2018 - PICA PICA and NVIDIA TuringElectronic Arts / DICE

SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time RaytracingSIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time RaytracingElectronic Arts / DICE

HPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
HPG 2018 - Game Ray Tracing: State-of-the-Art and Open ProblemsHPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
HPG 2018 - Game Ray Tracing: State-of-the-Art and Open ProblemsElectronic Arts / DICE

EPC 2018 - SEED - Exploring The Collaboration Between Proceduralism & Deep Le...
EPC 2018 - SEED - Exploring The Collaboration Between Proceduralism & Deep Le...EPC 2018 - SEED - Exploring The Collaboration Between Proceduralism & Deep Le...
EPC 2018 - SEED - Exploring The Collaboration Between Proceduralism & Deep Le...Electronic Arts / DICE

DD18 - SEED - Raytracing in Hybrid Real-Time Rendering
DD18 - SEED - Raytracing in Hybrid Real-Time RenderingDD18 - SEED - Raytracing in Hybrid Real-Time Rendering
DD18 - SEED - Raytracing in Hybrid Real-Time RenderingElectronic Arts / DICE

Creativity of Rules and Patterns: Designing Procedural Systems
Creativity of Rules and Patterns: Designing Procedural SystemsCreativity of Rules and Patterns: Designing Procedural Systems
Creativity of Rules and Patterns: Designing Procedural SystemsElectronic Arts / DICE

Shiny Pixels and Beyond: Real-Time Raytracing at SEED
Shiny Pixels and Beyond: Real-Time Raytracing at SEEDShiny Pixels and Beyond: Real-Time Raytracing at SEED
Shiny Pixels and Beyond: Real-Time Raytracing at SEEDElectronic Arts / DICE

Future Directions for Compute-for-Graphics
Future Directions for Compute-for-GraphicsFuture Directions for Compute-for-Graphics
Future Directions for Compute-for-GraphicsElectronic Arts / DICE

A Certain Slant of Light - Past, Present and Future Challenges of Global Illu...
A Certain Slant of Light - Past, Present and Future Challenges of Global Illu...A Certain Slant of Light - Past, Present and Future Challenges of Global Illu...
A Certain Slant of Light - Past, Present and Future Challenges of Global Illu...Electronic Arts / DICE

High Dynamic Range color grading and display in Frostbite
High Dynamic Range color grading and display in FrostbiteHigh Dynamic Range color grading and display in Frostbite
High Dynamic Range color grading and display in FrostbiteElectronic Arts / DICE

4K Checkerboard in Battlefield 1 and Mass Effect Andromeda
4K Checkerboard in Battlefield 1 and Mass Effect Andromeda4K Checkerboard in Battlefield 1 and Mass Effect Andromeda
4K Checkerboard in Battlefield 1 and Mass Effect AndromedaElectronic Arts / DICE

Photogrammetry and Star Wars Battlefront
Photogrammetry and Star Wars BattlefrontPhotogrammetry and Star Wars Battlefront
Photogrammetry and Star Wars BattlefrontElectronic Arts / DICE


More from Electronic Arts / DICE (20)

GDC2019 - SEED - Towards Deep Generative Models in Game Development
GDC2019 - SEED - Towards Deep Generative Models in Game DevelopmentGDC2019 - SEED - Towards Deep Generative Models in Game Development
GDC2019 - SEED - Towards Deep Generative Models in Game Development

SIGGRAPH 2010 - Style and Gameplay in the Mirror's Edge
SIGGRAPH 2010 - Style and Gameplay in the Mirror's EdgeSIGGRAPH 2010 - Style and Gameplay in the Mirror's Edge
SIGGRAPH 2010 - Style and Gameplay in the Mirror's Edge

SEED - Halcyon Architecture
SEED - Halcyon ArchitectureSEED - Halcyon Architecture
SEED - Halcyon Architecture

Syysgraph 2018 - Modern Graphics Abstractions & Real-Time Ray Tracing
Syysgraph 2018 - Modern Graphics Abstractions & Real-Time Ray TracingSyysgraph 2018 - Modern Graphics Abstractions & Real-Time Ray Tracing
Syysgraph 2018 - Modern Graphics Abstractions & Real-Time Ray Tracing

Khronos Munich 2018 - Halcyon and Vulkan
Khronos Munich 2018 - Halcyon and VulkanKhronos Munich 2018 - Halcyon and Vulkan
Khronos Munich 2018 - Halcyon and Vulkan

CEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
CEDEC 2018 - Towards Effortless Photorealism Through Real-Time RaytracingCEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing
CEDEC 2018 - Towards Effortless Photorealism Through Real-Time Raytracing

CEDEC 2018 - Functional Symbiosis of Art Direction and Proceduralism
CEDEC 2018 - Functional Symbiosis of Art Direction and ProceduralismCEDEC 2018 - Functional Symbiosis of Art Direction and Proceduralism
CEDEC 2018 - Functional Symbiosis of Art Direction and Proceduralism

SIGGRAPH 2018 - PICA PICA and NVIDIA Turing
SIGGRAPH 2018 - PICA PICA and NVIDIA TuringSIGGRAPH 2018 - PICA PICA and NVIDIA Turing
SIGGRAPH 2018 - PICA PICA and NVIDIA Turing

SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time RaytracingSIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing
SIGGRAPH 2018 - Full Rays Ahead! From Raster to Real-Time Raytracing

HPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
HPG 2018 - Game Ray Tracing: State-of-the-Art and Open ProblemsHPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems
HPG 2018 - Game Ray Tracing: State-of-the-Art and Open Problems

EPC 2018 - SEED - Exploring The Collaboration Between Proceduralism & Deep Le...
EPC 2018 - SEED - Exploring The Collaboration Between Proceduralism & Deep Le...EPC 2018 - SEED - Exploring The Collaboration Between Proceduralism & Deep Le...
EPC 2018 - SEED - Exploring The Collaboration Between Proceduralism & Deep Le...

DD18 - SEED - Raytracing in Hybrid Real-Time Rendering
DD18 - SEED - Raytracing in Hybrid Real-Time RenderingDD18 - SEED - Raytracing in Hybrid Real-Time Rendering
DD18 - SEED - Raytracing in Hybrid Real-Time Rendering

Creativity of Rules and Patterns: Designing Procedural Systems
Creativity of Rules and Patterns: Designing Procedural SystemsCreativity of Rules and Patterns: Designing Procedural Systems
Creativity of Rules and Patterns: Designing Procedural Systems

Shiny Pixels and Beyond: Real-Time Raytracing at SEED
Shiny Pixels and Beyond: Real-Time Raytracing at SEEDShiny Pixels and Beyond: Real-Time Raytracing at SEED
Shiny Pixels and Beyond: Real-Time Raytracing at SEED

Future Directions for Compute-for-Graphics
Future Directions for Compute-for-GraphicsFuture Directions for Compute-for-Graphics
Future Directions for Compute-for-Graphics

A Certain Slant of Light - Past, Present and Future Challenges of Global Illu...
A Certain Slant of Light - Past, Present and Future Challenges of Global Illu...A Certain Slant of Light - Past, Present and Future Challenges of Global Illu...
A Certain Slant of Light - Past, Present and Future Challenges of Global Illu...

High Dynamic Range color grading and display in Frostbite
High Dynamic Range color grading and display in FrostbiteHigh Dynamic Range color grading and display in Frostbite
High Dynamic Range color grading and display in Frostbite

4K Checkerboard in Battlefield 1 and Mass Effect Andromeda
4K Checkerboard in Battlefield 1 and Mass Effect Andromeda4K Checkerboard in Battlefield 1 and Mass Effect Andromeda
4K Checkerboard in Battlefield 1 and Mass Effect Andromeda

Photogrammetry and Star Wars Battlefront
Photogrammetry and Star Wars BattlefrontPhotogrammetry and Star Wars Battlefront
Photogrammetry and Star Wars Battlefront

Stochastic Screen-Space Reflections
Stochastic Screen-Space ReflectionsStochastic Screen-Space Reflections
Stochastic Screen-Space Reflections


Recently uploaded

Lesbian ℂall Girls Navi Mumbai Hire Me Neha 9910780858 Top Class ℂall Girl Se...
Lesbian ℂall Girls Navi Mumbai Hire Me Neha 9910780858 Top Class ℂall Girl Se...Lesbian ℂall Girls Navi Mumbai Hire Me Neha 9910780858 Top Class ℂall Girl Se...
Lesbian ℂall Girls Navi Mumbai Hire Me Neha 9910780858 Top Class ℂall Girl Se...poonam rawat$V15

Title Unlocking Imagination The Importance of Toca Boca for Kids.pdf
Title Unlocking Imagination The Importance of Toca Boca for Kids.pdfTitle Unlocking Imagination The Importance of Toca Boca for Kids.pdf
Title Unlocking Imagination The Importance of Toca Boca for Kids.pdfToca boca

WHO KILLED ALASKA? #17: Mirror Memoria - "OFFICER" TRANSCRIPT.pdf
WHO KILLED ALASKA? #17: Mirror Memoria - "OFFICER" TRANSCRIPT.pdfWHO KILLED ALASKA? #17: Mirror Memoria - "OFFICER" TRANSCRIPT.pdf
WHO KILLED ALASKA? #17: Mirror Memoria - "OFFICER" TRANSCRIPT.pdfOptimistic18

Plant cell organelles Poster in green white blue illustrative style.pdf
Plant cell organelles Poster in green white blue illustrative style.pdfPlant cell organelles Poster in green white blue illustrative style.pdf
Plant cell organelles Poster in green white blue illustrative style.pdfRoger Garcia

Vibration Control.pptxjjjjjjjjjjjjjjjjjjjjj
Vibration Control.pptxjjjjjjjjjjjjjjjjjjjjjVibration Control.pptxjjjjjjjjjjjjjjjjjjjjj
Vibration Control.pptxjjjjjjjjjjjjjjjjjjjjjjoshuaclack73

romantic date with Call Girls in Siwan 💓 6297126446 💓High Profile Call Girls ...
romantic date with Call Girls in Siwan 💓 6297126446 💓High Profile Call Girls ...romantic date with Call Girls in Siwan 💓 6297126446 💓High Profile Call Girls ...
romantic date with Call Girls in Siwan 💓 6297126446 💓High Profile Call Girls ...isha pandey

WHO KILLED ALASKA? #18: Mirror Memoria - "TATTOO" TRANSCRIPT.pdf
WHO KILLED ALASKA? #18: Mirror Memoria - "TATTOO" TRANSCRIPT.pdfWHO KILLED ALASKA? #18: Mirror Memoria - "TATTOO" TRANSCRIPT.pdf
WHO KILLED ALASKA? #18: Mirror Memoria - "TATTOO" TRANSCRIPT.pdfOptimistic18

Best Call Girls in Sheikhpura { 6297126446 } ❤️VVIP NISHA Call Girls Near 5 S...
Best Call Girls in Sheikhpura { 6297126446 } ❤️VVIP NISHA Call Girls Near 5 S...Best Call Girls in Sheikhpura { 6297126446 } ❤️VVIP NISHA Call Girls Near 5 S...
Best Call Girls in Sheikhpura { 6297126446 } ❤️VVIP NISHA Call Girls Near 5 S...isha pandey

Your Budget Call Girls in Purnia { 6297126446 } ❤️VVIP NISHA Call Girls Near ...
Your Budget Call Girls in Purnia { 6297126446 } ❤️VVIP NISHA Call Girls Near ...Your Budget Call Girls in Purnia { 6297126446 } ❤️VVIP NISHA Call Girls Near ...
Your Budget Call Girls in Purnia { 6297126446 } ❤️VVIP NISHA Call Girls Near ...isha pandey

C&C Artists' Websites .
C&C Artists' Websites                       .C&C Artists' Websites                       .
C&C Artists' Websites .LukeNash7

Codes and conventions of film magazines.pptx
Codes and conventions of film magazines.pptxCodes and conventions of film magazines.pptx
Codes and conventions of film magazines.pptxCharlotte512934

Smart-Dustbin-Using-EEEEEEESP32 (1).pptx
Smart-Dustbin-Using-EEEEEEESP32 (1).pptxSmart-Dustbin-Using-EEEEEEESP32 (1).pptx
Smart-Dustbin-Using-EEEEEEESP32 (1).pptxsrajece

Dune part two.docx this is dune part two
Dune part two.docx this is dune part twoDune part two.docx this is dune part two
Dune part two.docx this is dune part twozlealem20163052

VIP/Call/Girls Nandi Hills 6378878445 Hours Service Available Day and Night
VIP/Call/Girls Nandi Hills 6378878445 Hours Service Available Day and NightVIP/Call/Girls Nandi Hills 6378878445 Hours Service Available Day and Night
VIP/Call/Girls Nandi Hills 6378878445 Hours Service Available Day and Nightdarmandersingh4580

WHO KILLED ALASKA? #15: "5½ STORIES Part Two" Transcript .pdf
WHO KILLED ALASKA? #15: "5½ STORIES Part Two" Transcript .pdfWHO KILLED ALASKA? #15: "5½ STORIES Part Two" Transcript .pdf
WHO KILLED ALASKA? #15: "5½ STORIES Part Two" Transcript .pdfOptimistic18

the red riding girl story fkjgoifdjgijogifdoin
the red riding girl story fkjgoifdjgijogifdointhe red riding girl story fkjgoifdjgijogifdoin
the red riding girl story fkjgoifdjgijogifdoinkomalbattersea123

NO1 Pakistan kala jadu Specialist Expert in Quetta, Gujranwala, muzaffarabad,...
NO1 Pakistan kala jadu Specialist Expert in Quetta, Gujranwala, muzaffarabad,...NO1 Pakistan kala jadu Specialist Expert in Quetta, Gujranwala, muzaffarabad,...
NO1 Pakistan kala jadu Specialist Expert in Quetta, Gujranwala, muzaffarabad,...Amil Baba Dawood bangali

The most insightful Call Girls Sitamarhi ➡️ 6297126446 HOT & SEXY Models beau...
The most insightful Call Girls Sitamarhi ➡️ 6297126446 HOT & SEXY Models beau...The most insightful Call Girls Sitamarhi ➡️ 6297126446 HOT & SEXY Models beau...
The most insightful Call Girls Sitamarhi ➡️ 6297126446 HOT & SEXY Models beau...isha pandey

成绩单不见怎么办:买宾州州立大学毕业证成绩单学历证书
成绩单不见怎么办:买宾州州立大学毕业证成绩单学历证书成绩单不见怎么办:买宾州州立大学毕业证成绩单学历证书
成绩单不见怎么办:买宾州州立大学毕业证成绩单学历证书ytuknae

Call Girl Service in Sheohar 📲🔝 6297126446 🔝Call Girls Advance Cash On Delive...
Call Girl Service in Sheohar 📲🔝 6297126446 🔝Call Girls Advance Cash On Delive...Call Girl Service in Sheohar 📲🔝 6297126446 🔝Call Girls Advance Cash On Delive...
Call Girl Service in Sheohar 📲🔝 6297126446 🔝Call Girls Advance Cash On Delive...isha pandey


Recently uploaded (20)

Lesbian ℂall Girls Navi Mumbai Hire Me Neha 9910780858 Top Class ℂall Girl Se...
Lesbian ℂall Girls Navi Mumbai Hire Me Neha 9910780858 Top Class ℂall Girl Se...Lesbian ℂall Girls Navi Mumbai Hire Me Neha 9910780858 Top Class ℂall Girl Se...
Lesbian ℂall Girls Navi Mumbai Hire Me Neha 9910780858 Top Class ℂall Girl Se...

Title Unlocking Imagination The Importance of Toca Boca for Kids.pdf
Title Unlocking Imagination The Importance of Toca Boca for Kids.pdfTitle Unlocking Imagination The Importance of Toca Boca for Kids.pdf
Title Unlocking Imagination The Importance of Toca Boca for Kids.pdf

WHO KILLED ALASKA? #17: Mirror Memoria - "OFFICER" TRANSCRIPT.pdf
WHO KILLED ALASKA? #17: Mirror Memoria - "OFFICER" TRANSCRIPT.pdfWHO KILLED ALASKA? #17: Mirror Memoria - "OFFICER" TRANSCRIPT.pdf
WHO KILLED ALASKA? #17: Mirror Memoria - "OFFICER" TRANSCRIPT.pdf

Plant cell organelles Poster in green white blue illustrative style.pdf
Plant cell organelles Poster in green white blue illustrative style.pdfPlant cell organelles Poster in green white blue illustrative style.pdf
Plant cell organelles Poster in green white blue illustrative style.pdf

Vibration Control.pptxjjjjjjjjjjjjjjjjjjjjj
Vibration Control.pptxjjjjjjjjjjjjjjjjjjjjjVibration Control.pptxjjjjjjjjjjjjjjjjjjjjj
Vibration Control.pptxjjjjjjjjjjjjjjjjjjjjj

romantic date with Call Girls in Siwan 💓 6297126446 💓High Profile Call Girls ...
romantic date with Call Girls in Siwan 💓 6297126446 💓High Profile Call Girls ...romantic date with Call Girls in Siwan 💓 6297126446 💓High Profile Call Girls ...
romantic date with Call Girls in Siwan 💓 6297126446 💓High Profile Call Girls ...

WHO KILLED ALASKA? #18: Mirror Memoria - "TATTOO" TRANSCRIPT.pdf
WHO KILLED ALASKA? #18: Mirror Memoria - "TATTOO" TRANSCRIPT.pdfWHO KILLED ALASKA? #18: Mirror Memoria - "TATTOO" TRANSCRIPT.pdf
WHO KILLED ALASKA? #18: Mirror Memoria - "TATTOO" TRANSCRIPT.pdf

Best Call Girls in Sheikhpura { 6297126446 } ❤️VVIP NISHA Call Girls Near 5 S...
Best Call Girls in Sheikhpura { 6297126446 } ❤️VVIP NISHA Call Girls Near 5 S...Best Call Girls in Sheikhpura { 6297126446 } ❤️VVIP NISHA Call Girls Near 5 S...
Best Call Girls in Sheikhpura { 6297126446 } ❤️VVIP NISHA Call Girls Near 5 S...

Your Budget Call Girls in Purnia { 6297126446 } ❤️VVIP NISHA Call Girls Near ...
Your Budget Call Girls in Purnia { 6297126446 } ❤️VVIP NISHA Call Girls Near ...Your Budget Call Girls in Purnia { 6297126446 } ❤️VVIP NISHA Call Girls Near ...
Your Budget Call Girls in Purnia { 6297126446 } ❤️VVIP NISHA Call Girls Near ...

C&C Artists' Websites .
C&C Artists' Websites                       .C&C Artists' Websites                       .
C&C Artists' Websites .

Codes and conventions of film magazines.pptx
Codes and conventions of film magazines.pptxCodes and conventions of film magazines.pptx
Codes and conventions of film magazines.pptx

Smart-Dustbin-Using-EEEEEEESP32 (1).pptx
Smart-Dustbin-Using-EEEEEEESP32 (1).pptxSmart-Dustbin-Using-EEEEEEESP32 (1).pptx
Smart-Dustbin-Using-EEEEEEESP32 (1).pptx

Dune part two.docx this is dune part two
Dune part two.docx this is dune part twoDune part two.docx this is dune part two
Dune part two.docx this is dune part two

VIP/Call/Girls Nandi Hills 6378878445 Hours Service Available Day and Night
VIP/Call/Girls Nandi Hills 6378878445 Hours Service Available Day and NightVIP/Call/Girls Nandi Hills 6378878445 Hours Service Available Day and Night
VIP/Call/Girls Nandi Hills 6378878445 Hours Service Available Day and Night

WHO KILLED ALASKA? #15: "5½ STORIES Part Two" Transcript .pdf
WHO KILLED ALASKA? #15: "5½ STORIES Part Two" Transcript .pdfWHO KILLED ALASKA? #15: "5½ STORIES Part Two" Transcript .pdf
WHO KILLED ALASKA? #15: "5½ STORIES Part Two" Transcript .pdf

the red riding girl story fkjgoifdjgijogifdoin
the red riding girl story fkjgoifdjgijogifdointhe red riding girl story fkjgoifdjgijogifdoin
the red riding girl story fkjgoifdjgijogifdoin

NO1 Pakistan kala jadu Specialist Expert in Quetta, Gujranwala, muzaffarabad,...
NO1 Pakistan kala jadu Specialist Expert in Quetta, Gujranwala, muzaffarabad,...NO1 Pakistan kala jadu Specialist Expert in Quetta, Gujranwala, muzaffarabad,...
NO1 Pakistan kala jadu Specialist Expert in Quetta, Gujranwala, muzaffarabad,...

The most insightful Call Girls Sitamarhi ➡️ 6297126446 HOT & SEXY Models beau...
The most insightful Call Girls Sitamarhi ➡️ 6297126446 HOT & SEXY Models beau...The most insightful Call Girls Sitamarhi ➡️ 6297126446 HOT & SEXY Models beau...
The most insightful Call Girls Sitamarhi ➡️ 6297126446 HOT & SEXY Models beau...

成绩单不见怎么办:买宾州州立大学毕业证成绩单学历证书
成绩单不见怎么办:买宾州州立大学毕业证成绩单学历证书成绩单不见怎么办:买宾州州立大学毕业证成绩单学历证书
成绩单不见怎么办:买宾州州立大学毕业证成绩单学历证书

Call Girl Service in Sheohar 📲🔝 6297126446 🔝Call Girls Advance Cash On Delive...
Call Girl Service in Sheohar 📲🔝 6297126446 🔝Call Girls Advance Cash On Delive...Call Girl Service in Sheohar 📲🔝 6297126446 🔝Call Girls Advance Cash On Delive...
Call Girl Service in Sheohar 📲🔝 6297126446 🔝Call Girls Advance Cash On Delive...


Terrain in Battlefield 3: A Modern, Complete and Scalable System

  • 1. Terrain in Battlefield 3: A modern, complete and scalable system Mattias Widmark Software Engineer, EA Digital Illusions (DICE), Stockholm
  • 2. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 3. But first... • ... what are we talking about? • Frostbite terrain has many aspects other than the terrain mesh itself – Let’s look at them!
  • 4. • Heightfield-based • Mesh procedurally generated at runtime
  • 5. Surface rendering with procedual shader splatting – Arbitrary shaders splatted according to painted masks
  • 6. • Spline and quad decals
  • 7. Terrain decoration – Automatic distribution of meshes (trees, rocks, grass) according to mask – Billboards supported
  • 8. § • Terrain decoration – Important as the terrain surface itself
  • 9. Destruction/dynamic terrain – Destruction depth map • Controls crater depth around ie static models – Physics material map • Controls surface effects, audio, crater depth and width
  • 10. • Rivers/lakes – Implemented as free-floating decals – Water depth in pixel shader
  • 11. Terrain raster resources • Multiple raster resources used – Heightfield – Shader splatting masks – Colormap, used as an overlay on top of shader splatting – Physics materials – Destruction depth mask – Albedo map for bounce light – Additional mask channels
  • 12. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 13. Scalability • Our definition of scalability – Arbitrary view distance (0.06m to 30 000m) – Arbitrary level of detail (0.0001m and lower) – Arbitrary velocity (supercars and jets) • Main observation – It is all about hierarchies! – Consistent use of hierarchies gives scalability ”for free” • Hierarchies not new to terrain rendering – Frostbite approach similar to flight simulators • Quadtree hierarchies used for all spatial representations • Assuming knowledge of quadtrees, we jump right into Frostbite specifics!
  • 14. Quadtree node payload • The node payload is a central concept • A quadtree node can be attributed with a ”data blob”; the payload • Payload is Nodes (white circle) – a tile of raster data Payload (red dot) – a cell of terrain decoration • A list of instances (rock, grass, trees) – a piece of decal mesh • All nodes have payload... – ... but only a few have it loaded
  • 15. Nodes with and without payload • Payloads are constantly in motion – They are loaded (streamed), generated or freed evey frame – Only a fraction of the nodes have payload resident • Payload movement is governed by prioritization mechanisms... – ... but more of that later
  • 16. LOD payload • Non-leaf nodes have payload too • These payloads are used as LODs • Detail level depends on payload depth – Nodes closer to root represent lower detail Payload (red dot) LOD payload (orange dot) Increasing LOD
  • 17. View-dependent payload usage Set of payloads (green dots) used Observer moves and another set is for a certain observer position used – Note area to the left is distant – Area to the left now use higher and use lower LOD LOD Observer Observer
  • 18. Motivation for LOD payloads • With LOD • Without LOD – cost (payload count) is mostly – cost depend on terrain size independent of terrain size – Not scalable! – Scalable!
  • 19. Generation of raster LOD payload • Source data and workflows on leaf level • LODs generated automatically by pipeline • Requirements – Tile overlap (borders) for rendering algorithms – Continuity • Recursive (reverse) depth first algorithm – Green LOD tile is generated – Four children (red) and up to 12 neighbor tiles (blue) are used
  • 20. Terrain decoration payloads • Terrain decoration payload – Is a list of instance transforms (for grass, trees, rocks) – Is generated at runtime according to • scattering rules • shader splatted masks (position/density) – Note that we allow shaders to modify masks! • heightfield (ground-clamping and orientation)
  • 21. Terrain decoration LOD payloads • Quite unique (and slightly confusing) concept • LOD payloads used for scalability – Near-root payloads provide high view distance – Near-leaf payloads provide high density • Payloads can overlap – Providing high view distance and density
  • 22. • <screenshot from Frosted w/ game view> High distance low density trees Payload at level N Medium distance medium density trees Payload at level N+1 Adds to payload at level N for increased density Lower distance bushes Payload at level N+2 More leaves added (level N+4) Trees Bushes Leaves and branches Level N+3
  • 23. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 24. Real time editing in FrostEd • FrostEd is Frostbite editor • Game View is game rendering inside editor • Terrain editing with realtime feedback in game view – Heightfield sculpting – Mask and color painting – Decal editing – Terrain decoration
  • 25. External tools • When tools are not enough terrain can be exported and imported – Select all or part of terrain – Metadata + raw file – Edit raw file and reimport • Metadata will import to right area – Puts WorldMachine, GeoControl in the loop • A common workflow
  • 26. Workflow issues • Conflict between data compression and realtime editing • Realtime editing bypass pipeline • Clever update scheme for procedural content needed – We already had one (destruction) • Frostbite terrains too large for some popular tools – GeoControl and WorldMachine do not like 8k+ rasters
  • 27. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 28. Efficient on CPU • All work done in jobs, most on SPU and many wide – Early unoptimized versions consumed 10ms+ PPU time • BF3 final measurements (PS3) – 1-2ms SPU (peaks at ~8ms when lots of terrain decoration is happening) – <1ms PPU
  • 29. Efficient on GPU • Pre-baked shader permutations to avoid multi-pass • Procedual virtual texturing exploit frame-to-frame coherency • Typical figures (PS3): – Full screen GBuffer laydown (w/o detail overlay and terrain decoration): 2.5-3ms – Full screen GBuffer laydown (w/ detail overlay): 2.5-7ms – Terrain decoration: 1-4ms – Virtual texture tile compositing: 0.2-0.5ms
  • 30. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 31. GPU optimization: Procedural virtual texturing • Motivations – With shader splatting, artists can create beautiful terrains… • … rendering very slowly (10-20ms) – Shader splatting not scalable in view distance • Cannot afford multi-pass • By splatting into a texture – we leverage frame-to-frame coherency (performance) – can render in multiple passes (scalability) • Rendering full screen using the texture cost 2.5-3ms (PS3)
  • 32. Virtual texture key values • 32 samples per meter • 256x256 tiles with integrated two pixel border • Atlas storage with default size 4k x 2k • Two DXT5 textures R G B A R G B A Diffuse R Diffuse G Diffuse B Normal X Smoothness/ Normal Y Specular Normal Z Destruction • Very large, can easily reach 1M x 1M (= 1Tpixel)! – Typical virtual textures are 64k x 64k
  • 33. Indirection texture format • RGBA8 R G B A Index X Index Y Scale CLOD fade • Indices into virtual texture tile atlas • Scale factor for low-res areas... – ... where a tile covers more than one indirection sample • CLOD fade factor – Used to smoothly fade in a newly composited tile (fade-to tile) – Previous LOD (fade-from tile) is already in atlas and fetched using indirection mips – CLOD factor updated each frame
  • 34. The ”Teratexture” • How do we reach 1M x 1M? – Indirection texture can easily go 4k x 4k • Way too large! • Clipmap indirection texture – Clipmap – early virtual texture implementation – Replace 4k indirection texture with 6 64x64 clipmap layers
  • 35. Clipmap indirection • Clipmap level is resolved on CPU for each draw call – Avoids additional pixel shader logic – Requires each 64x64 map to have its own mip chain • Texture space has to be roughly organized with world space – Not an issue for terrain – More generic use cases are probably better off with multiple classic virtual textures
  • 36. Tile compositing • Tiles are composited on GPU and compressed on GPU or SPU • Benefits (compared to streaming from disc) – Small disc footprint – data magnification • Source raster data magnified ~1000x – Low latency • Tile is ready to use next frame – Dynamic updates • Destruction • Realtime editing – Efficient workflow • Artists don’t have to paint hundreds of square kilometers down to every last pebble
  • 37. Virtual texture issues • Blurriness (consoles have too small tile pool) • Runtime texture compression quality • GPU tile compositing cost offset some of the gain – ~0.25ms/frame on Xenon • Limited hardware filtering support – Expensive software and/or lower-quality filtering • Compositing latency • Tile compositing render target memory usage
  • 38. Virtual texture issues • Virtual texture has practical limit at around 32 samples per meter – Detail shader splatting fills in to required sharpness (500-1000 samples per meter) • We now have two shader splatting methods – Diffuse/Normal/Specular/Smoothness splats into virtual texture – Direct* splats details into Gbuffer • Performance concerns – Have to limit detail view distance – Typically 50m-100m
  • 39. Virtual texture issues • Indirection update performance – Updating indirection maps is expensive Observer • 4-6 64x64 maps with mips Clipmap – Do in job (SPU) – Update only dirty areas • New tile • CLOD fade factor • Recentering when clipmap region moves – Wraparound • Only edges affected on Updated recentering (bottom image) clipmap area
  • 40. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 41. Data streaming • Frostbite 1 did not stream terrain • Streaming required for larger Battlefield 3 and NFS: The Run levels
  • 42. Streaming basics • Streaming unit: Raster tiles (aka node payloads) – Typical tile sizes • Heightfield: 133x133x2 bytes • Mask: 66x66x1 bytes x 0-50 tiles per payload • Color: 264x264x0.5 bytes • Fixed-size tile pools (atlases) – Typical atlas sizes • Heightfield: 2048x2048 • Mask: 2048x1024 • Color: 2048x2048
  • 43. Streaming modes • Tile-by-tile (aka free) streaming – For slower gameplay • Tile bundle (aka push-based) streaming – For faster games – Tiles associated with a layout are bundled – Based on terrain resolution layouts • Hybrid streaming (most common) – Bundles used at selected spawn points and transitions – Free streaming fill in the rest
  • 44. Spawn point Layout of all data on level Data subset loaded at spawn point A Terrain resolution layout defines the subset Subsets loaded (and unloaded) as user progresses through level
  • 45. Resident set size: Powerful blurriness • Streaming does not remove memory footprint – A resident set is still needed • Resident set can be huge – Theoretical value for BF3 level on PS3: 70+Mb! • Blurriness feature shrinks resident set significantly – Increase blurriness by one and save around 70% – Very important memory saver for BF3 – Shipped with 32Mb terrain resident set
  • 46. Blurriness • Blurriness is mip bias applied to terrain raster streaming – Blurriness = 0: • Streaming continues until raster is sharp – Blurriness = 1: • Streaming stops when raster is slightly blurry (texel covers 2x2 pixels) – Blurriness = 2: • Streaming stops when raster is significantly blurry (texel covers 4x4 pixels)
  • 47. Blurriness: Implementation by pipeline trick • For each level of blurriness – cut tile size in half – add one leaf level • No data is lost – it is only shifted downwards Blurriness 0 Blurriness 1 256x256-sized tiles 128x128-sized tiles 8 resident tiles (500kpixel) 14 nodes added 13 nodes 10 resident tiles (164kpixel, saves 68%) 27 nodes
  • 48. BF3 blurriness use case • Blur expensive rasters – Heightfield (2 bytes per sample) – Mask (1 byte per sample) • Keep cheap rasters – Colormap (DXT1, 0.5byte per sample) • Put detail (for example occlusion) in colormap to hide blurry heightfield/normal map
  • 49. Physics – Wrong streaming setup gives strange artifacts • Vehicles spawning in air or in ground • Invisible and disappearing walls and holes
  • 50. Reducing disc seeks • Often main reason for latency – Can seek maybe four files per second – A terrain can have hundreds of files (tiles/payloads) • Methods to reduce the number of seeks – Use terrain resolution layouts at spawn • Otherwise minutes can pass before stabilization (waiting for file seeks)! – Co-locate overlapping tiles of different types • Store heightfield tile together with color and mask tiles
  • 51. Reducing disc seeks • Methods to reduce the number of seeks (cont’d) – Co-locate nearby tiles • Group leaf node payloads as second LOD in ancestor node • Saves 20-50% seeks in typical scenario Full dataset require 13 seeks Second LOD stored in parent nodes Leaf nodes subject for move in red Full dataset is now 10 seeks
  • 52. Improving throughput • Data tiles are compressed by pipeline – Color tiles are optionally DXT1-compressed – Mask compression • Source tiles (256x256) are chopped up into smaller pieces (66x66) • Empty tile culling • Identical (constant value) tile merging – Physics materials and destruction depth are packed to four bits and RLE-compressed – All tiles are z-compressed
  • 53. Improving throughput • A quadtree node has zero or four children • Incomplete quadtree – We allow zero through four payload children – Reduces bundle size by some 20%+ Complete quadtree with 32 Incomplete quadtree with only tiles at red LOD 20 tiles. Incompleteness saves 12 tiles (37%)
  • 54. Latency under the rug • Even with mentioned improvements, streaming is not instant • General ways of hiding latency – CLOD to smooth most streaming LOD transitions – Global prioritization helps distribute punishment
  • 55. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 56. Global prioritization • Compute priority for each frame and each quadtree node • Update streaming, virtual texturing and terrain decoration – According to priority • Priority value – 1.0: On target • One pixel per texel • Terrain decoration at specified view distance – < 1.0: Node doesn’t need payload – > 1.0: Node need payload
  • 57. Priority depends on distance and size • Closer nodes have higher priority • Larger nodes have higher priority Observer Priority • Red > 1 • Green = 1 • Blue < 1
  • 58. Priority modified by culling, updates and speed Normal node Node in motion Occluder Node being updated (crater added) Observer Occluded node Priority • Red > 1 • Green = 1 • Blue < 1 Node outside frustum
  • 59. Prioritized update algorithm Pool size (keep pool full) Low prio High prio Frame 0: Nodes Steady state Frame 1: Observer moved Bidirectional Look for payloads to fetch Look for payloads to release update Frame 1: Payload released Frame 2: New payload fetched
  • 60. Prioritized update cost • Priority evaluation and sorting done on SPU – <1ms • Update done on PPU – <0.5ms
  • 61. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 62. Mesh • Mesh generated from heightfield • Straight-forward tessellation – Rendered in patches of 16x16 triangle pairs – Projected triangle size rougly constant - support destruction everywhere – Blocky crestlines (on console) • PC, Xenon: – Heightfield sampled in vertex shader • PS3: – Vertex shader texture fetch is too slow • Heightfield samples stored in vertex attribute • Heightfield sampled in pixel shader
  • 63. Mesh stitching • A job analyze mesh quadtree and detect LOD switch edges • Edges are stitched by index permutations – Vertices are unchanged No stitch Stitch left Stitch left and bottom
  • 64. DX11 tessellation • Displacement mapping from heightfield – No additional memory needs (heightfield used as normal map) • Straightforward hull and domain shaders • Tessellation factor derived from projected patch edge bounding sphere – Tries to maintain a constant screen-space triangle width
  • 66. Overview • Scalability – hierarchies, payloads and limitations • Workflows – realtime in-game editing • CPU and GPU performance • Procedural virtual texturing – powerful GPU optimization • Data streaming – minimizing memory footprint • Robustness – global prioritization • Procedural mesh generation • Conclusions
  • 67. Conclusions • Frostbite 2 has a robust and competent terrain system – Heightfield, shading, decals, water, terrain decoration • Most aspects scale well – View distance, data resolution, decoration density and distance • Slick workflow – In-game editing – Good range of tools • Good performance (CPU, GPU, memory) – Parallelized, streaming, procedural virtual texture
  • 68. Special thanks • The Frostbite team • Black Box – Andy Routledge – Cody Ritchie – Brad Gour • Criterion – Tad Swift – Matthew Jones – Richard Parr • Dice – Andrew Hamilton
  • 69. Questions? mattias.widmark@dice.se EA Digital Illusions (DICE)

Editor's Notes

  1. BF3 use 32 samples per meterGoing above gives too low frame-to-frame coherency and often unacceptable latencies.
