DEVELOPMENTAL STAGES OF EMBRYO

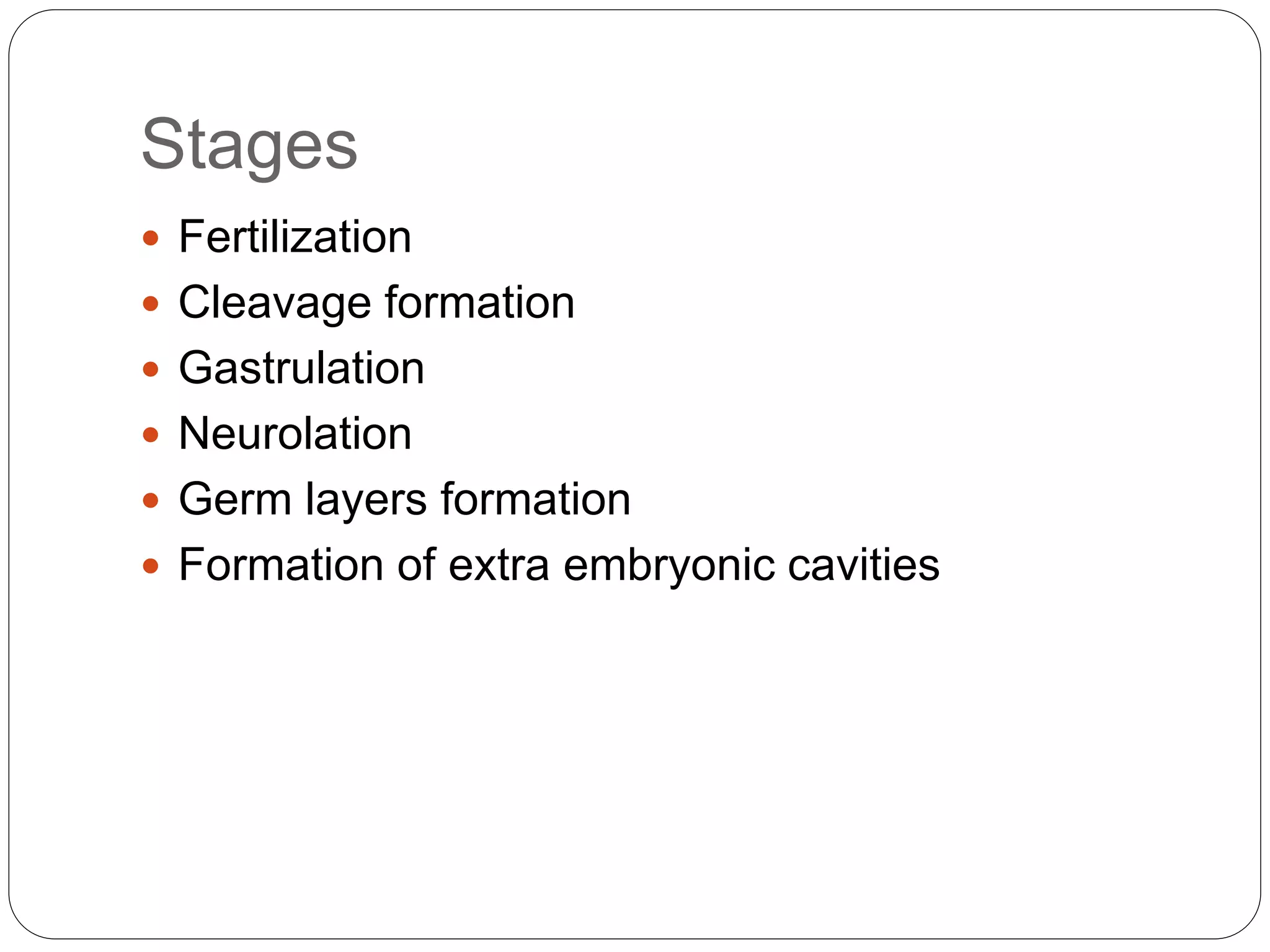

Stages
 Fertilization
 Cleavage formation
 Gastrulation
 Neurolation
 Germ layers formation
 Formation of extra embryonic cavities
Spermatogenesis

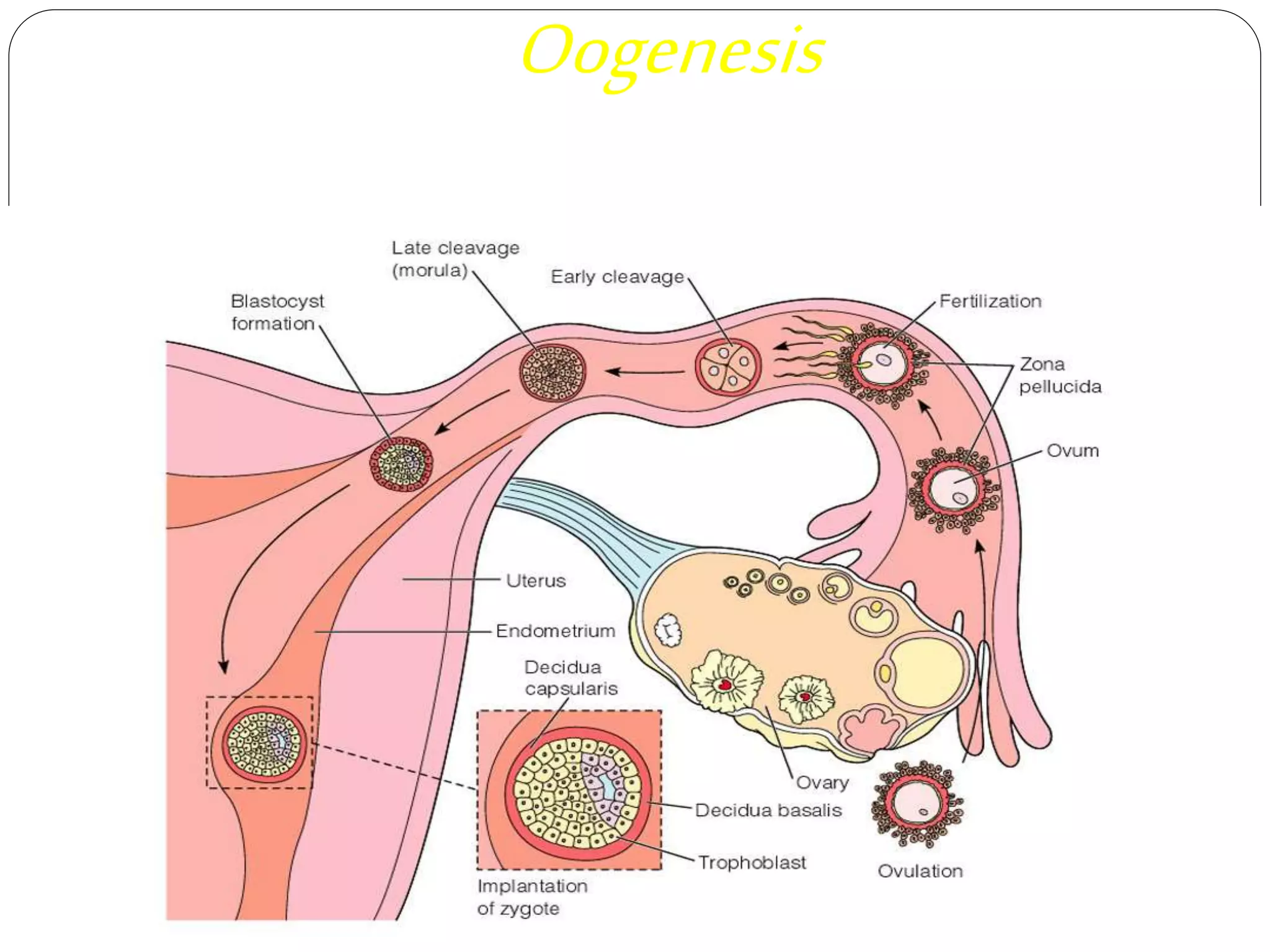

Oogenesis
Fertilization
 Fertilization is
the process of
fusion of the
spermatozoon
with the mature
ovum.

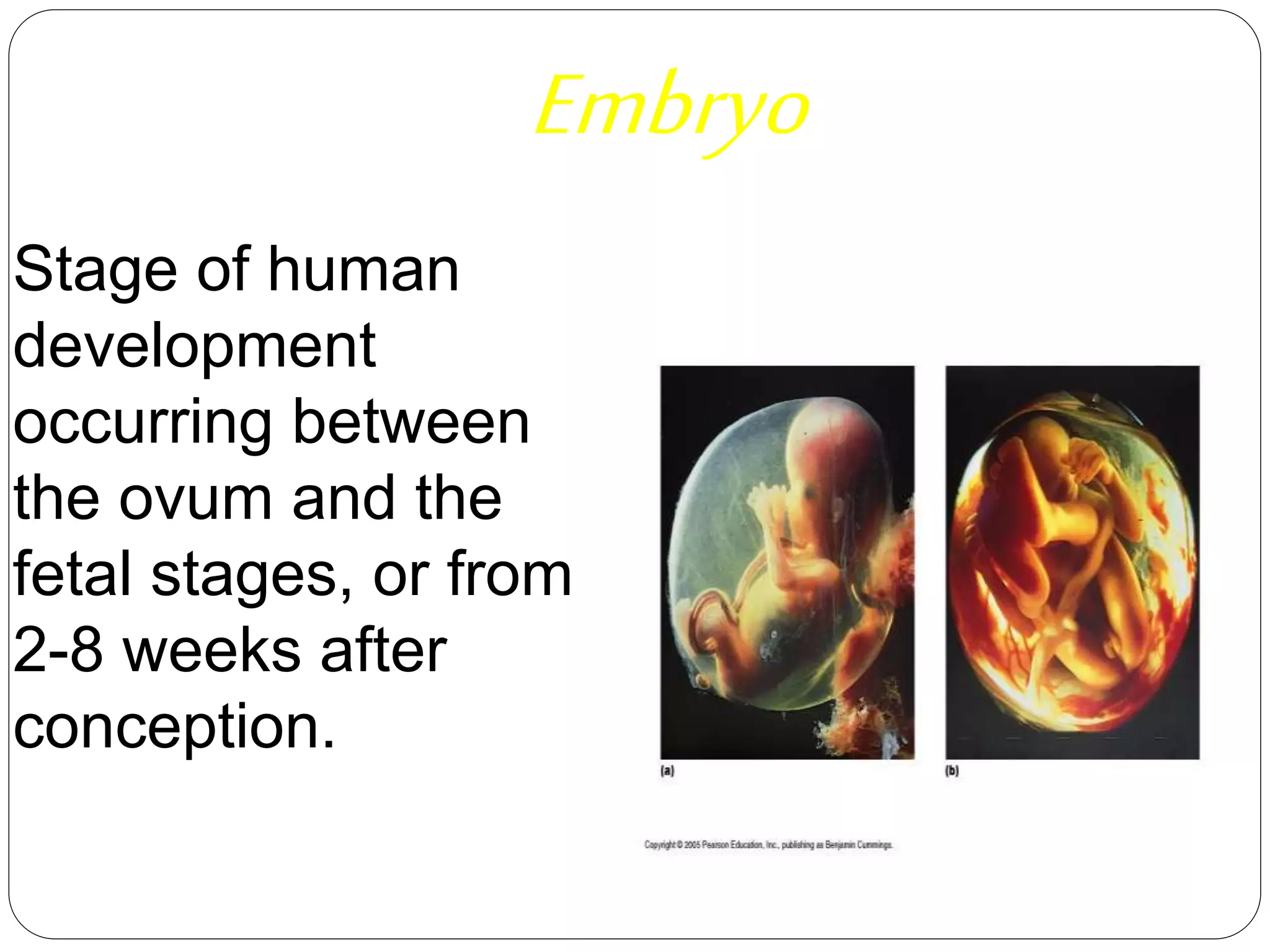

Embryo
Stage of human
development
occurring between
the ovum and the
fetal stages, or from
2-8 weeks after
conception.

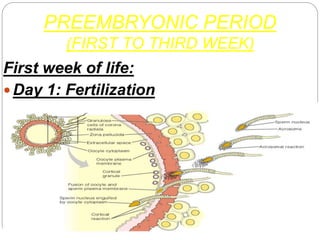

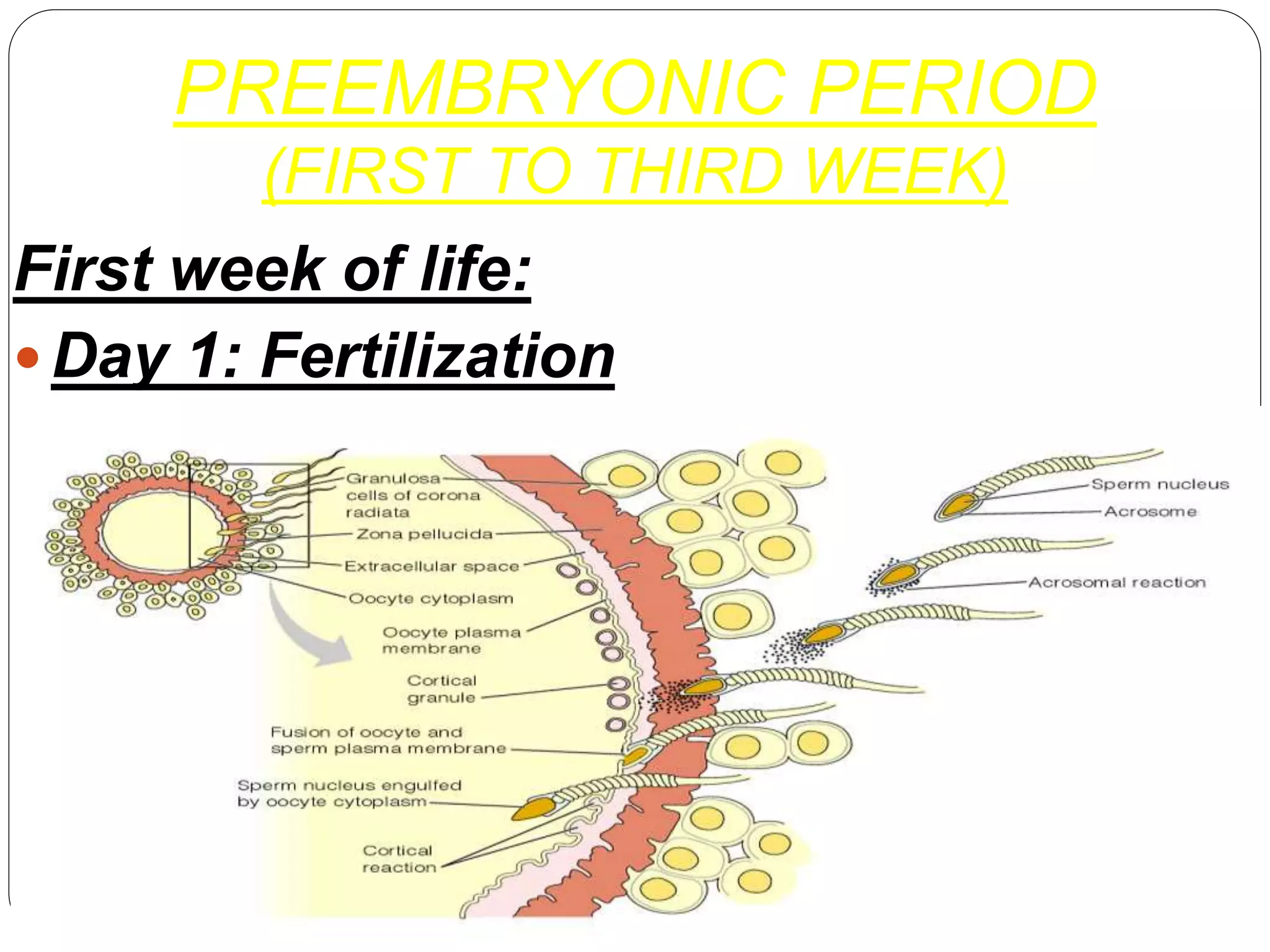

PREEMBRYONIC PERIOD
(FIRST TO THIRD WEEK)
First week of life:
 Day 1: Fertilization
Day2and3:Cleavage
 The original zygote divides about
30 hours after conception into two
daughter cells called
blastomeres.
 Continued subdivisions of the
original cell result in increasing
numbers of blastomeres.
 During cell division the dividing
cells decrease in size. This type
of cell division is called cleavage.
 By the time the zygote is ready to
enter the uterus, it contains a
solid ball of 12 to 16 blastomeres
called the morula (from the latin
Day4: Formation oftheblastocyst
 Fluid within the intercellular spaces
of the morula gradually increases,
and spaces on one side of the inner
cell mass come together, forming a
single cavity, the blastocele.
 The outer layer organizes into the
trophoblasts, which give rise to the
placenta, and the inner layer of cells
form the embryo.
 The cavity of the blastocele fills with
fluid, and the conceptus is now called
the blastocyst.
Preparationoftheendometrium
 Resting phase
 Proliferative phase
 Secretory phase
Attachmentoftheblastocyst
 The blastocyst attaches to the
uterine lining in the V-shaped.
 When the trophoblast (the outer
cell layer) attaches to the
endometrium, it proliferates and
separates into an inner
cytotrophoblastic layer (fetal side)
and an outer syncytiotrophoblastic
(placental side).
 The outer layer develops finger like
projections that proliferate and
superficially attach the blastocyst
to the endometrium within 6 days
after conception.

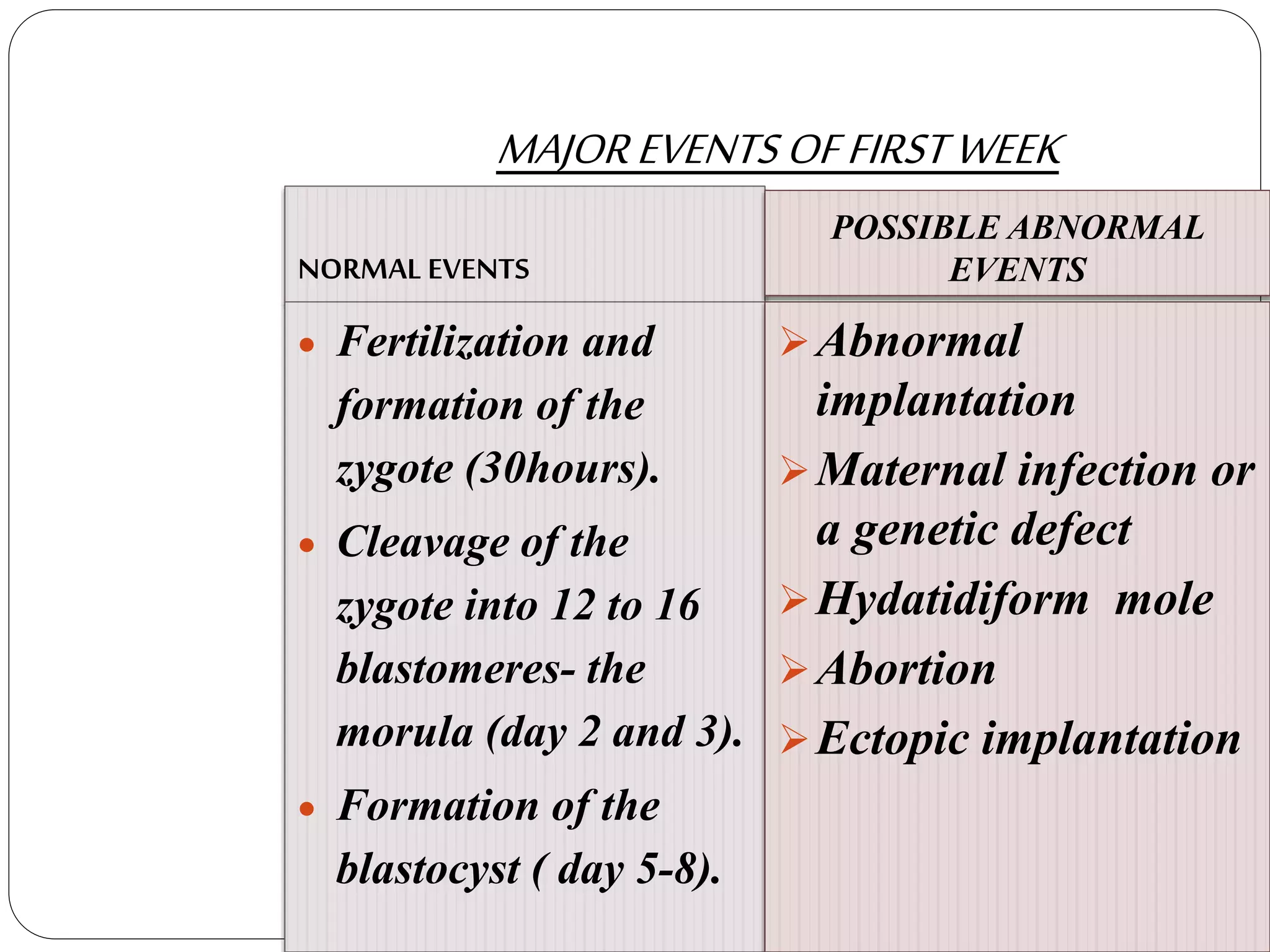

MAJOREVENTS OFFIRSTWEEK
NORMAL EVENTS
POSSIBLE ABNORMAL
EVENTS
 Fertilization and
formation of the
zygote (30hours).
 Cleavage of the
zygote into 12 to 16
blastomeres- the
morula (day 2 and 3).
 Formation of the
blastocyst ( day 5-8).
Abnormal
implantation
Maternal infection or
a genetic defect
Hydatidiform mole
Abortion
Ectopic implantation
Secondweekoflife
 A slitlike amniotic cavity appears about
day 8, and the yolk sac appears as a
second cavity on day 12. Bilaminar
embryonic disc is formed in between
these two layers.
 The endodermal disc becomes thicker
at it’s cephalad end, forming the
prochordal plate.
 During early development of the
nervous system, the function of the
prochordal plate is to indicate the site of
the mouth and to form the membranes
of the mouth and throat.
 The formation of the decidua, fetal
membranes, and placenta extends
beyond the second week, but their

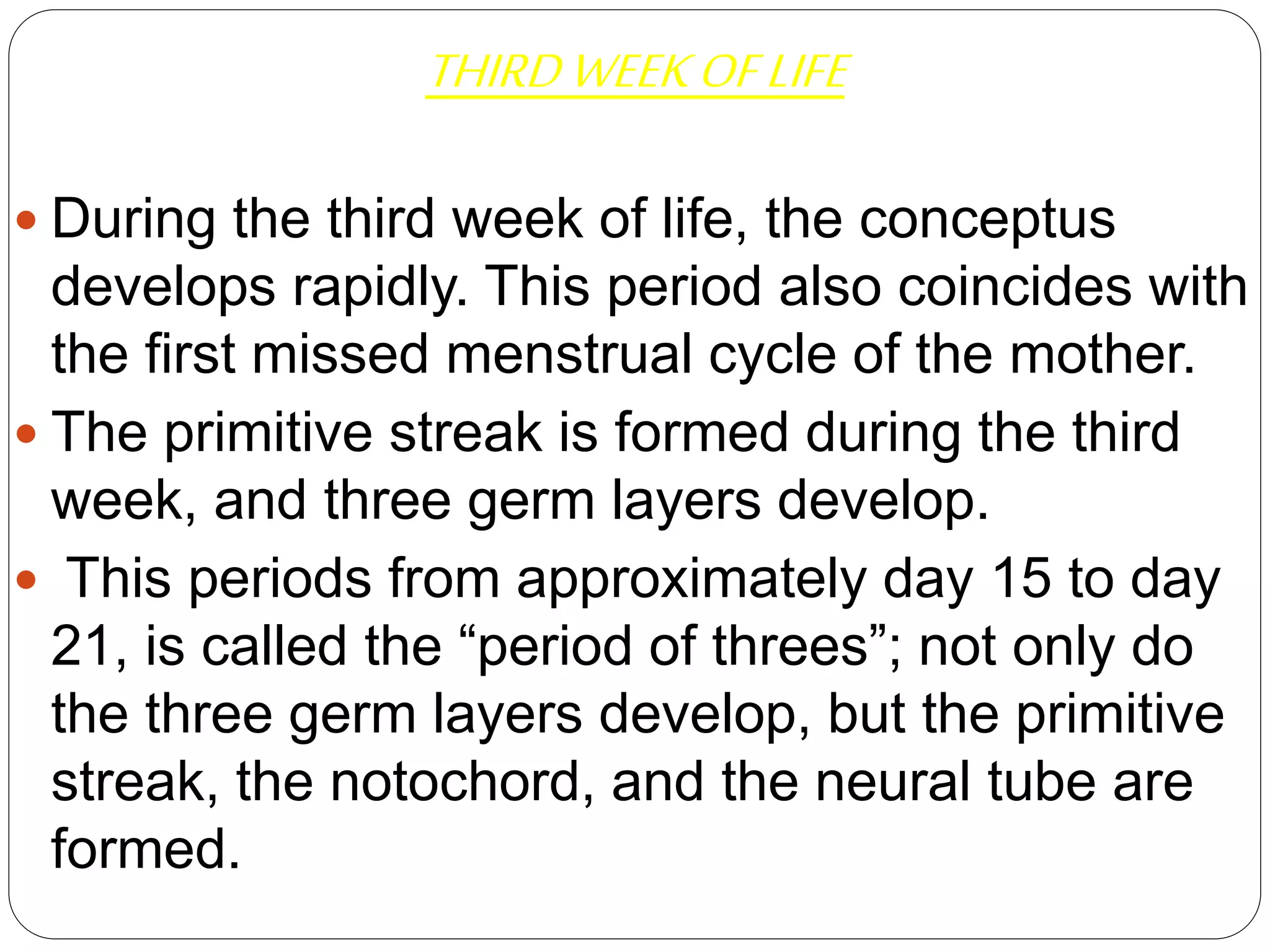

THIRDWEEKOFLIFE
 During the third week of life, the conceptus
develops rapidly. This period also coincides with
the first missed menstrual cycle of the mother.
 The primitive streak is formed during the third
week, and three germ layers develop.
 This periods from approximately day 15 to day
21, is called the “period of threes”; not only do
the three germ layers develop, but the primitive
streak, the notochord, and the neural tube are
formed.

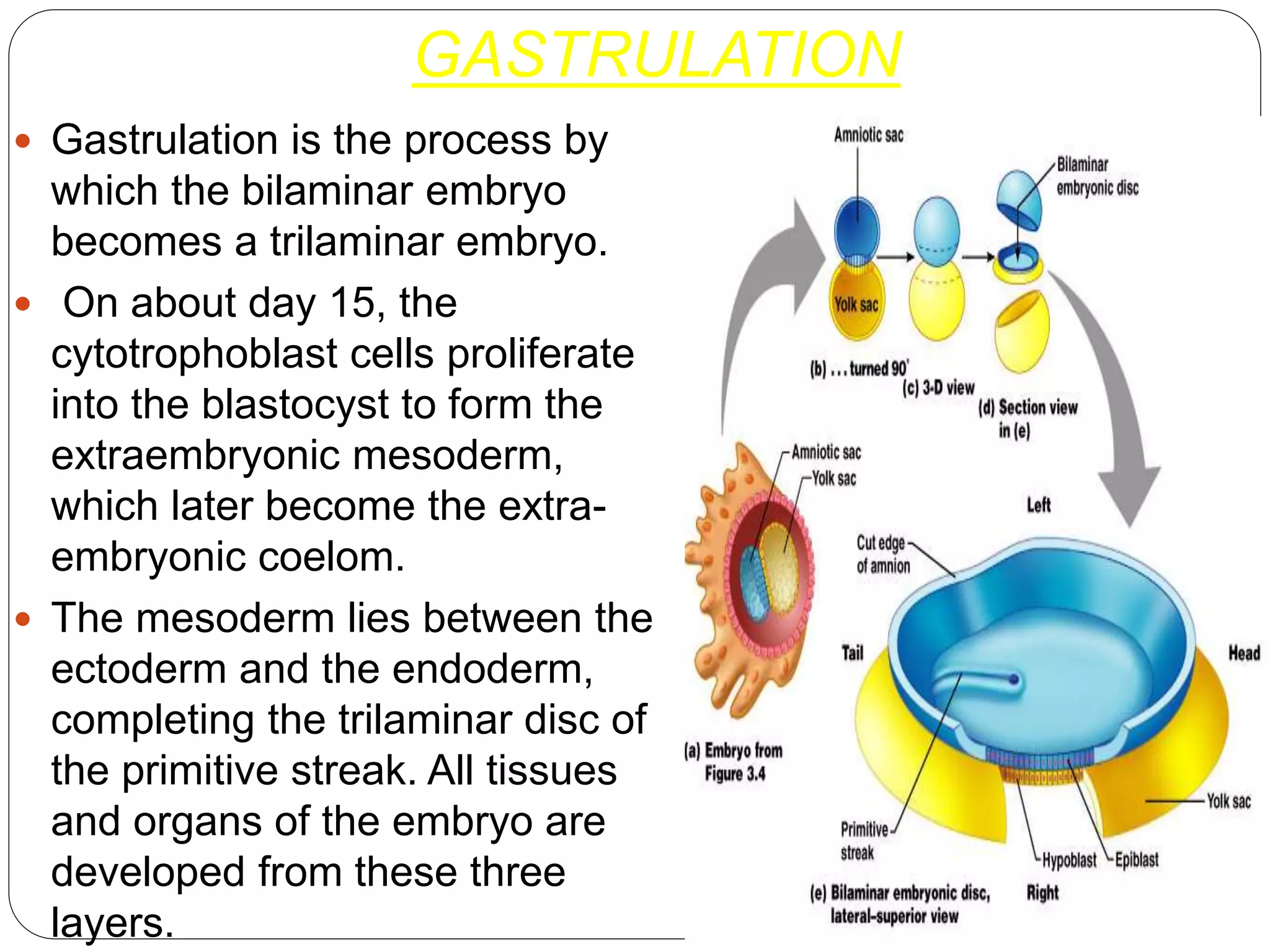

GASTRULATION
 Gastrulation is the process by
which the bilaminar embryo
becomes a trilaminar embryo.
 On about day 15, the
cytotrophoblast cells proliferate
into the blastocyst to form the
extraembryonic mesoderm,
which later become the extra-
embryonic coelom.
 The mesoderm lies between the
ectoderm and the endoderm,
completing the trilaminar disc of
the primitive streak. All tissues
and organs of the embryo are
developed from these three
layers.

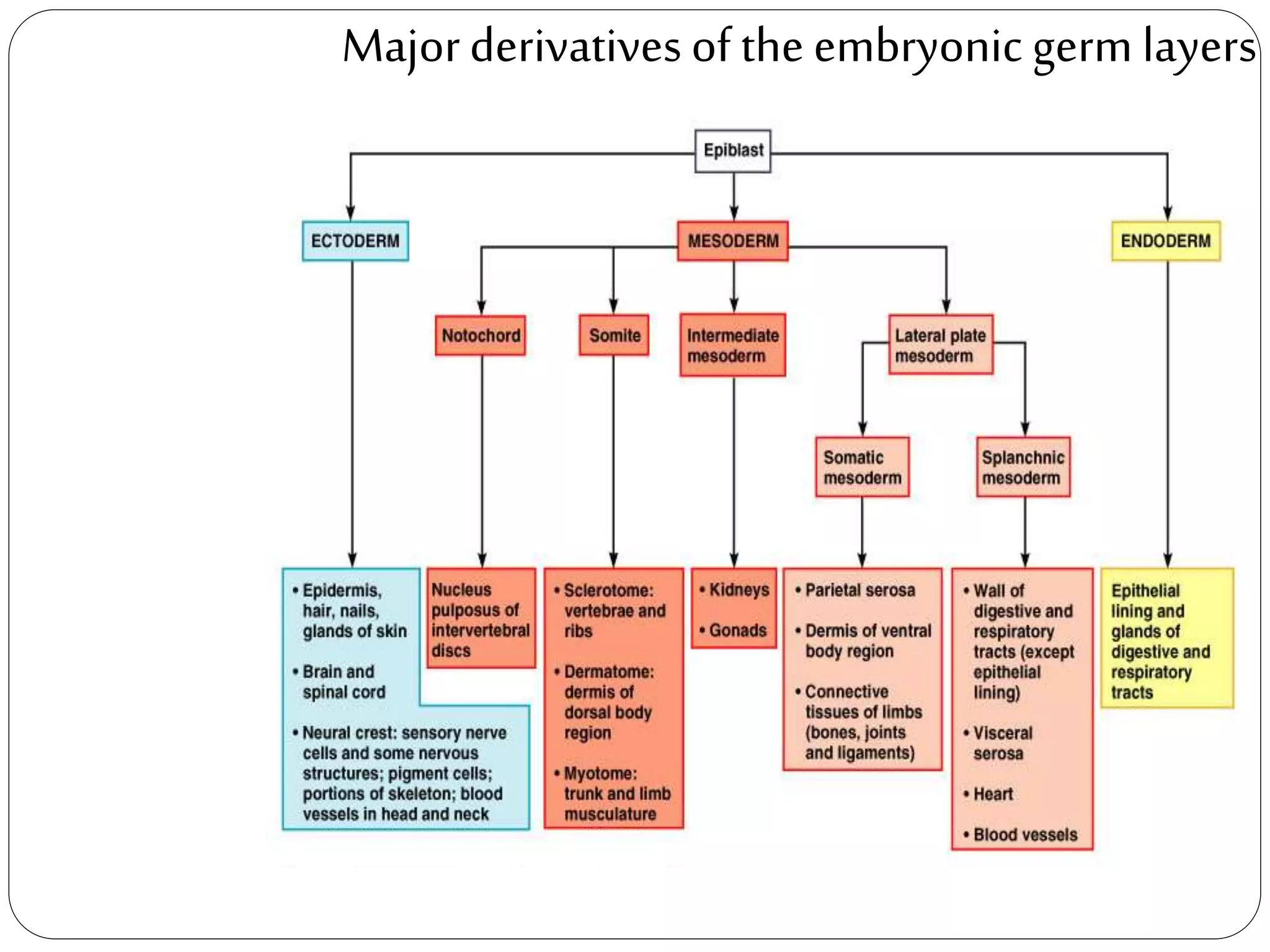

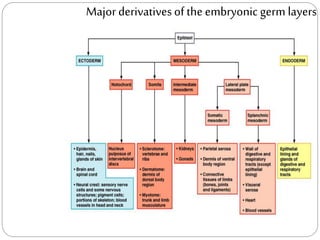

Majorderivativesof the embryonic germ layers

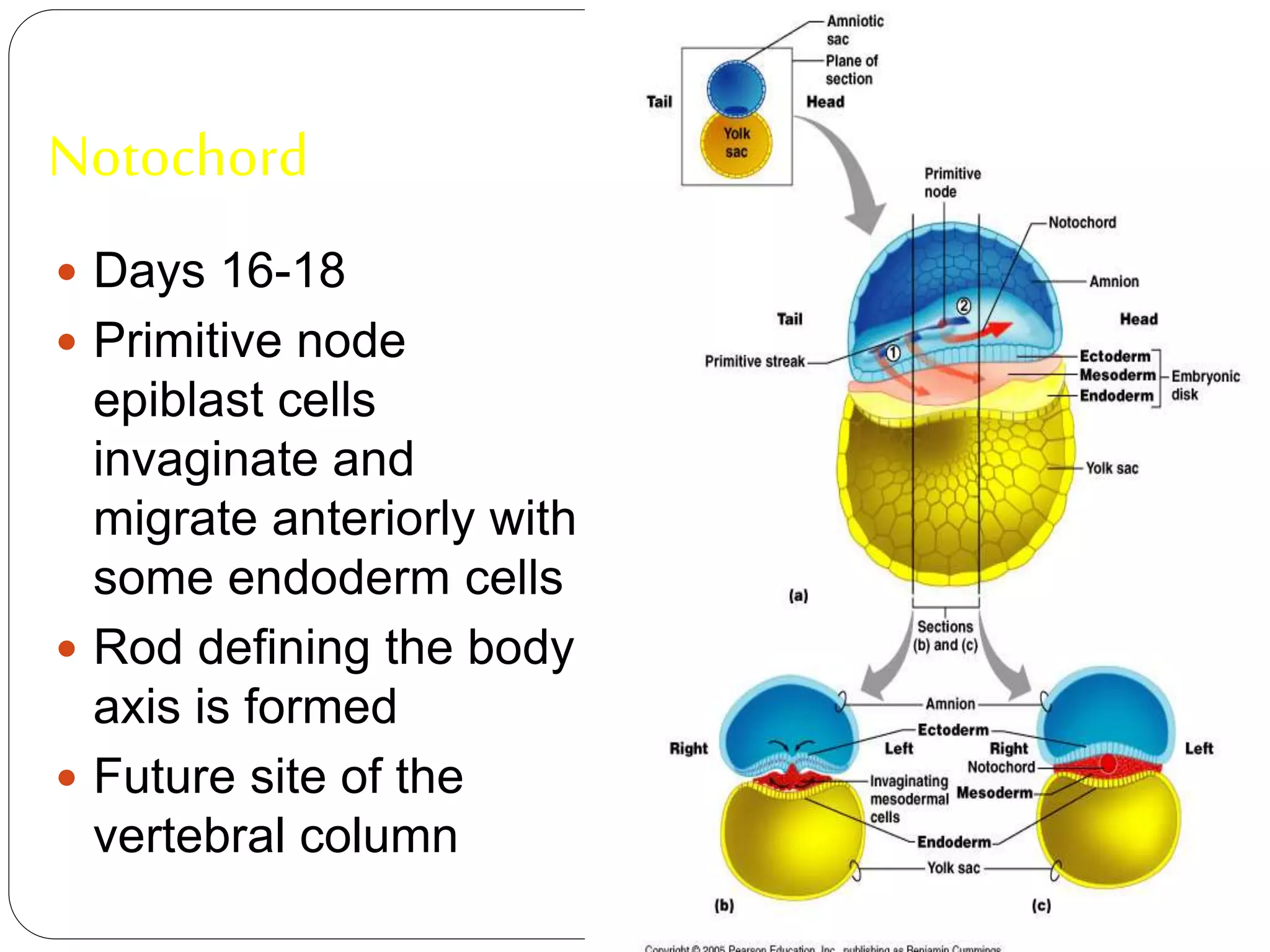

Notochord
 Days 16-18
 Primitive node
epiblast cells
invaginate and
migrate anteriorly with
some endoderm cells
 Rod defining the body
axis is formed
 Future site of the
vertebral column

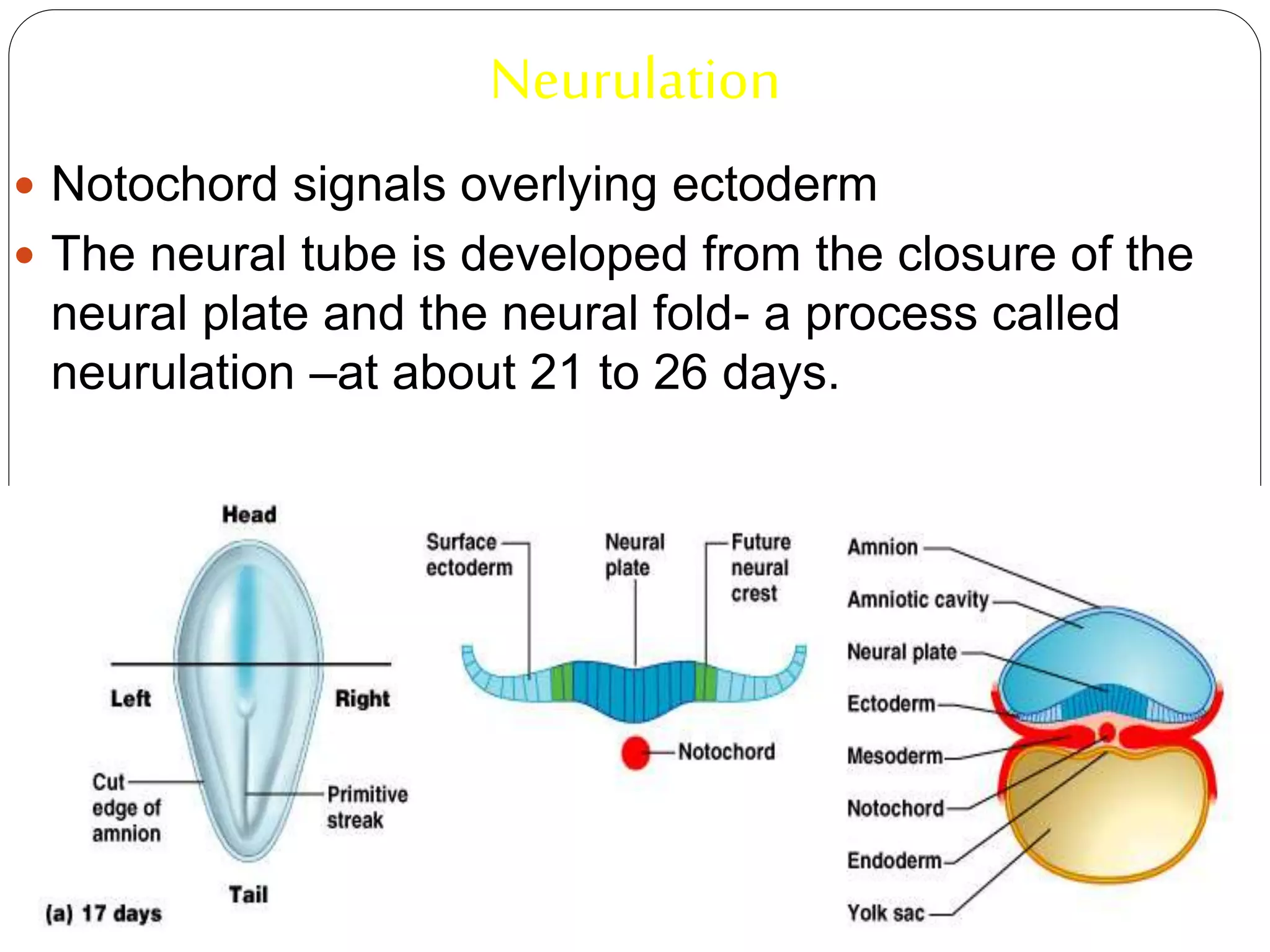

Neurulation
 Notochord signals overlying ectoderm
 The neural tube is developed from the closure of the
neural plate and the neural fold- a process called
neurulation –at about 21 to 26 days.

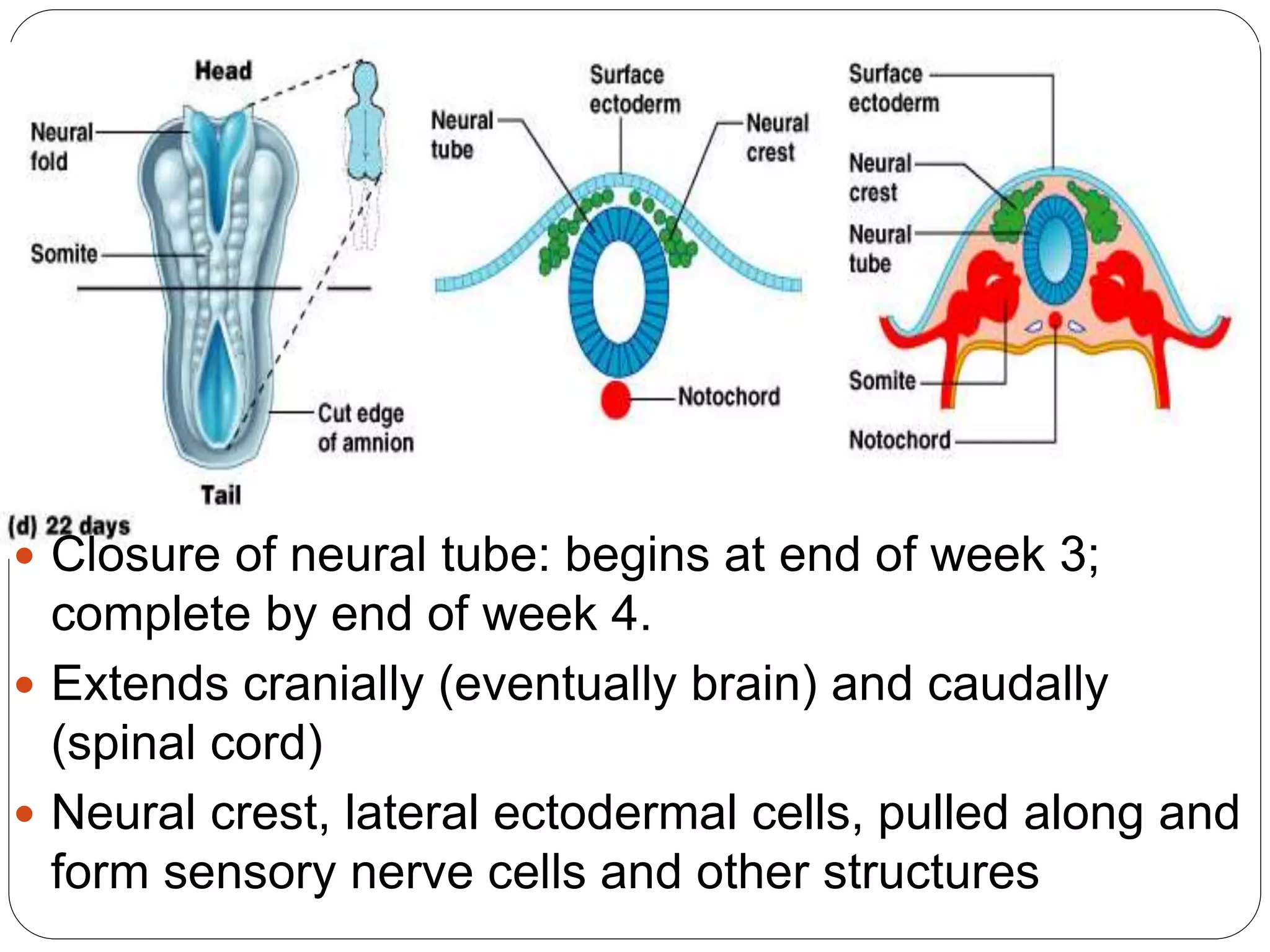

 Closure of neural tube: begins at end of week 3;
complete by end of week 4.
 Extends cranially (eventually brain) and caudally
(spinal cord)
 Neural crest, lateral ectodermal cells, pulled along and
form sensory nerve cells and other structures

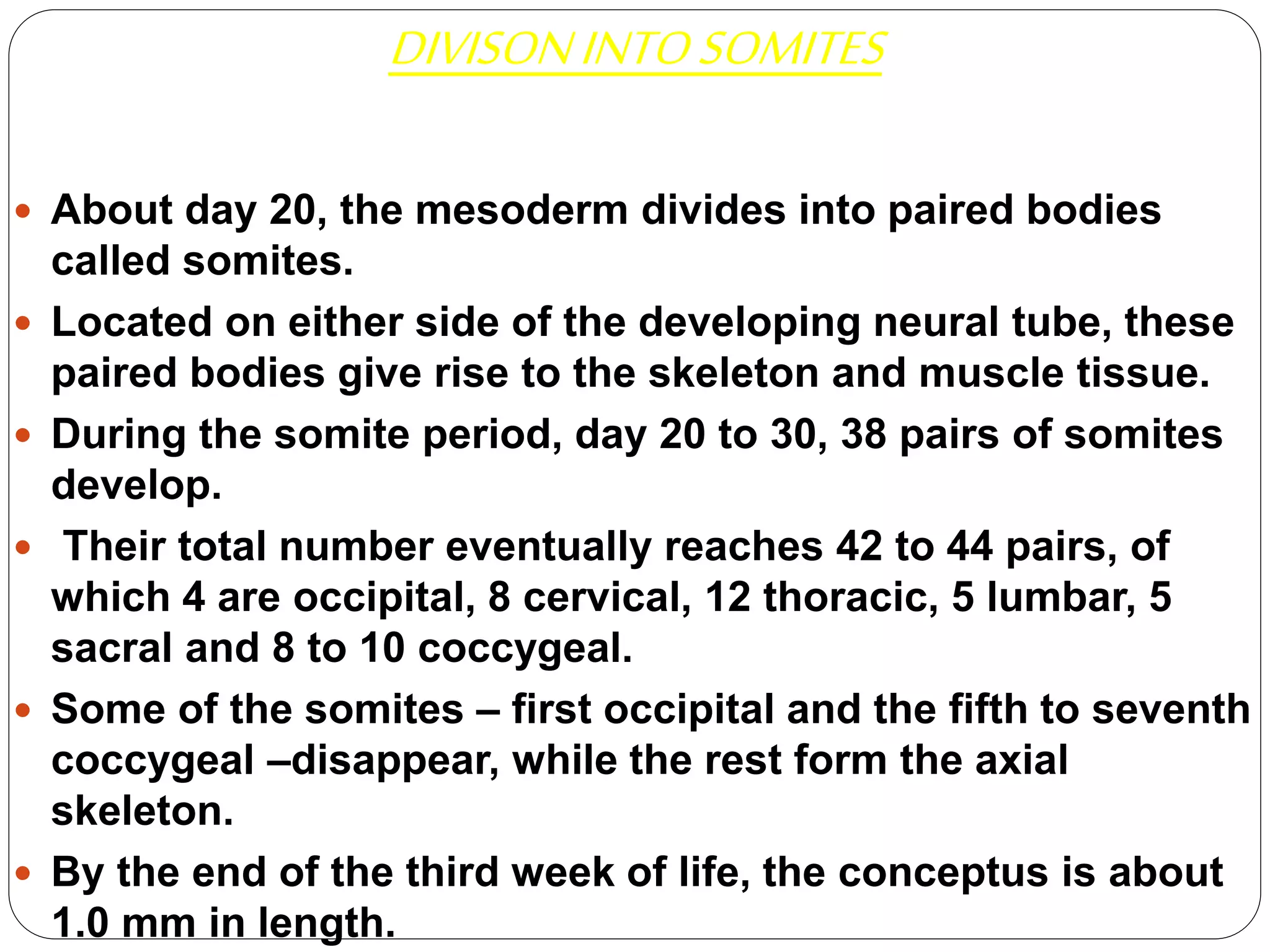

DIVISONINTOSOMITES
 About day 20, the mesoderm divides into paired bodies
called somites.
 Located on either side of the developing neural tube, these
paired bodies give rise to the skeleton and muscle tissue.
 During the somite period, day 20 to 30, 38 pairs of somites
develop.
 Their total number eventually reaches 42 to 44 pairs, of
which 4 are occipital, 8 cervical, 12 thoracic, 5 lumbar, 5
sacral and 8 to 10 coccygeal.
 Some of the somites – first occipital and the fifth to seventh
coccygeal –disappear, while the rest form the axial
skeleton.
 By the end of the third week of life, the conceptus is about
1.0 mm in length.

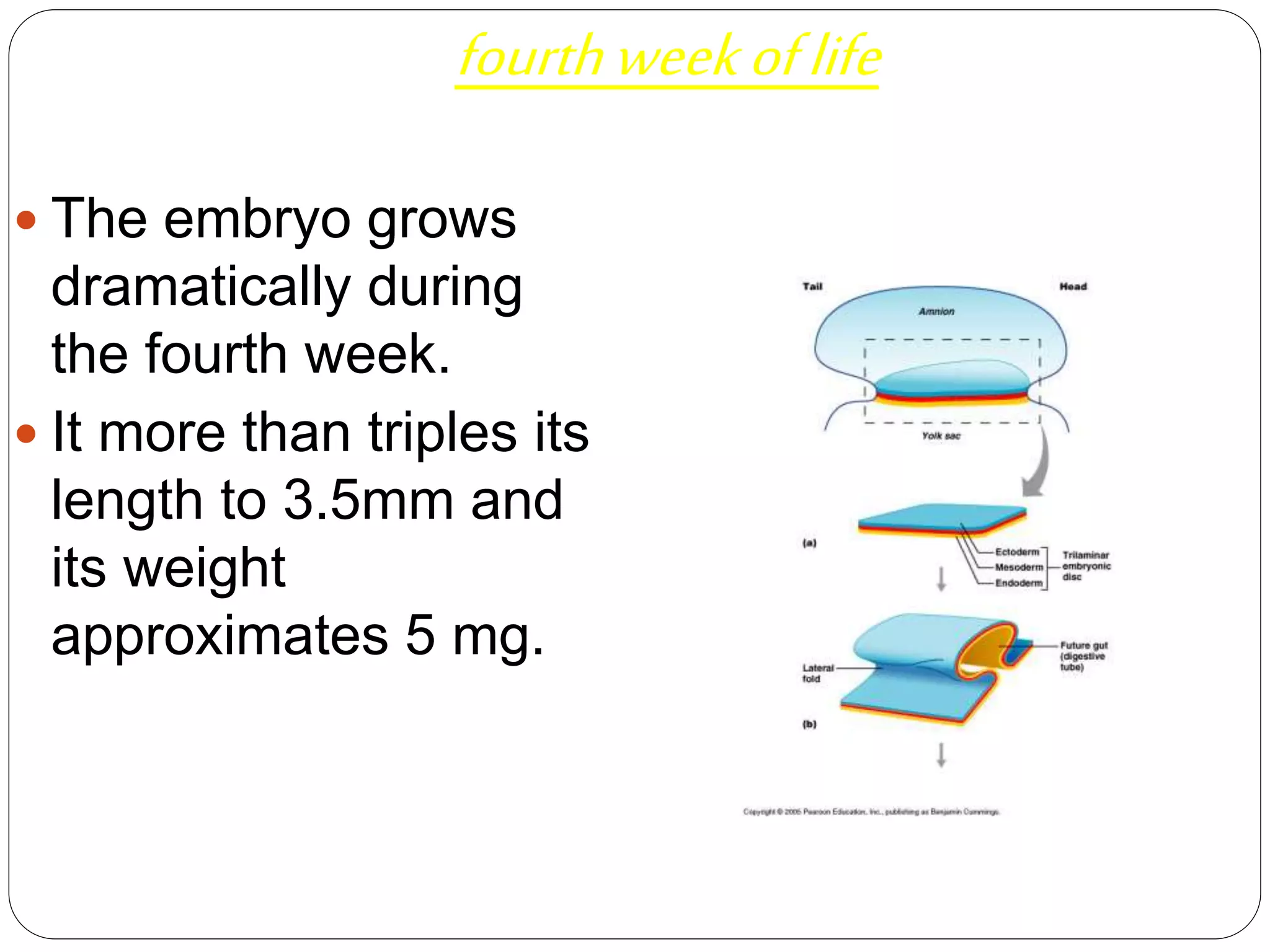

fourthweekoflife
 The embryo grows
dramatically during
the fourth week.
 It more than triples its
length to 3.5mm and
its weight
approximates 5 mg.

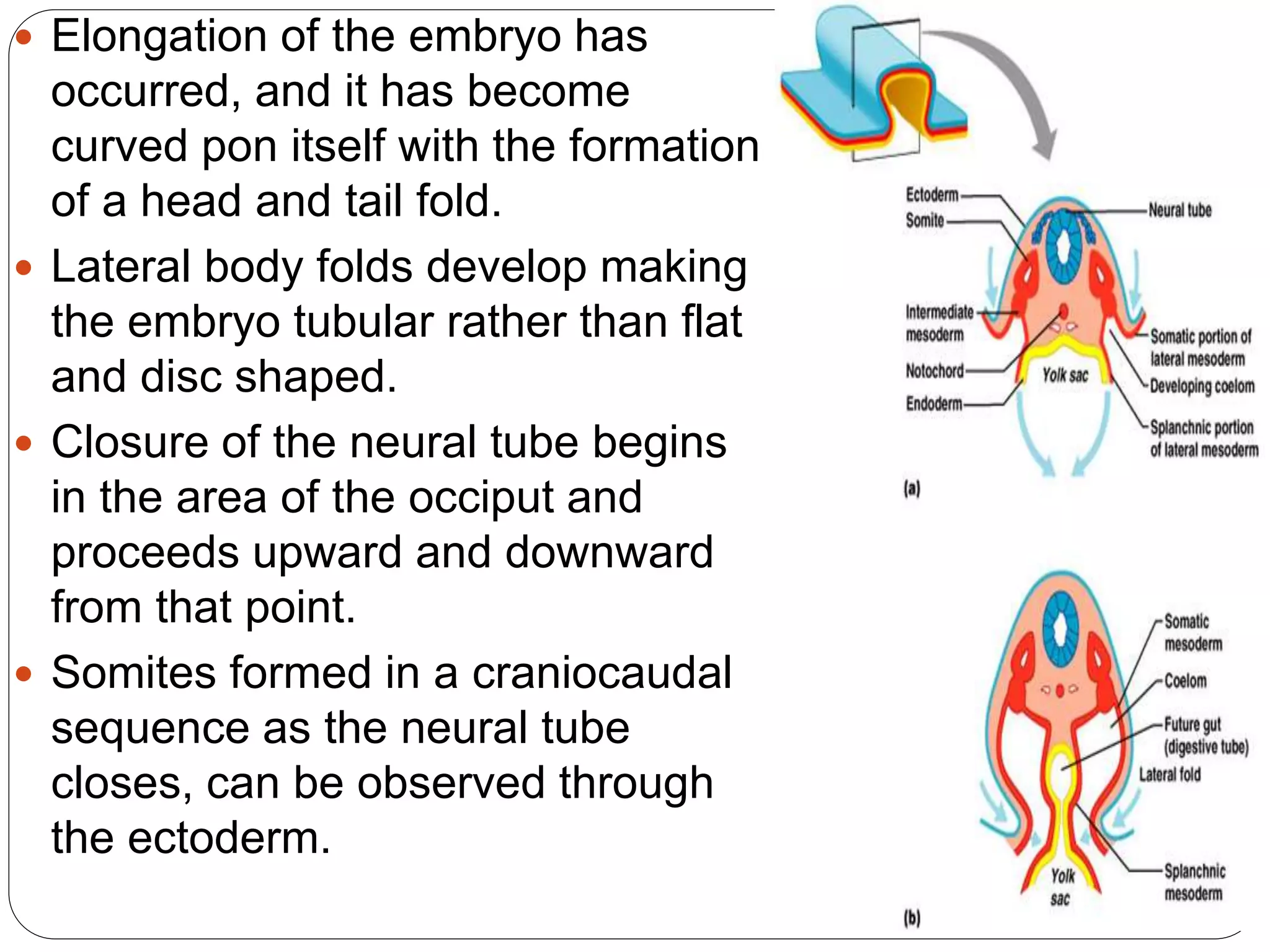

 Elongation of the embryo has
occurred, and it has become
curved pon itself with the formation
of a head and tail fold.
 Lateral body folds develop making
the embryo tubular rather than flat
and disc shaped.
 Closure of the neural tube begins
in the area of the occiput and
proceeds upward and downward
from that point.
 Somites formed in a craniocaudal
sequence as the neural tube
closes, can be observed through
the ectoderm.

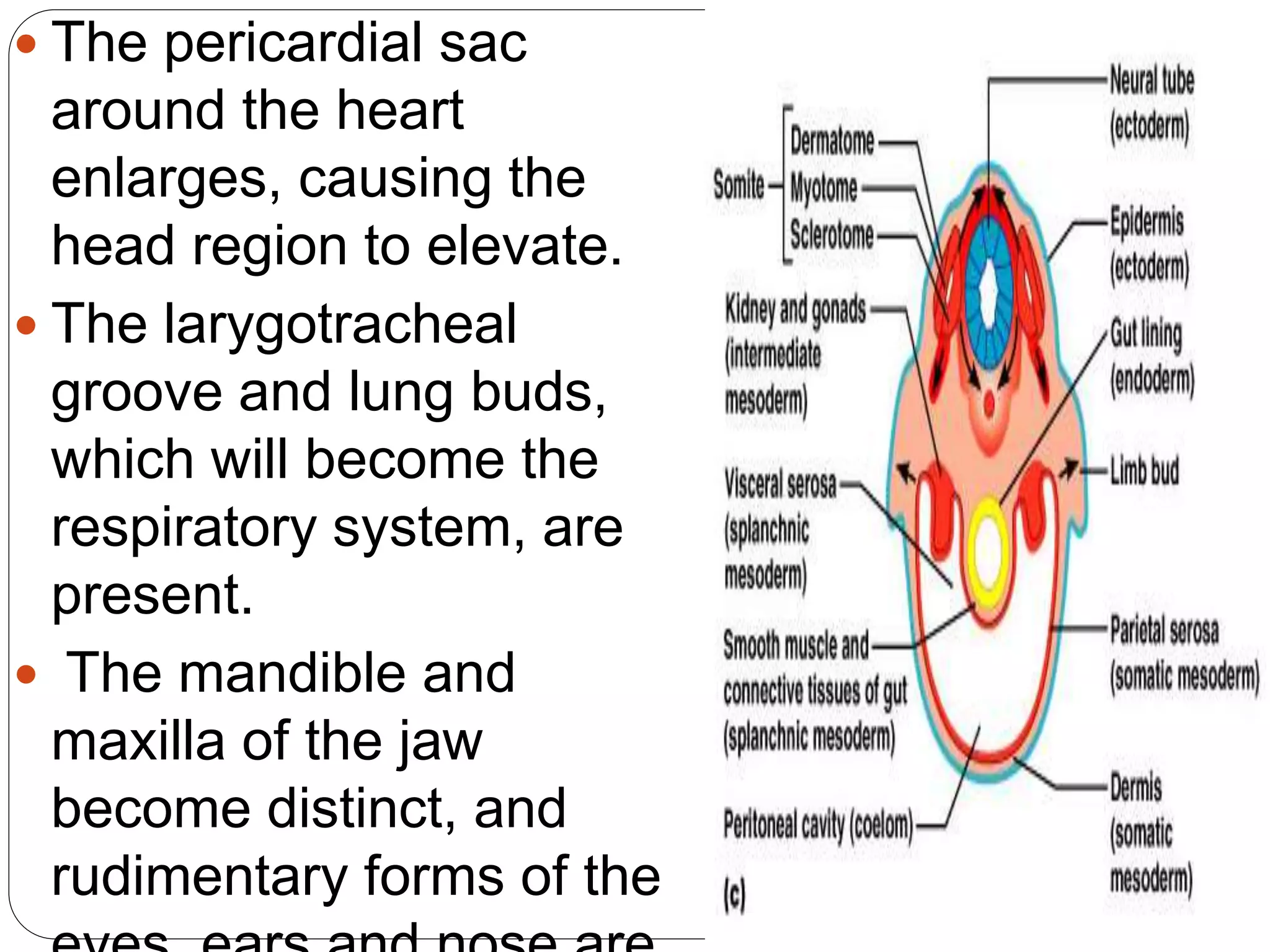

 The pericardial sac
around the heart
enlarges, causing the
head region to elevate.
 The larygotracheal
groove and lung buds,
which will become the
respiratory system, are
present.
 The mandible and
maxilla of the jaw
become distinct, and
rudimentary forms of the

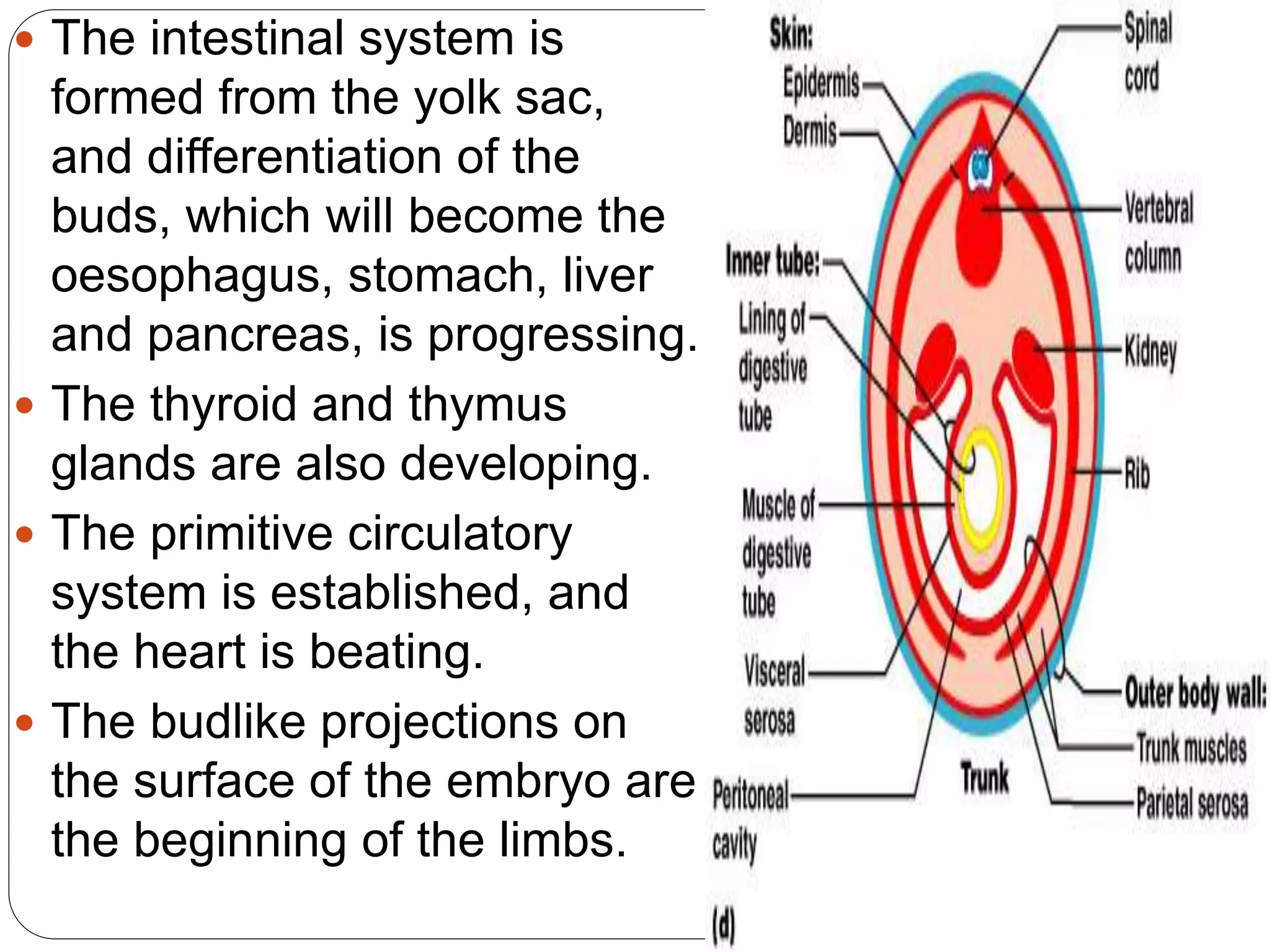

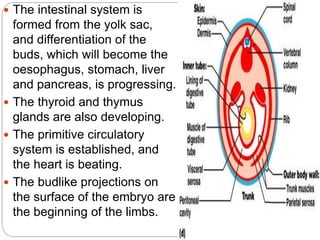

 The intestinal system is
formed from the yolk sac,
and differentiation of the
buds, which will become the
oesophagus, stomach, liver
and pancreas, is progressing.
 The thyroid and thymus
glands are also developing.
 The primitive circulatory
system is established, and
the heart is beating.
 The budlike projections on
the surface of the embryo are
the beginning of the limbs.

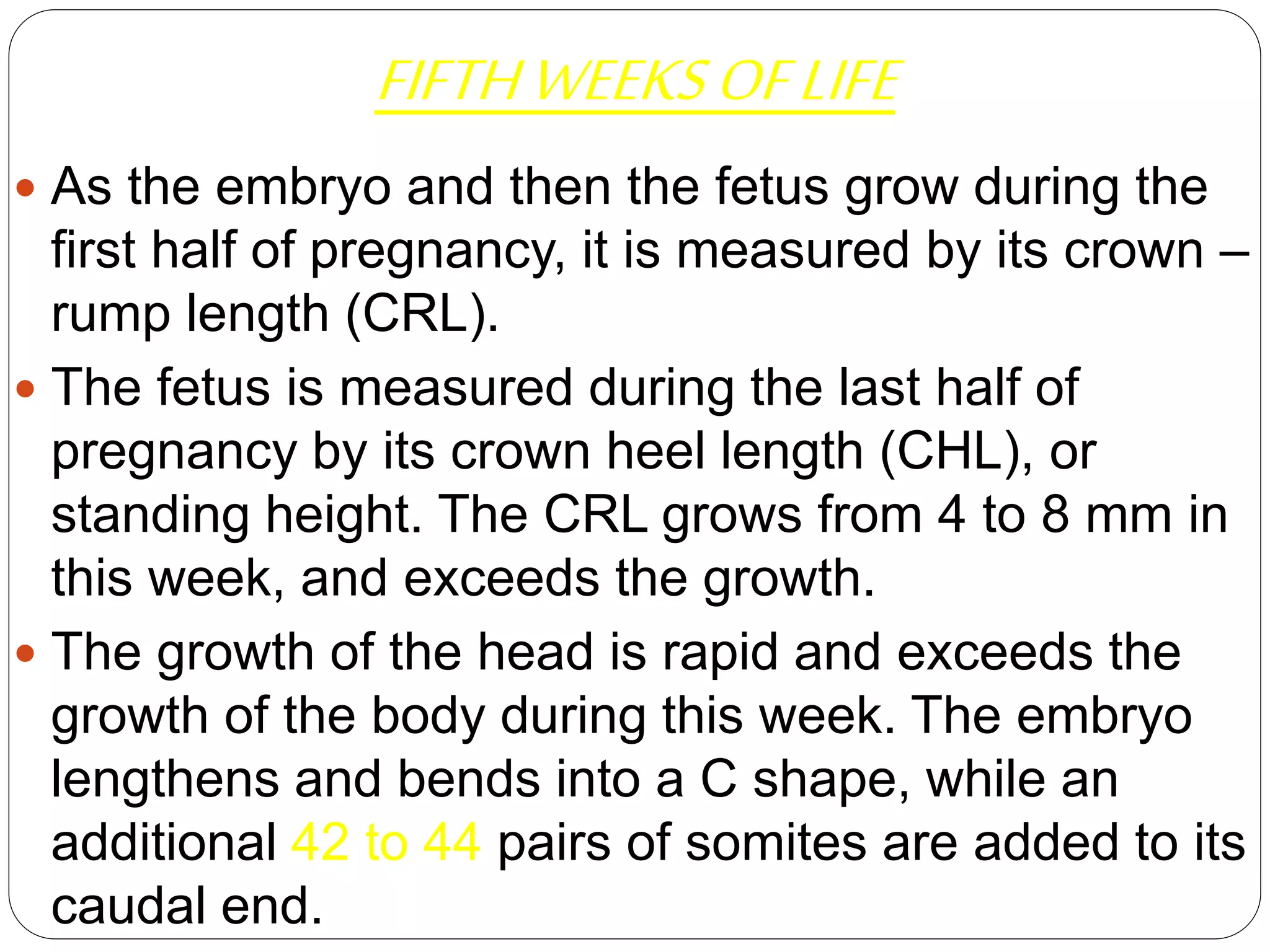

FIFTHWEEKSOFLIFE
 As the embryo and then the fetus grow during the
first half of pregnancy, it is measured by its crown –
rump length (CRL).
 The fetus is measured during the last half of
pregnancy by its crown heel length (CHL), or
standing height. The CRL grows from 4 to 8 mm in
this week, and exceeds the growth.
 The growth of the head is rapid and exceeds the
growth of the body during this week. The embryo
lengthens and bends into a C shape, while an
additional 42 to 44 pairs of somites are added to its
caudal end.

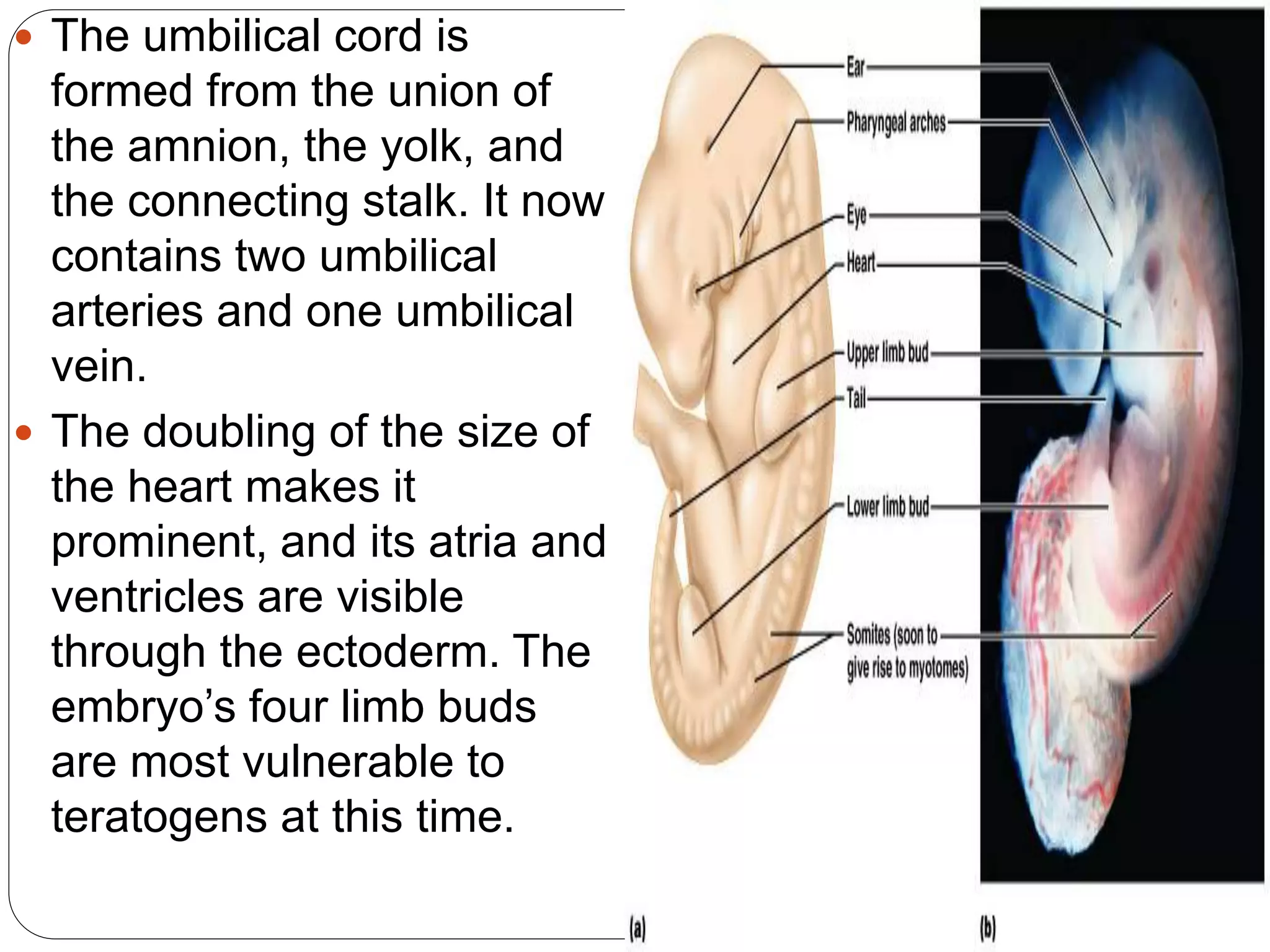

 The umbilical cord is
formed from the union of
the amnion, the yolk, and
the connecting stalk. It now
contains two umbilical
arteries and one umbilical
vein.
 The doubling of the size of
the heart makes it
prominent, and its atria and
ventricles are visible
through the ectoderm. The
embryo’s four limb buds
are most vulnerable to
teratogens at this time.

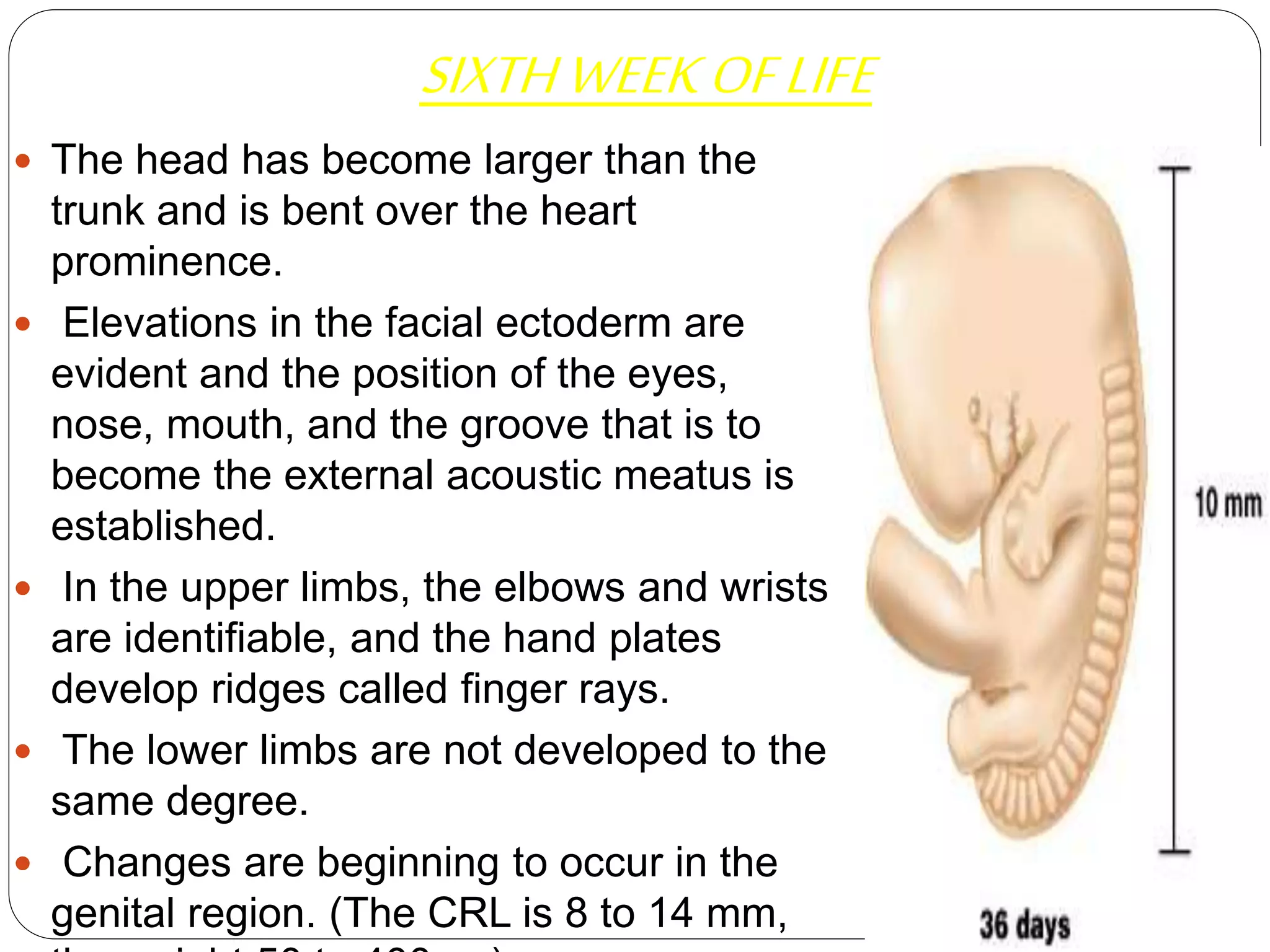

SIXTHWEEKOFLIFE
 The head has become larger than the
trunk and is bent over the heart
prominence.
 Elevations in the facial ectoderm are
evident and the position of the eyes,
nose, mouth, and the groove that is to
become the external acoustic meatus is
established.
 In the upper limbs, the elbows and wrists
are identifiable, and the hand plates
develop ridges called finger rays.
 The lower limbs are not developed to the
same degree.
 Changes are beginning to occur in the
genital region. (The CRL is 8 to 14 mm,

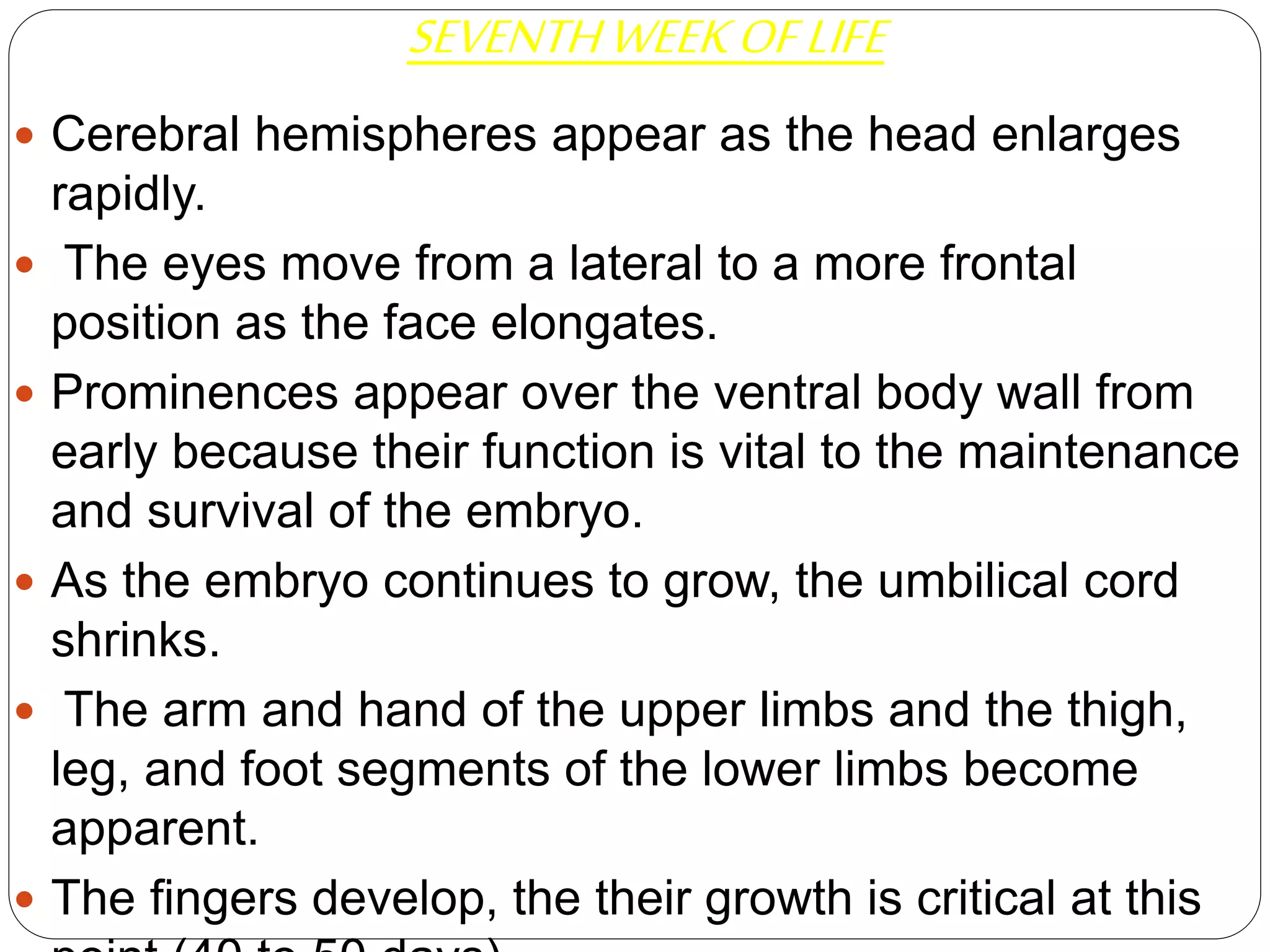

SEVENTHWEEKOFLIFE
 Cerebral hemispheres appear as the head enlarges
rapidly.
 The eyes move from a lateral to a more frontal
position as the face elongates.
 Prominences appear over the ventral body wall from
early because their function is vital to the maintenance
and survival of the embryo.
 As the embryo continues to grow, the umbilical cord
shrinks.
 The arm and hand of the upper limbs and the thigh,
leg, and foot segments of the lower limbs become
apparent.
 The fingers develop, the their growth is critical at this

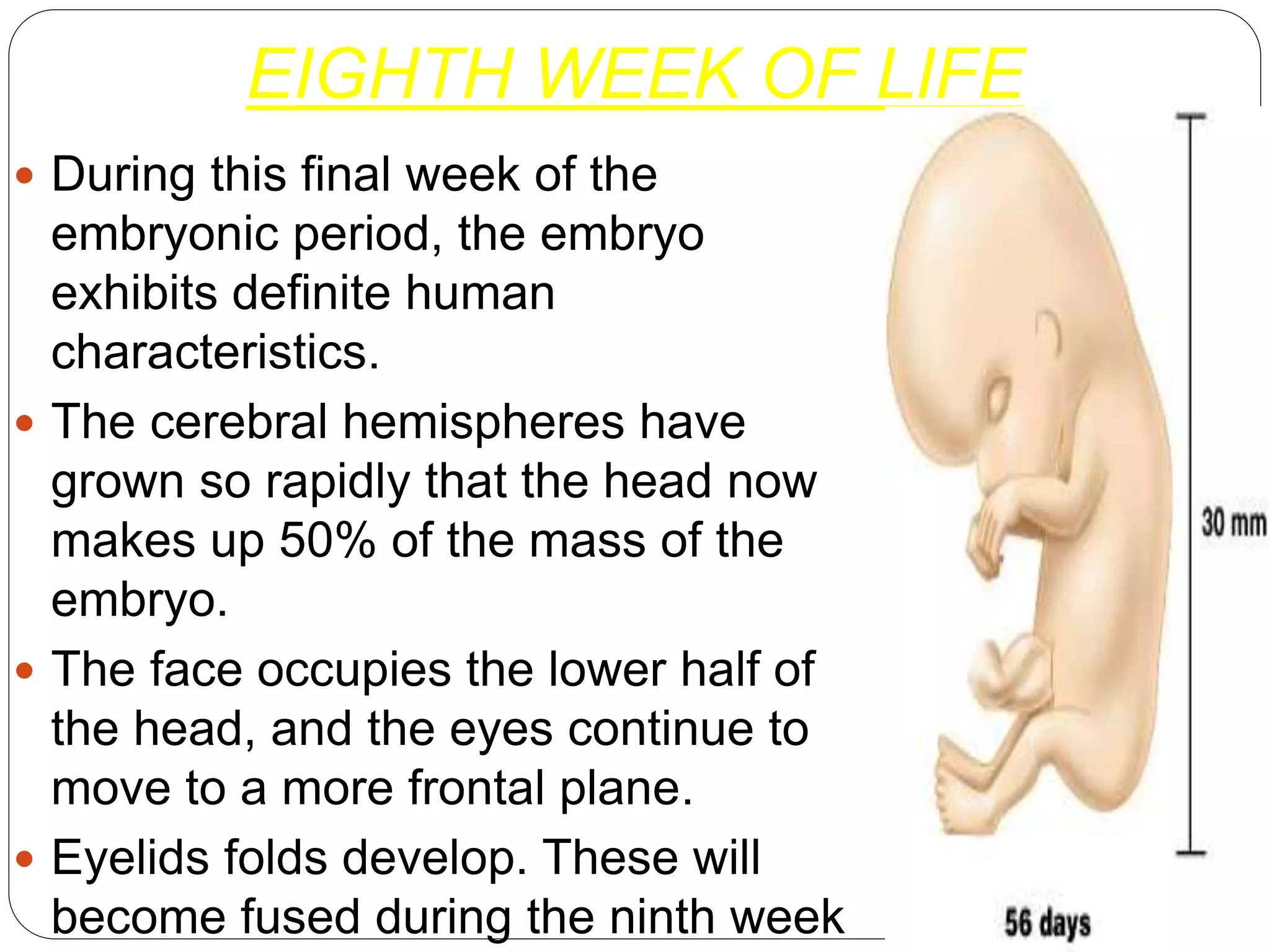

EIGHTH WEEK OF LIFE
 During this final week of the
embryonic period, the embryo
exhibits definite human
characteristics.
 The cerebral hemispheres have
grown so rapidly that the head now
makes up 50% of the mass of the
embryo.
 The face occupies the lower half of
the head, and the eyes continue to
move to a more frontal plane.
 Eyelids folds develop. These will
become fused during the ninth week

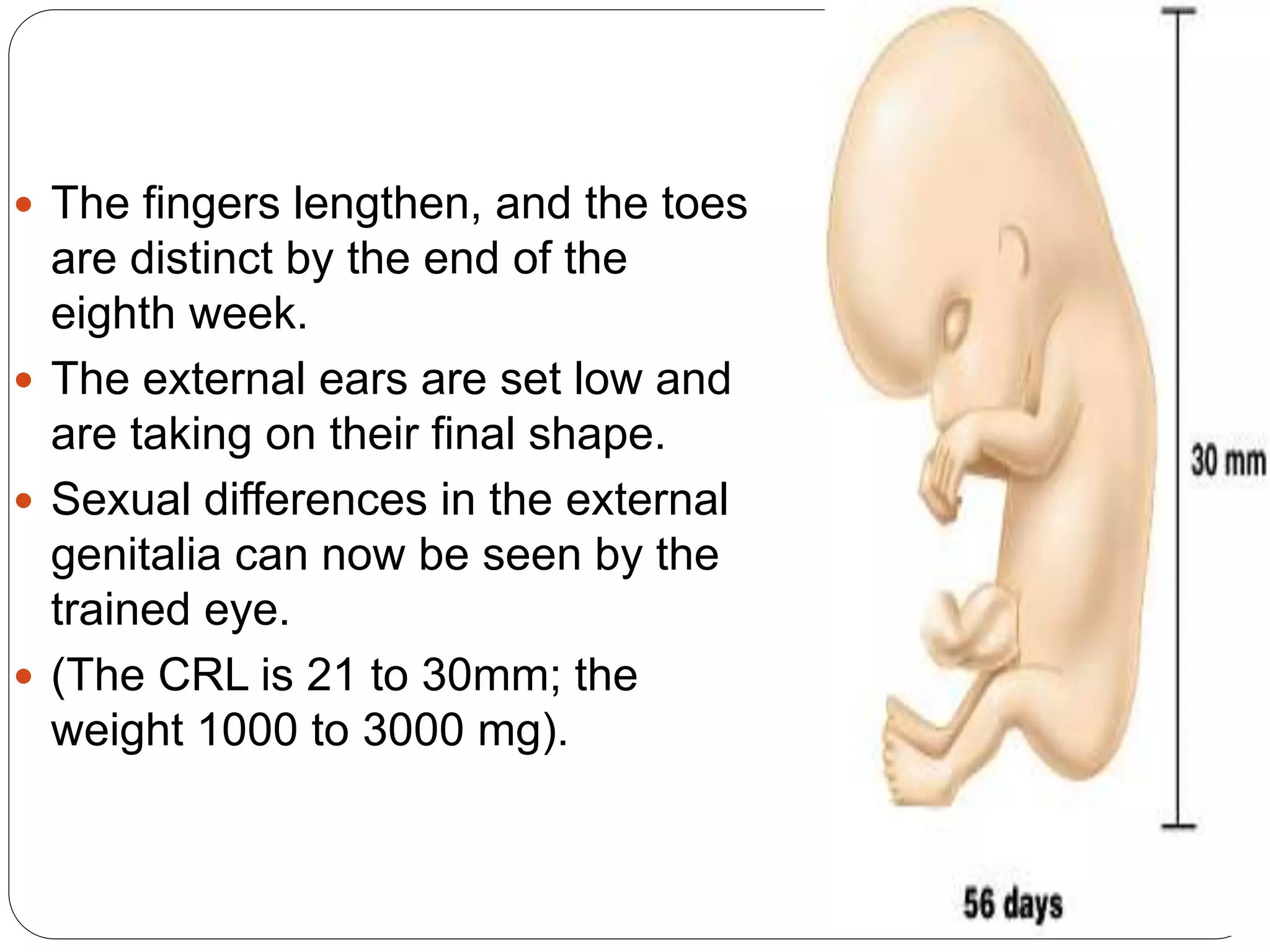

 The fingers lengthen, and the toes
are distinct by the end of the
eighth week.
 The external ears are set low and
are taking on their final shape.
 Sexual differences in the external
genitalia can now be seen by the
trained eye.
 (The CRL is 21 to 30mm; the
weight 1000 to 3000 mg).

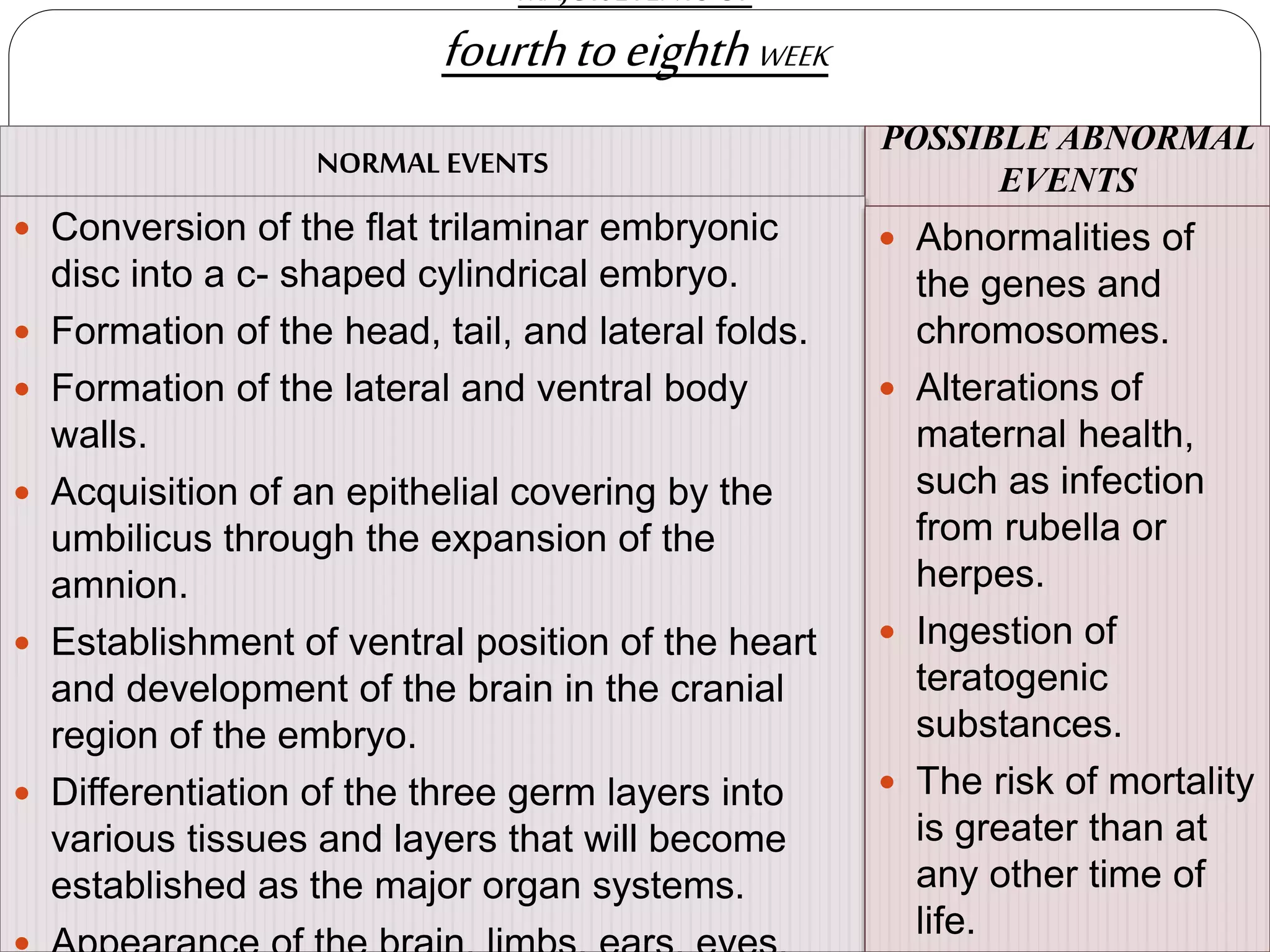

MAJOR EVENTS OF
fourthtoeighthWEEK
NORMAL EVENTS
POSSIBLE ABNORMAL
EVENTS
 Conversion of the flat trilaminar embryonic
disc into a c- shaped cylindrical embryo.
 Formation of the head, tail, and lateral folds.
 Formation of the lateral and ventral body
walls.
 Acquisition of an epithelial covering by the
umbilicus through the expansion of the
amnion.
 Establishment of ventral position of the heart
and development of the brain in the cranial
region of the embryo.
 Differentiation of the three germ layers into
various tissues and layers that will become
established as the major organ systems.
 Abnormalities of
the genes and
chromosomes.
 Alterations of
maternal health,
such as infection
from rubella or
herpes.
 Ingestion of
teratogenic
substances.
 The risk of mortality
is greater than at
any other time of
life.
Any
question?
THANK
YOU

Development of embryo

  • 1.
  • 2.
    Stages  Fertilization  Cleavageformation  Gastrulation  Neurolation  Germ layers formation  Formation of extra embryonic cavities
  • 3.
  • 4.
  • 5.
    Fertilization  Fertilization is theprocess of fusion of the spermatozoon with the mature ovum.
  • 6.
    Embryo Stage of human development occurringbetween the ovum and the fetal stages, or from 2-8 weeks after conception.
  • 7.
    PREEMBRYONIC PERIOD (FIRST TOTHIRD WEEK) First week of life:  Day 1: Fertilization
  • 8.
    Day2and3:Cleavage  The originalzygote divides about 30 hours after conception into two daughter cells called blastomeres.  Continued subdivisions of the original cell result in increasing numbers of blastomeres.  During cell division the dividing cells decrease in size. This type of cell division is called cleavage.  By the time the zygote is ready to enter the uterus, it contains a solid ball of 12 to 16 blastomeres called the morula (from the latin
  • 9.
    Day4: Formation oftheblastocyst Fluid within the intercellular spaces of the morula gradually increases, and spaces on one side of the inner cell mass come together, forming a single cavity, the blastocele.  The outer layer organizes into the trophoblasts, which give rise to the placenta, and the inner layer of cells form the embryo.  The cavity of the blastocele fills with fluid, and the conceptus is now called the blastocyst.
  • 10.
    Preparationoftheendometrium  Resting phase Proliferative phase  Secretory phase
  • 11.
    Attachmentoftheblastocyst  The blastocystattaches to the uterine lining in the V-shaped.  When the trophoblast (the outer cell layer) attaches to the endometrium, it proliferates and separates into an inner cytotrophoblastic layer (fetal side) and an outer syncytiotrophoblastic (placental side).  The outer layer develops finger like projections that proliferate and superficially attach the blastocyst to the endometrium within 6 days after conception.
  • 12.
    MAJOREVENTS OFFIRSTWEEK NORMAL EVENTS POSSIBLEABNORMAL EVENTS  Fertilization and formation of the zygote (30hours).  Cleavage of the zygote into 12 to 16 blastomeres- the morula (day 2 and 3).  Formation of the blastocyst ( day 5-8). Abnormal implantation Maternal infection or a genetic defect Hydatidiform mole Abortion Ectopic implantation
  • 13.
    Secondweekoflife  A slitlikeamniotic cavity appears about day 8, and the yolk sac appears as a second cavity on day 12. Bilaminar embryonic disc is formed in between these two layers.  The endodermal disc becomes thicker at it’s cephalad end, forming the prochordal plate.  During early development of the nervous system, the function of the prochordal plate is to indicate the site of the mouth and to form the membranes of the mouth and throat.  The formation of the decidua, fetal membranes, and placenta extends beyond the second week, but their
  • 14.
    THIRDWEEKOFLIFE  During thethird week of life, the conceptus develops rapidly. This period also coincides with the first missed menstrual cycle of the mother.  The primitive streak is formed during the third week, and three germ layers develop.  This periods from approximately day 15 to day 21, is called the “period of threes”; not only do the three germ layers develop, but the primitive streak, the notochord, and the neural tube are formed.
  • 15.
    GASTRULATION  Gastrulation isthe process by which the bilaminar embryo becomes a trilaminar embryo.  On about day 15, the cytotrophoblast cells proliferate into the blastocyst to form the extraembryonic mesoderm, which later become the extra- embryonic coelom.  The mesoderm lies between the ectoderm and the endoderm, completing the trilaminar disc of the primitive streak. All tissues and organs of the embryo are developed from these three layers.
  • 16.
  • 17.
    Notochord  Days 16-18 Primitive node epiblast cells invaginate and migrate anteriorly with some endoderm cells  Rod defining the body axis is formed  Future site of the vertebral column
  • 18.
    Neurulation  Notochord signalsoverlying ectoderm  The neural tube is developed from the closure of the neural plate and the neural fold- a process called neurulation –at about 21 to 26 days.
  • 19.
     Closure ofneural tube: begins at end of week 3; complete by end of week 4.  Extends cranially (eventually brain) and caudally (spinal cord)  Neural crest, lateral ectodermal cells, pulled along and form sensory nerve cells and other structures
  • 20.
    DIVISONINTOSOMITES  About day20, the mesoderm divides into paired bodies called somites.  Located on either side of the developing neural tube, these paired bodies give rise to the skeleton and muscle tissue.  During the somite period, day 20 to 30, 38 pairs of somites develop.  Their total number eventually reaches 42 to 44 pairs, of which 4 are occipital, 8 cervical, 12 thoracic, 5 lumbar, 5 sacral and 8 to 10 coccygeal.  Some of the somites – first occipital and the fifth to seventh coccygeal –disappear, while the rest form the axial skeleton.  By the end of the third week of life, the conceptus is about 1.0 mm in length.
  • 21.
    fourthweekoflife  The embryogrows dramatically during the fourth week.  It more than triples its length to 3.5mm and its weight approximates 5 mg.
  • 22.
     Elongation ofthe embryo has occurred, and it has become curved pon itself with the formation of a head and tail fold.  Lateral body folds develop making the embryo tubular rather than flat and disc shaped.  Closure of the neural tube begins in the area of the occiput and proceeds upward and downward from that point.  Somites formed in a craniocaudal sequence as the neural tube closes, can be observed through the ectoderm.
  • 23.
     The pericardialsac around the heart enlarges, causing the head region to elevate.  The larygotracheal groove and lung buds, which will become the respiratory system, are present.  The mandible and maxilla of the jaw become distinct, and rudimentary forms of the
  • 24.
     The intestinalsystem is formed from the yolk sac, and differentiation of the buds, which will become the oesophagus, stomach, liver and pancreas, is progressing.  The thyroid and thymus glands are also developing.  The primitive circulatory system is established, and the heart is beating.  The budlike projections on the surface of the embryo are the beginning of the limbs.
  • 25.
    FIFTHWEEKSOFLIFE  As theembryo and then the fetus grow during the first half of pregnancy, it is measured by its crown – rump length (CRL).  The fetus is measured during the last half of pregnancy by its crown heel length (CHL), or standing height. The CRL grows from 4 to 8 mm in this week, and exceeds the growth.  The growth of the head is rapid and exceeds the growth of the body during this week. The embryo lengthens and bends into a C shape, while an additional 42 to 44 pairs of somites are added to its caudal end.
  • 27.
     The umbilicalcord is formed from the union of the amnion, the yolk, and the connecting stalk. It now contains two umbilical arteries and one umbilical vein.  The doubling of the size of the heart makes it prominent, and its atria and ventricles are visible through the ectoderm. The embryo’s four limb buds are most vulnerable to teratogens at this time.
  • 28.
    SIXTHWEEKOFLIFE  The headhas become larger than the trunk and is bent over the heart prominence.  Elevations in the facial ectoderm are evident and the position of the eyes, nose, mouth, and the groove that is to become the external acoustic meatus is established.  In the upper limbs, the elbows and wrists are identifiable, and the hand plates develop ridges called finger rays.  The lower limbs are not developed to the same degree.  Changes are beginning to occur in the genital region. (The CRL is 8 to 14 mm,
  • 29.
    SEVENTHWEEKOFLIFE  Cerebral hemispheresappear as the head enlarges rapidly.  The eyes move from a lateral to a more frontal position as the face elongates.  Prominences appear over the ventral body wall from early because their function is vital to the maintenance and survival of the embryo.  As the embryo continues to grow, the umbilical cord shrinks.  The arm and hand of the upper limbs and the thigh, leg, and foot segments of the lower limbs become apparent.  The fingers develop, the their growth is critical at this
  • 30.
    EIGHTH WEEK OFLIFE  During this final week of the embryonic period, the embryo exhibits definite human characteristics.  The cerebral hemispheres have grown so rapidly that the head now makes up 50% of the mass of the embryo.  The face occupies the lower half of the head, and the eyes continue to move to a more frontal plane.  Eyelids folds develop. These will become fused during the ninth week
  • 31.
     The fingerslengthen, and the toes are distinct by the end of the eighth week.  The external ears are set low and are taking on their final shape.  Sexual differences in the external genitalia can now be seen by the trained eye.  (The CRL is 21 to 30mm; the weight 1000 to 3000 mg).
  • 32.
    MAJOR EVENTS OF fourthtoeighthWEEK NORMALEVENTS POSSIBLE ABNORMAL EVENTS  Conversion of the flat trilaminar embryonic disc into a c- shaped cylindrical embryo.  Formation of the head, tail, and lateral folds.  Formation of the lateral and ventral body walls.  Acquisition of an epithelial covering by the umbilicus through the expansion of the amnion.  Establishment of ventral position of the heart and development of the brain in the cranial region of the embryo.  Differentiation of the three germ layers into various tissues and layers that will become established as the major organ systems.  Abnormalities of the genes and chromosomes.  Alterations of maternal health, such as infection from rubella or herpes.  Ingestion of teratogenic substances.  The risk of mortality is greater than at any other time of life.
  • 33.
  • 34.
