Experiments List
1) To study the characteristics and operations of TTL Inverters, OR, AND, NOR and NAND
gate using ICs.
2) To study NAND and NOR gates as a universal logic.
3) To study and prove De Morgan’s Theorem
4) To design Half and Full adder circuits using logic gates.
5) To design Half and full subtractor circuits using logic gates.
6) To study the binary parallel adder.
7) To design 4 bit magnitude comparator circuits.
8) To study the 7 segment decoder .
9) To design 4:16 decoder using two 3:8 decoder and four 2:4 decoder
10) To design 16: 1 Multiplexer using 4:1 Multiplexer.
11) To study various types of flip flops using logic gates and ICs.
12) To design Mode-N and divide by K counter.
13) To construct a 4 bit binary to gray converter and vice versa using IC 7486 .
14) To study Up-Down counter .
15) To study programmable shift registers.

EXPERIMENT – 1
Aim:
To study the characteristics and operations of TTL Inverters, OR, AND, NOR and NAND gate
using ICs.
Apparatus: Bread board, wires, IC-7402(AND),7432(OR),7404 (NOT)
Theory:

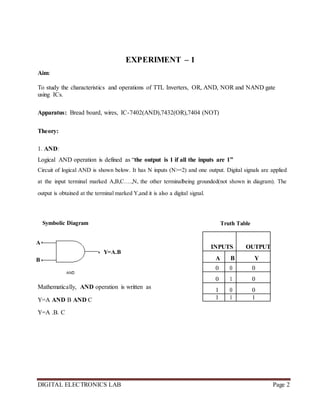

1. AND:
Logical AND operation is defined as “the output is 1 if all the inputs are 1”
Circuit of logical AND is shown below. It has N inputs (N>=2) and one output. Digital signals are applied
at the input terminal marked A,B,C….,N, the other terminalbeing grounded(not shown in diagram). The
output is obtained at the terminal marked Y,and it is also a digital signal.
Mathematically, AND operation is written as
Y=A AND B AND C
Y=A .B. C
Symbolic Diagram Truth Table
A
B
Y=A.B
INPUTS OUTPUT
A B Y
0 0 0
0 1 0
1 0 0
1 1 1

2. OR:
Logical OR operation is defined as “the output is 1 if at least one of the inputs is 1”.Circuit of logical
OR is shown below. It has N inputs (N>=2) and one output. Digital signals are applied at the input
terminal marked A, B, C….,N, the other terminal being grounded(not shown in diagram).The output is
obtained at the terminal marked Y, and it is also a digital signal.
Mathematically,
OR operation is written
asY=A OR B OR C
Y=A +B+C+……+N
Truth Table for OR GATE
INPUTS OUTPUT
A B Y
0 0 0
0 1 1
1 0 1
1 1 1

3.NOT:
Logical NOT operation is also called as Inverter. It has one input (A) and one output(Y).Its logic
Equation is written asY = NOT A
And is read as “Y equals not A” or “Y equals complement of A”.
Truth Table for NOT GATE
i/p o/p
A Y
Mathematically,
NOT operation is written as 0 1
Y= A’
1 0

4. NAND Gate:
The output is 1 when either of inputs A or B is 1, or if neither is 1. In otherwords, it is normally
1, going 0 only if both A and B are 1.
Truth Table for NAND GATE
Mathematically, INPUTS OUTPUT
NAND operation is written as
Y=(AB)’ A B Y
0 0 1
0 1 1
1 0 1
1 1 0

5. NOR Gate:
A HIGH output (1) results if both the inputs to the gate are LOW (0). If one orboth input isHIGH
(1) or LOW output (0) results. NOR is the result of the negation ofthe OR operator. NOR is a
functionally complete operation -- combinations of NOR gatescan be combined to generate any
other logical function. By contrast, the OR operator ismonotonic as it can only change LOW to
HIGH but not vice versa.
Truth Table for NOR GATE
Mathematically, INPUTS OUTPUT
NOR operation is written as
Y=(A+B)’ A B Y
0 0 1
0 1 0
1 0 0
1 1 0
Result:
All truth tables are verified for logic gates.

EXPERIMENT – 2
Aim: To study NAND and NORgates as a universal logic.
Apparatus: IC 7402, IC 7400, Power supply, Connecting wires, Multimeter, Breadboard etc.
Theory:
Standard Procedures:-
Analyzing the Problem:-
NAND GATE:
1) NAND is the contraction of AND – NOT gates.
2) It has two or more inputs and only one output i.e. Y = A · B.
3) When all the inputs are HIGH, the output is LOW. If any one or both the inputs are
LOW, then the output is HIGH.
4) The Logic symbol and the truth table of NAND gate is as shown here.
5) The small circle (or bubble) represents the operation of inversion.
The NAND gate is equivalent to an OR gate with the bubble at its inputs which are as shown.

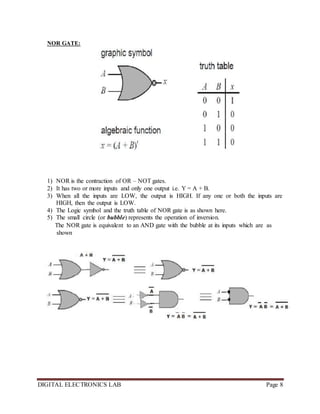

NOR GATE:
1) NOR is the contraction of OR – NOT gates.
2) It has two or more inputs and only one output i.e. Y = A + B.
3) When all the inputs are LOW, the output is HIGH. If any one or both the inputs are
HIGH, then the output is LOW.
4) The Logic symbol and the truth table of NOR gate is as shown here.
5) The small circle (or bubble) represents the operation of inversion.
The NOR gate is equivalent to an AND gate with the bubble at its inputs which are as
shown

 A universal gate is a gate which can implement any Boolean function without need to use
any other gate type.
 The NAND and NOR gates are universal gates.
 In practice, this is advantageous since NAND and NOR gates are economical and easier
to fabricate and are the basic gates used in all IC digital logic families.
Designing the Solution:
NAND GATE AS A UNIVERSAL GATE :
To prove that any Boolean function can be implemented using only NAND gates, we
will show that the AND, OR, and NOT operations can be performed using only these gates.
IMPLEMENTING INVERTER USING NAND GATE :
The figure shows two ways in which a NAND gate can be used as an inverter (NOT gate).
All NAND input pins connect to the input signal A gives an output A’.
One NAND input pin is connected to the input signal A while all other input pins are
connected to logic 1. The output will be A’.
IMPLEMENTING AND USING NAND GATE :
An AND gate can be replaced by NAND gates as shown in the figure (The AND is replaced by a
NAND gate with its output complemented by a NAND gate inverter).

IMPLEMENTING OR USING NAND GATE:
An OR gate can be replaced by NAND gates as shown in the figure (The OR gate is replaced by
a NAND gate with all its inputs complemented by NAND gate inverters).
NOR GATE AS A UNIVERSAL GATE:
To prove that any Boolean function can be implemented using only NOR gates, we will show
that the AND, OR, and NOT operations can be performed using only these gates.
IMPLEMENTING INVERTER USING NOR GATE:
The figure shows two ways in which a NOR gate can be used as an inverter (NOT gate).
All NOR input pins connect to the input signal A gives an output A’.
One NOR input pin is connected to the input signal A while all other input pins are
connected to logic 0. The output will be A’.

IMPLEMENTING OR USING NOR GATE :
An OR gate can be replaced by NOR gates as shown in the figure (The OR is replaced by a
NOR gate with its output complemented by a NOR gate inverter).
IMPLEMENTING AND USING NOR GATE :
An AND gate can be replaced by NOR gates as shown in the figure (The AND gate is
replaced by a NOR gate with all its inputs complemented by NOR gate inverters).
Basic IC needed are NAND gate and NOR gate.
IC diagram are given as below
Fig – Pin Diagram of NAND & NOR GATES

Implementing the Solution:-
Plug the chips you will be using into the breadboard. Point all the chips in the same direction
with pin 1 at the upper-left corner. (Pin 1 is often identified by a dot or a notch next to it on the
chip package).
Connect +5V and GND pins of each chip to the power and ground bus strips on the breadboard.
Make the connections as per the circuit diagram.
Switch on VCC and apply various combinations of input according to truth table.
Note down the output readings for half/full adder and sum and the carry bit for different
combinations of inputs in following Tables where S & V indicating logic value of the output.
And fill your result in S (V) and C (V) in voltage. Where 5V indicating logic 1 and 0V indicating
logic 0.
·
Testing the Solution:-
· Truth Tables:
·
·
·
·
·
·
·
·
·
·
· NAND Gate NOR Gate
Inverter using Nand Gate And Using Nand Gate Or Using Nand Gate

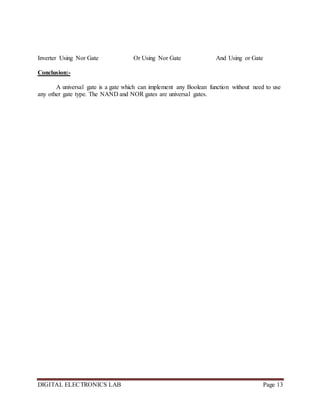

Inverter Using Nor Gate Or Using Nor Gate And Using or Gate
Conclusion:-
A universal gate is a gate which can implement any Boolean function without need to use
any other gate type. The NAND and NOR gates are universal gates.

EXPERIMENT – 3
Aim: To study and prove Demorgan’sTheorem.
Apparatus: AND Gate (IC-7408),OR Gate (IC-7432),NOT Gate (IC-7404), Digital IC
TrainerKIT,LED,Breadboard,Connecting wires.
Theory:
1)De-Morgan’s first theorem states that 'the complement of a sum is equal to the product of
Complements'.
Bar (A+B) = Bar (A.B)
NOR gate = Bubbled AND gate
2)De-Morgan's second theorem states that 'the complement of a product is equal to the sum of the
complements'.
Bar (A.B) = Bar (A+B)
NAND gate = Bubbled OR gate

Truth table for theorem-1:
A B LHS=Bar(A.B) RHS=Bar(A+B)
0 0 1 1
0 1 1 1
1 0 1 1
1 1 0 0
Truth table for theorem-2:
A B LHS=Bar(A+B) RHS=Bar(A.B)
0 0 1 1
0 1 0 0
1 0 0 0
1 1 0 0
Circuit diagram for theorem-1:
Circuit diagram for theorem-2:

Procedure:
1) Take Digital Trainer KIT including Breadboard, ICs and connecting leads.
2) Insert ICs on the Breadboard.
3) According to pin configuration of IC perform the connections.
4) Connect VCC (+5V) to pin no.14 and Connect Pin no. 7 to GND of IC.
5) Apply different input and observe output at LED.
6) Verify the output according truth-table.
Result:
All the output verified the result of Truth Table and hence de-Morgan’s theorem is verified.

EXPERIMENT – 4
Aim: To design Half and Full adder circuits using logic gates.
Apparatus: Bread board, wires, IC-7402(AND), 7432(OR), 7486 (XOR)
Theory:
Half Adder:
Half Adder is a combinational circuit that performs addition of two bits. It has two inputs
and two outputs. The two I/Ps are the two 1-bit numbers A and B designated as augend and
addend bits. The two O/Ps are the sum ‘S’ of A and B and the carry bit, denoted by ‘C’.
Truth Table of a half adder can be derived by performing binary addition of
augend andaddend bits as follows:
Truth Table for HALF-ADDER
A B SUM CARRY
From the truth table, Boolean Expression can be 0 0 0 0
derived as: 0 1 1 0
S = A’B + AB’ = A ⊕B
1 0 1 0
C = AB 1 1 0 1
A Half Adder circuit can be implemented using AND & OR logic gates or by
using XOR & AND logic gates. Both these implementations are shown in the
image below:

Since NAND is considered as Universal Logic Gate which means that all other logic gates can be
derived from it, below is the implementation of a Half Adder circuit using NAND logic gate:
Full Adder:-
Full Adder is a combinational circuit that performs addition of three bits. It consists of three
inputs and two outputs. Two of the inputs denoted by A and B are augends and addend bits that
are to be added, & third input denoted by Cin presents the carry bit from the previous lower
significant position. The two O/Ps are the sum ‘S’ of A and Band the carry bit, denoted by Co.
A full adder circuit can be realized using half adder circuits as shown in the image below:

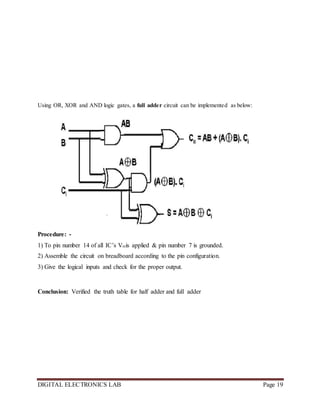

Using OR, XOR and AND logic gates, a full adder circuit can be implemented as below:
Procedure: -
1) To pin number 14 of all IC’s Vccis applied & pin number 7 is grounded.
2) Assemble the circuit on breadboard according to the pin configuration.
3) Give the logical inputs and check for the proper output.
Conclusion: Verified the truth table for half adder and full adder

EXPERIMENT – 5
Aim: To design Half and full subtractor circuits using logic gates.
Apparatus: IC 7400, IC 7408, IC 7486, IC 7432, Patch Cords & IC Trainer Kit.
Theory:
Half Subtractor:
Subtracting a single-bit binary value B from another A (i.e. A -B ) produces a difference bit D
and a borrow out bit B-out. This operation is called half subtraction and the circuit to realize it is
called a half subtractor. The Boolean functions describing the half- Subtractor are:
Truth Table for HALF-SUBTRACTOR
INPUTS OUTPUTS
A B D Br
0 0 0 0
0 1 1 1
1 0 1 0
1 1 0 0
Boolean expressions for half-subtractor are,
D = A⊕B
Br = A’B

Full Subtractor:
Subtracting two single-bit binary values, B, Cin from a single-bit value A produces a difference
bit D and a borrow out Br bit. This is called full subtraction.
TheBoolean functions describing the full-subtractor are:
D = (x ⊕ y) ⊕ Cin⊕Br= A’B + A’(Cin) + B(Cin)
A B Cin D Br
0 0 0 0 0
0 0 1 1 1
0 1 0 1 1
0 1 1 0 1
1 0 0 1 0
1 0 1 0 0
1 1 0 0 0
1 1 1 1 1

Procedure:
1. Check the components for their working. Insert the appropriate IC into the IC base.
2. Make connections as shown in the circuit diagram.
3. Verify the Truth Table and observe the outputs.
Result: The truth table of the above circuits is verified.

EXPERIMENT – 6

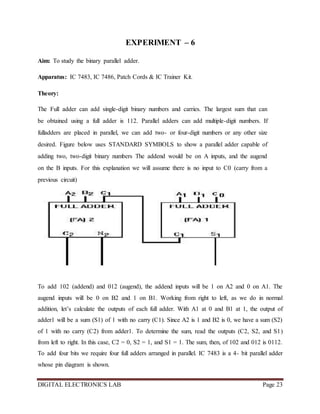

Aim: To study the binary parallel adder.
Apparatus: IC 7483, IC 7486, Patch Cords & IC Trainer Kit.
Theory:
The Full adder can add single-digit binary numbers and carries. The largest sum that can
be obtained using a full adder is 112. Parallel adders can add multiple-digit numbers. If
fulladders are placed in parallel, we can add two- or four-digit numbers or any other size
desired. Figure below uses STANDARD SYMBOLS to show a parallel adder capable of
adding two, two-digit binary numbers The addend would be on A inputs, and the augend
on the B inputs. For this explanation we will assume there is no input to C0 (carry from a
previous circuit)
To add 102 (addend) and 012 (augend), the addend inputs will be 1 on A2 and 0 on A1. The
augend inputs will be 0 on B2 and 1 on B1. Working from right to left, as we do in normal
addition, let’s calculate the outputs of each full adder. With A1 at 0 and B1 at 1, the output of
adder1 will be a sum (S1) of 1 with no carry (C1). Since A2 is 1 and B2 is 0, we have a sum (S2)
of 1 with no carry (C2) from adder1. To determine the sum, read the outputs (C2, S2, and S1)
from left to right. In this case, C2 = 0, S2 = 1, and S1 = 1. The sum, then, of 102 and 012 is 0112.
To add four bits we require four full adders arranged in parallel. IC 7483 is a 4- bit parallel adder
whose pin diagram is shown.

i) 4-Bit Binary Adder
An Example: 7+2=11 (1001)
7 is realized at A3 A2 A1 A0 = 0111
2 is realized at B3 B2 B1 B0 = 0010
Sum = 1001
ADDERCIRCUIT:

Procedure:
 Check all the components for their working.
 Insert the appropriate IC into the IC base.
 Make connections as shown in the circuit diagram.
 Apply augend and addend bits on A and B and Cin=0. Verify the results and observe the
outputs
Result:Verified the working of IC 7483 as Binary parallel adder.

EXPERIMENT – 7
Aim: To design 4 bit magnitude comparator circuits.
Apparatus: IC 7486, IC 7432, IC 7408, IC 7400, Power supply, Connecting wires, Multimeter.
Theory:
The comparison of two numbers is an operator that determines one number is greater than, less
than
(or) equal to the other number. A magnitude comparator is a combinational circuit that compares
two
numbers A and B and determines their relative magnitude. The outcome of the comparator is
specified by three binary variables that indicate whether A>B, A=B (or) A<B.
A = A3 A2 A1 A0
B = B3 B2 B1 B0
The equality of the two numbers and B is displayed in a combinational circuit designated by the
symbol (A=B). This indicates A greater than B, then inspect the relative magnitude of pairs of
significant digits starting from most significant position. A is 0 and that of B is 0. We have A<B,
the sequential comparison can be expanded as
The same circuit can be used to compare the relative magnitude of two BCD
digits. Where, A = B is expanded as,

Designing the Solution:-
4 BIT MAGNITUDE COMPARATOR
Pin Configuration of 7485:
Pin Diagram & Logic Diagram:
Fig - Pin Diagram & Logic Diagram of IC 7485

Procedure:
Plug the chips you will be using into the breadboard. Point all the chips in the same direction
with
pin 1 at the upper-left corner. (Pin 1 is often identified by a dot or a notch next to it on the chip
package).
 Connect +5V and GND pins of each chip to the power and ground bus strips on the
breadboard.
 Make the connections as per the circuit diagram.
 Switch on VCC and apply various combinations of input according to truth table. Take
2 4bit nos& Write output in observation table.
Result:
 4-bit Magnitude comparator circuit is designed.

EXPERIMENT – 8
Aim: To study the 7 segment decoder .
Apparatus: IC7447, 7-Segment display (common anode), Patch chords, resistor (1K_) & IC
Trainer Kit
Theory:
The Light Emitting Diode (LED) finds its place in many applications in these modernelectronic
fields. One of them is the Seven Segment Display. Seven-segment displayscontains the
arrangement of the LEDs in “Eight” (8) passion, and a Dot (.) with a commonelectrode, lead
(Anode or Cathode). The purpose of arranging it in that passion is that we canmake any number
out of that by switching ON and OFF the particular LED's. Here is theblock diagram of the
Seven Segment LED arrangement.
LED’s are basically of two types-
1)Common Cathode (CC) -All the 8 anode legs uses only one cathode, which is common.
2)Common Anode (CA)-The common leg for all the cathode is of Anode type.
A decoder is a combinational circuit that connects the binary information from ‘n’ input lines to
a maximum of 2n unique output lines. The IC7447 is a BCD to 7-segment patternconverter. The
IC7447 takes the Binary Coded Decimal (BCD) as the input and outputs the relevant 7 segment
code.

CIRCUIT DIAGRAM:
TRUTH TABLE:
Procedure
 Check all the components for their working. Insert the appropriate IC into the IC base.
Verify the Truth Table and observe the outputs.
Result:
7-Segment Decoder is studied and designed.

EXPERIMENT – 9
Aim: To study various types of flip flops using logic gates and ICs.
Apparatus: Power supply, Digital Trainer kit, ICs – 7474, Connecting wires,
Multimeter,CRO,PulseGenerator, Patch Chords, IC 7400 NAND gate IC, IC 7402 NOR gate IC,
IC 7404 NOT gate IC, LED.
Theory:
FLIP-FLOP:-
"Flip-flop" is the common name given to two-state devices which offer basic memory for
sequential logic operations. Flip-flops are heavily used for digital data storage and transfer and
are commonly used in banks called "register" for the storage of binary numerical data.
D-Type flip-flop (Toggle switch) :
The operations of a D flip-flop are much more simpler.
It has only one input addition to the clock. It is very useful when a single data bit (0 or 1) is to
bestored.
If there is a HIGH on the D input when a clock pulse is applied, the flip-flop SETs and stores a 1.
If there is a LOW on the D input when a clock pulse is applied, the flip-flop RESETs and stores
a0.
To implement D flip-flop we require NAND gates and NOR gates. The
truth table for D flip flop is shown below:
i/p o/p
Q D Q(t+1)
0 0 0
0 1 1
1 0 0
1 1 1

J-K flip-flop:
The J-K flip-flop works very similar to S-R flip-flop.
The only difference is that this flip-flop has NO invalid
state. The truth table is shown below.
T flip-flop:
This type of flip-flop is a simplified version of the JK flip-flop.
It is not usually found as an IC chip by itself, but is used in many kinds of circuits, especially
counter and dividers.
Its only function is that it toggles itself with every clock pulse (on either the leading edge, on the
trailing edge) it can be constructed from the RS flip-flop.
The truth table is shown below.
i/p o/p
Q J K Q(t+1)
0 0 0 0
0 0 1 0
0 1 0 1
0 1 1 1
1 0 0 1
1 0 1 0
1 1 0 1
1 1 1 0

Truth Table:-
i/p o/p
Q T Q(t+1)
0 0 0
0 - 1
1 0 1
1 - 0
Pin Diagrams of Basic gates ICs used in experiment:

2)JKFlipFlop
3)T-Flip-Flop

i) Flip-Flop: -
The R –S Flip flop has two data inputs R & S.
Generation of two signals to drive a flip flop is a disadvantage in much application.
Furthermore, the forbidden condition of both R and S high may occur inadvertently. This
has lid to the D Flip Flop a circuit that needs only a single data input.
Fig shows the simple diagram of D Flip- Flop using NOR Gate.
In this circuit the D input is just transferred to the output e.g. If D =0 then output Q isalso & If D
= 1 output is also 1, as shown in the truth table.
J-K Flip-flop:-
JK Flip-Flop is the most versatile binary strange element.
It can perform all the functions of SR and D flip-flop. The uncertainty in the State of SR
Flip- Flop when S = R = 1 can be eliminated by using JK Flip-Flop.
T Flip –Flop: -
The basic digital memory circuit is known as flip flop.
It two stable states which are known as the 1 state 0 state. It can be obtained by using NAND
orNOR gates.
Generally there are two inputs to the flip flops (R, S or J K) and two outputs Q and Q’. The
outputs Q and Q’ are always complementary. The circuit has two stable state Q=1which is
referred to as the1 state( or set state ) whereas in the other stable state Q’=0 which is referred to
as the 0 sate ( or reset state ) .
If the circuit is in 1 state. It continues to remain in this state and similarly if it is in 0 state, it
continues to remain in this state.
This property of the circuit is referred to as memory, that is it can store 1 bit of digital
information.
In a JK flip flop, if J=K the resulting flip flop is referred to as a T Flip Flop, as shown in fig.
It has only input, referred to as T input. Its truth table is given in table 1. If T=1 it acts as a toggle
switch for every clock pulse the output Q changes.

Procedure: -
· Study the circuit diagram.
· Connect the circuit as shown in fig i.e. JK Flip Flop by using connecting wires.
· Switch ‘ON’ the power supply.
· Apply proper I/P to J & K I/Ps of Flip-Flop from Logic I/P
· Check the O/P on Logic O/P Section.
· Change the I/P & Verify the Truth Table.
Result:
so using the ICs-7474 and gates we can study and verify the different flip flops like D, JK and T.

EXPERIMENT – 10
Aim: To construct a 4 bit binary to gray converter and vice versa using IC 7486 .
Apparatus: IC 7486, Power supply, Connecting wires, Multimeter, BreadBoard, etc.
Theory:
IC Diagram of XOR GATE:-
BINARY TO GRAY CODE CONVERTOR:-

GRAY CODE TO BINARY CONVERTOR:
 Plug the chips you will be using into the breadboard. Point all the chips in the
same direction with pin 1 at the upper-left corner. (Pin 1 is often identified by a
dot or a notch next to it on the chip package).
 Connect +5V and GND pins of each chip to the power and ground bus strips on the
breadboard.
 Make the connections as per the circuit diagram.
 Switch on VCC and apply various combinations of input according to truth table.
In the case of binary to gray conversion, the inputs B0, B1, B2 and B3 are given at
respective pins and outputs G0, G1, G2, G3 are taken for all the 16 combinations of the input.
In the case of gray to binary conversion, the inputs G0, G1, G2 and G3 are given at respective
pins and outputs B0, B1, B2, and B3 are taken for all the 16 combinations of inputs.
The values of the outputs are tabulated.
Results:
We designed and simulated a Gray code converter that converts binary coded numbers to Gray
coded numbers and vice versa.

EXPERIMENT – 11
Aim: To study Up-Down counter.
Apparatus: IC 7476, Patch Cords & IC Trainer Kit
Theory:
A counter in which each flip-flop is triggered by the output goes to previous flip-flop.As
all the flip-flops do not change state simultaneously spike occur at the output. To avoidthis,
strobe pulse is required. Because of the propagation delay the operating speed ofasynchronous
counter is low. Asynchronous counter are easy and simple to construct.
MOD-8 UP COUNTER

Truth Table for MOD-8 up counter
CLK QC QB QA
0 0 0 0
1 0 0 1
2 0 1 0
3 0 1 1
4 1 0 0
5 1 0 1
6 1 1 0
7 1 1 1
8 0 0 0
MOD-6 UP COUNTER
CIRCUIT DIAGRAM:

Truth Table for MOD-6 up counter
CLK QC QB QA
0 0 0 0
1 0 0 1
2 0 1 0
3 0 1 1
4 1 0 0
5 1 0 1
6 0 0 0
MOD-8 DOWN COUNTER
CIRCUIT DIAGRAM:

Truth Table for MOD-8 down counter
CLK QC QB QA
0 1 1 1
1 1 1 0
2 1 0 1
3 1 0 0
4 0 1 1
5 0 1 0
6 0 0 1
7 0 0 0
8 1 1 1
MOD-6 DOWN COUNTER
CIRCUIT DIAGRAM:

Truth Table for MOD-6 down counter
CLK QC QB QA
0 1 1 1
1 1 1 0
2 1 0 1
3 1 0 0
4 0 1 1
5 0 1 0
6 1 1 1
PROCEDURE:
 Verify the Truth Table and observe the outputs.
RESULT: The working of up-down counter is verified.

EXPERIMENT – 12
Aim: To study programmable shift registers
Apparatus: IC 7495, Patch Cords & IC Trainer Kit.
Theory:
1) SERIAL IN SERIAL OUT (SISO) (Right Shift)
2)Serial Shift QA QB QC QD
i/p pulses
data
- - X X X X
0 t1 0 X X X
1 t2 1 0 X X
0 t3 0 1 0 X
1 t4 1 0 1 0
X t5 X 1 0 1
X t6 X X 1 0
X t7 X X X 1
X t8 X X X X
2) SERIAL IN PARALLEL OUT (SIPO)
Serial Shift QA QB QC QD
i/p pulses
data
- - X X X X
0 t1 0 X X X
1 t2 1 0 X X
0 t3 0 1 0 X
1 t4 1 0 1 0
3) PARALLEL IN PARALLEL OUT (PIPO)
clock Shift QA QB QC QD
i/p pulses
terminal
- - X X X X
CLK2 t1 1 0 1 0

3) PARALLEL IN SERIAL OUT (PISO)
clock i/p Shift QA QB QC QD
terminal pulses
- - X X X X
CLK2 t1 1 0 1 0
CLK2 t2 X 1 0 1
0 t3 X X 1 0
1 t4 X X X 1
X t5 X X X X
PROCEDURE:
 Verify the Truth Table and observe the outputs
.
Result:
The various operations of a programmable shift register is verified.

Deld lab manual

More Related Content

What's hot

Similar to Deld lab manual

More from Vivek Kumar Sinha

Recently uploaded

Deld lab manual
