1 by: Haitham Farag Daw 2013-14 FACULITY OFELECTRONIC TECNOLOGY COMPUTETRENGINEERING (MSc)

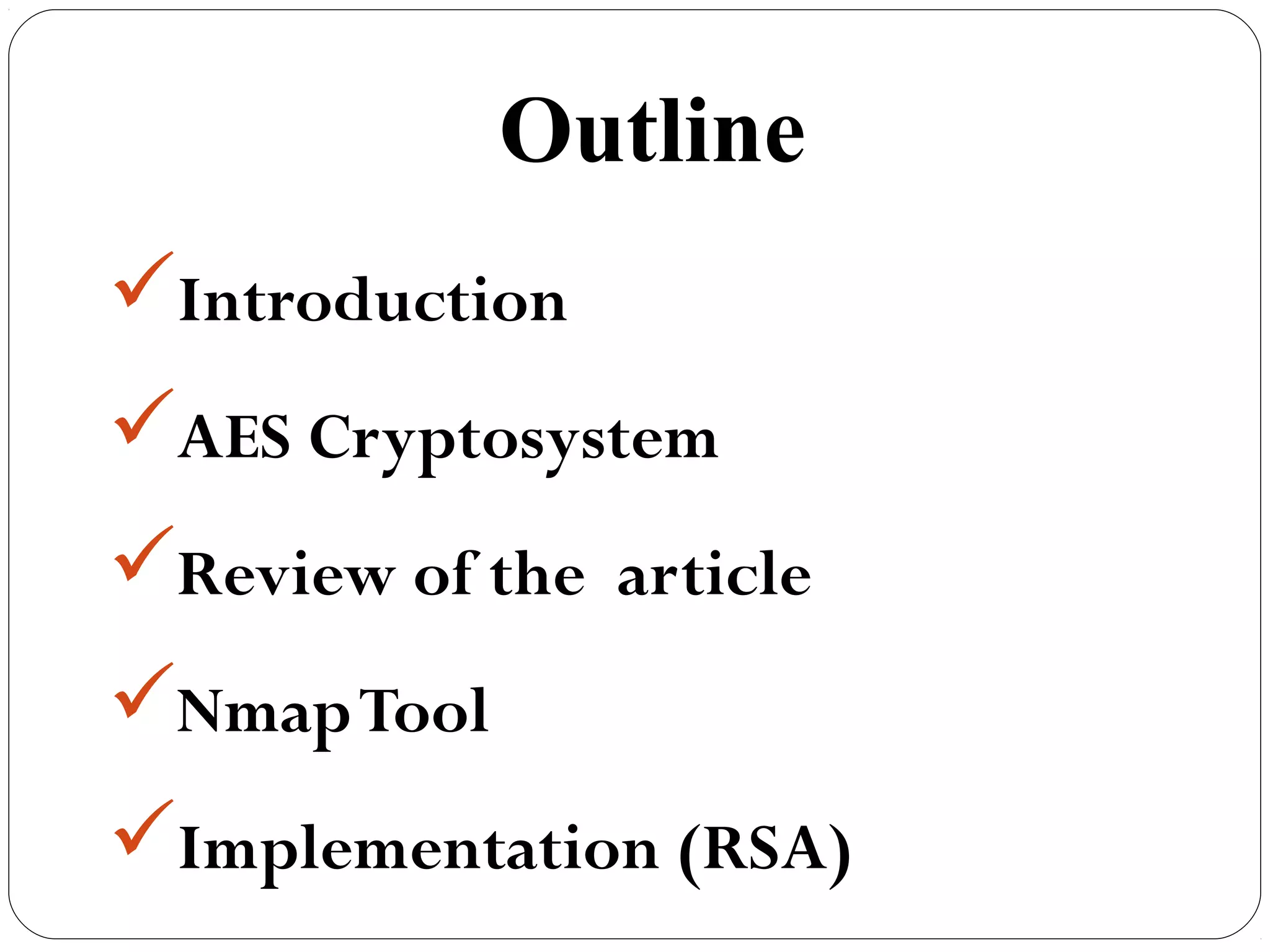

Outline Introduction AES Cryptosystem Review of the article NmapTool Implementation (RSA)

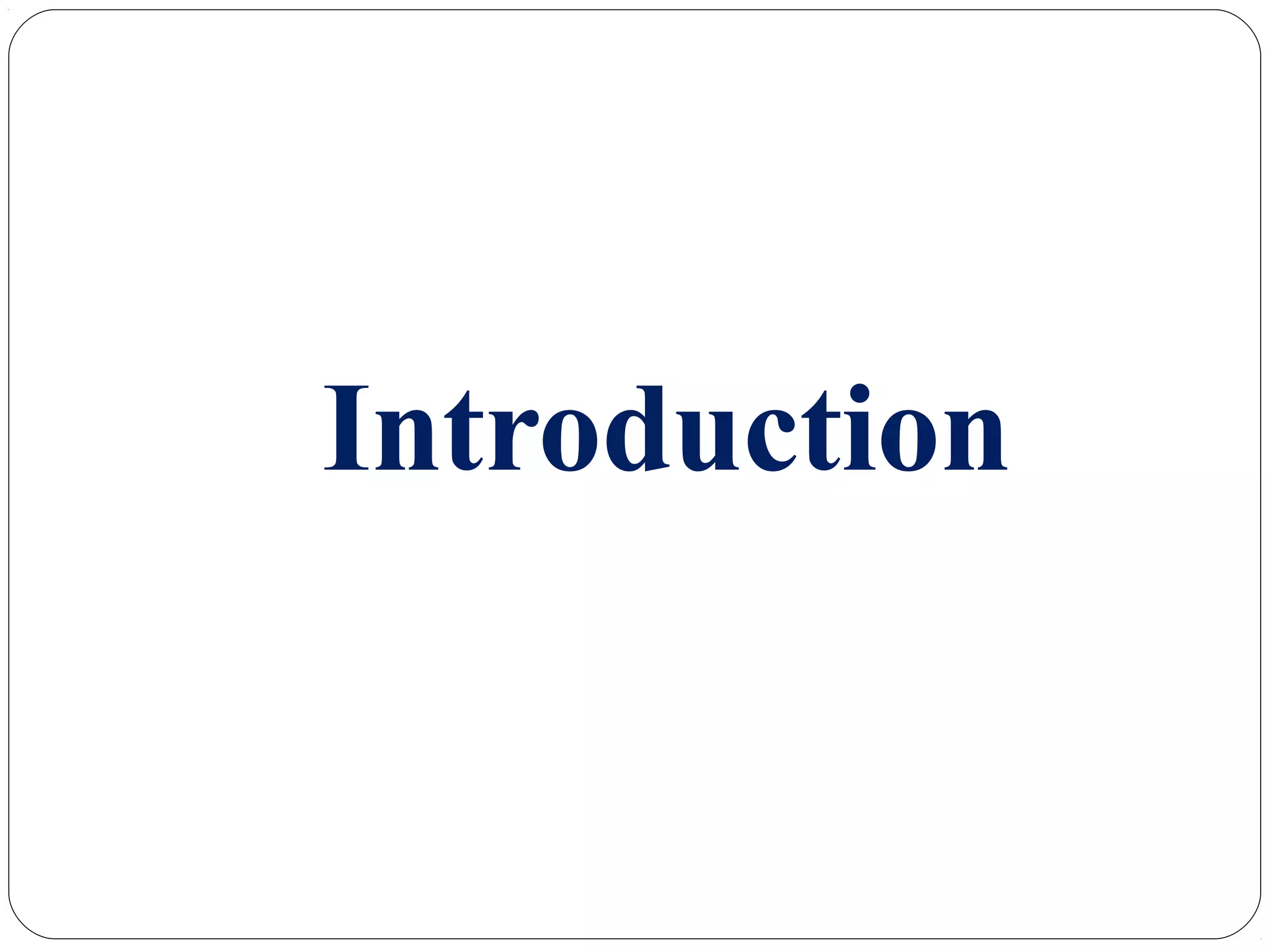

Introduction

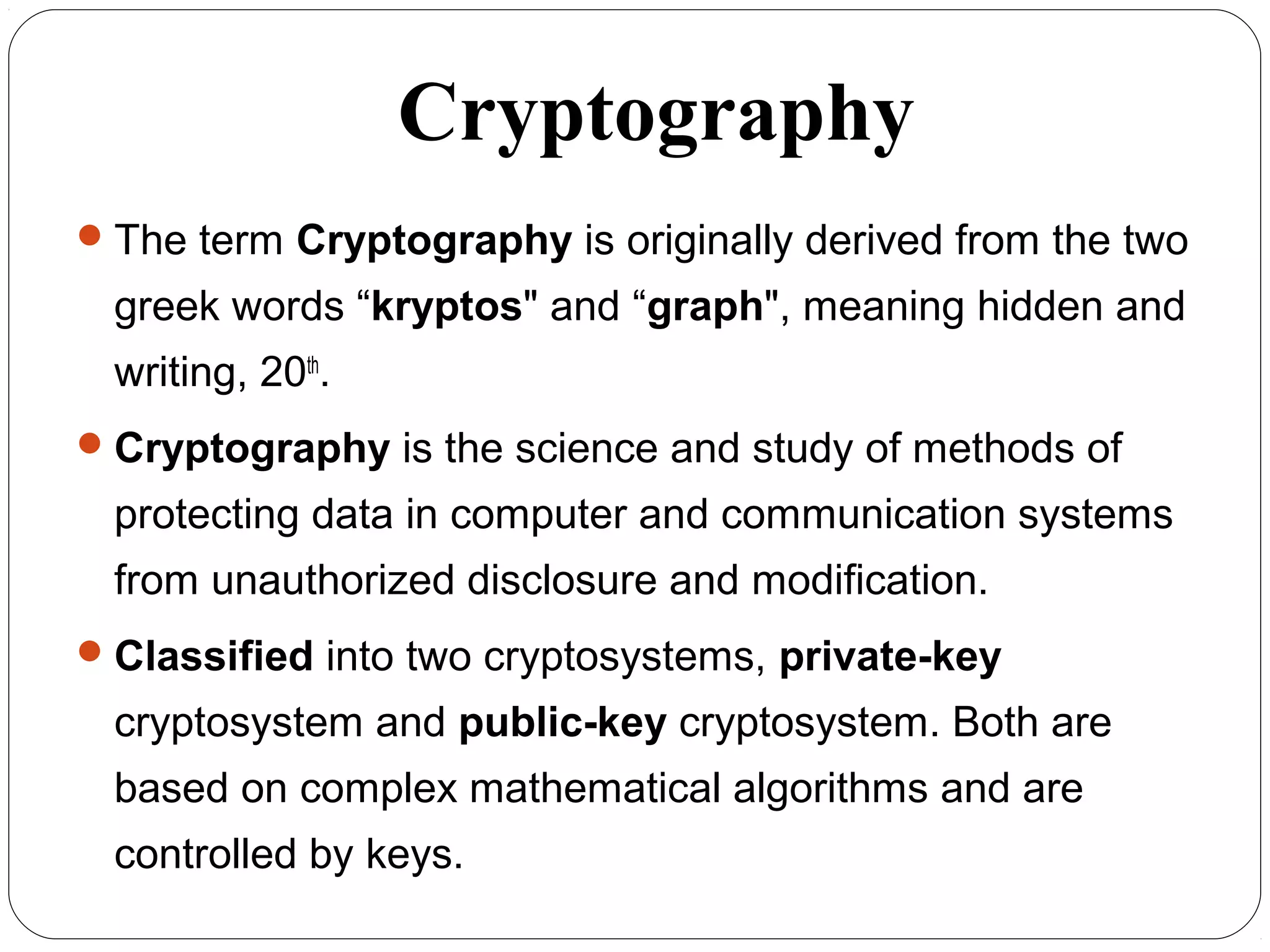

Cryptography 4 The term Cryptography is originally derived from the two greek words “kryptos" and “graph", meaning hidden and writing, 20th . Cryptography is the science and study of methods of protecting data in computer and communication systems from unauthorized disclosure and modification. Classified into two cryptosystems, private-key cryptosystem and public-key cryptosystem. Both are based on complex mathematical algorithms and are controlled by keys.

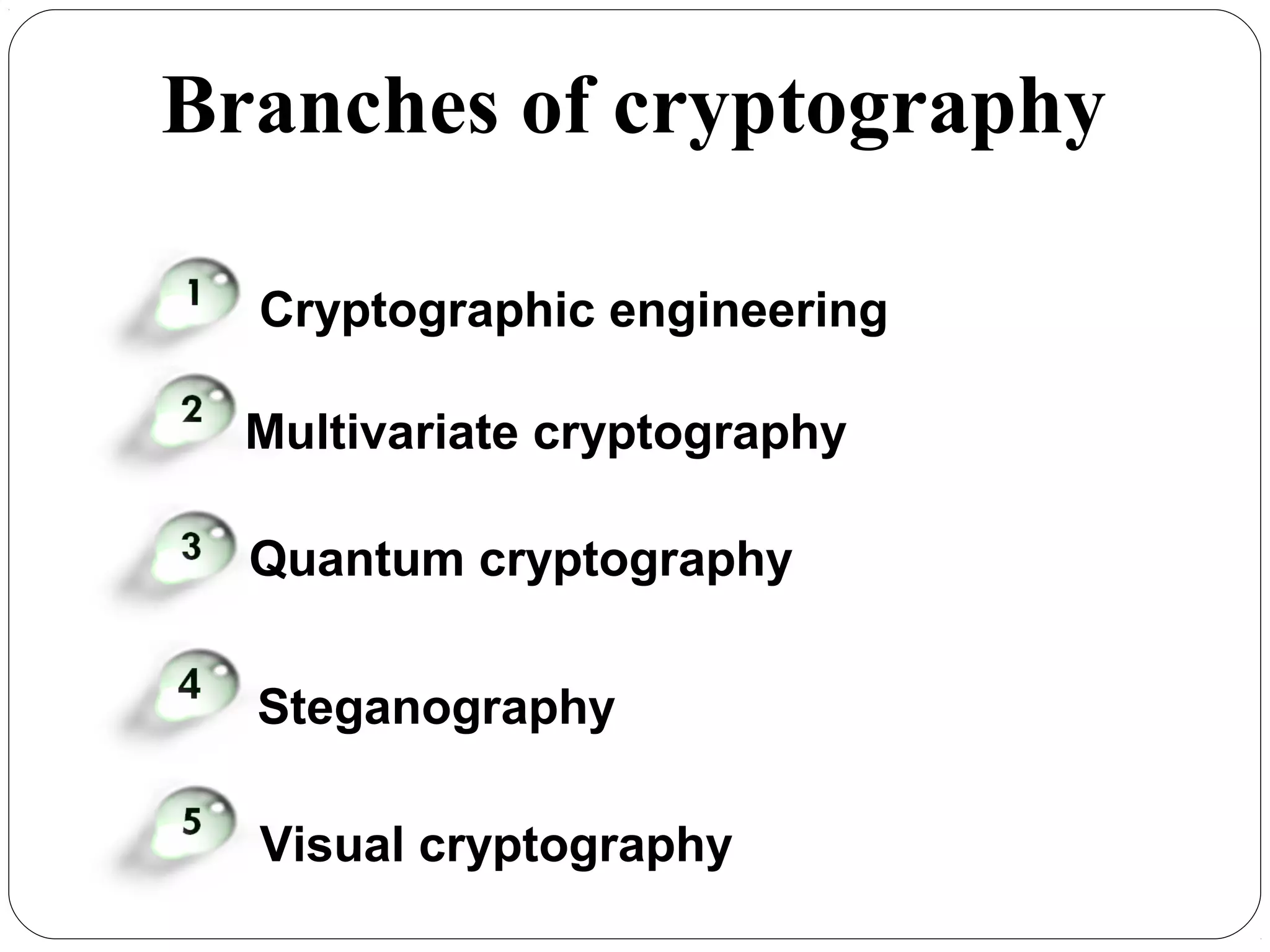

Branches of cryptography Cryptographic engineering Visual cryptography Steganography Quantum cryptography Multivariate cryptography

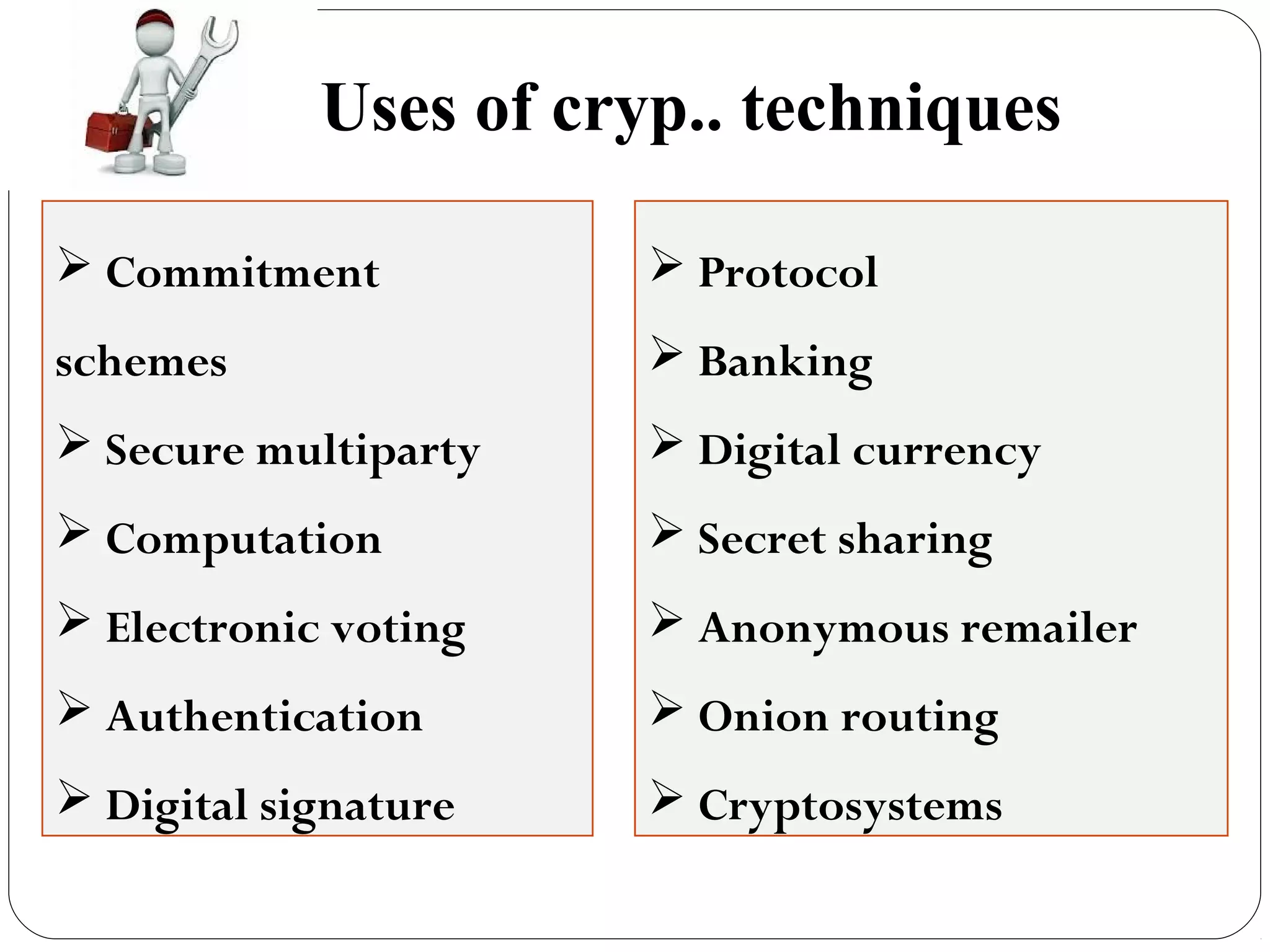

6 Uses of cryp.. techniques  Commitment schemes  Secure multiparty  Computation  Electronic voting  Authentication  Digital signature  Protocol  Banking  Digital currency  Secret sharing  Anonymous remailer  Onion routing  Cryptosystems

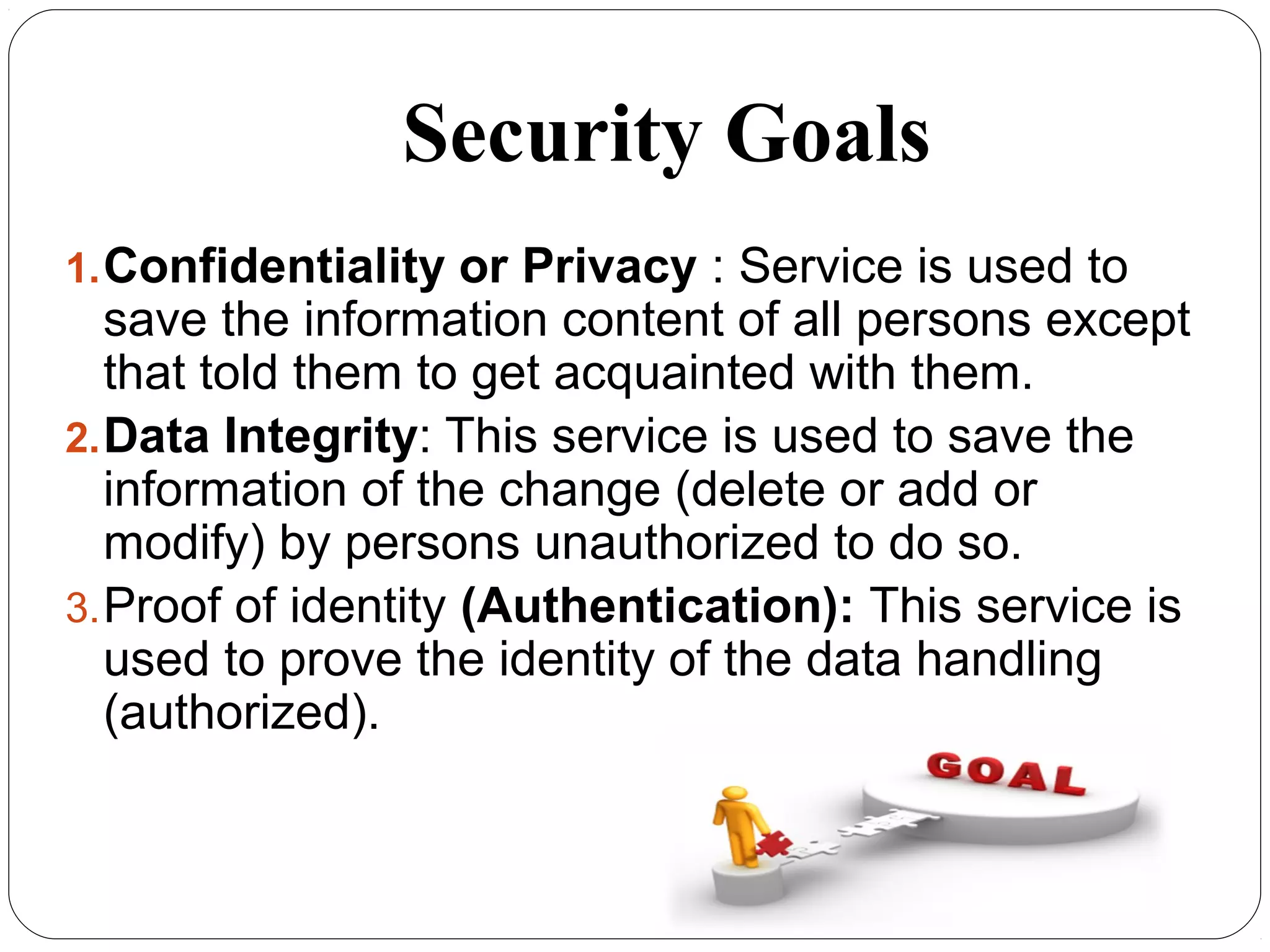

Security Goals 7 1.Confidentiality or Privacy : Service is used to save the information content of all persons except that told them to get acquainted with them. 2.Data Integrity: This service is used to save the information of the change (delete or add or modify) by persons unauthorized to do so. 3.Proof of identity (Authentication): This service is used to prove the identity of the data handling (authorized).
Cont. 8 4. (Non-repudiation): This service is used to prevent a person from denial to do something, Digital Signature.  Note :- If the primary purpose of encryption is to provide these services to the people is to maintain the security of their information .
9 Ciphers Classical Rotor Machines Private KeySubstitution Modern Public Key Stream Block Transpositio n Fig 3:- Types of Ciphers

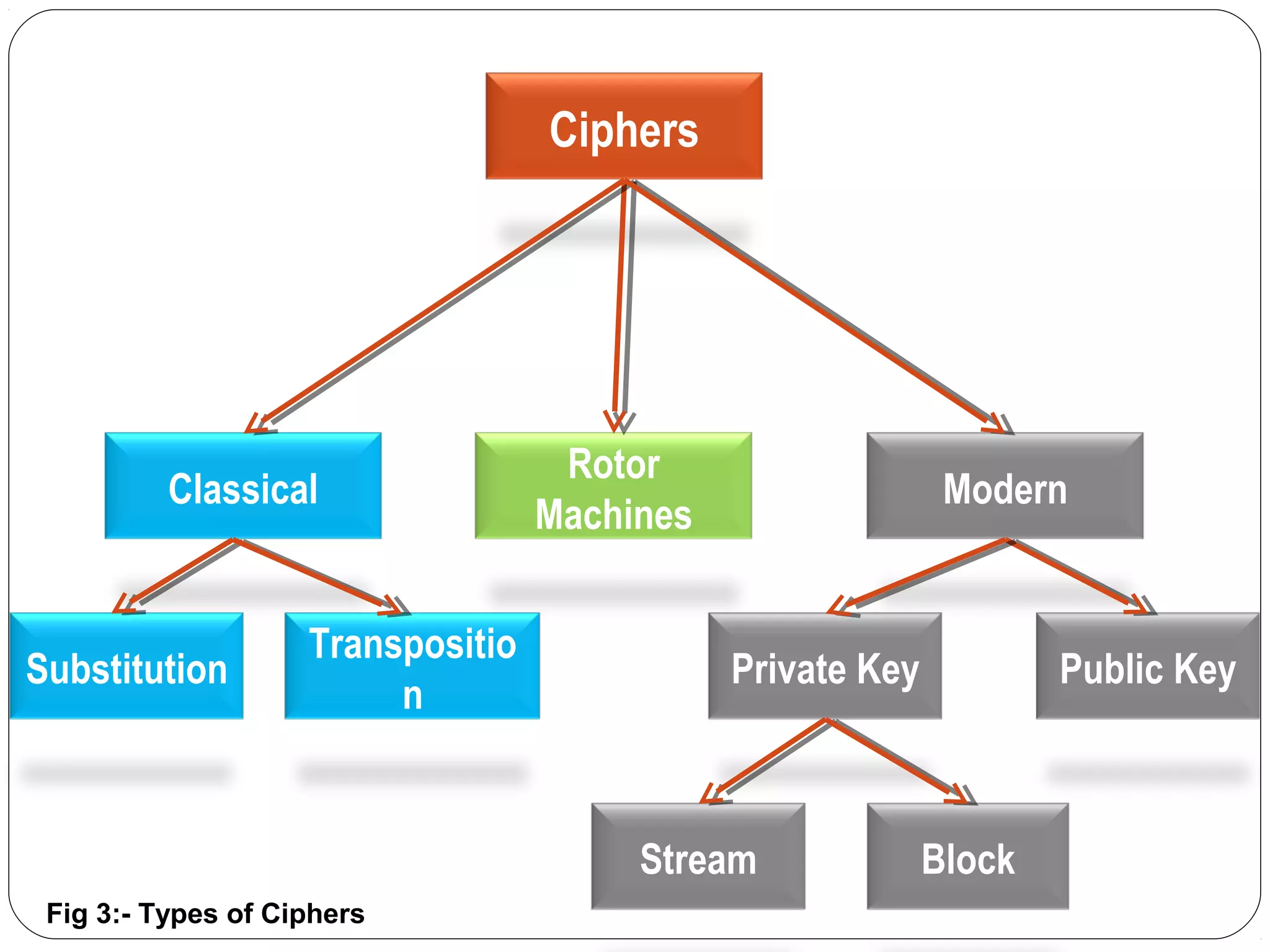

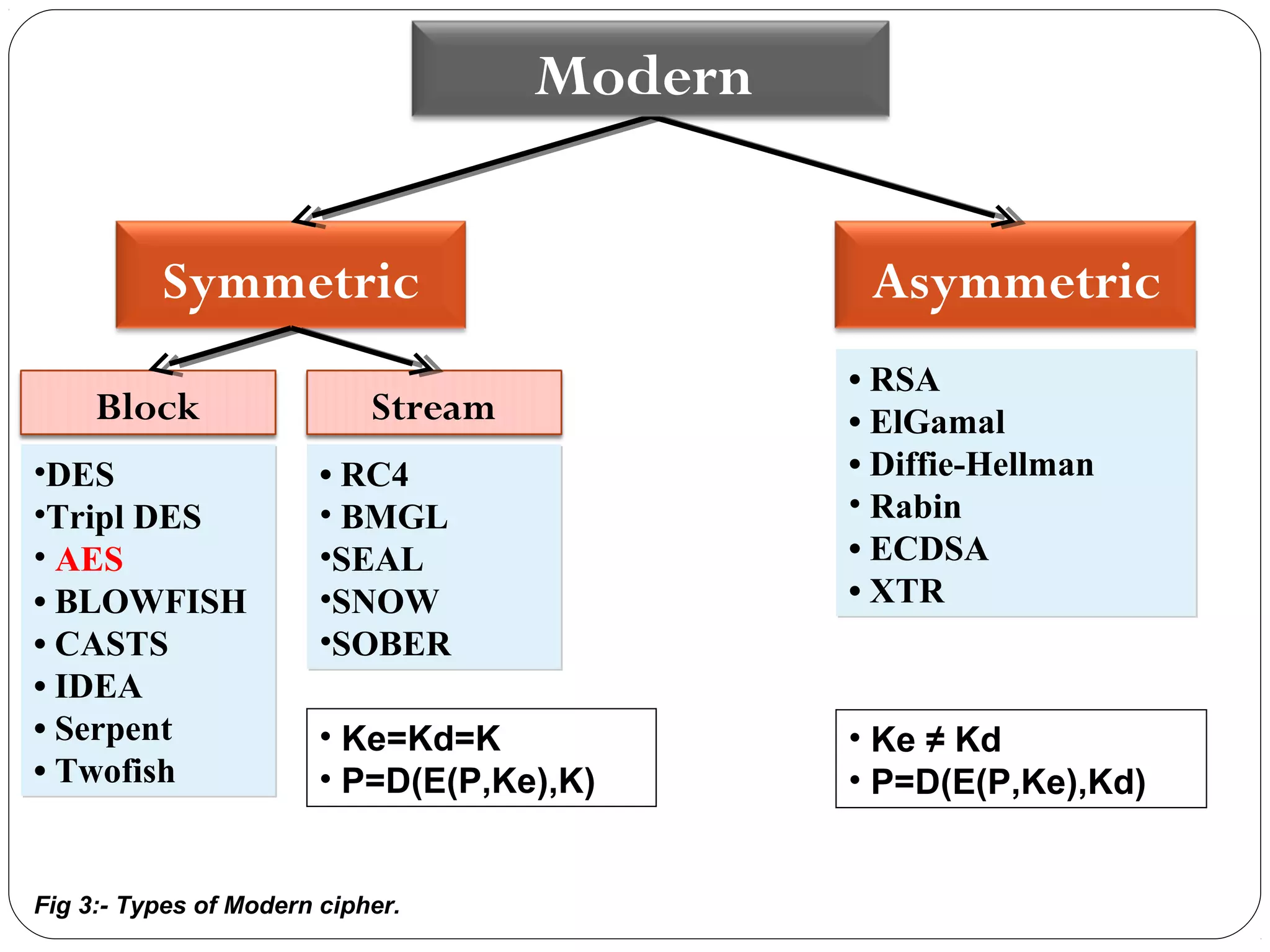

Fig 3:- Types of Modern cipher. Symmetric Asymmetric • Ke=Kd=K • P=D(E(P,Ke),K) • Ke ≠ Kd • P=D(E(P,Ke),Kd) •DES •Tripl DES • AES • BLOWFISH • CASTS • IDEA • Serpent • Twofish •DES •Tripl DES • AES • BLOWFISH • CASTS • IDEA • Serpent • Twofish • RSA • ElGamal • Diffie-Hellman • Rabin • ECDSA • XTR • RSA • ElGamal • Diffie-Hellman • Rabin • ECDSA • XTR Modern • RC4 • BMGL •SEAL •SNOW •SOBER • RC4 • BMGL •SEAL •SNOW •SOBER Block Stream

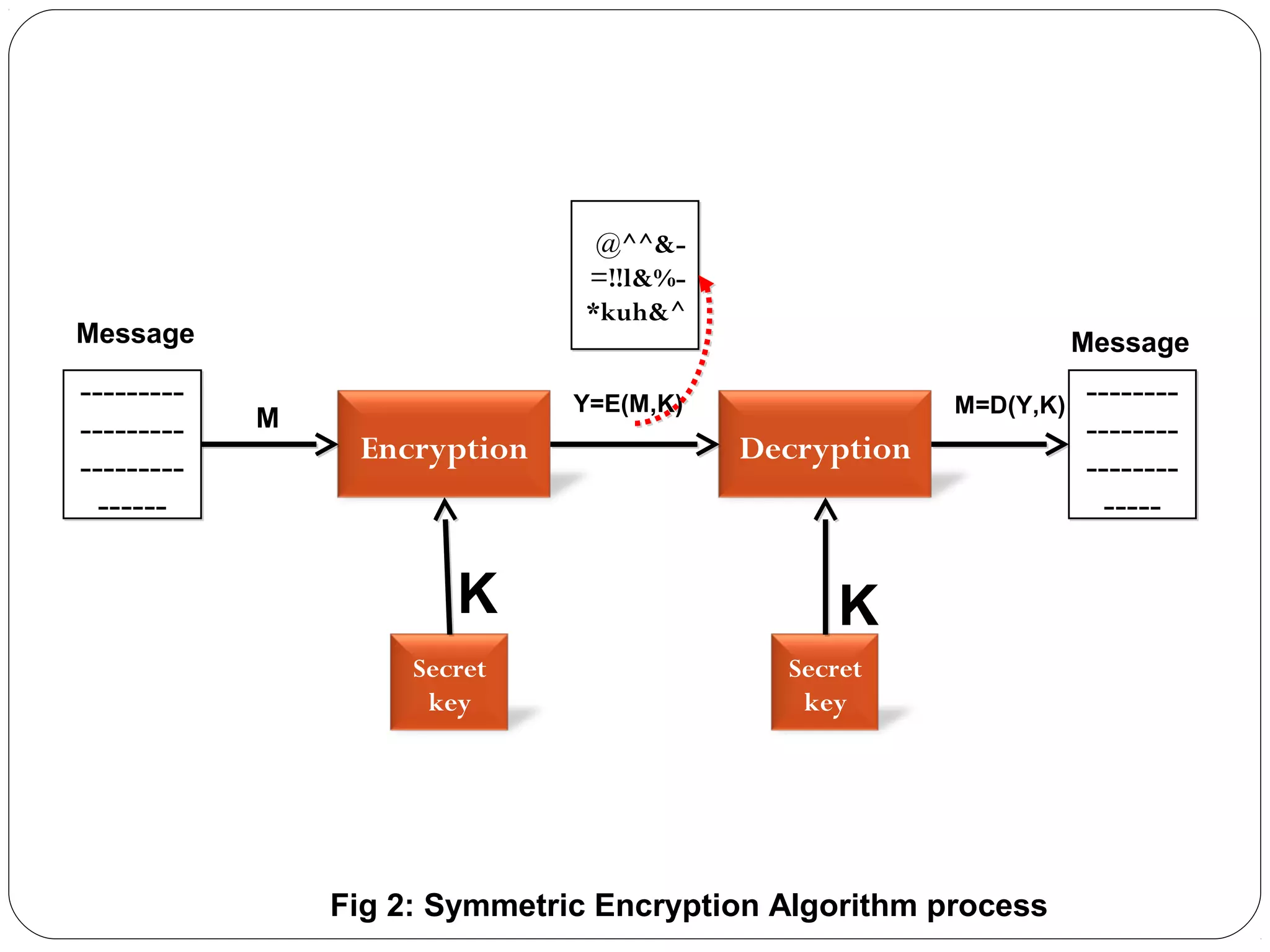

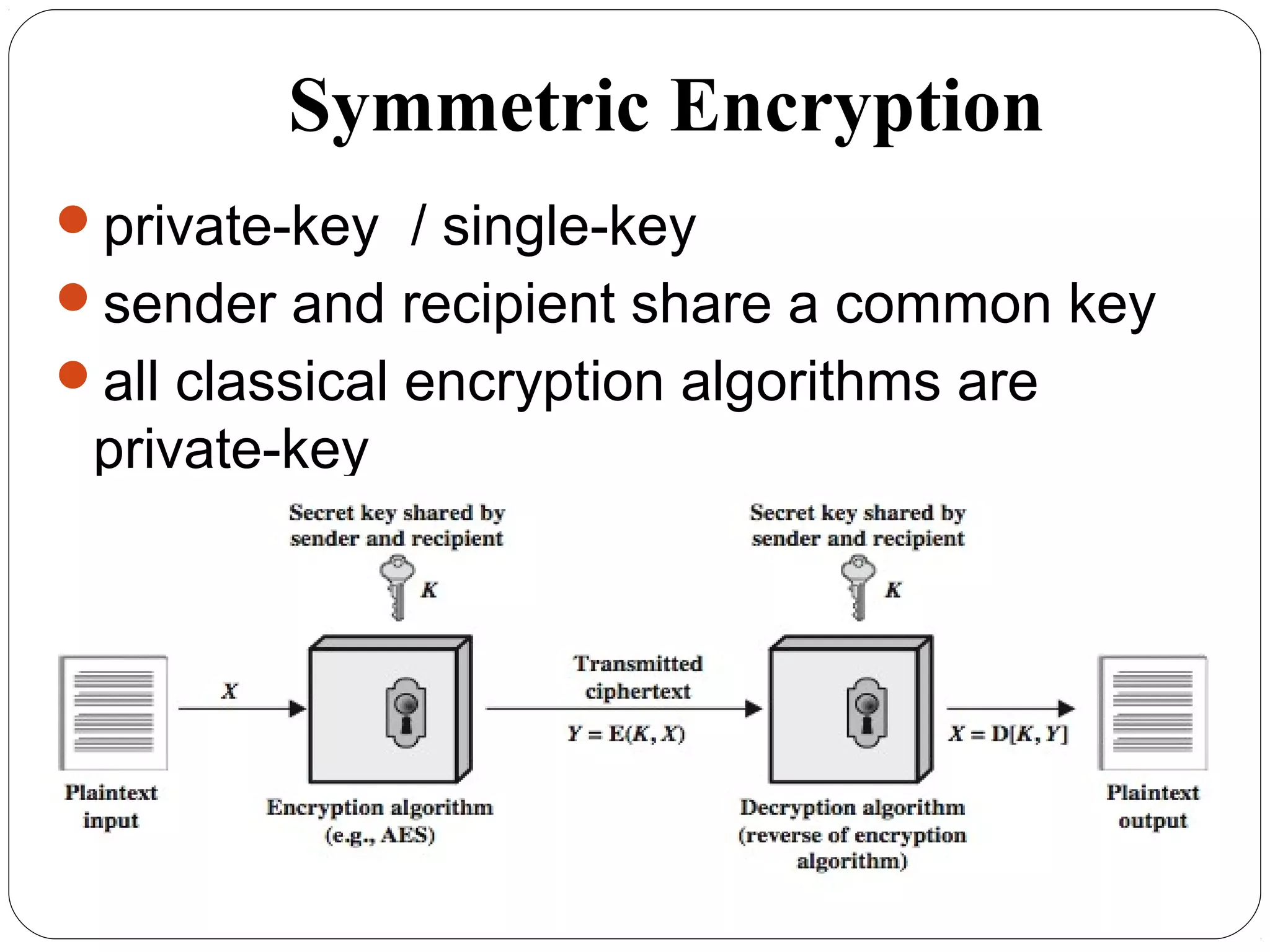

Symmetric Encryption private-key / single-key sender and recipient share a common key all classical encryption algorithms are private-key

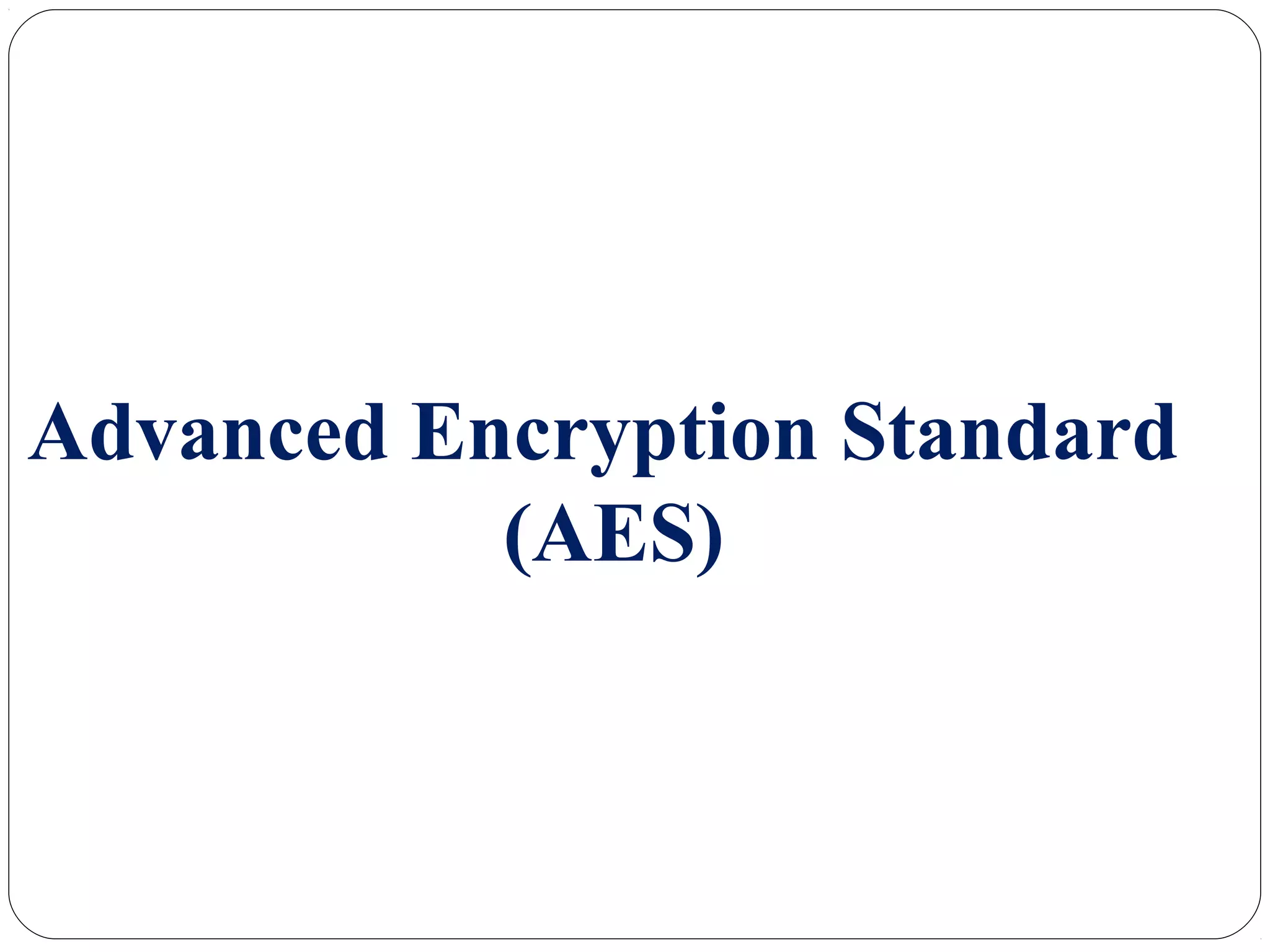

Advanced Encryption Standard (AES)
7.13 Main topics  To review a short history of AES  To define the basic structure and trans.. of AES To define the key expansion process  To define ANALYSIS and Uses of AES Comparison Reference

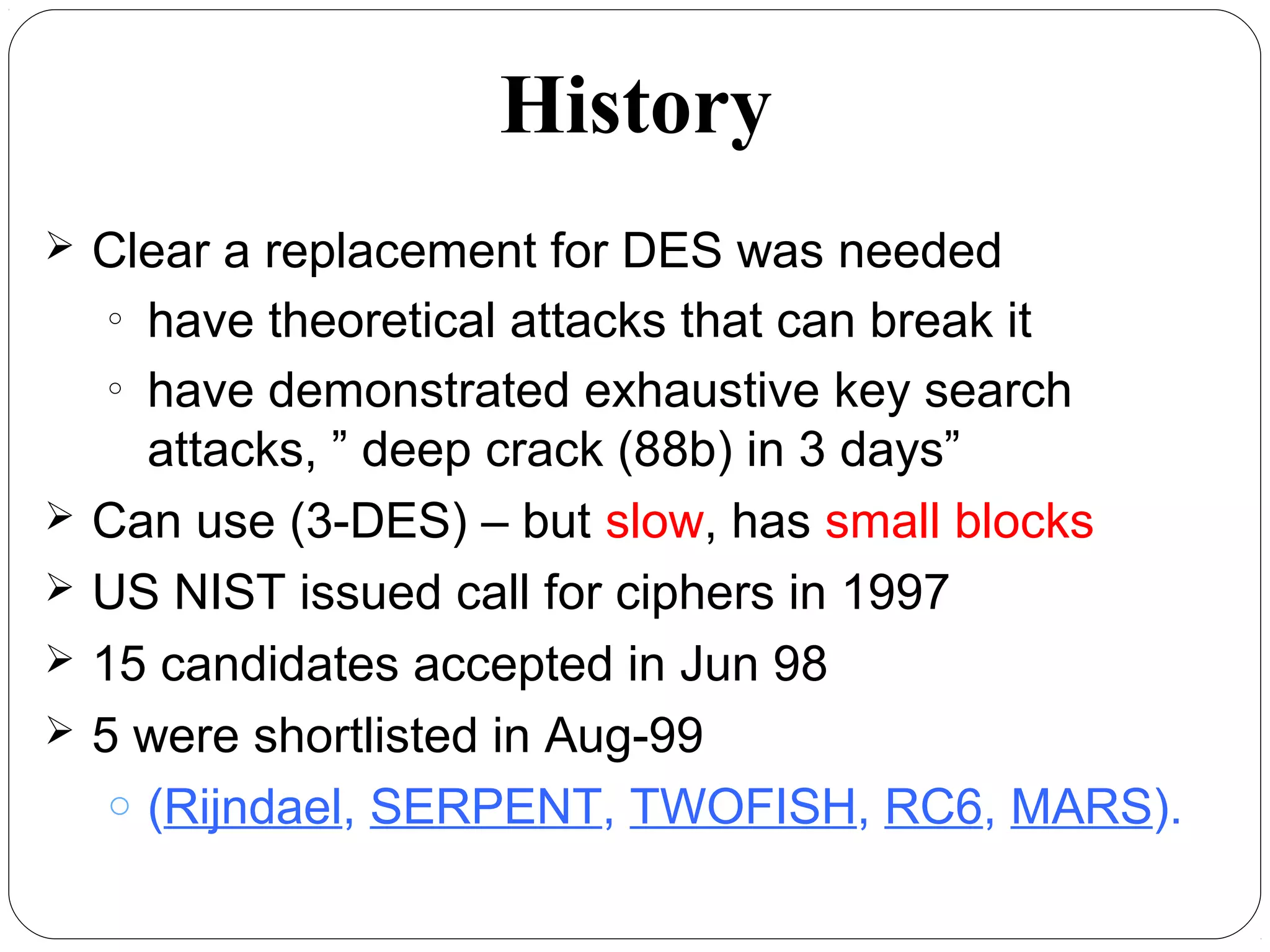

7.14  Clear a replacement for DES was needed o have theoretical attacks that can break it o have demonstrated exhaustive key search attacks, ” deep crack (88b) in 3 days”  Can use (3-DES) – but slow, has small blocks  US NIST issued call for ciphers in 1997  15 candidates accepted in Jun 98  5 were shortlisted in Aug-99 o (Rijndael, SERPENT, TWOFISH, RC6, MARS). History

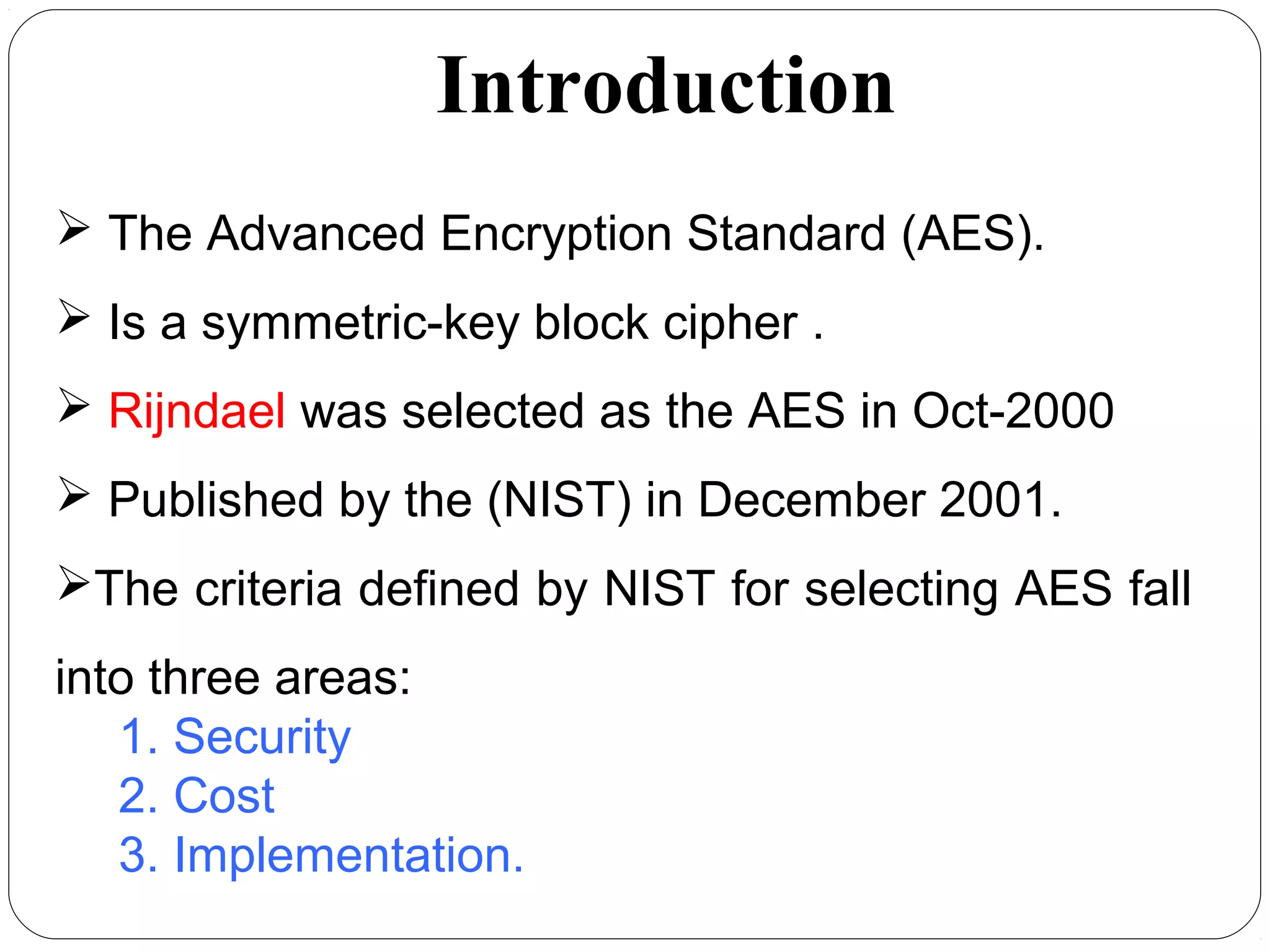

Introduction  The Advanced Encryption Standard (AES).  Is a symmetric-key block cipher .  Rijndael was selected as the AES in Oct-2000  Published by the (NIST) in December 2001. The criteria defined by NIST for selecting AES fall into three areas: 1. Security 2. Cost 3. Implementation.

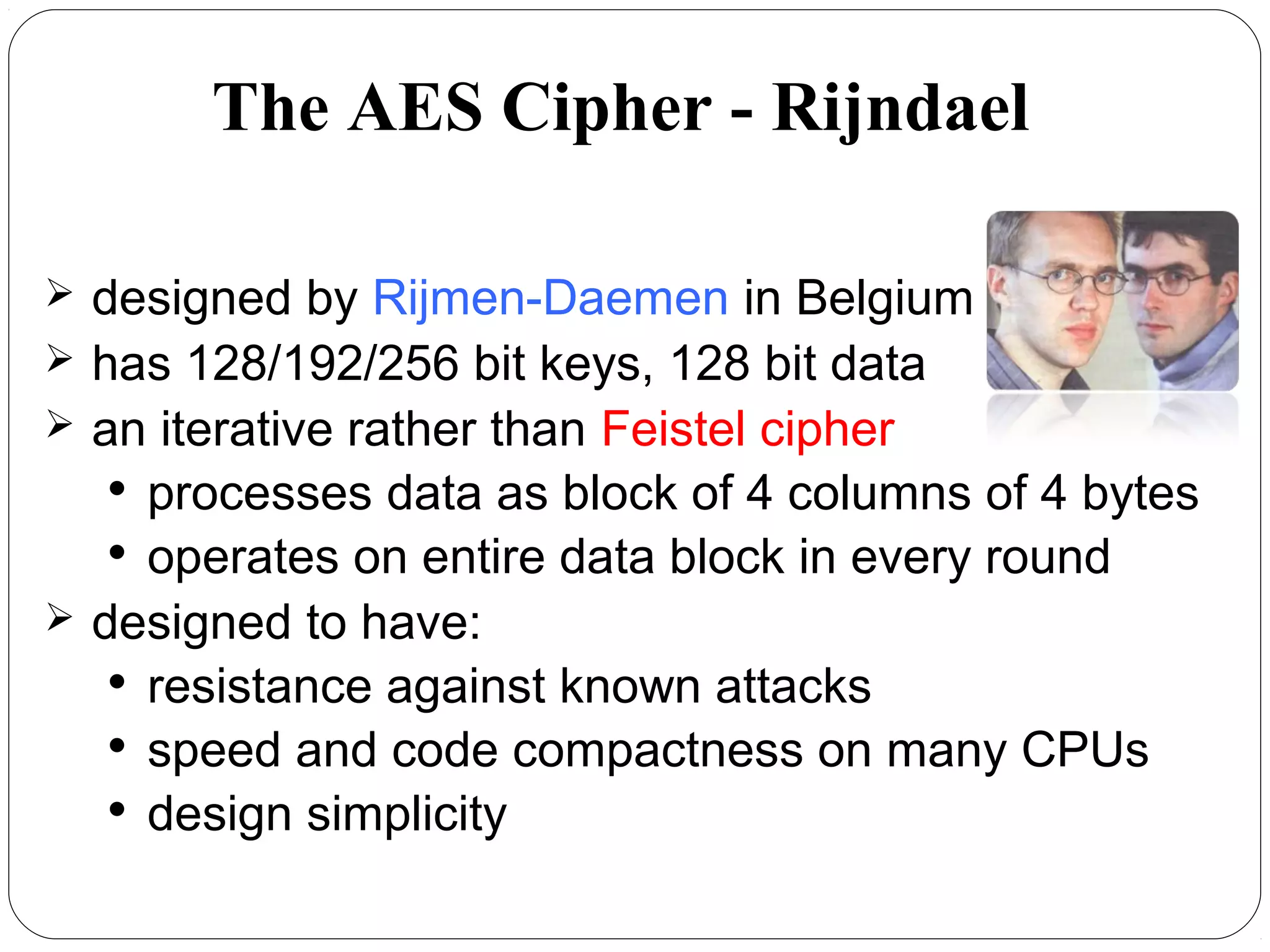

7.16  designed by Rijmen-Daemen in Belgium  has 128/192/256 bit keys, 128 bit data  an iterative rather than Feistel cipher  processes data as block of 4 columns of 4 bytes  operates on entire data block in every round  designed to have:  resistance against known attacks  speed and code compactness on many CPUs  design simplicity The AES Cipher - Rijndael

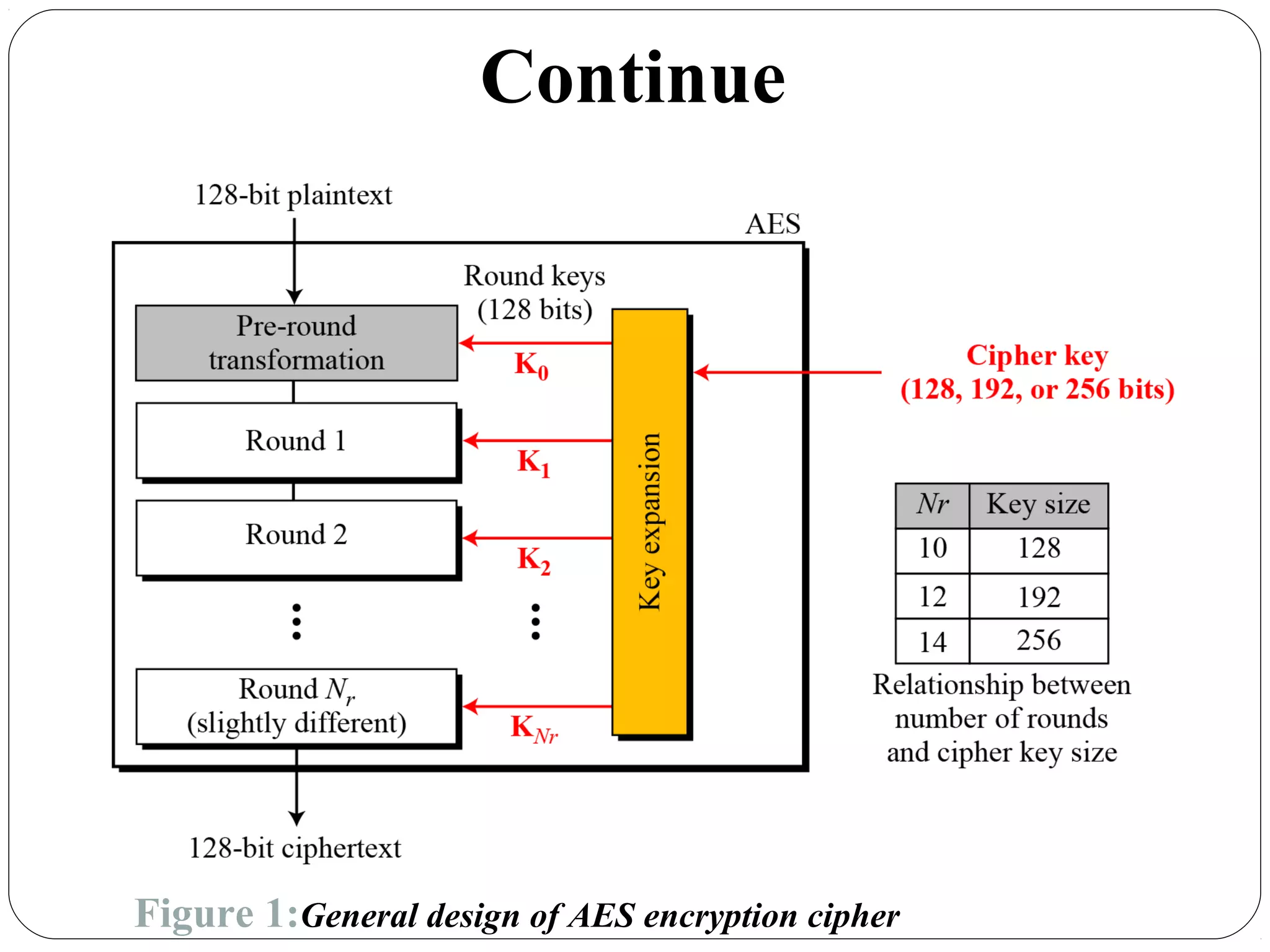

7.17 Continue Figure 1:General design of AES encryption cipher

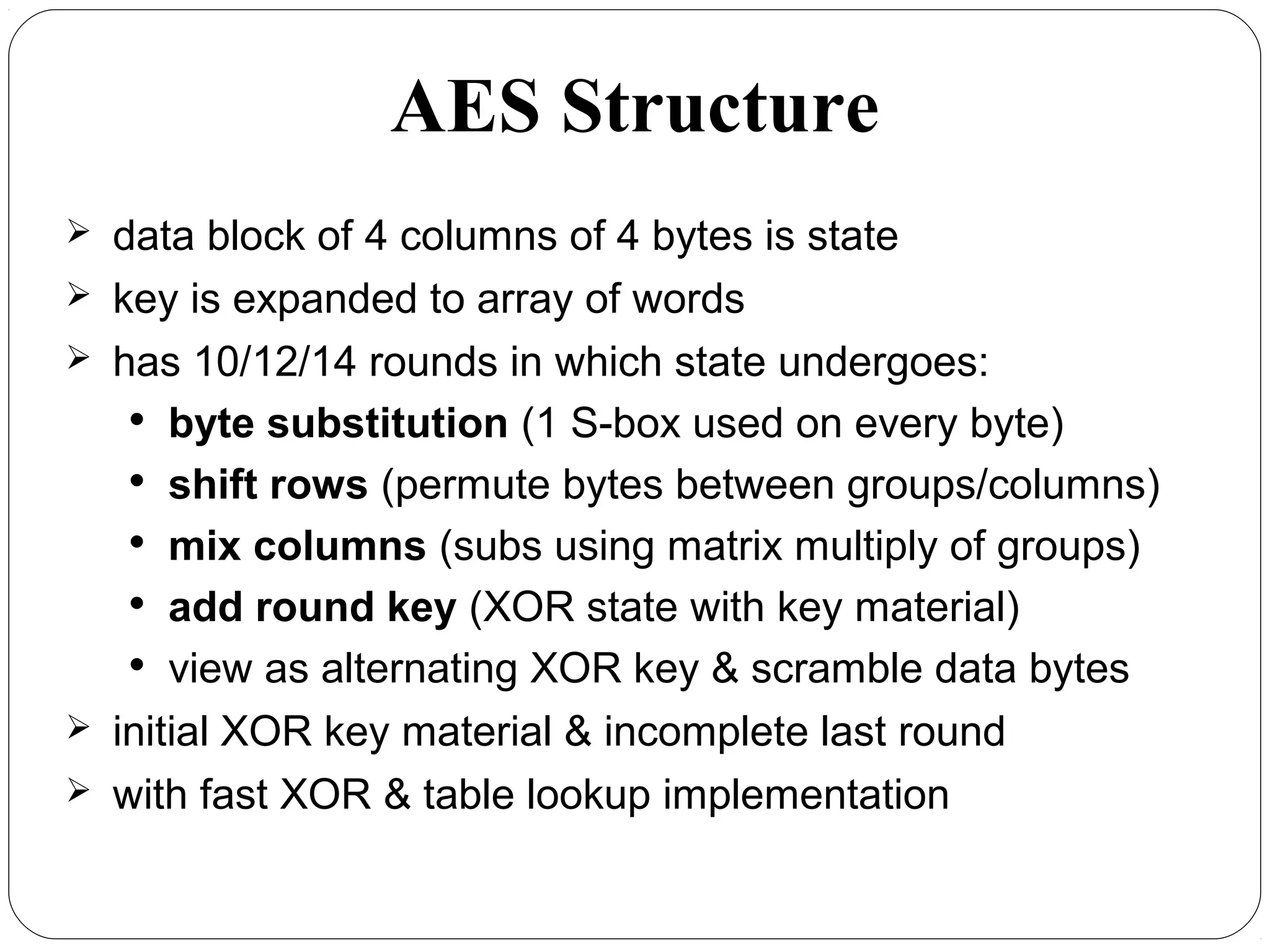

AES Structure  data block of 4 columns of 4 bytes is state  key is expanded to array of words  has 10/12/14 rounds in which state undergoes:  byte substitution (1 S-box used on every byte)  shift rows (permute bytes between groups/columns)  mix columns (subs using matrix multiply of groups)  add round key (XOR state with key material)  view as alternating XOR key & scramble data bytes  initial XOR key material & incomplete last round  with fast XOR & table lookup implementation

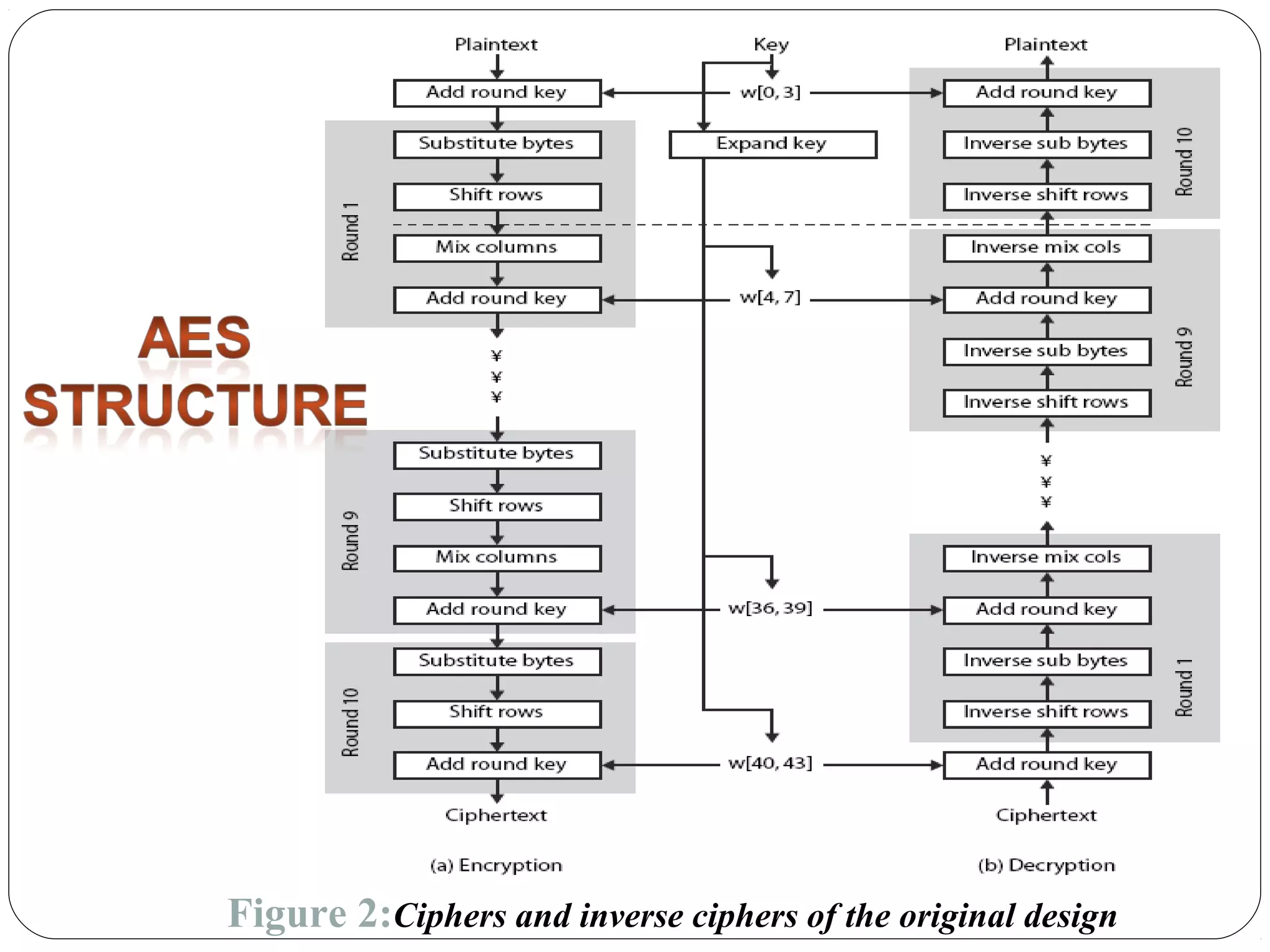

7.19 Figure 2:Ciphers and inverse ciphers of the original design

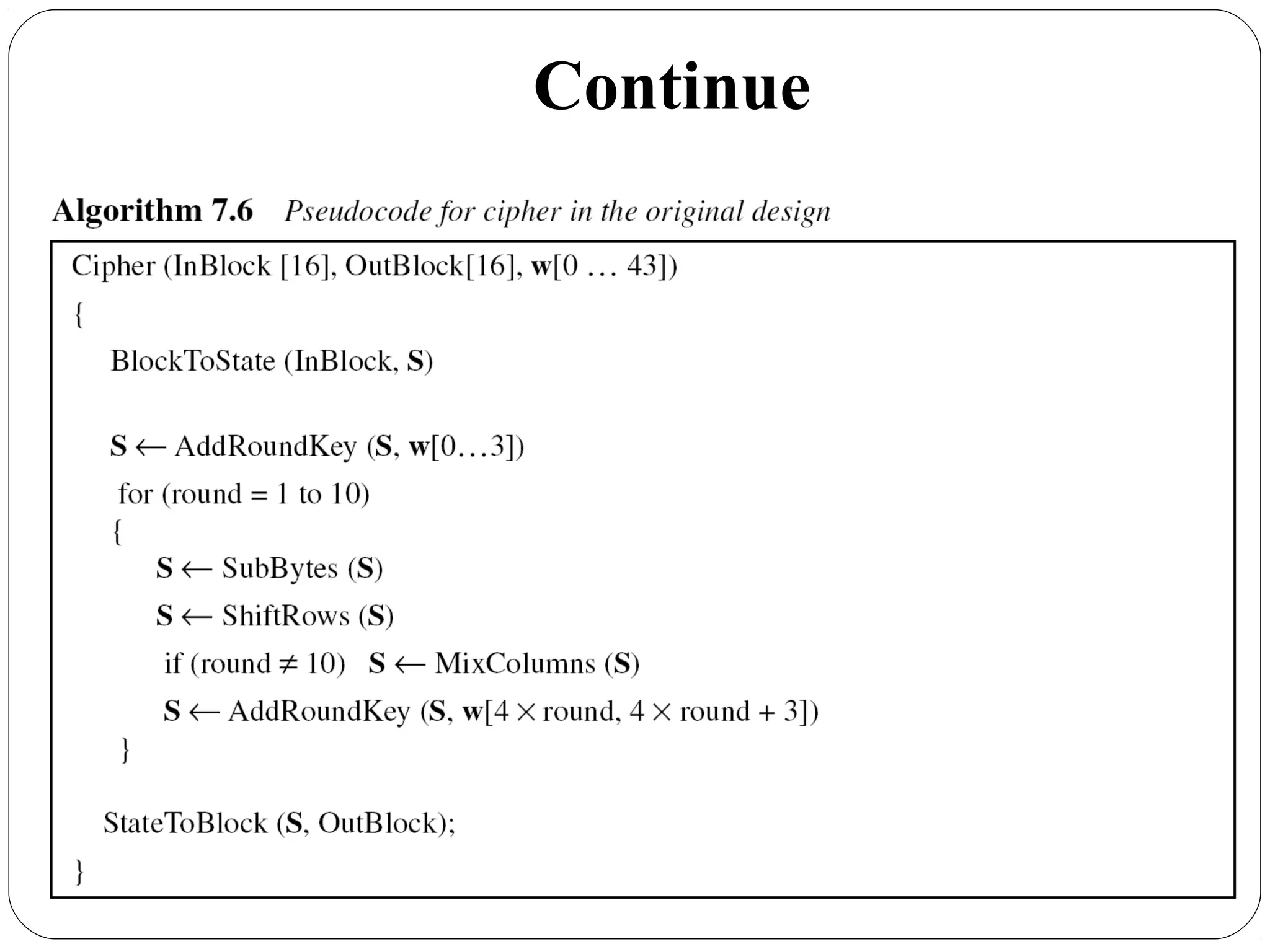

7.20 Continue

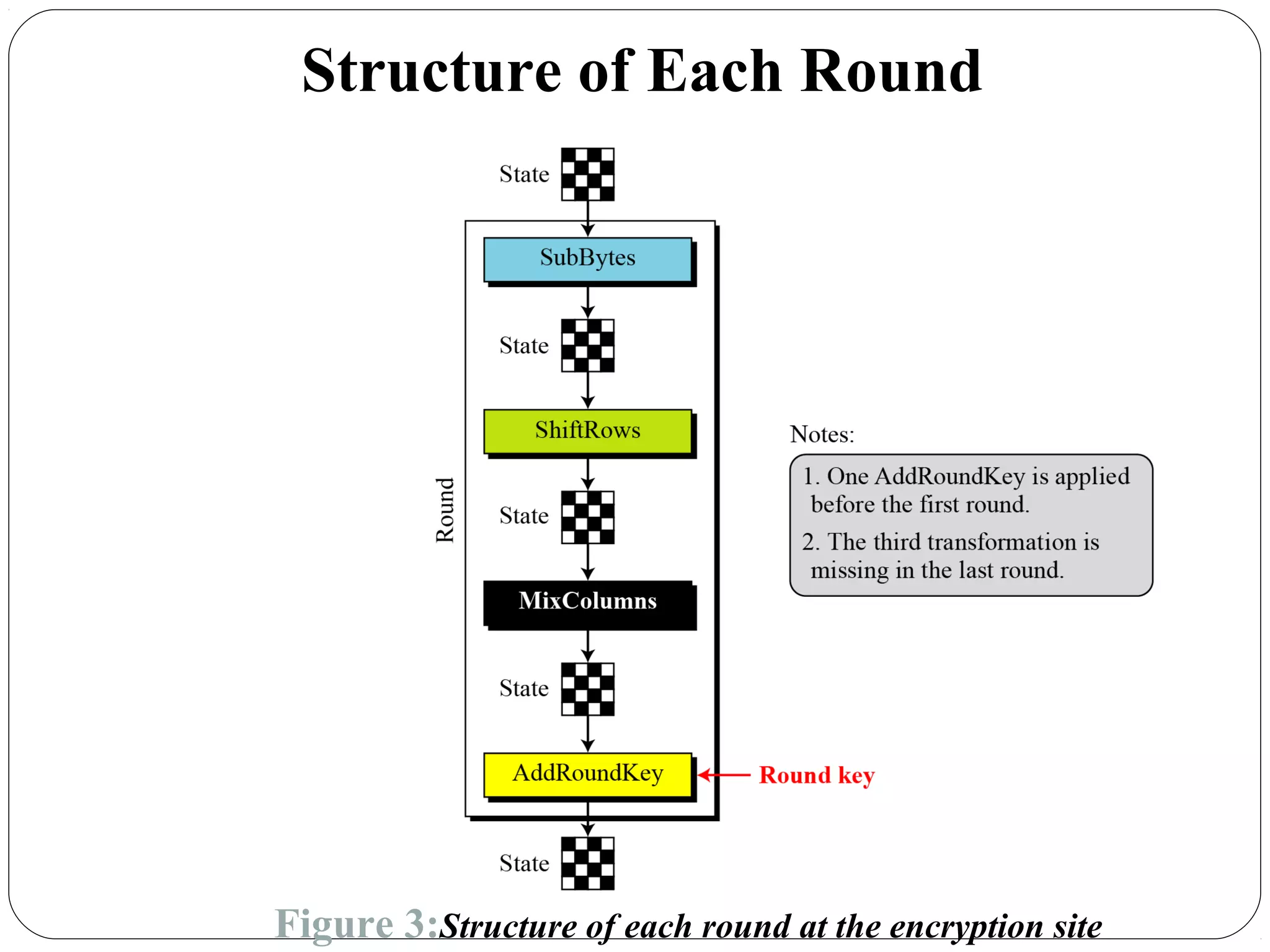

7.21 Structure of Each Round Figure 3:Structure of each round at the encryption site

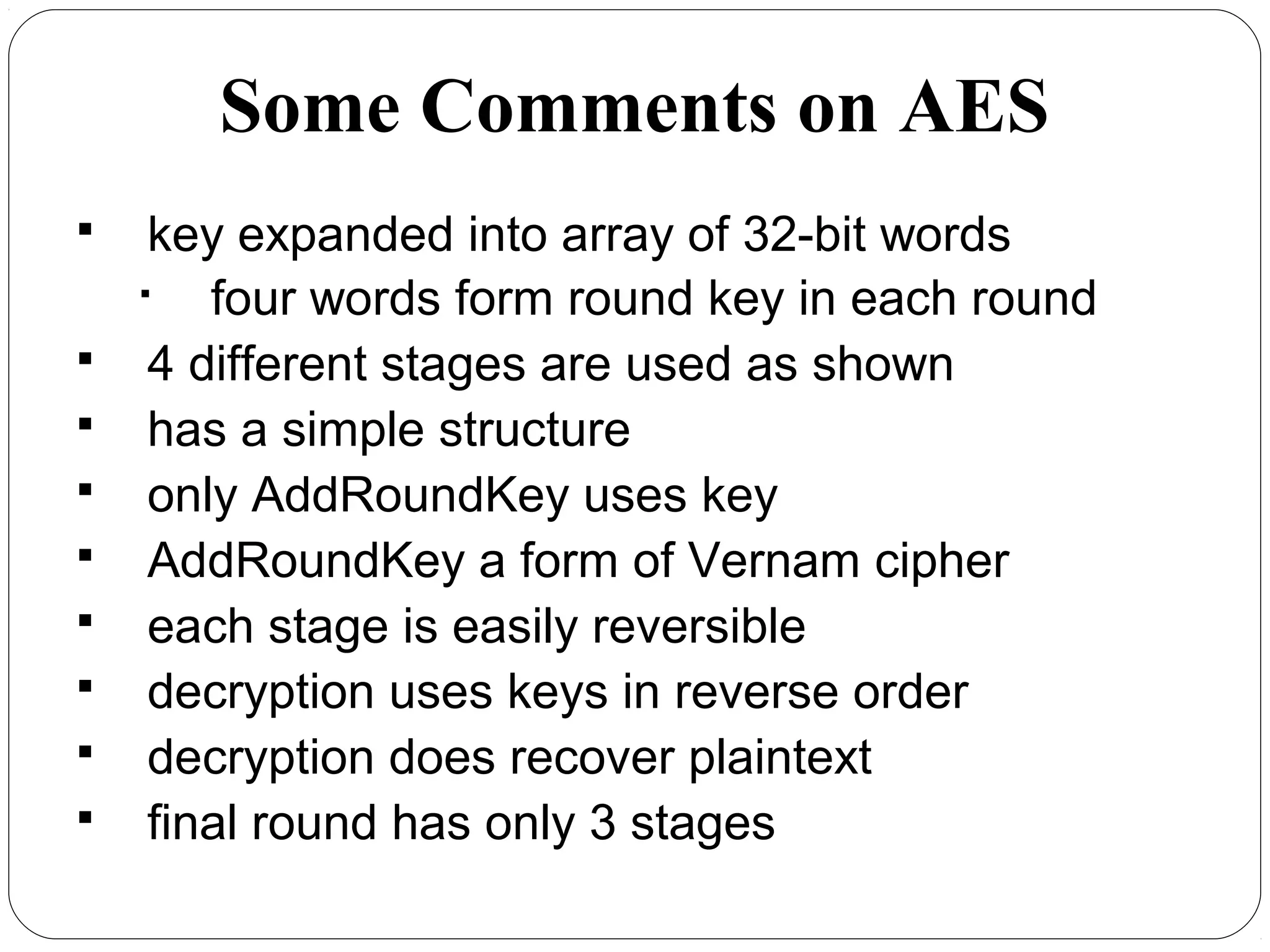

Some Comments on AES  key expanded into array of 32-bit words  four words form round key in each round  4 different stages are used as shown  has a simple structure  only AddRoundKey uses key  AddRoundKey a form of Vernam cipher  each stage is easily reversible  decryption uses keys in reverse order  decryption does recover plaintext  final round has only 3 stages

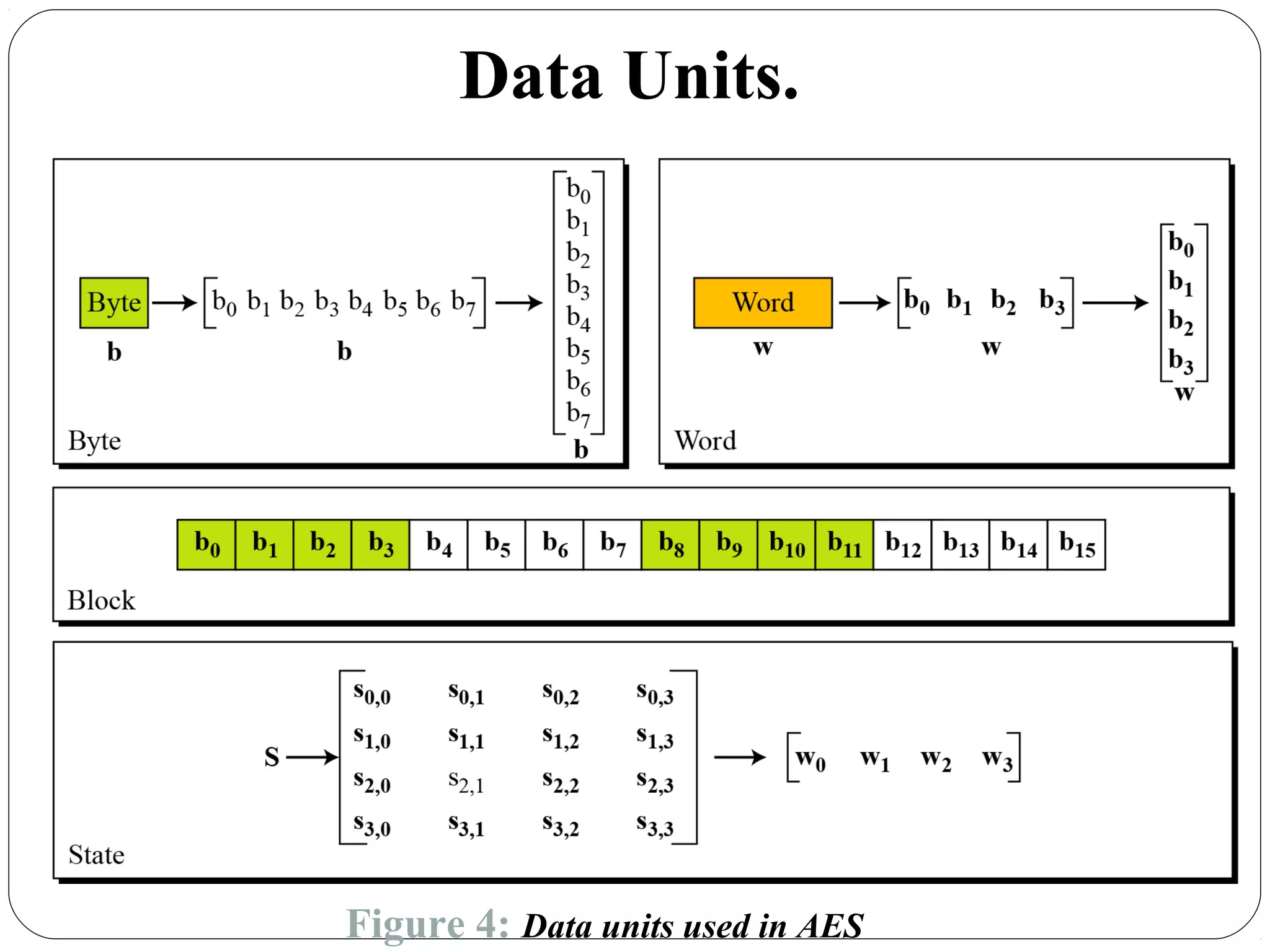

7.23 Data Units. Figure 4: Data units used in AES

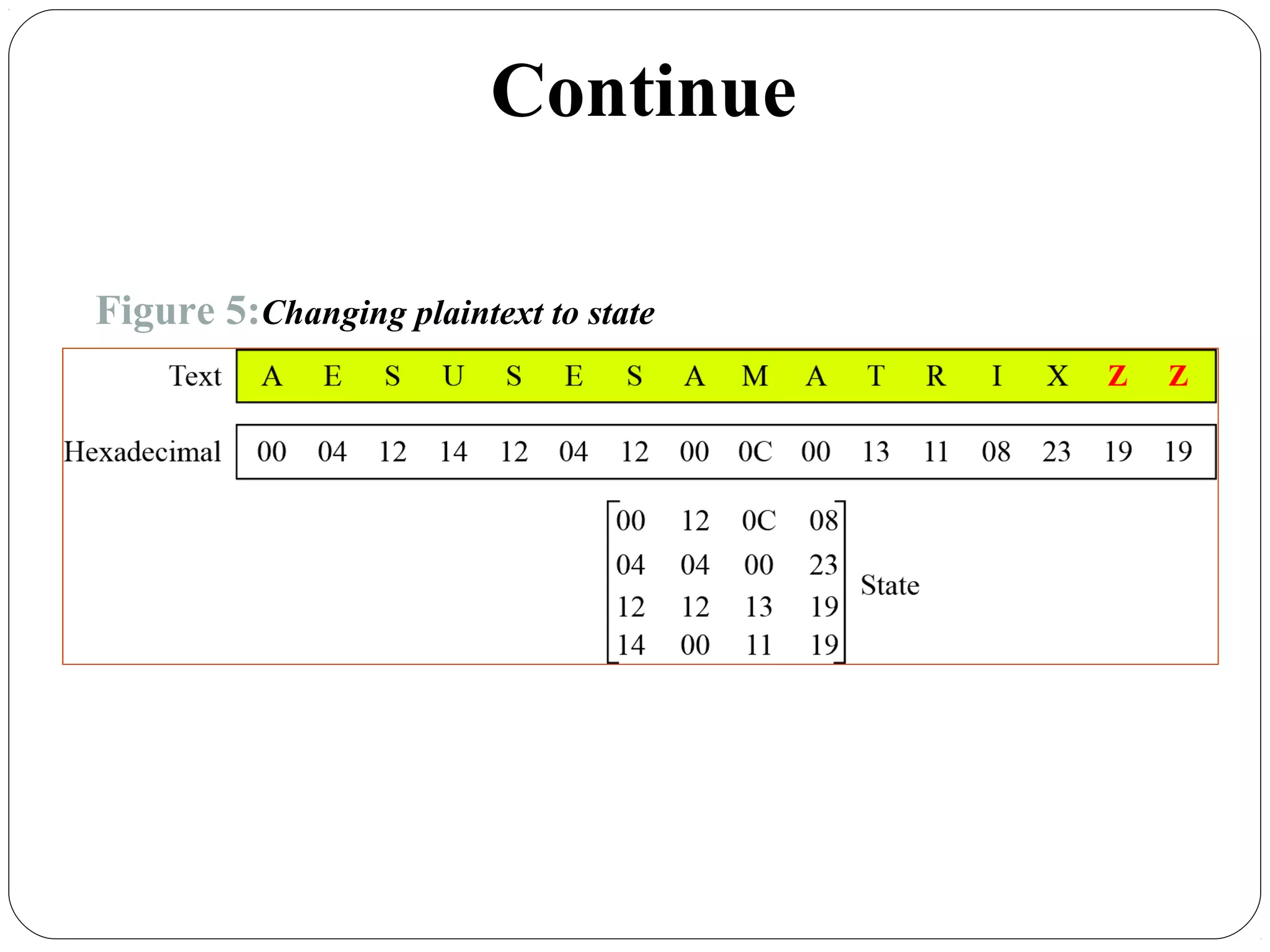

7.24 Figure 5:Changing plaintext to state Continue

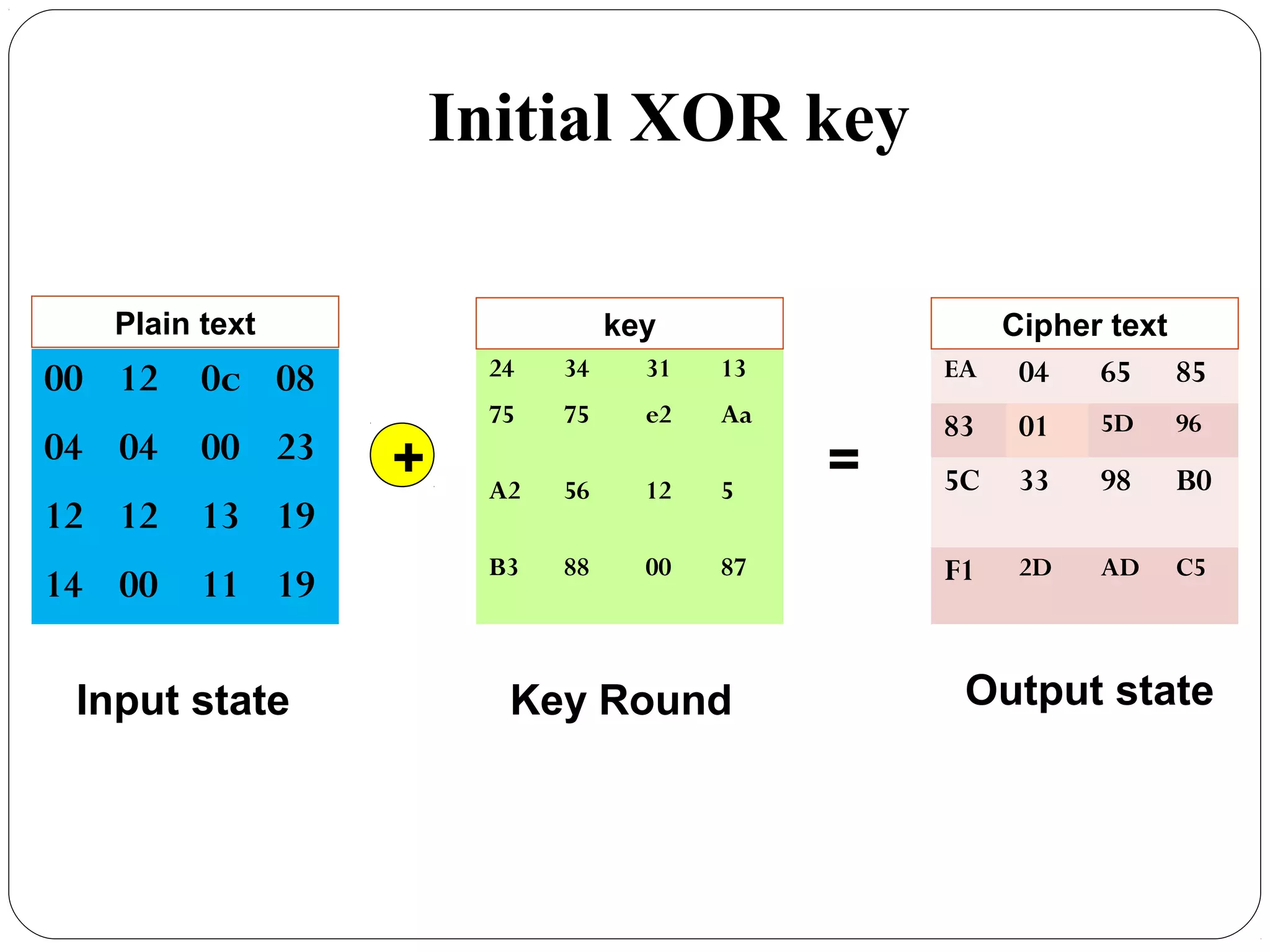

7.25 EA 04 65 85 83 01 5D 96 5C 33 98 B0 F1 2D AD C5 Initial XOR key 24 34 31 13 75 75 e2 Aa A2 56 12 5 B3 88 00 87 00 12 0c 08 04 04 00 23 12 12 13 19 14 00 11 19 Input state Output stateKey Round Plain text key Cipher text + =

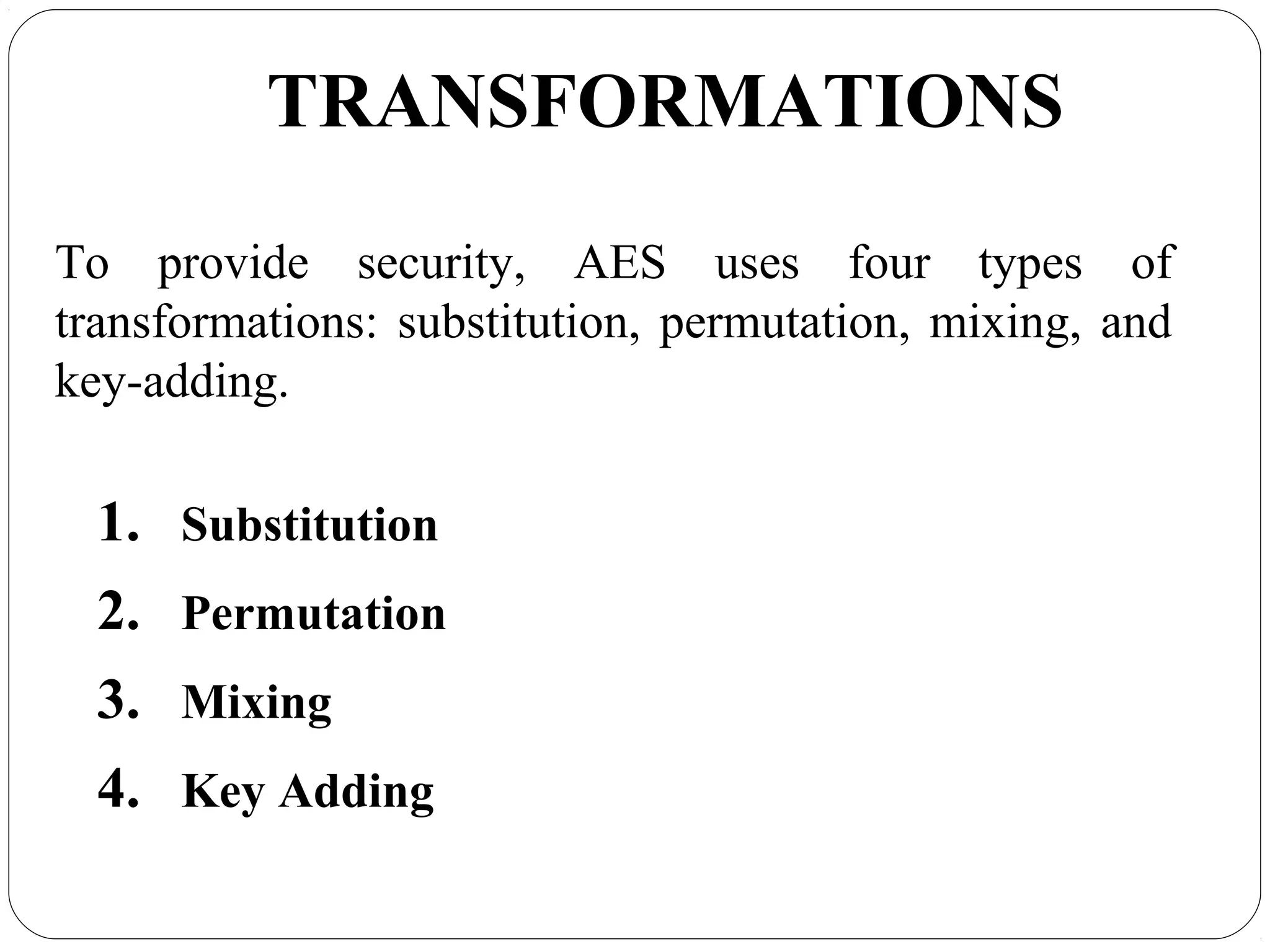

7.26 TRANSFORMATIONS To provide security, AES uses four types of transformations: substitution, permutation, mixing, and key-adding. 1. Substitution 2. Permutation 3. Mixing 4. Key Adding

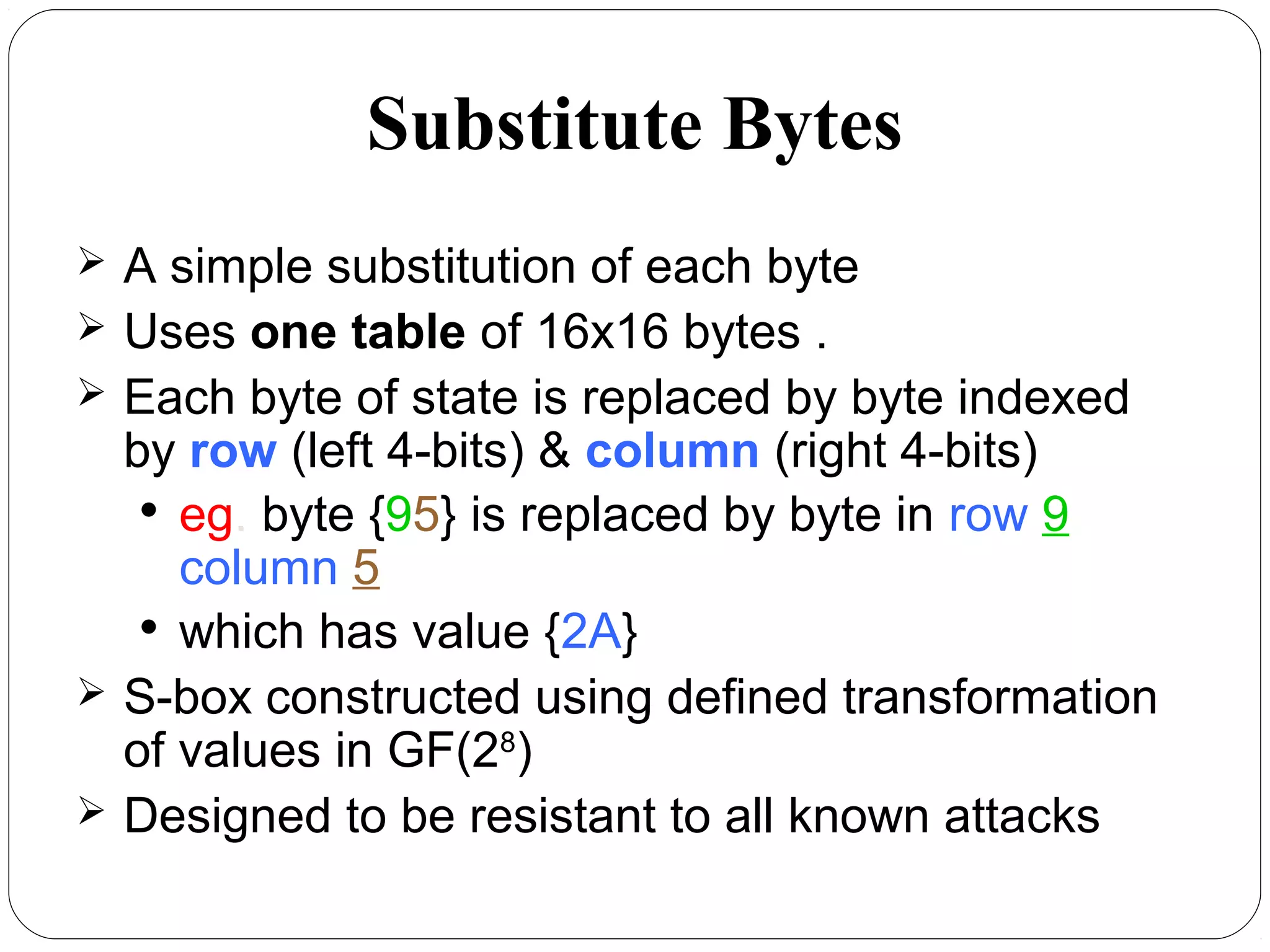

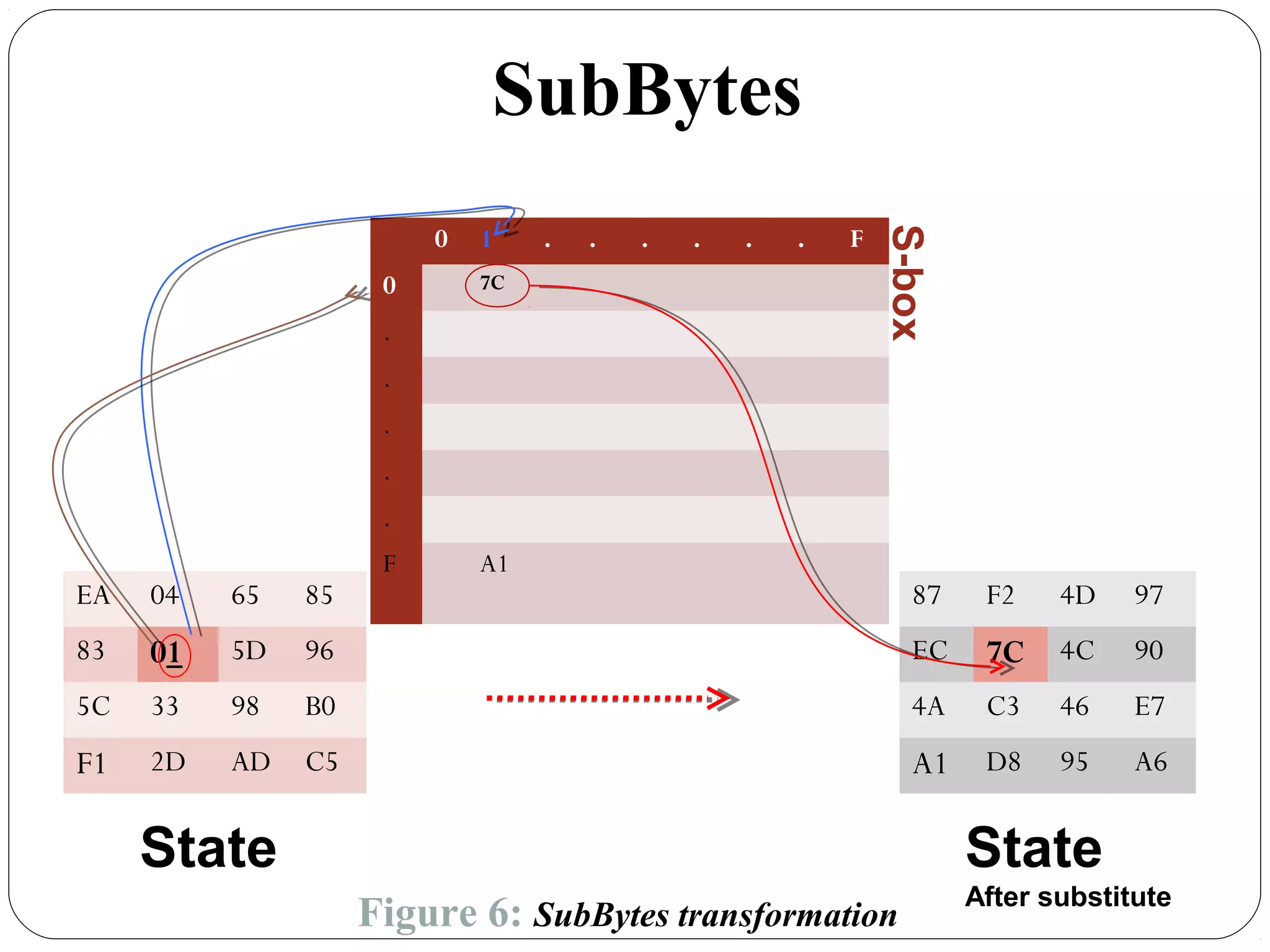

Substitute Bytes  A simple substitution of each byte  Uses one table of 16x16 bytes .  Each byte of state is replaced by byte indexed by row (left 4-bits) & column (right 4-bits)  eg. byte {95} is replaced by byte in row 9 column 5  which has value {2A}  S-box constructed using defined transformation of values in GF(28 )  Designed to be resistant to all known attacks

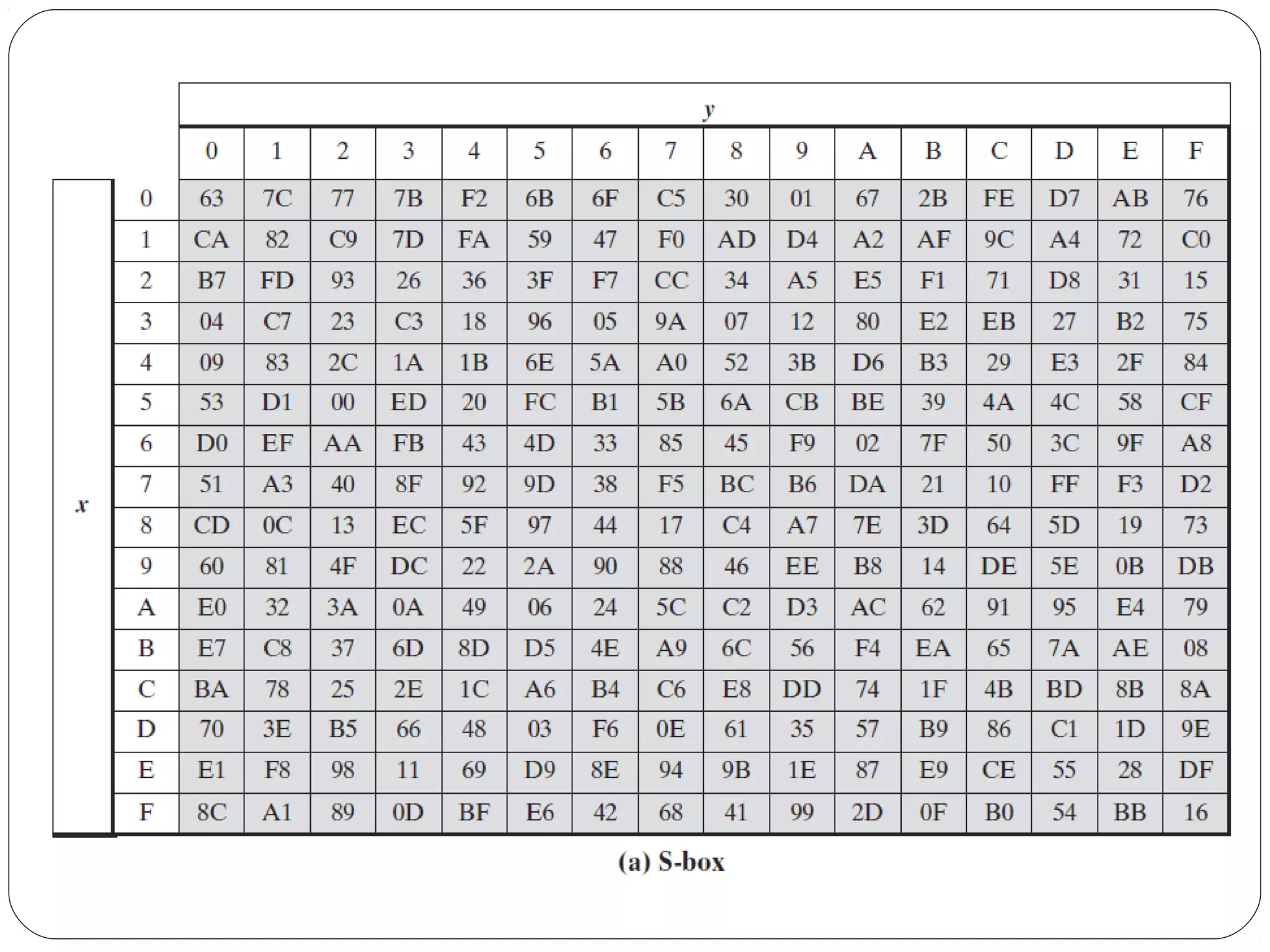

7.28 0 1 . . . . . . F 0 7C . . . . . F A1 EA 04 65 85 83 01 5D 96 5C 33 98 B0 F1 2D AD C5 State 87 F2 4D 97 EC 7C 4C 90 4A C3 46 E7 A1 D8 95 A6 State After substituteS-box SubBytes Figure 6: SubBytes transformation

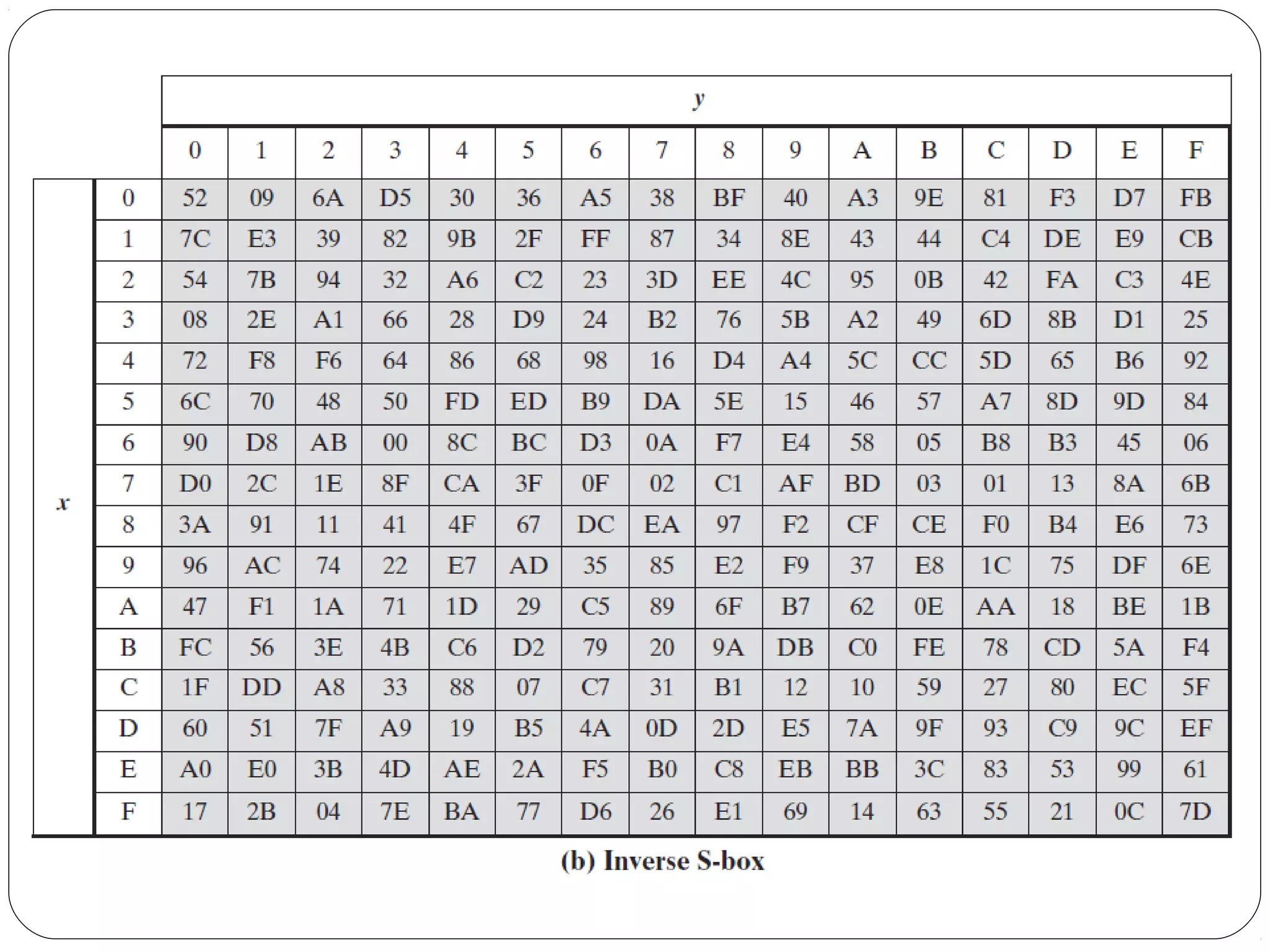

7.29
7.30

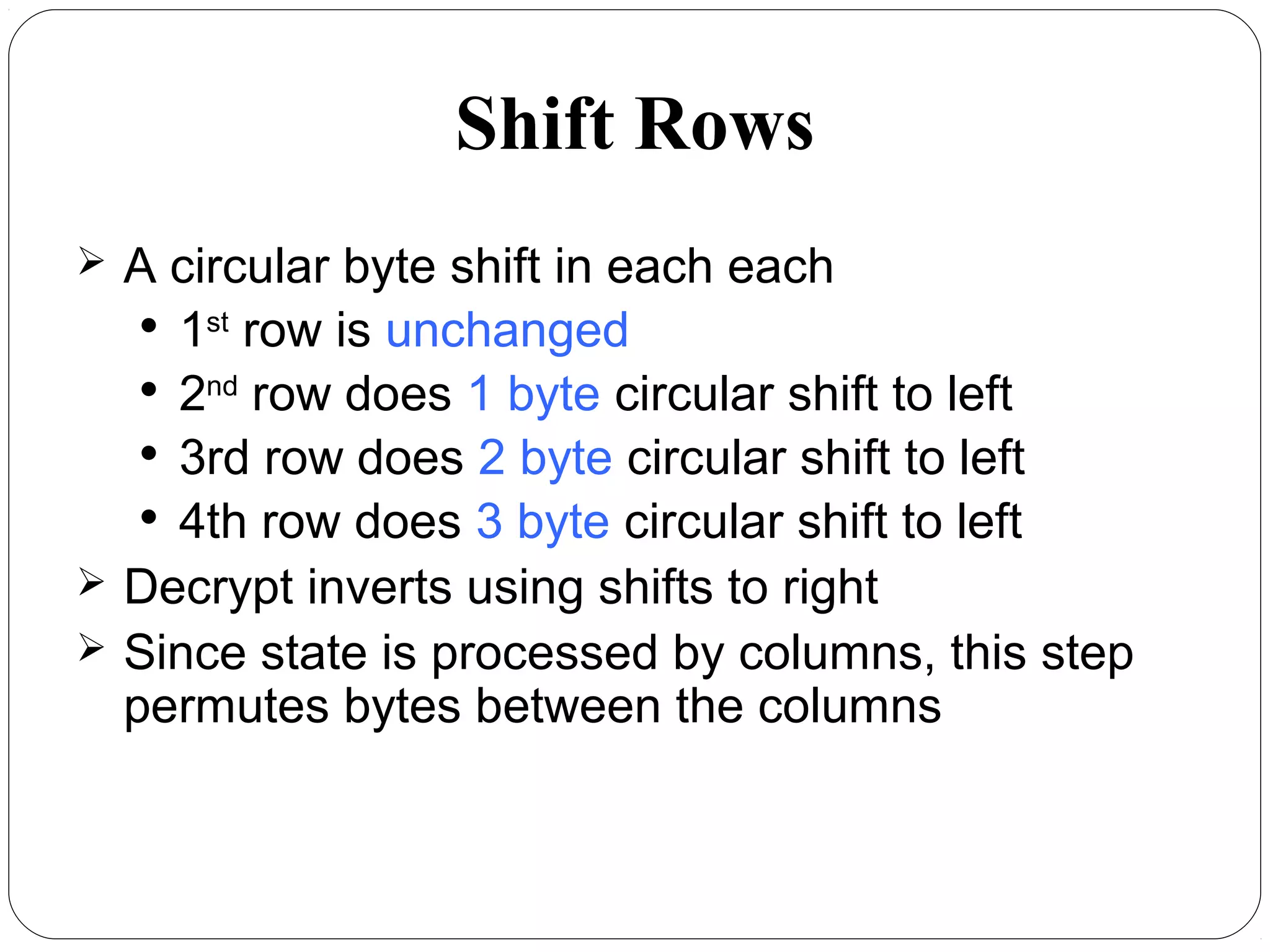

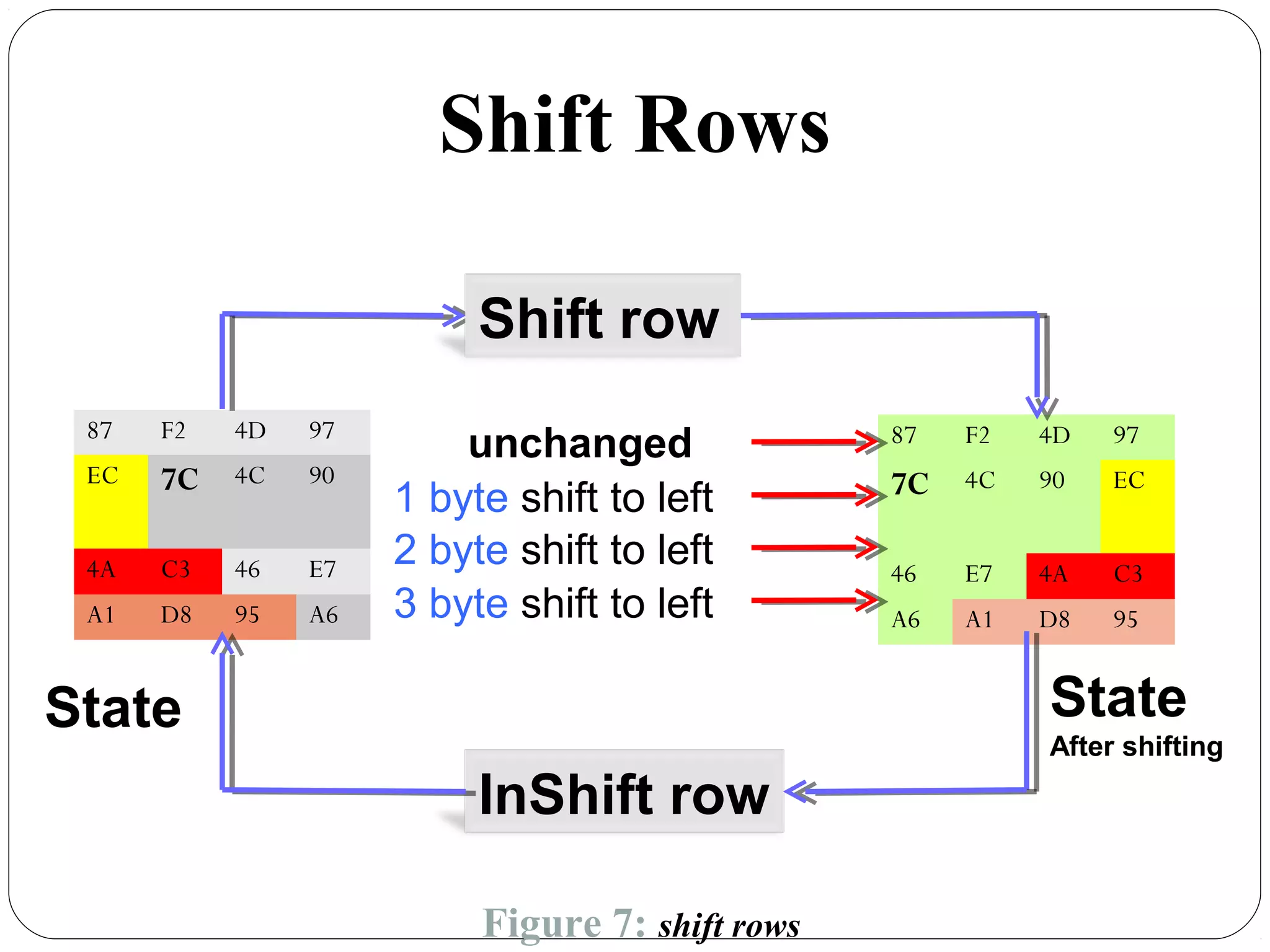

Shift Rows  A circular byte shift in each each  1st row is unchanged  2nd row does 1 byte circular shift to left  3rd row does 2 byte circular shift to left  4th row does 3 byte circular shift to left  Decrypt inverts using shifts to right  Since state is processed by columns, this step permutes bytes between the columns
7.32 87 F2 4D 97 EC 7C 4C 90 4A C3 46 E7 A1 D8 95 A6 87 F2 4D 97 7C 4C 90 EC 46 E7 4A C3 A6 A1 D8 95 unchanged 1 byte shift to left 2 byte shift to left 3 byte shift to left State After shifting State Shift Rows Shift row InShift row Figure 7: shift rows

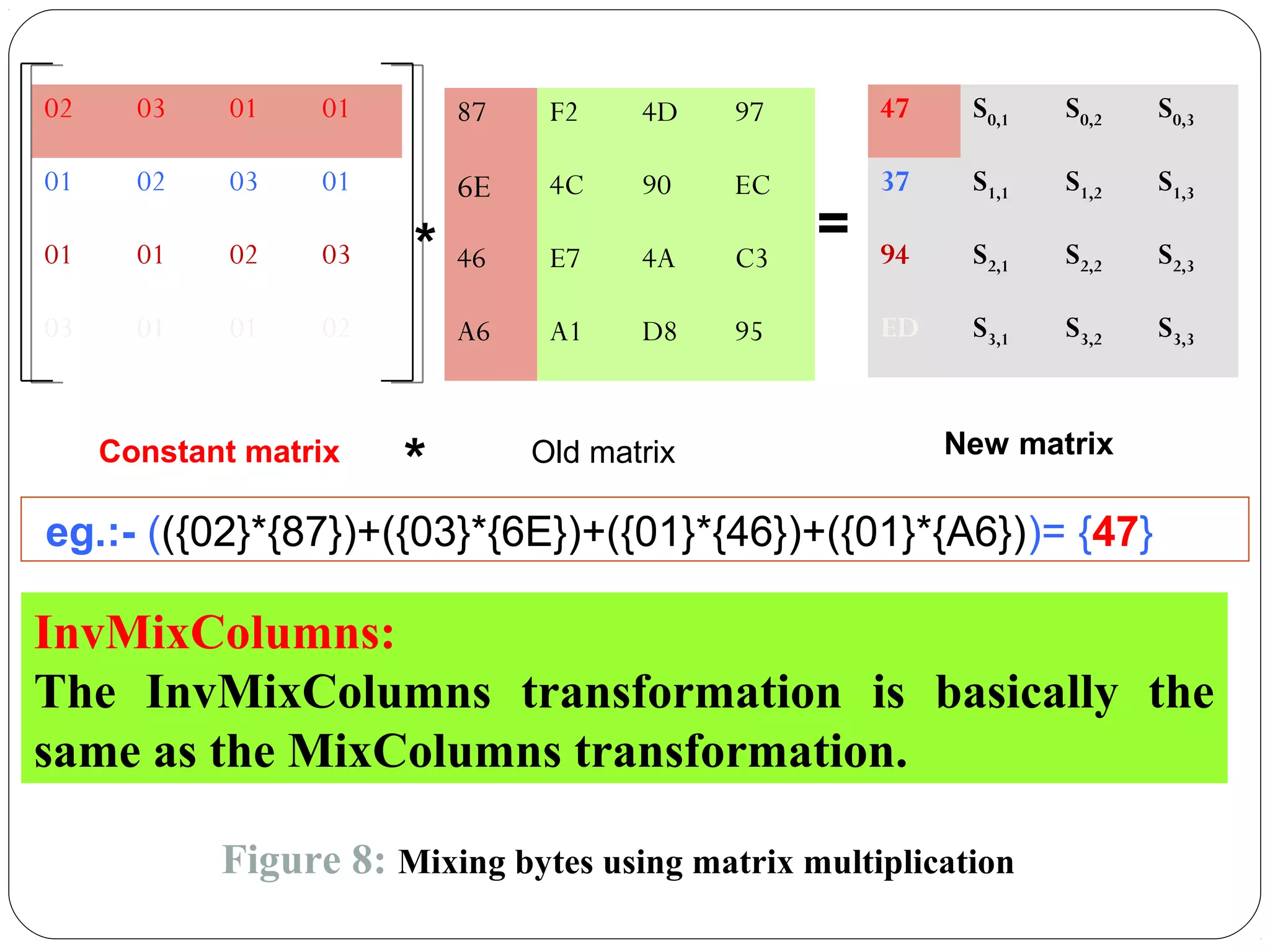

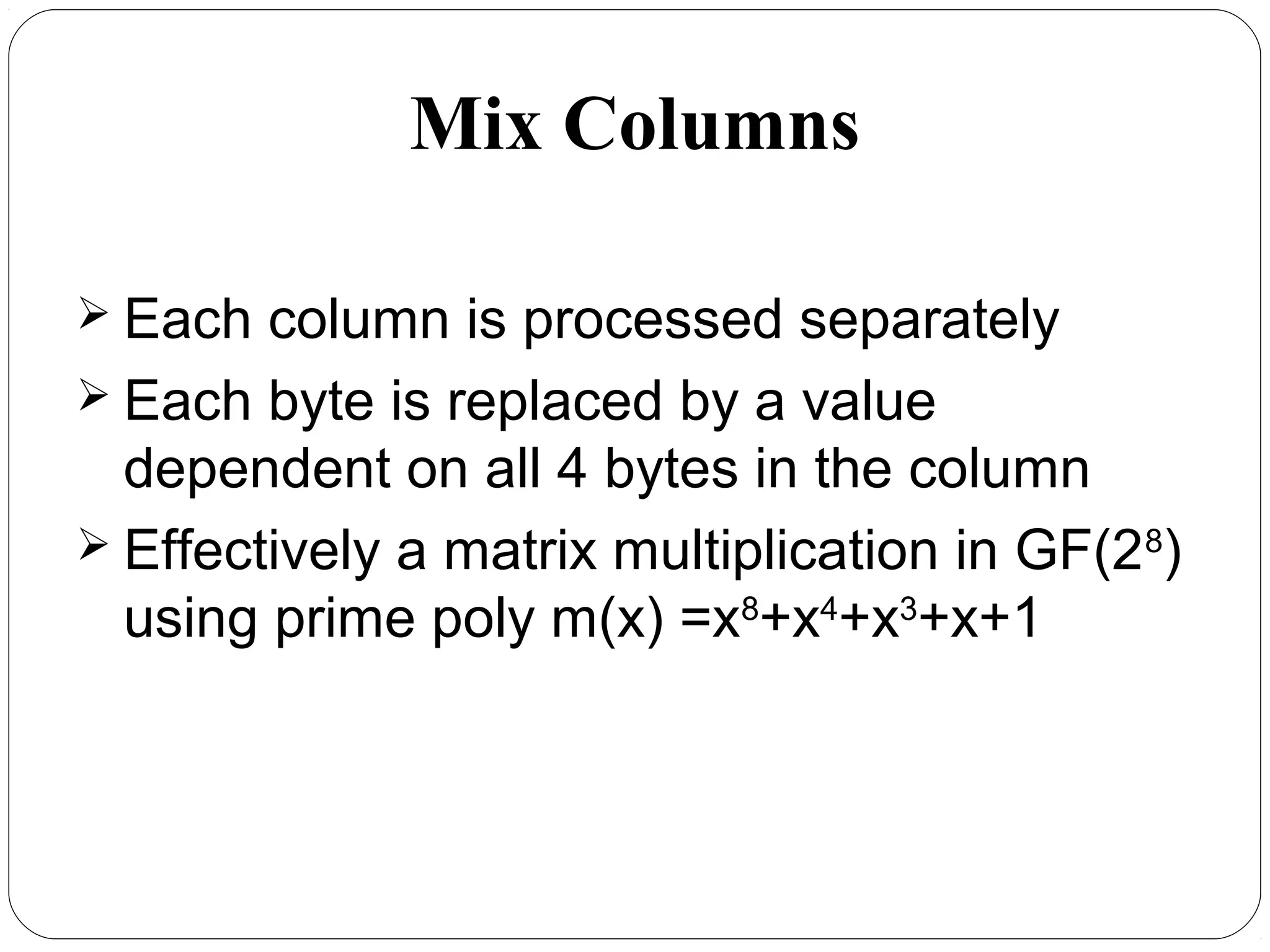

Mix Columns  Each column is processed separately  Each byte is replaced by a value dependent on all 4 bytes in the column  Effectively a matrix multiplication in GF(28 ) using prime poly m(x) =x8 +x4 +x3 +x+1

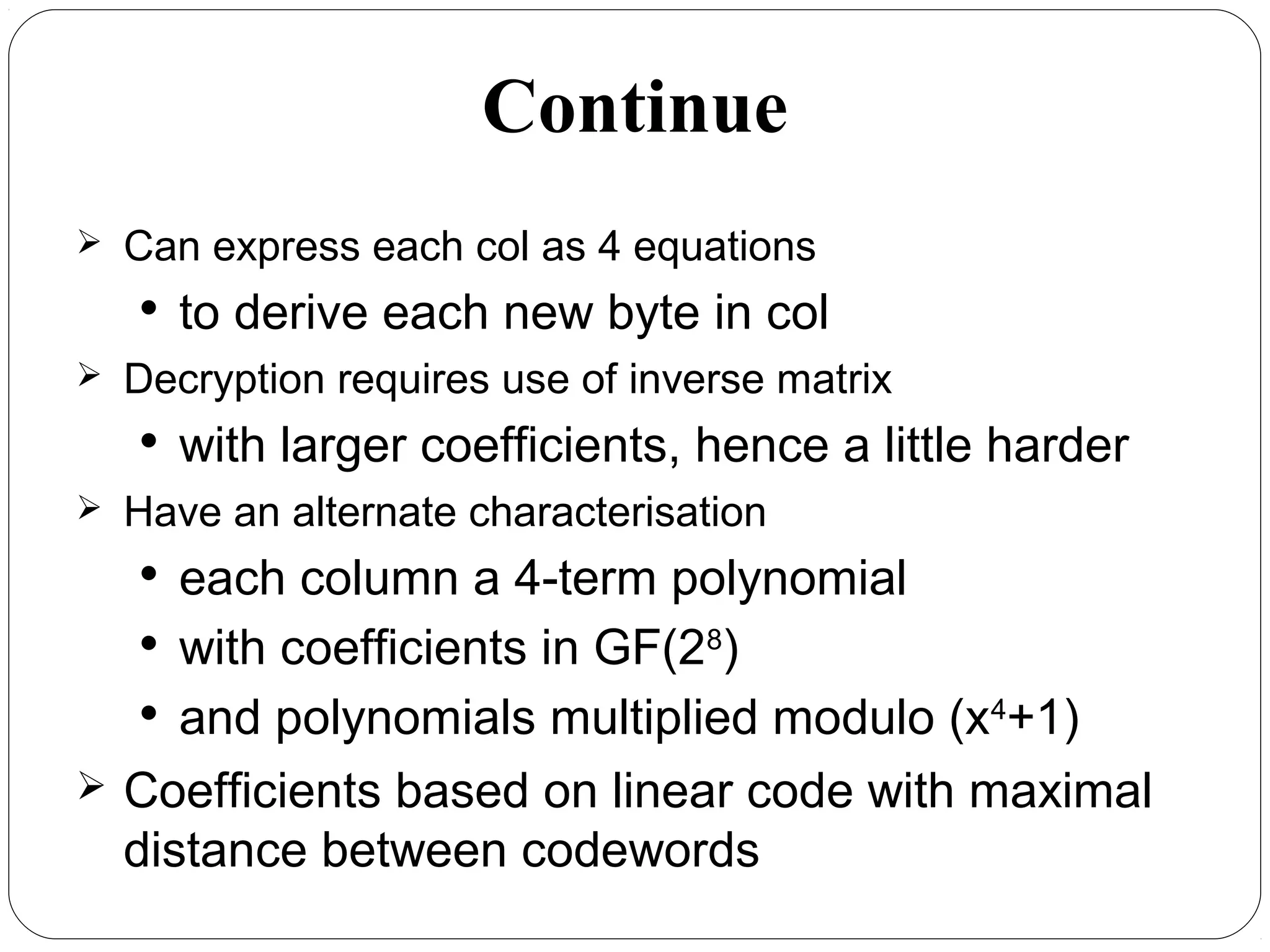

Continue  Can express each col as 4 equations  to derive each new byte in col  Decryption requires use of inverse matrix  with larger coefficients, hence a little harder  Have an alternate characterisation  each column a 4-term polynomial  with coefficients in GF(28 )  and polynomials multiplied modulo (x4 +1)  Coefficients based on linear code with maximal distance between codewords

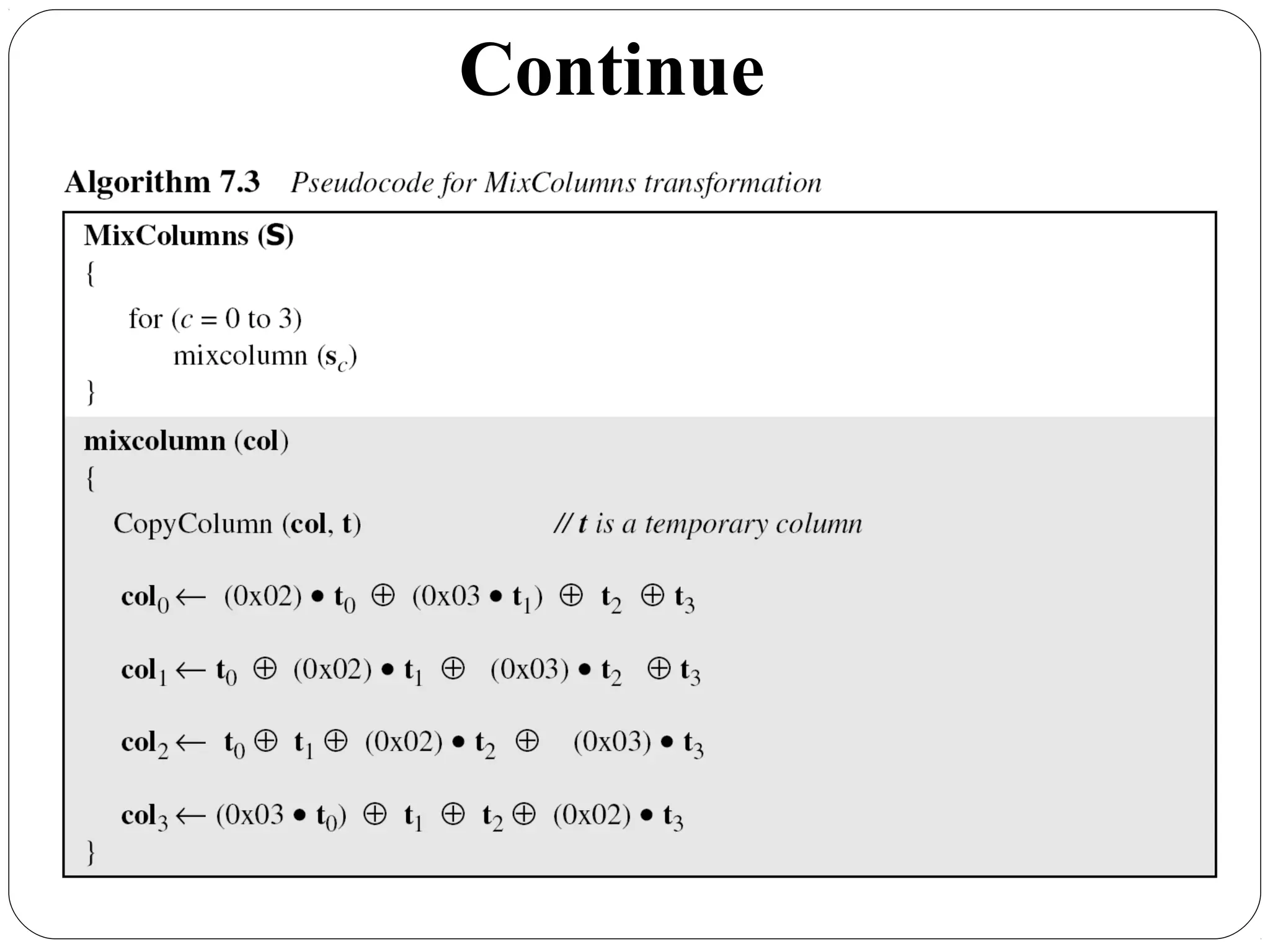

7.35 Continue
7.36 02 03 01 01 01 02 03 01 01 01 02 03 03 01 01 02 87 F2 4D 97 6E 4C 90 EC 46 E7 4A C3 A6 A1 D8 95 47 S0,1 S0,2 S0,3 37 S1,1 S1,2 S1,3 94 S2,1 S2,2 S2,3 ED S3,1 S3,2 S3,3 =* Old matrix New matrixConstant matrix * eg.:- (({02}*{87})+({03}*{6E})+({01}*{46})+({01}*{A6}))= {47} InvMixColumns: The InvMixColumns transformation is basically the same as the MixColumns transformation. Figure 8: Mixing bytes using matrix multiplication

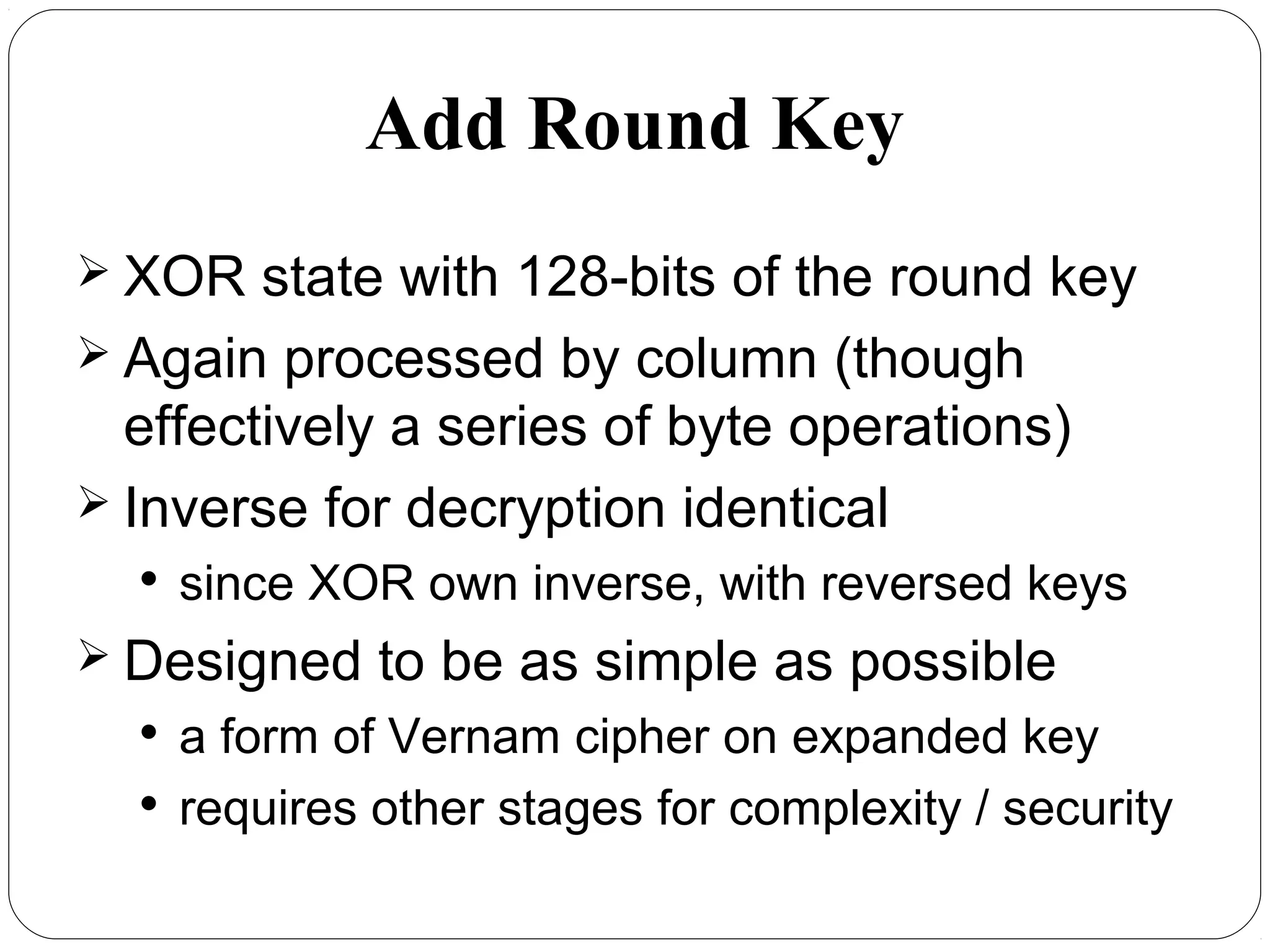

Add Round Key  XOR state with 128-bits of the round key  Again processed by column (though effectively a series of byte operations)  Inverse for decryption identical  since XOR own inverse, with reversed keys  Designed to be as simple as possible  a form of Vernam cipher on expanded key  requires other stages for complexity / security

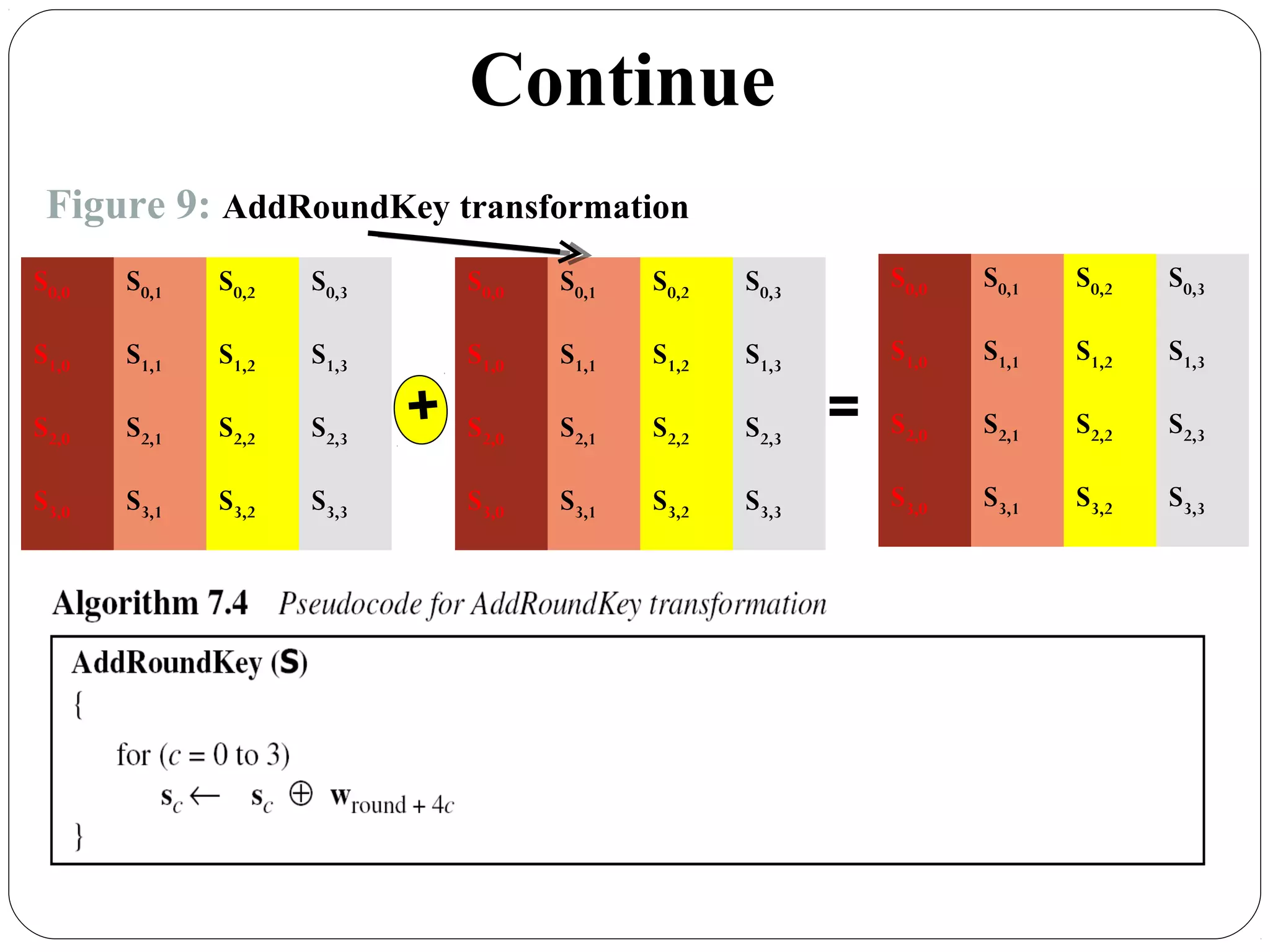

7.38 Continue Figure 9: AddRoundKey transformation S0,0 S0,1 S0,2 S0,3 S1,0 S1,1 S1,2 S1,3 S2,0 S2,1 S2,2 S2,3 S3,0 S3,1 S3,2 S3,3 S0,0 S0,1 S0,2 S0,3 S1,0 S1,1 S1,2 S1,3 S2,0 S2,1 S2,2 S2,3 S3,0 S3,1 S3,2 S3,3 S0,0 S0,1 S0,2 S0,3 S1,0 S1,1 S1,2 S1,3 S2,0 S2,1 S2,2 S2,3 S3,0 S3,1 S3,2 S3,3 + =

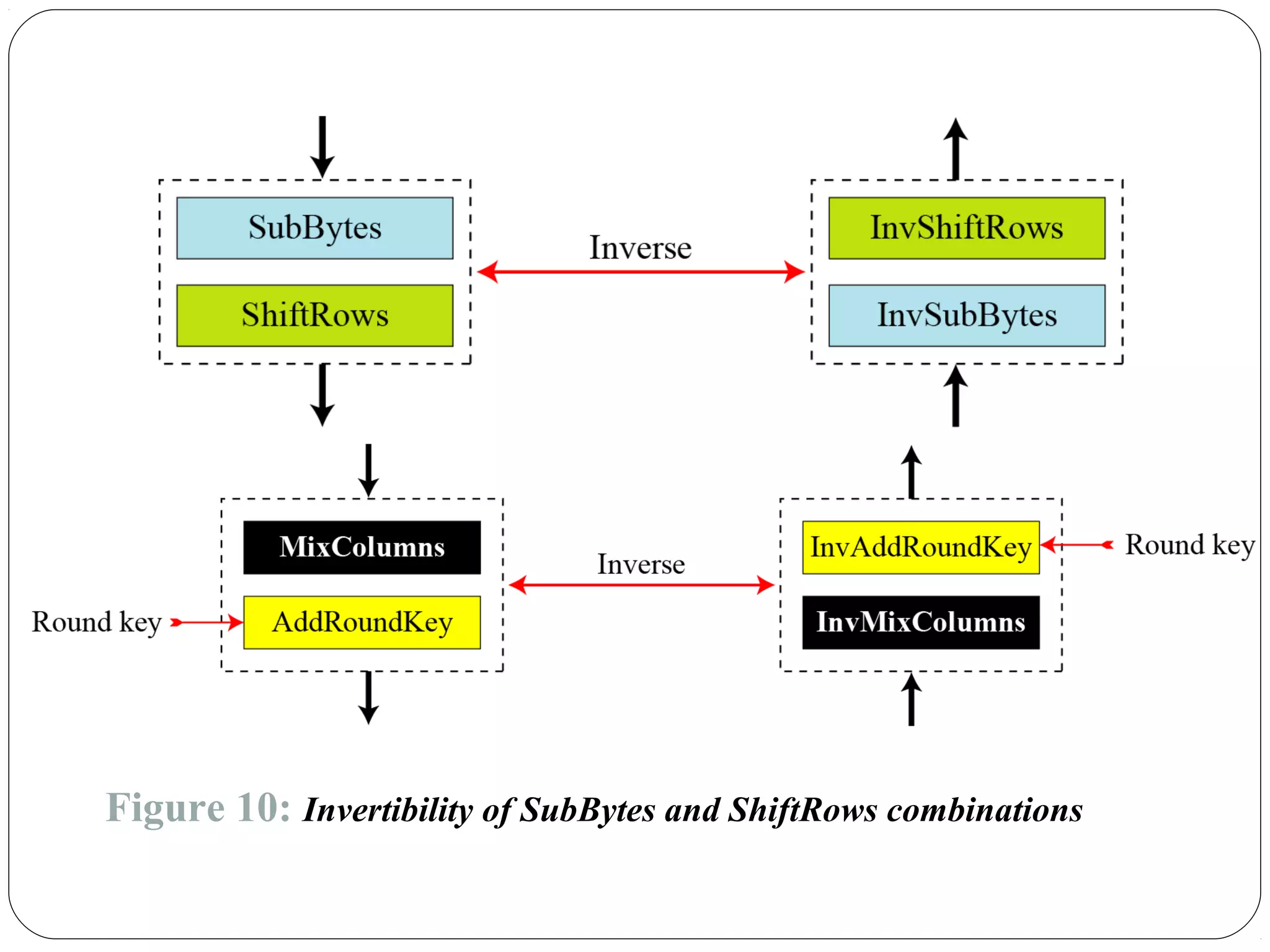

Figure 10: Invertibility of SubBytes and ShiftRows combinations

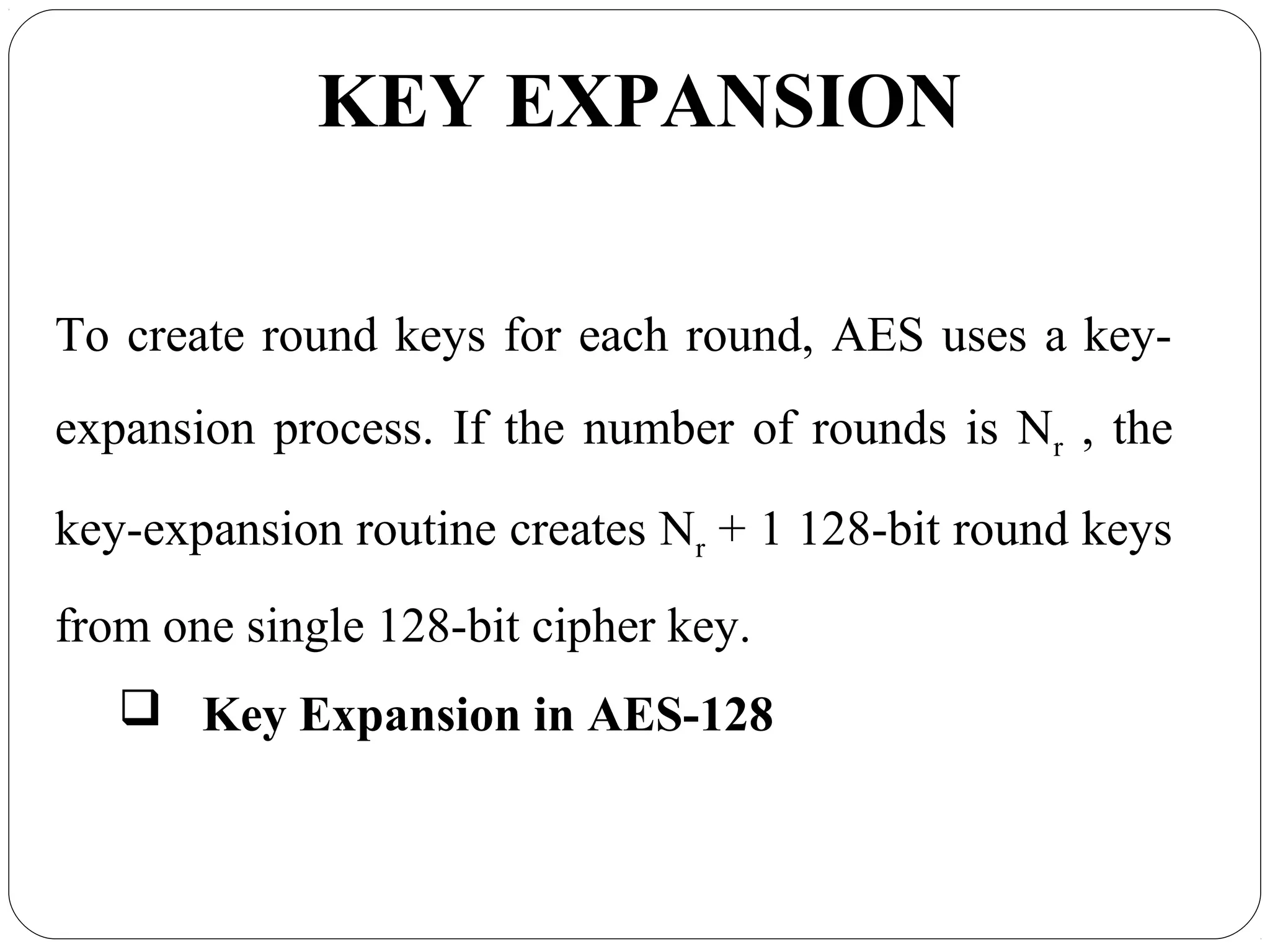

7.40 KEY EXPANSION To create round keys for each round, AES uses a key- expansion process. If the number of rounds is Nr , the key-expansion routine creates Nr + 1 128-bit round keys from one single 128-bit cipher key.  Key Expansion in AES-128

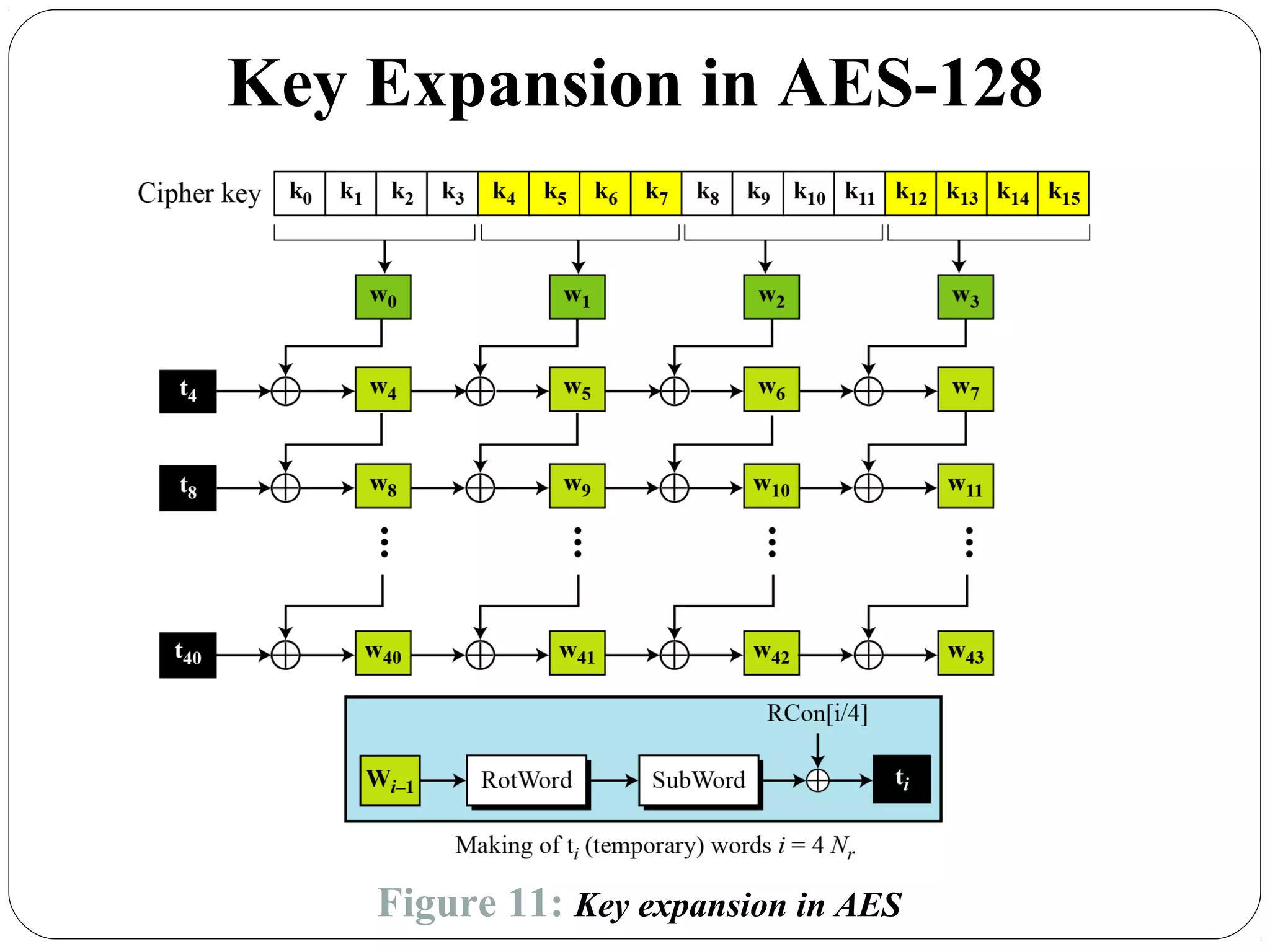

7.41 Key Expansion in AES-128 Figure 11: Key expansion in AES

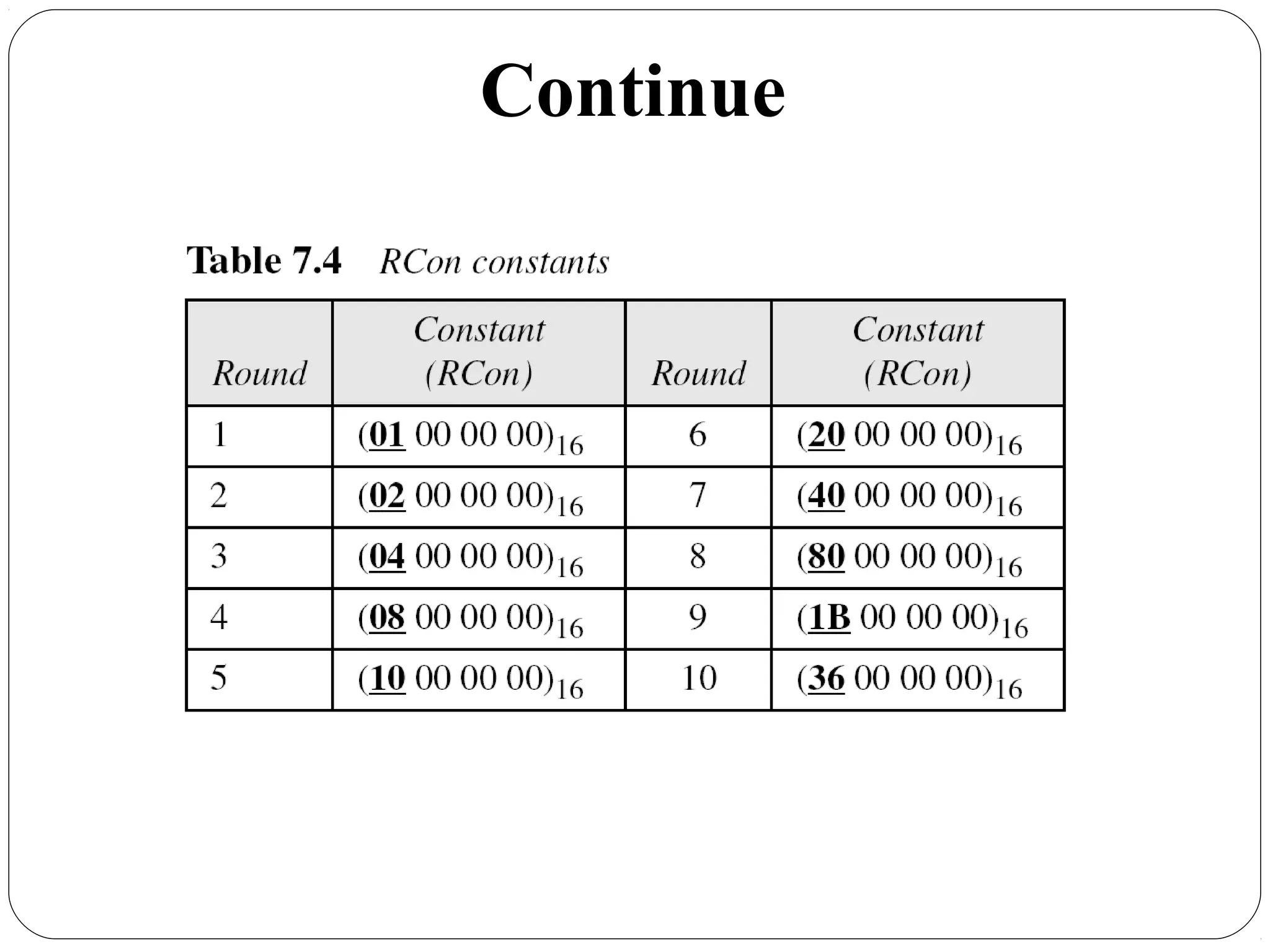

7.42 Continue

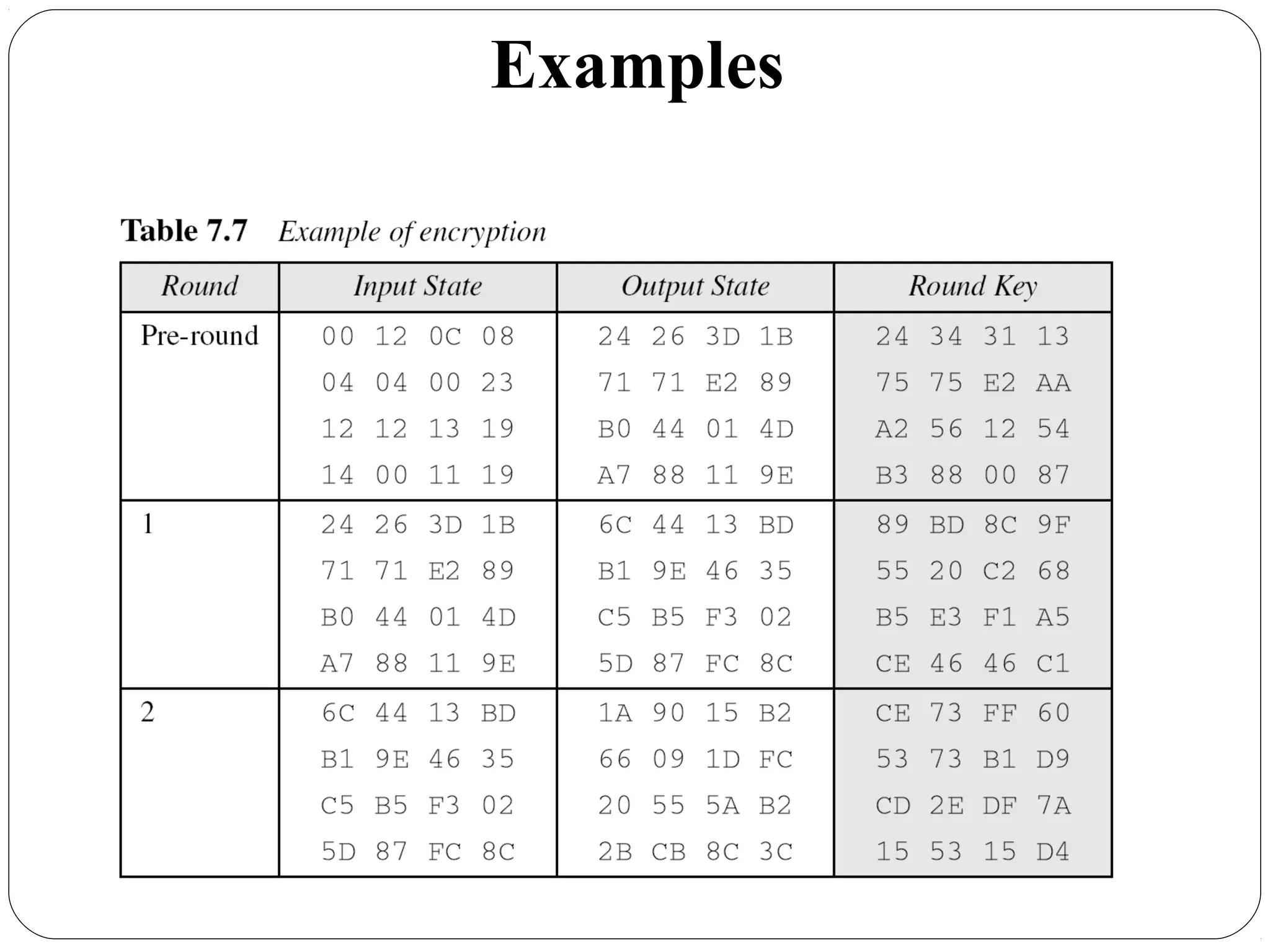

7.43 Examples
7.44 ContinuedContinued

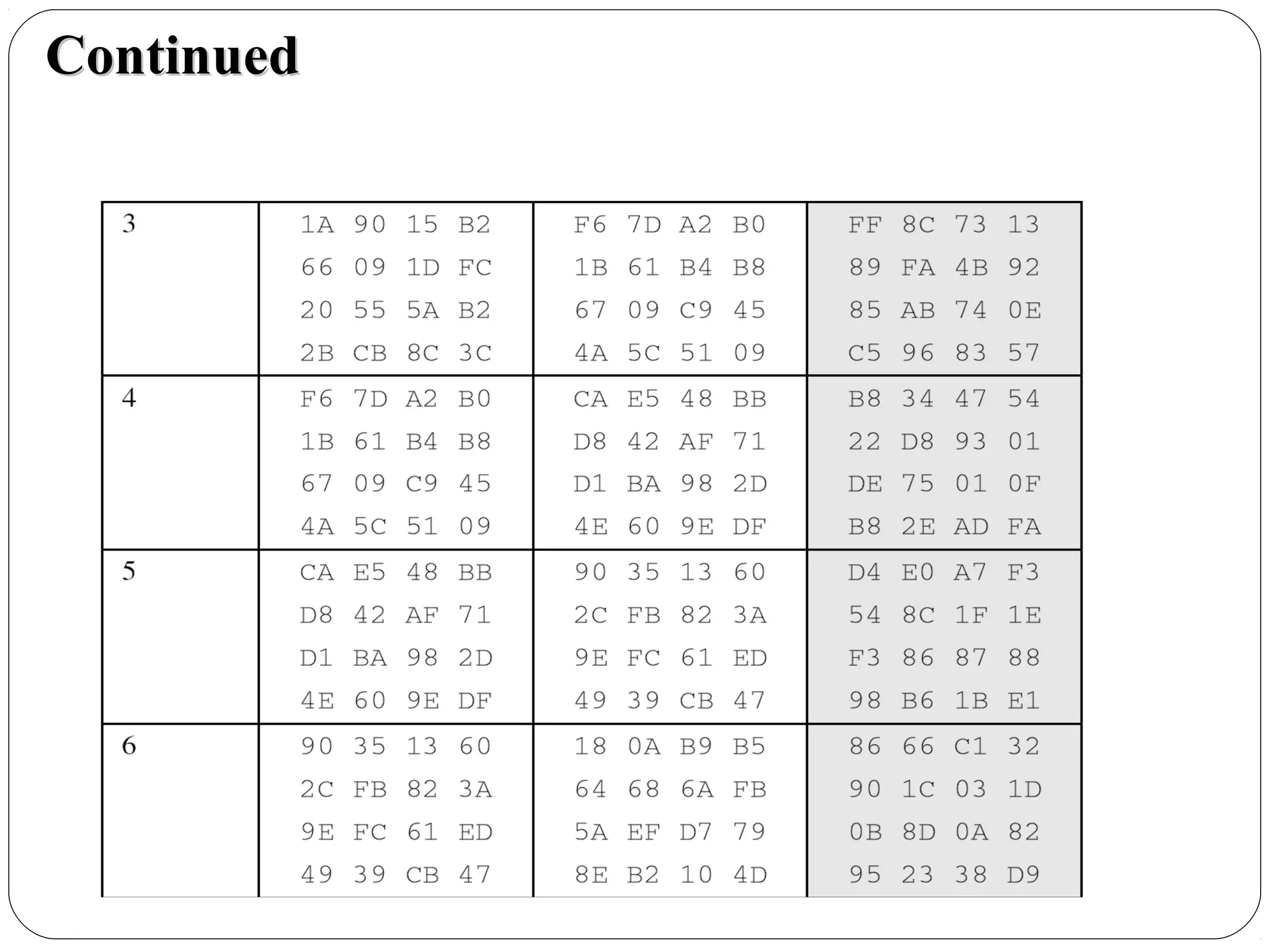

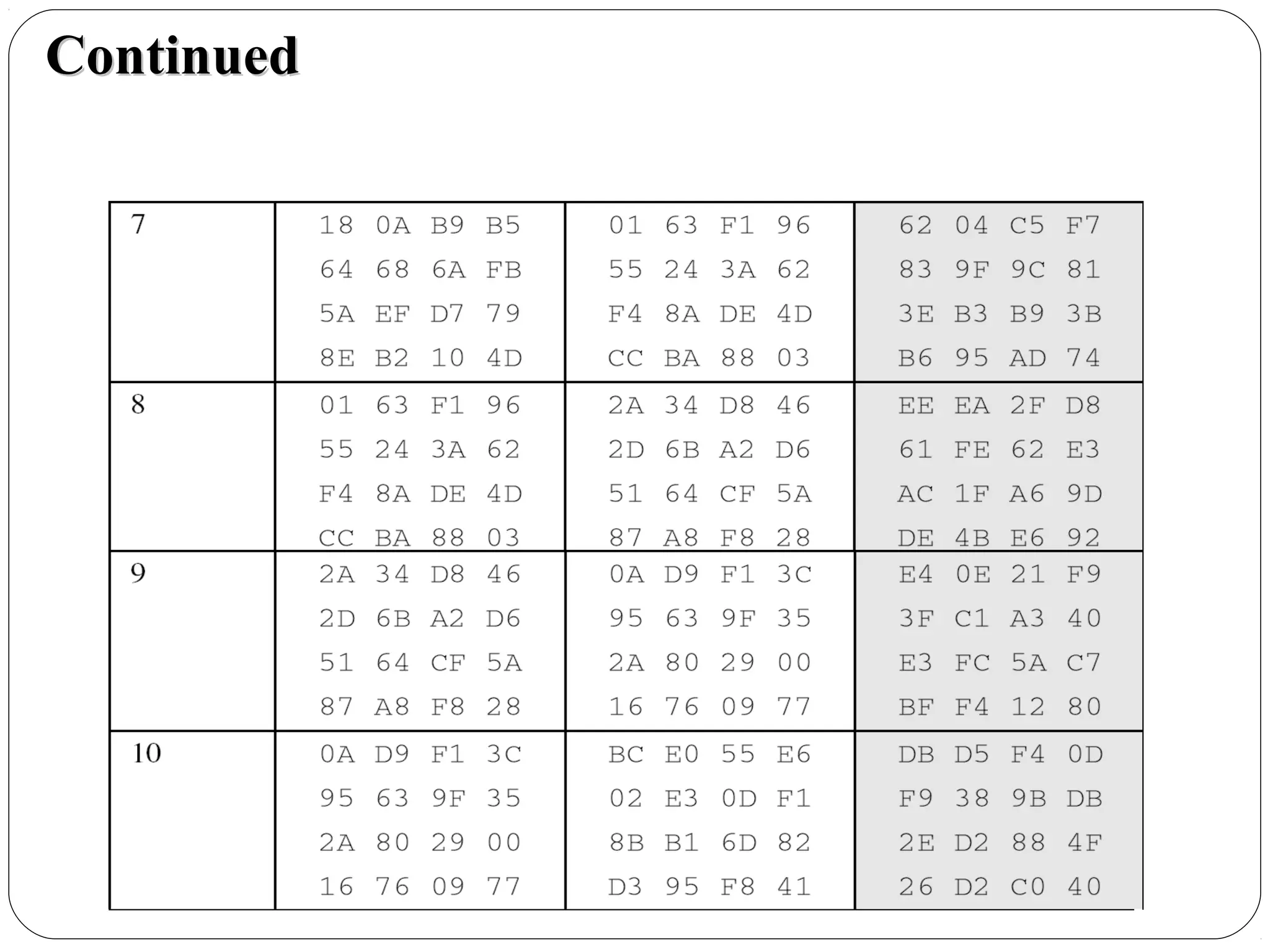

7.45 ContinuedContinued

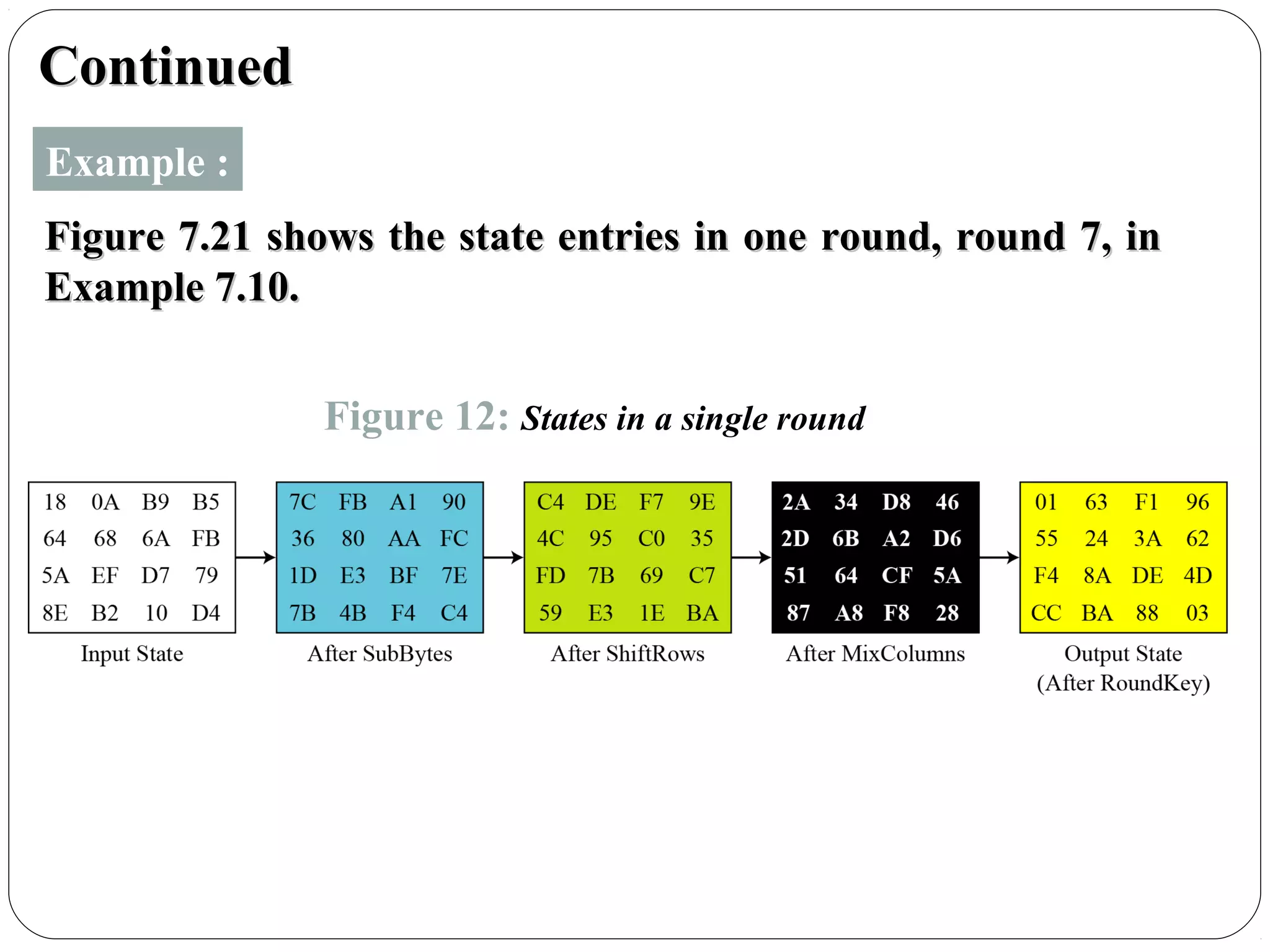

7.46 ContinuedContinued Example : Figure 7.21 shows the state entries in one round, round 7, inFigure 7.21 shows the state entries in one round, round 7, in Example 7.10.Example 7.10. Figure 12: States in a single round

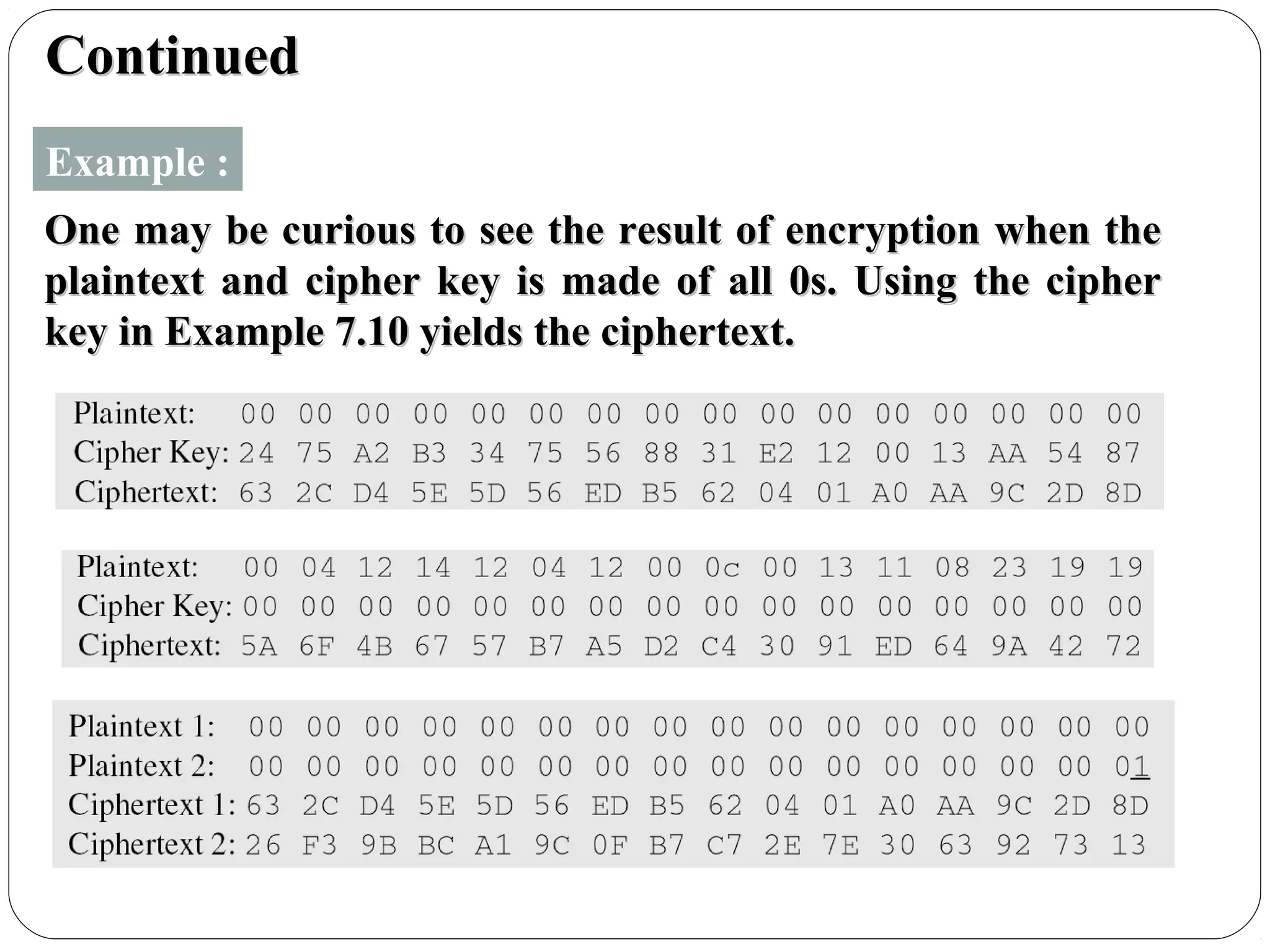

7.47 ContinuedContinued Example : One may be curious to see the result of encryption when theOne may be curious to see the result of encryption when the plaintext and cipher key is made of all 0s. Using the cipherplaintext and cipher key is made of all 0s. Using the cipher key in Example 7.10 yields the ciphertext.key in Example 7.10 yields the ciphertext.

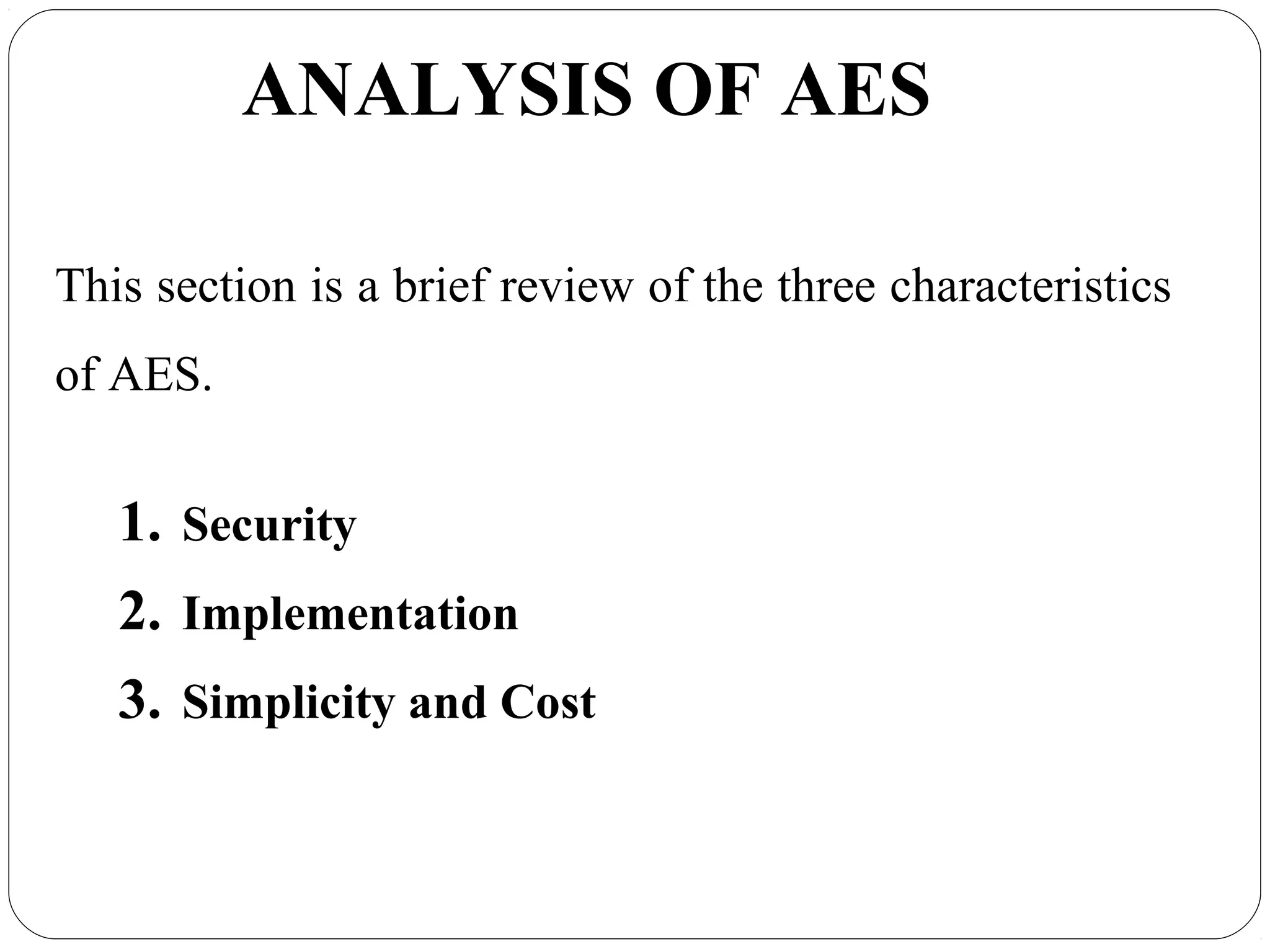

7.48 ANALYSIS OF AES This section is a brief review of the three characteristics of AES. 1. Security 2. Implementation 3. Simplicity and Cost

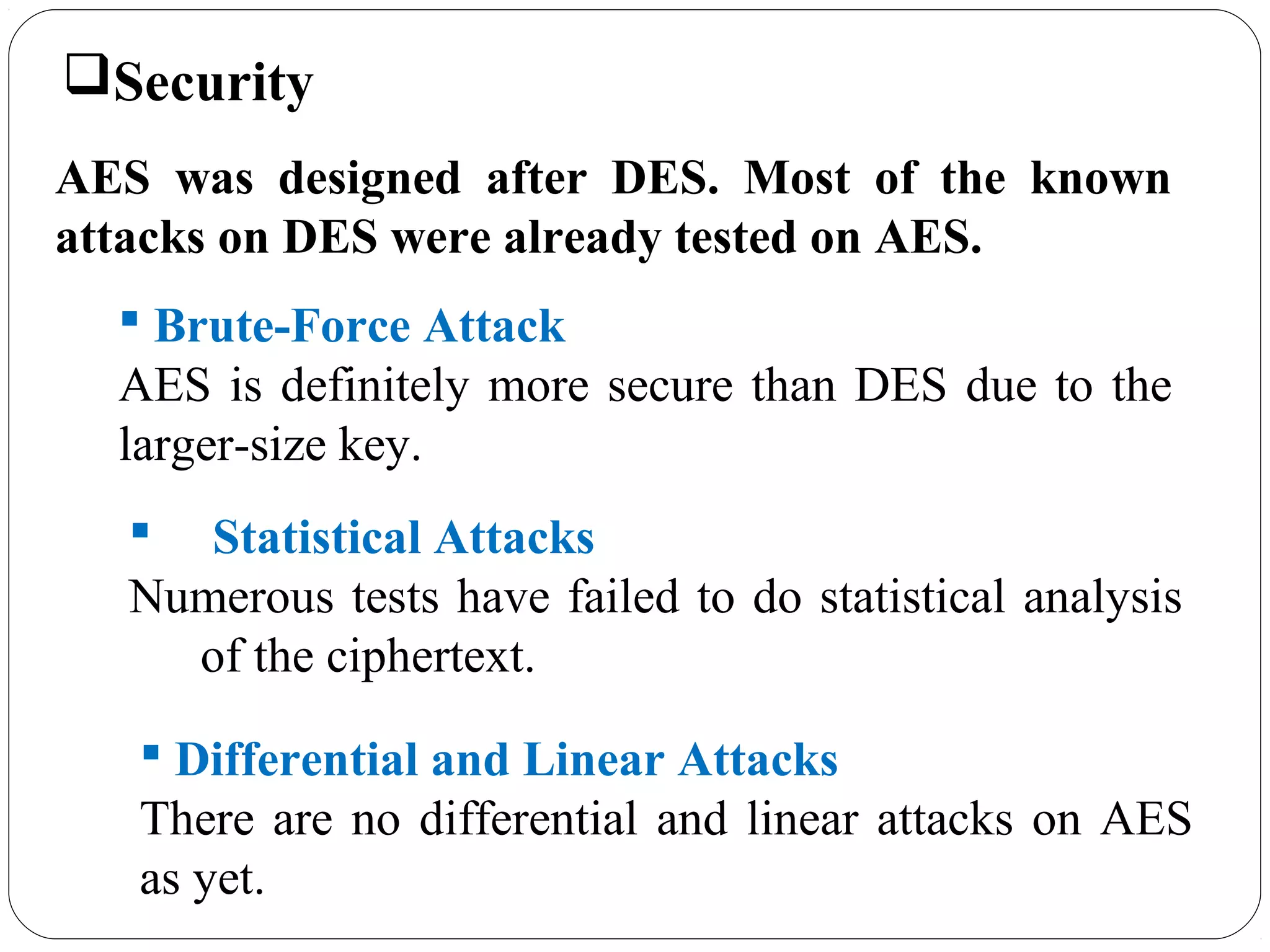

7.49 Security AES was designed after DES. Most of the known attacks on DES were already tested on AES.  Brute-Force Attack AES is definitely more secure than DES due to the larger-size key.  Statistical Attacks Numerous tests have failed to do statistical analysis of the ciphertext.  Differential and Linear Attacks There are no differential and linear attacks on AES as yet.

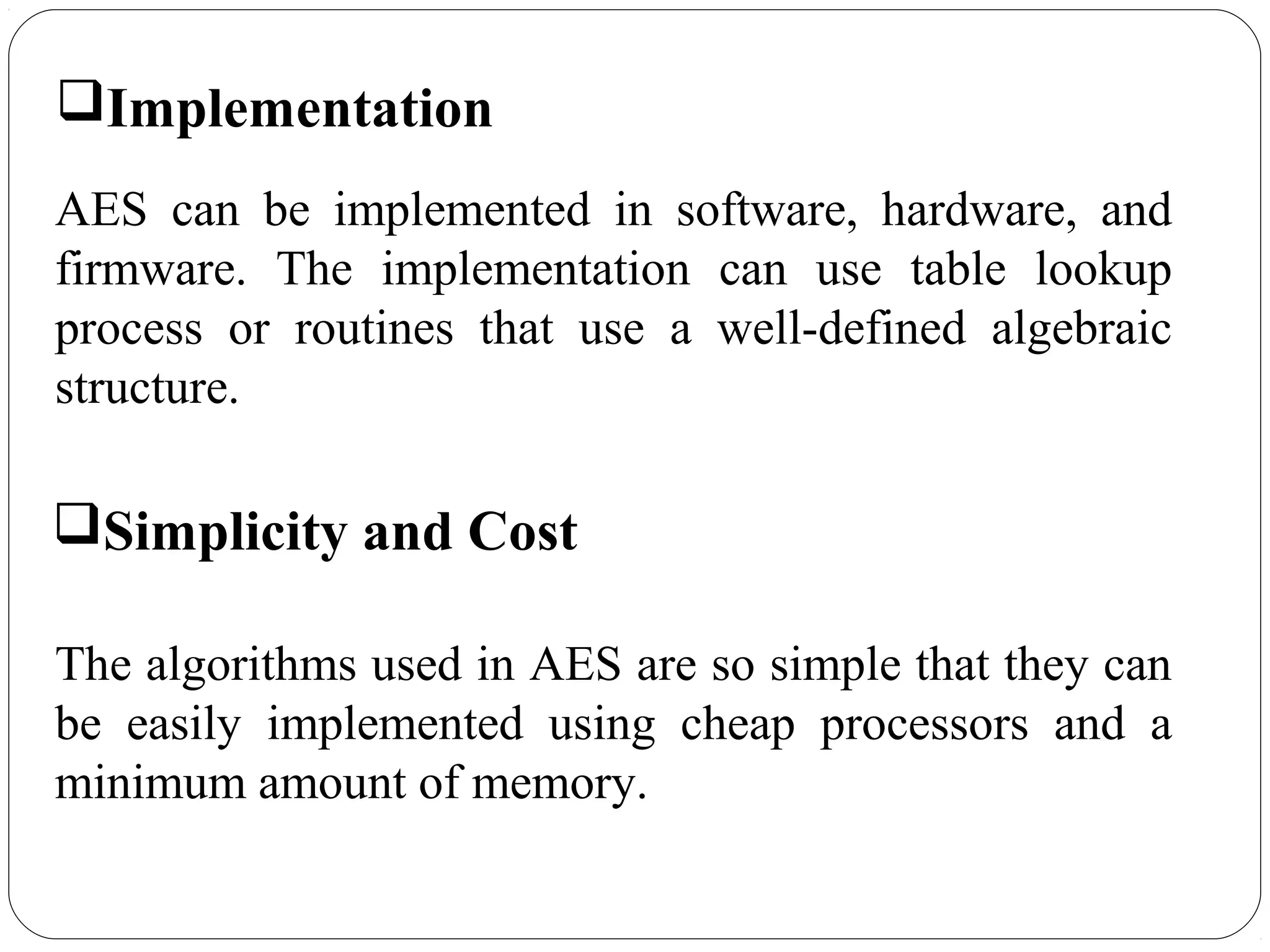

7.50 Implementation AES can be implemented in software, hardware, and firmware. The implementation can use table lookup process or routines that use a well-defined algebraic structure. Simplicity and Cost The algorithms used in AES are so simple that they can be easily implemented using cheap processors and a minimum amount of memory.

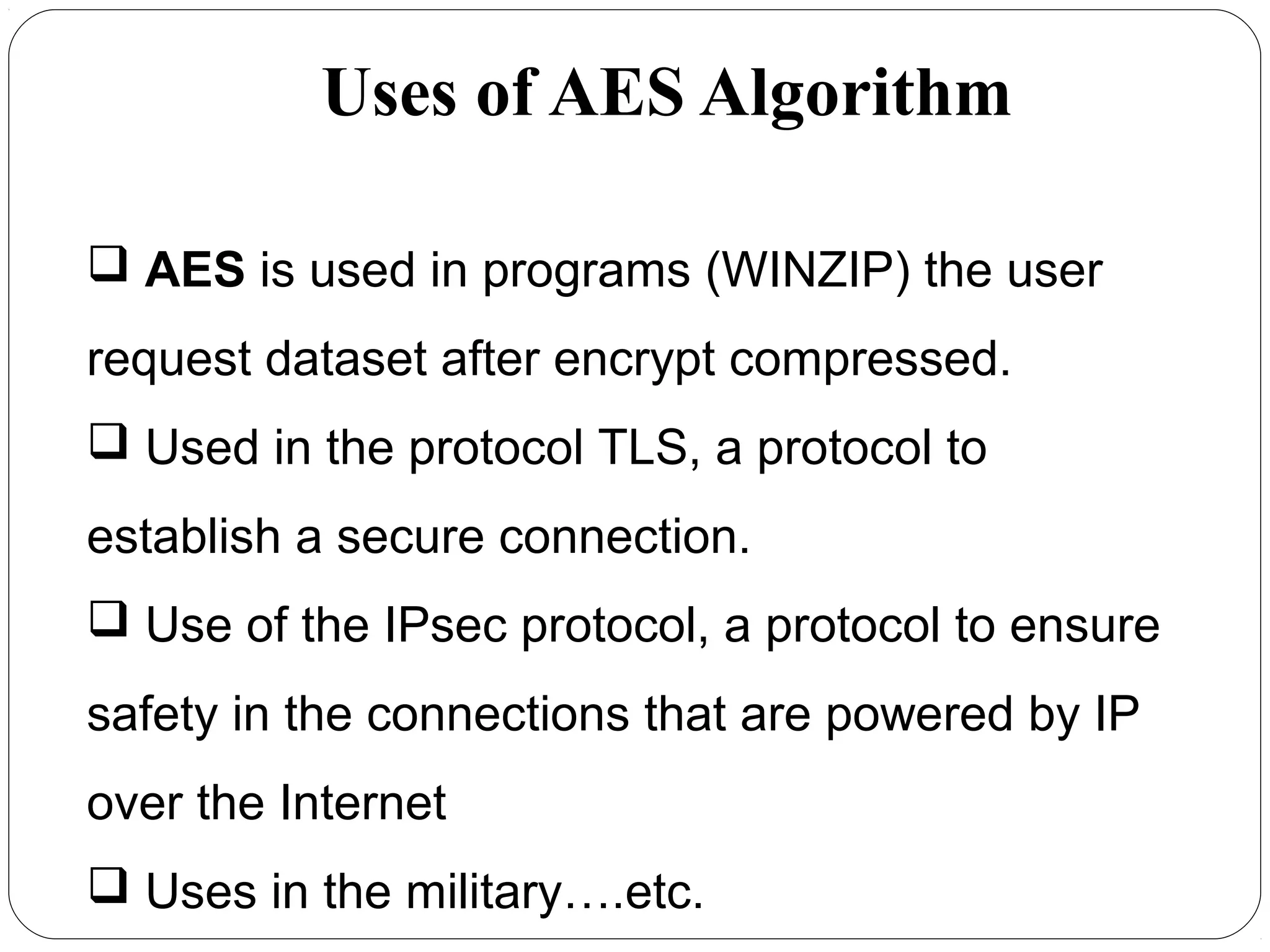

Uses of AES Algorithm 7.51  AES is used in programs (WINZIP) the user request dataset after encrypt compressed.  Used in the protocol TLS, a protocol to establish a secure connection.  Use of the IPsec protocol, a protocol to ensure safety in the connections that are powered by IP over the Internet  Uses in the military….etc.

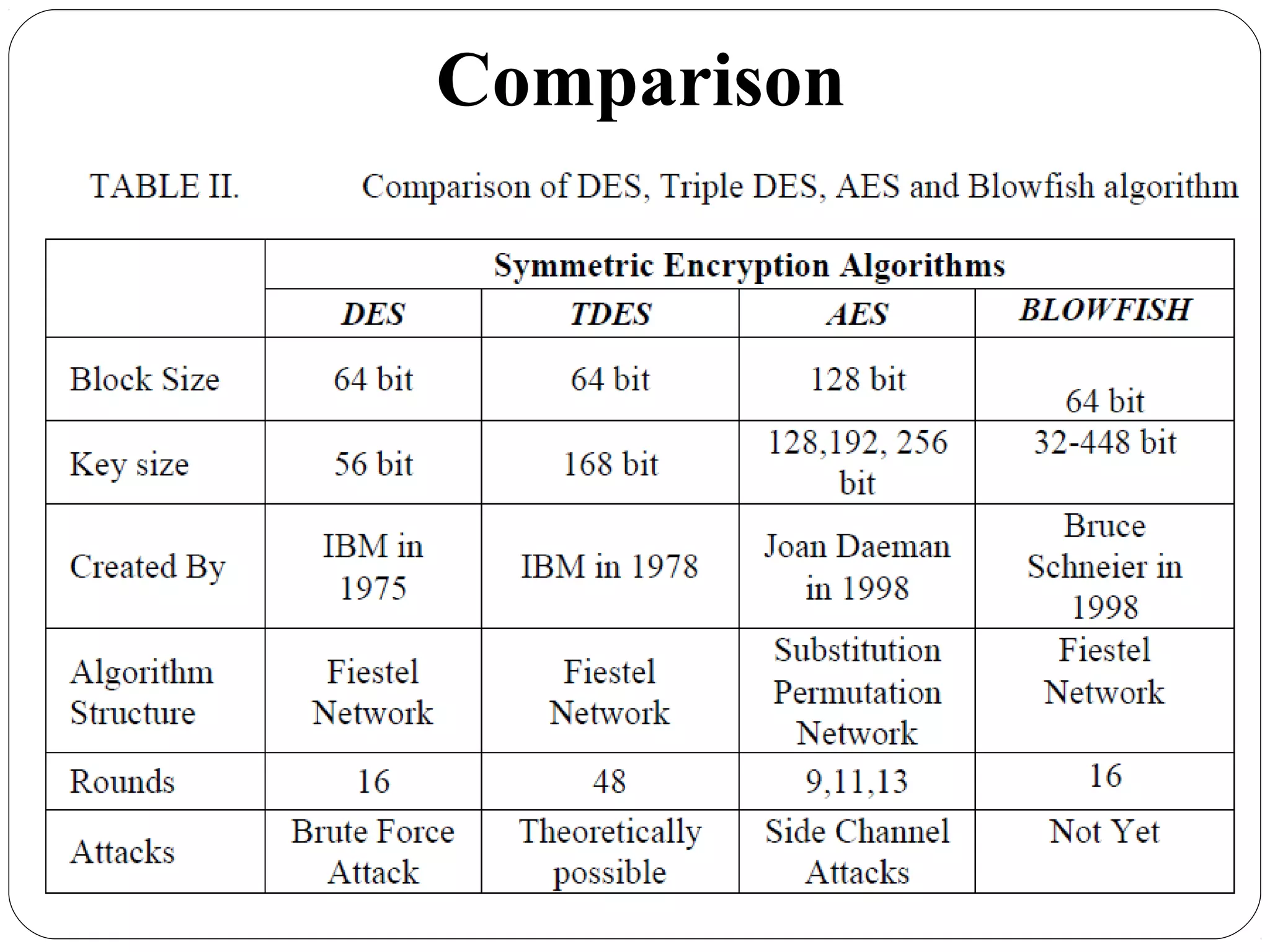

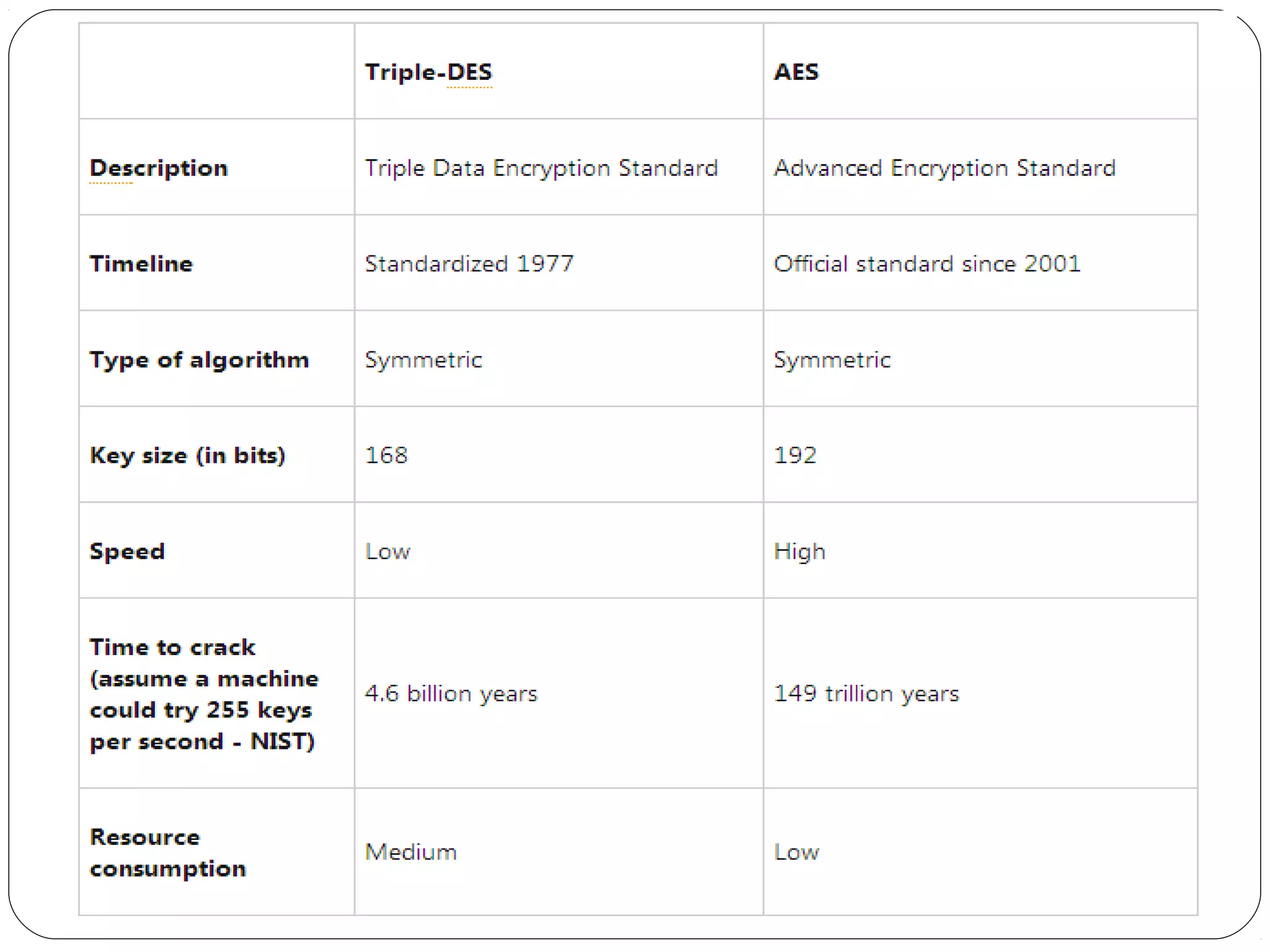

7.52 Comparison
7.53

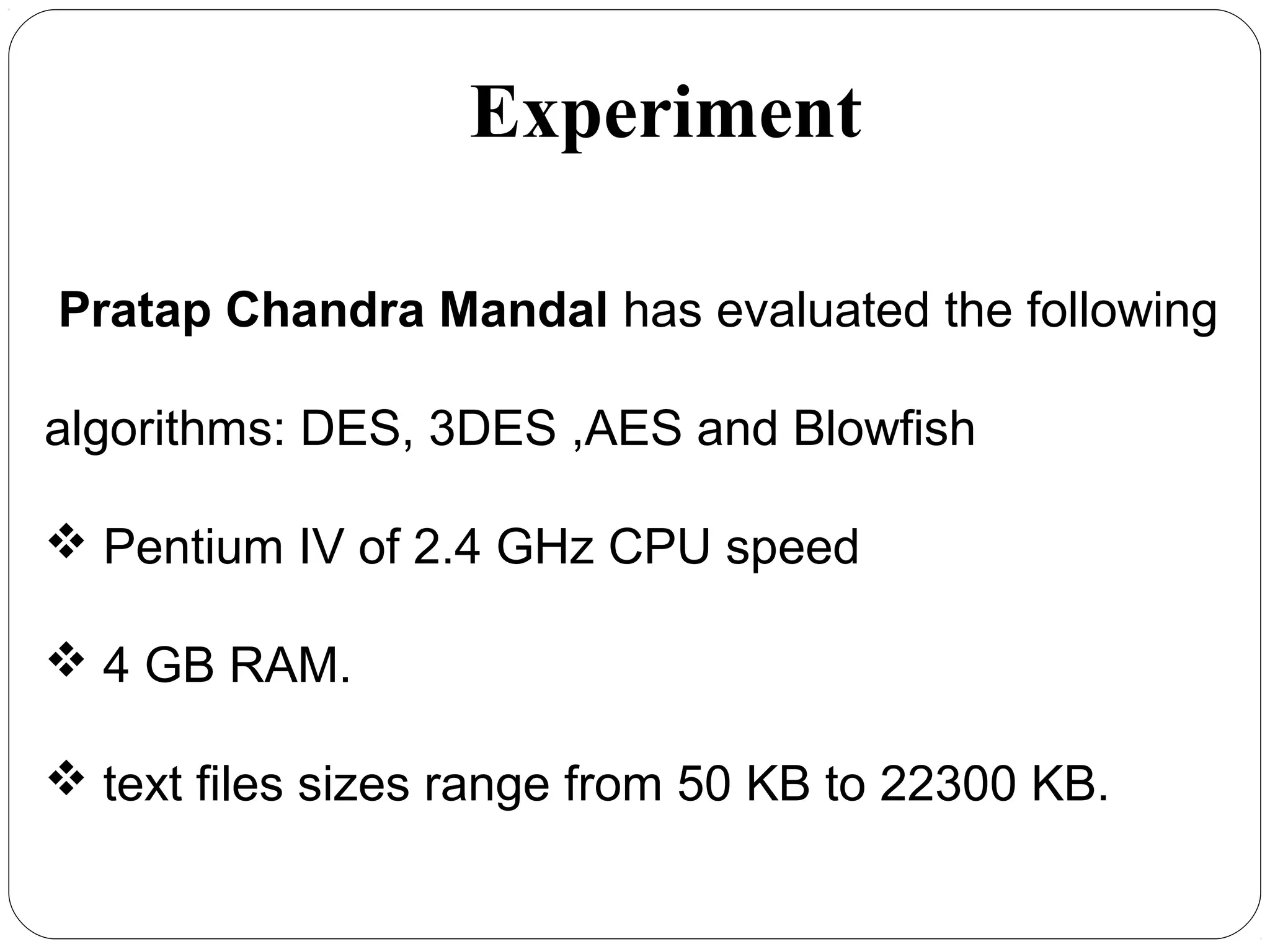

7.54 Pratap Chandra Mandal has evaluated the following algorithms: DES, 3DES ,AES and Blowfish  Pentium IV of 2.4 GHz CPU speed  4 GB RAM.  text files sizes range from 50 KB to 22300 KB. Experiment
7.55

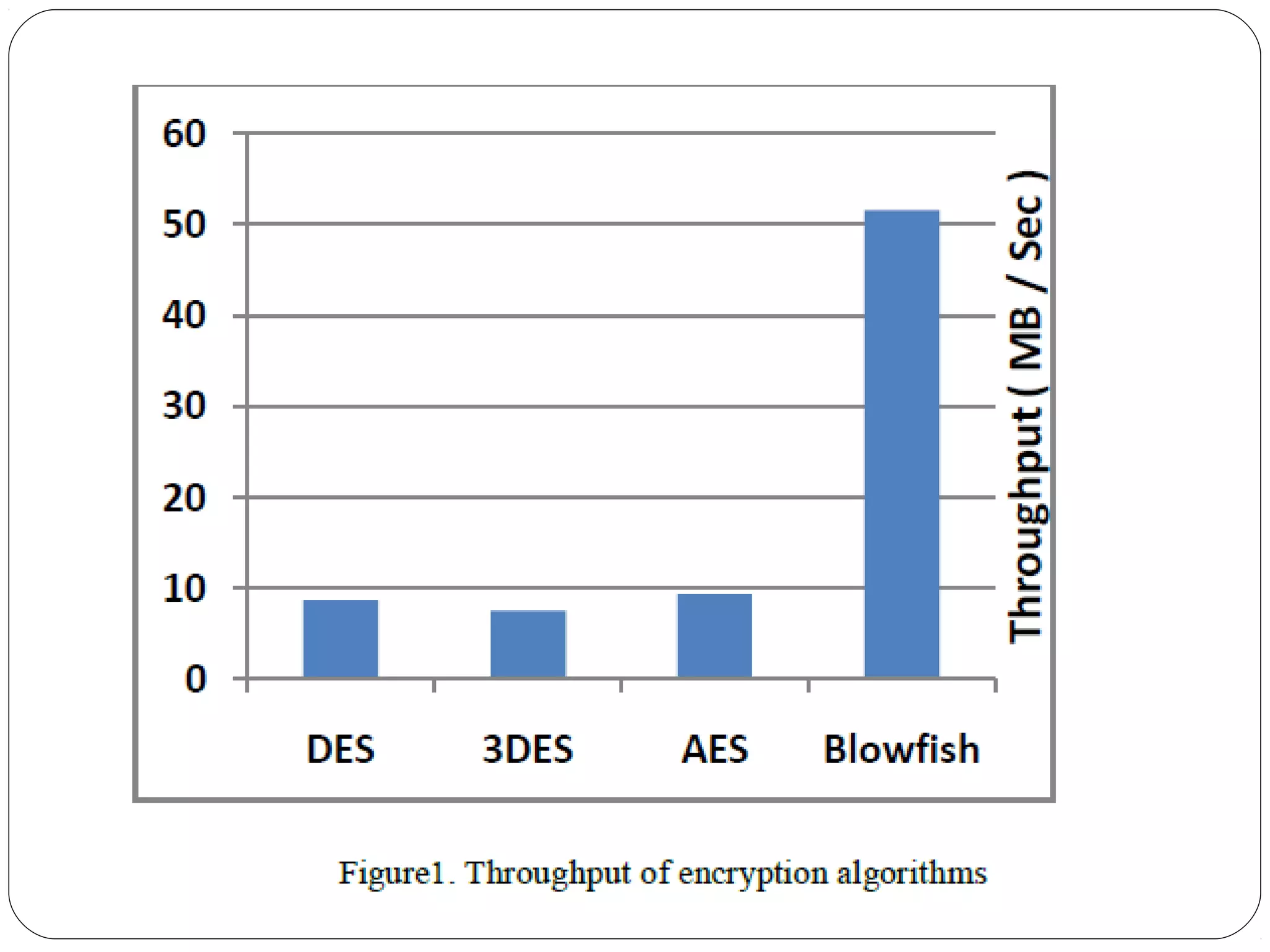

7.56

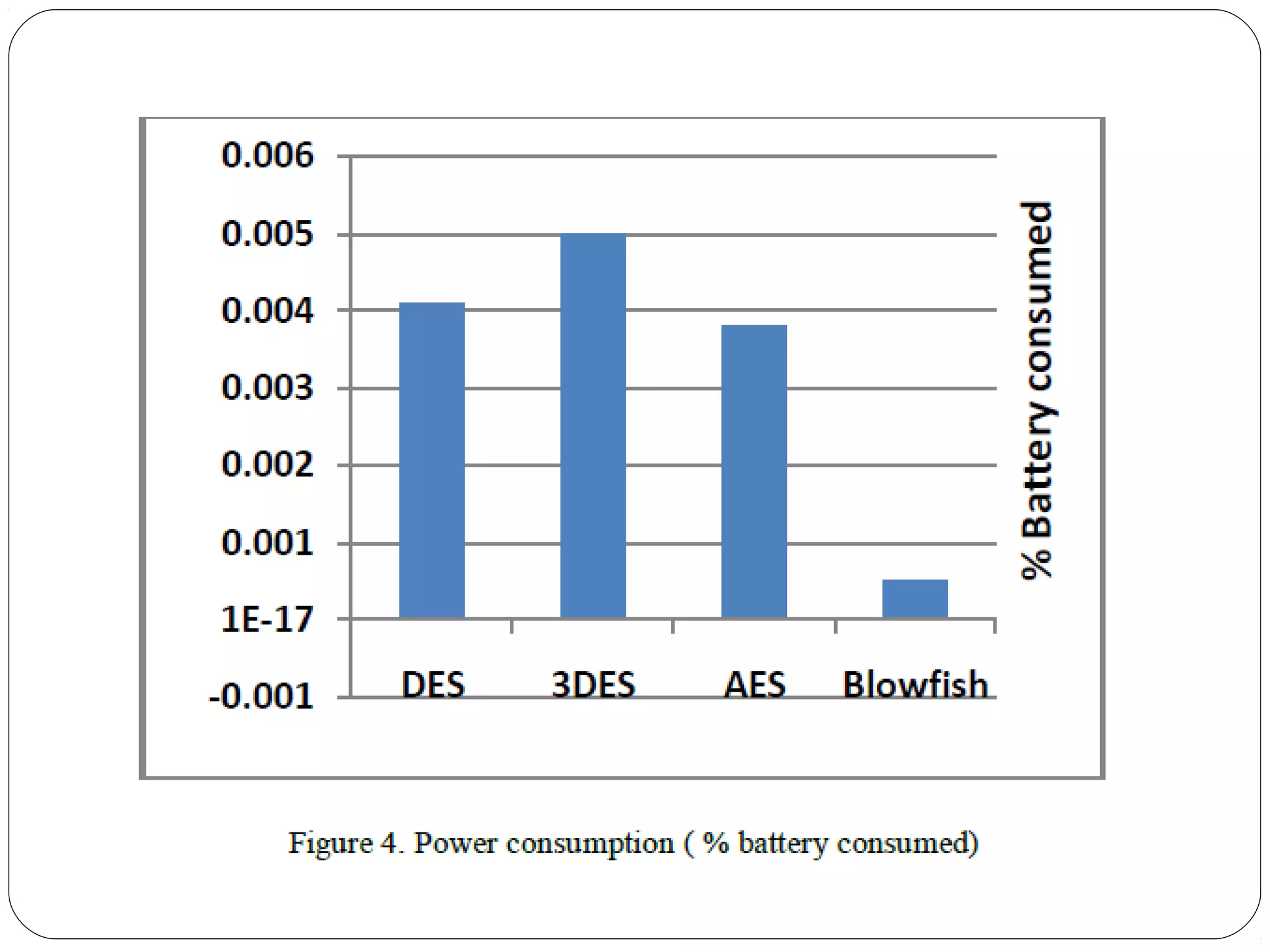

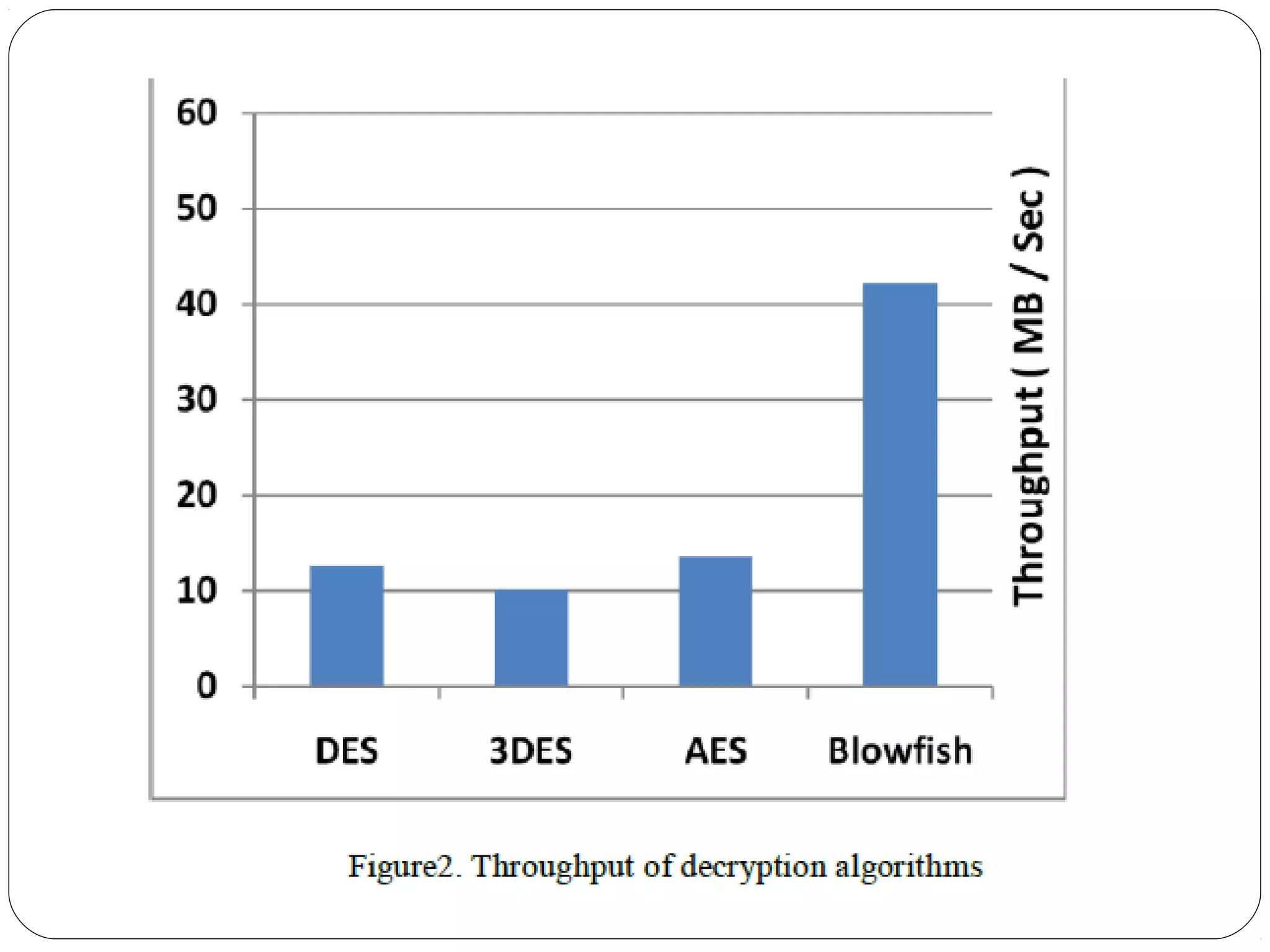

7.57

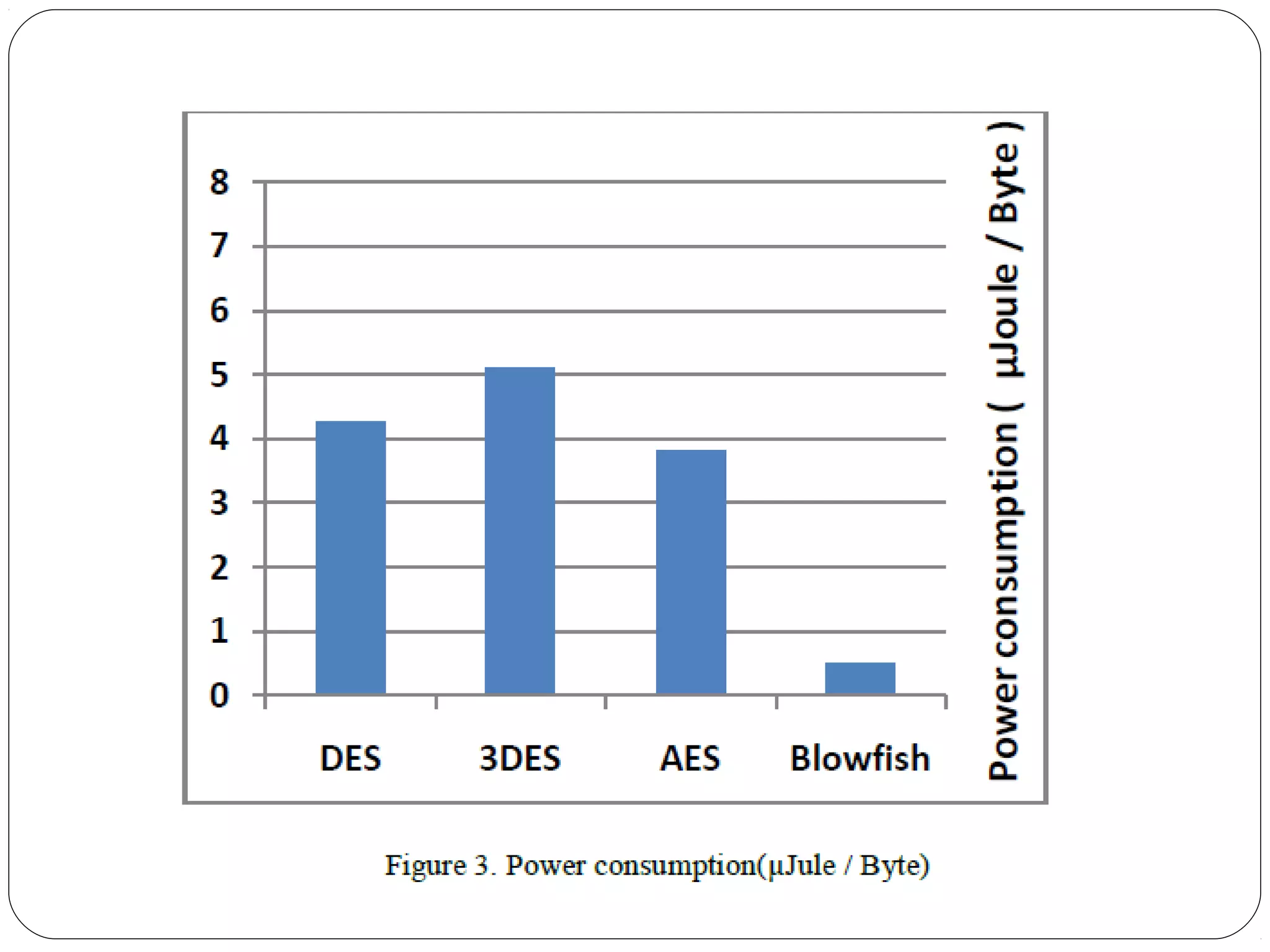

7.58
7.59  William Stallings, CRYPTOGRAPHY AND NETWORK SECURITY, FIFTH EDITION,2011, USA  www.cs.bc.edu/~straubin/cs381-05/blockciphers/rijndael_ingles2004.swf  http://en.wikipedia.org/wiki/Advanced_Encryption_Standard  Pratap Chandra Mandal., Kolkata, W.B., Evaluation of performance of the Symmetric Key Algorithms: DES, 3DES ,AES and Blowfish.Journal of Global Research in Computer Science, 3 (8), August 2012, 67-70.  Handout Reference
Presentation of review article

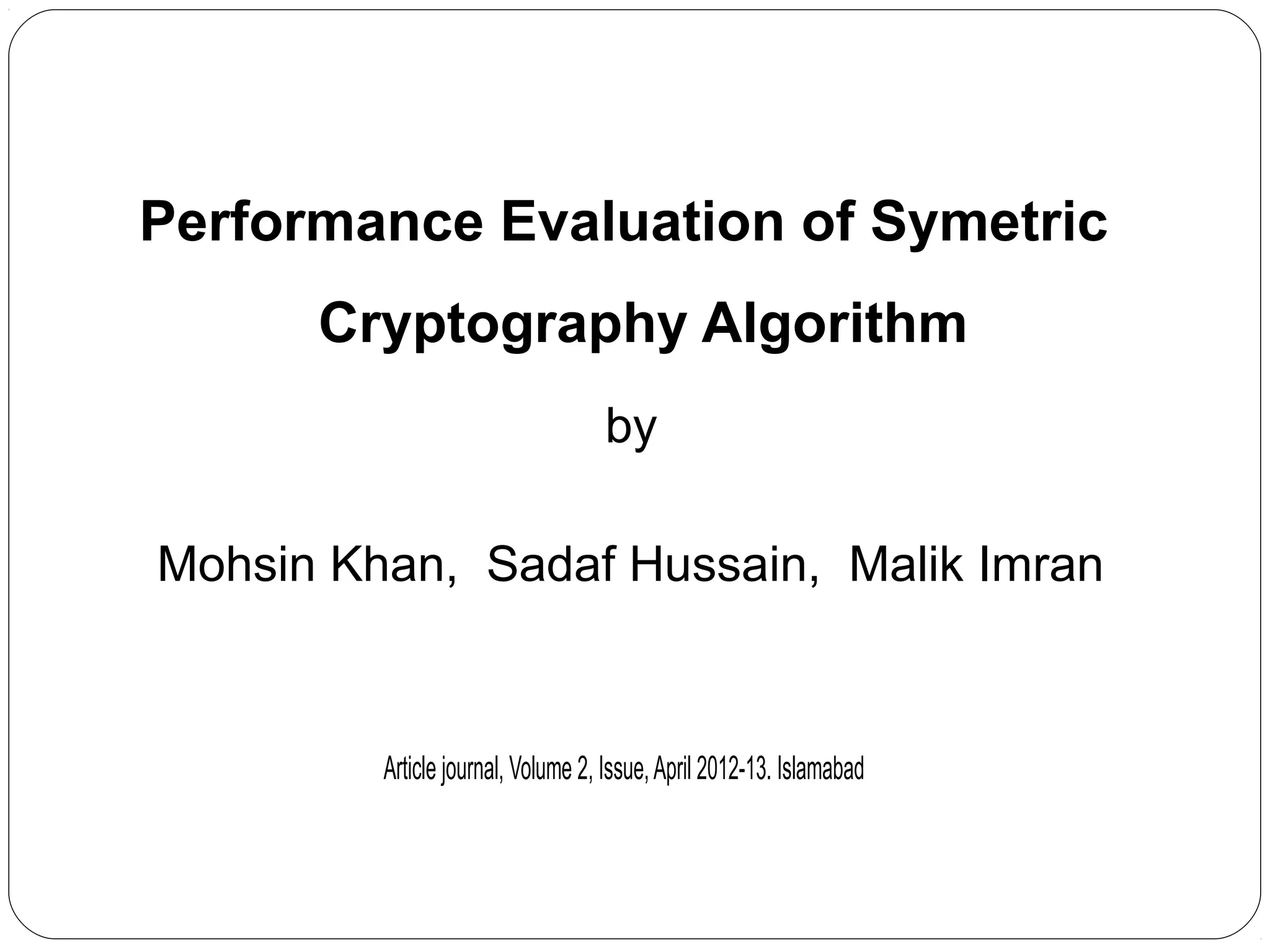

Performance Evaluation of Symetric Cryptography Algorithm by Mohsin Khan, Sadaf Hussain, Malik Imran Article journal, Volume 2, Issue,April 2012-13. Islamabad

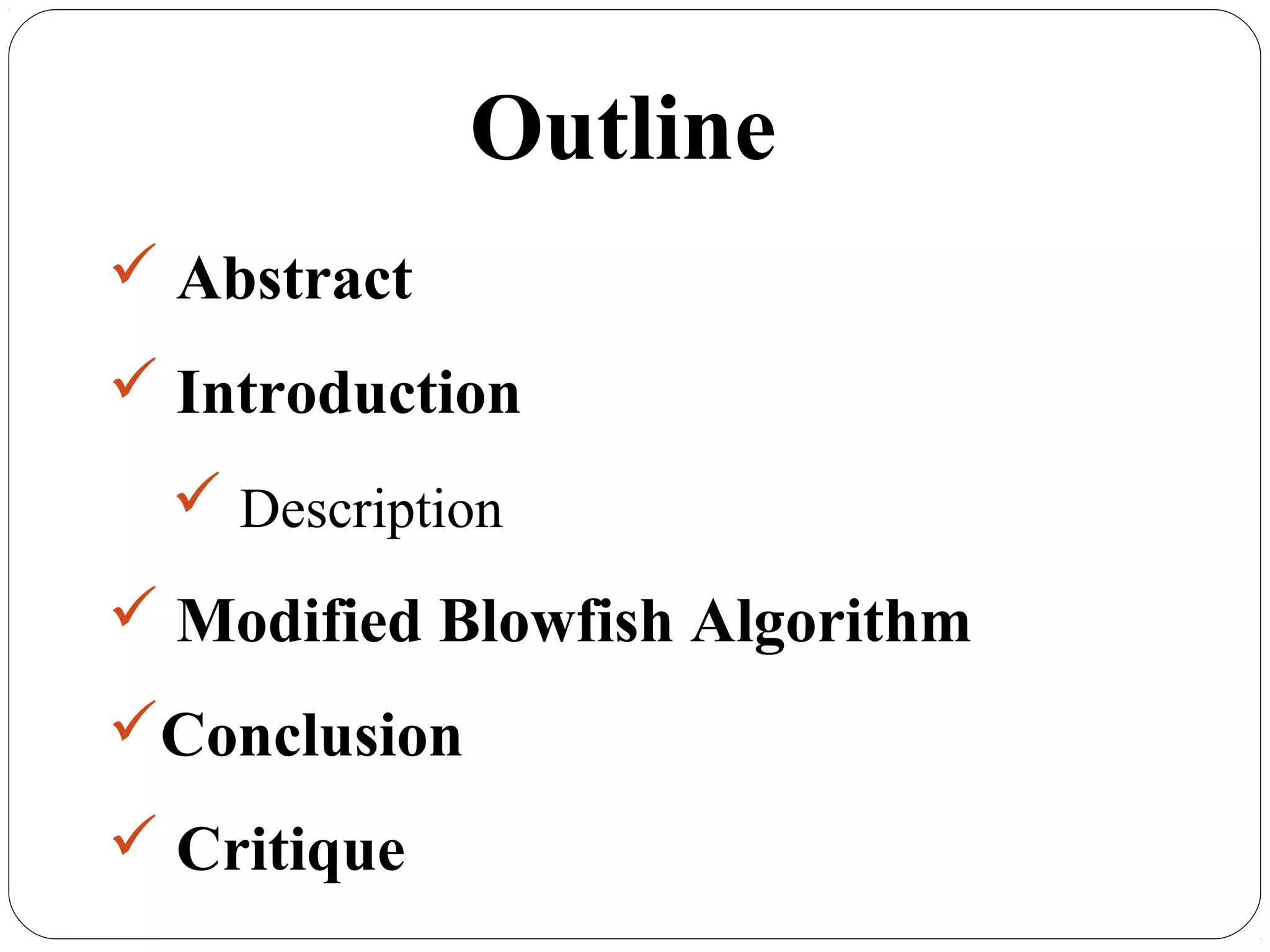

Outline  Abstract  Introduction  Description  Modified Blowfish Algorithm Conclusion  Critique

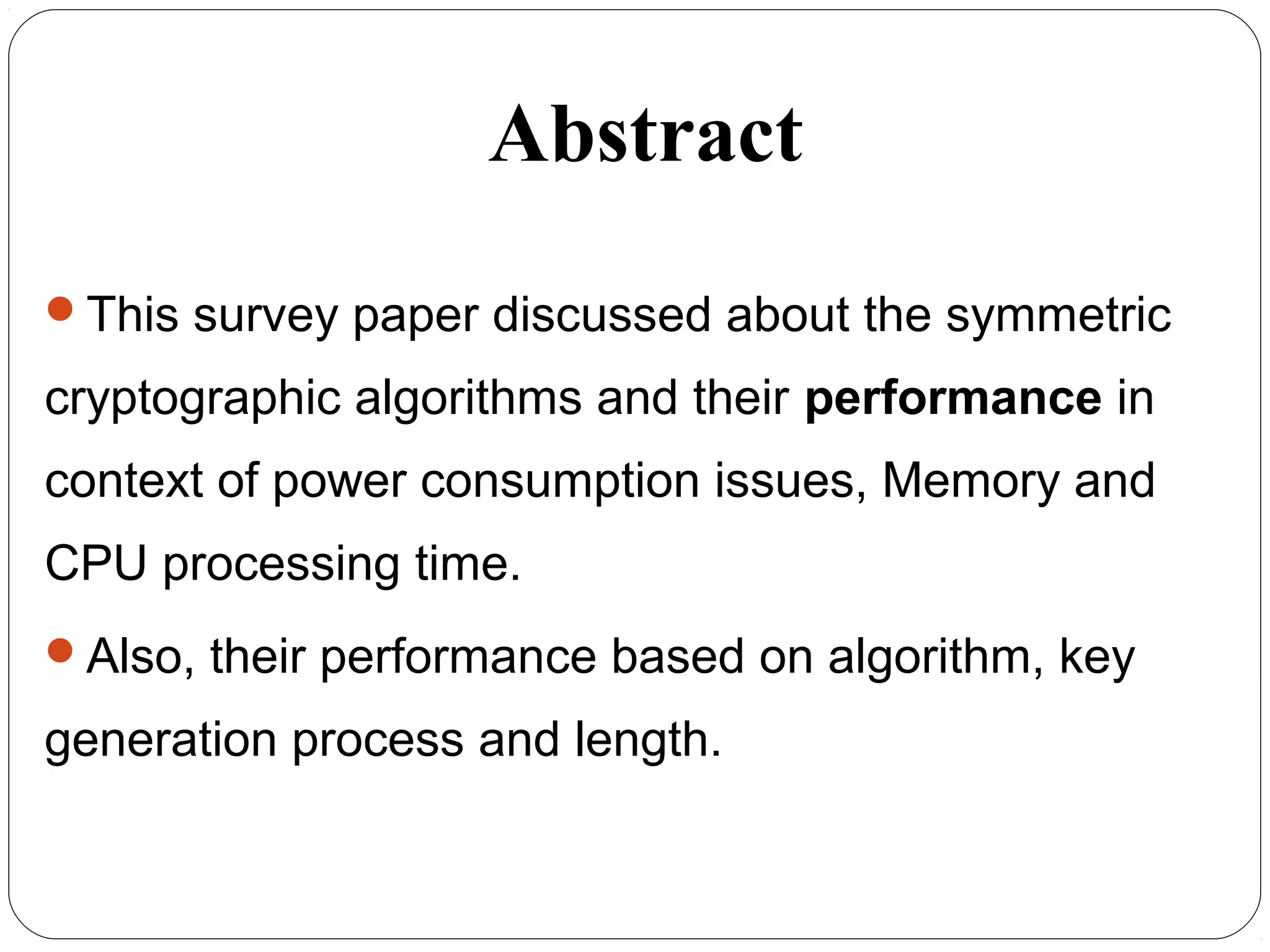

Abstract This survey paper discussed about the symmetric cryptographic algorithms and their performance in context of power consumption issues, Memory and CPU processing time. Also, their performance based on algorithm, key generation process and length.

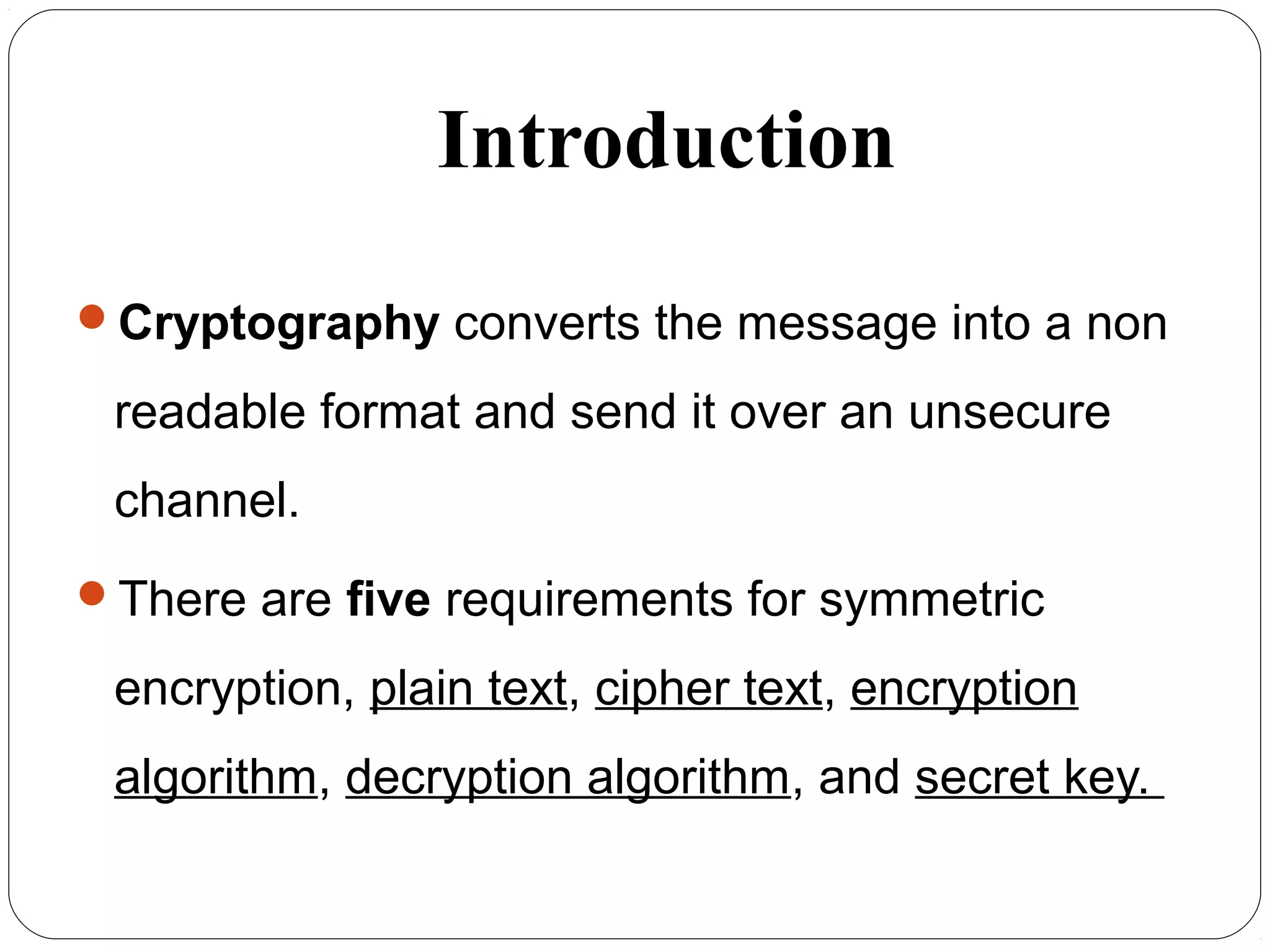

Introduction Cryptography converts the message into a non readable format and send it over an unsecure channel. There are five requirements for symmetric encryption, plain text, cipher text, encryption algorithm, decryption algorithm, and secret key.

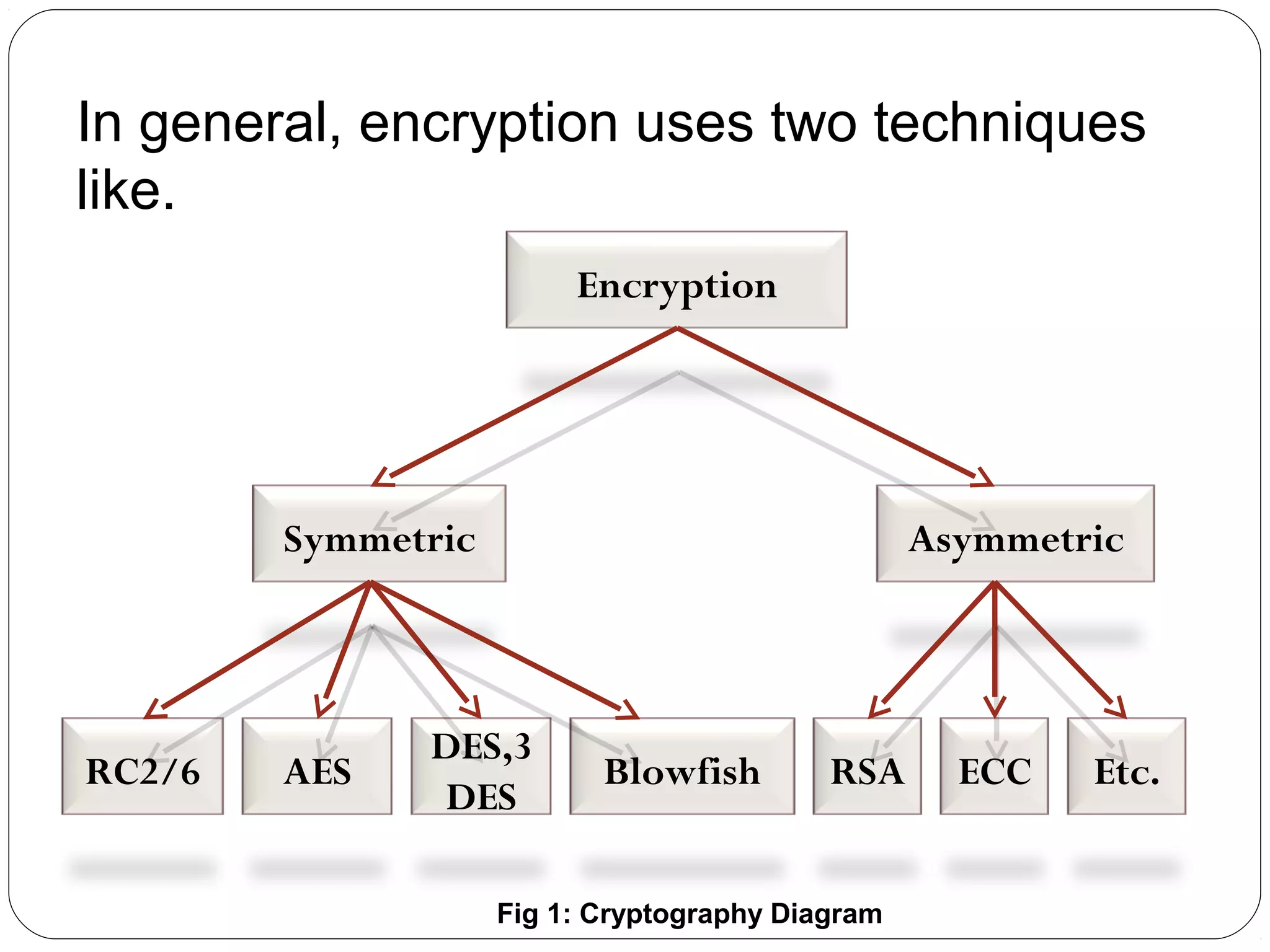

In general, encryption uses two techniques like. Encryption Symmetric Asymmetric RSA ECC Etc.Blowfish DES,3 DES AESRC2/6 Fig 1: Cryptography Diagram
--------- --------- --------- ------ --------- --------- --------- ------ Secret key Secret key Encryption Decryption -------- -------- -------- ----- -------- -------- -------- ----- Message Message M Y=E(M,K) M=D(Y,K) K K @^^&- =!!l&%- *kuh&^ @^^&- =!!l&%- *kuh&^ Fig 2: Symmetric Encryption Algorithm process

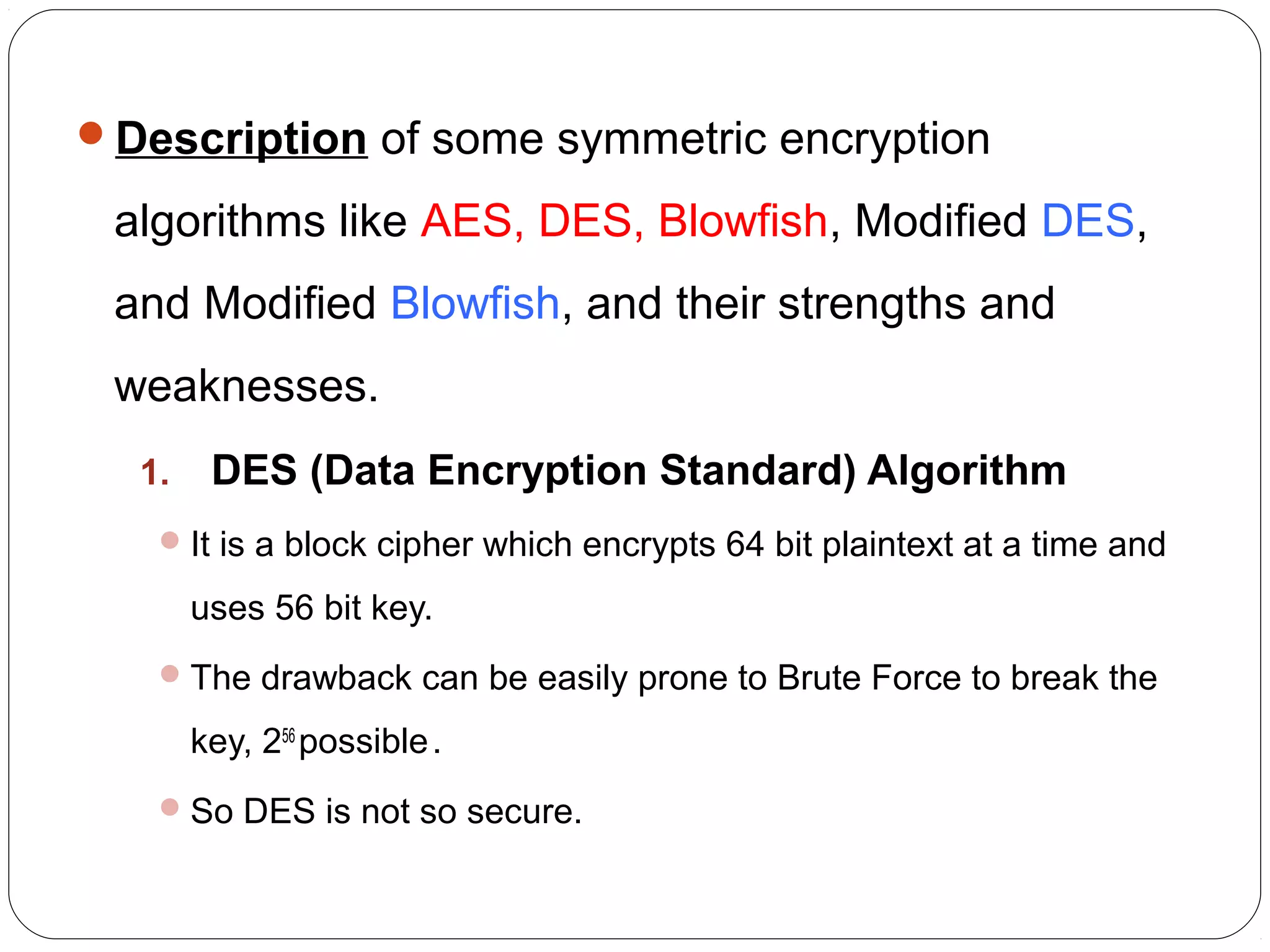

Description of some symmetric encryption algorithms like AES, DES, Blowfish, Modified DES, and Modified Blowfish, and their strengths and weaknesses. 1. DES (Data Encryption Standard) Algorithm It is a block cipher which encrypts 64 bit plaintext at a time and uses 56 bit key. The drawback can be easily prone to Brute Force to break the key, 256 possible. So DES is not so secure.

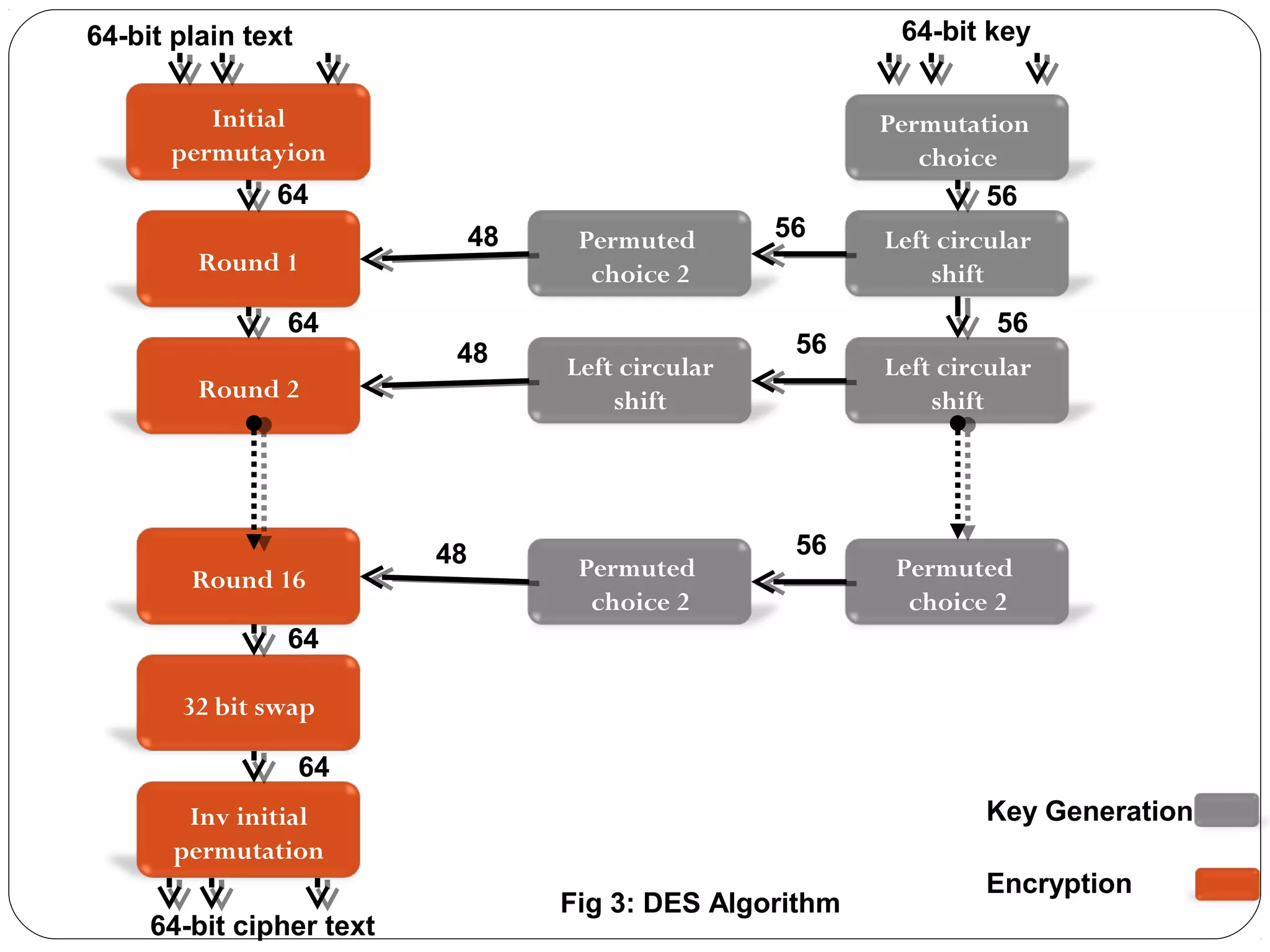

Round 1 Round 2 Initial permutayion Round 16 32 bit swap Inv initial permutation Permuted choice 2 Left circular shift Permuted choice 2 Left circular shift Left circular shift Permuted choice 2 Permutation choice 64-bit plain text 64-bit cipher text 64-bit key 56 56 56 56 5648 48 48 64 64 64 64 Key Generation Encryption Fig 3: DES Algorithm

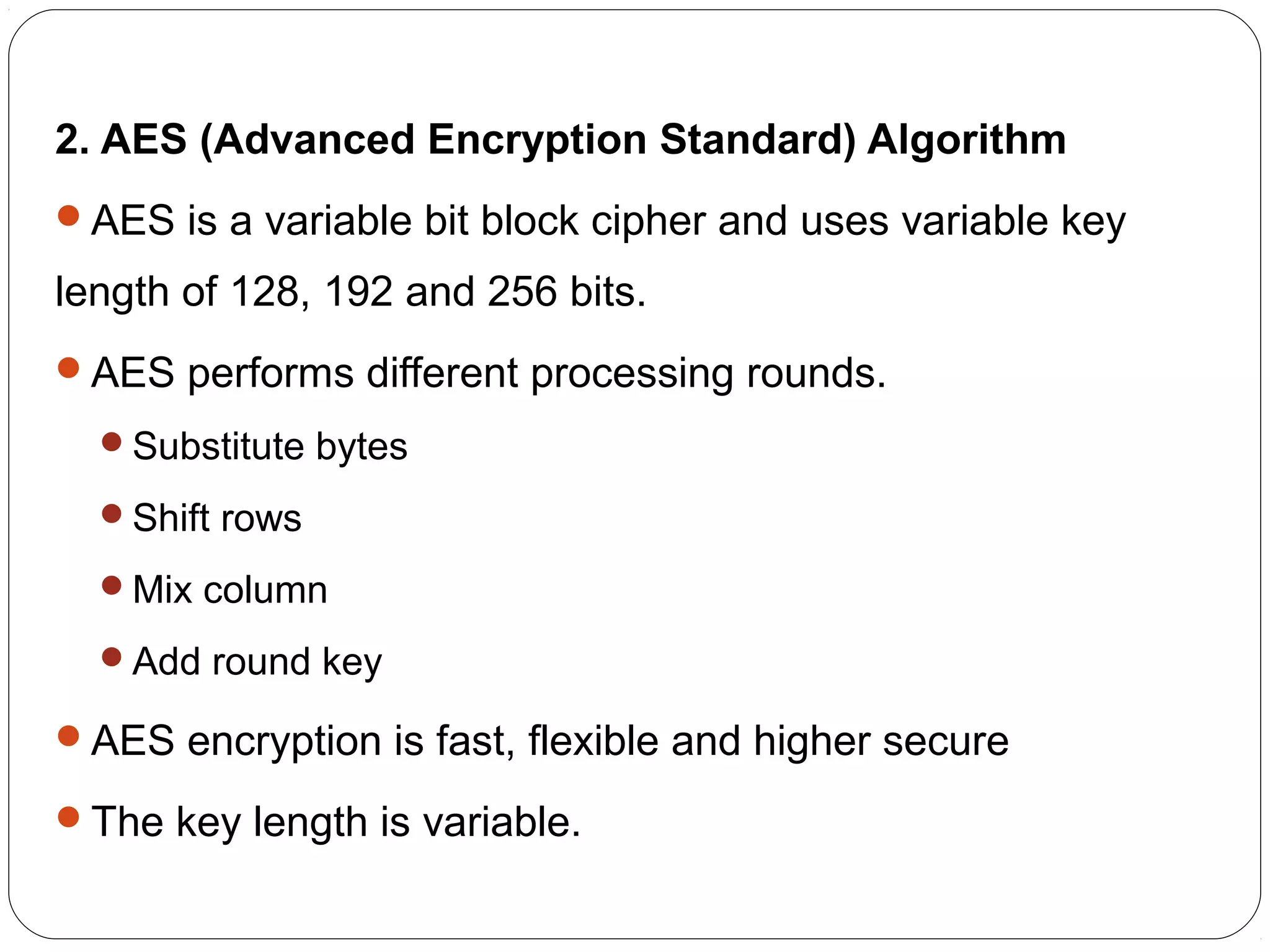

2. AES (Advanced Encryption Standard) Algorithm AES is a variable bit block cipher and uses variable key length of 128, 192 and 256 bits. AES performs different processing rounds. Substitute bytes Shift rows Mix column Add round key AES encryption is fast, flexible and higher secure The key length is variable.

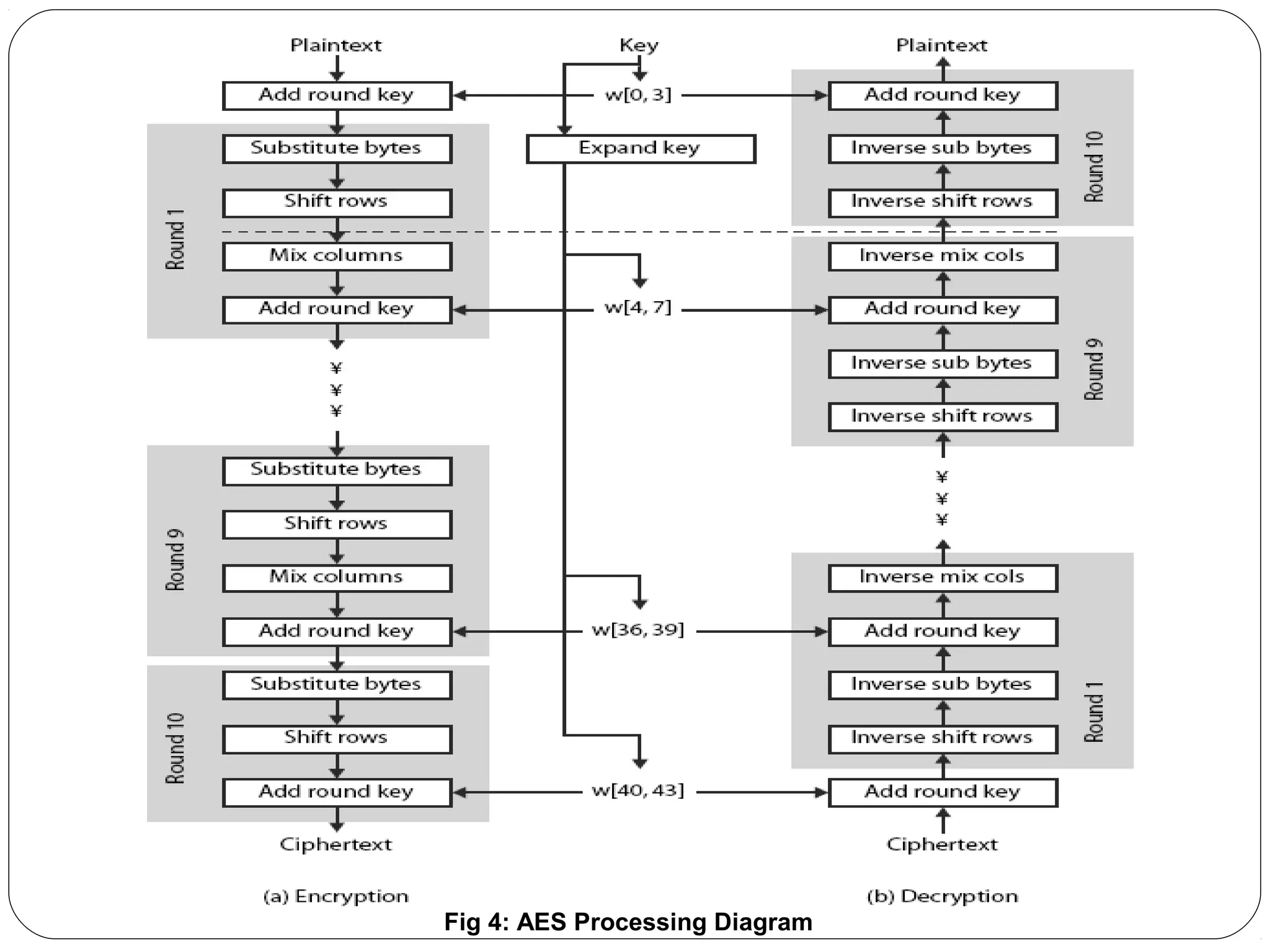

Fig 4: AES Processing Diagram

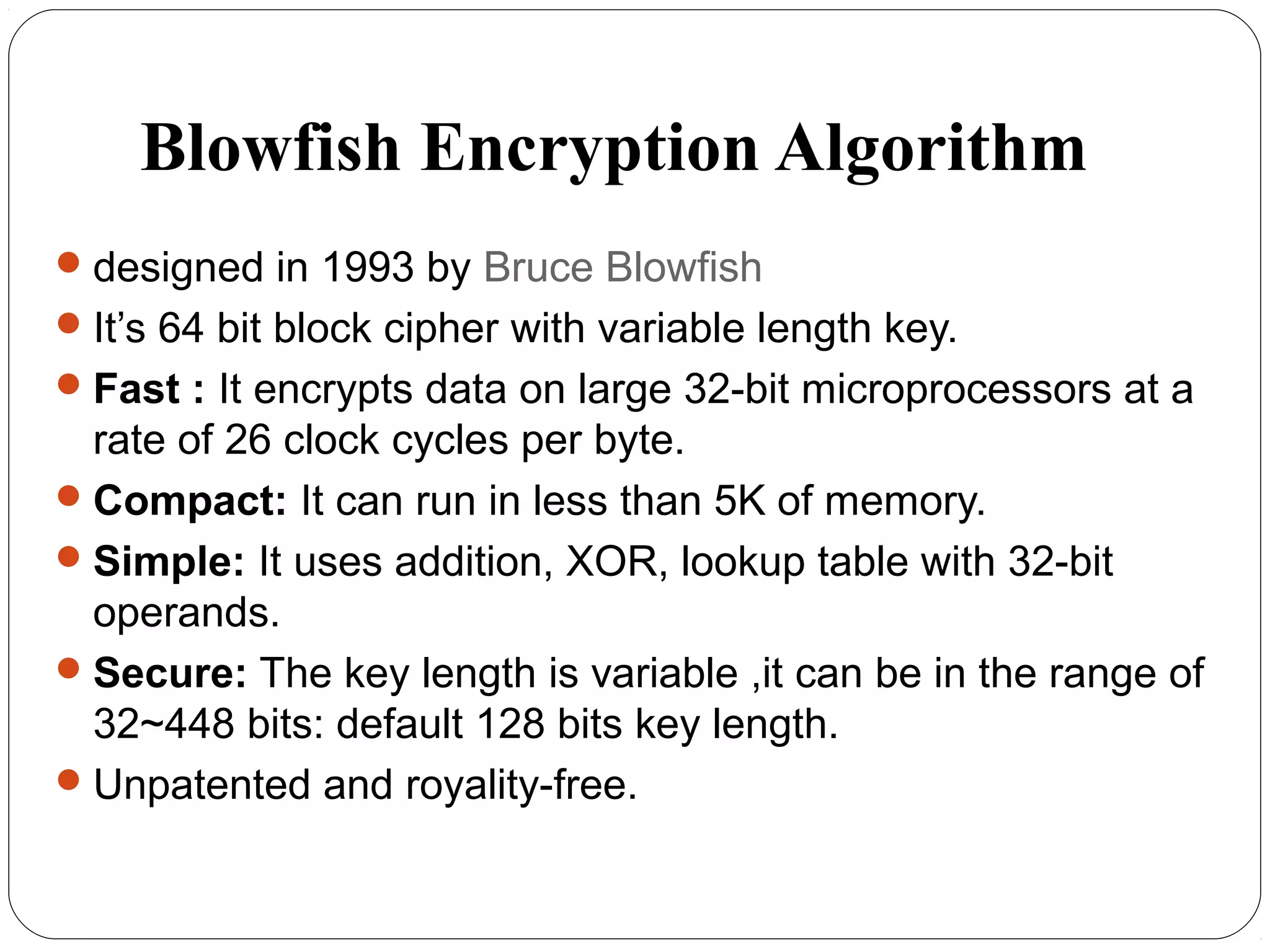

Blowfish Encryption Algorithm designed in 1993 by Bruce Blowfish It’s 64 bit block cipher with variable length key. Fast : It encrypts data on large 32-bit microprocessors at a rate of 26 clock cycles per byte. Compact: It can run in less than 5K of memory. Simple: It uses addition, XOR, lookup table with 32-bit operands. Secure: The key length is variable ,it can be in the range of 32~448 bits: default 128 bits key length. Unpatented and royality-free.

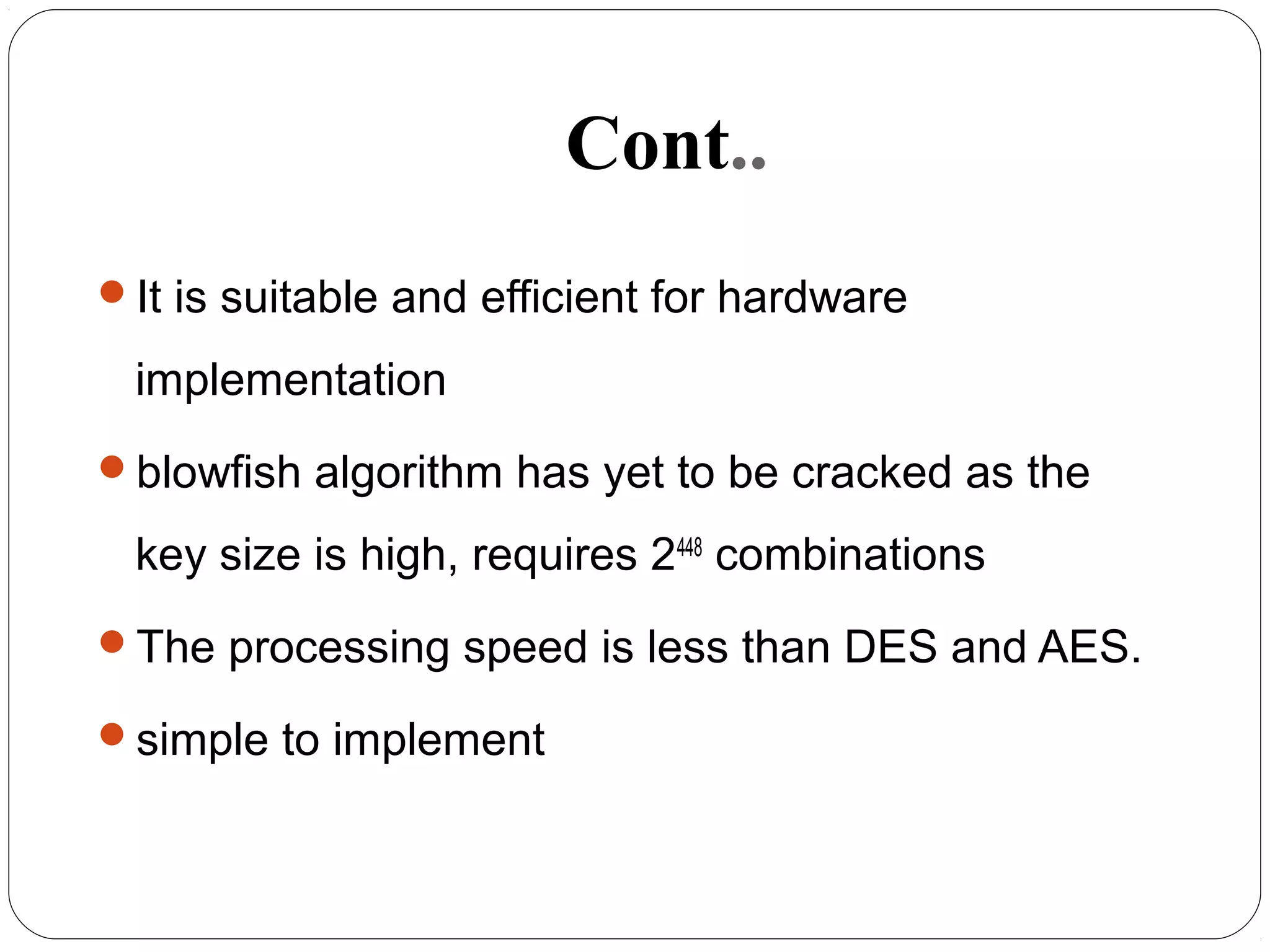

Cont.. It is suitable and efficient for hardware implementation blowfish algorithm has yet to be cracked as the key size is high, requires 2448 combinations The processing speed is less than DES and AES. simple to implement

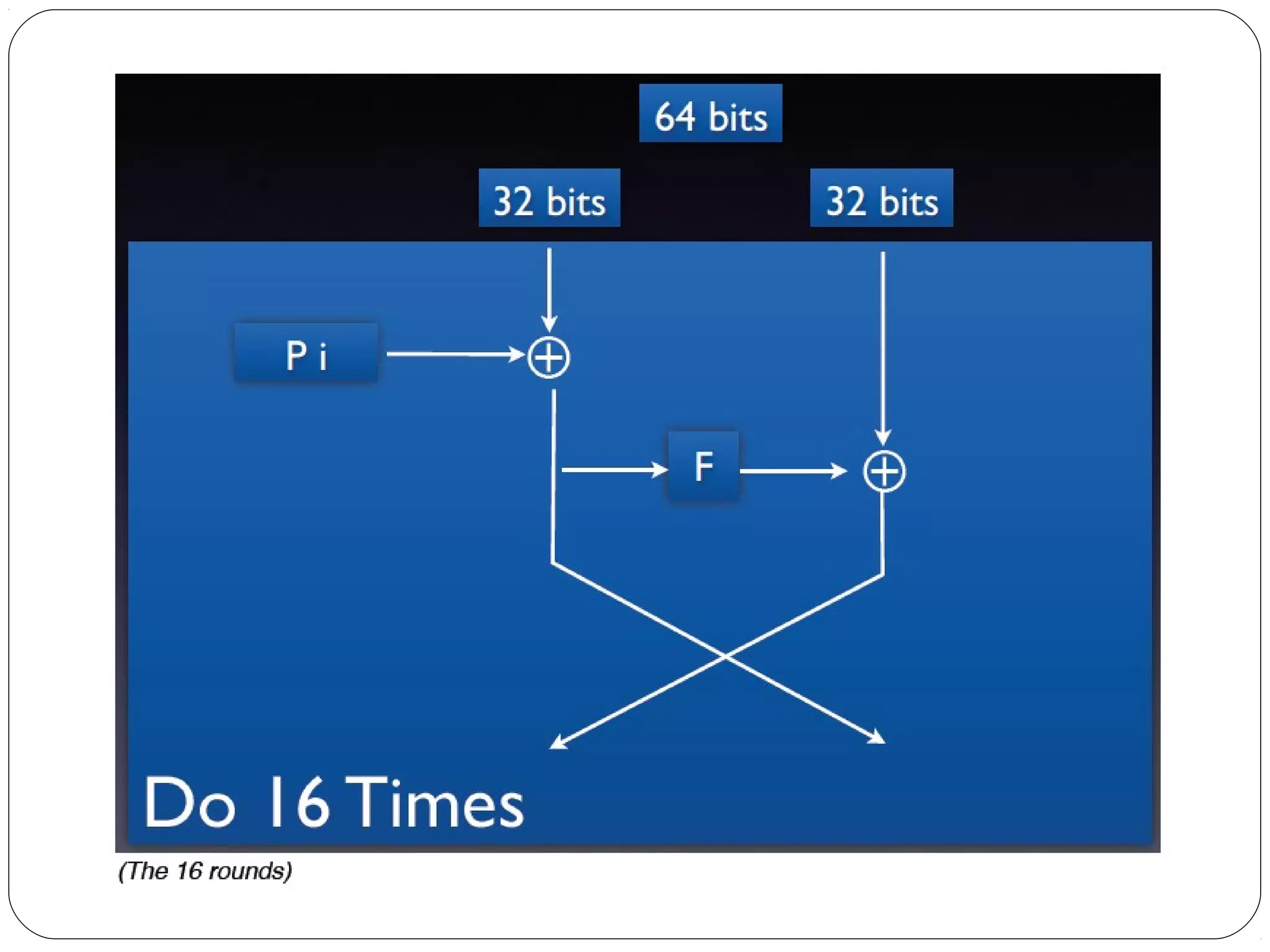

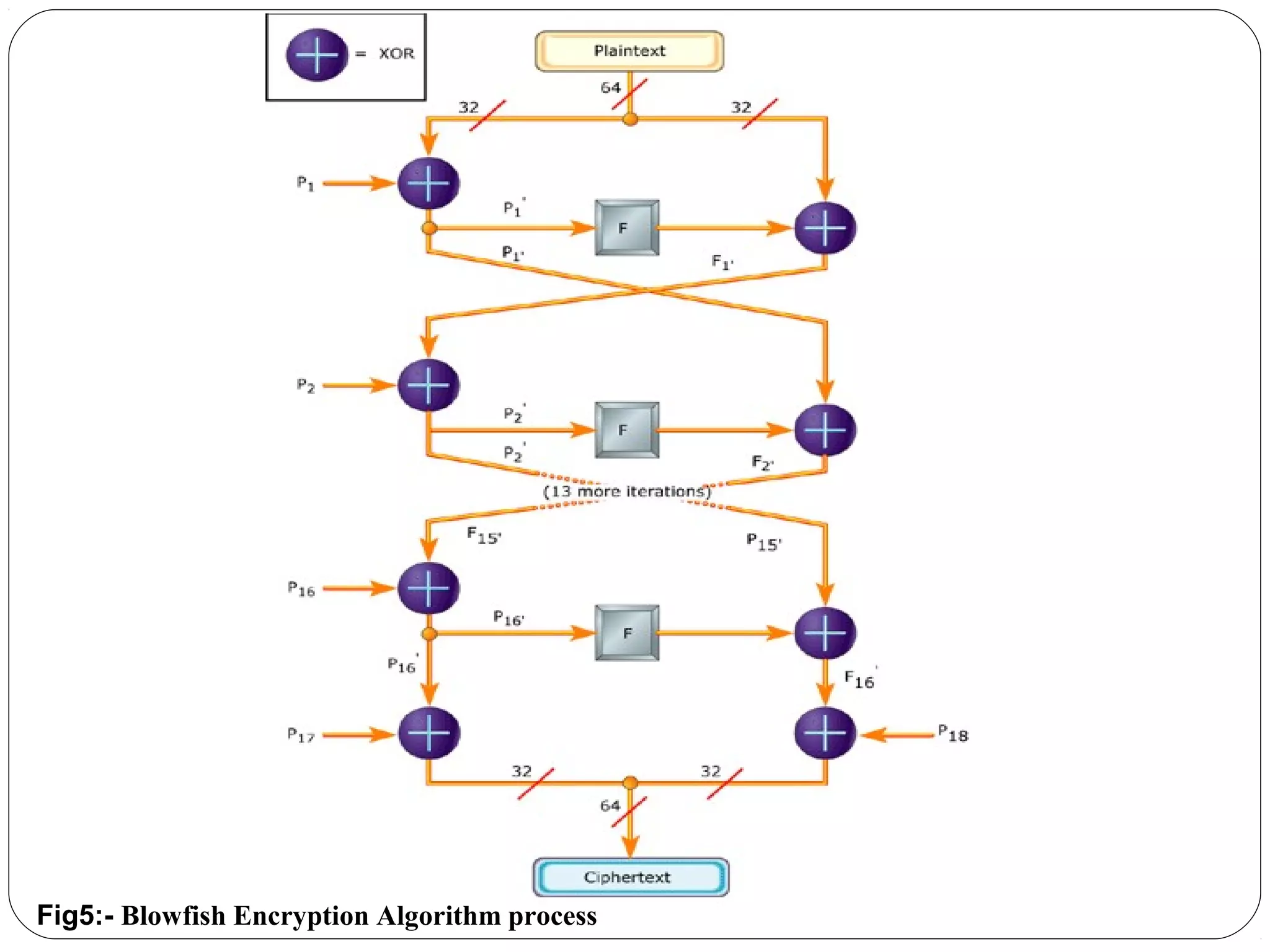

Fig5:- Blowfish Encryption Algorithm process

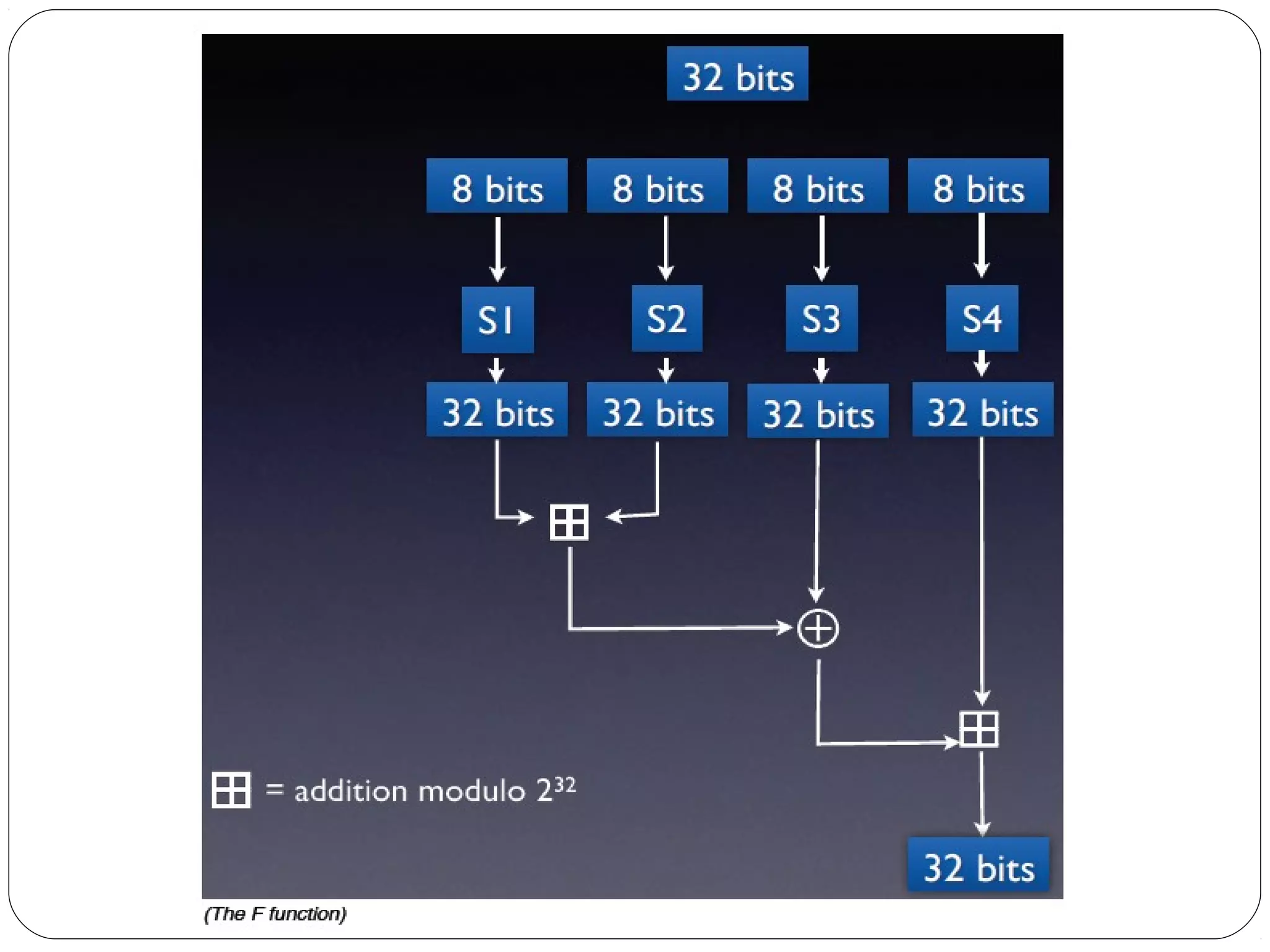

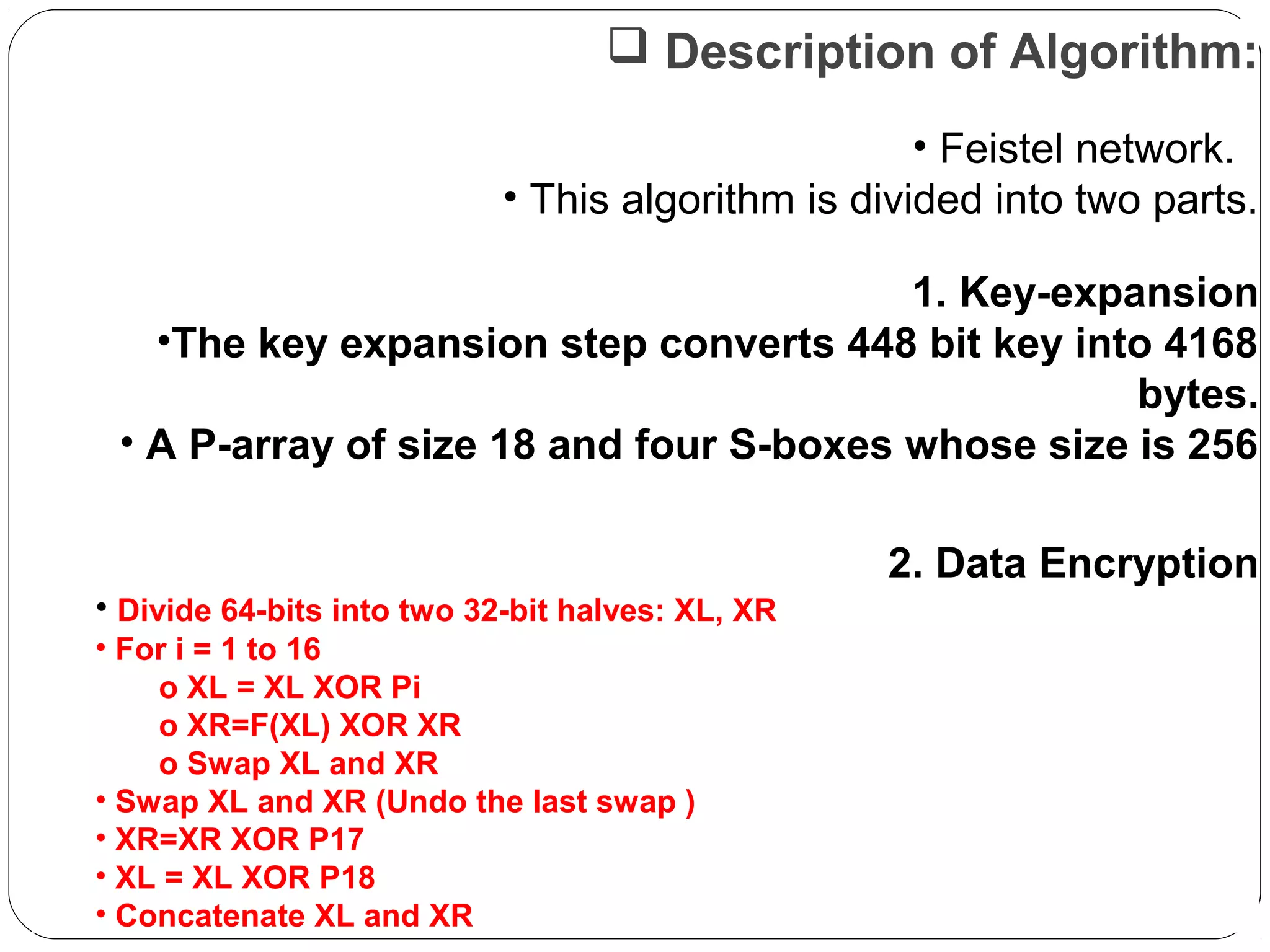

 Description of Algorithm: • Feistel network. • This algorithm is divided into two parts. 1. Key-expansion •The key expansion step converts 448 bit key into 4168 bytes. • A P-array of size 18 and four S-boxes whose size is 256 2. Data Encryption • Divide 64-bits into two 32-bit halves: XL, XR • For i = 1 to 16 o XL = XL XOR Pi o XR=F(XL) XOR XR o Swap XL and XR • Swap XL and XR (Undo the last swap ) • XR=XR XOR P17 • XL = XL XOR P18 • Concatenate XL and XR

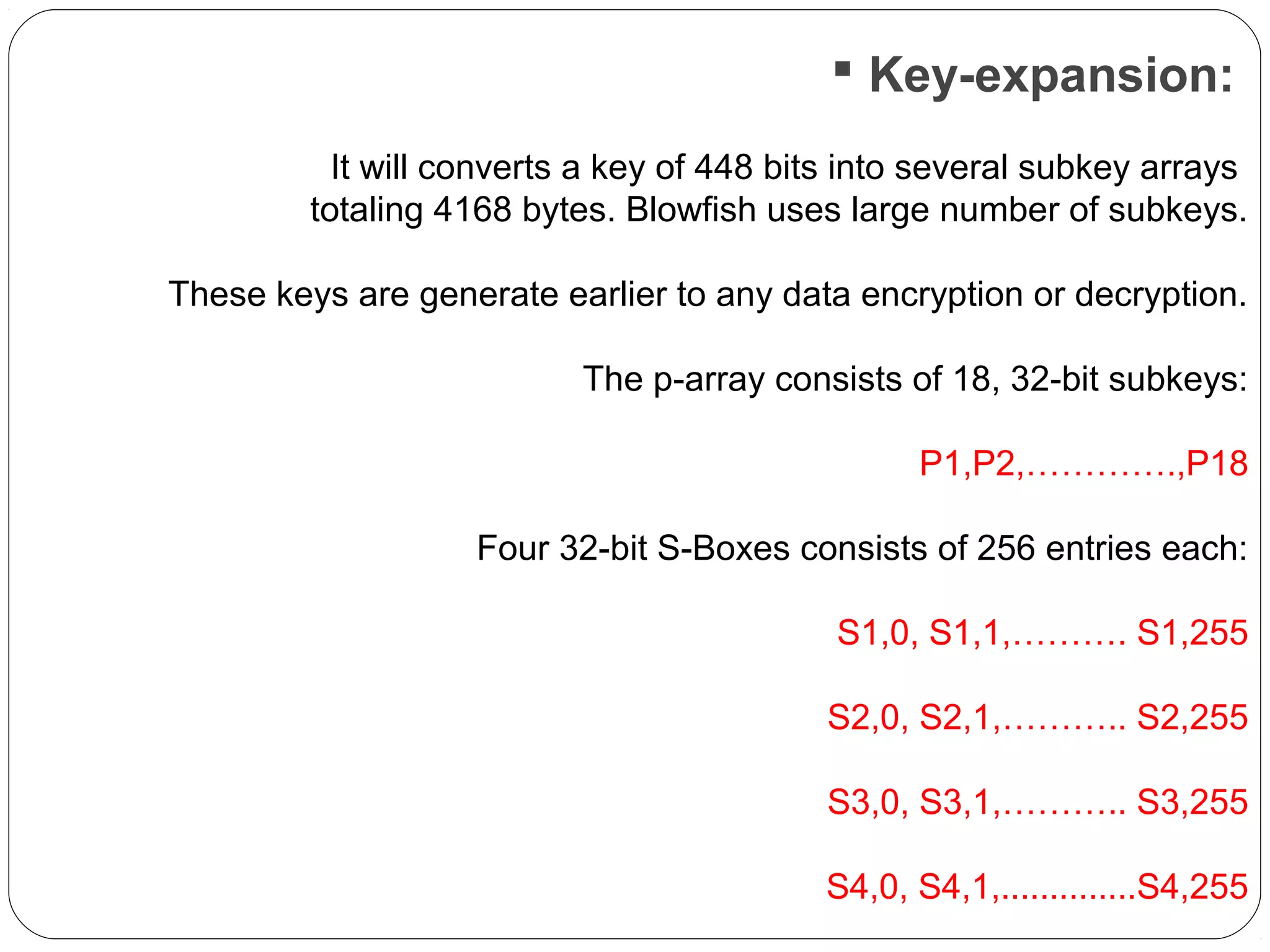

 Key-expansion: It will converts a key of 448 bits into several subkey arrays totaling 4168 bytes. Blowfish uses large number of subkeys. These keys are generate earlier to any data encryption or decryption. The p-array consists of 18, 32-bit subkeys: P1,P2,………….,P18 Four 32-bit S-Boxes consists of 256 entries each: S1,0, S1,1,………. S1,255 S2,0, S2,1,……….. S2,255 S3,0, S3,1,……….. S3,255 S4,0, S4,1,..............S4,255

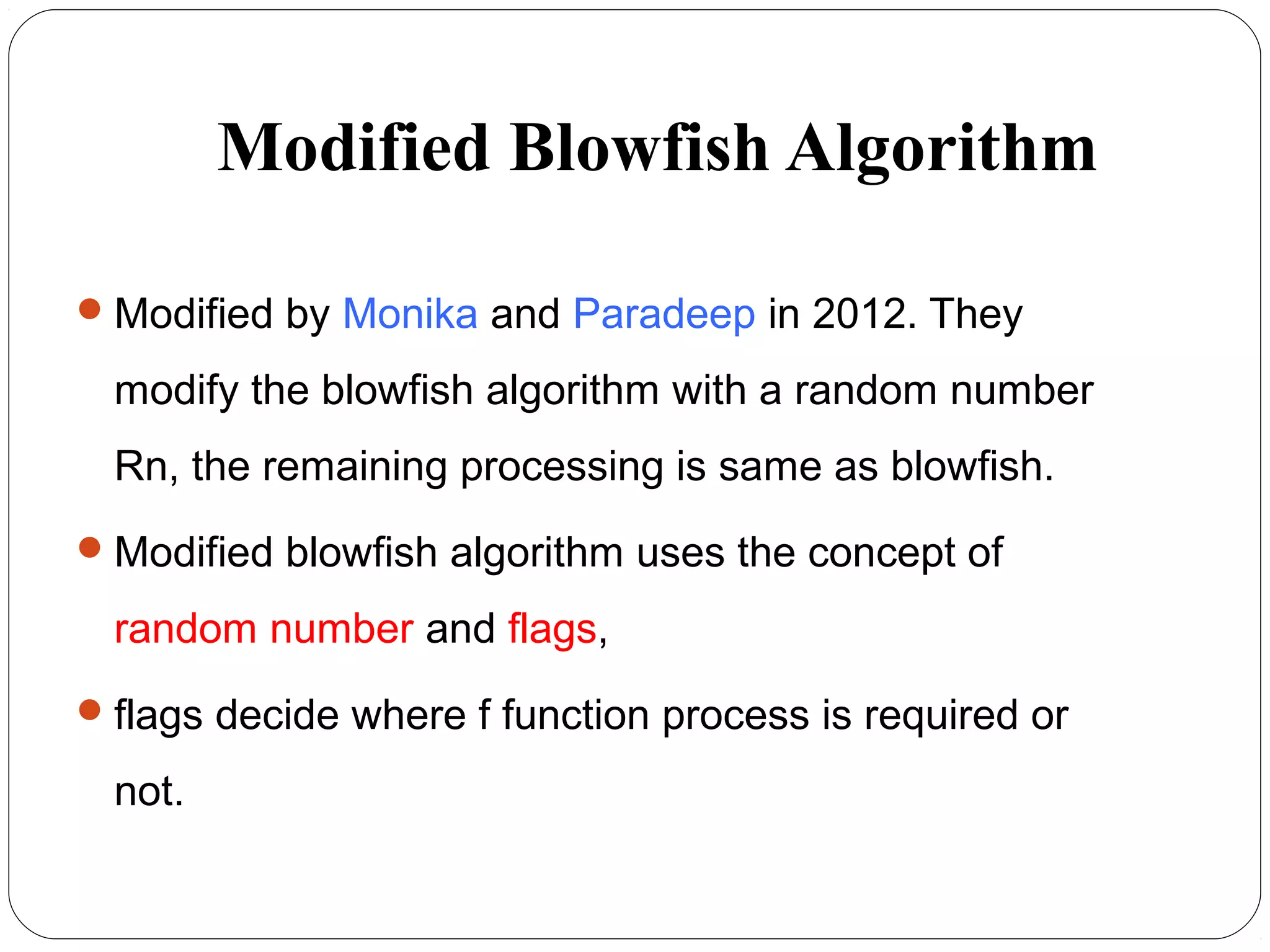

Modified Blowfish Algorithm Modified by Monika and Paradeep in 2012. They modify the blowfish algorithm with a random number Rn, the remaining processing is same as blowfish. Modified blowfish algorithm uses the concept of random number and flags, flags decide where f function process is required or not.

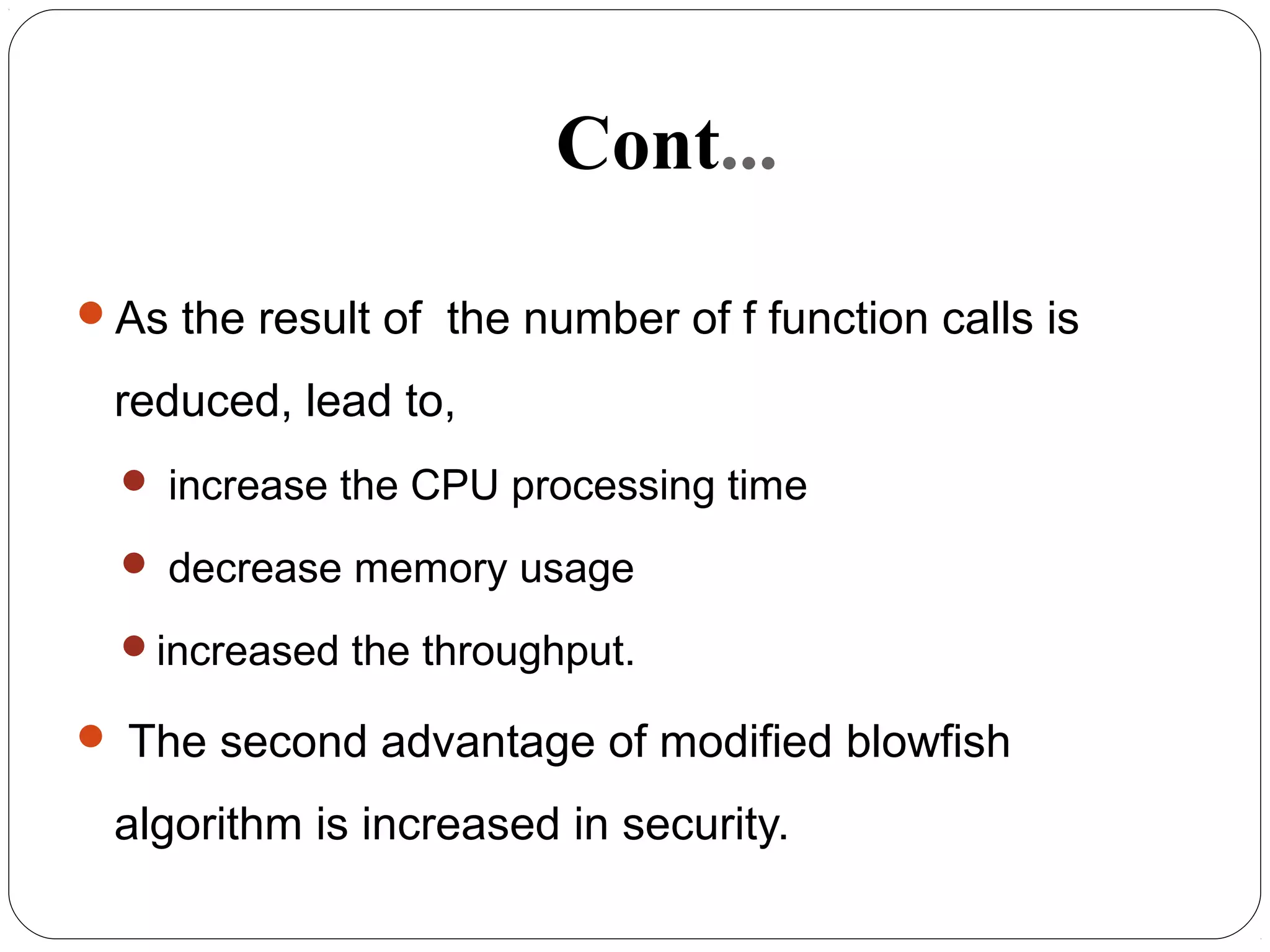

Cont... As the result of the number of f function calls is reduced, lead to,  increase the CPU processing time  decrease memory usage increased the throughput.  The second advantage of modified blowfish algorithm is increased in security.

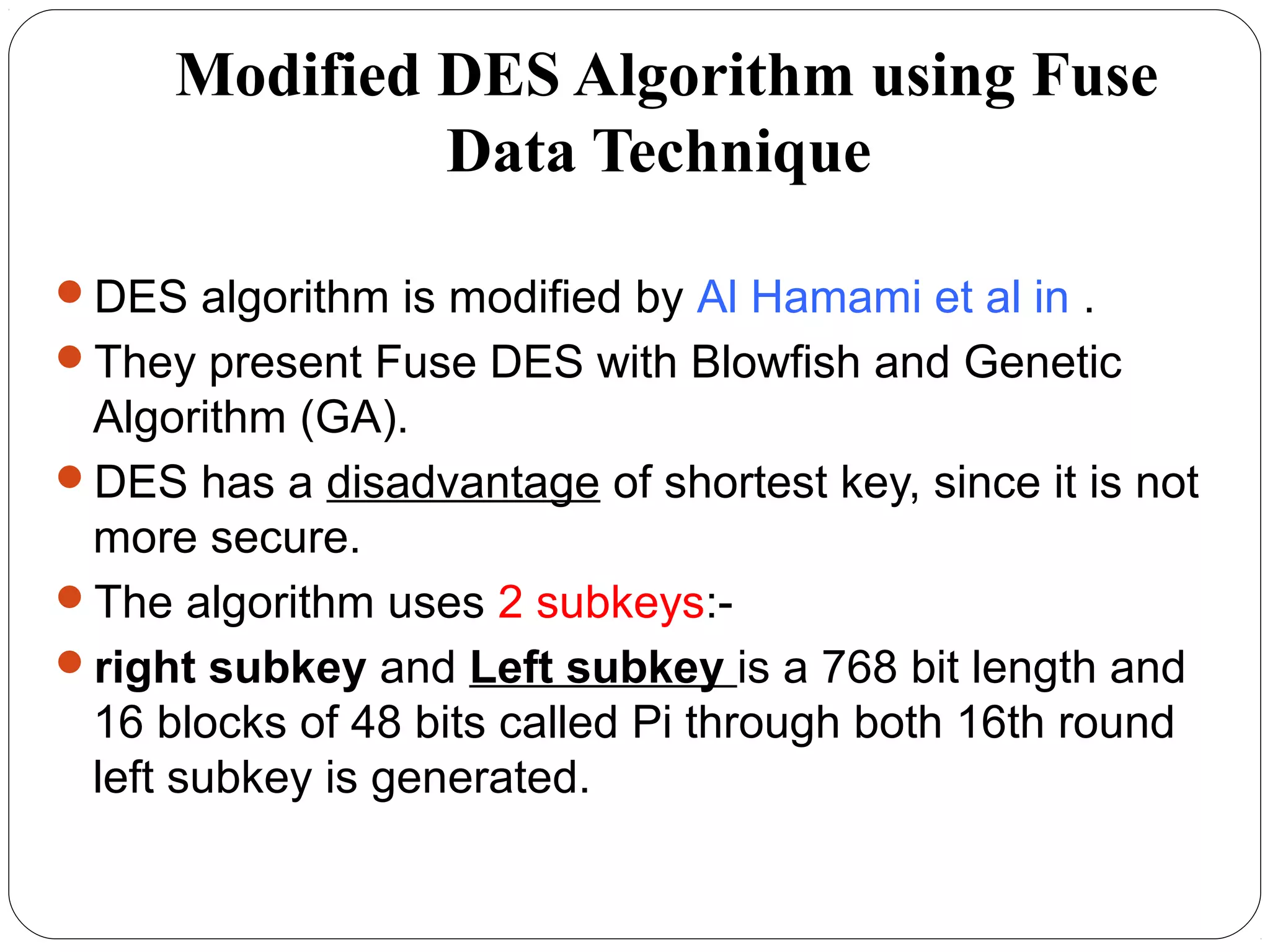

Modified DES Algorithm using Fuse Data Technique DES algorithm is modified by Al Hamami et al in . They present Fuse DES with Blowfish and Genetic Algorithm (GA). DES has a disadvantage of shortest key, since it is not more secure. The algorithm uses 2 subkeys:- right subkey and Left subkey is a 768 bit length and 16 blocks of 48 bits called Pi through both 16th round left subkey is generated.

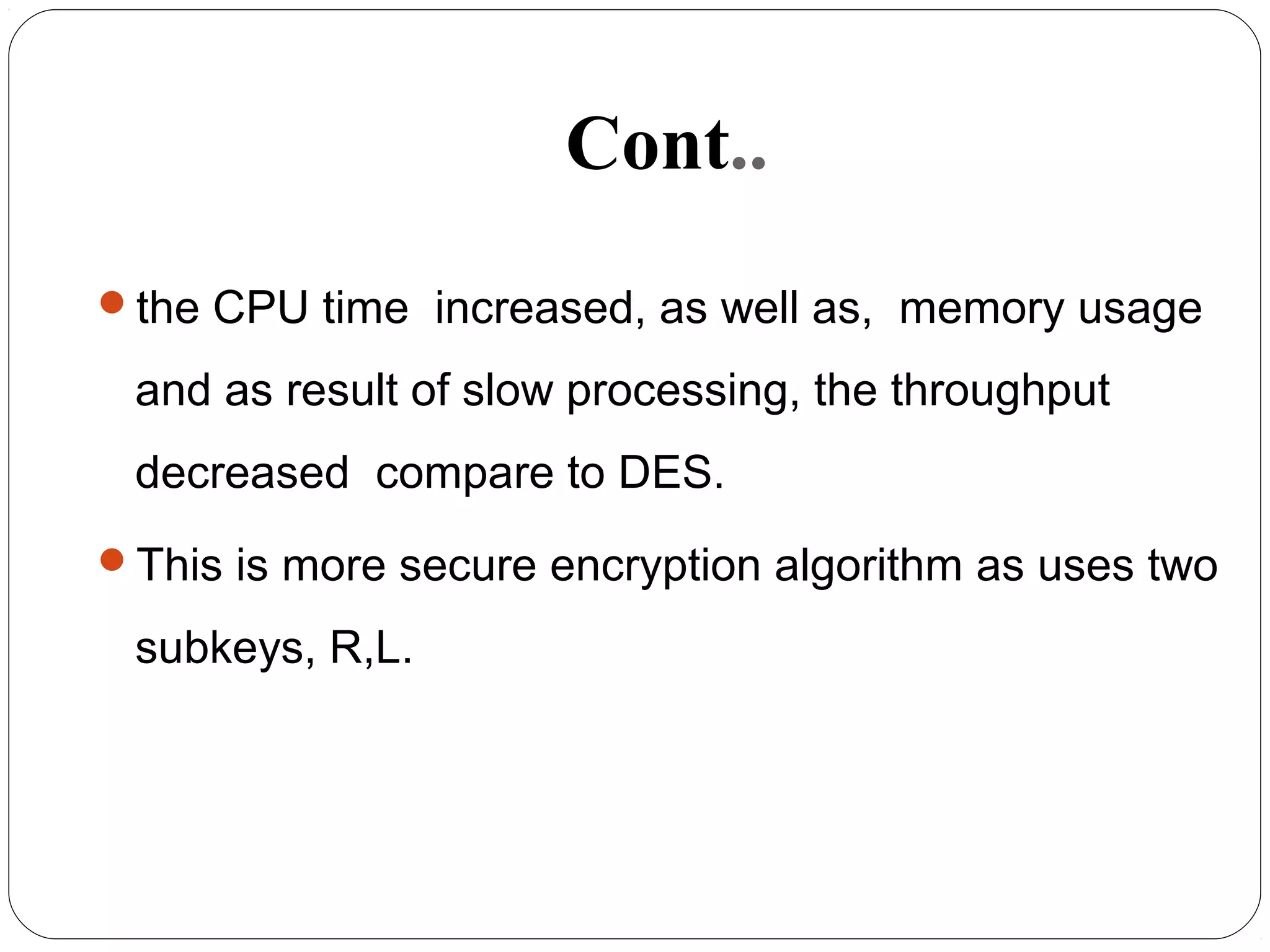

Cont.. the CPU time increased, as well as, memory usage and as result of slow processing, the throughput decreased compare to DES. This is more secure encryption algorithm as uses two subkeys, R,L.

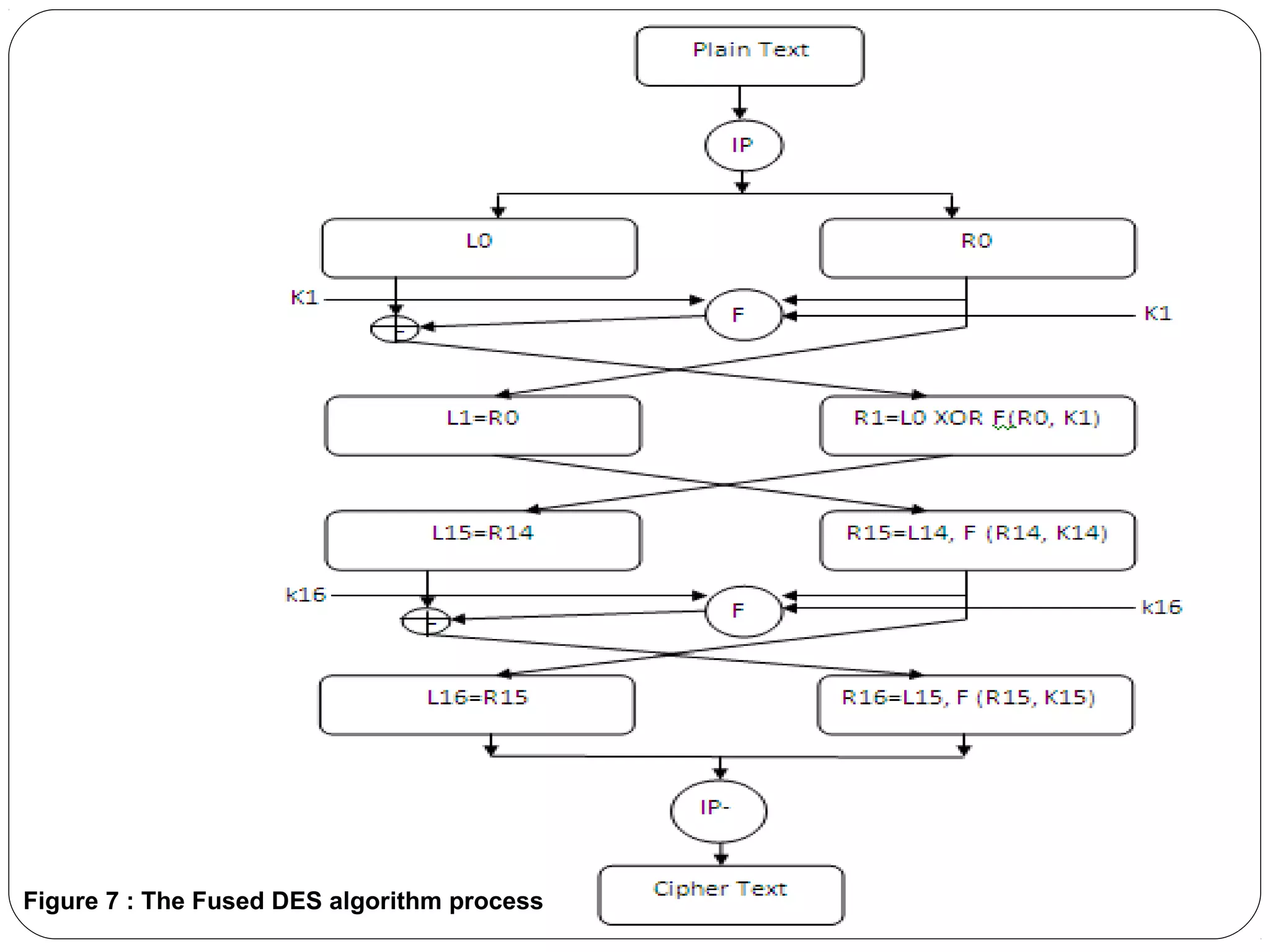

Figure 7 : The Fused DES algorithm process

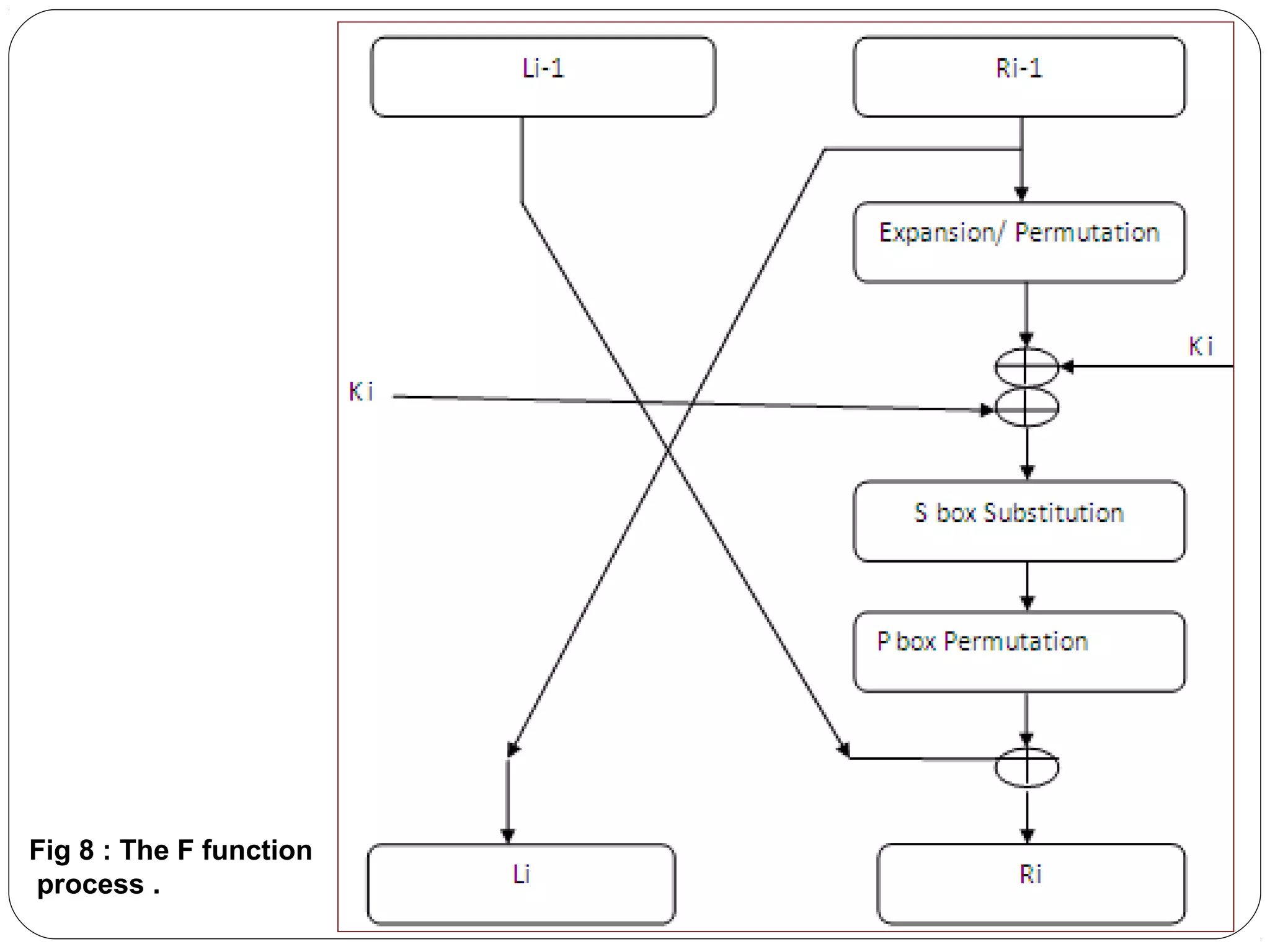

Fig 8 : The F function process .

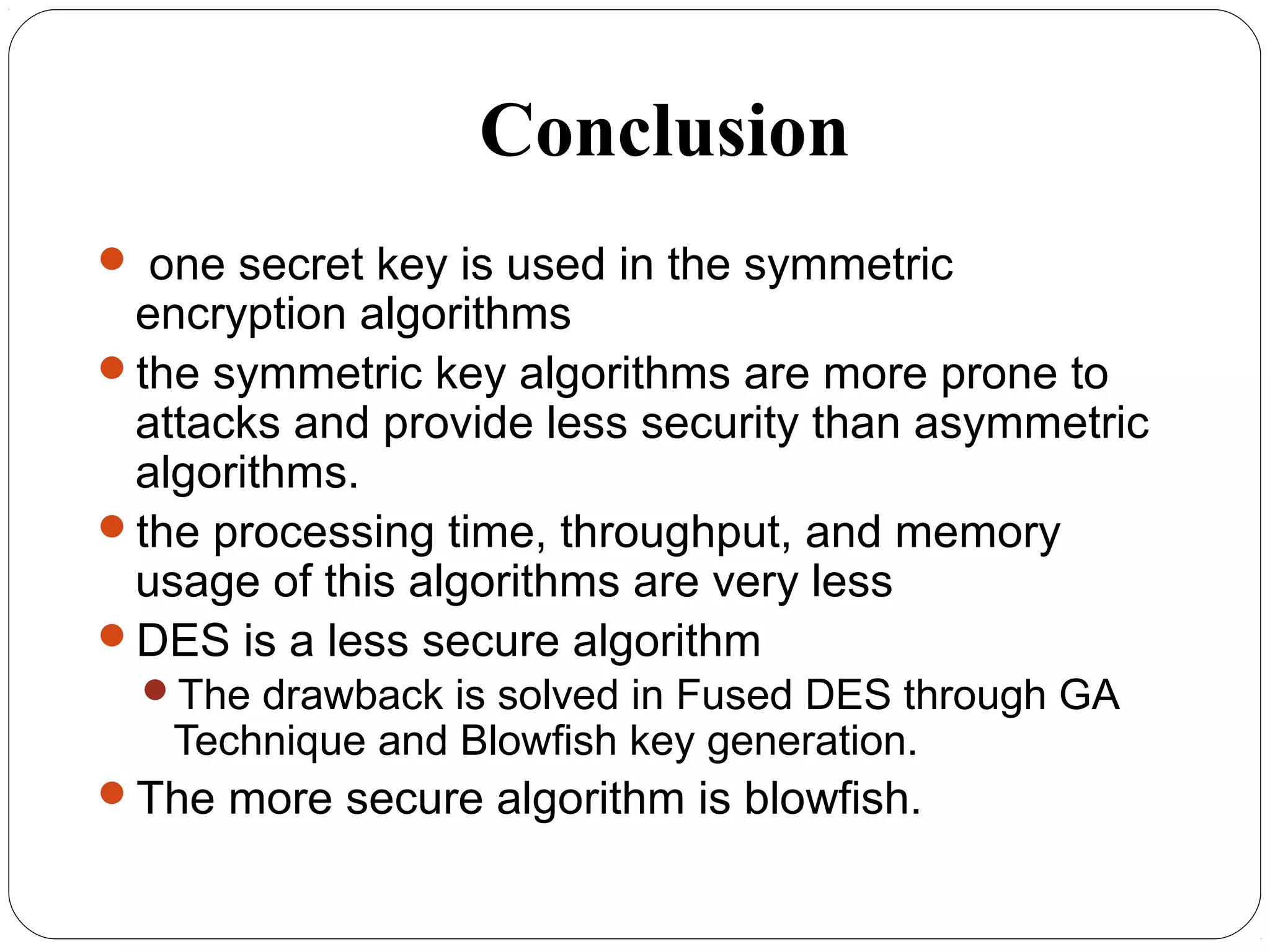

Conclusion  one secret key is used in the symmetric encryption algorithms the symmetric key algorithms are more prone to attacks and provide less security than asymmetric algorithms. the processing time, throughput, and memory usage of this algorithms are very less DES is a less secure algorithm The drawback is solved in Fused DES through GA Technique and Blowfish key generation. The more secure algorithm is blowfish.

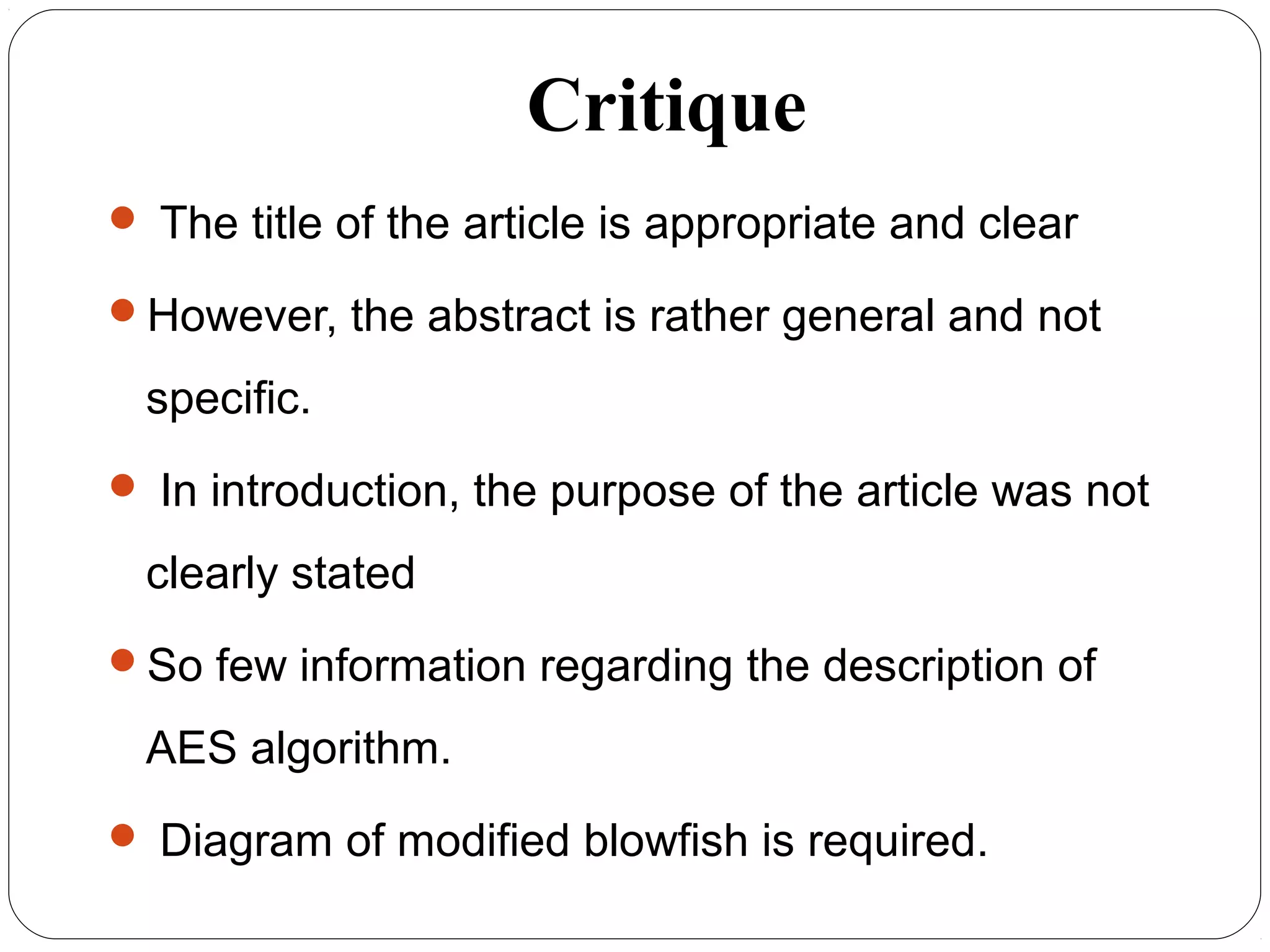

Critique  The title of the article is appropriate and clear However, the abstract is rather general and not specific.  In introduction, the purpose of the article was not clearly stated So few information regarding the description of AES algorithm.  Diagram of modified blowfish is required.

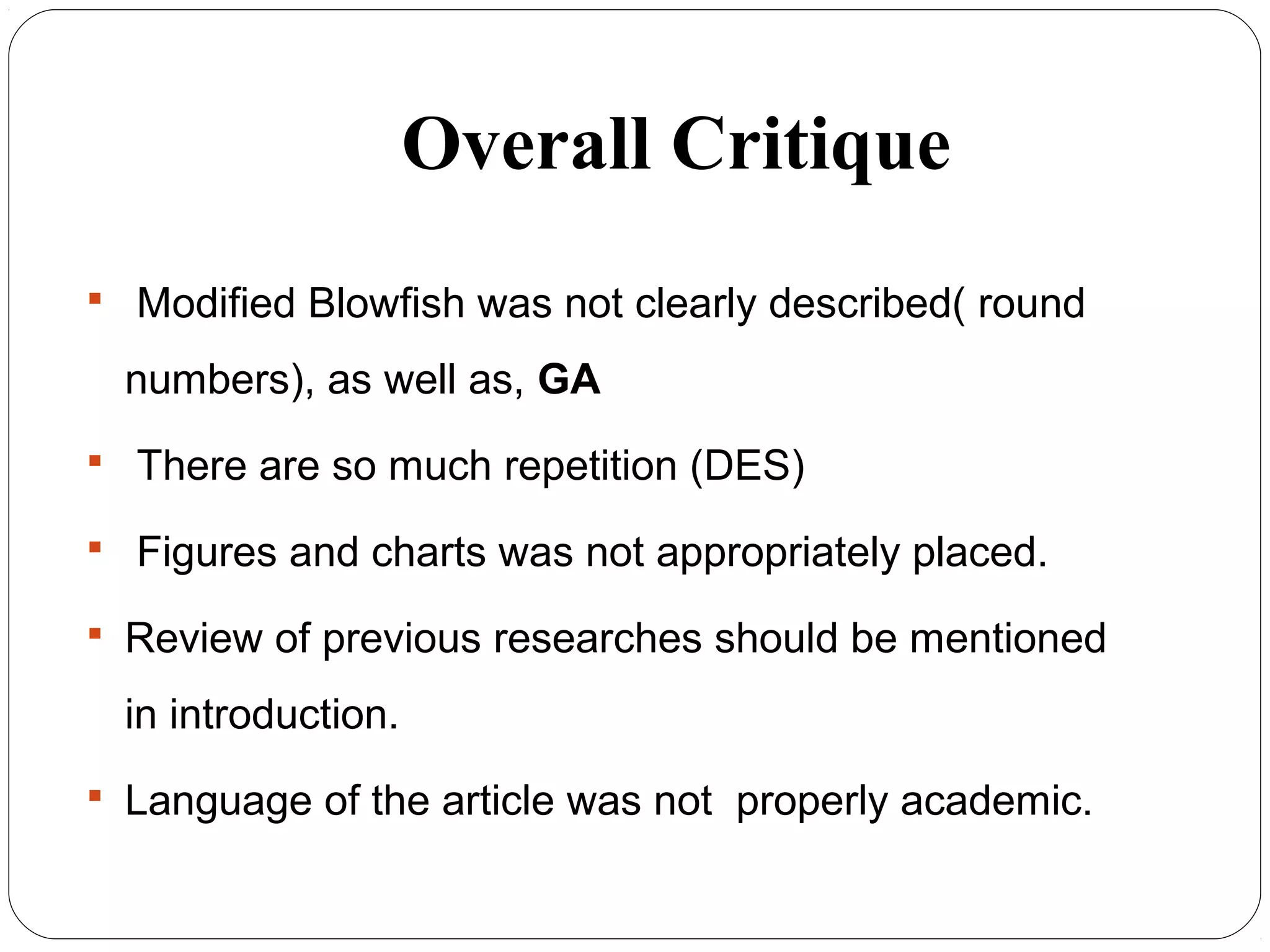

Overall Critique  Modified Blowfish was not clearly described( round numbers), as well as, GA  There are so much repetition (DES)  Figures and charts was not appropriately placed.  Review of previous researches should be mentioned in introduction.  Language of the article was not properly academic.
Nmap Tool

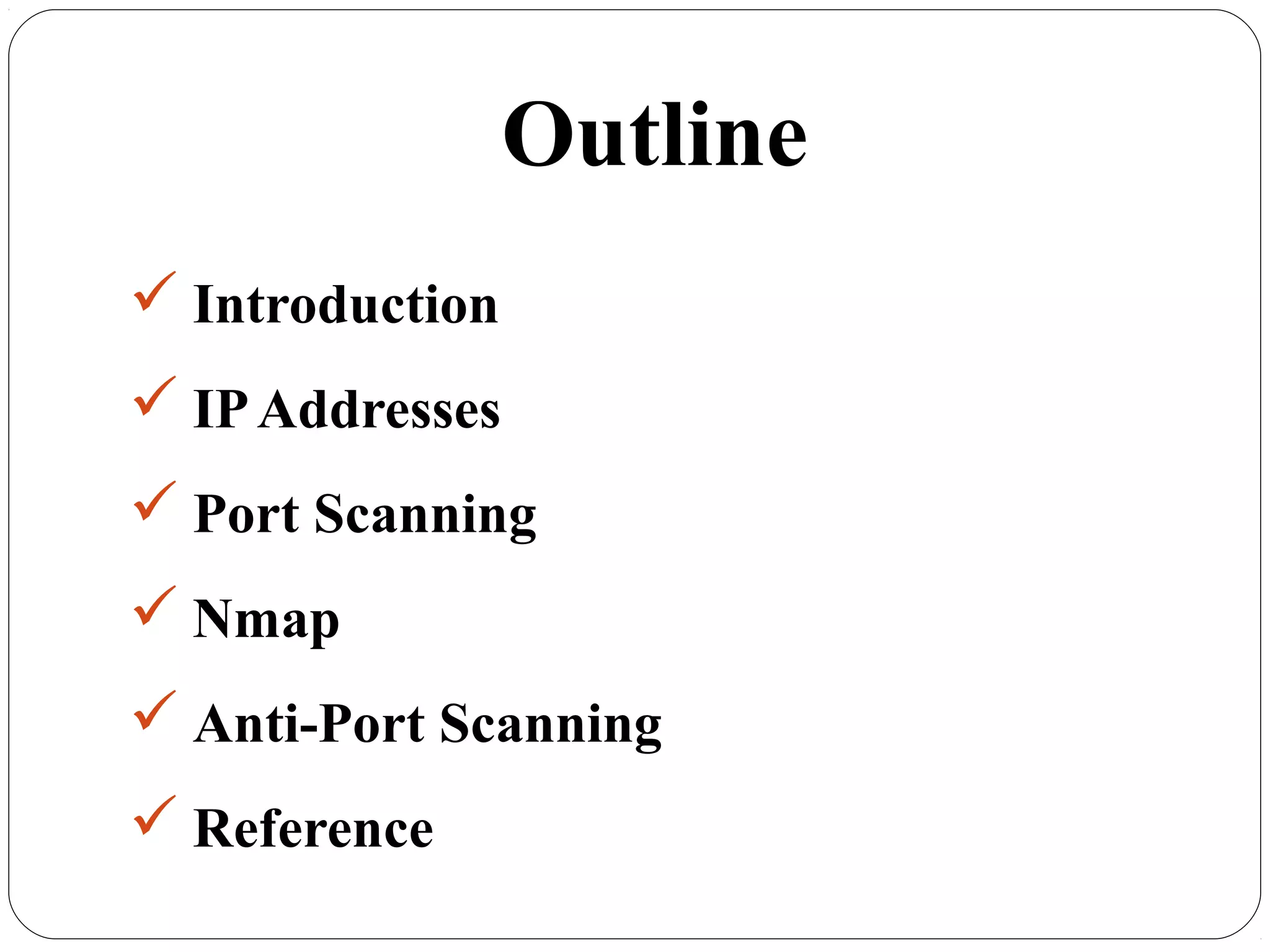

Outline  Introduction  IPAddresses  Port Scanning  Nmap  Anti-Port Scanning  Reference

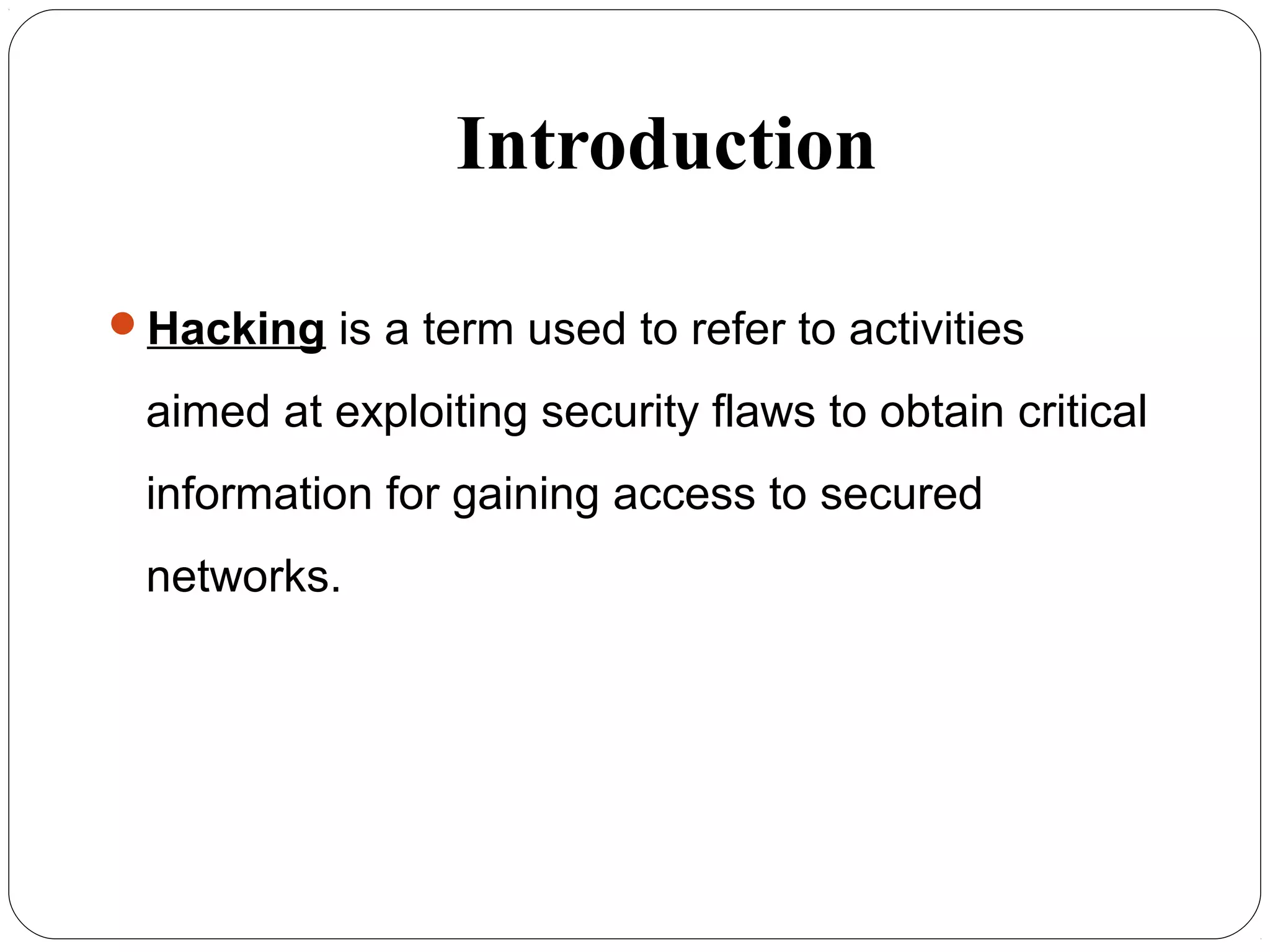

Introduction Hacking is a term used to refer to activities aimed at exploiting security flaws to obtain critical information for gaining access to secured networks.

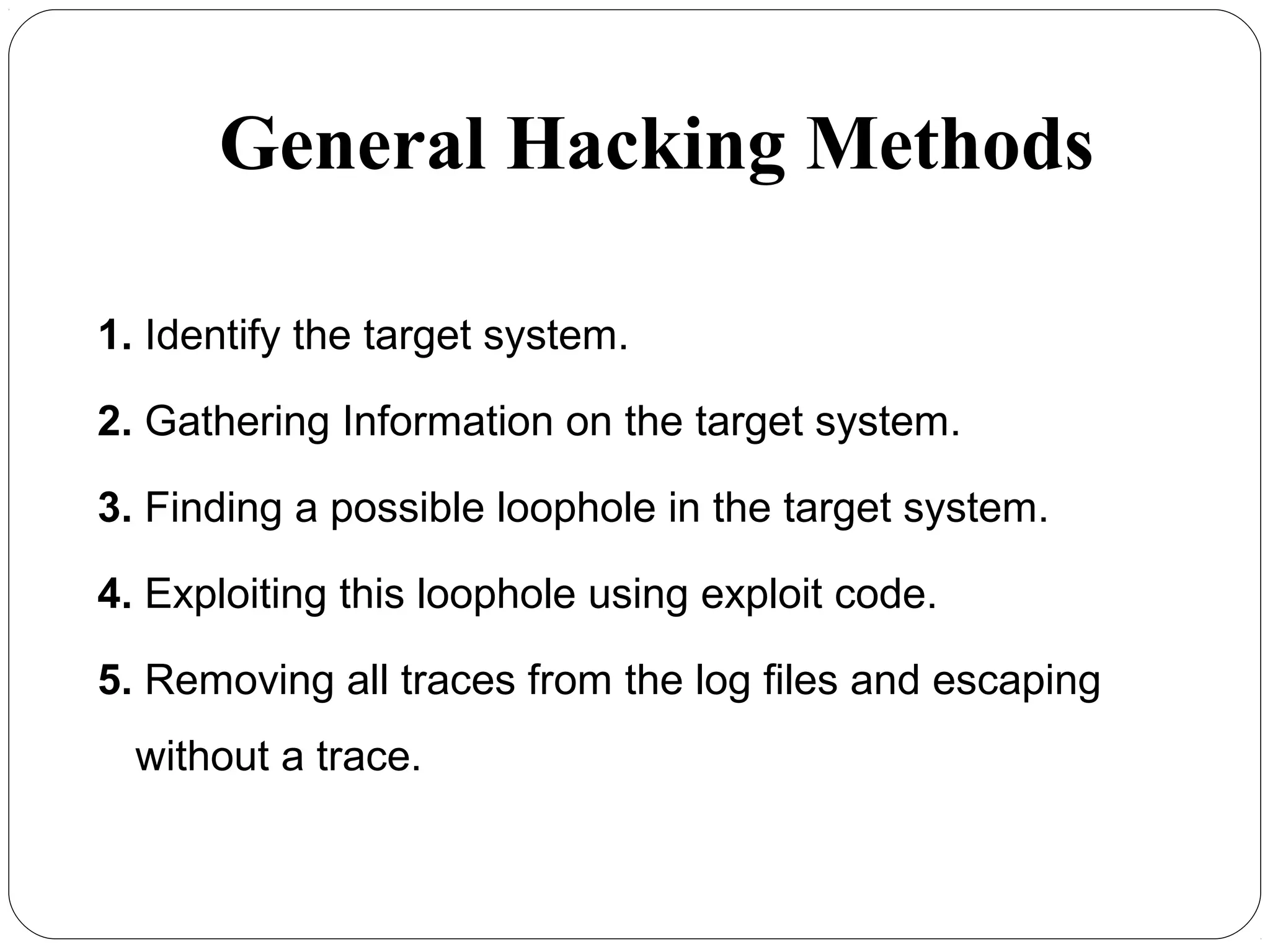

General Hacking Methods 1. Identify the target system. 2. Gathering Information on the target system. 3. Finding a possible loophole in the target system. 4. Exploiting this loophole using exploit code. 5. Removing all traces from the log files and escaping without a trace.

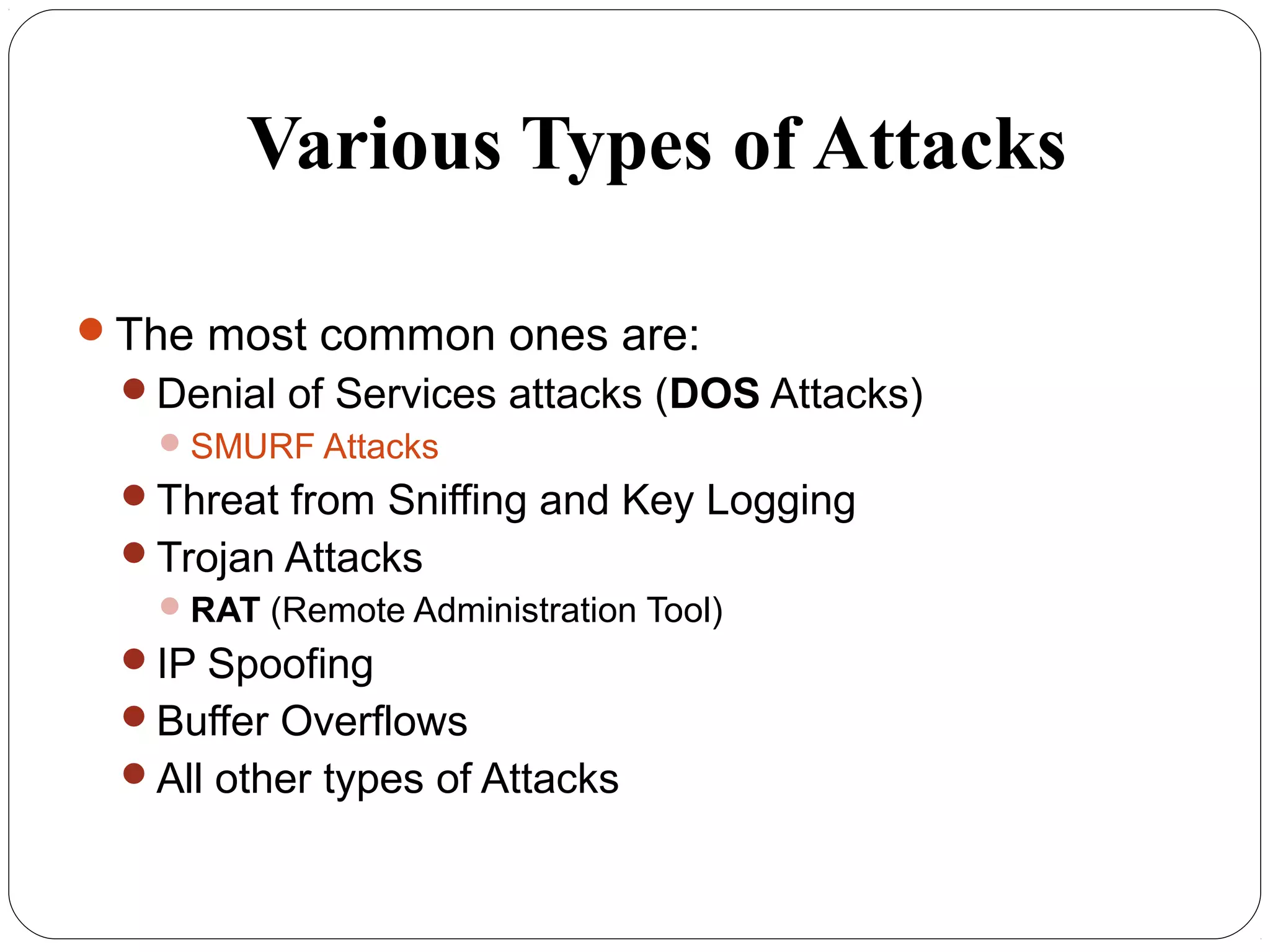

Various Types of Attacks The most common ones are: Denial of Services attacks (DOS Attacks) SMURF Attacks Threat from Sniffing and Key Logging Trojan Attacks RAT (Remote Administration Tool) IP Spoofing Buffer Overflows All other types of Attacks

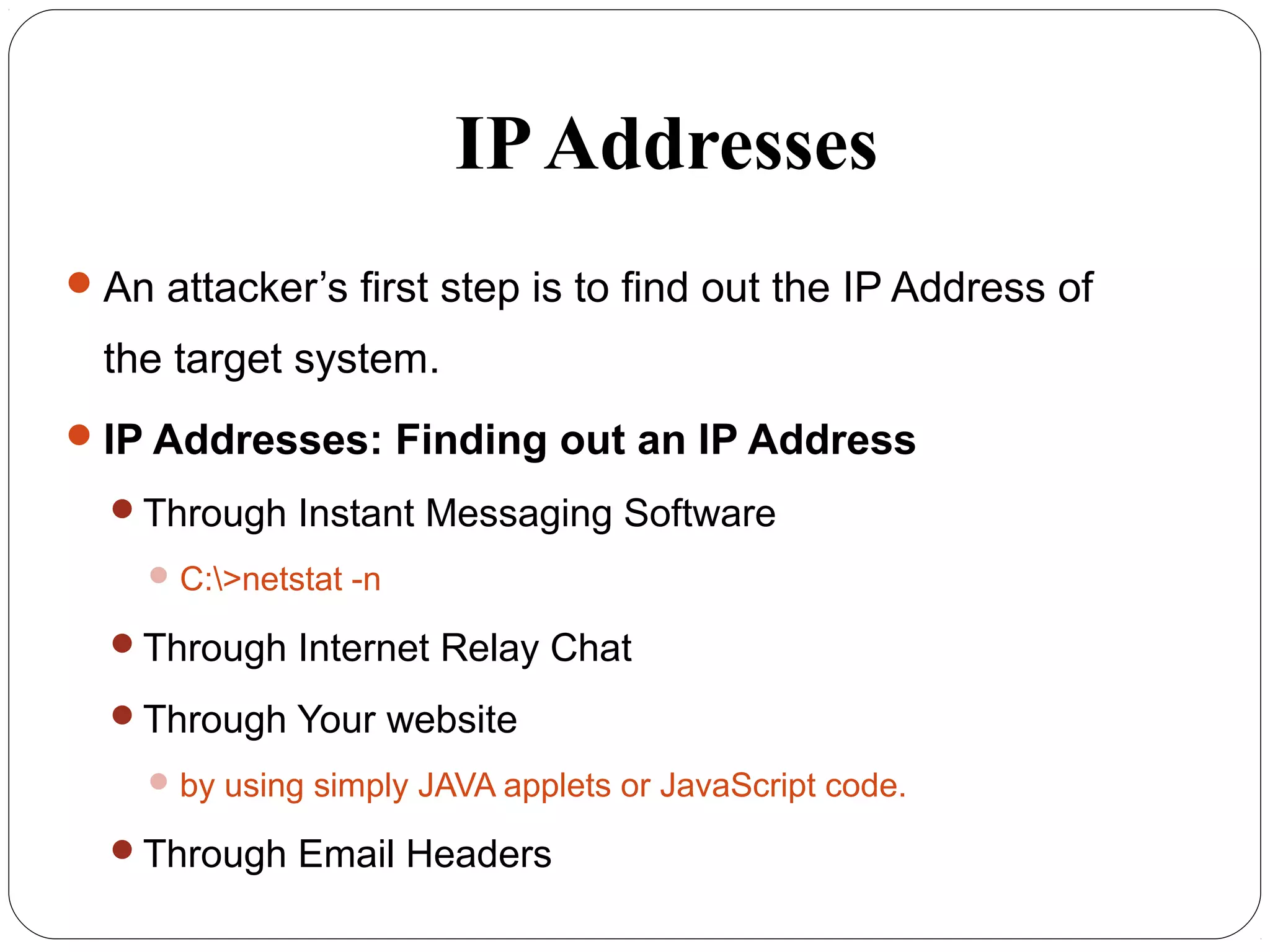

IPAddresses An attacker’s first step is to find out the IP Address of the target system. IP Addresses: Finding out an IP Address Through Instant Messaging Software C:>netstat -n Through Internet Relay Chat Through Your website by using simply JAVA applets or JavaScript code. Through Email Headers

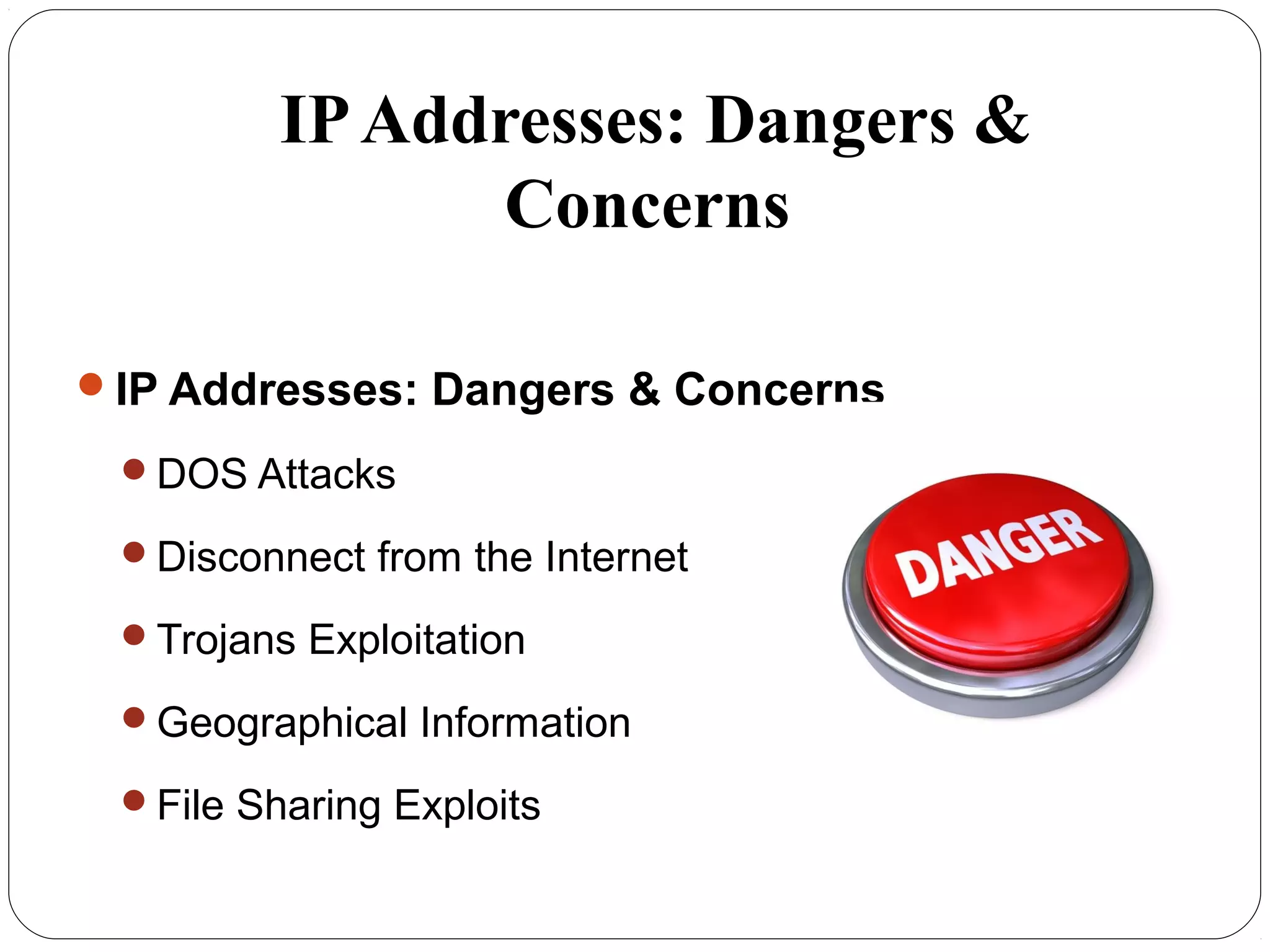

IPAddresses: Dangers & Concerns IP Addresses: Dangers & Concerns DOS Attacks Disconnect from the Internet Trojans Exploitation Geographical Information File Sharing Exploits

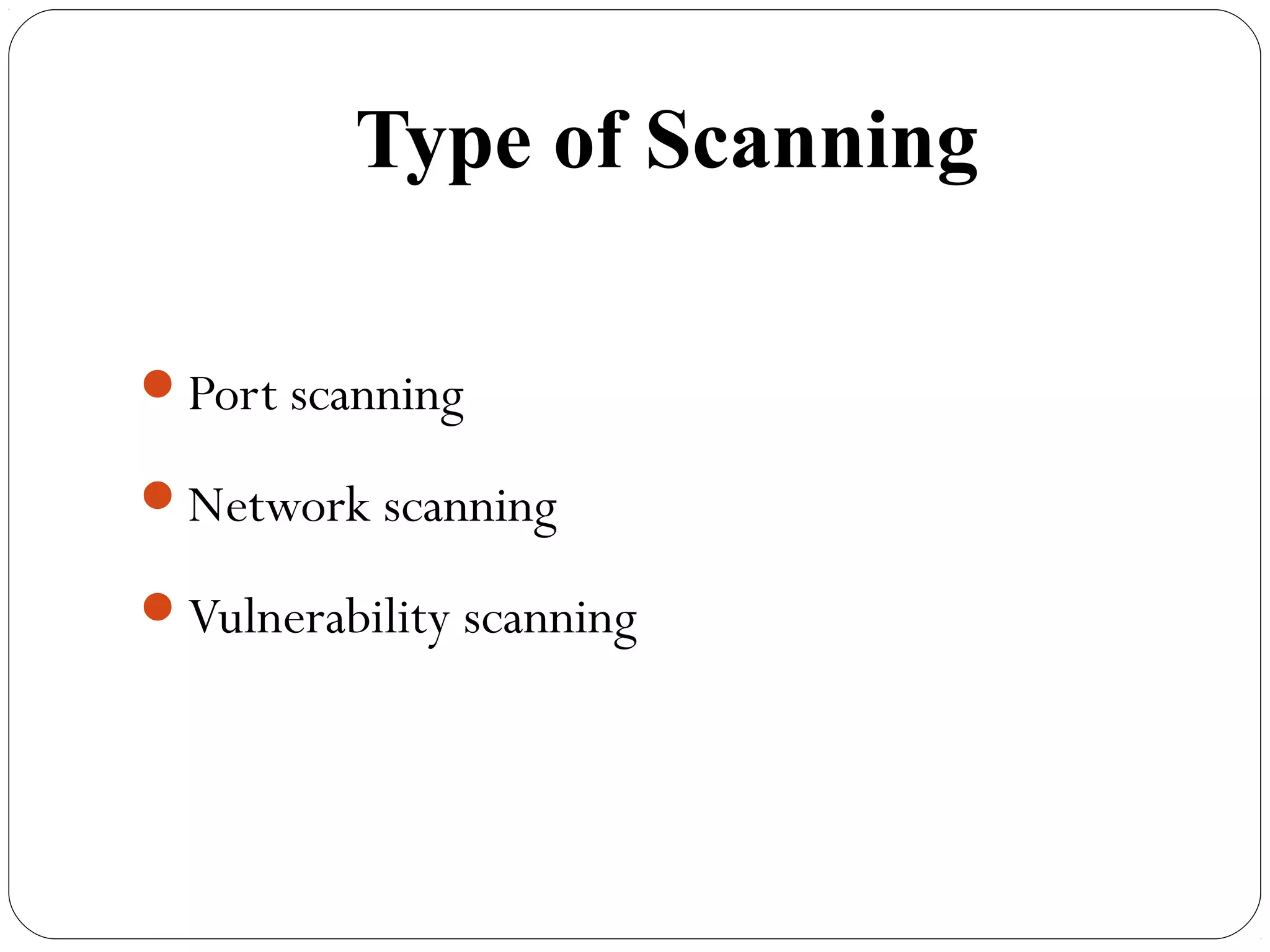

Type of Scanning Port scanning Network scanning Vulnerability scanning

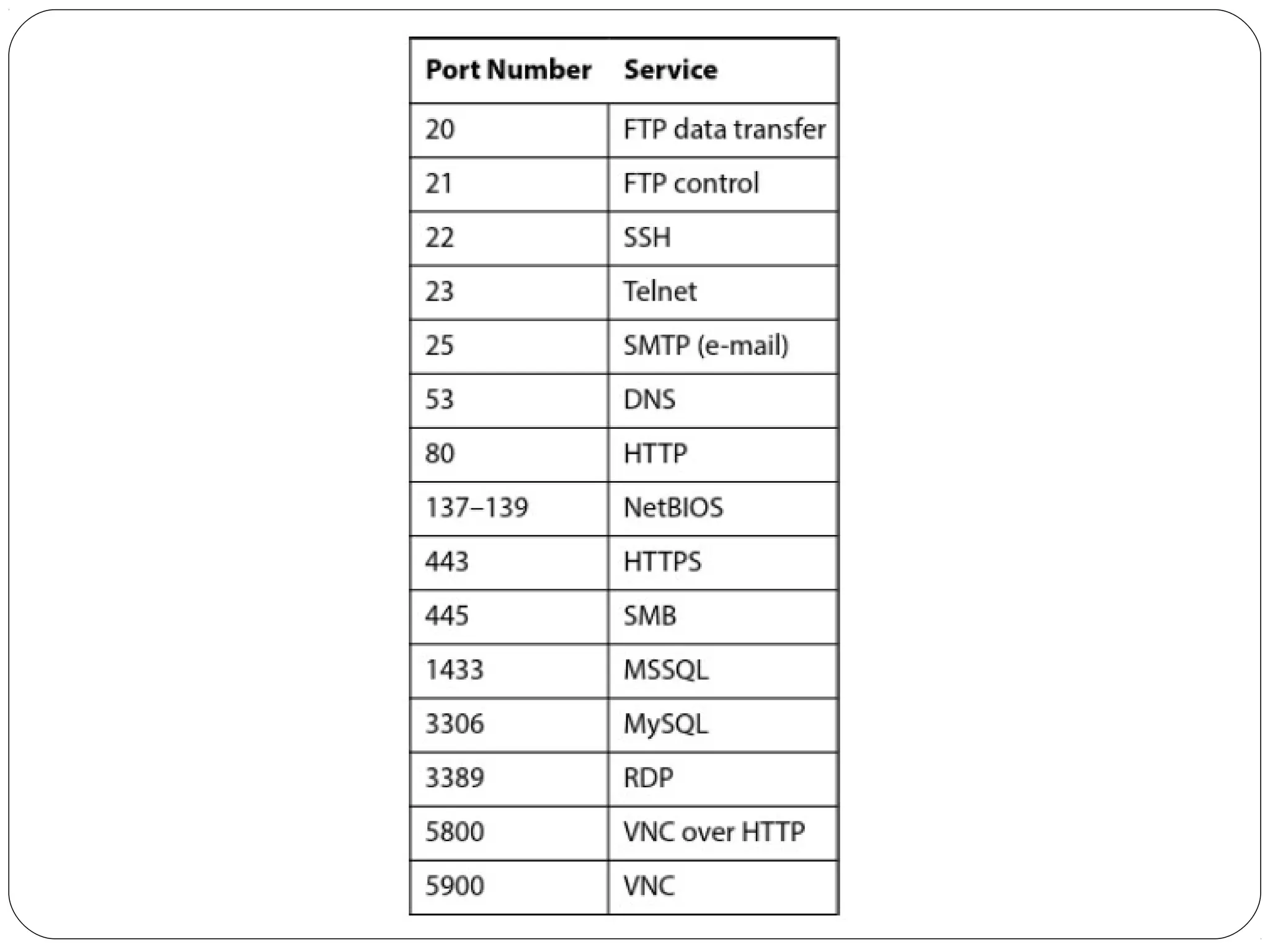

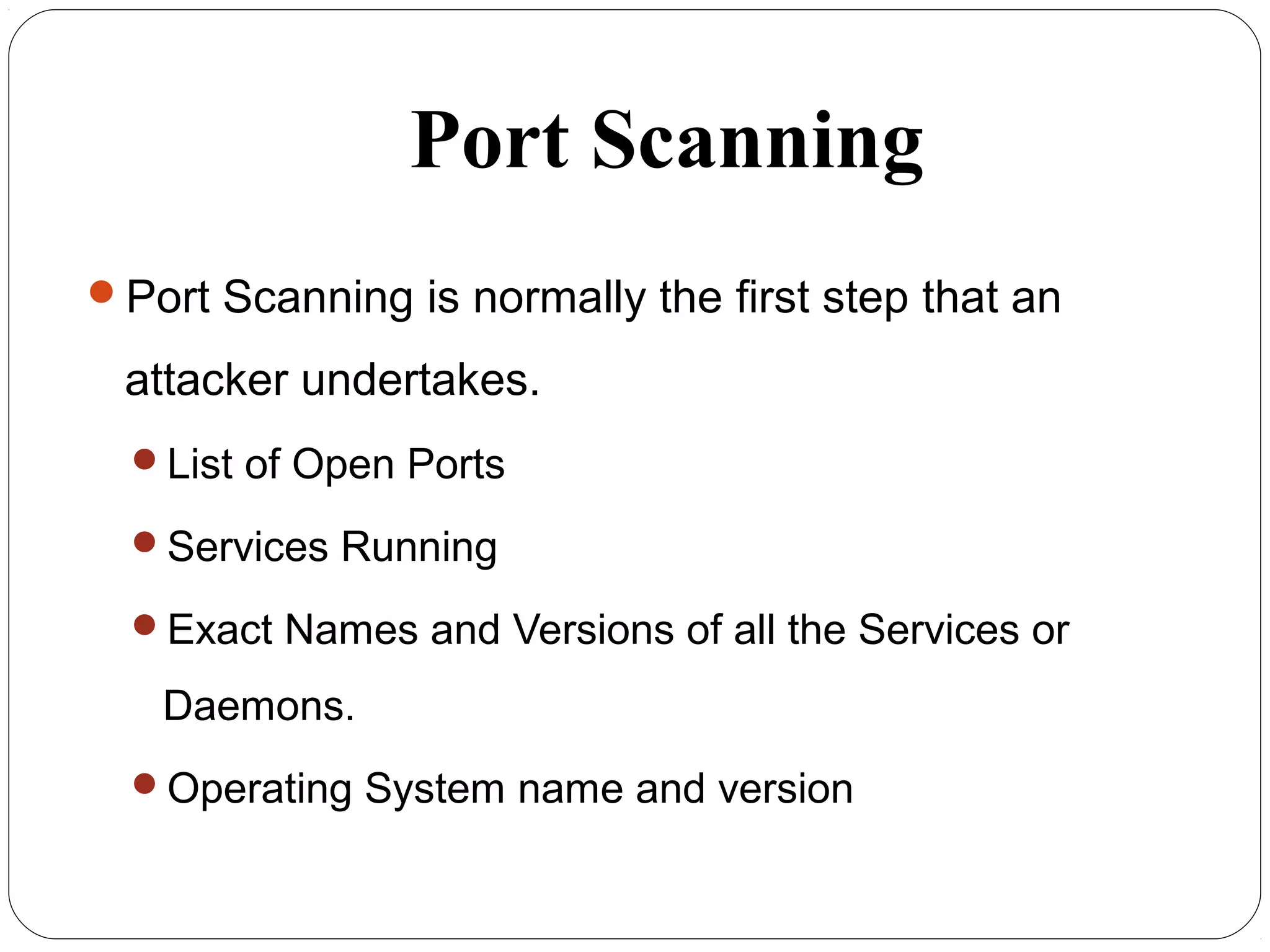

Port Scanning Port Scanning is normally the first step that an attacker undertakes. List of Open Ports Services Running Exact Names and Versions of all the Services or Daemons. Operating System name and version

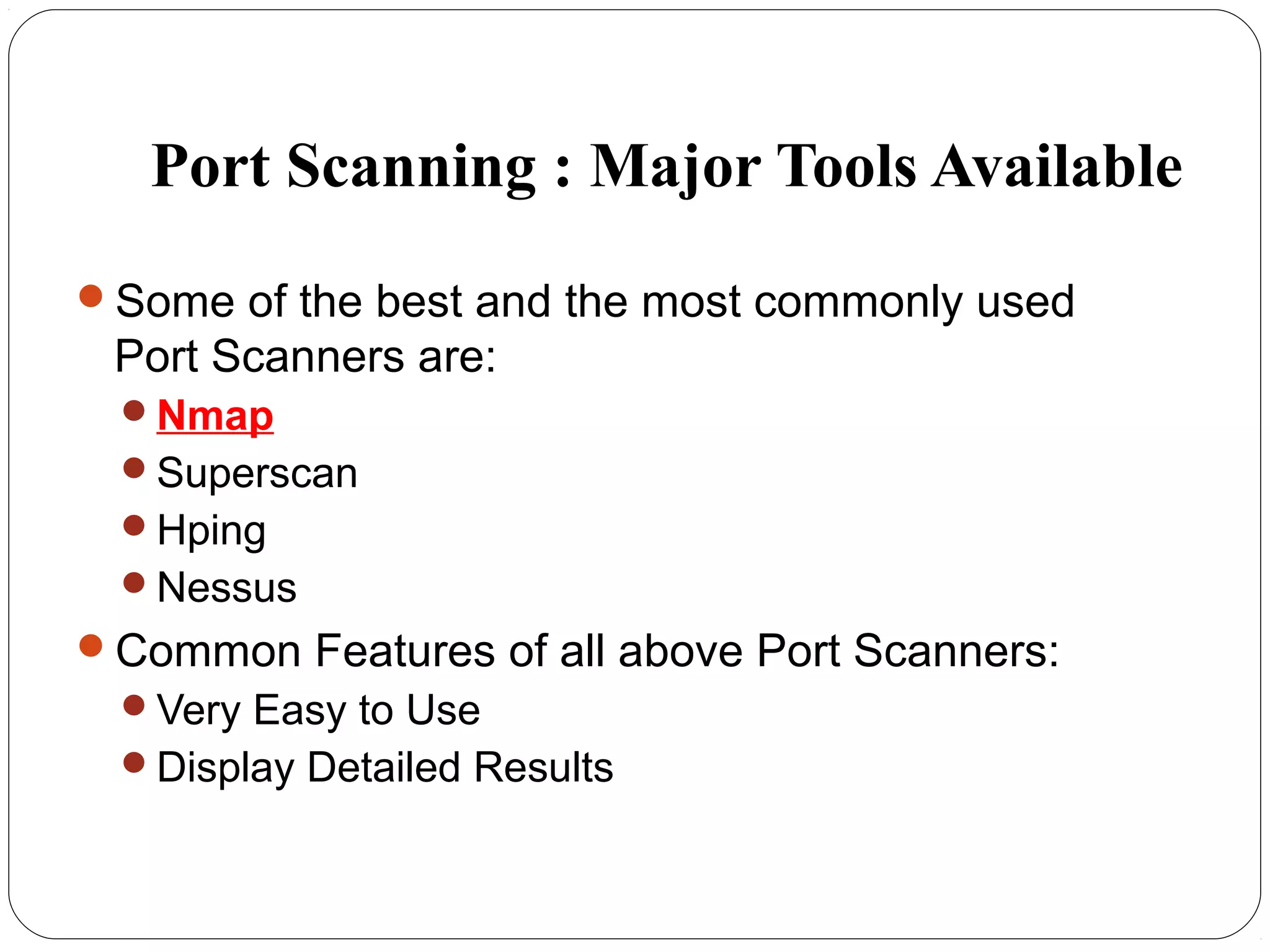

Port Scanning : Major Tools Available Some of the best and the most commonly used Port Scanners are: Nmap Superscan Hping Nessus Common Features of all above Port Scanners: Very Easy to Use Display Detailed Results
Nmap

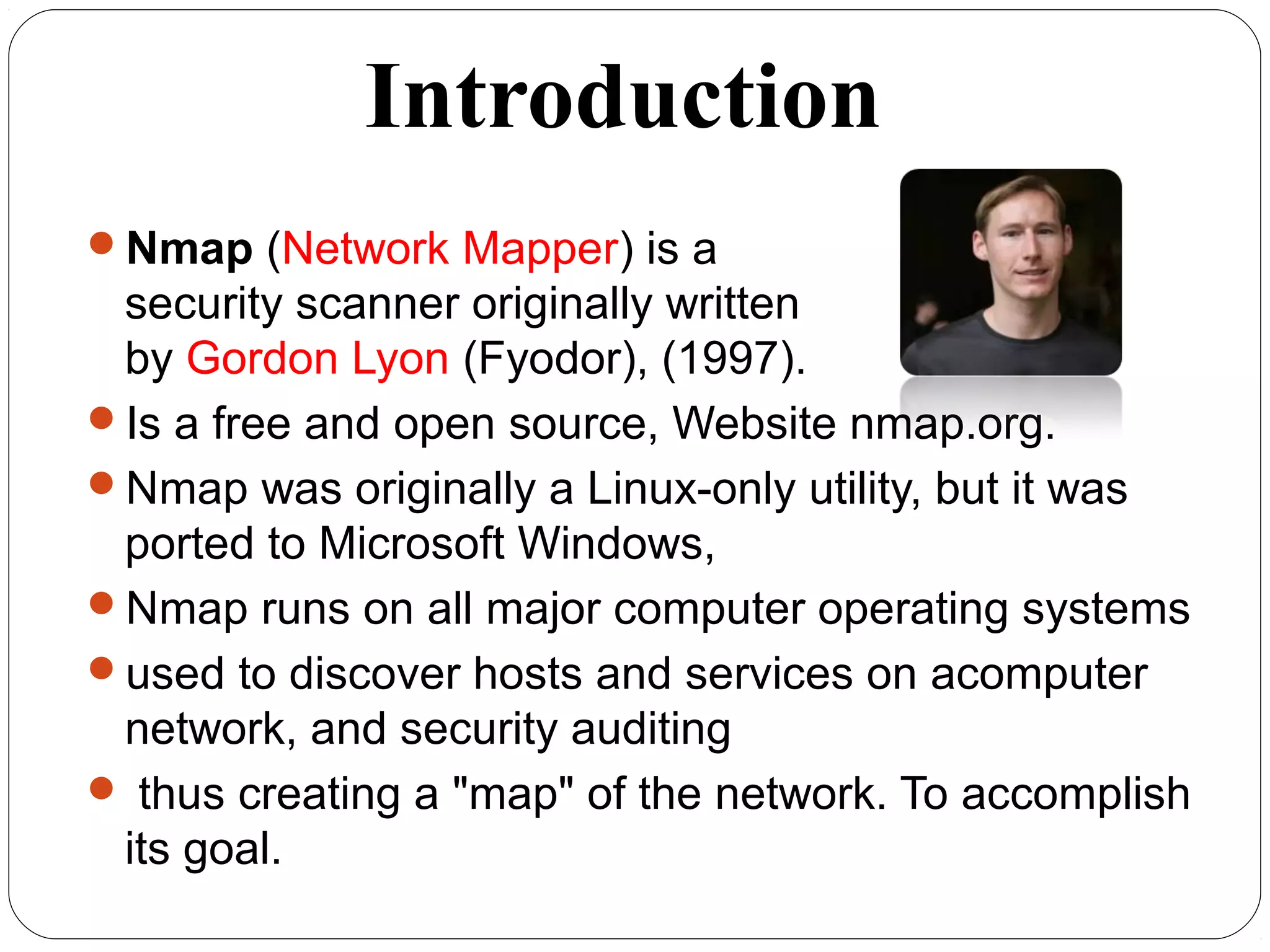

Introduction Nmap (Network Mapper) is a security scanner originally written by Gordon Lyon (Fyodor), (1997). Is a free and open source, Website nmap.org. Nmap was originally a Linux-only utility, but it was ported to Microsoft Windows, Nmap runs on all major computer operating systems used to discover hosts and services on acomputer network, and security auditing  thus creating a "map" of the network. To accomplish its goal.

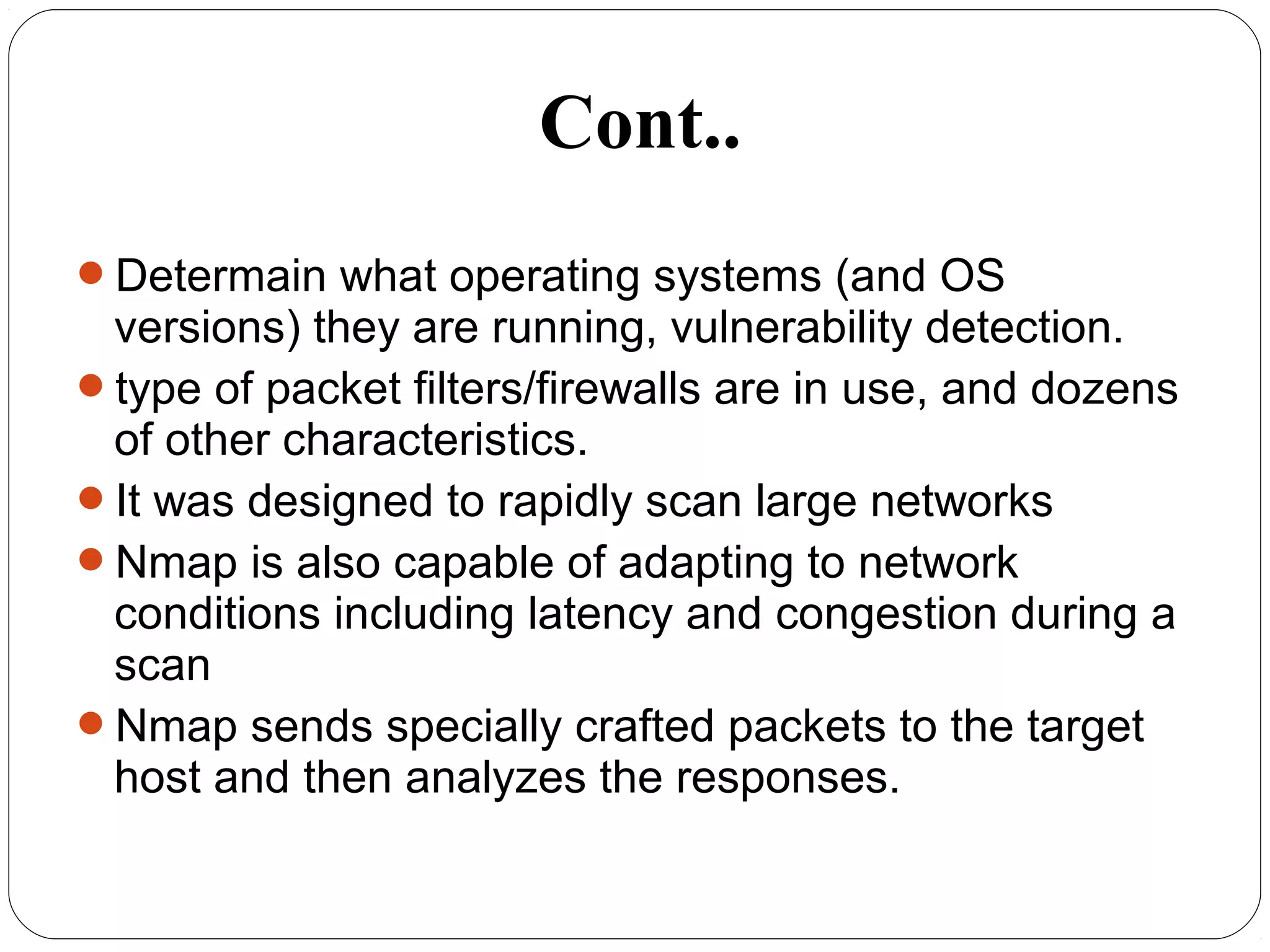

Determain what operating systems (and OS versions) they are running, vulnerability detection. type of packet filters/firewalls are in use, and dozens of other characteristics. It was designed to rapidly scan large networks Nmap is also capable of adapting to network conditions including latency and congestion during a scan Nmap sends specially crafted packets to the target host and then analyzes the responses. Cont..

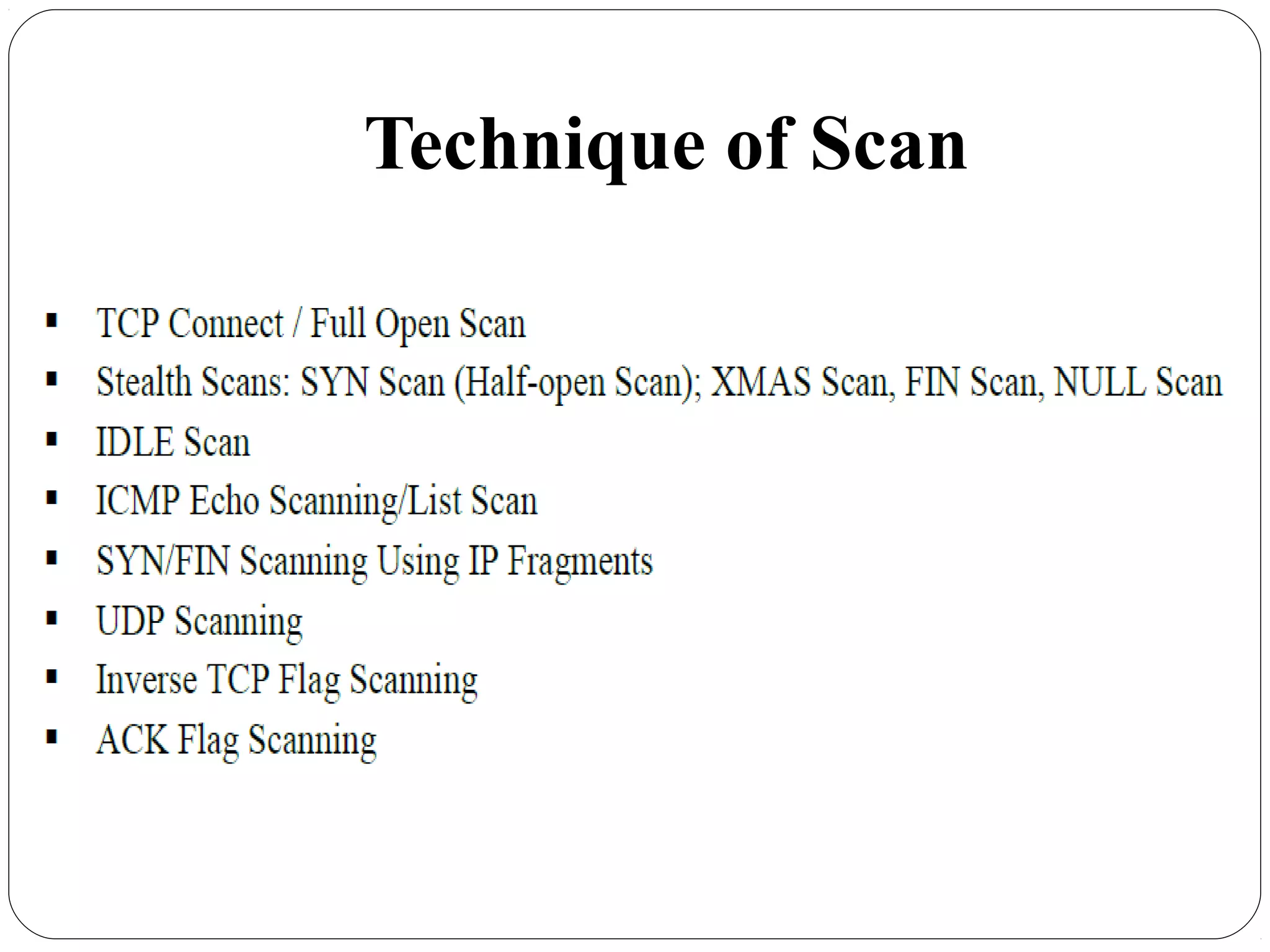

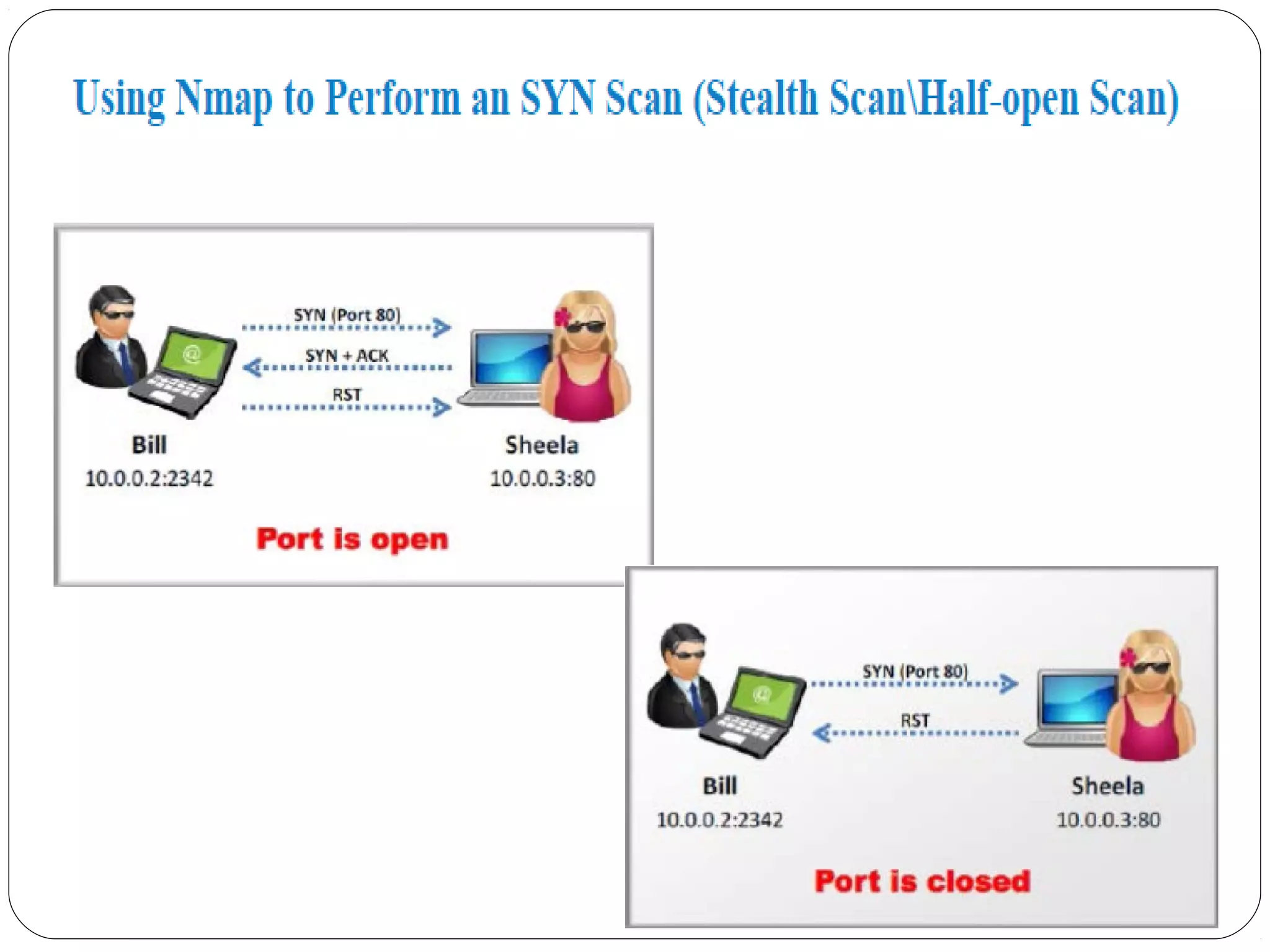

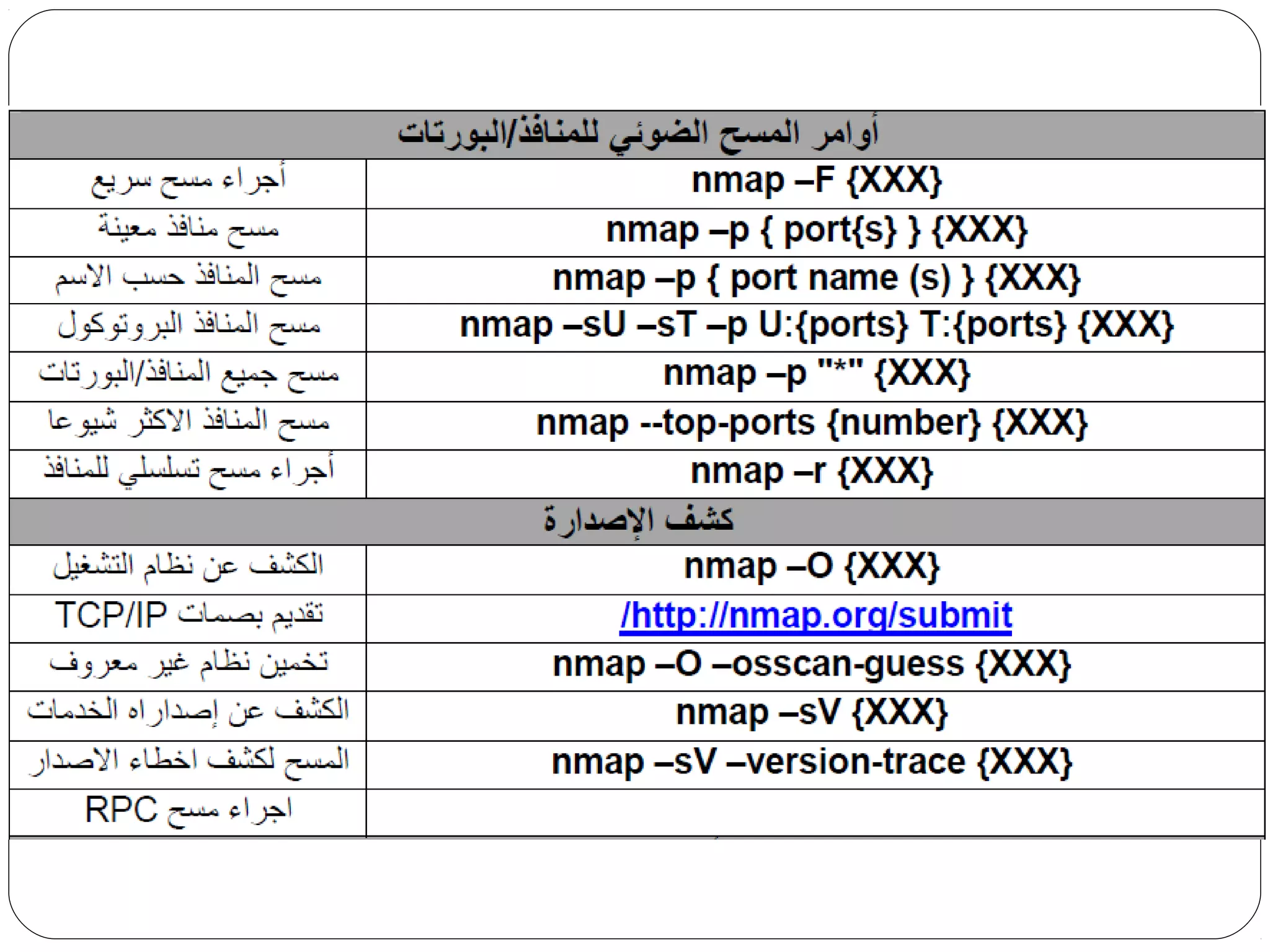

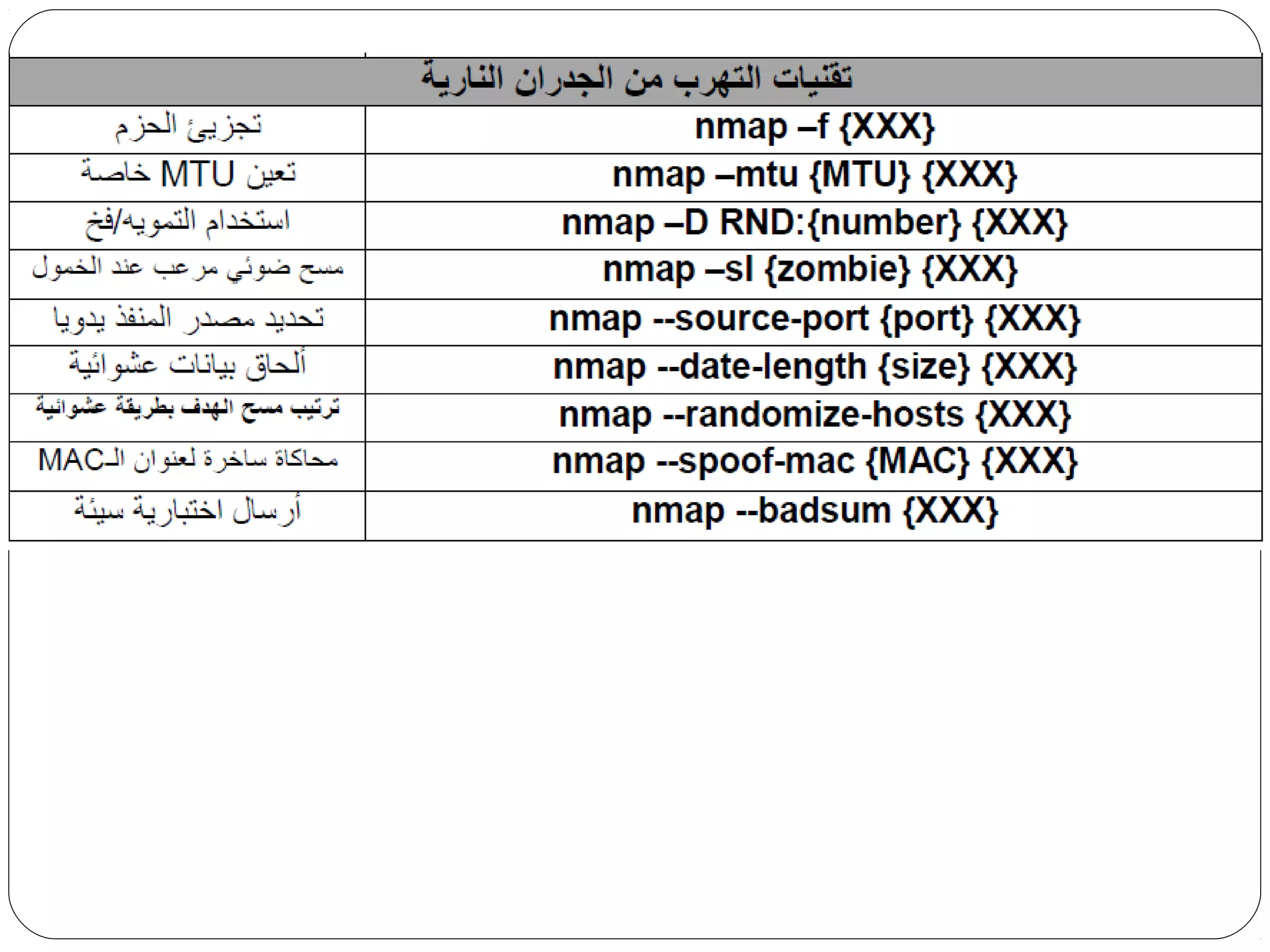

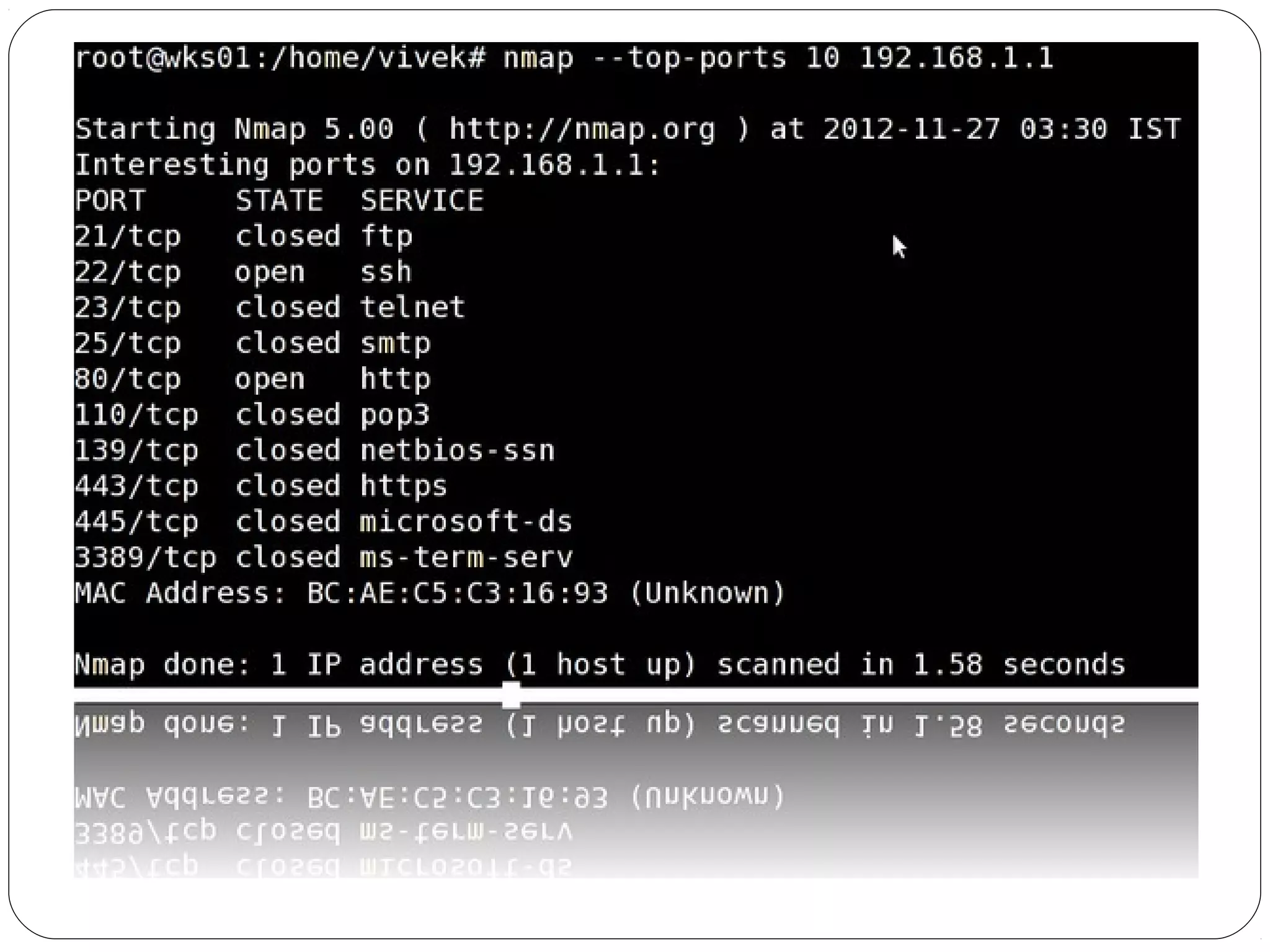

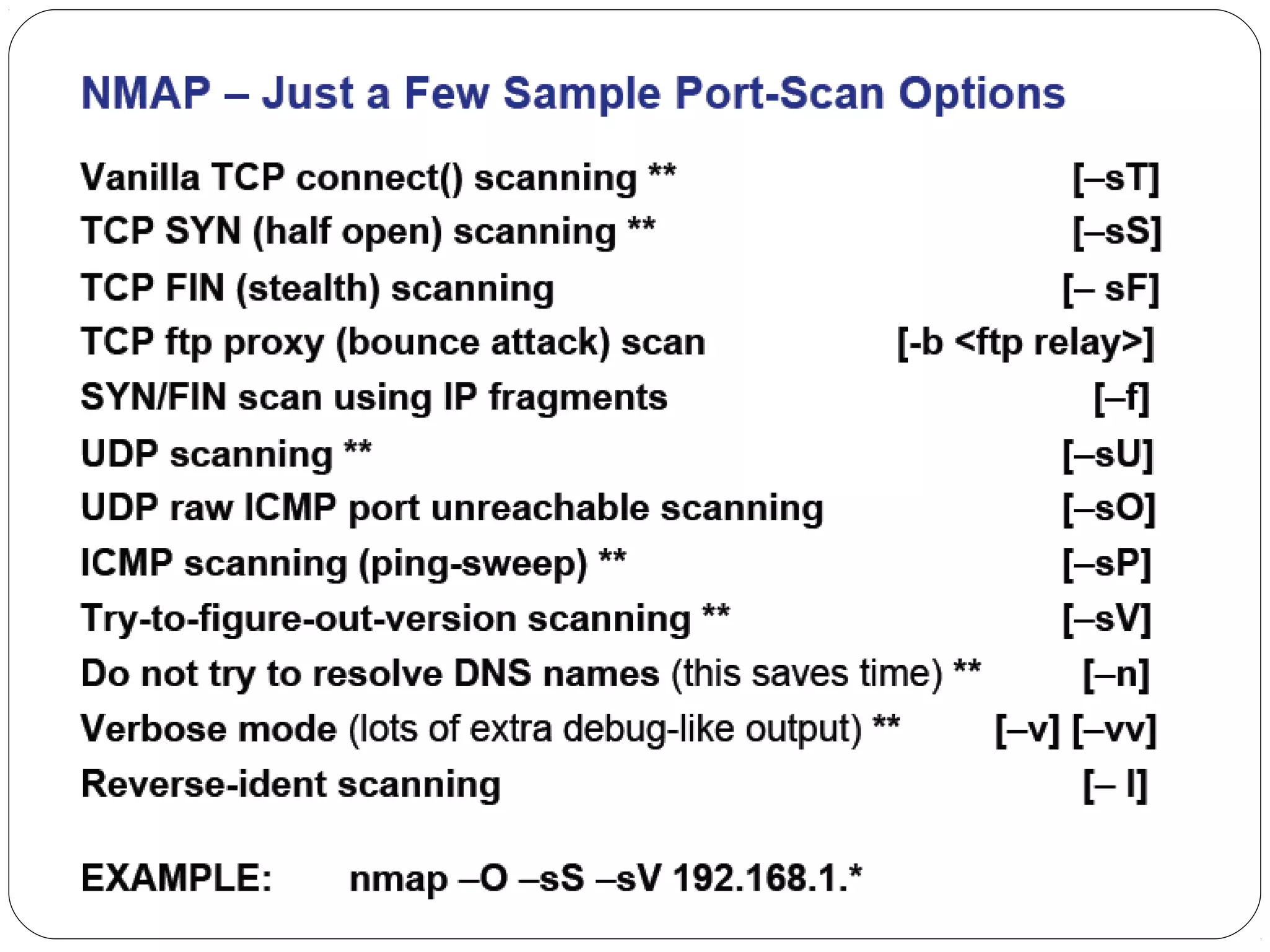

Technique of Scan

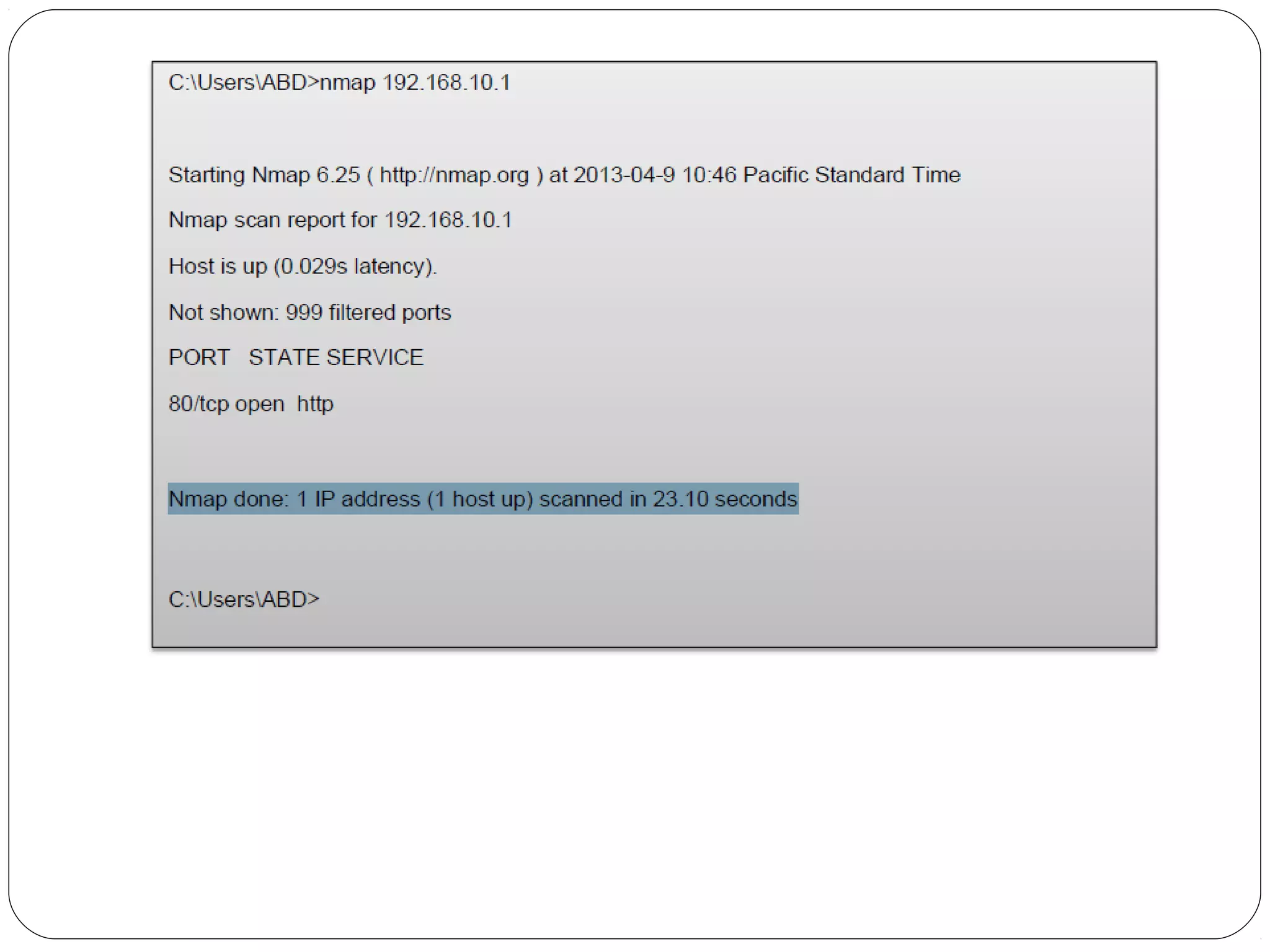

M///mm

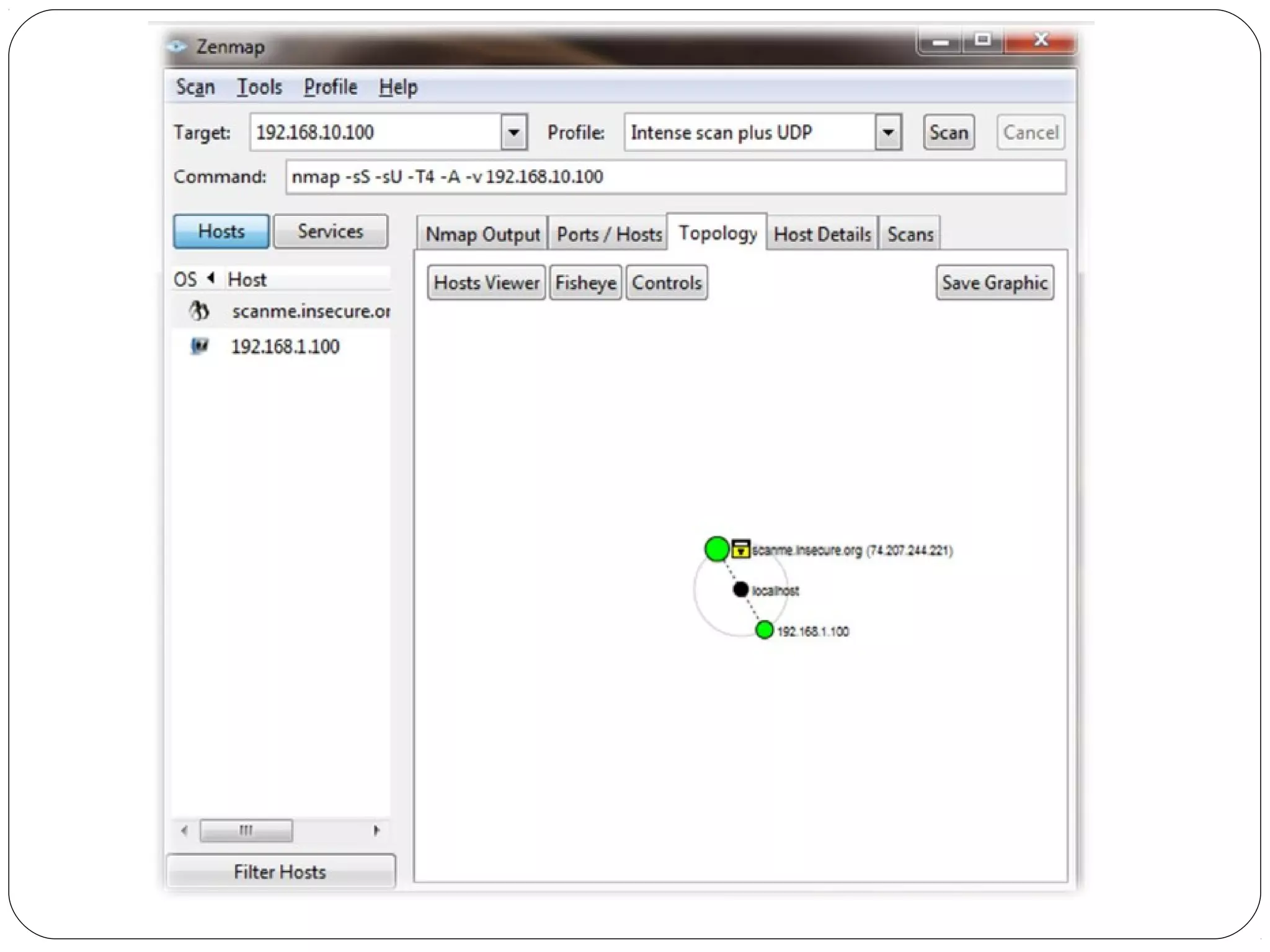

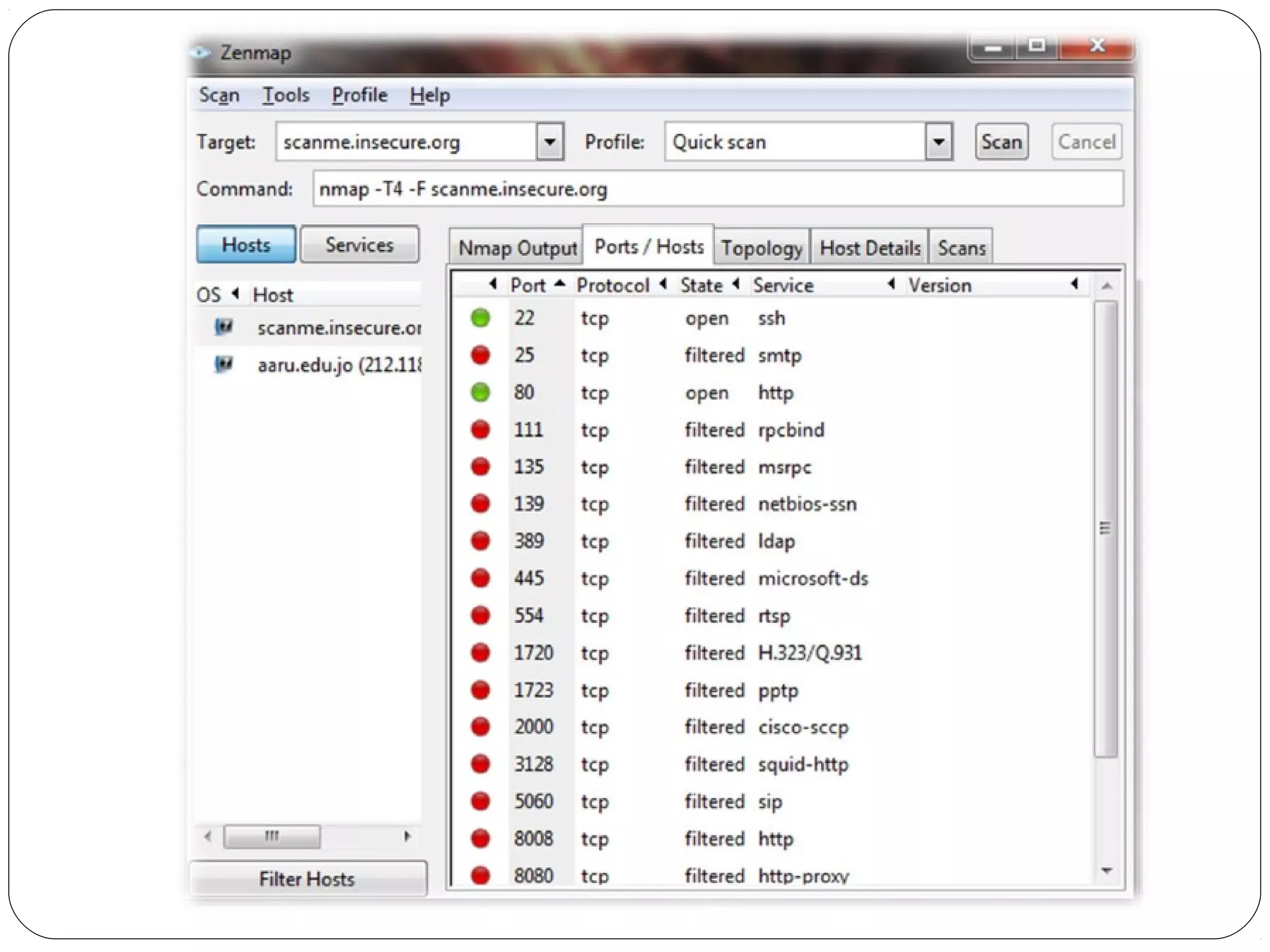

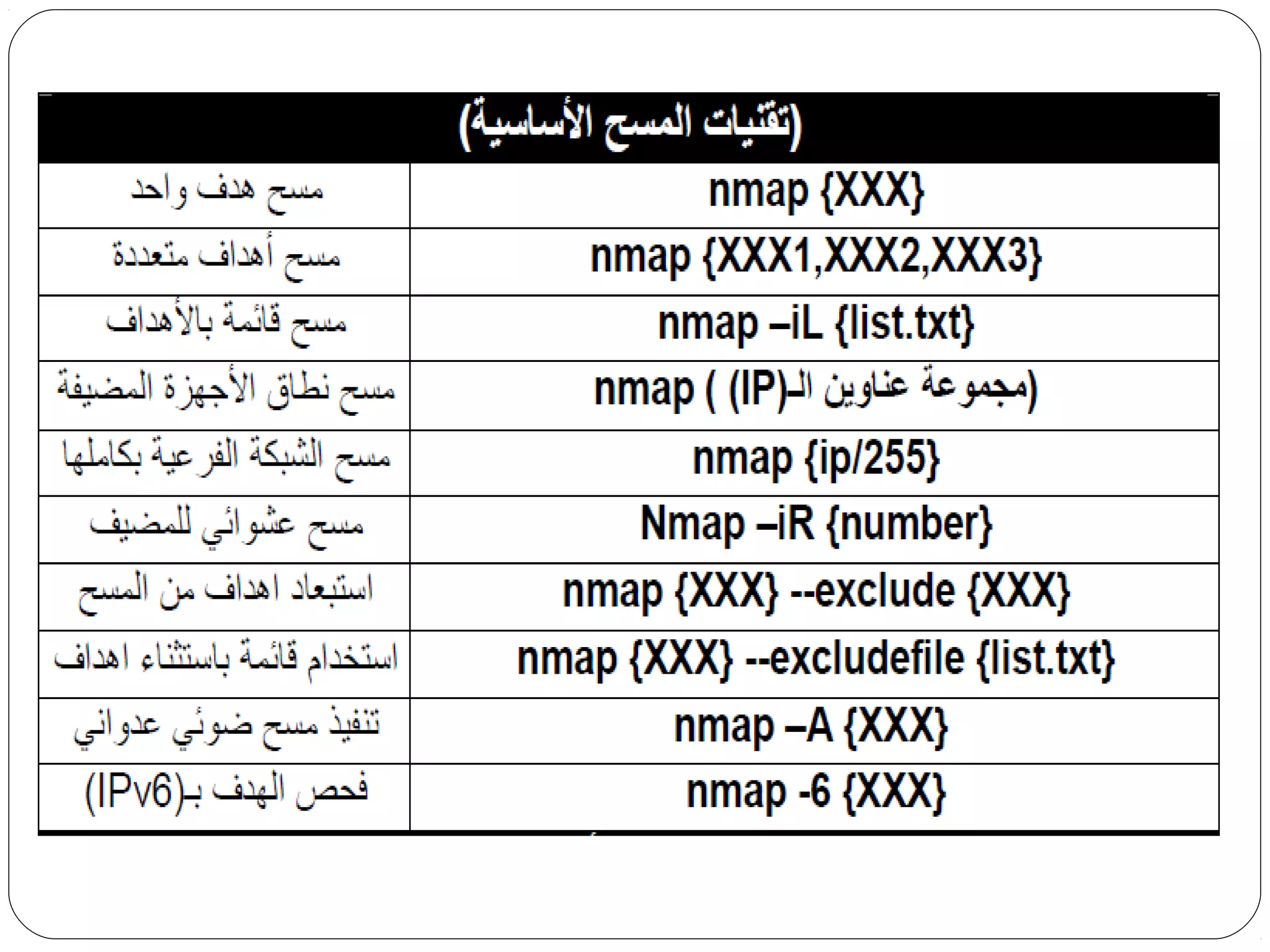

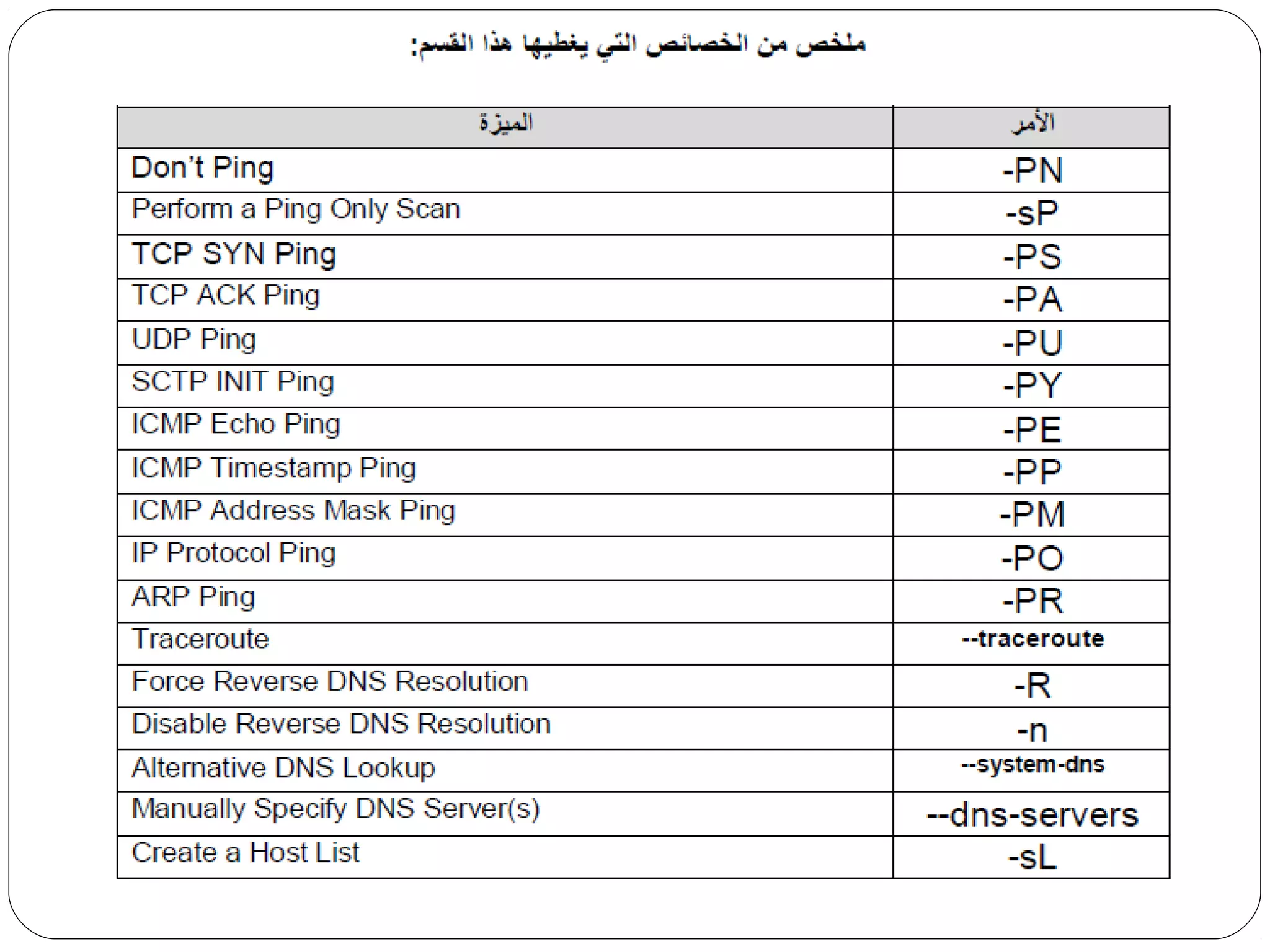

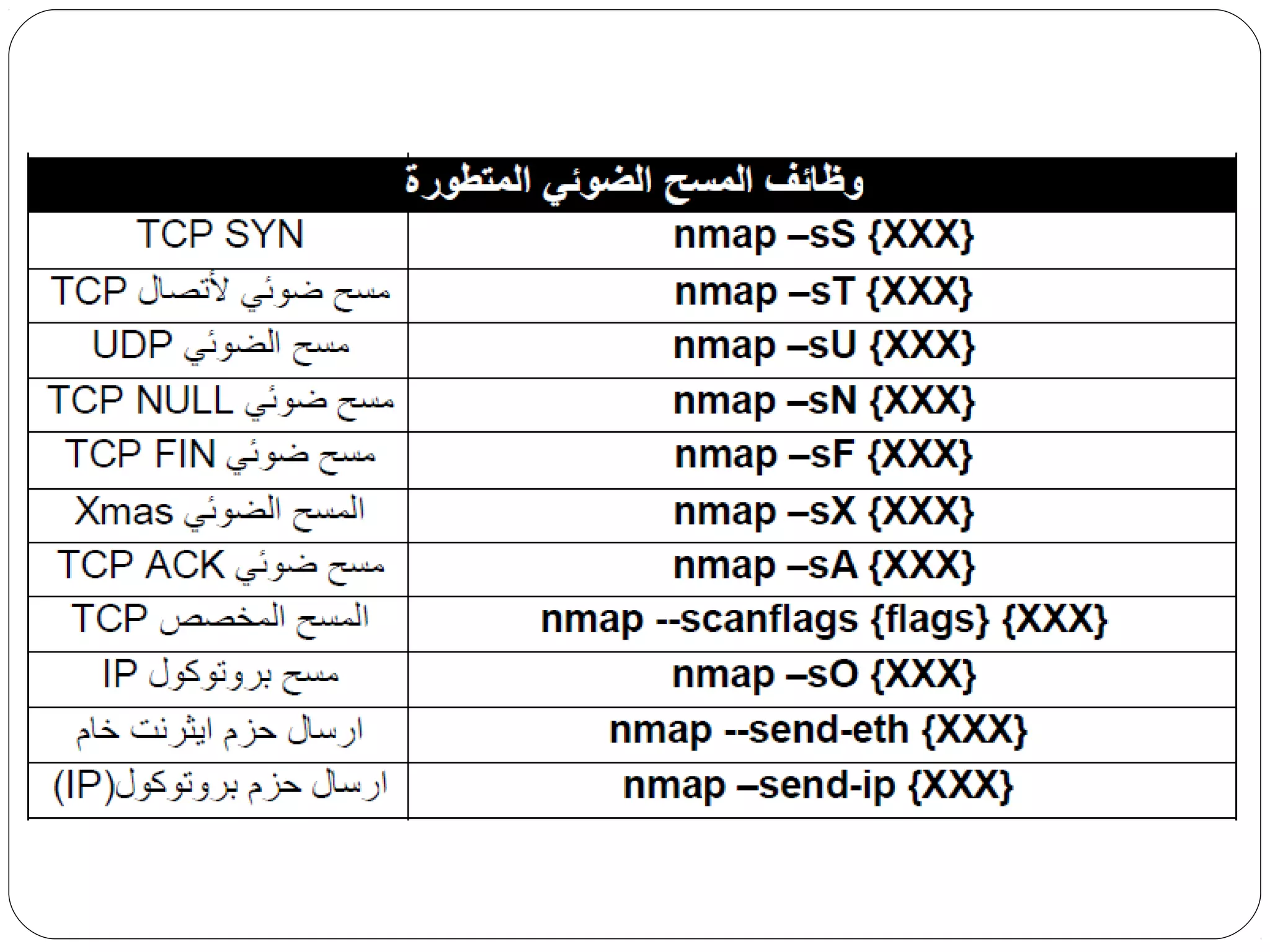

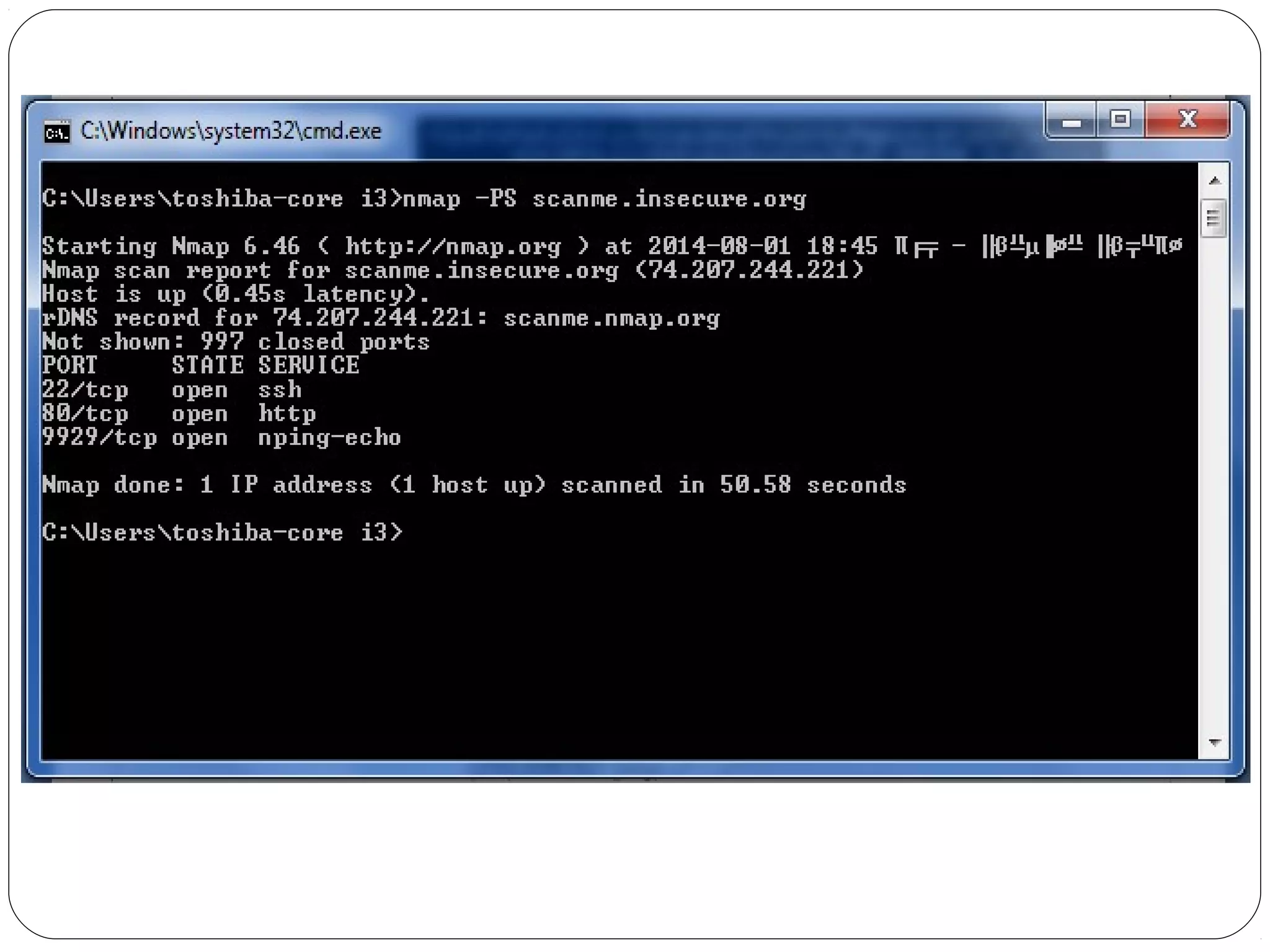

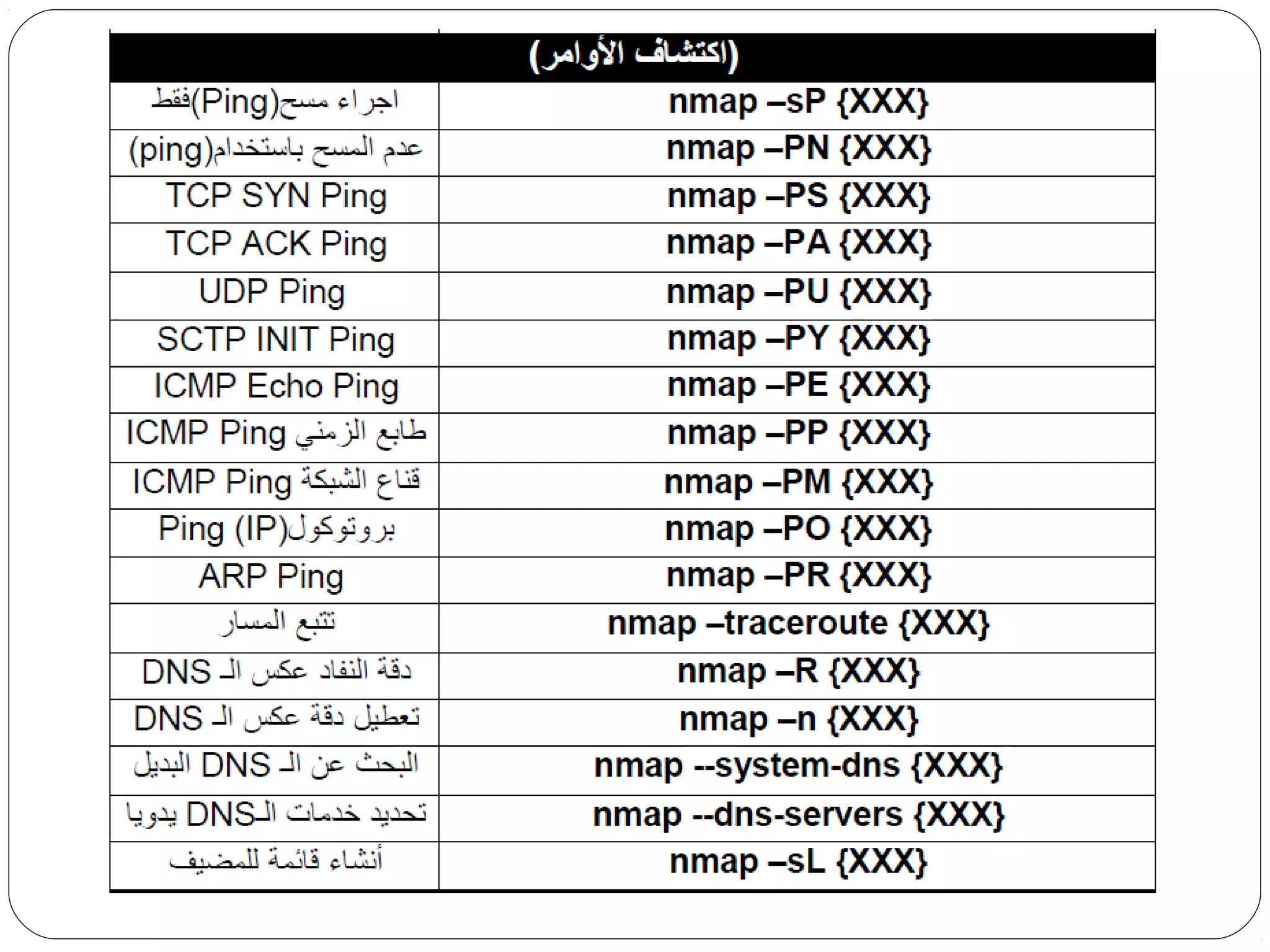

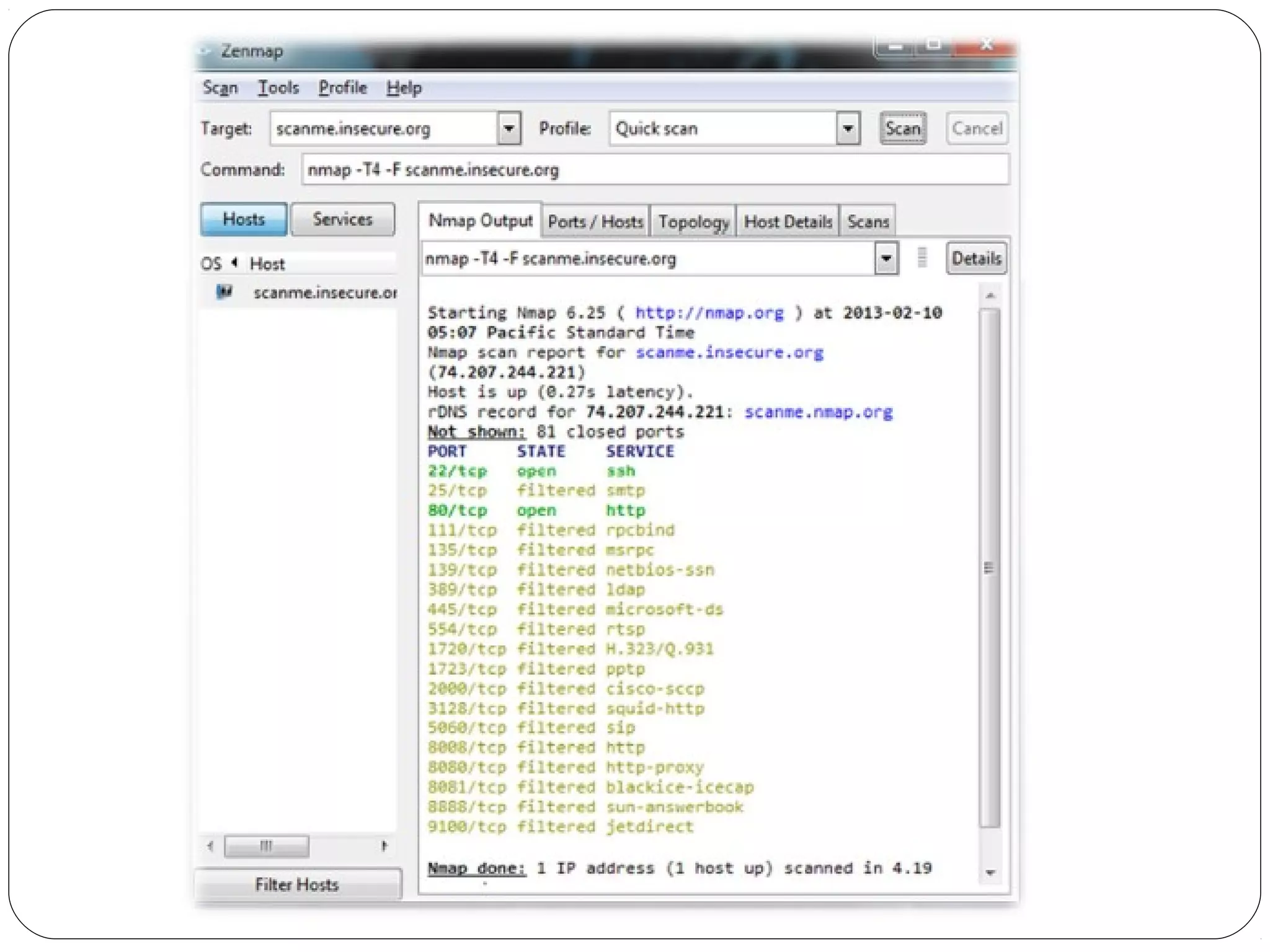

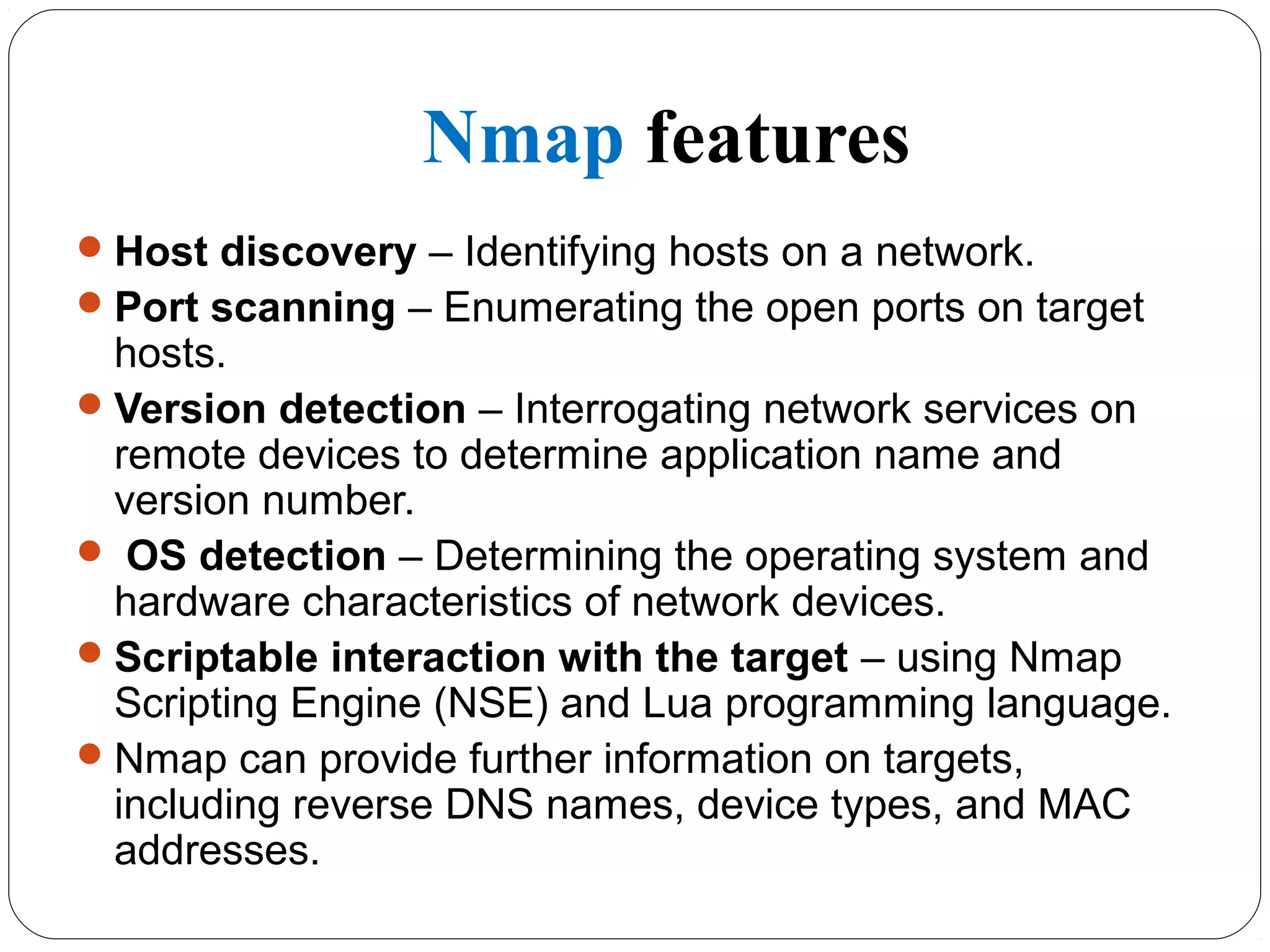

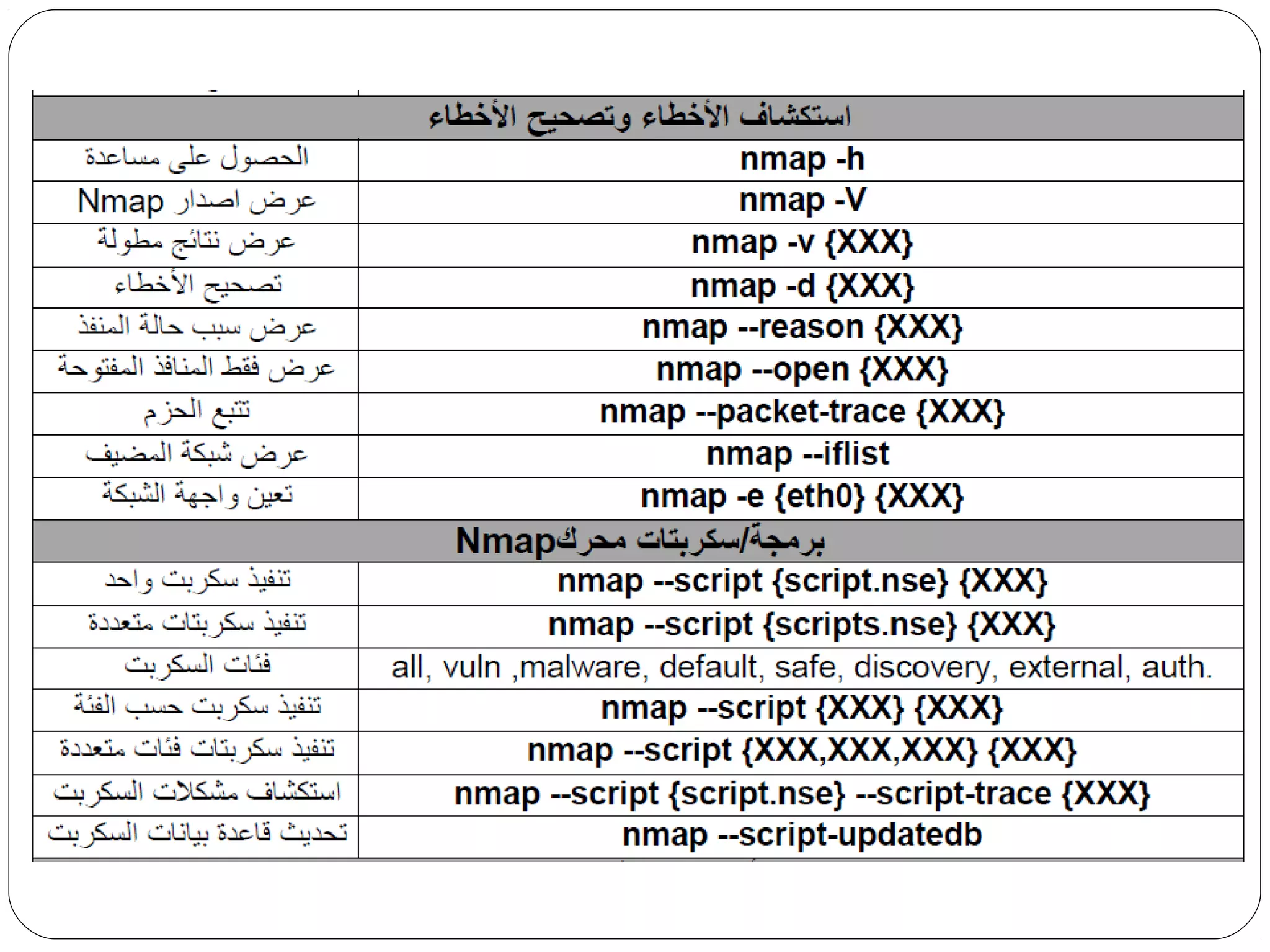

Nmap features Host discovery – Identifying hosts on a network. Port scanning – Enumerating the open ports on target hosts. Version detection – Interrogating network services on remote devices to determine application name and version number.  OS detection – Determining the operating system and hardware characteristics of network devices. Scriptable interaction with the target – using Nmap Scripting Engine (NSE) and Lua programming language. Nmap can provide further information on targets, including reverse DNS names, device types, and MAC addresses.

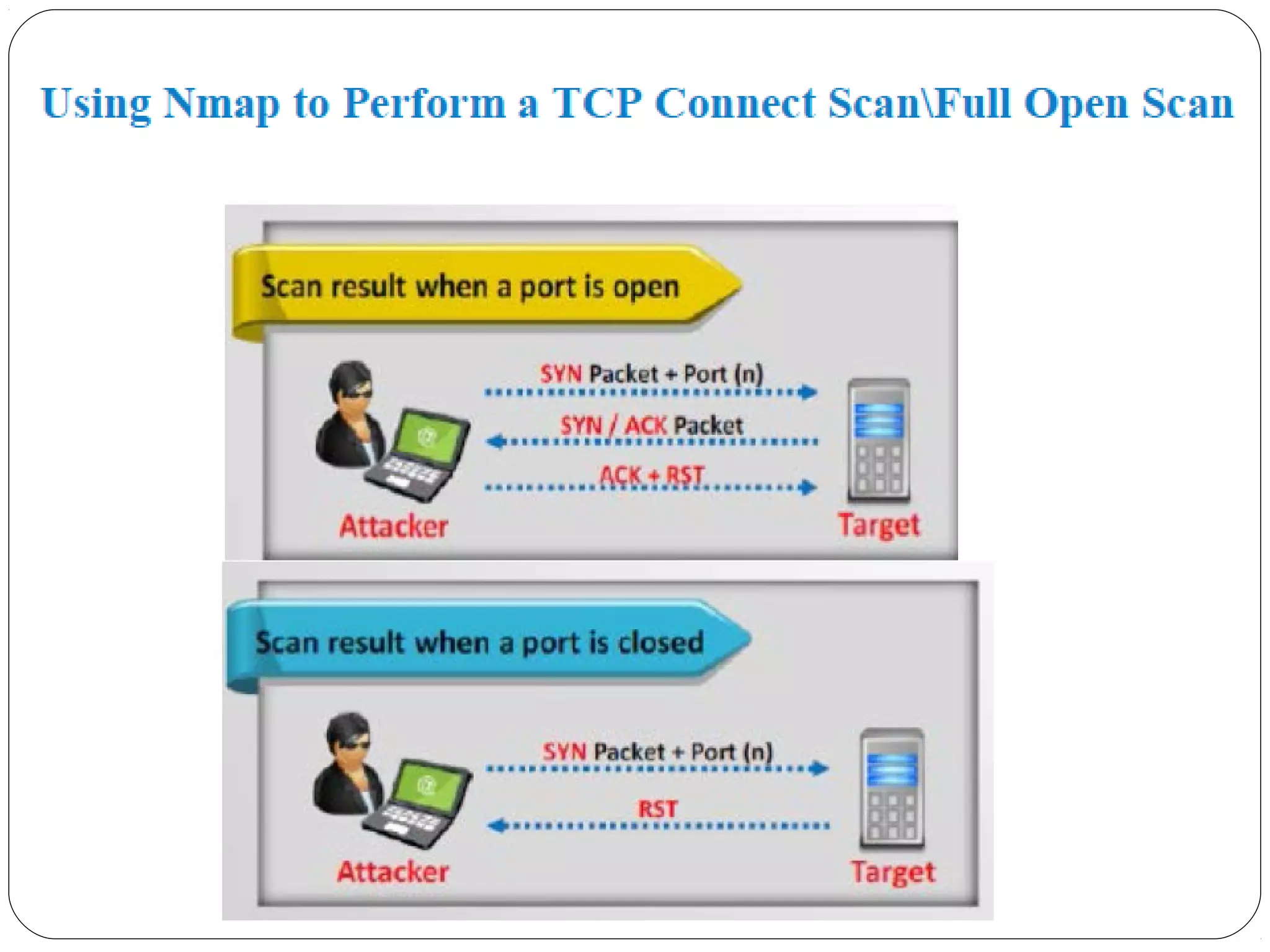

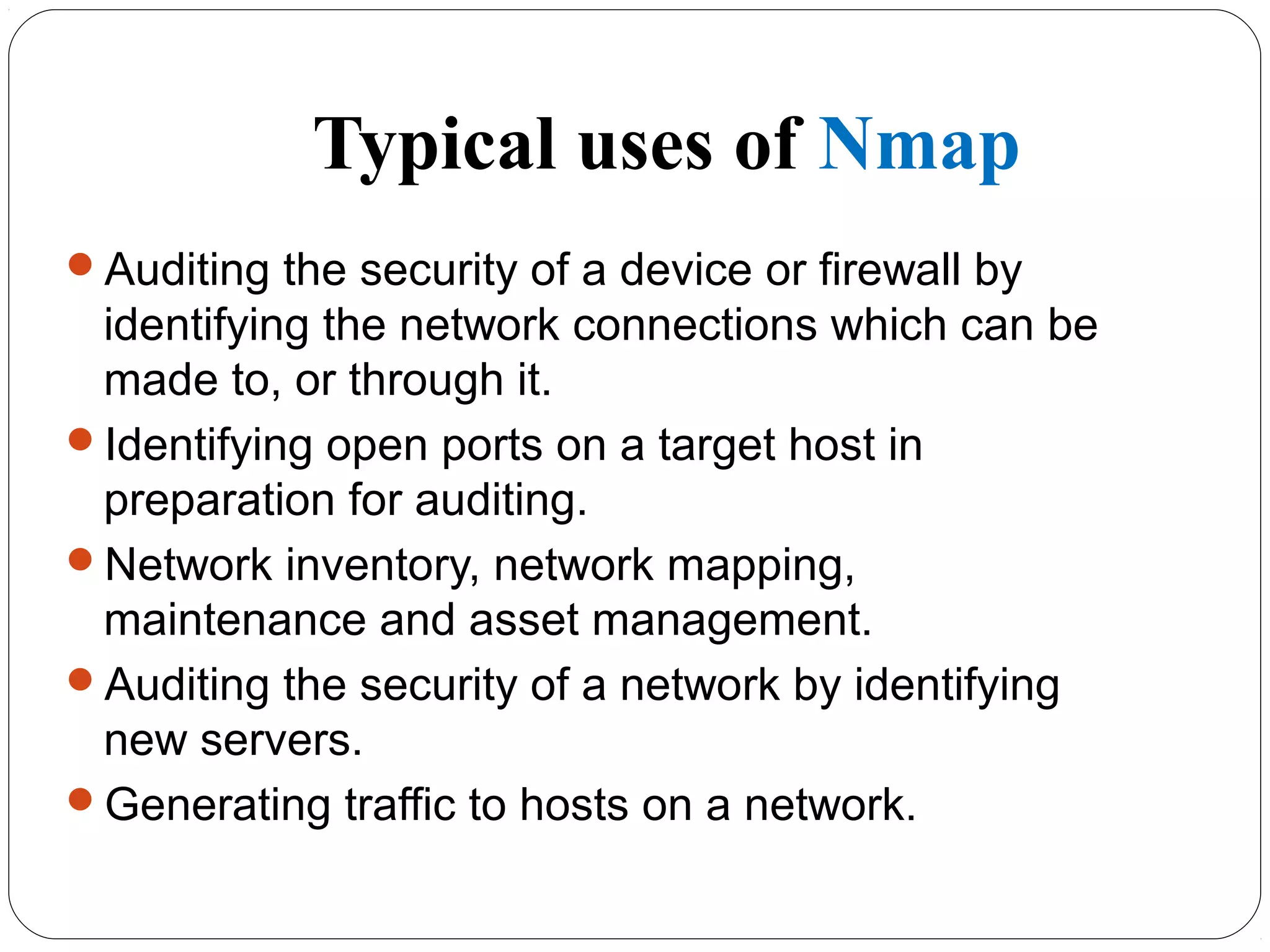

Typical uses of Nmap Auditing the security of a device or firewall by identifying the network connections which can be made to, or through it. Identifying open ports on a target host in preparation for auditing. Network inventory, network mapping, maintenance and asset management. Auditing the security of a network by identifying new servers. Generating traffic to hosts on a network.

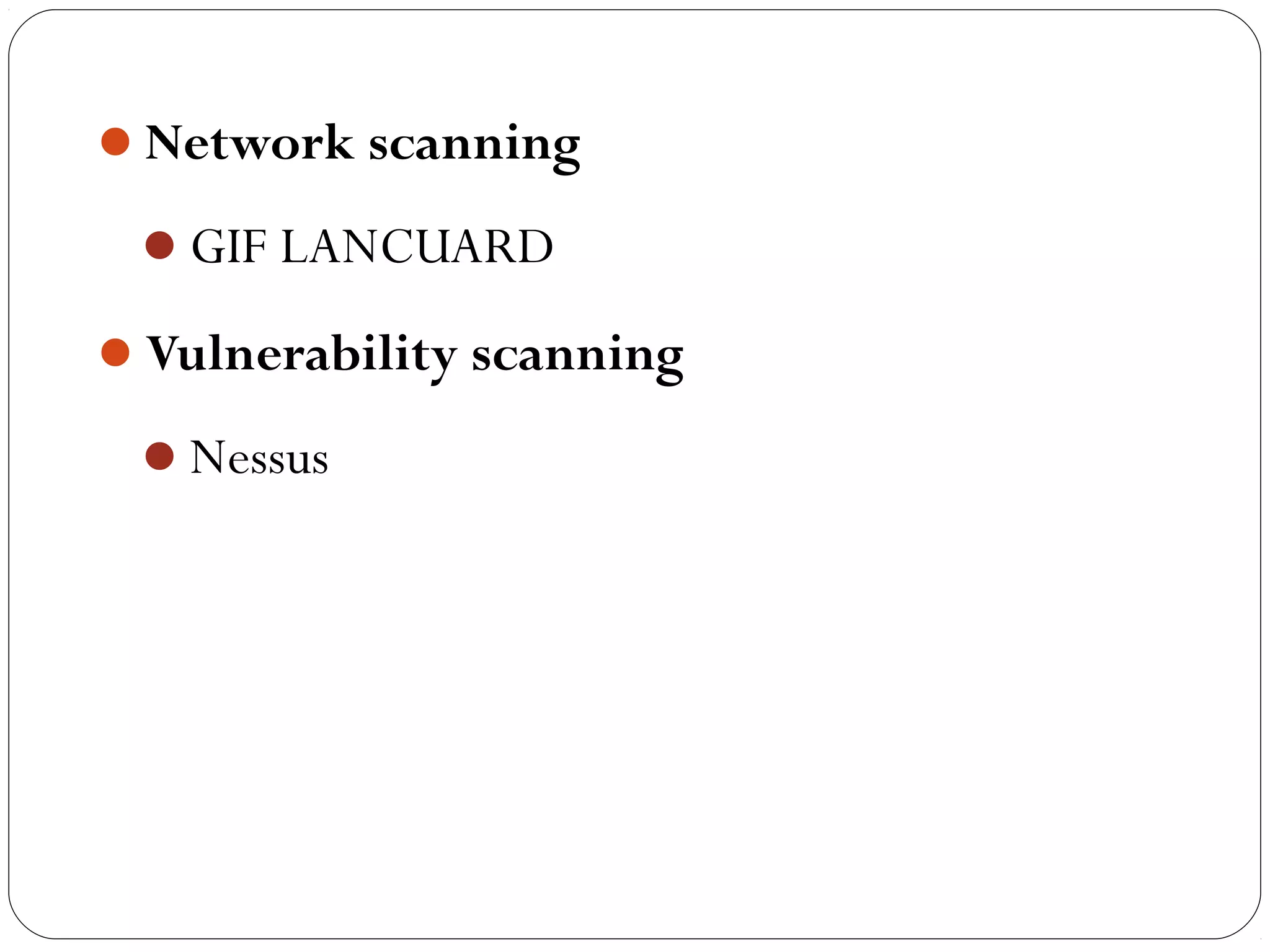

Network scanning GIF LANCUARD Vulnerability scanning Nessus

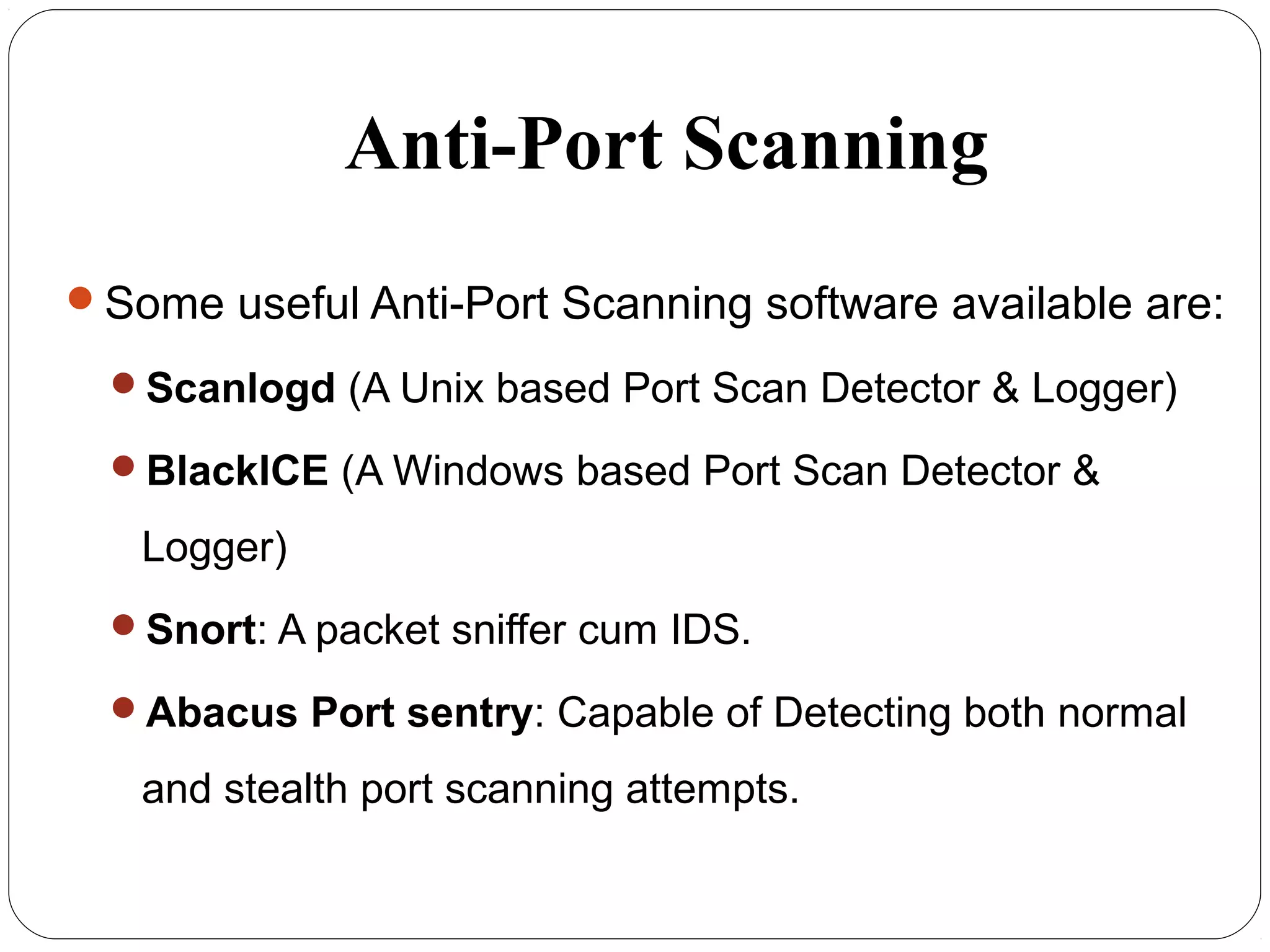

Anti-Port Scanning Some useful Anti-Port Scanning software available are: Scanlogd (A Unix based Port Scan Detector & Logger) BlackICE (A Windows based Port Scan Detector & Logger) Snort: A packet sniffer cum IDS. Abacus Port sentry: Capable of Detecting both normal and stealth port scanning attempts.

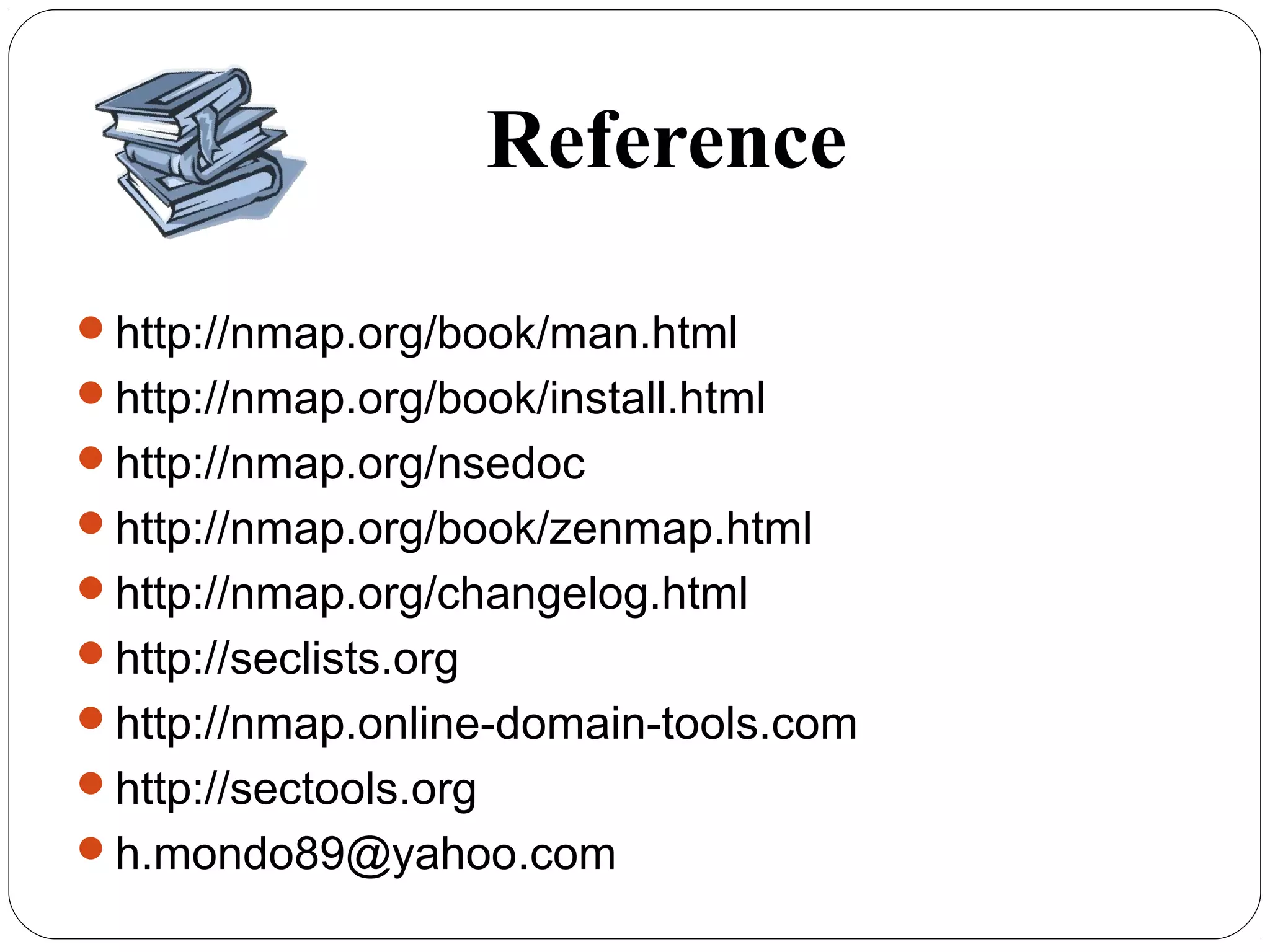

Reference http://nmap.org/book/man.html http://nmap.org/book/install.html http://nmap.org/nsedoc http://nmap.org/book/zenmap.html http://nmap.org/changelog.html http://seclists.org http://nmap.online-domain-tools.com http://sectools.org h.mondo89@yahoo.com
