The design and creation of a fully functional computer through the use of a Field Programmable Gate Array. The FPGA was designed through the hardware description language VHDL. Once the entire computer was interfaced, a video game was programmed through the use of assembly language. The computer was able to drive a monitor, and have a keyboard for human interrupts.
There are three main modes of data transfer between CPU and I/O devices:
1) Programmed I/O where the CPU actively manages all data transfers by executing I/O instructions.
2) Interrupt-driven I/O where devices interrupt the CPU when data is available to transfer, allowing the CPU to perform other tasks in the meantime.
3) Direct Memory Access (DMA) where an I/O controller directly accesses memory to transfer data without CPU involvement, freeing up the CPU.
The document discusses assembly language programming. It begins by explaining that assembly language is a low-level programming language useful for embedded systems and device drivers due to its close correspondence to machine code and ability to optimize for speed and size. The document then provides details on memory organization, addressing modes, interrupts, and an example program to test the program status word register in assembly language.
Lab 7 -RAM and ROM, Xilinx, Digelent BASYS experimentor boardKatrina Little
This document describes an experiment using a 32x4 RAM implemented on a BASYS1 FPGA board. The objective is to introduce RAM as a means of implementing combinational logic functions. The document provides background on RAM and ROM, describes a function F1 to be implemented, and provides a design methodology, test plan, and questions. The test plan involves programming the RAM by writing data to different addresses, verifying the output, and generating a truth table.
The document discusses the organization and operation of computer systems at both the hardware and software level. It covers topics such as the central processing unit, instruction execution, pipelining, parallelism, memory hierarchies, storage devices, input/output, networking, and encoding of digital data. The document contains detailed diagrams and explanations of how different components of computer systems work individually and interact together.
This document discusses the fundamental concepts and organization of the central processing unit (CPU). It describes how the CPU fetches, decodes, and executes instructions through a multi-step process. It explains that the CPU uses a program counter to keep track of the next instruction, and increments it after fetching and decoding each one. It also details how the CPU performs operations like fetching data from memory, storing to memory, transferring between registers, and performing arithmetic/logic functions using the ALU.
The 8051 microcontroller has an 8-bit CPU, 64KB program memory, 64KB data memory, 4KB onboard program memory, 128 bytes onboard data RAM, 32 I/O lines, two 16-bit timers/counters, a full duplex UART, and a 6-source interrupt structure. It consists of a CPU, two memory sections, I/O ports, special function registers, and control logic connected via an 8-bit internal data bus. The 8051 has 40 pins, with some pins having alternate functions.
8086 Interrupts & With DOS and BIOS by vijayVijay Kumar
This document discusses interrupts in microprocessors and provides examples of their use. It defines an interrupt as an event that temporarily halts normal program execution to service another event, like an I/O device requiring attention. Interrupts provide an alternative to polling that allows a CPU to serve multiple devices simultaneously. The document then gives examples of using interrupts to control a robot's movement in response to sensors as compared to polling, and provides overviews of DOS and BIOS interrupts for I/O functions like reading keyboards, displaying to screens, and communicating with serial ports.
There are three main modes of data transfer between CPU and I/O devices:
1) Programmed I/O where the CPU actively manages all data transfers by executing I/O instructions.
2) Interrupt-driven I/O where devices interrupt the CPU when data is available to transfer, allowing the CPU to perform other tasks in the meantime.
3) Direct Memory Access (DMA) where an I/O controller directly accesses memory to transfer data without CPU involvement, freeing up the CPU.
The document discusses assembly language programming. It begins by explaining that assembly language is a low-level programming language useful for embedded systems and device drivers due to its close correspondence to machine code and ability to optimize for speed and size. The document then provides details on memory organization, addressing modes, interrupts, and an example program to test the program status word register in assembly language.
Lab 7 -RAM and ROM, Xilinx, Digelent BASYS experimentor boardKatrina Little
This document describes an experiment using a 32x4 RAM implemented on a BASYS1 FPGA board. The objective is to introduce RAM as a means of implementing combinational logic functions. The document provides background on RAM and ROM, describes a function F1 to be implemented, and provides a design methodology, test plan, and questions. The test plan involves programming the RAM by writing data to different addresses, verifying the output, and generating a truth table.
The document discusses the organization and operation of computer systems at both the hardware and software level. It covers topics such as the central processing unit, instruction execution, pipelining, parallelism, memory hierarchies, storage devices, input/output, networking, and encoding of digital data. The document contains detailed diagrams and explanations of how different components of computer systems work individually and interact together.
This document discusses the fundamental concepts and organization of the central processing unit (CPU). It describes how the CPU fetches, decodes, and executes instructions through a multi-step process. It explains that the CPU uses a program counter to keep track of the next instruction, and increments it after fetching and decoding each one. It also details how the CPU performs operations like fetching data from memory, storing to memory, transferring between registers, and performing arithmetic/logic functions using the ALU.
The 8051 microcontroller has an 8-bit CPU, 64KB program memory, 64KB data memory, 4KB onboard program memory, 128 bytes onboard data RAM, 32 I/O lines, two 16-bit timers/counters, a full duplex UART, and a 6-source interrupt structure. It consists of a CPU, two memory sections, I/O ports, special function registers, and control logic connected via an 8-bit internal data bus. The 8051 has 40 pins, with some pins having alternate functions.
8086 Interrupts & With DOS and BIOS by vijayVijay Kumar
This document discusses interrupts in microprocessors and provides examples of their use. It defines an interrupt as an event that temporarily halts normal program execution to service another event, like an I/O device requiring attention. Interrupts provide an alternative to polling that allows a CPU to serve multiple devices simultaneously. The document then gives examples of using interrupts to control a robot's movement in response to sensors as compared to polling, and provides overviews of DOS and BIOS interrupts for I/O functions like reading keyboards, displaying to screens, and communicating with serial ports.
This document provides an overview of the instruction set of the 8085 microprocessor. It discusses the different types of instructions including one-byte, two-byte, and three-byte instructions. It describes the various instruction categories such as data transfer, arithmetic, logical, branching, and machine control instructions. It also covers addressing modes, assembly language programming, and examples of arithmetic operations and first programs. The document serves as an introduction to understanding the instruction set and programming of the 8085 microprocessor.
This document discusses input/output (I/O) organization in computer systems. It covers various I/O techniques including programmed I/O, interrupts, direct memory access (DMA), and I/O interfaces. Memory-mapped I/O allows I/O devices to use the same address space as memory. Interrupts allow I/O devices to signal the processor when they need service. DMA controllers can transfer data directly between I/O devices and memory without processor intervention. Buses and interface circuits are used to connect I/O devices to the processor and main memory.
This document discusses input/output (I/O) organization in computer systems. It covers various I/O techniques including programmed I/O, interrupts, and direct memory access (DMA). Interrupts allow I/O devices to signal the processor asynchronously when data is ready to be transferred. DMA allows high-speed transfer of data between I/O devices and memory without processor involvement. The document also discusses I/O addressing techniques, I/O interface circuits, bus protocols, and arbitration when multiple devices seek to access the bus simultaneously.
This document discusses computer architecture and microprocessors. It explains how to set up a counter using a register loaded with a number that is then incremented or decremented. It discusses time delay, which uses a counter concept where the number of clock cycles depends on T-states. A simple example program is provided and calculated to take 1.8 milliseconds to execute based on a 2MHz processor frequency. Additional examples are given to illustrate using register pairs or nested loops to create longer time delays. The document also covers stacks, stack instructions, and using subroutines to avoid repeatedly writing time delay code.
The document summarizes key aspects of computer organization including instruction codes, stored program organization, computer registers, instruction formats, and the instruction cycle. It describes how instruction codes specify operations, operands, and sequencing to control the computer's processing. A basic computer uses a stored program organization with opcode and address parts in instructions. It has registers like the accumulator, address register, and program counter. The instruction cycle involves fetching, decoding, and executing instructions by issuing micro-operations from the control unit's microprogram.
Firmware is a program that provides low-level control for a device's specific hardware. It performs control, monitoring and data manipulation functions. Firmware is stored in non-volatile memory like EPROM or flash memory. Common reasons for updating firmware include fixing bugs or adding new features. Firmware may be the only program that runs on an embedded system and provides all of its functions.
The document discusses the basic structure of computers including hardware, instruction set architecture, and computer organization. It defines key components like the CPU, memory, arithmetic logic unit, control unit, and input/output units. It also covers computer types, functional units, basic operations, bus structures, software, performance factors like pipelining and caching, and generations of computer technology development from vacuum tubes to integrated circuits and microprocessors.
Computer Architecture – An IntroductionDilum Bandara
Overview on high-level design of internal components of a computer. Cover step-by-step execution of a program through ALU while accessing & updating registers
SYBSC IT SEM IV EMBEDDED SYSTEMS UNIT II Embedded Systems MemoryArti Parab Academics
The document discusses different types of computer memory and memory testing techniques. It describes three main types of memory - RAM, ROM, and hybrid memory. RAM is volatile and used for main memory, ROM is non-volatile but can only be read from, and hybrid memory has aspects of both. The document then discusses various memory testing strategies to verify memory functionality, including testing the data bus, address bus, and memory devices themselves.
This document discusses input/output (I/O) systems in 3 parts:
1) I/O hardware including devices, buses, controllers, polling, and interrupts. Interrupts allow hardware to notify the CPU when a device is ready rather than requiring repeated polling.
2) The application I/O interface including block/character devices, networks, clocks/timers, and blocking/non-blocking I/O.
3) The kernel I/O subsystem which transforms requests to hardware operations, handles scheduling, buffering, caching, error handling and more. Device drivers plug into the OS to support specific devices.
The document discusses the organization and design of computers. It covers:
1) The main components of a computer including the processing unit, memory system, control unit, and datapath.
2) How the control unit uses a finite state machine to interpret instructions and generate control signals to direct the datapath.
3) How the datapath consists of functional units like the ALU and registers to perform operations.
4) How instructions are fetched from memory and executed in three steps - fetch, decode, execute - by directing the flow of data through the datapath.
Here are the steps to determine the status of the C, H, and Z flags after adding 0x38 and 0x2F:
1. 0x38 + 0x2F = 0x67
2. The addition does not generate a carry, so the C flag remains unset.
3. The addition results in a half carry, so the H flag is set.
4. The result 0x67 is non-zero, so the Z flag is unset.
Therefore, after adding 0x38 and 0x2F, the status flags would be:
C flag = 0
H flag = 1
Z flag = 0
This document provides an overview and syllabus for a course on PIC microcontroller programming. It discusses the objectives of the course, which are to expose students to PIC architecture and peripherals, advanced PIC features, and assembly and C programming. The syllabus covers addressing modes, instruction sets, assembly, and C programming over 5 lectures. It also provides details on the PIC16F877 instruction set, which includes 35 instructions grouped into data transfer, arithmetic/logic, bit operations, program flow control, and other categories. Addressing modes for the PIC include immediate, register, memory, direct, and indirect.
The document discusses an example assembly language program that implements a delay of 0.01 seconds using an 8051 microcontroller. It explains that the program uses nested loops and a subroutine to achieve the fixed, loop, and adjustment times needed for the desired delay. Registers R0 and R1 are used to control the loop counts. The program returns after completing all loops and the subroutine to produce the accurate 0.01 second delay.
The document discusses the key components of an embedded system, including the memory map, I/O map, and interrupt map. The memory map shows the memory addresses for devices like RAM, ROM, and peripherals. The I/O map similarly lists addresses for devices that use a separate I/O space. The interrupt map defines interrupt numbers for devices that can trigger interrupts, like a serial controller. Together these maps provide an interface for the programmer to access hardware on the embedded board.
This document provides an overview of input/output organization in computers. It discusses how computers can communicate with external devices through buses and interfaces. It covers different I/O techniques like programmed I/O, interrupt-driven I/O, and direct memory access. Interrupts allow devices to signal the processor when they need service. DMA controllers can transfer data directly between devices and memory without processor involvement. The document also addresses handling multiple devices, interrupt priorities, and simultaneous interrupt requests.
Question paper with solution the 8051 microcontroller based embedded systems...manishpatel_79
This document contains a question paper with solutions for the subject Microcontrollers from VTU's 4th semester B.E. examination from June-July 2013. The paper tests knowledge of CPU architectures like CISC, RISC, von Neumann, and Harvard. It also compares microprocessors and microcontrollers and tests understanding of interfacing 8051 microcontrollers to external memory. Finally, it examines the five addressing modes of 8051 - immediate, register, direct, indirect and indexed addressing - providing examples of each.
The document discusses various peripherals on microcontrollers including parallel I/O ports (P0-3), timers/counters, DAC, ADC, PWM, UART. It provides details on how each peripheral works, the registers used to control them, and examples of using timers/counters and DAC to generate waveforms.
- Income inequality in the US has increased dramatically since the 1980s, with the top 1% of earners seeing their share of total income rise from 10% to over 20%.
- Hillary Clinton's economic policy proposals, including raising the minimum wage, equal pay for women, infrastructure investment, tax increases on the wealthy, and reducing student debt, will promote both economic growth and reduce inequality according to over 150 economists.
- The economists argue these policies will increase benefits for middle and lower income Americans and reduce the divisiveness caused by rising inequality that threatens US democratic ideals.
Neha Dolliyar is a software tester with over 2 years of experience working at BSL Information Technology in Gurgaon, India. She has expertise in writing test cases, defect tracking, and working with developers to resolve issues. Some of her major projects include testing an ASP.NET load management system, an iOS task management app, and an ASP.NET CRM web application. She is proficient with testing tools like Jira, Bugzilla, and Mantis. Neha holds a B.Tech in computer science and seeks new opportunities to expand her quality assurance and testing skills.
This document provides an overview of the instruction set of the 8085 microprocessor. It discusses the different types of instructions including one-byte, two-byte, and three-byte instructions. It describes the various instruction categories such as data transfer, arithmetic, logical, branching, and machine control instructions. It also covers addressing modes, assembly language programming, and examples of arithmetic operations and first programs. The document serves as an introduction to understanding the instruction set and programming of the 8085 microprocessor.
This document discusses input/output (I/O) organization in computer systems. It covers various I/O techniques including programmed I/O, interrupts, direct memory access (DMA), and I/O interfaces. Memory-mapped I/O allows I/O devices to use the same address space as memory. Interrupts allow I/O devices to signal the processor when they need service. DMA controllers can transfer data directly between I/O devices and memory without processor intervention. Buses and interface circuits are used to connect I/O devices to the processor and main memory.
This document discusses input/output (I/O) organization in computer systems. It covers various I/O techniques including programmed I/O, interrupts, and direct memory access (DMA). Interrupts allow I/O devices to signal the processor asynchronously when data is ready to be transferred. DMA allows high-speed transfer of data between I/O devices and memory without processor involvement. The document also discusses I/O addressing techniques, I/O interface circuits, bus protocols, and arbitration when multiple devices seek to access the bus simultaneously.
This document discusses computer architecture and microprocessors. It explains how to set up a counter using a register loaded with a number that is then incremented or decremented. It discusses time delay, which uses a counter concept where the number of clock cycles depends on T-states. A simple example program is provided and calculated to take 1.8 milliseconds to execute based on a 2MHz processor frequency. Additional examples are given to illustrate using register pairs or nested loops to create longer time delays. The document also covers stacks, stack instructions, and using subroutines to avoid repeatedly writing time delay code.
The document summarizes key aspects of computer organization including instruction codes, stored program organization, computer registers, instruction formats, and the instruction cycle. It describes how instruction codes specify operations, operands, and sequencing to control the computer's processing. A basic computer uses a stored program organization with opcode and address parts in instructions. It has registers like the accumulator, address register, and program counter. The instruction cycle involves fetching, decoding, and executing instructions by issuing micro-operations from the control unit's microprogram.
Firmware is a program that provides low-level control for a device's specific hardware. It performs control, monitoring and data manipulation functions. Firmware is stored in non-volatile memory like EPROM or flash memory. Common reasons for updating firmware include fixing bugs or adding new features. Firmware may be the only program that runs on an embedded system and provides all of its functions.
The document discusses the basic structure of computers including hardware, instruction set architecture, and computer organization. It defines key components like the CPU, memory, arithmetic logic unit, control unit, and input/output units. It also covers computer types, functional units, basic operations, bus structures, software, performance factors like pipelining and caching, and generations of computer technology development from vacuum tubes to integrated circuits and microprocessors.
Computer Architecture – An IntroductionDilum Bandara
Overview on high-level design of internal components of a computer. Cover step-by-step execution of a program through ALU while accessing & updating registers
SYBSC IT SEM IV EMBEDDED SYSTEMS UNIT II Embedded Systems MemoryArti Parab Academics
The document discusses different types of computer memory and memory testing techniques. It describes three main types of memory - RAM, ROM, and hybrid memory. RAM is volatile and used for main memory, ROM is non-volatile but can only be read from, and hybrid memory has aspects of both. The document then discusses various memory testing strategies to verify memory functionality, including testing the data bus, address bus, and memory devices themselves.
This document discusses input/output (I/O) systems in 3 parts:
1) I/O hardware including devices, buses, controllers, polling, and interrupts. Interrupts allow hardware to notify the CPU when a device is ready rather than requiring repeated polling.
2) The application I/O interface including block/character devices, networks, clocks/timers, and blocking/non-blocking I/O.
3) The kernel I/O subsystem which transforms requests to hardware operations, handles scheduling, buffering, caching, error handling and more. Device drivers plug into the OS to support specific devices.
The document discusses the organization and design of computers. It covers:
1) The main components of a computer including the processing unit, memory system, control unit, and datapath.
2) How the control unit uses a finite state machine to interpret instructions and generate control signals to direct the datapath.
3) How the datapath consists of functional units like the ALU and registers to perform operations.
4) How instructions are fetched from memory and executed in three steps - fetch, decode, execute - by directing the flow of data through the datapath.
Here are the steps to determine the status of the C, H, and Z flags after adding 0x38 and 0x2F:
1. 0x38 + 0x2F = 0x67
2. The addition does not generate a carry, so the C flag remains unset.
3. The addition results in a half carry, so the H flag is set.
4. The result 0x67 is non-zero, so the Z flag is unset.
Therefore, after adding 0x38 and 0x2F, the status flags would be:
C flag = 0
H flag = 1
Z flag = 0
This document provides an overview and syllabus for a course on PIC microcontroller programming. It discusses the objectives of the course, which are to expose students to PIC architecture and peripherals, advanced PIC features, and assembly and C programming. The syllabus covers addressing modes, instruction sets, assembly, and C programming over 5 lectures. It also provides details on the PIC16F877 instruction set, which includes 35 instructions grouped into data transfer, arithmetic/logic, bit operations, program flow control, and other categories. Addressing modes for the PIC include immediate, register, memory, direct, and indirect.
The document discusses an example assembly language program that implements a delay of 0.01 seconds using an 8051 microcontroller. It explains that the program uses nested loops and a subroutine to achieve the fixed, loop, and adjustment times needed for the desired delay. Registers R0 and R1 are used to control the loop counts. The program returns after completing all loops and the subroutine to produce the accurate 0.01 second delay.
The document discusses the key components of an embedded system, including the memory map, I/O map, and interrupt map. The memory map shows the memory addresses for devices like RAM, ROM, and peripherals. The I/O map similarly lists addresses for devices that use a separate I/O space. The interrupt map defines interrupt numbers for devices that can trigger interrupts, like a serial controller. Together these maps provide an interface for the programmer to access hardware on the embedded board.
This document provides an overview of input/output organization in computers. It discusses how computers can communicate with external devices through buses and interfaces. It covers different I/O techniques like programmed I/O, interrupt-driven I/O, and direct memory access. Interrupts allow devices to signal the processor when they need service. DMA controllers can transfer data directly between devices and memory without processor involvement. The document also addresses handling multiple devices, interrupt priorities, and simultaneous interrupt requests.
Question paper with solution the 8051 microcontroller based embedded systems...manishpatel_79
This document contains a question paper with solutions for the subject Microcontrollers from VTU's 4th semester B.E. examination from June-July 2013. The paper tests knowledge of CPU architectures like CISC, RISC, von Neumann, and Harvard. It also compares microprocessors and microcontrollers and tests understanding of interfacing 8051 microcontrollers to external memory. Finally, it examines the five addressing modes of 8051 - immediate, register, direct, indirect and indexed addressing - providing examples of each.
The document discusses various peripherals on microcontrollers including parallel I/O ports (P0-3), timers/counters, DAC, ADC, PWM, UART. It provides details on how each peripheral works, the registers used to control them, and examples of using timers/counters and DAC to generate waveforms.
- Income inequality in the US has increased dramatically since the 1980s, with the top 1% of earners seeing their share of total income rise from 10% to over 20%.
- Hillary Clinton's economic policy proposals, including raising the minimum wage, equal pay for women, infrastructure investment, tax increases on the wealthy, and reducing student debt, will promote both economic growth and reduce inequality according to over 150 economists.
- The economists argue these policies will increase benefits for middle and lower income Americans and reduce the divisiveness caused by rising inequality that threatens US democratic ideals.
Neha Dolliyar is a software tester with over 2 years of experience working at BSL Information Technology in Gurgaon, India. She has expertise in writing test cases, defect tracking, and working with developers to resolve issues. Some of her major projects include testing an ASP.NET load management system, an iOS task management app, and an ASP.NET CRM web application. She is proficient with testing tools like Jira, Bugzilla, and Mantis. Neha holds a B.Tech in computer science and seeks new opportunities to expand her quality assurance and testing skills.
The document discusses Mule Enterprise Service Bus (ESB). Key points:
- Mule ESB is a lightweight Java-based integration platform that allows connecting applications together quickly through various protocols including JMS, HTTP, FTP, and more.
- It acts as a transit system carrying data between applications within or across organizations.
- Mule ESB includes capabilities for data transformations, routing, messaging, and integration with existing systems regardless of technology used.
James Okarimia - IFRS Implementation and How the Banks should Approach IT.JAMES OKARIMIA
This document discusses IFRS 9 implementation for banks. It provides an overview of IFRS 9 requirements, including classification and measurement of financial assets and liabilities, impairment methodology, and hedge accounting. It recommends banks take a transformation program approach with three phases: assess, design, implement. It identifies key areas of impact like governance, policies, methodology, models, and data. It also discusses challenges of the tight timeline, wide organizational impact, data needs, and complexity involved in IFRS 9 implementation.
Este documento describe la importancia de STEM (Ciencias, Tecnología, Ingeniería y Matemáticas) en la educación y el cuidado infantil. Explica que STEM fomenta la curiosidad natural de los niños y les ayuda a desarrollar habilidades cruciales para el éxito futuro. También examina cómo los niños aprenden mejor los conceptos de STEM a través de la exploración y la resolución de problemas con materiales reales, en lugar de instrucción directa. Además, ofrece consejos sobre cómo crear actividades de STEM
Las entrevistas de selección son una parte importante del proceso de selección de personal en las empresas. Sirven para evaluar las habilidades, conocimientos y aptitudes de los candidatos para el puesto. Es importante que los candidatos se preparen adecuadamente y demuestren interés en la empresa y la posición.
James J Okarimia
Managing Partner
Aligning Finance, Risk and Data Analytics in Meeting the Requirements of Emerging Regulations
Banks must meet more (and more varied) regulations today than ever. The sheer scale and scope of banking regulations, including Dodd-Frank, Basel III and IFRS, pose challenges to all financial institutions, from the smallest bank to the largest financial services enterprise.
Successful story sharing of New on boarding customer project from Shanghai Es...?? ?
The Shanghai Essential Team successfully used a new customer onboarding project to help enroll a new client, Pacific Link International Freight Forwarder, and significantly increase their bookings over a short period of time. Through joint efforts with the SAL team and hypercare of the new customer, their bookings increased from 3 FFE in week 36 to 14.5 FFE by week 50. The onboarding project provided welcome materials, assistance using online booking tools, daily communication, and helped address issues. This success has led to the evaluation of the customer for additional dedicated customer service applications to support their goal of 1000 FFE in 2015.
El documento propone una re-ingeniería de los aprendizajes centrada en el aprendizaje activo con docentes como coaches. Sugiere actualizar el modelo TPACK considerando nuevos conocimientos y tecnologías. También promueve aprendizajes expandidos, personalizados e invertidos aprovechando la conectividad e inteligencia artificial. Finalmente argumenta que con enfoques gamificados, inmersivos y de codificación, así como análisis de grandes datos, los aprendizajes pueden evolucionar.
JAMES OKARIMIA - IFRS Implementation and How The Banks Should Approach ITJAMES OKARIMIA
This document discusses IFRS 9 implementation for banks and provides recommendations. IFRS 9 will require significant changes to banks' governance, policies, processes, models, and data to comply with the new accounting standard by 2018. It recommends treating IFRS 9 implementation as a transformation program involving separate phases to assess, design, and implement changes across the organization. Multiple work streams will be needed focusing on governance, policies and methodology, models, and data. Challenges include the tight timeline, wide impact on the organization, increased data requirements, and complexity of new impairment models. Senior management support and alignment of different teams will be critical to successfully execute the program.
The document provides an introduction to microprocessors, including:
1. The basic components of a computer system including the CPU, memory, and input/output units.
2. The evolution of microprocessors from 4-bit to 64-bit sizes.
3. An overview of the internal structure of a microprocessor, including the arithmetic logic unit, control unit, register sets, accumulator, program counter, and condition code register.
4. A description of the bus system including the data bus, address bus, and control bus that allow communication between the microprocessor and other computer components.
The document provides an introduction to microprocessors, including:
- The basic components of a computer system using block diagrams including the CPU, memory, and input/output units.
- The evolution of microprocessors from 4 to 64 bytes.
- The internal structure and basic operation of a microprocessor including the arithmetic logic unit, control unit, register sets, accumulator, condition code register, program counter, and stack pointer.
- Examples of microprocessors such as the Intel 8085 and 8086.
4bit pc report[cse 08-section-b2_group-02]shibbirtanvin
The document describes the design and implementation of a 4-bit very simple computer system as an assignment. Key aspects of the design include a 2-stage pipeline with separate fetch and execution units, Harvard architecture with separate instruction and data memory, and a microprogrammed control unit. The computer is designed to execute 28 instructions from an assigned instruction set in an efficient manner using as few clock cycles and chips as possible.
A microprocessor is the central processing unit (CPU) of a computer system. It contains an arithmetic logic unit (ALU) that performs arithmetic and logic operations, a control unit that controls the flow of data and coordinates other units, and register sets that temporarily store data. It communicates with memory and input/output devices via buses. Early microprocessors had 4-bit, 8-bit, then increasingly larger data widths up to today's 64-bit designs. Common microprocessors include the 8085 and 8086 from the 1970s-80s era.
This slide provide the introduction to the computer , instruction formats and their execution, Common Bus System , Instruction Cycle, Hardwired Control Unit and I/O operation and handling of interrupt
This document discusses computer instruction codes and the basic organization of a stored program computer. It describes how instruction codes specify operations for the computer to perform and are stored with data in memory. Each instruction is read from memory and placed in a control register to be executed. The document also outlines the basic registers used in a computer, including registers for holding instructions, data, memory addresses, and input/output. These registers are connected via a common bus system to transfer information between registers and memory.
The document provides an overview of microprocessors, including:
- The basic components of a computer system using block diagrams including the CPU, memory, and input/output units.
- The evolution of microprocessor sizes from 4 to 64 bytes and data sizes such as nibble, byte, word, and longword.
- The internal structure and basic operation of a microprocessor including the arithmetic logic unit, control unit, register sets, accumulator, condition code register, program counter, and stack pointer.
- Examples of microprocessors such as the Intel 8086, Motorola 6800, and Zilog Z80.
A computer system consists of a central processing unit (CPU), memory, and input/output devices connected via buses. The CPU contains an arithmetic logic unit (ALU) to perform calculations, registers to store data and instructions, a control unit to coordinate operations, and a program counter. The memory stores programs and data and comes in read-only (ROM) and random-access (RAM) varieties. Early microprocessors evolved from 4-bit to 64-bit designs and introduced features like accumulators, condition code registers, and stack pointers. Common 8-bit microprocessors included the Intel 8085 and Zilog Z80, while early 16-bit processors included the Intel 8086 and Motorola 6800.
A computer system consists of a central processing unit (CPU), memory, and input/output devices connected via buses. The CPU contains an arithmetic logic unit (ALU) to perform calculations, registers to store data and instructions, a control unit to coordinate operations, and a program counter. The memory stores programs and data and comes in read-only (ROM) and random-access (RAM) varieties. Early microprocessors evolved from 4-bit to 64-bit designs and introduced features like accumulators, condition code registers, and stack pointers. Common 8-bit microprocessors included the Intel 8085 and Zilog Z80, while early 16-bit processors included the Intel 8086 and Motorola 6800.
A computer system consists of a central processing unit (CPU), memory, and input/output devices connected via buses. The CPU contains an arithmetic logic unit (ALU) to perform calculations, registers to store data and instructions, a control unit to coordinate operations, and a program counter. The memory stores programs and data and comes in read-only (ROM) and random-access (RAM) varieties. Early microprocessors evolved from 4-bit to 64-bit designs and introduced features like accumulators, flags, and stack pointers. Common microprocessors include the Intel 8085 and 8086.
A computer system consists of a central processing unit (CPU), memory, and input/output devices connected via buses. The CPU contains an arithmetic logic unit (ALU) to perform calculations, registers to store data and instructions, a control unit to coordinate operations, and a program counter. The memory stores programs and data and comes in read-only (ROM) and random-access (RAM) varieties. Early microprocessors evolved from 4-bit to 64-bit designs and introduced features like accumulators, flags, and stack pointers. Common microprocessors include the Intel 8086 and Motorola 6800.
A computer system consists of a central processing unit (CPU), memory, and input/output devices connected via buses. The CPU contains an arithmetic logic unit to perform calculations, registers to store data and instructions, a control unit to coordinate operations, and a program counter. Data is transferred over the data bus in nibbles, bytes, words or long words. The CPU fetches and executes instructions in cycles. Examples of early microprocessors include the Intel 8085 and 8086.
This document provides an overview of microprocessors and microcomputers. It defines a microprocessor as a computer processor contained on a microchip that incorporates most or all of a central processing unit's functions. The document discusses typical microcomputer components like the input, control, arithmetic, memory, and output units. It also describes the von Neumann model, instruction and program definitions, computer languages, bus systems, the fetch-execute cycle, and internal CPU organization. Common microprocessor bit sizes are also outlined.
The document describes the internal architecture and components of the 8085 microprocessor. It includes the following main units:
1) Processing unit containing the arithmetic logic unit (ALU), accumulator, flags register, and temporary register for performing arithmetic and logical operations.
2) Storage and interface unit containing registers like the general purpose registers, stack pointer, program counter, and address/data buffers for memory interfacing.
3) Instruction unit containing the instruction register, decoder and timing/control section for fetching and decoding instructions.
4) Interrupt and serial I/O unit for handling interrupts and serial communication with peripheral devices. The 8085 uses address, data and control buses to interface with external memory and devices.
The Z80 CPU was first released in 1976 by Zilog. It has 16 pins for address and data buses, as well as pins for control signals like READ, WRITE, and INTERRUPT. The Z80 uses 8-bit bytes of memory addressed by 16-bit addresses, for a maximum of 64KB. It has registers like the accumulator, program counter, stack pointer, and flag register. The ALU performs arithmetic and logical operations. The Z80 supports 158 instruction types across various addressing modes like immediate, register, and indexed addressing.
This document provides information about the ARM7 microcontroller LPC2148. It discusses the features of the LPC2148 including its memory, speed, interfaces, and peripherals. It also describes the ARM7TDMI-S architecture and software tools that can be used for programming the LPC2148 such as compilers, debuggers, and IDEs. Finally, it discusses some example applications of the LPC2148 and how to interface it with an LCD and communicate using UART.
This document provides an overview of implementing a basic MIPS processor. It discusses the core MIPS instruction set including load, store, arithmetic, logical and branch instructions. It describes the major components needed - instruction memory, register file, ALU, data memory, program counter, etc. It shows how these components can be combined into a single datapath and discusses the control signals needed. It also introduces concepts like pipelining, pipeline hazards including structural and data hazards.
The document discusses the 8051 microcontroller. It provides details about the 8051 architecture such as its memory organization, I/O ports, registers, and instruction set. The key advantages of microcontrollers over microprocessors are that microcontrollers have peripherals integrated into a single chip, making the system design simpler and more reliable.
Design & Simulation of RISC Processor using Hyper Pipelining TechniqueIOSR Journals
This Hyper pipelining technique is different to the pipelining of instruction decoding known from
RISC processors. The point is that we can use hyper pipelining on top of any sequential logic, for example a
RISC processor, independent of its underlying functionality. The RISC processor with pipelined instruction set
decoding can automatically be hyper pipelined to generate CMF individual RISC processors. Hyper pipelining
implements additional register and can use register balancing for fine grain timing optimizations. The method
hyper pipelining is also called “C-slow Retiming”. The main benefit is the multiplication of the core's
functionality by only implementing registers. This is a great advantage for ASICs but obviously very attractive
for FPGAs with their already existing registers
Similar to CPU Implemented on an Xilinix FPGA (20)
Introduction- e - waste – definition - sources of e-waste– hazardous substances in e-waste - effects of e-waste on environment and human health- need for e-waste management– e-waste handling rules - waste minimization techniques for managing e-waste – recycling of e-waste - disposal treatment methods of e- waste – mechanism of extraction of precious metal from leaching solution-global Scenario of E-waste – E-waste in India- case studies.
Literature Review Basics and Understanding Reference Management.pptxDr Ramhari Poudyal
Three-day training on academic research focuses on analytical tools at United Technical College, supported by the University Grant Commission, Nepal. 24-26 May 2024
Embedded machine learning-based road conditions and driving behavior monitoringIJECEIAES
Car accident rates have increased in recent years, resulting in losses in human lives, properties, and other financial costs. An embedded machine learning-based system is developed to address this critical issue. The system can monitor road conditions, detect driving patterns, and identify aggressive driving behaviors. The system is based on neural networks trained on a comprehensive dataset of driving events, driving styles, and road conditions. The system effectively detects potential risks and helps mitigate the frequency and impact of accidents. The primary goal is to ensure the safety of drivers and vehicles. Collecting data involved gathering information on three key road events: normal street and normal drive, speed bumps, circular yellow speed bumps, and three aggressive driving actions: sudden start, sudden stop, and sudden entry. The gathered data is processed and analyzed using a machine learning system designed for limited power and memory devices. The developed system resulted in 91.9% accuracy, 93.6% precision, and 92% recall. The achieved inference time on an Arduino Nano 33 BLE Sense with a 32-bit CPU running at 64 MHz is 34 ms and requires 2.6 kB peak RAM and 139.9 kB program flash memory, making it suitable for resource-constrained embedded systems.
Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapte...University of Maribor
Slides from talk presenting:
Aleš Zamuda: Presentation of IEEE Slovenia CIS (Computational Intelligence Society) Chapter and Networking.
Presentation at IcETRAN 2024 session:
"Inter-Society Networking Panel GRSS/MTT-S/CIS
Panel Session: Promoting Connection and Cooperation"
IEEE Slovenia GRSS
IEEE Serbia and Montenegro MTT-S
IEEE Slovenia CIS
11TH INTERNATIONAL CONFERENCE ON ELECTRICAL, ELECTRONIC AND COMPUTING ENGINEERING
3-6 June 2024, Niš, Serbia
International Conference on NLP, Artificial Intelligence, Machine Learning an...gerogepatton
International Conference on NLP, Artificial Intelligence, Machine Learning and Applications (NLAIM 2024) offers a premier global platform for exchanging insights and findings in the theory, methodology, and applications of NLP, Artificial Intelligence, Machine Learning, and their applications. The conference seeks substantial contributions across all key domains of NLP, Artificial Intelligence, Machine Learning, and their practical applications, aiming to foster both theoretical advancements and real-world implementations. With a focus on facilitating collaboration between researchers and practitioners from academia and industry, the conference serves as a nexus for sharing the latest developments in the field.
Electric vehicle and photovoltaic advanced roles in enhancing the financial p...IJECEIAES
Climate change's impact on the planet forced the United Nations and governments to promote green energies and electric transportation. The deployments of photovoltaic (PV) and electric vehicle (EV) systems gained stronger momentum due to their numerous advantages over fossil fuel types. The advantages go beyond sustainability to reach financial support and stability. The work in this paper introduces the hybrid system between PV and EV to support industrial and commercial plants. This paper covers the theoretical framework of the proposed hybrid system including the required equation to complete the cost analysis when PV and EV are present. In addition, the proposed design diagram which sets the priorities and requirements of the system is presented. The proposed approach allows setup to advance their power stability, especially during power outages. The presented information supports researchers and plant owners to complete the necessary analysis while promoting the deployment of clean energy. The result of a case study that represents a dairy milk farmer supports the theoretical works and highlights its advanced benefits to existing plants. The short return on investment of the proposed approach supports the paper's novelty approach for the sustainable electrical system. In addition, the proposed system allows for an isolated power setup without the need for a transmission line which enhances the safety of the electrical network
KuberTENes Birthday Bash Guadalajara - K8sGPT first impressionsVictor Morales
K8sGPT is a tool that analyzes and diagnoses Kubernetes clusters. This presentation was used to share the requirements and dependencies to deploy K8sGPT in a local environment.
Using recycled concrete aggregates (RCA) for pavements is crucial to achieving sustainability. Implementing RCA for new pavement can minimize carbon footprint, conserve natural resources, reduce harmful emissions, and lower life cycle costs. Compared to natural aggregate (NA), RCA pavement has fewer comprehensive studies and sustainability assessments.

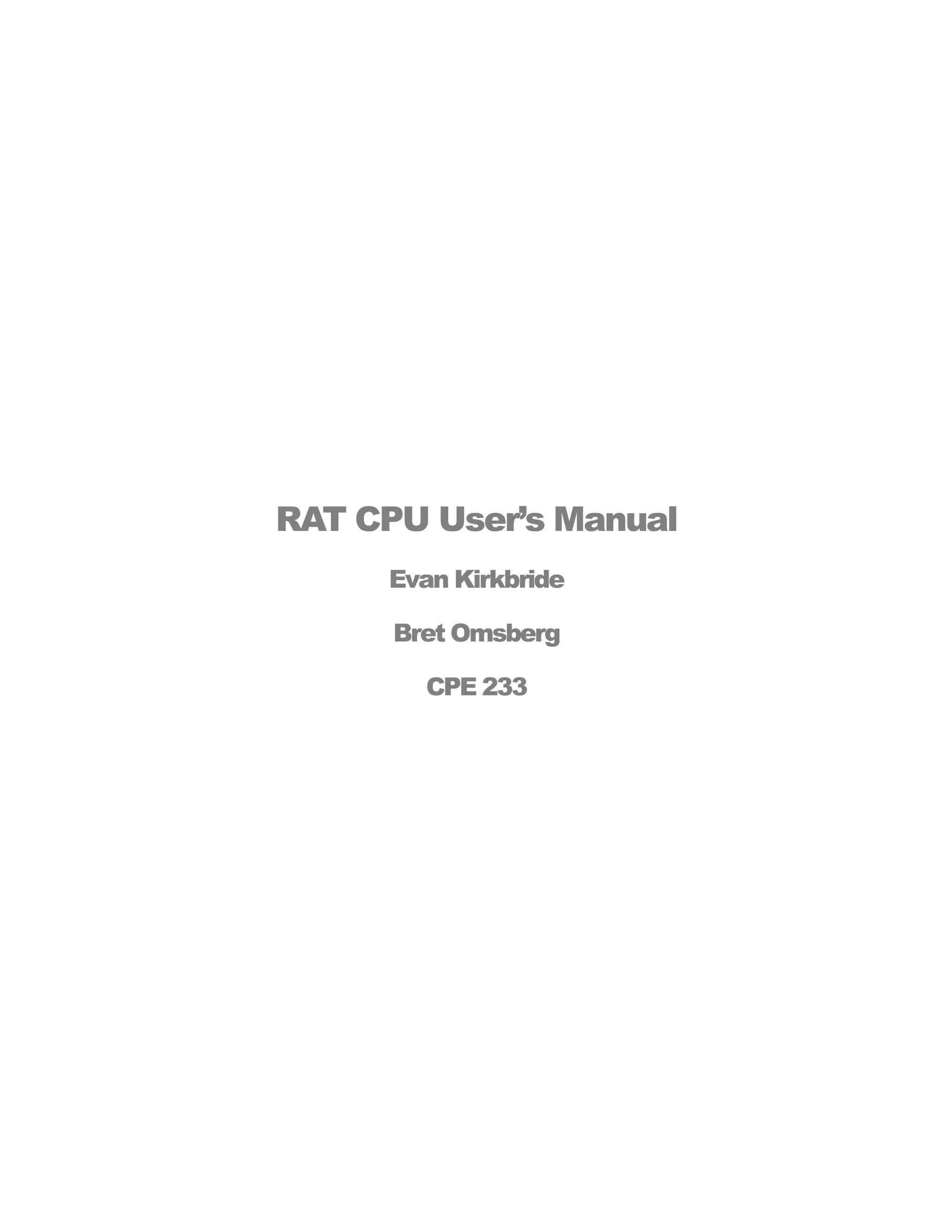

1. RAT CPU User’s Manual
Evan Kirkbride
Bret Omsberg
CPE 233

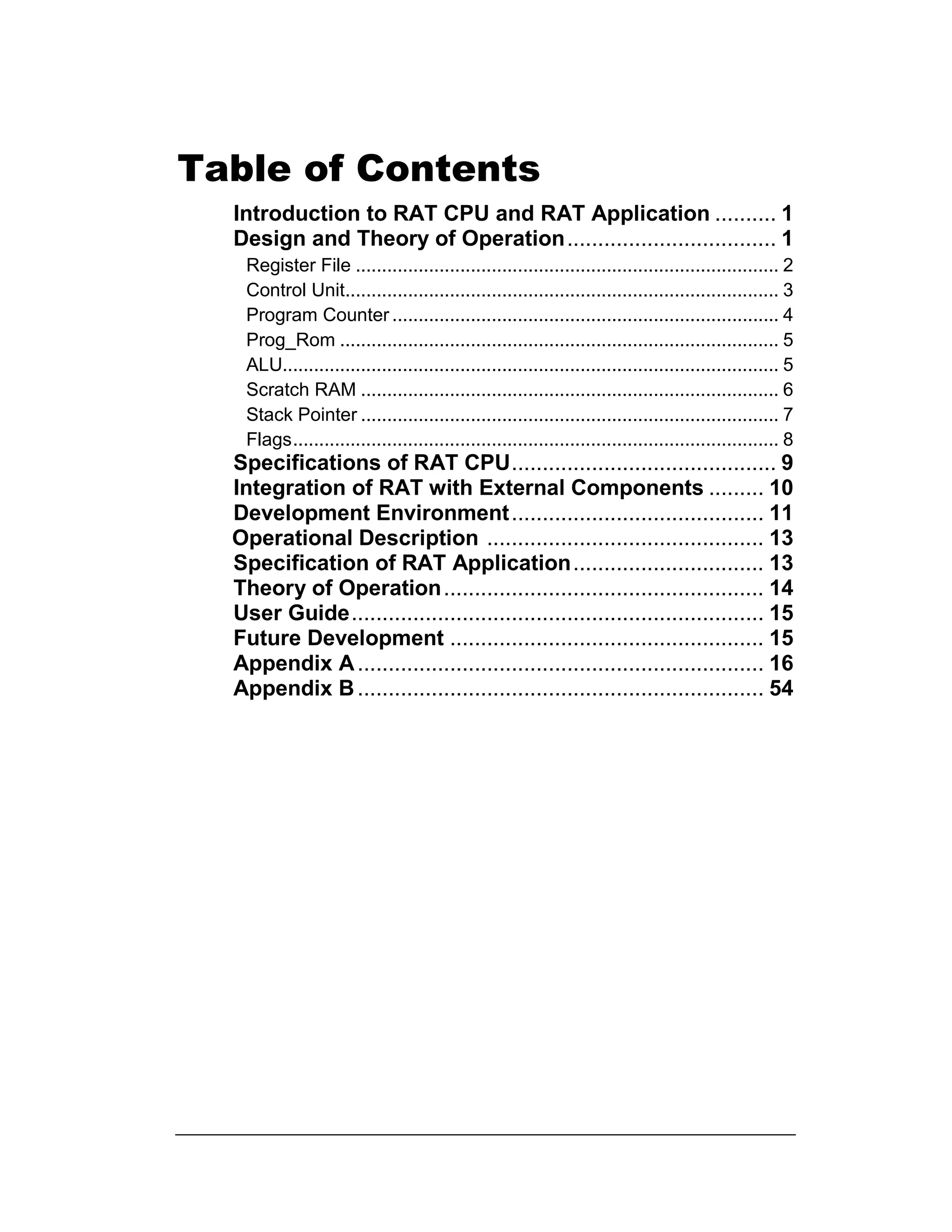

2. Table of Contents
Introduction to RAT CPU and RAT Application .......... 1
Design and Theory of Operation.................................. 1
Register File ................................................................................. 2
Control Unit................................................................................... 3
Program Counter .......................................................................... 4
Prog_Rom .................................................................................... 5
ALU............................................................................................... 5
Scratch RAM ................................................................................ 6
Stack Pointer ................................................................................ 7
Flags............................................................................................. 8
Specifications of RAT CPU........................................... 9
Integration of RAT with External Components ......... 10
Development Environment......................................... 11
Operational Description ............................................. 13
Specification of RAT Application............................... 13
Theory of Operation.................................................... 14
User Guide................................................................... 15
Future Development ................................................... 15
Appendix A.................................................................. 16
Appendix B.................................................................. 54
3. 1
Introduction to RAT CPU and RAT
Application
The RAT CPU is a complex, fully functional computer. When working with the
RAT assembler, this CPU can perform nearly any function imaginable. From
engendering video games, to connecting to the internet, the RAT CPU is capable
of accomplishing such tasks. For most everyday computing needs, the RAT CPU
would suffice. The RAT application is an integral part of the RAT CPU. The RAT
CPU would not be able to use of its internal components without the program file
generated by the RAT application. The RAT application is what allows for the
development of assembly language programs as well as generating the program file
that delivers all of the necessary information into the RAT CPU in order to
operate correctly. Neither one would be much use on their own, but when
working with one another, the RAT CPU and application make it into a powerful
processing unit.
Design and Theory of Operation
The CPU is made of multiple different components that are specifically designed to
perform different operations. Each one plays an integral part in the success of the
CPU’s operation and varies in degree of complexity. Each component was extensively
tested before being implemented into the overall CPU design to assure performance.
Part
A
4. 2
Figure 1Entire RAT CPU Architecture
Register File
The Register File is relatively small in terms of overall size of memory but is essential to
the proper functionality of the CPU as a whole. The register file is 32 locations by 8
bits wide (32x8). This means that 32 different registers holding 8 bits each are location
inside the register file at any given time. What makes the Register File so useful is its
ability, compared to other forms of memory, to access to addresses simultaneously.
This is made possible by the two input address lines and the two output lines that the
register file contains. The Register File is read asynchronously meaning no clock edge is
necessary to read the contents of the registers but is written to the registers on the
rising clock edge.
The Register File is one of the most essential parts of the RAT CPU. It is involved in
nearly every operation that the CPU runs. The Register File’s input register lines come
from the IR that is feed from the prog_rom. The register file outputs two lines, one
being a tri-state meaning that this line will only output if the register file makes RF_OE
high. The tri-state output is connected directly into one of the inputs to the ALU. This
line also connects to the Multi_Bus line and eventually to the output port. The non tri-
state output is sent into two different multiplexors. The first multiplexor is for the
ALU second input. The other multiplexor is feed into one of the inputs of the scratch
pad multiplexor. The multiplexor also has a data in line. This is feed through a
multiplexor that can come from three different places: the In_Port, the Multi_Bus, and
the sum output of the ALU. If the control unit makes the write enable of the Register
File, RF_OE, go high, the data that is selected from the data in line will be written to
the register file.
5. 3
Control Unit
The control unit is responsible for directing the entire CPU. The control unit
controls multiplexor select lines, write enables, output enables, load lines and set
and clear lines. The control unit decides which multiplexor select line to be high
through the combination of inputs. The control unit also outputs the IO_OE
output directly. The control unit uses states to choose where signals need to be
sent. This is decided by the present state and next states that the control unit finds
itself as well as the seven bit opcode coming from the Prog Rom. Each state of
the control unit has a value given to each output depending on how the state
should react. If a state calls to output a value, the IO_OE lines goes high as well as
the RF_OE. The control unit will be able to recognize this as an output by the
opcode coming from the Prog Rom. The control unit allows the rest of the CPU
to work in unison. The entire CPU takes a total of four input lines and 3 output
lines. The input lines consist of an inport line, a reset line, and INT_In and a
clock. The CPU’s outputs are outport, port ID and IO_OE. The input port of the
CPU runs directly to the register file multiplexor. This value will be selected
depending on the opcode given from the Prog Rom that is loaded from the RAT
Simulator. The RAT Simulator takes each operation and creates the seven bit
opcode that will move the control unit into the proper state to execute each
command. As the program counter increments, the Prog Rom will move down the
operation list and deliver via the IR, the next opcode. With each new opcode, a
new state in the control unit is reached causing different values to multiplexors,
write enables, output enables to be given to various components throughout the
CPU. The Program Counter, in conjunction with the Prog Rom created from the
RAT Simulator; allow the correct opcode to be delivered to the control unit. The
control unit in turn will deliver back the times when the program counter should
increment and when the program counter should load the next value to be passed
into the Prog Rom to pass the next operation code to the control unit. Once the
control unit receives this value, it will pass this information to the rest of the CPU.
Figure 2Black Box Diagram of the Register File
6. 4
Program Counter
The Program Counter signals are as follows: PC_OE, PC_LD, PC_INC,
PC_RST, and D_IN. The PC takes an input (D_IN) and will either load or output
D_IN to PC_COUNT if PC_LD is on, or can increment this value and count up
periodically if PC_INC is on. There is also a tri-state output (PC_TRI) that will
display high Z’s unless PC_OE is on, in which case PC_TRI will mirror
PC_COUNT. There is also a reset (RST) that will make the PC_COUNT output
all zeroes if it is turned on. The PC in relation to the rest of the CPU will output
into the address of the ROM, meaning it will access the ROM with whatever the
PC displays. The PC will also have a multiplexor that will decide what to load into
it, and therefore which address to access. This address is either from any
immediate needs such as contents from the ROM itself that can either branch or
call, or be something from the stack with a return.
The program counter is essential for changing the instructions inside the
prog_rom and eventually the entire CPU. During the fetch state of the CPU, the
program counter will add one to the previous count inside in the program counter.
The program counter gets its initial value from a multiplexor that is feed by the IR
line that comes from the prog_rom, the Multi_Bus line, and an external 0x3FF
line. The control unit will control which line is feed and at what point the line will
be feed into the PC. Once the value is loaded into the PC, it will be incremented
in the fetch states to properly run through the code of the prog_rom. The value of
the PC can also be stored in the memory of the scratch pad via the tri-state output
of the PC. The program counters essential purpose is to navigate through the
prog_rom and keep track of what instructions have been delivered and the next
instruction of the RAT CPU. The PC feeds directly into the prog_rom with the 10
bit address line that the prog_rom will deliver and output its 18 bit contents to the
rest of the CPU. If the current value of the PC needs to be stored for use at a later
Figure 3 Black Box Diagram of Control Unit
7. 5
point, the tri-state output will be sent to the scratch pad to be written to a specific
address that will be available for use at any given time.
Figure 4 Black Box Diagram of Program Counter
Prog_rom
The Prog_rom, as the name implies, is a type of read-only memory, or ROM. The
Prog_Rom provides the instructions created from the RAT assembler. The contents of
the Prog_Rom cannot be changed by any hardware of the RAT CPU. The Prog_Rom
is 1024 rows by 18 bits wide (1024x8) meaning that it has 10 address lines and 18 data
lines. Once the Prog_rom is generated in the RAT Assembler, it will be controlled by
the Program Counter to move between address lines and deliver the necessary
information throughout the CPU.
Figure 5 Black Box Diagram of Prog Rom
ALU
The Arithmetic Logic Unit or the ALU is responsible for performing the
mathematical operations that have to be performed in order for the RAT
instructions to run properly. The RAT ALU has four inputs and three outputs.
The four inputs consist of two 8 bit lines, a carry in line and a 4 bit select line. The
three outputs of the ALU are the SUM line that is an 8 bit line, a carry flag, and a
zero flag. The two eight bit input lines can either come from registers or a register
8. 6
and from the immediate lie. The carry in input is connected the carry flag and will
only be high if the carry flag is high. The four bit select line comes from the
control unit and selects which operation to be carried out. Each combination of
inputs to the select line corresponds to some type of operation inside the ALU.
For example, if “0000” is inputted into the select line from the control unit, the
ALU will recognize this as the operation to add the values from the two 8 bit
inputs. Once the ALU has all the information it needs to perform an operation,
the ALU will then output the sum, carry flag and zero flag. The sum comes from
the addition to the two 8 bit numbers. The carry flag will only be high a ninth bit
is necessary to complete the operation. For example, if the values of “11111111”
and 00000001”, the sum will output “00000000” but the carry flag will output ‘1’.
These two outputs are then concatenated together to create “100000000” which is
nine bits instead of eight. The zero flag will only be high if the value of the sum
and zero. In any other cases, the zero flag will be held low. In terms of connecting
the ALU to the rest of the RAT CPU, the two 8 bit input lines come from two
different destinations. One of the lines is connected the tri-state output of the
register file. The second line is connected to the multiplexor from the register file
and IR. The carry in line will be directed connected to the c flag. The Sum output
of the ALU is connected to the multiplexor leading into the Register File.
Figure 6 Black Box Diagram of ALU
Scratch RAM
The Scratch RAM serves as the random access memory of the CPU. What makes
RAM different from other forms of memory is the ability to access data directly in
any random order. What also makes RAM different is the loss of stored
information if the power is removed. This type of memory is known as volatile
memory. In terms of the CPU, the Scratch RAM device serves as the temporary
storage of data. The contents of the memory can be accessed through the RAT
instructions. The Ram is also used as the storage device for the stack. Like the
register file, the RAM is read asynchronously meaning no clock is necessary in
reading from the RAM. The reason for this is because the RAM will need to be
accessed at any given moment instead of on a clock edge. If the RAM were
accessed synchronously, the system would be considerably slower. However, the
RAM is written with the rising edge of the clock. The Scratch RAM has five
inputs: SCR_WR, SCR_OE, CLK, SCR_ADDR and DATA. The RAM is 256 bits
by 10. The 256 bits is inputted from the SCR_ADDR that is 8 bits wide. This
provides the location in which data will be written too. The SCR_DATA provides
the information that will be loaded into each address only if SCR_WE is high. If
9. 7
SCR_WE is low and SCR_OE is high, the address that was inputted from the
SCR_ADDR will be outputted on the tri-state output. This output will be pushed
onto the multi_bus to its next location. The SCR_ADDR is passed through a
multiplexor that is feed from four different places. One is from the IR that comes
from Prog_Rom, another comes from the Reg_File, and the last two come from
the SP. The SCR_ADDR_SEL selects which line to pass into the Scratch Pad and
ultimately controls the Ram.
Figure 7 Black Box Diagram of Scratch Ram
Stack Pointer
The stack pointer is essential for finding old values that have since been stored on the
scratch pad. The SP stores the value of the current address that is on top of the stack.
This value is essential when trying to retrieve the latest data written to the scratch pad.
The stack pointer works in conjunction with the scratch pad when the information that
was recently stored to the scratch pad is trying to be accessed by a different component
of the CPU. Depending on the operational code that is given to the control unit, the
stack pointer may have to be increased by one or decreased by one to maintain stack
integrity. This value will then be passed back into the SP and eventually into the scratch
pad.
The stack pointer has four input lines. A clock, an 8 bit input address line, an
asynchronous reset and an asynchronous load. The input line is controlled by a three
input multiplexor. One line comes from the tri-state output of the program counter.
The other two lines are come from external modules outside of the stack pointer. One
line goes into a module that decrements the count by one while the other increments
by one. Depending on the command given from the prog_rom, the stack pointer will
control whether to increment by one, decrement by one, or feed the exact count into
the scratch pad.
Figure 8 Black Box Diagram of Stack Pointer
10. 8
Flags
The Flags are used for an important purpose involving branching and other
operational codes. Some operational codes, most involving branching to other
subroutines in the prog_rom, requires information from flags. For example, the
command “BREQ” (branch if equals), will only branch if the zero flag is set to high.
The zero flag will then be checked. If the zero flag is indeed high, the branch
command will be carried out. The flag modules hold contents that have no other place
to be stored. The shadow flags serve as storage devices of the flag modules during
interrupts to allow for restoring information to the previous state before the interrupt
occurred.
The flag components are fairly simple devices but are very important to the overall
success of the CPU. Three different flags are present on the CPU. One is for the carry
flag. The carry flag is attached to the ALU and is used to detect an over or under flow
by mathematical operations inside the ALU. The carry flag will only be set if the C_LD
input, controlled by the control unit, is high. The carry flag also has two asynchronous
clear and set lines. If the clear is set by the control unit, the carry flag will be set to zero.
If the set is made high by the control unit, the Carry flag will be set to one. The zero
flag is much like that of the carry flag but does not have the asynchronous set and
clears. The carry and zero flags also have another module added to them to deal with
interrupts correctly. The zero and carry flag have what is called a shadow carry flag and
shadow zero flag. These two flags work the same as the flags except the loads of these
modules will only be high when the interrupt line is high. The interrupt flag is a little
different from the carry and zero flags. The interrupt has no input but only lines
feeding from the control unit. If the control unit sets the clear line high, the interrupt
flag will be set to zero. If the control unit makes the set line high, the interrupt flag will
be set to one. This carry flag feeds into an AND gate between the interrupt line and the
interrupt flag that runs into the control unit.
11. 9
Figure 9 Black Box Diagram of Carry, Zero and Interrupt Flags
Specifications of RAT CPU
DESCRIPTION NEXYS 2
Processor MicroBlaze
Gates 500K-gate Xilinx Sparatan 3E FPGA
RAM 16MB of Micron PSDRAM
ROM 16MB of Intel StrataFlash ROM
Clock 50MHz oscillator plus socket for second oscillator
Power USB Cable, 2.1mm wall-plug supply, battery pack
I/O (INPUT/OUTPUT)
Ports
60 FPGA I/O’s routed to expansion connectors
1 High speed Hirose FX2 connector and four 6-pin headers
8 LEDs
4 7-segment displays
4 buttons
12. 10
DESCRIPTION NEXYS 2
8 slide switches
VGA Port
PS2 Port
USB Port
Serial Port
External Memory 128Mbit Micron M45W8MW 16 Cellular RAM pseudo-
static DRAM
128Mbit Intel TE28F128J3D75-110 StrataFLash Device
Peripheral Connectors Four two-row 6-pin Pmod connectors that can
accommodate up to 8Pmods
Integration of RAT with External
Components
Integrating the RAT CPU with the external components on the Nexys-2 board
requires the need of a wrapper that would use the CPU as component, and have
the inputs and outputs of the wrapper mapped to whatever components (LEDs,
switches, buttons) as needed. The port-id would need to be unique for each kind
of input and output needed in the wrapper so that the correct inputs and outputs
of the CPU can be used. Within the wrapper code if the port-id is equal to a
certain specified number, then an input or output would be transmitted.
Examples of an input and output code that is tied to the wrapper can be seen
below. The outputs would also require the IO_OE to be high in order to ensure
an output of the RAT CPU is outputting.
inputs: process(s_port_id, SWITCHES)
begin
if (s_port_id = SWITCHES_ID) then
s_input_port <= SWITCHES;
else
s_input_port <= x"00";
end if;
end process inputs;
Port ID unique to
switches
13. 11
Integrating other components outside the Nexys-2 board requires a very similar
method depending on the peripheral. For example the PS/2 keyboard used in the
application in Part B has a Key Code that would act as an input to the CPU, so a
port-id for this input would be assigned to the input process of the RAT CPU as
seen in the example. A PS/2 control register would need to be assigned an output
from the CPU, so a similar port ID system would be used for the outputs. The
VGA display would use the same methods for interfacing with the inputs and
outputs of the CPU, and any required registers or modules needed for these
peripherals to function would be port-mapped within the Wrapper accordingly.
Development Environment
In order to execute assembly level programming to create actions within the RAT
CPU, a RAT simulator program was used. The program would take the assembly
language that would manipulate the bits and registers of the prog_rom and would
simulate how the bits would be manipulated within the CPU. The simulator
would step through each instruction and show what would be changed within the
CPU. Whenever the assembly program was complied, a prog_rom VHDL
module would be created and used in the RAT CPU in Xilinx. The layout of the
UI can be seen below.
outputs: process(CLK, s_load, s_port_id)
begin
if (rising_edge(CLK)) then
if (s_load = '1') then
if (s_port_id = LEDS_ID) then
r_LEDS <= s_output_port;
elsif (S_port_id = VGA_HADDR_ID) then
r_vga_wa(10 downto 8) <= S_output_port(2 downto 0);
elsif (s_port_id = VGA_LADDR_ID) then
r_vga_wa(7 downto 0) <= S_output_port;
elsif (s_port_id = VGA_WRITE_ID) then
r_vga_wd <= S_output_port;
end if;
end if;
end if;
end process outputs;
s_load =
IO_OE
Port ID
unique
to each
output
required
14. 12
Can step-through line-by-line
or have interrupts
Registers and Bits changed as program plays out
Assembly
Program –
highlight one
current
instruction
15. 13
Operational Description
The RAT application is what allows the RAT CPU to function. The application that
was developed was “Guitar Hero +”. The application builds in the use of external
components that work with the help of interrupts. The interrupts are only engaged
when the user makes a command that the program is expecting. Two external
peripherals are used, as well as the use of the 7-segment display. The first being a
display monitor. The display monitor creates the environment in which the user will
interact with the CPU. This is done by using a keyboard, connected via the PS2 port on
the Nexys2 board. The keys that the CPU will accept are the “A”, “S”, “D”, and “F”
keys. Each key corresponds to a column on the display. A block will fall down the
screen and bounce between one of the four columns at any given time. The block will
not become clear as to which column it will end in until the last second. If the block
ends in column A and the user inputs the “A” key at the same time as the block is
leaving the bottom of the screen, a point will be rewarded. If the user presses the
wrong button, or mistimes the “A” key, the user will not be rewarded a point. The
score is tracked on the 7-segment display on the Nexys2 board. The high score that is
achievable is 10. After 10 blocks have fallen, the game will reset. After each block falls,
the block will fall at an increasing rate each time. “Guitar Hero +” is a rather
challenging game that ultimately tests the ability of the user to stay focused on the
block and have the ability to react to the change in the column until it reaches the
bottom.
Specifications of Application
DESCRIPTION GUITAR HERO +
Players 1
Buttons in use on
Keyboard
4 – A, S, D, F
High Score 10
Screen Resolution 8 bit color, 40pixels x 30pixels
Part
B
16. 14
DESCRIPTION GUITAR HERO +
Aspect Ratio 4:3
Peripherals Needed 2- Keyboard and Monitor with VGA hookup
Theory of Operation
“Guitar Hero +” utilizes all features that the RAT CPU has to offer. In order for
“Guitar Hero +” to operate efficiently and correctly, the assembly language code that
the game is designed in must be properly inserted into the RAT CPU. This is done by
generating a prog_rom file and synthesizing it within the RAT CPU itself. This
prog_rom file, as discussed previously, will send all necessary operational codes to the
control unit. The control unit now must deal, in addition to controlling the entire RAT
CPU, the ability of user inputs. This is done by configuring the RAT CPU to work
properly with the keyboard. The keyboard will accept four buttons to be pressed by the
user: keys A, S, D and F. These four buttons correspond with the four red blocks at
the bottom of the monitor. Going right to left, A corresponds with the first column, S
corresponds with the second column, D corresponds with the third and F corresponds
with the far left column on the monitor. As the block falls down the screen, it will be
moved, with the use of the random number generator, between the four columns and
alternate all the way down the screen. As the block gets close to the bottom, the block
will stay in the same column allowing the user to select the button that corresponds
with the location of the falling block. If the user times it correctly, a point will be added
to the 7-segment display on the Nexys2 board. The RAT CPU deals with this interrupt
by changing states of the Finite State Machine of the CPU. The CPU will then deliver
all the information corresponding with the interrupt to the proper locations of the
RAT CPU. Once the interrupt is removed, the CPU will return to its previous State
and go on with operation until another interrupt is activated. This leads to a new block
being generated at the top of the screen with a twist, it will fall faster than the previous
block. This process will be repeated 10 times. The score of the 7-segment display will
show how the amount of blocks that were correct out of 10. At the end of the 10
blocks, a game over screen will be displayed. The prog_rom file of “Guitar Hero +”
handles all necessary commands of moving the blocks and comparing locations of the
block with respect to the bottom of the screen. The only direct input to the RAT CPU
is the interrupt line that feeds into the CPU. This interrupt line ultimately controls the
state at which the CPU is in at any given time and allows “Guitar Hero +” to run
effectively with external interrupts from the user.
17. 15
User Guide
“Guitar Hero +” prides itself on its friendly environment. A monitor, keyboard, VGA
cable, and a Nexys2 board programmed with the RAT CPU are the essential elements
to run “Guitar Hero +”. The user only has to interact with the keyboard in order to
play the game. The keys of “A”, “S”, “D”, and “F” are the only keys that the user
needs to press. These are the only elements that the user needs to take into account.
“Guitar Hero +” rules are simple and have a natural feeling to them. As the block
drops down the screen, the user must focus on which column the block is bouncing
between. Once the block reaches the bottom red blocks, the user must correctly select
the key that corresponds with the column the block is in. For example, if the block is in
the second column and is just about to reach the bottom, the user would select “S”.
This would reward the user with one point that would show on the 7-segment display
on the Nexys2 board. If the user would have selected any other button besides “S”, or
would have selected “S” after the block had already passed through the bottom of the
screen or pressed it too soon, a point would not be rewarded to the user. In both
scenarios the next block would then drop from the top of the screen just as before and
would repeat this process a total of ten times.
Future Development
There are many possibilities for Future Development of “Guitar Hero +”. The first
change would be to implement a scoring featuring on the screen instead of the 7-
segment display of the Nexys2 board. Another feature would be for multiply settings.
This would include the ability to change the difficulty. The difficulty could range from
easy, medium, hard, and finally expert. The higher level modes could even incorporate
more keys into the program. Instead of only having four keys, five to six would be
possible. Another feature that would improve game play would be to incorporate
another peripheral to the Nexys2 board that allowed for audio. This would allow music
to be implemented into the game and have a more realistic feeling to the game. One
last implementation would be to add a multiplayer feature. This could be added by
using the number pad on the keyboard as player 2 and implementing a second screen
that would duplicate player 1 screens over to player 2s. Each player would have the
exact same keys but their scores could be prepared on screen. These additions would
make the game better and be more enjoyable to the user.
18. 16
Appendix A
ALU Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.all;
entity ALU is
Port ( A : in STD_LOGIC_VECTOR (7 downto 0);
B : in STD_LOGIC_VECTOR (7 downto 0);
C_IN : in STD_LOGIC;
SEL : in STD_LOGIC_VECTOR (3 downto 0);
SUM : out STD_LOGIC_VECTOR (7 downto 0);
C_FLAG : out STD_LOGIC;
Z_FLAG : out STD_LOGIC);
end ALU;
architecture Behavioral of ALU is
signal output : STD_LOGIC_VECTOR(8 downto 0);
begin
selection: process(A, B, C_IN, SEL)
begin
case SEL is
when "0000" => output <= '0' & A + B; --ADD
when "0001" => output <= ('0' & A) + B + C_IN; --
ADDC
when "0010" => output <= '0' & A - B; --SUB
when "0011" => output <= '0' & A - B - C_IN; --SUBC
when "0100" => output <= '0' & A - B; --CMP
when "0101" => output <= '0' & (A AND B); --AND
when "0110" => output <= '0' & (A OR B); --OR
when "0111" => output <= '0' & (A XOR B); --EXOR
when "1000" => output <= '0' & (A AND B); --TEST
when "1001" => output <= A(7 downto 0) & C_IN; --LSL
when "1010" => output <= A(0) & C_IN & A(7 downto
1); --LSR
when "1011" => output <= A(7 downto 0) & A(7); --ROL
when "1100" => output <= A(0) & A(0) & A(7 downto
1); --ROR
when "1101" => output <= A(0) & A(7) & A(7 downto
1); --ASR
when "1110" => output <= C_IN & B; --MOV
when others => output <= C_IN & A;
end case;
end process selection;
19. 17
Flags: process(output)
begin
if(output(7 downto 0) = "00000000") then
Z_FLAG <= '1';
else
Z_FLAG <= '0';
end if;
end process flags;
C_FLAG <= output(8);
SUM <= output(7 downto 0);
end Behavioral
ALU Mux Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity ALUMUX is
Port ( In0 : in STD_LOGIC_VECTOR (7 downto 0);
In1 : in STD_LOGIC_VECTOR (7 downto 0);
Sel : in STD_LOGIC;
Output : out STD_LOGIC_VECTOR (7 downto 0));
end ALUMUX;
architecture Behavioral of ALUMUX is
begin
process(sel, in0, in1)
begin
case sel is
when '0' => Output <= in0;
when others => output <= in1;
end case;
end process;
end Behavioral;
C Flag Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity C is
Port ( Input : in STD_LOGIC;
20. 18
SET : in STD_LOGIC;
LoaD : in STD_LOGIC;
RST : in STD_LOGIC;
CLK : in STD_LOGIC;
FLAG : out STD_LOGIC);
end C;
architecture Behavioral of C is
begin
process(clk, set, input, load, rst) is
begin
if(rst = '1')then
flag <= '0';
elsif(set = '1') then
flag <= '1';
else
if(load = '1' and rising_edge(clk))then
flag <= input;
end if;
end if;
end process;
end Behavioral;
Z Flag Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity Z is
Port ( Input : in STD_LOGIC;
SET : in STD_LOGIC;
LoaD : in STD_LOGIC;
RST : in STD_LOGIC;
CLK : in STD_LOGIC;
FLAG : out STD_LOGIC);
end Z;
architecture Behavioral of C is
begin
process(clk, set, input, load, rst) is
begin
if(rst = '1')then
flag <= '0';
elsif(set = '1') then
flag <= '1';
21. 19
else
if(load = '1' and rising_edge(clk))then
flag <= input;
end if;
end if;
end process;
end Behavioral;
Flag Mux Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity flagMUX is
Port ( in0 : in STD_LOGIC;
in1 : in STD_LOGIC;
sel : in STD_LOGIC;
output : out STD_LOGIC);
end flagMUX;
architecture Behavioral of flagMUX is
begin
process(in0, in1, sel) is
begin
case sel is
when '0' => output <= in0;
when others => output <= in1;
end case;
end process;
end Behavioral;
Control Unit Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity ControlUnit is
Port ( CLK : in STD_LOGIC;
C : in STD_LOGIC;
Z : in STD_LOGIC;
INT : in STD_LOGIC;
RST : in STD_LOGIC;
OPCODE_HI_5 : in STD_LOGIC_VECTOR (4 downto 0);
OPCODE_LO_2 : in STD_LOGIC_VECTOR (1 downto 0);
22. 20
PC_LD : out STD_LOGIC;
PC_INC : out STD_LOGIC;
PC_RESET : out STD_LOGIC;
PC_OE : out STD_LOGIC;
PC_MUX_SEL : out STD_LOGIC_VECTOR (1 downto 0);
SP_LD : out STD_LOGIC;
SP_MUX_SEL : out STD_LOGIC_VECTOR (1 downto 0);
SP_RESET : out STD_LOGIC;
RF_WR : out STD_LOGIC;
RF_WR_SEL : out STD_LOGIC_VECTOR (1 downto 0);
RF_OE : out STD_LOGIC;
REG_IMMED_SEL : out STD_LOGIC;
ALU_SEL : out STD_LOGIC_VECTOR (3 downto 0);
SCR_WR : out STD_LOGIC;
SCR_OE : out STD_LOGIC;
SCR_ADDR_SEL : out STD_LOGIC_VECTOR (1 downto 0);
C_FLAG_SEL : out STD_LOGIC;
C_FLAG_LD : out STD_LOGIC;
C_FLAG_SET : out STD_LOGIC;
C_FLAG_CLR : out STD_LOGIC;
SHAD_C_LD : out STD_LOGIC;
Z_FLAG_SEL : out STD_LOGIC;
Z_FLAG_LD : out STD_LOGIC;
Z_FLAG_SET : out STD_LOGIC;
Z_FLAG_CLR : out STD_LOGIC;
SHAD_Z_LD : out STD_LOGIC;
I_FLAG_SET : out STD_LOGIC;
I_FLAG_CLR : out STD_LOGIC;
IO_OE : out STD_LOGIC);
end ControlUnit;
architecture Behavioral of ControlUnit is
type state_type is (ST_init, ST_fet, ST_exec, ST_interrupt);
signal PS,NS : state_type := ST_init;
signal sig_OPCODE_7: std_logic_vector (6 downto 0);
begin
-- concatenate the all opcodes into a 7-bit complete opcode
for
-- easy instruction decoding.
sig_OPCODE_7 <= OPCODE_HI_5 & OPCODE_LO_2;
sync_p: process (CLK, NS, RST)
begin
if (RST = '1') then
PS <= ST_init;
elsif (rising_edge(CLK)) then
PS <= NS;
end if;
end process sync_p;
32. 30
when others =>
NS <= ST_fet;
PC_LD <= '0'; PC_MUX_SEL <= "00"; PC_RESET <= '0'; PC_OE
<= '0'; PC_INC <= '0';
SP_LD <= '0'; SP_MUX_SEL <= "00"; SP_RESET <= '0';
RF_WR <= '0'; RF_WR_SEL <= "00"; RF_OE <= '0';
REG_IMMED_SEL <= '0'; ALU_SEL <= "0000";
SCR_WR <= '0'; SCR_OE <= '0'; SCR_ADDR_SEL <= "00";
C_FLAG_SEL <= '0'; C_FLAG_LD <= '0'; C_FLAG_SET <= '0';
C_FLAG_CLR <= '0'; SHAD_C_LD <= '0';
Z_FLAG_SEL <= '0'; Z_FLAG_LD <= '0'; Z_FLAG_SET <= '0';
Z_FLAG_CLR <= '0'; SHAD_Z_LD <= '0';
I_FLAG_SET <= '0'; I_FLAG_CLR <= '0';
IO_OE <= '0';
end case;
end process comb_p;
end Behavioral;
I Flag Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity I is
Port ( SET : in STD_LOGIC;
CLR : in STD_LOGIC;
FLAG : out STD_LOGIC);
end I;
architecture Behavioral of I is
begin
process(set, clr) is
begin
if(clr = '1')then
flag <= '0';
elsif(set = '1') then
flag <= '1';
end if;
end process;
end Behavioral;
Program Counter Code
33. 31
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.all;
entity ProgramCounter is
Port ( D_IN : in STD_LOGIC_VECTOR (9 downto 0);
PC_OE : in STD_LOGIC;
PC_LD : in STD_LOGIC;
PC_INC : in STD_LOGIC;
RST : in STD_LOGIC;
CLK : in STD_LOGIC;
PC_COUNT : out STD_LOGIC_VECTOR (9 downto 0);
PC_TRI : out STD_LOGIC_VECTOR (9 downto 0));
end ProgramCounter;
architecture Behavioral of ProgramCounter is
signal PC_STORE : std_logic_vector(9 downto 0);
begin
synch: process(RST, CLK) is
begin
if(RST = '1') then
PC_STORE <= "0000000000";
elsif(rising_edge(CLK)) then
if(PC_LD = '1') then
PC_STORE <= D_IN;
elsif(PC_INC = '1') then
PC_STORE <= PC_STORE + 1;
end if;
end if;
end process synch;
oe : process(PC_OE, PC_STORE)is
begin
if(PC_OE = '1') then
PC_TRI <= PC_Store;
else
PC_TRI <= "ZZZZZZZZZZ";
end if;
end process oe;
PC_COUNT <= PC_STORE;
34. 32
end Behavioral;
Program Counter Mux Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity MUX is
Port ( IN_0 : in STD_LOGIC_VECTOR (9 downto 0);
IN_1 : in STD_LOGIC_VECTOR (9 downto 0);
IN_2 : in STD_LOGIC_VECTOR (9 downto 0);
SEL : in STD_LOGIC_VECTOR (1 downto 0);
MUX_OUT : out STD_LOGIC_VECTOR (9 downto 0));
end MUX;
architecture Behavioral of MUX is
begin
With SEL select
MUX_OUT <= IN_0 when "00",
IN_1 when "01",
IN_2 when "10",
"0000000000" when others;
end Behavioral;
Plus One Module Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity Plus1 is
Port ( Input : in STD_LOGIC_VECTOR (7 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end Plus1;
architecture Behavioral of Plus1 is
begin
Output <= Input + 1;
end Behavioral;
Minus One Module
35. 33
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity Minus1 is
Port ( Input : in STD_LOGIC_VECTOR (7 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end Minus1;
architecture Behavioral of Minus1 is
begin
Output <= Input - 1;
end Behavioral;
Random Number Generator Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity randnumbdecoder is
Port ( input : in STD_LOGIC_VECTOR (7 downto 0);
output : out STD_LOGIC_VECTOR (7 downto 0));
end randnumbdecoder;
architecture Behavioral of randnumbdecoder is
begin
process(input) is
begin
if(input(7 downto 4) = x"1" or input(7 downto 4) = x"2" or
input(7 downto 4)
= x"3" or input(7 downto 4) = x"4") then
output <= x"10";
elsif(input(7 downto 4) = x"5" or input(7 downto 4) = x"6" or
input(7 downto
4) = x"7" or input(7 downto 4) = x"8") then
output <= x"12";
elsif(input(7 downto 4) = x"0" or input(7 downto 4) = x"9" or
input(7 downto
4) = x"A0" or input(7 downto 4) = x"B") then
output <= x"14";
elsif(input(7 downto 4) = x"C" or input(7 downto 4) = x"D" or
input(7 downto
4) = x"E" or input(7 downto 4) = x"F") then
output <= x"16";
end if;
end process;
36. 34
end Behavioral;
Register File Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity RegisterFile is
Port ( D_IN : in STD_LOGIC_VECTOR (7 downto 0);
DX_OUT : out STD_LOGIC_VECTOR (7 downto 0);
DY_OUT : out STD_LOGIC_VECTOR (7 downto 0);
ADRX : in STD_LOGIC_VECTOR (4 downto 0);
ADRY : in STD_LOGIC_VECTOR (4 downto 0);
DX_OE : in STD_LOGIC;
WE : in STD_LOGIC;
CLK : in STD_LOGIC);
end RegisterFile;
architecture Behavioral of RegisterFile is
TYPE memory is array (0 to 31) of std_logic_vector(7 downto
0);
SIGNAL REG: memory := (others=>(others=>'0'));
begin
process(clk)
begin
if (rising_edge(clk)) then
if (WE = '1') then
REG(conv_integer(ADRX)) <= D_IN;
end if;
end if;
end process;
DX_OUT <= REG(conv_integer(ADRX)) when DX_OE='1' else
(others=>'Z');
DY_OUT <= REG(conv_integer(ADRY));
end Behavioral;
Register File Mux Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity RegMUX is
Port ( In0 : in STD_LOGIC_VECTOR (7 downto 0);
In1 : in STD_LOGIC_VECTOR (7 downto 0);
In2 : in STD_LOGIC_VECTOR (7 downto 0);
In3 : in STD_LOGIC_VECTOR (7 downto 0);
37. 35
Sel : in STD_LOGIC_VECTOR (1 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end RegMUX;
architecture Behavioral of RegMUX is
begin
process(sel, in0, in1, in2, in3)
begin
case sel is
when "00" => output <= in0;
when "01" => output <= in1;
when "10" => output <= in2;
when others => output <= in3;
end case;
end process;
end Behavioral;
Scratch Pad Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity ScratchPad is
Port ( SCR_ADDR : in STD_LOGIC_VECTOR (7 downto 0);
SCR_OE : in STD_LOGIC;
SCR_WE : in STD_LOGIC;
CLK : in STD_LOGIC;
SCR_DATA : inout STD_LOGIC_VECTOR (9 downto 0));
end ScratchPad;
architecture Behavioral of ScratchPad is
TYPE memory is array (0 to 255) of std_logic_vector(9 downto 0);
SIGNAL REG: memory := (others=>(others=>'0'));
begin
stuff: process(CLK, REG, SCR_WE, SCR_ADDR, SCR_DATA) is
begin
if(rising_edge(CLK))then
if(SCR_WE = '1') then
REG(conv_integer(SCR_ADDR)) <= SCR_DATA;
end if;
end if;
end process stuff;
38. 36
tri: process(SCR_OE, SCR_ADDR, REG) is
begin
if(SCR_OE = '1') then
SCR_DATA <= REG(conv_integer(SCR_ADDR));
else
SCR_DATA <= "ZZZZZZZZZZ";
end if;
end process tri;
end Behavioral;
Seven Segment Display Decoder Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity decoder is
Port ( load : in STD_LOGIC;
portid : in STD_LOGIC_VECTOR (7 downto 0);
input : in STD_LOGIC_VECTOR (3 downto 0);
output1 : out STD_LOGIC_VECTOR (6 downto 0);
output2 : out STD_LOGIC_VECTOR (6 downto 0));
end decoder;
architecture Behavioral of decoder is
begin
process(load, portid, input) is
begin
if(load = '1') then
if( portid = x"40") then
case input is
when "0000" => output1 <= "0000001";
when "0001" => output1 <= "1001111";
when "0010" => output1 <= "0010010";
when "0011" => output1 <= "0000110";
when "0100" => output1 <= "1001100";
when "0101" => output1 <= "0100100";
when "0110" => output1 <= "1100000";
when "0111" => output1 <= "0001111";
when "1000" => output1 <= "0000000";
when "1001" => output1 <= "0001100";
when others => output1 <= "1111111";
end case;
elsif(portid = x"10") then
case input is
when "0000" => output2 <= "0000001";
39. 37
when "0001" => output2 <= "1001111";
when "0010" => output2 <= "0010010";
when "0011" => output2 <= "0000110";
when "0100" => output2 <= "1001100";
when "0101" => output2 <= "0100100";
when "0110" => output2 <= "1100000";
when "0111" => output2 <= "0001111";
when "1000" => output2 <= "0000000";
when "1001" => output2 <= "0001100";
when others => output2 <= "1111111";
end case;
end if;
end if;
end process;
end Behavioral;
Seven Segment Display Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity displayer is
Port ( CLK : in STD_LOGIC; --CLK needs to be slow
display1 : in STD_LOGIC_VECTOR(6 downto 0);
display2 : in STD_LOGIC_VECTOR(6 downto 0);
Displayout : out STD_LOGIC_VECTOR(6 downto 0);
LED1out : out STD_LOGIC;
LED2out : out STD_LOGIC);
end displayer;
architecture Behavioral of displayer is
begin
process(CLK) is
begin
if(CLK = '1')then
LED1out <= '0';
LED2out <= '1';
displayout <= display1;
elsif(CLK = '0')then
LED1out <= '1';
LED2out <= '0';
displayout <= display2;
end if;
end process;
end Behavioral;
40. 38
Shadow Flag Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity shadow is
Port ( input : in STD_LOGIC;
load : in STd_LOGic;
CLK : in STD_LOGIC;
output : out STD_LOGIC);
end shadow;
architecture Behavioral of shadow is
begin
process(clk, input) is
begin
if(load = '1' and rising_edge(CLK))then
output <= input;
end if;
end process;
end Behavioral;
Stack Pointer Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity SP is
Port ( Load : in STD_LOGIC;
RST : in STD_LOGIC;
CLK : in STD_LOGIC;
Input : in STD_LOGIC_VECTOR (7 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end SP;
architecture Behavioral of SP is
begin
process (RST, Load, CLK) is
begin
if(RST = '1') then
Output <= "00000000";
elsif(Load = '1' and rising_edge(CLK))then
Output <= Input;
end if;
41. 39
end process;
end Behavioral;
Stack Pointer Mux Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity SPMUX is
Port ( In0 : in STD_LOGIC_VECTOR (7 downto 0);
In1 : in STD_LOGIC_VECTOR (7 downto 0);
In2 : in STD_LOGIC_VECTOR (7 downto 0);
In3 : in STD_LOGIC_VECTOR (7 downto 0);
SEL : in STD_LOGIC_VECTOR (1 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end SPMUX;
architecture Behavioral of SPMUX is
begin
process(Sel, in0, in1, in2, in3) is
begin
case SEL is
when "00" => output <= in0;
when "01" => output <= in1;
when "10" => output <= in2;
when others => output <= in3;
end case;
end process;
end Behavioral;
Scratch Pad Mux Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity SMUX is
Port ( In0 : in STD_LOGIC_VECTOR (7 downto 0);
In1 : in STD_LOGIC_VECTOR (7 downto 0);
In2 : in STD_LOGIC_VECTOR (7 downto 0);
In3 : in STD_LOGIC_VECTOR (7 downto 0);
SEL : in STD_LOGIC_VECTOR (1 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end SPMUX;
architecture Behavioral of SPMUX is
begin
42. 40
process(Sel, in0, in1, in2, in3) is
begin
case SEL is
when "00" => output <= in0;
when "01" => output <= in1;
when "10" => output <= in2;
when others => output <= in3;
end case;
end process;
end Behavioral;
RAT CPU Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity RAT_CPU is
Port ( IN_PORT : in STD_LOGIC_VECTOR (7 downto 0);
RST : in STD_LOGIC;
INT_IN : in STD_LOGIC;
CLK : in STD_LOGIC;
OUT_PORT : out STD_LOGIC_VECTOR (7 downto 0);
PORT_ID : out STD_LOGIC_VECTOR (7 downto 0);
IO_OE : out STD_LOGIC);
end RAT_CPU;
architecture Behavioral of RAT_CPU is
component ControlUnit is
Port ( CLK : in STD_LOGIC;
C : in STD_LOGIC;
Z : in STD_LOGIC;
INT : in STD_LOGIC;
RST : in STD_LOGIC;
OPCODE_HI_5 : in STD_LOGIC_VECTOR (4 downto
0);
OPCODE_LO_2 : in STD_LOGIC_VECTOR (1 downto
0);
PC_LD : out STD_LOGIC;
PC_INC : out STD_LOGIC;
PC_RESET : out STD_LOGIC;
PC_OE : out STD_LOGIC;
PC_MUX_SEL : out STD_LOGIC_VECTOR (1 downto
0);
SP_LD : out STD_LOGIC;
SP_MUX_SEL : out STD_LOGIC_VECTOR (1 downto
0);
SP_RESET : out STD_LOGIC;
43. 41
RF_WR : out STD_LOGIC;
RF_WR_SEL : out STD_LOGIC_VECTOR (1 downto
0);
RF_OE : out STD_LOGIC;
REG_IMMED_SEL : out STD_LOGIC;
ALU_SEL : out STD_LOGIC_VECTOR (3 downto
0);
SCR_WR : out STD_LOGIC;
SCR_OE : out STD_LOGIC;
SCR_ADDR_SEL : out STD_LOGIC_VECTOR (1 downto
0);
C_FLAG_SEL : out STD_LOGIC;
C_FLAG_LD : out STD_LOGIC;
C_FLAG_SET : out STD_LOGIC;
C_FLAG_CLR : out STD_LOGIC;
SHAD_C_LD : out STD_LOGIC;
Z_FLAG_SEL : out STD_LOGIC;
Z_FLAG_LD : out STD_LOGIC;
Z_FLAG_SET : out STD_LOGIC;
Z_FLAG_CLR : out STD_LOGIC;
SHAD_Z_LD : out STD_LOGIC;
I_FLAG_SET : out STD_LOGIC;
I_FLAG_CLR : out STD_LOGIC;
IO_OE : out STD_LOGIC);
end component;
component PCandMUX is
Port ( FROM_IMMED : in STD_LOGIC_VECTOR (9 downto 0);
FROM_STACK : in STD_LOGIC_VECTOR (9 downto 0);
FF : in STD_LOGIC_VECTOR (9 downto 0);
PC_MUX_SEL : in STD_LOGIC_VECTOR (1 downto 0);
PC_OE : in STD_LOGIC;
PC_LD : in STD_LOGIC;
PC_INC : in STD_LOGIC;
RST : in STD_LOGIC;
CLK : in STD_LOGIC;
PC_COUNT : out STD_LOGIC_VECTOR (9 downto 0);
PC_TRI : out STD_LOGIC_VECTOR (9 downto 0));
end component;
component prog_rom is
port ( ADDRESS : in std_logic_vector(9 downto 0);
INSTRUCTION : out std_logic_vector(17 downto 0);
CLK : in std_logic);
end component;
component RegisterFile is
Port ( D_IN : in STD_LOGIC_VECTOR (7 downto 0);
DX_OUT : out STD_LOGIC_VECTOR (7 downto 0);
DY_OUT : out STD_LOGIC_VECTOR (7 downto 0);
ADRX : in STD_LOGIC_VECTOR (4 downto 0);
ADRY : in STD_LOGIC_VECTOR (4 downto 0);
DX_OE : in STD_LOGIC;
WE : in STD_LOGIC;
44. 42
CLK : in STD_LOGIC);
end component;
component ALU is
Port ( A : in STD_LOGIC_VECTOR (7 downto 0);
B : in STD_LOGIC_VECTOR (7 downto 0);
C_IN : in STD_LOGIC;
SEL : in STD_LOGIC_VECTOR (3 downto 0);
SUM : out STD_LOGIC_VECTOR (7 downto 0);
C_FLAG : out STD_LOGIC;
Z_FLAG : out STD_LOGIC);
end component;
component ALUMUX is
Port ( In0 : in STD_LOGIC_VECTOR (7 downto 0);
In1 : in STD_LOGIC_VECTOR (7 downto 0);
Sel : in STD_LOGIC;
Output : out STD_LOGIC_VECTOR (7 downto 0));
end component;
component RegMUX is
Port ( In0 : in STD_LOGIC_VECTOR (7 downto 0);
In1 : in STD_LOGIC_VECTOR (7 downto 0);
In2 : in STD_LOGIC_VECTOR (7 downto 0);
In3 : in STD_LOGIC_VECTOR (7 downto 0);
Sel : in STD_LOGIC_VECTOR (1 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end component;
component SP is
Port ( Load : in STD_LOGIC;
RST : in STD_LOGIC;
CLK : in STD_LOGIC;
Input : in STD_LOGIC_VECTOR (7 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end component;
component Plus1 is
Port ( Input : in STD_LOGIC_VECTOR (7 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end component;
component Minus1 is
Port ( Input : in STD_LOGIC_VECTOR (7 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end component;
component SPMUX is
Port ( In0 : in STD_LOGIC_VECTOR (7 downto 0);
In1 : in STD_LOGIC_VECTOR (7 downto 0);
In2 : in STD_LOGIC_VECTOR (7 downto 0);
In3 : in STD_LOGIC_VECTOR (7 downto 0);
SEL : in STD_LOGIC_VECTOR (1 downto 0);
Output : out STD_LOGIC_VECTOR (7 downto 0));
end component;
45. 43
component ScratchPad is
Port ( SCR_ADDR : in STD_LOGIC_VECTOR (7 downto 0);
SCR_OE : in STD_LOGIC;
SCR_WE : in STD_LOGIC;
CLK : in STD_LOGIC;
SCR_DATA : inout STD_LOGIC_VECTOR (9 downto 0));
end component;
component C is
Port ( Input : in STD_LOGIC;
SET : in STD_LOGIC;
LoaD : in STD_LOGIC;
RST : in STD_LOGIC;
CLK : in std_Logic;
FLAG : out STD_LOGIC);
end component;
component Z is
Port ( Input : in STD_LOGIC;
SET : in STD_LOGIC;
Load : in STD_LOGIC;
RST : in STD_LOGIC;
Clk : in std_logic;
flag : out STD_LOGIC);
end component;
component I is
Port ( SET : in STD_LOGIC;
CLR : in STD_LOGIC;
FLAG : out STD_LOGIC);
end component;
component shadow is
Port ( input : in STD_LOGIC;
load : in STD_LOGIC;
CLK : in STD_LOGIC;
output : out STD_LOGIC);
end component;
component flagMUX is
Port ( in0 : in STD_LOGIC;
in1 : in STD_LOGIC;
sel : in STD_LOGIC;
output : out STD_LOGIC);
end component;
component db_1Shot is
Port ( A, CLK : in STD_LOGIC;
A_DB : out STD_LOGIC);
end component;
--ControlUnitSigs
signal S_PC_MUX_SEL, S_RF_WR_SEL, S_SP_MUX_SEL, S_SCR_ADDR_SEL :
STD_LOGIC_VECTOR(1 downto 0);
48. 46
C_FLAG => S_to_C_FLAG,
Z_FLAG => S_to_Z_FLAG);
M3: SPMUX PORT MAP(In0 => S_MULT_BUS(7 downto 0),
In1 => "00000000",
In2 => S_minusone,
In3 => S_plusone,
SEL => S_SP_MUX_SEL,
Output => S_toSP);
ST: SP PORT MAP(Load => S_SP_LD,
RST => S_SP_RESET,
CLK => CLK,
Input => S_toSP,
Output => S_fromSP);
M4: SPMUX PORT MAP(In0 => S_REG_TO_ALUMUX,
In1 => S_IR(7 downto 0),
In2 => S_fromSP,
In3 => S_minusone,
SEL => S_SCR_ADDR_SEL,
Output => S_toSCR);
Pl: Plus1 PORT MAP(Input => S_fromSP,
Output => S_plusone);
Mi: Minus1 PORT MAP(Input => S_fromSP,
output => S_minusone);
SCR: ScratchPad PORT MAP(SCR_ADDR => S_toSCR,
SCR_OE => S_SCR_OE,
SCR_WE => S_SCR_WR,
CLK => CLK,
SCR_DATA => S_MULT_BUS);
flagc : C PORT MAP(Input => S_Cflagin,
SET => S_C_FLAG_SET,
LoaD => S_C_FLAG_LD,
RST => S_C_FLAG_CLR,
clk => clk,
FLAG => S_C);
flagZ : Z PORT MAP(Input => S_Zflagin,
SET => S_Z_FLAG_SET,
LoaD => S_Z_FLAG_LD,
RST => S_Z_FLAG_CLR,
clk => clk,
FLAG => S_Z);
flagI : I PORT MAP( SET => S_I_FLAG_SET,
CLR => S_I_FLAG_CLR,
FLAG => S_I_FLAG);
shadC : Shadow PORT MAP(input => S_C,
load => S_SHAD_C_LD,
49. 47
CLK => CLK,
output => S_shadC);
shadZ : shadow PORT MAP(input => S_C,
load => S_SHAD_Z_LD,
CLK => CLK,
output => S_shadZ);
CMux : flagMUX PORT MAP(In0 => S_to_C_FLAG,
In1 => S_shadC,
Sel => S_C_FLAG_SEL,
Output => S_CflagIn);
ZMux : flagMUX PORT MAP(In0 => S_to_Z_FLAG,
In1 => S_shadZ,
Sel => S_Z_FLAG_SEL,
Output => S_ZflagIn);
OUT_PORT <= S_MULT_BUS(7 downto 0);
PORT_ID <= S_IR(7 downto 0);
IO_OE <= S_IO_OE;
end Behavioral;
RAT Wrapper Code
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity RAT_wrapper is
Port ( LEDS : out STD_LOGIC_VECTOR (3 downto 0);
display : out STD_LOGIC_VECTOR (6 downto 0);
DP : out std_logic;
SWITCHES : in STD_LOGIC_VECTOR (7 downto 0);
RST : in STD_LOGIC;
CLK : in STD_LOGIC;
ps2d, ps2c : inout std_logic;
VGA_RGB : out std_logic_vector(7 downto 0);
VGA_HS : out std_logic;
VGA_VS : out std_logic);
end RAT_wrapper;
architecture Behavioral of RAT_wrapper is
-- INPUT PORT IDS -------------------------------------------
------------
50. 48
CONSTANT SWITCHES_ID : STD_LOGIC_VECTOR (7 downto 0) :=
X"20";
CONSTANT VGA_READ_ID : STD_LOGIC_VECTOR (7 downto 0) :=
x"93";
CONSTANT PS2_KEY_CODE_ID : STD_LOGIC_VECTOR (7 downto 0) :=
X"44";
CONSTANT PS2_STATUS_ID : STD_LOGIC_VECTOR (7 downto 0) :=
X"45";
-------------------------------------------------------------
-------------
-------------------------------------------------------------
-------------
-- OUTPUT PORT IDS ------------------------------------------
-------------
CONSTANT LEDS_ID : STD_LOGIC_VECTOR (7 downto 0) :=
X"40";
CONSTANT VGA_HADDR_ID : STD_LOGIC_VECTOR (7 downto 0) :=
x"90";
CONSTANT VGA_LADDR_ID : STD_LOGIC_VECTOR (7 downto 0) :=
x"91";
CONSTANT VGA_WRITE_ID : STD_LOGIC_VECTOR (7 downto 0) :=
x"92";
CONSTANT PS2_CONTROL_ID : STD_LOGIC_VECTOR (7 downto 0) :=
X"46";
--components ------------------------------------------------
------------
component RAT_CPU
Port ( IN_PORT : in STD_LOGIC_VECTOR (7 downto 0);
RST : in STD_LOGIC;
INT_IN : in STD_LOGIC;
CLK : in STD_LOGIC;
OUT_PORT : out STD_LOGIC_VECTOR (7 downto 0);
PORT_ID : out STD_LOGIC_VECTOR (7 downto 0);
IO_OE : out STD_LOGIC);
end component RAT_CPU;
component vgaDriverBuffer is
Port ( CLK, we : in std_logic;
wa : in std_logic_vector (10 downto
0);
wd : in std_logic_vector (7 downto
0);
Rout : out std_logic_vector (2 downto
0);
Gout : out std_logic_vector (2 downto
0);
Bout : out std_logic_vector(1 downto 0);
HS : out std_logic;
VS : out std_logic;
51. 49
pixelData : out std_logic_vector(7 downto
0));
end component;
component displayer is
Port ( CLK : in STD_LOGIC;
display1 : in STD_LOGIC_VECTOR(6 downto 0);
display2 : in STD_LOGIC_VECTOR(6 downto 0);
Displayout : out STD_LOGIC_VECTOR(6 downto 0);
LED1out : out STD_LOGIC;
LED2out : out STD_LOGIC);
end component;
component clk_div2 is
Port ( clk : in STD_LOGIC;
sclk : out STD_LOGIC);
end component;
component decoder is
PORT ( load : in STD_LOGIC;
portid : in STD_LOGIC_VECTOR (7 downto 0);
input : in STD_LOGIC_VECTOR (3 downto 0);
output1 : out STD_LOGIC_VECTOR (6 downto 0);
output2 : out STD_LOGIC_VECTOR (6 downto 0));
end component;
component pseudo_random is
port ( clk : in std_logic;
pseudo_random_num : out std_logic_vector (7 downto
0));
end component;
component randnumbdecoder is
Port ( input : in STD_LOGIC_VECTOR (7 downto 0);
output : out STD_LOGIC_VECTOR (7 downto 0));
end component;
component PS2_REGISTER is
PORT (
PS2_DATA_READY,
PS2_ERROR : out STD_LOGIC;
PS2_KEY_CODE : out STD_LOGIC_VECTOR(7 downto
0);
PS2_CLK : inout STD_LOGIC;
PS2_DATA : in STD_LOGIC;
PS2_CLEAR_DATA_READY : in STD_LOGIC);
end component;
-------------------------------------------------------------
-------------
-- Signals for connecting RAT_CPU to RAT_wrapper ------------
-------------
signal s_input_port : std_logic_vector (7 downto 0);
52. 50
signal s_output_port : std_logic_vector (7 downto 0);
signal s_port_id : std_logic_vector (7 downto 0);
signal s_load : std_logic;
--vga signals------------------------------------------------
-------------
signal r_vga_we : std_logic;
signal r_vga_wa : std_logic_vector(10 downto 0);
signal r_vga_wd : std_logic_vector(7 downto 0);
signal r_vgaData : std_logic_vector(7 downto 0);
-- random number/decoder ------------------------------------
signal r_LEDS, s_random, s_randin : std_logic_vector (7
downto 0);
--LED display signals ------------------------------------------
---------
signal sclk, sint_in : std_logic;
signal sLEDS1out, sLEDS2out : STD_LOGIC := '1';
signal Sdisplay1, sdisplay2 : STD_LOGIC_VECTOR(6 downto 0)
:= "0000000";
signal sintr : STD_LOGIC_VECTOR(9 downto 0);
--Keyboard signals----------------------------
signal kbd_data : std_logic_vector(7 downto 0);
signal ps2KeyCode, ps2Status, ps2ControlReg, new_ps2status :
std_logic_vector (7 downto 0);
-------------------------------------------------------------
-------------
begin
-- Instantiate RAT_CPU --------------------------------------
-------------
CPU: RAT_CPU
port map( IN_PORT => s_input_port,
OUT_PORT => s_output_port,
PORT_ID => s_port_id,
RST => RST,
IO_OE => s_load,
INT_IN => new_ps2status(1),
CLK => CLK);
-------------------------------------------------------------
-------------
PS2_DRIVER : PS2_REGISTER
port map(PS2_DATA => PS2D,
PS2_CLK => ps2c,
PS2_CLEAR_DATA_READY => ps2ControlReg(0),
PS2_KEY_CODE => ps2KeyCode,
PS2_DATA_READY => ps2Status(1),
PS2_ERROR => ps2Status(0));
------------------------------------------------------------
-------------
VGA: vgaDriverBuffer
port map(CLK => CLK,
WE => r_vga_we,
54. 52
end process stopbug;
-------------------------------------------------------------
-------------
-- MUX for selecting what input to read ---------------------
-------------
-------------------------------------------------------------
-------------
inputs: process(CLK, s_port_id, s_randin, ps2KeyCode,
ps2Status, new_ps2Status, r_vgaData)
begin
if (s_port_id = SWITCHES_ID) then
s_input_port <= s_randin;
elsif (s_port_id = VGA_READ_ID) then
s_input_port <= r_vgaData;
elsif (S_port_id = PS2_KEY_CODE_ID) then
s_input_port <= ps2KeyCode;
elsif (s_port_id = PS2_STATUS_ID) then
s_input_port <= new_ps2Status;
else
s_input_port <= x"00";
end if;
end process inputs;
-------------------------------------------------------------
-------------
-------------------------------------------------------------
-------------
-- MUX for updating output registers ------------------------
-------------
-- Register updates depend on rising clock edge and asserted
load signal
-------------------------------------------------------------
-------------
outputs: process(CLK, s_load, s_port_id, s_output_port)
begin
if (rising_edge(CLK)) then
if (s_load = '1') then
-- the register definition for the LEDS
if (s_port_id = LEDS_ID) then
r_LEDS <= s_output_port;
elsif (s_port_id = PS2_CONTROL_ID) then
ps2ControlReg <= s_output_port;
elsif (S_port_id = VGA_HADDR_ID) then
r_vga_wa(10 downto 8) <= S_output_port(2 downto
0);
elsif (s_port_id = VGA_LADDR_ID) then
r_vga_wa(7 downto 0) <= S_output_port;
elsif (s_port_id = VGA_WRITE_ID) then
55. 53
r_vga_wd <= S_output_port;
end if;
if( s_port_id = VGA_WRITE_ID ) then
r_vga_we <= '1';
else
r_vga_we <= '0';
end if;
end if;
end if;
end process outputs;
-------------------------------------------------------------
-------------
end Behavioral;
56. 54
Appendix B
;r7 = y coord
;r8 = x coord
;r6 = color
.cseg
.org 0x10
mov r15, 0x00
mov r14, 0x93 ;delay
mov r11, 0x00
mov r12, 0x00
mov r25, 0x00
mov r19, 0xFF ;keeps track of number of notes
out r11, 0x40
out r11, 0x10
mov r27, 0x00 ;score
firstdot: SEI
add r19, 0x01
cmp r19, 0x0A ;max score
breq end
out r27,0x40
CALL erase
sub r14, 0x03 ;speed subtraction
mov r21, 0x00
Mov r7, 0x1D ;first column
mov r8, 0x10
mov r6, 0xE0
CALL drawdot
Mov r7, 0x1D ;second column
mov r8, 0x12
mov r6, 0xE0
CALL drawdot
Mov r7, 0x1D ;third column
mov r8, 0x14
mov r6, 0xE0
CALL drawdot
Mov r7, 0x1D ;fourth column
mov r8, 0x16
mov r6, 0xE0
CALL drawdot
mov r9, 0x00 ;first real dot
mov r7, 0x00
in r20, 0x20
57. 55
mov r8, r20
cmp r8, 0x00
breq newx1
goback: mov r6, 0x0E
CALL drawdot
push r7 ;store dot
push r8
push r6
CALL delay
newline: mov r7, r9 ;erase dot
mov r8, 0x00
mov r6, 0x00
CALL draw_horiz1
add r9, 0x01
nextdots: pop r6 ;get back dot
pop r8
pop r7
add r7, 0x01 ;change dot coord
cmp r7, 0x1D ;check if it reaches bottom
breq firstdot
cmp r21, 0x01
breq going
in r20, 0x20
mov r8, r20
cmp r8, 0x00
breq newx2
going: cmp r7, 0x1A
breq setint
fromint: CALL drawdot
push r7 ;store new dot
push r8
push r6
CALL delay
brn newline ;erase dot and do again
;drawdot---------------------
drawdot: mov r4, r7
mov r5, r8
and r5, 0x3F
and r4, 0x1F
LSR r4
brcc bit7
or r5, 0x40
clc
bit7: lsr r4
brcc dout
or r5, 0x80
dout: out r5, 0x91
out r4, 0x90
out r6, 0x92
RET
;draw horz----------------------
draw_horiz1: CALL drawdot
58. 56
ADD r8,0x01
CMP r8, 0x27
BRNE draw_horiz1
RET
;---------------------------------------------------------------
-----
;delay-------------------------
delay:
MOV R1, r14
OUTSIDE_FOR1: SUB R1, 0x01
MOV R2, r14
MIDDLE_FOR1: SUB R2, 0x01
MOV R3, r14
INSIDE_FOR1: SUB R3, 0x01
BRNE INSIDE_FOR1
OR R2, 0x00
BRNE MIDDLE_FOR1
OR R1, 0x00
BRNE OUTSIDE_FOR1
ret
;setting x values---------------------------
newx1: mov r8, 0x10 ;sometimes x coord would be zero
brn goback ; this code ensures it is at least
0x10
newx2: mov r8, 0x10
brn going
;ISR Keyboard -----------------------
ISR: cmp r25, 0x01
BRNE continue
MOV r25, 0x00 ; clear key-up flag
BRN reset_ps2_register
continue: cmp r21, 0x01
brne reset_ps2_register
IN r15, 0x44 ; get keycode data
check_1: CMP r15,0x1C ;was a pressed
BRNE check_2
CALL checkinga
BRN reset_ps2_register
check_2: CMP r15,0x1B ;was s pressed
BRNE check_3
CALL checkings
BRN reset_ps2_register
check_3: CMP r15, 0x23 ;was d pressed
BRNE check_4
CALL checkingd
59. 57
brn reset_ps2_register
check_4: CMP r15, 0x2B ;was f pressed
brne key_up_check
call checkingf
brn reset_ps2_register
checkinga: cmp r20, 0x10 ;was a correct
brne enda
add r27, 0x01
enda: RET
checkings: cmp r20, 0x12 ;was s correct
brne ends
add r27, 0x01
ends: RET
checkingd: cmp r20, 0x14 ;was d correct
brne endd
add r27, 0x01
endd: RET
checkingf: cmp r20, 0x16 ;was f correct
brne endf
add r27, 0x01
endf: RET
;------------------------------------------
key_up_check: CMP r15,0xF0 ; look for key-up code
BREQ set_skip_flag ; branch if found
BRN reset_ps2_register
set_skip_flag: ADD r25, 0x01 ; indicate key-up found
BRN reset_ps2_register
reset_ps2_register:
MOV r30, 0x01
OUT r30, 0x46
MOV r30, 0x00
OUT r30, 0x46
RETIE
;game over/ you win---------------------------
gameover:
mov r11, 0x00
mov r12, 0x01
out r11, 0x40
out r12, 0x10
CALL erase
call delay
CALL delay
CALL delay
CALL GH
call delay
CALL delay
CALL delay
