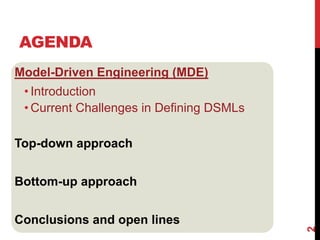

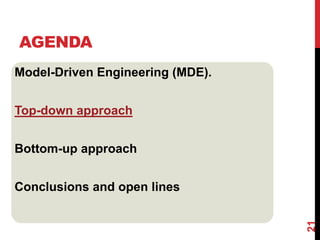

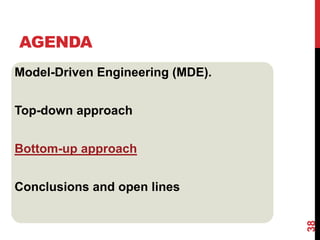

2. Model-Driven Engineering (MDE)
• Introduction
• Current Challenges in Defining DSMLs
Top-down approach
Bottom-up approach

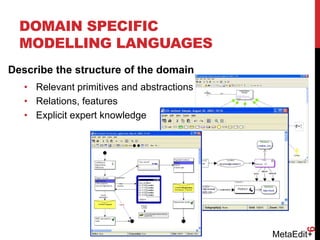

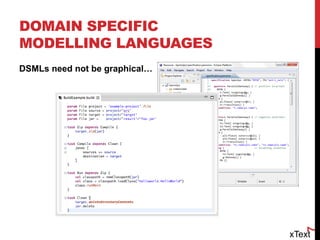

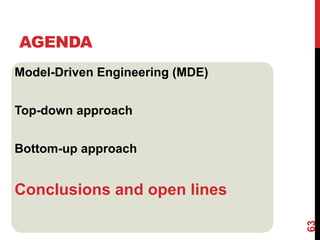

Conclusions and open lines
AGENDA
2

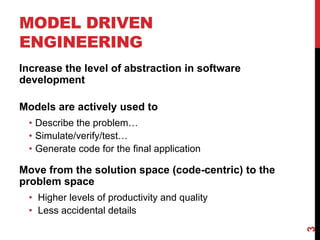

3. MODEL DRIVEN
ENGINEERING
Increase the level of abstraction in software
development
Models are actively used to
• Describe the problem…
• Simulate/verify/test…
• Generate code for the final application
Move from the solution space (code-centric) to the
problem space
• Higher levels of productivity and quality
• Less accidental details
3

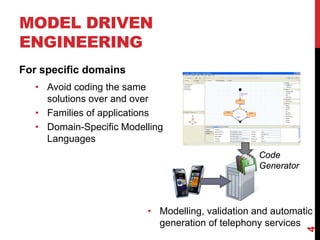

4. MODEL DRIVEN
ENGINEERING
For specific domains
• Avoid coding the same
solutions over and over
• Families of applications
• Domain-Specific Modelling
Languages
Code
Generator
• Modelling, validation and automatic
generation of telephony services
4
5. MODEL DRIVEN
ENGINEERING

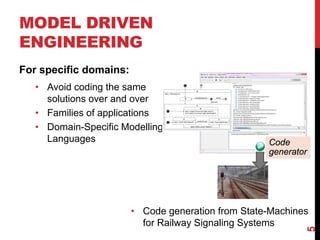

For specific domains:
• Avoid coding the same
solutions over and over
• Families of applications
• Domain-Specific Modelling
Languages
• Code generation from State-Machines
for Railway Signaling Systems
5
Code
generator

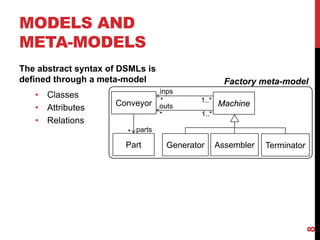

8. MODELS AND
META-MODELS
The abstract syntax of DSMLs is
defined through a meta-model
• Classes
• Attributes
• Relations
8
Factory meta-model
Machine
Part
Conveyor
Generator Assembler
inps
outs
*
*
* parts
Terminator
1..*
1..*

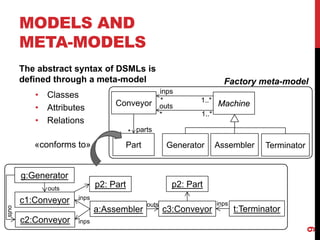

9. MODELS AND
META-MODELS
The abstract syntax of DSMLs is
defined through a meta-model
• Classes
• Attributes
• Relations
9
«conforms to»
c1:Conveyor
g:Generator
a:Assembler
c2:Conveyor
c3:Conveyor t:Terminator
p2: Partp2: Partouts
outs
inps
inps
outs inps
Factory meta-model
Machine
Part
Conveyor
Generator Assembler
inps
outs
*
*
* parts
Terminator
1..*
1..*

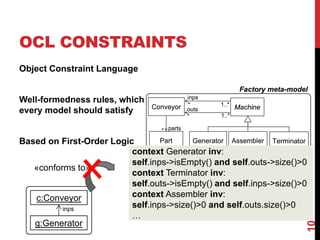

10. OCL CONSTRAINTS
10
Object Constraint Language
Well-formedness rules, which
every model should satisfy
Based on First-Order Logic
g:Generator
«conforms to»
c:Conveyor
Factory meta-model
Machine
Part
Conveyor
Generator Assembler
inps
outs
*
*
* parts
Terminator
1..*
1..*
Factory meta-model
Machine
Part
Conveyor
Generator Assembler
inps
outs
*
*
* parts
Terminator
1..*
1..*
context Generator inv:
self.inps->isEmpty() and self.outs->size()>0
context Generator inv:
self.inps->isEmpty() and self.outs->size()>0
context Terminator inv:
self.outs->isEmpty() and self.inps->size()>0
context Assembler inv:
self.inps->size()>0 and self.outs.size()>0
…
inps

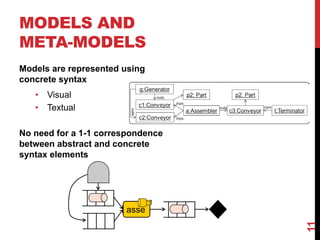

11. MODELS AND
META-MODELS
Models are represented using
concrete syntax
• Visual
• Textual
No need for a 1-1 correspondence
between abstract and concrete
syntax elements
11
asse

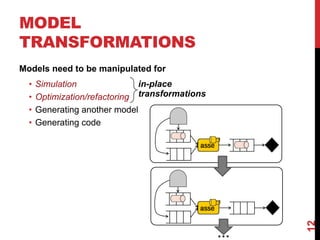

12. MODEL
TRANSFORMATIONS
Models need to be manipulated for
• Simulation
• Optimization/refactoring
• Generating another model
• Generating code
in-place
transformations
12
…

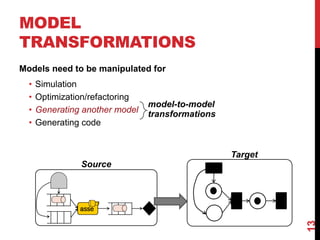

13. MODEL
TRANSFORMATIONS
Models need to be manipulated for
• Simulation
• Optimization/refactoring
• Generating another model
• Generating code
Source
Target
13
model-to-model
transformations

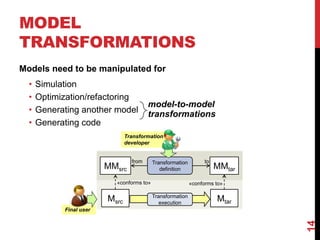

14. MODEL
TRANSFORMATIONS
Models need to be manipulated for
• Simulation
• Optimization/refactoring
• Generating another model
• Generating code
14
MMsrc MMtar
Msrc Mtar
Transformation
definition
from to
«conforms to» «conforms to»
Transformation
execution
Transformation
developer
Final user
model-to-model
transformations

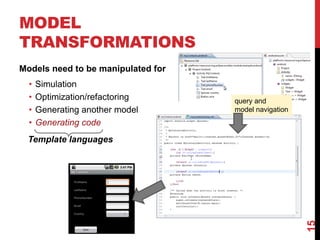

15. MODEL
TRANSFORMATIONS
Models need to be manipulated for
• Simulation
• Optimization/refactoring
• Generating another model
• Generating code
15
Template languages
query and
model navigation

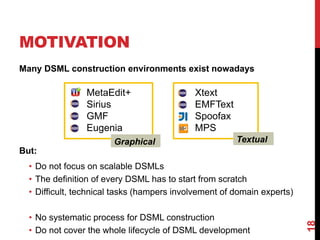

18. MOTIVATION
18
Many DSML construction environments exist nowadays
But:
• Do not focus on scalable DSMLs
• The definition of every DSML has to start from scratch
• Difficult, technical tasks (hampers involvement of domain experts)
• No systematic process for DSML construction
• Do not cover the whole lifecycle of DSML development
Xtext
EMFText
Spoofax
MPS
MetaEdit+
Sirius
GMF
Eugenia
Graphical Textual
19. OUR APPROACHES
Top-down
• Meta-model first
• Reusability by means of patterns
• Pattern to specify model
fragmentation strategies
19
1
2 Patterns
20. OUR APPROACHES
Top-down
• Meta-model first
• Reusability by means of patterns
• Pattern to specify model
fragmentation strategies
Bottom-up
• Start from examples
• Improve the involvement of domain
experts
20
1
2
2
1
3
Patterns

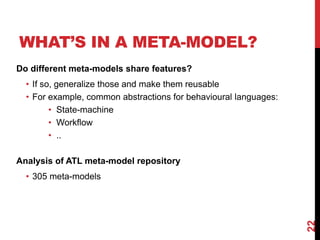

22. WHAT’S IN A META-MODEL?
22
Do different meta-models share features?
• If so, generalize those and make them reusable
• For example, common abstractions for behavioural languages:
• State-machine
• Workflow
• ..
Analysis of ATL meta-model repository
• 305 meta-models

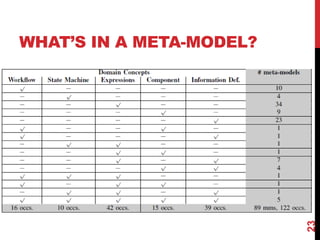

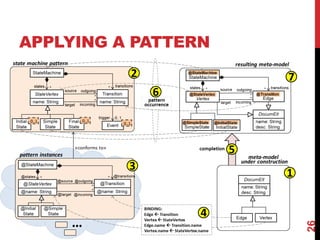

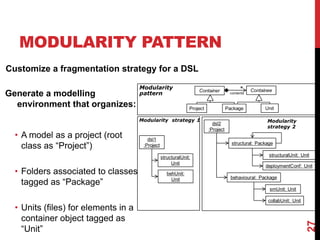

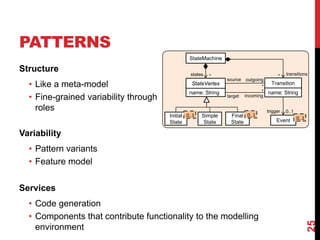

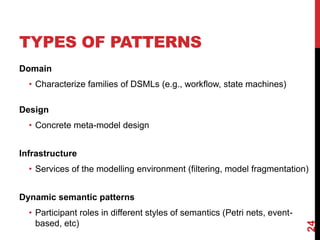

27. MODULARITY PATTERN
27
Customize a fragmentation strategy for a DSL
Generate a modelling
environment that organizes:
• A model as a project (root
class as “Project”)
• Folders associated to classes
tagged as “Package”
• Units (files) for elements in a
container object tagged as
“Unit”

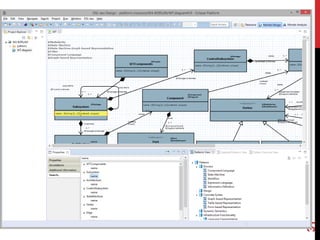

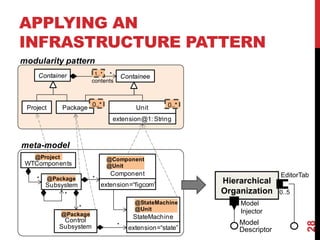

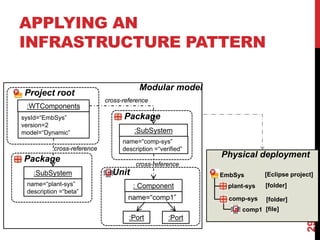

28. APPLYING AN
INFRASTRUCTURE PATTERN
28
Container
extension@1: String
*
Project
contents
modularity pattern
Containee
Package Unit 0..*0..*
meta-model
Component
@Component
@Unit
StateMachine
@StateMachine
@Unit
WTComponents
@Project
Subsystem
@Package
Control
Subsystem
@Package
*
*
*
*
extension=“state”
extension=“figcom”
*
1..*
Hierarchical
Organization 0..5
Model
Injector
Model
Descriptor
EditorTab

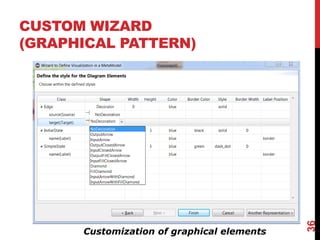

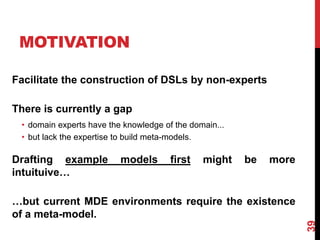

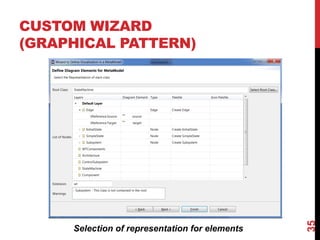

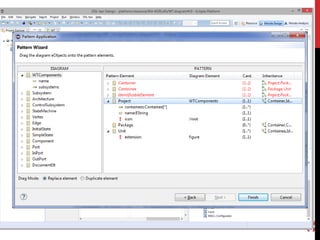

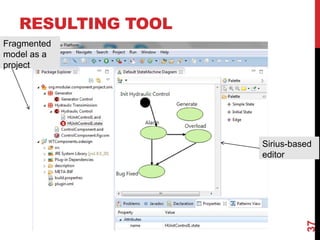

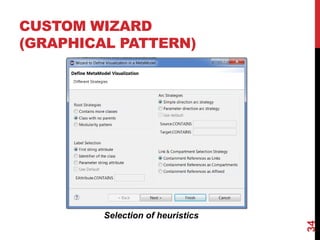

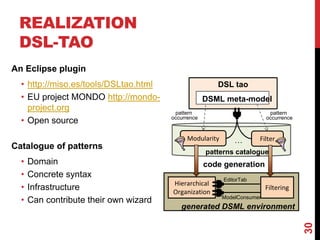

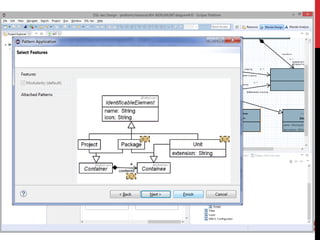

39. Facilitate the construction of DSLs by non-experts
There is currently a gap
• domain experts have the knowledge of the domain...
• but lack the expertise to build meta-models.
Drafting example models first might be more
intuituive…
…but current MDE environments require the existence
of a meta-model.
MOTIVATION
39

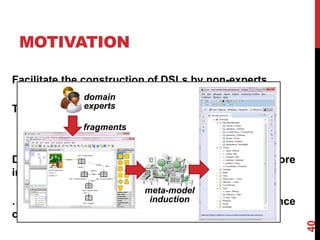

40. Facilitate the construction of DSLs by non-experts
There is currently a gap
• Domain experts have the knowledge of the domain...
• but lack the expertise to build meta-models.
Drafting example models first might be more
intuituive…
…but current MDE environments require the existence
of a meta-model.
MOTIVATION
40
domain
experts
fragments
meta-model
induction

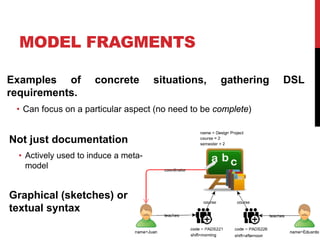

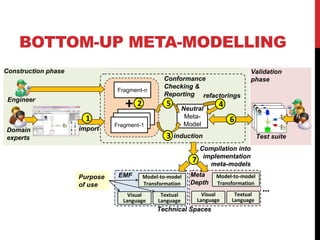

42. MODEL FRAGMENTS
Examples of concrete situations, gathering DSL
requirements.
• Can focus on a particular aspect (no need to be complete)
Not just documentation
• Actively used to induce a meta-
model
Graphical (sketches) or
textual syntax
43. fragment edu1 {
c : Course {
attr name = "Design Project"
attr course = 2
attr semester = 2
ref coordinator = p1
}
g1 : Group {
attr code = "PADS221"
attr shift = "morning"
ref course = c
}
…
…
g2 : Group {
attr code = "PADS226"
attr shift = "afternoon"
ref course = c
}
p1 : Professor {
attr name = "Juan"
ref teaches = g1
}
p2 : Professor {
attr name = "Eduardo"
ref teaches = g2
}
}
MODEL FRAGMENTS
textual syntax

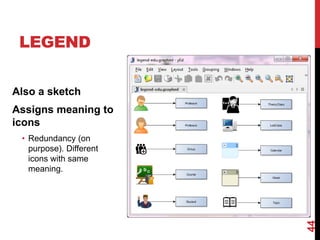

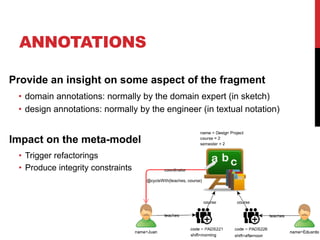

45. ANNOTATIONS
Provide an insight on some aspect of the fragment
• domain annotations: normally by the domain expert (in sketch)
• design annotations: normally by the engineer (in textual notation)
Impact on the meta-model
• Trigger refactorings
• Produce integrity constraints

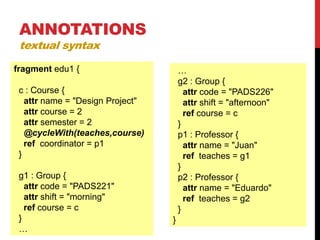

46. fragment edu1 {
c : Course {
attr name = "Design Project"
attr course = 2
attr semester = 2
@cycleWith(teaches,course)
ref coordinator = p1
}
g1 : Group {
attr code = "PADS221"
attr shift = "morning"
ref course = c
}
…
…
g2 : Group {
attr code = "PADS226"
attr shift = "afternoon"
ref course = c
}
p1 : Professor {
attr name = "Juan"
ref teaches = g1
}
p2 : Professor {
attr name = "Eduardo"
ref teaches = g2
}
}

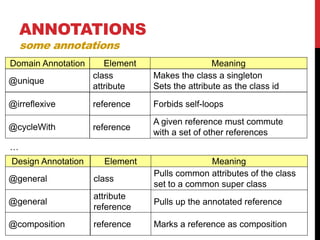

ANNOTATIONS
textual syntax
47. …
MeaningElement
ANNOTATIONS
some annotations
Domain Annotation
@unique
Makes the class a singleton
Sets the attribute as the class id
class
attribute
@irreflexive Forbids self-loopsreference
@cycleWith
A given reference must commute
with a set of other references
reference
MeaningElementDesign Annotation
@general
Pulls common attributes of the class
set to a common super class
class
@general Pulls up the annotated reference
attribute
reference
@composition Marks a reference as compositionreference
48. BOTTOM-UP META-MODEL
CONSTRUCTION
Meta-model update upon entering a new fragment
using induction algorithm.
Annotations in a fragment are transfered to the meta-
model, which may trigger refactorings.
Conflicts (e.g., assignment of non-compatible types
for same field) are reported and fixed if possible.

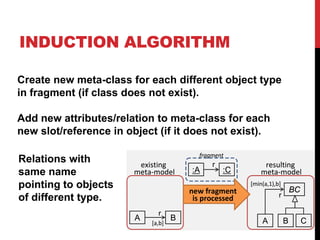

49. INDUCTION ALGORITHM
Create new meta-class for each different object type
in fragment (if class does not exist).
Add new attributes/relation to meta-class for each
new slot/reference in object (if it does not exist).
:A :C
r
A B
r
[a,b] A B
r
[min(a,1),b]
C
BC
existing
meta-model
resulting
meta-model
new fragment
is processed
fragment
:A :C
r
A B
r
[a,b] A B
r
[min(a,1),b]
C
BC
existing
meta-model
resulting
meta-model
new fragment
is processed
fragment
Relations with
same name
pointing to objects
of different type.

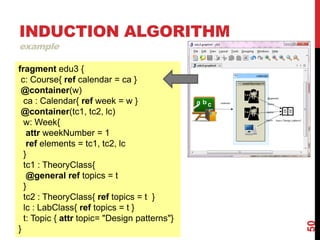

50. INDUCTION ALGORITHM
example
50
fragment edu3 {
c: Course{ ref calendar = ca }
@container(w)
ca : Calendar{ ref week = w }
@container(tc1, tc2, lc)
w: Week{
attr weekNumber = 1
ref elements = tc1, tc2, lc
}
tc1 : TheoryClass{
@general ref topics = t
}
tc2 : TheoryClass{ ref topics = t }
lc : LabClass{ ref topics = t }
t: Topic { attr topic= "Design patterns"}
}

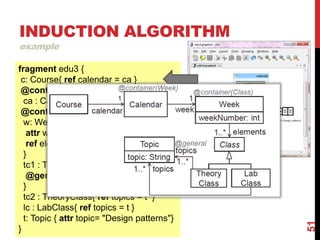

51. INDUCTION ALGORITHM
example
51
fragment edu3 {
c: Course{ ref calendar = ca }
@container(w)
ca : Calendar{ ref week = w }
@container(tc1, tc2, lc)
w: Week{
attr weekNumber = 1
ref elements = tc1, tc2, lc
}
tc1 : TheoryClass{
@general ref topics = t
}
tc2 : TheoryClass{ ref topics = t }
lc : LabClass{ ref topics = t }
t: Topic { attr topic= "Design patterns"}
}

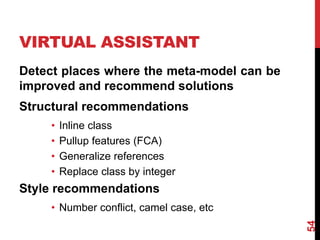

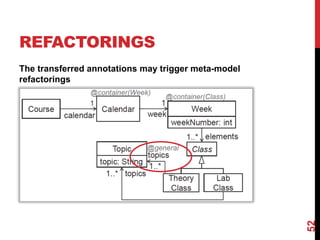

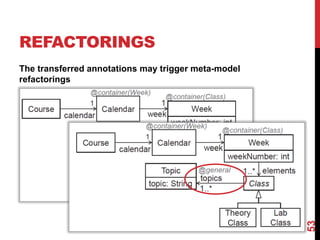

54. VIRTUAL ASSISTANT
Detect places where the meta-model can be
improved and recommend solutions
Structural recommendations
• Inline class
• Pullup features (FCA)
• Generalize references
• Replace class by integer
Style recommendations
• Number conflict, camel case, etc
54

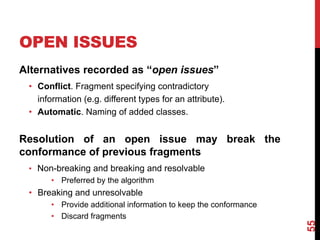

55. OPEN ISSUES
Alternatives recorded as “open issues”
• Conflict. Fragment specifying contradictory
information (e.g. different types for an attribute).
• Automatic. Naming of added classes.
Resolution of an open issue may break the
conformance of previous fragments
• Non-breaking and breaking and resolvable
• Preferred by the algorithm
• Breaking and unresolvable
• Provide additional information to keep the conformance
• Discard fragments
55

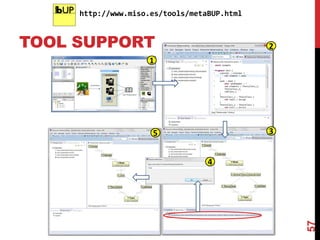

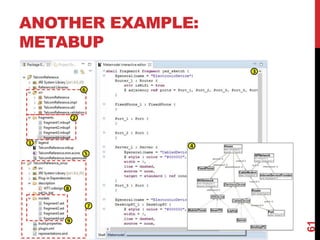

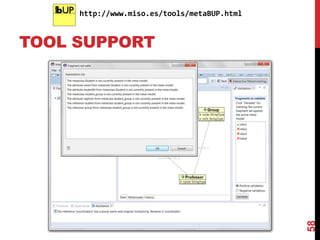

64. CONCLUSIONS
MDE accelerates software development process
(for specific domains)
DSMLs oriented to particular domains
Constructing environments for DSMLs is time
consuming
• Top-down (pattern-based)
• Bottom-up (example-based)
64

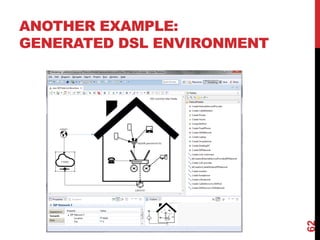

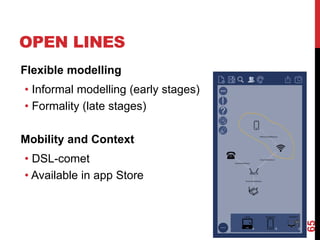

65. OPEN LINES
Flexible modelling
• Informal modelling (early stages)
• Formality (late stages)
Mobility and Context
• DSL-comet
• Available in app Store
65
