The document discusses a pragmatic approach to model-driven architecture (MDA) for developing Java EE applications. It describes building platform-independent and platform-specific models, then transforming models into code. The speakers provide examples of applying MDA principles like defining a target architecture and domain model to generate artifacts like entity classes and data access objects from UML stereotypes using a template engine.

1. MDA: Smarter development of Java EE applications Richard van der Laan Tony Sloos <logo>

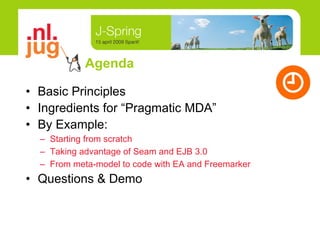

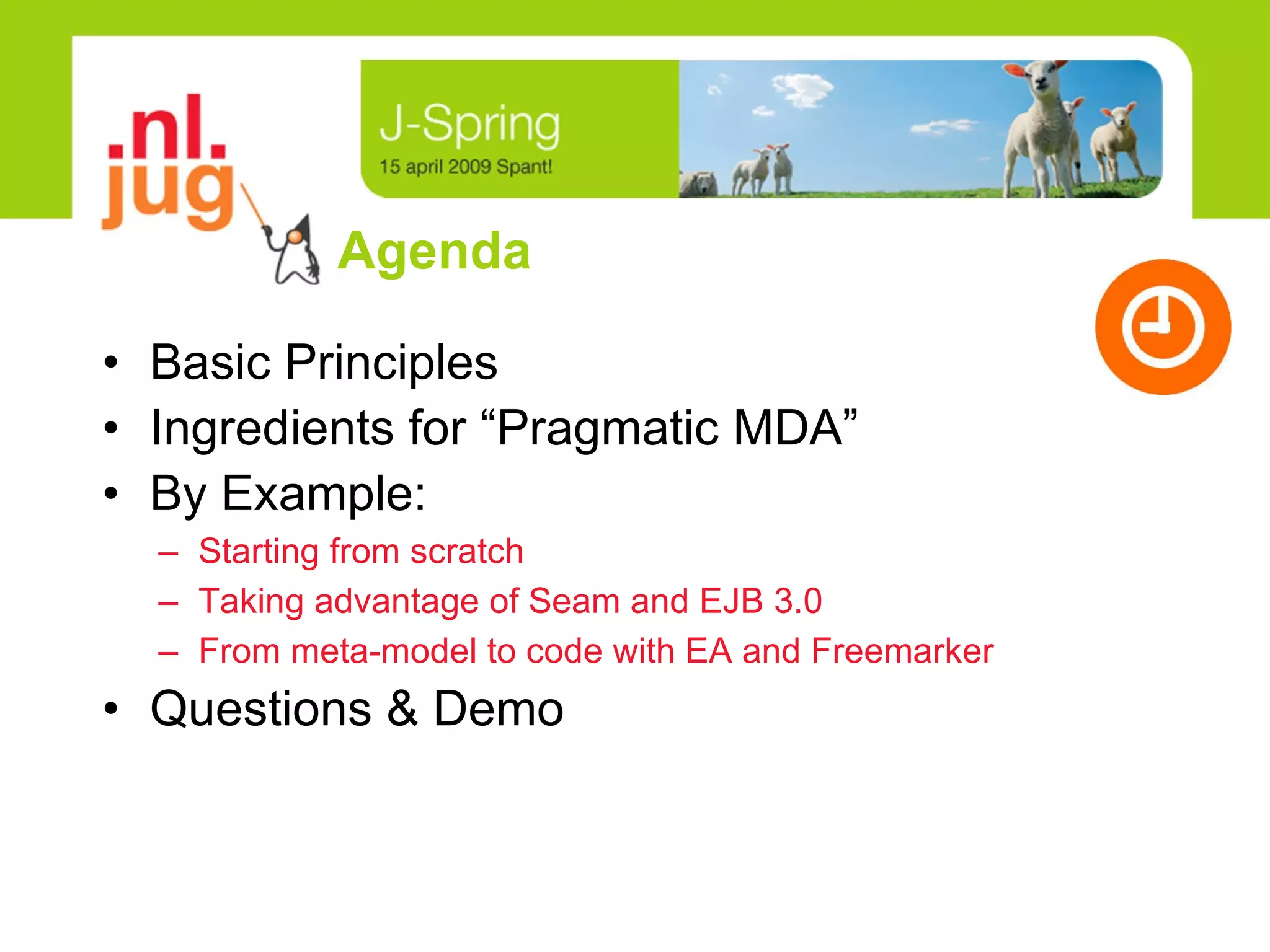

2. Agenda Basic Principles Ingredients for “Pragmatic MDA” By Example: Starting from scratch Taking advantage of Seam and EJB 3.0 From meta-model to code with EA and Freemarker Questions & Demo

3. Speakers Background Tony Sloos – independent architect Field of activity: strategy, architecture & implementation guidance/governance Specializations : Java EE, frameworks & model-based development <logo> Richard van der Laan – software architect Field of activity: architecture & multi-disciplinary product development Specializations : high-tech automation, distributed services, model-based development

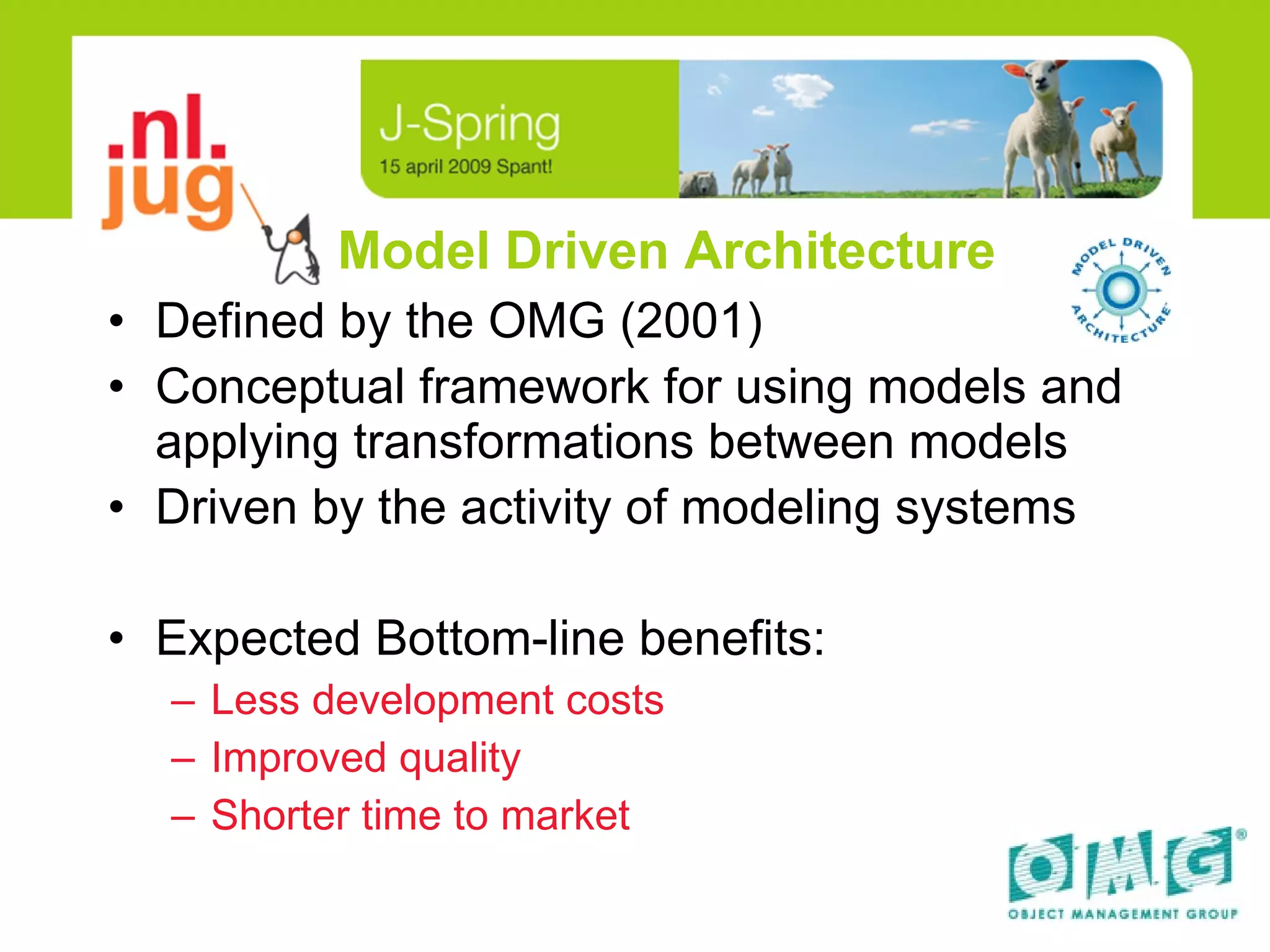

4. Model Driven Architecture Defined by the OMG (2001) Conceptual framework for using models and applying transformations between models Driven by the activity of modeling systems Expected Bottom-line benefits: Less development costs Improved quality Shorter time to market

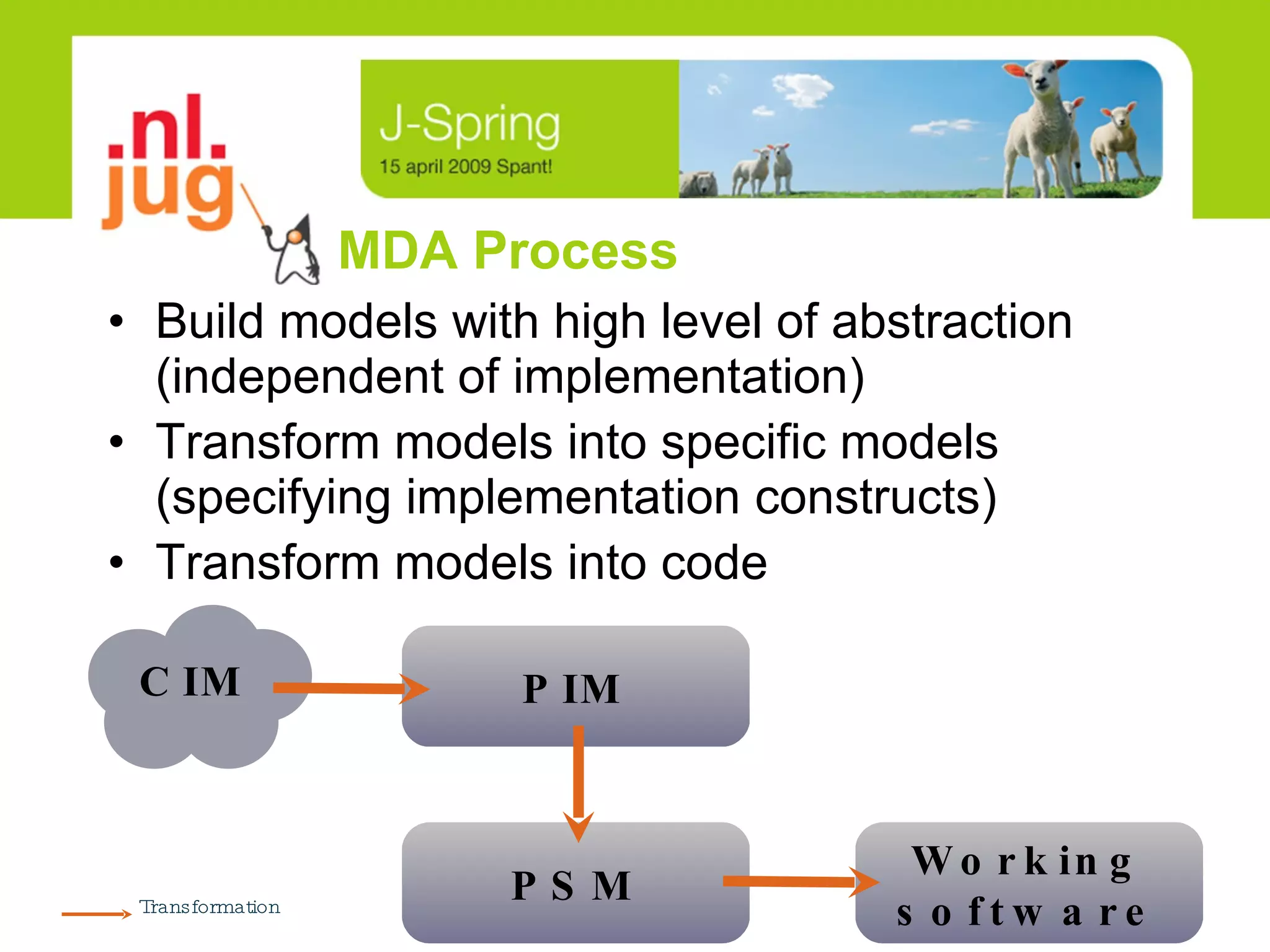

5. MDA Process Build models with high level of abstraction (independent of implementation) Transform models into specific models (specifying implementation constructs) Transform models into code PIM Working software PSM CIM Transformation

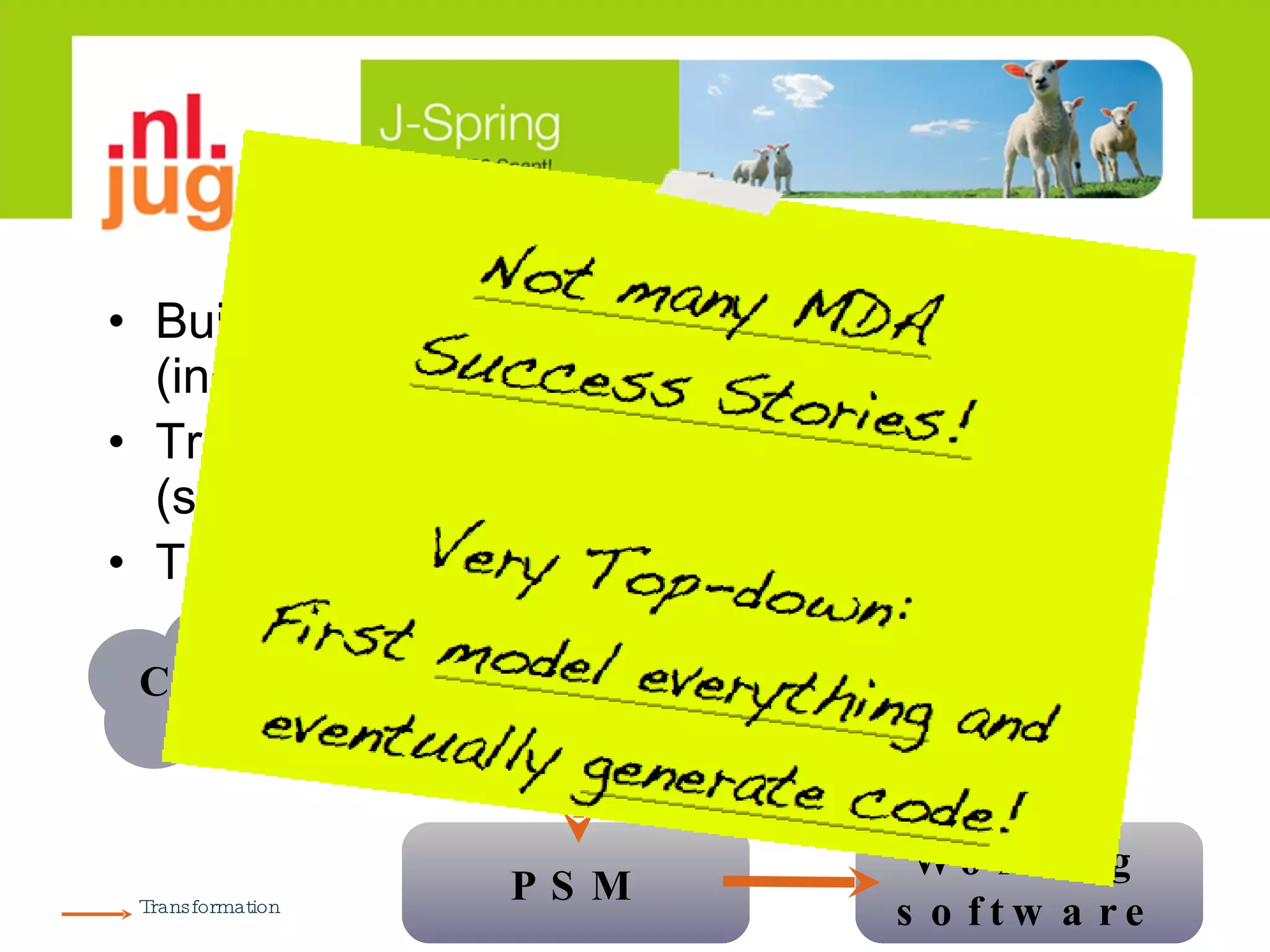

6. MDA Process Build models with high level of abstraction (independent of implementation) Transform models into specific models (specifying implementation constructs) Transform models into code PIM Working software PSM CIM Transformation

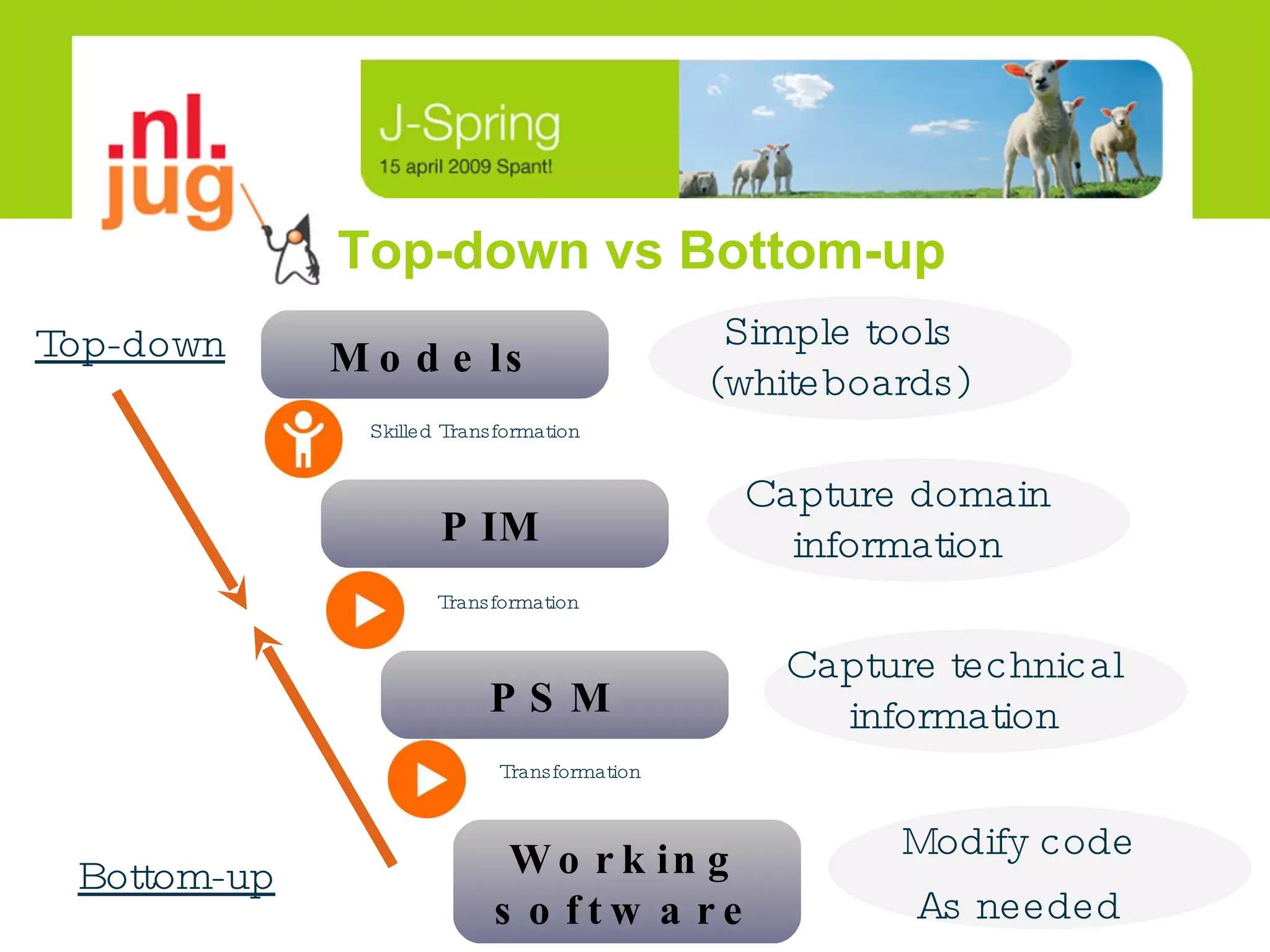

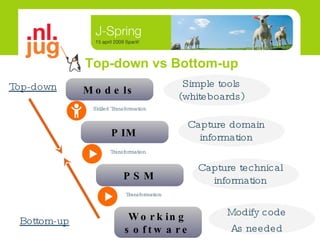

7. Top-down vs Bottom-up Working software Models PIM PSM Top-down Bottom-up Transformation Skilled Transformation Capture domain information Transformation Capture technical information Simple tools (whiteboards) Modify code As needed

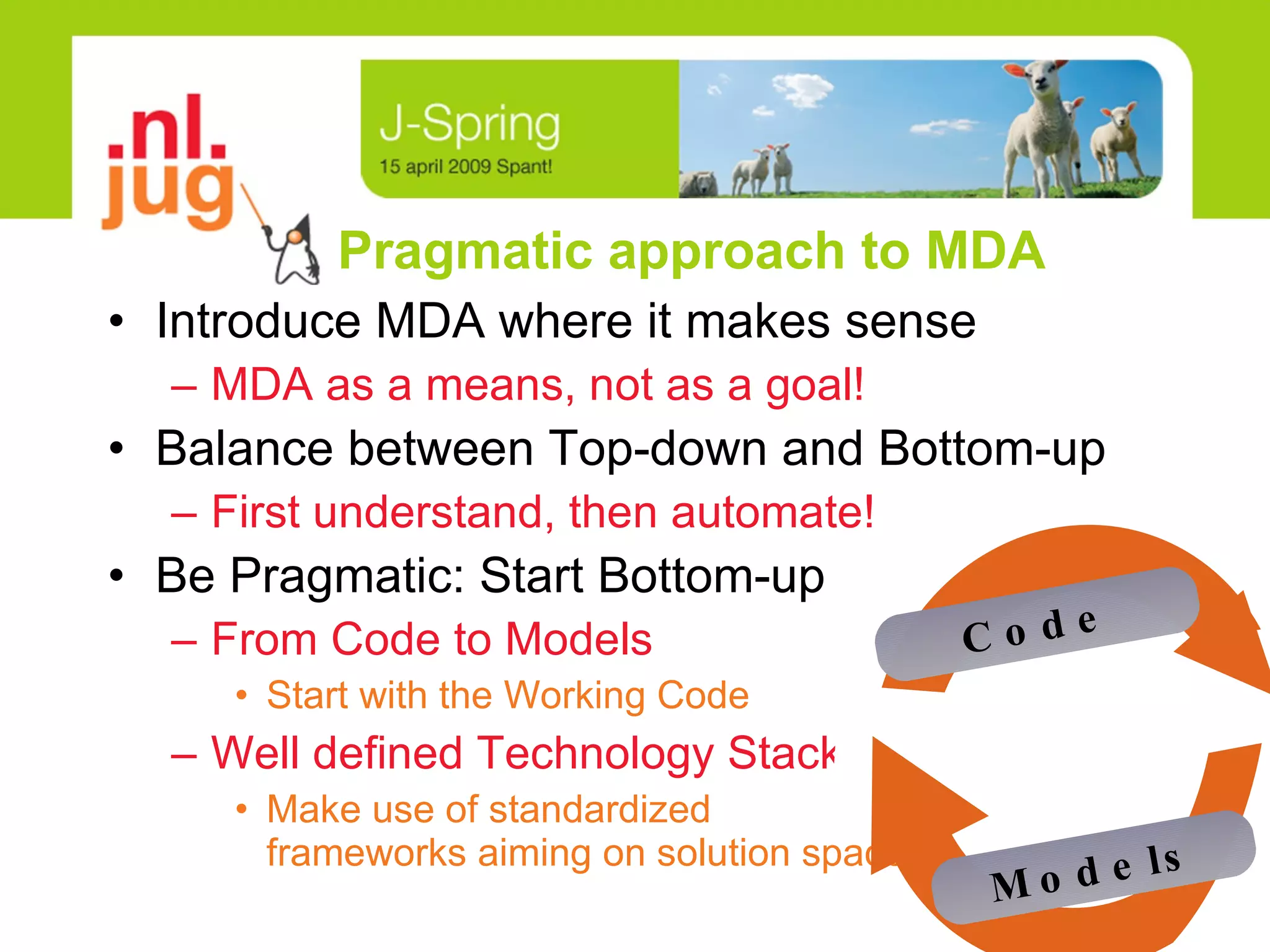

8. Pragmatic approach to MDA Introduce MDA where it makes sense MDA as a means, not as a goal! Balance between Top-down and Bottom-up First understand, then automate! Be Pragmatic: Start Bottom-up From Code to Models Start with the Working Code Well defined Technology Stack Make use of standardized frameworks aiming on solution space Models Code

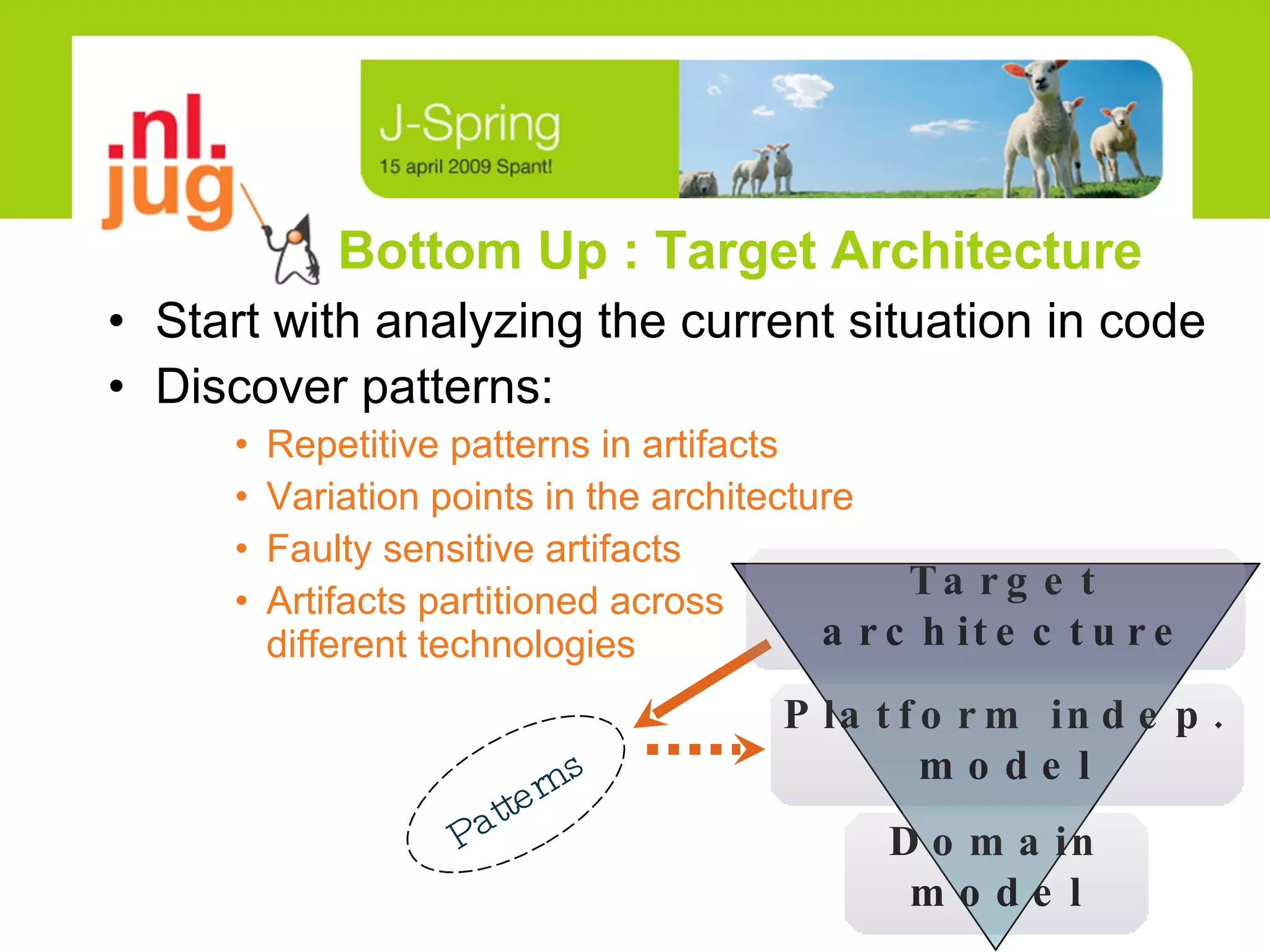

9. Bottom Up : Target Architecture Start with analyzing the current situation in code Discover patterns: Repetitive patterns in artifacts Variation points in the architecture Faulty sensitive artifacts Artifacts partitioned across different technologies Patterns Platform indep. model Target architecture Domain model

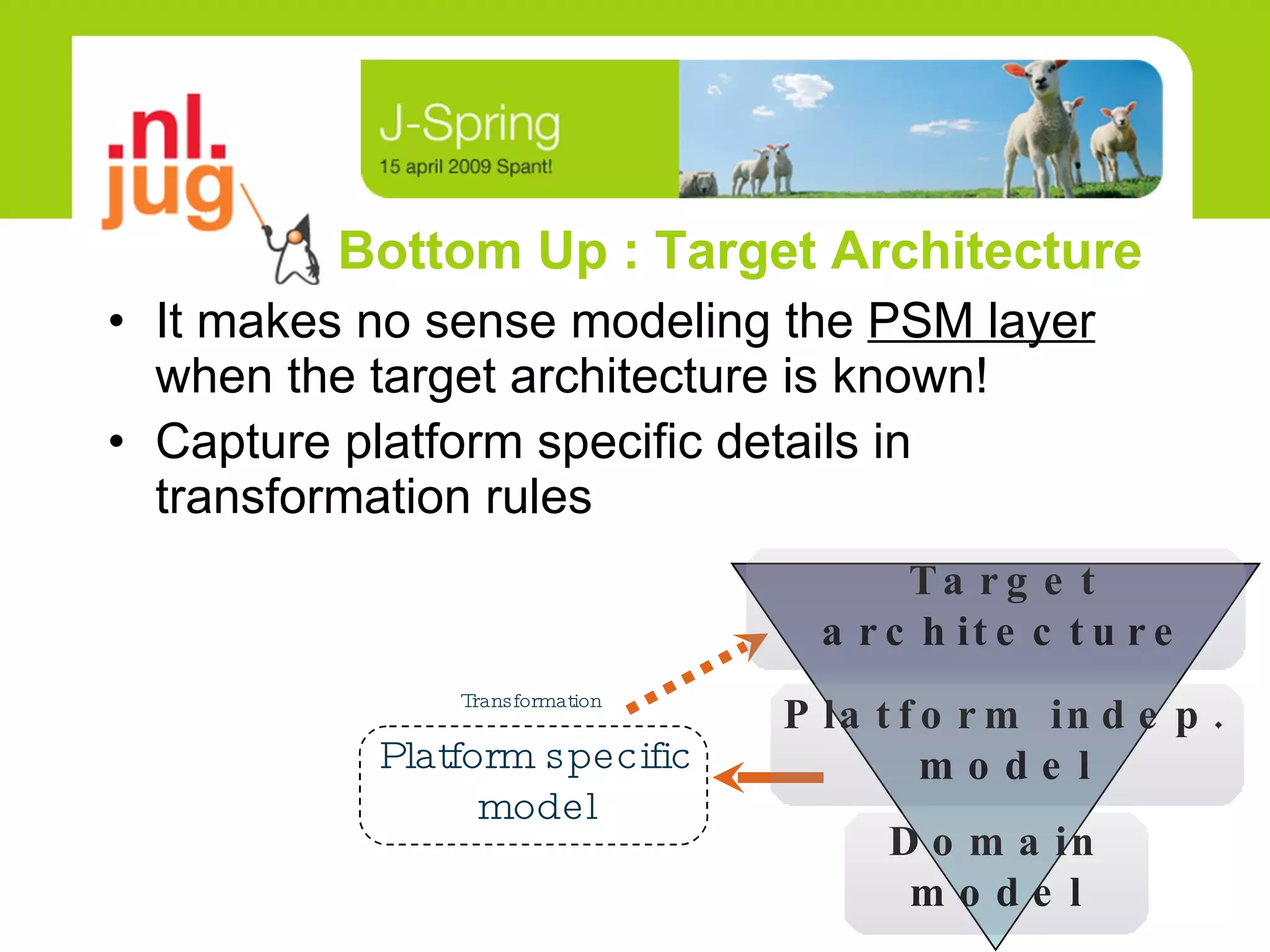

10. Bottom Up : Target Architecture It makes no sense modeling the PSM layer when the target architecture is known! Capture platform specific details in transformation rules Platform specific model Transformation Platform indep. model Target architecture Domain model

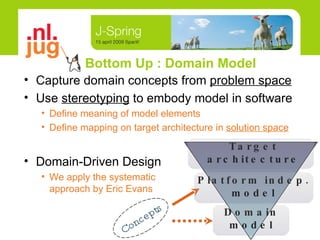

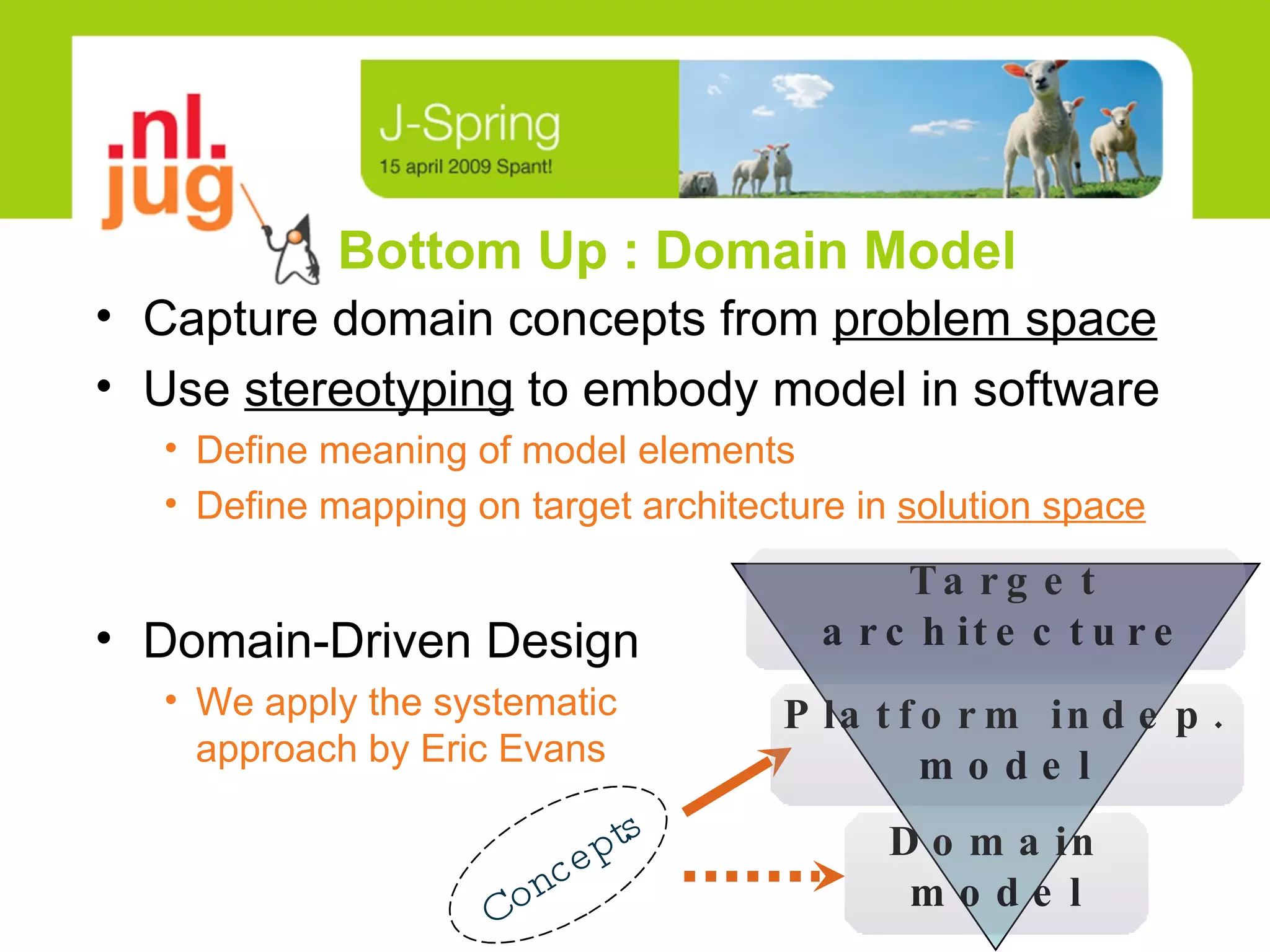

11. Bottom Up : Domain Model Concepts Capture domain concepts from problem space Use stereotyping to embody model in software Define meaning of model elements Define mapping on target architecture in solution space Domain-Driven Design We apply the systematic approach by Eric Evans Platform indep. model Target architecture Domain model

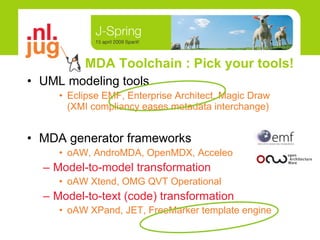

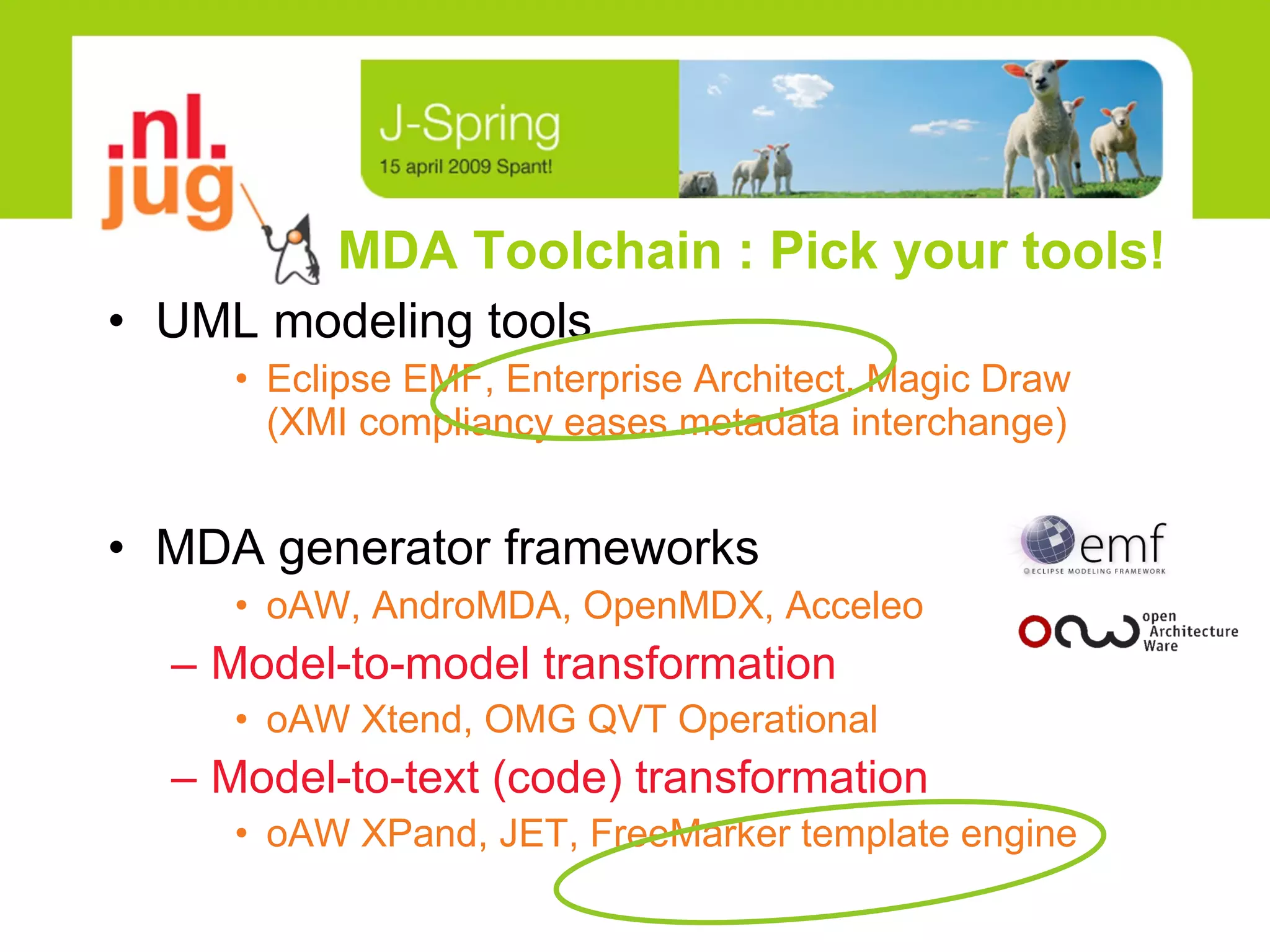

12. MDA Toolchain : Pick your tools! UML modeling tools Eclipse EMF, Enterprise Architect, Magic Draw (XMI compliancy eases metadata interchange) MDA generator frameworks oAW, AndroMDA, OpenMDX, Acceleo Model-to-model transformation oAW Xtend, OMG QVT Operational Model-to-text (code) transformation oAW XPand, JET, FreeMarker template engine

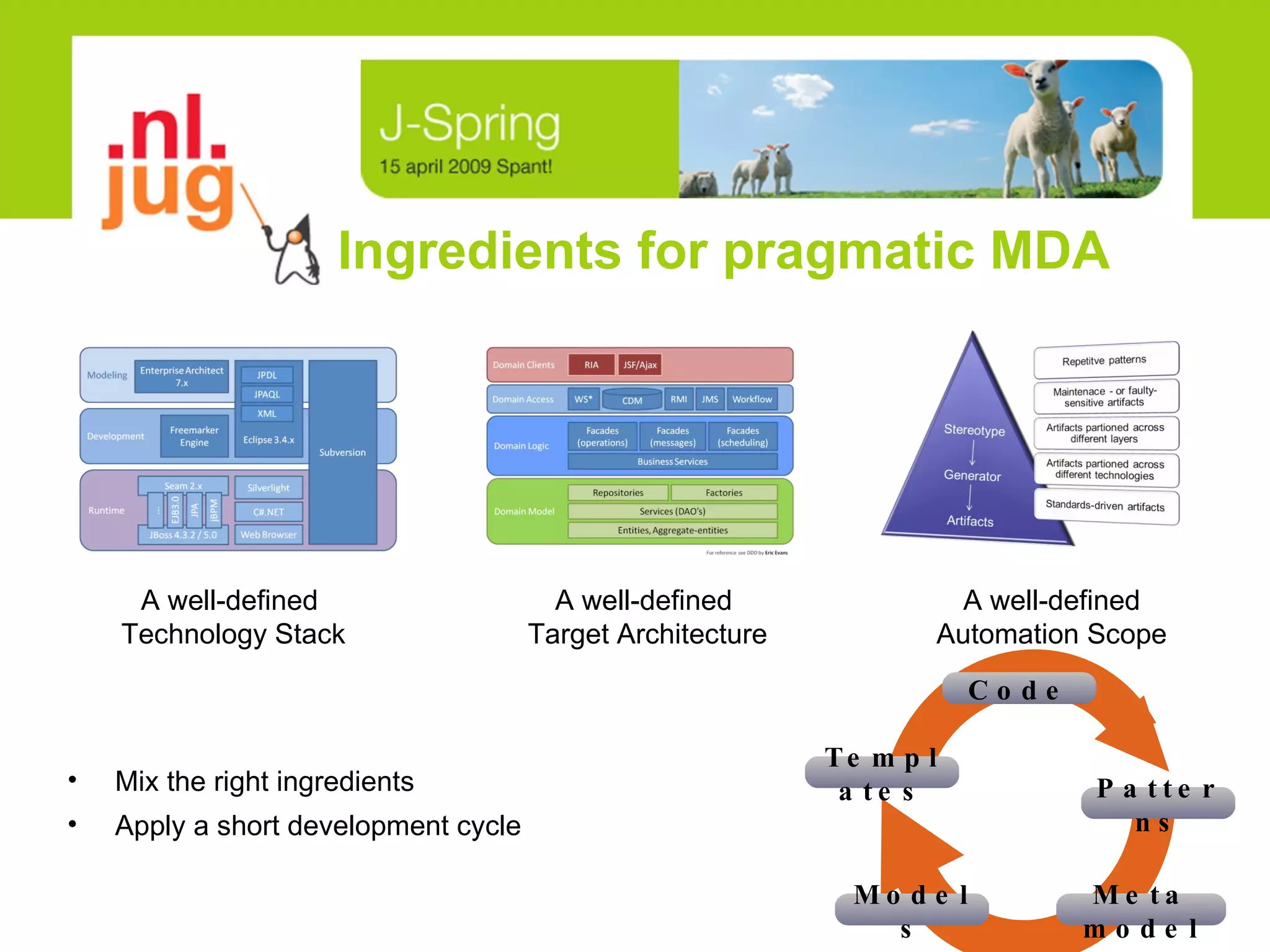

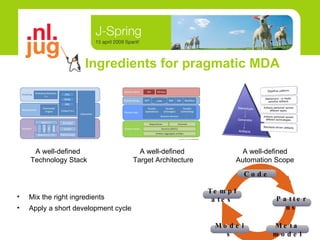

13. Ingredients for pragmatic MDA A well-defined Technology Stack A well-defined Target Architecture A well-defined Automation Scope Mix the right ingredients Apply a short development cycle Code Patterns Meta model Models Templates

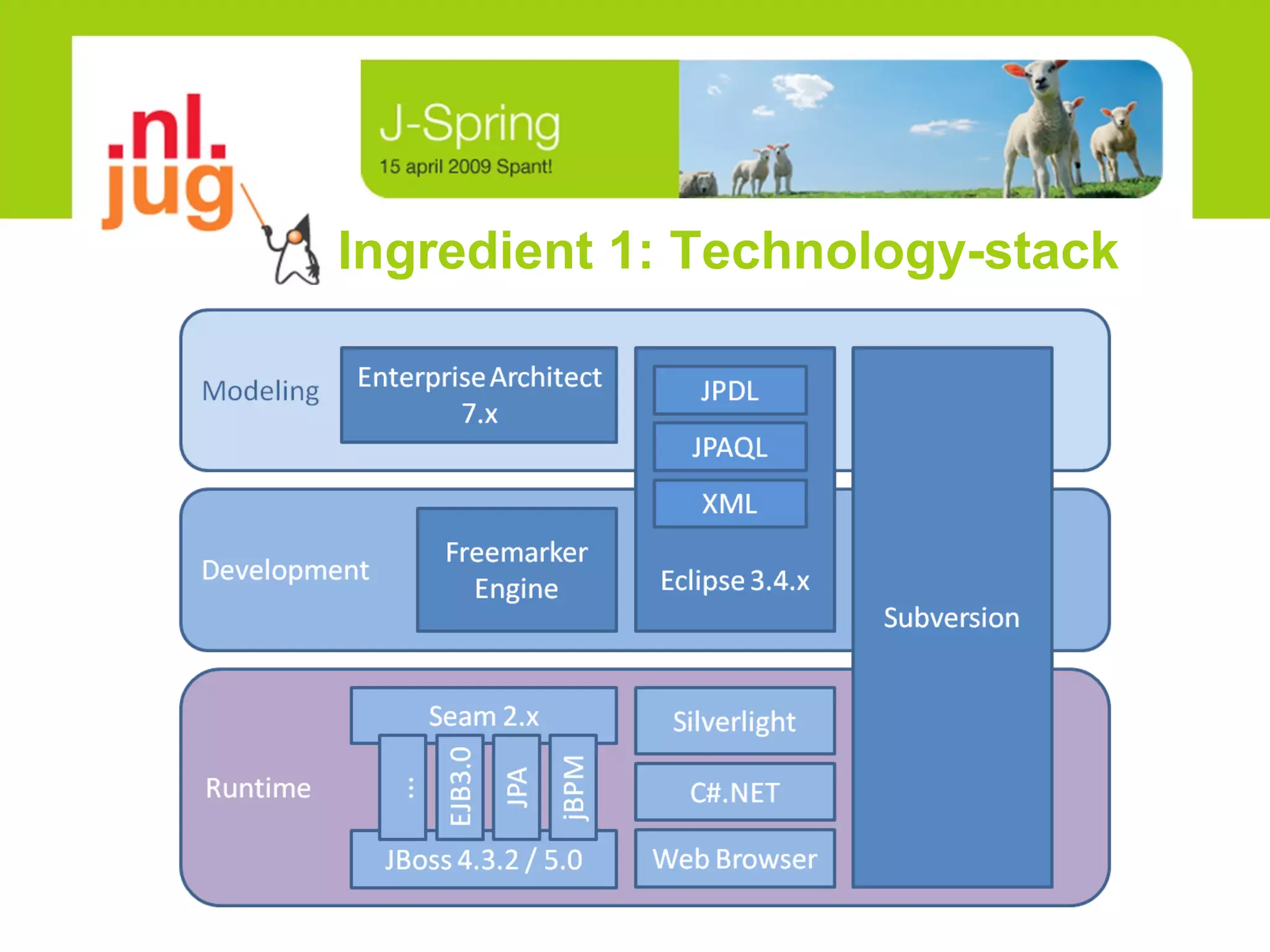

14. Ingredient 1: Technology-stack

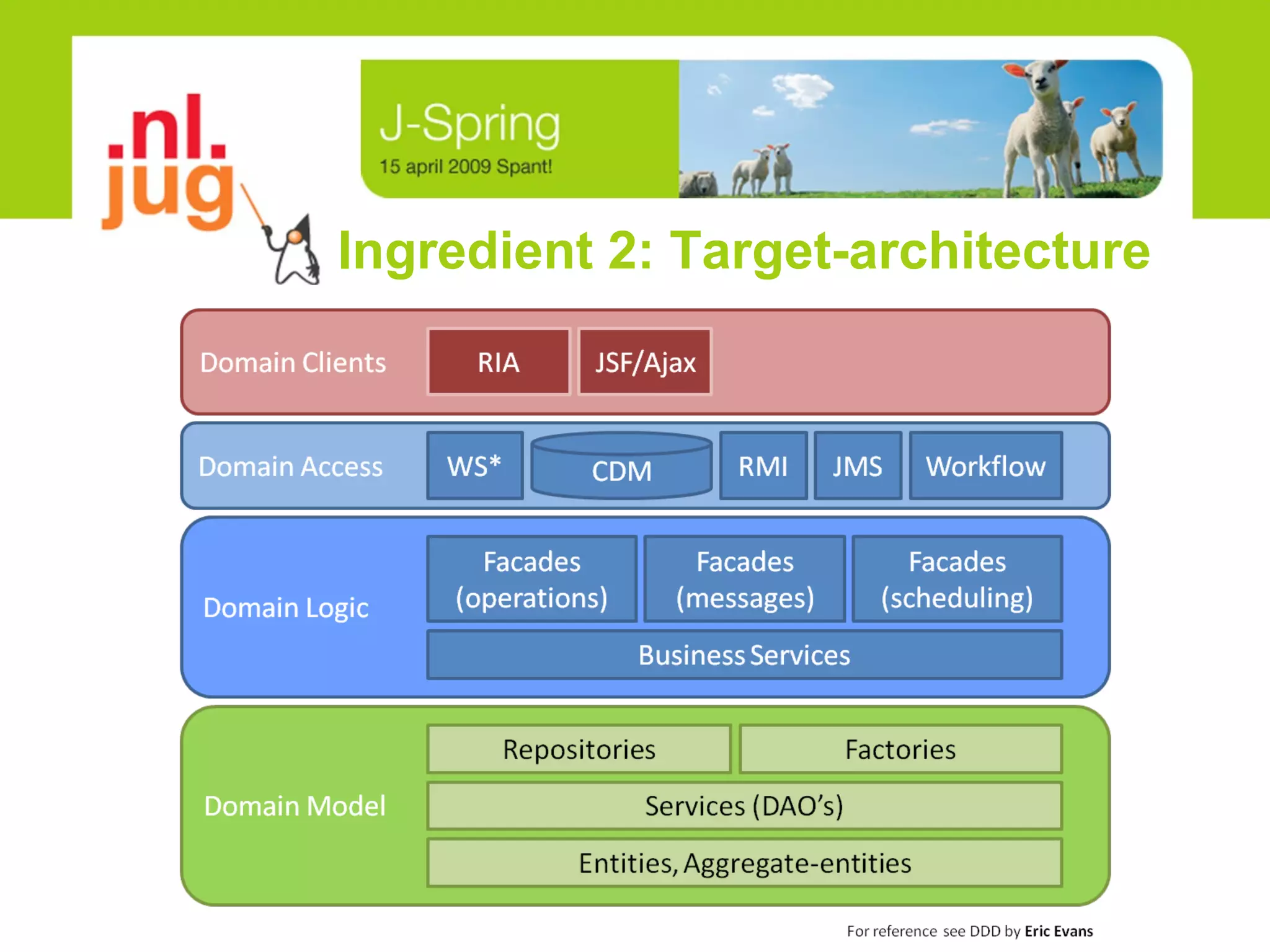

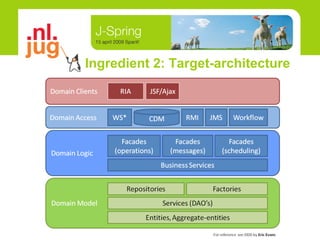

15. Ingredient 2: Target-architecture

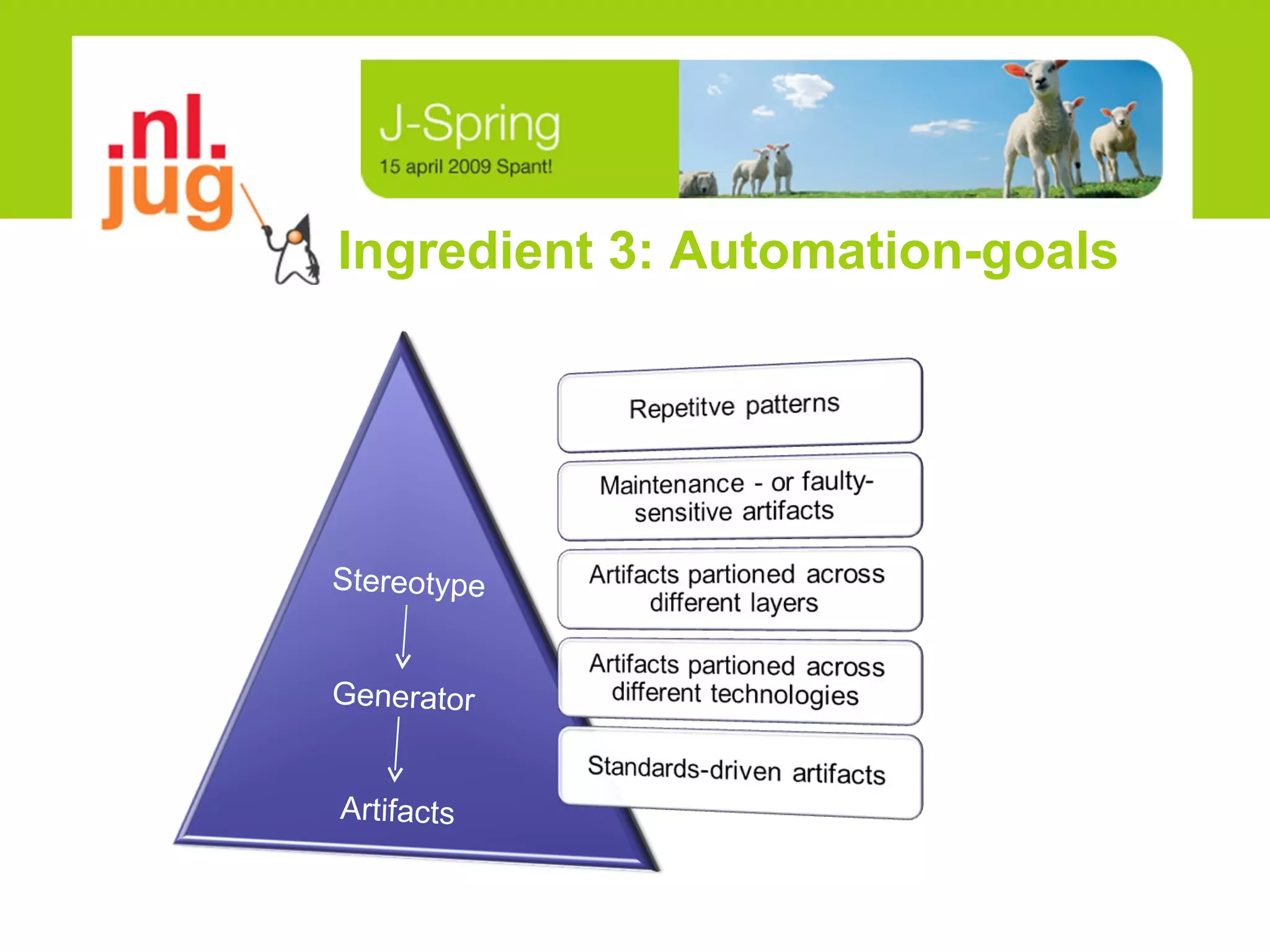

16. Ingredient 3: Automation-goals Stereotype Generator Artifacts

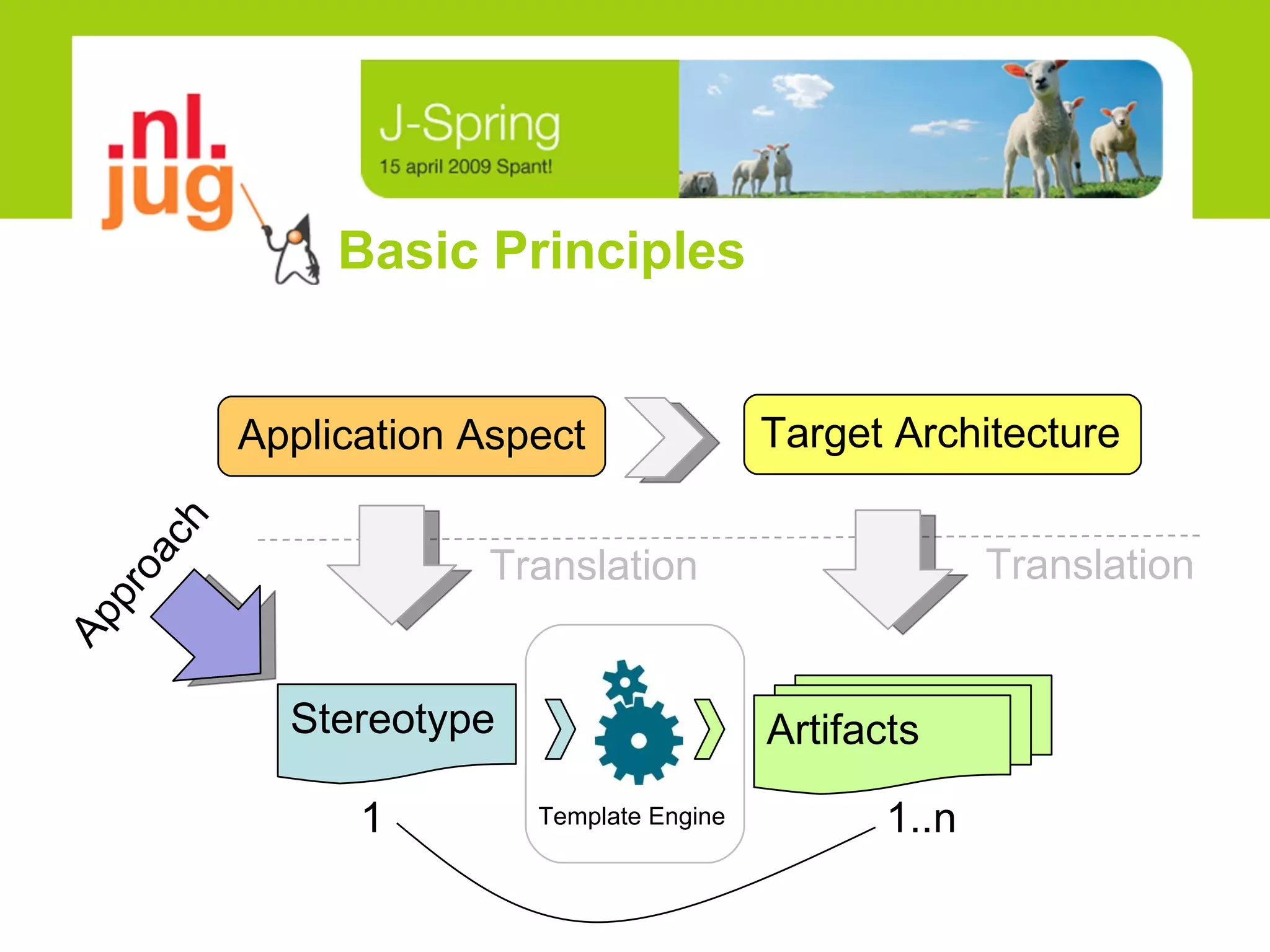

17. Basic Principles Application Aspect Target Architecture Translation Stereotype Template Engine Approach Artifacts Translation 1 1..n

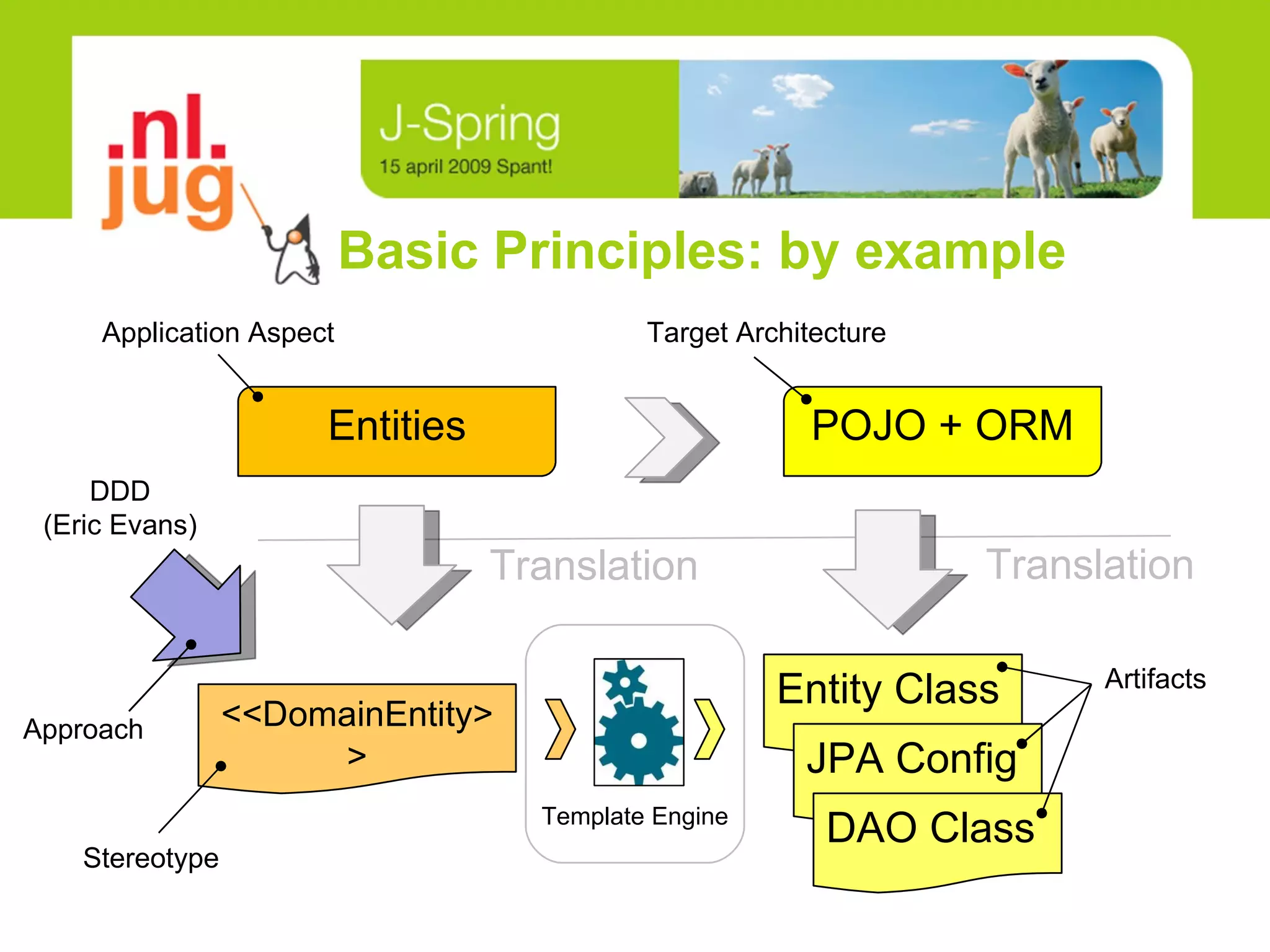

18. Basic Principles: by example Entities Application Aspect Template Engine POJO + ORM Target Architecture Translation Entity Class JPA Config DAO Class Artifacts <<DomainEntity>> Stereotype Translation DDD (Eric Evans) Approach

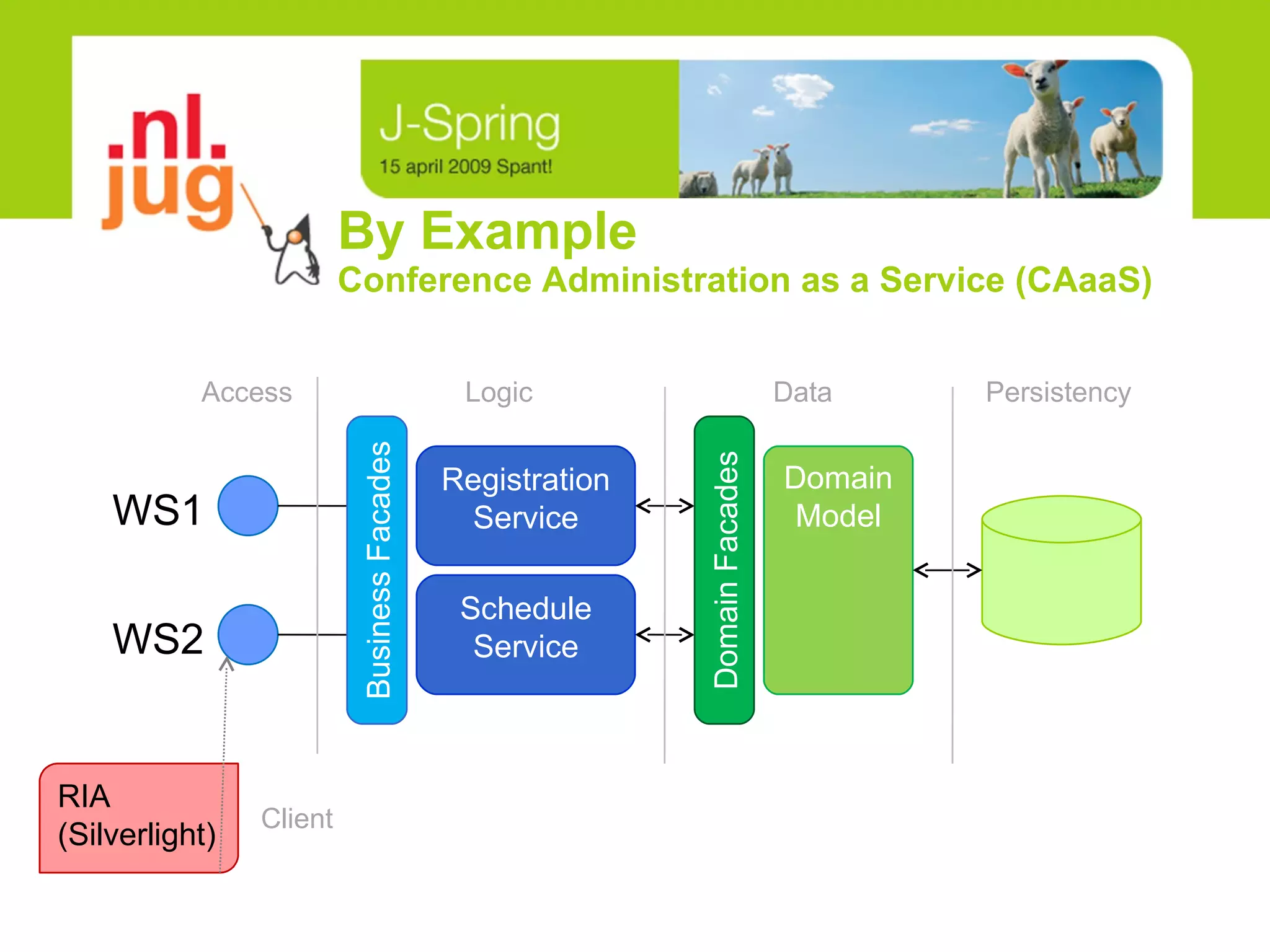

19. By Example Conference Administration as a Service (CAaaS) WS1 Registration Service Schedule Service WS2 Domain Model RIA (Silverlight) Access Logic Data Persistency Client Domain Facades Business Facades

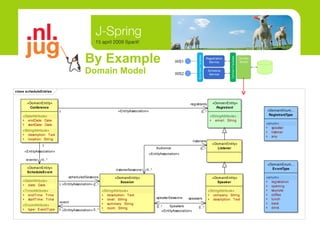

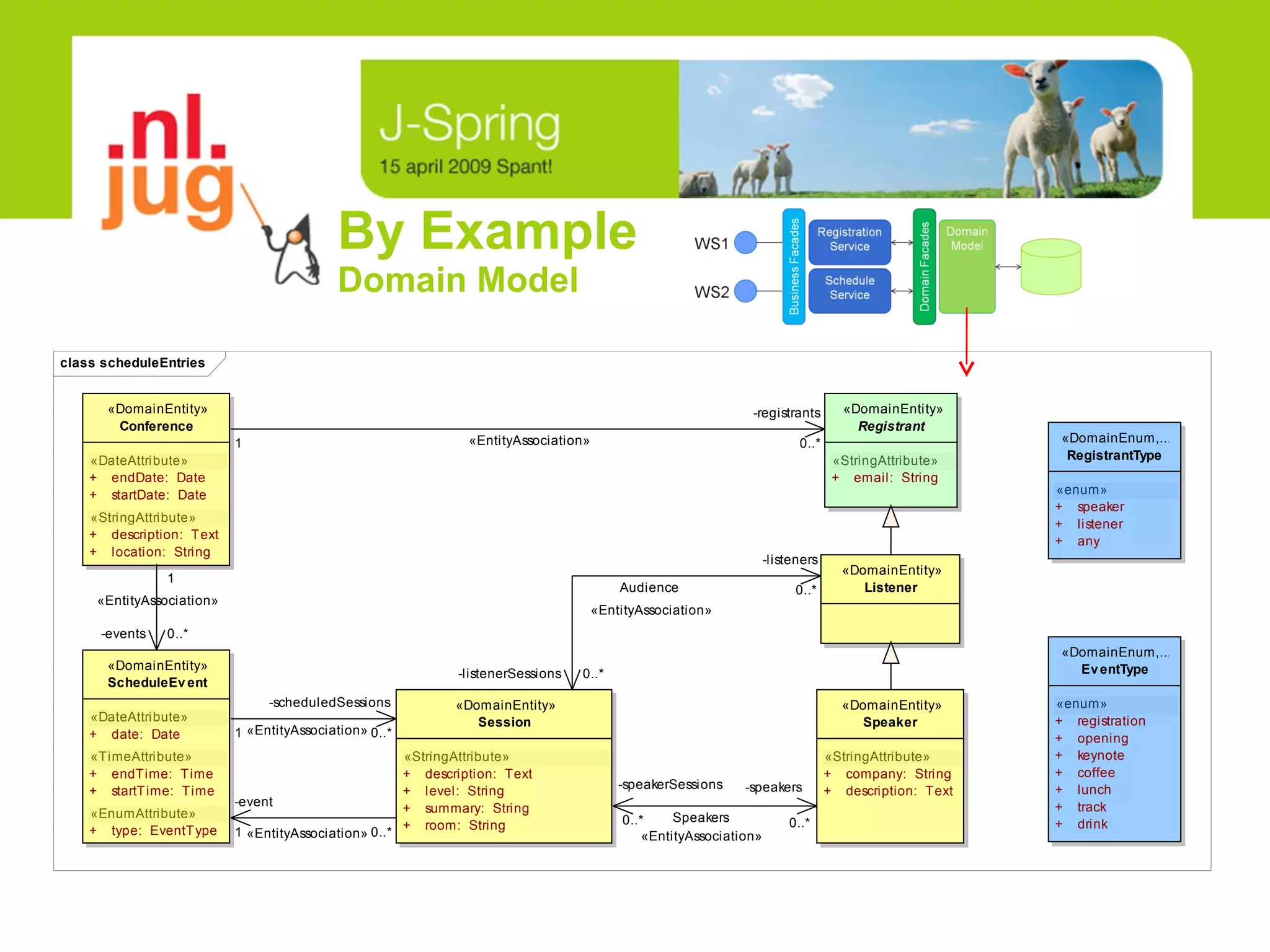

20. By Example Domain Model

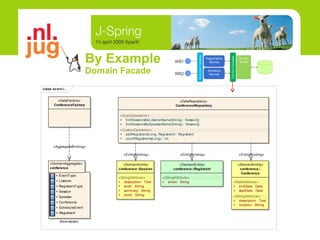

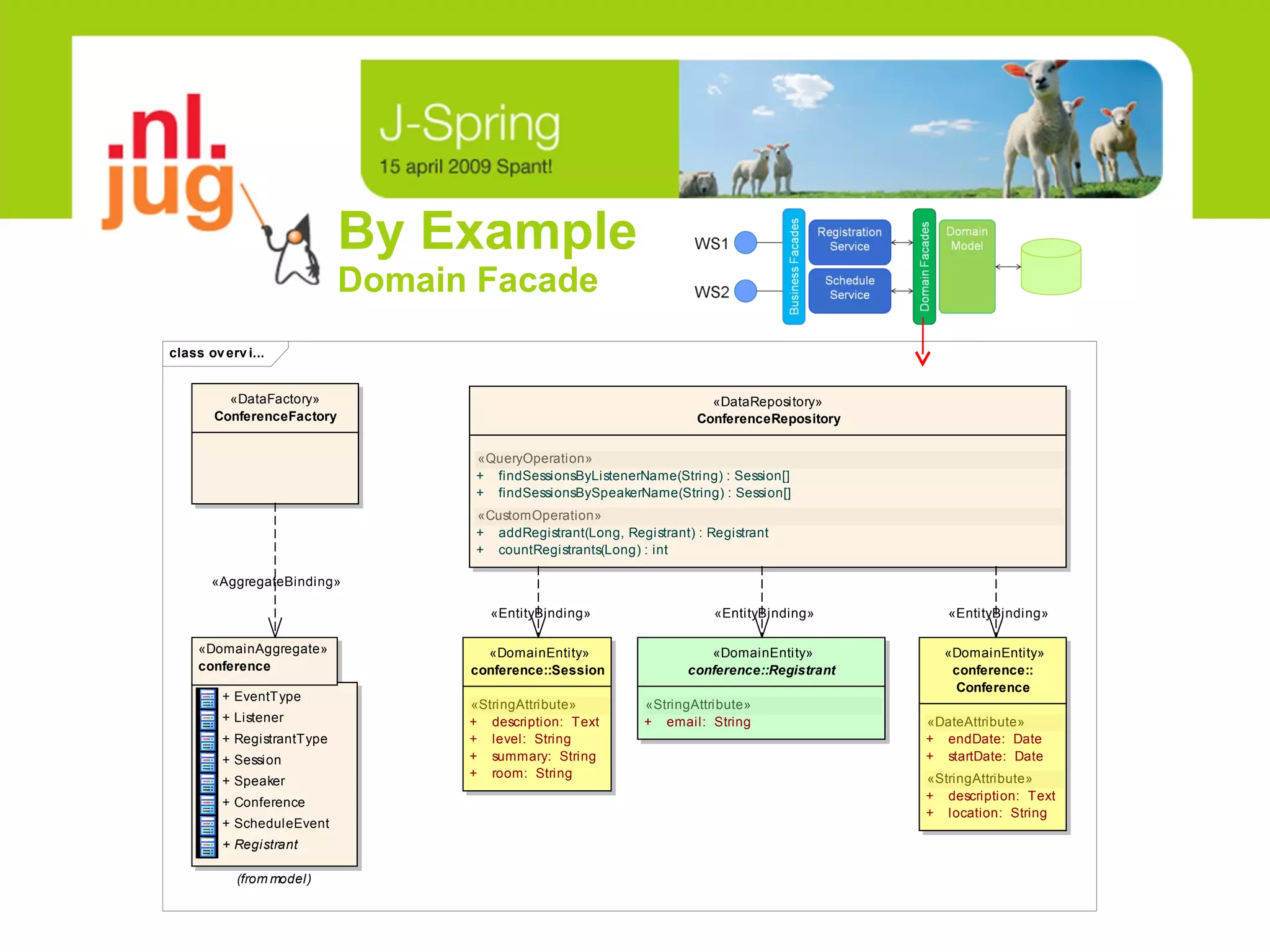

21. By Example Domain Facade

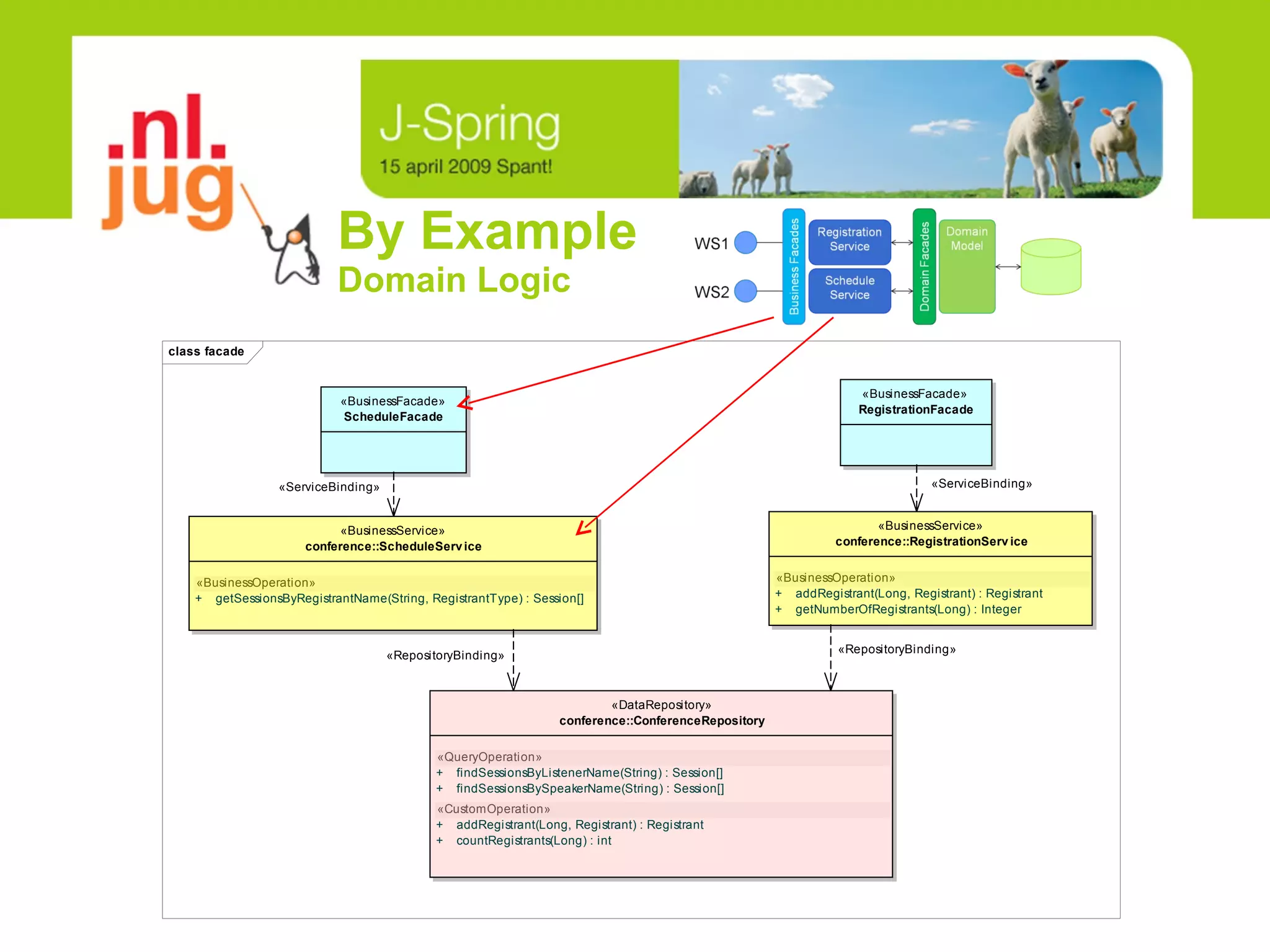

22. By Example Domain Logic

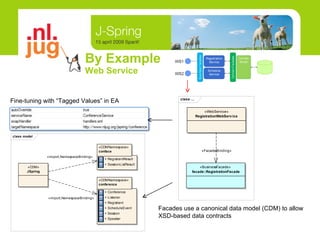

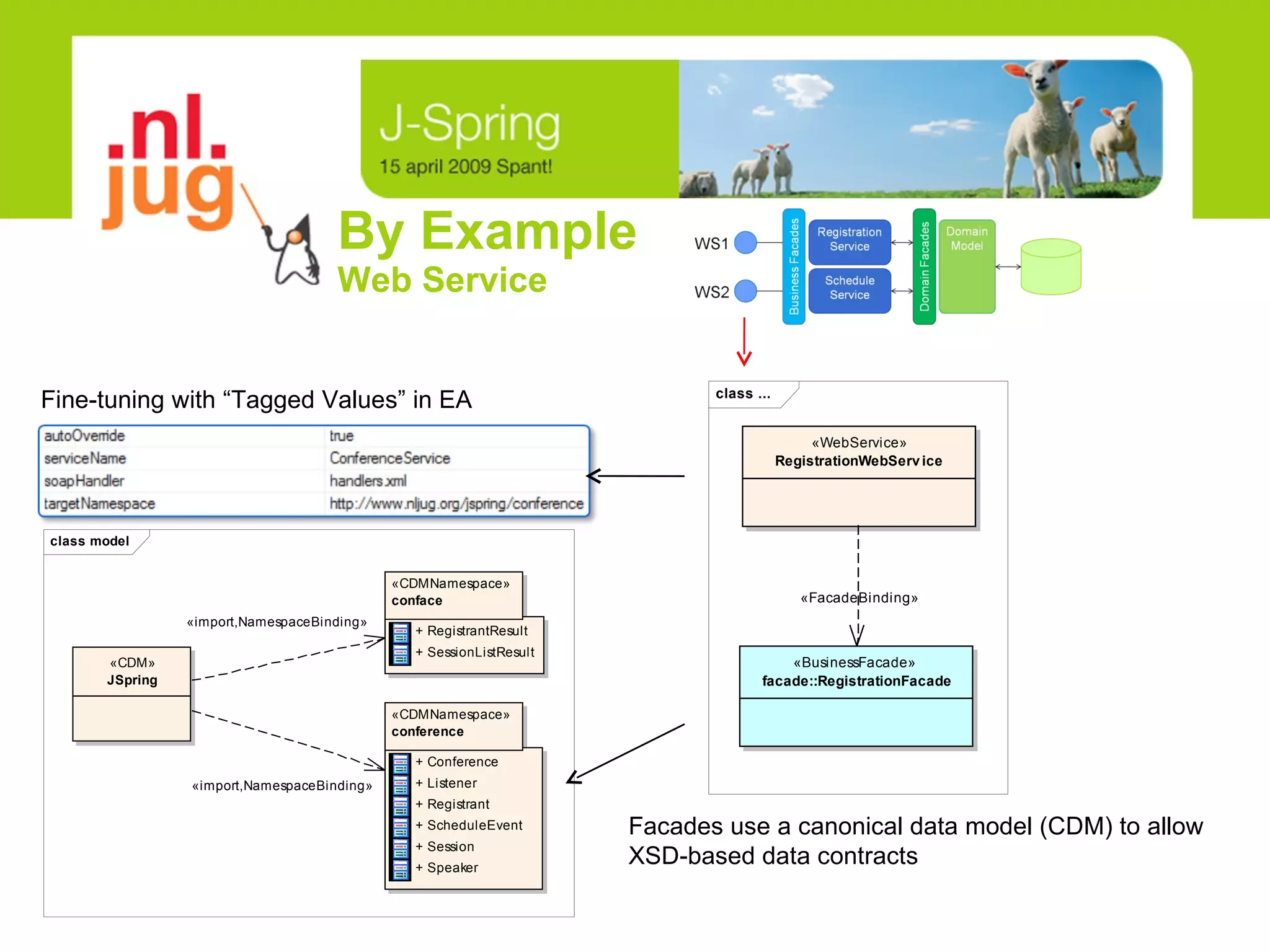

23. By Example Web Service Fine-tuning with “Tagged Values” in EA Facades use a canonical data model (CDM) to allow XSD-based data contracts

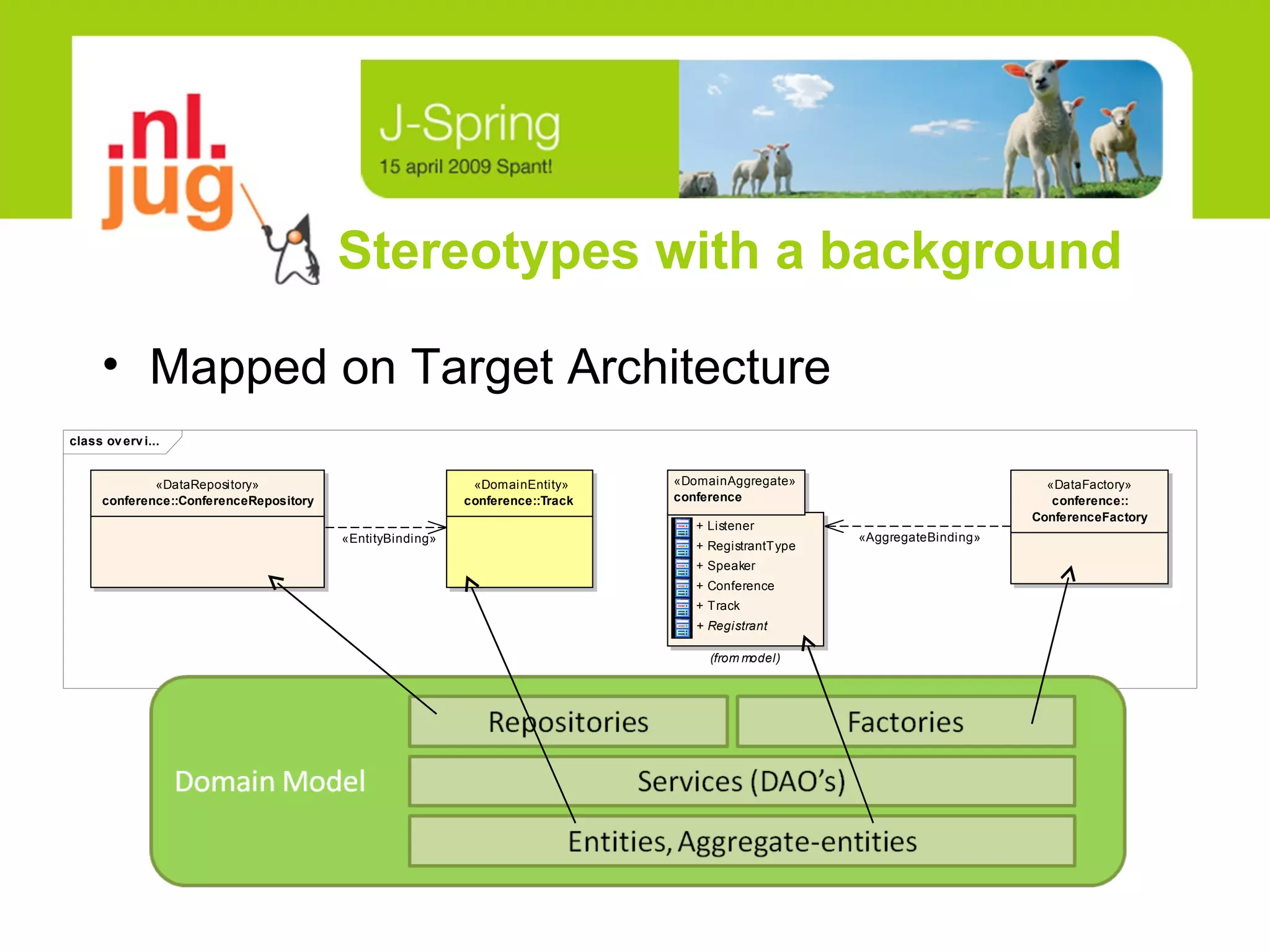

24. Stereotypes with a background Mapped on Target Architecture

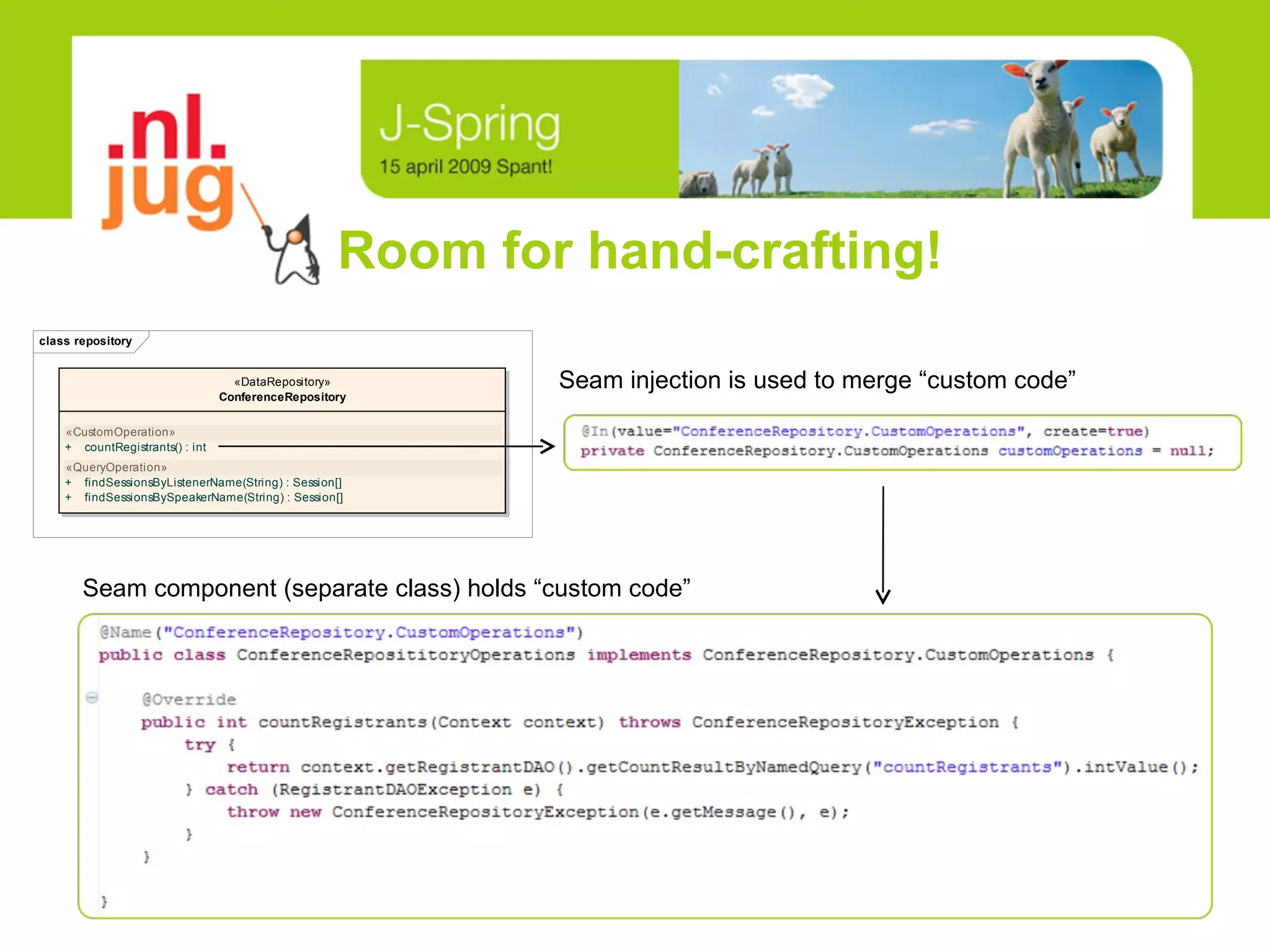

25. Room for hand-crafting! Seam injection is used to merge “custom code” Seam component (separate class) holds “custom code”

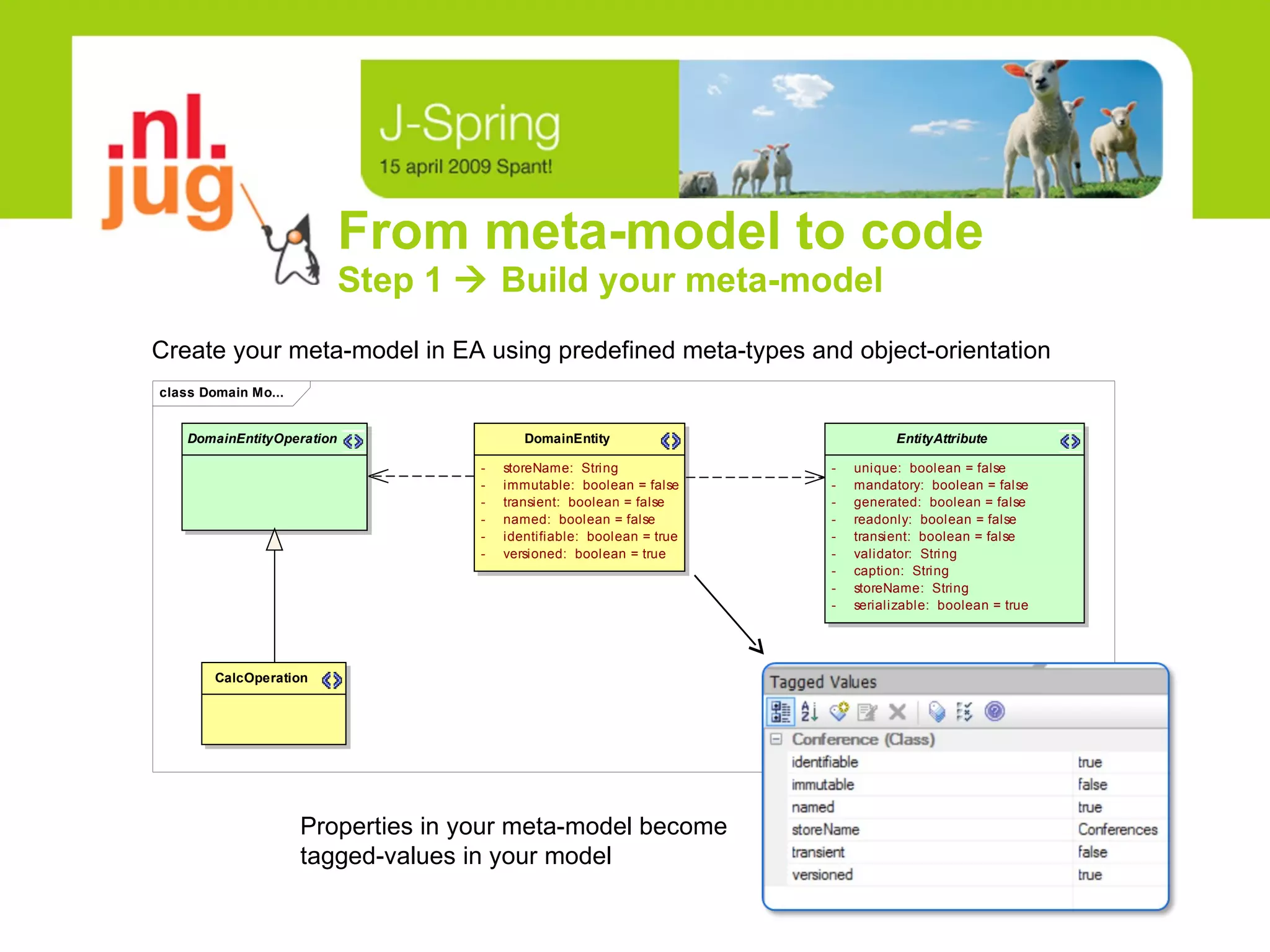

26. From meta-model to code Step 1  Build your meta-model Create your meta-model in EA using predefined meta-types and object-orientation Properties in your meta-model become tagged-values in your model

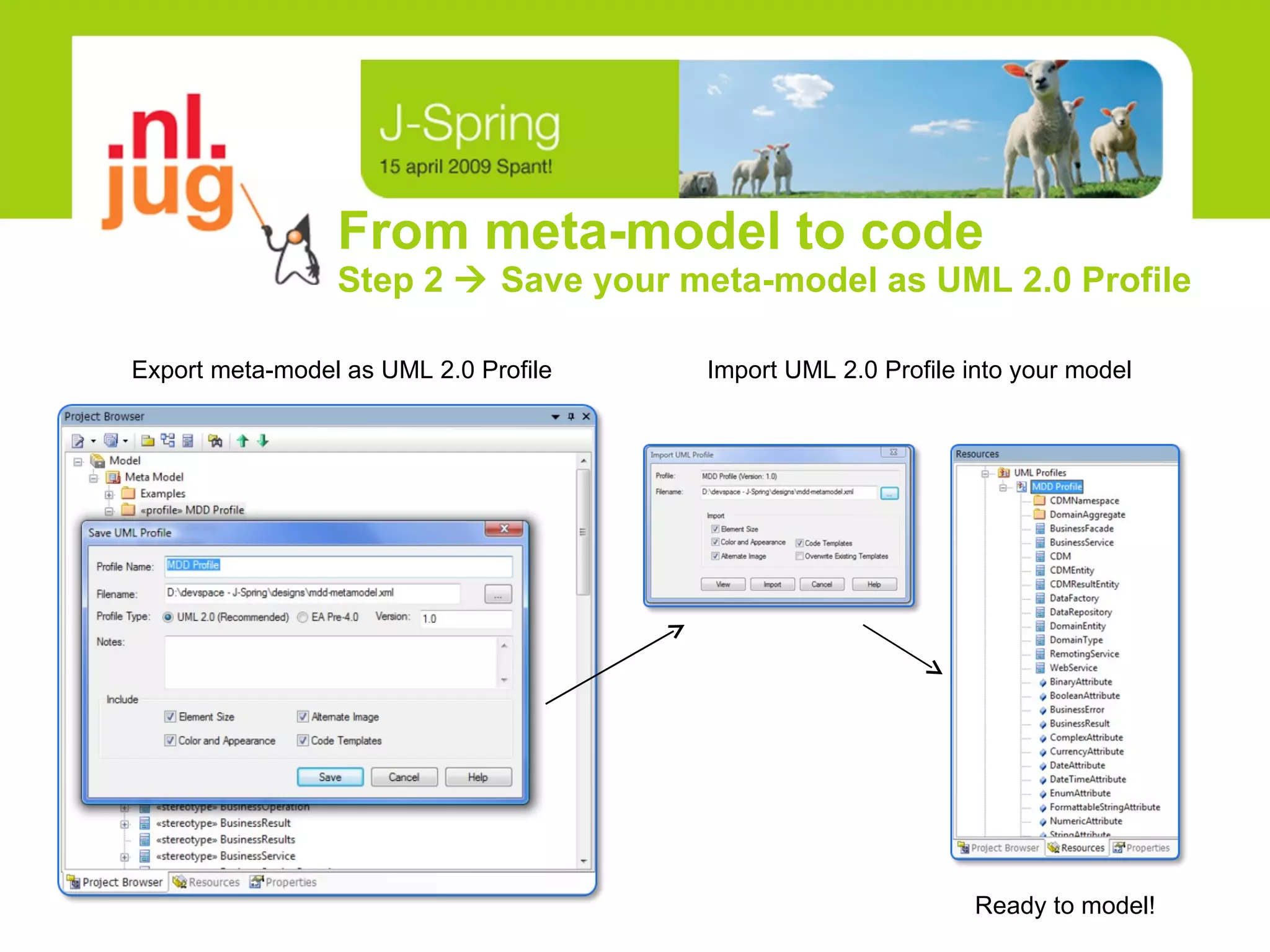

27. From meta-model to code Step 2  Save your meta-model as UML 2.0 Profile Export meta-model as UML 2.0 Profile Import UML 2.0 Profile into your model Ready to model!

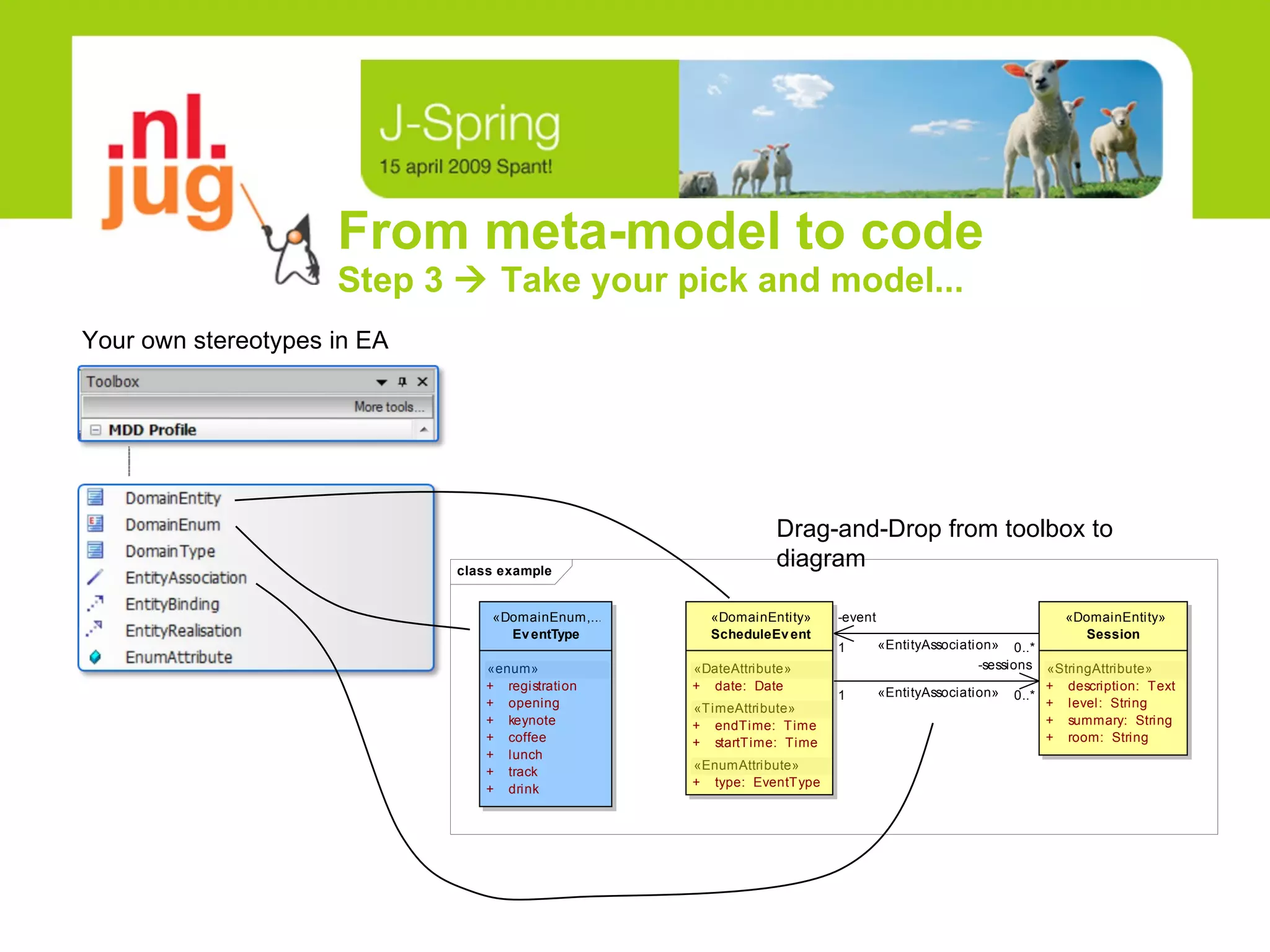

28. From meta-model to code Step 3  Take your pick and model... Your own stereotypes in EA Drag-and-Drop from toolbox to diagram

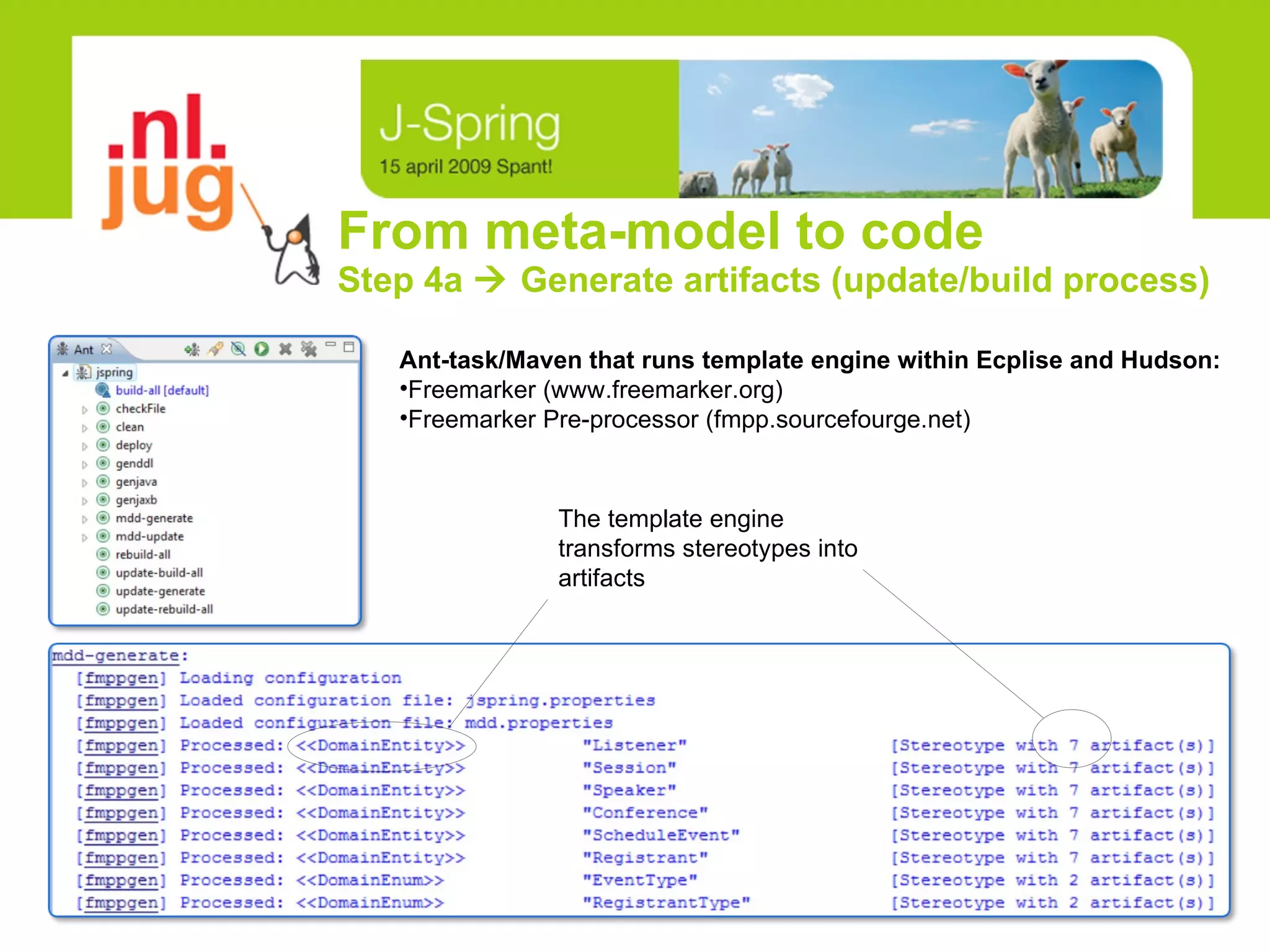

29. From meta-model to code Step 4a  Generate artifacts (update/build process) The template engine transforms stereotypes into artifacts Ant-task/Maven that runs template engine within Ecplise and Hudson: Freemarker (www.freemarker.org) Freemarker Pre-processor (fmpp.sourcefourge.net)

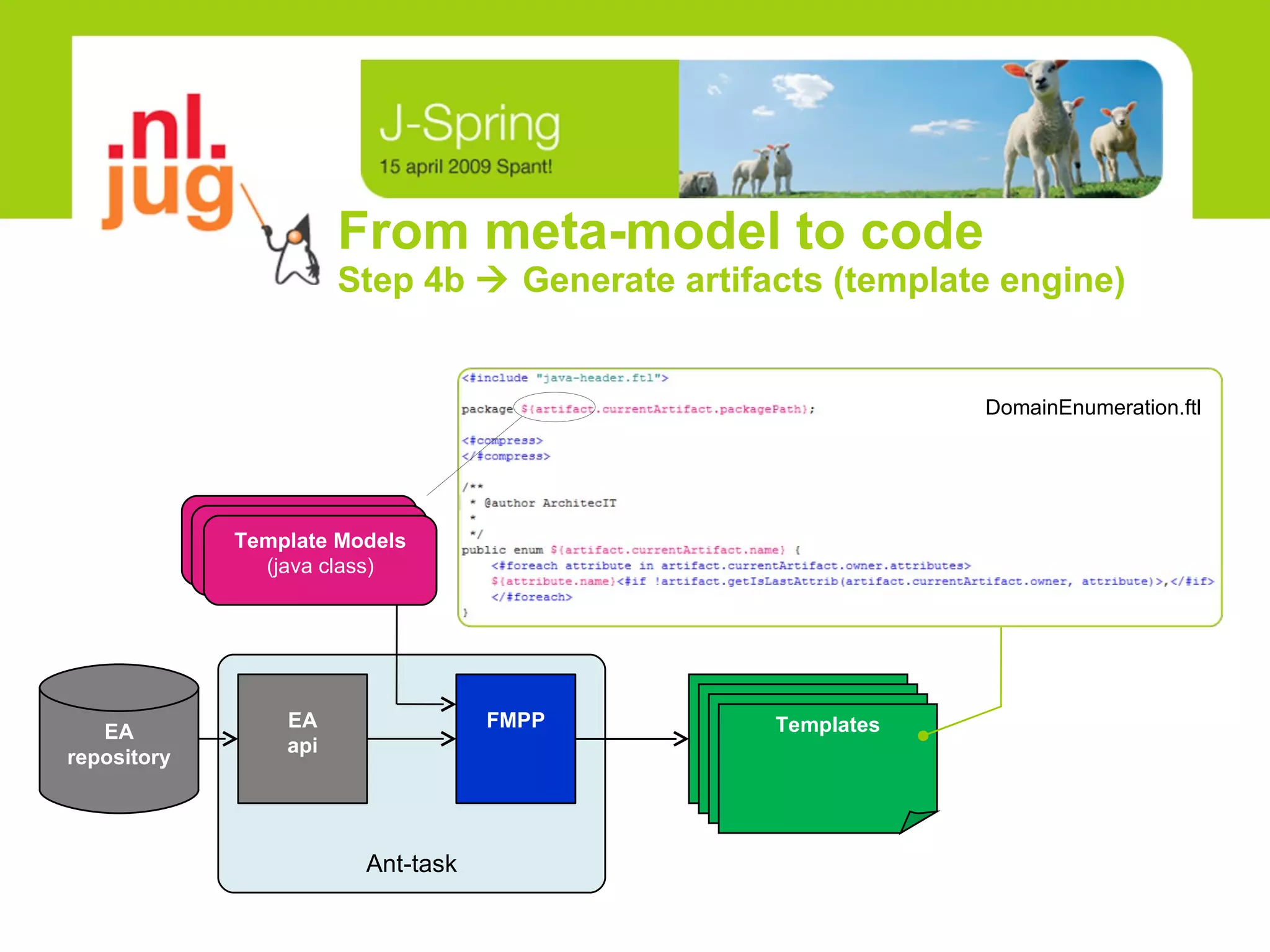

30. From meta-model to code Step 4b  Generate artifacts (template engine) Ant-task EA repository EA api FMPP Template Models (java class) Templates Templates Templates Templates DomainEnumeration.ftl

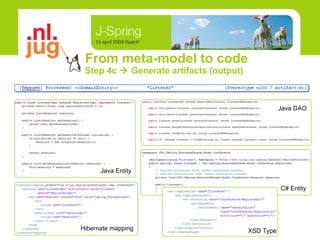

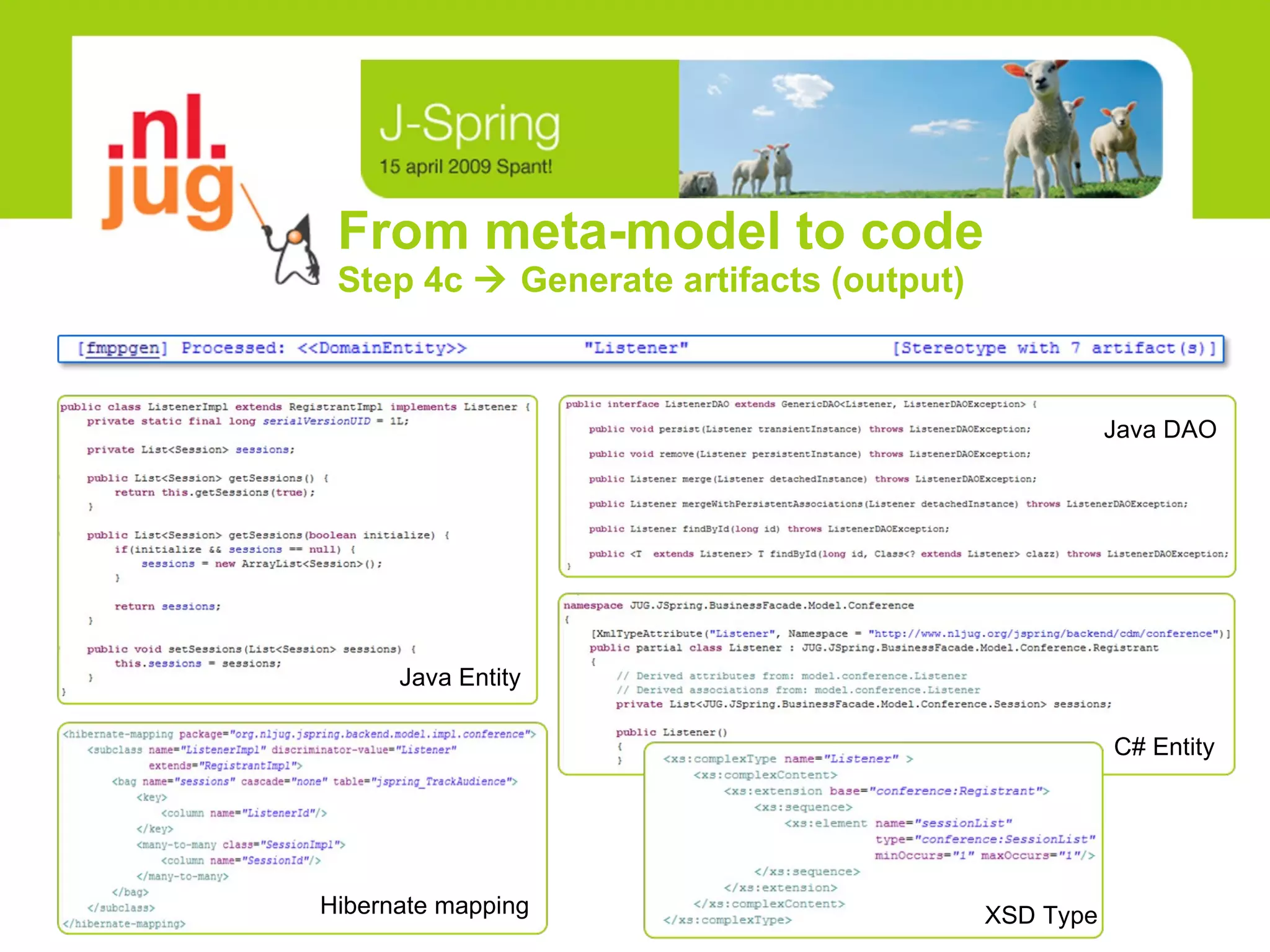

31. From meta-model to code Step 4c  Generate artifacts (output) Java Entity Java DAO C# Entity Hibernate mapping XSD Type

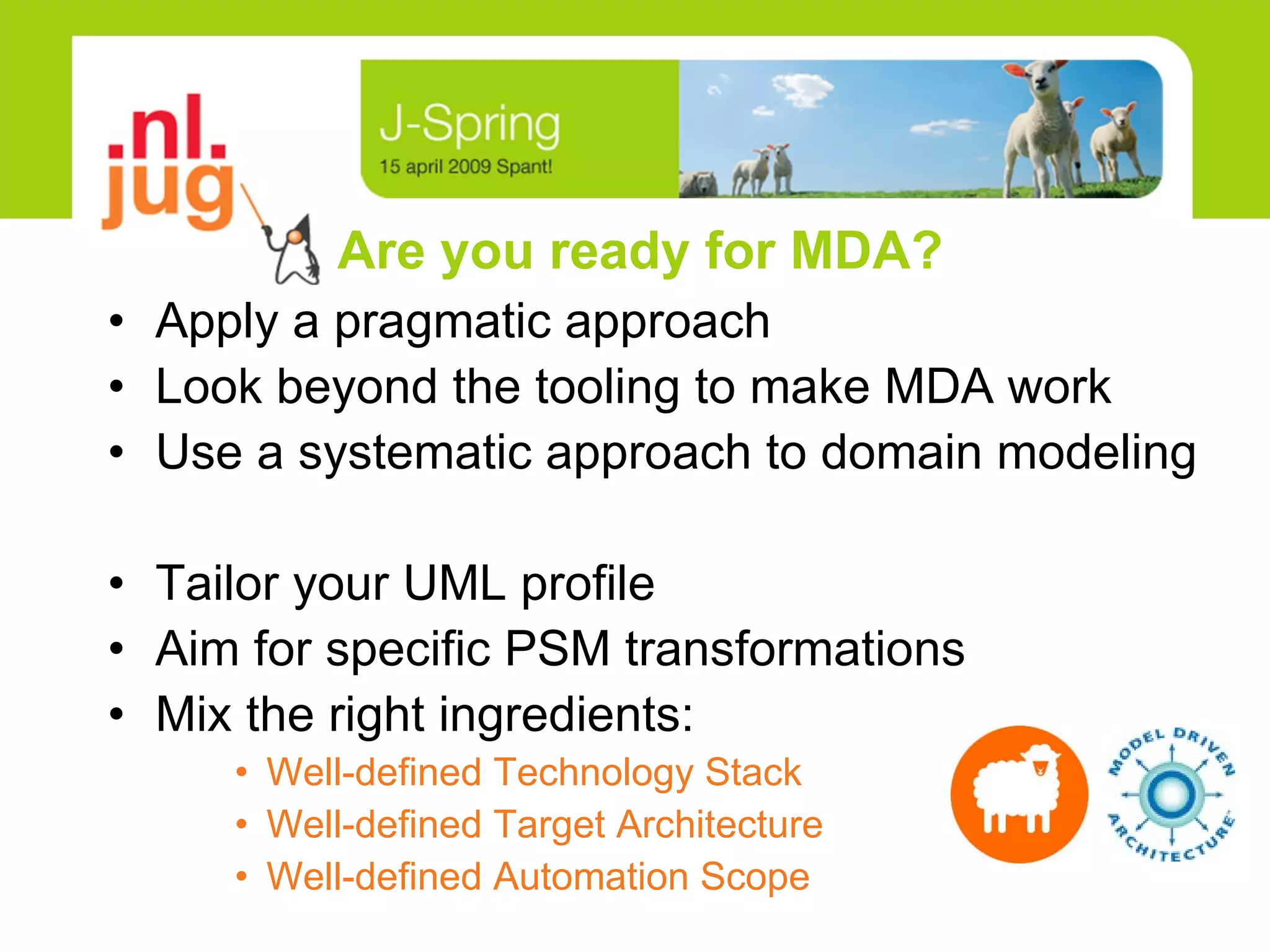

32. Are you ready for MDA? Apply a pragmatic approach Look beyond the tooling to make MDA work Use a systematic approach to domain modeling Tailor your UML profile Aim for specific PSM transformations Mix the right ingredients: Well-defined Technology Stack Well-defined Target Architecture Well-defined Automation Scope

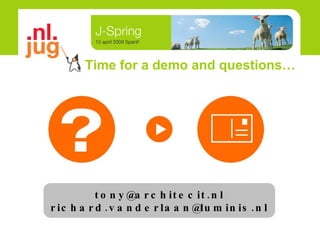

33. [email_address] [email_address] Time for a demo and questions…
