- 1. On the Questfor Flexible Modelling Esther Guerra, Juan de Lara MISO - Modelling & Software Engineering Research Group (miso.es) Universidad Aut´onoma de Madrid (Spain) Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 1 / 23

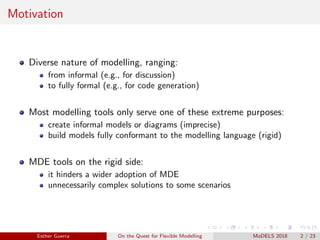

- 2. Motivation Diverse nature ofmodelling, ranging: from informal (e.g., for discussion) to fully formal (e.g., for code generation) Most modelling tools only serve one of these extreme purposes: create informal models or diagrams (imprecise) build models fully conformant to the modelling language (rigid) MDE tools on the rigid side: it hinders a wider adoption of MDE unnecessarily complex solutions to some scenarios Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 2 / 23
- 3. Contribution Our claim: modellingtools need further flexibility cover different stages, purposes, and approaches explicit modelling process and conformance rules In this presentation: requirements for flexible modelling tools application scenarios our proposal: meta-modelling language + explicit modelling process the Kite meta-modelling framework Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 3 / 23
- 4. Requirements and Scenarios Esther Guerra Onthe Quest for Flexible Modelling MoDELS 2018 4 / 23
- 5. Requirements and scenarios R1:Configurable inconsistency tolerance R1: The user should be able to relax the model conformance rules. Possibility to enable/disable: cardinality and integrity constraints type checking of field values objects with an abstract type objects with a non-existing type Inconsistency tolerance rigid freeconfigurable typing #instances cardinality constraints R1 Generalization multiple inheritance object- level R4 gexplicitEsther Guerra On the Quest for Flexible Modelling MoDELS 2018 5 / 23

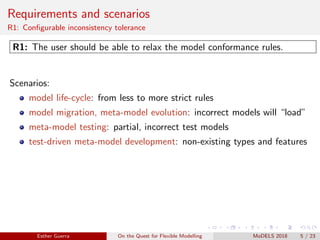

- 6. Requirements and scenarios R1:Configurable inconsistency tolerance R1: The user should be able to relax the model conformance rules. Scenarios: model life-cycle: from less to more strict rules model migration, meta-model evolution: incorrect models will “load” meta-model testing: partial, incorrect test models test-driven meta-model development: non-existing types and features Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 5 / 23
- 7. Requirements and scenarios R2:Information extension R2: The user should be able to dis(allow) information extension. Possibility to have (or not): objects with no type (it is type-safe) typed objects with fields not in the object type Inconsistency tolerance rigid freeconfigurable typing #instances cardinality constraints R1 Information extension untyped objects untyped features R2 GeneralizationR4 ProR5 Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 6 / 23

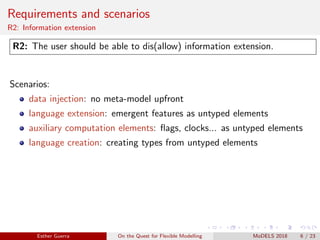

- 8. Requirements and scenarios R2:Information extension R2: The user should be able to dis(allow) information extension. Scenarios: data injection: no meta-model upfront language extension: emergent features as untyped elements auxiliary computation elements: flags, clocks... as untyped elements language creation: creating types from untyped elements Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 6 / 23

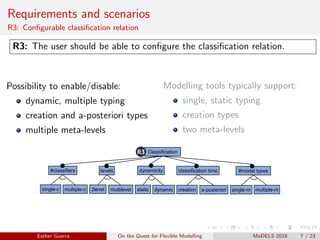

- 9. Requirements and scenarios R3:Configurable classification relation R3: The user should be able to configure the classification relation. Possibility to enable/disable: dynamic, multiple typing creation and a-posteriori types multiple meta-levels Modelling tools typically support: single, static typing creation types two meta-levels rmation ension untyped features Classification dynamicity static dynamic levels 2level multilevel #classifiers single-c multiple-c classification time creation a-posteriori #model types single-m multiple-m R3 Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 7 / 23
- 10. Requirements and scenarios R3:Configurable classification relation R3: The user should be able to configure the classification relation. Scenarios: reuse of model operations: by allowing multiple typing OO model«Container» * cl Package Class creation type applicable to Element name: String * pck Container * cnt :Package name=“org” :Package name=“people” :Class name=“Person” Graph MM OO MM defined over operation flatten (Container c) = c.cnt… ti fl «Container» «Leaf» * lf Leaf a posteriori type joint instantiation of sets of classes: e.g., used in ontologies multi-level modelling: by allowing multiple meta-levels Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 7 / 23

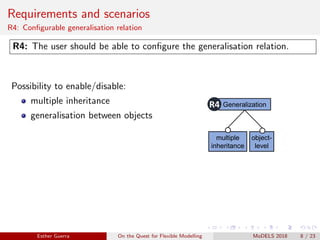

- 11. Requirements and scenarios R4:Configurable generalisation relation R4: The user should be able to configure the generalisation relation. Possibility to enable/disable: multiple inheritance generalisation between objects tolerance rigid freeconfigurable typing #instances cardinality constraint Generalization multiple inheritance object- level R4 exp config Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 8 / 23
- 12. Requirements and scenarios R4:Configurable generalisation relation R4: The user should be able to configure the generalisation relation. Scenarios: model libraries: reusable by object inheritance Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 8 / 23
- 13. Requirements and scenarios R5:Explicit and configurable modelling process R5: The tool should allow defining and enacting modelling processes. Modelling processes: phases, conformance rules order of object creation current modelling phase manual automatic process intent meta-model creation (bottom-up, top-down, blended) model creation Inconsistency tolerance rigid freeconfigurable typing #instances cardinality constraints R1 Information extension untyped objects untyped features R2 d sta levels 2level multilevel #classifiers single-c multiple-c R3 Generalization multiple inheritance object- level R4 modelling process generic domain- specific state change manual automatic process intent bottom-up top-down blended Process explicit configurable R5 model refinement Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 9 / 23

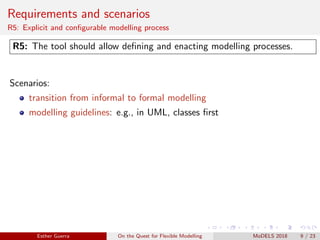

- 14. Requirements and scenarios R5:Explicit and configurable modelling process R5: The tool should allow defining and enacting modelling processes. Scenarios: transition from informal to formal modelling modelling guidelines: e.g., in UML, classes first Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 9 / 23
- 15. Requirements and scenarios R6:Process-aware extensible assistance R6: Fixes and refactorings may depend on the process intent. For example, given a model error: bottom-up fixes modify the meta-model top-down fixes modify the model domain-specific fixes ree ality constraints Information extension untyped objects untyped features R2 Classification dynamicity static dynamic levels 2level multilevel #classifiers single-c multiple-c classification time creation a-poste R3 modelling process generic domain- specific state change manual automatic process intent bottom-up top-down blended Process explicit configurable R5 model refinement assistance extensible Process R6 Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 10 / 23

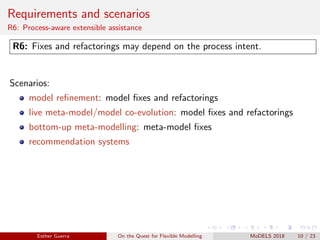

- 16. Requirements and scenarios R6:Process-aware extensible assistance R6: Fixes and refactorings may depend on the process intent. Scenarios: model refinement: model fixes and refactorings live meta-model/model co-evolution: model fixes and refactorings bottom-up meta-modelling: meta-model fixes recommendation systems Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 10 / 23

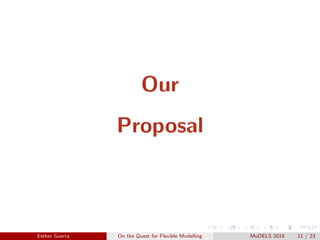

- 17. Our Proposal Esther Guerra Onthe Quest for Flexible Modelling MoDELS 2018 11 / 23

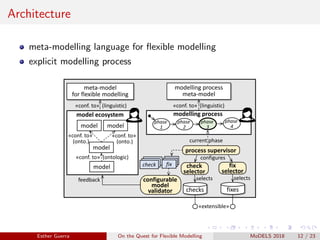

- 18. Architecture meta-modelling language forflexible modelling explicit modelling process model model model meta-model for flexible modelling «conf. to» (linguistic) «conf. to» (onto.) «conf. to» (onto.) modelling process meta-model «conf. to» (linguistic) model «conf. to» (ontologic) modelling processmodel ecosystem process supervisor current phase configurable model validator configures feedback fixeschecks check selector fix selector selects selects «extensible» fixfixfix checkcheckcheck phase 1 phase 2 phase 3 phase 4 Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 12 / 23

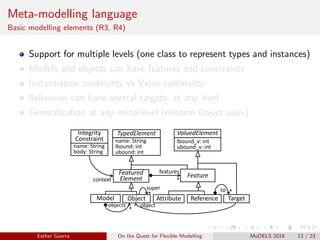

- 19. Meta-modelling language Basic modellingelements (R3, R4) Support for multiple levels (one class to represent types and instances) Models and objects can have features and constraints Instantiation cardinality vs Value cardinality References can have several targets, at any level Generalization at any meta-level (relation Object.super) Model Object Feature TypedElement Featured Element ValuedElement name: String lbound: int ubound: int lbound_v: int ubound_v: int Attribute Reference features * * objects * super Target *to object Integrity Constraint name: String body: String context Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 13 / 23

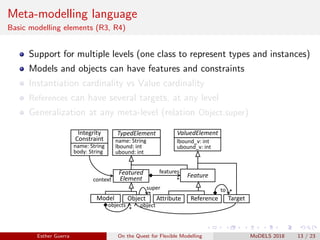

- 20. Meta-modelling language Basic modellingelements (R3, R4) Support for multiple levels (one class to represent types and instances) Models and objects can have features and constraints Instantiation cardinality vs Value cardinality References can have several targets, at any level Generalization at any meta-level (relation Object.super) Model Object Feature TypedElement Featured Element ValuedElement name: String lbound: int ubound: int lbound_v: int ubound_v: int Attribute Reference features * * objects * super Target *to object Integrity Constraint name: String body: String context Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 13 / 23
- 21. Meta-modelling language Basic modellingelements (R3, R4) Support for multiple levels (one class to represent types and instances) Models and objects can have features and constraints Instantiation cardinality vs Value cardinality References can have several targets, at any level Generalization at any meta-level (relation Object.super) Model Object Feature TypedElement Featured Element ValuedElement name: String lbound: int ubound: int lbound_v: int ubound_v: int Attribute Reference features * * objects * super Target *to object Integrity Constraint name: String body: String context Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 13 / 23

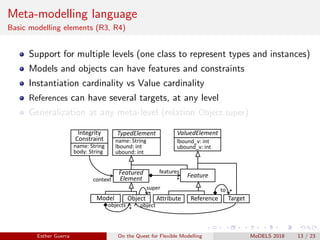

- 22. Meta-modelling language Basic modellingelements (R3, R4) Support for multiple levels (one class to represent types and instances) Models and objects can have features and constraints Instantiation cardinality vs Value cardinality References can have several targets, at any level Generalization at any meta-level (relation Object.super) Model Object Feature TypedElement Featured Element ValuedElement name: String lbound: int ubound: int lbound_v: int ubound_v: int Attribute Reference features * * objects * super Target *to object Integrity Constraint name: String body: String context Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 13 / 23

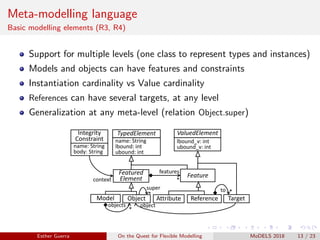

- 23. Meta-modelling language Basic modellingelements (R3, R4) Support for multiple levels (one class to represent types and instances) Models and objects can have features and constraints Instantiation cardinality vs Value cardinality References can have several targets, at any level Generalization at any meta-level (relation Object.super) Model Object Feature TypedElement Featured Element ValuedElement name: String lbound: int ubound: int lbound_v: int ubound_v: int Attribute Reference features * * objects * super Target *to object Integrity Constraint name: String body: String context Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 13 / 23
- 24. Meta-modelling language Flexible typing(R1, R2, R3) Explicit typing relation Zero, one or more typings for an instance Types can be assigned at creation time, or later Re-typing (preserving the instance identity) * otypingsModel Typing Object Typing Feature Typing TypedElementTyping Featured Typing *ftypings type instance Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 14 / 23
- 25. Meta-modelling language Examples 1 Conference{ 2 Author {} 3 Reviewer /1..∗/ {} 4 } 5 6 MODELS :Conference /0..0/ { 7 amelia :Author :Reviewer {} 8 lateReviews { 9 ref who = amelia; 10 } 11 } Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 15 / 23

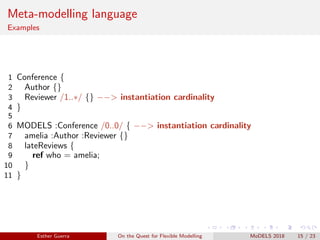

- 26. Meta-modelling language Examples 1 Conference{ 2 Author {} 3 Reviewer /1..∗/ {} −−> instantiation cardinality 4 } 5 6 MODELS :Conference /0..0/ { −−> instantiation cardinality 7 amelia :Author :Reviewer {} 8 lateReviews { 9 ref who = amelia; 10 } 11 } Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 15 / 23
- 27. Meta-modelling language Examples 1 Conference{ 2 Author {} 3 Reviewer /1..∗/ {} 4 } 5 6 MODELS :Conference /0..0/ { 7 amelia :Author :Reviewer {} −−> object with multiple types 8 lateReviews { 9 ref who = amelia; 10 } 11 } Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 15 / 23
- 28. Meta-modelling language Examples 1 Conference{ 2 Author {} 3 Reviewer /1..∗/ {} 4 } 5 6 MODELS :Conference /0..0/ { 7 amelia :Author :Reviewer {} 8 lateReviews { −−> object with no types 9 ref who = amelia; 10 } 11 } Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 15 / 23

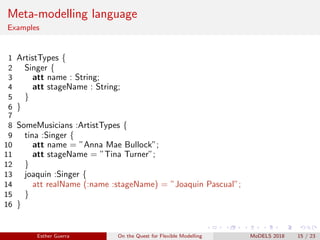

- 29. Meta-modelling language Examples 1 ArtistTypes{ 2 Singer { 3 att name : String; 4 att stageName : String; 5 } 6 } 7 8 SomeMusicians :ArtistTypes { 9 tina :Singer { 10 att name = ”Anna Mae Bullock”; 11 att stageName = ”Tina Turner”; 12 } 13 joaquin :Singer { 14 att realName (:name :stageName) = ”Joaquin Pascual”; 15 } 16 } Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 15 / 23

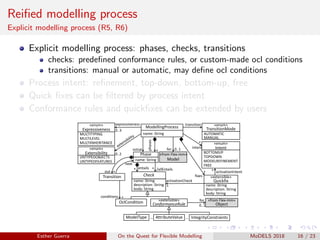

- 30. Reified modelling process Explicitmodelling process (R5, R6) Explicit modelling process: phases, checks, transitions checks: predefined conformance rules, or custom-made ocl conditions transitions: manual or automatic, may define ocl conditions Process intent: refinement, top-down, bottom-up, free Quick fixes can be filtered by process intent Conformance rules and quickfixes can be extended by users ModellingProcess Phase name: String phases * name: String «enum» Intent BOTTOMUP TOPDOWN MODELREFINEMENT FREE intent initial Transition out * next «enum» TransitionMode AUTOMATIC MANUAL «enum» Expressiveness MULTITYPING MULTILEVEL MULTIINHERITANCE «enum» Extensibility UNTYPEDOBJECTS UNTYPEDFEATURES expressiveness 0..3 0..2 transition Check /allEntails* conditions * «extensible» Quickfix name: String description: String body: String activationCheck activationIntent * * fixes * * name: String description: String body: String OclCondition «extensible» ConformanceRule ModelType AttributeValue IntegrityConstraints… … «from Flex-mm» Object Model for 0..1 for 0..1 entails* «from Flex-mm» Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 16 / 23

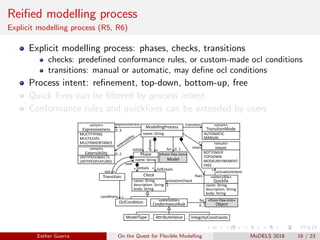

- 31. Reified modelling process Explicitmodelling process (R5, R6) Explicit modelling process: phases, checks, transitions checks: predefined conformance rules, or custom-made ocl conditions transitions: manual or automatic, may define ocl conditions Process intent: refinement, top-down, bottom-up, free Quick fixes can be filtered by process intent Conformance rules and quickfixes can be extended by users ModellingProcess Phase name: String phases * name: String «enum» Intent BOTTOMUP TOPDOWN MODELREFINEMENT FREE intent initial Transition out * next «enum» TransitionMode AUTOMATIC MANUAL «enum» Expressiveness MULTITYPING MULTILEVEL MULTIINHERITANCE «enum» Extensibility UNTYPEDOBJECTS UNTYPEDFEATURES expressiveness 0..3 0..2 transition Check /allEntails* conditions * «extensible» Quickfix name: String description: String body: String activationCheck activationIntent * * fixes * * name: String description: String body: String OclCondition «extensible» ConformanceRule ModelType AttributeValue IntegrityConstraints… … «from Flex-mm» Object Model for 0..1 for 0..1 entails* «from Flex-mm» Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 16 / 23

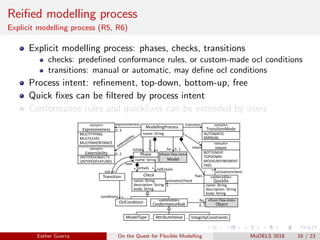

- 32. Reified modelling process Explicitmodelling process (R5, R6) Explicit modelling process: phases, checks, transitions checks: predefined conformance rules, or custom-made ocl conditions transitions: manual or automatic, may define ocl conditions Process intent: refinement, top-down, bottom-up, free Quick fixes can be filtered by process intent Conformance rules and quickfixes can be extended by users ModellingProcess Phase name: String phases * name: String «enum» Intent BOTTOMUP TOPDOWN MODELREFINEMENT FREE intent initial Transition out * next «enum» TransitionMode AUTOMATIC MANUAL «enum» Expressiveness MULTITYPING MULTILEVEL MULTIINHERITANCE «enum» Extensibility UNTYPEDOBJECTS UNTYPEDFEATURES expressiveness 0..3 0..2 transition Check /allEntails* conditions * «extensible» Quickfix name: String description: String body: String activationCheck activationIntent * * fixes * * name: String description: String body: String OclCondition «extensible» ConformanceRule ModelType AttributeValue IntegrityConstraints… … «from Flex-mm» Object Model for 0..1 for 0..1 entails* «from Flex-mm» Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 16 / 23

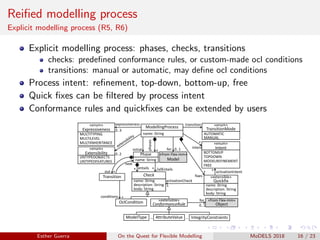

- 33. Reified modelling process Explicitmodelling process (R5, R6) Explicit modelling process: phases, checks, transitions checks: predefined conformance rules, or custom-made ocl conditions transitions: manual or automatic, may define ocl conditions Process intent: refinement, top-down, bottom-up, free Quick fixes can be filtered by process intent Conformance rules and quickfixes can be extended by users ModellingProcess Phase name: String phases * name: String «enum» Intent BOTTOMUP TOPDOWN MODELREFINEMENT FREE intent initial Transition out * next «enum» TransitionMode AUTOMATIC MANUAL «enum» Expressiveness MULTITYPING MULTILEVEL MULTIINHERITANCE «enum» Extensibility UNTYPEDOBJECTS UNTYPEDFEATURES expressiveness 0..3 0..2 transition Check /allEntails* conditions * «extensible» Quickfix name: String description: String body: String activationCheck activationIntent * * fixes * * name: String description: String body: String OclCondition «extensible» ConformanceRule ModelType AttributeValue IntegrityConstraints… … «from Flex-mm» Object Model for 0..1 for 0..1 entails* «from Flex-mm» Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 16 / 23

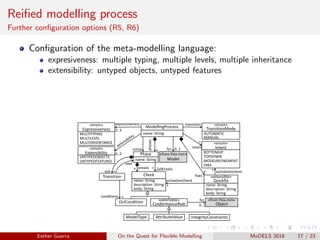

- 34. Reified modelling process Furtherconfiguration options (R5, R6) Configuration of the meta-modelling language: expresiveness: multiple typing, multiple levels, multiple inheritance extensibility: untyped objects, untyped features ModellingProcess Phase name: String phases * name: String «enum» Intent BOTTOMUP TOPDOWN MODELREFINEMENT FREE intent initial Transition out * next «enum» TransitionMode AUTOMATIC MANUAL «enum» Expressiveness MULTITYPING MULTILEVEL MULTIINHERITANCE «enum» Extensibility UNTYPEDOBJECTS UNTYPEDFEATURES expressiveness 0..3 0..2 transition Check /allEntails* conditions * «extensible» Quickfix name: String description: String body: String activationCheck activationIntent * * fixes * * name: String description: String body: String OclCondition «extensible» ConformanceRule ModelType AttributeValue IntegrityConstraints… … «from Flex-mm» Object Model for 0..1 for 0..1 entails* «from Flex-mm» Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 17 / 23

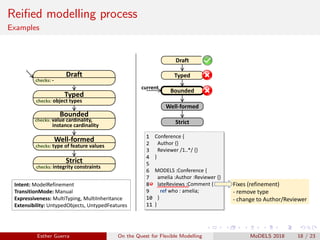

- 35. Reified modelling process Examples Typed Intent:ModelRefinement TransitionMode: Manual Expressiveness: MultiTyping, MultiInheritance Extensibility: UntypedObjects, UntypedFeatures checks: object types Draft checks: - Bounded checks: value cardinality, instance cardinality Well-formed checks: type of feature values Strict checks: integrity constraints current Conference { Author {} Reviewer /1..*/ {} } MODELS :Conference { amelia :Author :Reviewer {} lateReviews :Comment { ref who : amelia; } } 1 2 3 4 5 6 7 8 9 10 11 Typed Draft Bounded Well-formed Strict Fixes (refinement) - remove type - change to Author/Reviewer Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 18 / 23

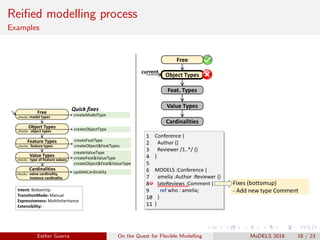

- 36. Reified modelling process Examples FeatureTypes checks: feature types Object Types Cardinalities checks: value cardinality, instance cardinality Free checks: model types checks: object types Value Types checks: type of feature values createObjectType createValueType createFeat&ValueType createObject&Feat&ValueType createFeatType createObject&FeatTypes Quick fixes createModelType Intent: BottomUp TransitionMode: Manual Expressiveness: MultiInheritance Extensibility: - updateCardinality current Conference { Author {} Reviewer /1..*/ {} } MODELS :Conference { amelia :Author :Reviewer {} lateReviews :Comment { ref who : amelia; } } 1 2 3 4 5 6 7 8 9 10 11 Object Types Feat. Types Value Types Cardinalities Fixes (bottomup) - Add new type Comment Free Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 18 / 23

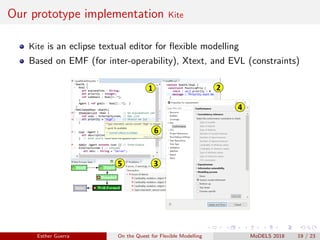

- 37. Our prototype implementationKite Kite is an eclipse textual editor for flexible modelling Based on EMF (for inter-operability), Xtext, and EVL (constraints) 1 2 35 6 4 Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 19 / 23

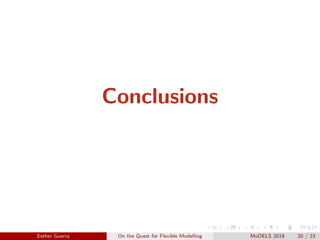

- 38. Conclusions Esther Guerra Onthe Quest for Flexible Modelling MoDELS 2018 20 / 23

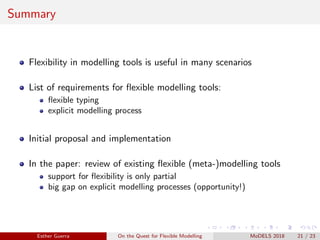

- 39. Summary Flexibility in modellingtools is useful in many scenarios List of requirements for flexible modelling tools: flexible typing explicit modelling process Initial proposal and implementation In the paper: review of existing flexible (meta-)modelling tools support for flexibility is only partial big gap on explicit modelling processes (opportunity!) Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 21 / 23

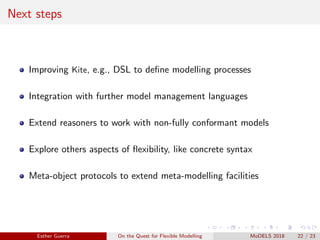

- 40. Next steps Improving Kite,e.g., DSL to define modelling processes Integration with further model management languages Extend reasoners to work with non-fully conformant models Explore others aspects of flexibility, like concrete syntax Meta-object protocols to extend meta-modelling facilities Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 22 / 23
- 41. On the Questfor Flexible Modelling Esther Guerra, Juan de Lara esther.guerra@uam.es MISO - Modelling & Software Engineering Research Group (miso.es) Universidad Aut´onoma de Madrid (Spain) Comments? Questions? Esther Guerra On the Quest for Flexible Modelling MoDELS 2018 23 / 23
