The document discusses advancements in research orchestration capabilities at Oak Ridge National Laboratory (ORNL) under the management of UT-Battelle for the U.S. Department of Energy. It emphasizes the evolving human-machine interaction in research, highlighting the importance of automated and distributed workflow orchestration through technologies like the OLCF facility API and Globus. Key features of the system include project-level and user-level authentication, job submission and monitoring, as well as streamlined interactions with computational resources.

1. ORNL is managed by UT-Battelle LLC for the US Department of Energy
Enhancing research orchestration
capabilities at ORNL
Tyler J. Skluzacek
Research Scientist
Oak Ridge National Laboratory

2. 2
2
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility
Task Who does it?
Initiate experiment
Operate instrument
Initiate data transfers
Initiate compute
Computes!
Validate outputs
Initiate reactionary analysis
Publish, clean up

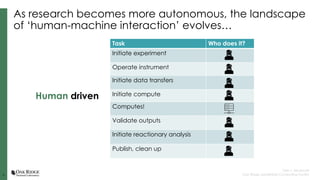

As research becomes more autonomous, the landscape
of ‘human-machine interaction’ evolves…
Human driven

3. 3
3
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility
Task Who does it?
Initiate experiment
Operate instrument
Initiate data transfers
Initiate compute
Computes!
Validate outputs
Initiate reactionary analysis
Publish, clean up

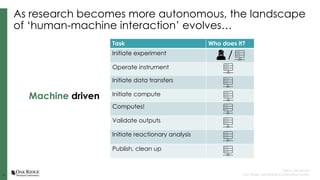

As research becomes more autonomous, the landscape
of ‘human-machine interaction’ evolves…
Machine driven
/

4. 4
4
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility
Task Who does it?
Initiate experiment
Operate instrument
Initiate data transfers
Initiate compute
Computes!
Validate outputs
Initiate reactionary analysis
Publish, clean up

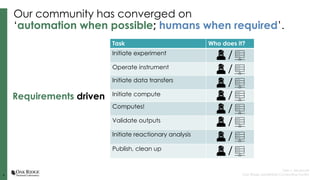

Our community has converged on
‘automation when possible; humans when required’.
Requirements driven
/
/
/
/
/
/
/
/

5. 5
5
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility

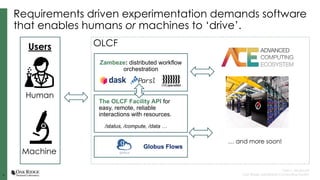

Requirements driven experimentation demands software
that enables humans or machines to ‘drive’.
… and more soon!
Users
Human
Machine
Zambeze: distributed workflow
orchestration
The OLCF Facility API for
easy, remote, reliable
interactions with resources.
/status, /compute, /data …
OLCF
Globus Flows

6. 6
6
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility
The OLCF Facility API enables users to remotely interact
with our resources
Not a new idea, but we can build on it!
• FirecREST (CSCS):
https://firecrest.readthedocs.io/en/l
atest/overview.html#gateway
• SuperFacility (NERSC):
https://www.nersc.gov/research-an
d-development/superfacility/
• Tapis (TACC):
https://tapis.readthedocs.io/en/late
st/technical/index.html

7. 7
7
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility

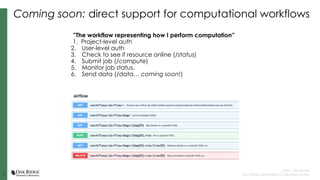

Coming soon: direct support for computational workflows
”The workflow representing how I perform computation”
1. Project-level auth
2. User-level auth
3. Check to see if resource online (/status)
4. Submit job (/compute)
5. Monitor job status.
6. Send data (/data… coming soon!)

8. 8
8
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility

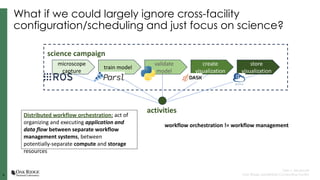

What if we could largely ignore cross-facility
configuration/scheduling and just focus on science?
microscope
capture
train model
validate
model
create
visualization
store
visualization
science campaign
activities
Distributed workflow orchestration: act of
organizing and executing application and
data flow between separate workflow
management systems, between
potentially-separate compute and storage
resources
workflow orchestration != workflow management

9. 9
9
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility

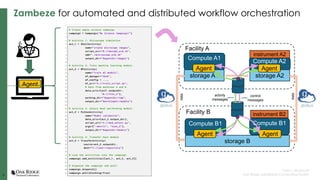

Zambeze for automated and distributed workflow orchestration
Facility A
Compute A1
storage A1 storage A2
Agent Agent
Compute B1
storage B
Agent
Compute B1
Agent
Facility B
activity
messages
control
messages
data
data
Compute A2
instrument A2
instrument B2
Agent

10. 10
10
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility

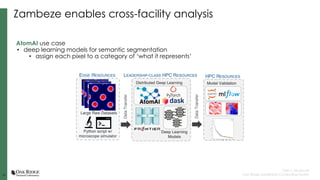

Zambeze enables cross-facility analysis
AtomAI use case
• deep learning models for semantic segmentation
• assign each pixel to a category of ‘what it represents’

11. 11
11
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility

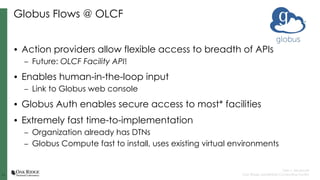

Globus Flows @ OLCF
• Action providers allow flexible access to breadth of APIs
– Future: OLCF Facility API!
• Enables human-in-the-loop input
– Link to Globus web console
• Globus Auth enables secure access to most* facilities
• Extremely fast time-to-implementation
– Organization already has DTNs
– Globus Compute fast to install, uses existing virtual environments

12. 12
12
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility
Globus Flows for tomographic reconstruction
In collaboration with Ryan Chard;
Credit to Will Engler for ALCF AP
…

13. 13
13
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility
In conclusion,
Globus enables OLCF to provide key research orchestration capabilities.
@

14. 14
14
Tyler J. Skluzacek
Oak Ridge Leadership Computing Facility
If you would like to learn more, please reach out!
Others to thank for these efforts:
Tyler J. Skluzacek
Research Scientist
skluzacektj@ornl.gov
Paul Bryant Ryan Chard Rafael Ferreira
da Silva
Ryan Prout
A.J. Ruckman Renan Santos
Souza
Mark Coletti
Fred Suter Gavin Wiggins
